5Sets 4.2mm Auto Electrical Connector Plug Car Terminal Headers Straight Wire Terminals Spacing 5557 5569 Vehicle Accessories
Price range: $12.18 through $36.12
"*" indicates required fields
Description
SPECIFICATIONS
Brand Name: NONE
Certification: CE
High-concerned chemical: None
Model Number: 4.2mm Connectors
Origin: Mainland China
Voltage: None

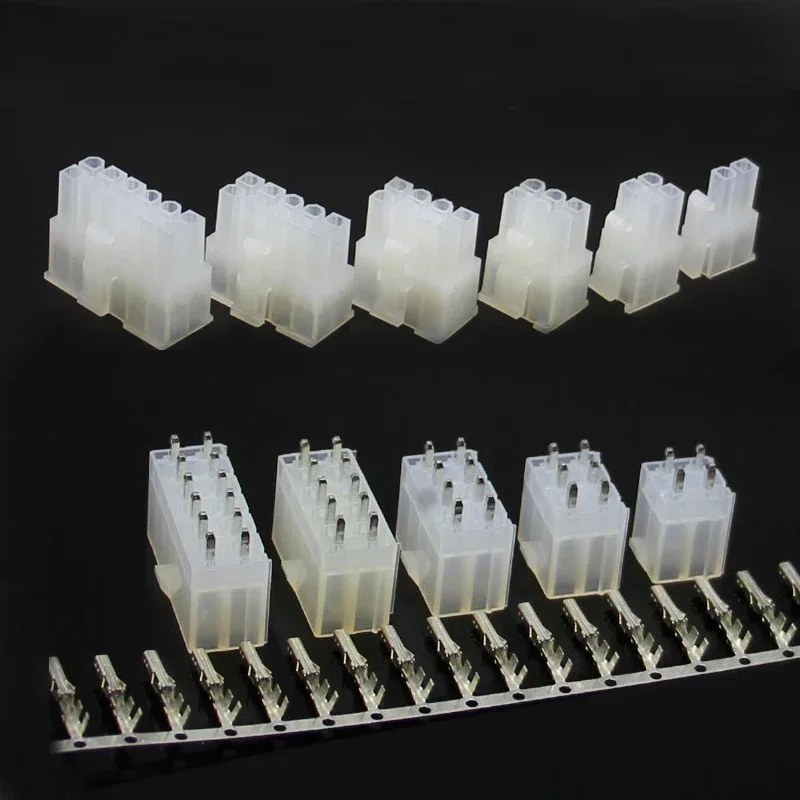

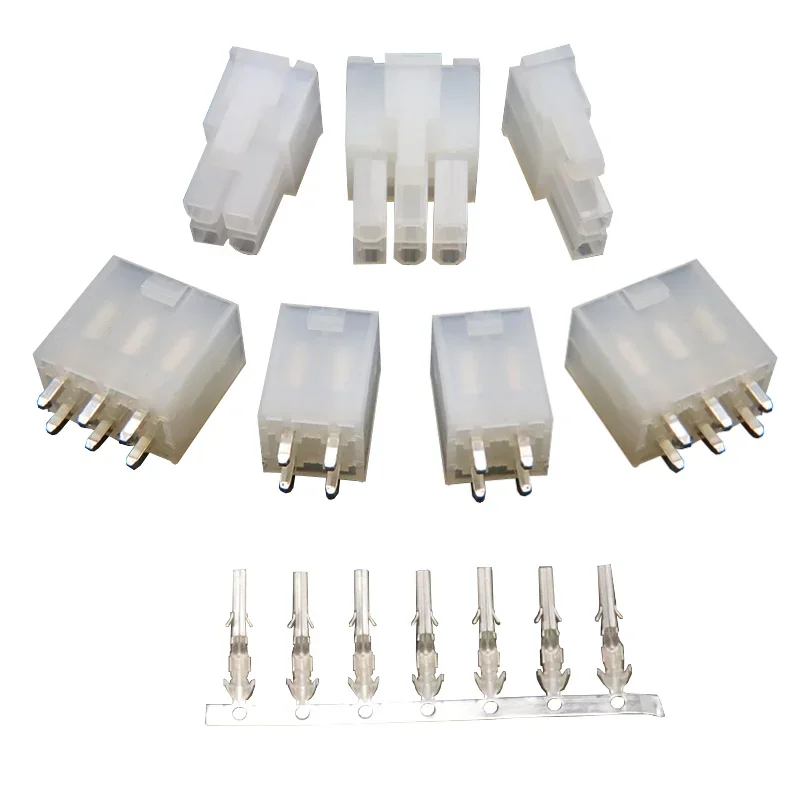

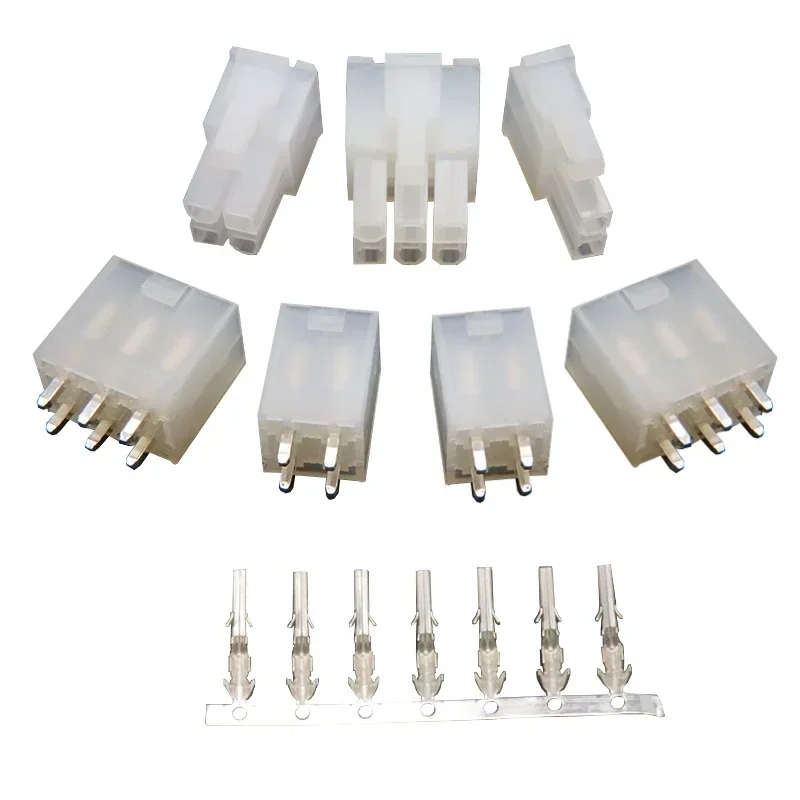

5sets 5557 5569 Auto connector Spacing 4.2MM Terminal/Header/Straight Pin Wire Terminals Electrical Connector Plug for Car Auto
Poles: 2,4,6,8,10,12,14,16,18,20,22,24
Applicable wires: AWG28#~22#
Appicable range: -40~105
Voltage rating: 250V.Ac/Dc
Current rating: 9A max
Contact resistance: 0.015
Insulation resistance: 1000M
Withstand voltage: 1500V.Ac/Minute
Material:
Plug housing: Nylon UL94V-2
Receptacle housing: Nylon UL94V-2
Terminal: Phos.Bronze Tin/plated
Additional information
| Color | 5sets 2x10P, 5sets 2x11P, 5sets 2x12P, 5sets 2x6P, 5sets 2x7P, 5sets 2x8P, 5sets 2x9P, 5sets 2x2P, 5sets 2x3P, 5sets 2x4P, 5sets 2x5P, 5sets 2x1P |
|---|
