1/2W Metal Film, Carbon Film & Precision Resistors
1/2W resistors for higher-margin through-hole circuits and precision work
This collection centers on 0.5W resistors, including axial metal film and carbon film values, assortment kits, low-ohm sampling parts and selected precision calibration resistors. It also contains shared listings with other wattages and SMD formats, so choose by the exact variant rather than the collection title alone.
What is a 1/2W resistor?
A 1/2W resistor is rated to dissipate up to 0.5 watt under specified ambient temperature, mounting and derating conditions. Compared with a typical 1/4W axial resistor, a 1/2W part often provides a larger body and more thermal margin, but wattage does not by itself define dimensions, working voltage, pulse capacity, tolerance or construction.
Products represented

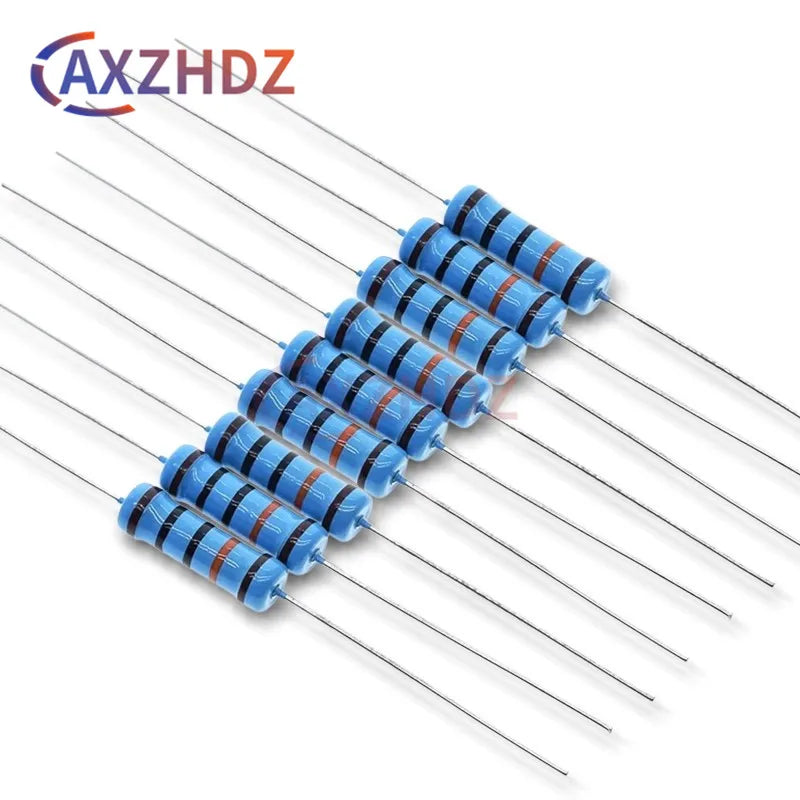

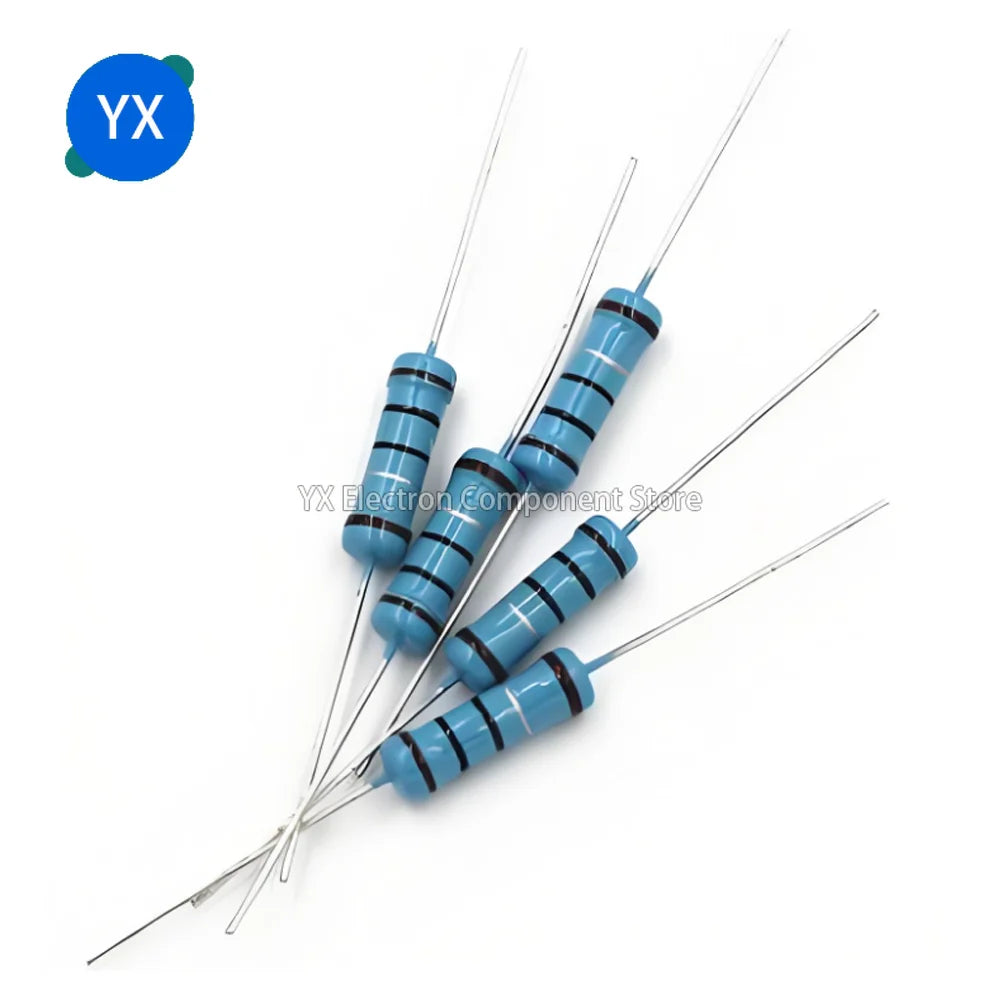

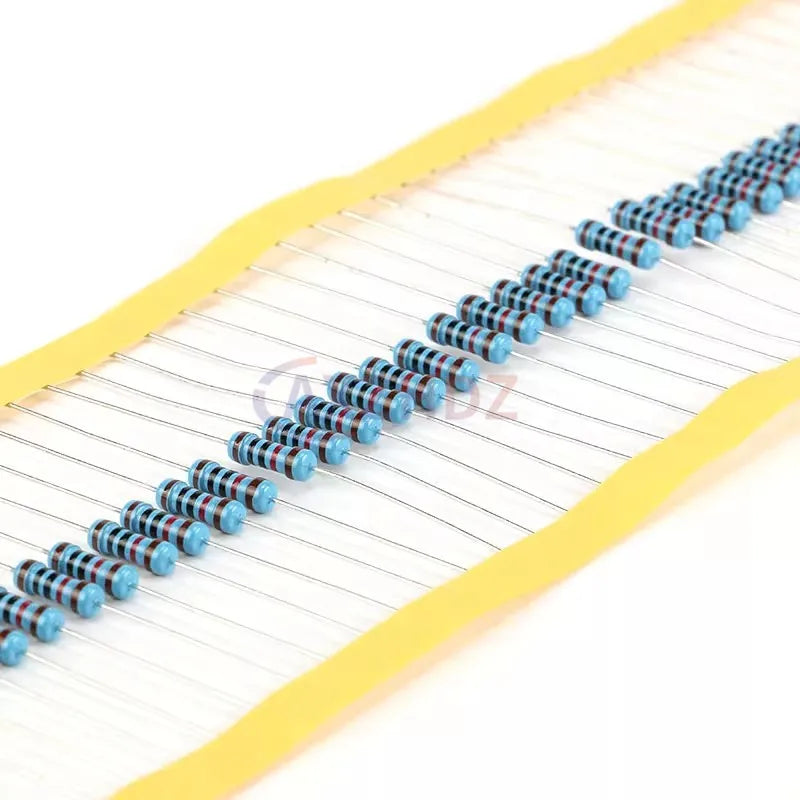

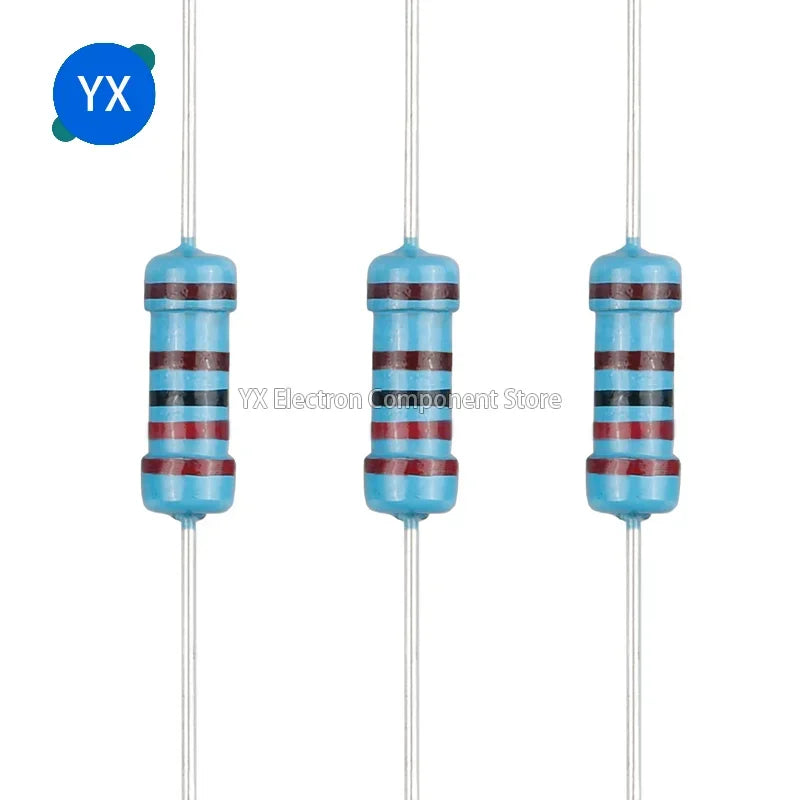

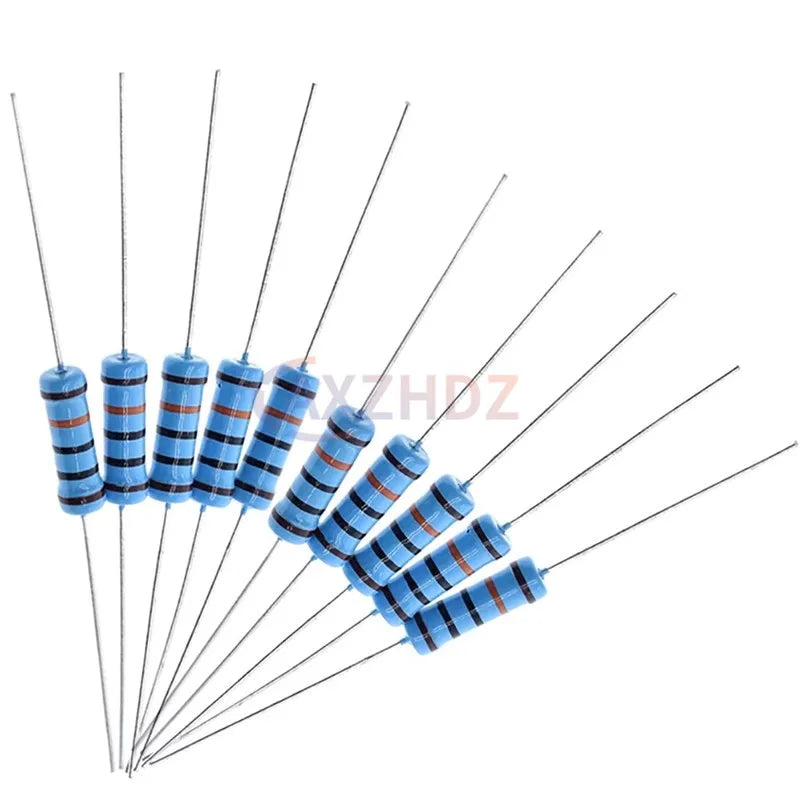

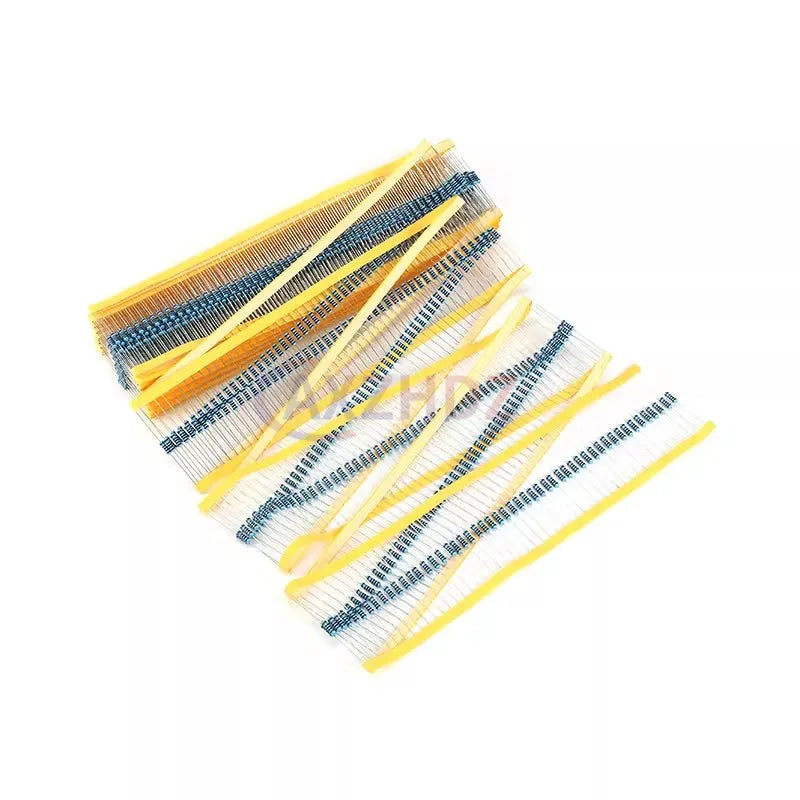

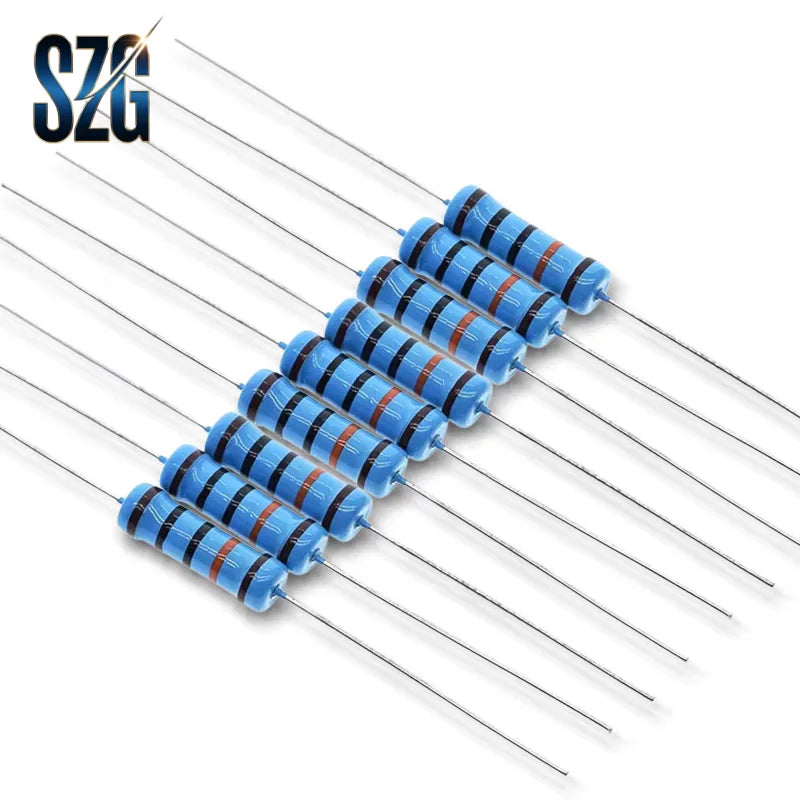

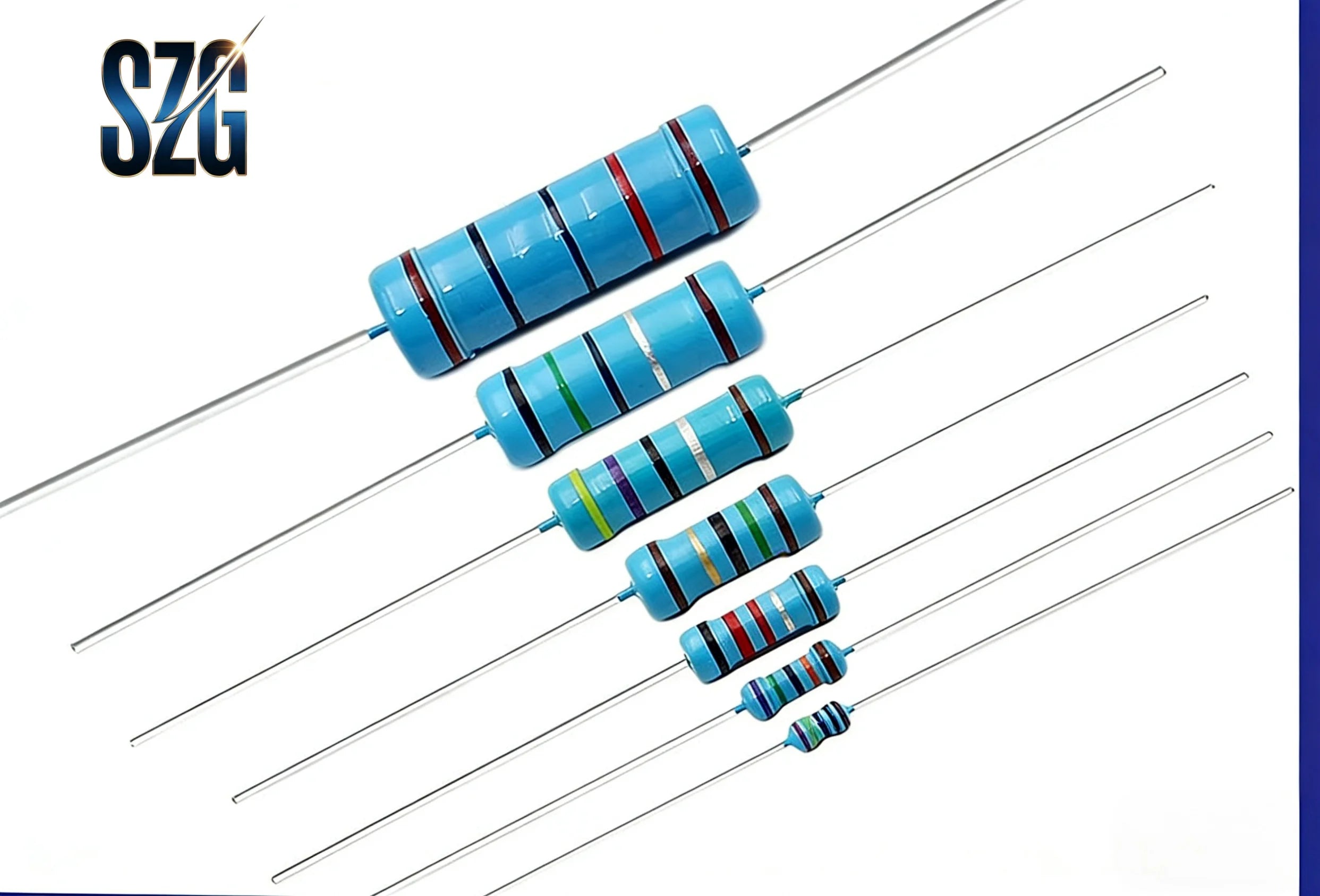

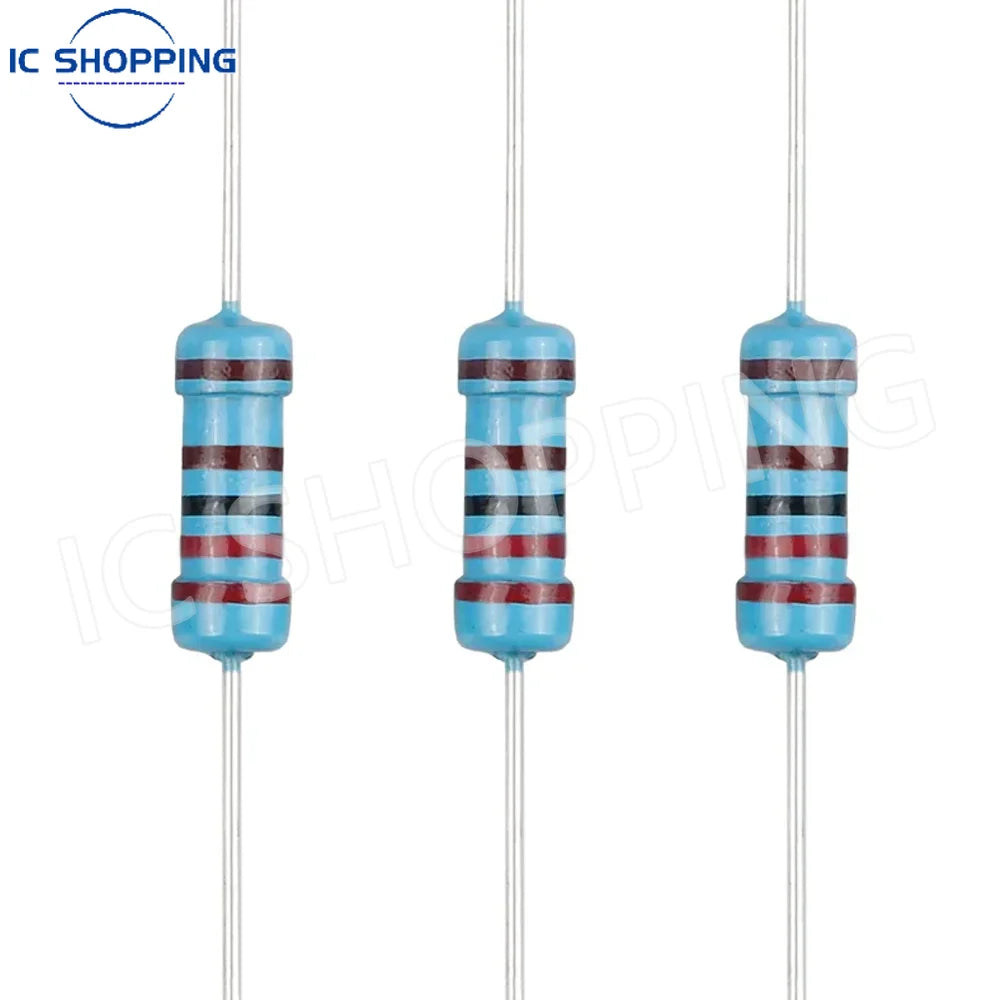

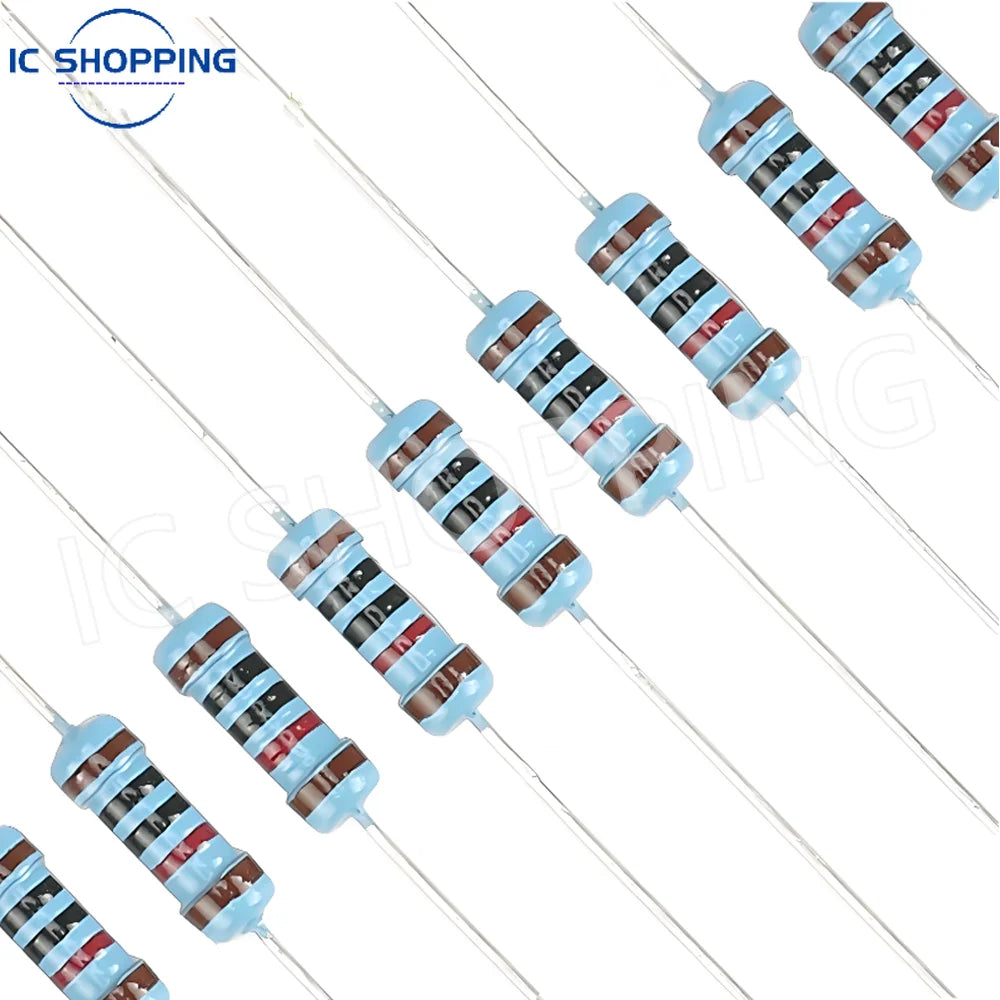

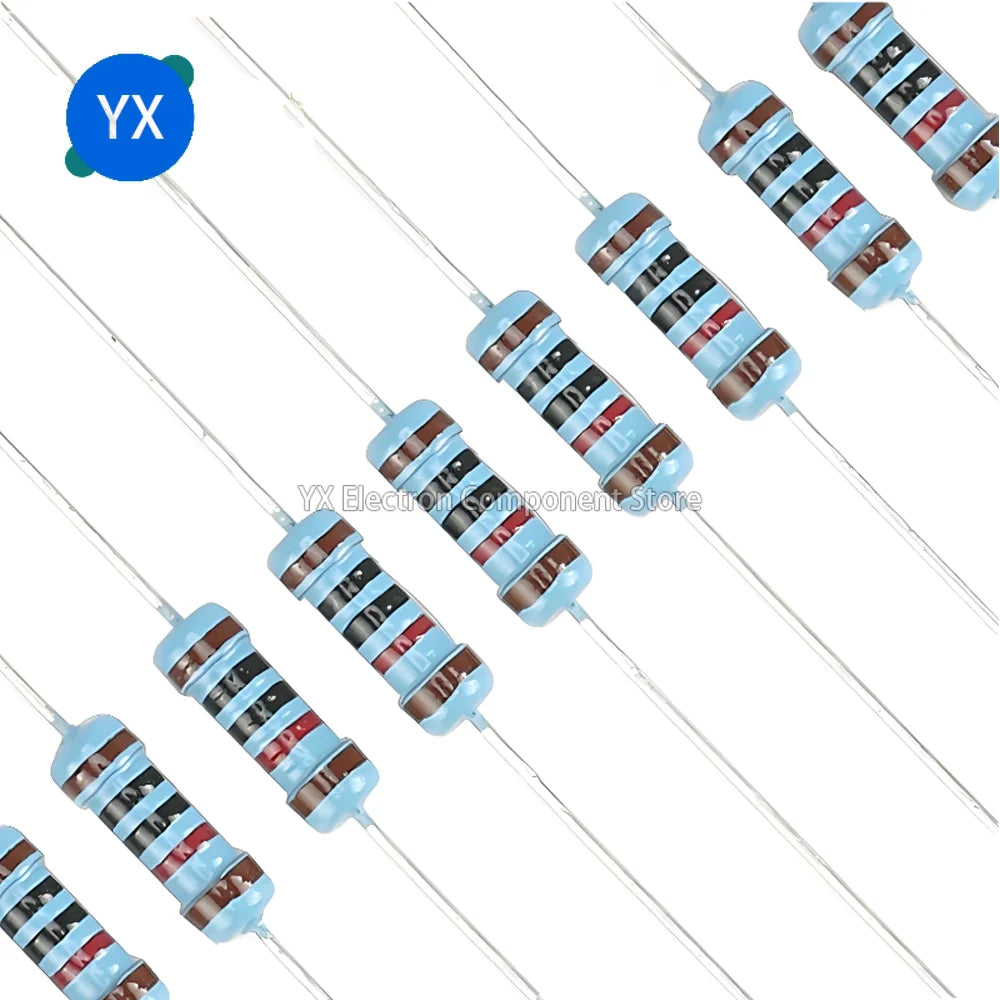

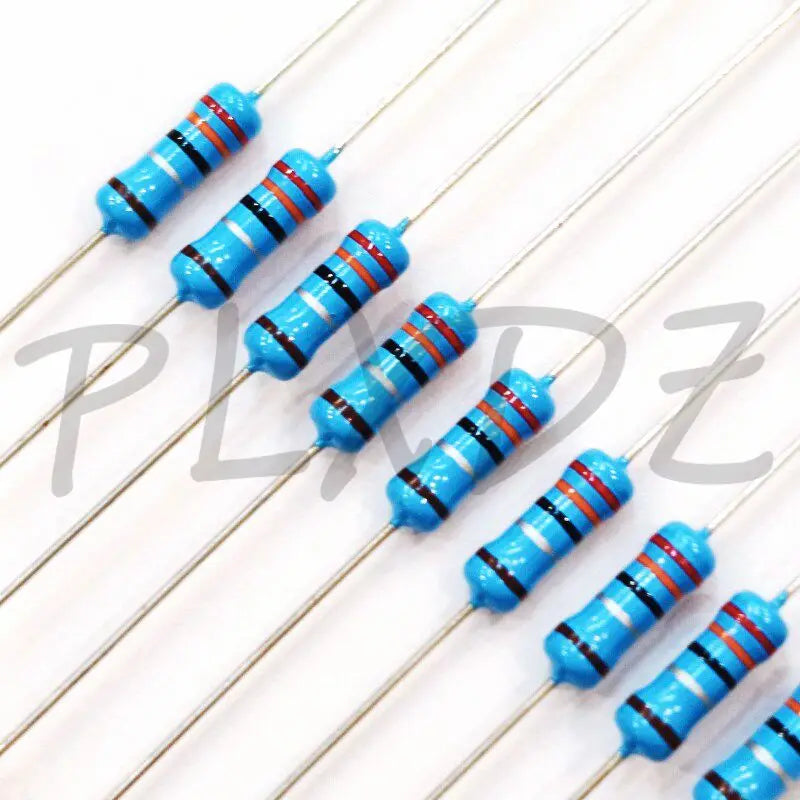

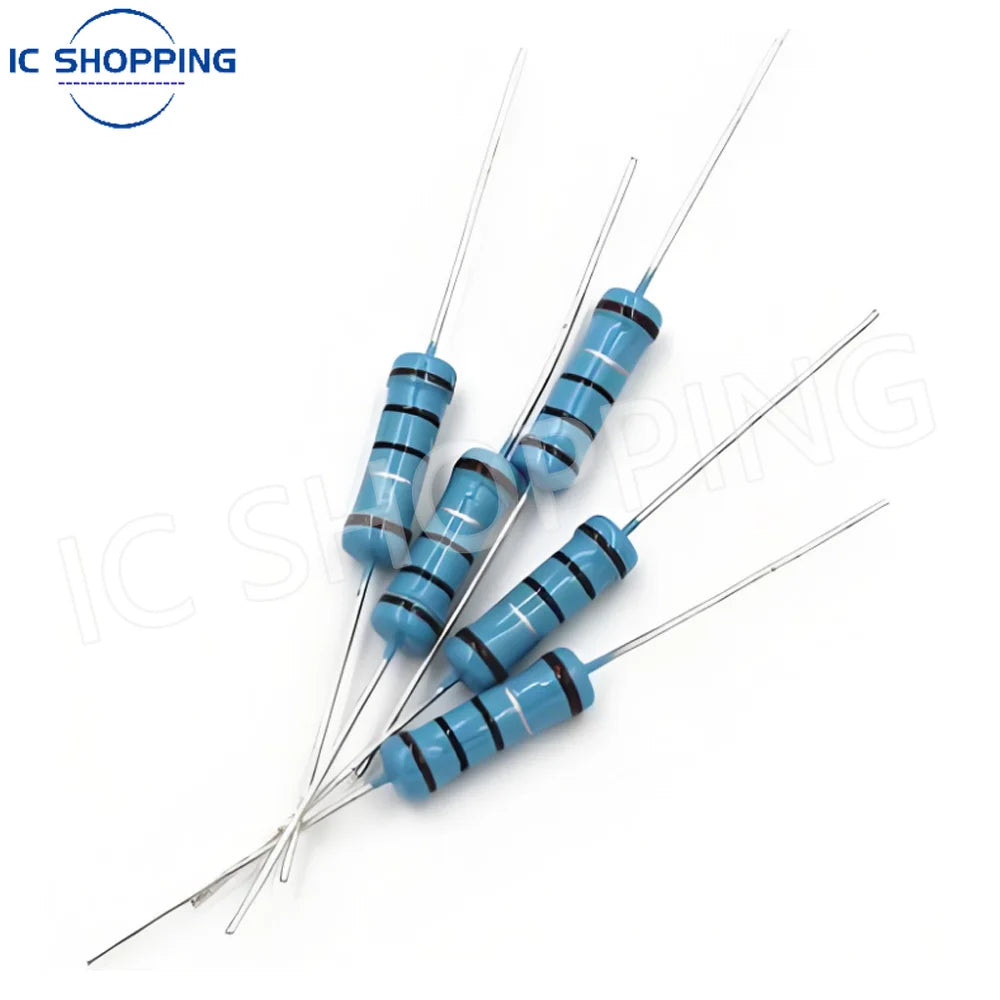

- General-purpose metal film: many axial listings specify 1% tolerance across single values and multi-value kits.

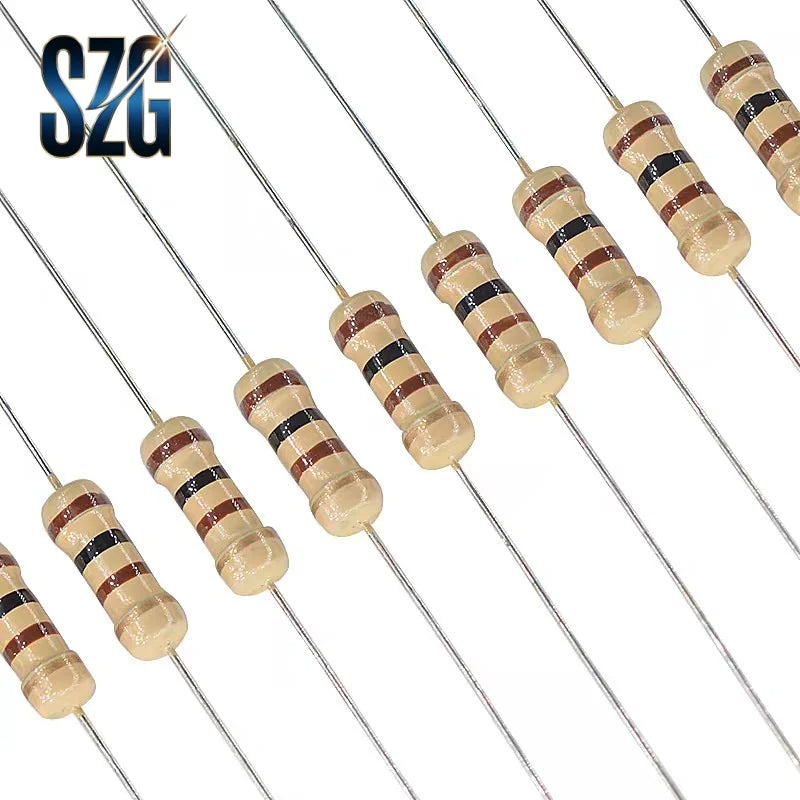

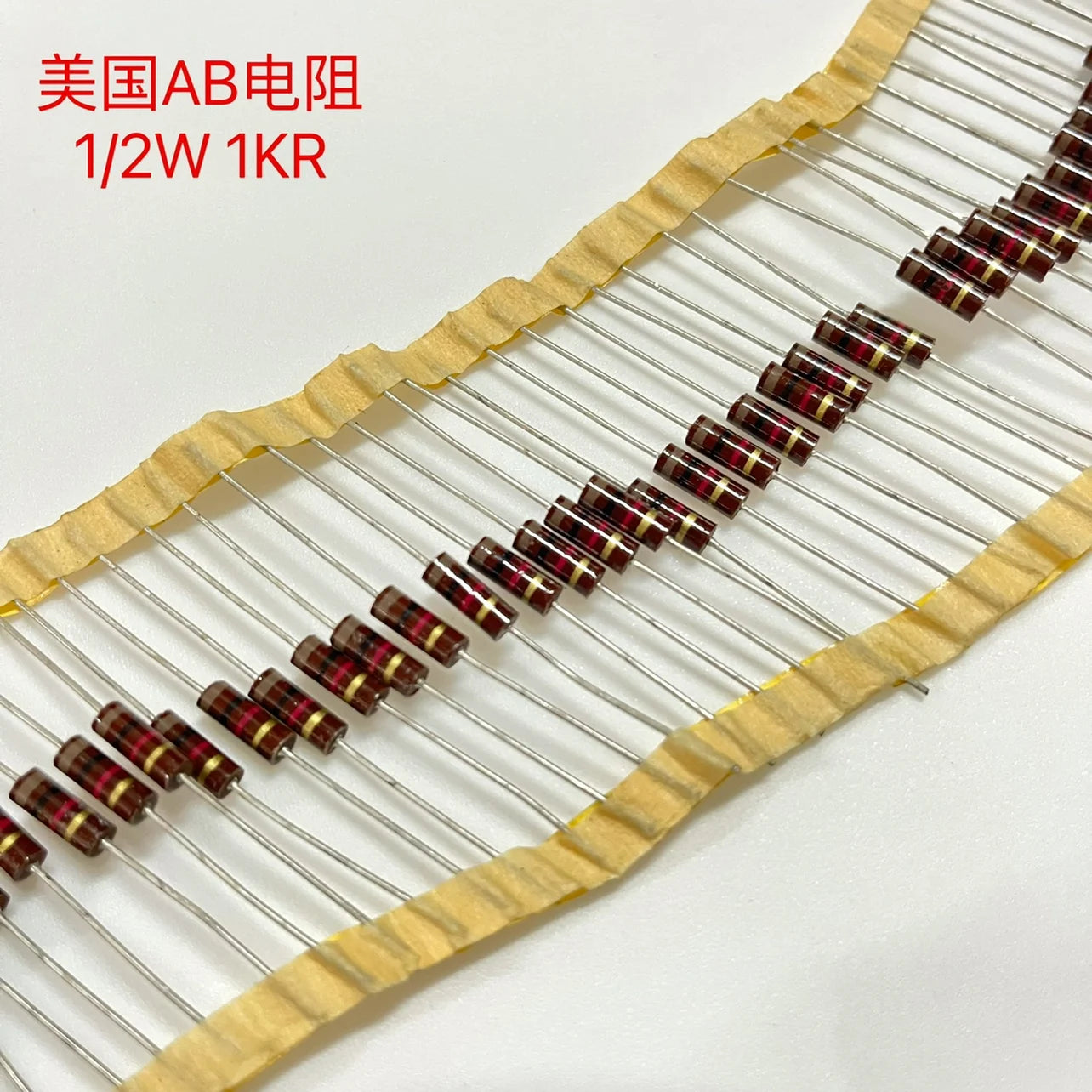

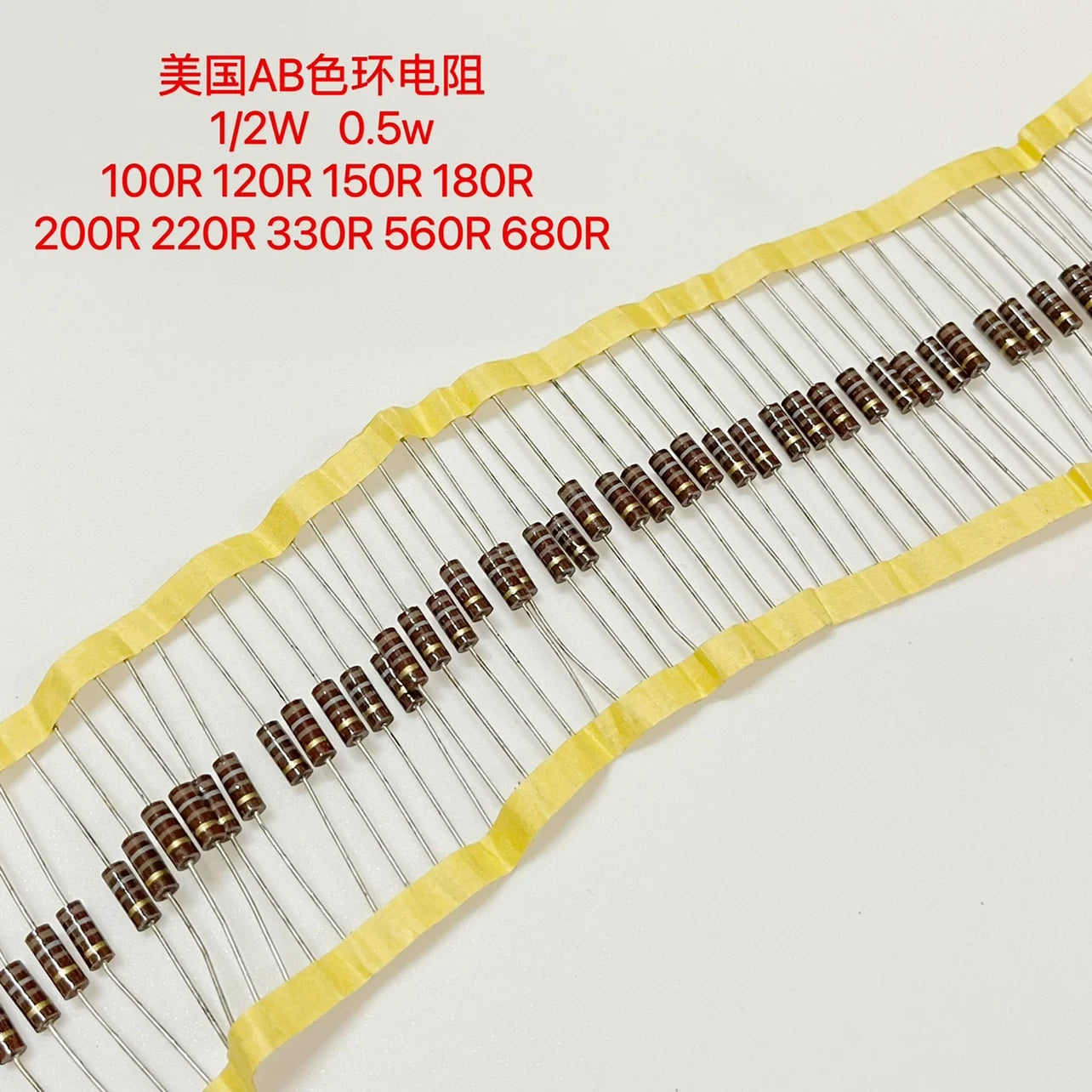

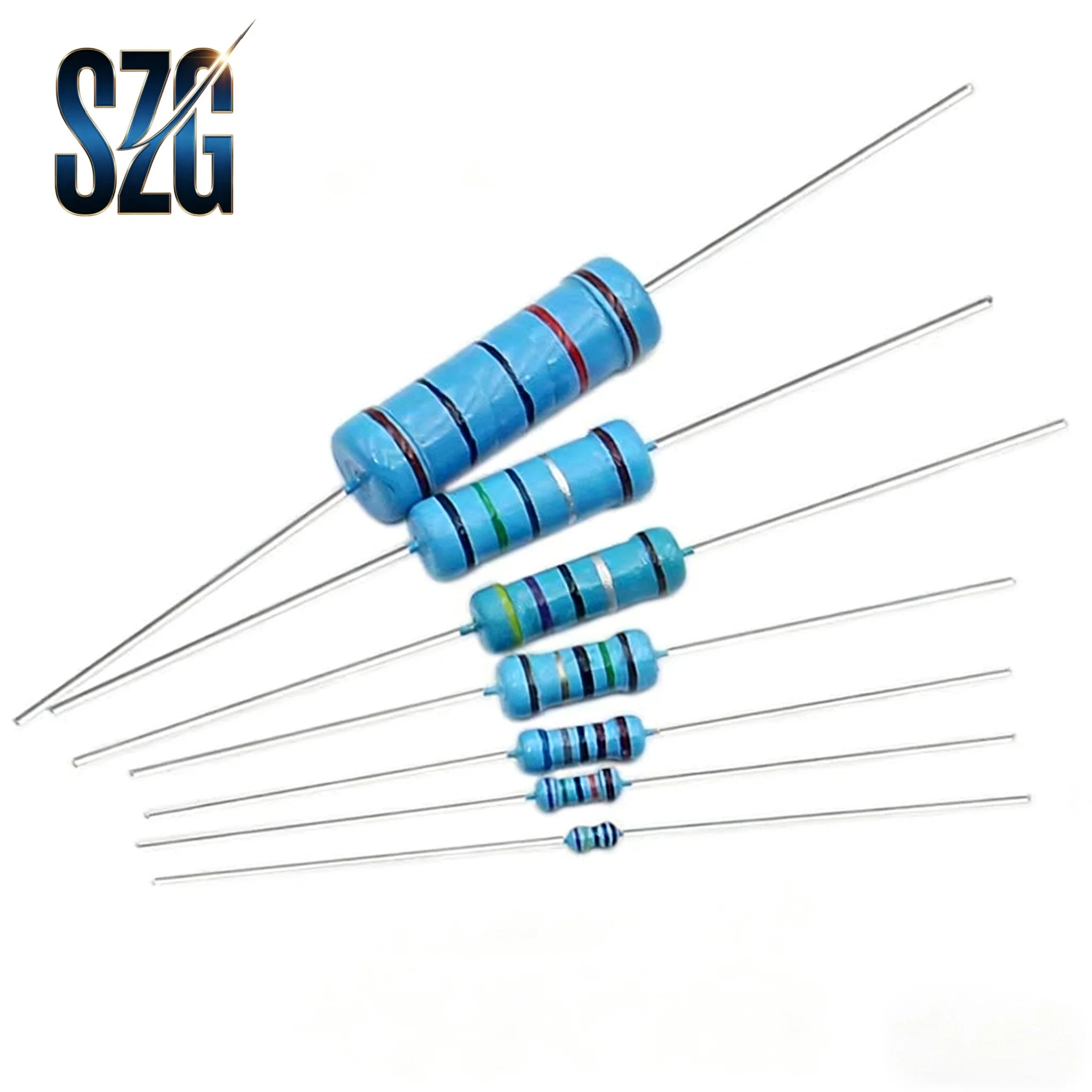

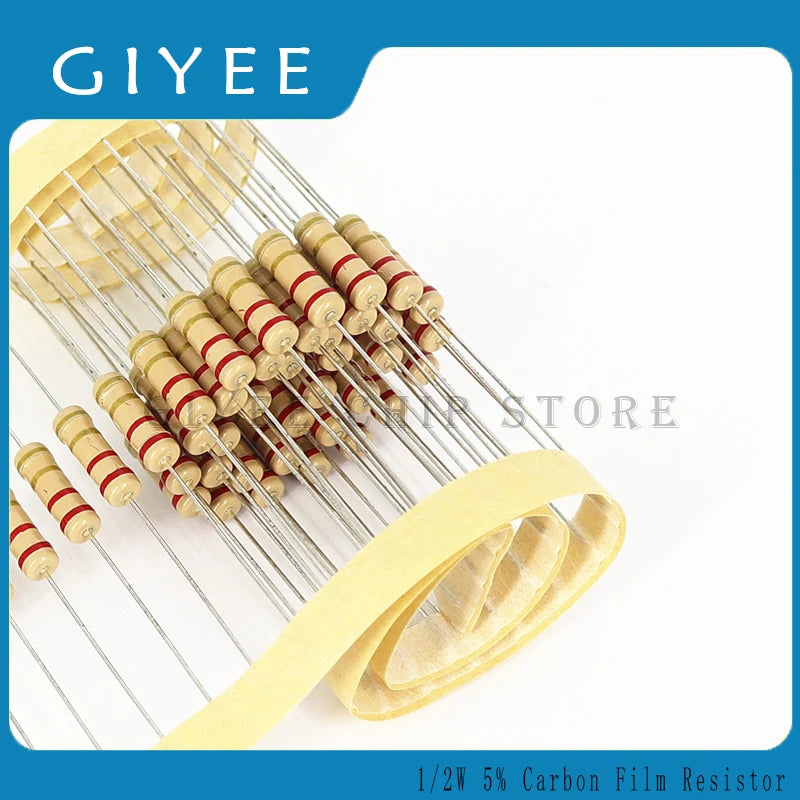

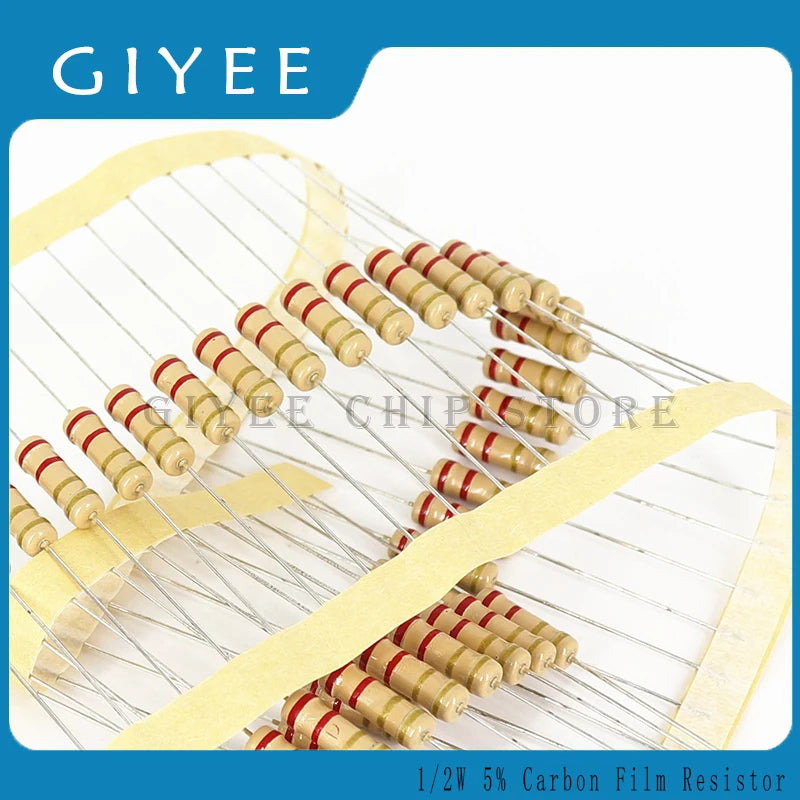

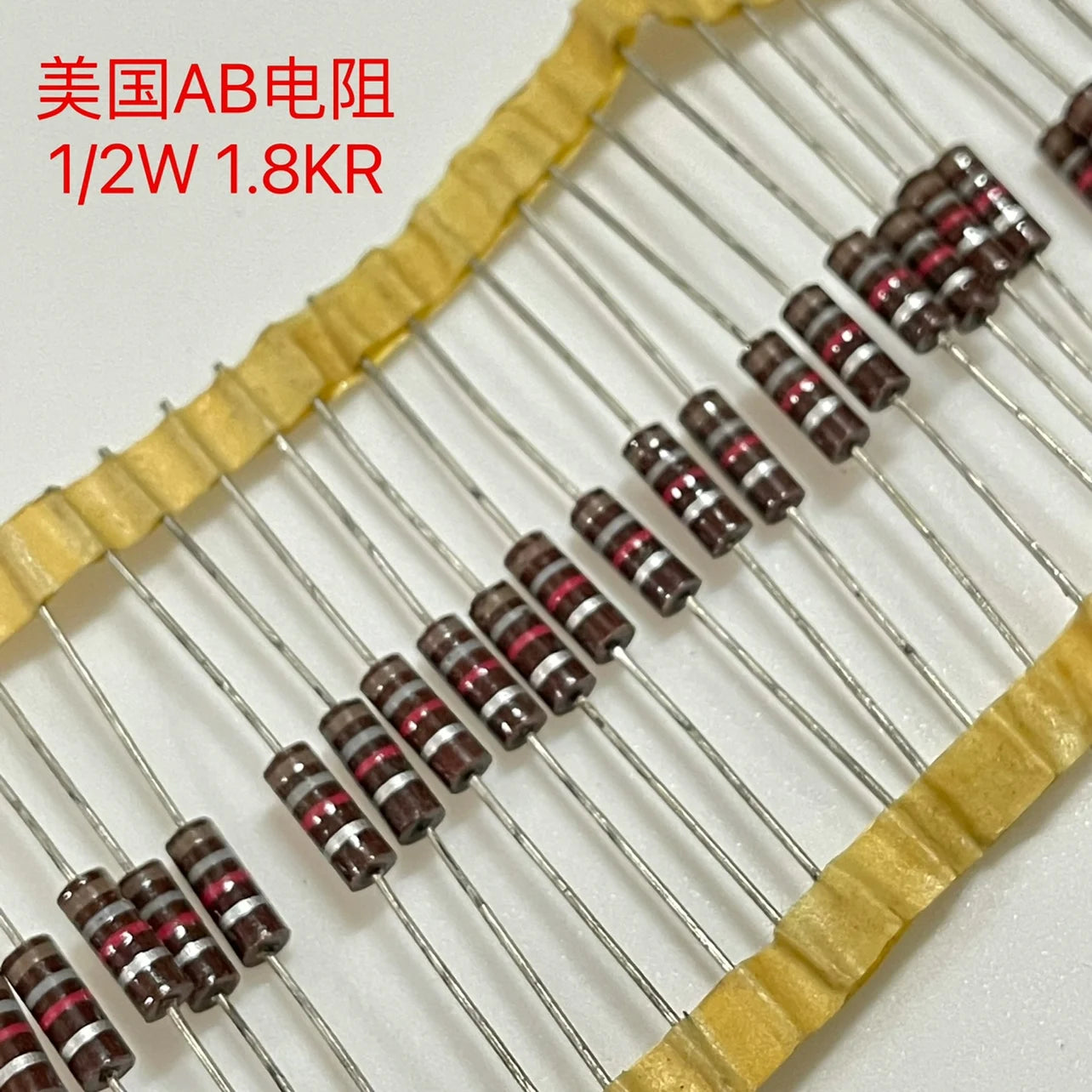

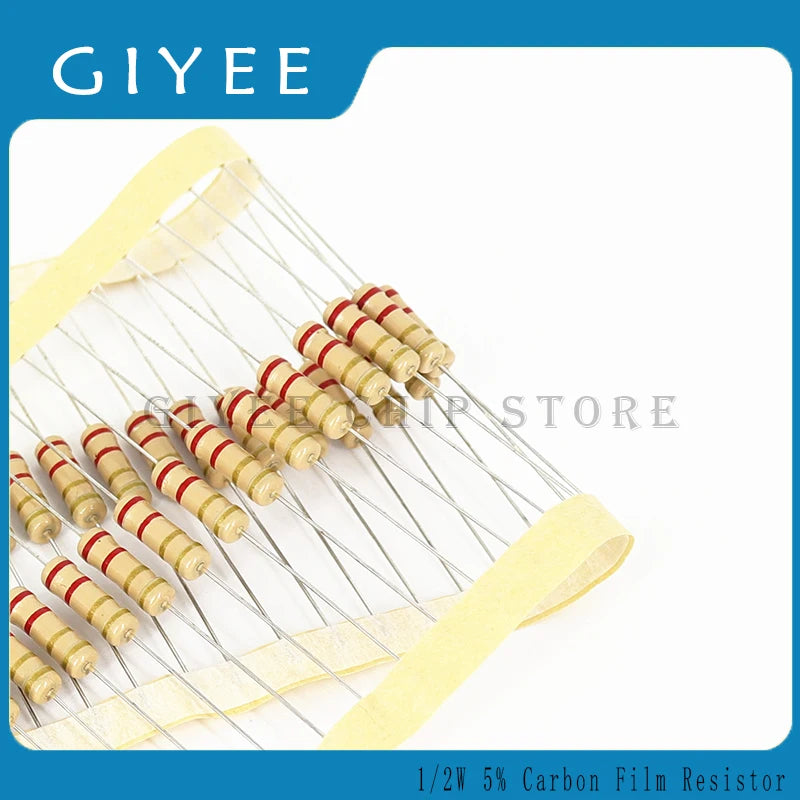

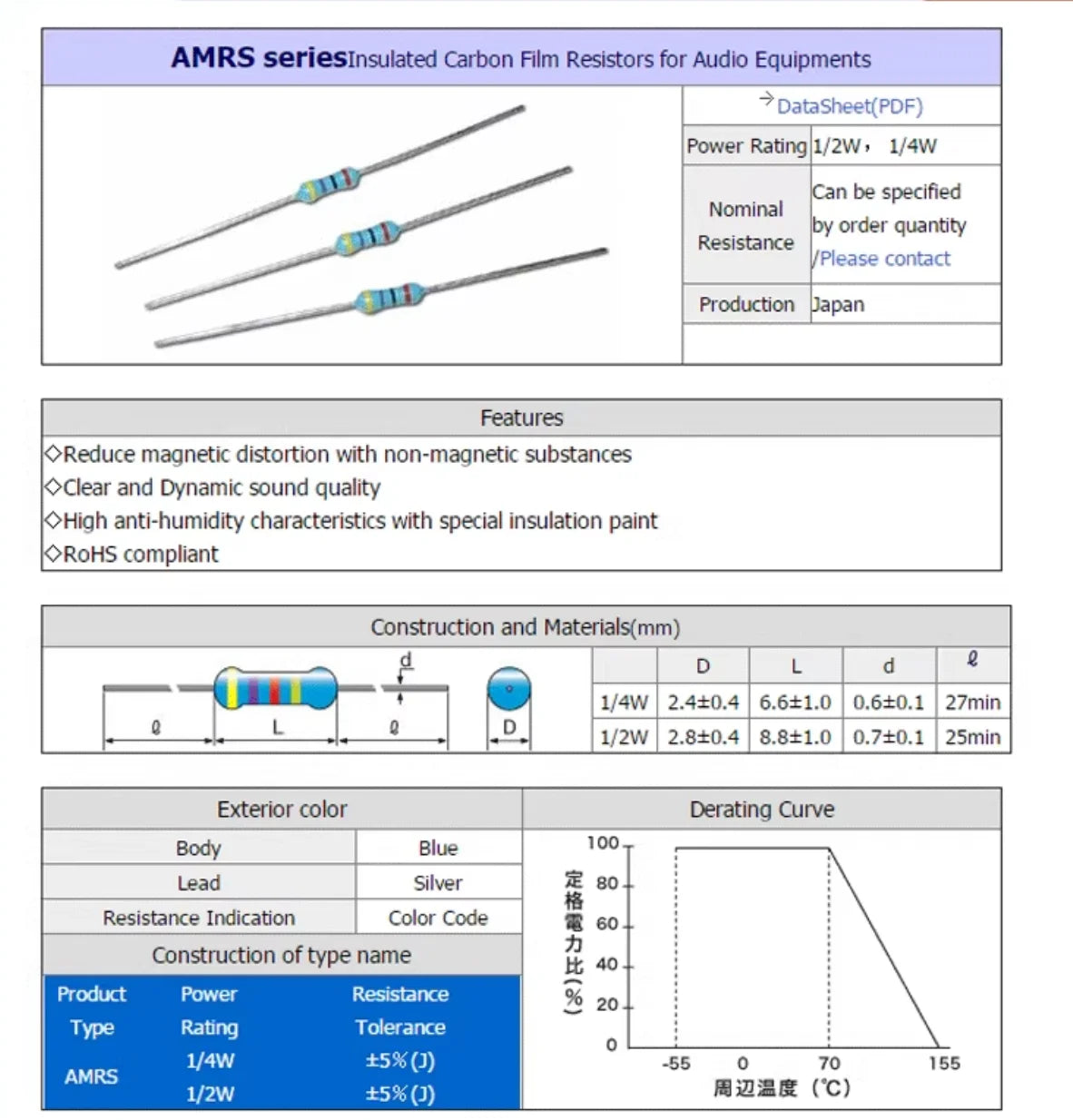

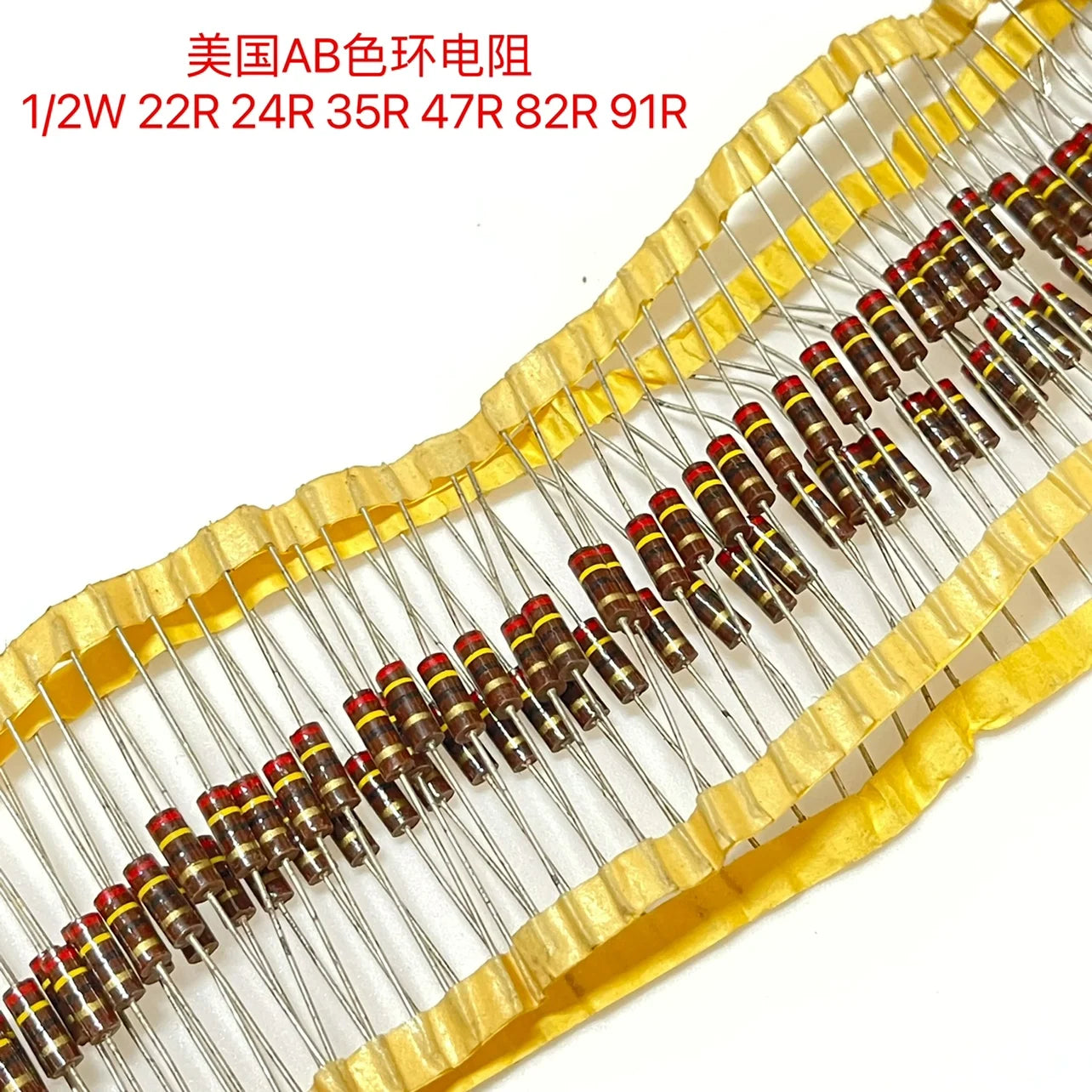

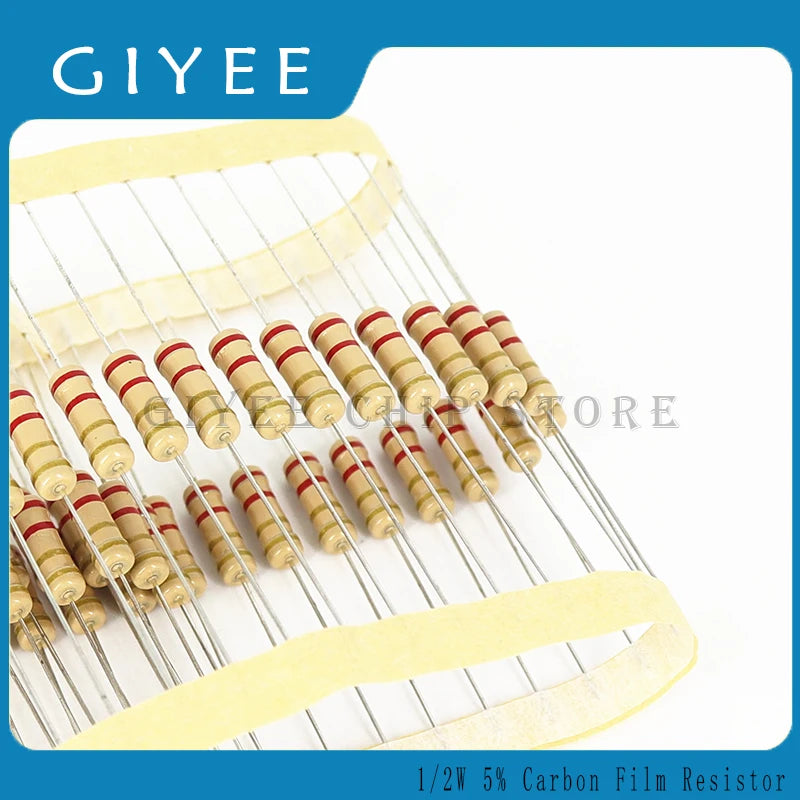

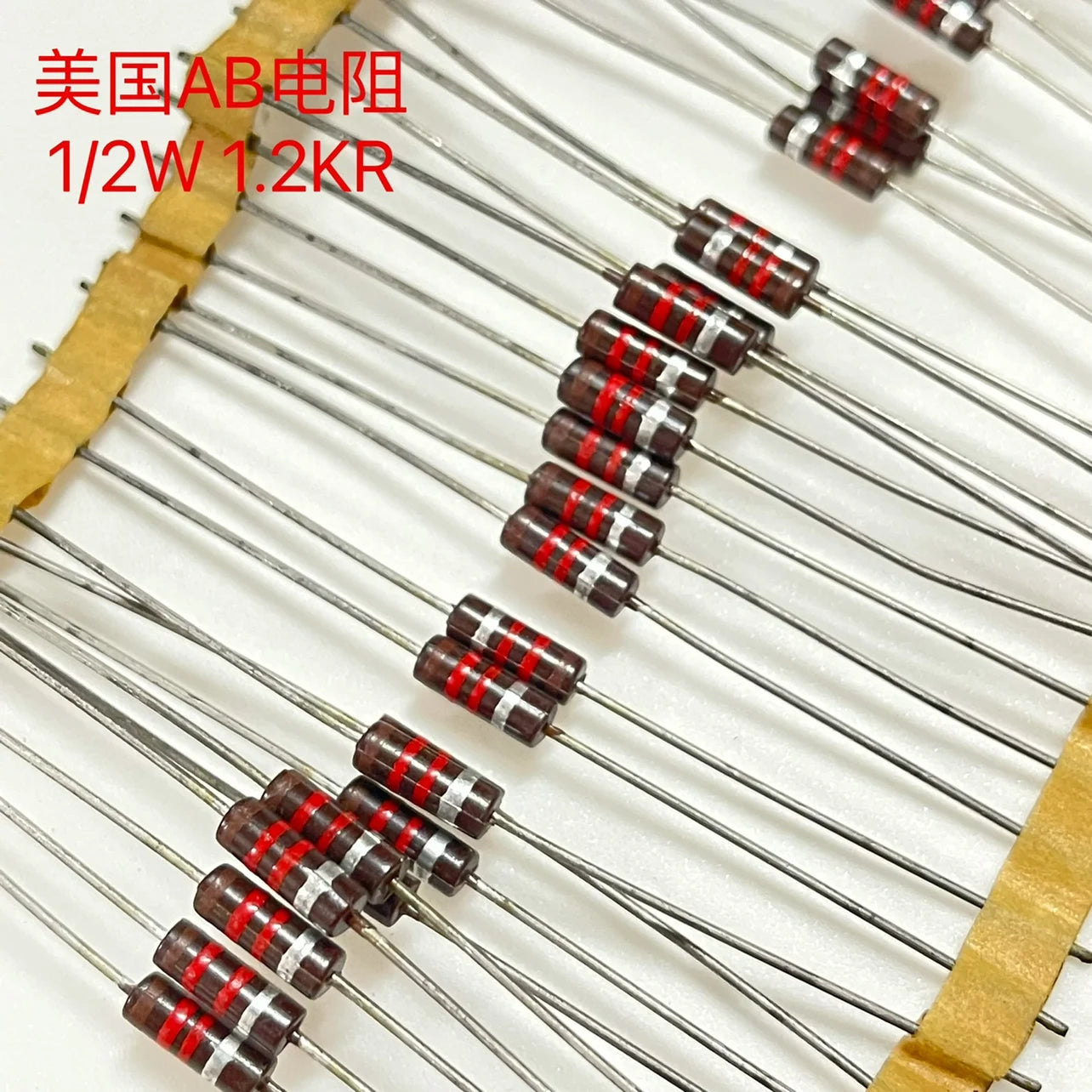

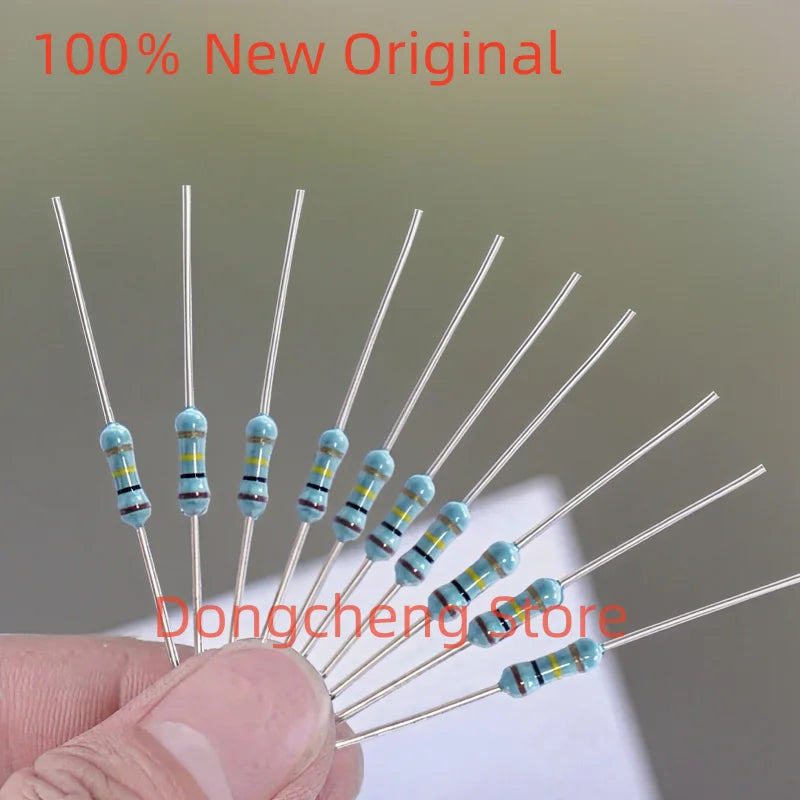

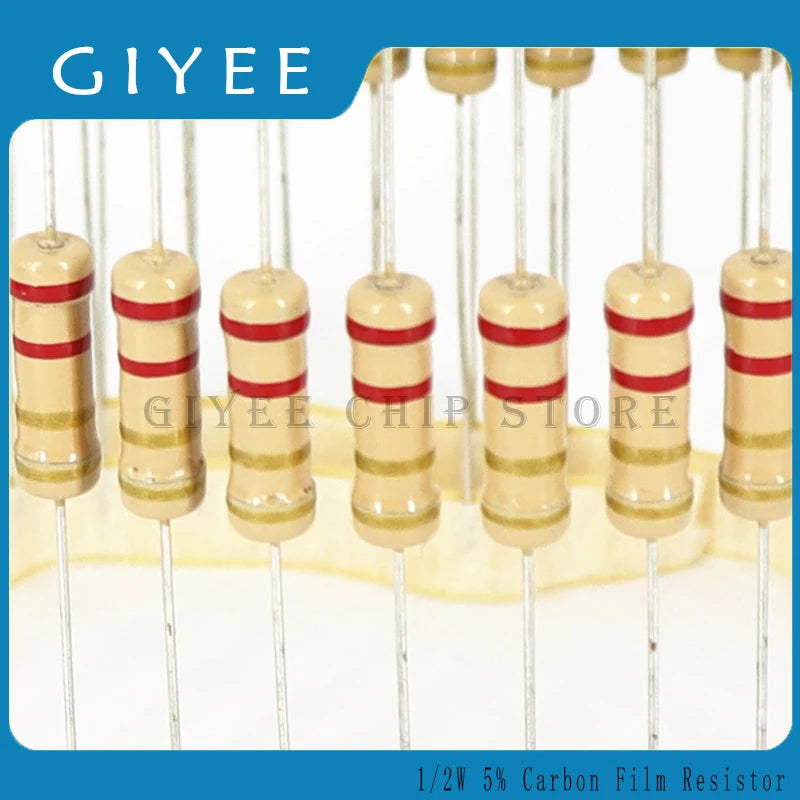

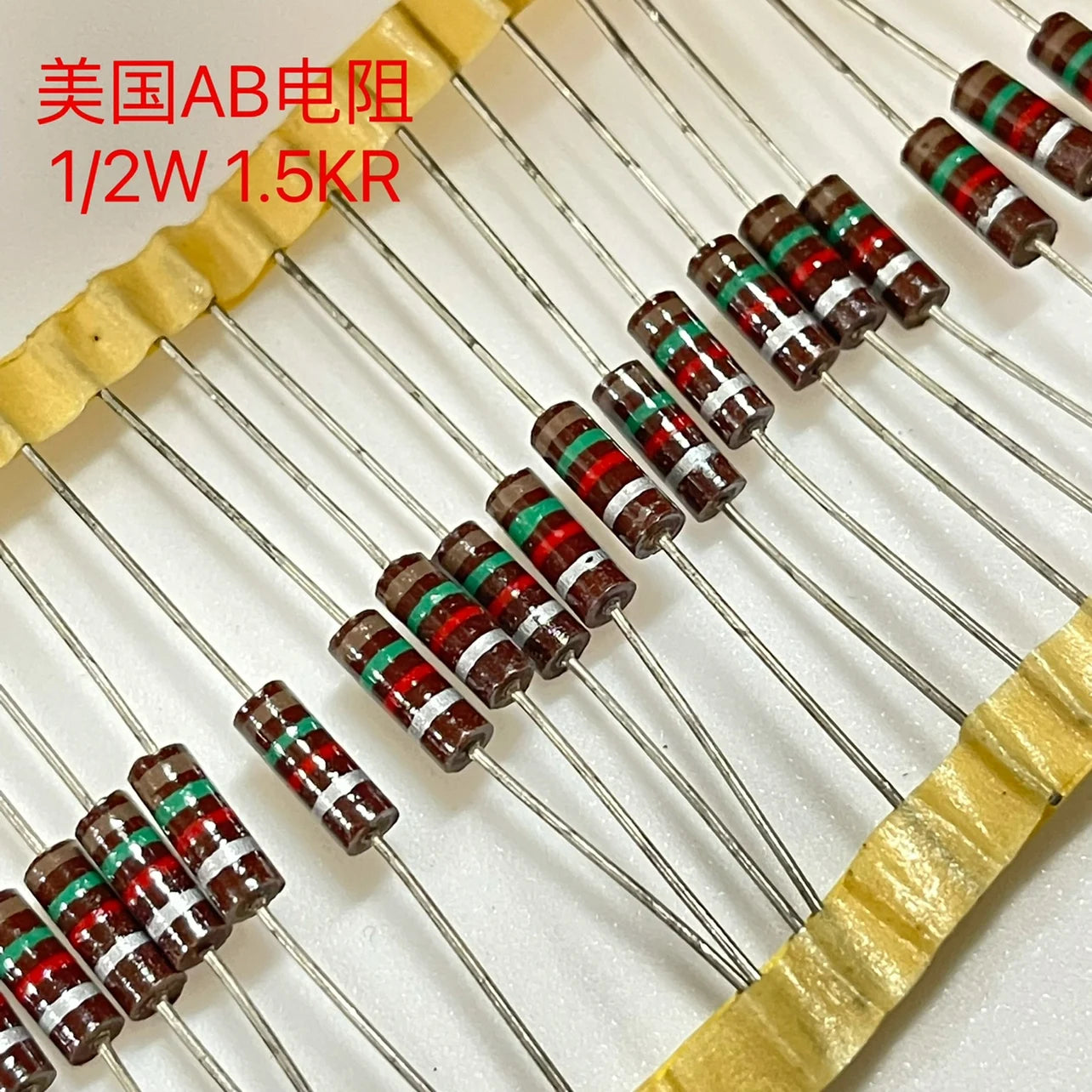

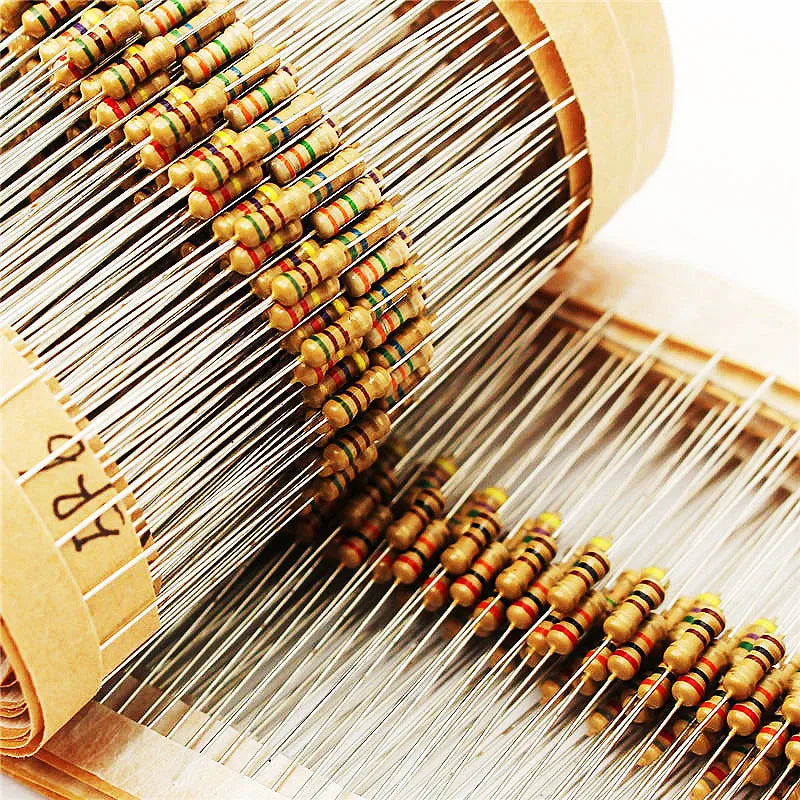

- Carbon film: product-specific 5% ranges for repair, prototyping and general circuitry.

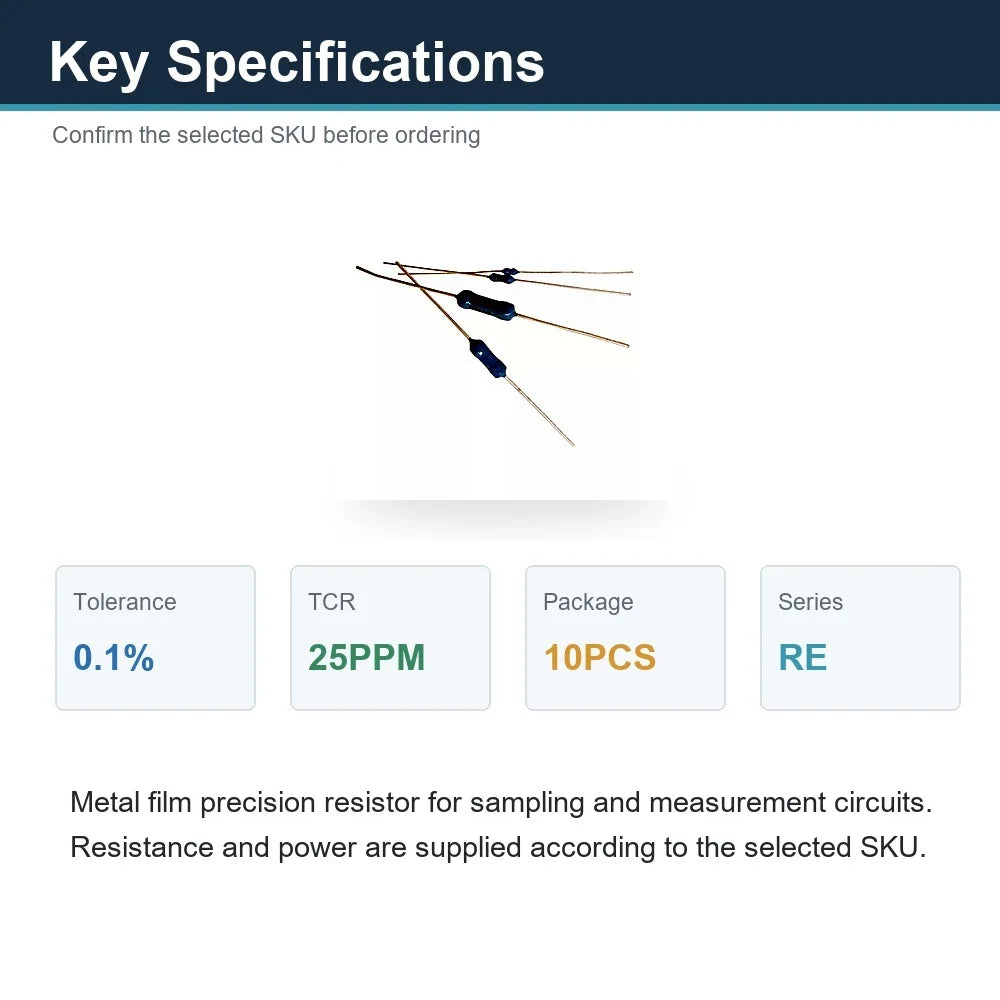

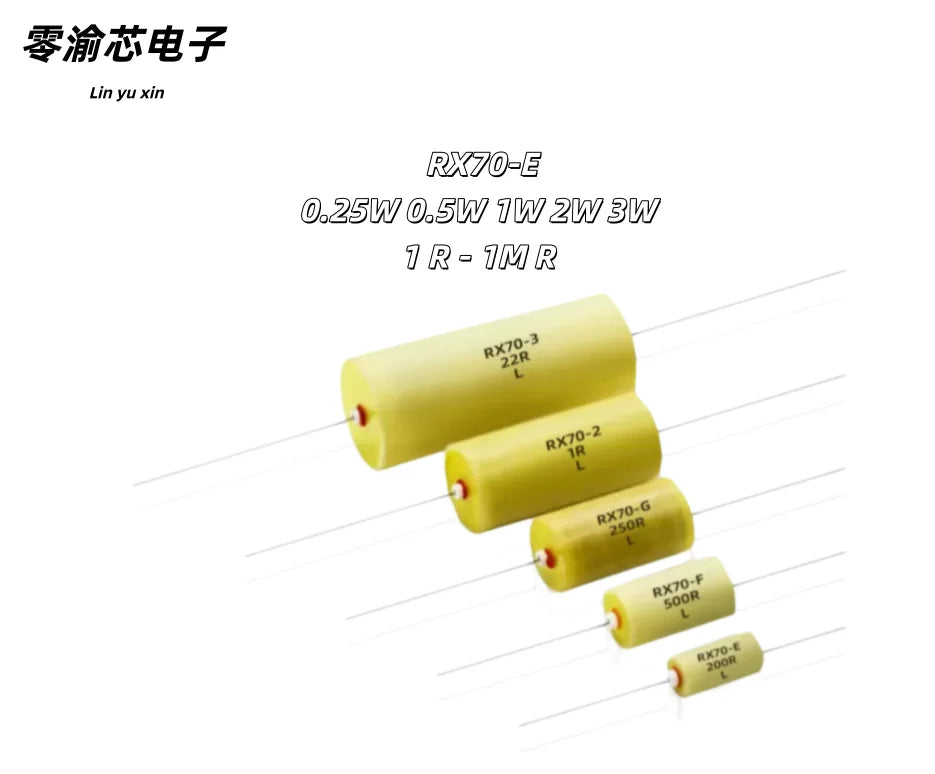

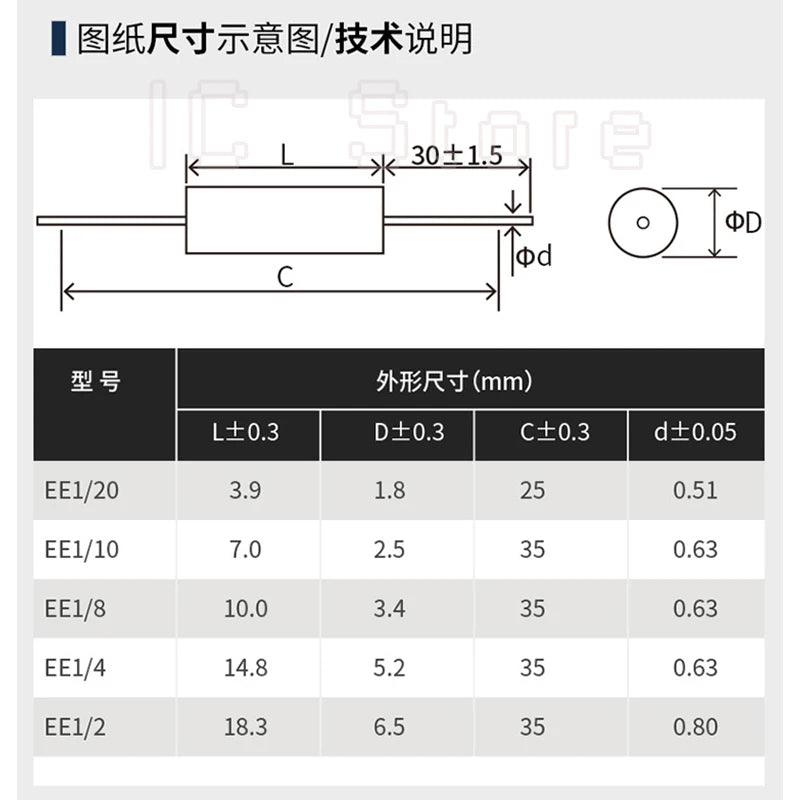

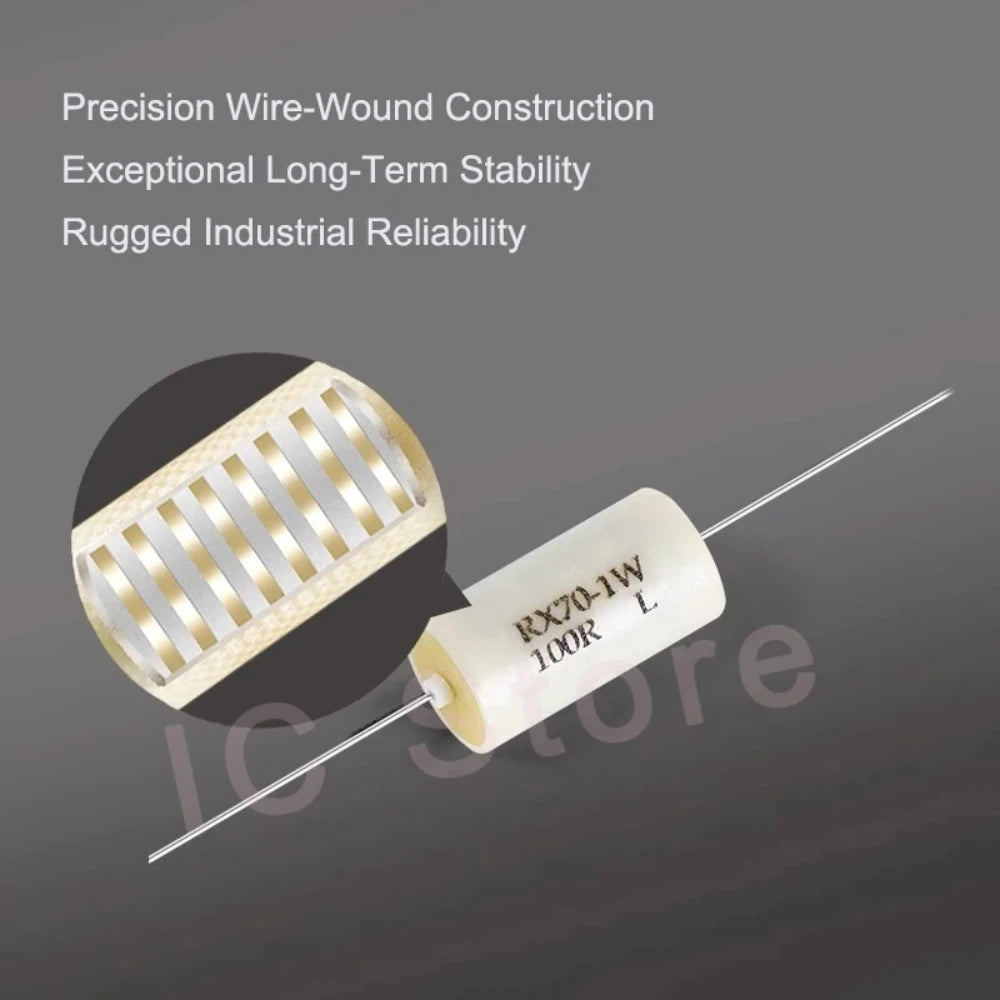

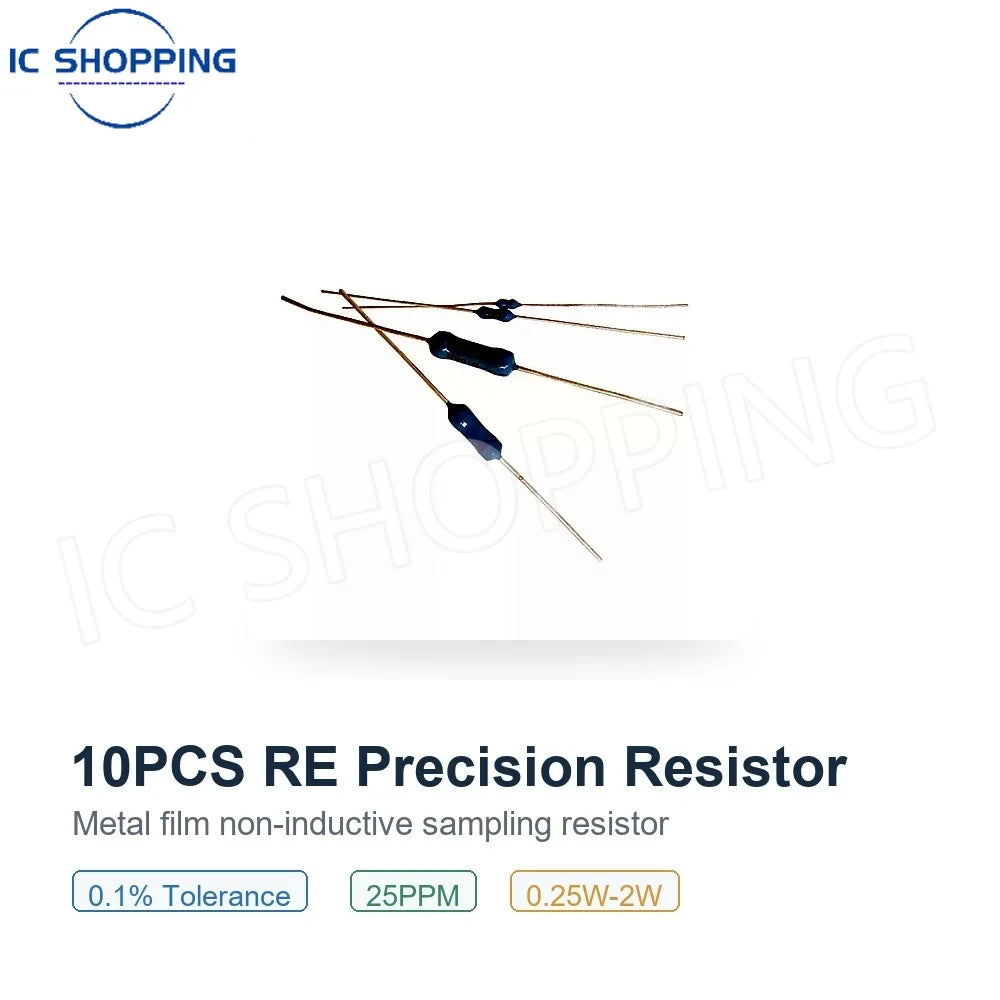

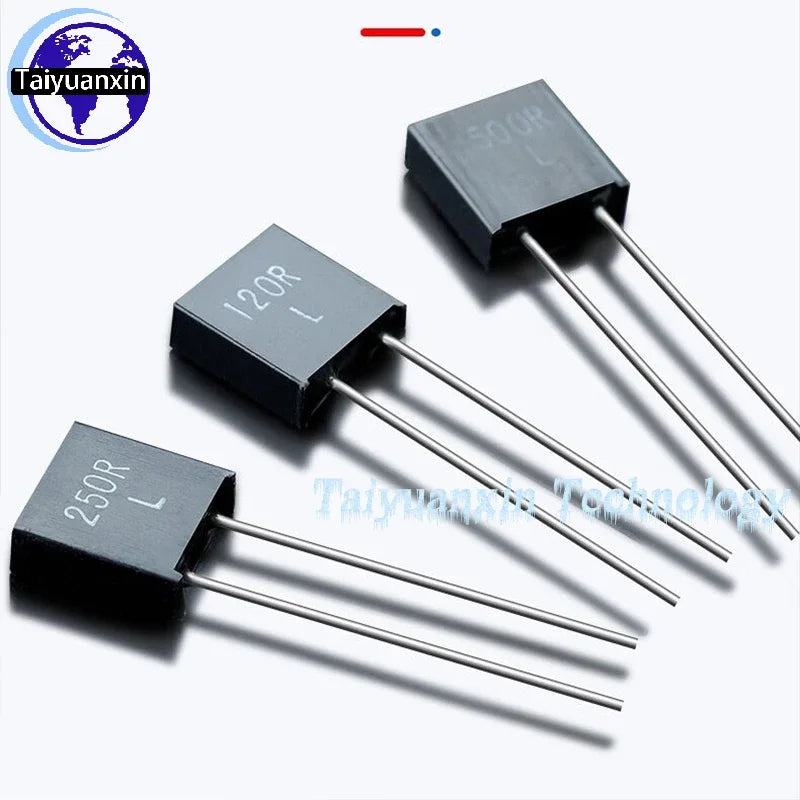

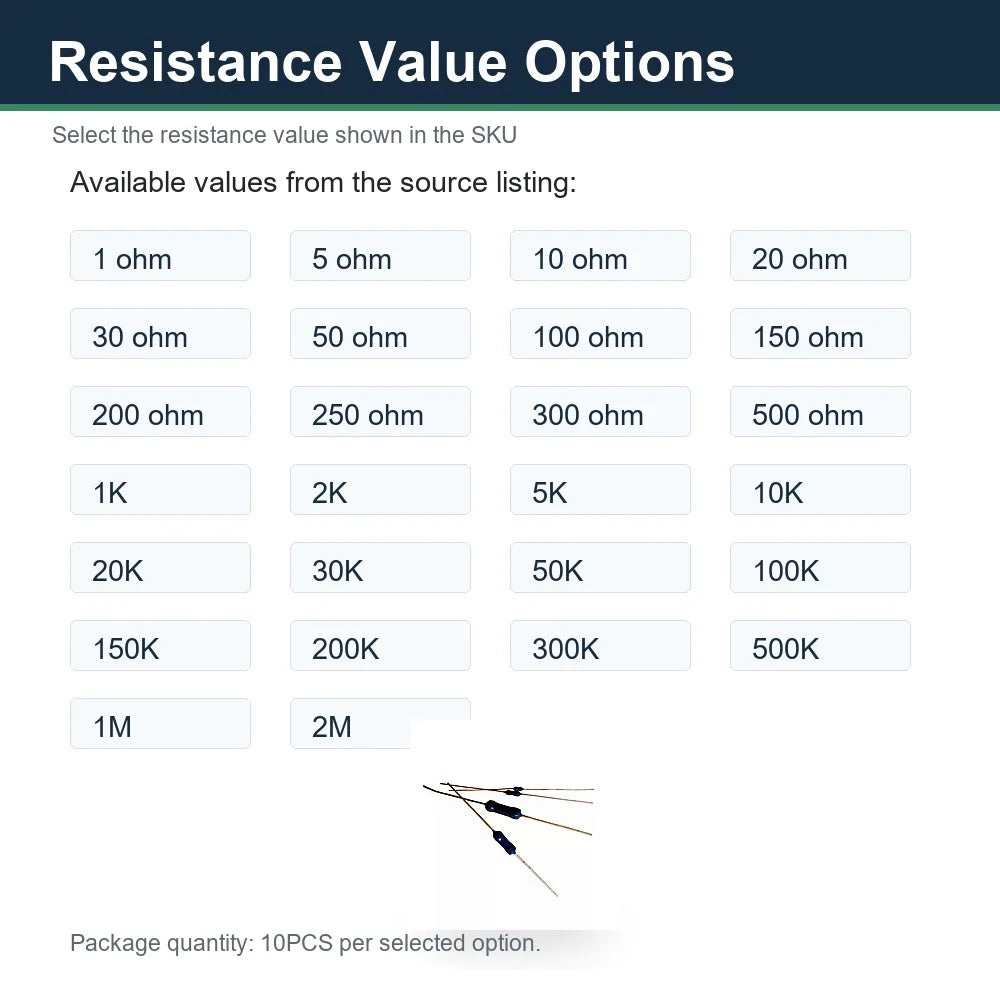

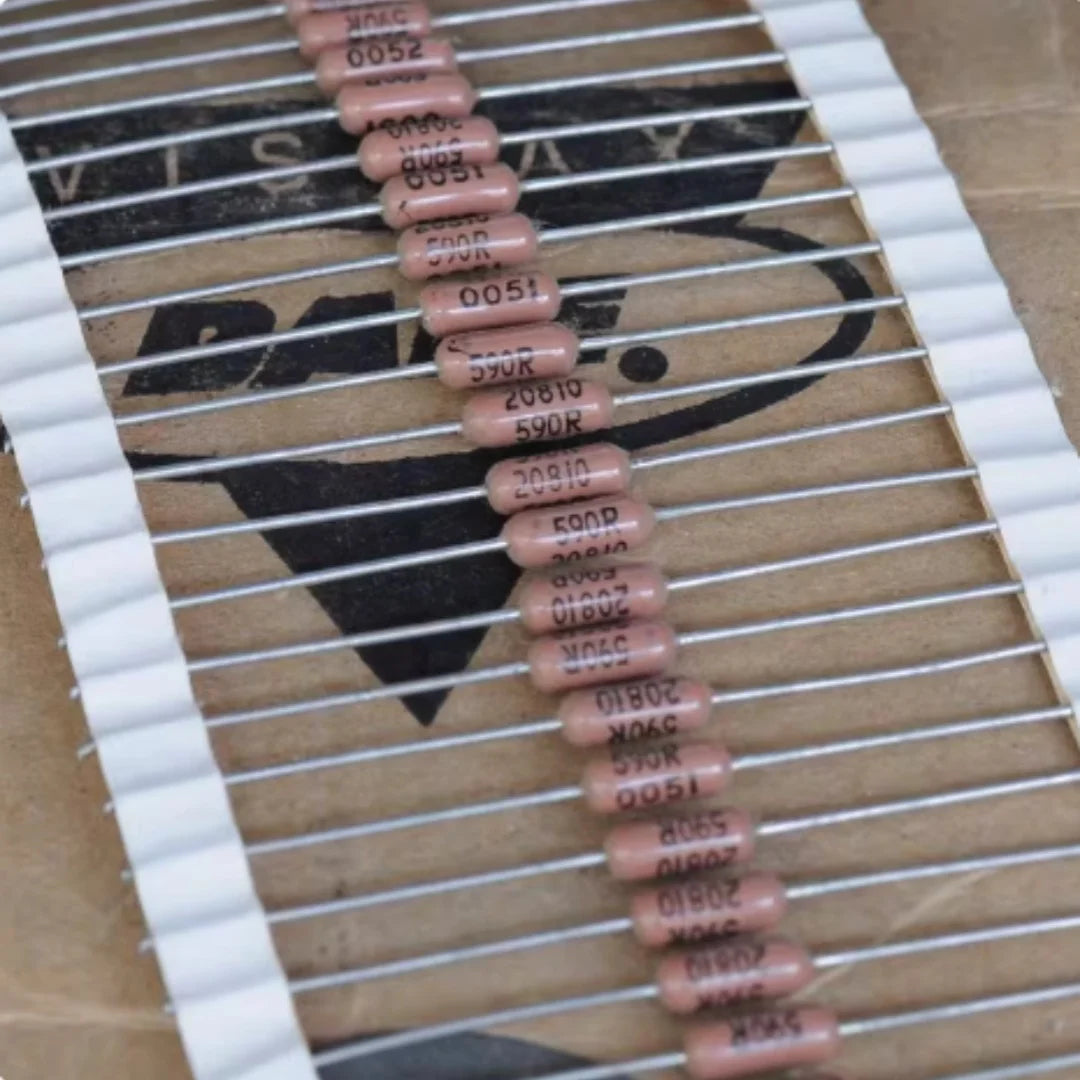

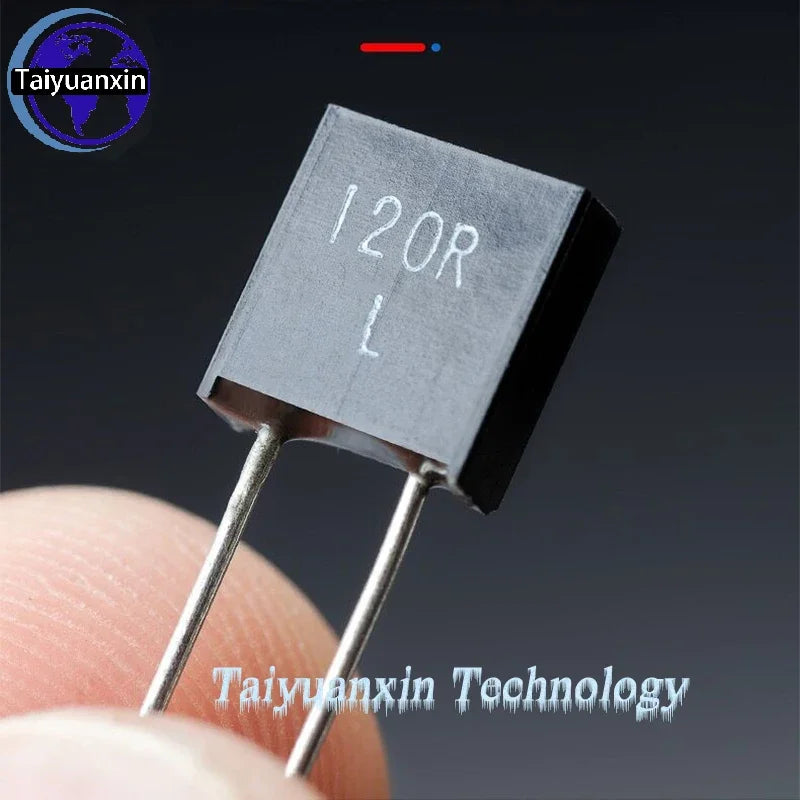

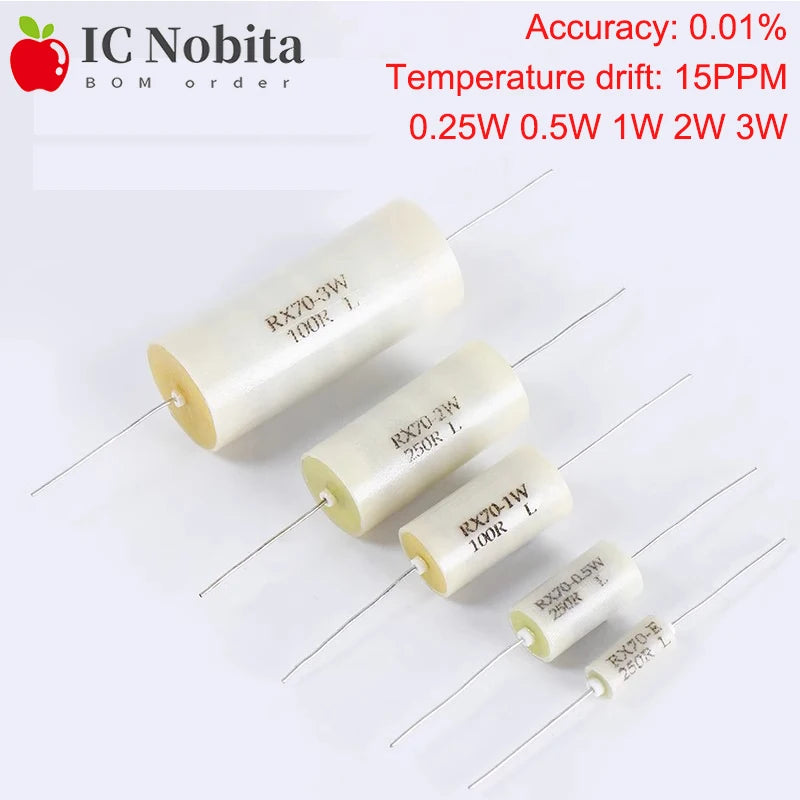

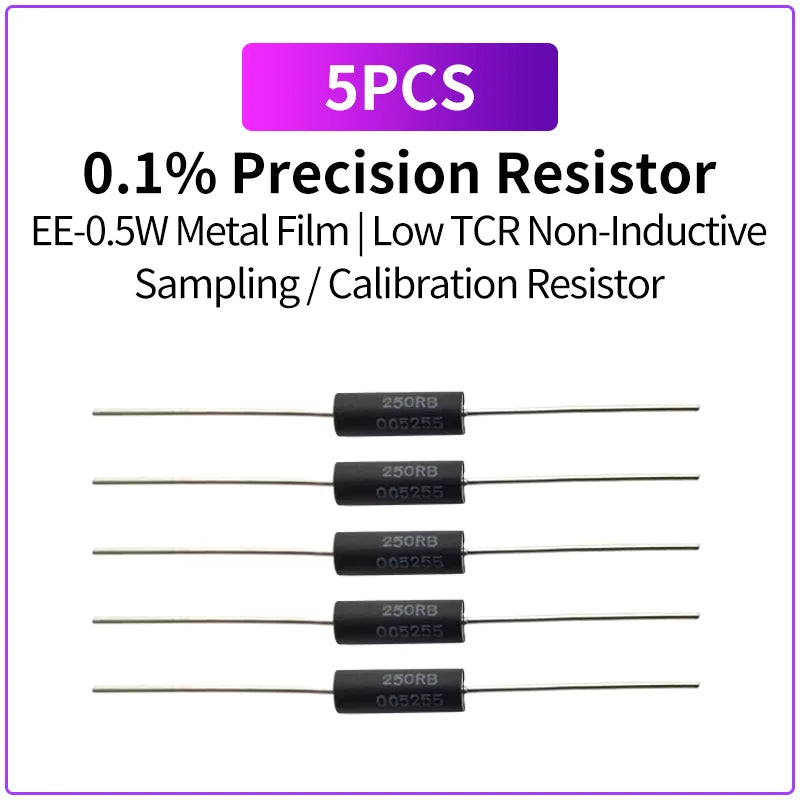

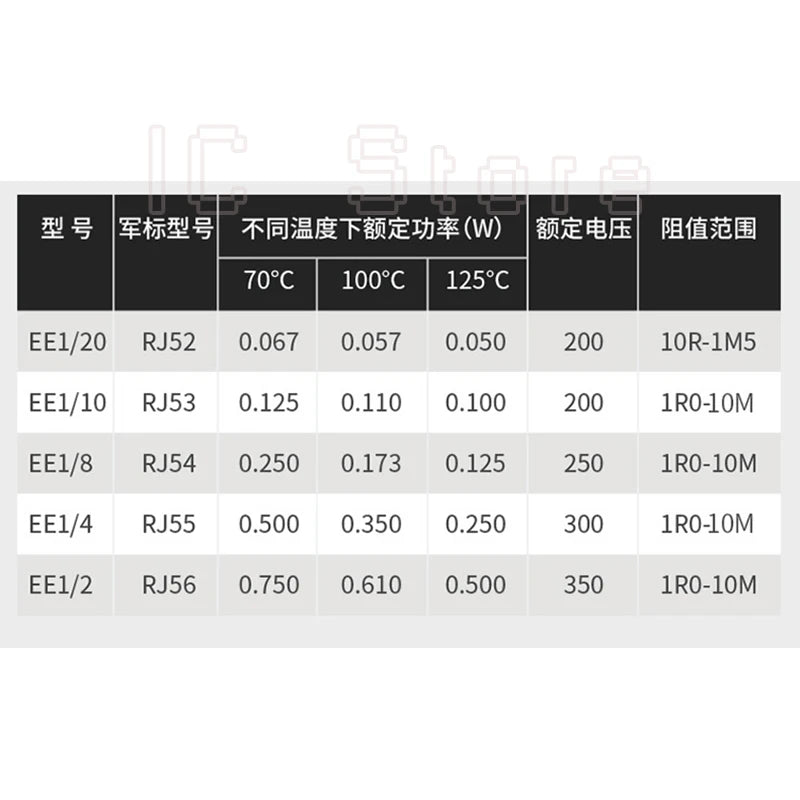

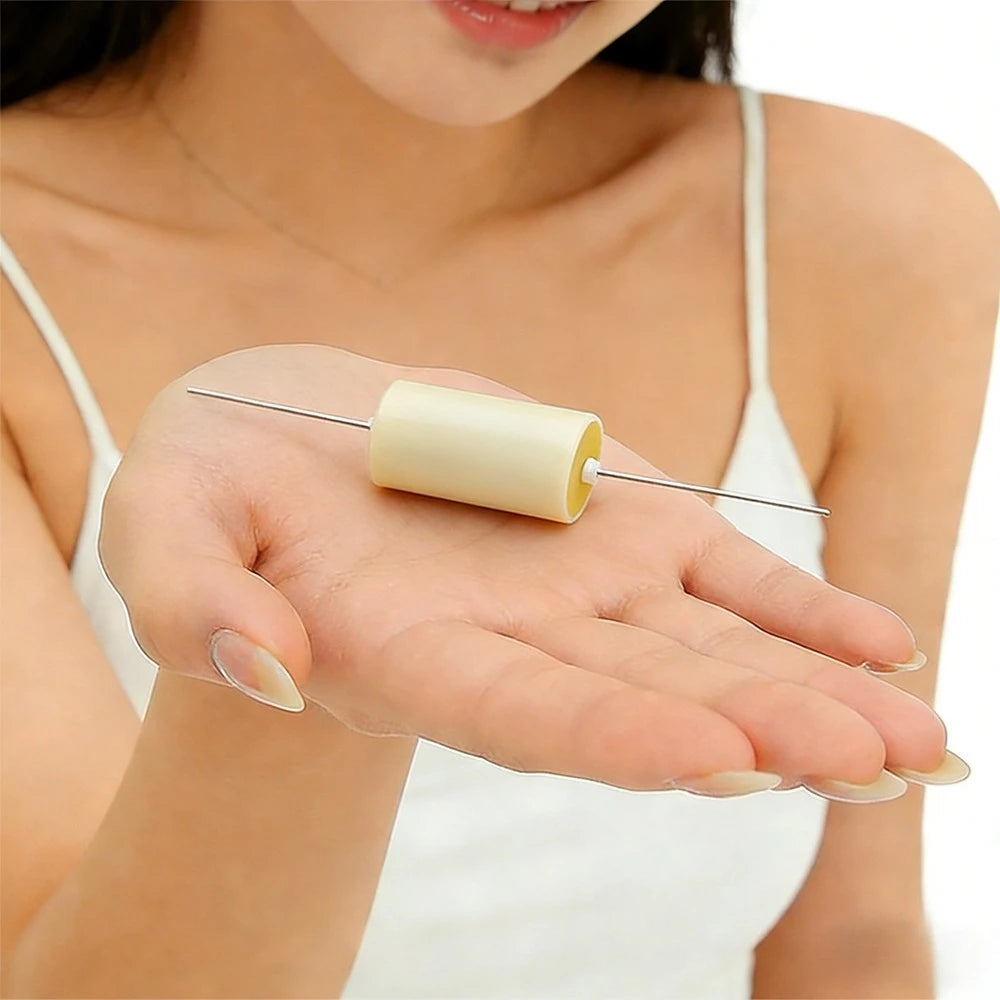

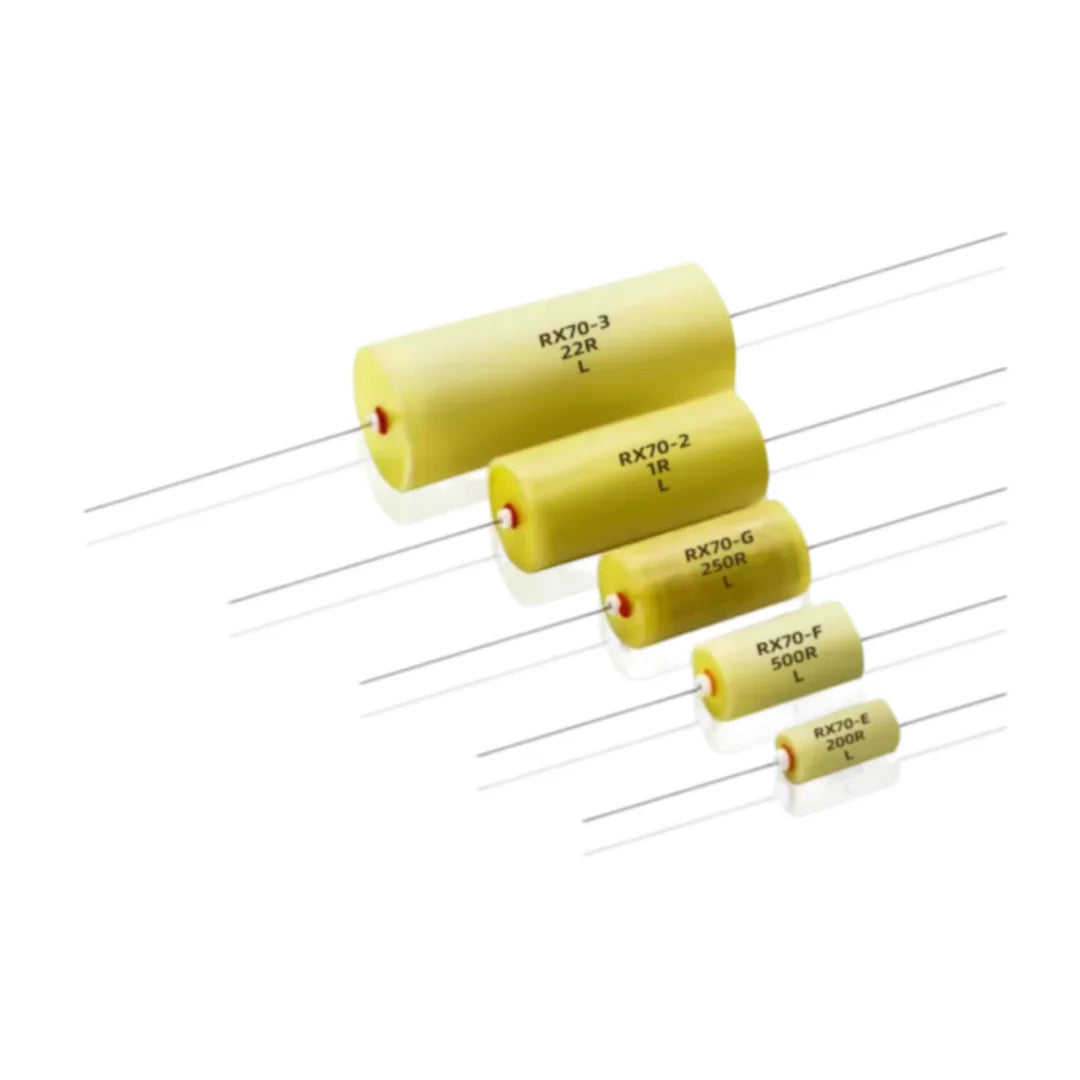

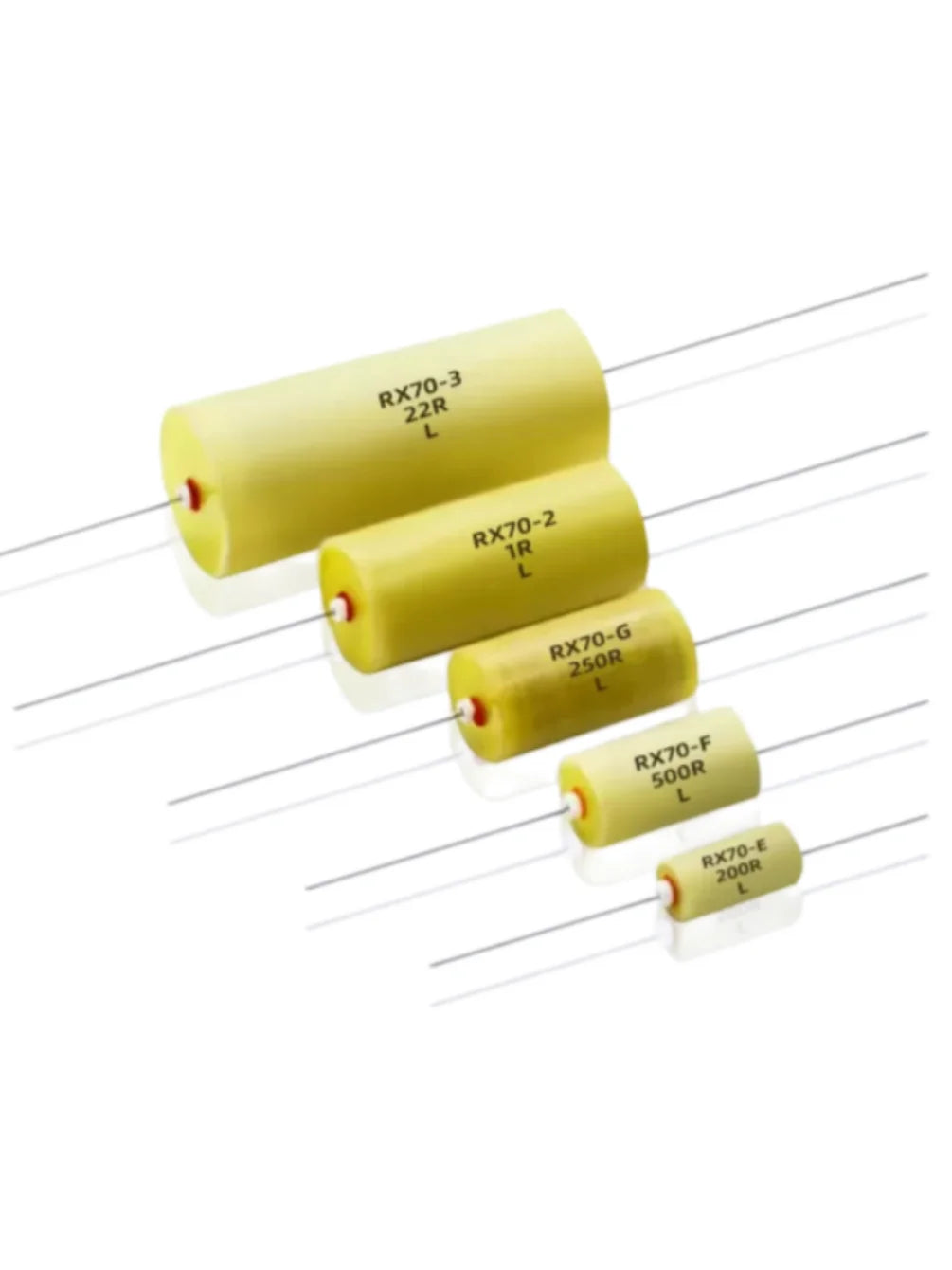

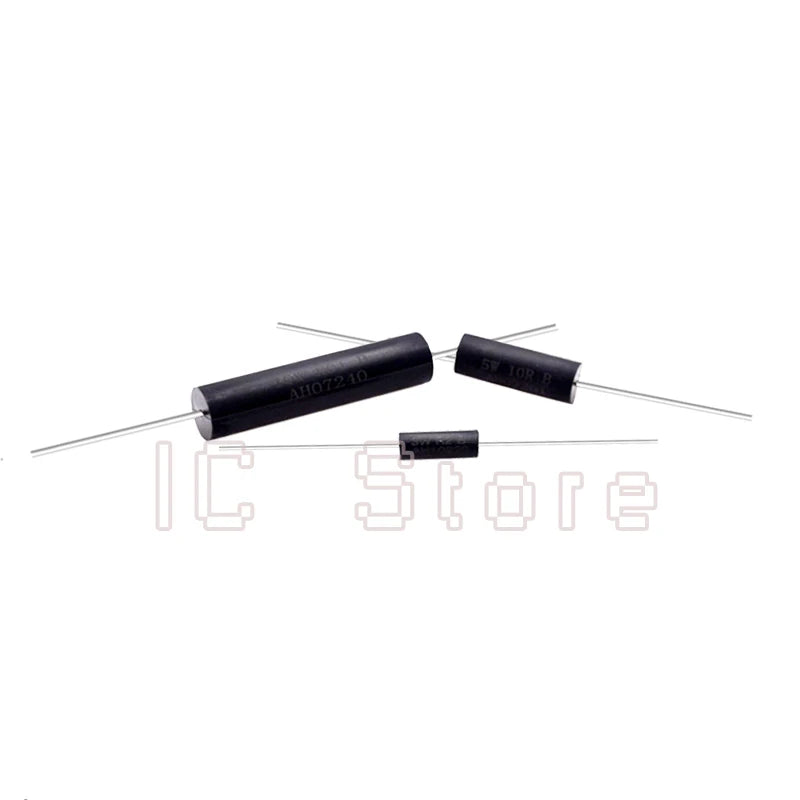

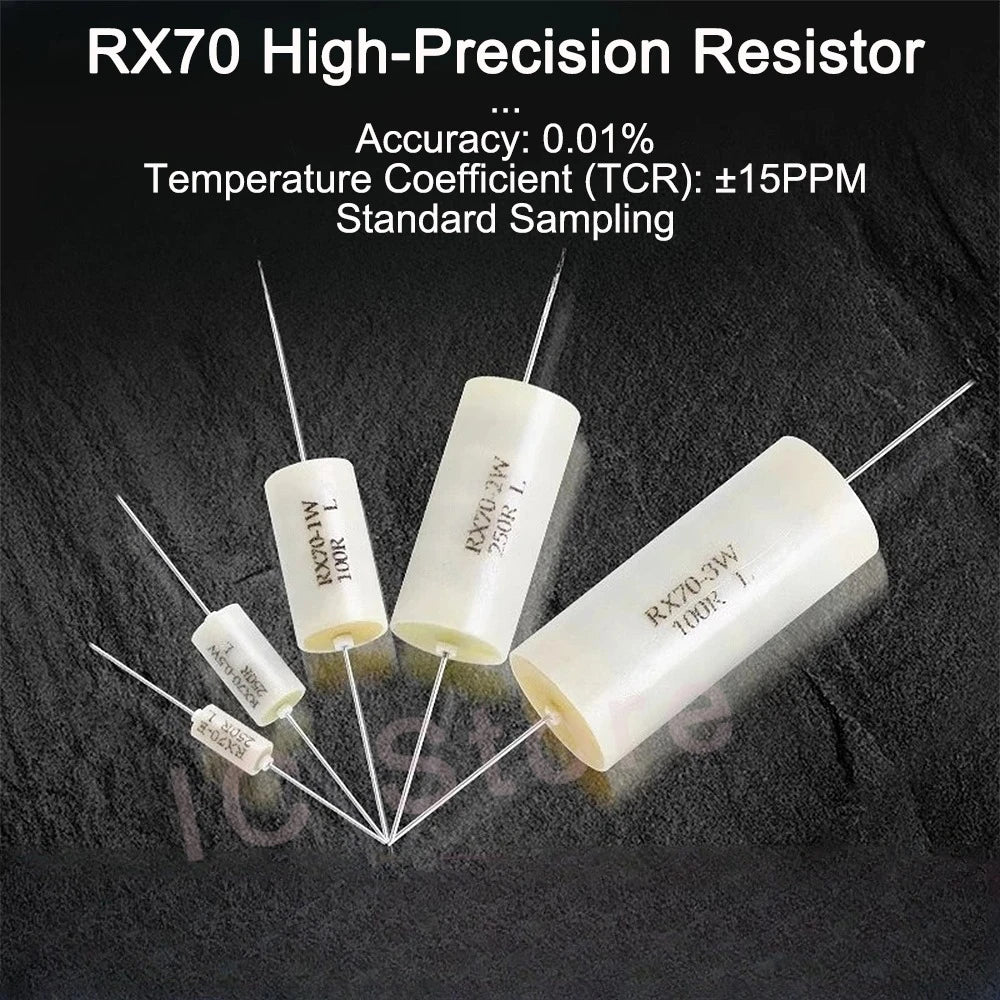

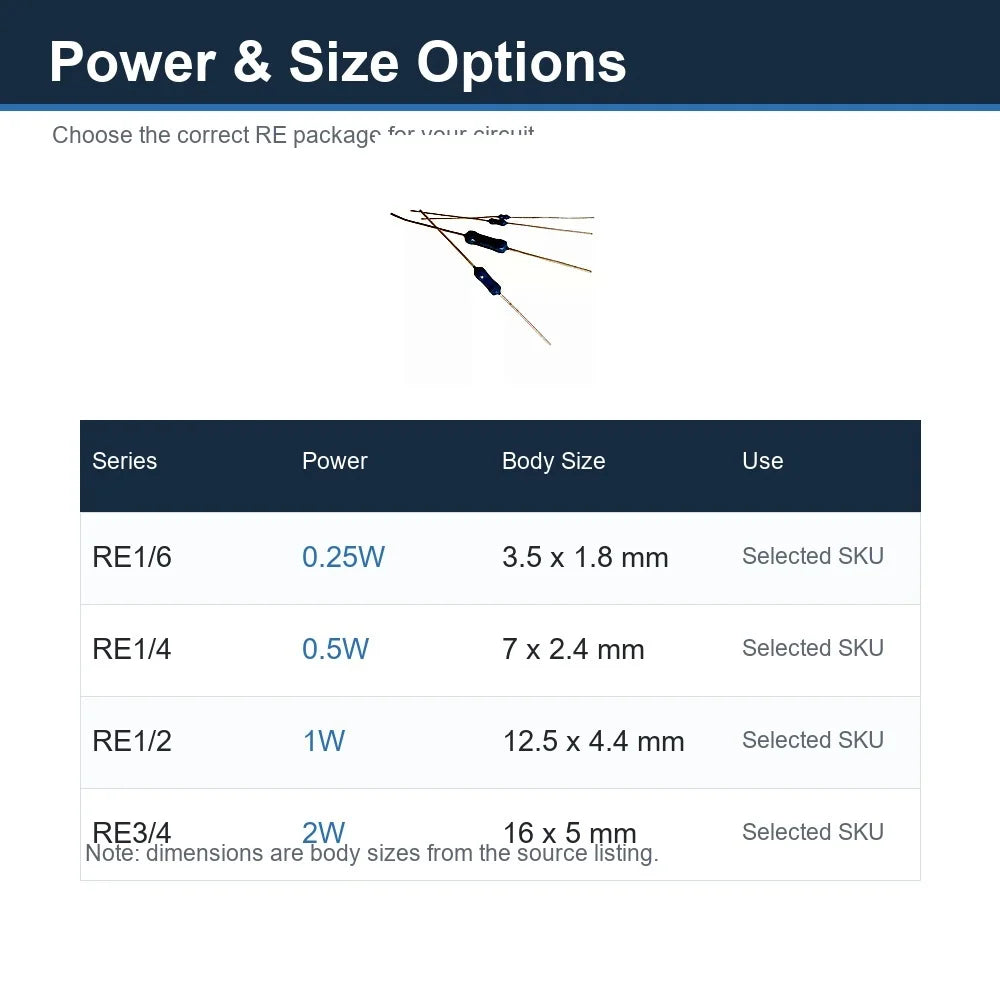

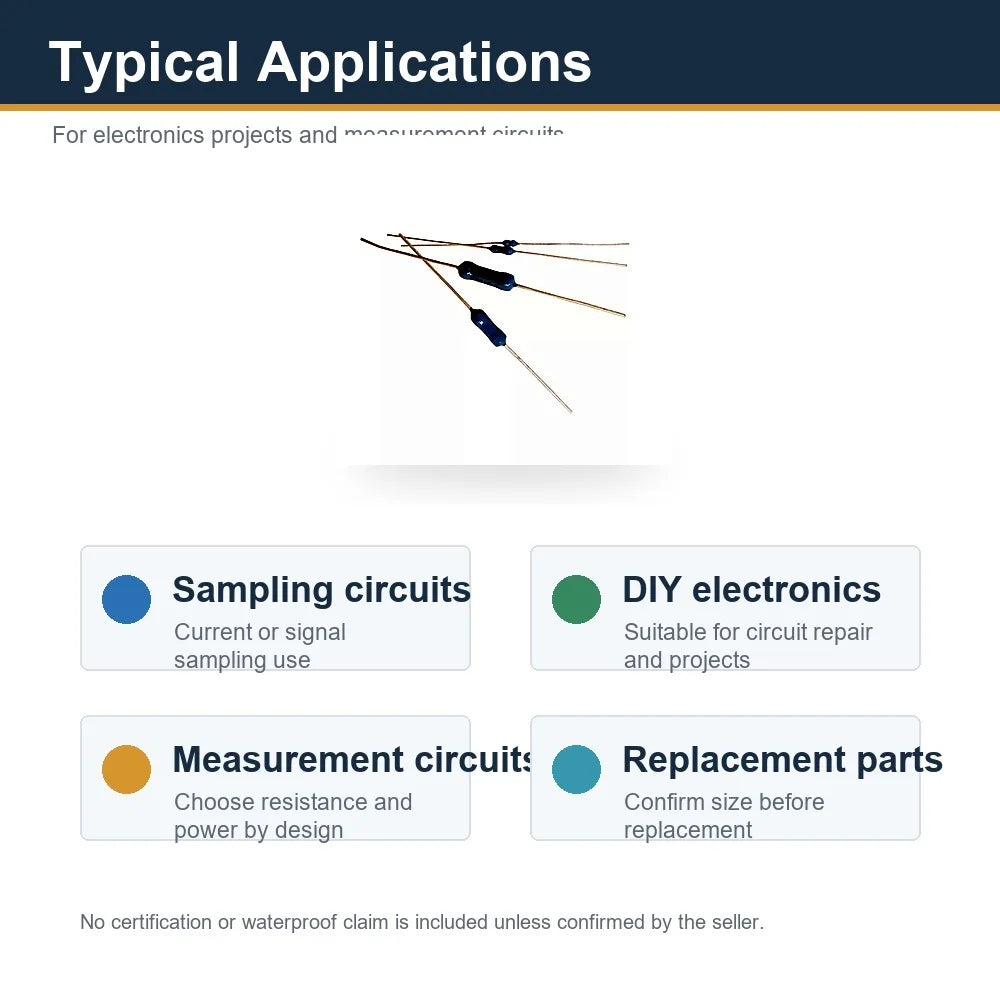

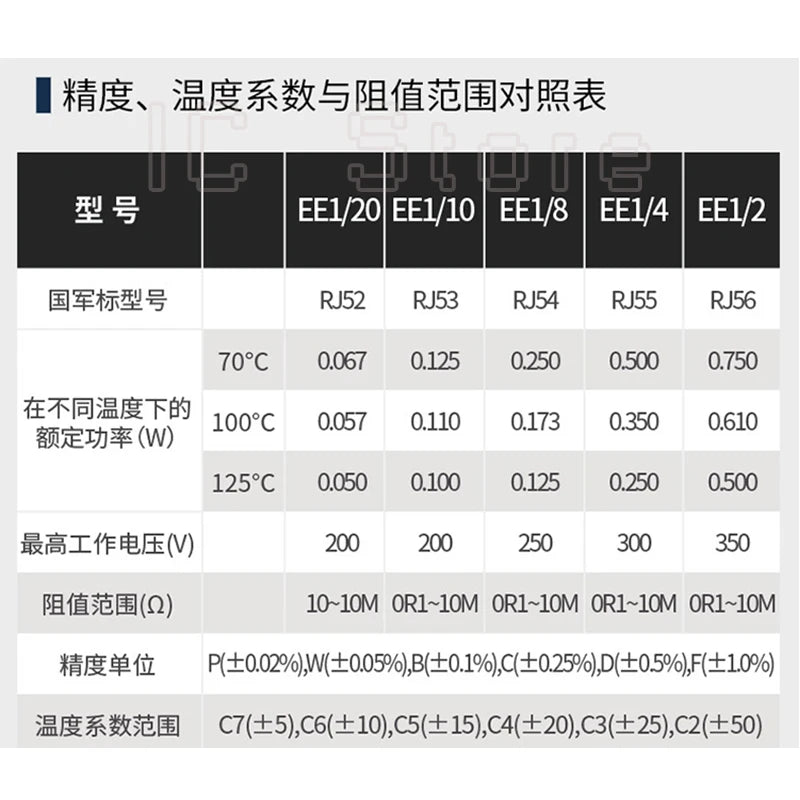

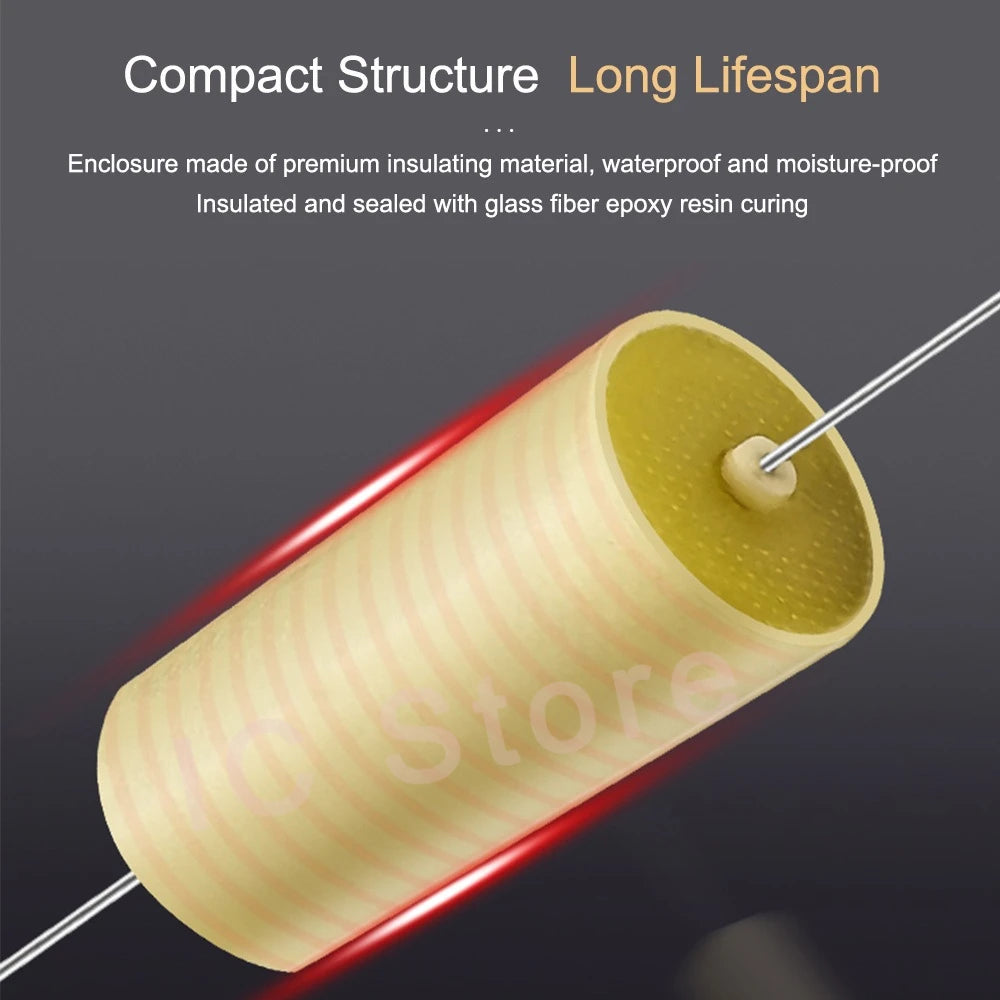

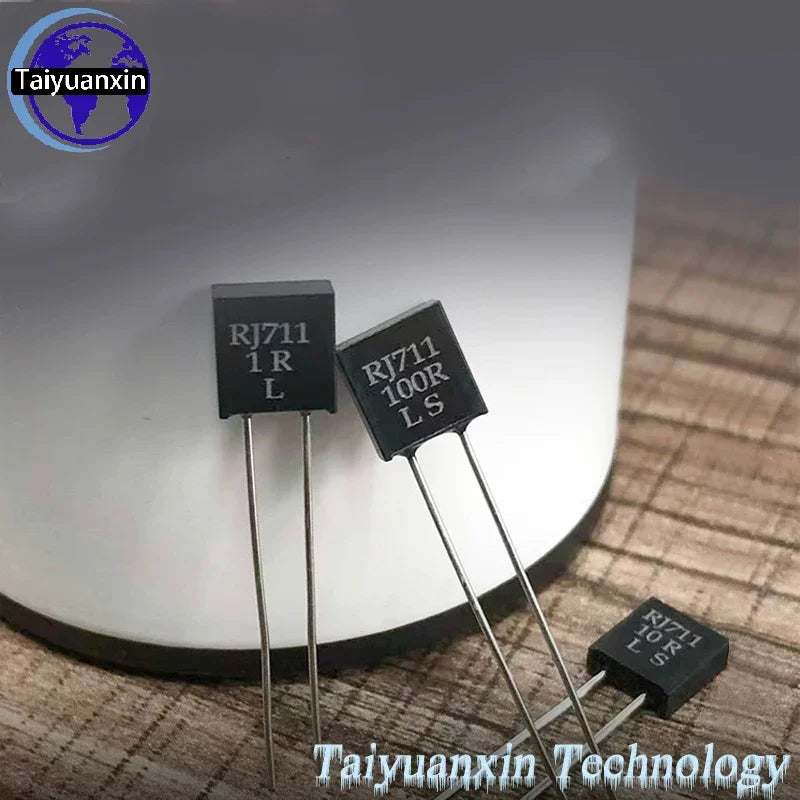

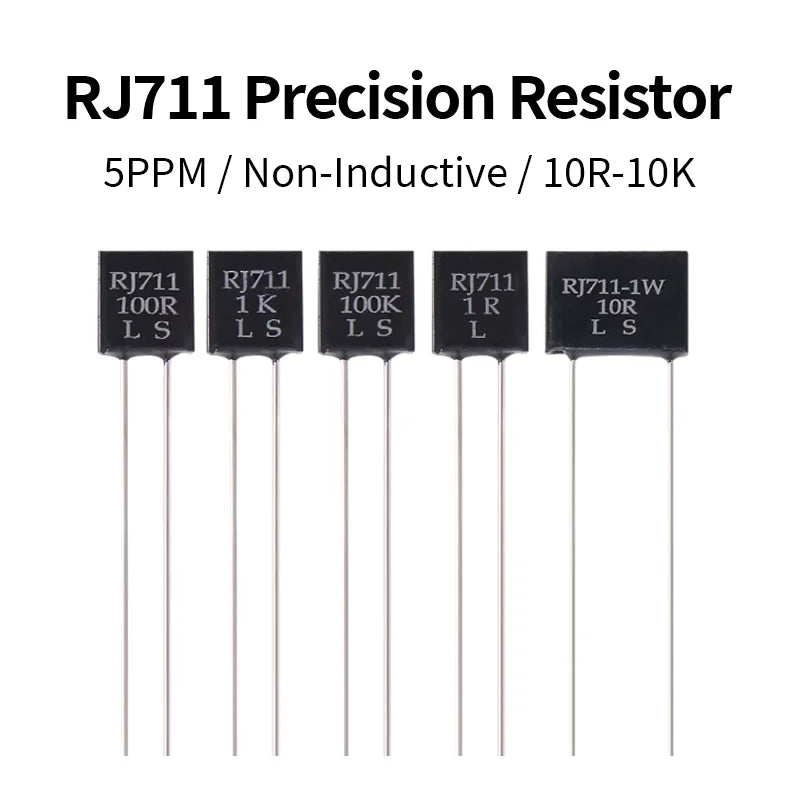

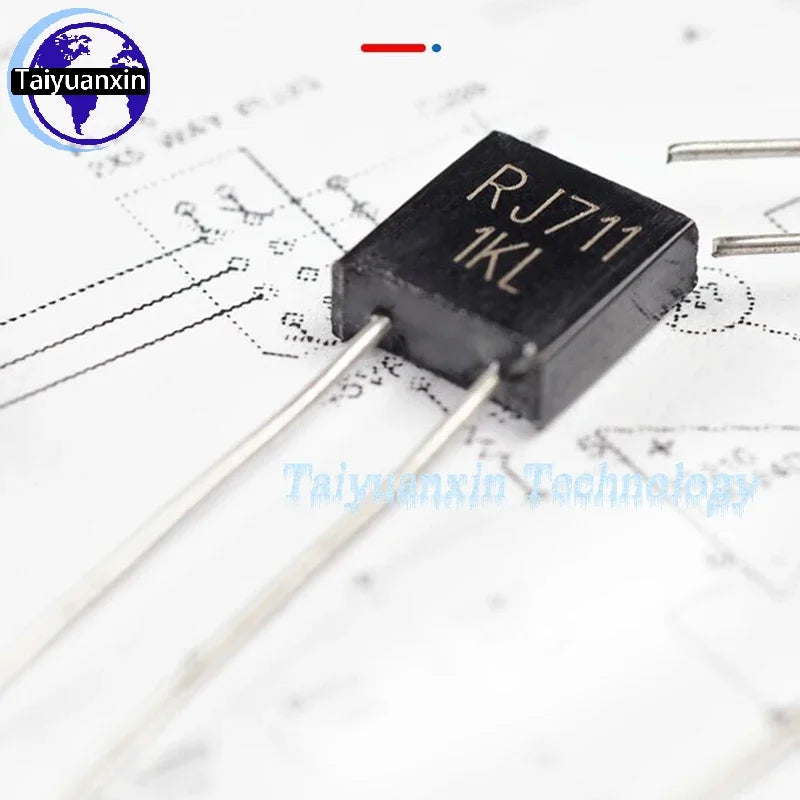

- Precision resistors: selected RE, EE, RJ711, RX70 and CMF60-style listings with their own tolerance and TCR claims.

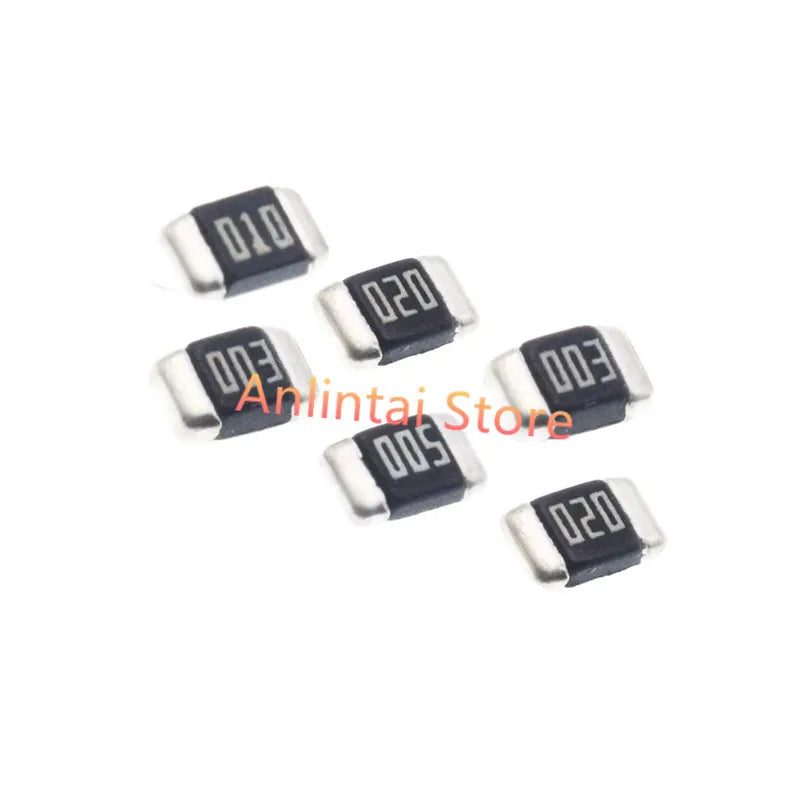

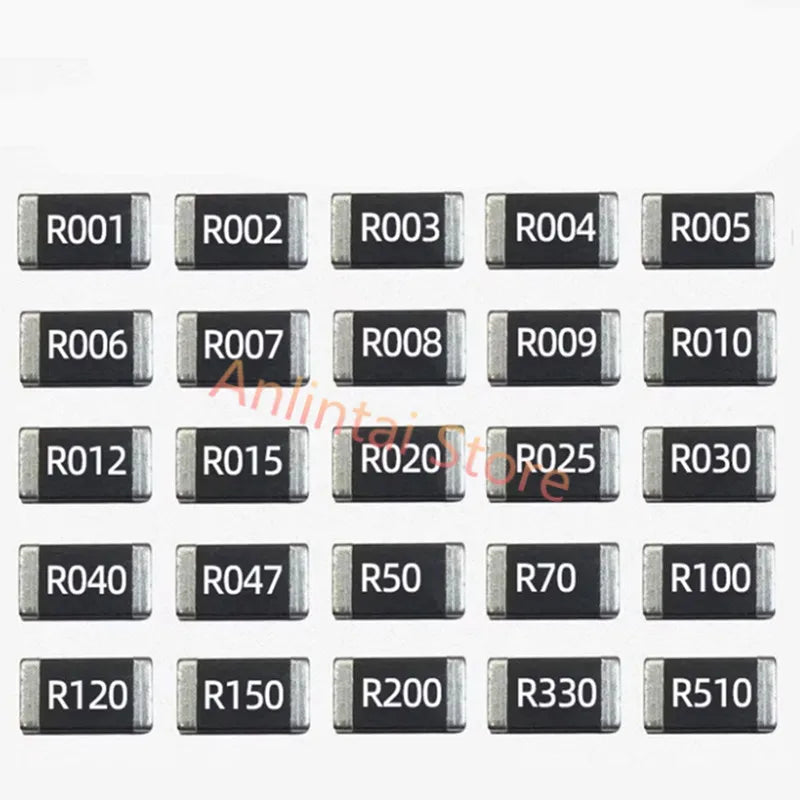

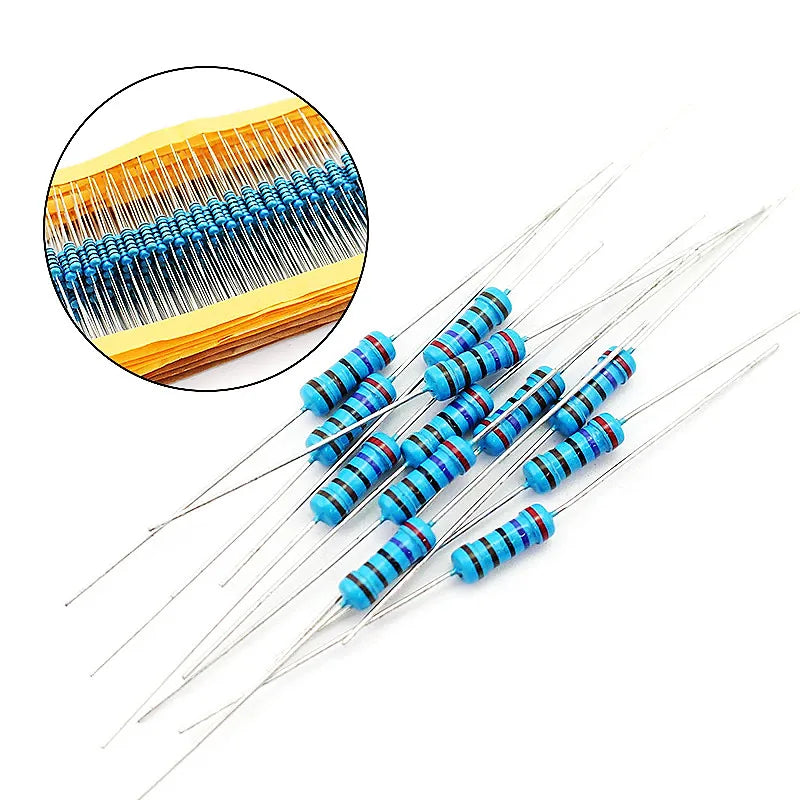

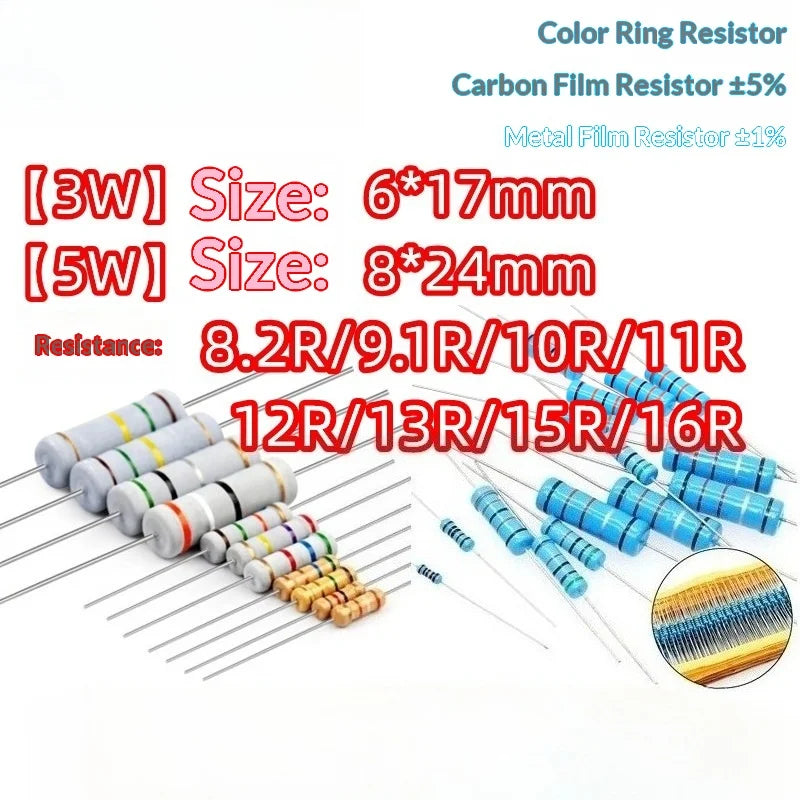

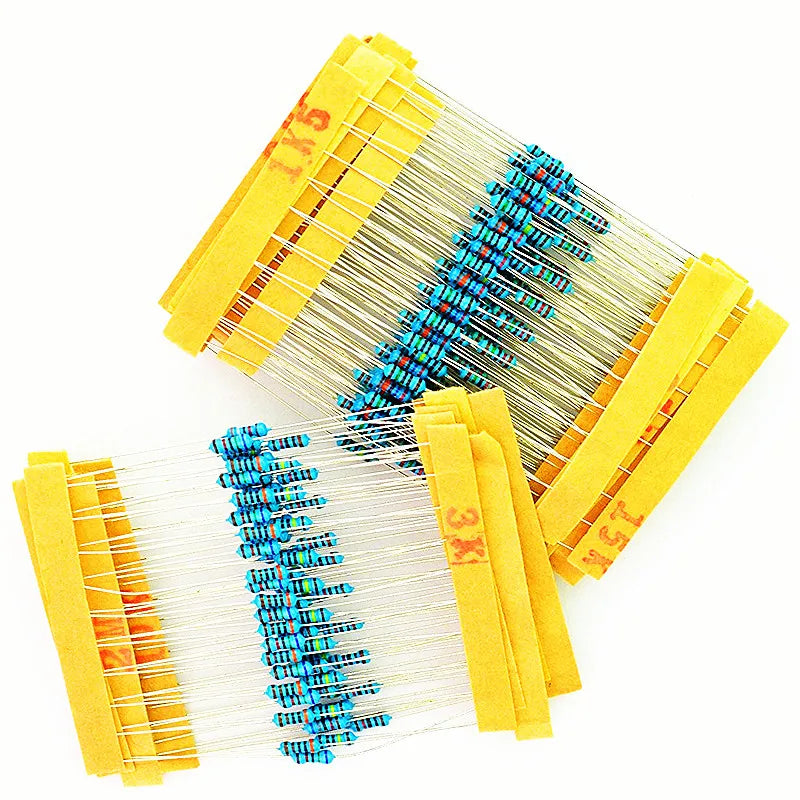

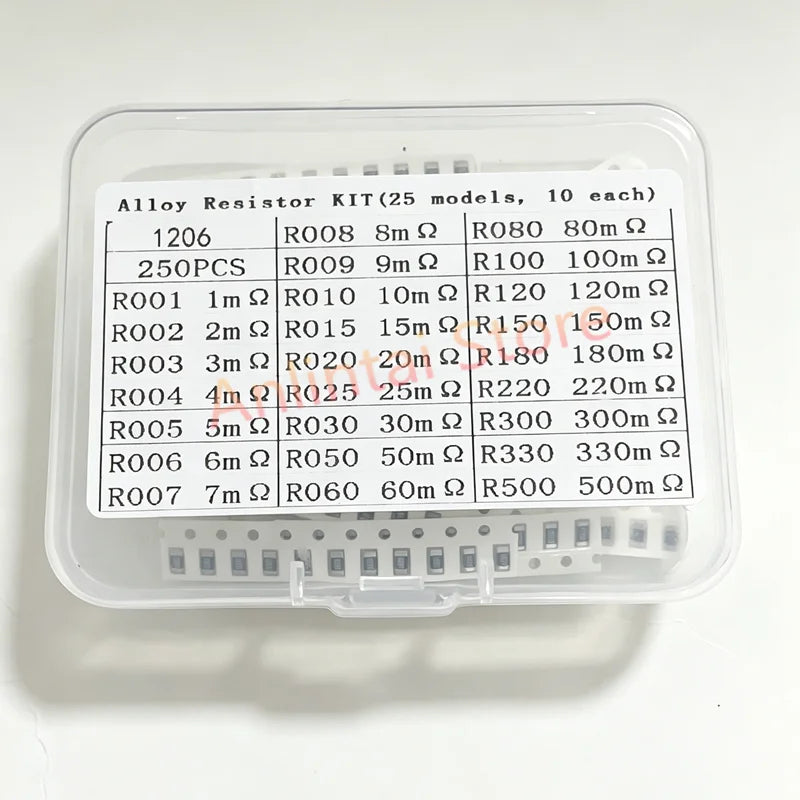

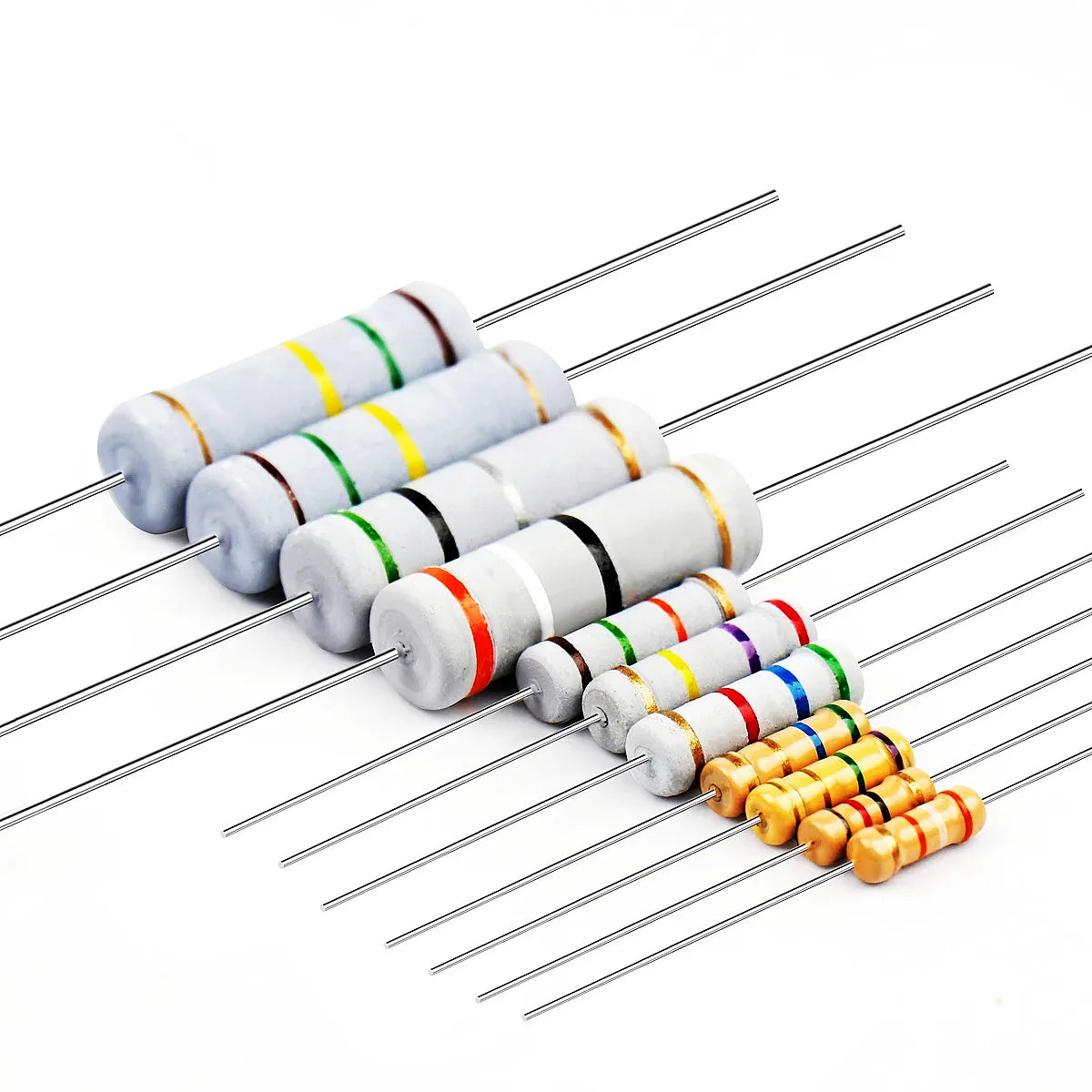

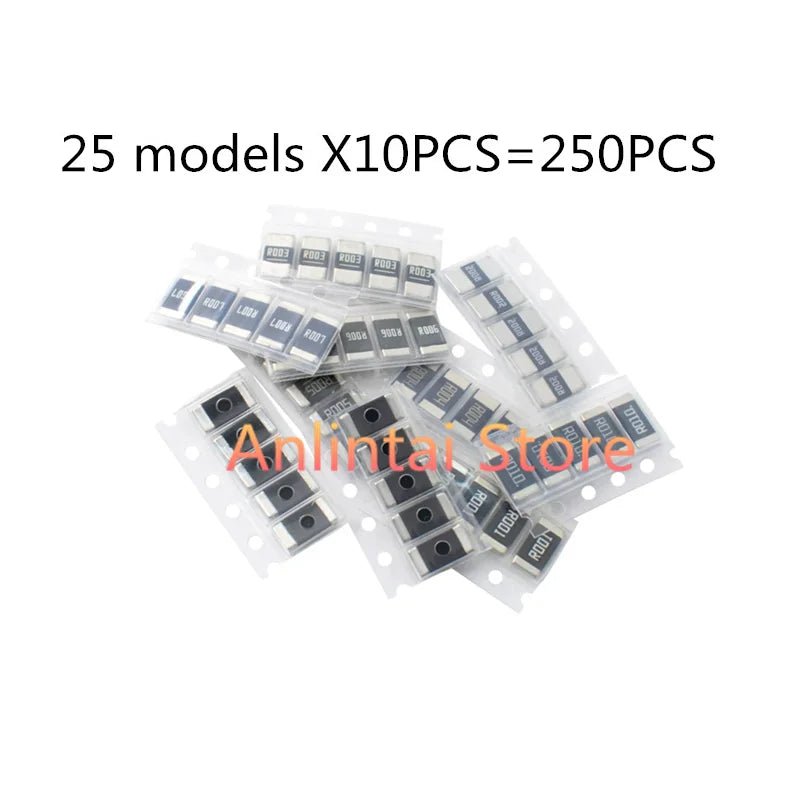

- Low-ohm sampling parts: sub-ohm values in axial, four-terminal or SMD forms, depending on the listing.

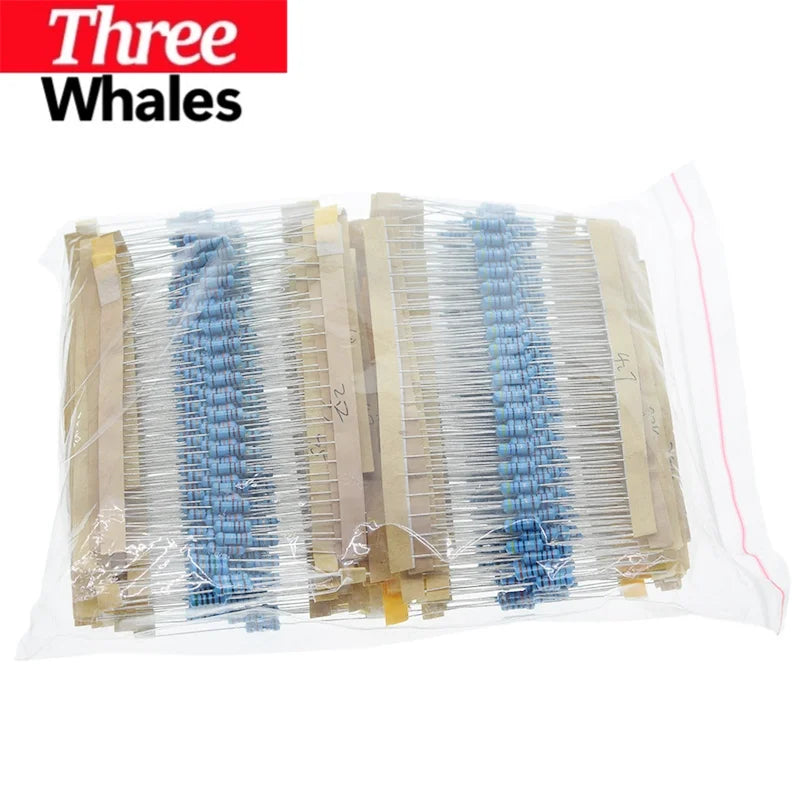

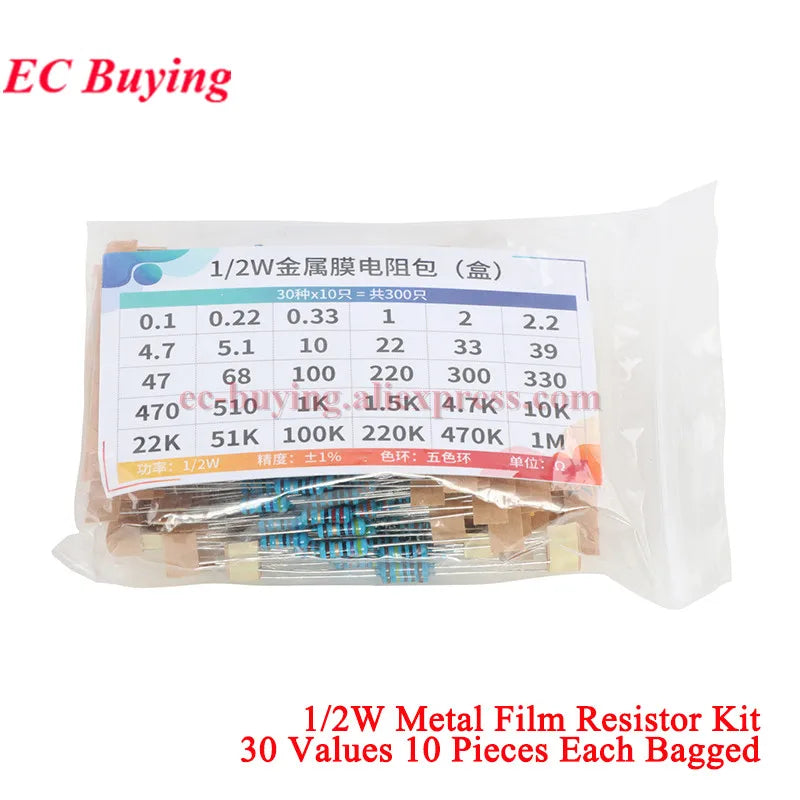

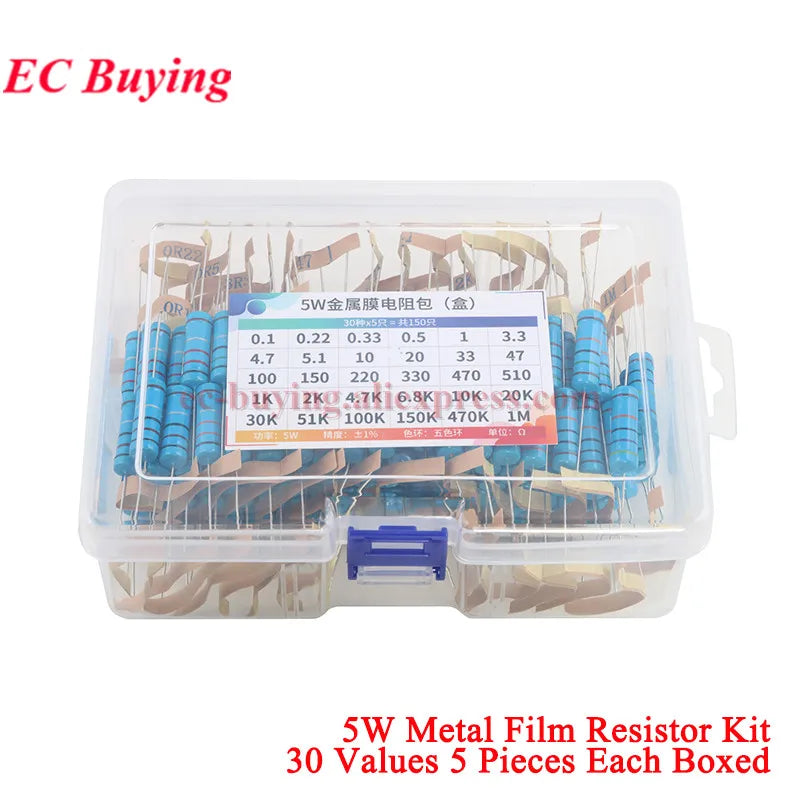

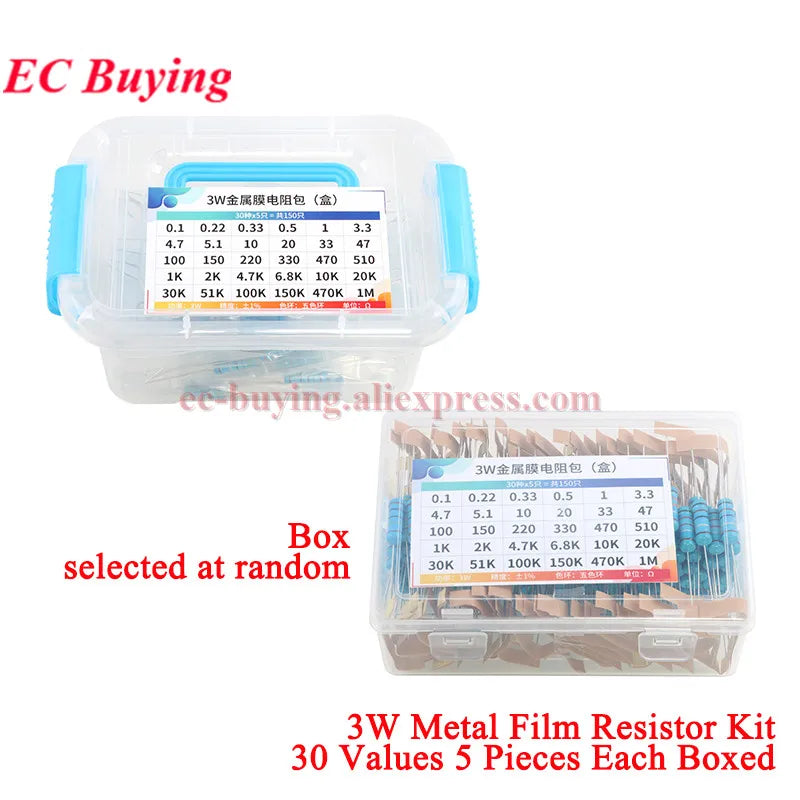

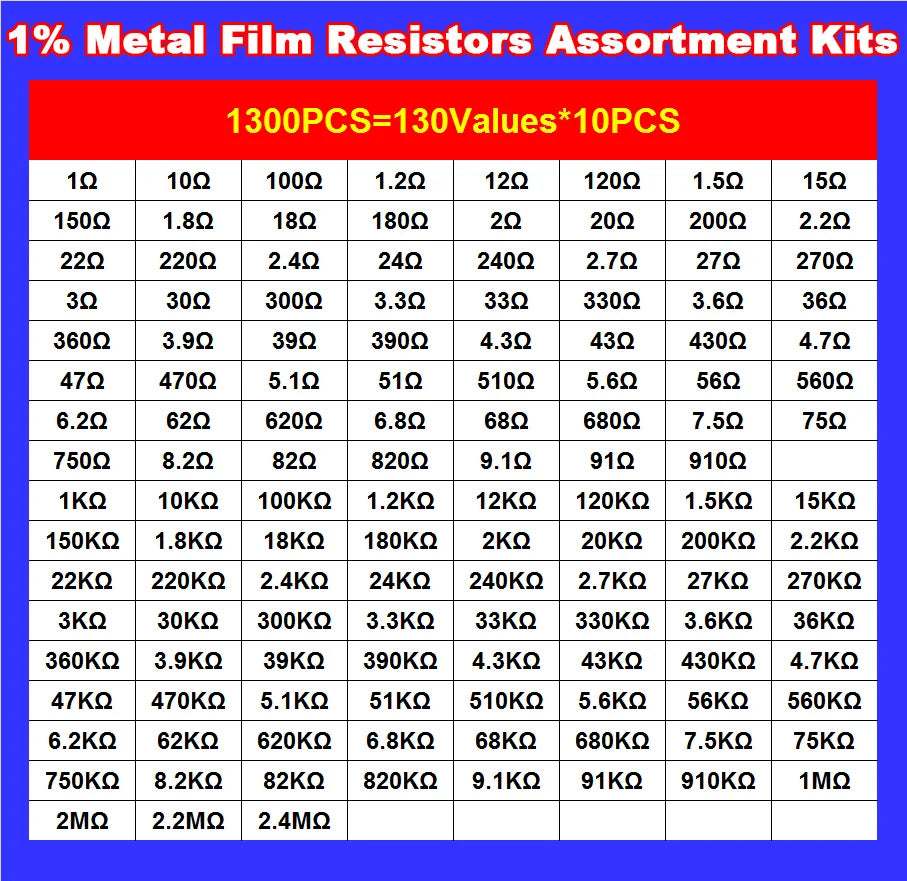

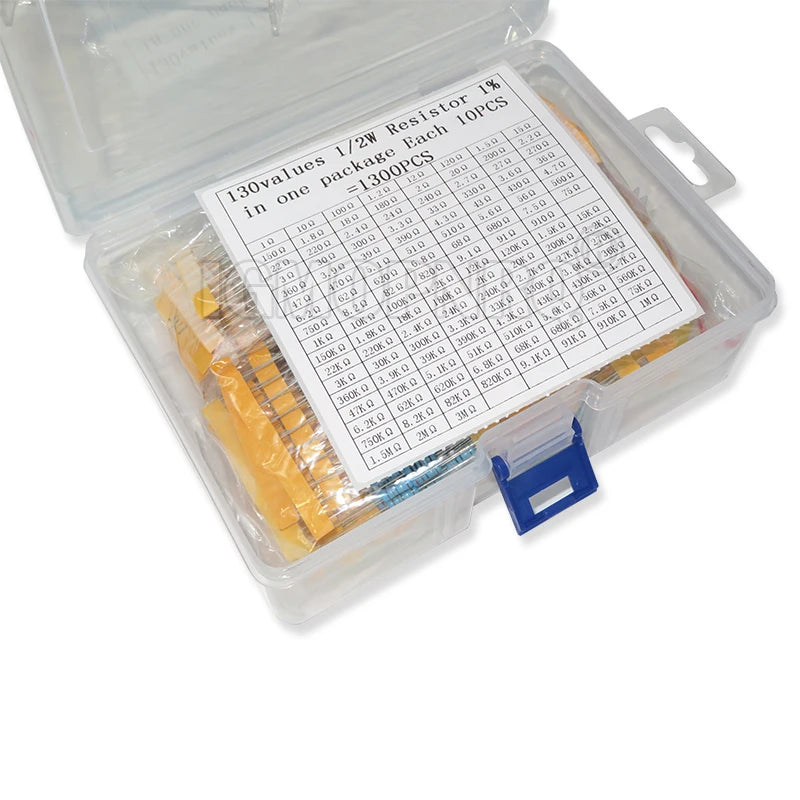

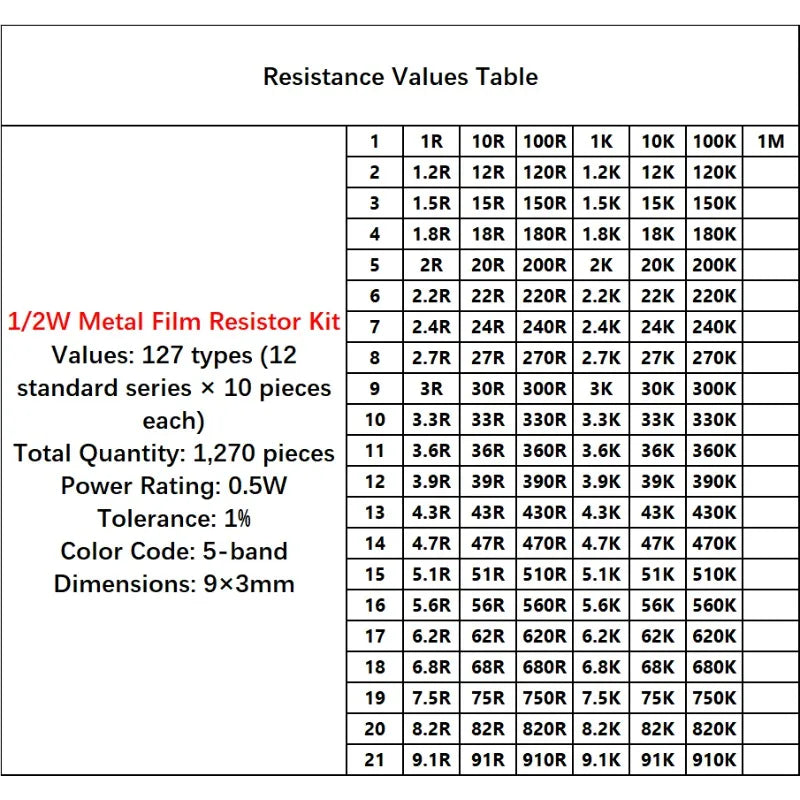

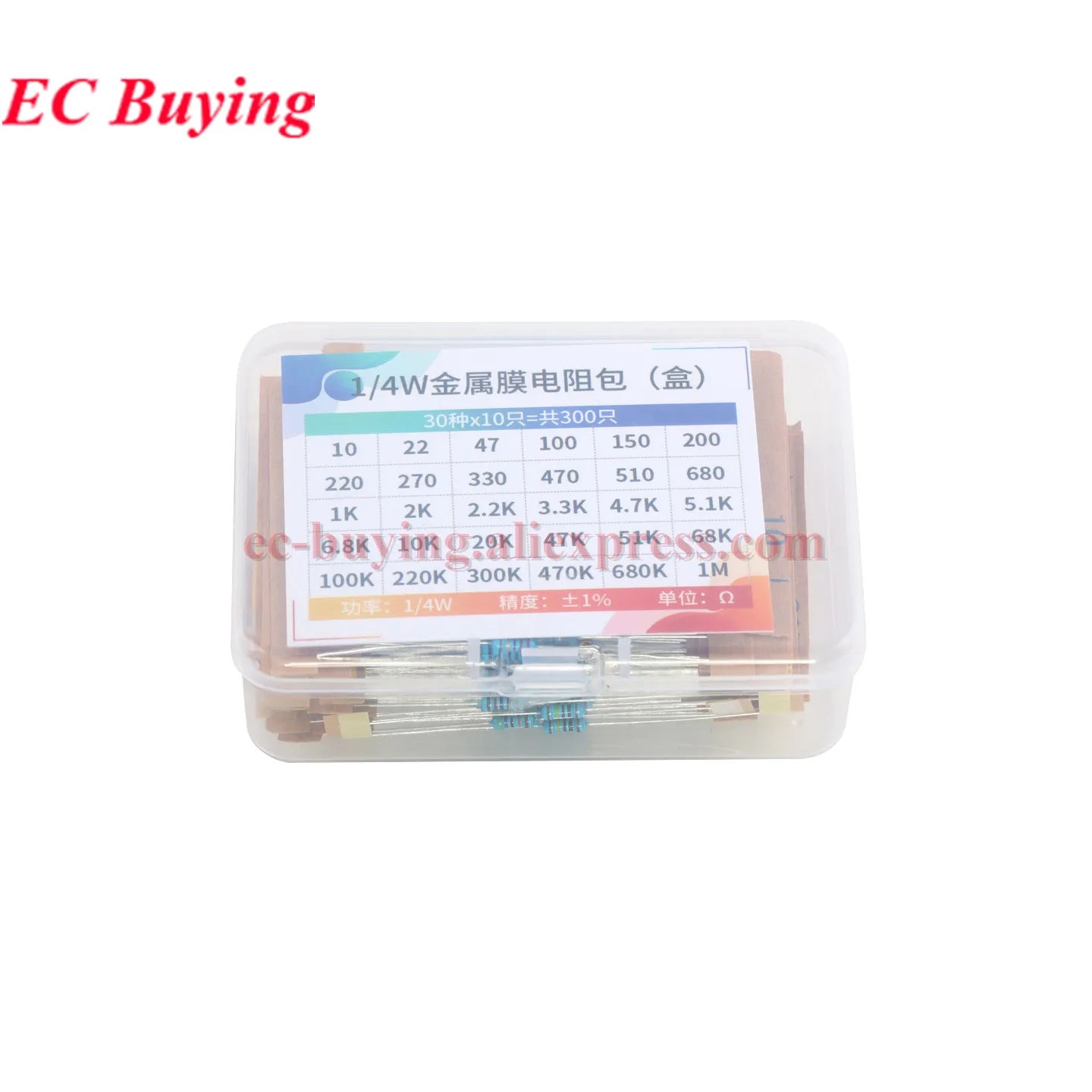

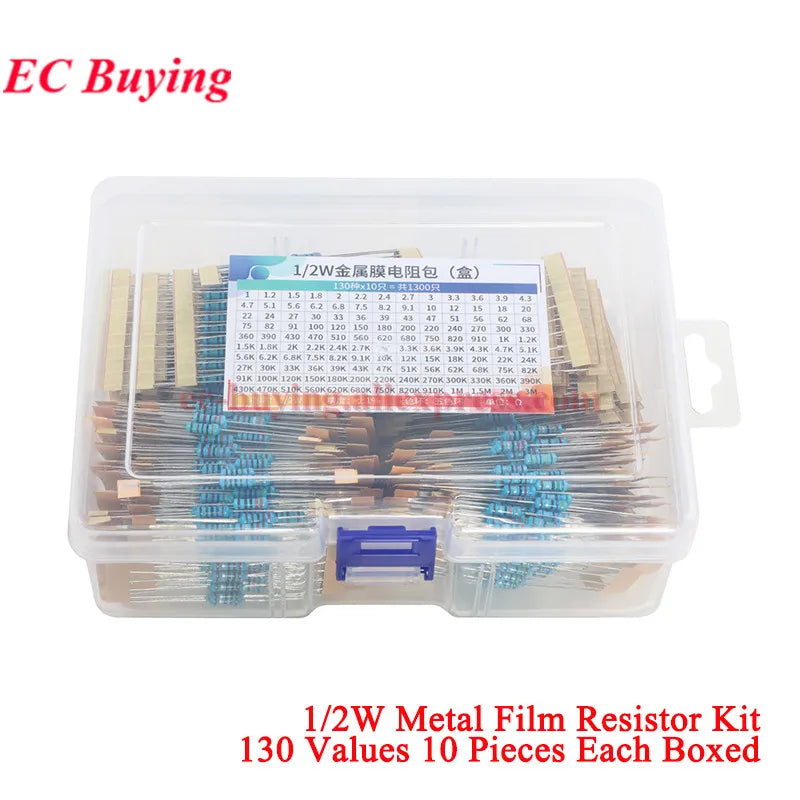

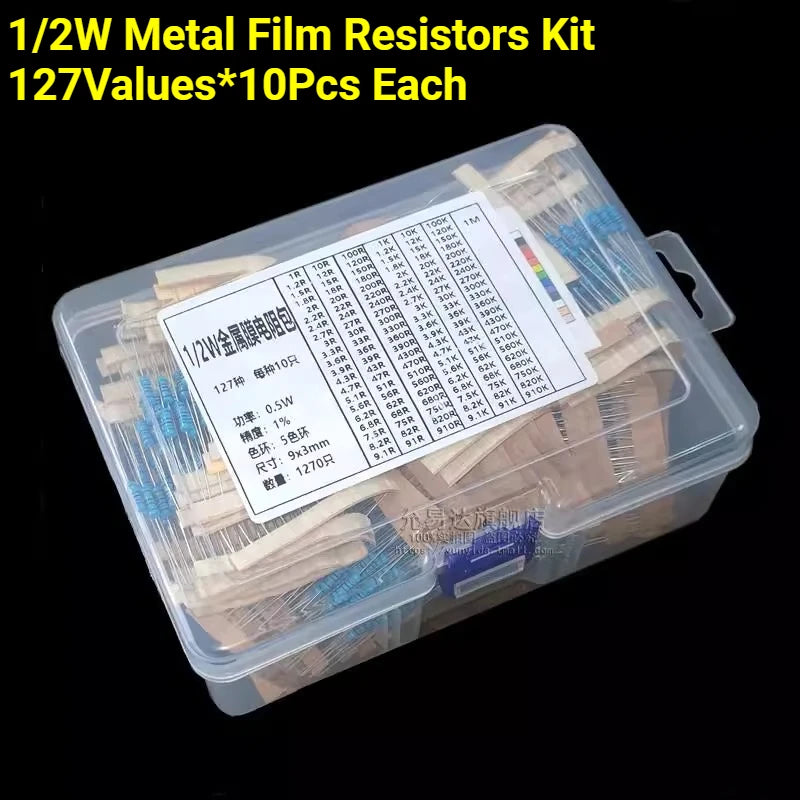

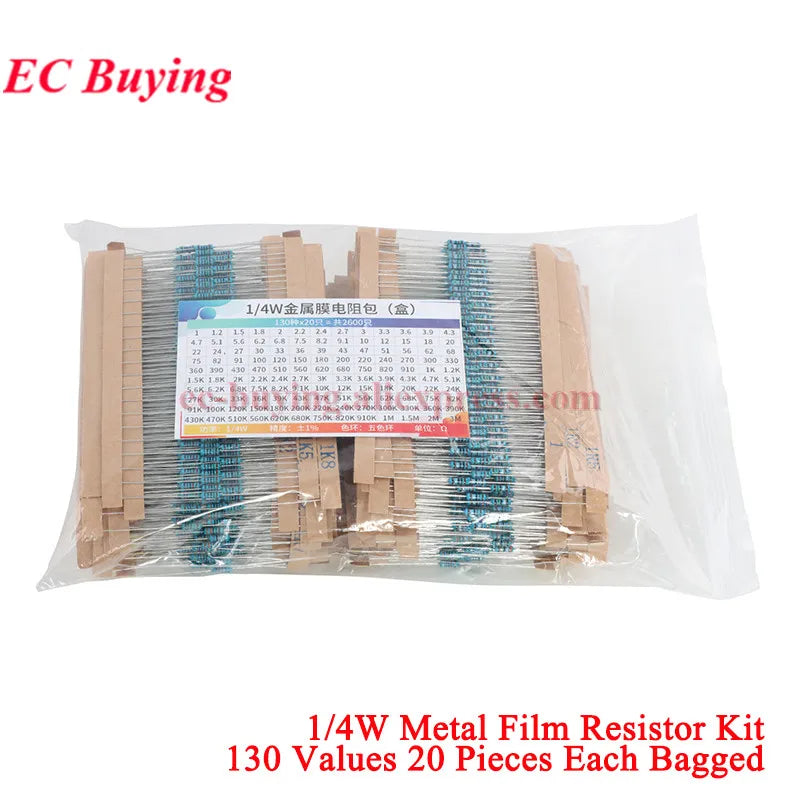

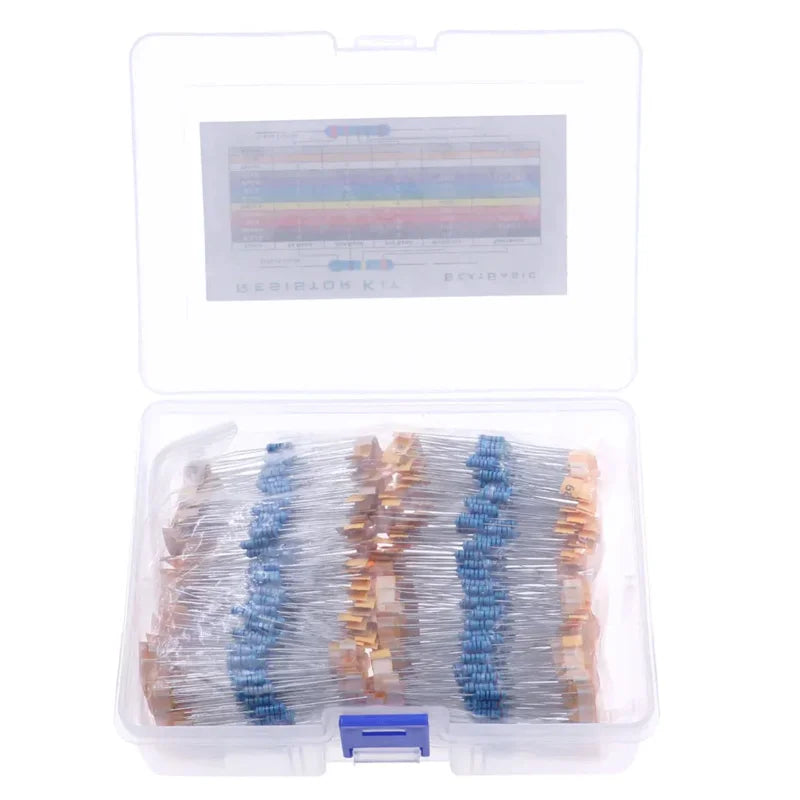

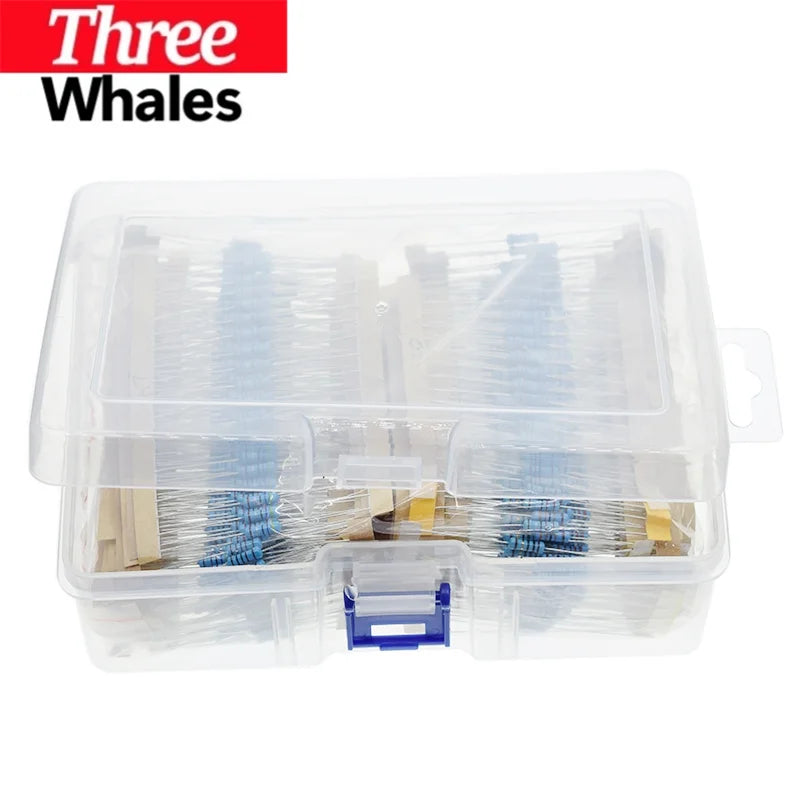

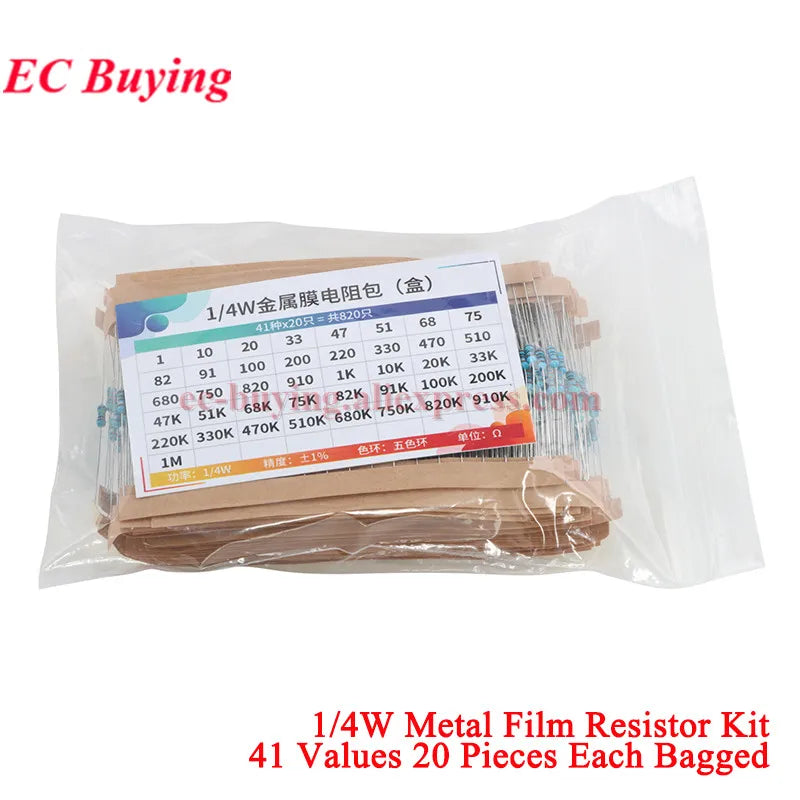

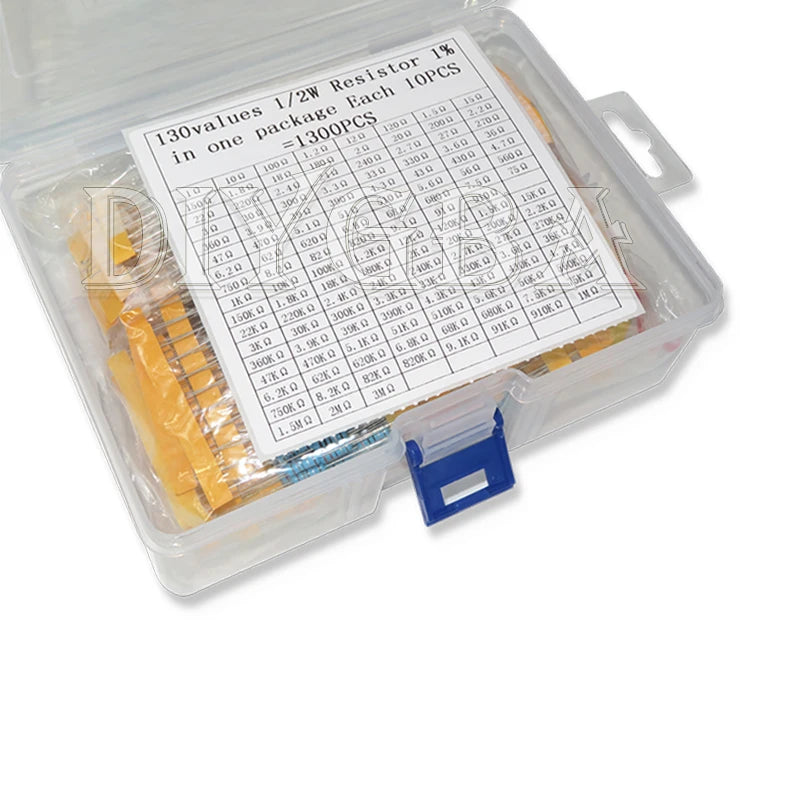

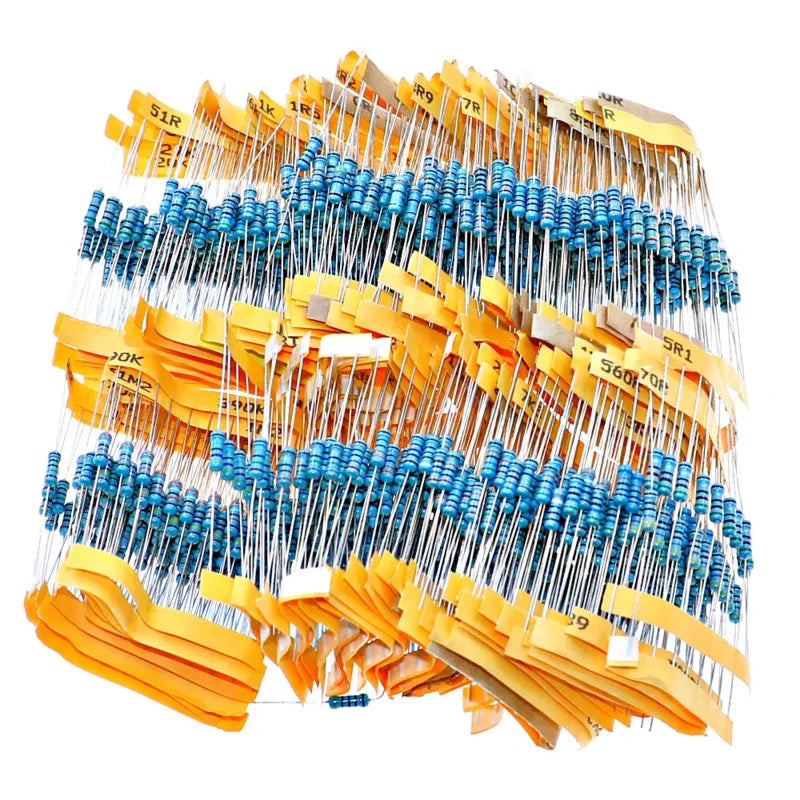

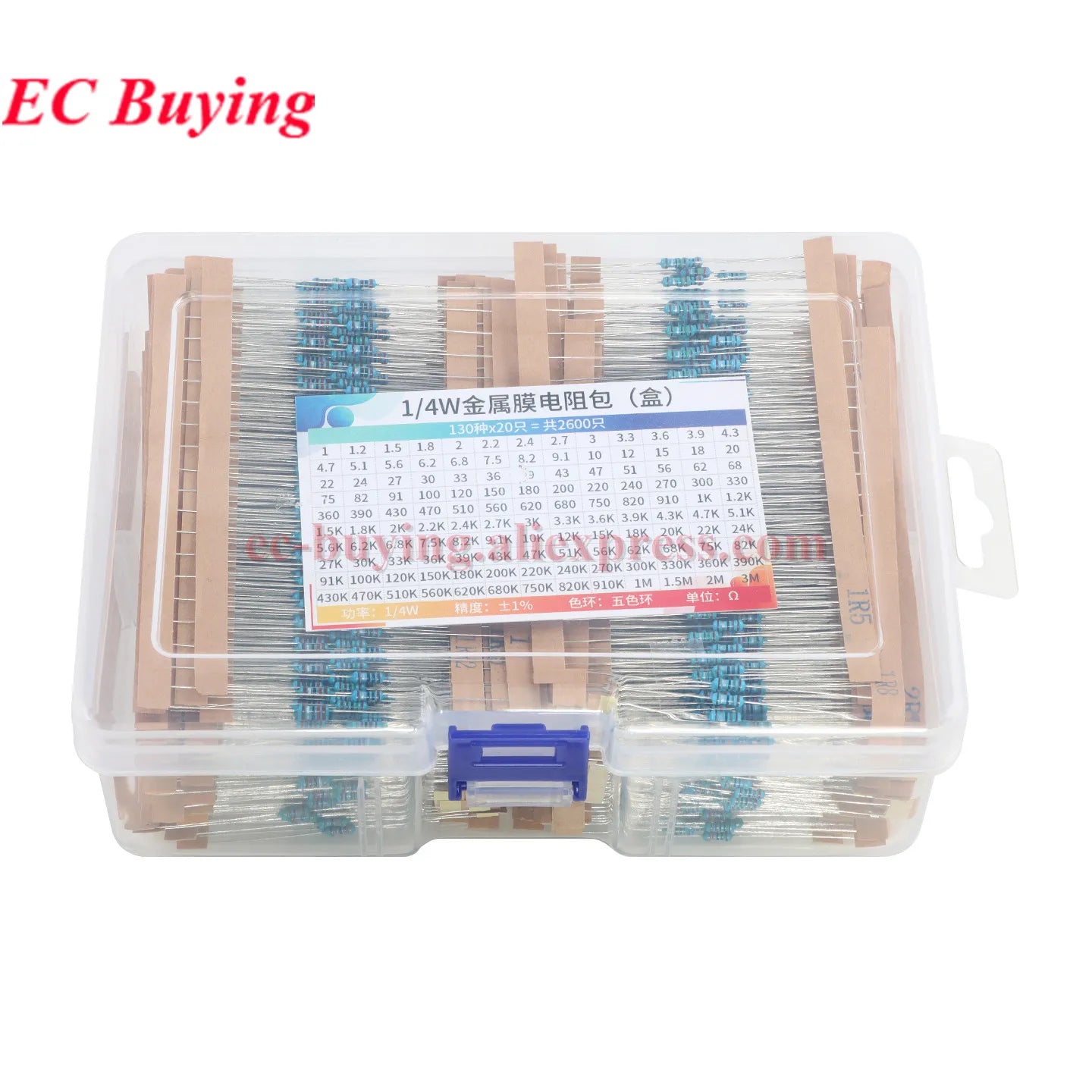

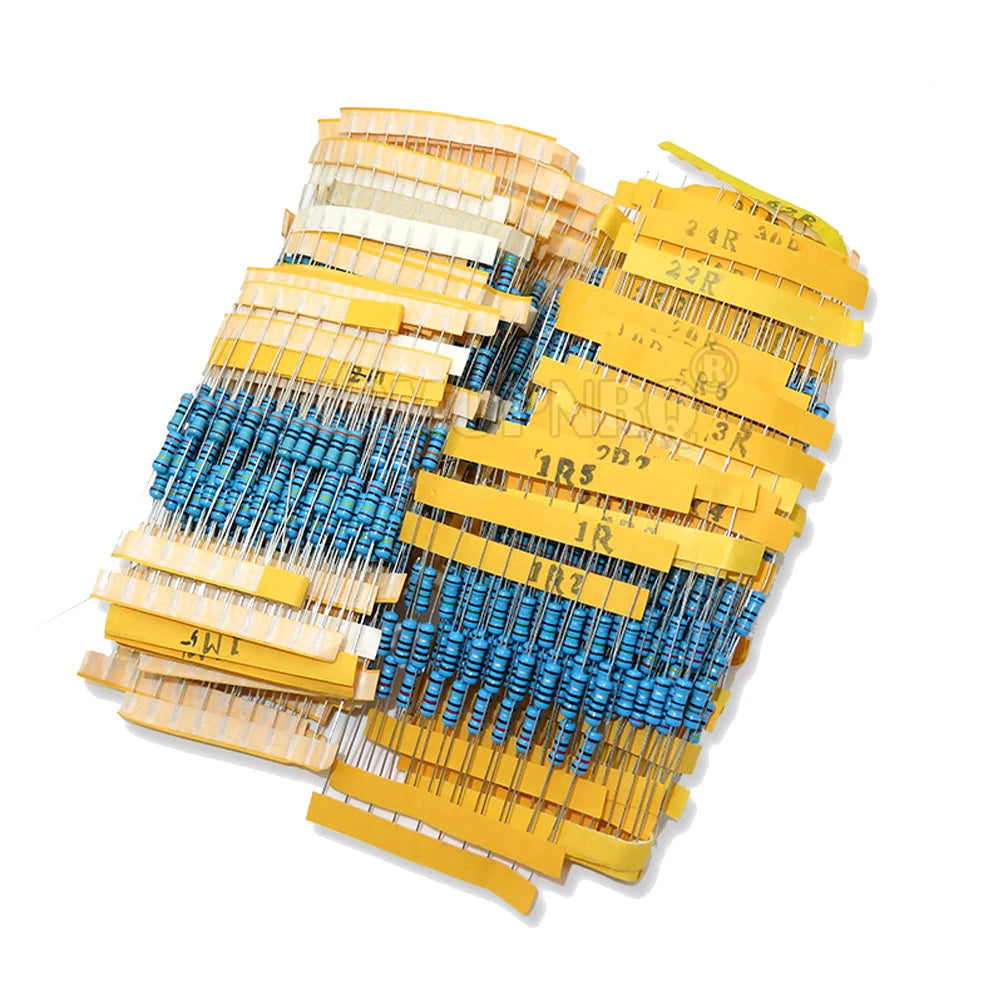

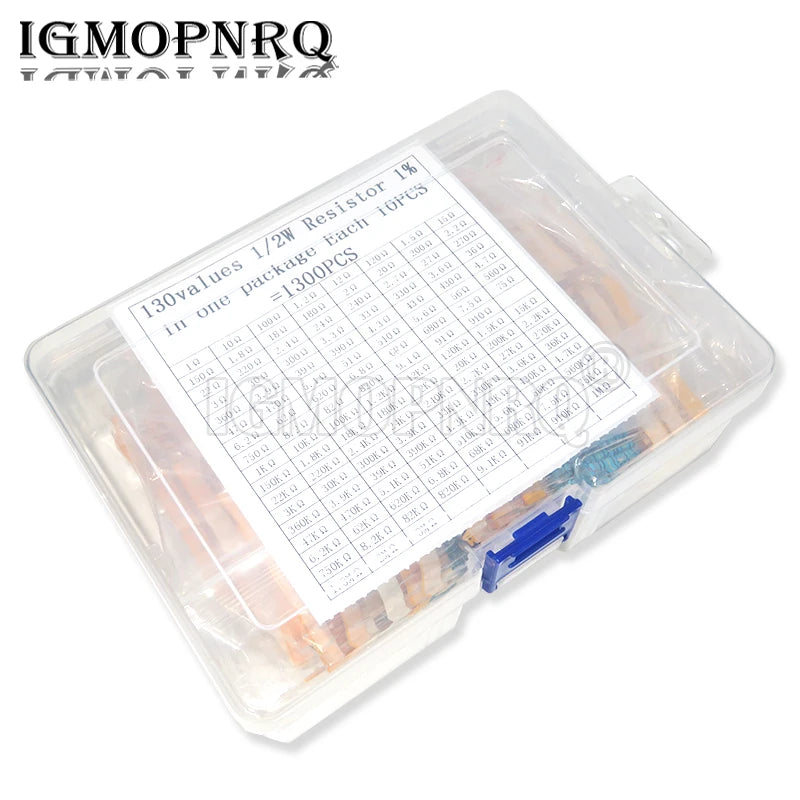

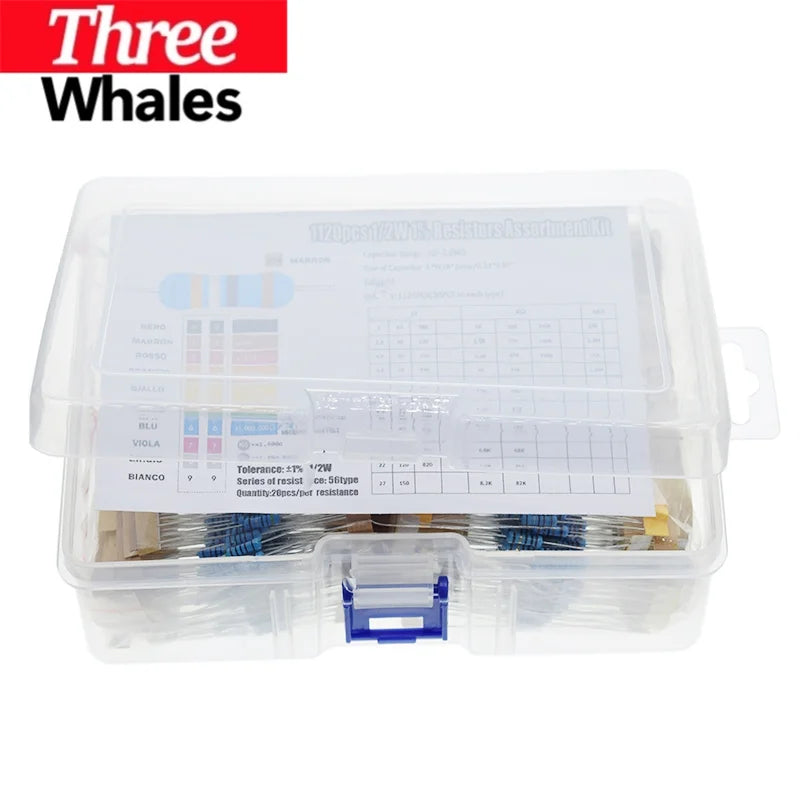

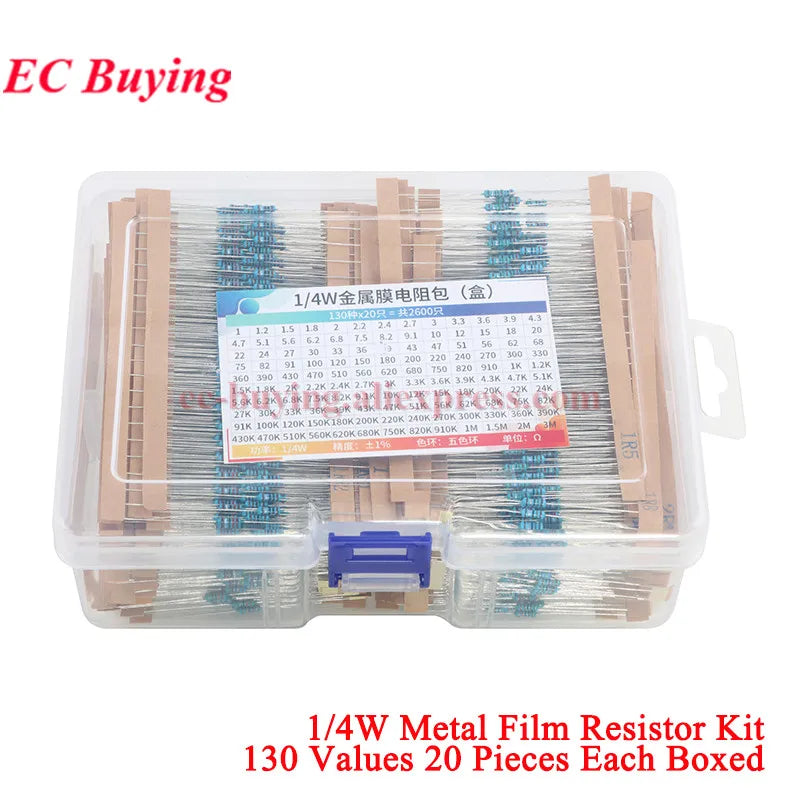

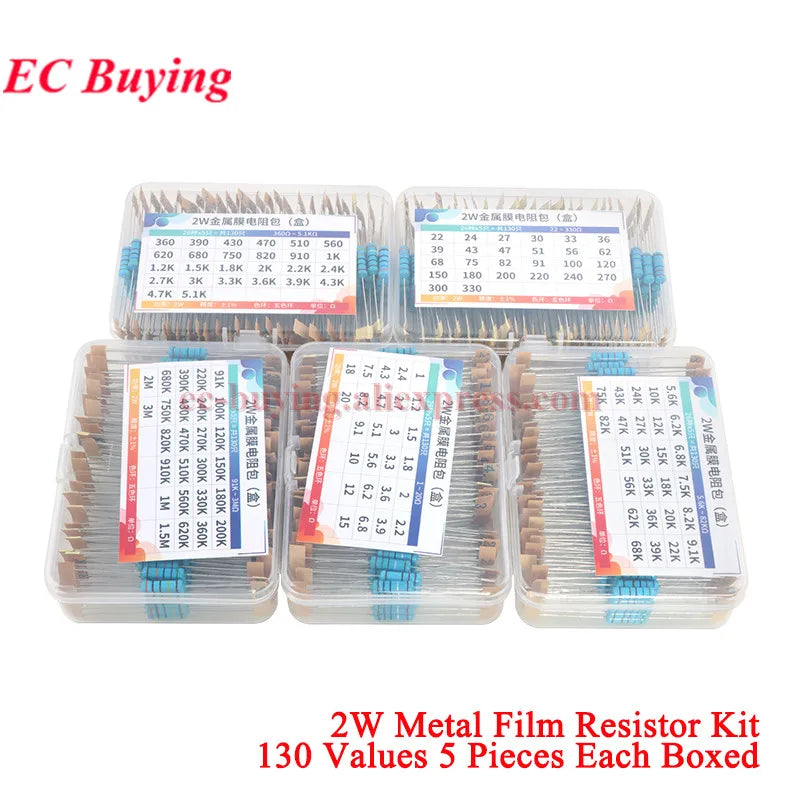

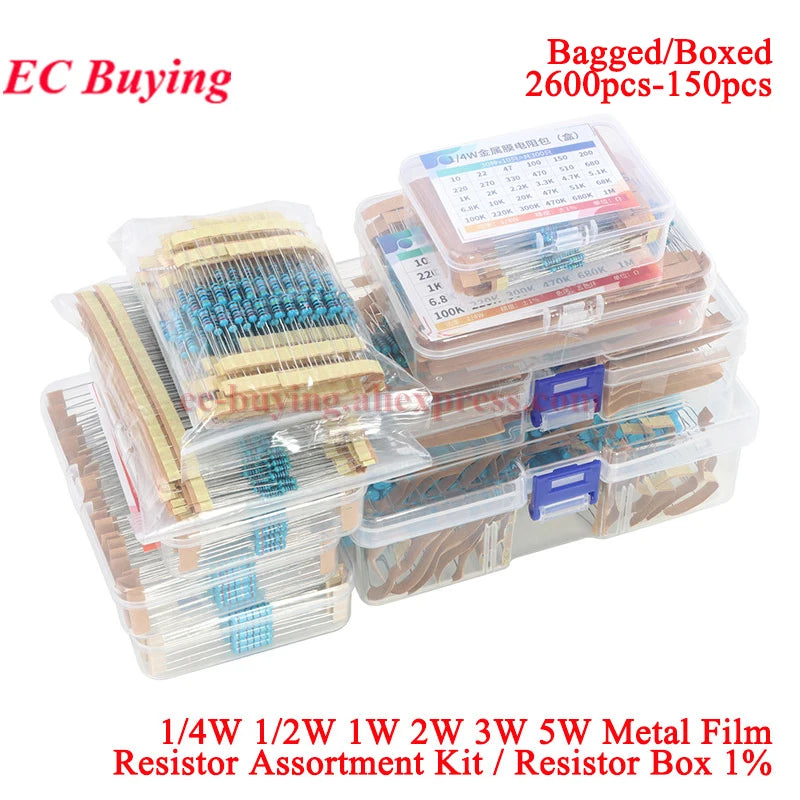

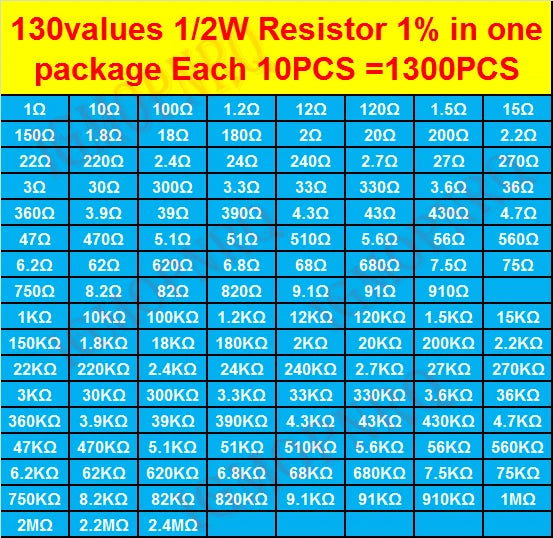

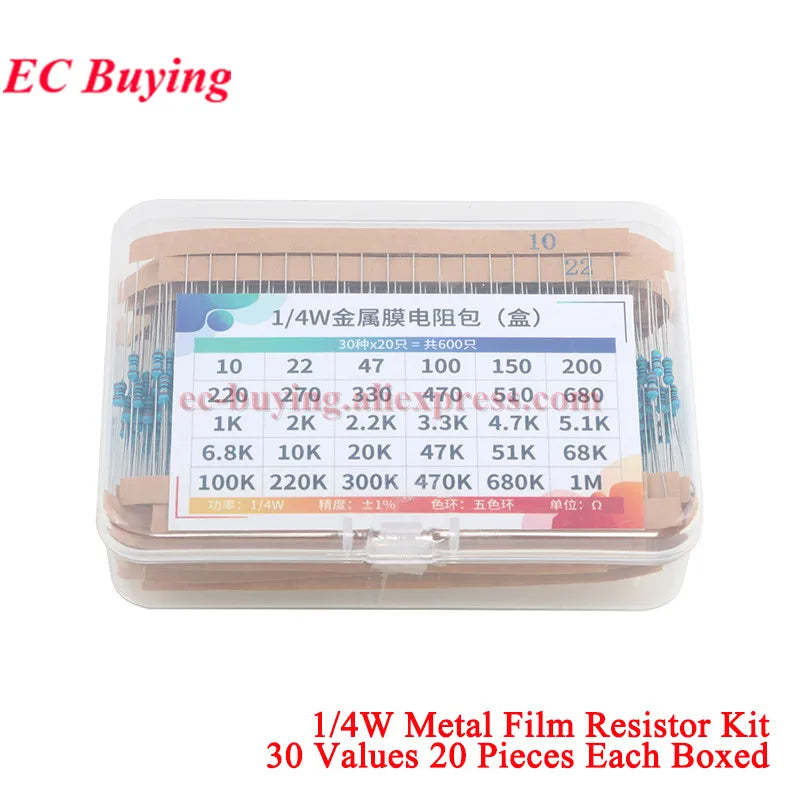

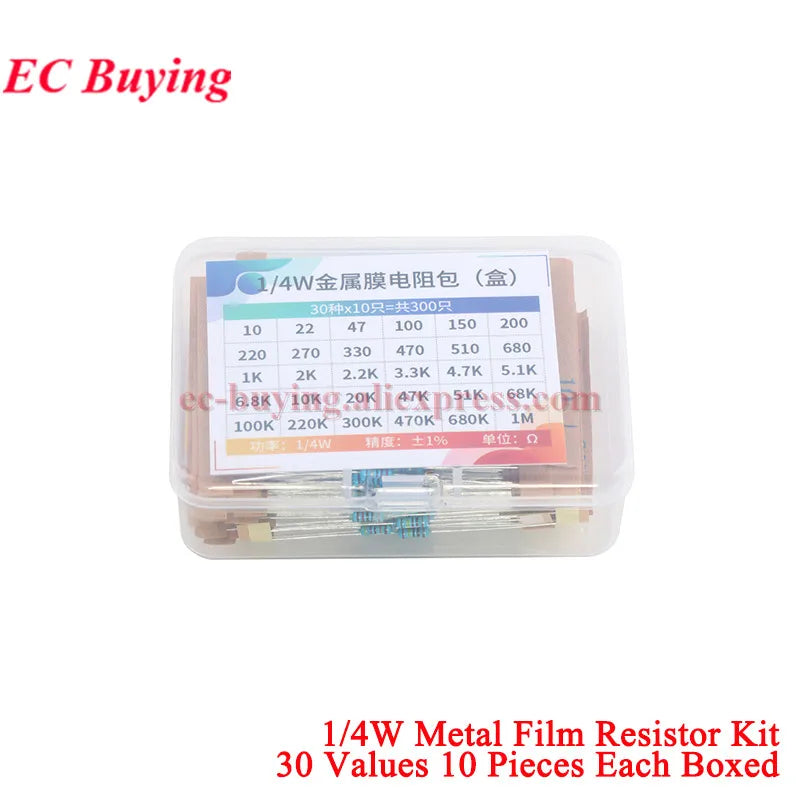

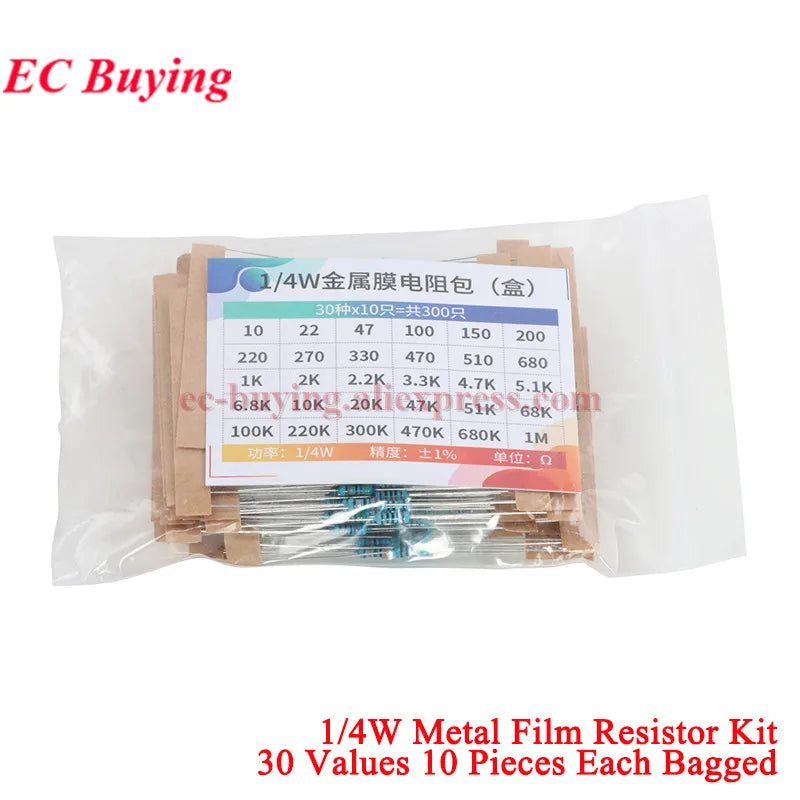

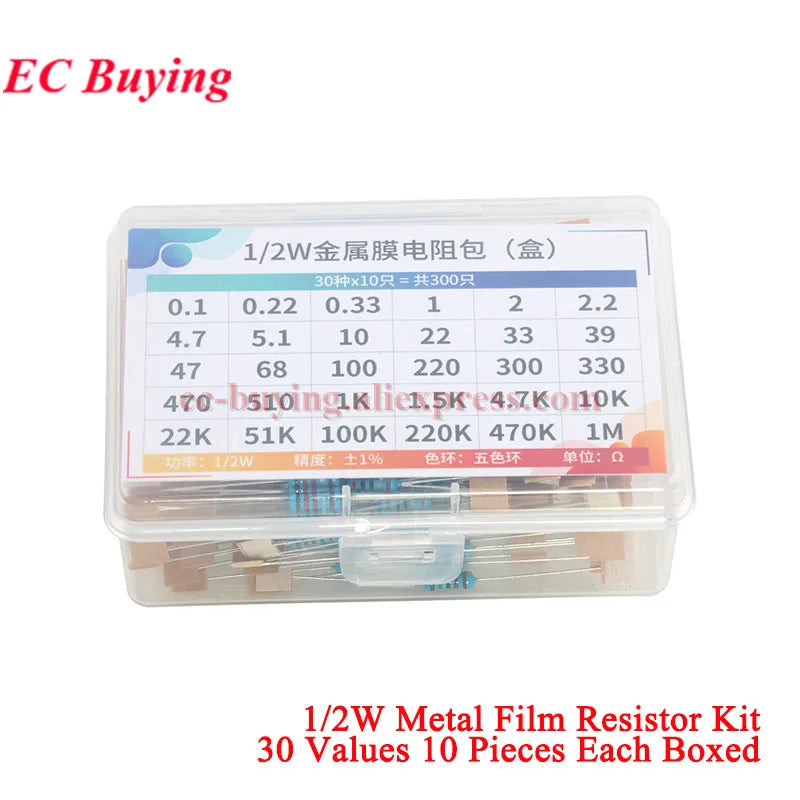

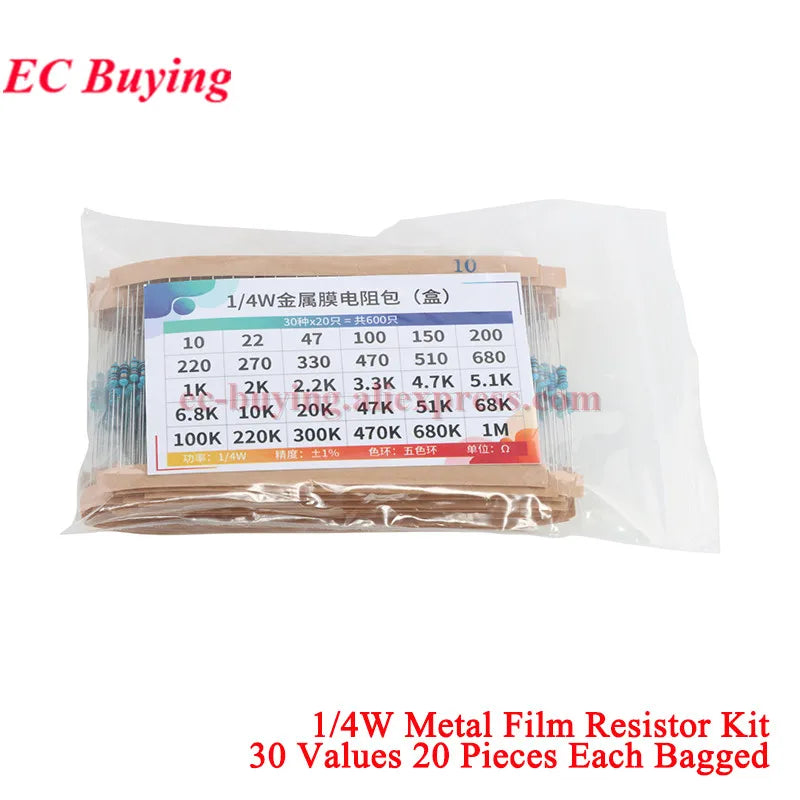

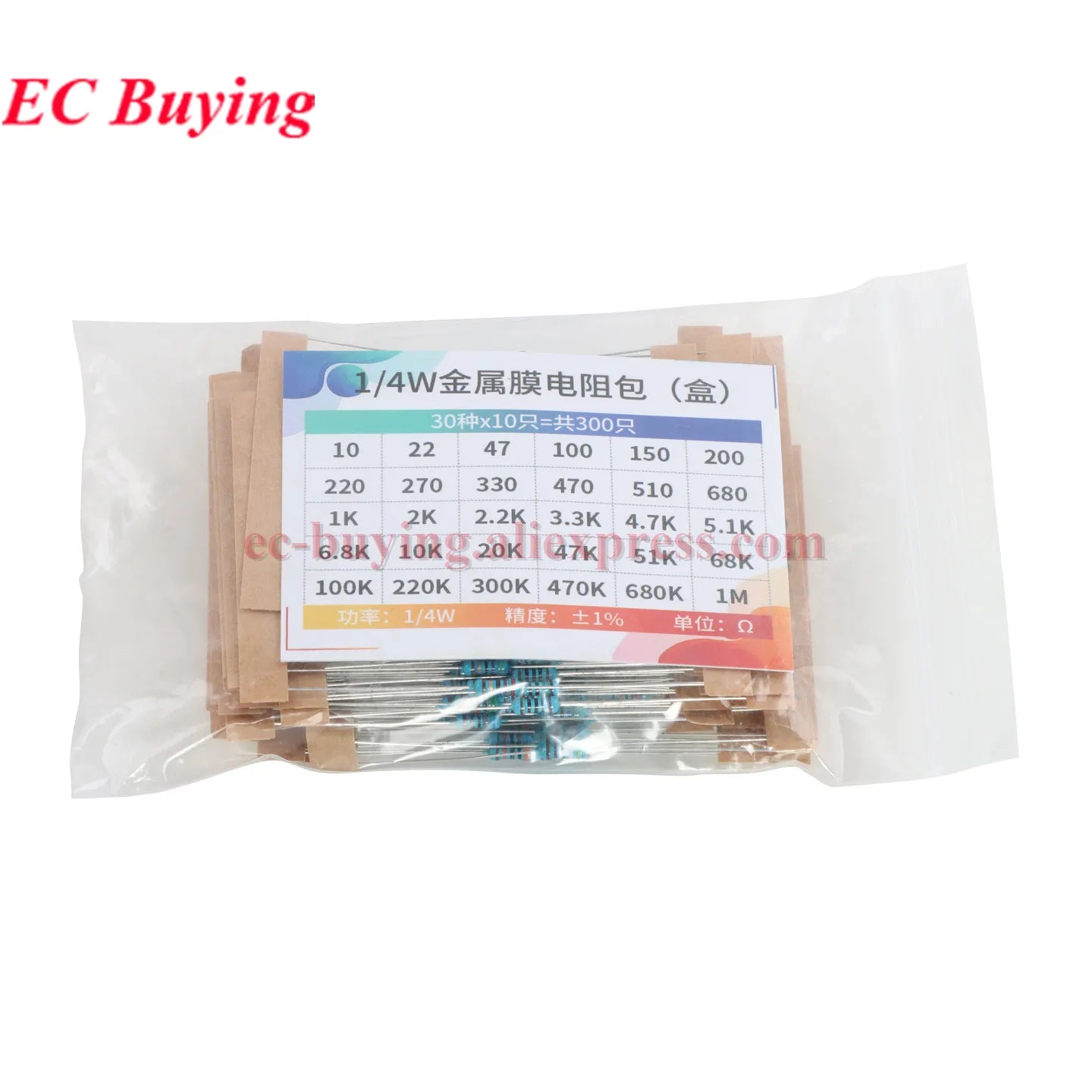

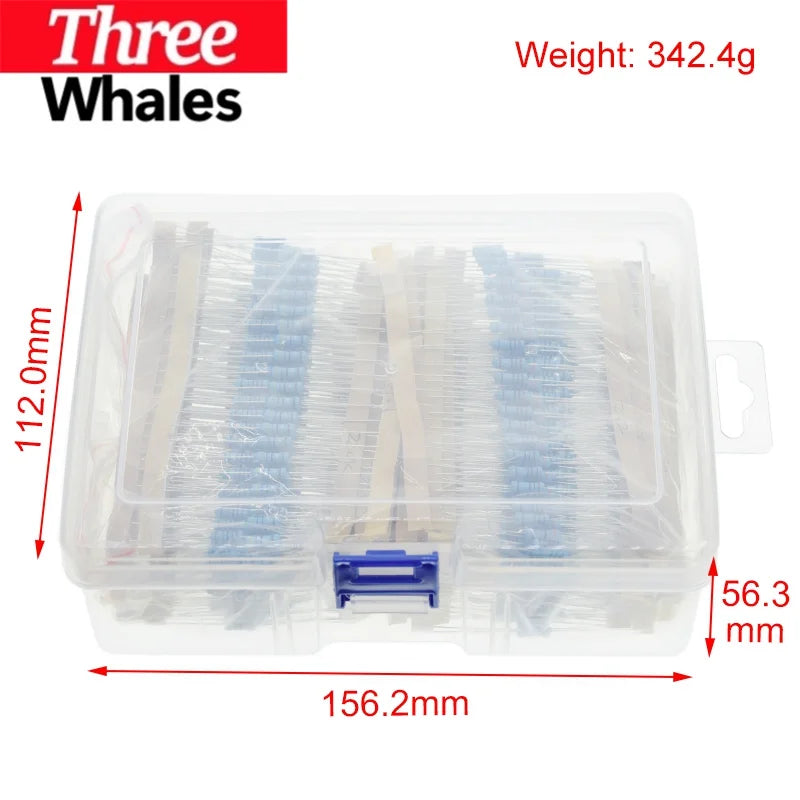

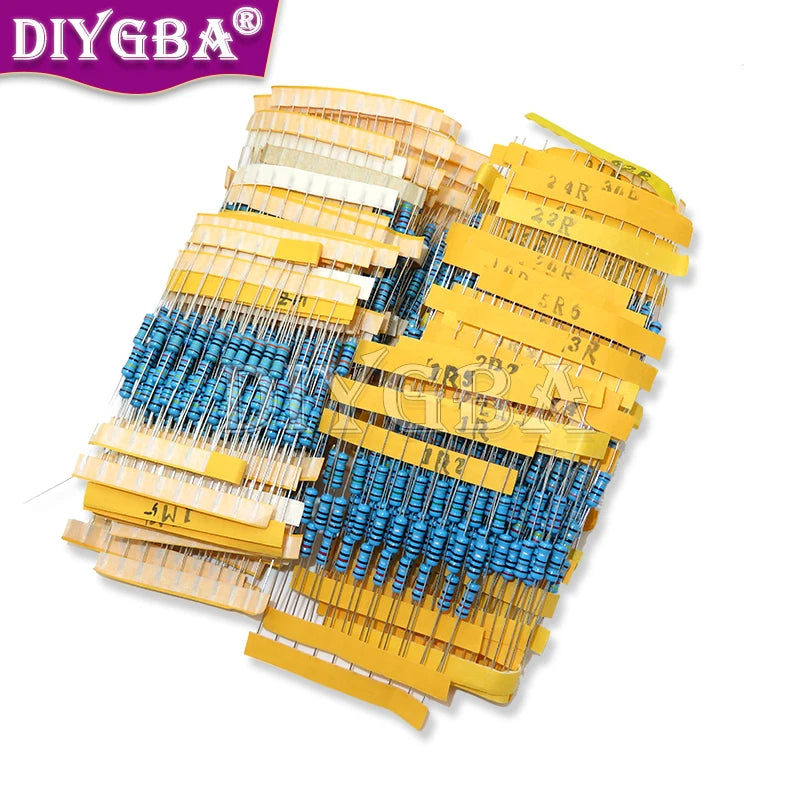

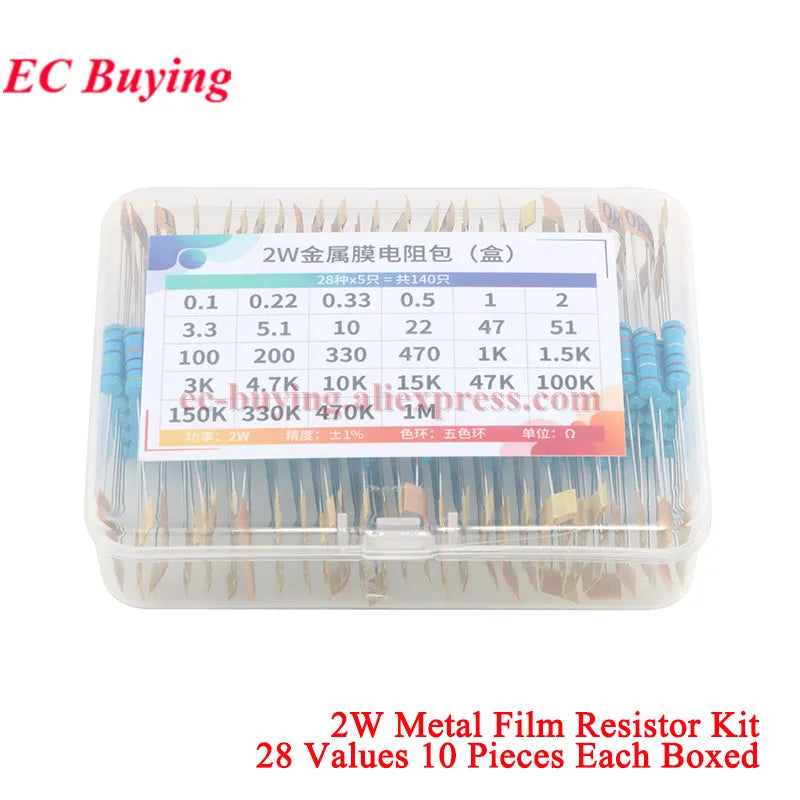

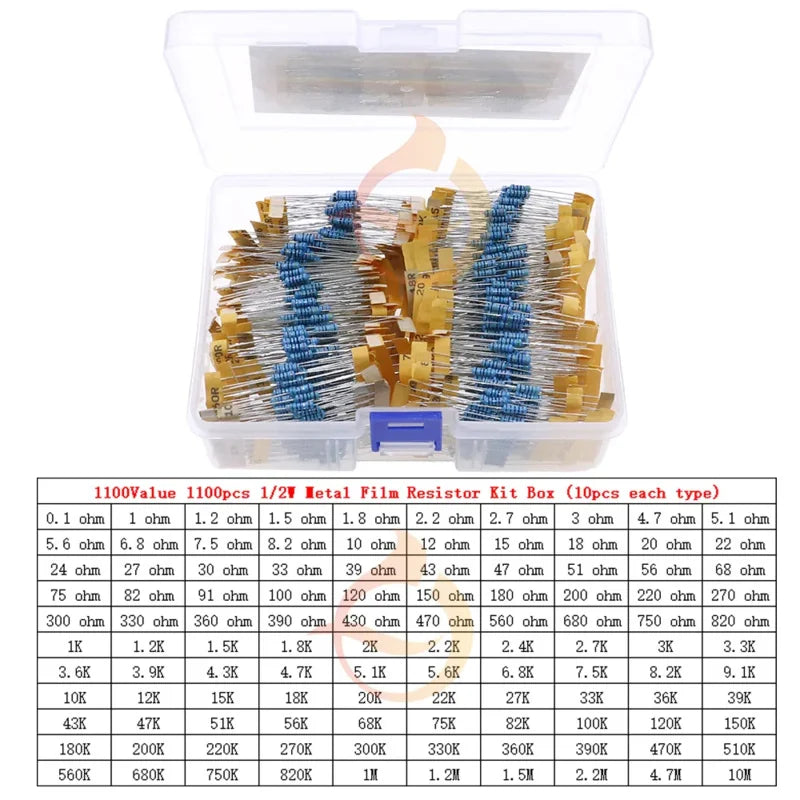

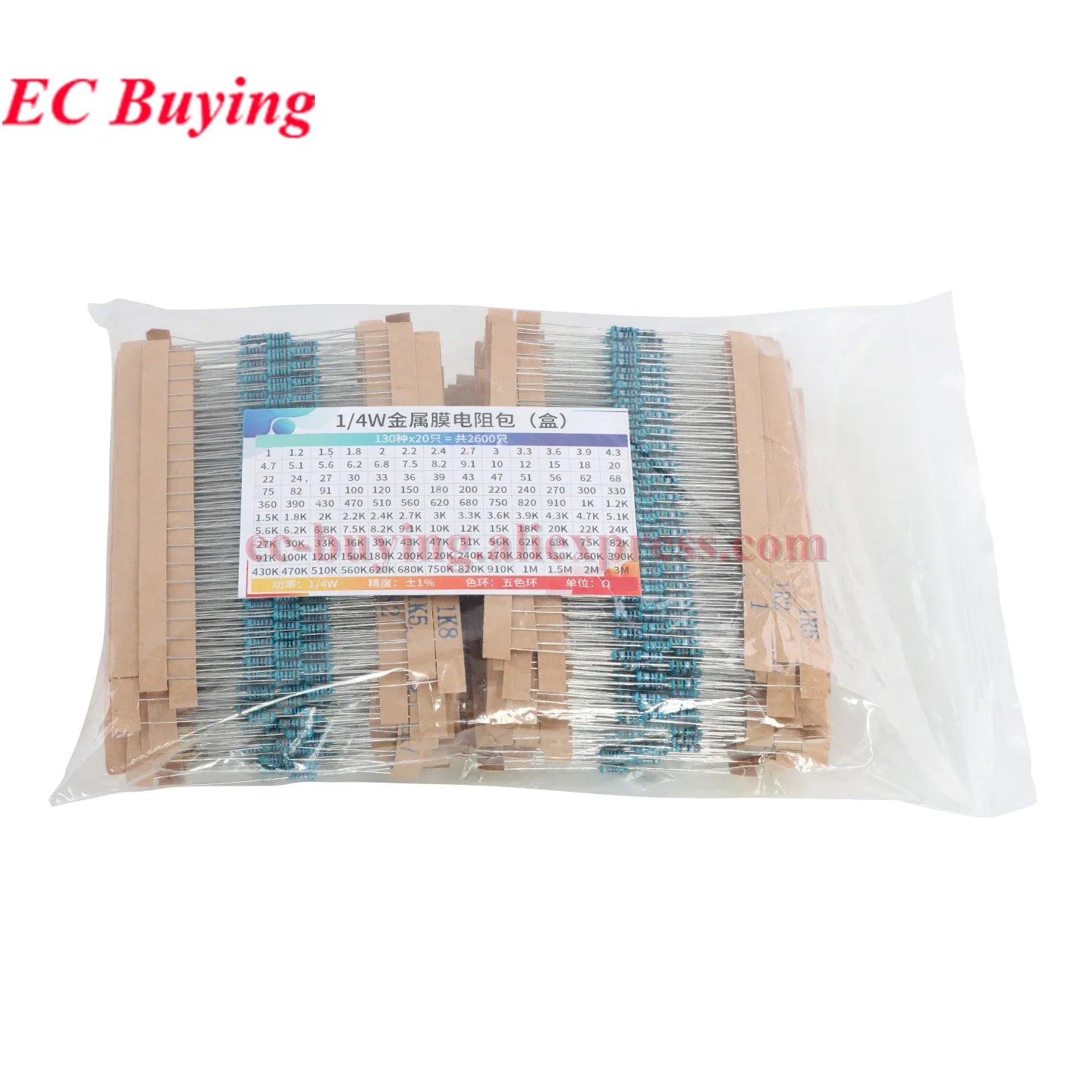

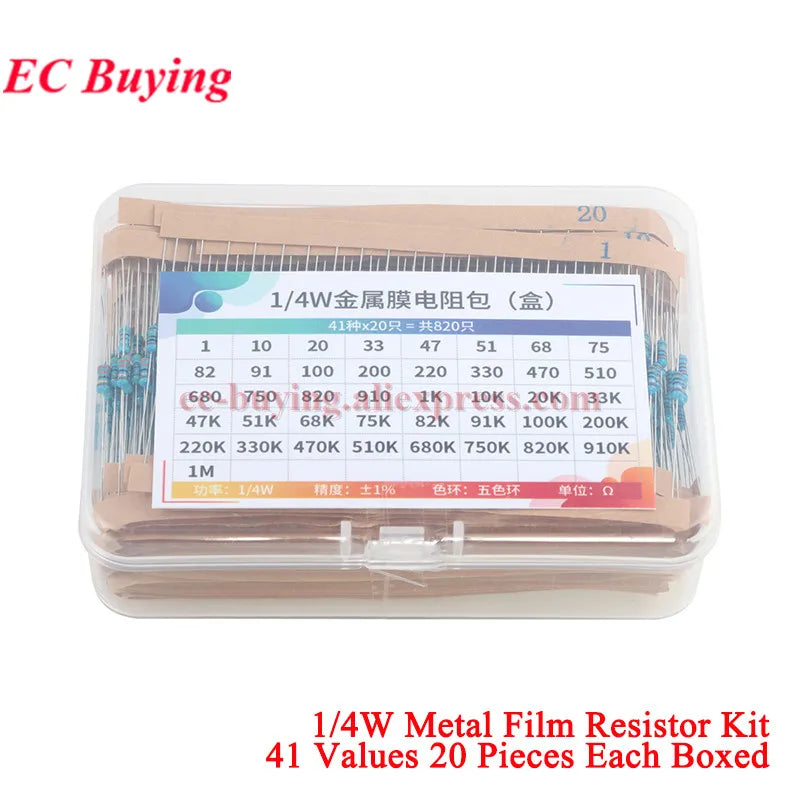

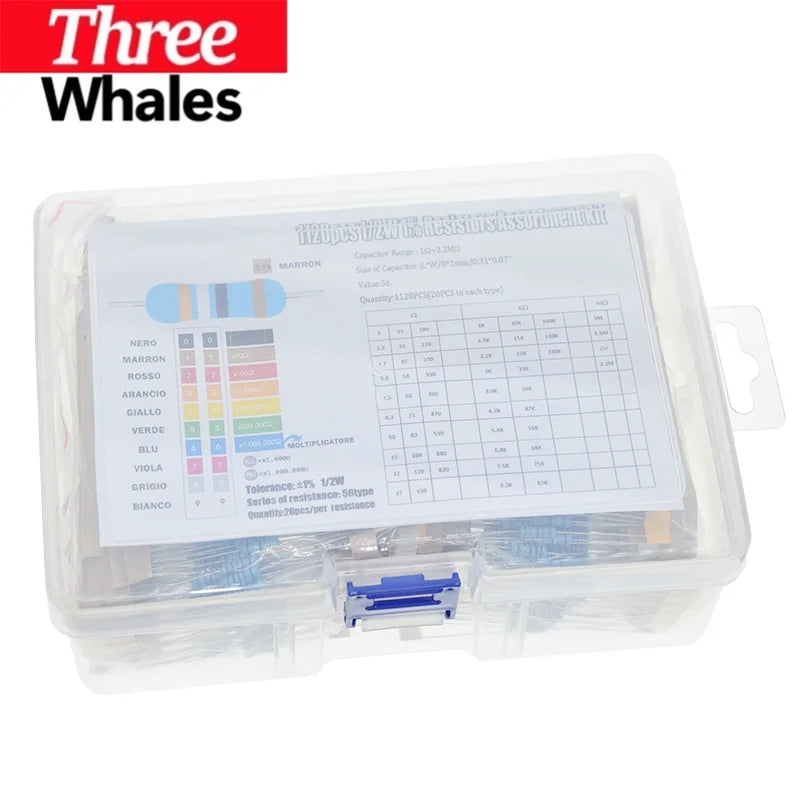

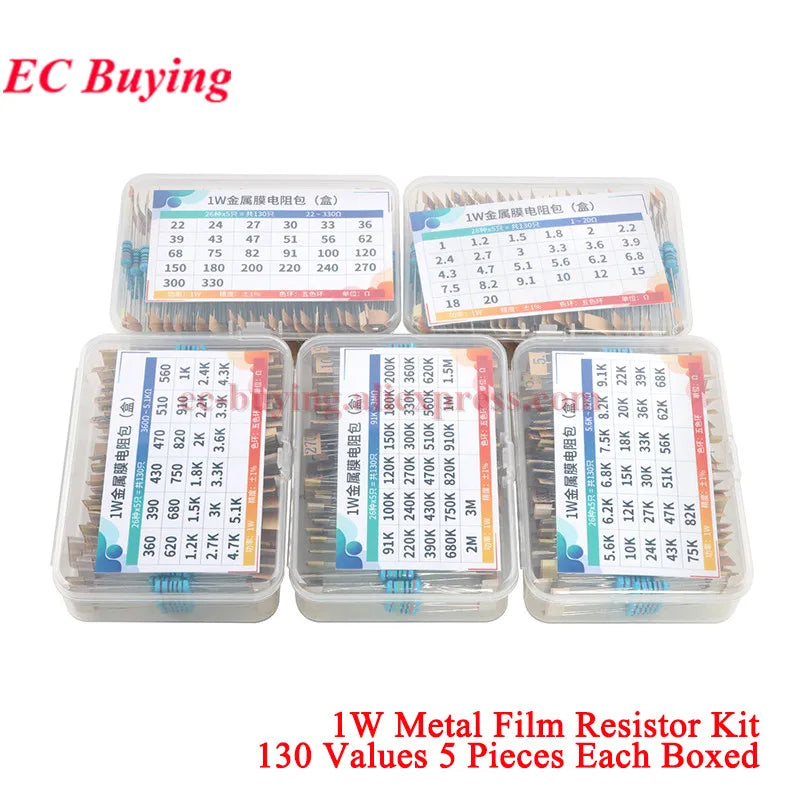

- Assortment kits: boxed, bagged and sample-book sets with different value counts and pieces per value.
- Special structures: RI40 glass-glaze high-resistance products and selected non-inductive listings.
How to select

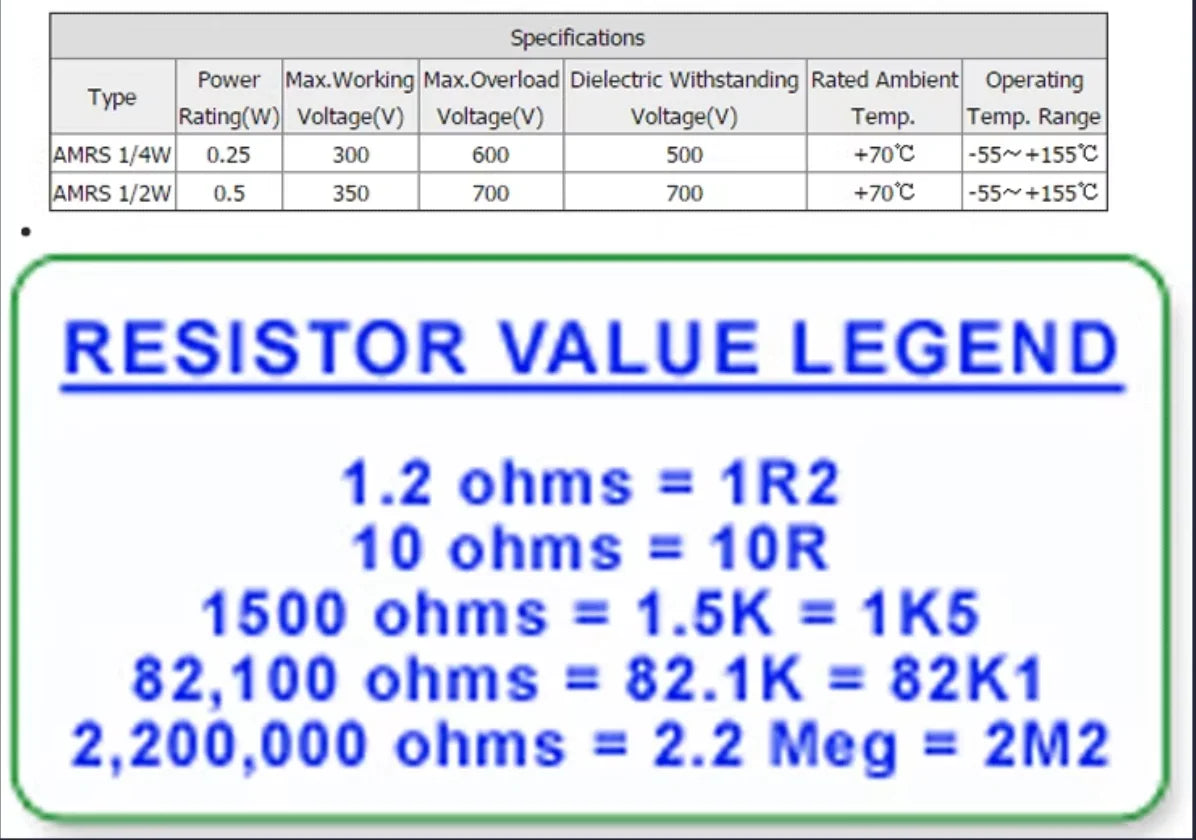

- Choose resistance: distinguish R, K, M and milliohm notation. R005 means 0.005Ω only where the listing uses that convention.
- Calculate dissipation: use P = I²R or P = V²/R, then add margin and apply temperature derating.
- Verify technology: metal film, carbon film, metal oxide, wirewound, glass glaze and alloy sampling parts are not interchangeable categories.
- Confirm tolerance and TCR: 1%, 0.1%, 0.01%, 25ppm and 5ppm claims belong only to the exact products that state them.
- Check voltage: especially for megohm and gigohm values, where working-voltage limits may be reached before 0.5W.
- Review pulse duty: steady-state wattage does not prove surge, braking, discharge or repetitive-pulse capability.

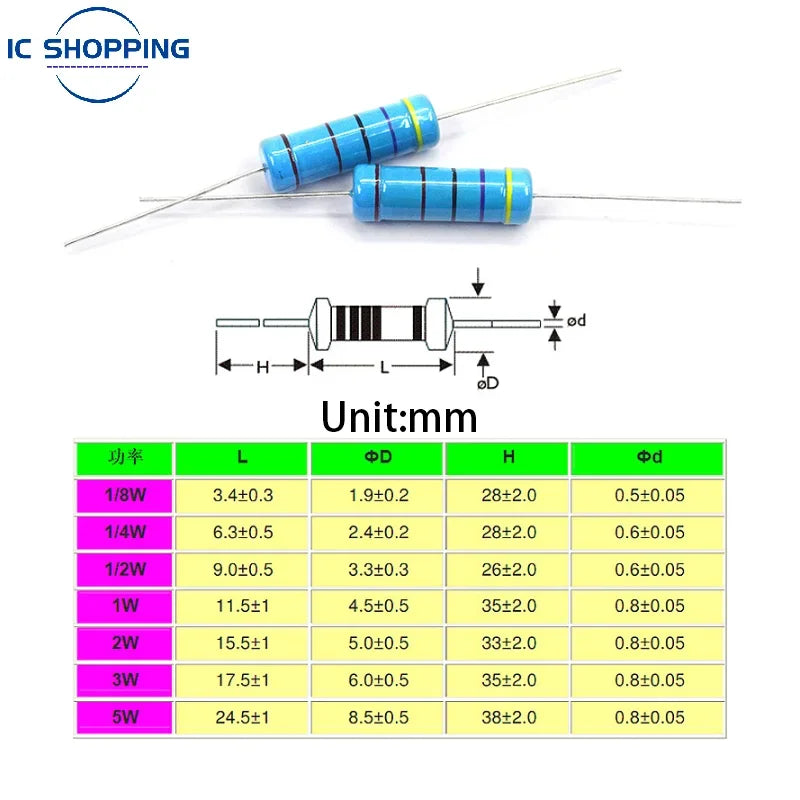

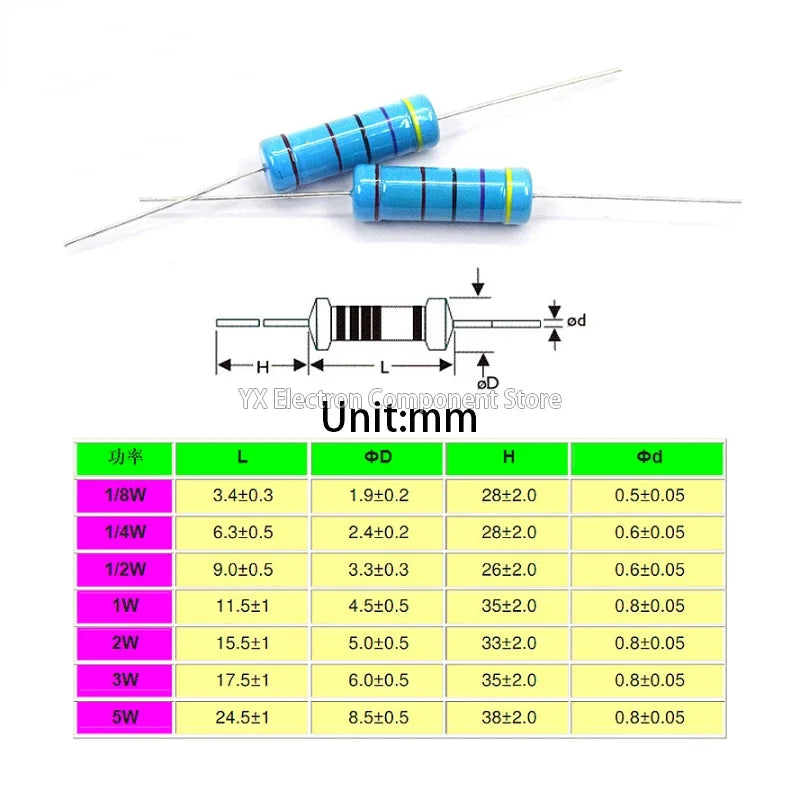

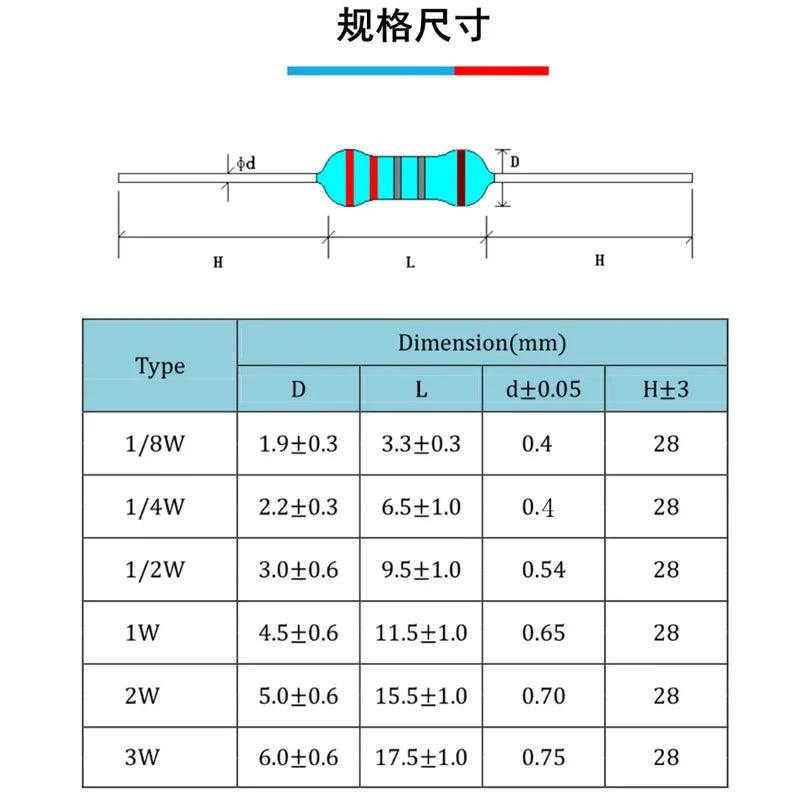

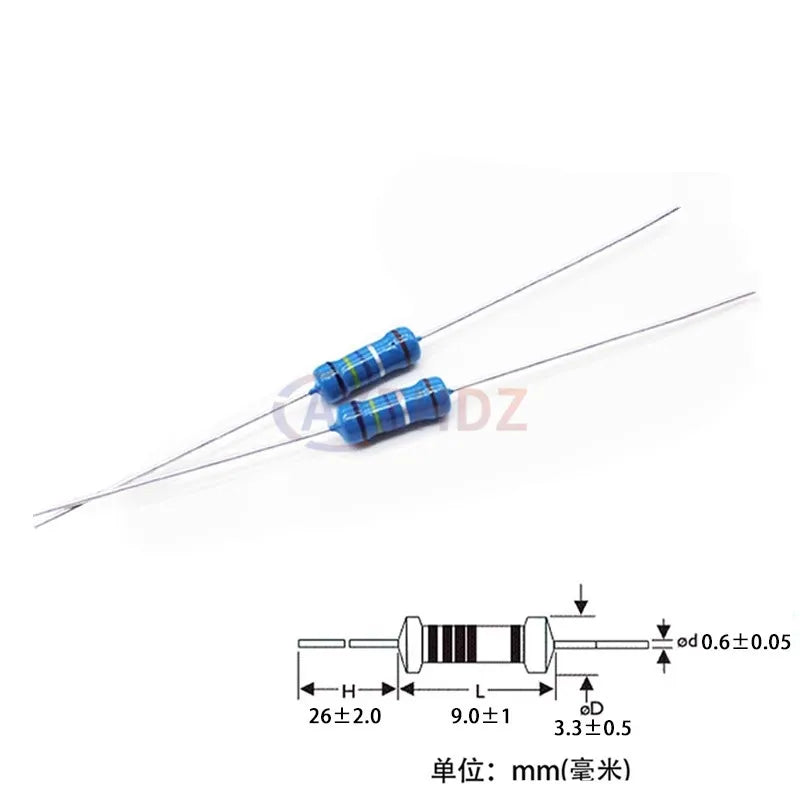

- Match mechanics: compare axial body size, lead spacing, SMD footprint or four-terminal connection.

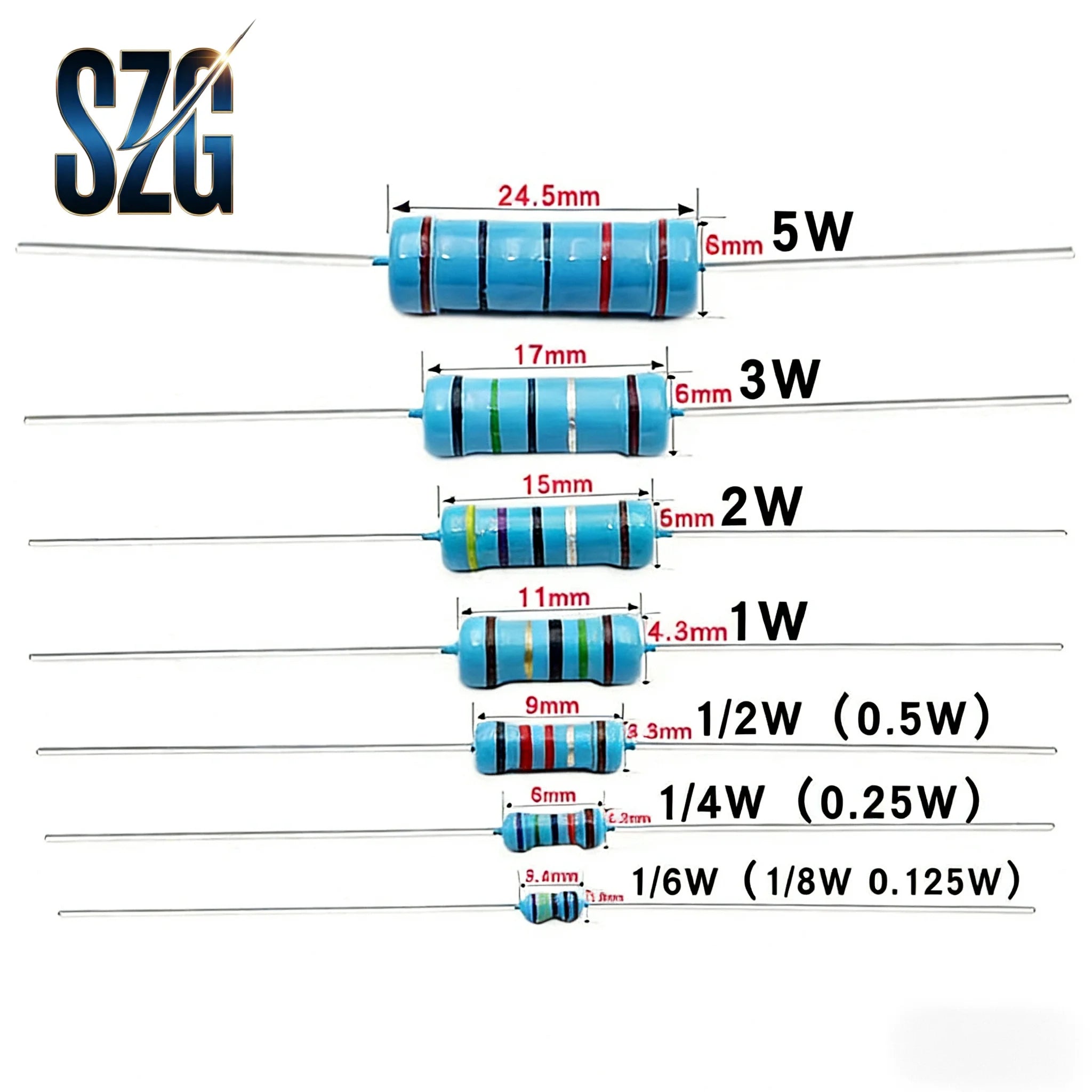

1/2W versus 1/4W axial resistors
A 1/2W resistor can provide additional dissipation margin, but it is usually physically larger. It is not automatically a drop-in replacement for a 1/4W part when lead spacing, board clearance, voltage coefficient, noise or frequency behavior matters. A higher wattage rating also does not eliminate the need for derating.
General-purpose versus precision resistors
General metal film and carbon film products suit routine biasing, current limiting and repair. Precision listings target measurement, calibration or stable reference networks and may specify tighter tolerance or lower TCR. Tolerance and TCR are separate: a tightly trimmed resistor can still drift with temperature unless its TCR is also suitable.
Low-ohm and current-sense boundaries
A low resistance value does not automatically make a component an accurate current shunt. Verify resistance tolerance, TCR, overload stability and connection geometry. Four-terminal parts such as selected RX76 listings require Kelvin connections to use their intended sensing advantage. Standard two-lead routing adds copper and contact resistance.
Non-inductive and high-frequency boundaries
Only products explicitly identified and documented as non-inductive should be selected where parasitic inductance matters. Ordinary axial film and wirewound resistors may behave differently at higher frequencies. Confirm residual inductance, capacitance and frequency response for sensitive circuits.
Collection boundaries

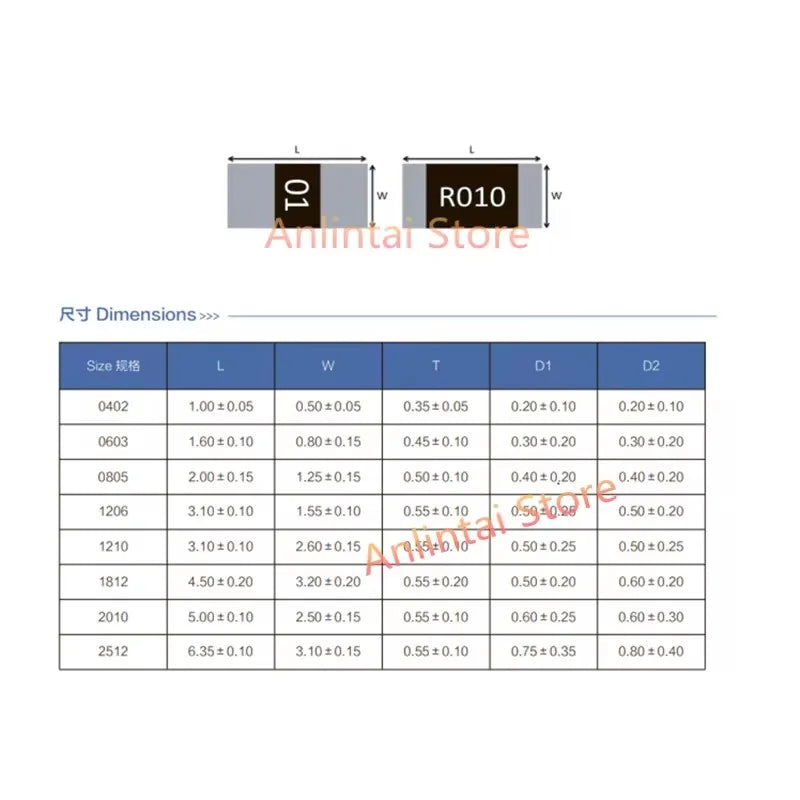

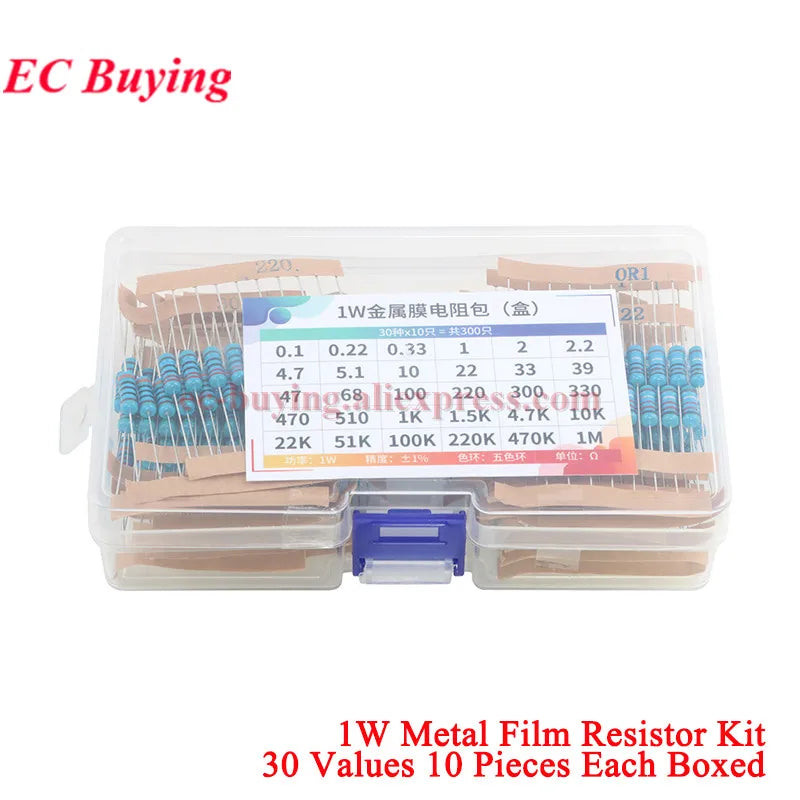

Shared listings include 0.25W, 1W, 2W, 3W and 5W options. Select the 0.5W variant when 1/2W is required. The included 0805 and 1210 SMD products are not mechanical substitutes for axial parts, and package names do not guarantee identical power performance across manufacturers. RS485/CAN 120Ω listings require the correct network topology and placement; resistance and wattage alone do not prove protocol suitability. Audio, military or application wording in a title does not establish certification or system compatibility.
Typical applications
- Power-supply bias, feedback and bleeder paths within ratings
- LED and transistor current limiting after calculation
- Through-hole repair where 0.5W size and ratings match
- Prototype and service-bench assortment stock
- Measurement dividers and calibration networks using verified precision parts
- Low-ohm sensing using suitable product construction and Kelvin layout
Ordering checklist
- Resistance and notation
- 0.5W variant selection
- Construction: metal film, carbon film, wirewound, glass glaze or SMD alloy
- Tolerance and TCR
- Working voltage, overload and pulse requirement
- Body size, lead spacing, footprint or terminal count
- Value coverage and quantity per value for kits
- Required thermal margin and airflow
Frequently asked questions
Can a 1/2W resistor replace a 1/4W resistor?
Sometimes, but only after checking resistance, tolerance, dimensions, voltage, pulse behavior and circuit requirements.
Can I continuously run a 0.5W resistor at 0.5W?
Not as a default design rule. Use derating and allow margin for ambient temperature, enclosure and airflow.
Are all products here axial through-hole resistors?
No. The collection also includes SMD, four-terminal and special high-resistance products.
Are all precision listings non-inductive?
No. Non-inductive construction must be stated for the exact product and verified for the required frequency.
Does 0.01% tolerance also mean 5ppm TCR?
No. Initial tolerance and temperature coefficient are independent specifications.
Can any low-ohm resistor be used for current measurement?
No. Check TCR, tolerance, power, overload stability and Kelvin connection requirements.
Are 120Ω resistors automatically suitable for RS485 or CAN termination?
No. Confirm the bus impedance, node position, topology, connector wiring and equipment specification.
