2512 SMD Current-Sense, Alloy & Power Resistors
2512 SMD resistors for current sensing, low-ohm paths and power circuits
This collection centers on 2512 imperial surface-mount resistors, including general-purpose chip resistors, low-ohm alloy shunts, current-sense parts, single-value packs and assortment kits. The relatively large body provides useful board-level thermal area, but package size alone does not establish power, current, precision or pulse capability.
What is a 2512 resistor?

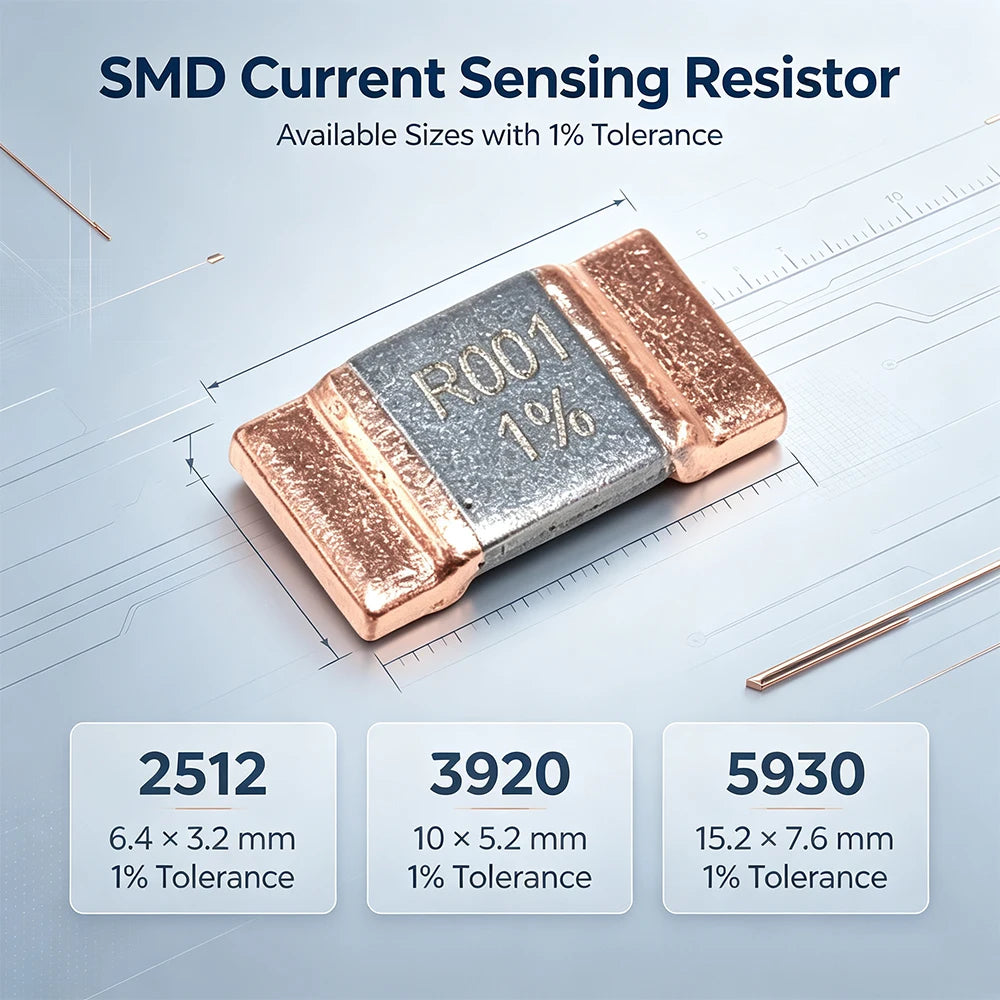

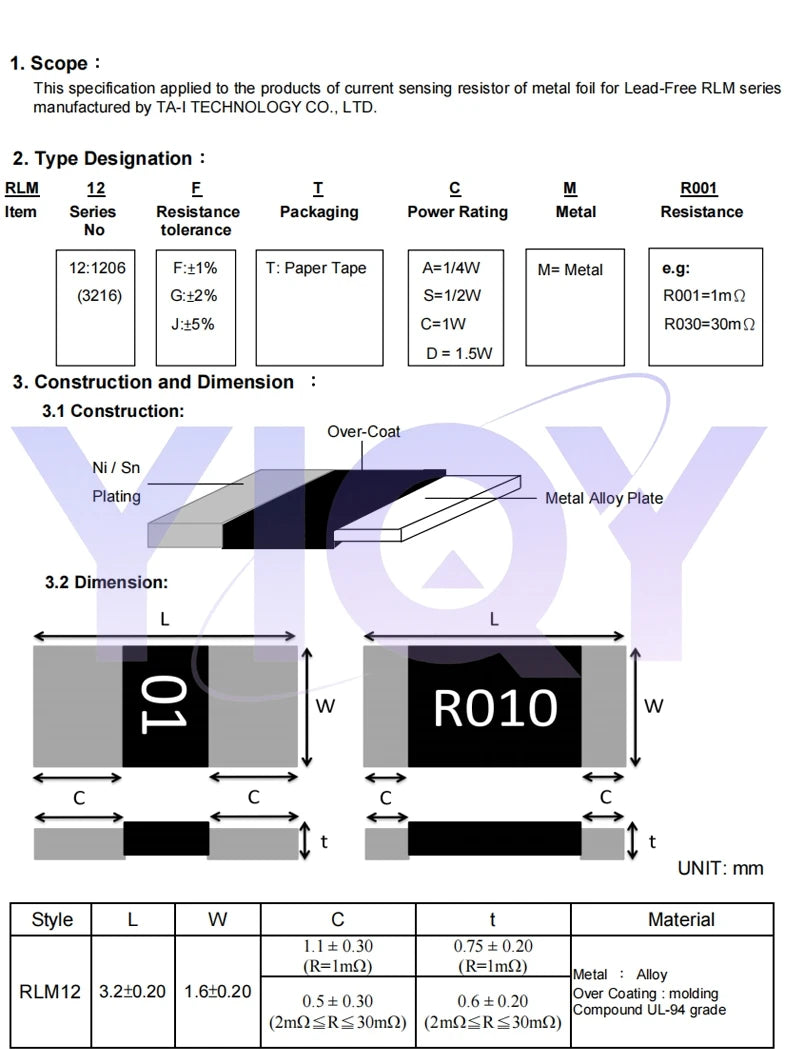

2512 imperial describes a nominal body around 0.25 × 0.12 inches and commonly corresponds to 6432 metric. It defines dimensions, not resistance technology or electrical rating. Products sharing this footprint may use thick-film, metal-alloy or manganese-copper constructions with very different performance.
Products represented

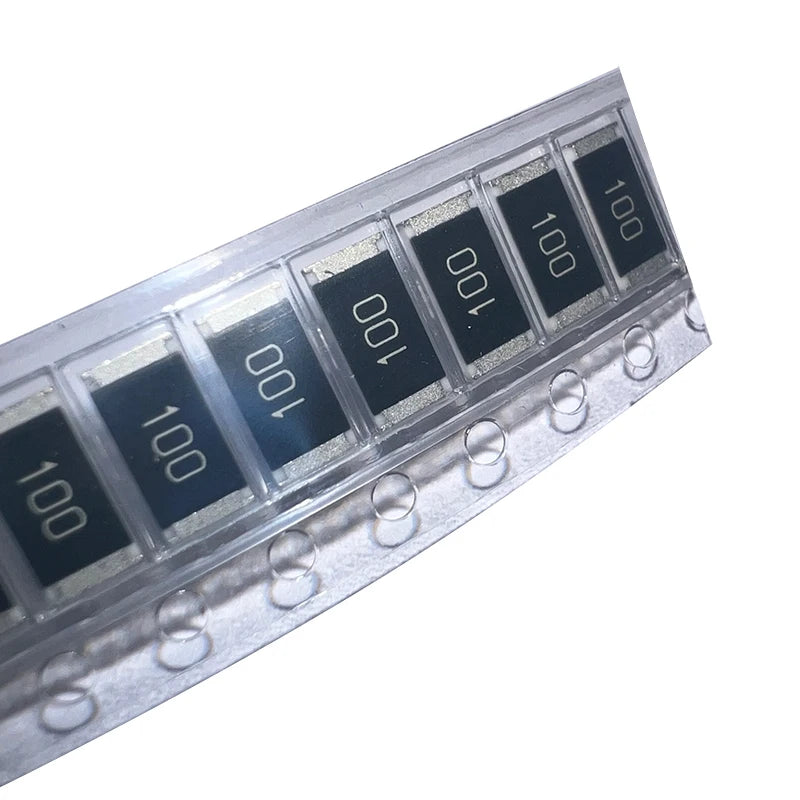

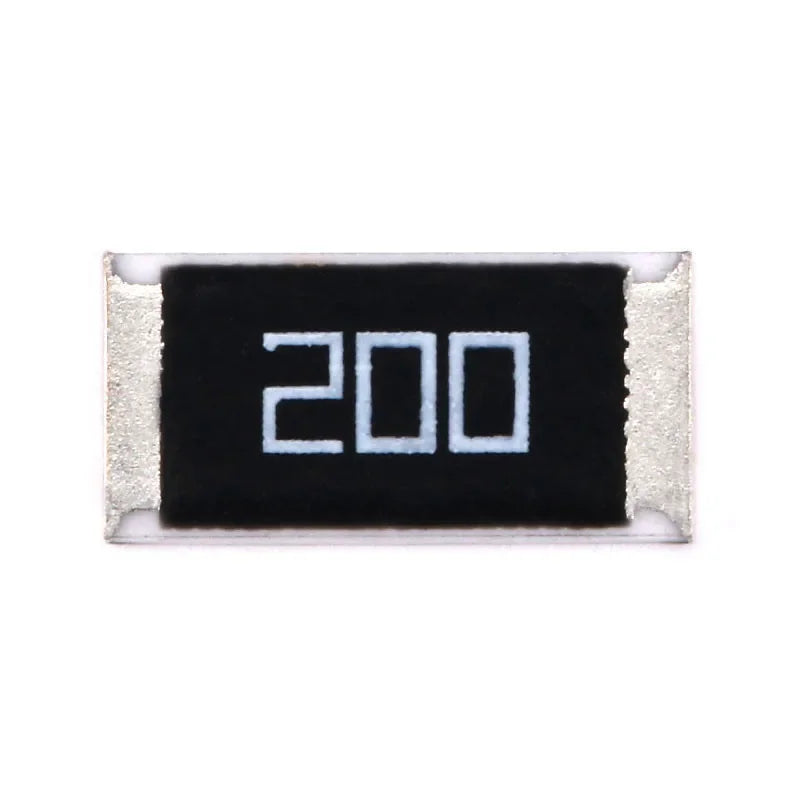

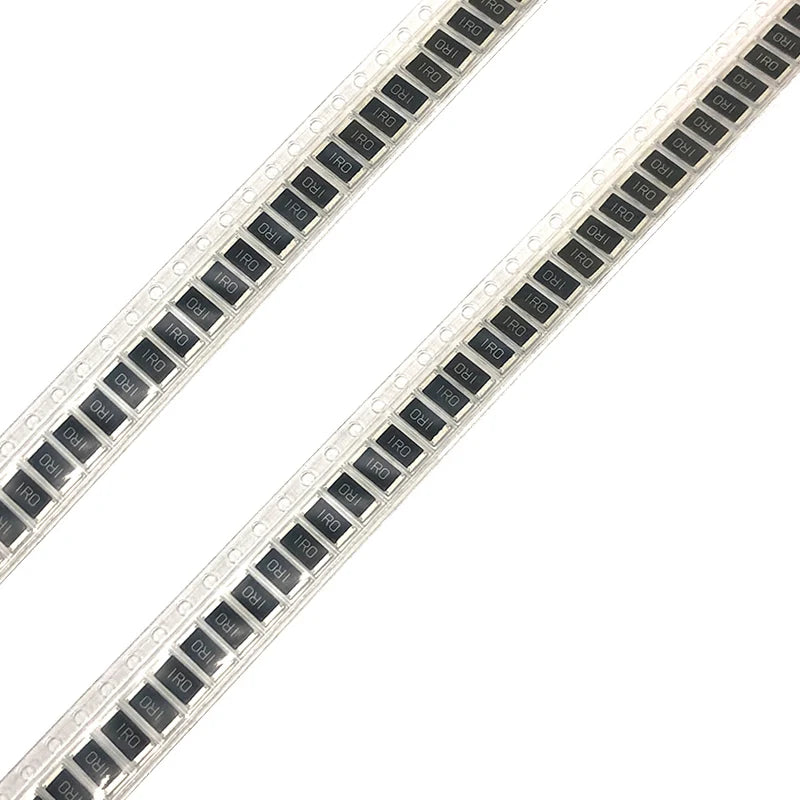

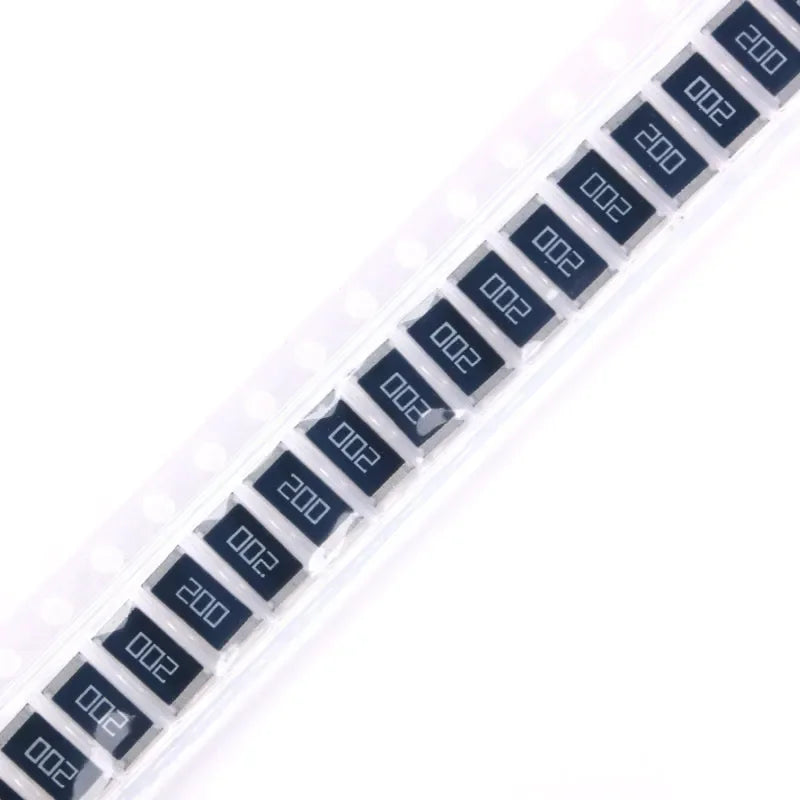

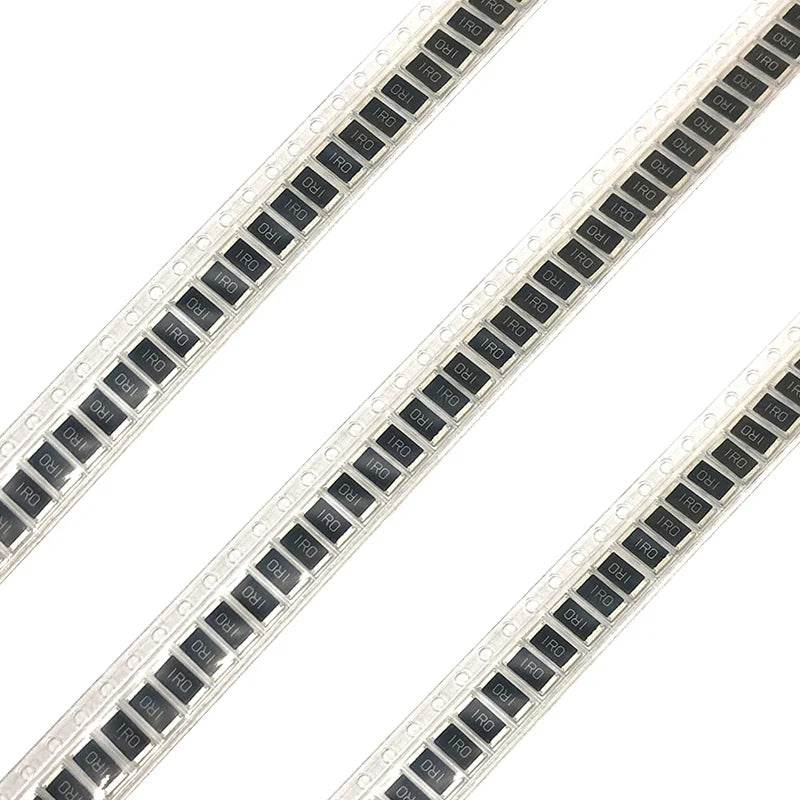

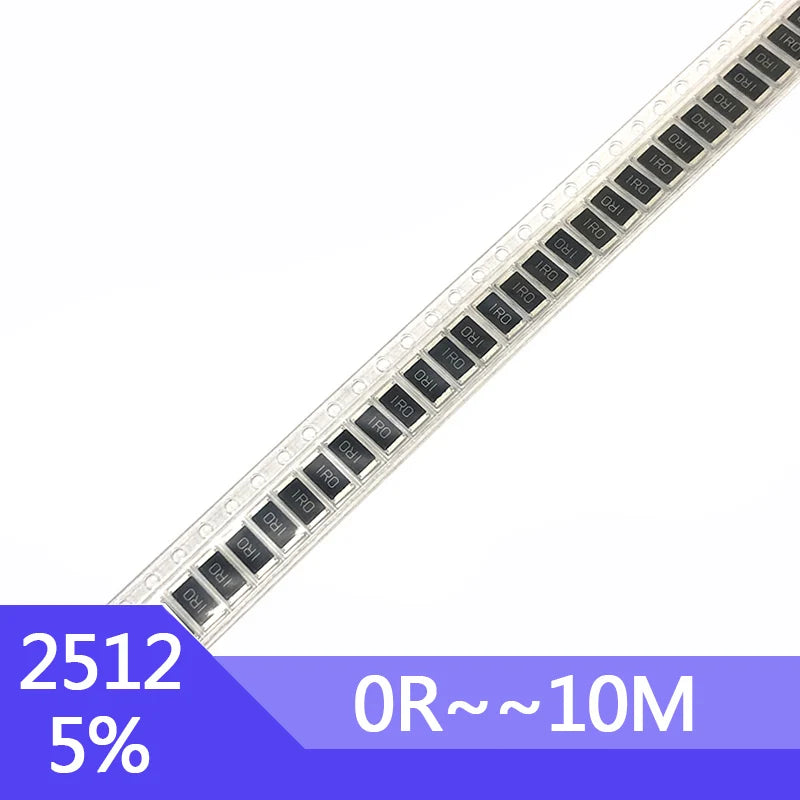

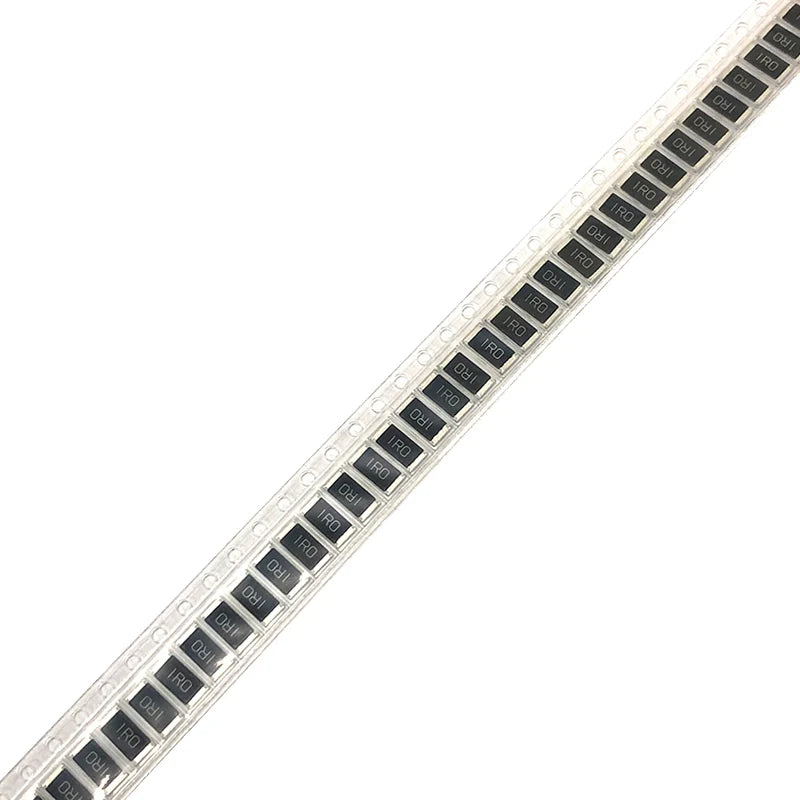

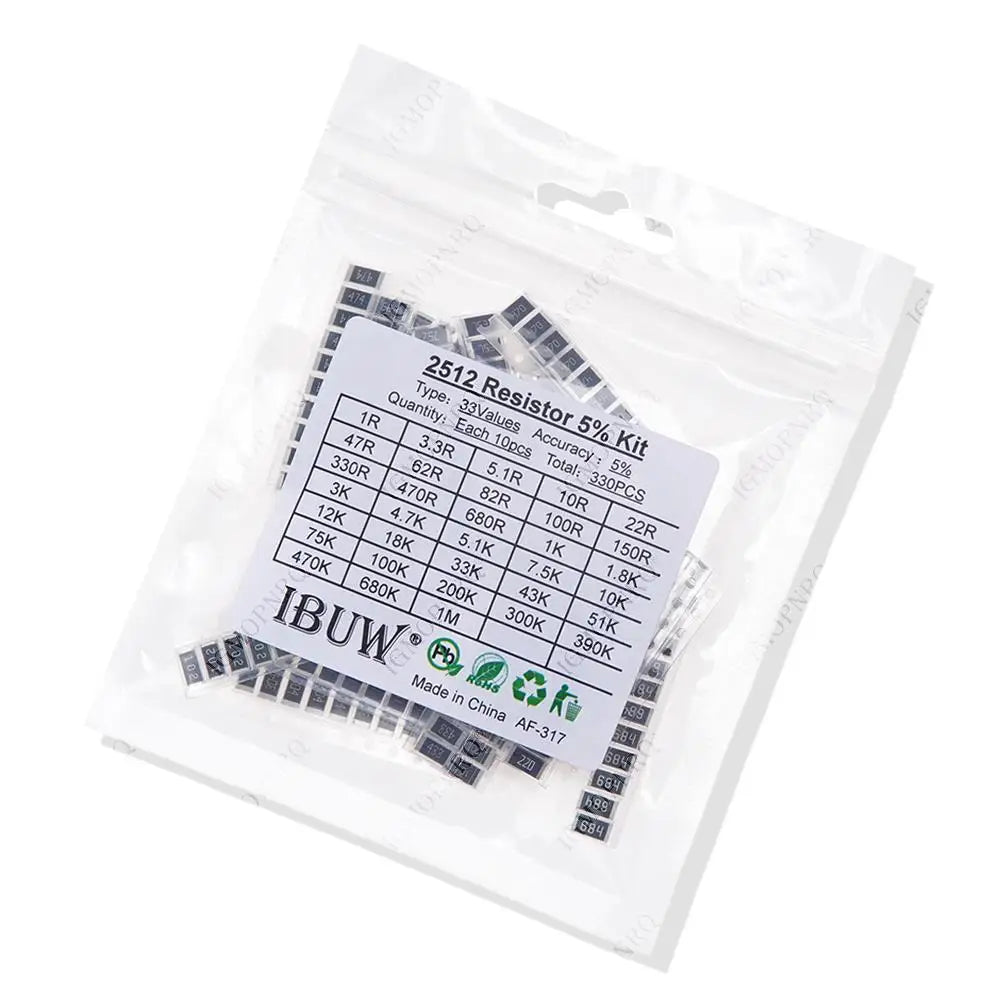

- General-purpose fixed resistors: values from 0R and low ohms through kilohm and megohm ranges.

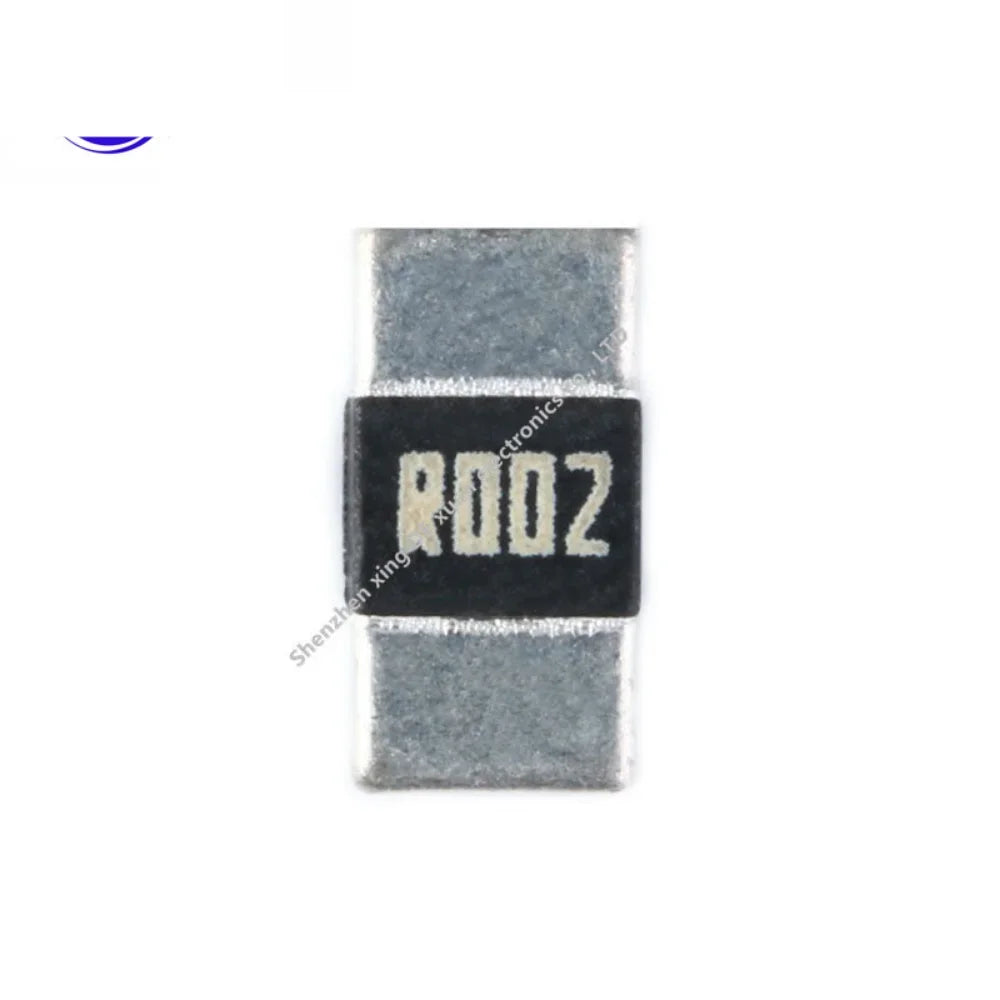

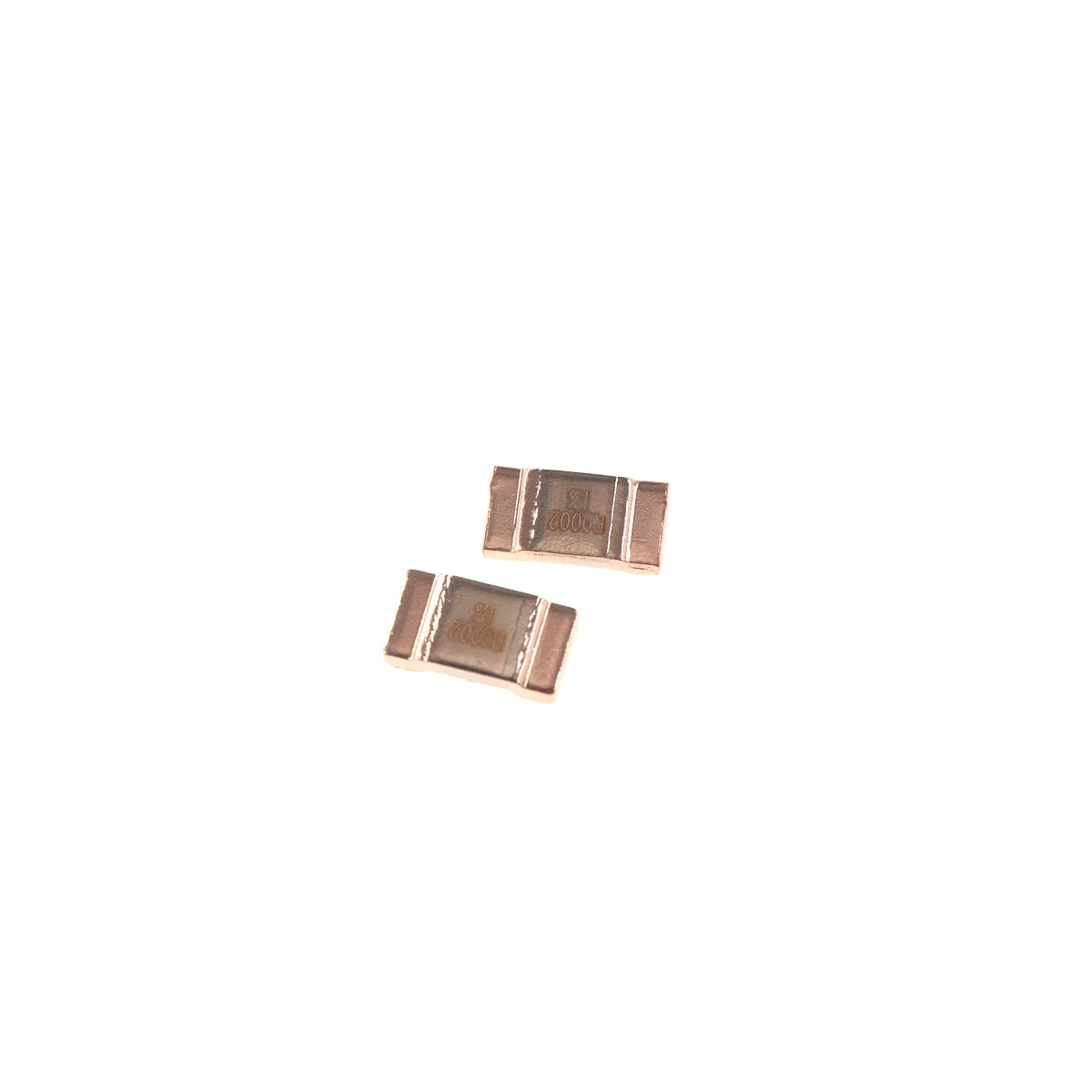

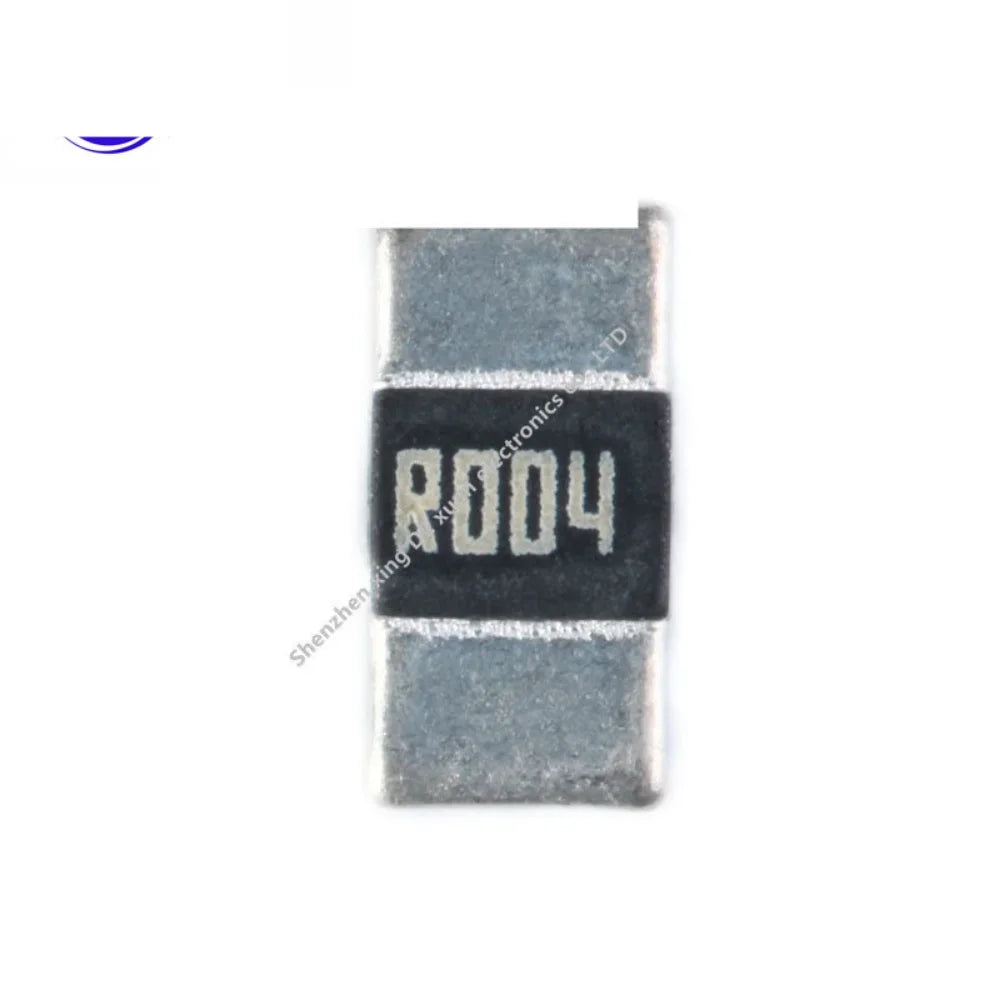

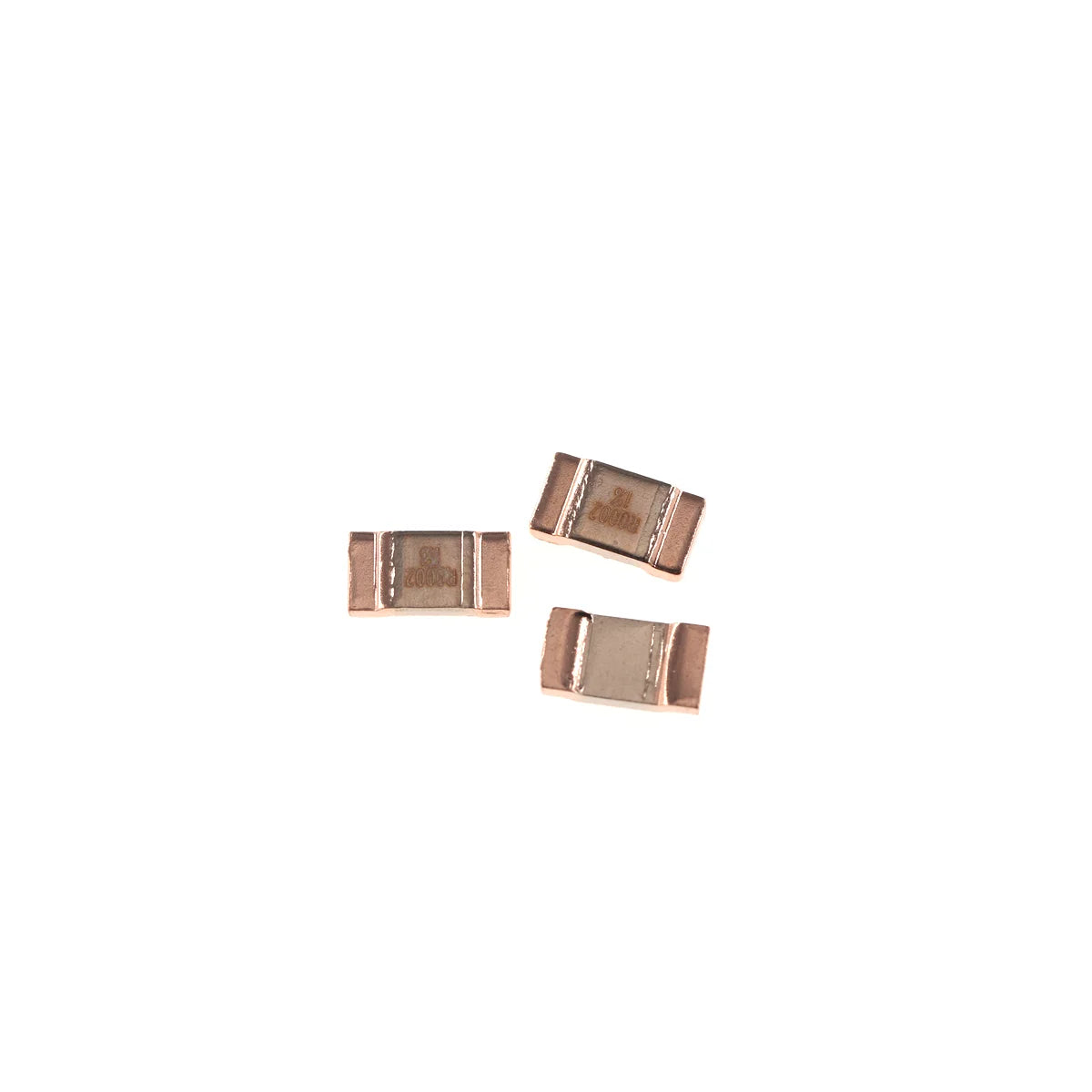

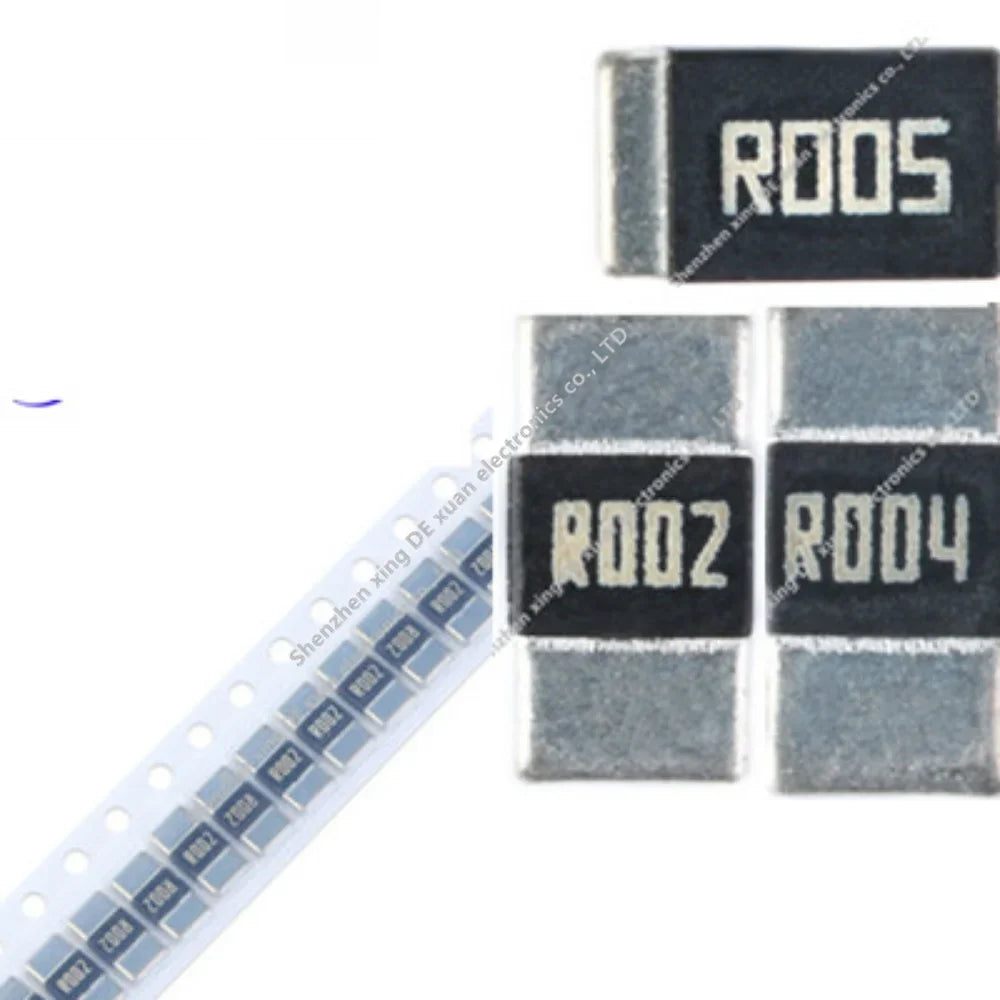

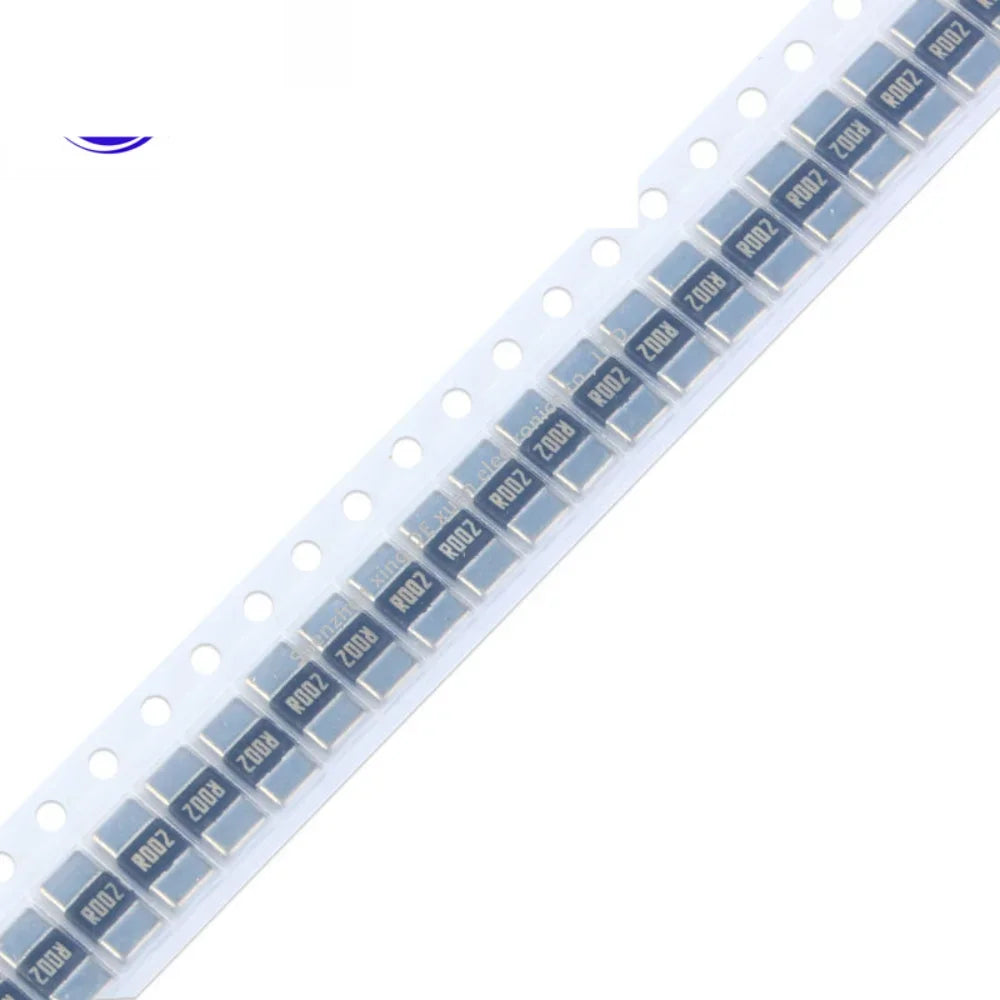

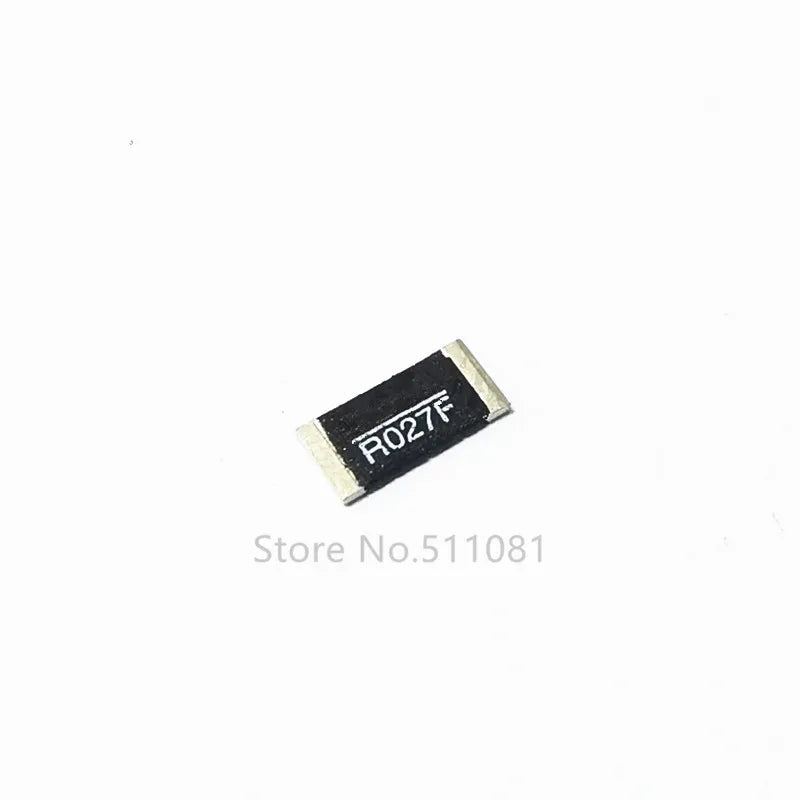

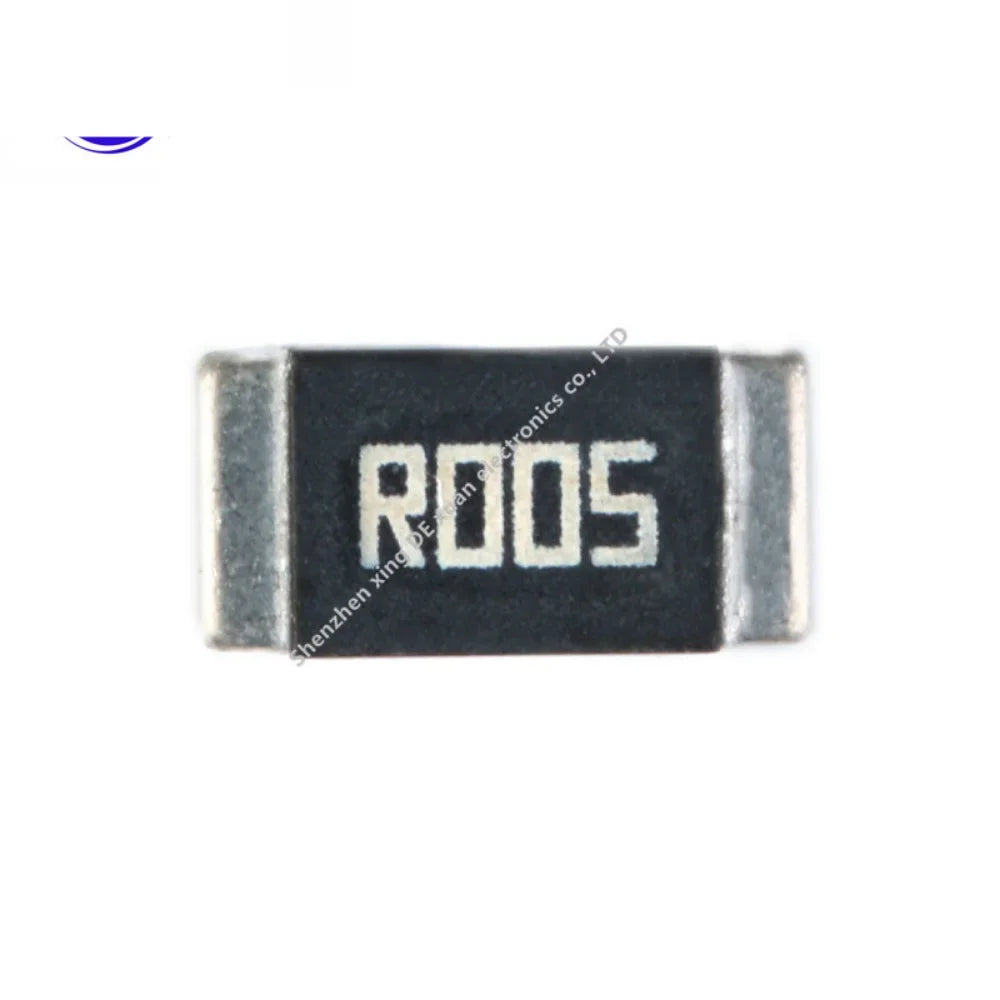

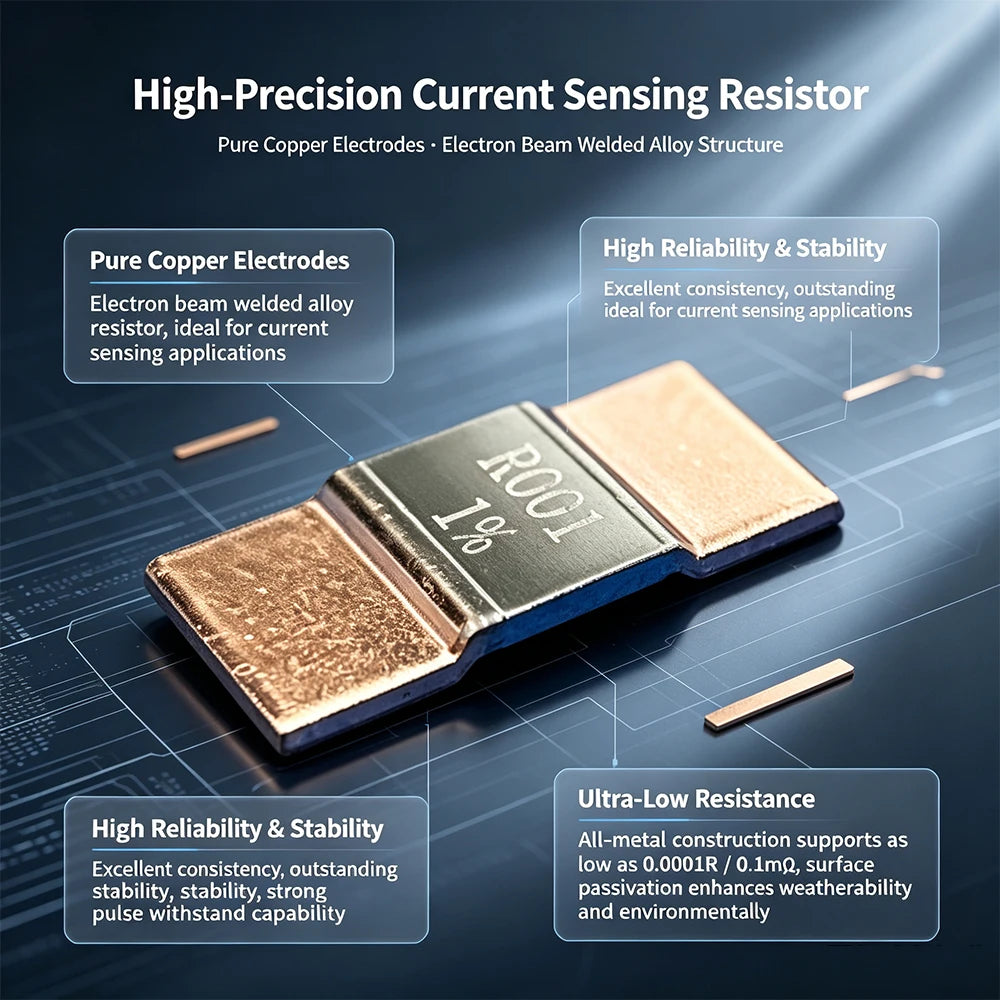

- Current-sense and shunt resistors: milliohm and sub-ohm alloy options for measuring current through a controlled voltage drop.

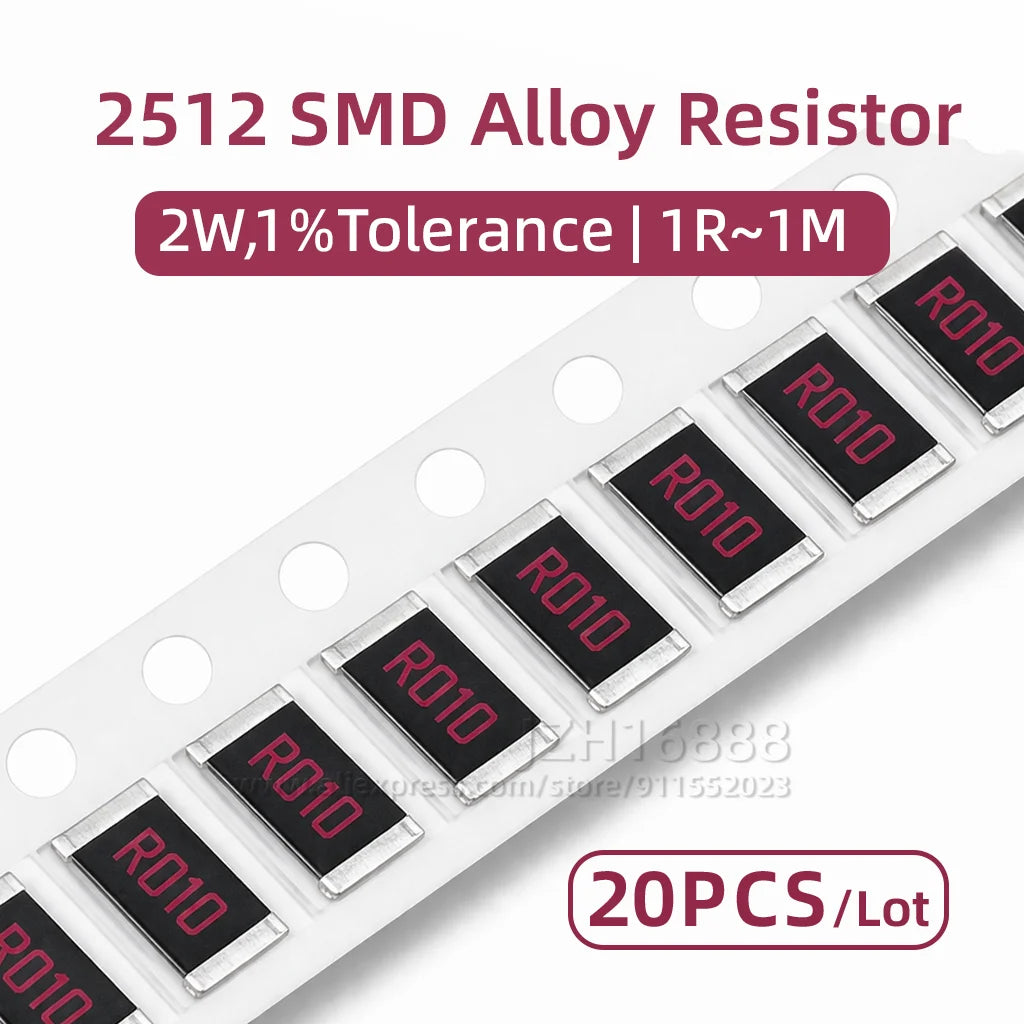

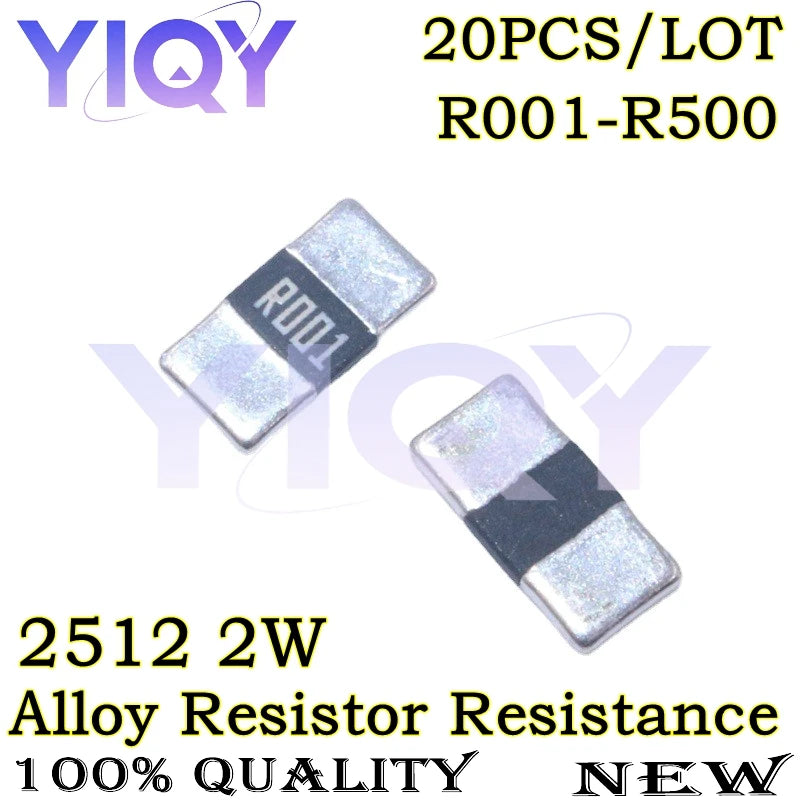

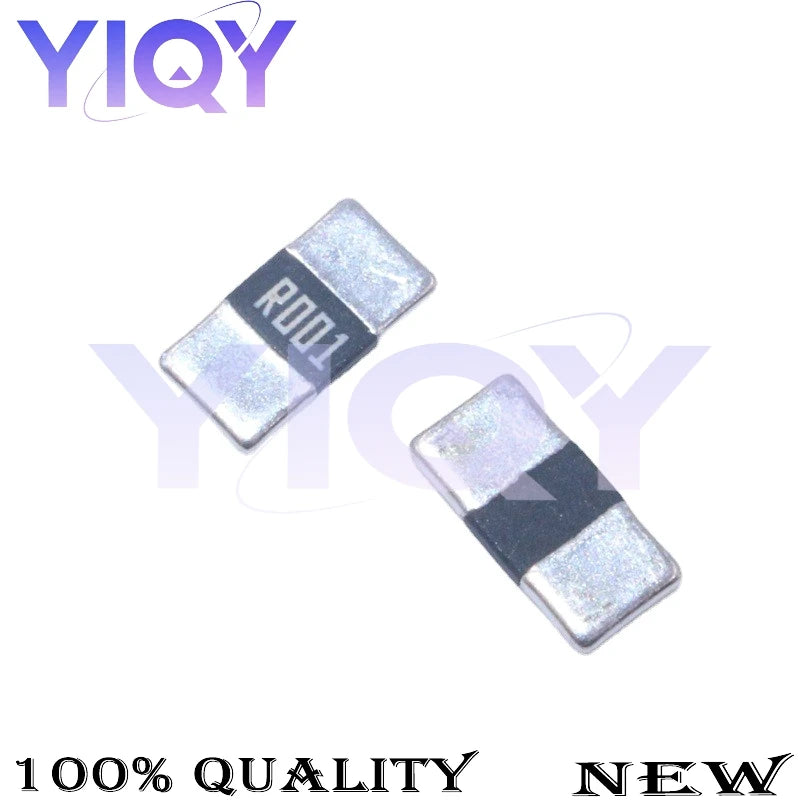

- Power resistors: selected product families described with 1W, 2W or 3W ratings.

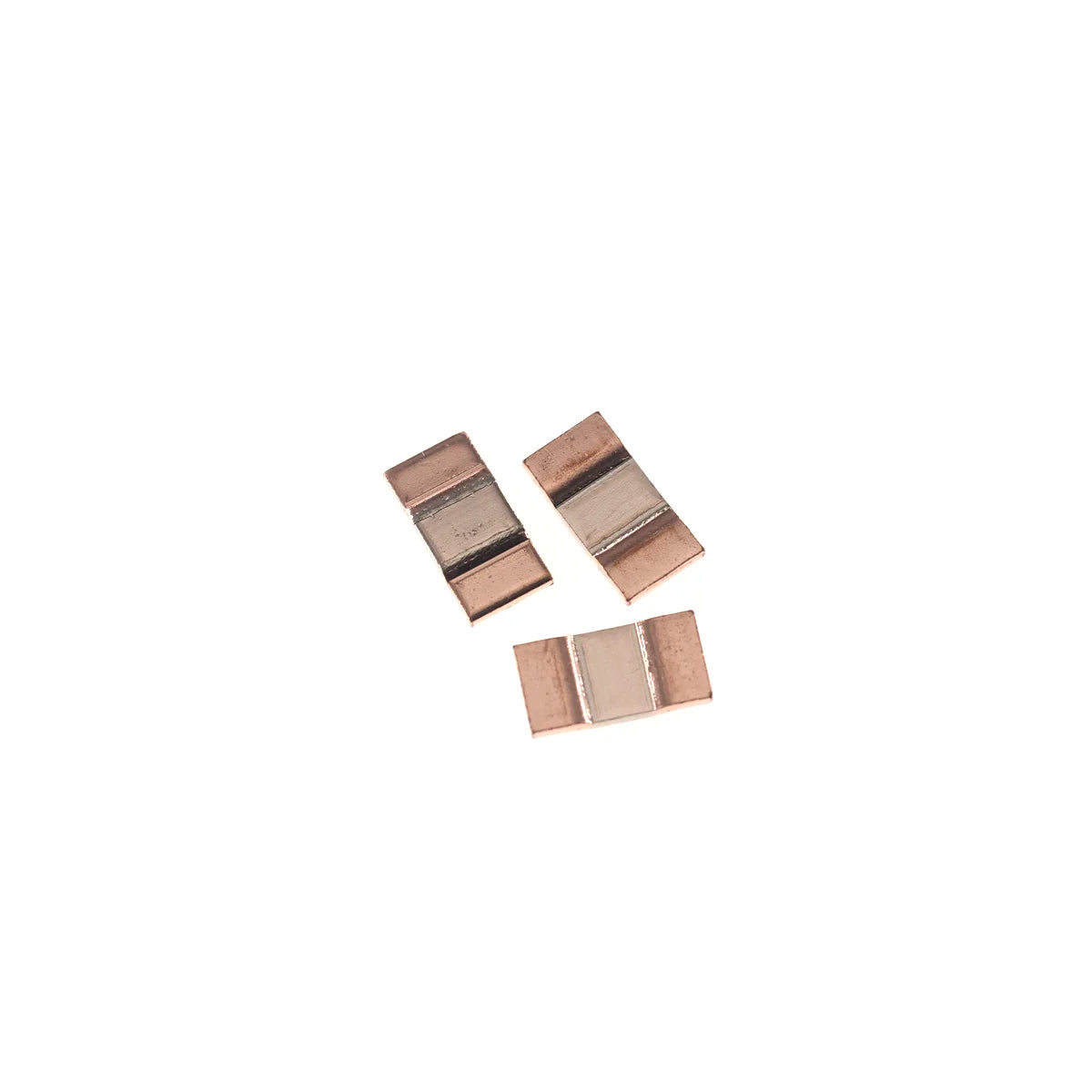

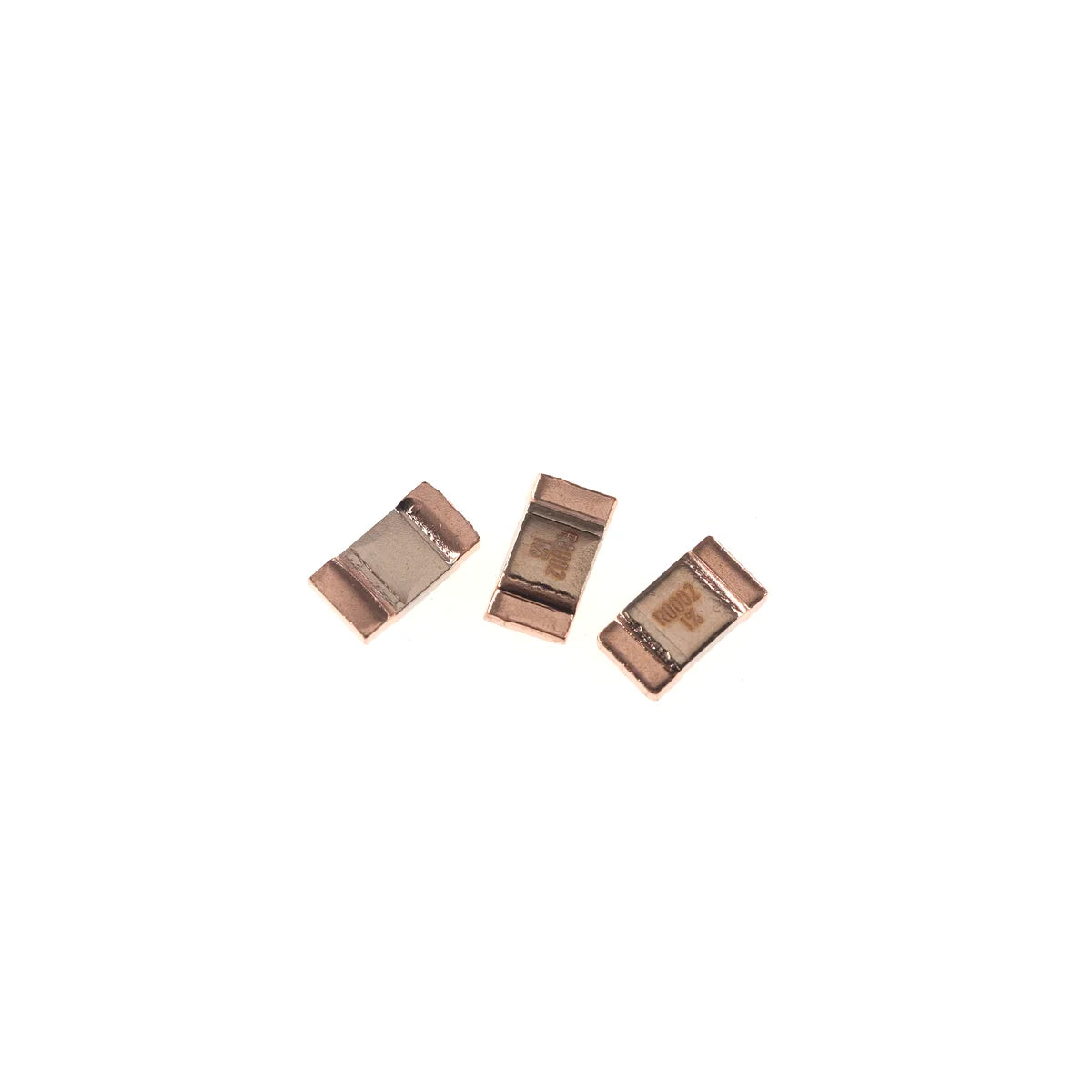

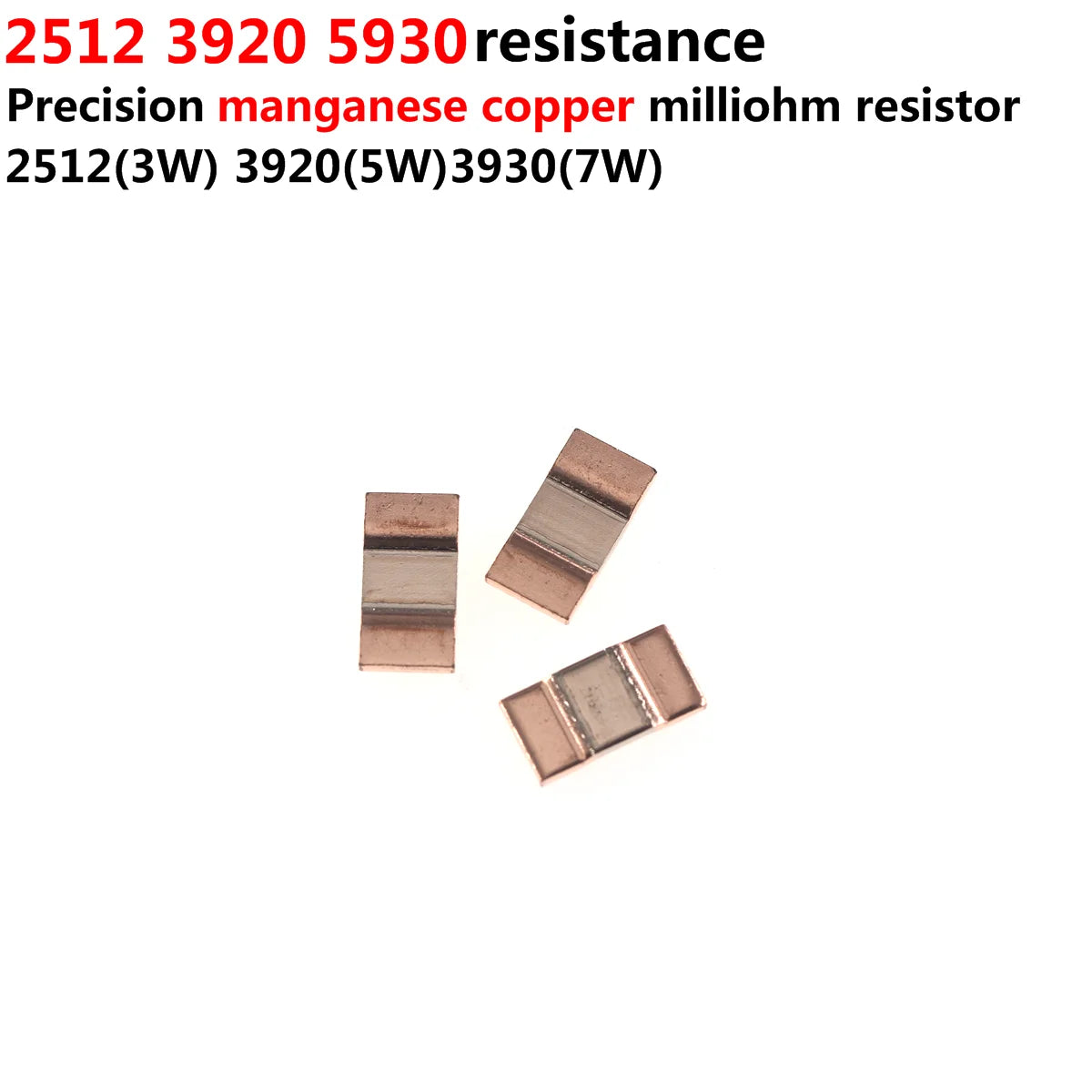

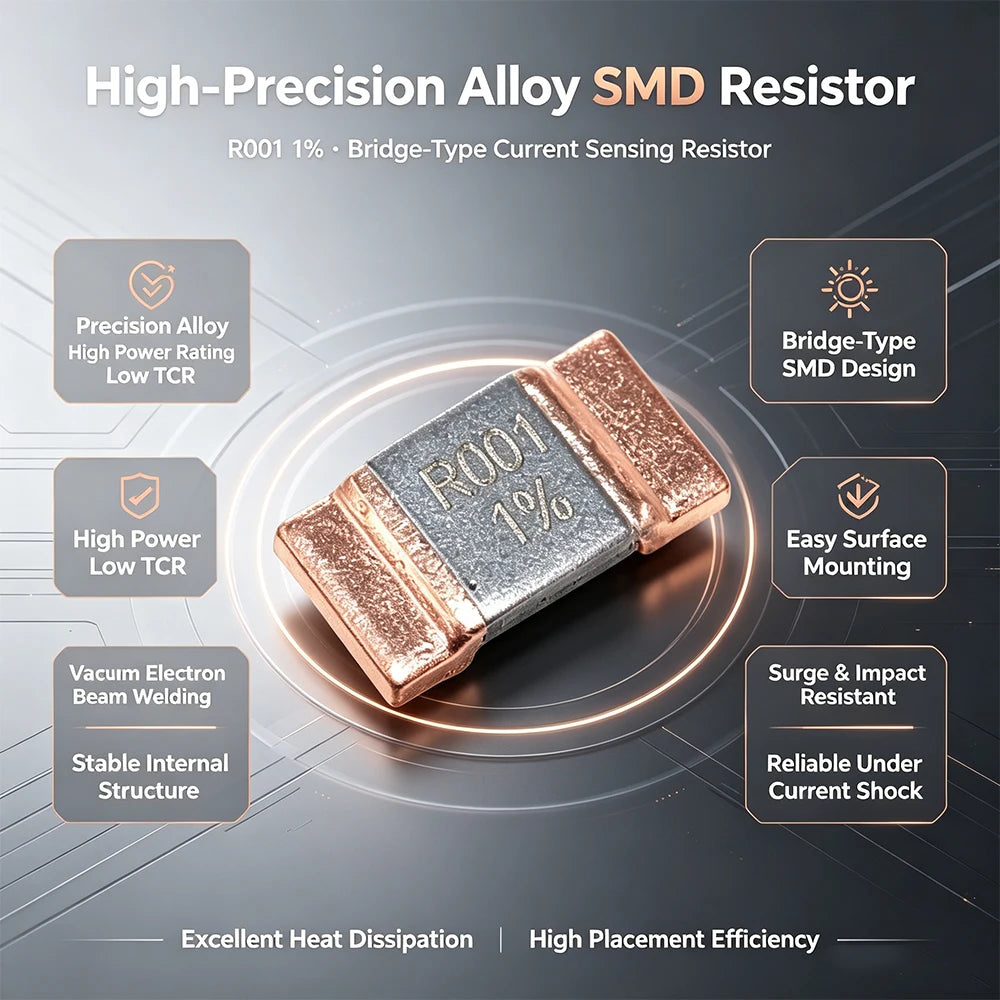

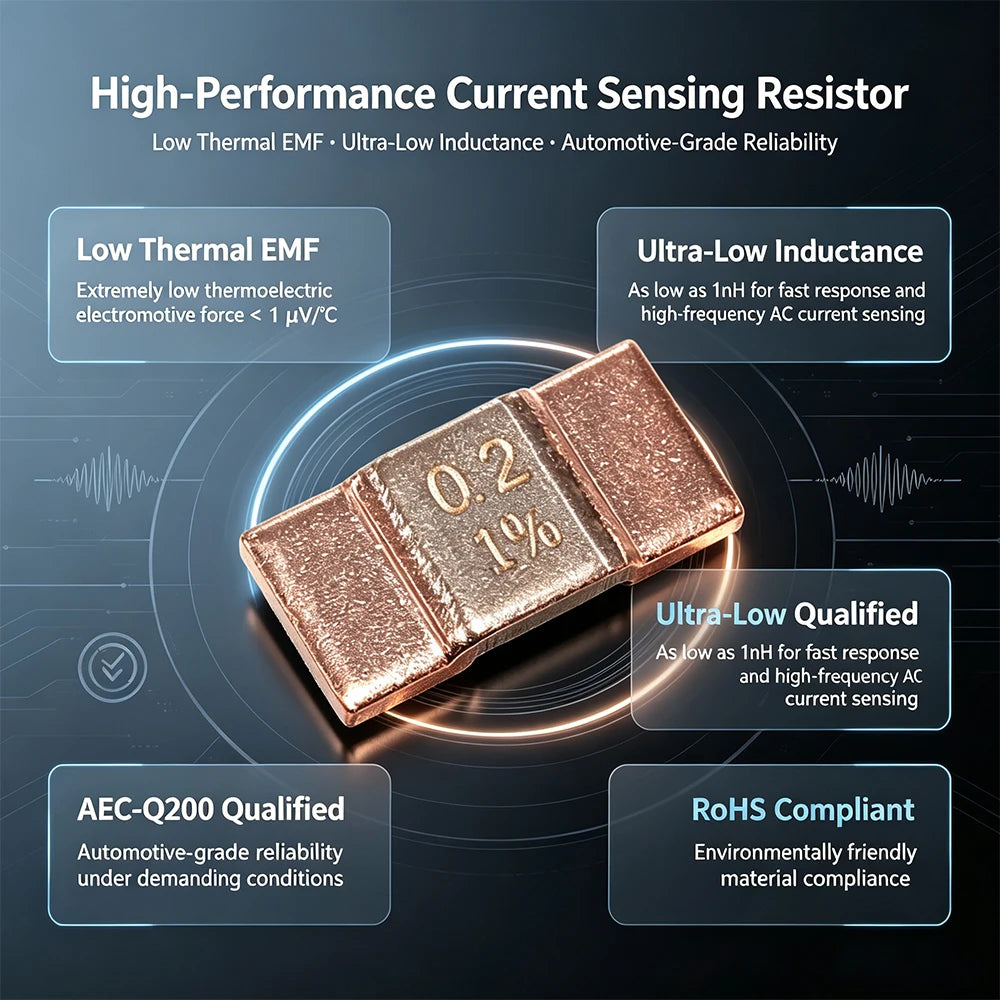

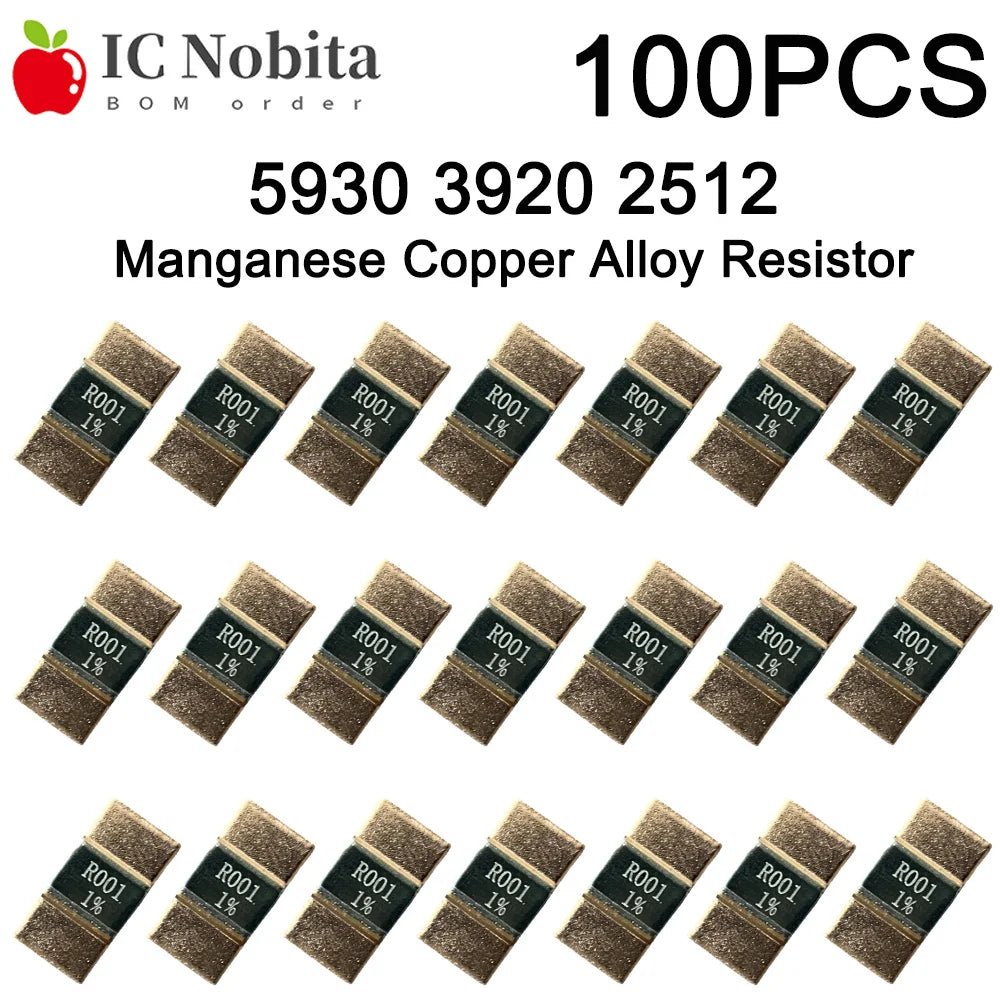

- Larger alloy shunts: mixed listings containing 3920 or 5930 formats with separate 5W or 7W claims.

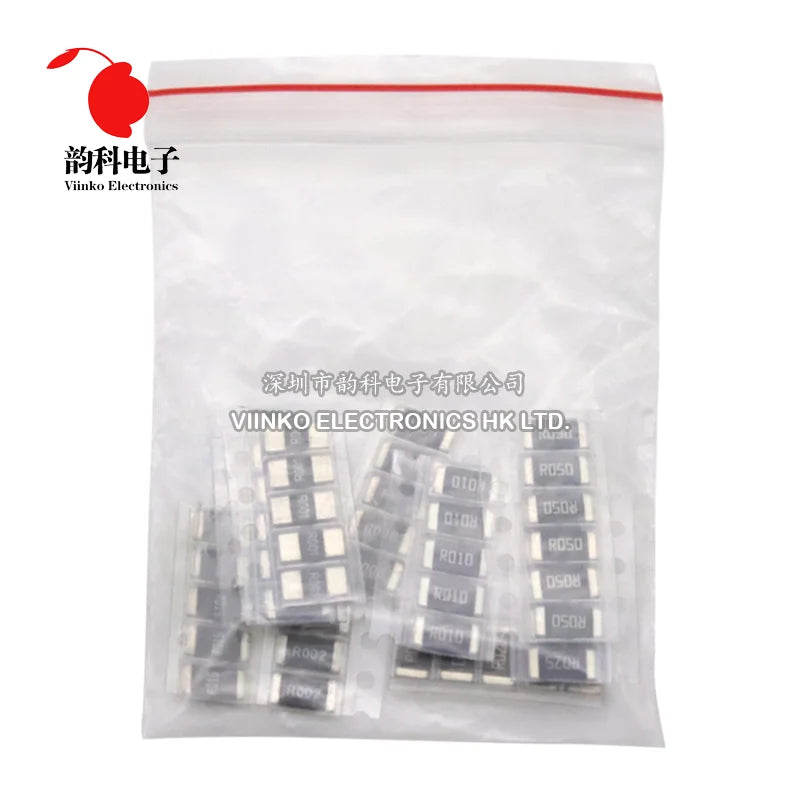

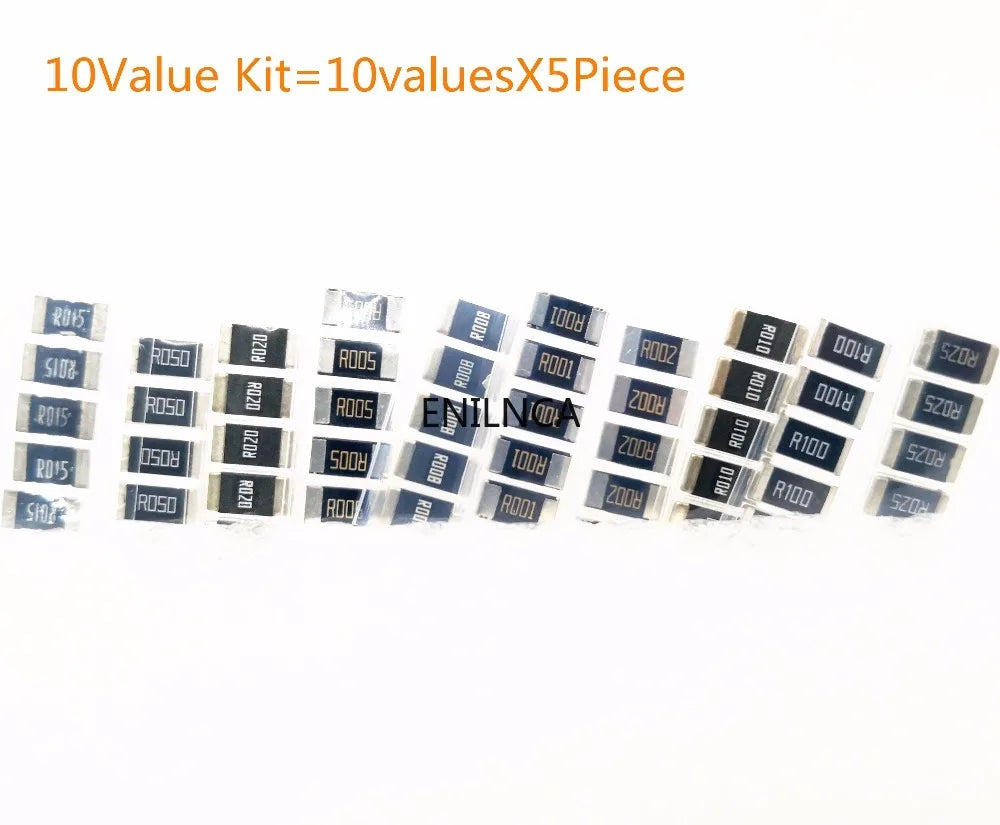

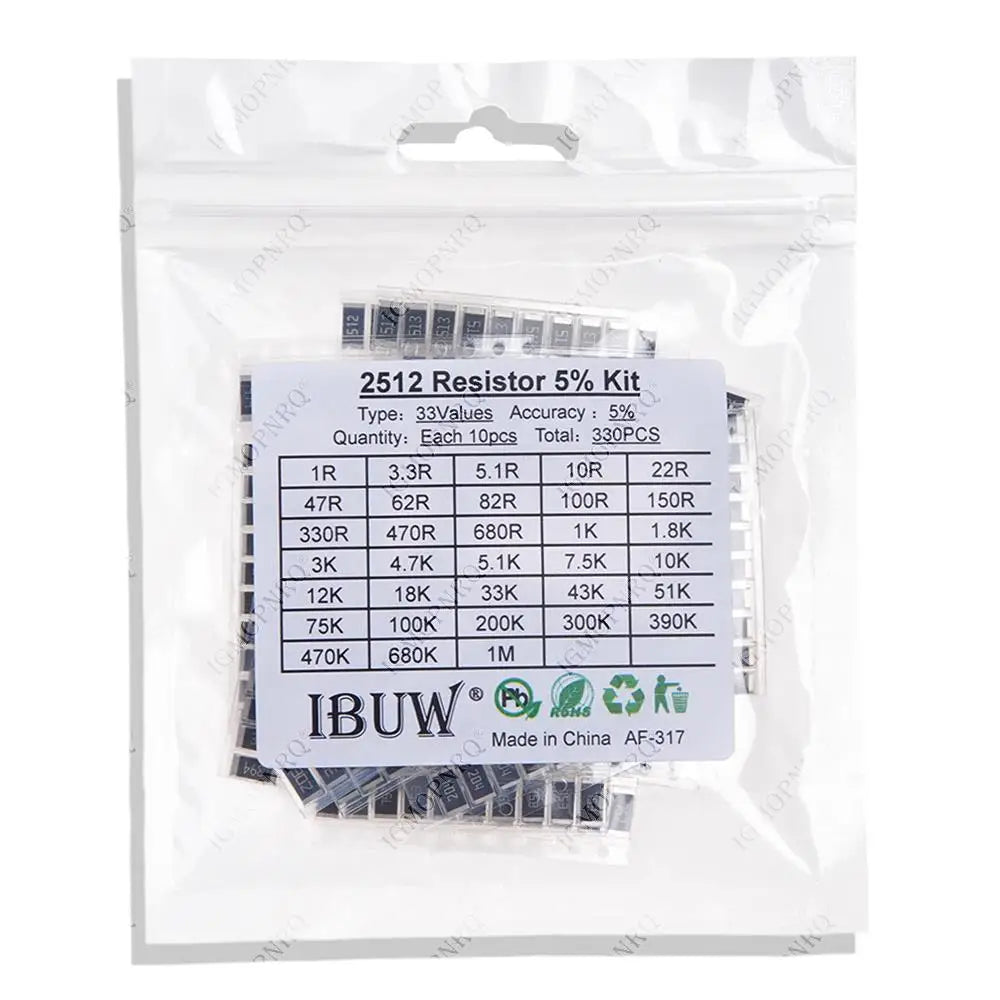

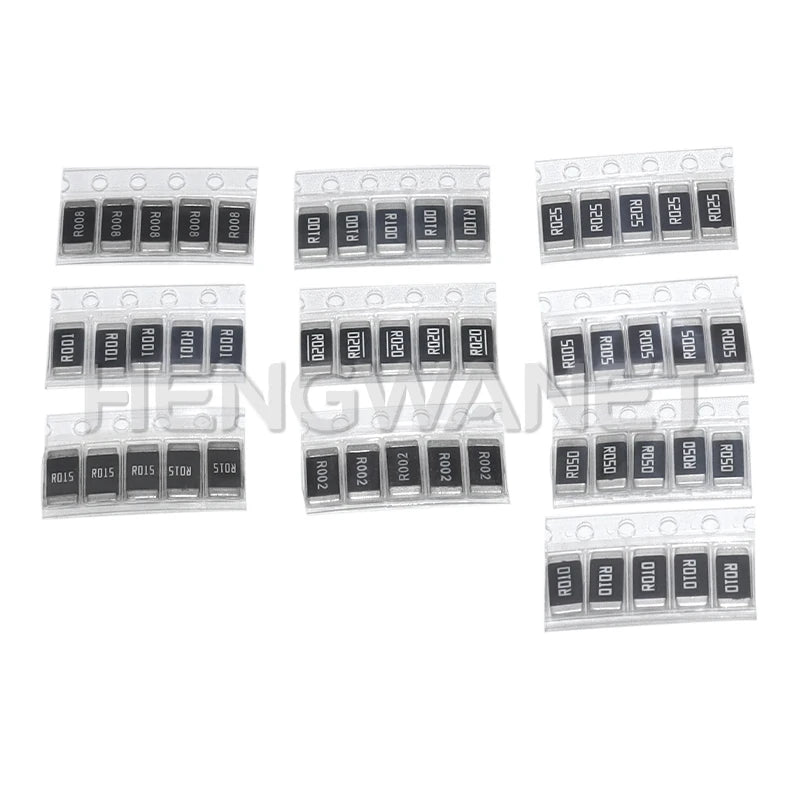

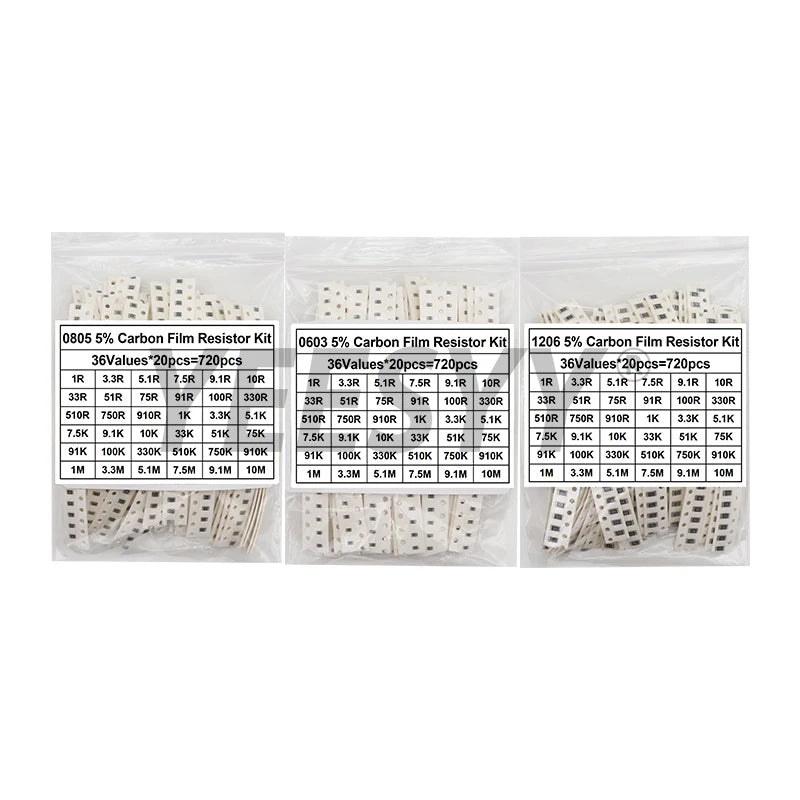

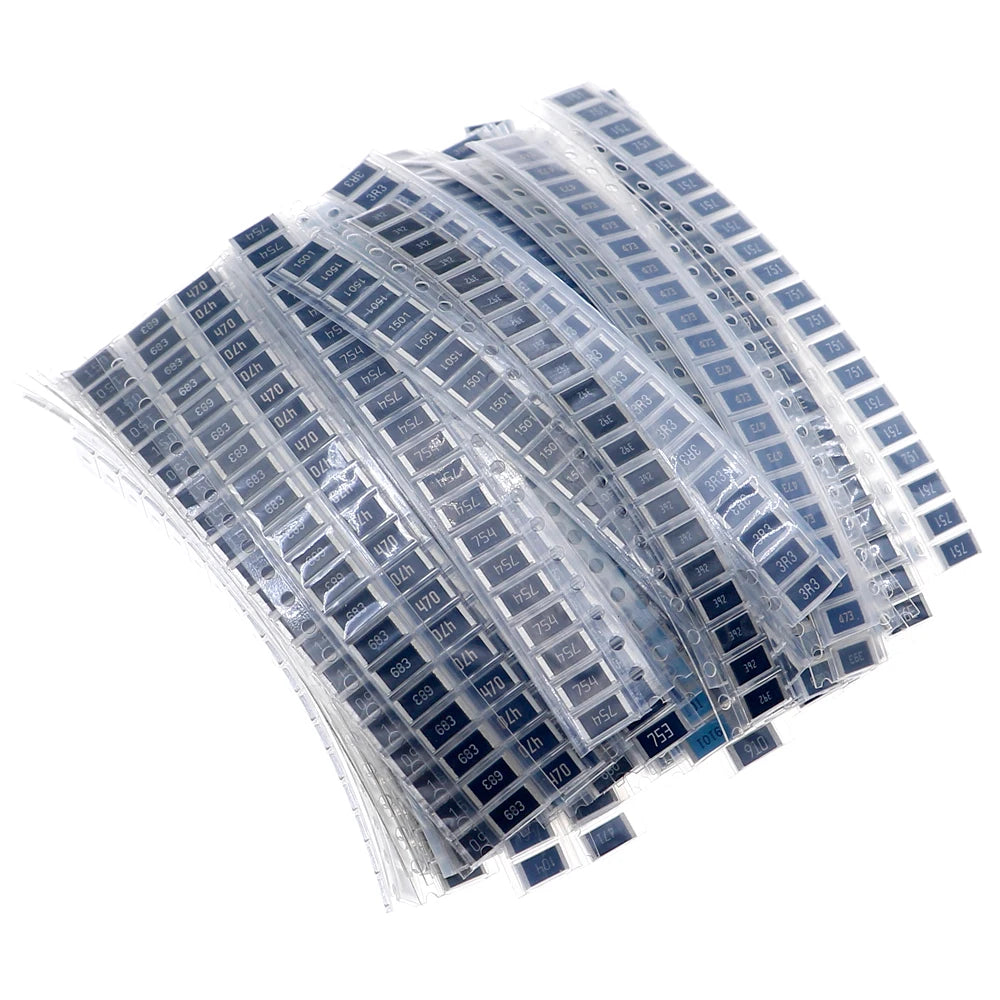

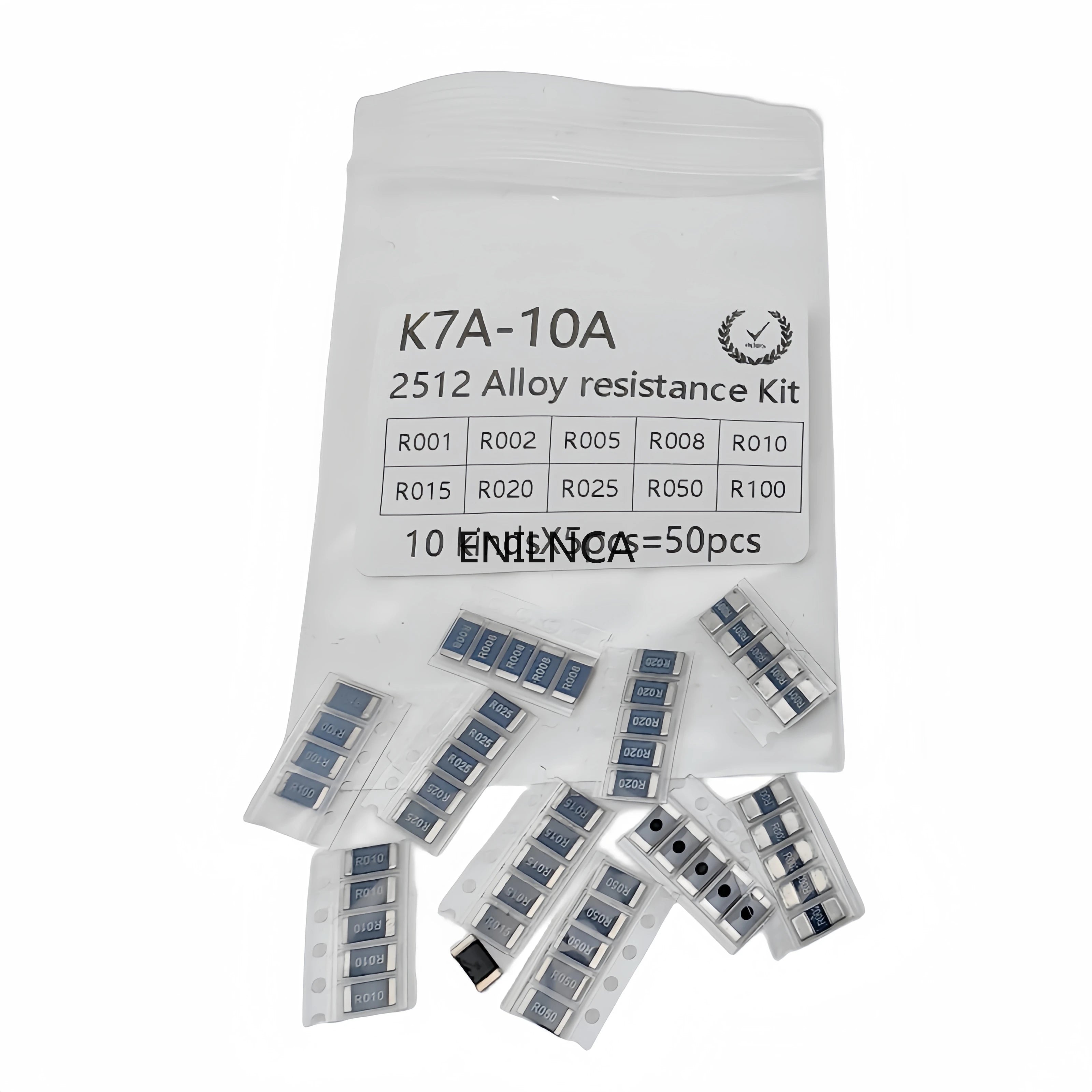

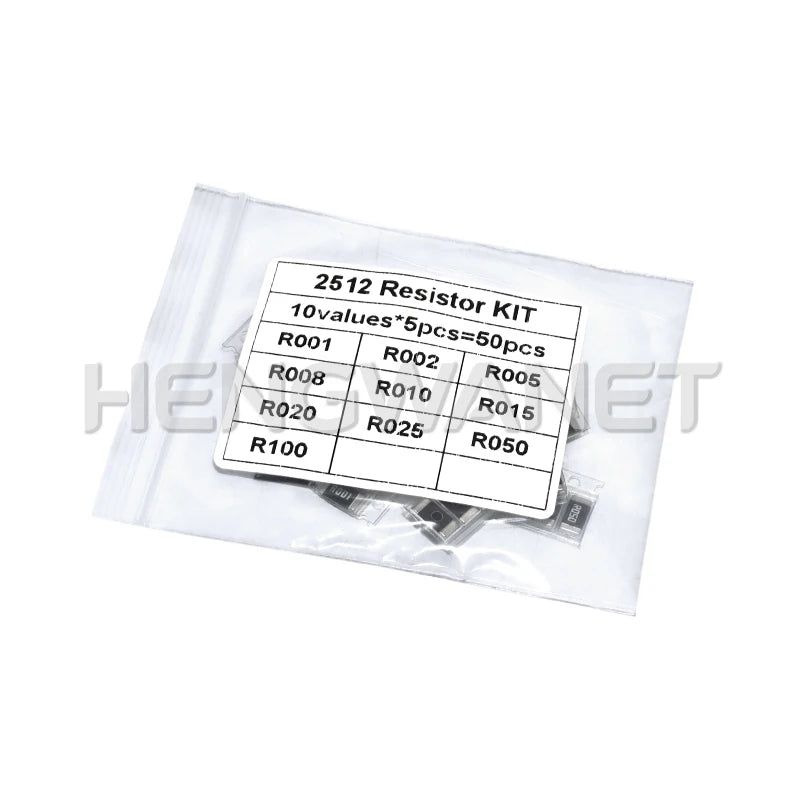

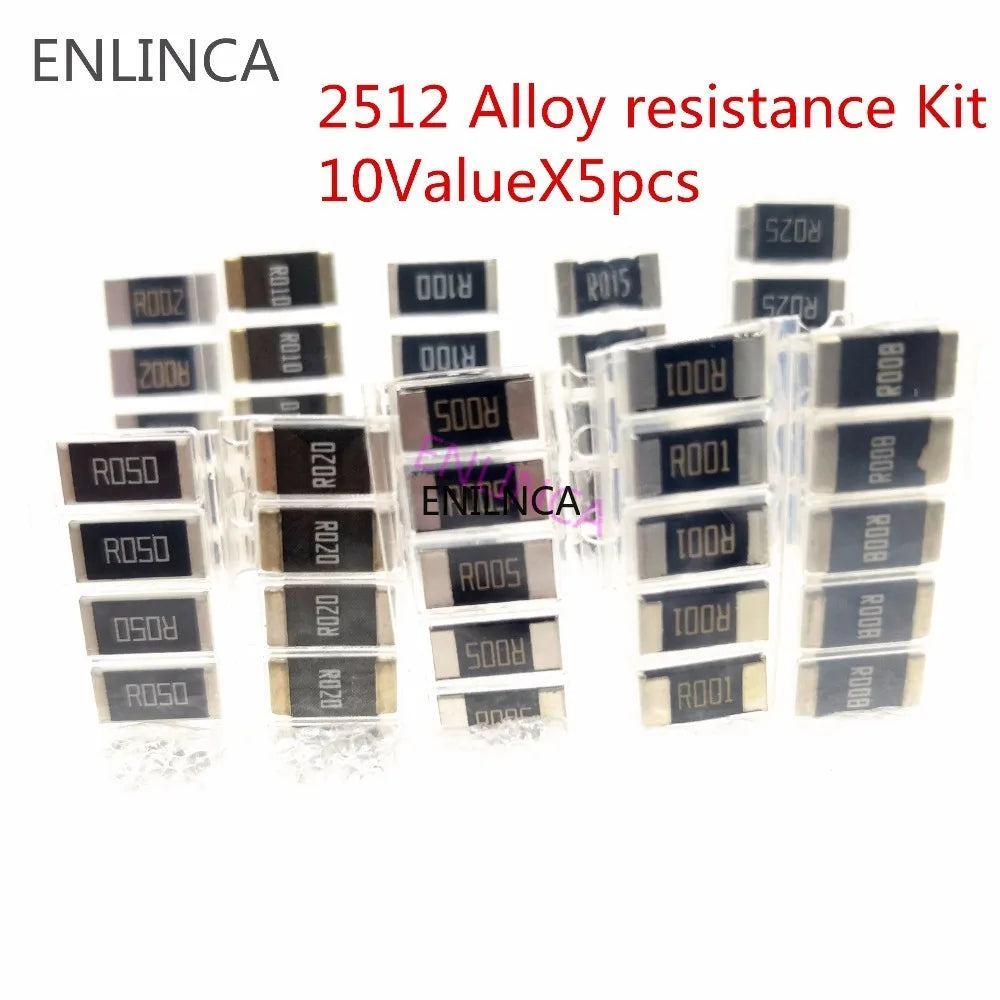

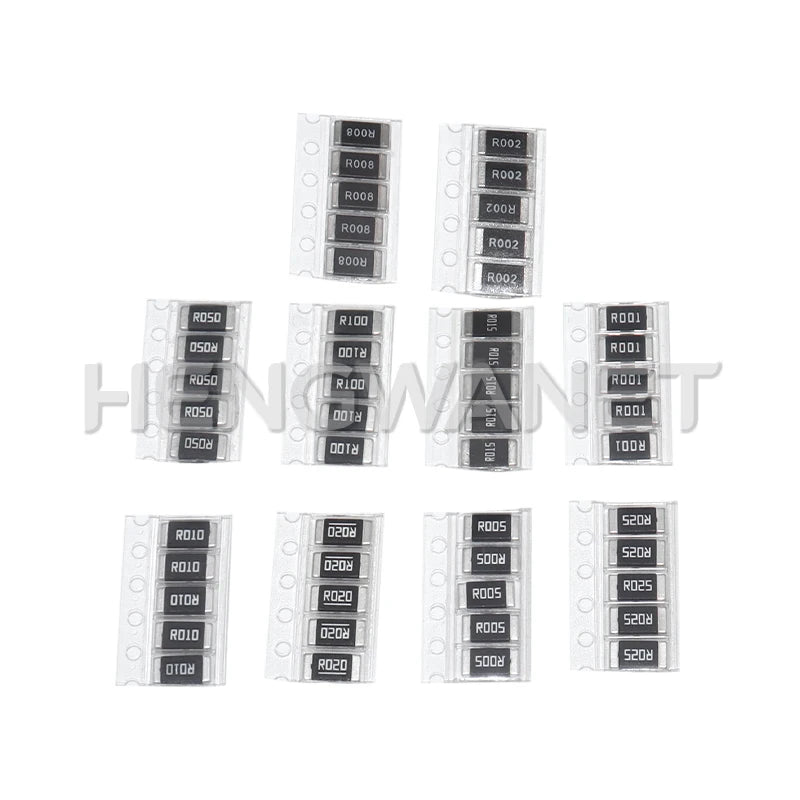

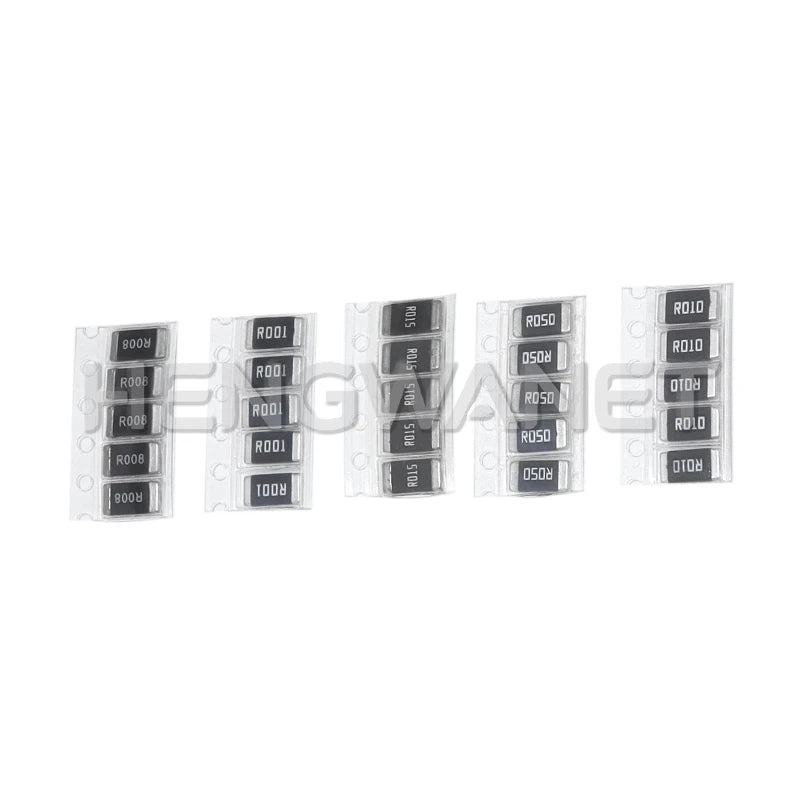

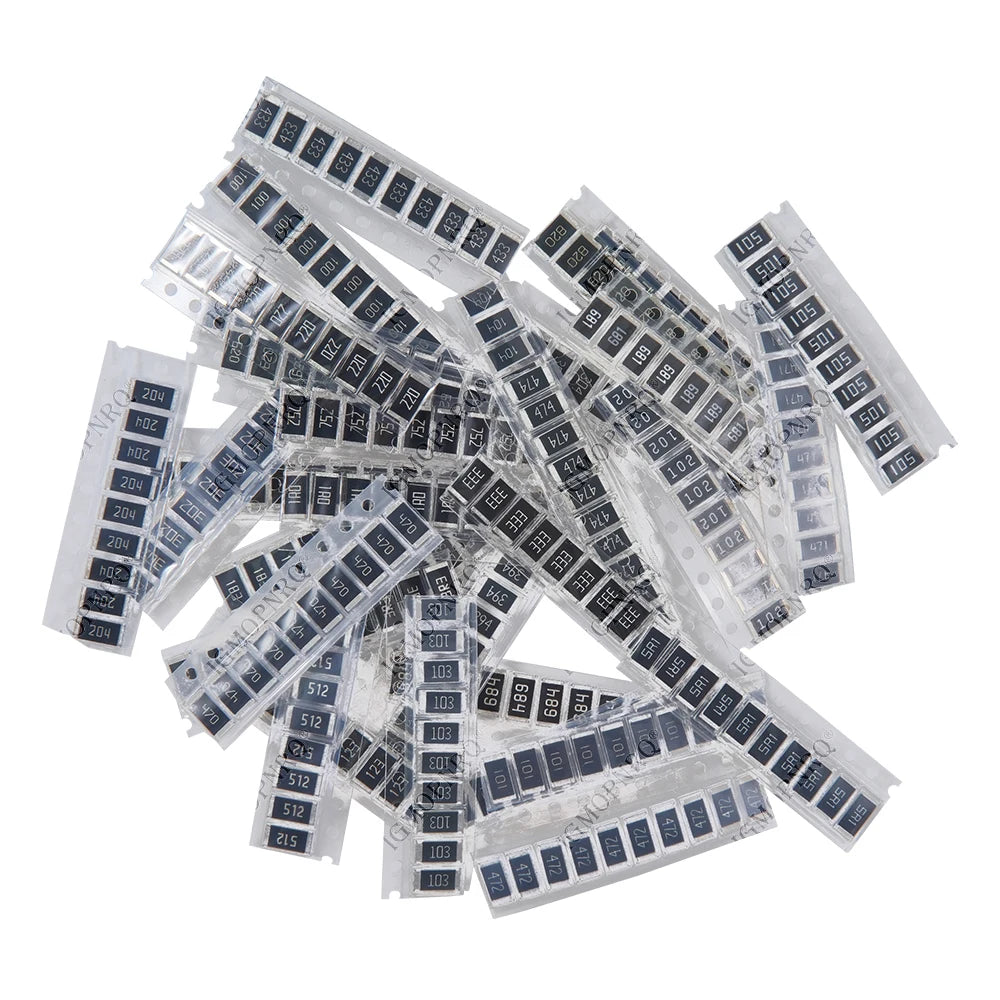

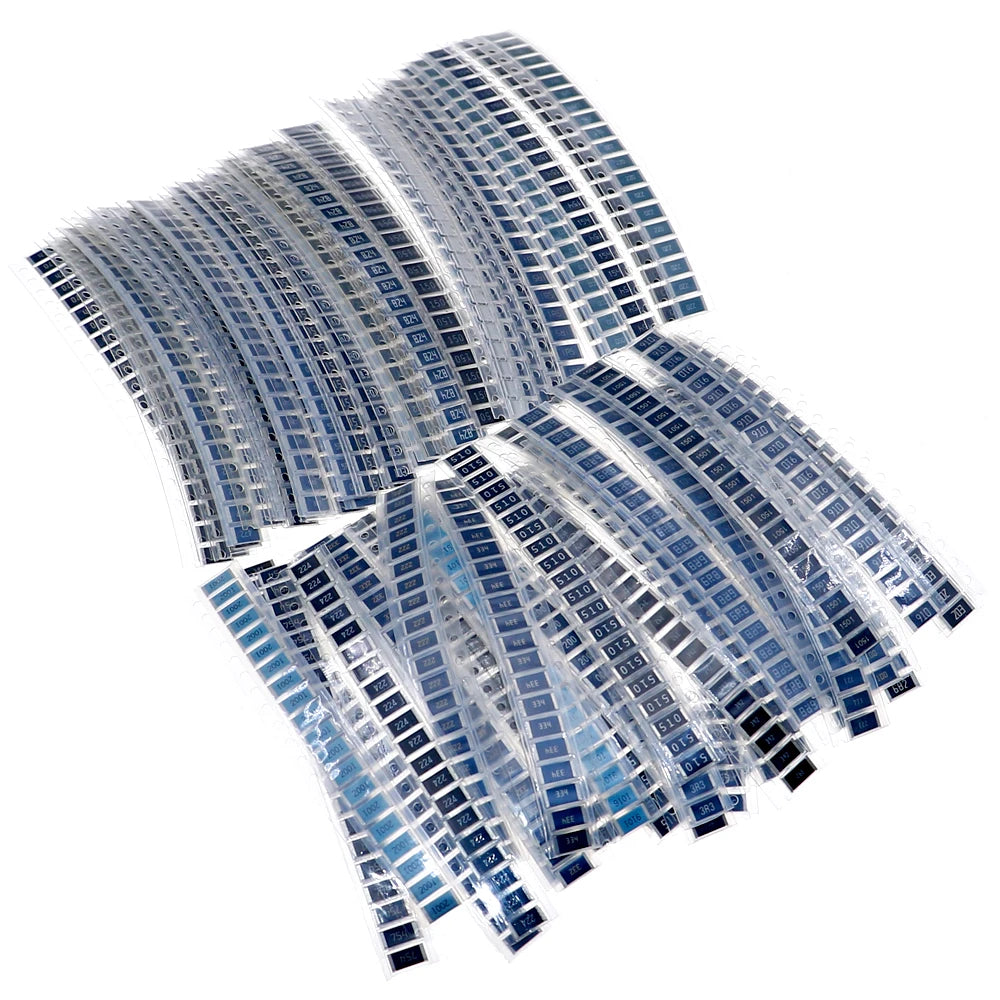

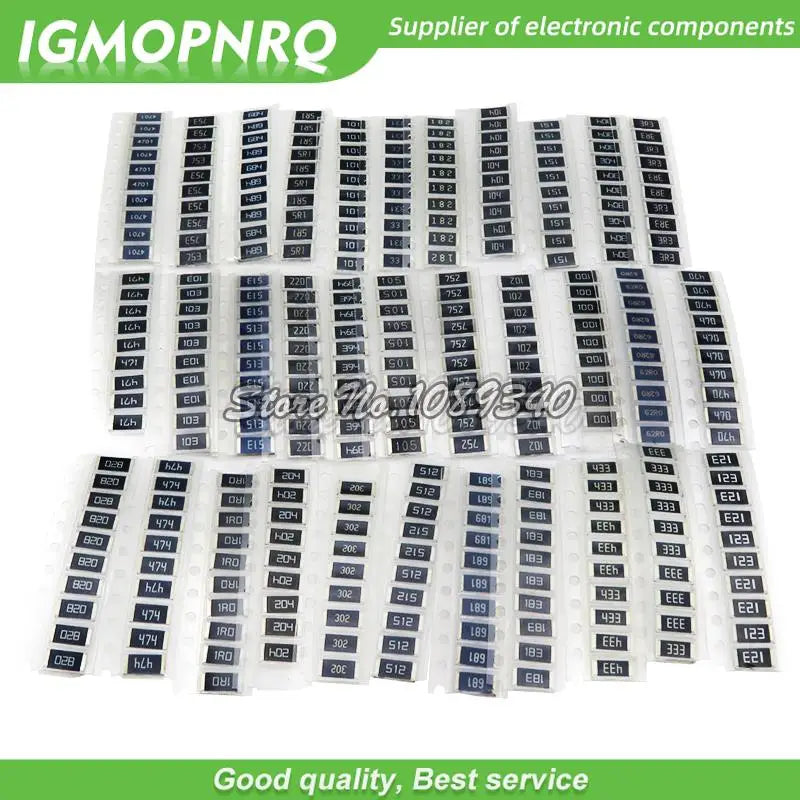

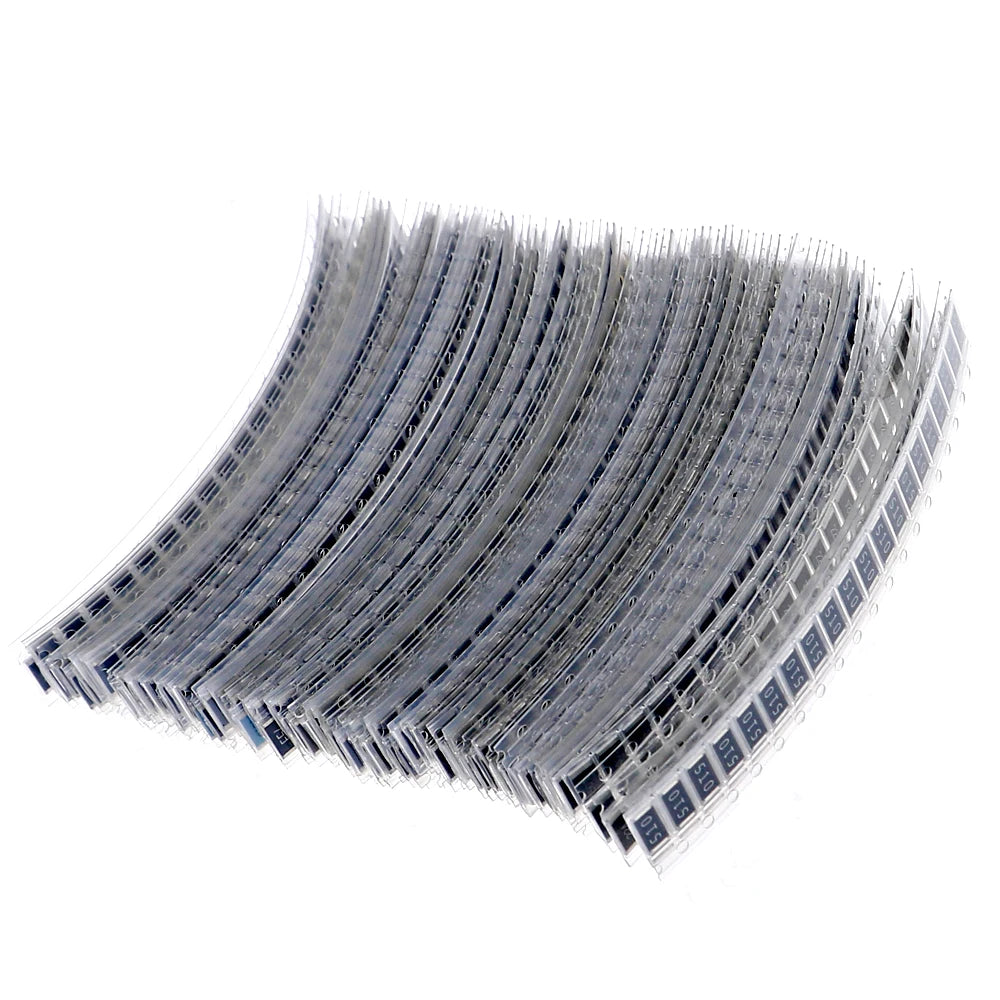

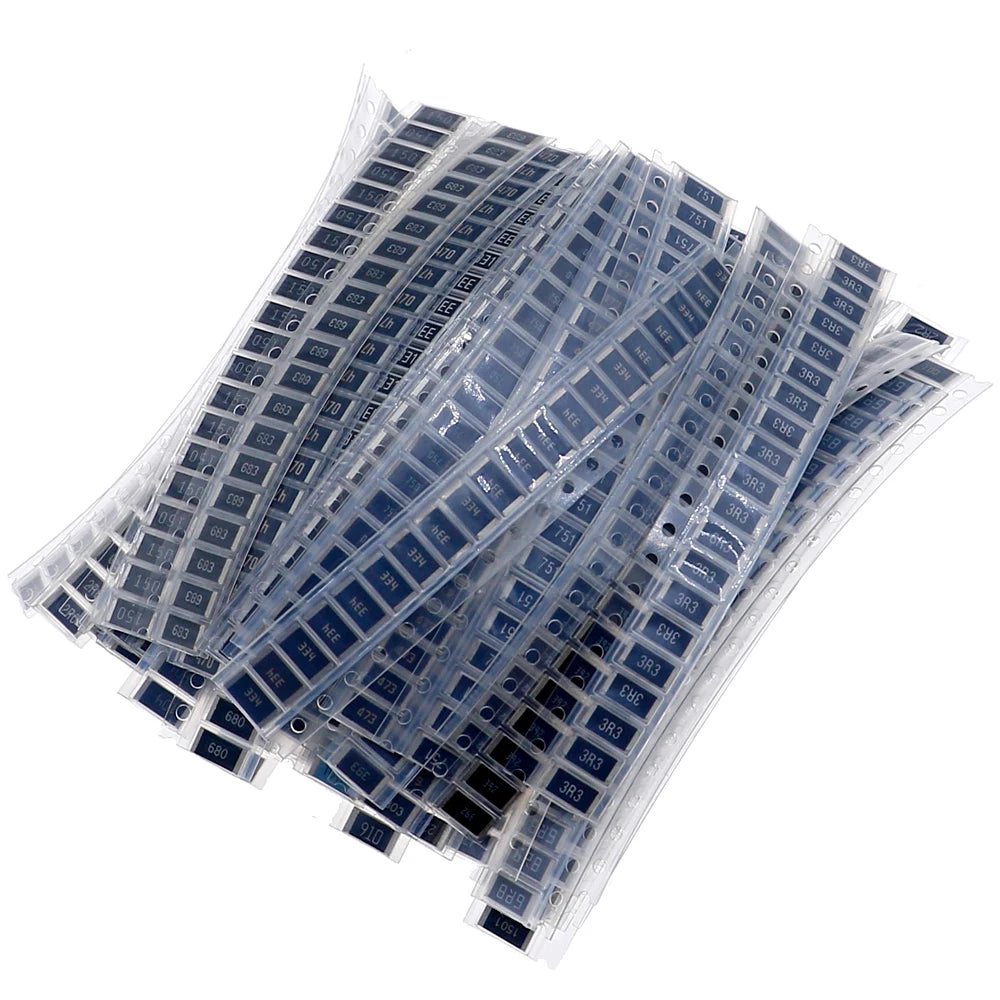

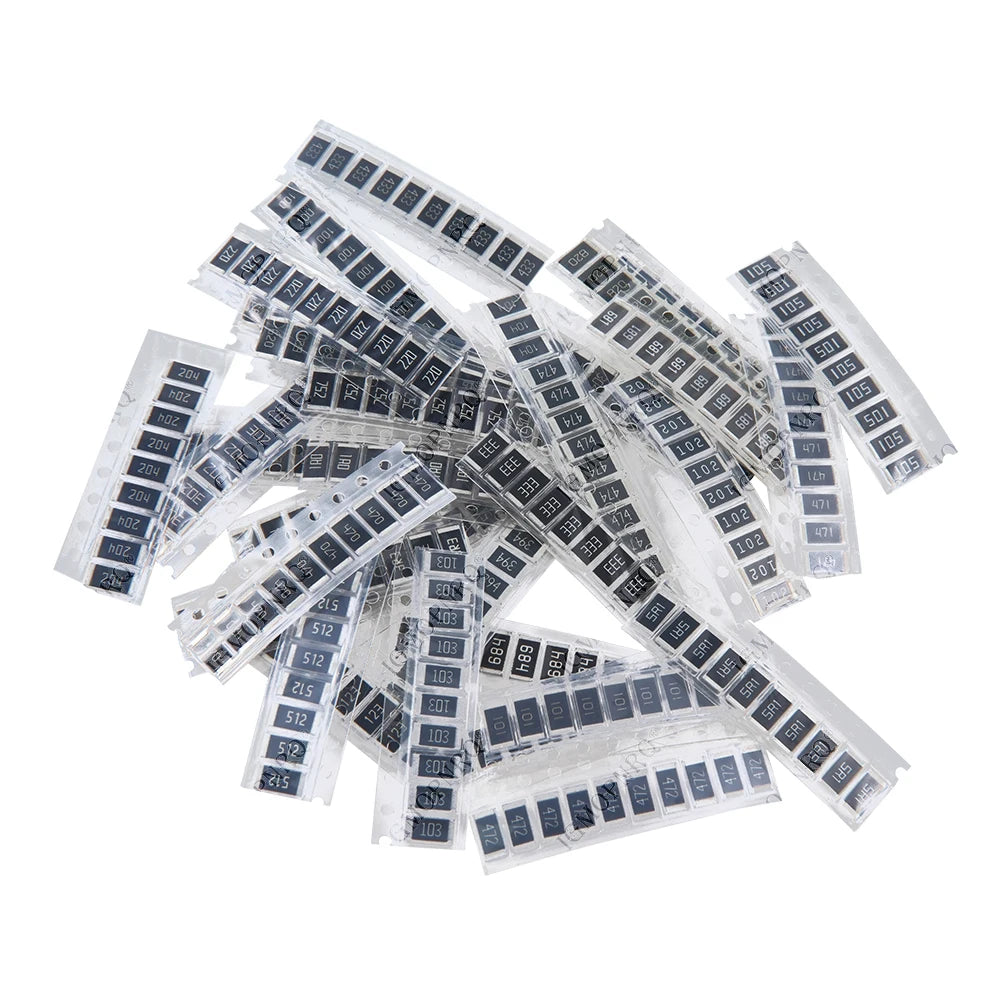

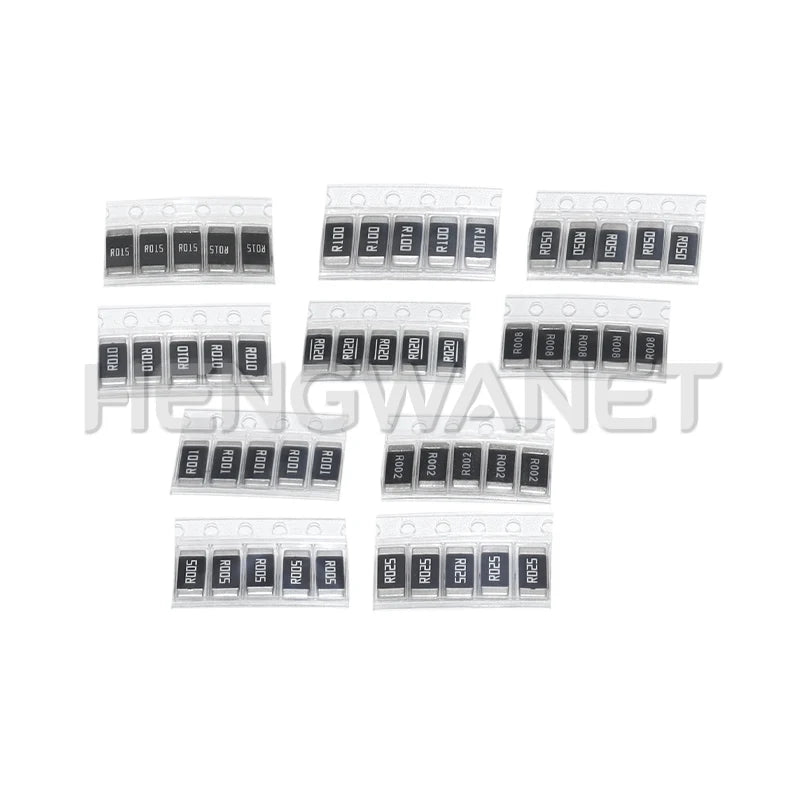

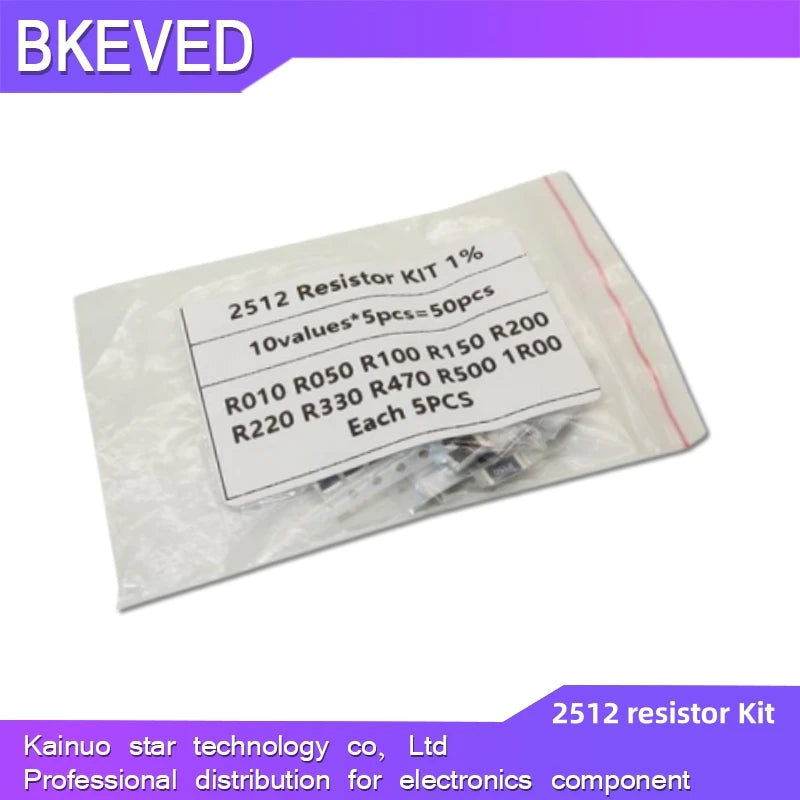

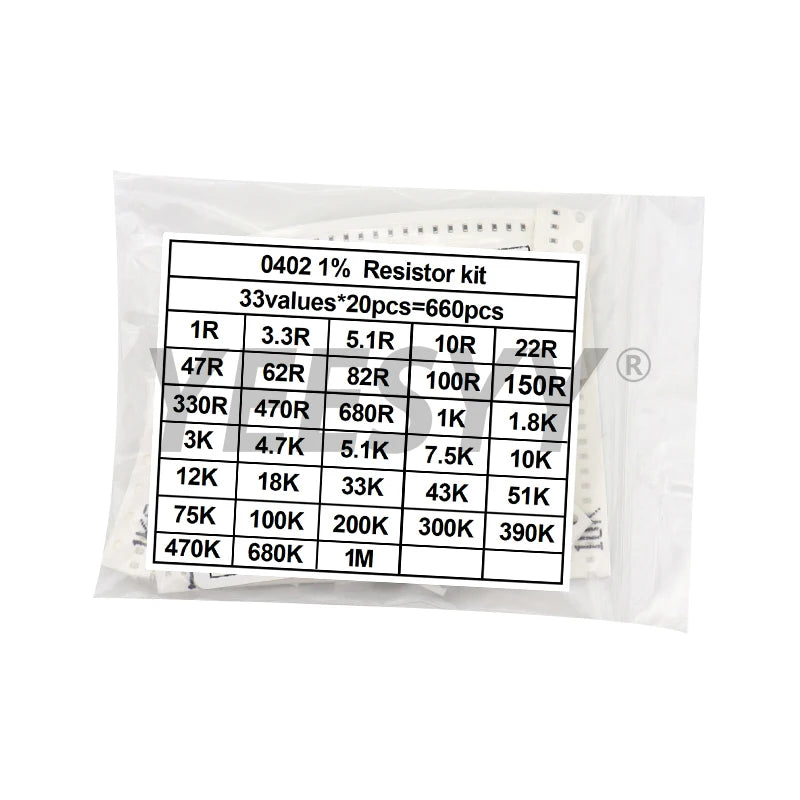

- Assortment kits: low-ohm sets, broad resistance ranges and multi-package sample books.
How to select a 2512 resistor
- Confirm footprint and construction: verify 2512 imperial / 6432 metric and distinguish thick-film from alloy or manganese-copper parts.

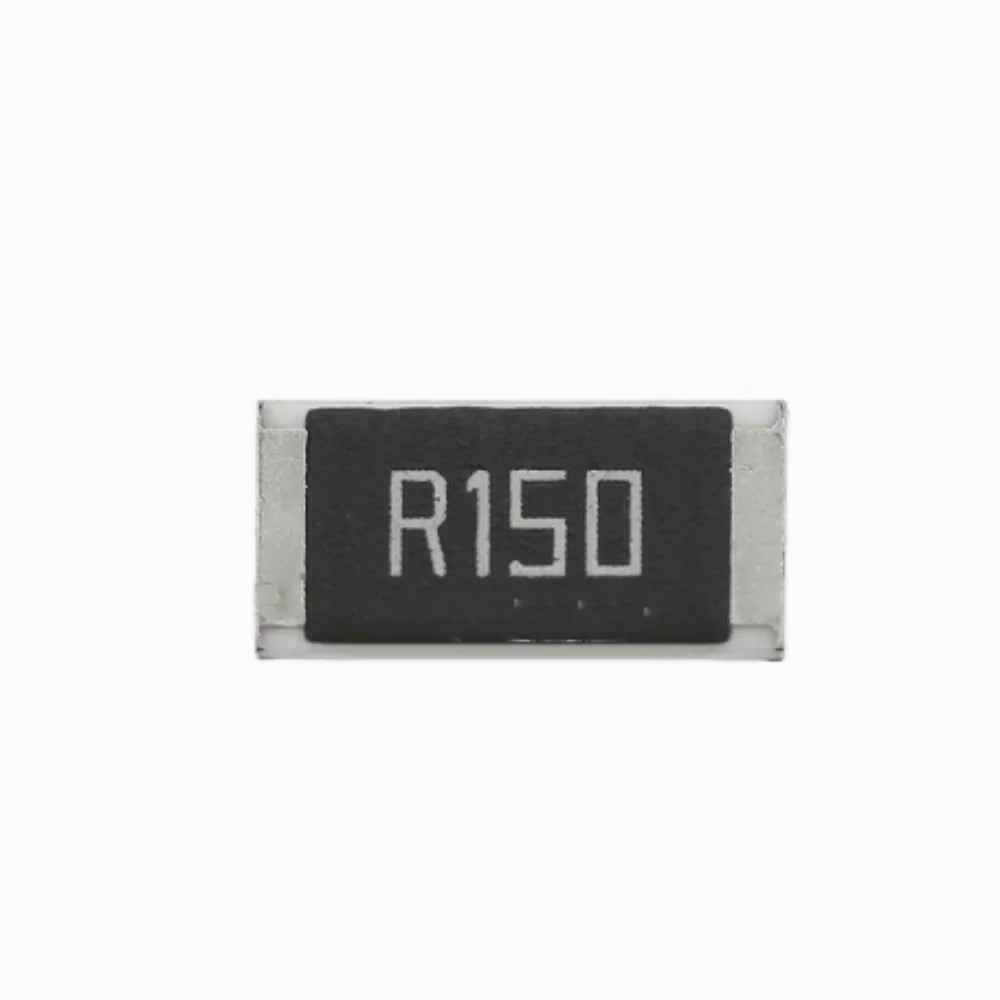

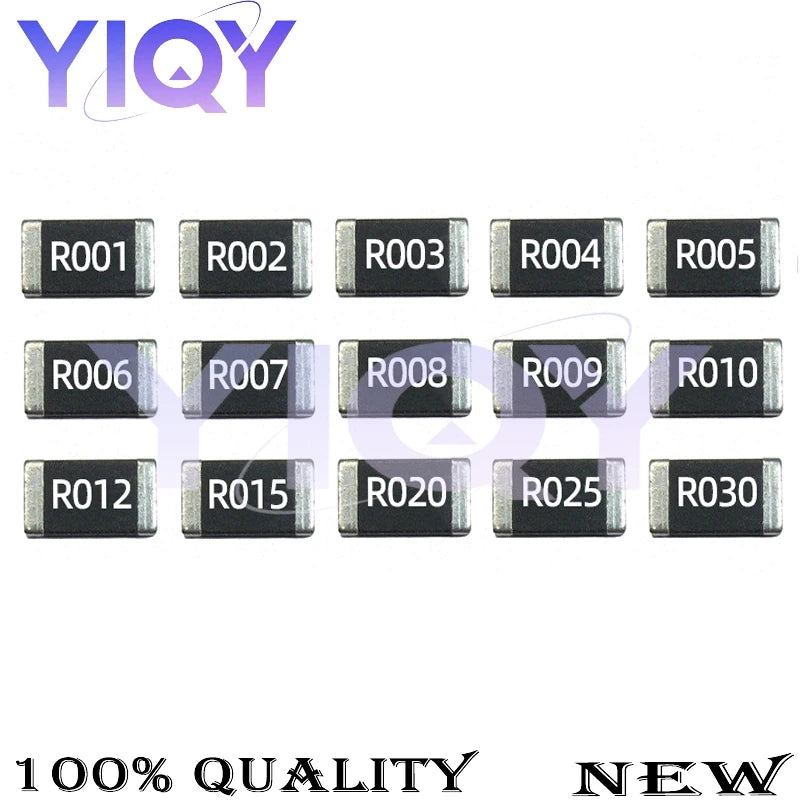

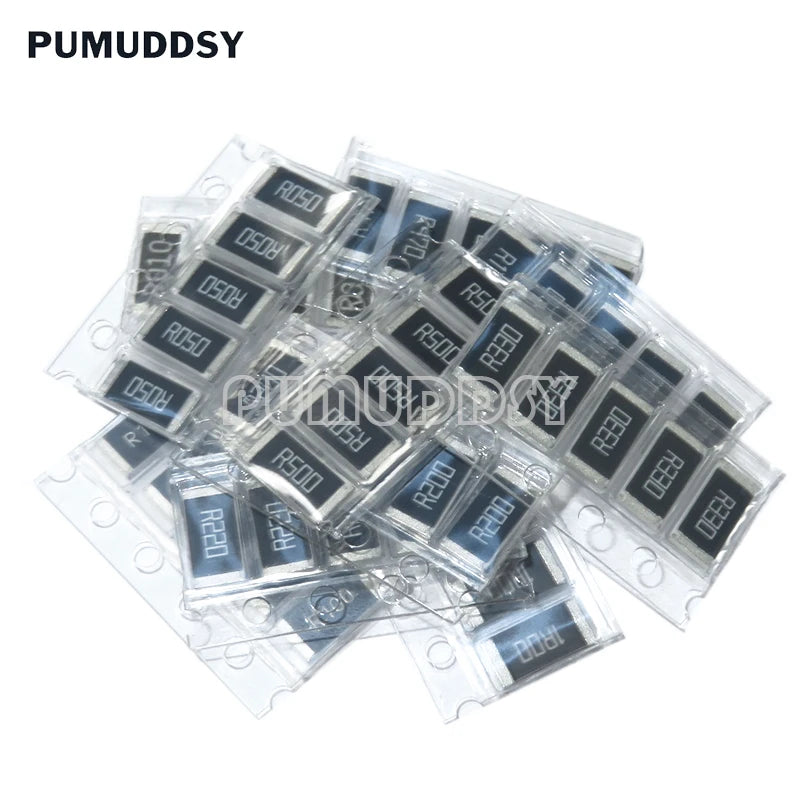

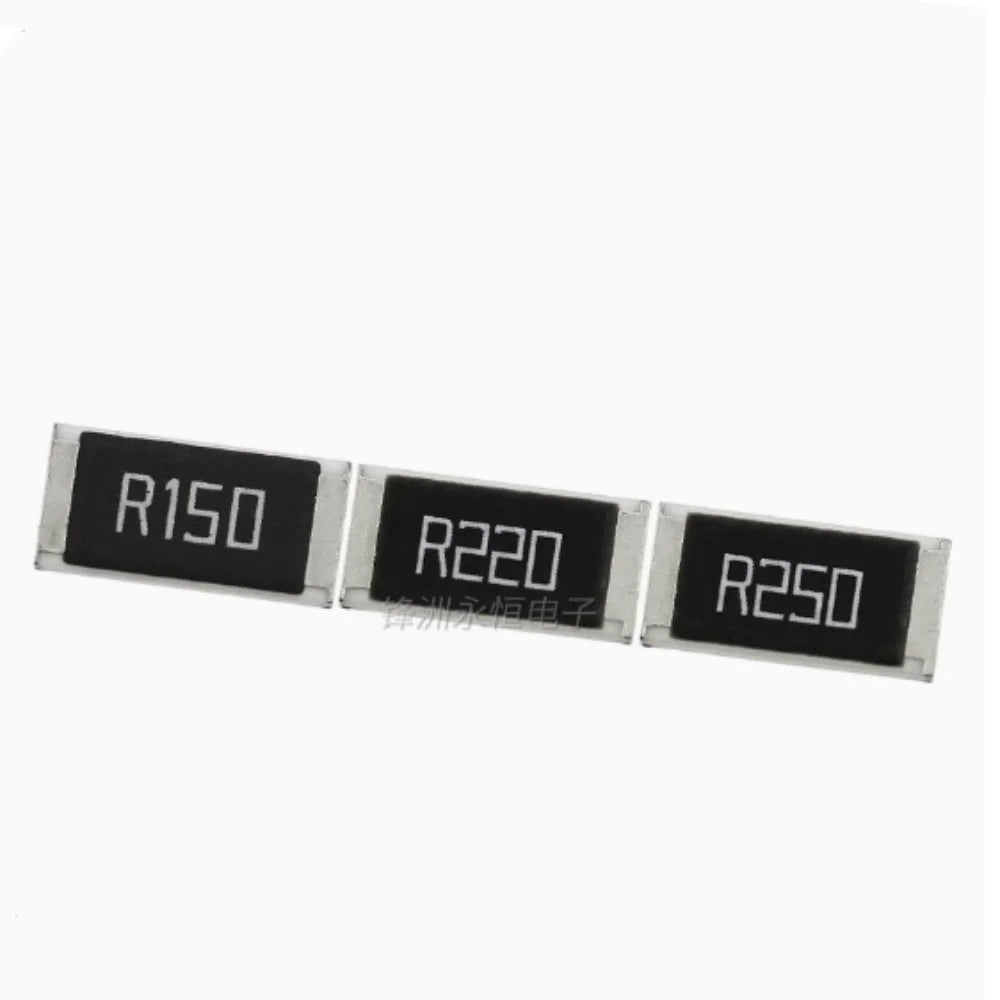

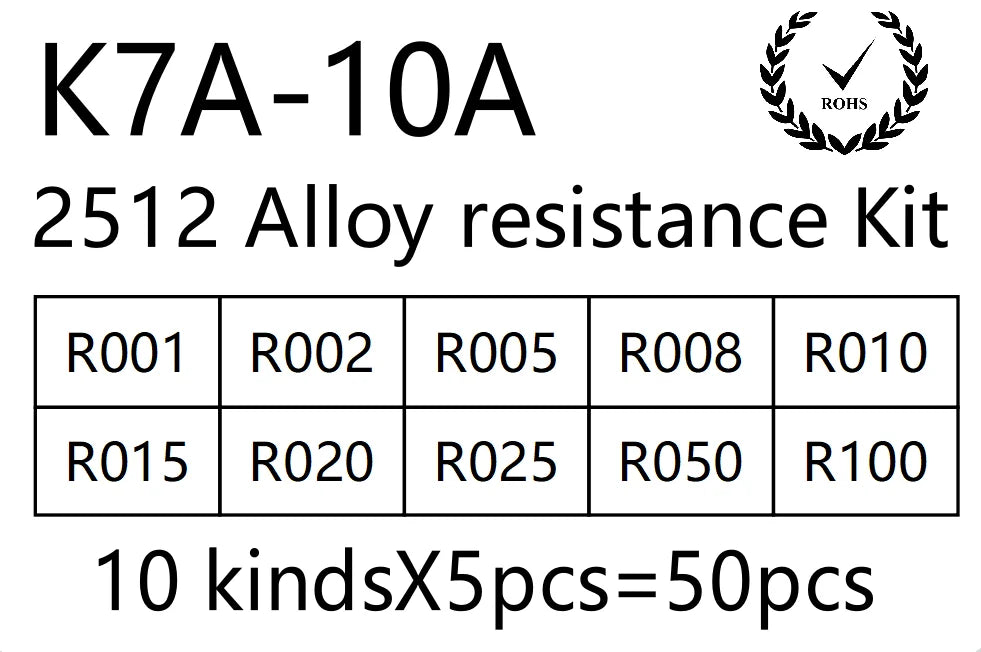

- Decode resistance: R001 means 0.001Ω, R010 means 0.01Ω, R050 means 0.05Ω and 1R00 means 1Ω.
- Calculate sense voltage: use V = I × R and confirm that the resulting signal suits the measurement circuit.
- Calculate dissipation: use P = I²R, include fault and startup conditions, then apply the exact derating curve.

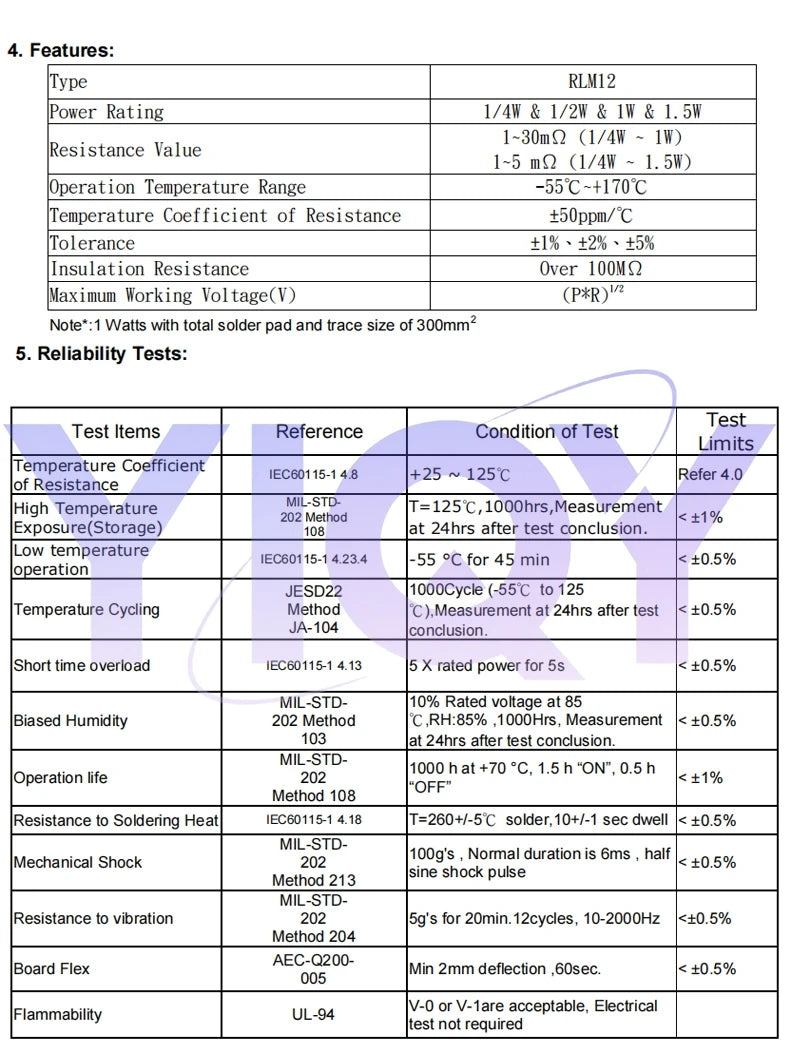

- Check tolerance and TCR: both directly affect current-measurement error and are separate specifications.
- Review pulse capability: surge energy and overload duration cannot be inferred from package or nominal wattage.
- Plan Kelvin routing: low-ohm measurements may require separate sense traces to reduce pad and copper errors.

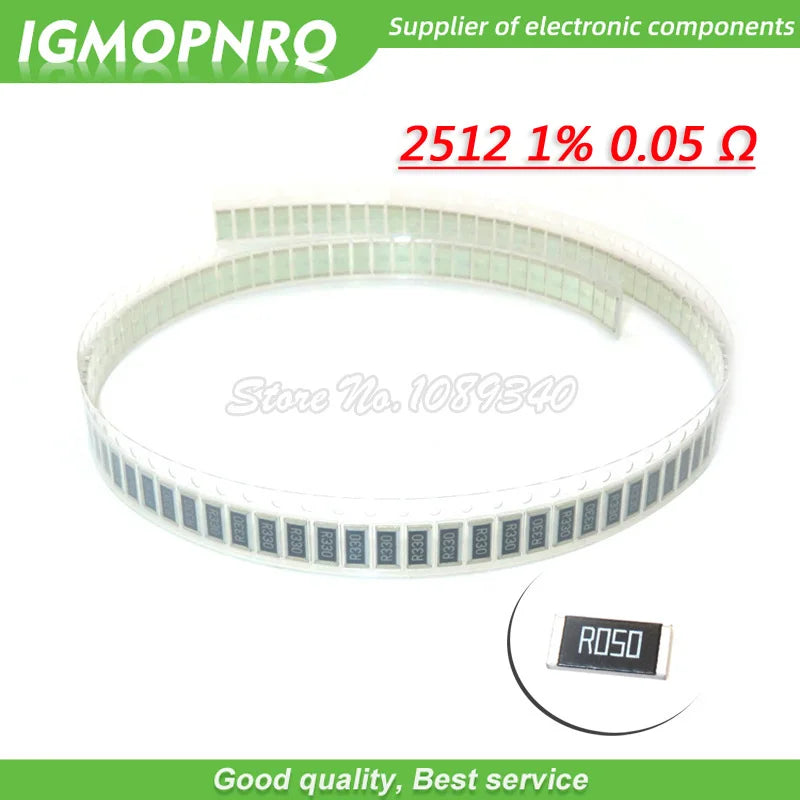

- Verify quantity and format: compare single values, mixed kits, cut tape, bulk packs and mixed-package options.
Current-sense versus general-purpose 2512 resistors
A low resistance value alone does not prove current-sense suitability. Current-shunt selection also depends on terminal construction, TCR, thermal EMF, overload behavior, stability and PCB layout. General thick-film 2512 resistors may be appropriate for other power or voltage-divider functions but should not inherit alloy-shunt claims.
Power-rating boundaries
Listings reference 1W, 2W, 3W, 5W and 7W products. These ratings belong to specific components, sizes and thermal conditions. The 5W and 7W claims are associated with larger mixed-listing formats such as 3920 or 5930 and must not be applied to standard 2512 parts. Verify PCB copper area, ambient temperature, terminal temperature and derating for every selection.
Low-ohm layout and measurement
At milliohm values, solder joints, pads and traces can equal a significant fraction of the resistor value. Use four-wire measurement and Kelvin-connected sense traces where accuracy requires it. Place sense connections inside the current-carrying pads according to the exact component guidance.
Mixed-listing boundaries

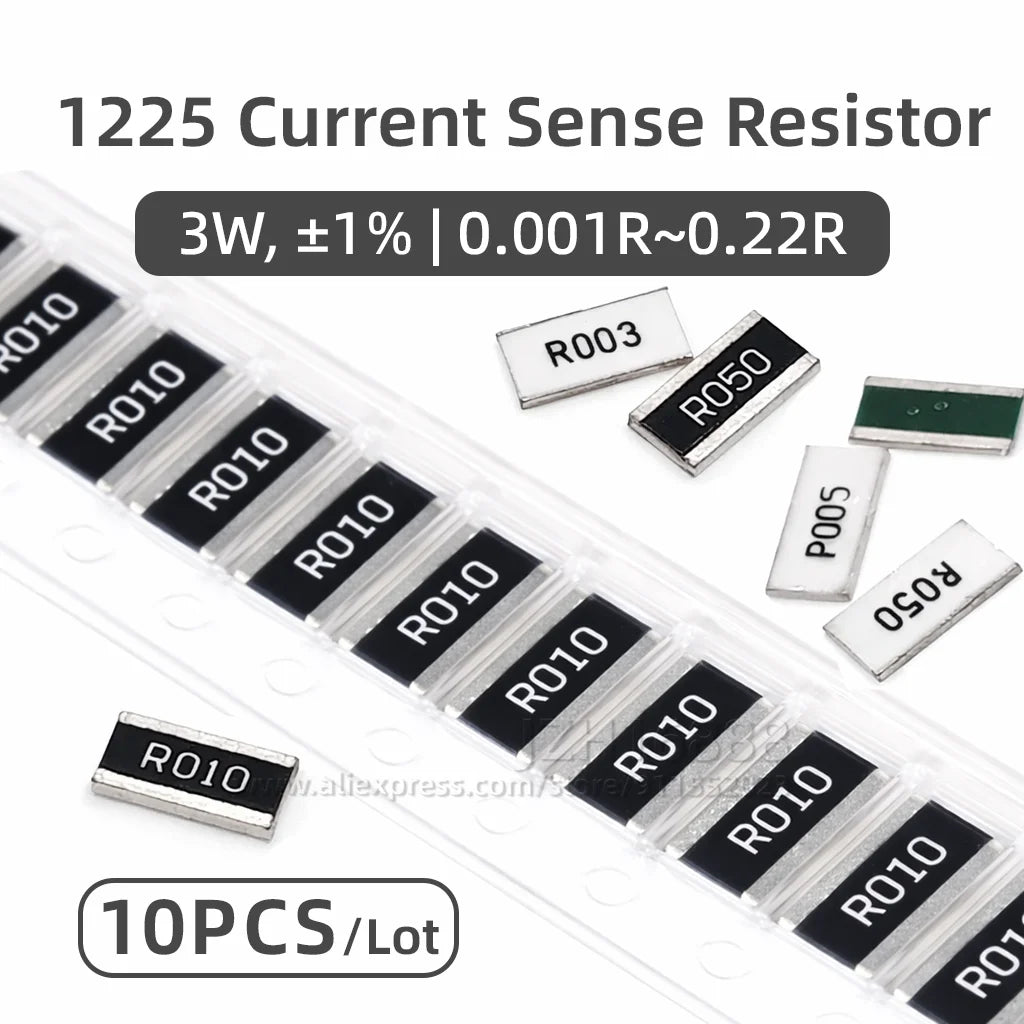

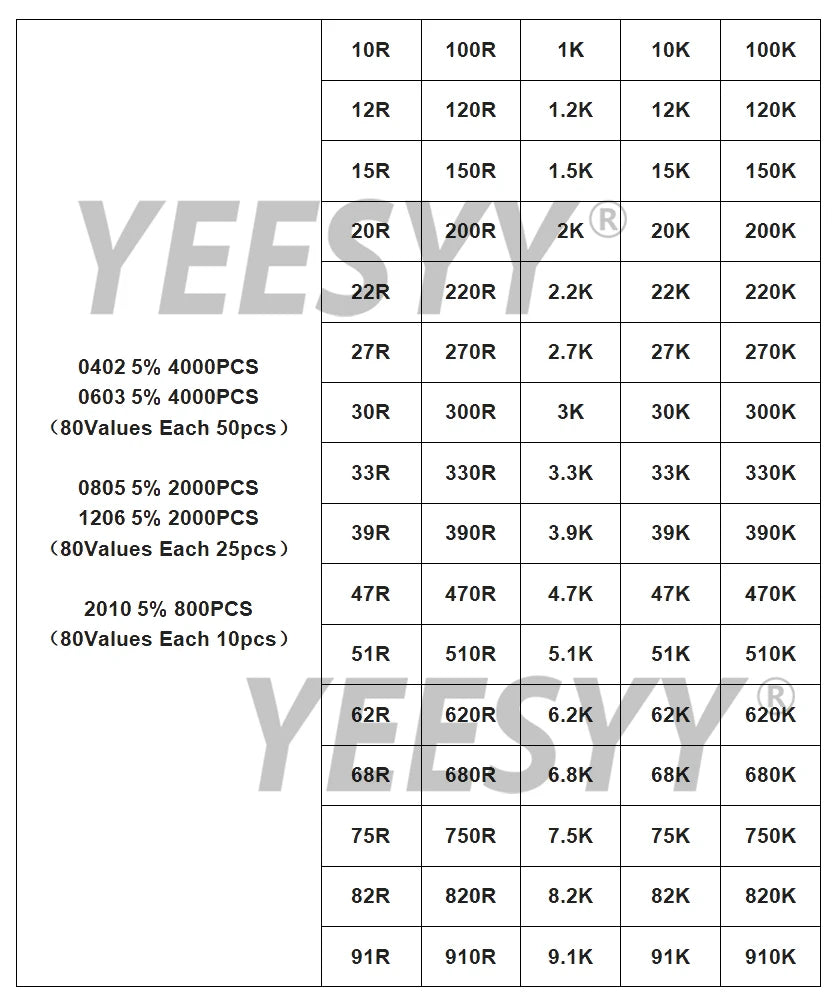

Some listings combine 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512, 3920 or 5930 options. Only variants explicitly marked 2512 / 6432 belong to this footprint. A listing labeled 1225 is also a different format. Tolerance, TCR, material, wattage and branded part-number claims apply only to the specified product or variant.
Ordering checklist
- 2512 imperial / 6432 metric dimensions
- Thick-film, metal-alloy or manganese-copper construction
- Resistance and notation
- Tolerance and TCR
- Continuous current and power derating
- Pulse, surge and fault energy
- Kelvin or two-terminal layout
- Single value, assortment or mixed-size kit
Frequently asked questions
Is every 2512 resistor a current-sense resistor?
No. The collection includes both general-purpose fixed resistors and specialized alloy shunts.
Is every 2512 resistor rated at 1W or 2W?
No. Ratings vary by construction and thermal conditions and must be checked per product.
What does R010 mean?
R010 denotes 0.01Ω, or 10mΩ.
Can a 3920 or 5930 shunt use a 2512 footprint?
No. Those are different physical formats and require their own PCB land patterns.
Why use Kelvin sensing?
Separate sense traces reduce measurement error from high-current pads, solder and copper traces.
Does 1% tolerance define TCR?
No. Initial tolerance and temperature coefficient are independent specifications.
