2W Metal Film, Carbon Film & Power Resistors

2W resistors for through-hole power handling, repair and load control

This collection centers on 2-watt resistors, including axial metal film, carbon film and metal oxide values, assortment kits, low-ohm SMD alloy parts and selected wirewound or high-voltage products. Because construction and thermal behavior vary, select the exact product and variant rather than relying on wattage alone.

What is a 2W resistor?

A 2W resistor is designed to dissipate up to two watts under specified ambient temperature, mounting and derating conditions. The rating does not define body size, working voltage, surge energy, tolerance, TCR or safety behavior. Calculate circuit dissipation with P = I²R or P = V²/R, then provide design margin and suitable cooling.

Products represented

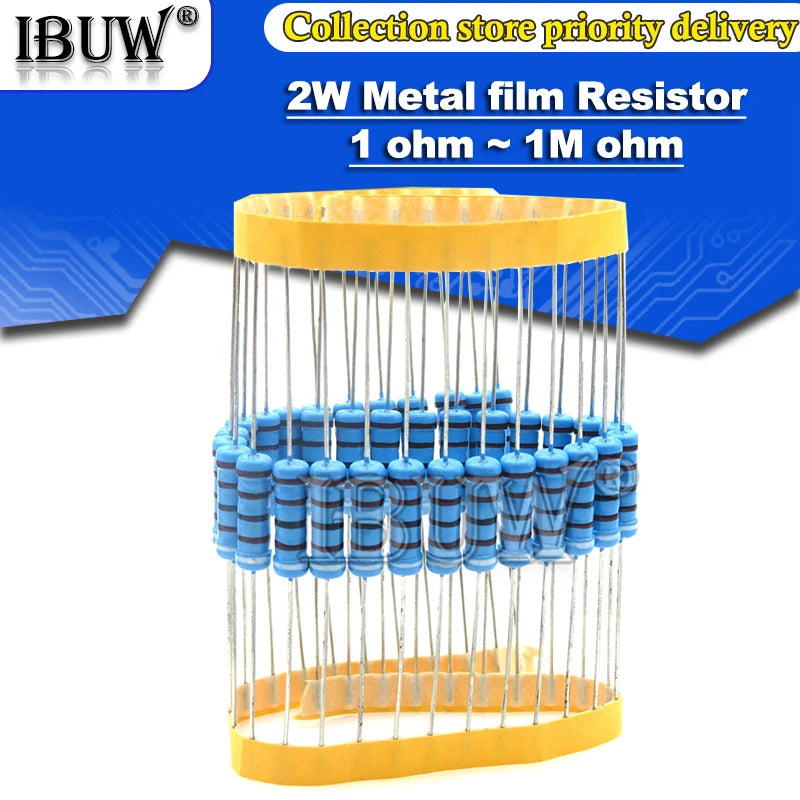

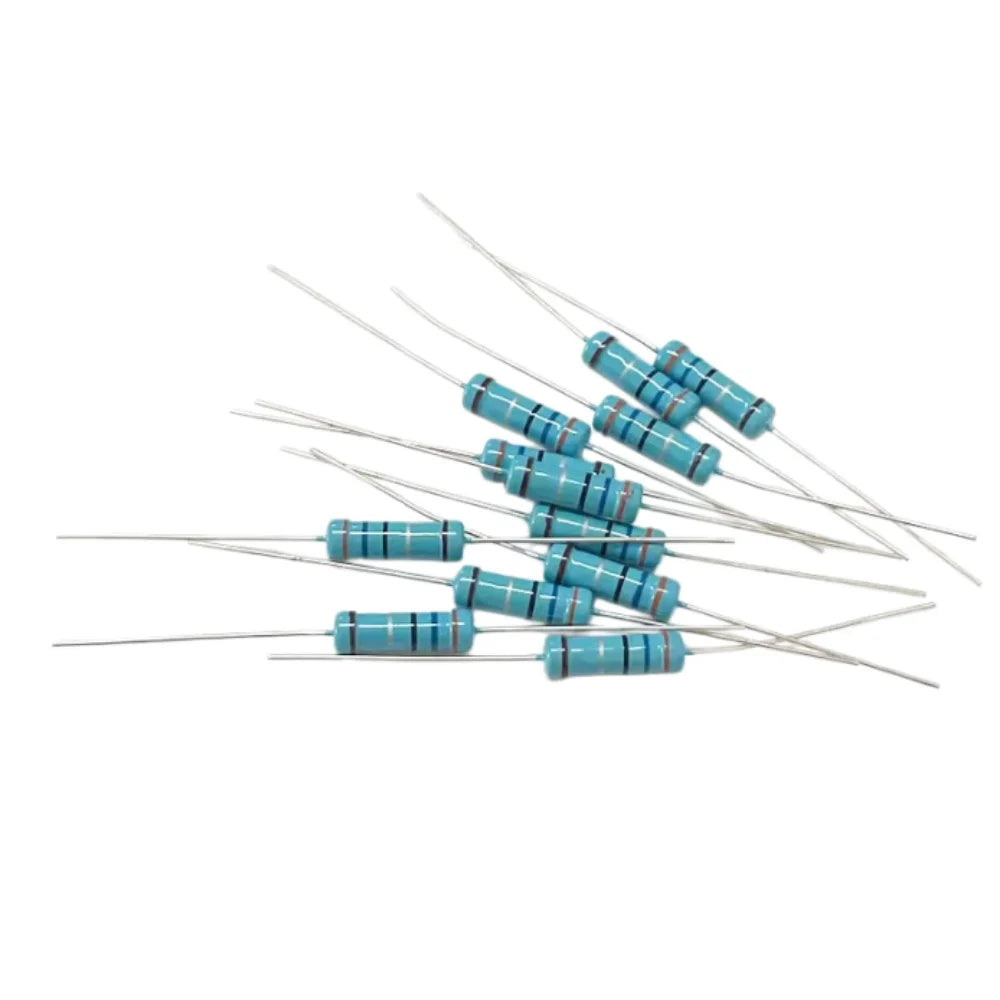

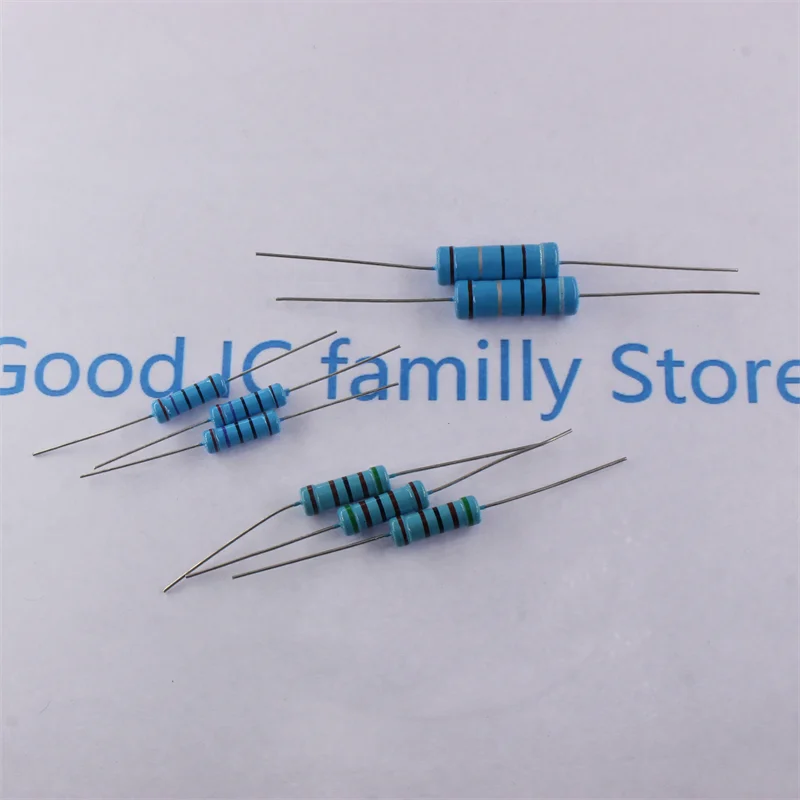

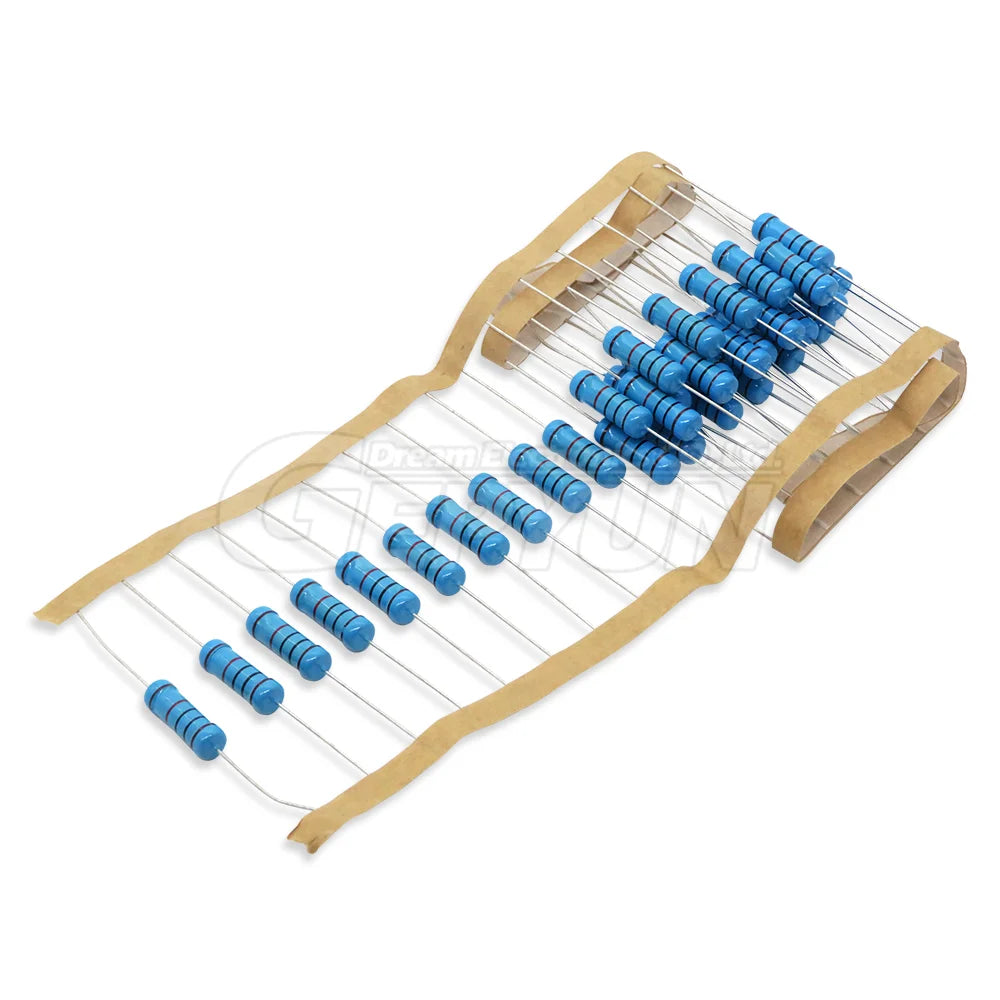

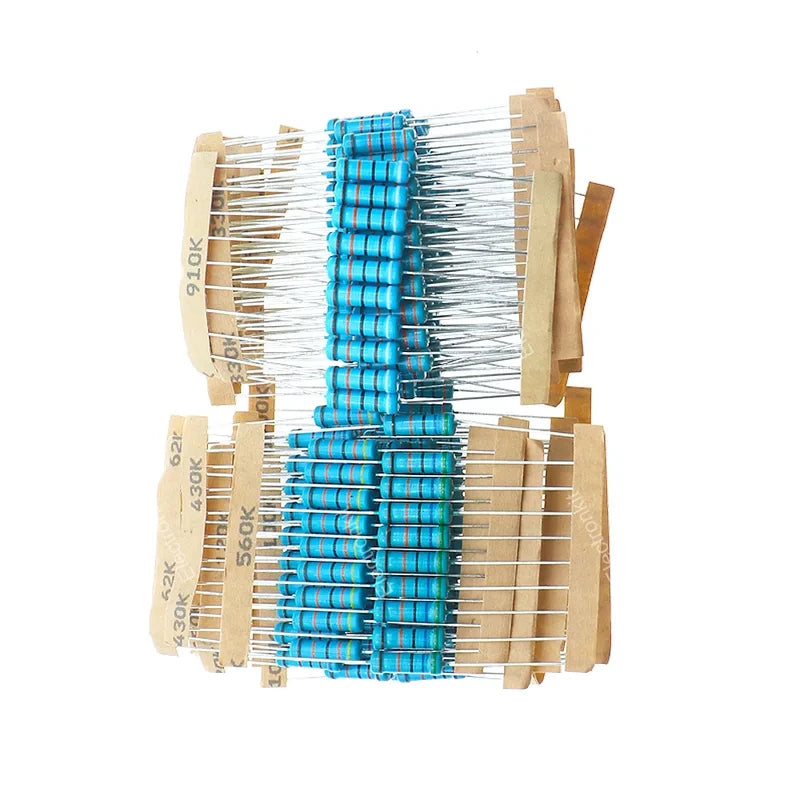

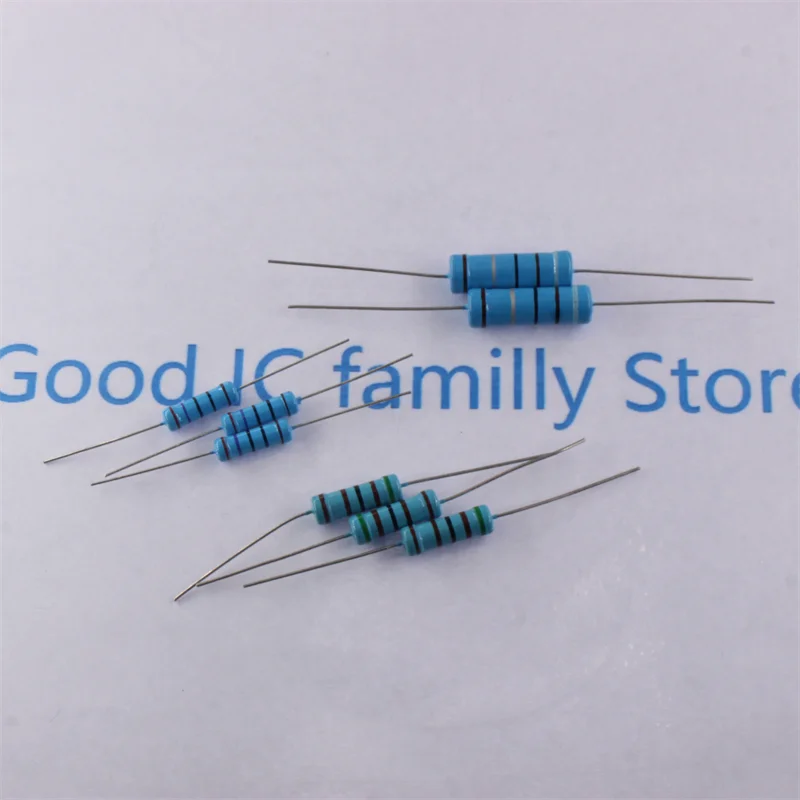

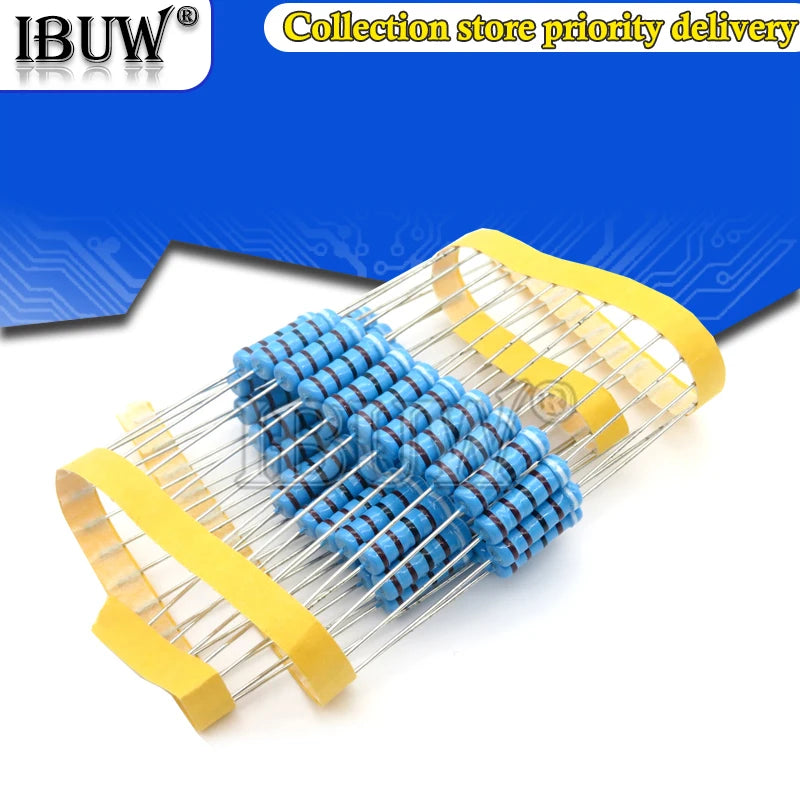

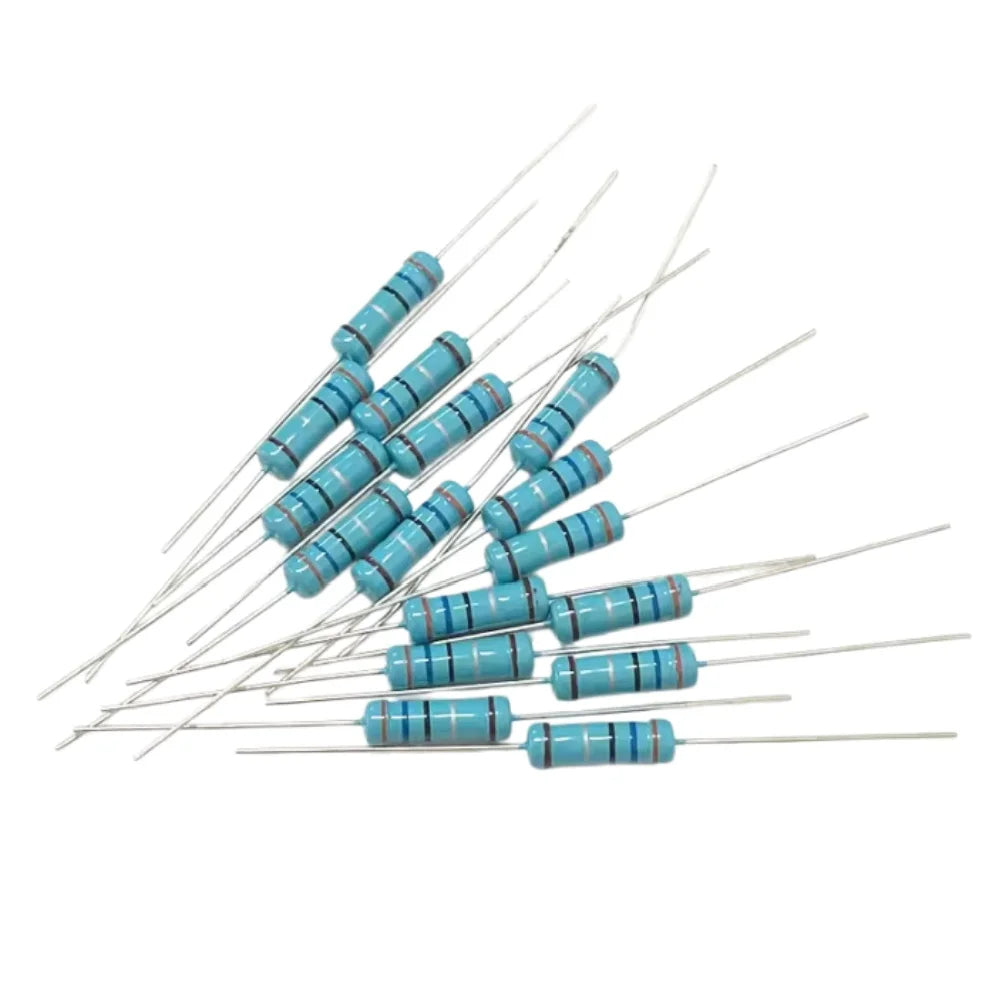

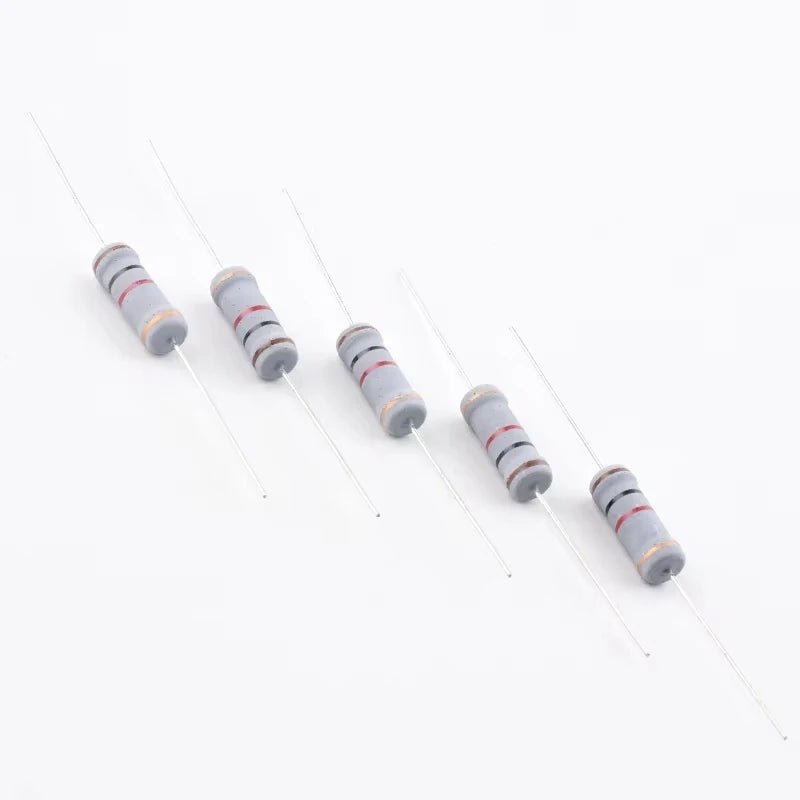

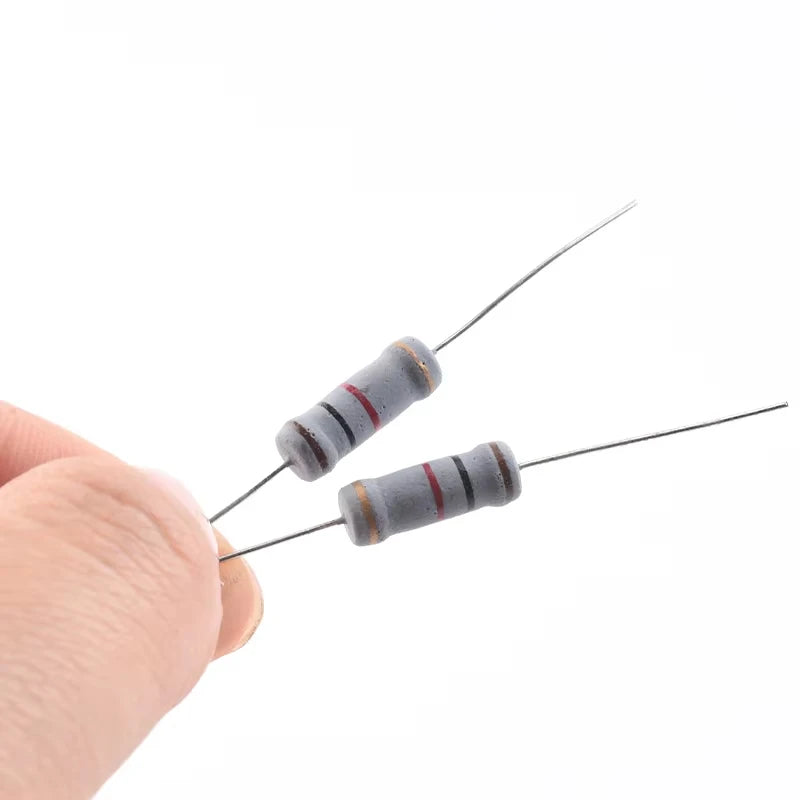

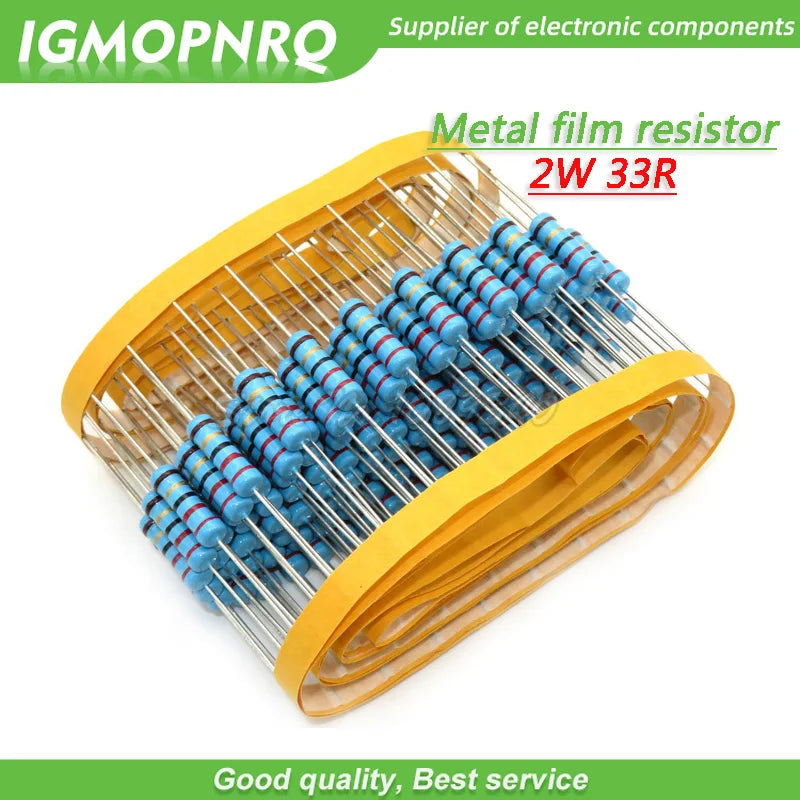

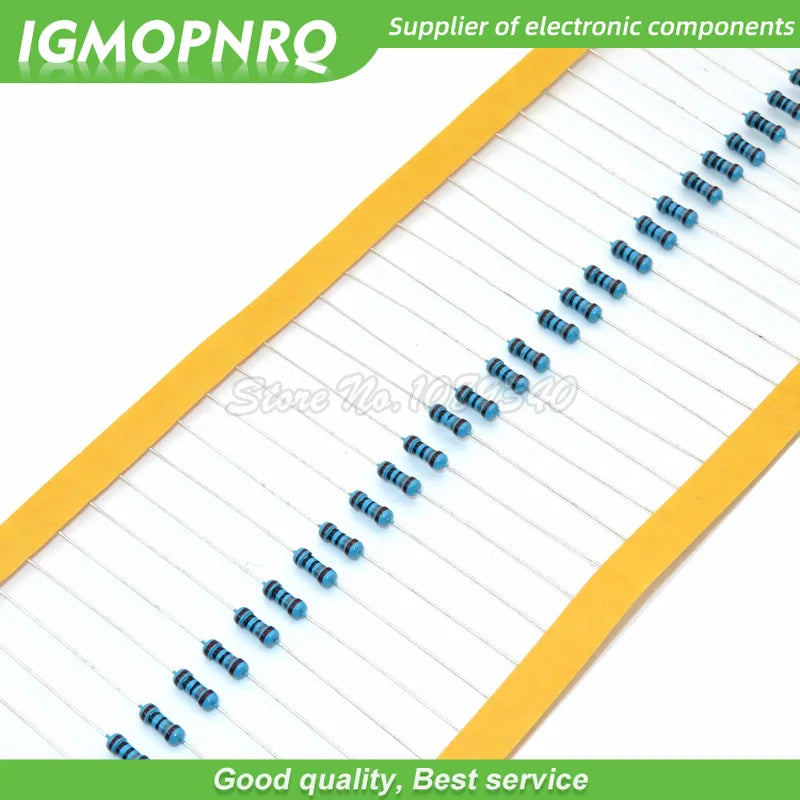

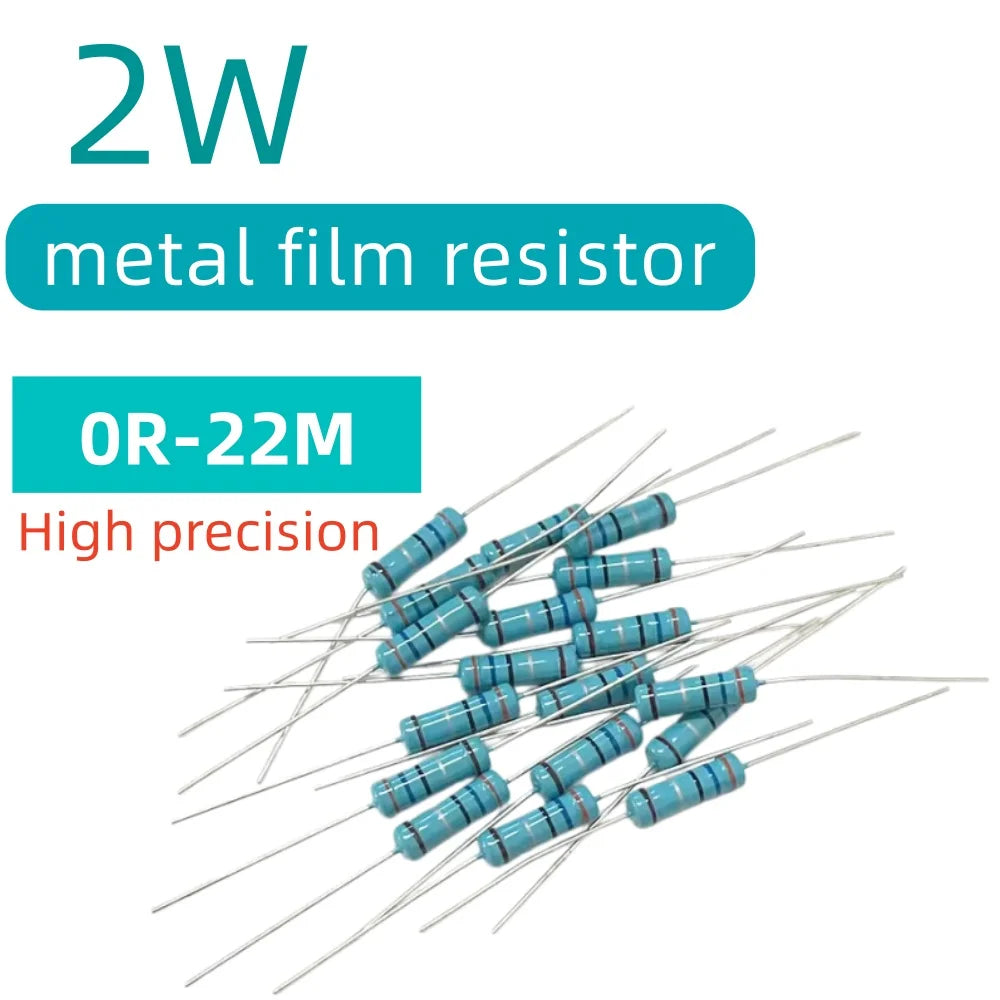

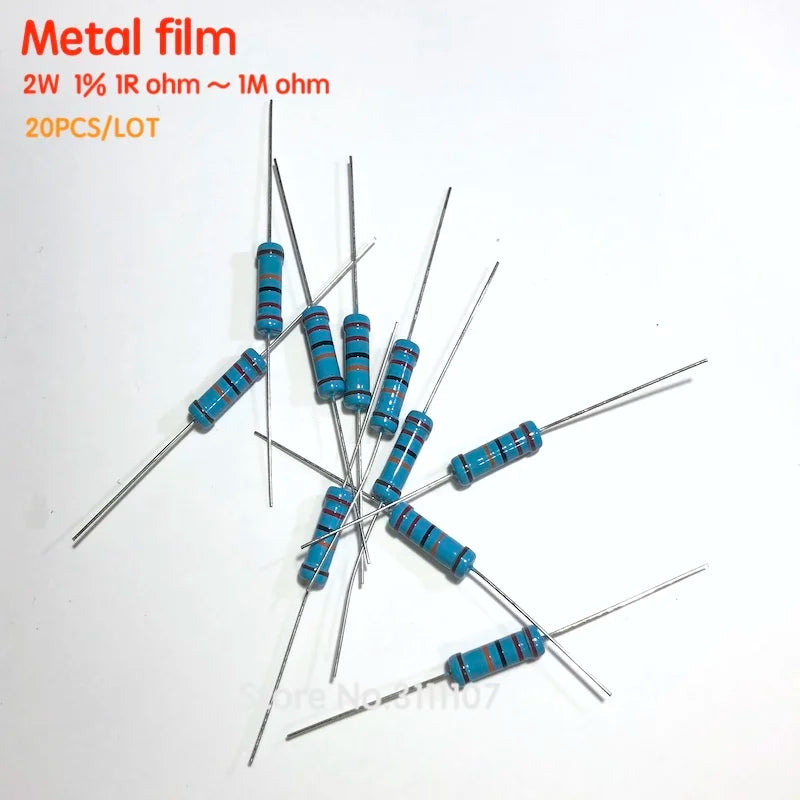

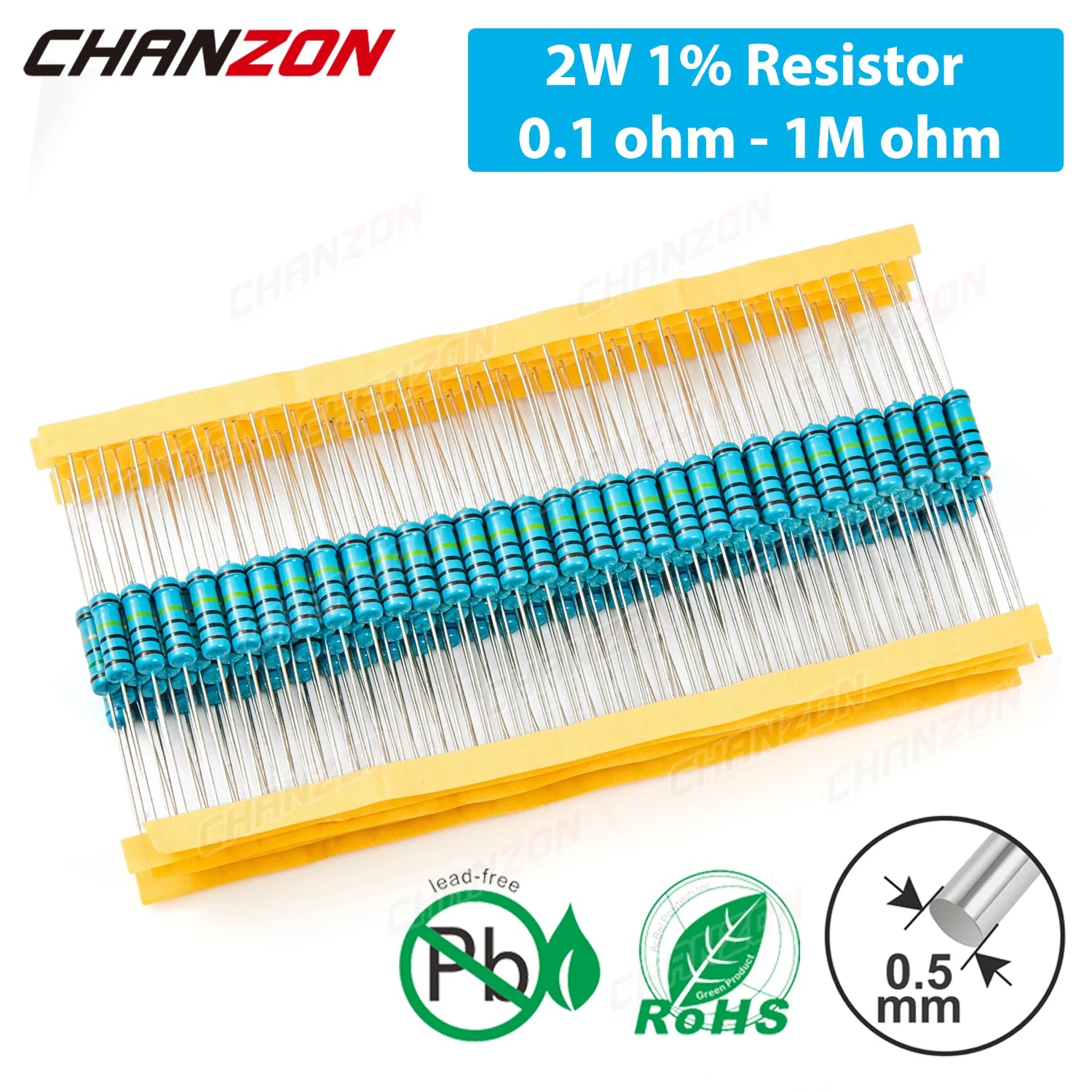

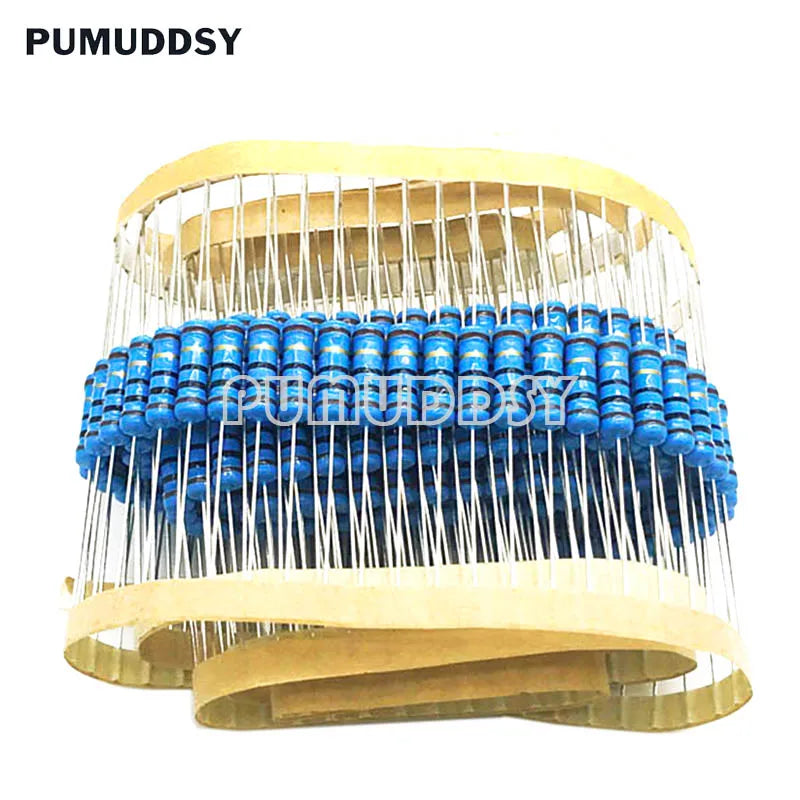

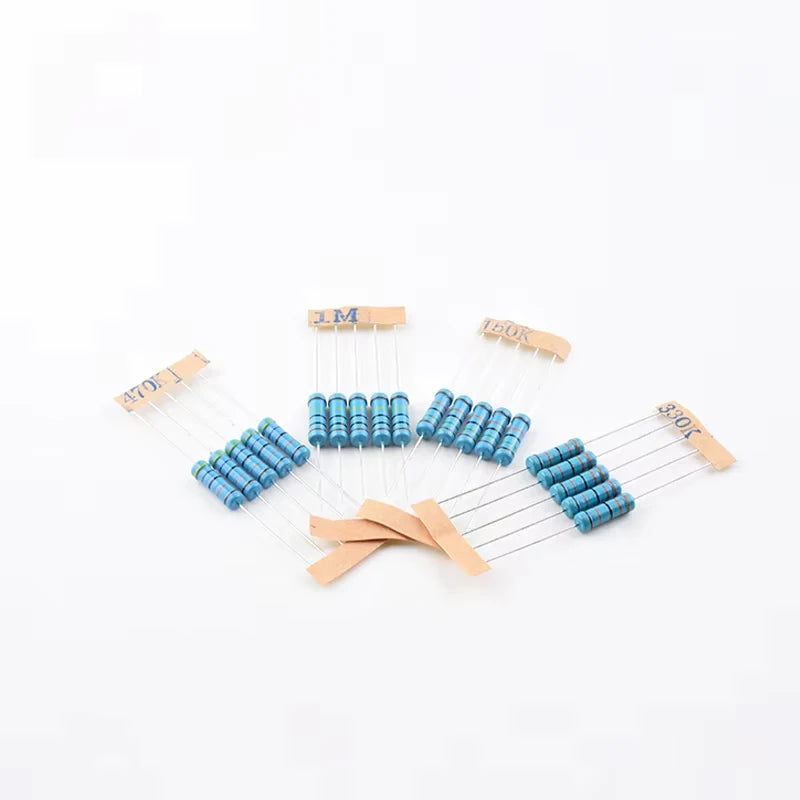

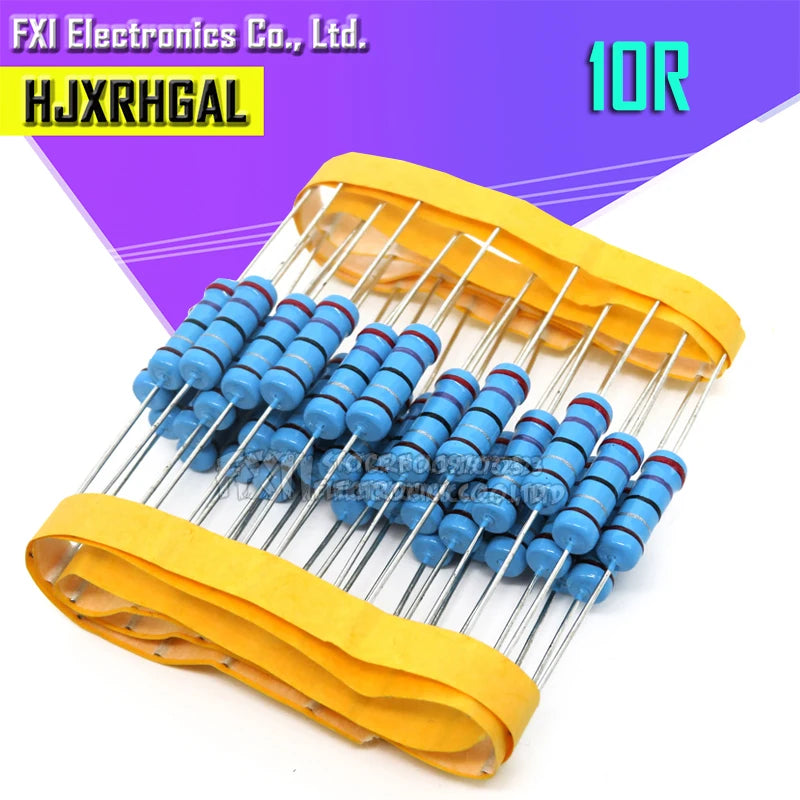

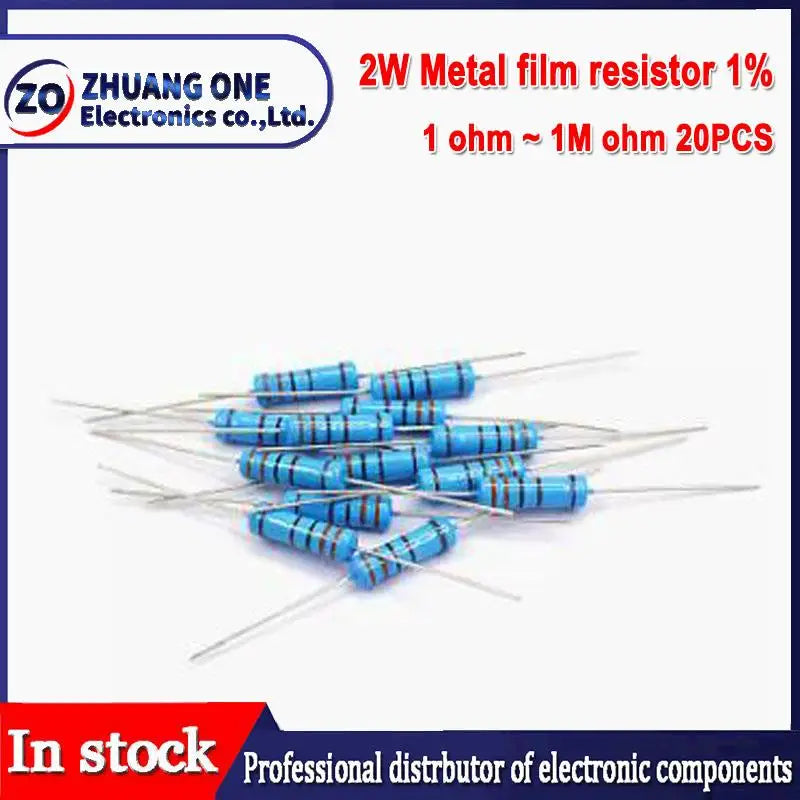

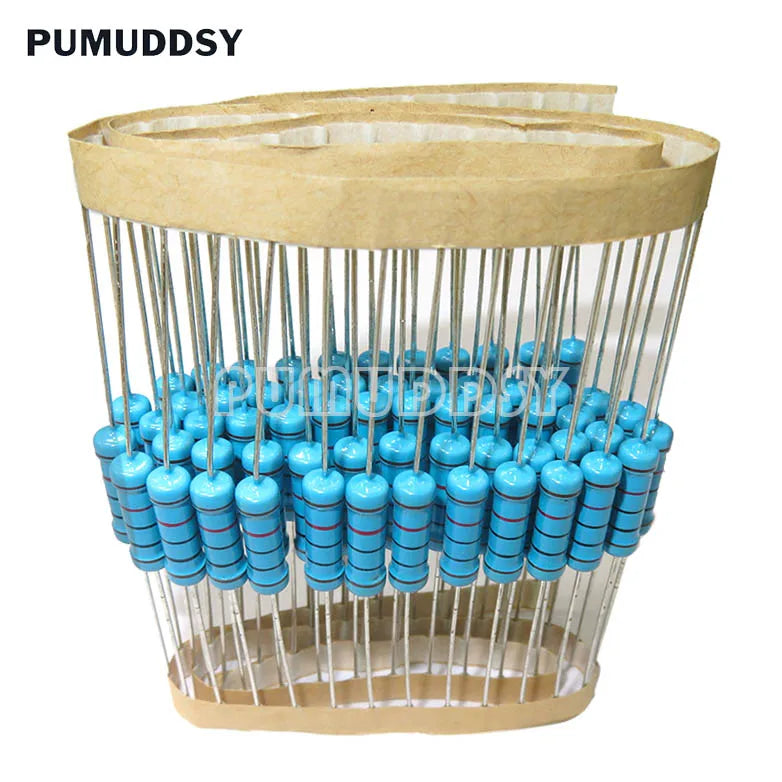

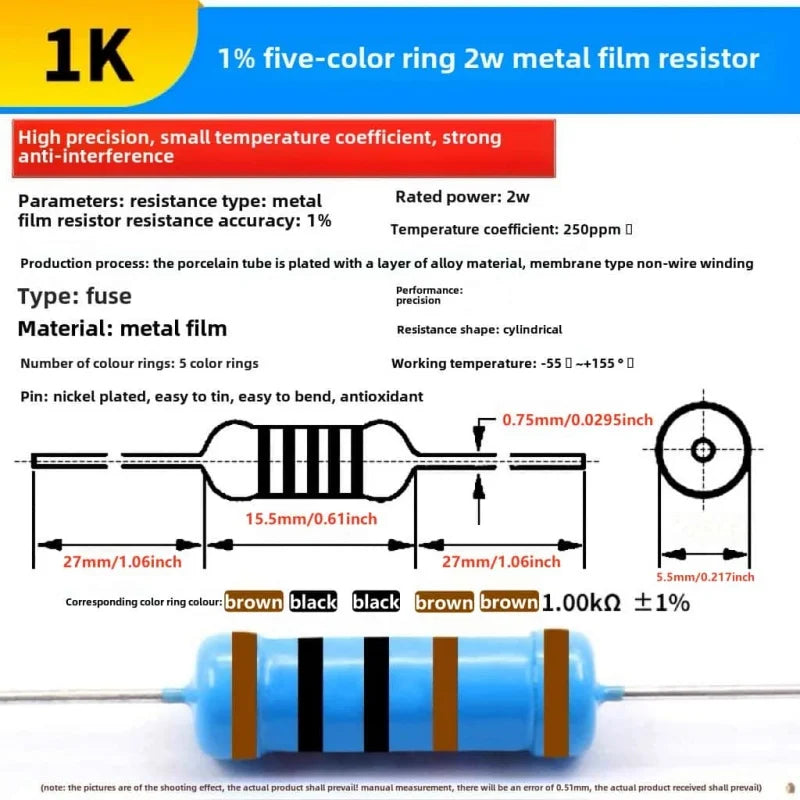

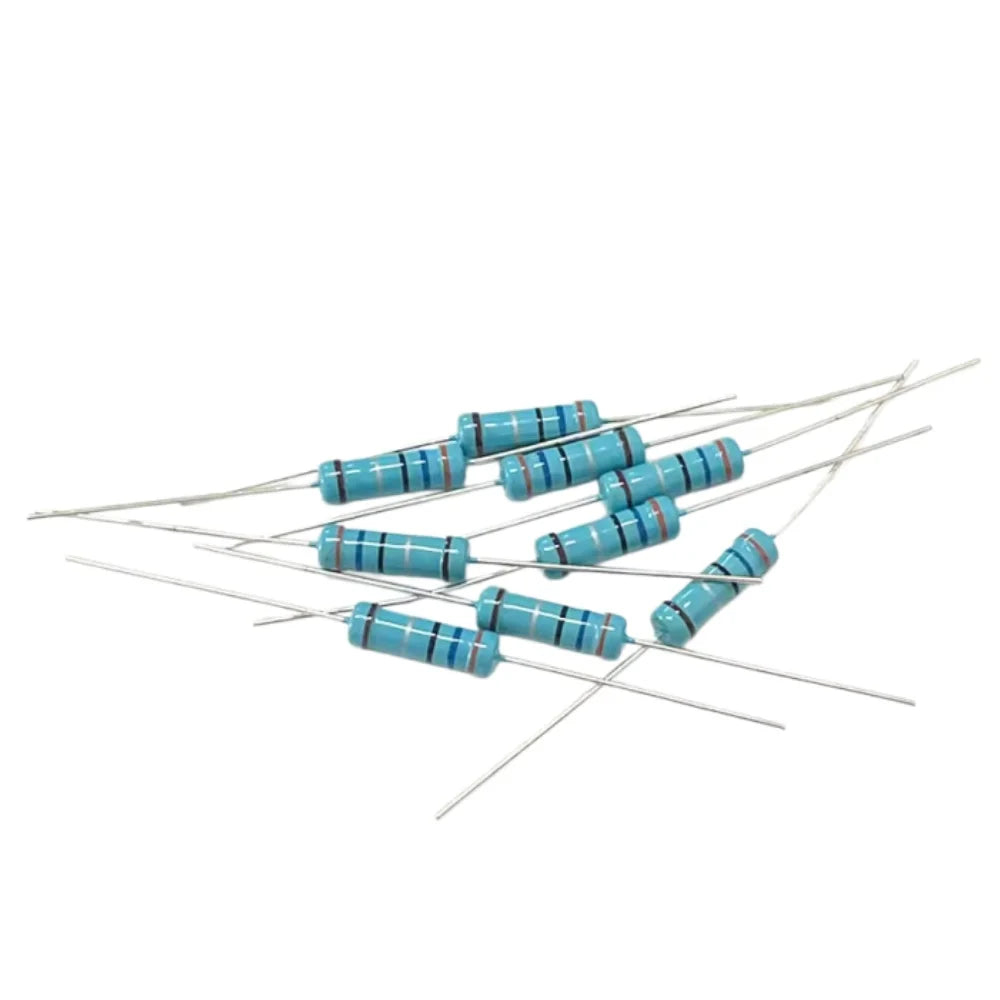

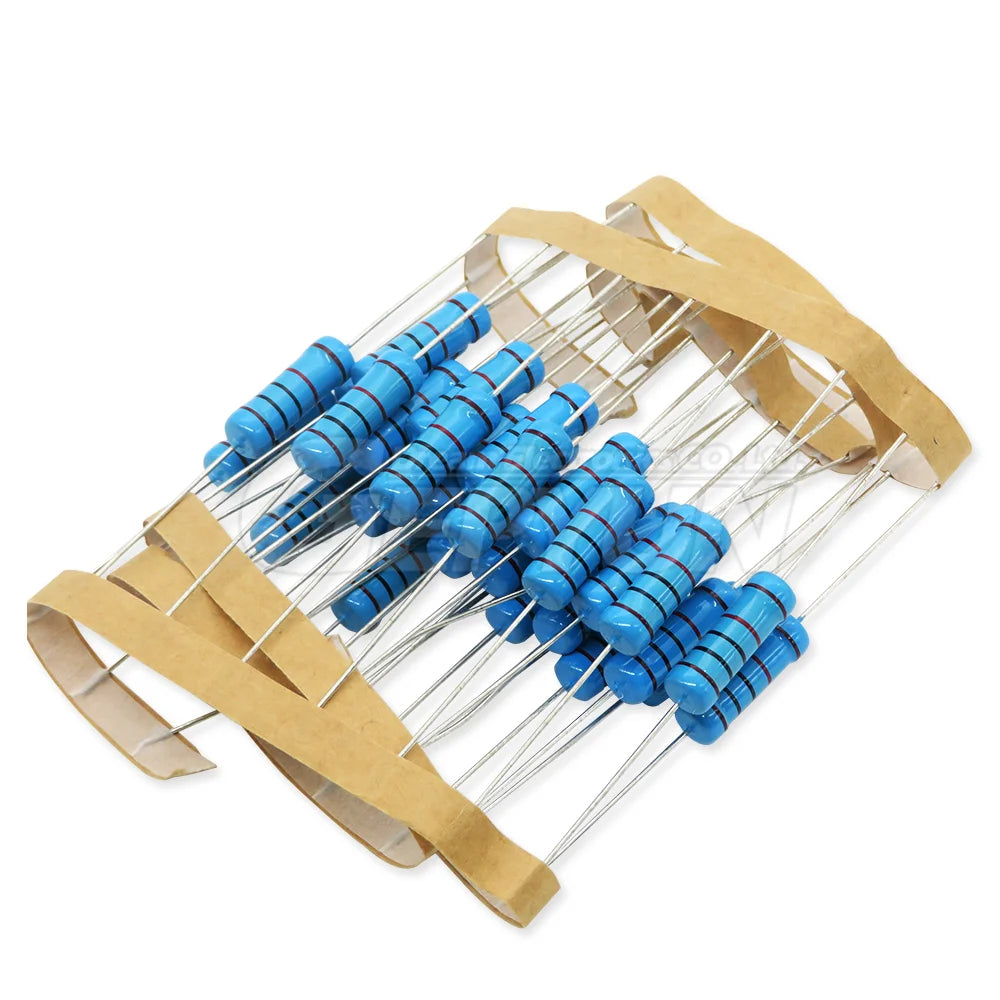

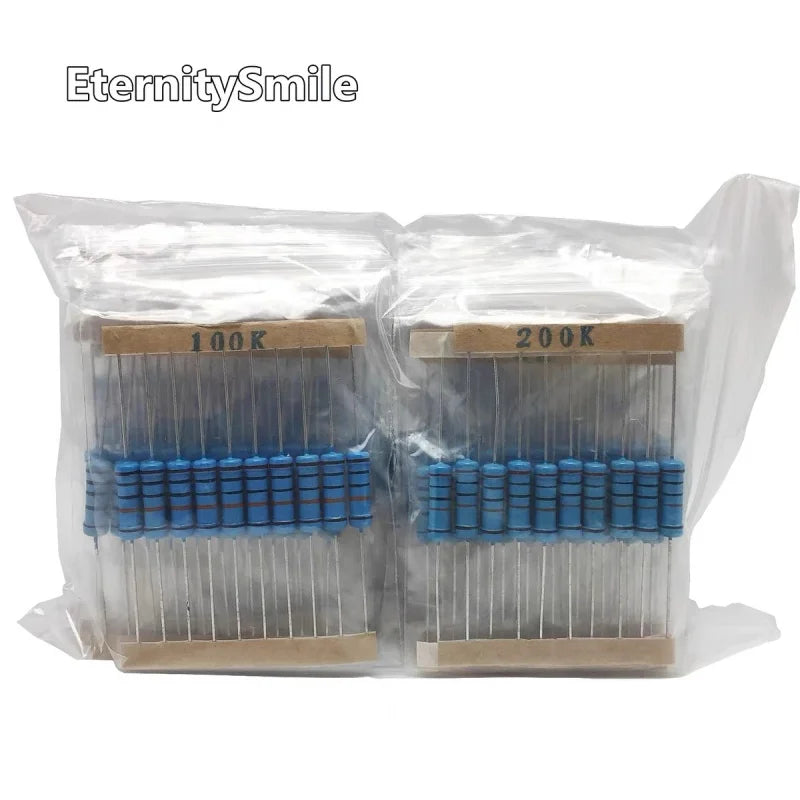

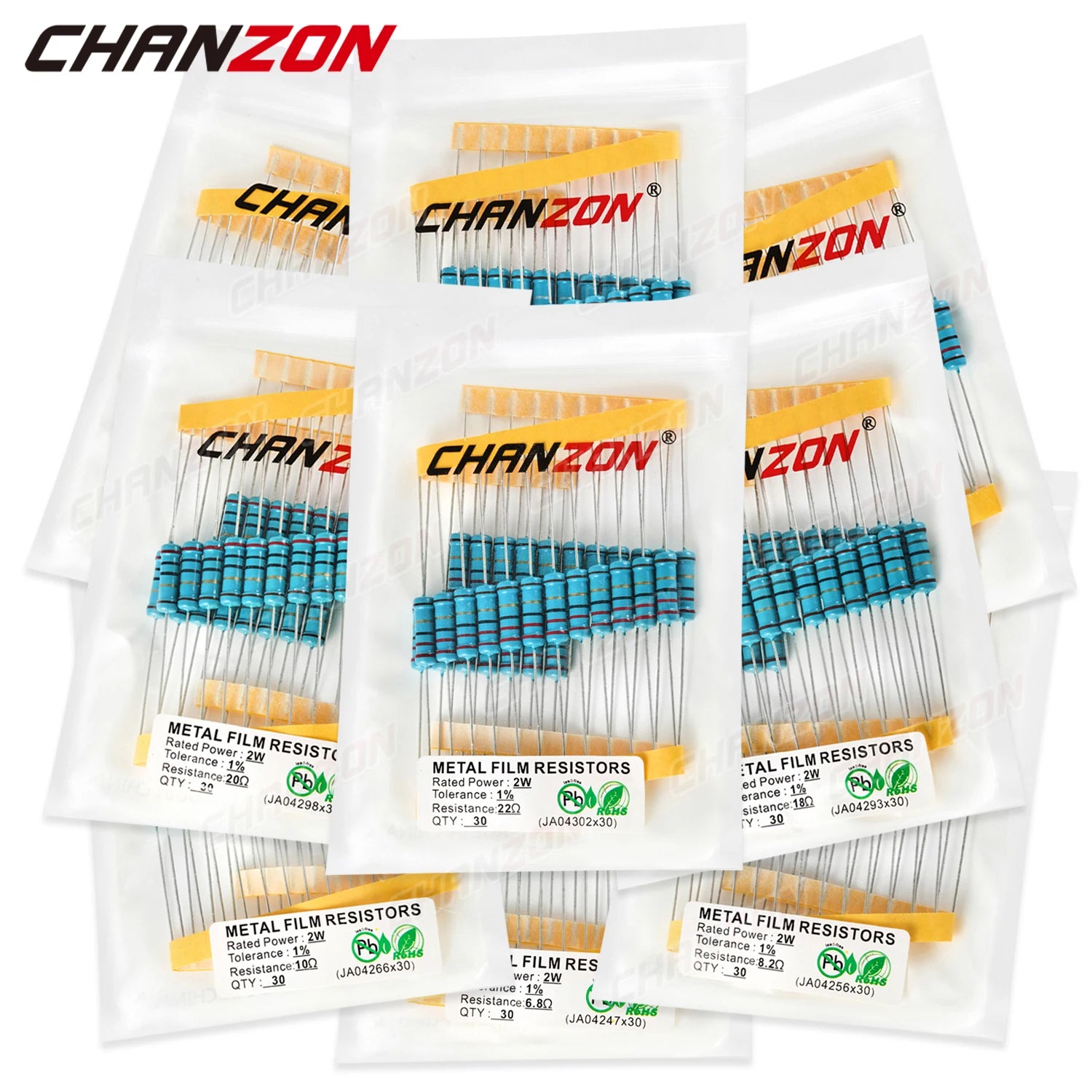

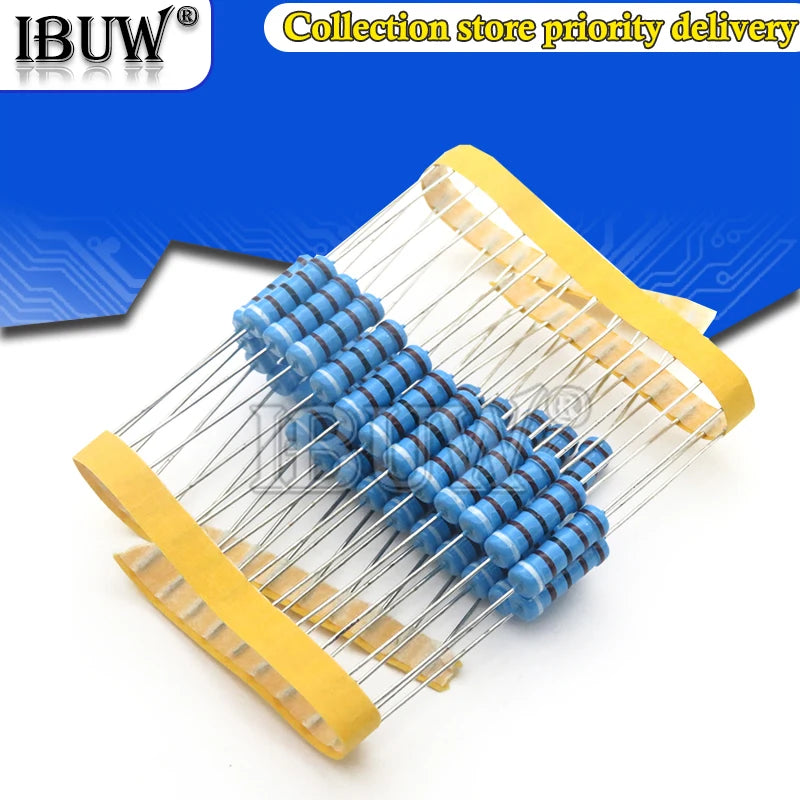

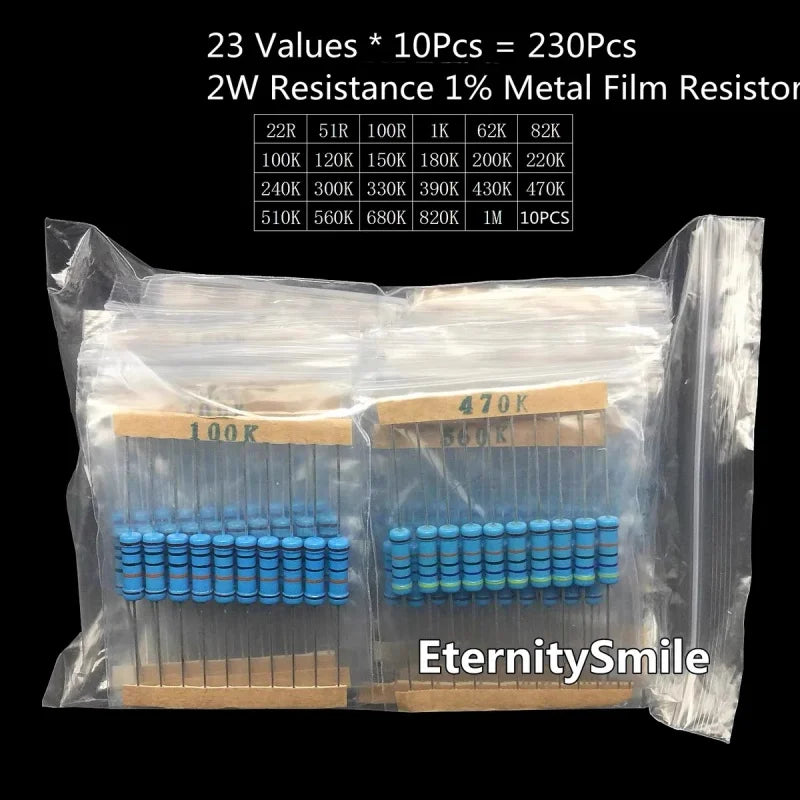

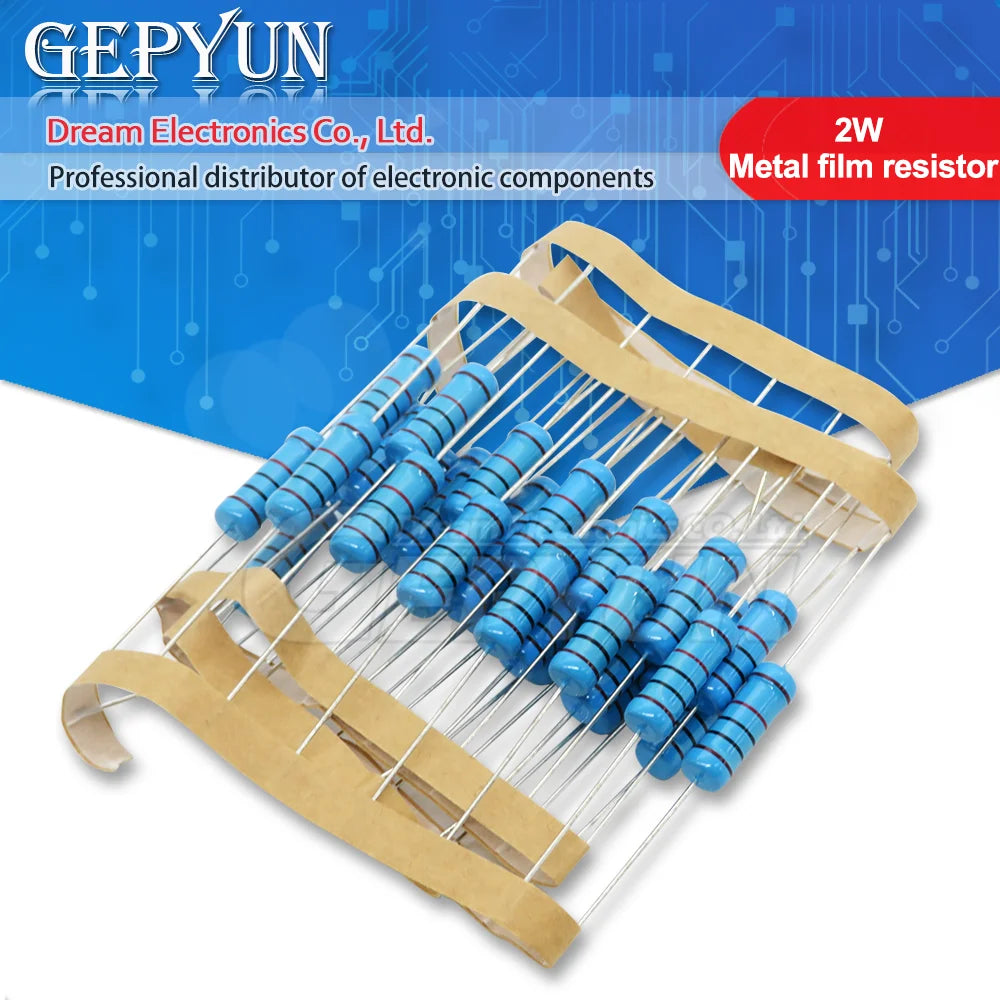

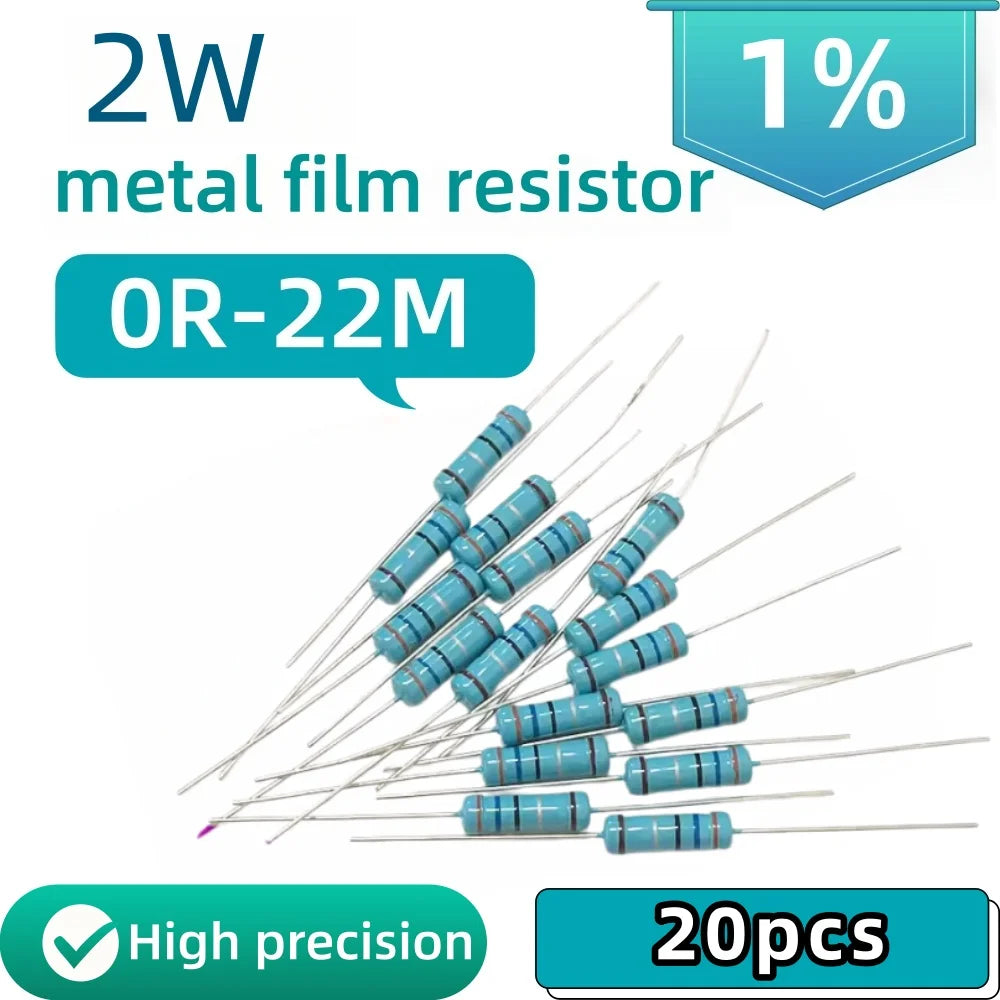

Axial metal film: many listings specify 1% tolerance in single-value packs and broad assortments.

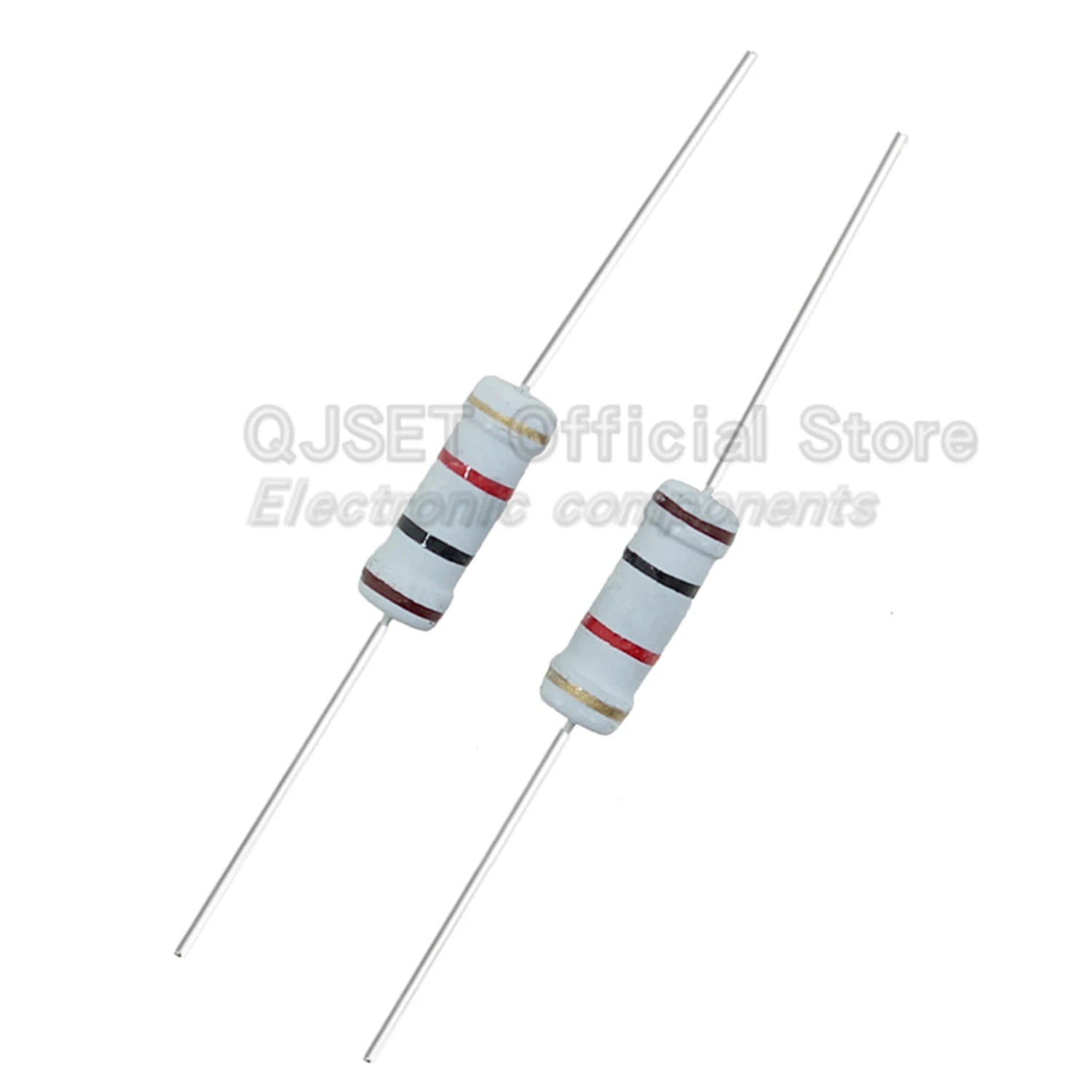

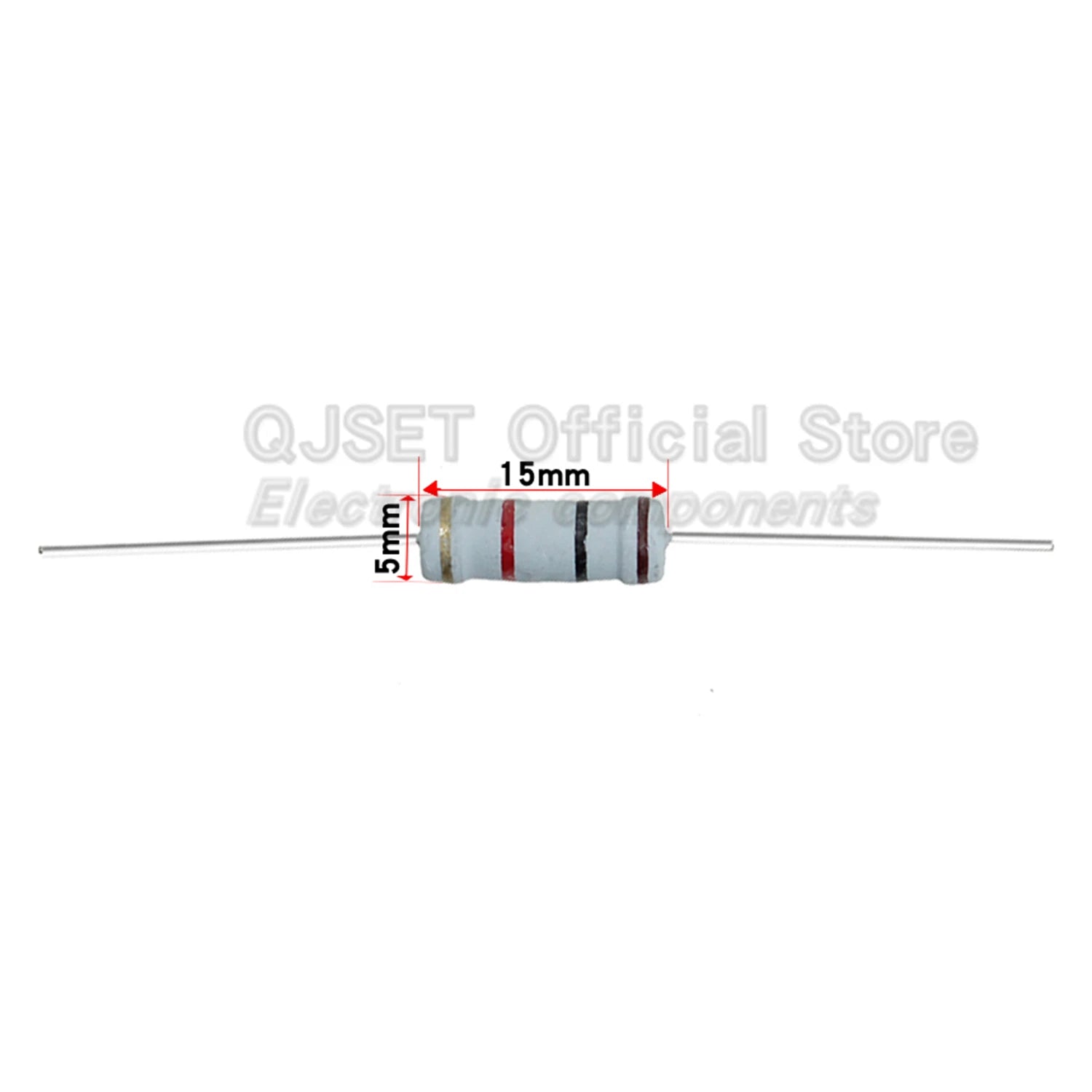

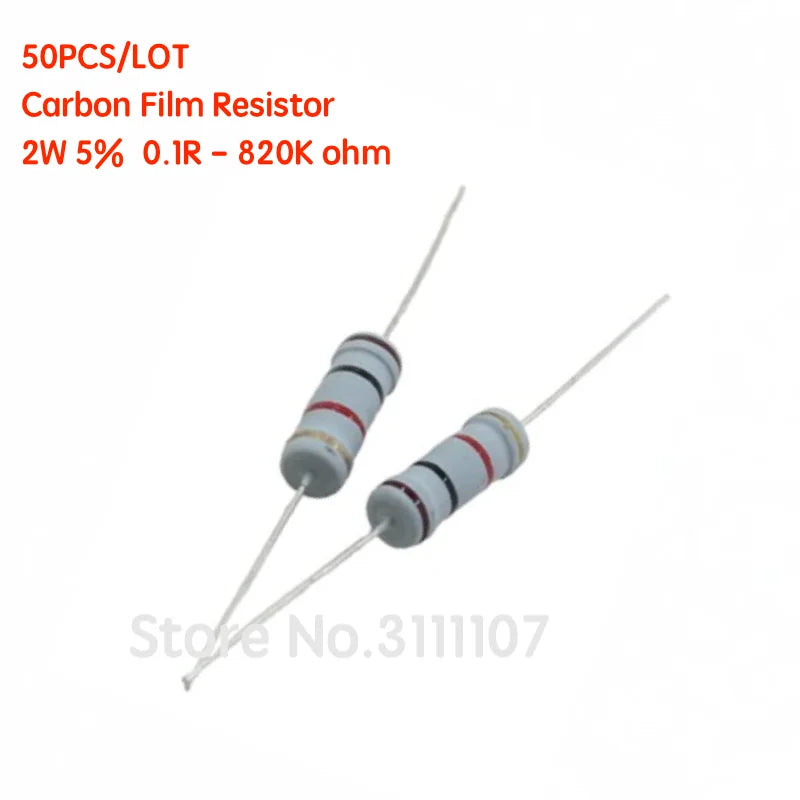

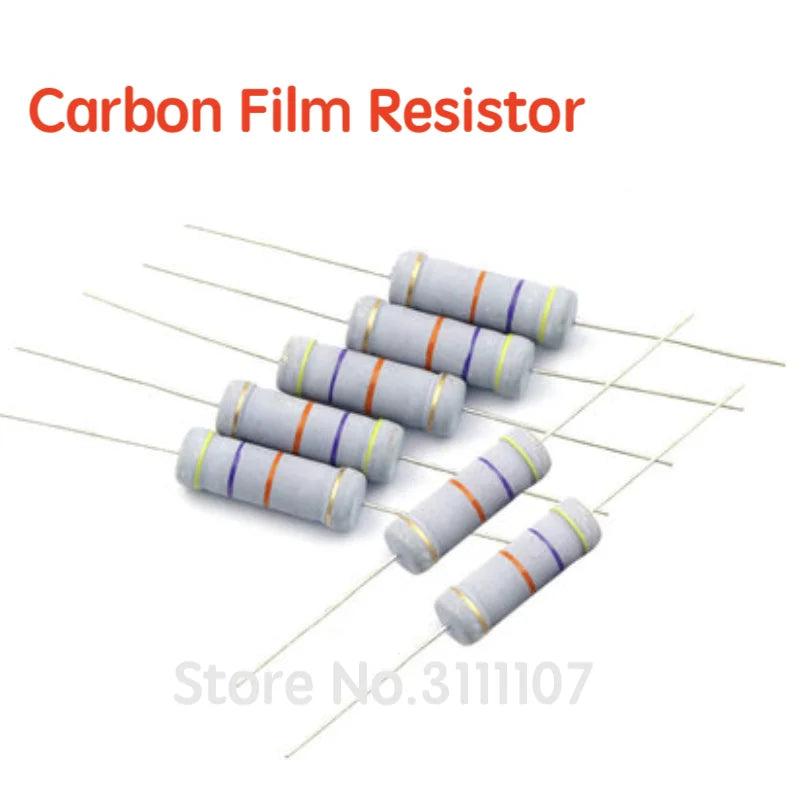

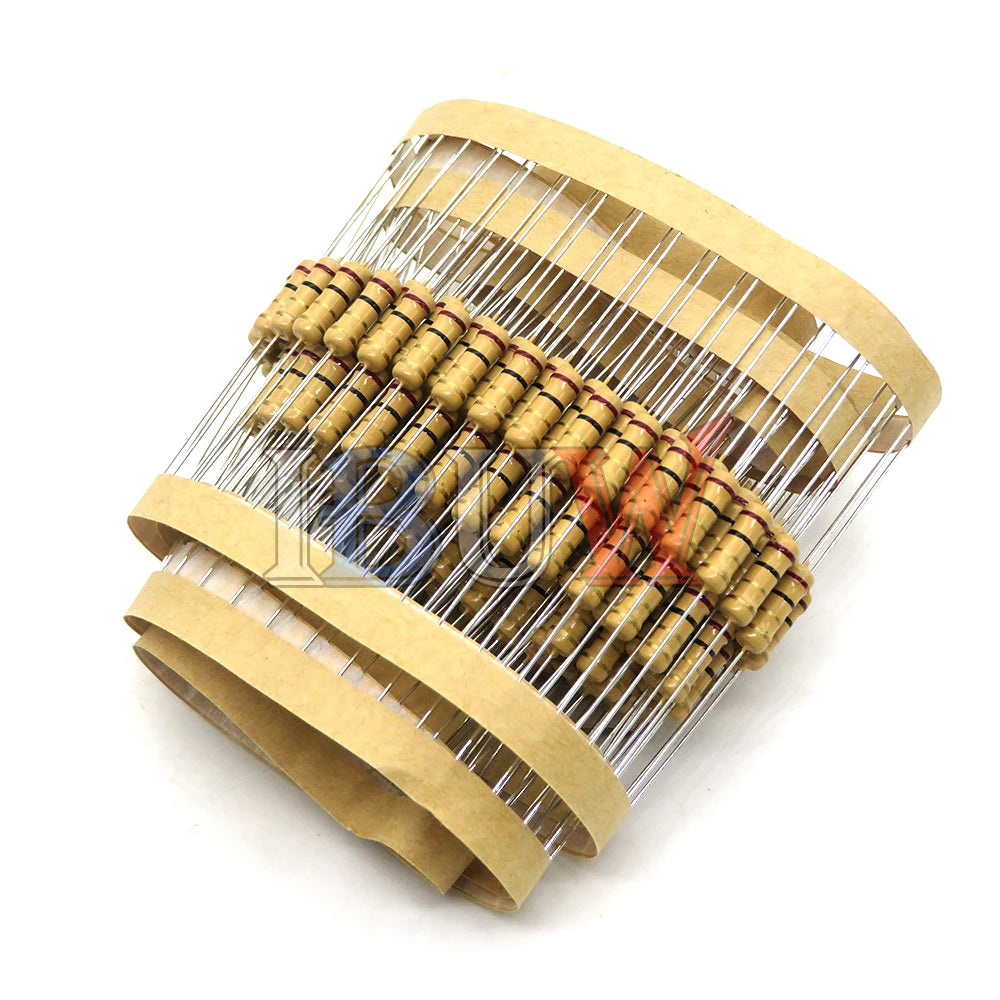

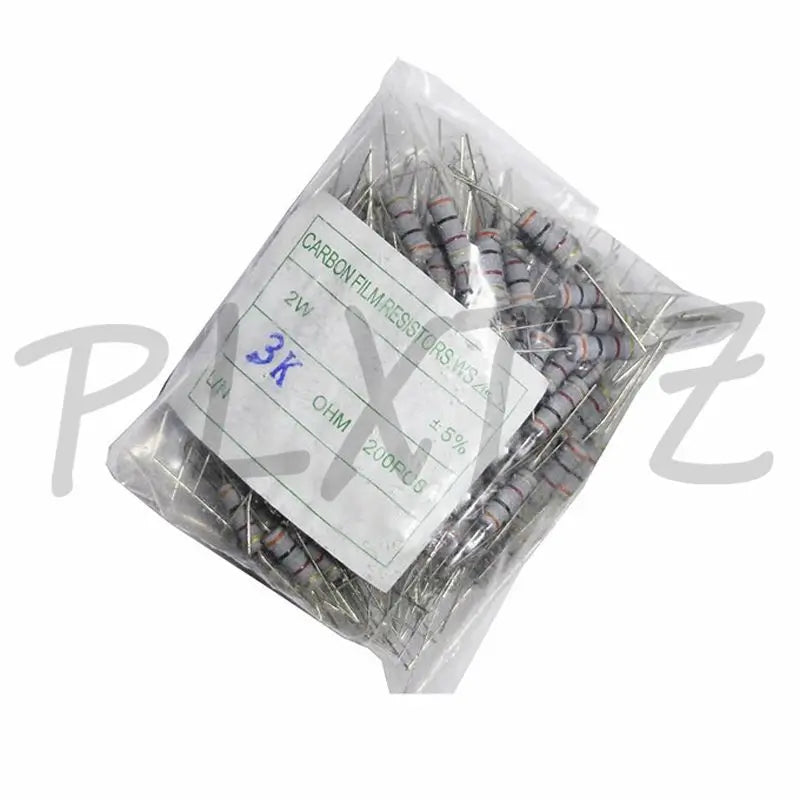

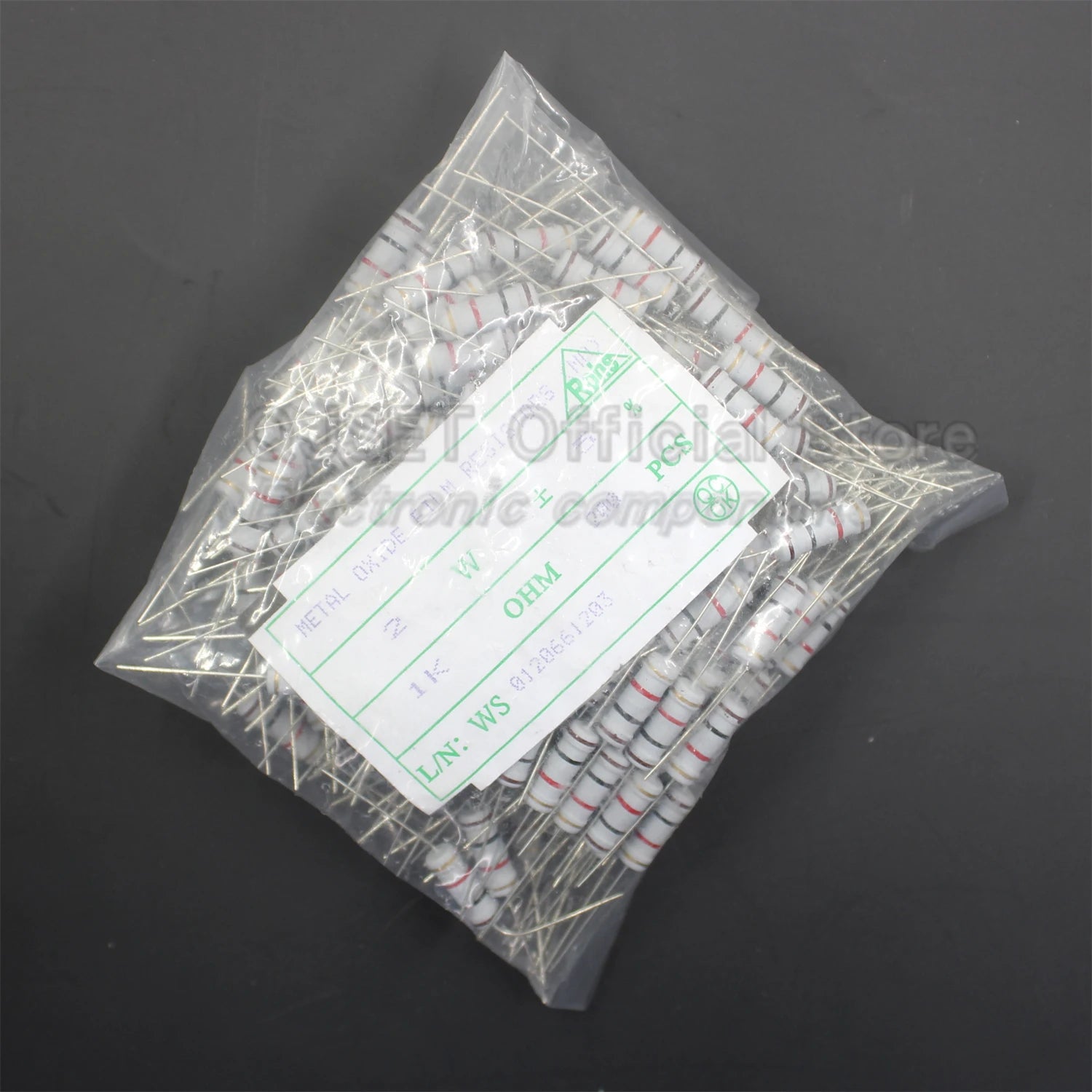

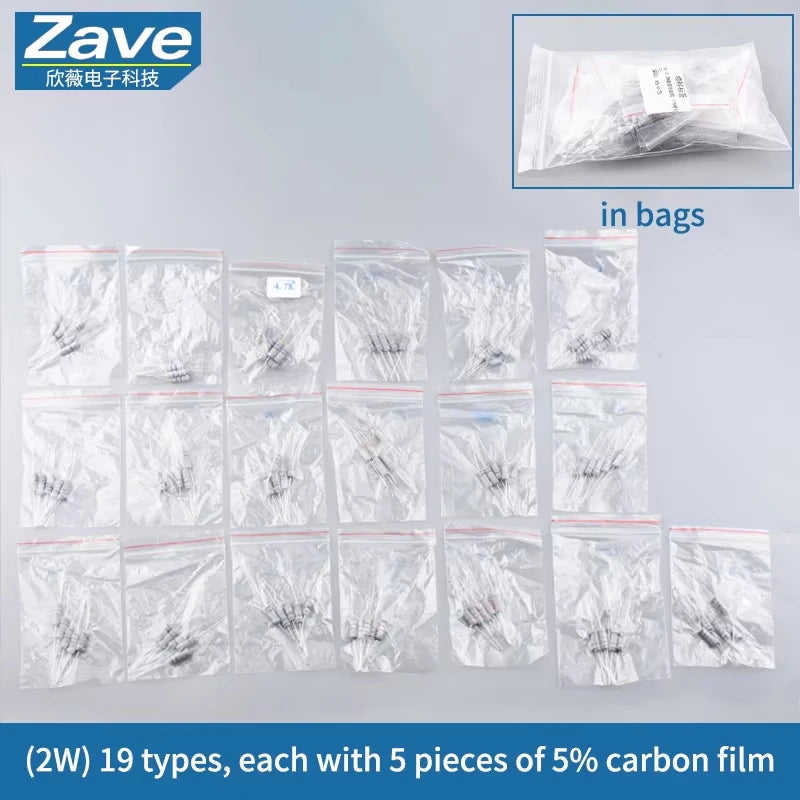

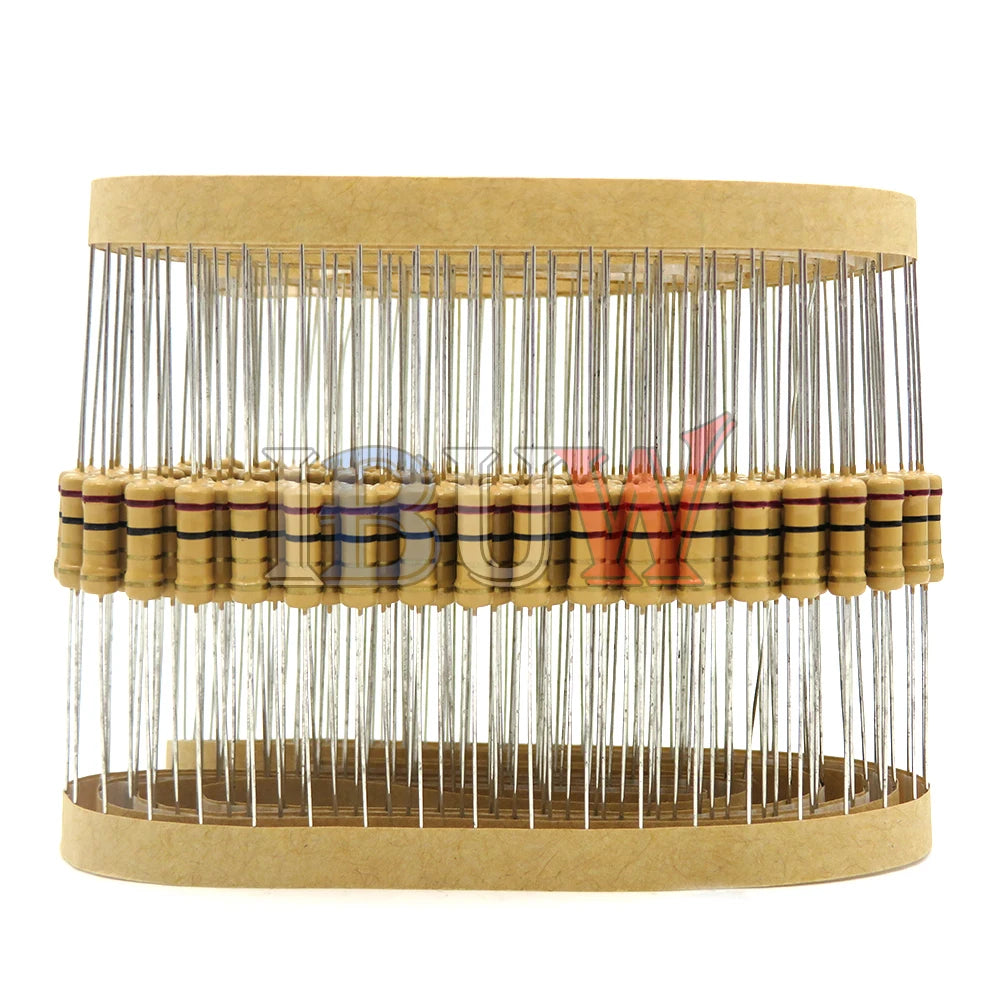

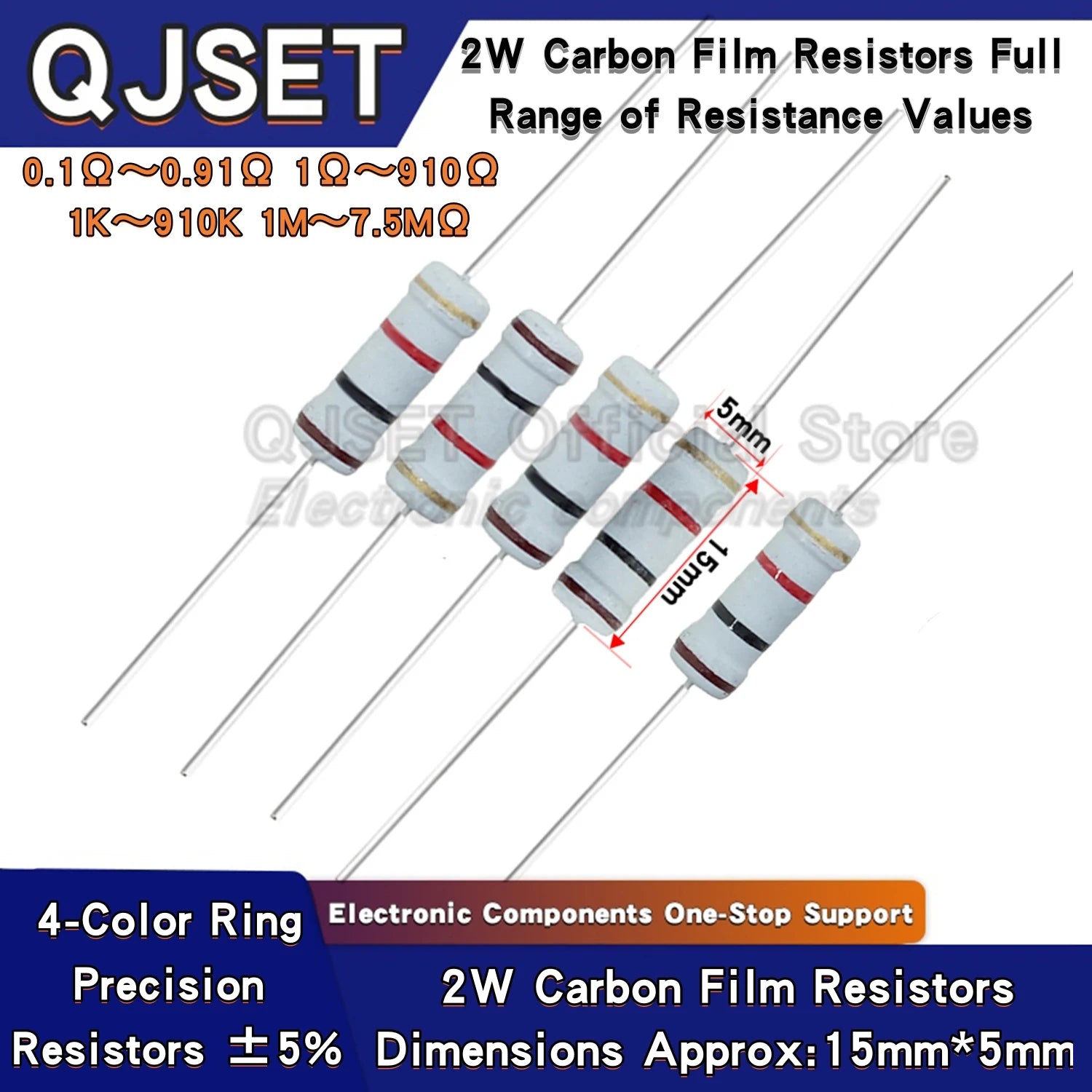

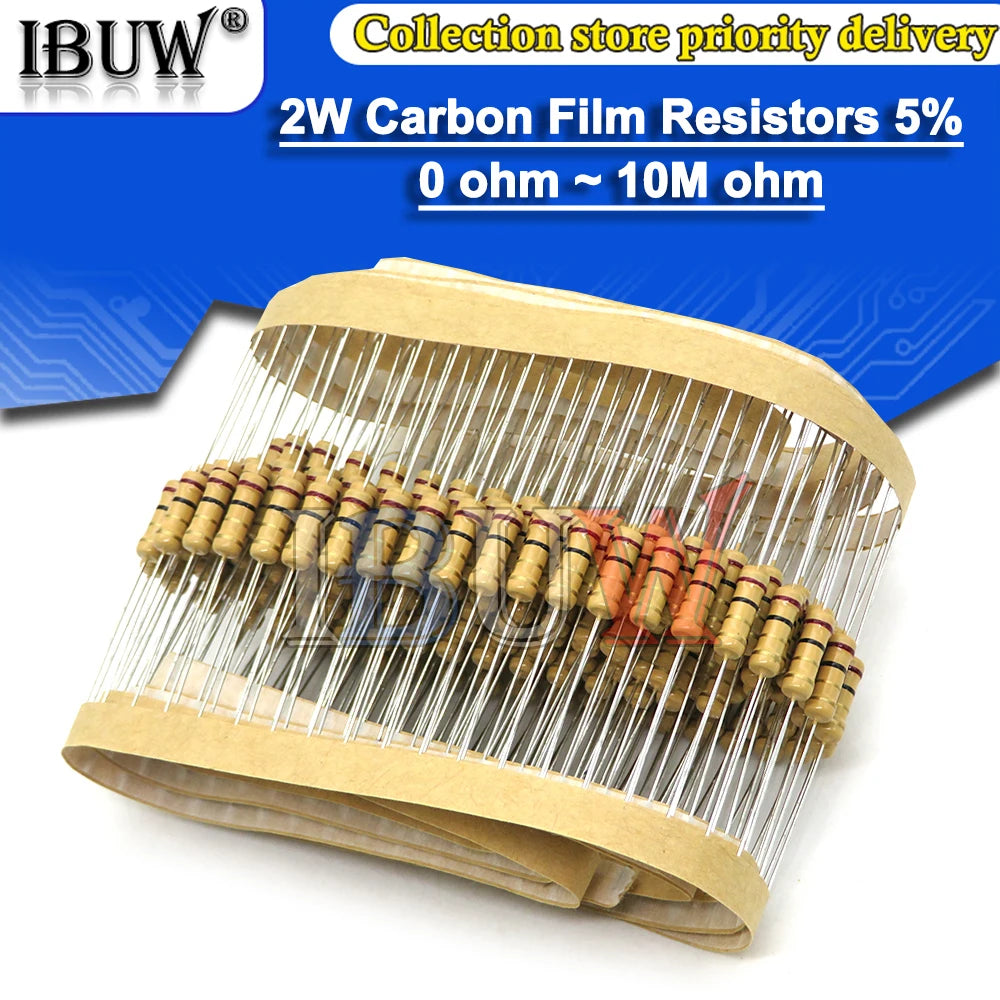

Carbon film: commonly offered with product-specific 5% tolerance for repair and general-purpose circuits.

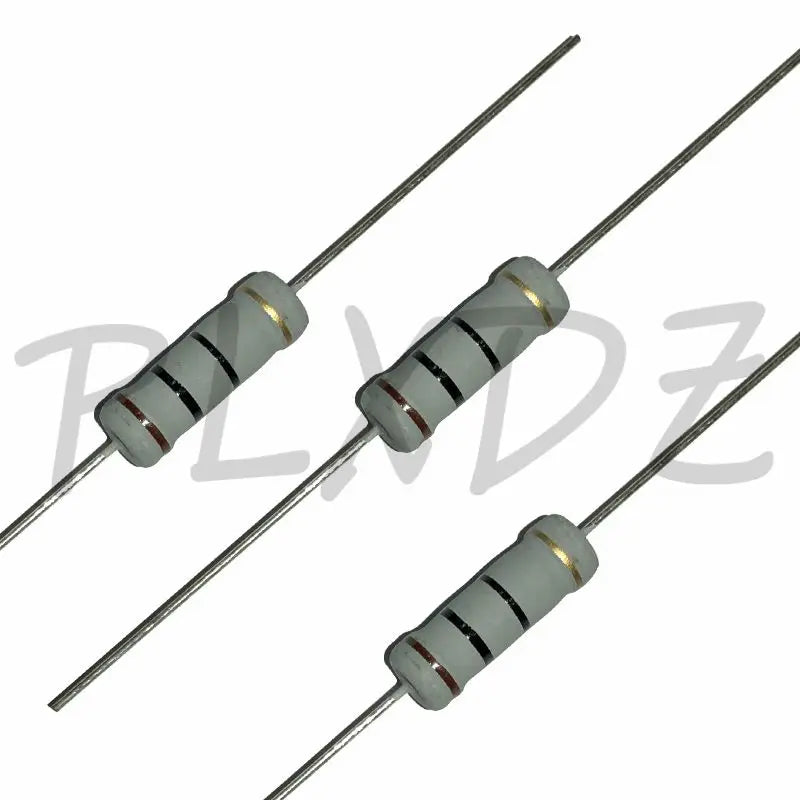

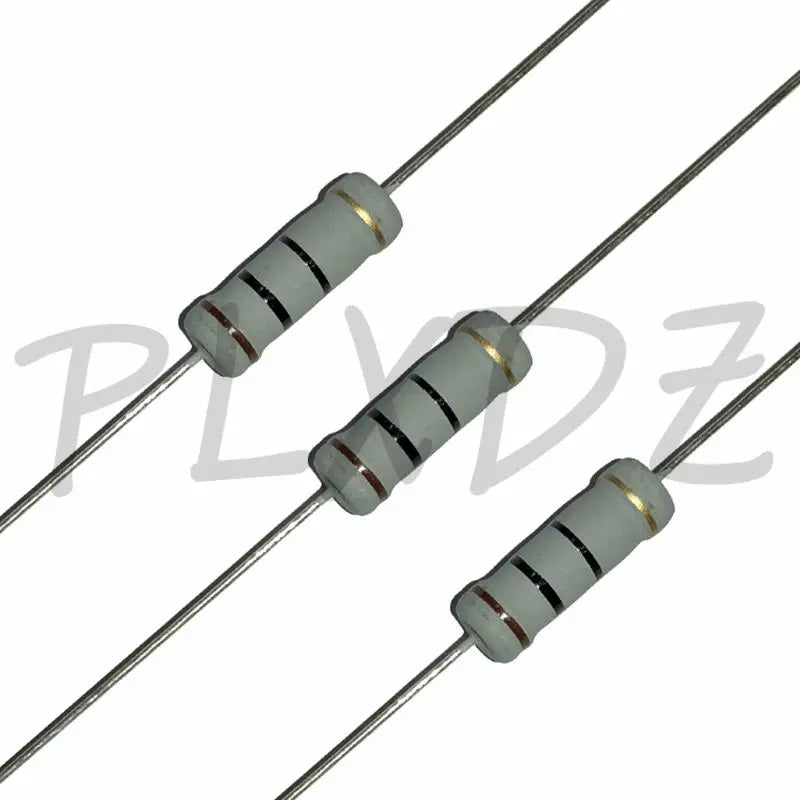

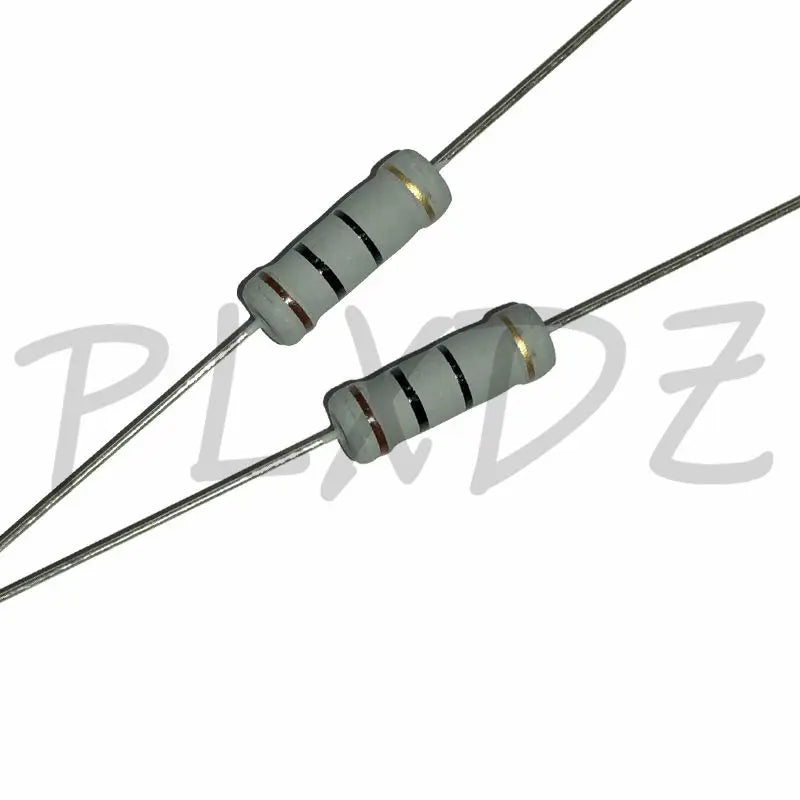

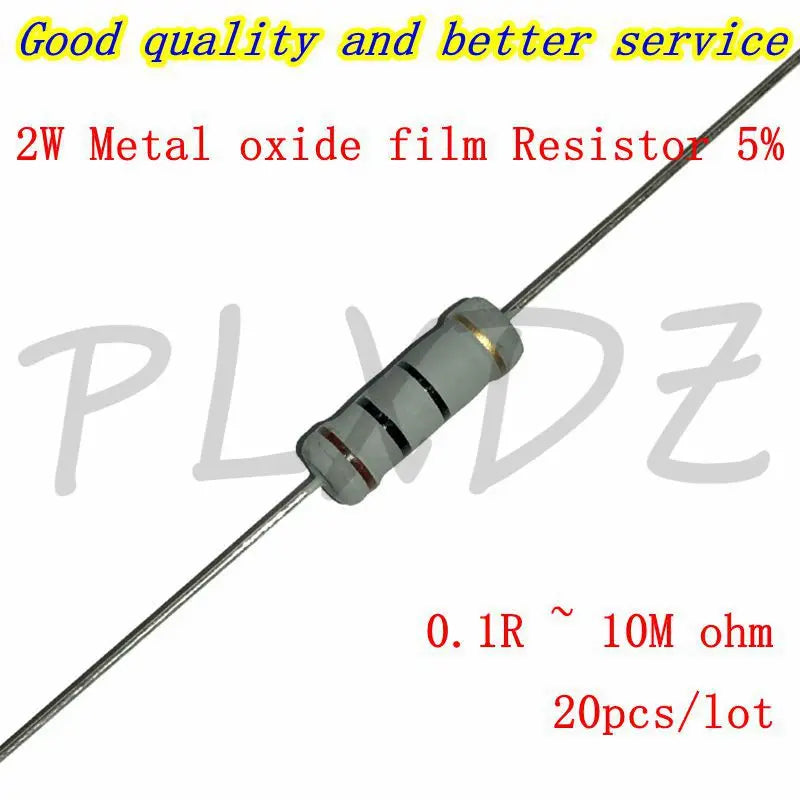

Metal oxide film: selected axial products with different overload and temperature behavior from carbon or metal film.

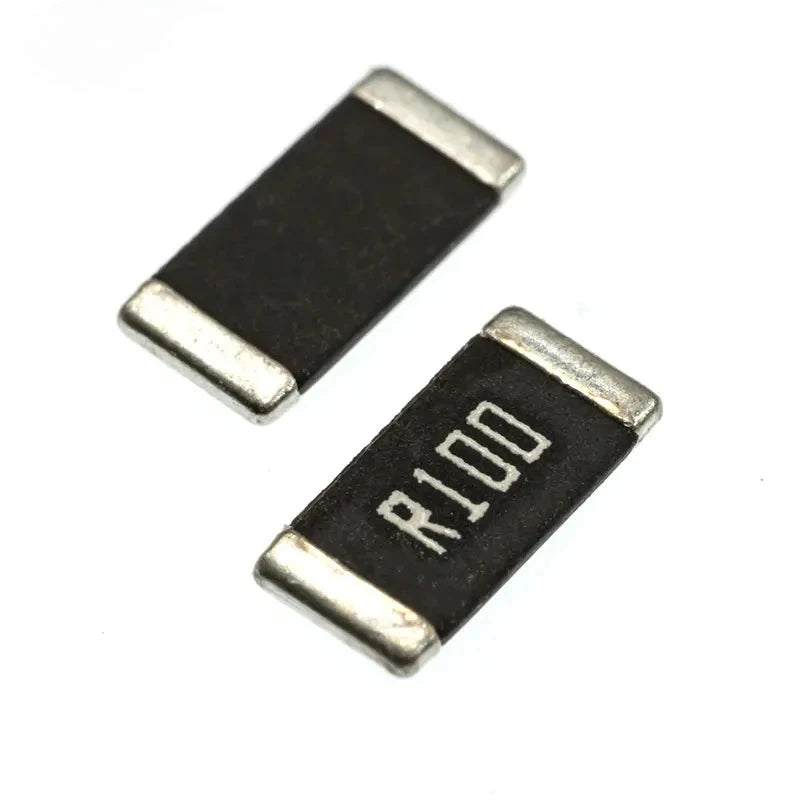

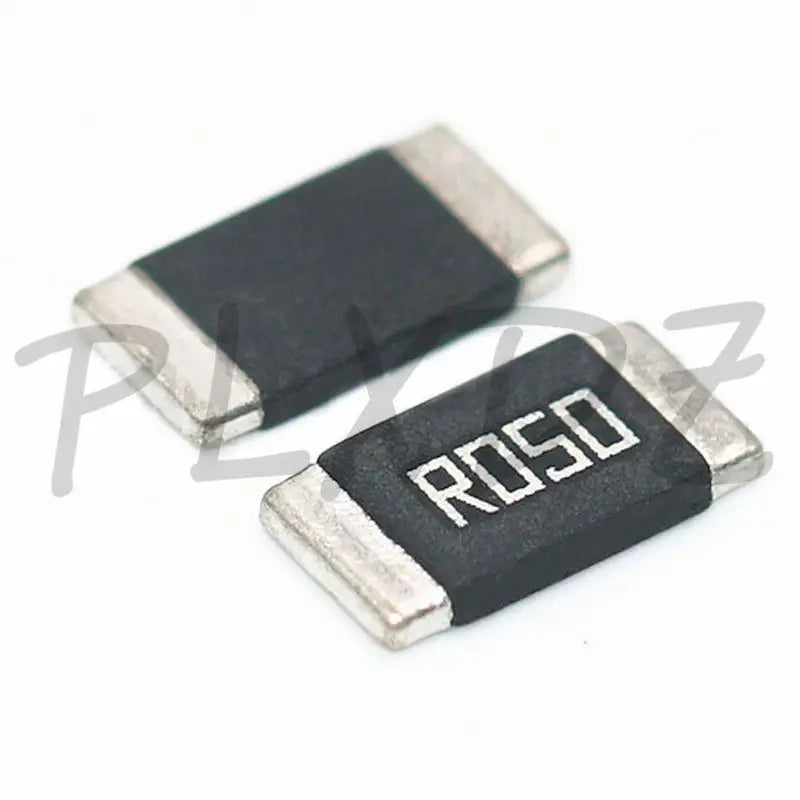

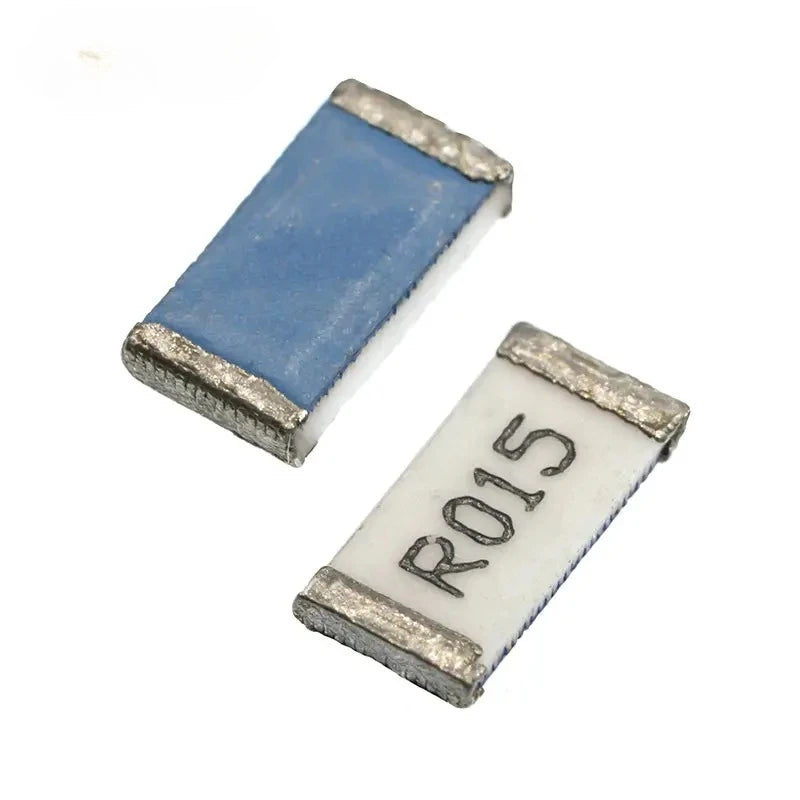

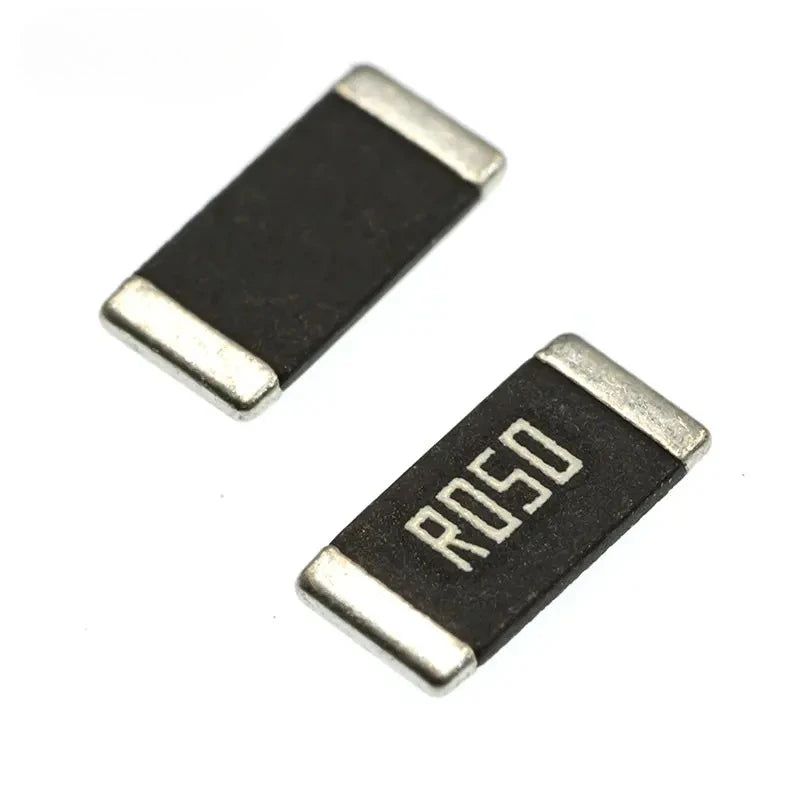

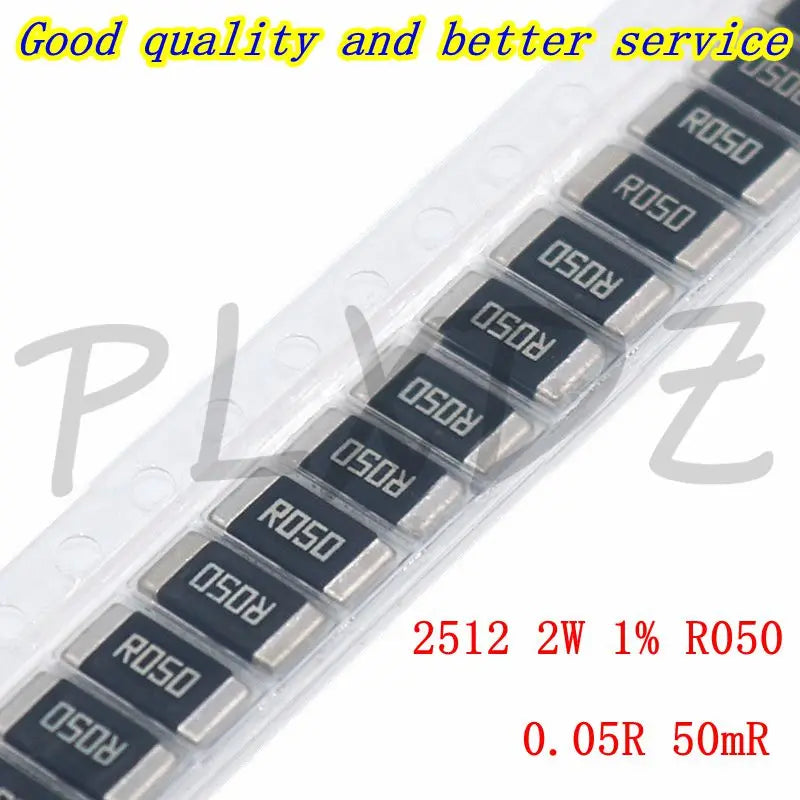

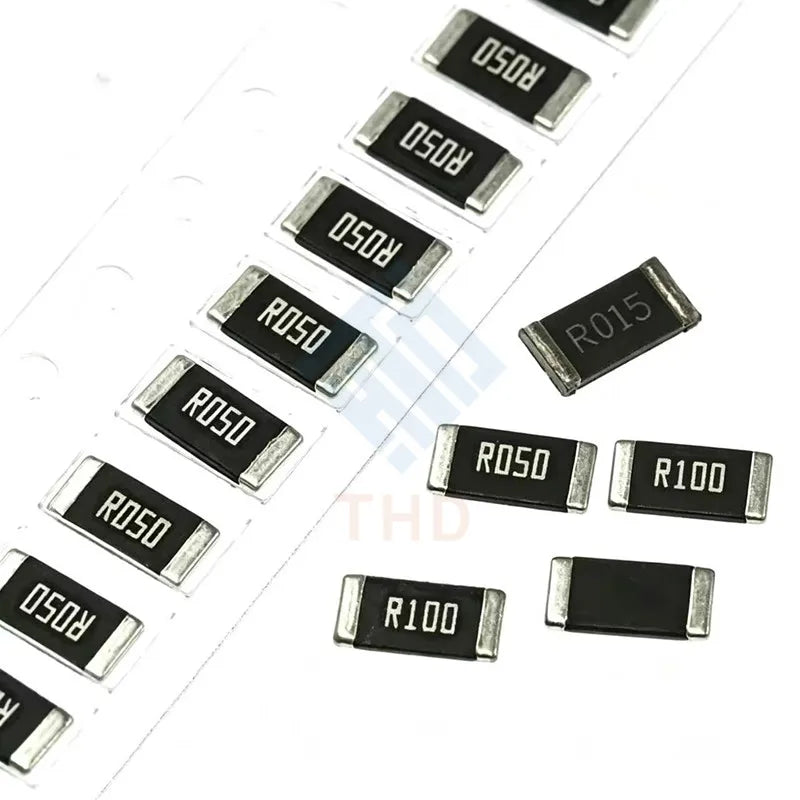

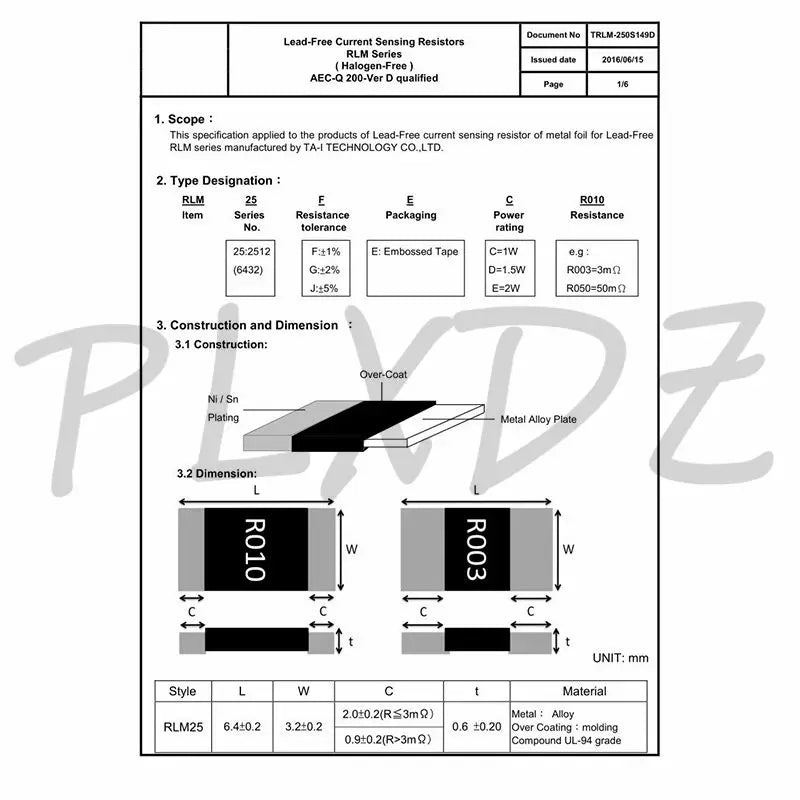

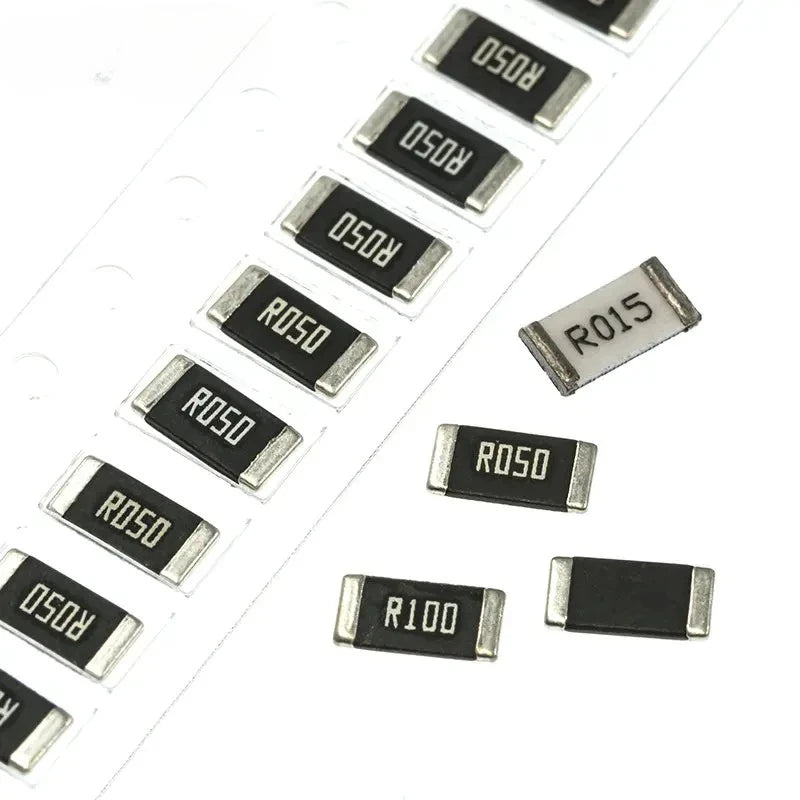

2010 and 2512 SMD alloy or thick-film parts: low-ohm and general-value products with package-specific thermal requirements.
Wirewound and fusible listings: selected low-ohm products whose inductance and opening behavior require product-level verification.
RI80 high-voltage products: special high-resistance variants with product-specific voltage and non-inductive claims.

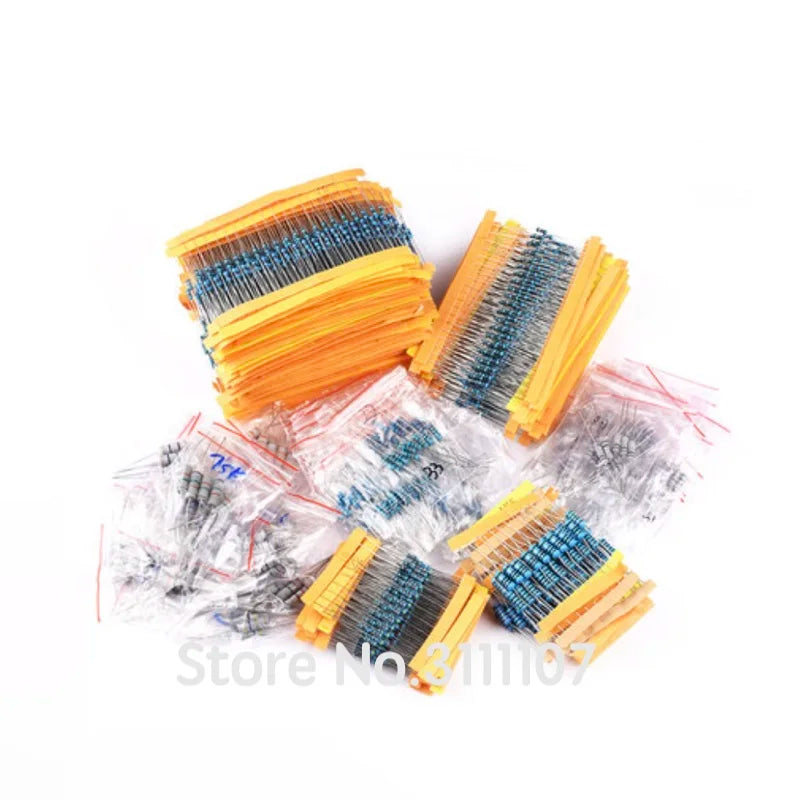

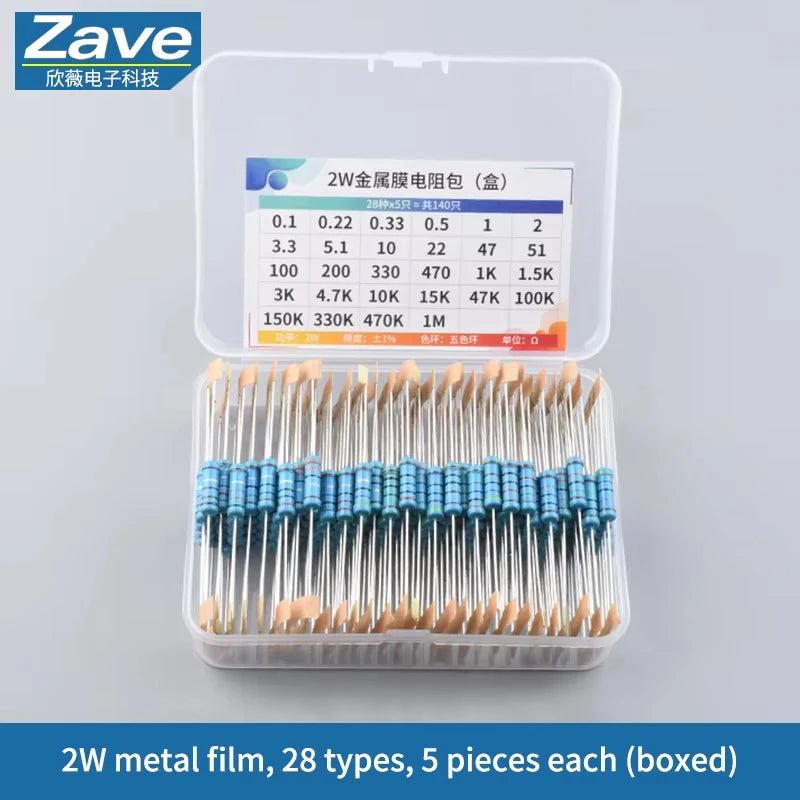

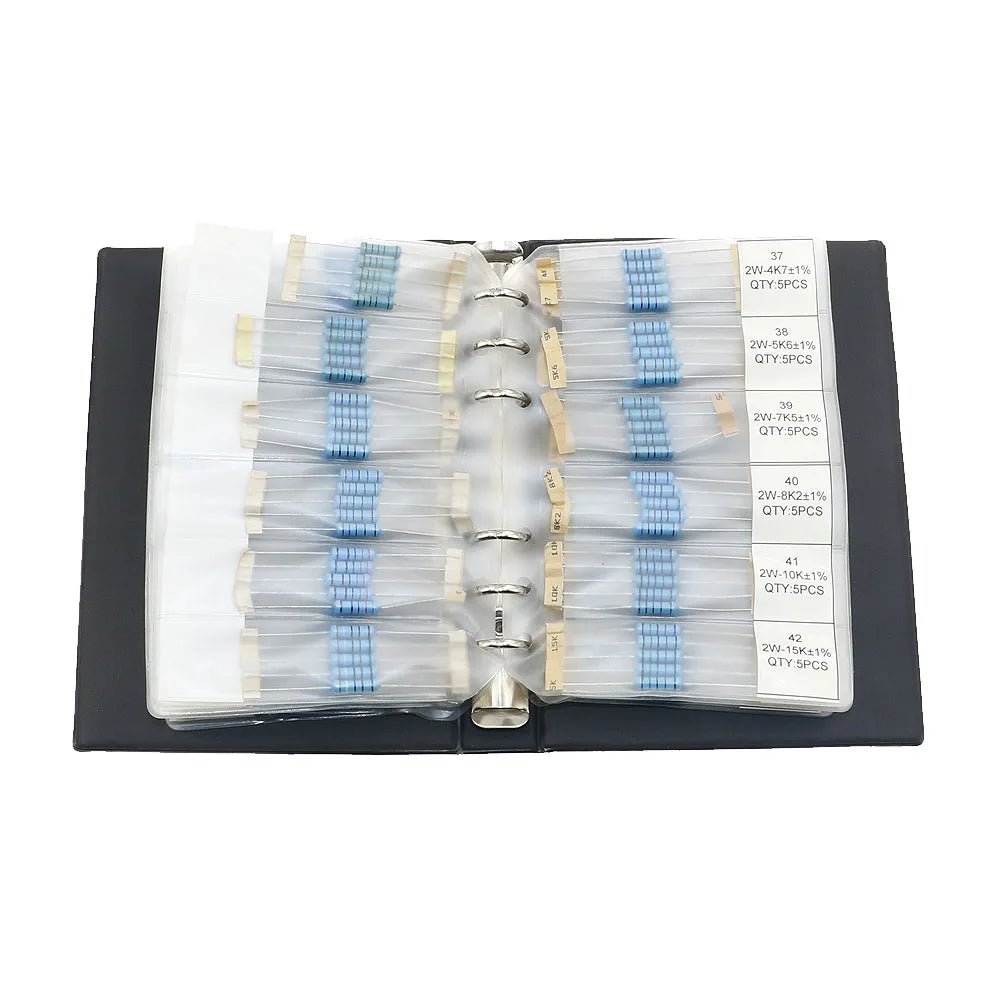

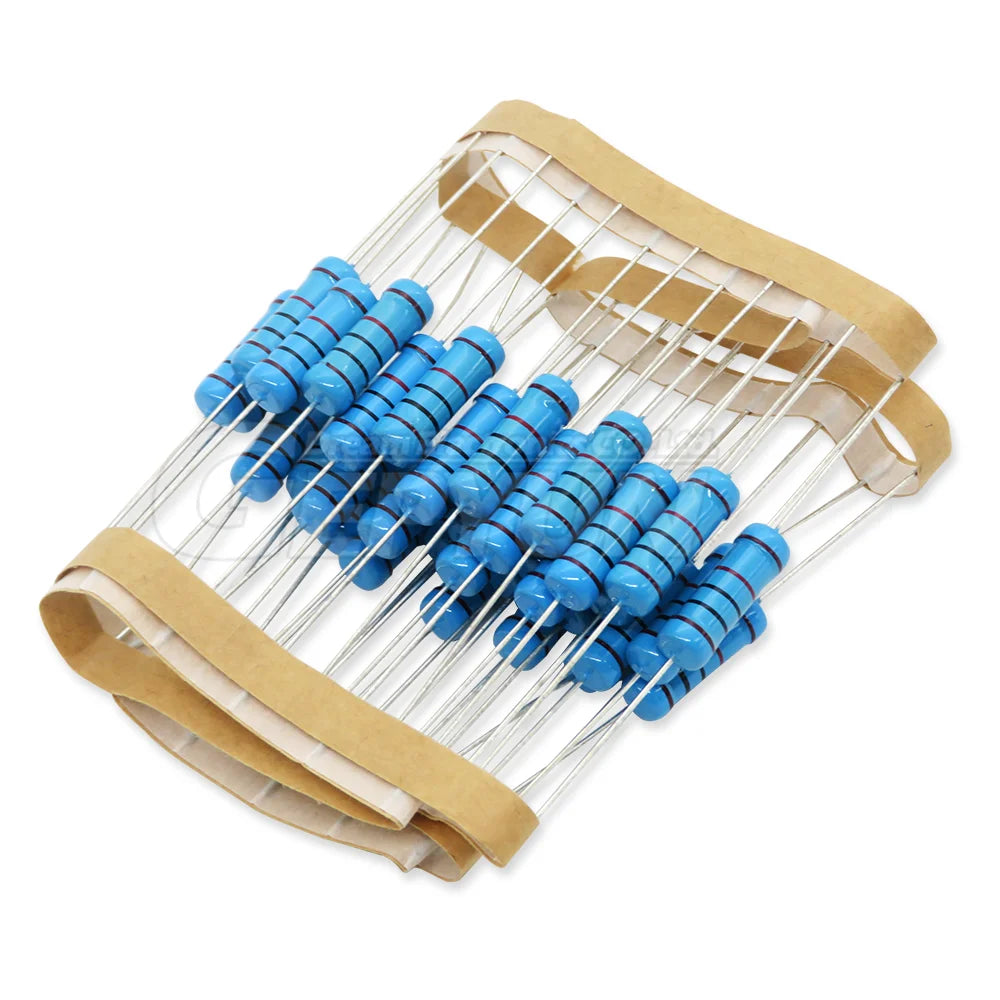

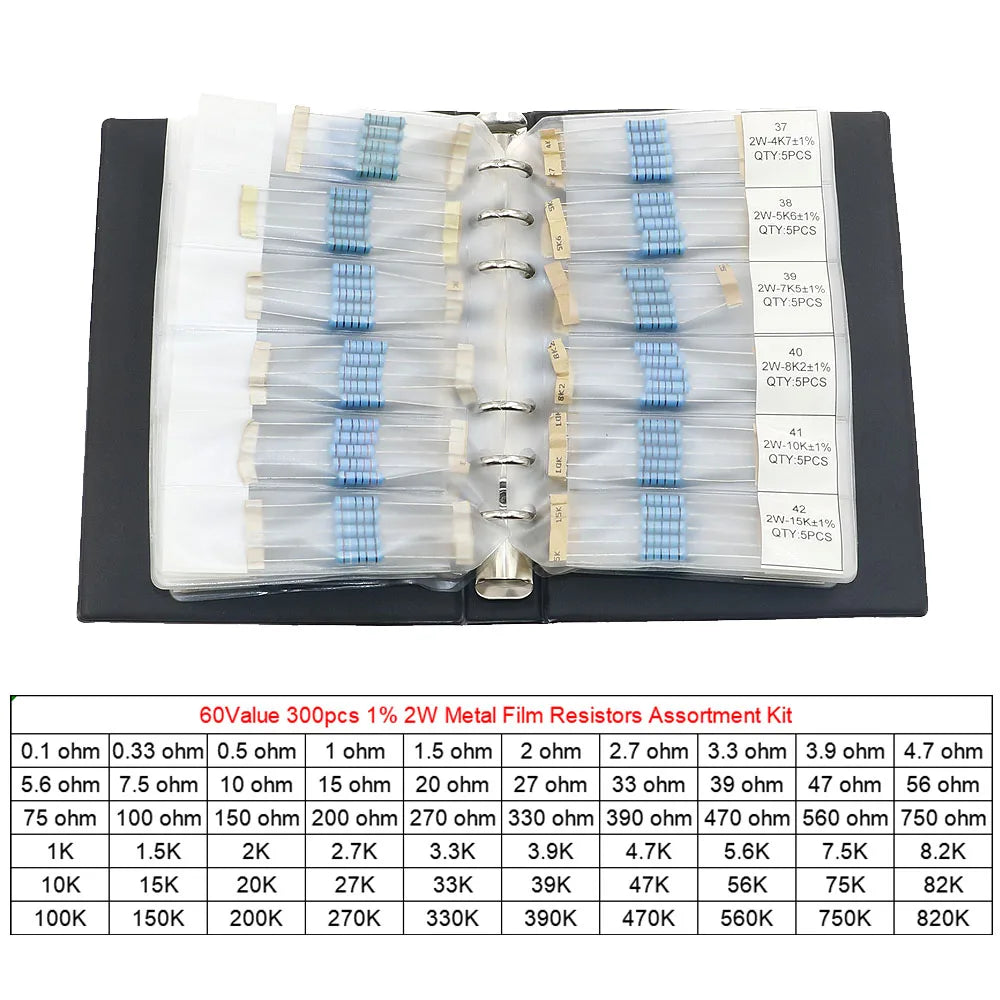

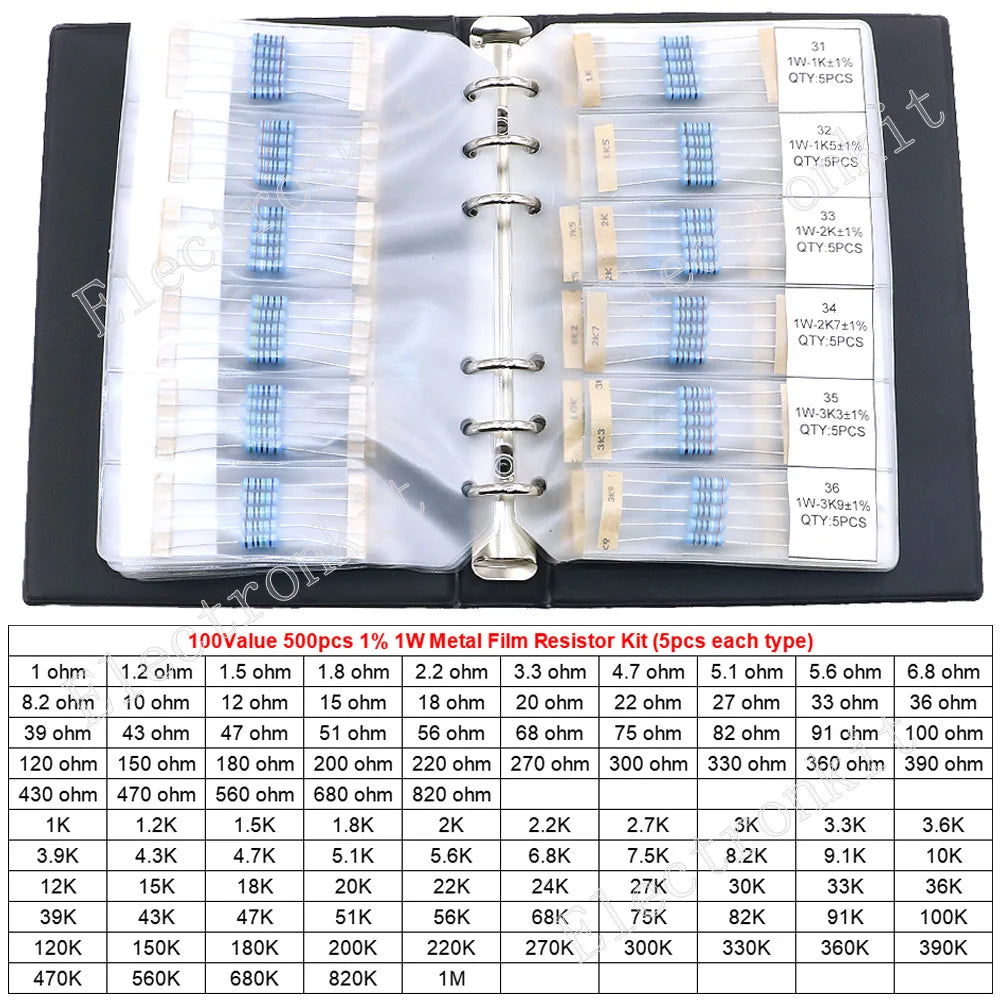

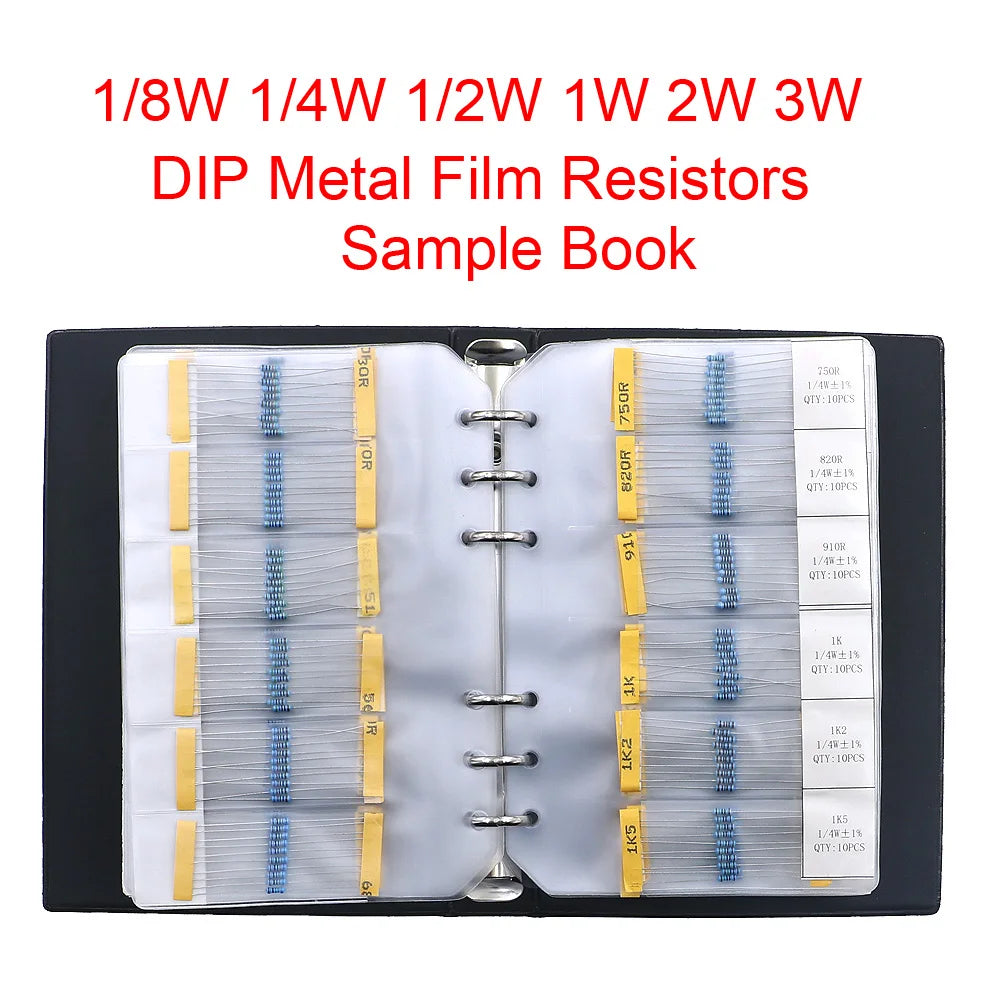

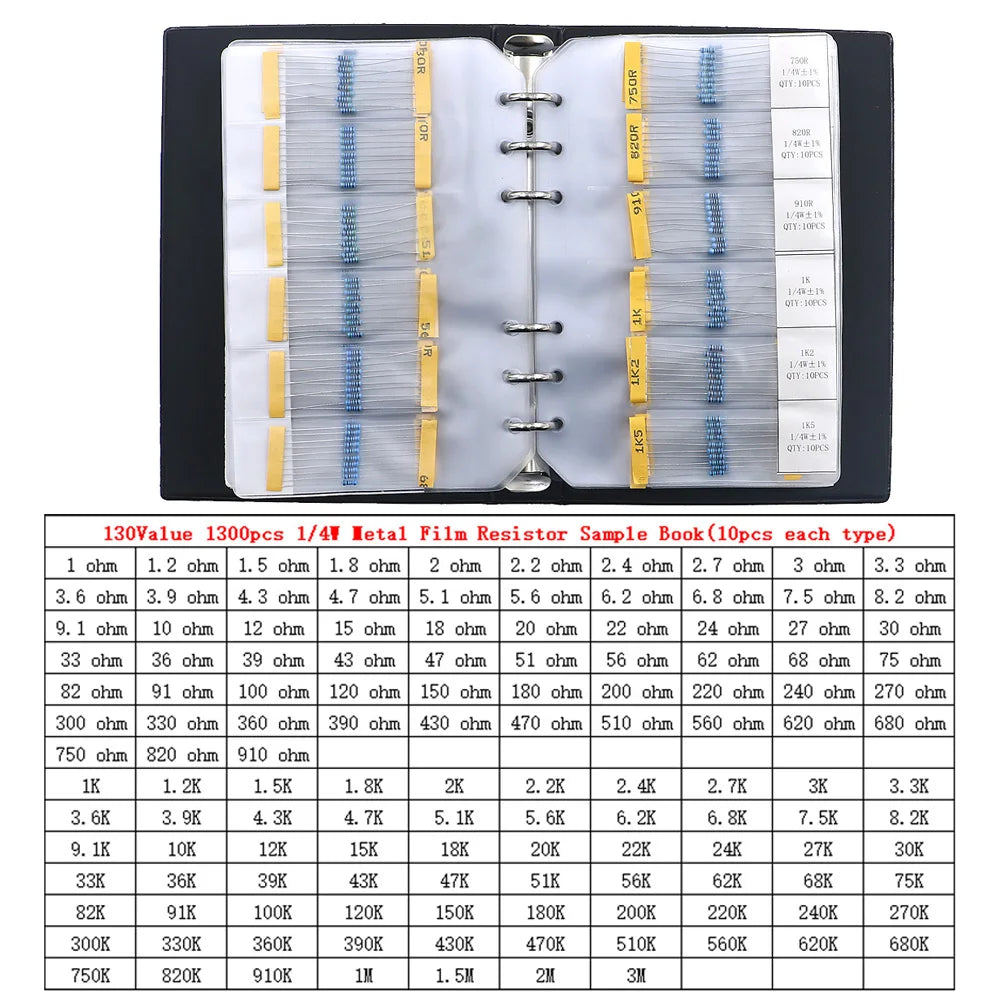

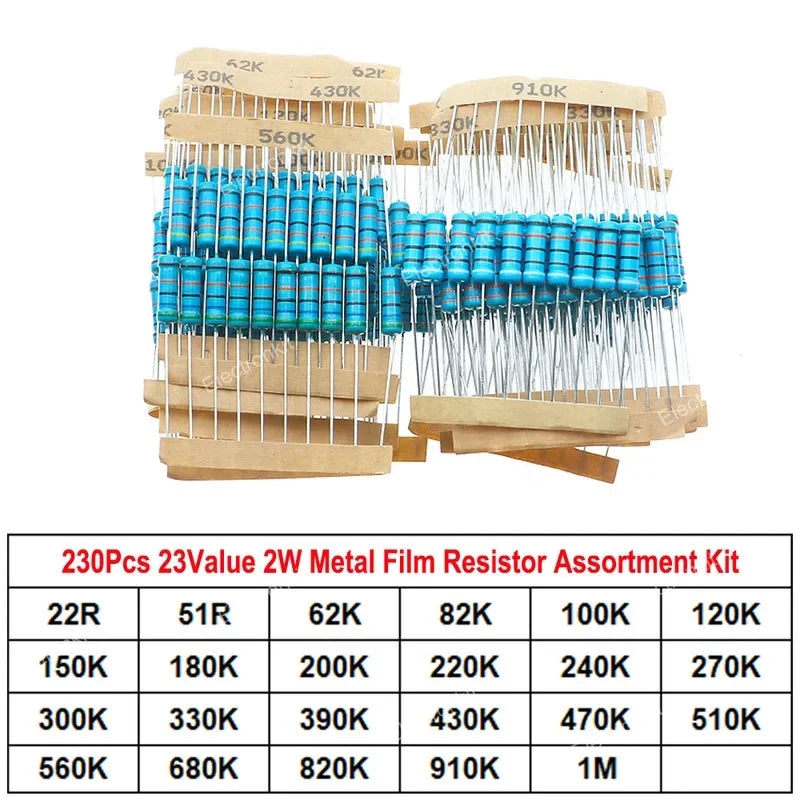

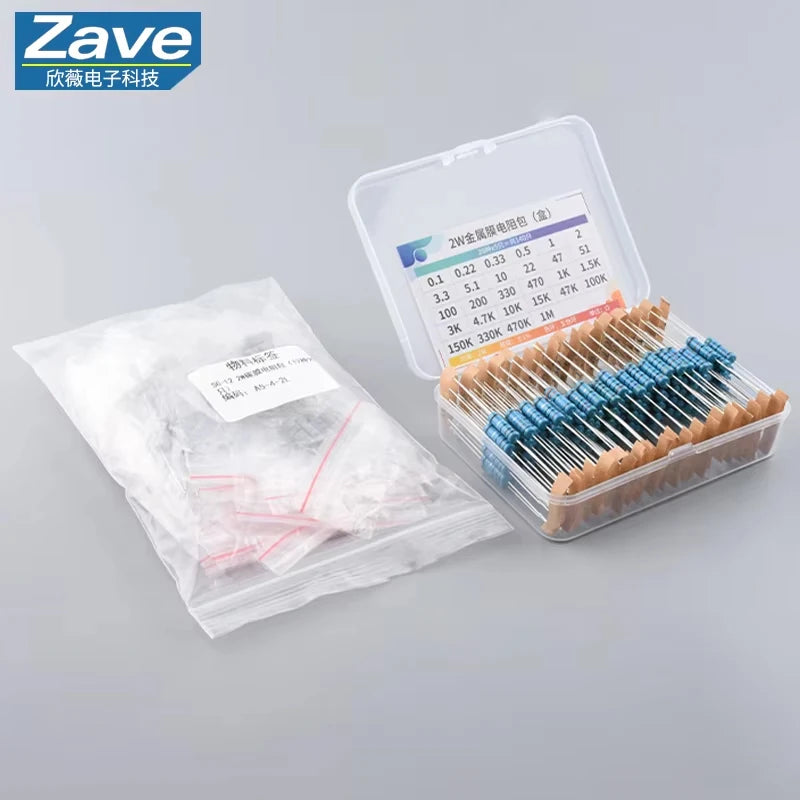

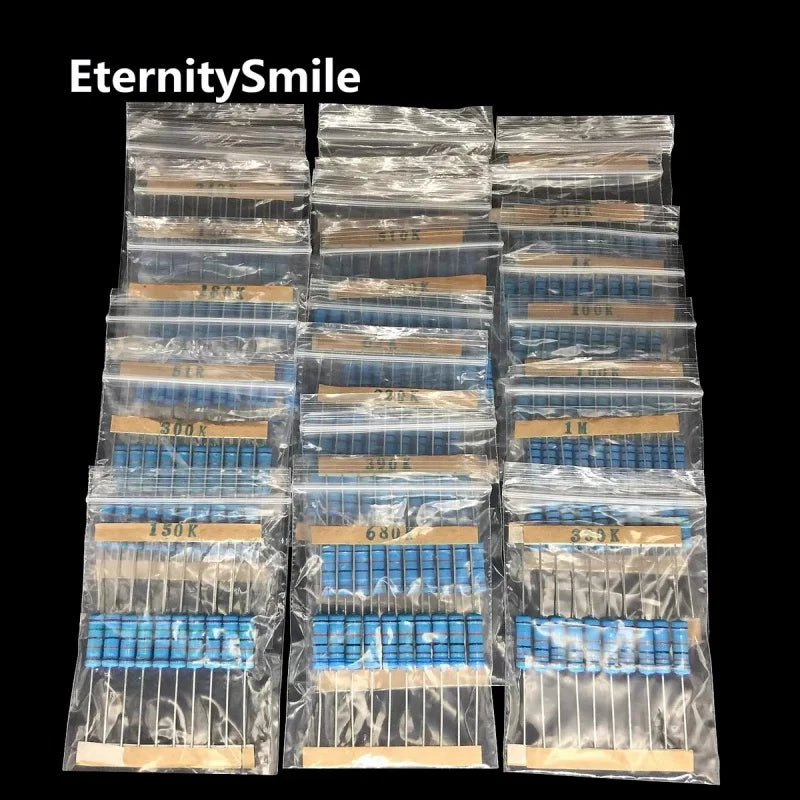

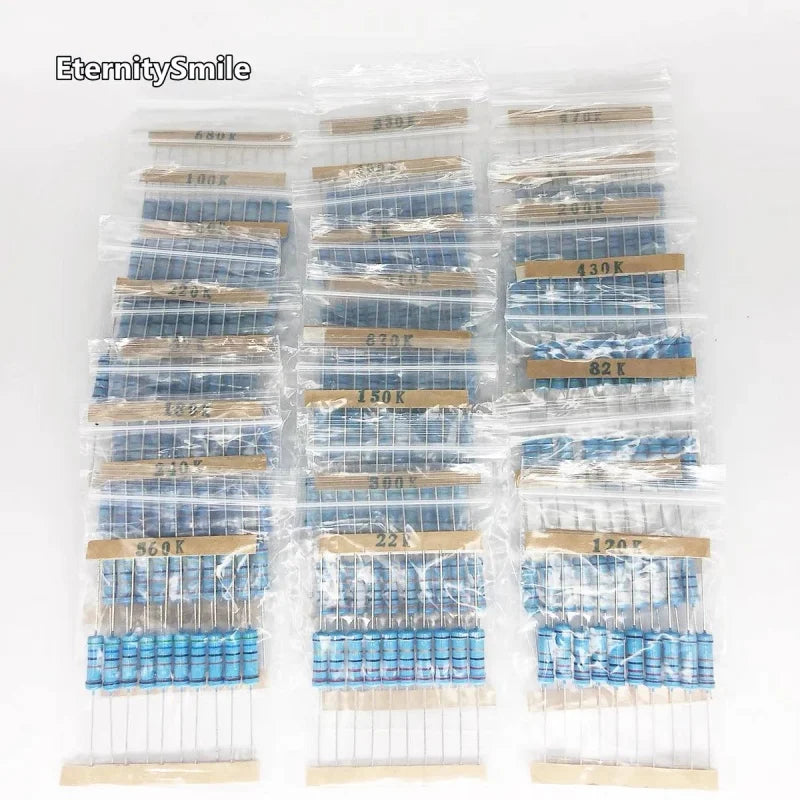

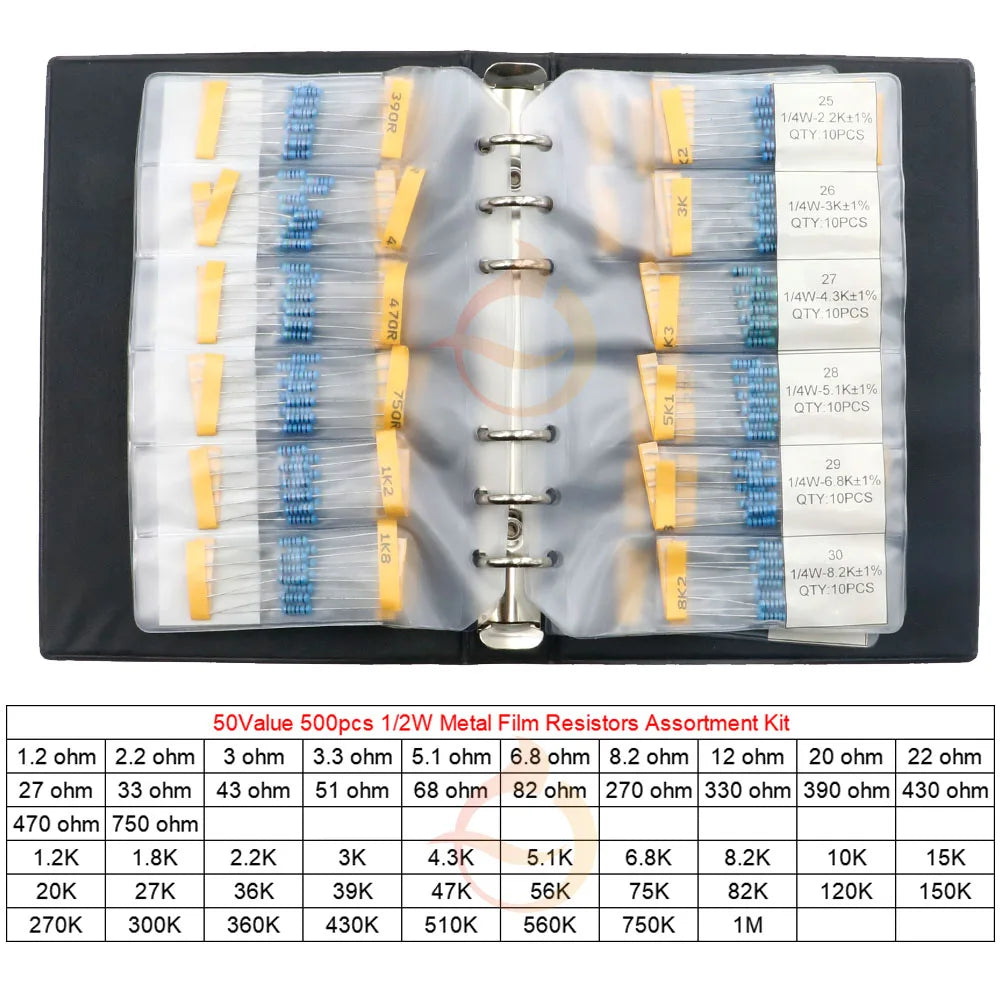

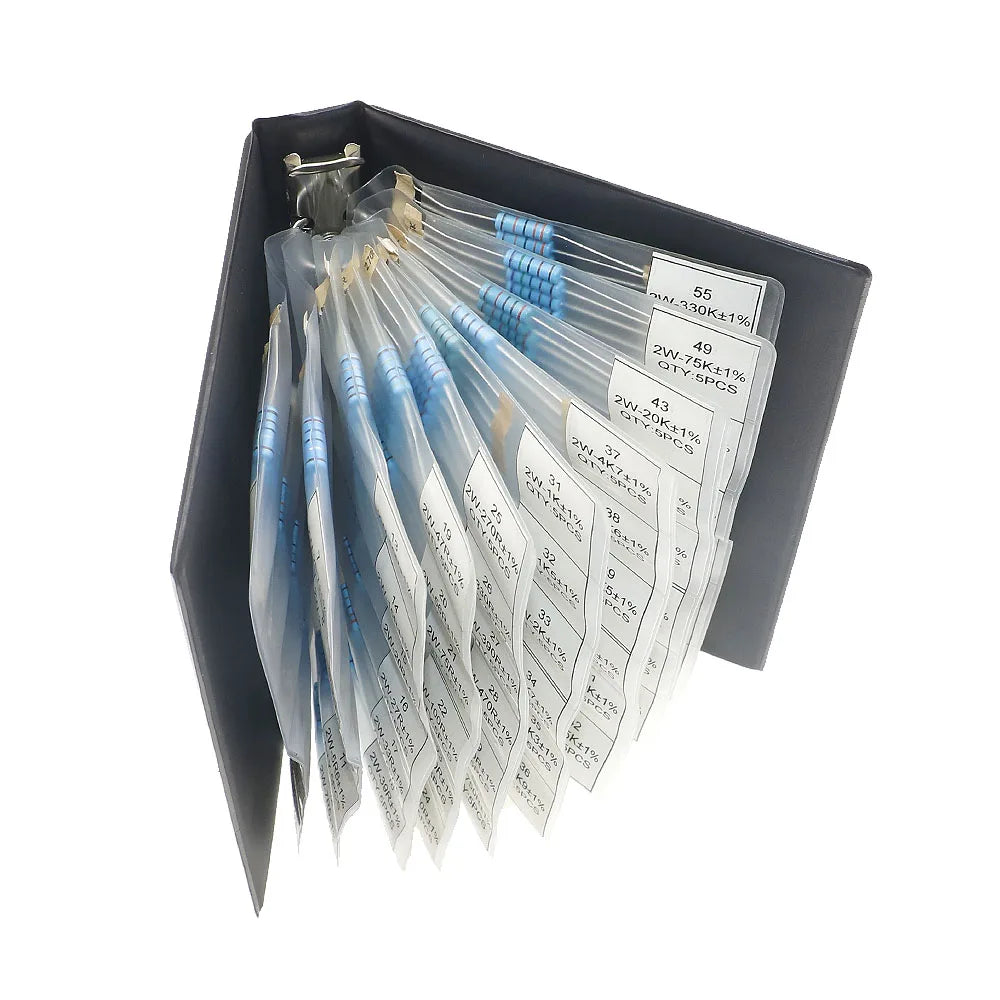

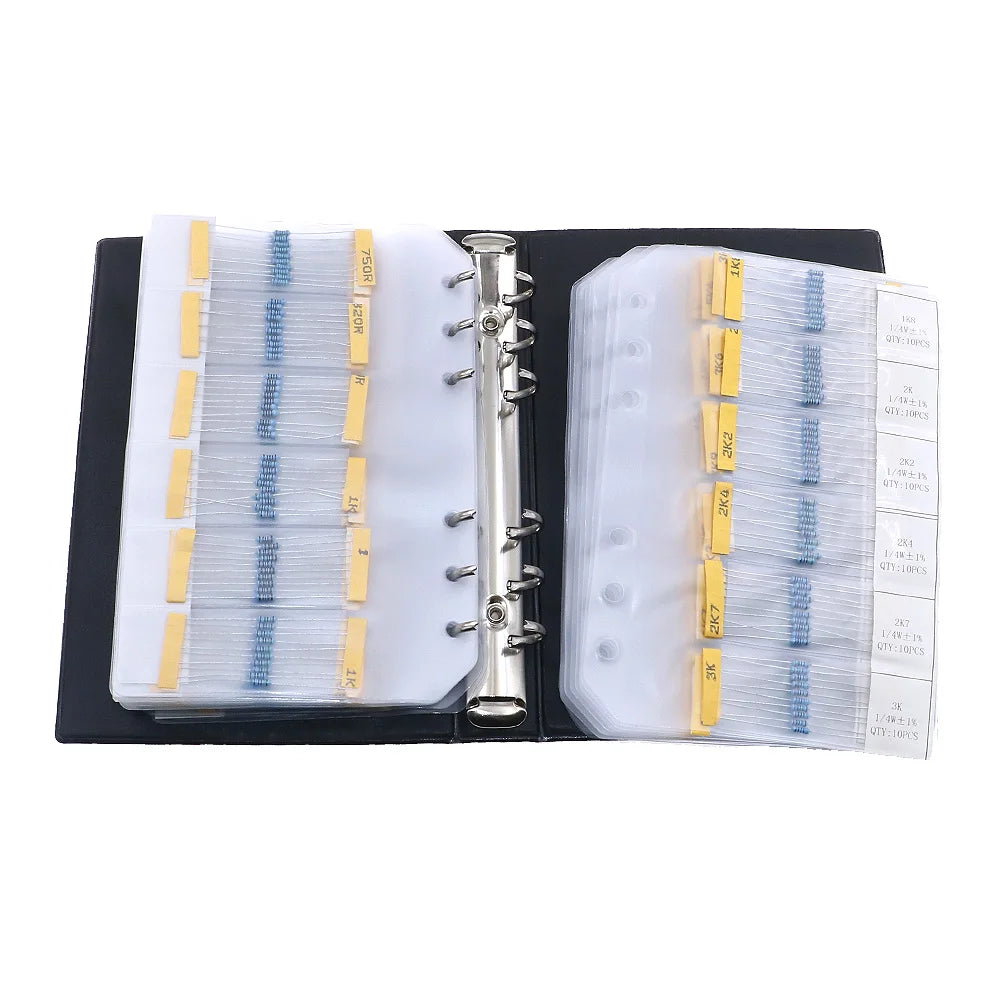

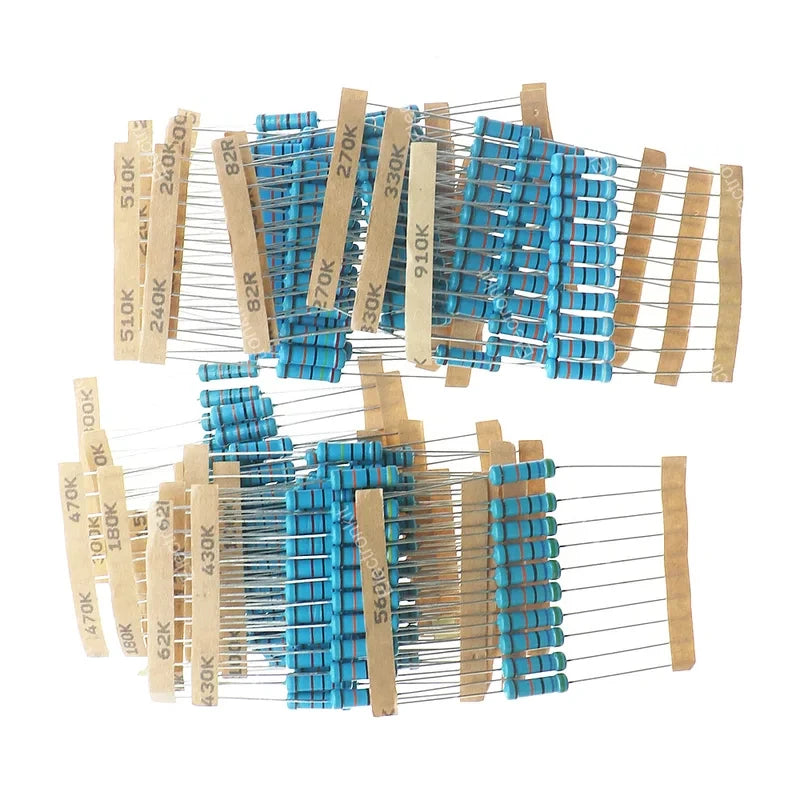

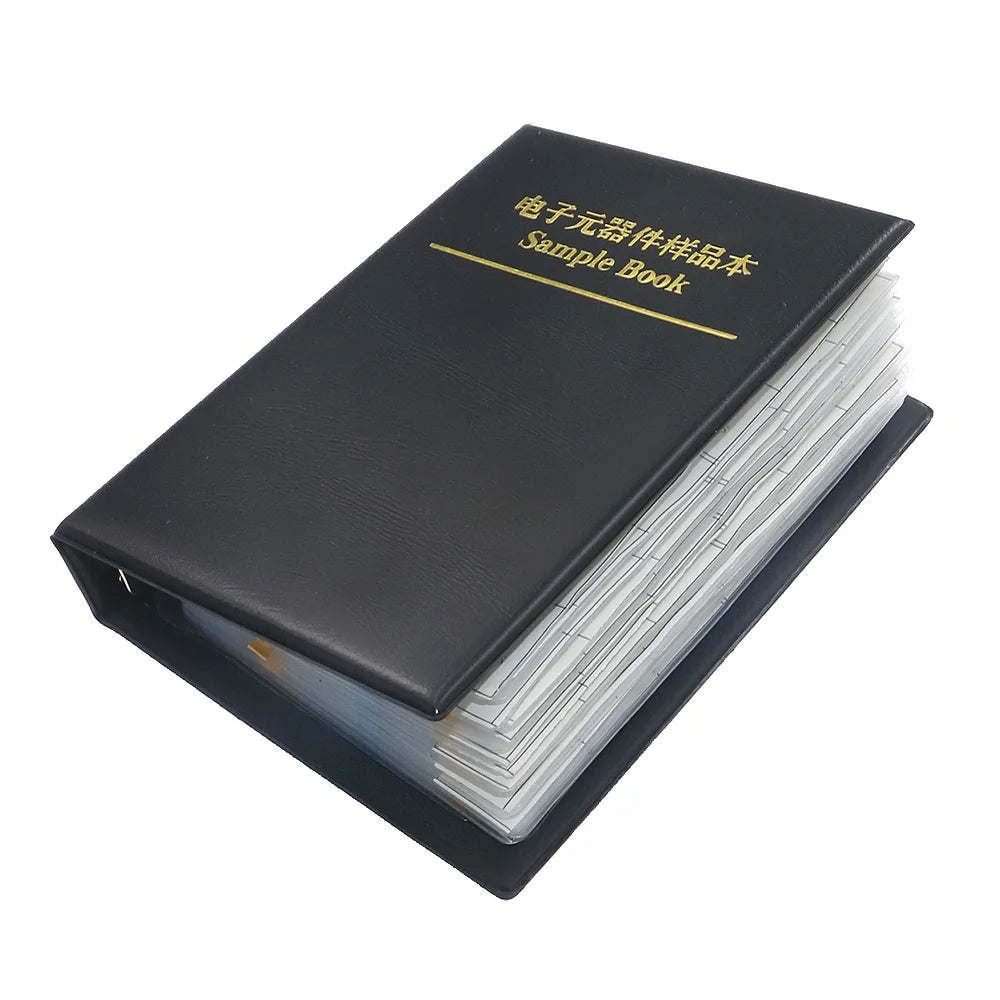

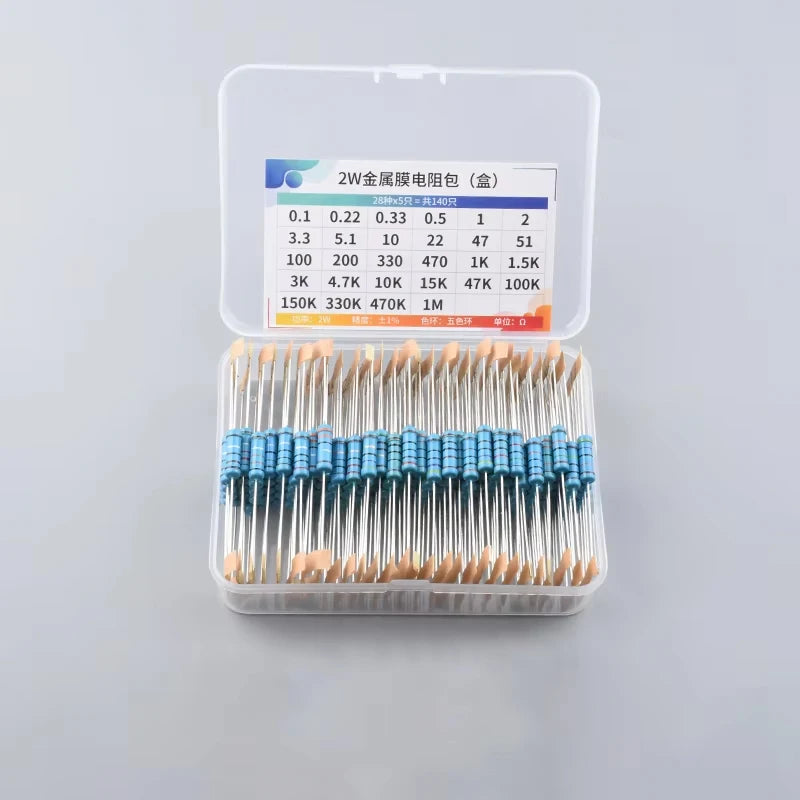

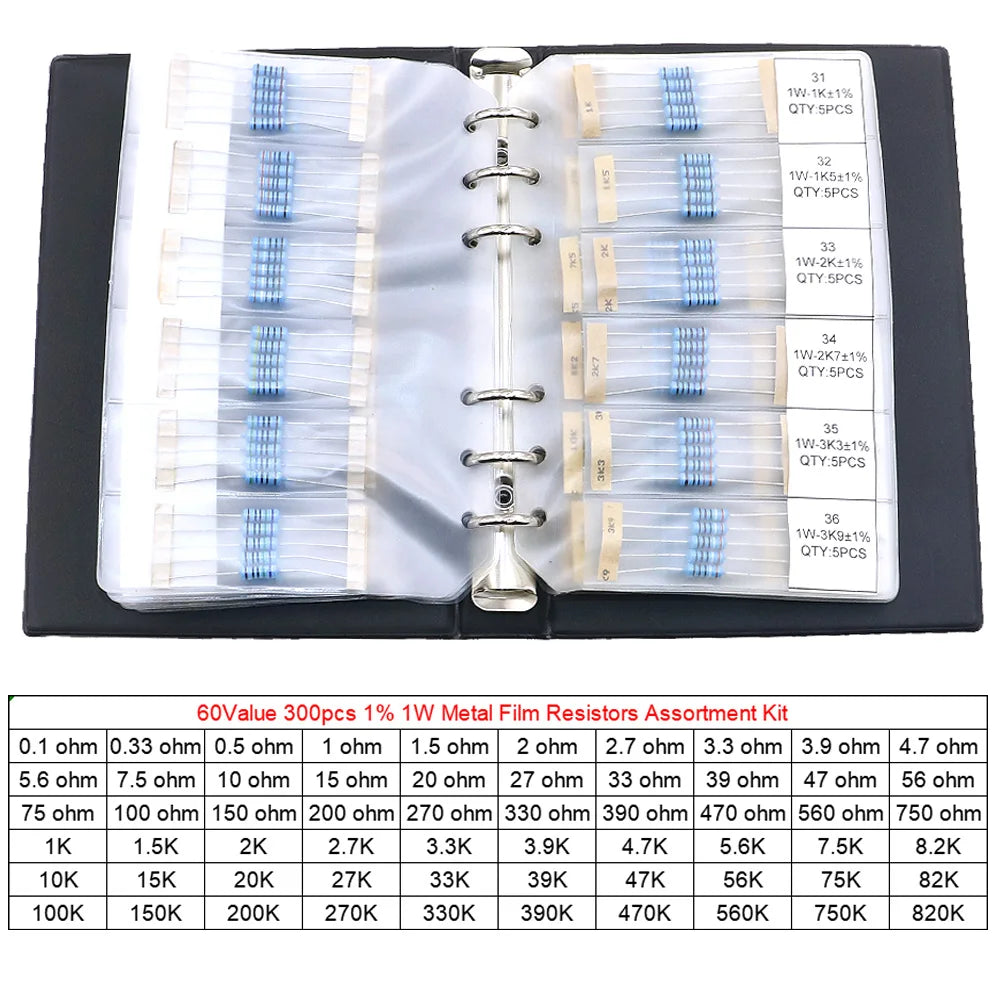

Assortment kits: different value ranges, quantities, technologies and shared wattage options.

How to select

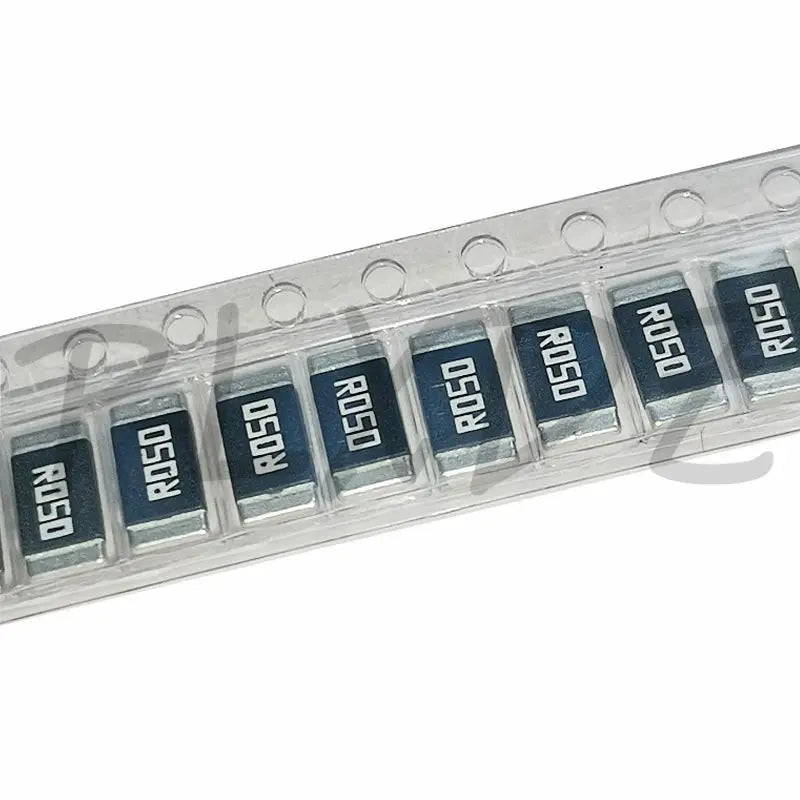

Choose resistance: distinguish R, K, M and milliohm notation. R050 commonly indicates 0.050Ω only where that convention is stated.
Calculate continuous power: add margin and use the product's thermal derating curve.
Verify technology: metal film, carbon film, metal oxide, wirewound, thick film and alloy elements are not interchangeable.
Confirm tolerance and TCR: 1%, 5% and other claims belong to the exact listing; tolerance does not determine thermal drift.
Check working voltage: high-value resistors may reach their voltage limit before dissipating 2W.
Check pulse energy: startup, discharge, braking and repetitive transients require overload and pulse data.

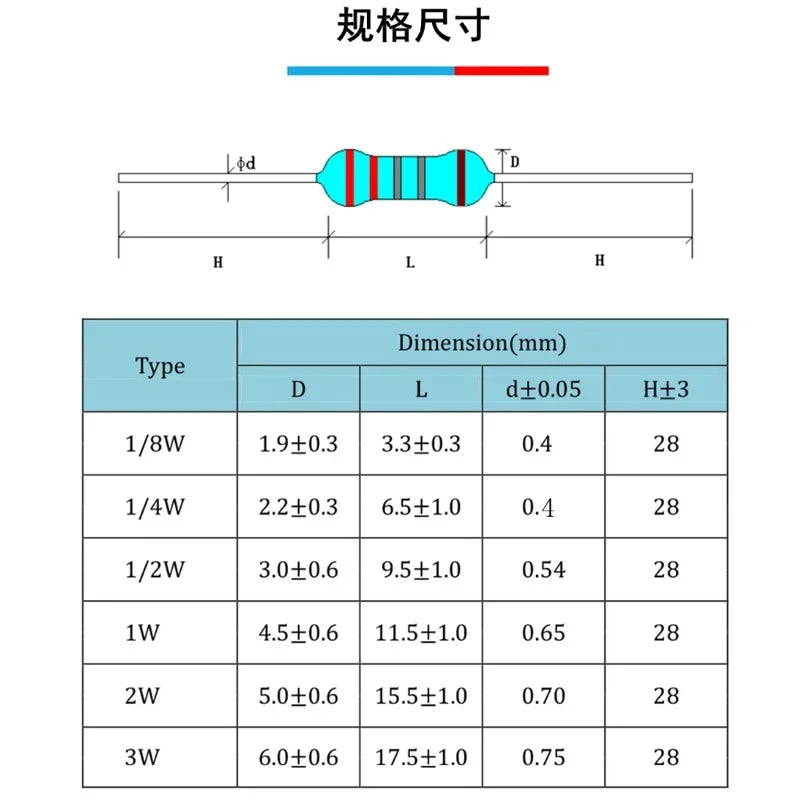

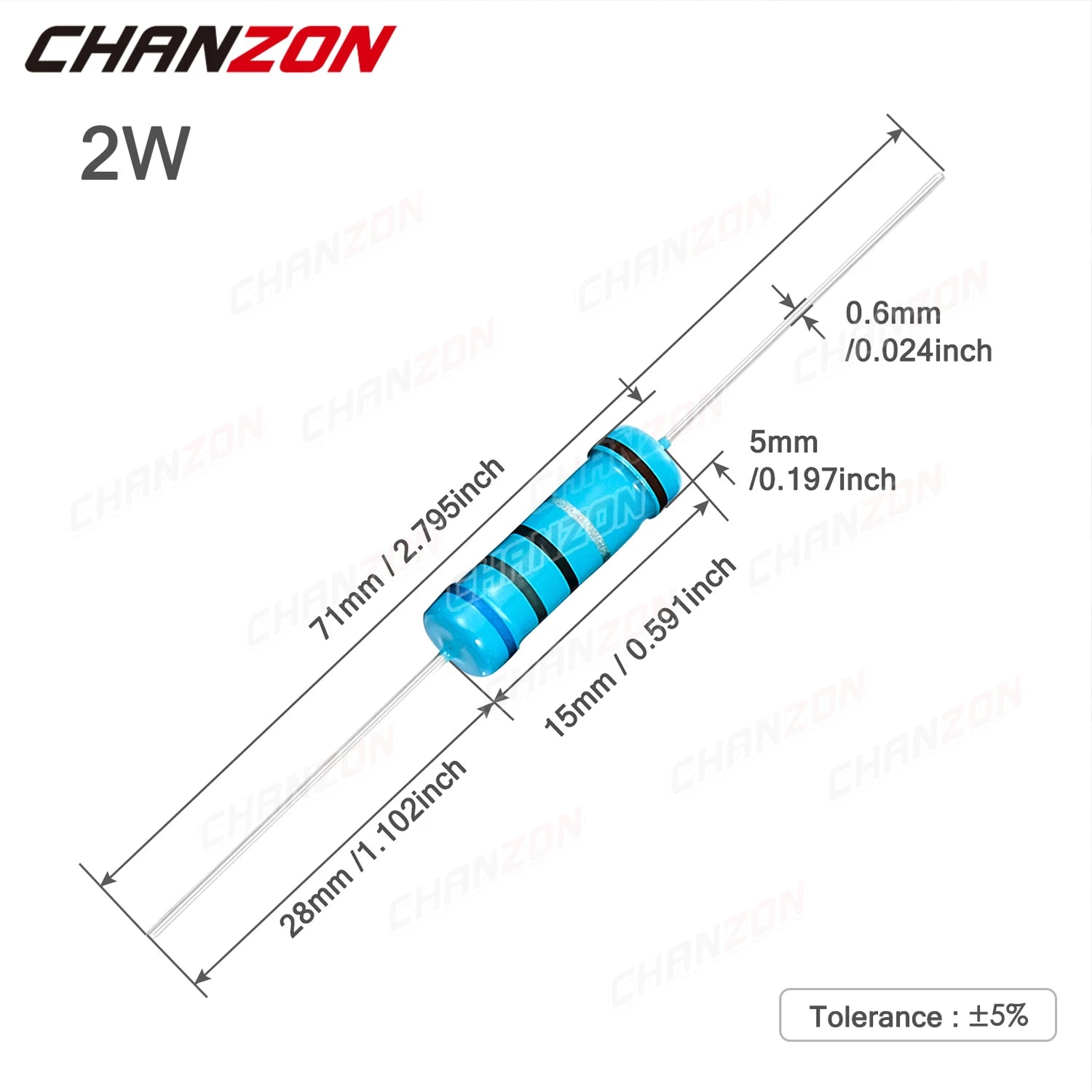

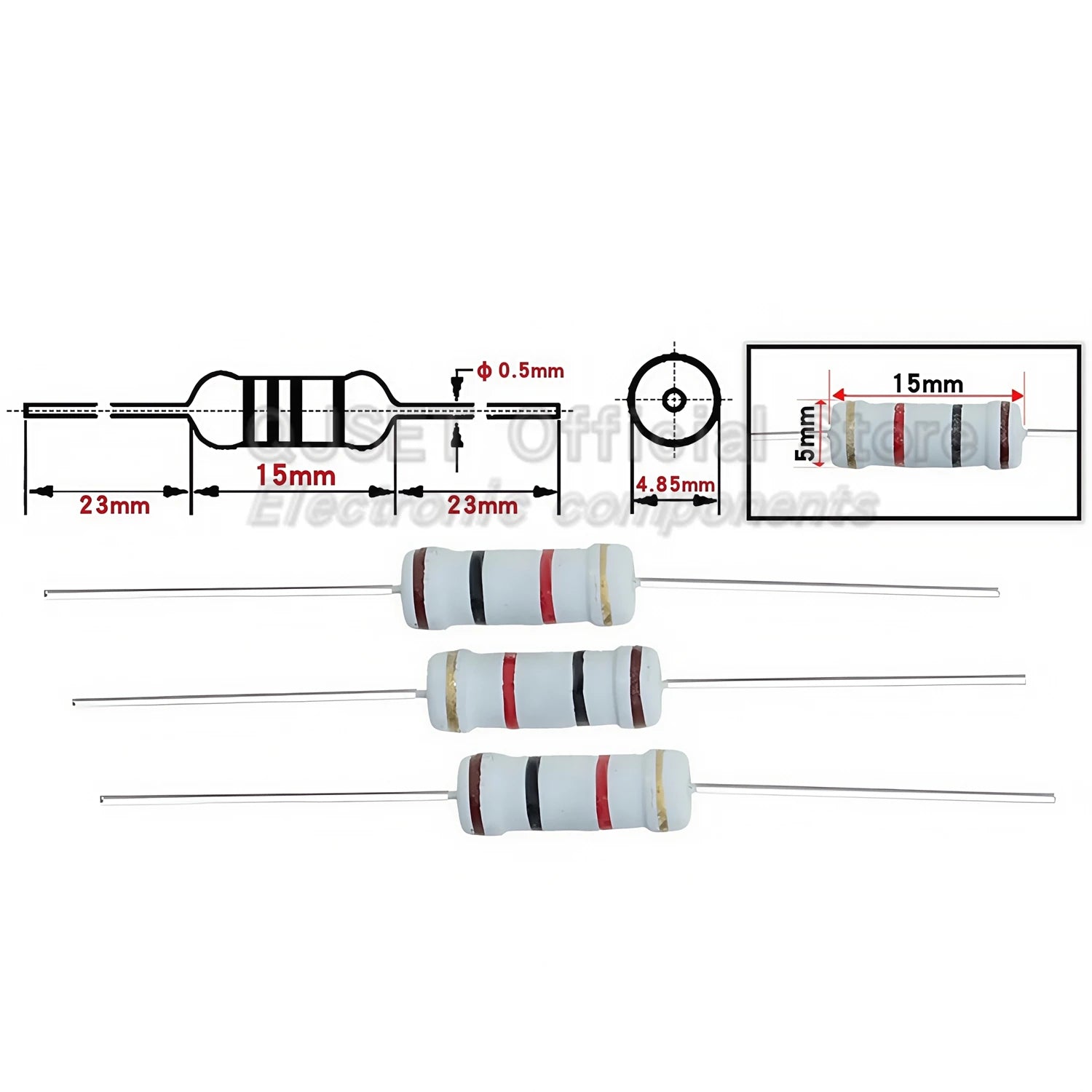

Match mechanics: compare axial body length and lead spacing, or the exact 2010/2512 footprint and PCB land pattern.

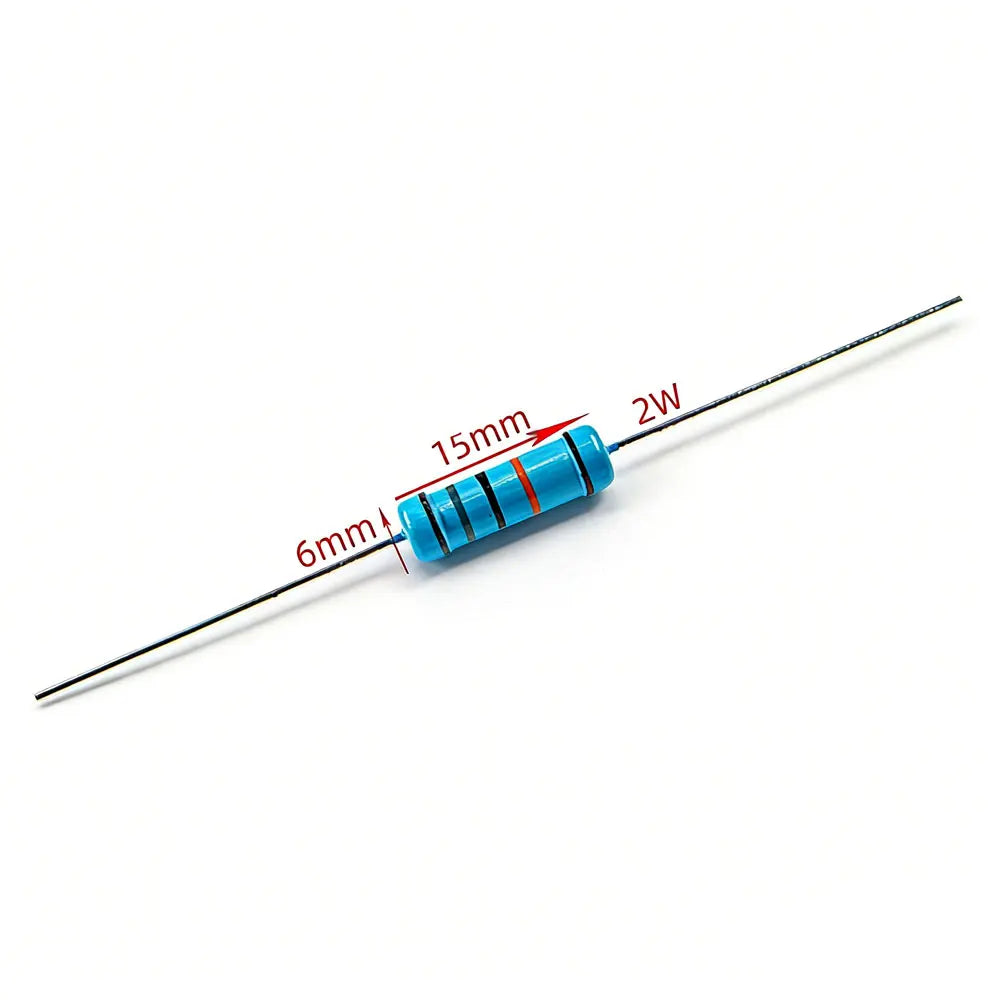

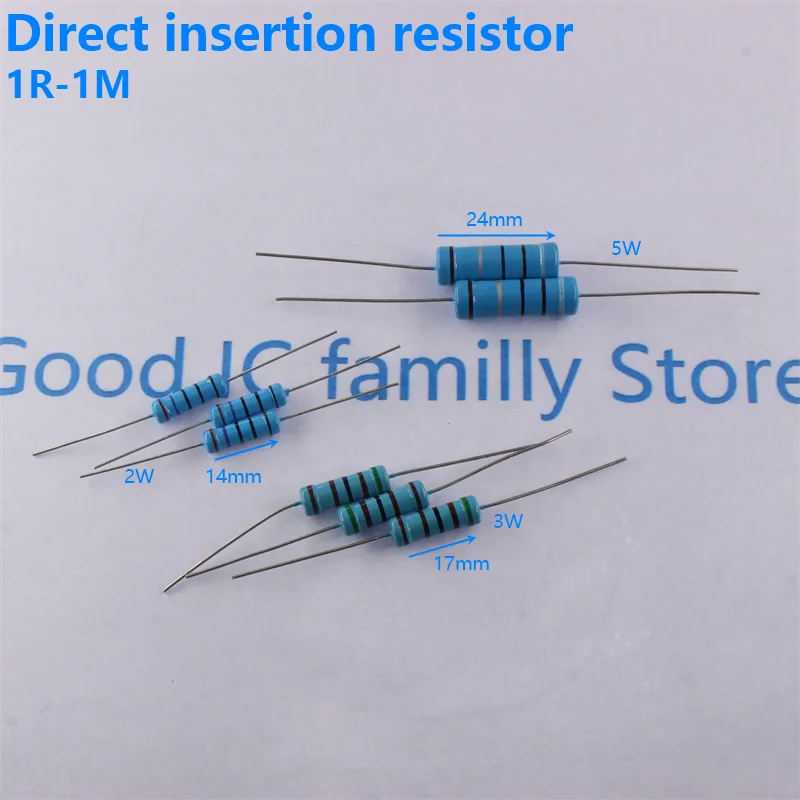

2W versus 1W axial resistors

A 2W axial resistor generally needs more body volume, board space and heat clearance than a 1W part. It can provide more dissipation margin, but it is not automatically a direct replacement. Verify dimensions, voltage rating, pulse capability, parasitic behavior and the temperature allowed around nearby components.

Axial versus SMD power resistors

Axial and SMD products can share resistance and wattage labels but use different heat paths. A 2010 or 2512 rating depends on PCB copper area, pad design, board material and ambient temperature. Package code alone does not prove 2W performance or current-sense accuracy.

Low-ohm and current-sense boundaries

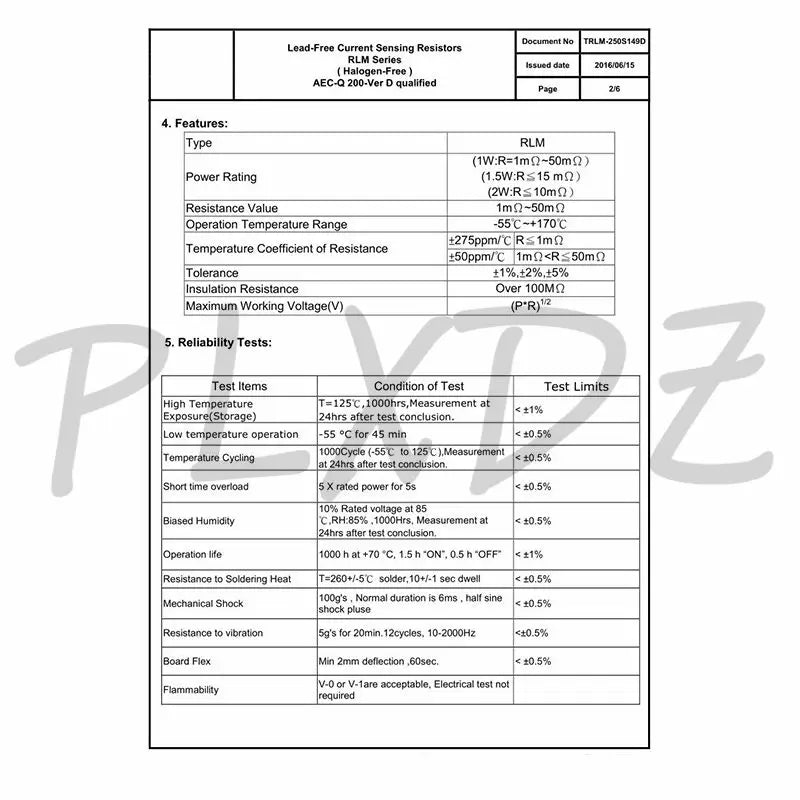

Low resistance does not automatically make a resistor a precision shunt. Verify element material, tolerance, TCR, overload stability and terminal geometry. At milliohm values, PCB traces, solder and contact resistance can dominate; use Kelvin routing or four-wire measurement when required.

Fusible and wirewound boundaries

“Fuse,” “fusible” and “flameproof” describe different properties. A wirewound product is not automatically a controlled fuse, and a title containing fuse does not establish opening time, breaking capacity or certification. Ordinary wirewound structures may also introduce inductance.

High-voltage and pulse boundaries

RI80 and similar high-voltage products must be selected by voltage rating, resistance, dimensions, creepage, clearance and environment. Continuous wattage does not prove high-voltage or surge suitability. Likewise, amplifier load, discharge or braking use requires pulse energy, duty cycle and cooling data.

Collection boundaries

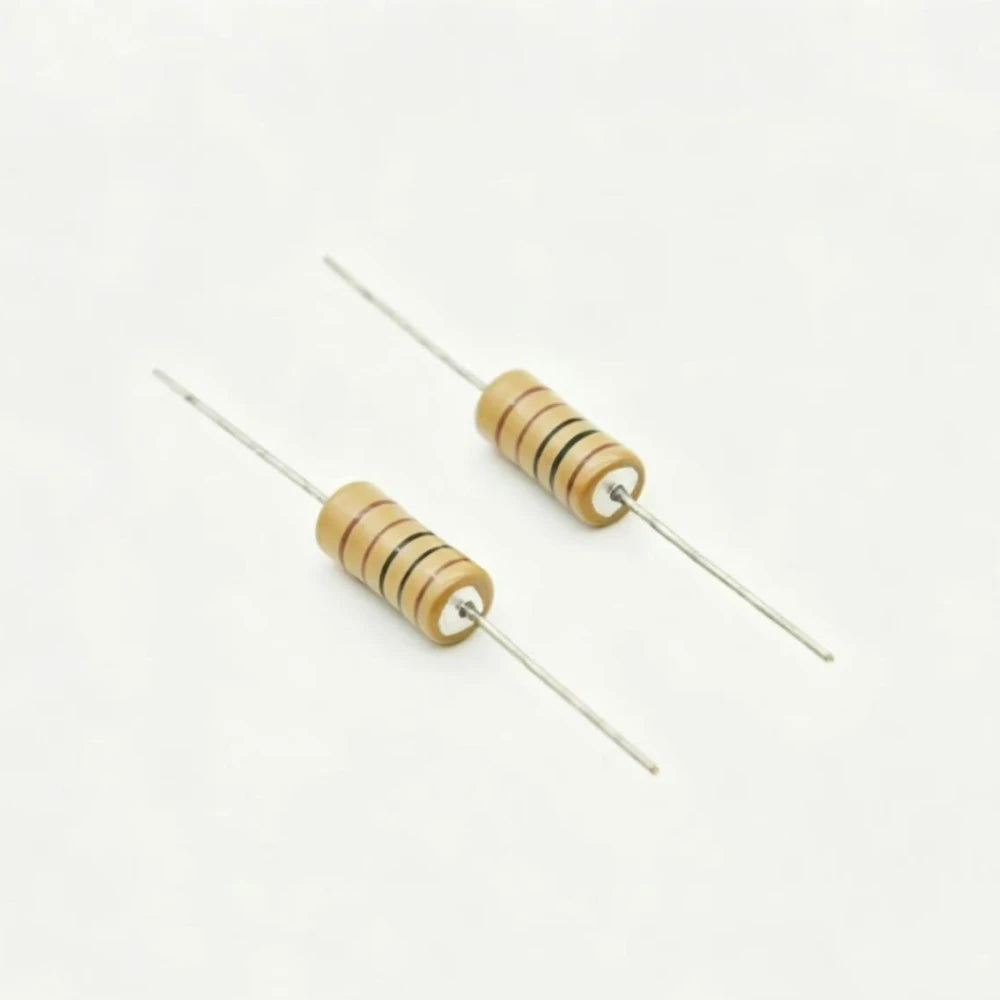

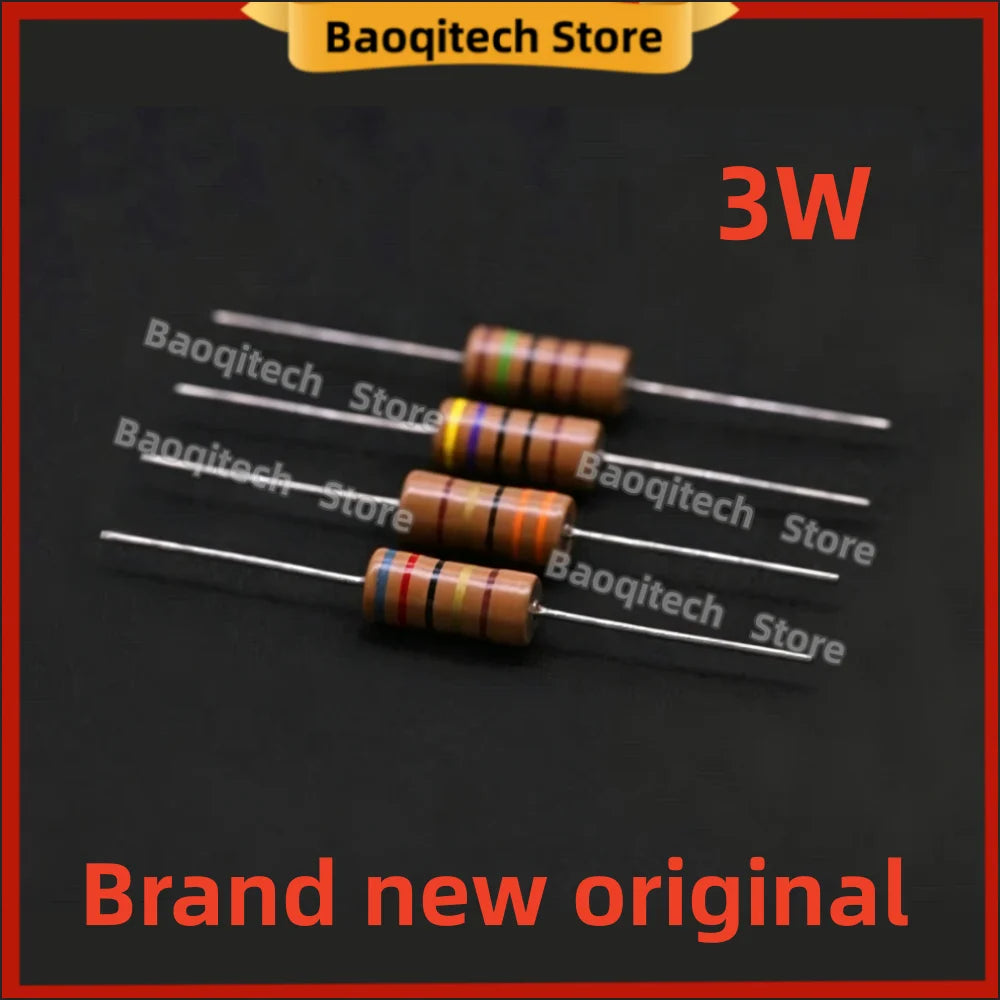

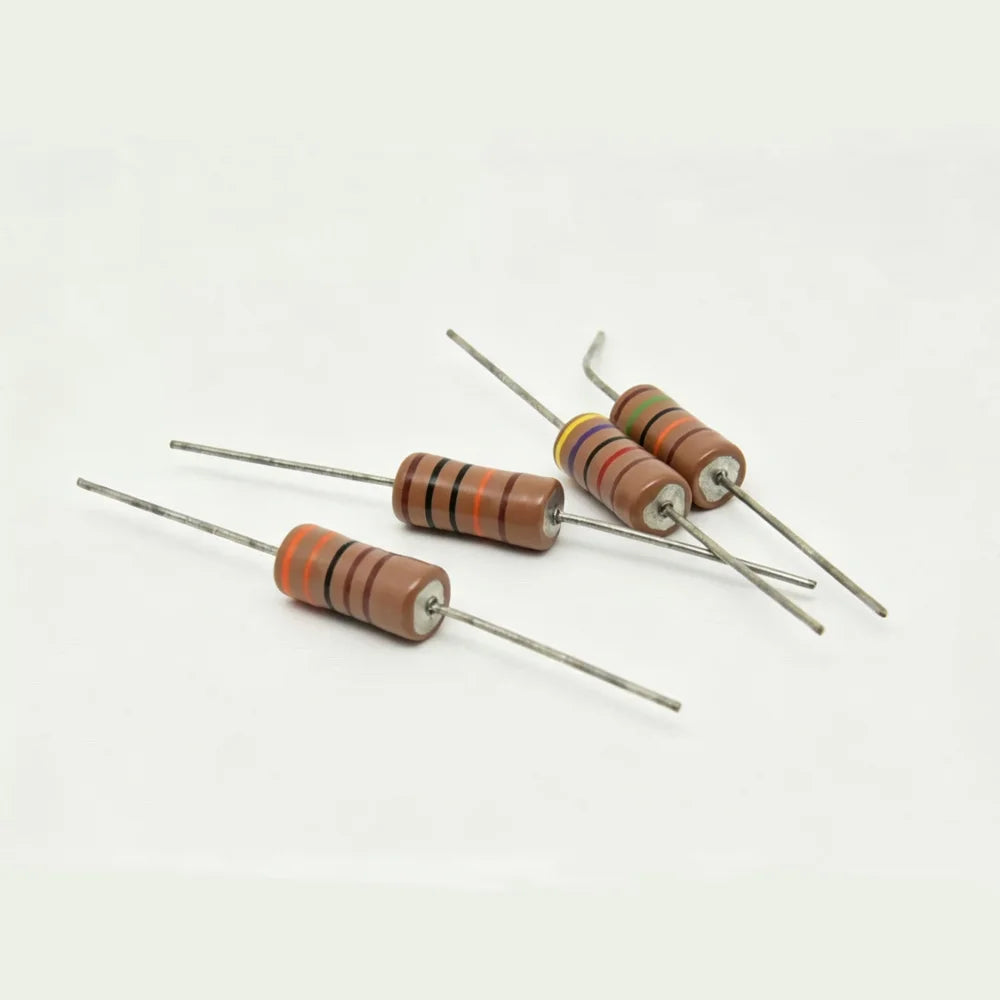

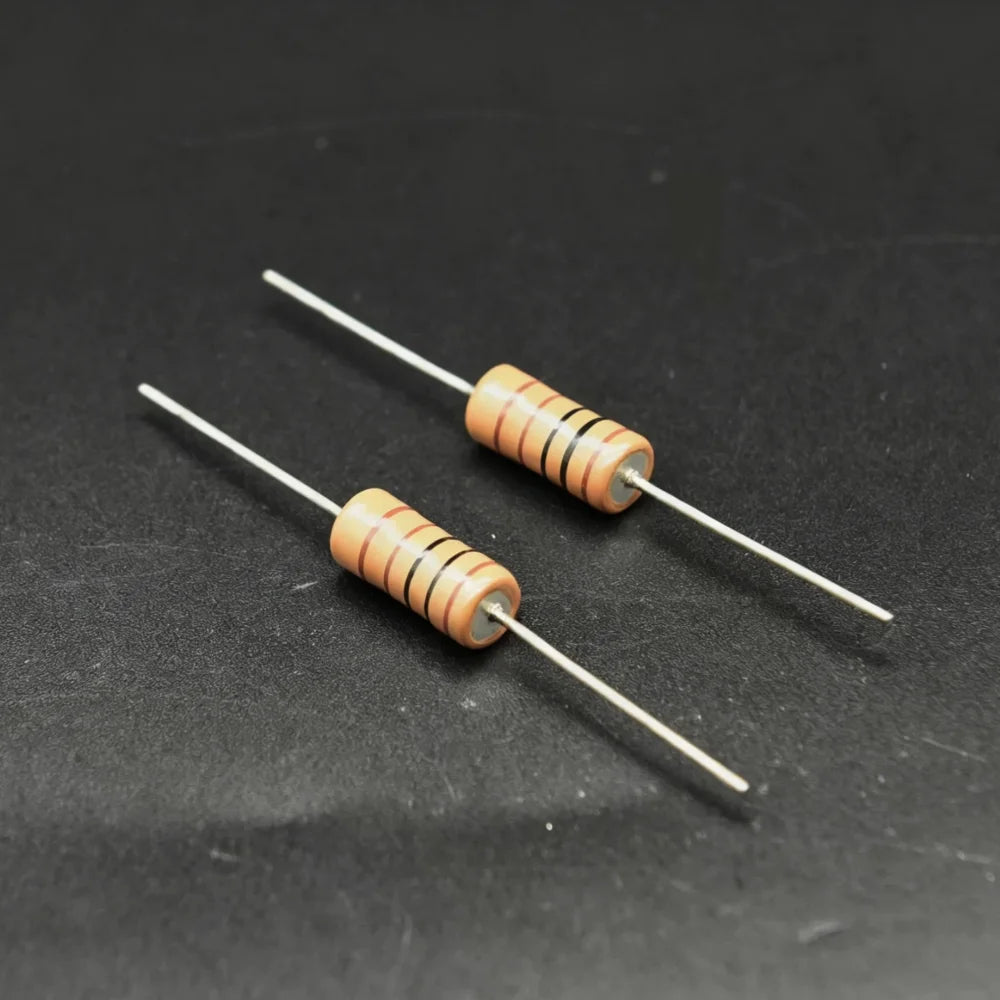

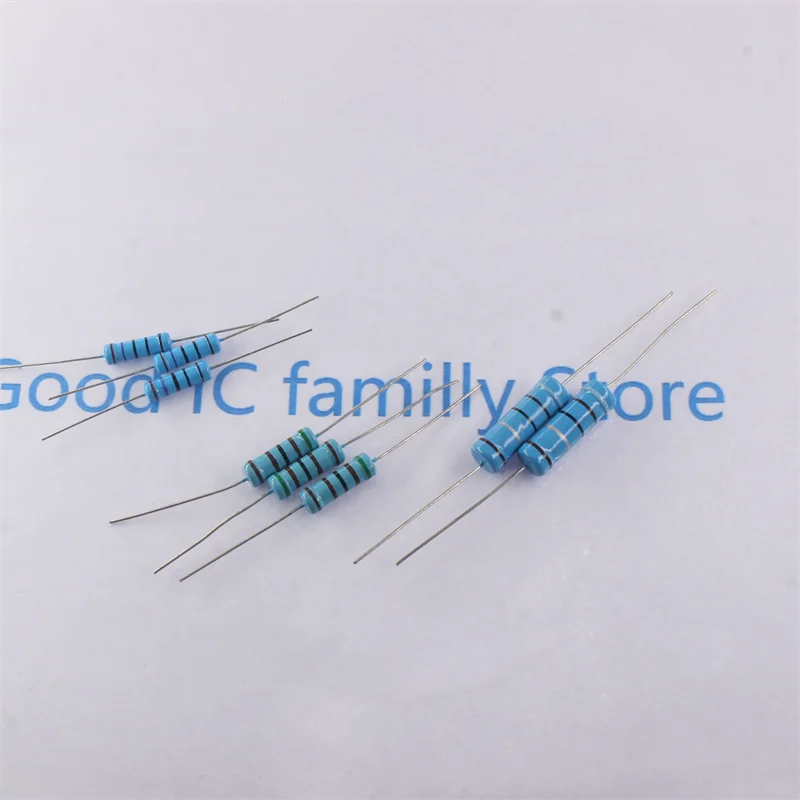

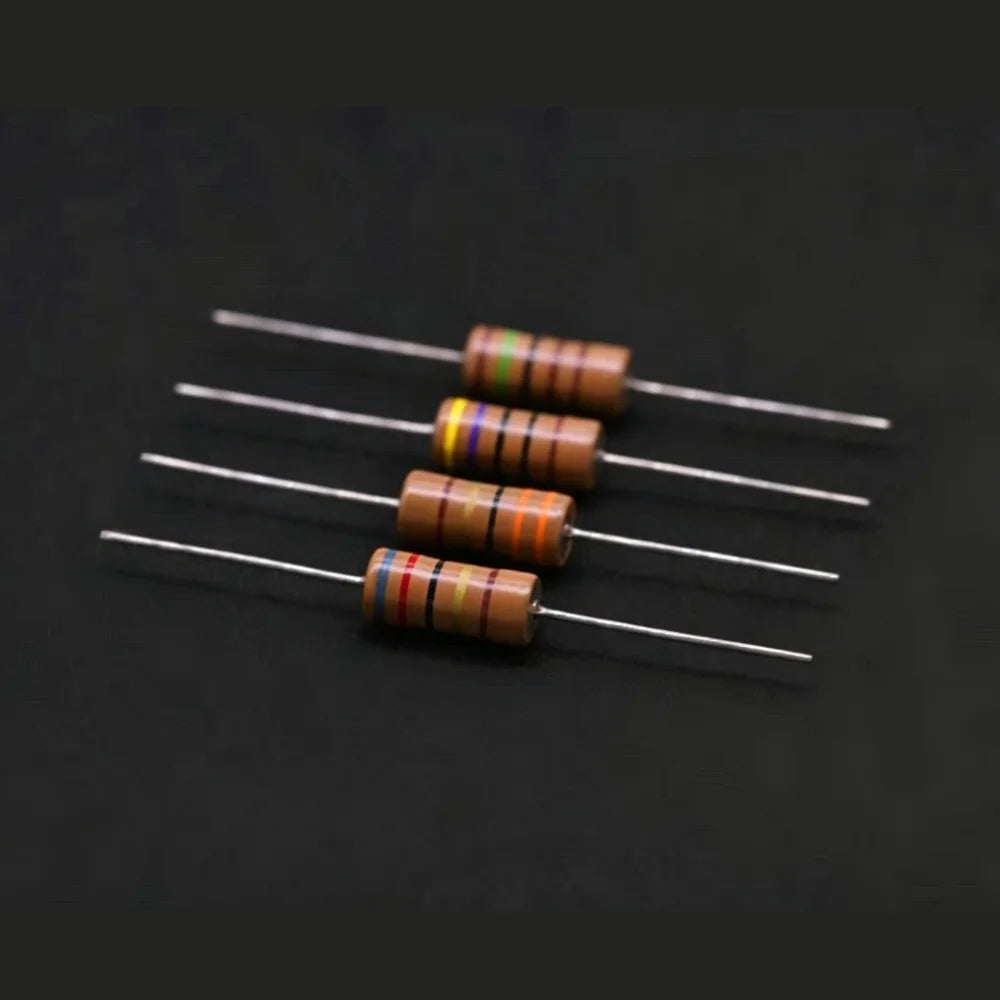

Several shared listings offer 1/2W, 1W, 3W, 5W or other power options; select the exact 2W variant. The RX24 aluminum-housed listing contains 10W and 25W products and is not equivalent to a 2W axial resistor. One 1210 listing is rated differently and is not a mechanical substitute. Audio-oriented titles and imported part-number claims do not establish system compatibility, authenticity or certification without supporting product documentation.
