8051 Microcontroller ICs, Development Boards & Programmers

8051-compatible microcontrollers, development boards and programming tools

Compare embedded controllers built around 8051-compatible cores, from individual ICs to populated teaching and prototyping boards. This collection contains AT89C2051, AT89C52, AT89S52 and AT89C51ED2 listings; STC12, STC15, STC8 and STC32G families; N76E003 and N79E814; CH552/CH559 USB-focused boards; C8051F devices; and selected SH79, CMS8 and MA82 parts. “8051” identifies a broad architecture lineage, not a shared footprint, pinout, peripheral set, programmer or binary-compatible drop-in replacement. Check the full selected part number and vendor documentation before designing or replacing a device.

Choose the exact IC package and family

• Classic AT89 devices: compare AT89C2051 in DIP-20, AT89S52 in DIP-40 or TQFP-44 and the specific AT89C52 or AT89C51ED2 packages listed. Verify actual flash, RAM, clock, reset, ISP/programming method, voltage and I/O characteristics for the chosen suffix; an AT89C2051 does not become pin-compatible with an AT89S52 merely because both are described as 8051 MCUs.

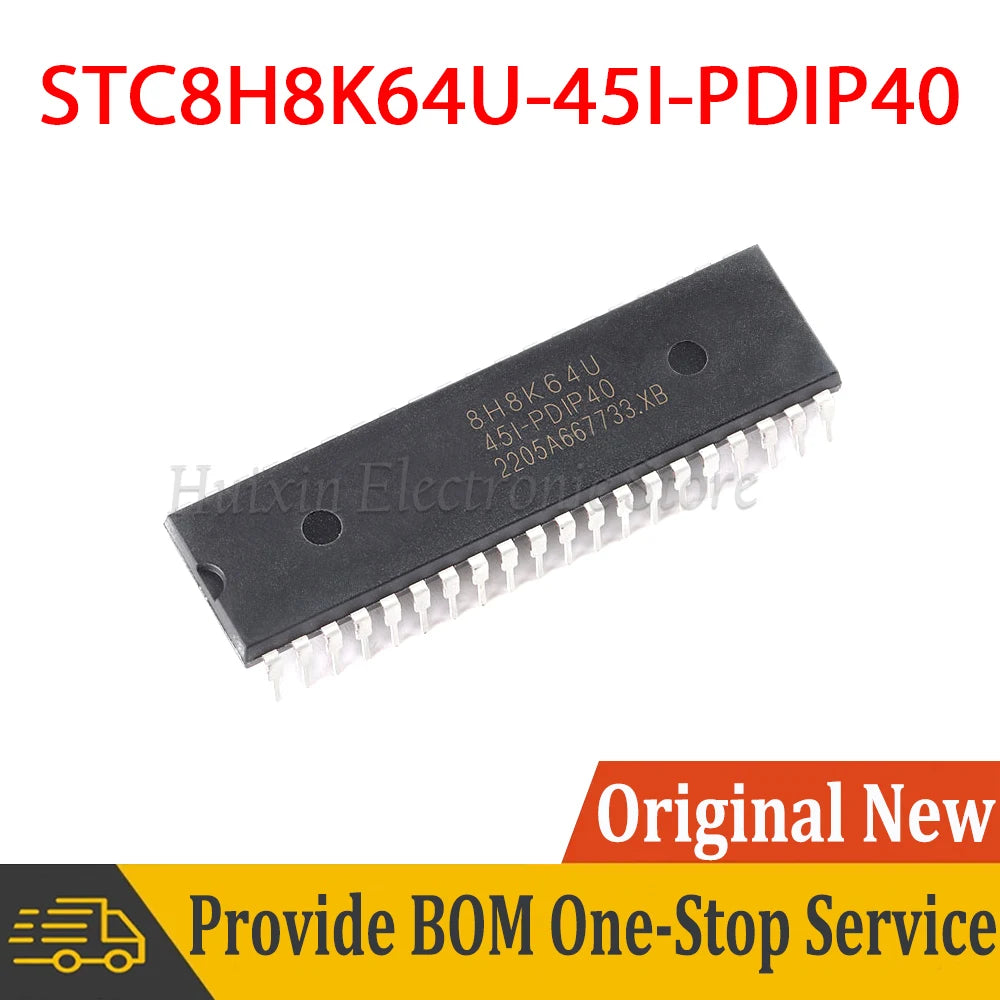

• STC enhanced devices: STC8G1K08/08A, STC8H1K17/28, STC8H8K64U, STC15W104/204S/408AS and STC12C5A60S2 listings span SOP, TSSOP, QFN, DFN, LQFP and PDIP packages. Options may distinguish 8-, 16-, 20-, 28-, 32-, 40-, 44-, 48- or 64-pin styles, not merely color. “1T” or enhanced-core wording is model-specific; compare timers, ADC, serial ports, memory map and programming support at the exact ordering code rather than assuming all STC chips offer the same functions.

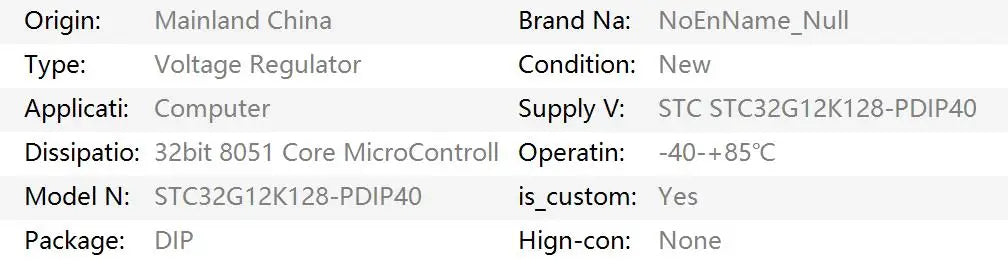

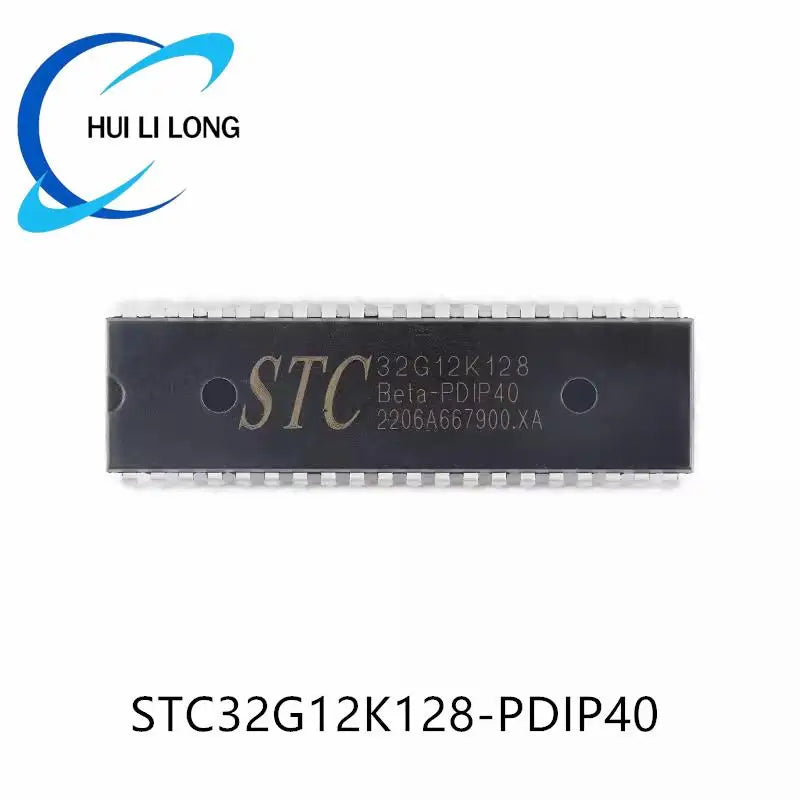

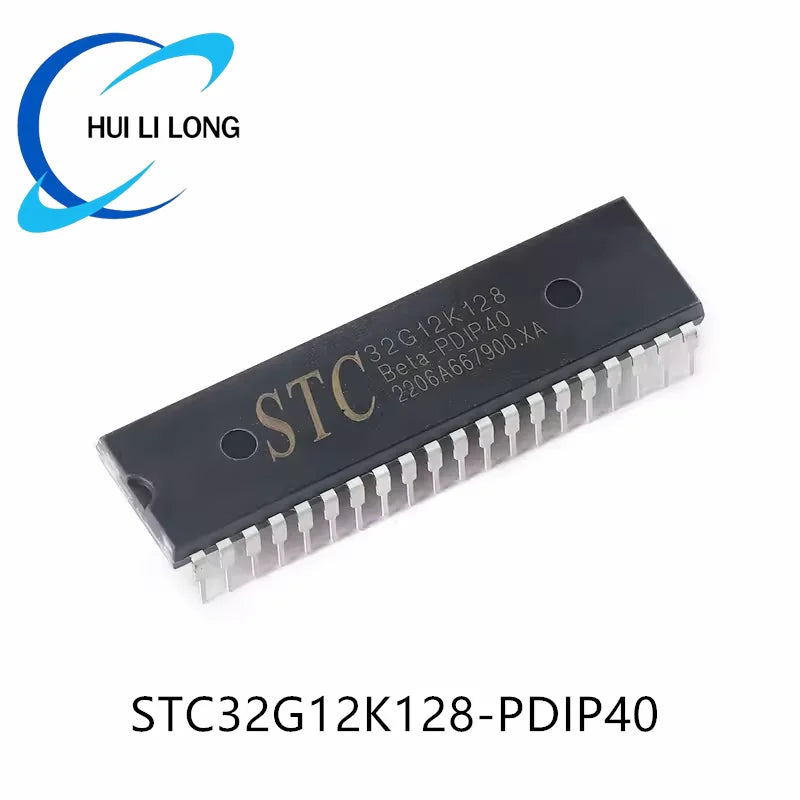

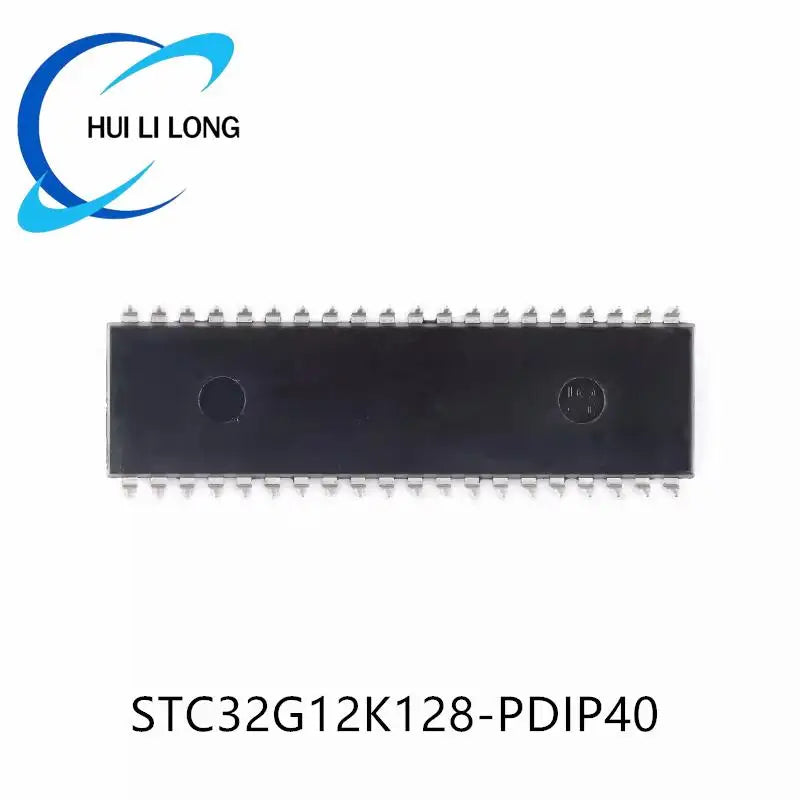

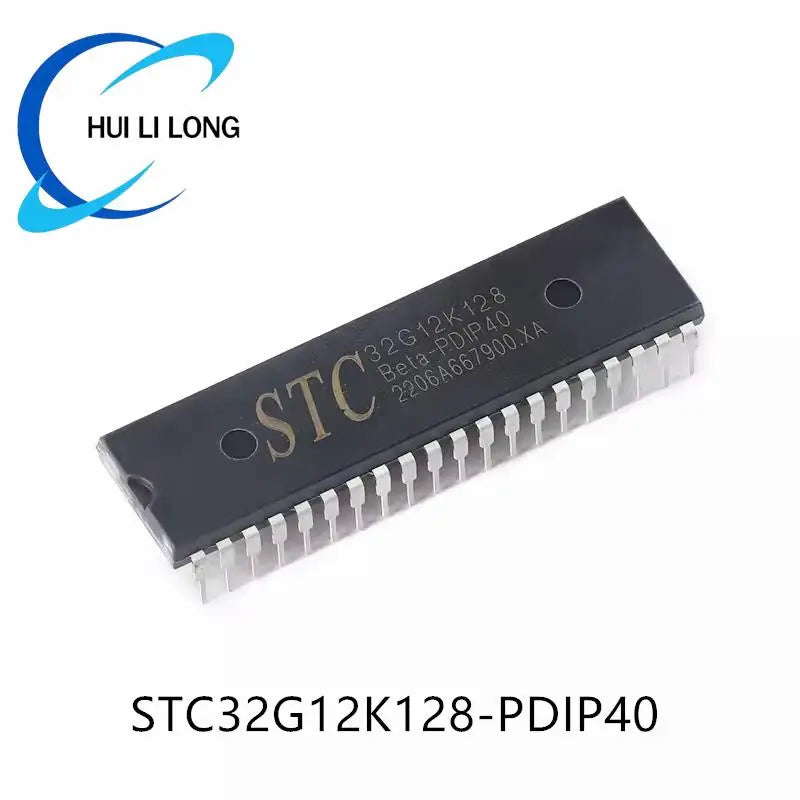

• STC32G and other derivatives: listings include STC32G12K128 and STC32G144K246 chips or core boards. Despite the “8051 core” wording used in some titles, a 32-bit STC32G device must be checked independently for architecture, compiler, firmware and debugger requirements. N76E003, C8051F300/F130/F350, CH552/CH559, SH79F, CMS8S and MA82 devices likewise have distinct peripherals and toolchains.
• Quantity and package: a single chip, a 2/3/5/10/20/30-piece lot and a 50/100-piece lot are separate purchase choices. Verify the option and the package suffix together; “5PCS” in a title does not override a selected 1-piece variant.

Board, kit or programmer?

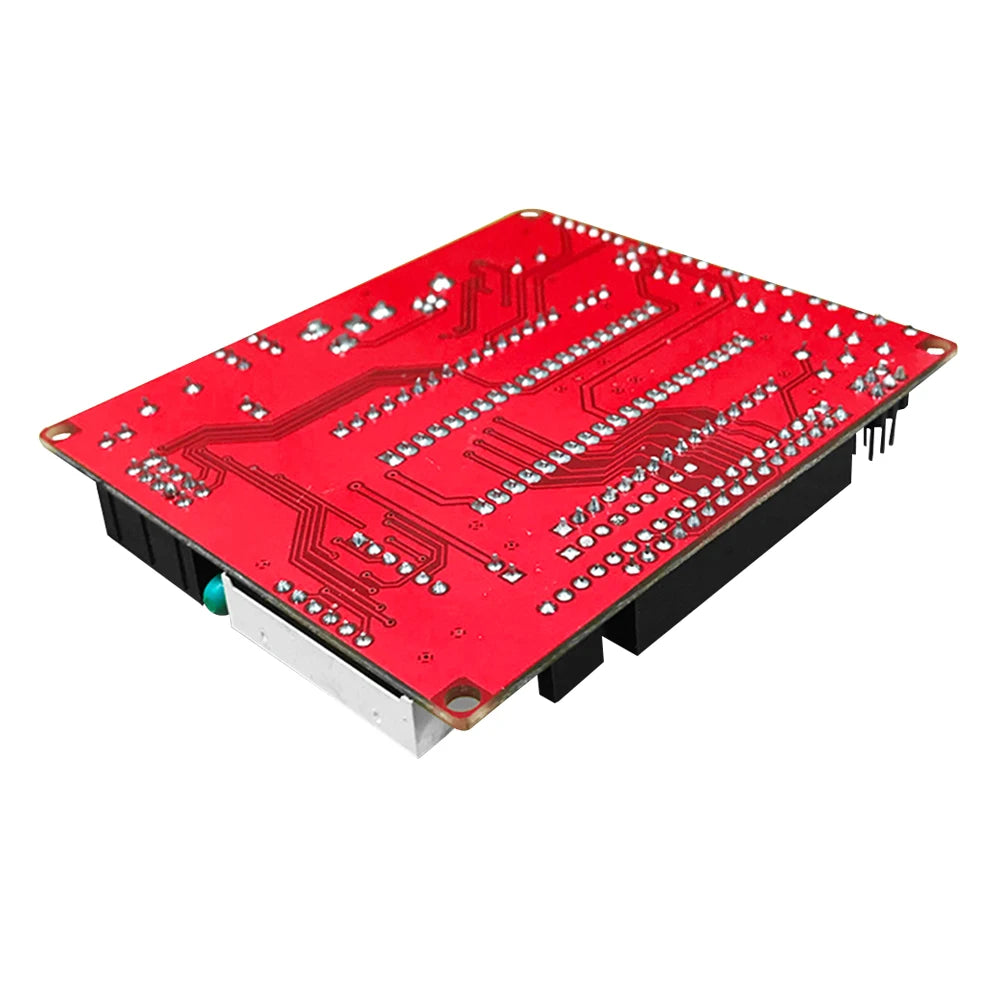

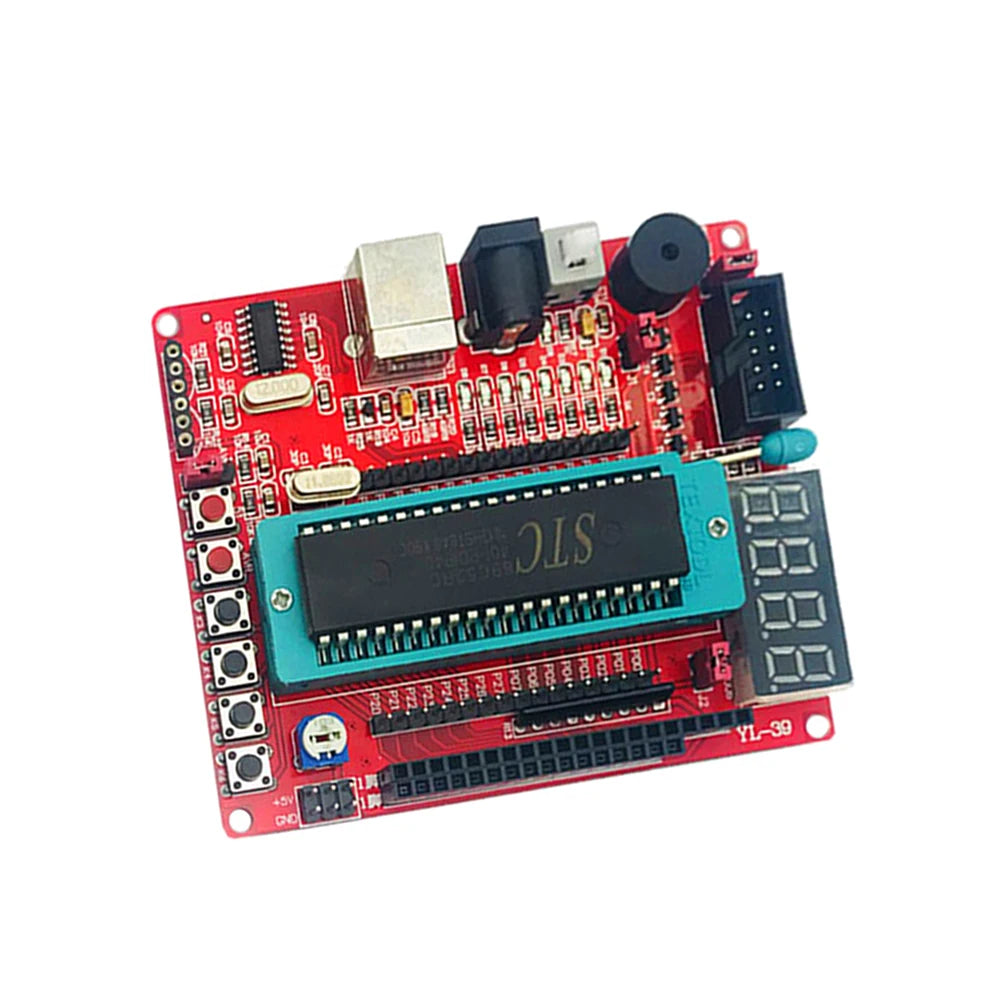

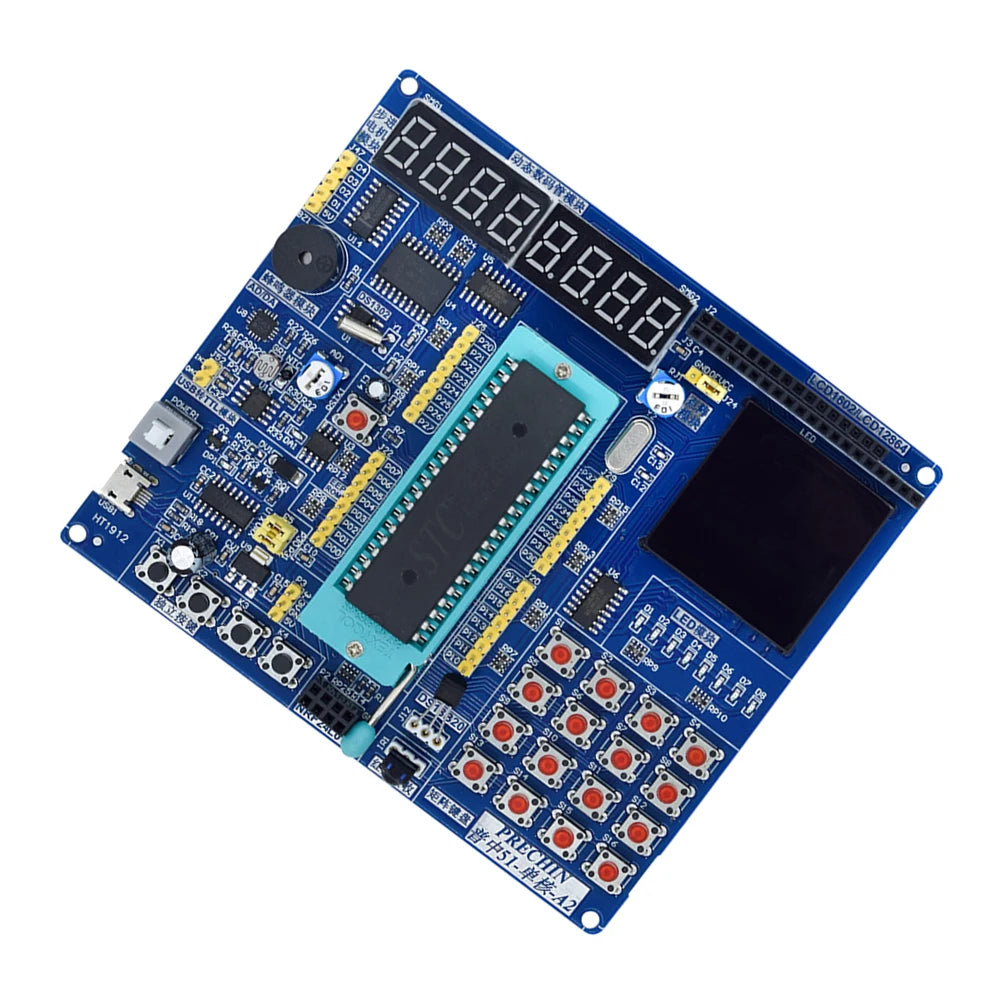

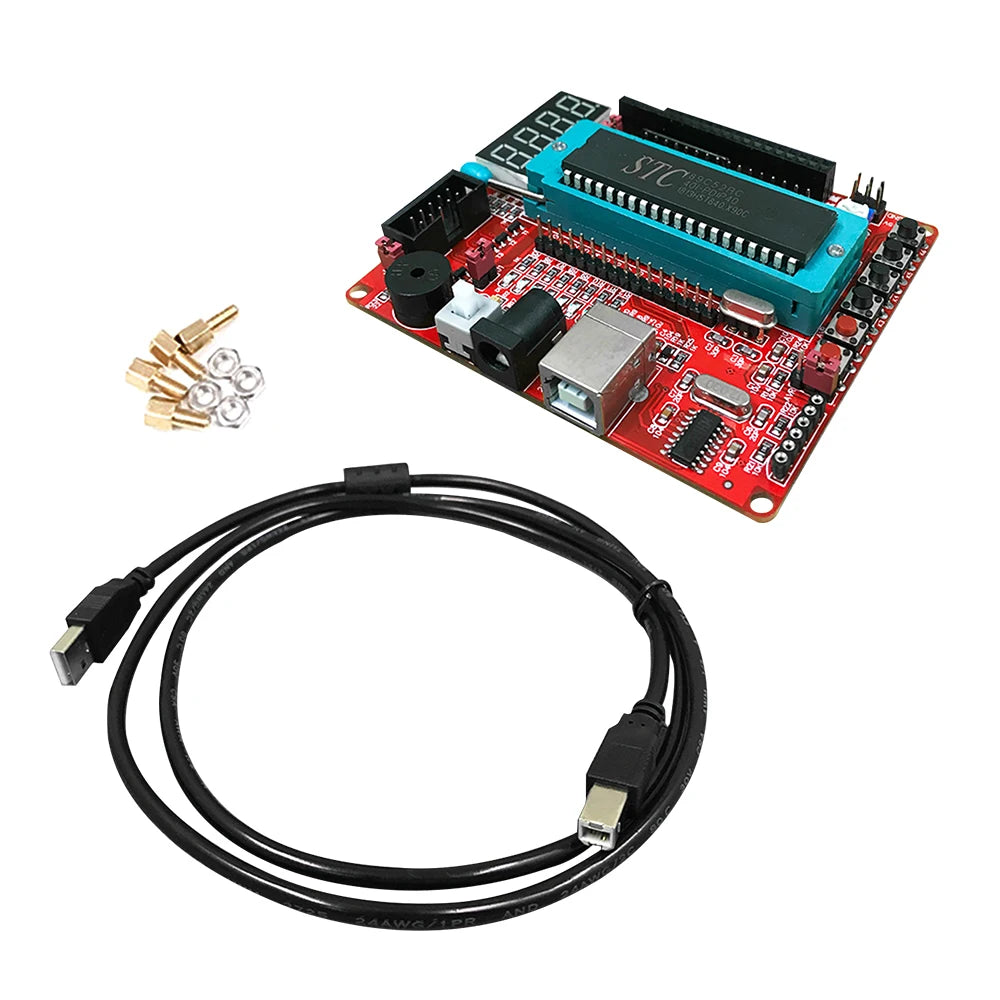

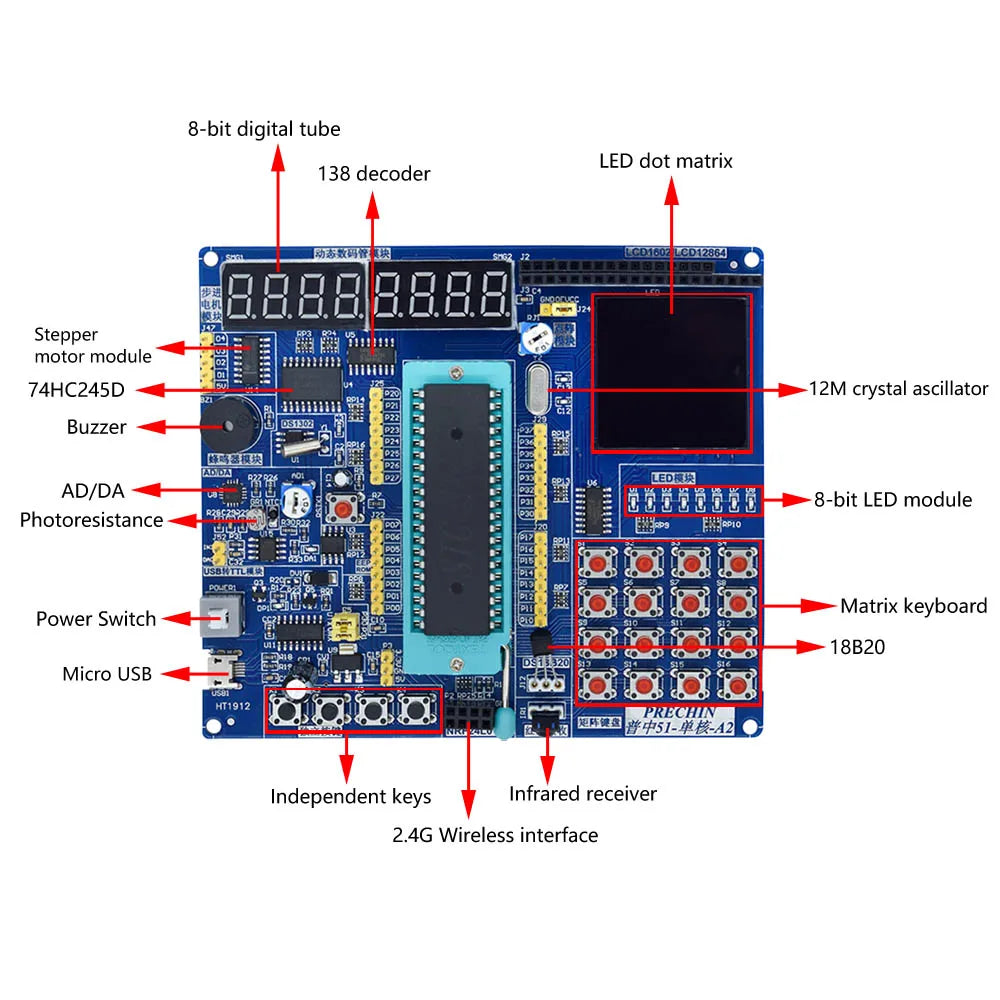

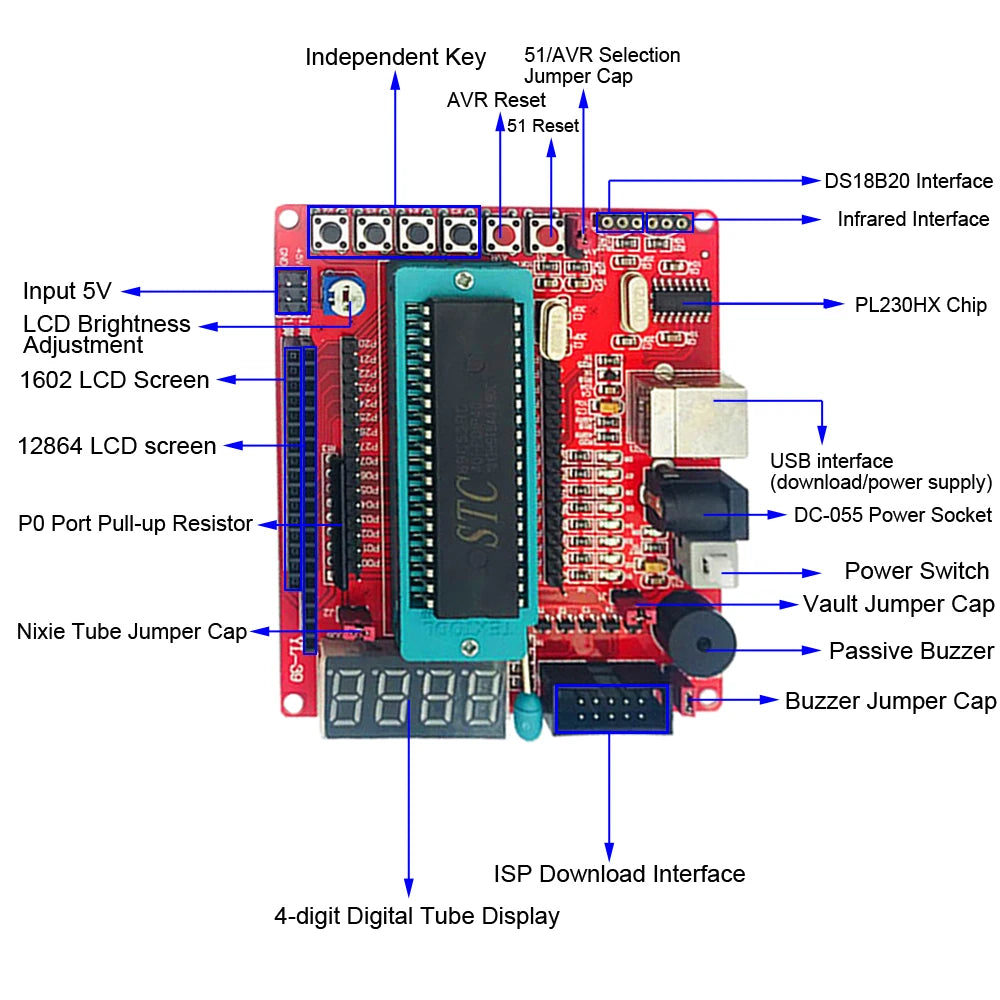

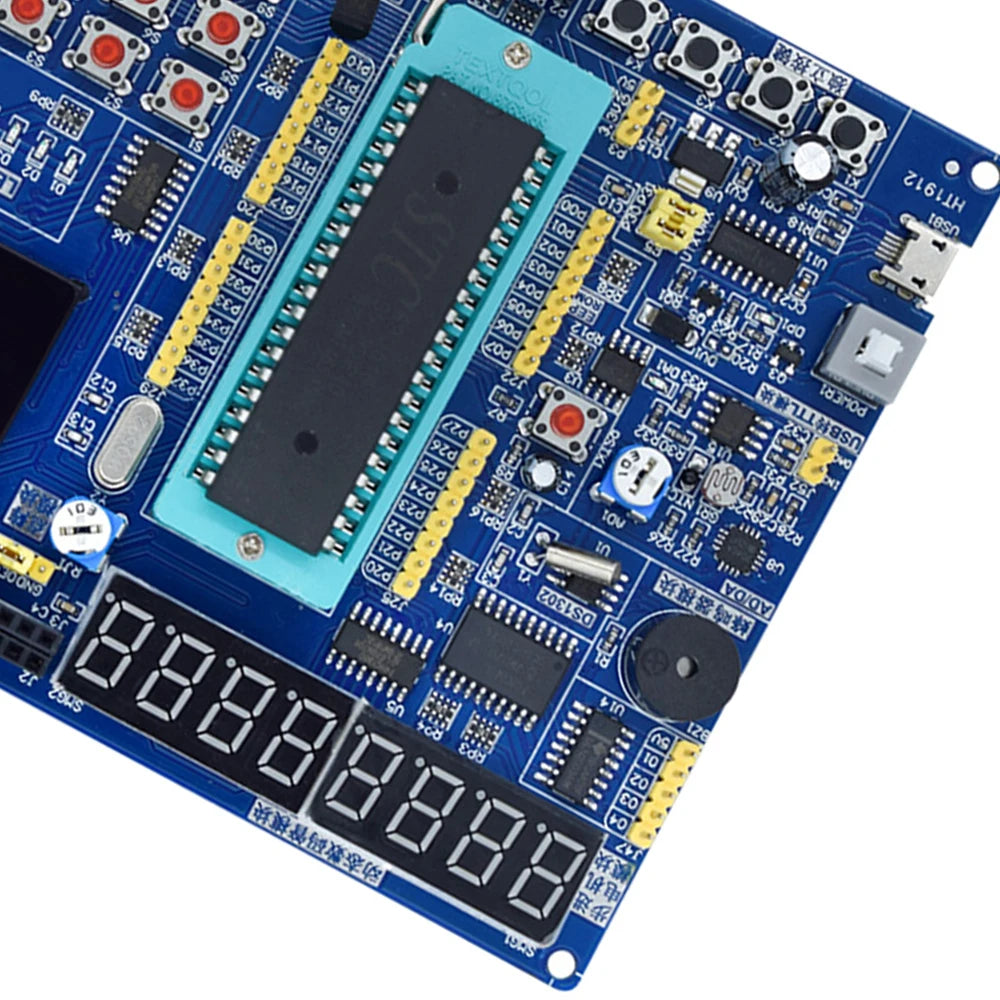

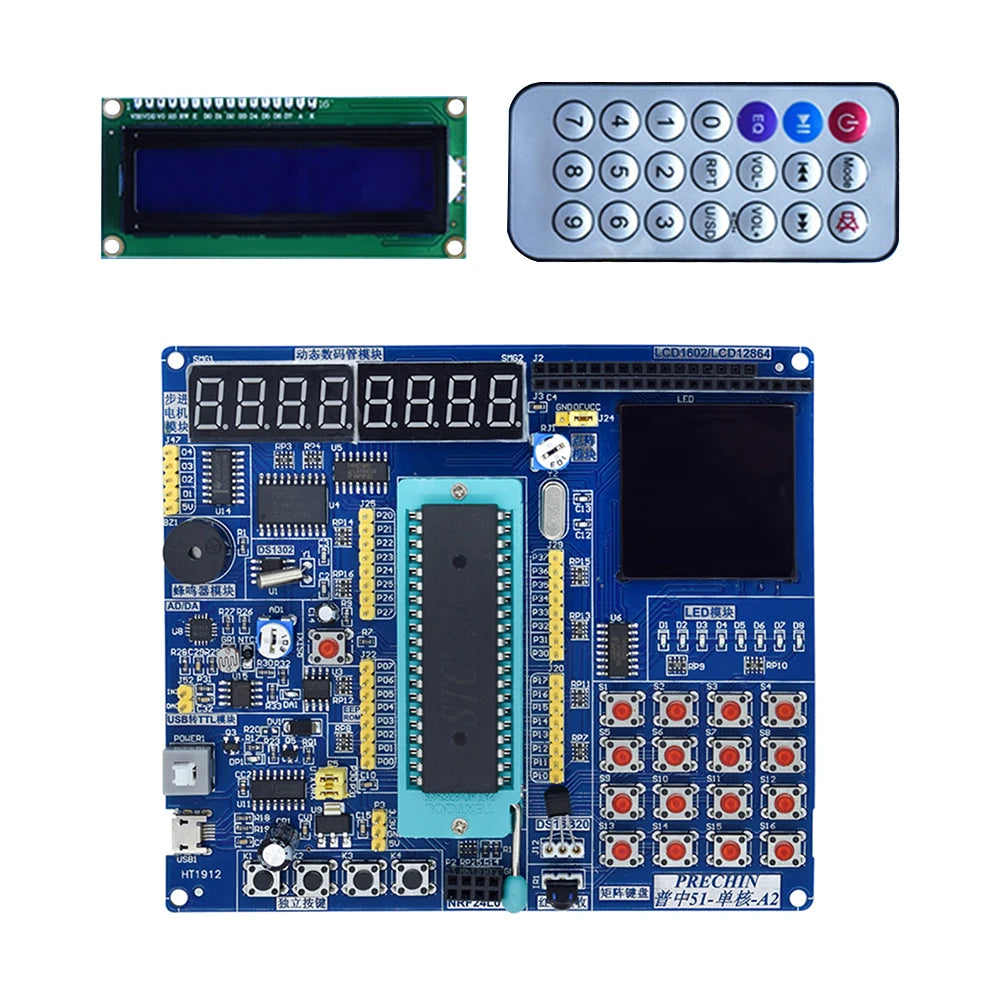

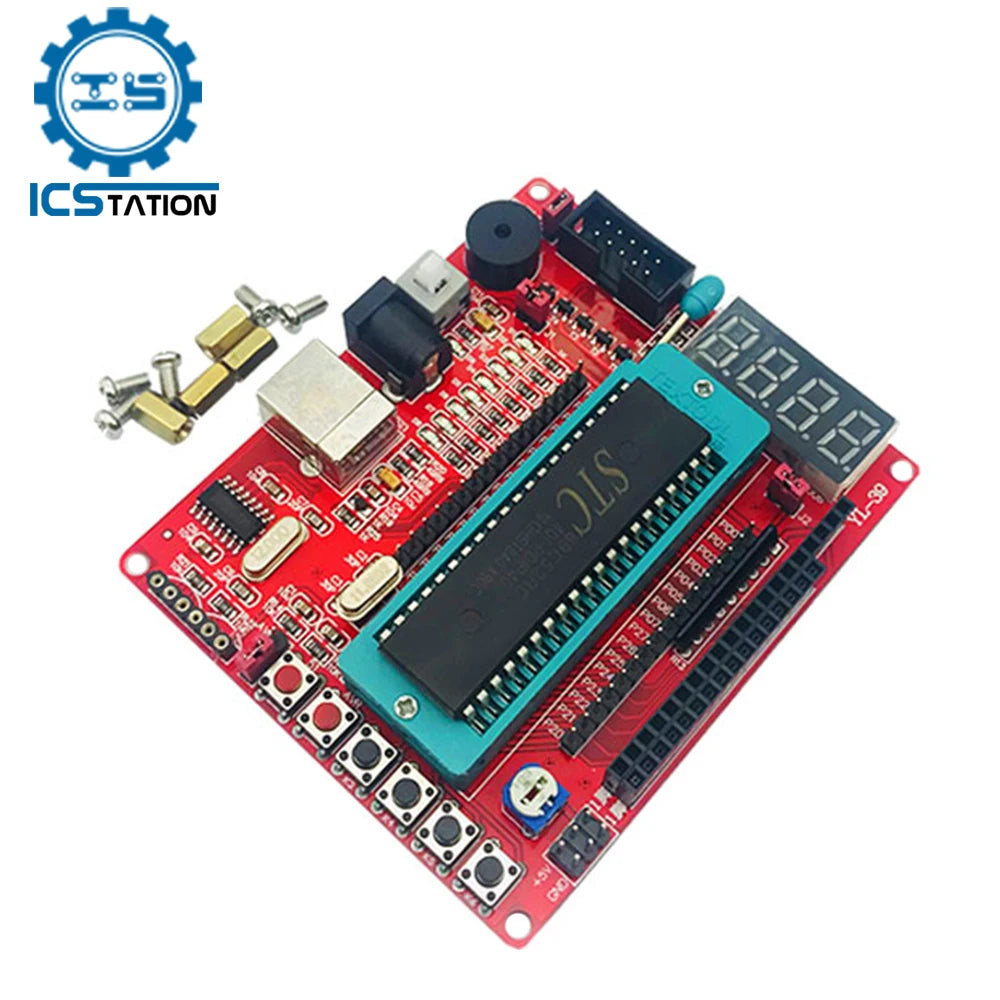

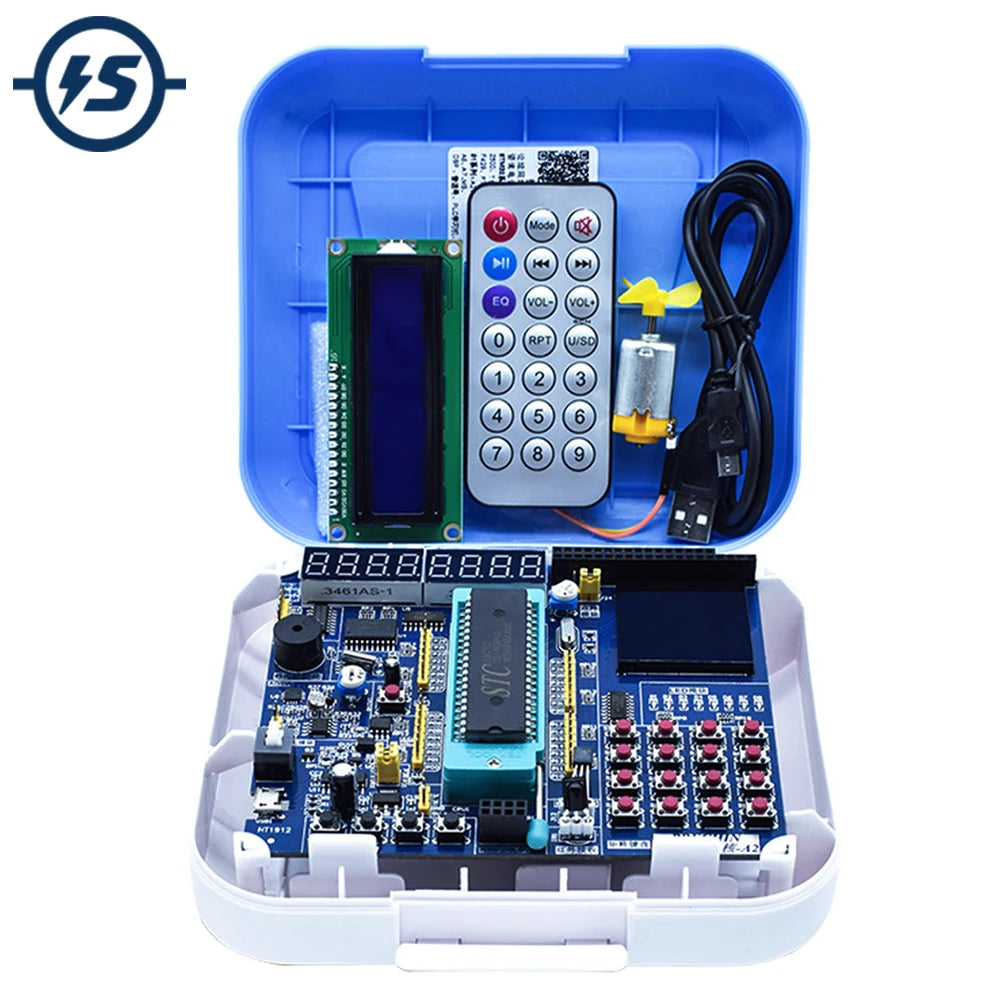

• Development boards: STC89C52 C51 learning boards, STC8H8K64U and STC32G core boards, N76E003 boards and CH552/CH559 USB boards are assembled platforms, not loose ICs. Check the fitted MCU, PCB revision, available headers, power input, onboard download circuit and whether an LCD1602 or other learning accessory is included.
• DIY kits: STC89C52 learning experiments and AT89C2051 LED-clock kits may need assembly. A kit can contain a PCB and components without being a finished, programmed controller; compare included parts, socket, display and programming requirements for its exact option.

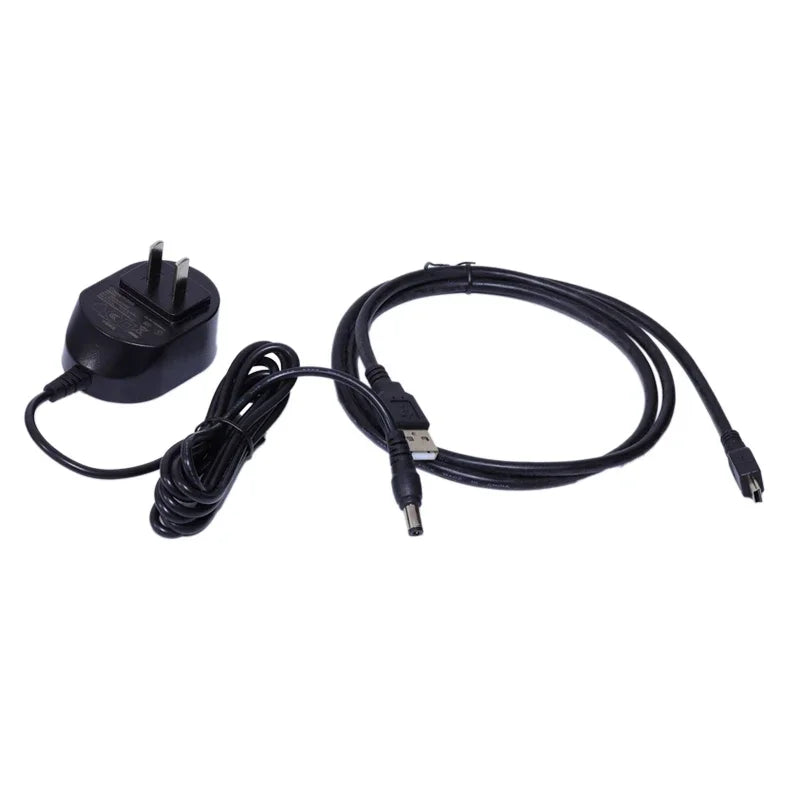

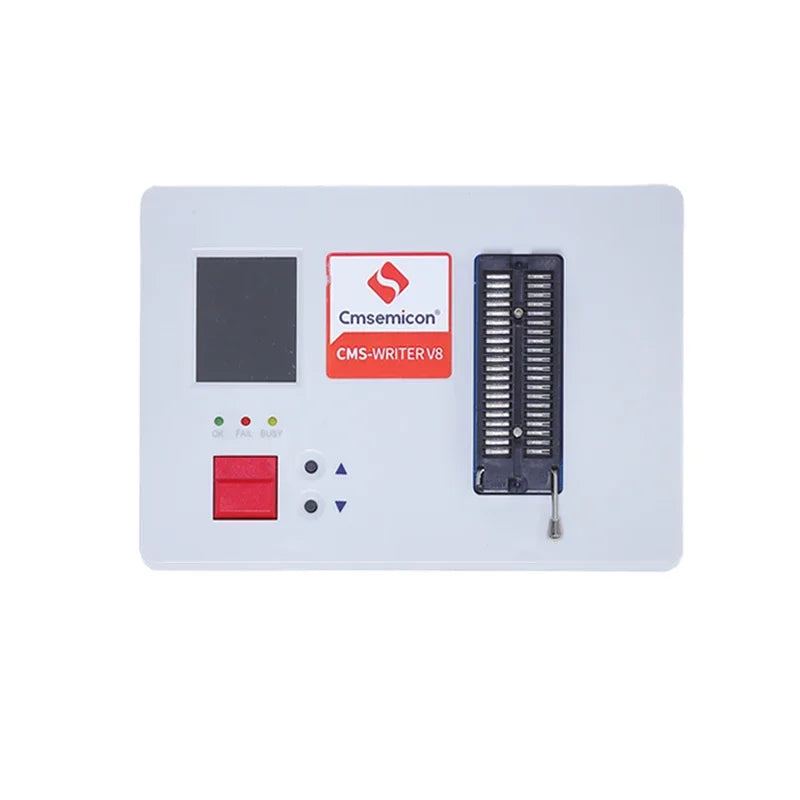

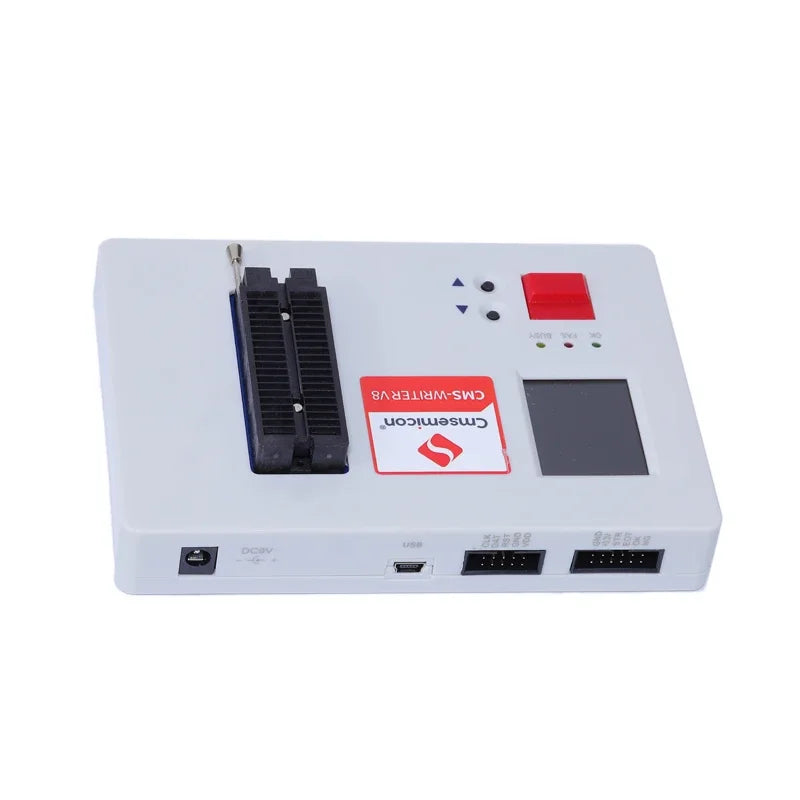

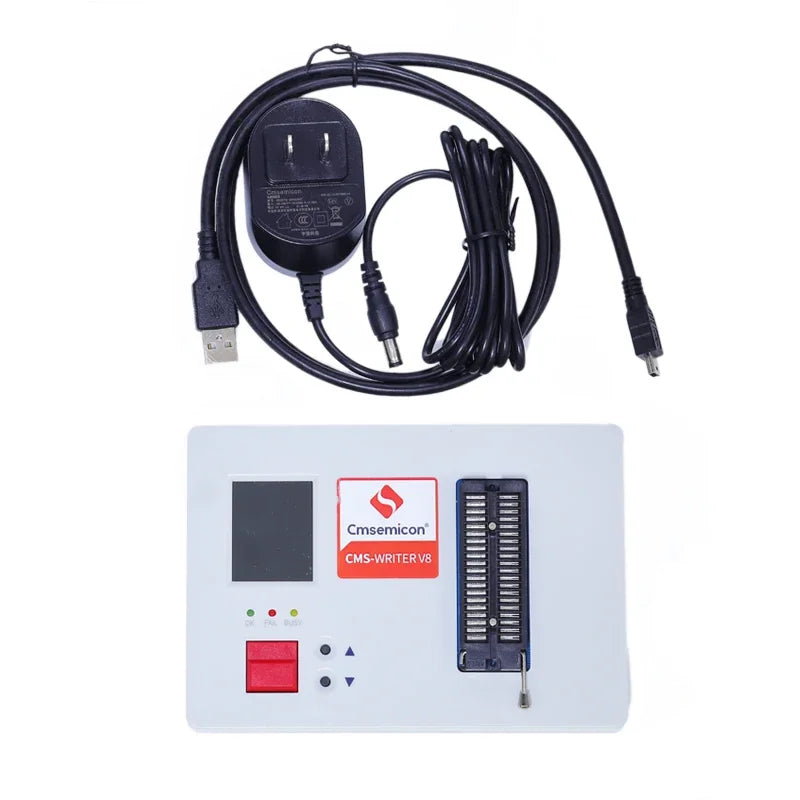

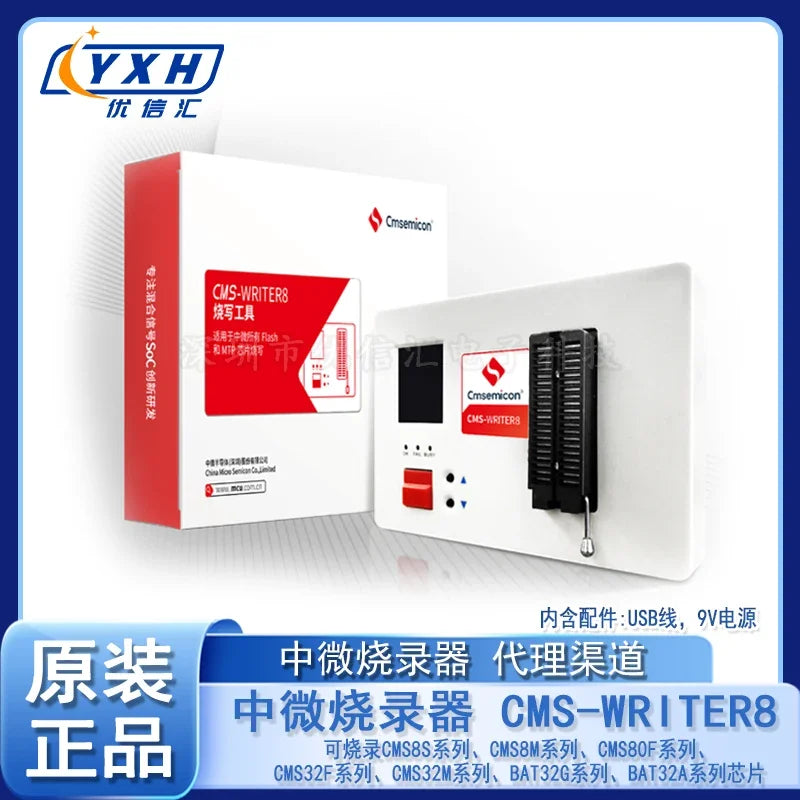

• Burners and emulators: HC-LINK, HC-PM51 and CMS-WRITER listings are programming or debugging equipment. Check socket adapter, supported device list, software/firmware version and required host interface. A claim to support multiple MCU families is not proof of compatibility with every device in this collection.
• Related or misleading matches: W5500 Ethernet and MCP2515 CAN modules are peripherals that can connect to a compatible controller, not 8051 MCUs. AD8051ARTZ is an amplifier part number, not an 8051 microcontroller; similarly, HMI panels with “8051” embedded in a model number and unrelated Ethernet chips should be selected on their own specifications. These products remain visible here, but should not be mistaken for MCU ICs.

Engineering selection checklist

Identify the exact device and package first; then compare core and clock behavior, flash/RAM size, supported supply and logic levels, required oscillator and reset circuit, peripheral mapping, ADC resolution and input limits, UART/SPI/I²C/CAN or USB implementation as applicable, programmer protocol and toolchain. For a repair, compare the original full ordering code and programmed firmware rather than relying on a similar prefix. A programmer's socket pitch or a board's physical header does not prove electrical or firmware compatibility. Treat seller claims of originality, industrial rating and certification as unverified unless supported by the particular item's documentation.

Frequently asked questions

Is any 8051 chip a direct replacement for another? No. Core lineage alone does not match package pin assignments, instruction timing, flash layout, peripherals, electrical limits or firmware programming method. Consult both datasheets and the original system design.

What is the difference between DIP and SOP/QFN/LQFP choices? They are different physical mounting and often pin-count formats. Select the exact suffix and PCB footprint; do not use a package option as a substitute without checking the pin map.

Does a development board arrive ready to run code? Some boards include USB download circuits, while DIY kits and bare chips may require assembly, an external programmer or firmware. Verify the chosen listing's fitted device and included accessories.

Is CH559 an Ethernet module or simply a generic C51 board? The CH559 listings describe an 8051-architecture USB-host learning board. Check its actual USB host/device features and connectors against the board revision rather than extrapolating from other 8051 boards.

How do I select a burner? Match the exact MCU part number and package to the burner's supported-device list, software version, adapter and supply voltage. Avoid assuming a universal-sounding title covers a particular target.
