AD797 Op Amps, Modules and Audio Alternatives

AD797 single op amps, selected amplifier modules and alternatives

This collection brings together AD797-labelled single-channel op amp ICs, a selectable AD797 amplifier module and other audio or high-speed amplifier choices. It is not a uniform assortment of AD797 chips: several product titles mention AD797 only as a possible comparison or replacement, while one multi-model chip listing includes completely different semiconductor types. Read the selected variant and its condition before ordering. An AD797 in DIP-8 is not the same physical item as a surface-mount part or a populated board.

Identify the actual AD797 offering

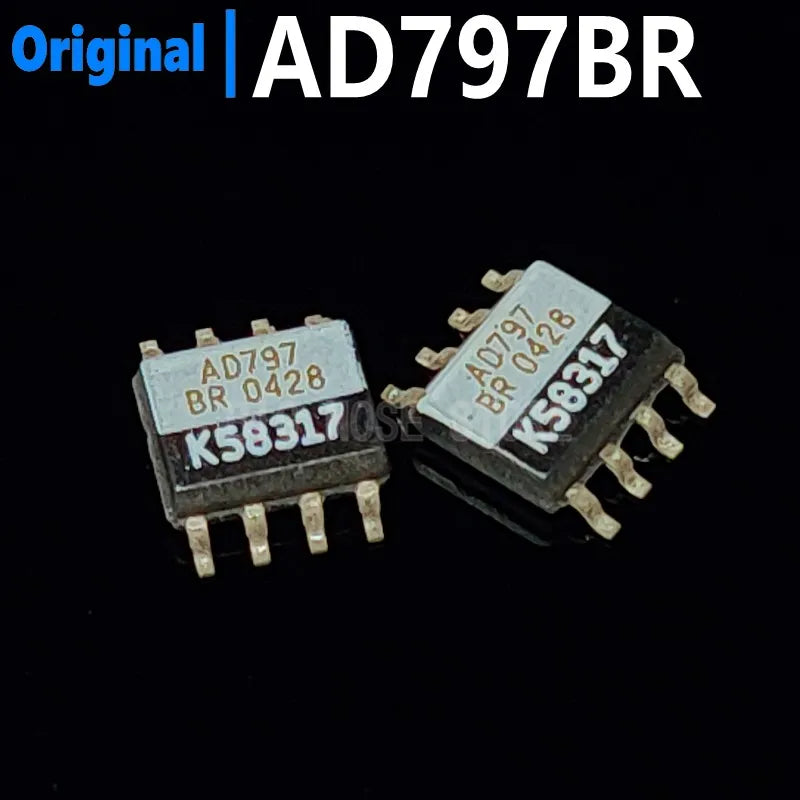

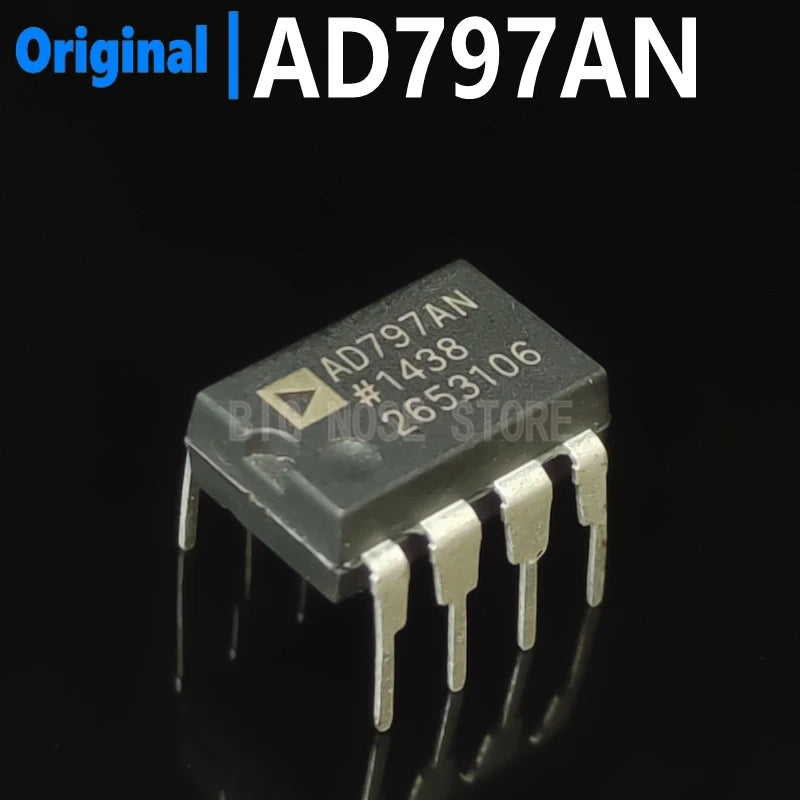

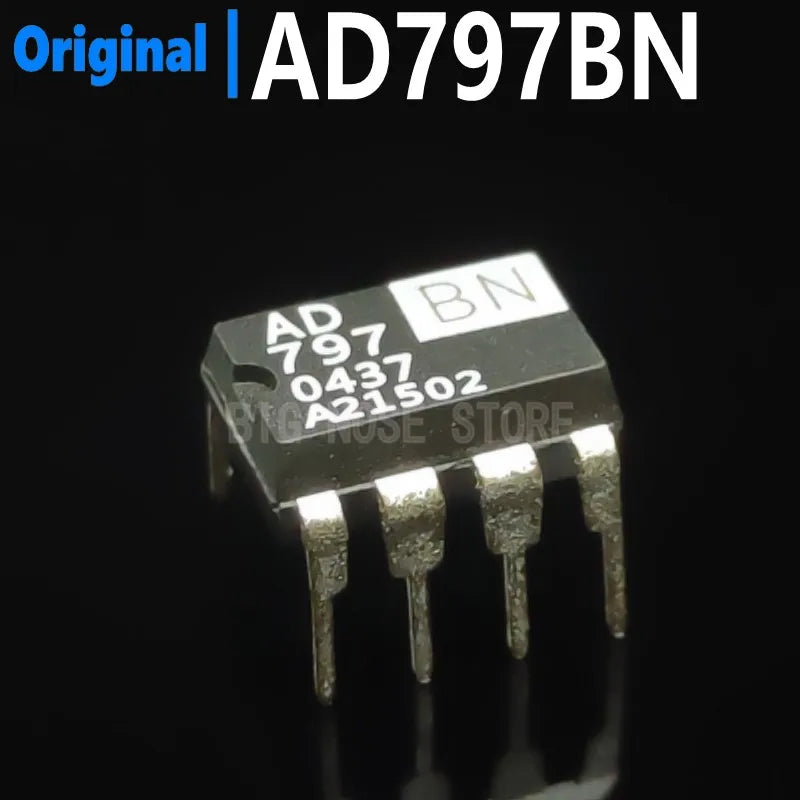

One selectable SOP-8 listing offers 10pcs-AD797BRZ or 10pcs-AD797ARZ. These are separate ten-piece choices, not a mixed twenty-piece set. Another listing offers AD797BN DIP8, AD797AN DIP8, AD797BR SOP8 and AD797AR SOP8; its generic seller statement calls the parts genuine but supplies no batch-specific provenance or measurements. Confirm the exact ordering suffix, package drawing, footprint, orientation and required grade from the appropriate manufacturer's documentation. The shorter AN/BN/AR/BR option text should not be silently equated to a longer suffix without inspecting the shipped part marking.

A third multi-model chip listing includes AD797BRZ as a selectable 1-, 5- or 20-piece choice. Its same dropdown also contains LD7552BPS, CAT7106CA, IRF7307PBF, LM75CIM3 and THS7314DR in 1-, 5- or 20-piece choices. Selecting a different part number does not deliver an AD797. LD7552 is a controller-type device, LM75 is associated with temperature sensing, IRF7307 is a MOSFET part and THS7314 is not an AD797 single audio op amp. Treat the option label as the contract for the particular model and count, rather than trusting the crowded title or an “international standard” placeholder in its specifications. This product remains in the collection, but its non-AD797 variants are not interchangeable with an AD797.

A separate product is explicitly titled AD797 AD797AN single operational amplifier used version. Its seller text says the device is a disassembly version and an old product. Do not infer factory-new condition, unopened original packaging, traceability or a fresh production date for that offer. The seller prints ±5 to ±15 V-style operating wording, noise and distortion figures with incomplete or malformed units; these are not independently verified test results for the individual used device. Buyers who need documented lot history or tightly controlled precision should qualify condition and authenticity before use.

Boards are different from loose components

One module listing offers a distinct AD797 Module option alongside OPA847 Module, OPA657 Module, OPA657 Single Way and OPA657 Double Way. Only the AD797 Module choice is described by the selector as AD797. The seller's long technical paragraph mostly specifies OPA847 and OPA657 boards, including a 50 × 42 mm OPA847 assembly advertised for ±5 V and a 50 × 36 mm OPA657 assembly described with a ±6.5 V maximum. Those board-specific supplies and high-frequency advertising figures must not be applied to the AD797 option. A “3.9G” label in the seller title is not verified closed-loop bandwidth for the AD797 board. Its selected gain, connectors, component population and pinout should be inspected as a complete assembly rather than assumed from the loose-IC datasheet.

An assembled high-speed board needs compatible supply rails, a suitable input source and load, decoupling and controlled layout; small-signal bandwidth of an amplifier IC is not the achieved bandwidth of a populated module at every closed-loop gain. Do not assume that a board advertising “in-phase” operation can directly replace a DIP-8 chip in an existing socket. Check mechanical size and electrical interface before purchasing it for a repair or prototype.

Related but distinct op amps and discrete modules

Two OPA828 products offer single and dual configurations. One also has an “OPA828 original OP” choice that should be distinguished from the adapter configurations. The seller proposes these as alternatives to AD797 and other audio parts, but OPA828 is not AD797, nor is it AD828. A dual adapter may use a different physical arrangement from a native dual IC; select channel count and confirm actual fitted chips, board height, pin map, power rails and stability in the host design. Seller statements about silver-containing solder and gold-plated pins are not a guarantee of measurable sonic or electrical improvement.

Two MUSES03 pages name AD797 as a possible replacement target; their selected products are MUSES03 single-channel audio op amps, not AD797 chips. One seller asserts direct upgrades and “100% new original” with subjective listening claims; another gives materially different bandwidth, slew and voltage wording, including malformed “±3±18V.” Do not combine those figures into a specification for either page or treat a listening impression as measured performance. Confirm the particular part's documentation, package and condition, especially when substituting into an AD797 circuit.

A discrete HDAM product offers single channel and Dual channel selections and advertises replacing MUSES03, LME49710 or AD797. The text quotes conflicting ±28 V maximum versus a separate ±5 to ±22 V operating range, as well as nominal dimensions, current and frequency-response numbers without a complete measurement setup. These are seller statements for that module, not AD797 specifications or a guarantee of safe socket compatibility. Check the selected channel count, pin mapping, polarity, quiescent consumption, physical clearance and supply limits against the actual host equipment before energizing.

Technical selection: noise is only one parameter

The AD797 family is typically selected for demanding low-noise precision signal chains, but a low input voltage-noise density alone cannot determine total system noise. Include source resistance and its thermal noise, amplifier input current noise, noise gain, frequency band and any input filtering. A high-impedance source can favor a different input architecture than a low-impedance source. Confirm offset and drift at the actual temperature, gain-bandwidth and slew for the signal amplitude, common-mode and output headroom at the intended rails, supply current and load behavior. The correct values belong to the precise part grade and specified measurement conditions, not to a collection-wide headline.

Feedback topology and stability matter when swapping precision and high-speed op amps. Compare the datasheet's supported gains, capacitive-load behavior and recommended compensation with the existing circuit. A single-channel eight-pin op amp must not be inserted in a dual-channel socket simply because both have eight pins. Check device pin 1, supply polarity, package width and mounting method. An adapter can alter parasitics and board height. Follow the equipment maker's service instructions and use appropriately qualified help for mains-powered audio equipment; this collection is not a universal wiring guide.

What to check before checkout

1. Exact selection: AD797ARZ versus BRZ, DIP8 AN/BN versus SOP8 AR/BR, AD797 Module versus another populated board, or a non-AD797 model in a mixed selector.
2. Quantity: the first SOP8 listing specifies ten pieces; the mixed page has 1, 5 and 20 piece choices; a single amplifier or module is not automatically a ten-pack.
3. Condition and traceability: one AD797AN offer explicitly says dismantled/old. Generic claims of “original” or “new” in other seller text are not proof of a particular part's provenance.
4. Electrical fit: supply limits, input range, output load, channel count, gain, noise behavior, stability and compensation for the specific circuit and suffix.
5. Mechanical fit: package type, footprint, adapter height, pin orientation, populated board dimensions and connectors.
6. Evidence: consult current part-specific manufacturer data and validate the delivered device in the actual application before production deployment.

Frequently asked questions

Does every product in this AD797 collection contain AD797? No. The mixed semiconductor listing has non-AD797 part selections, and the OPA828, MUSES03 and discrete HDAM pages refer to AD797 chiefly as a comparison or replacement target.

Are AD797ARZ and AD797BRZ delivered together? No. The ten-piece listing has distinct ARZ and BRZ choices; select one. Verify the grade and package from the exact option.

Is the AD797 Module the same as a DIP-8 AD797AN? No. A populated board has its own interface and components. The module product also offers OPA657 and OPA847 options, so select AD797 Module specifically if that is required.

Are all AD797 parts in this series new? No. One AD797AN seller explicitly describes a used, disassembled older component. Check condition on the actual listing and request provenance when required.

Can MUSES03, OPA828 or a discrete HDAM replace my AD797 directly? Not on a shared seller replacement claim alone. Verify channel count, pinout, supply, stability, compensation, package and clearance in the host equipment.

Does the OPA847 board's ±5 V or bandwidth statement apply to the AD797 board? No. That paragraph describes another selectable board; it does not establish AD797 module limits.

Are noise, distortion and audible improvements guaranteed? No. Such figures need a specified frequency, source, gain, load and test method. Seller copy and subjective audio claims are not device-by-device certification.

Yoeruyo presents the retained range with its variants intact. Choose the actual part or assembled module, then verify electrical specifications and condition rather than treating every AD797 mention as the same deliverable.
