74HC595 Shift Registers and Serial LED Display Modules

Serial output expansion: know what you are ordering

This collection centers on 74HC595/SN74HC595 serial-input, parallel-output shift-register ICs and LED display modules that use shift-register-style control. It also includes TM1637, TM1638 and MAX7219 display choices, 74HC165 input registers, 74HC logic assortments and other selectable components. “For Arduino” describes a possible development context, not proof of one shared wiring diagram, code library, operating voltage or plug-and-play behavior. Choose the actual chip, assembled board, display size and quantity from the selected variant before designing your project.

What a 74HC595 does, and what it does not do

A 74HC595-type IC receives serial data into an eight-bit shift register and transfers it to an output storage register under its specified latch/control timing. Eight parallel outputs can then represent the stored pattern, while a serial output can support a correctly timed cascade into another device. The output stage has a three-state control; disabling the outputs is not the same as clearing the data in storage. A shift-register clear control affects the register as defined by the exact manufacturer's truth table. This is a bare logic IC, not a microcontroller, display decoder, constant-current LED driver or assembled Arduino shield.

In a typical microcontroller design, data, shift clock and storage/latch control are distinct signals. The exact edge timing, control polarity and signal naming must be taken from the selected manufacturer's datasheet or the assembled module's schematic. Passing bytes through a software shift-out routine is only one implementation choice; it does not establish a universal signal order, digit mapping or timing for every module here. Cascading increases the number of outputs but also changes update time, loading and system-level timing. If simultaneous appearance matters, design the latch update appropriately. Check supply decoupling, valid logic input levels, unused control-pin states and output-current limits for your exact chip and board.

Several seller titles call a 74HC595 “open drain,” “counter” or a DIP-14 part. Those labels are not safe specifications for the common 74HC595 function and 16-pin package. In particular, a listing that says “74HC595 DIP-14” conflicts with multiple DIP-16 listings and should be checked against the actual package marking and manufacturer drawing before purchase. Similarly “storage” does not mean nonvolatile memory. Do not assume a loose 74HC595 can drive arbitrary LEDs, relays or motors directly: verify per-output and total package current, logic thresholds, external resistors, suitable driver stages and thermal conditions for the finished circuit.

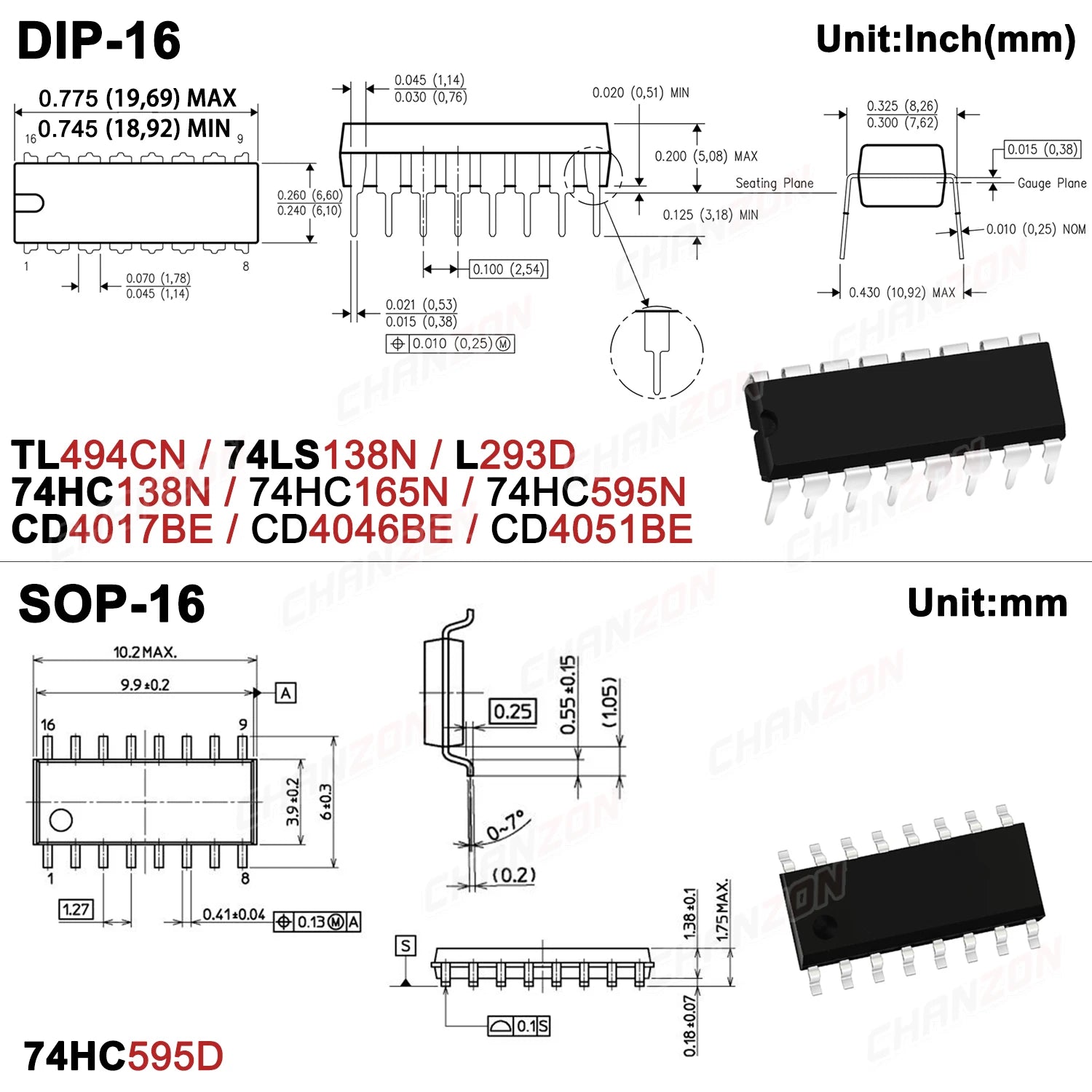

Bare DIP-16 and SOP-16 chip choices

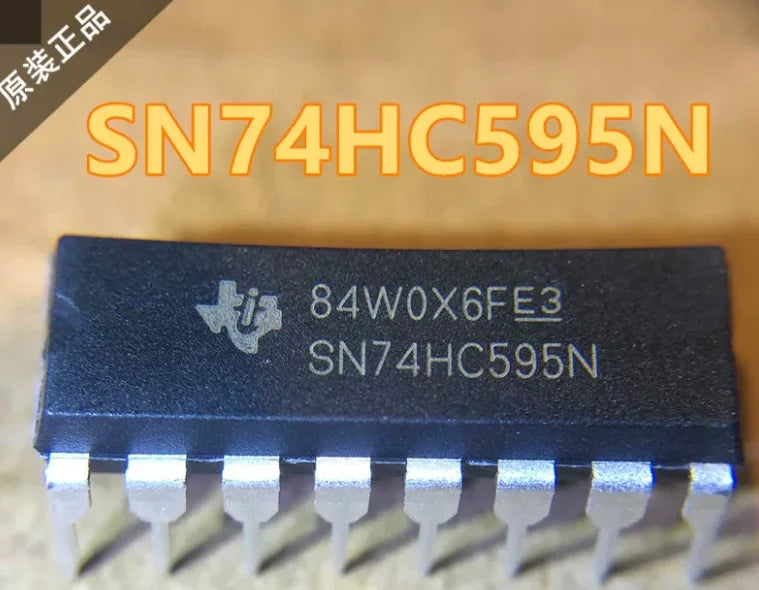

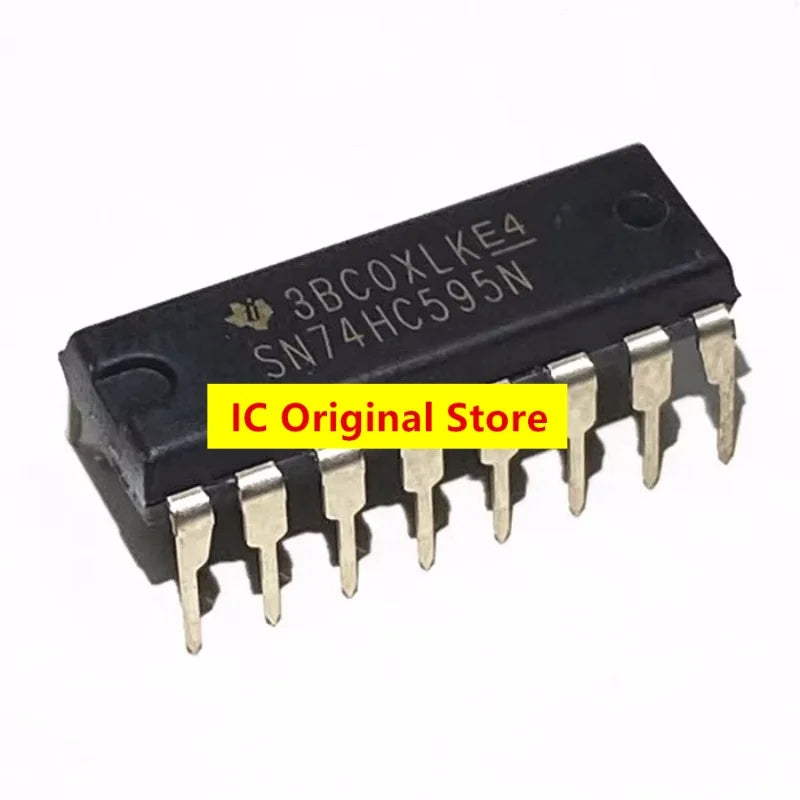

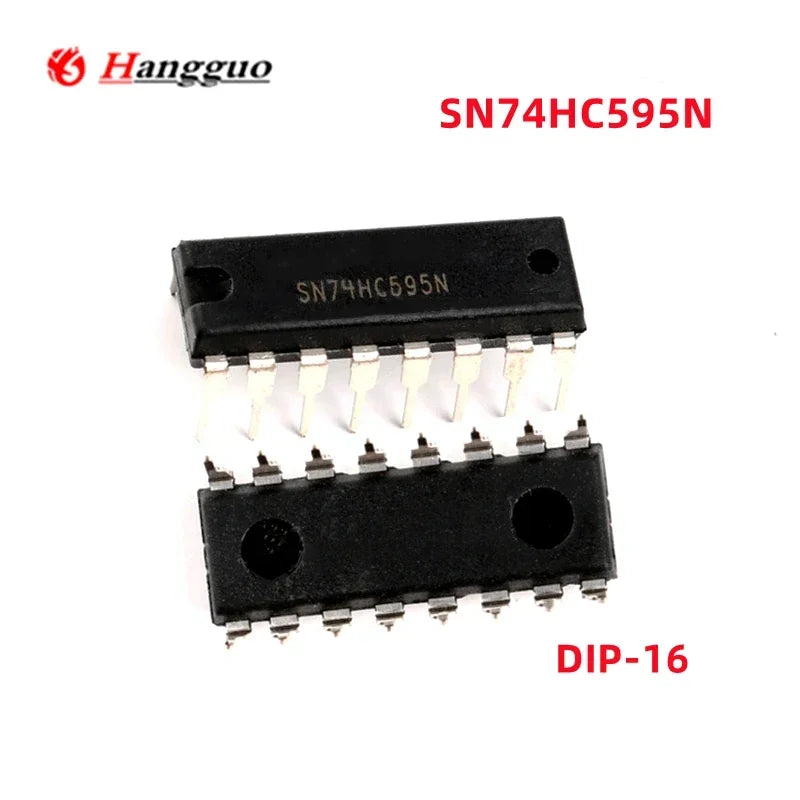

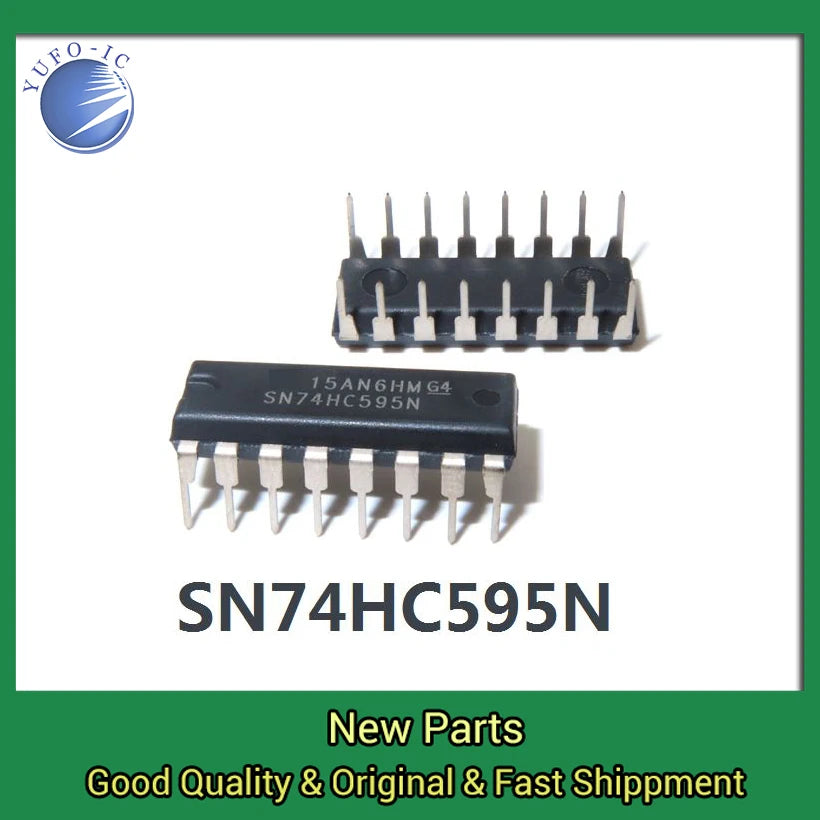

Multiple listings offer SN74HC595N or 74HC595N in DIP-16 through-hole form at stated order quantities including 5, 10, 20, 50, 100 or 200 pieces. Other listings distinguish “74HC595N DIP16” from “74HC595D SOP16” using a Color selector, with a separate quantity selector misleadingly labeled Voltage. DIP and SOP are not the same PCB footprint; compare lead pitch, body width, pin-one orientation, manufacturer's complete suffix and packaging format. A quantity option of 50pcs does not change the supply voltage. Supplier claims such as “original TI,” “100% genuine,” “new original” or “import original” are not independently verified provenance, traceability or test certification for every listing.

Some multi-model chip titles mention SN74HC595N next to SN74HC257N, SN74HC393N, SN74HC590AN, SN74HC74N, SN74HC138N and other logic devices. Their Color entries select different functions, not a preassembled chain of shift registers. SN74HC257 is a selector/multiplexer type, HC393 and HC590 are counter-family options, HC74 is a flip-flop, HC138 is a decoder, HC00/02/04/08/14/32/86 are logic gates or inverters. A title listing all of them does not mean every code ships in a 10-piece order. Verify the selected full code and count before adding an item to a bill of materials.

74HC595 LED display modules: board and display details matter

Listings include 2-, 3- and 4-digit seven-segment red display modules, a four-digit 74HC595 serial-interface module with 1/5/10-piece options, and an eight-digit 0.56-inch display module with Blue, green, Red, WHITE and YELLOW color choices. “4 Channel,” “2 Channel” and “3 Channel” choices in another display listing appear to designate display configurations rather than different loose ICs; confirm the selected board and actual digit count. A field called Support Language with “2-bit/3-bit/4-bit” values is not a language setting: it describes the vendor's display configuration. “3 digit nixie tube” in another title should not be taken as proof of a high-voltage gas-discharge Nixie tube when the product is described as a seven-segment LED board. Inspect the actual module imagery, segment technology, PCB and schematic before designing its supply.

With a display board, the bare shift register's eight outputs are only one part of the electrical story. Digit multiplexing versus static drive, common-anode versus common-cathode topology, onboard resistors and transistors, peak and average LED current, segment mapping, refresh rate and connection count depend on the specific board revision. A listing's “3-pin digital I/O” claim applies to that module's interface, not every 74HC595 display. Do not infer that an eight-digit board uses the same software as a two-digit or four-digit board, or that a red/blue/green LED variant has identical forward-voltage and brightness behavior. Verify actual pin labels and ratings on the selected board and host controller; avoid assigning a universal wiring diagram to this mixed series.

TM1637, TM1638, MAX7219 and another UART display are alternatives

Several product titles group TM1637 four-digit displays, TM1638 eight-bit/eight-digit-style displays, 74HC595 four- or eight-digit boards and a MAX7219 choice under one listing. The Color option identifies the actual controller/module, and some listings additionally select 1, 3, 5 or 10 pieces. TM1637 and TM1638 have their own serial control interfaces and display-scanning behavior; MAX7219 has a different control scheme. Their protocols, pin connections and firmware libraries are not interchangeable with a bare 74HC595 or with each other merely because they all drive LED digits. A title calling one option “RED Anode” cannot establish identical common-electrode design for every selected controller board.

The four-bit UART TTL serial-port digital-tube module lists “1PCS with Pin,” “1PCS no Pin,” “3PCS with Pin” and “3PCS no Pin” options. Those specify header/quantity choices. It is described as a UART-controlled display module that can replace other display solutions in some application contexts, not a pin-for-pin or protocol-compatible TM1650, MAX7219, TM1637 or 74HC595 device. Match serial framing, baud rate, logic voltage, power rail, connector style and firmware command set to the actual selected board. No particular Arduino, NodeMCU or Raspberry Pi host is guaranteed compatible by the title alone.

Other serial and parallel logic in the same listings

74HC165 is a parallel-input, serial-output register family, commonly used for input acquisition; it is not a serial-to-parallel 74HC595 output-expander replacement. HC164 is another shift-register family with different output-latching behavior, and HC4094/HC166/HC194 have their own register and control arrangements. HC573/HC373 are latch types, HC245 is a bus transceiver, HC4051/4052/4053 are analog selectors and HC4066 is an analog switch. SN74LVC8T245 is a multi-bit bus-translation device, not an HC595 shift register. Compare timing, output topology, voltage domain, control pins and package for any proposed substitution rather than buying by a shared “74HC” label.

Actual 12-value DIP, 30-piece and 50/80-piece 74HC assortment kits in the collection may include HC595 alongside HC00, HC04, HC08, HC14, HC138, HC164, HC165 and other codes. A kit listing mentioning IC sockets does not automatically include sockets in every kit; read that exact product's packing list, DIP versus SMD distinction and per-code count. By contrast, a Color menu offering “74HC595D,” “74HC165D,” “74HC138D,” and a Model Number choice of 10PCS/50PCS is a single selected code at a chosen count, not a mixed kit. A broad kit should not be used as proof of a particular manufacturer or standardized grade for every chip inside.

Cross-listed parts that cannot be treated as shift-out hardware

Many titles include SN74HC595N alongside unrelated options such as L293D motor drivers, ULN2803A transistor arrays, MAX232 serial transceivers, NE555/LMC555 timers, TL494/UC384x/VIPer22A power controllers, LM358/TL07x op amps, CD4011/CD4013/CD4017 logic, STM32 microcontrollers, MOSFETs, JFETs, transistors, Flash/SRAM memory and TVS protection devices. A selection for one of those codes supplies that function, not a 74HC595 and not an Arduino shift-out module. Some listings mention “motor driver” in the title but have a 74HC595N DIP-16 Color option; the chip itself is not a motor driver. A model field specifying SI4943BDY-T1-E3 while the title mentions SN74HC595N is a conflicting source listing: do not presume the selected product is a 595 without confirming its actual chip marking and packing details.

“For Arduino” is an application phrase in seller copy. It does not include an Arduino board, prescribe a safe connection to high-energy loads or certify universal 3.3 V/5 V interoperability. Before interfacing a 3.3 V host, evaluate the HC595's VIH requirement at the selected supply and its VOH/VOL under load; do not assume every 5 V HC input will recognize a 3.3 V HIGH with sufficient margin. Use appropriate output stages for loads beyond the IC's ratings and follow the equipment maker's documentation for any hazardous or mains-related circuit. No generalized high-voltage wiring instructions or unsupported compatibility guarantees are provided here.

Step-by-step selection checklist

1. Choose the actual function: bare 74HC595 serial-to-parallel output expansion, a fully assembled LED display board, UART display, other dedicated display controller, 74HC165 input capture or a mixed IC kit.
2. Confirm the chosen variant: Color can mean controller, digit count, LED color, package or chip code; Model Number may mean piece count. “With Pin” and “no Pin” affect the supplied header. Read the final option combination, not just the headline.
3. Match package and interface: DIP-16 versus SOP-16 footprints for loose ICs; for modules, inspect actual pin labels, supply range, clock/data/latch or UART protocol and connector arrangement. Do not assign one library to TM1637, TM1638, MAX7219 and HC595.
4. Validate electrical limits: recommended VCC, input thresholds, output-high/low levels at load, package current and LED or external-driver demands under actual duty cycle. Select a defined power-on/reset and unused-control-pin strategy.
5. Design timing intentionally: check shift-clock and storage-clock edges, setup/hold, output enable and cascade data timing in the exact device documentation. For LED boards, establish segment/digit mapping and refresh behavior from the board, not the shift-register name alone.
6. Verify order contents: a 10PCS headline with ten selectable part numbers typically describes ten of the selected code, whereas an assortment kit needs its own packing list. Do not treat “genuine,” “original” or generic seller test language as independent certification.

Frequently asked questions

Is a 74HC595 an Arduino module?

A bare 74HC595 is a shift-register IC, not a complete Arduino module. Assembled display boards that contain shift registers are separate products with additional circuitry and board-specific pinouts.

Can I use the same code for a TM1637, TM1638, MAX7219 and 74HC595 display?

No. These are different controller/interface choices. Confirm the selected controller, its protocol and the module's digit/segment mapping before selecting firmware.

Does 74HC165 shift data out to LEDs like 74HC595?

No. HC165 is a parallel-input serial-output register family used to read input states; HC595 is serial-input with parallel outputs. Verify exact full codes and control timing.

Is a “74HC595 DIP-14” listing safe for a DIP-14 PCB?

Do not assume so. The 74HC595N listings here otherwise specify DIP-16, and the conflicting DIP-14 wording requires physical marking and manufacturer package confirmation before purchase or PCB assembly.

Can a 3.3 V controller always drive a 74HC595 at 5 V?

No blanket guarantee. Compare the host's guaranteed output HIGH/LOW against the chosen HC595's specified input thresholds at its actual supply and temperature, with adequate margins.

Does a multi-code 10PCS headline include all the named chips?

Usually the selected Color specifies a single chip model and the quantity field states how many of that model. Genuine assorted kits are separate products; confirm their exact packing lists.
