ATmega2560 MCU Chips, Mega 2560 Boards & WiFi Versions

ATmega2560 chips, Mega 2560 boards and dual-MCU WiFi variants

Compare ATmega2560-based 8-bit AVR hardware by form factor, USB interface and included peripherals. The selection covers a bare ATmega2560-16AU TQFP-100 IC, full-size Mega 2560 R3-style development boards, compact Mega 2560 Pro/Pro Mini embedded boards and Mega+WiFi R3 boards pairing an ATmega2560 with an ESP8266. These are not equivalent physical products: a loose MCU requires a designed circuit and programming setup, a populated board has its own regulator and connectors, and an ESP8266-equipped model adds a separate processor and its own firmware path. Inspect the selected variant rather than assuming every model in a combined title ships together.

Select by physical format and processor

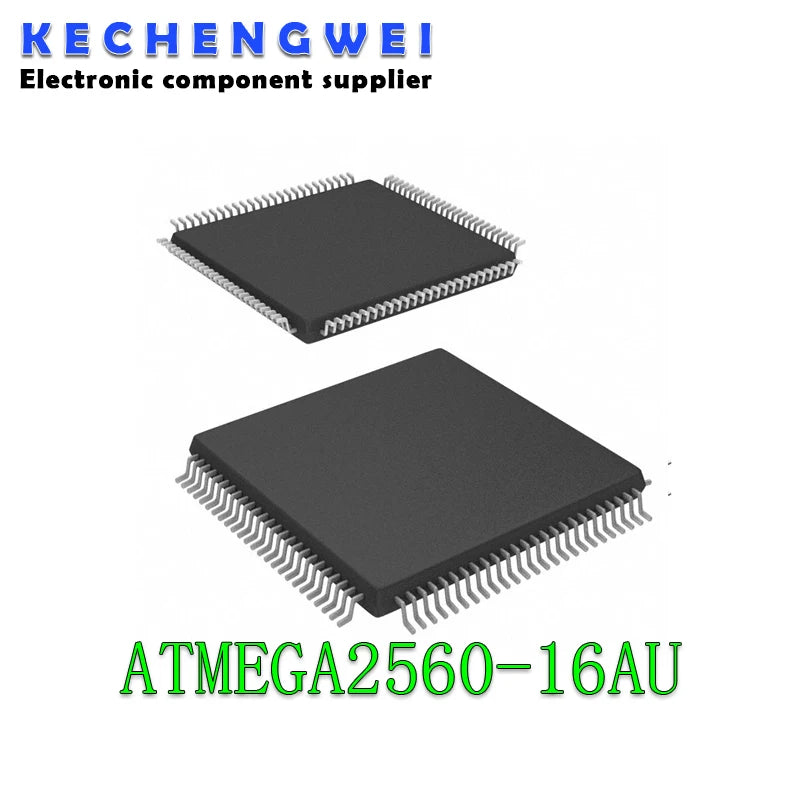

• Bare ATmega2560-16AU: a listed one-piece TQFP-100 surface-mount IC for an appropriate PCB footprint. A bare chip is not a Mega 2560 board and does not include a USB connector, oscillator, regulator, bootloader, headers or installed sketch unless the individual offer explicitly states otherwise. Match the full suffix, pin-1 orientation, land pattern and target programming method for production or repair.
• Mega 2560 R3-style boards: populated ATmega2560-16AU boards generally follow a larger Mega-style layout, but USB-to-serial implementation and connector vary. Variants in this collection distinguish CH340/CH340G versus ATmega16U2-labelled options, USB-C versus other USB connectors, board marking and with-cable versus board-only offers. The USB bridge is not the target ATmega2560 and a different bridge can require different host drivers or firmware handling. Verify board dimensions, header placement and shield fit for the exact PCB, not just the Mega 2560 name.
• Compact Mega 2560 Pro/Pro Mini: embedded boards described around 38 × 55 mm carry an ATmega2560-16AU with CH340G USB-to-UART in many offers. Their Micro-USB or Type-C and male-header options vary. They aim to expose Mega-class MCU resources in a smaller footprint, not to guarantee full-size Mega shield stacking, an identical regulator or every R3 connector. Check pin labelling and soldered-header state before designing a carrier board.
• Mega 2560 + ESP8266 WiFi: listings describe a combined AVR Mega and ESP8266 WiFi board with CH340 USB-to-serial and switching or routing options between USB, AVR and ESP8266. The two processors have separate firmware and I/O voltage domains. Confirm the fitted ESP module, serial routing, onboard flash labeling, board revision and selected USB cable contents. A listing may call its ESP flash “32Mb” while elsewhere saying “megabyte”; do not interpret that inconsistent unit as a guaranteed capacity without checking the fitted device.

How to evaluate the ATmega2560 platform

Board descriptions commonly cite a 16 MHz ATmega2560, 256 KB program flash, 8 KB SRAM, 4 KB EEPROM, 54 digital I/O positions and 16 analog input positions for the Mega platform. Those MCU-level figures do not mean all pins are available on every compact board or that every pin can safely drive the current quoted in a seller description. Check the exact board schematic and microcontroller datasheet for pin multiplexing, total-port/current limits, power dissipation and the regulator's usable output under your input voltage and ambient temperature. A “5 V board” label describes its typical AVR logic supply, not permission to apply 5 V to an attached ESP8266's I/O.

Choose power entry and programming separately. USB power, VIN/barrel input and direct regulated rail connections can have different permitted ranges and protection on R3 and compact boards. Seller texts give broad and sometimes inconsistent input and LDO-current figures; use the selected board revision's markings and schematic rather than assuming one rating applies across every offer. For sketches, verify board profile, bootloader, USB bridge driver and upload port. For bare IC programming or recovery, confirm target supply, oscillator and ISP header/pin assignment and whether a bootloader is actually installed.

Variant selection and compatibility boundaries

“Color” in these listings commonly means board model, cable inclusion, USB connector or USB-serial bridge rather than cosmetic color. Options such as “PRO MINI MEGA2560,” “MEGA2560 CH340-Cable,” “ATMEGA2560 ESP8266” and “Mega2560 official” are alternative choices, not a combined assortment. A claimed “original” or “official” in third-party product copy is not independent verification of manufacturer provenance. Select by verifiable hardware and package contents. Mega-shaped boards may accept some Arduino Mega-format accessories, but voltage levels, power draw, connector geometry and software pin assignments must be checked individually; no universal shield compatibility is implied.

Frequently asked questions

Should I choose the TQFP-100 chip or a Mega 2560 board? Choose the loose chip for a PCB that already provides its clock, power, programming and I/O circuits. Choose a populated board for its ready-made development connections, after checking the selected revision and included headers.

Does Mega 2560 Pro Mini have the same footprint as a full-size Mega R3? No. Compact Pro/Pro Mini boards use a smaller layout. Compare the mechanical drawing and pinout before mounting or plugging in a shield.

Is CH340G the main ATmega2560 processor? No. CH340G is a USB-to-serial interface on many listed boards. Other selected options reference ATmega16U2 for USB; the MCU used for the sketch is separately identified as ATmega2560.

Does every Mega 2560 board here include WiFi? No. Only a selected Mega+WiFi variant with an ESP8266 provides that additional processor; a standard R3, compact Pro or bare ATmega2560 is not inherently WiFi-enabled.

Can I upload the same sketch to the ESP8266 and ATmega2560? Do not assume so. They are different processor architectures with separate board definitions and firmware targets; confirm serial routing and the required toolchain for each.

Is a USB cable or pin header included? Only if the chosen offer explicitly includes it. Variants label some choices “with cable” or male headers; others describe a board alone.

What should I verify before using external power? Confirm the particular board's input connector, allowed VIN range, regulator thermal capacity, 3.3 V output capacity and any attached ESP8266 rail requirements. Do not generalize the largest seller-quoted voltage across all versions.
