Audio Capacitors for Crossovers and Amplifiers
Audio capacitors for speaker crossovers and amplifier circuits
This collection spans different electrical roles, not one universal “audio-grade” component. It contains non-polar axial and radial crossover capacitors, metallized polypropylene (MKP) and polyester (MKS) film types, bipolar electrolytics, polarized aluminium electrolytics for amplifier signal or power-supply circuits, and a few silver-mica and multi-section parts. Choose the actual circuit function first: a passive speaker crossover, signal coupling or an amplifier power rail calls for different properties.
Compare construction and circuit role

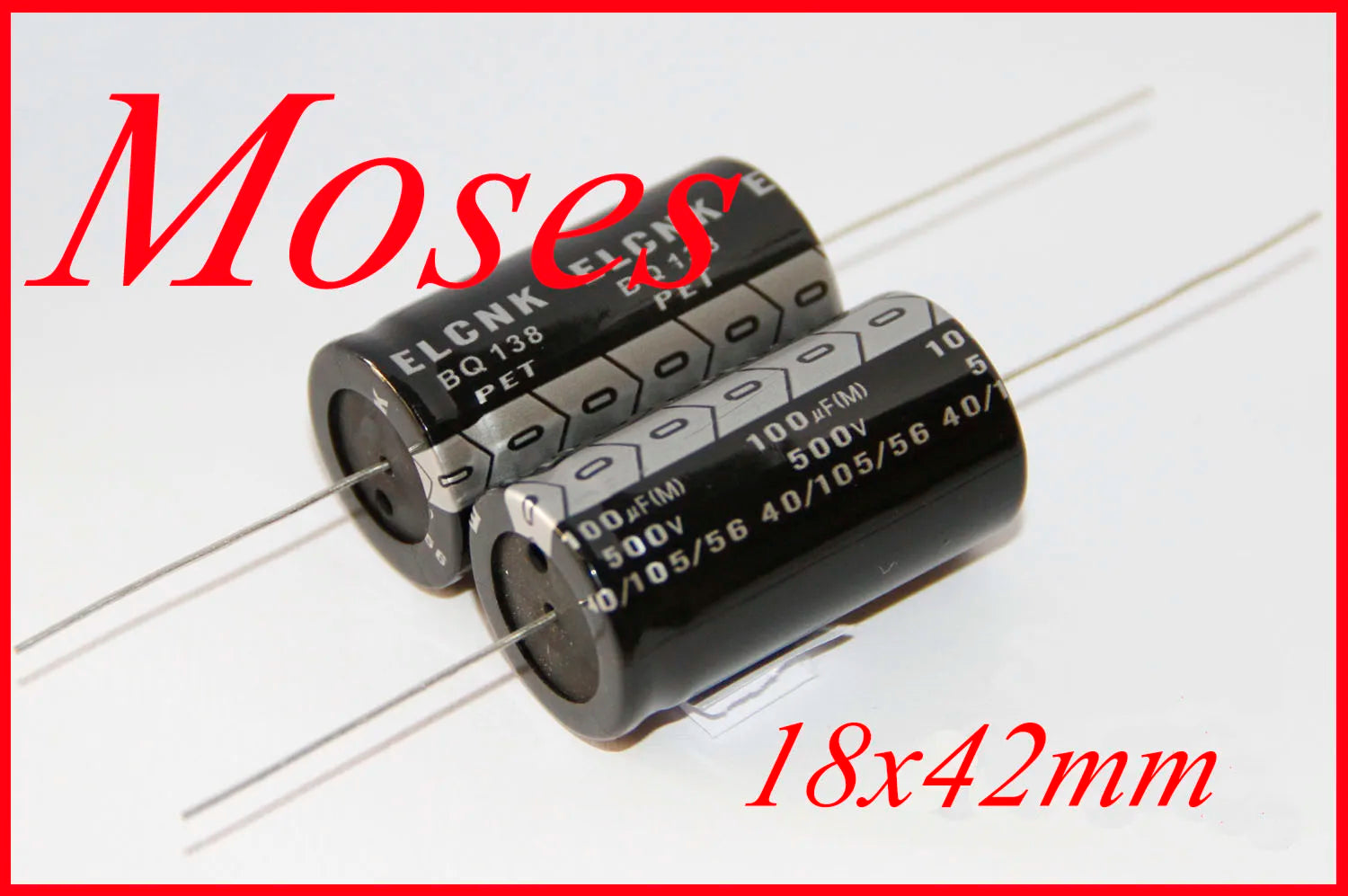

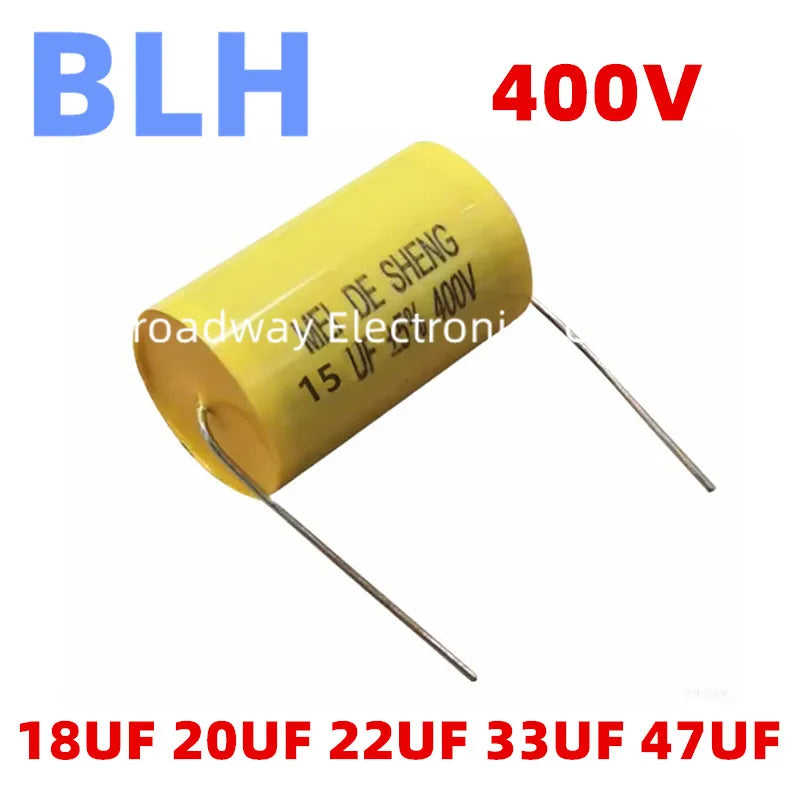

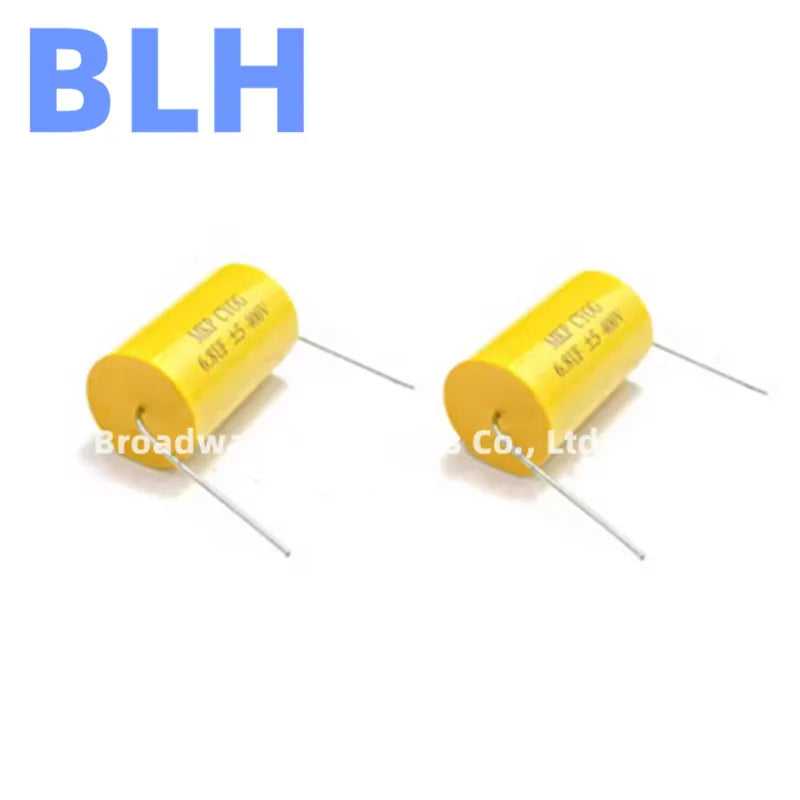

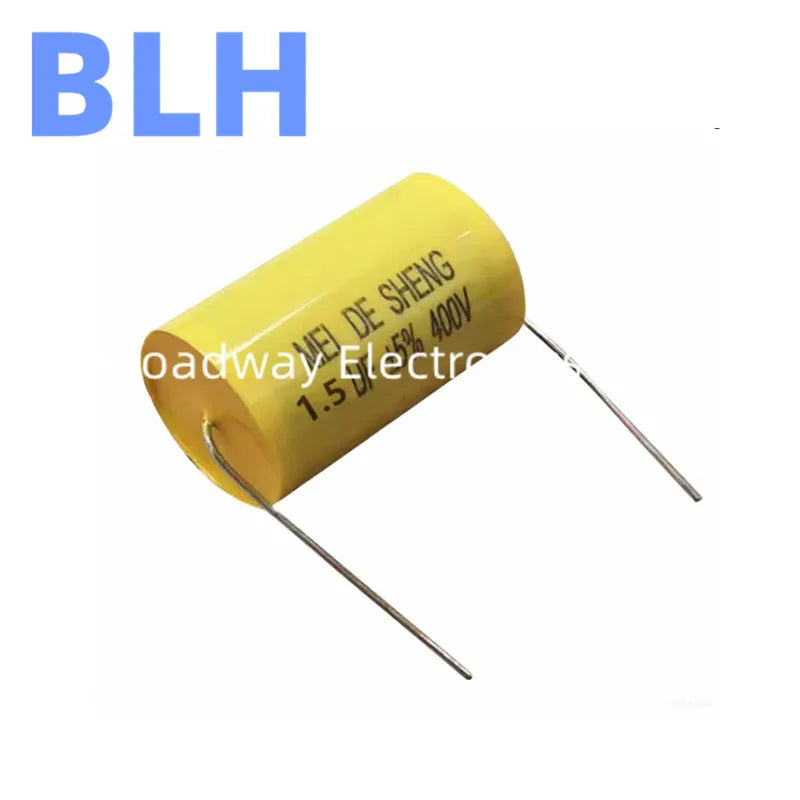

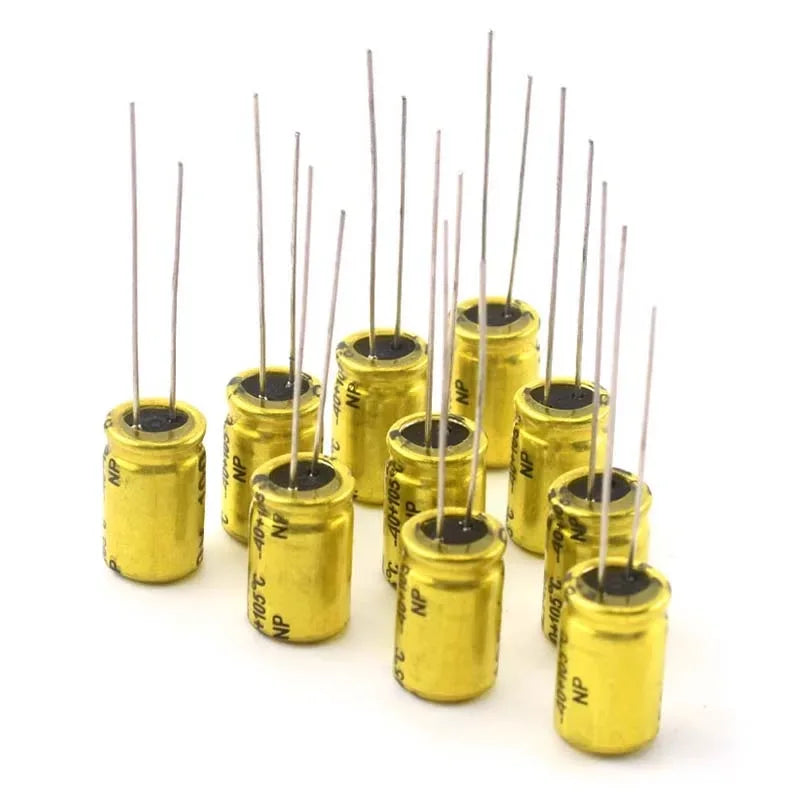

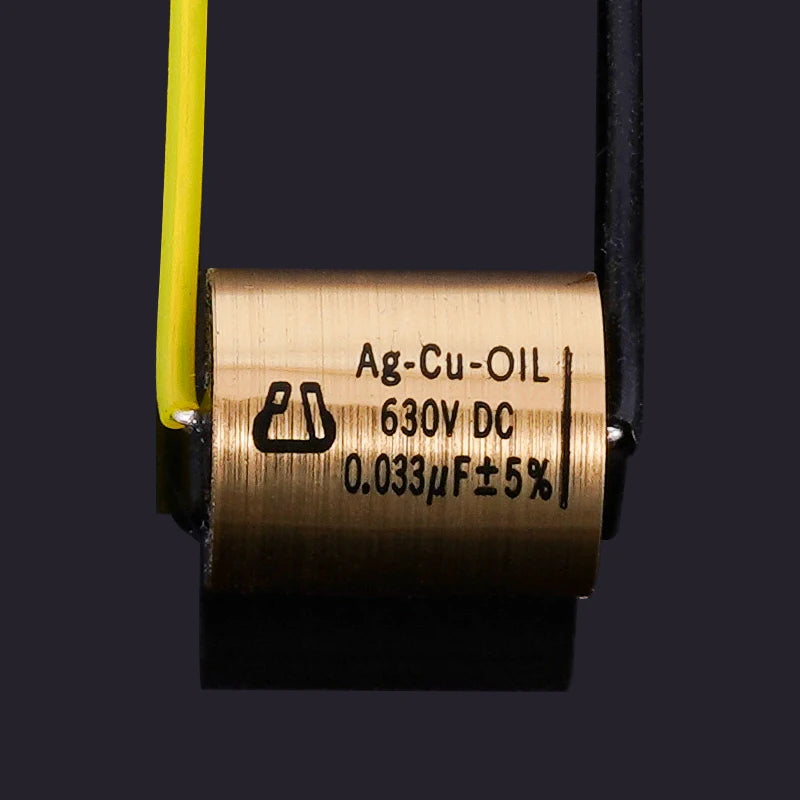

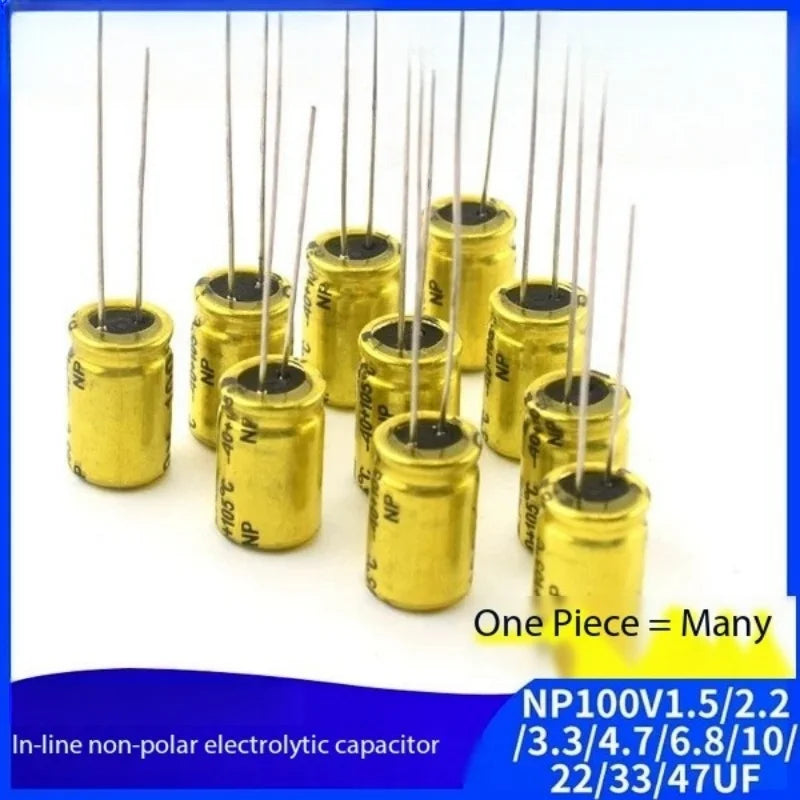

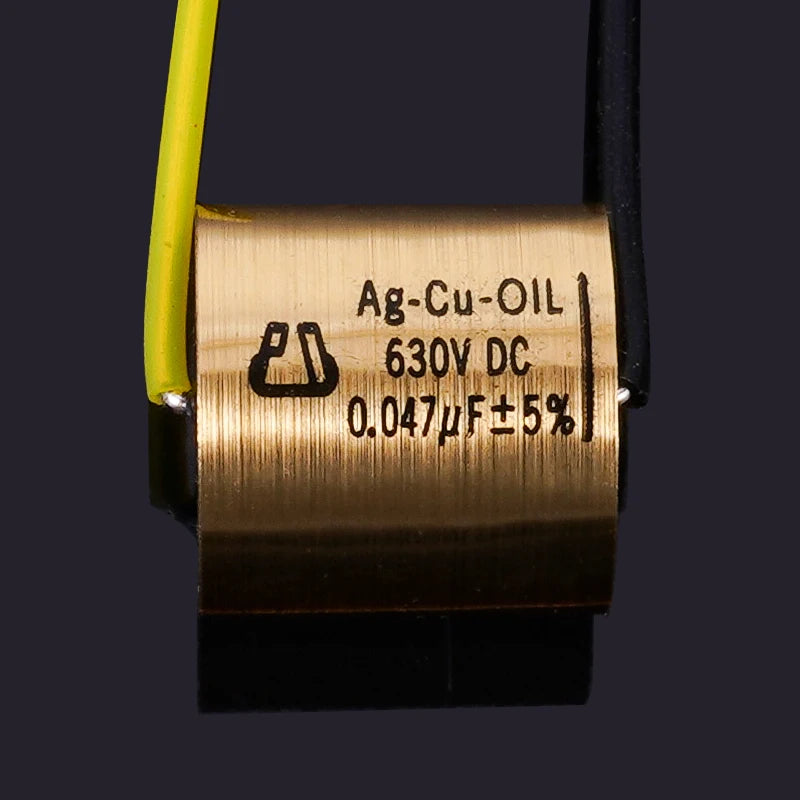

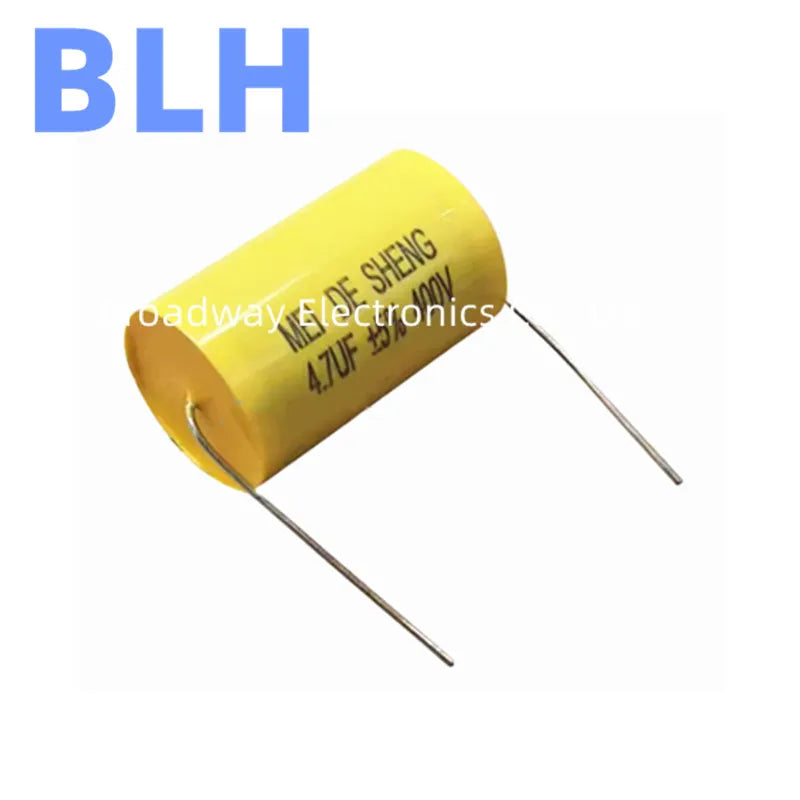

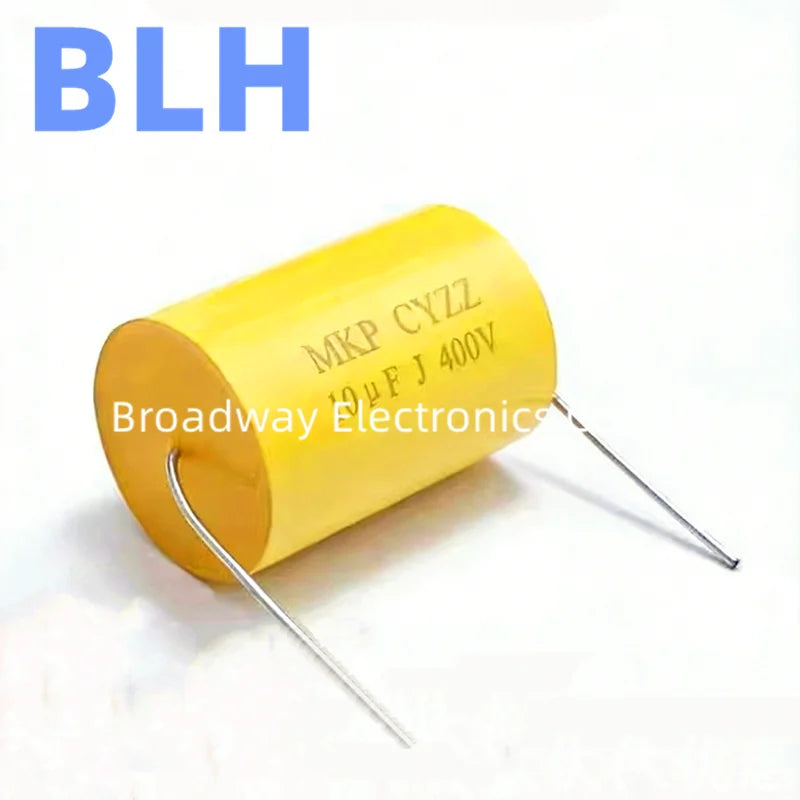

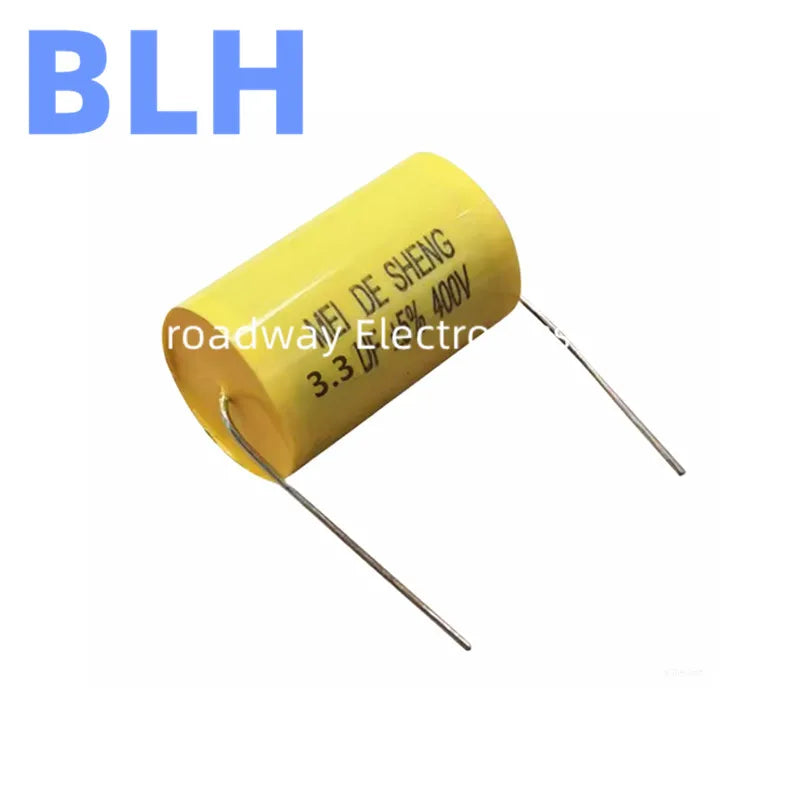

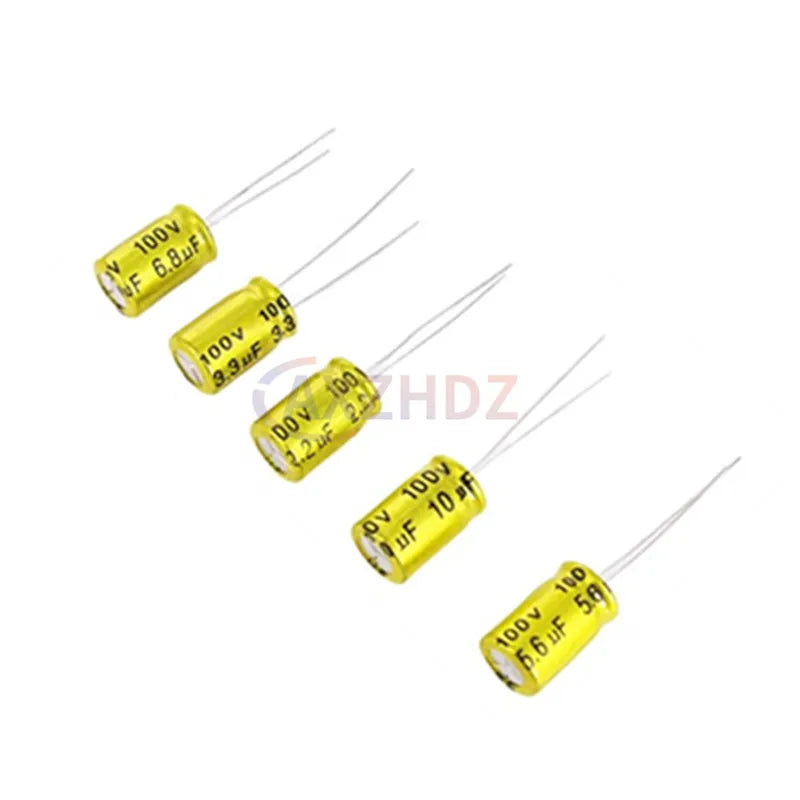

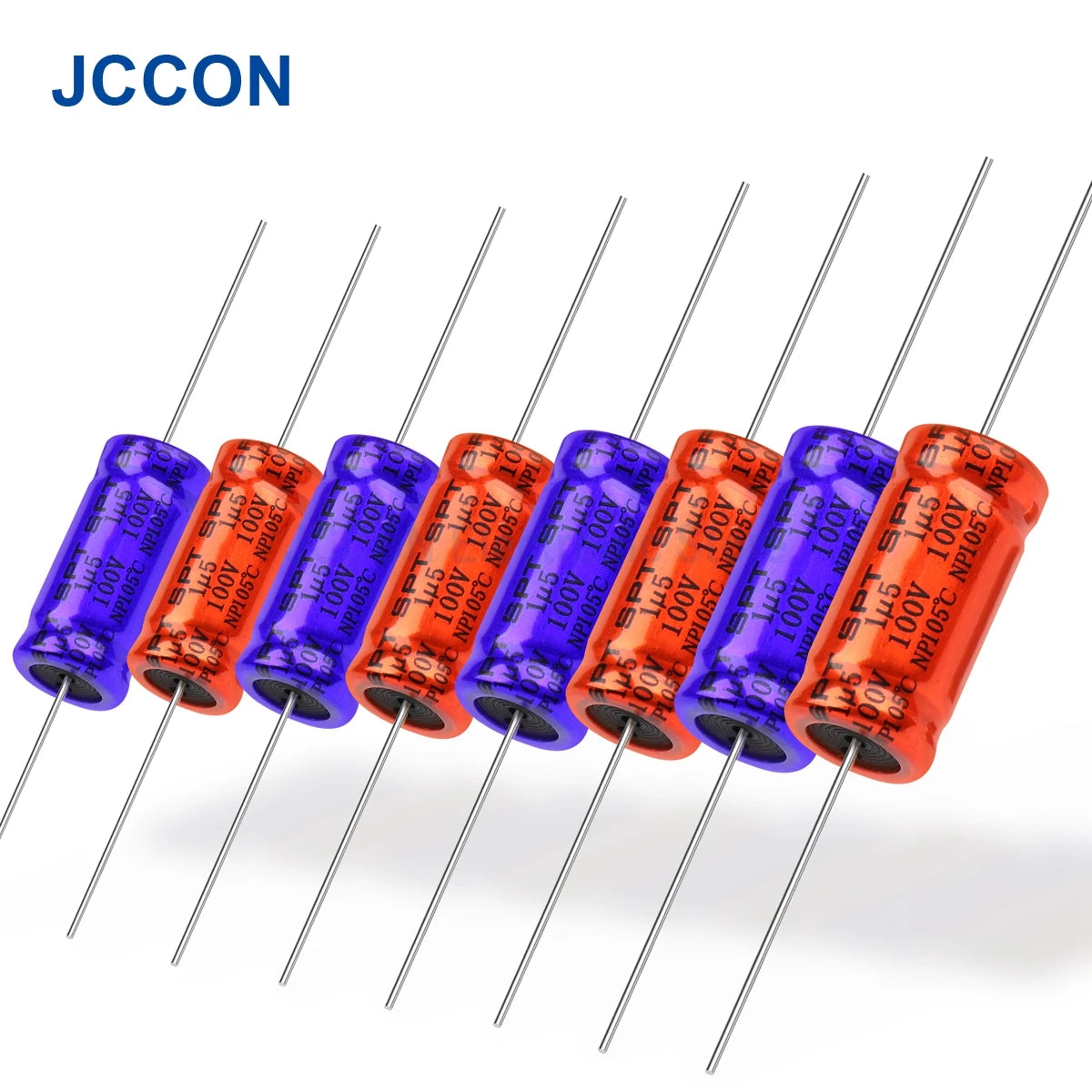

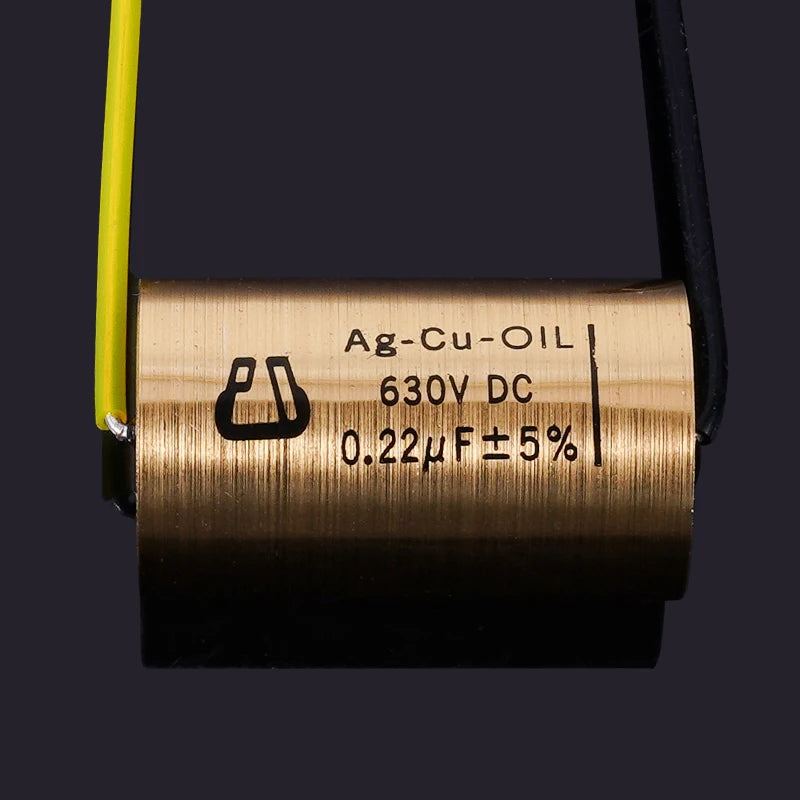

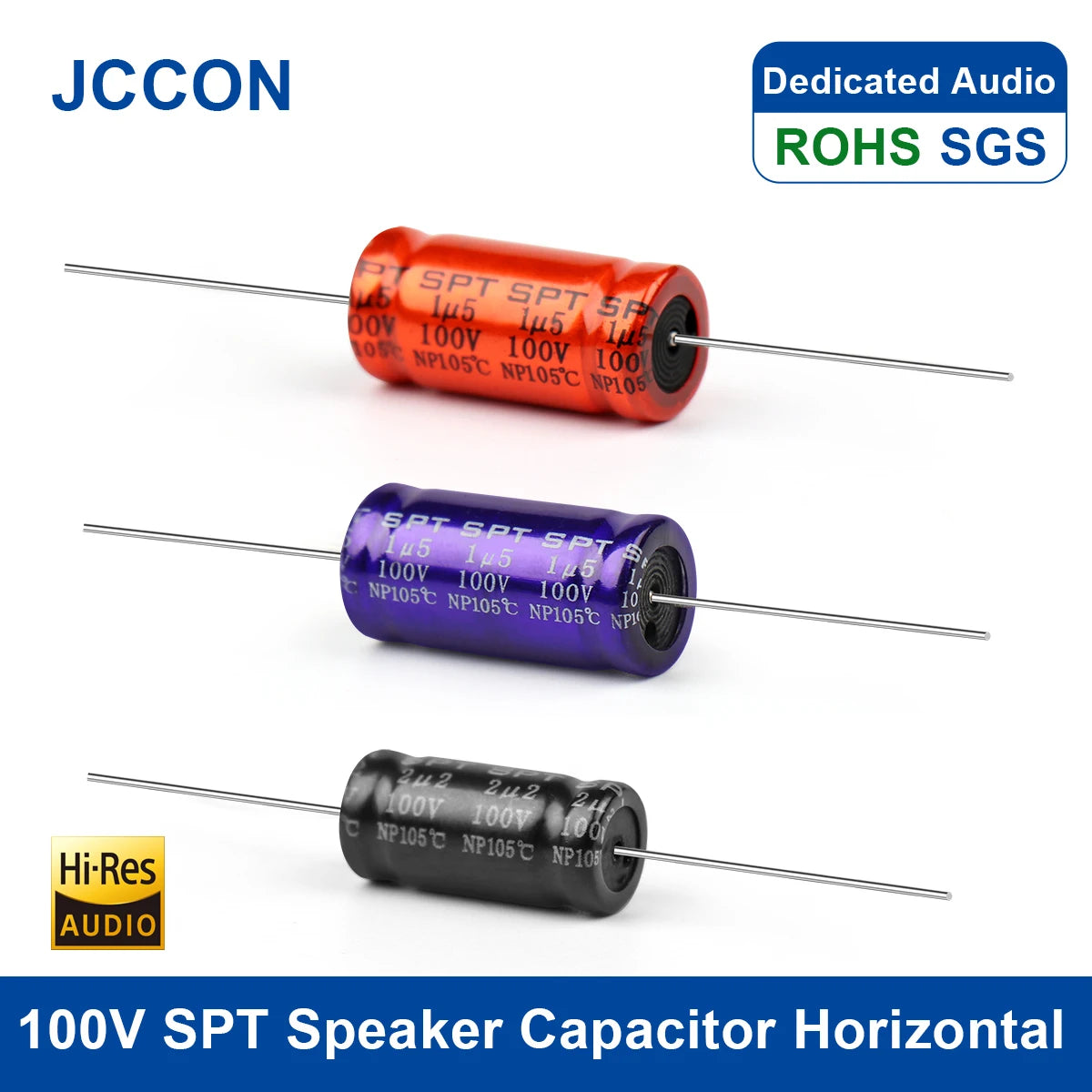

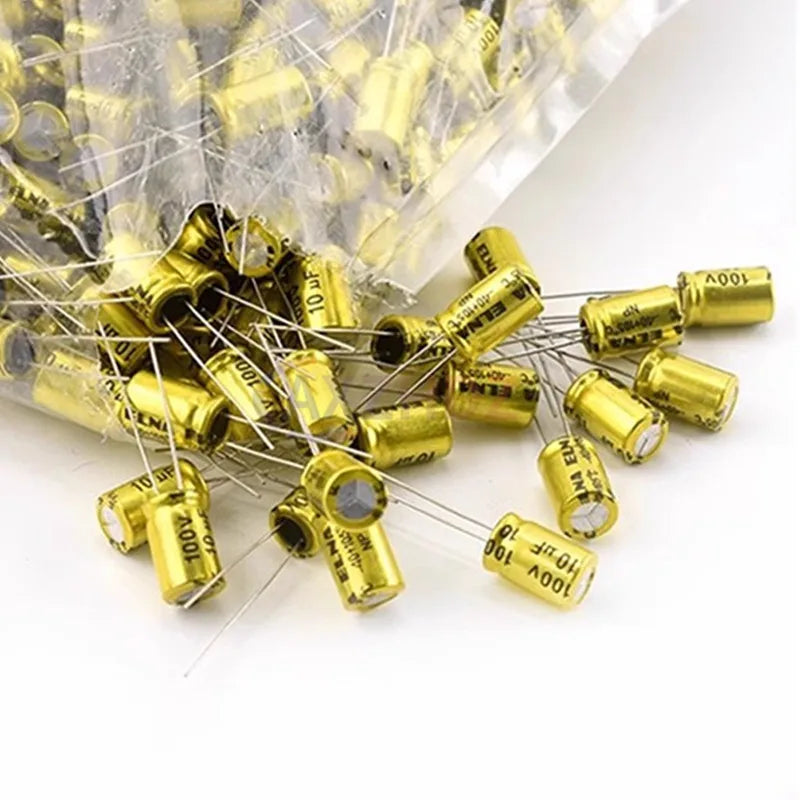

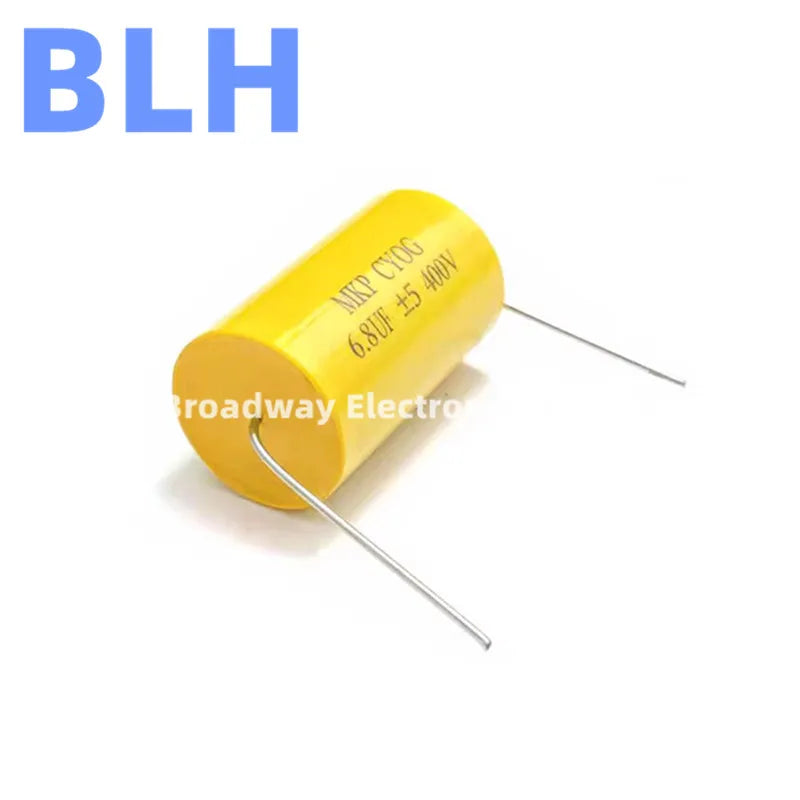

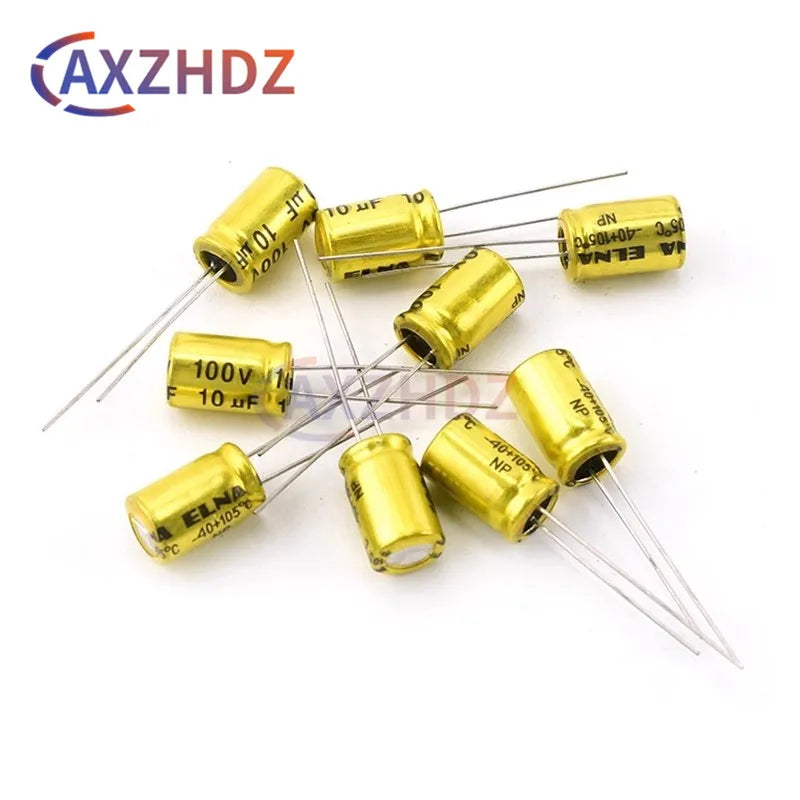

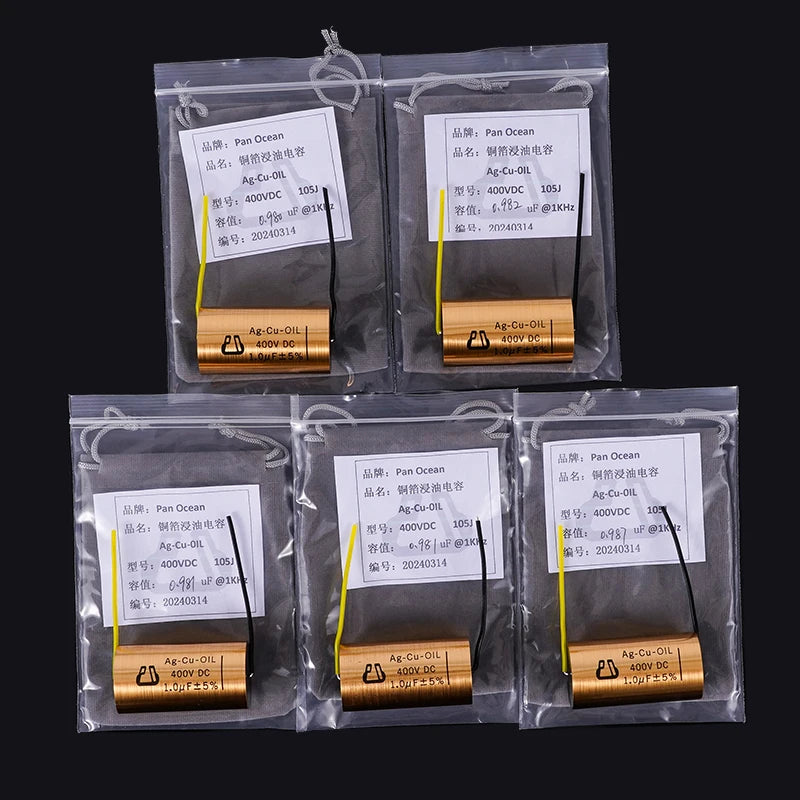

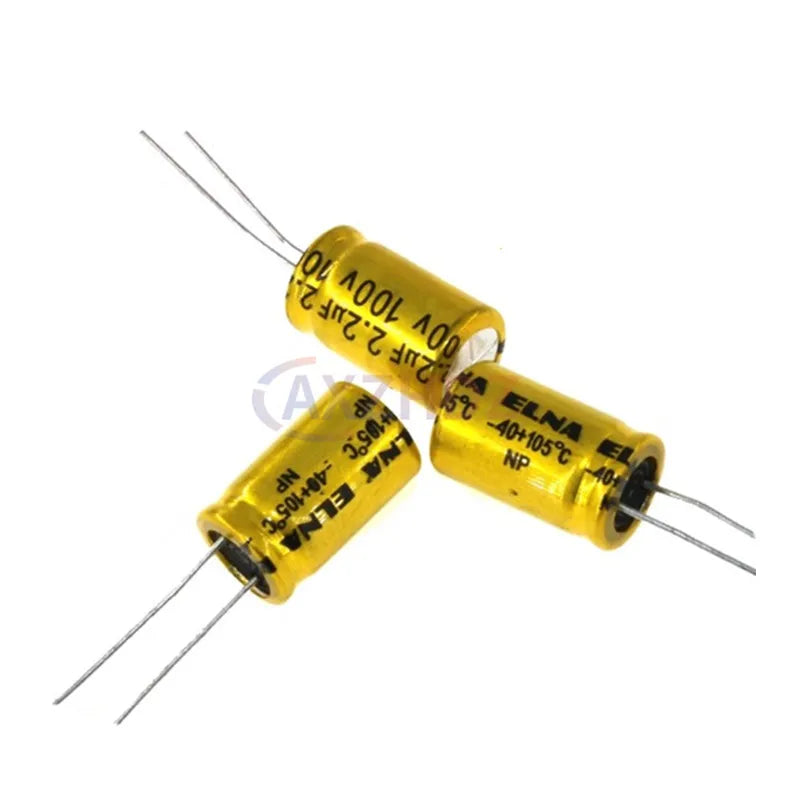

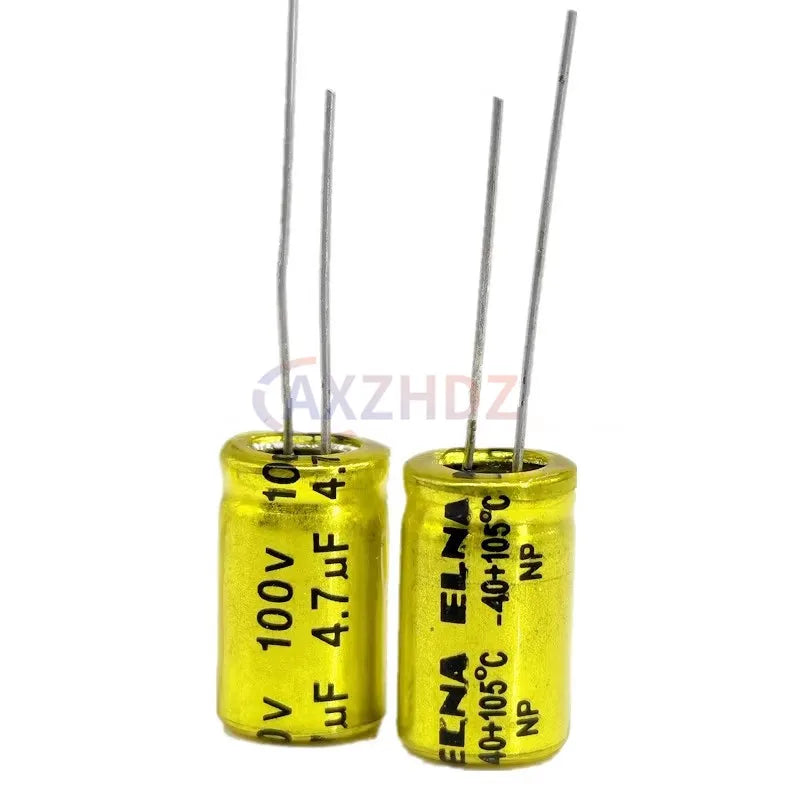

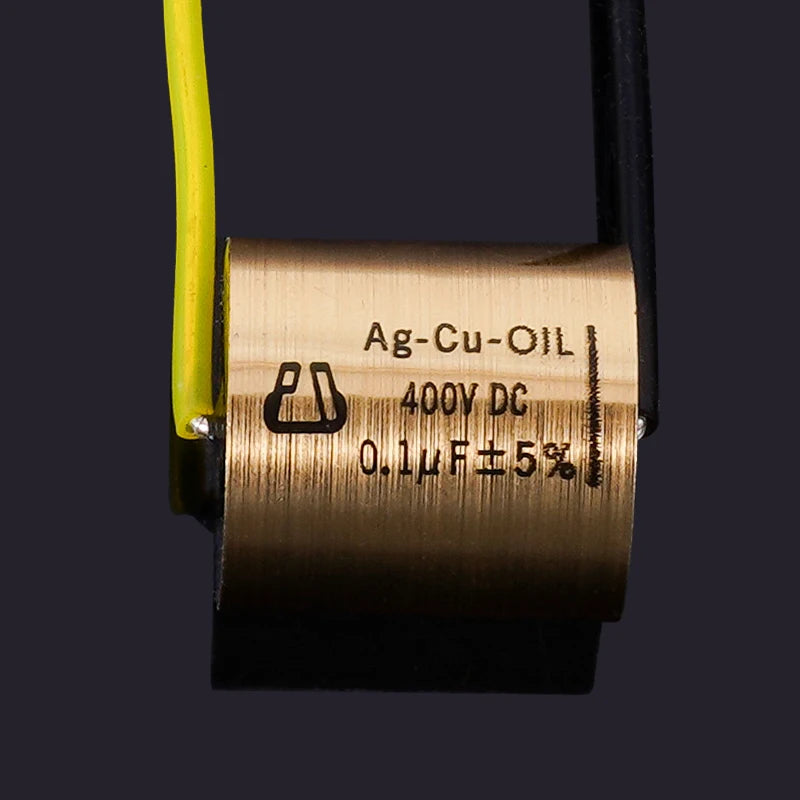

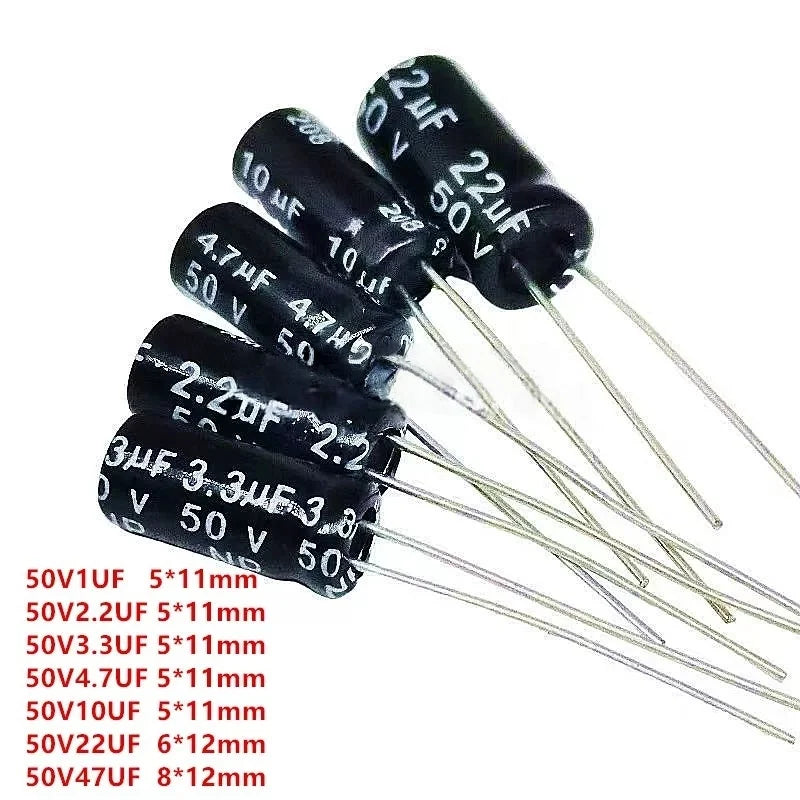

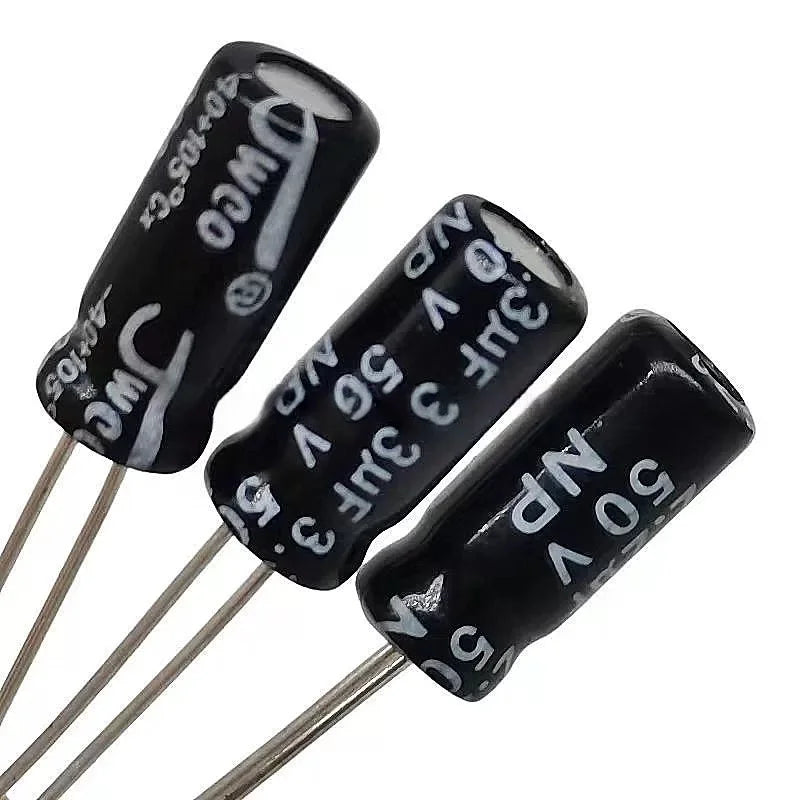

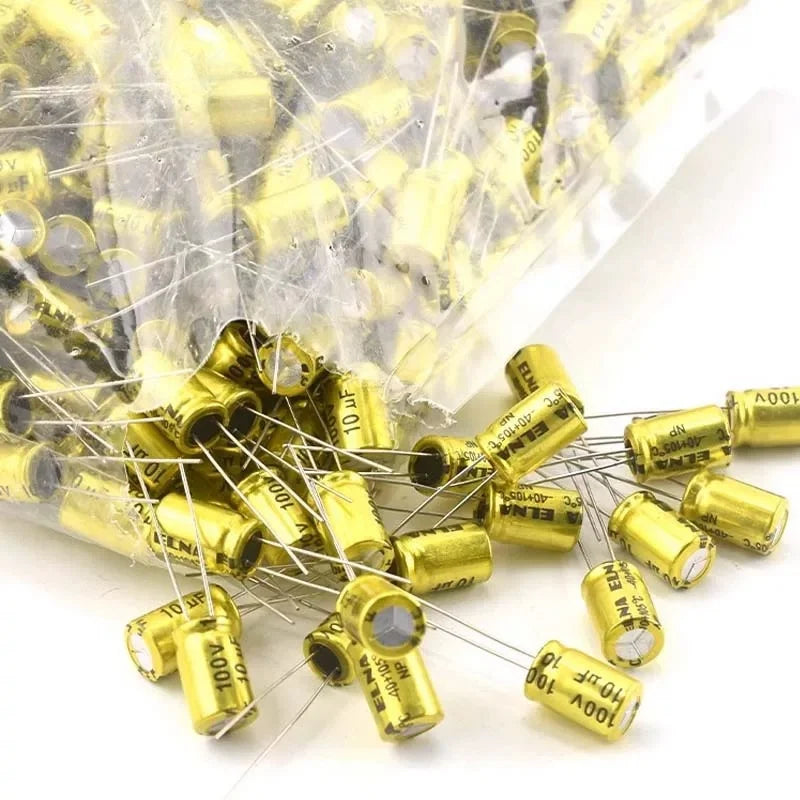

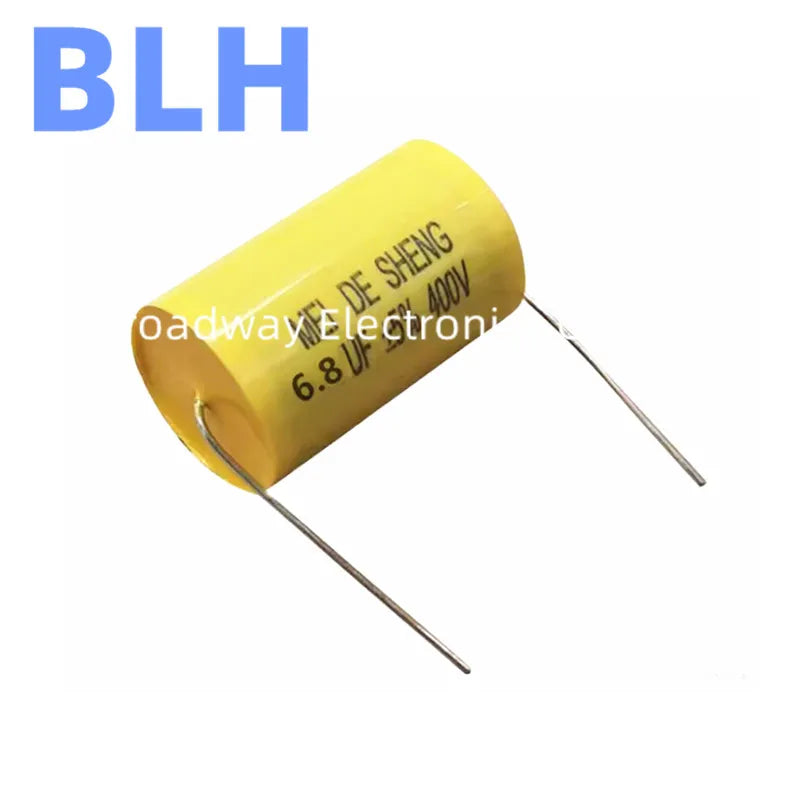

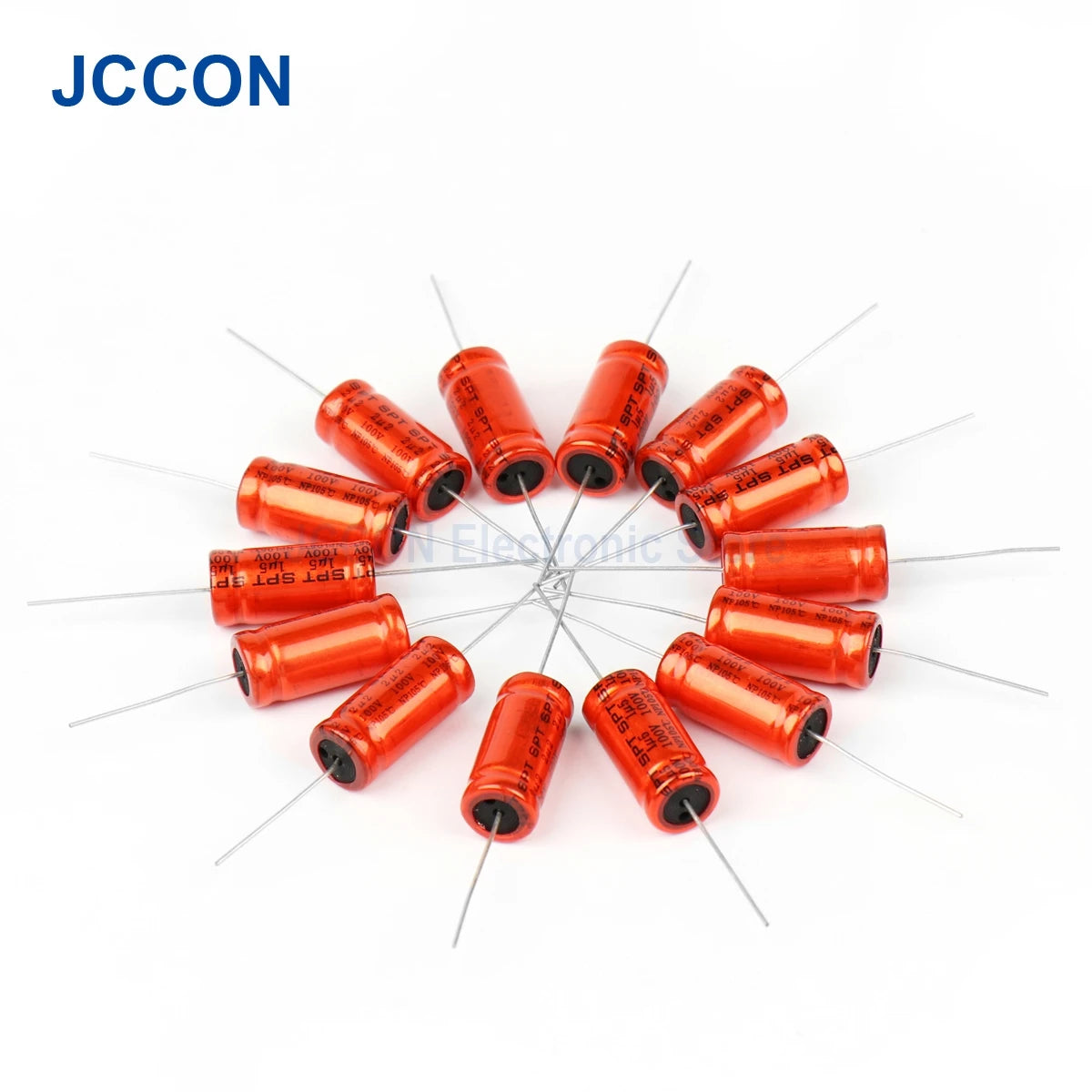

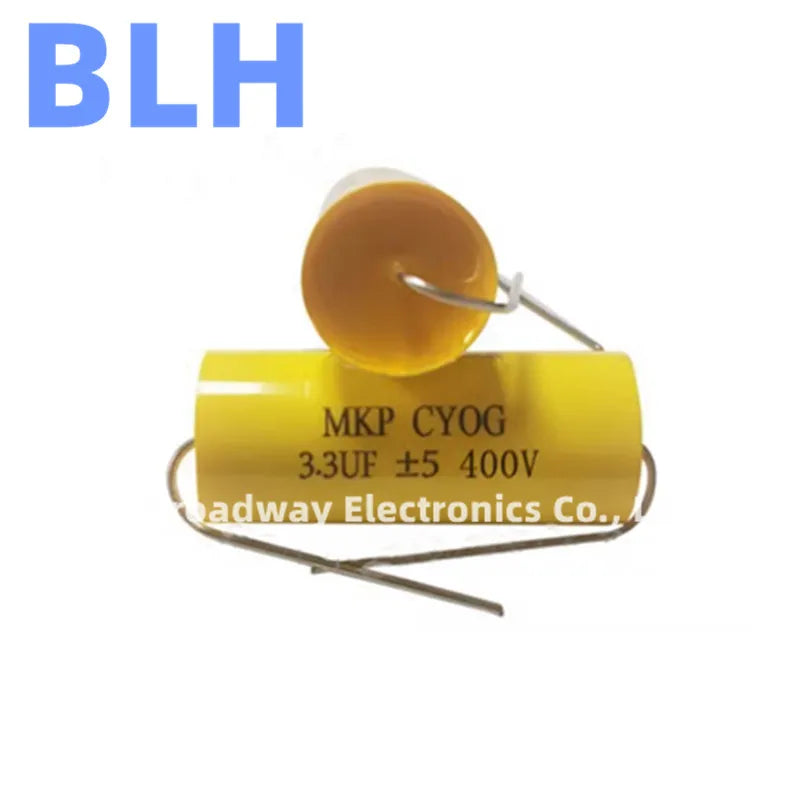

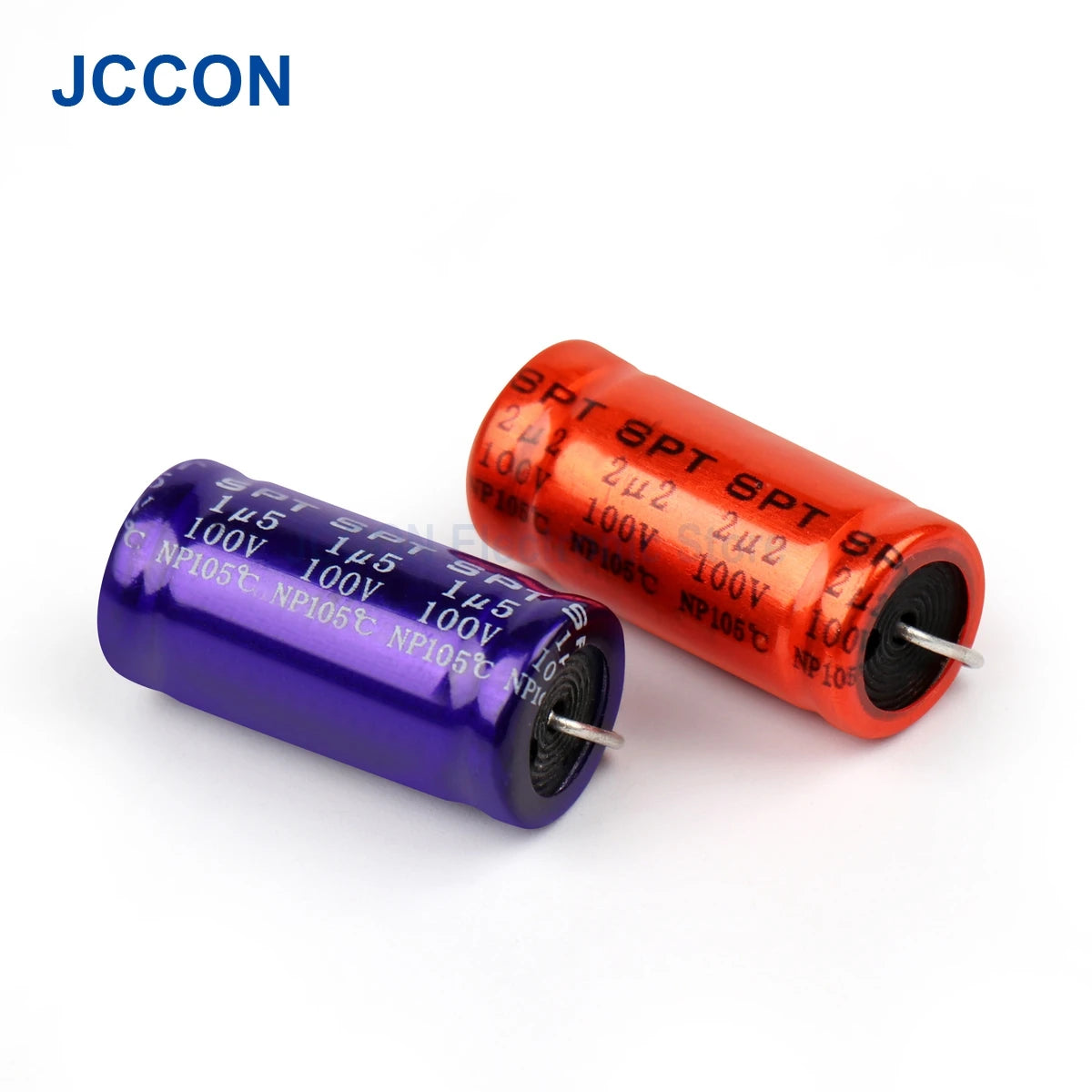

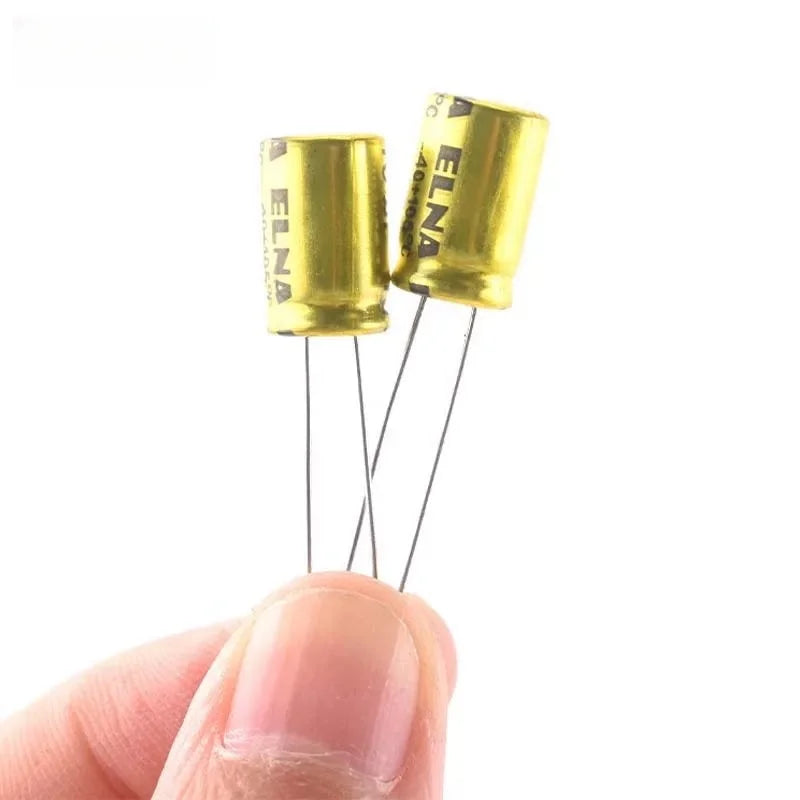

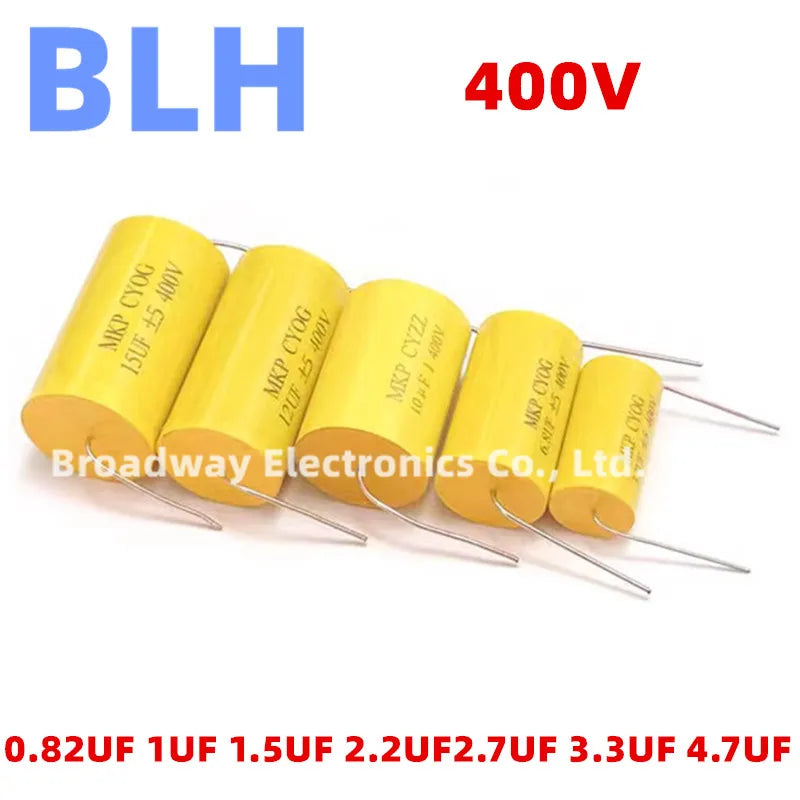

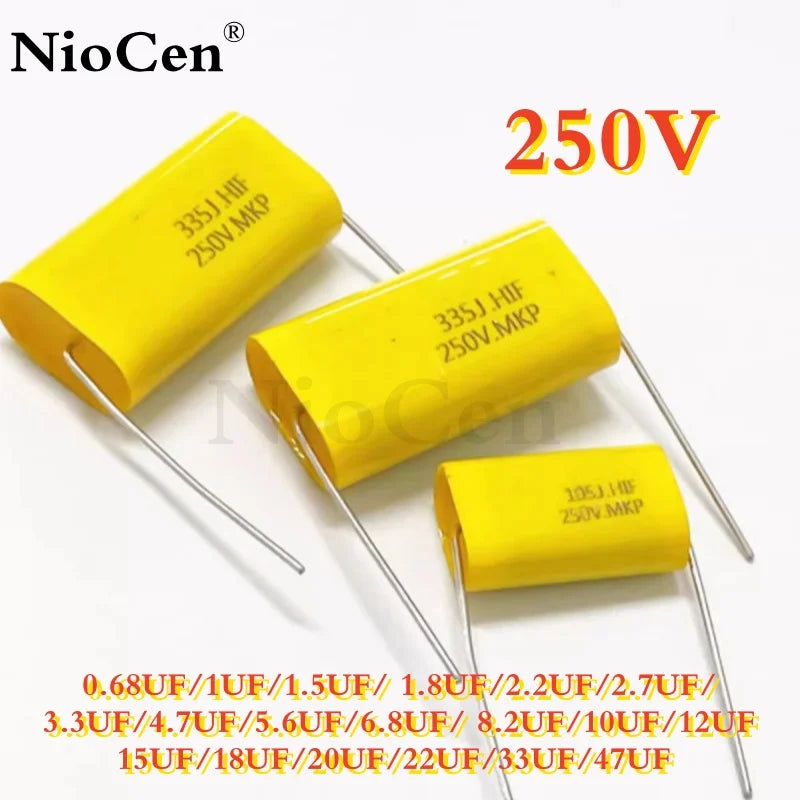

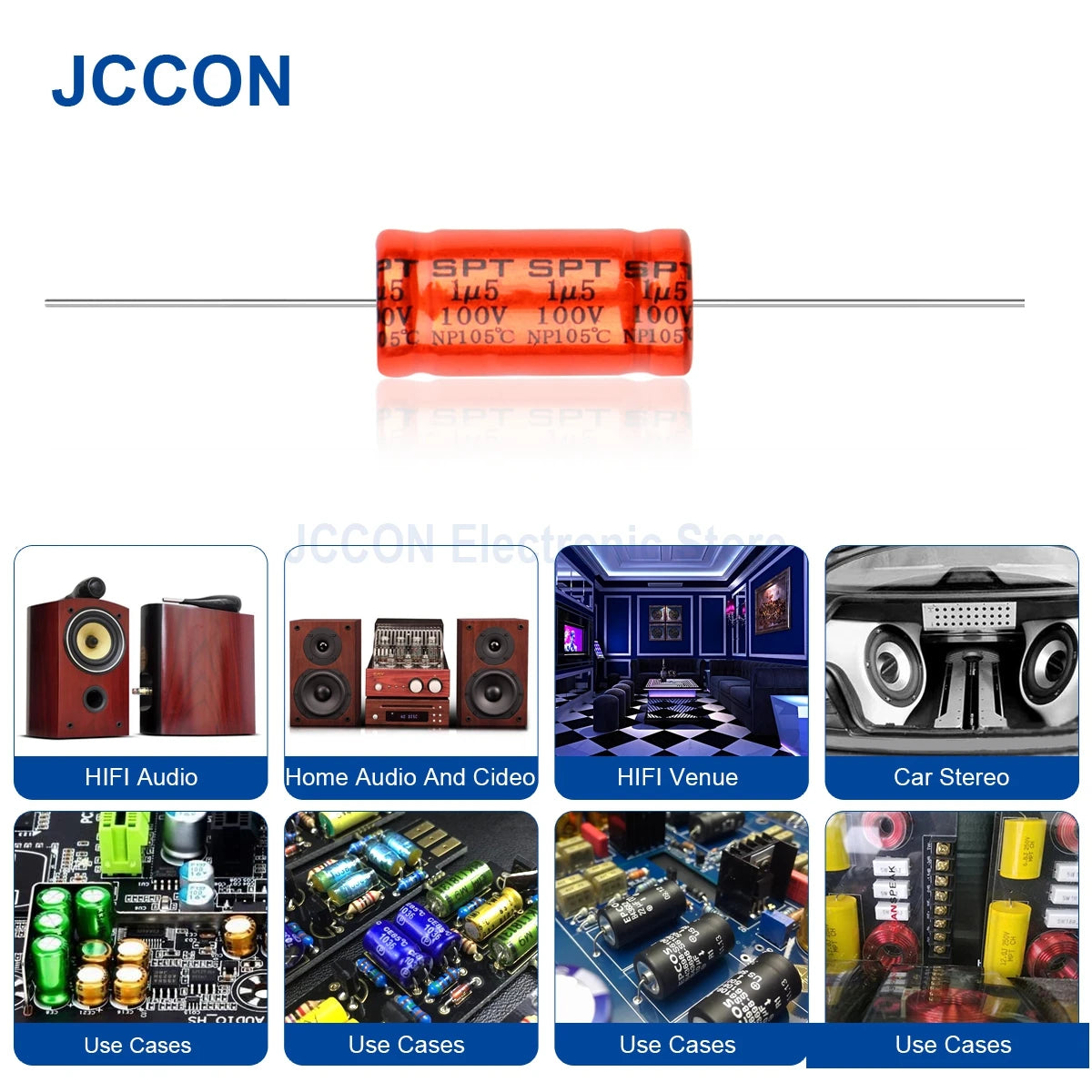

- Passive speaker crossovers: Listings include MKP film capacitors, other specified film types and non-polar/bipolar (NP/BP) electrolytics, with axial and horizontal packages and choices from fractions of a microfarad to tens of µF. Compare the crossover schematic, capacitance, tolerance, voltage, physical space, series resistance and dissipation where relevant. MKP and NP electrolytic parts of equal µF are not automatically identical in size, losses or long-term behavior.

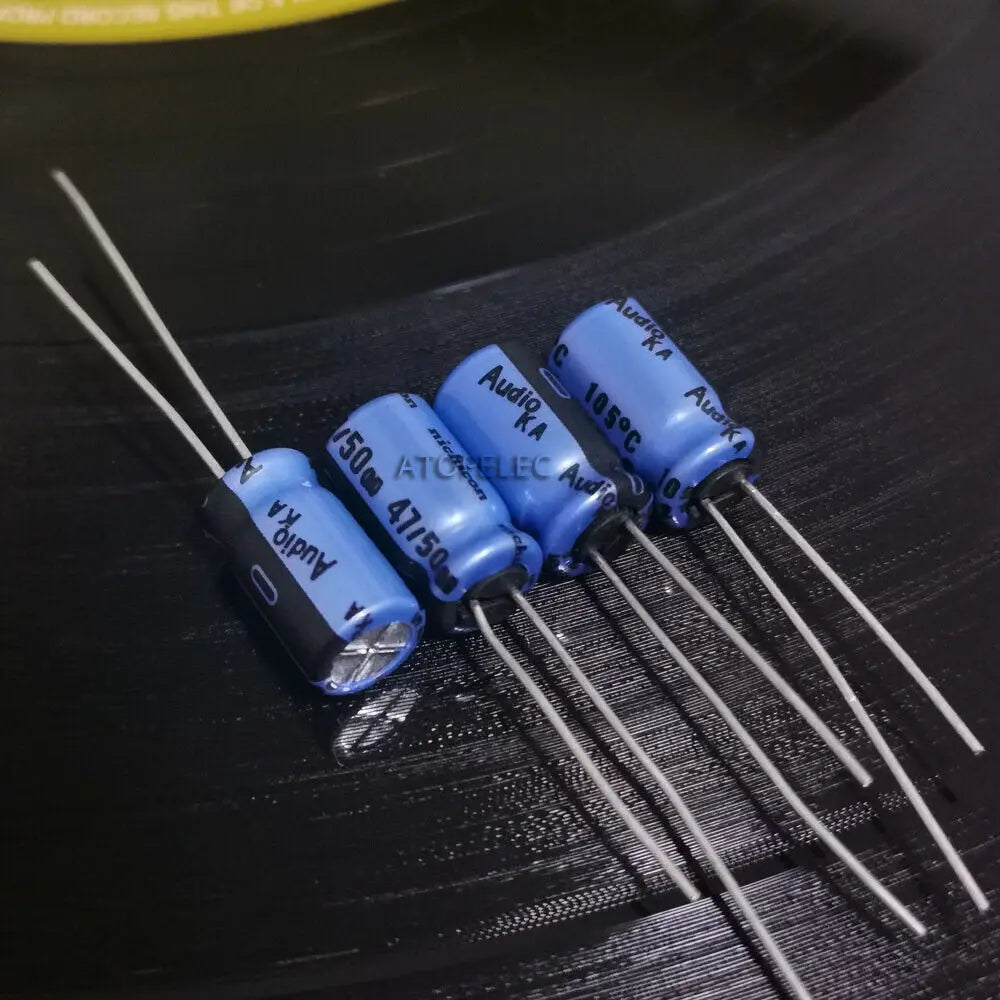

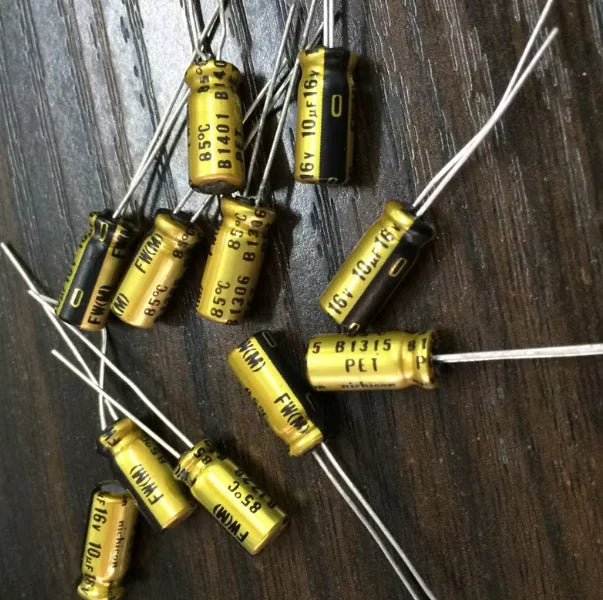

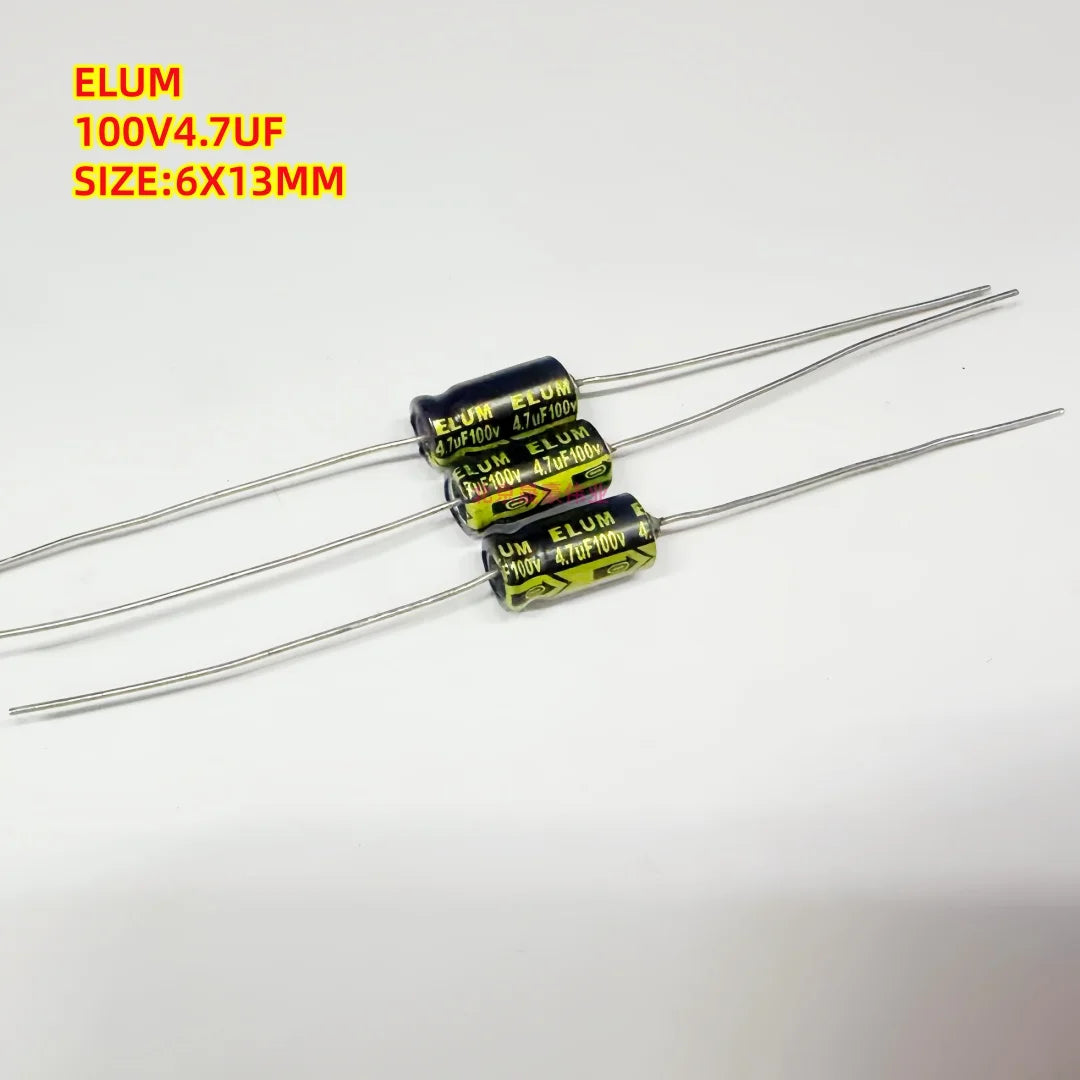

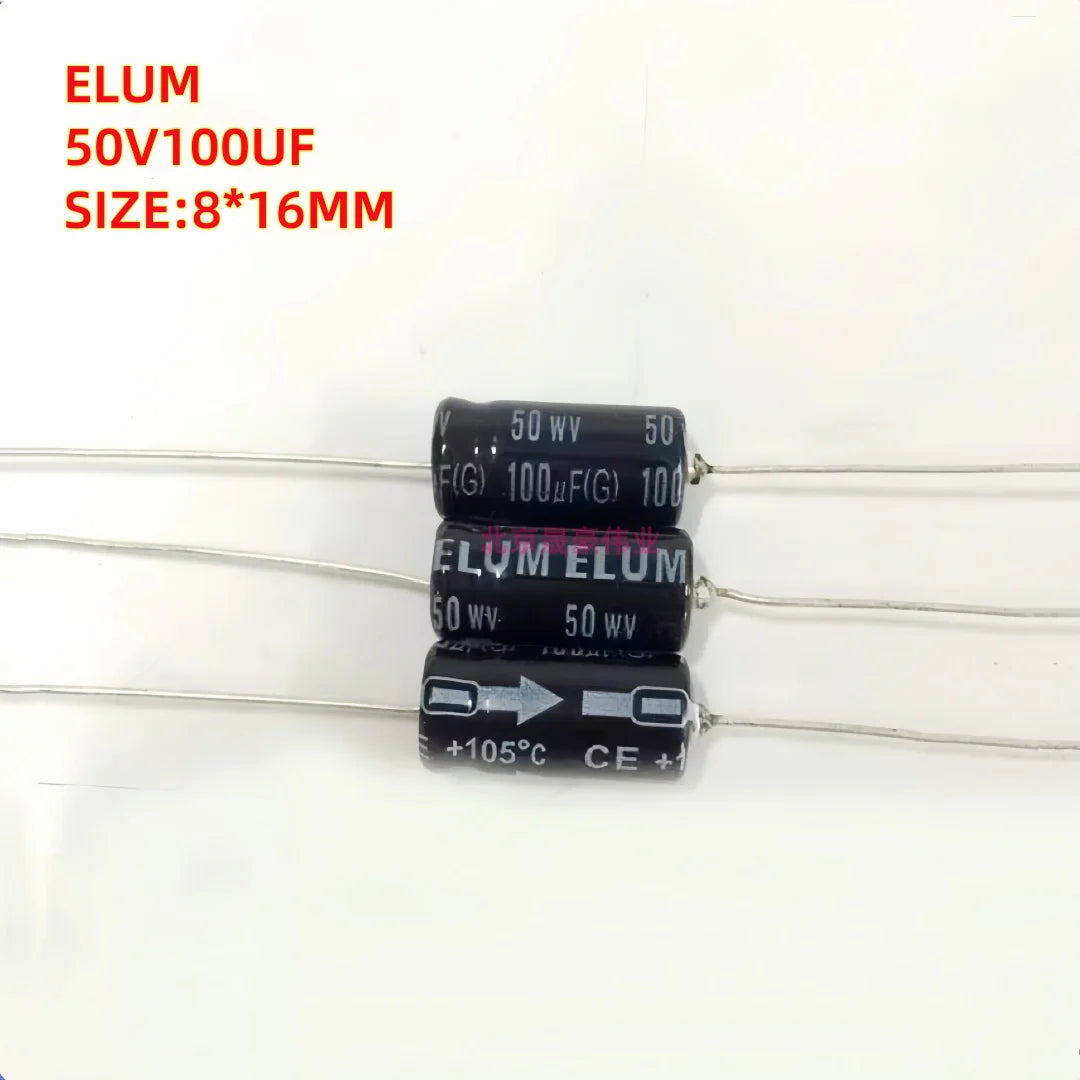

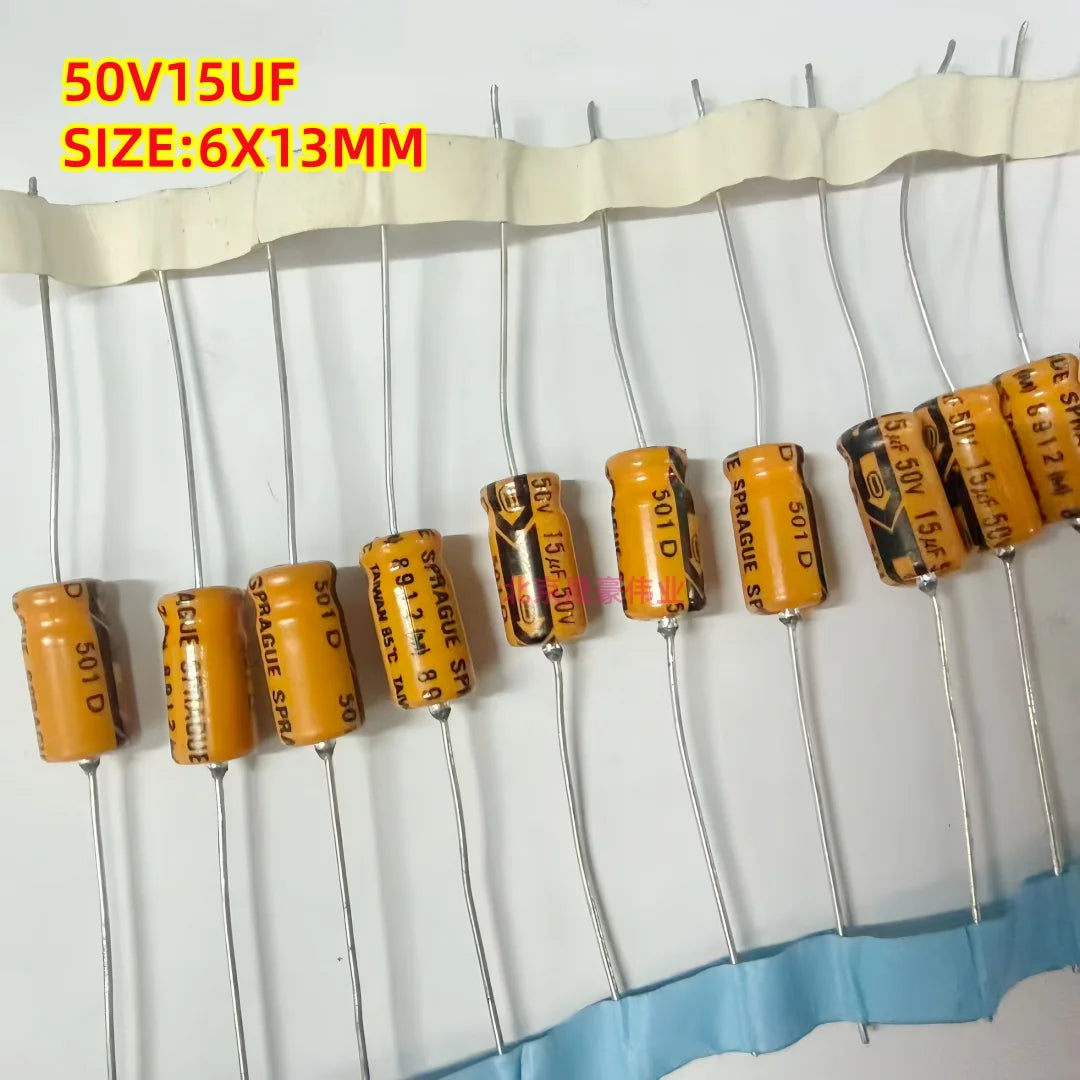

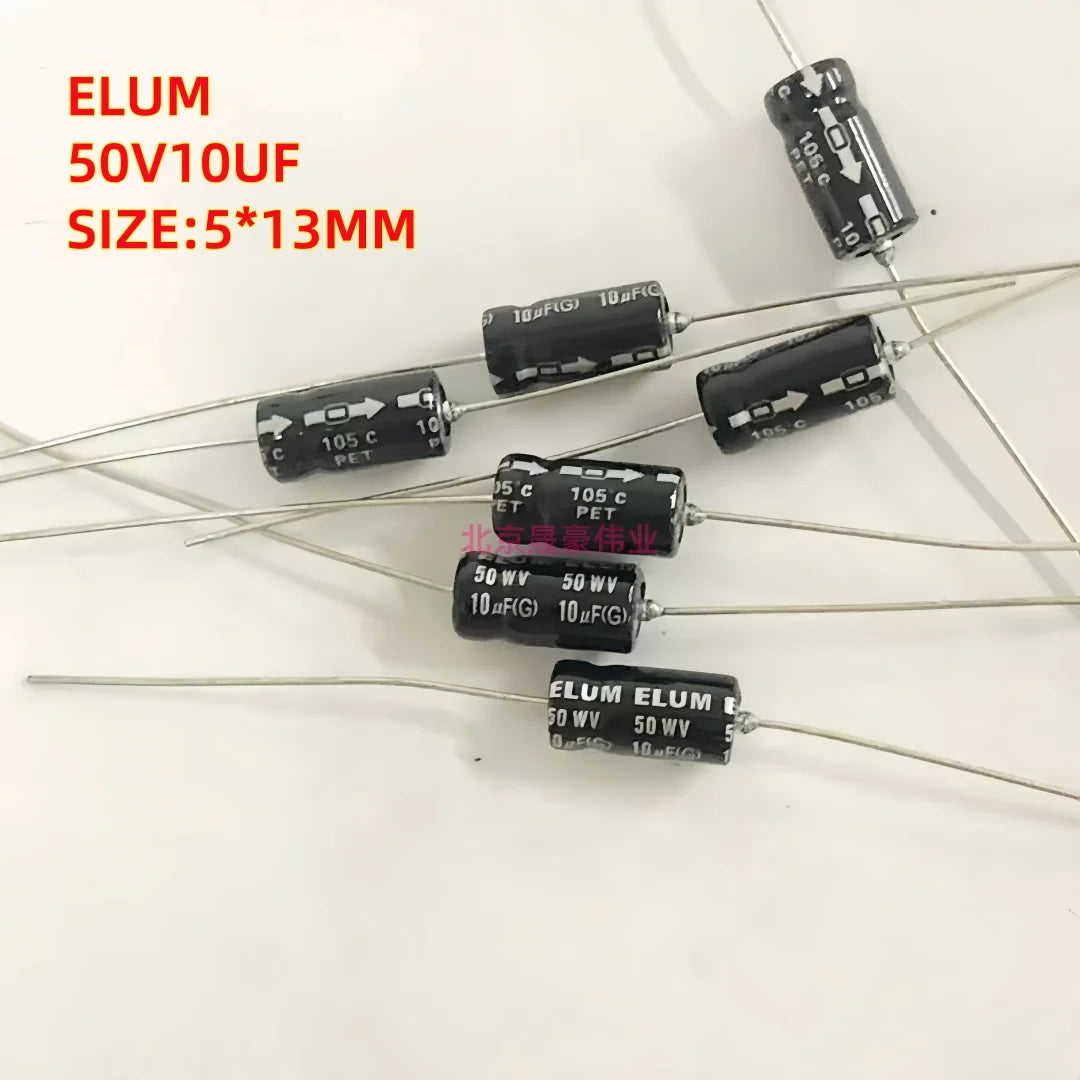

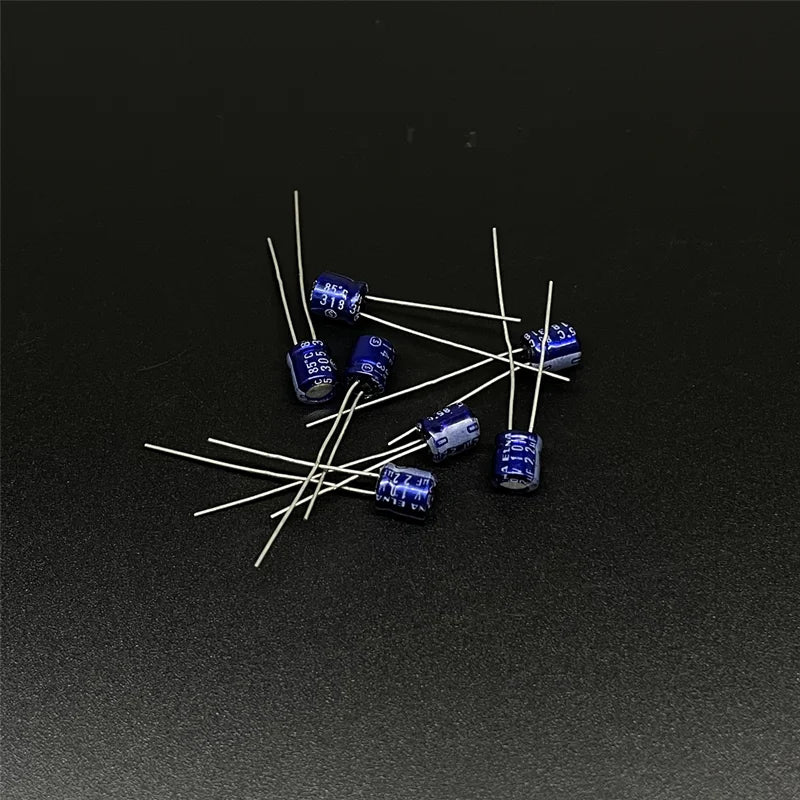

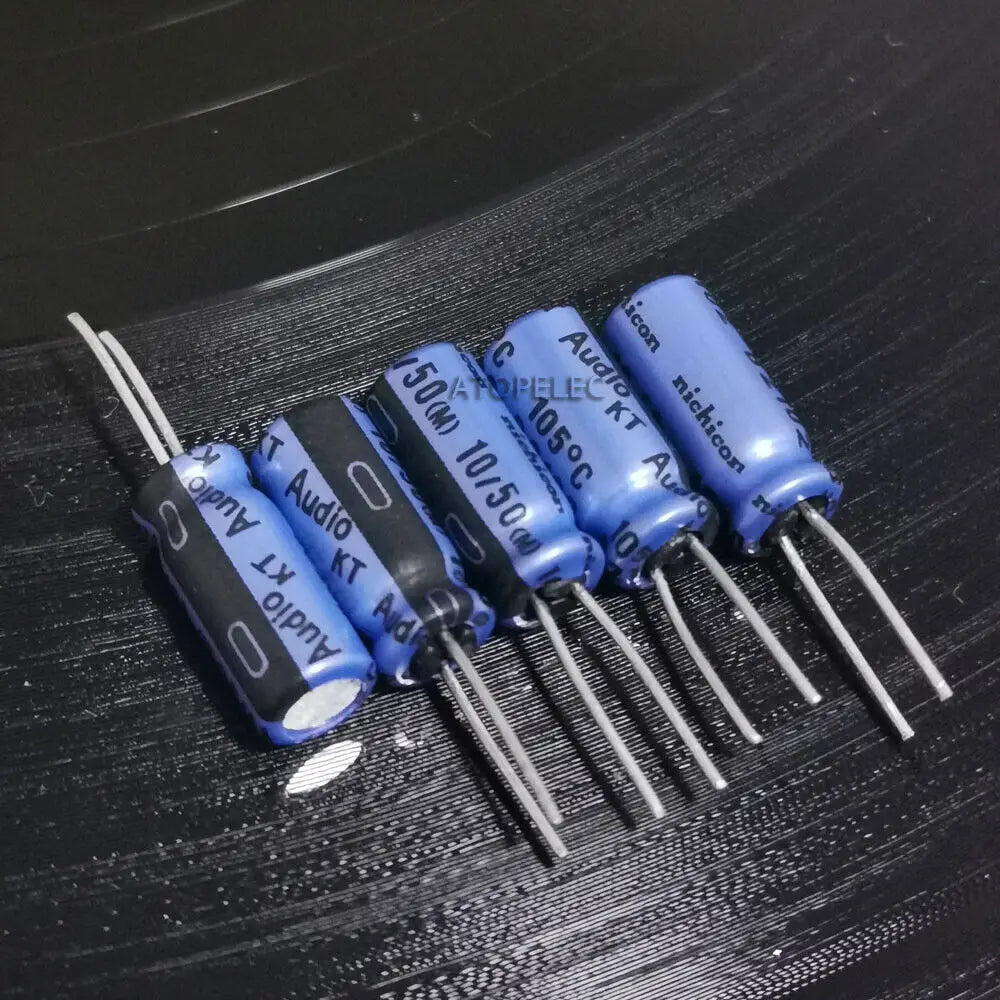

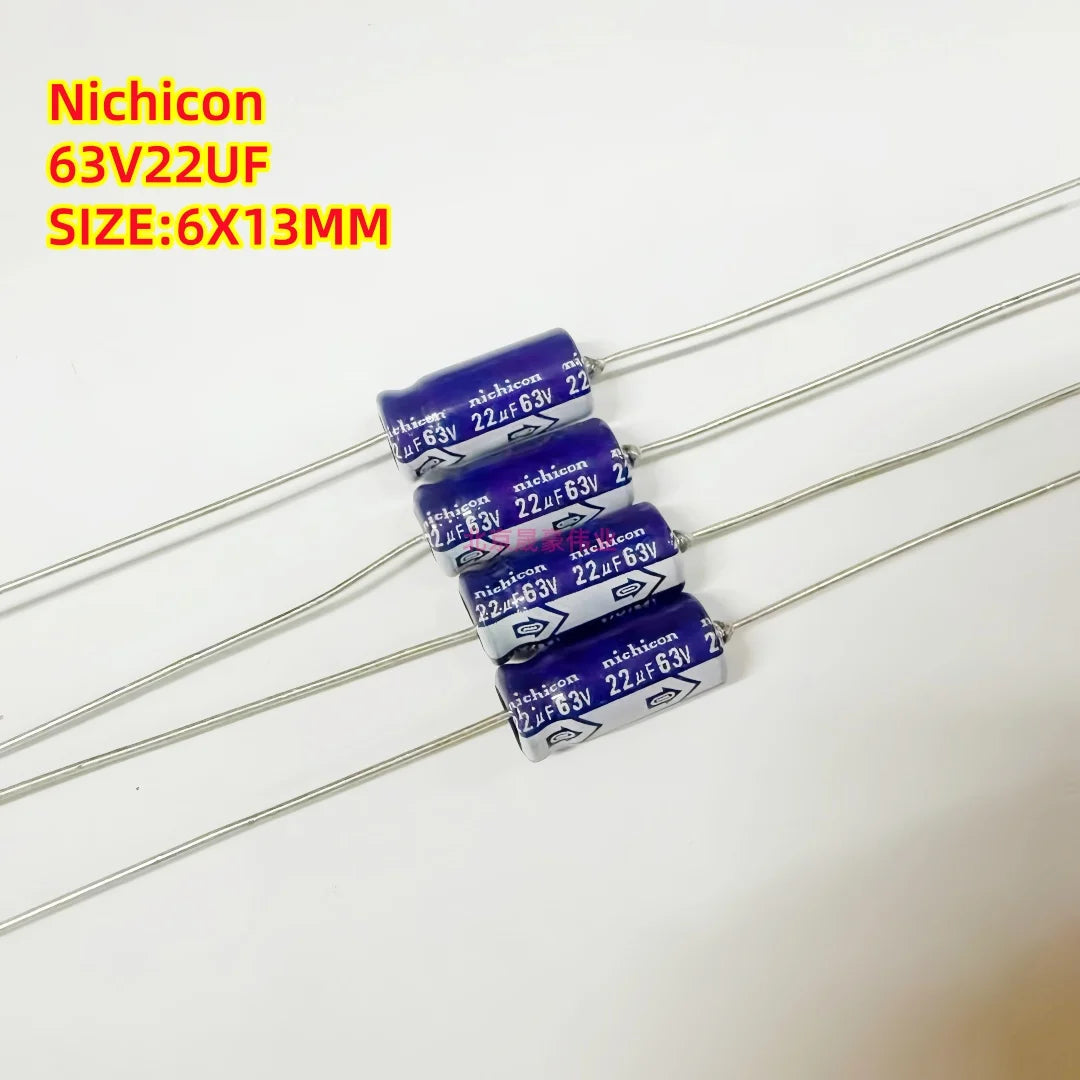

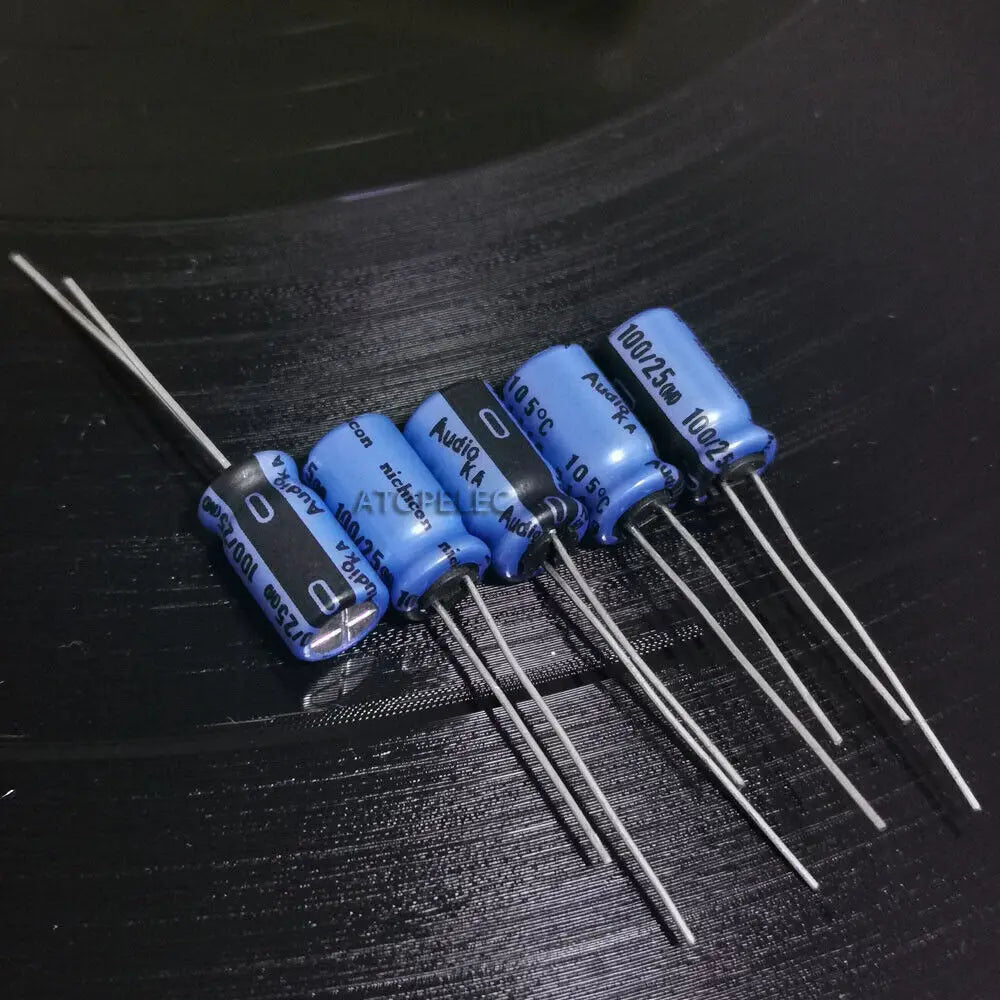

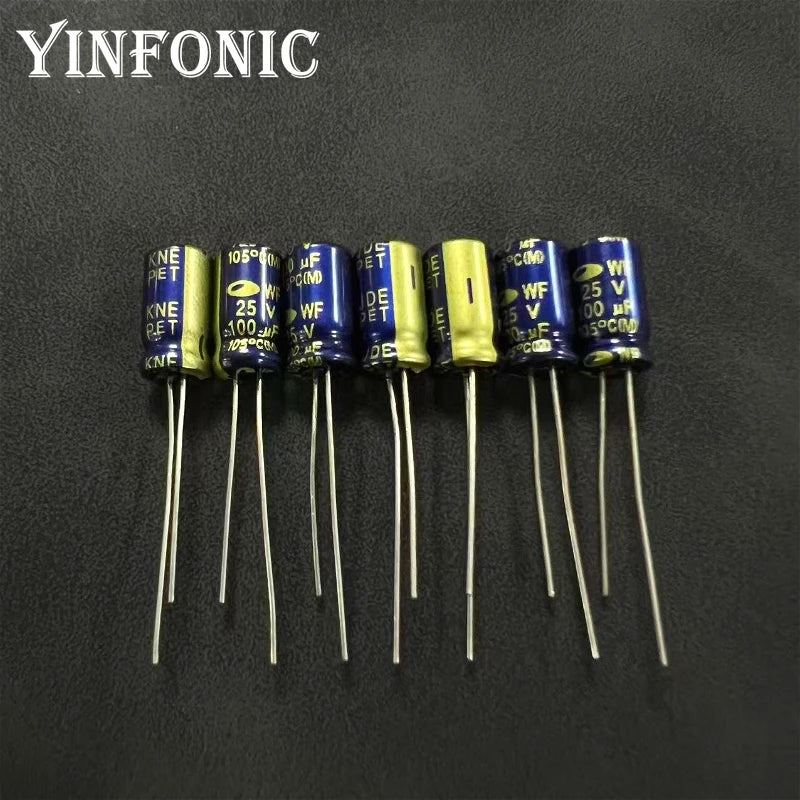

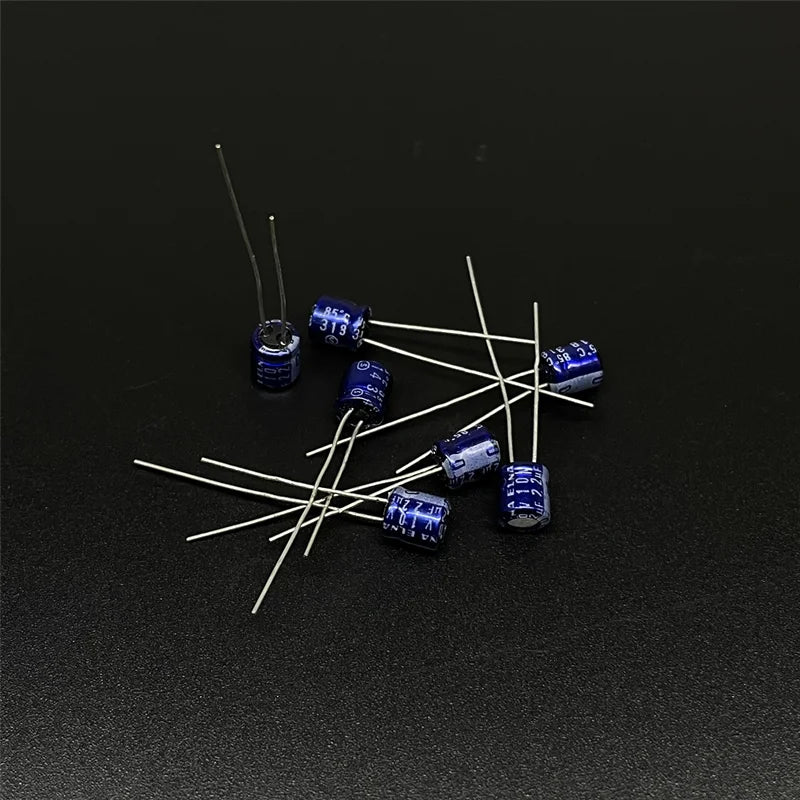

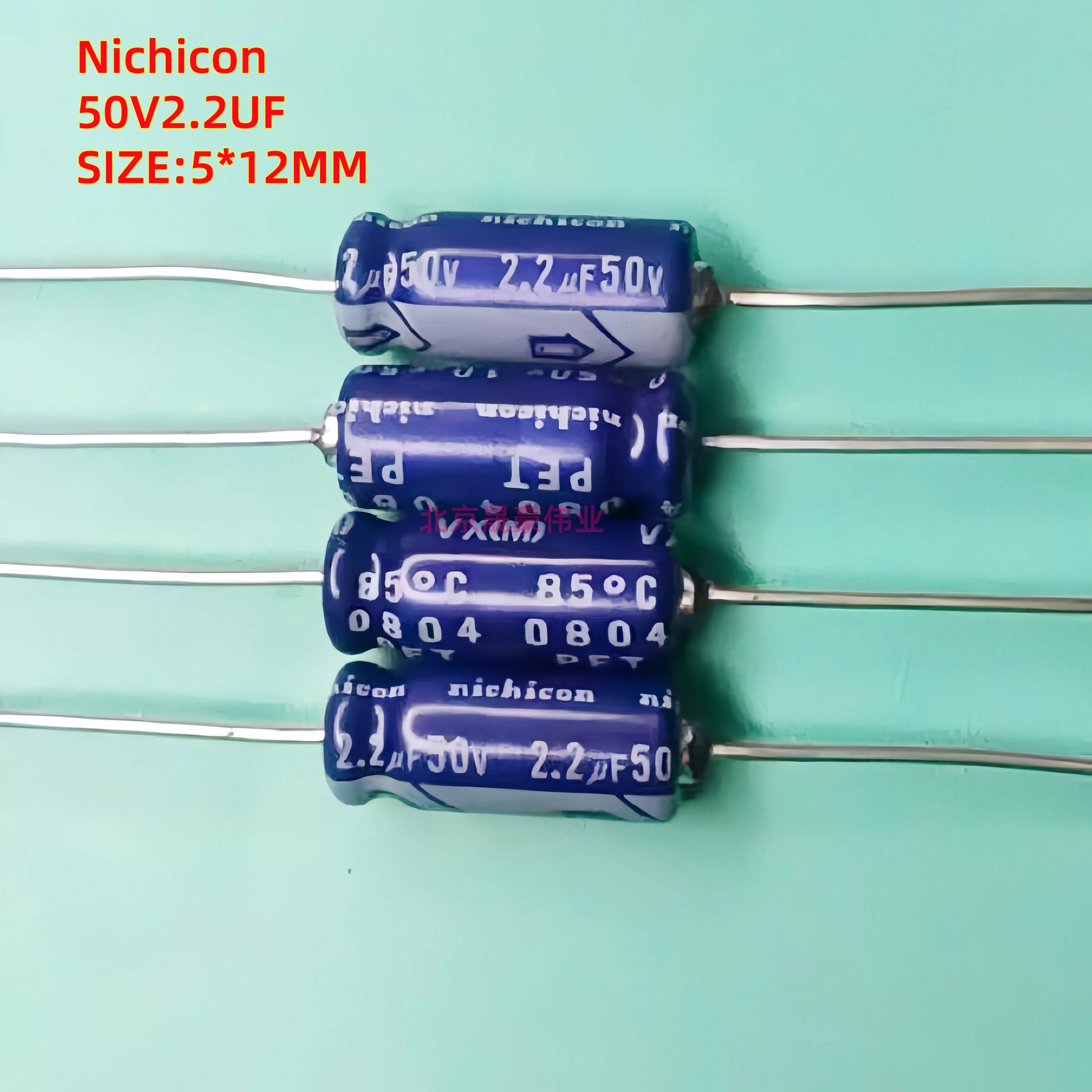

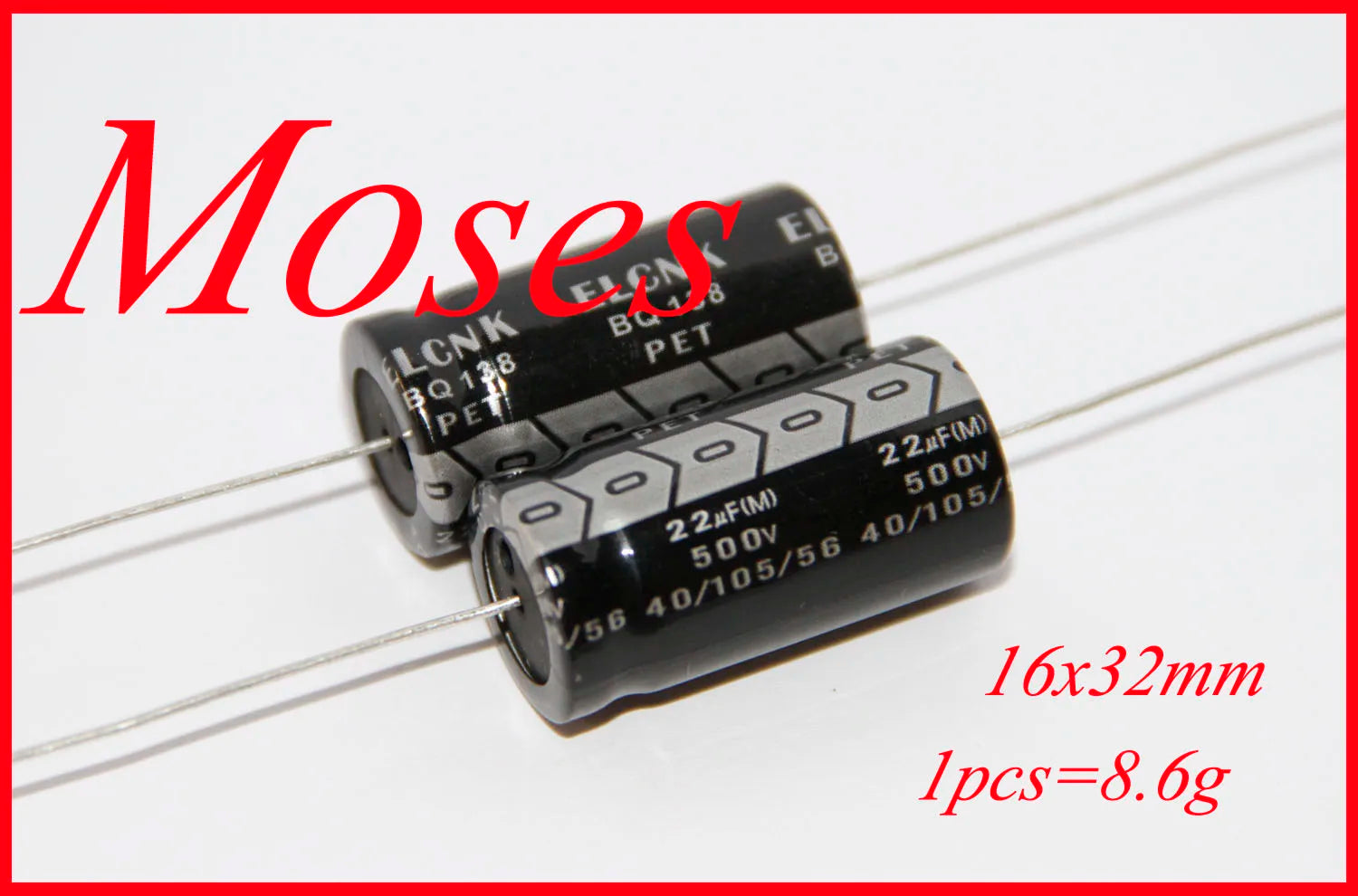

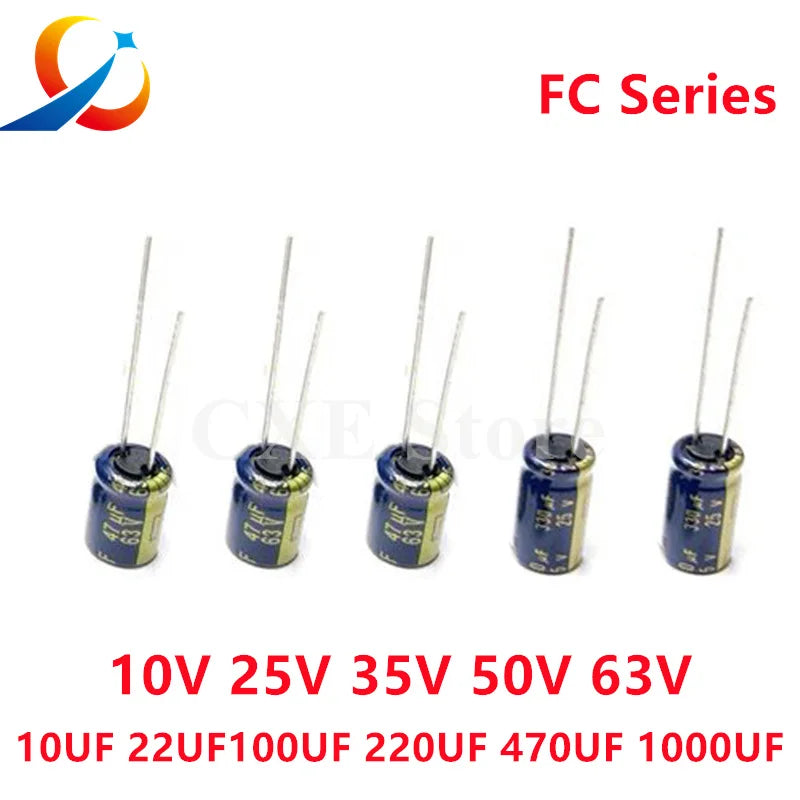

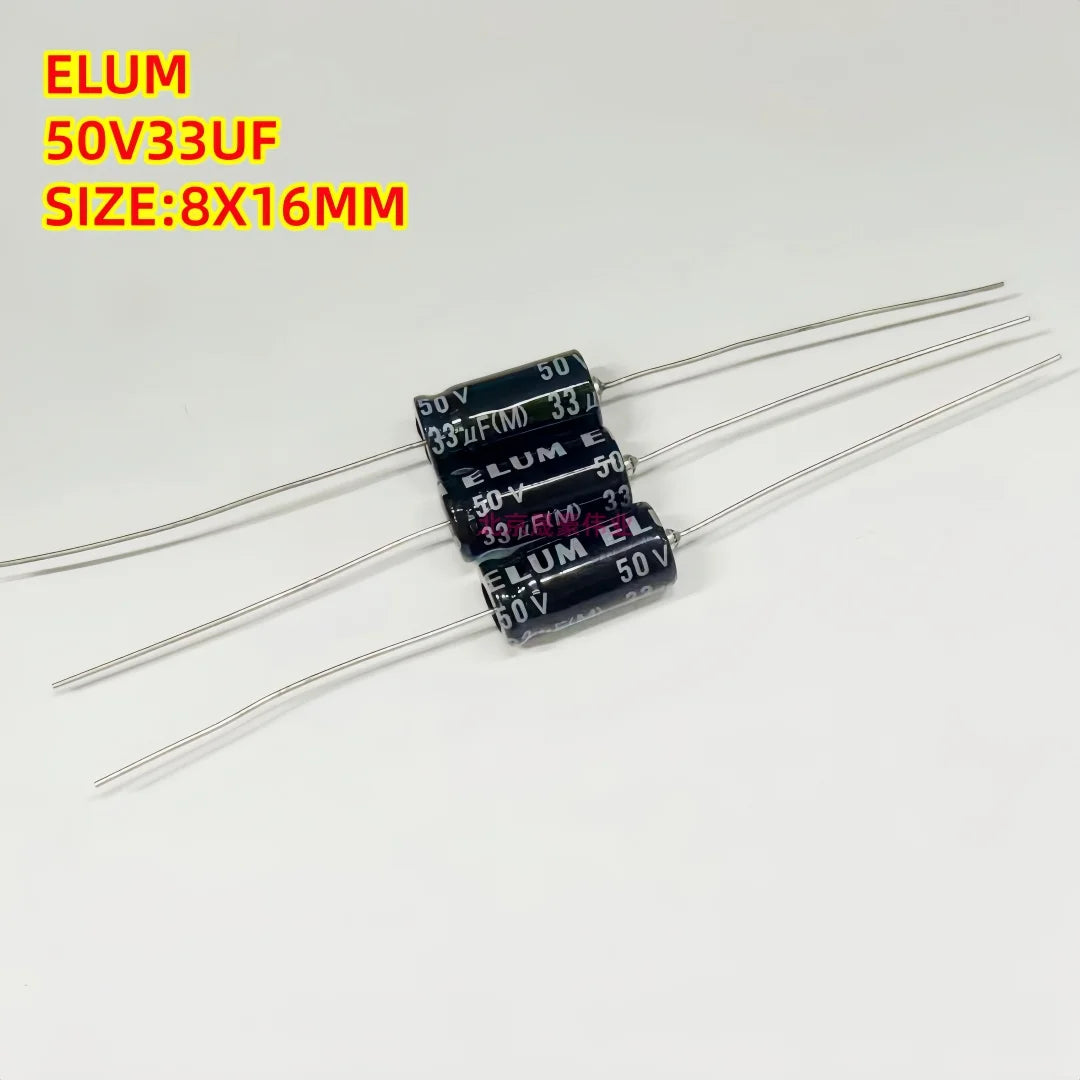

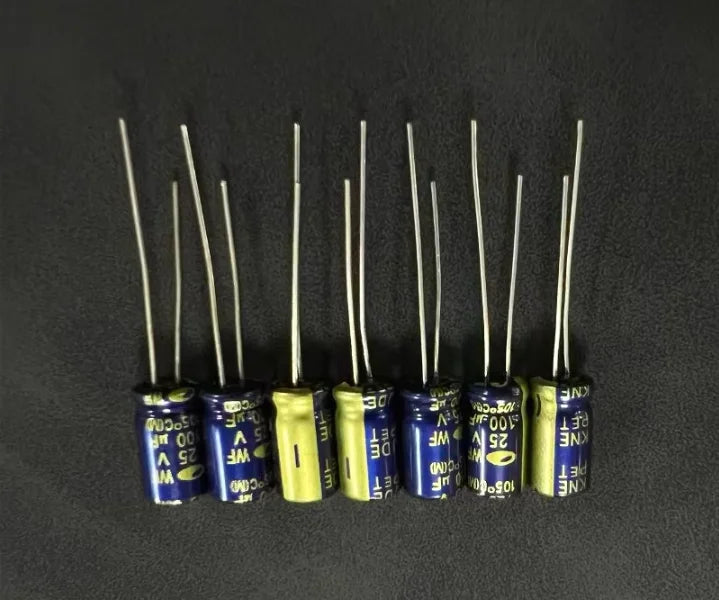

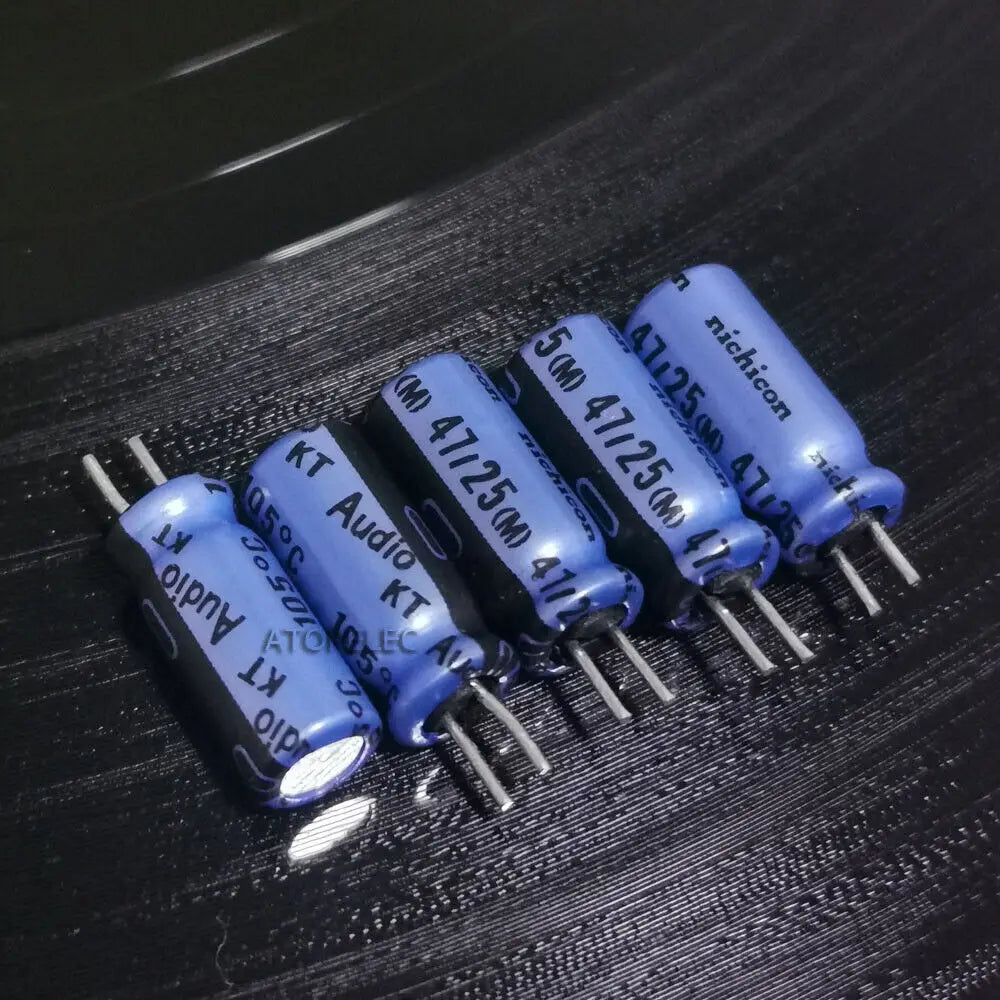

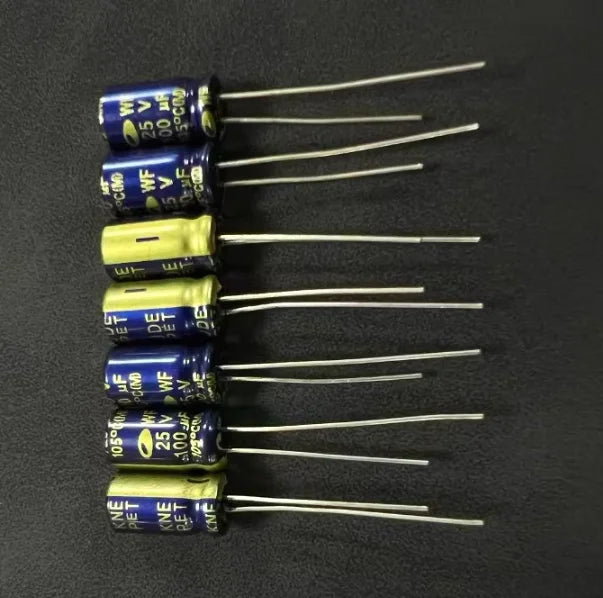

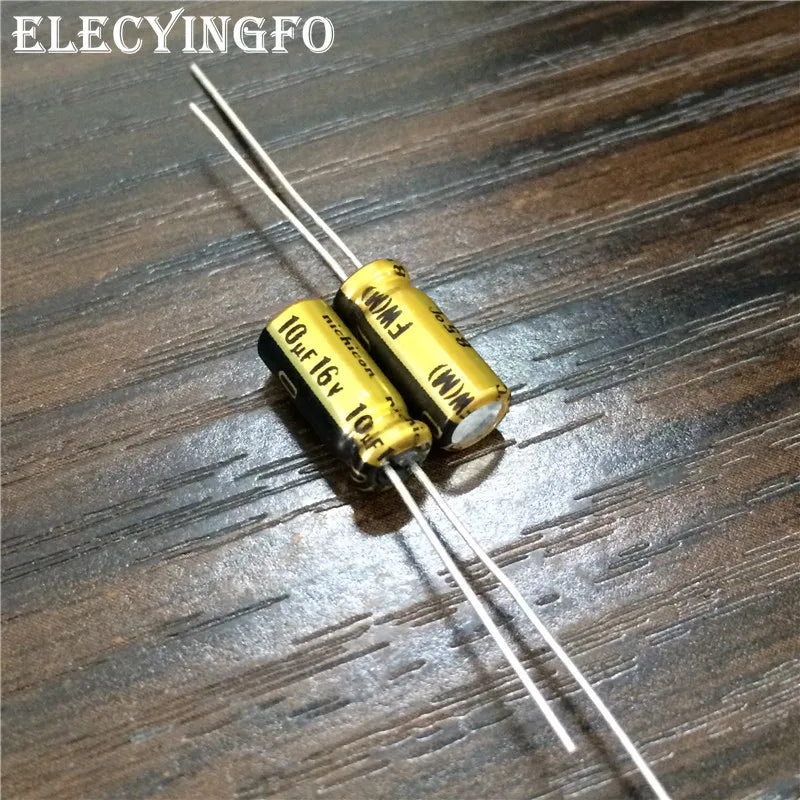

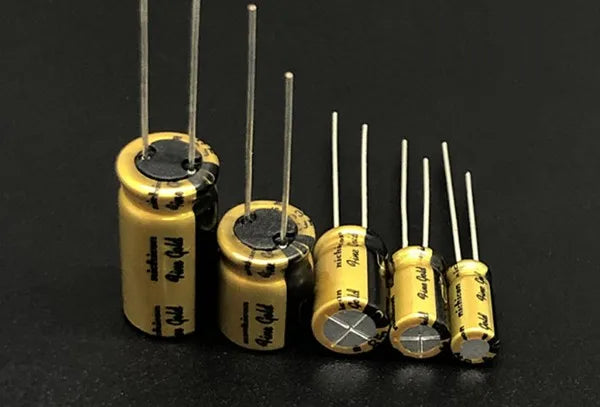

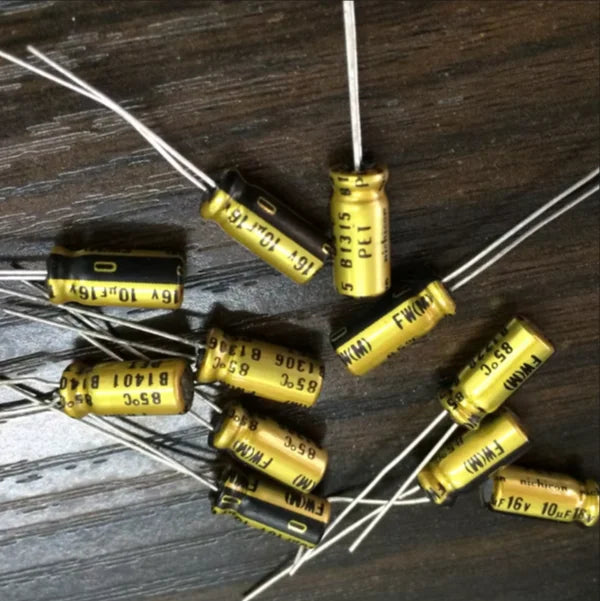

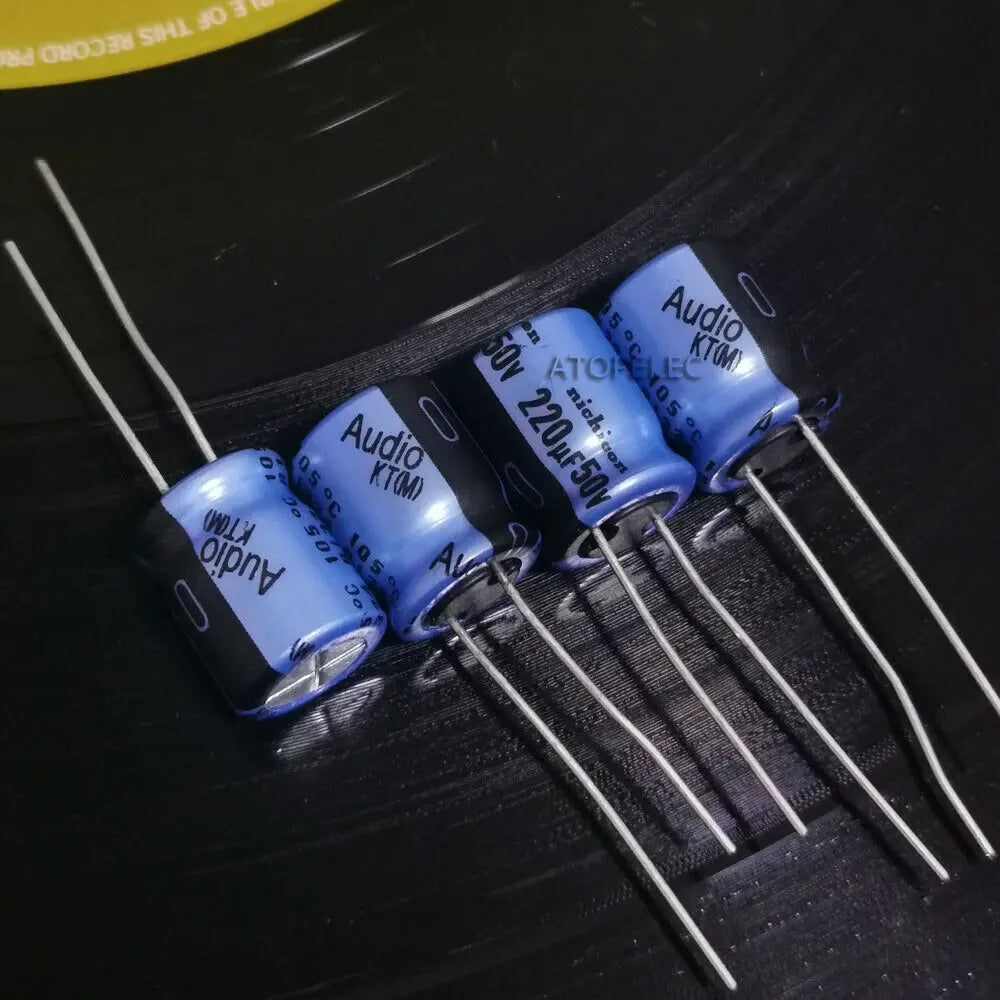

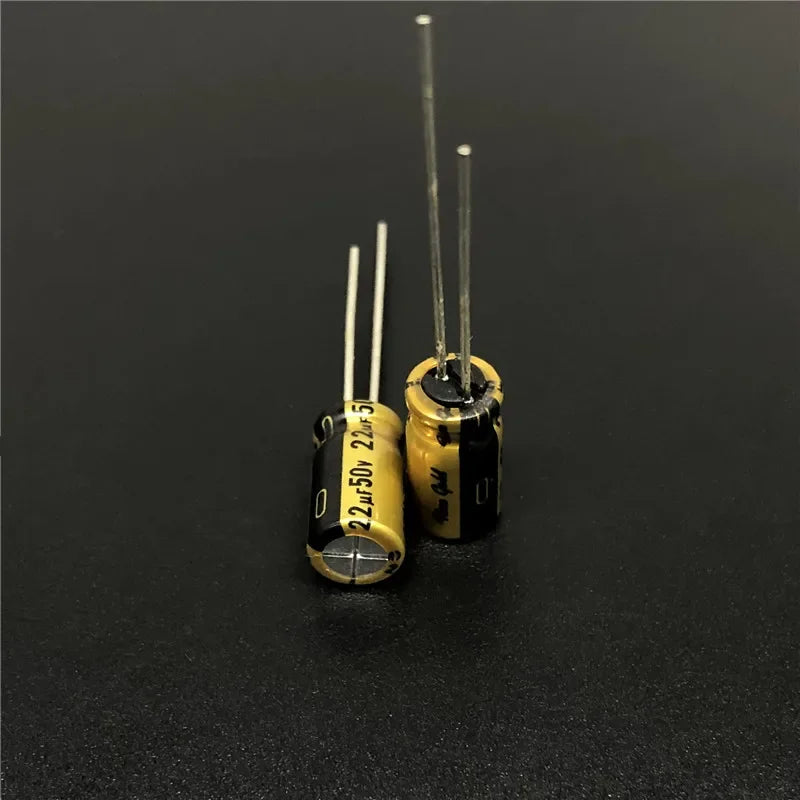

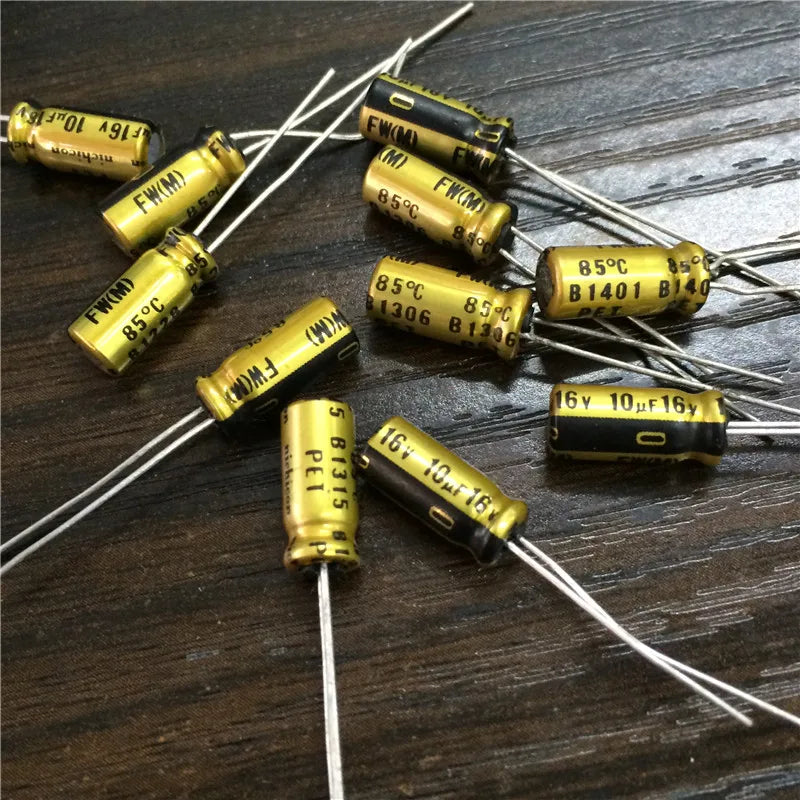

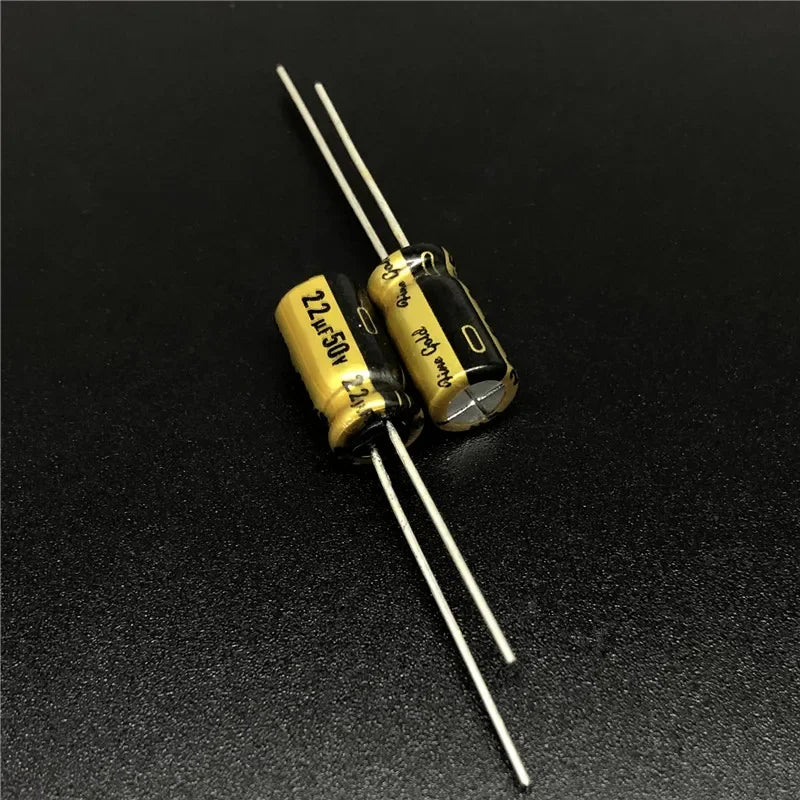

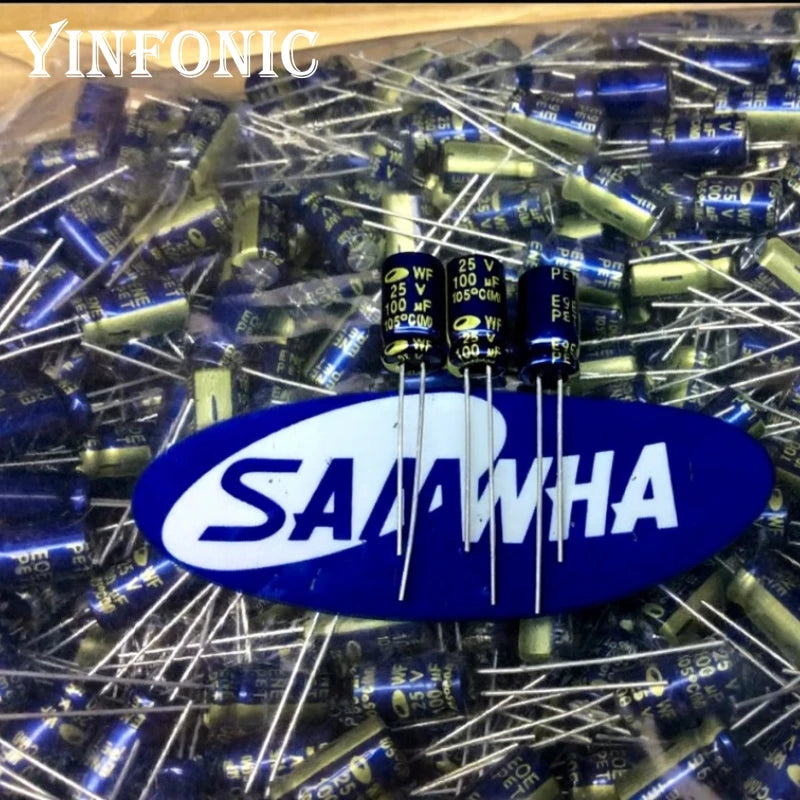

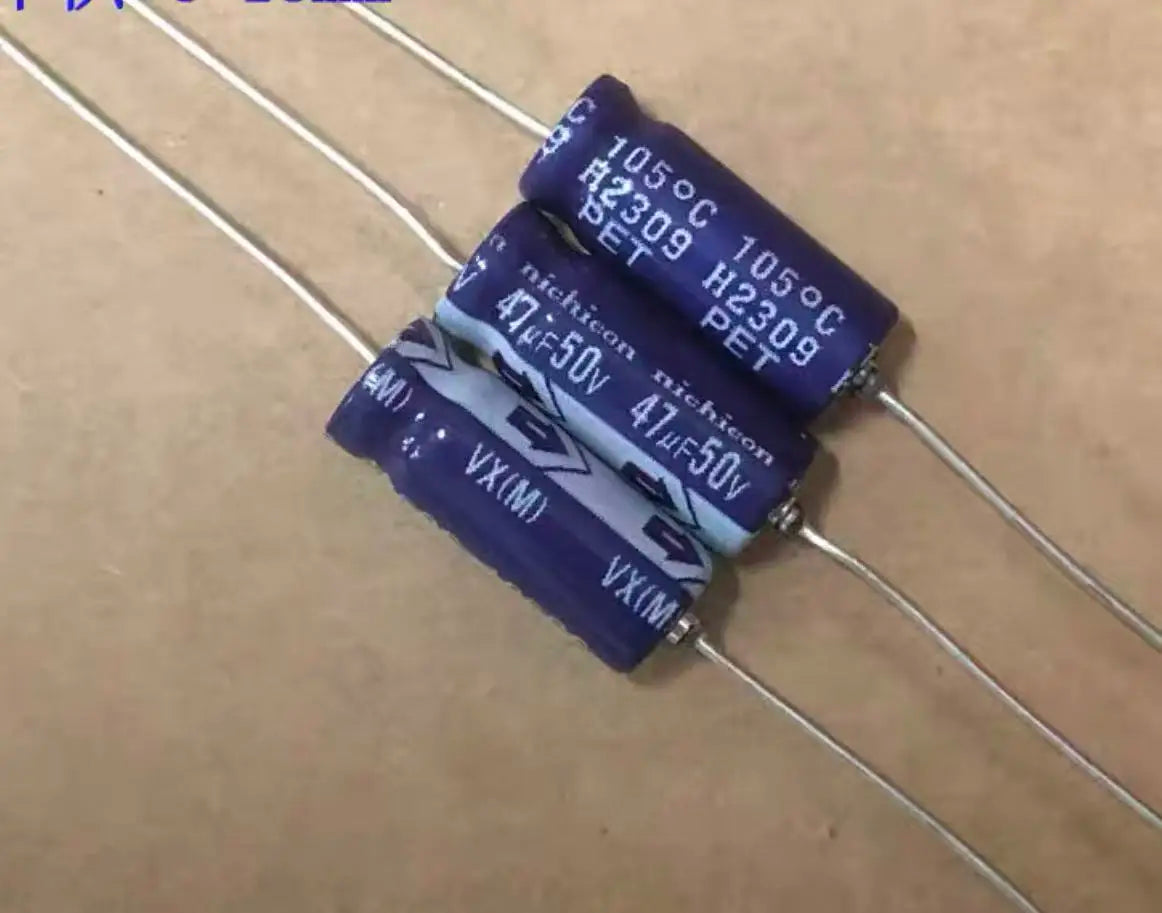

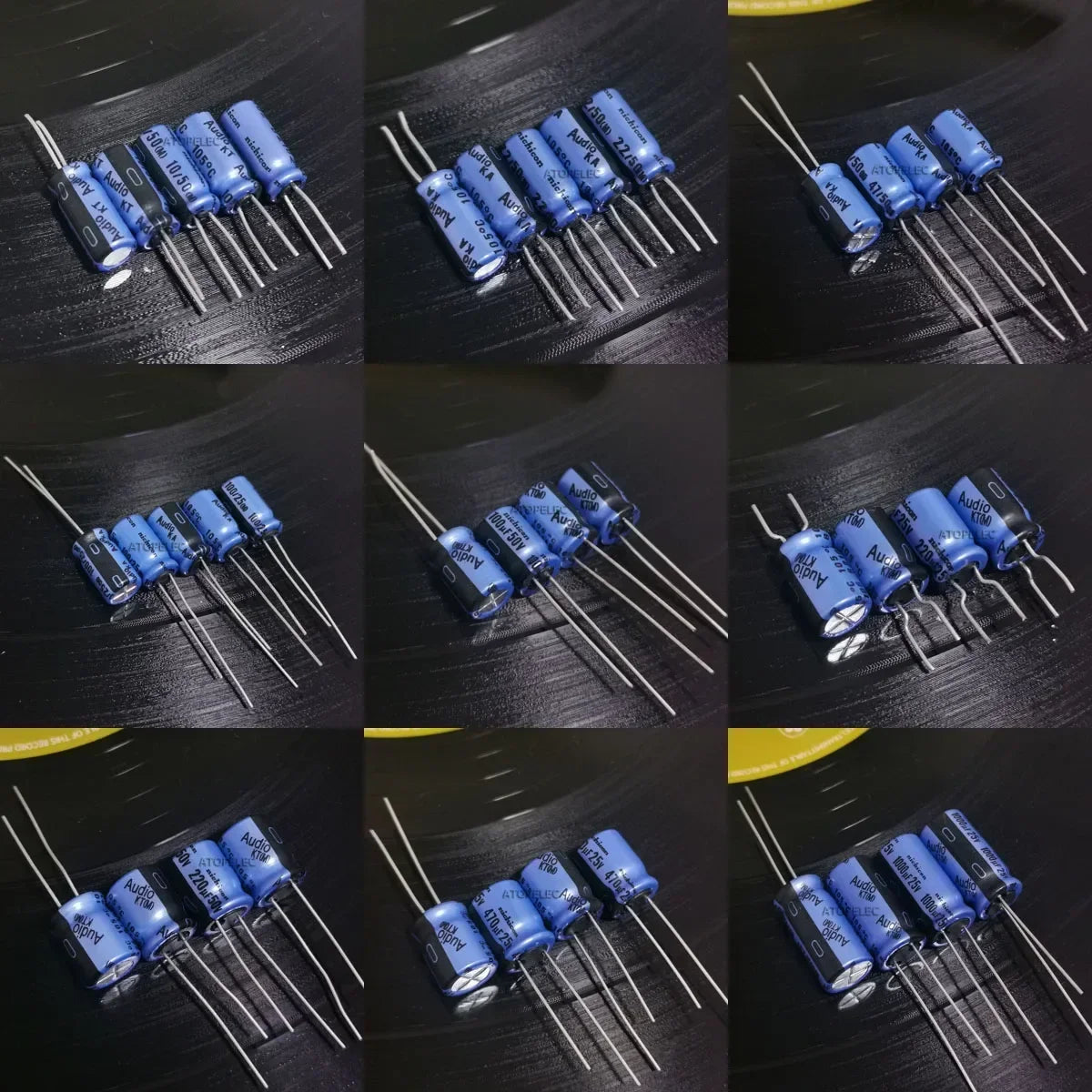

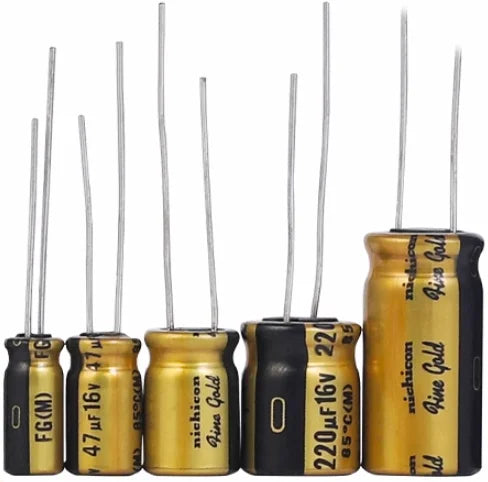

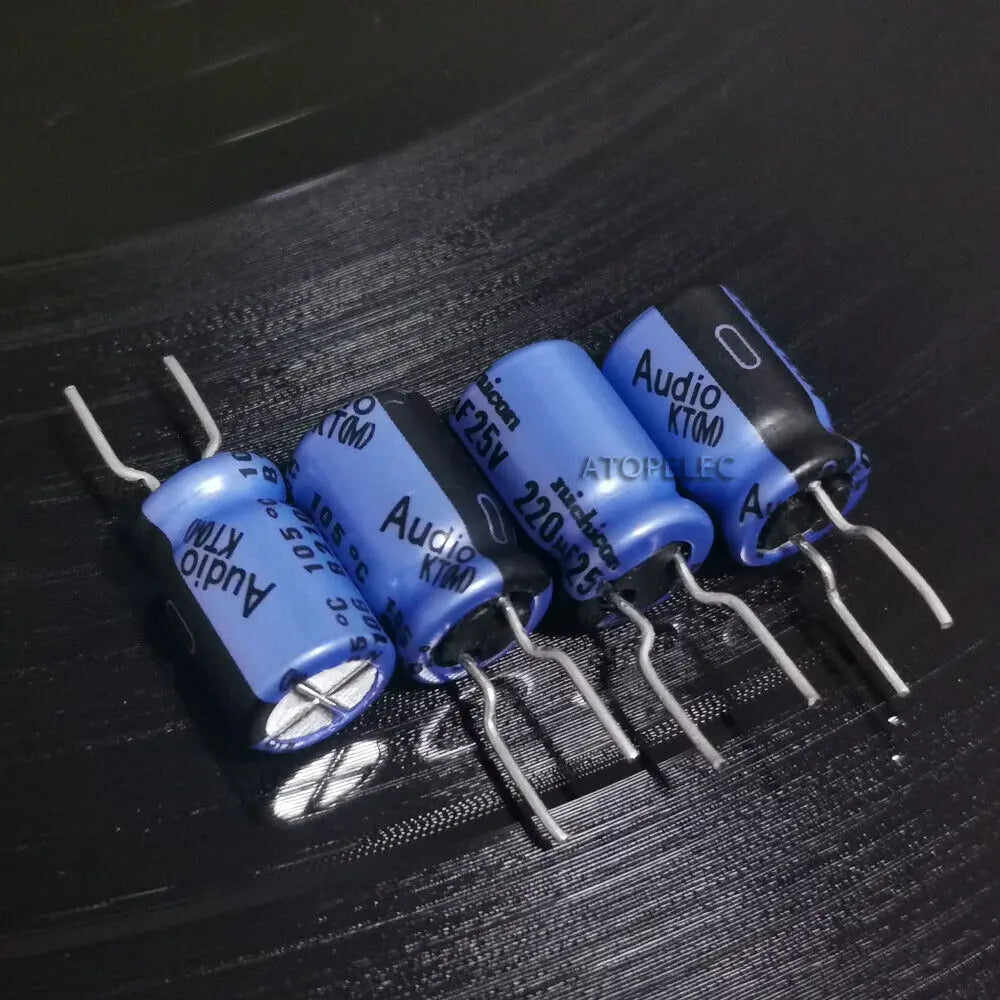

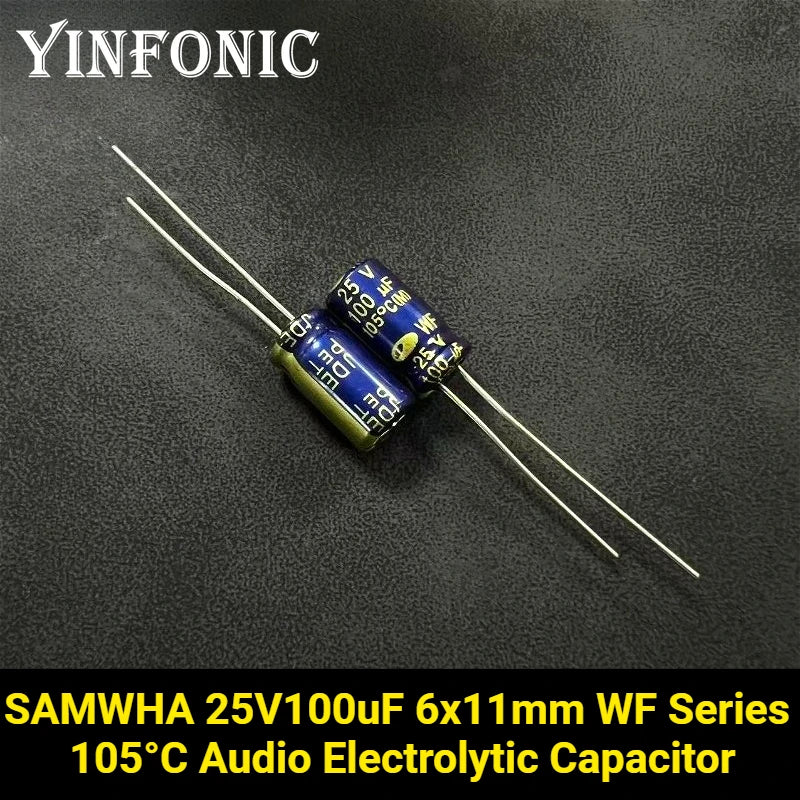

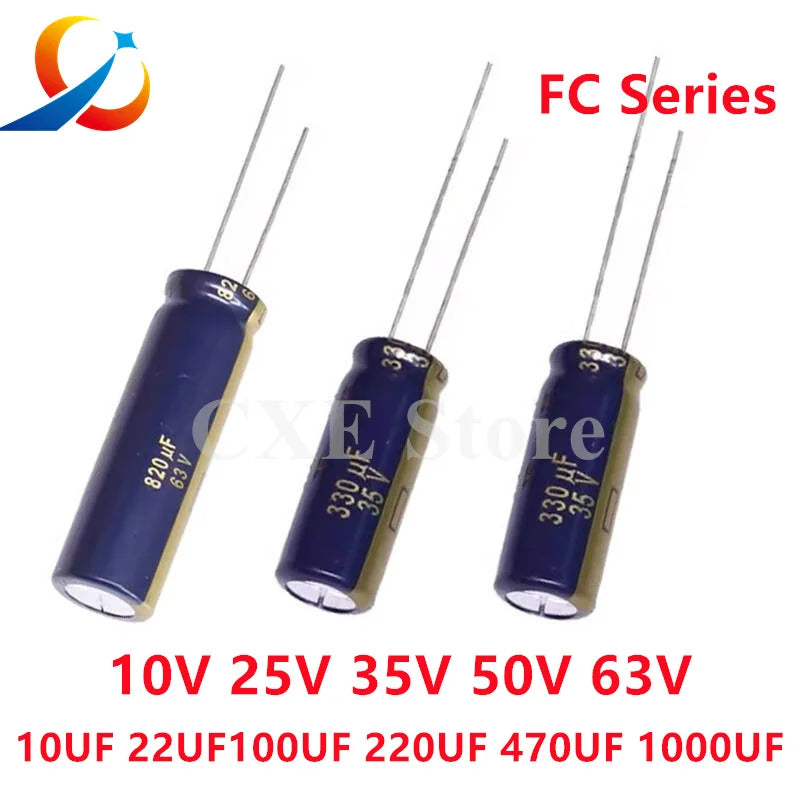

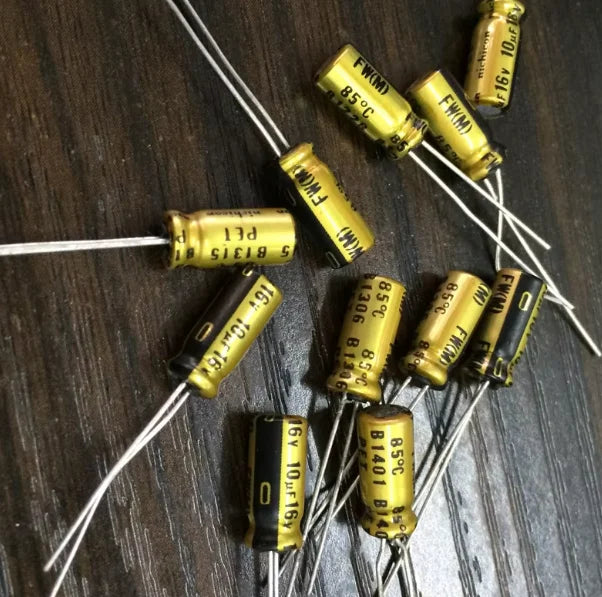

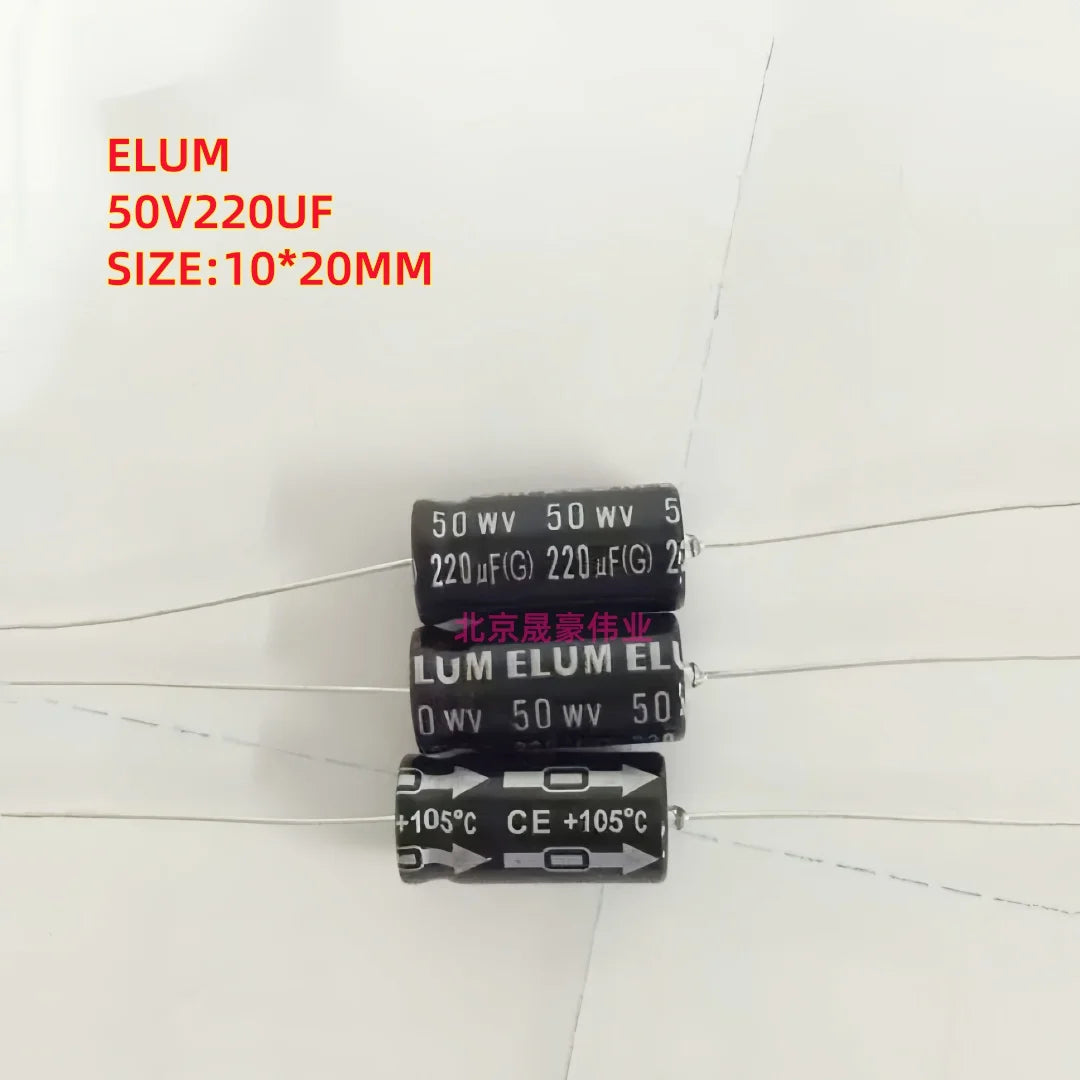

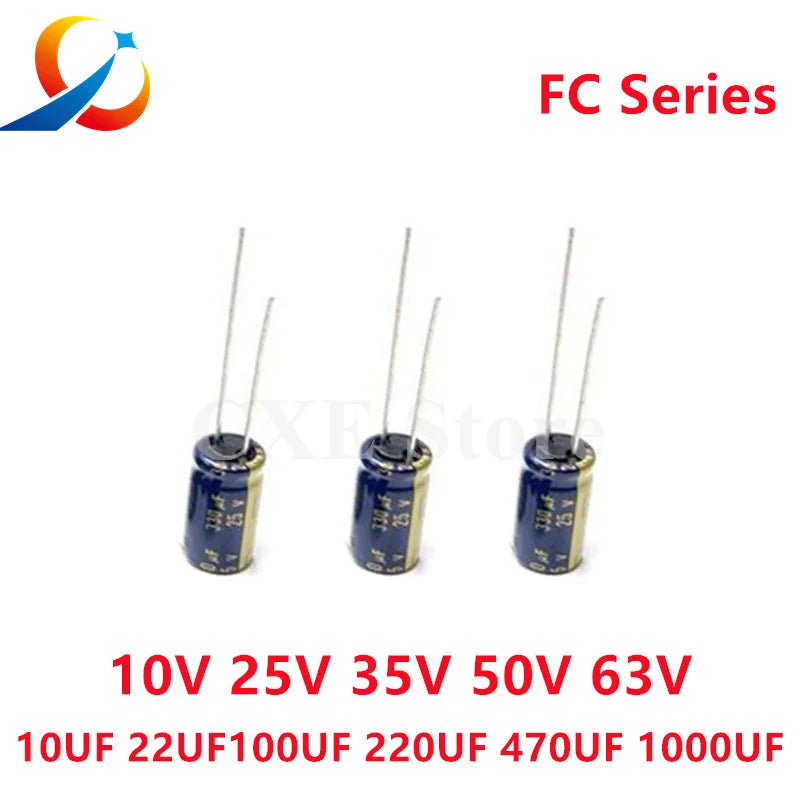

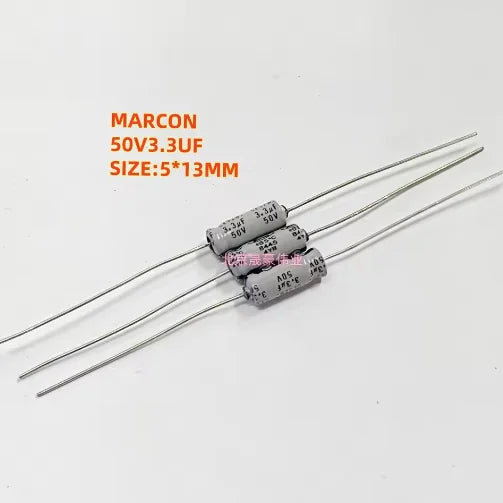

- Amplifier signal paths: Some film and electrolytic products are advertised for coupling. Check whether the circuit has DC bias and requires polarity, whether the chosen part is explicitly non-polar, and the original capacitance, voltage, leakage and layout. An ordinary polarized aluminium electrolytic must not be installed with the wrong polarity.

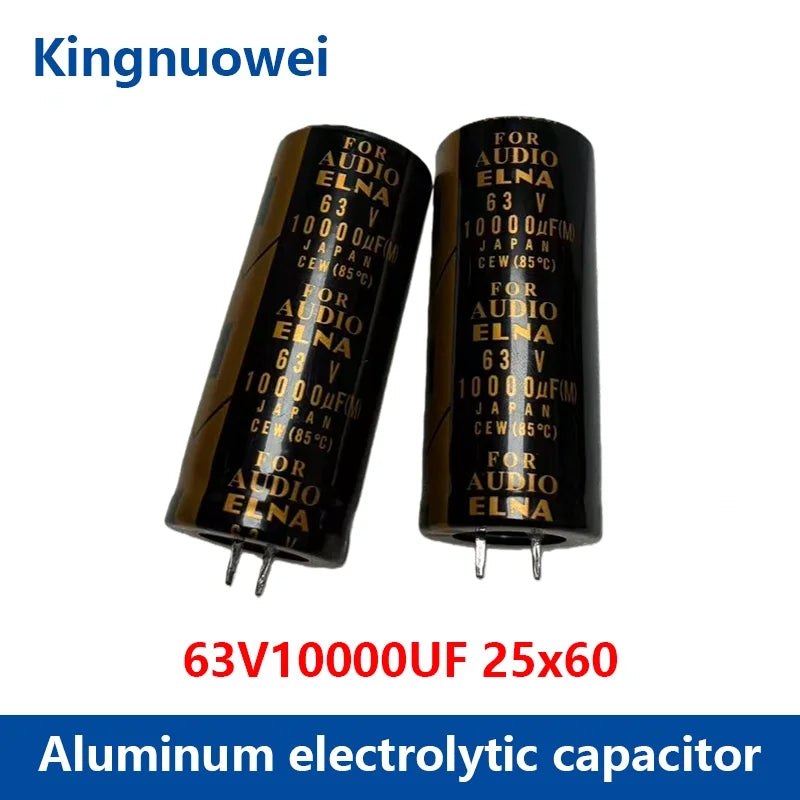

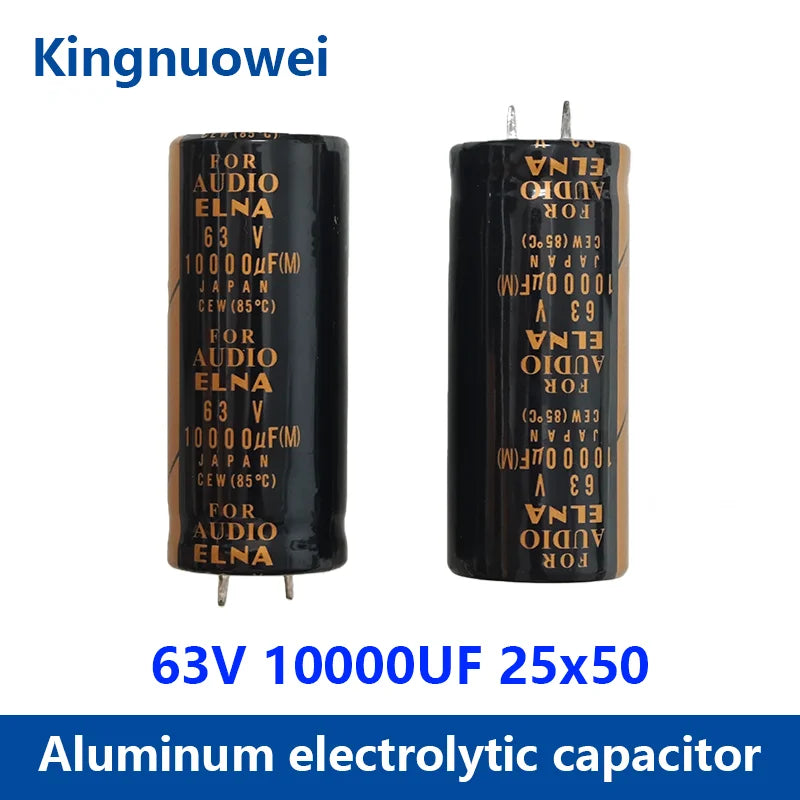

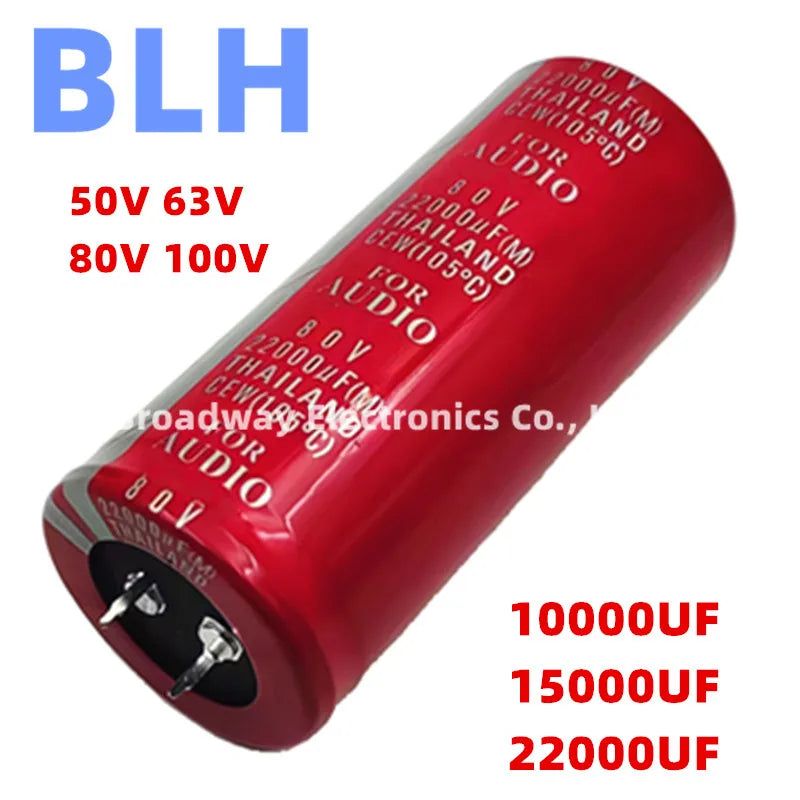

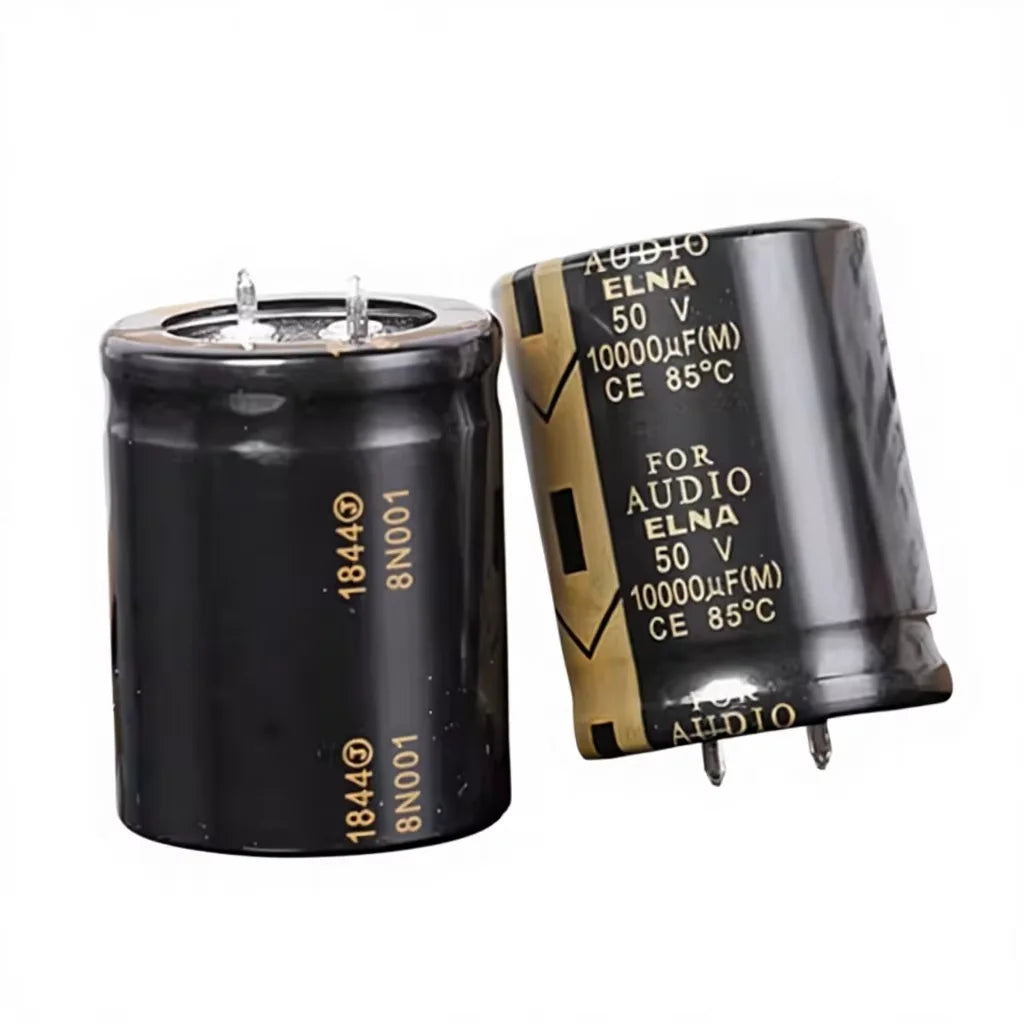

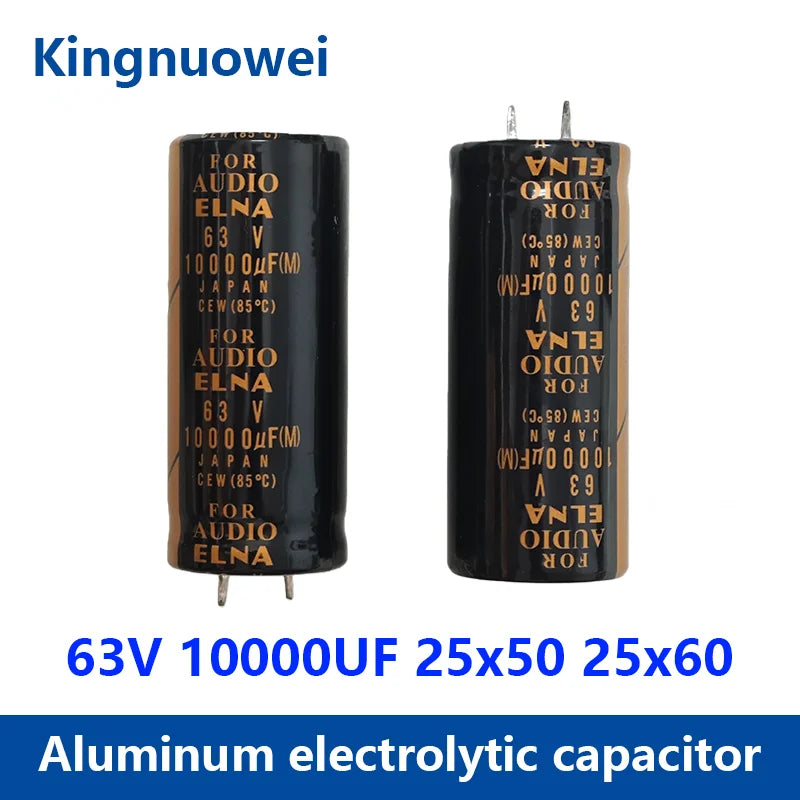

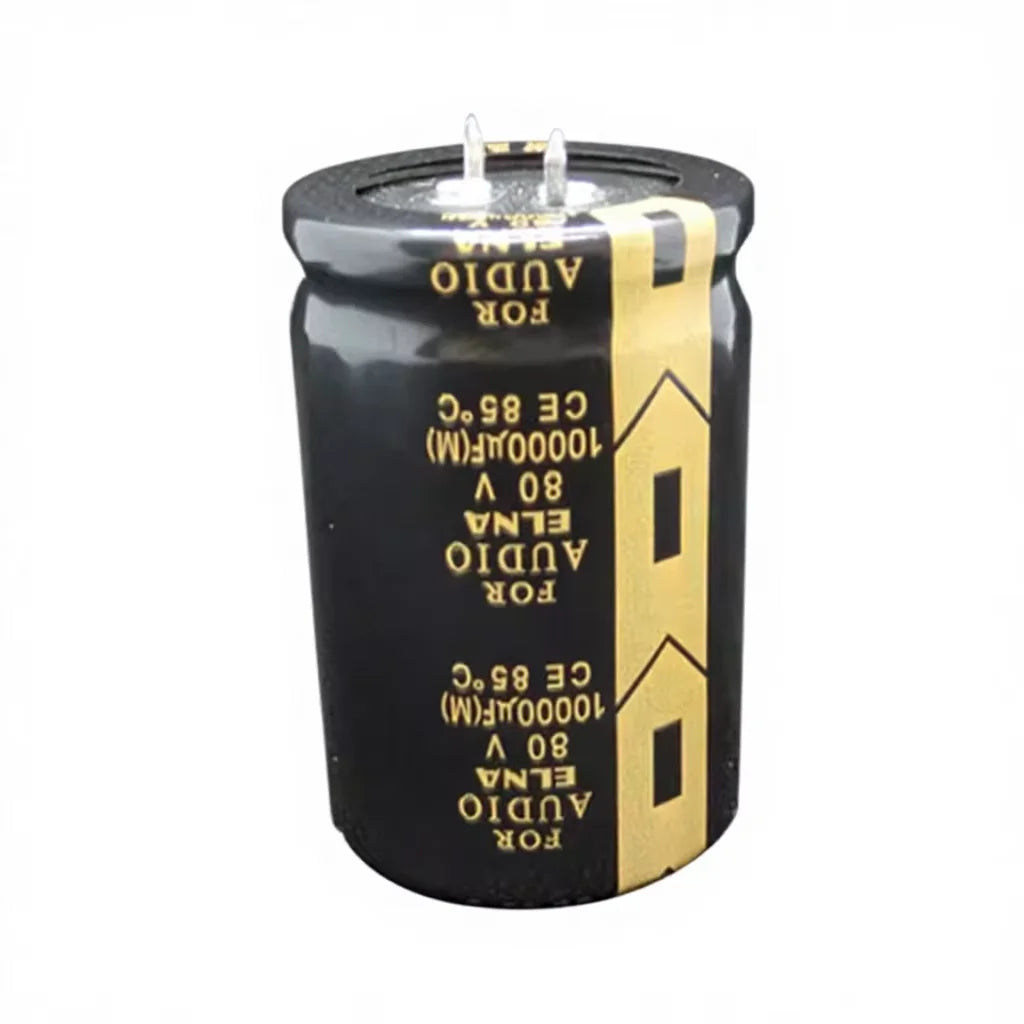

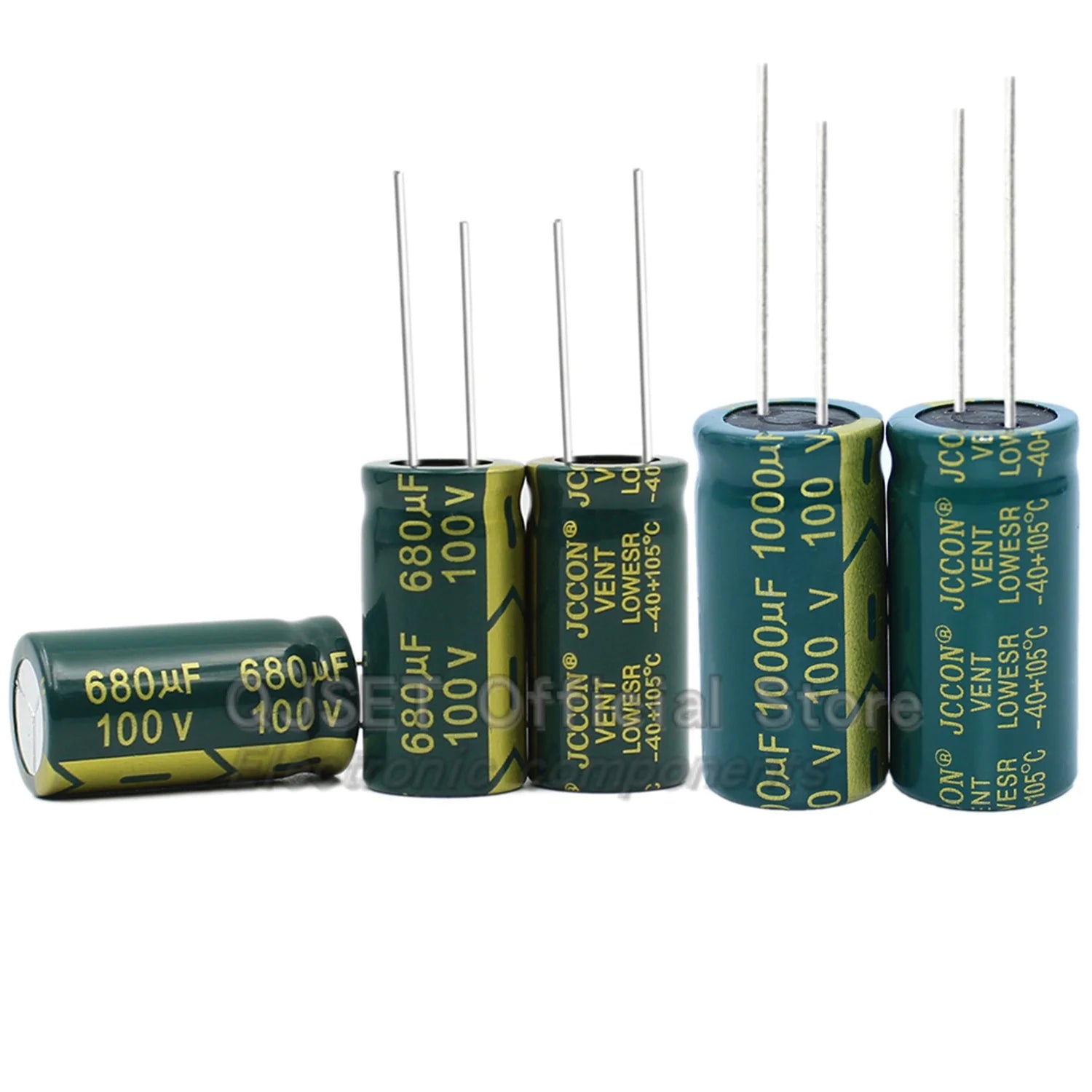

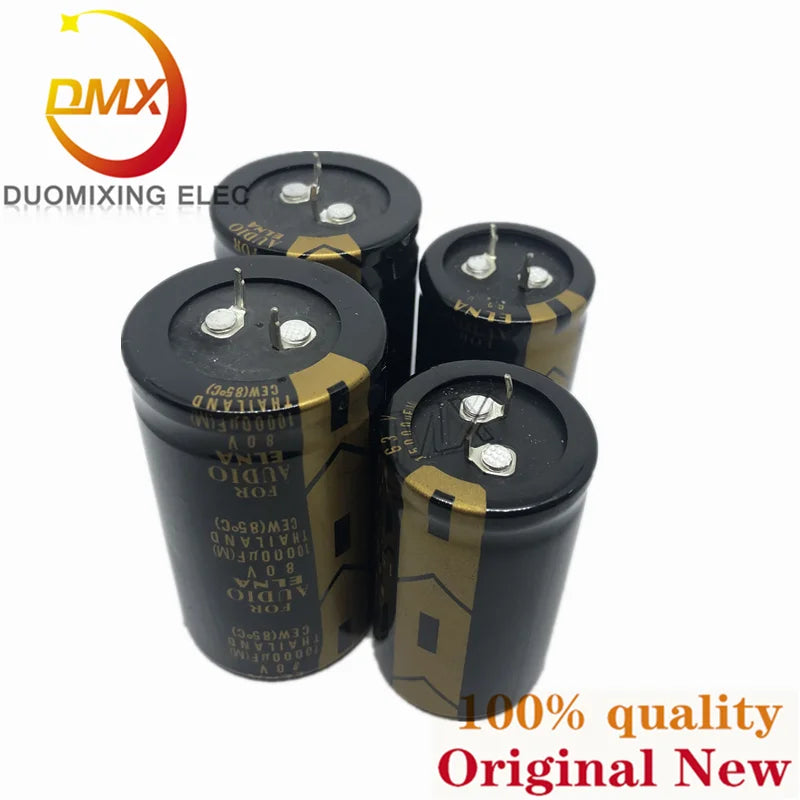

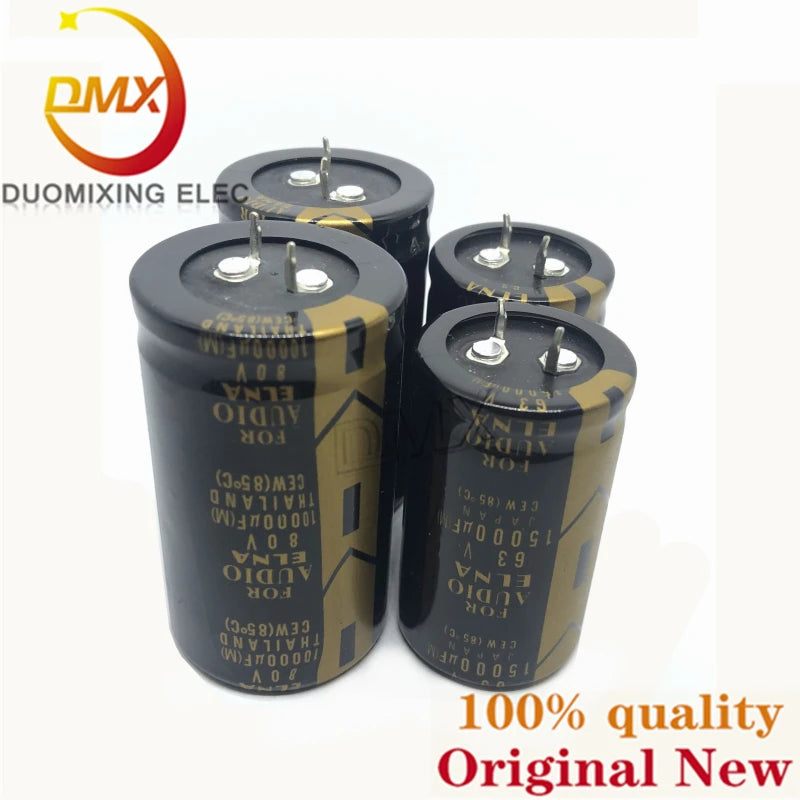

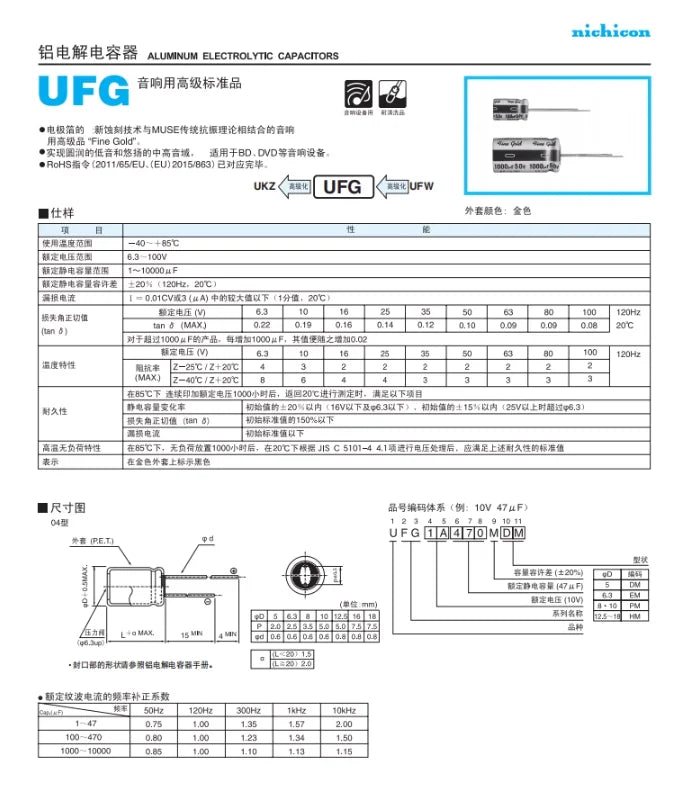

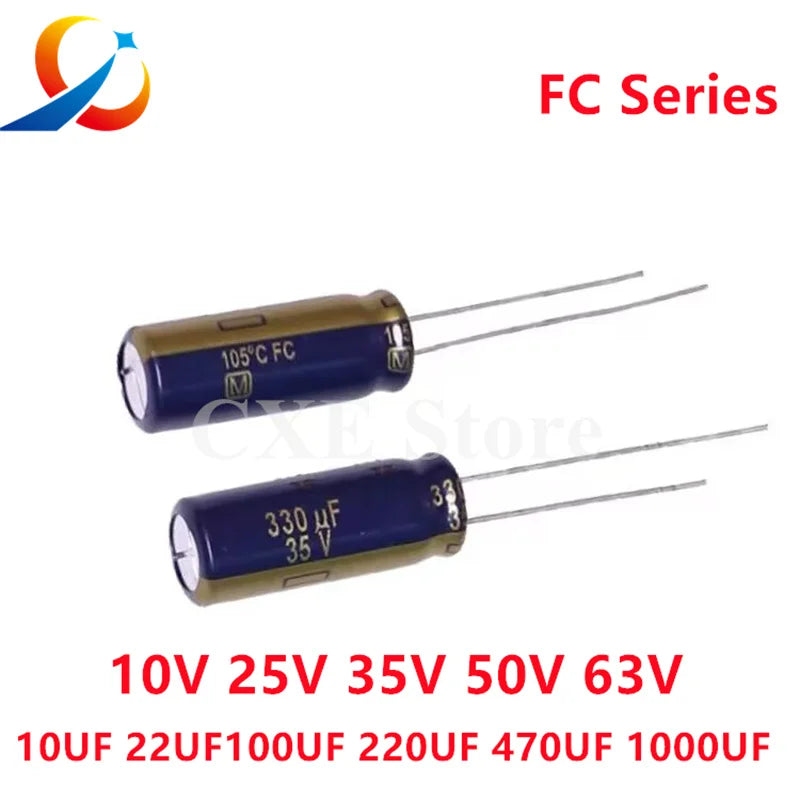

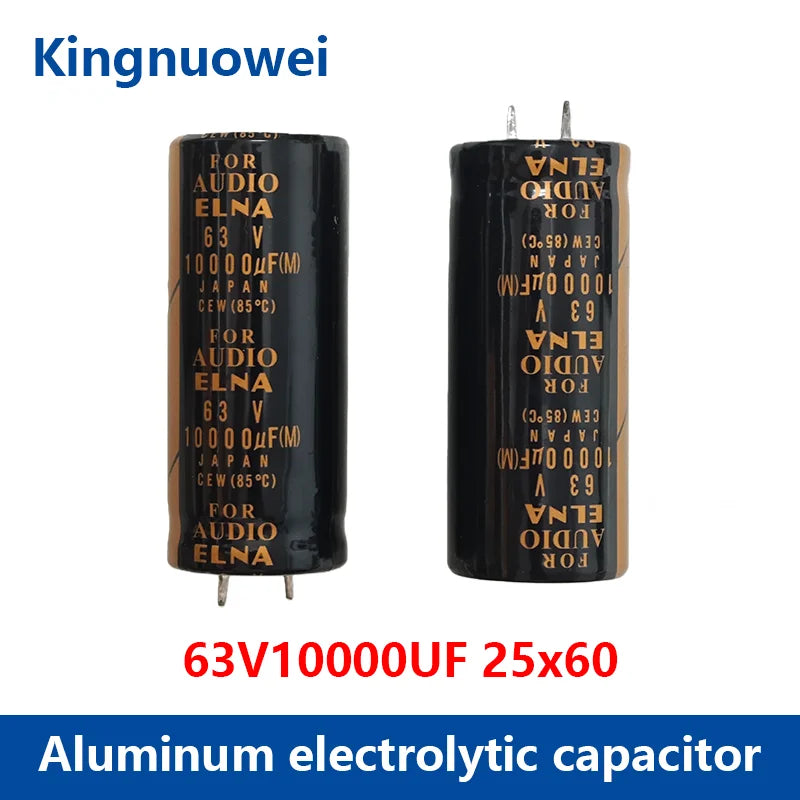

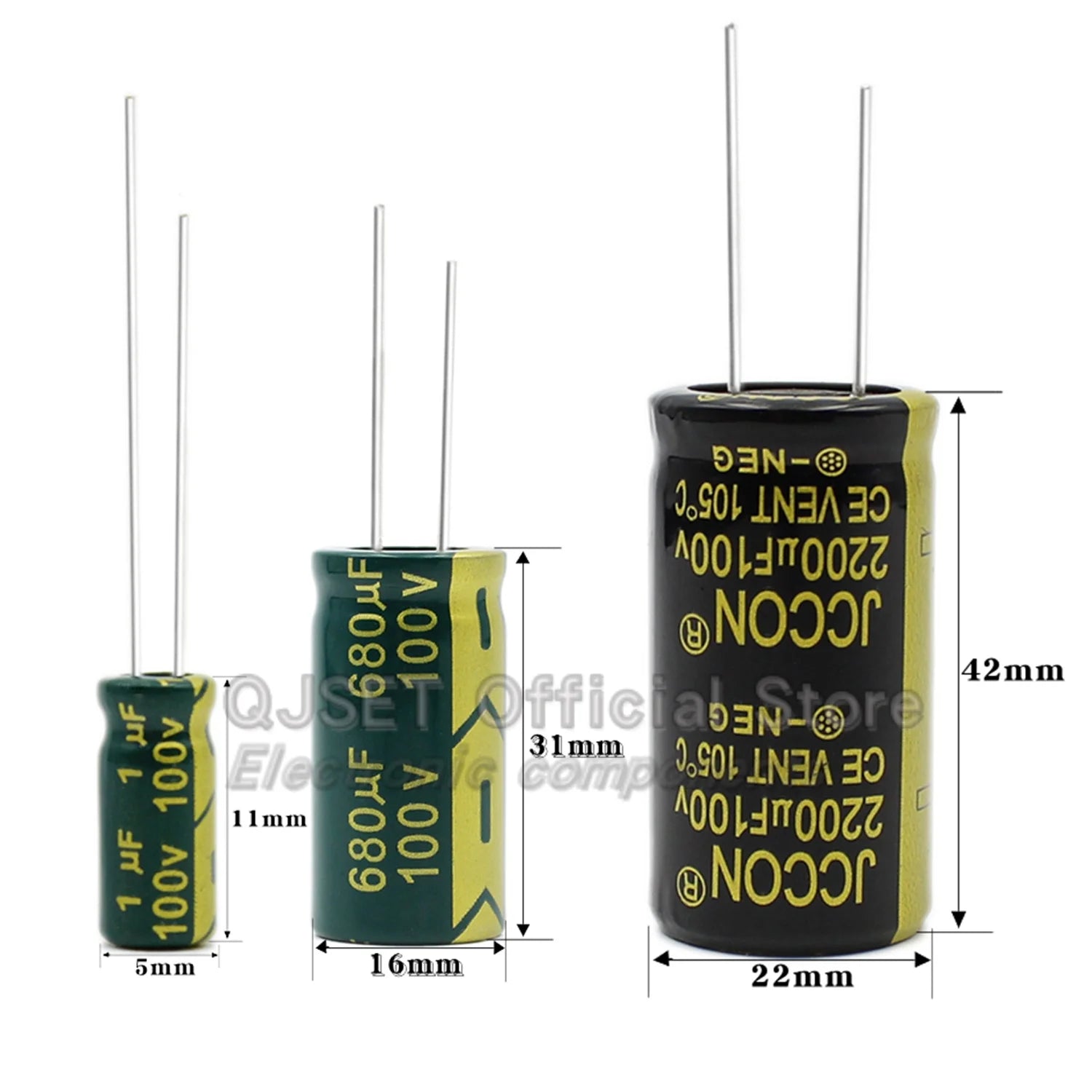

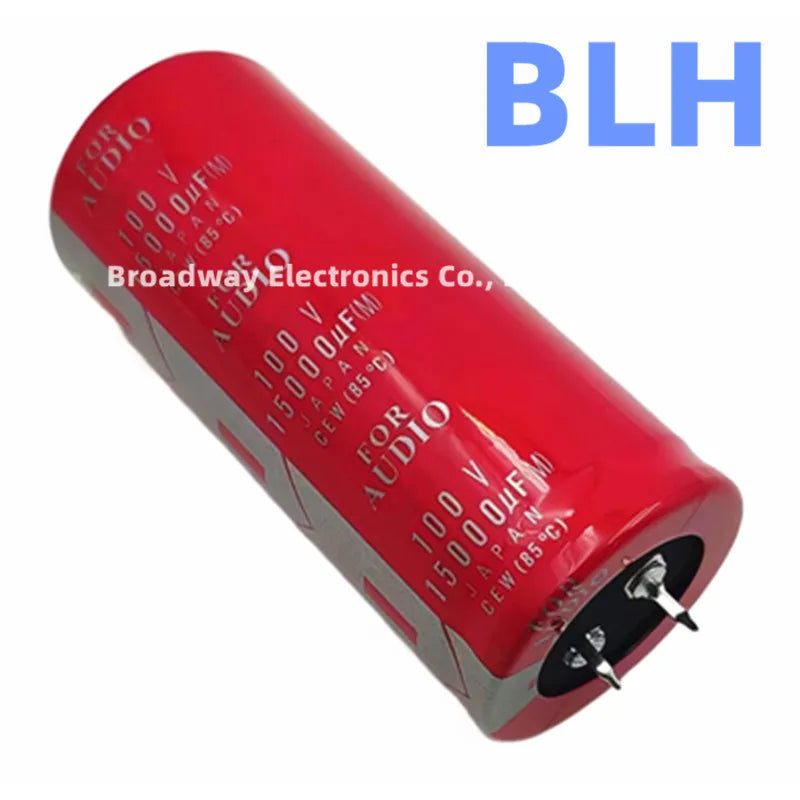

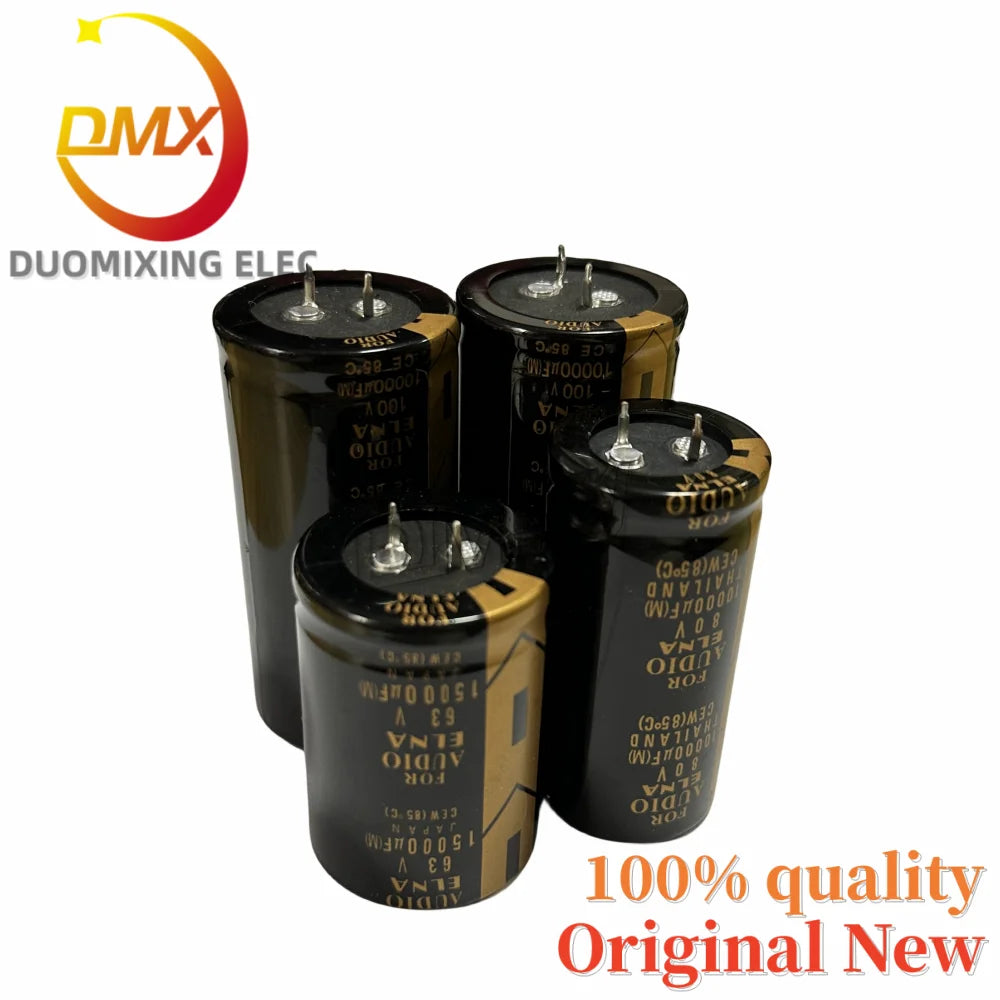

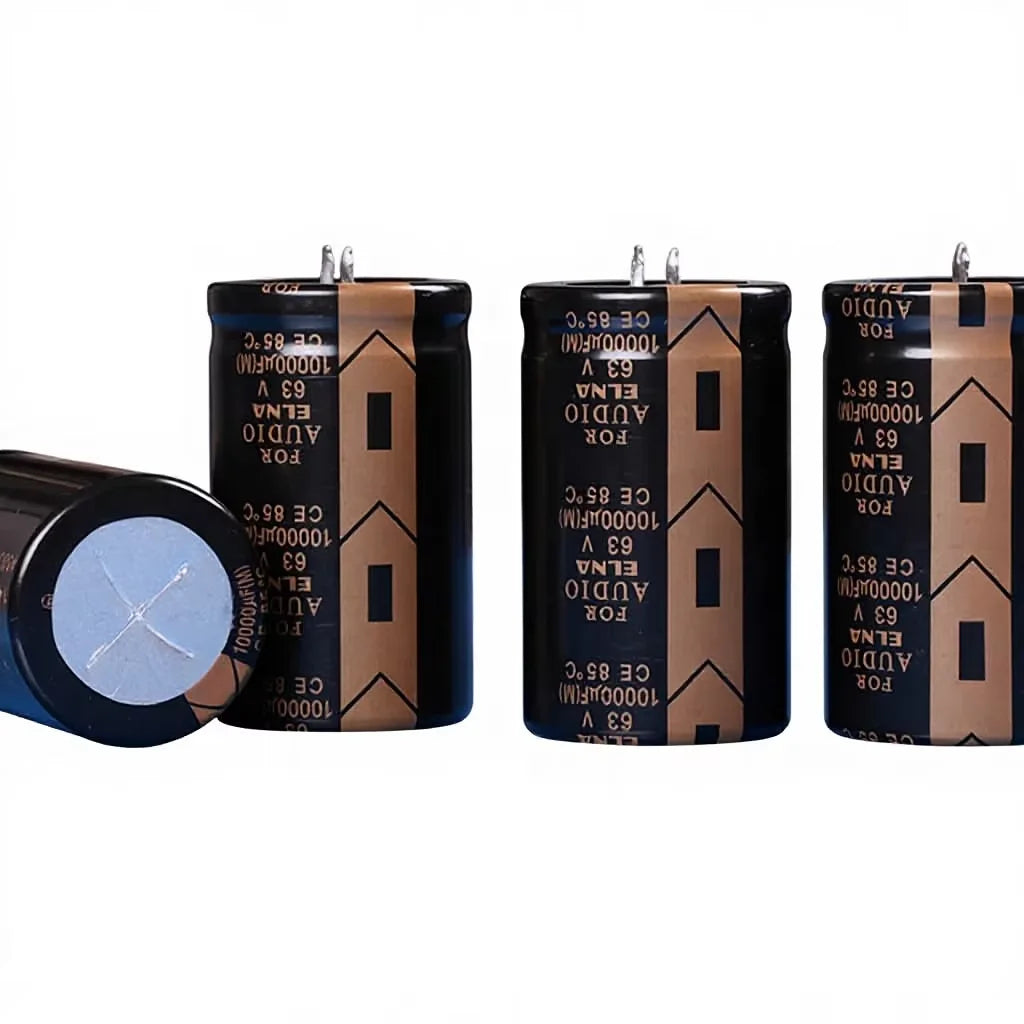

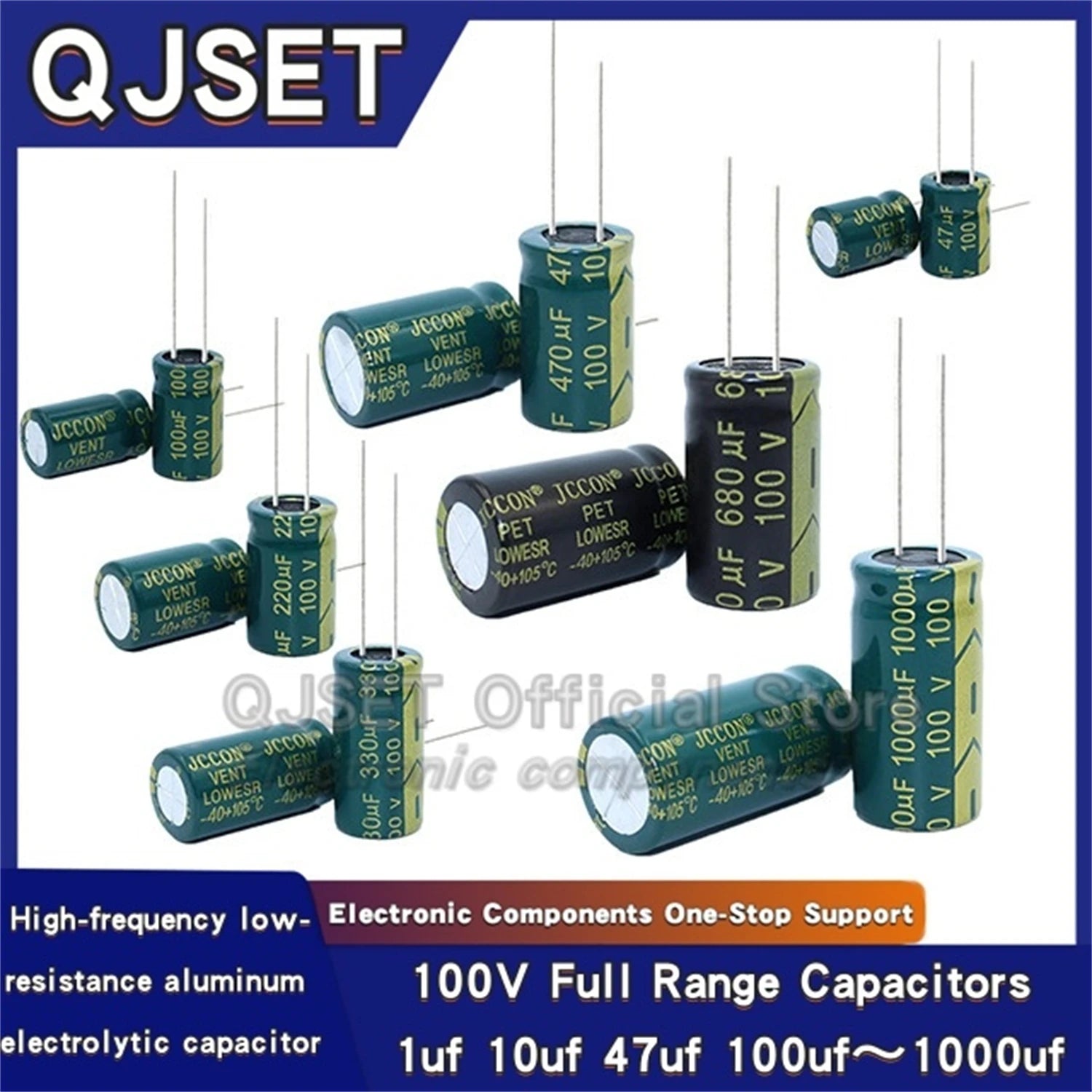

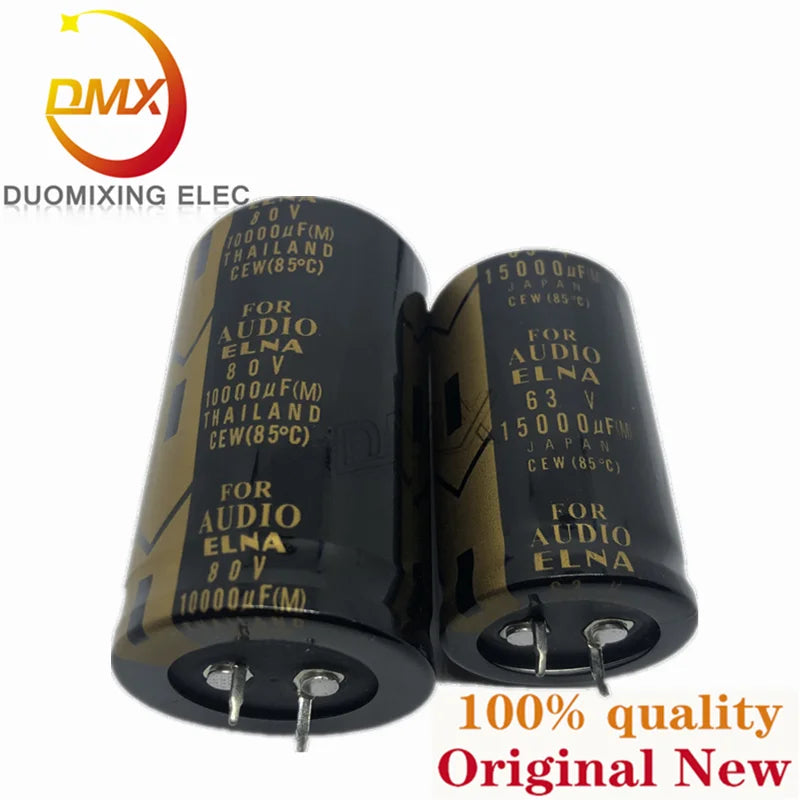

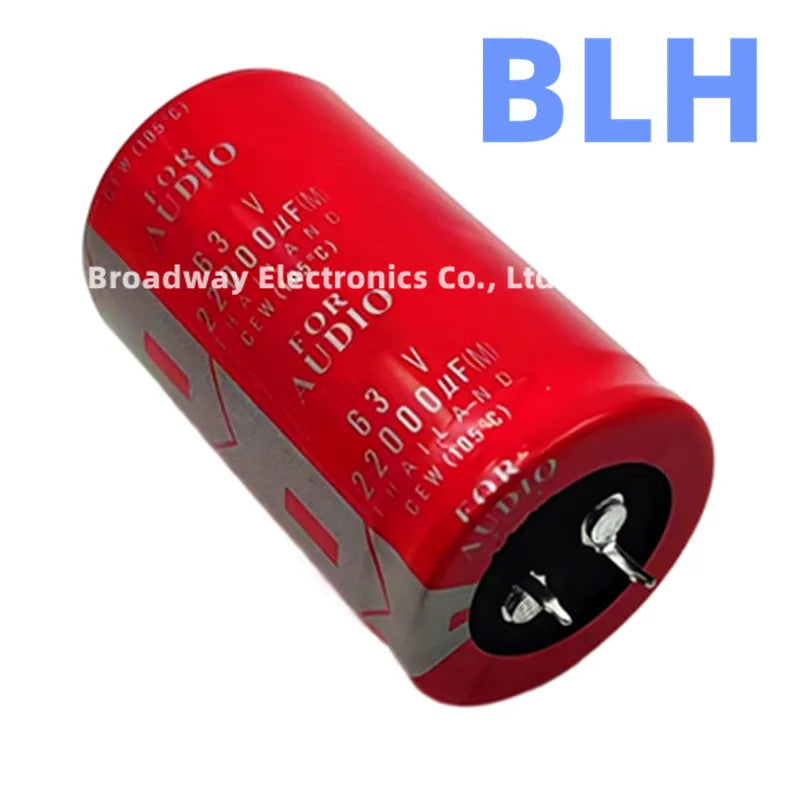

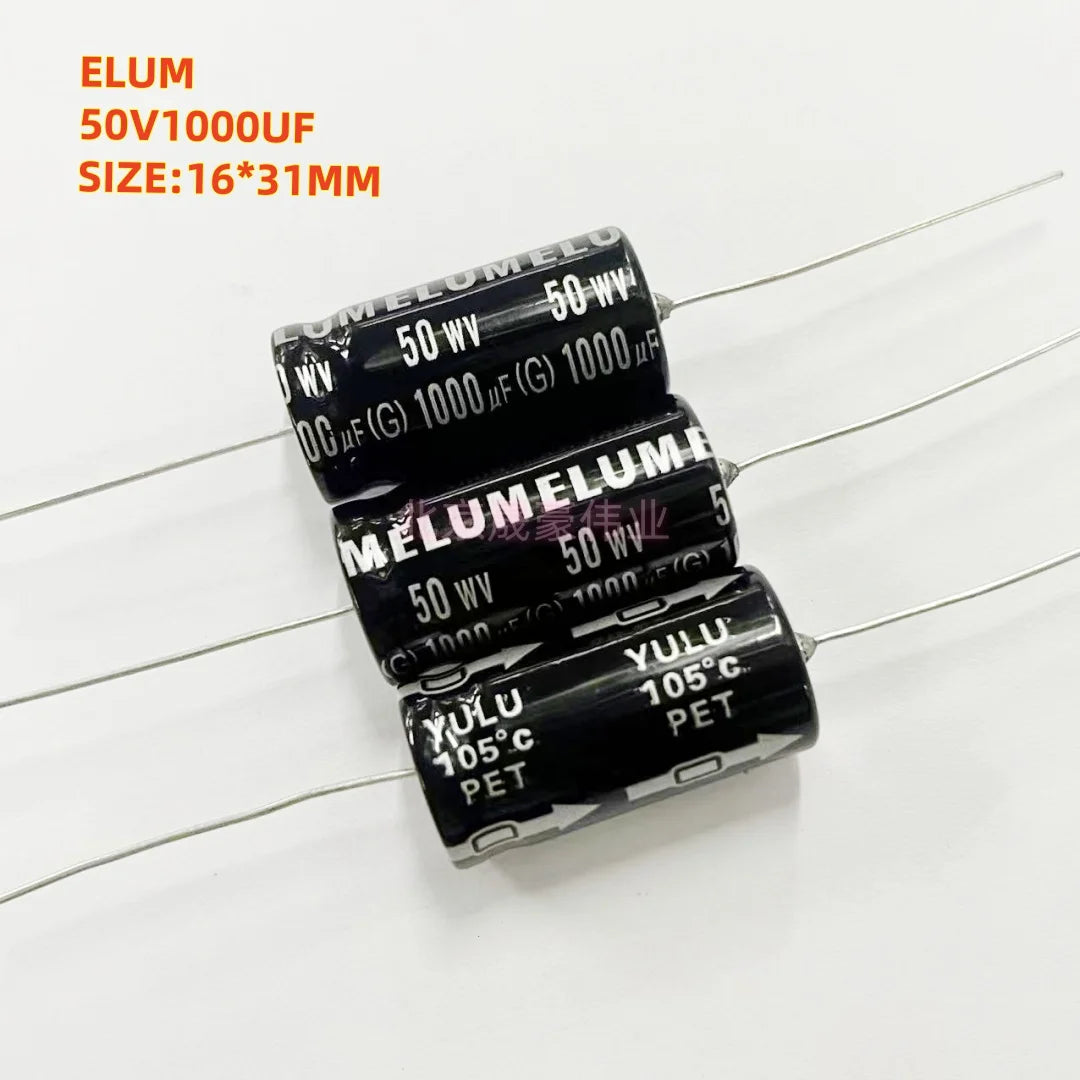

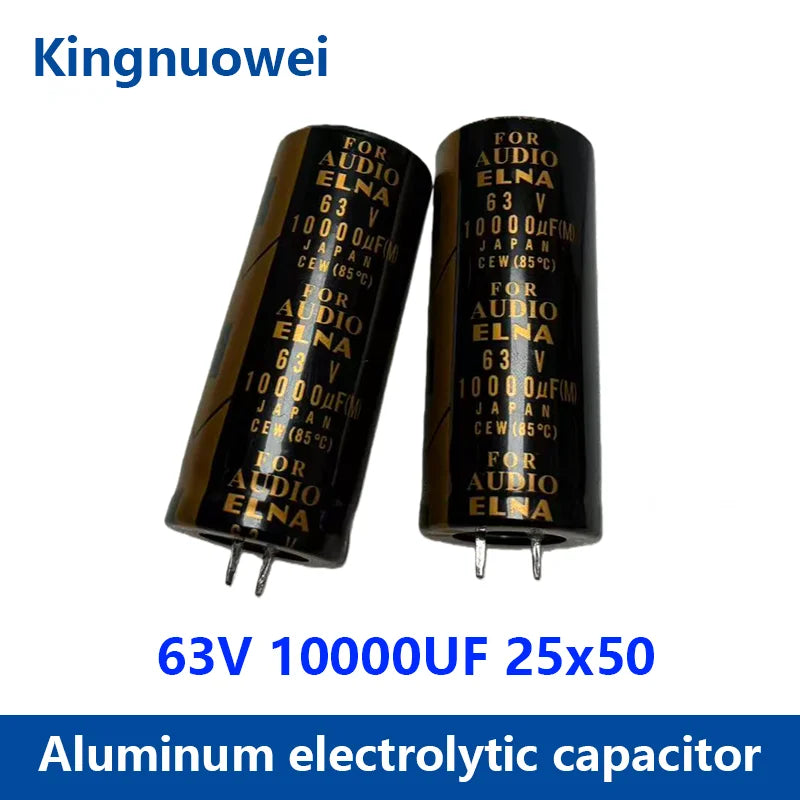

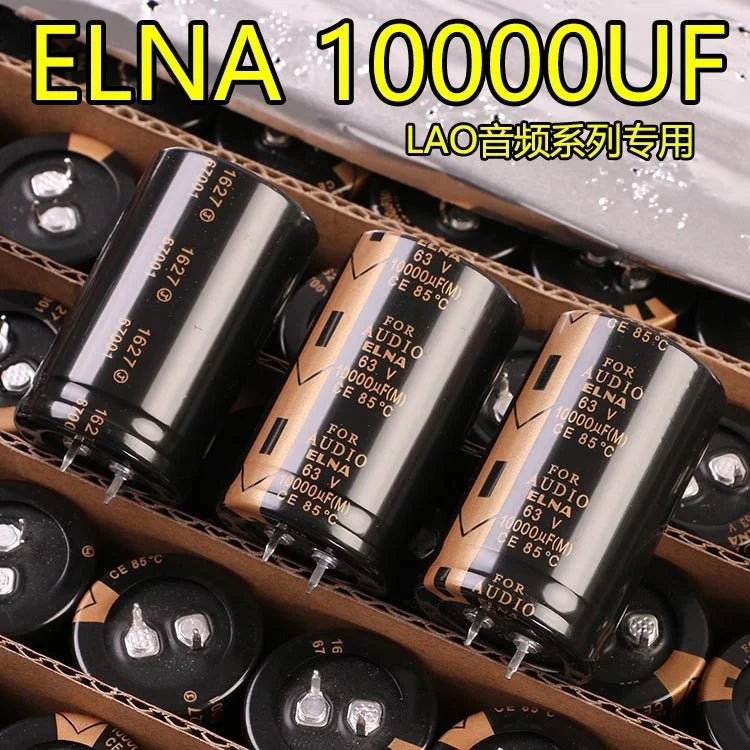

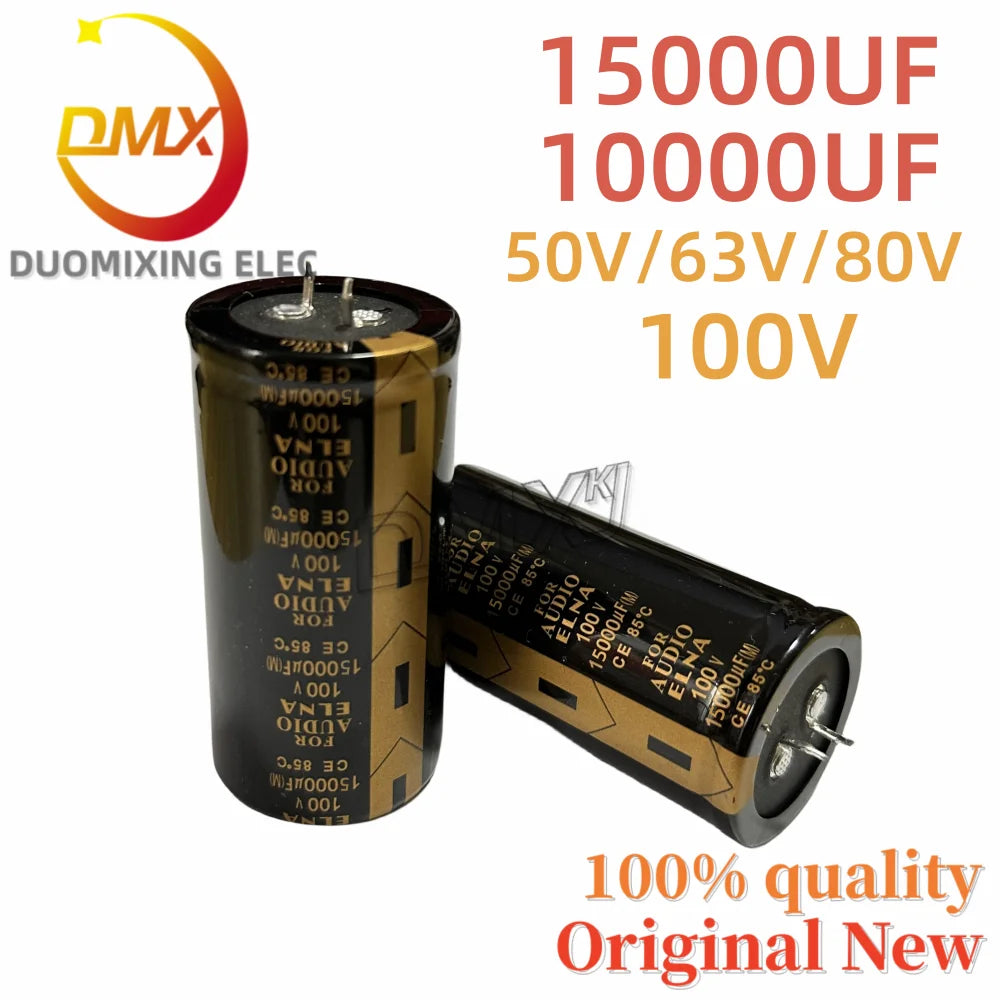

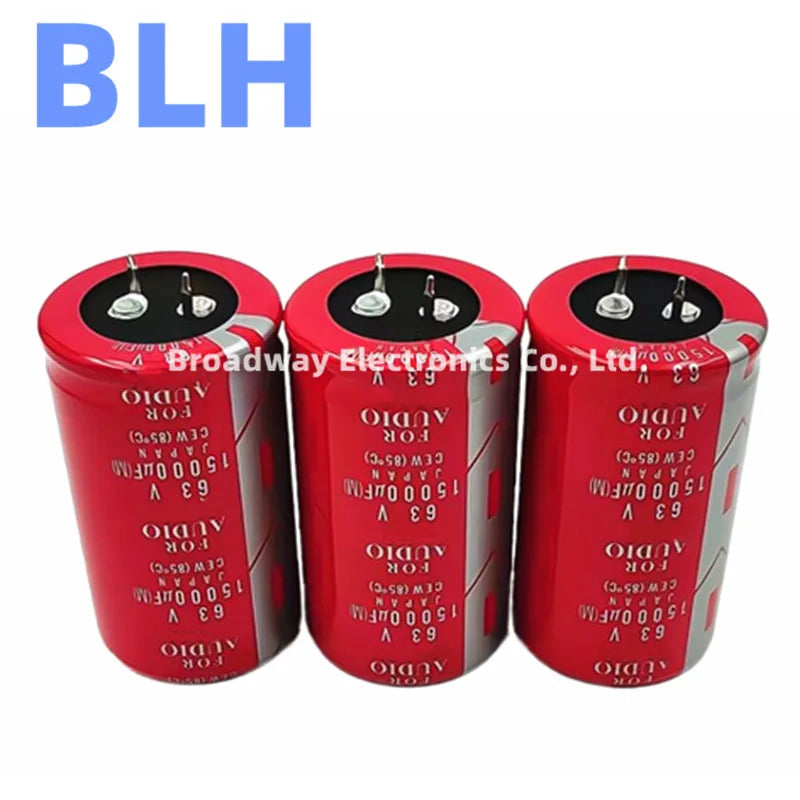

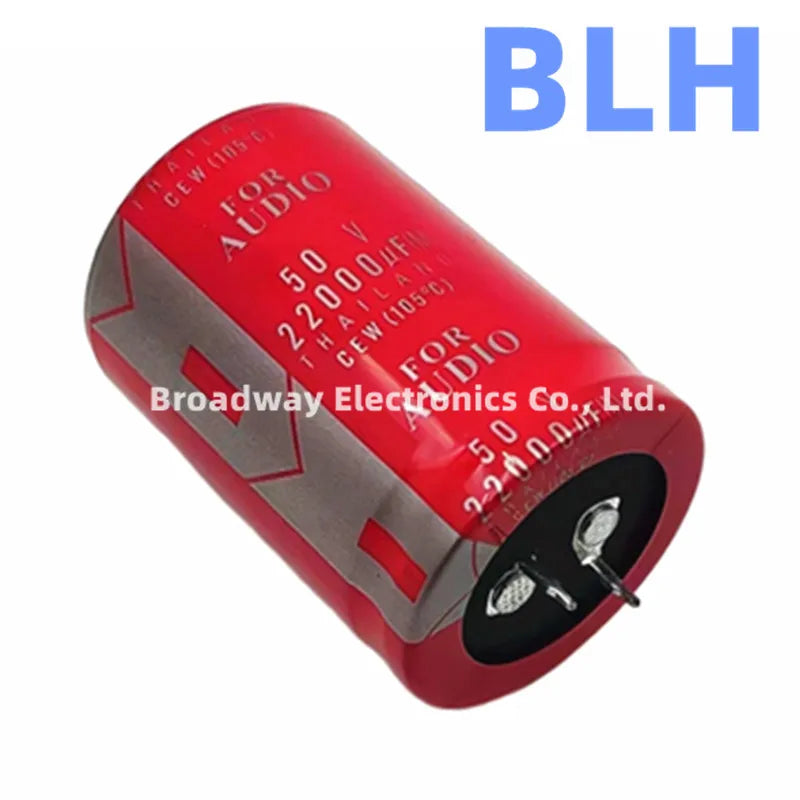

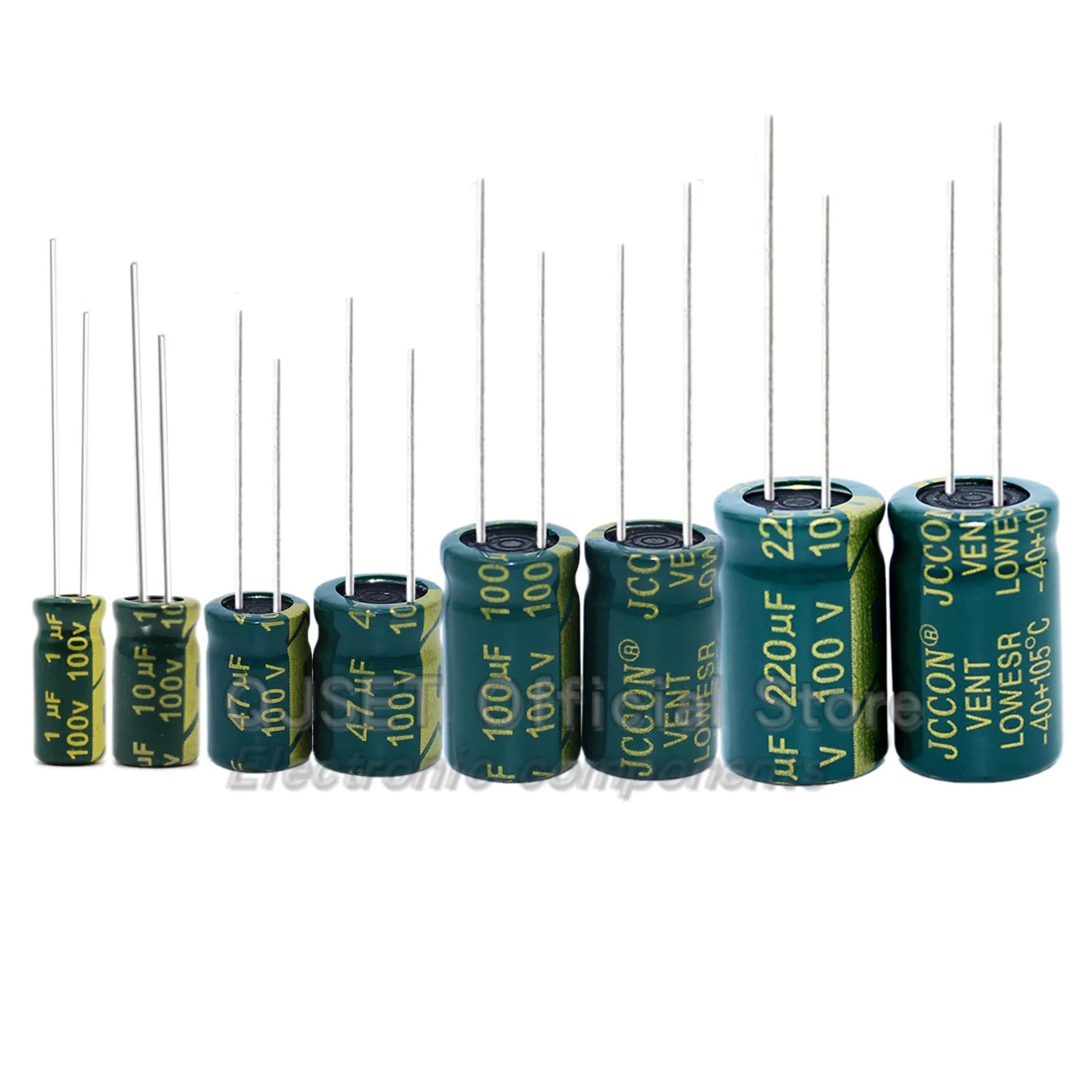

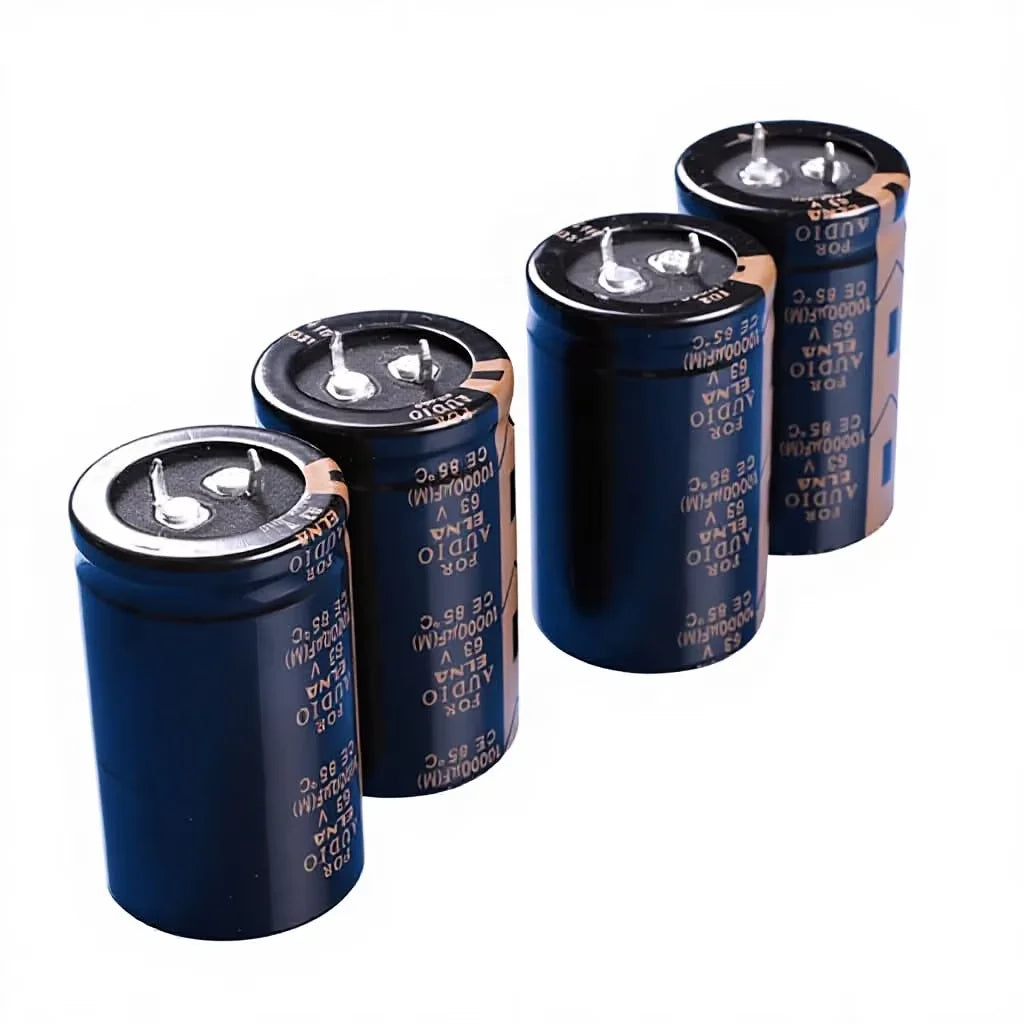

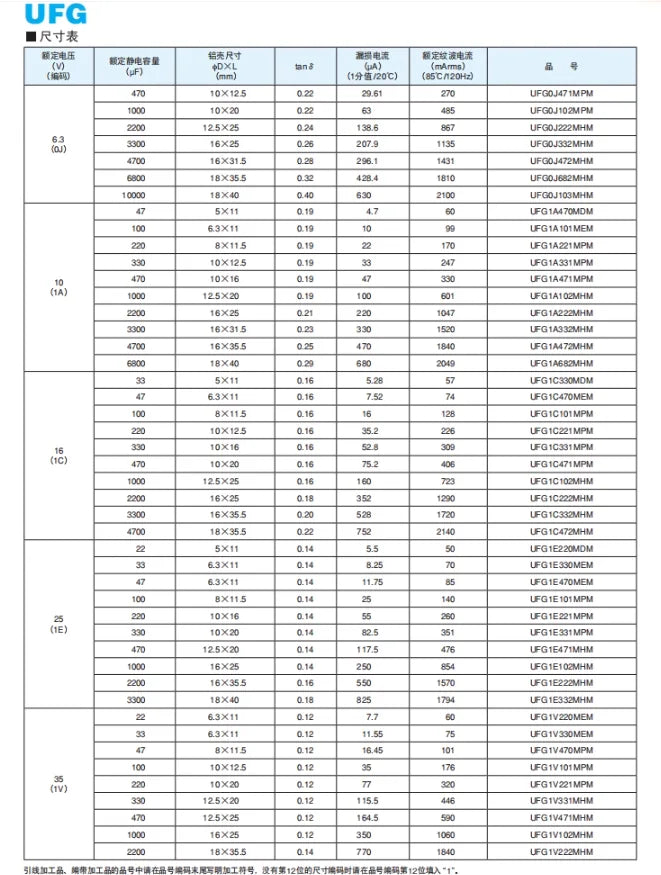

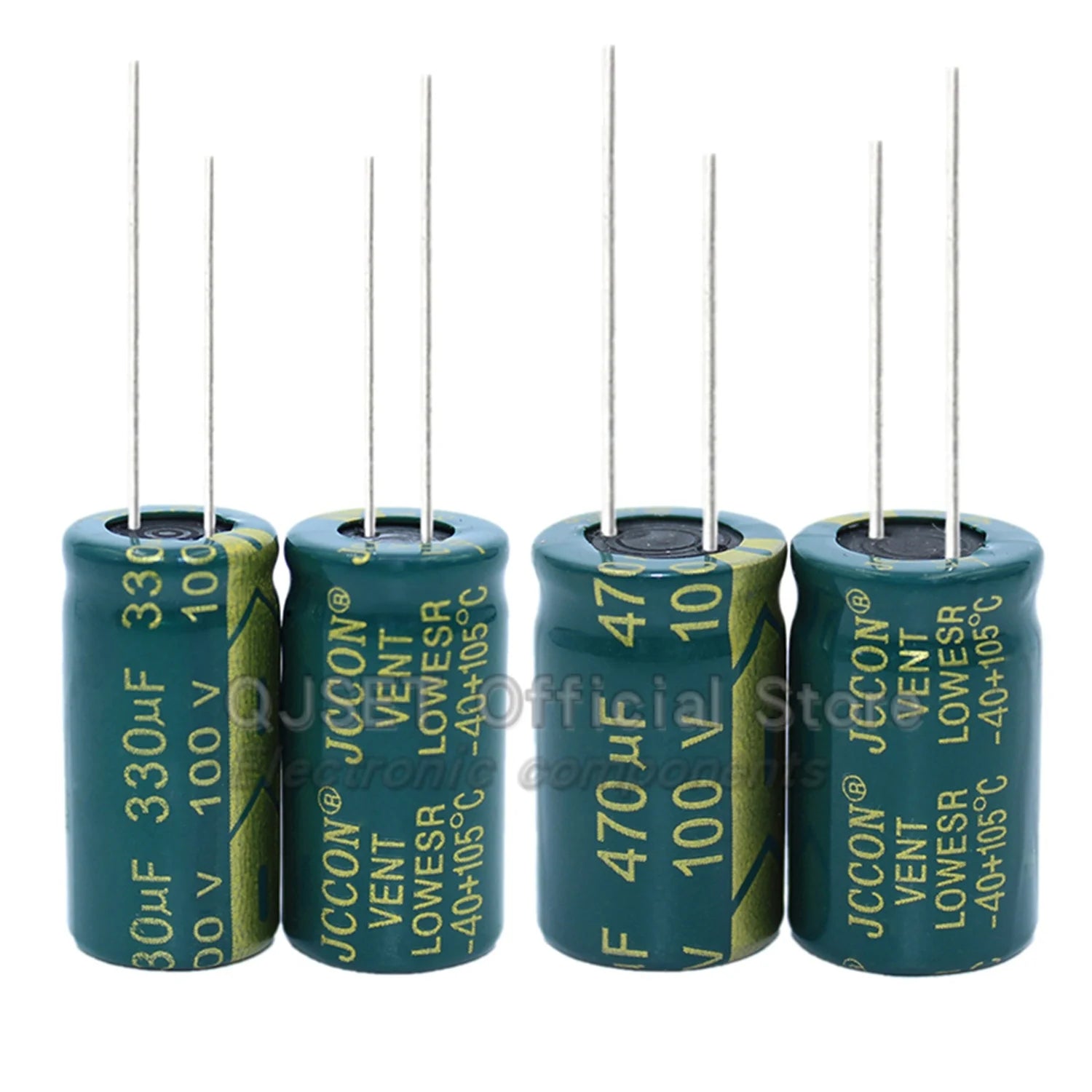

- Power-supply reservoir/filter capacitors: Many listings show 4,700–22,000 µF and other high-capacitance aluminium electrolytics for amplifier power supplies. Compare voltage, ripple-current rating, ESR/impedance, temperature and lifetime at the specified conditions, diameter, height, lead pitch and mounting. Large µF does not by itself prove suitable ripple current or audible improvement.
- Special formats: Silver-mica listings use pF values rather than µF, and a 100+100 µF or 50+50 µF can denotes separately identified sections. Check the common connection and equipment diagram; neither is a drop-in substitute for one ordinary crossover capacitor.
Selection workflow
- Read the original capacitor body, equipment schematic and the selected listing variant. Record capacitance and unit (pF, nF or µF), voltage type and value, tolerance, polarity and quantity per pack. A variant option labeled “Color” may actually be a capacitance value.

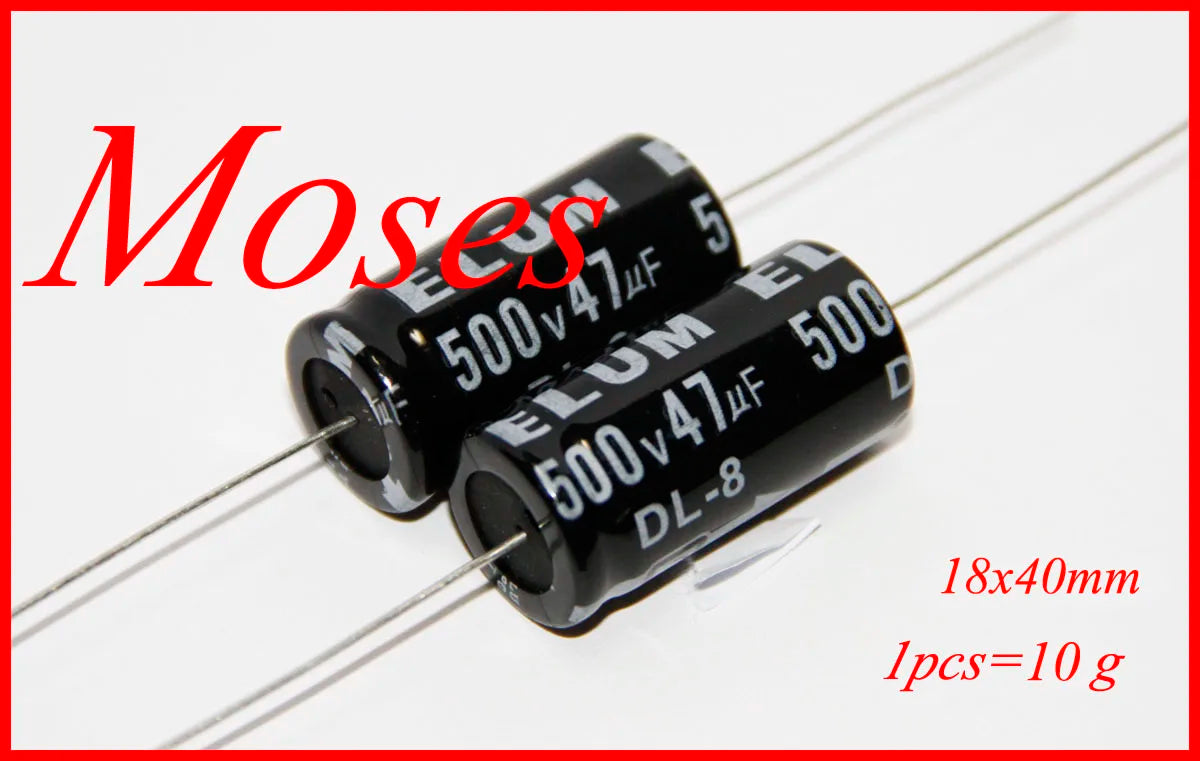

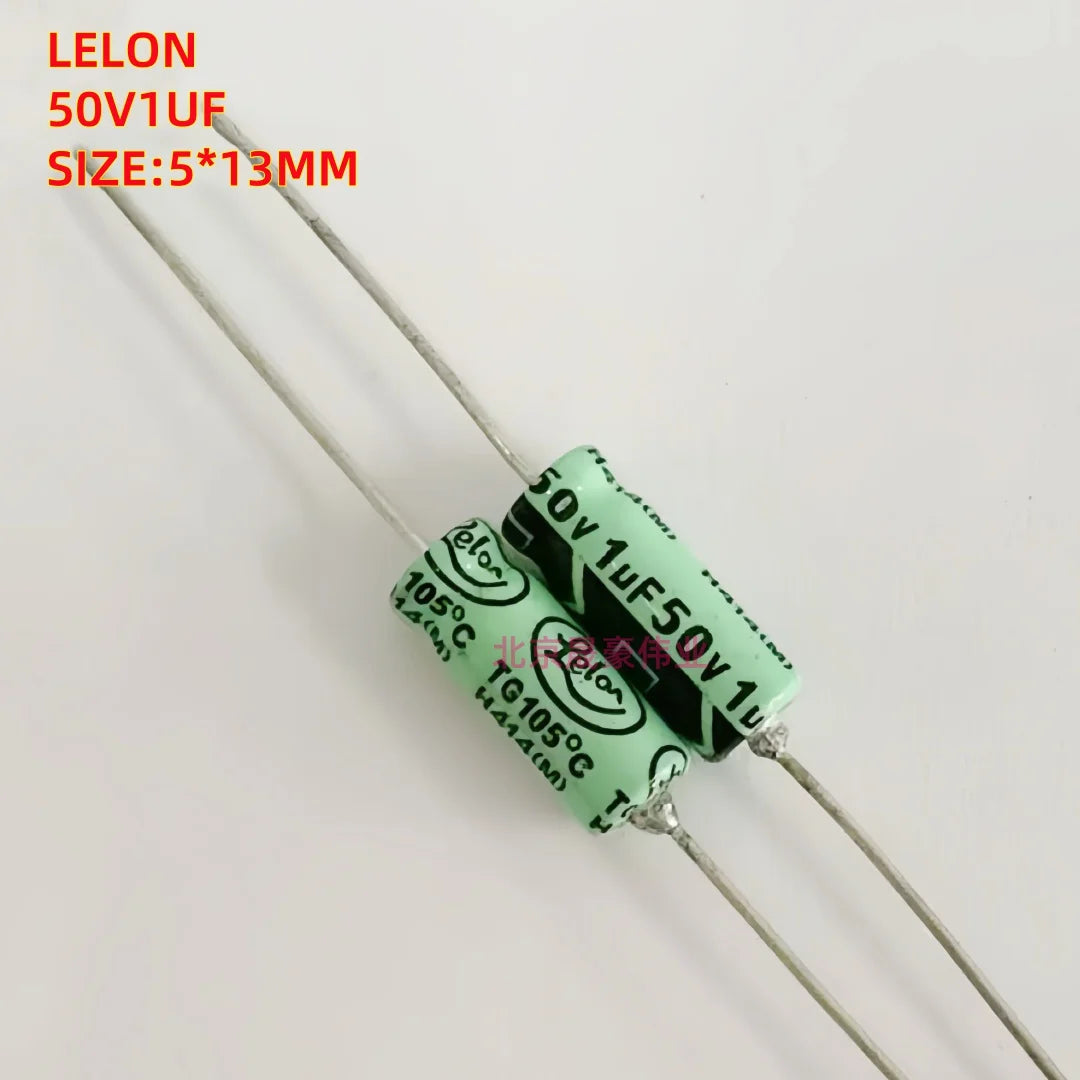

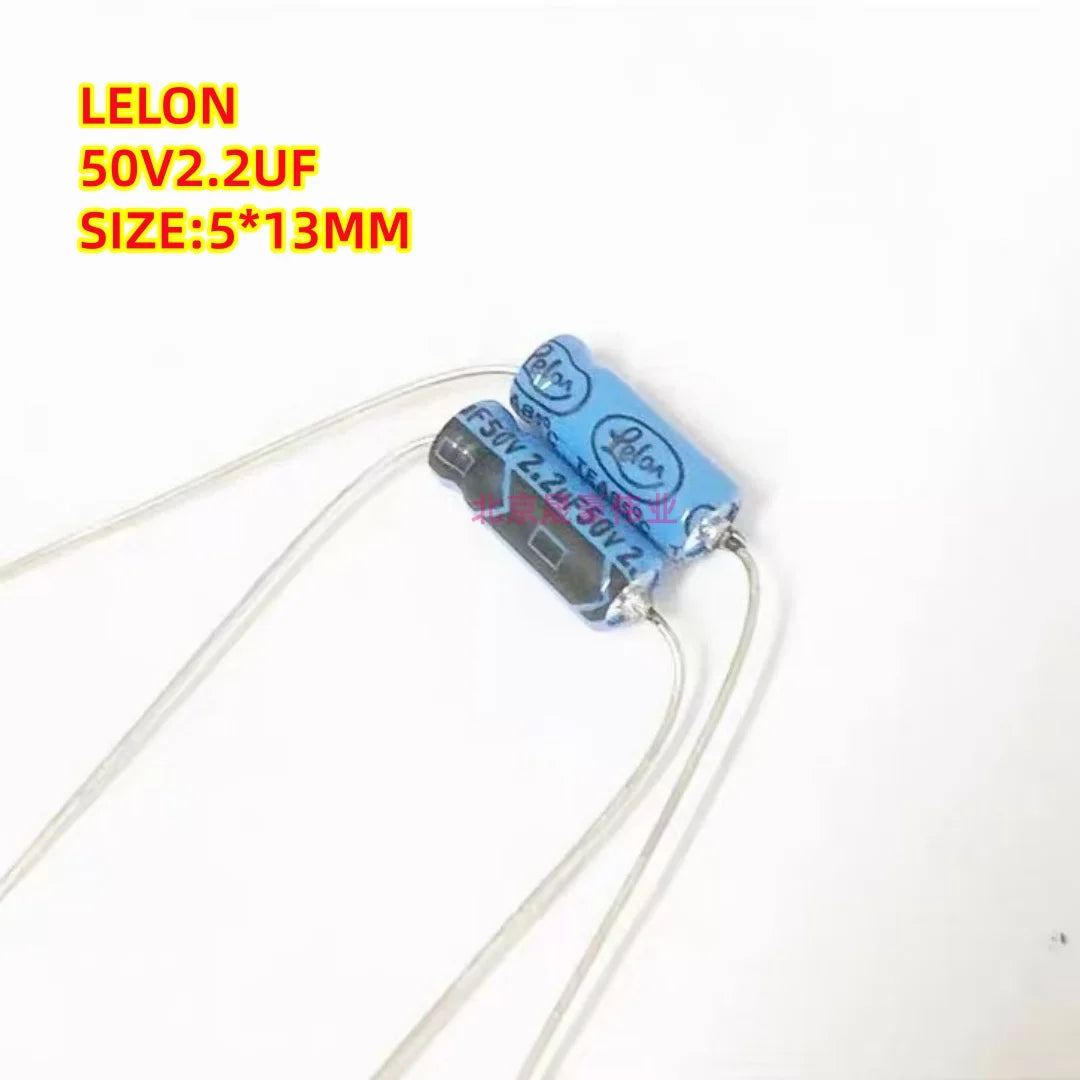

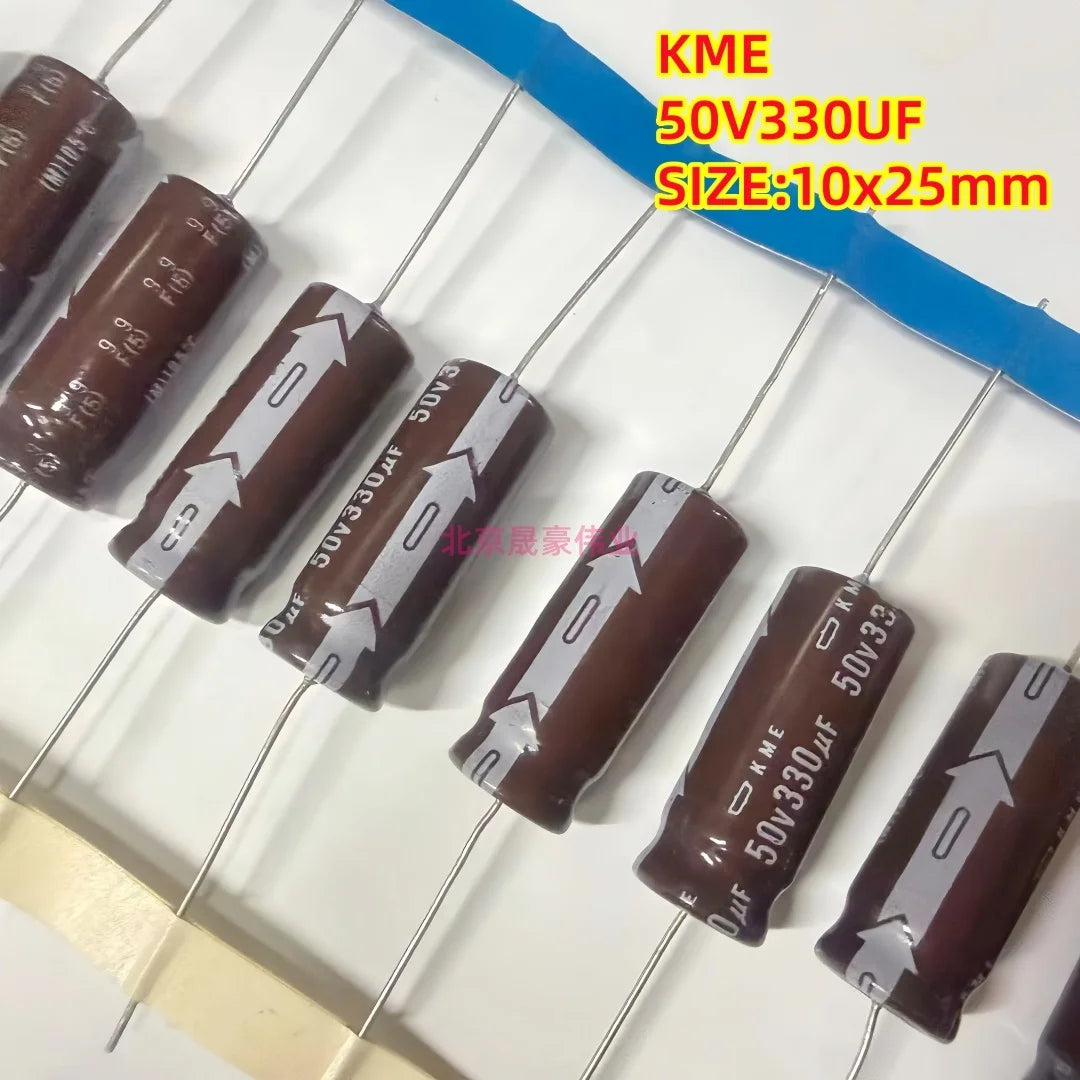

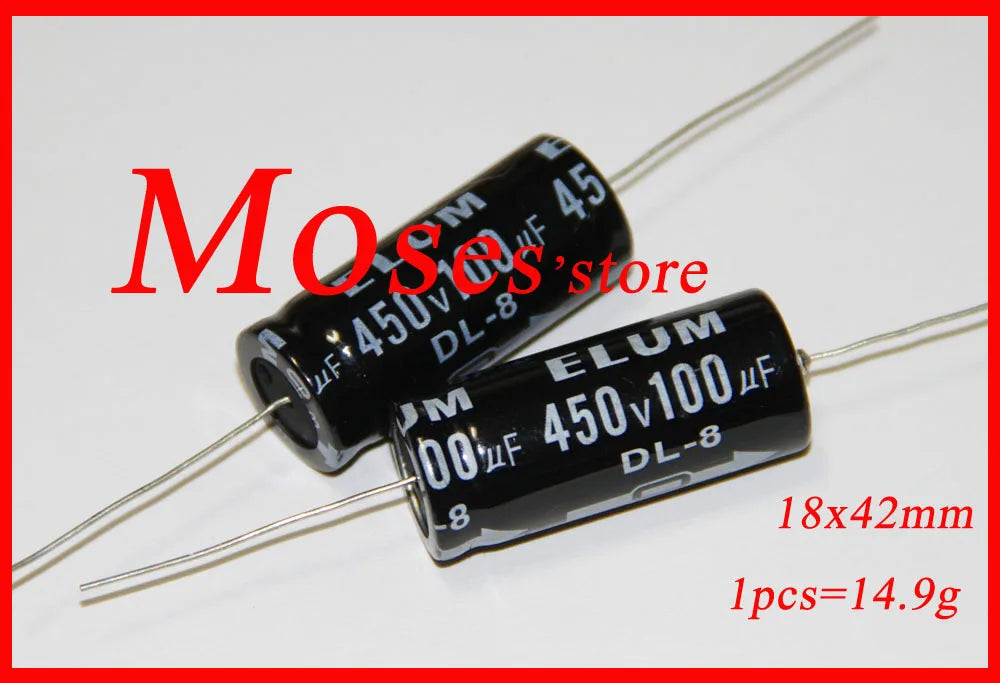

- Identify dielectric and form factor. MKP polypropylene film, MKS polyester film, bipolar electrolytic and polarized electrolytic are different constructions. Check axial versus radial leads, dimensions and lead spacing before ordering.
- For a crossover, evaluate topology, crossover frequency, driver impedance, signal level and dissipation with the actual design. For a supply, verify ripple and thermal limits. Do not infer a frequency response, distortion figure, sound quality or universal equipment compatibility from words such as “HiFi,” “fever” or “audiophile.”

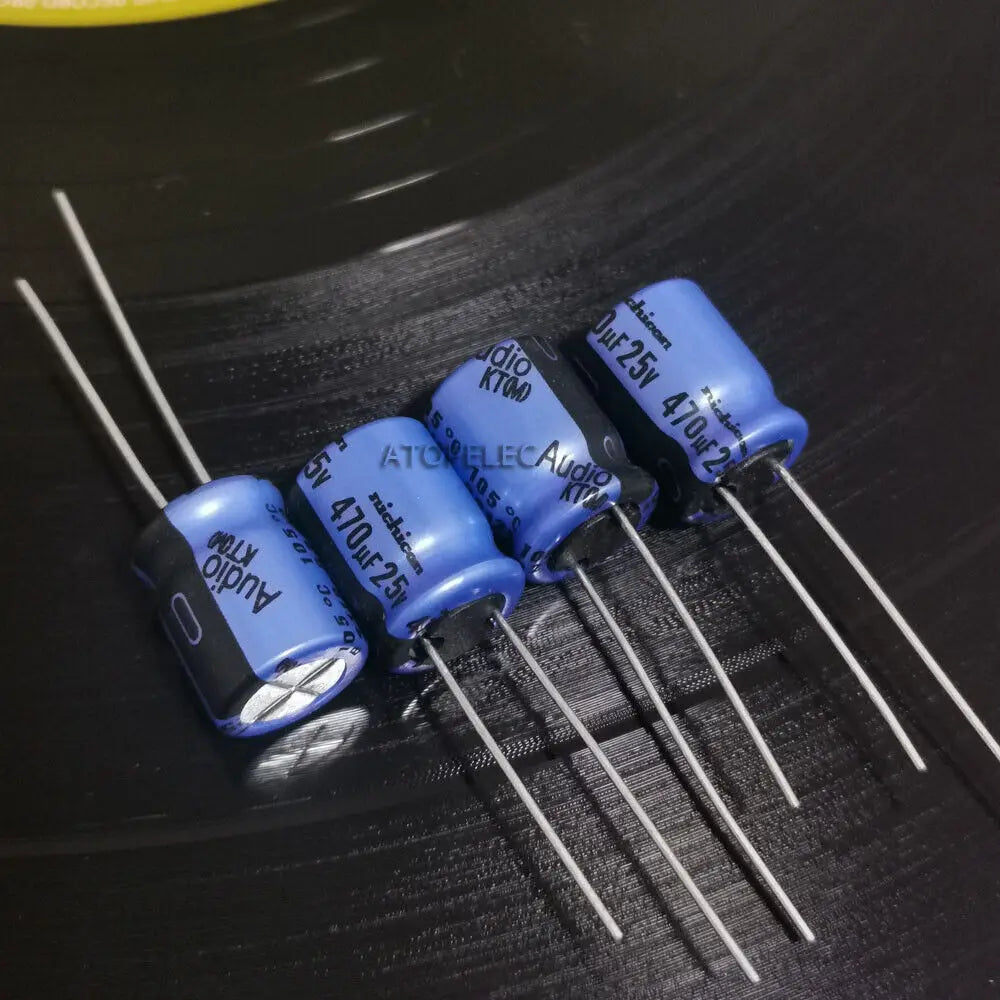

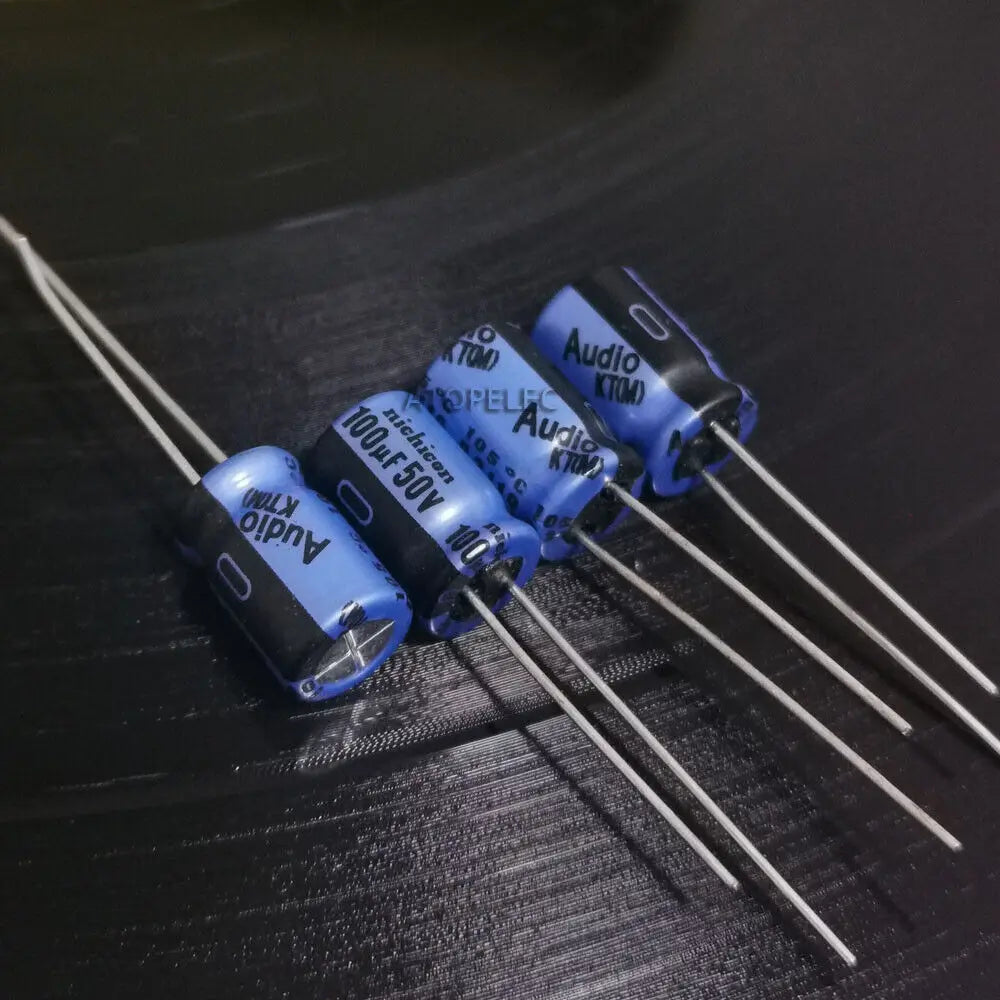

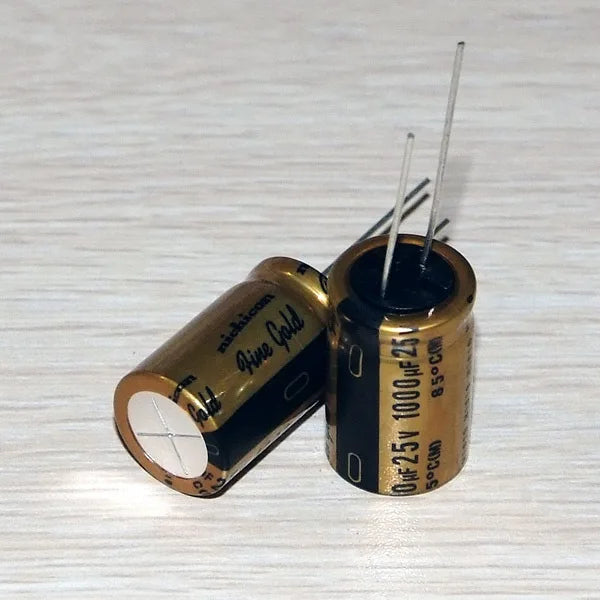

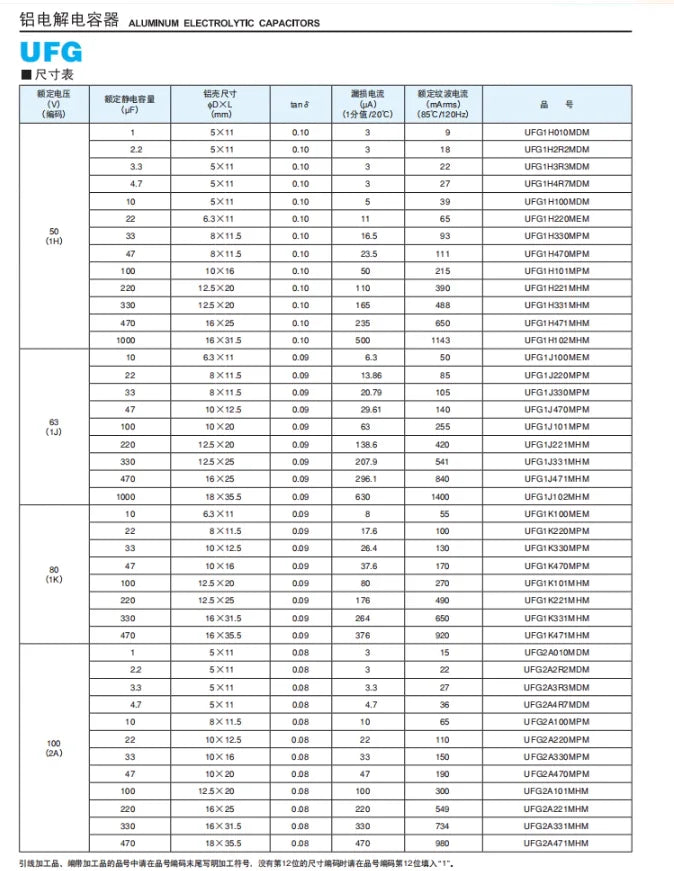

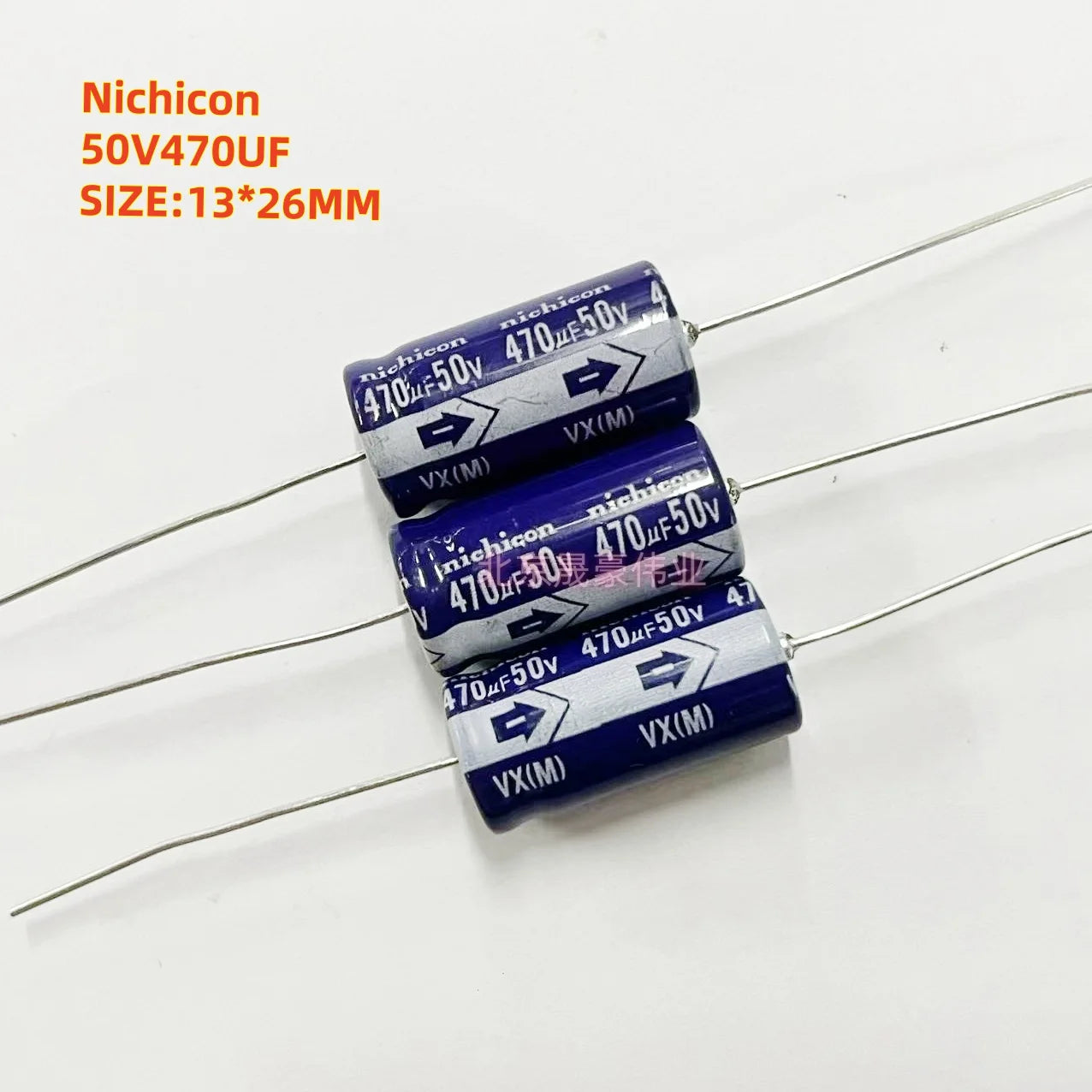

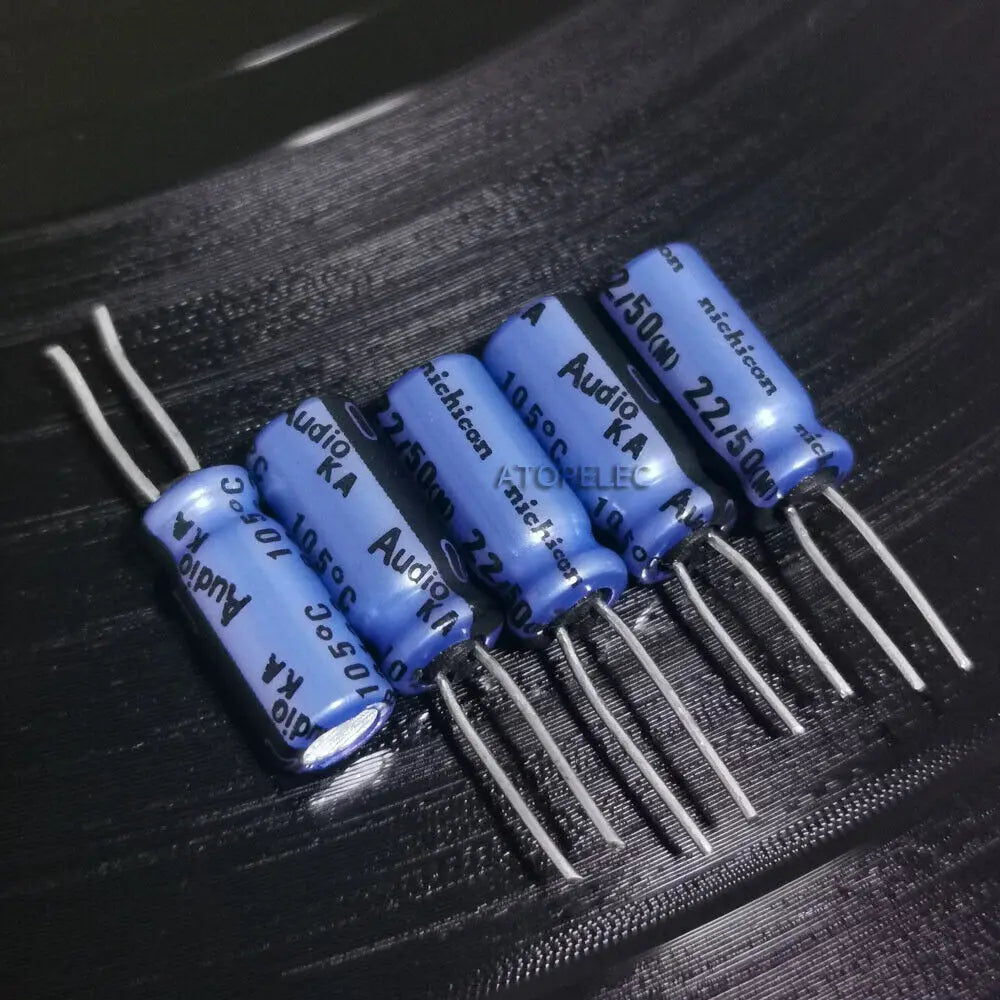

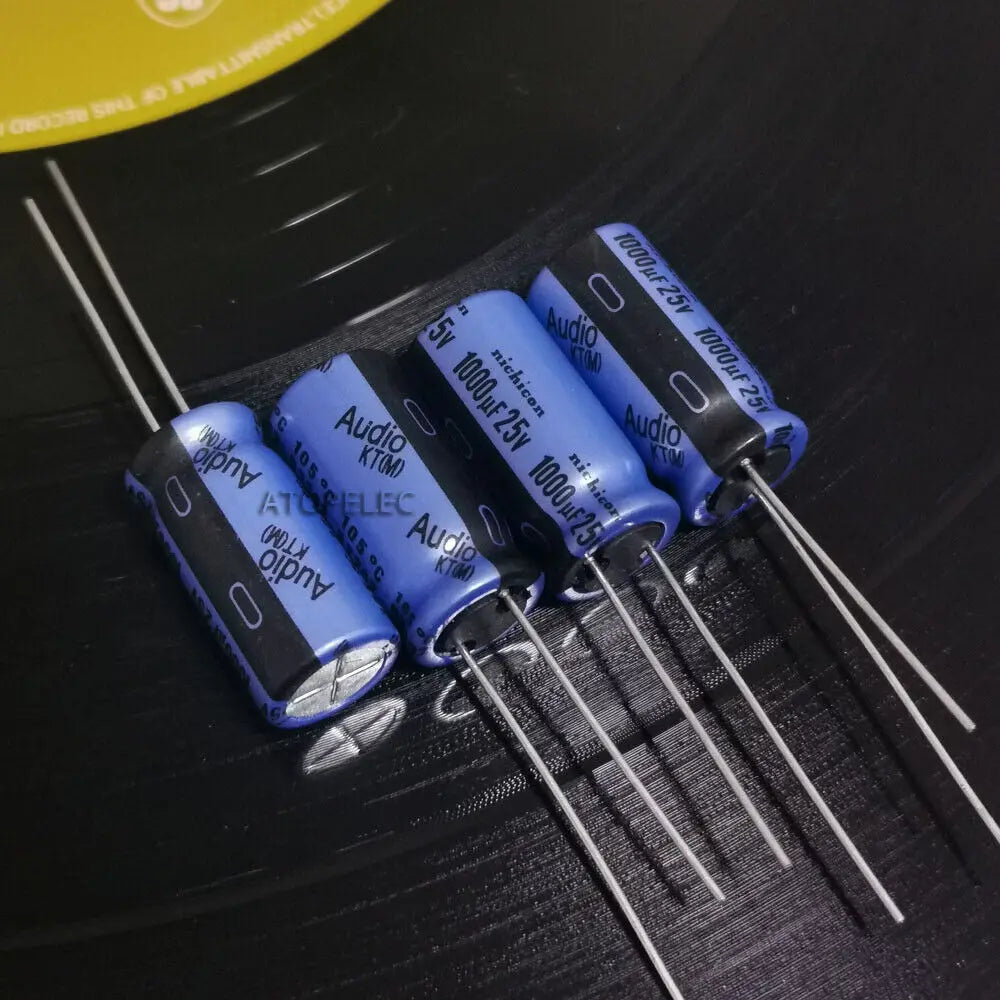

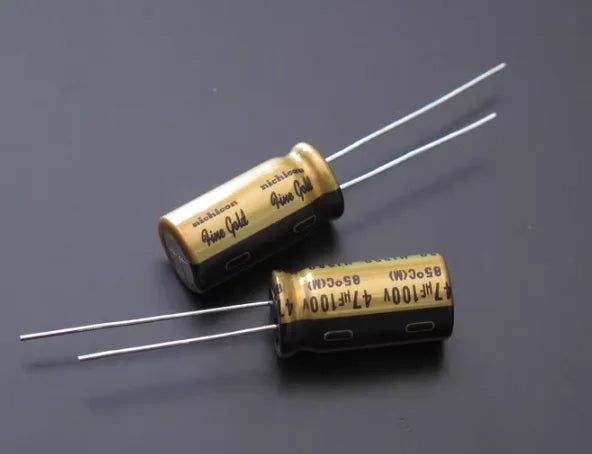

- Supplier titles mentioning Nichicon, ELNA, WIMA, DUELUND or “original” are not documentation of manufacturer origin or authorized sourcing. Where a specific series is essential, verify markings and traceable manufacturer data for that exact selected component.
Buying checklist and FAQ
Bring the schematic position, original marking, capacitance and unit, voltage, tolerance, polarity, dielectric, ESR or ripple requirement where applicable, lead layout, body clearance and selected pack count.
Can I use a polarized electrolytic in a passive crossover? Not merely because the µF matches; follow the circuit's polarity and part requirements, often a non-polar type.
Does “audio grade” guarantee better sound? No. Performance depends on the circuit, verified component specifications, operating conditions and measurements.
Does a 400 V film capacitor replace a 400 V electrolytic? Not by voltage alone. Compare capacitance, polarity, dielectric behavior, form factor and the circuit function.
