Common-Mode Chokes and Filter Inductors
Choke inductors for noise filtering and current smoothing

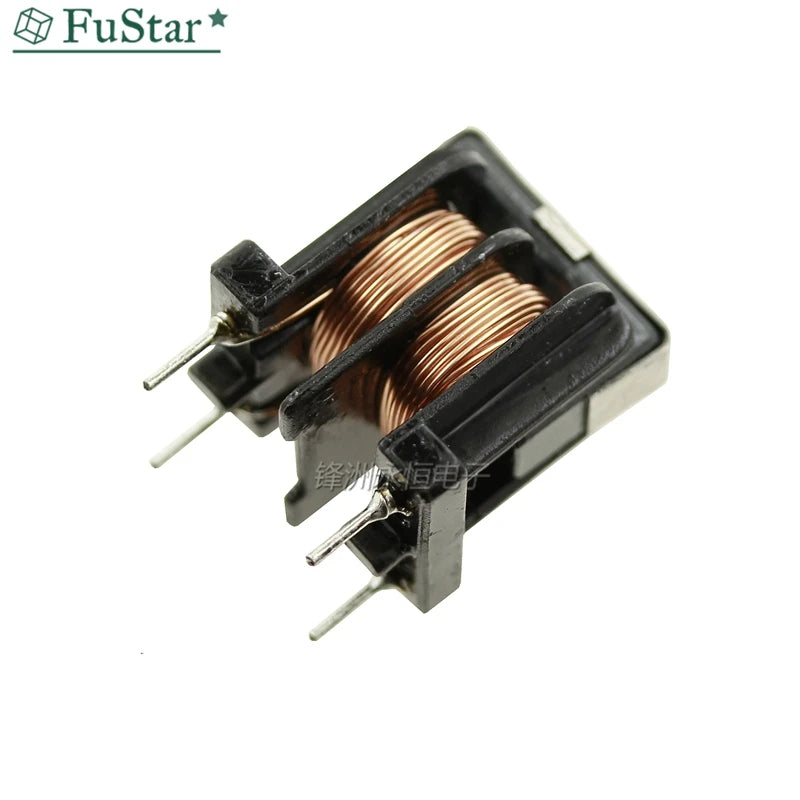

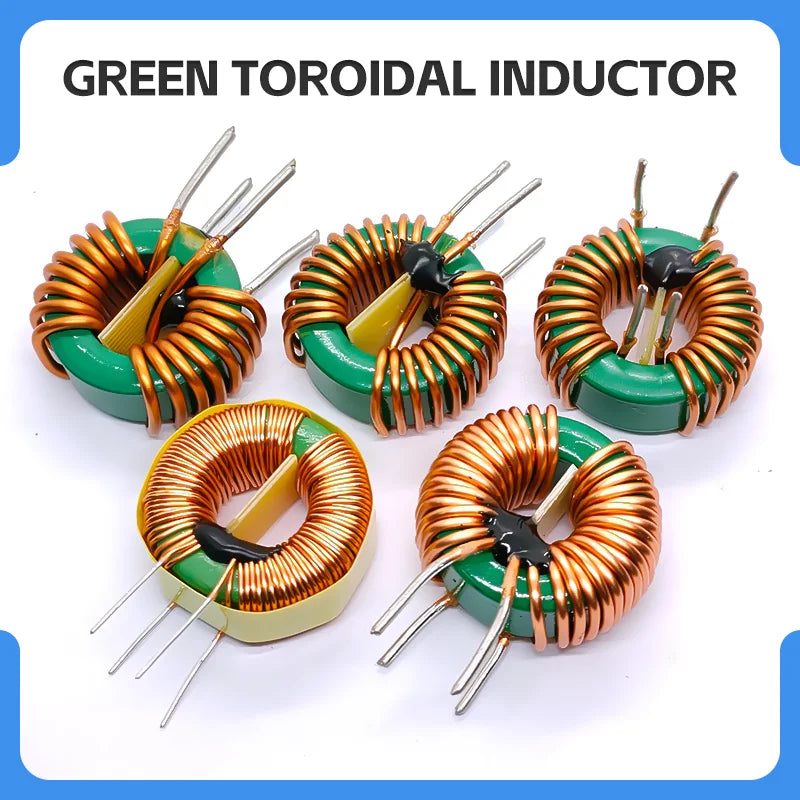

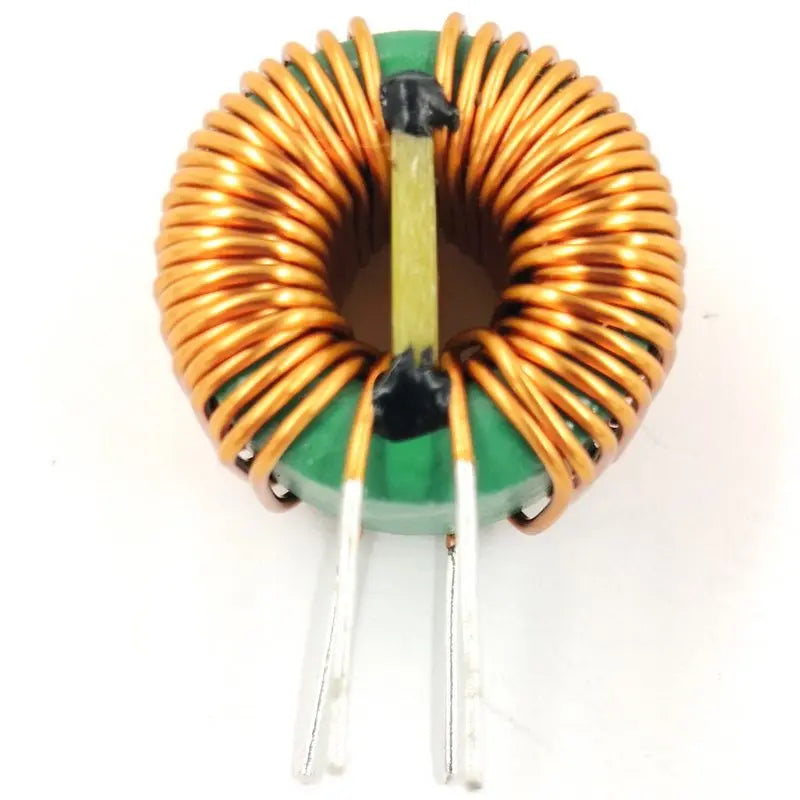

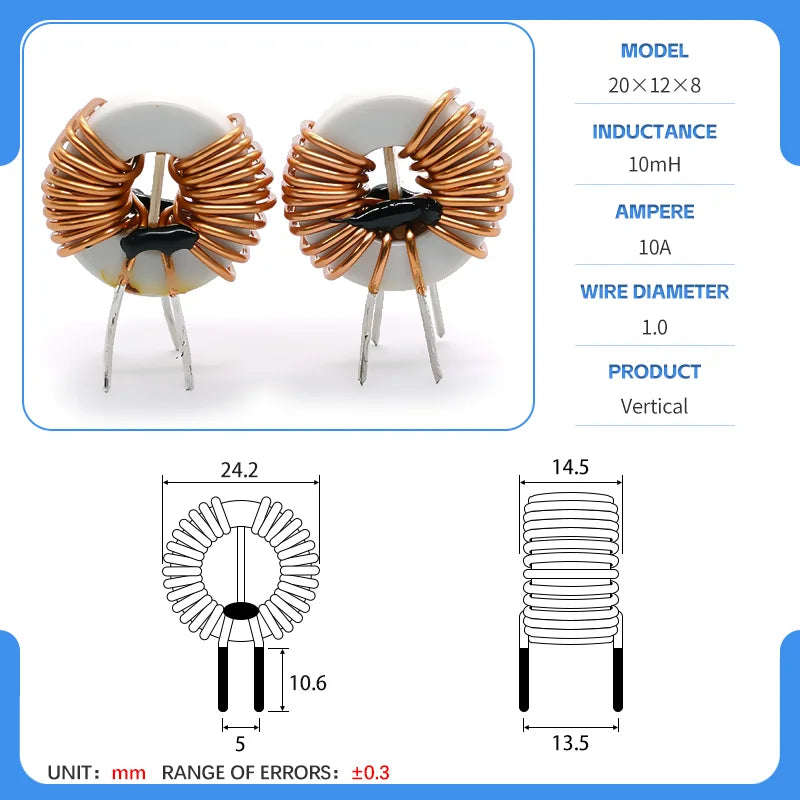

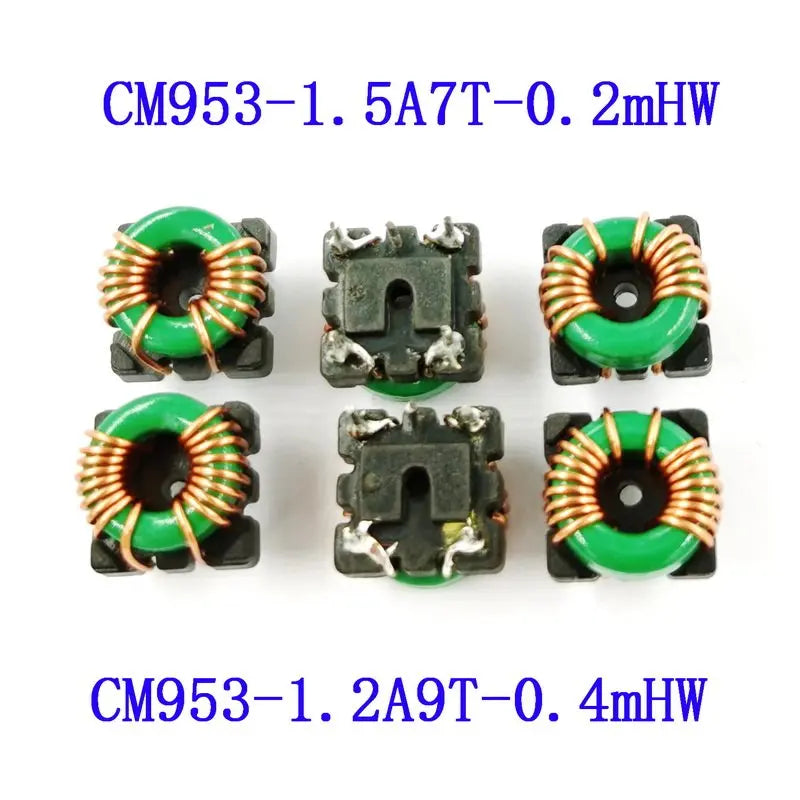

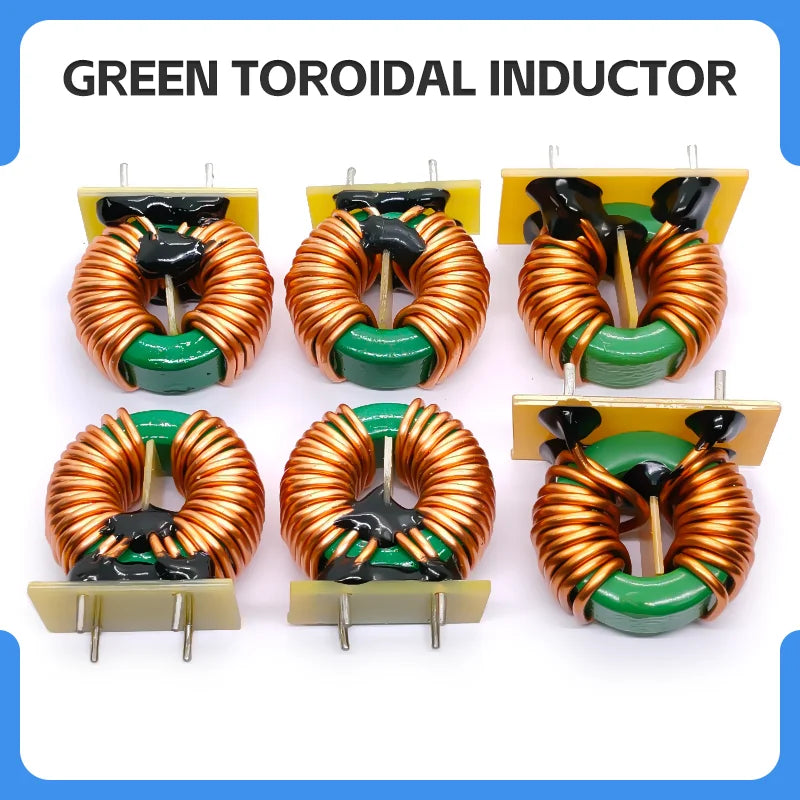

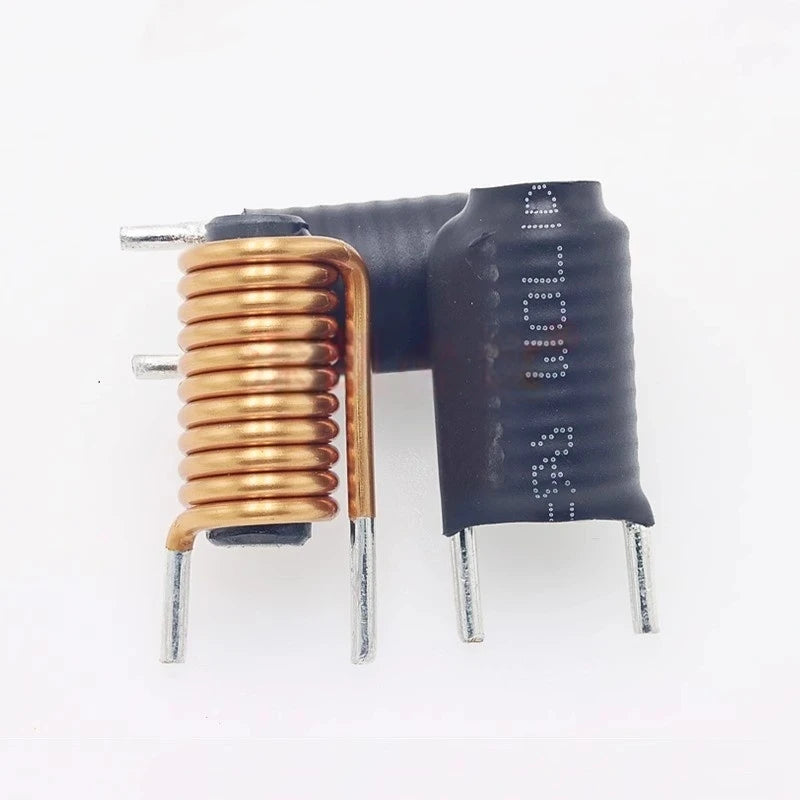

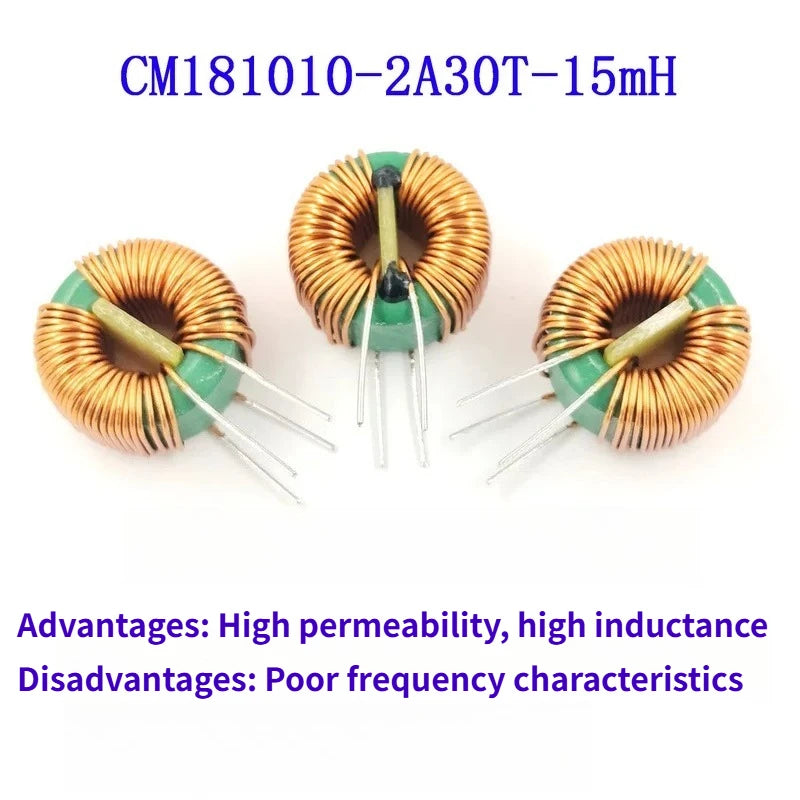

A choke is a magnetic component used to oppose changing current. Here, most listings are coupled-winding common-mode chokes for signal or power-line noise filtering: through-hole UU9.8/UU10.5, EE and ET-style parts, toroidal nanocrystalline or ferrite wound types, flat-wire high-current filters and SMD signal-line chokes. The collection also contains single-winding rod, I-core, toroidal and molded power inductors, a tube-equipment load choke, a bare sendust ring core and mixed-value kits. “Choke” in a title does not make these circuits or parts interchangeable.
Understand the actual filter function

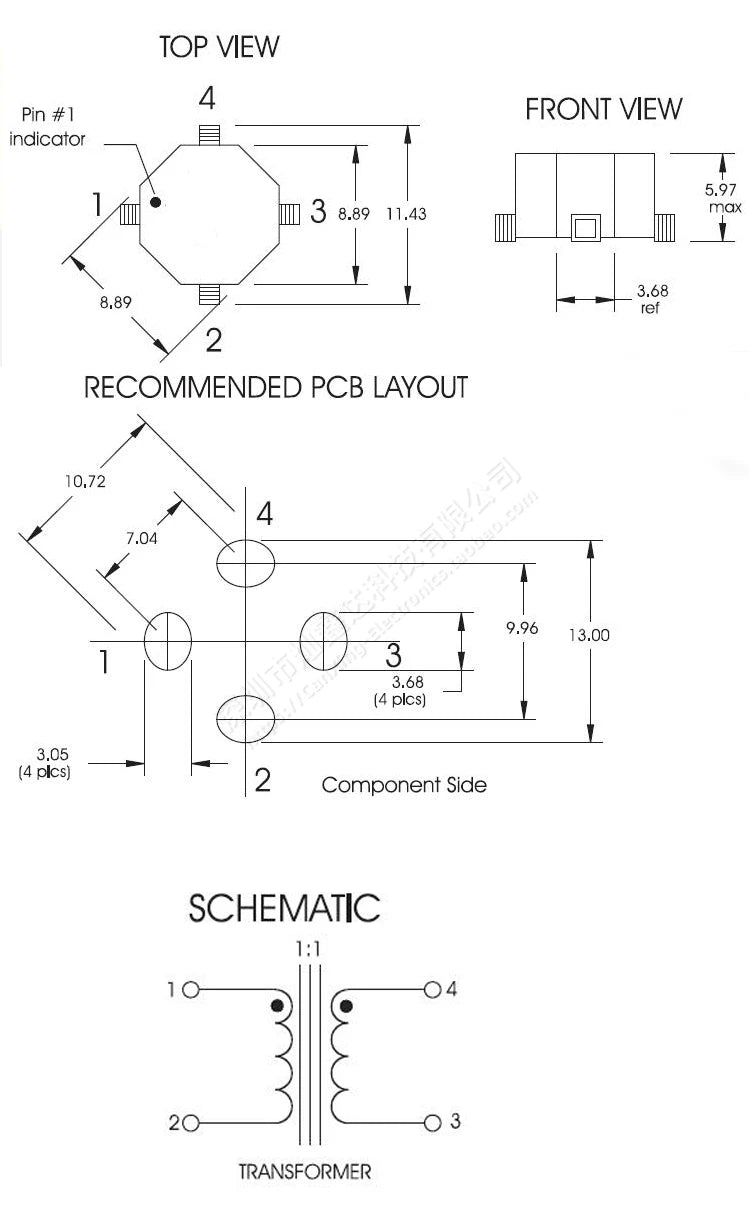

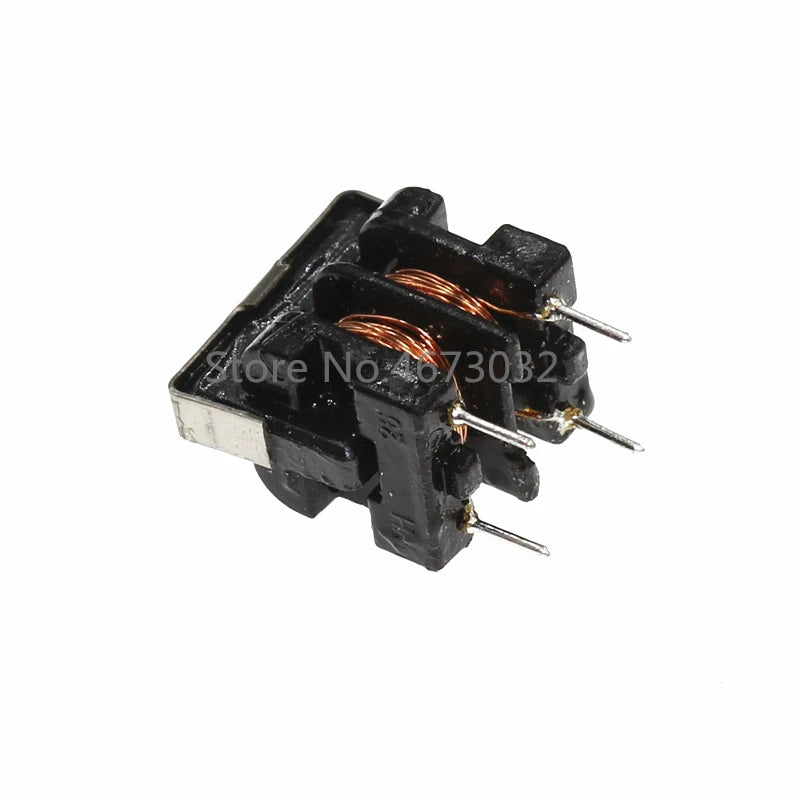

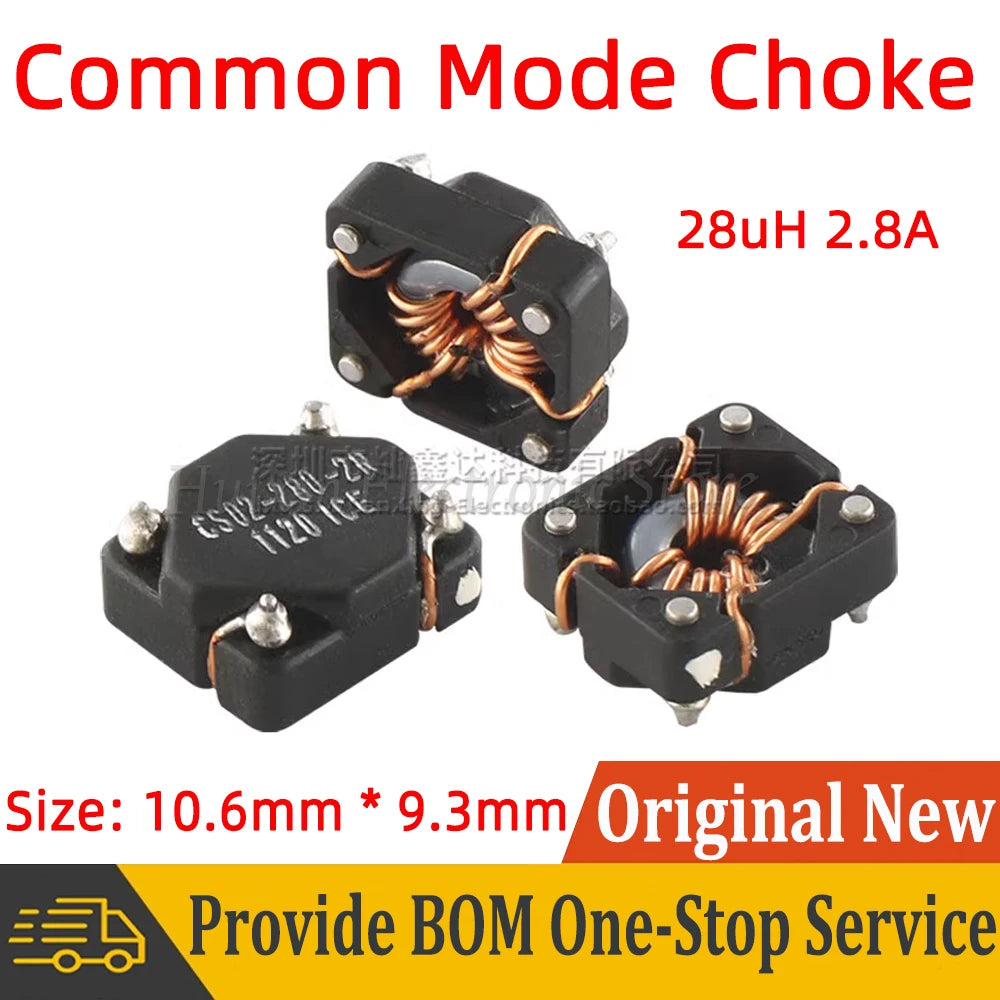

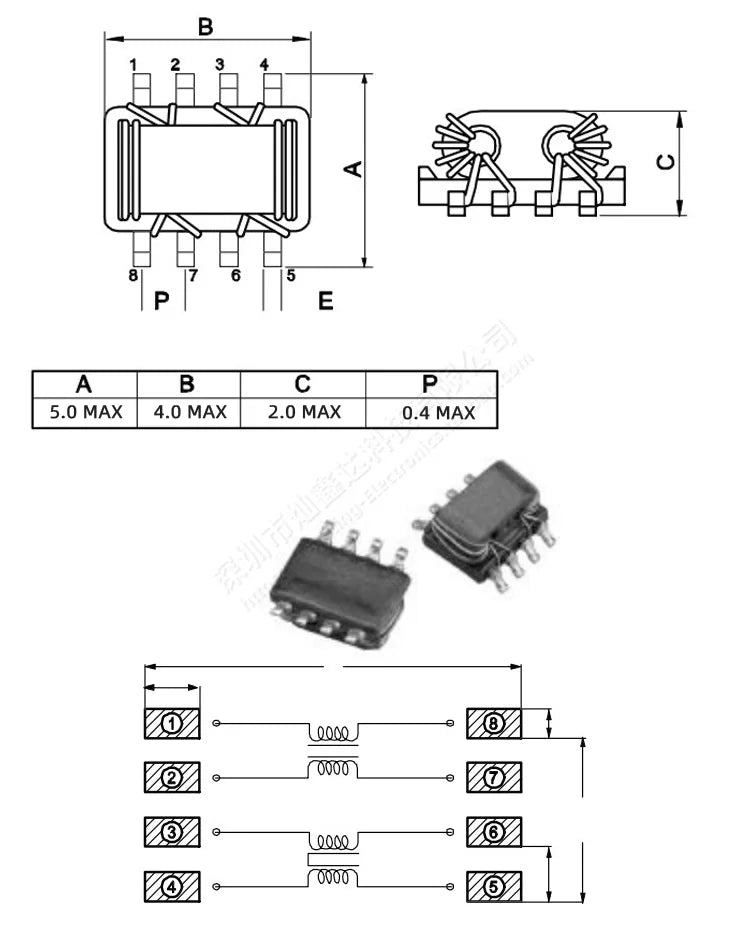

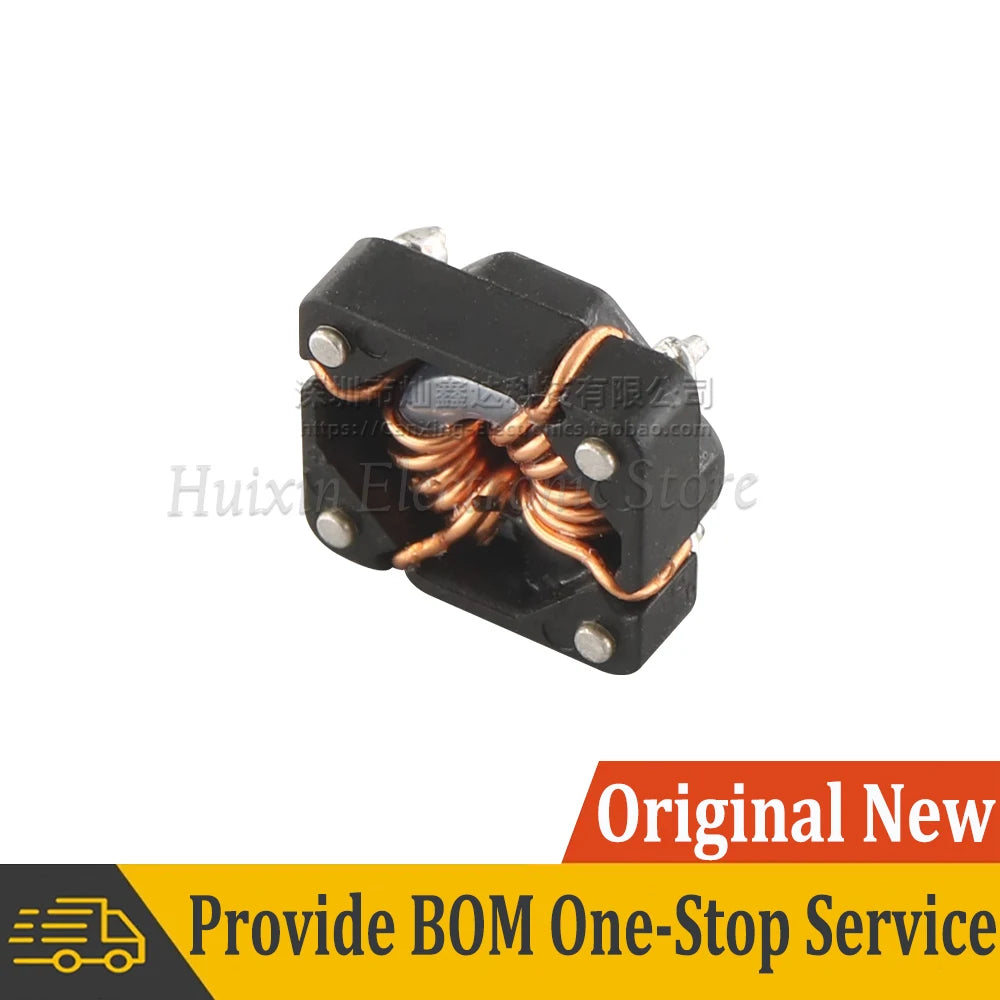

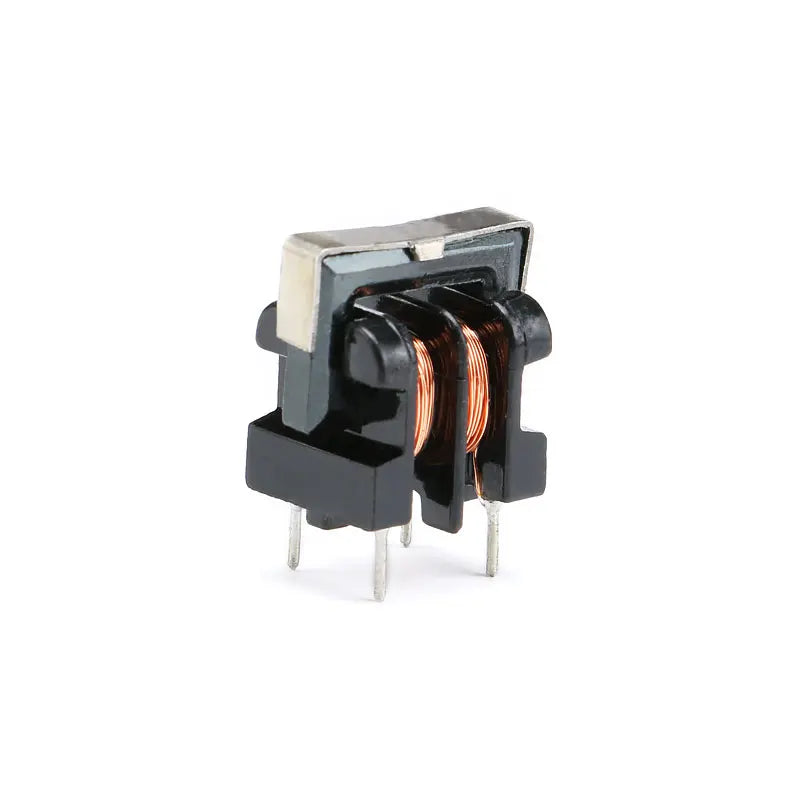

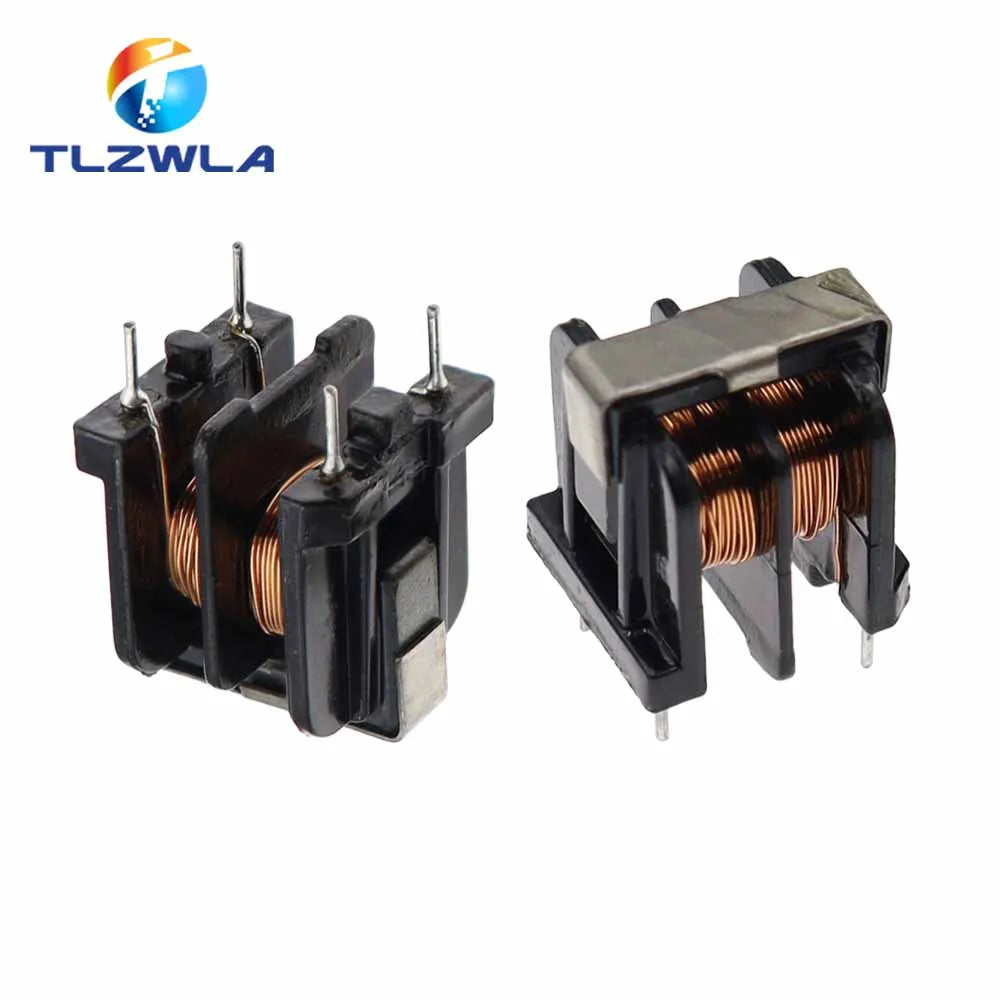

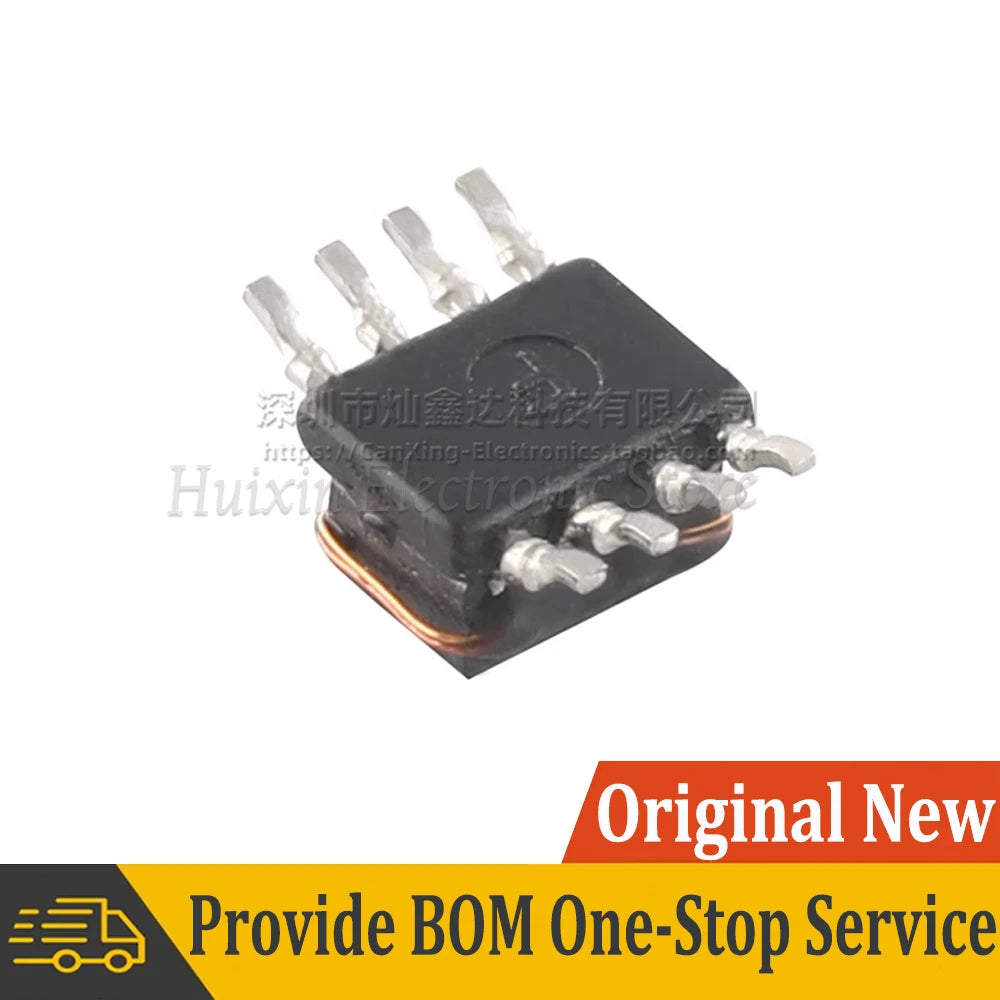

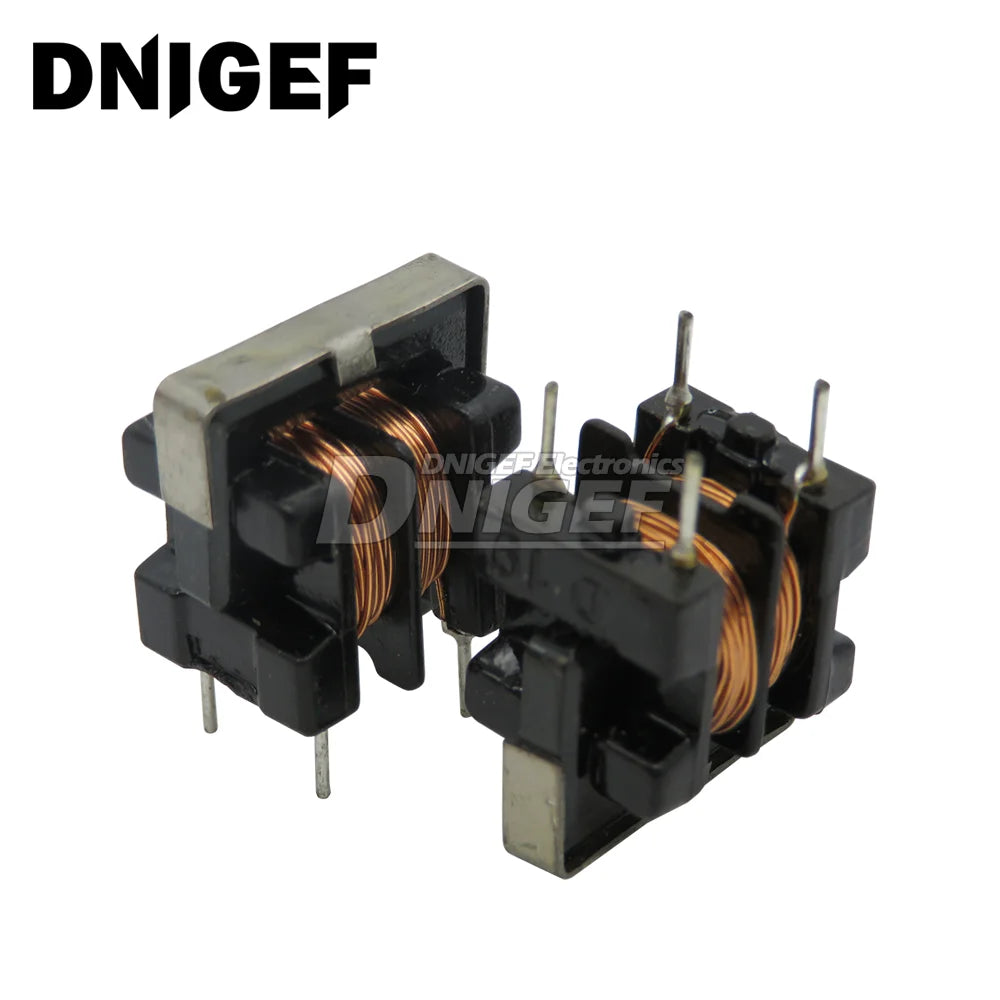

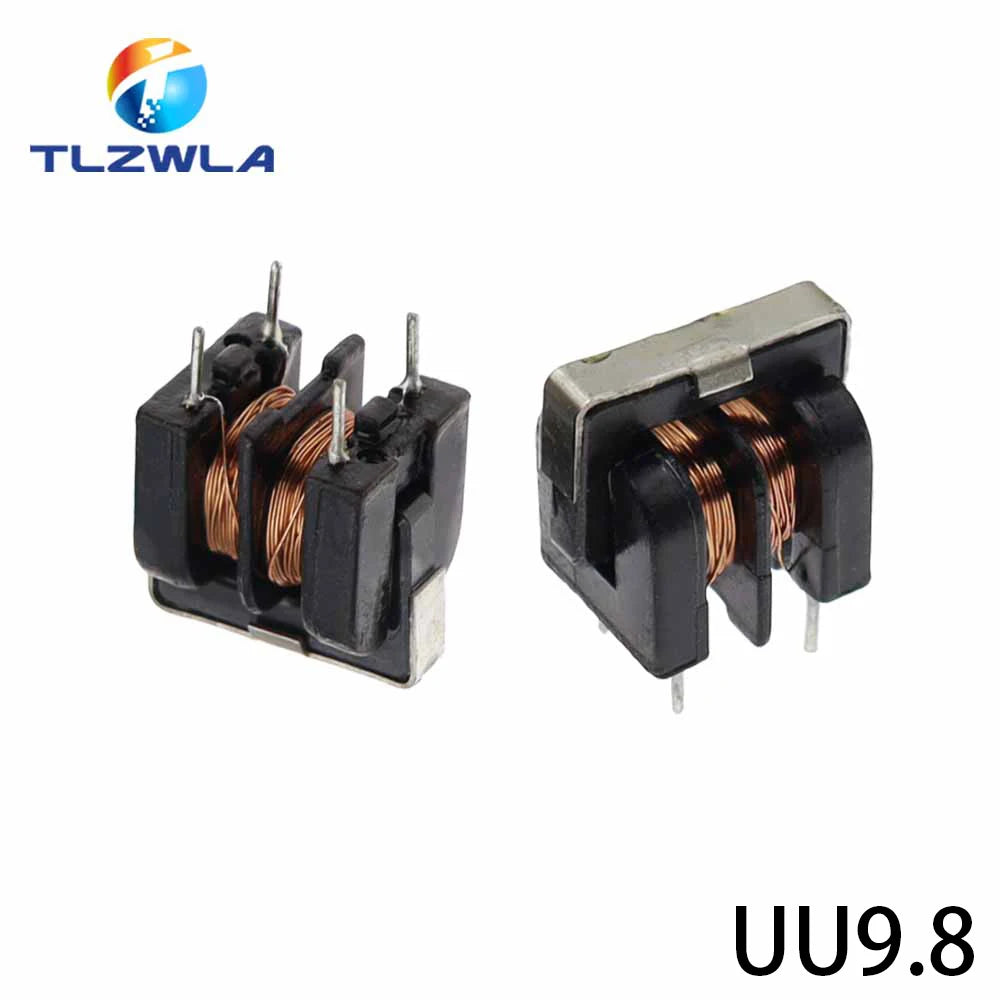

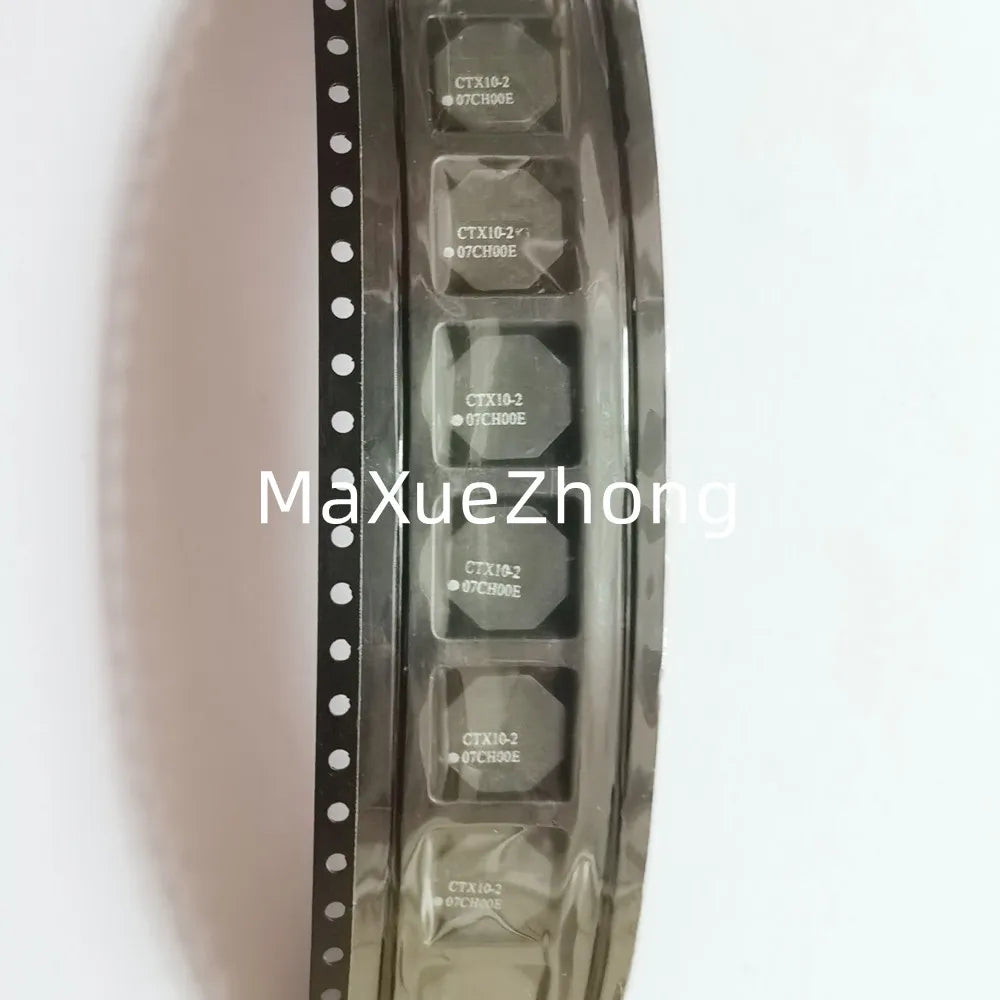

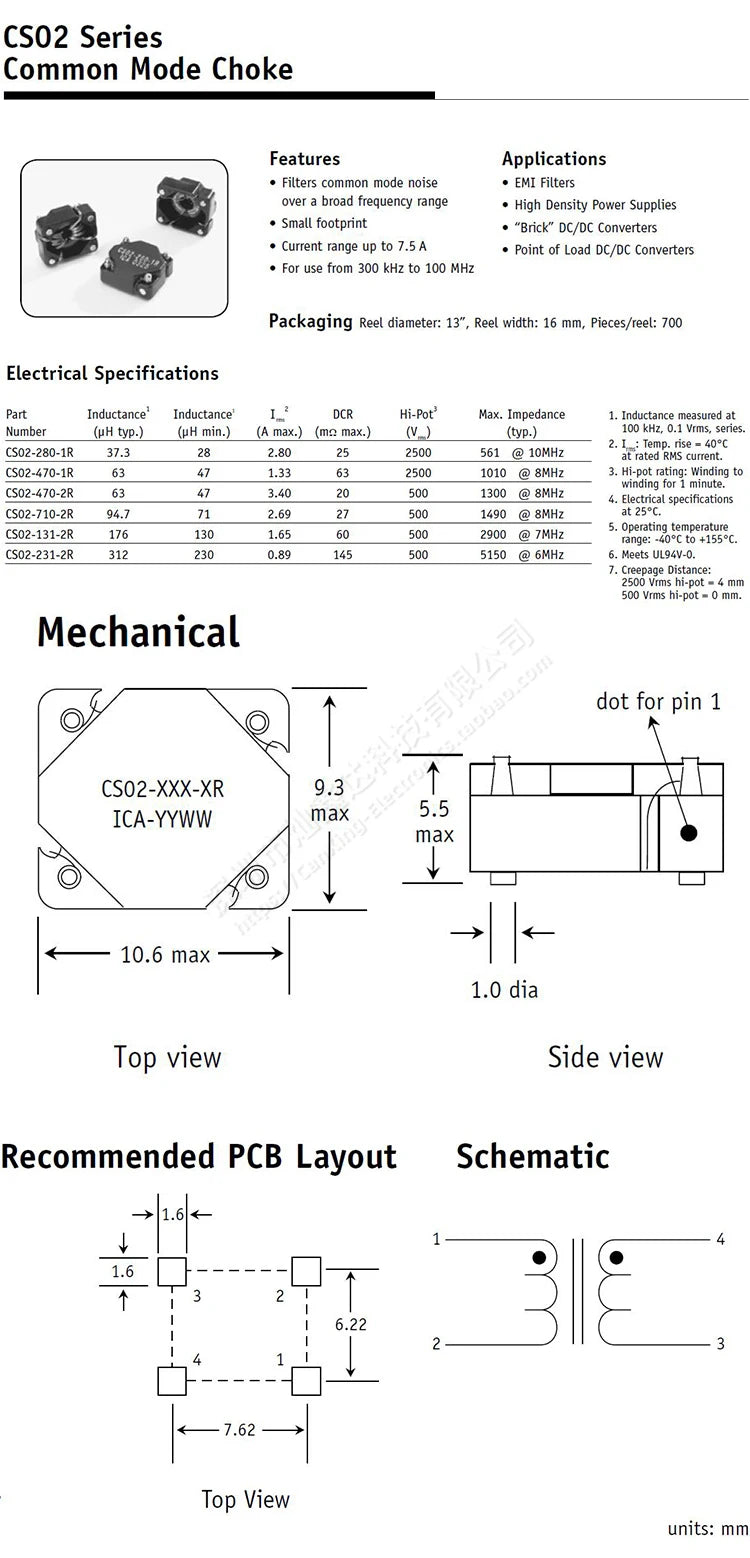

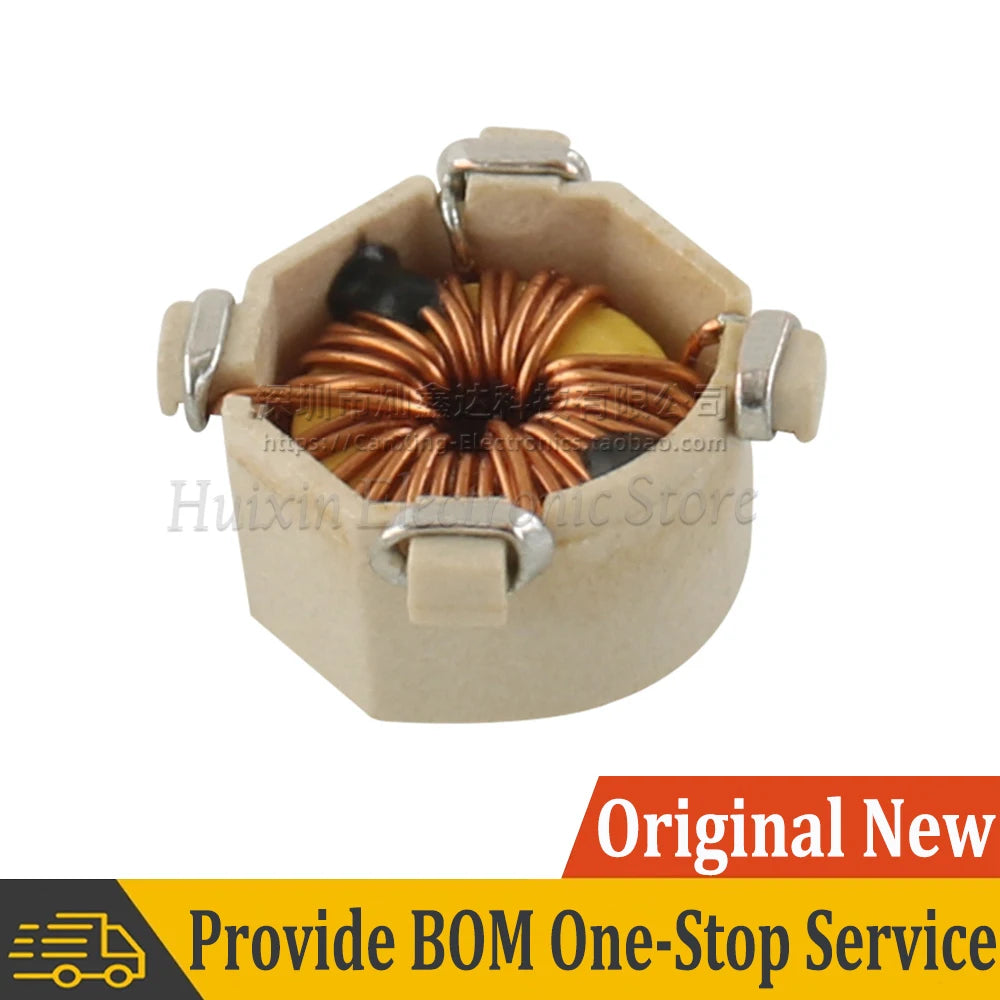

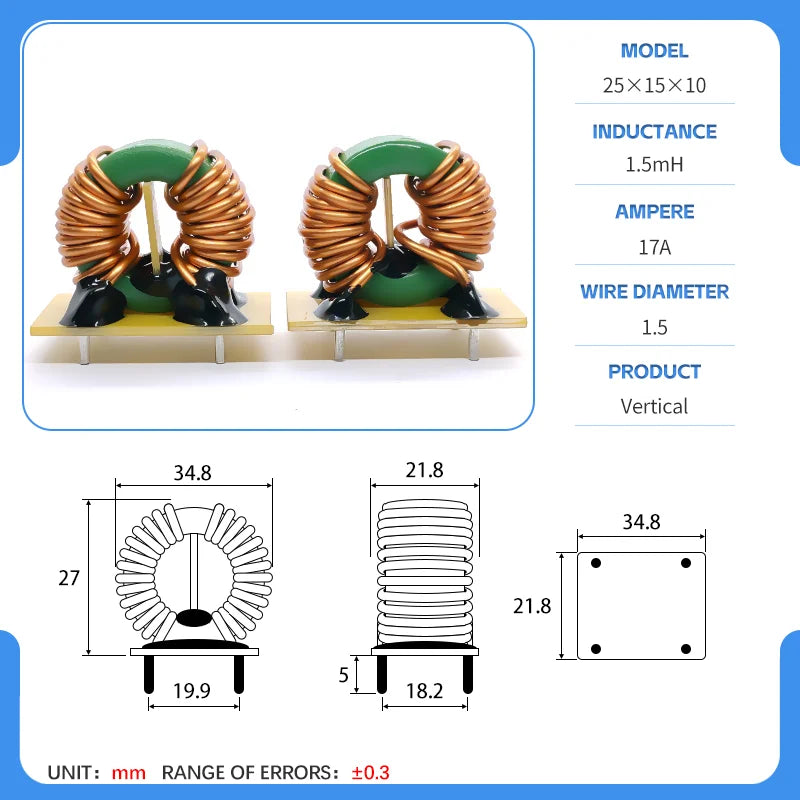

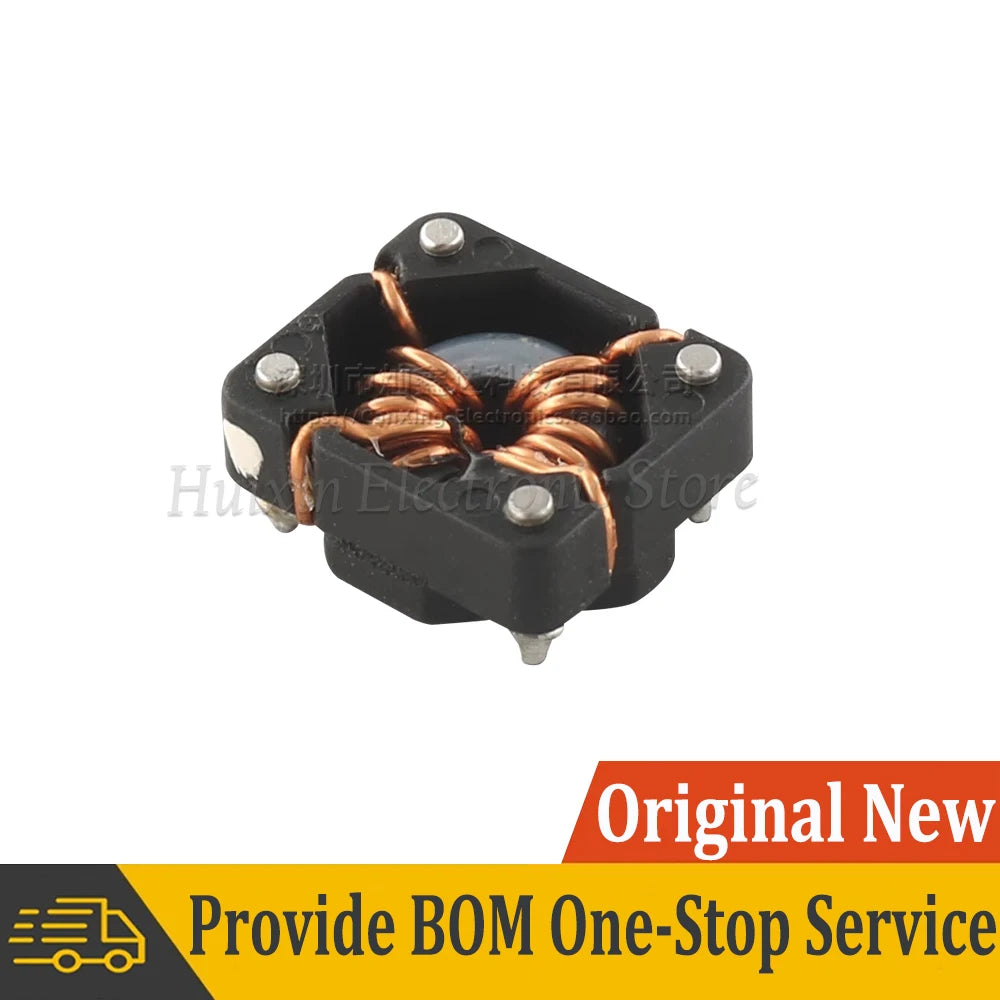

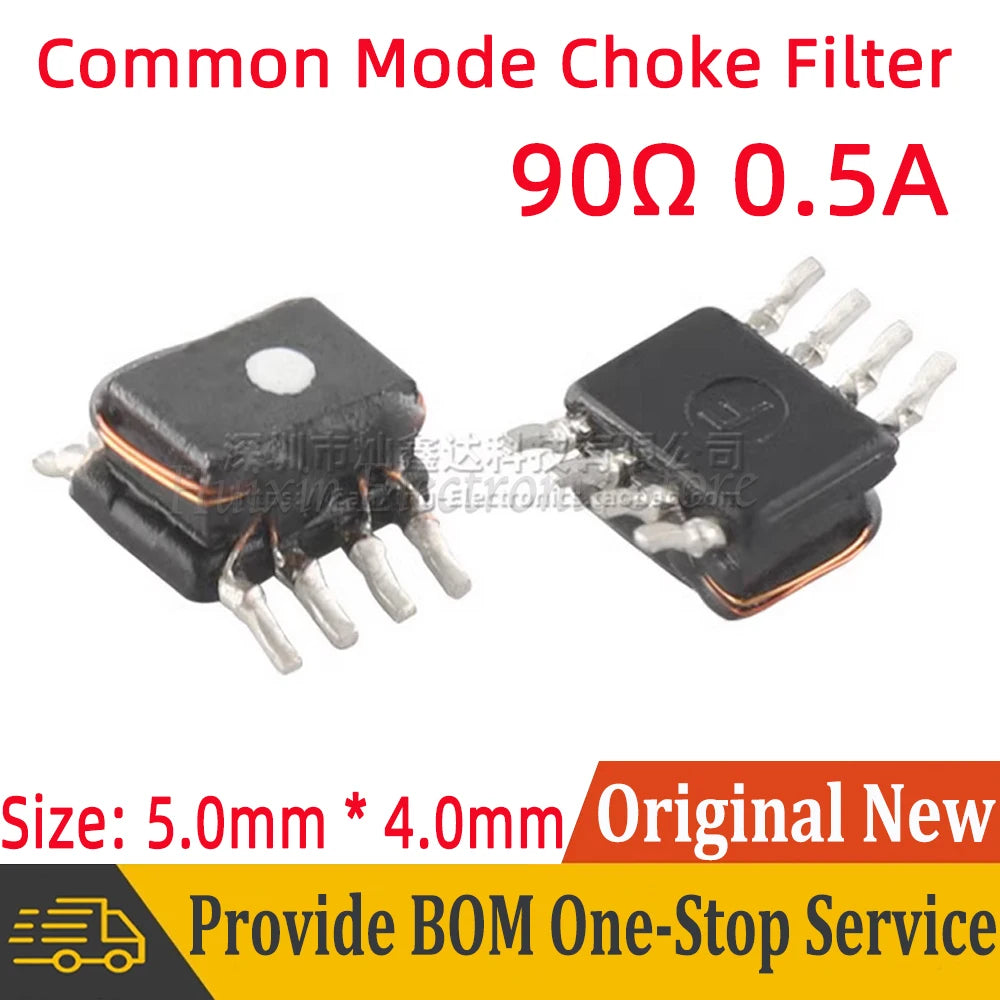

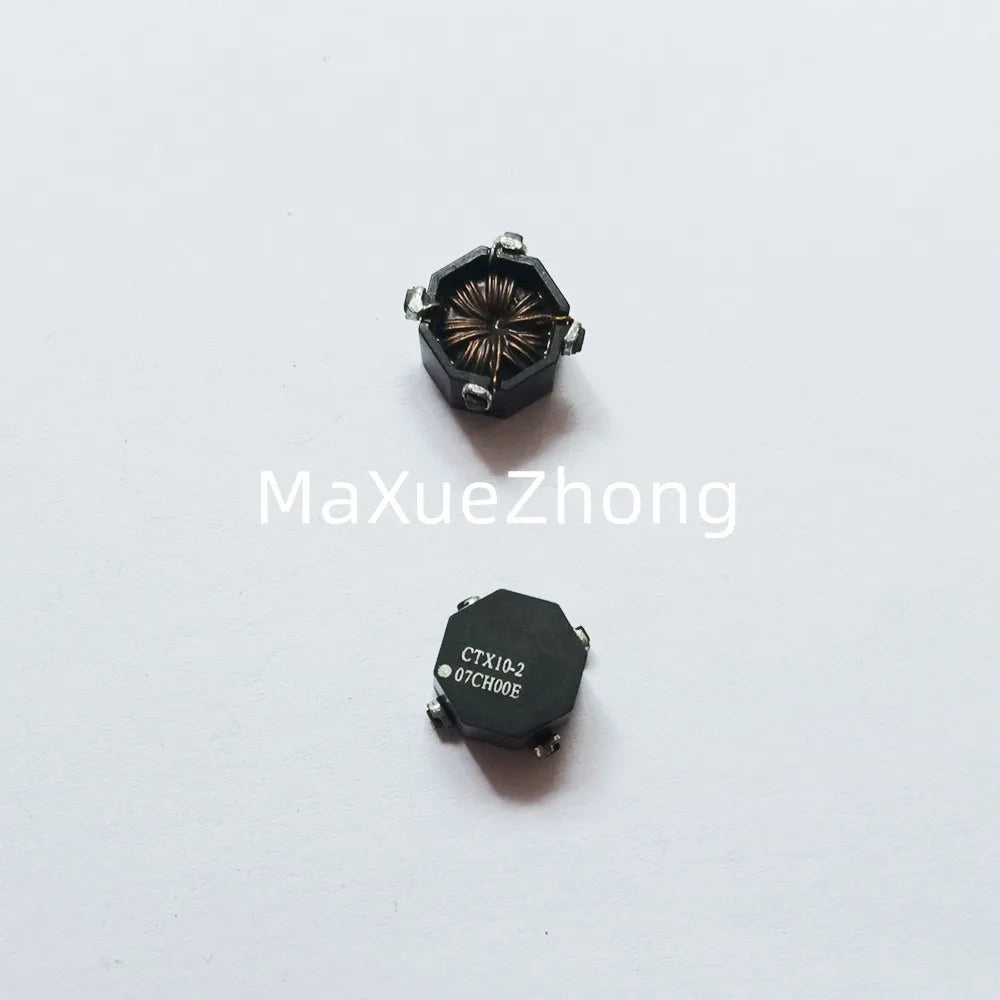

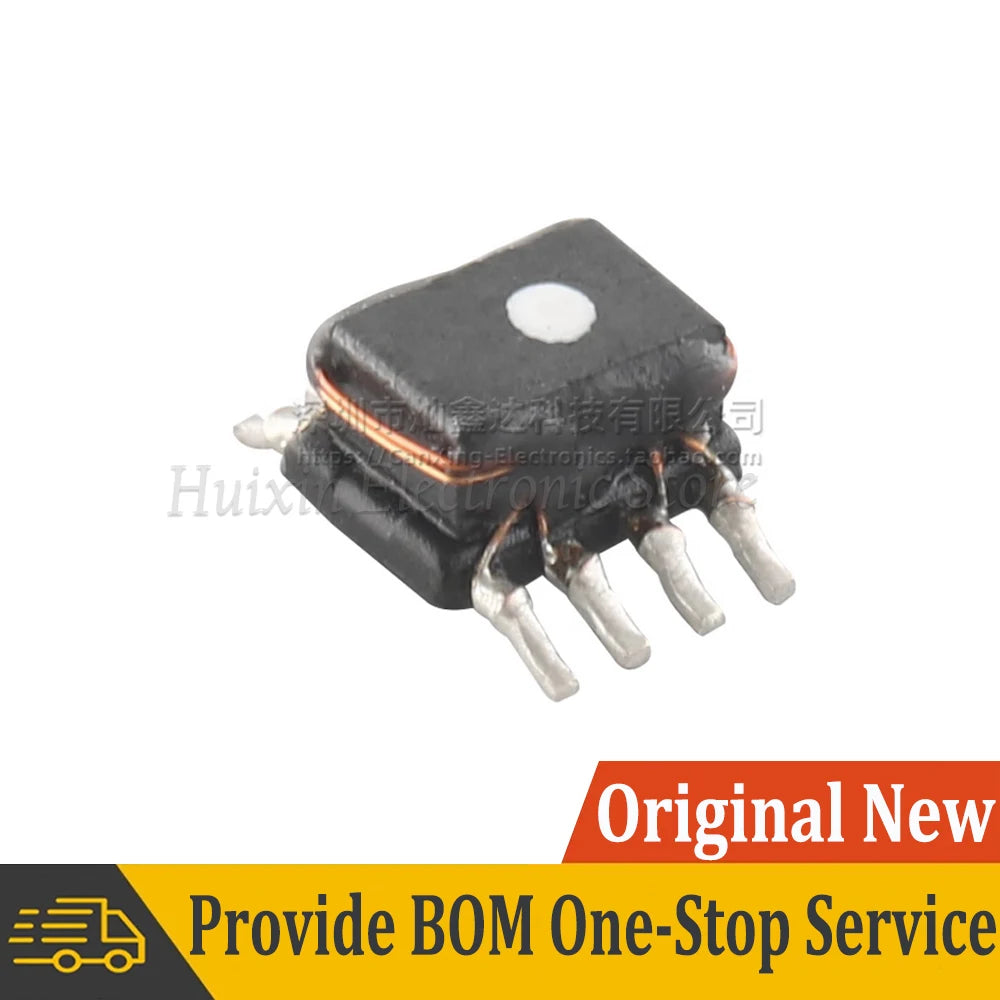

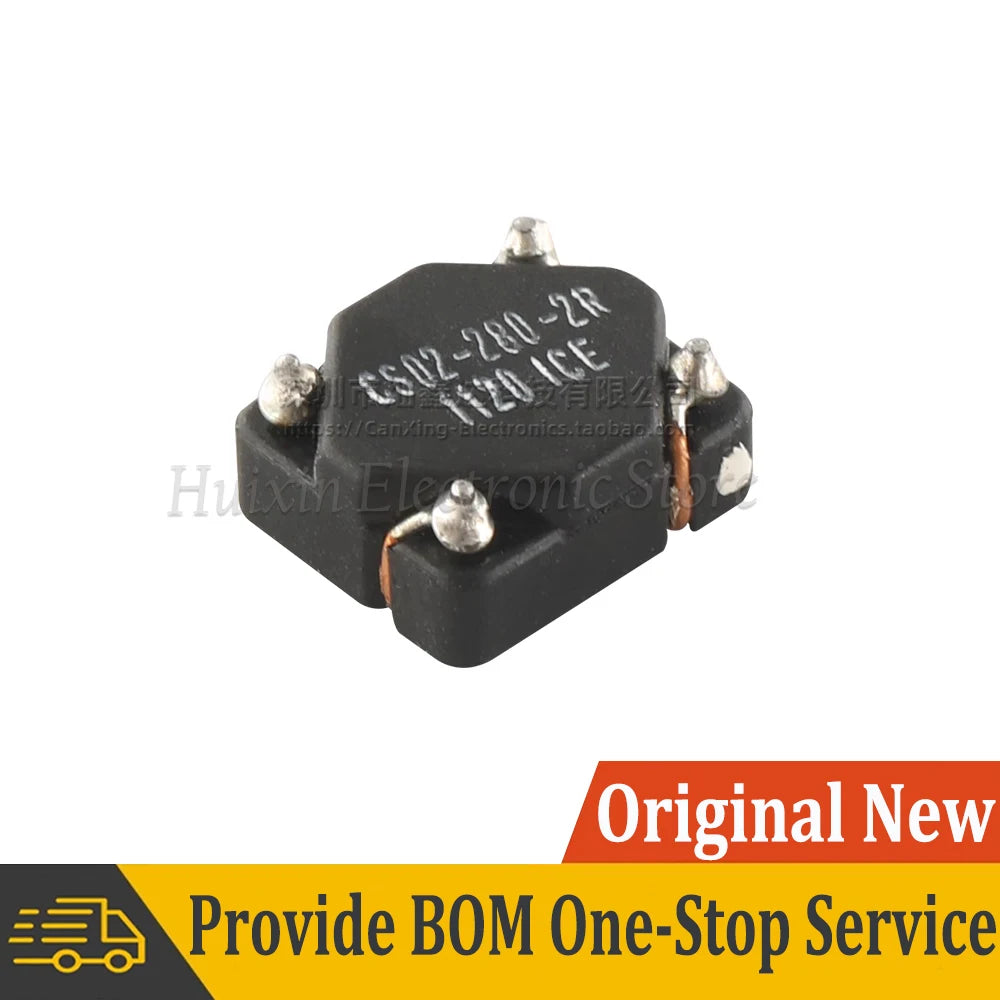

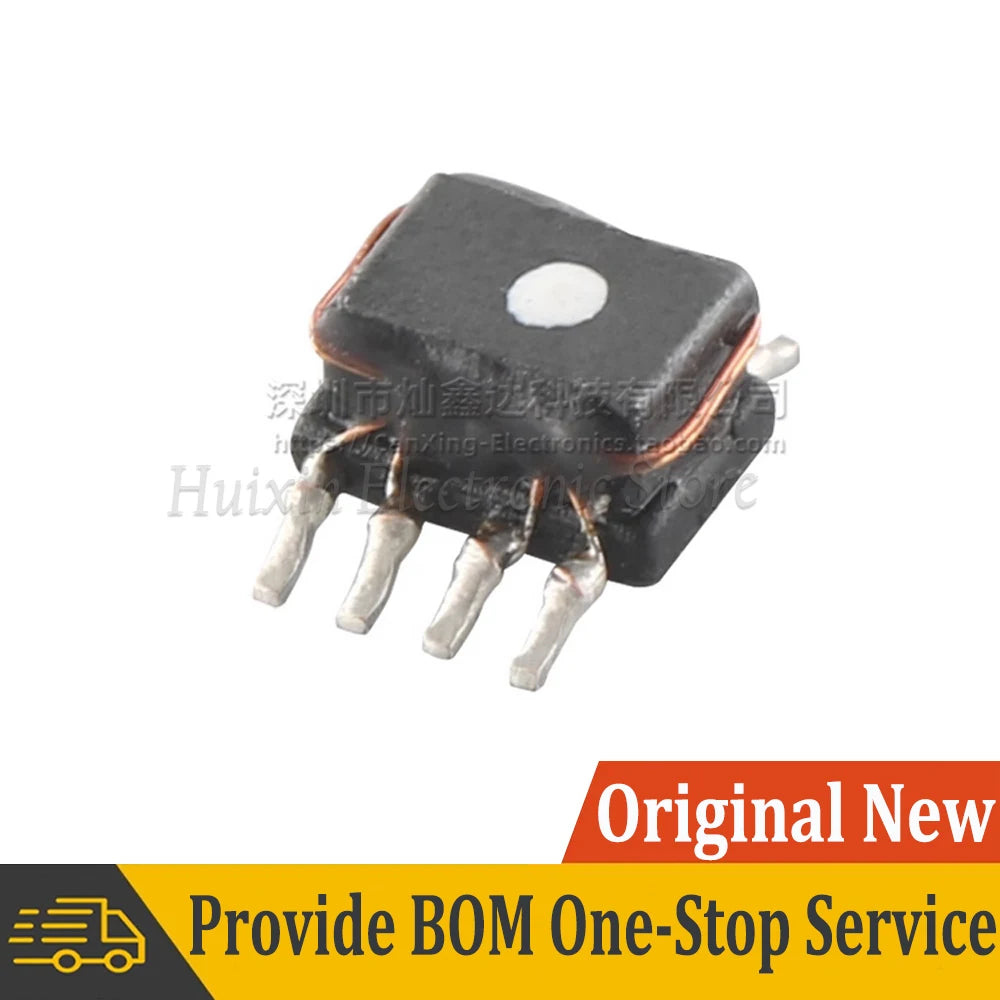

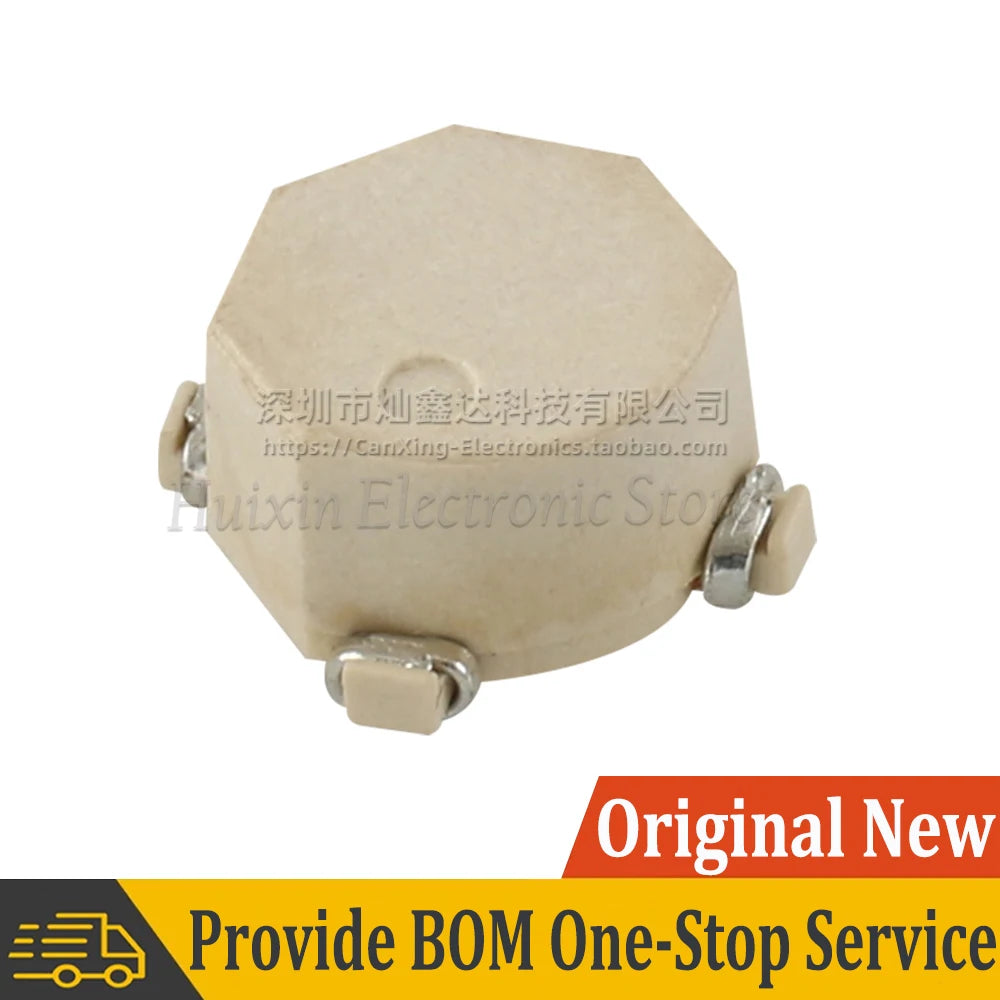

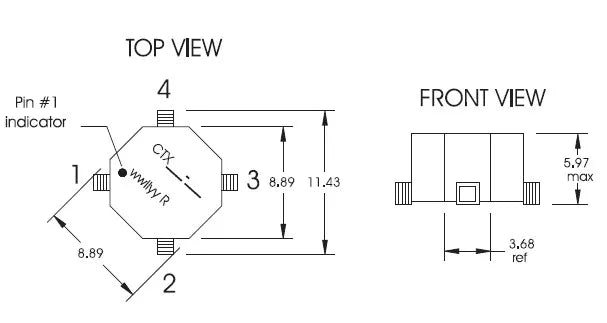

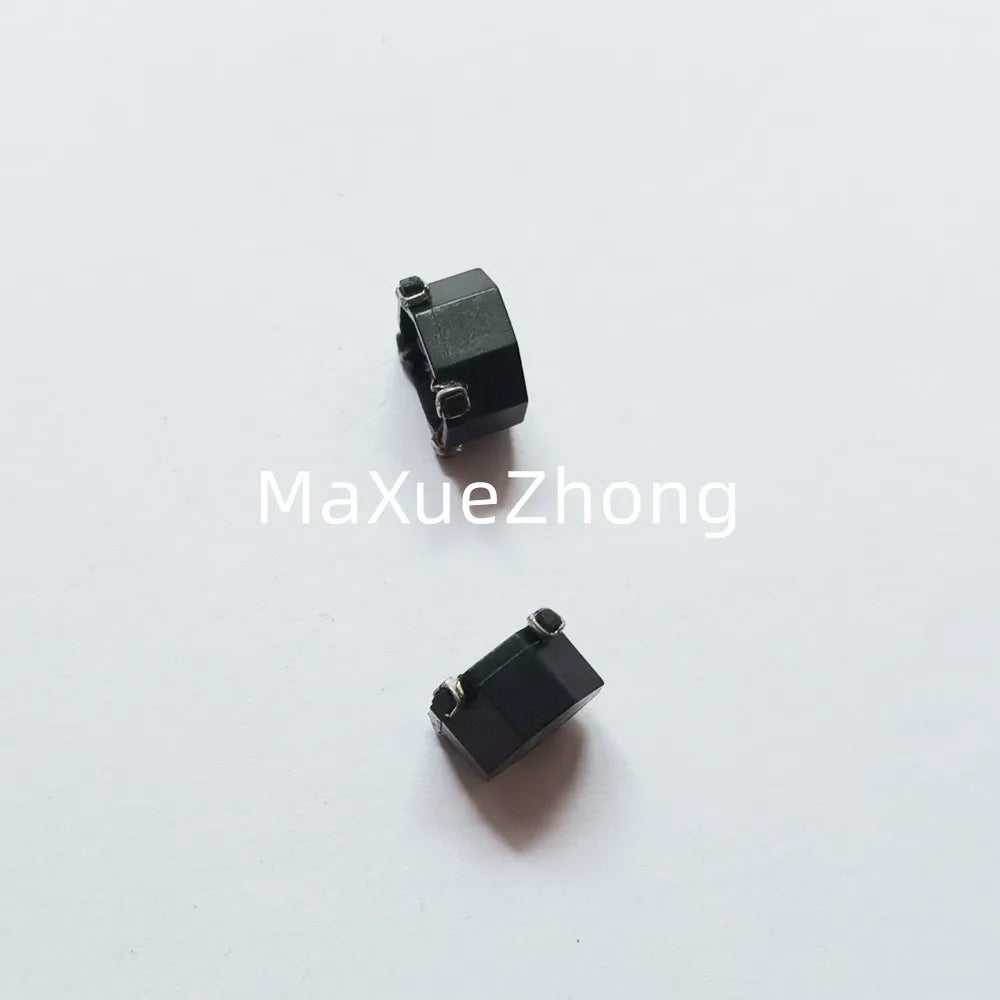

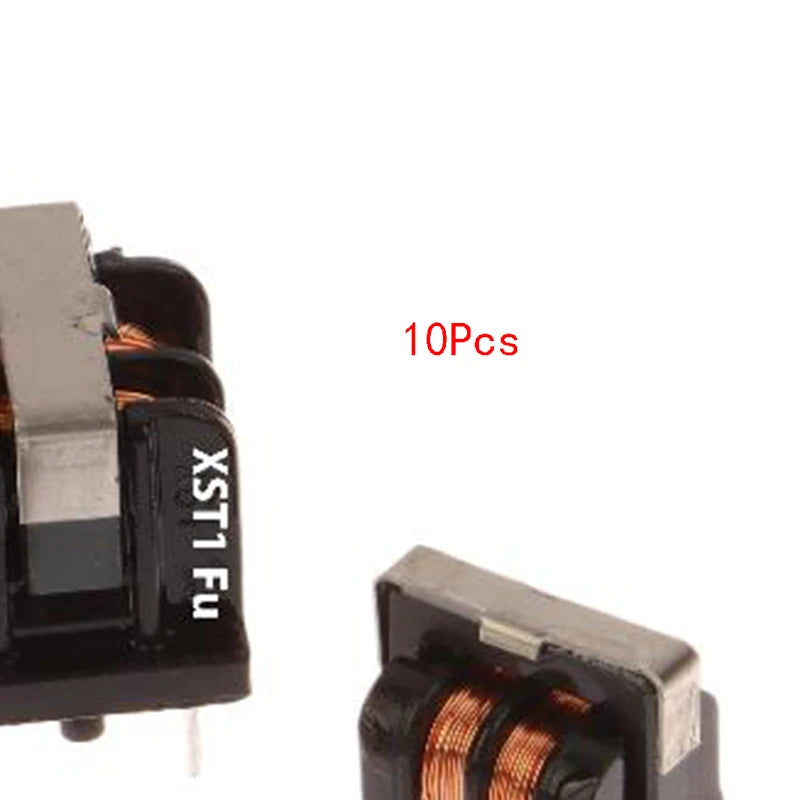

- Signal-line common-mode chokes: Four-terminal SMD options include USB or other signal-filter listings. Their Ω value generally describes impedance at a specified frequency, not winding DC resistance. Choose against the actual signal bandwidth, insertion loss, common-mode impedance-frequency curve, rated current, DCR per winding, package and pinout. A USB mention does not validate a protocol generation or data rate.

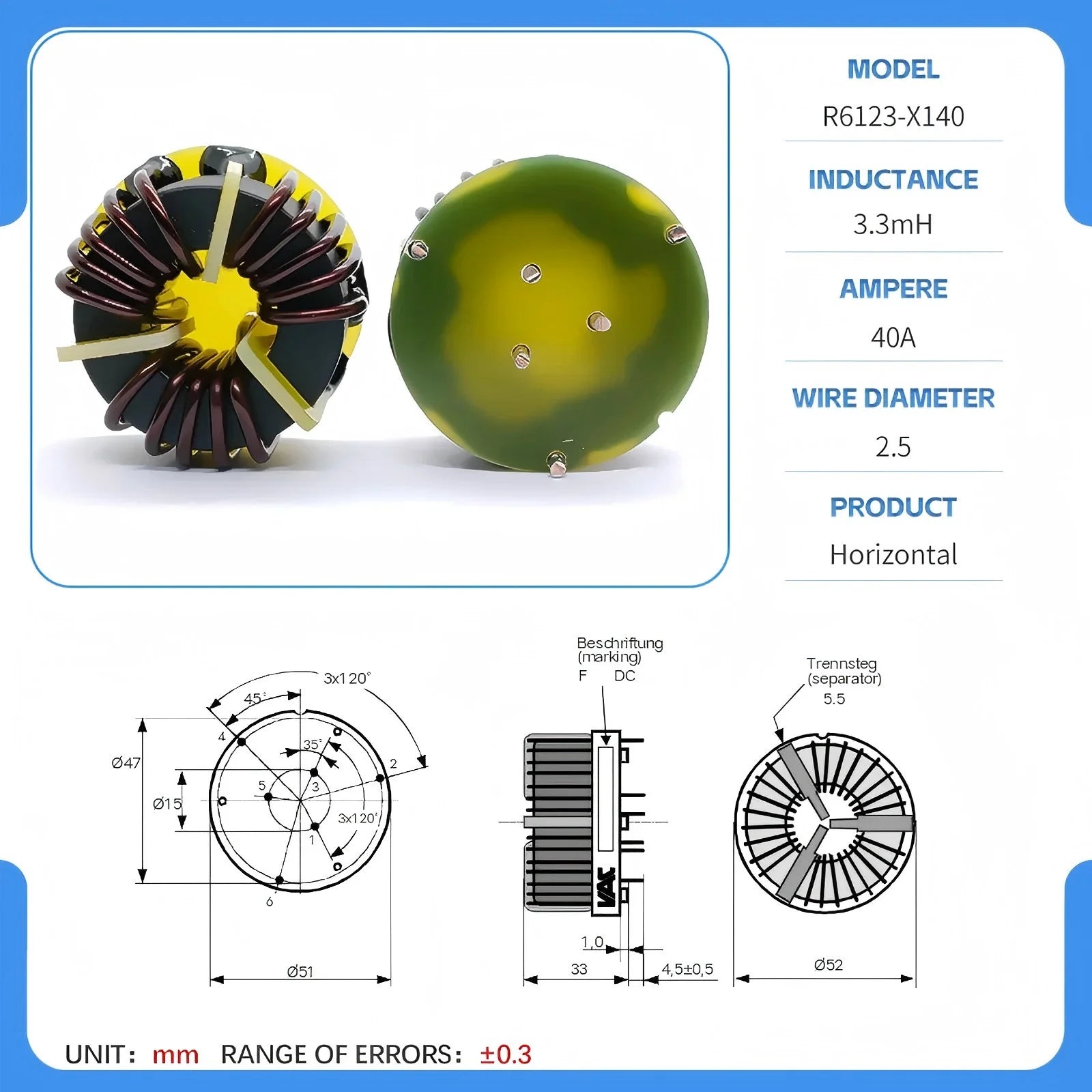

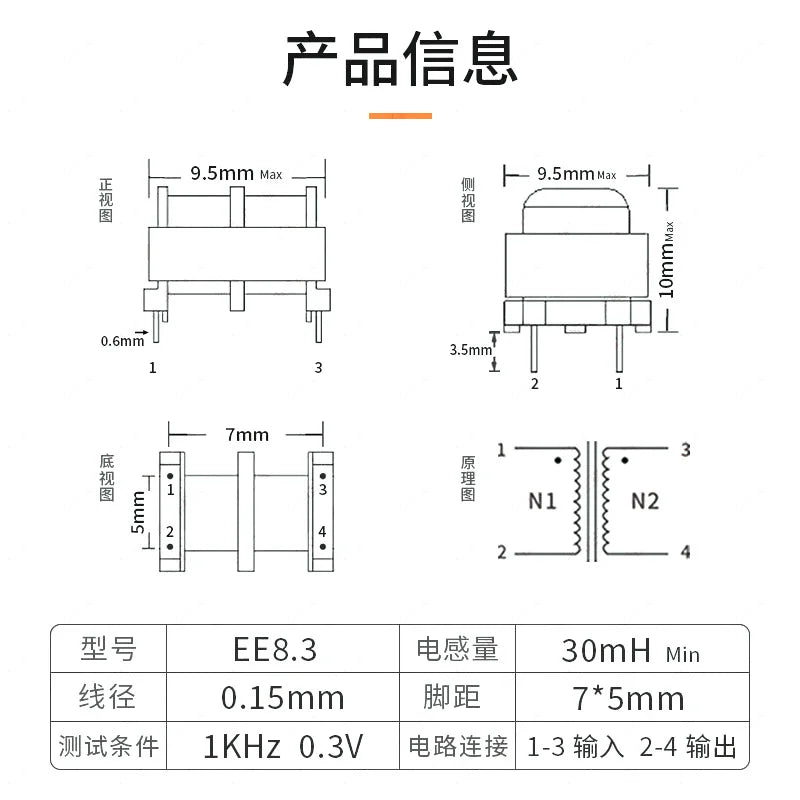

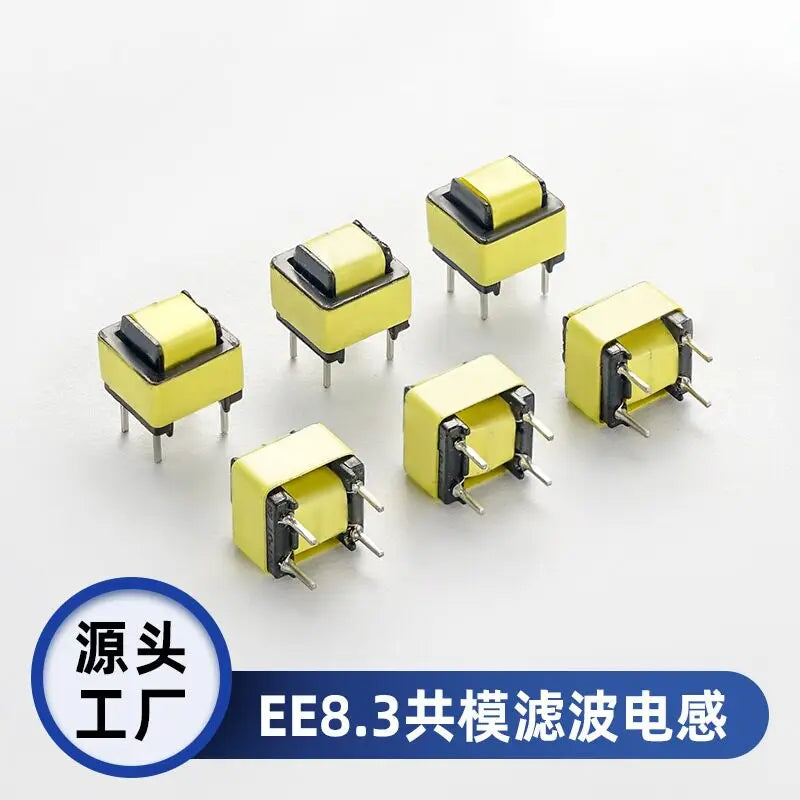

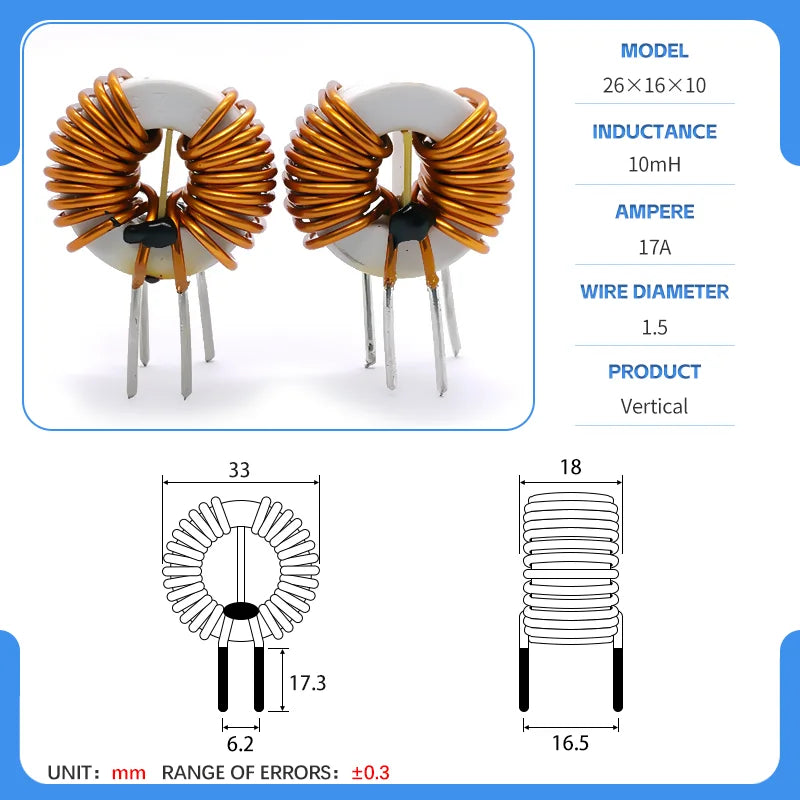

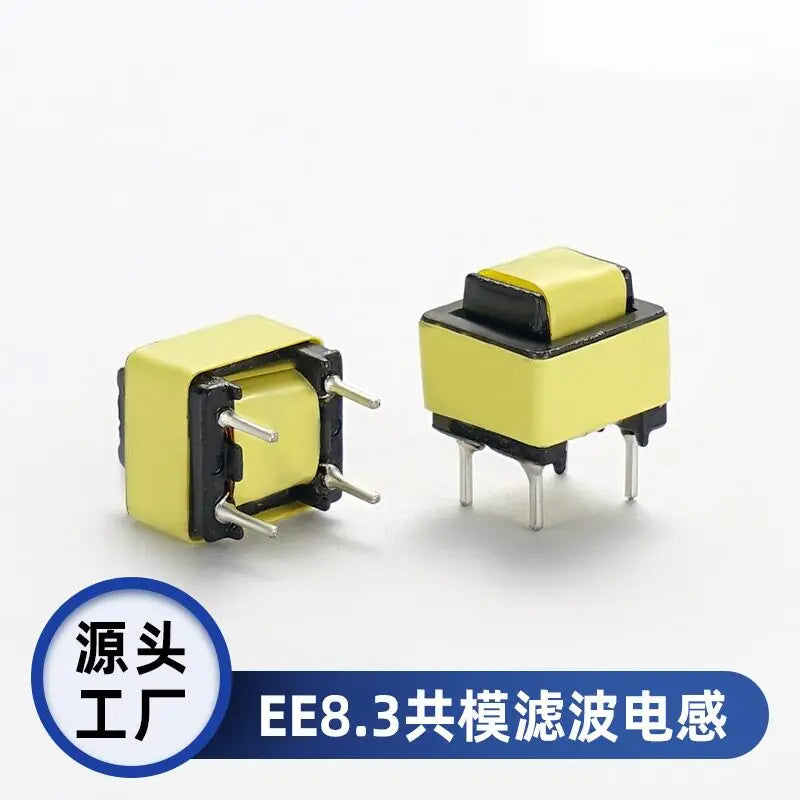

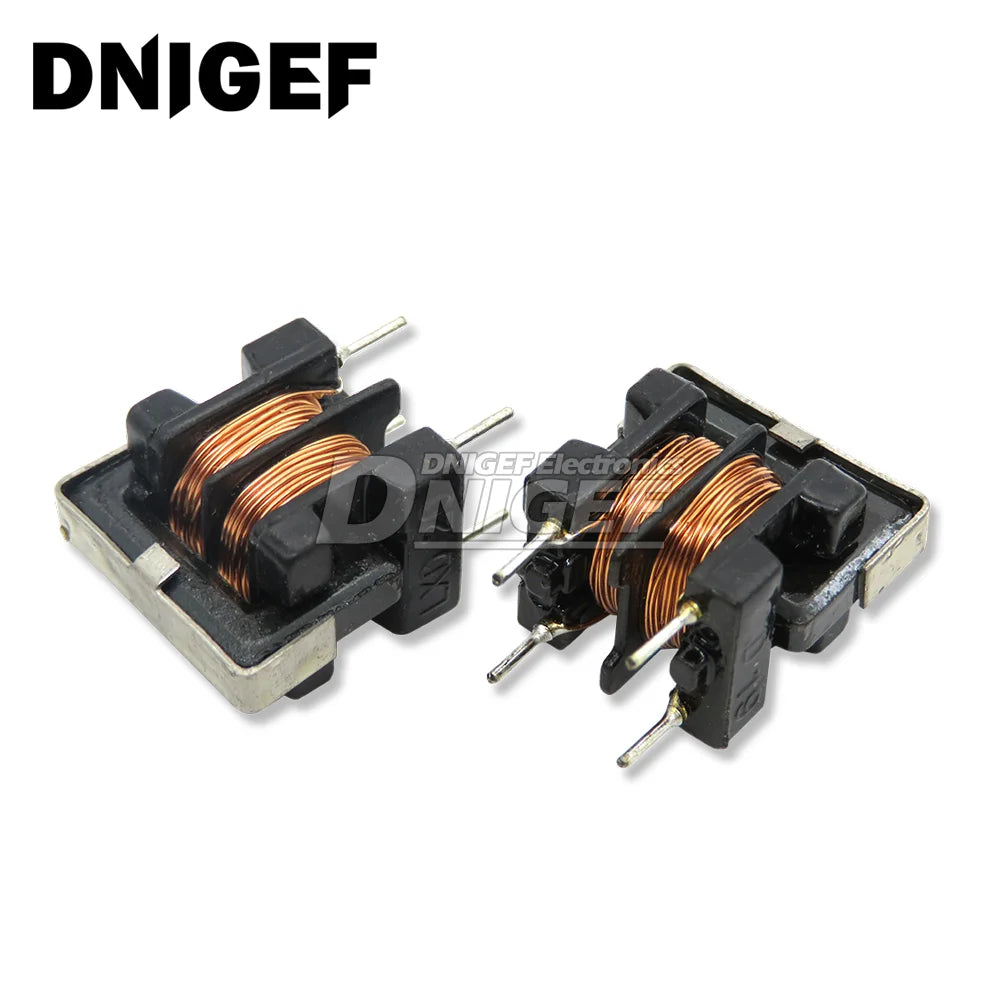

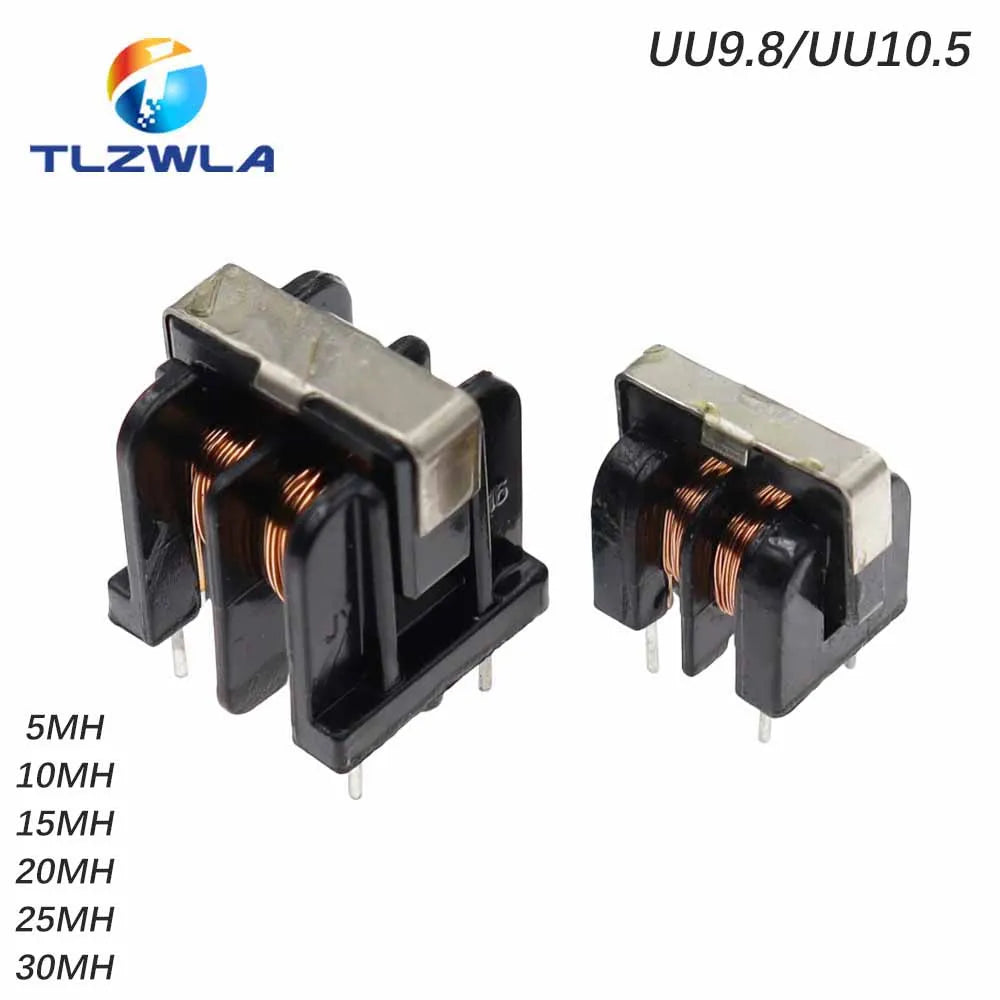

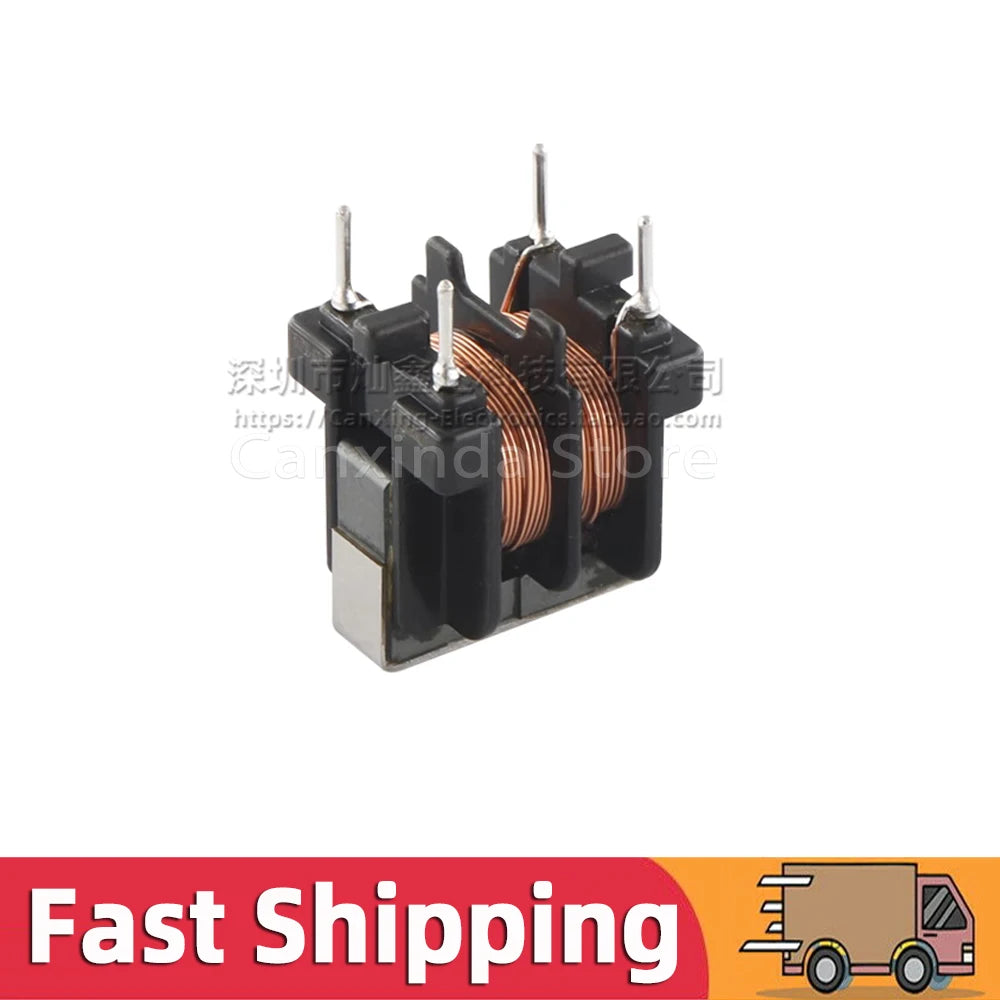

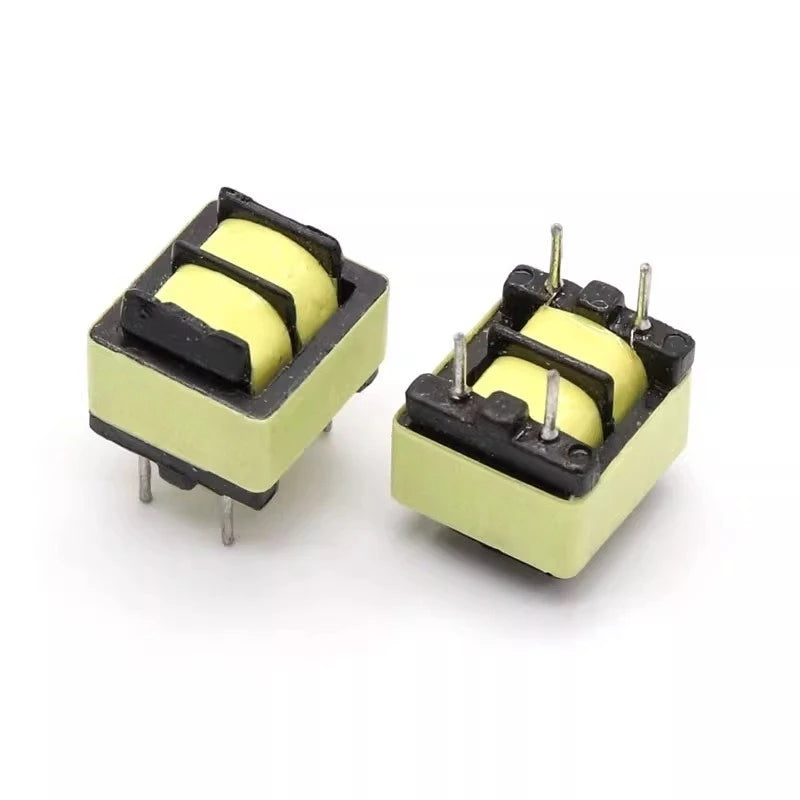

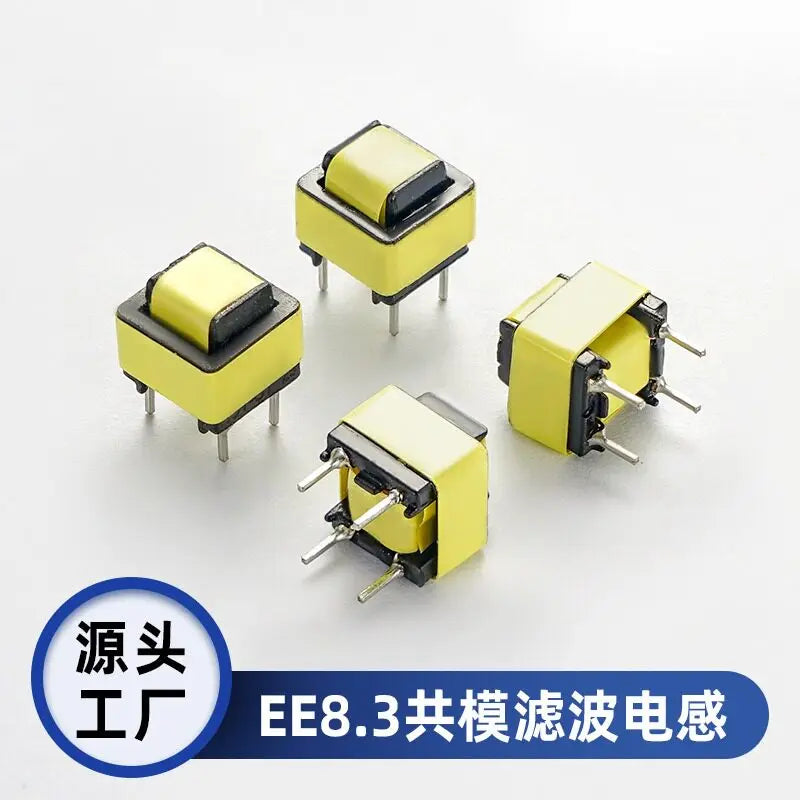

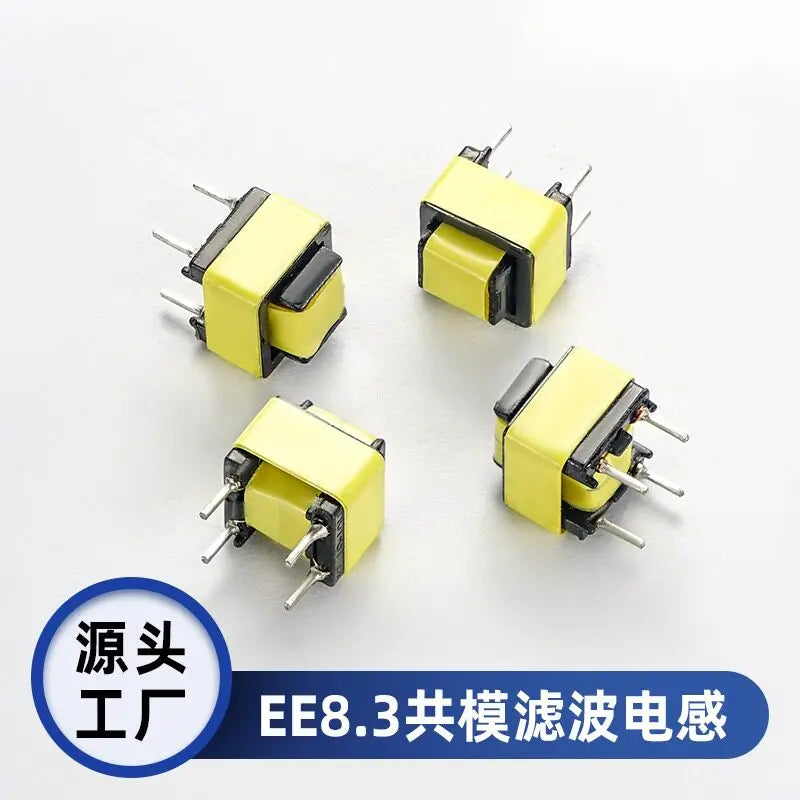

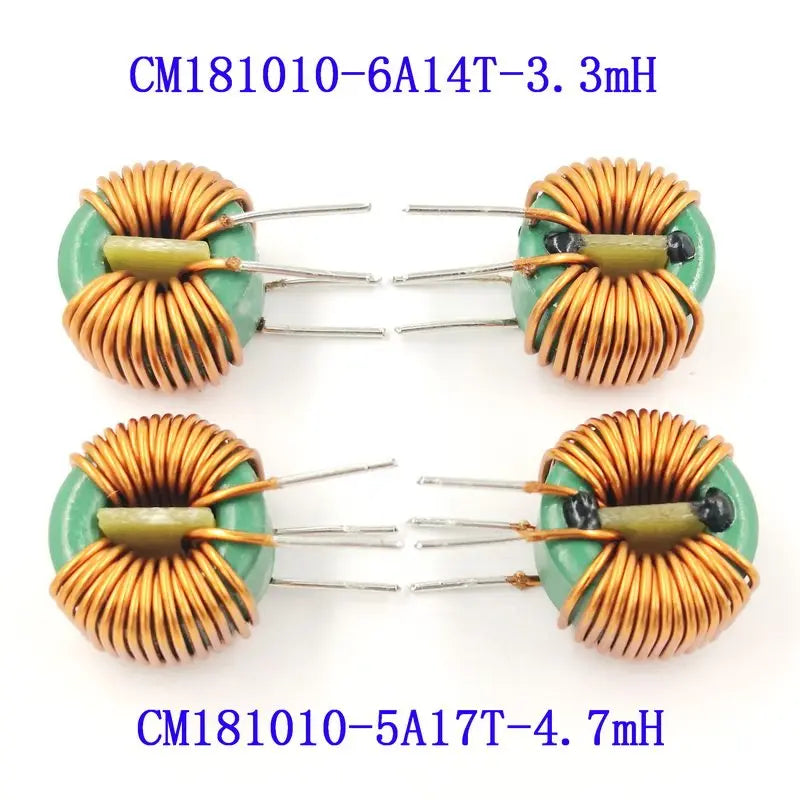

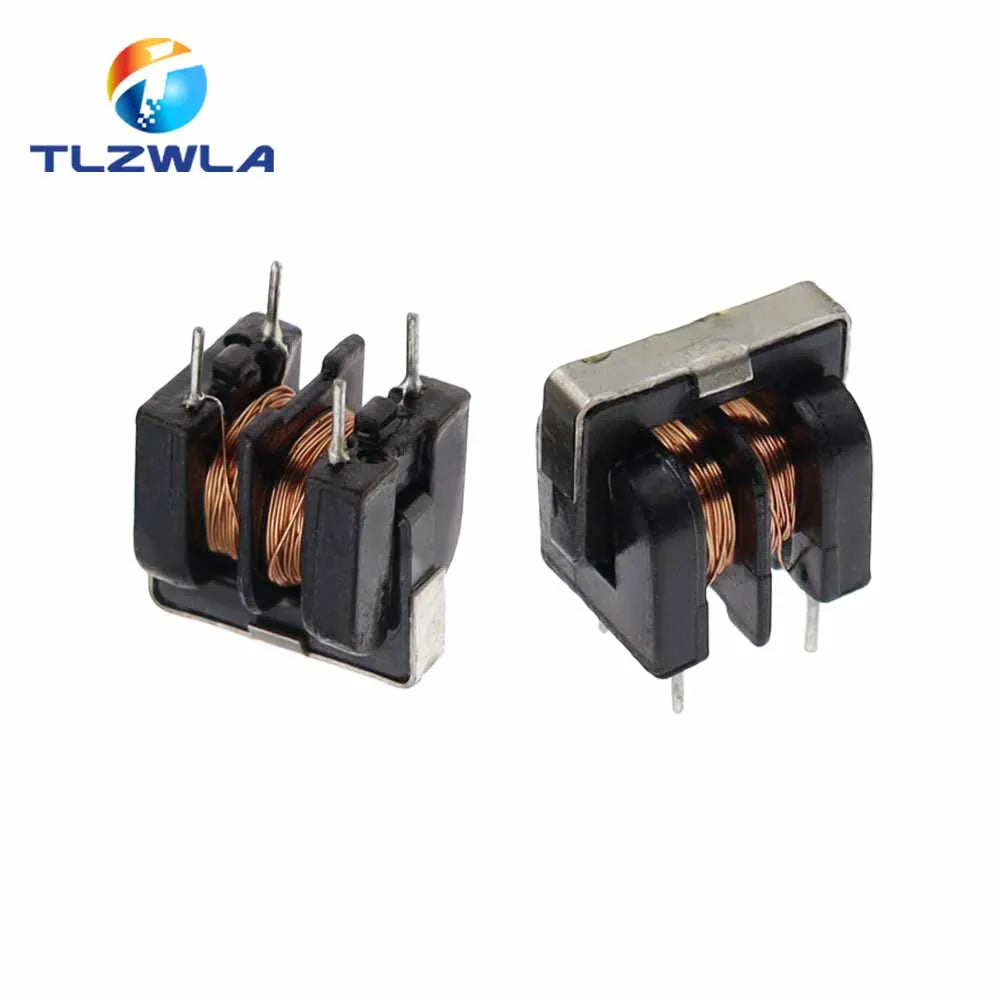

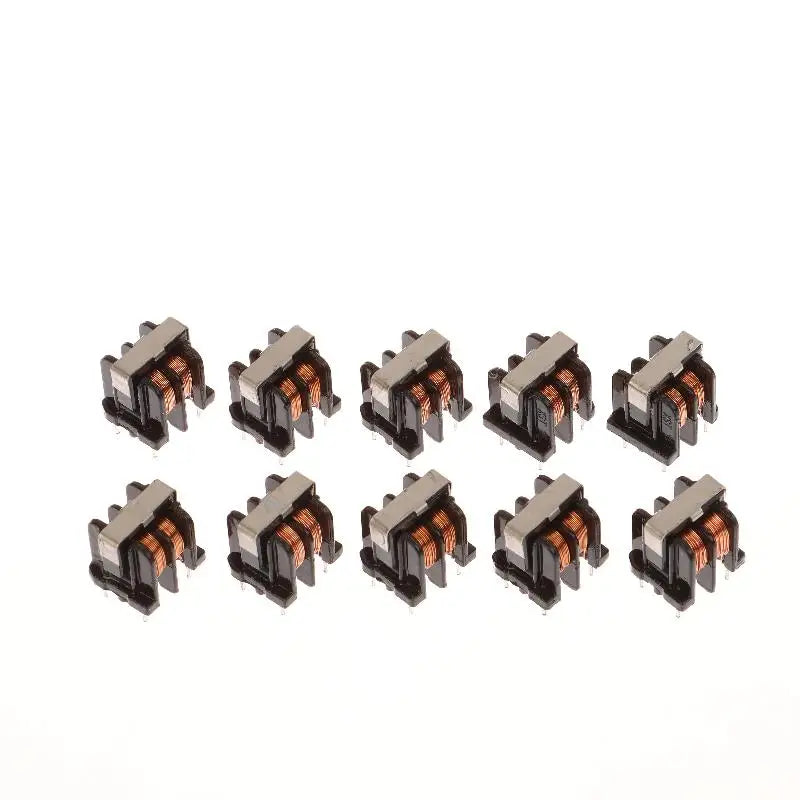

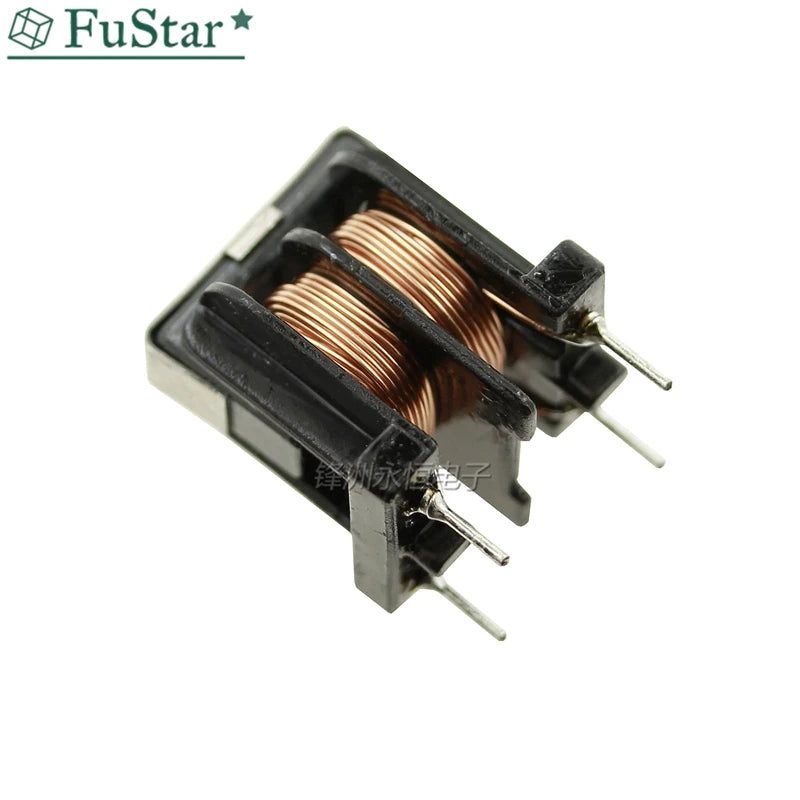

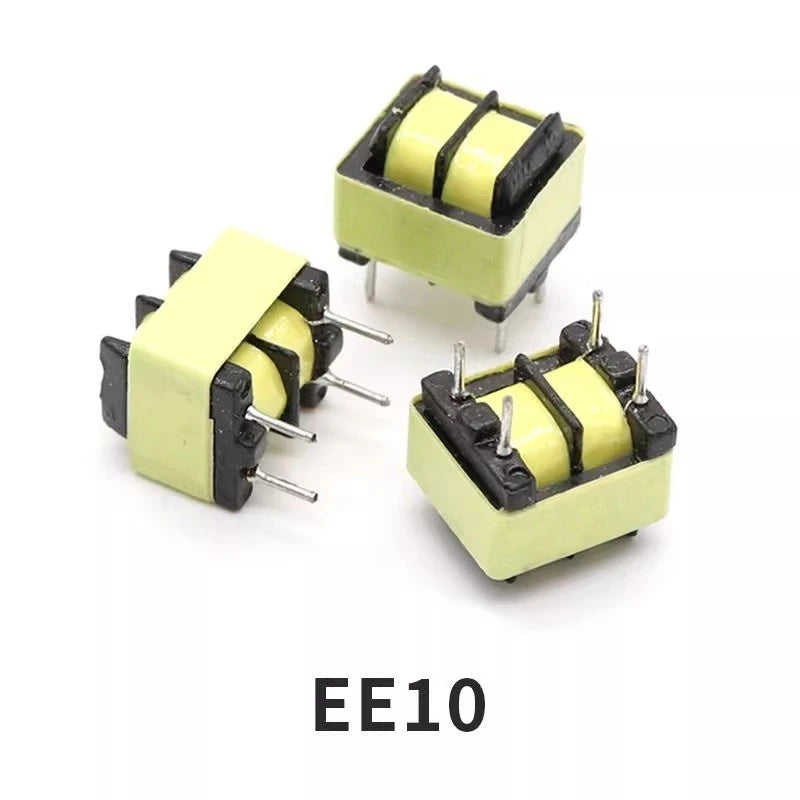

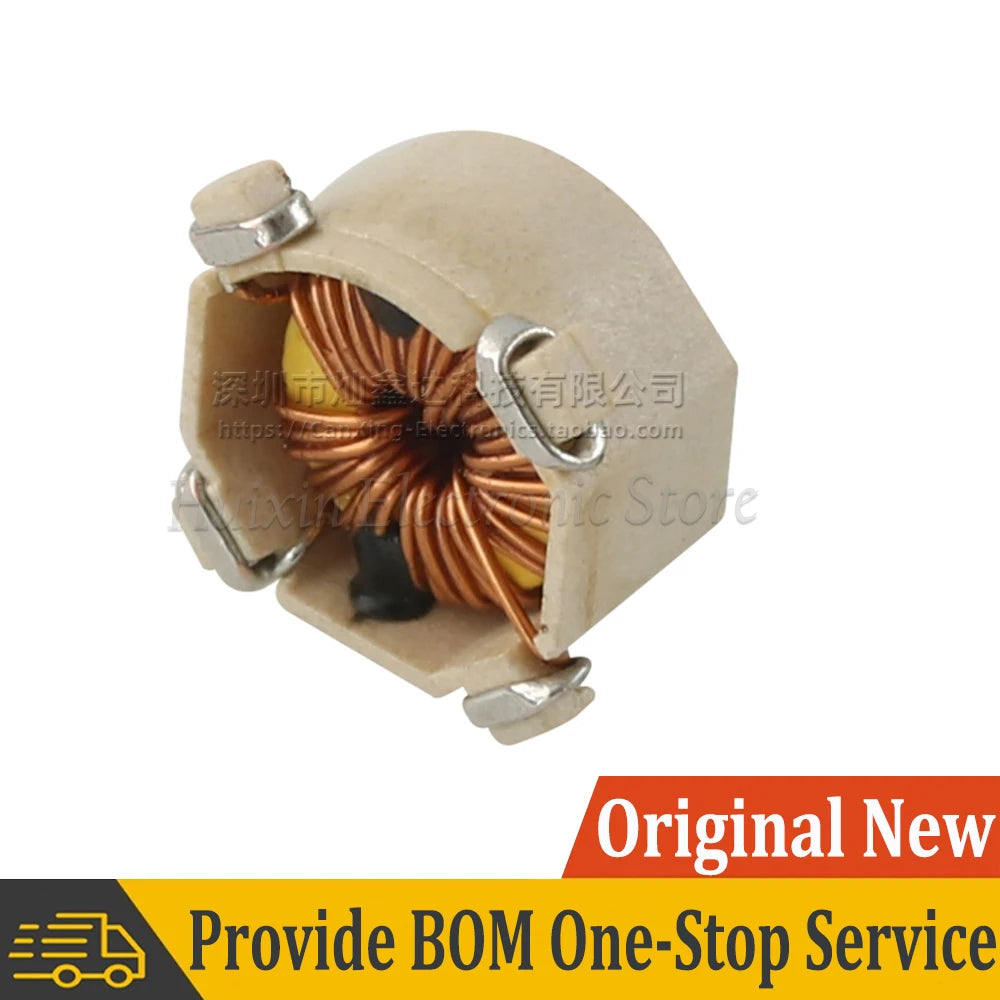

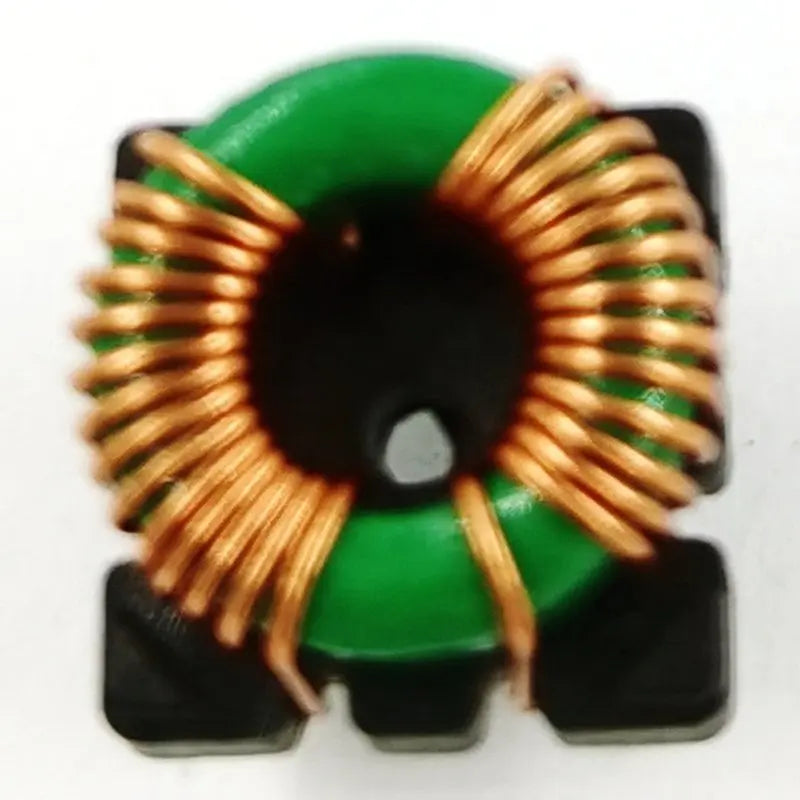

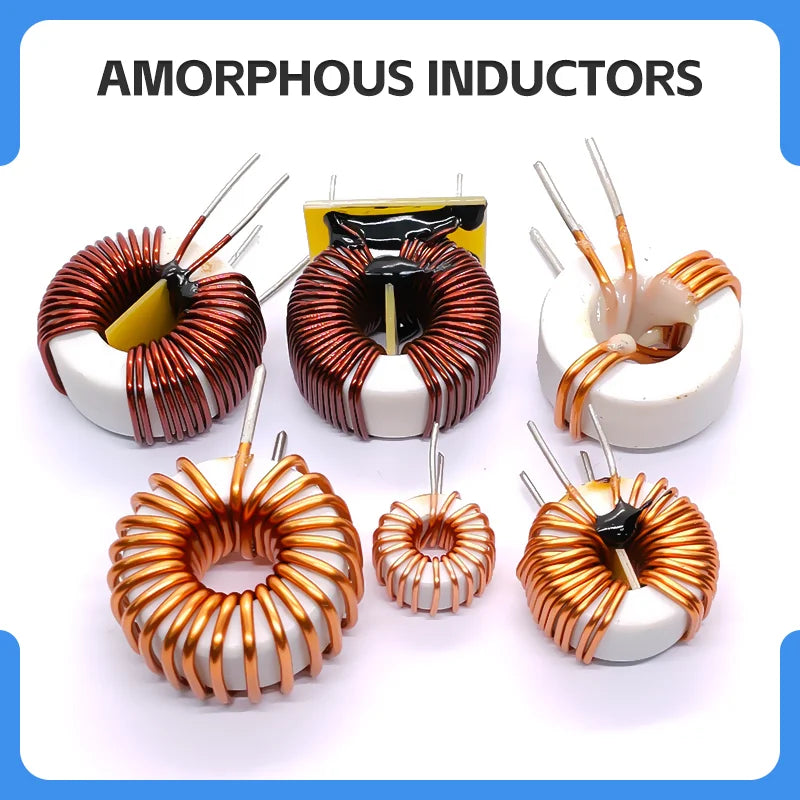

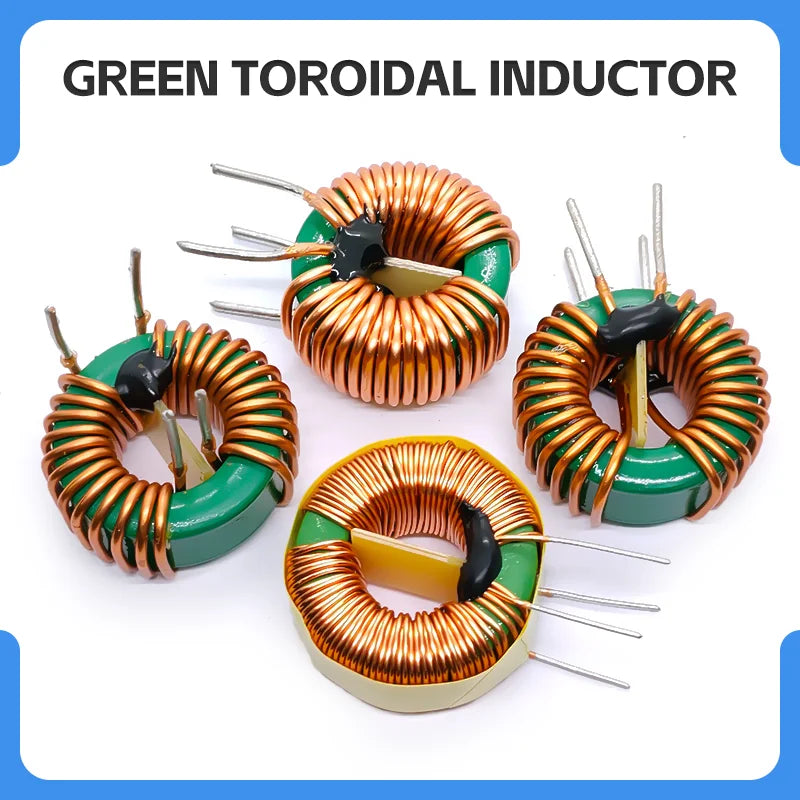

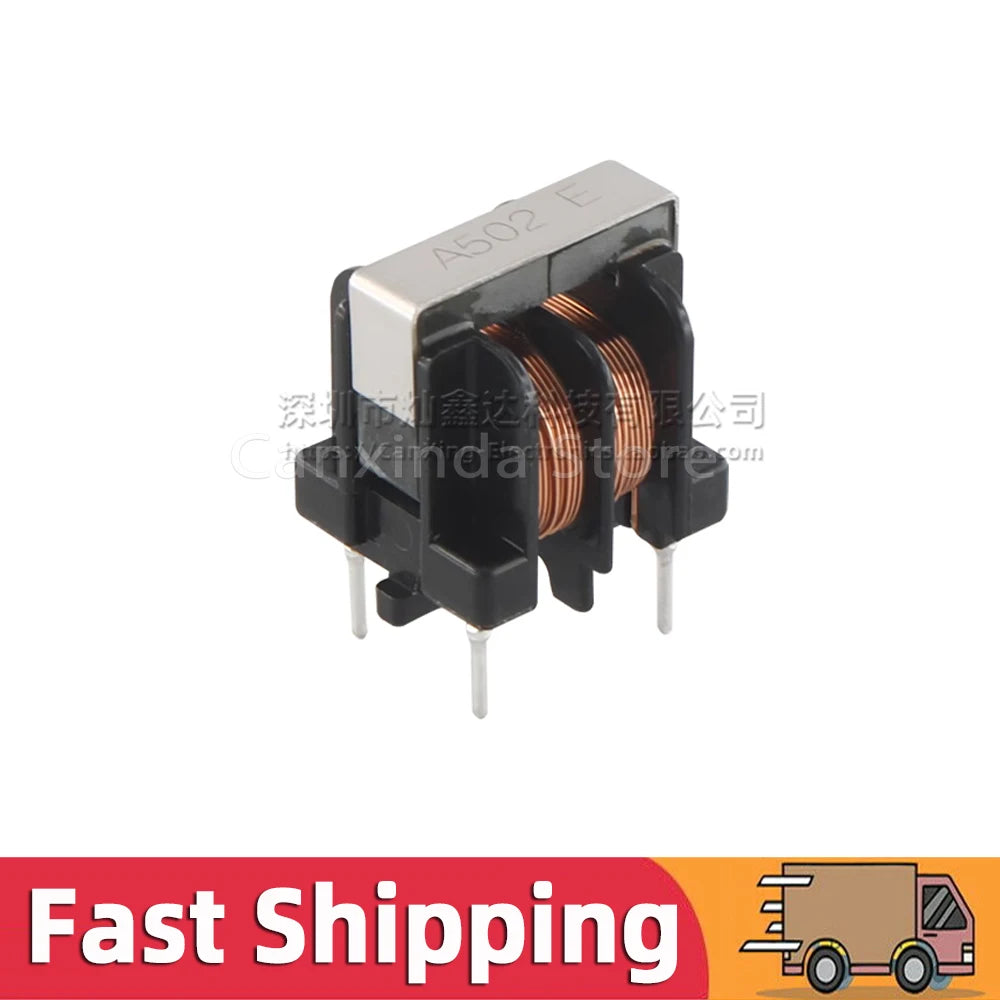

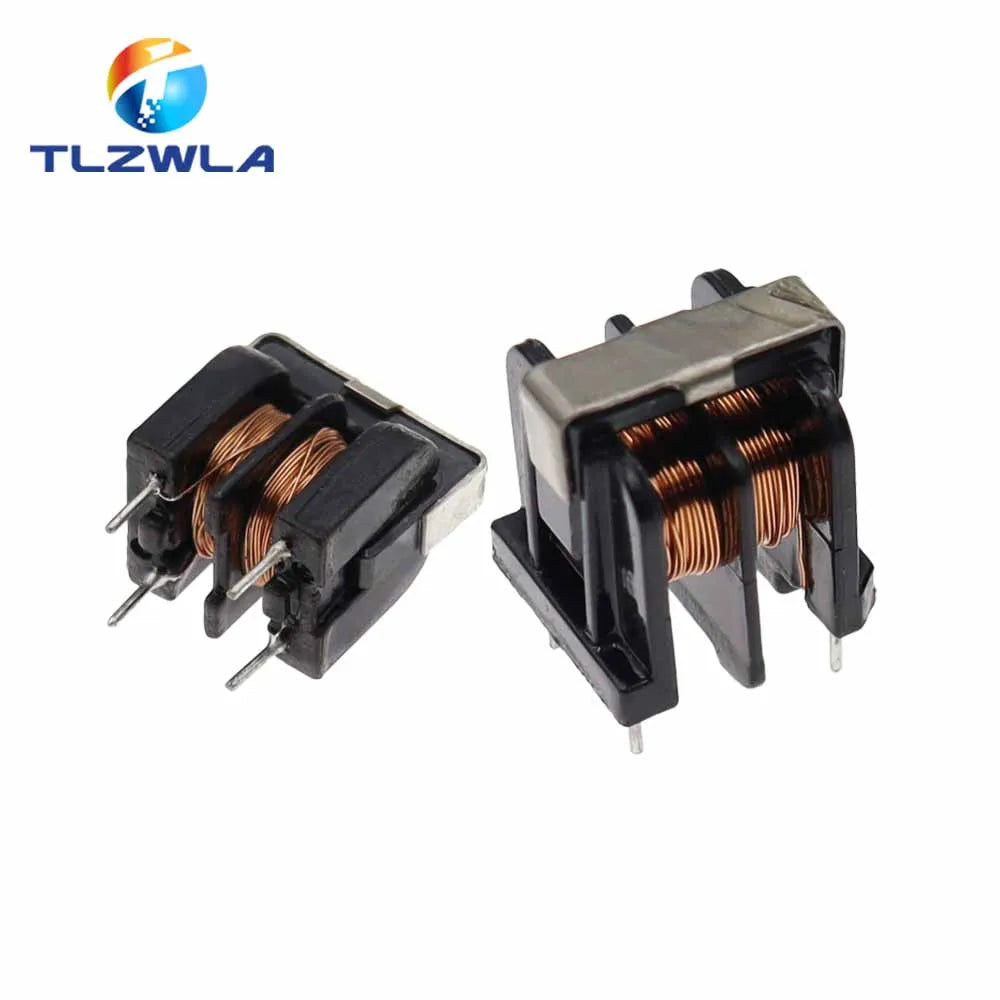

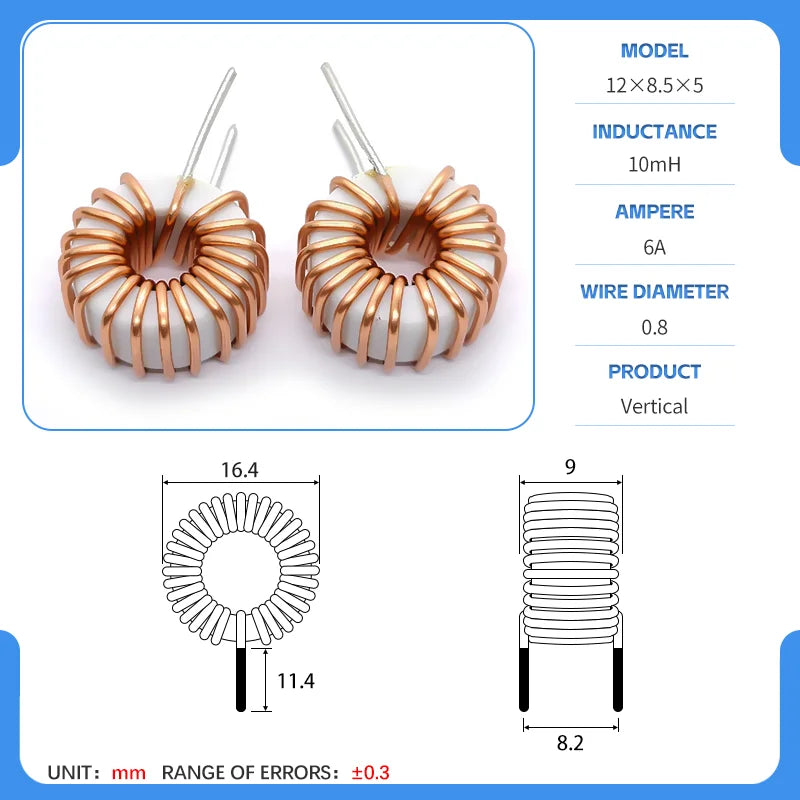

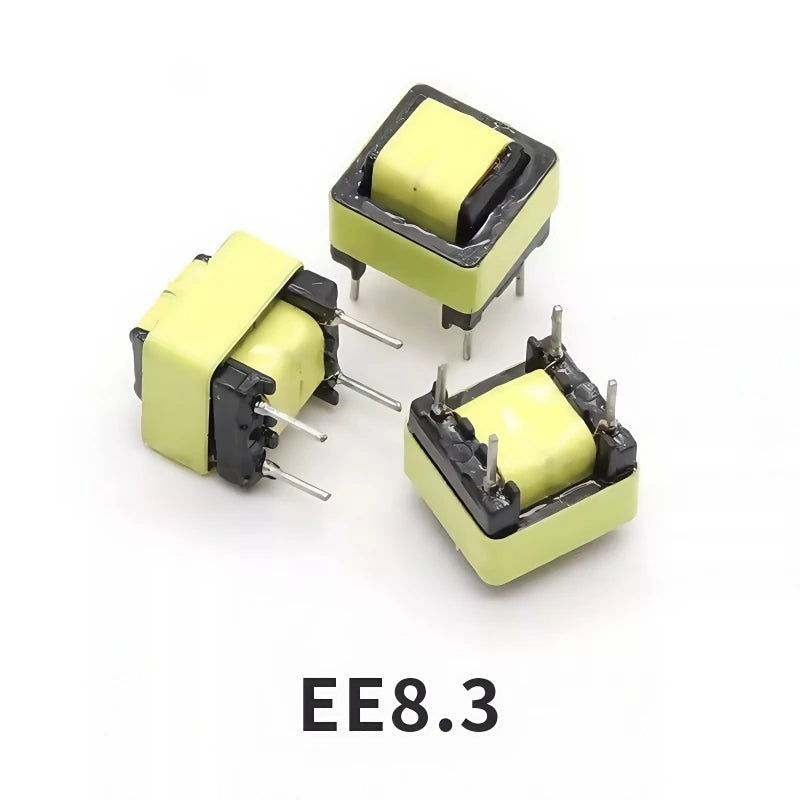

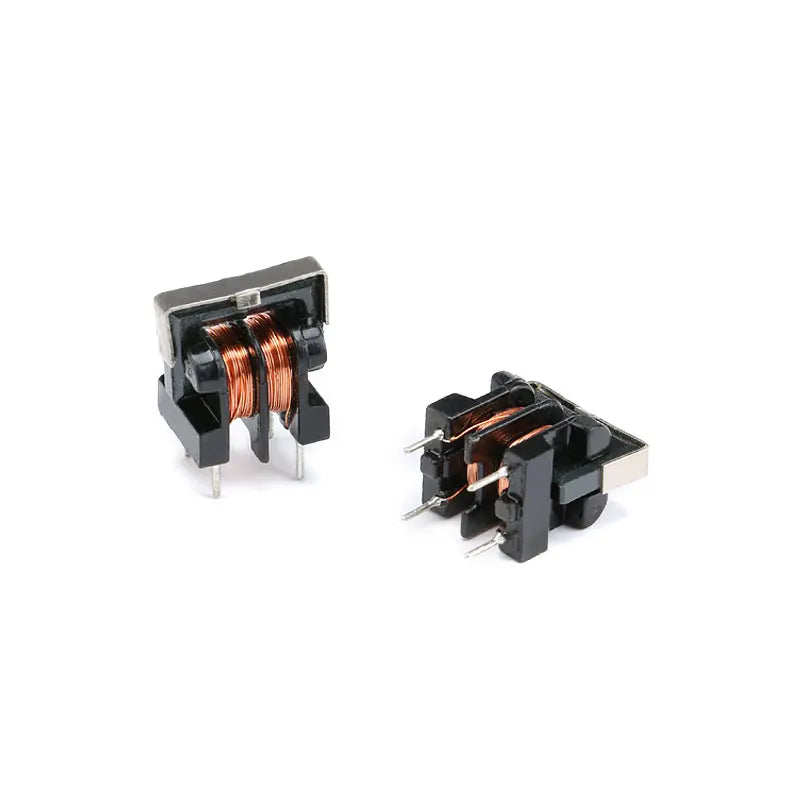

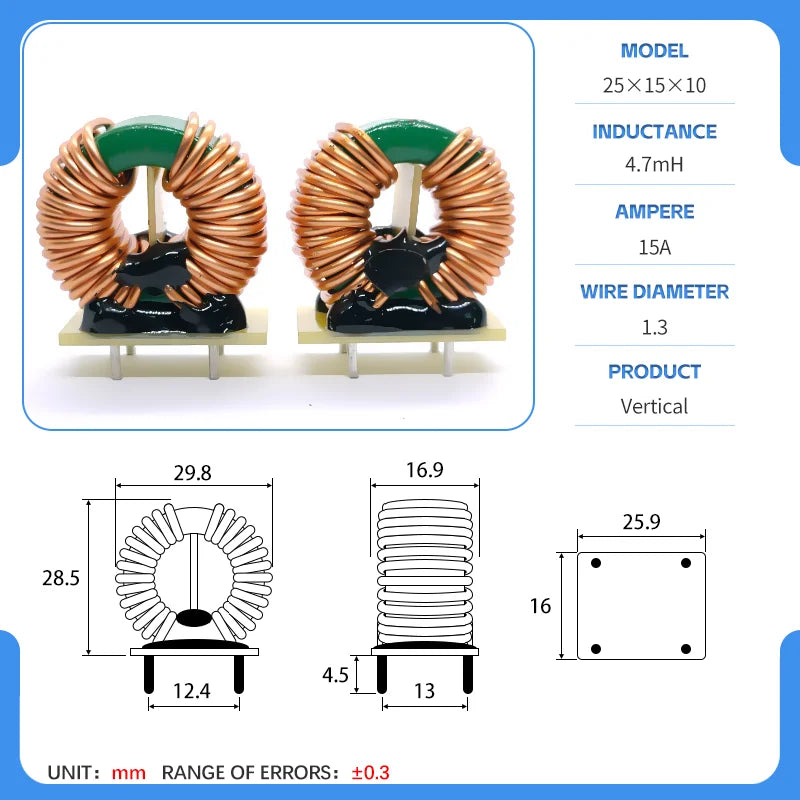

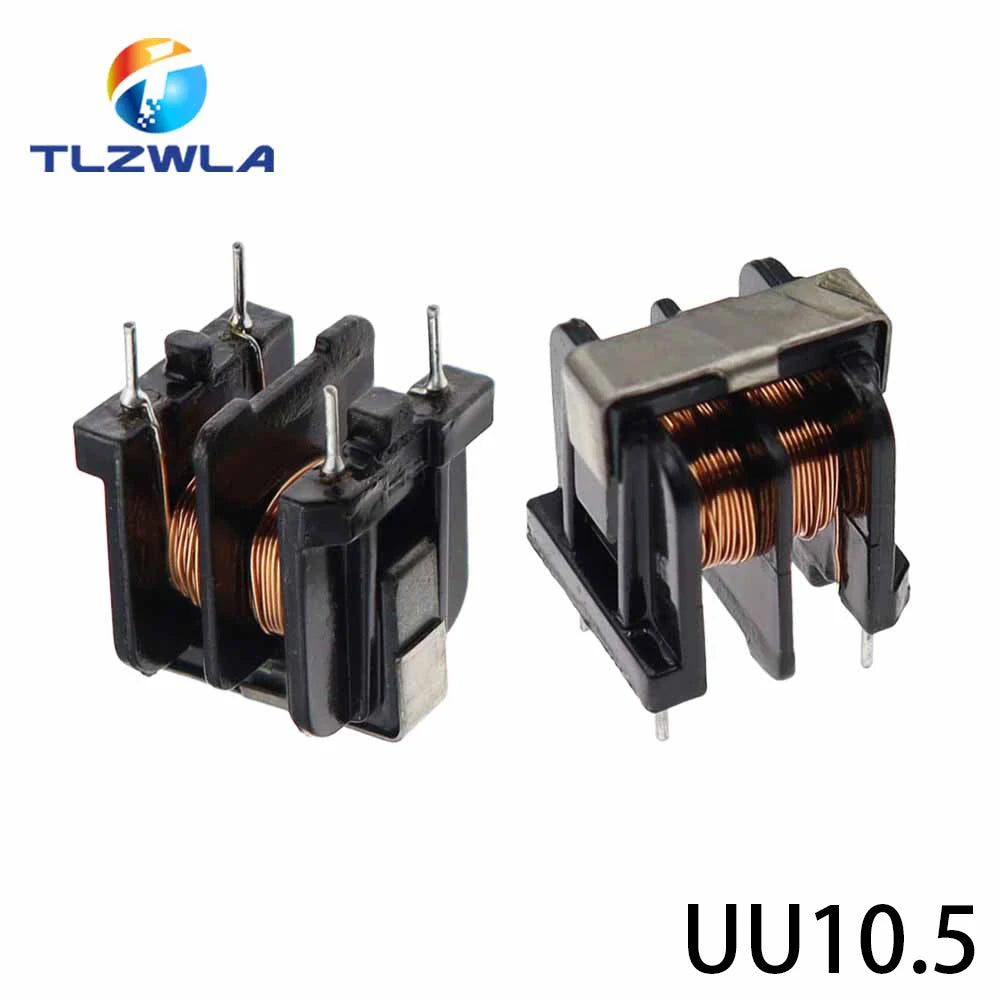

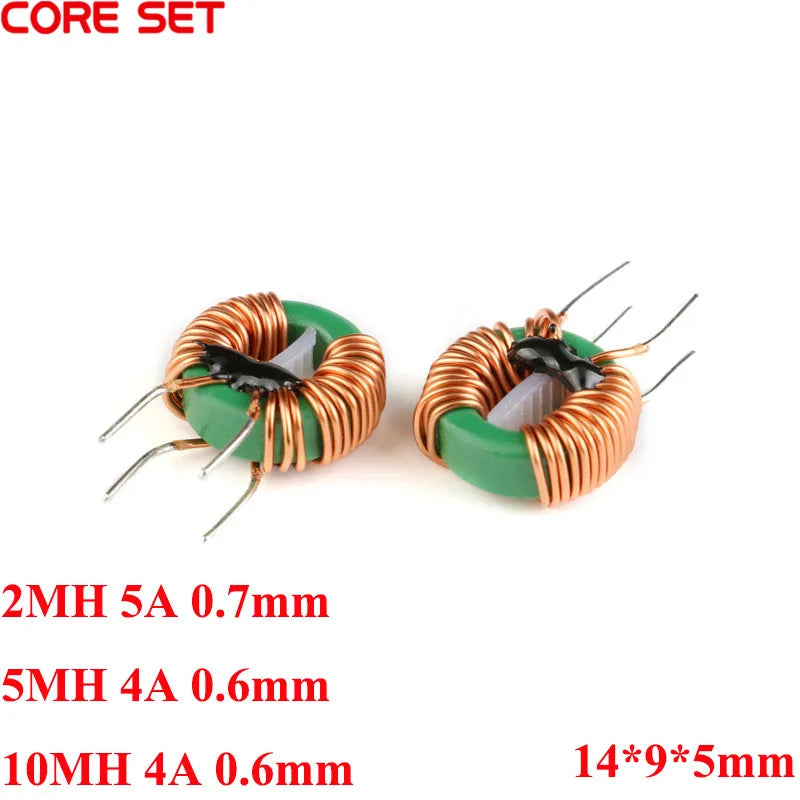

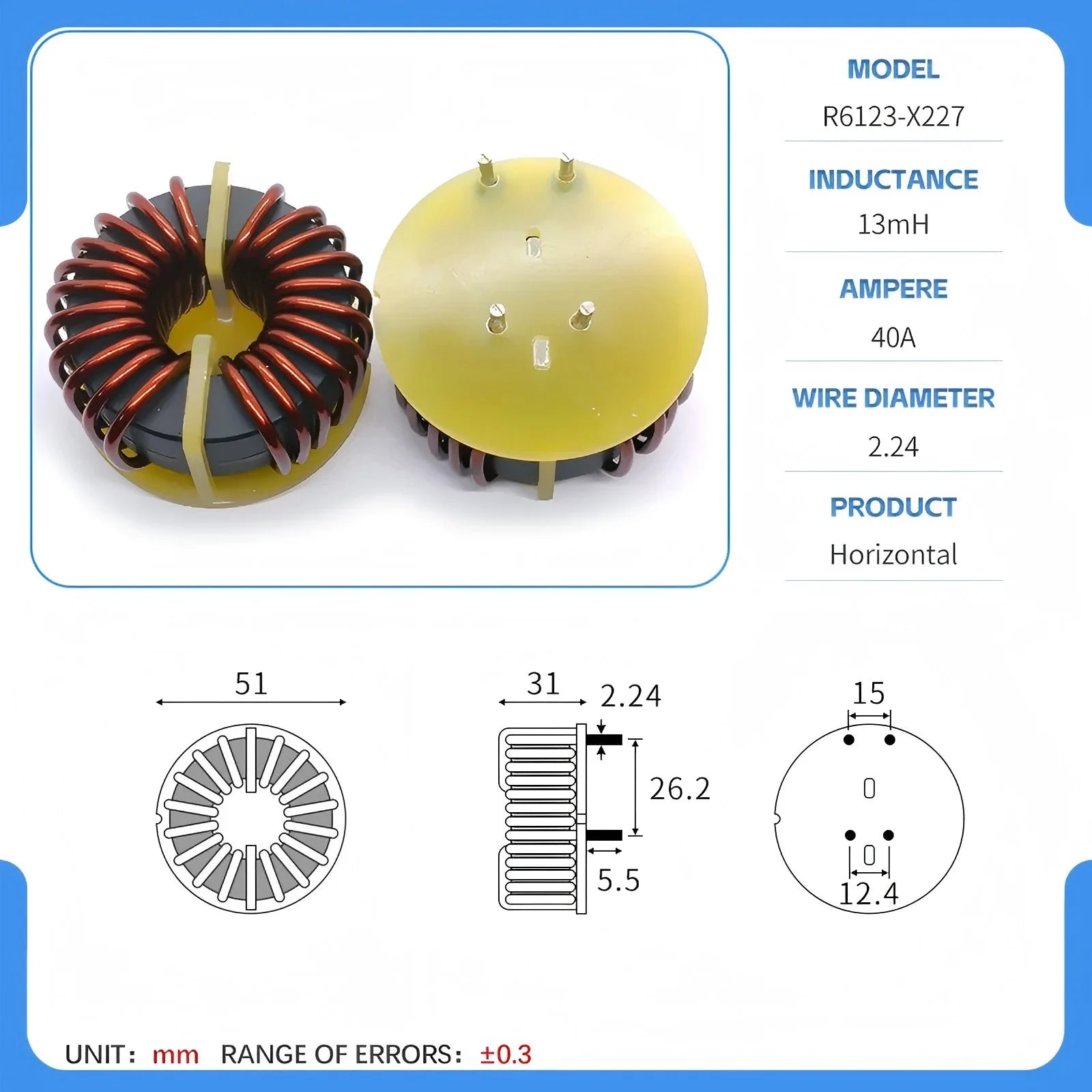

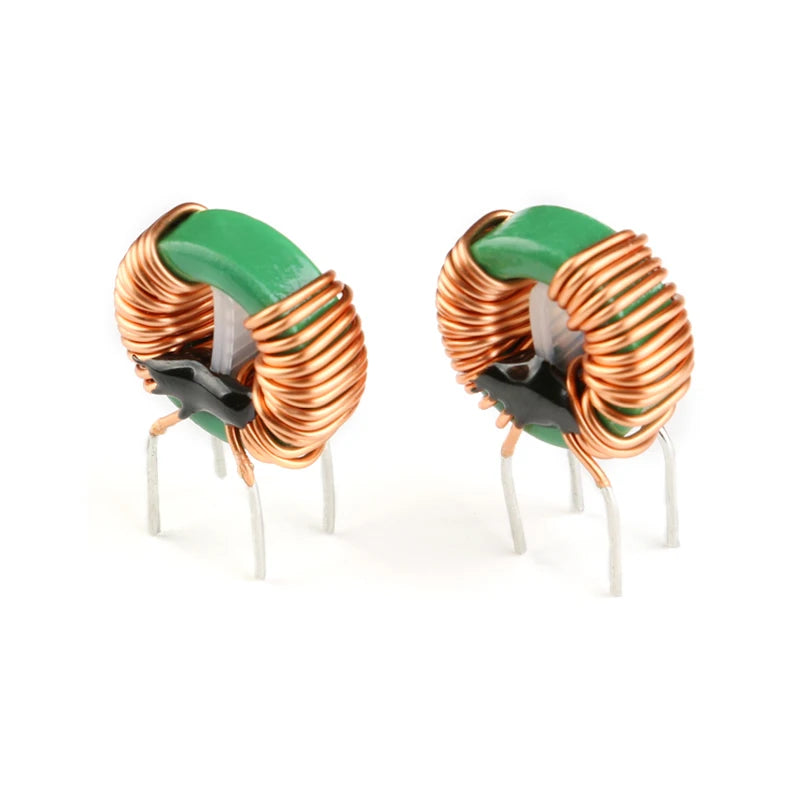

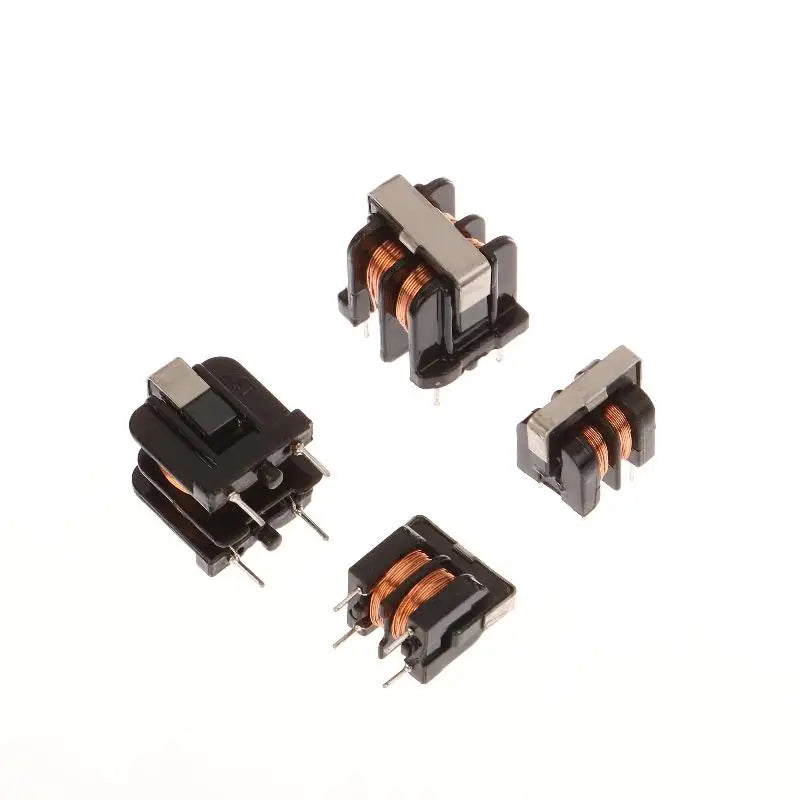

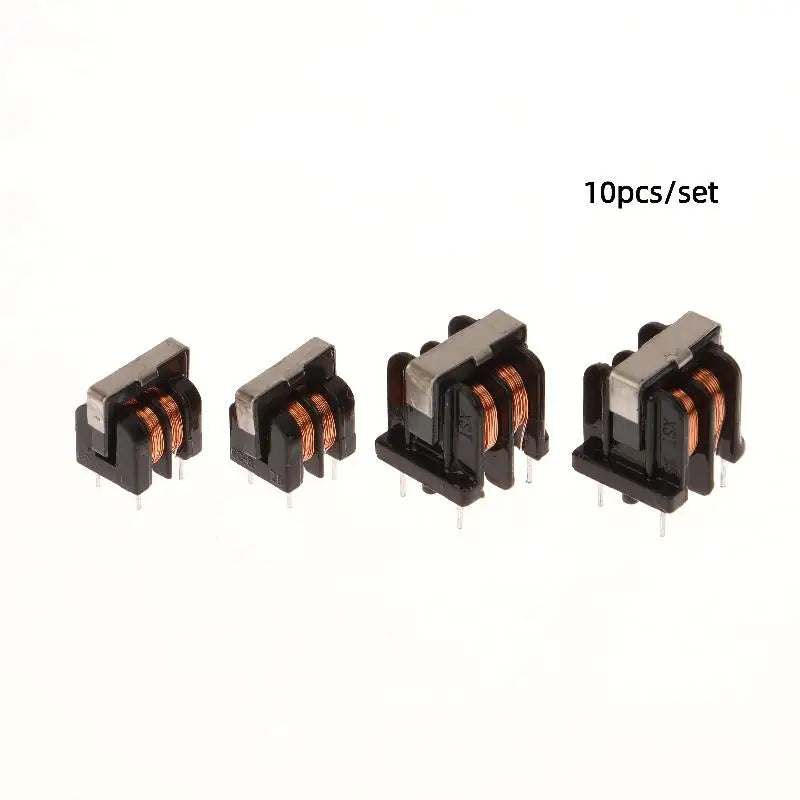

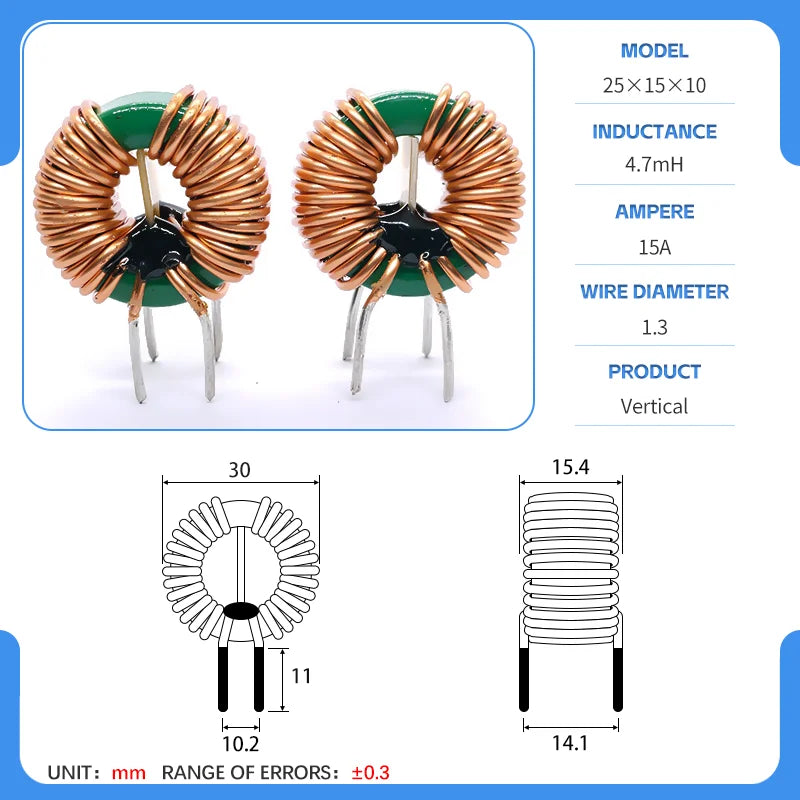

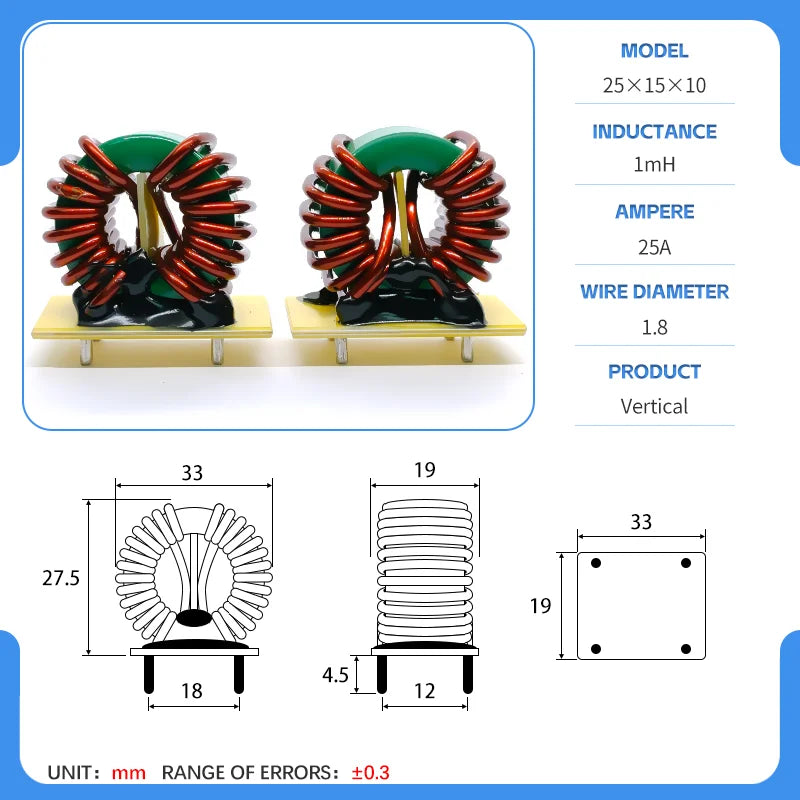

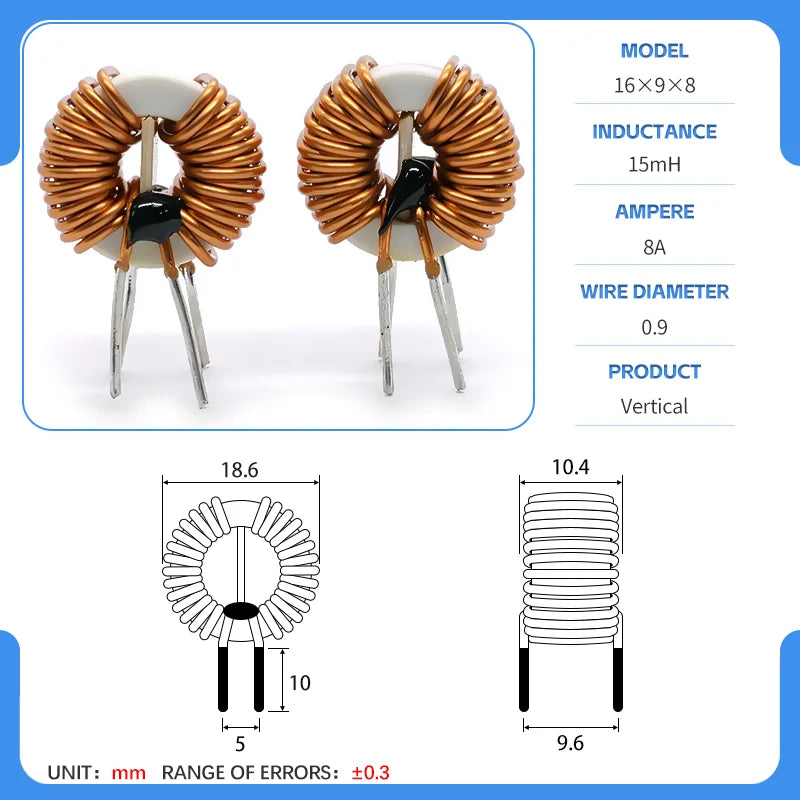

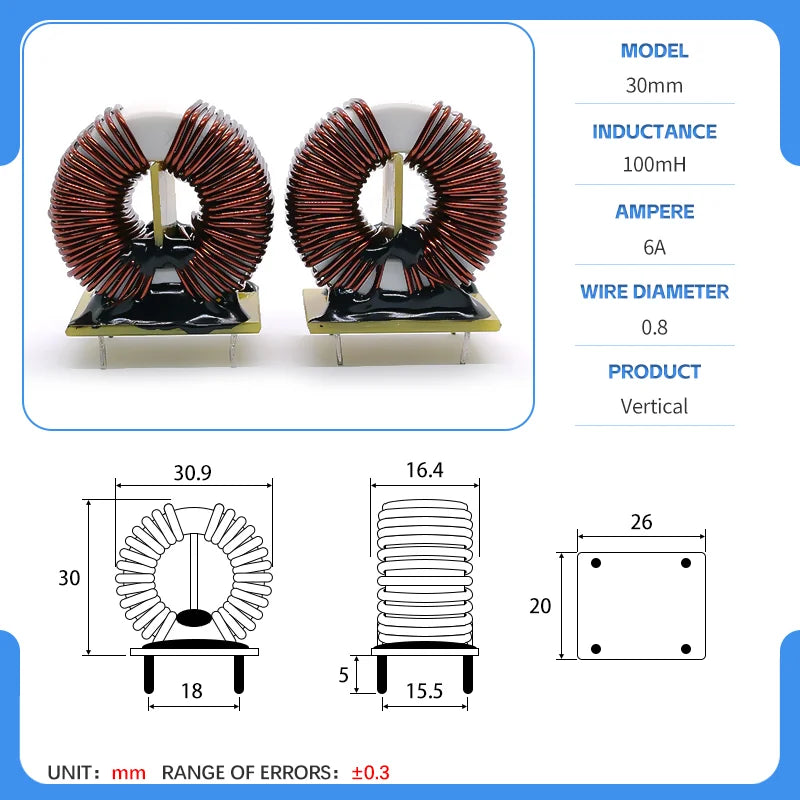

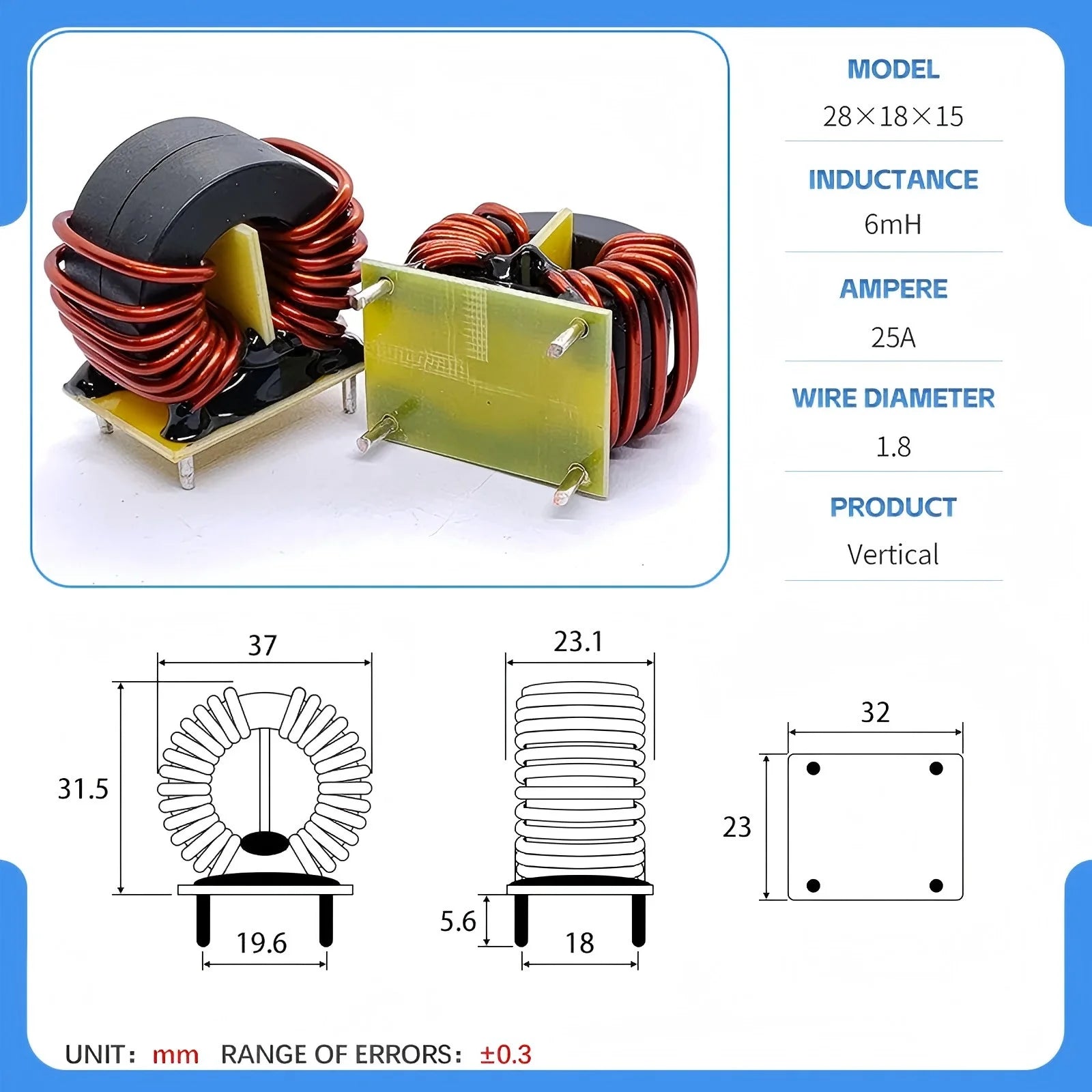

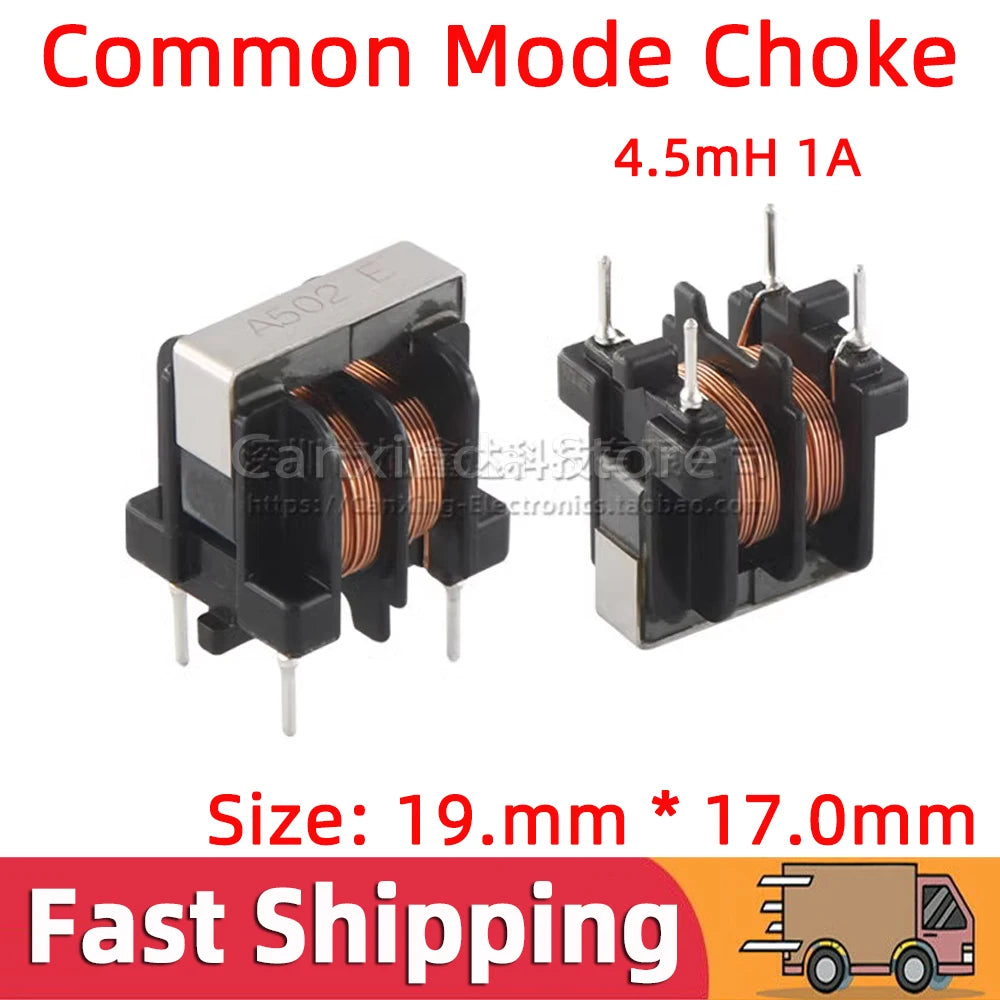

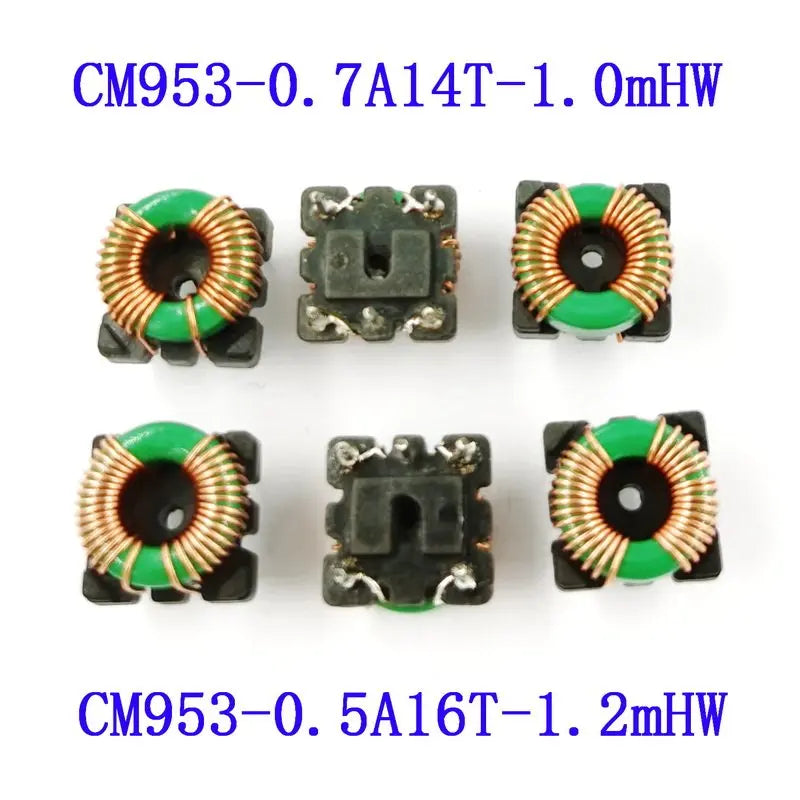

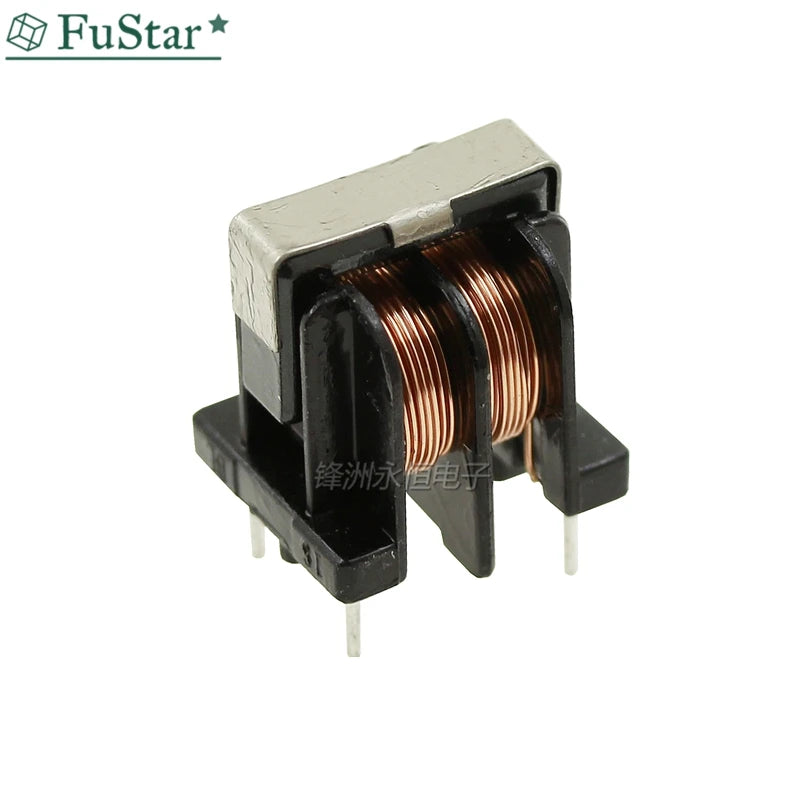

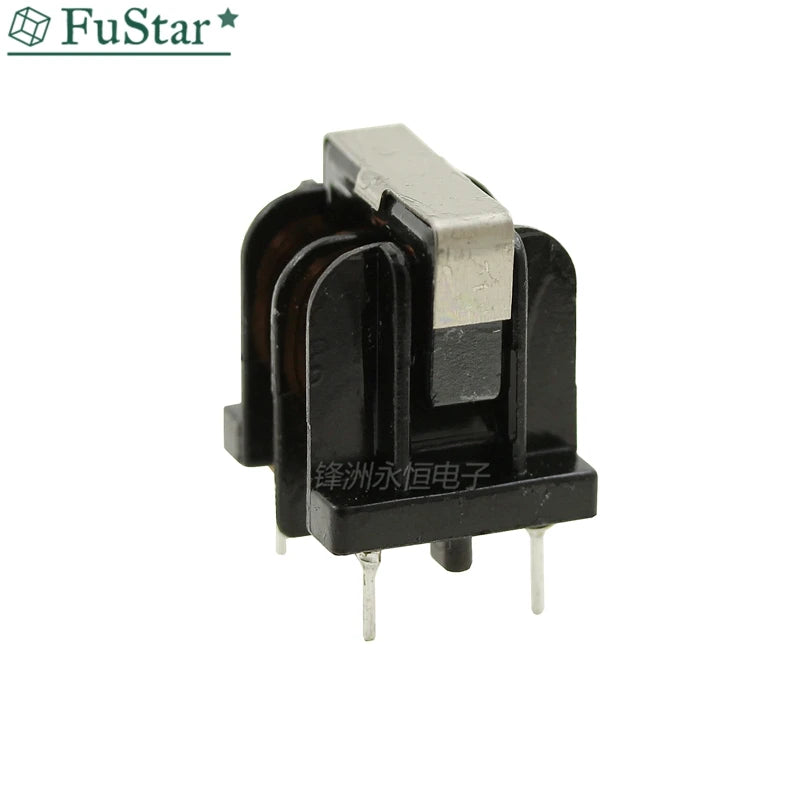

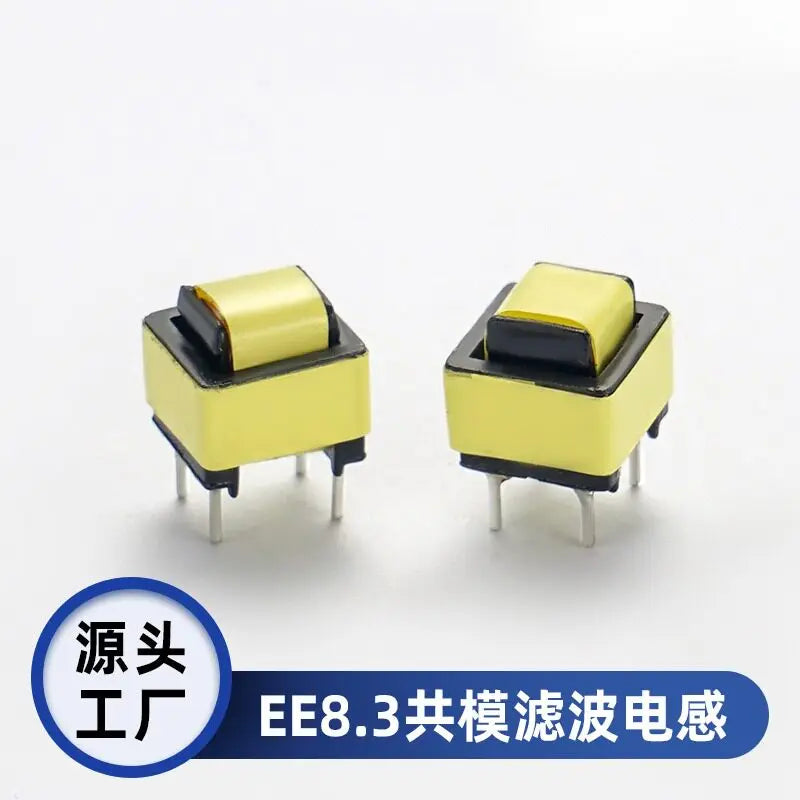

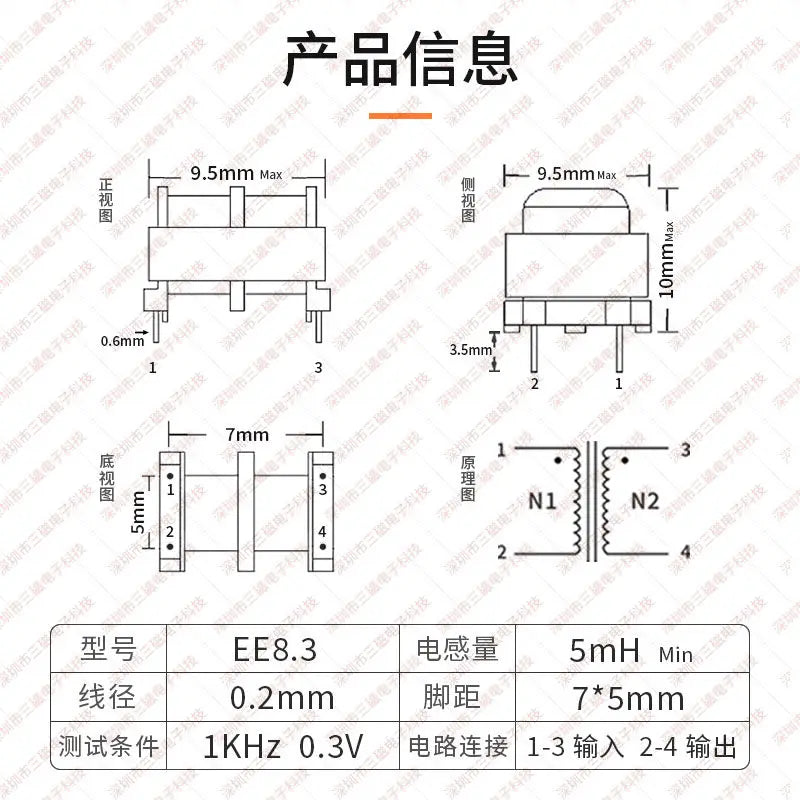

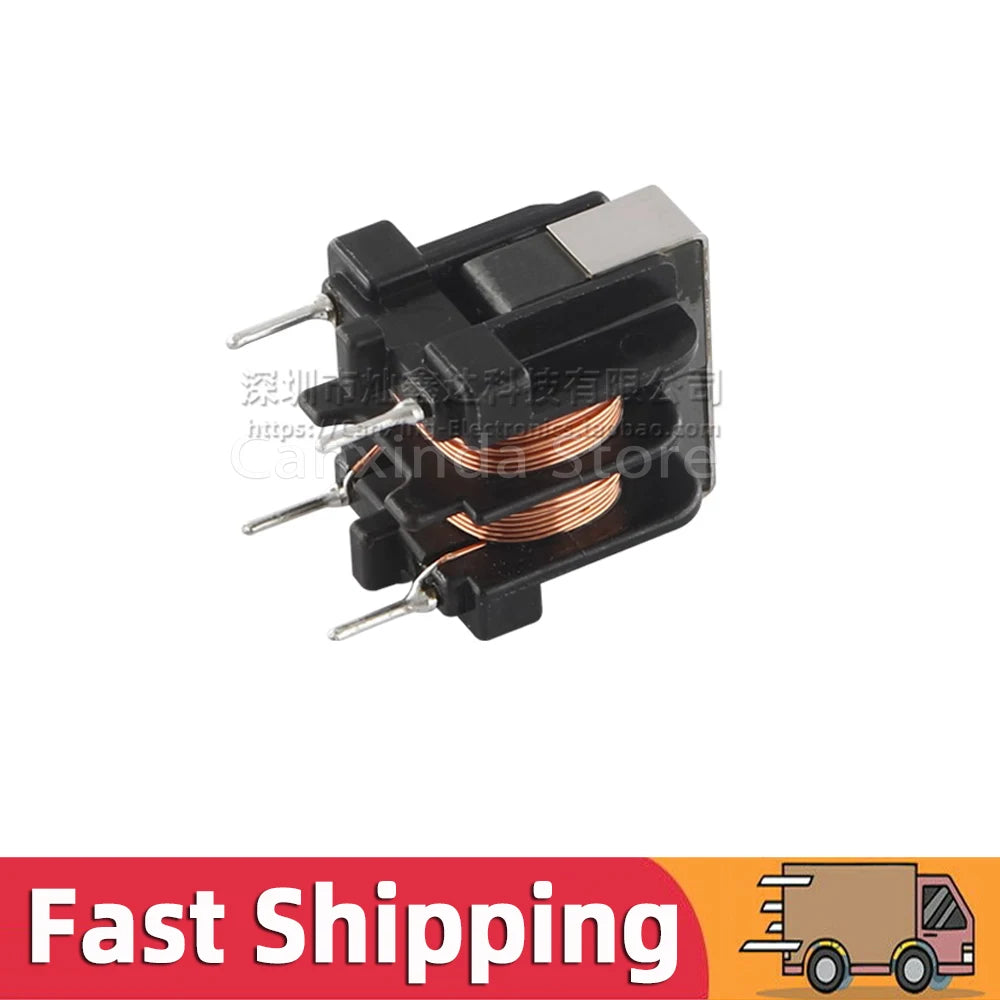

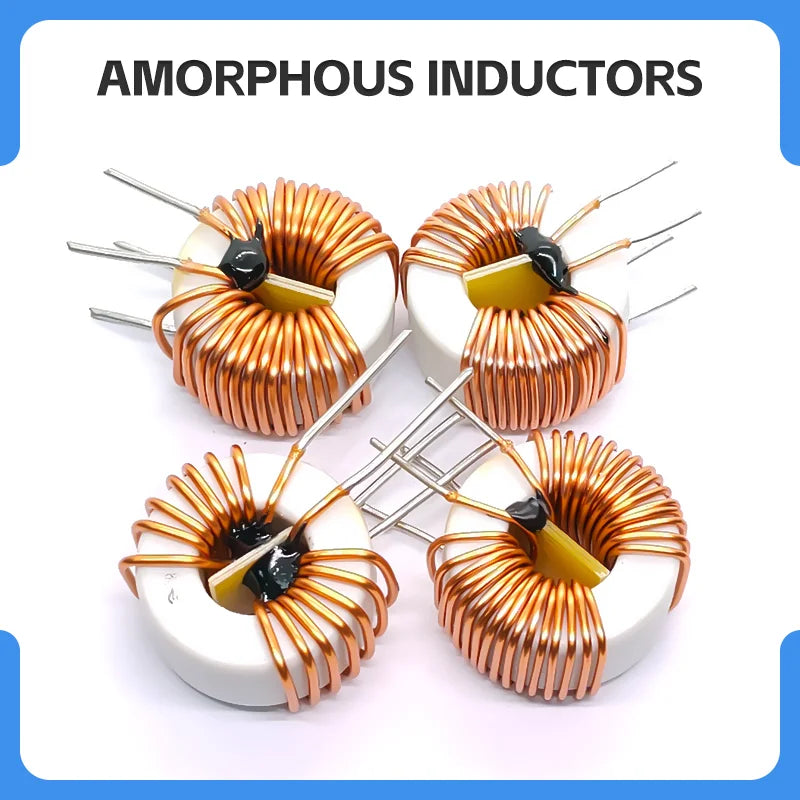

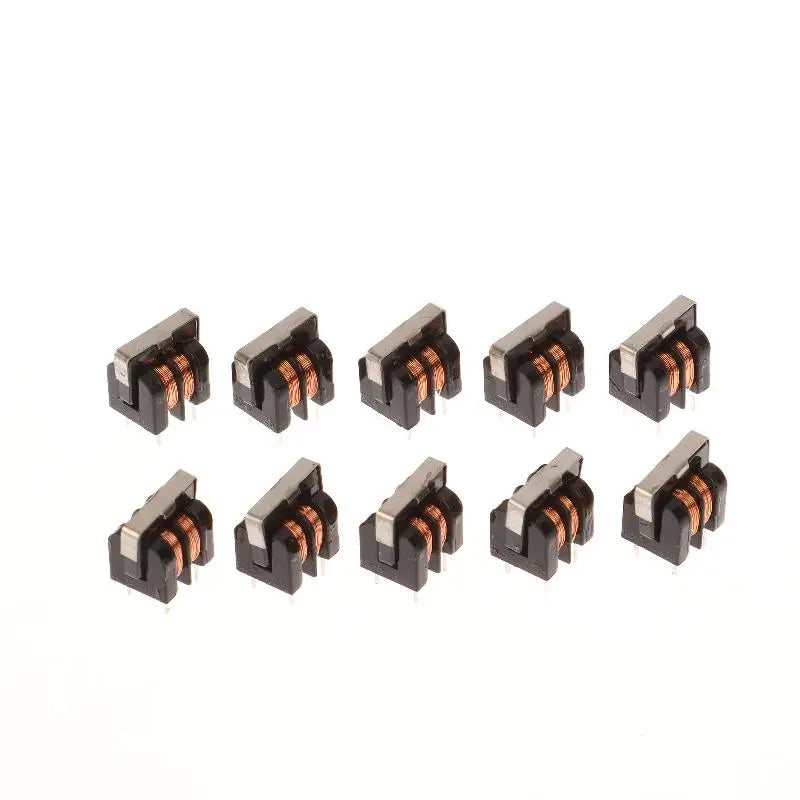

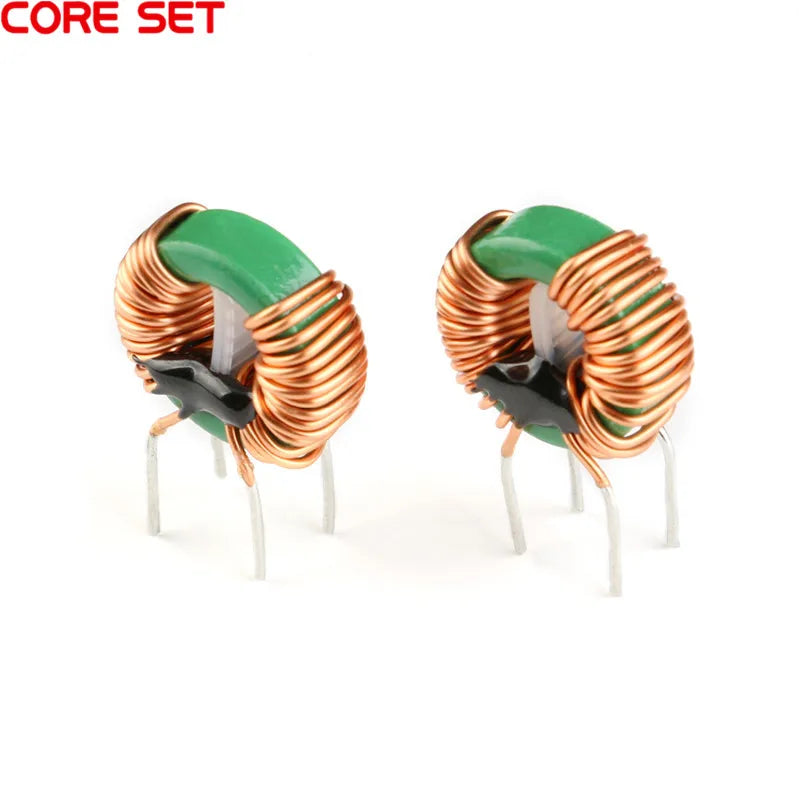

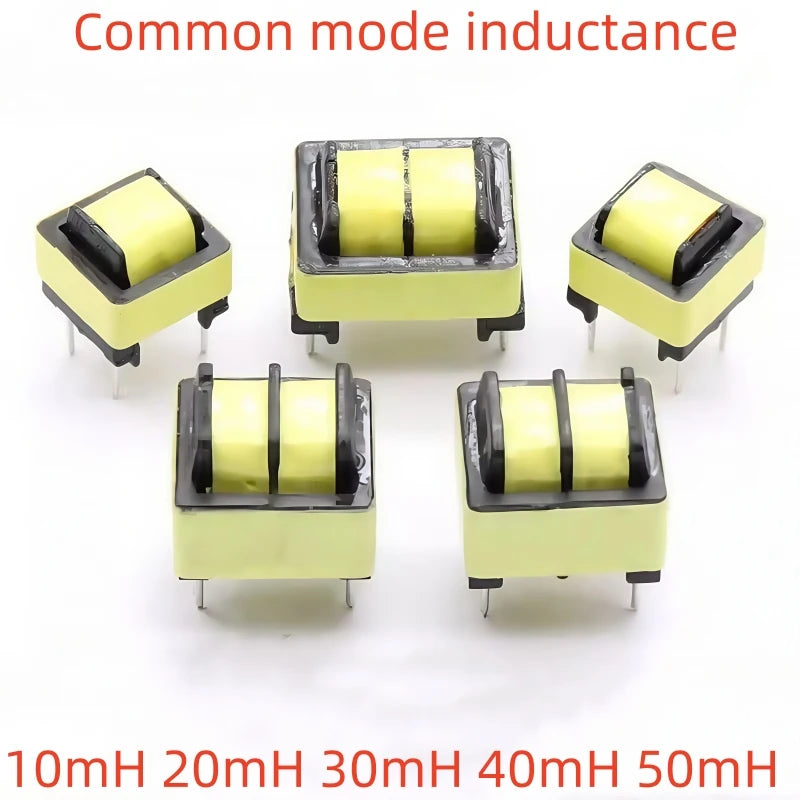

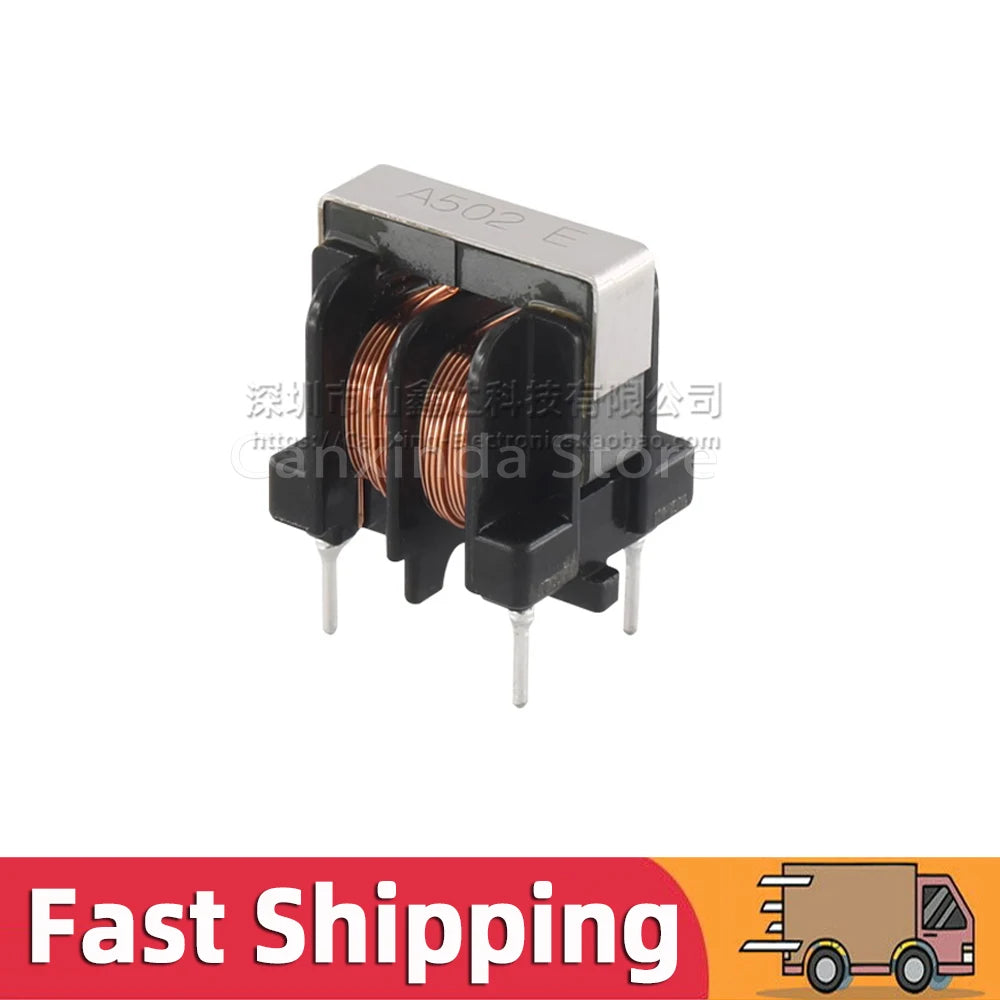

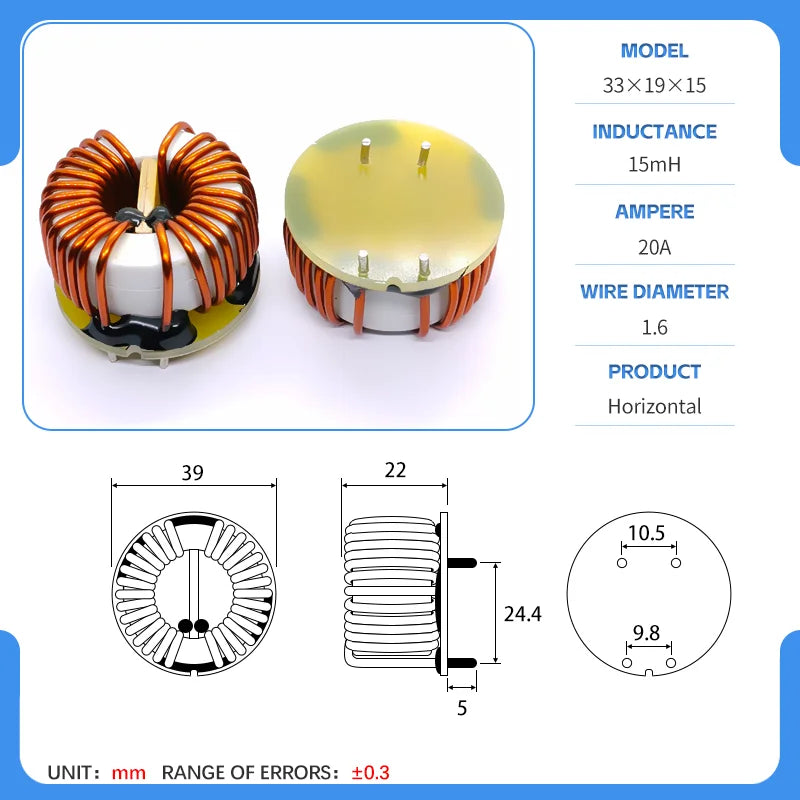

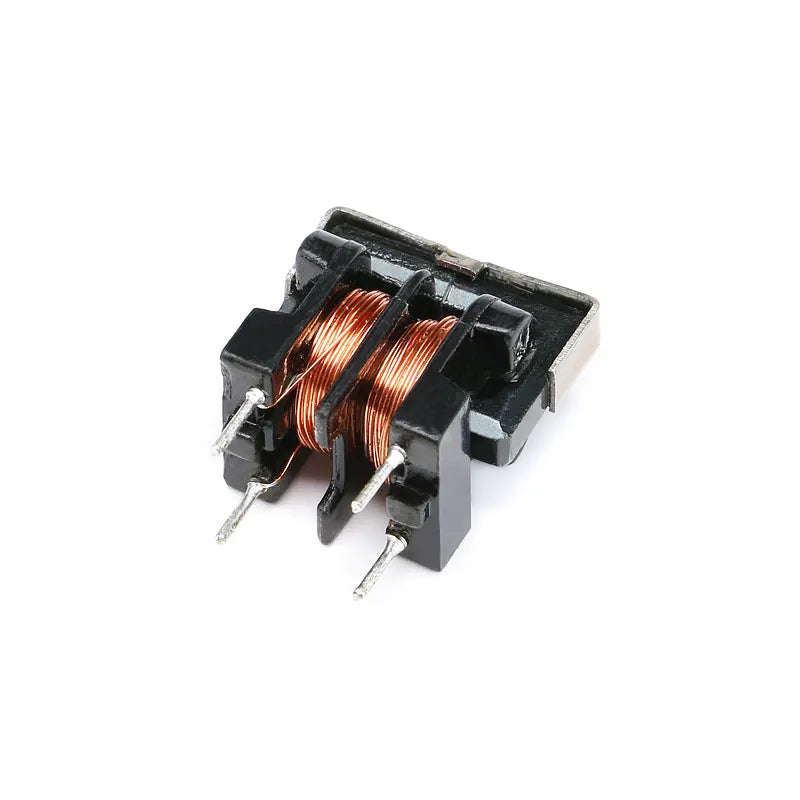

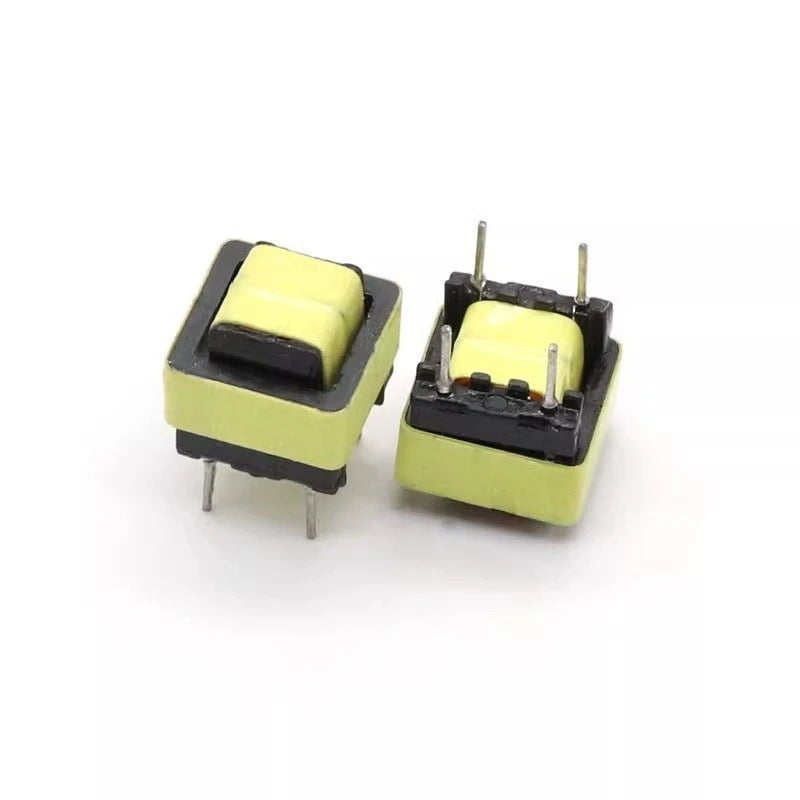

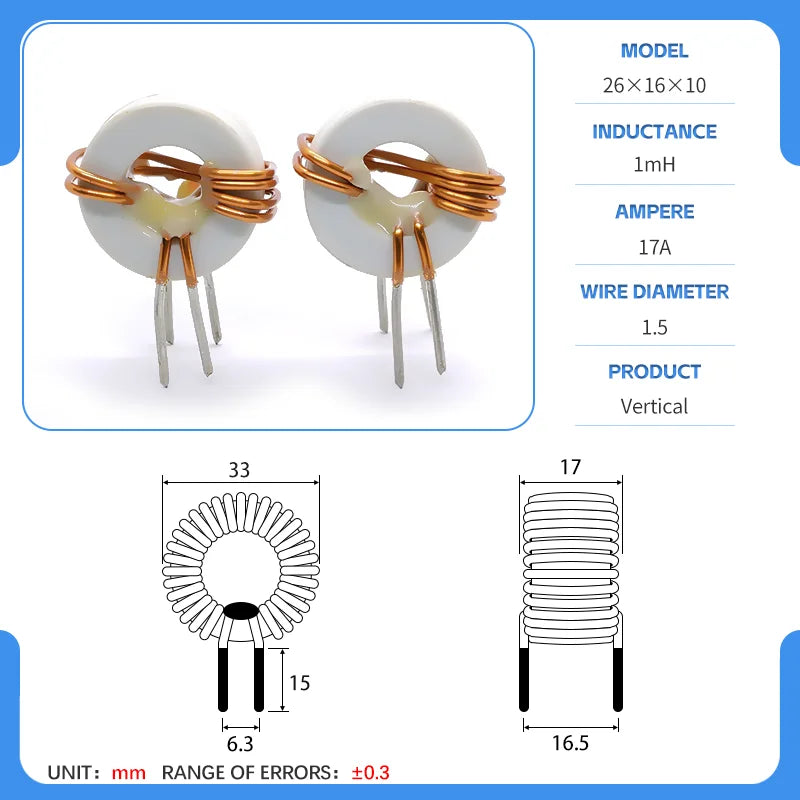

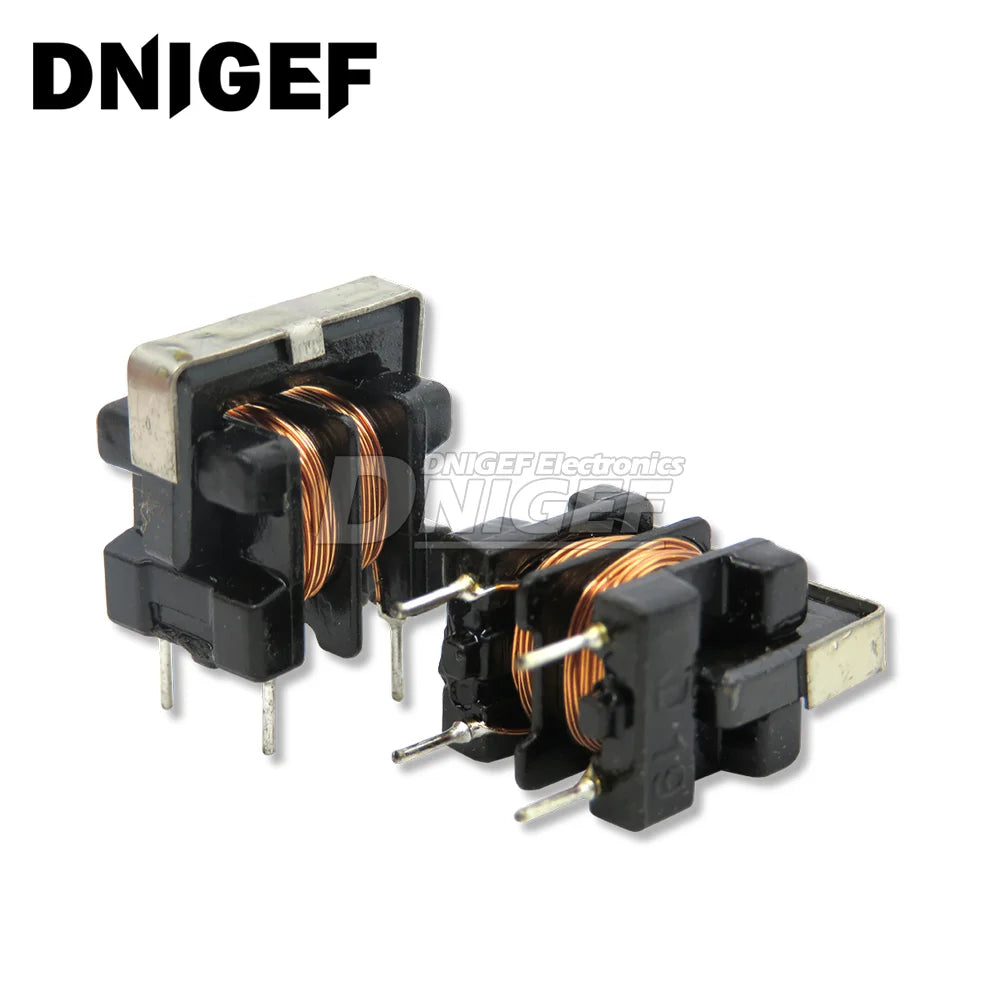

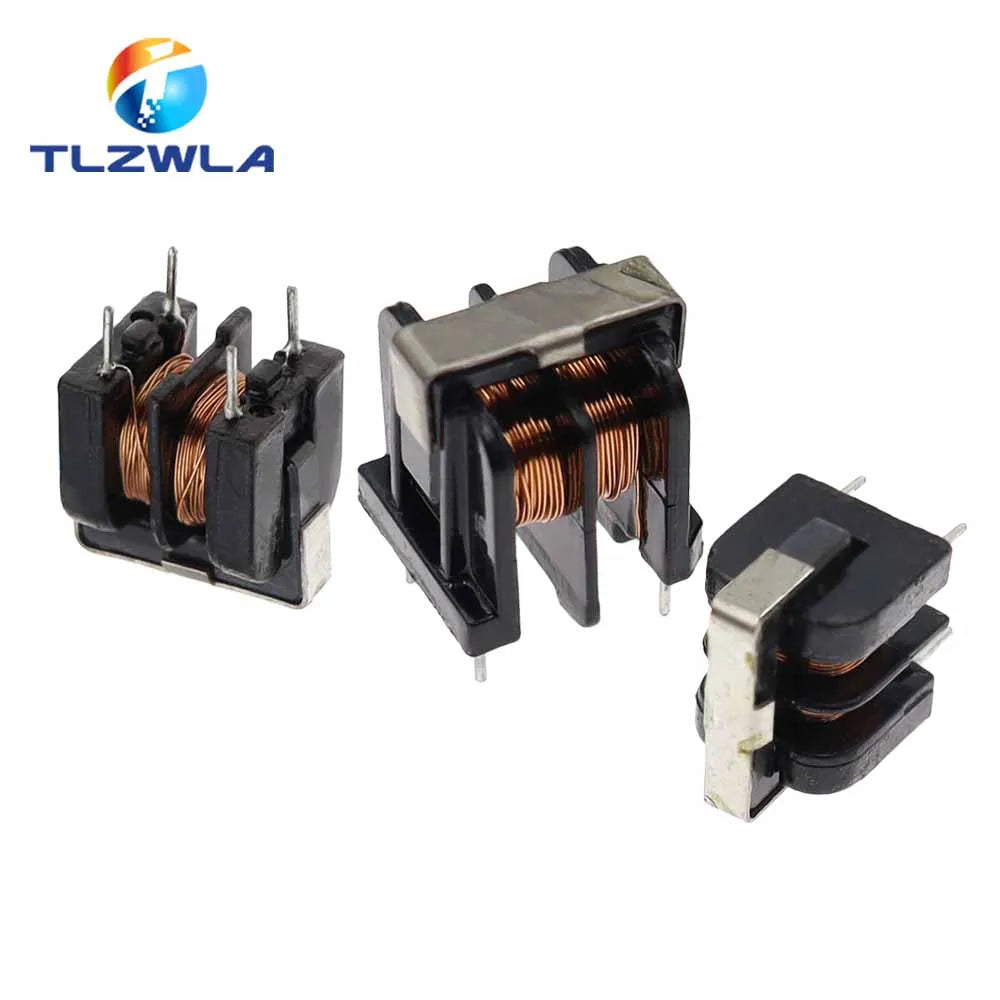

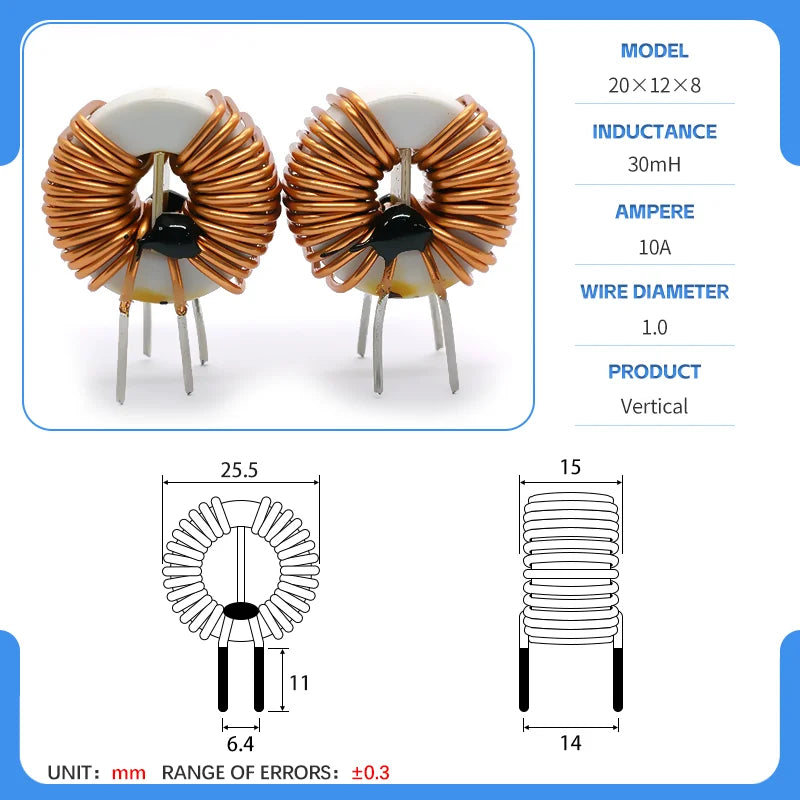

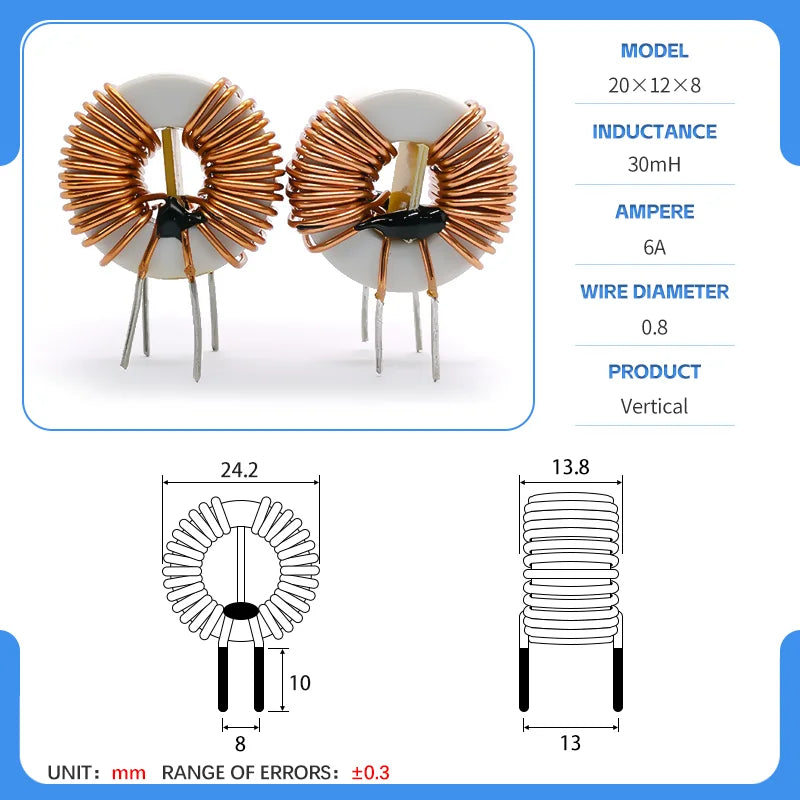

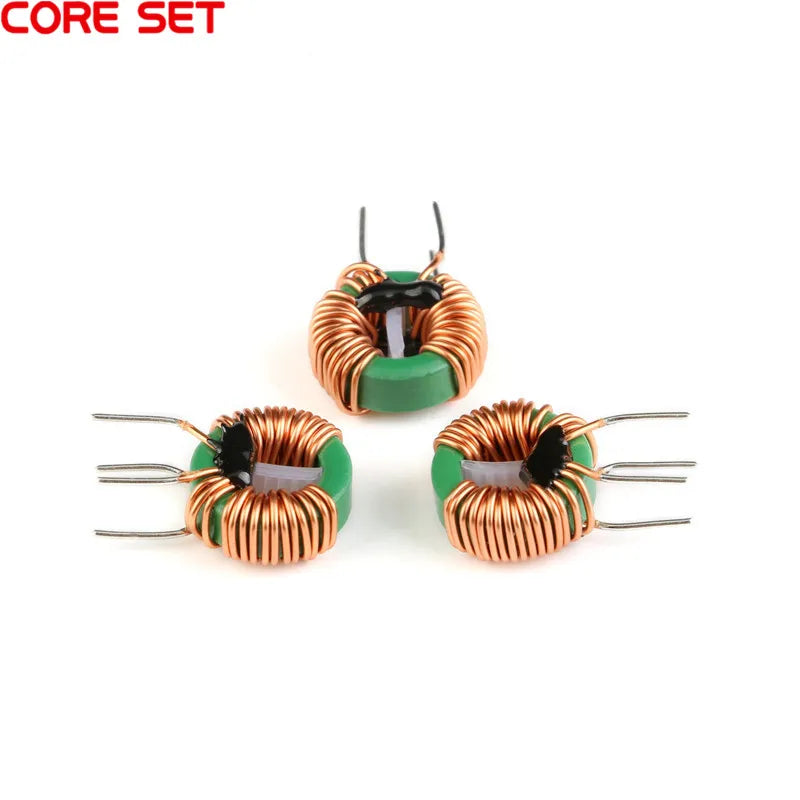

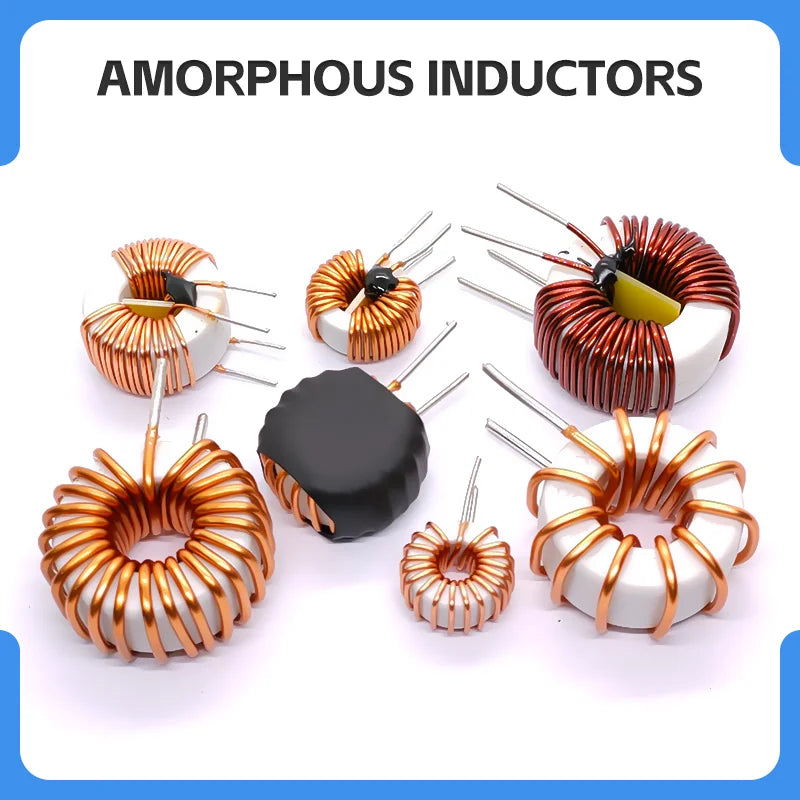

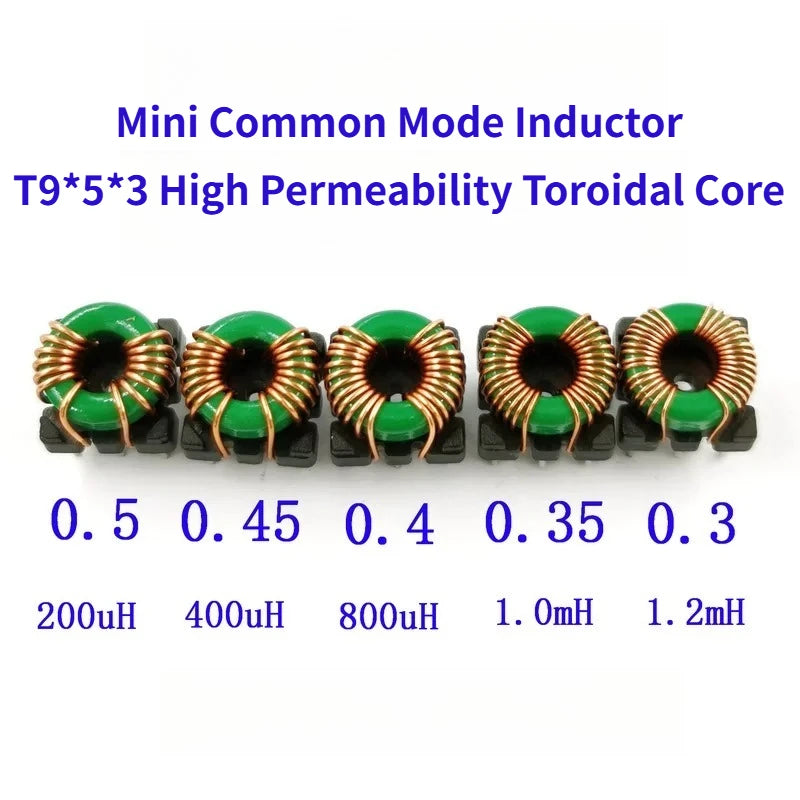

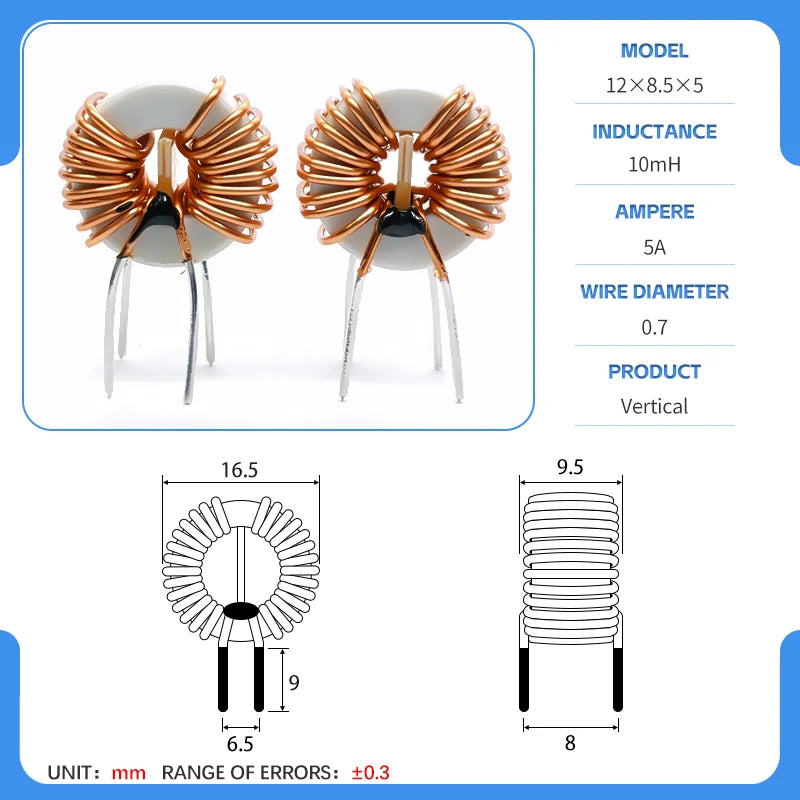

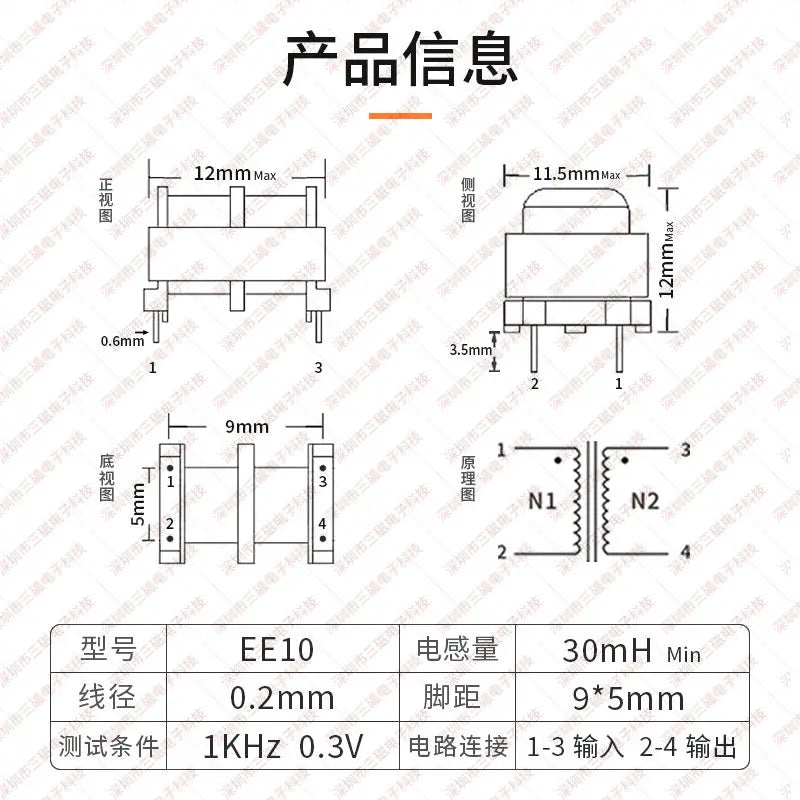

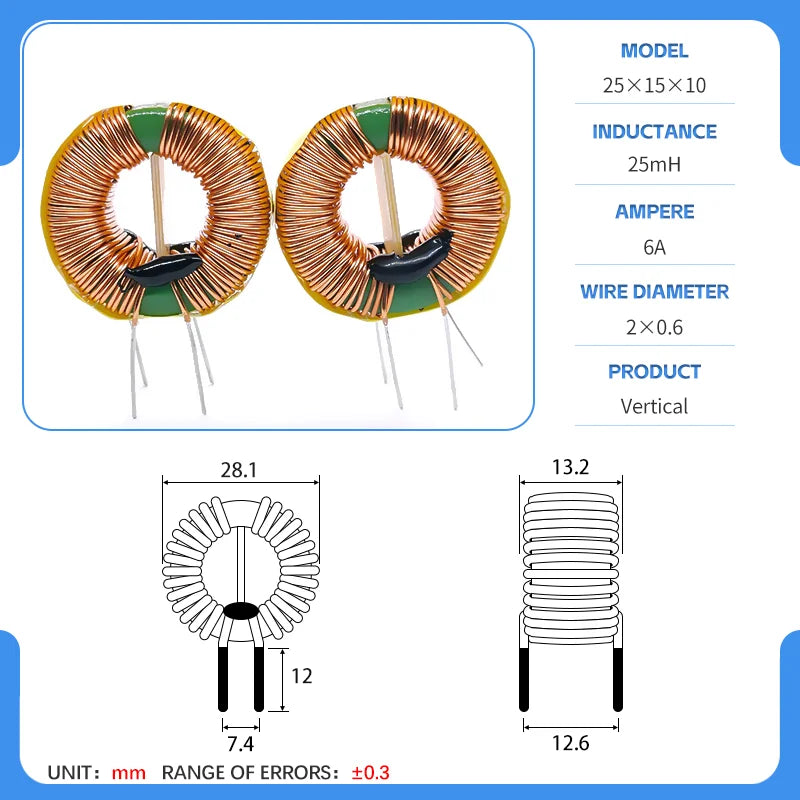

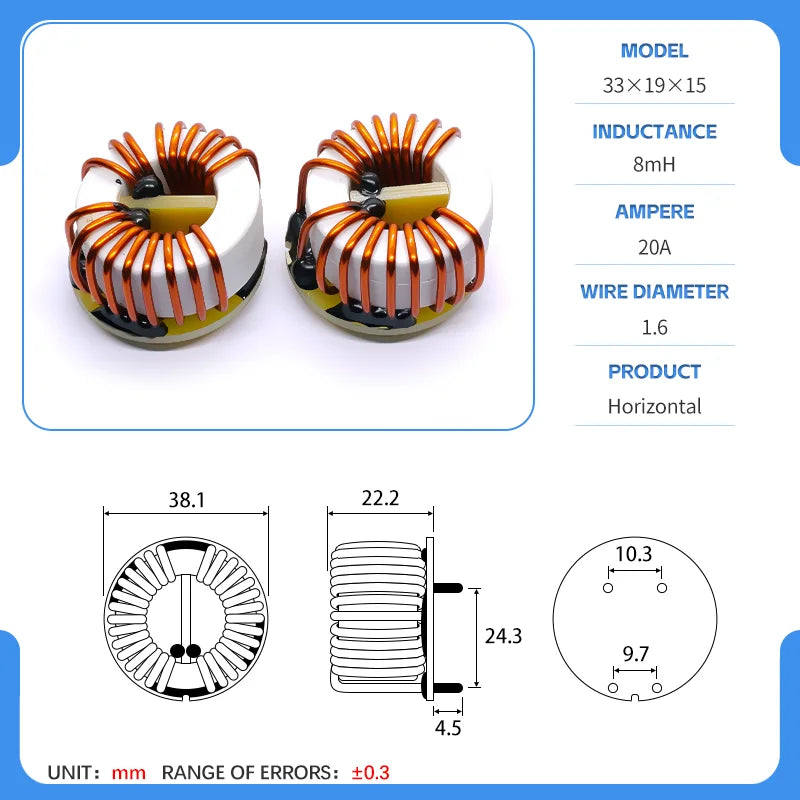

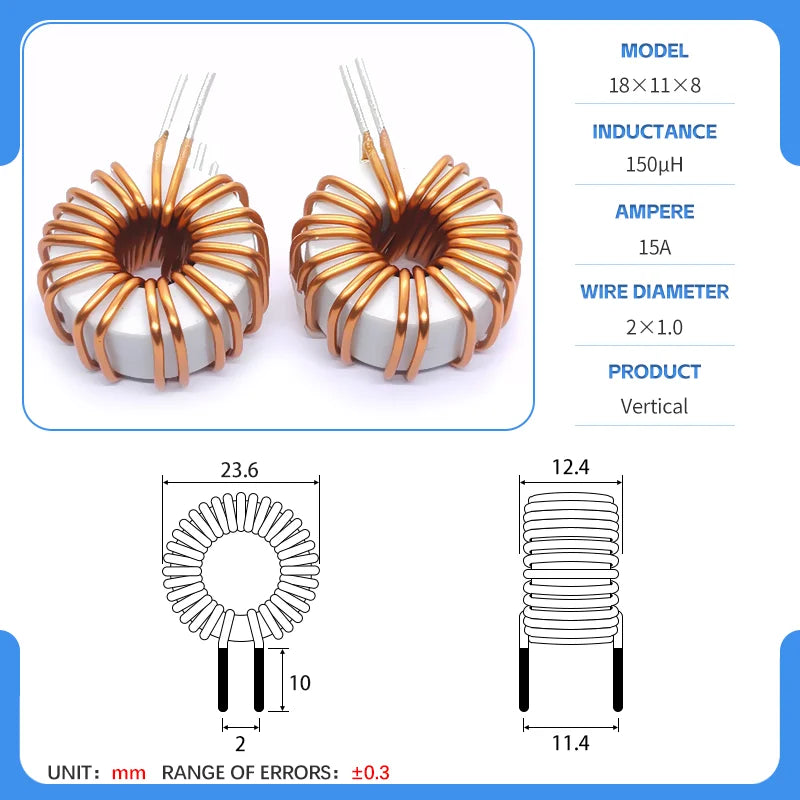

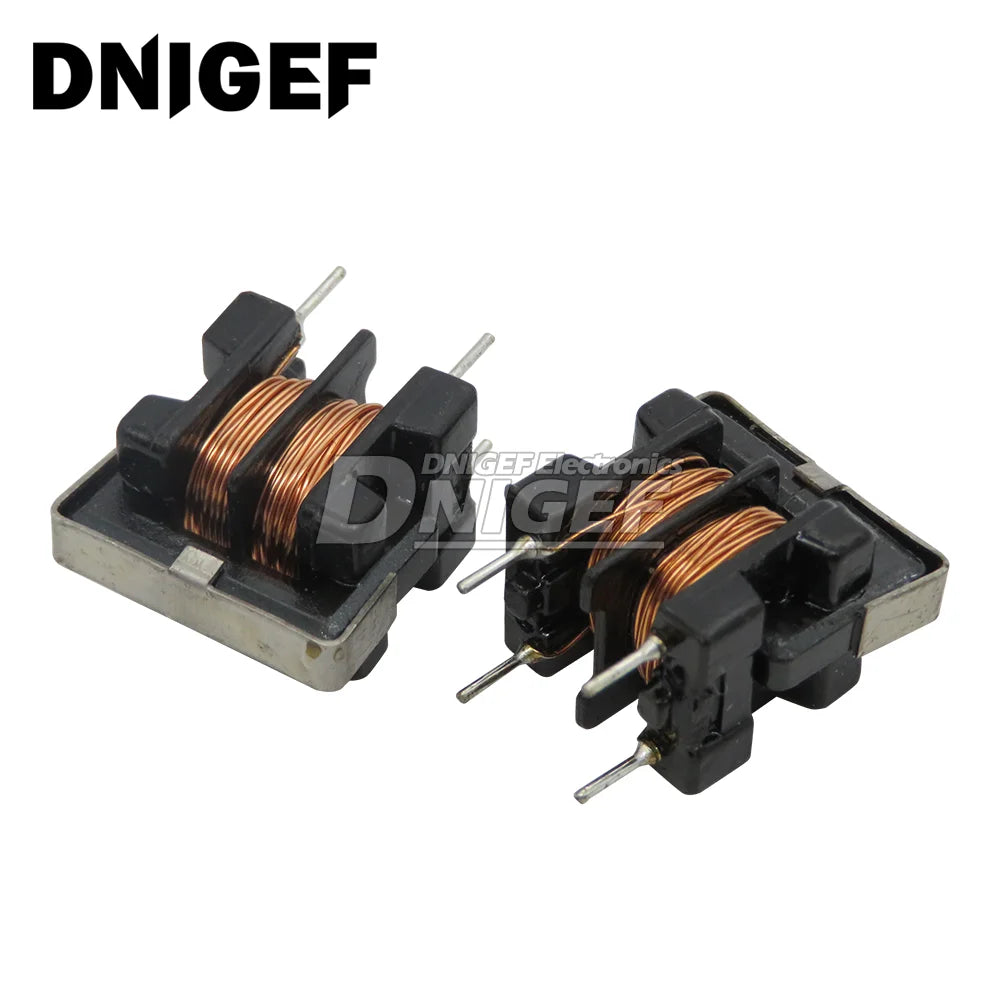

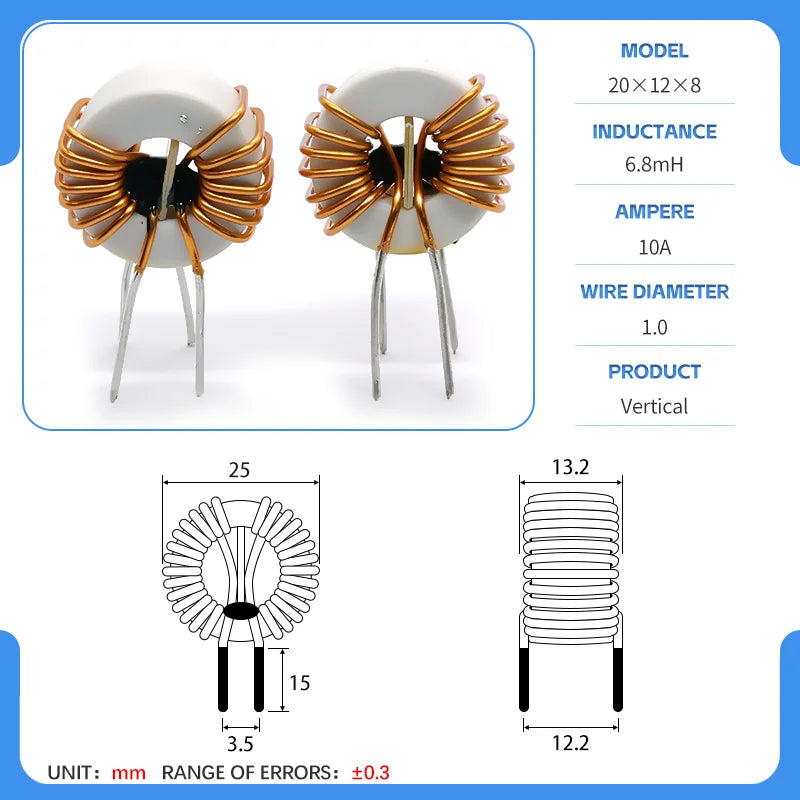

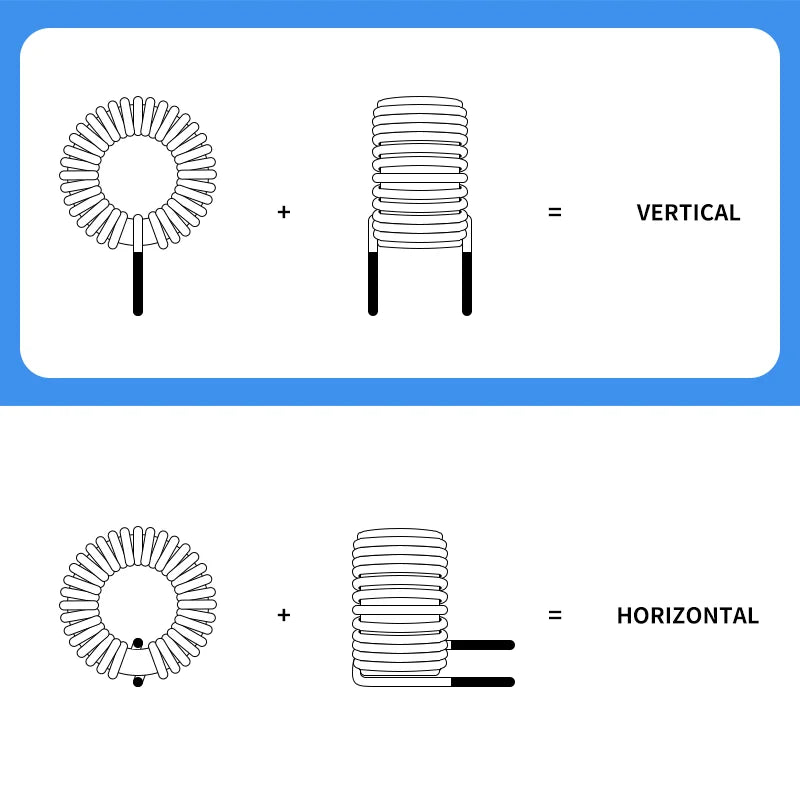

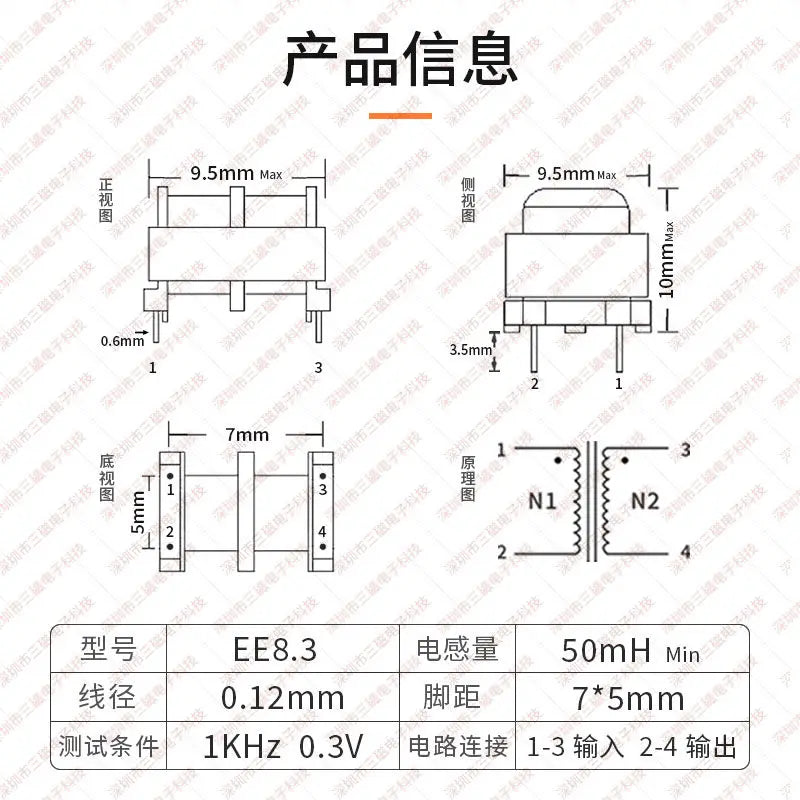

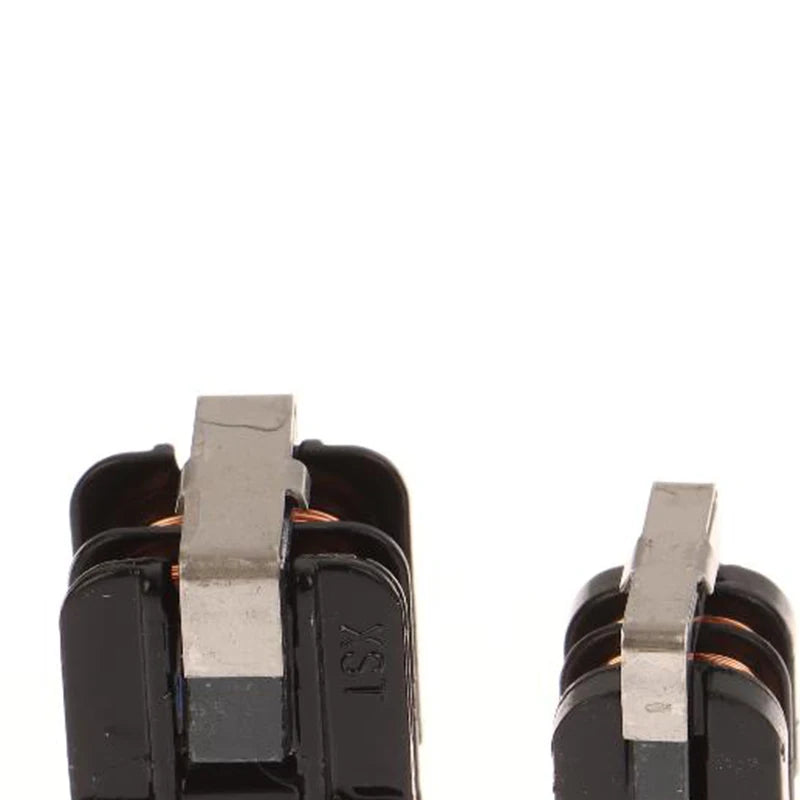

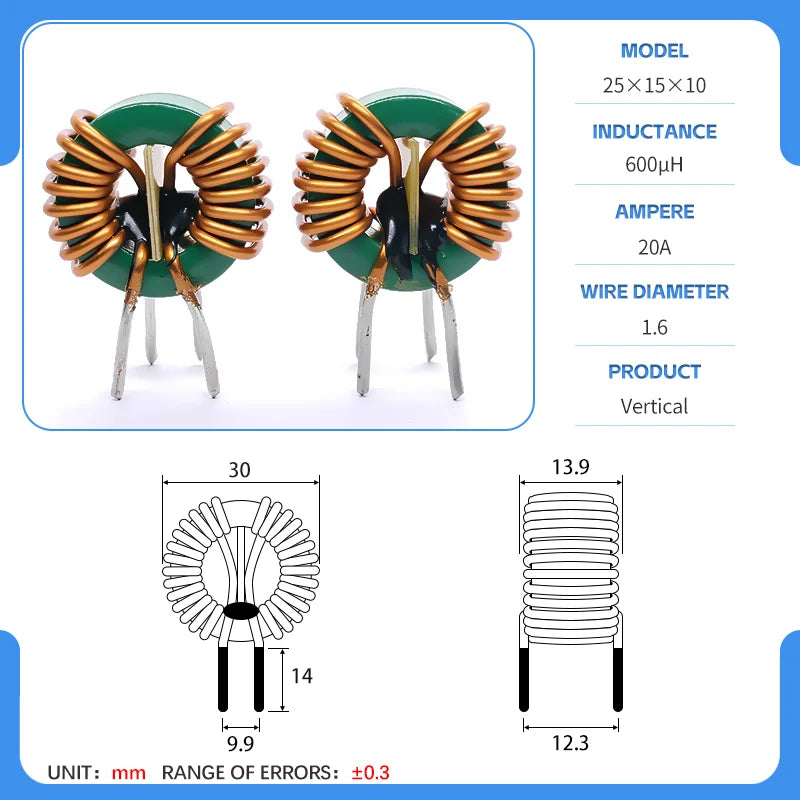

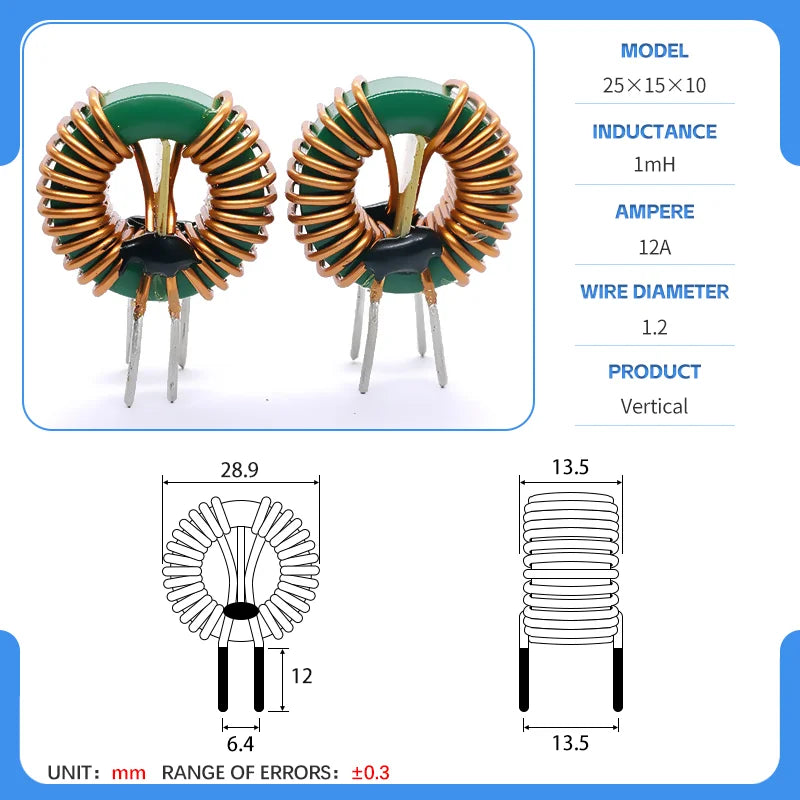

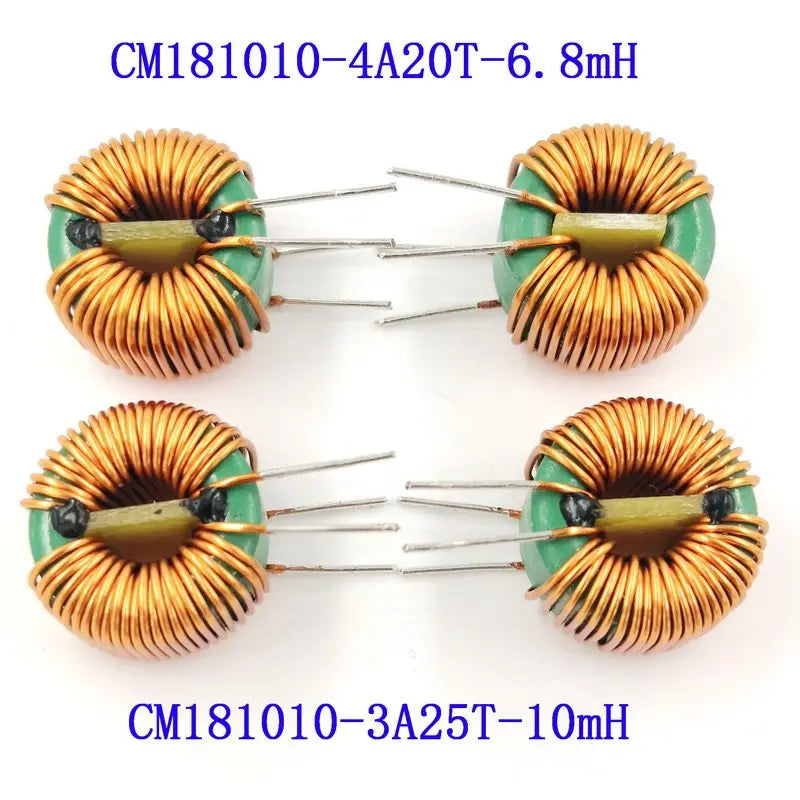

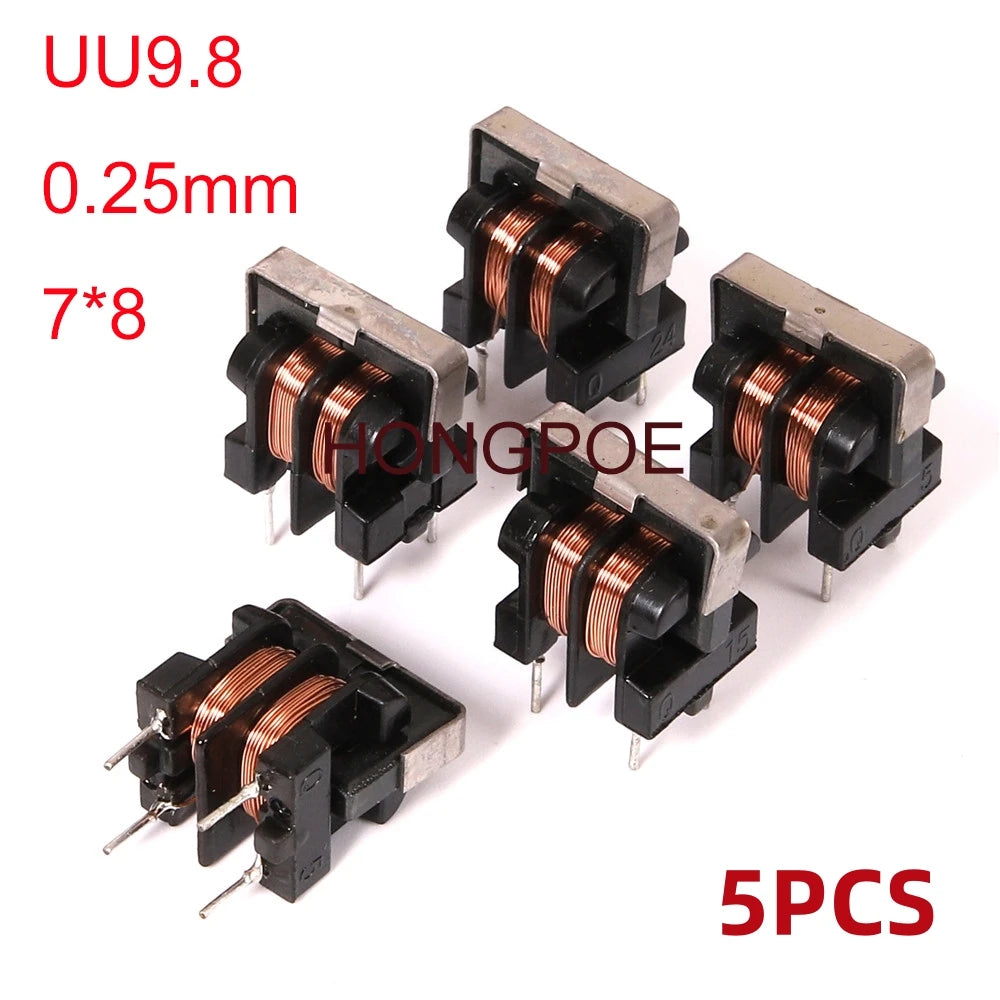

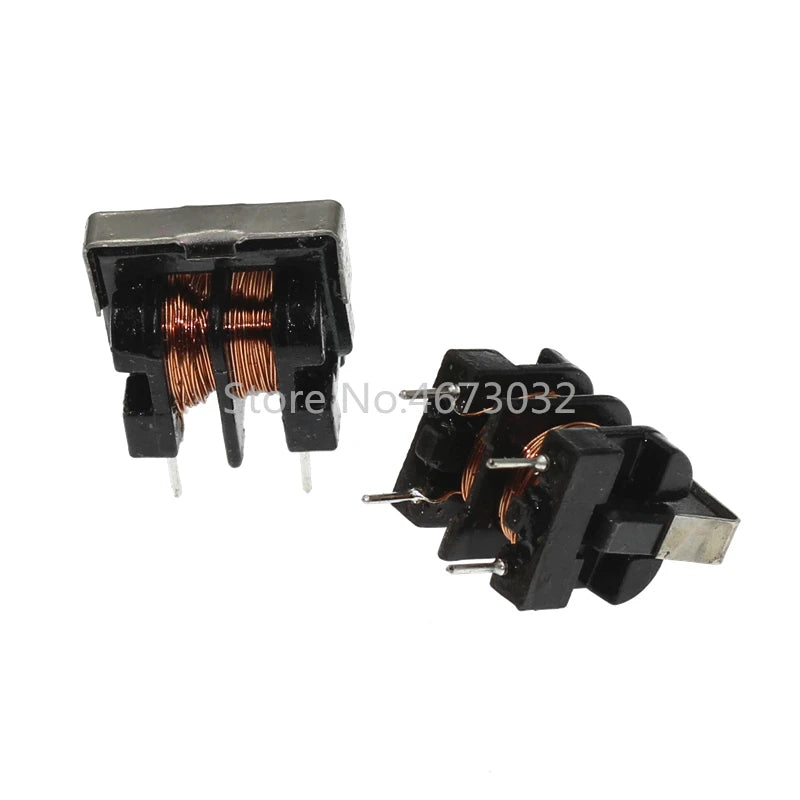

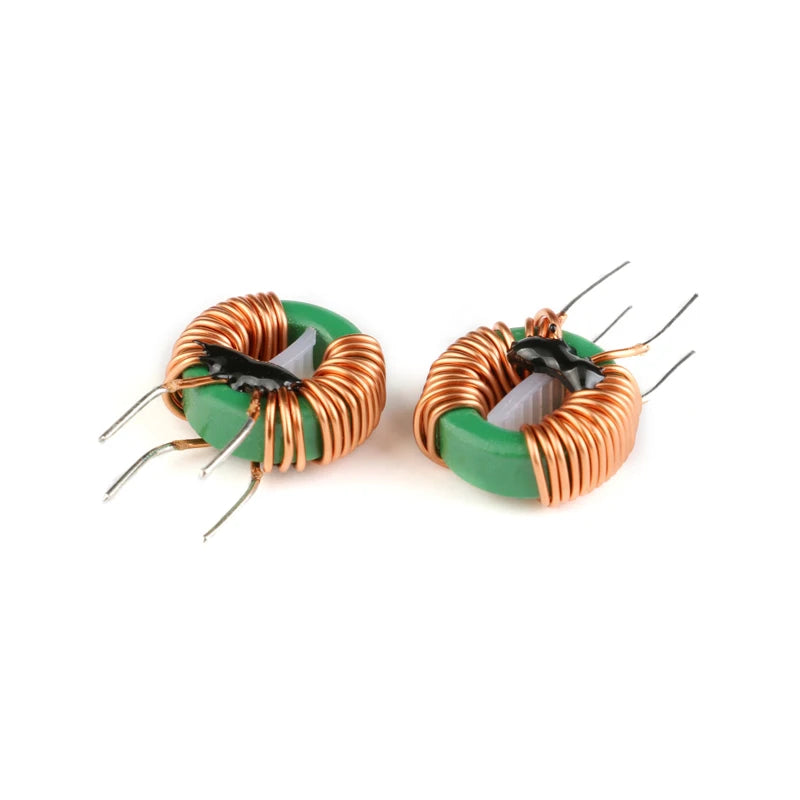

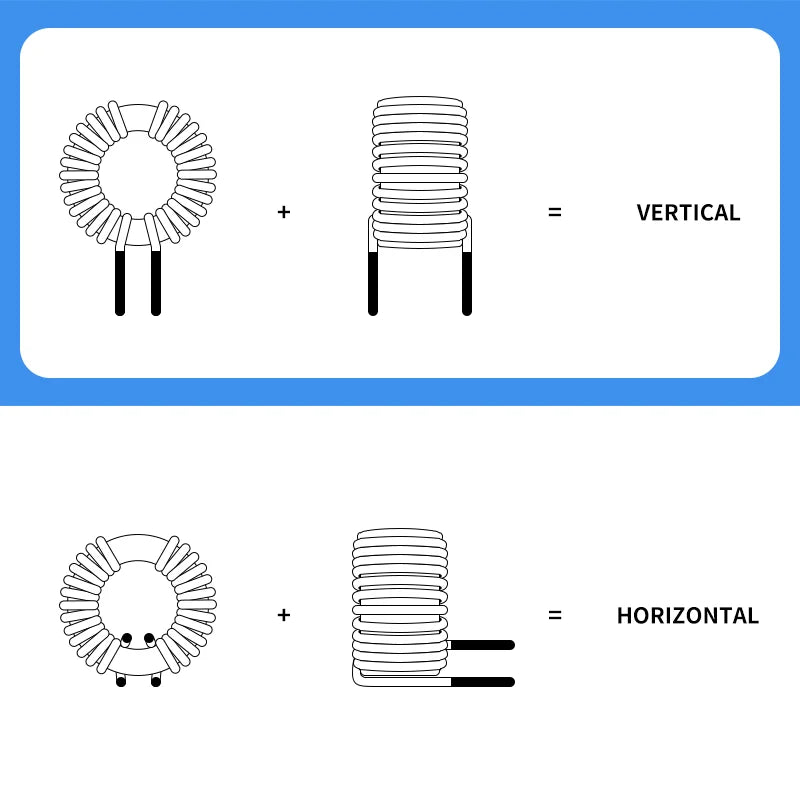

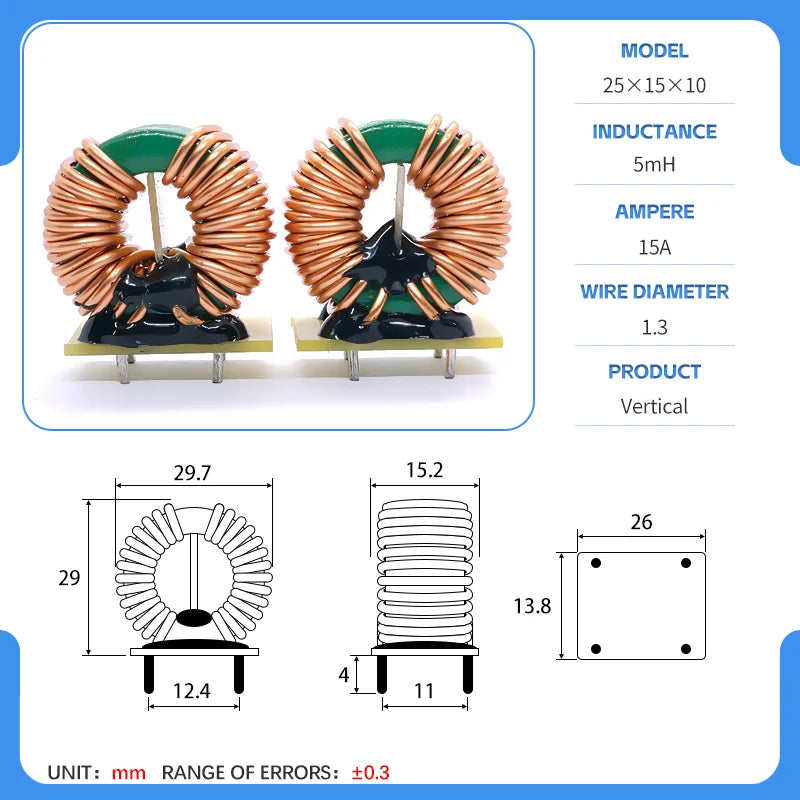

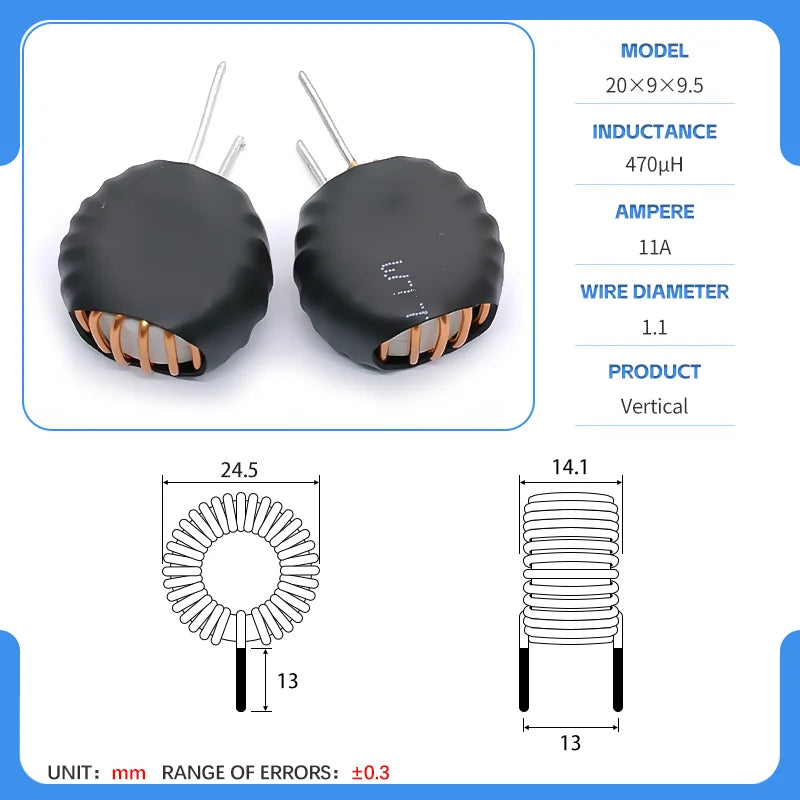

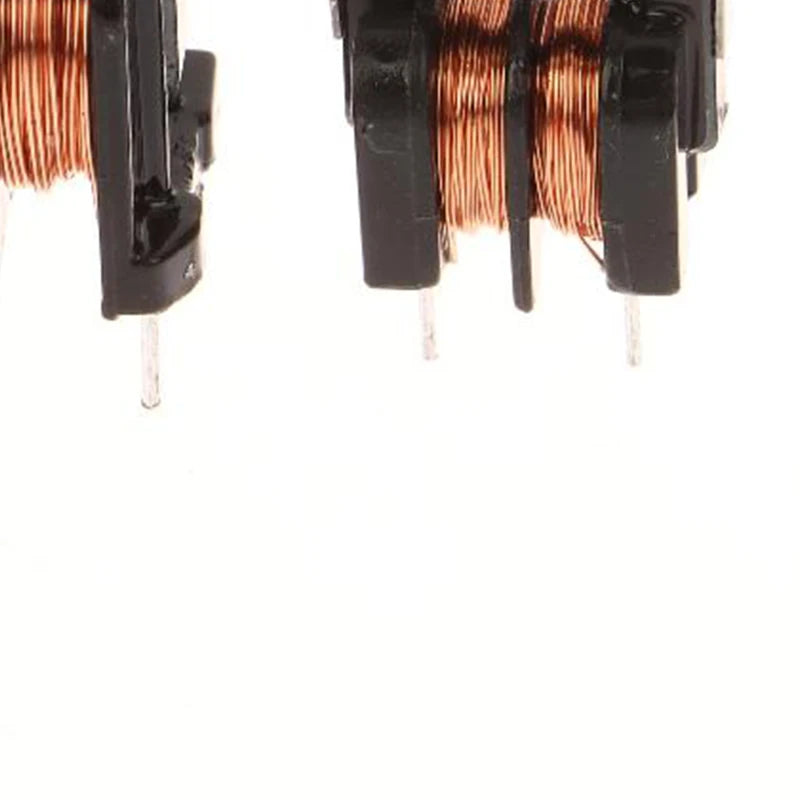

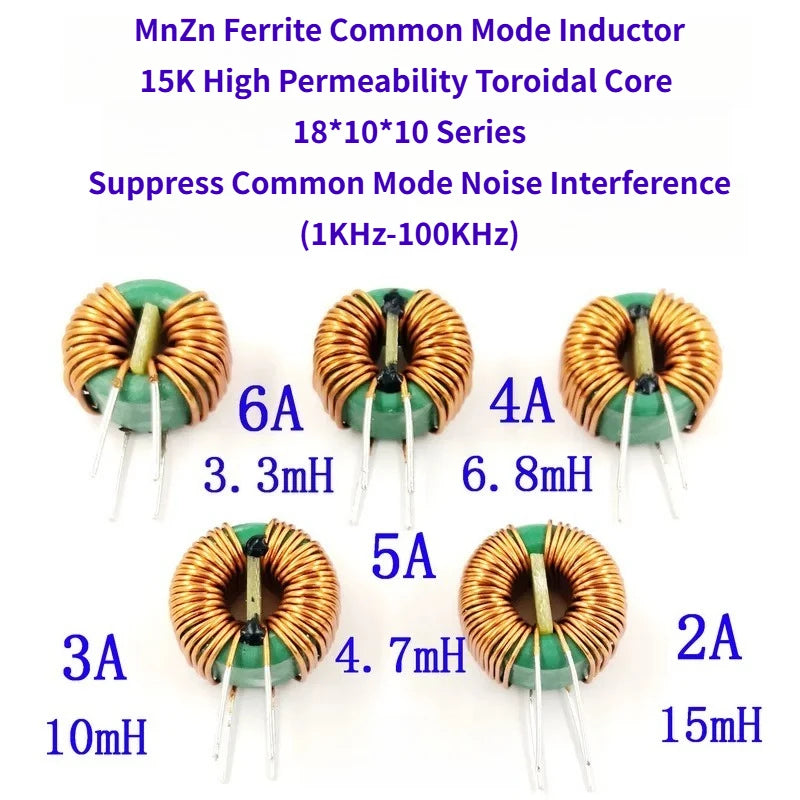

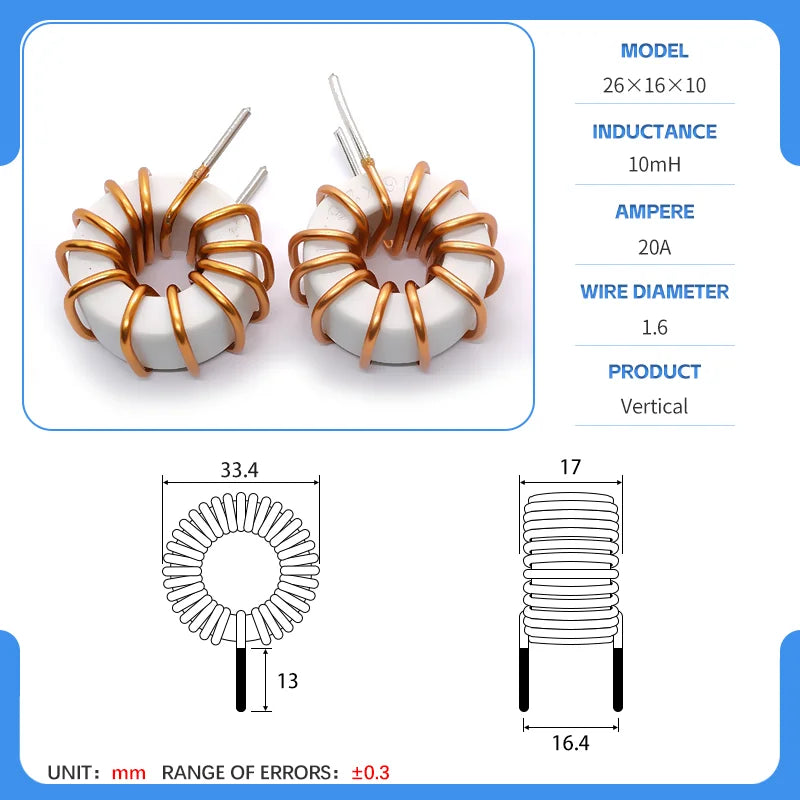

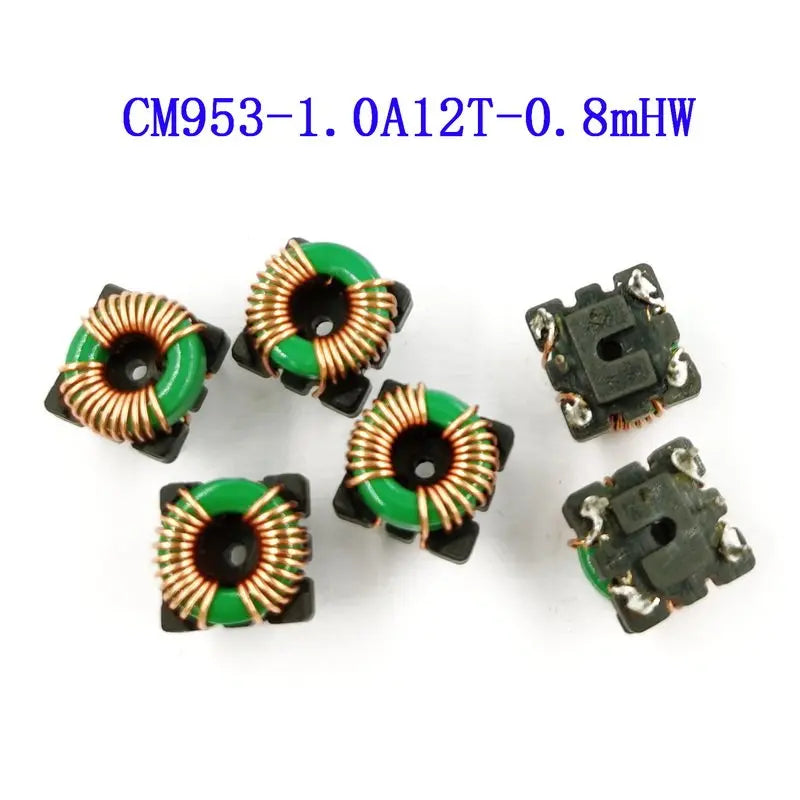

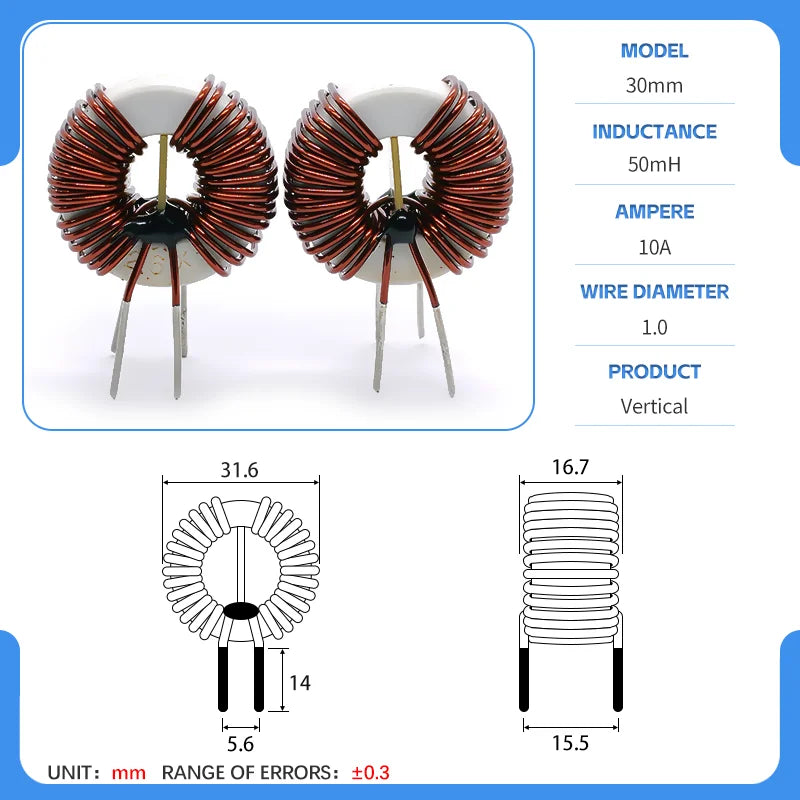

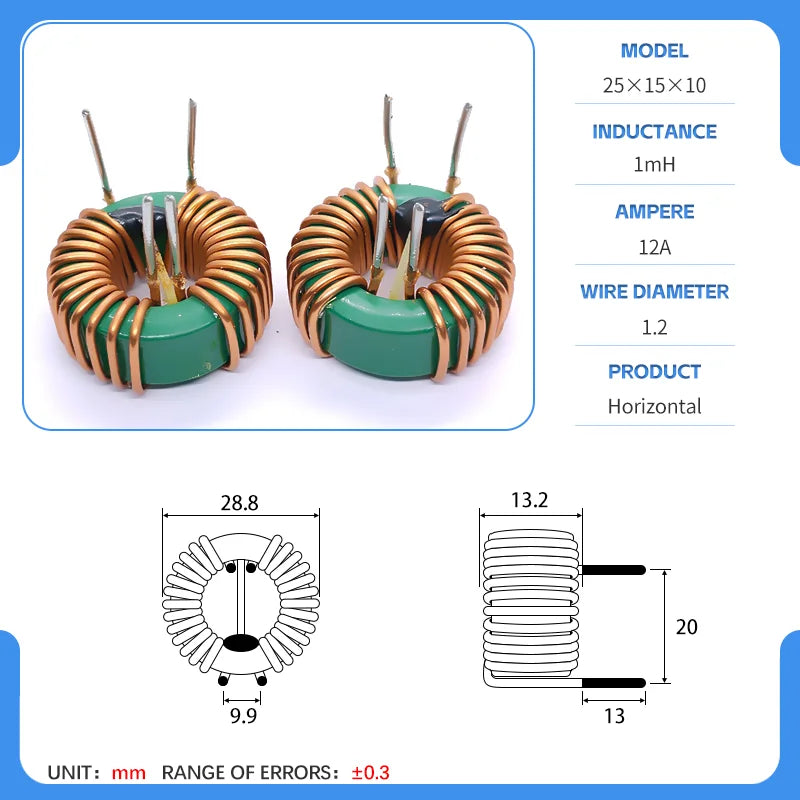

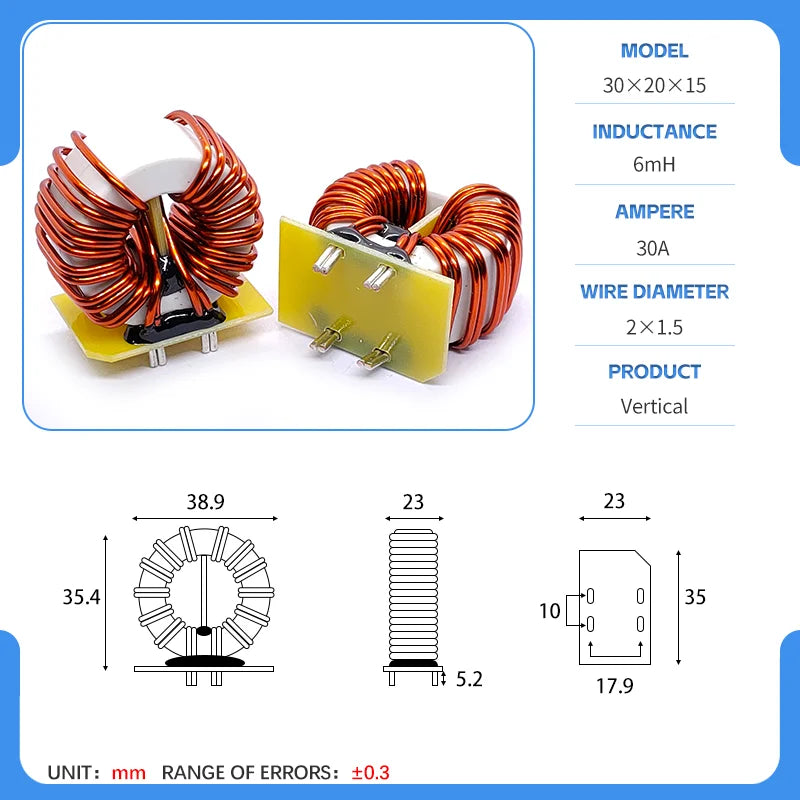

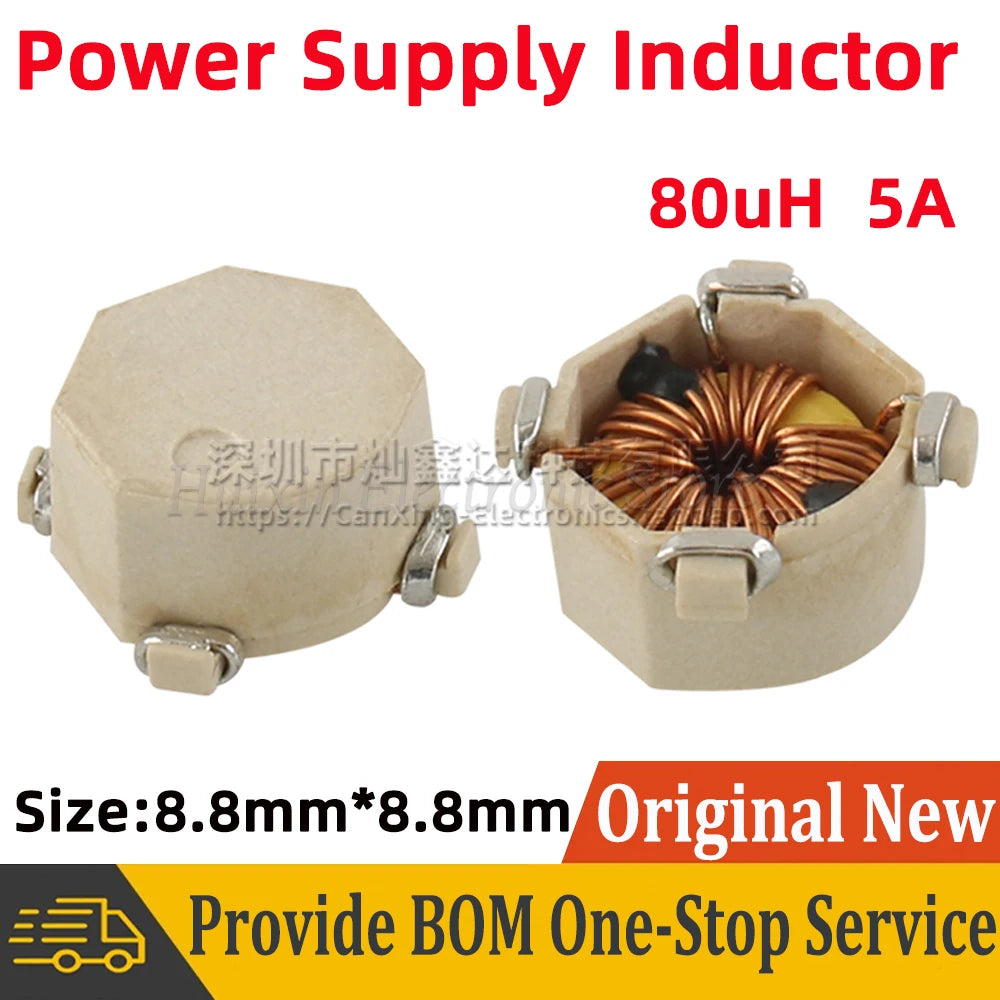

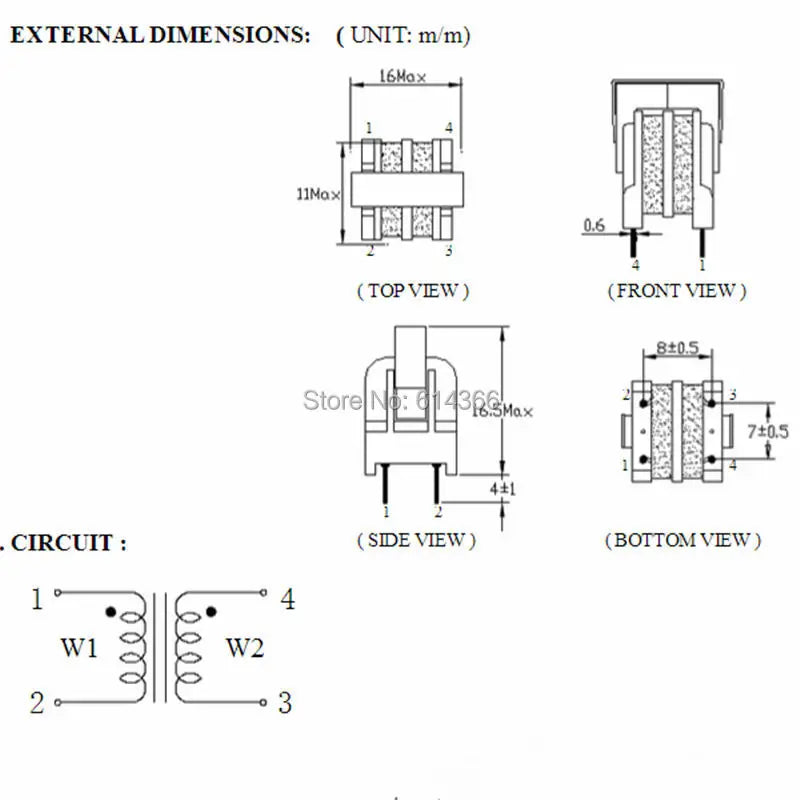

- Power-line coupled chokes: UU9.8/UU10.5, EE/ET and wound ring-core options offer different mH values, mounting pitches, winding directions, insulation arrangements and current choices. Check the number of windings (some listings include three-phase variants), common-mode attenuation, leakage/differential-mode behavior, temperature rise, required creepage and clearance, and the exact chosen part's safety documentation for any mains application. The title alone does not establish safety approval or provide a universal mains wiring scheme.

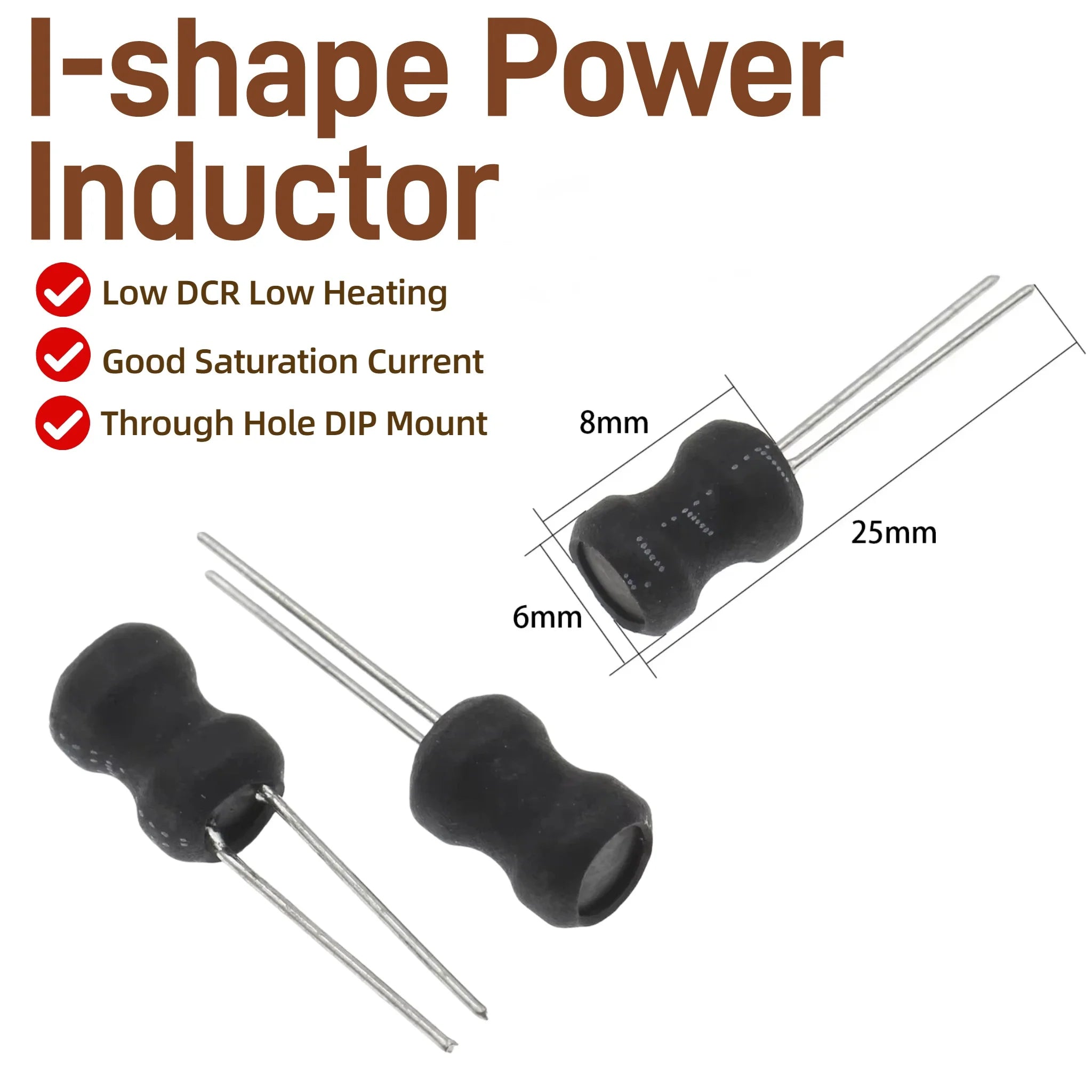

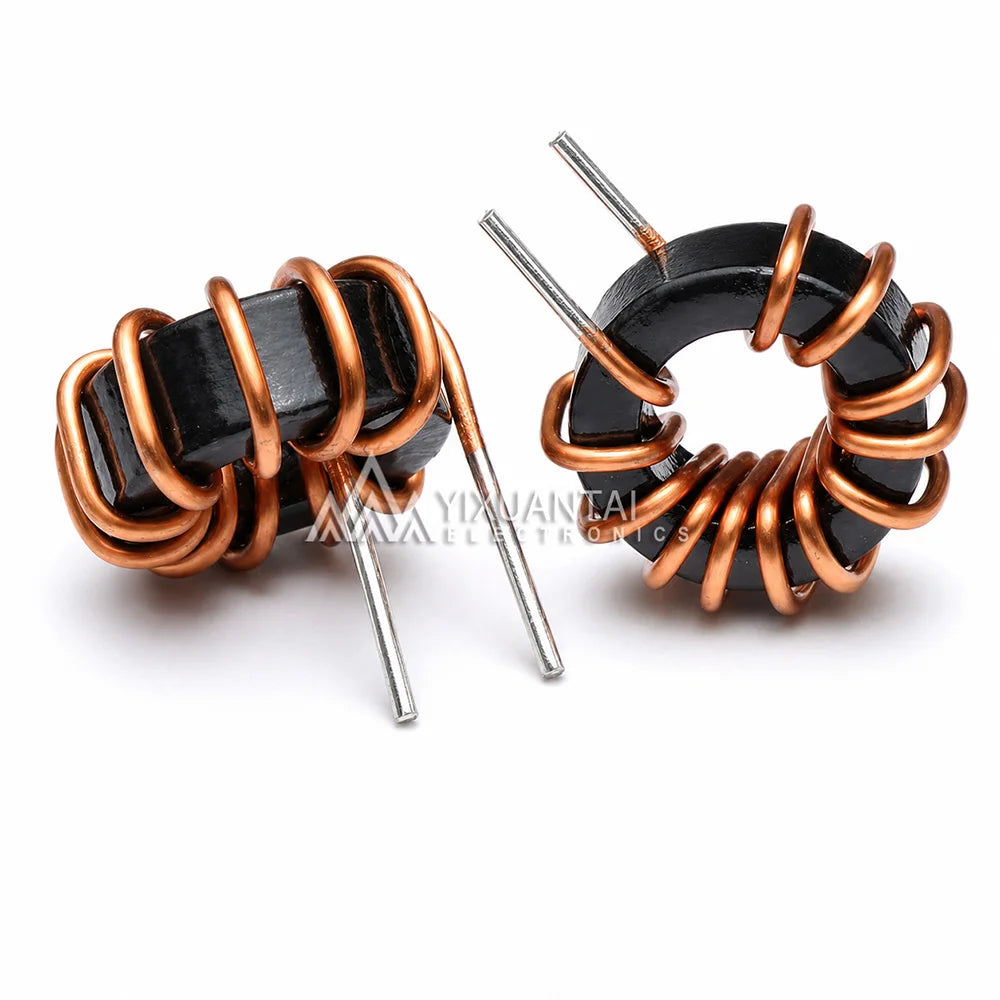

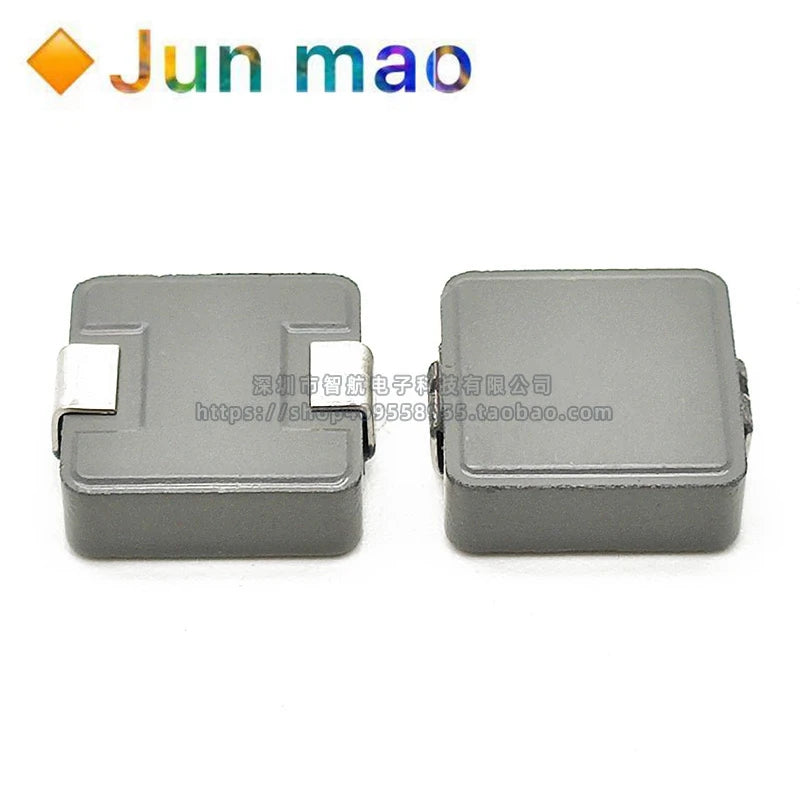

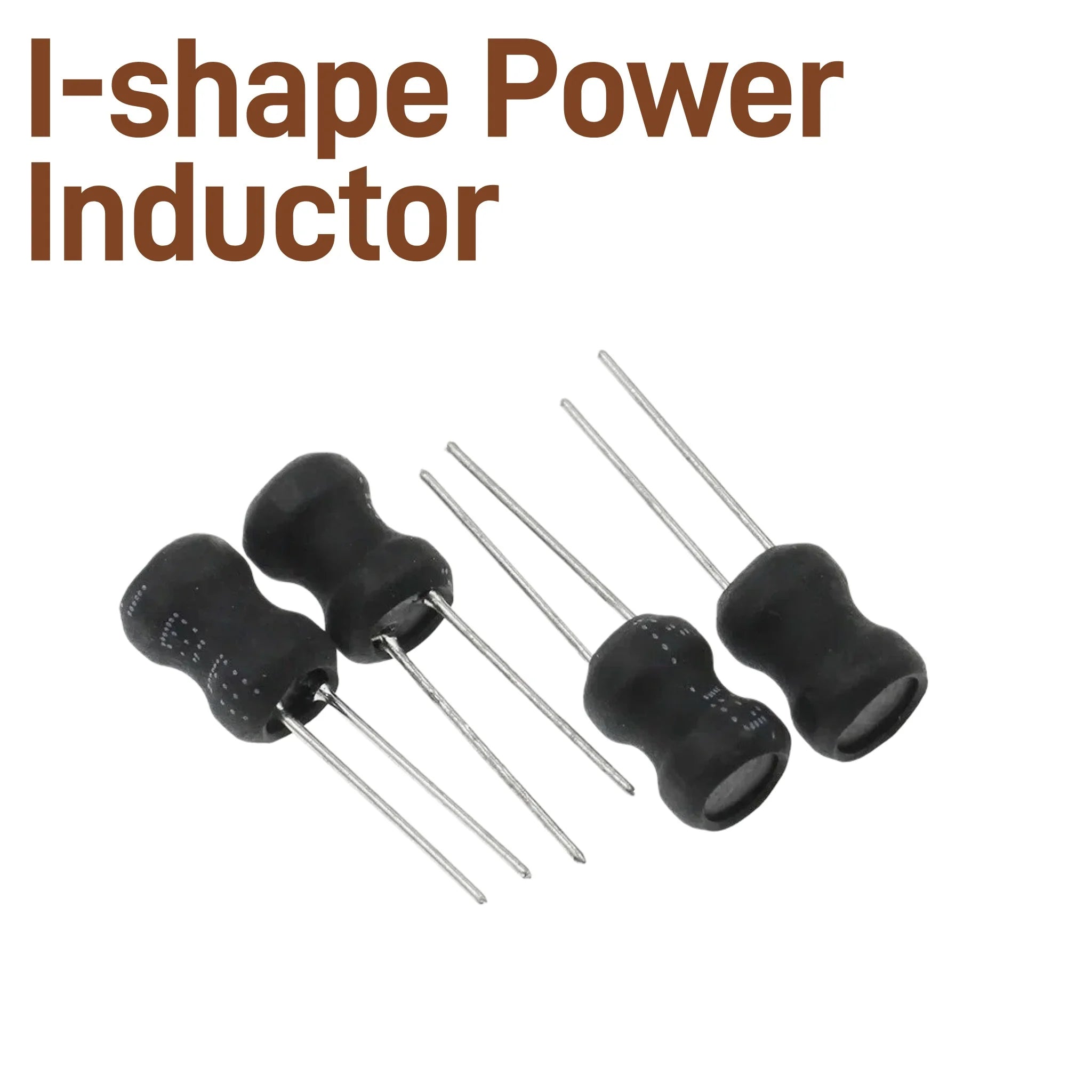

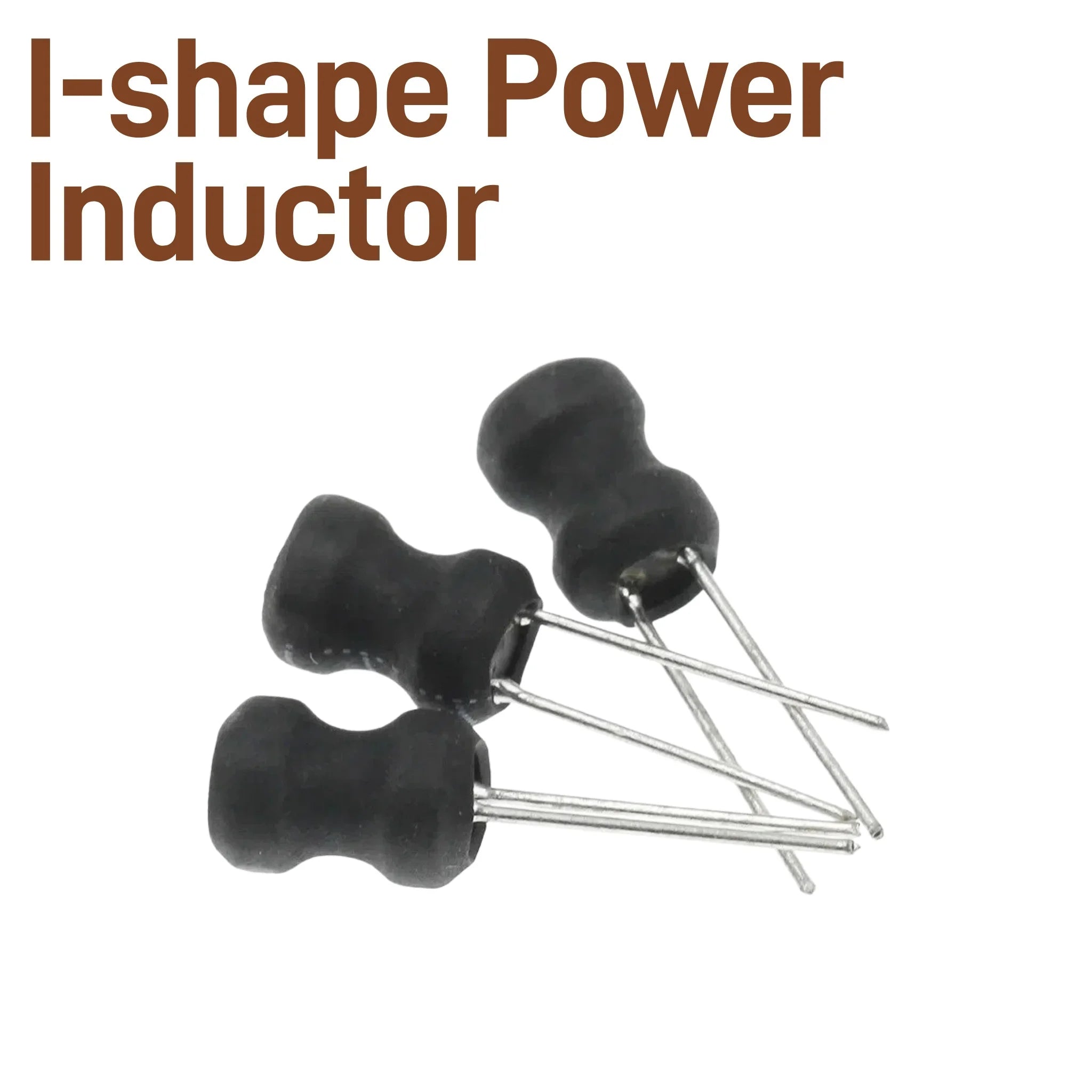

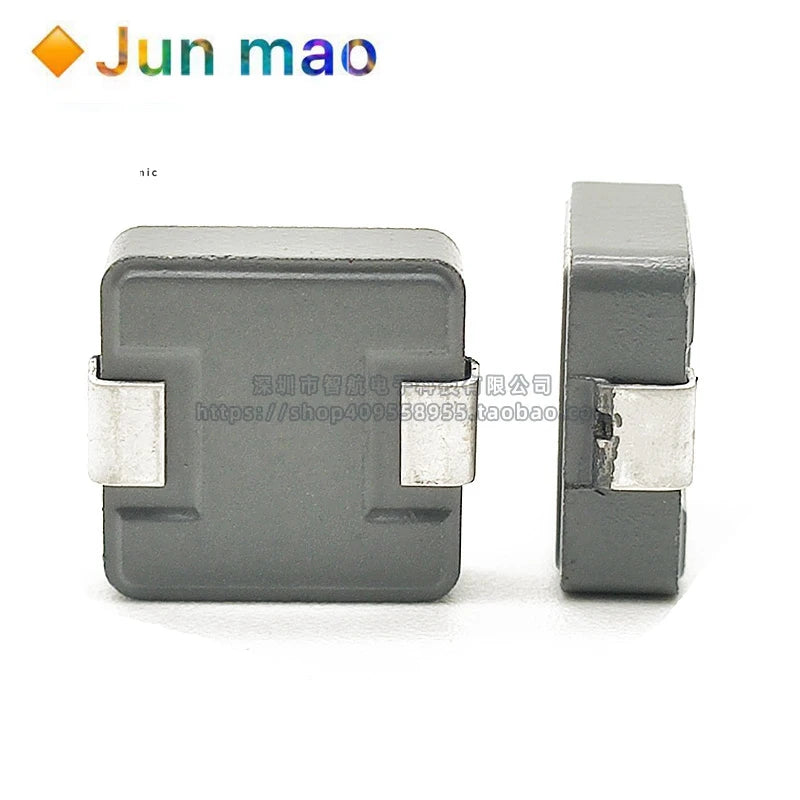

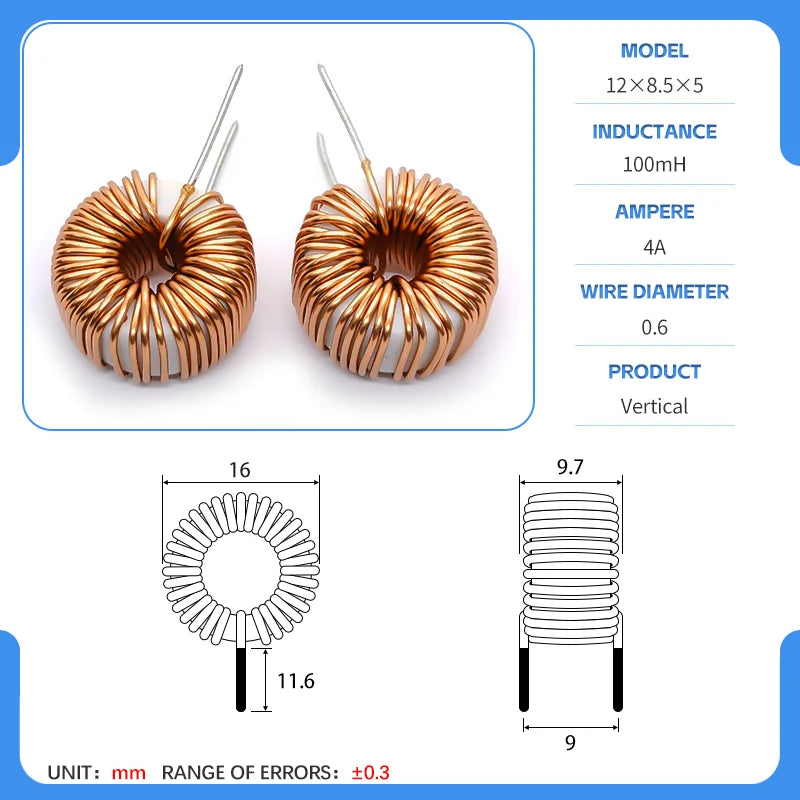

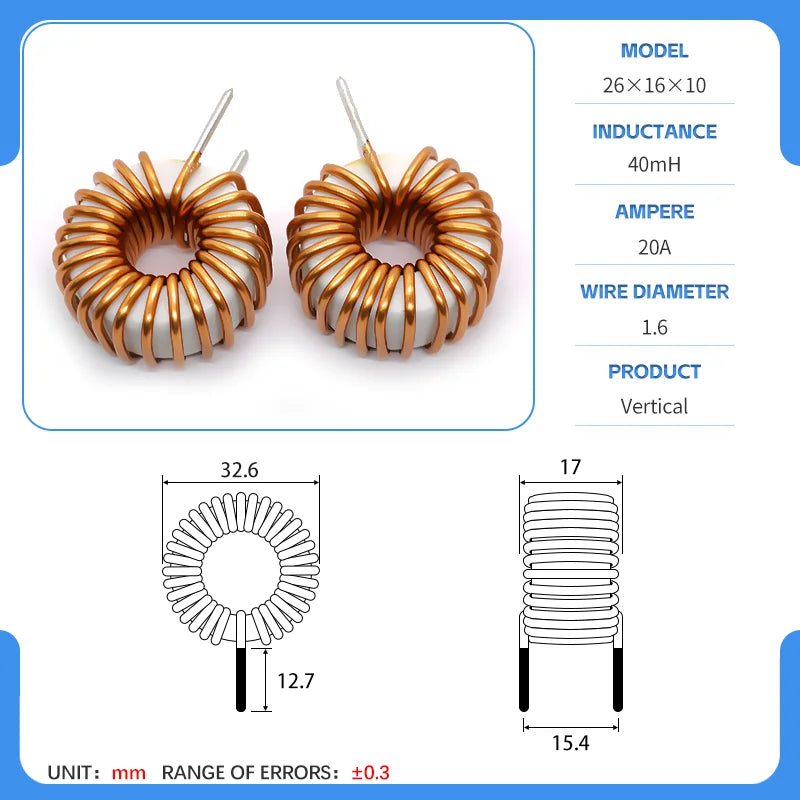

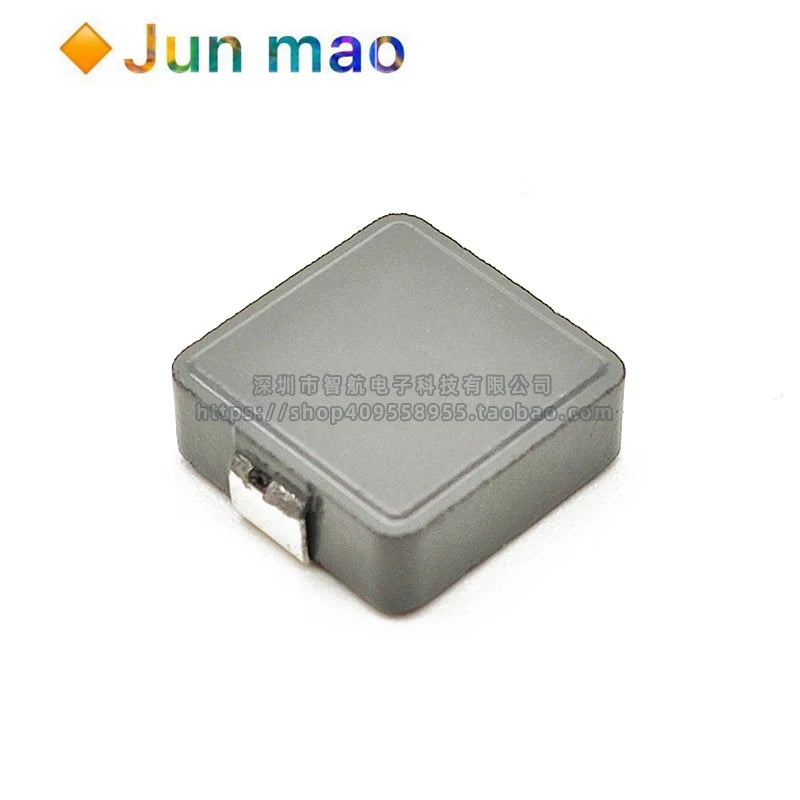

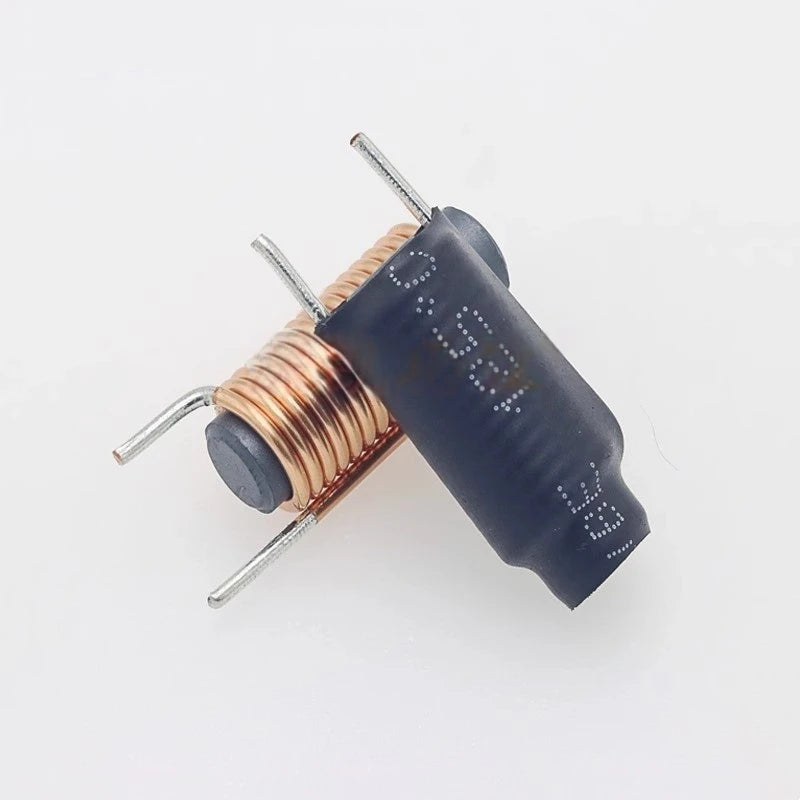

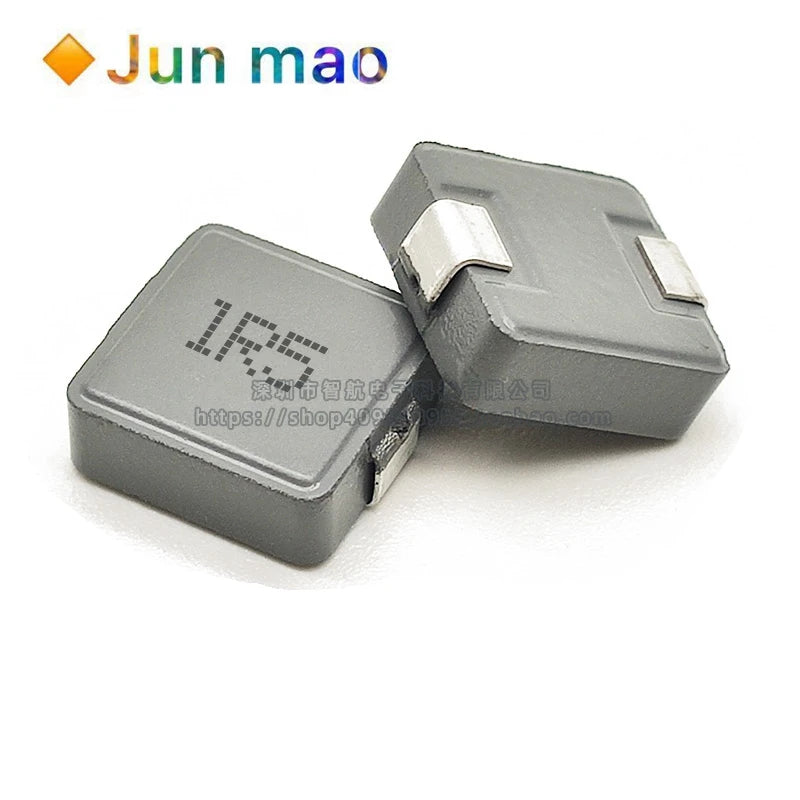

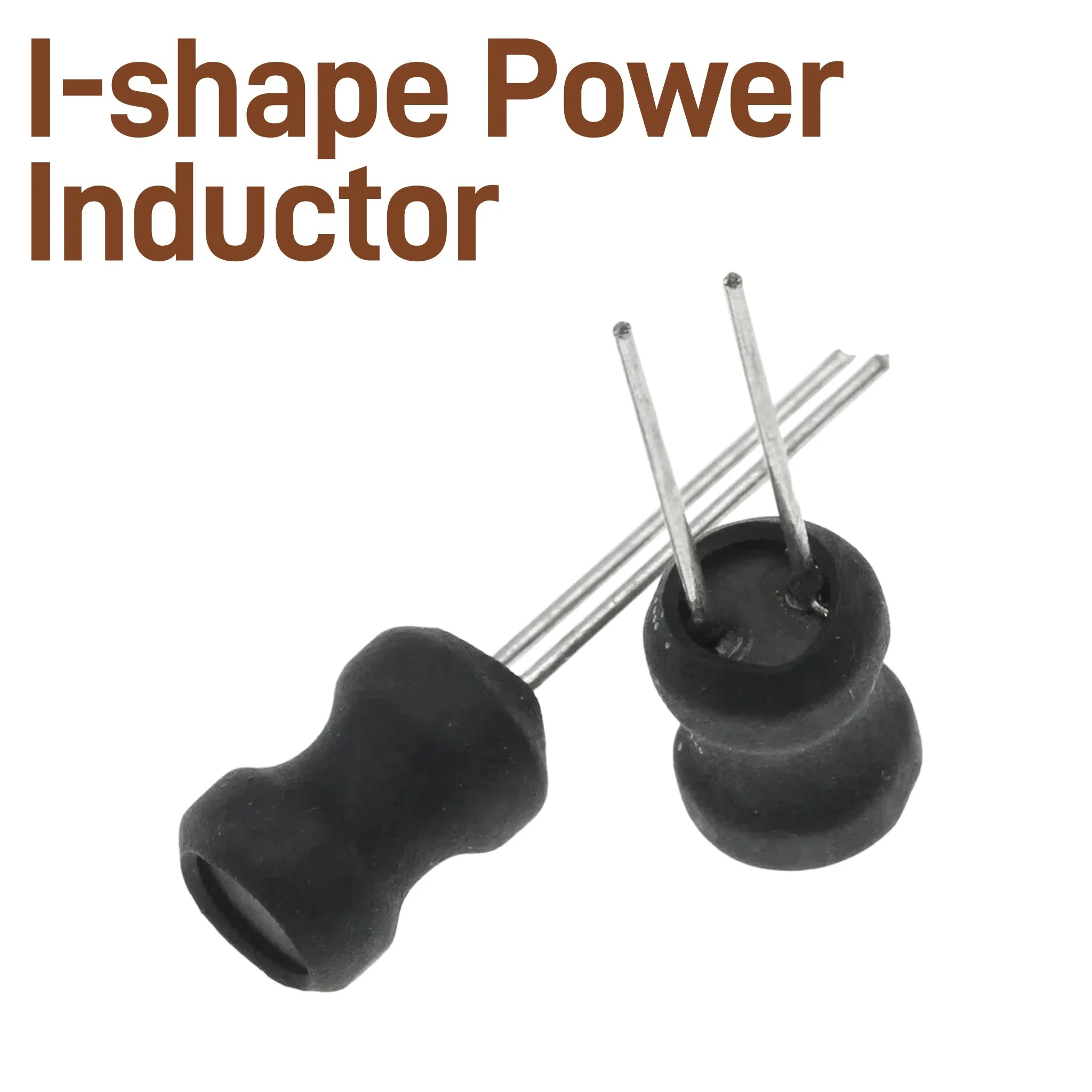

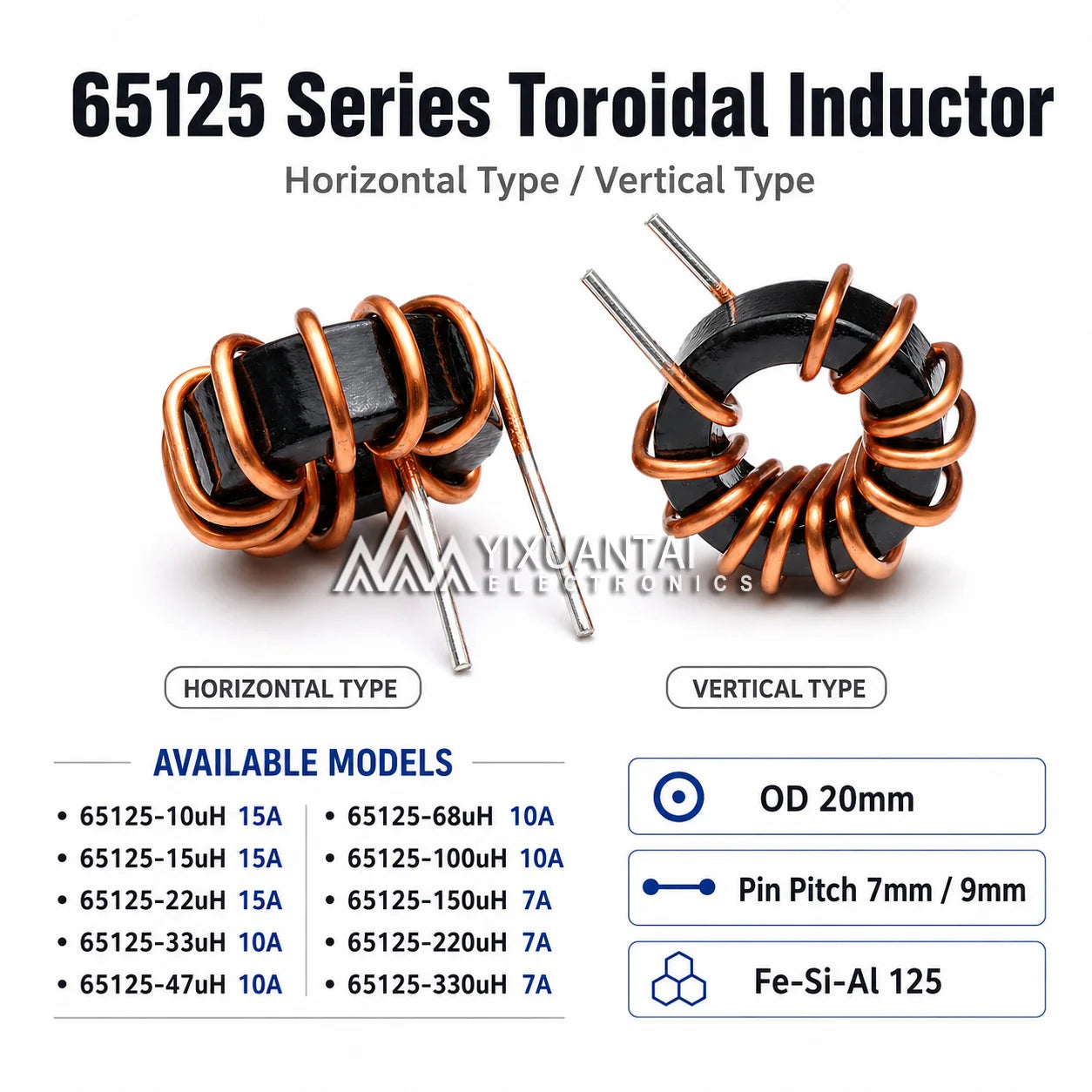

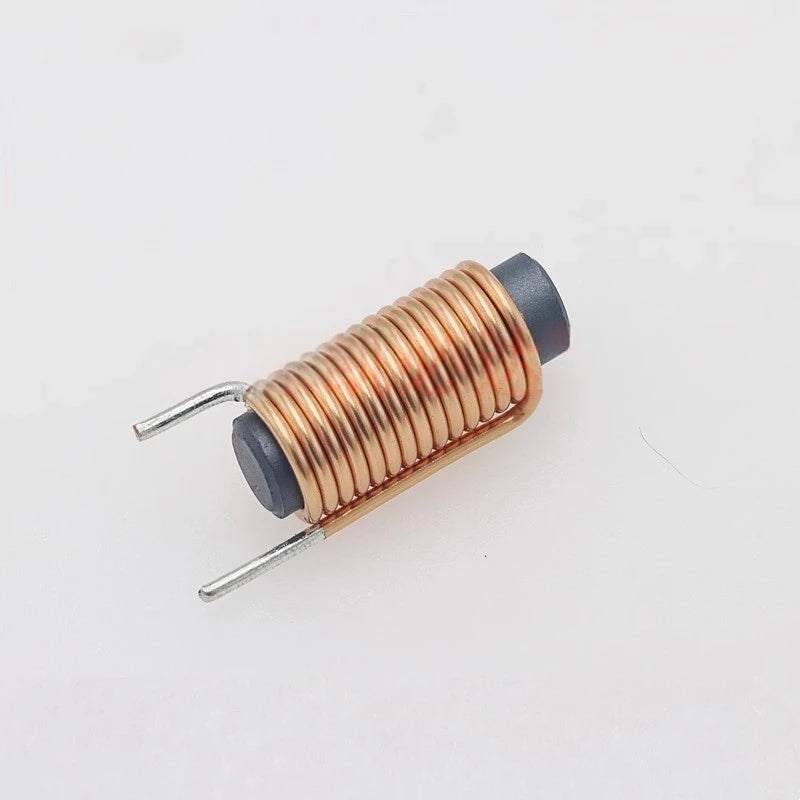

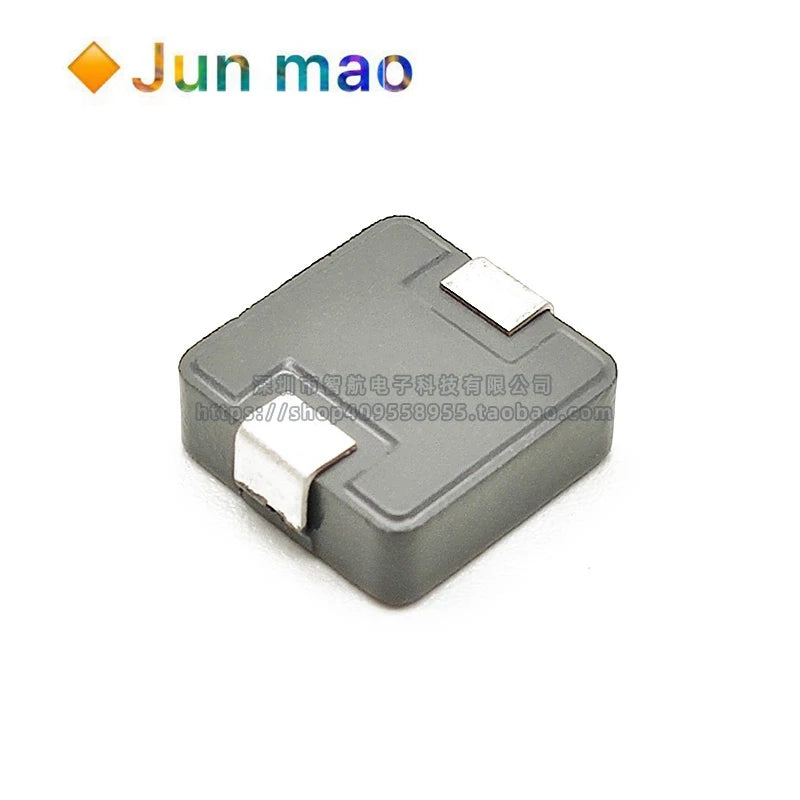

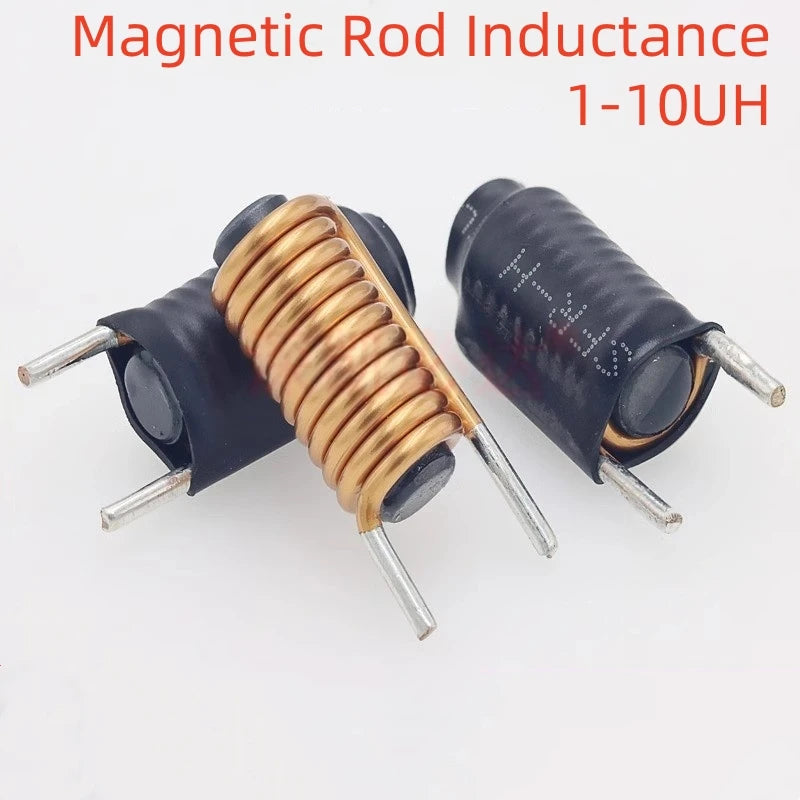

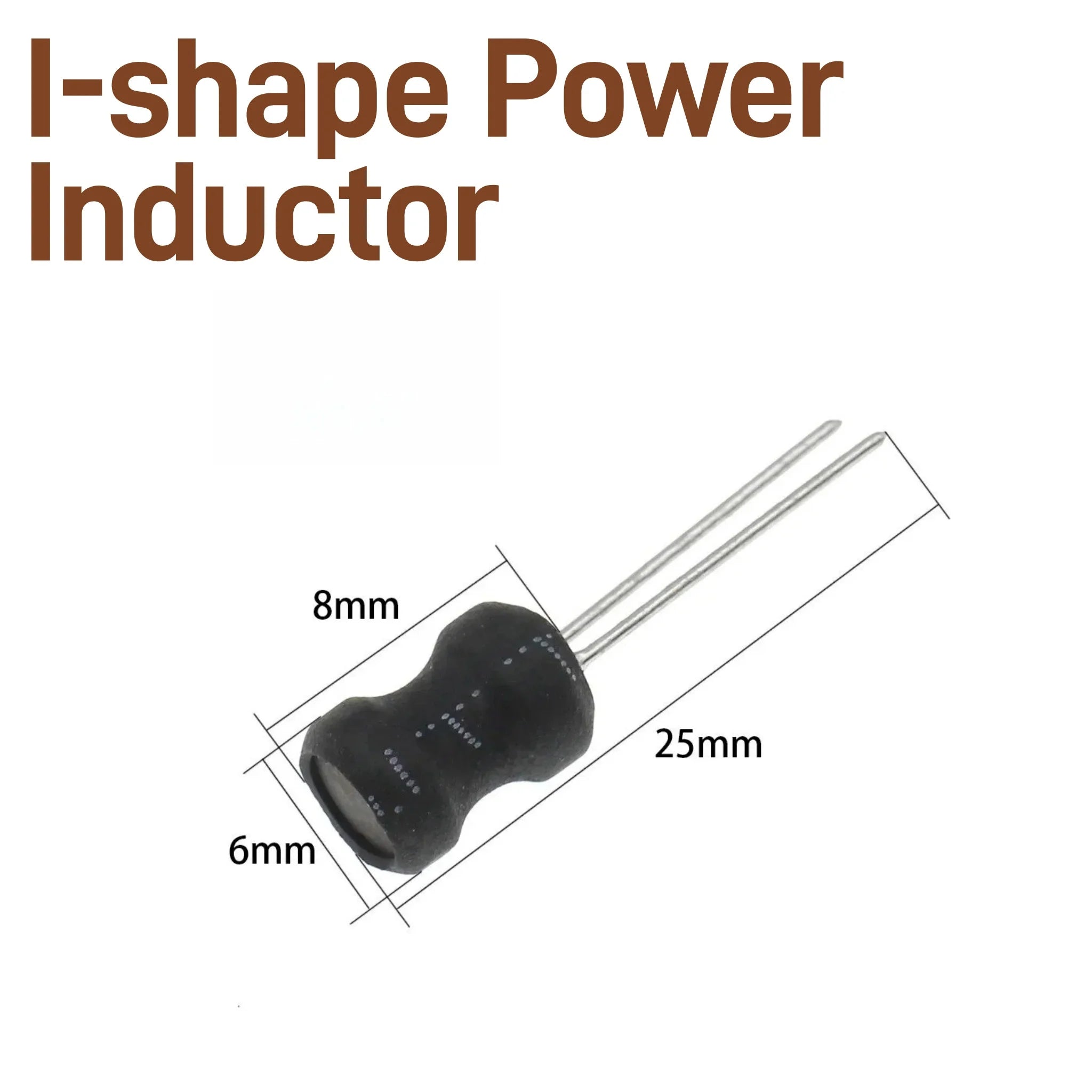

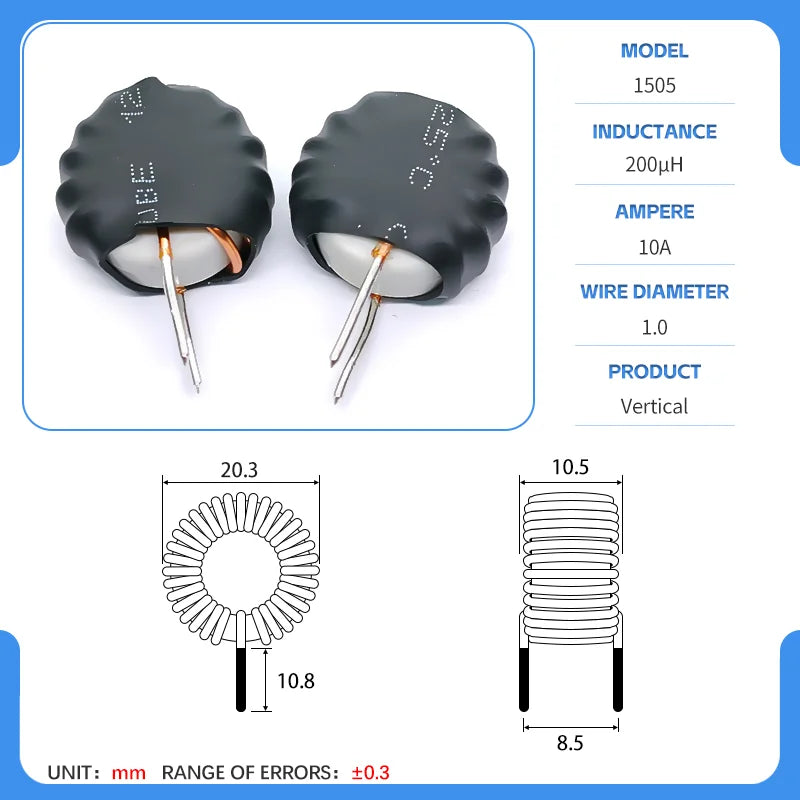

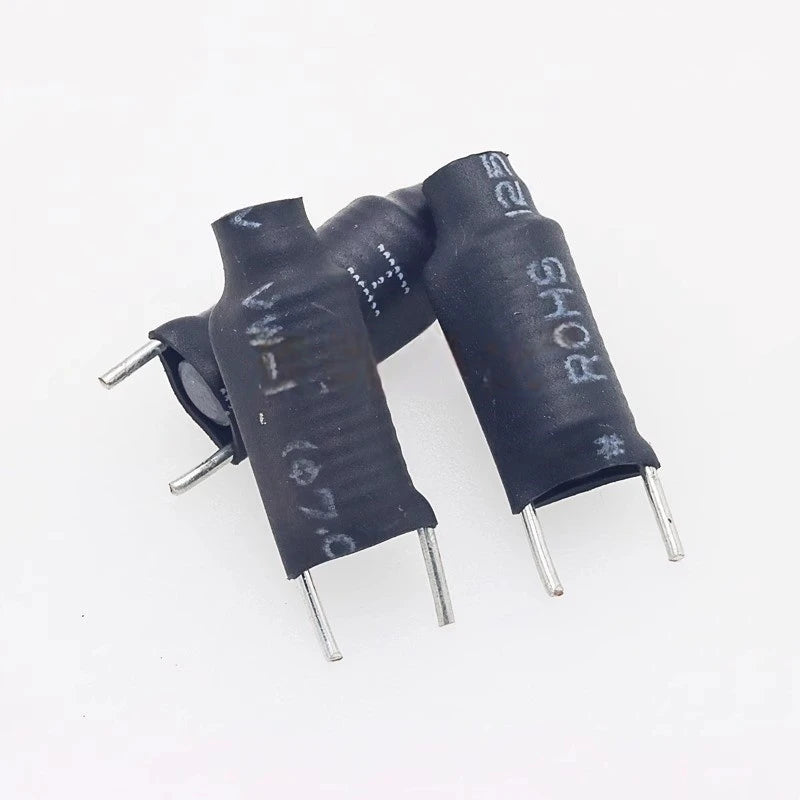

- Single-winding power or differential-mode chokes: 0608-style I-core, 5026/65125 toroidal, rod and molded SMD components instead serve energy storage or current smoothing in their stated circuit. Match inductance in µH or mH, saturation current (Isat), RMS/temperature-rise current (Irms), DCR, switching-frequency loss and mechanical mounting. A nominal 10 mH common-mode part is not a replacement for a 10 mH single-winding part.

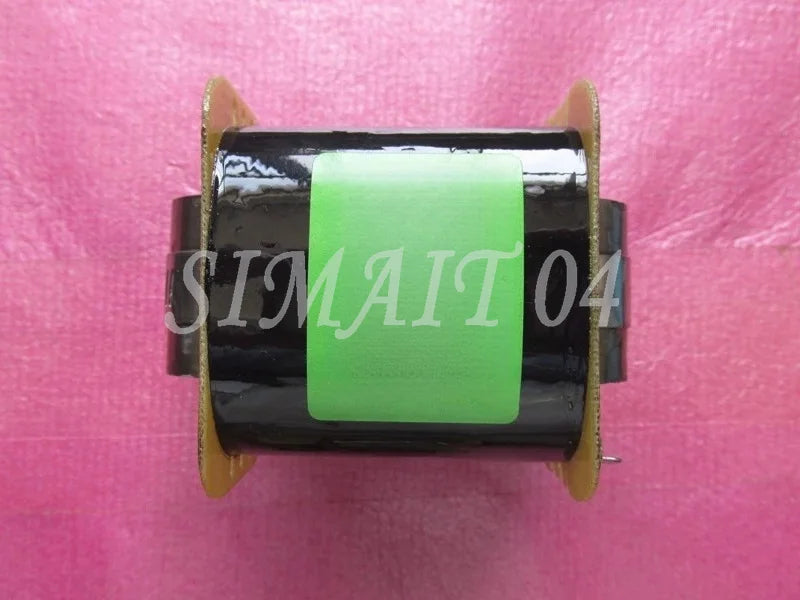

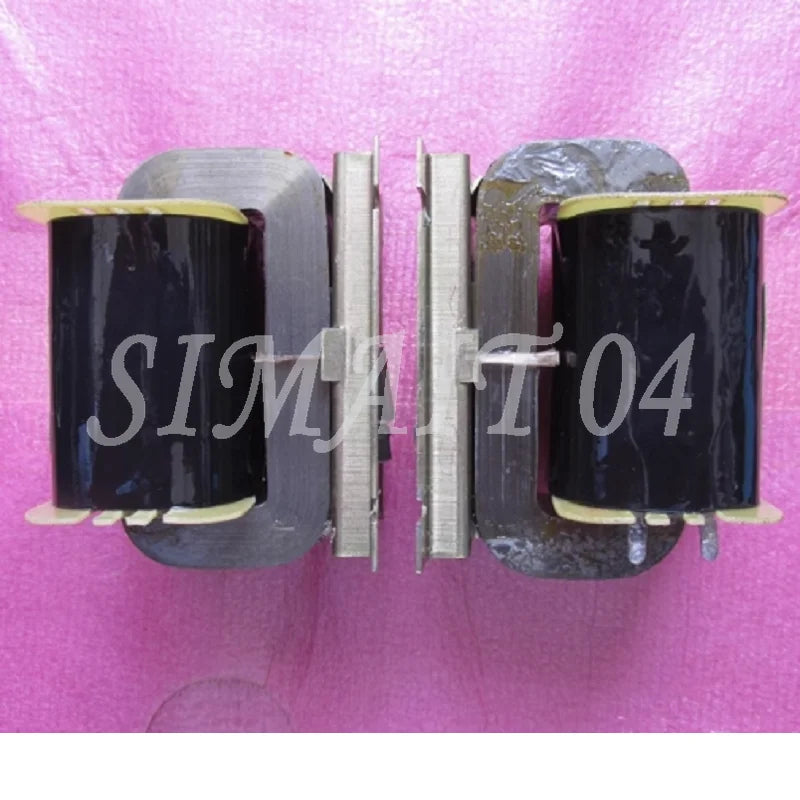

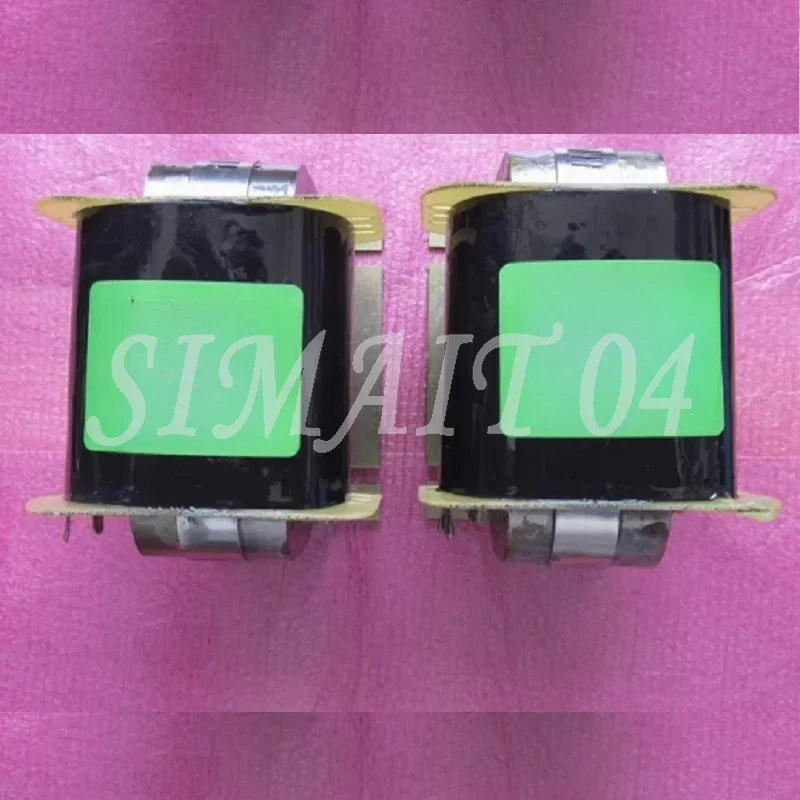

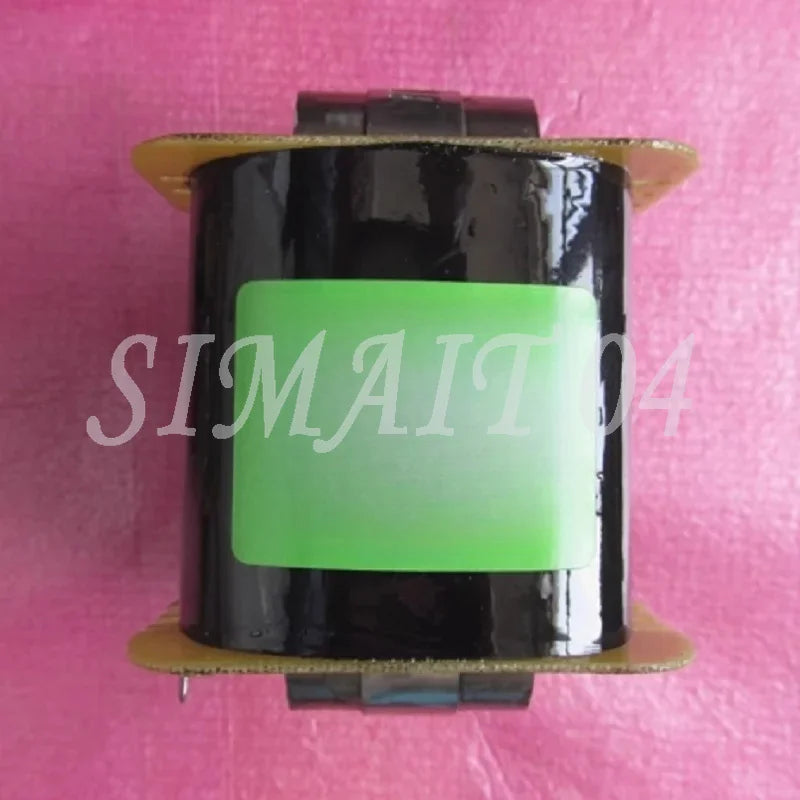

- Load choke, core and assortments: A tube-equipment load choke with a stated DC current and copper resistance is selected for its specific audio/power-supply circuit, not generic EMI suppression. A bare ring core has no finished-coil inductance until wound. Assorted kits can mix axial, toroidal, SMD and radial inductors; verify the selected contents and piece count.
Selection workflow
- Use the schematic to determine whether the noise is common-mode, differential-mode or a supply ripple problem. Record winding count, line arrangement and full reference part number before looking at headline values.
- Read the selected variant's unit carefully: 1 mH = 1,000 µH. An option field called “Resistance”, “Volume” or “Color” may encode inductance or pack size rather than resistance or appearance; Ω at a stated frequency is not DCR.
- For a coupled choke, verify impedance versus frequency, allowable signal or line current, differential-mode insertion loss, DCR, winding insulation and electrical spacing under actual operating conditions. For a single power coil, evaluate current-dependent inductance, Isat, Irms and core loss instead.
- Confirm SMD land pattern or DIP pin pitch, body height, winding orientation, package quantity and supporting datasheet. Avoid treating claims such as “original”, generic certification or a named converter as verified approval for the exact item.
FAQ
Can a 10 mH UU common-mode choke replace a 10 mH I-core inductor? No. The winding topology and purpose differ; compare the schematic first.
Is 90 Ω on an SMD signal choke its DC resistance? Usually it is frequency-specific impedance; check the selected part's test frequency and DCR separately.
Are all chokes here suitable for mains EMI filters? No. Signal-line and power inductors may not meet the electrical, spacing or certification requirements of a mains design.
