Common-Mode Chokes for EMI and RFI Filtering
Common-mode chokes for signal, power and RF noise control
A common-mode choke is a coupled-winding magnetic component used to impede noise current traveling in the same direction on conductors while allowing the intended differential signal or power current to pass through its separate windings. This collection brings together four-terminal SMD signal-line filters, through-hole and toroidal power-line chokes, UU9.8/UF9.8 and UU10.5/UF10.5 coils, flat-copper SQ and nanocrystalline ring options, plus HF antenna feed-line suppression parts and bare ferrite toroids. Selection depends on the actual circuit and selected variant, not the word “choke” alone.
What is in this collection?

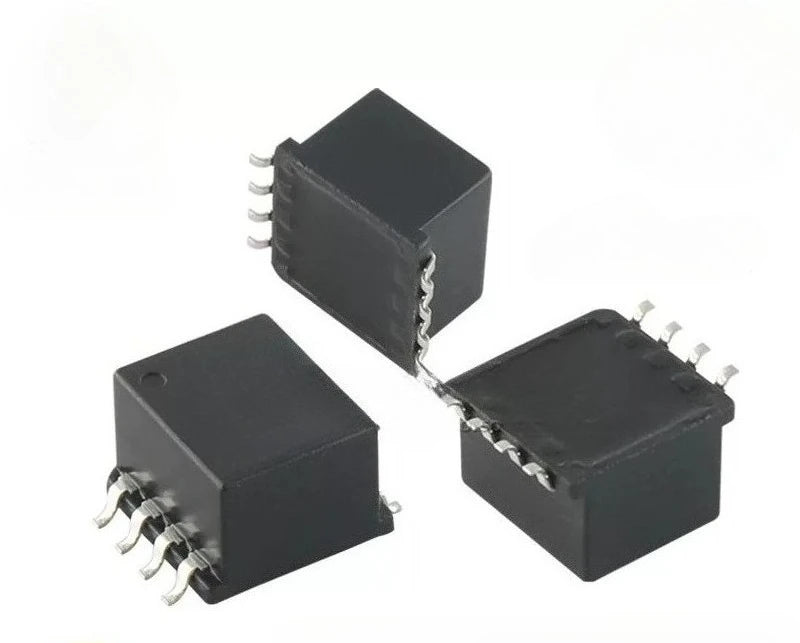

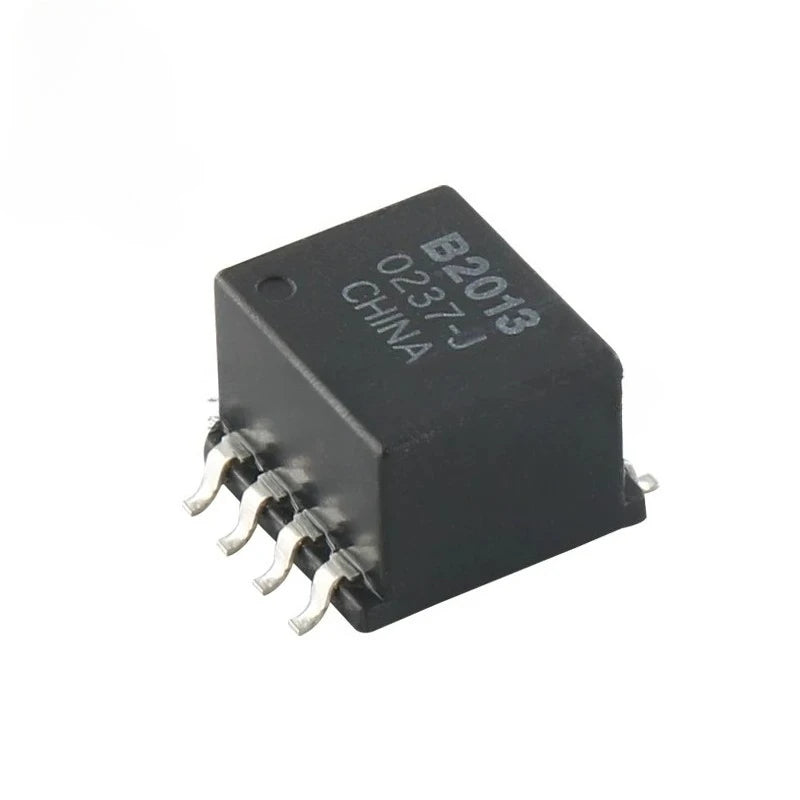

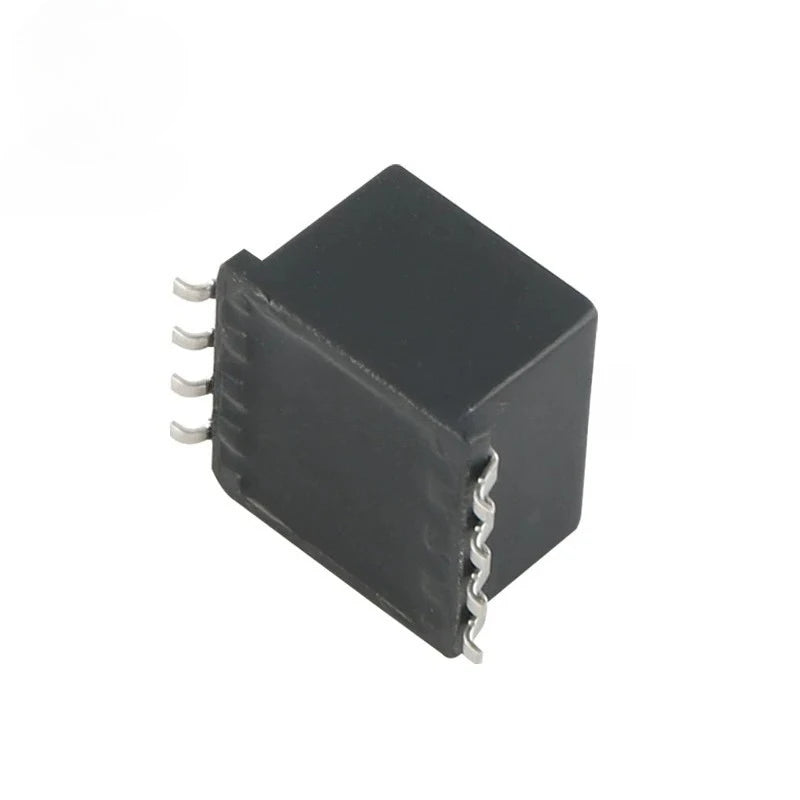

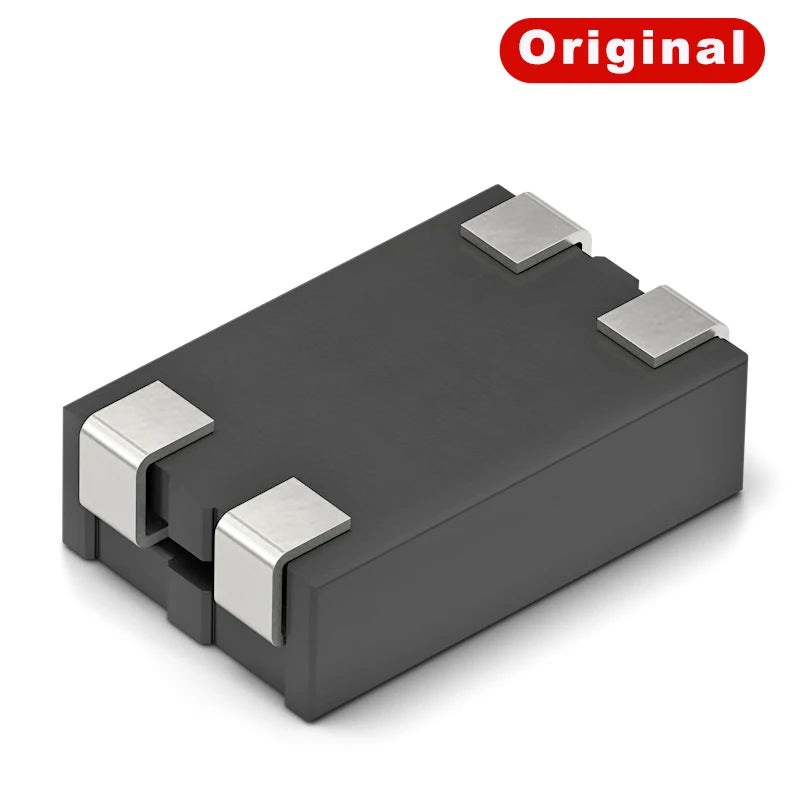

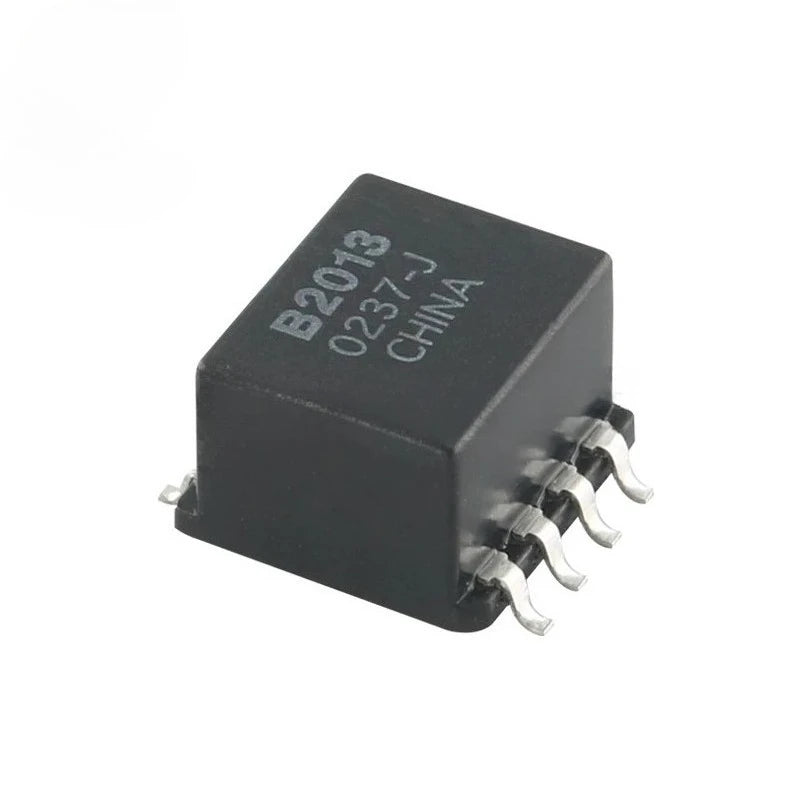

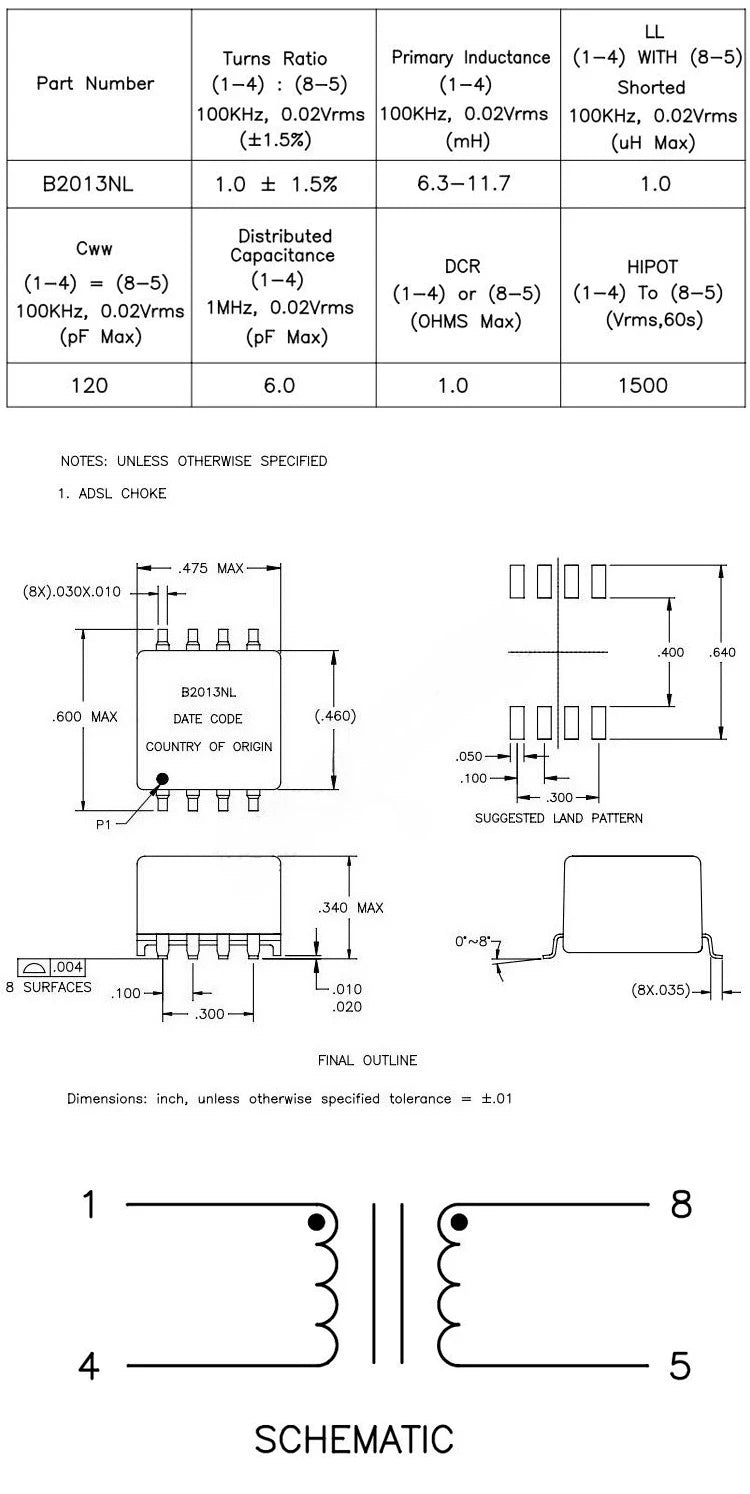

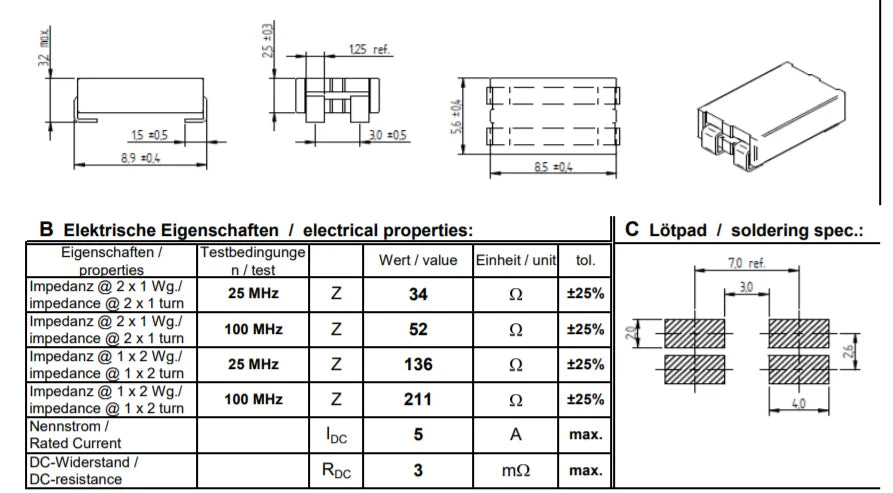

- Signal-line SMD parts: Four-wire USB/signal filters and listings such as ZJY-2P01, ACM7060 and 4-pin SMD coils use different impedance, inductance, current and frequency specifications. The stated impedance in ohms is measured at a specified frequency; it is not DC winding resistance. A 90 Ω or 200 Ω label alone does not establish USB speed, eye-diagram margin or suitability for a particular interface.

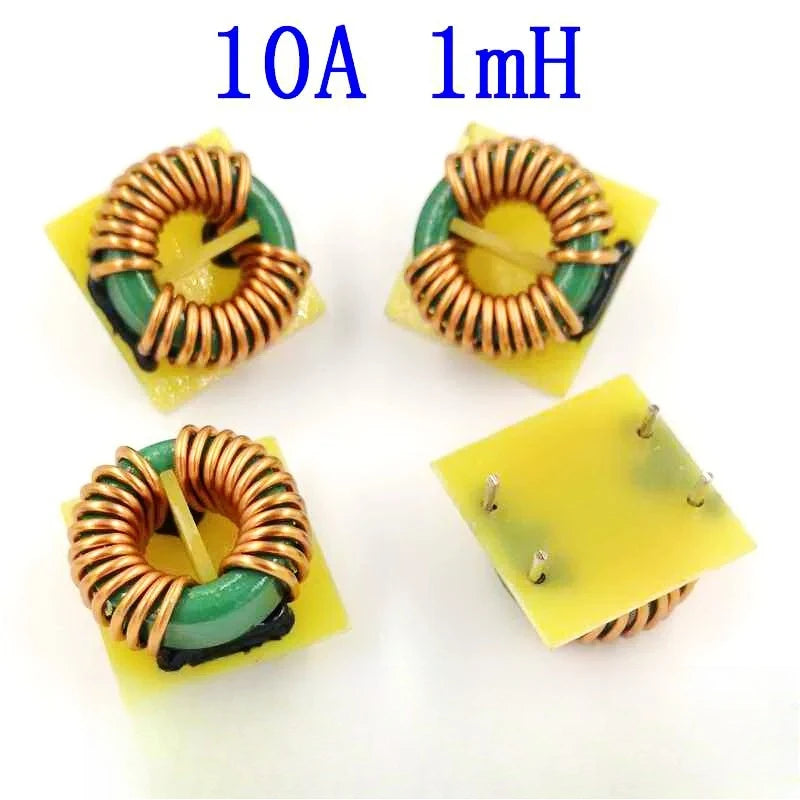

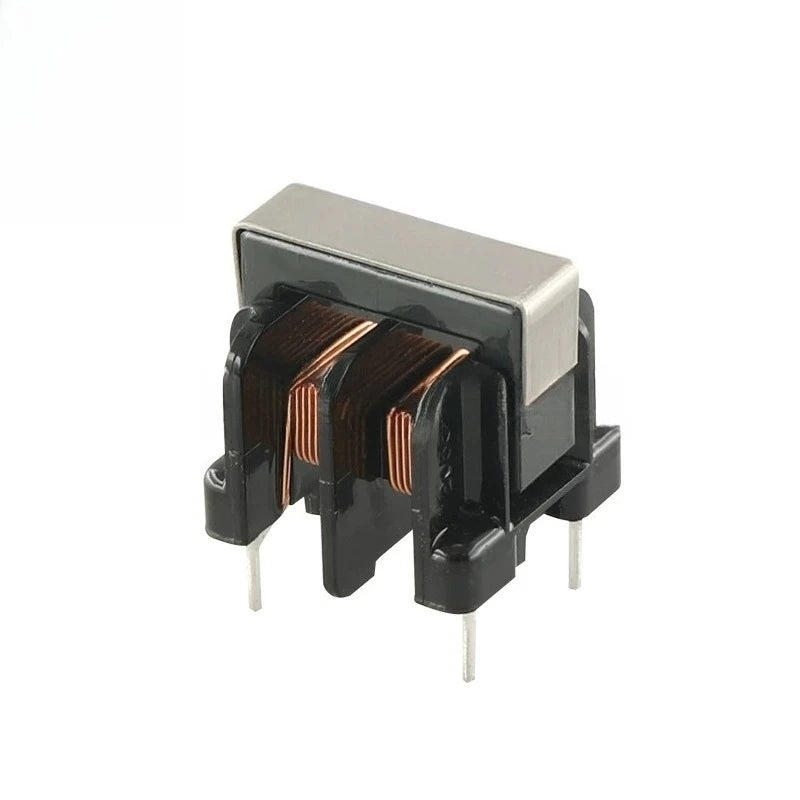

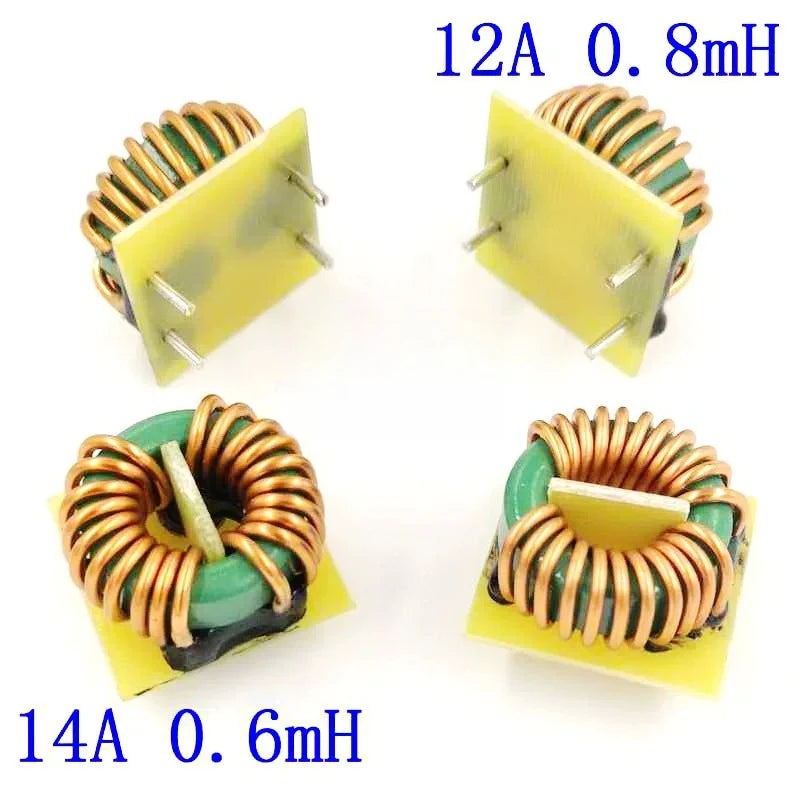

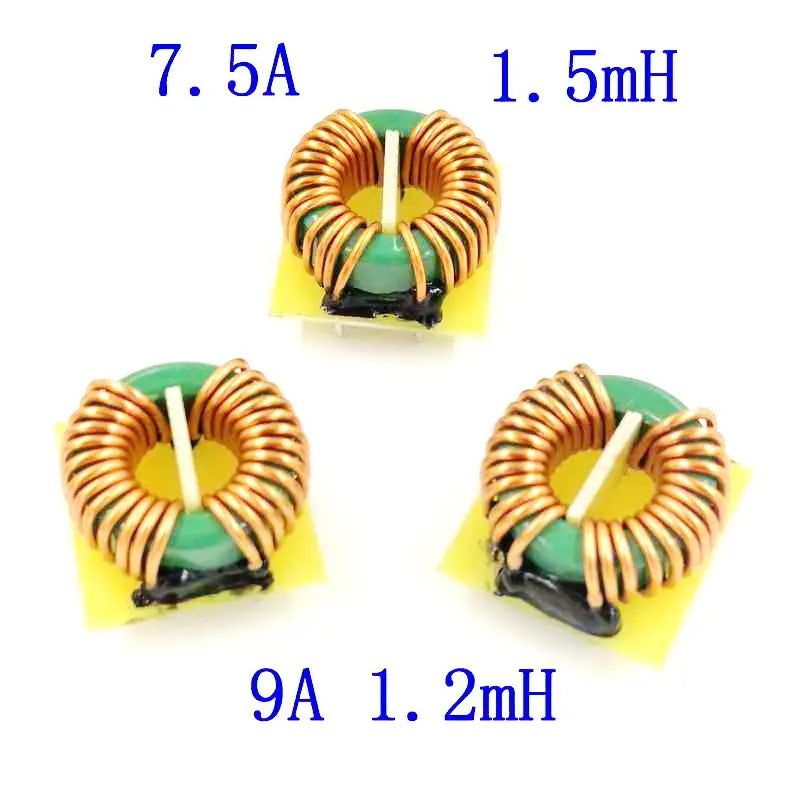

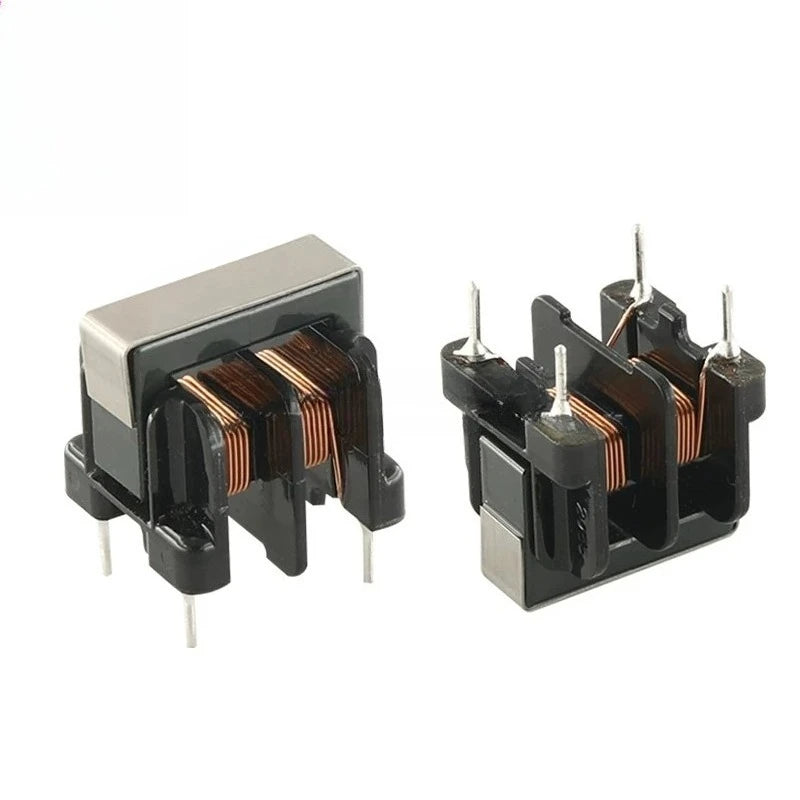

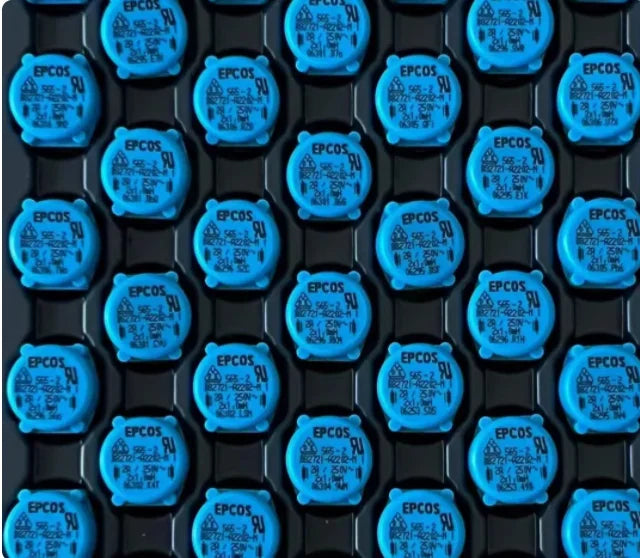

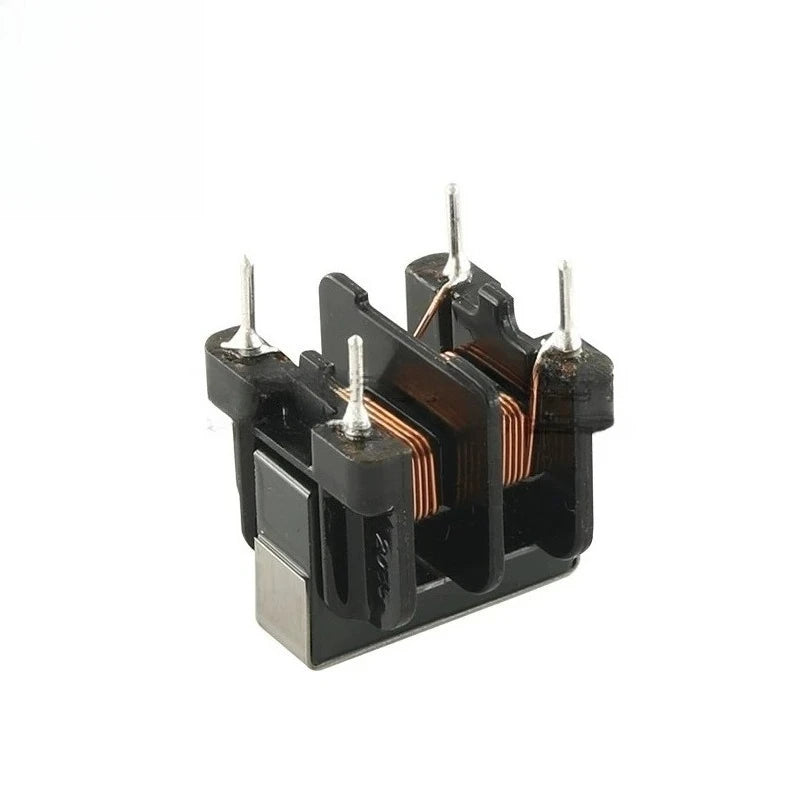

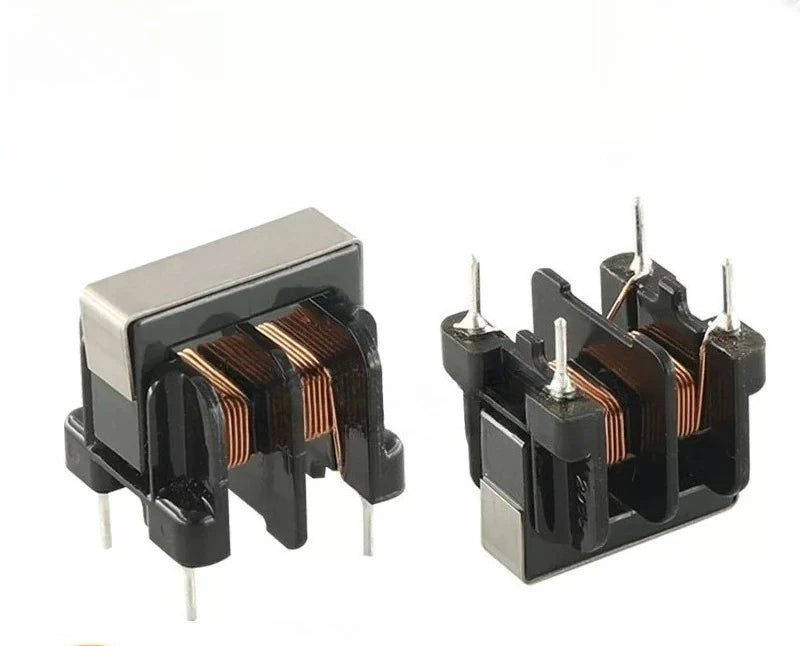

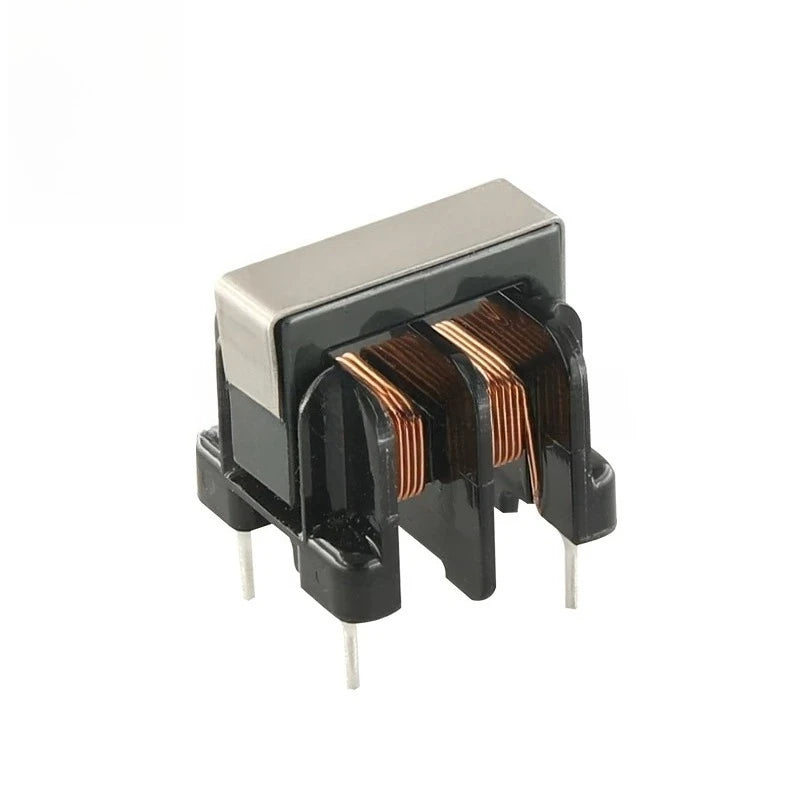

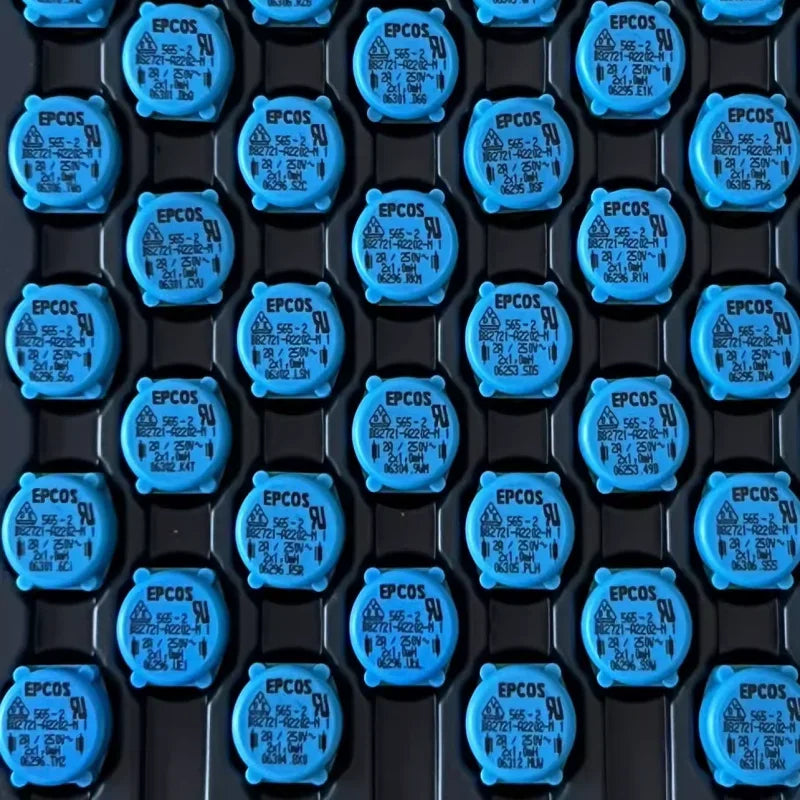

- PCB power-line chokes: UU9.8/UF9.8, UU10.5/UF10.5, ET28, SQ flat-copper, ring-core and mounted SMD options list different mH/µH values, current claims and footprints. Compare both windings, insulation, voltage, temperature rise, leakage and mounting pitch using the exact part's documentation. Variant labels in shared listings may describe a size, inductance and pack quantity, not a universal rating.

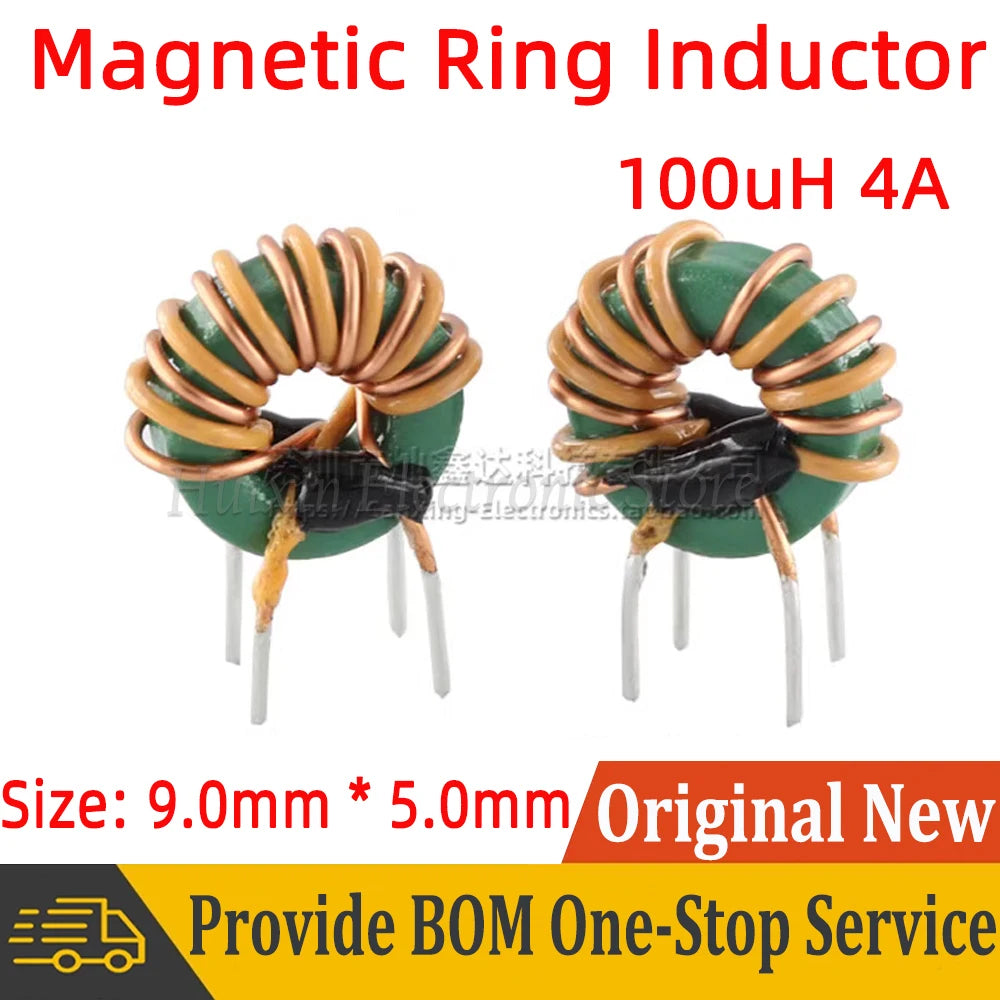

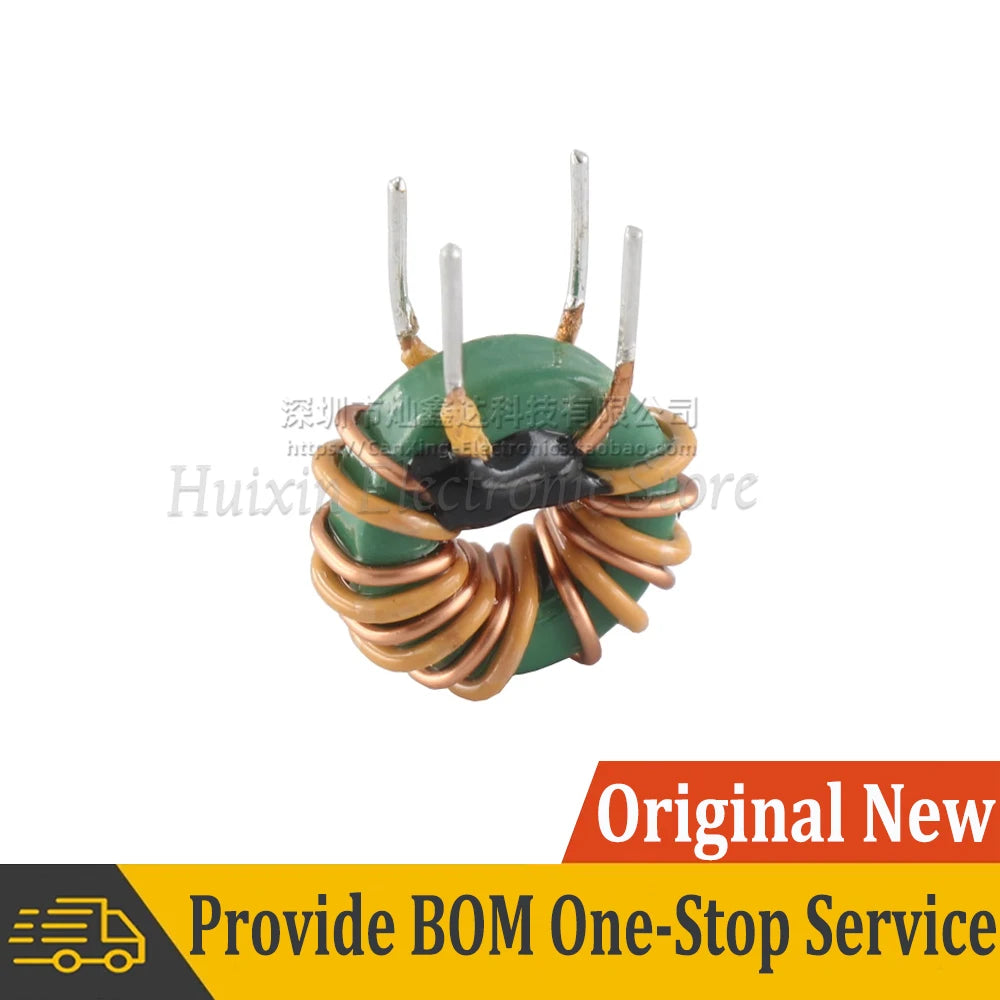

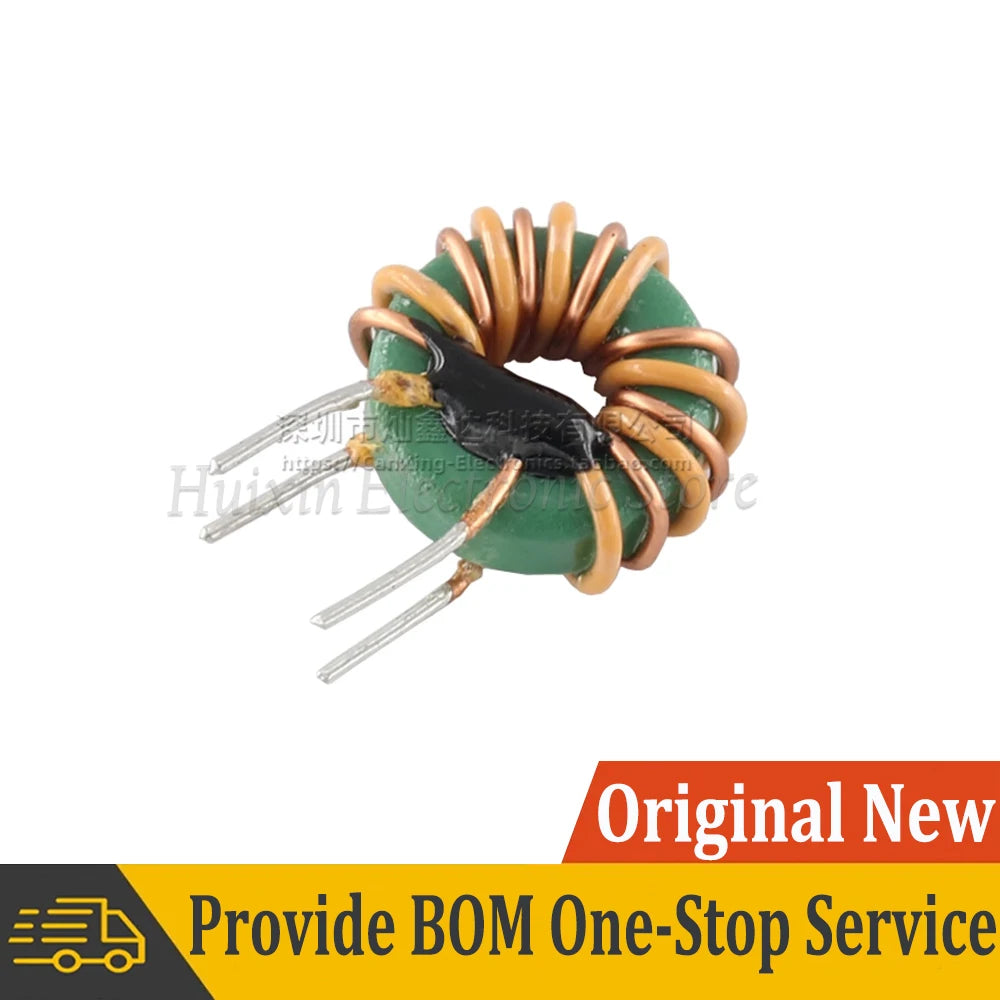

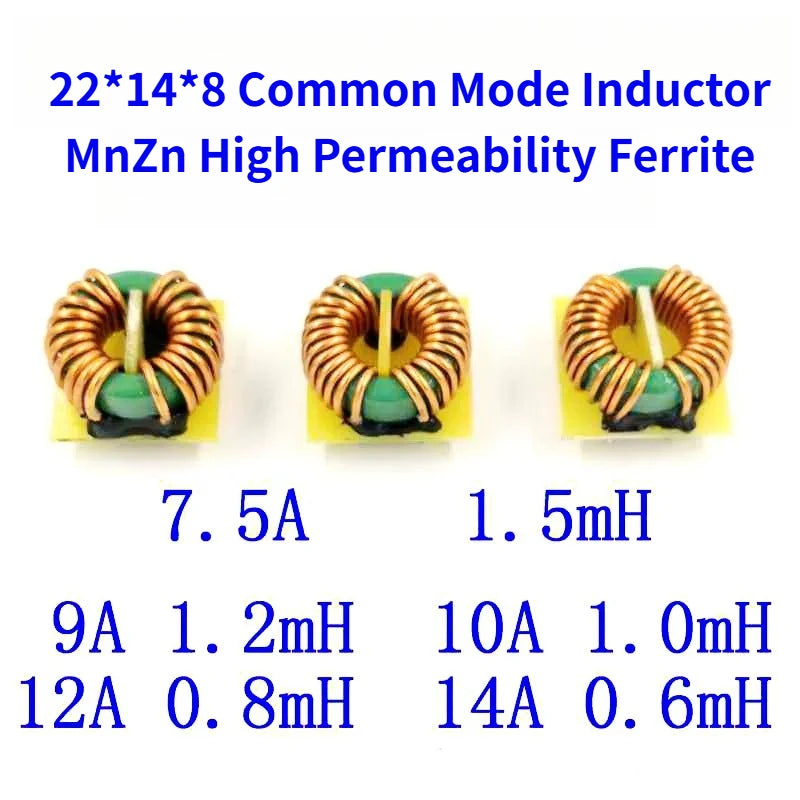

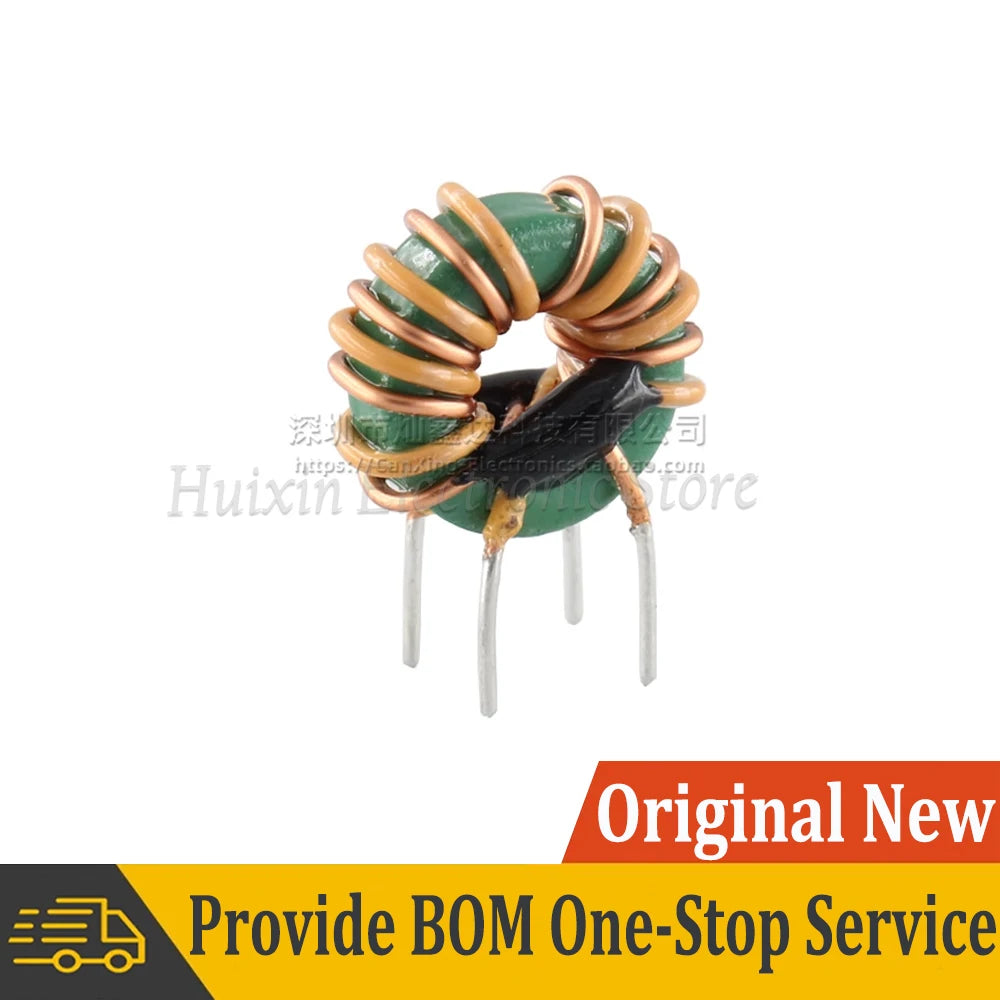

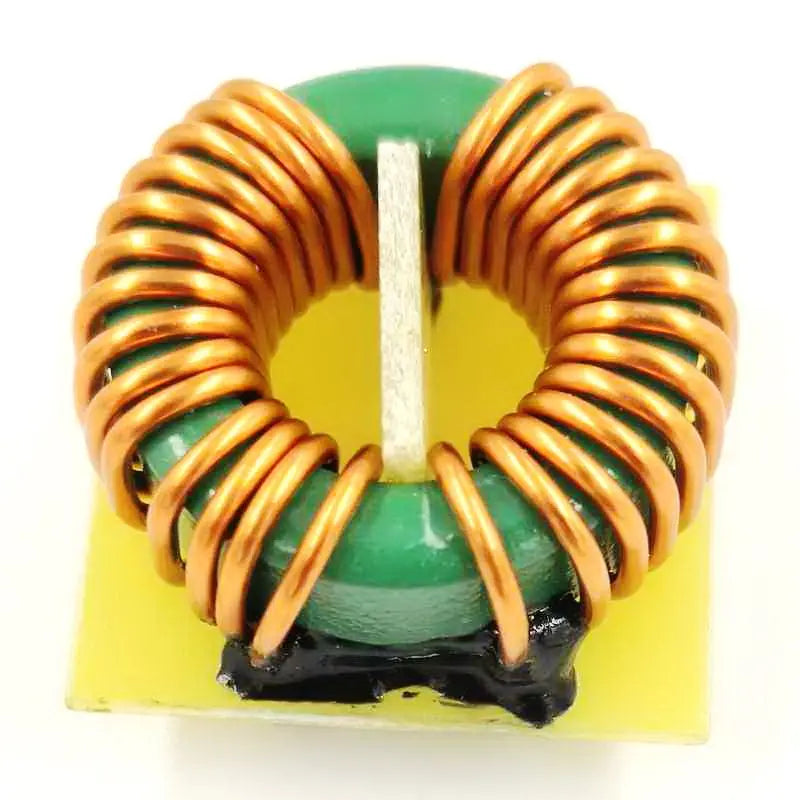

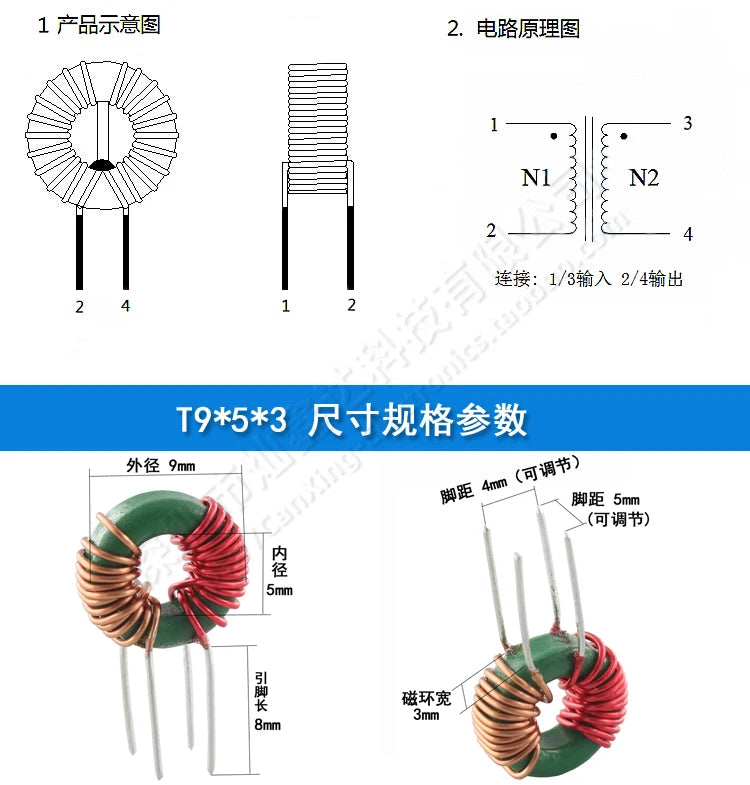

- Nanocrystalline and toroidal coils: Wound T16, T25 and T32 choices vary in winding count, form, claimed current and inductance; a bare FT-240-43 ferrite toroid requires a specified winding design before it becomes a choke or balun. Core material, size and AL value do not establish the final wound assembly's suppression performance or power rating.
- HF radio suppression: EM-series shortwave feed-line rings and ferrite toroids are intended for RF common-mode current applications. Verify the operating frequency, material, turns, coax fit, loss and heat dissipation for the installed antenna system; they are not automatically interchangeable with mains EMI filters.
How to choose
- Identify the path to filter: data pair, DC input/output, AC power line or HF feed line. Determine working and transient voltages, normal current, conductor count and required safety clearances.
- Use the relevant impedance-versus-frequency or inductance data, not a single headline value. Check insertion loss in the actual circuit, differential-mode signal impact and winding DCR separately.
- Check rated current, saturation or impedance change under bias, heating, operating temperature, insulation and mechanical footprint. Do not infer regulatory compliance or isolation from a listing's name or appearance.
- Select the exact option and quantity. Some listings offer 5–50 mH UU variants and others offer 3.3–47 mH or specific Ω-at-frequency SMD parts; mH, µH and Ω are different measurements.
Compatibility boundaries and FAQ
Can a common-mode choke replace a DC-DC energy-storage inductor? Generally no. Its coupled windings and intended noise mode differ from a one-winding power inductor; follow the circuit design.
Does a ferrite toroid arrive as a finished balun? Not when the selected item is an unwound core; the turns, wire, connections and verification belong to the finished assembly.
Is every “choke” here electronic? No. One carburetor starter-valve listing uses the same word for a mechanical part. It has no EMI-filter function and should be selected using its vehicle and carburetor fitment details.
For any connection to mains or safety-critical equipment, use the selected device's verified specifications and qualified design practices. Model-number and “original” claims in source listings do not independently verify manufacturer origin or approvals.
