Cyclone IV FPGA Development Boards & Kits

Cyclone IV FPGA boards and educational kits: choose the fitted chip and exact bundle

This mixed collection centers on EP4CE6E22C8N and EP4CE10E22C8N Cyclone IV learning platforms and compact core modules, with board quantities, a USB-Blaster-only selection and related but non-Cyclone-IV products also present. It is not an assortment of identical FPGA boards and not every option supplies a programming adapter. EP4CE6 and EP4CE10 are alternative populated chips, not two devices shipped together when both appear in a headline. Confirm the selected variant, board revision, supplied accessories, configuration memory and power connector before specifying a design.

Compact EP4CE6 and EP4CE10 core modules

One 52 × 52 mm mini-USB core-board listing offers only Finished product / EP4CE6E22 and Finished product / EP4CE10E22. Although its headline also mentions EP4CE22E22C8N, that third part is not among its current selectable variants. Its supplier describes a 5 V/500 mA board input through mini-USB or headers, a 50 MHz oscillator, 16 Mbit flash, JTAG and 2.54 mm pin headers. Its EP4CE22 discussion warns that designated package pins serve special functions and cannot be assumed available as normal user I/O; any carrier must use the exact fitted device's pin assignment rather than the generic headline. The file supplier offers may contain schematics with missing PCB traces, so do not assume a complete production-ready layout or verified pinout without checking delivered documentation.

Another EP4CE6 Type-C core-board listing describes a 7.6 × 5.4 cm board, 50 MHz clock and 16 Mbit SPI NOR flash. Its Color options are EP4CE6E22C8N Core, EP4CE10E22C8N Core and USB Blaster: the third option is a downloader, not a board. A separate Type-C/W25Q/CH340 board has a short description, so confirm the exact flash part, serial bridge wiring, programming interface and whether the quoted peripherals are actually populated on that PCB. Several thinly documented EP4CE6 listings use 1PC, 2PCS, 3PCS, 5pcs or 10pcs selectors; these represent purchase quantities and do not automatically change the silicon model. “For Arduino” or “compatible with Arduino” in these headlines does not verify shield footprint, connector mapping, 5 V-tolerant FPGA I/O or working Arduino software libraries. The “2.5V” supplier labels likewise must not be read as a universal external board-supply specification: distinguish core/PLL/I/O rails from the board's documented input.

Full-size experiment boards and included teaching hardware

The EP4CE6/EP4CE10 protective-box educational kits select one fitted part in a white-box or black-box package. Their supplier describes a 136 × 106 mm board with EPCS16N 16 Mbit configuration device, 64 Mbit SDRAM, JTAG and active-serial paths, 2.54 mm expansion, buttons, LEDs, seven-segment display, buzzer, PS/2, RS232, I²C EEPROM, VGA and LCD interfaces. A supplier shipping list for those particular offers mentions a board, USB programmer, power cable and enclosure. Do not extend that packing list to compact core-only products or assume every external LCD/camera/network module is supplied. A Nios II design is a programmable soft-core system that needs a suitable project and toolchain, not a separate hard CPU already present on each board.

Two other classroom-style listings use Bundle1 through Bundle6, and one EP4CE6 offer extends to Bundle7. The EP4CE10 six-bundle listing describes Bundle1 as board, USB programmer and power cable; Bundle2 adds a connecting board, VGA module, OV7670 camera, 2.4-inch TFT, Ethernet module and USB module; Bundle3 adds connecting board, VGA and camera; Bundle4 adds connecting board, TFT and camera; Bundle5 adds connecting board and Ethernet; Bundle6 adds connecting board and USB module. The EP4CE6 seven-bundle supplier instead says its Bundle1 also includes an LCD1602 module; Bundle7 adds a connecting board, 7-inch 800 × 480 TFT and OV7670 camera. Its Bundle2 description lists a USB-to-RS232 cable where the other six-bundle listing lists a USB module. These offers have different package lists; do not merge them or promise a module from one offer with another. The second EP4CE6 six-bundle product has minimal supplier detail, so its Bundle1–6 names alone do not verify the same contents. Check the exact product's selected variant and itemized packing list before buying a vision, display or networking kit.

Connector names do not mean a complete subsystem. An onboard LCD socket is not an attached LCD; VGA logic output is not automatically the separate VGA/SD expansion board; a board's serial connector is not automatically a USB-to-RS232 adapter. An OV7670 camera module, TFT display, Ethernet daughterboard and CH376S USB module each need a matching connecting board, voltage levels, pin map, clocks and board-specific HDL. The seven-inch display supplier gives panel/backlight values for its claimed bundle, not verified limits for other boards. One product incorrectly describes a 16-bit display module with inconsistent color counts; confirm the module's data sheet rather than relying on conflicting seller copy.

Configuration, power and design flow

Cyclone IV FPGA fabric normally loads volatile configuration after power-up; a .sof JTAG download into the FPGA is not automatically permanent merely because the board has a JTAG socket. A compatible nonvolatile configuration device may instead be programmed through a supported active-serial flow using the appropriate .pof and hardware configuration. Determine which target is actually being written and test cold boot. Check the PCB's oscillator, EPCS/W25Q chip and flash connection, SDRAM width/capacity/timing, JTAG pin-1 orientation and programmer voltage reference against the selected revision. A USB Blaster may be listed in a teaching kit yet sold separately in a core-board variant.

Supply voltage and pin I/O voltage must be kept distinct. A board advertising 5 V DC or USB input can regulate the FPGA core and I/O banks internally; it does not make raw FPGA pins 5 V tolerant. A generic “2.5V” entry cannot replace the particular board schematic. Confirm the external power connector and polarity, bank VCCIO, peripheral logic thresholds, regulator headroom, available current and connector pinout before integrating a daughterboard. Select a Quartus version that supports the actual EP4CE6 or EP4CE10 device, along with compatible programmer drivers, constraints and any Nios II/IP licenses; a board title is not proof that every tutorial project builds unchanged.

Different devices and unrelated matches retained in this series

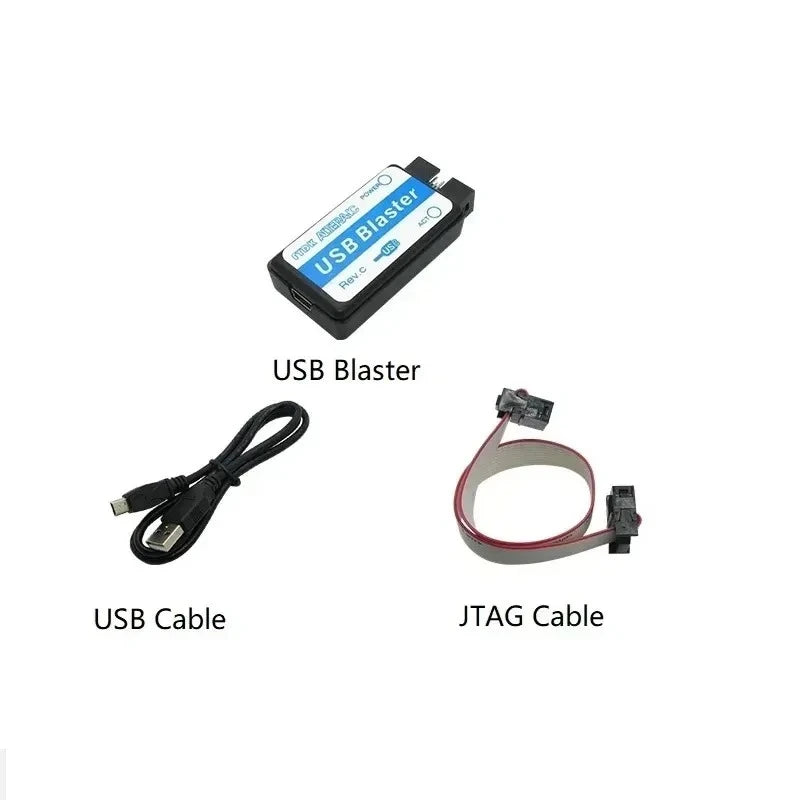

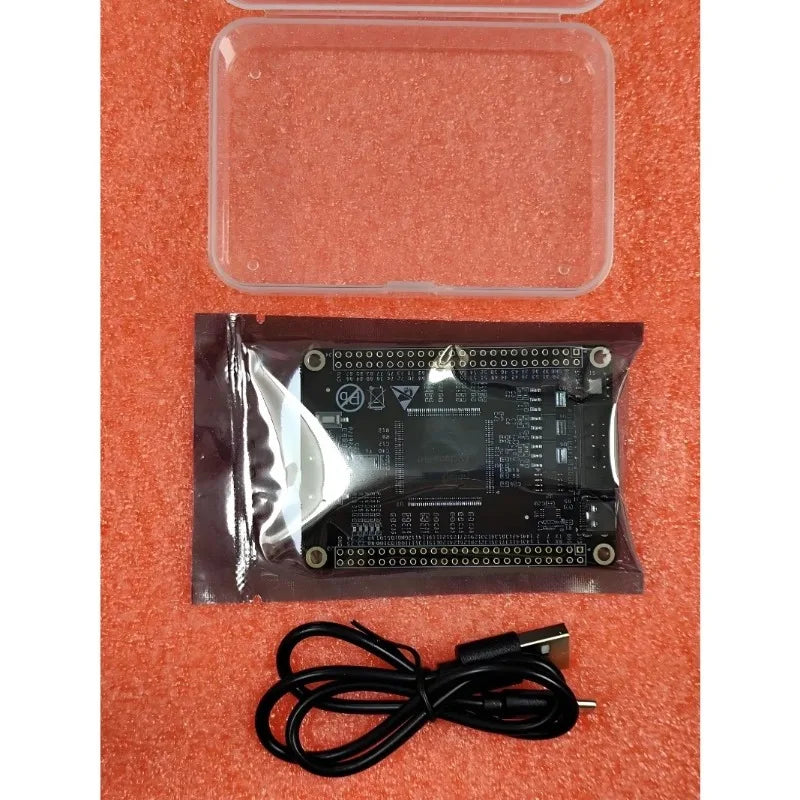

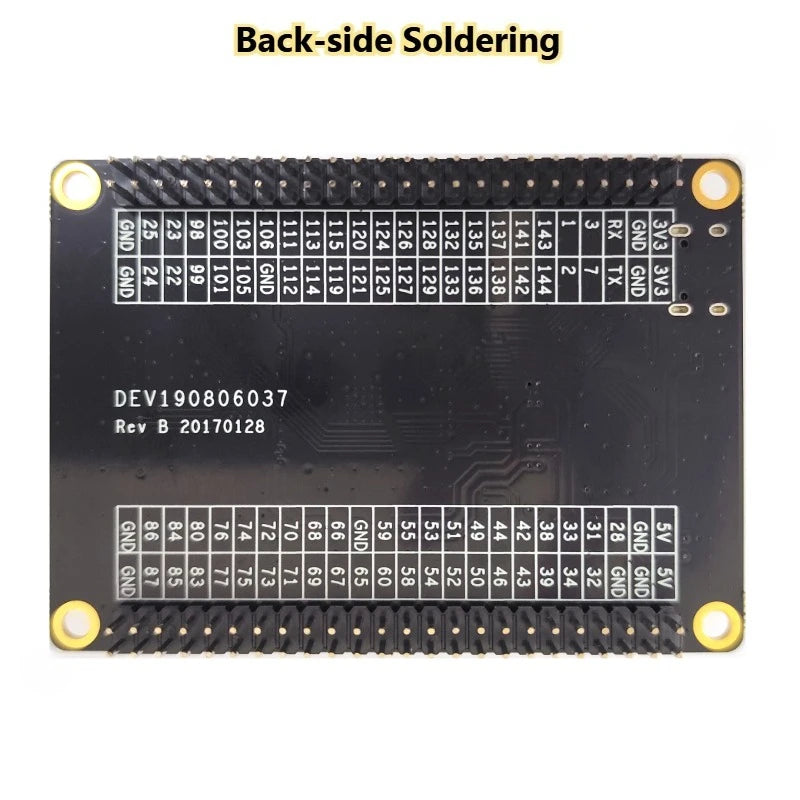

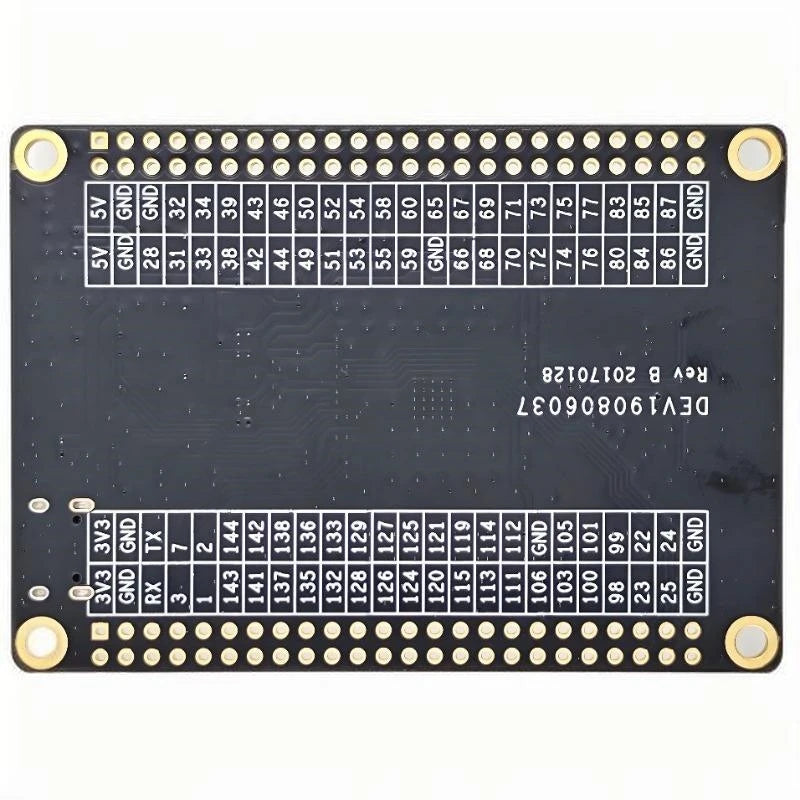

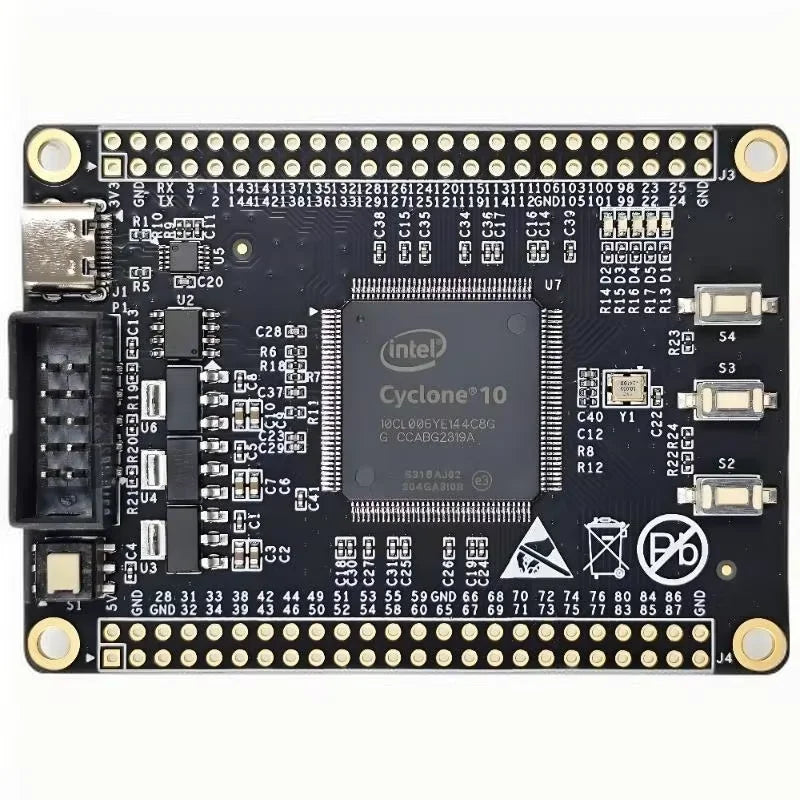

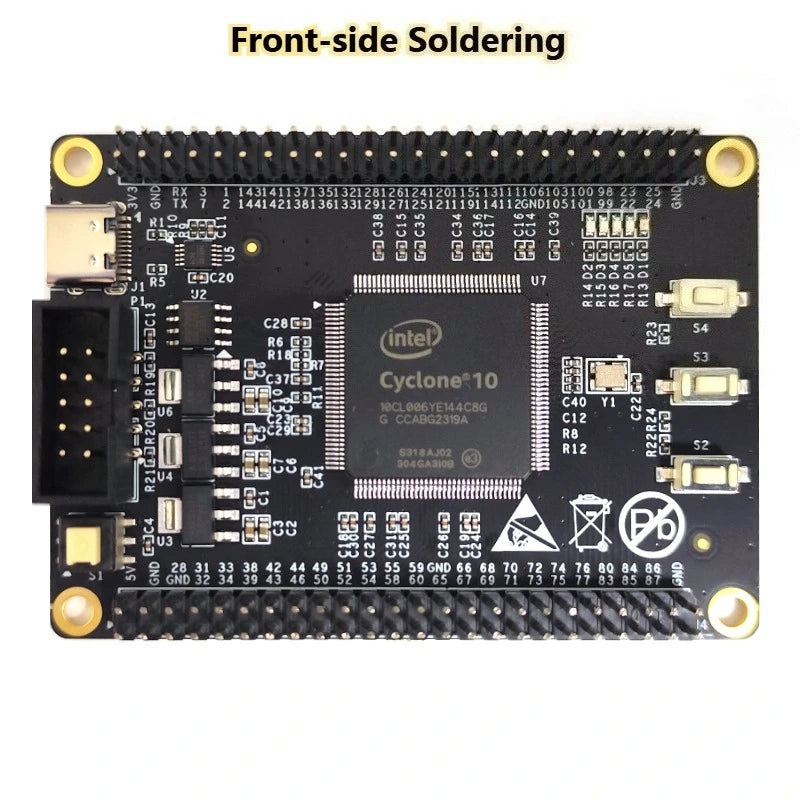

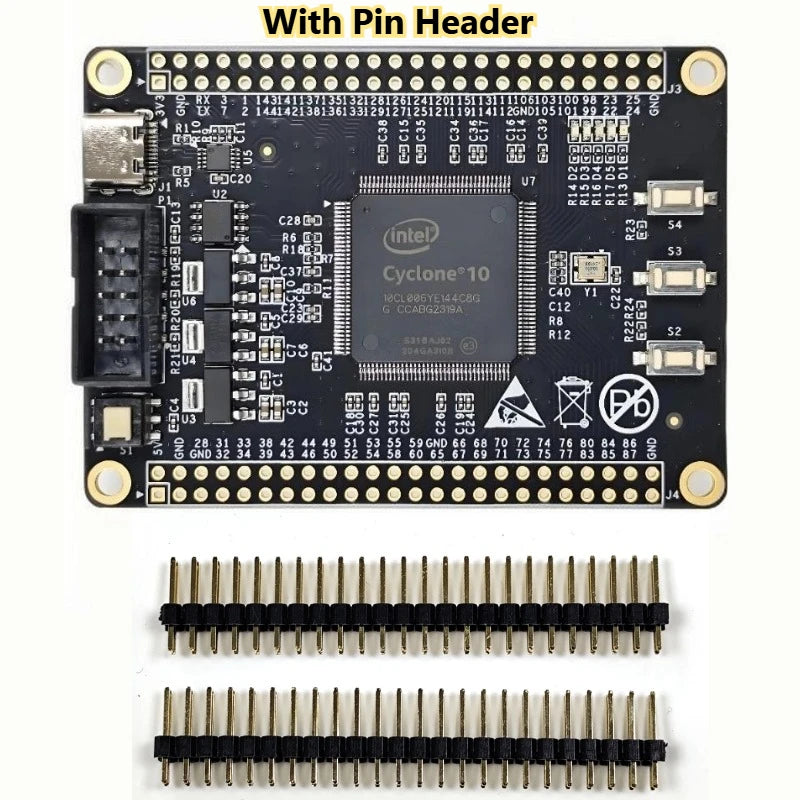

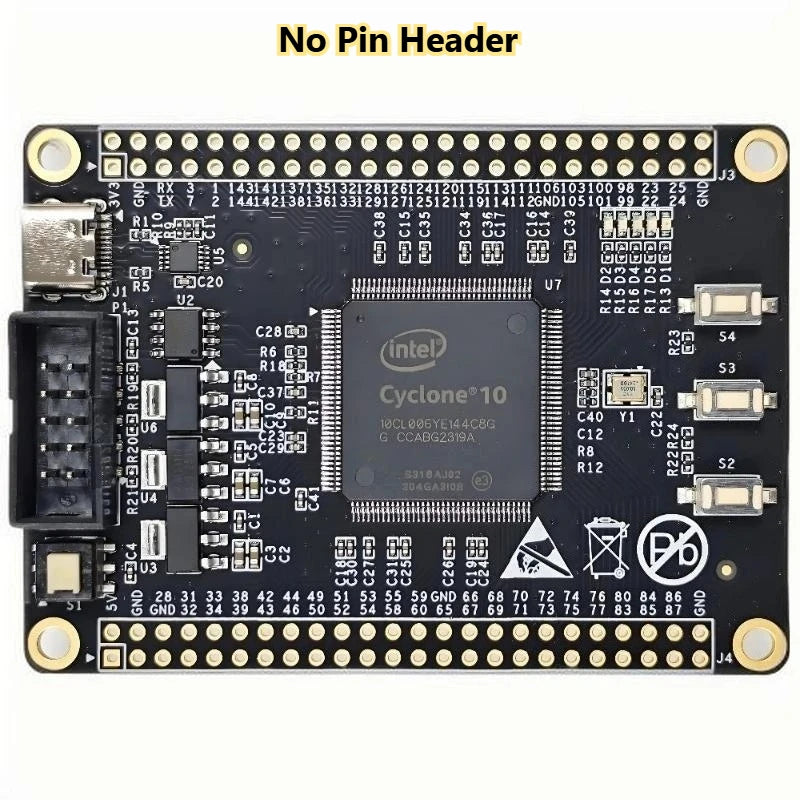

The EP2C5T144 Cyclone II minimum-system board is an older family, described with EPCS4, 50 MHz clock and 5 V board input. One listing selects either “EP2C5T144C8 Module” or “EP2C5T144C8N Chip”; the latter is a loose IC, not a populated core board. Cyclone II projects cannot simply be assumed drop-in compatible with Cyclone IV boards. A 10CL006YE144C8G listing is Cyclone 10, not Cyclone IV; its selector ranges from “USB Blaster Only” to “With Pin Header,” “No Pin Header,” “Front-side Soldering” and “Back-side Soldering.” Confirm whether each choice is a downloader or an assembled board with its stated header orientation, and check Cyclone 10 tool and pinout support separately. Its seller's broad “500+ I/O” statement is not a credible specification for a 144-pin part: consult the exact device data sheet.

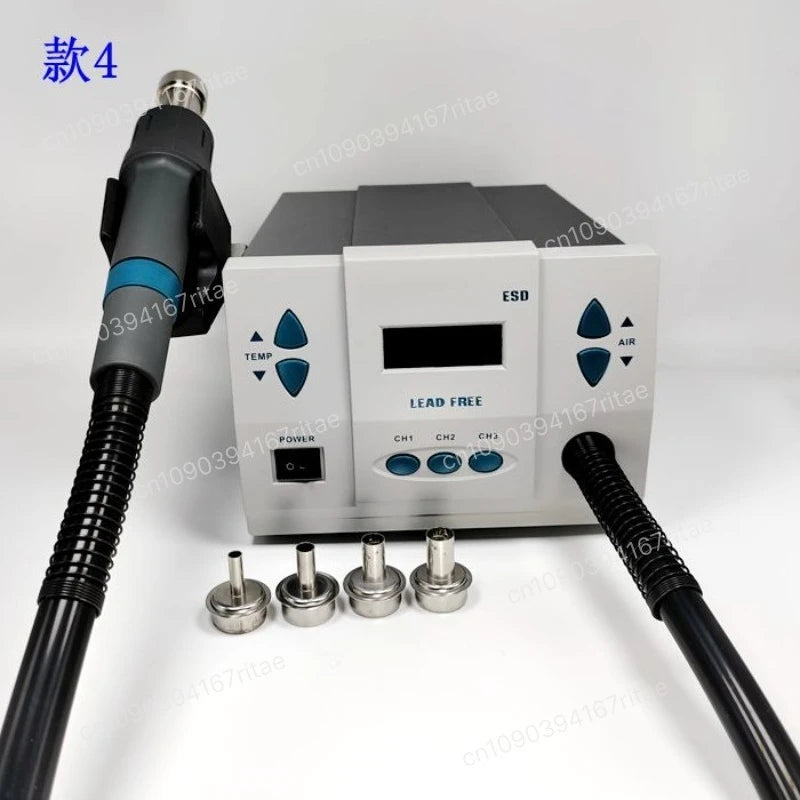

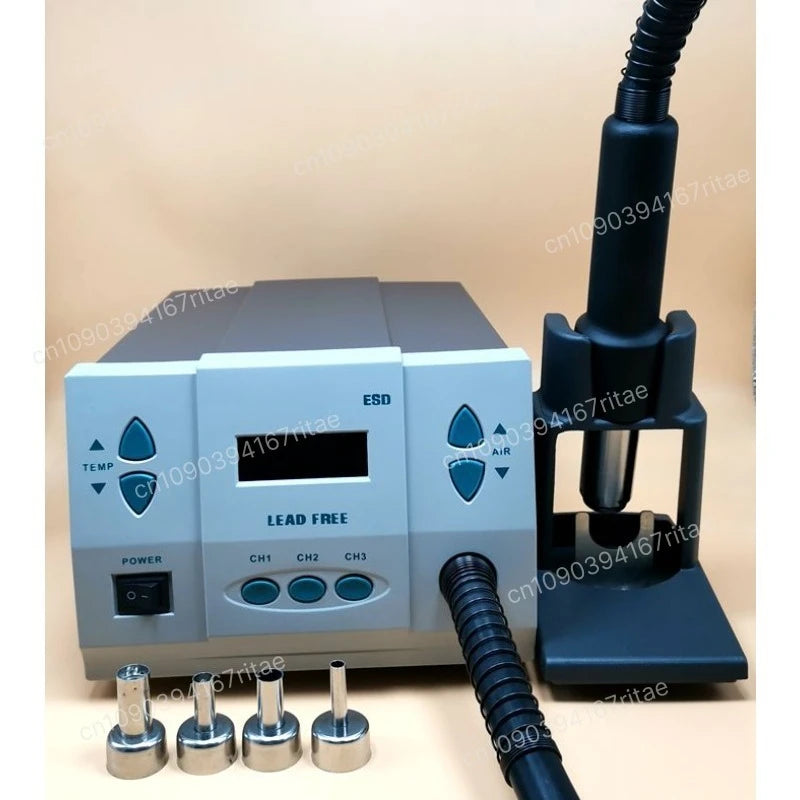

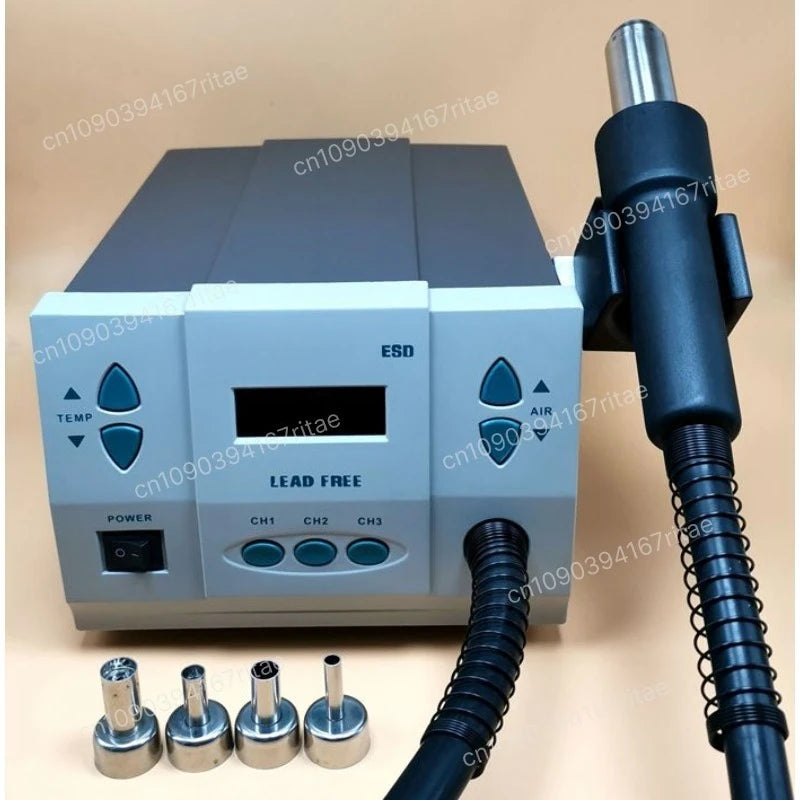

A mini MiSTer retro console listing is based on a Cyclone V SoC, not EP4CE6 or EP4CE10. White and black selectors refer to the case; supplier packing text lists a host, 32 GB TF card preloaded with a system but without games, and a 5 V power lead. It is a different computer/gaming use case, not a plug-compatible Cyclone IV student board. An 861DW “cyclone and direct wind” hot-air rework station is a soldering tool; its Style 1–4 variants are not FPGA devices, and the short supplier description does not establish differences among those styles. A CYCLONE ELRS 2.4 GHz PWM/CRSF RC receiver is radio-control equipment, not programmable logic; it stays here because of the shared word in its title, not technical compatibility. Neither item should inherit the EP4CE6 board specifications.

Selection checklist for engineers and educators

1. Identify the delivered item: EP4CE6 versus EP4CE10 assembly, USB Blaster only, loose EP2C5 chip, Cyclone 10 module, Cyclone V host or unrelated tool. A Color or Model Number label can encode the entire physical item or pack quantity.
2. Choose required resources: actual logic elements, embedded RAM and multipliers, user I/O per bank, clocks/PLLs, external SDRAM and configuration memory. Verify the silicon suffix and FPGA resource table, not just marketing-level family names.
3. Audit the kit: check whether a programmer, enclosure, connection board, VGA expansion, LCD, camera, USB/Ethernet modules and cables appear in the selected product's own packing list. Similar Bundle1 names across offers are not interchangeable promises.
4. Validate electrical interfaces: board input versus I/O bank rails, pin 1, expansion-header pitch, reserved pins, cable keying, power budget, camera/display connector mapping and bus widths. Do not attach a 5 V peripheral to FPGA I/O based only on the board-input label.
5. Verify reproducibility: obtain revision-specific schematics and pin constraints, supported Quartus release, programmer drivers, boot-file procedure, example designs, SDRAM timing and license status. Seller statements of testing, documentation, originality or technical support are not independent verification.

Frequently asked questions

Do I receive EP4CE6 and EP4CE10 in one order? No such combined shipment follows from these titles. Select the exact fitted-chip variant and check its packing list.

Does the EP4CE22 mentioned in the three-chip title ship? The reviewed selector on that product currently exposes finished EP4CE6 and EP4CE10 options, not an EP4CE22 option.

Does the USB Blaster option include an EP4CE6 board? No board is established by the “USB Blaster” label; it is a separately selected programming accessory.

Is every Bundle1 the same? No. One EP4CE6 offer claims an LCD1602 in Bundle1; the detailed EP4CE10 six-bundle offer lists board, programmer and cable. Verify the individual offer.

Will .sof programming survive a power cycle? Not by virtue of loading volatile FPGA fabric over JTAG. Confirm separate programming of suitable configuration memory and cold-boot behavior.

Can I connect Arduino 5 V signals directly? Do not assume so. Check pin mapping and VCCIO/absolute maximum ratings for the board and device.

Are Cyclone II, IV, V and 10 interchangeable? No. They differ in silicon, board connections, tool/device support and, for Cyclone V SoC, processing architecture.

Is the hot-air station or ELRS CYCLONE receiver an FPGA? No. Their names contain “cyclone,” but their functions are soldering and radio control, respectively.

This guide describes the present mixed product assortment without altering collection membership. Catalog descriptions can contain conflicting electrical, support and shipping claims. Confirm the chosen physical item, PCB revision and official silicon documentation for safety- or production-critical use; supplier return statements do not replace the store's published policies.
