DRV8825 Stepper Drivers, Carriers and CNC Controller Kits

DRV8825 stepper control: bare IC, plug-in carrier or complete controller stack?

Compare DRV8825 stepper-driver IC selections, plug-in StepStick-style motor-driver carriers, CNC Shield V3/V4 combinations, printer-controller boards, RAMPS/Mega sets and related heatsinks. This collection is intentionally broader than a single driver module: A4988, DRV8824, DRV8833, TMC-family and other selectable products appear alongside DRV8825. Product titles often string together several different options. Choose by the selected variant and its packing list, not by assuming every option contains a DRV8825, heatsink, motor or completed controller.

What the DRV8825 controls

A DRV8825 is a current-regulating bipolar stepper-motor driver with STEP and DIR control and configurable microstepping, commonly used on small plug-in carriers for CNC and 3D-printer motion systems. It drives motor windings under commands from a separate controller; it does not interpret G-code, run a printer by itself, or include a motor in a bare IC or carrier selection. Full-step through 1/32-step settings are commonly associated with DRV8825 carriers, but the actual board's mode-pin routing, available settings and firmware configuration must match. Microstep resolution alone does not guarantee positional accuracy or torque under load.

For engineering selection, treat supply voltage, maximum current, board temperature and motor winding current as separate constraints. Quoted chip peak ratings or a listing's “1.5A” headline do not guarantee continuous current on a tiny carrier without adequate cooling. Current regulation must be set for the specific motor and carrier, using its documented reference-voltage procedure and sense-resistor value; carriers can use different resistors. Verify fault/protection behavior, thermal path, motor-supply decoupling and logic-signal compatibility in the selected manufacturer's documentation. Do not disconnect a live stepper or reverse a driver socket: these can damage driver and controller hardware.

Choose the item being delivered

• Bare DRV8825PWPR: a ten-piece multi-chip listing offers DRV8825PWPR alongside DRV8824PWPR, DRV8833PWPR and DRV8833CPWPR. Another five-piece mixed-model page includes “DRV8825PWPR TSSOP-28” among STM32 devices, DIR9001PWR and RT8566. These are separately selected ICs requiring a suitable PCB footprint and thermal layout, not preassembled StepStick carriers. Do not assume the product title's list means a mixed pack.

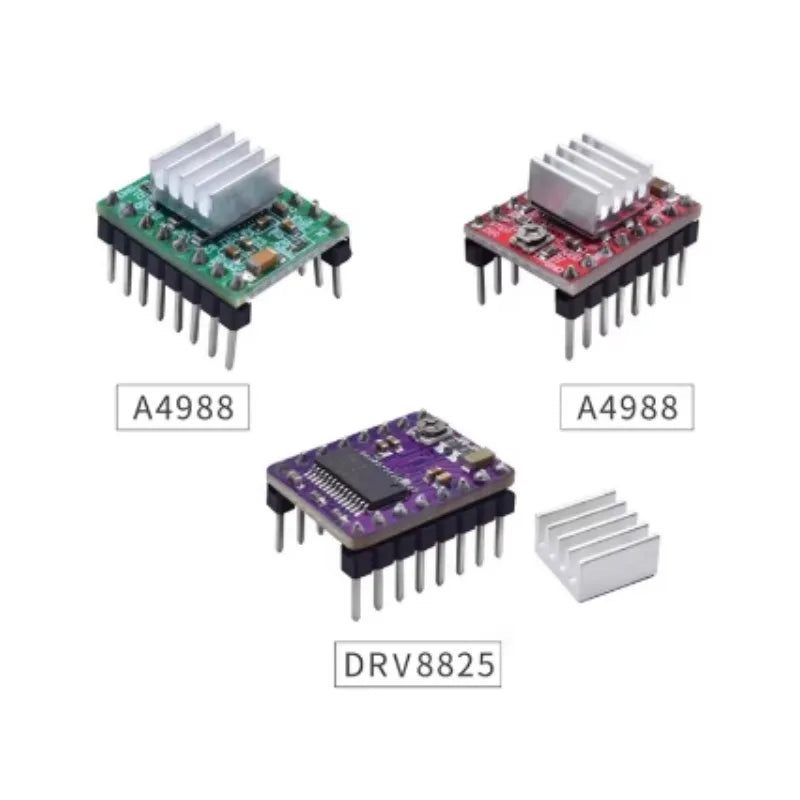

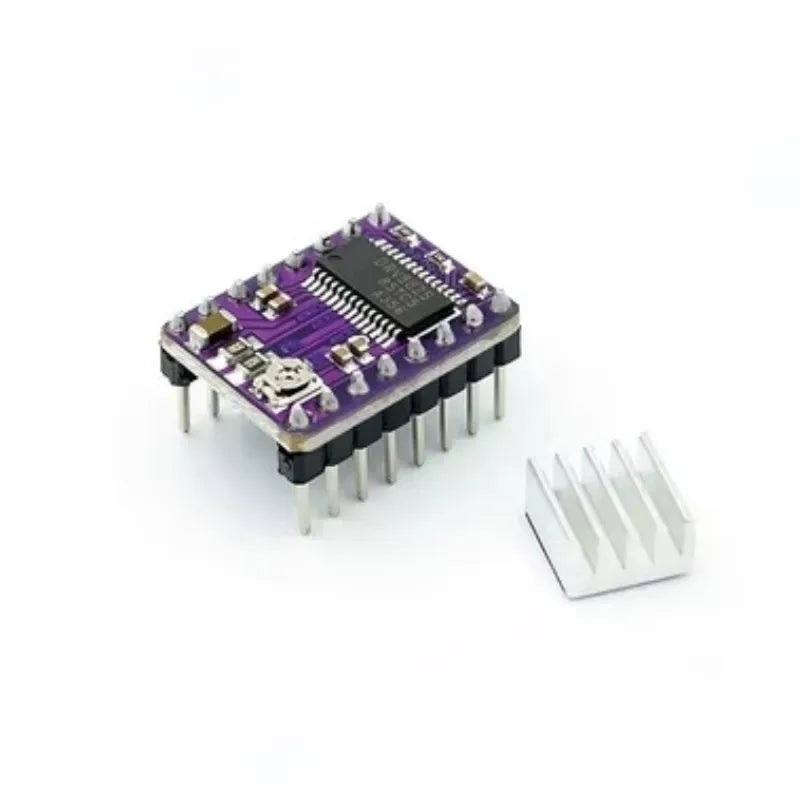

• Single DRV8825 carrier: standalone StepStick-style listings offer a selected DRV8825 board, sometimes with a small heatsink. Other listings offer A4988 Red, A4988 Green or DRV8825 as alternative choices. A generic “A4988 DRV8825” headline does not guarantee the selected module uses both chips. Check populated header pins, heatsink inclusion and component orientation in the selected carrier photo and listing.
• Carrier multipacks: one-, five-, ten- and up-to-100-piece driver-module listings appear here. A “100pcs StepStick” product offers separate DRV8825, A4988 Green and A4988 Red selections; an option for A4988 is not a DRV8825 shipment. Quantity can be encoded in the color, voltage or pack-size option rather than a dedicated quantity field.
• Cooling blocks only: XCR3D and another aluminum heatsink listing provide selectable four-, eight-, ten- or sixteen-piece cooling accessories for driver modules. These are heatsinks, not stepper-driver electronics. Check their dimensions, adhesive and clearance against the carrier and neighboring components before using them.
• UNO + CNC Shield: several pages combine V3 UNO-format CNC shield, UNO R3, USB cable and selectable A4988 or DRV8825 carriers, but also contain shield-only, MCU-only, single-driver or partial-kit options. A separate Basic/CNC kit listing explicitly contains just one chosen driver, despite a shield with multiple sockets; CNC variants may add limit switches. Count populated drivers, not merely sockets or words in the headline.
• Nano + CNC Shield V4: V4/Nano 3.0 kits commonly pair a V4 shield with three selected DRV8825 or A4988 carriers, while certain variant choices provide only a Nano with cable, one carrier or a shield. V3 is generally the UNO-format board and V4 the Nano-format board. Their physical interface and number of sockets differ; verify exact revision and packing list.
• Mega + RAMPS 1.4: printer kits list a Mega 2560 R3, RAMPS 1.4, selected sets of five A4988 or DRV8825 drivers and, in some listings, 2004 or 12864 display/control hardware. Others have opaque “Package A–E” selections. Confirm each package's actual parts before assuming a display, cable or DRV8825 is included. RAMPS is a different controller ecosystem from the UNO CNC Shield.
• MKS GEN-L motherboard: MKS Gen-L V1.0/V2.1 listings include motherboard-only variants and variants named for A4988, DRV8825, TMC2208 or TMC2209. “Supports DRV8825” describes a possible carrier interface, not proof the board-only option ships populated with that driver.
• Motor bundle: a CNC controller/NEMA 17 product references a motor and UNO/DRV8825 controller stack, with shipping-origin variants. Consult its exact bill of materials, motor winding current and connector requirements rather than assuming the motor specifications apply to every product in this series.

DRV8825 versus other driver families

A4988 and DRV8825 carrier pinouts are often similar, which can make replacement possible in some compatible sockets, but that is not universal plug-and-play. Their motor-supply limits, microstep mode table, current-limit calibration, decay behavior and thermal characteristics differ. Do not copy an A4988 reference-voltage setting, firmware step resolution or carrier orientation blindly onto DRV8825. Board colors such as purple, red and green identify seller options, not an independent functional qualification.

DRV8824PWPR and DRV8833PWPR/DRV8833CPWPR are separate devices, not spelling variations of DRV8825. TMC2208, TMC2209, TMC2100, TMC2130, LV8729 and AT2100 references in assorted listings belong to alternative driver families or accessories. UART-capable TMC configurations may require board-specific wiring and firmware settings. A “heatsink for TMC2208/DRV8825” can be purely mechanical hardware and must not be read as containing those ICs.

CNC and printer integration details

A V3 shield can offer several driver sockets, commonly marked X/Y/Z/A. The fourth socket's actual independent axis behavior depends on shield routing, jumpers and firmware, so an empty four-slot shield is not a four-axis motor system. V4 listings generally use Nano and three slots. The external motor supply powers the driver/motor stage while USB/logic power may follow a different path; verify the actual board before connecting supplies or accessories. Step/direction pins, enable, microstep jumpers, limit inputs, spindle control and any firmware-specific conventions must match the chosen revision and controller software. “GRBL compatible” on a selected shield is not a promise that all GRBL releases, displays, limit switches and motors work without configuration.

A “42 stepper motor driver expansion board” is an expansion/shield board for an appropriate stepper carrier and controller, not necessarily a NEMA 17/42mm motor or a populated DRV8825. For SKR, MKS, RAMPS and other printer motherboards, inspect the socket pinout, logic supply, firmware microstep setting and driver cooling before substituting a StepStick-style carrier. Heatsink attachment should preserve clearance and not short exposed electronics. Inductive loads and high motor currents require a suitable power supply, thermal design and fault protection; no one universal wiring method applies across all of these boards.

Pre-purchase checklist

1. Identify delivery level: bare HTSSOP chip, populated driver carrier, heatsink-only pack, empty shield, motherboard, or full controller kit with specified motors or display.
2. Read every selected option: DRV8825 versus A4988/DRV8824/DRV8833/TMC; V3 UNO versus V4 Nano; one, four, five, ten or 100 pieces; partial versus complete kits. Verify opaque package codes from their individual packing lists.
3. Specify the motor: bipolar winding arrangement, rated winding current and power-supply voltage must match the chosen carrier and assembled board's actual operating limits. NEMA frame size does not establish winding current.
4. Plan current regulation and heat: use the particular carrier's sense resistors and documented current-limit calibration, expected duty cycle, enclosure airflow and heatsink clearance. Do not treat a chip peak number as guaranteed continuous module performance.
5. Validate host and firmware: check controller footprint, motor socket orientation, mode pins, driver count, STEP/DIR mapping, firmware microstep setting and optional limit-switch or display wiring.
6. Check package fit: a DRV8825PWPR bare IC is not a StepStick replacement without assembly; a carrier cannot directly replace a motherboard; a heat sink alone cannot drive a motor.

Select the actual variant and consult its board-level and component-level documentation. This collection helps compare the right building block for a motion-control design without treating every matching search term as equivalent hardware or making unverified compatibility, origin or continuous-current guarantees.
