DSP audio processors: choose the signal path, not just the channel count
This collection brings together professional speaker-management processors, car-audio DSP amplifiers, Bluetooth/EQ and ADAU audio boards, plus a much wider group of loudspeakers, recording modules, embedded devices and control products that share broad catalog keywords. Not every item here is an audio processor. A processor shapes a signal; a preamplifier provides a line-level path; a power amplifier drives a supported speaker load. A 4-in/8-out processing specification does not establish eight amplified loudspeaker channels. Start with the exact product and selected variant, then trace the physical input, processing, conversion and output stages.
Professional speaker management and effects

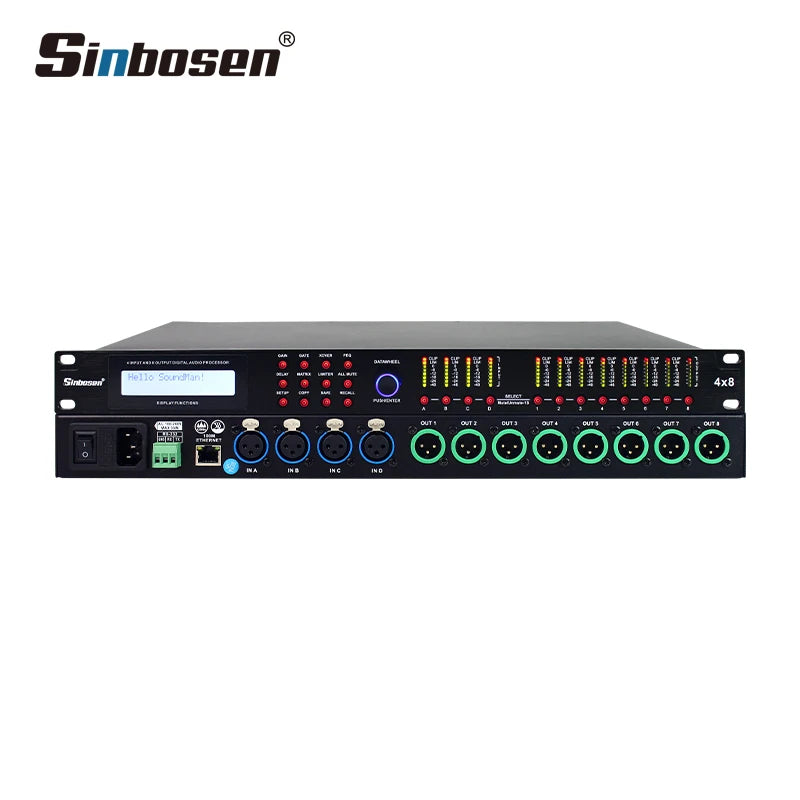

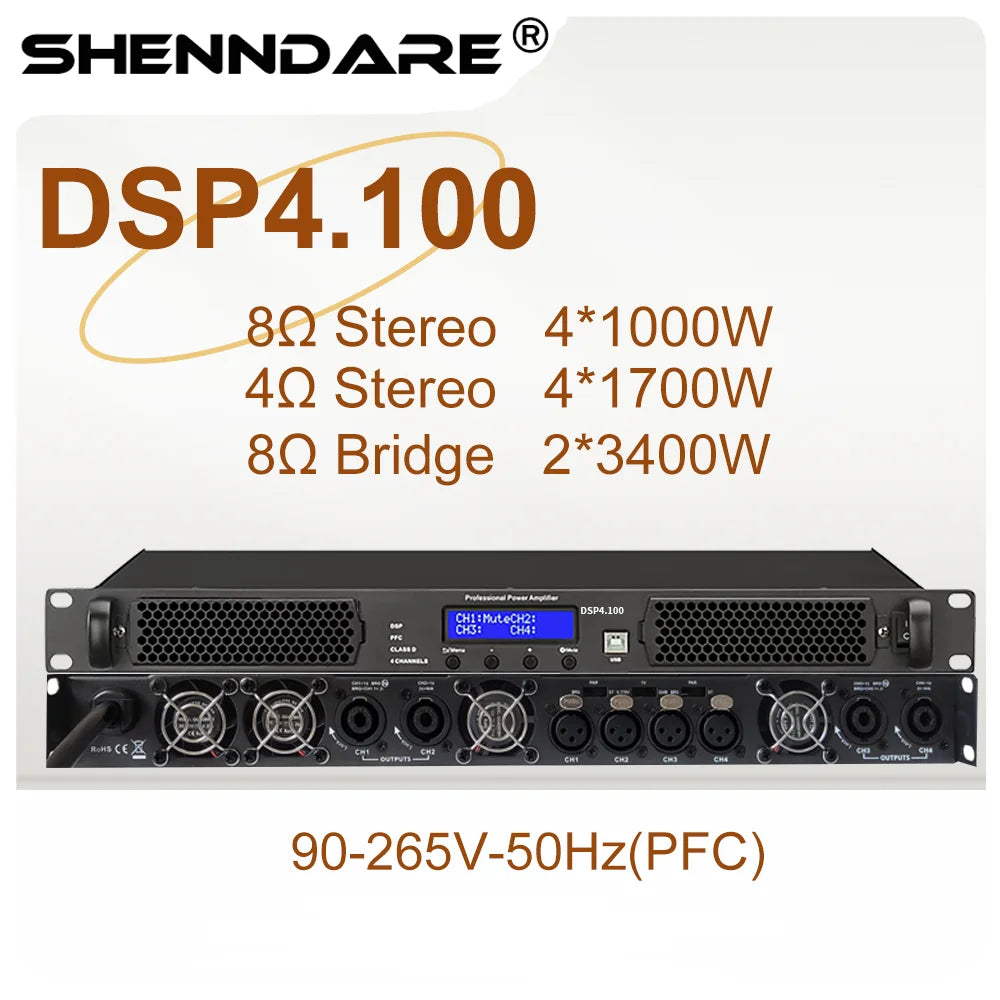

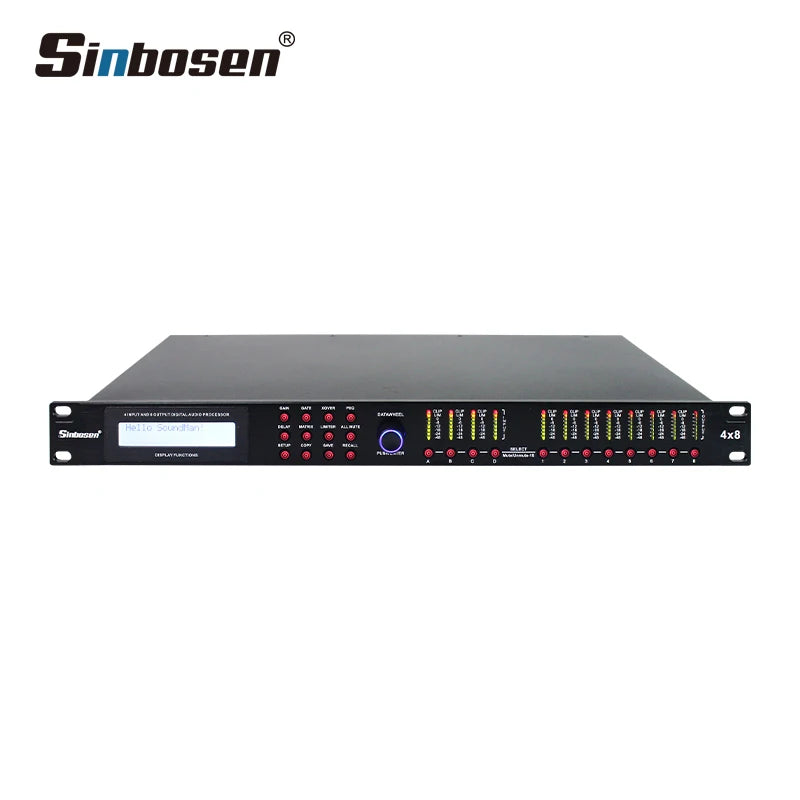

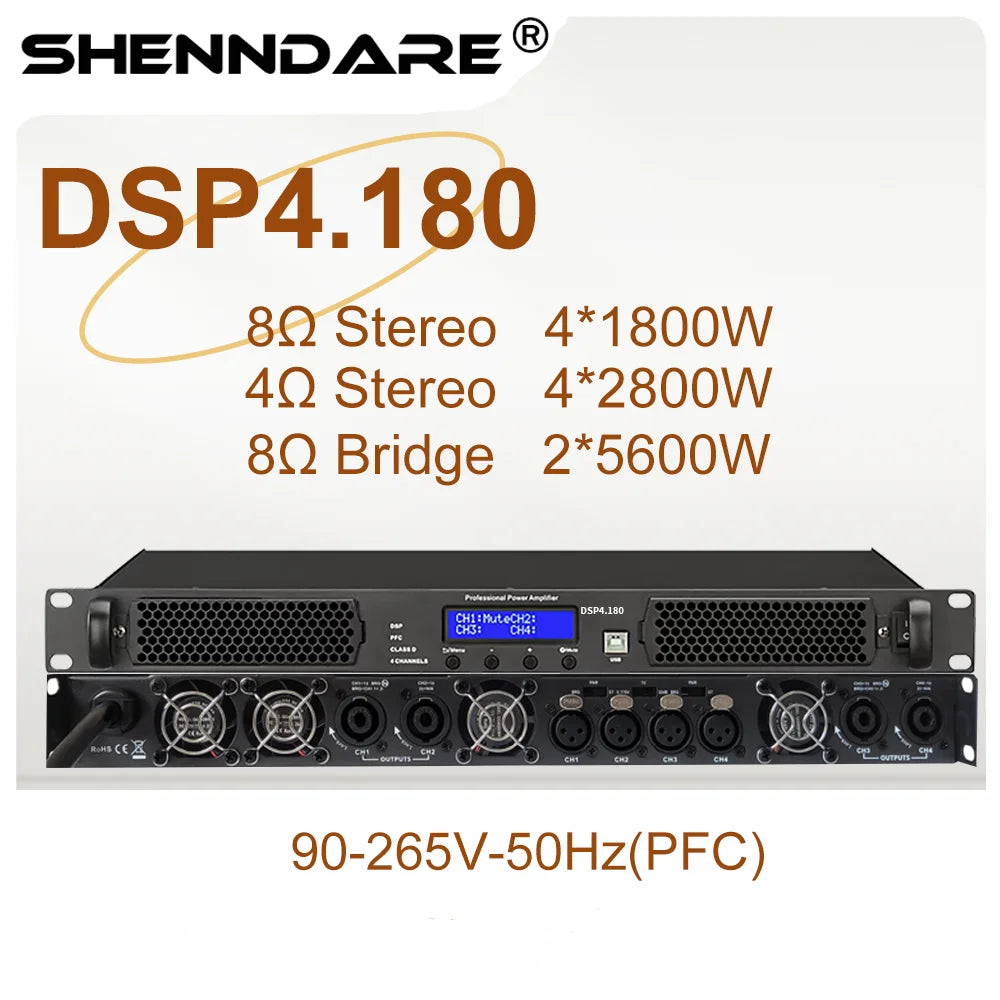

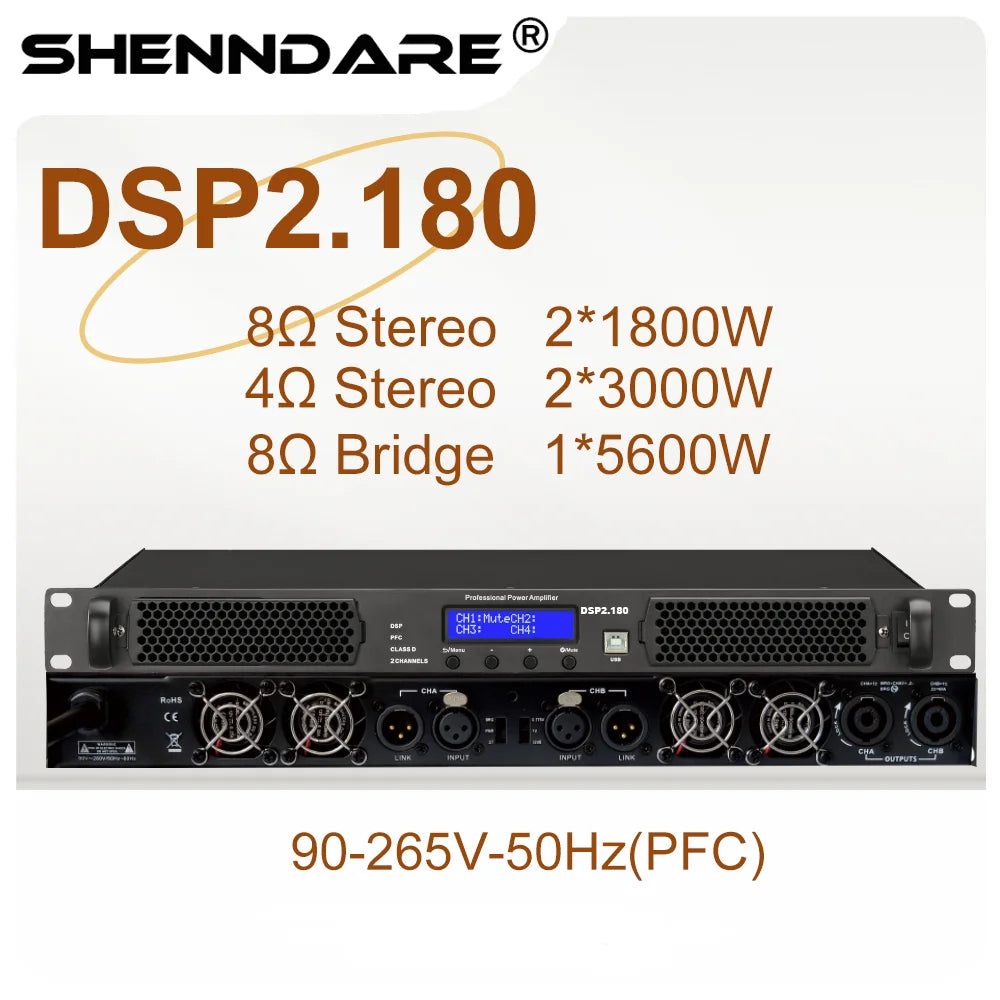

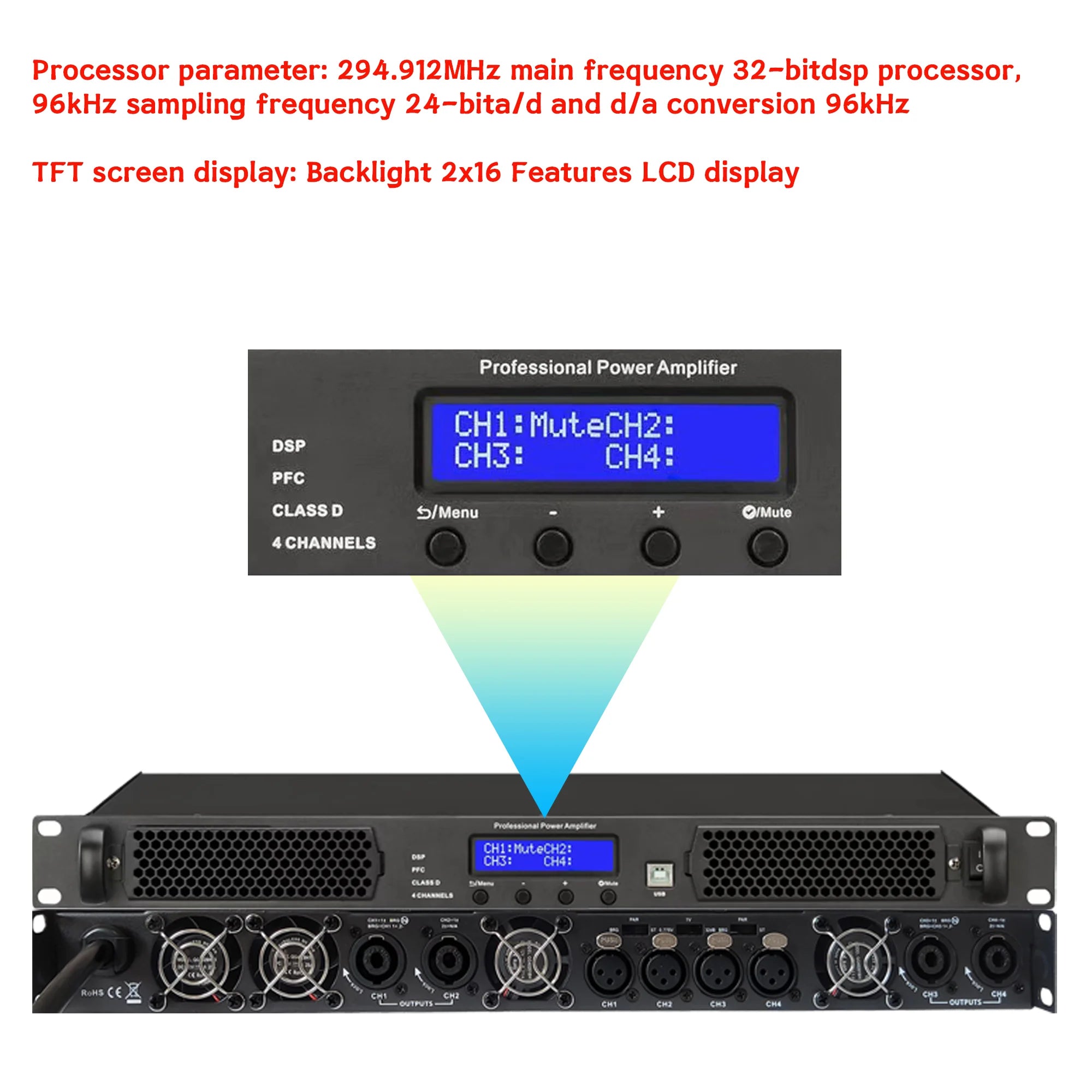

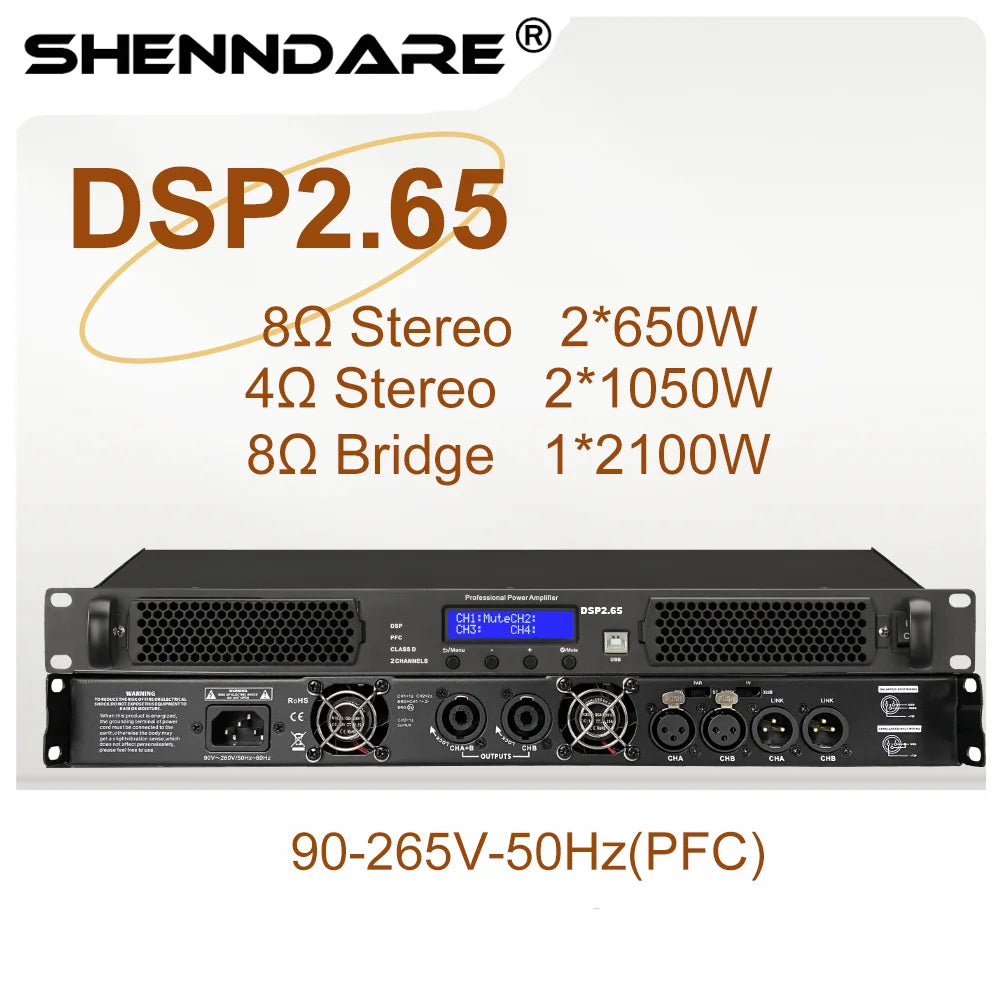

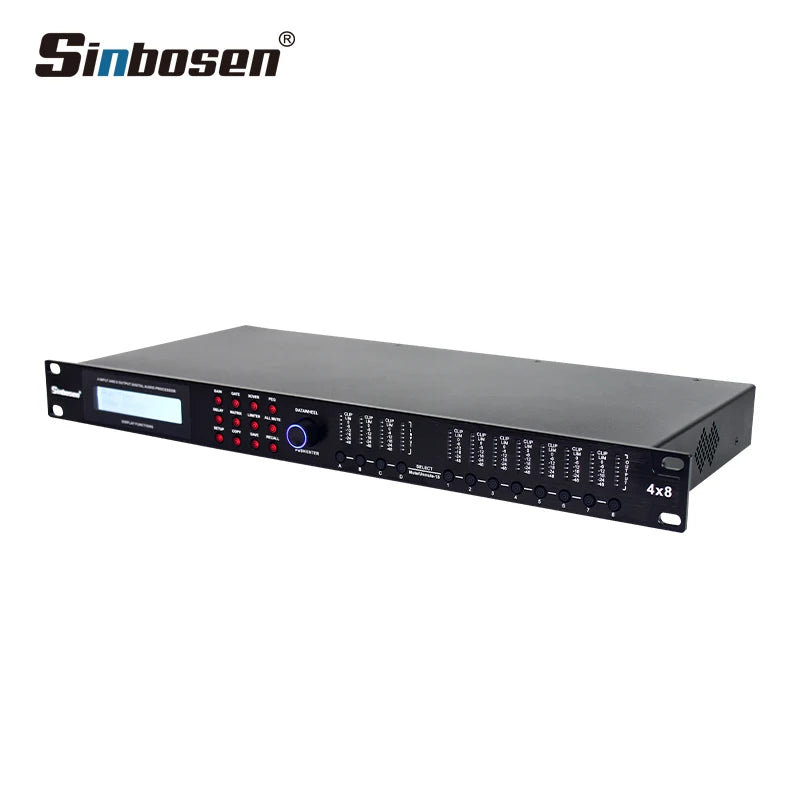

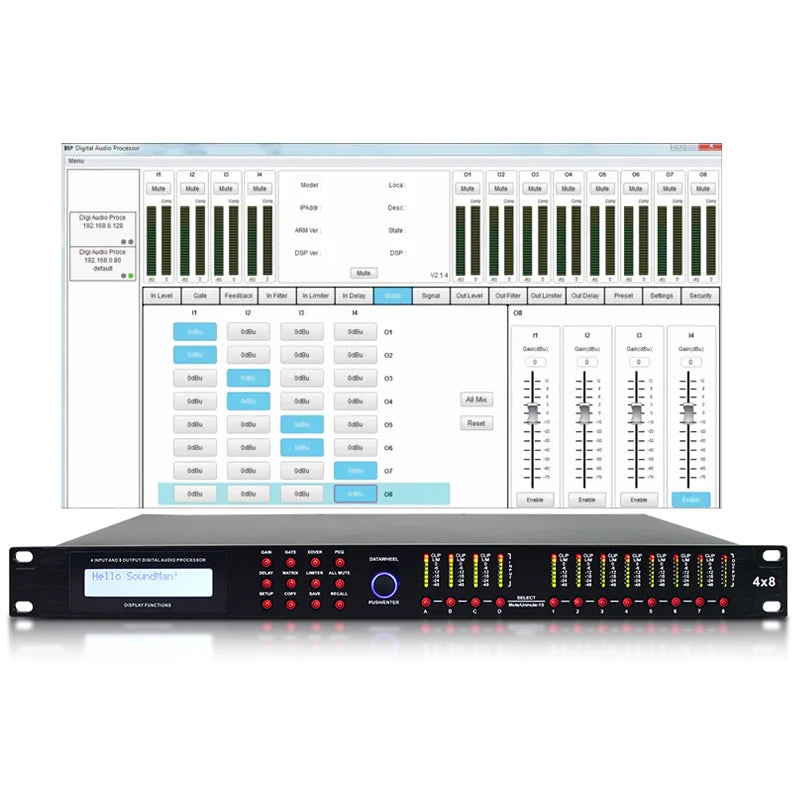

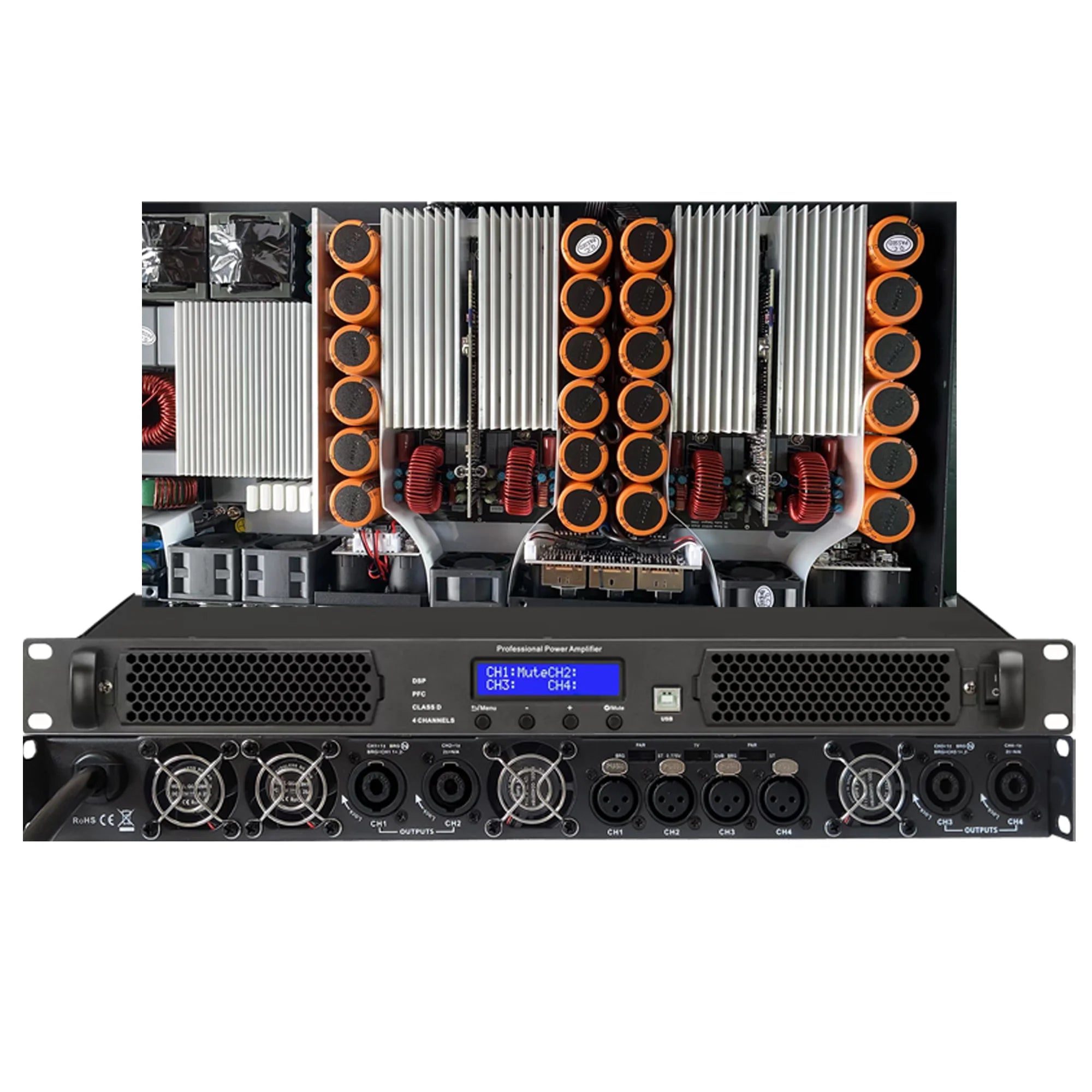

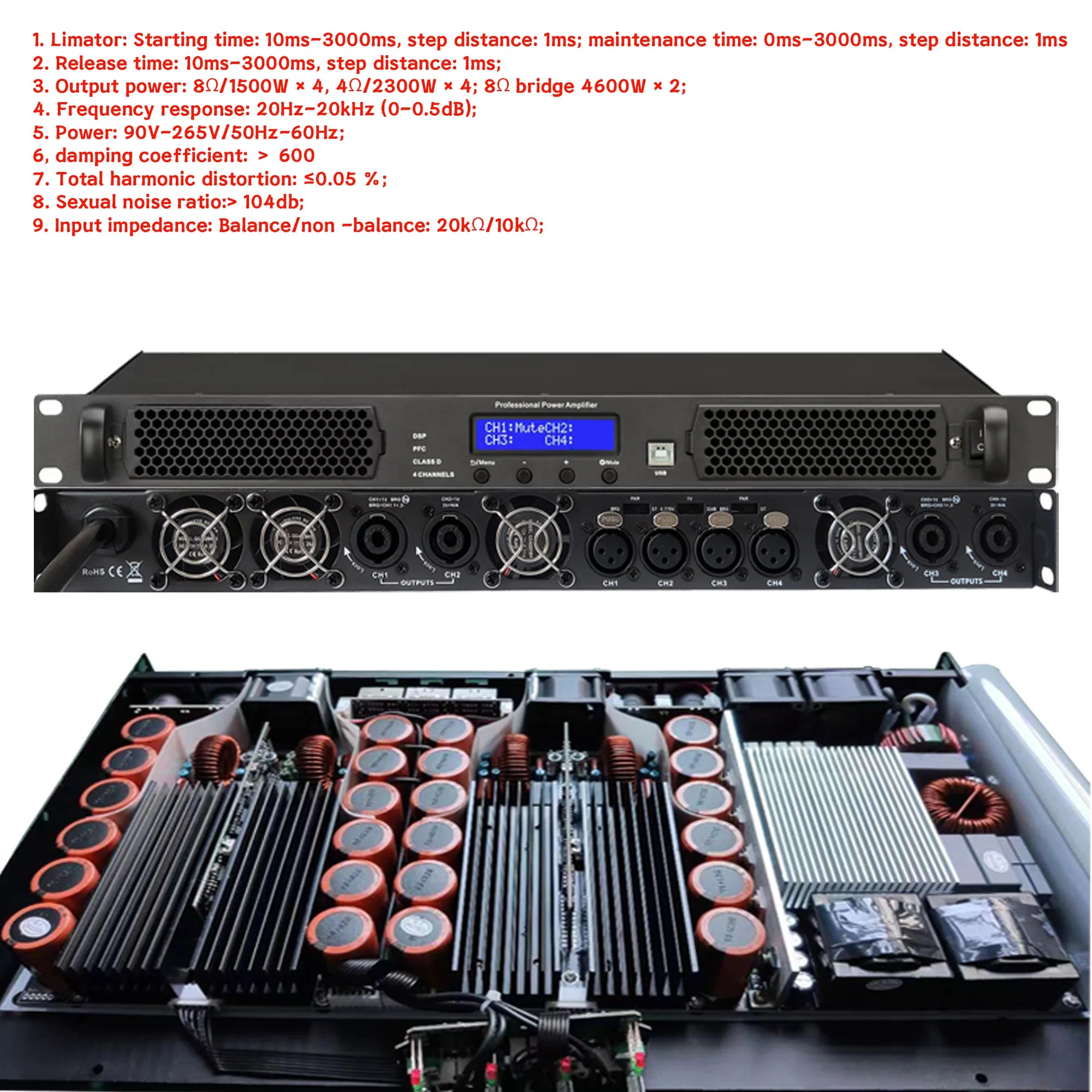

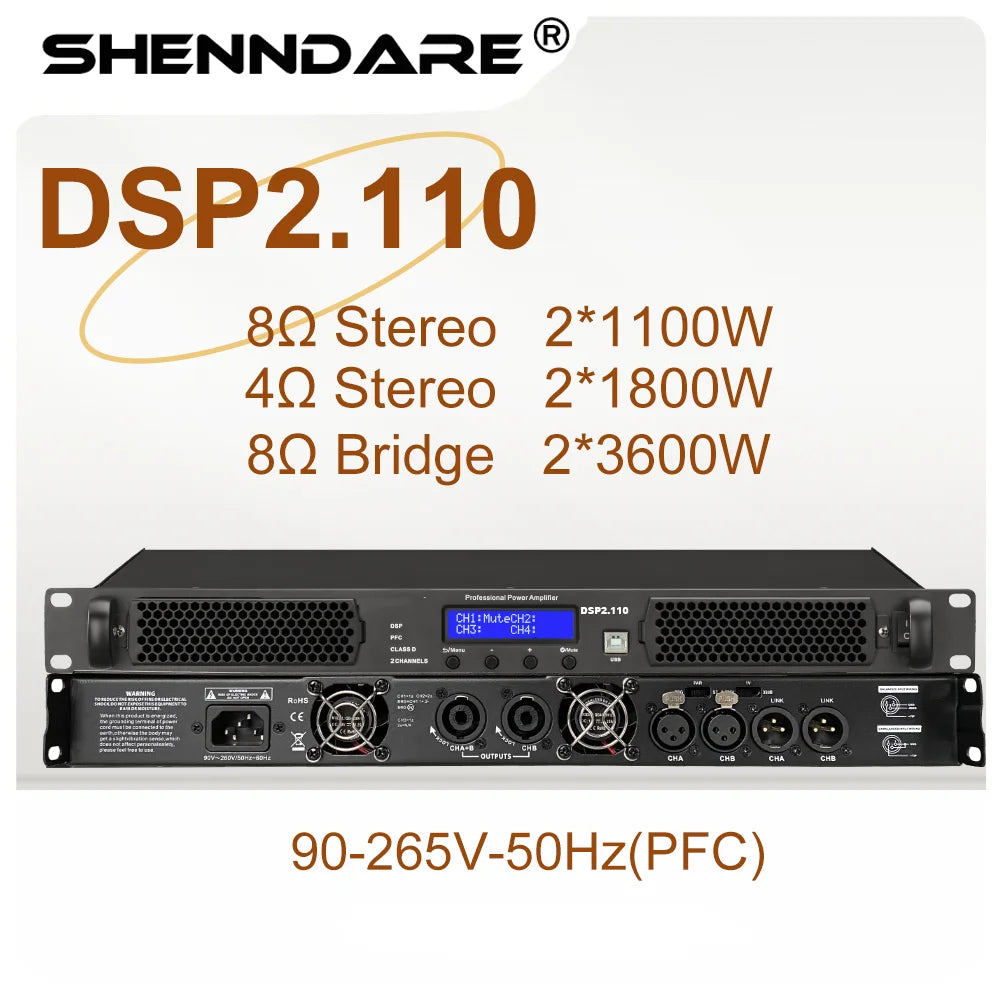

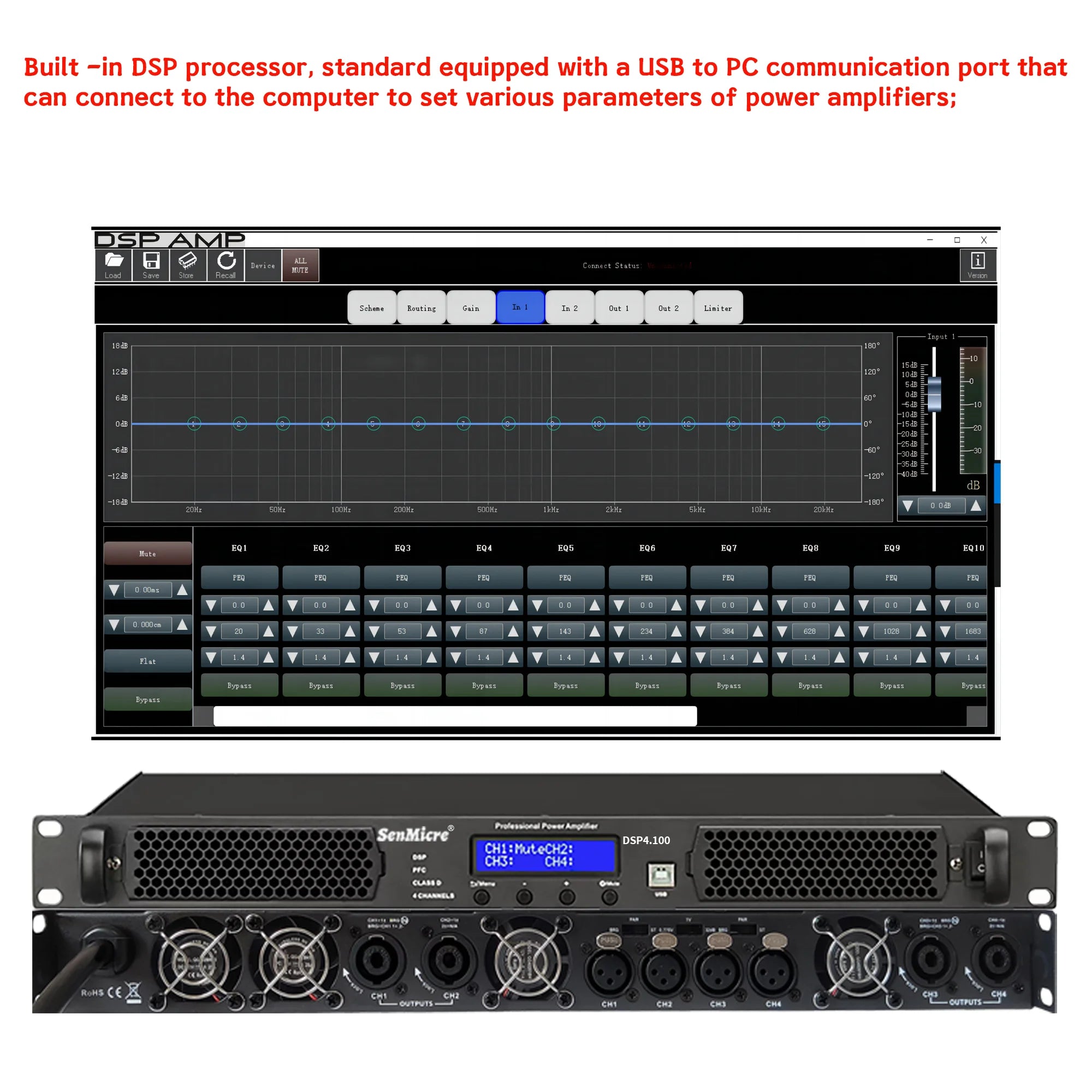

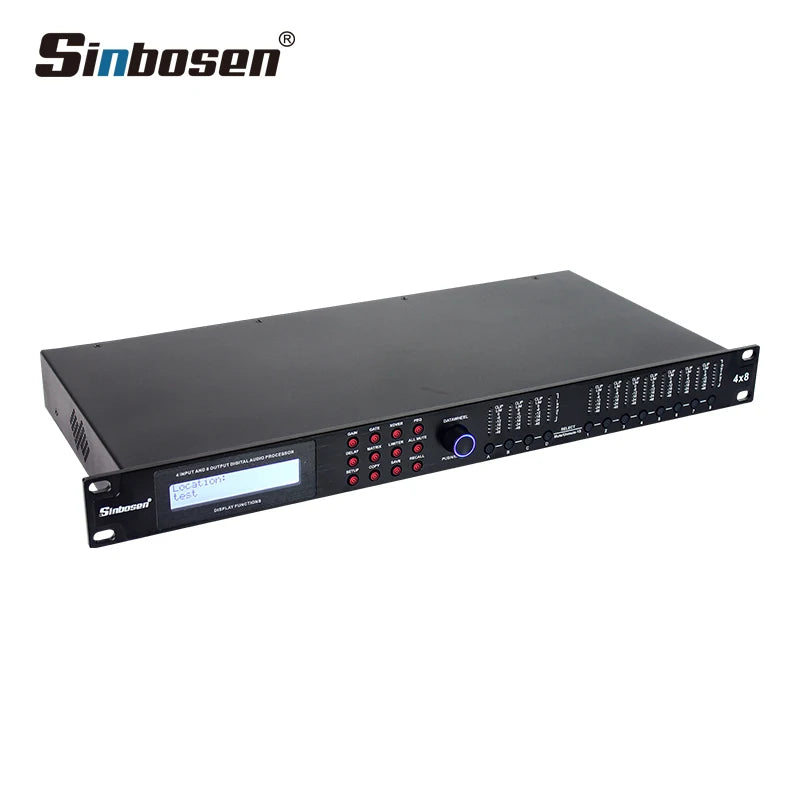

Listings include 2-in/4-out and 4-in/8-out digital crossover/equalizer units, DSP-408, miniDSP 2x4 HD, DBX260-labeled rack products, feedback suppressors, reverb/multi-effect processors and four-input/eight-output PA management equipment. Some are routing/crossover processors intended to feed separate amplifiers; others are amplifier/processor combinations. Compare balanced versus unbalanced analog inputs, digital-input availability, number of independent physical output connectors, input sensitivity, maximum line level, sample rate, conversion latency and whether all advertised channels are simultaneously usable. A microphone reverb processor is not necessarily a loudspeaker management unit with limiters and time alignment. Check the actual model's crossover filter types and slopes, EQ topology, delay range, limiter behavior, preset memory and remote-control/software support rather than inferring them from the word DSP.
Where an equipment title names a familiar professional model, the title alone does not establish manufacturer authorization, authenticity, licensing or identical firmware. Review the selected unit's markings and current technical documentation. Supplier-supplied certification or performance language should not be taken as a collection-wide guarantee.
Car DSP processors and DSP amplifiers

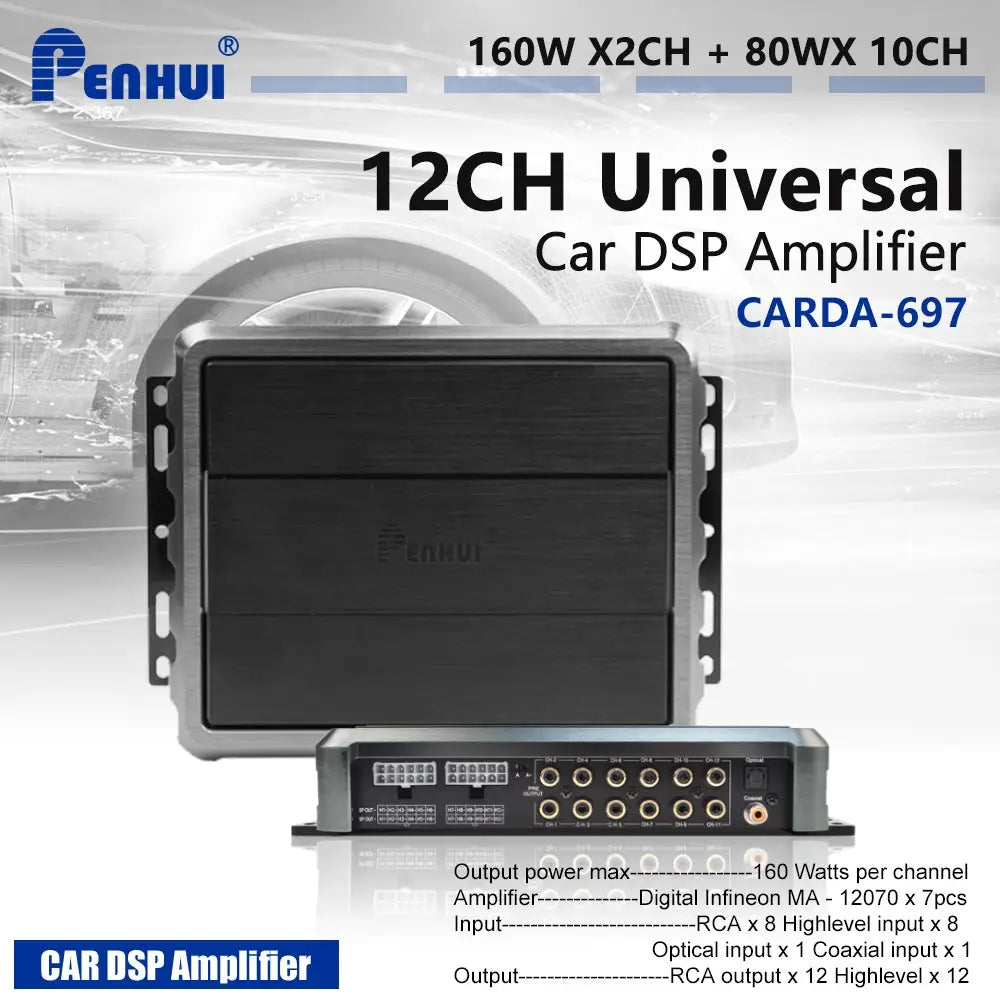

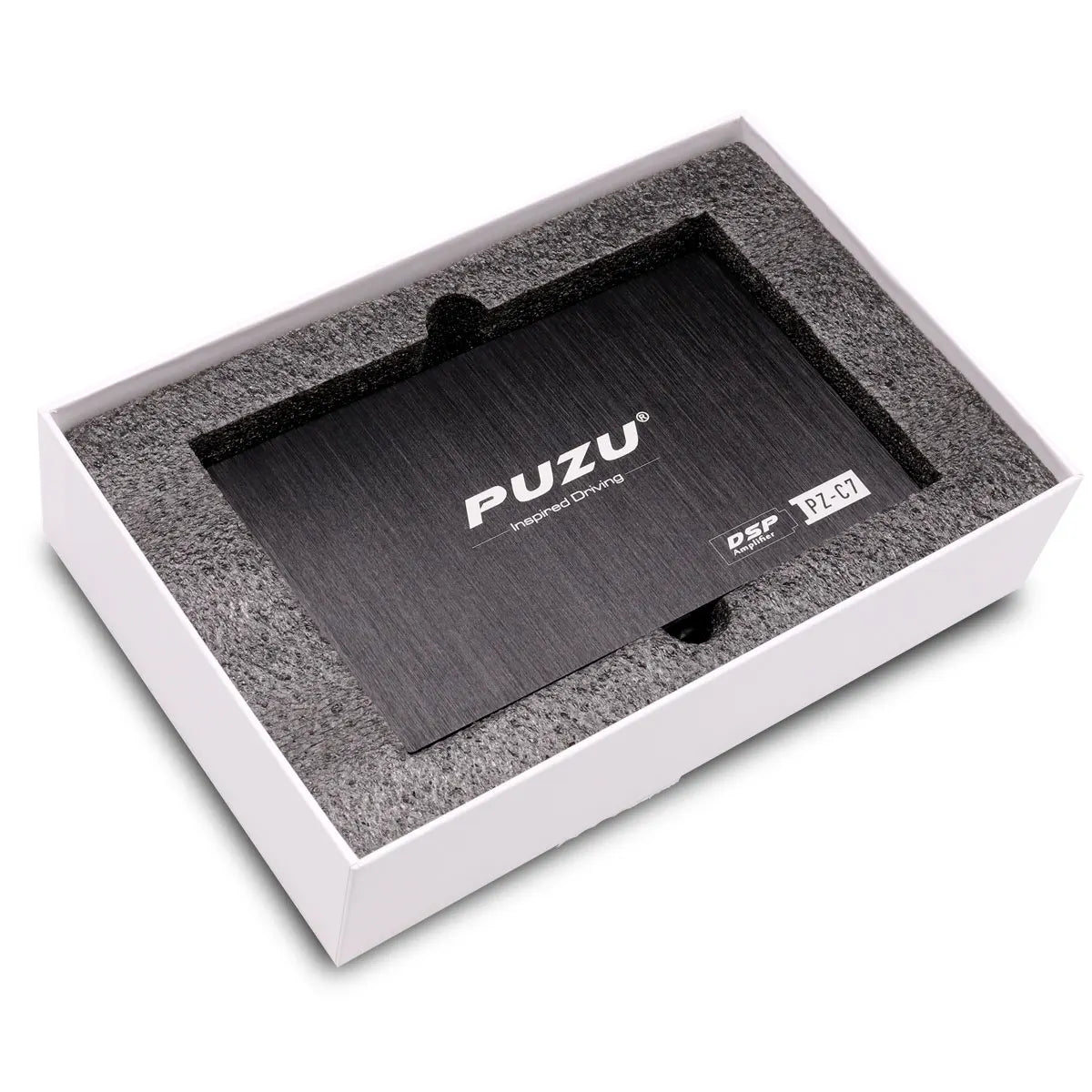

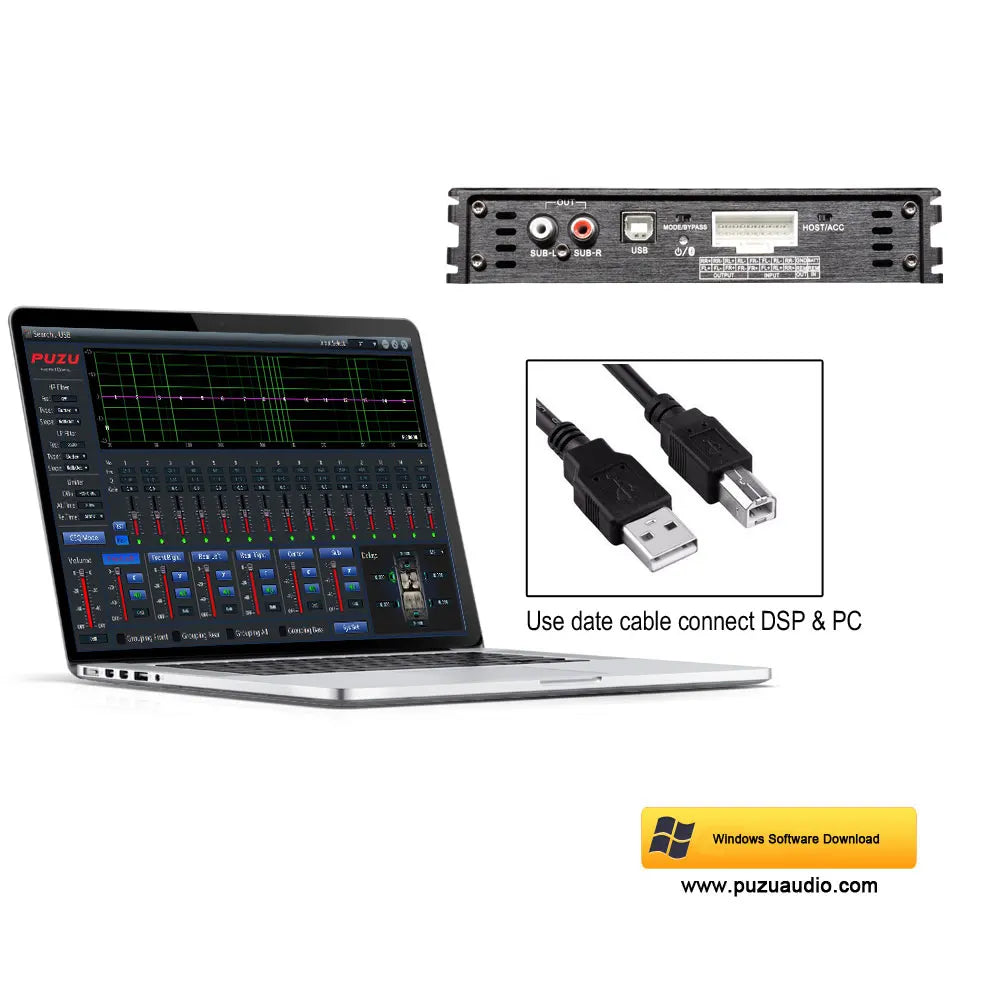

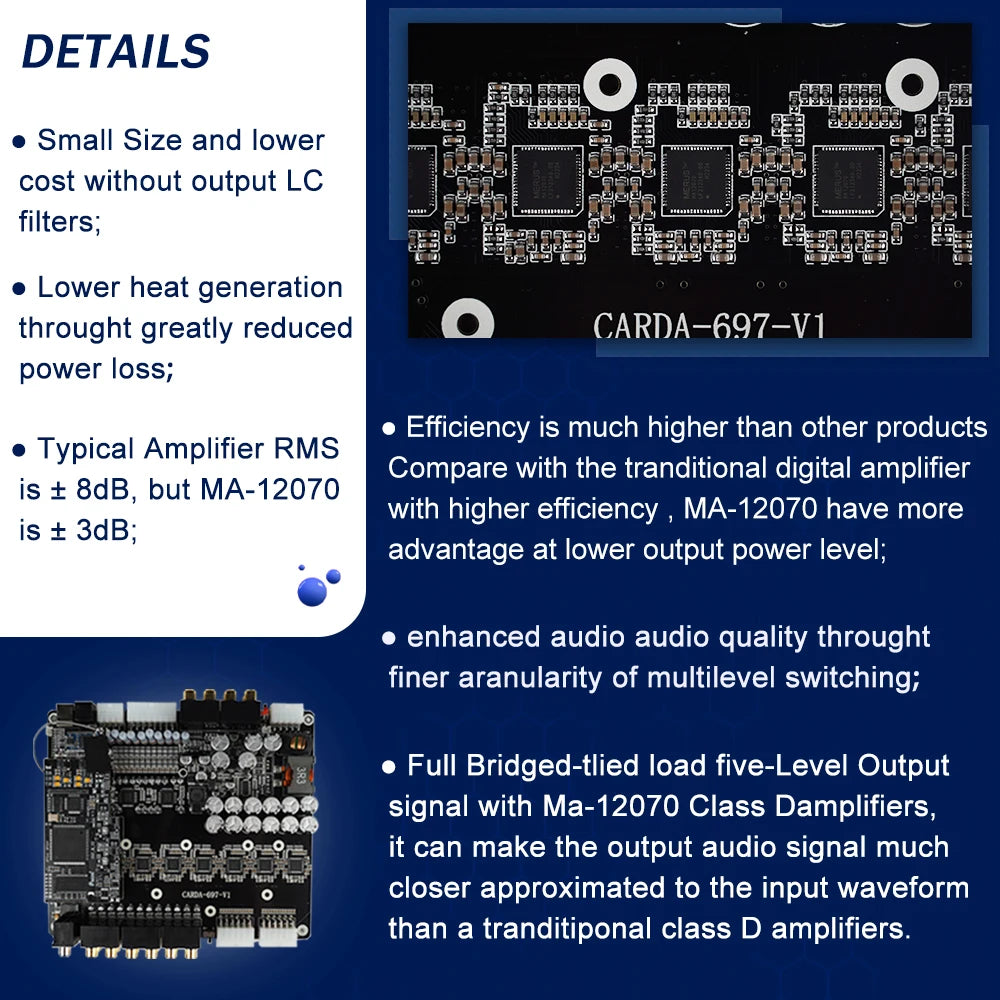

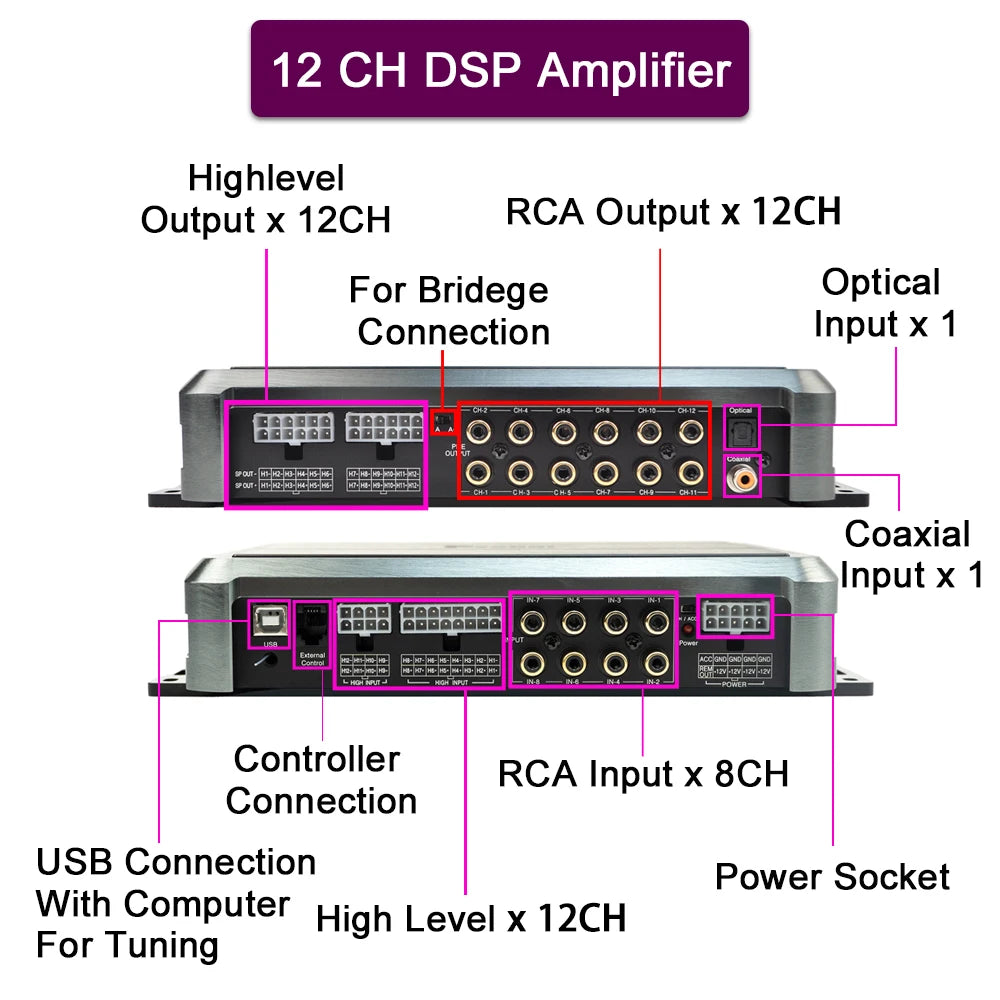

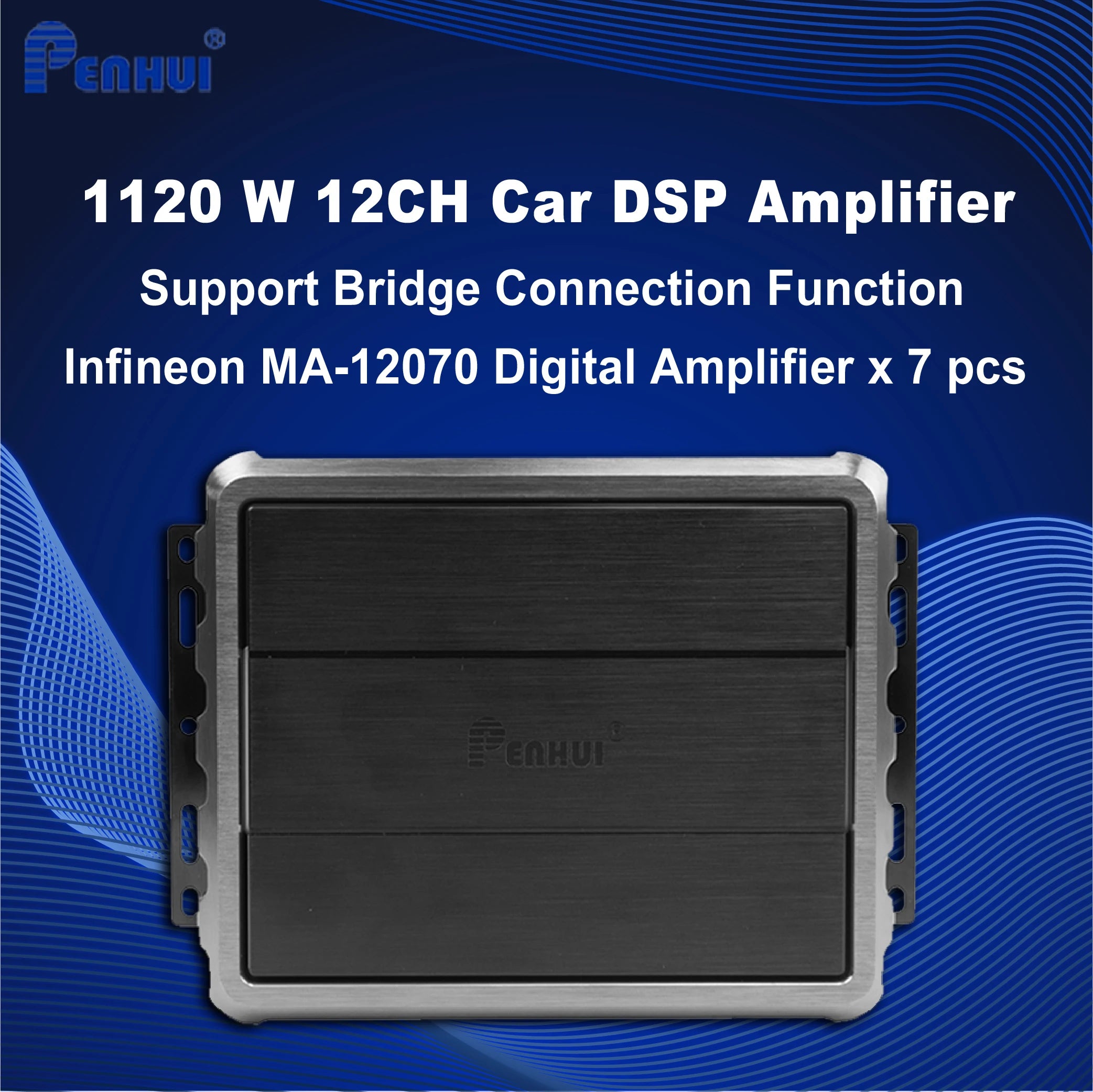

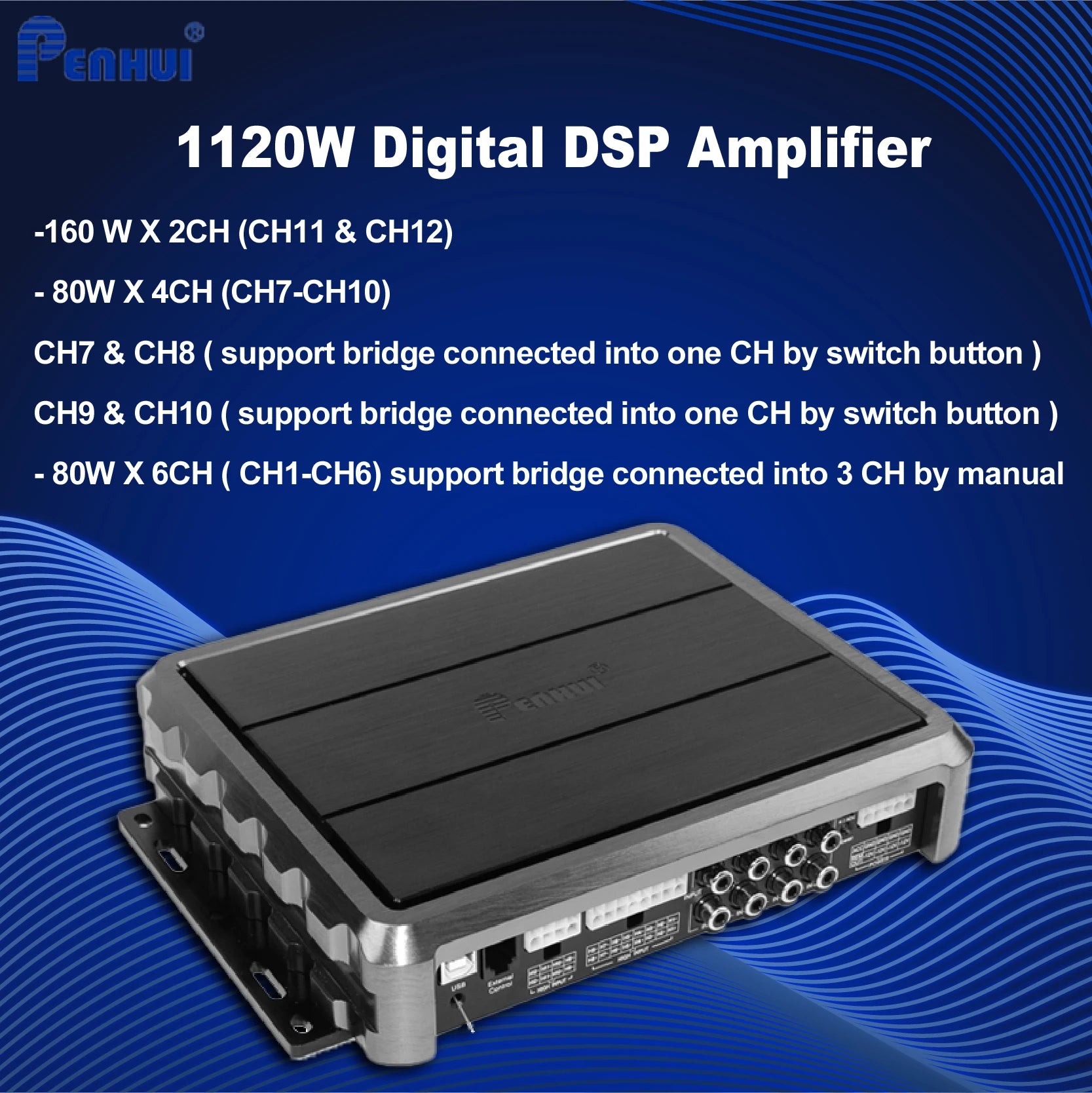

The car-audio range includes PUZU PZ-C7, PZ-D8, PZ-X4800S and PZ-X6800S, Sennuopu X/DS/DP/H-series products, Android head-unit DSP amplifier modules, RedPower units and wiring-harness choices. Distinguish four types of number: audio input channels, independent DSP processing paths, RCA/line-level outputs and powered speaker outputs. For example, a six-to-ten-channel DSP with eight amplified outputs is not automatically a ten-channel power amplifier. Where descriptions mix “4×150 W,” “4×45 W,” MAX and RMS claims, compare only continuous RMS power under a stated supply, speaker impedance and distortion standard; do not turn an unspecified or peak headline into a guaranteed output rating. DSP channel count is not amplifier output power.

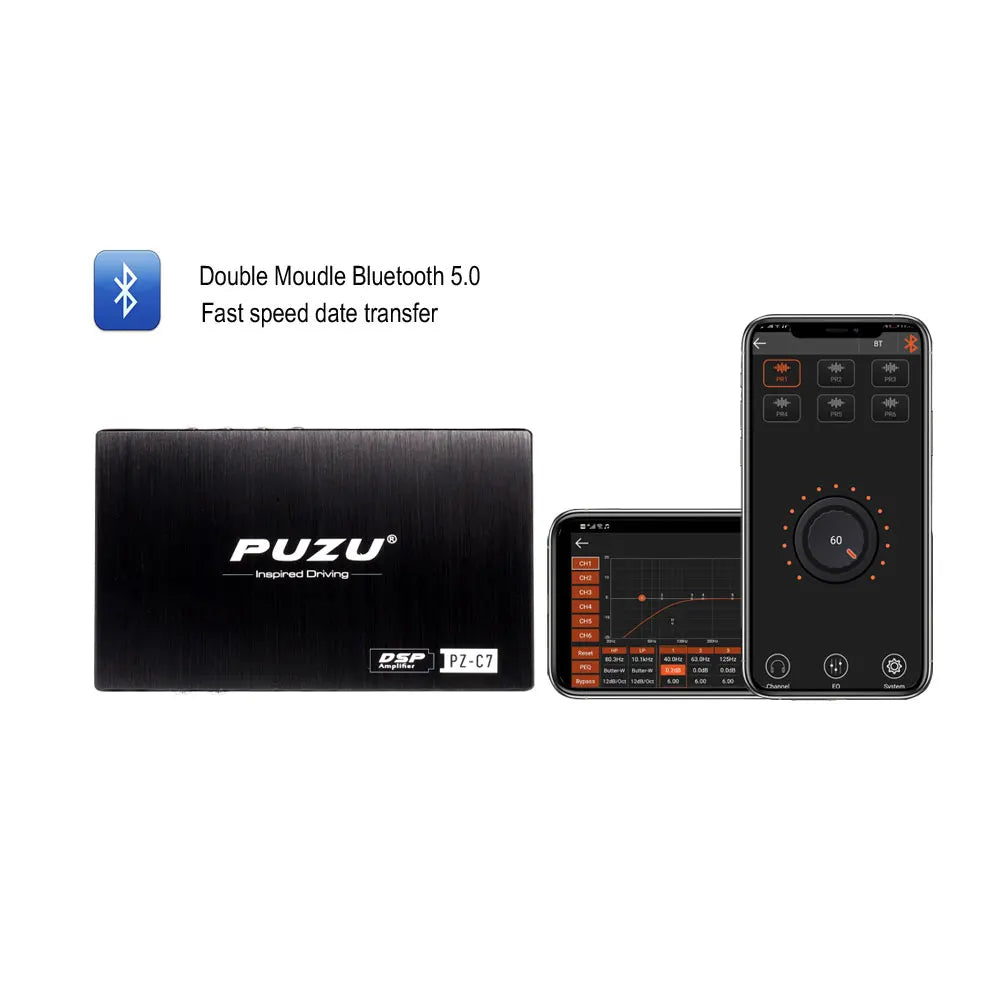

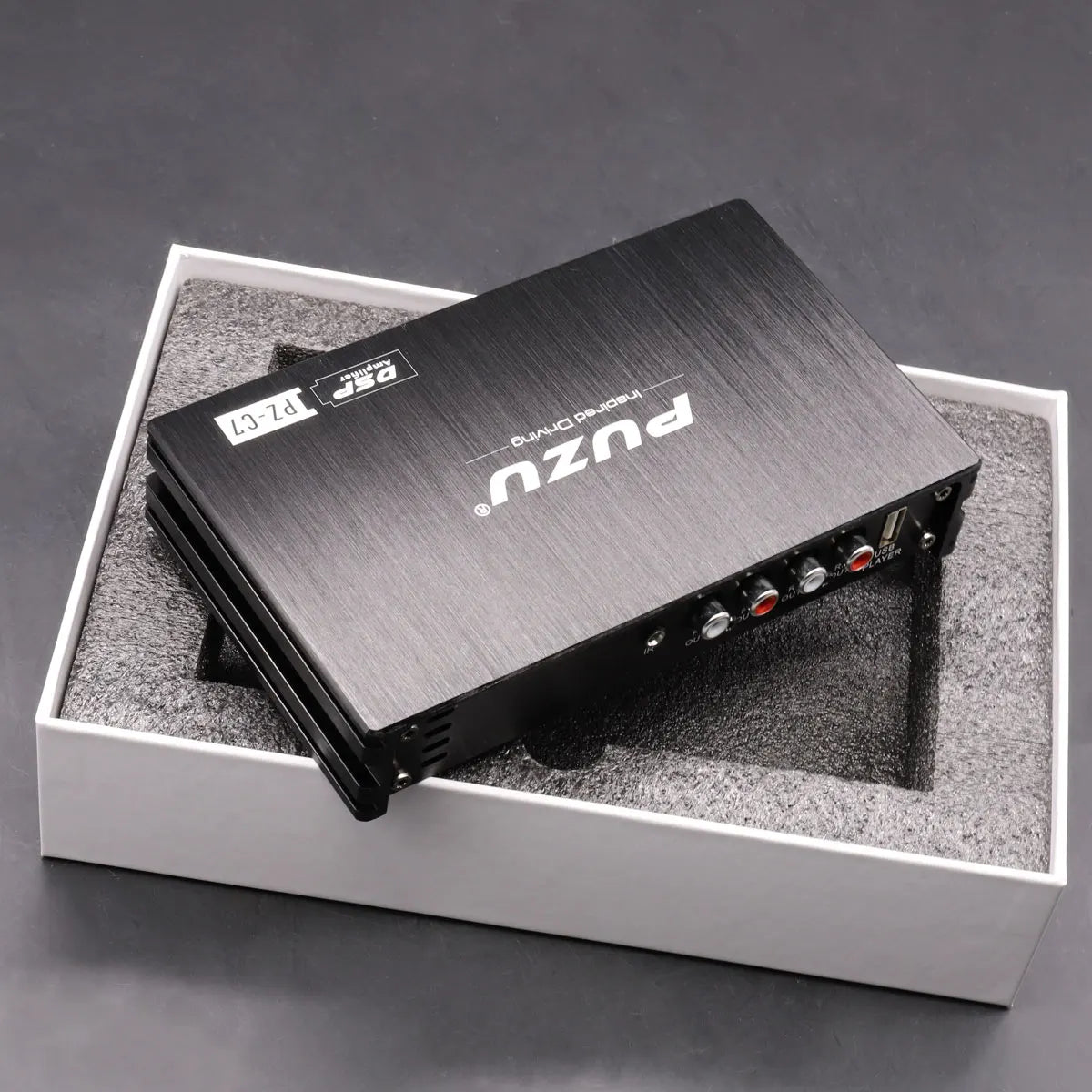

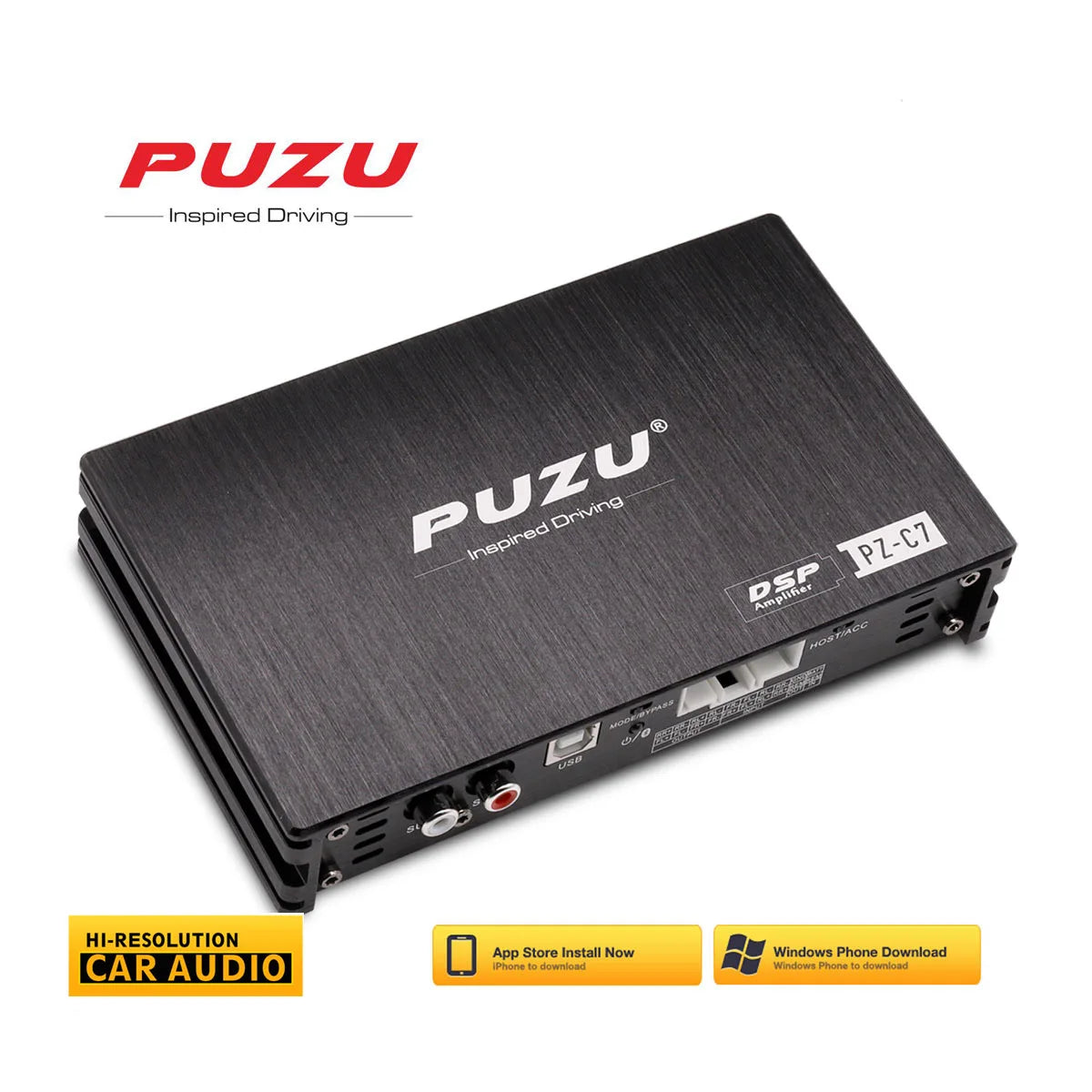

Vehicle compatibility is conditional. A PZ-C7 Toyota non-JBL listing offers 2005–2017 versus 2018–2025 harness choices, explicitly warns that Toyota JBL systems are not supported and directs a GR86 buyer to the older harness option. Other listings offer Suzuki year-specific or Android 16-pin selections. Connector shape by itself does not prove pin assignment, trim-level fit, factory amplified-system compatibility or retained steering-wheel controls. Check vehicle make, model year, factory head unit, JBL or other factory amplifier, CAN integration, input signal level, power and ground, mounting position, included harness and firmware for the selected model. A PZ-X6800S supplier description states its host price excludes harness and remote: do not infer pictured accessories are bundled. Some car products provide processing-only RCA outputs alongside four powered channels, so plan external amplifiers accordingly.
Small-format audio processing boards

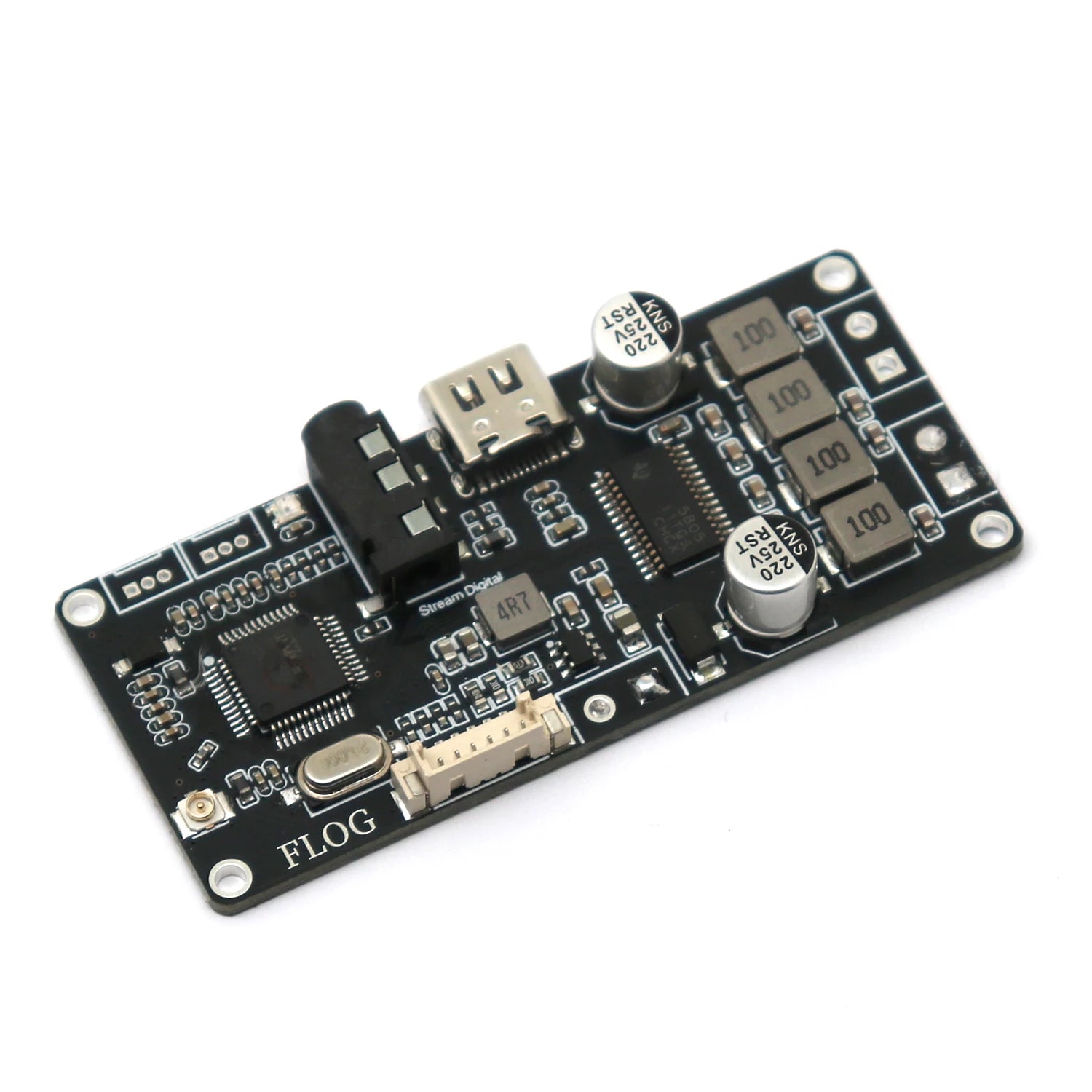

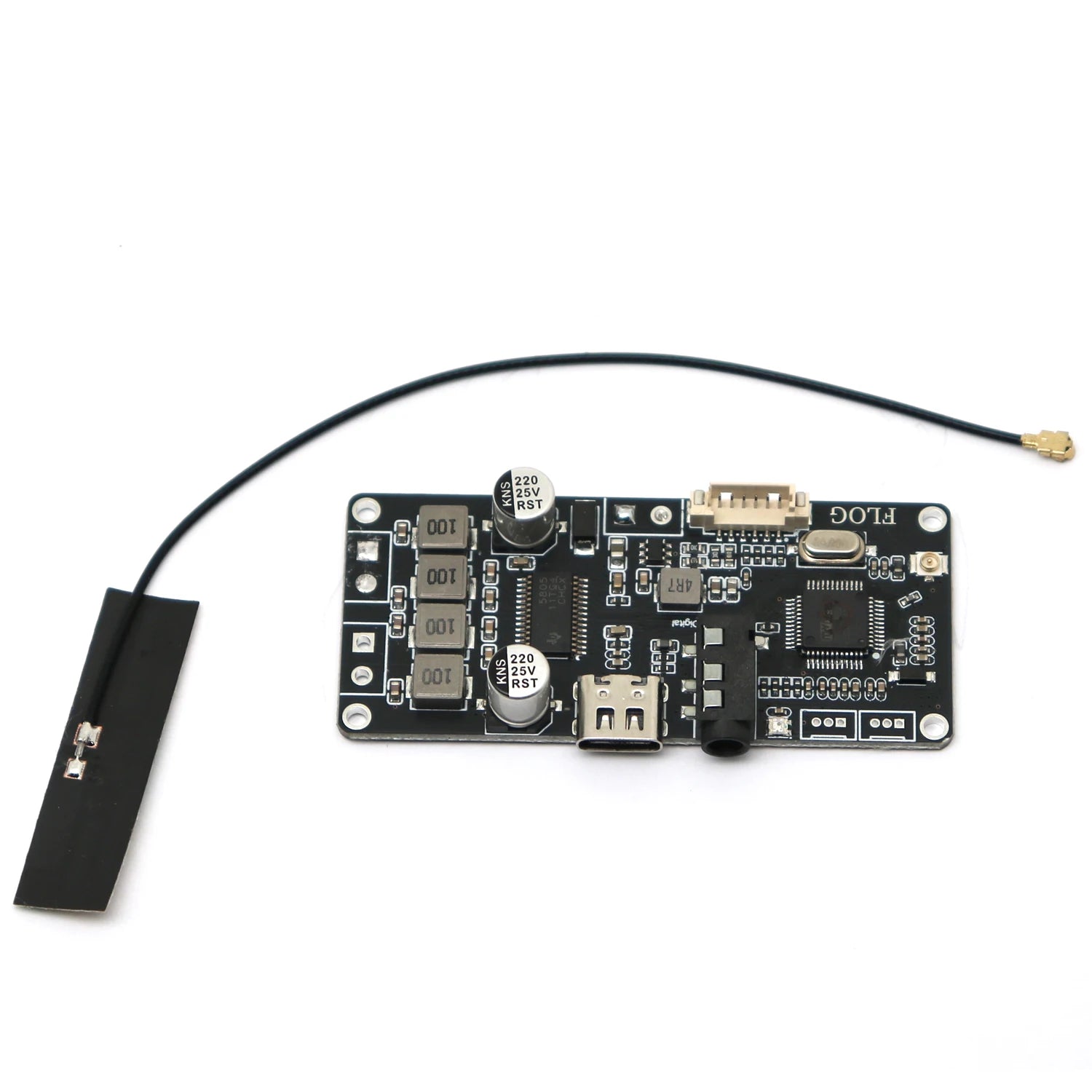

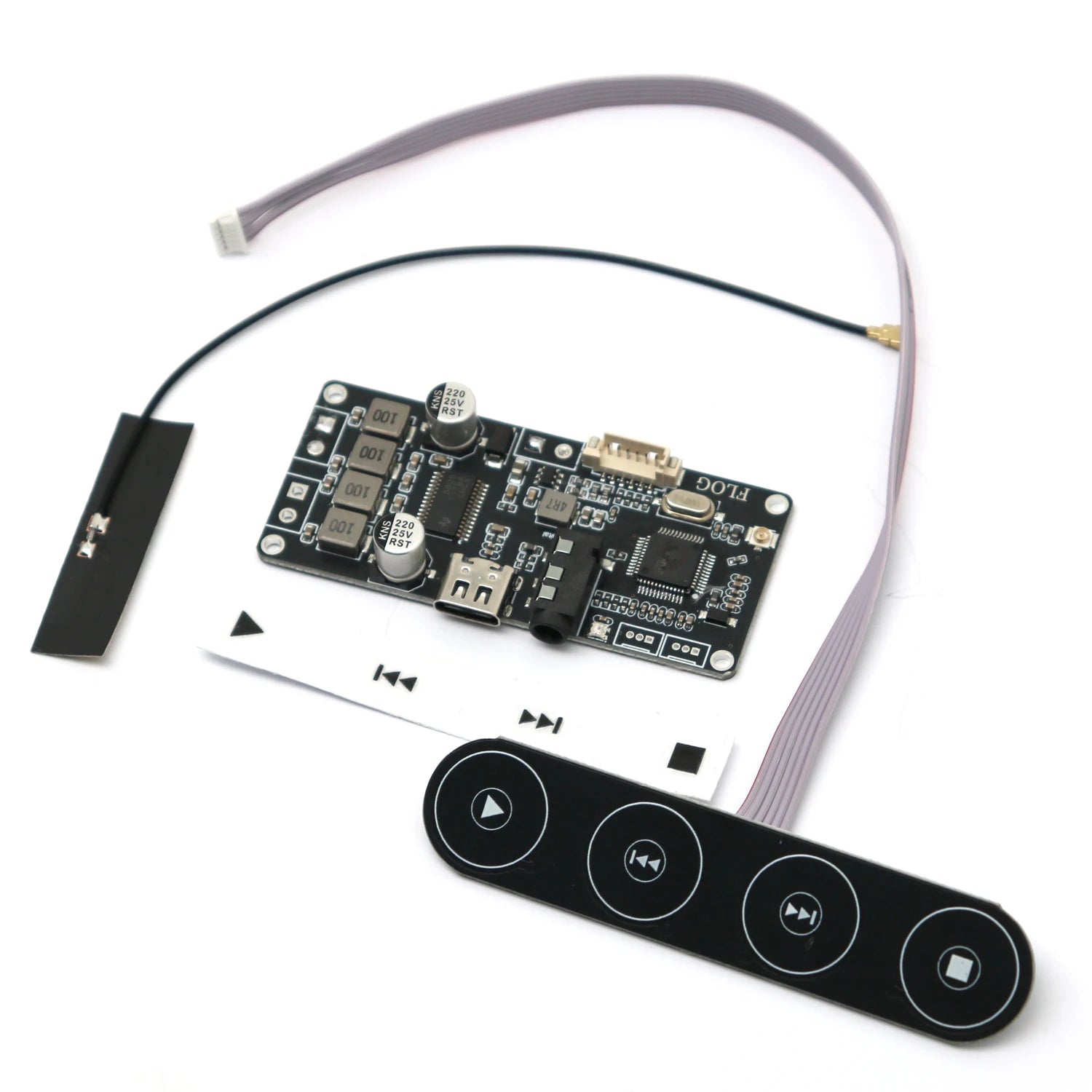

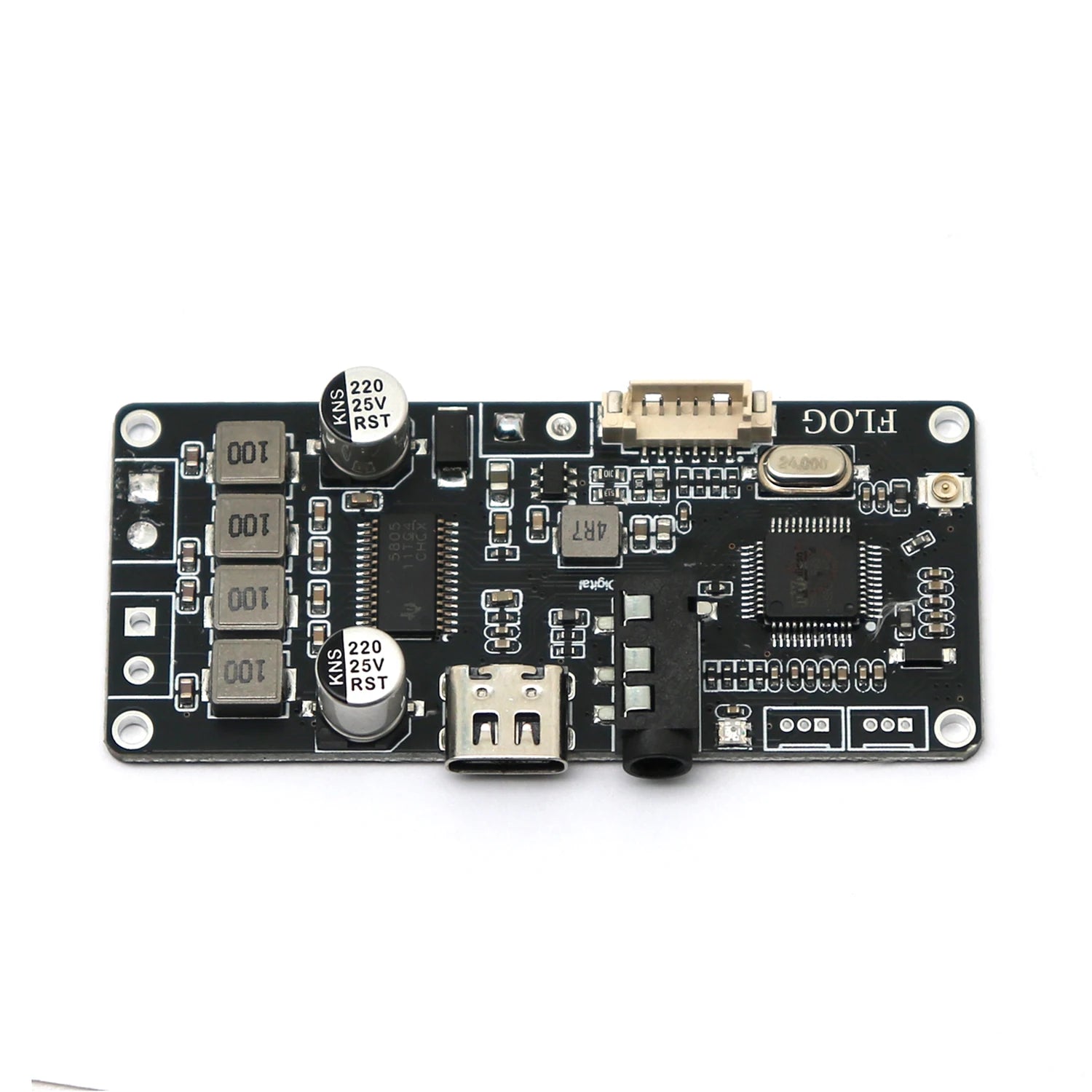

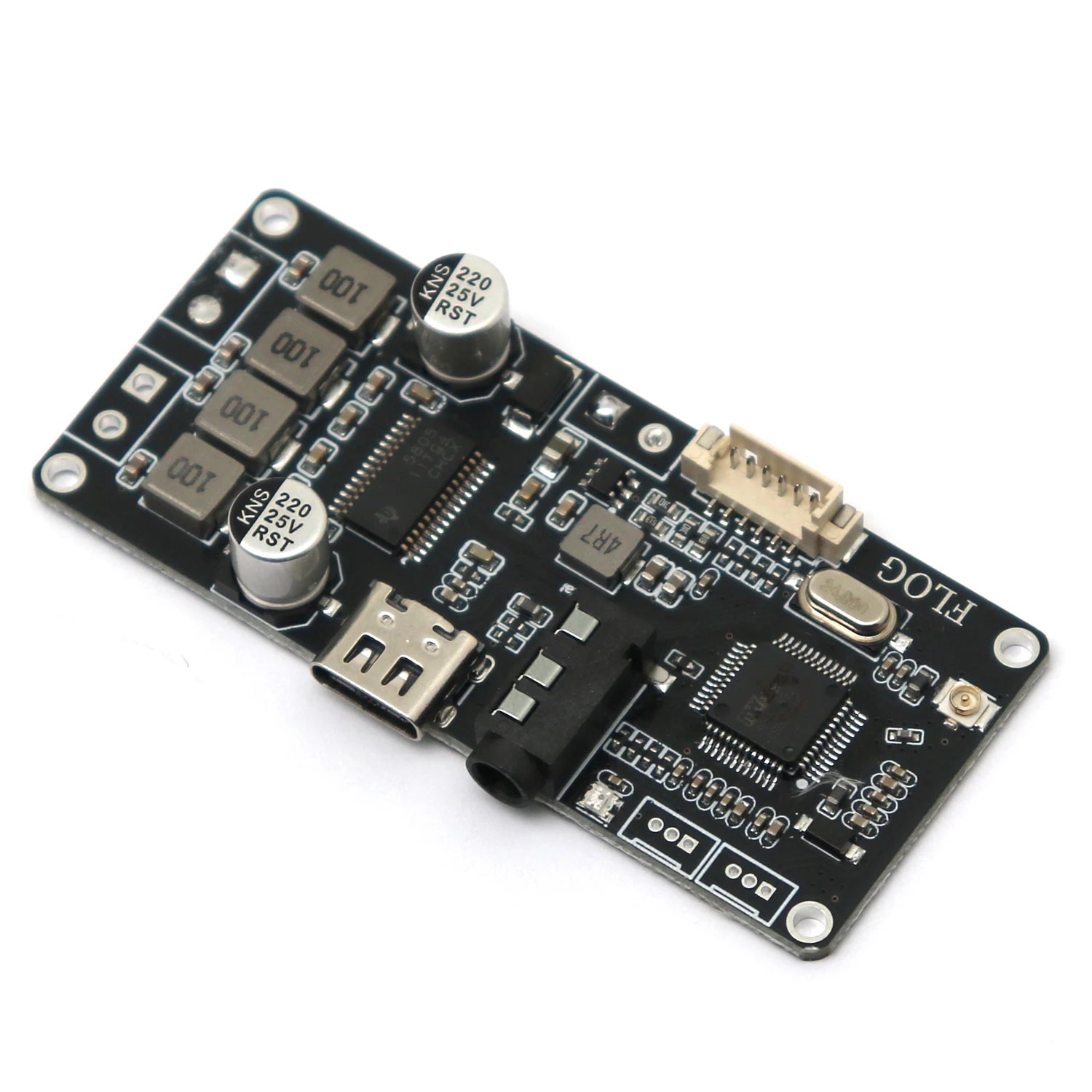

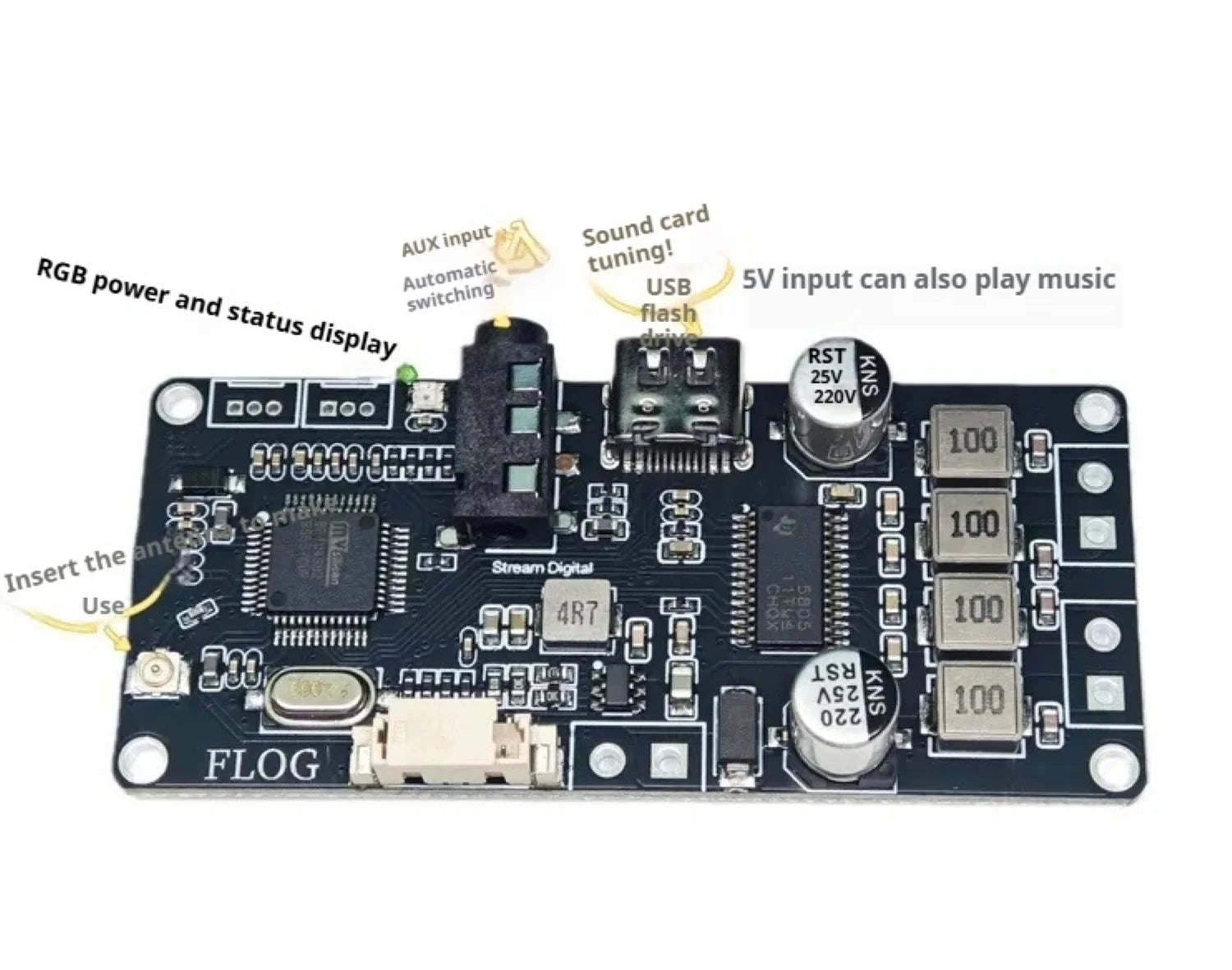

ADAU1452/CS42448/AD1938 pages, ADAU1701/ADAU1401 learning or feedback-suppression boards, BP1048/BP1048B2 Bluetooth tuning modules, TAS5805 amplifier boards and TPA3255-based amplifier boards are different hardware platforms. An ADAU1452 selection may be a DSP board, a CODEC-only choice, a combined DSP-and-CODEC configuration or one equipped with a USBi programming interface. A codec is a converter, not a complete standalone DSP development system. One ADAU1401/ADAU1701 supplier text says ADAU1701 ships by default and suggests requesting ADAU1401 separately; do not promise an ADAU1401-fitted board from the title. Compare actual chip population, analog-versus-I2S signal path, ADC/DAC channel count, clocking, EEPROM/boot method, DSP project file, SigmaStudio or other tuning workflow, supply voltage, connectors and external programming hardware.
BP1048 listings offer alternatives labeled “Key plate” or “potentiometer board,” while a BP1048B2 page describes a Bluetooth 5.3/50-band-EQ board. Do not assume a key-board option includes the potentiometer board or vice versa, or that software and firmware are universal across revisions. TWS operation in supplier text requires two powered and paired boards; one board cannot by itself be advertised as a two-board stereo kit. Bluetooth audio profiles, AAC/SBC behavior, EQ control, preamplifier output level and whether a power stage is fitted need confirmation against the selected revision. A power amplifier board and a low-level tuning board are not interchangeable just because both use a DSP label.
Engineering checklist for an audio signal chain
- Define sources: microphone, analog line, speaker-level car head unit, optical/coaxial, USB, I2S or Bluetooth. Verify connectors and supported formats on the chosen device, including any adapter or external ADC requirement.
- Count outputs by function: identify line-level RCA/XLR channels, digital channels and speaker-powered outputs separately. A subwoofer feed or crossover band is not necessarily an additional amplifier channel.
- Specify the acoustic task: select crossover points/slopes, EQ bands and filter types, delay and time alignment, phase/polarity, limiter and dynamic-range behavior according to the loudspeaker/vehicle system. These controls must be supported in the specific product's interface and firmware.
- Match electrical ratings: confirm supply, input/output voltage range, grounding, load impedance, continuous output power, thermal management and physical connectors. Speaker-driver peak/PMPO values and car amplifier MAX figures are not continuous-power specifications.
- Check serviceability: determine how presets are stored, whether a computer/phone app is supported on your OS, whether a USBi or proprietary programming cable is needed and whether the required harness or remote is included. Treat seller screenshots and broad compatibility text as leads for verification, not guarantees.
Other products currently grouped here
Many listings are 4 Ω/8 Ω woofers, tweeters, full-range drivers, portable speakers, passive crossovers, binding posts, Speakon sockets, polypropylene crossover capacitors or replacement phone/vehicle speakers. They may be downstream components in an audio project, but they do not themselves perform digital equalization. Select their diameter, frame/cutout, impedance, continuous rating, sensitivity and 1- versus 2-piece packaging; a headline that mentions “car DSP” can still refer only to a passive midrange driver. Piezo discs and active/passive buzzers are sound-producing components, not full audio-processing systems.

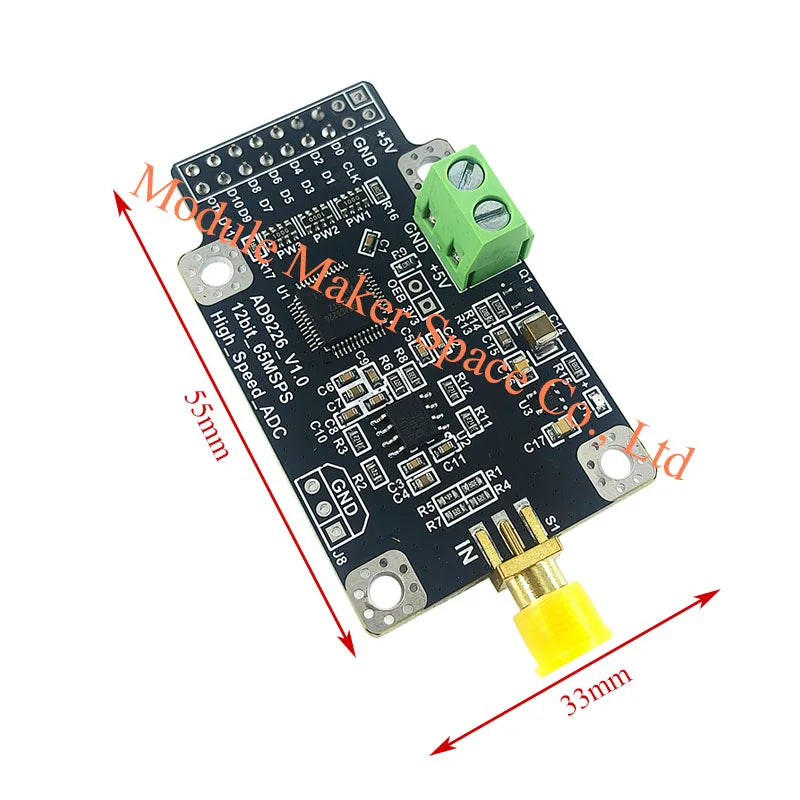

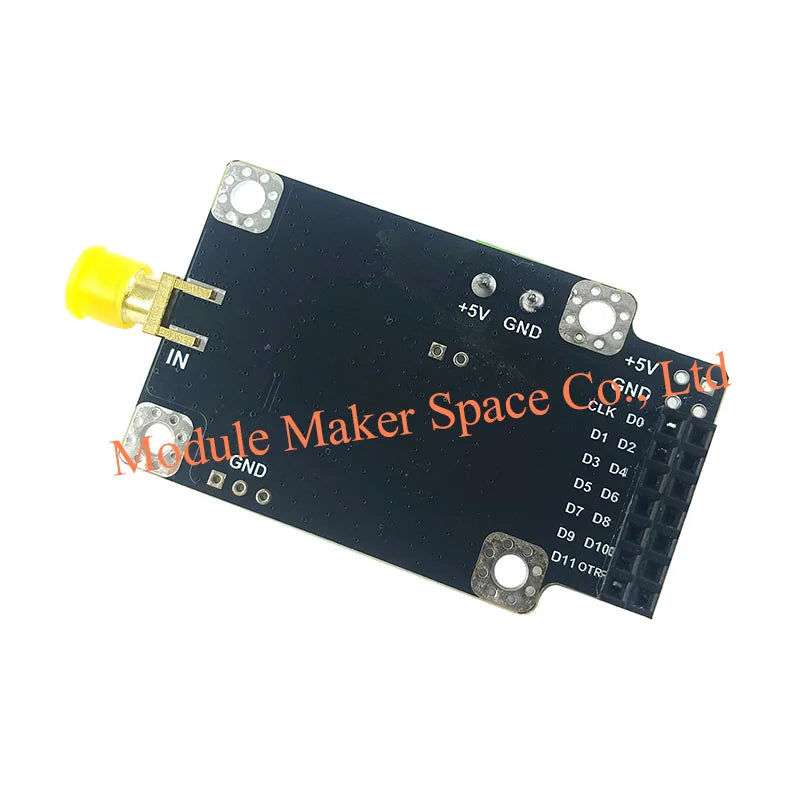

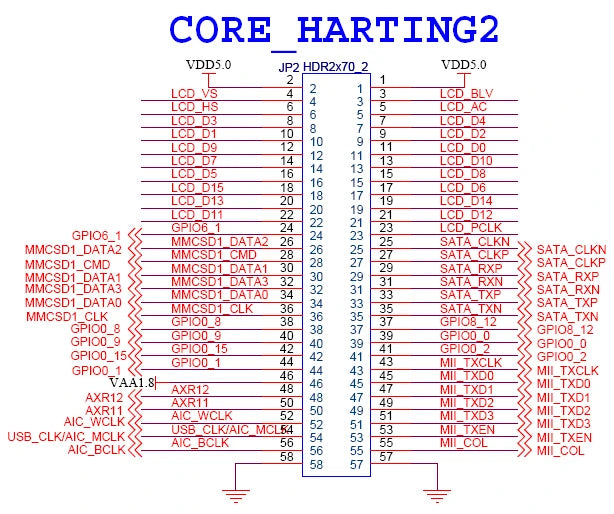

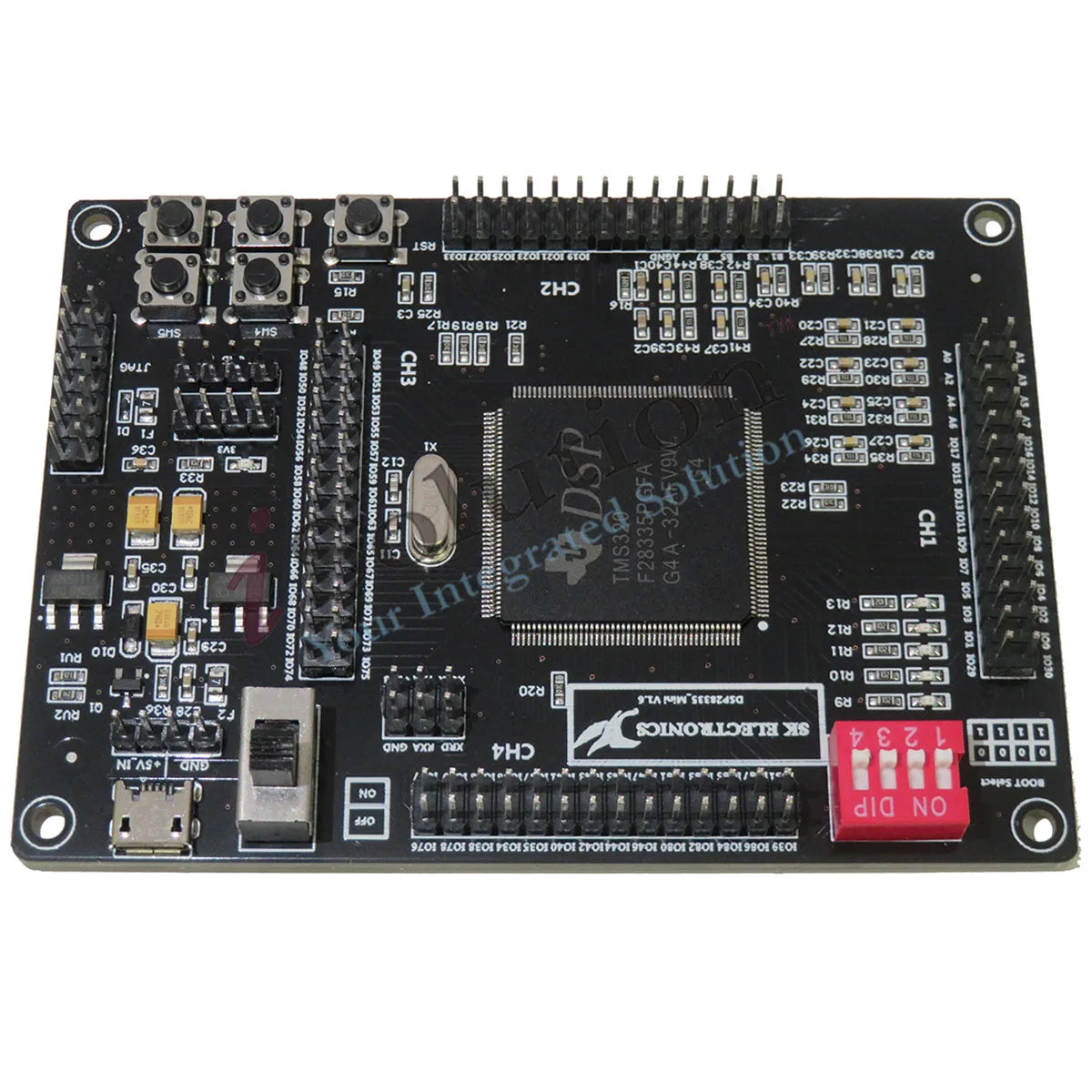

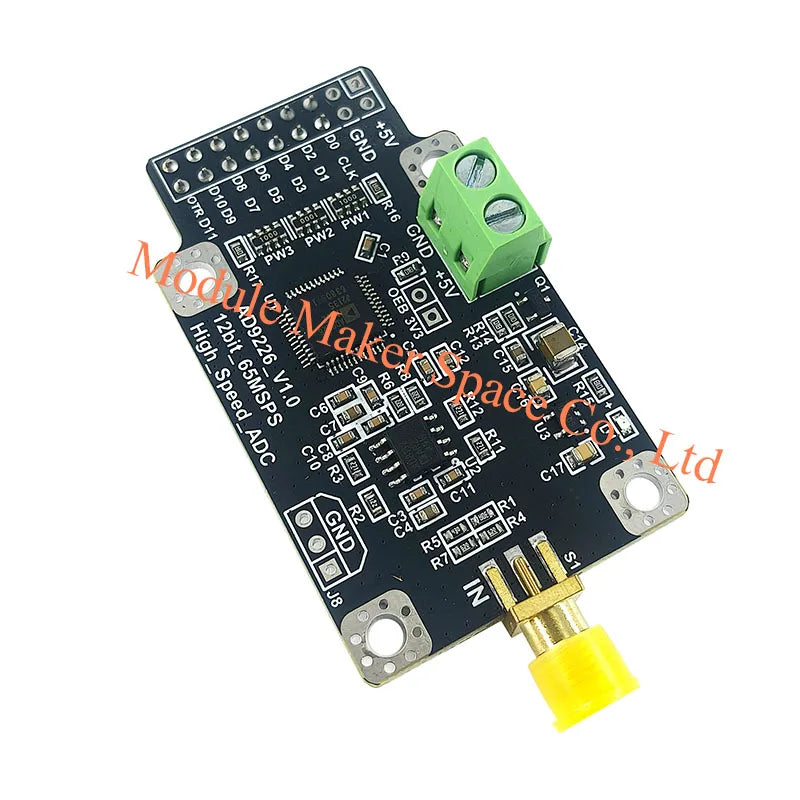

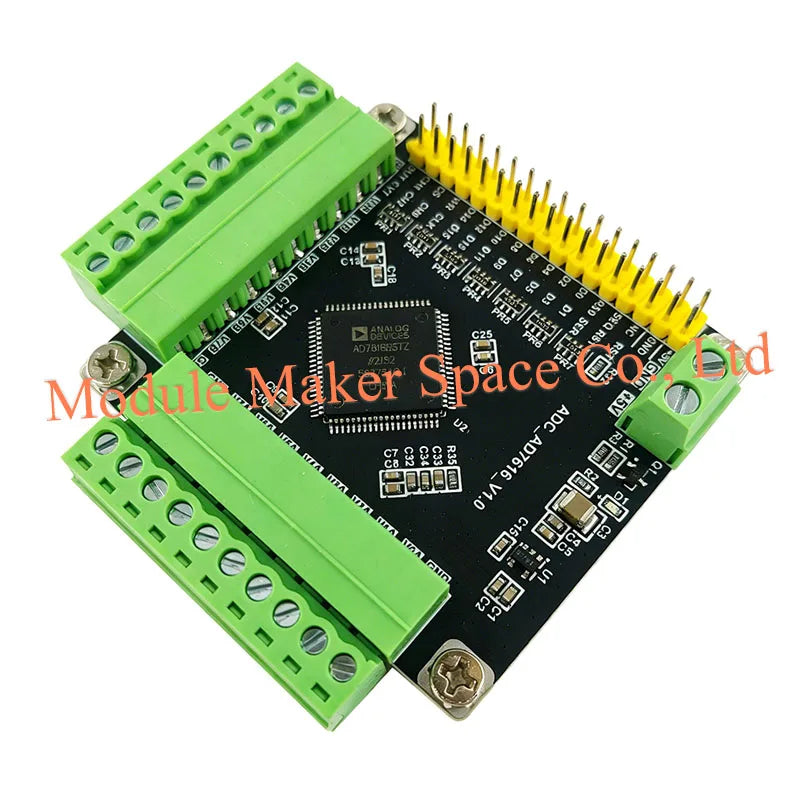

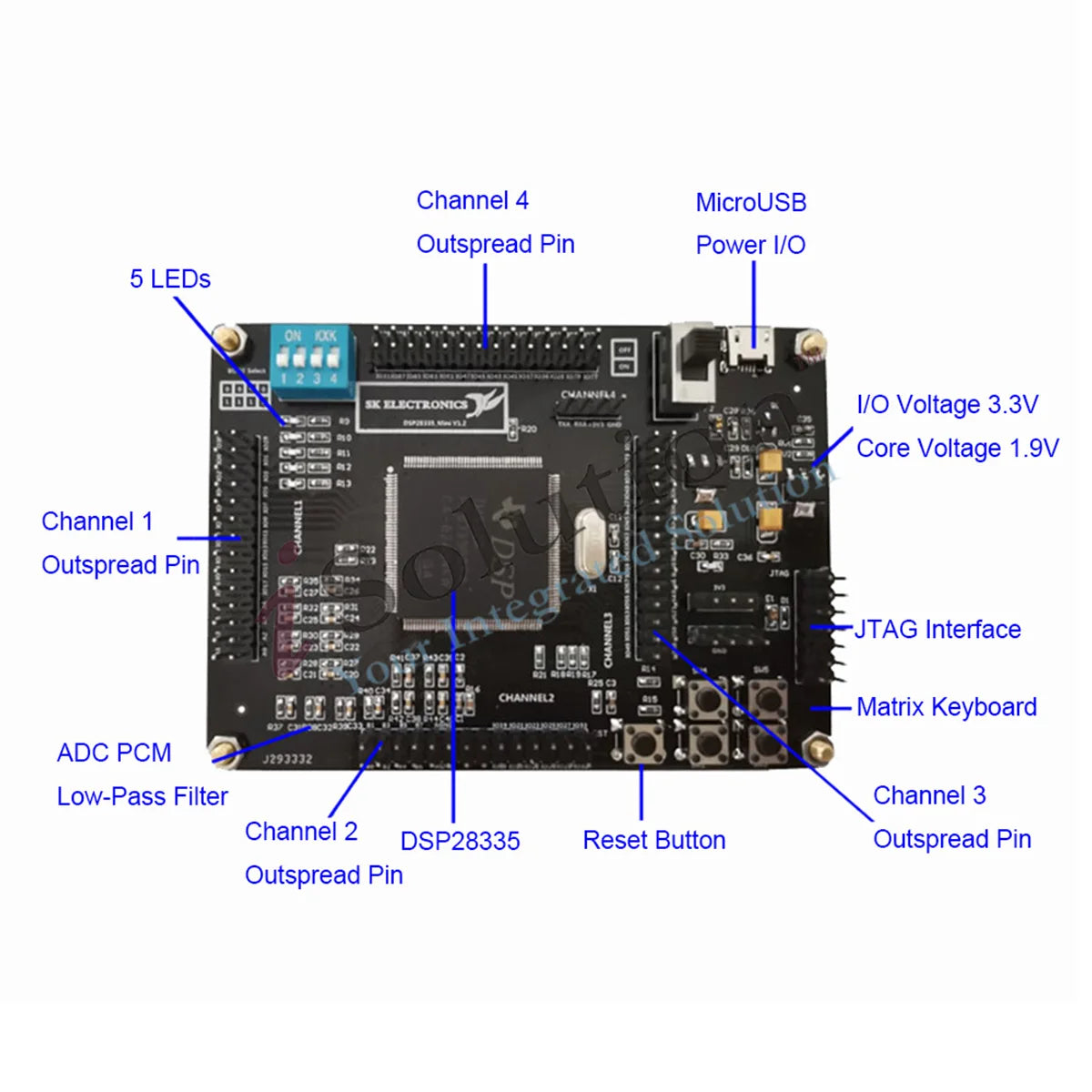

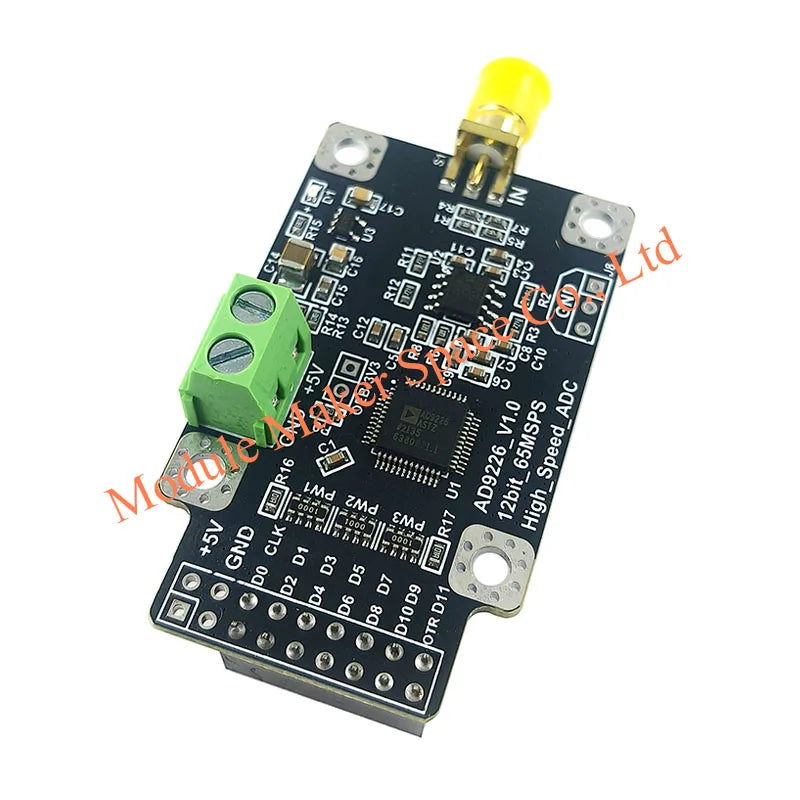

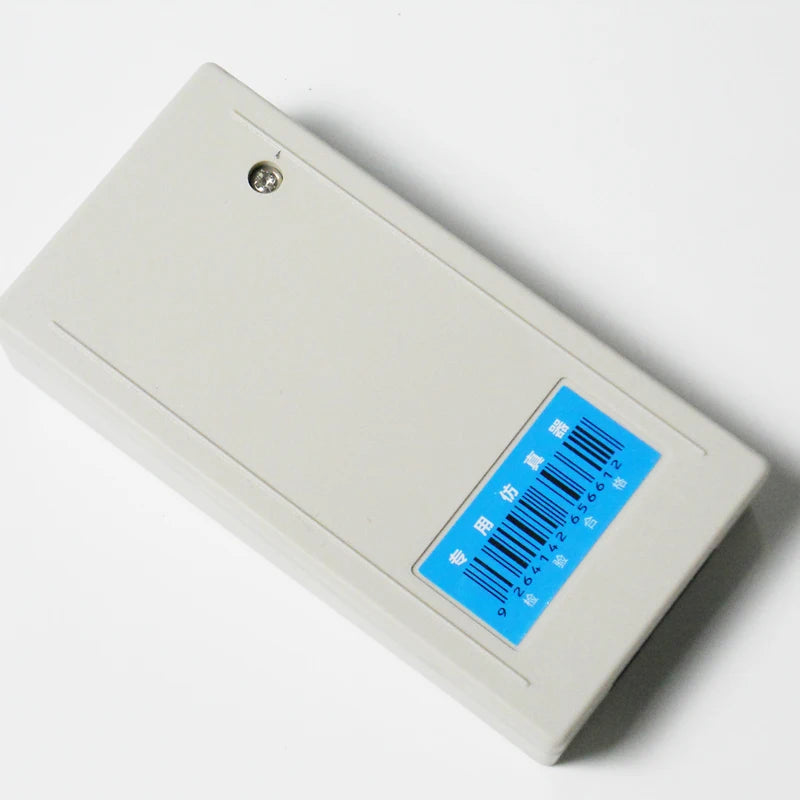

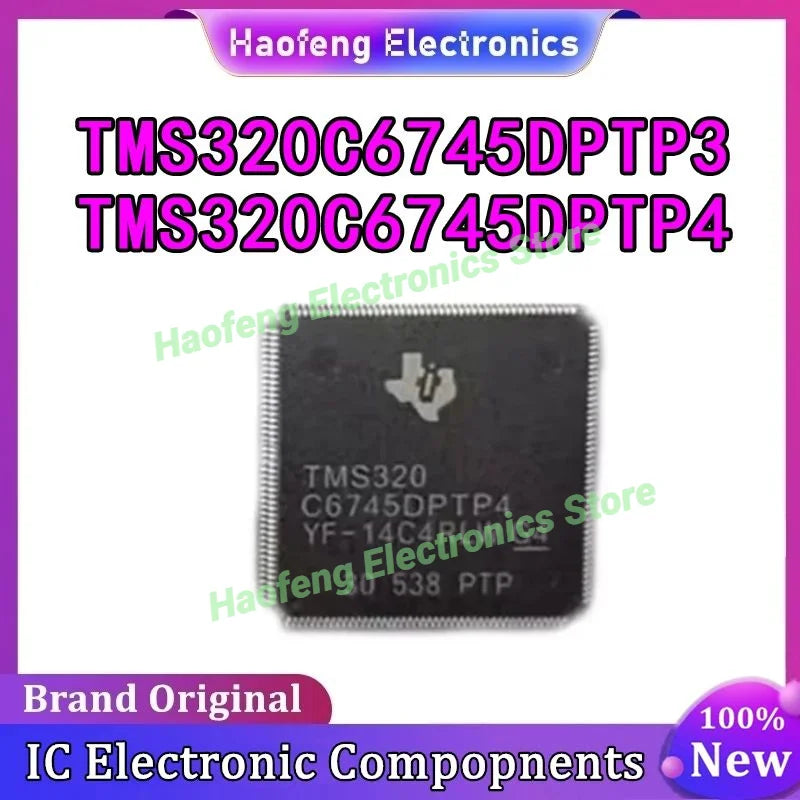

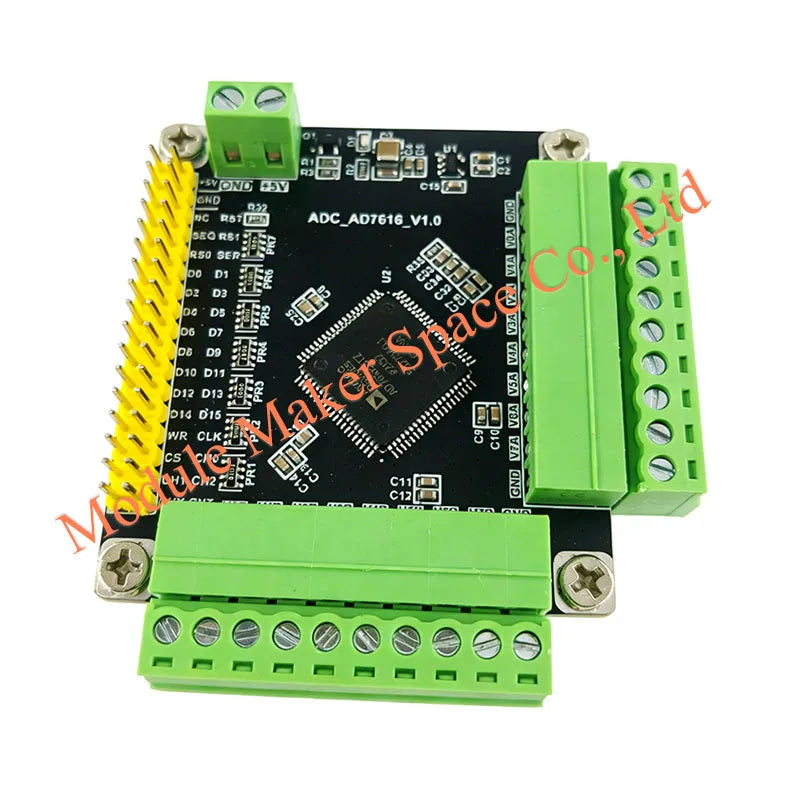

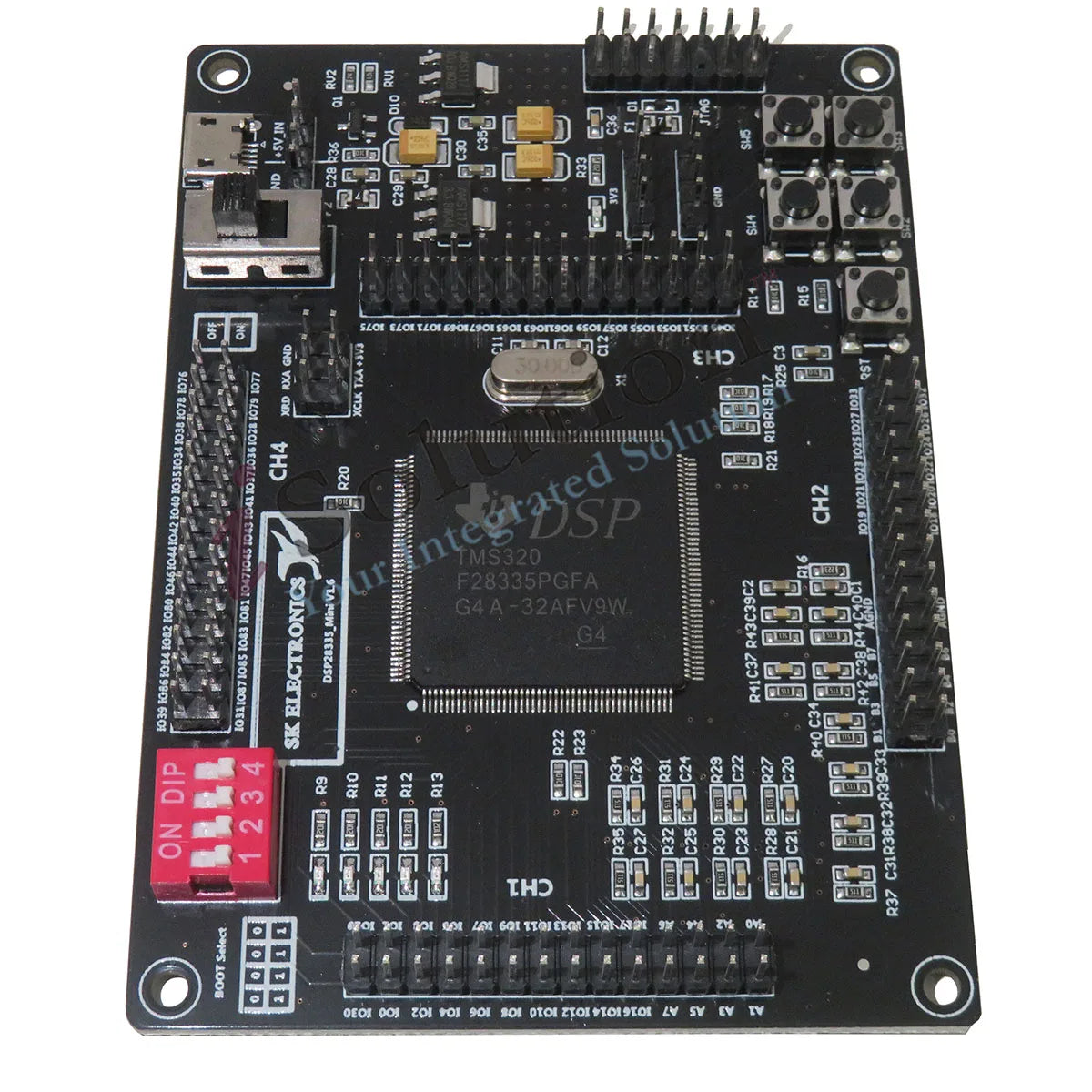

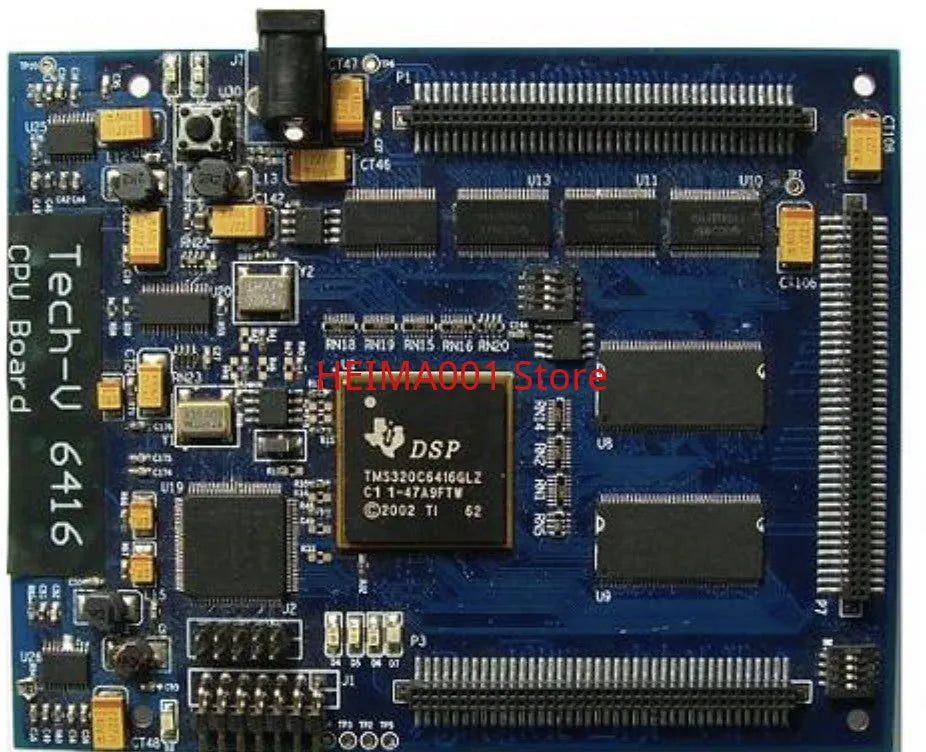

ISD1820 voice-recording boards offer short record/playback functions with module-only versus module-plus-speaker or 1-set options in some listings. They are not freely programmable multichannel crossover DSPs. An MS3625 I2S microphone module is a digital pickup peripheral; its soldered-header and one/three-piece alternatives do not include a processing board. AD7616 and AD9226 acquisition modules are ADC boards for broader DSP/FPGA development, not finished audio processors. TMS320C6748 core boards, C2000 development boards, standalone DSP/MCU ICs and XDS debug probes are embedded-development items rather than plug-in car or PA audio units; confirm target chip, package, memory and debugger separately. A T113-i product has distinct board, motherboard, screen and ten-connector choices, not an all-in-one DSP audio kit.
Samwha-Dsp meters, overload relays and phase/voltage controls use DSP in their supplier name, but serve electrical measurement/protection functions. DSPOWER RC servos are mechanical actuators with torque, voltage, connector, gear and pack-count alternatives. HYCNC DSP 0501 uses DSP in a CNC-controller label and separately sells a single handle, wiring board, 50-pin cable or suit. None should inherit audio crossover, vehicle-harness or speaker-management claims from this collection. This separation matters especially where an option named “Color” actually encodes a device model, connector, quantity or kit contents.
Frequently asked questions
Does a 4-in/8-out DSP power eight speakers directly? Not necessarily. Eight can refer to signal-processing or line outputs. Check which outputs are amplified and the specified impedance and RMS power.
Are PZ-C7 Toyota harness choices universal? No. The selected year range and factory audio configuration matter; the listed Toyota non-JBL version explicitly excludes JBL systems.
Does a PZ-X6800S listing include the harness and remote? One supplier description expressly prices the host without them. Confirm exact selected contents before purchase.
Is an ADAU1452 CODEC-only option a programmable DSP board? No. The choice may supply just conversion hardware; verify whether the DSP board and USBi are included.
Is an ISD1820 recorder a multichannel audio crossover? No. It is a voice-record/playback module with different recording and speaker bundle options.
Are speakers, Samwha-Dsp protection relays and DSPOWER servos audio processors? No. Their presence reflects broad catalog grouping; evaluate them according to their own product function and selected variant.
This guide describes the current collection without changing its product membership. The exact selected item, manufacturer's documentation and stated package contents govern compatibility, ratings and software support; collection placement alone is not a certification or fit guarantee.
