EMI Power Line Filters, DC Noise Filters and Ferrite Parts
An EMI filter reduces conducted electromagnetic interference in a specified circuit and frequency range. A finished AC power-line filter, a DC LC board, a ferrite cable clamp and an unmounted common-mode choke address different paths for noise; none is a universal cure for electrical faults or audio hum. This collection covers those components and several neighboring products. Choose the selected model using its actual circuit data, not just an “EMI,” “HiFi” or “anti-lightning” headline.
What the listings include

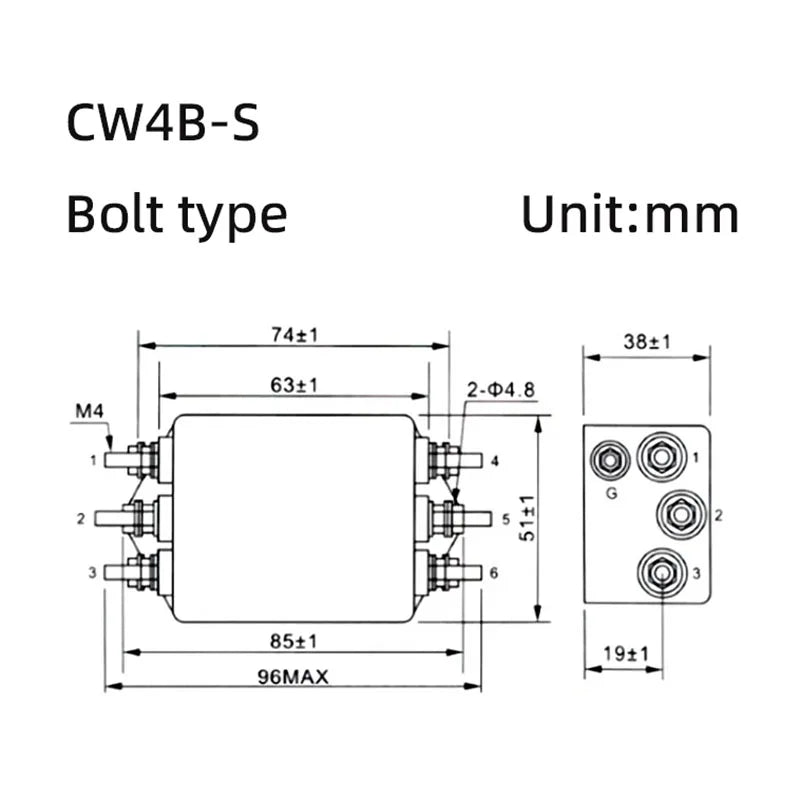

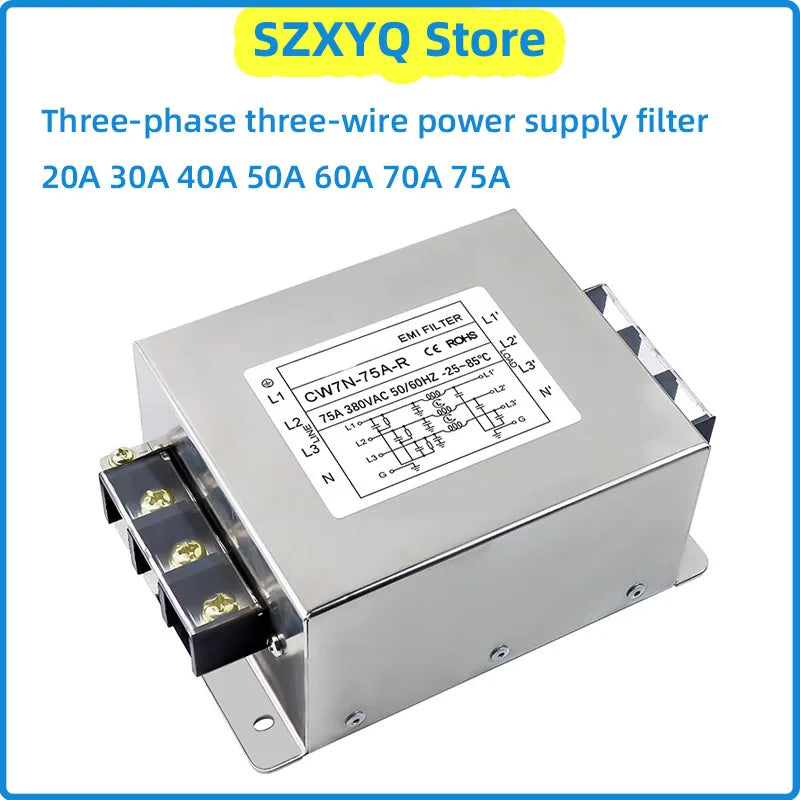

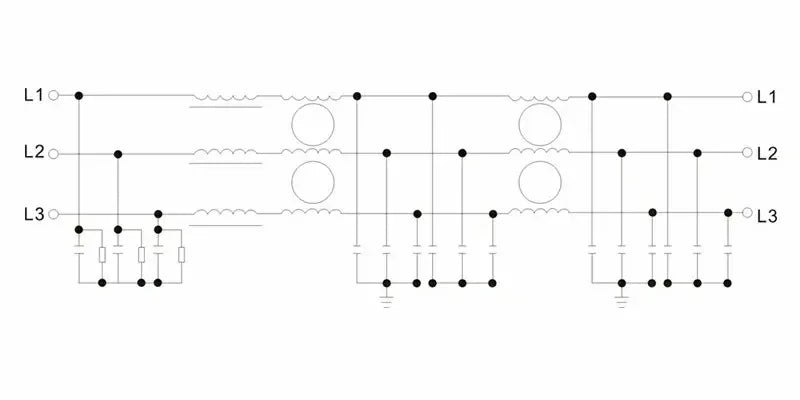

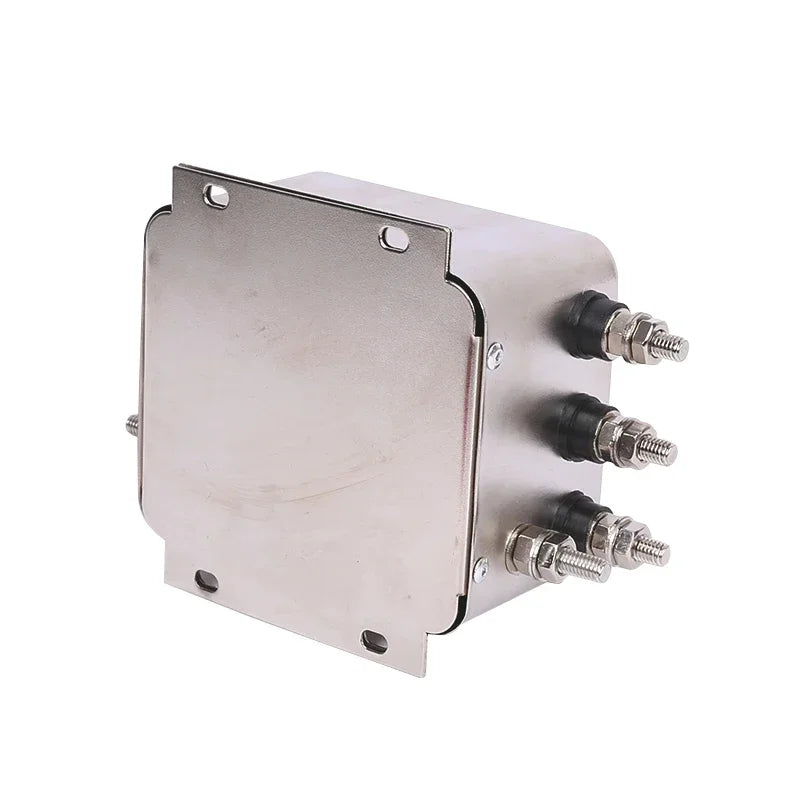

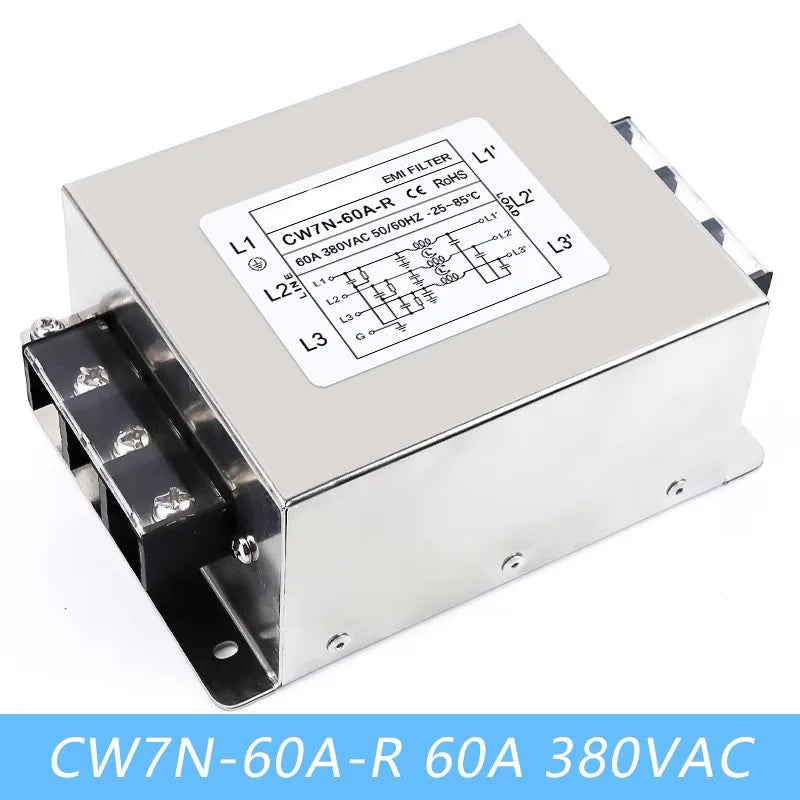

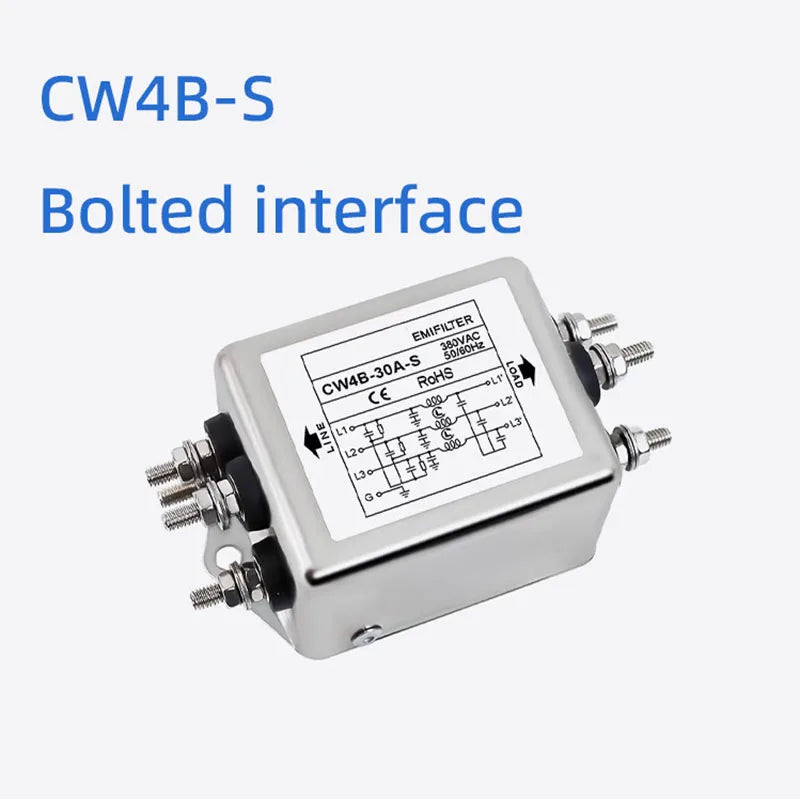

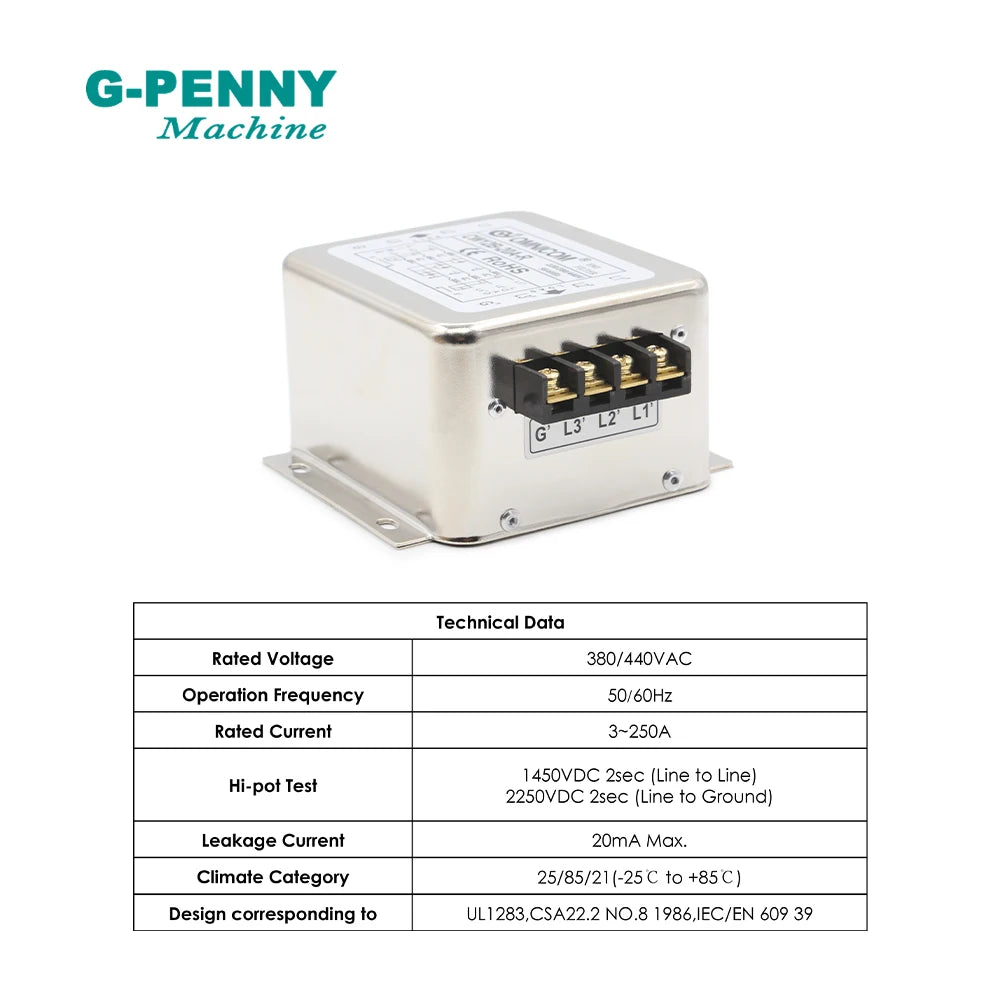

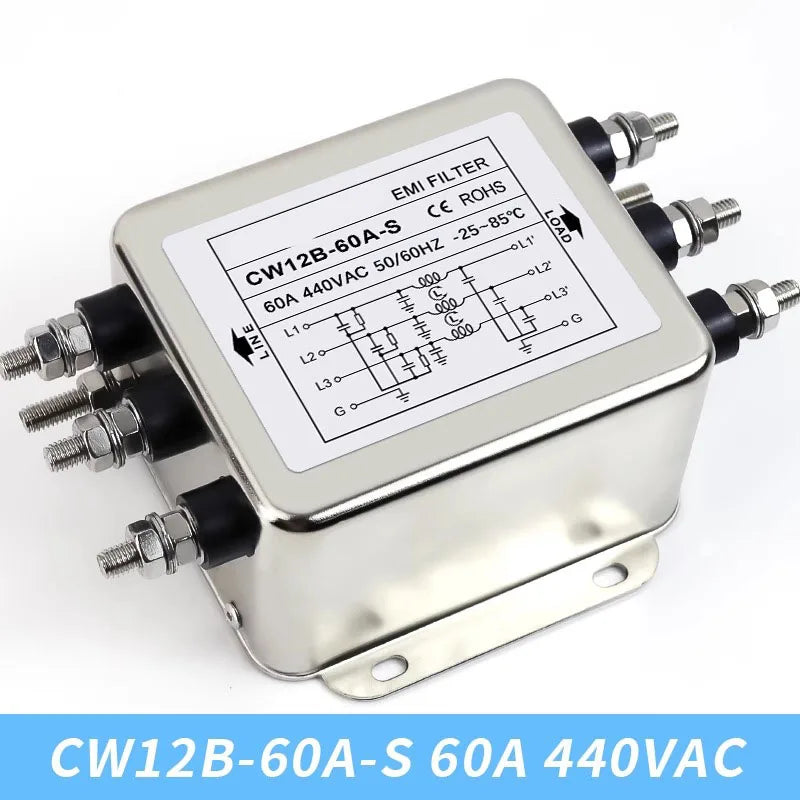

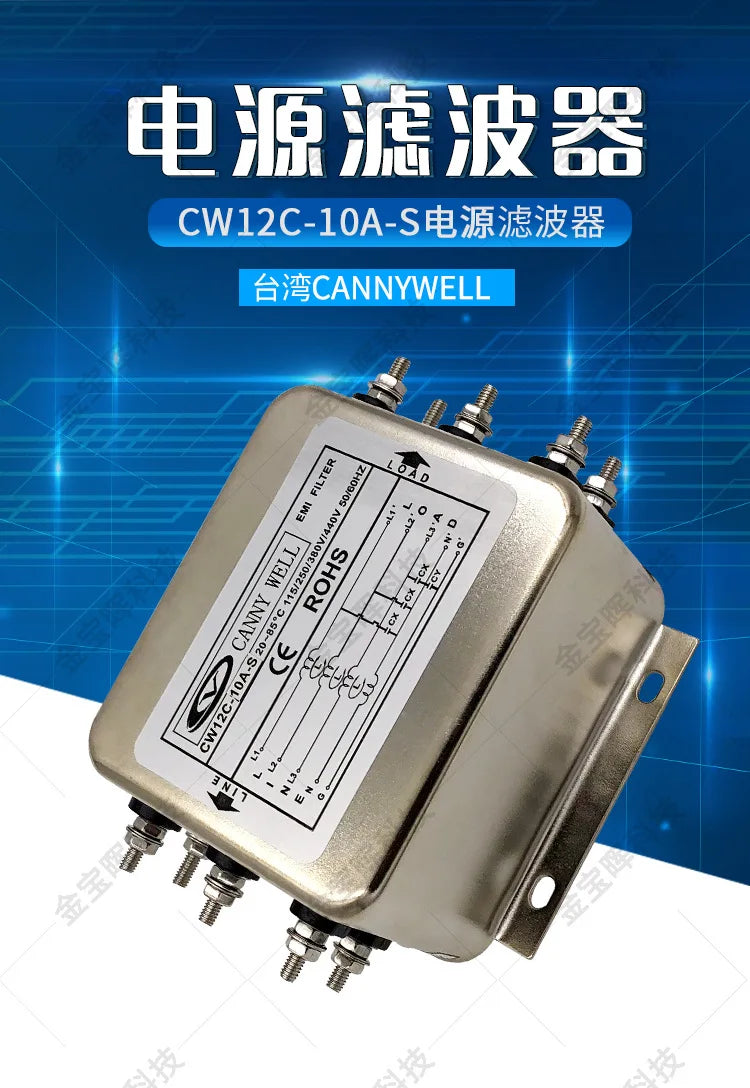

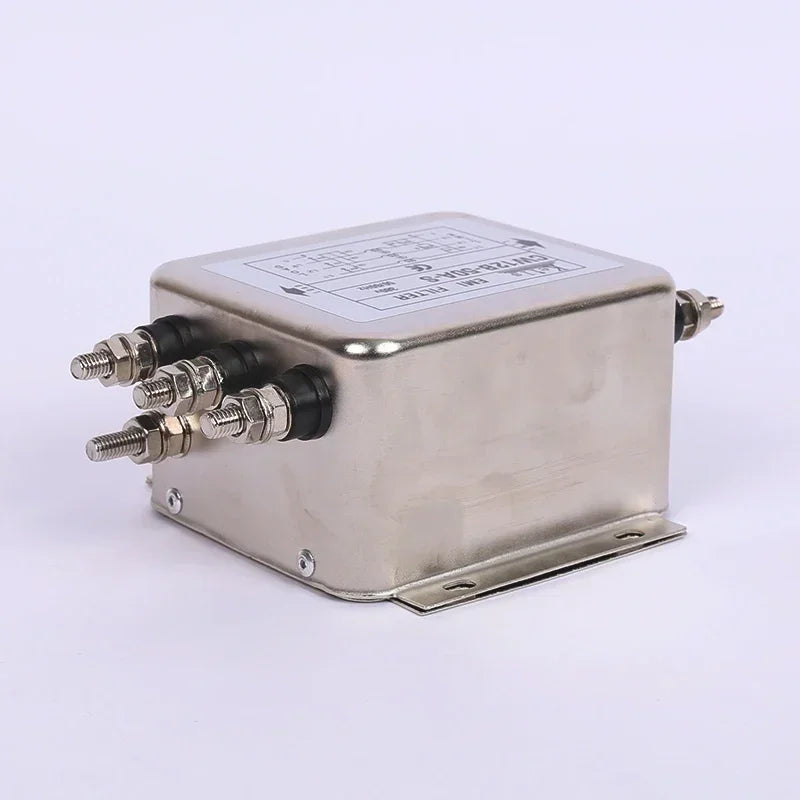

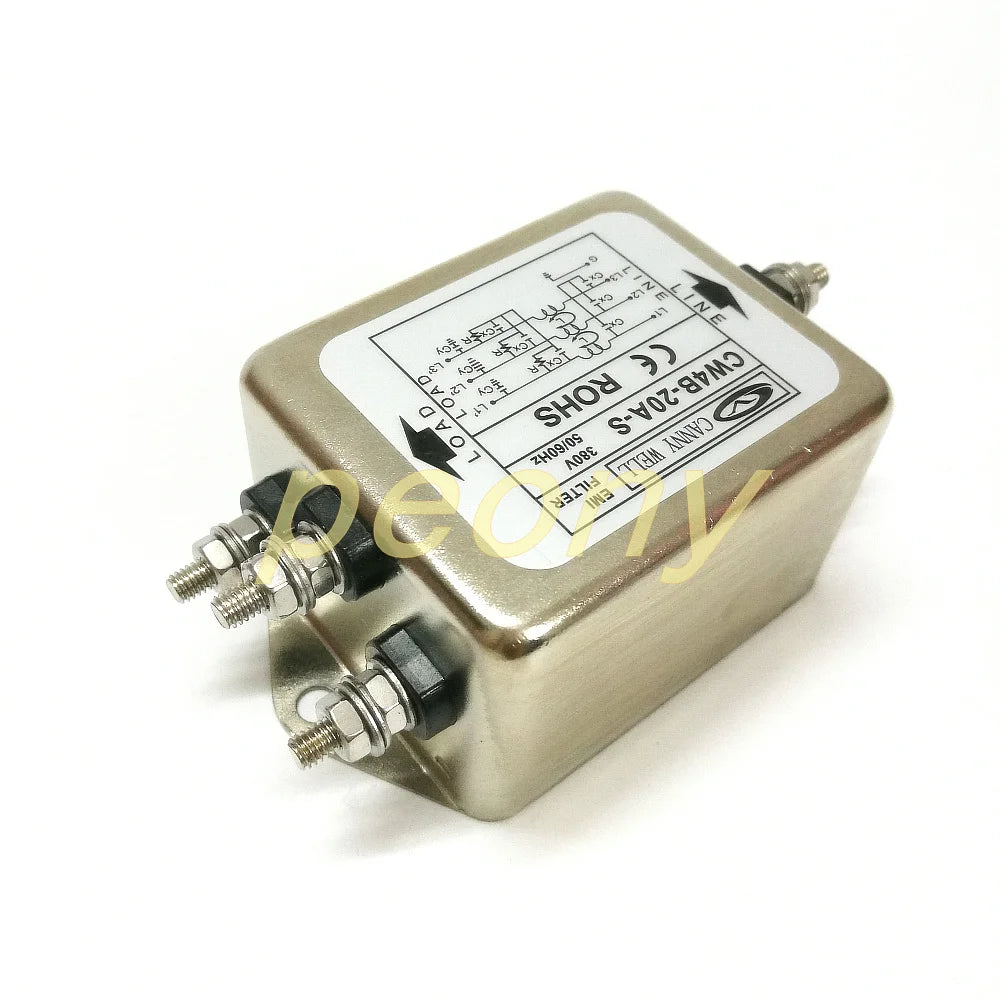

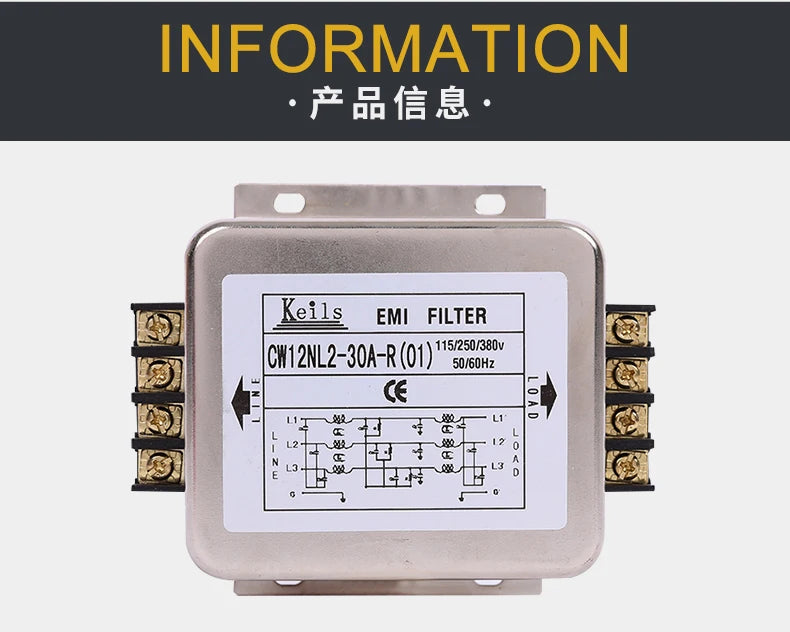

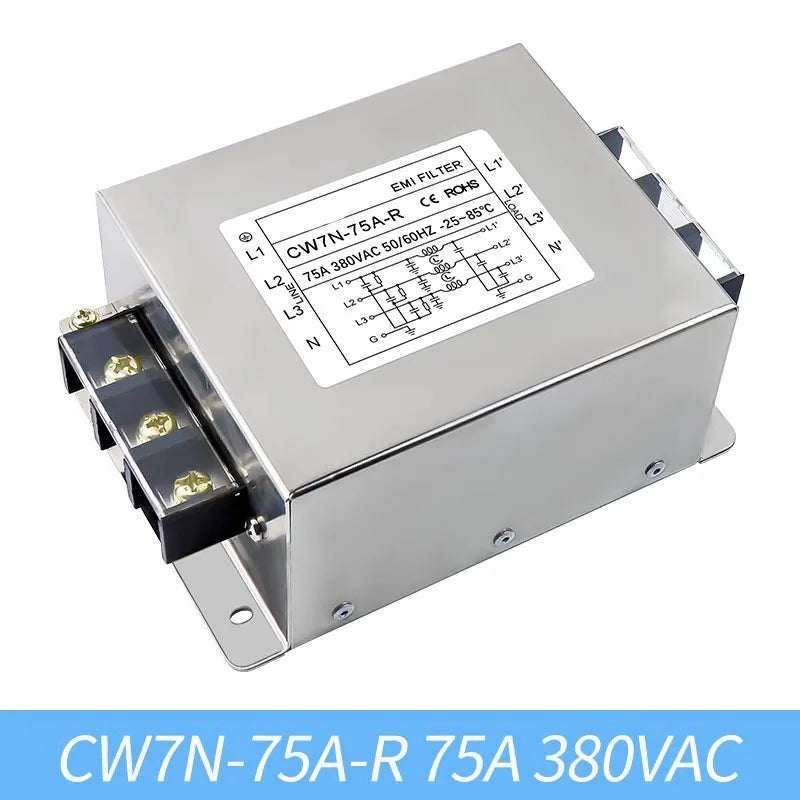

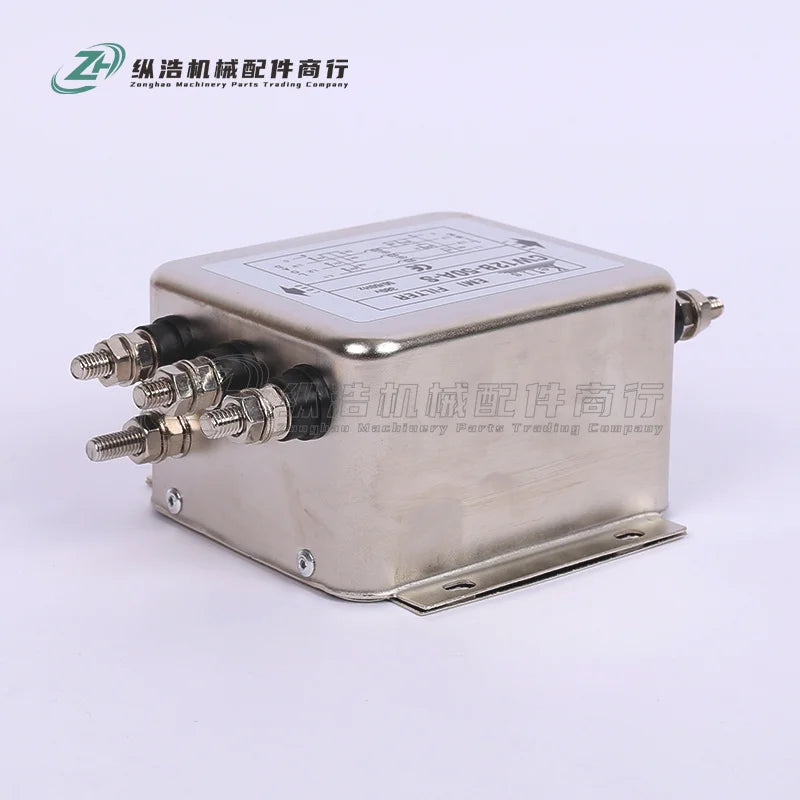

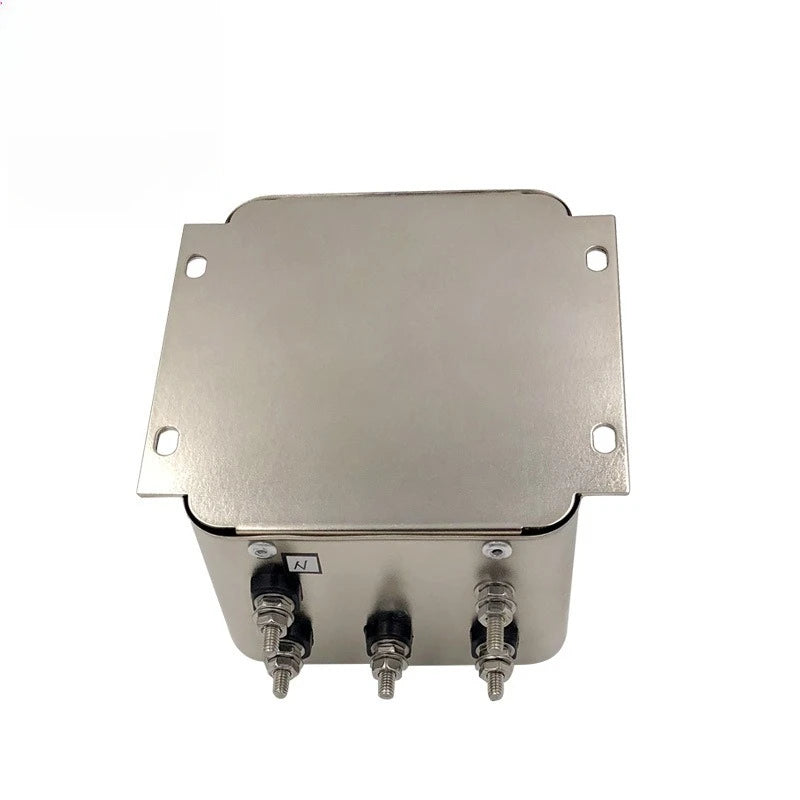

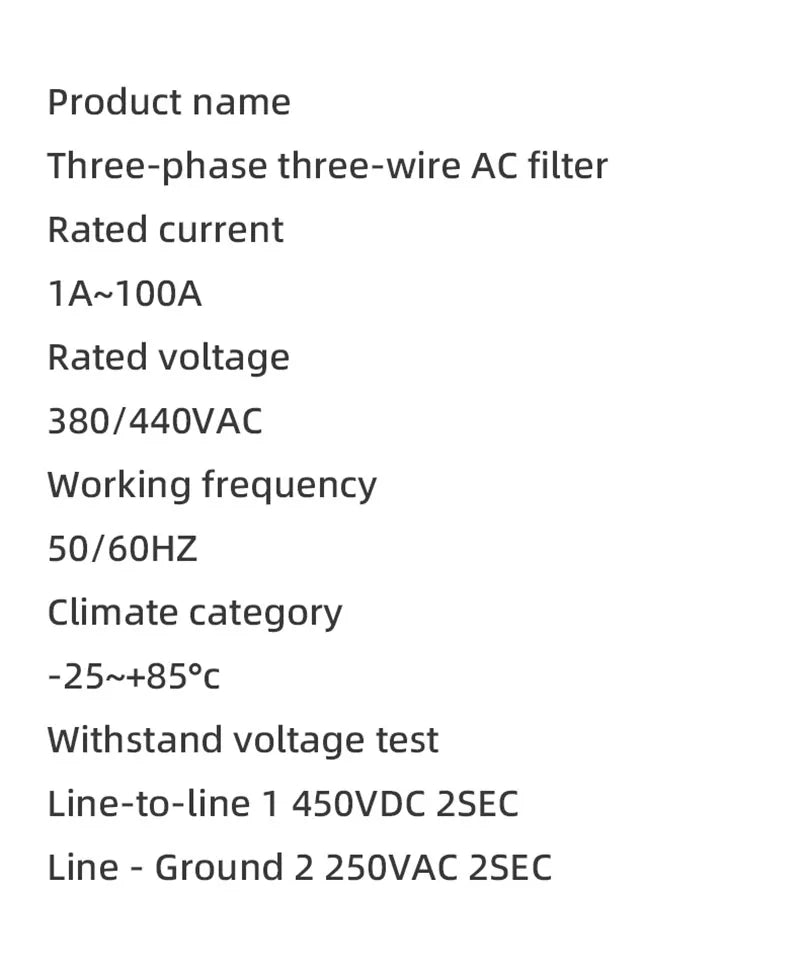

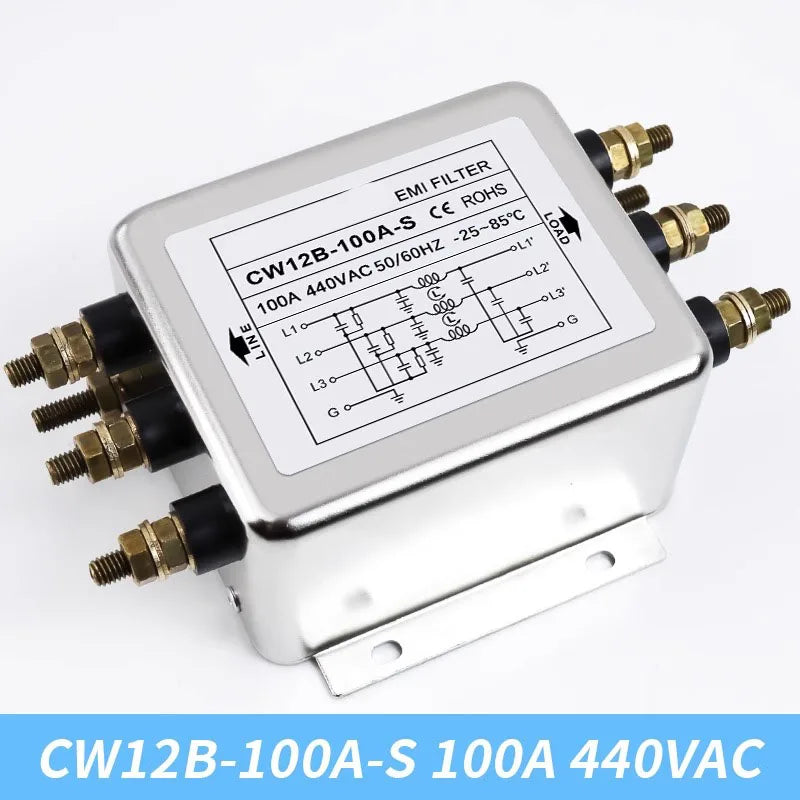

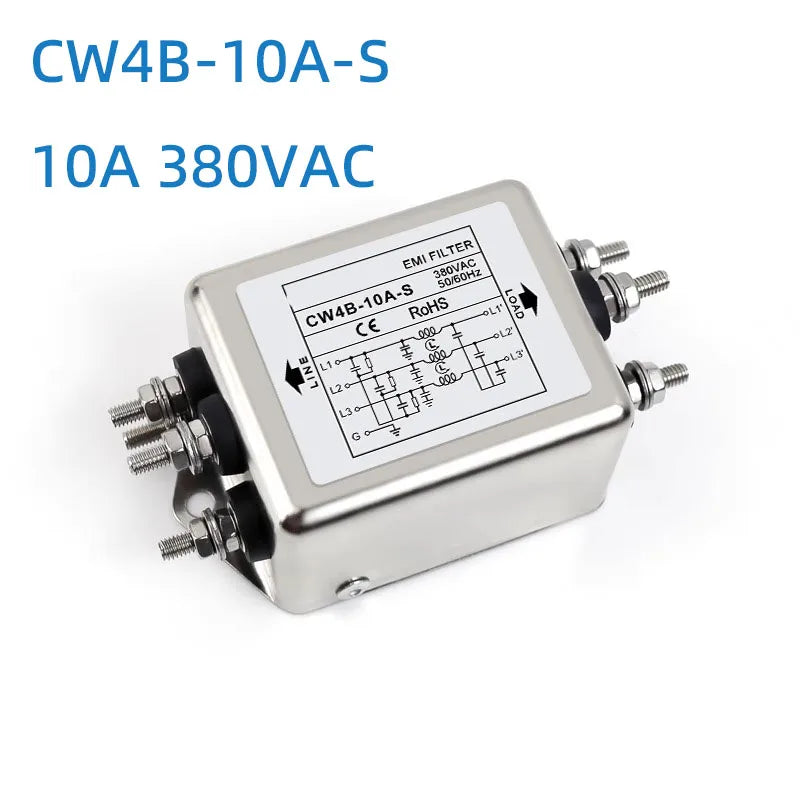

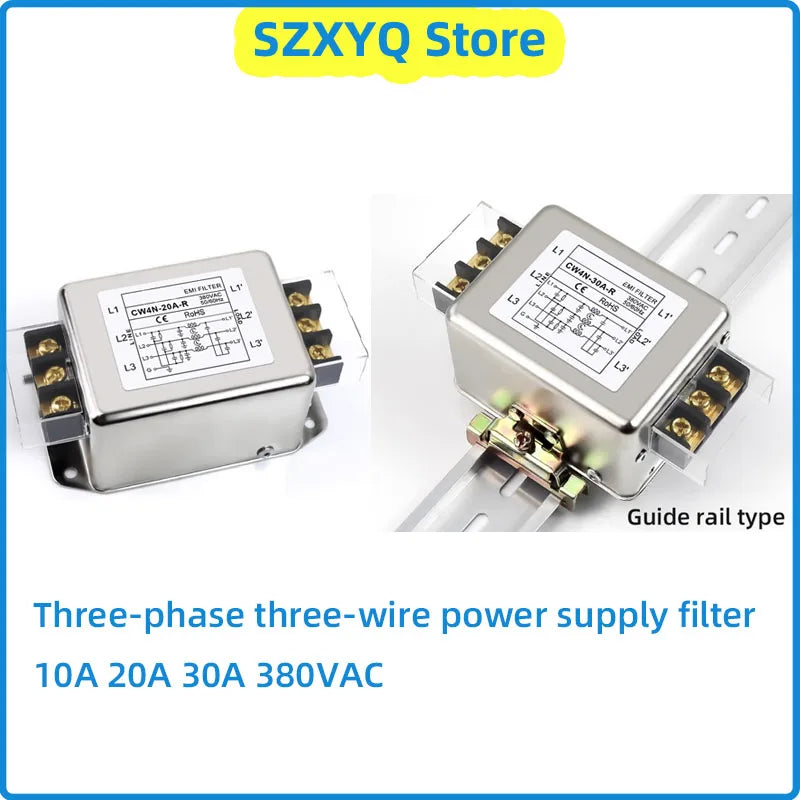

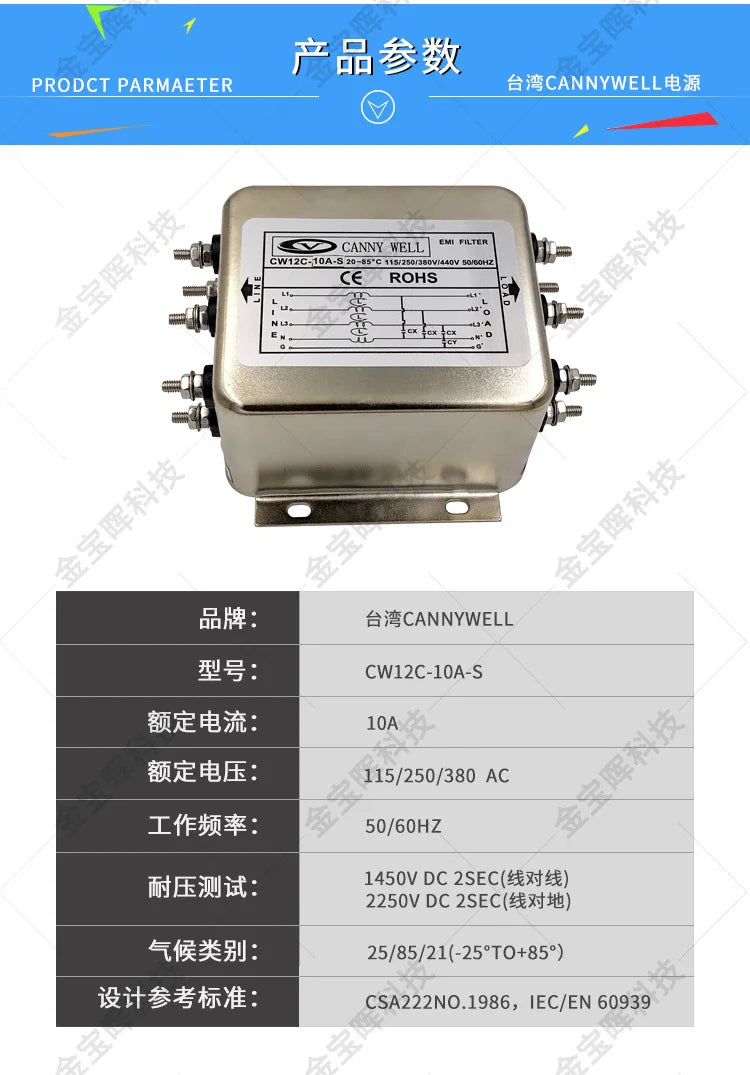

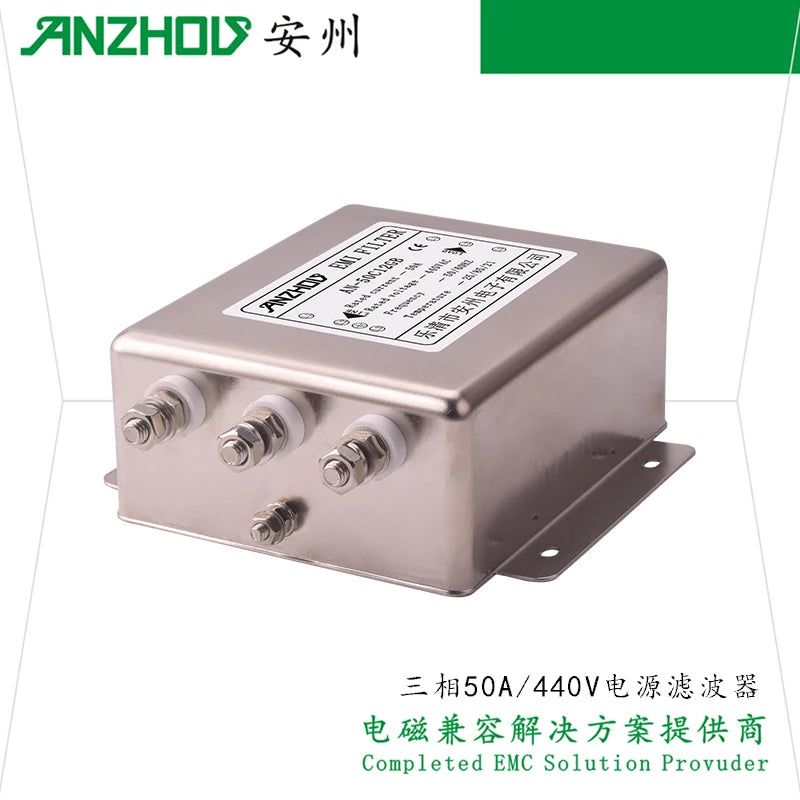

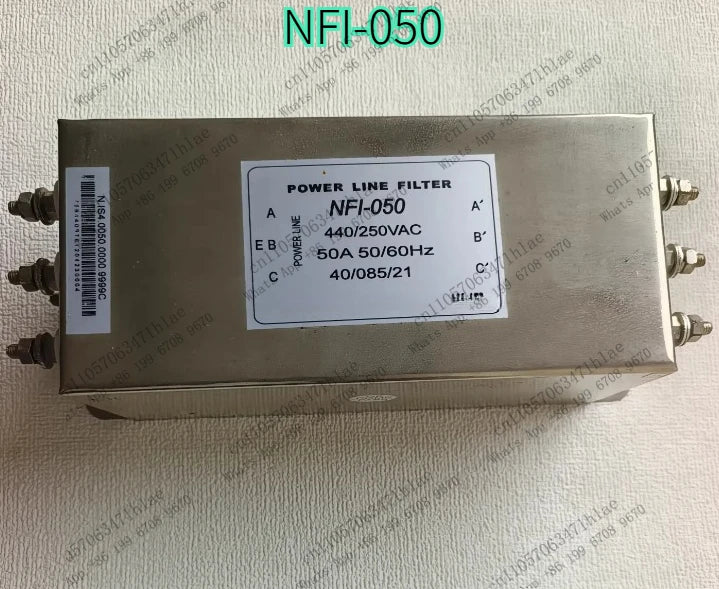

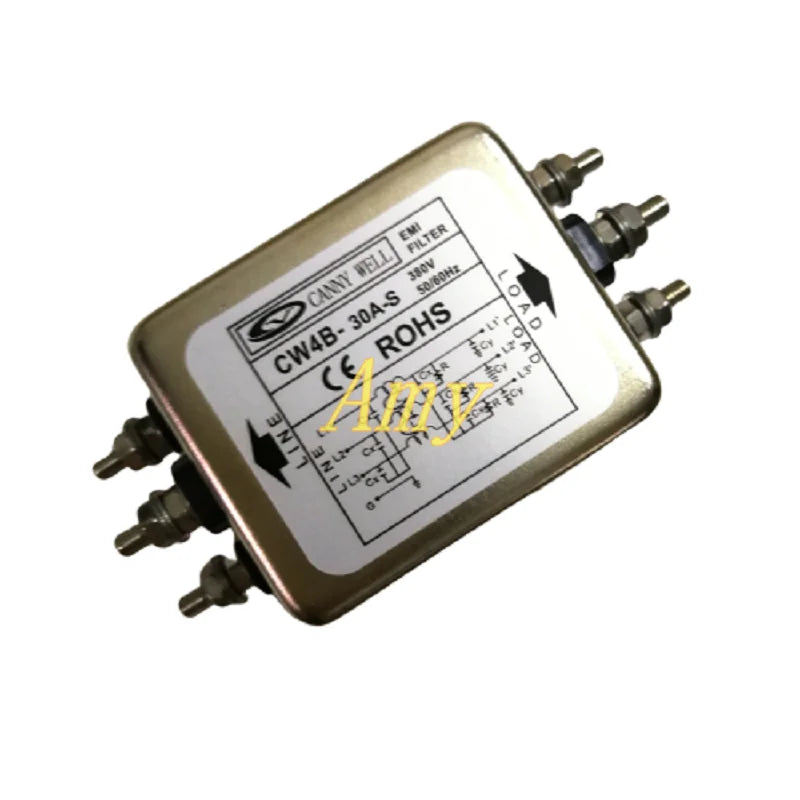

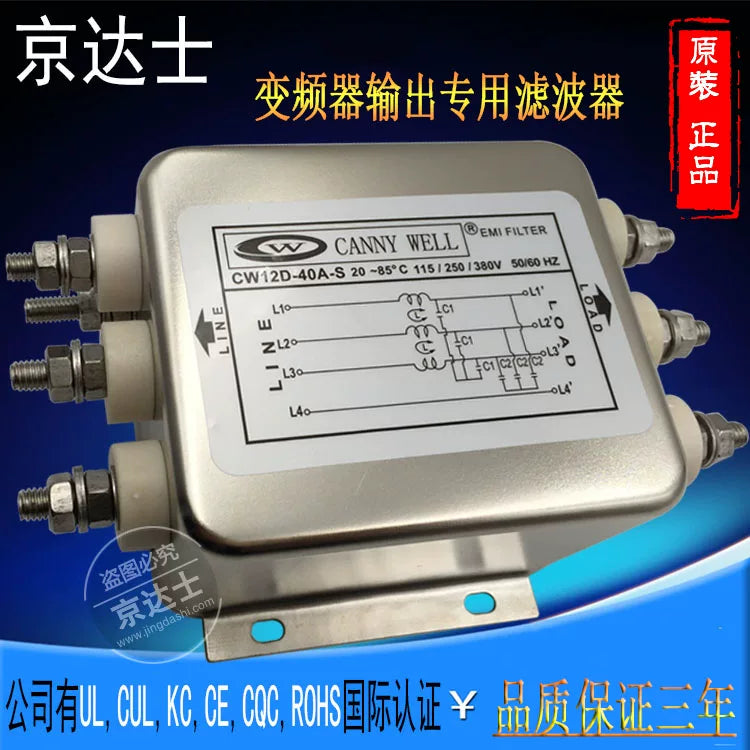

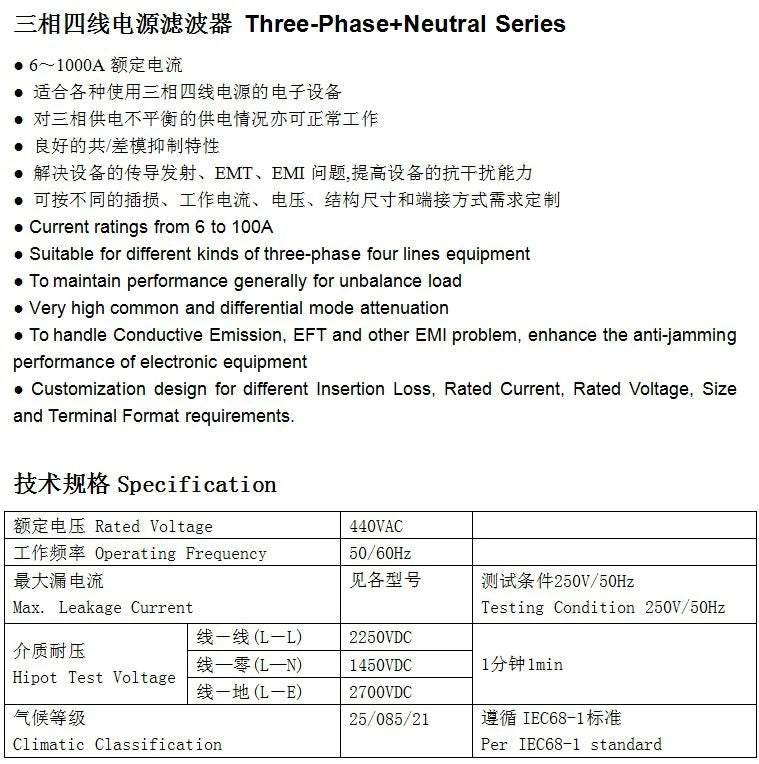

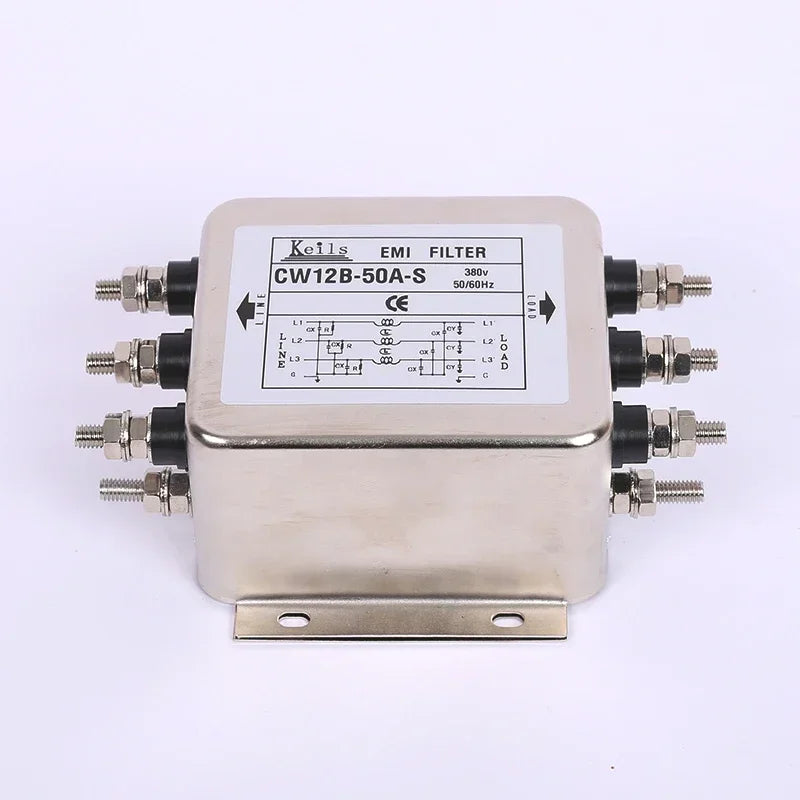

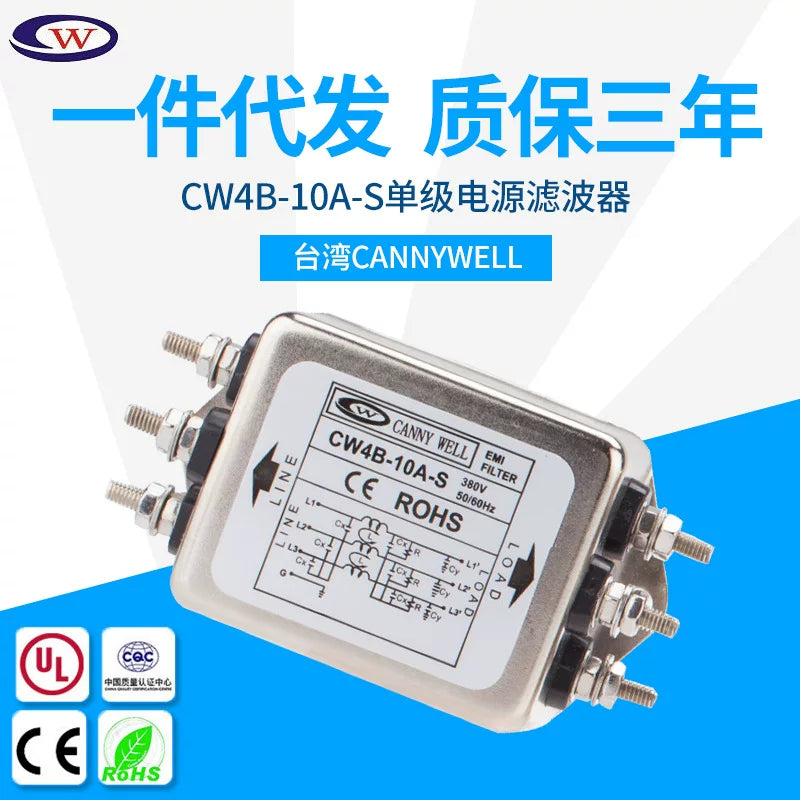

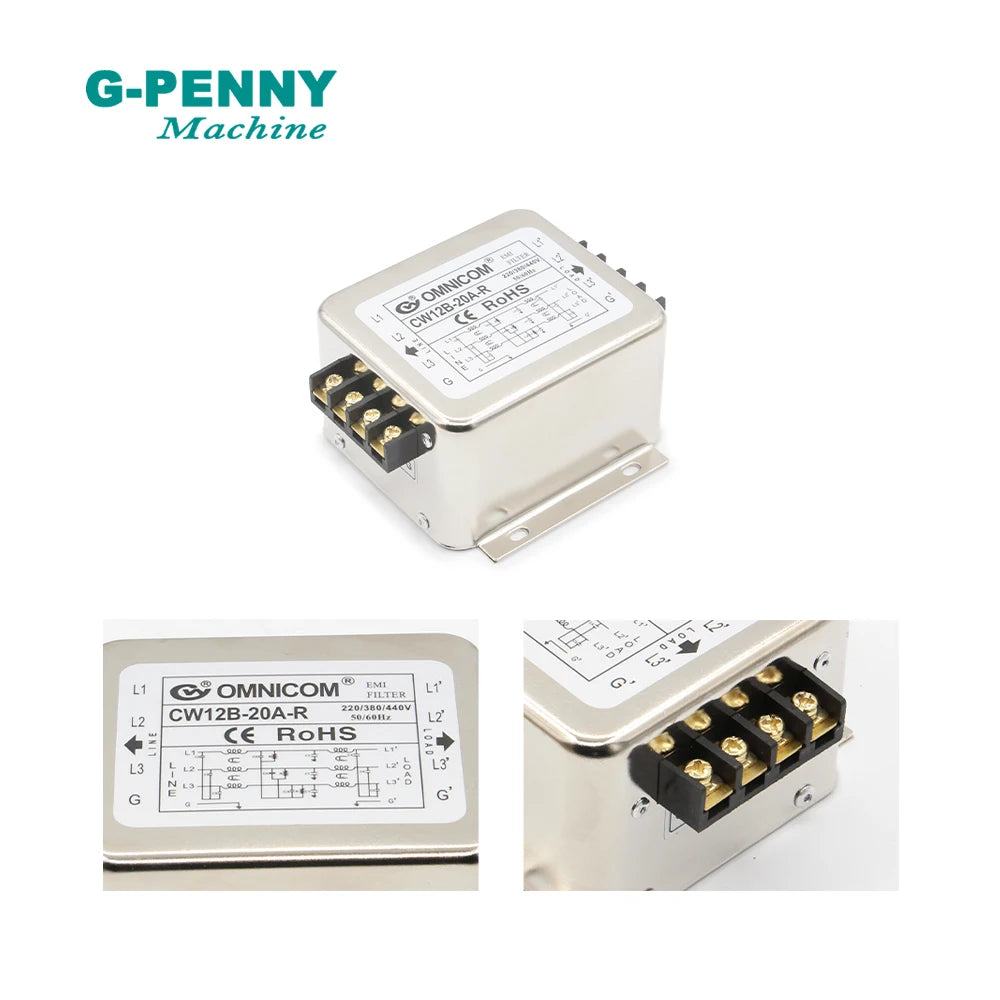

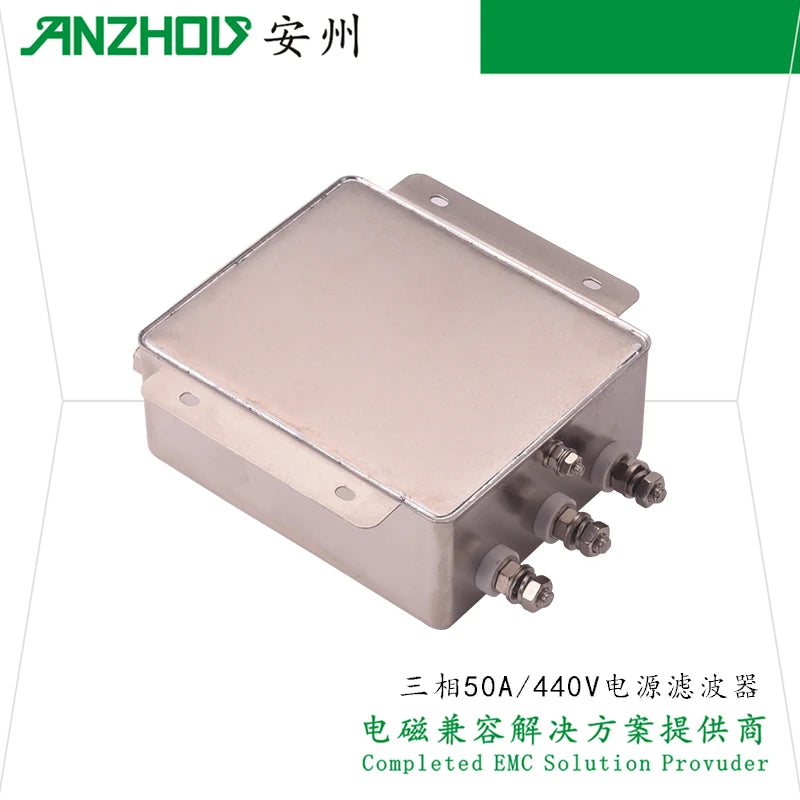

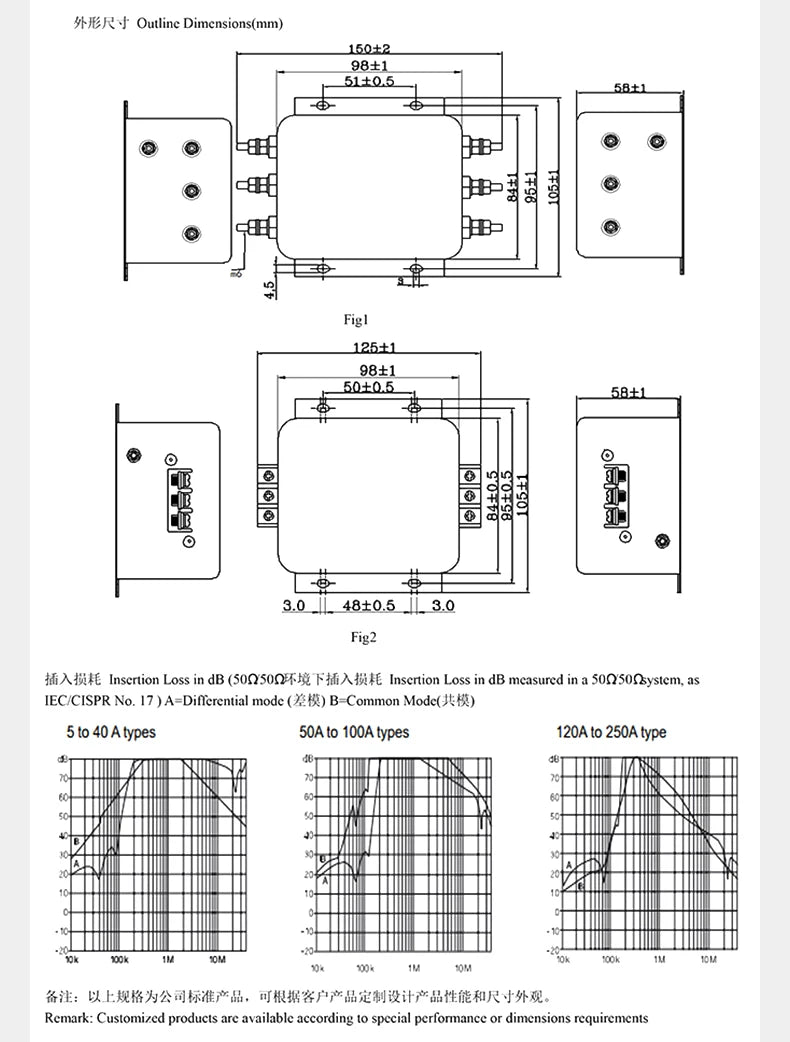

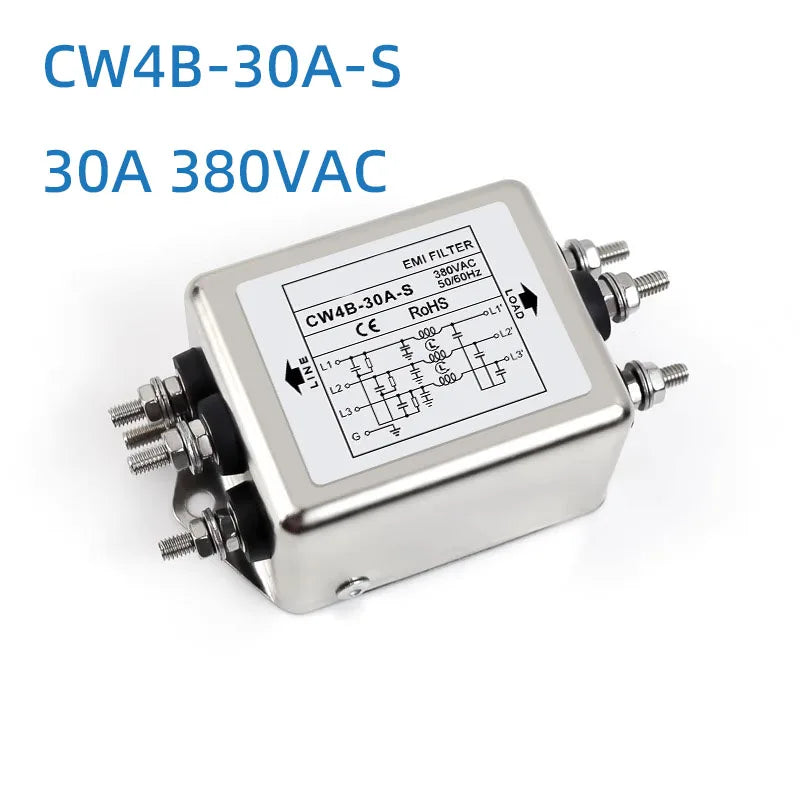

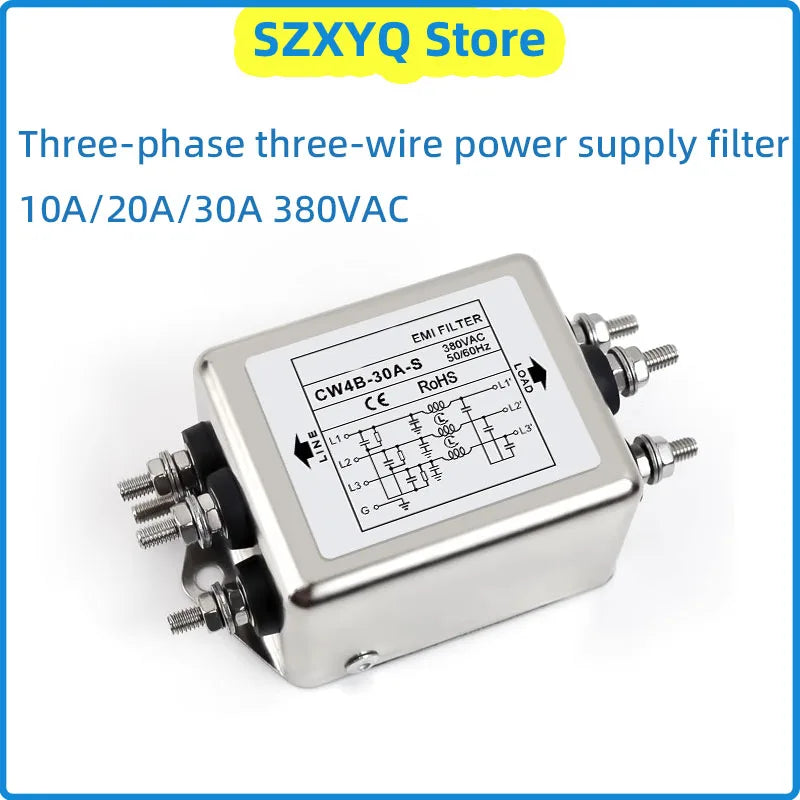

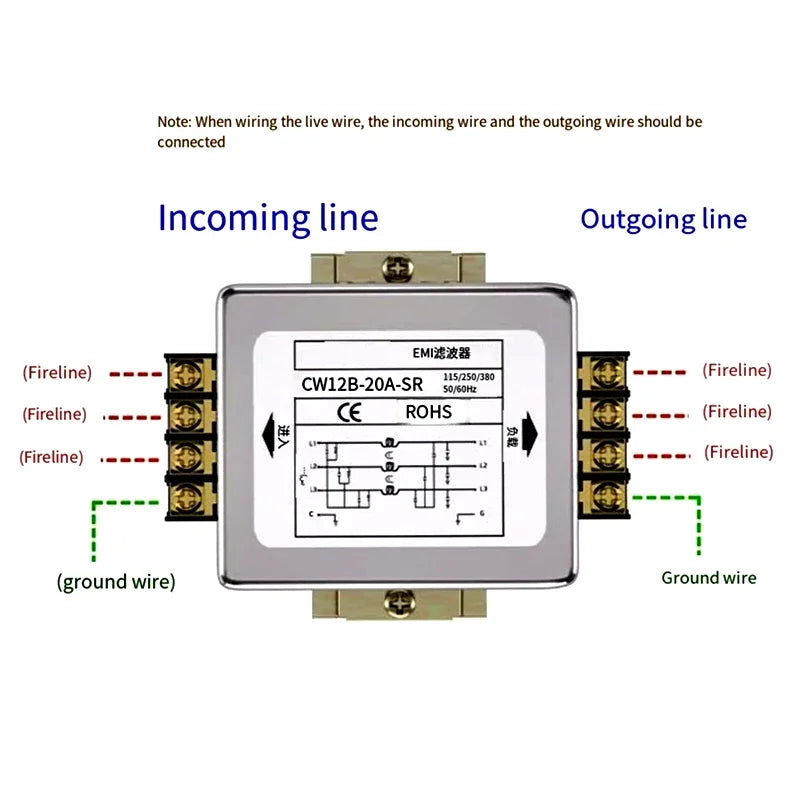

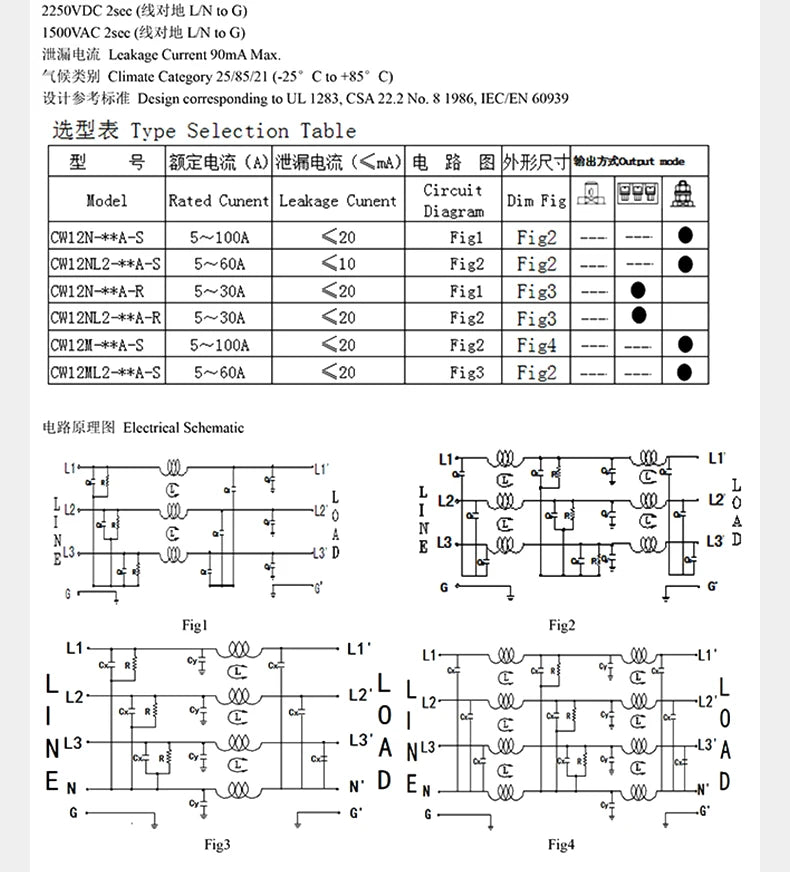

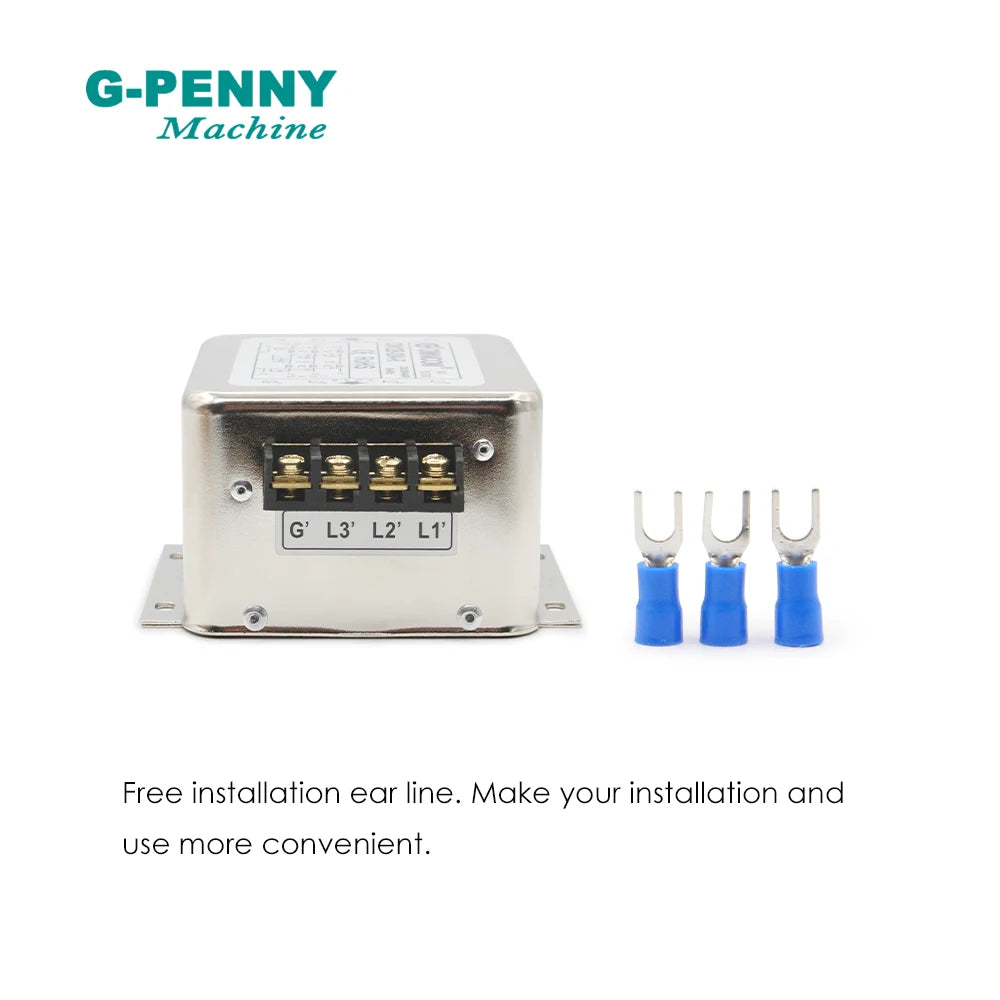

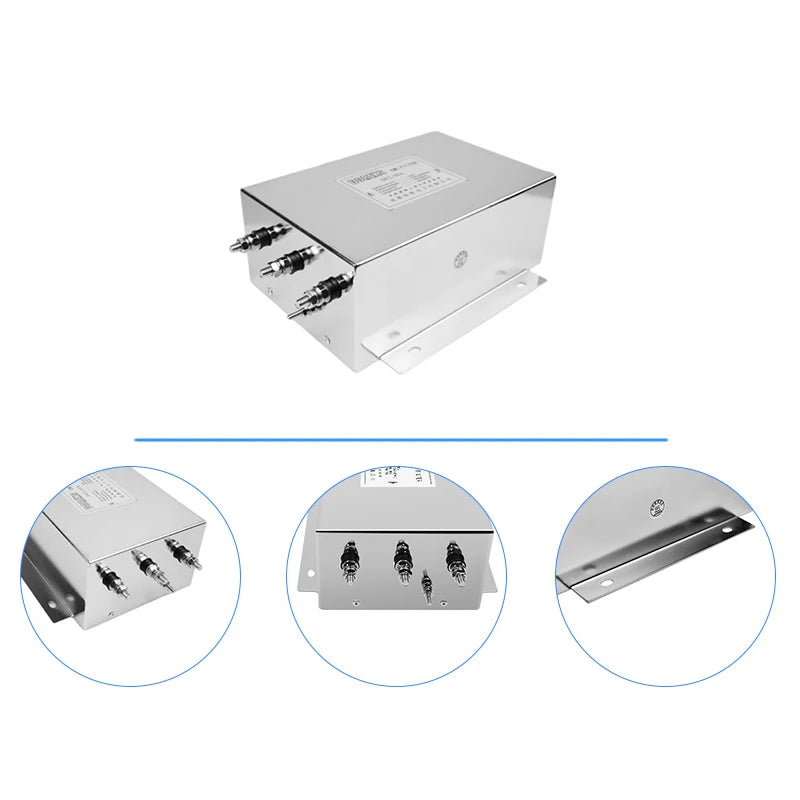

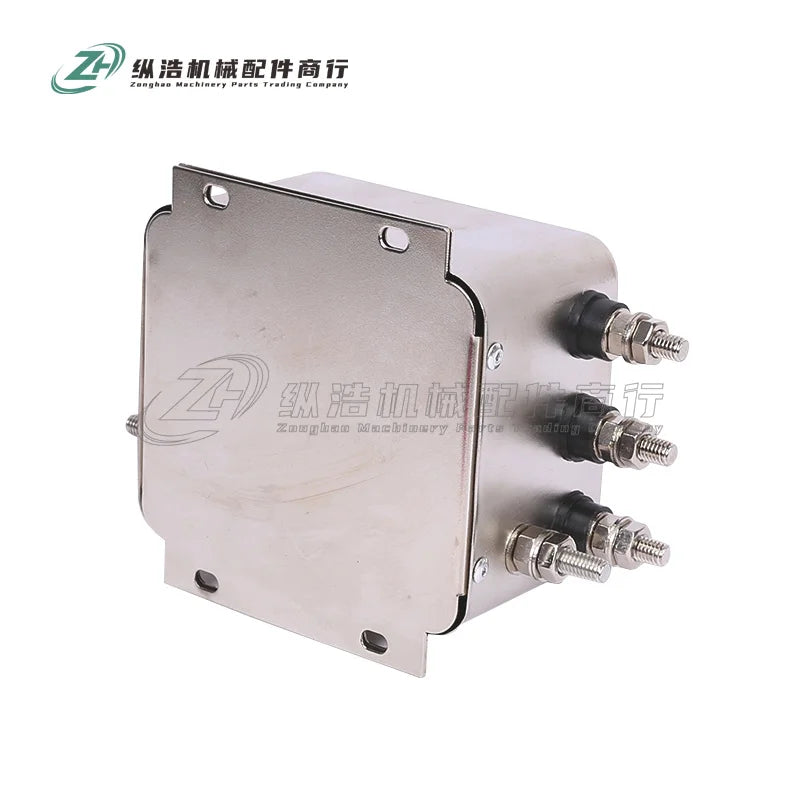

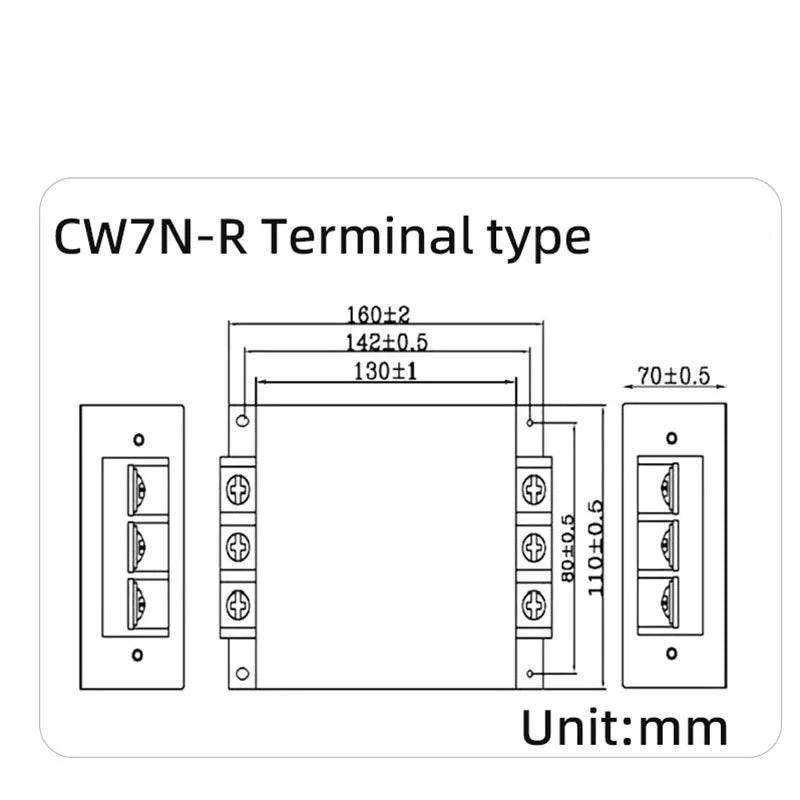

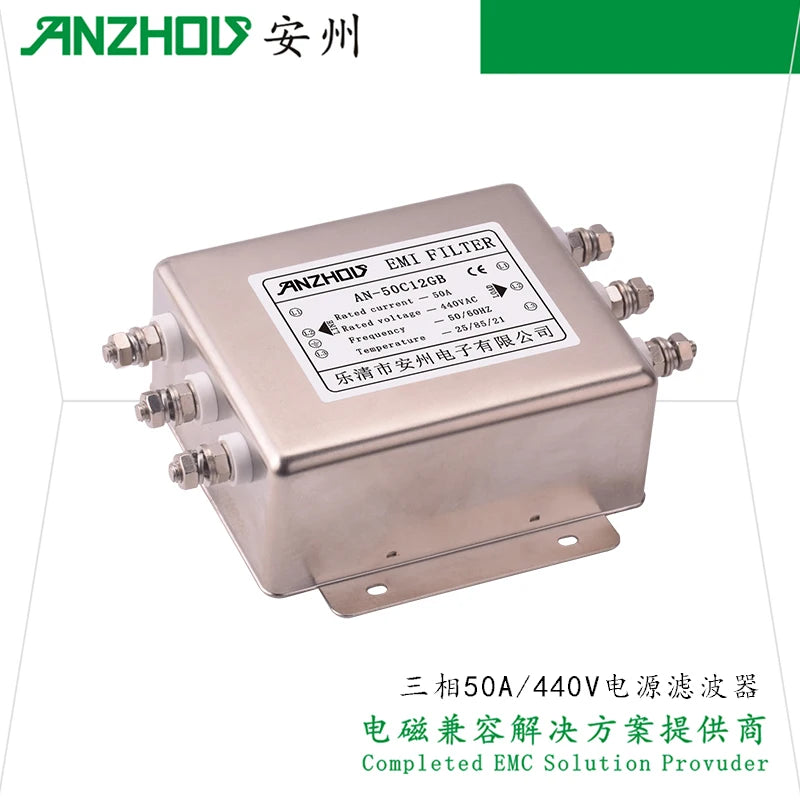

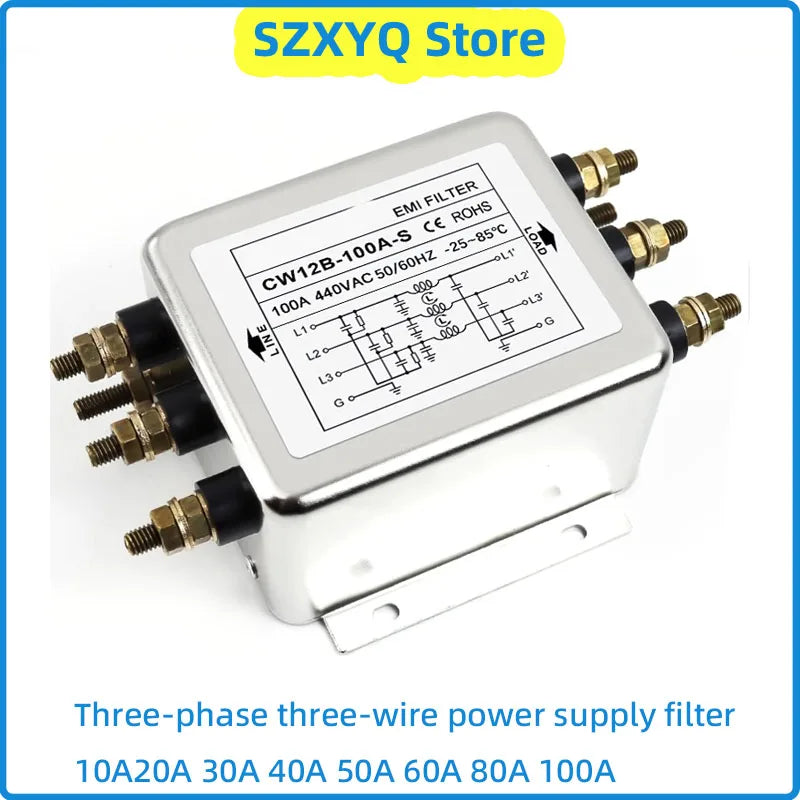

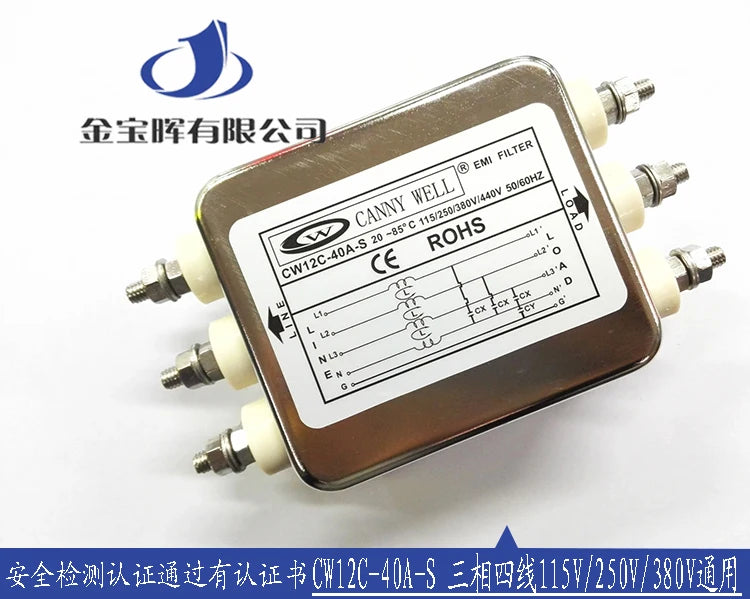

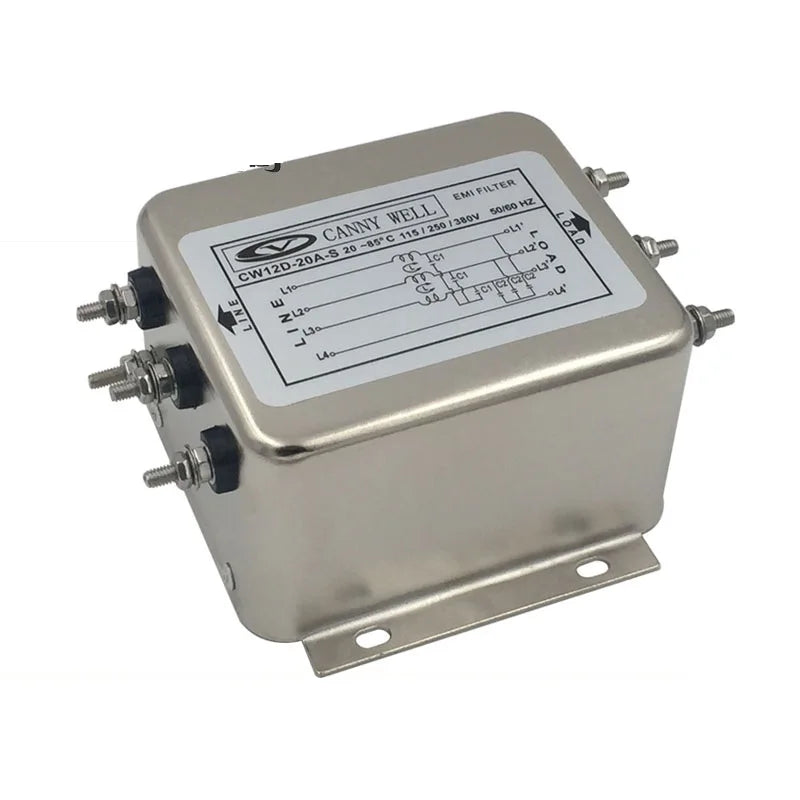

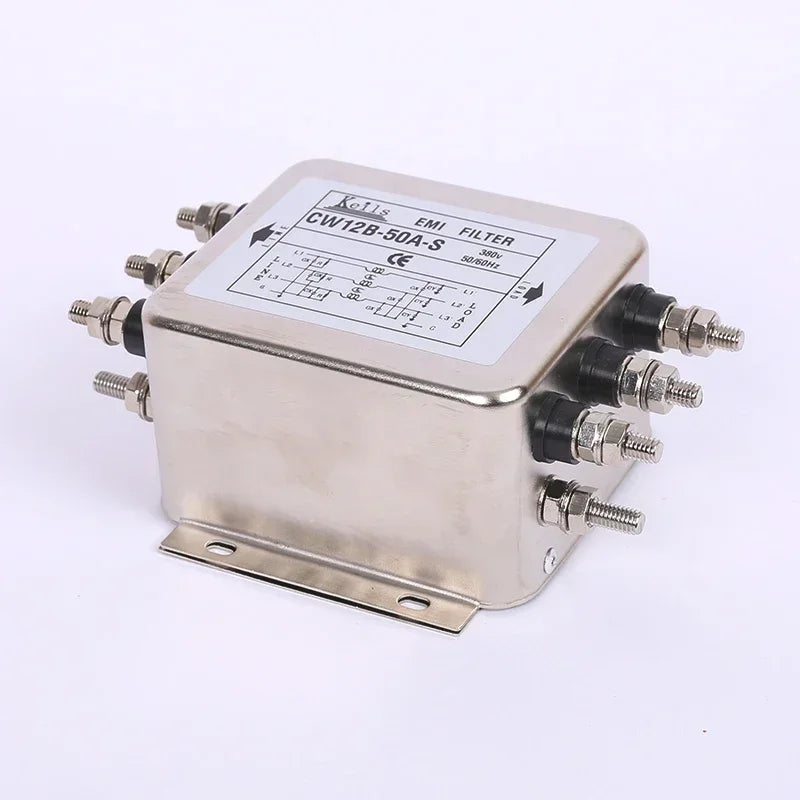

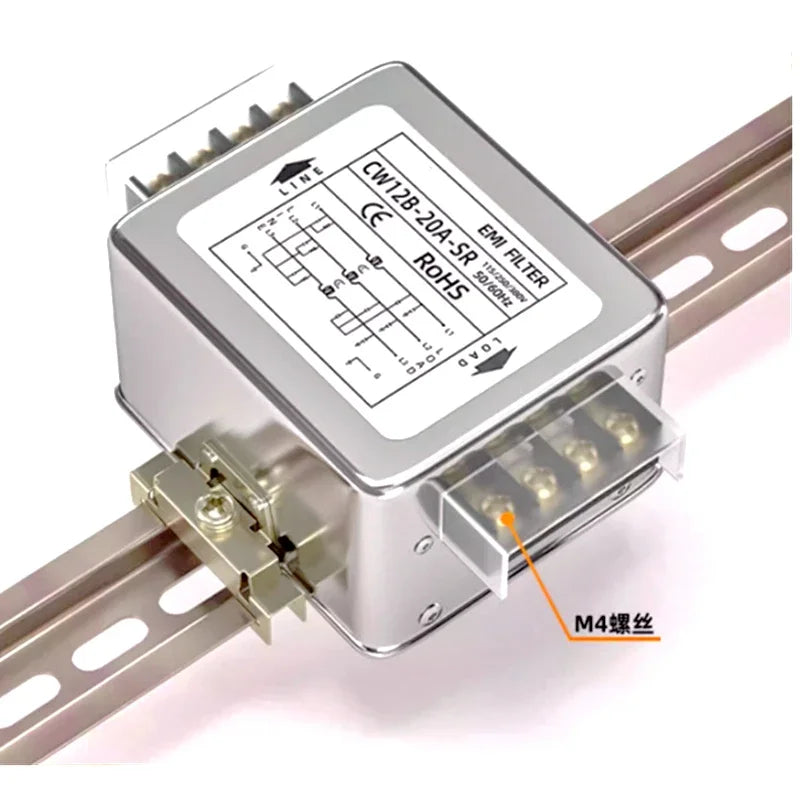

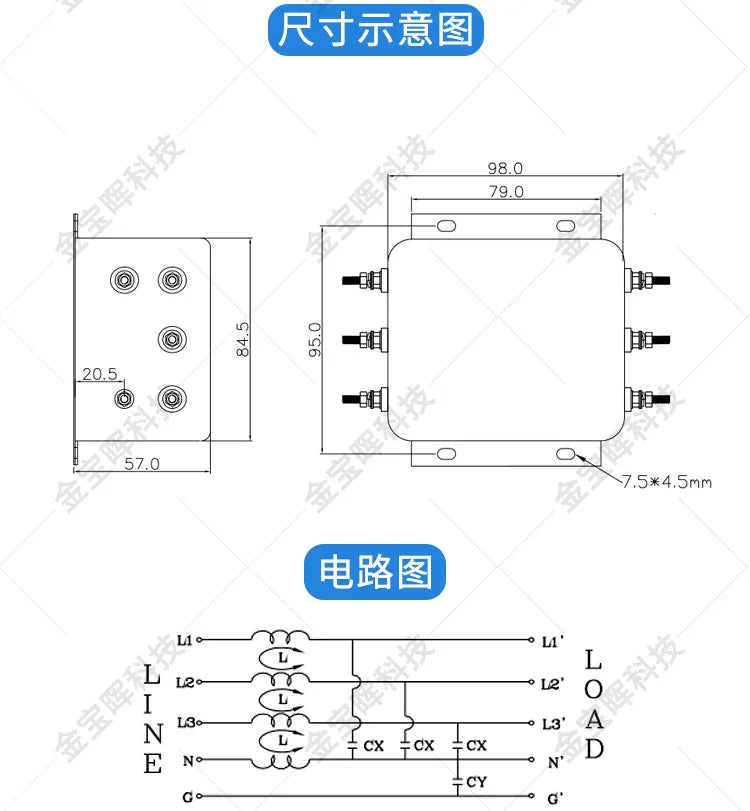

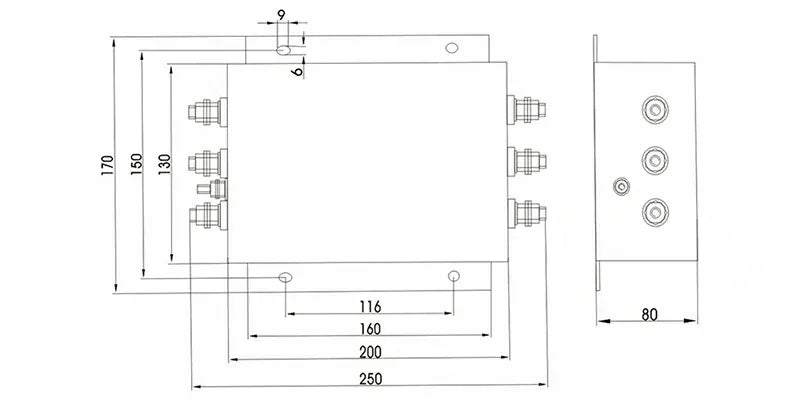

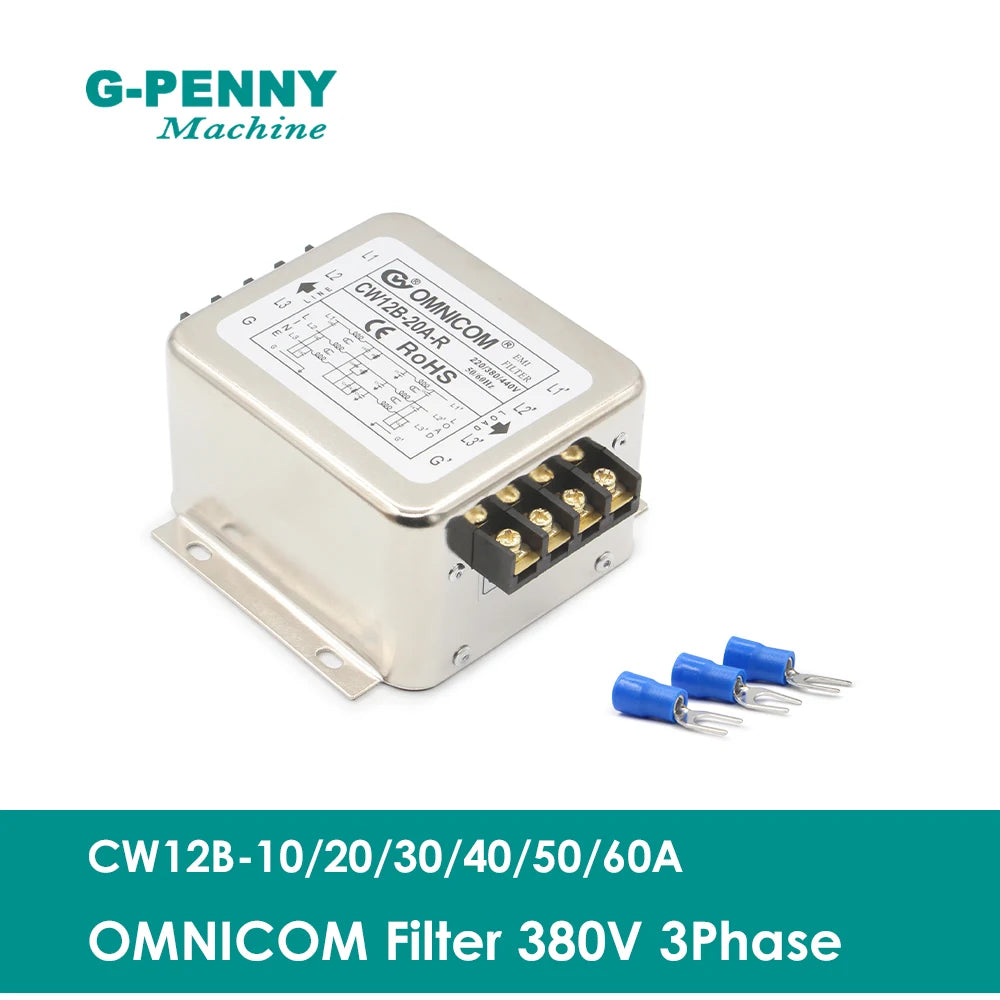

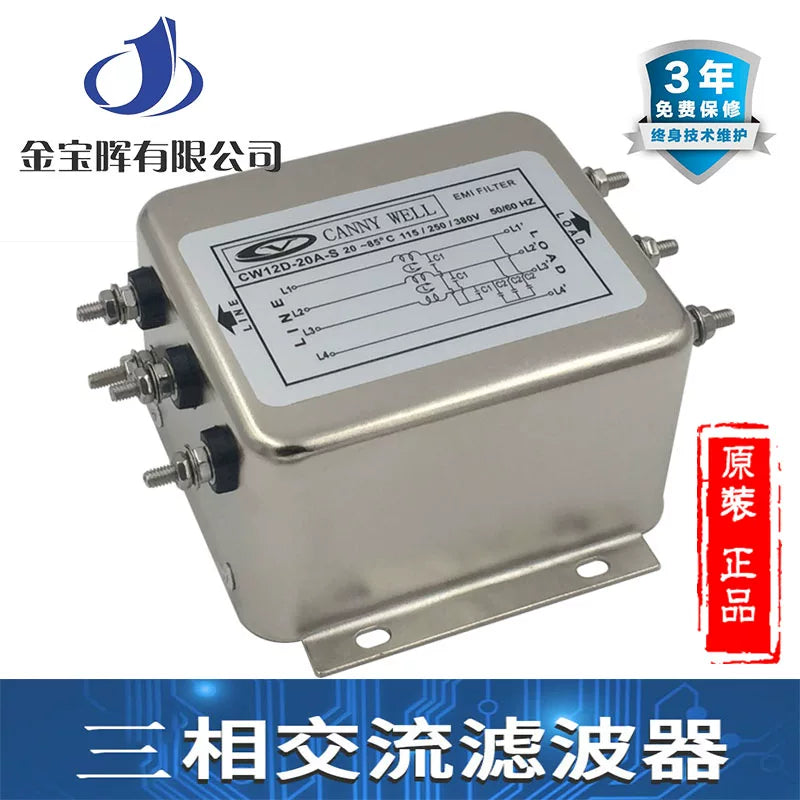

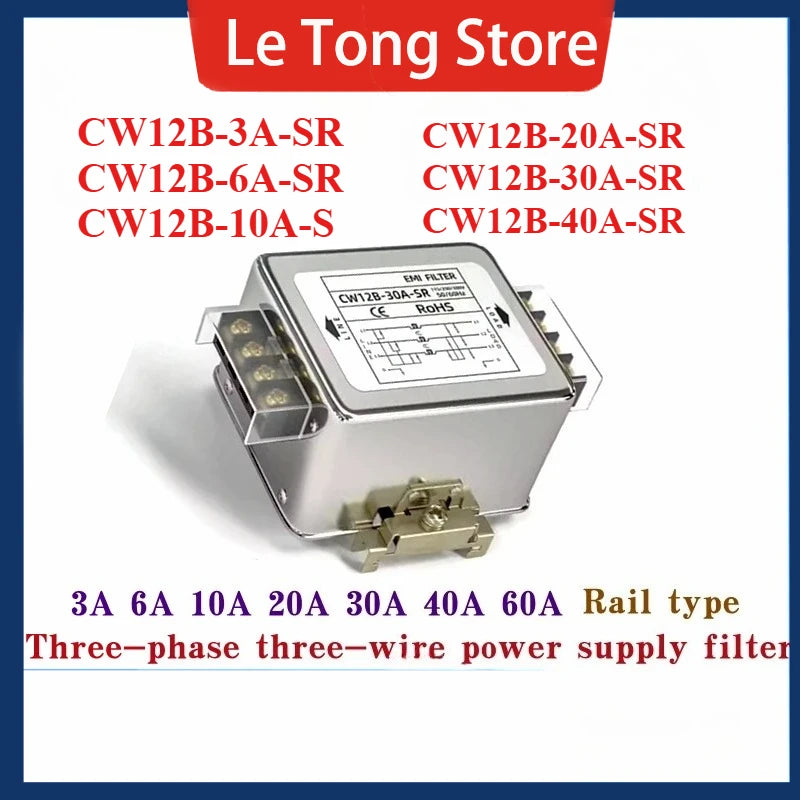

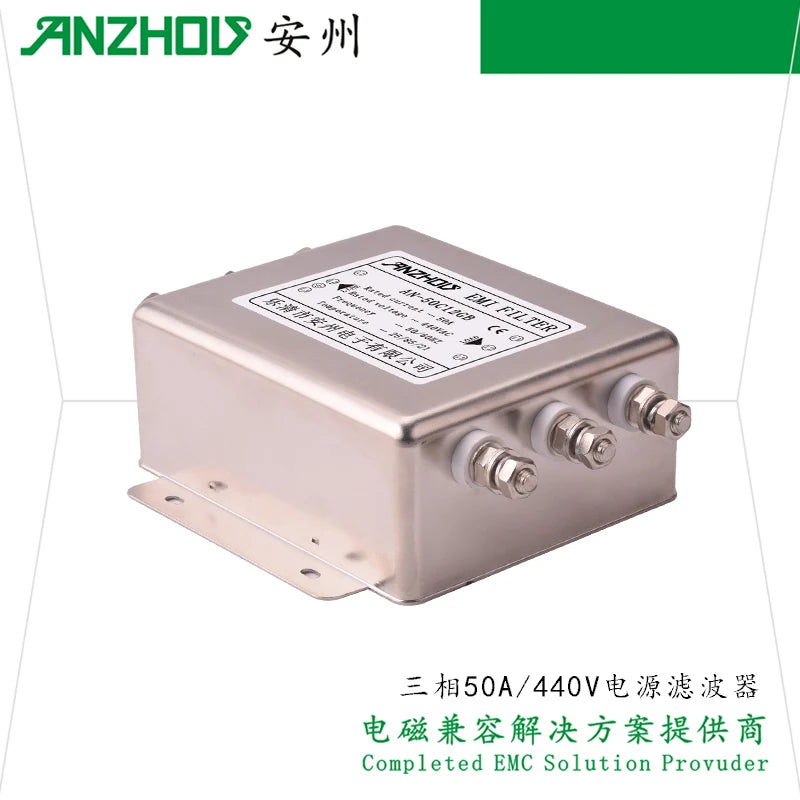

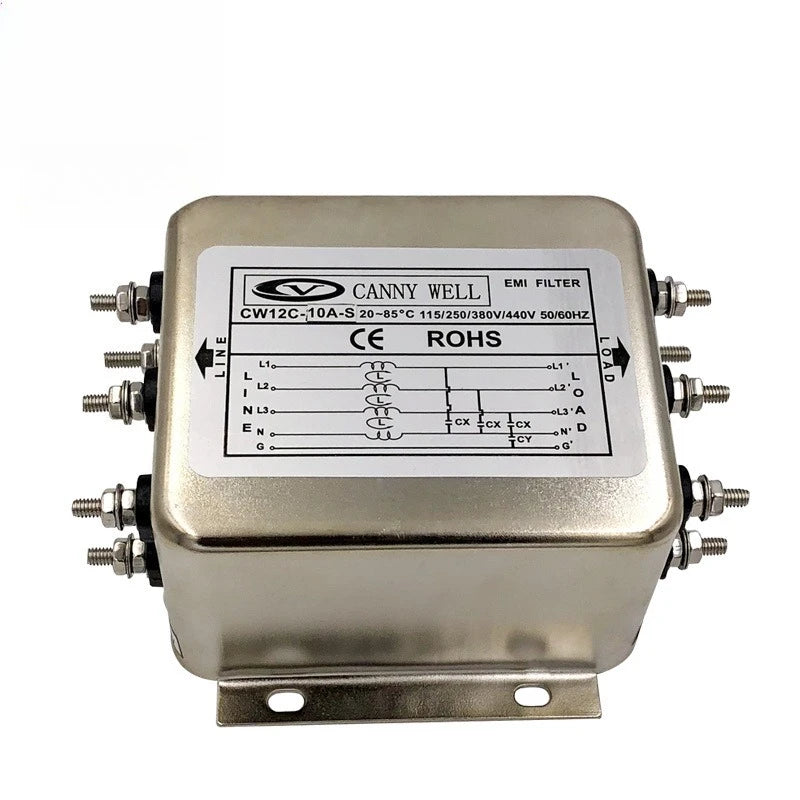

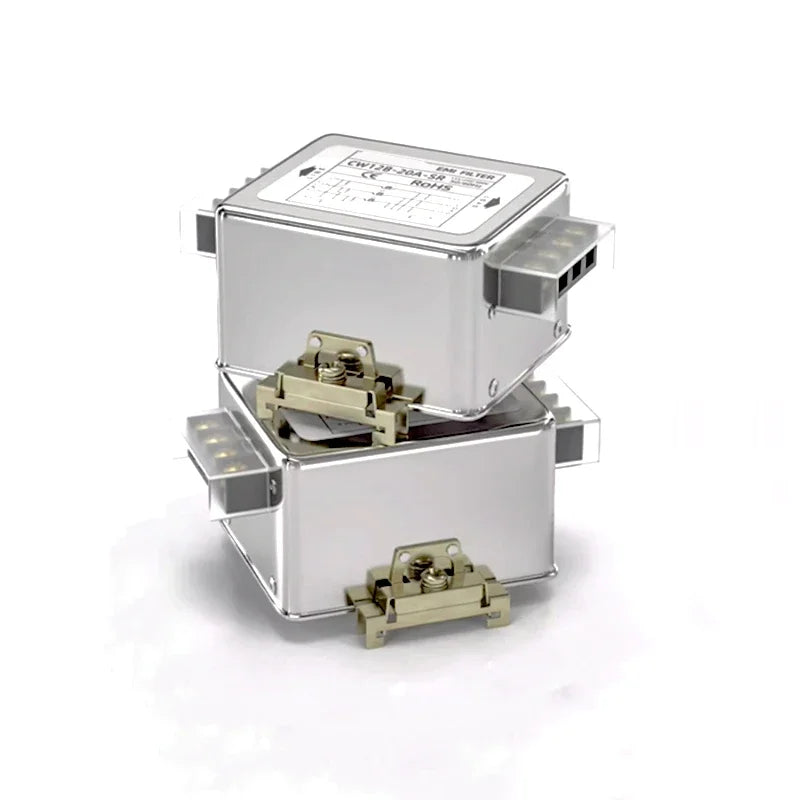

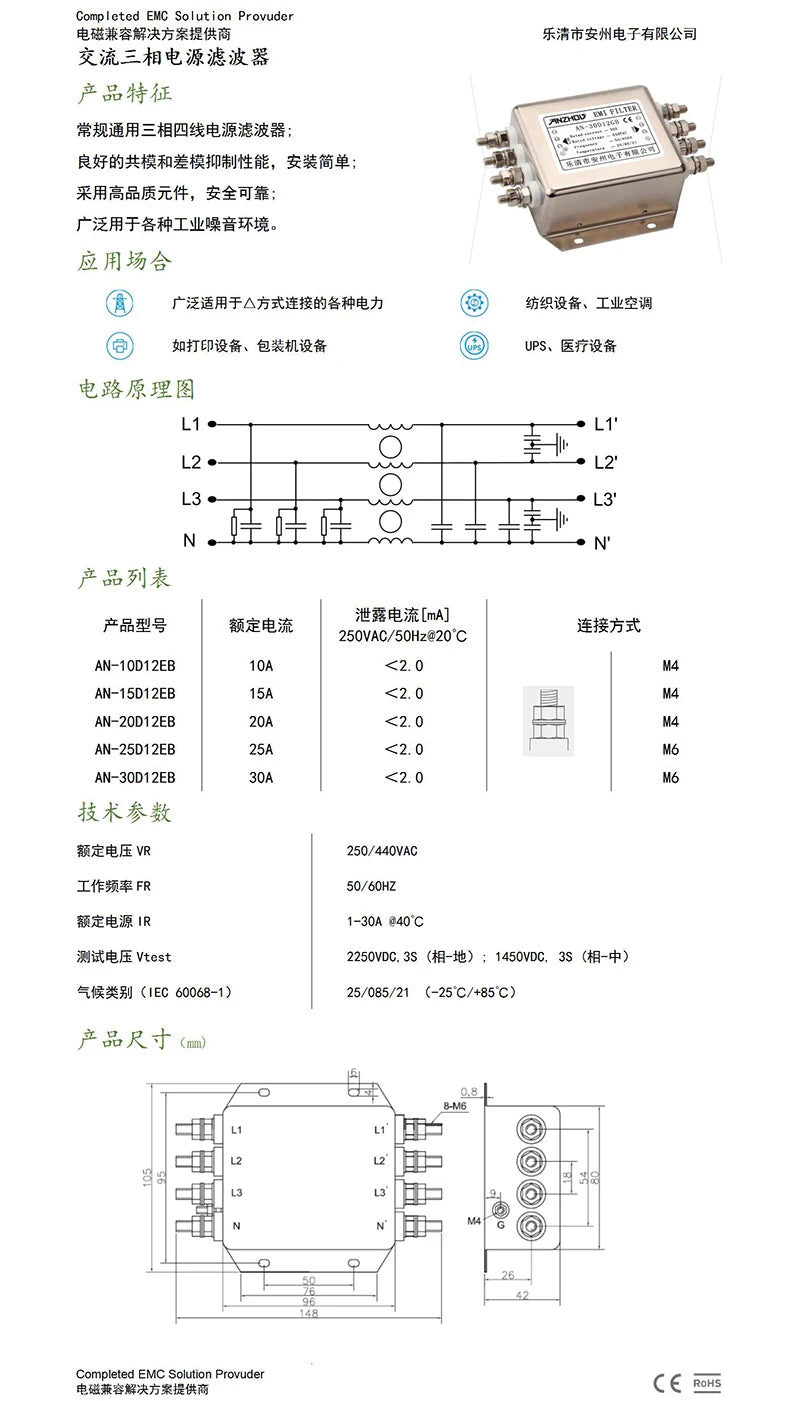

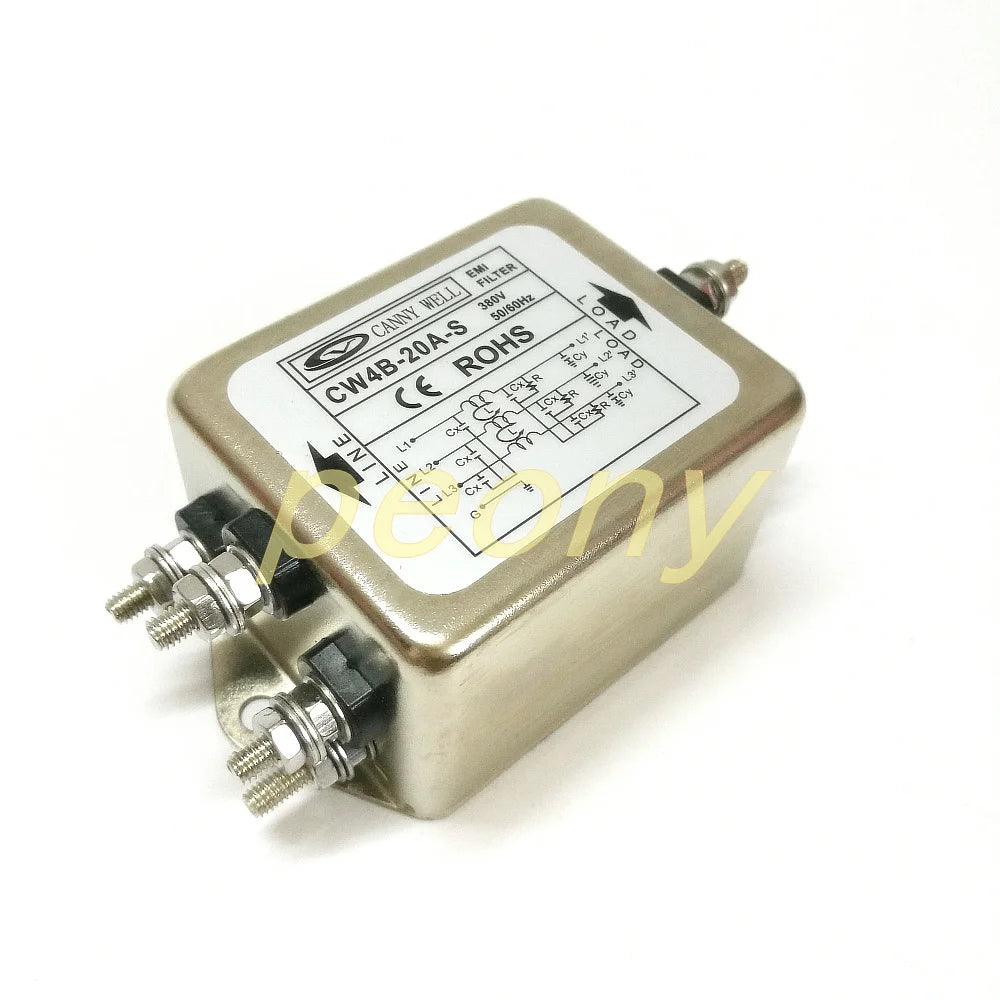

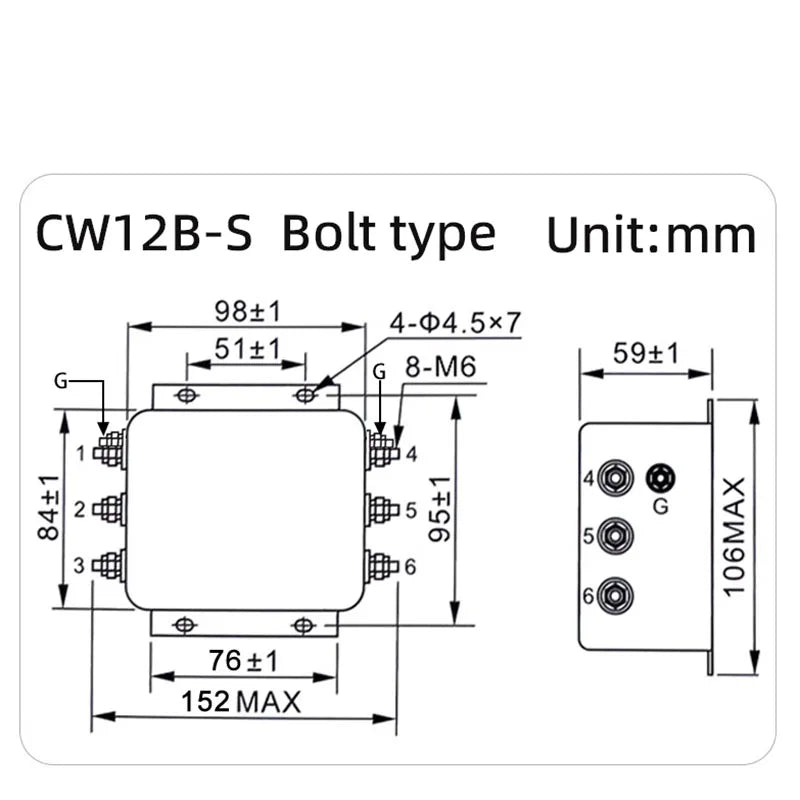

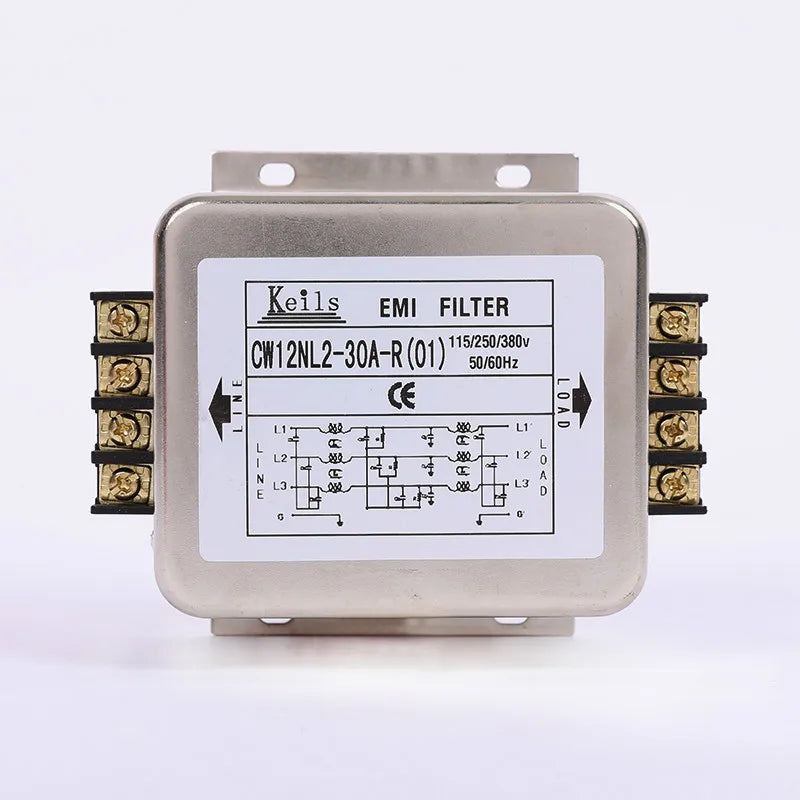

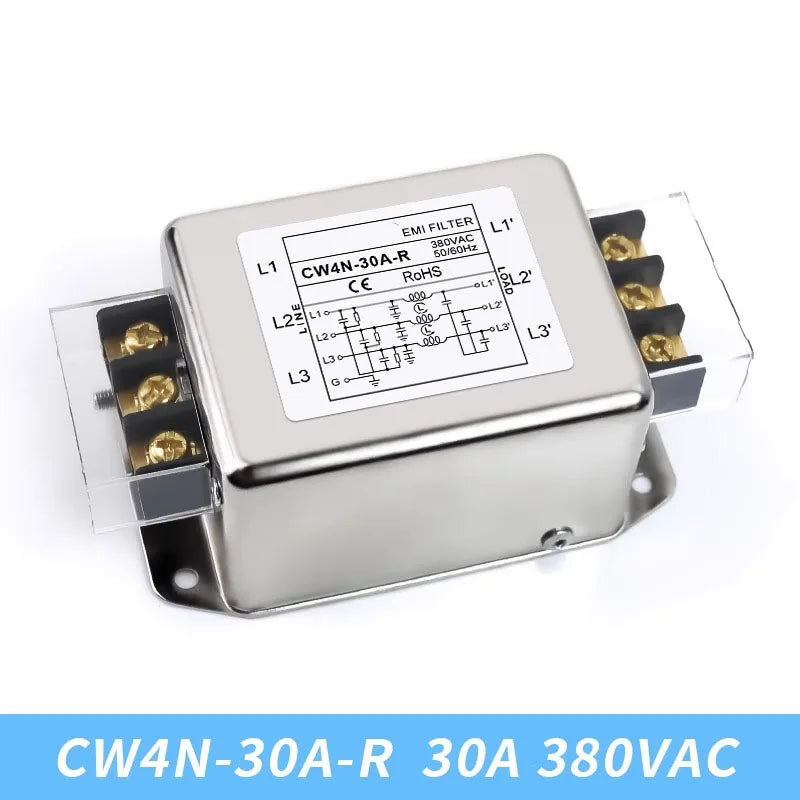

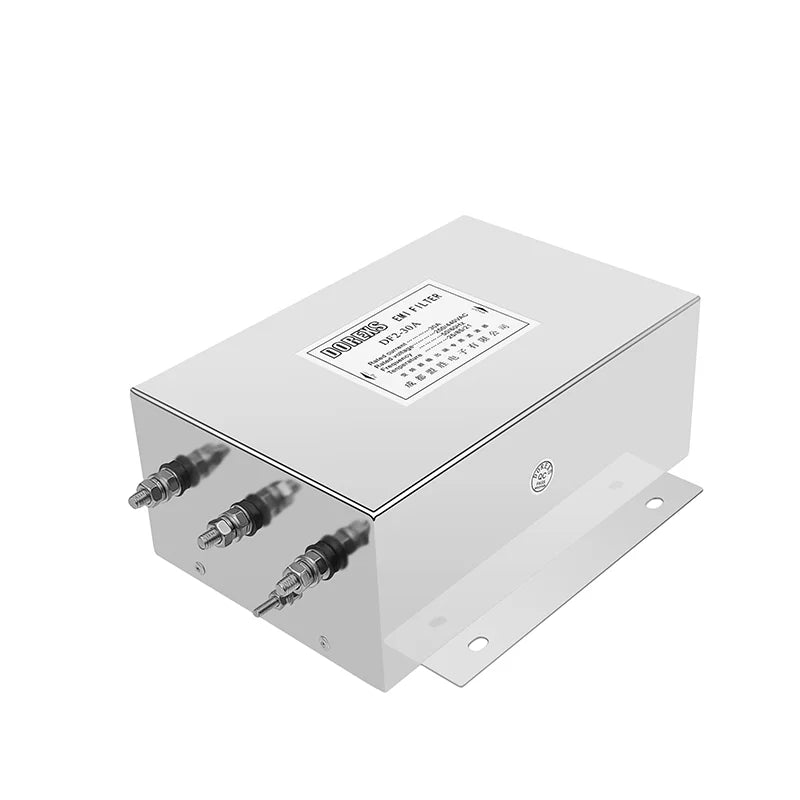

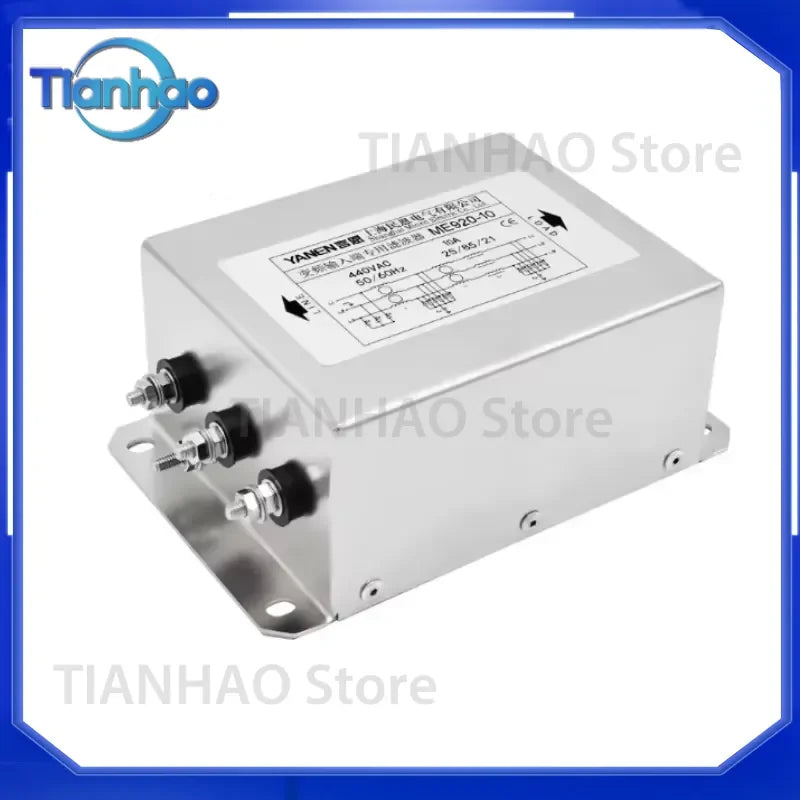

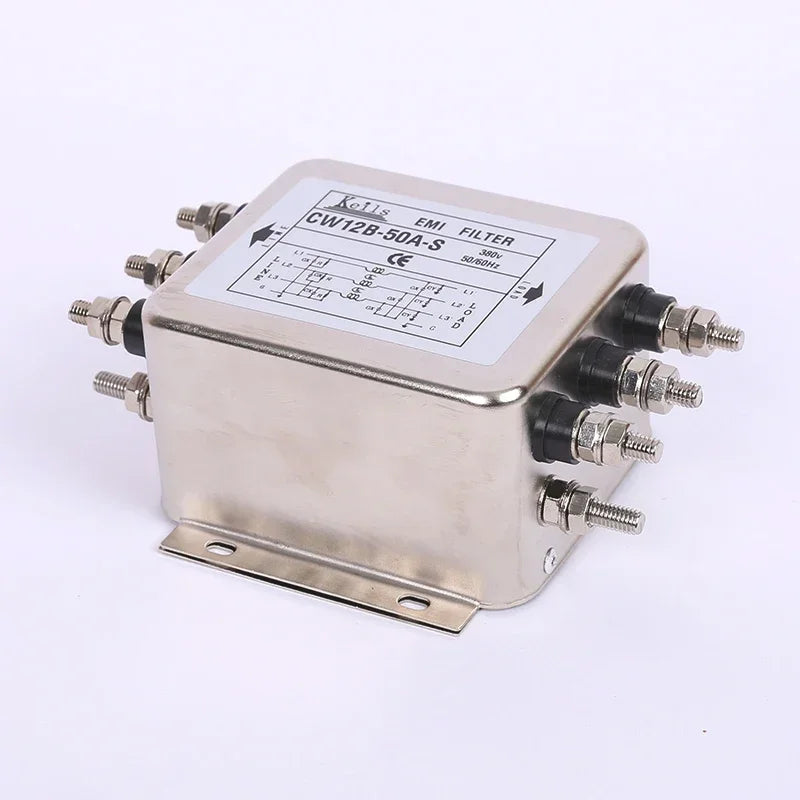

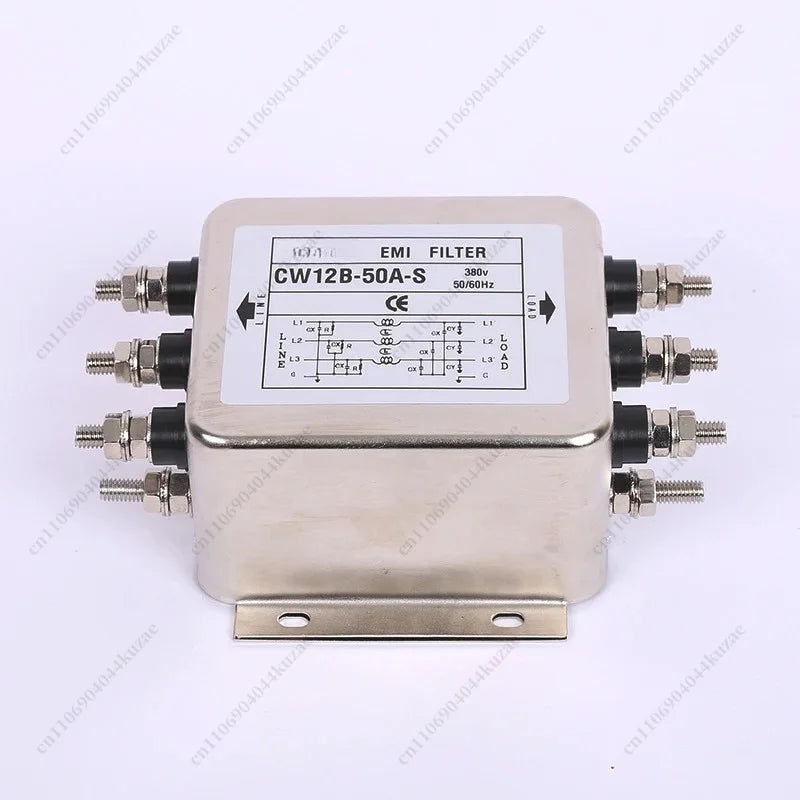

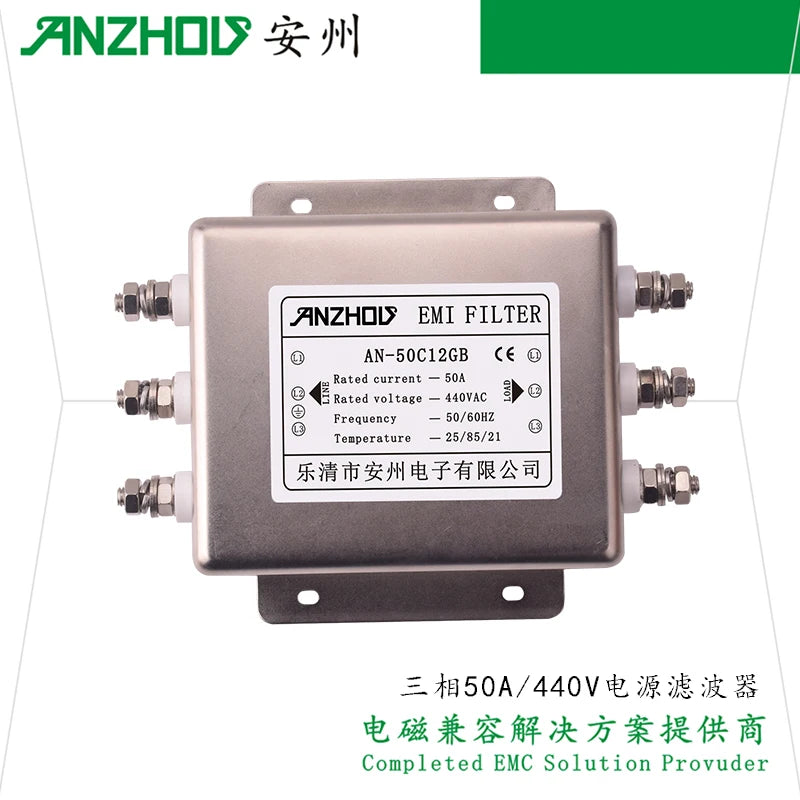

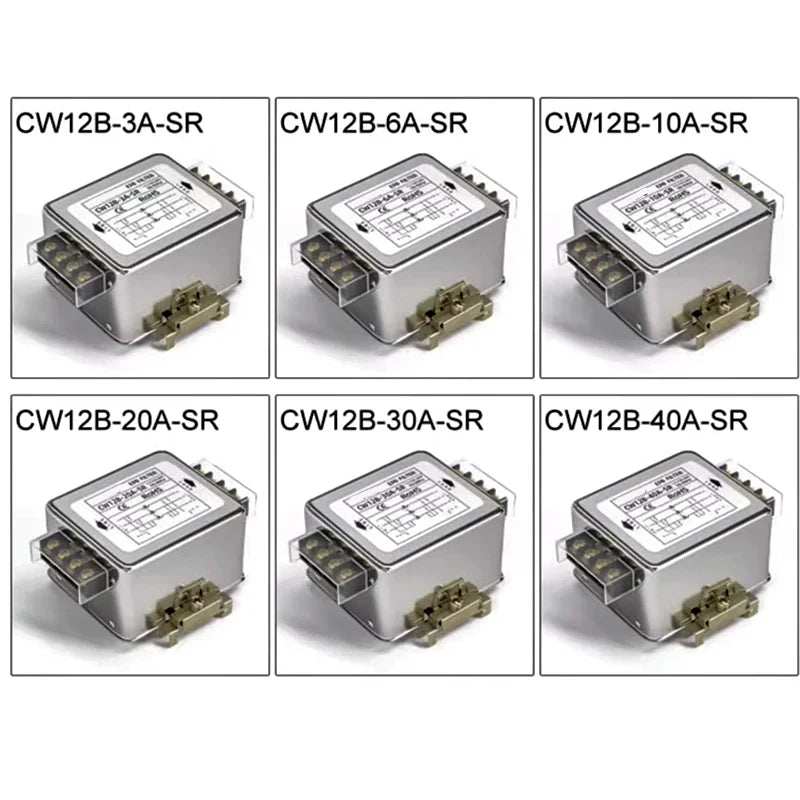

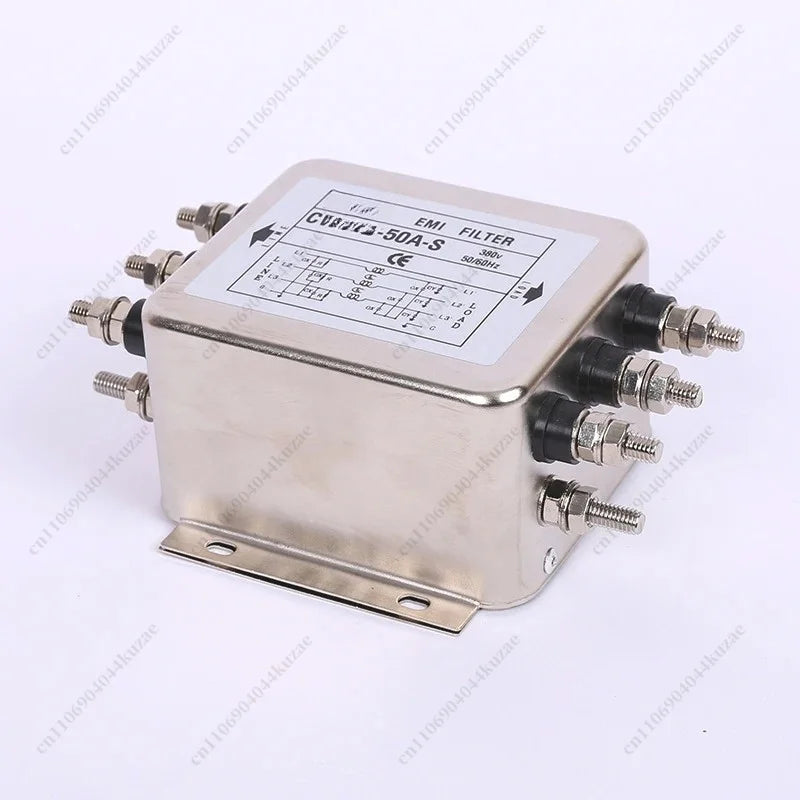

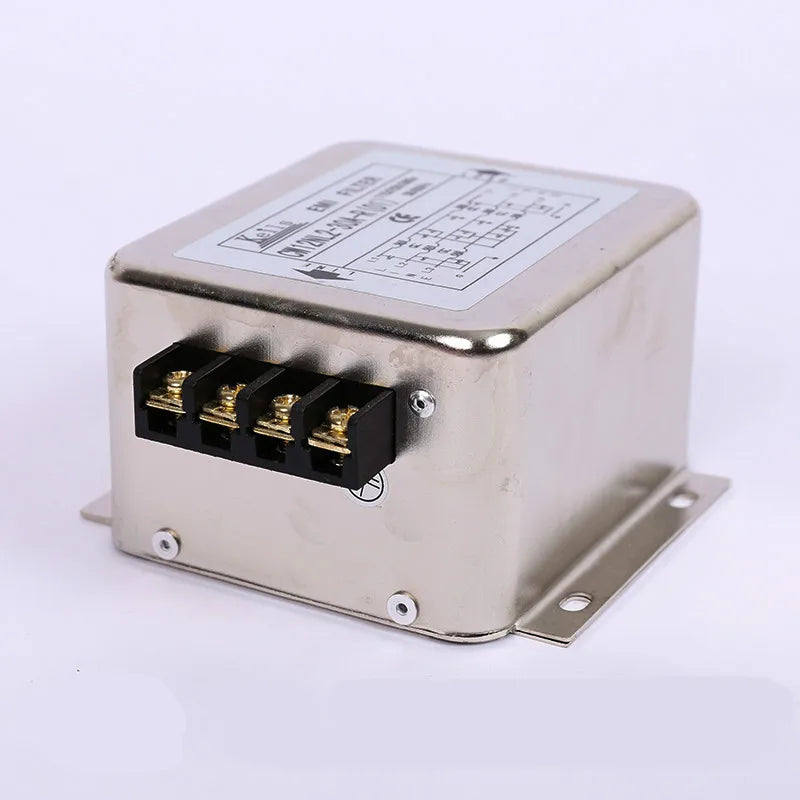

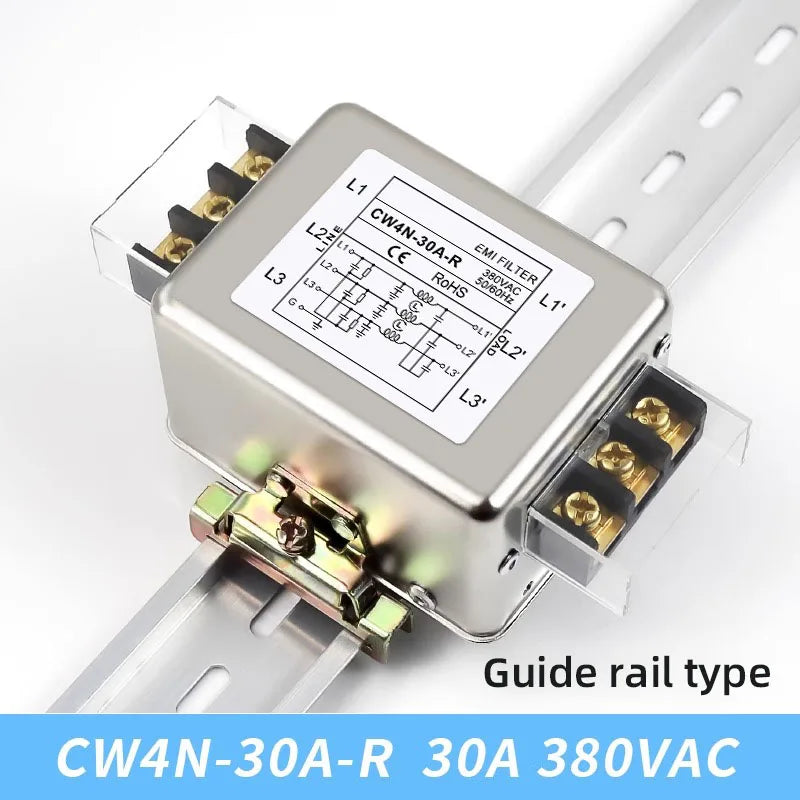

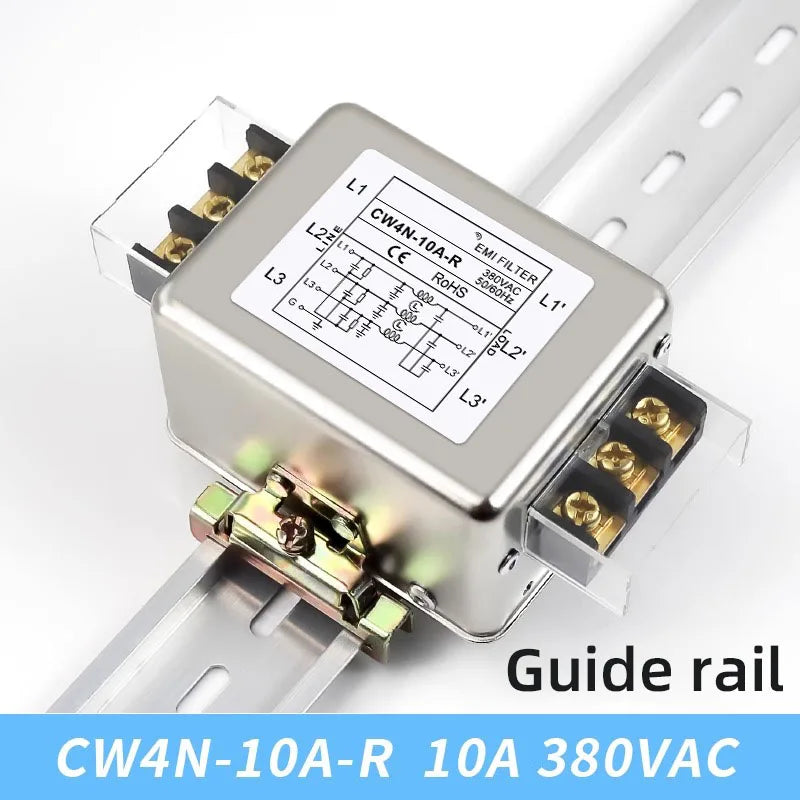

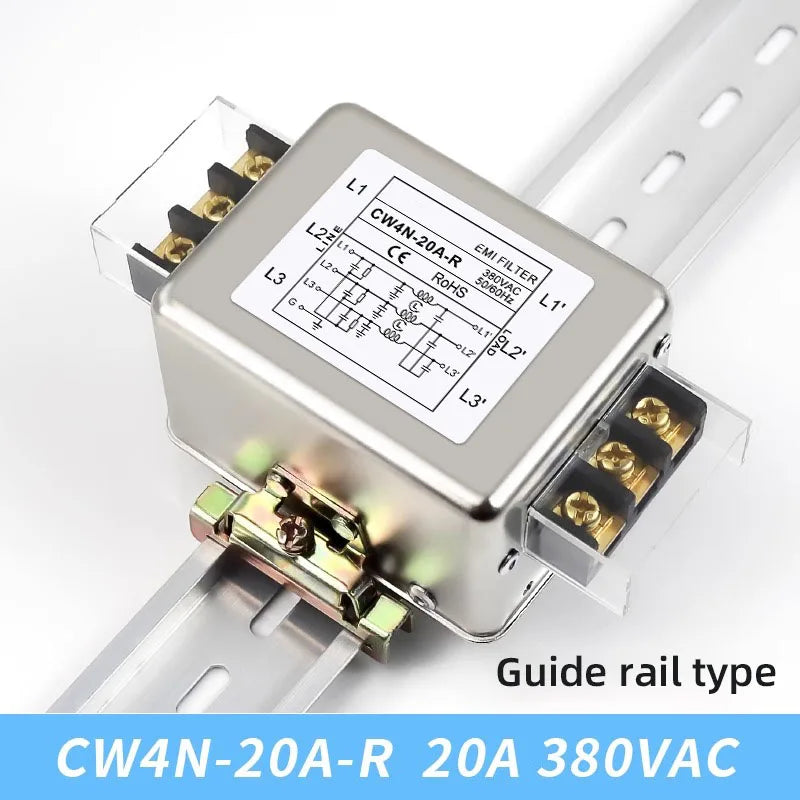

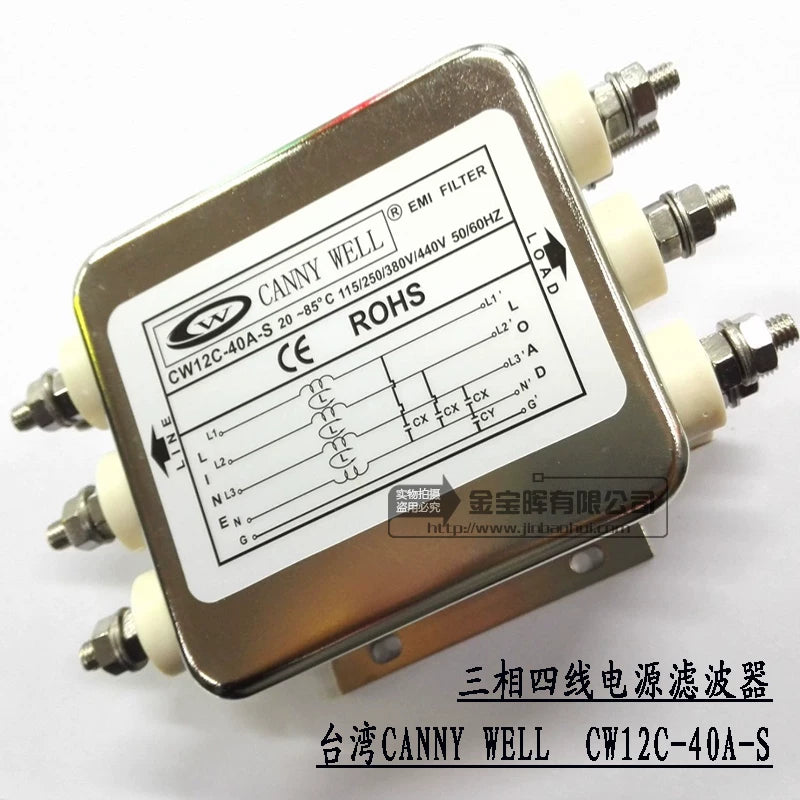

- Industrial three-phase AC power-line filters: CW12B, CW12C, CW4B, CW7N and other inverter/servo listings describe 380/440 V-class systems with model-dependent current choices and three-wire or four-wire configurations. The neutral arrangement, phase count, voltage, terminals and enclosure must match the installation. A listing that mentions both 3-wire and 4-wire models does not make any individual variant both.

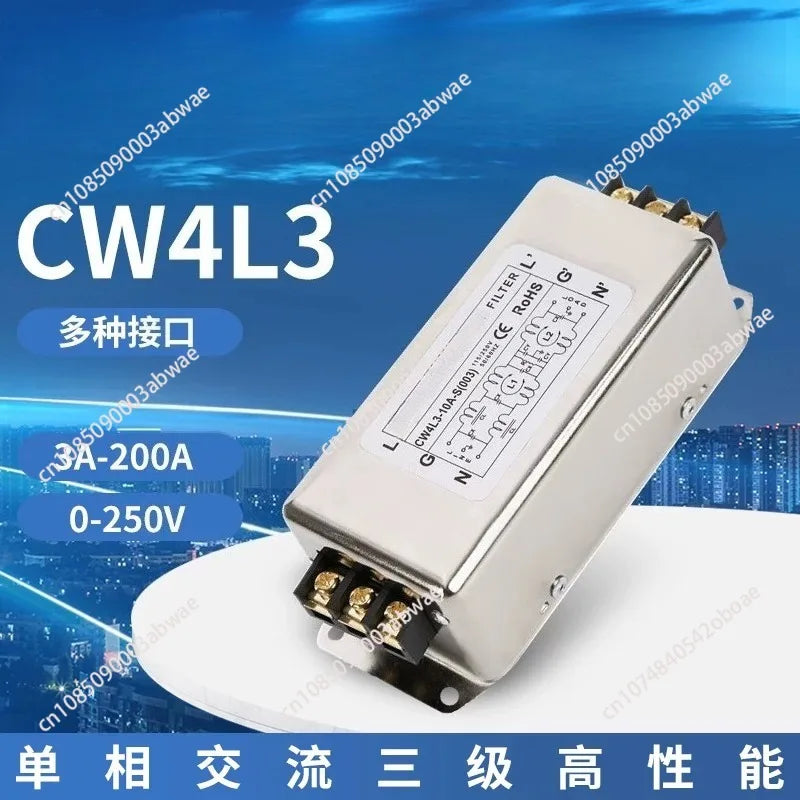

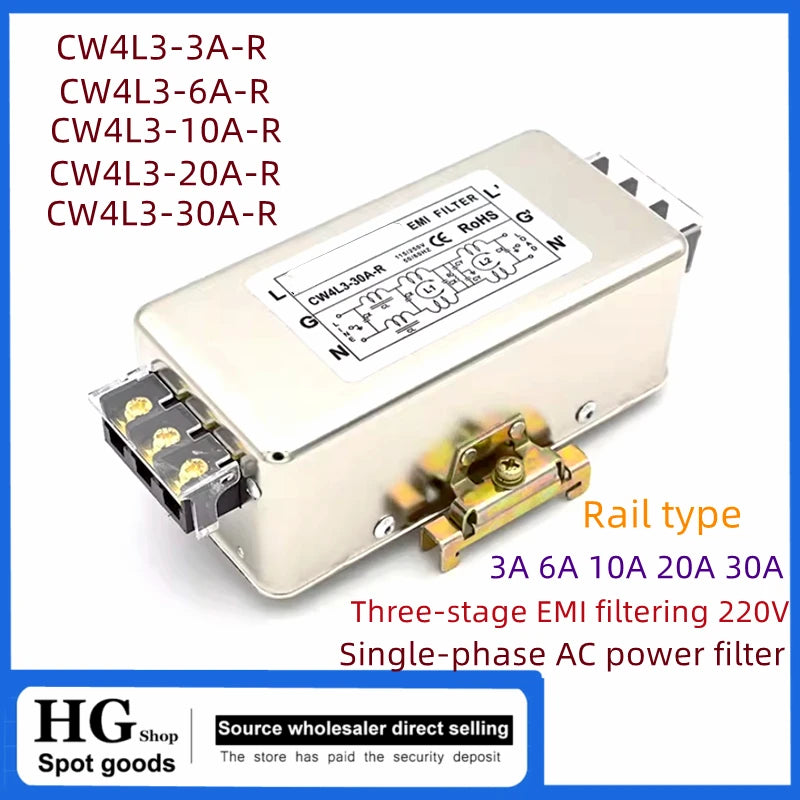

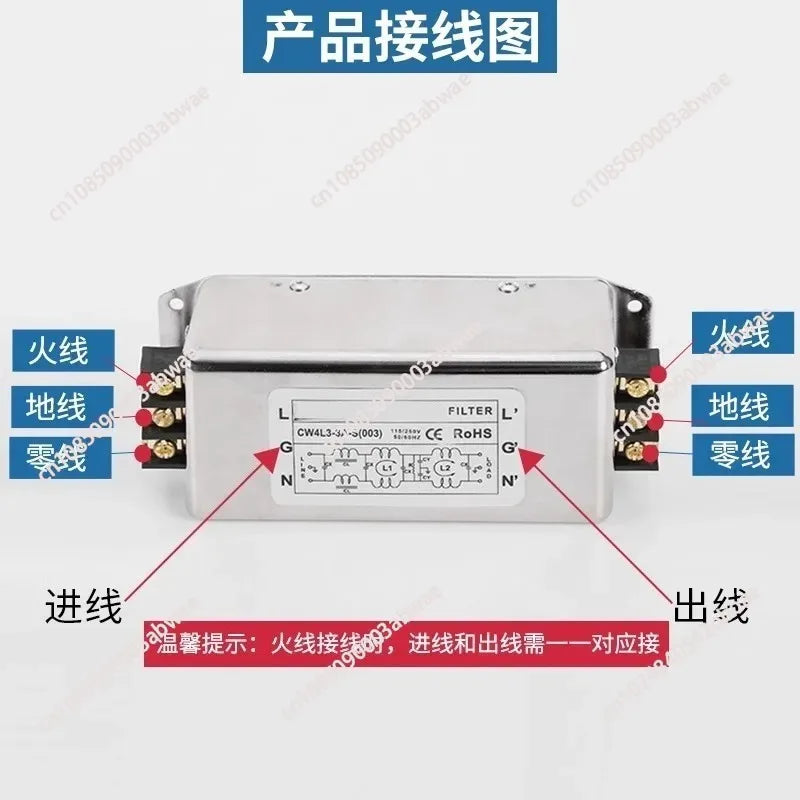

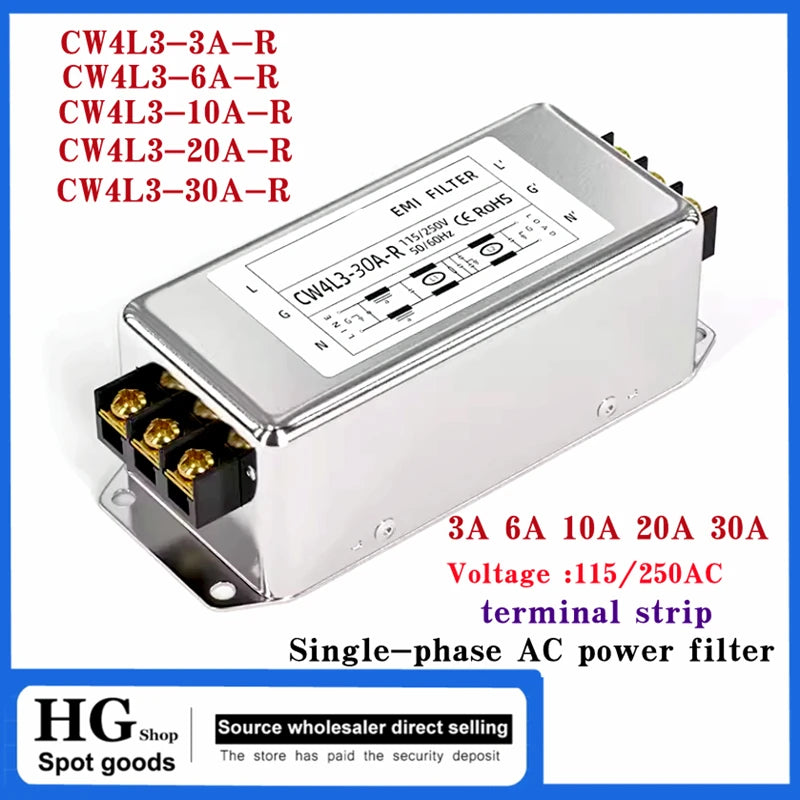

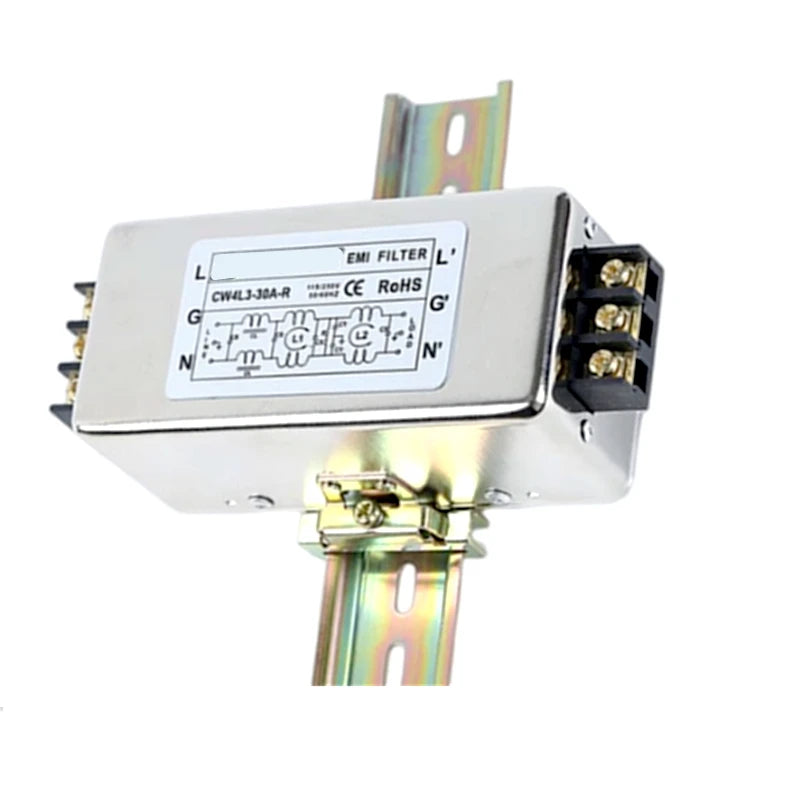

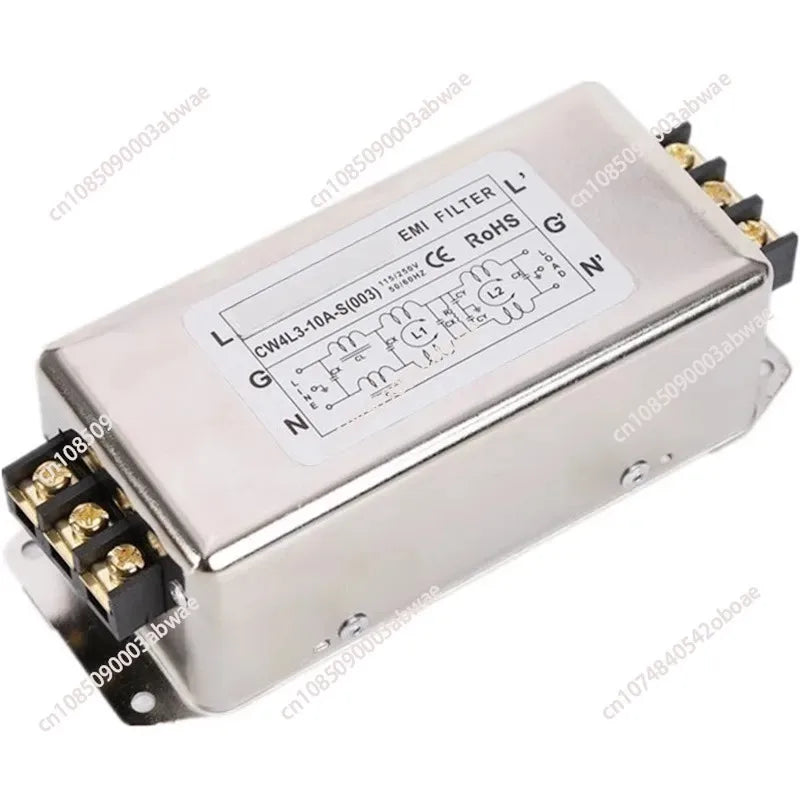

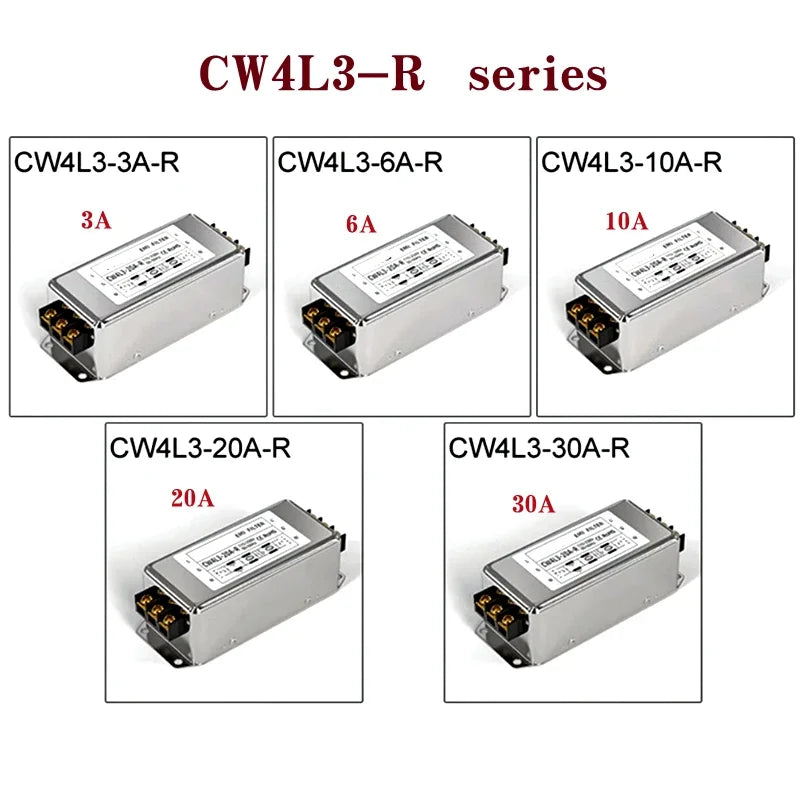

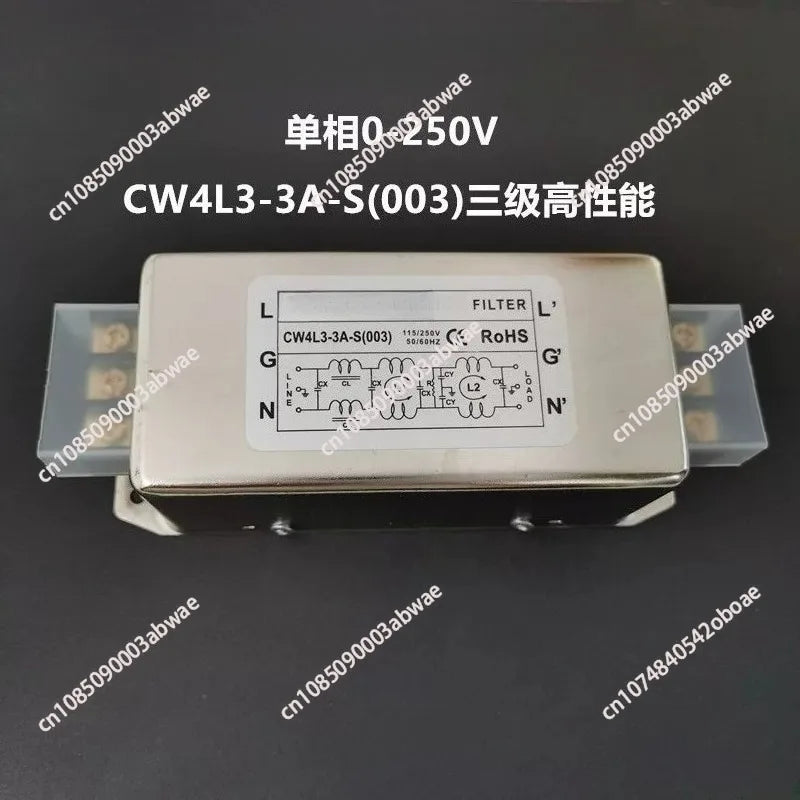

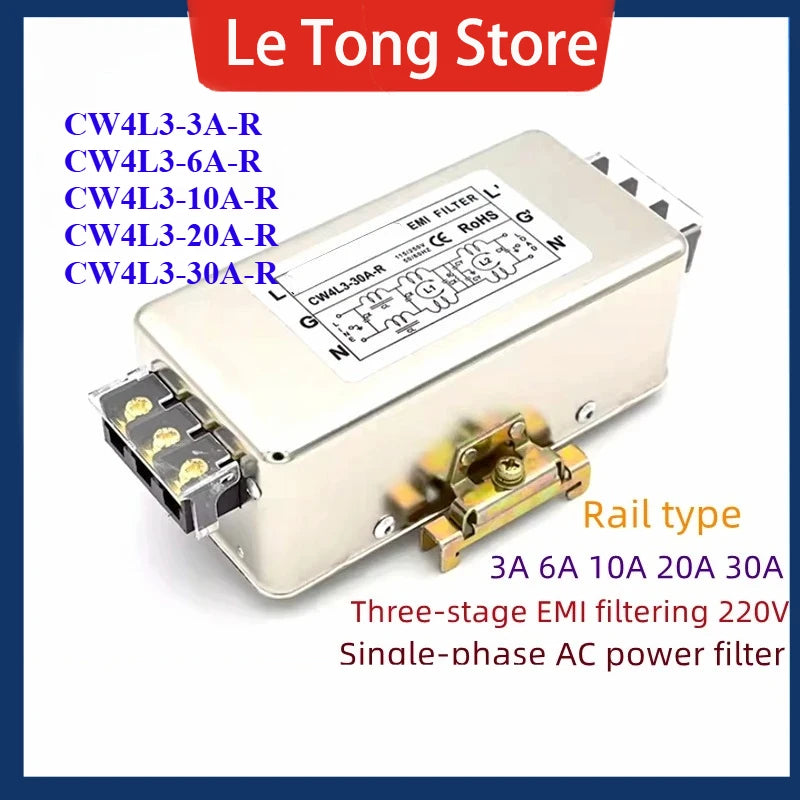

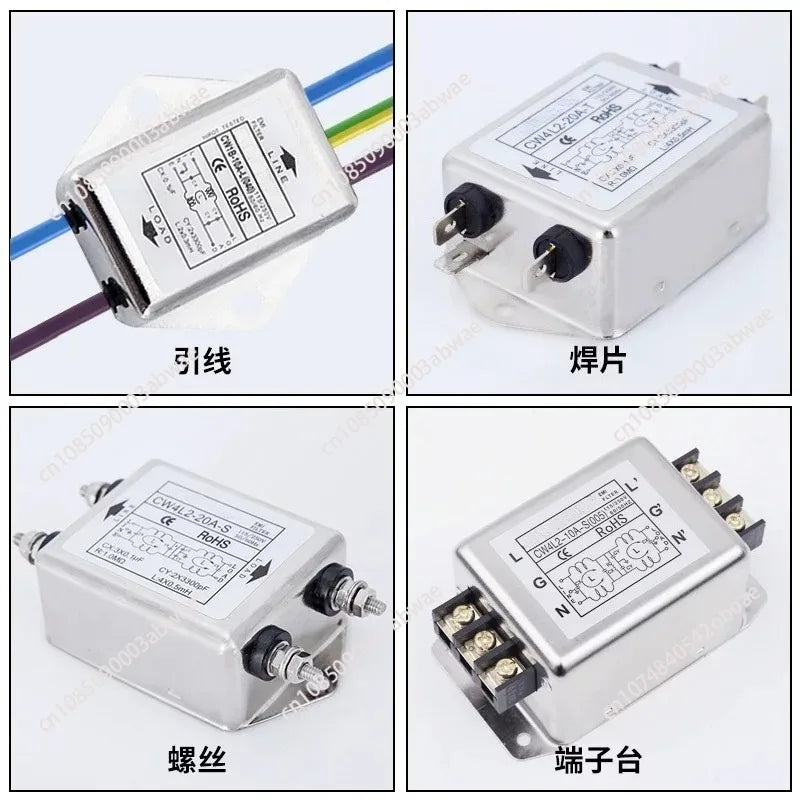

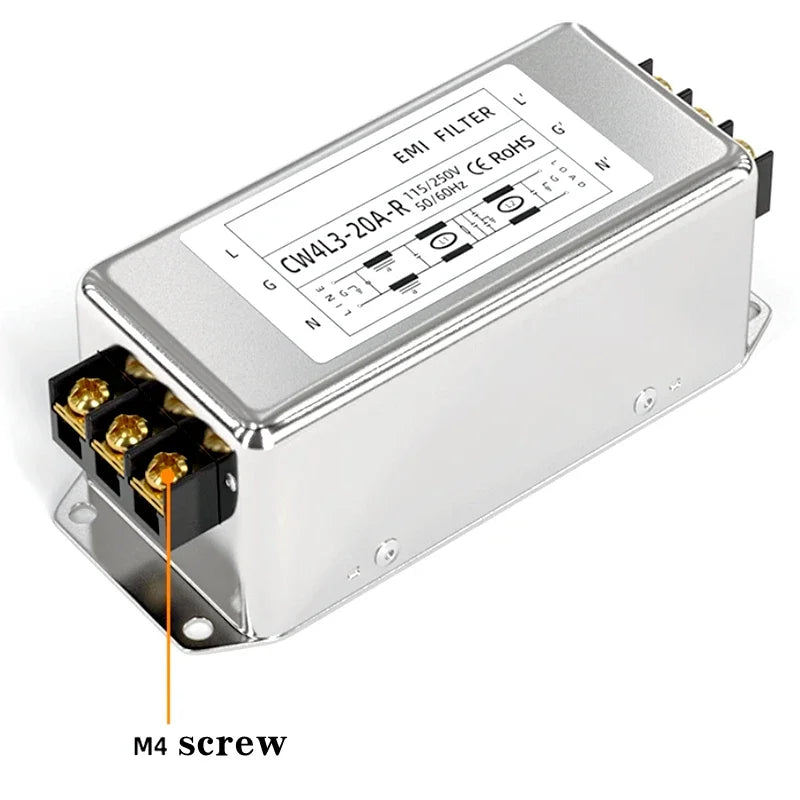

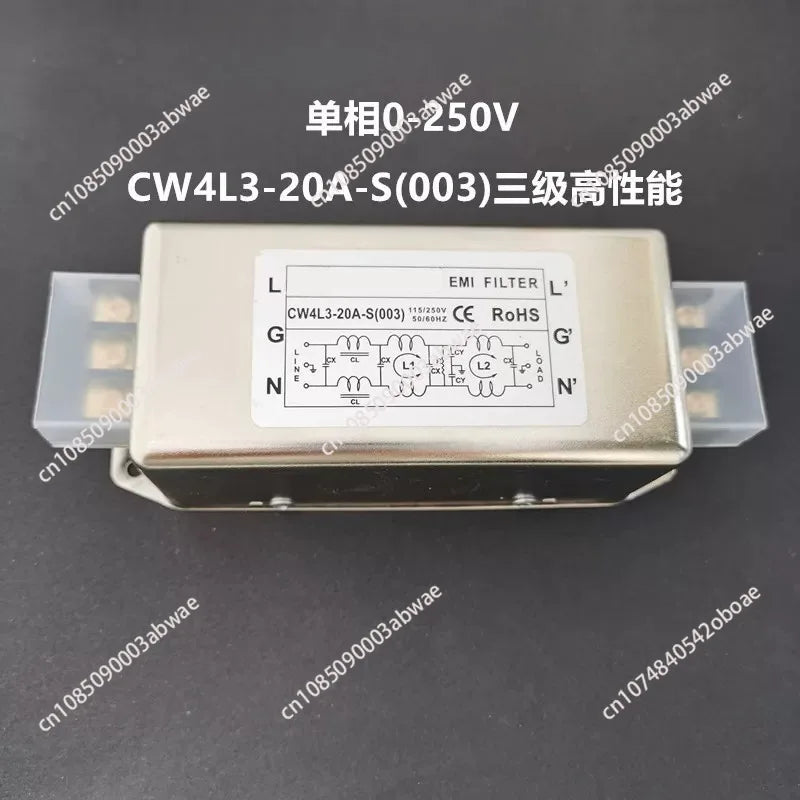

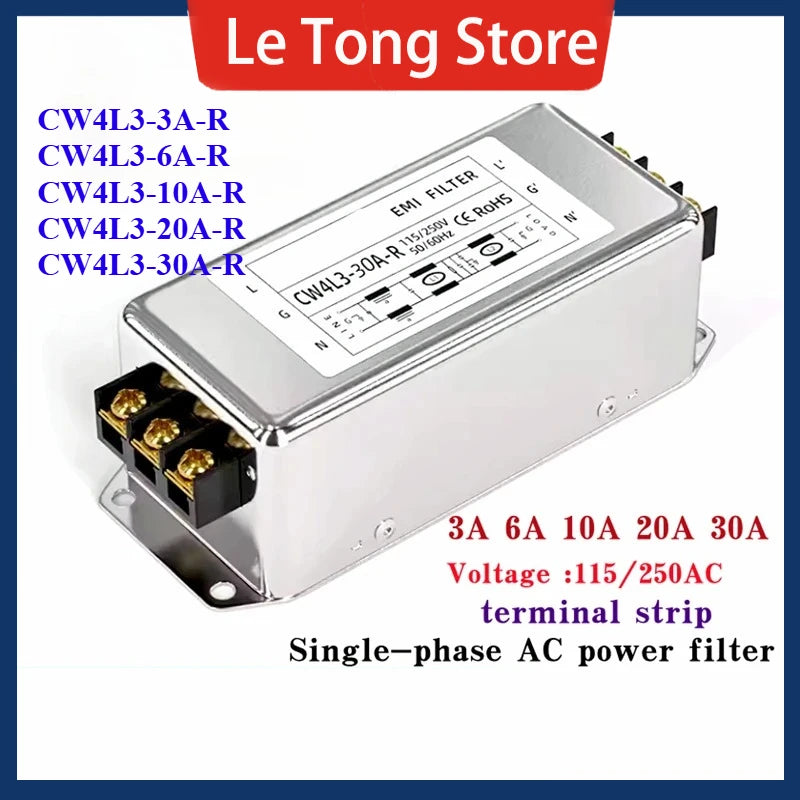

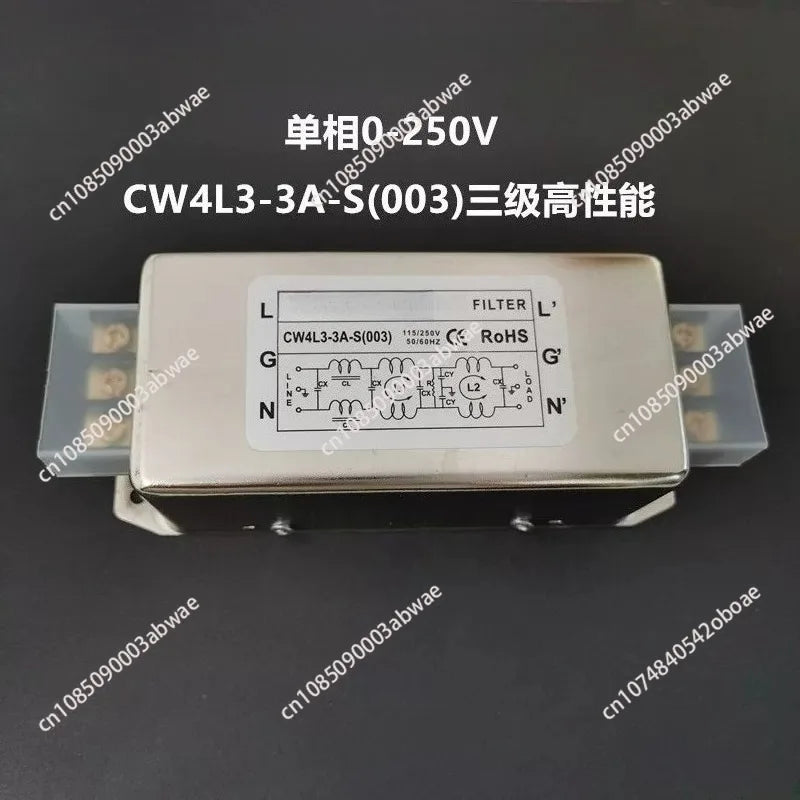

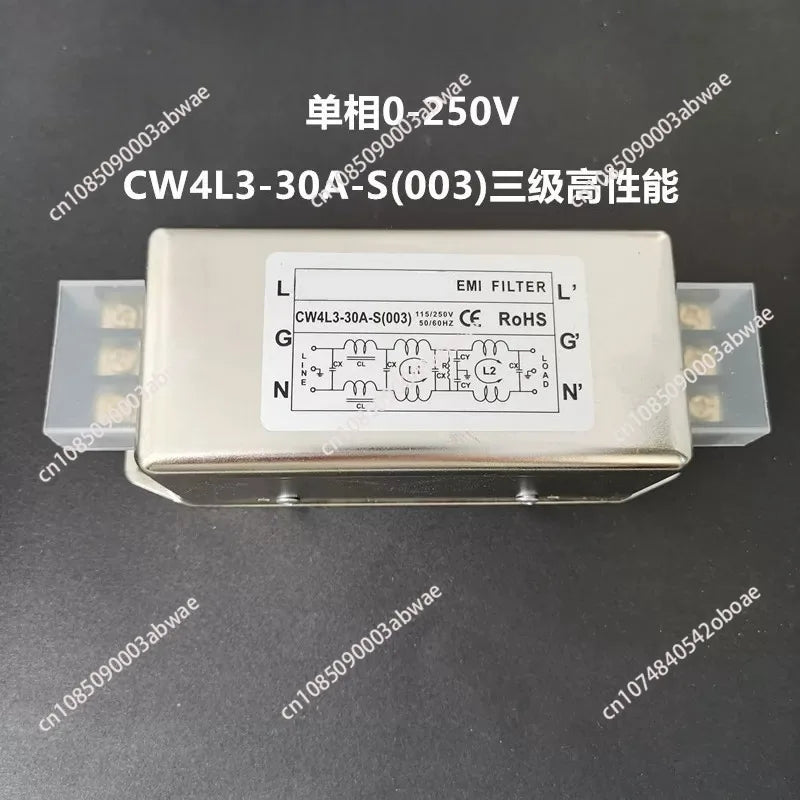

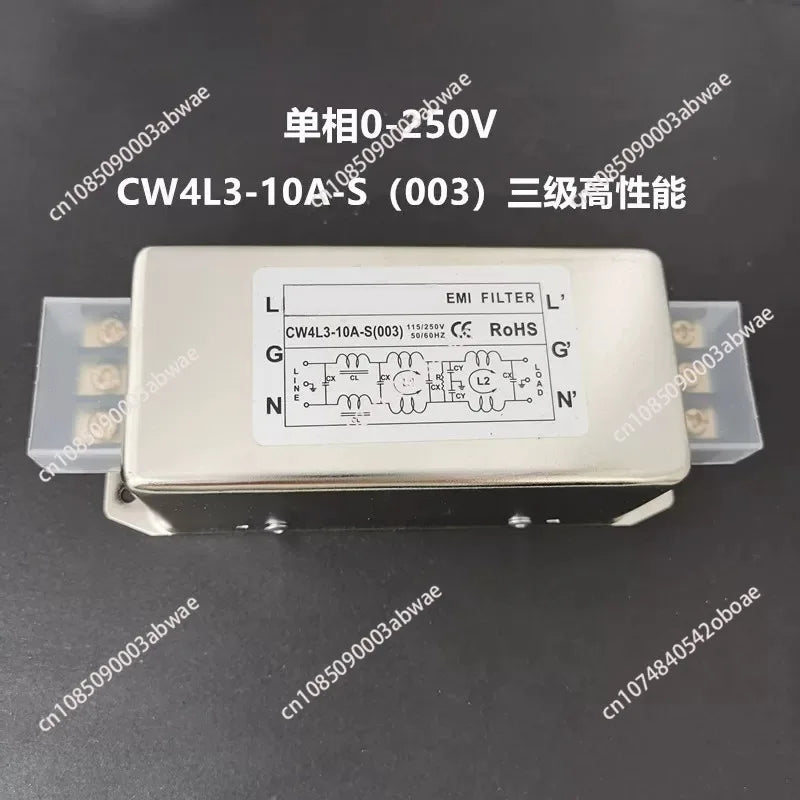

- Single-phase AC filters: CW4L2, CW4L3, CW4L4, CW1B, CW1D and CW2A families include bolt/terminal, rail-mount, wired and IEC inlet styles with differing current and 115/250 V-class claims. Compare LINE/LOAD identification, earth connection, leakage current, mounting clearance and exact part-level ratings. A filtered IEC socket may include a switch or fuse holder, but those features are not guaranteed for every option.
- AC audio and DIY filter boards: open PCB modules and enclosed power accessories marketed for amplifiers or audio systems are not interchangeable with properly enclosed, qualified line filters. “Four-stage,” “power purifier,” “DC blocker,” “isolator,” “surge” and “lightning protection” are distinct claims; no filter stage count, 20 A or 4400 W headline proves a selected board's attenuation, galvanic isolation, surge protection or regulatory approval.
- Low-voltage DC filters: 12/24/48 V car-audio LC boards, 0–50 V amplifier supply boards and other DC-only modules are intended for specified supply rails. Match input/output polarity, operating voltage, continuous and peak current, ripple frequency, impedance and thermal limits; do not connect them to AC mains on the basis of a shared “EMI filter” title.
- Ferrite and magnetic parts: snap-on cable cores, hollow beads and SMT/through-hole common-mode chokes are components for circuit or cable-level suppression, not completed power filters. Compare cable inner diameter or winding pinout, impedance versus frequency, insertion loss in the actual circuit, DC resistance, rated current and saturation or bias behavior. Inductance in µH/mH does not alone establish EMI attenuation.
- Other listings: a passive 88–108 MHz FM broadcast notch filter concerns an RF signal path, not mains line noise. An inverter with a built-in filter is a complete drive, while a refrigerator spare filter, an IEC connector and an X2-labelled capacitor kit need their own equipment or safety specifications. An X2 marking in a listing does not verify certification for each selected capacitor.
How to select an EMI filter
- Identify whether interference travels along AC input, DC supply, a cable or an RF signal line, and whether it is common-mode or differential-mode. Choose a device category for that path before comparing model names.
- Match phase and wiring configuration, AC versus DC voltage, normal and peak current, line frequency, connection type and installation environment. For mains applications review leakage current, protective earth, insulation and the equipment's applicable safety requirements.
- Look for measured attenuation or impedance over the frequency range that matters, with specified source/load impedance and test conditions. “Noise reduction” alone does not predict an audible or EMC result; system layout and grounding can dominate performance.

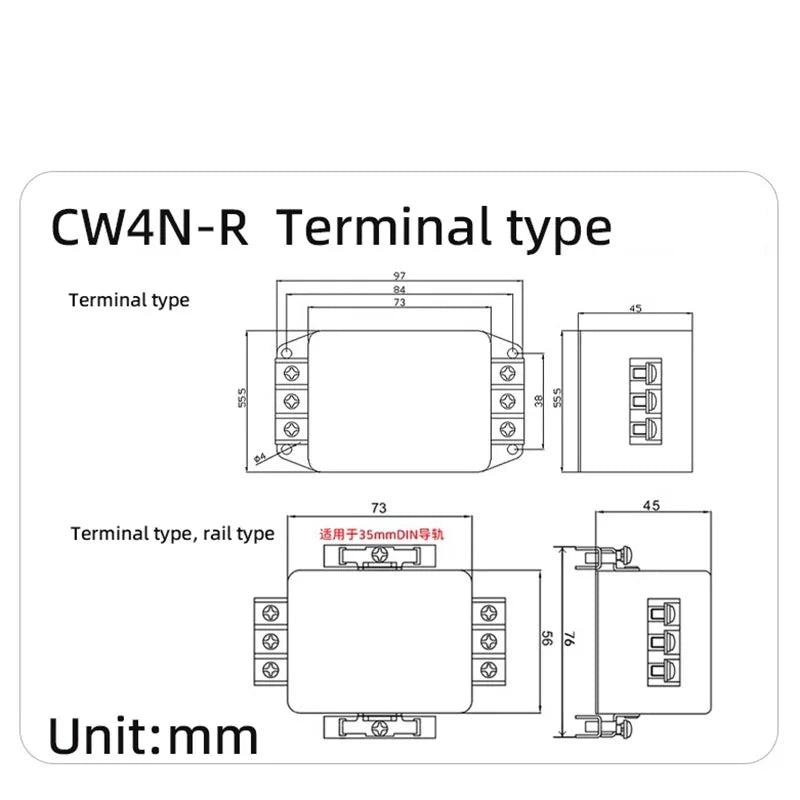

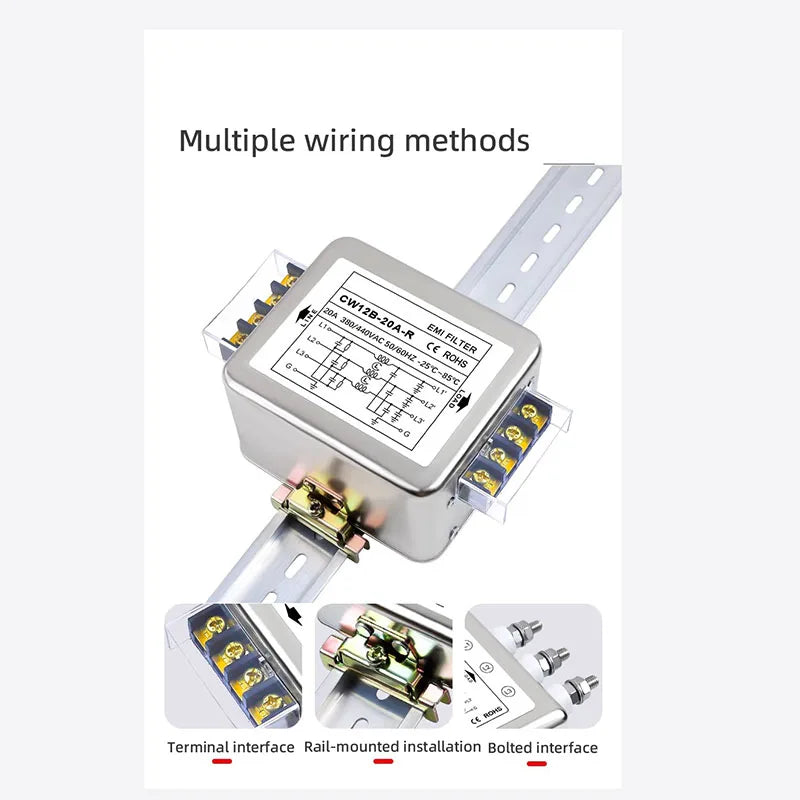

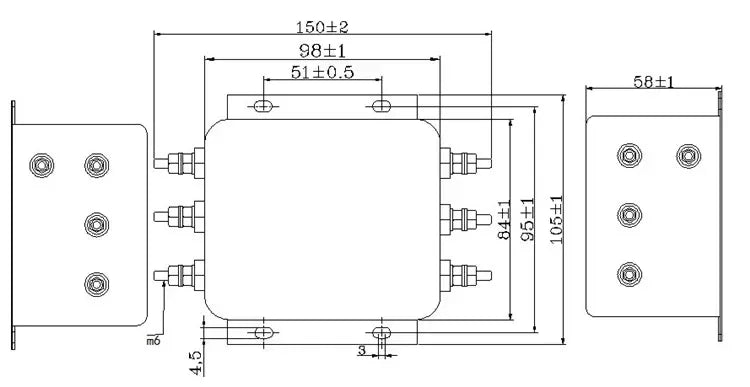

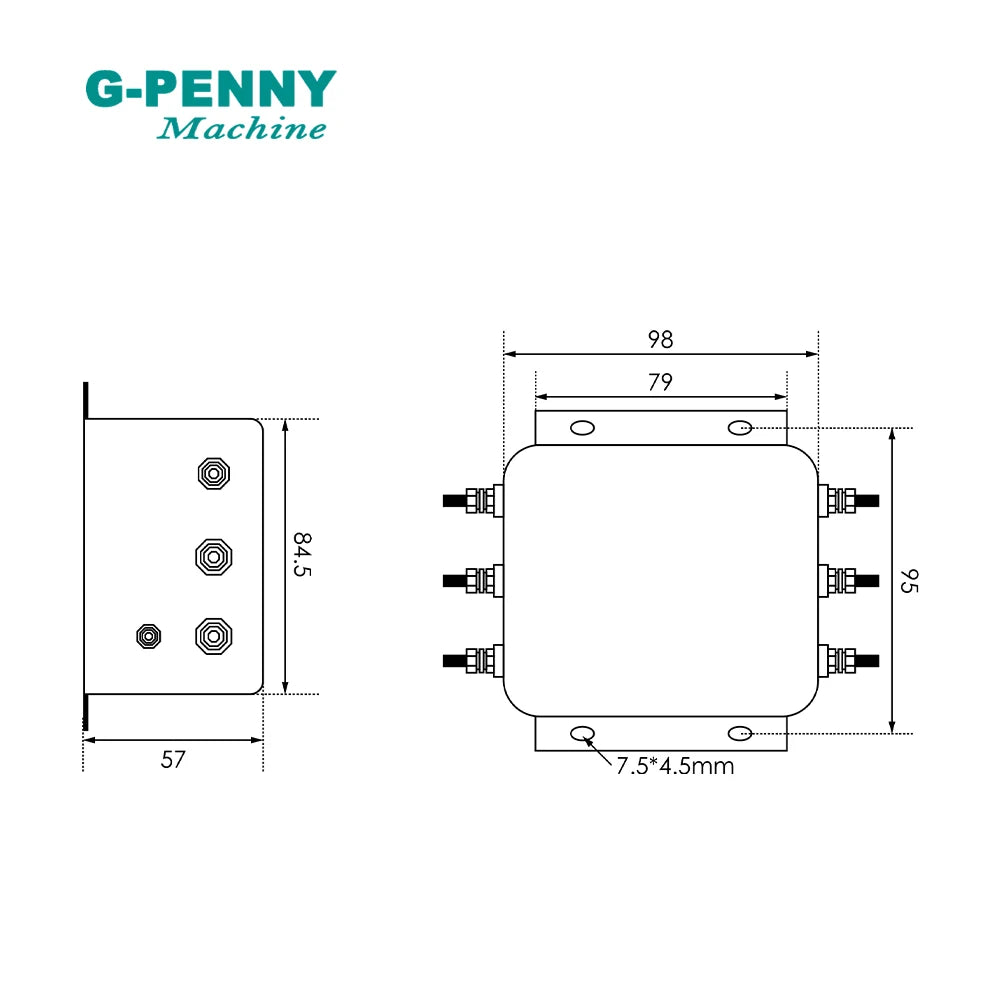

- Compare dimensions and variant-specific terminals: 3-phase three-wire versus four-wire, DIN rail versus bolt fixing, IEC inlet versus loose PCB, or clip-on core versus four-pin choke. Confirm whether a housing, switch, fuse or accessory is actually supplied.
- For safety-critical or compliance work obtain traceable datasheets and certificates for the exact selected model. Seller claims such as CE, FCC, RoHS, surge protection or genuine brand provenance cannot be transferred to every variant in a shared listing.
Buying checklist and applications
Record the noise source and target band, supply type, phase/wire count, operating voltage and current, expected fault conditions, mounting and thermal space, allowable leakage, earth arrangement, attenuation test conditions and exact package contents. These products appear in inverter, CNC, power-supply, audio, vehicle and cable-noise projects, but application keywords do not establish equipment compatibility. Mains and high-current installation must follow the equipment manufacturer's instructions and qualified electrical practice; this page does not provide a general wiring procedure.
Frequently asked questions
Is a three-phase EMI filter suitable for a single-phase amplifier?
Not on the basis of its current rating. Match phase, conductor arrangement, voltage, leakage, grounding and the original equipment specification.
Does an EMI filter also protect against lightning or surges?
Not inherently. Conducted-noise attenuation and surge protection are separate functions; check documented protection and safety ratings for the selected device.
Can a ferrite cable clamp replace an AC line filter?
No. A ferrite clamp has frequency-dependent cable impedance, whereas an AC line filter is an installed circuit assembly with its own line, load and safety requirements.
Is a low-voltage DC LC filter the same as an 88–108 MHz FM notch filter?
No. One acts on a DC supply path; the other attenuates a defined RF signal band. Match the signal path and frequency response.
