Fast-recovery rectifier diodes are PN-junction devices selected when reverse-recovery behavior matters as well as voltage, current and heat. This collection includes axial FR and UF parts, surface-mount US-series parts, higher-current rectifiers and assortments. Some listings also contain ordinary rectifiers, Schottky devices, bridge modules and unrelated protection-language keywords. The selected variant's part-specific datasheet, not a shared headline, determines whether it is actually fast-recovery and suitable for your switching conditions.
Understand the device families

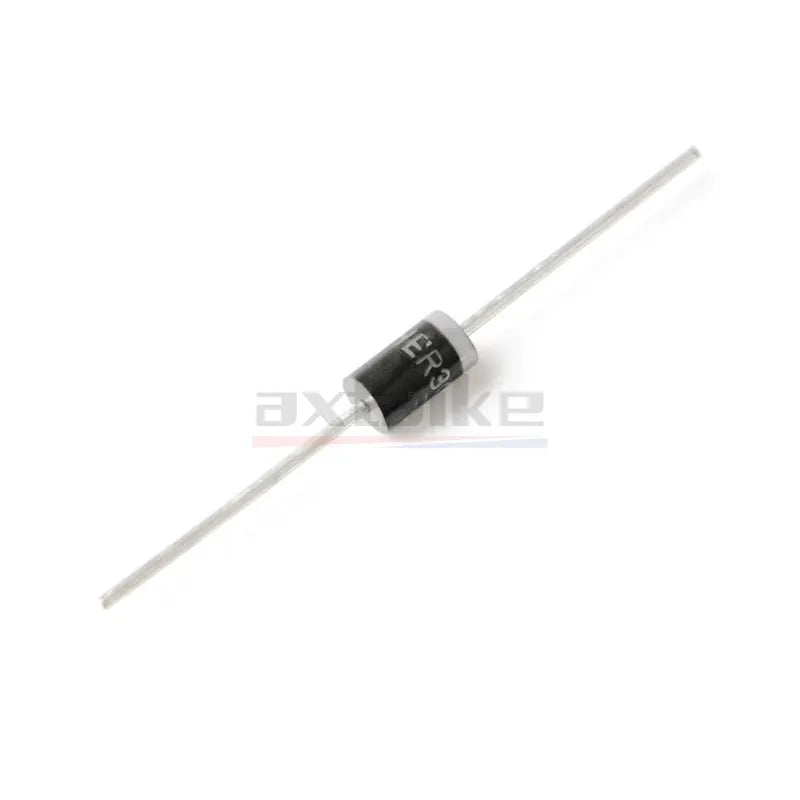

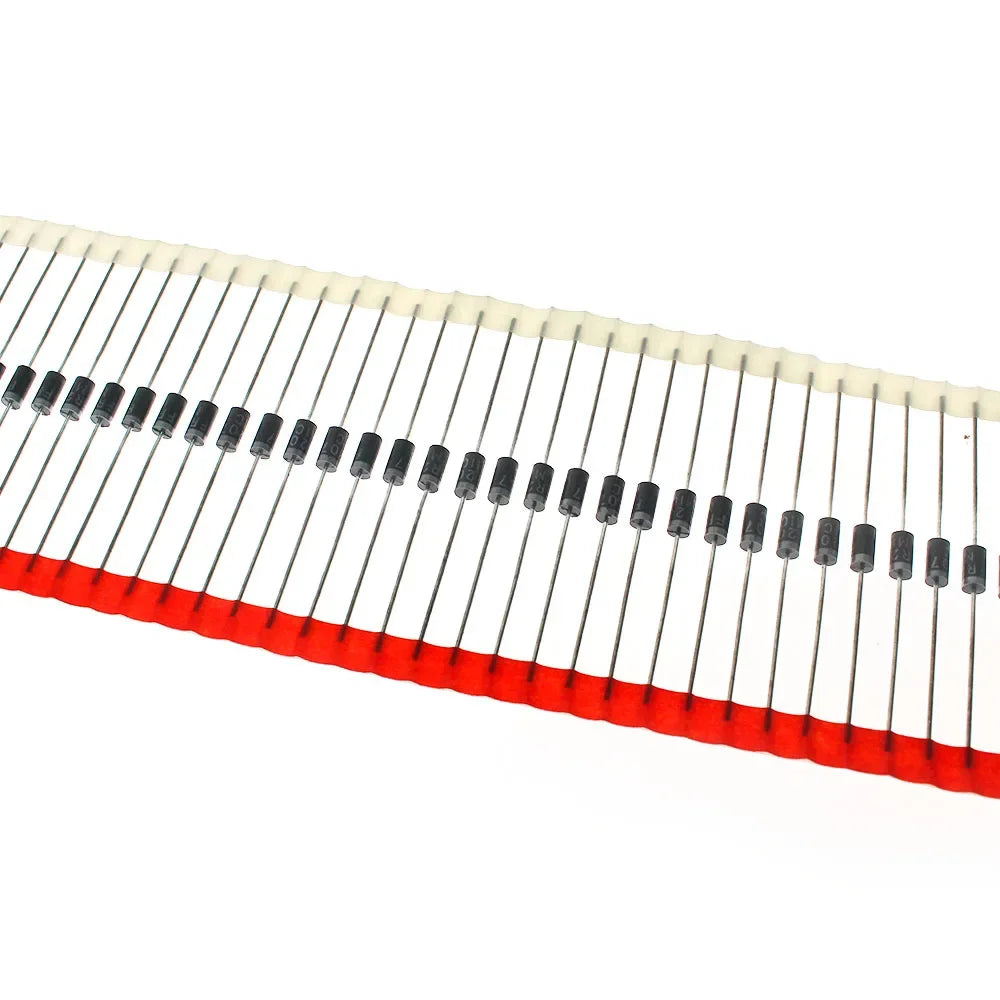

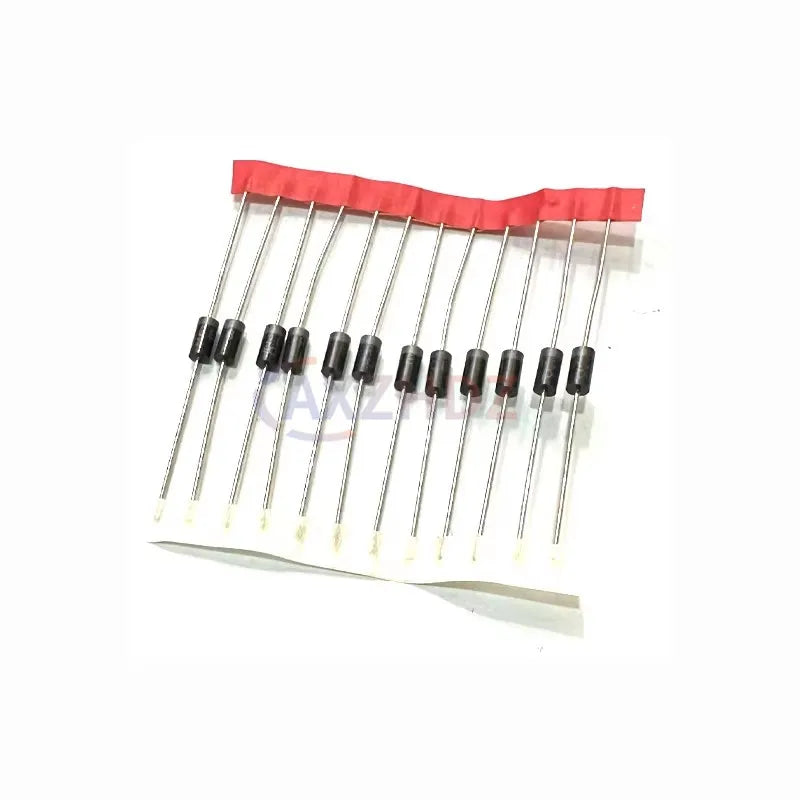

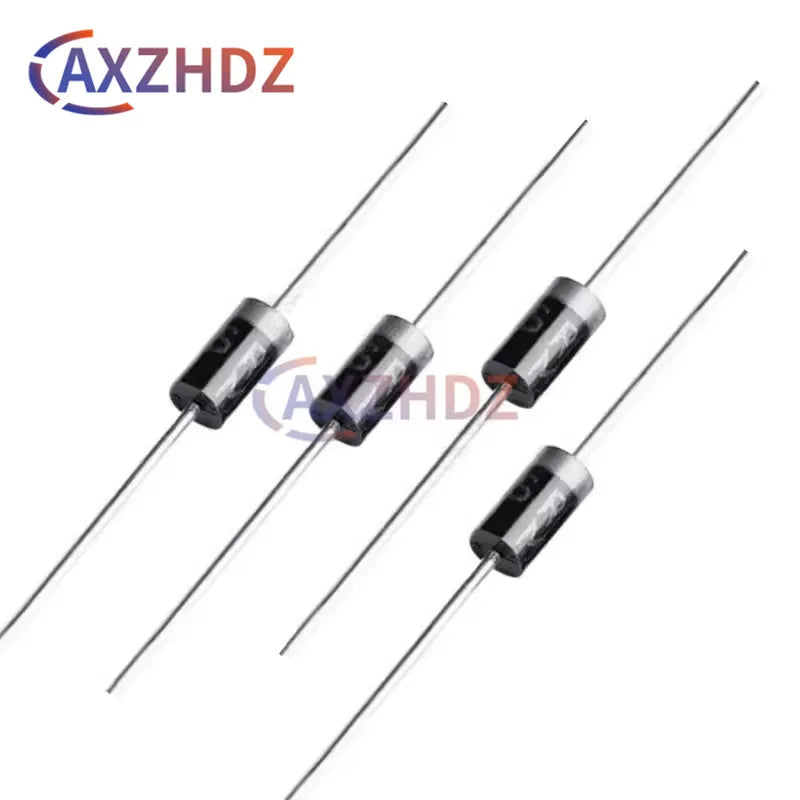

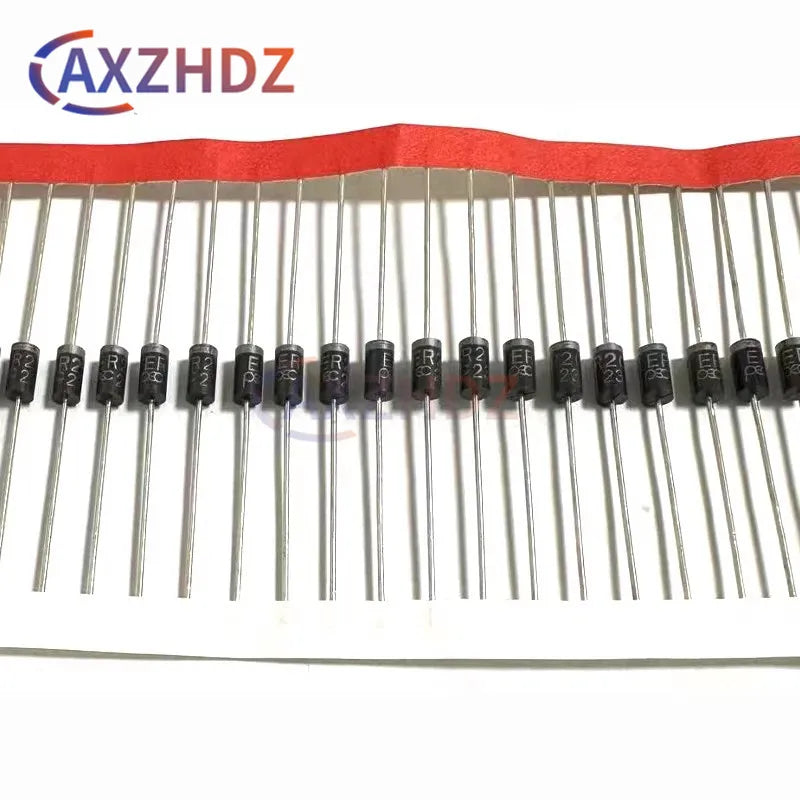

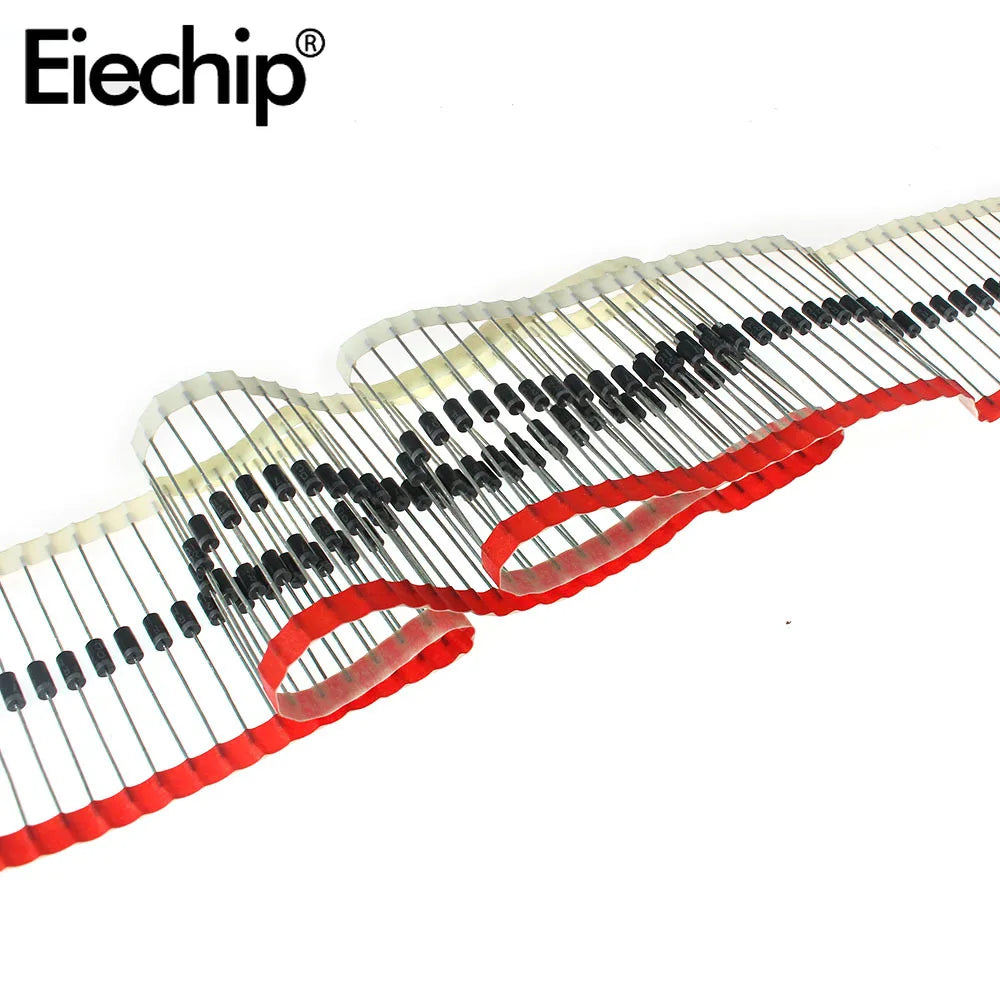

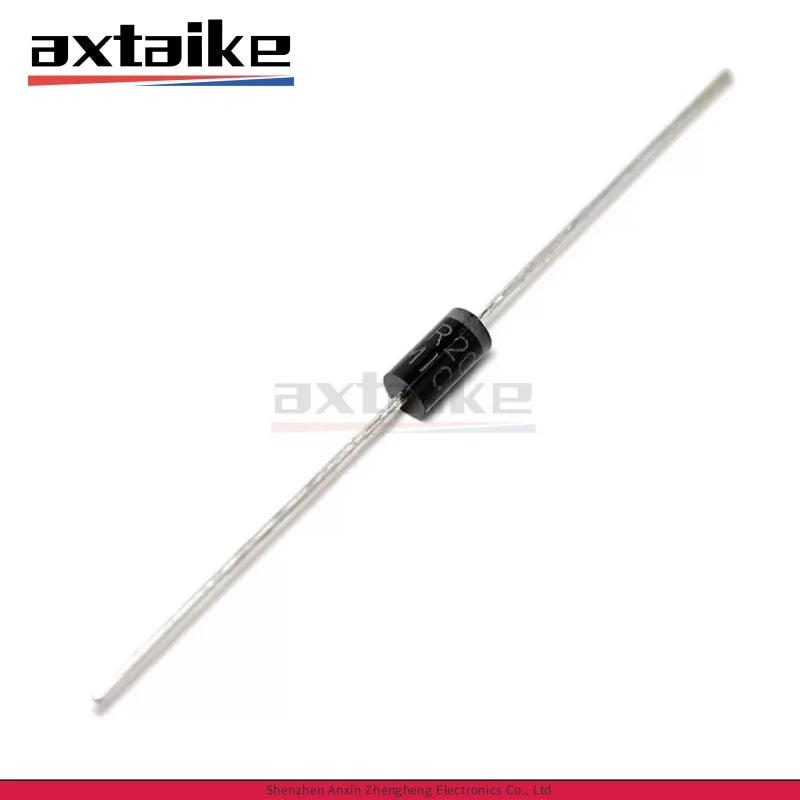

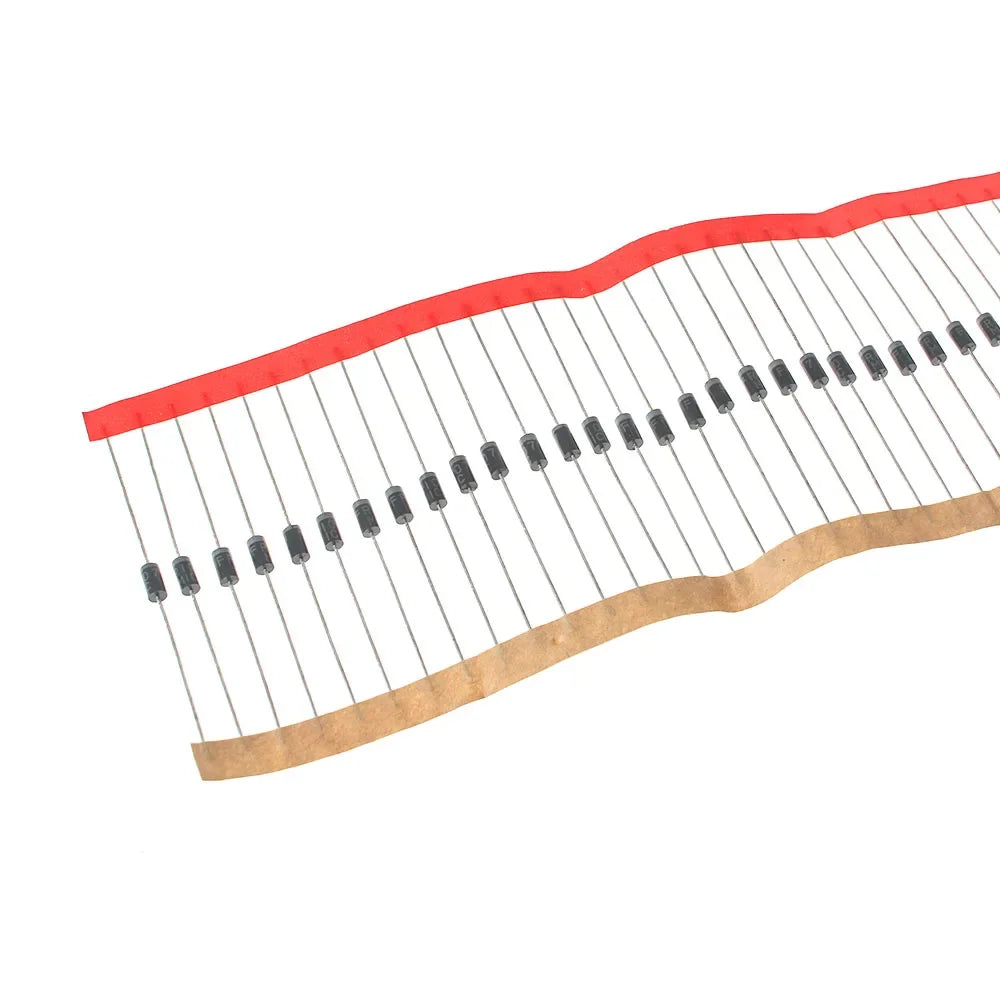

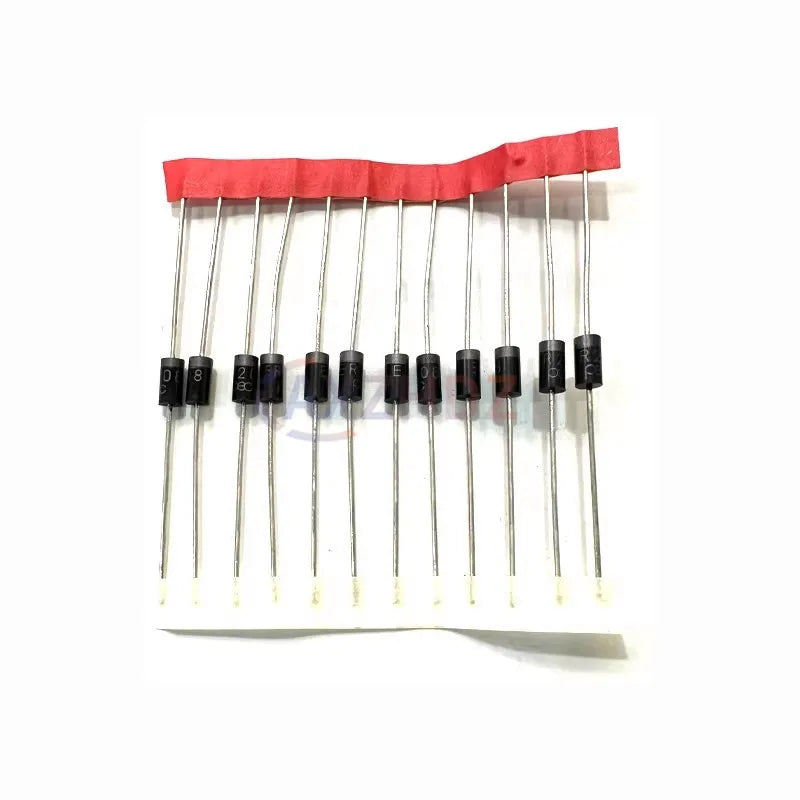

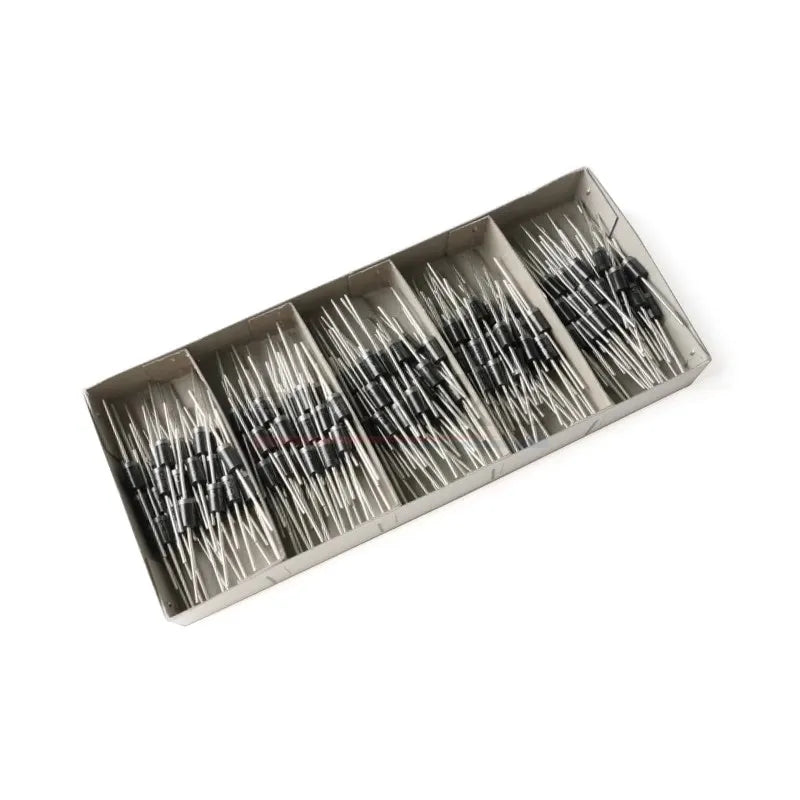

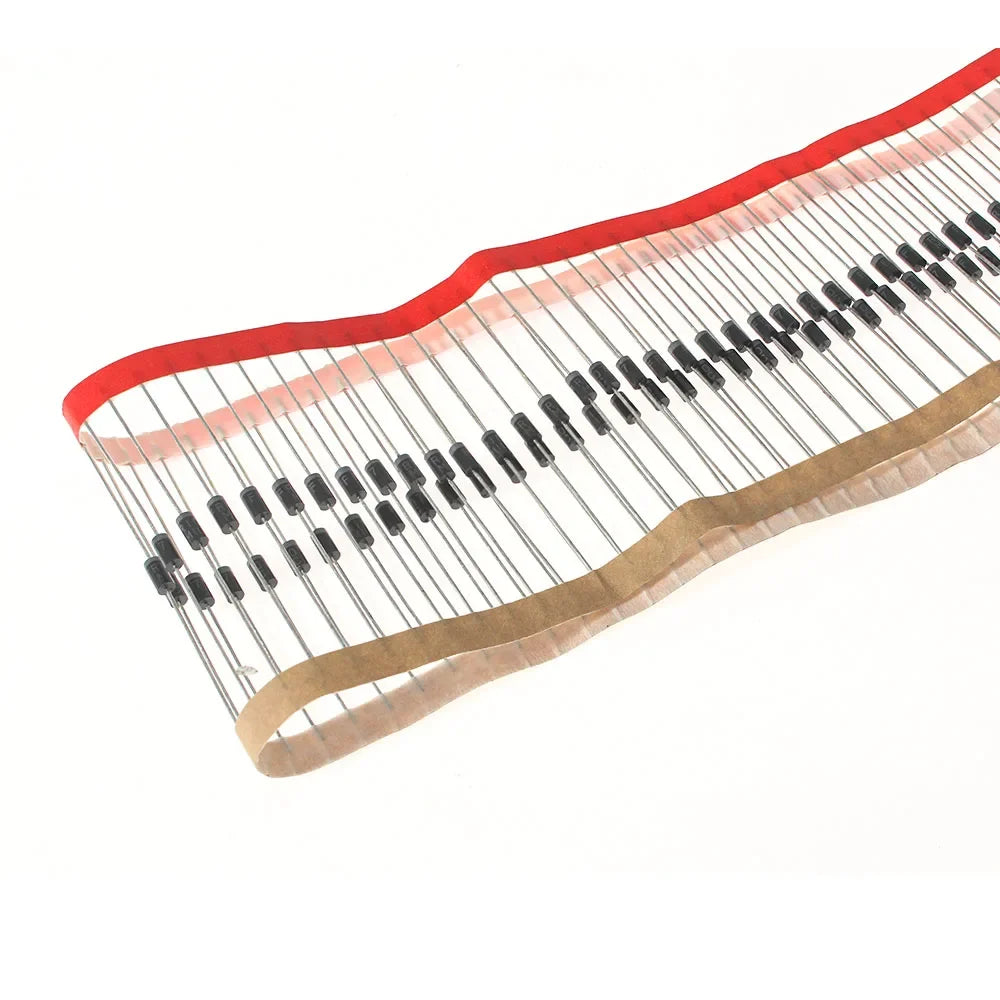

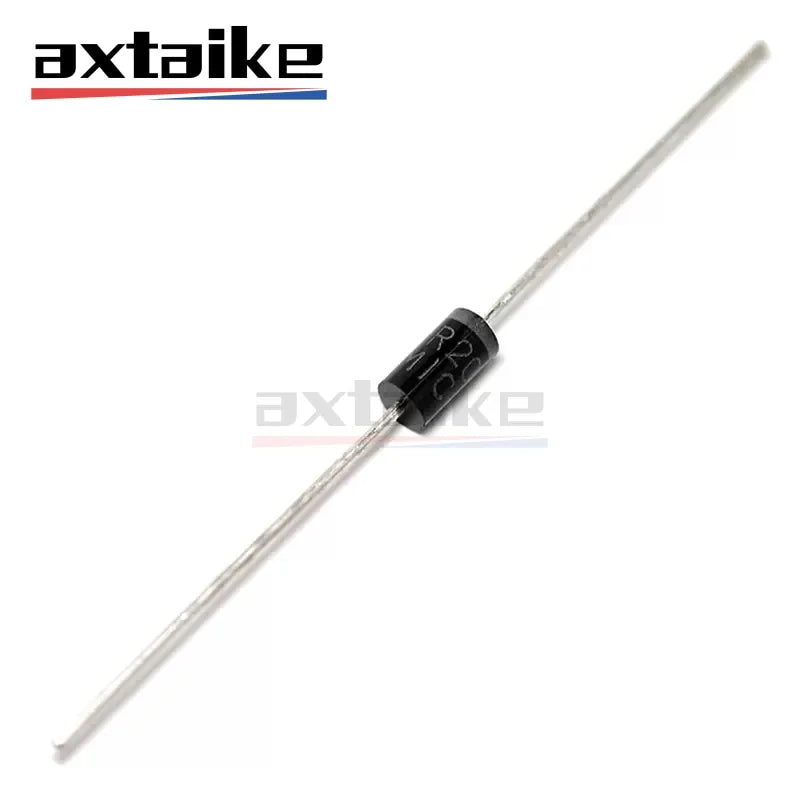

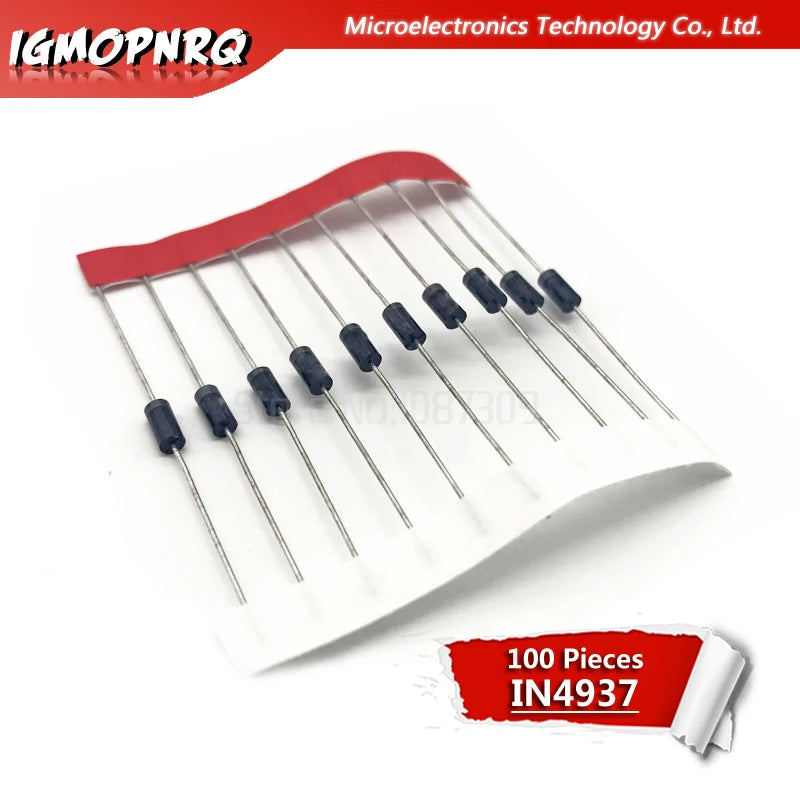

- FR axial rectifiers: FR104/FR107, FR157, FR207/FR257, FR307 and FR607/FR608 appear in differing voltage, current and body-size choices. The FR prefix does not establish the same recovery time, surge rating or package across every suffix. Compare the exact part's reverse-recovery time and test conditions as well as repetitive peak reverse voltage and average current.

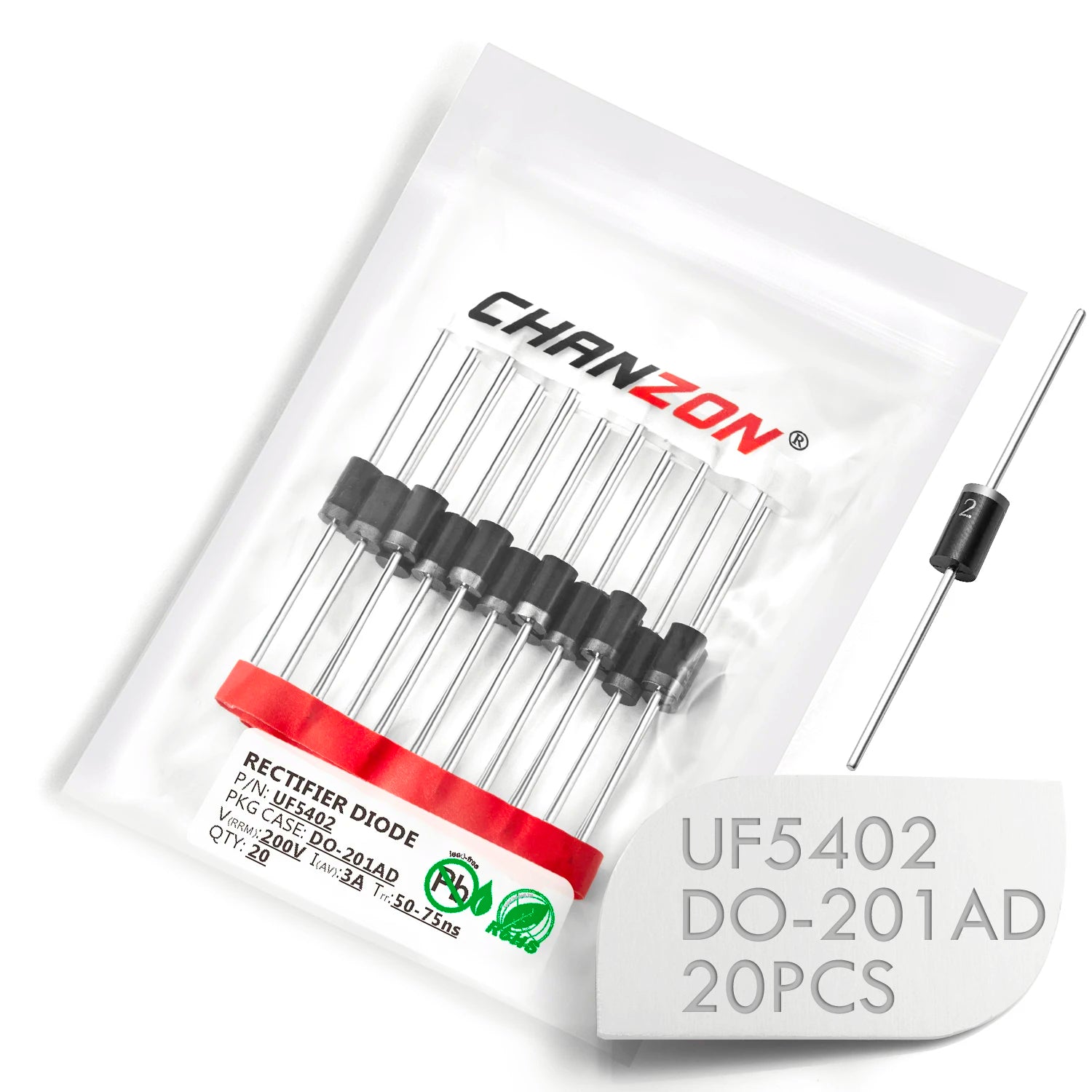

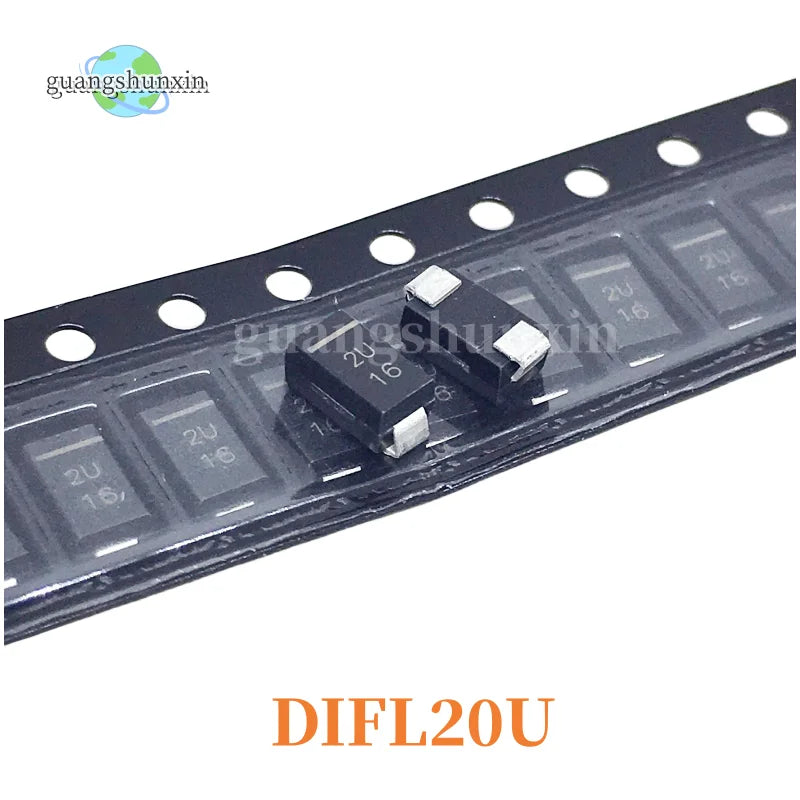

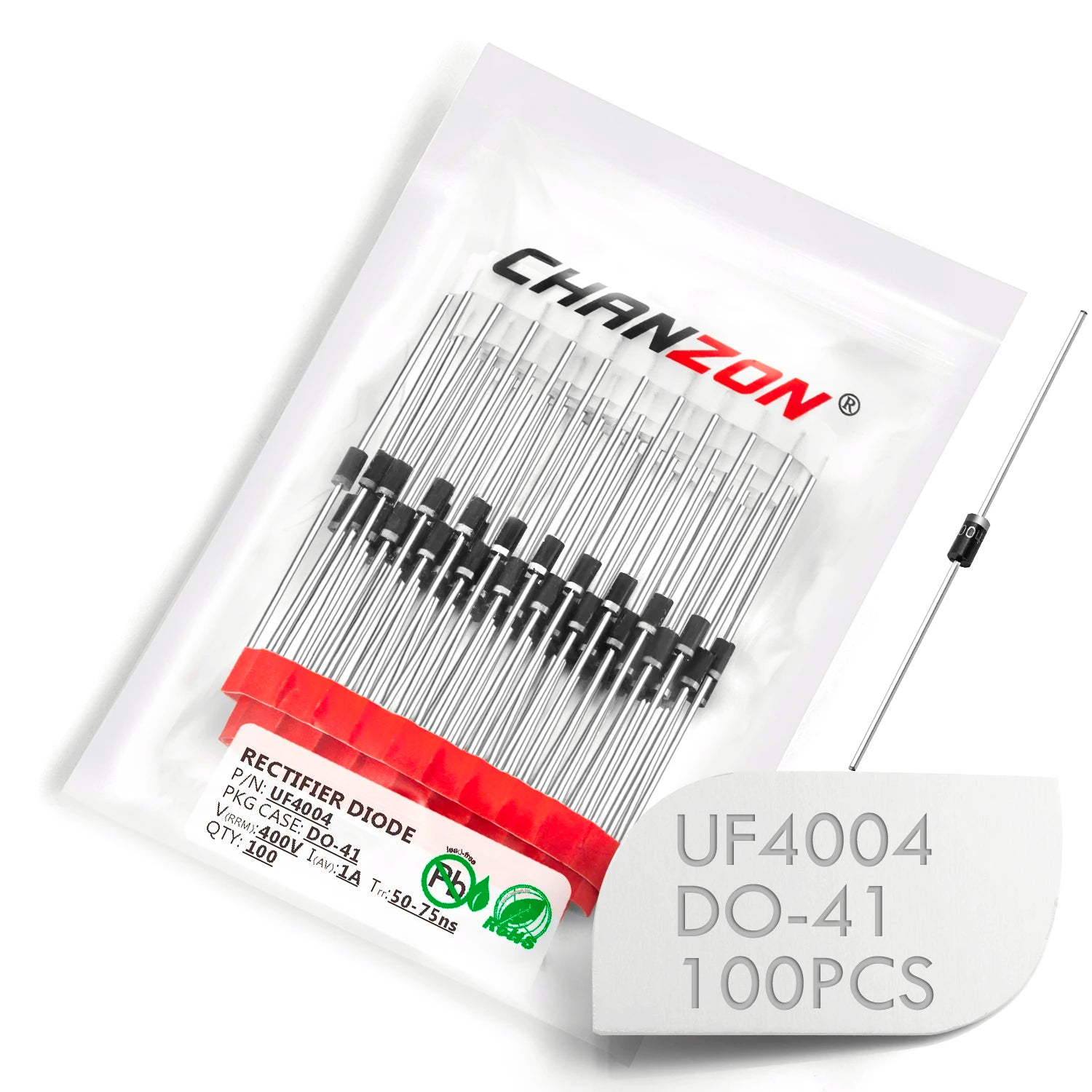

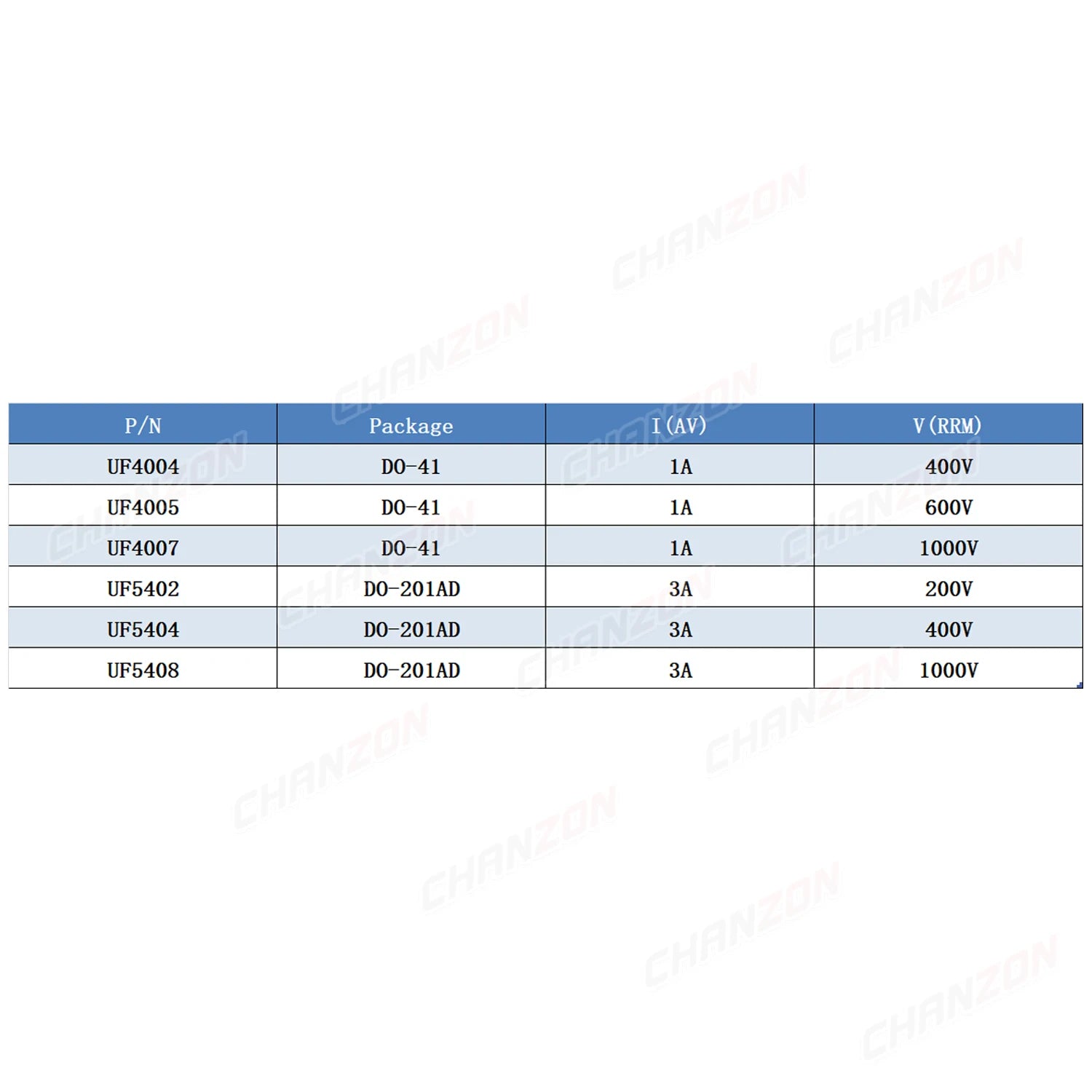

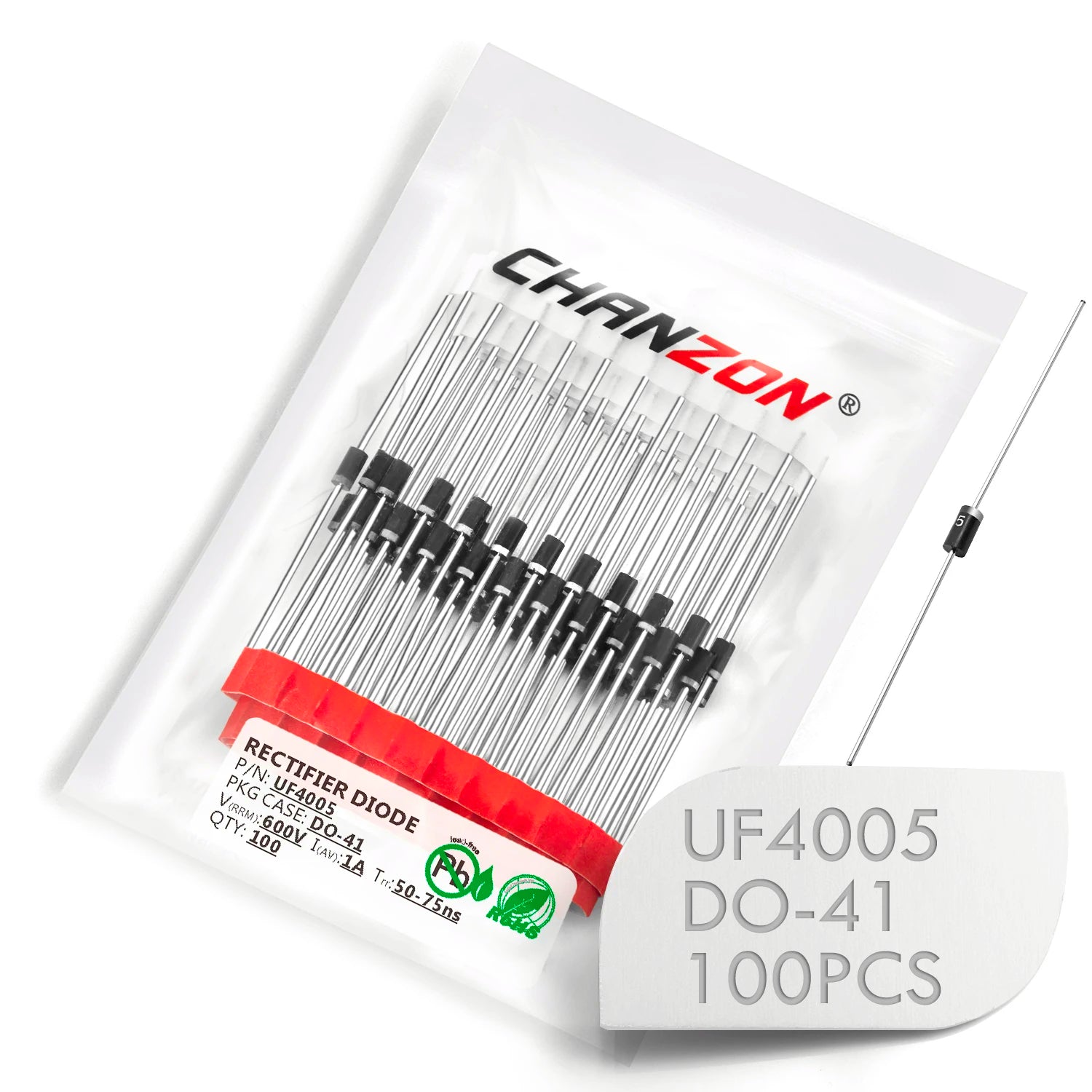

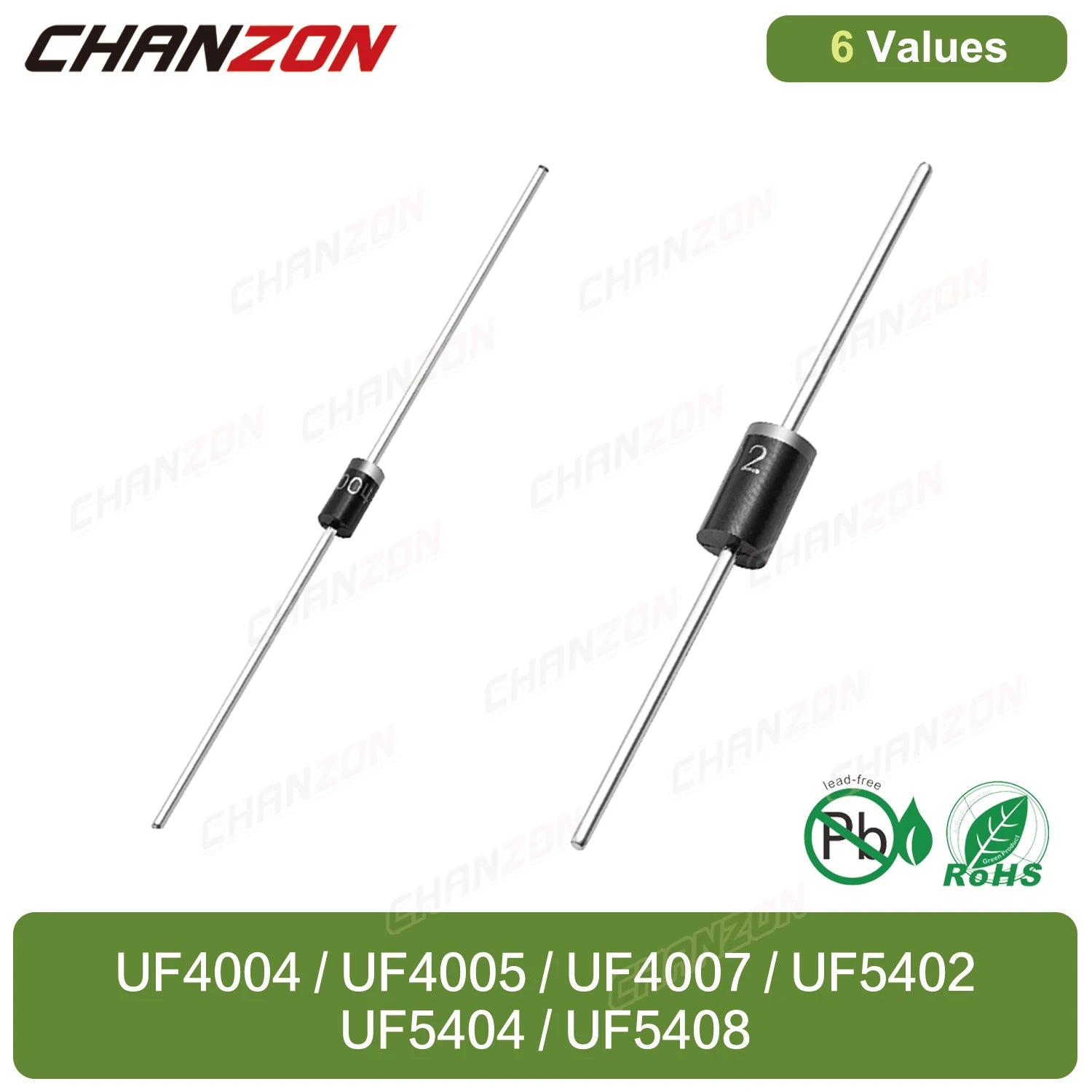

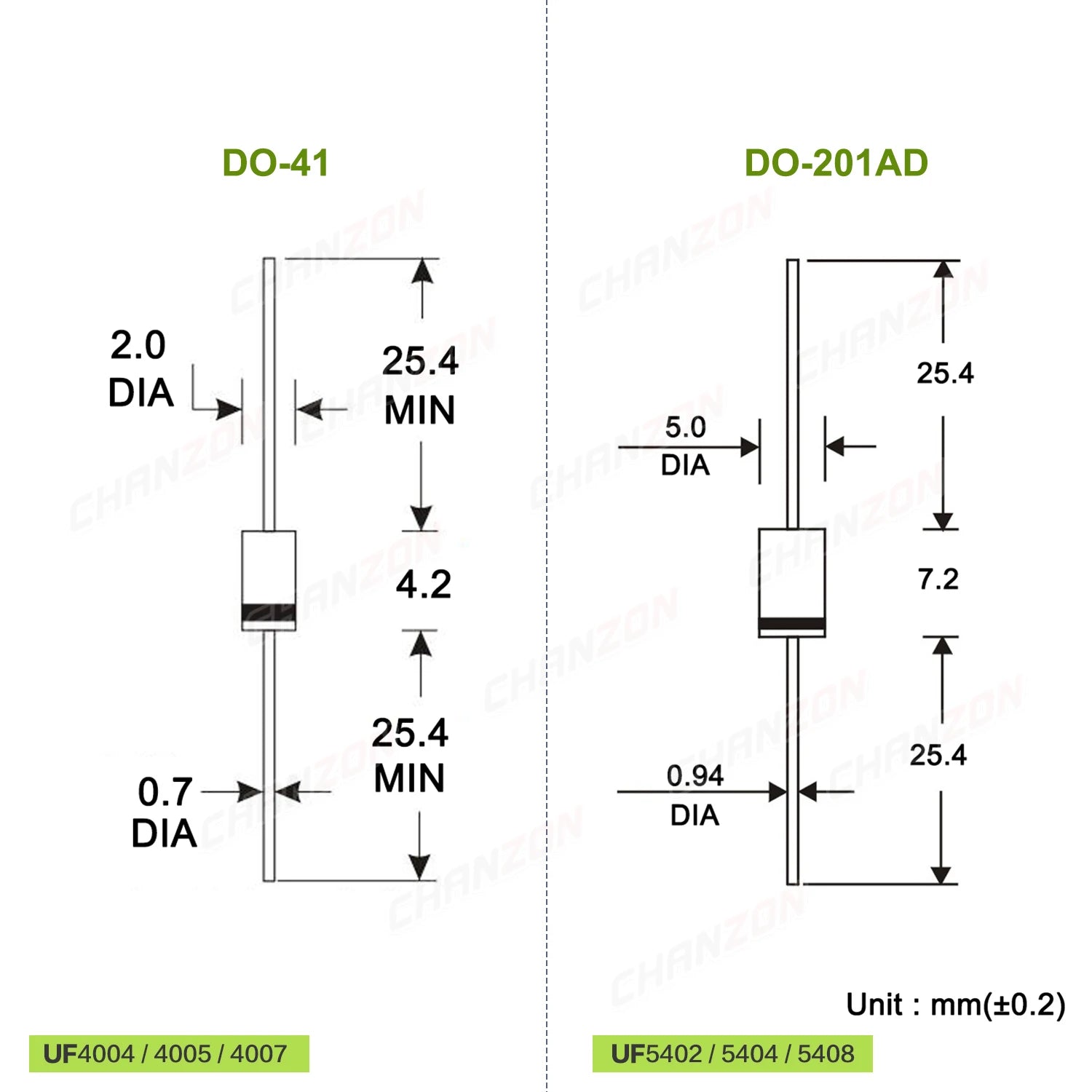

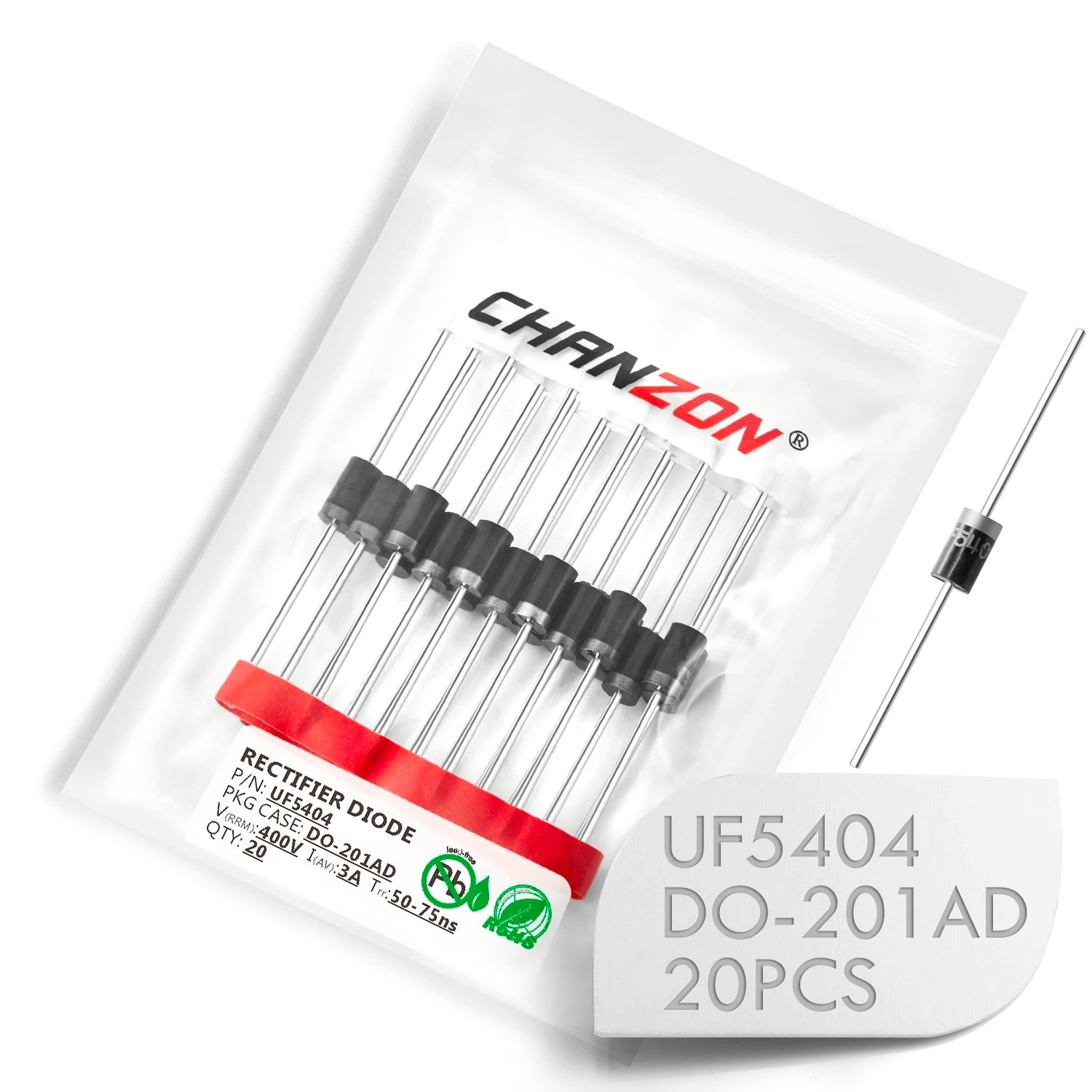

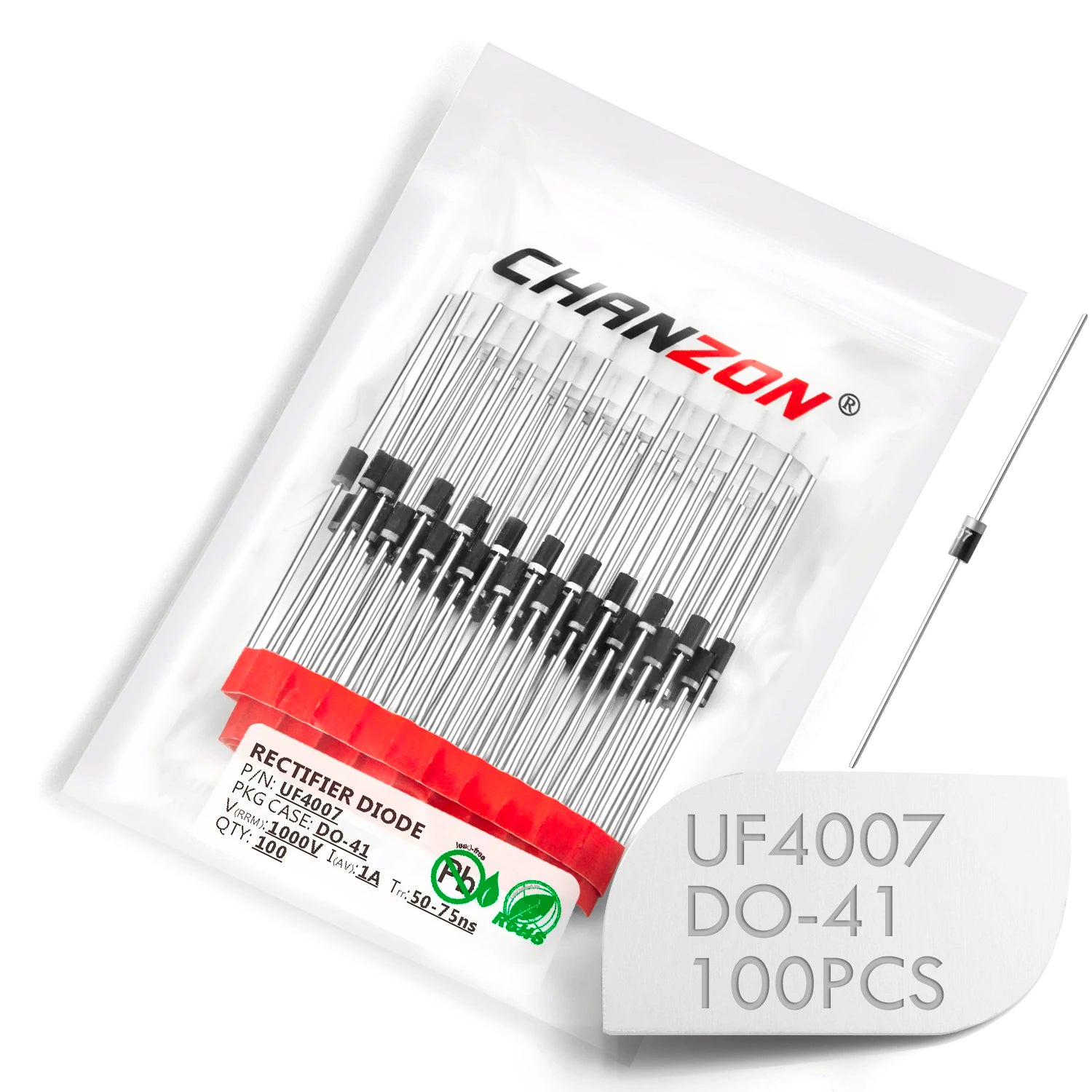

- UF and ultrafast options: UF4007 and related UF-series listings are distinct from ordinary 1N4007 silicon rectifiers. Matching a nominal current and voltage does not establish equivalent switching loss, thermal behavior or polarity/footprint. Confirm the full suffix, package and manufacturer-specific recovery data.

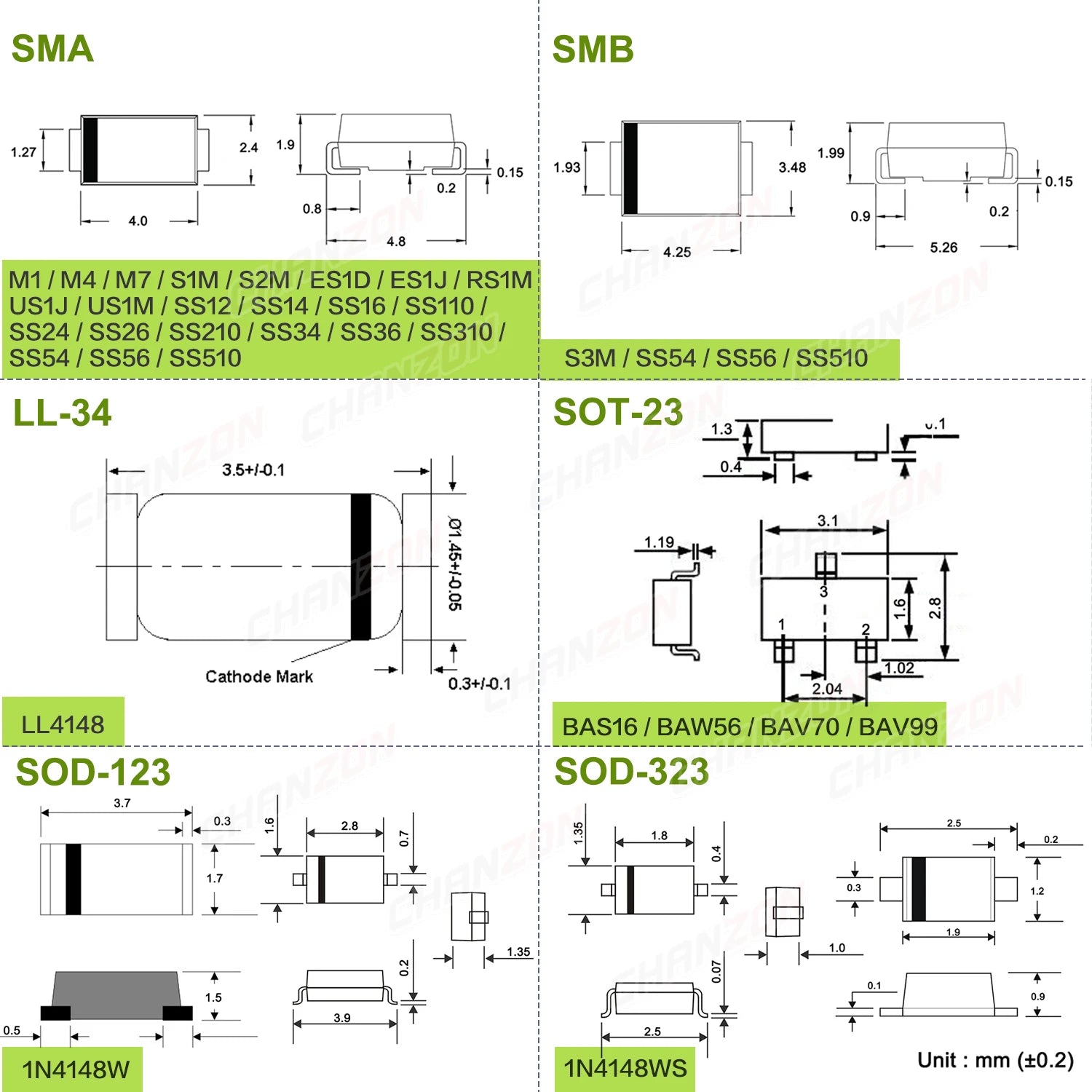

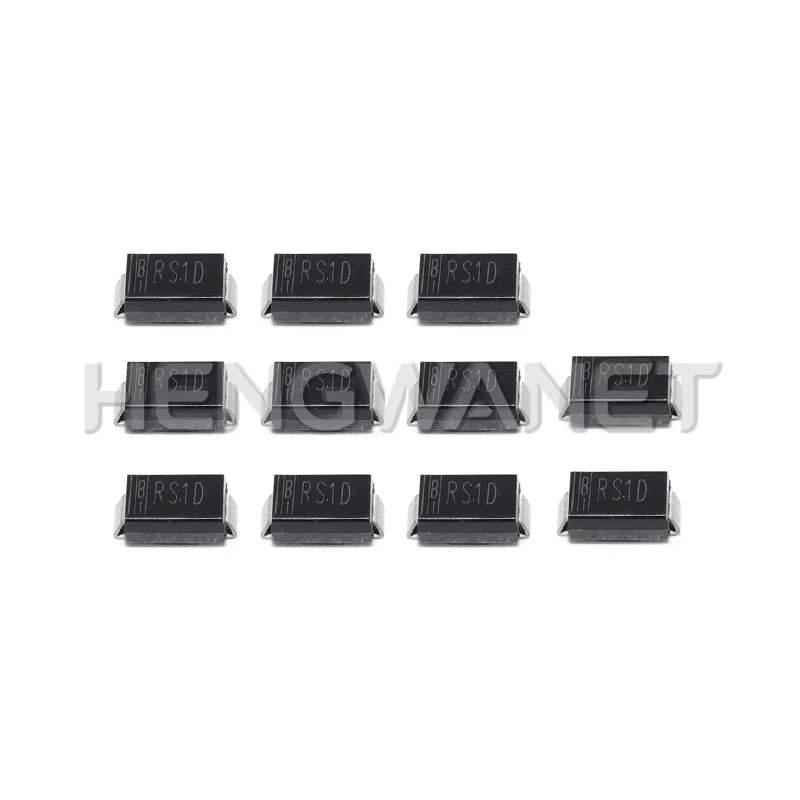

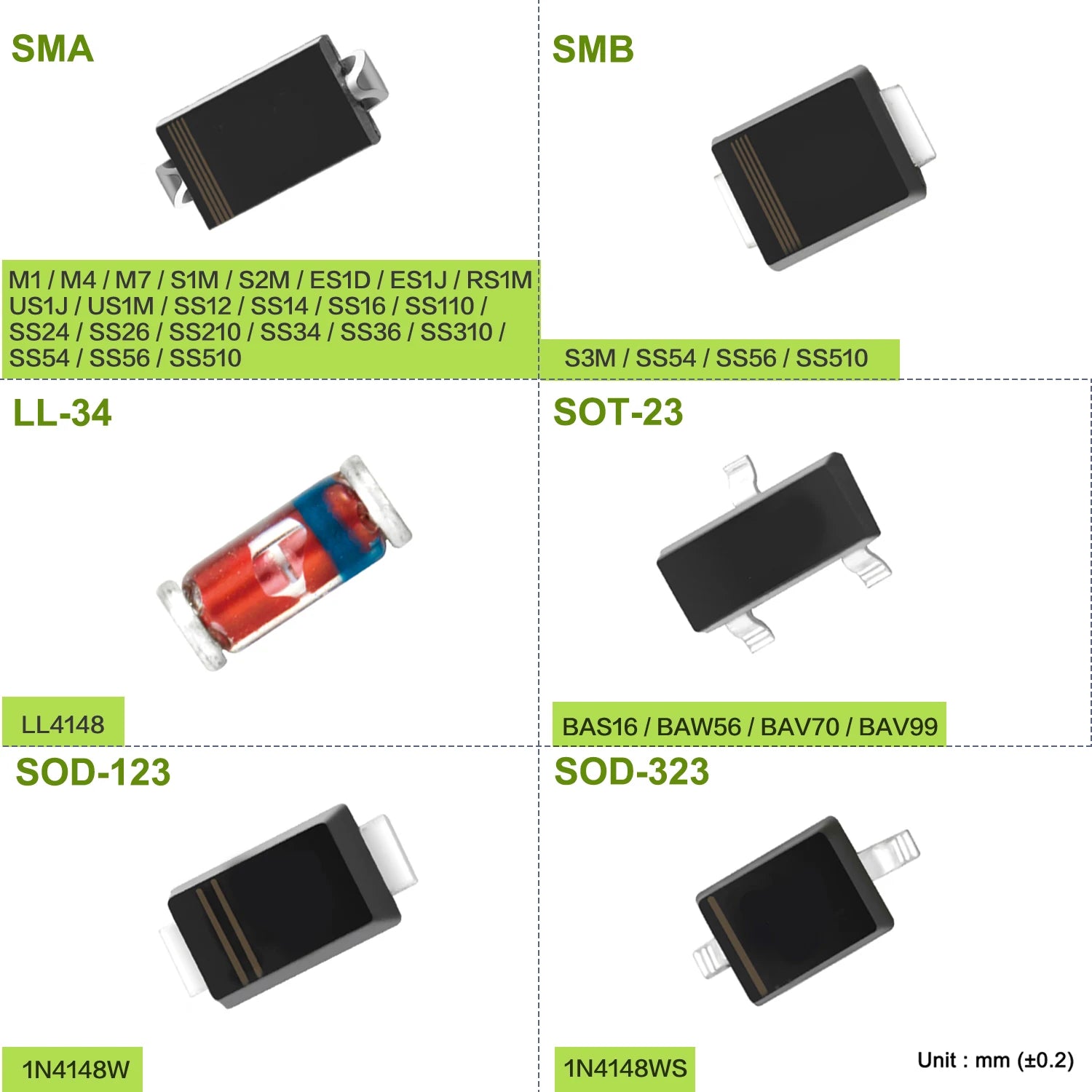

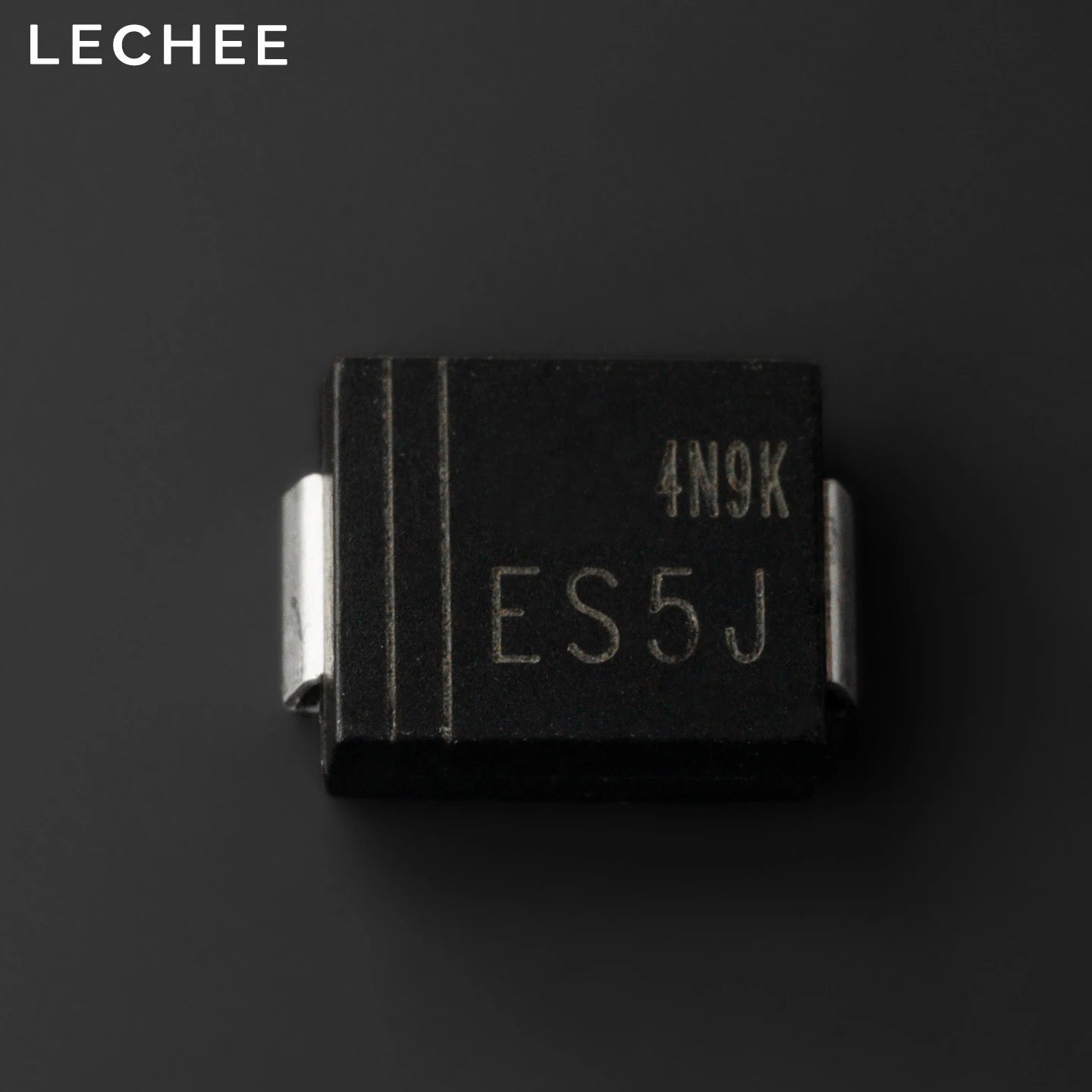

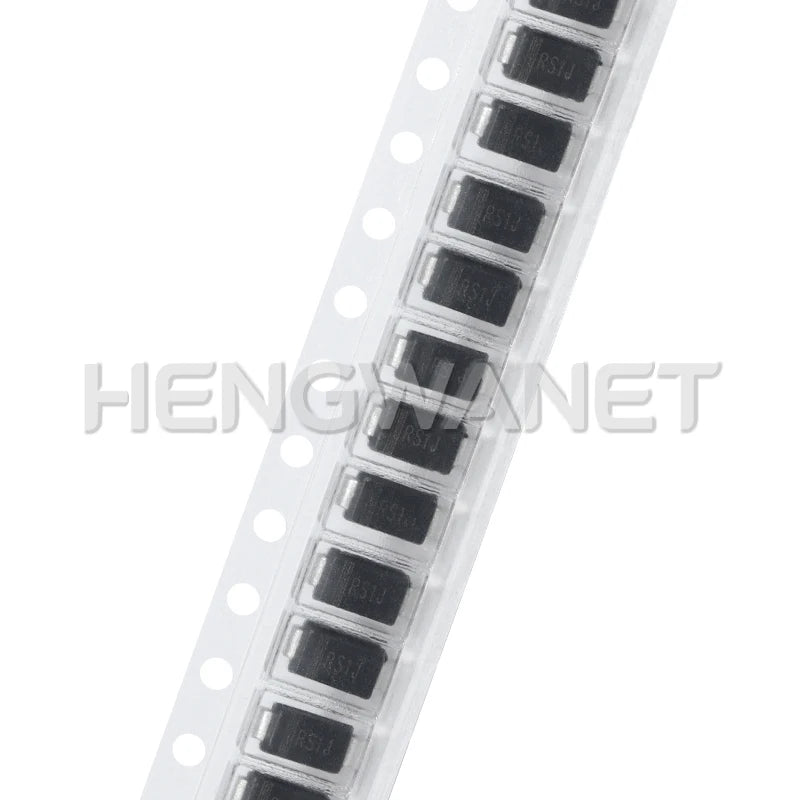

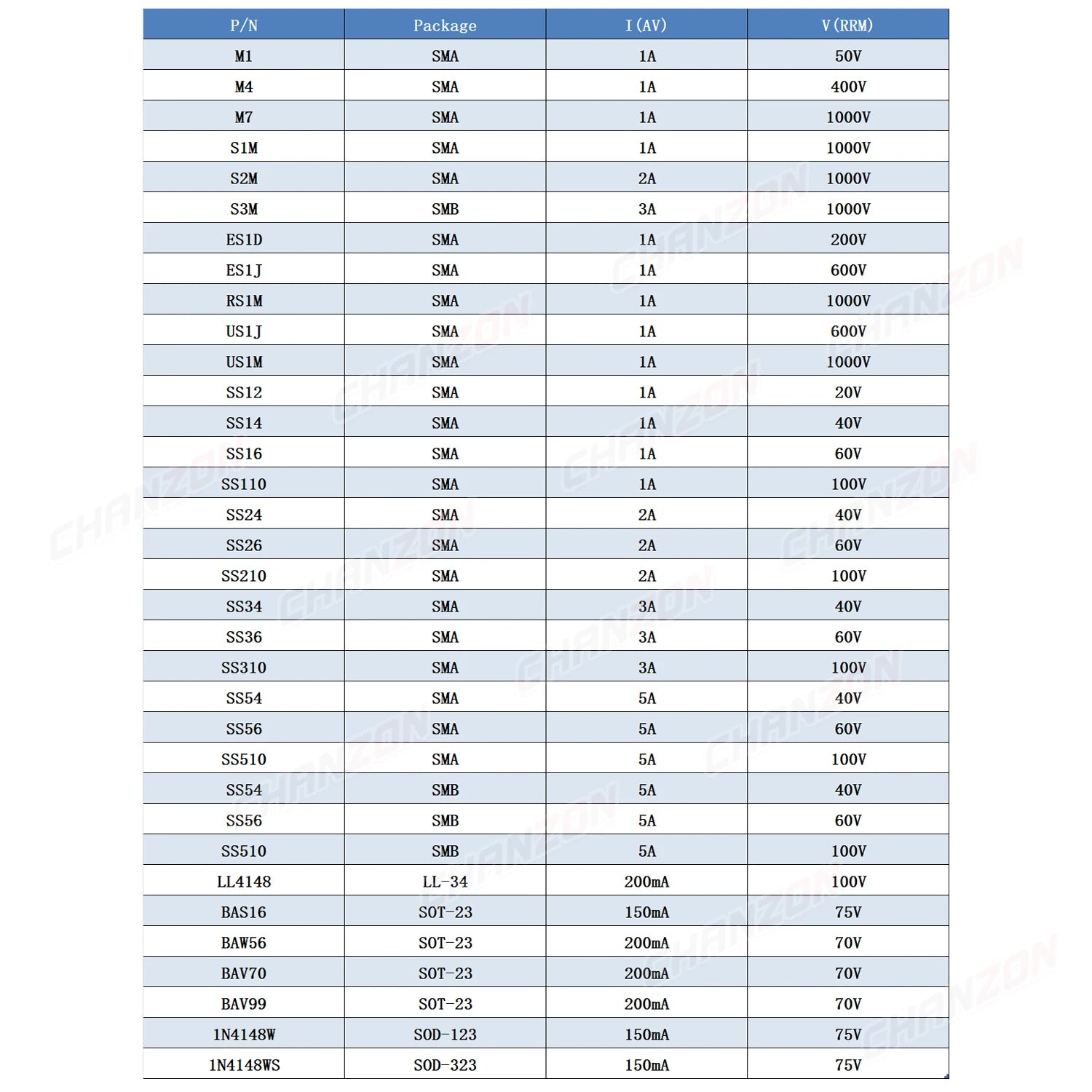

- SMD fast rectifiers: US1M and related US-series devices are offered in SMA/DO-214AC-type packages. An item title that strings together US1M, HER107, UF4007 and “ESD TVS” should not be read as a single interchangeable specification: the actual US1M option is a rectifier, and “TVS” in a headline alone does not establish transient-voltage-suppressor behavior.

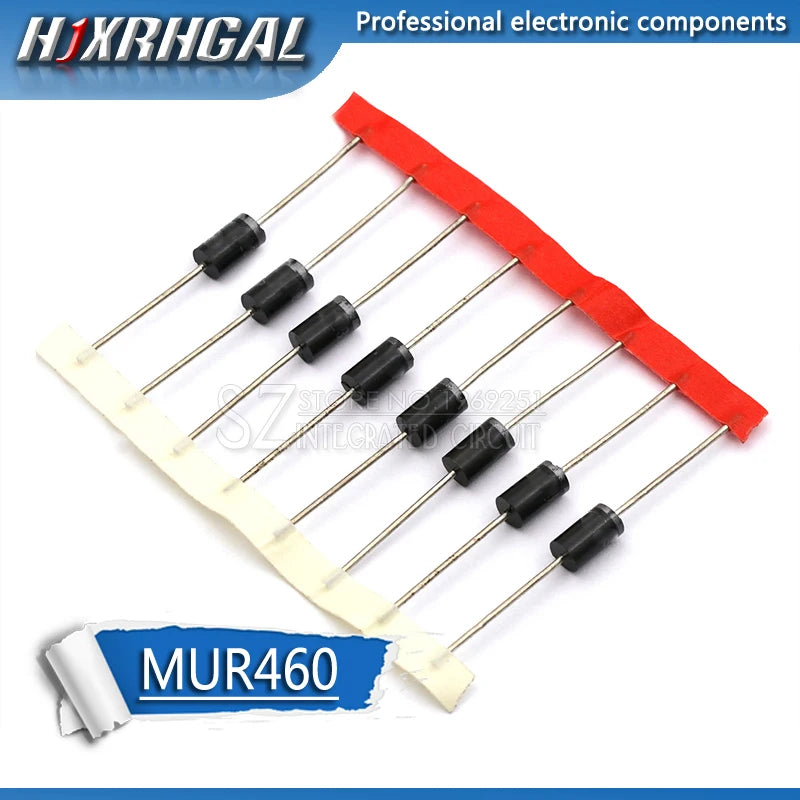

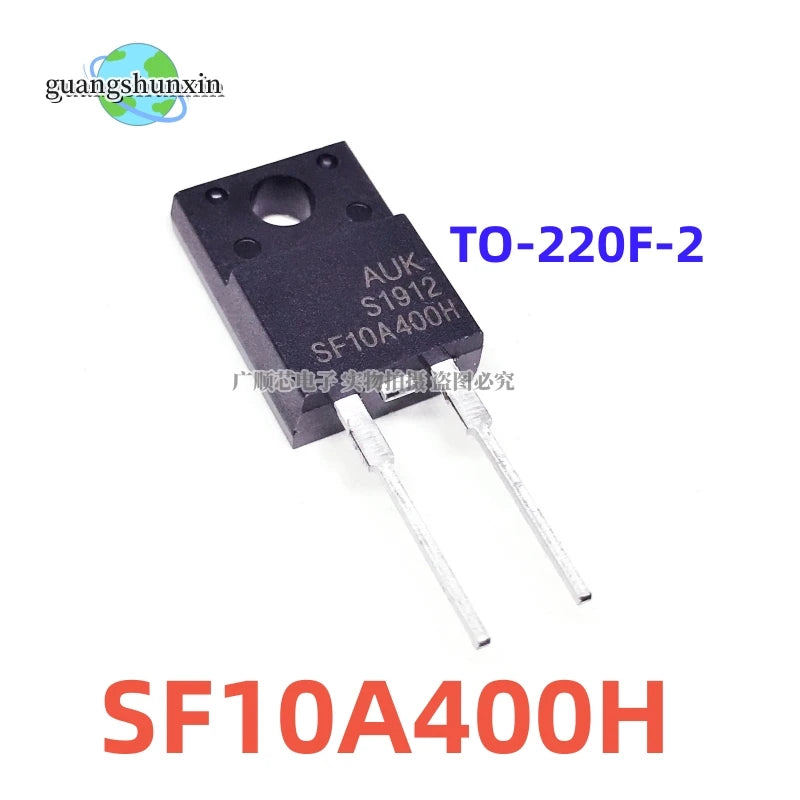

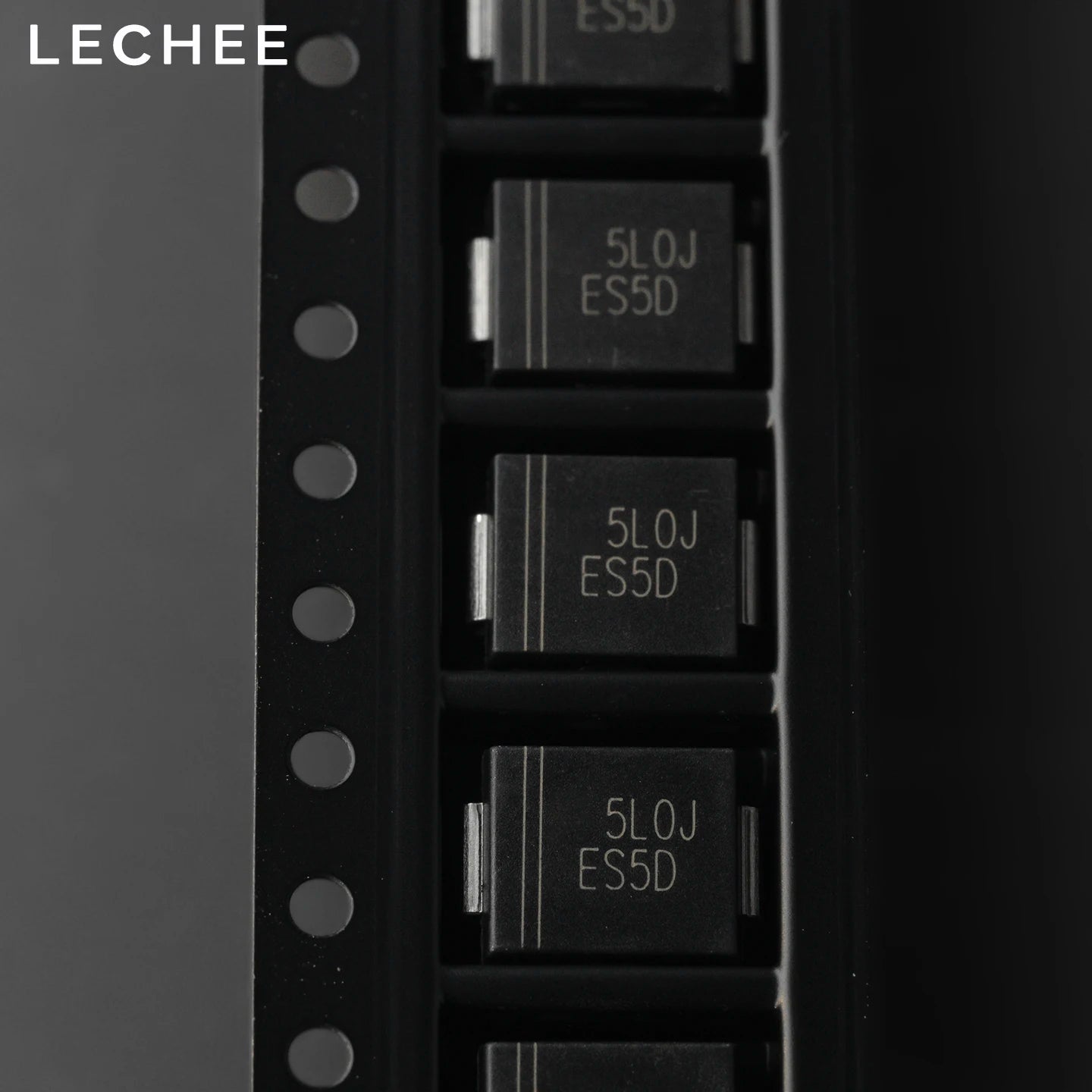

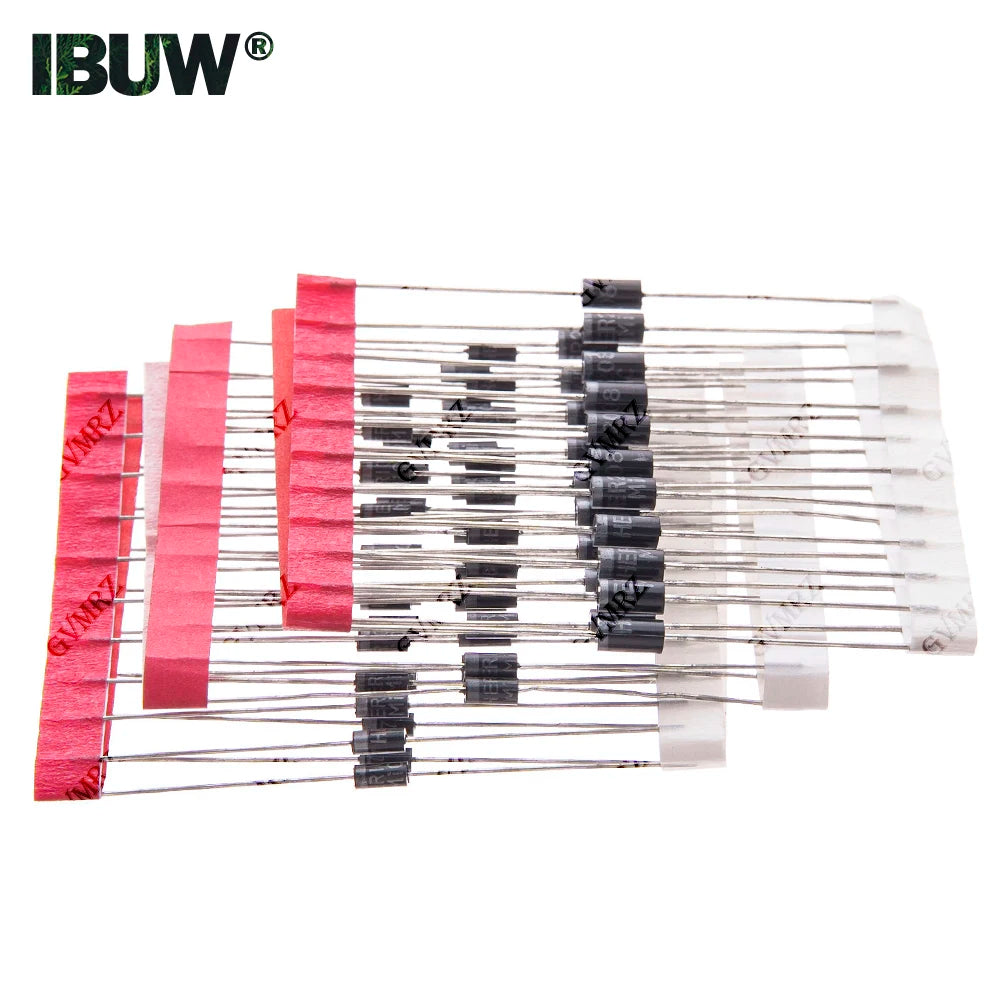

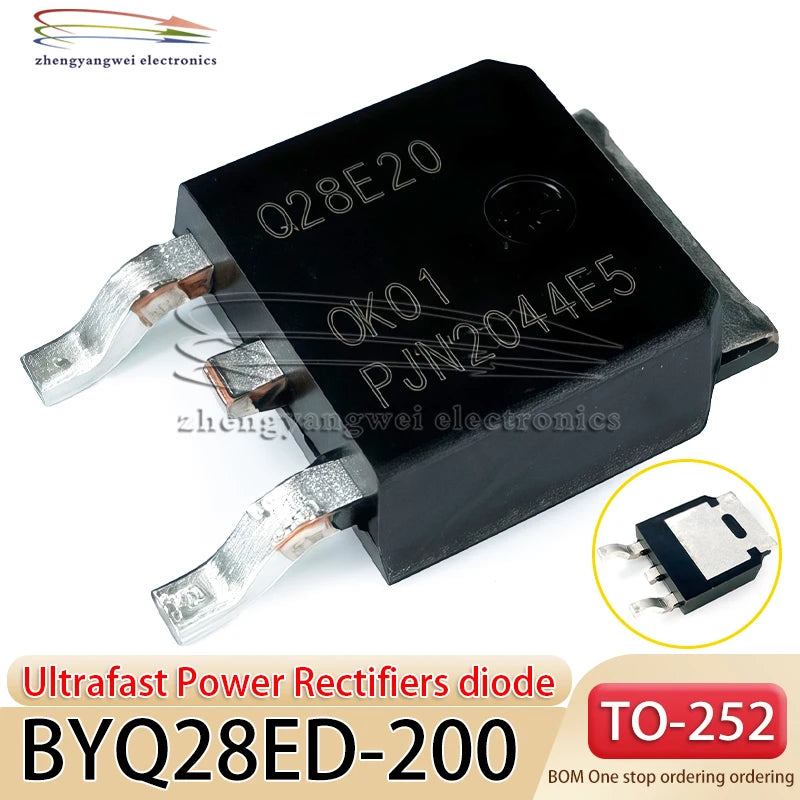

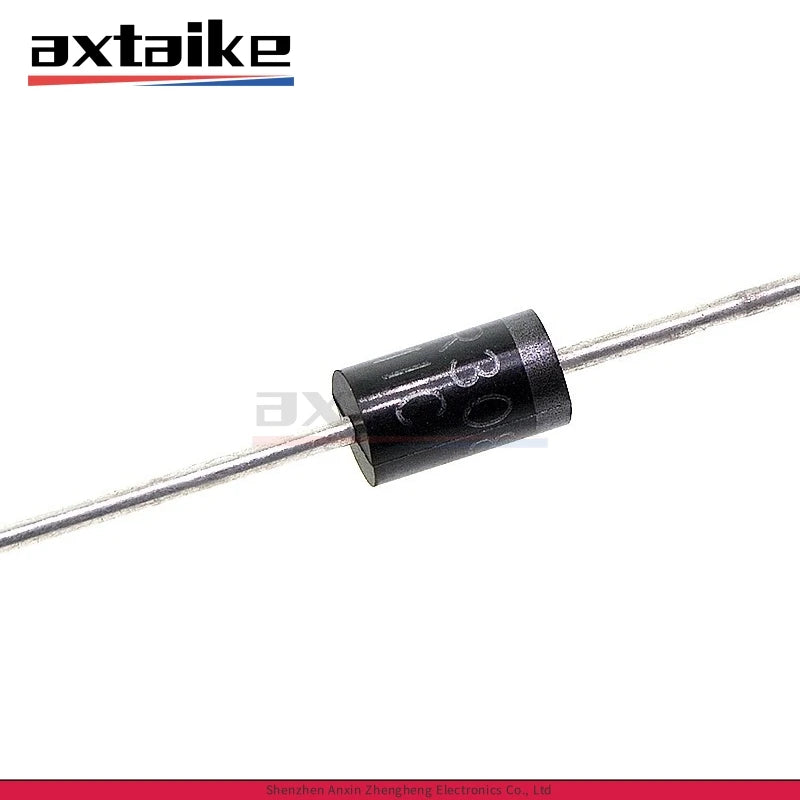

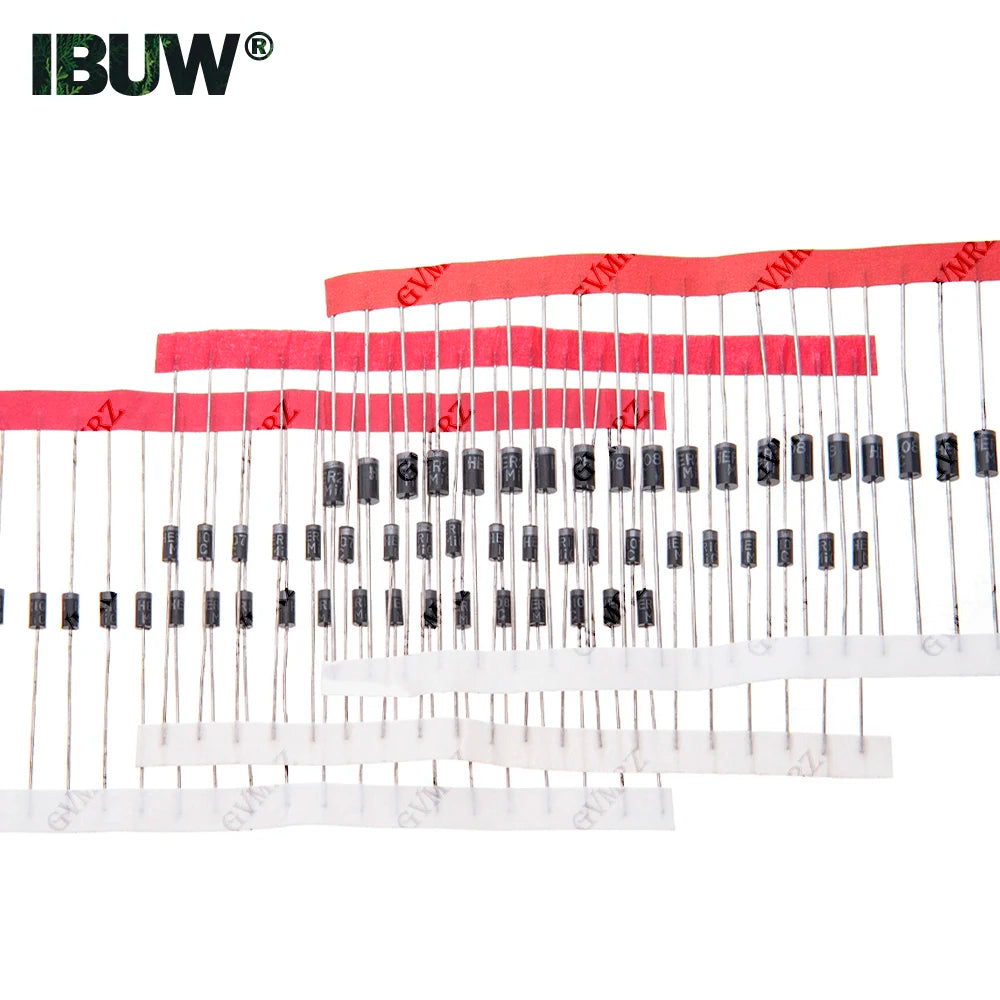

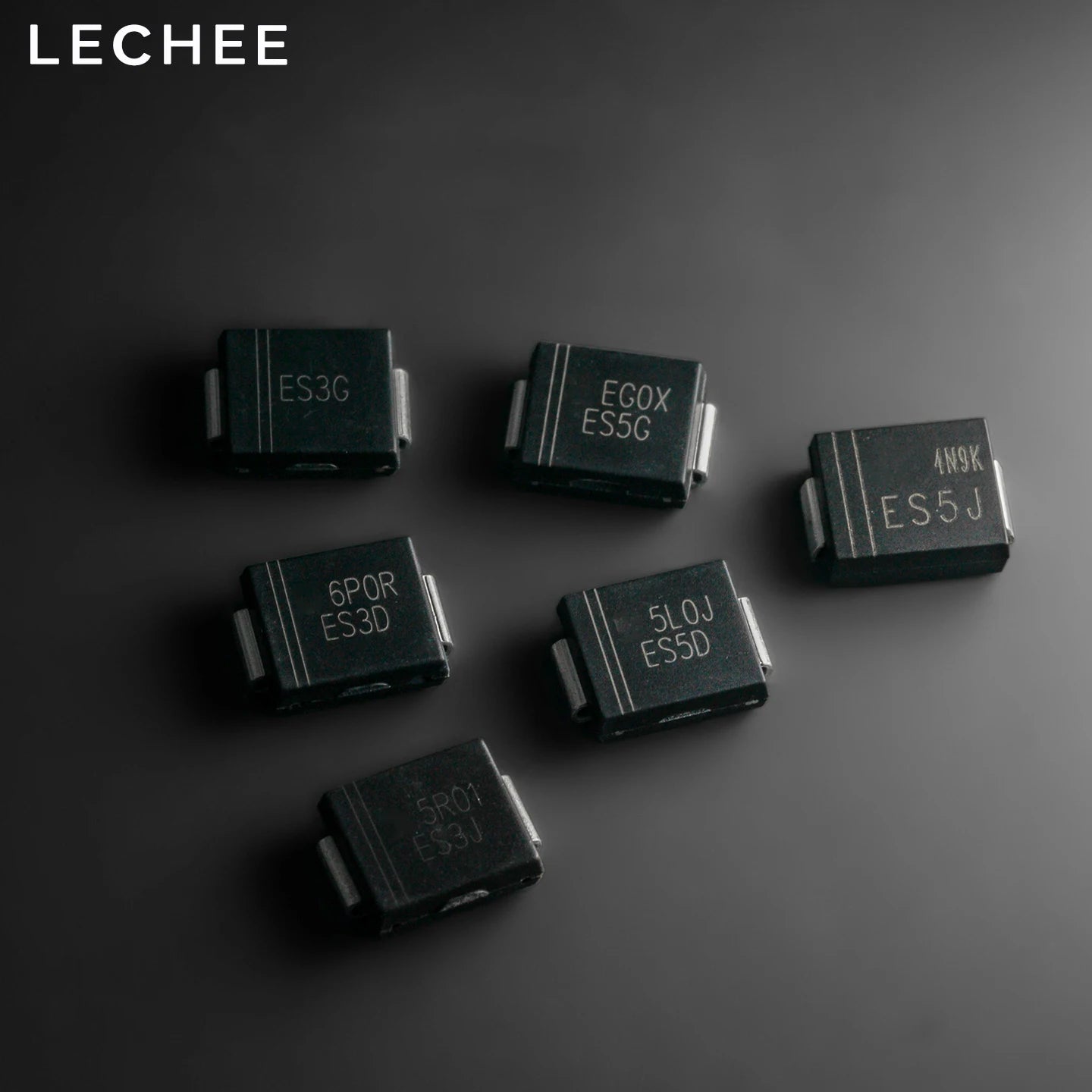

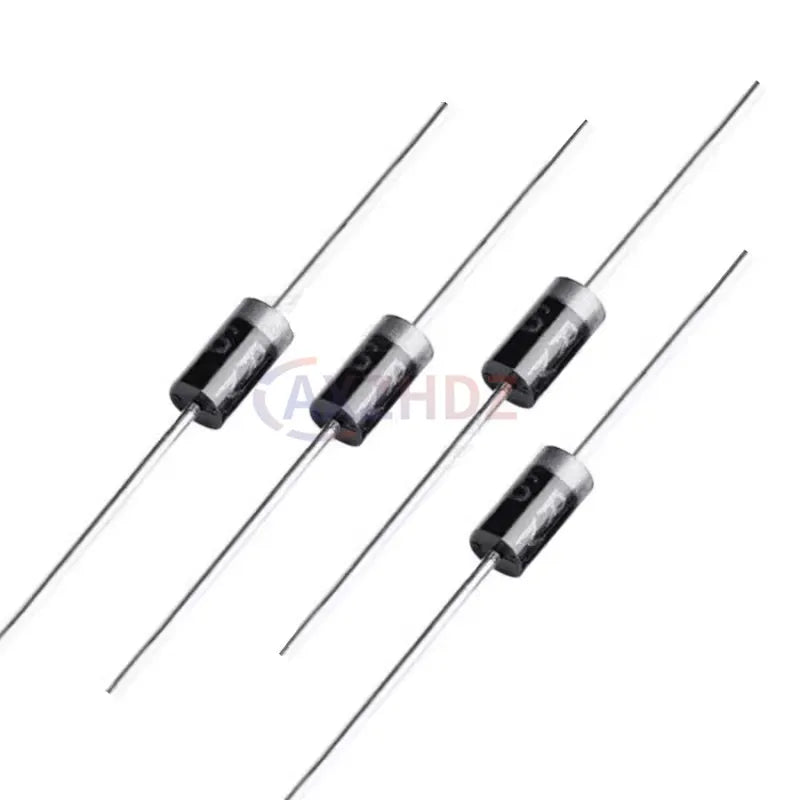

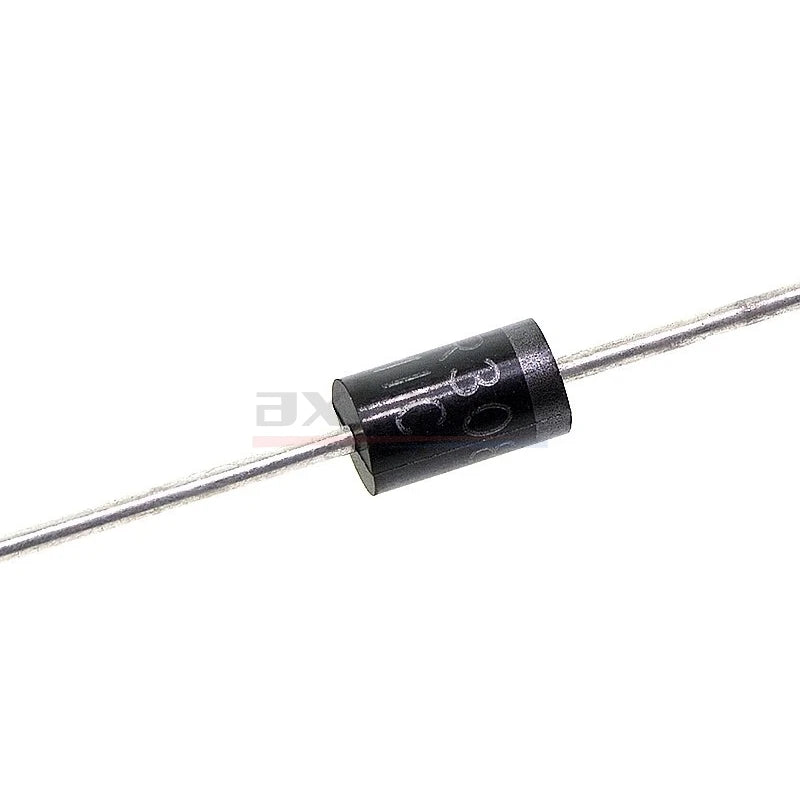

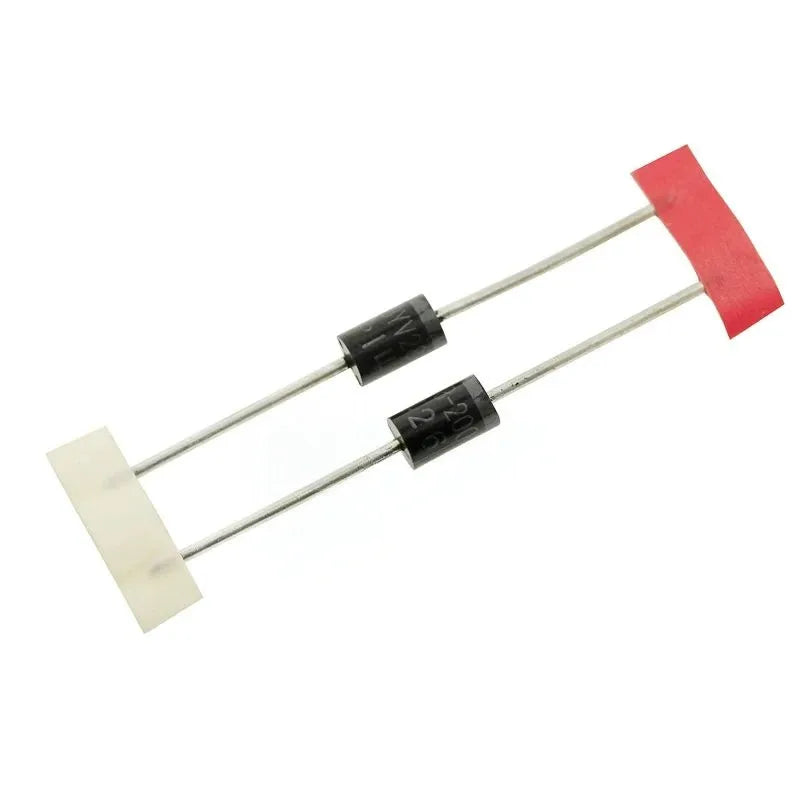

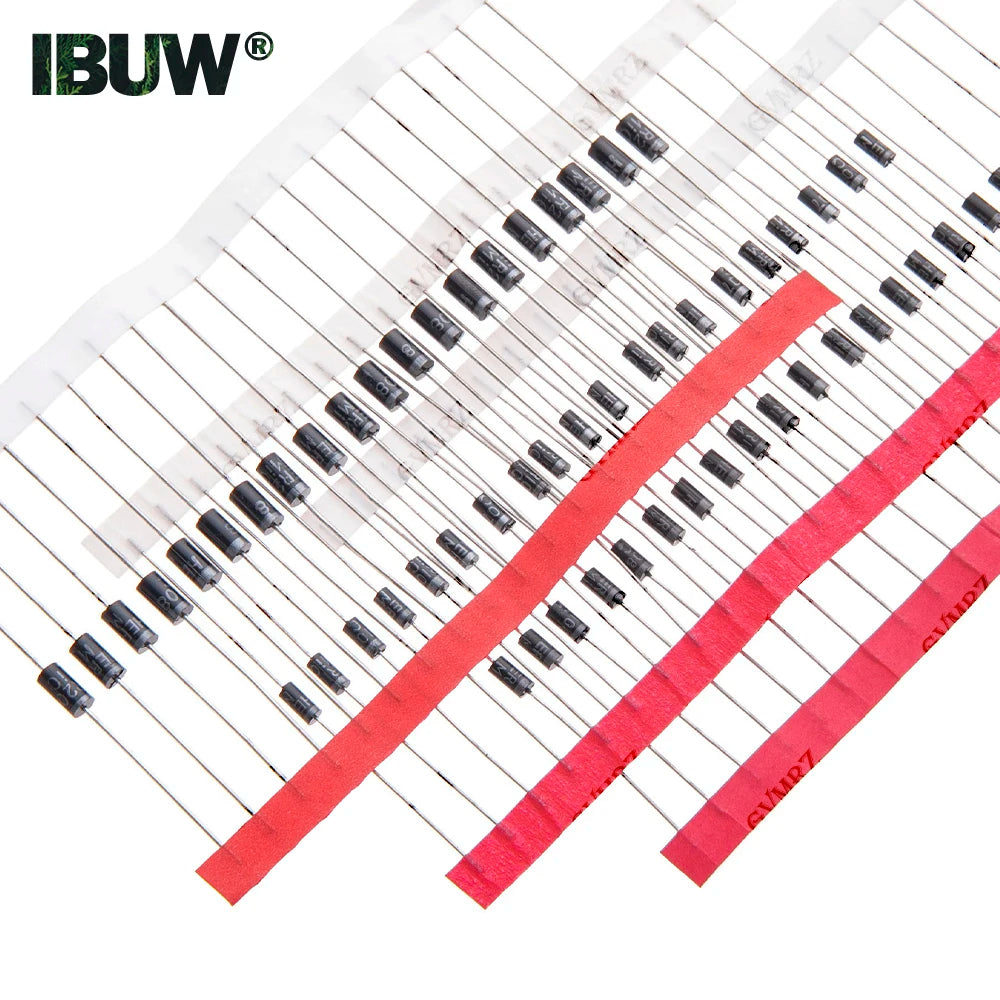

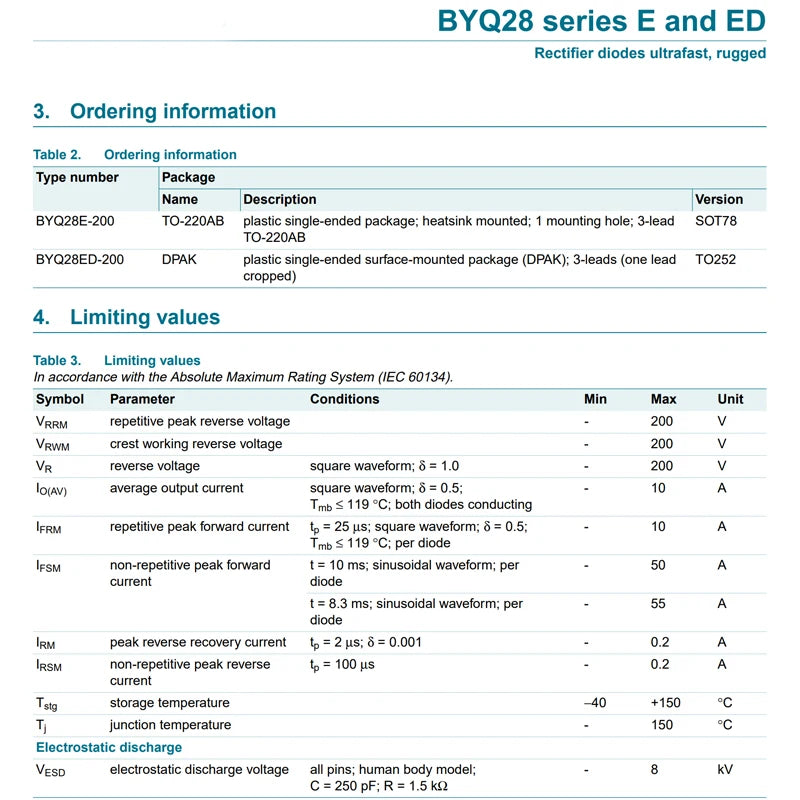

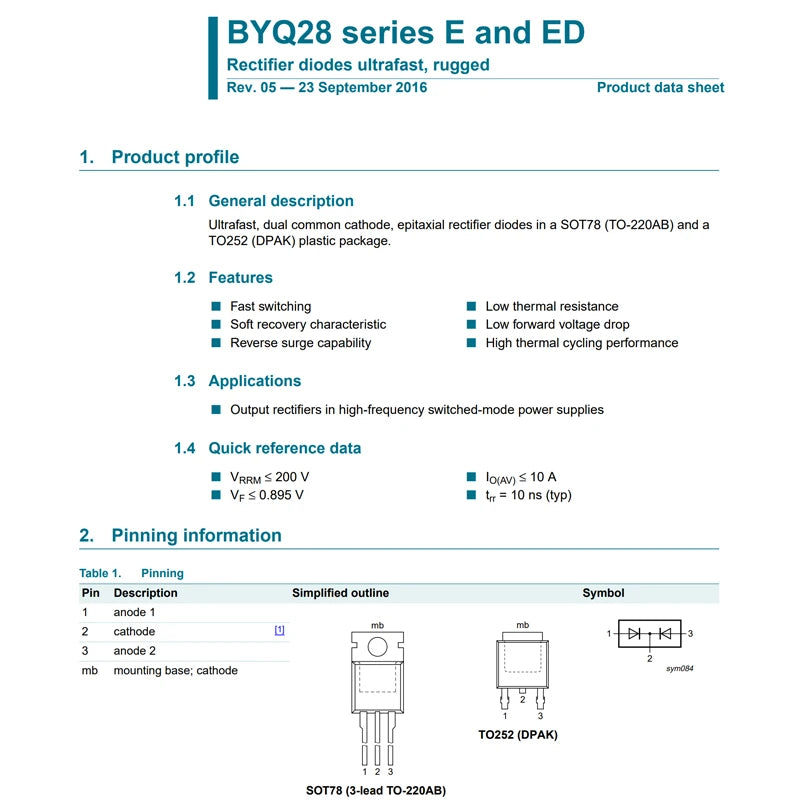

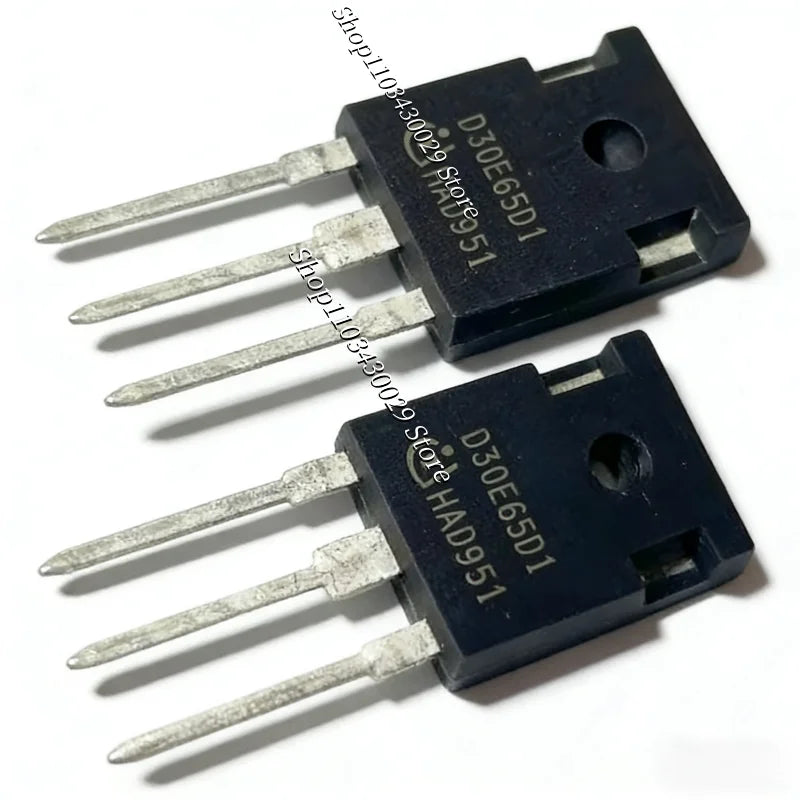

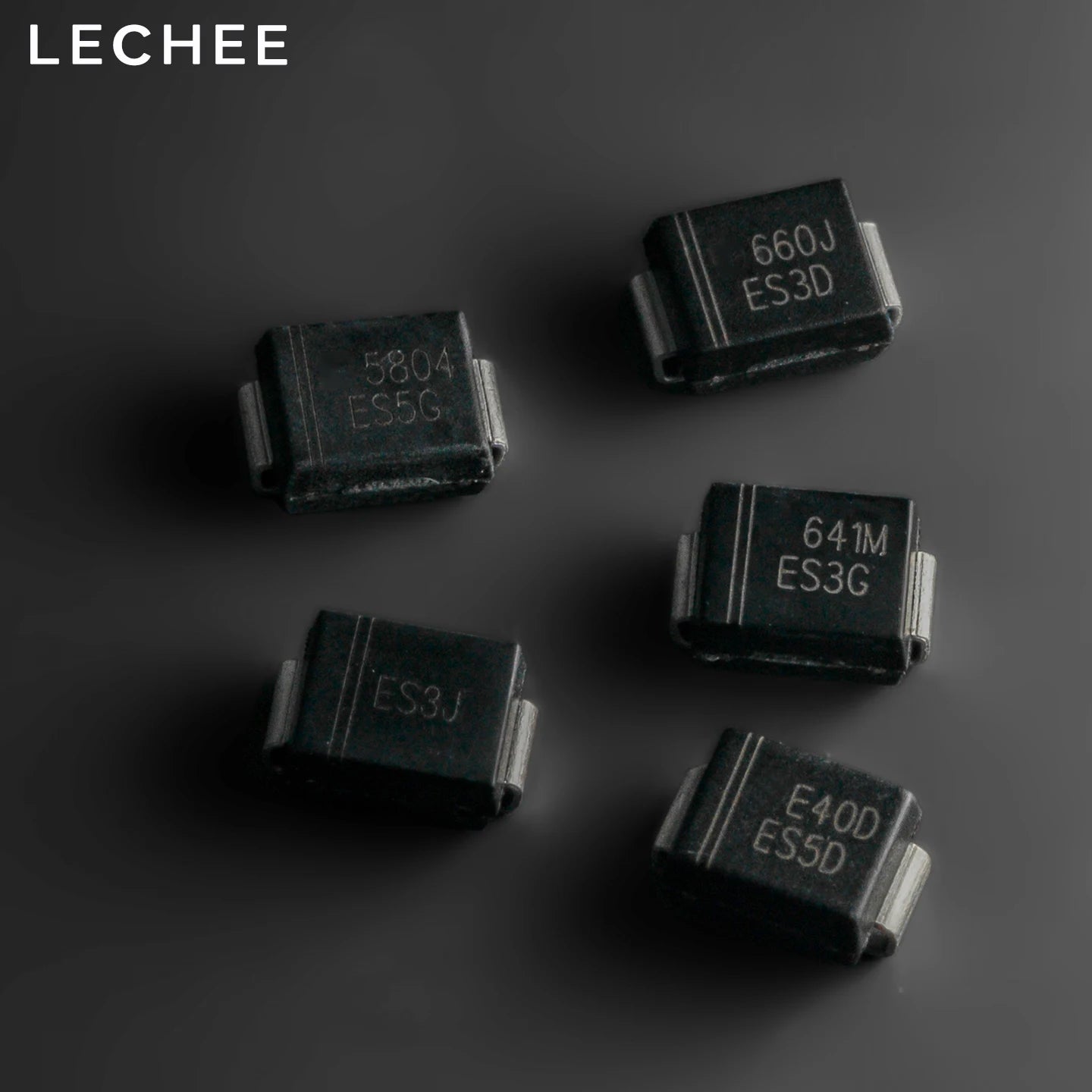

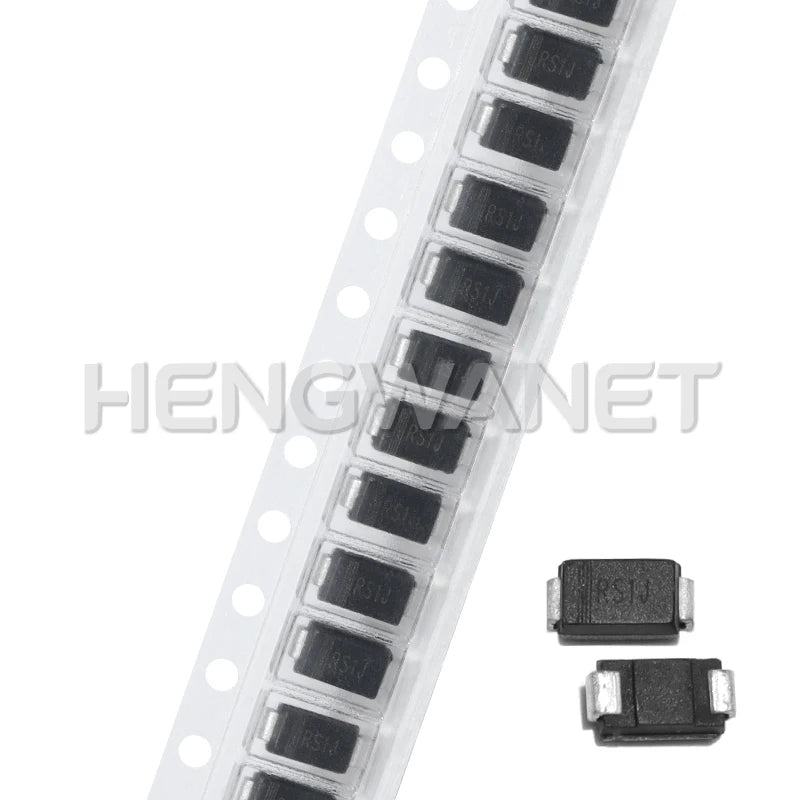

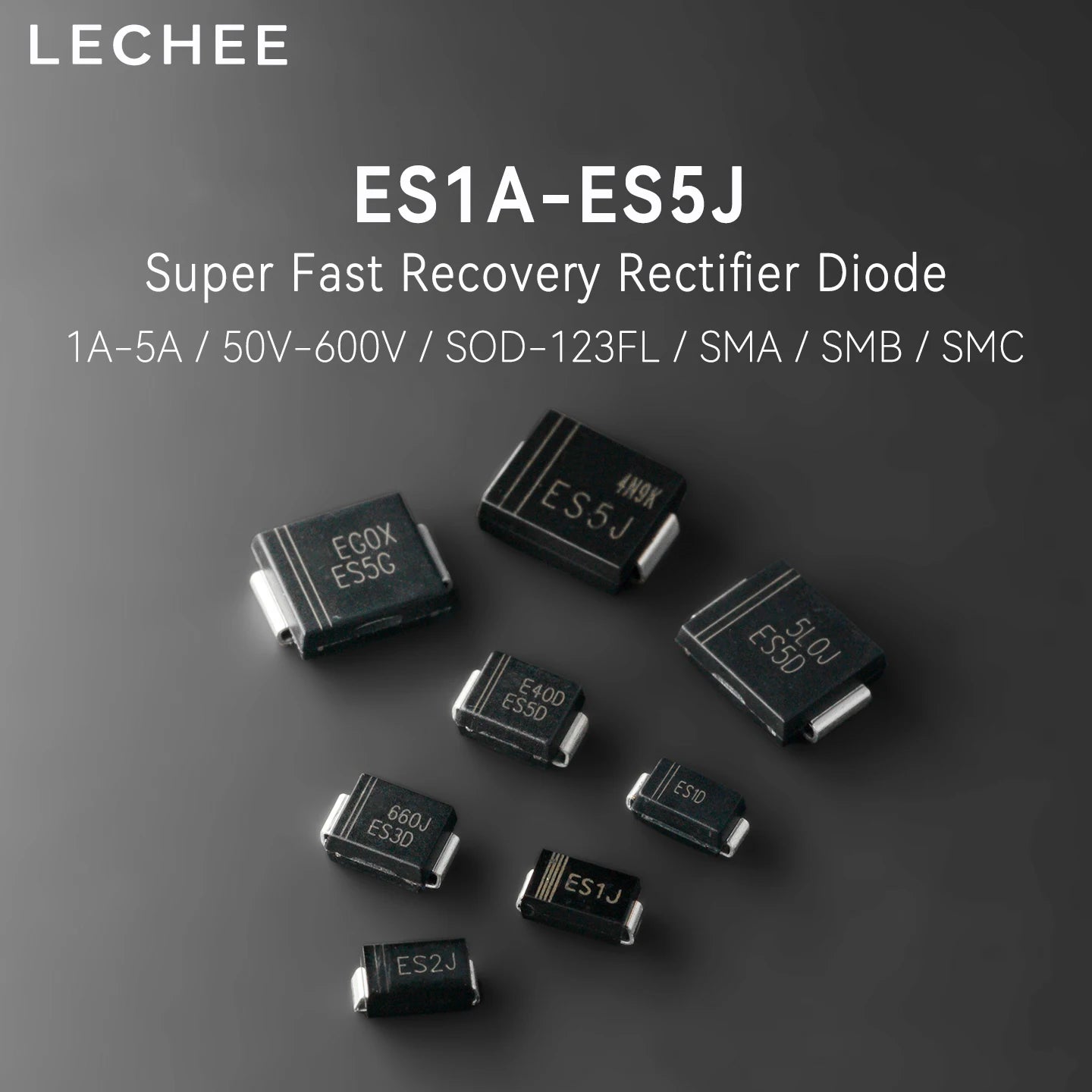

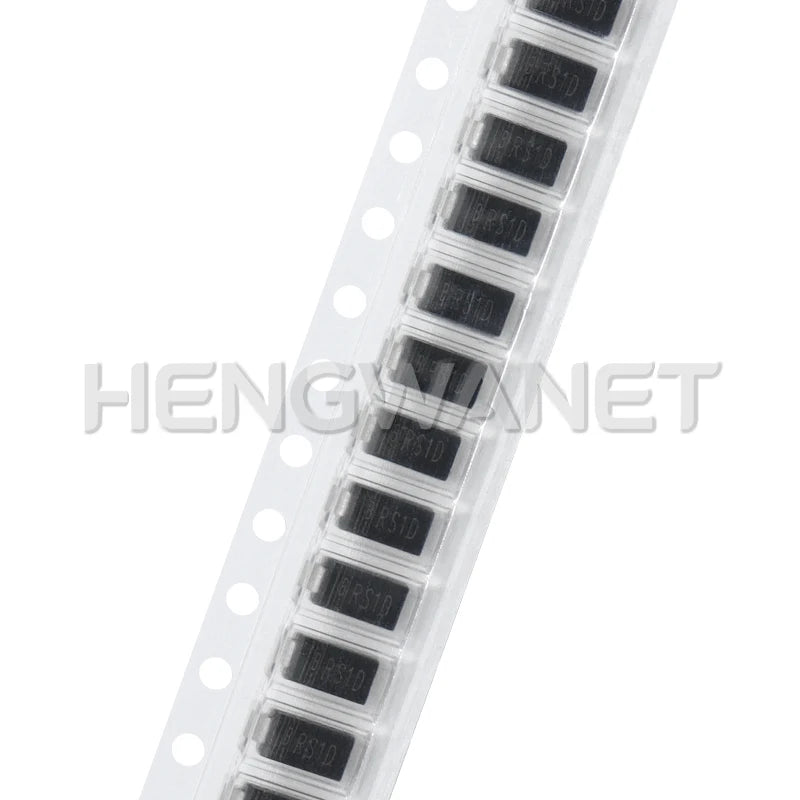

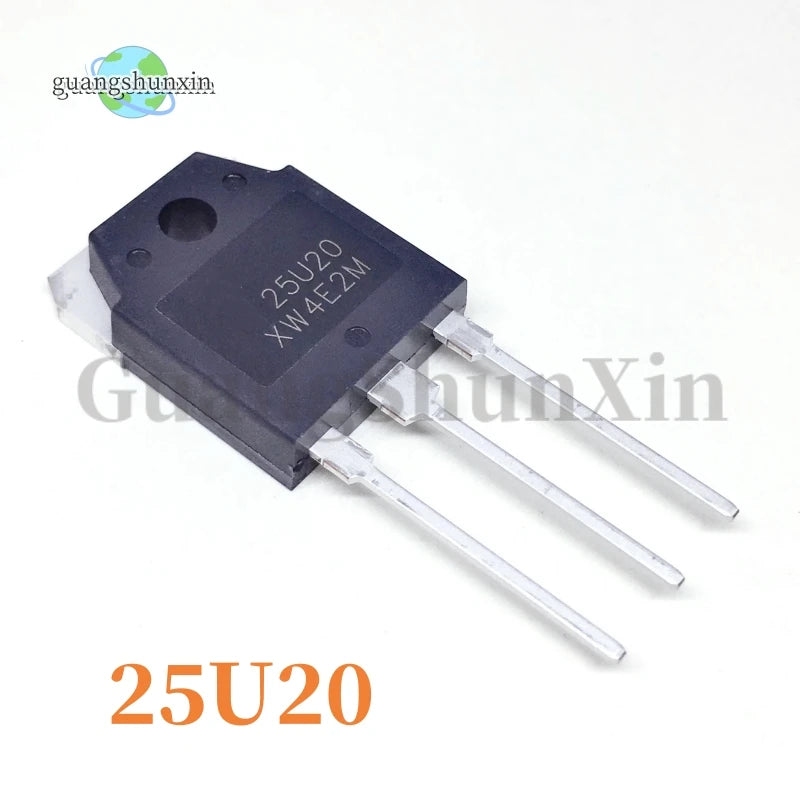

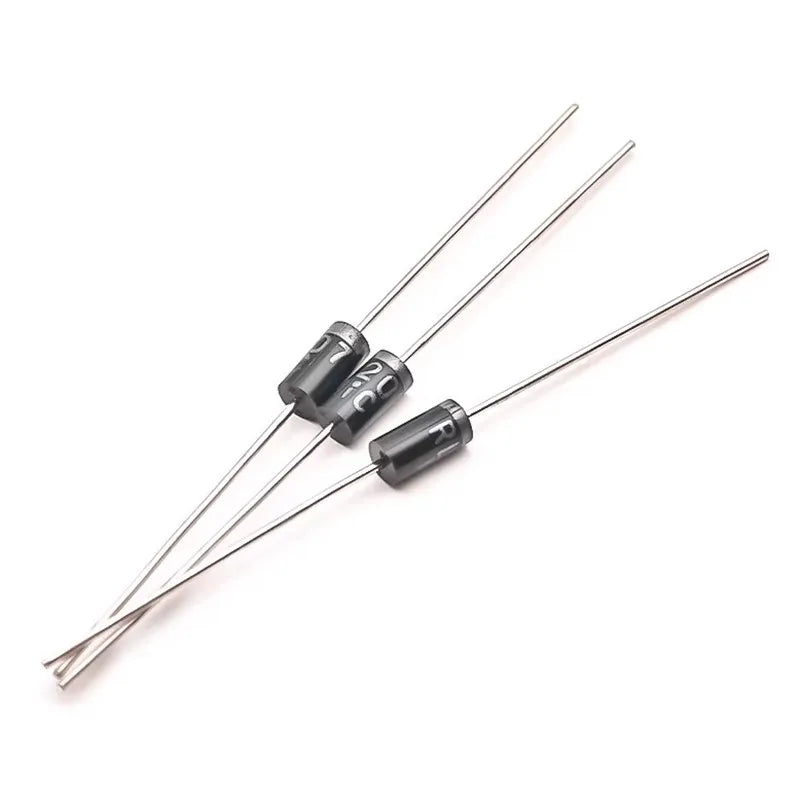

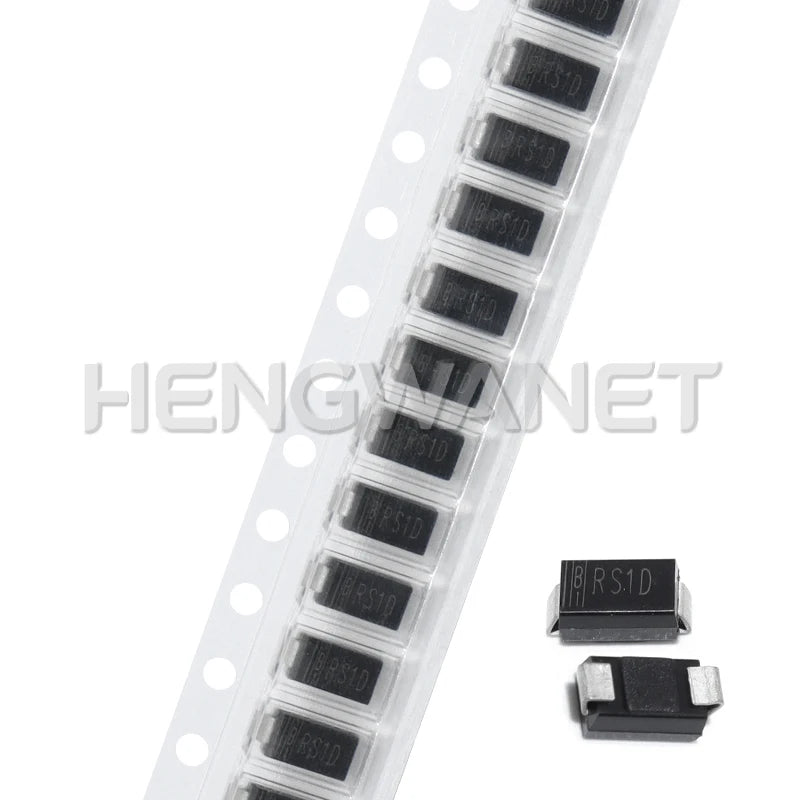

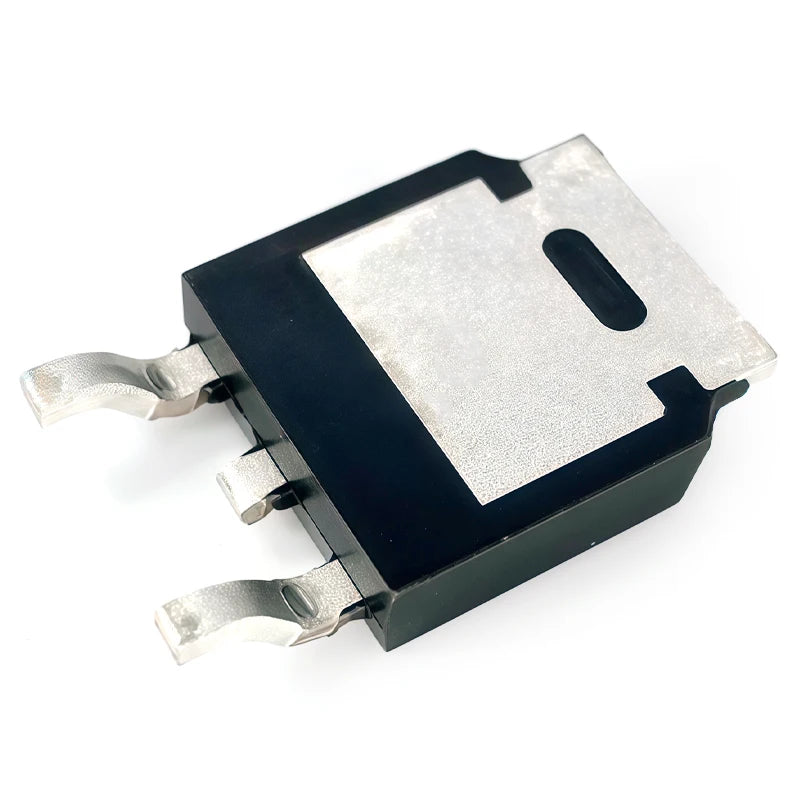

- Other recovery-labelled families: HER, ES, RS, SF, MUR and selected power packages can address different high-frequency or high-voltage requirements. Verify whether a TO-220/TO-247 option is single, common-cathode or another dual arrangement and whether ratings apply per diode or to the package.

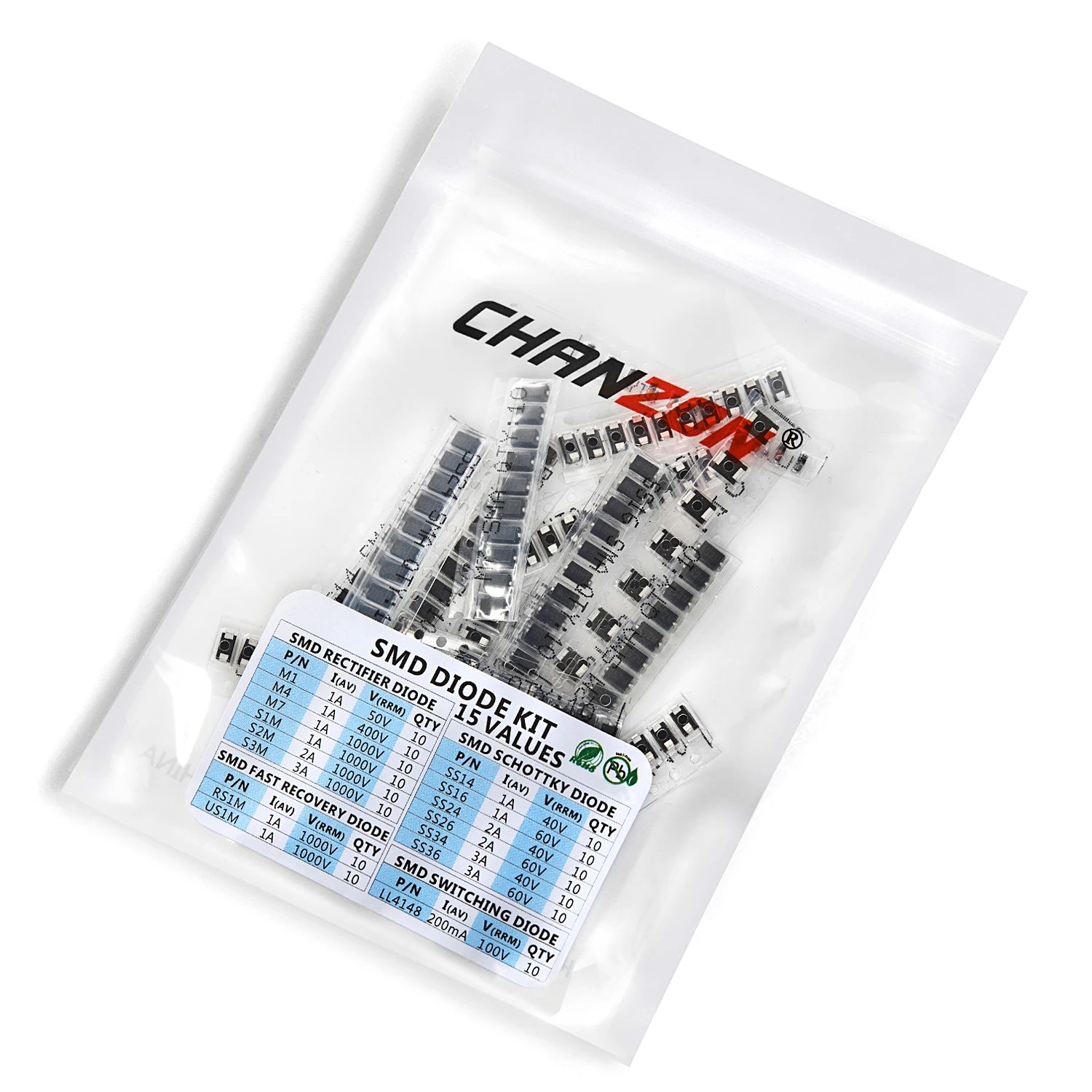

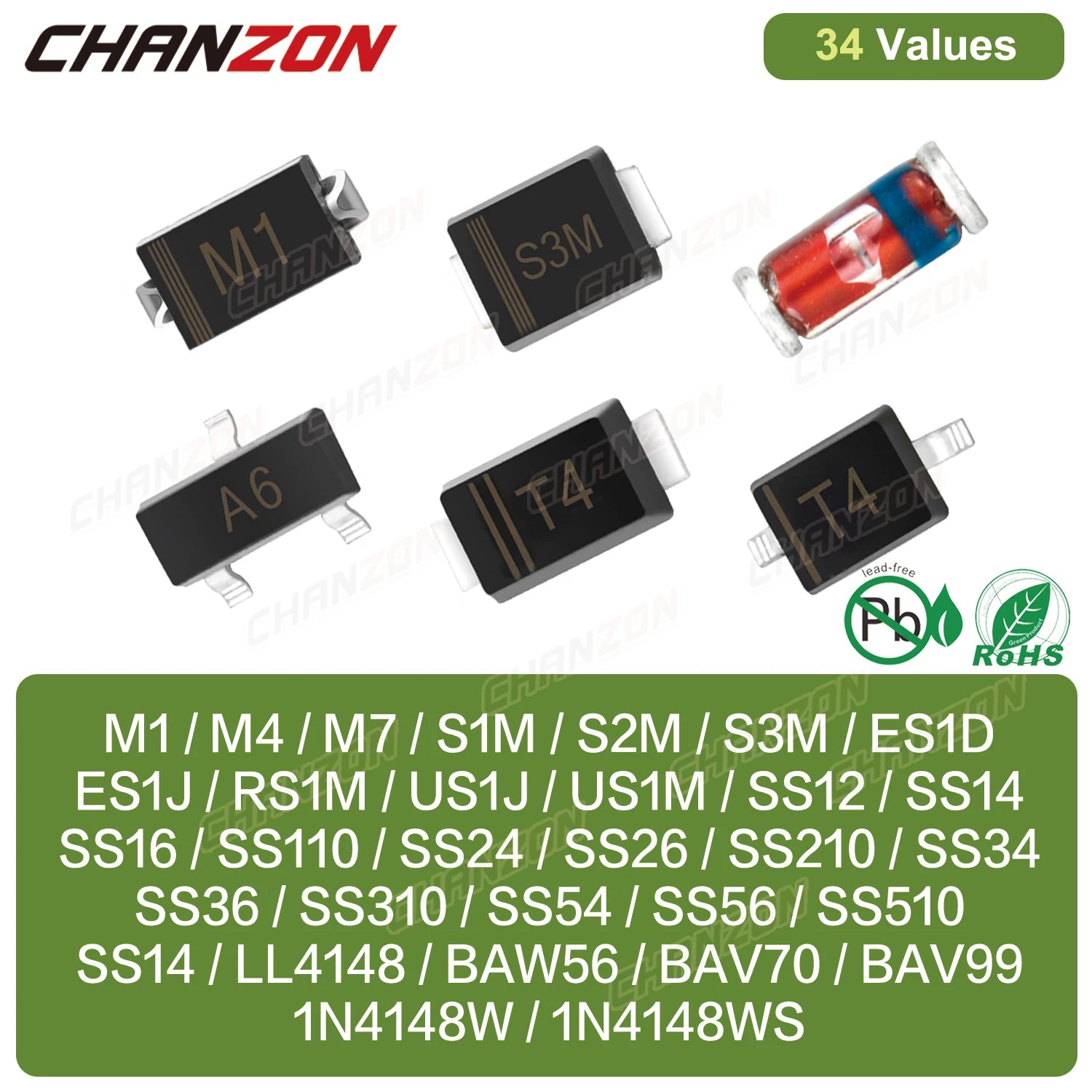

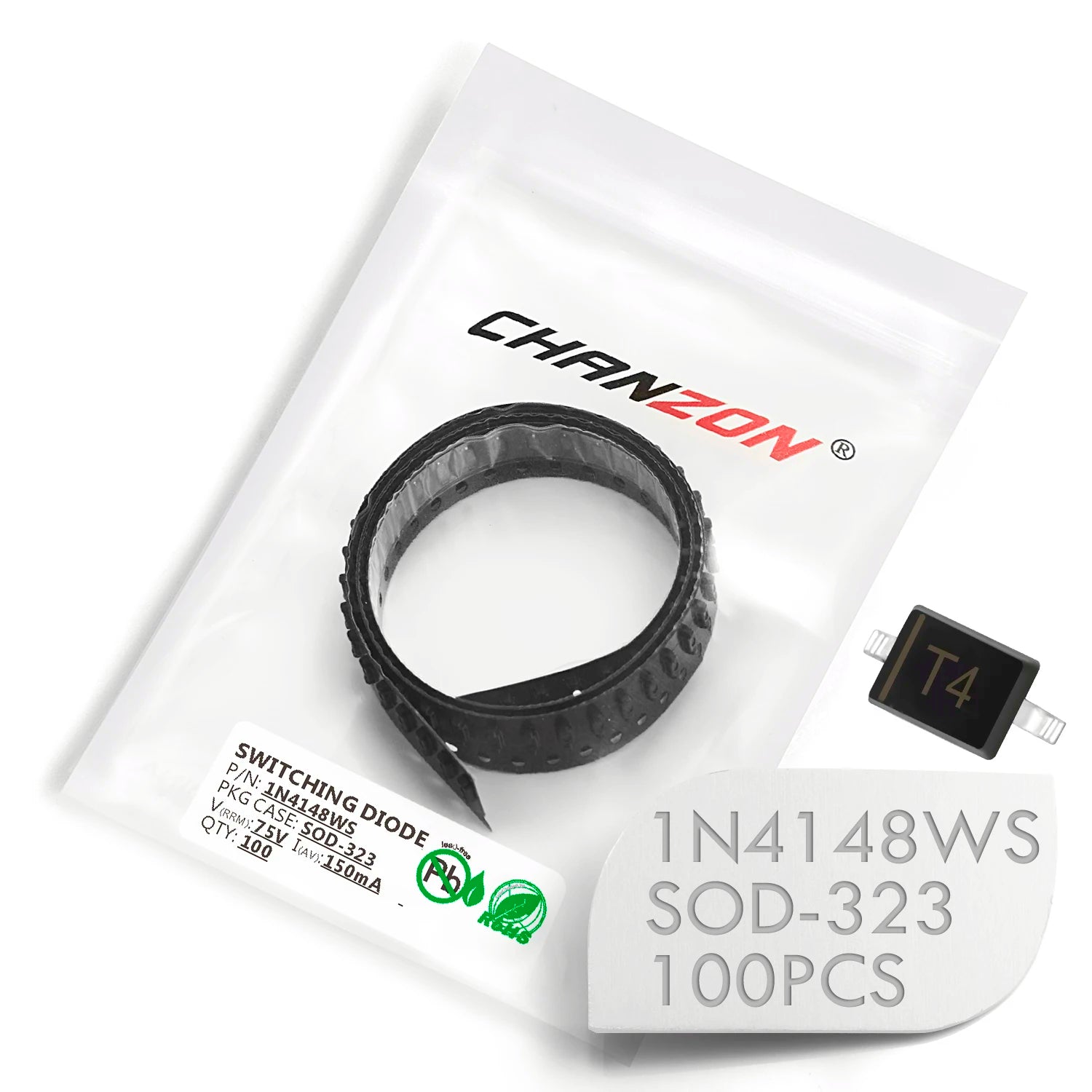

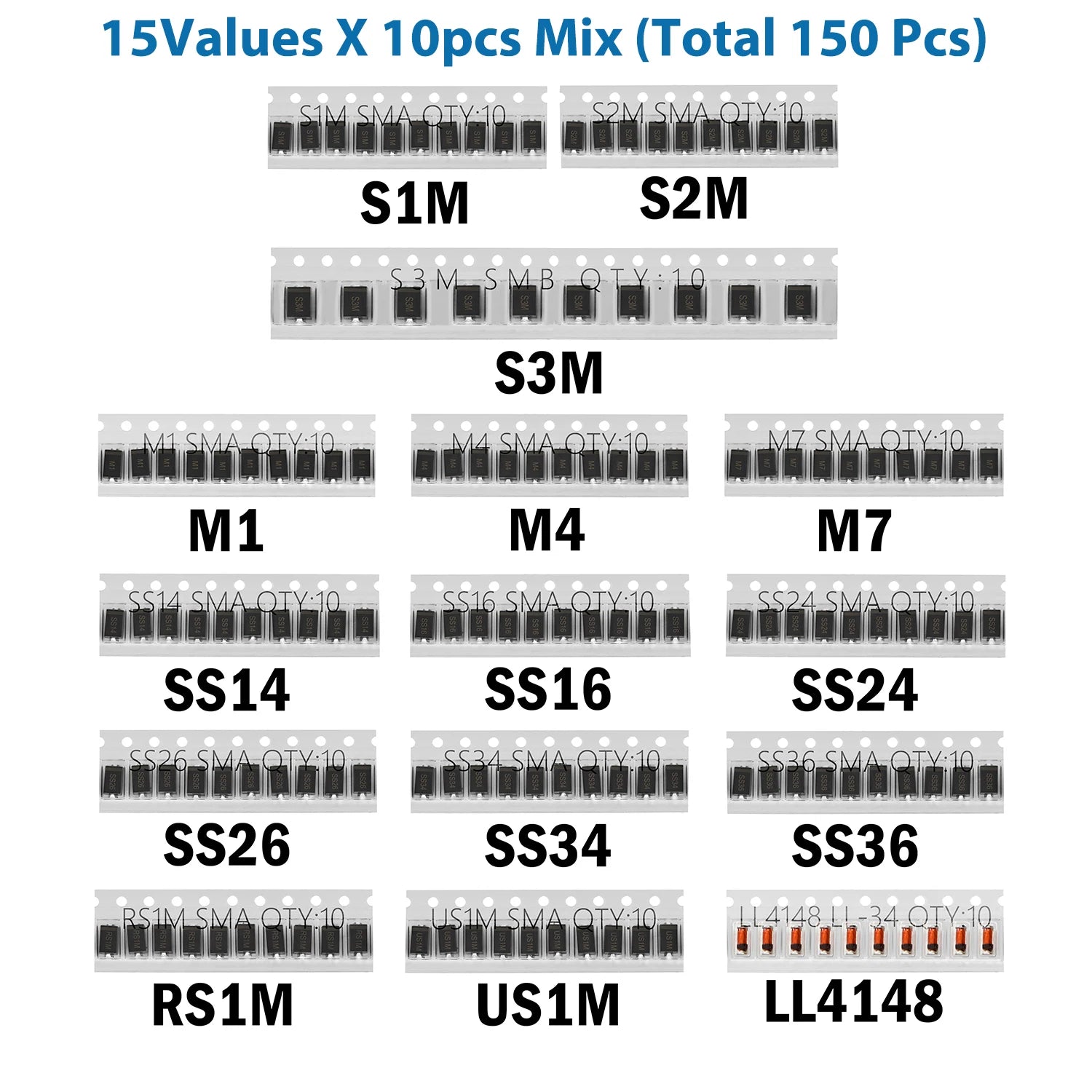

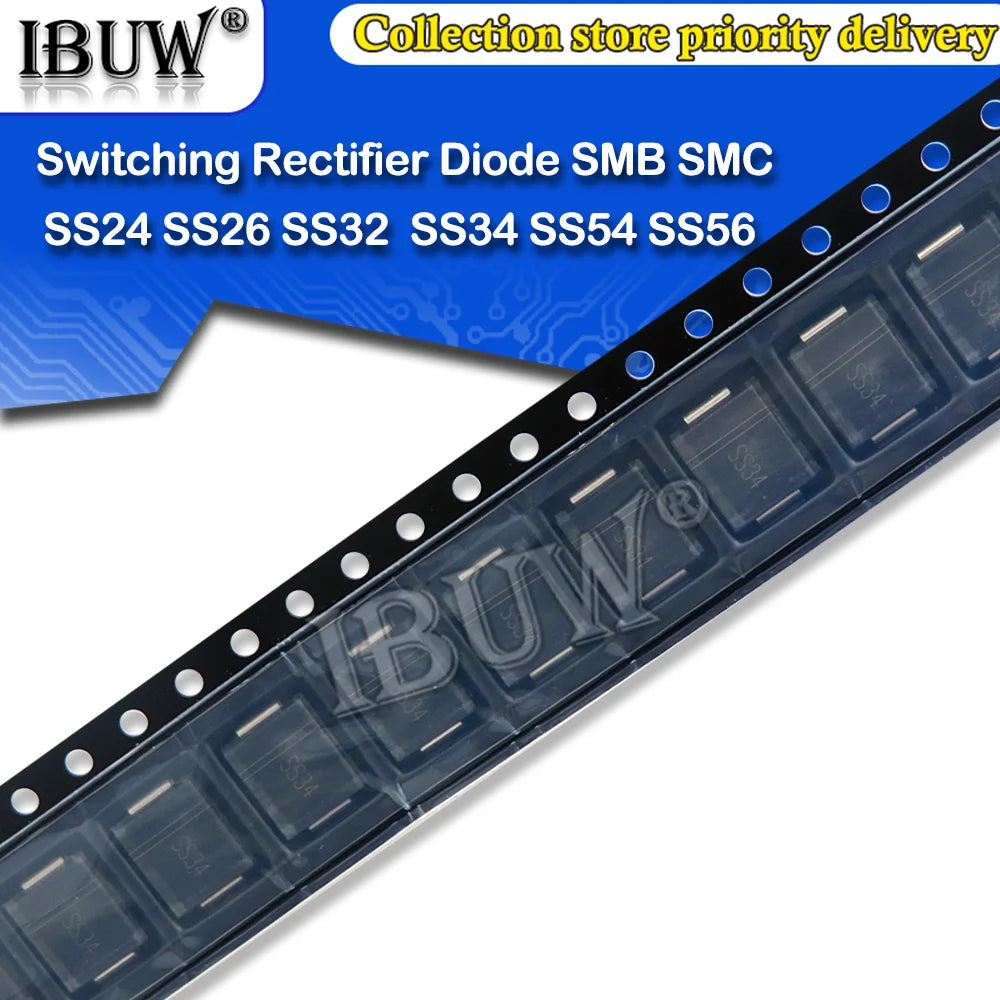

- Mixed listings: Some assortments offer RL207 or 1N4007 ordinary rectifiers, 1N5819/1N5822 Schottky parts or 1N4148 small-signal switching diodes alongside FR/UF parts. SQ/SQL single- and three-phase bridge-module choices are complete rectifier arrangements; “fast recovery” in a seller title does not prove a bridge's diode recovery specification. None of these other types becomes an FR diode by appearing on this page.
Choose by waveform and documented limits
- Identify the job first: mains-frequency rectification, a switching converter's freewheel or rectification path, snubber-related current path or an equipment-specific replacement. Determine whether you need one diode, a dual package or a bridge module.
- Set repetitive peak reverse-voltage headroom for steady operation and transients, then compare average forward and nonrepetitive surge current under the actual waveform and cooling conditions. Do not read a voltage in a seller's “Max. Forward Voltage” field as the forward drop.
- Compare reverse-recovery time at the stated forward current, reverse current and di/dt. Where available, check recovery charge and softness, junction capacitance, leakage and forward drop: a smaller quoted time alone does not prove lower losses or lower electrical noise in your circuit.
- Assess dissipation and thermal path using package, mounting and operating temperature. Match cathode marking, lead spacing or SMD land pattern and any dual-diode pinout.
- Confirm the exact variant and quantity. “Color” menus often encode FR104 versus FR607 or pack size; a 50-piece headline does not define all options. For bridge choices, verify single versus three phase and terminal map separately.
Purchasing checklist
Record part number and full suffix, diode technology, reverse voltage, working and surge currents, switching frequency and recovery test conditions, forward drop, leakage at temperature, package/pinout, thermal design and pack quantity. For repairs or high-energy circuits, rely on traceable part documentation and qualified design guidance; supplier labels do not prove certifications, original manufacturer or system compatibility.
Frequently asked questions
Is UF4007 the same as 1N4007?
No. Both are silicon rectifier part families, but UF4007 is specified for ultrafast recovery whereas the standard 1N4007 is not a drop-in substitute when recovery matters. Verify the selected manufacturer's data.
Is US1M an ESD or TVS protection diode?
Do not assume that from a listing headline. A US1M option is sold as an SMD fast rectifier; actual transient-clamping performance would need a separate device-specific specification.
Can I use a Schottky instead of an FR diode?
Only after checking reverse voltage, temperature-dependent leakage, forward loss, surge, footprint and system behavior. They are different diode technologies.
Does the fastest recovery-time number always mean the best choice?
No. Compare measurement conditions, reverse-recovery charge and softness, loss, noise, temperature and cooling for the actual waveform.
