Ferrite Beads, Cable Chokes and EMI Cores
Ferrite components for conducted EMI and cable RFI control
Ferrite beads impede high-frequency interference while passing the intended DC supply or lower-frequency signal. This collection contains multilayer SMD chip beads, multi-line bead arrays, axial or hollow through-hole sleeves, snap-on cable ferrites, loose toroidal and rod cores, transformer core-and-bobbin sets and ferrite sample books. These forms do different jobs: a specified chip bead is a PCB component, a clip-on core surrounds an existing cable and a bare magnetic core needs a winding design before it becomes an inductor or transformer.
Compare the actual product types

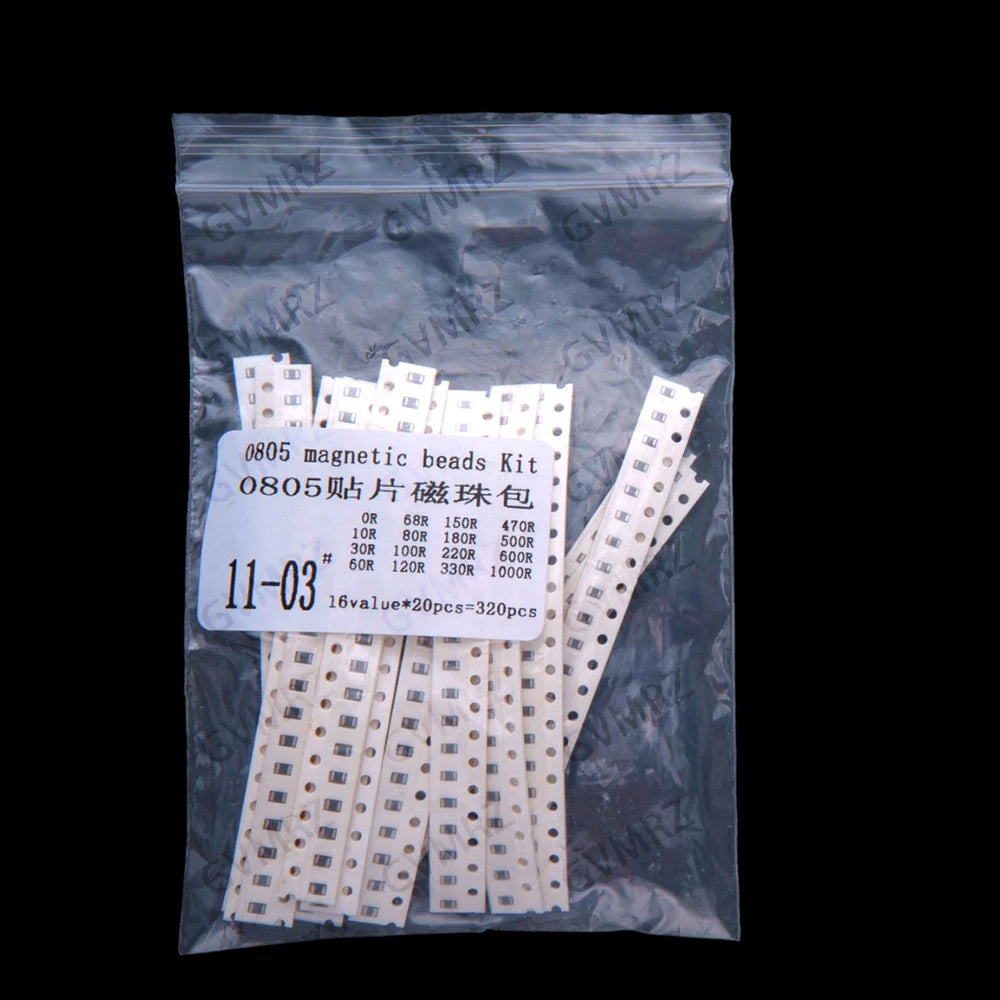

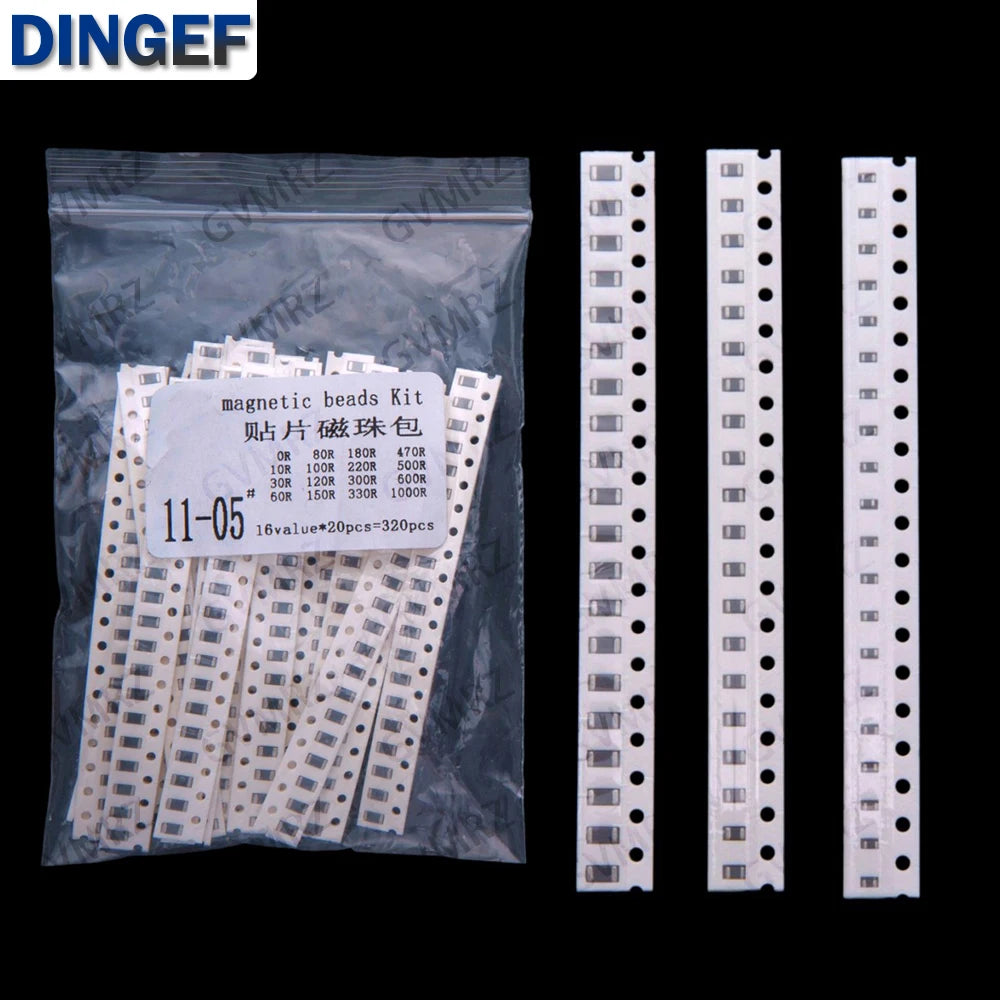

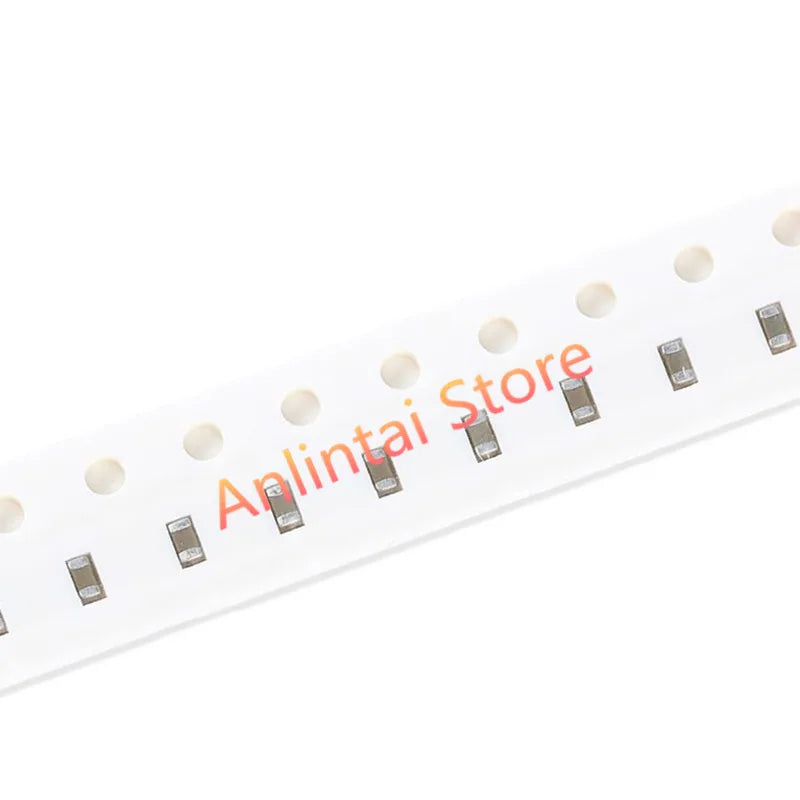

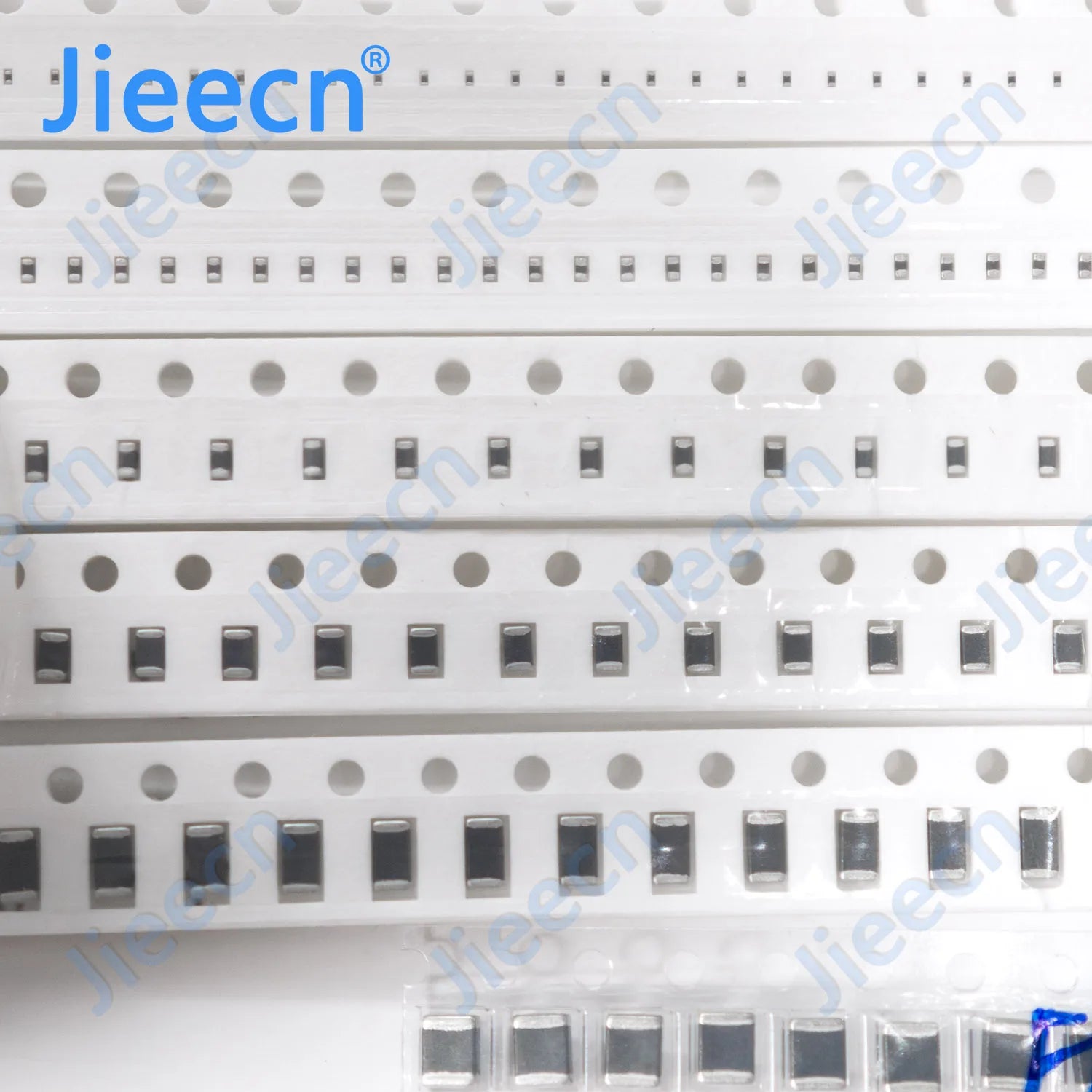

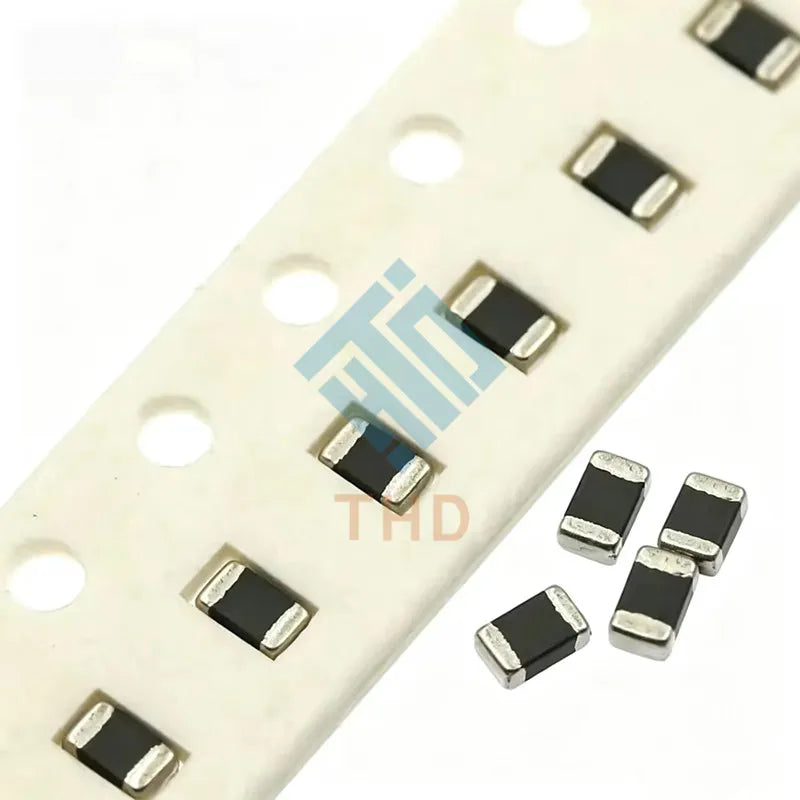

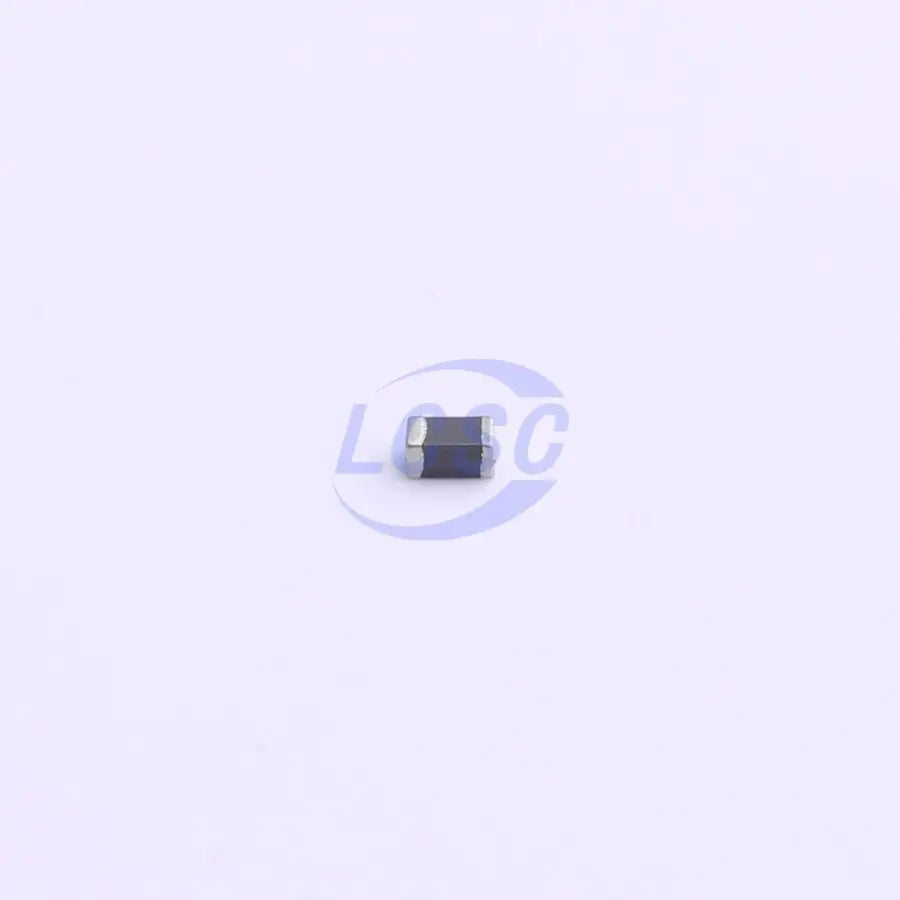

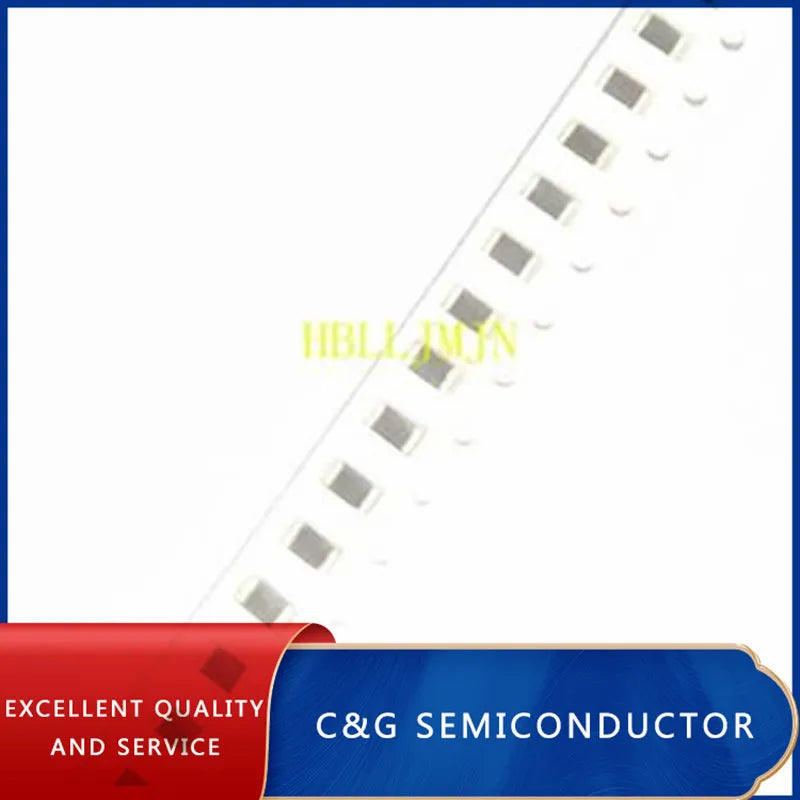

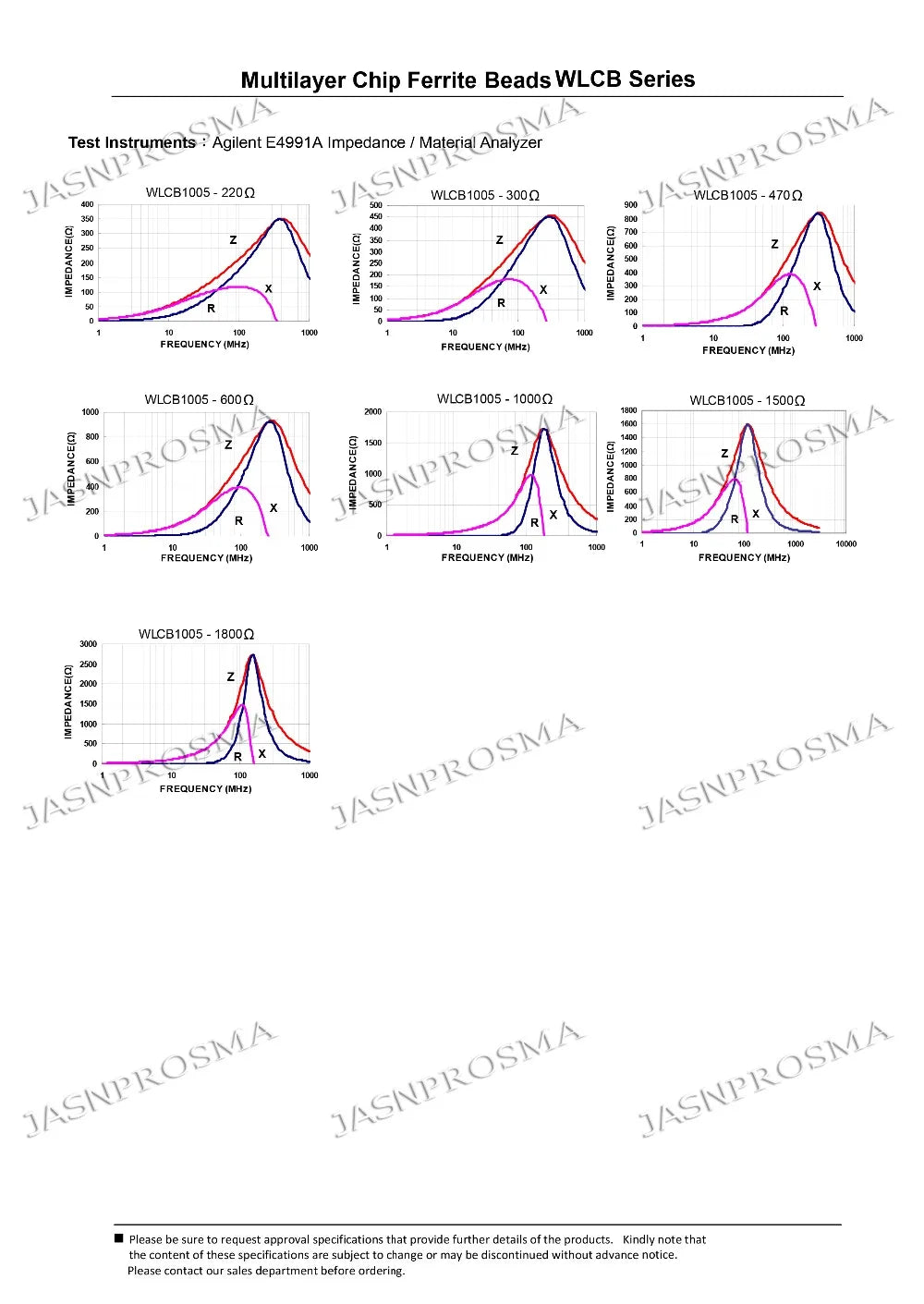

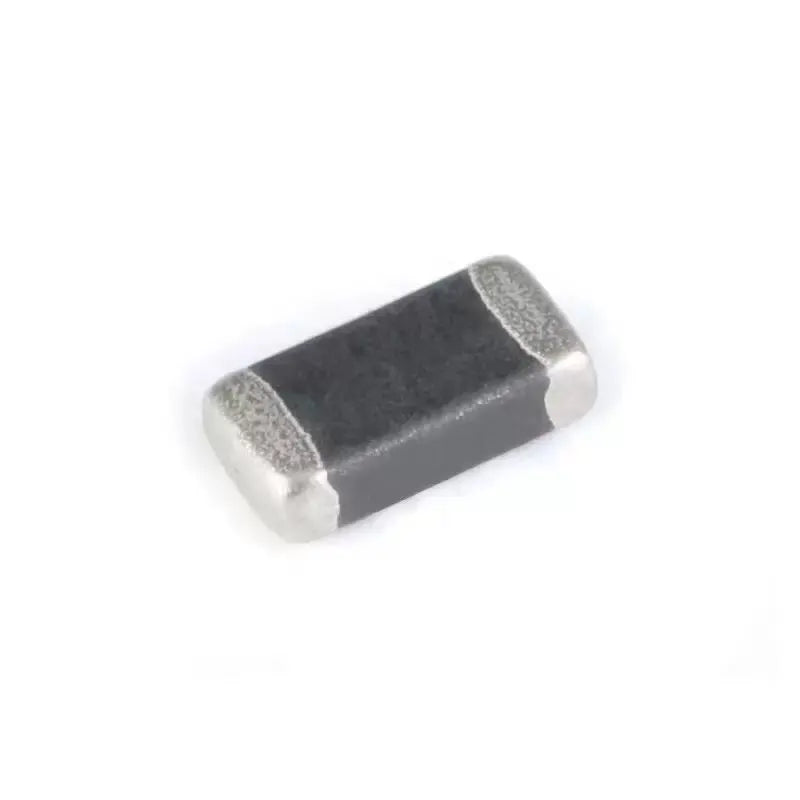

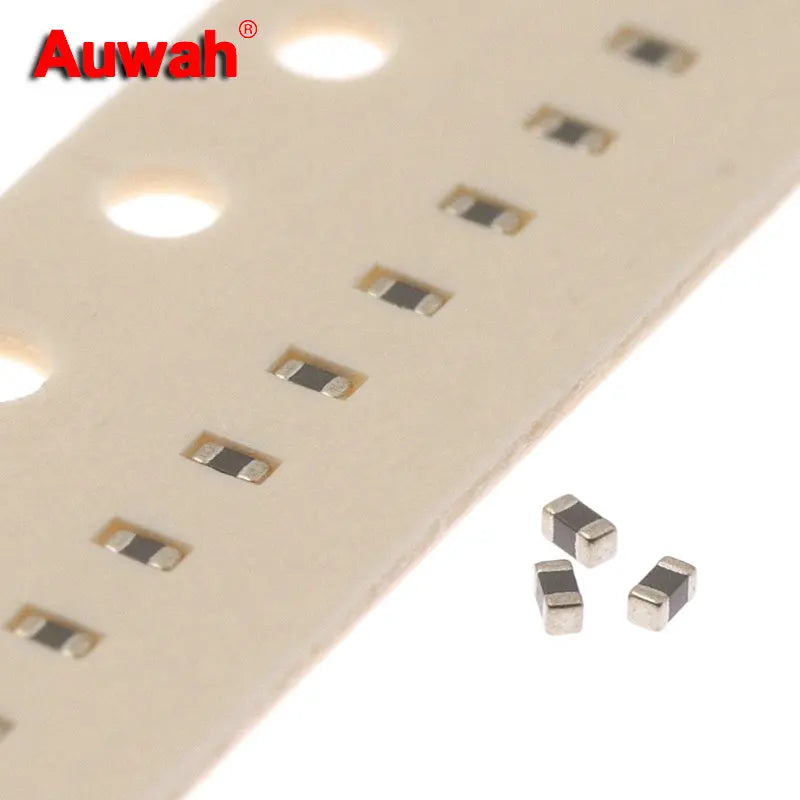

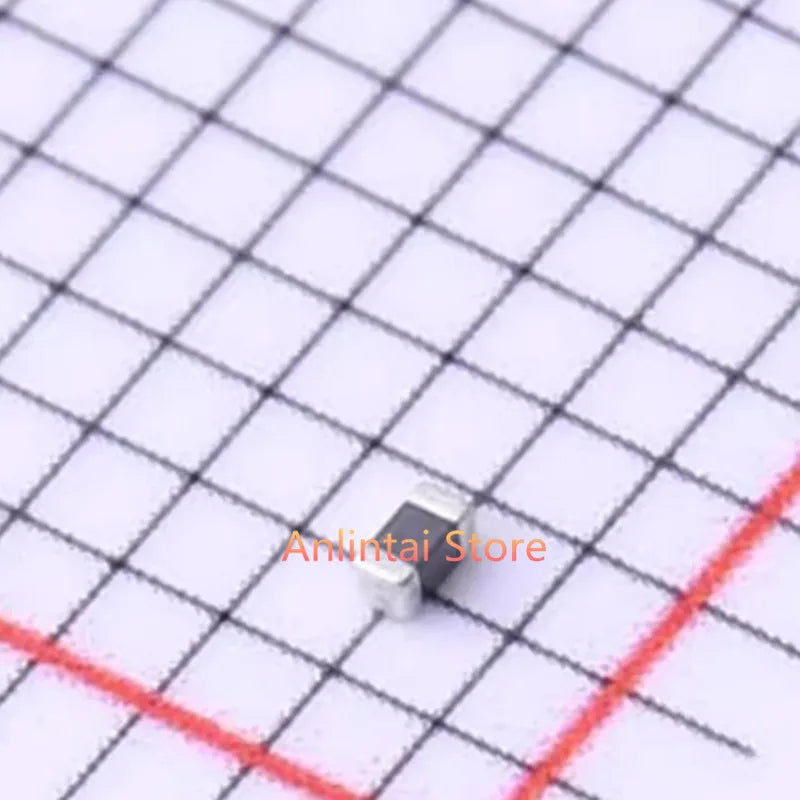

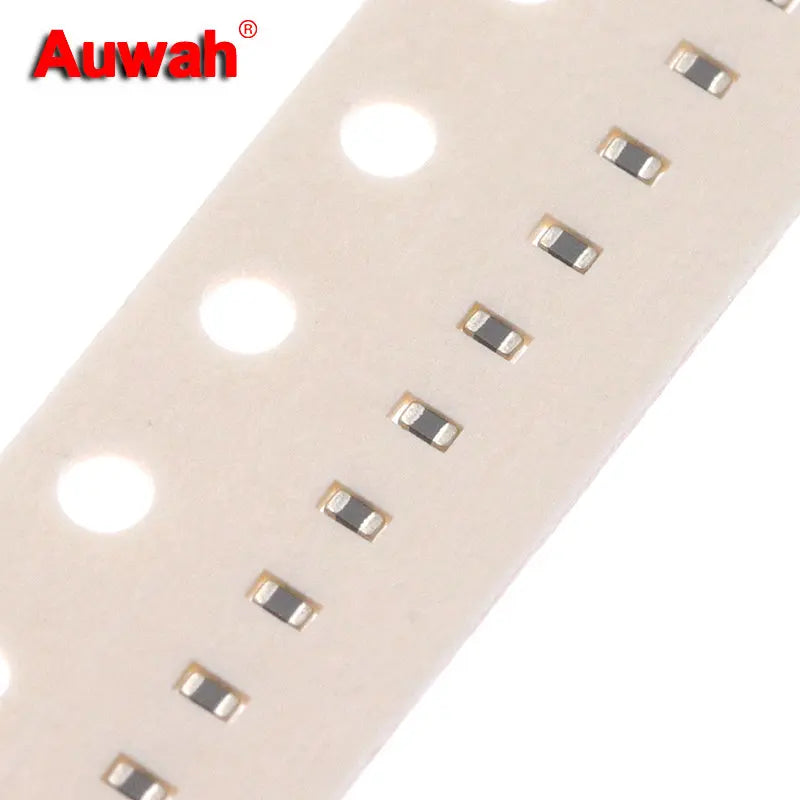

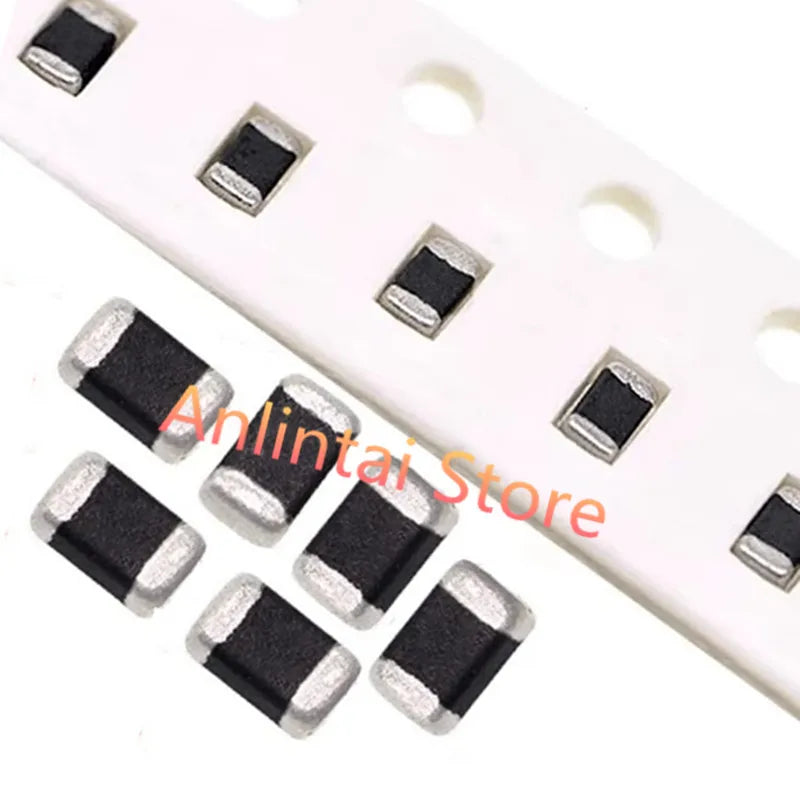

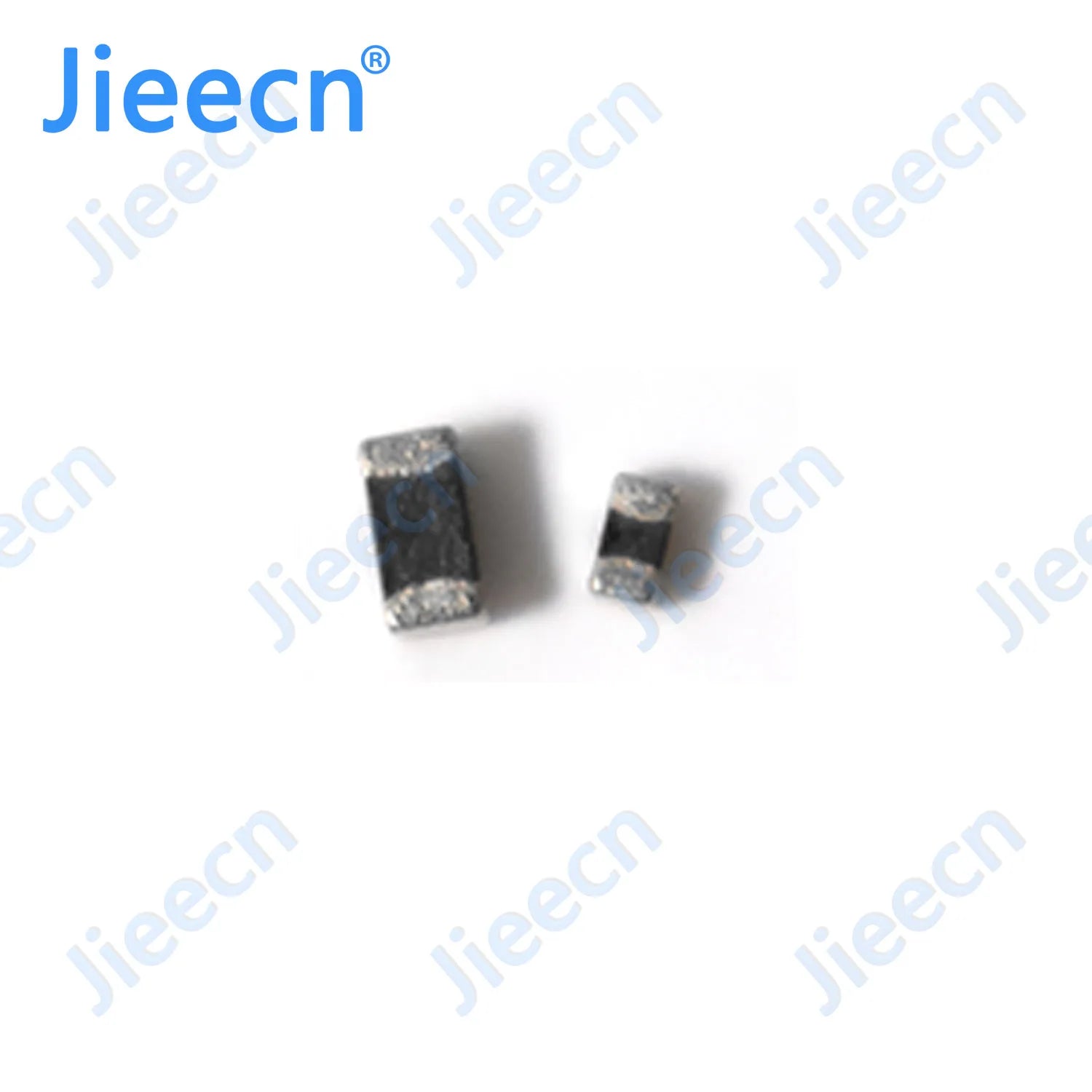

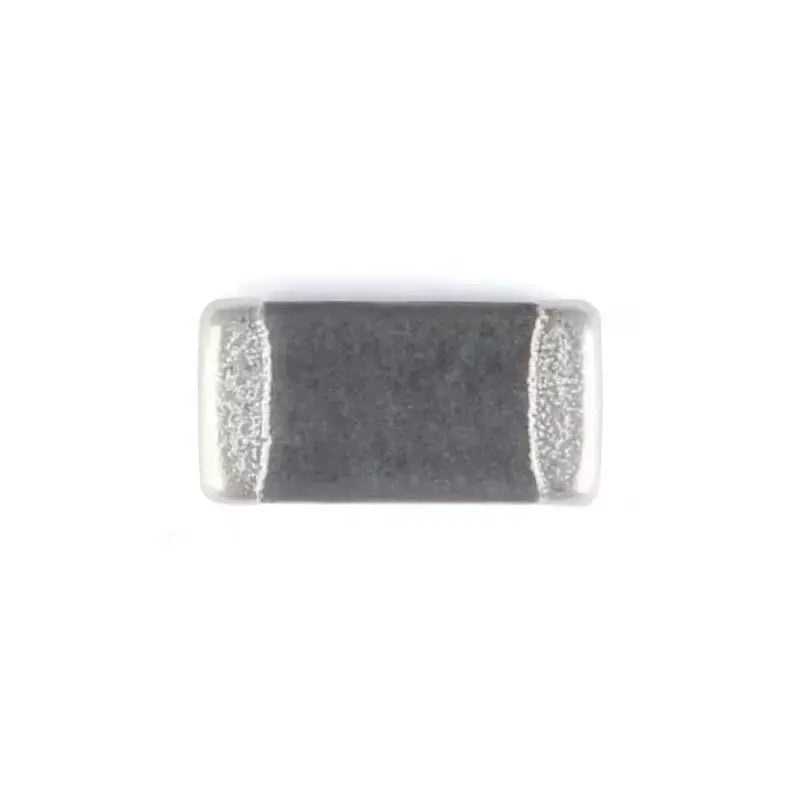

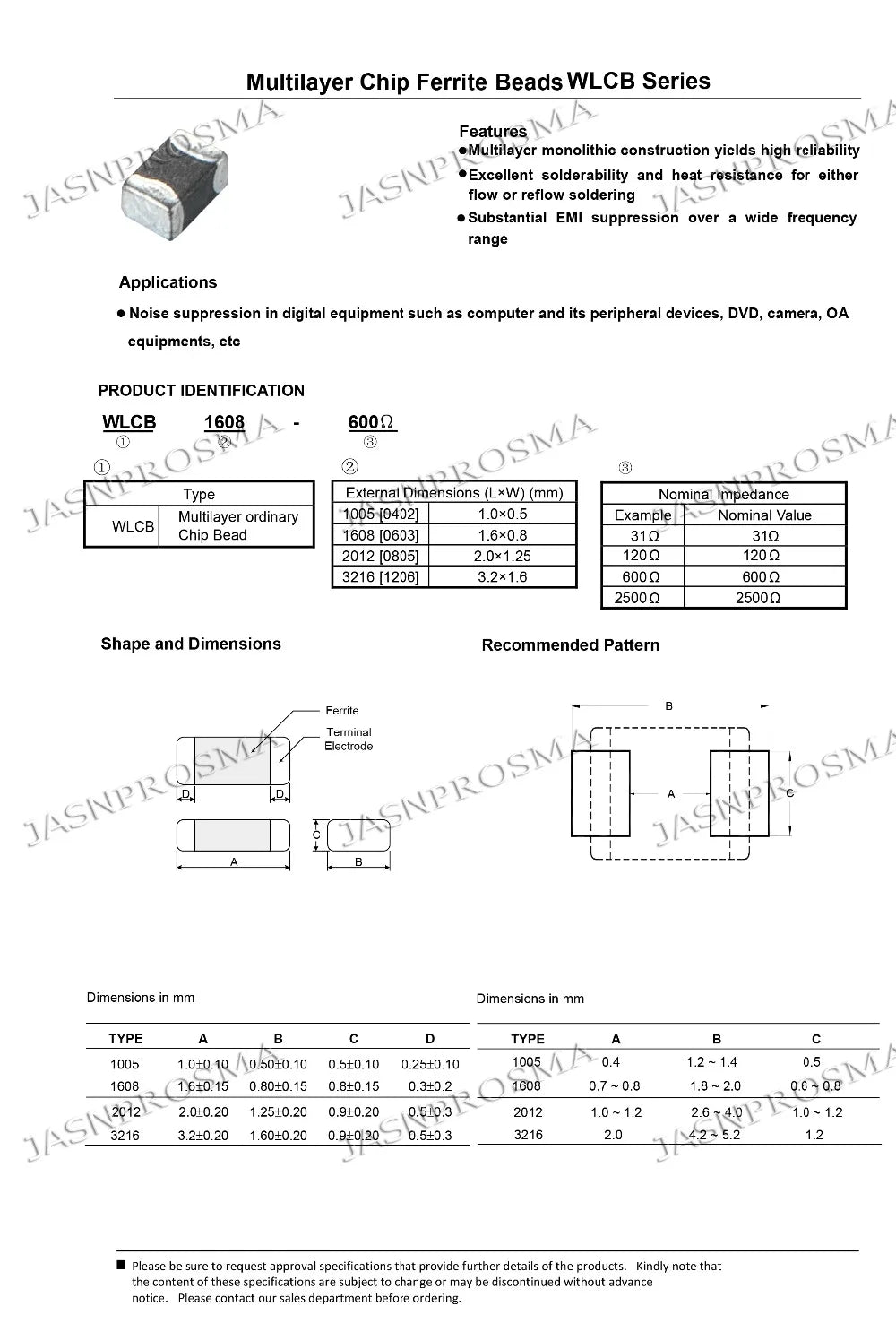

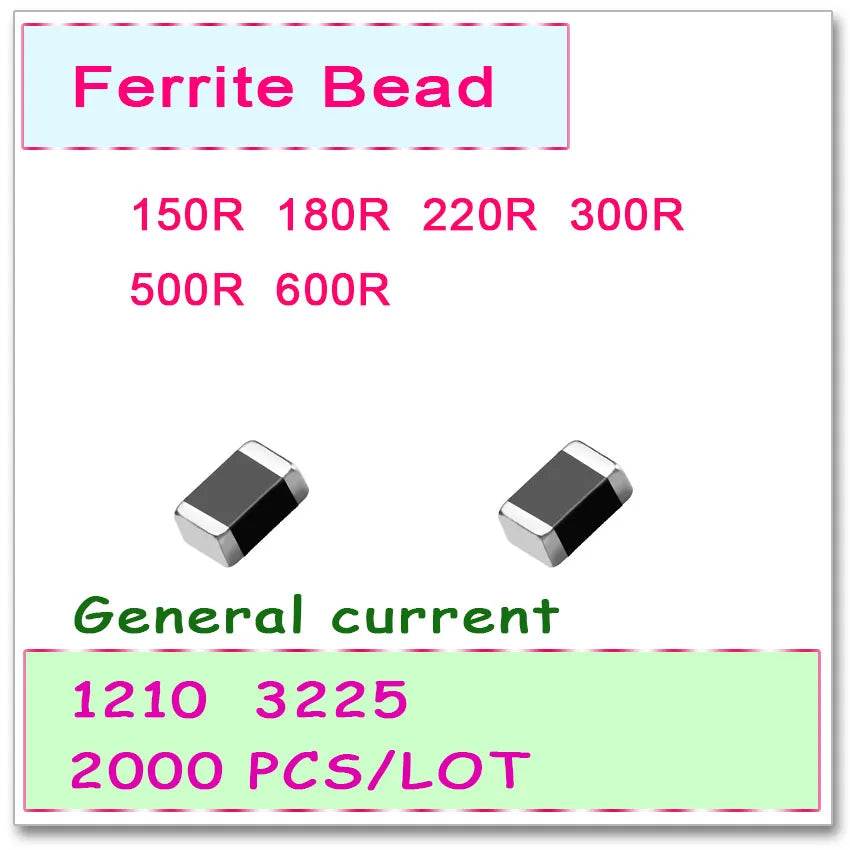

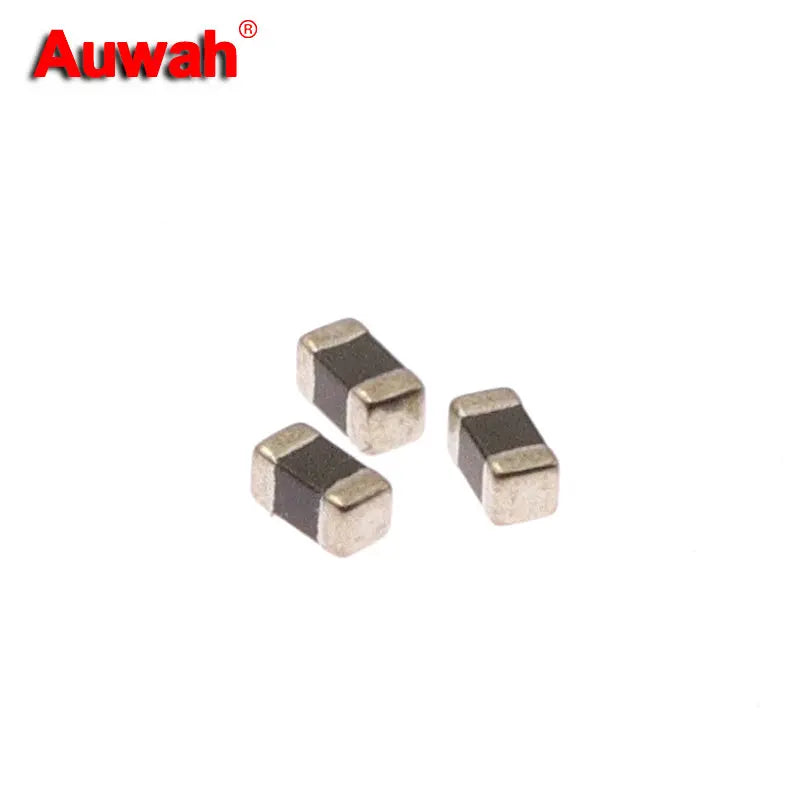

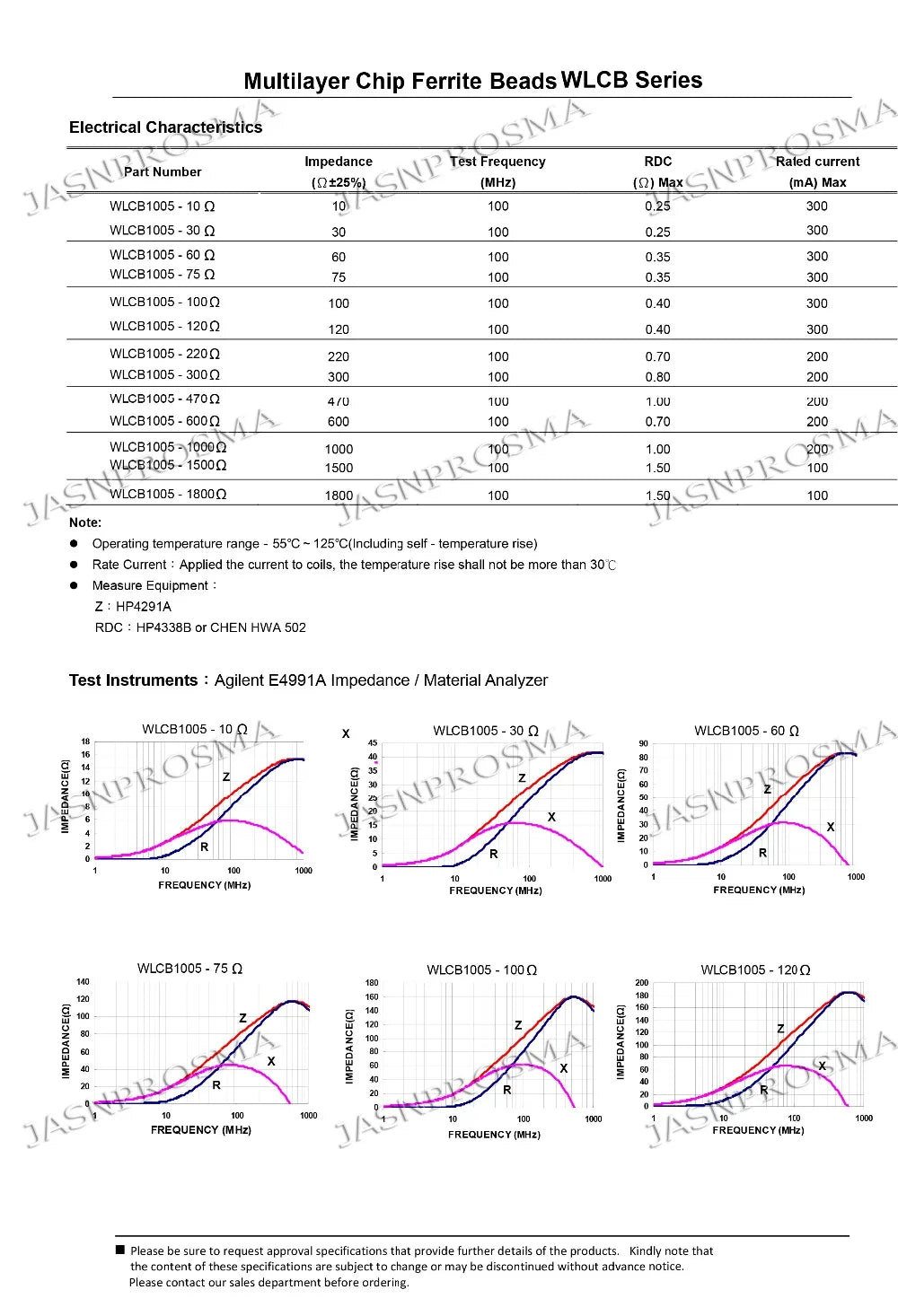

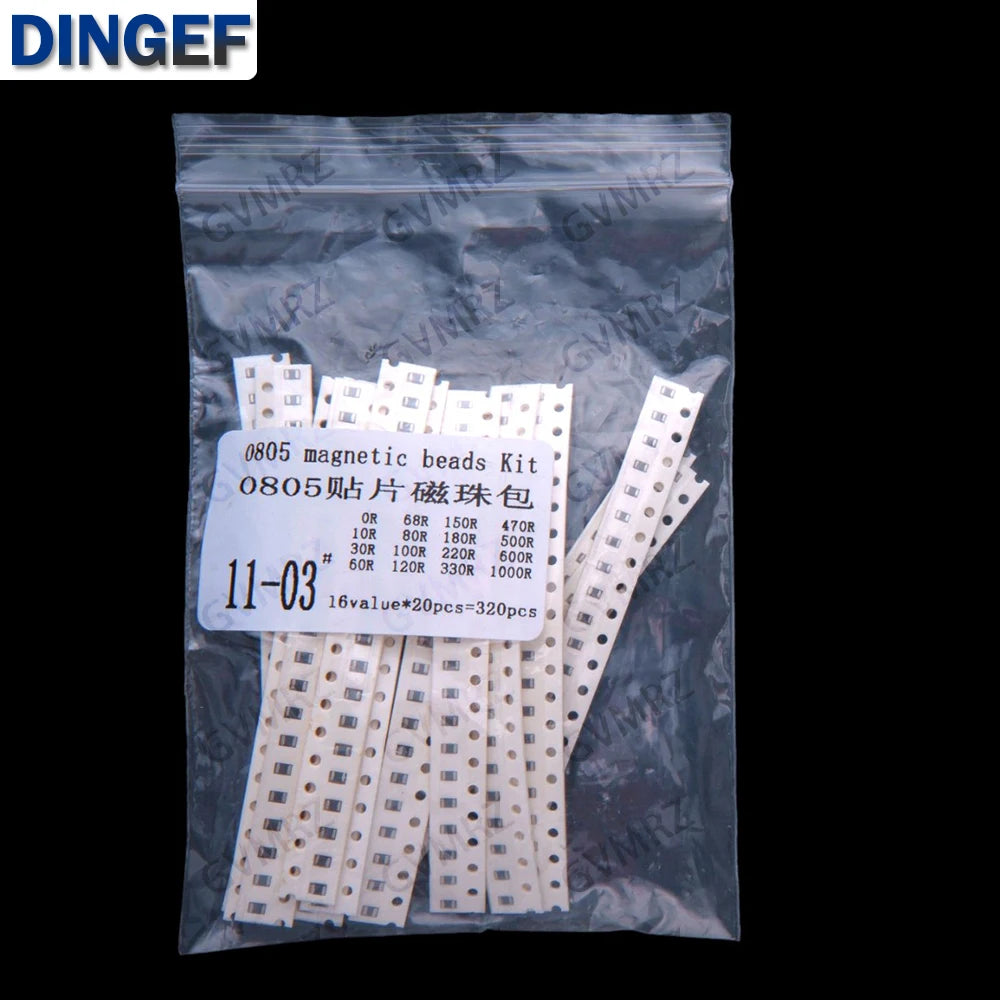

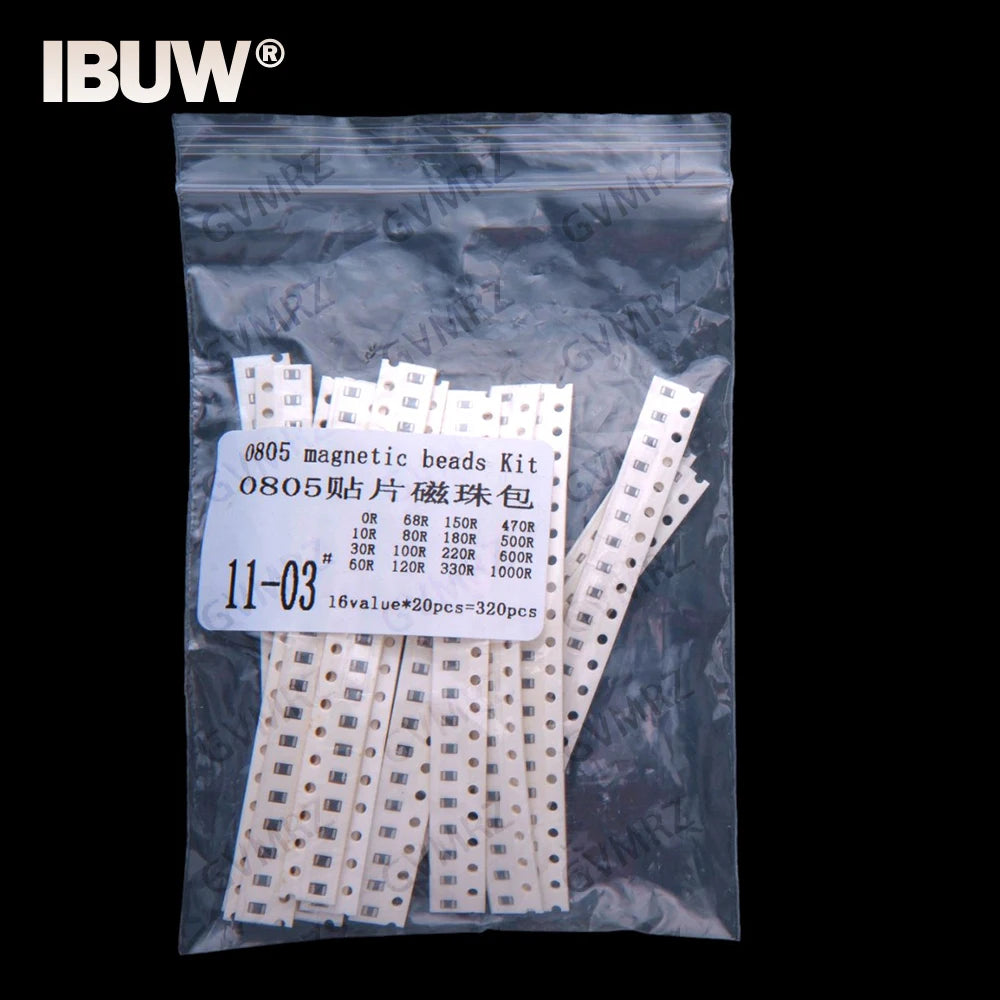

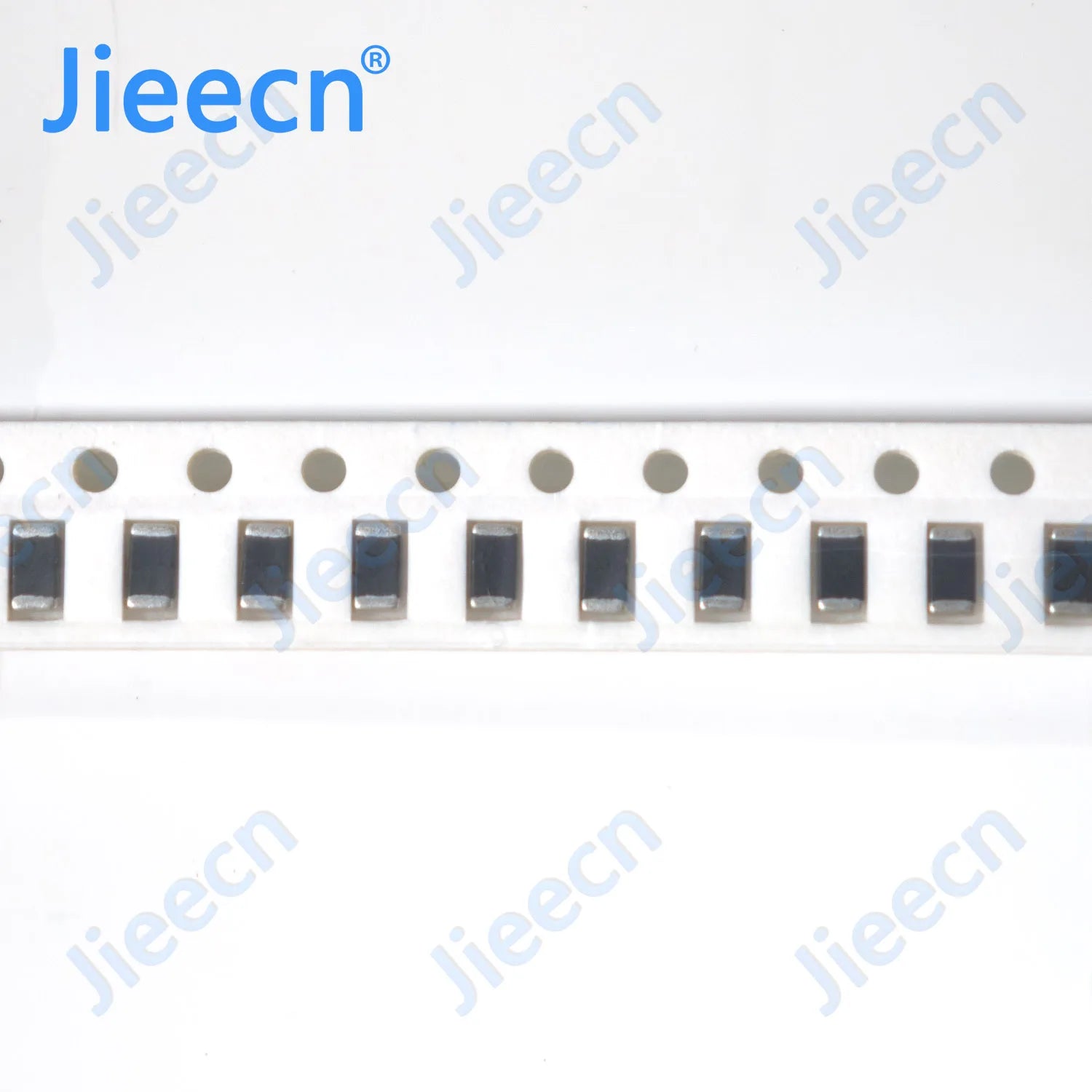

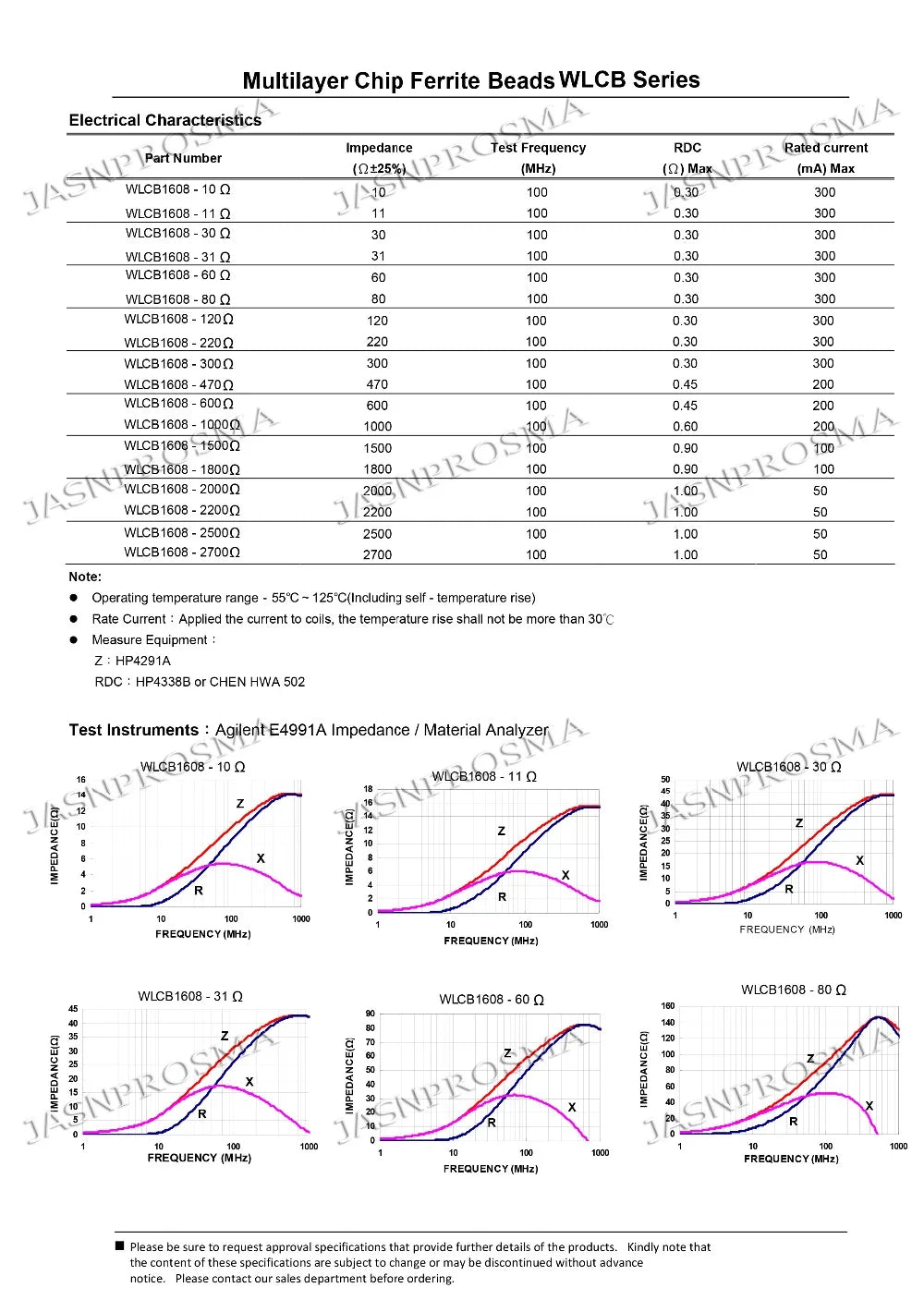

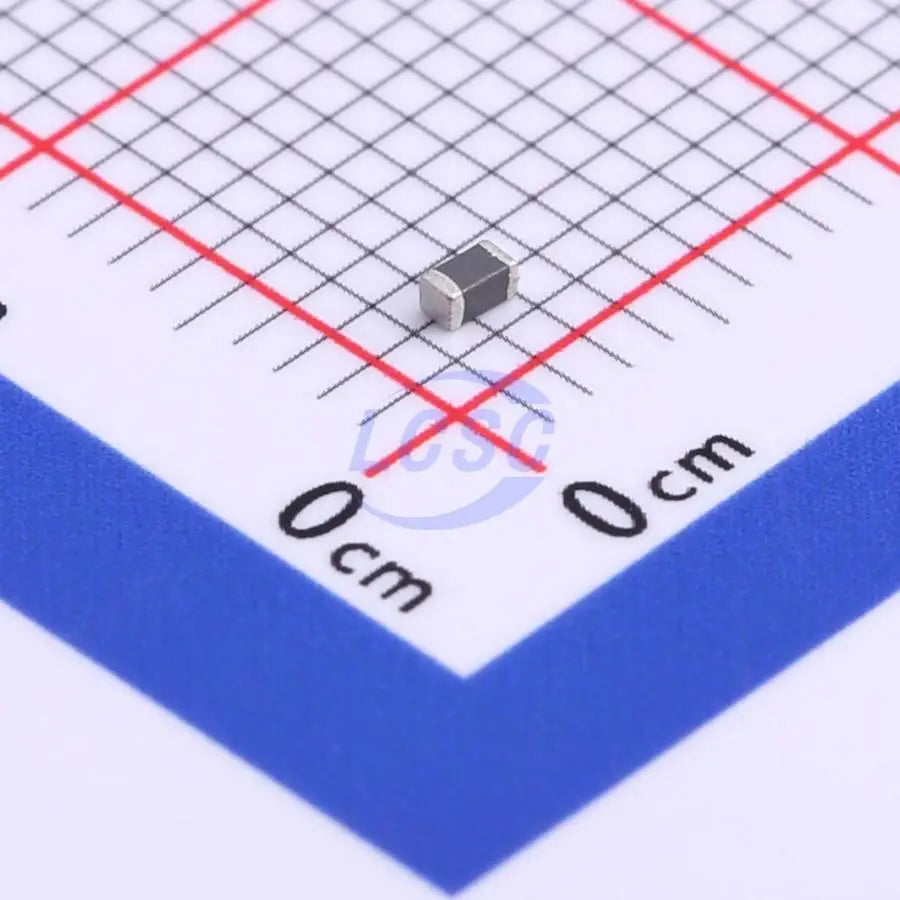

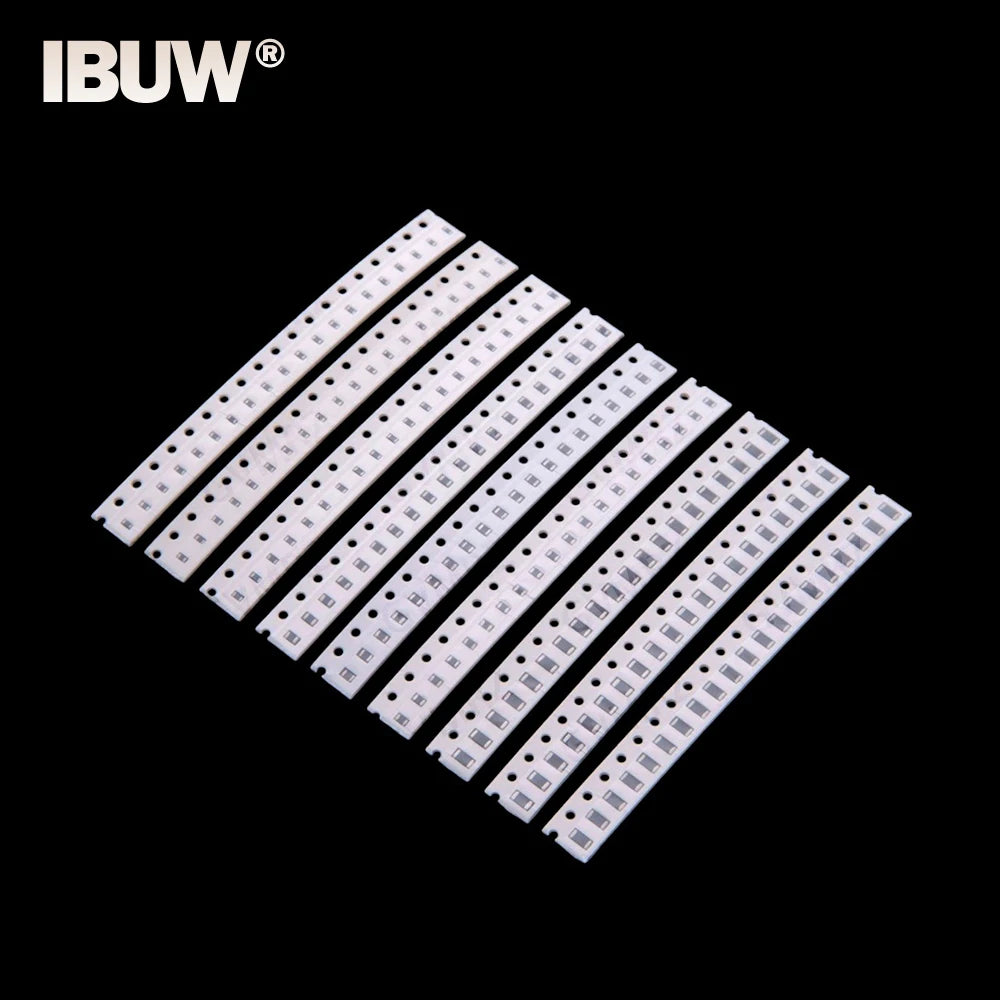

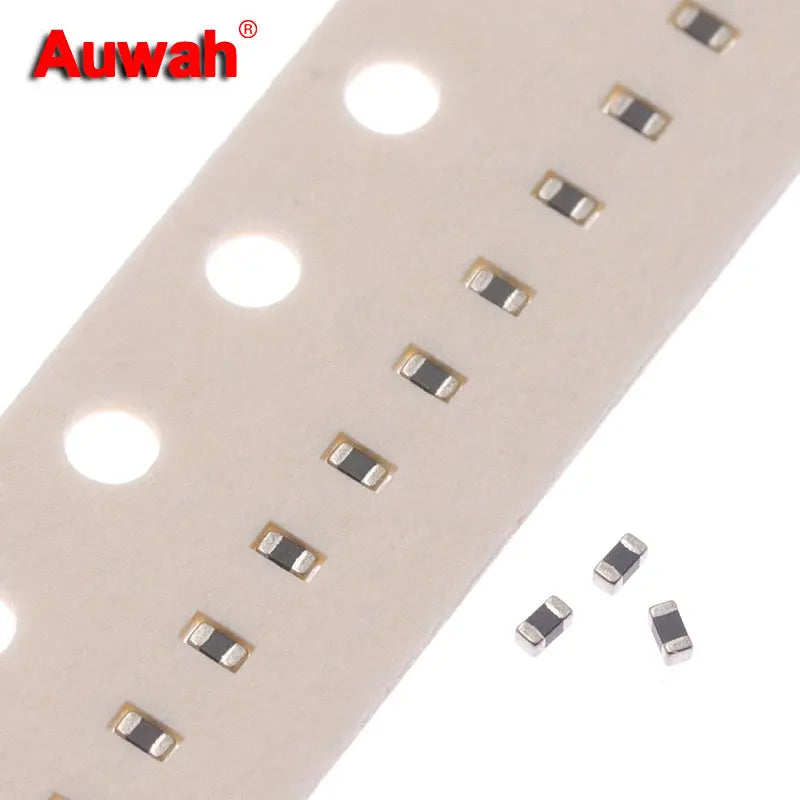

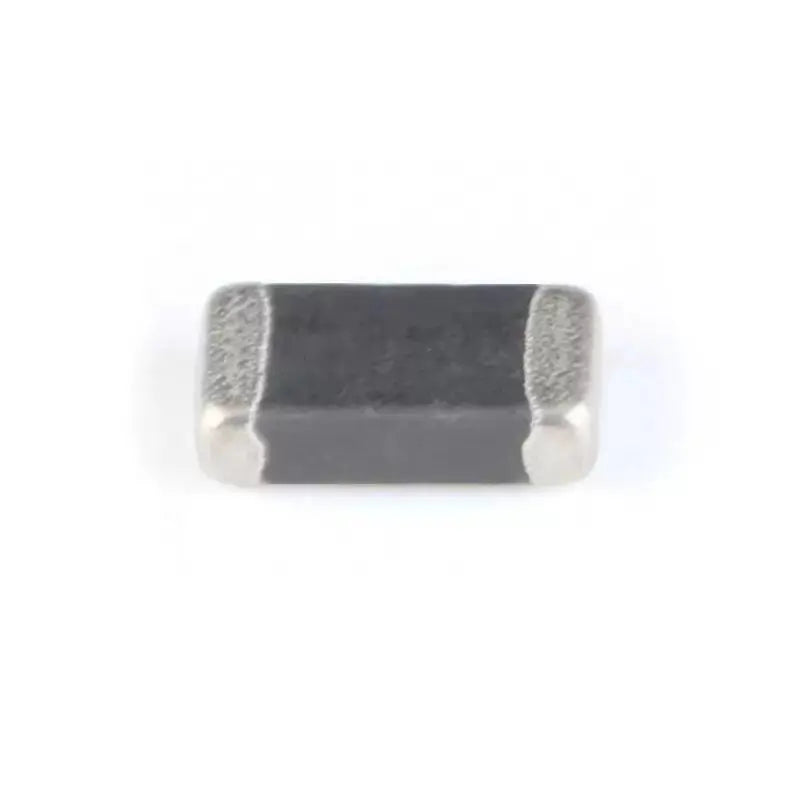

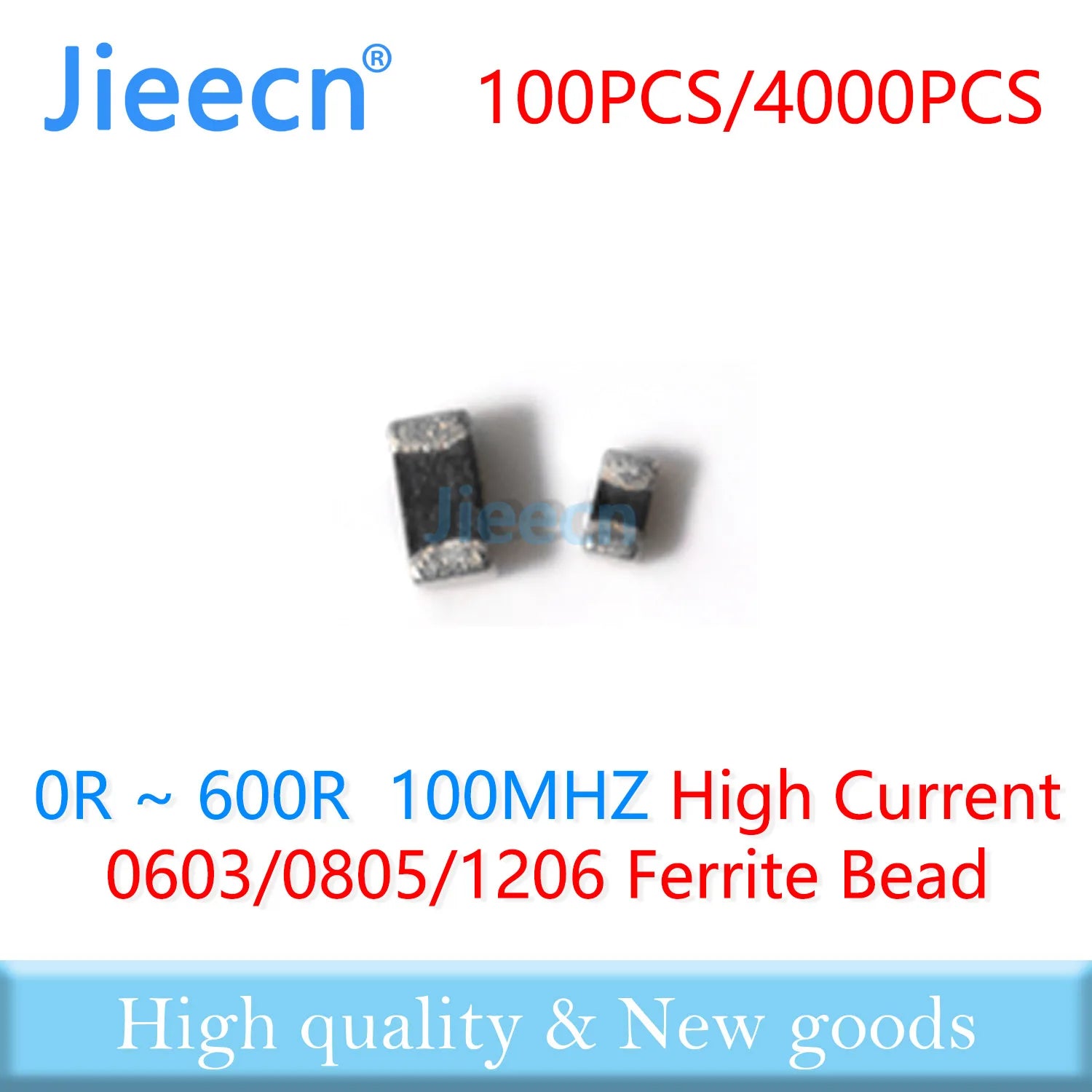

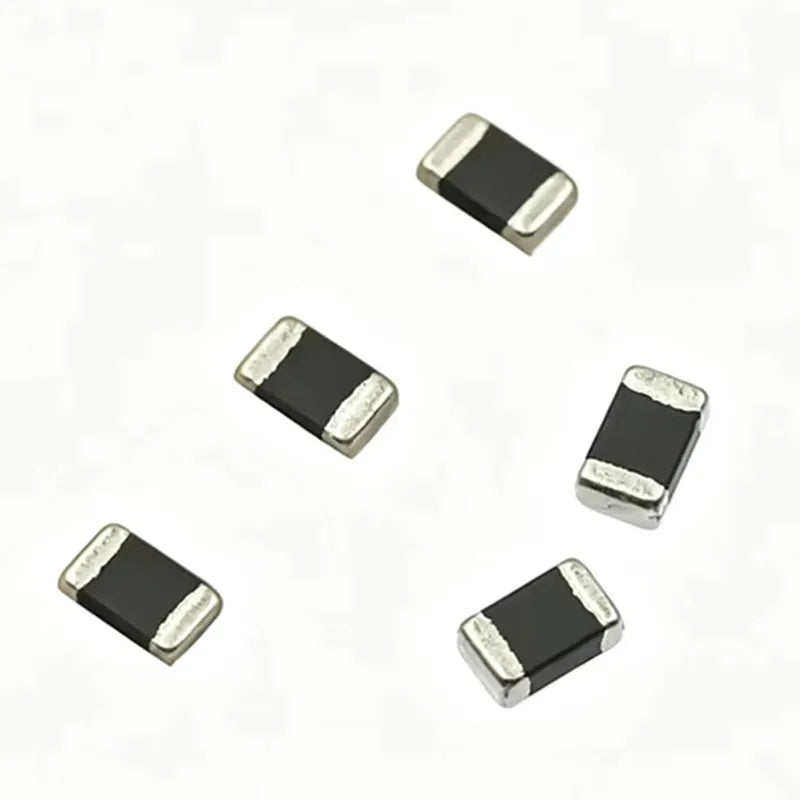

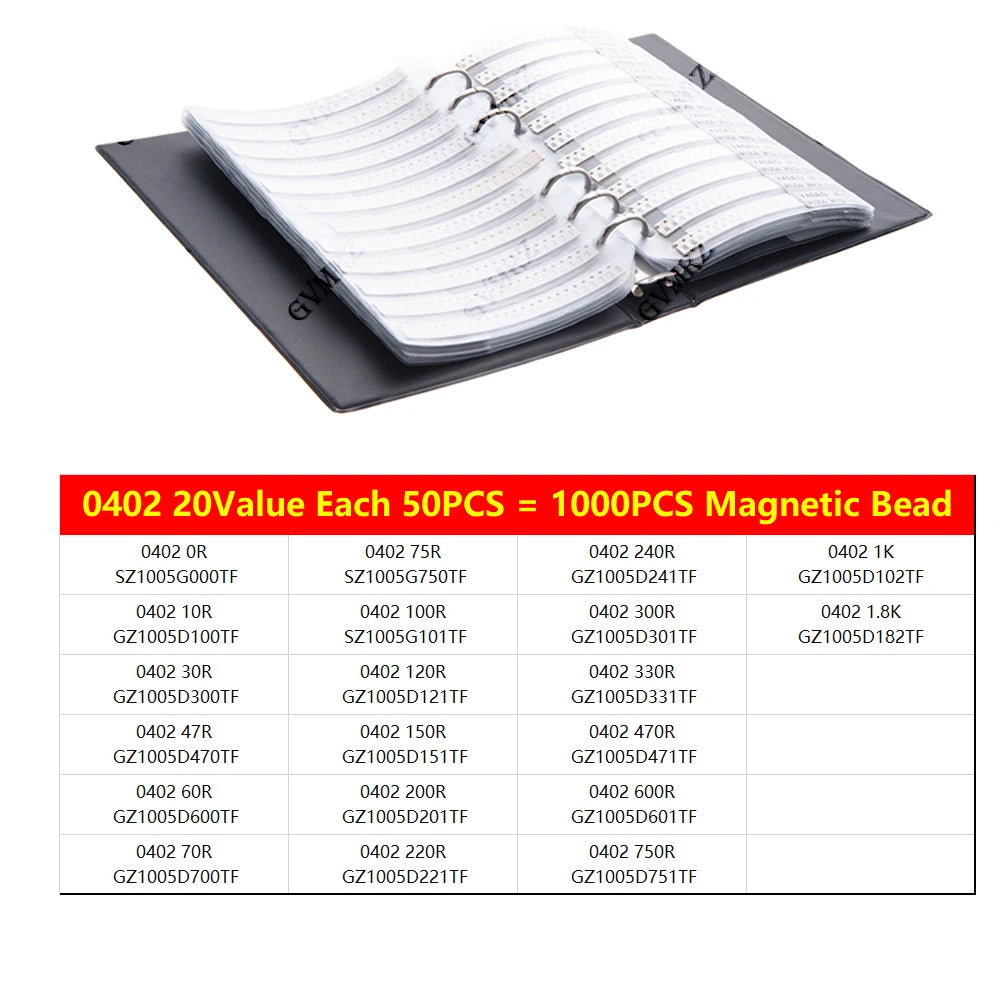

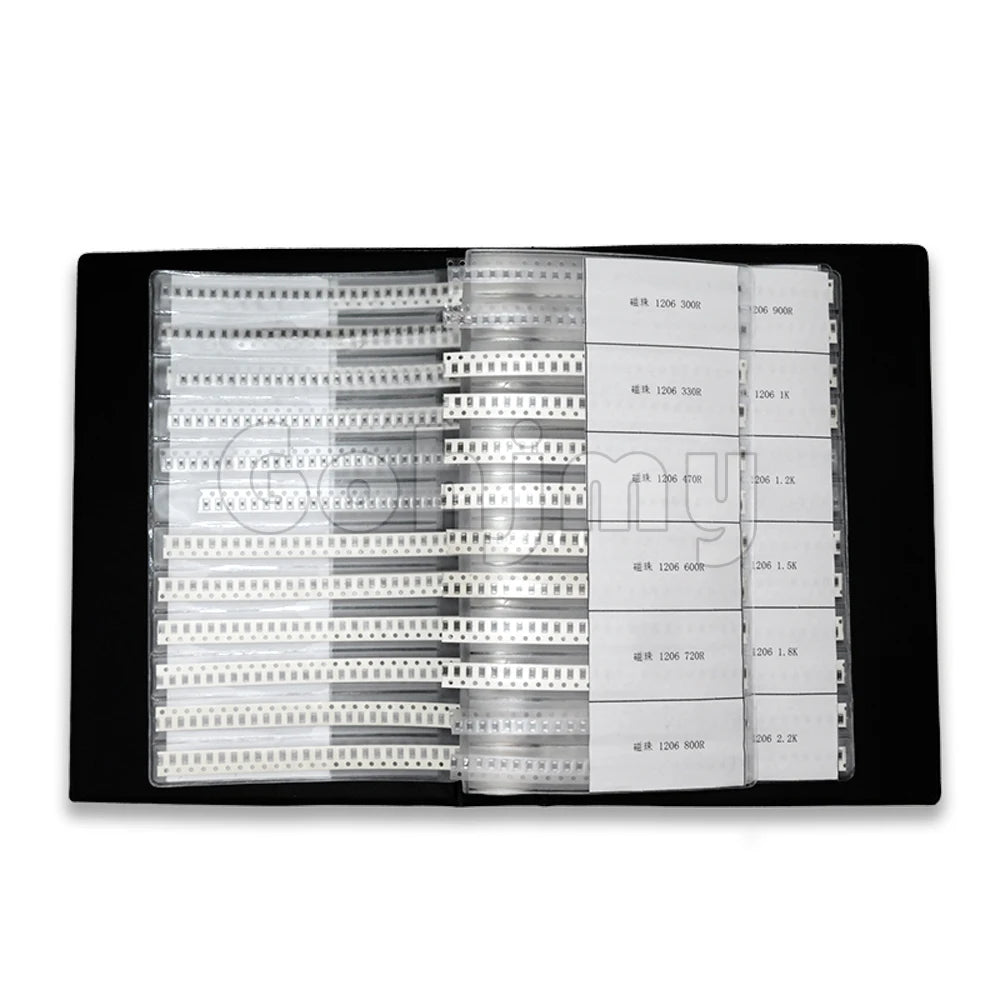

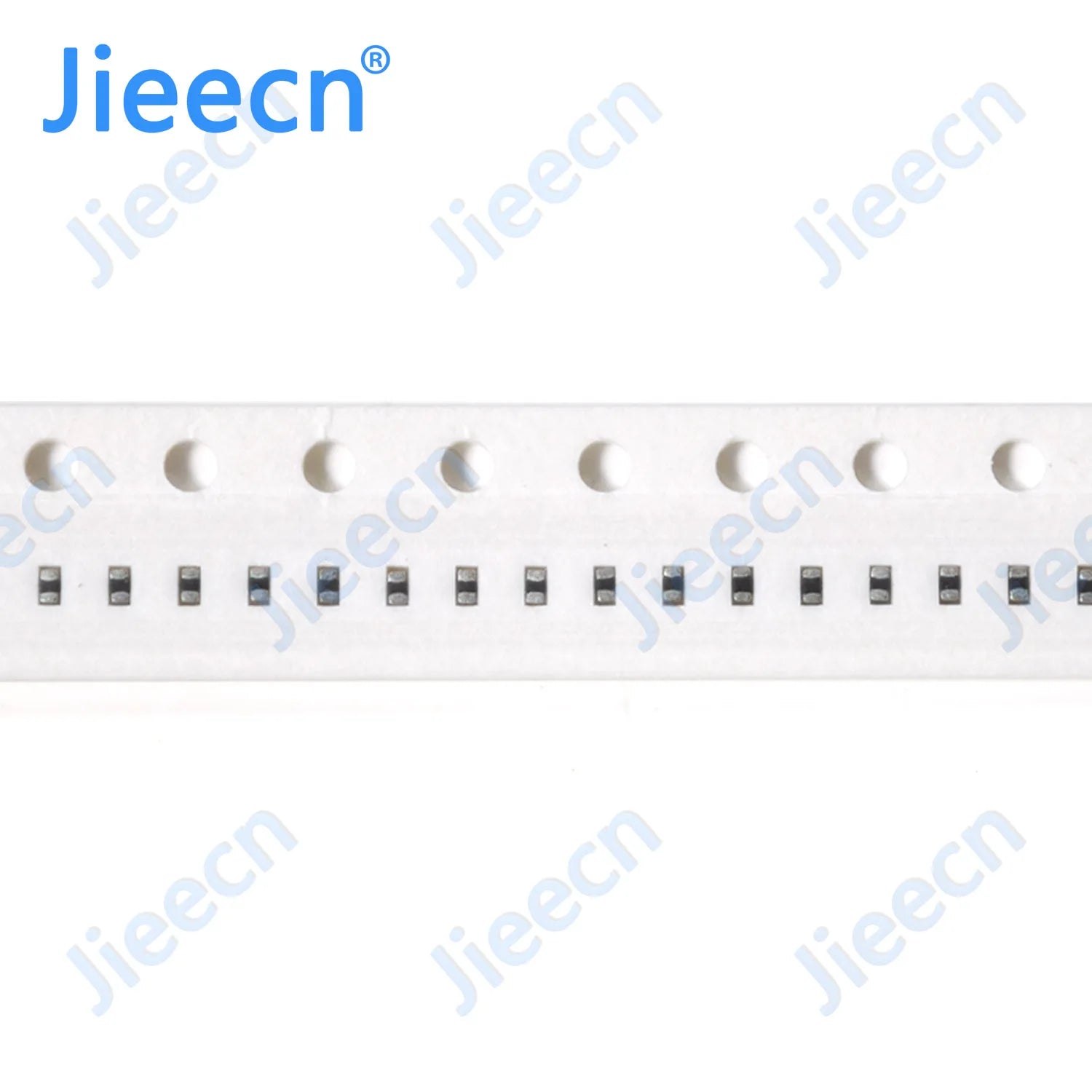

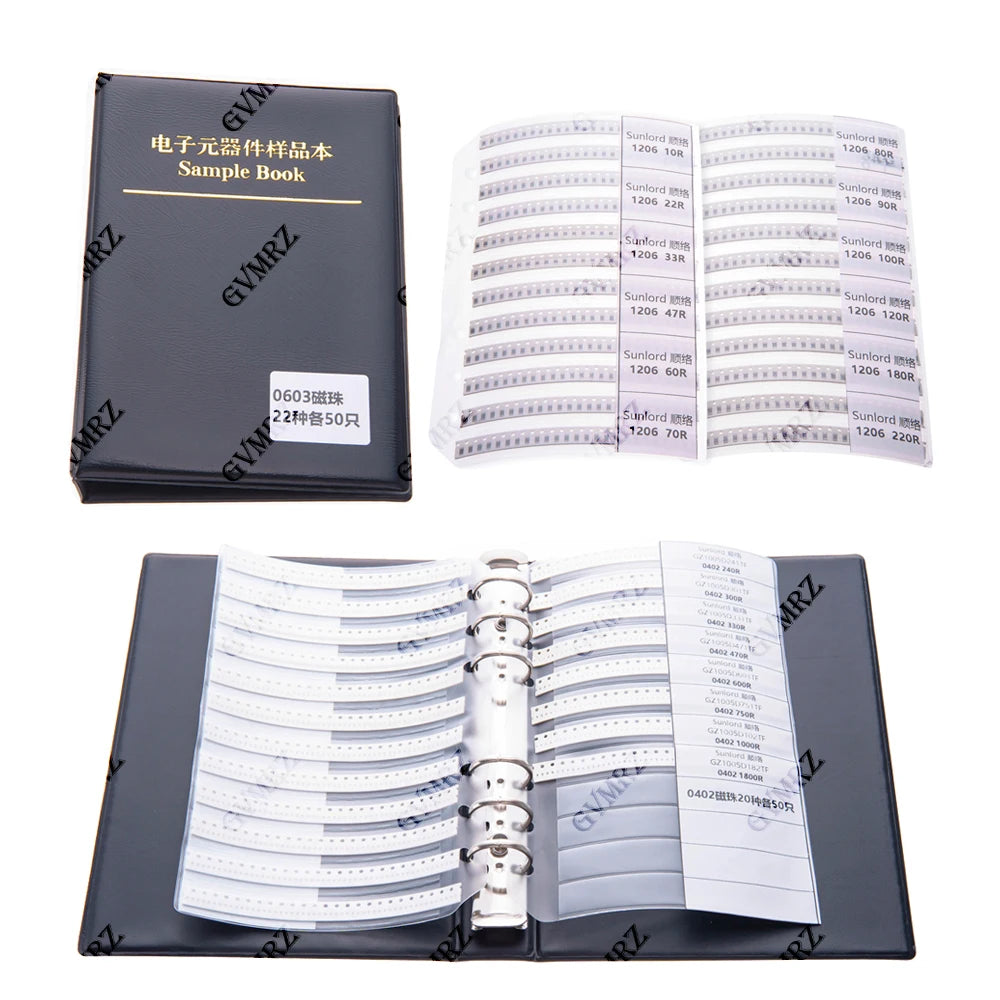

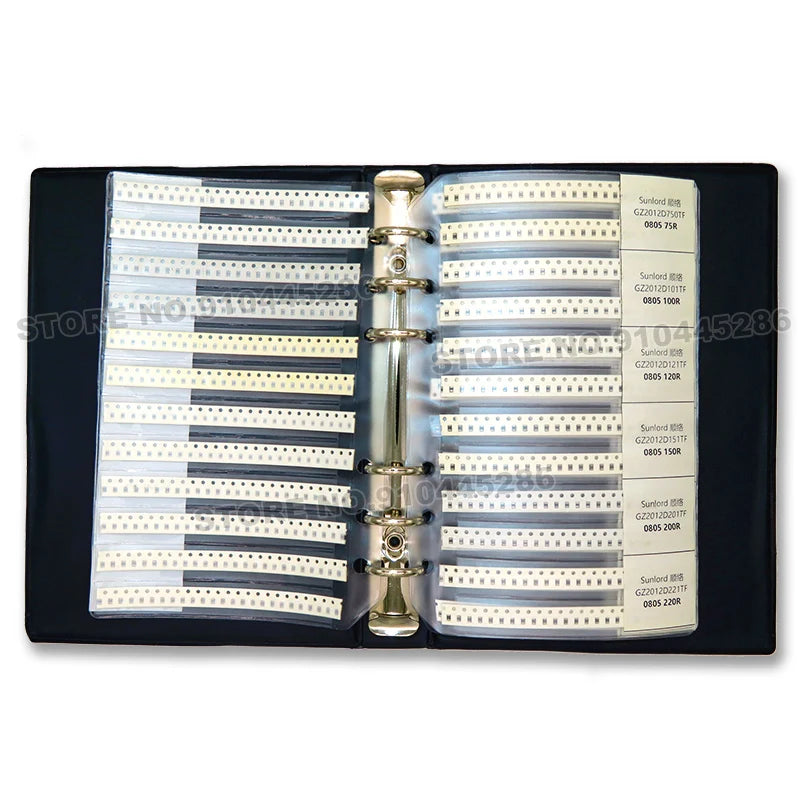

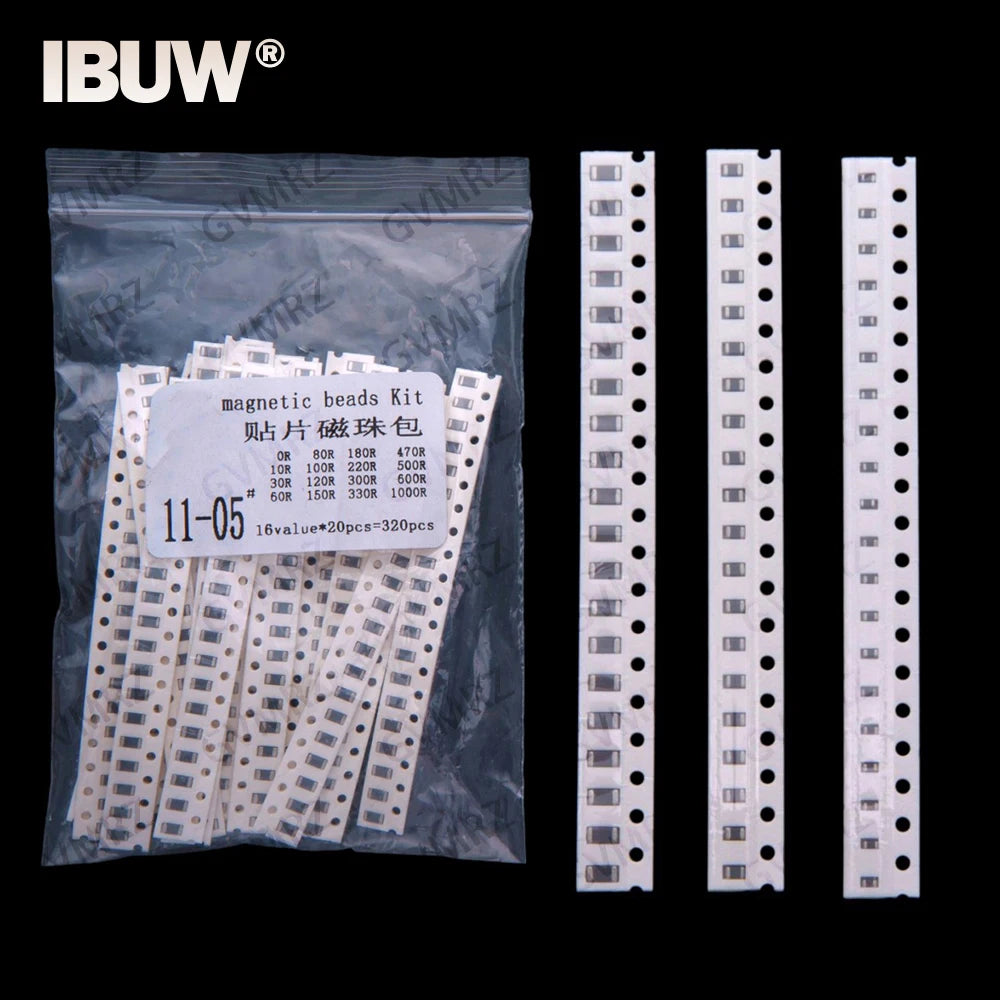

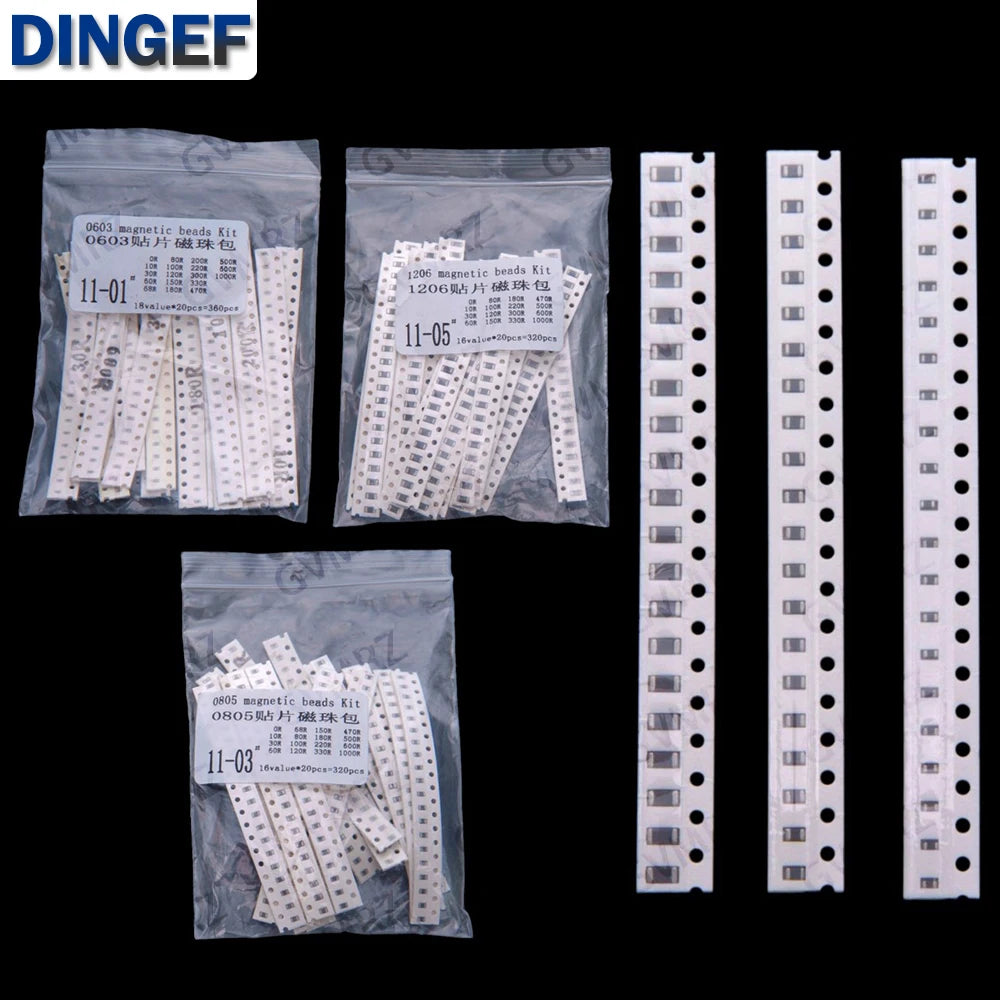

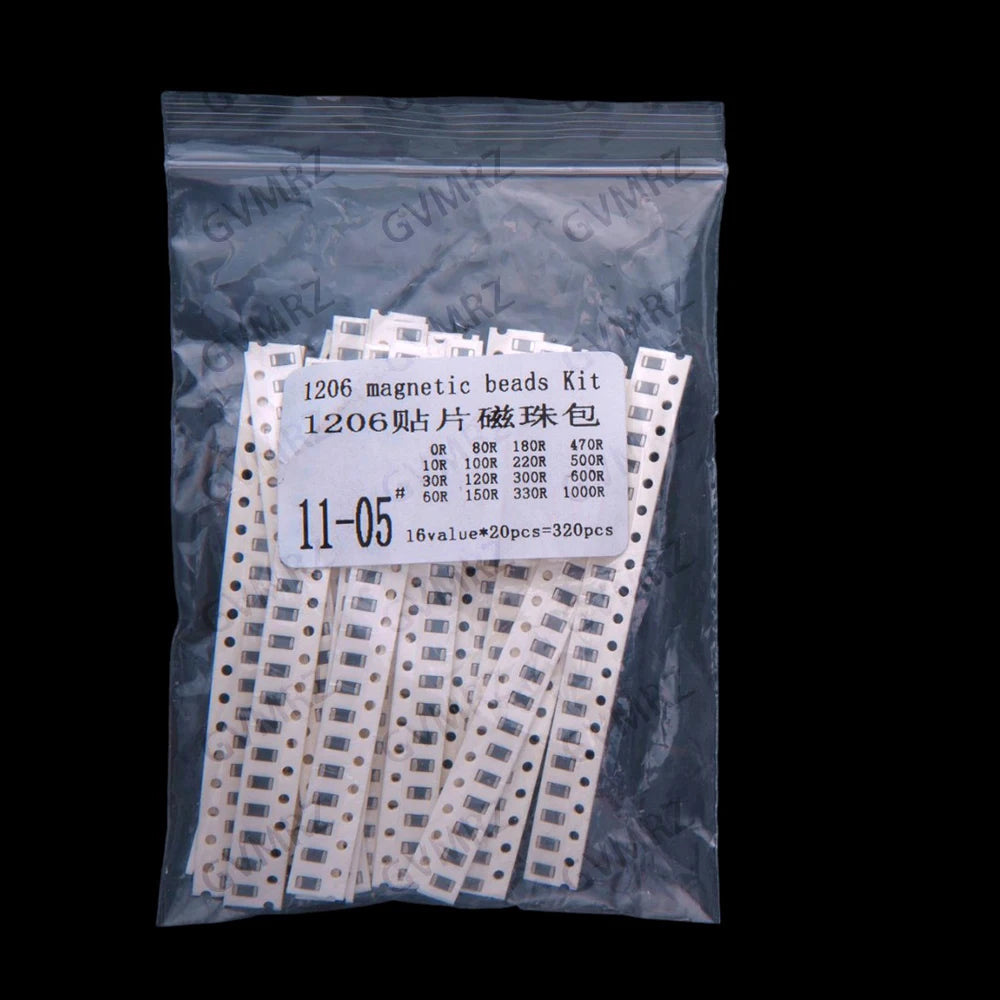

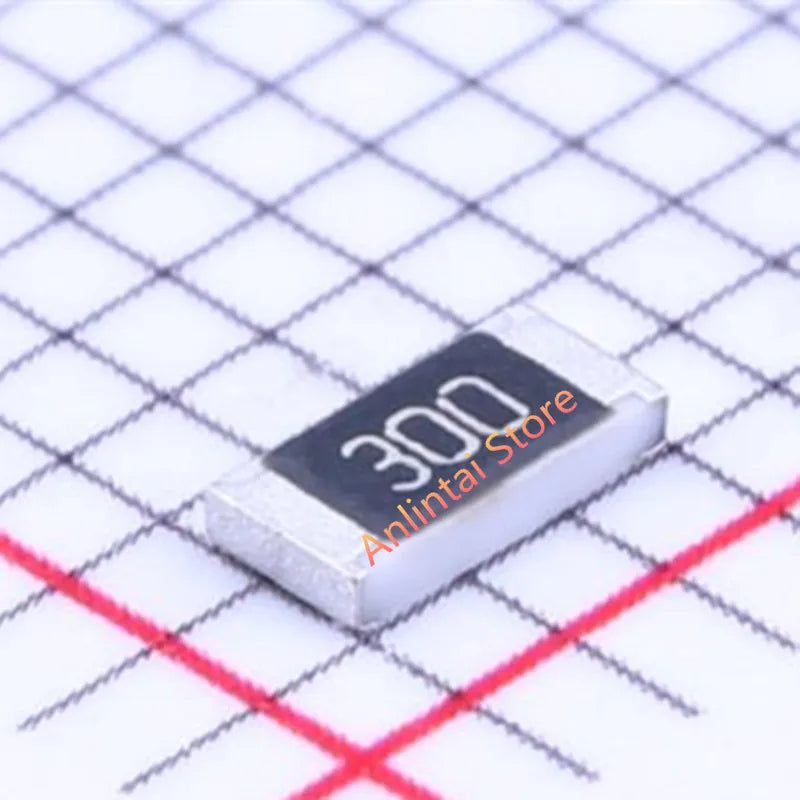

- PCB chip beads: 0201, 0402, 0603, 0805, 1206, 1210 and 1812 listings include BLM, MPZ, HI and other part-number families or generic variants. Labels such as 60 Ω, 120 Ω, 600 Ω or 2.5 kΩ usually refer to impedance at a stated test frequency, often 100 MHz but sometimes 1 GHz; they are not DC resistance. Read the selected part's impedance-versus-frequency curve, DC resistance (DCR), rated current, impedance change under DC bias, heating and footprint. A 0R option or matching nominal impedance alone does not prove the same EMI performance.
- Arrays: Four-channel SMD bead-array listings provide multiple signal or supply paths in one body. Verify the individual line pinout, impedance at the specified frequency, coupling between channels, current and package land pattern; an array cannot replace a single two-terminal bead without revising the circuit.
- Hollow, axial and multi-hole sleeves: Small 3.5×6 mm, 4×2×2 mm and other nickel-zinc or ferrite cores accept a conductor through the bore. The number of passes, wire size, core material, frequency and temperature affect installed impedance. Dimensions in a title are mechanical options, not an ohmic DC rating.

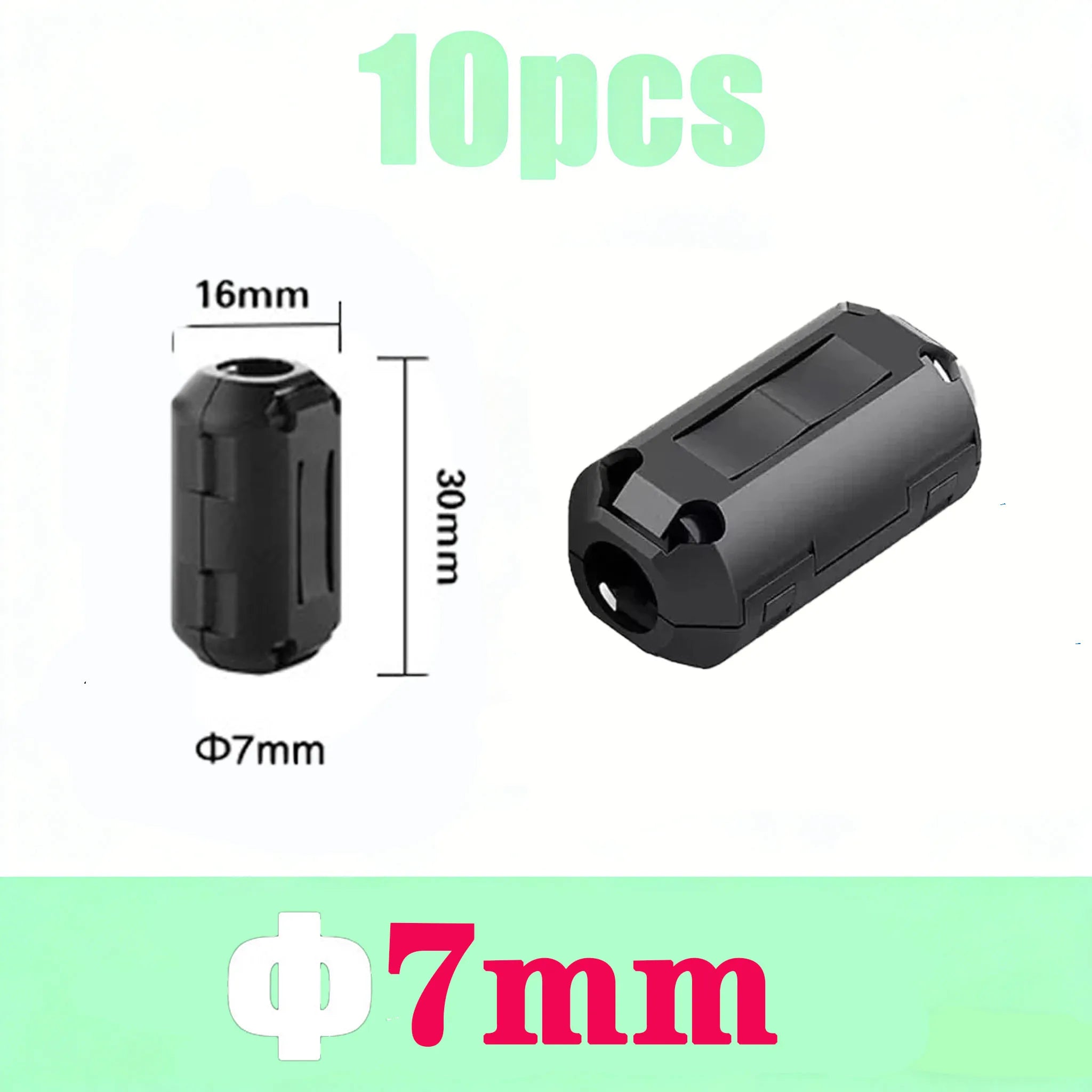

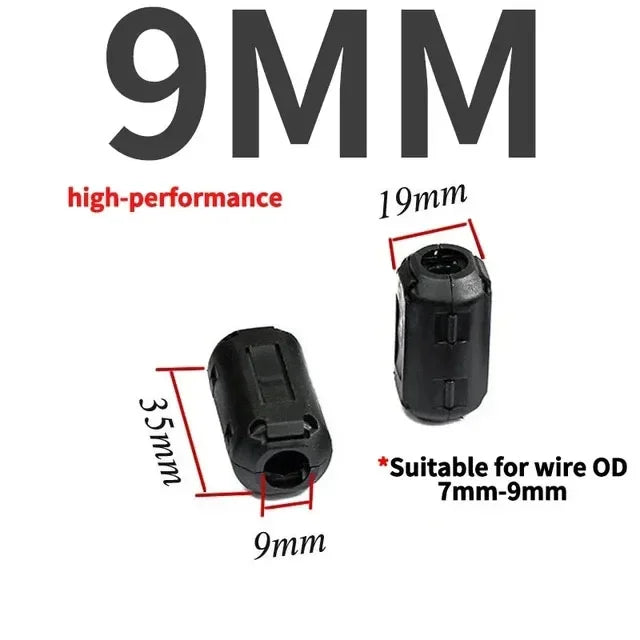

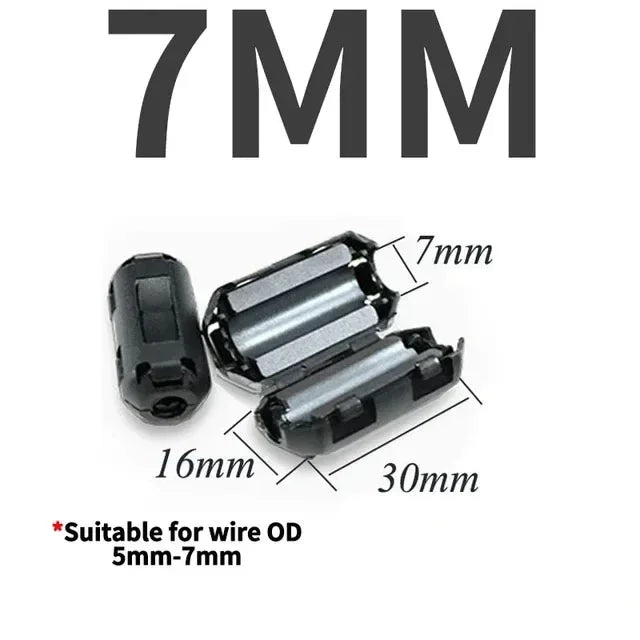

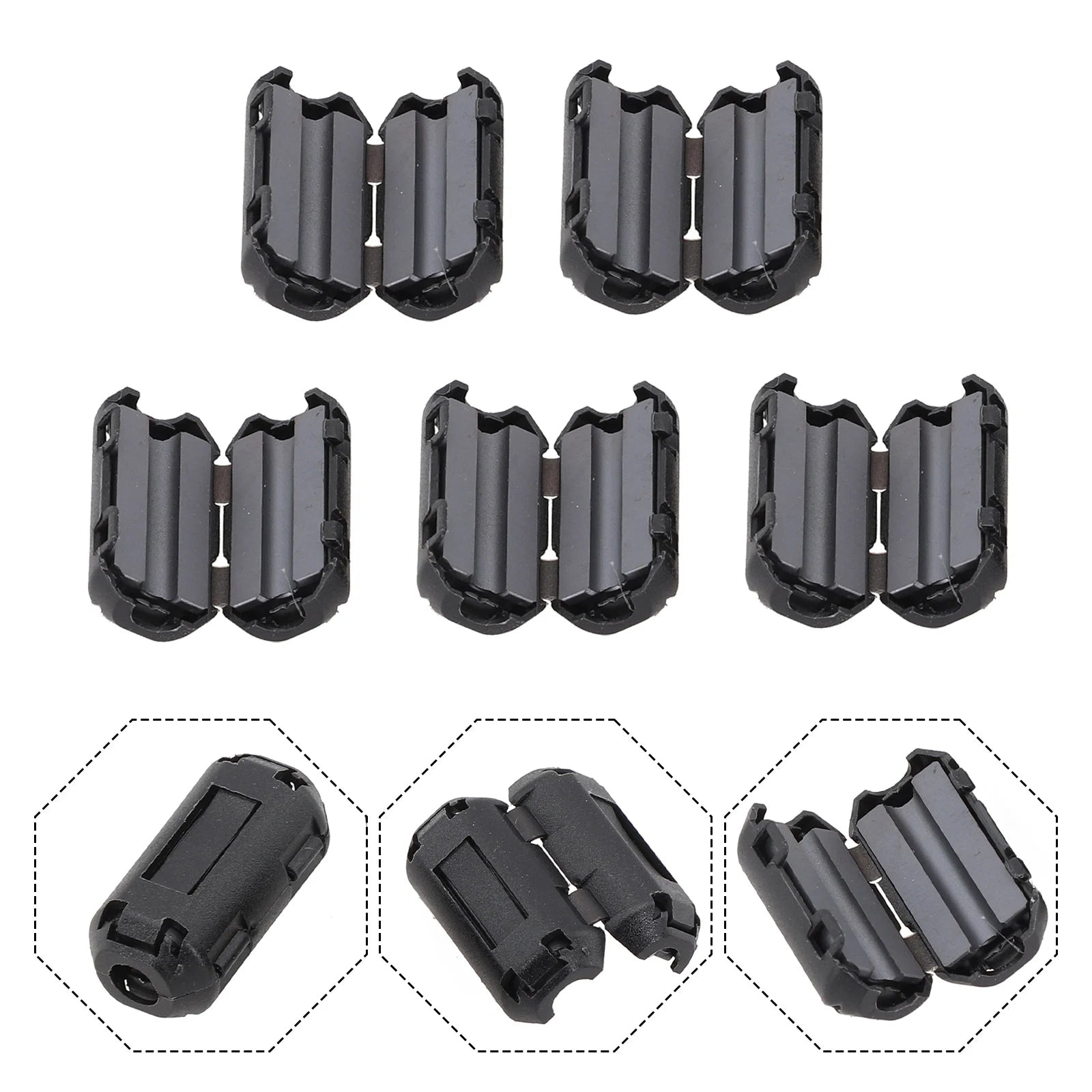

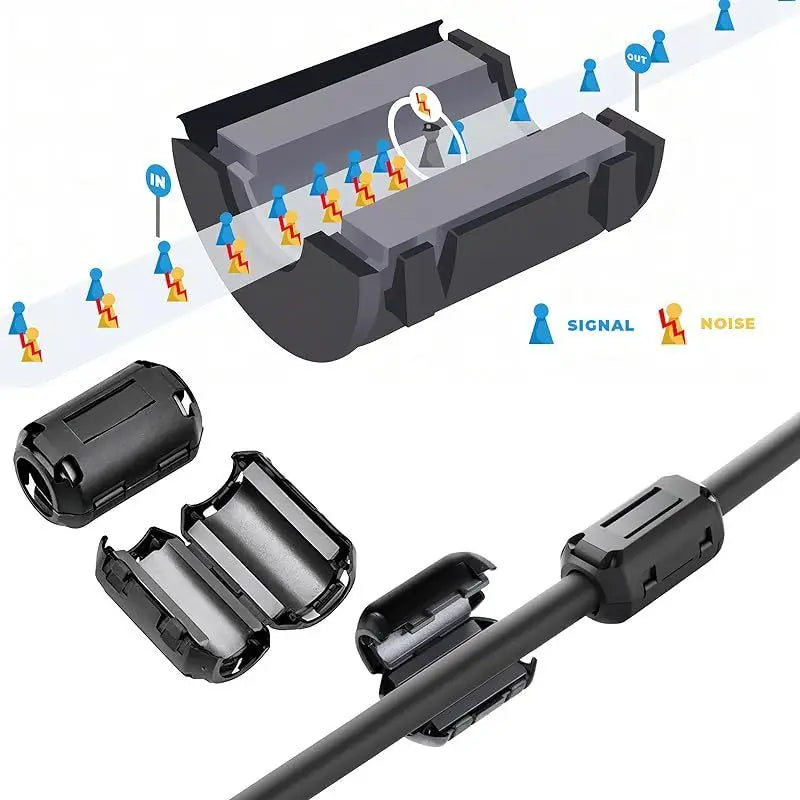

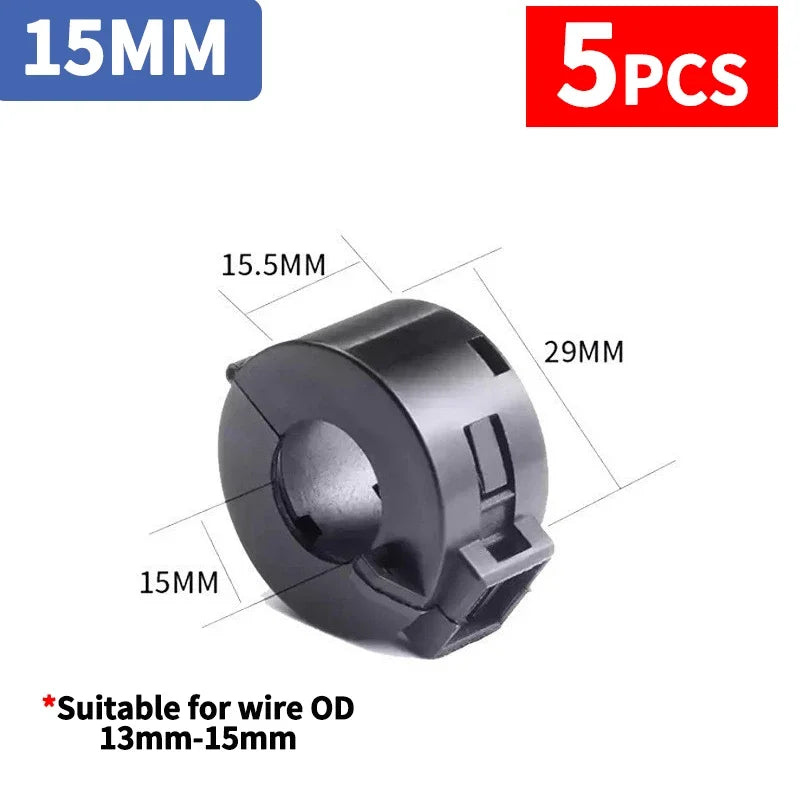

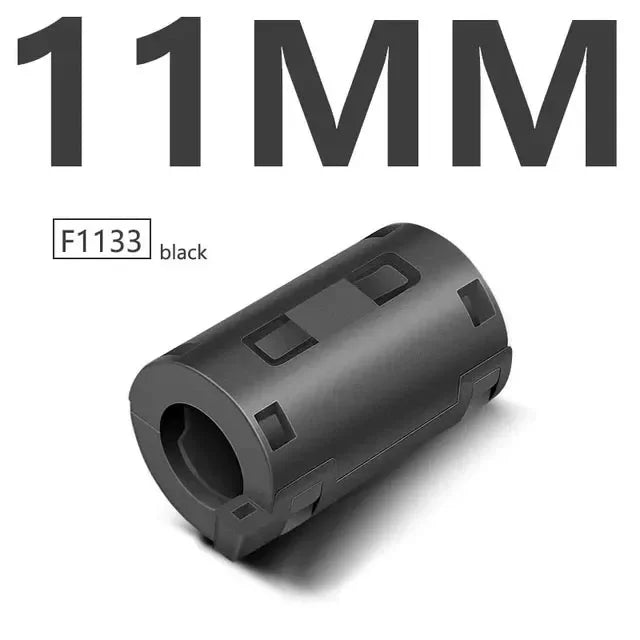

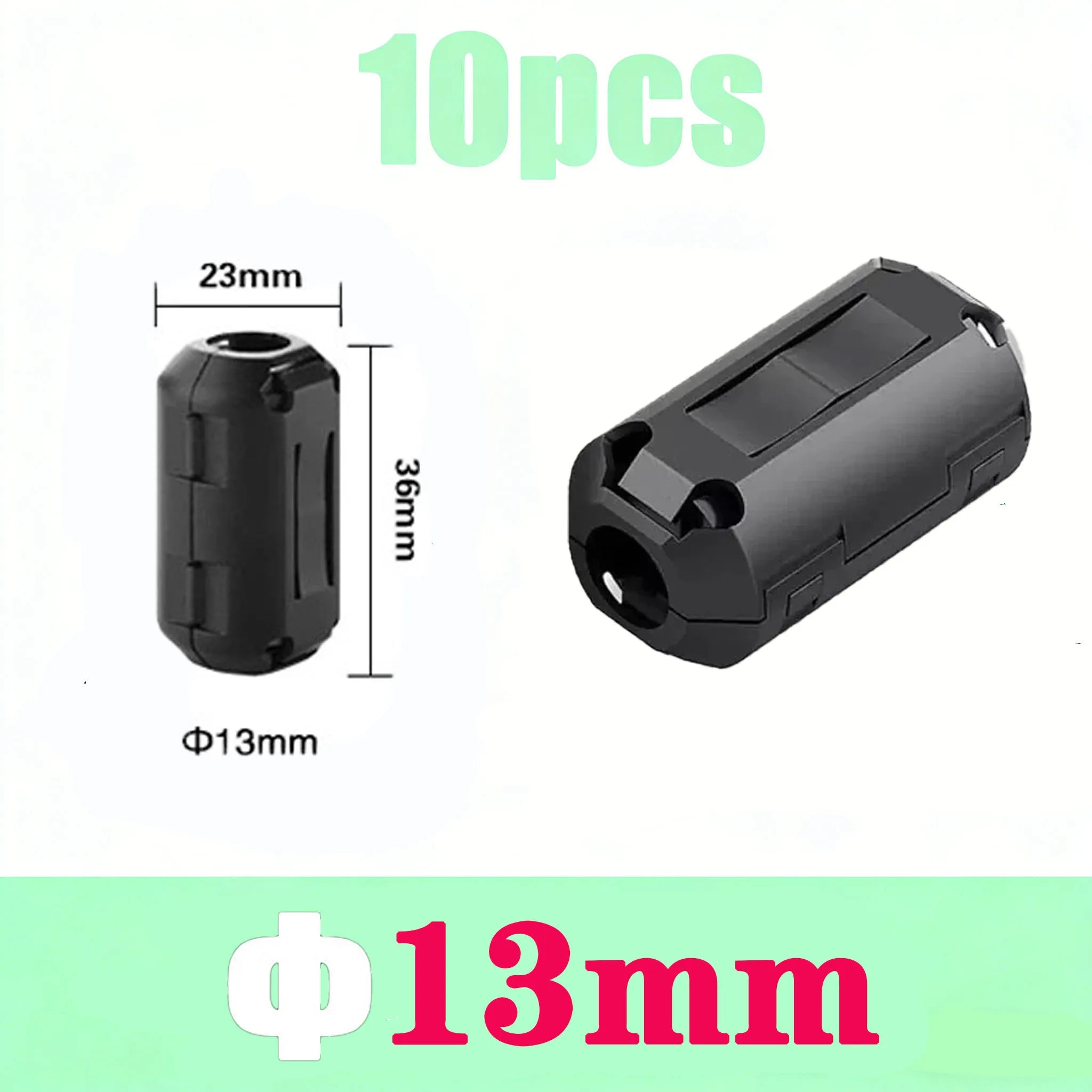

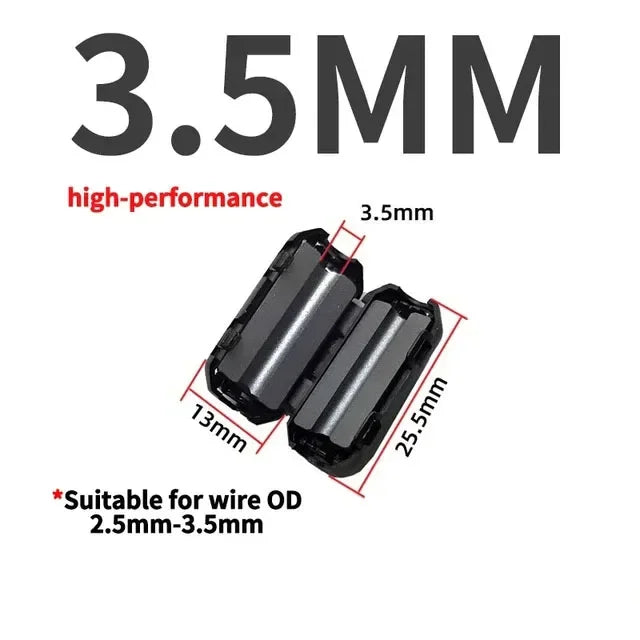

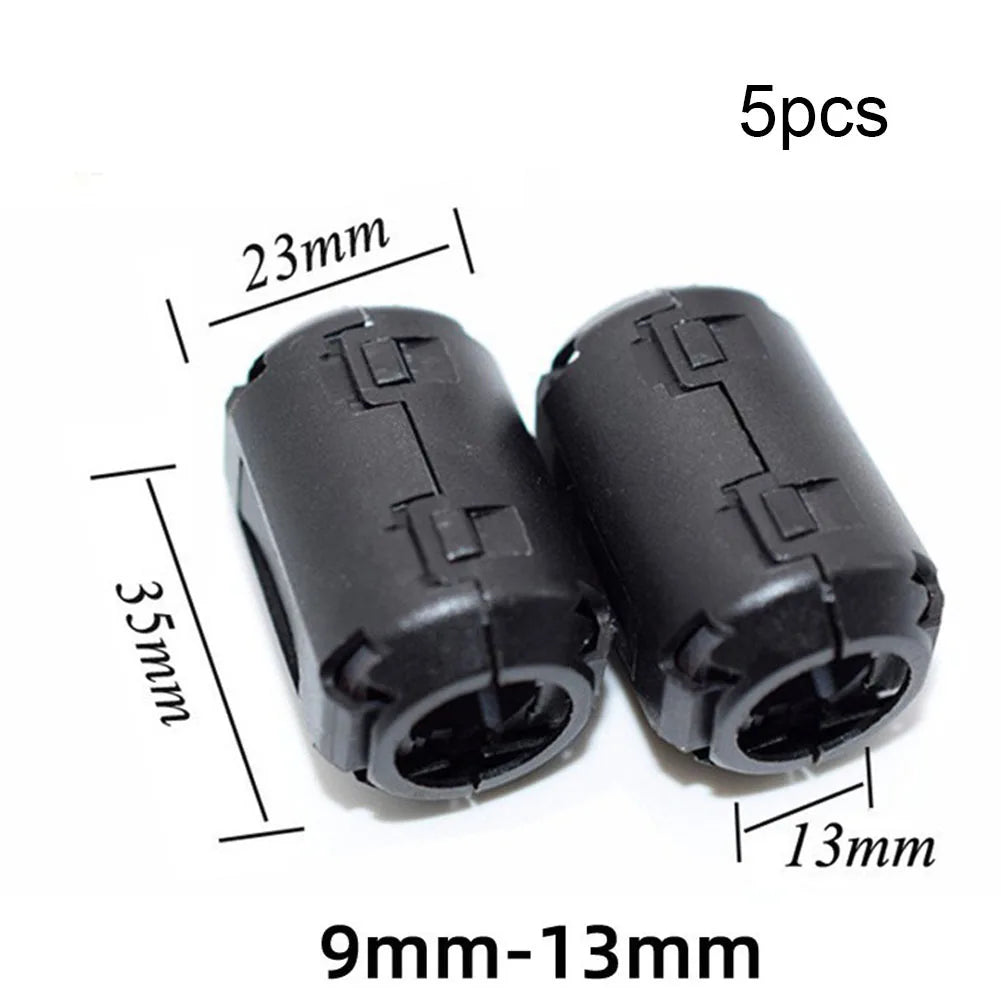

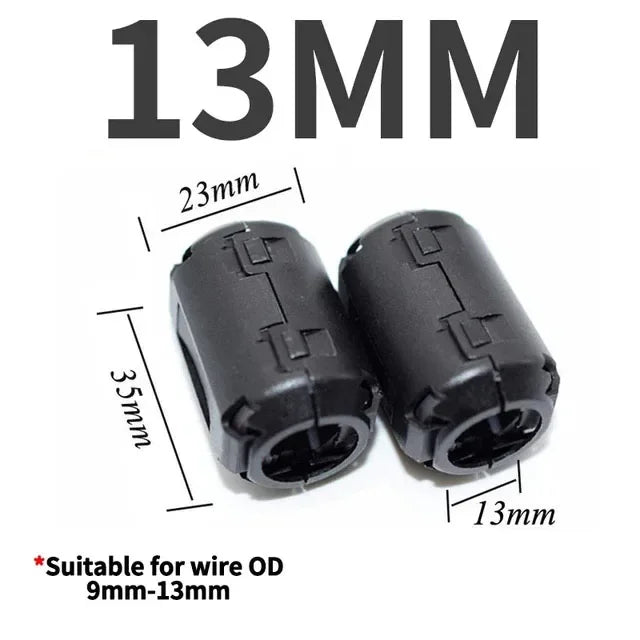

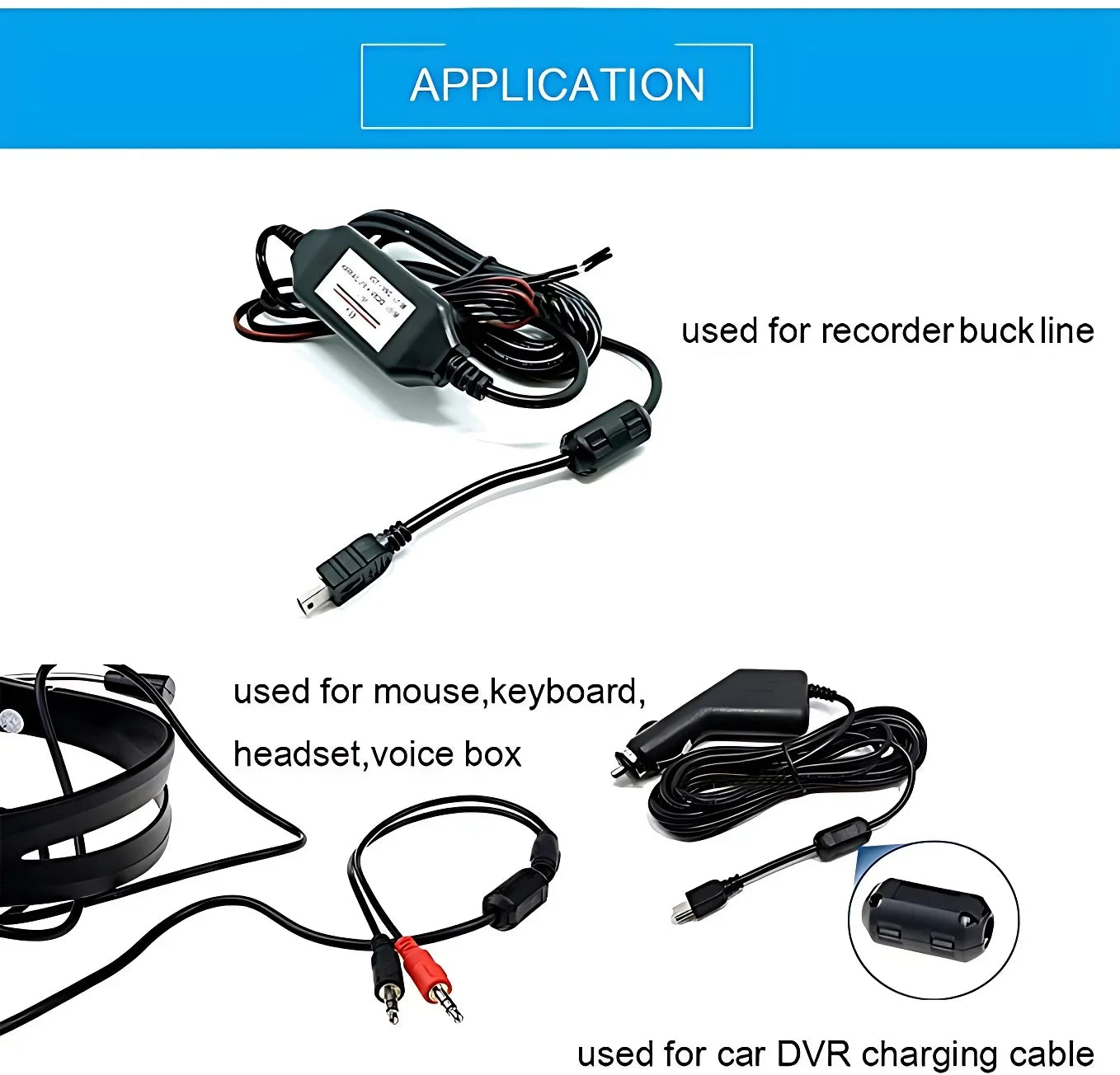

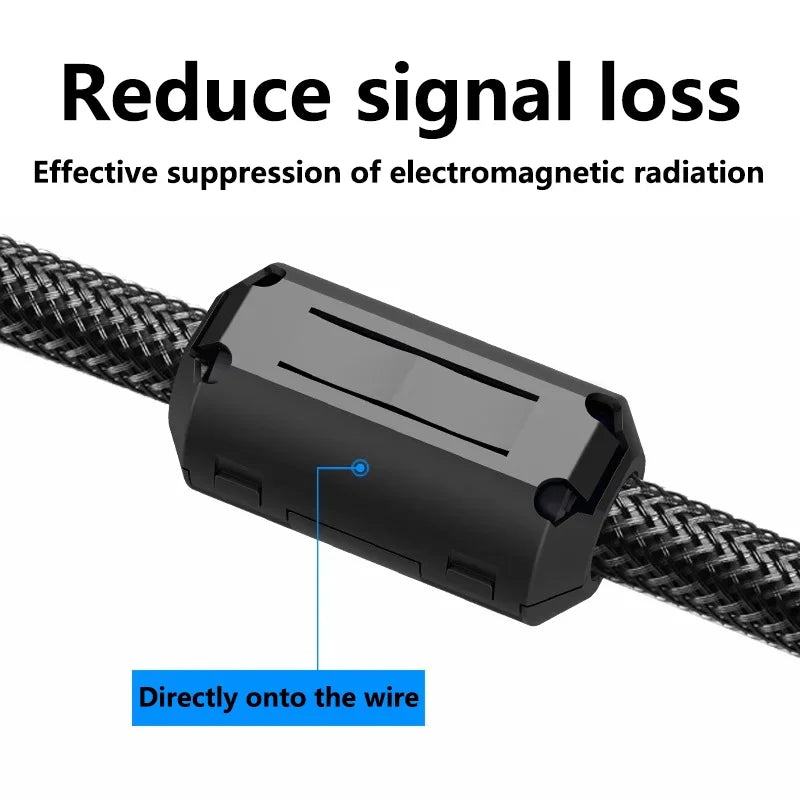

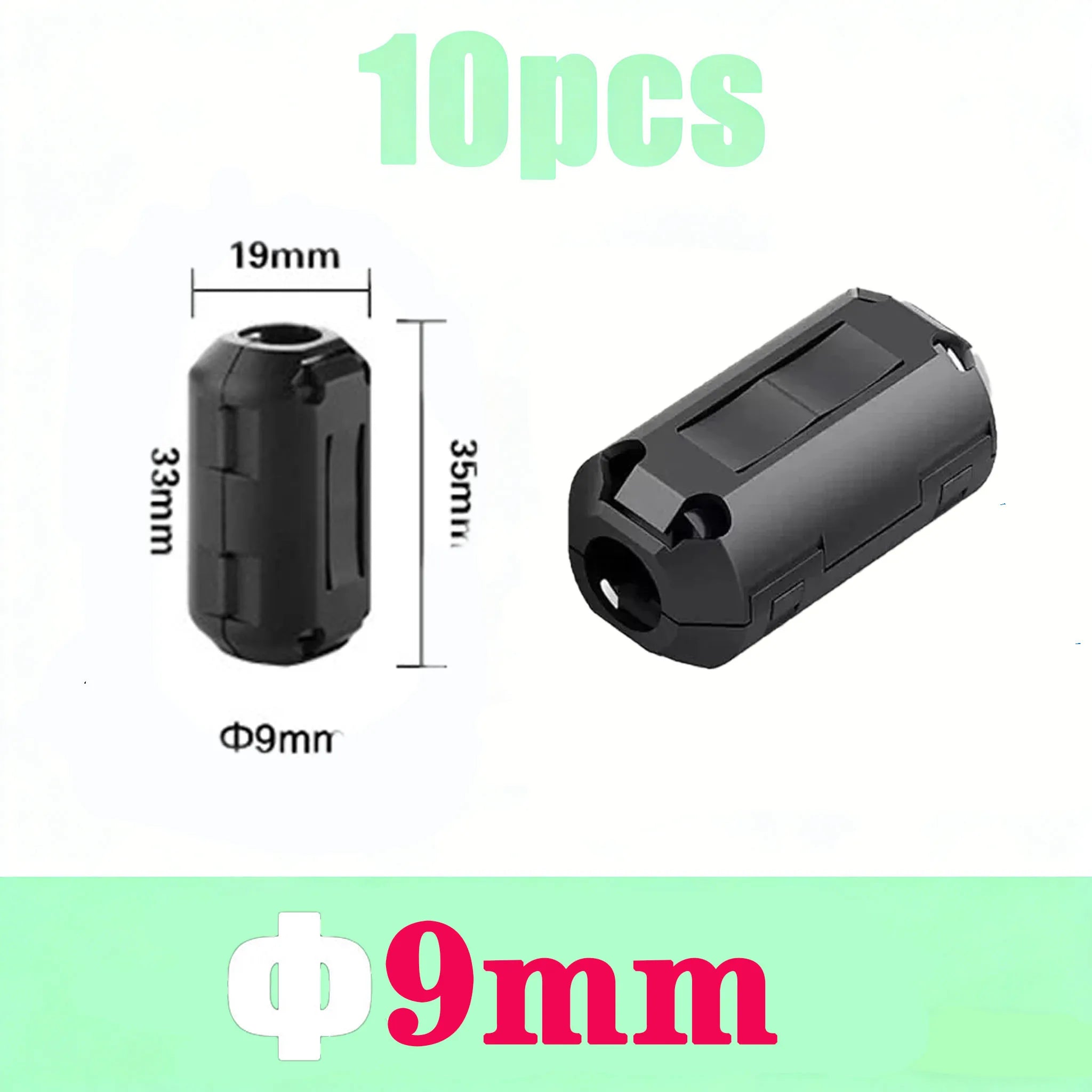

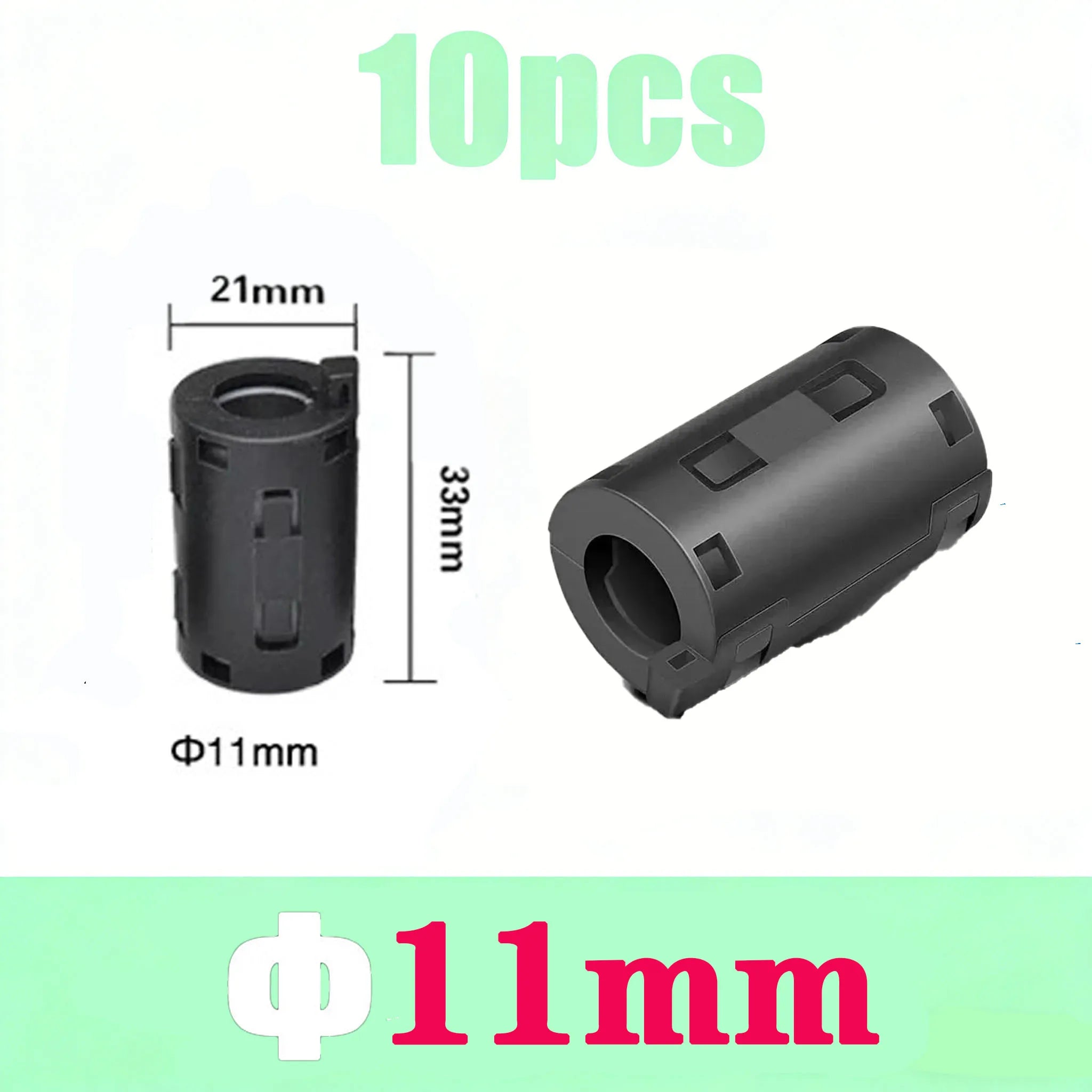

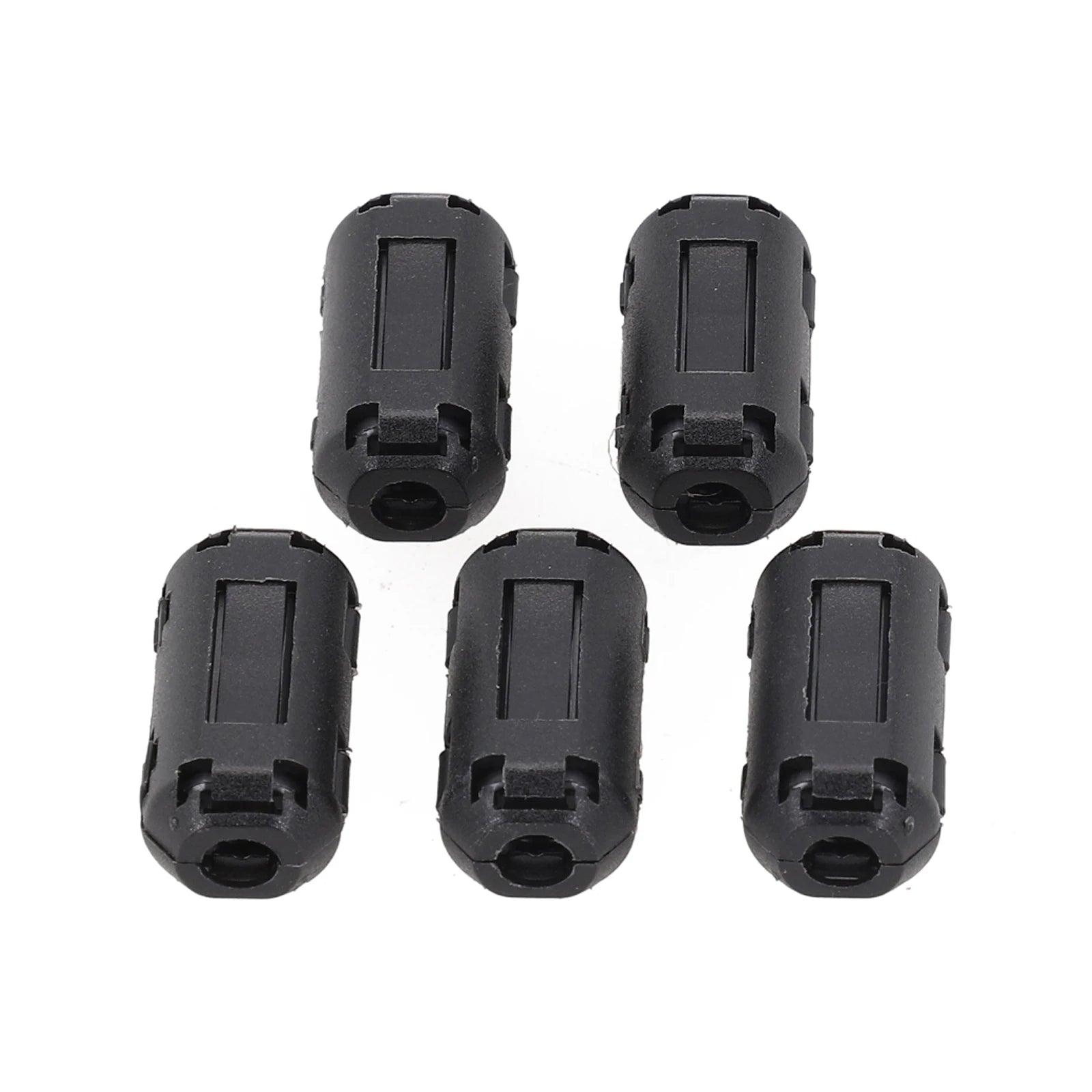

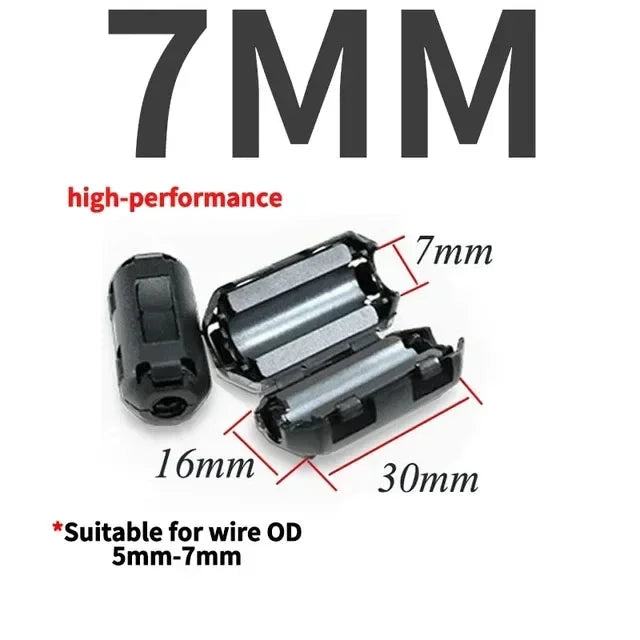

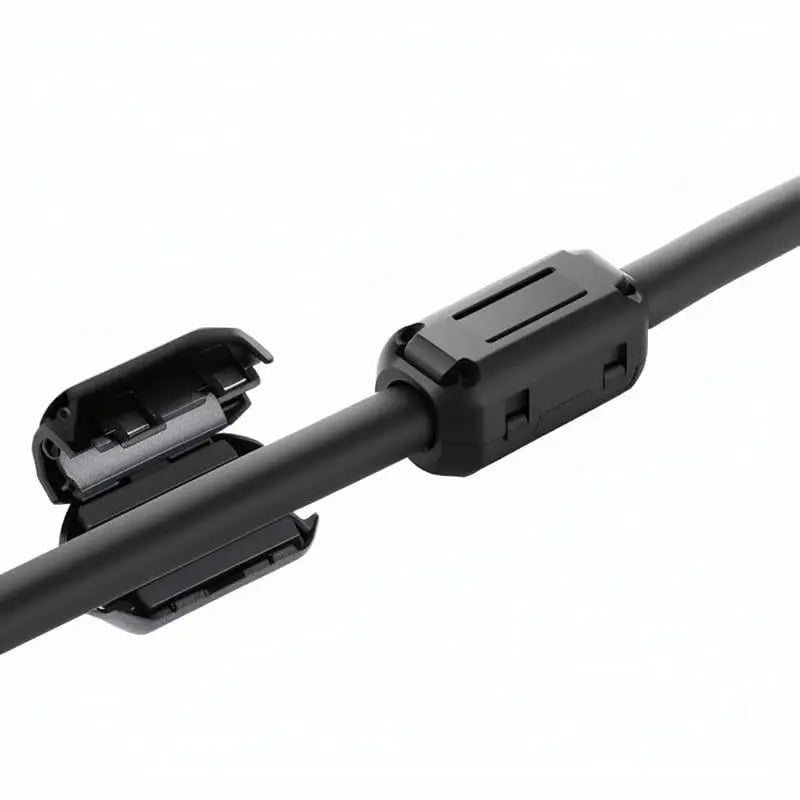

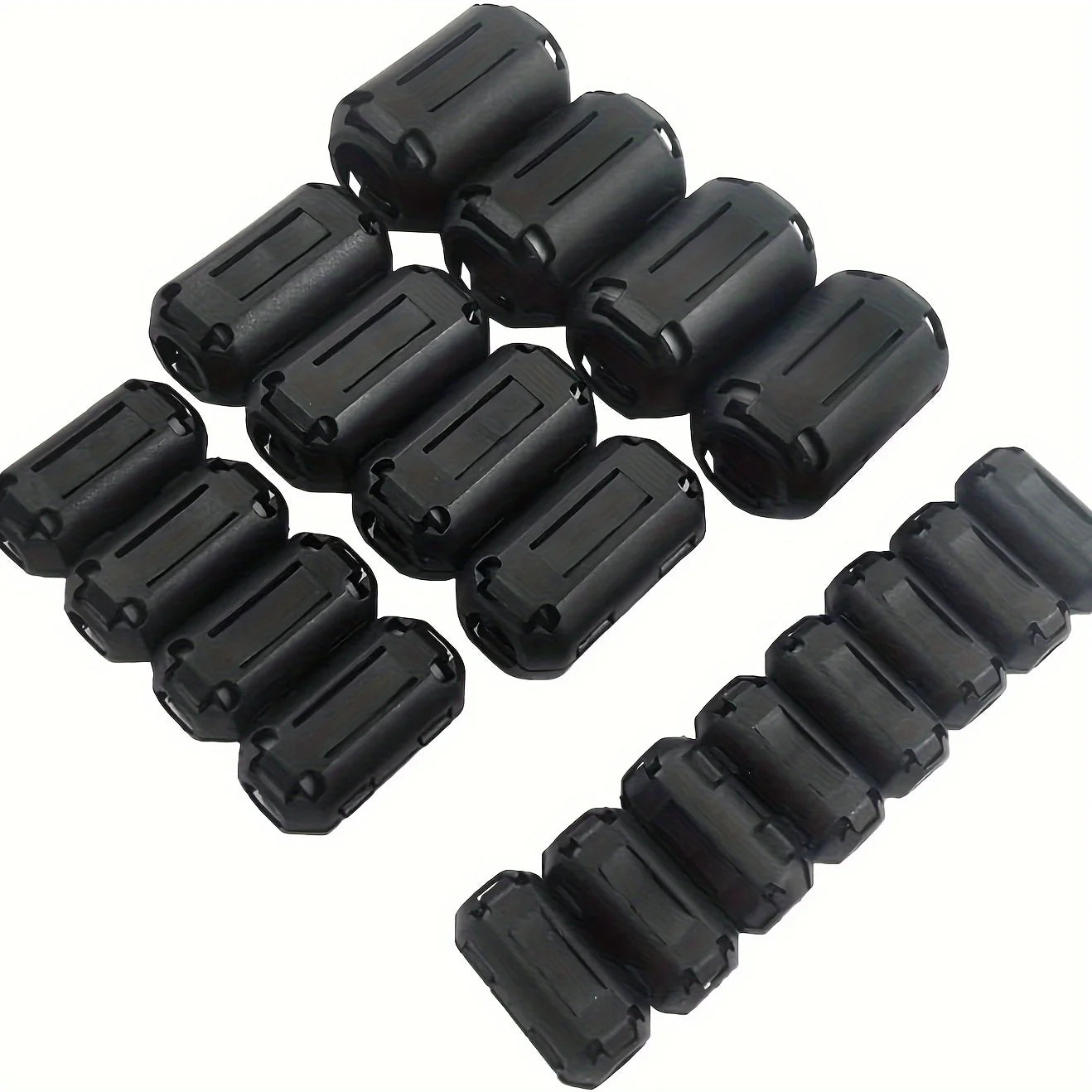

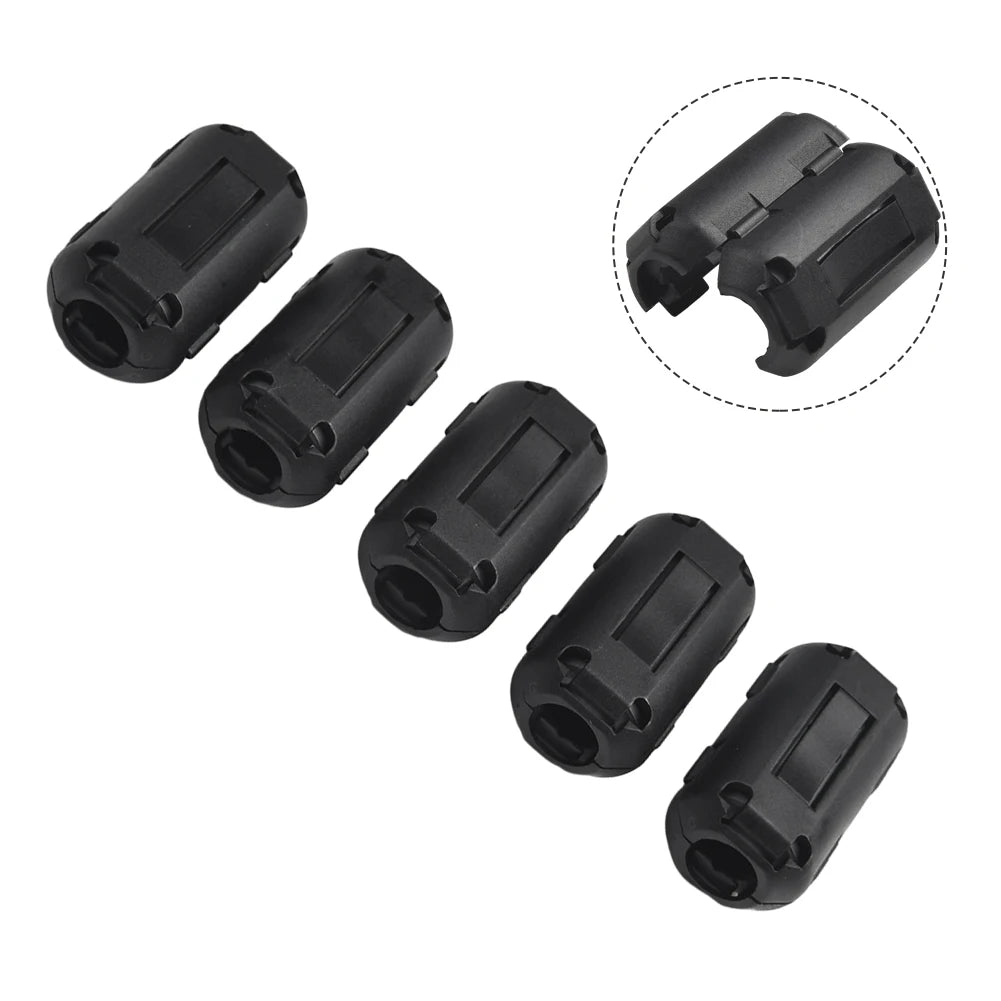

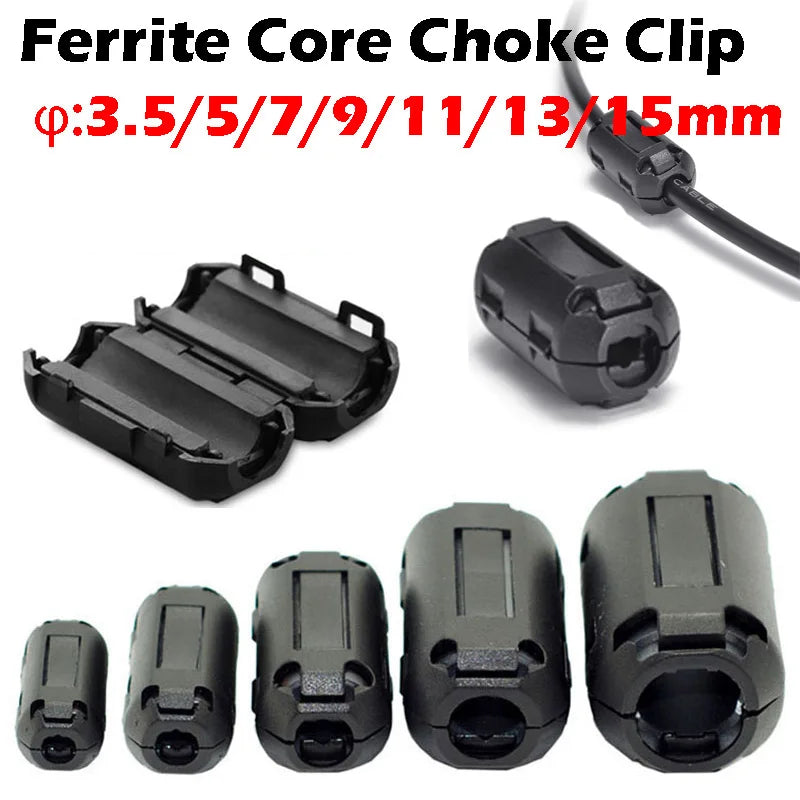

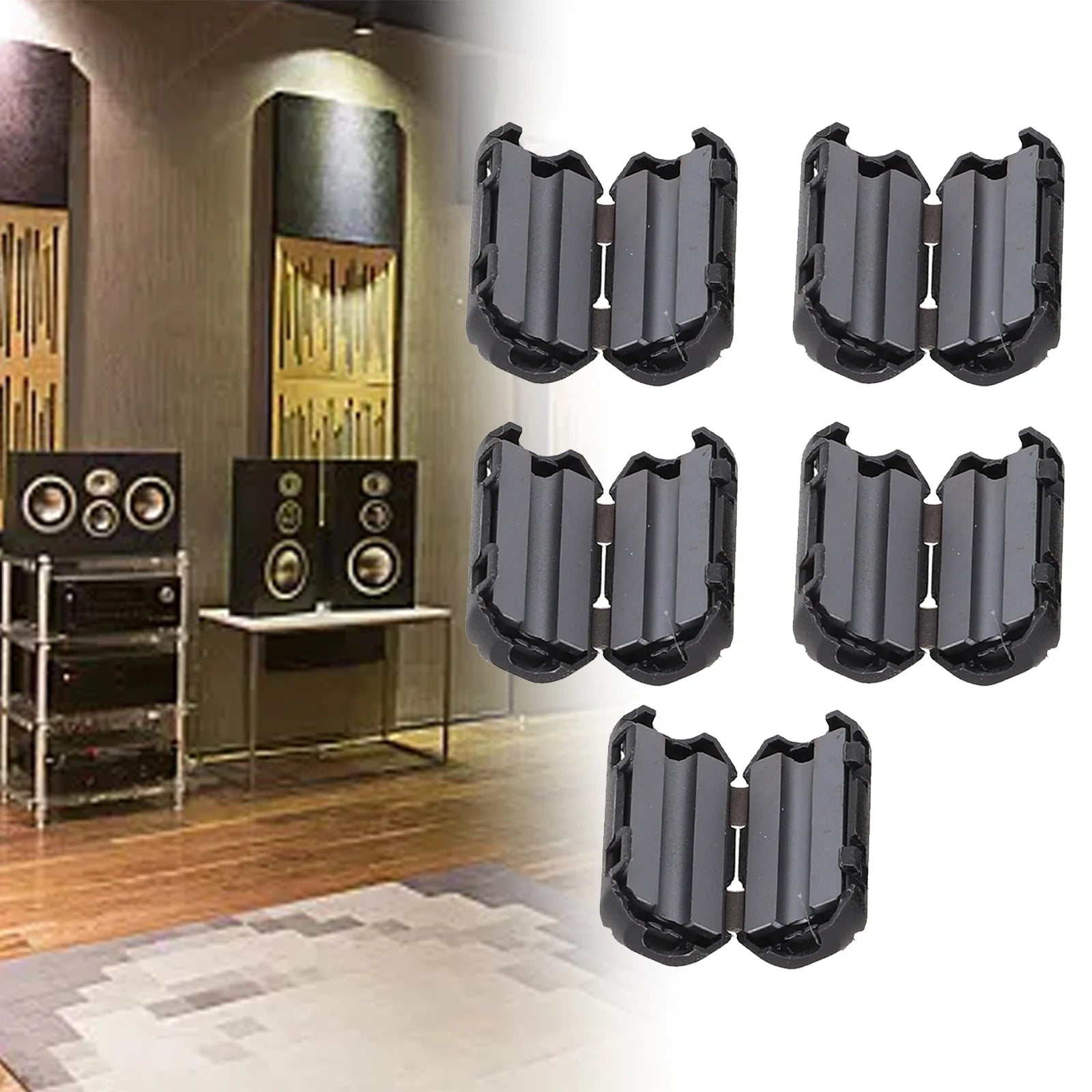

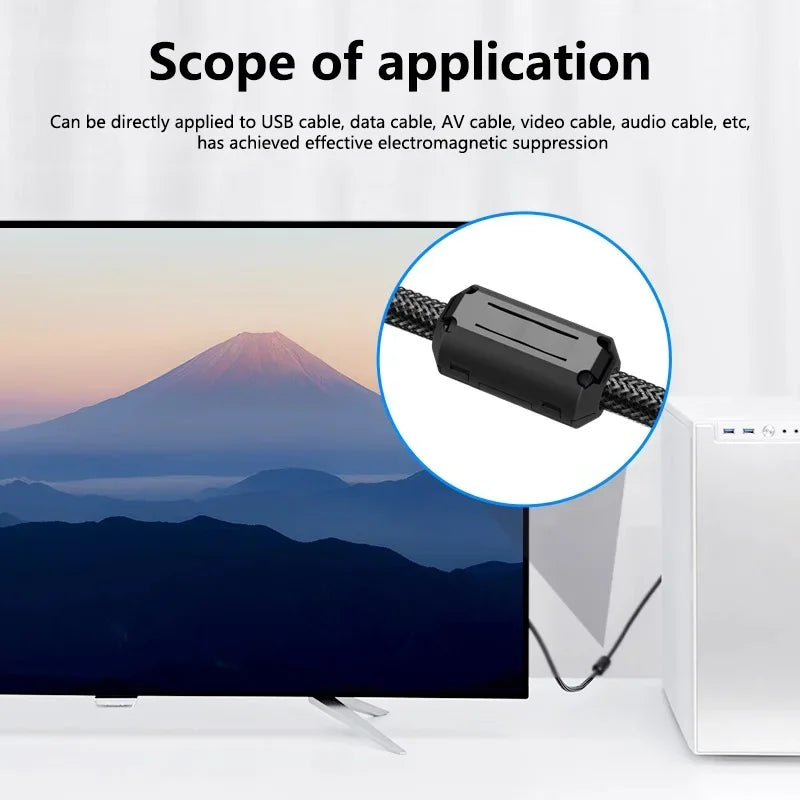

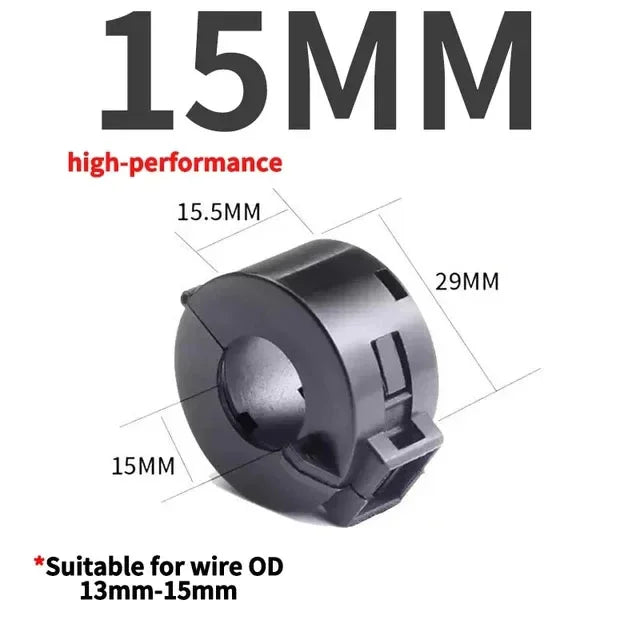

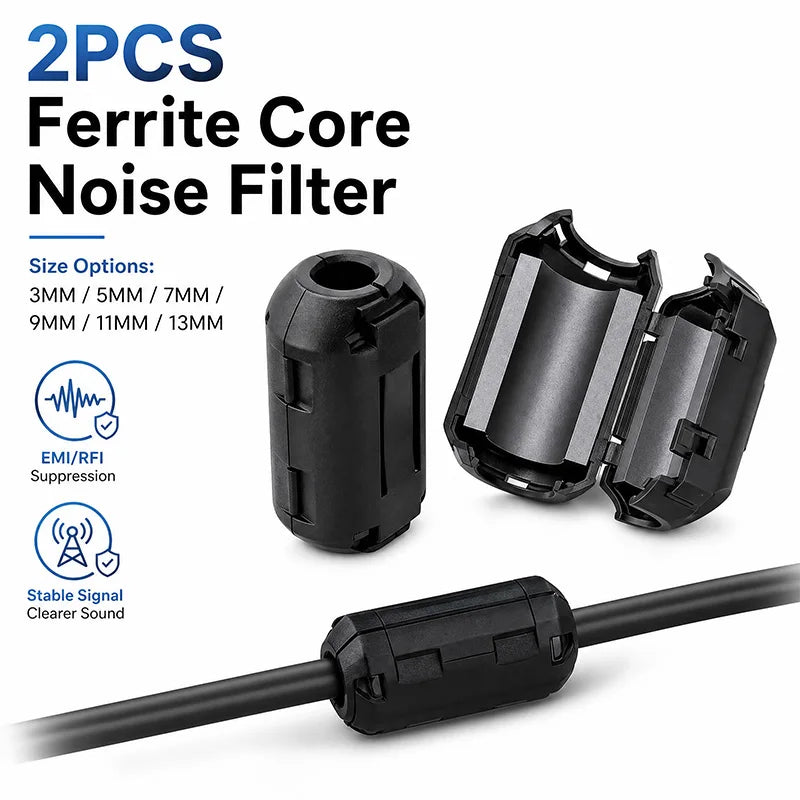

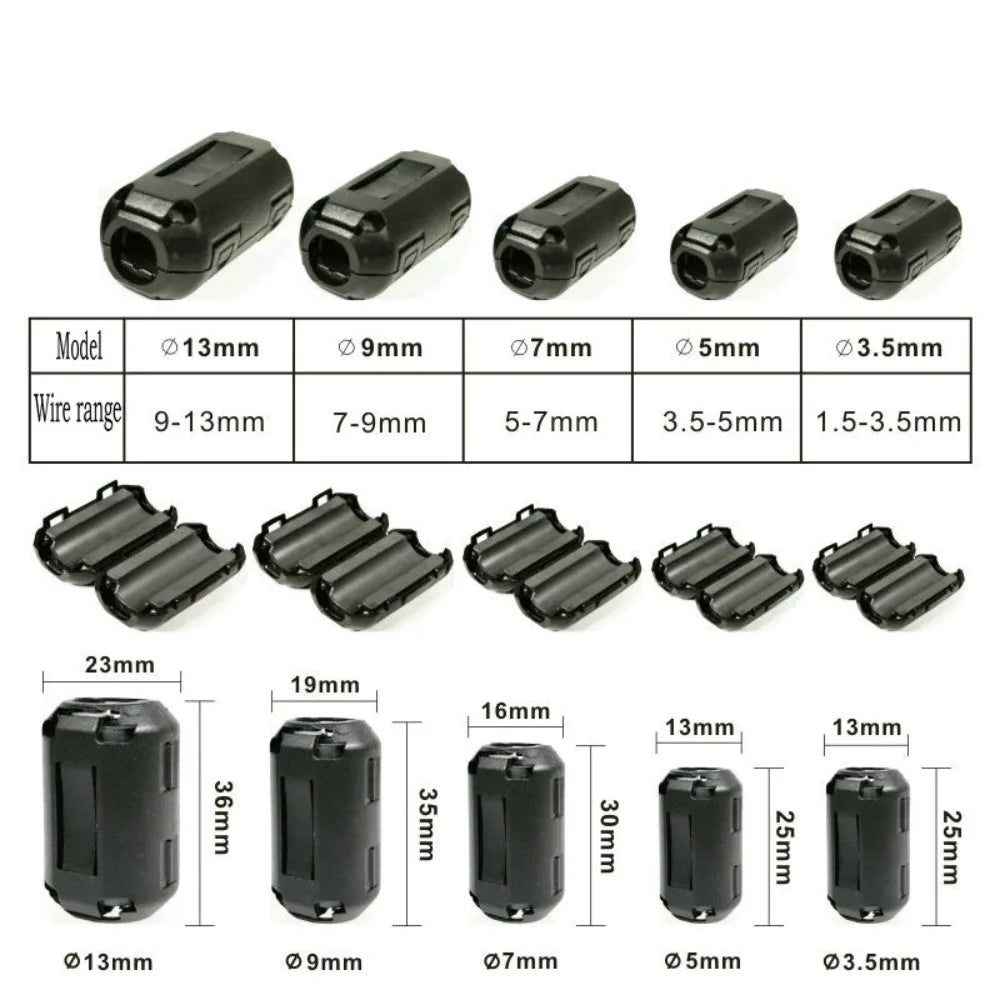

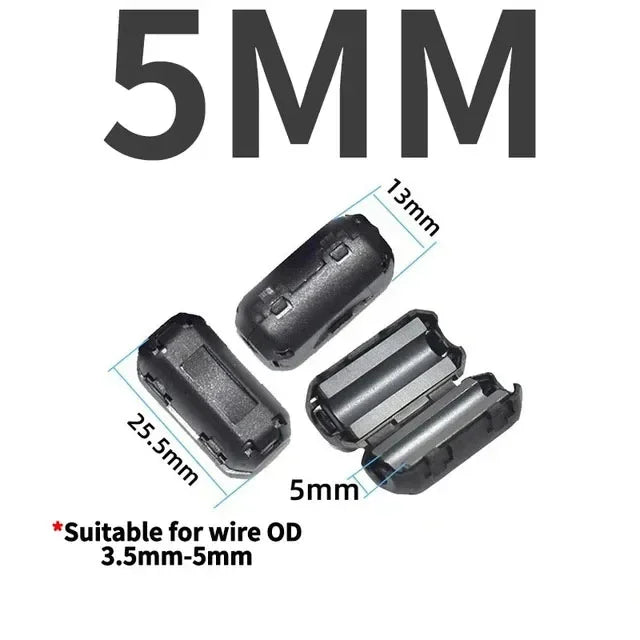

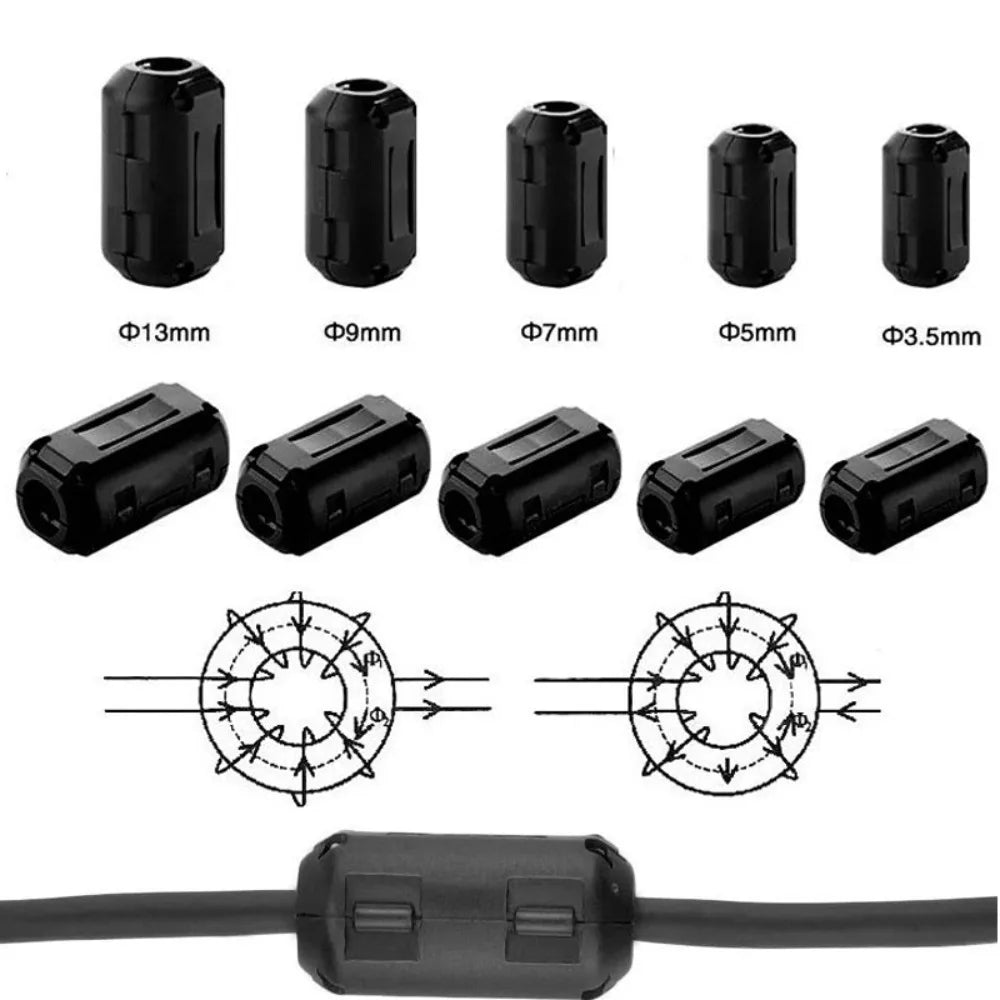

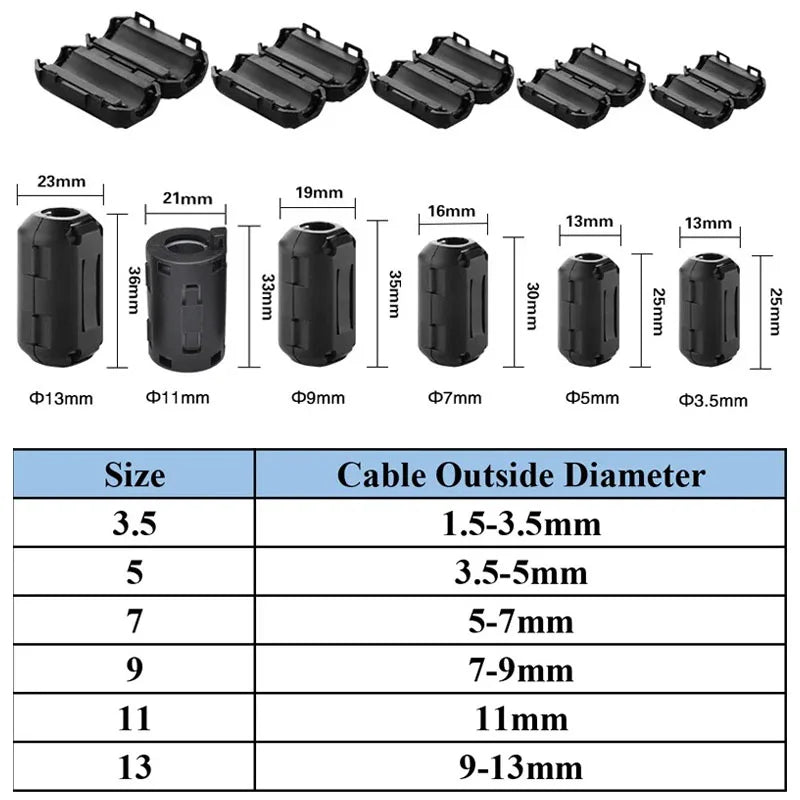

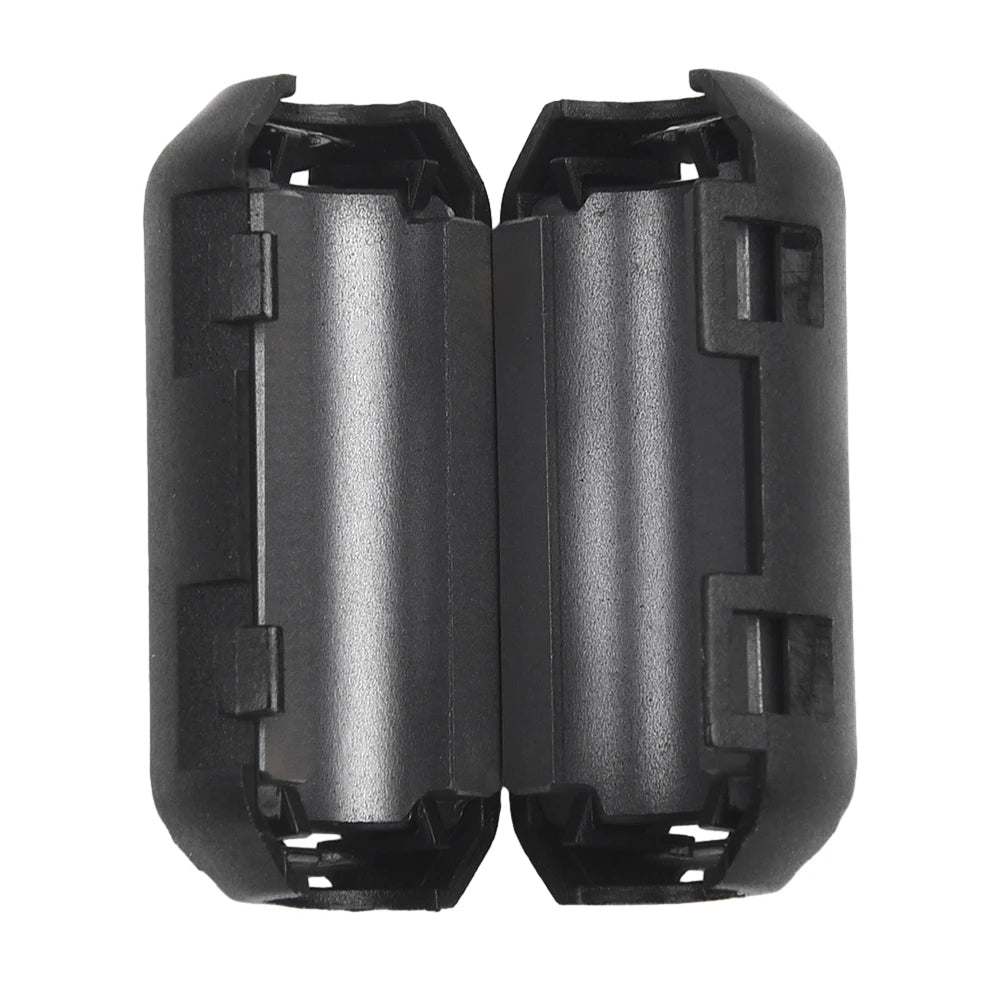

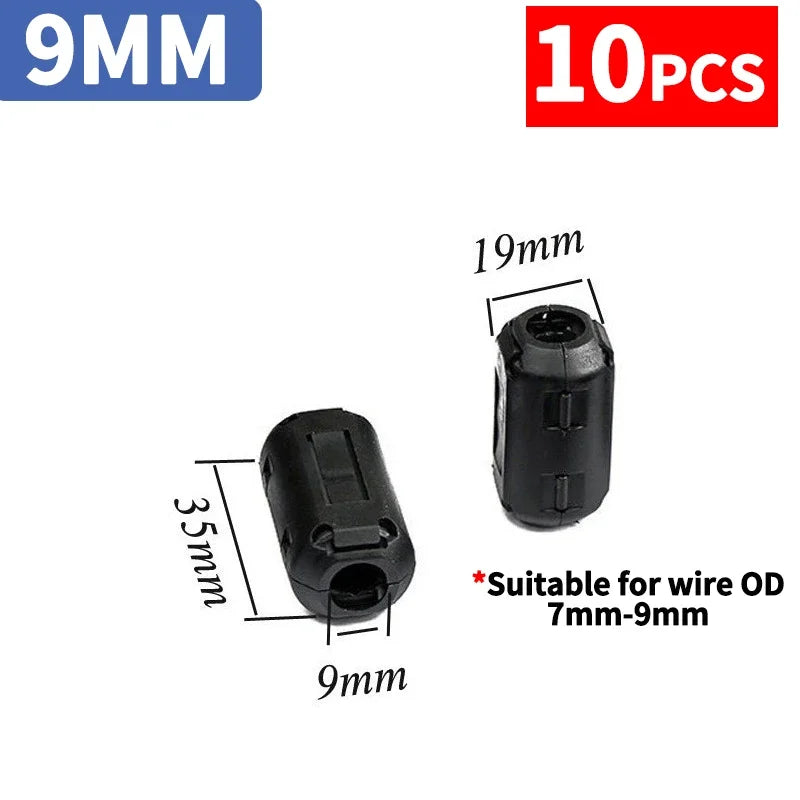

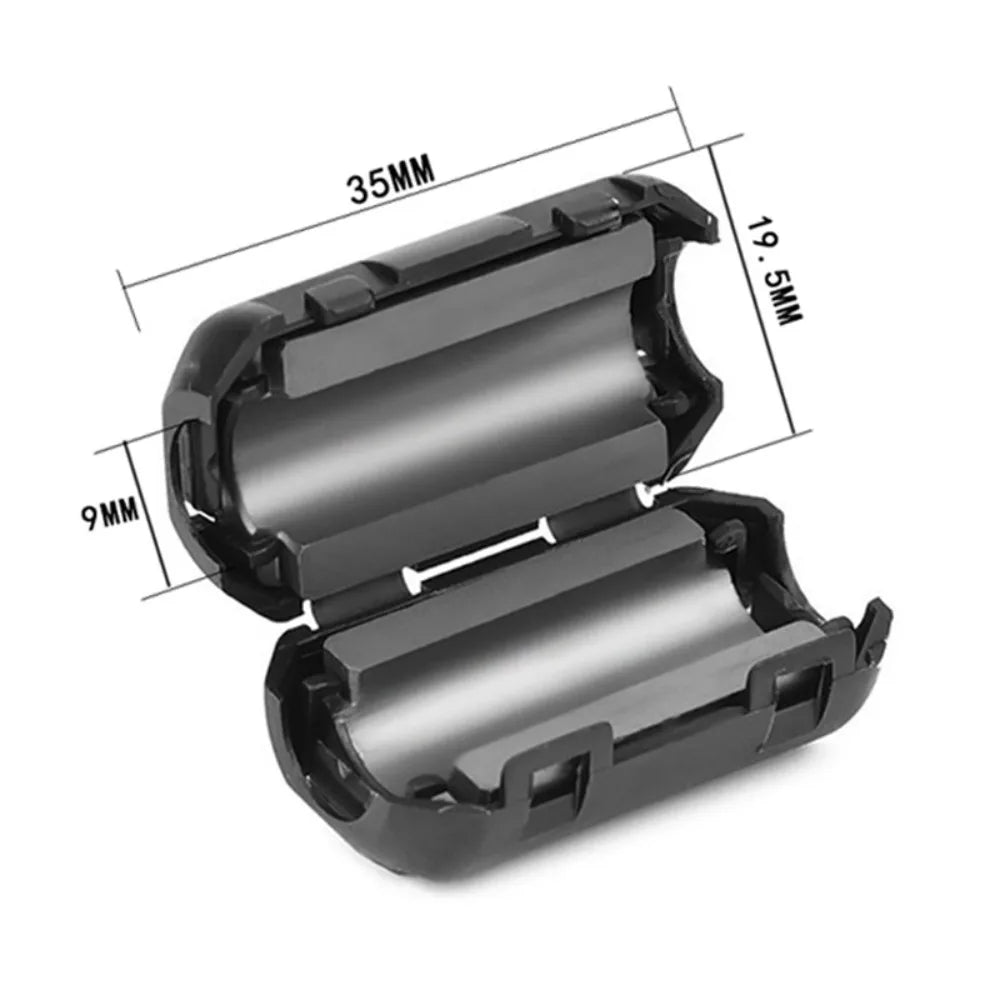

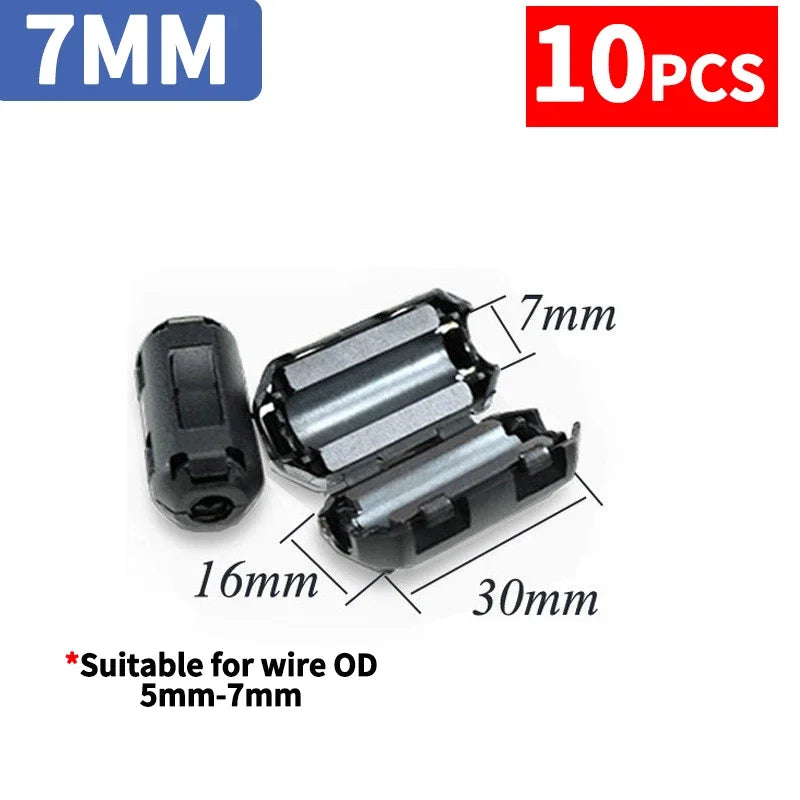

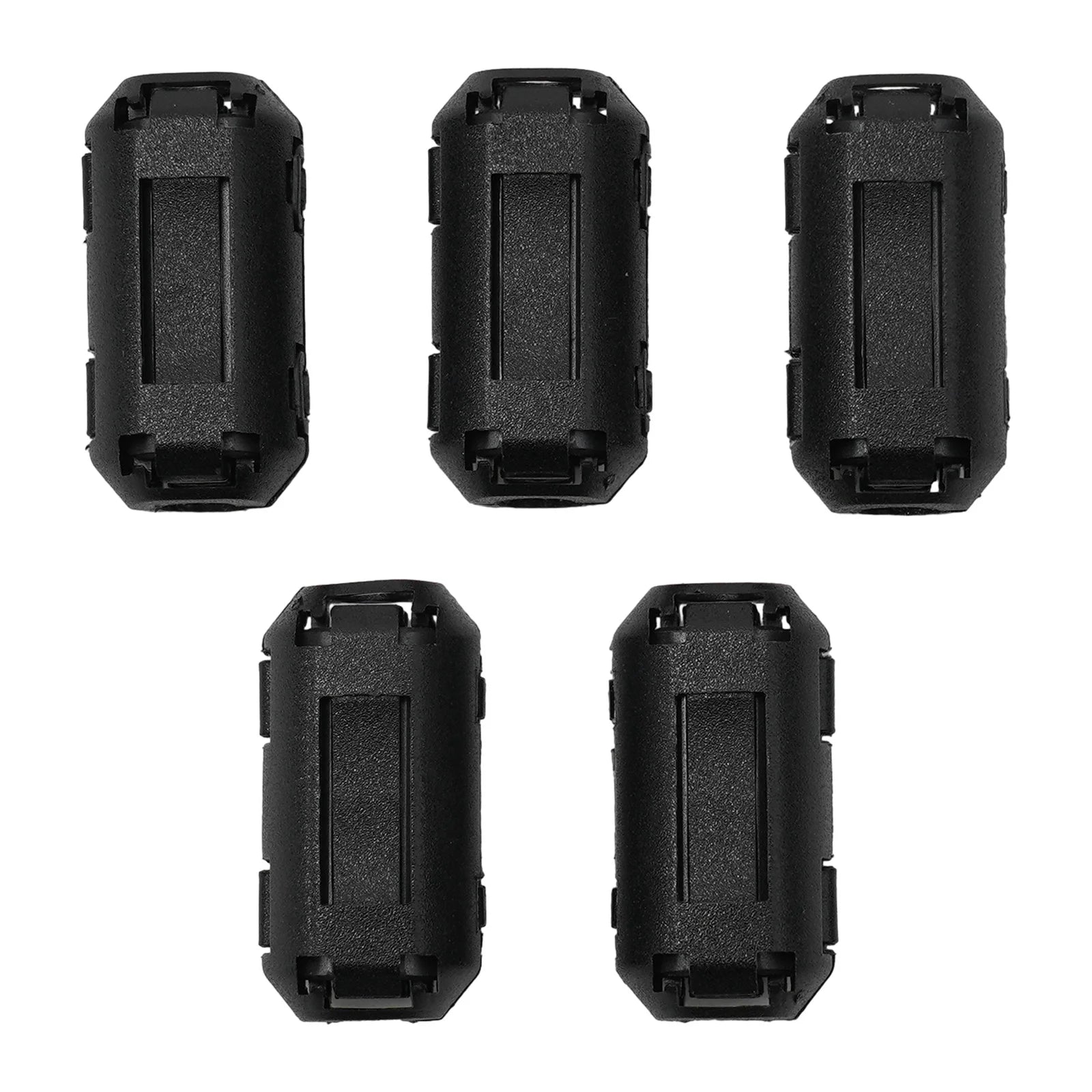

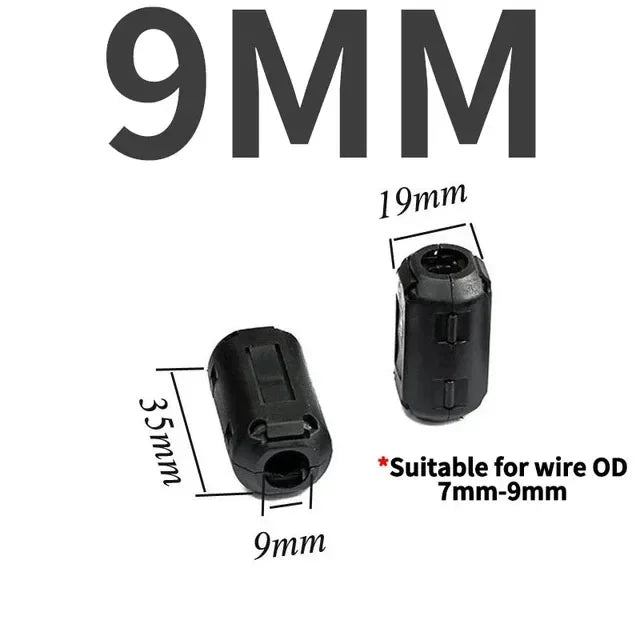

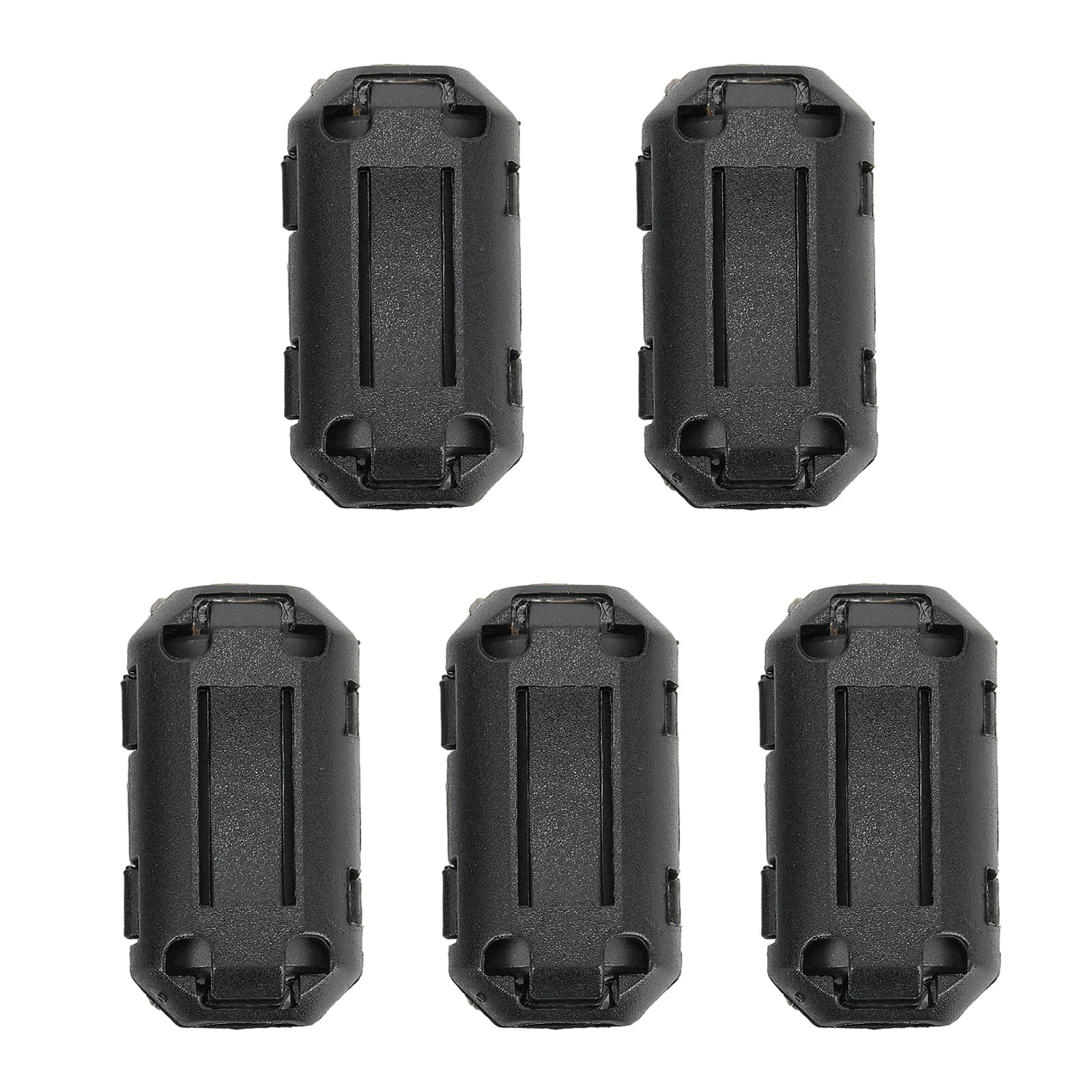

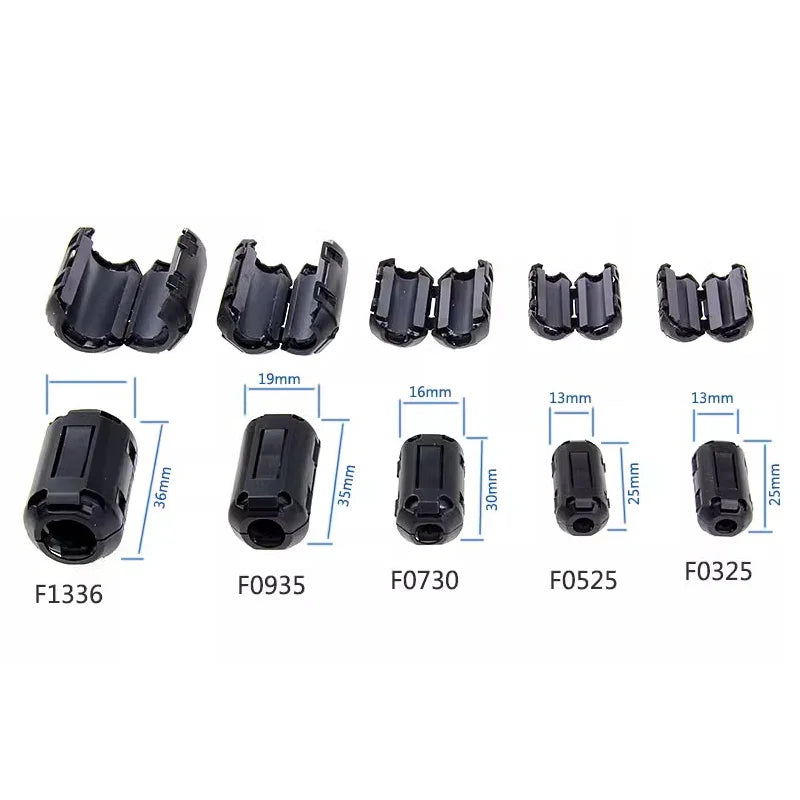

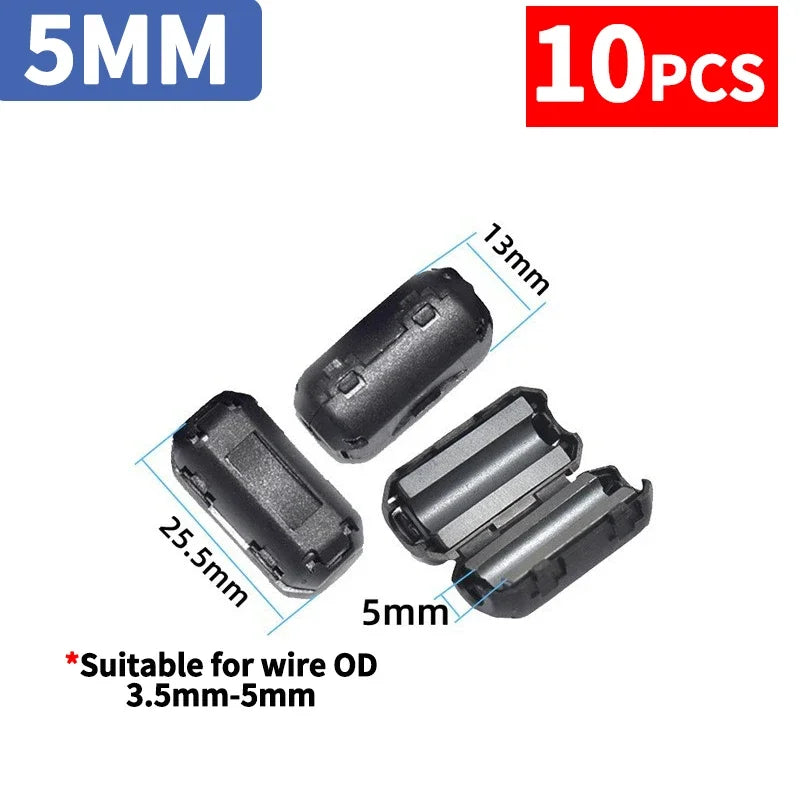

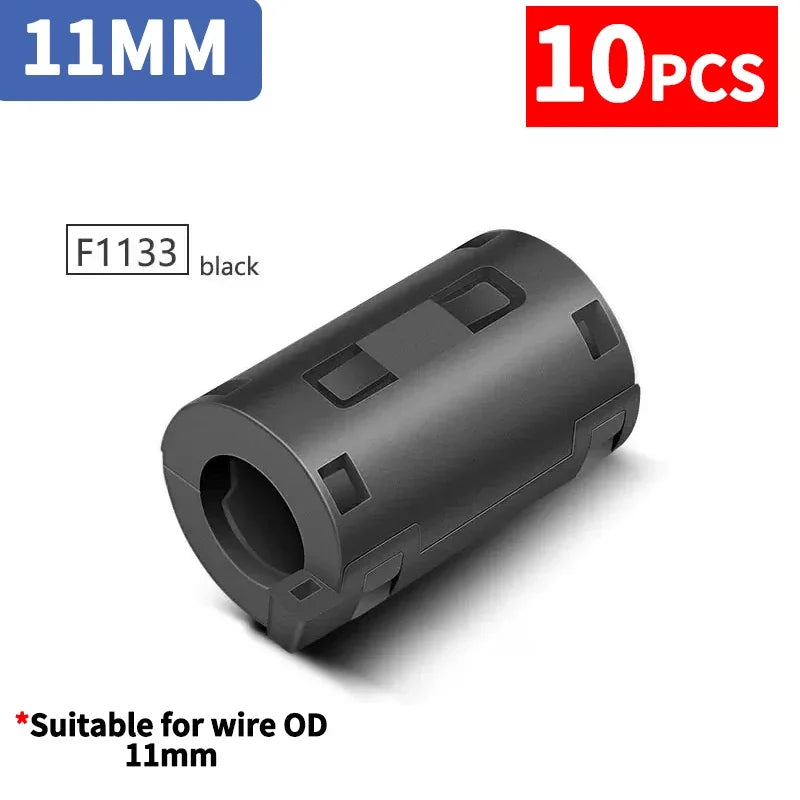

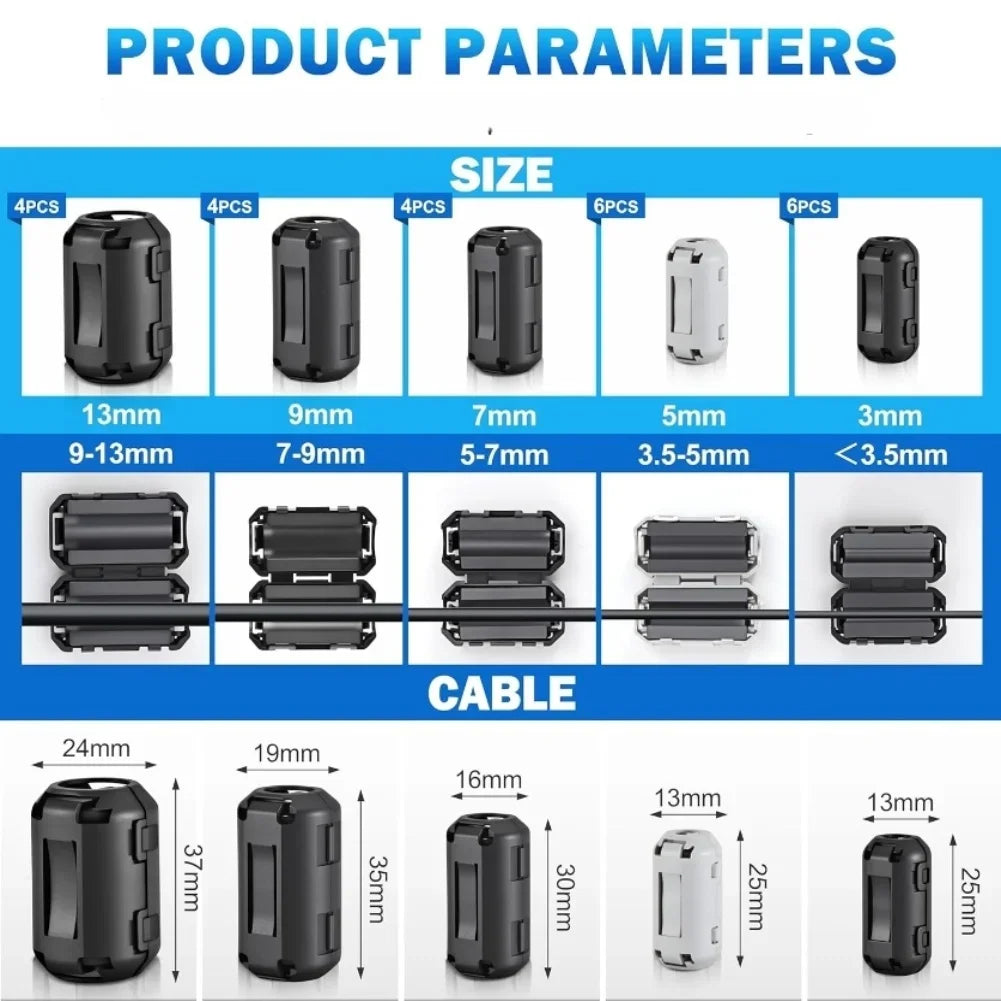

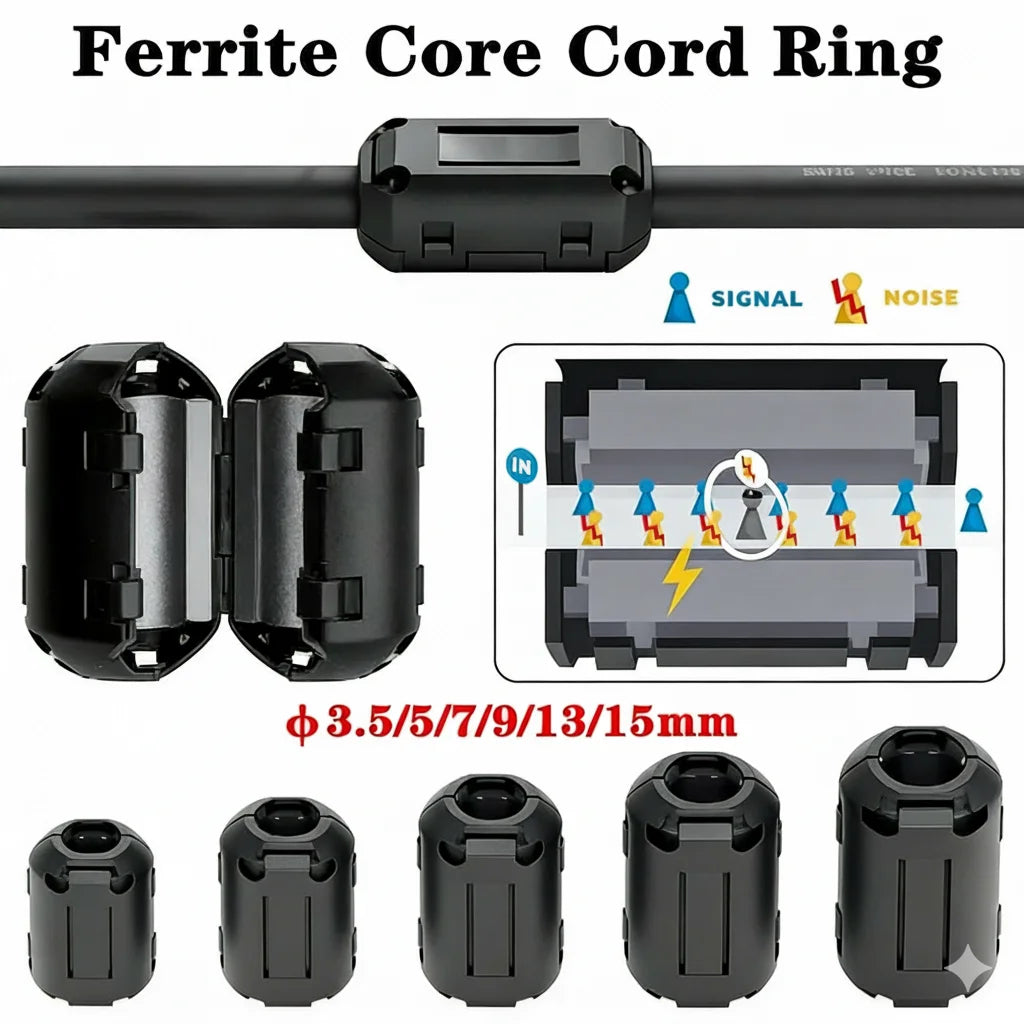

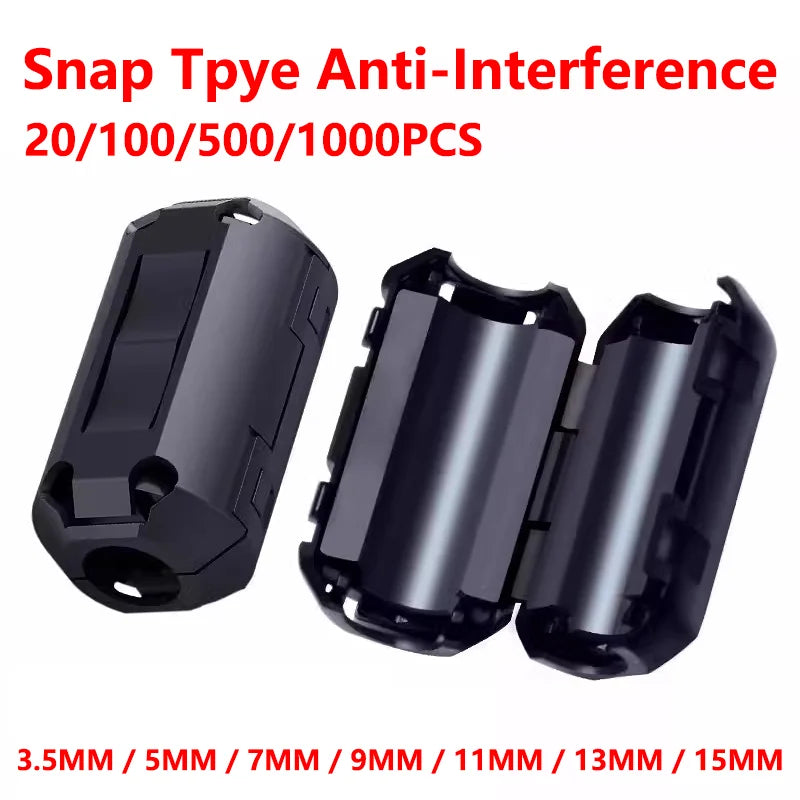

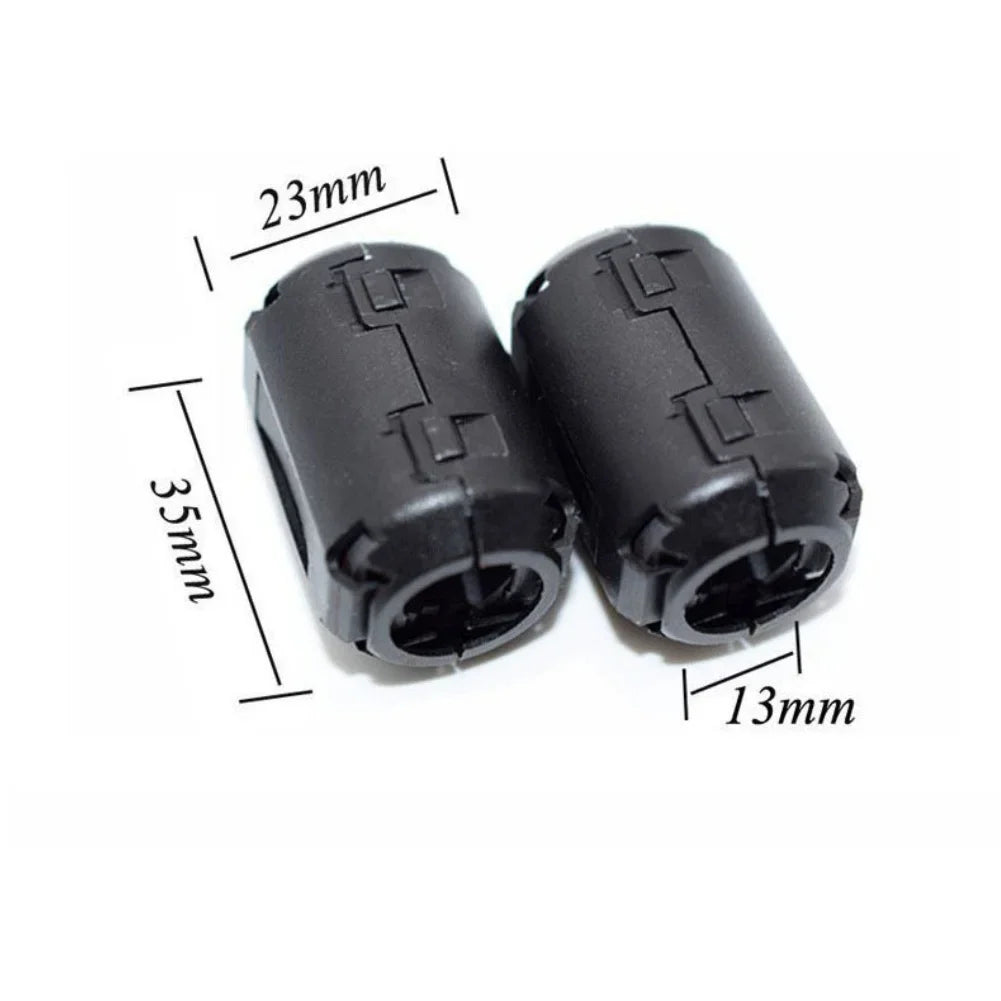

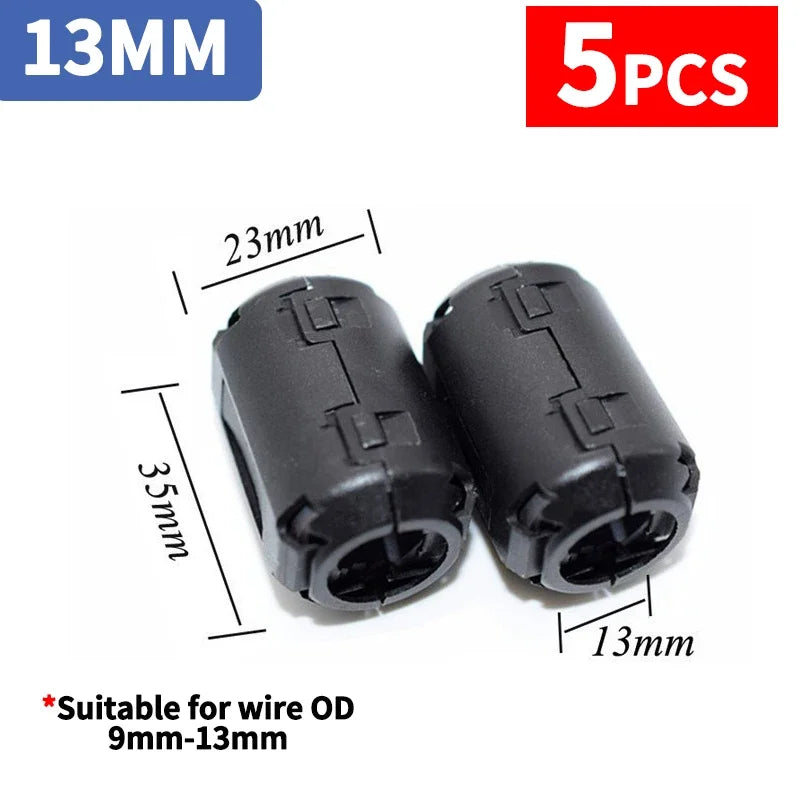

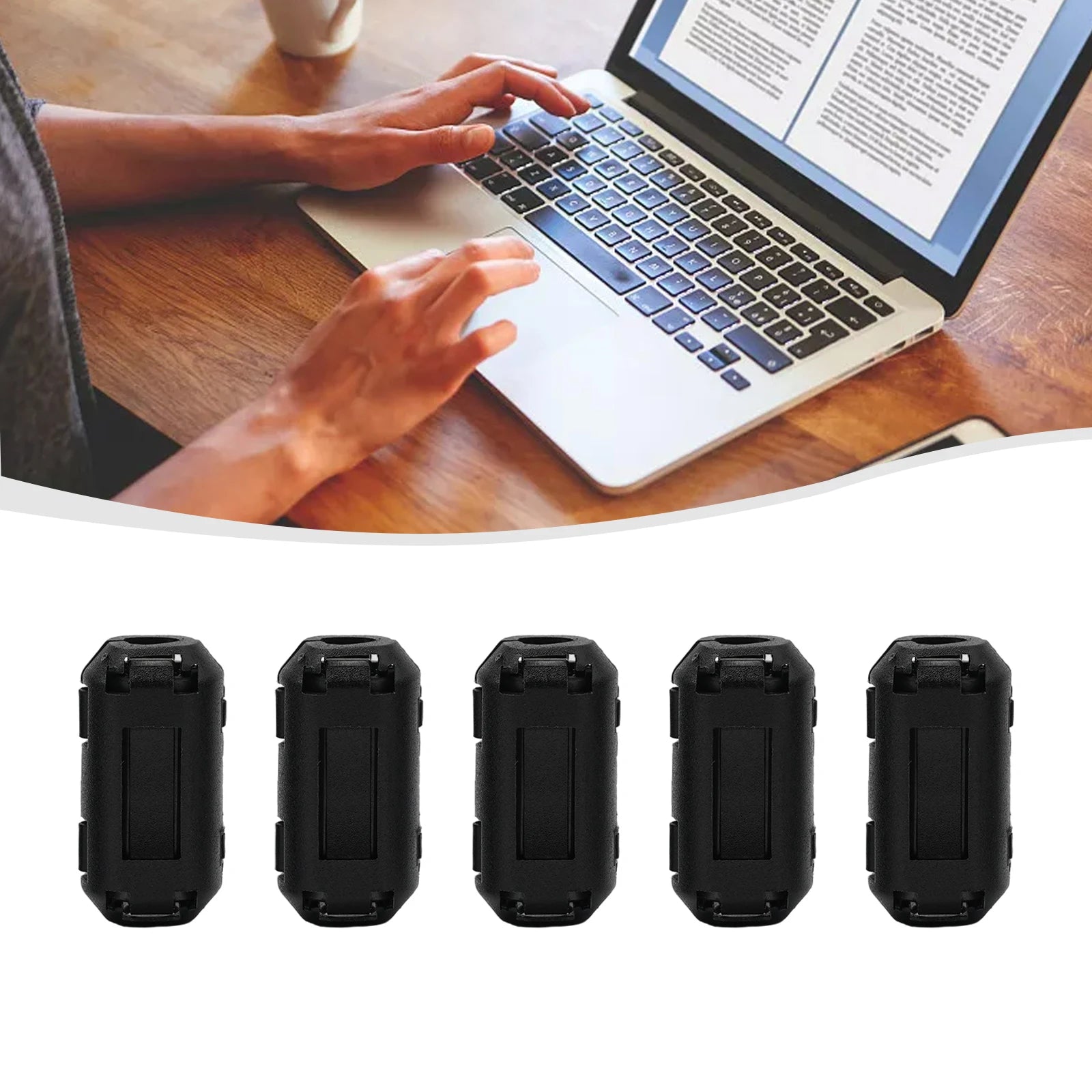

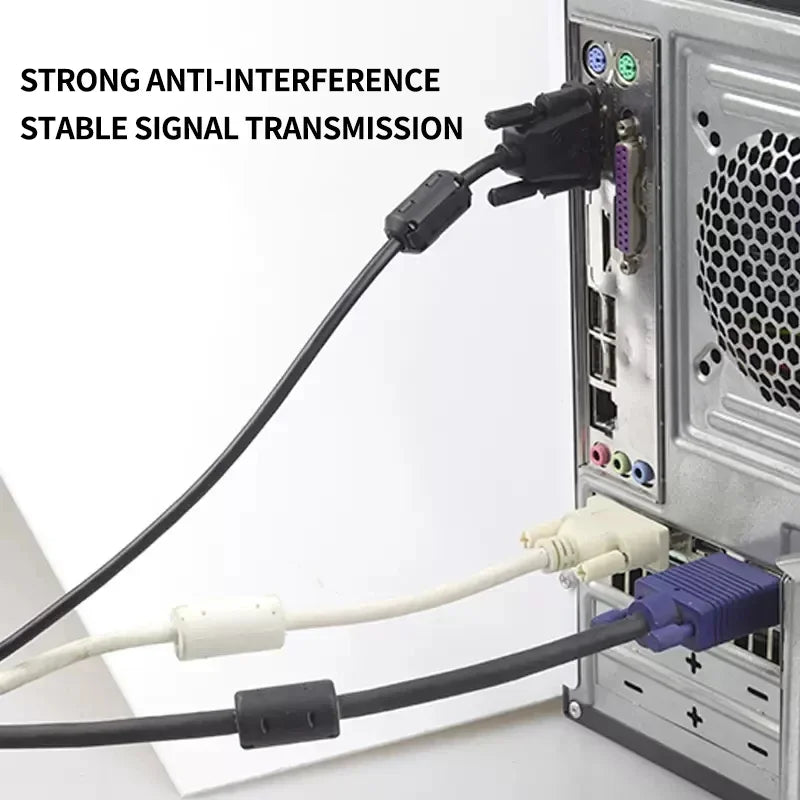

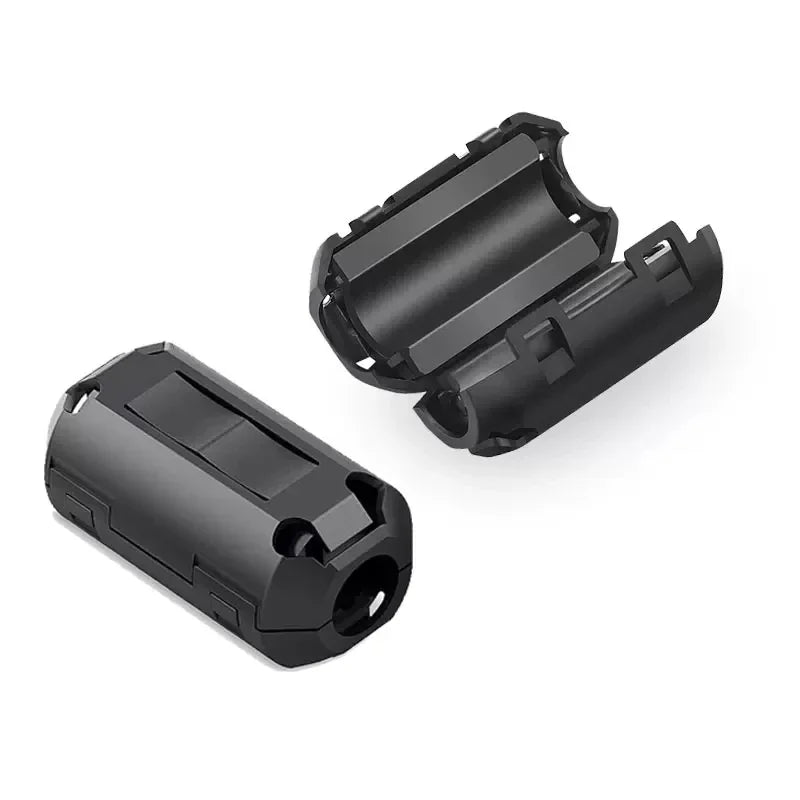

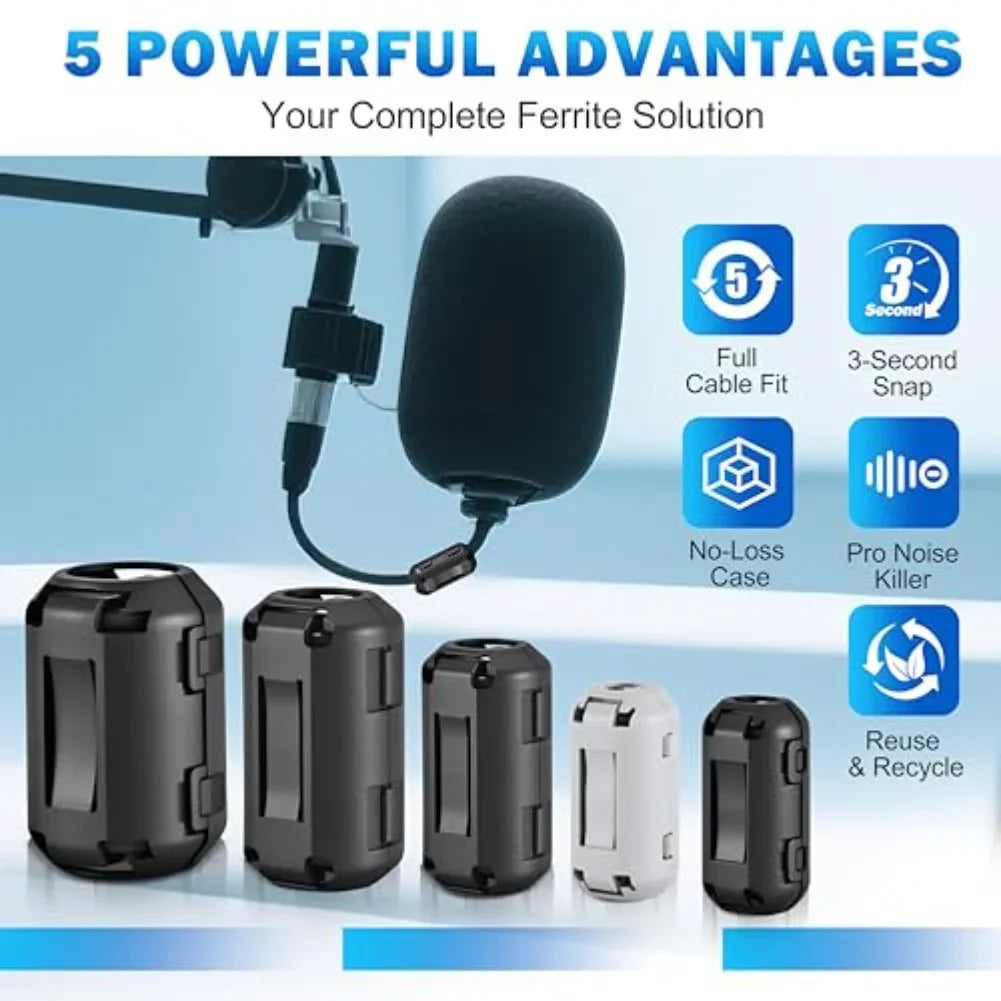

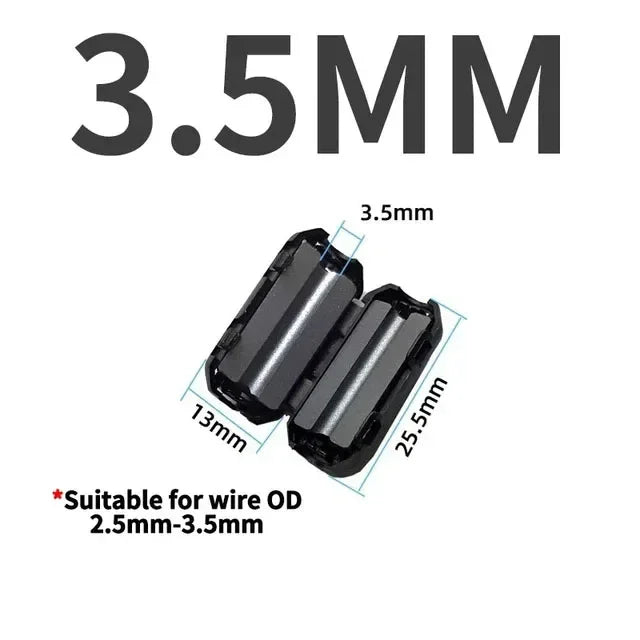

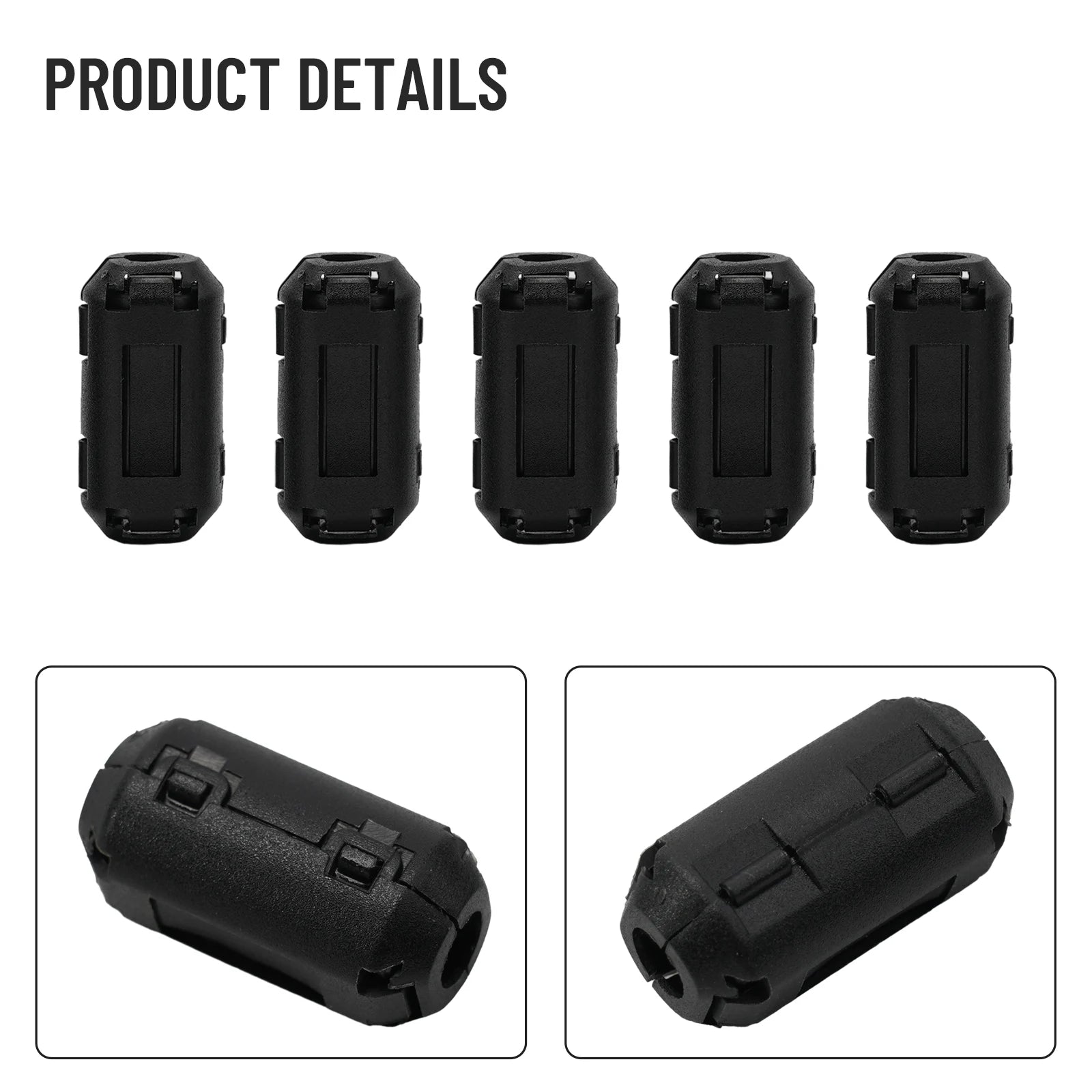

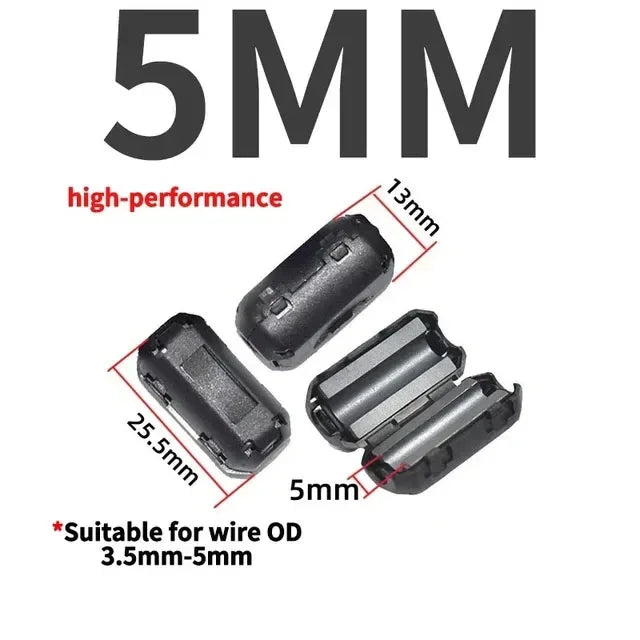

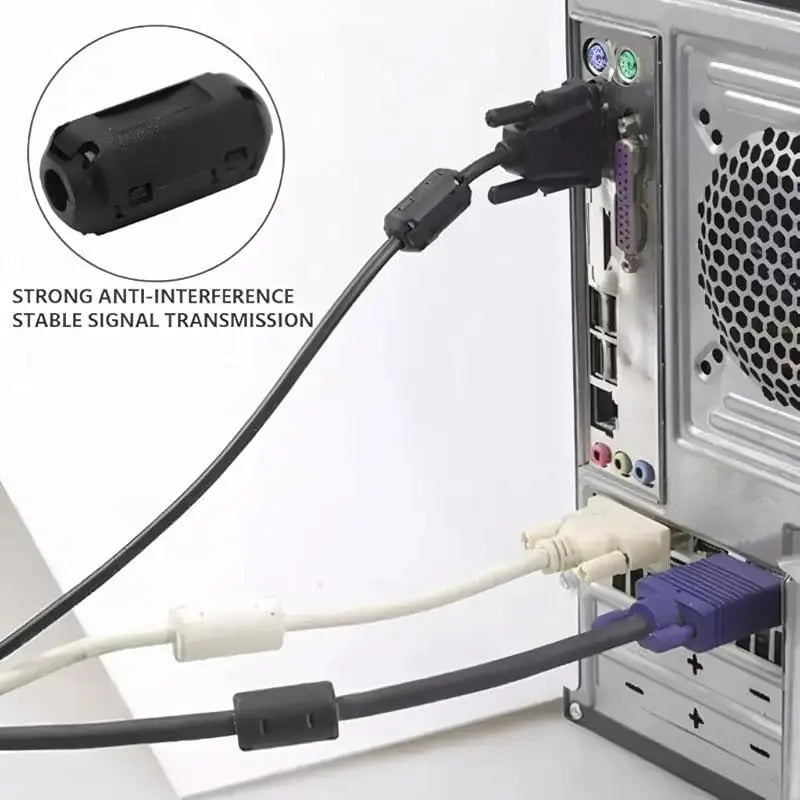

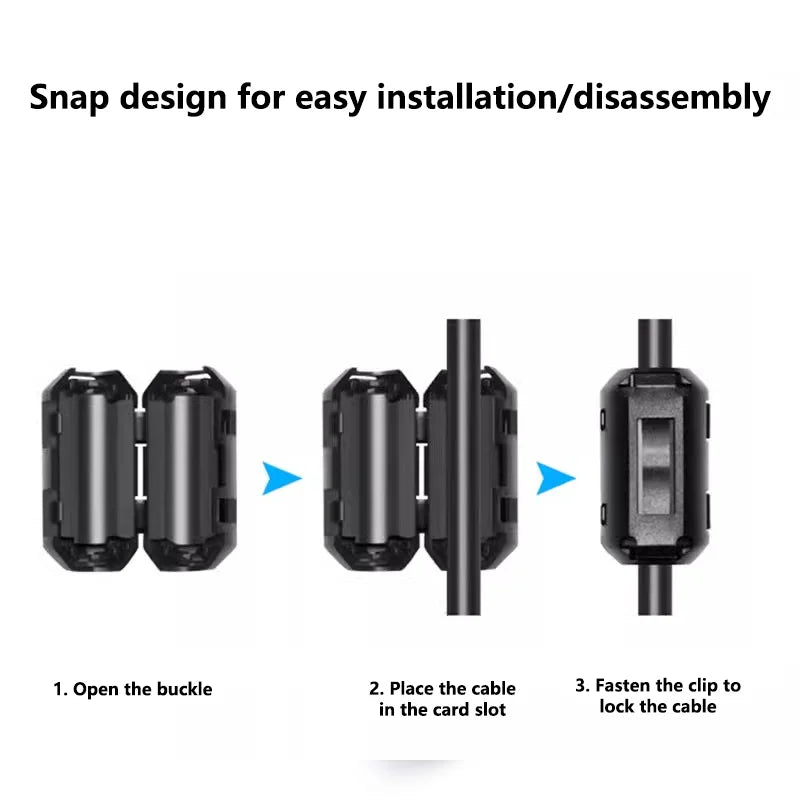

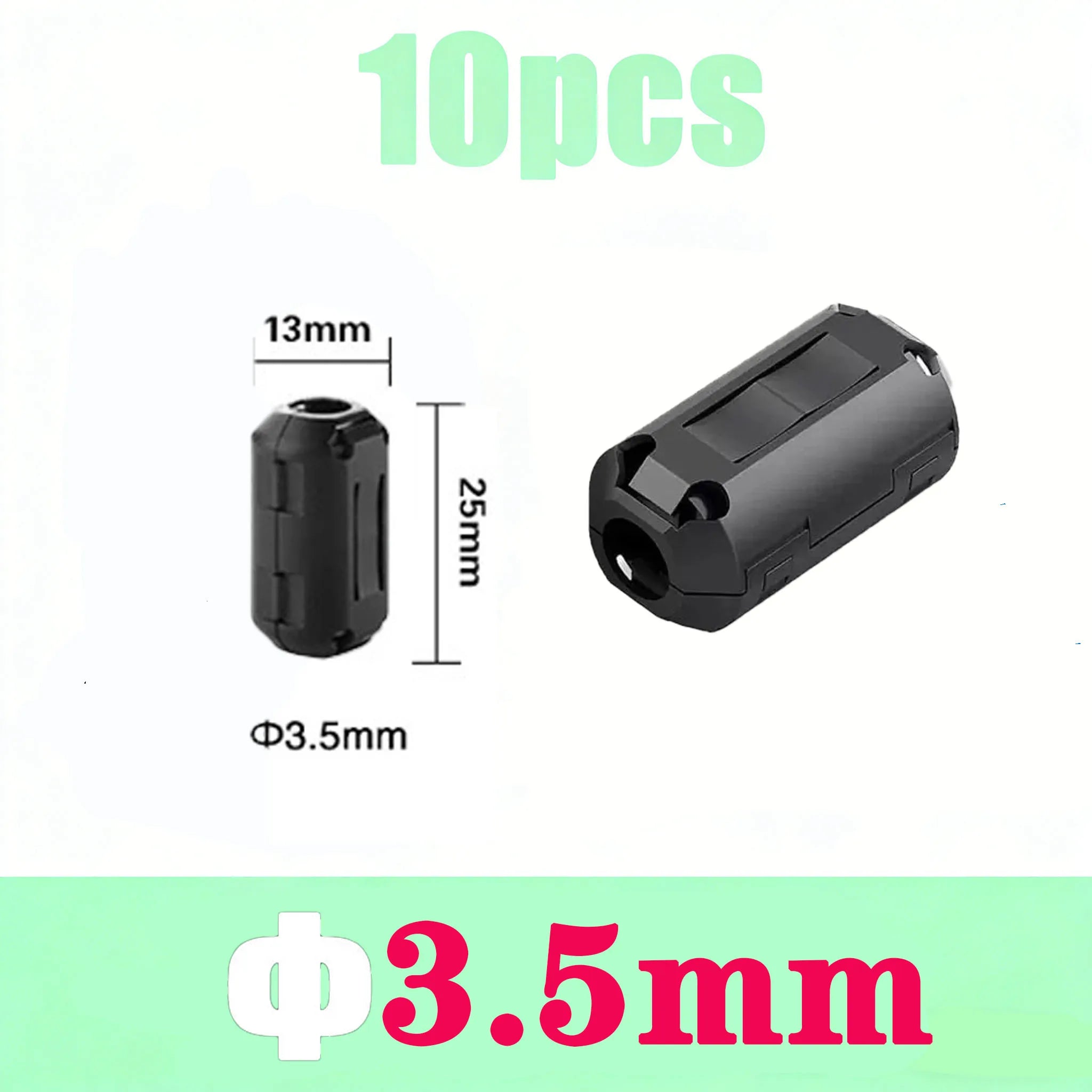

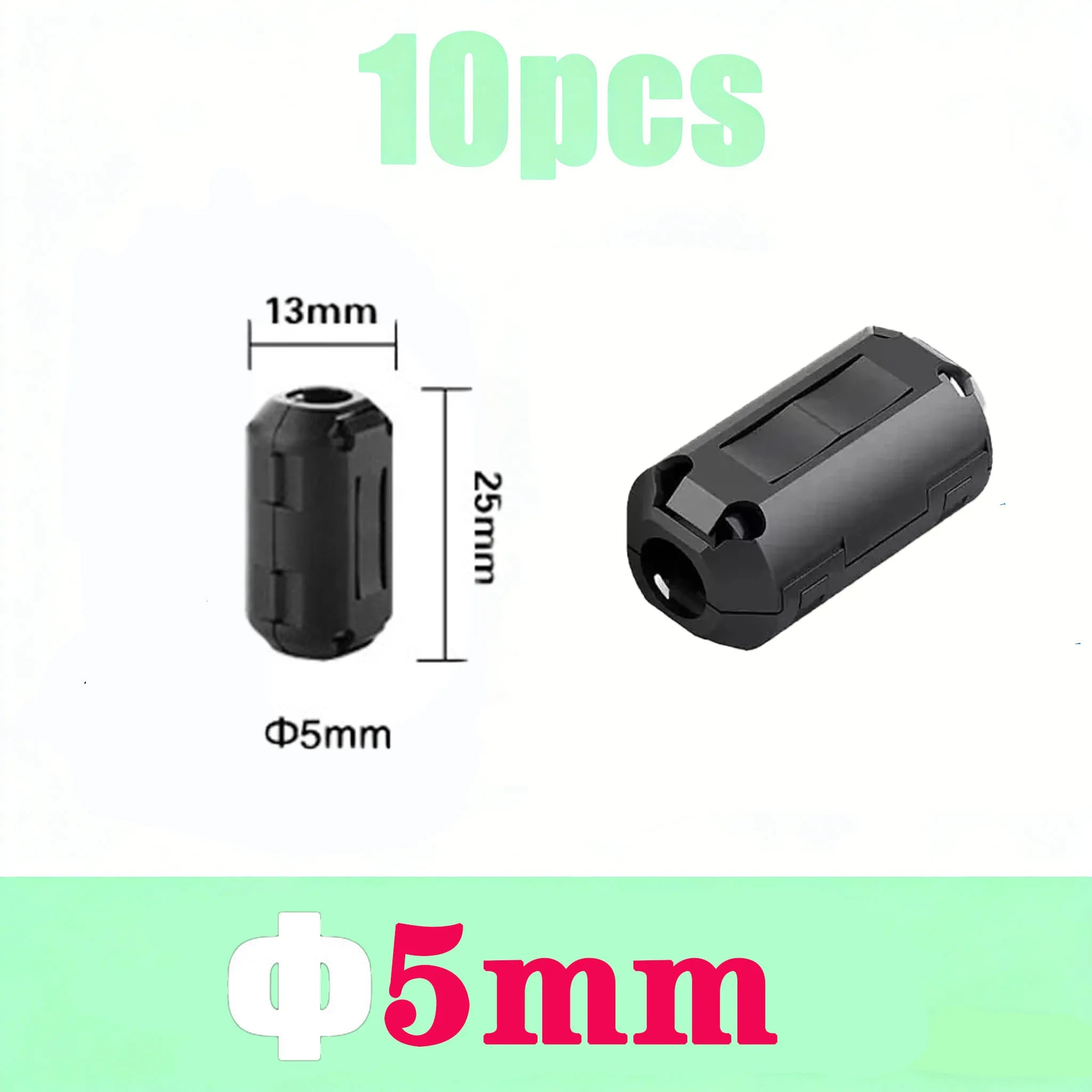

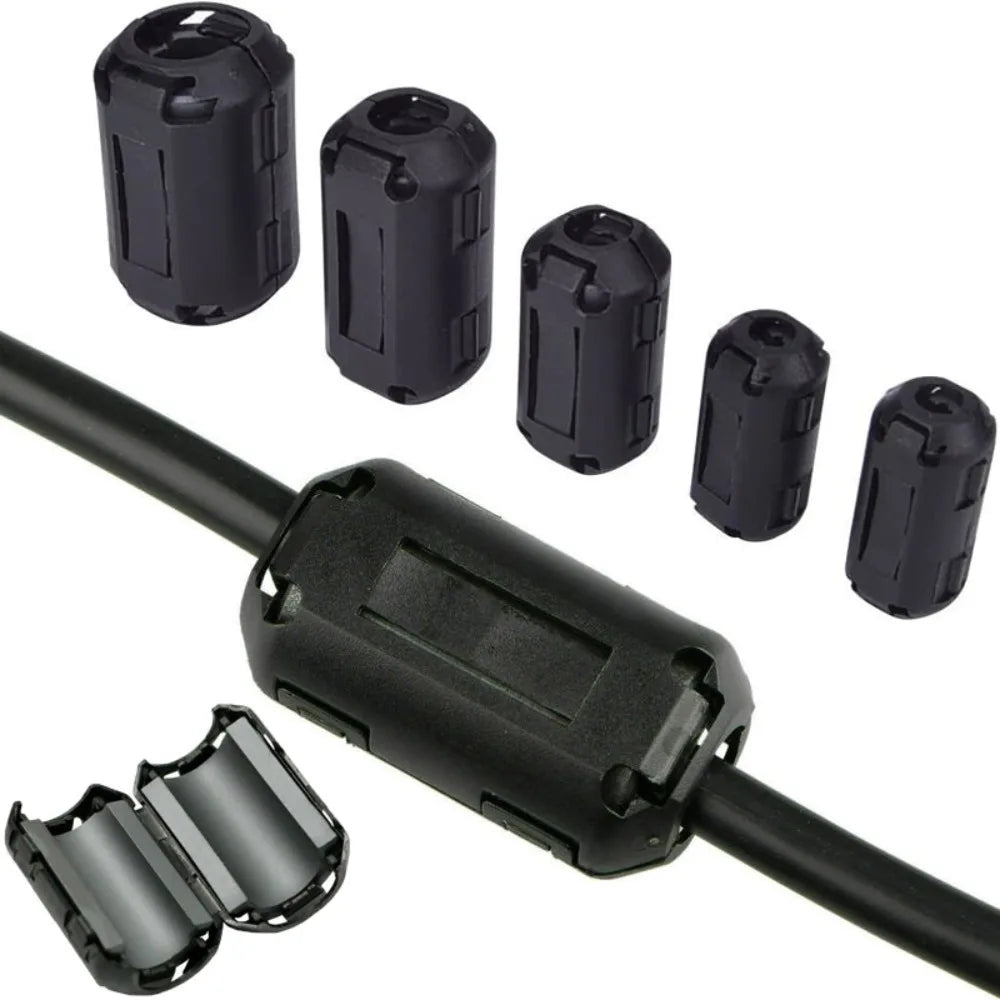

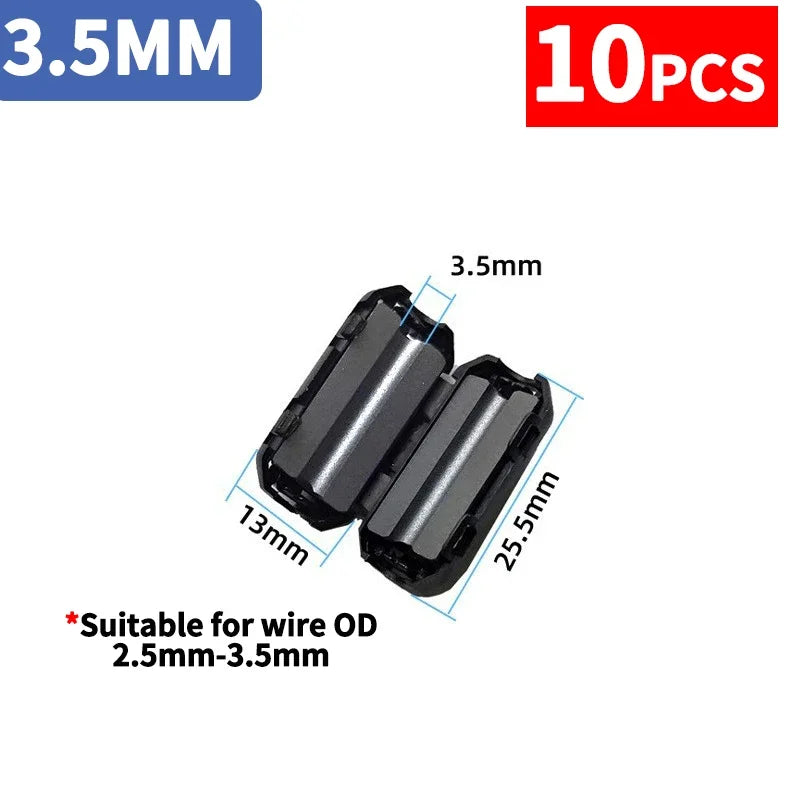

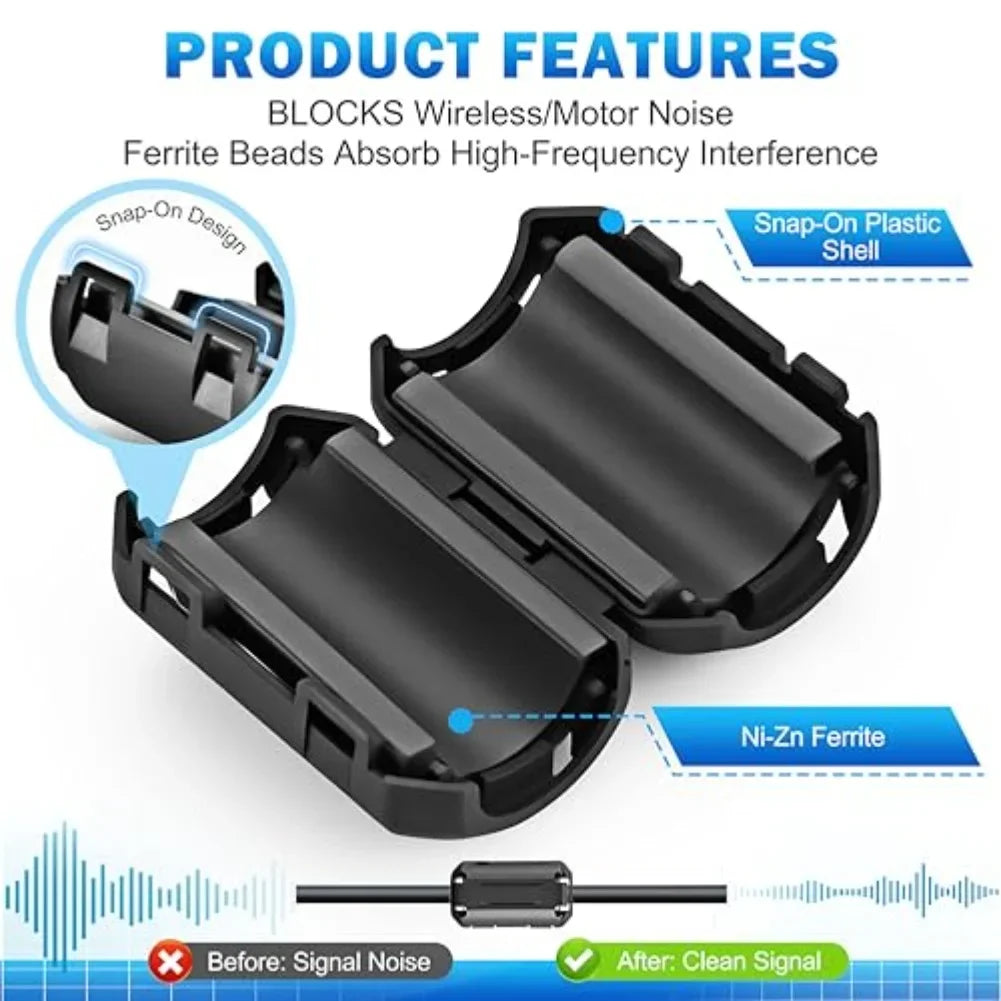

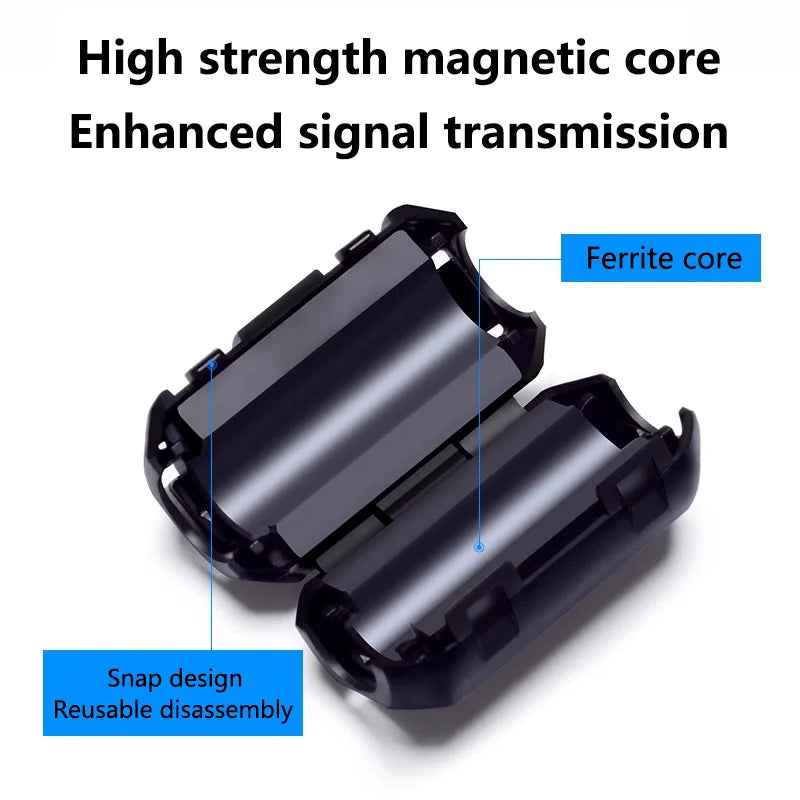

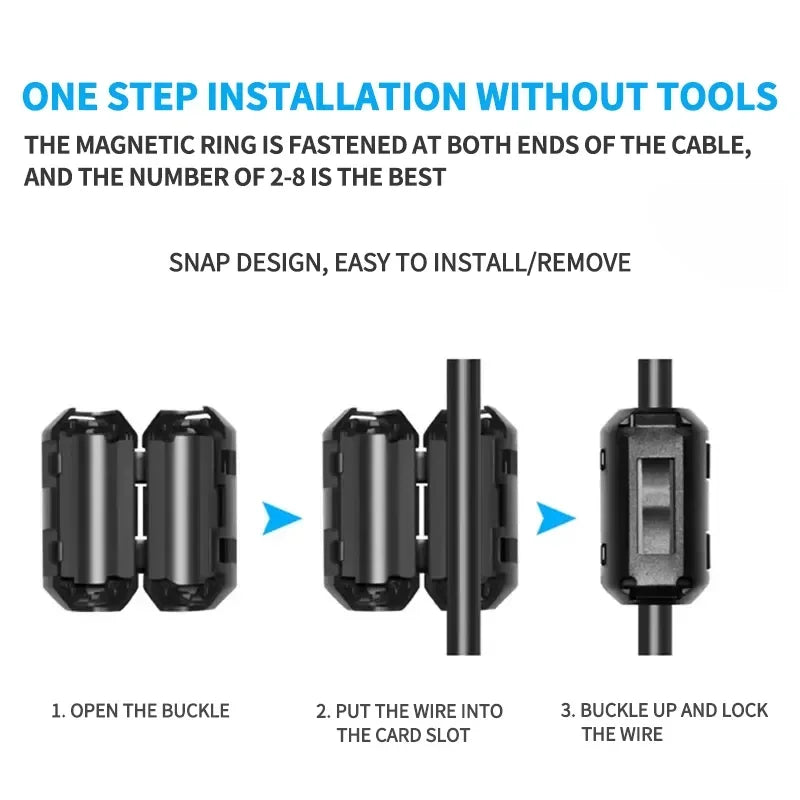

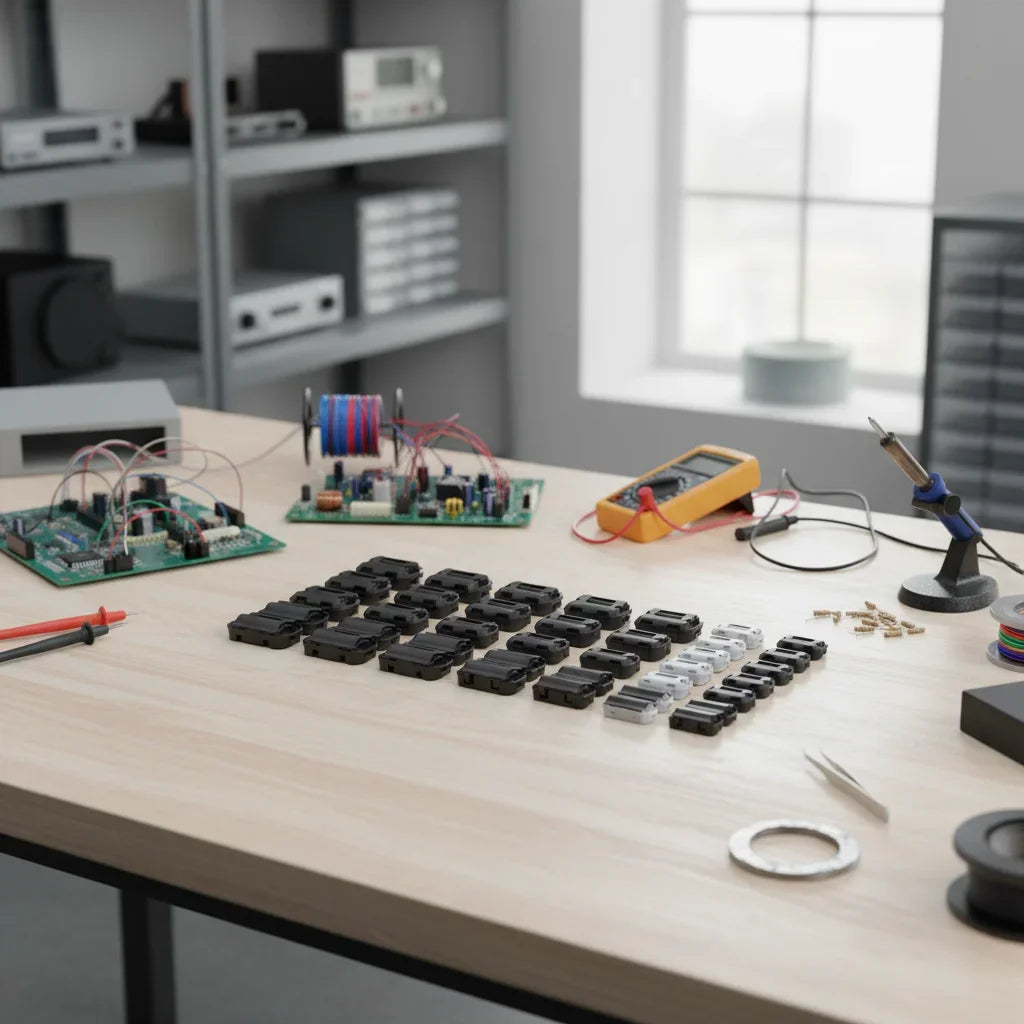

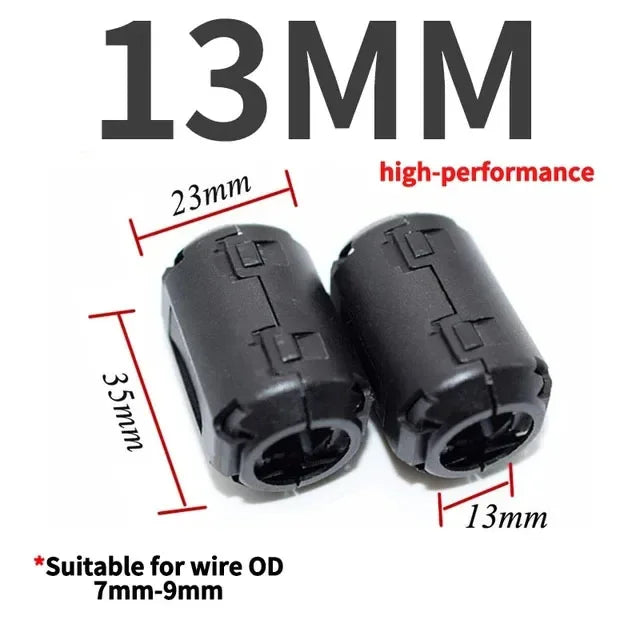

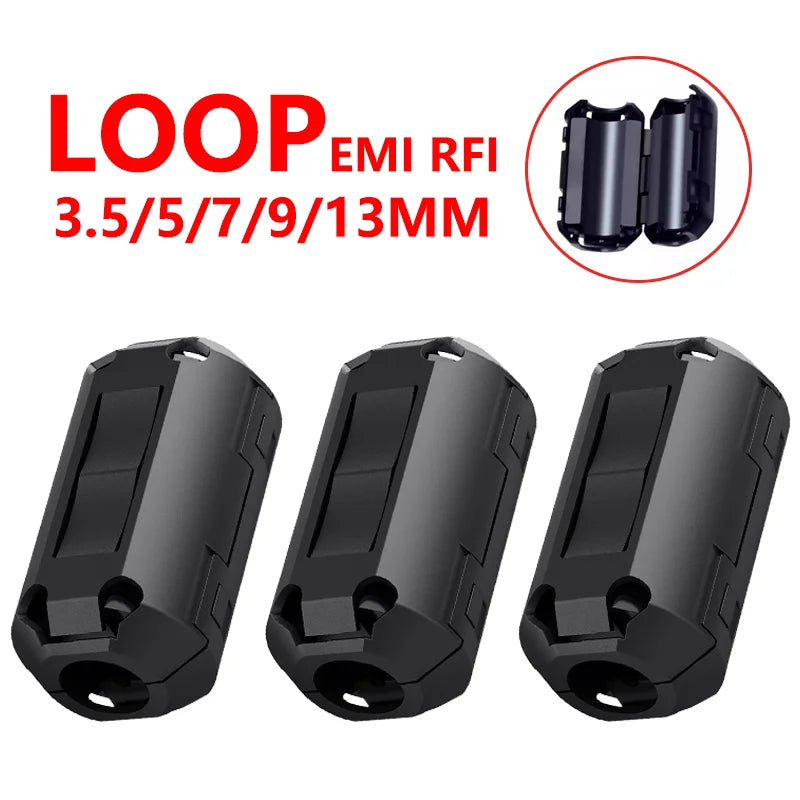

- Snap-on cable chokes: Clip-on shells are offered for different cable diameters, often around 3.5–15 mm, with pack-size choices. Measure the cable's outside diameter, check the closed latch and ferrite material, then evaluate noise at the actual frequency. A clip may suppress certain common-mode interference but cannot promise clearer audio, restore an invalid HDMI/USB signal, or serve as a certified surge protector.

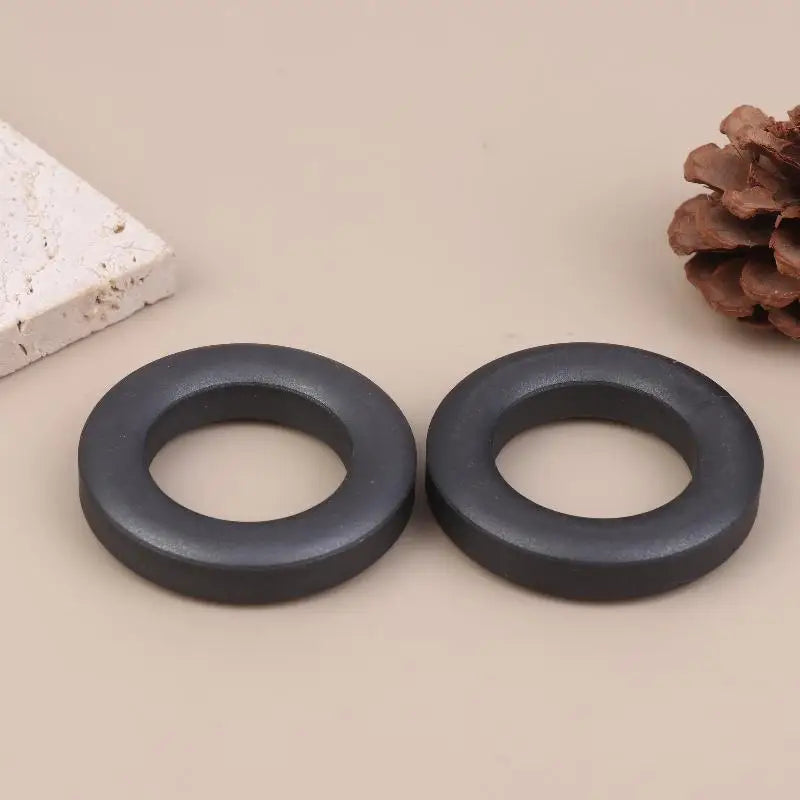

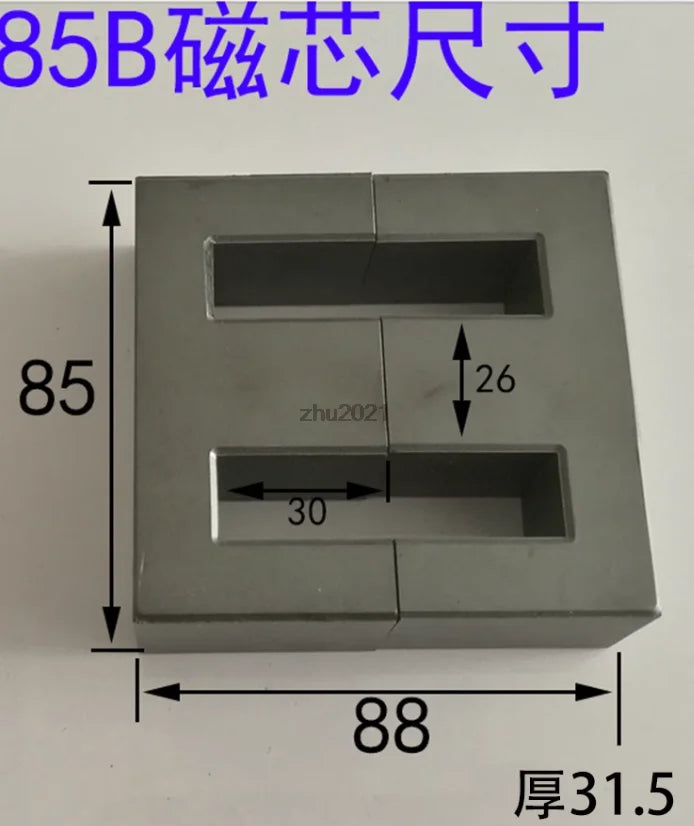

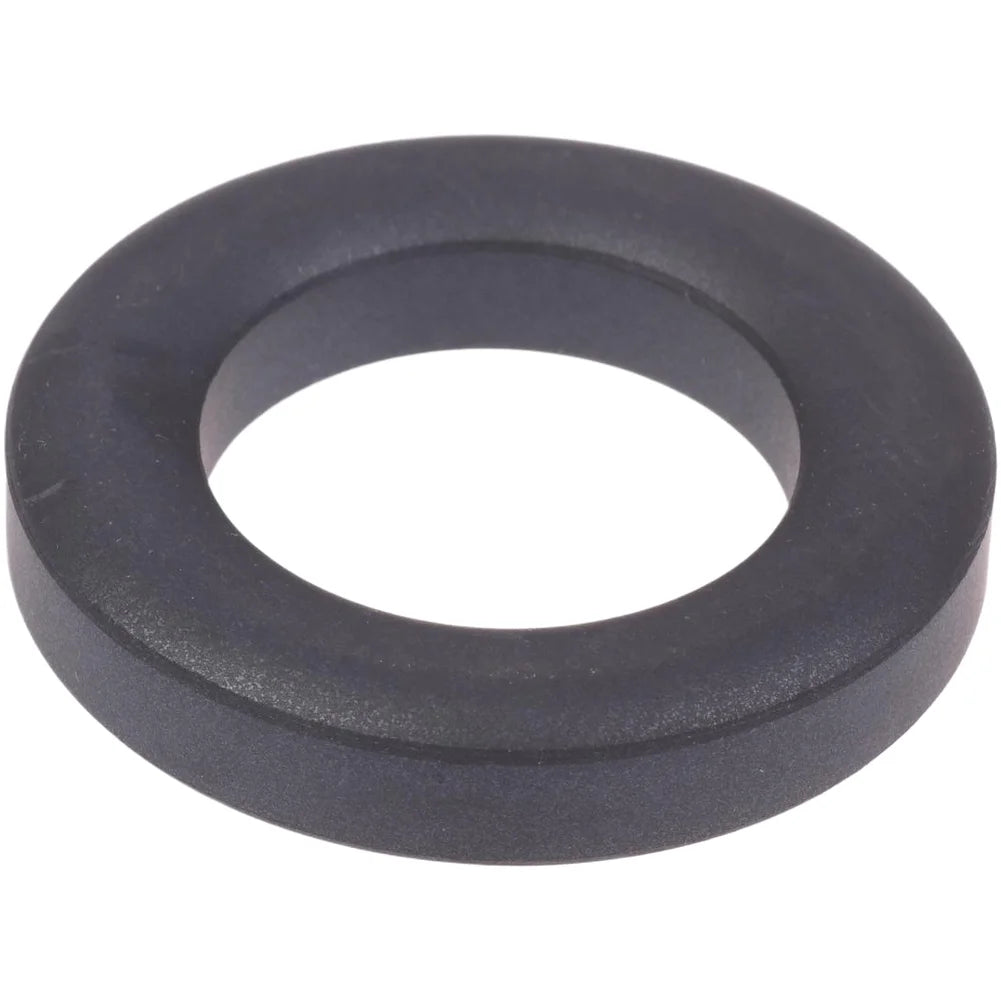

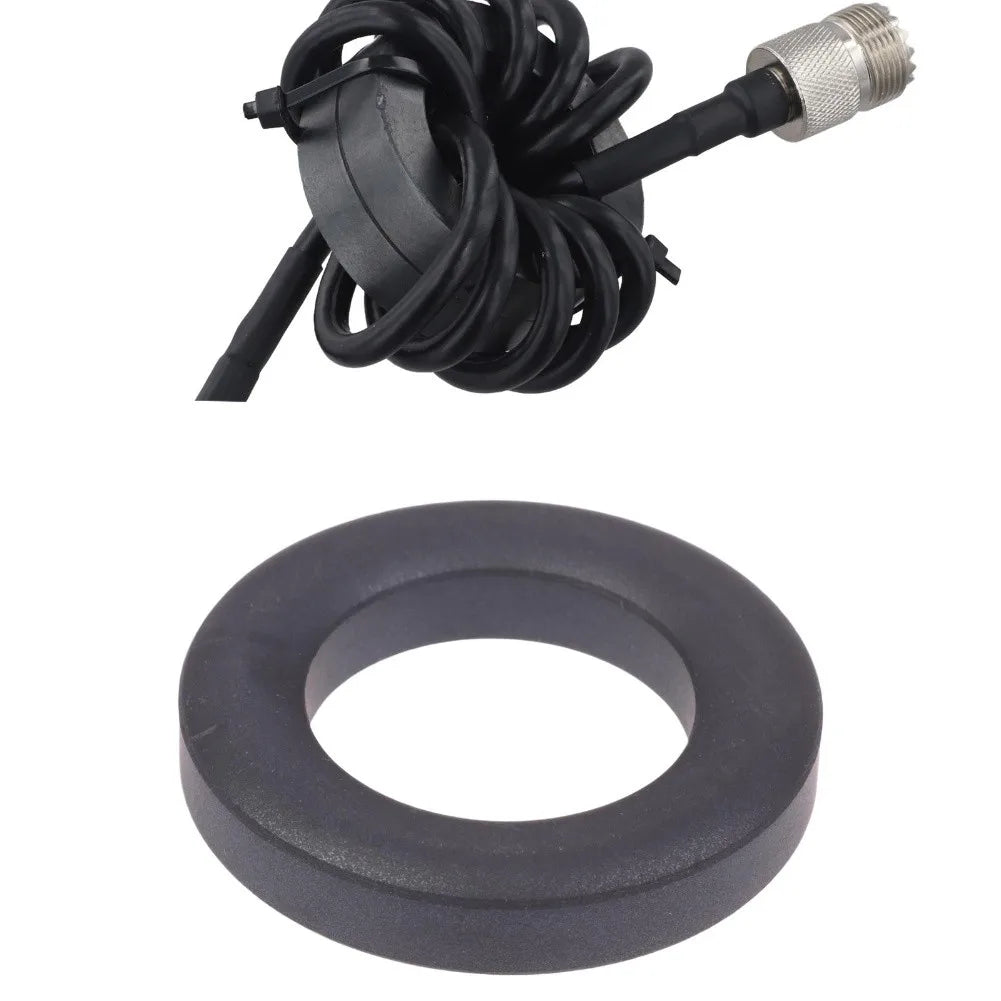

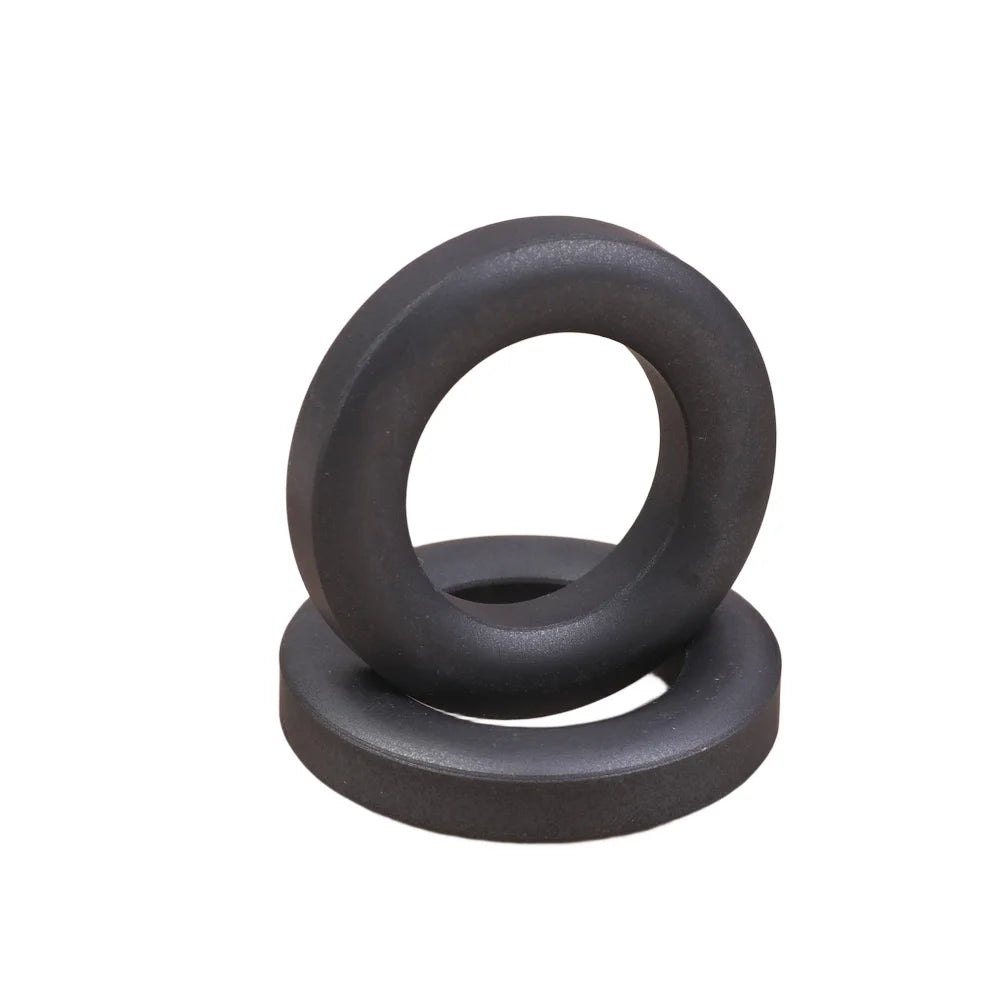

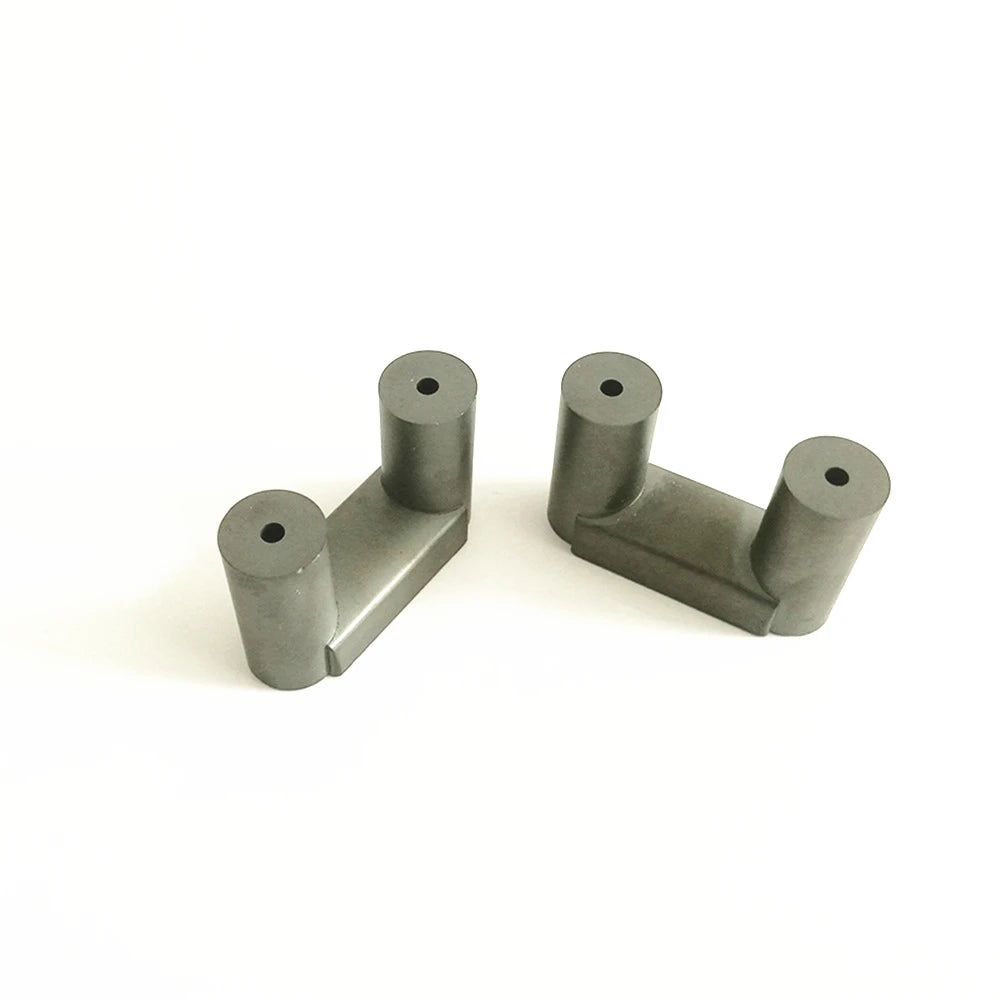

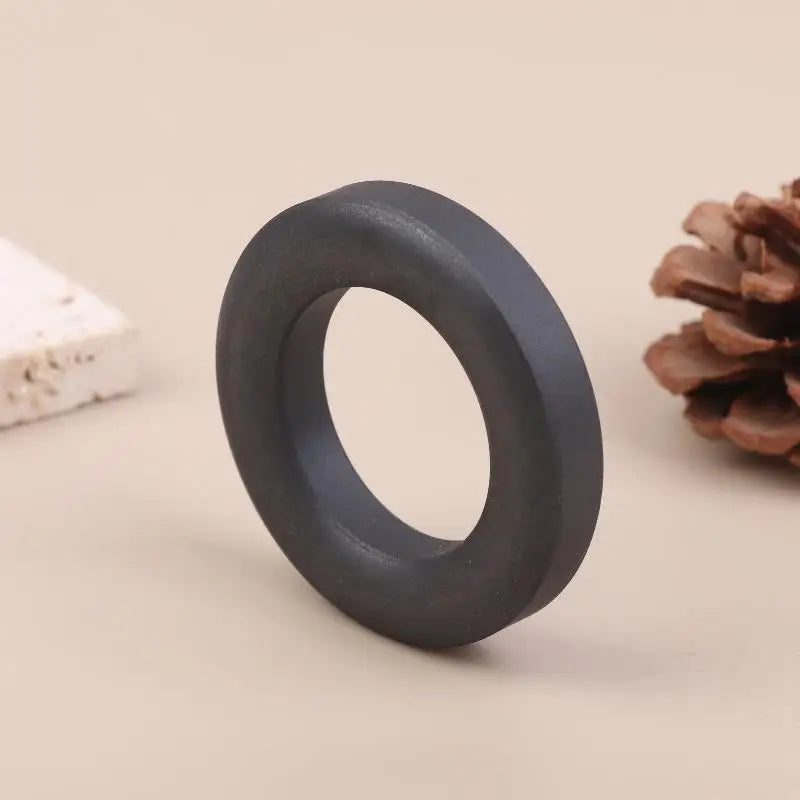

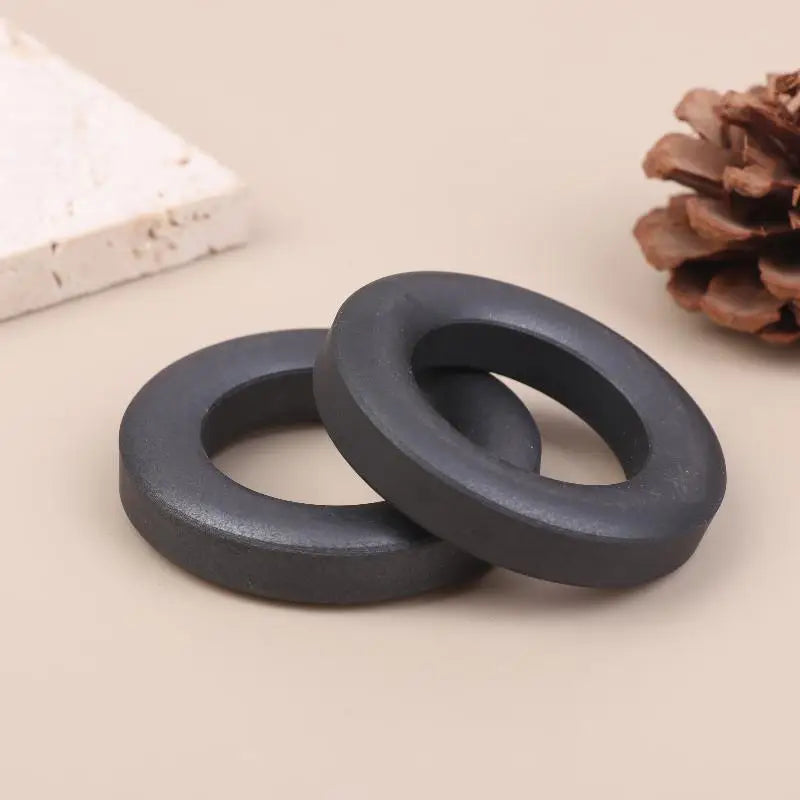

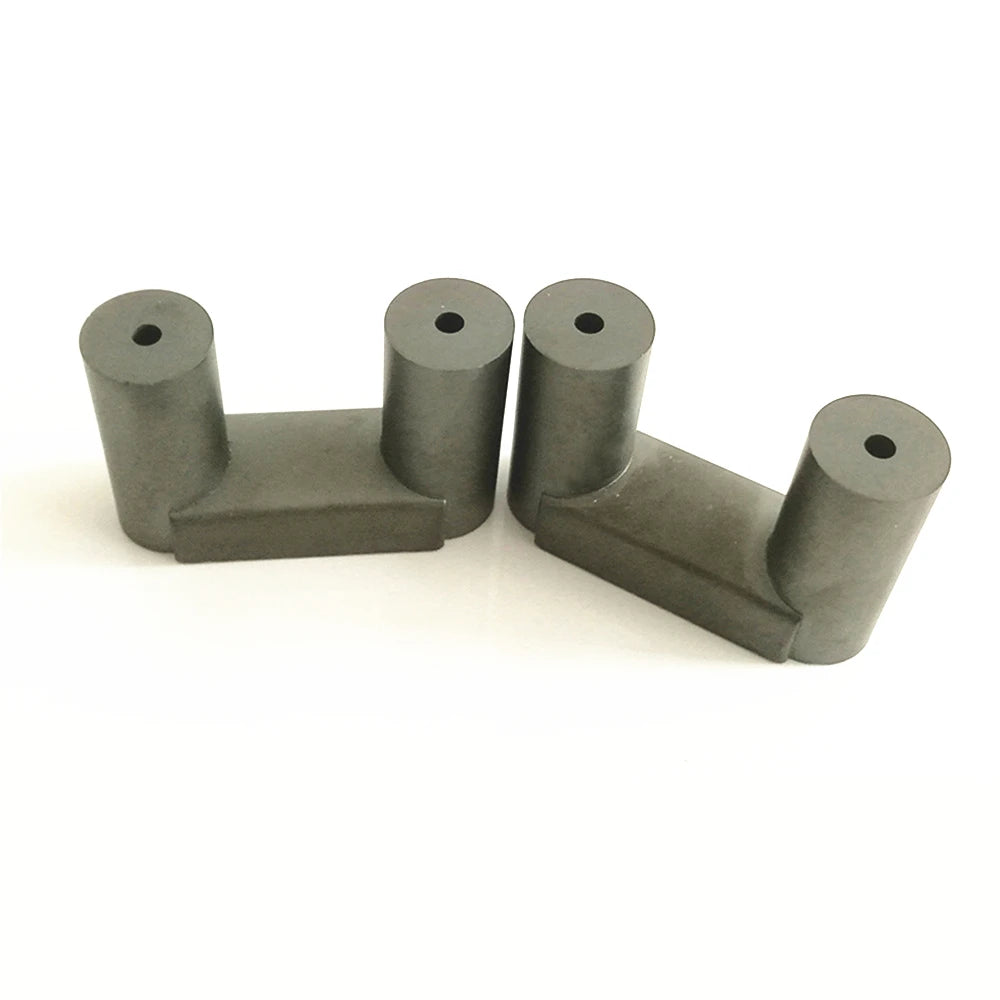

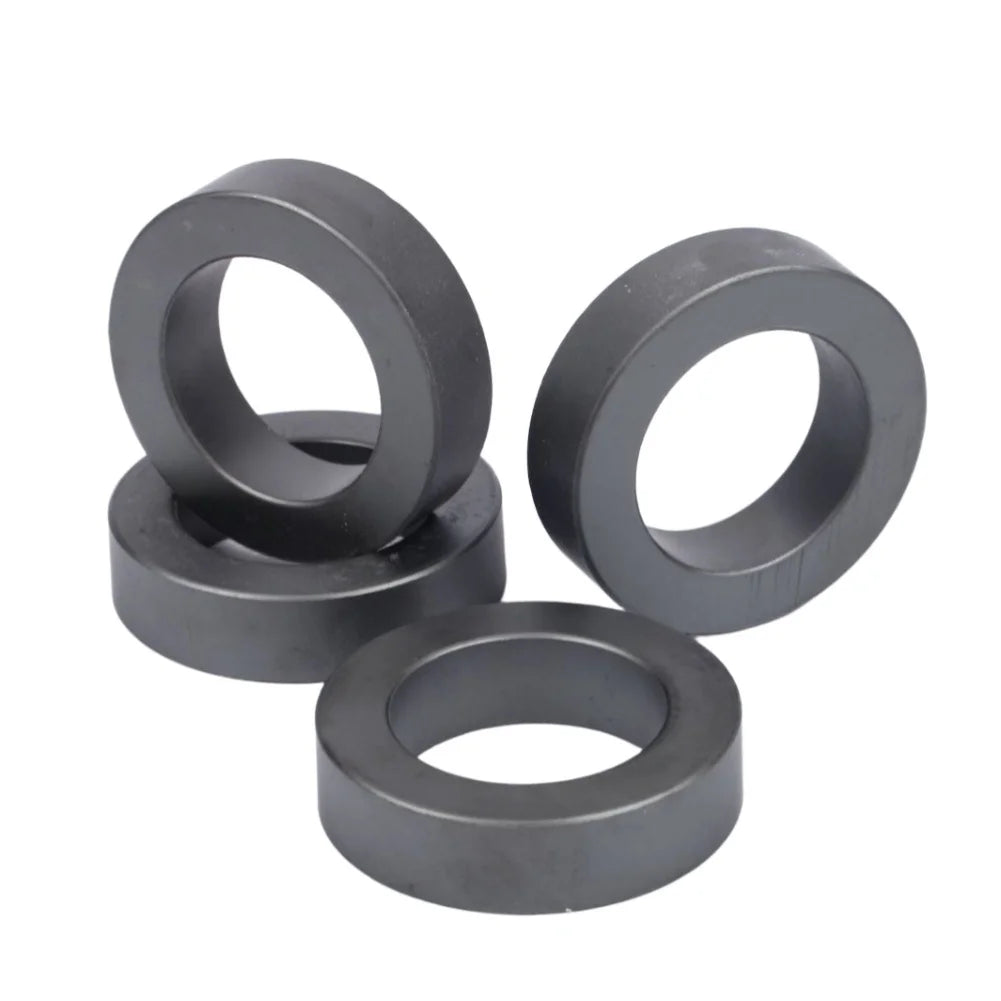

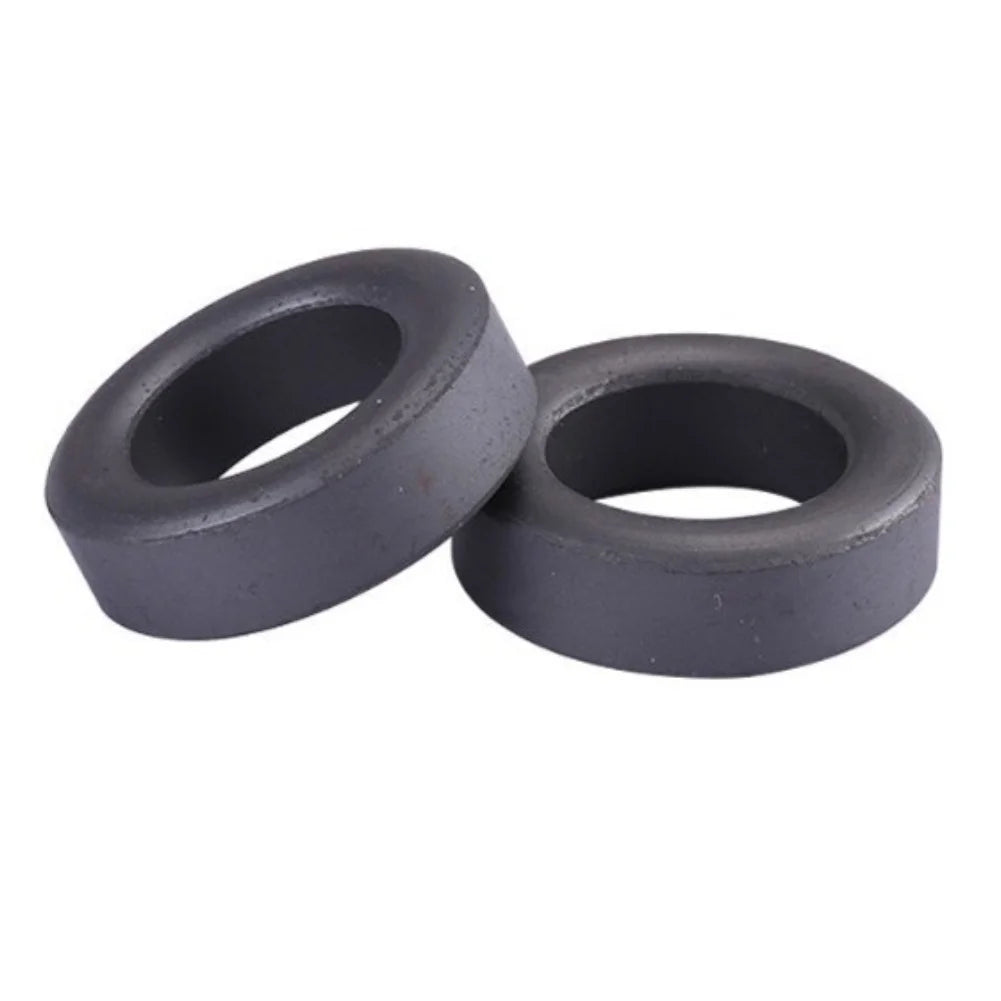

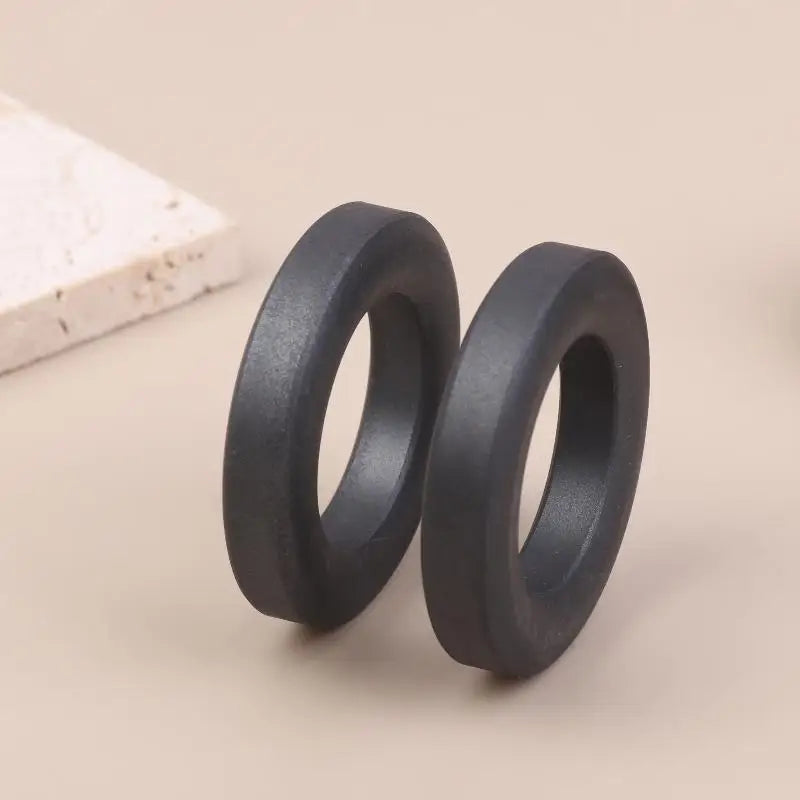

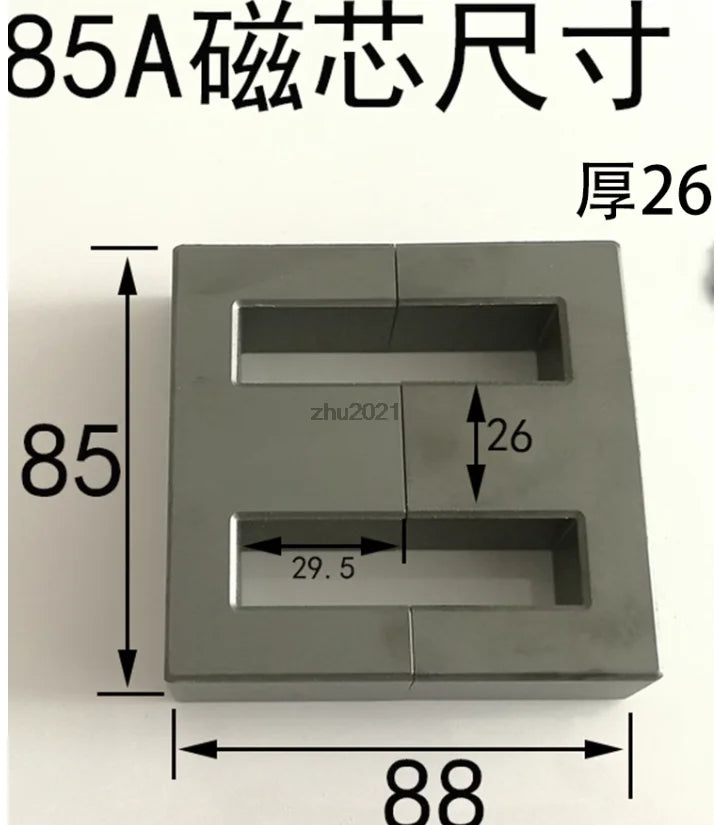

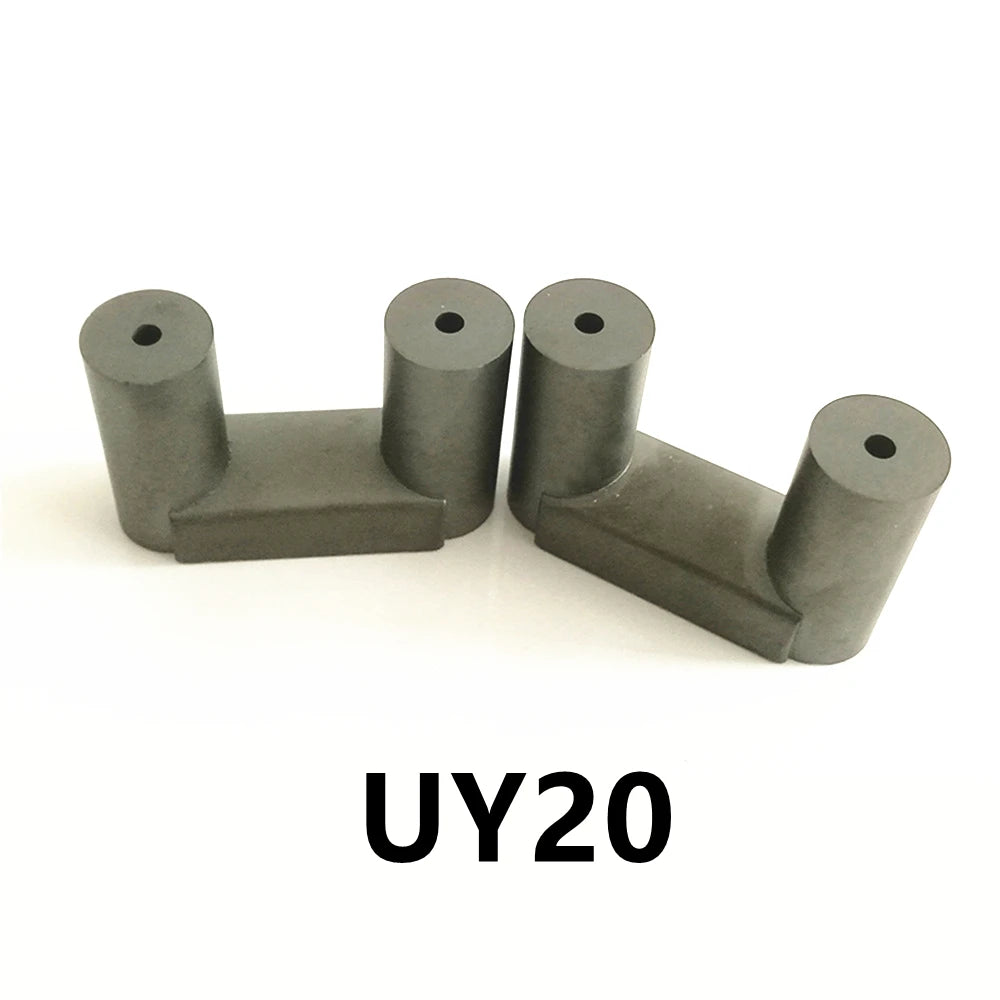

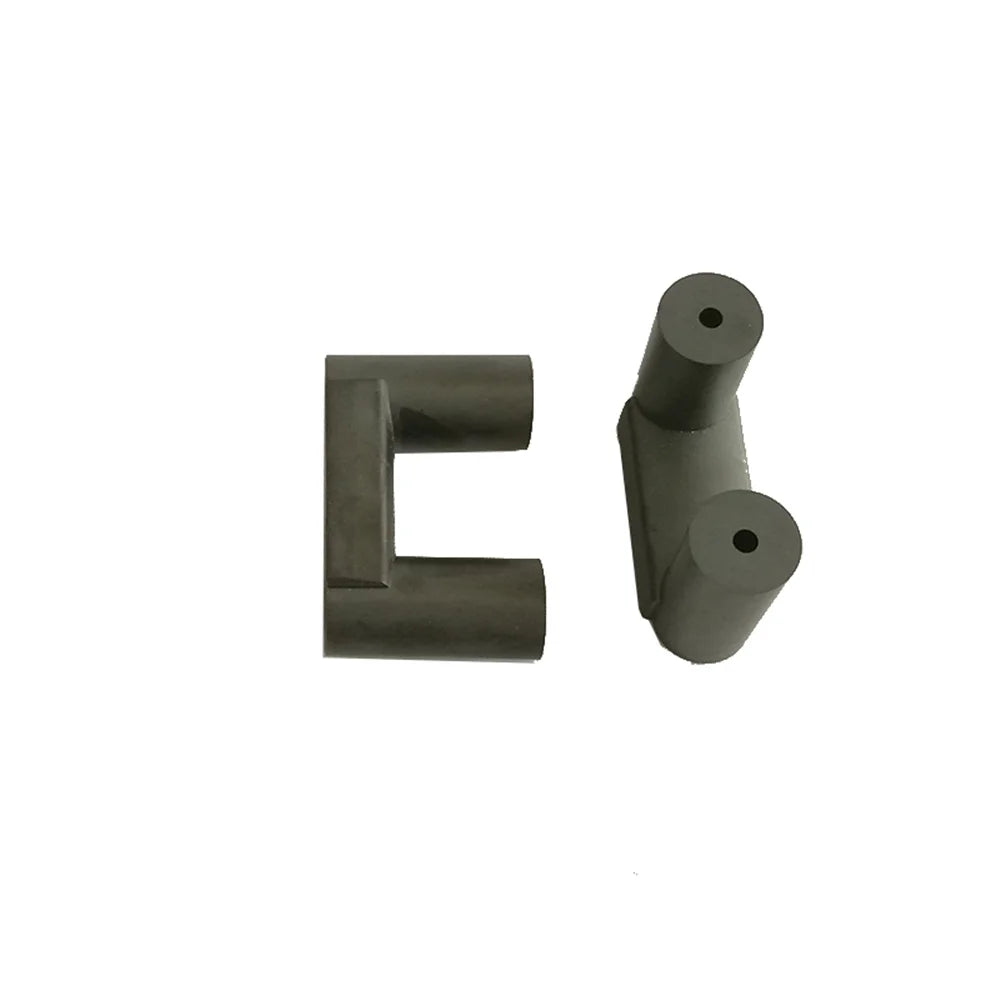

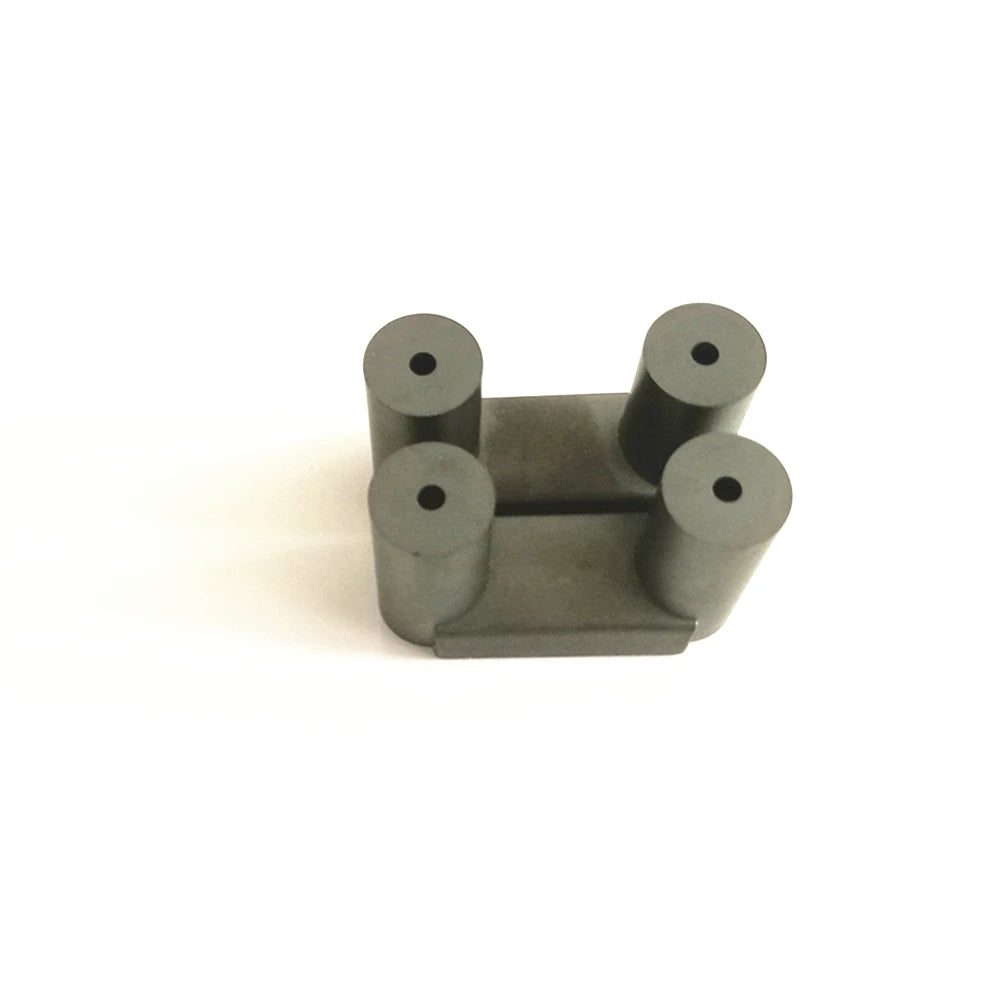

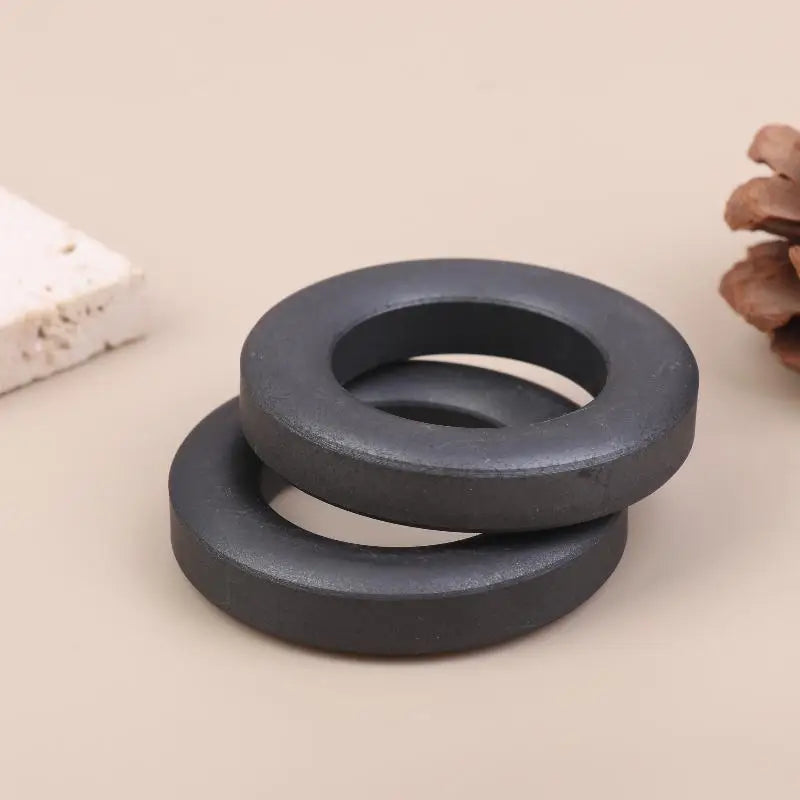

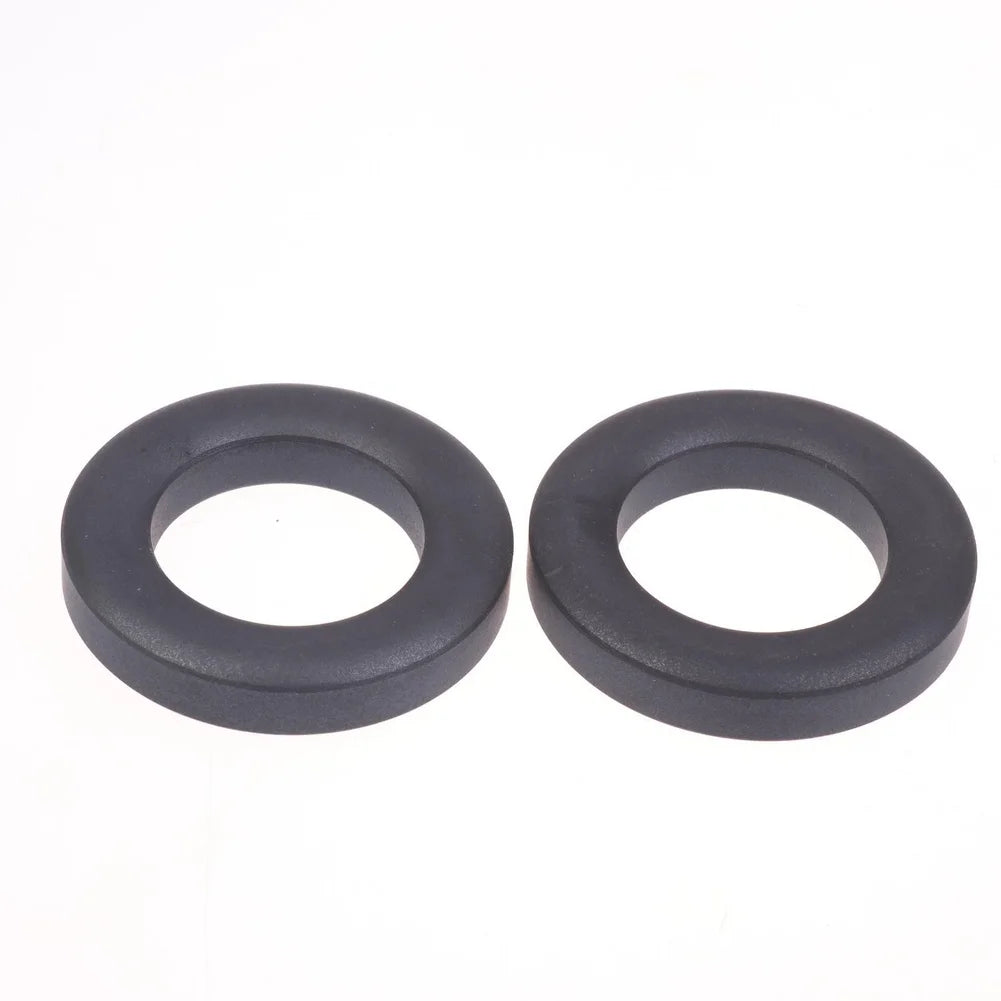

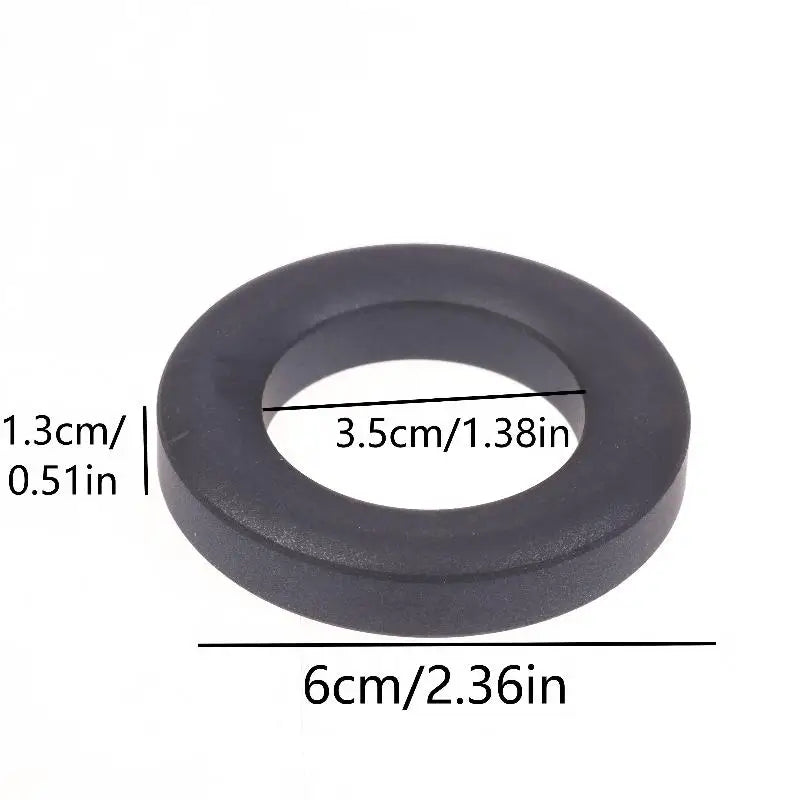

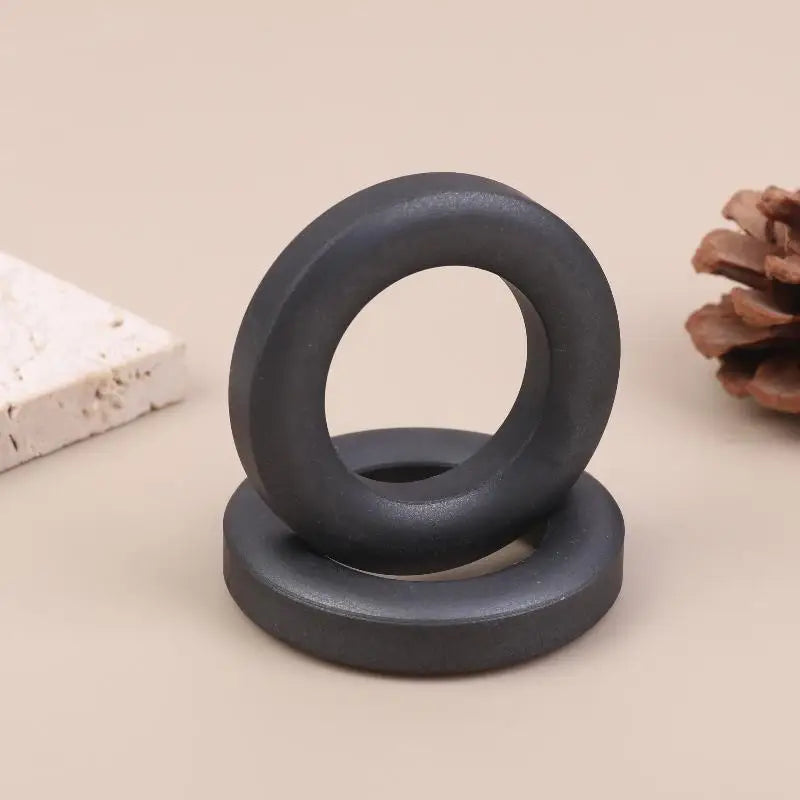

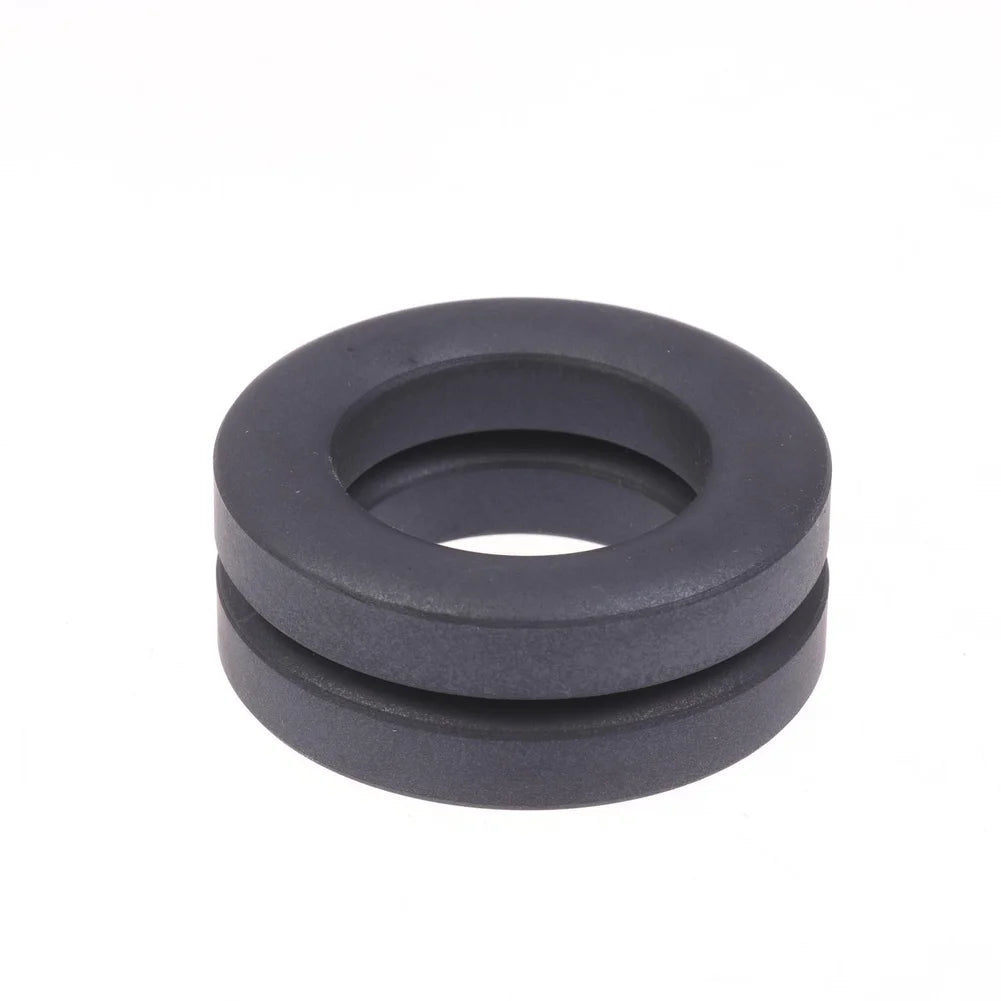

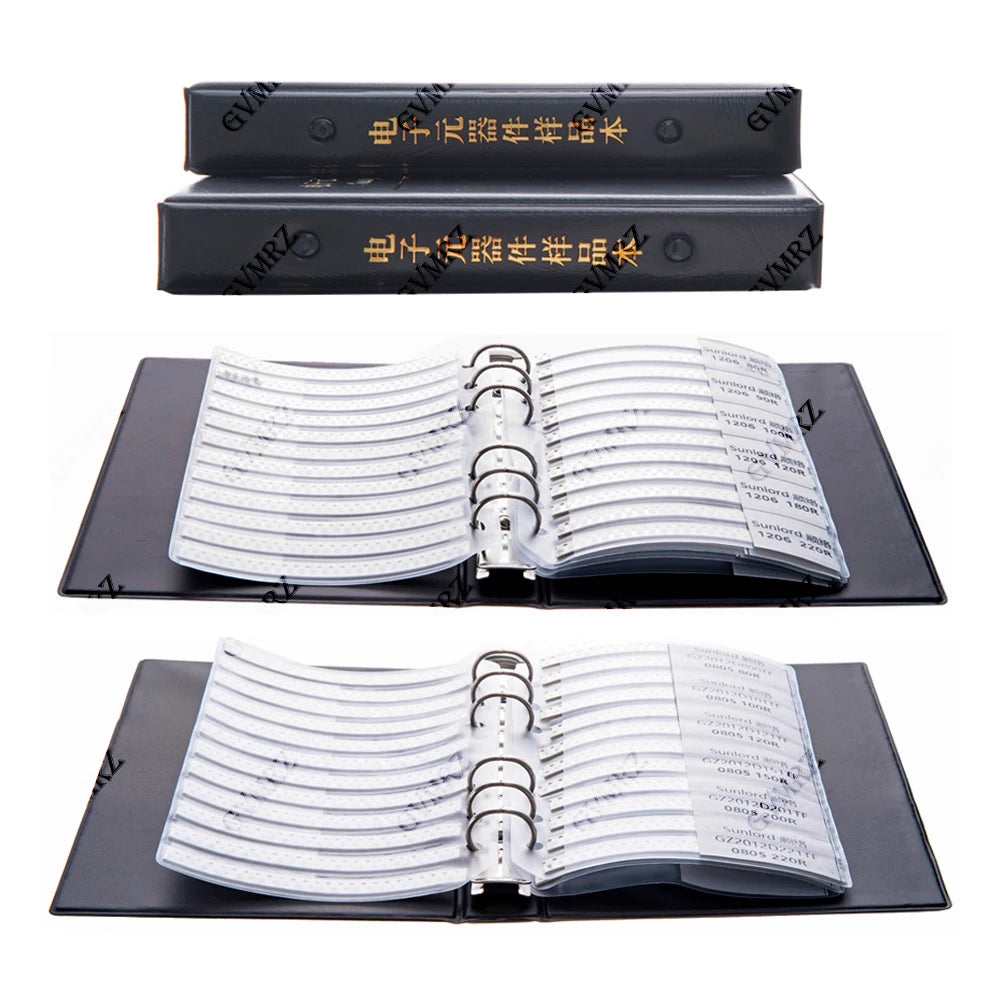

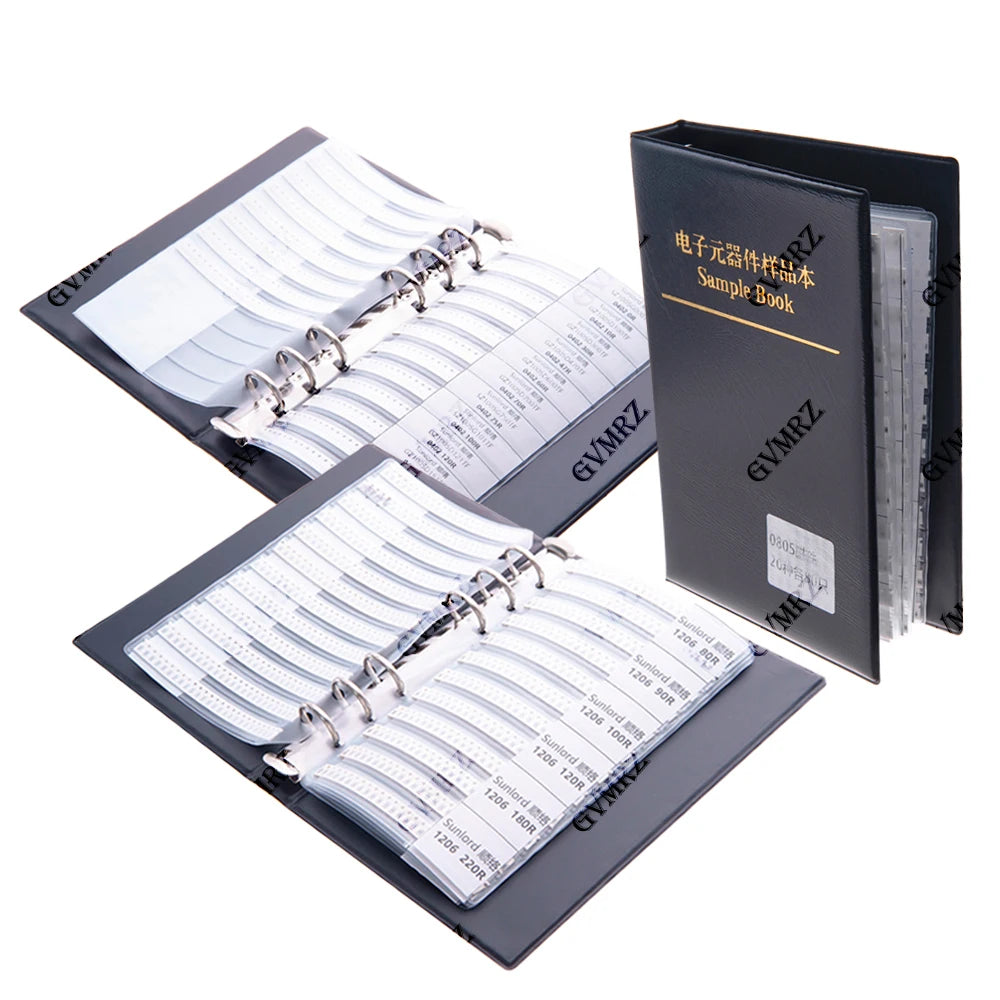

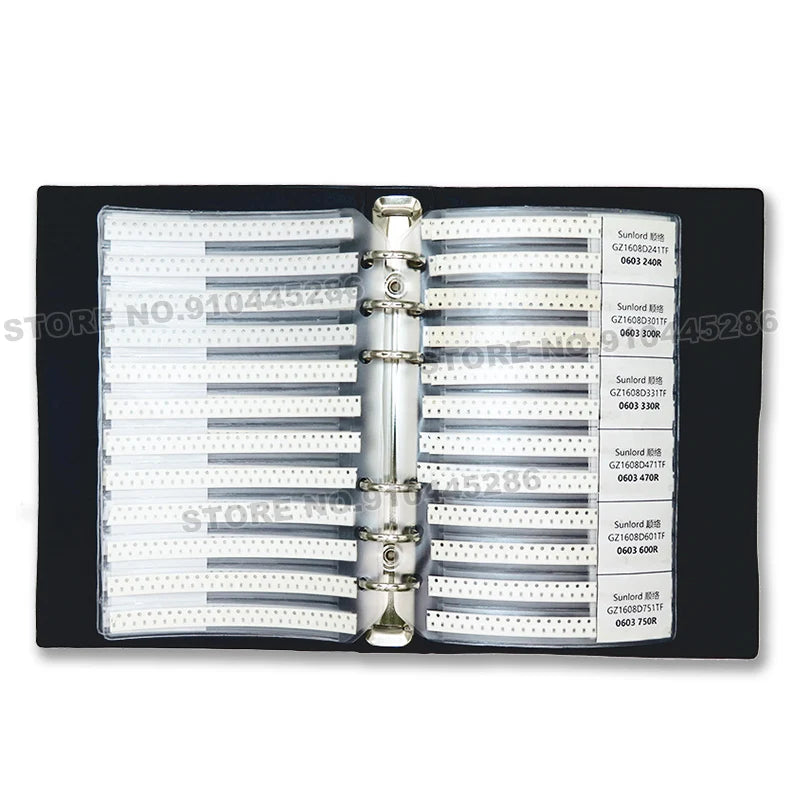

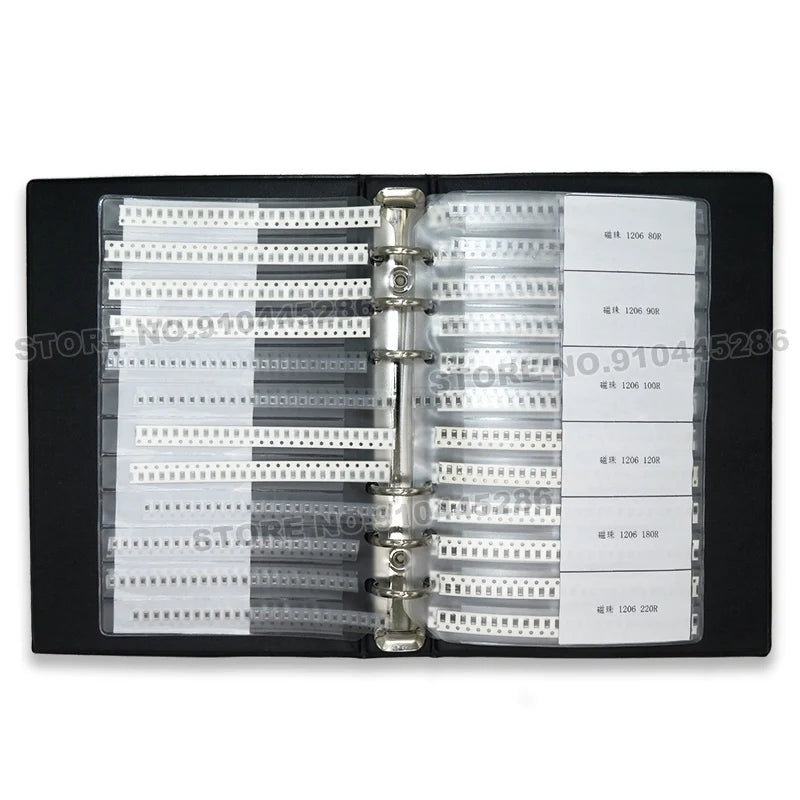

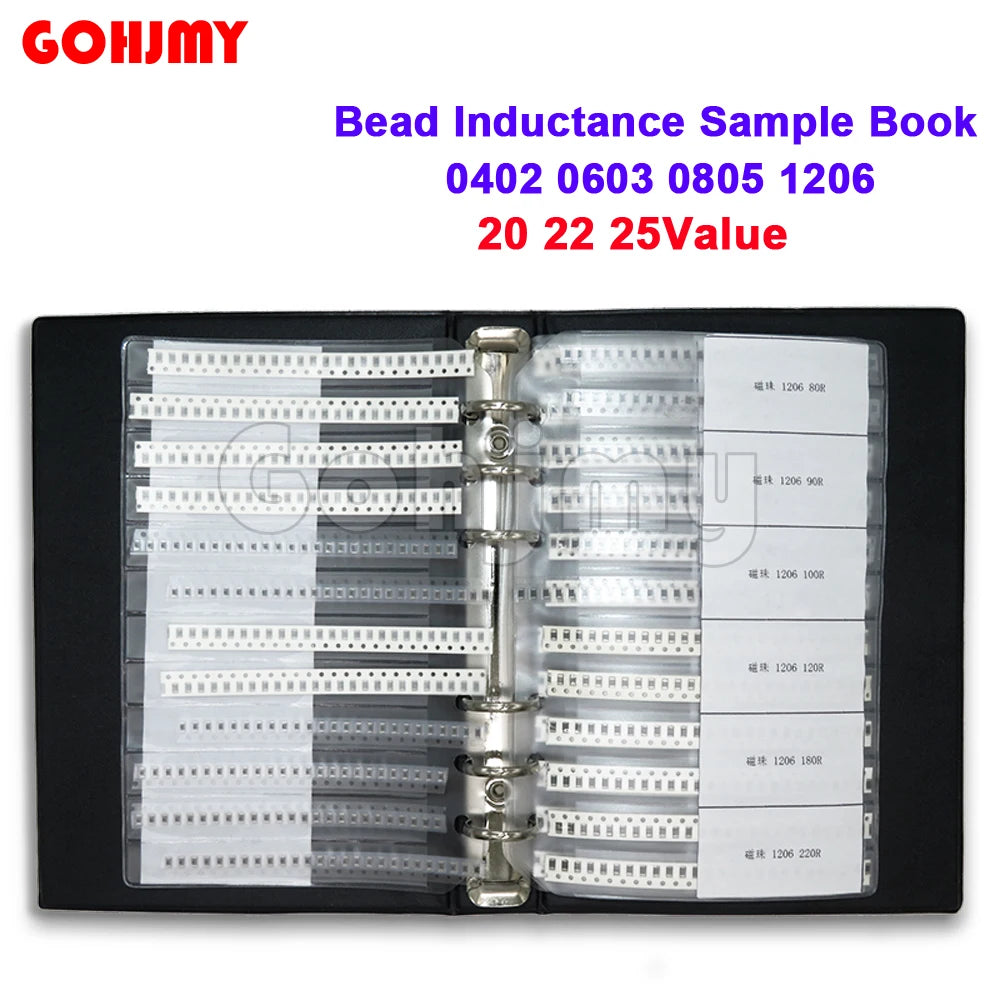

- Loose toroids, rods and transformer cores: FT240-43-type toroids, rod cores and EE/UY/UF core sets are magnetic starting materials, not finished wound chokes, baluns or transformers. Core AL, material, dimensions and intended frequency inform a winding design; final inductance, insulation, current handling and loss depend on the assembled component. Some sample-book listings share variants with resistor or capacitor assortments: select the explicitly named ferrite-bead option if beads are wanted.
Selection workflow
- Locate the noise path and its frequency range: PCB supply rail, signal trace, multi-line bus or whole cable. Distinguish differential and common-mode current; placement and conductor routing matter.
- For an SMD bead, compare impedance over the relevant band and DCR at DC separately. Check rated current with temperature and bias; an Ω-at-100-MHz marking is not resistance for Ohm's-law voltage-drop calculations.
- For a clip or bare core, match material, bore and cable/conductor fit, then verify measured suppression at the actual number of turns or passes. A bare ring does not specify the performance of a finished balun.

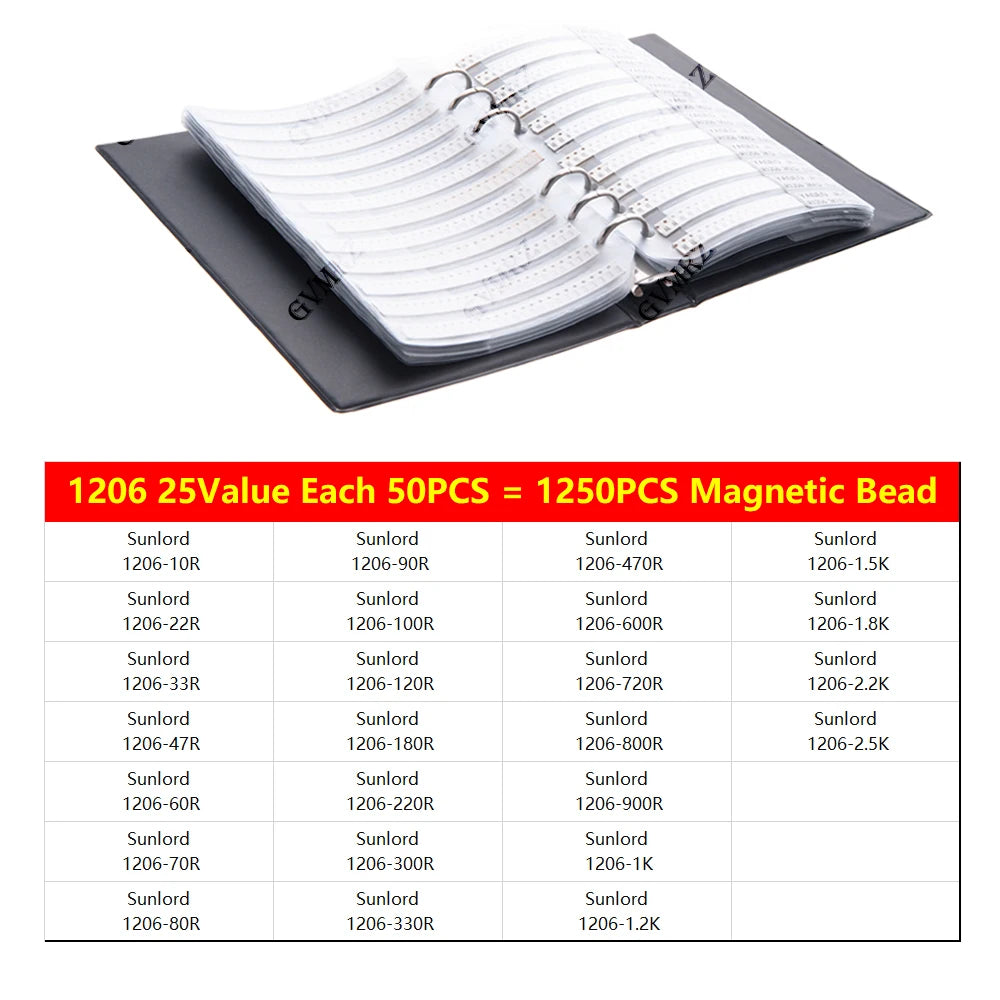

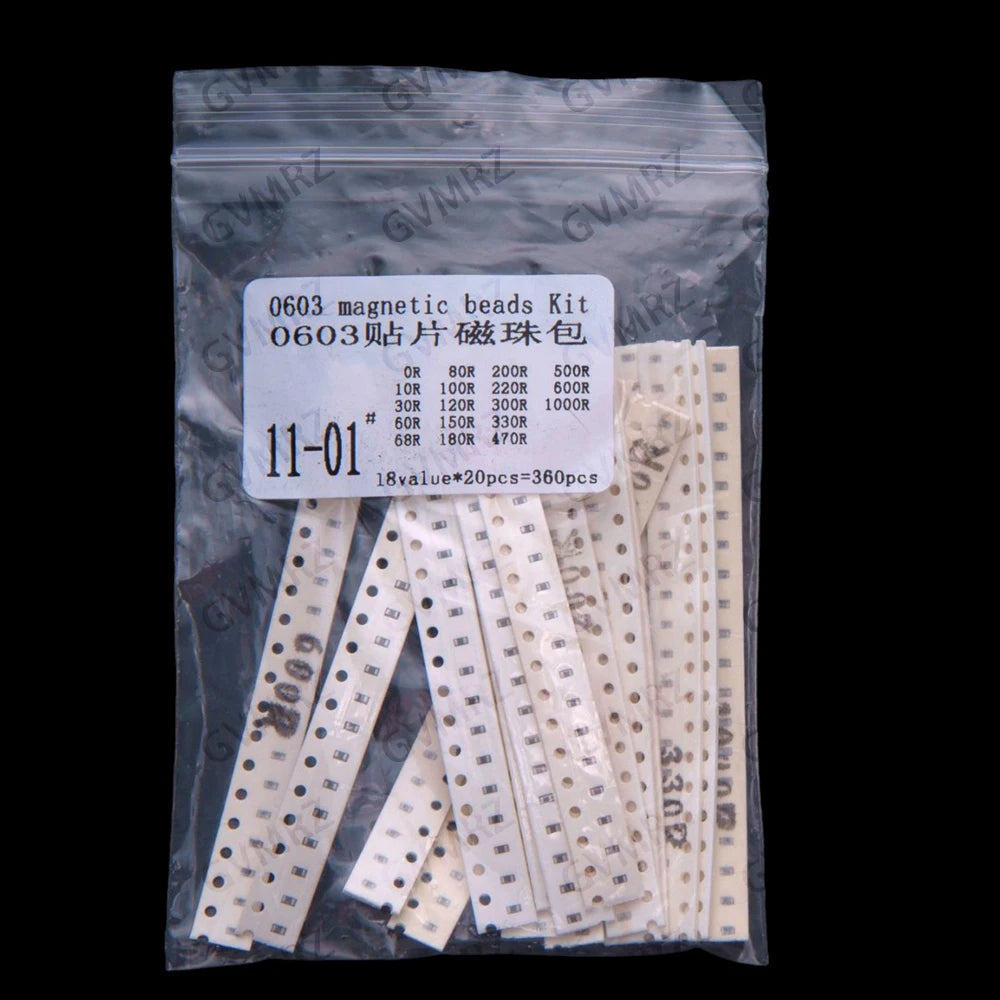

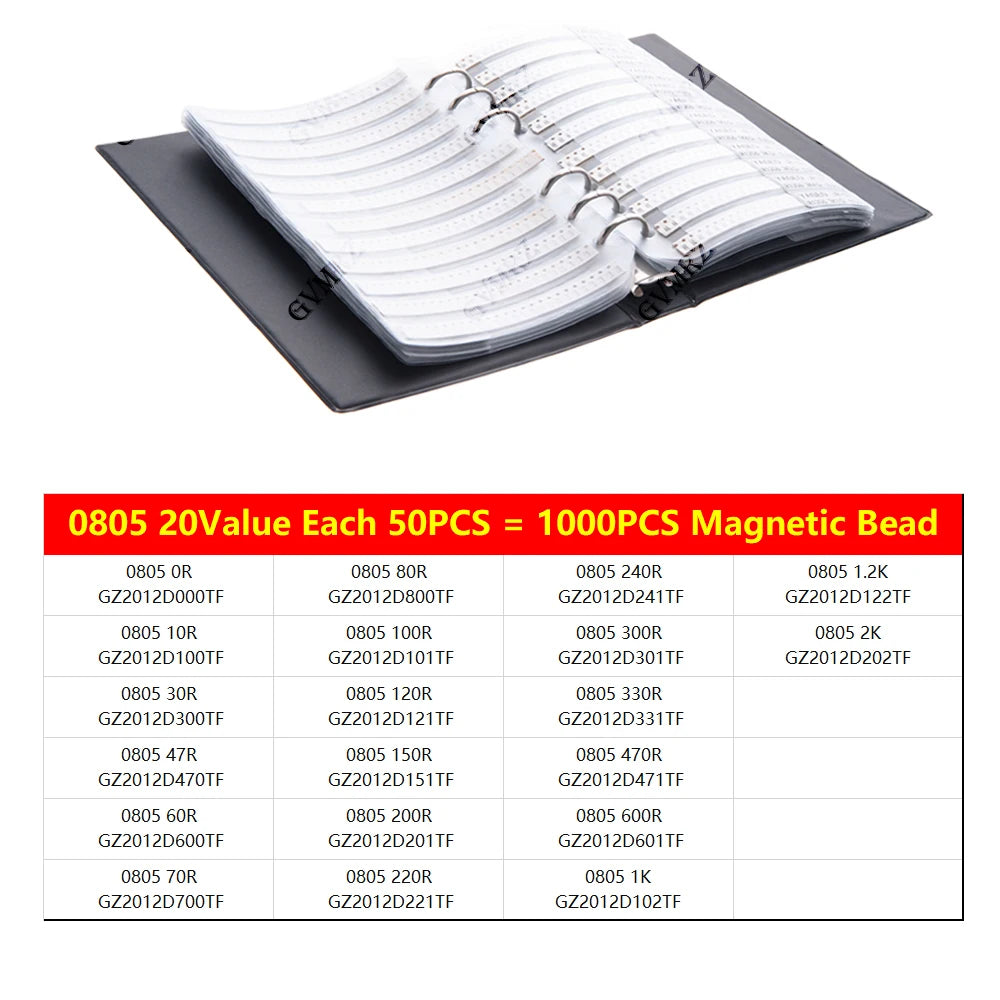

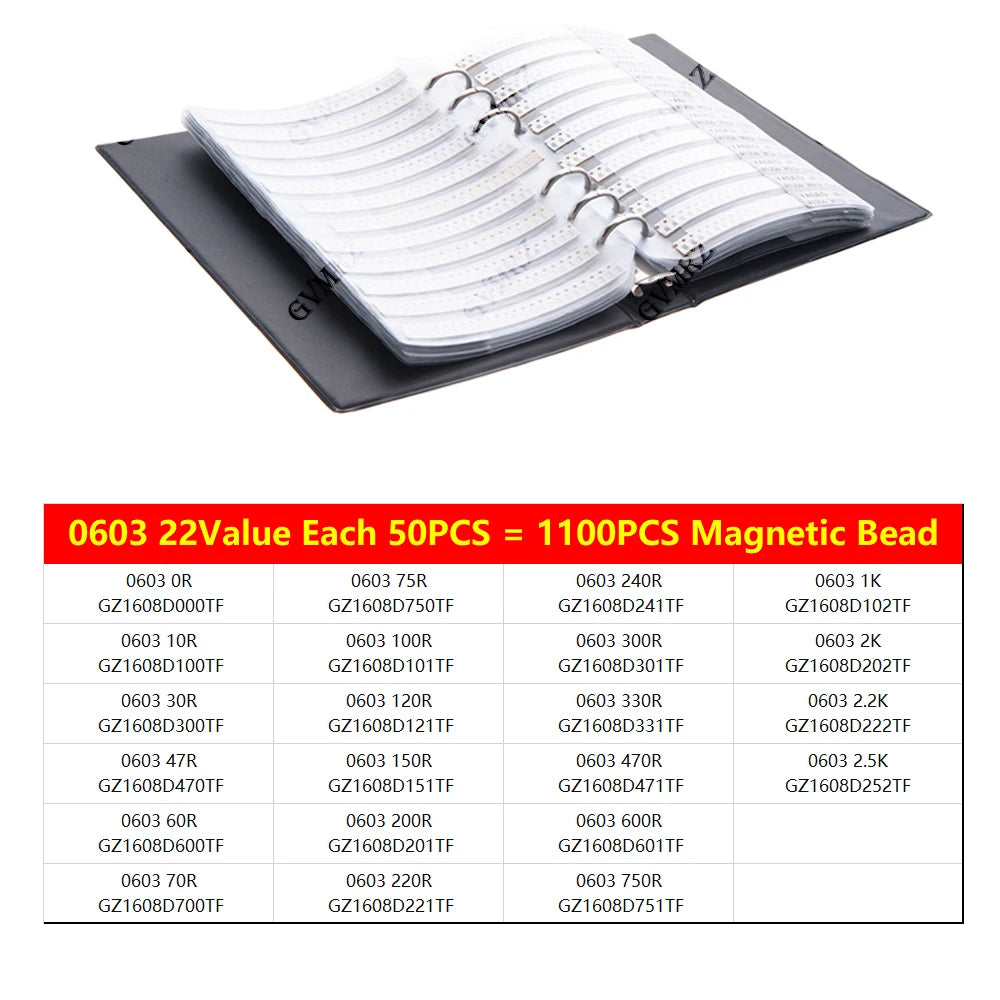

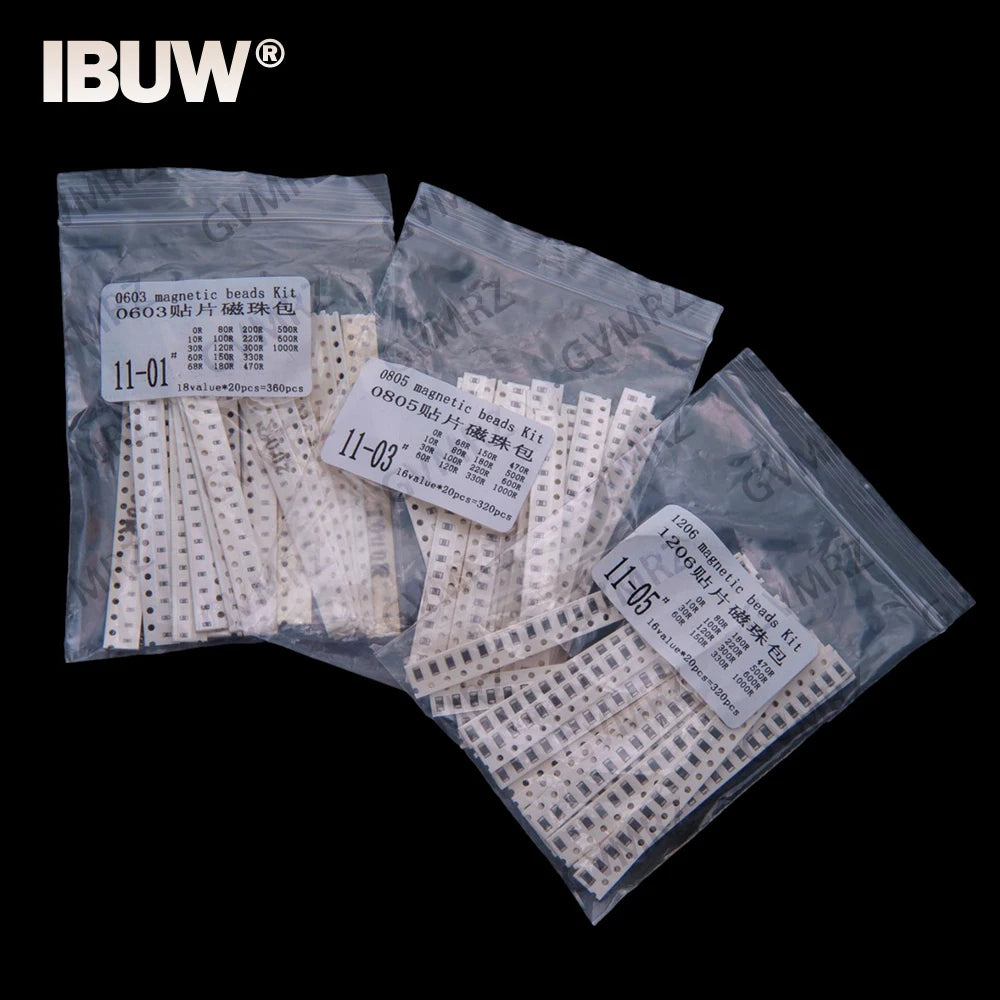

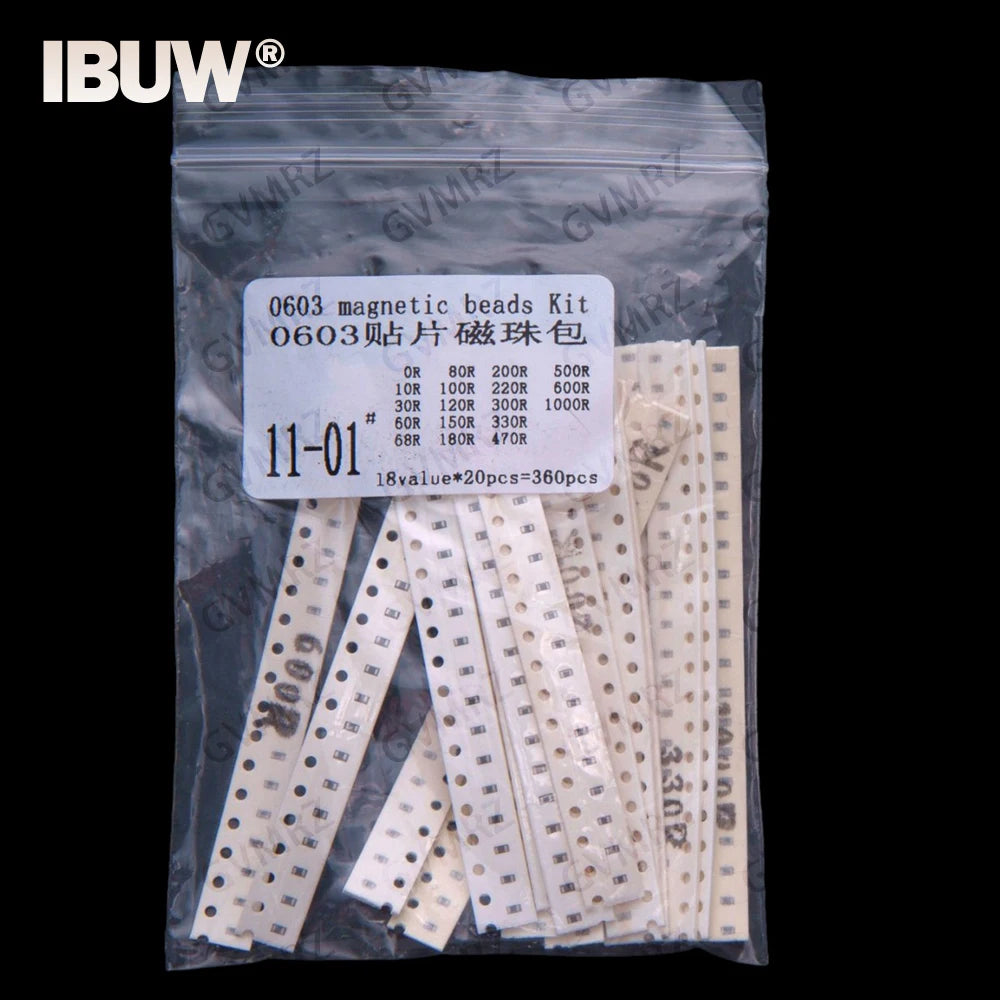

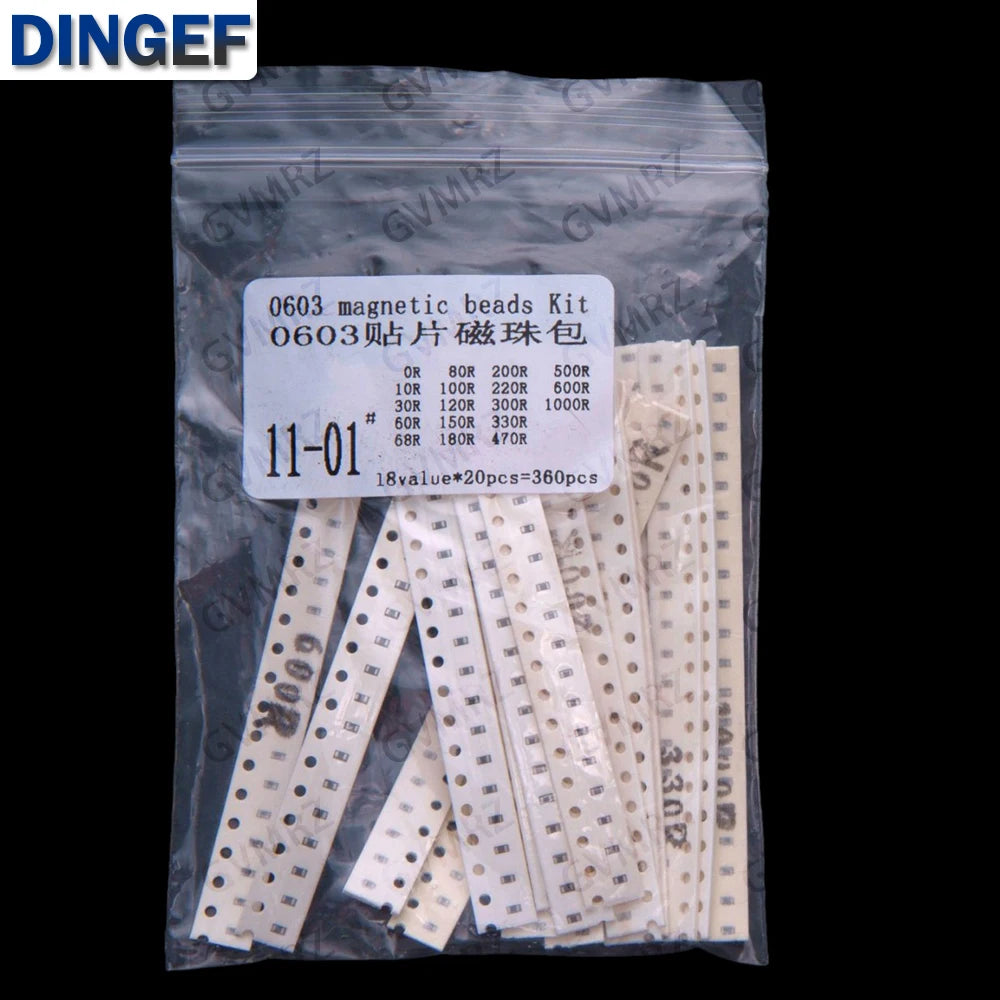

- Check exact variant, footprint and pack count. Reels, 100-piece bags and mixed sample books should not be assumed to contain the same parts.
FAQ
Is a 600 Ω ferrite bead a 600 Ω resistor? No. The figure normally denotes frequency-dependent impedance at a test frequency. DCR is a separate value.
Can I replace a power inductor with a chip ferrite bead? No. A power inductor is chosen for energy storage and inductance under current; a ferrite bead is characterized for frequency-dependent noise impedance.
Are ferrite jewelry or fridge magnets EMI cores? No. Decorative magnetic bead/ball listings in the results do not establish a defined EMI impedance or electronic suitability.
Check the selected part's documented ratings for safety-critical or high-current applications. A copied manufacturer or “original” claim does not verify authenticity, certification or standardized performance.
