SMD Ferrite Beads and EMI Chip Bead Assortments
SMD ferrite beads for PCB-level high-frequency noise filtering

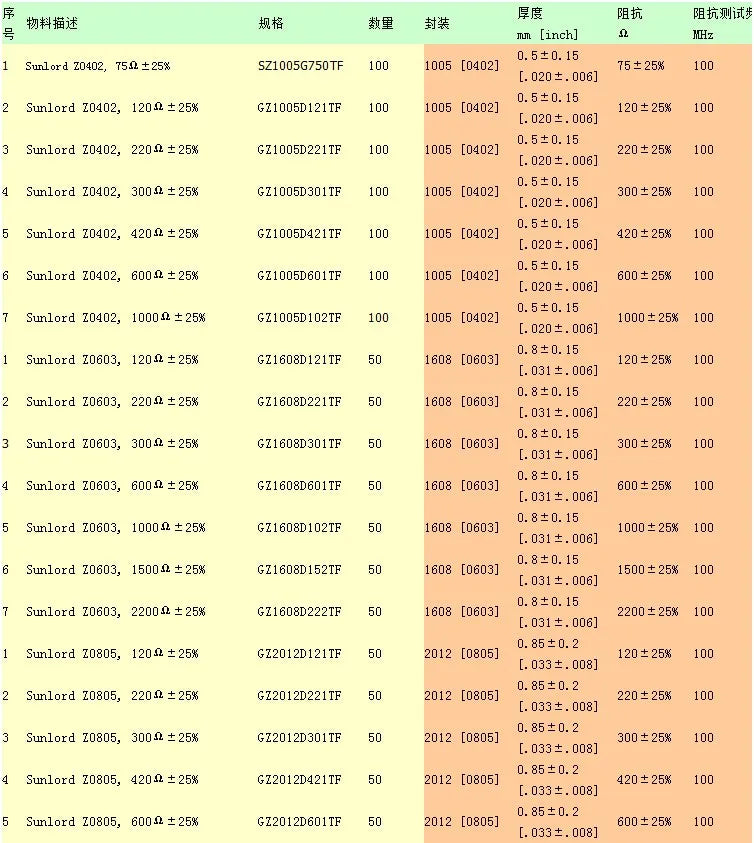

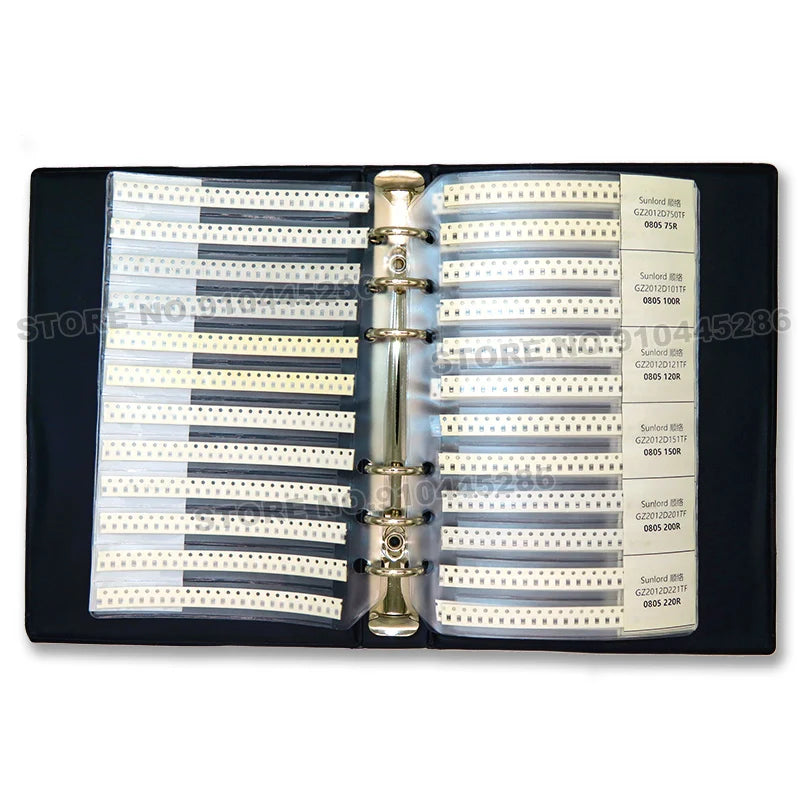

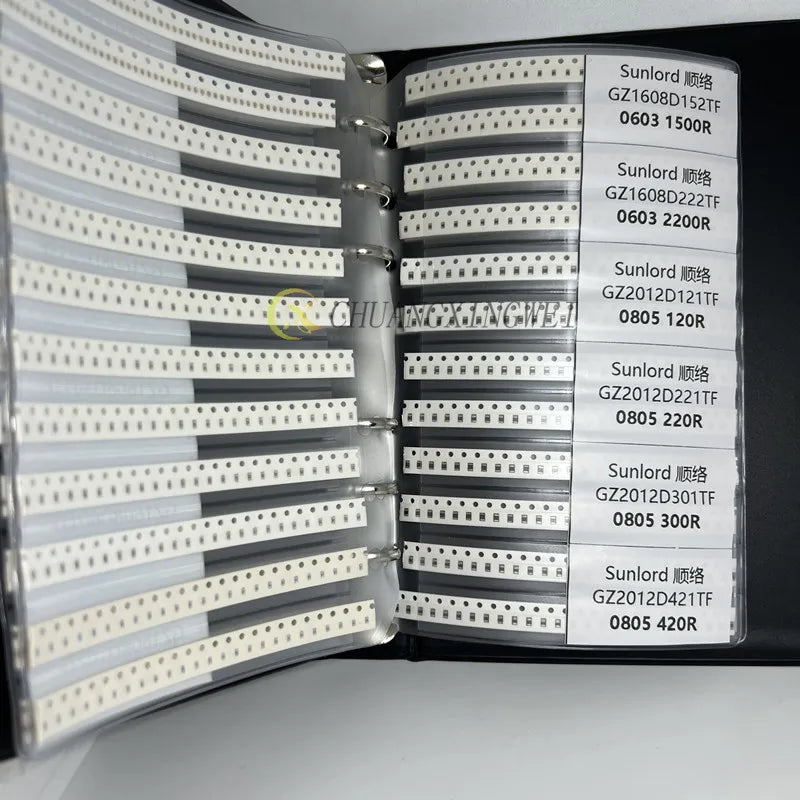

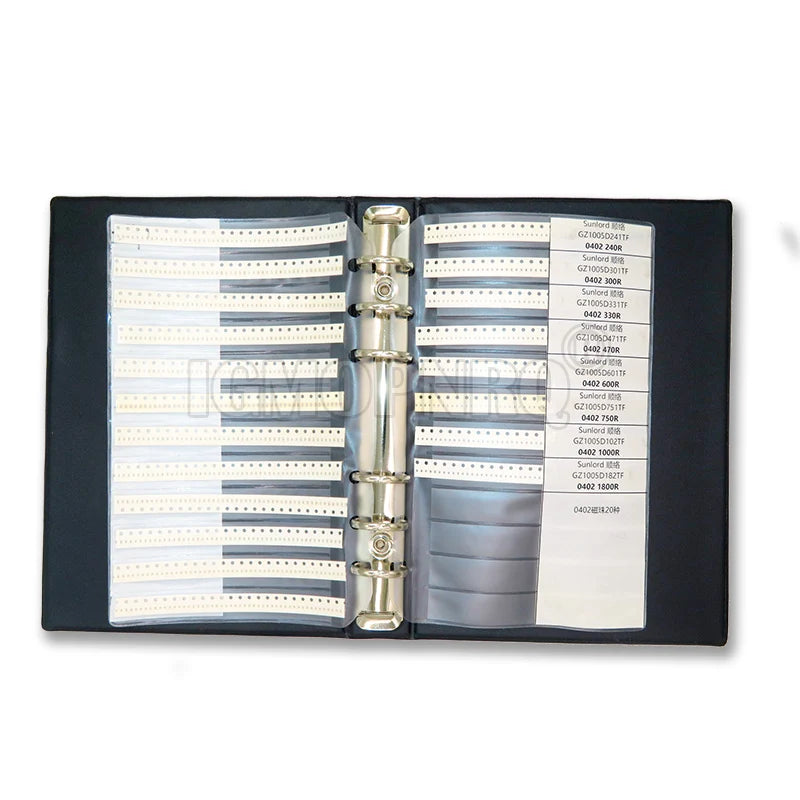

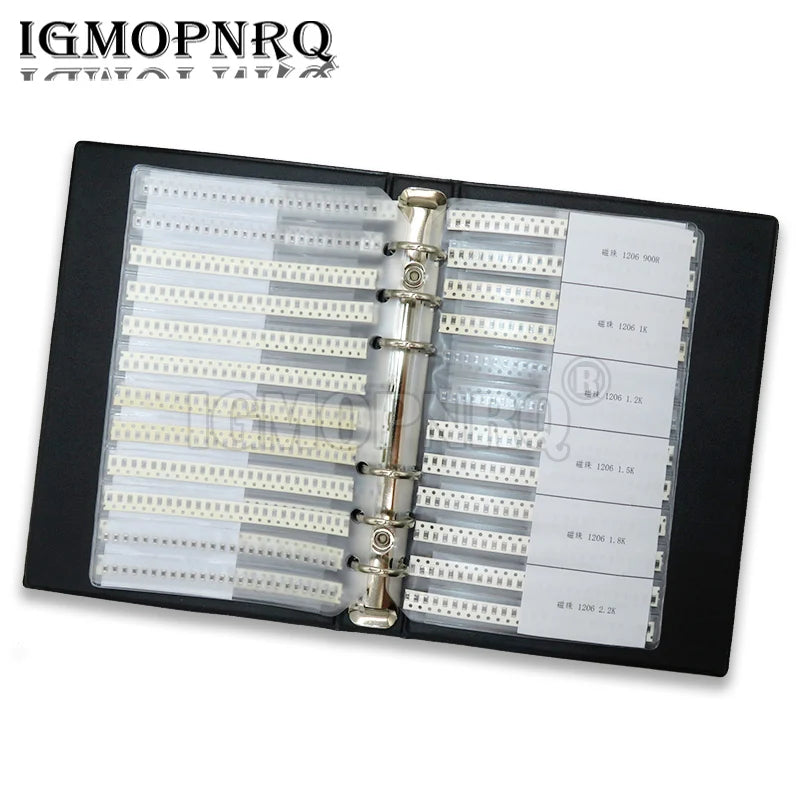

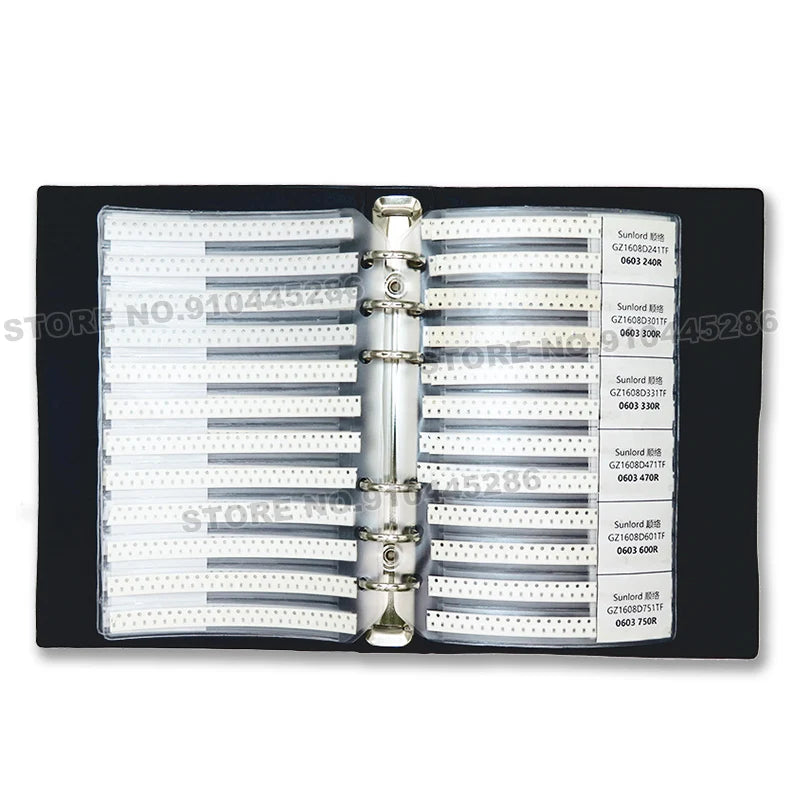

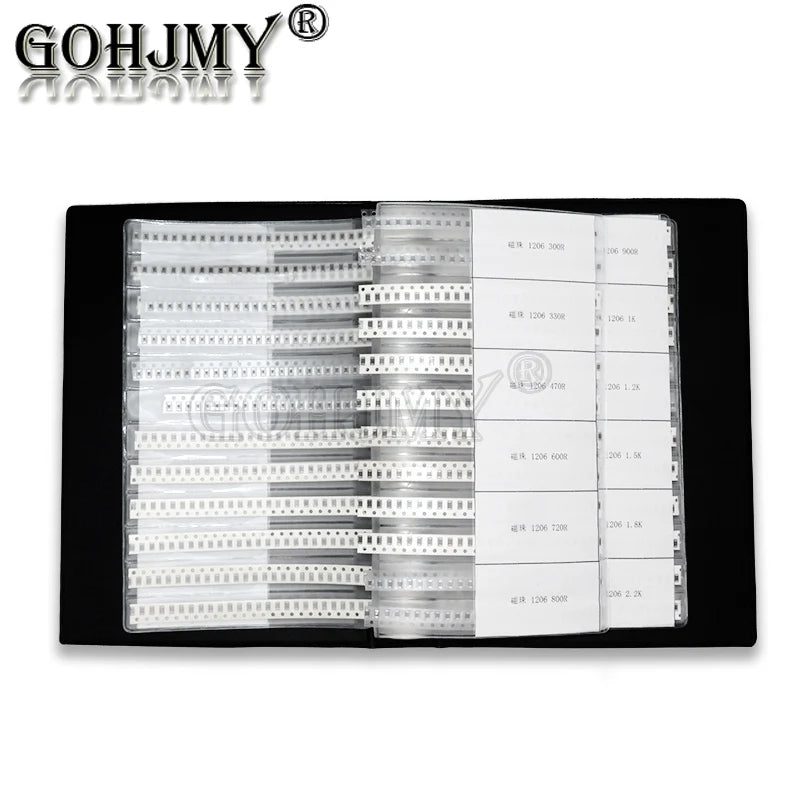

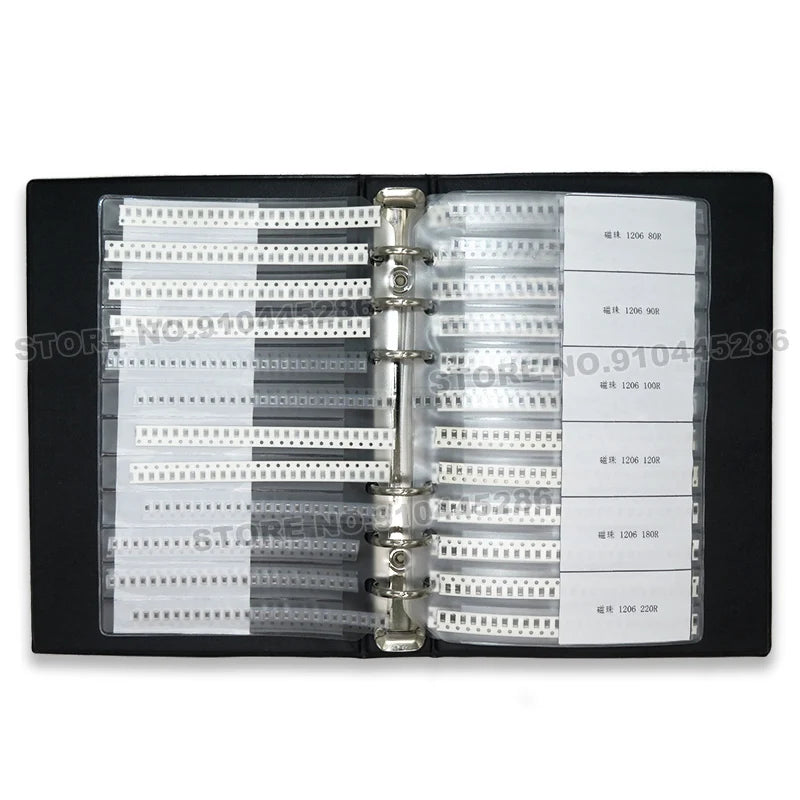

A surface-mount ferrite bead is a two-terminal frequency-dependent impedance used in series with a PCB power rail or appropriate signal path to attenuate conducted high-frequency noise. This collection centers on individual multilayer chip beads and sample assortments in 0402, 0603, 0805, 1206 and 1210 case sizes. Listings include 100-piece packs, larger 2,000- or 4,000-piece quantities and mixed-value books. Check the exact selected option: one shared listing combines many sizes, nominal impedance labels, current labels and pack counts.
What the markings mean

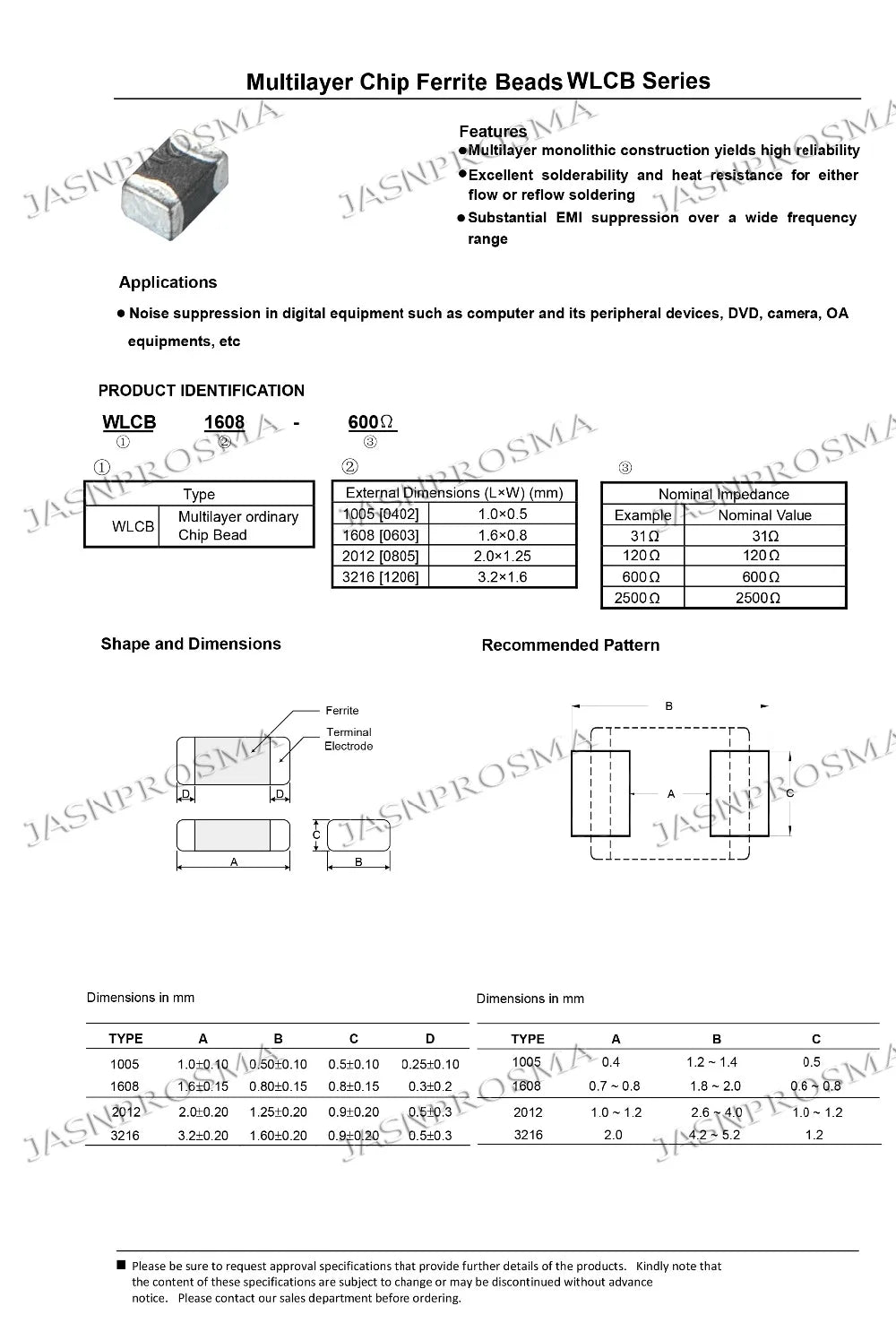

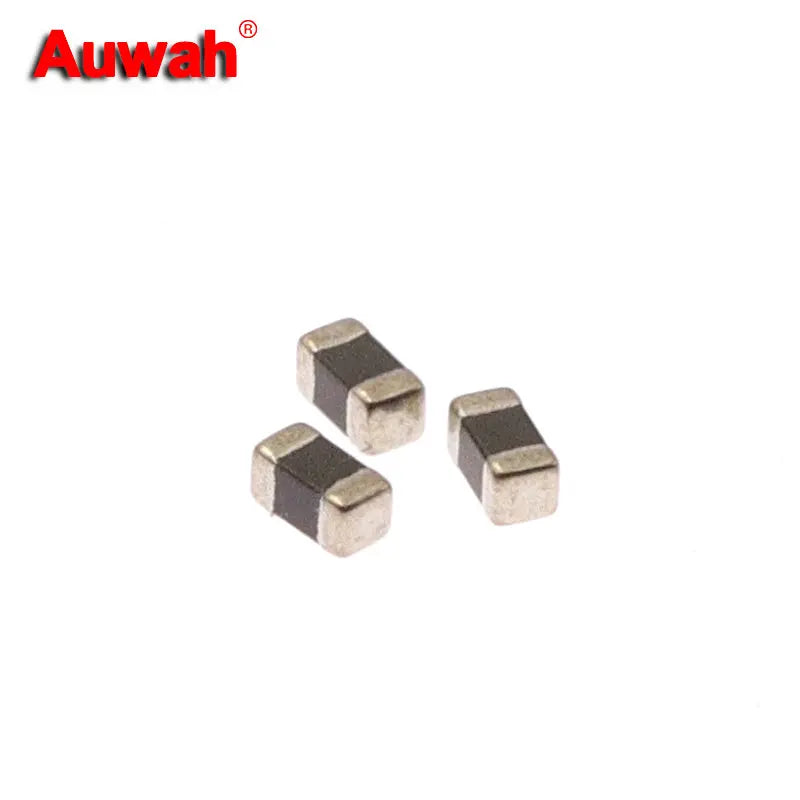

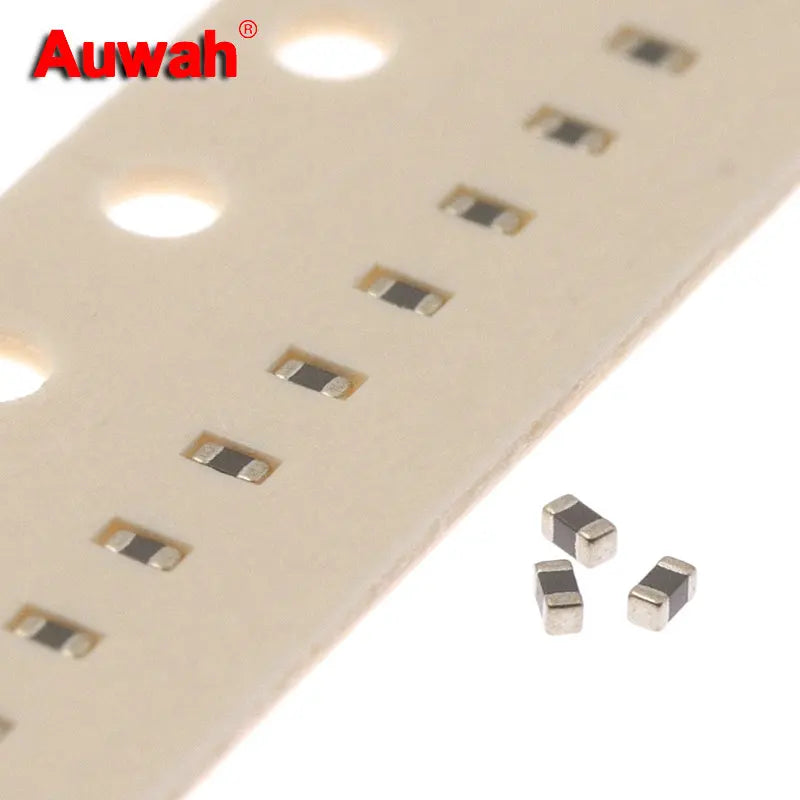

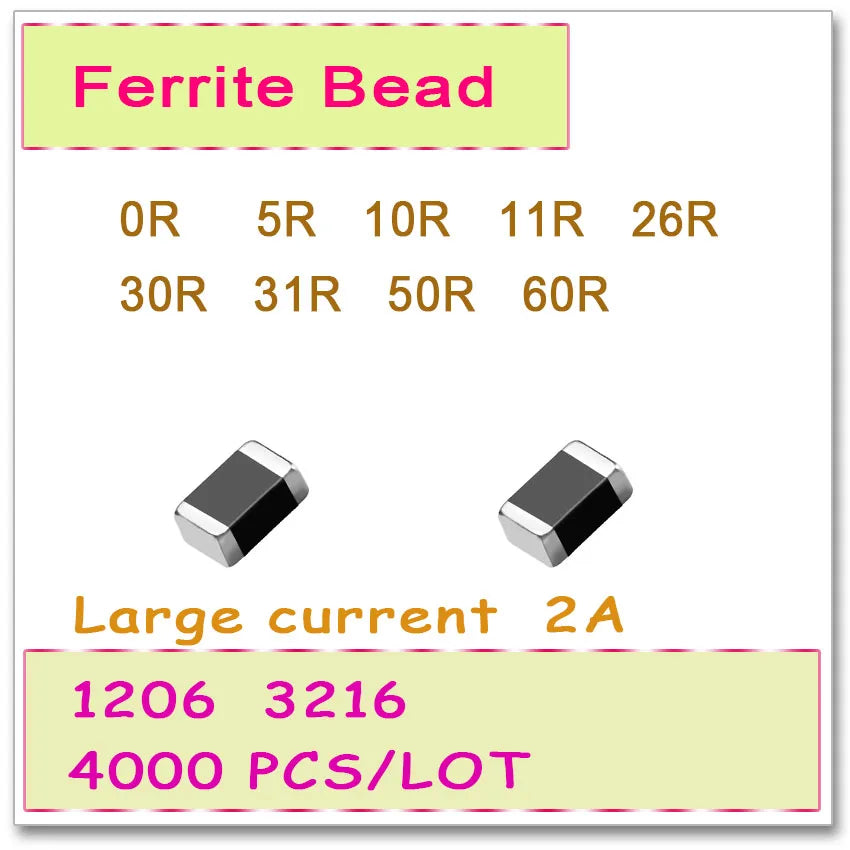

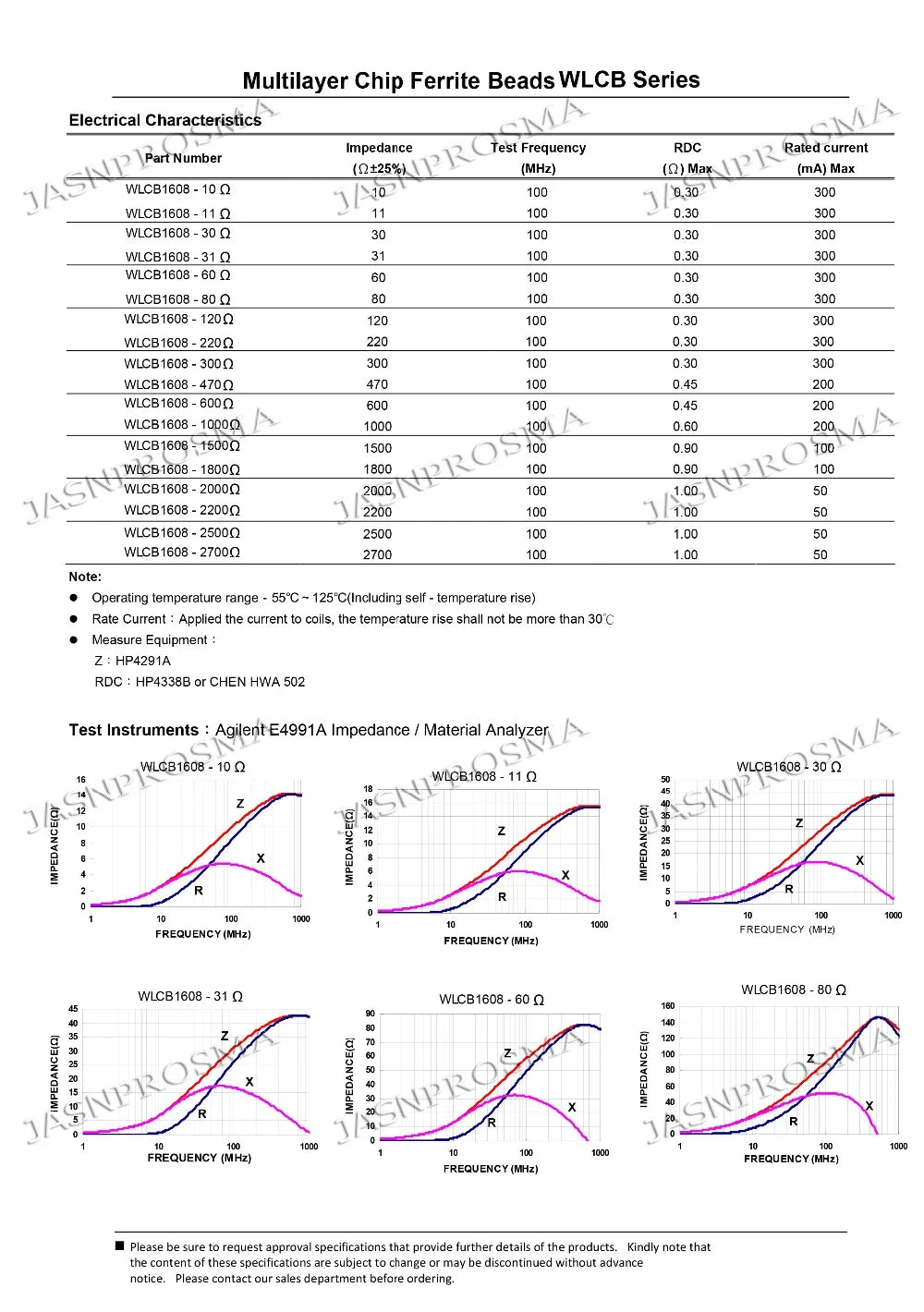

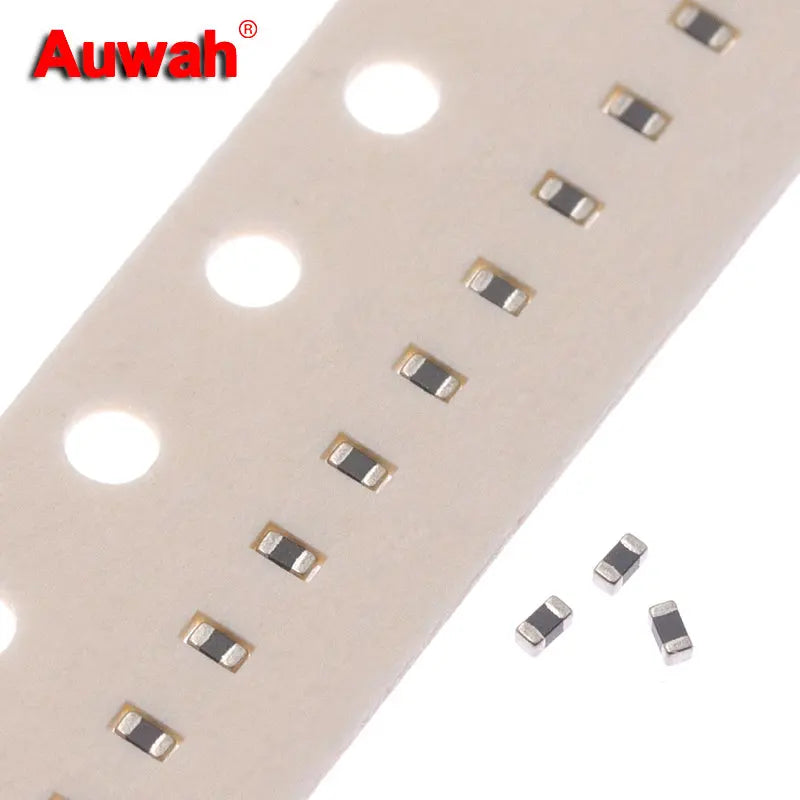

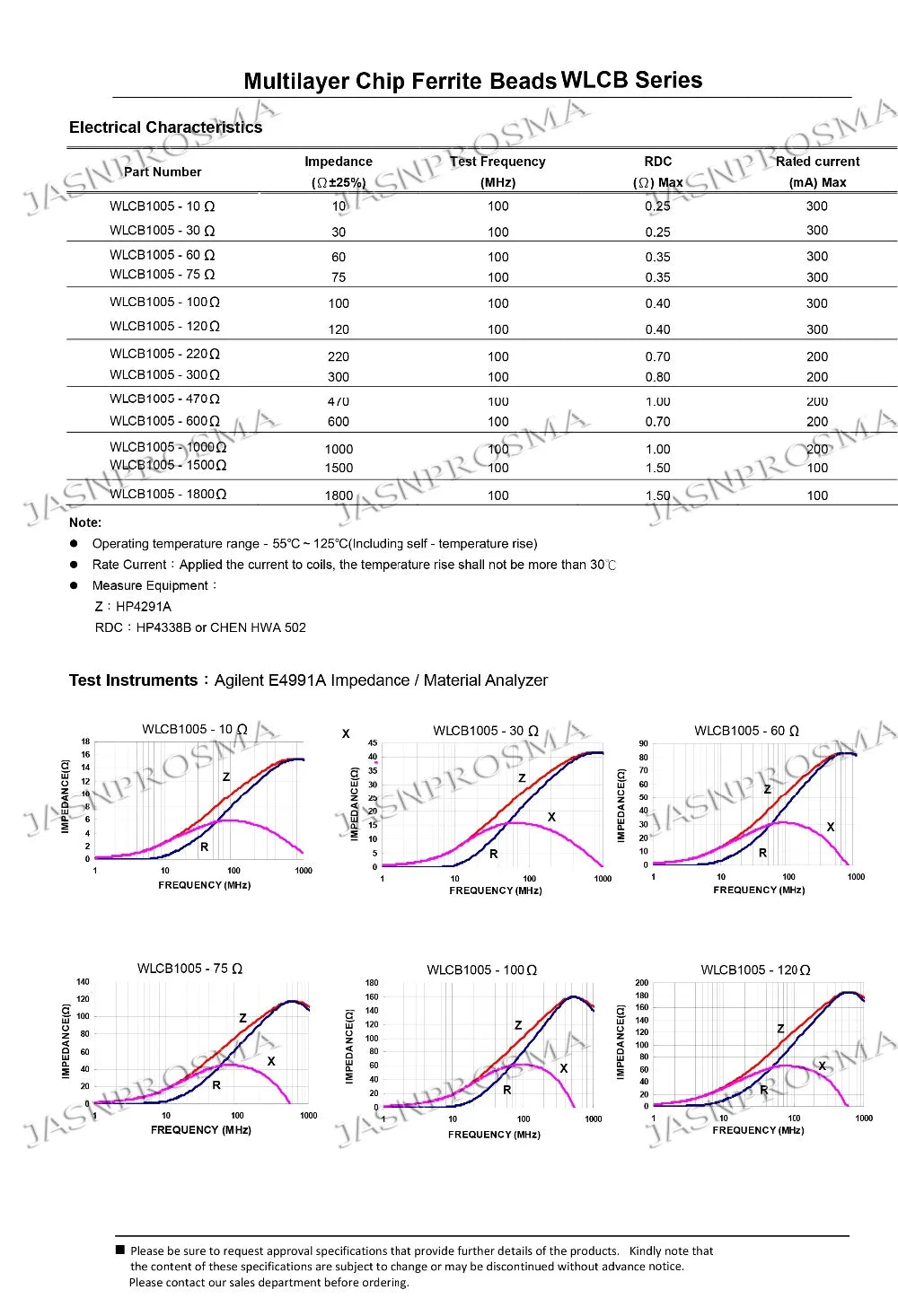

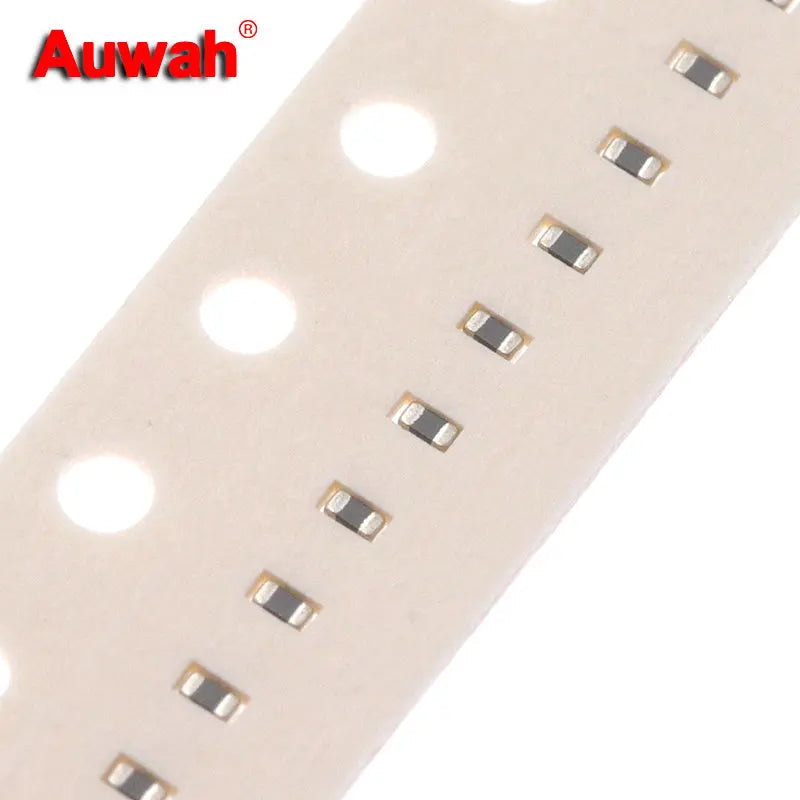

A label such as 60R, 220 Ω or 1 kΩ on a ferrite bead normally describes impedance at a specified frequency, not its DC resistance. Many listed parts cite 100 MHz, while some 0402 high-frequency options cite 1 GHz. Compare impedance curves at your actual interference frequencies, not just the printed number. A 0R variant in a shared listing is not evidence that it supplies the same high-frequency loss as another bead option. For example, one 0805 listing specifies 1 kΩ at 100 MHz, DCR 120 mΩ and 1.5 A; these are three different characteristics of that listed part, not ratings for every 0805 bead here.
How to choose an SMD bead
- Define the unwanted frequency and circuit: identify the source, victim and current path. A bead in series with a supply rail differs from a common-mode choke filtering a pair of conductors; assess the layout and decoupling network as a whole.

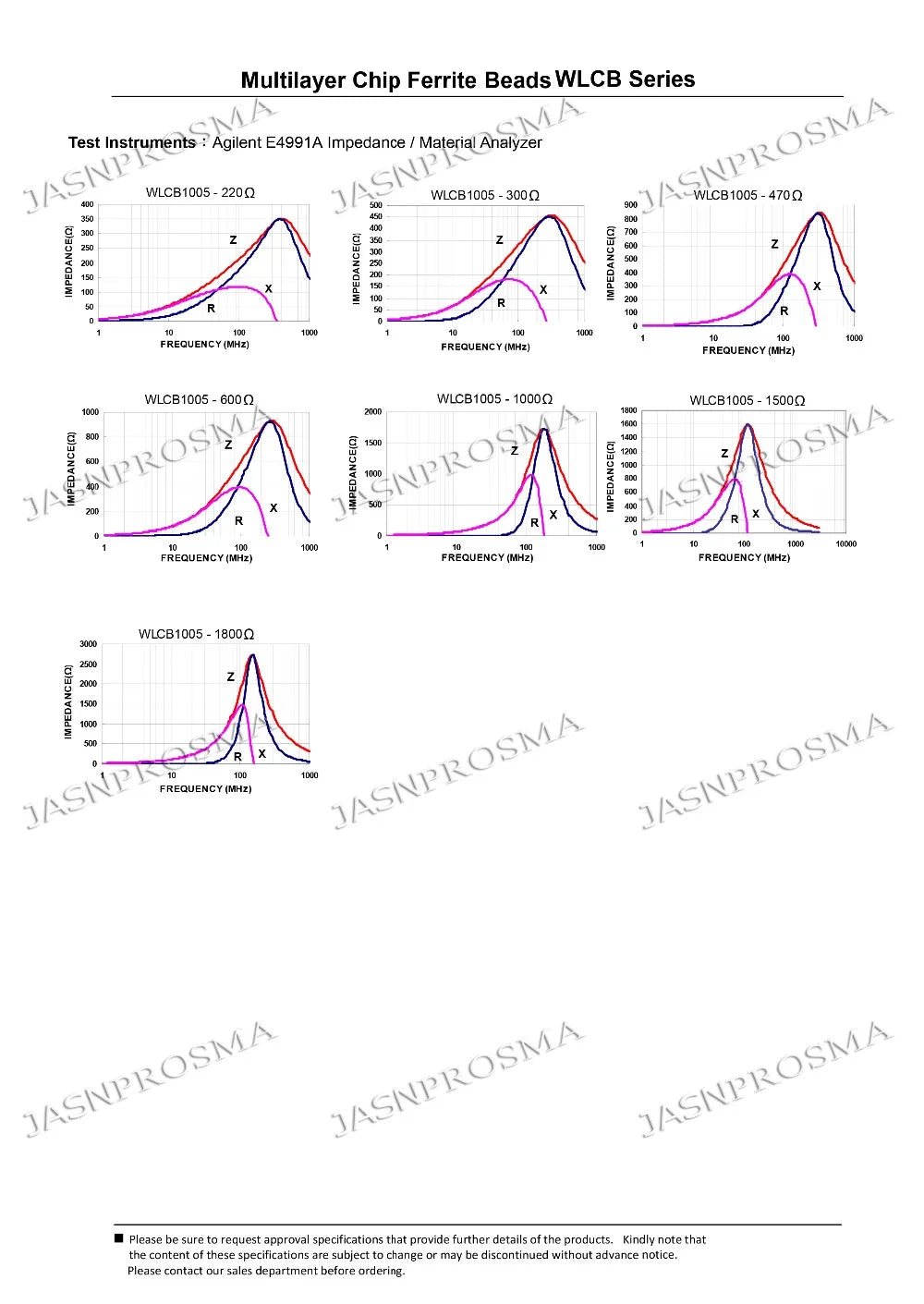

- Match the impedance specification: verify test frequency, tolerance and the frequency response for the selected part number. A 220 Ω-at-1-GHz option cannot be treated as equivalent to 220 Ω-at-100-MHz.
- Check DC and thermal behavior: read separate DCR, rated current, temperature rise and DC-bias-dependent impedance. Higher stated current or lower DCR does not alone guarantee better suppression at the target frequency.
- Fit the board: verify chip size in both imperial and metric notation, land pattern, clearance, soldering conditions and manufacturer pin/component data; 0603 is often 1608 metric and 0805 is often 2012 metric, but match the actual drawing.

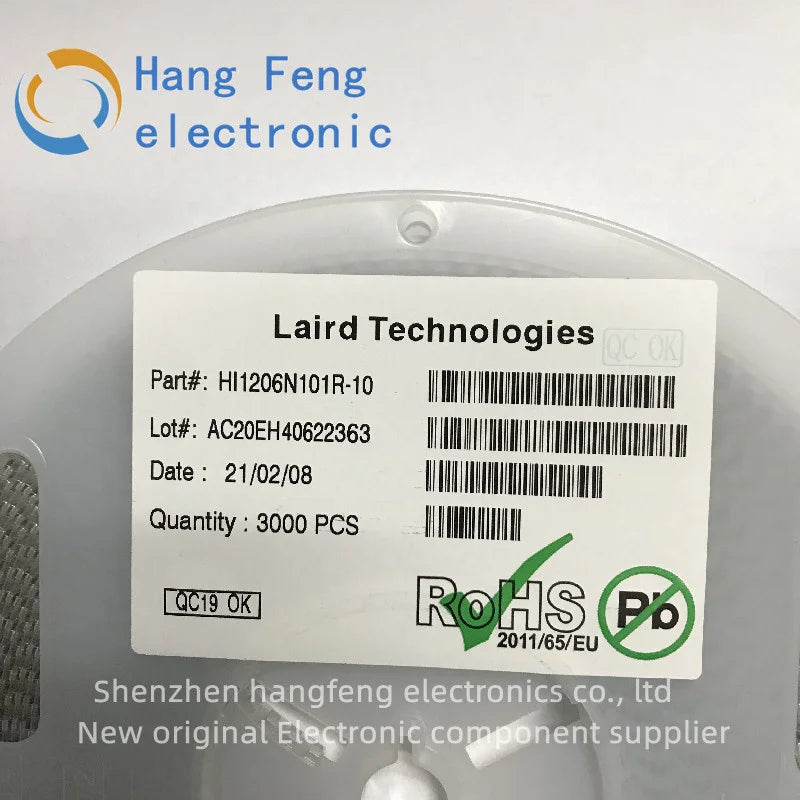

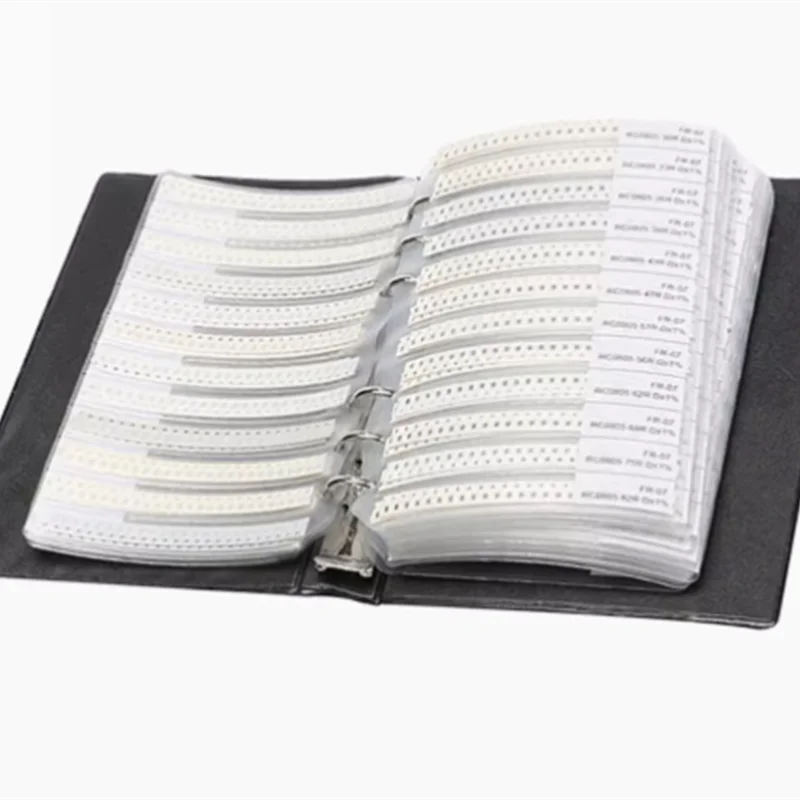

- Order the right quantity: distinguish a single impedance in a 100-piece pack from multi-value sample books and larger production quantities. A manufacturer's part-number string or “original” wording is not proof of provenance or authorization.
Product boundaries

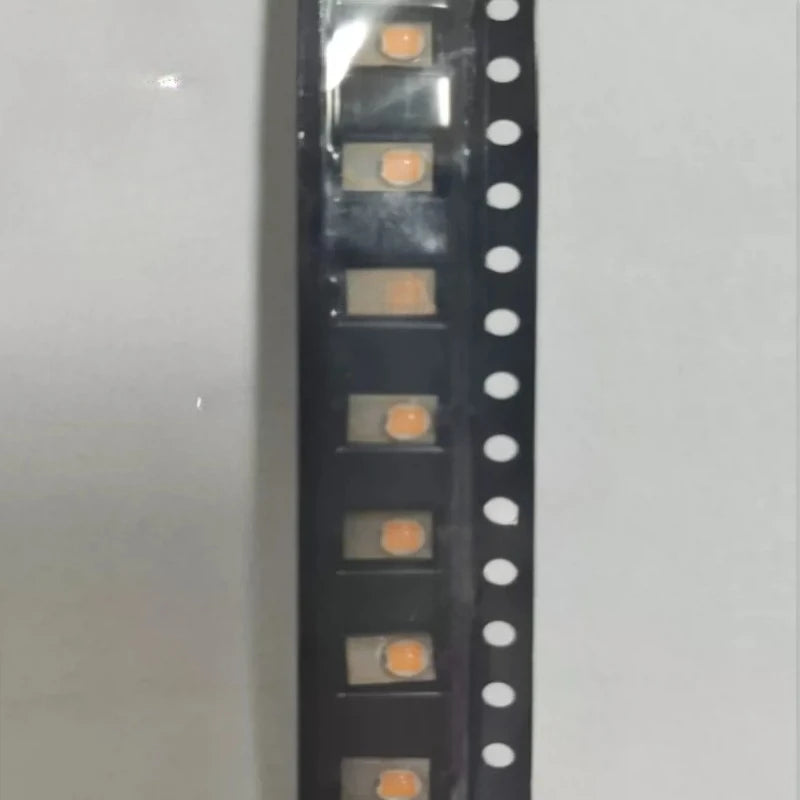

Some results also include hollow or axial ferrite sleeves, a three-pin wound buzzer/boost inductor, a loose toroidal magnetic core and an SMD LED. The sleeve needs conductor routing and a bore fit, the wound component is specified by inductance, and a bare core needs a winding design; none is a drop-in SMD chip-bead replacement. The LED is not an EMI filtering component. Mixed books must be selected by their actual contents and case size.
FAQ
Does 600R mean 600 Ω DC resistance? No. For a ferrite bead it is normally an AC impedance at a stated measurement frequency. Use the separate DCR value for rail voltage-drop and power-loss estimates.
Can I replace a power inductor or common-mode choke with a bead? Not on name or package size alone. Power inductors store energy; common-mode chokes act on multiple conductors; chip beads are characterized by high-frequency impedance in a specific path.
Will the same nominal impedance work for any data line? No. Check insertion loss, signal integrity, DC bias, operating frequency and the circuit manufacturer's requirements before fitting a bead to a data or RF path.
