Snap-On Ferrite Cable Chokes and Clip-On EMI Cores
Clip-on ferrite cores for cable-borne interference

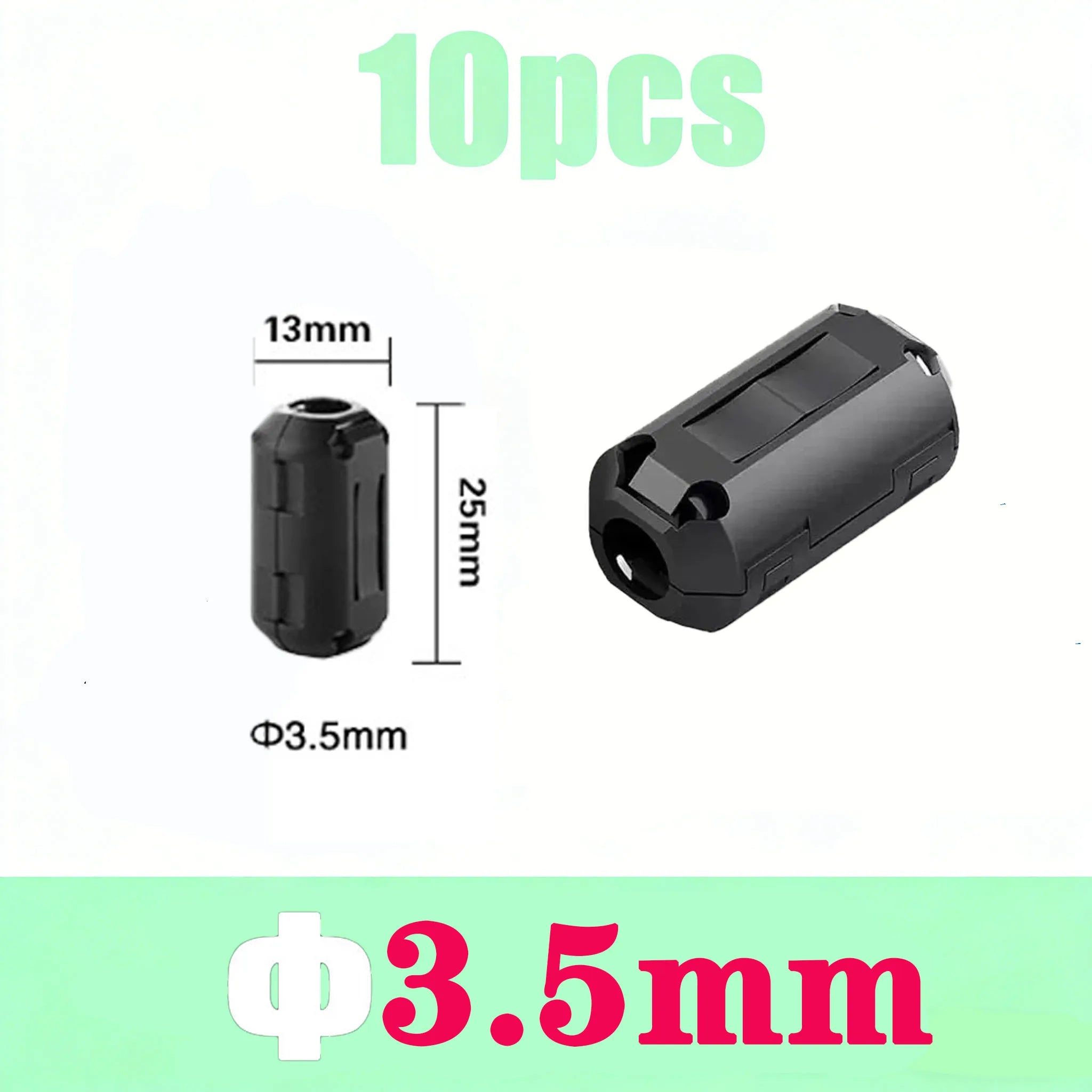

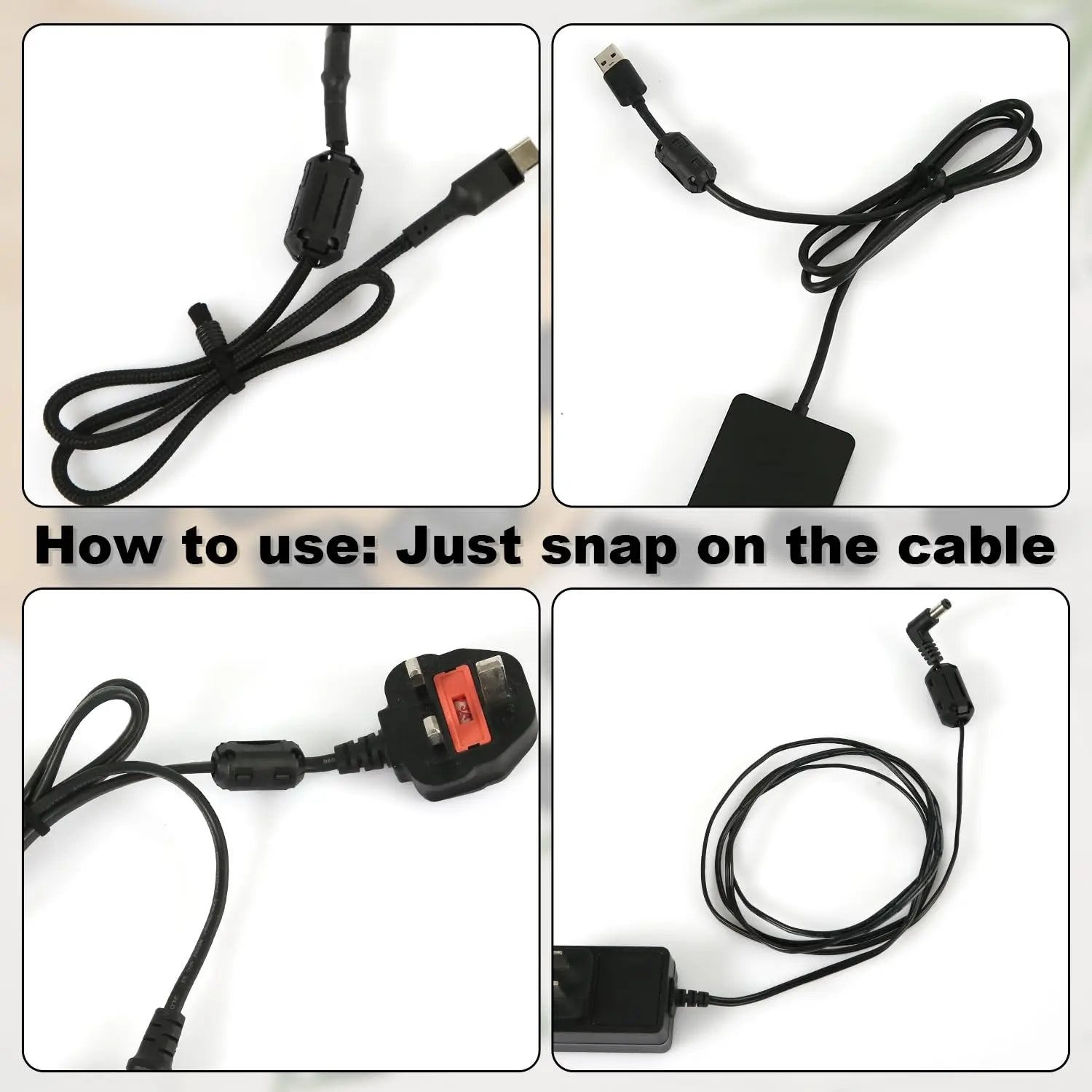

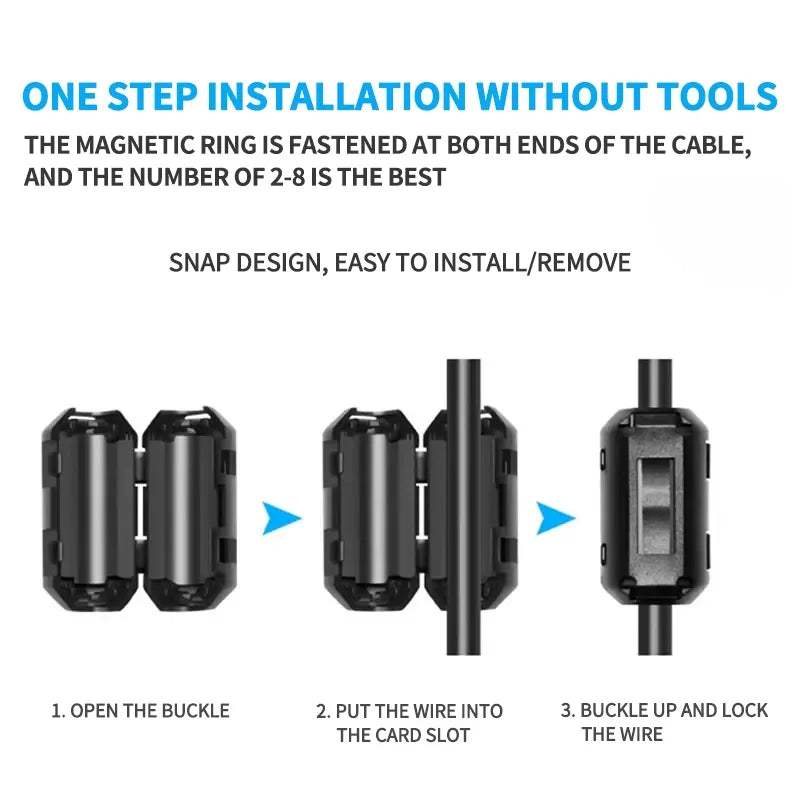

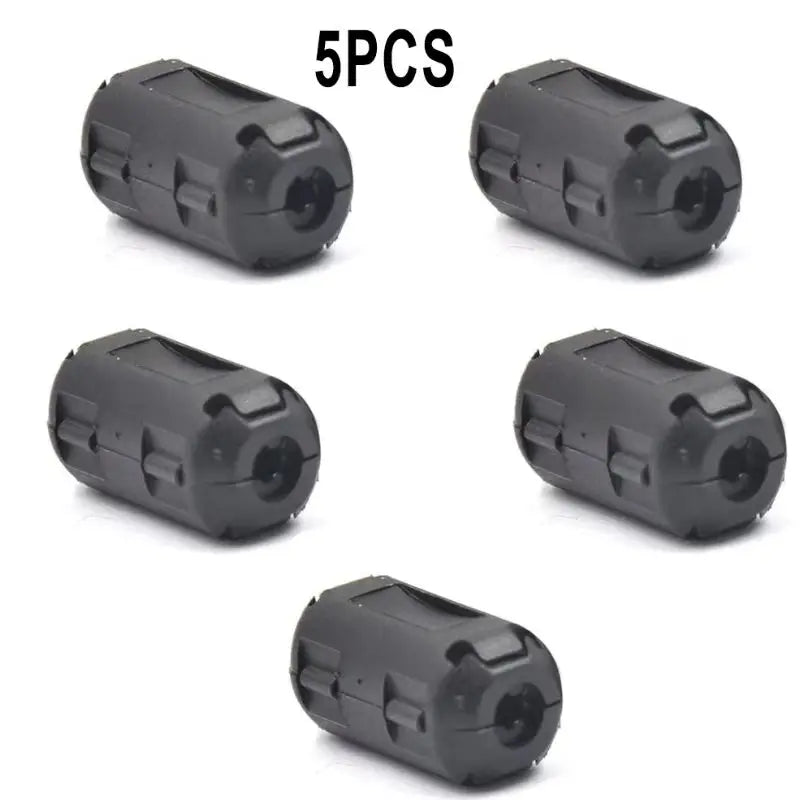

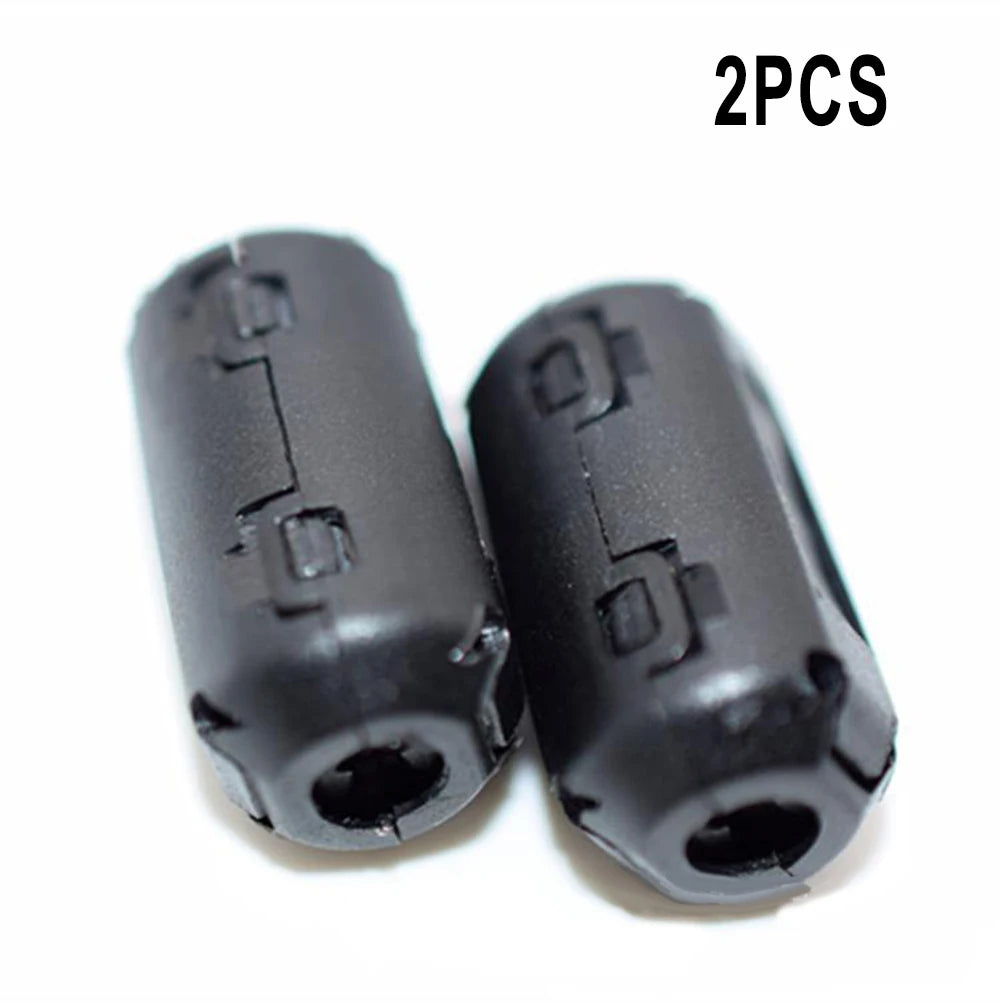

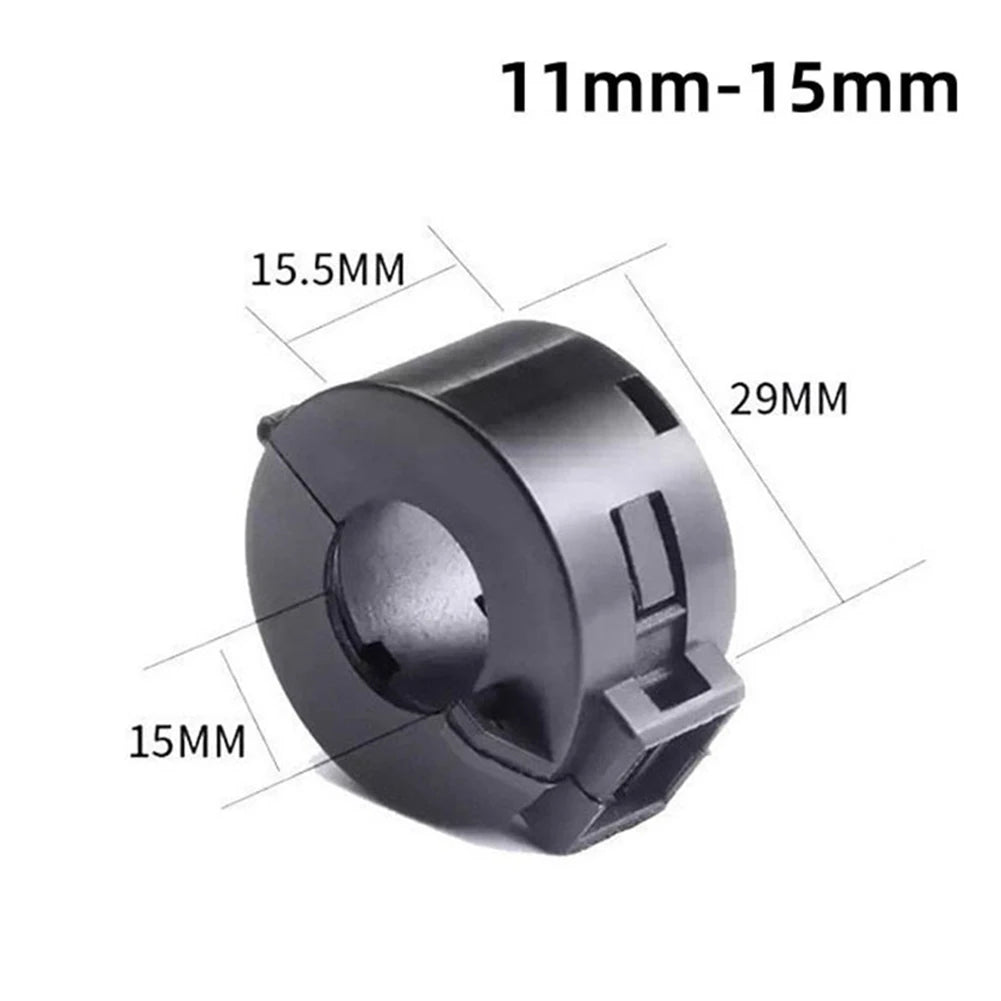

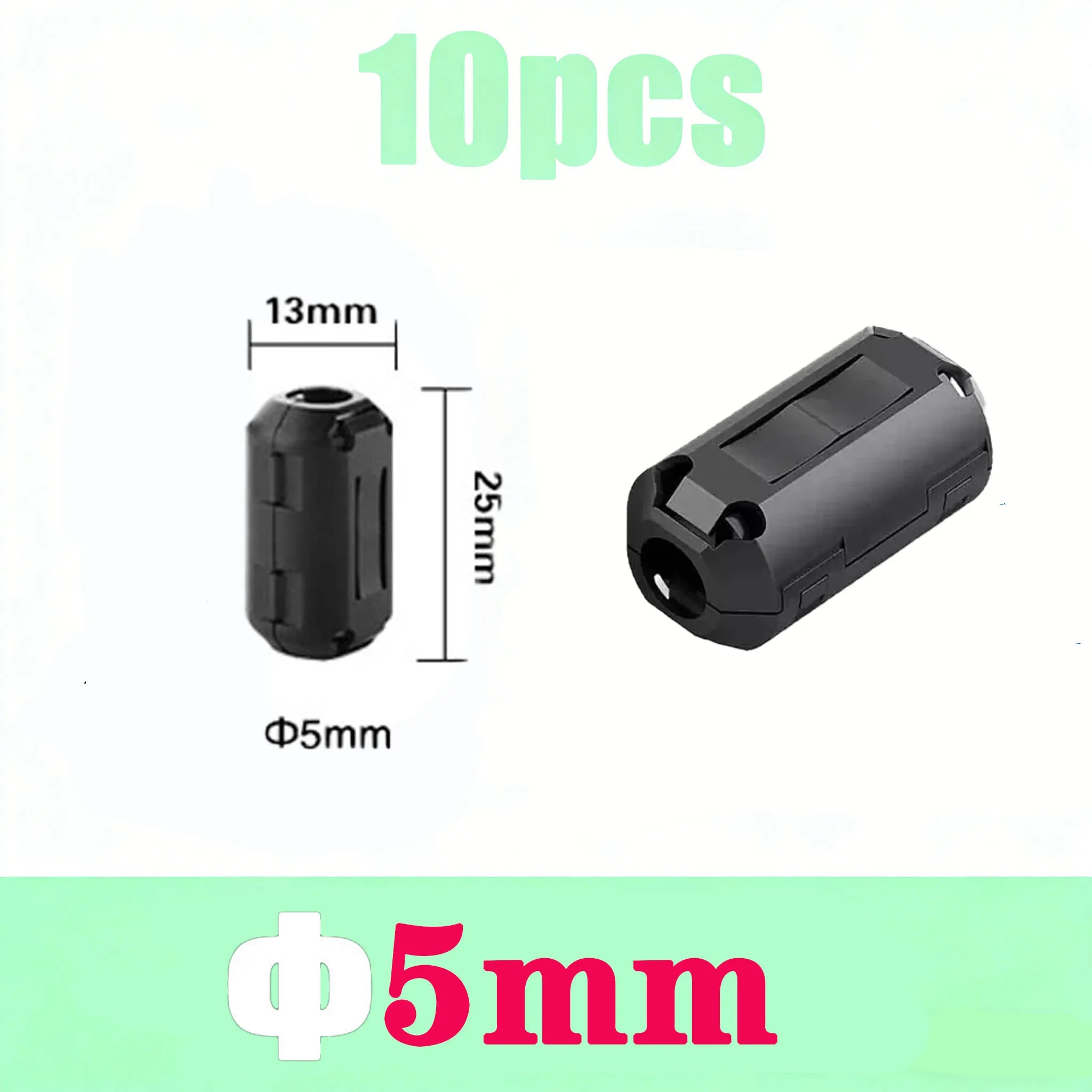

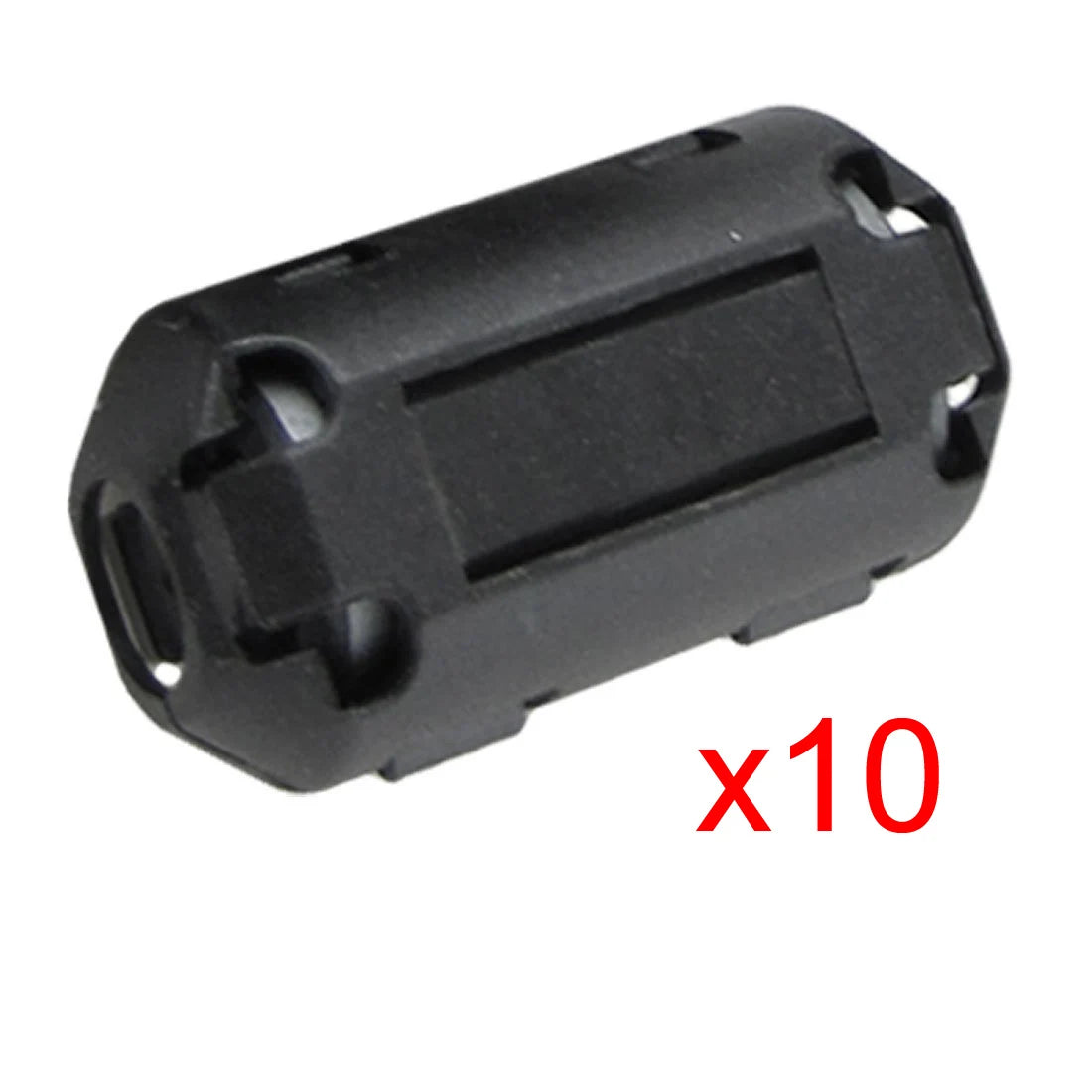

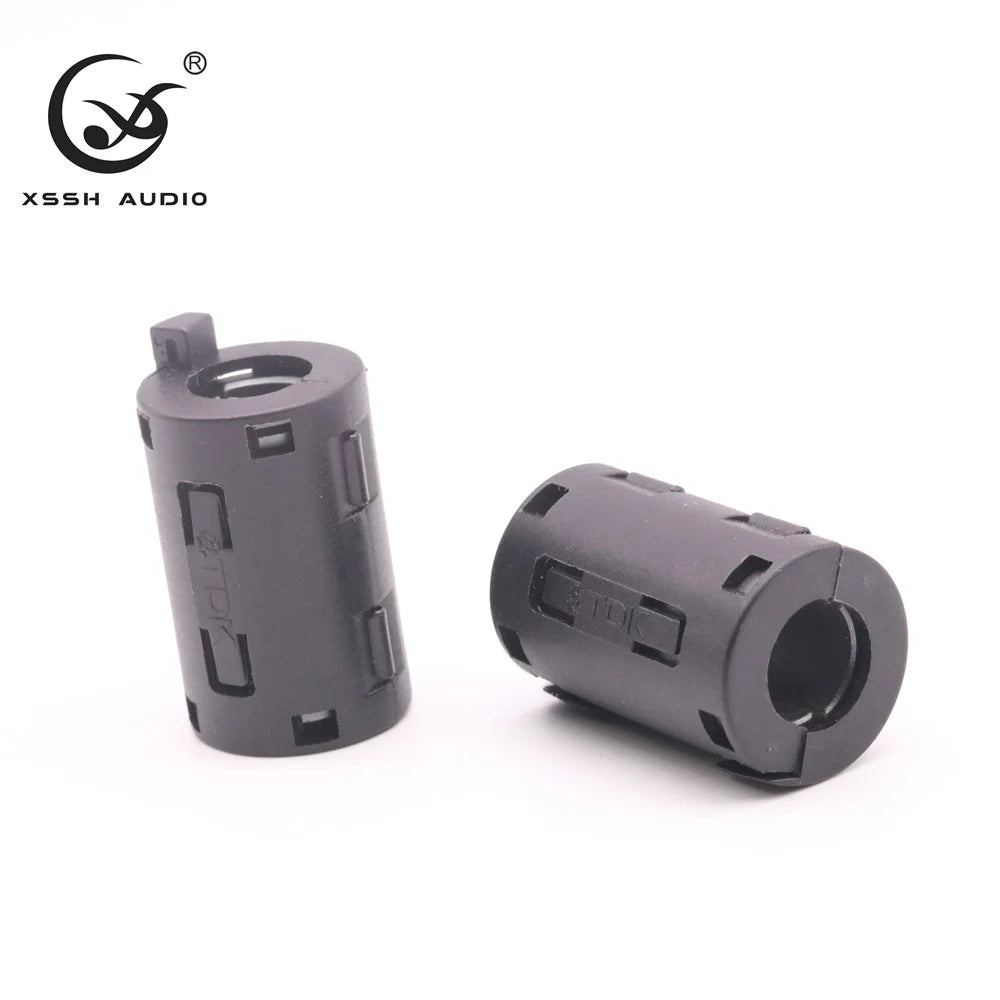

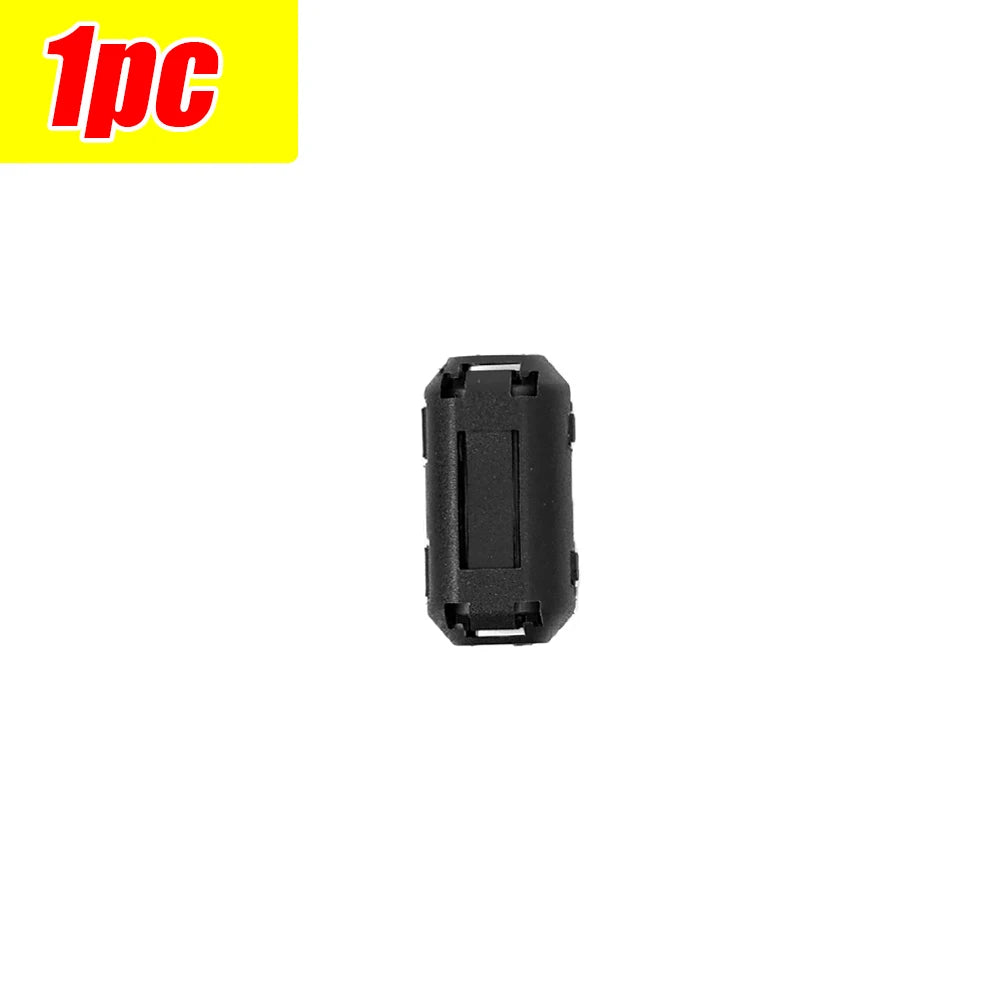

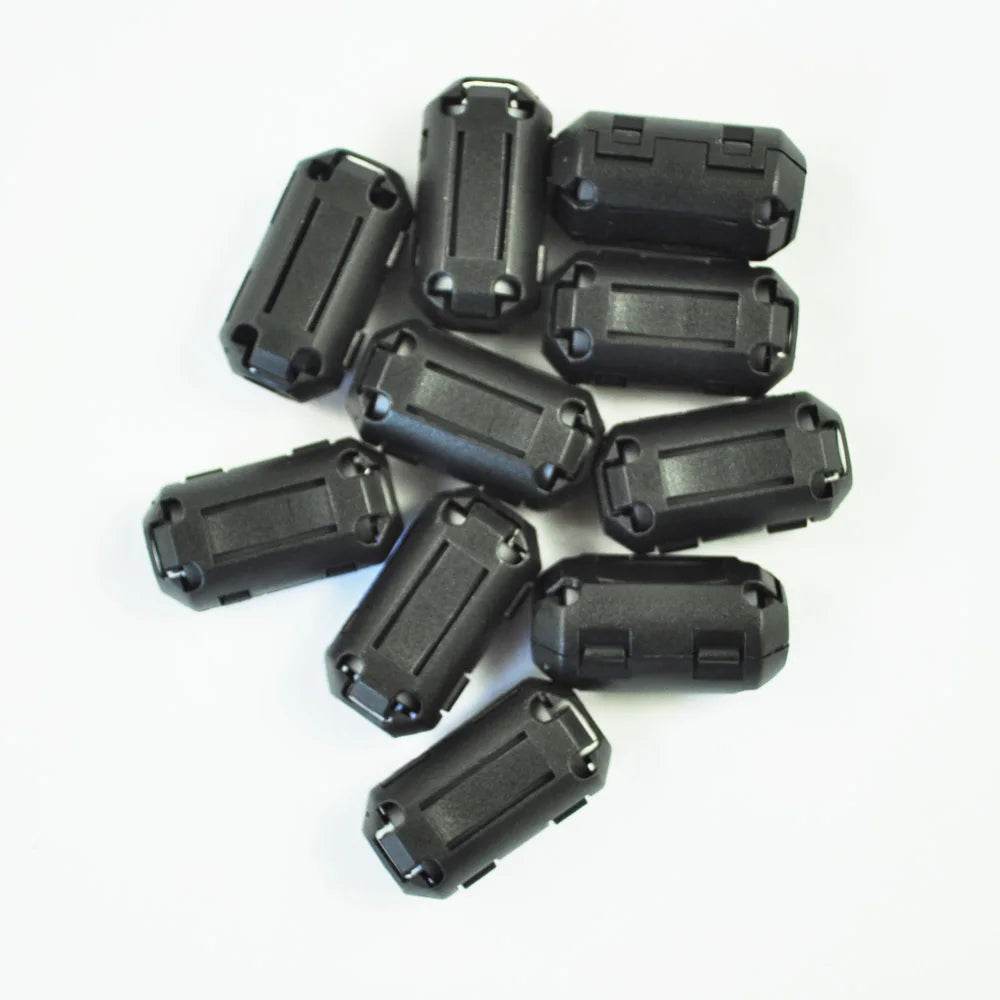

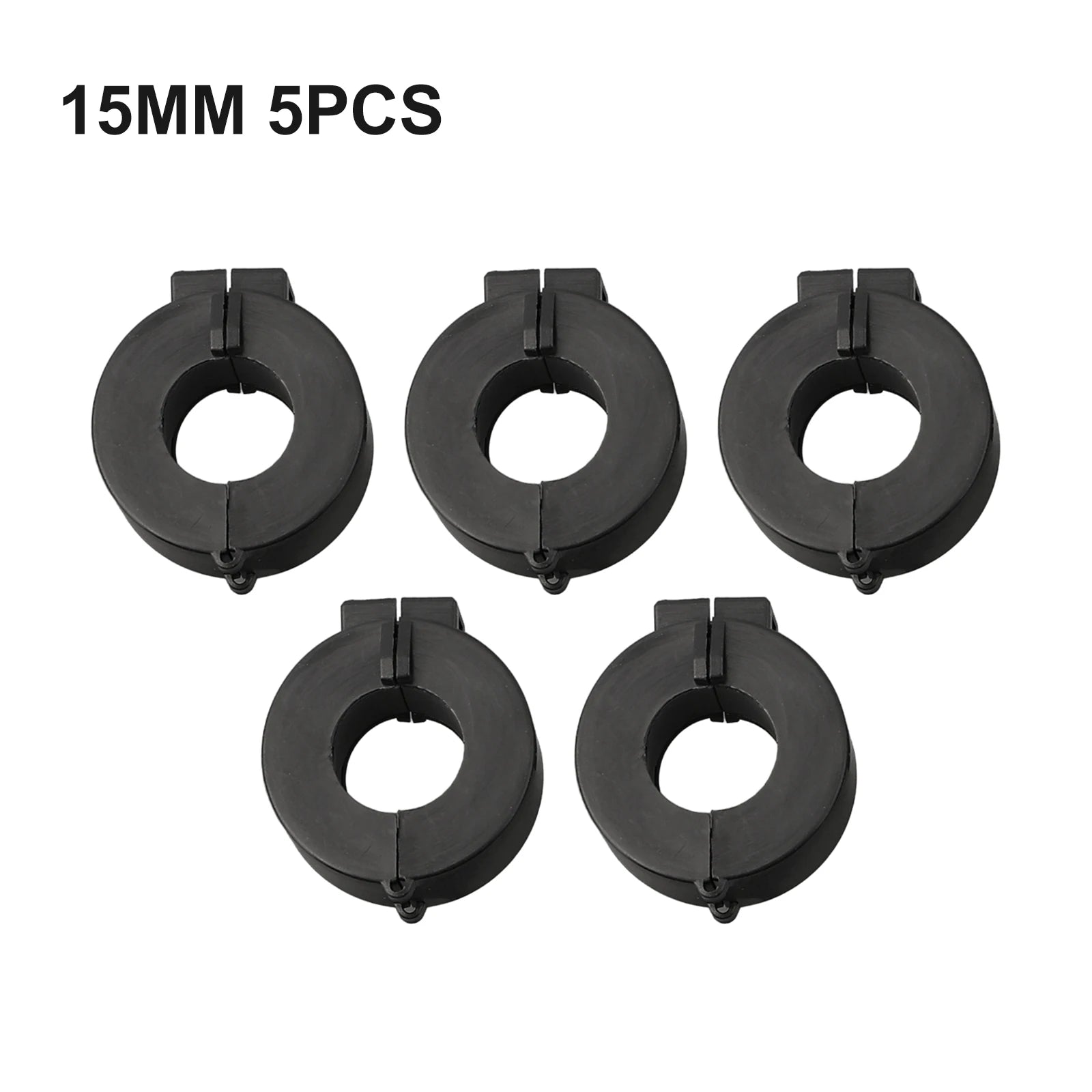

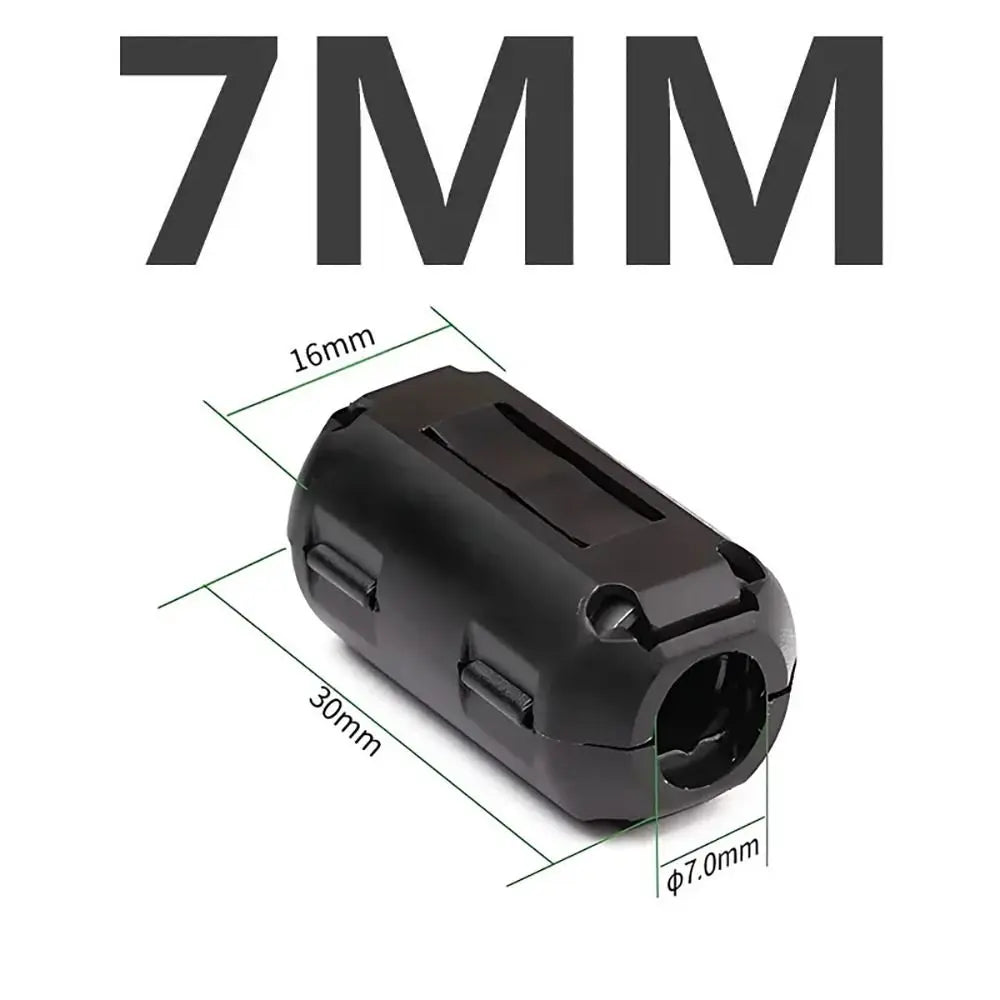

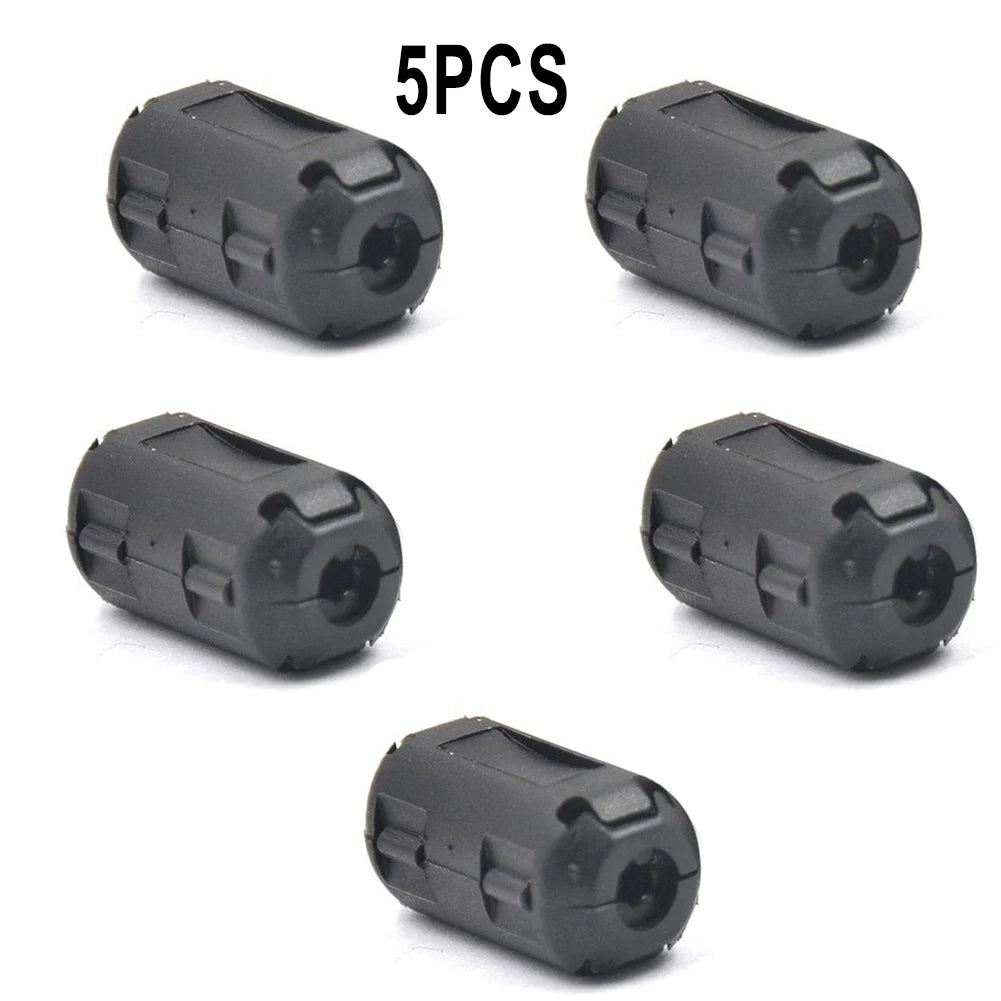

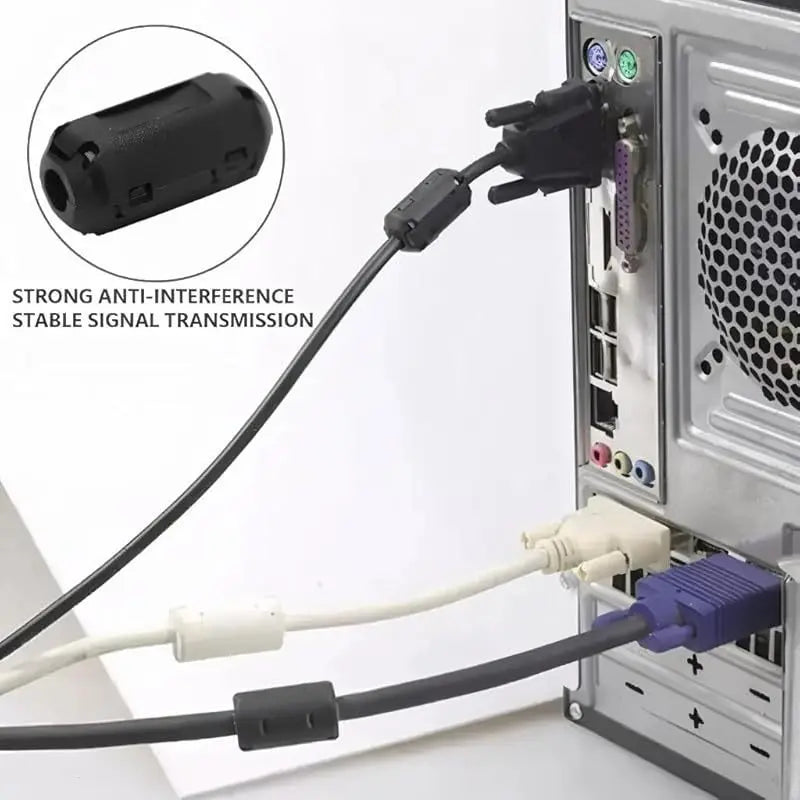

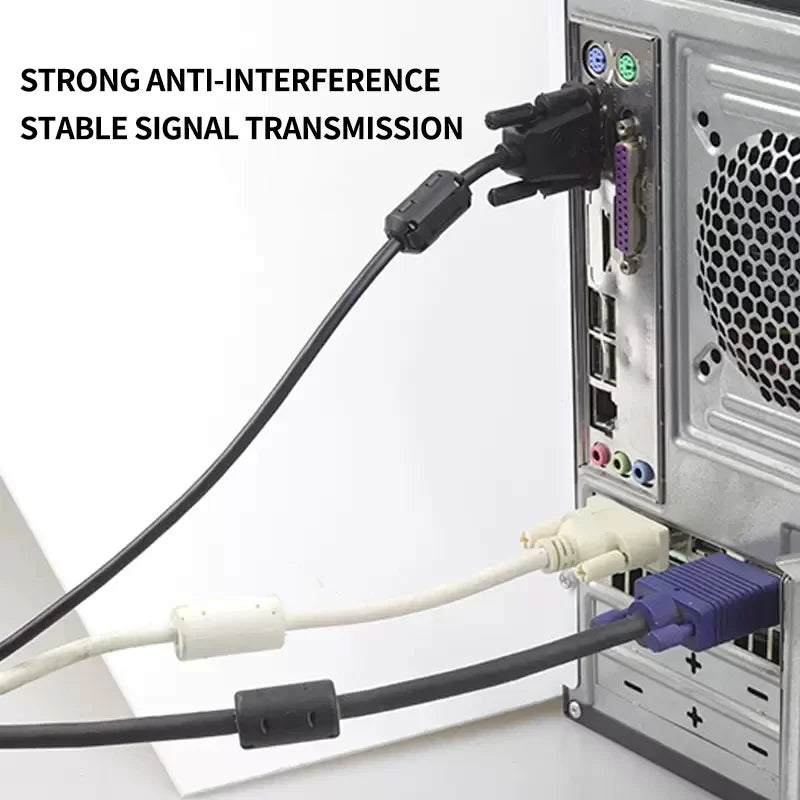

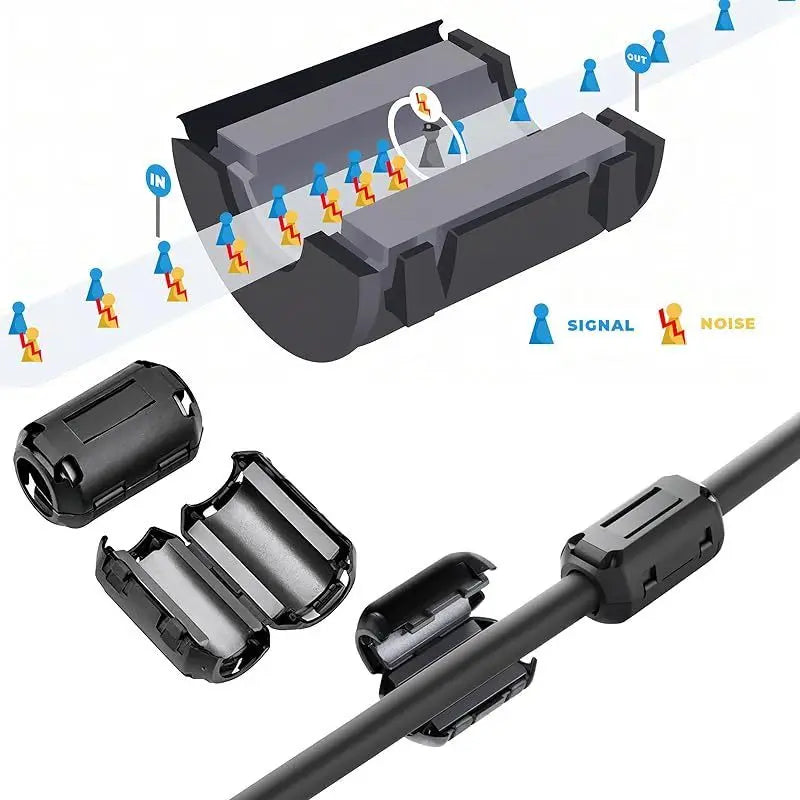

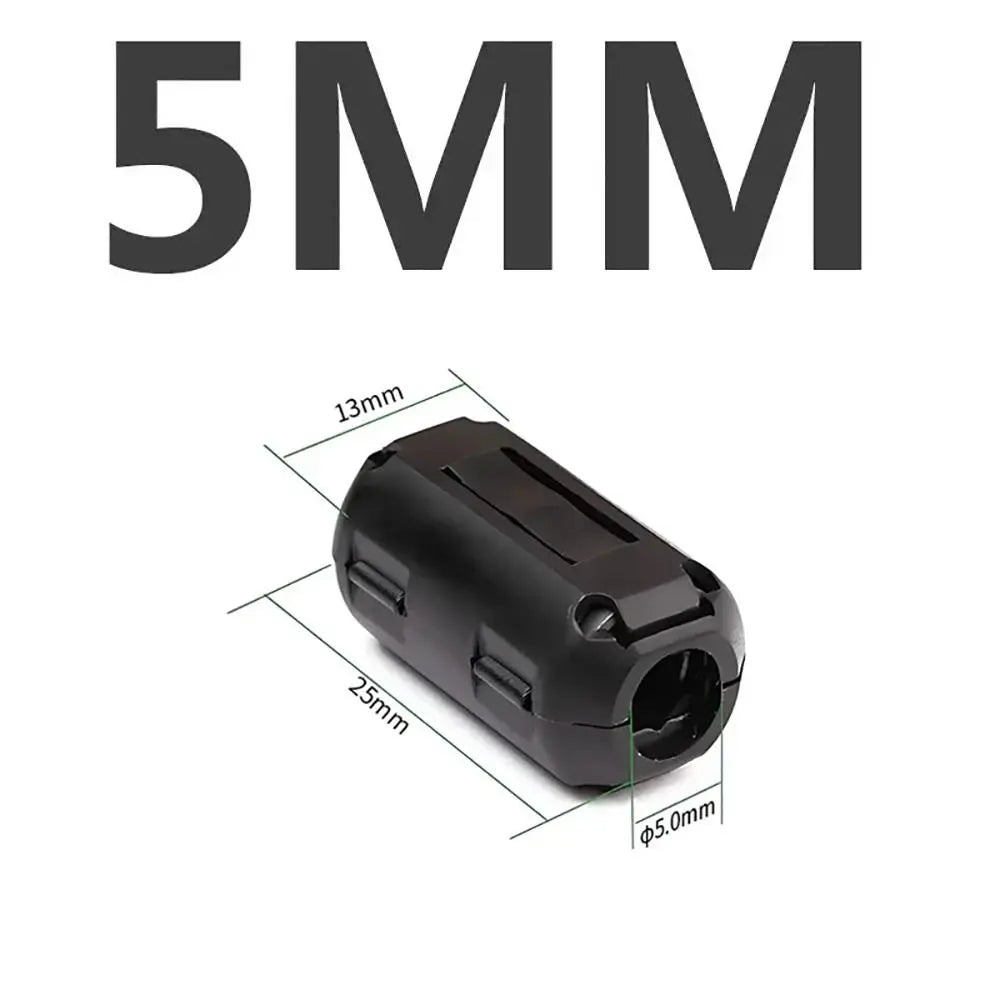

A snap-on ferrite cable choke is a split magnetic core in a hinged shell that closes around an existing cable. It adds frequency-dependent impedance to unwanted high-frequency currents without splicing the conductors. The principal options here are clip-on cable cores for USB, audio/video and power cords, with nominal inner-diameter choices around 3.5, 5, 7, 9, 11, 13 and 15 mm. Listings include individual clips, 2-, 5-, 6-, 10-, 20- and 24-piece kits and some bulk quantities. Selection by cable fit and noise frequency matters more than a device name in a title.
How clip-on ferrites differ

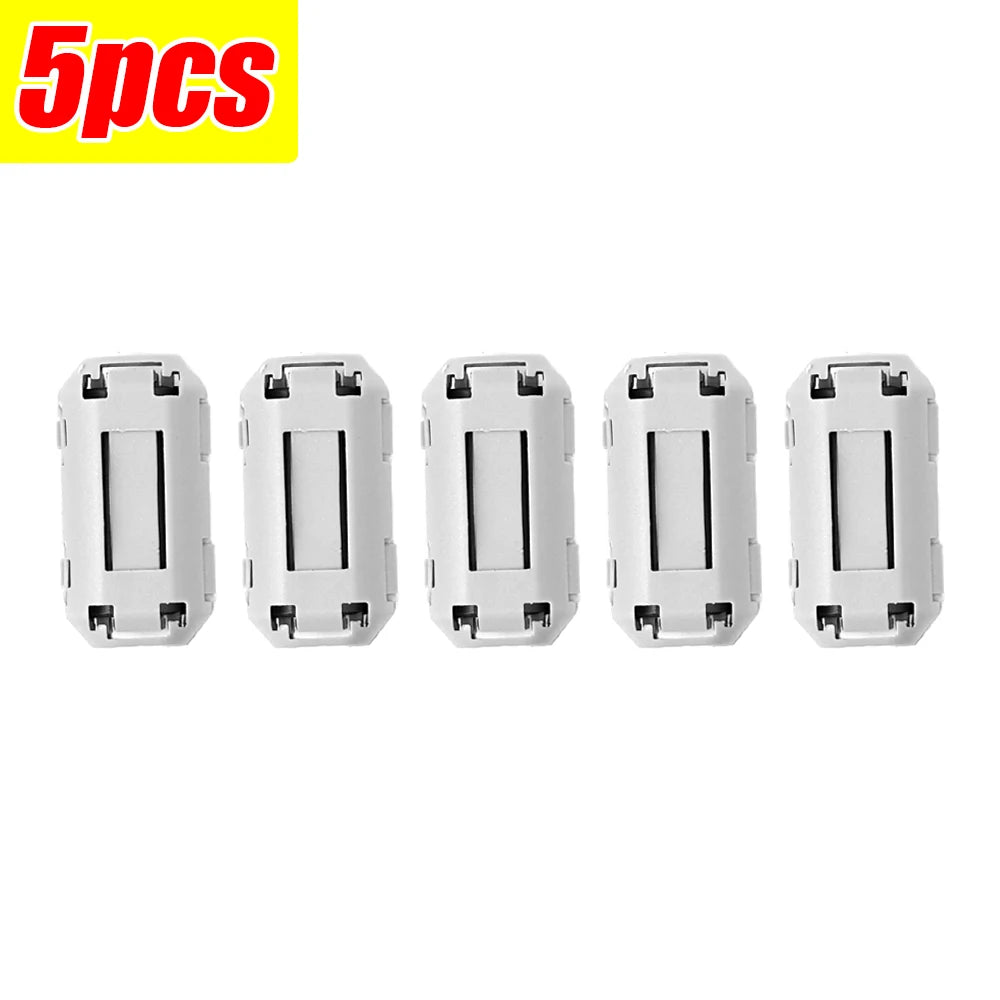

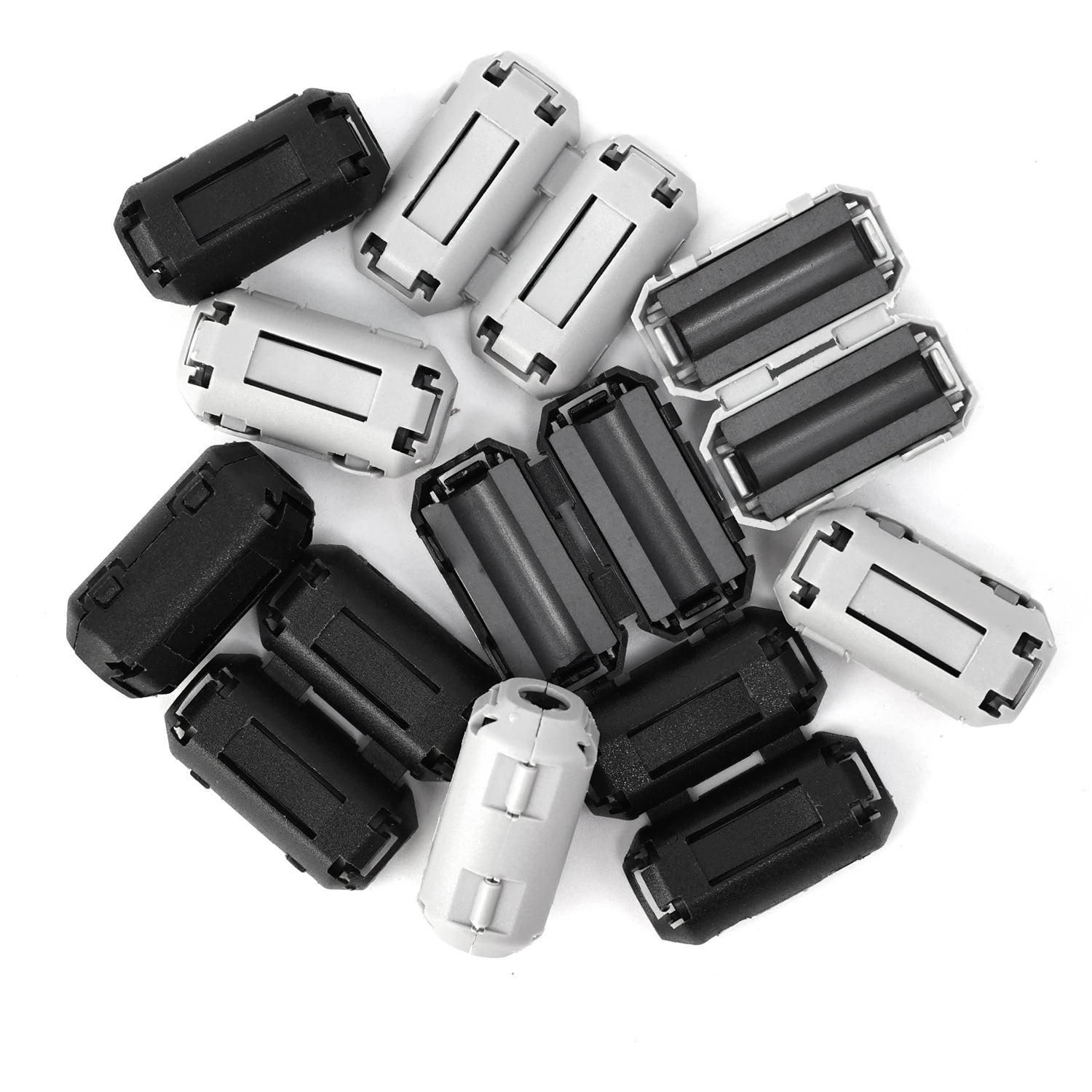

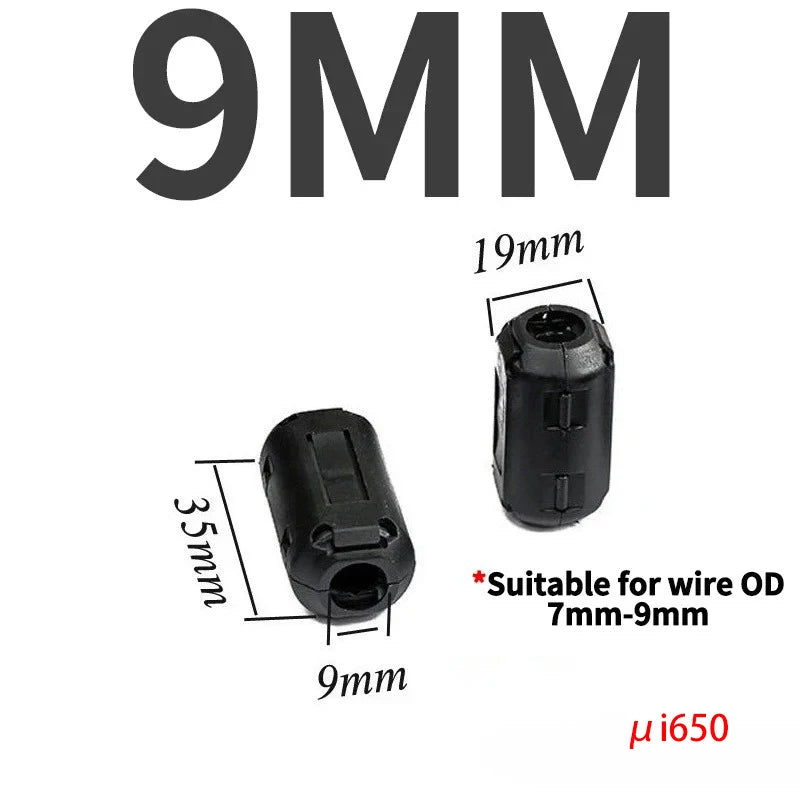

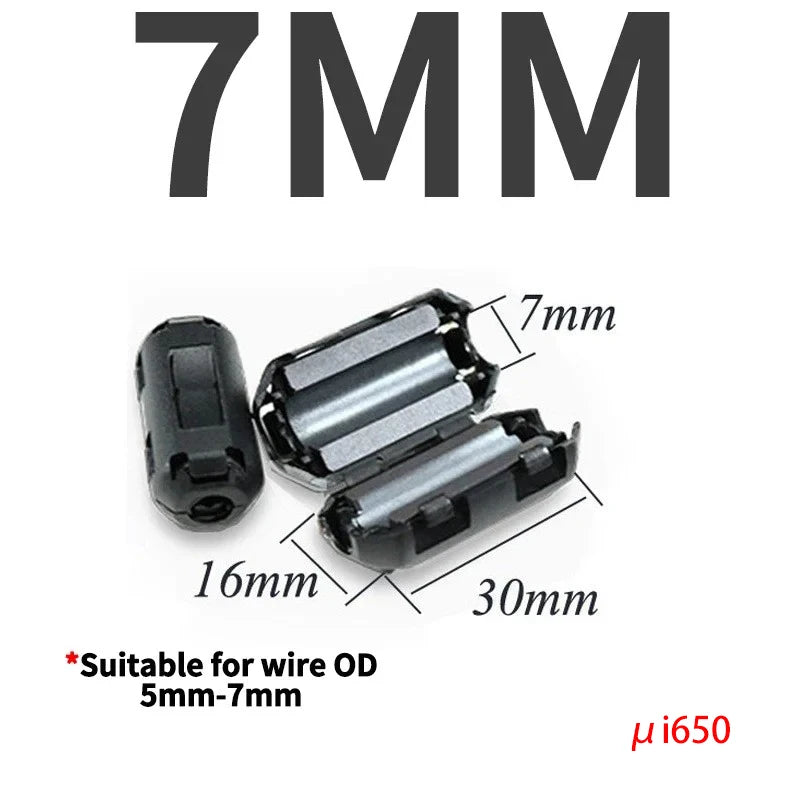

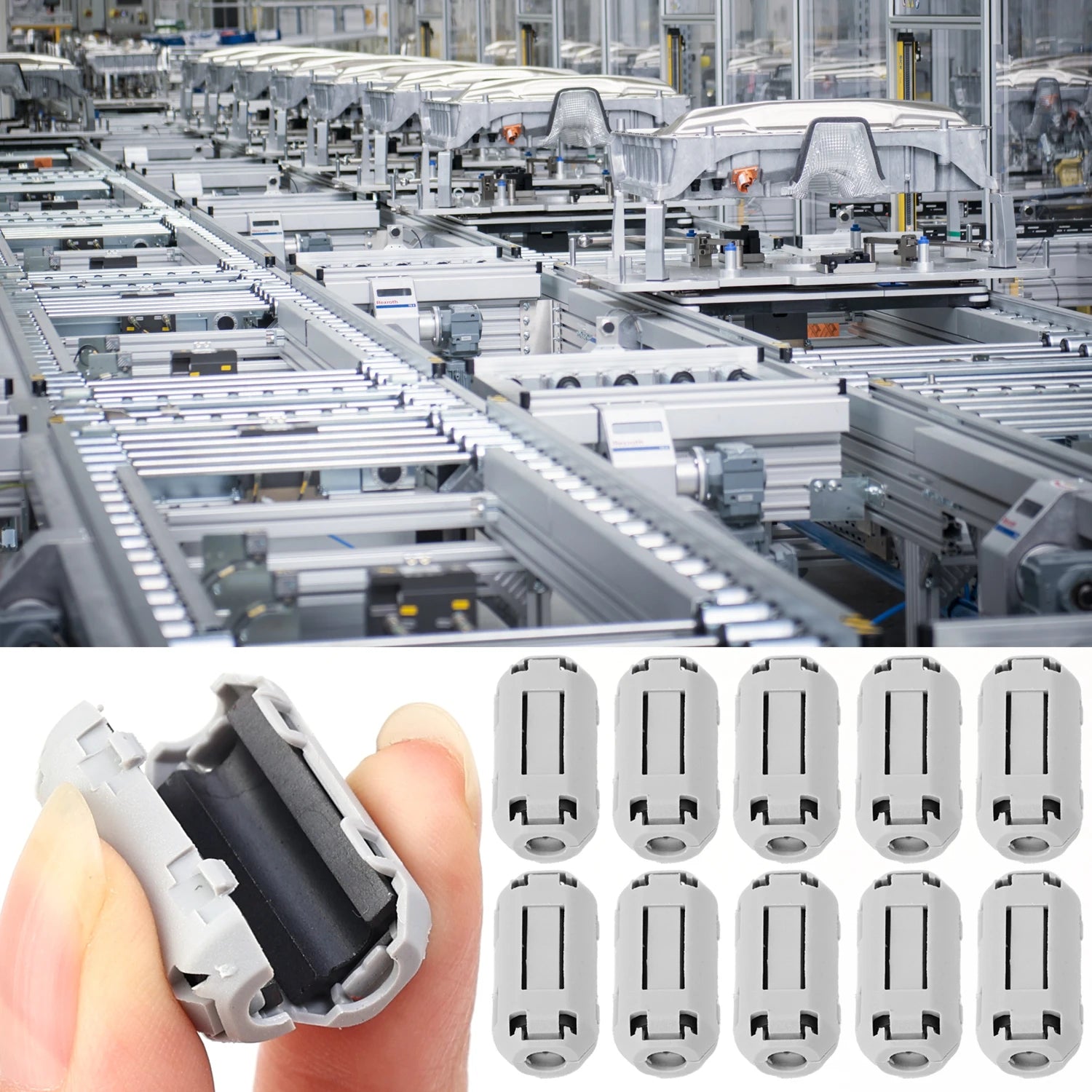

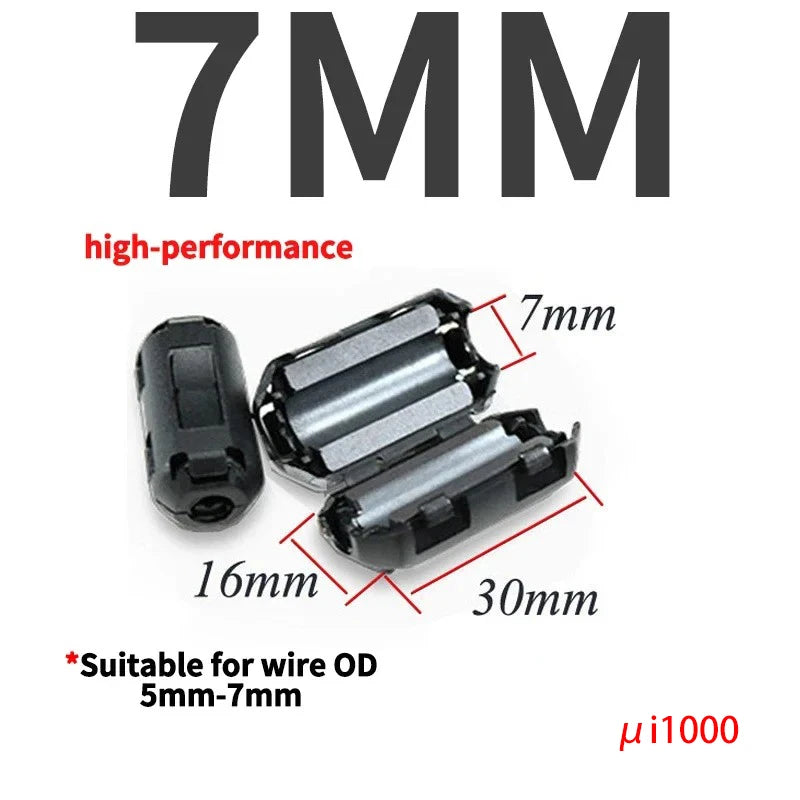

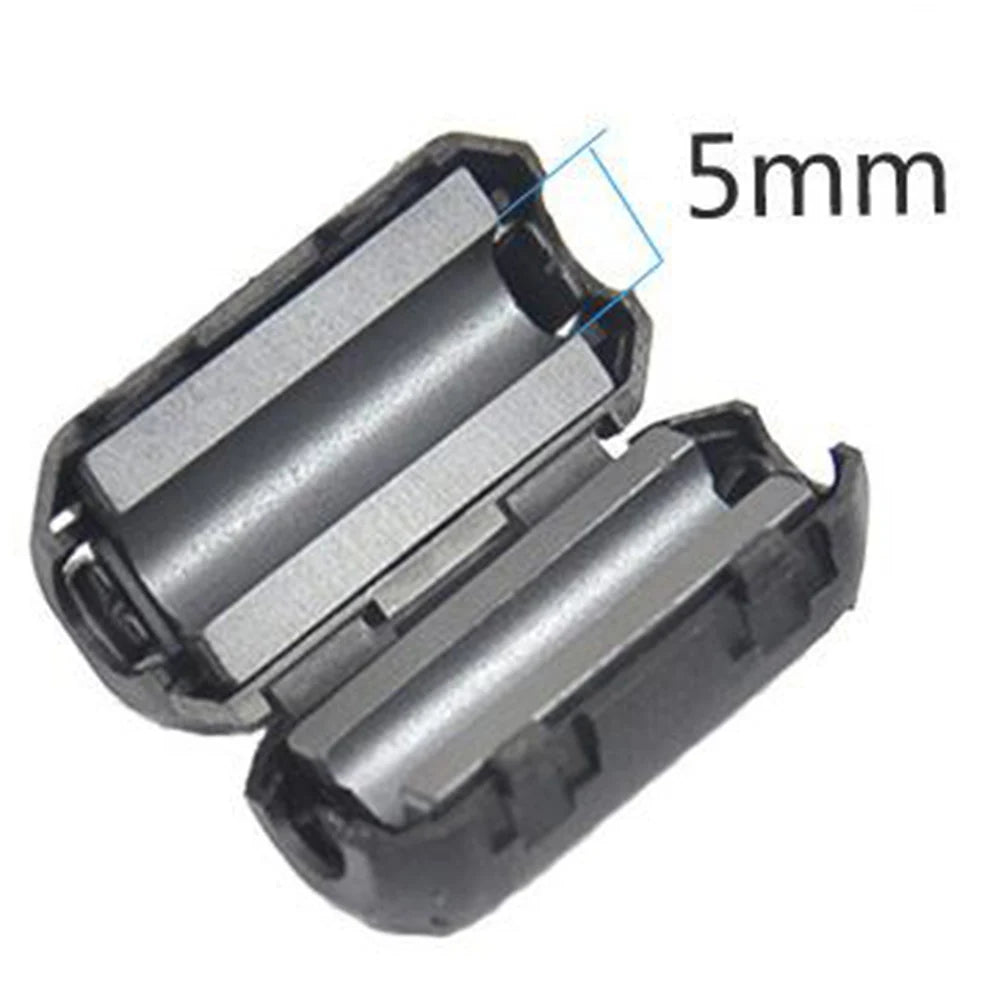

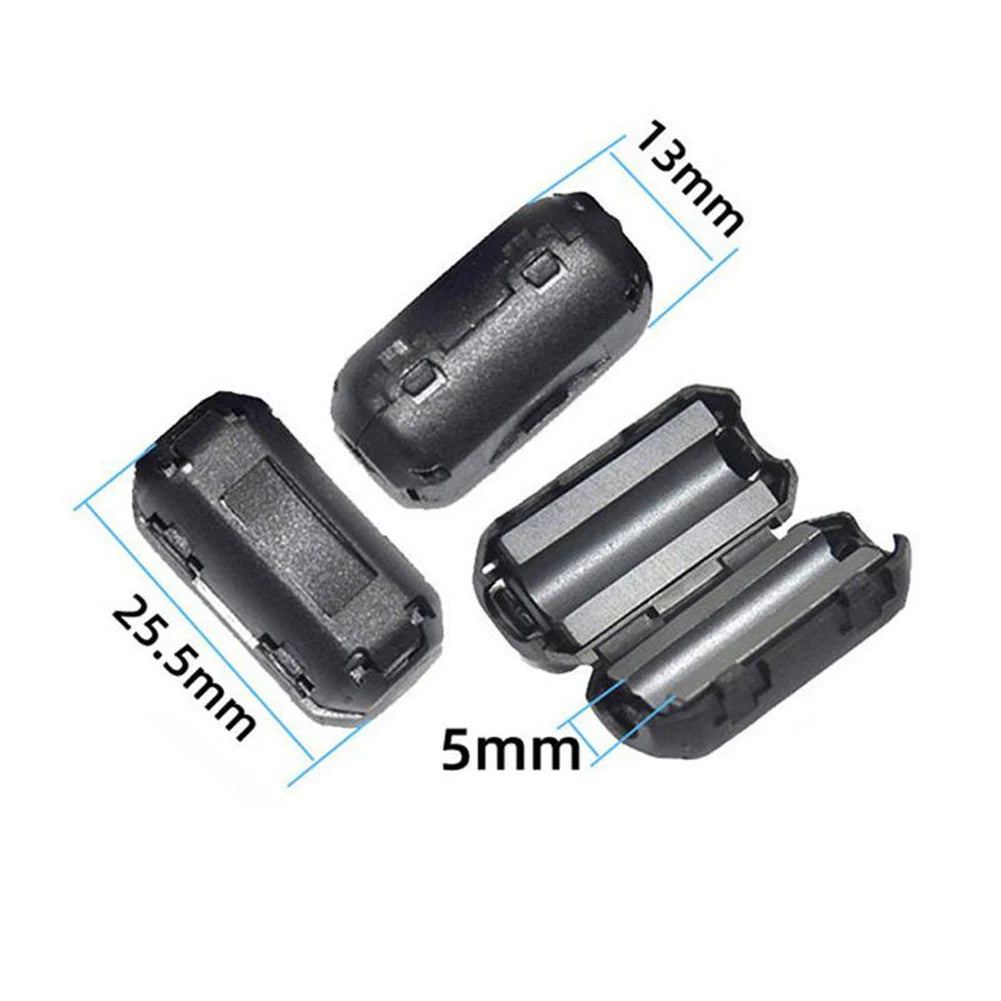

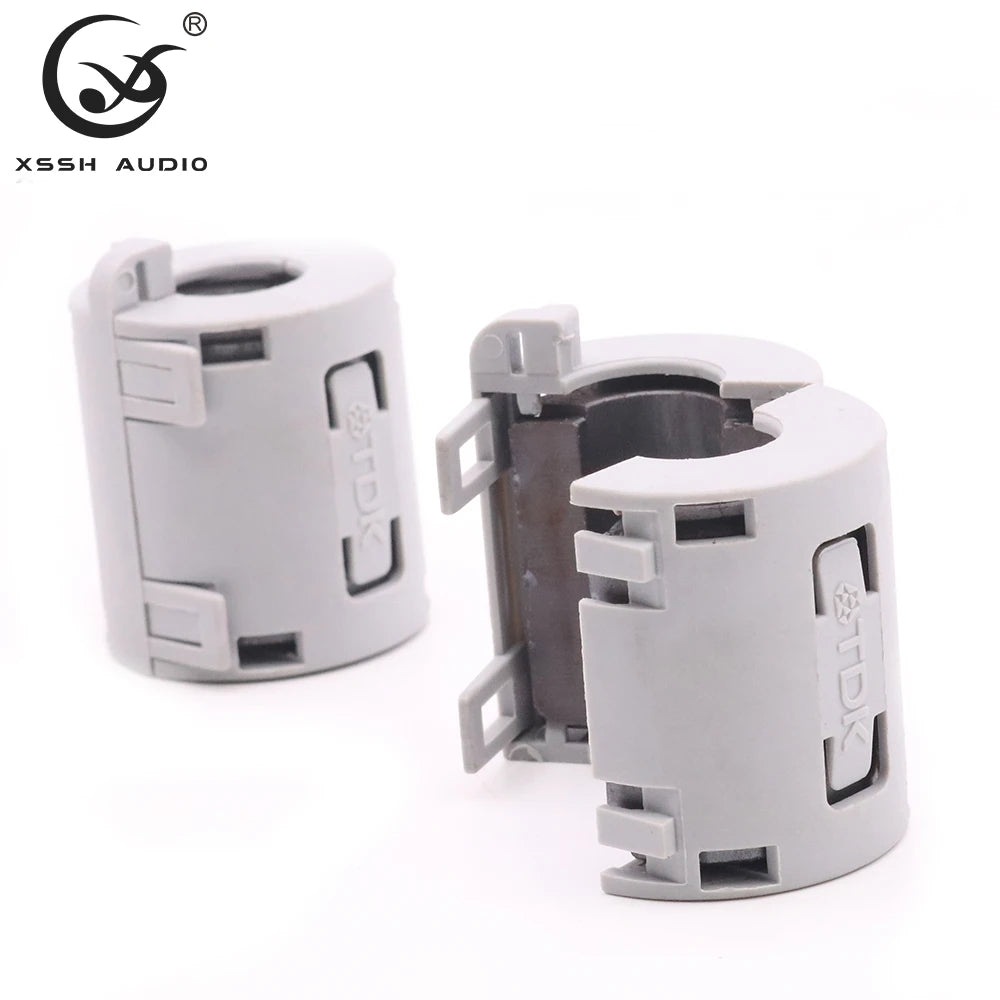

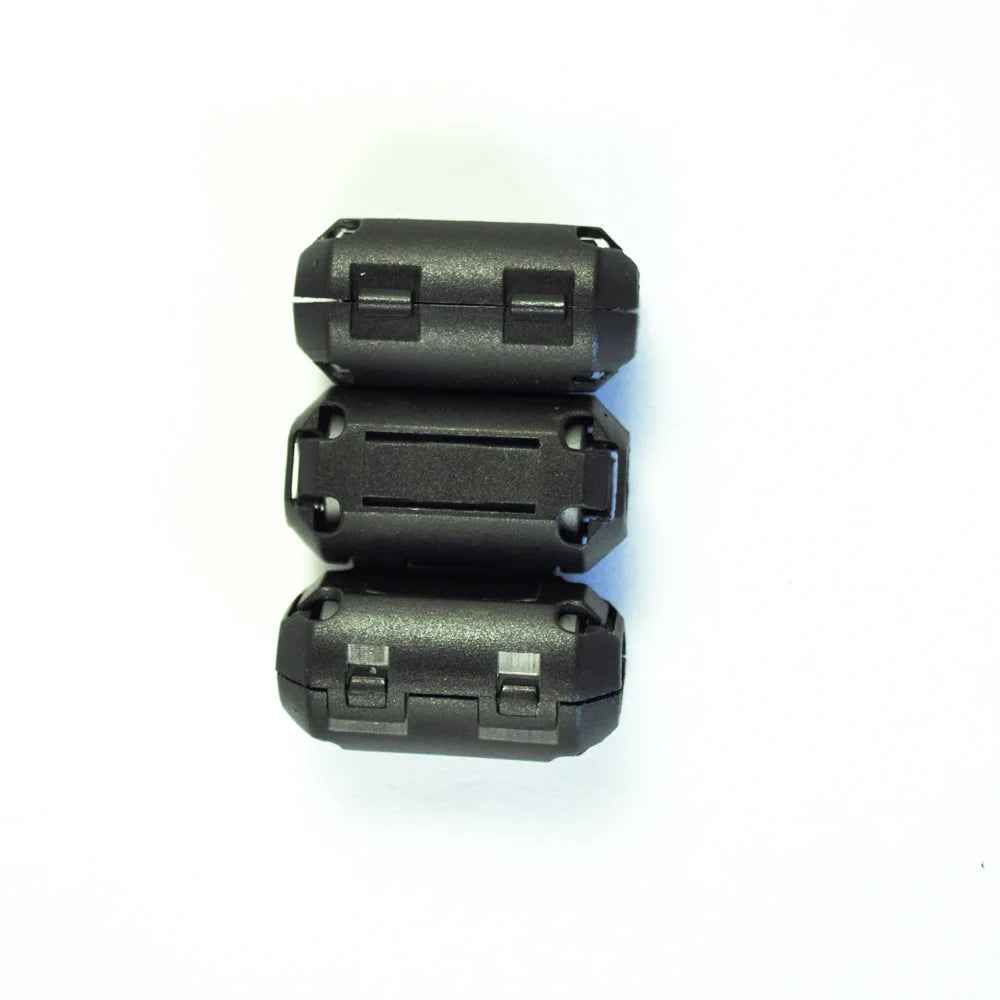

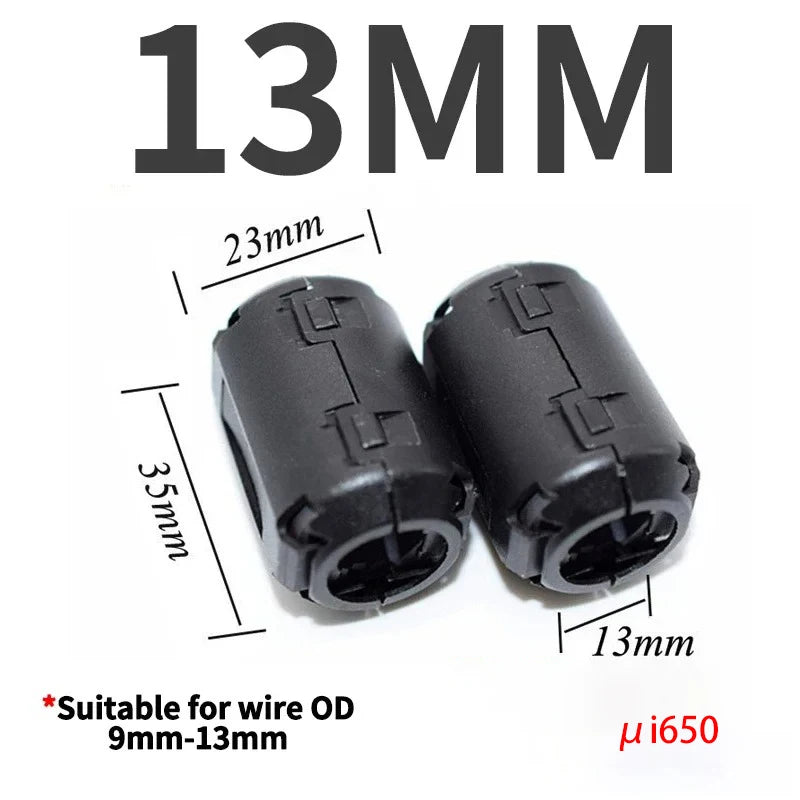

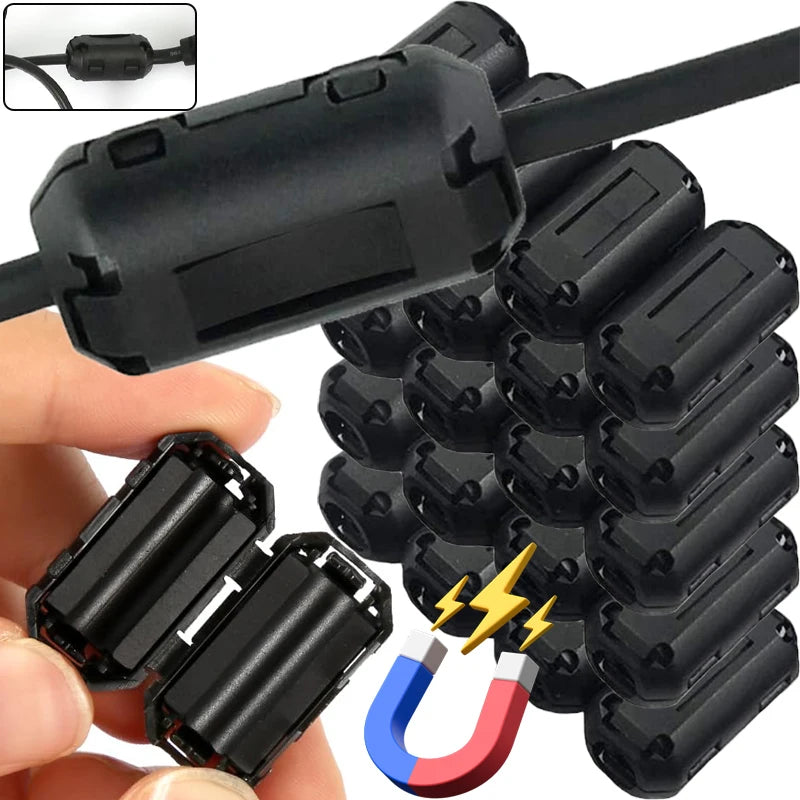

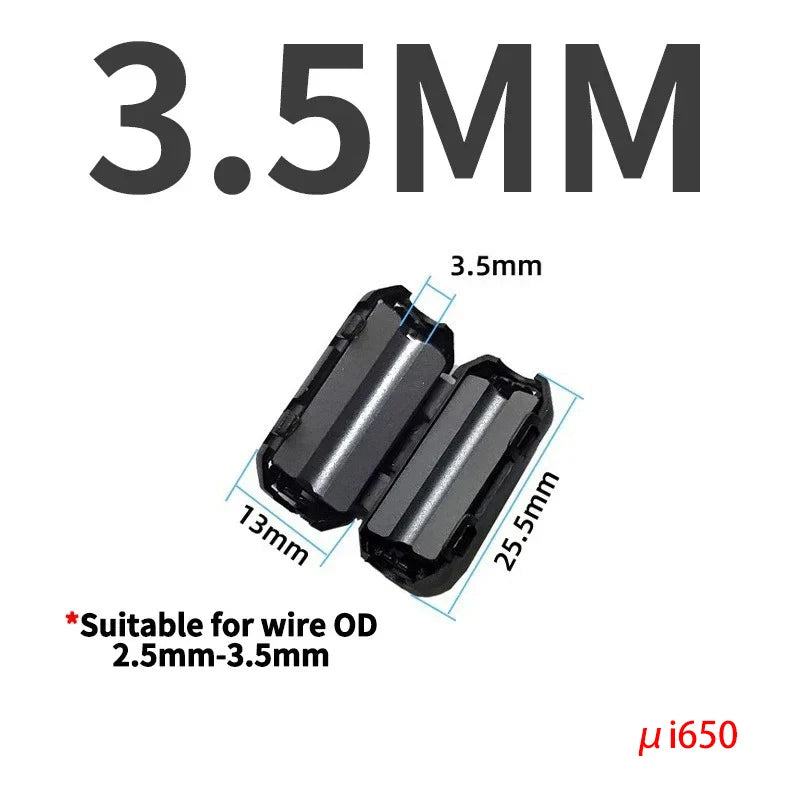

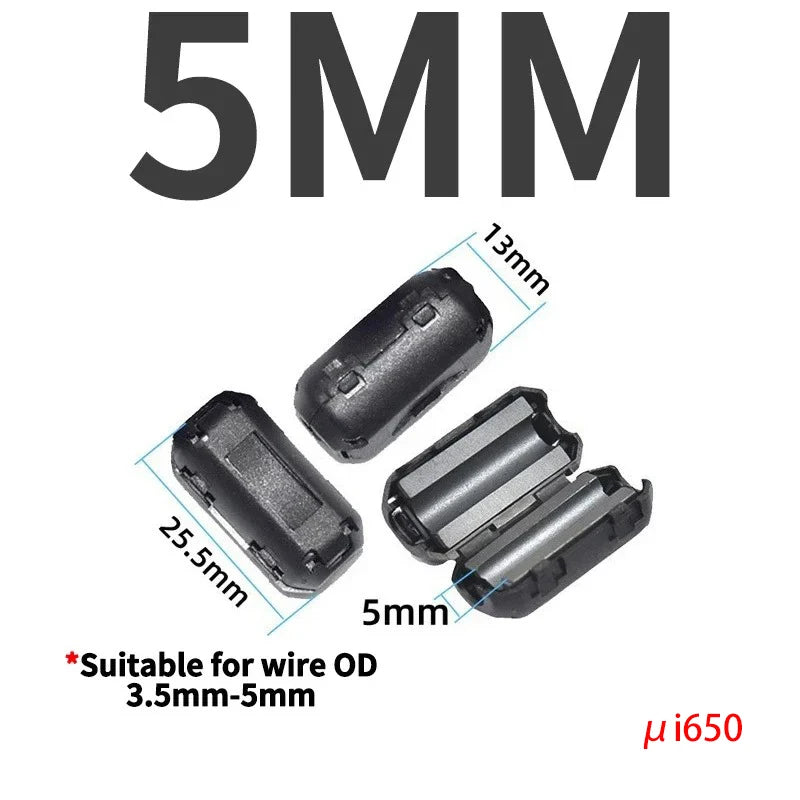

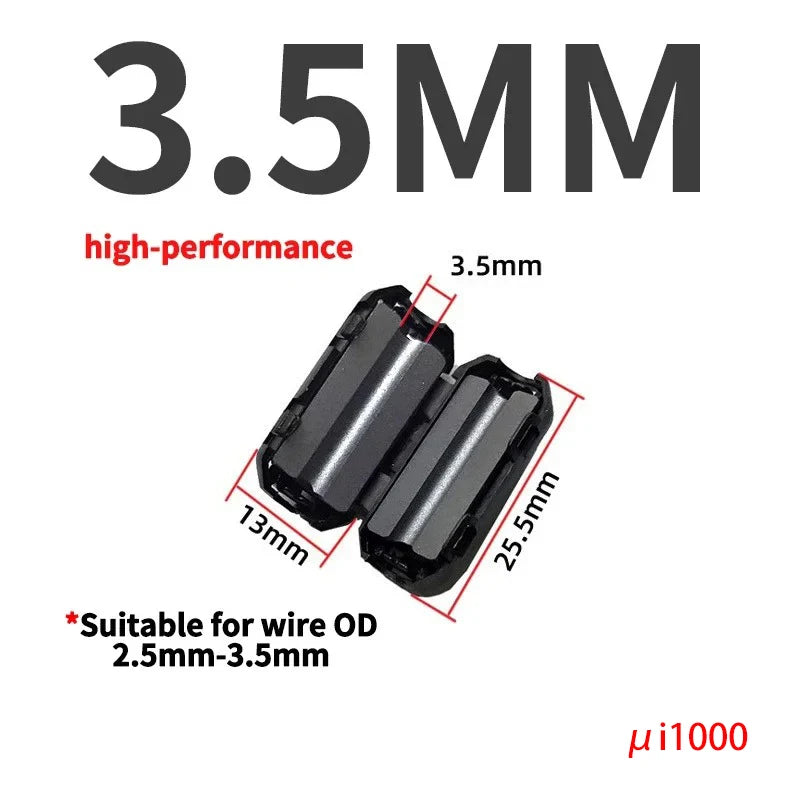

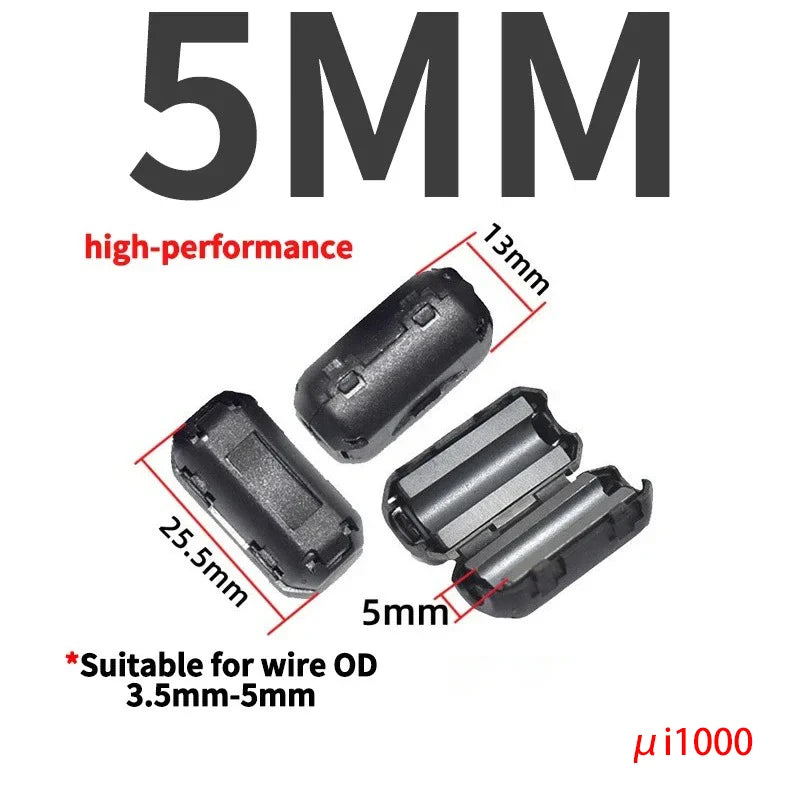

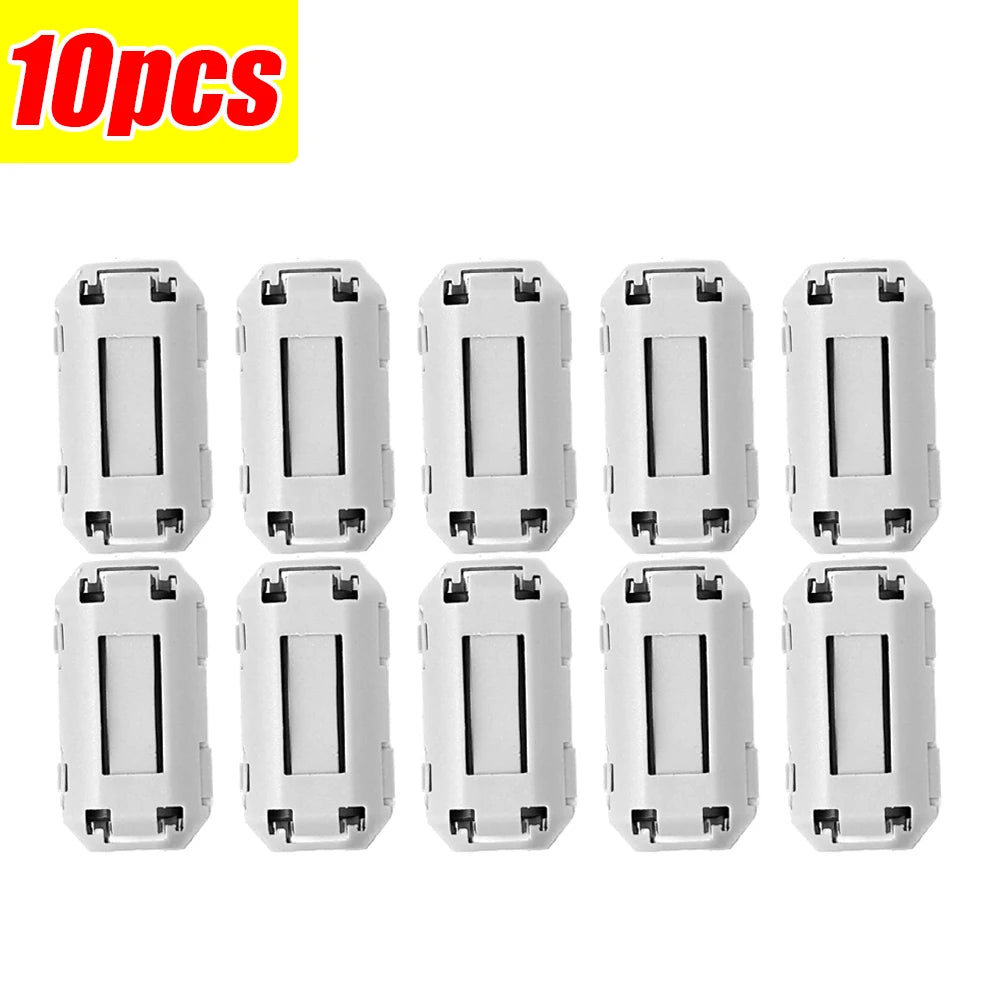

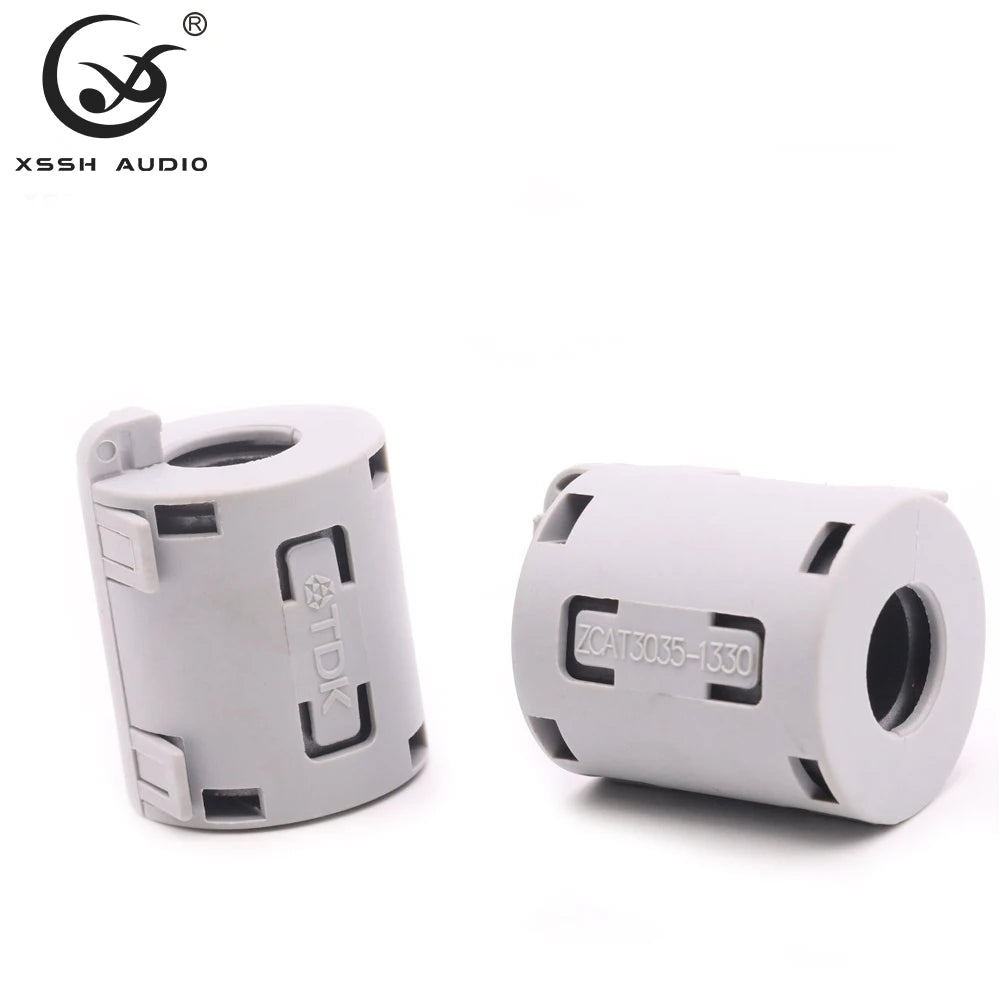

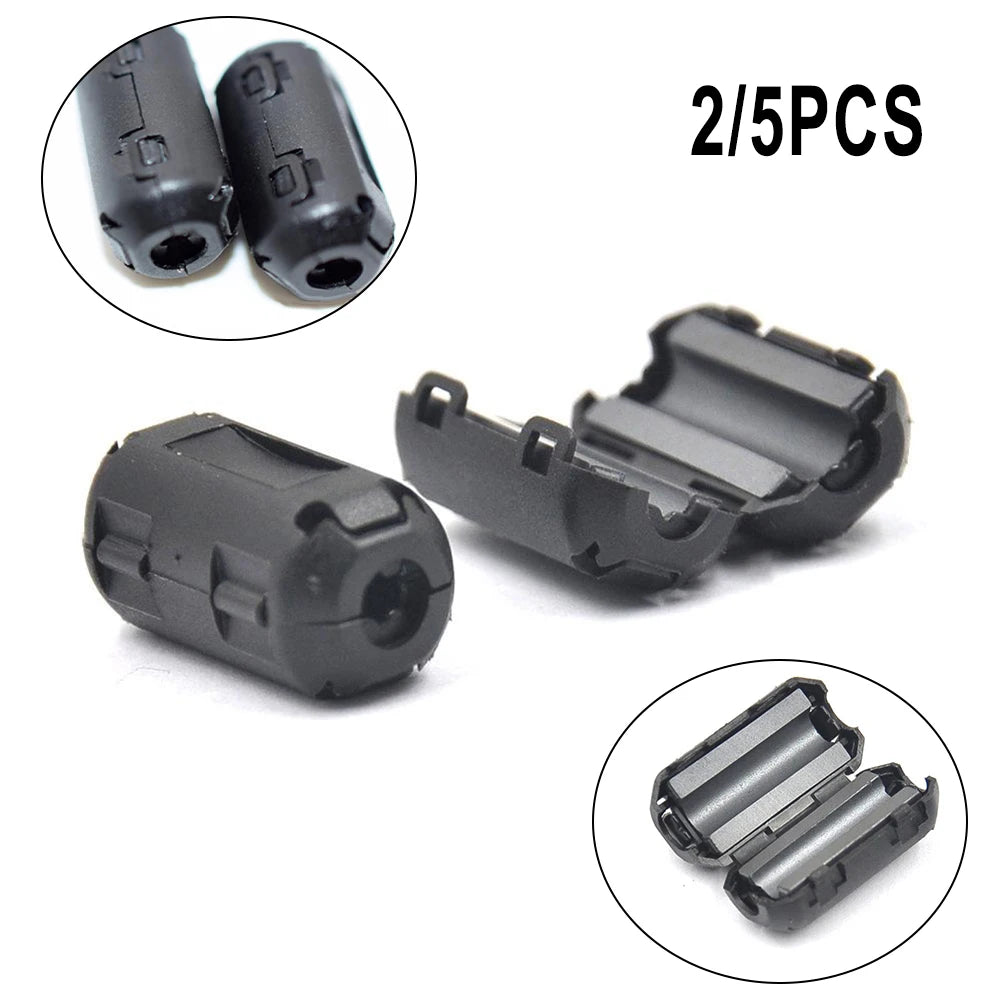

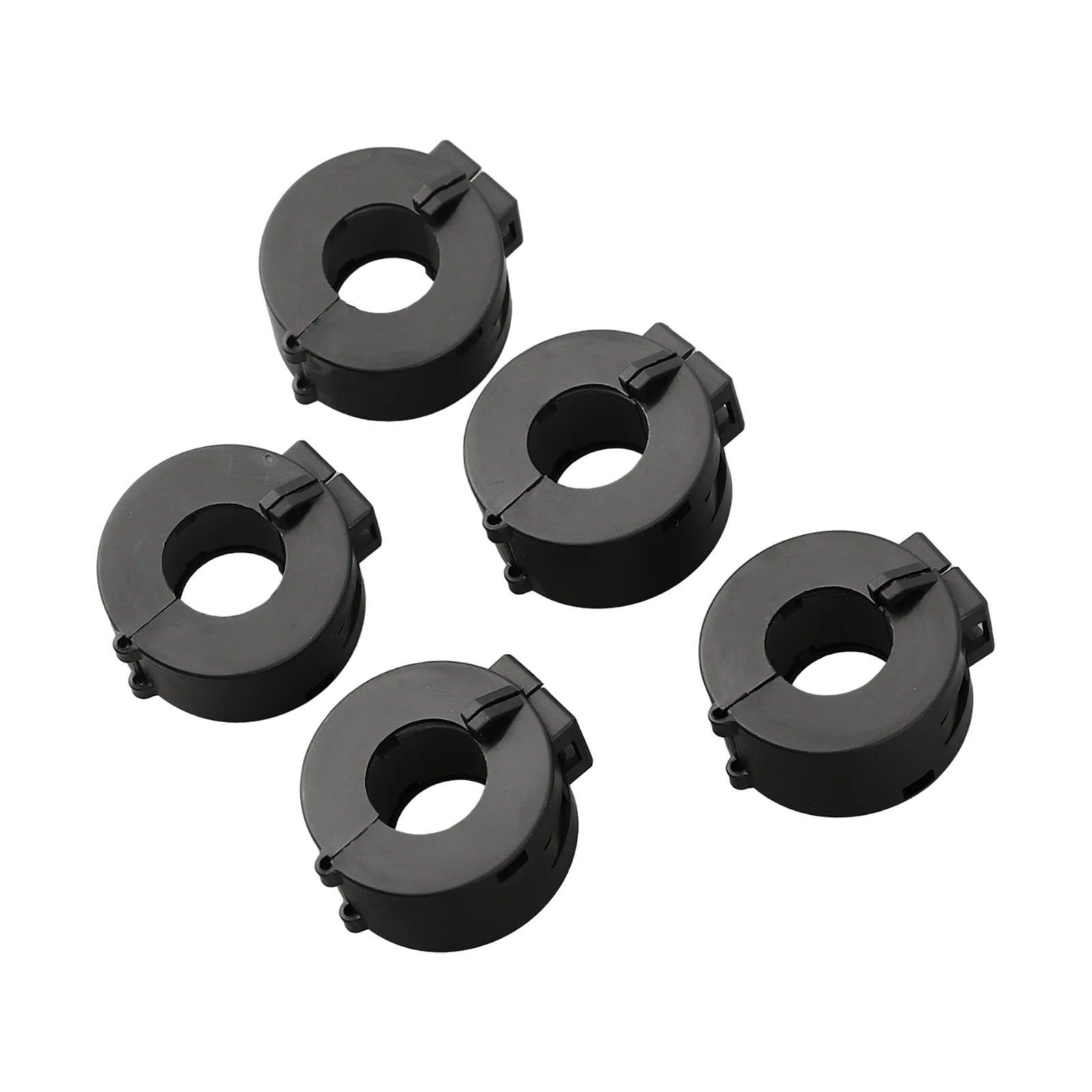

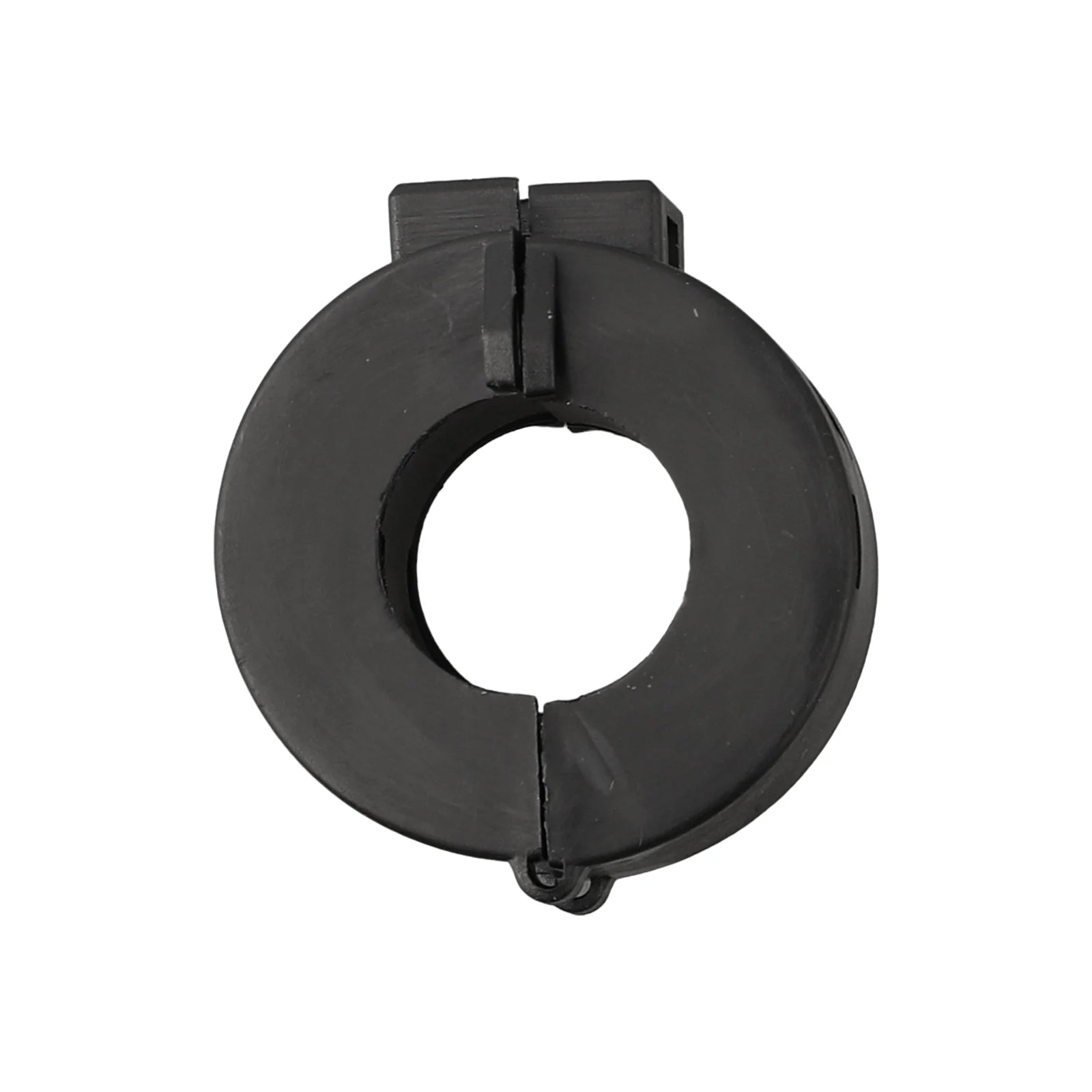

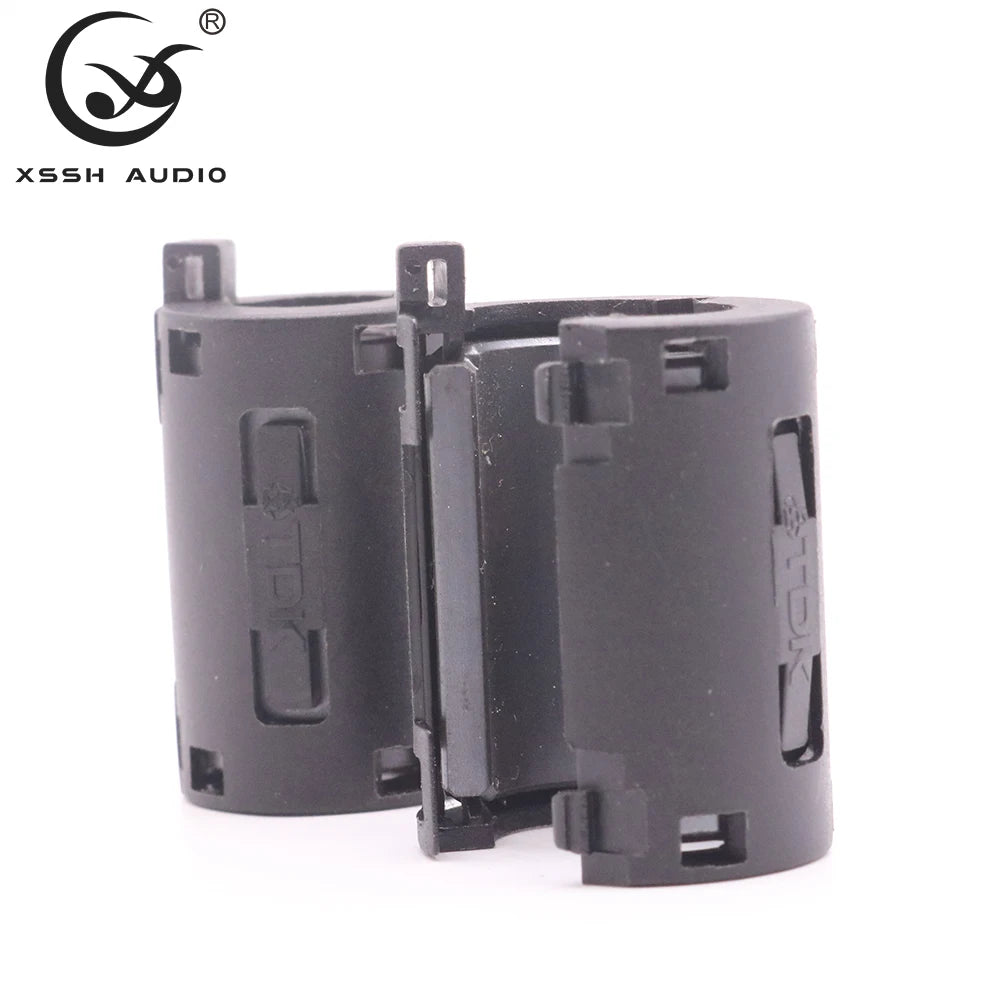

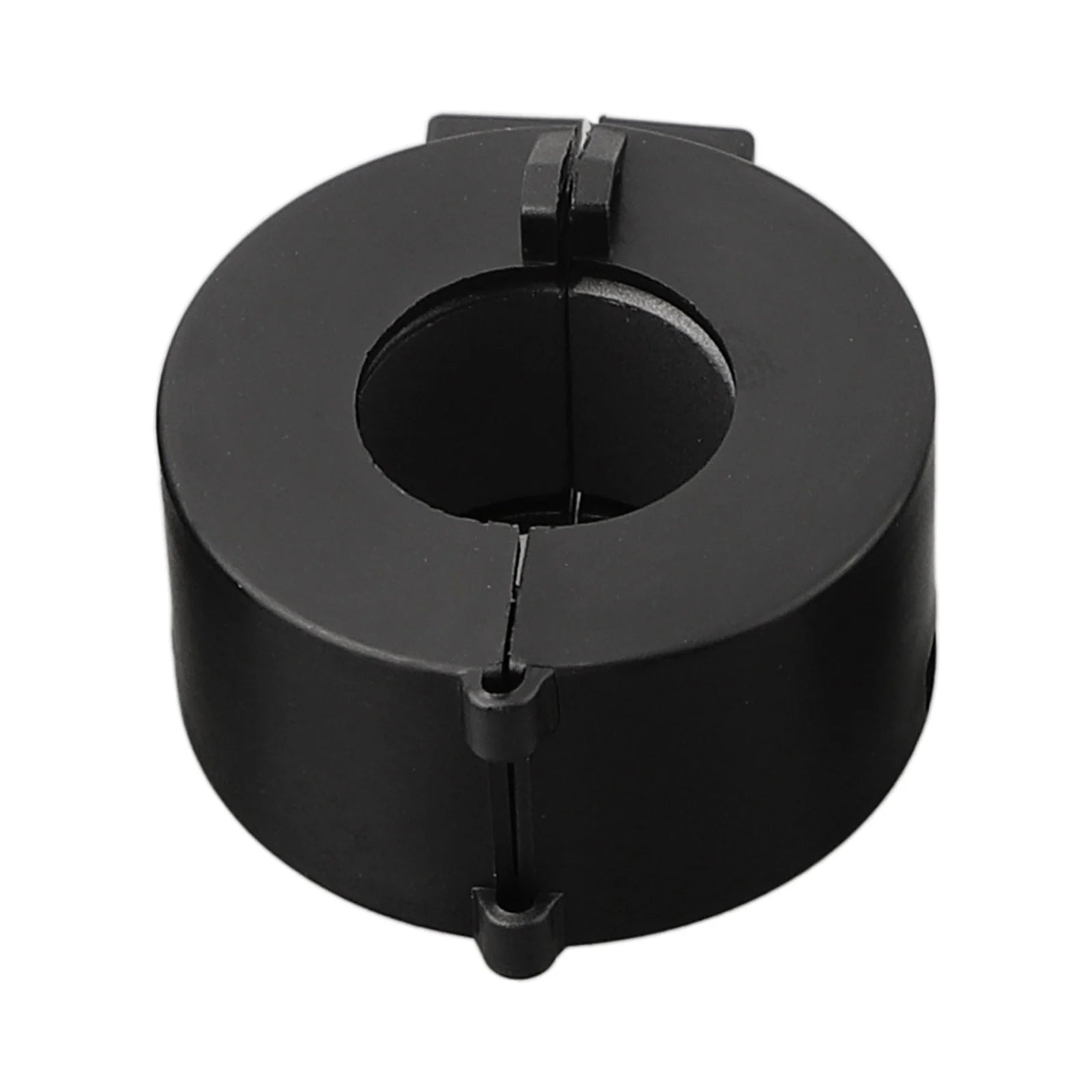

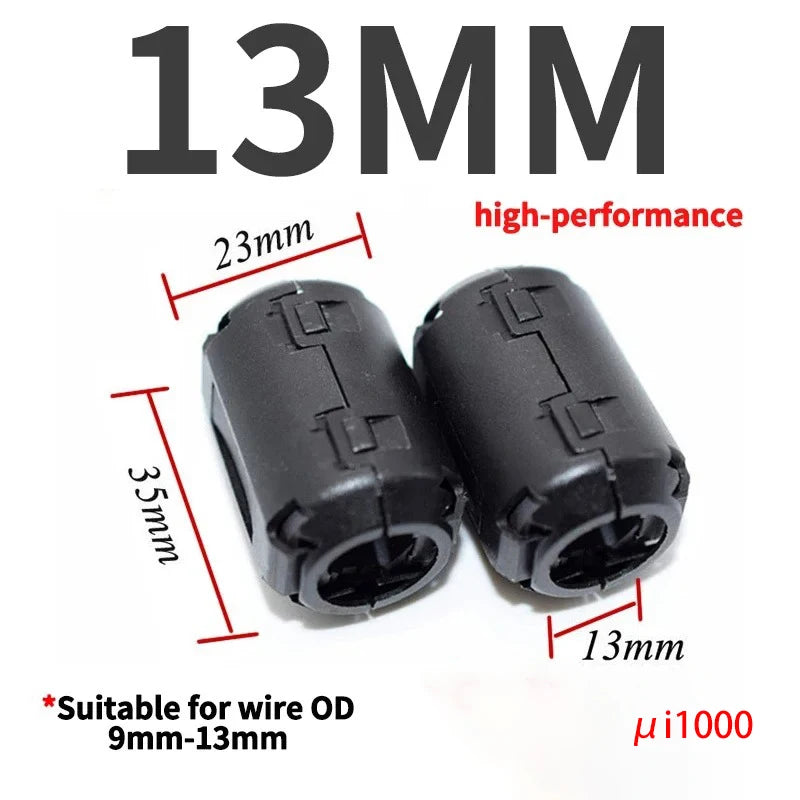

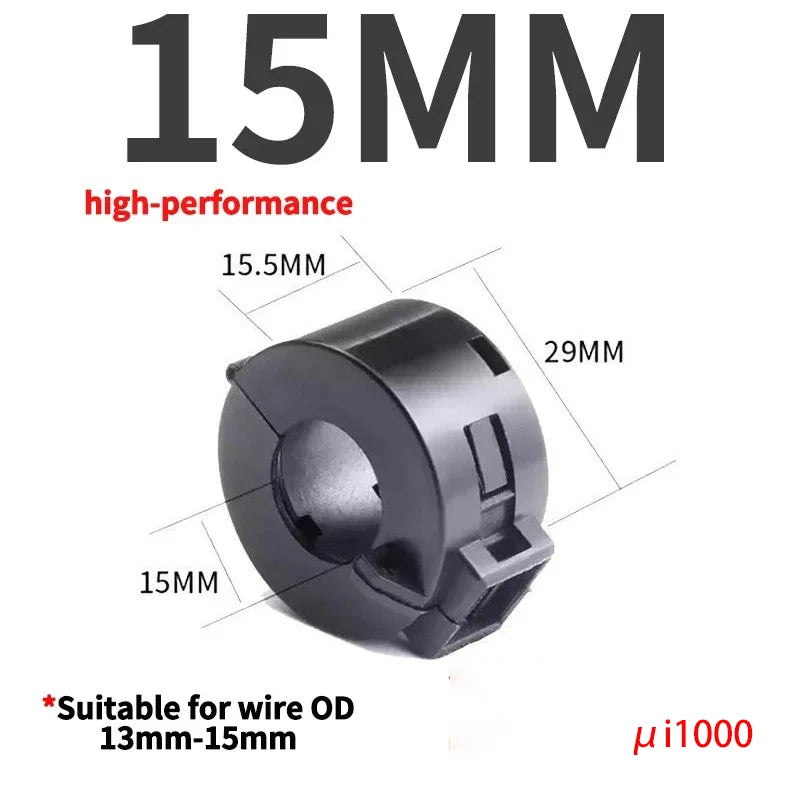

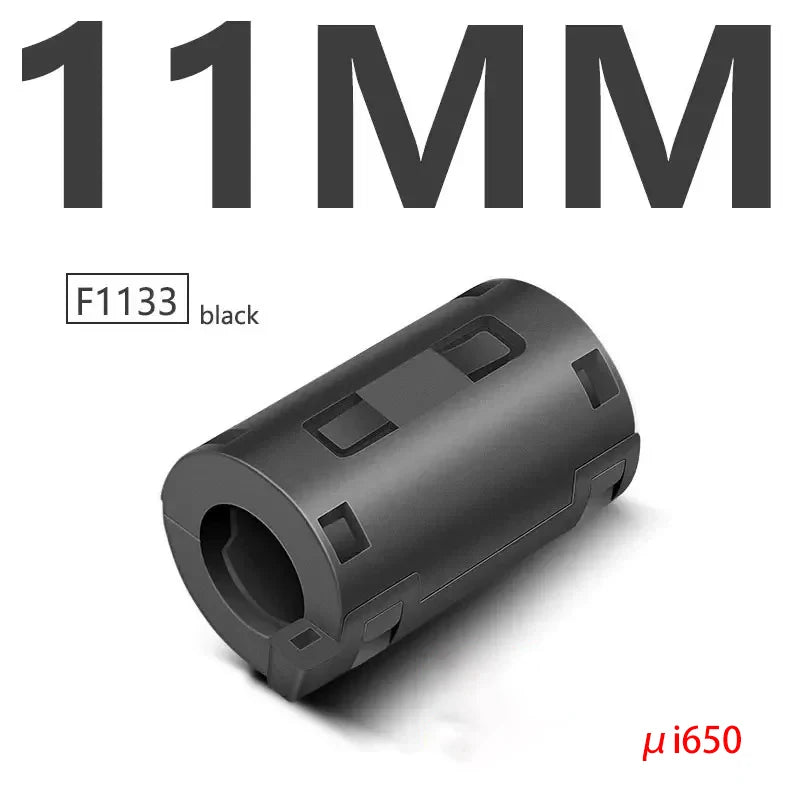

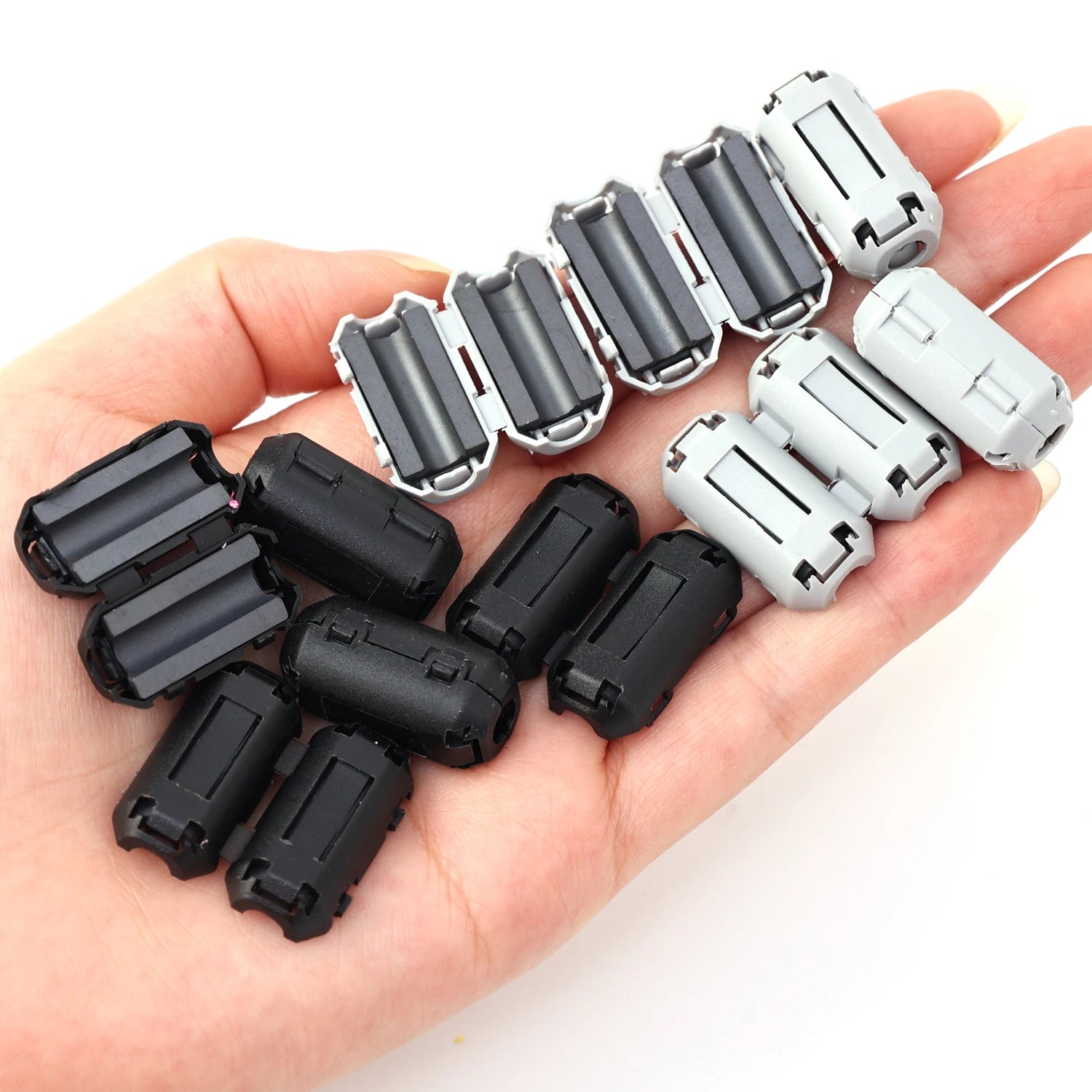

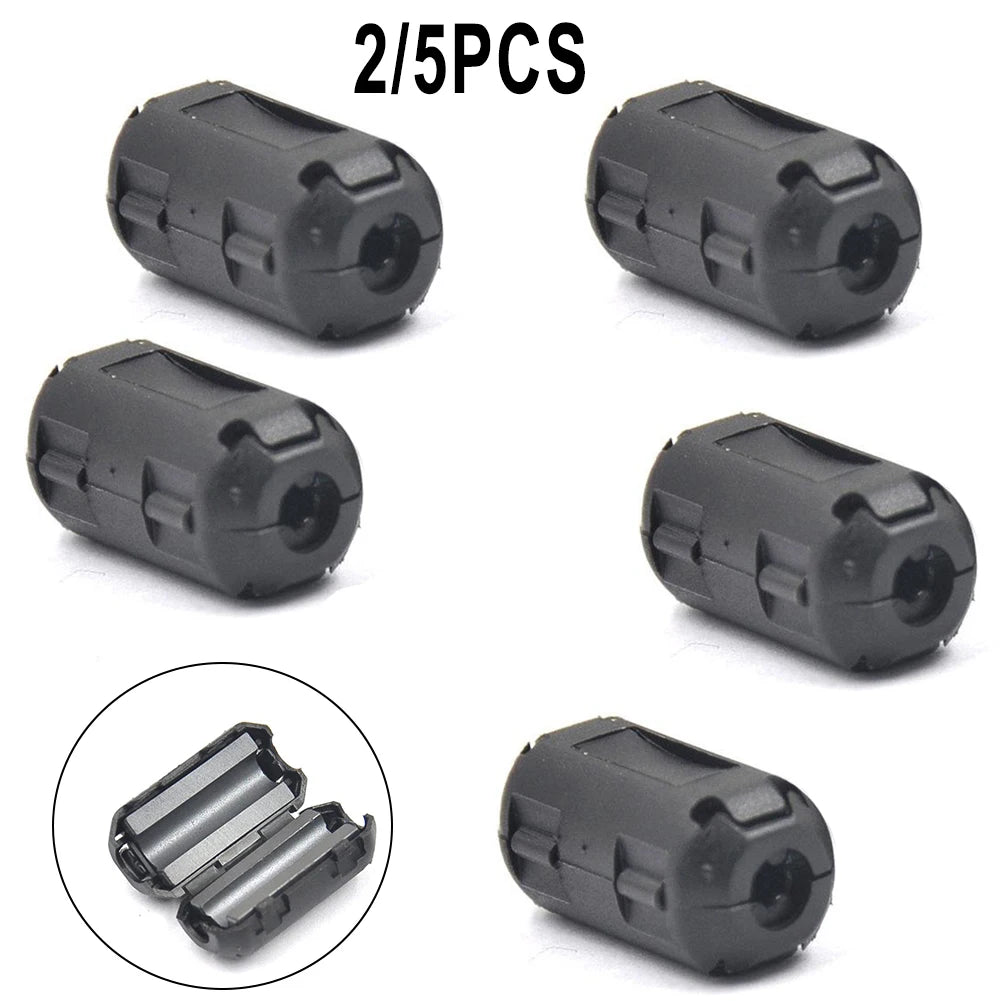

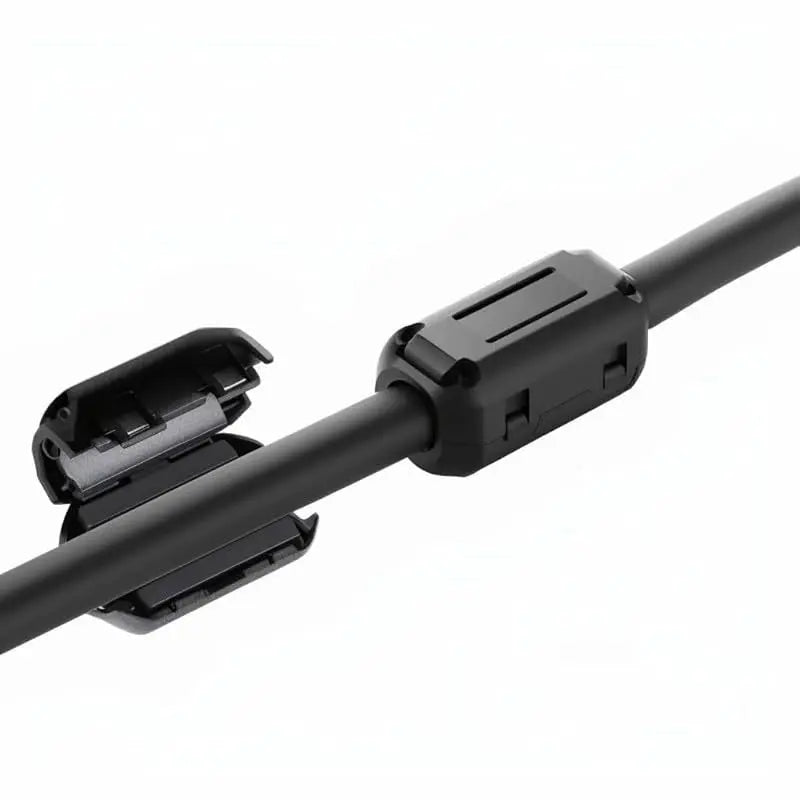

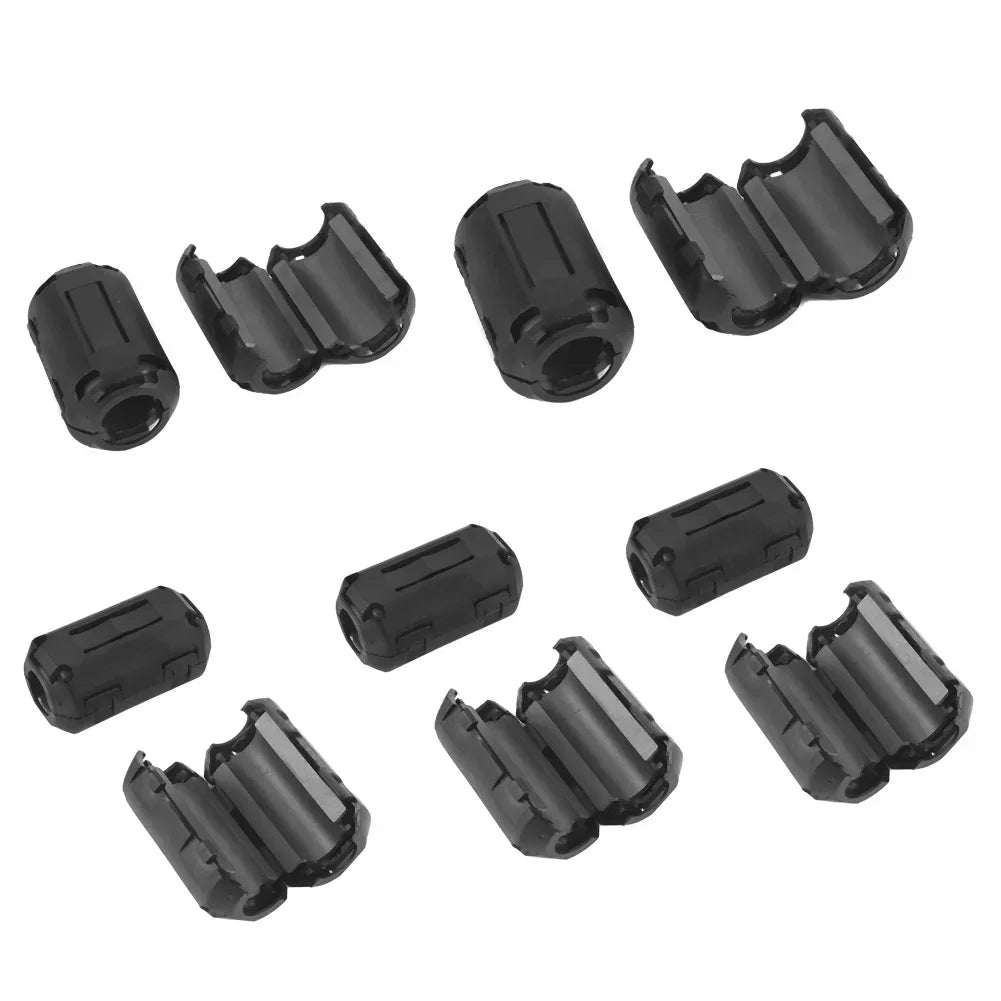

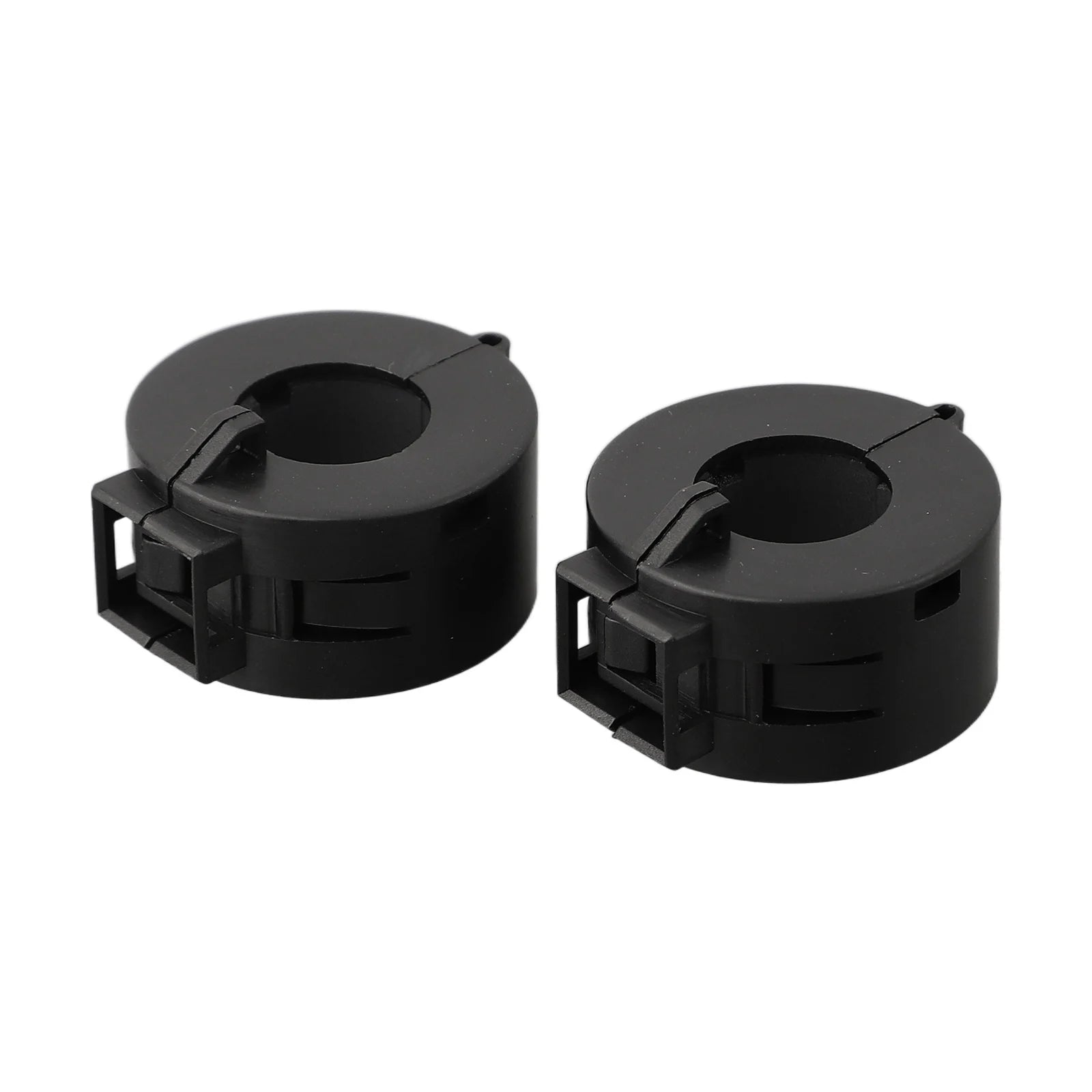

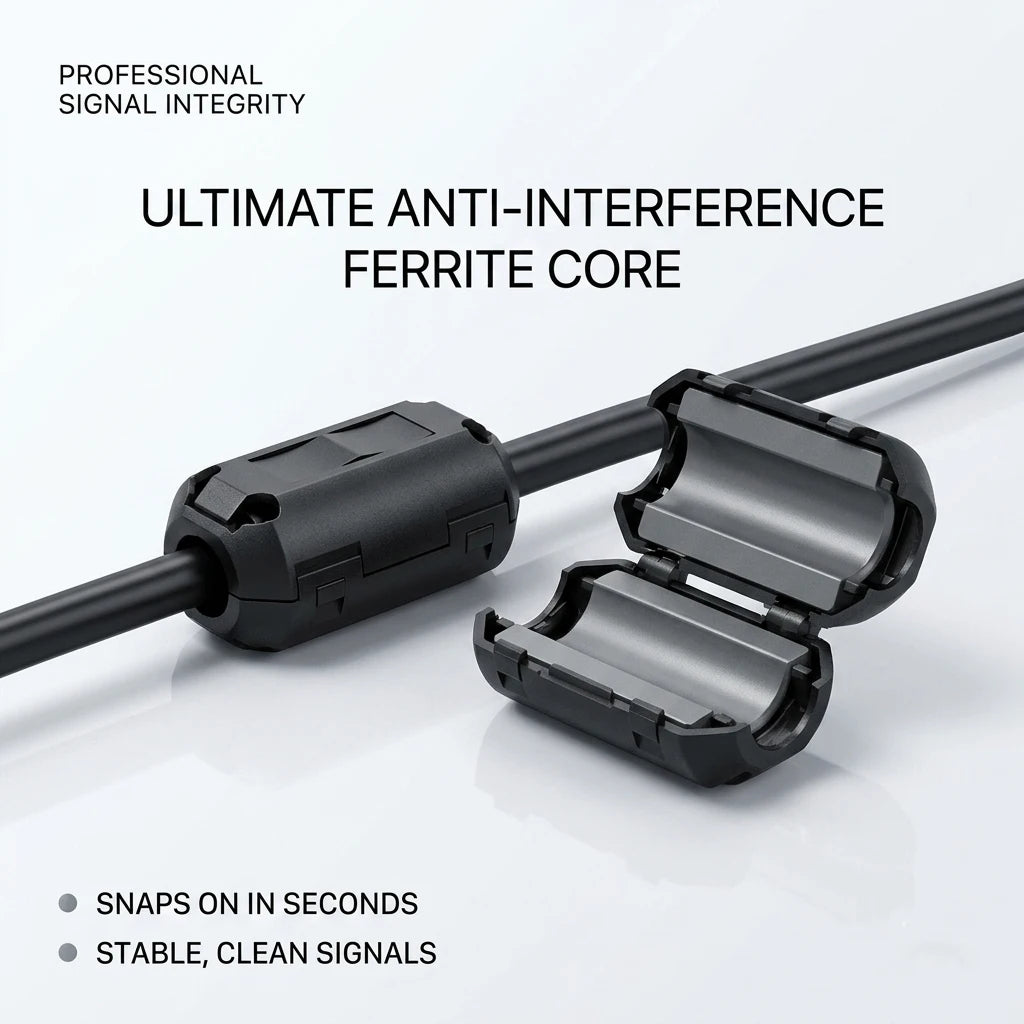

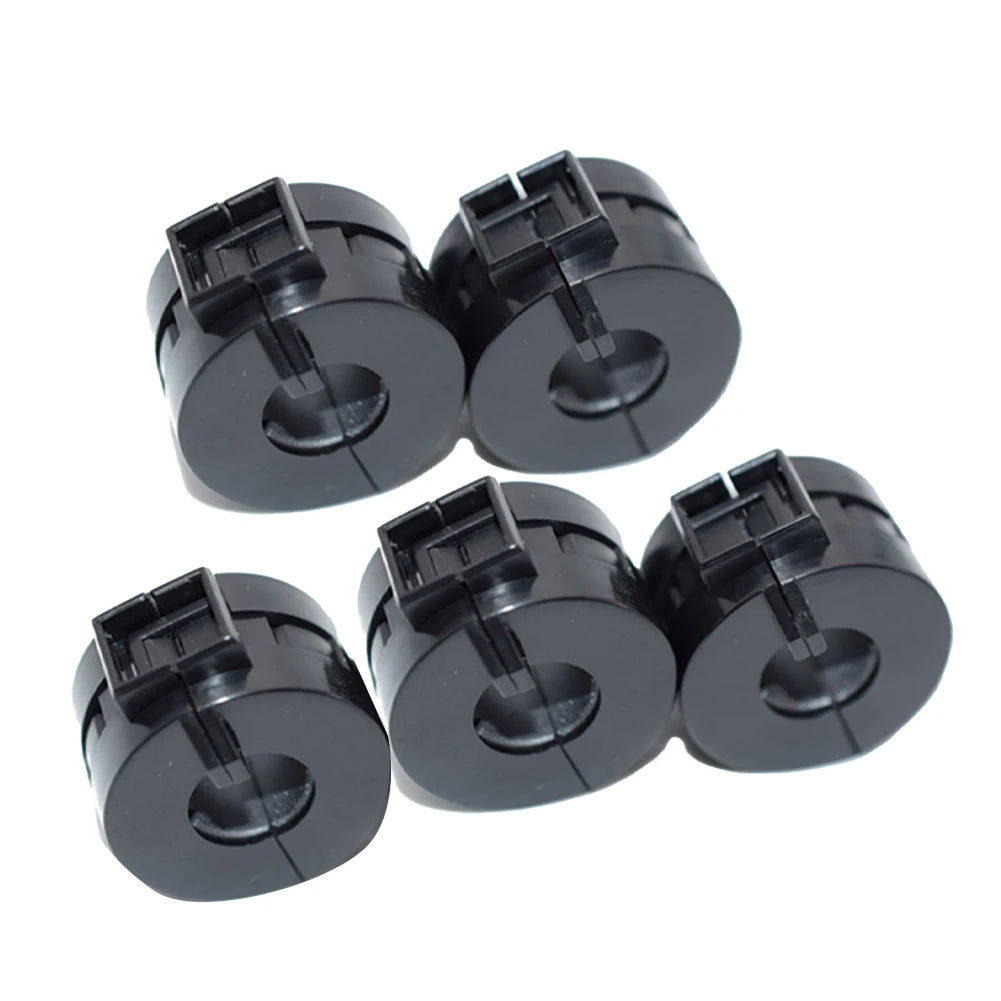

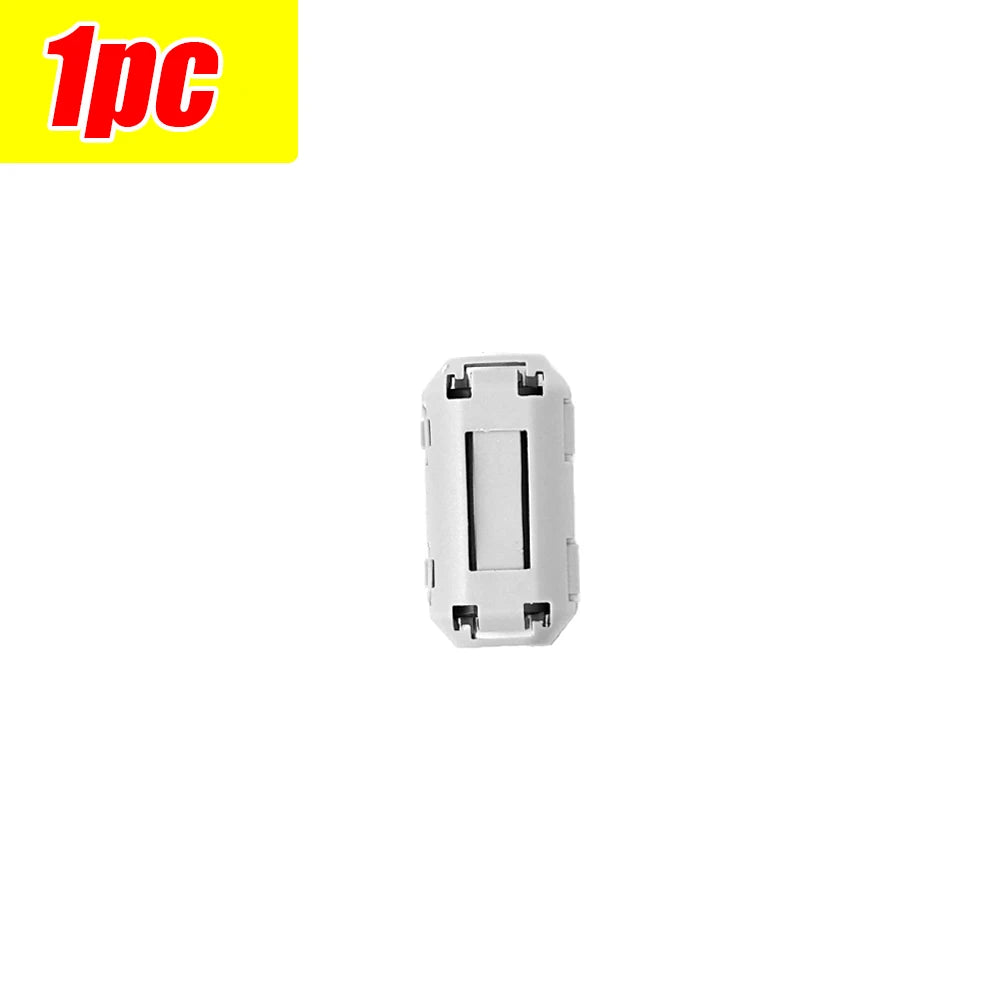

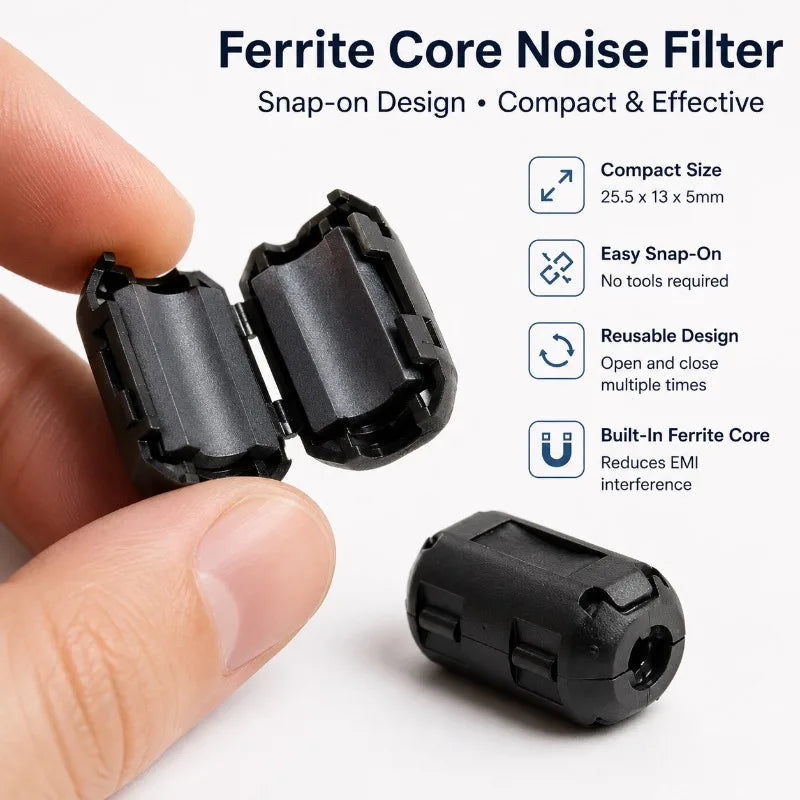

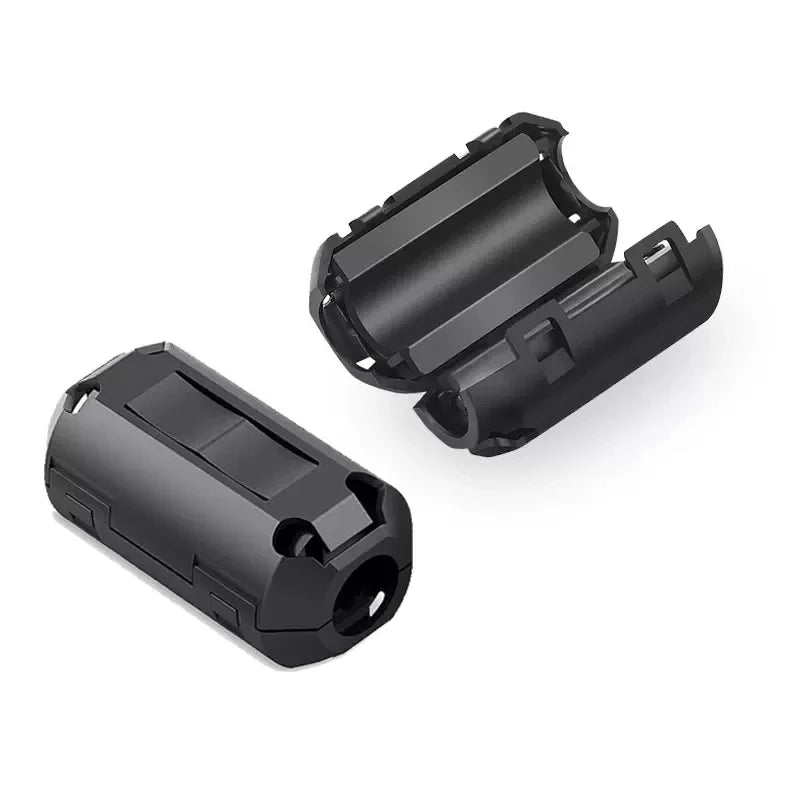

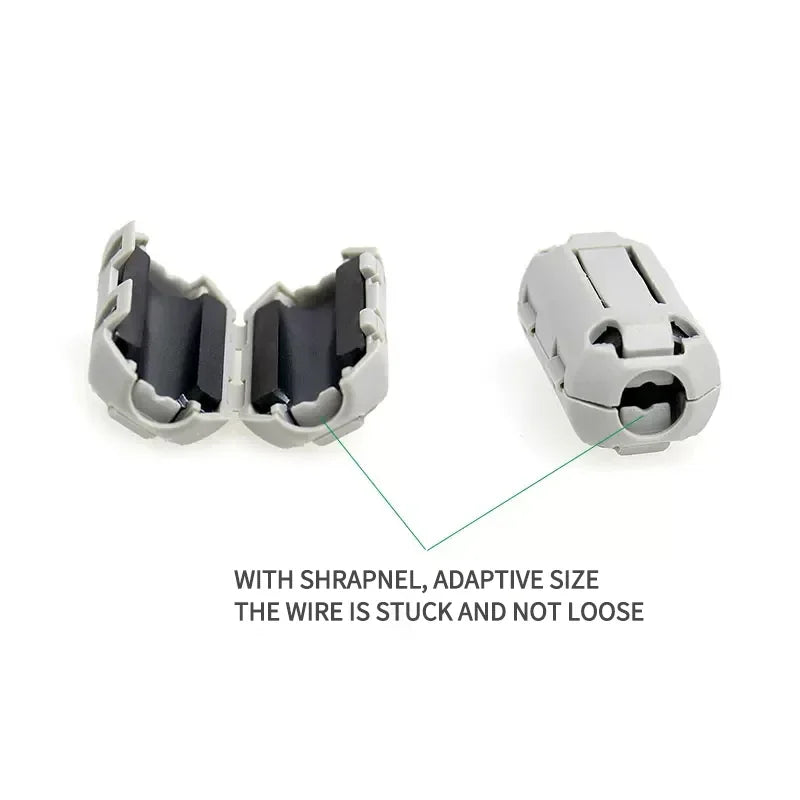

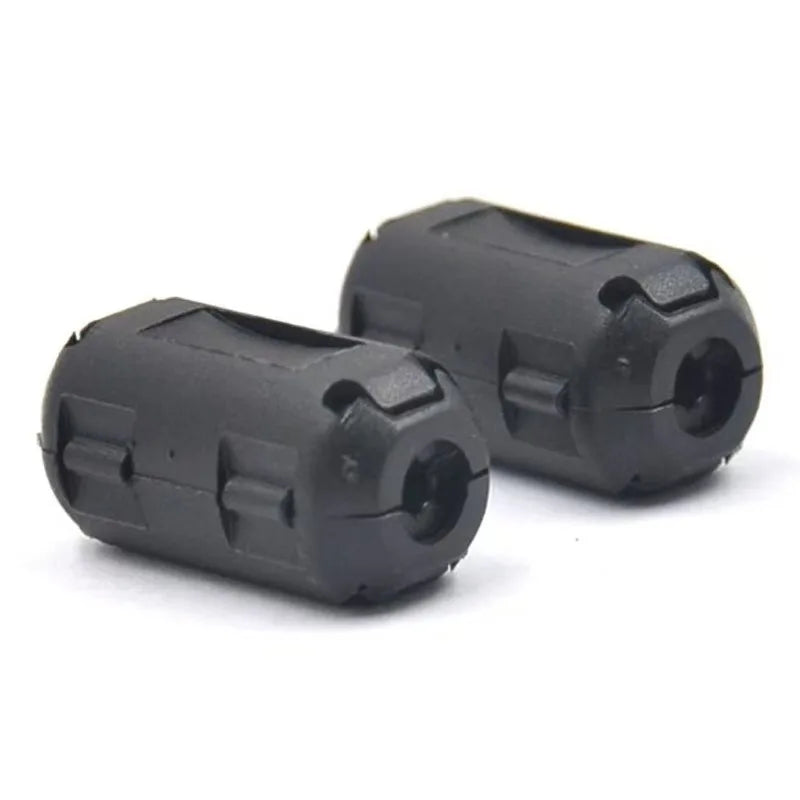

- Split-shell clips: hinged plastic cases close around an intact cable; some variants specify black or gray shell, size and quantities, while others distinguish ui650 and ui1000 grades. Those labels alone do not provide a verified impedance curve or guarantee that the magnetic materials are interchangeable.

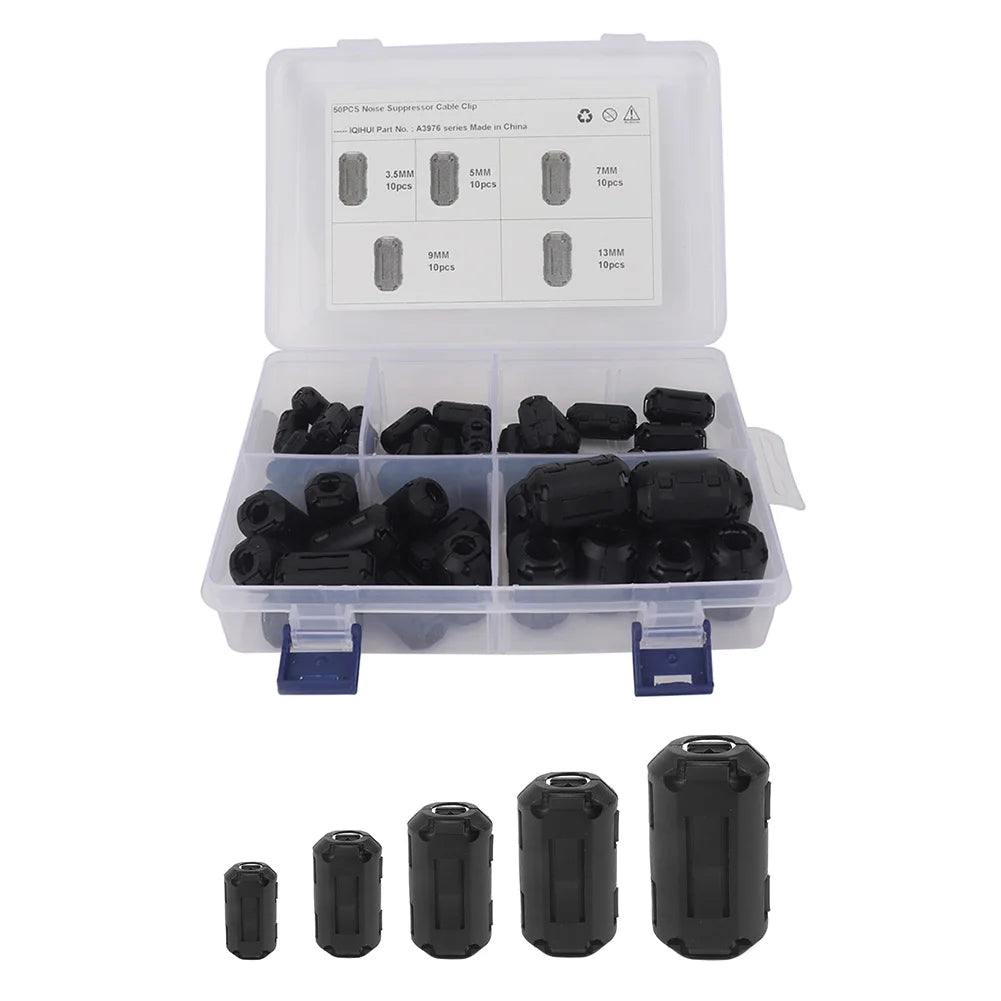

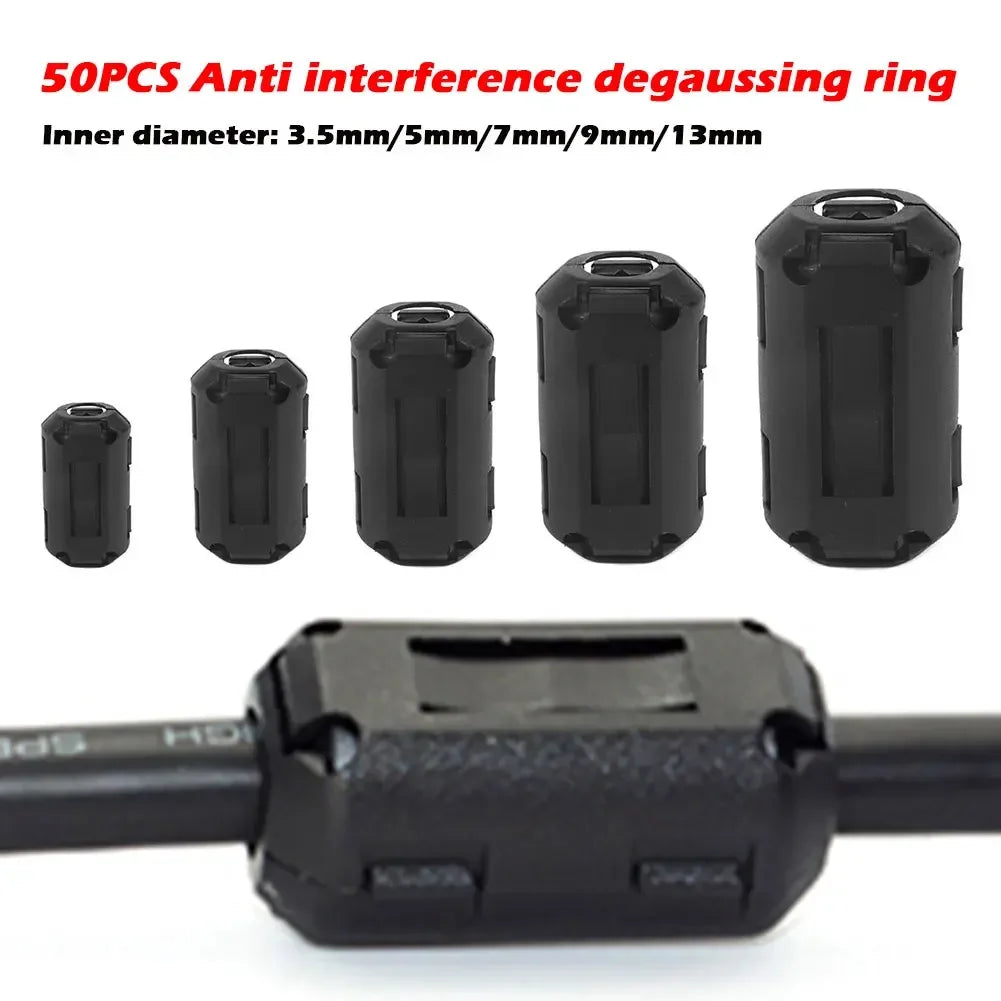

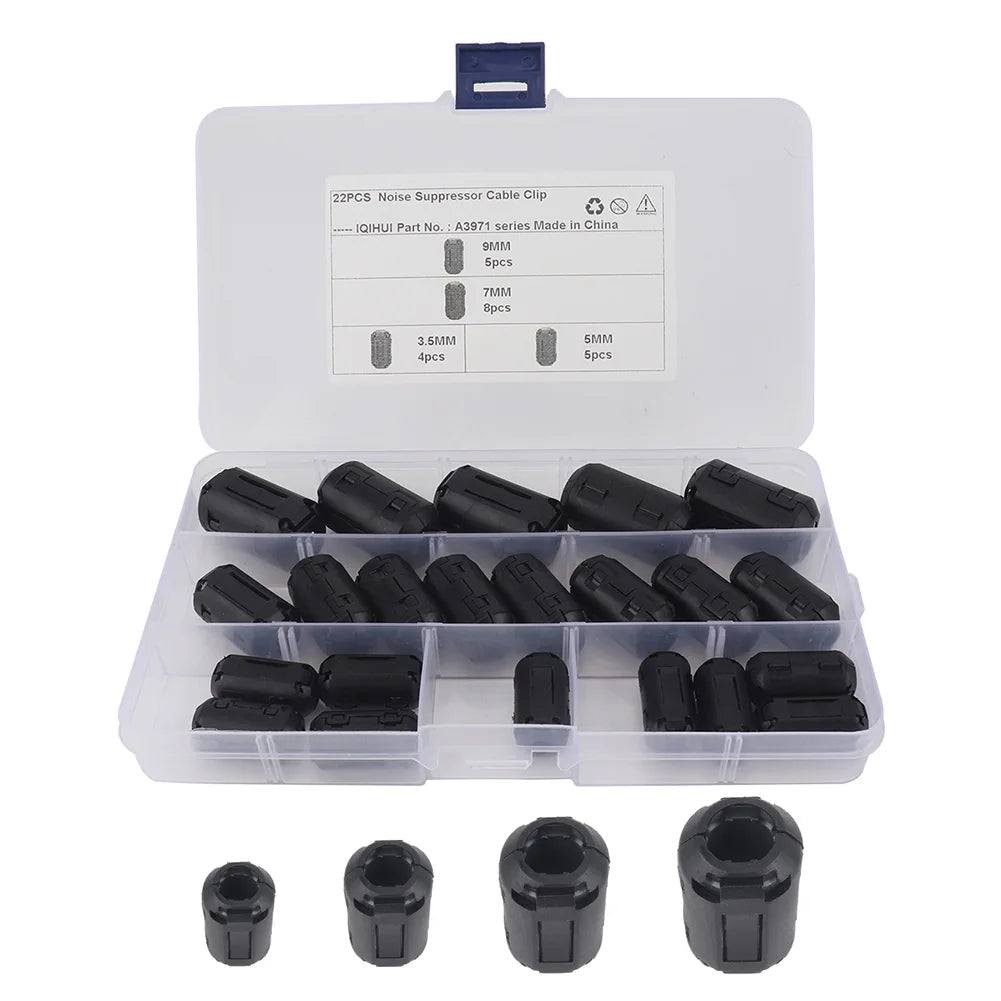

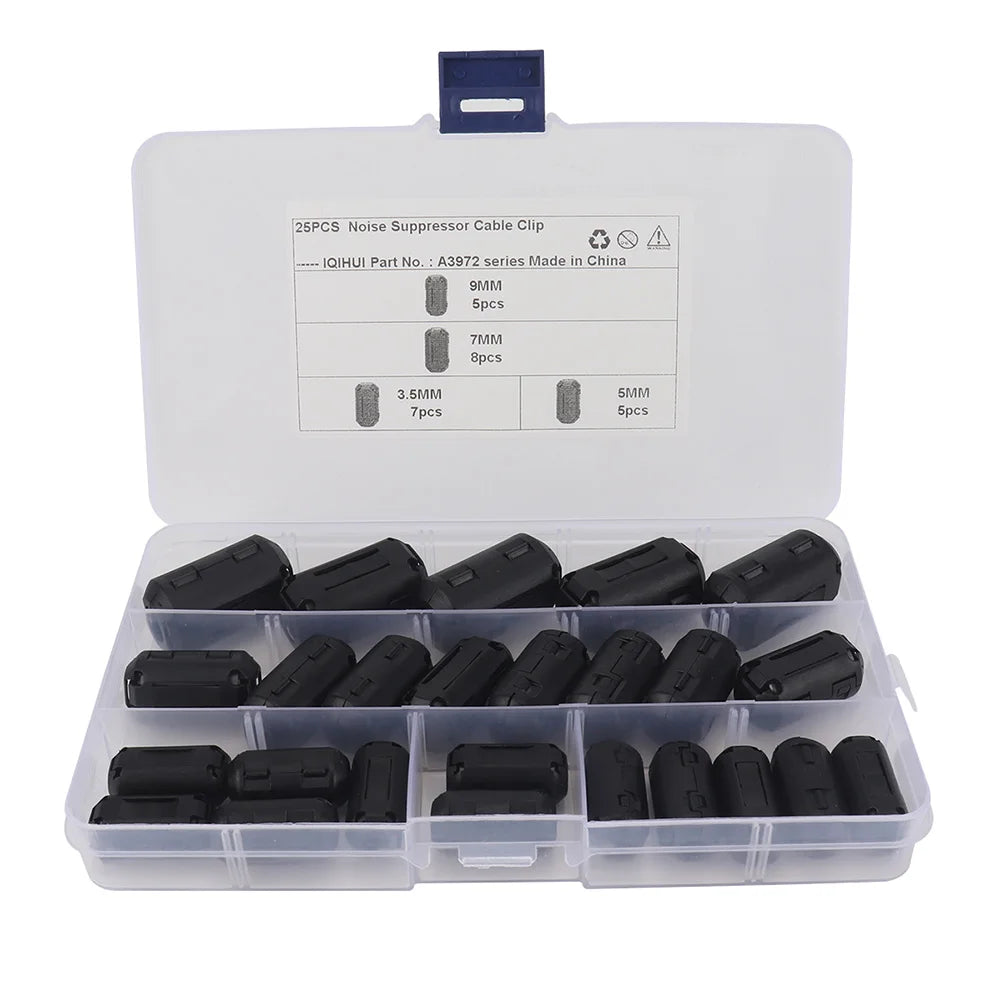

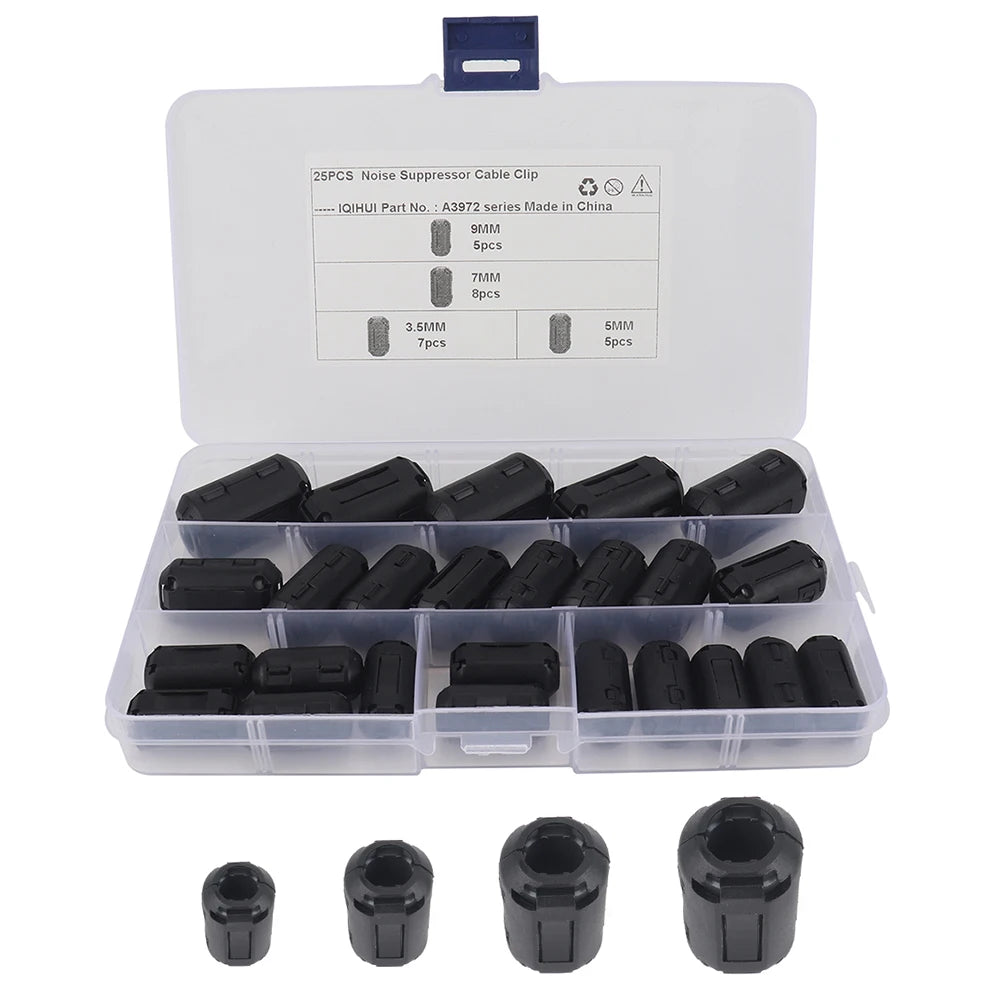

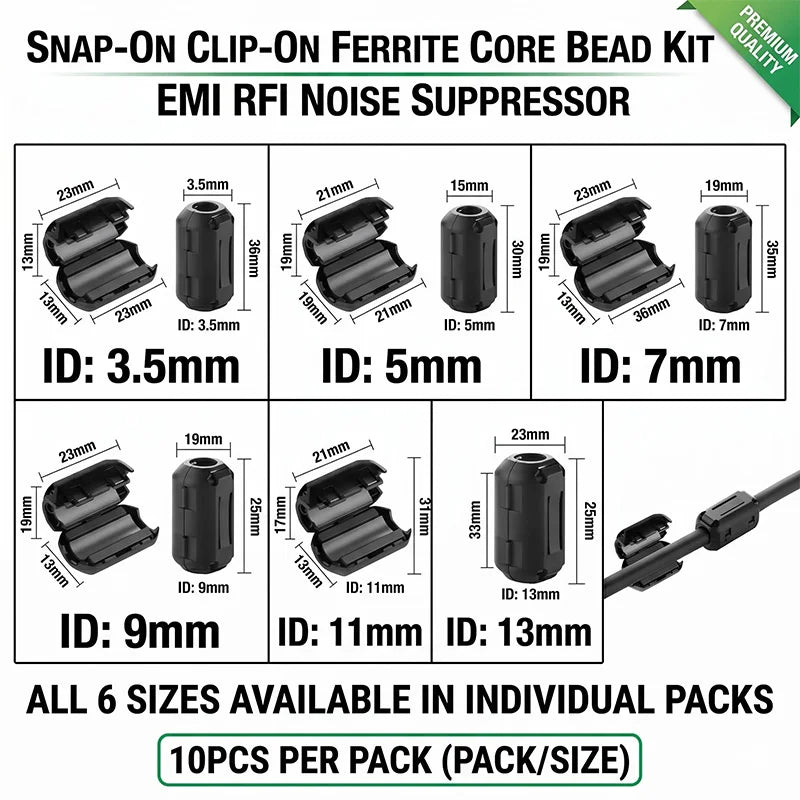

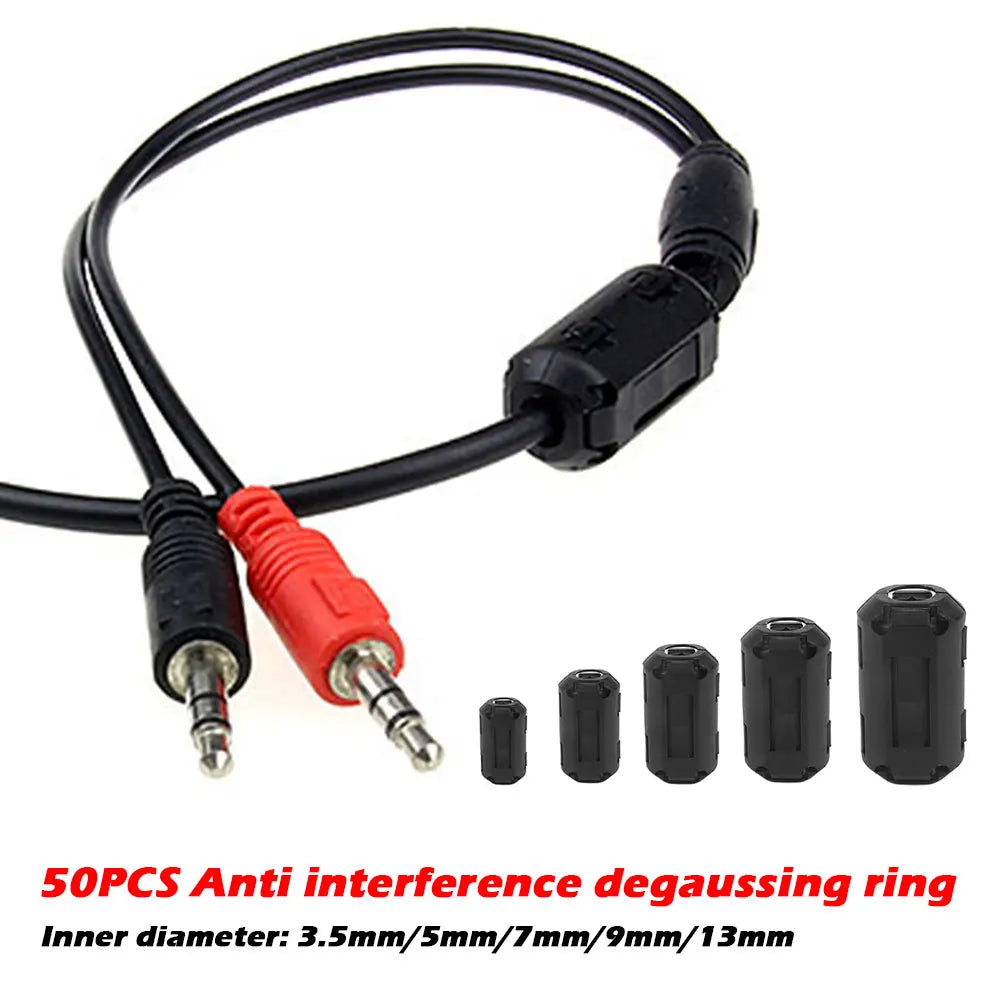

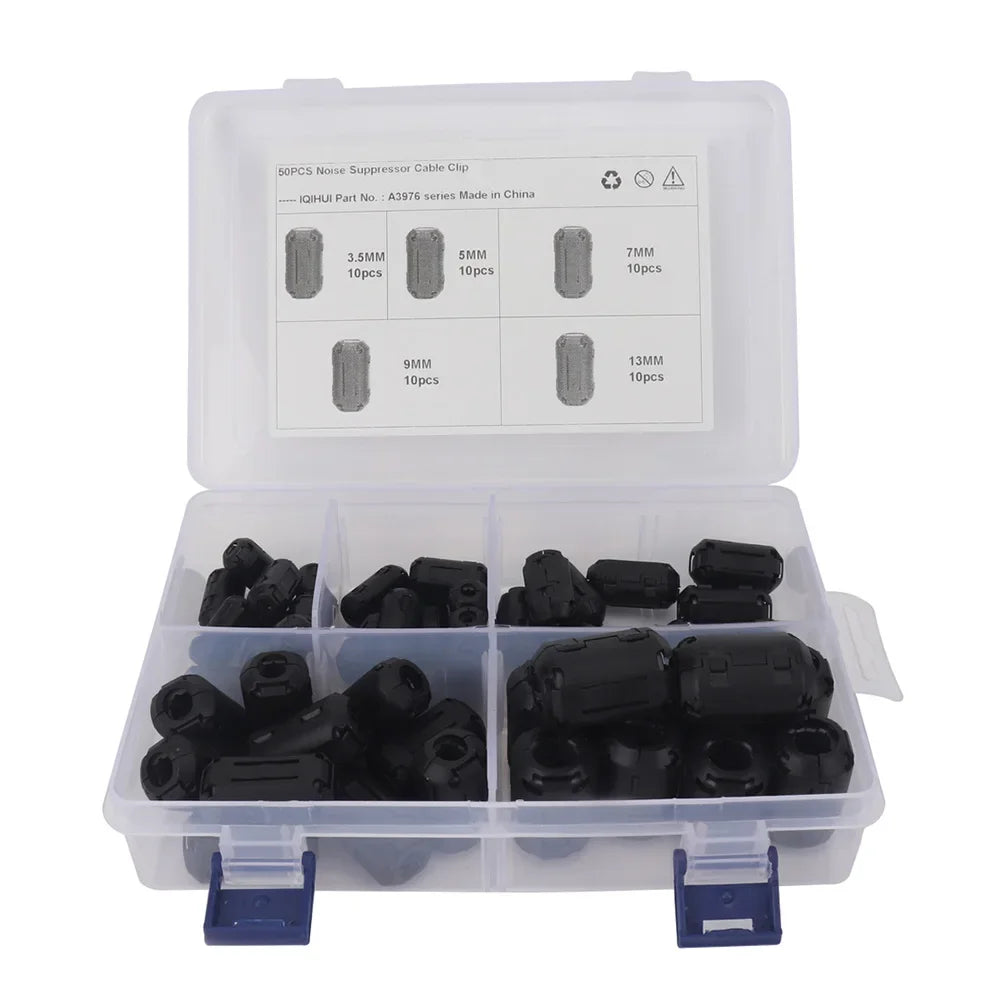

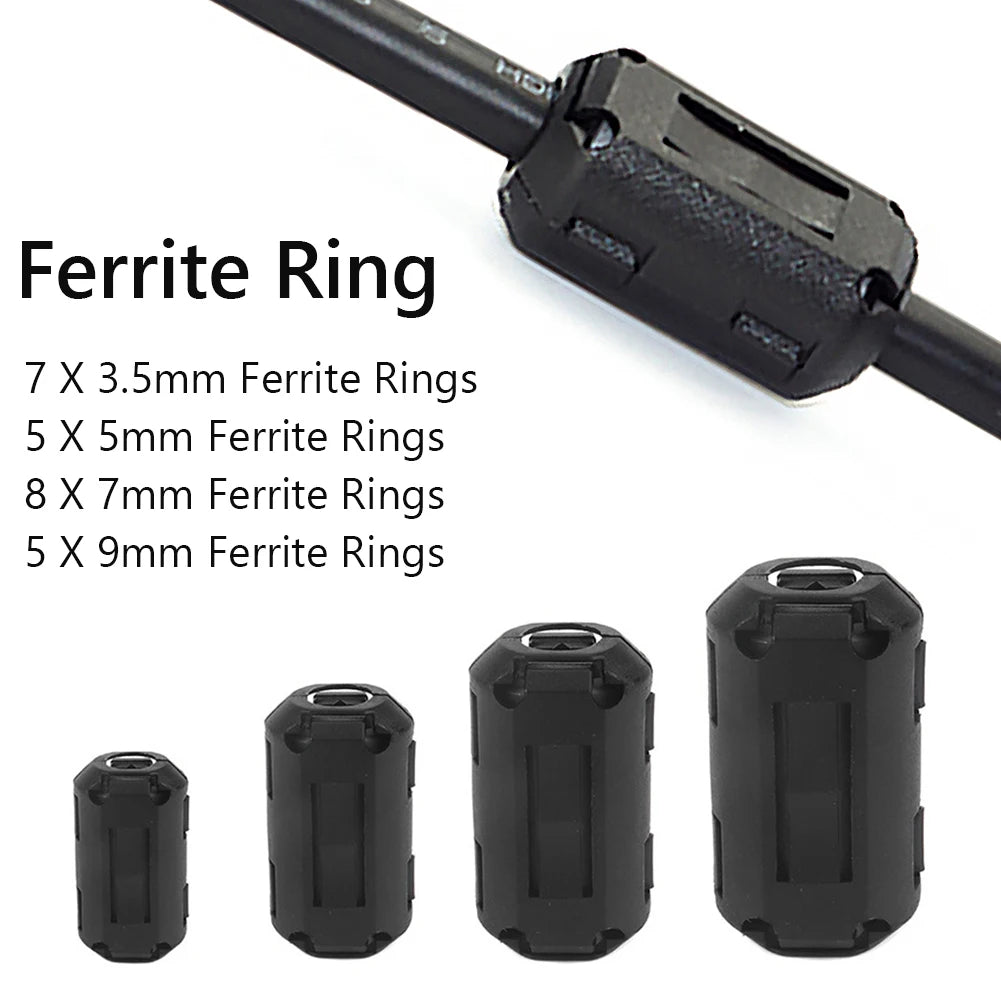

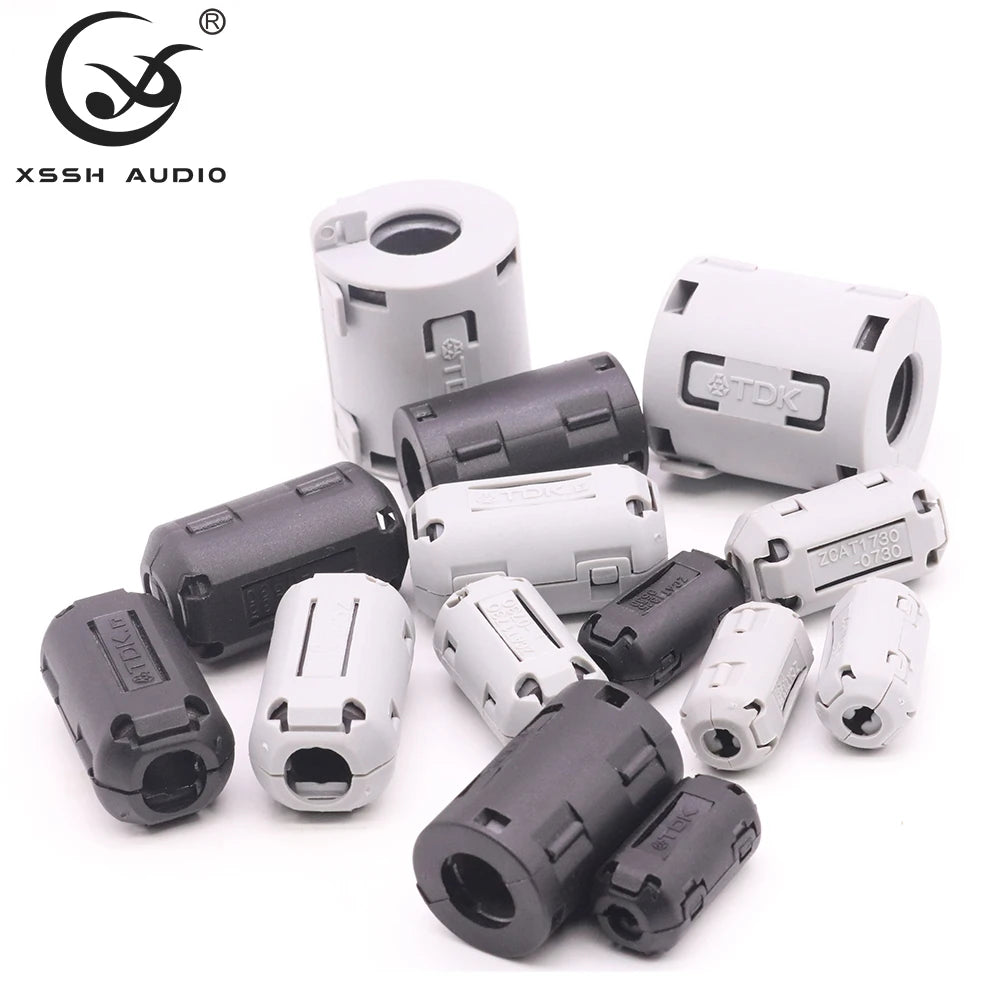

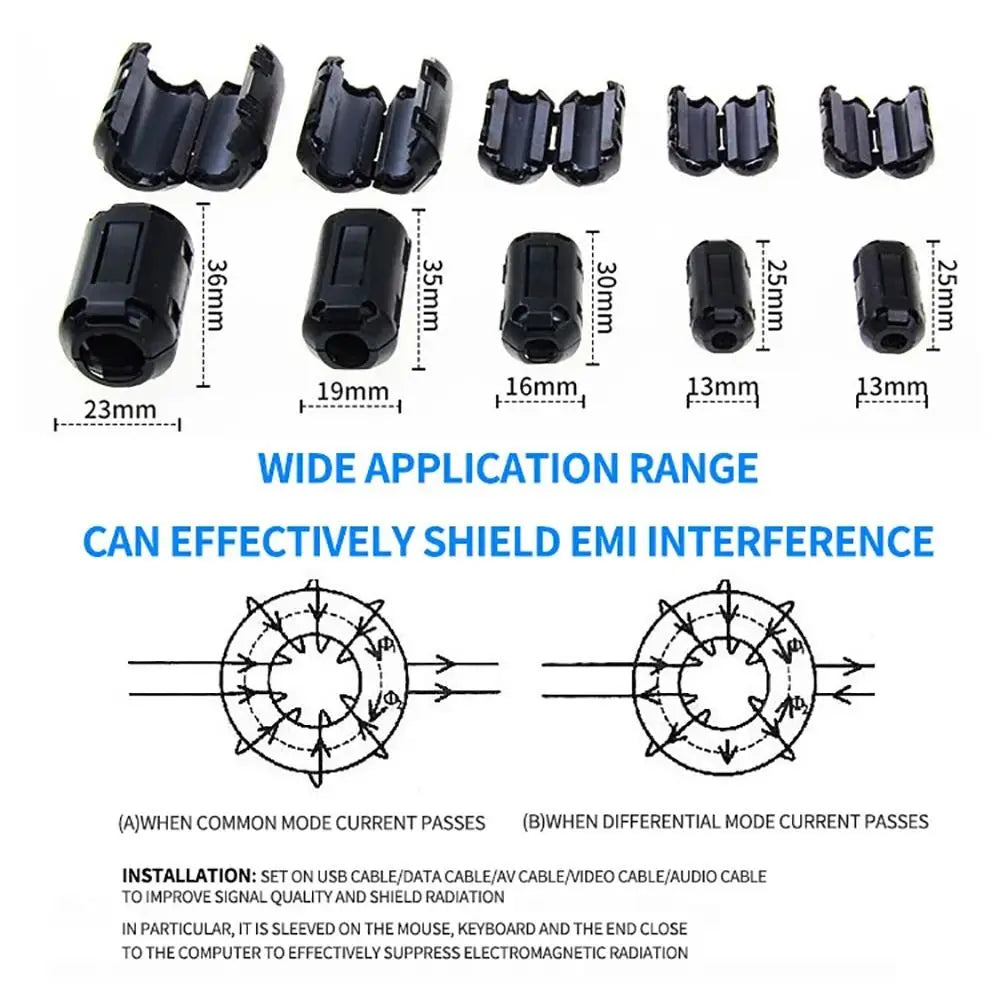

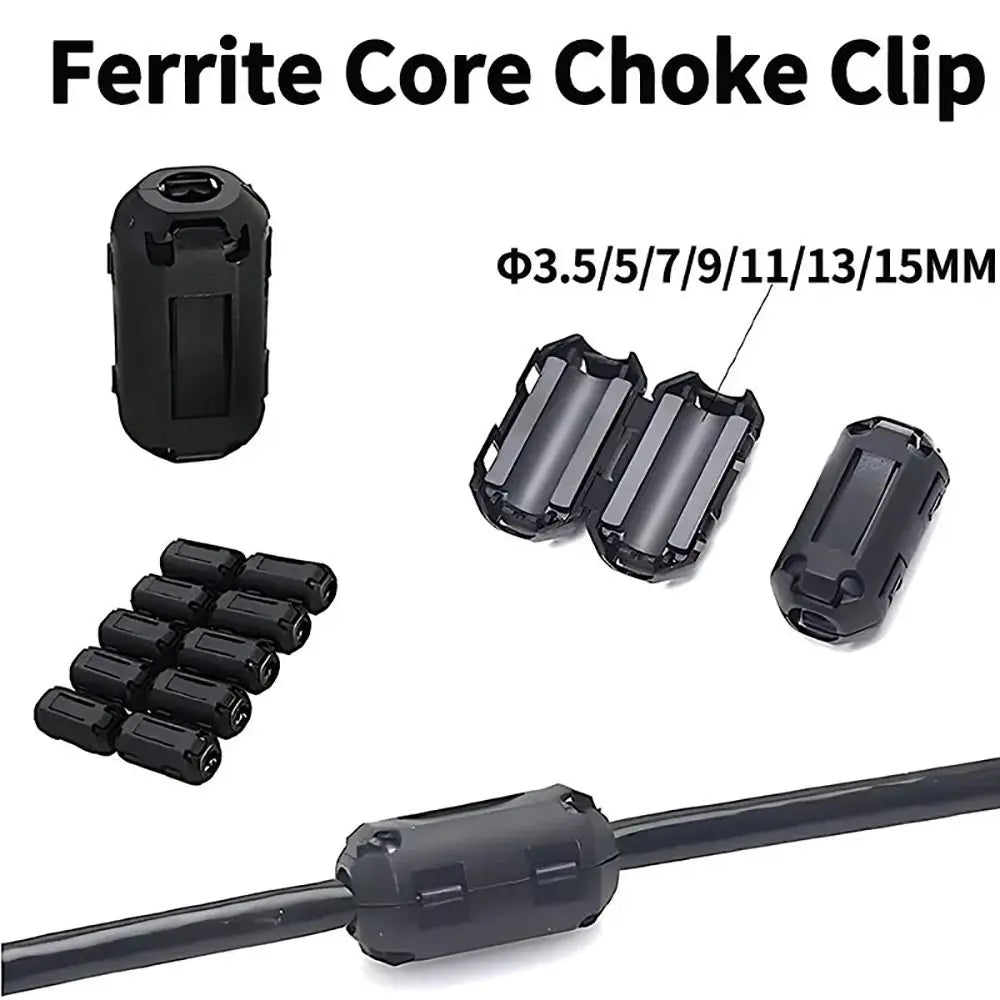

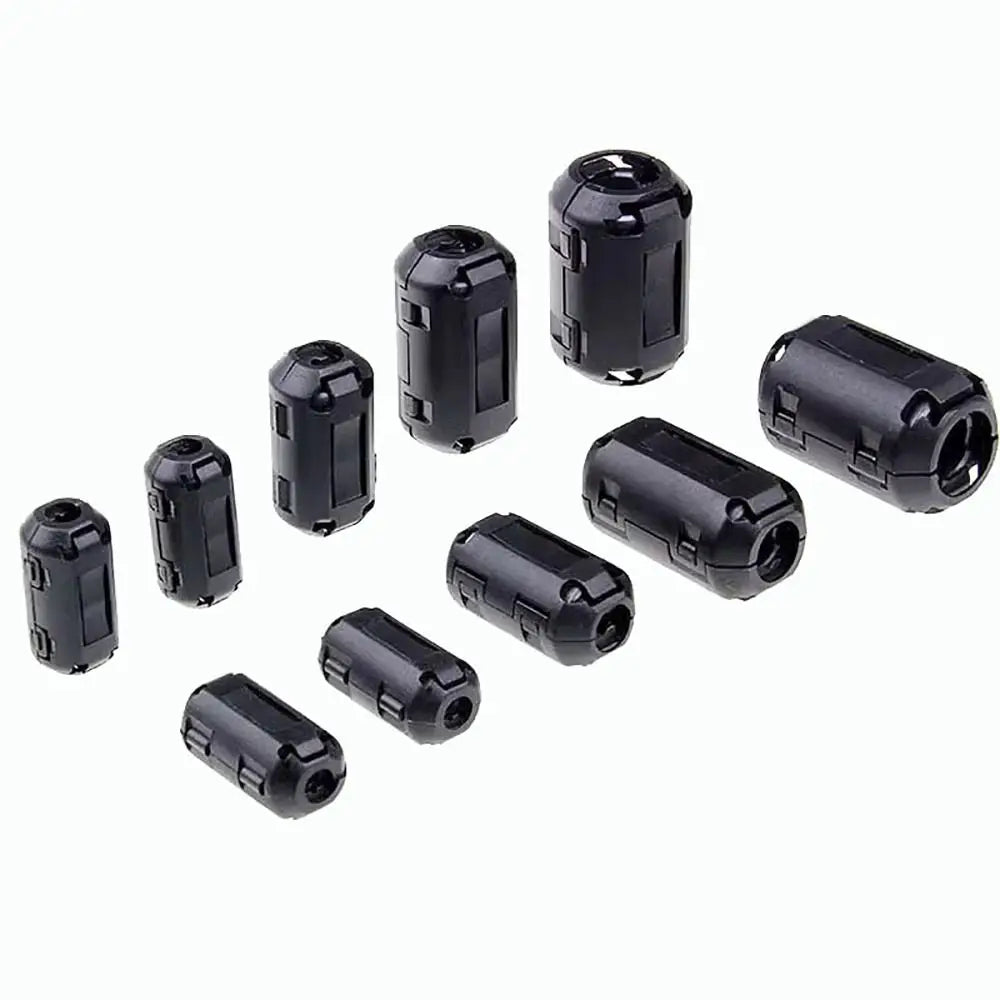

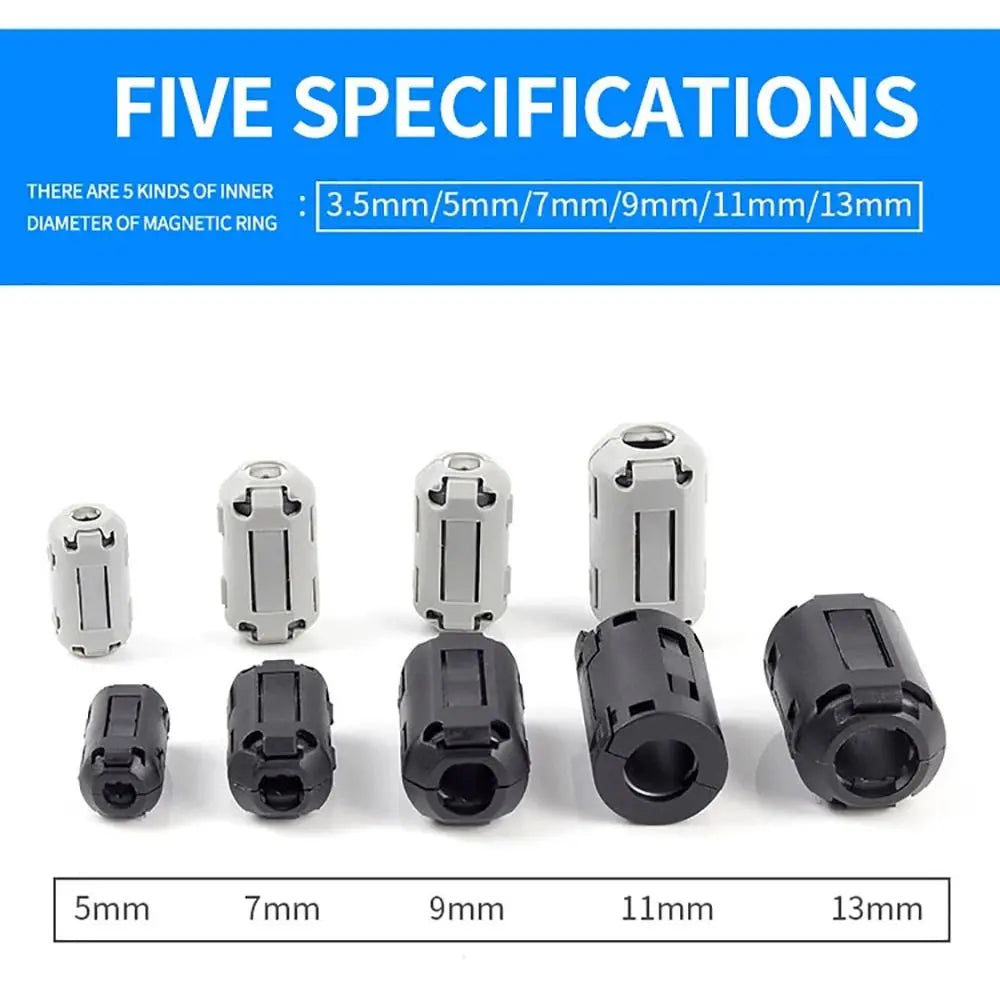

- Mixed-size sets: assortments offer several bore sizes for different cable outer diameters. A 24-piece set listing describes 3.5, 5, 7, 9 and 13 mm choices; inspect each kit's actual contents instead of assuming every pack has all sizes.

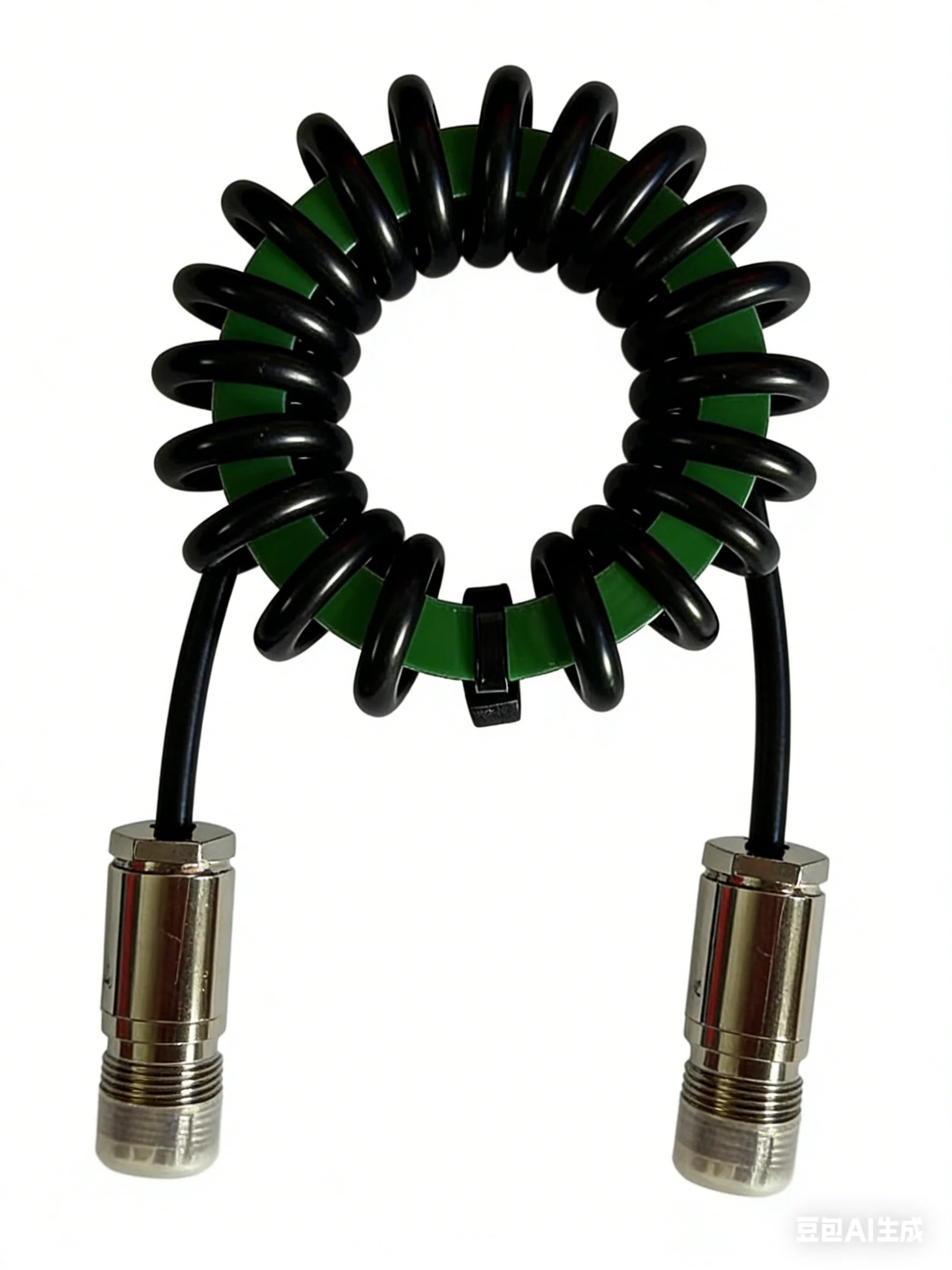

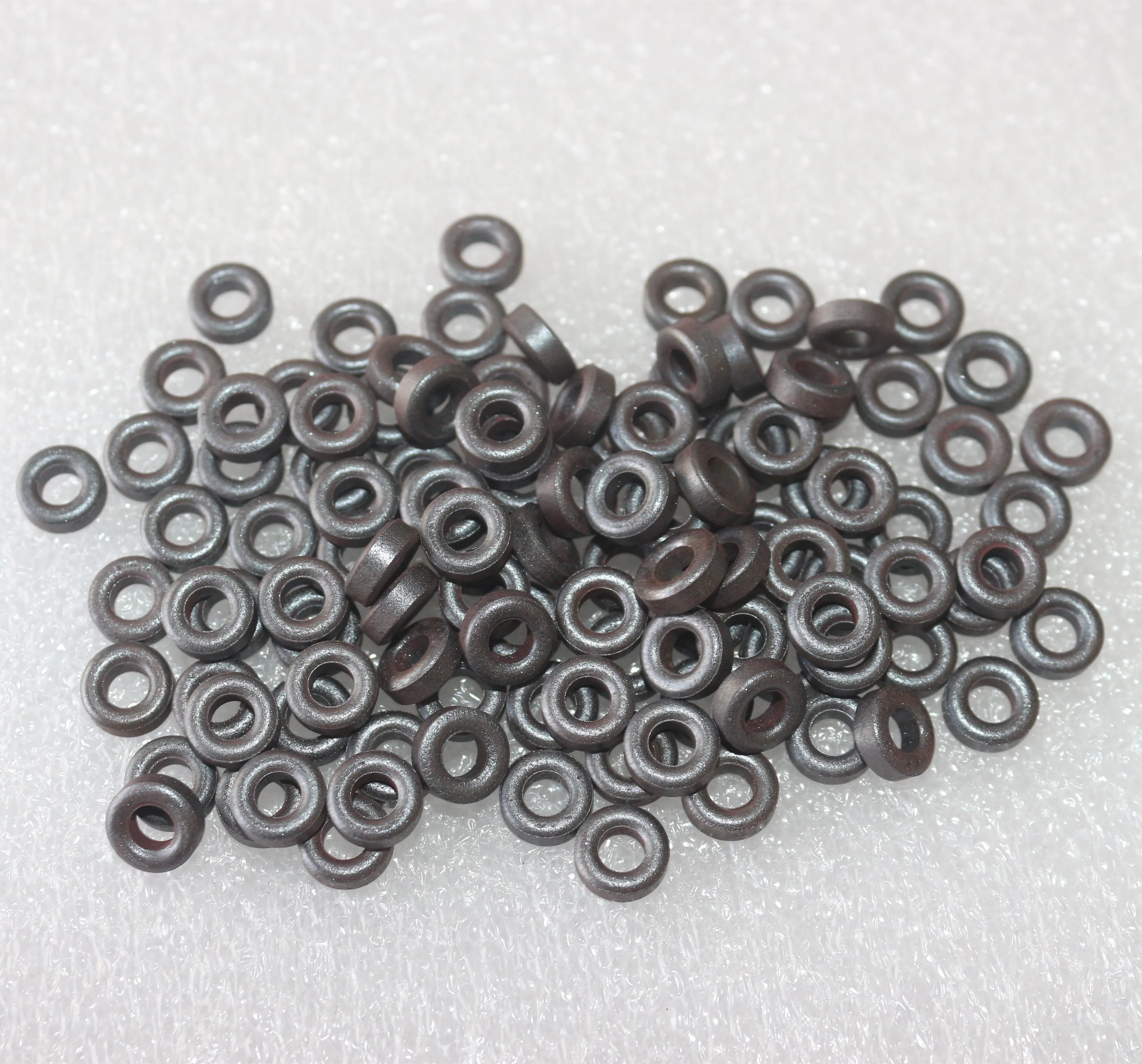

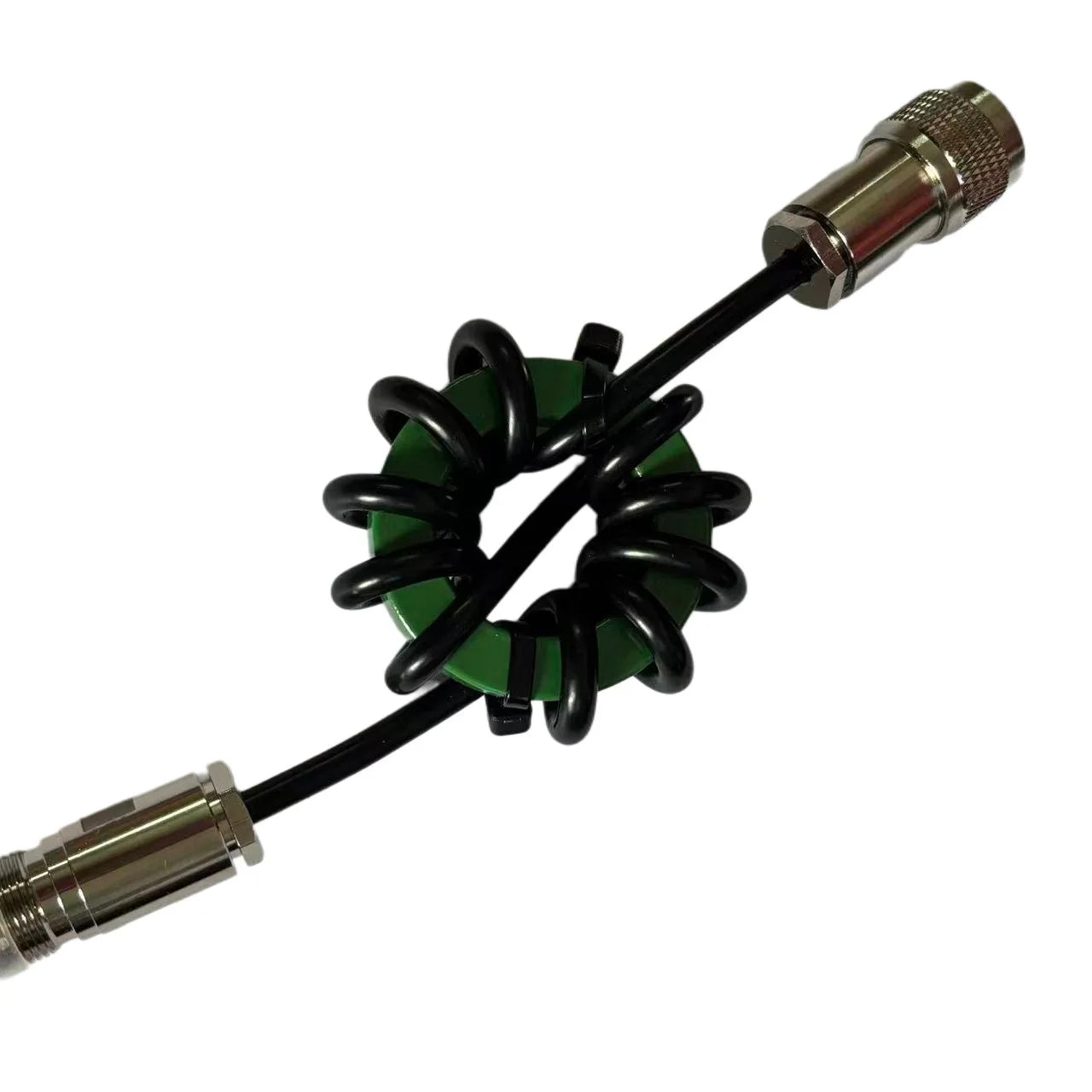

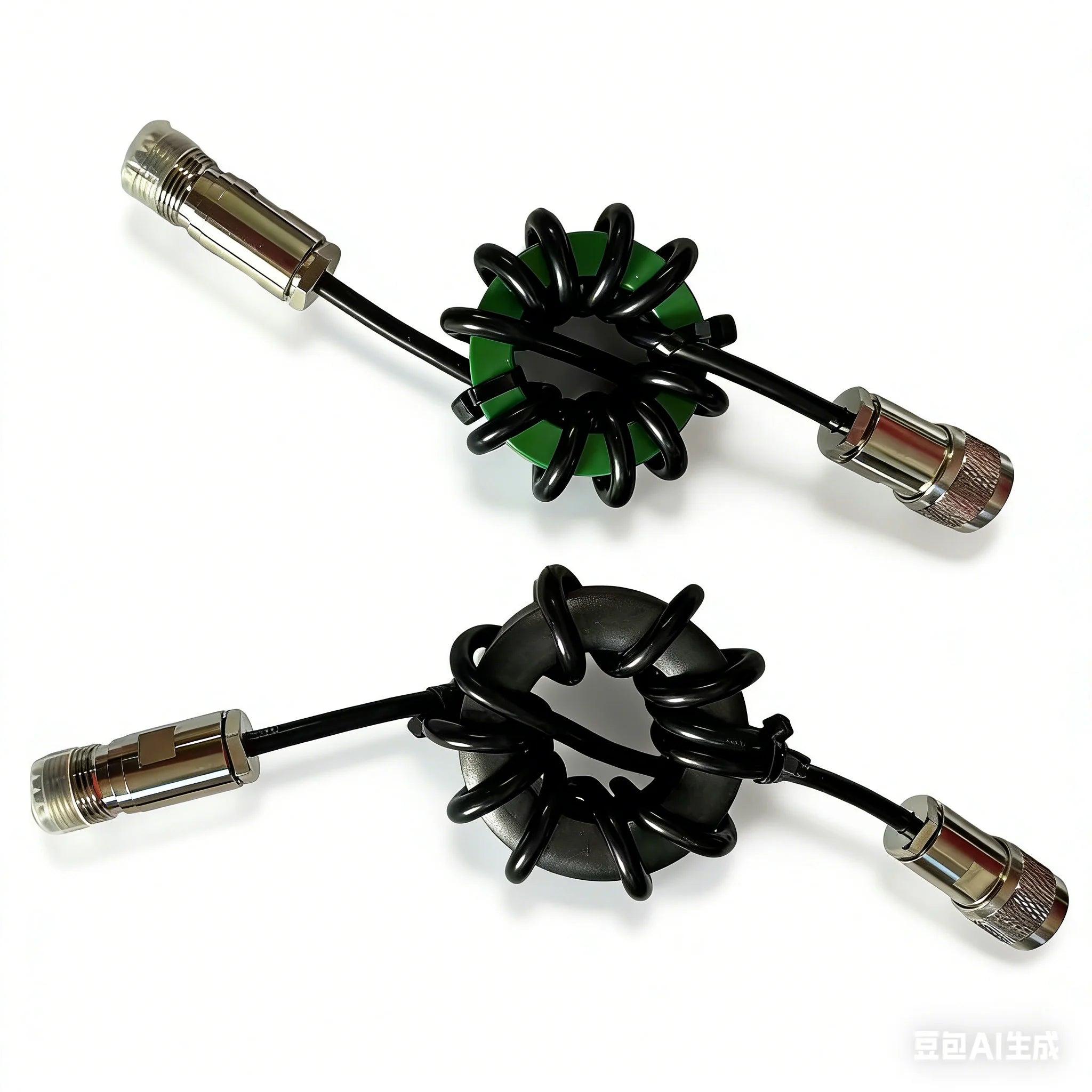

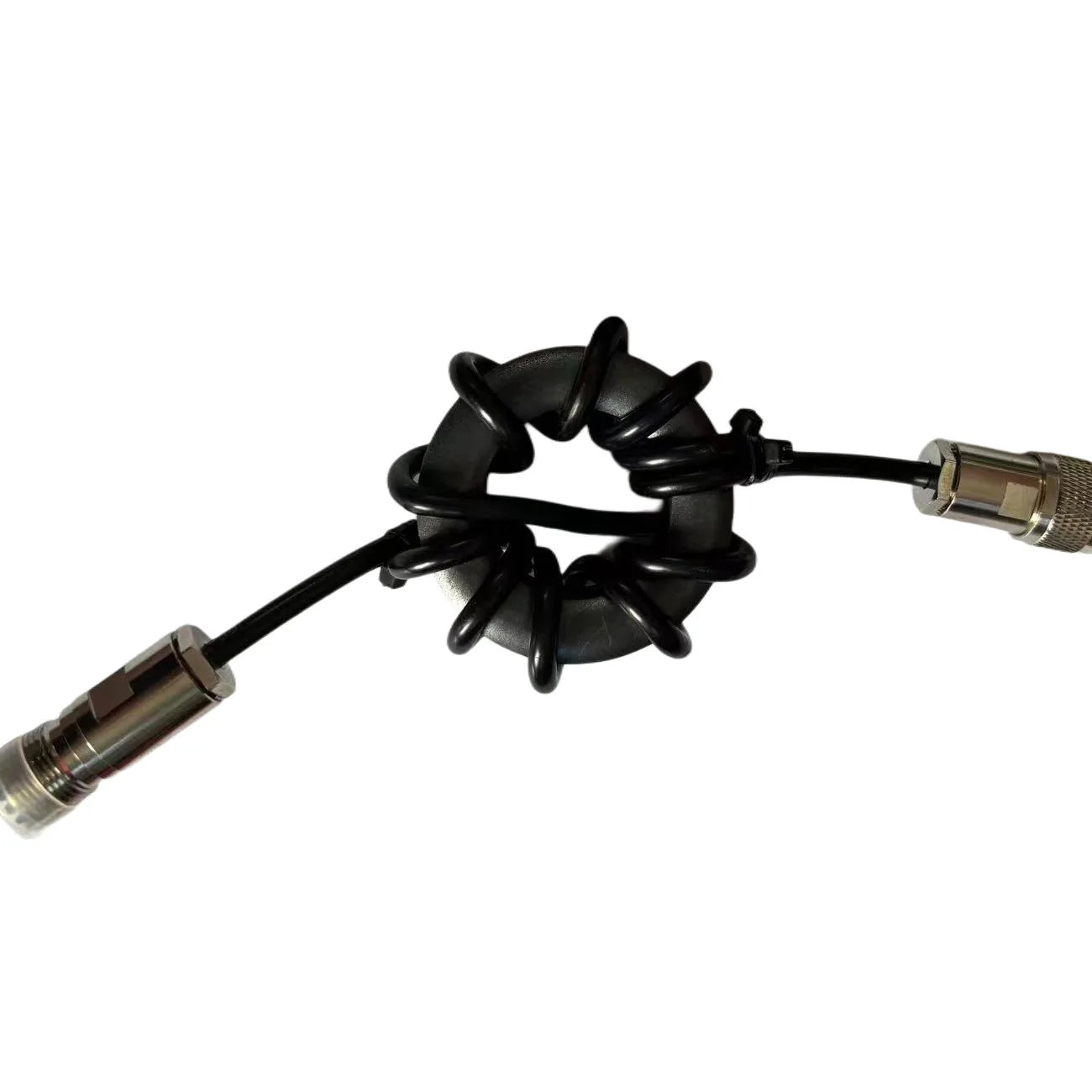

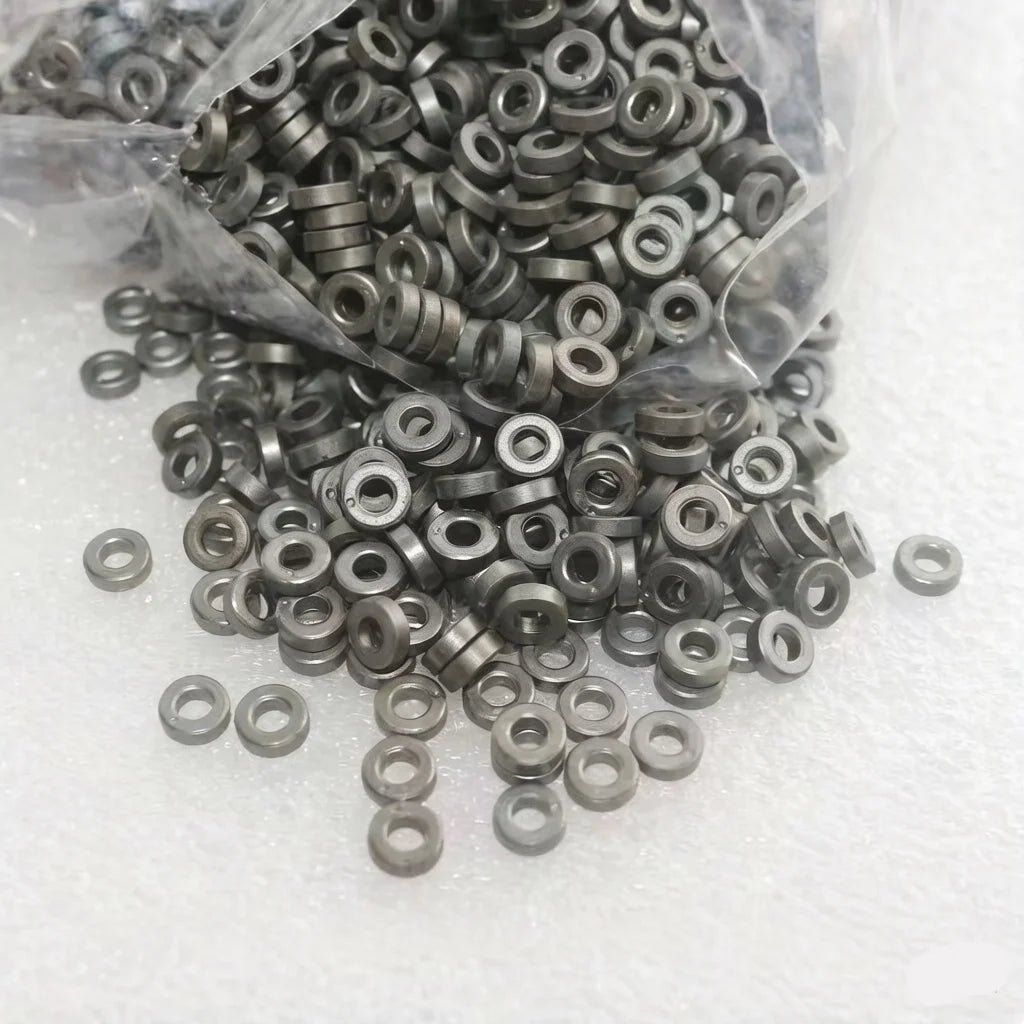

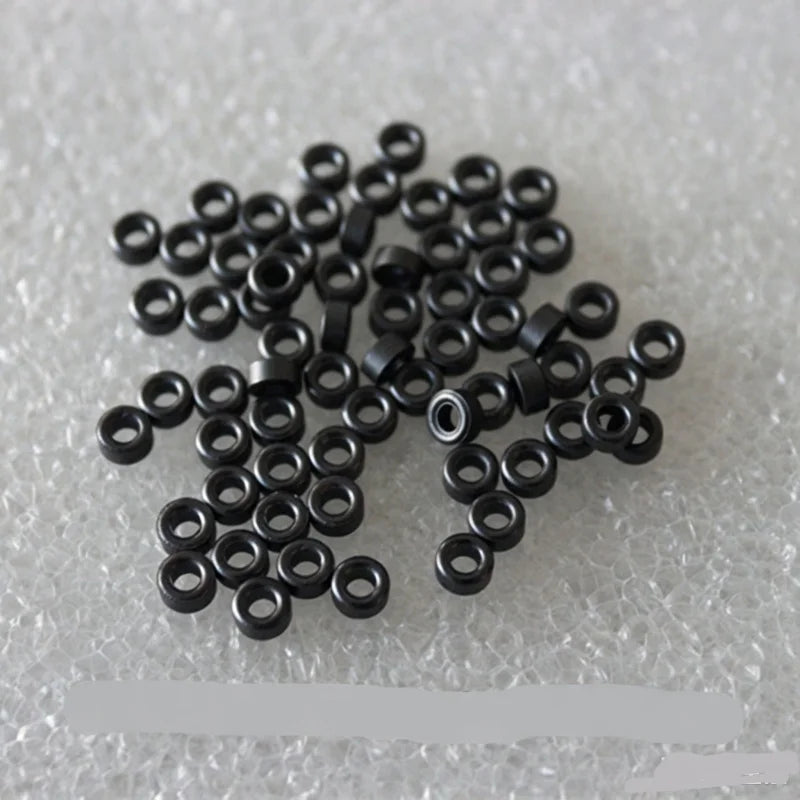

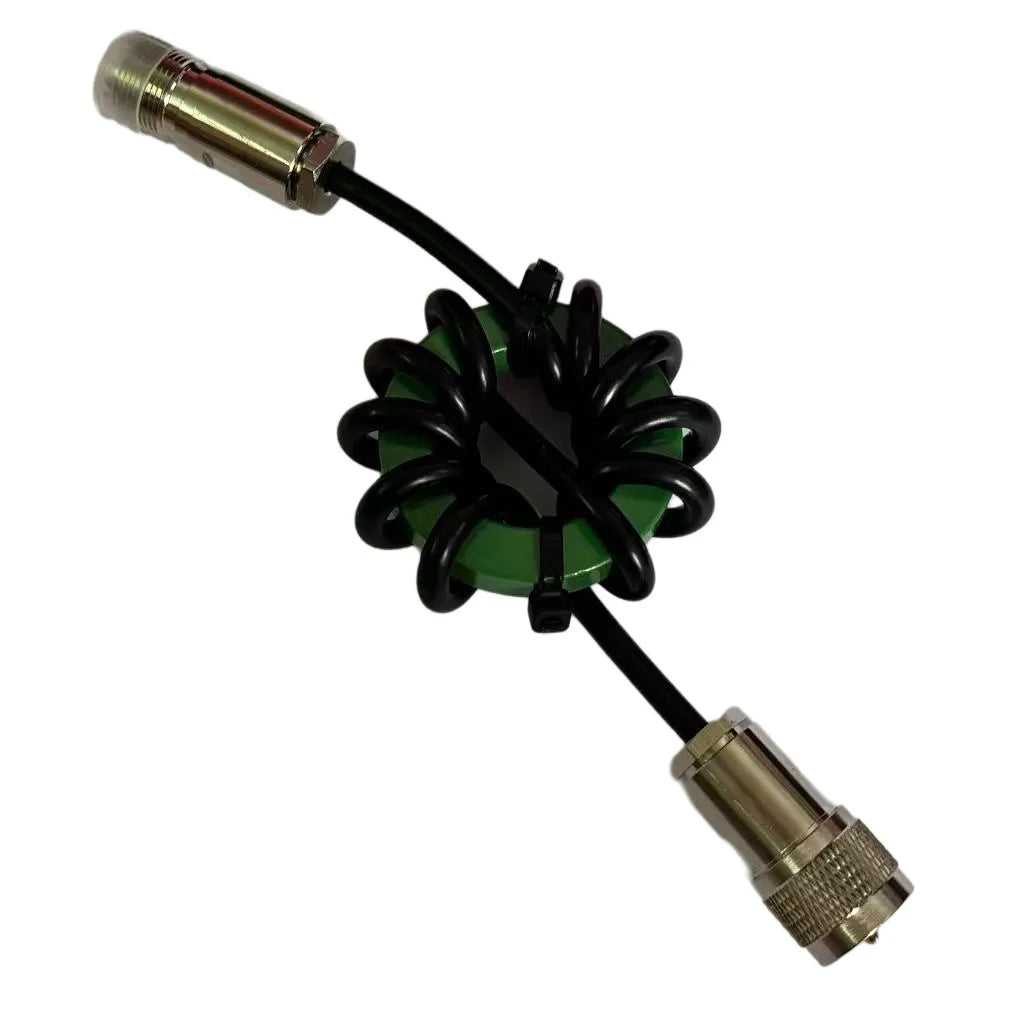

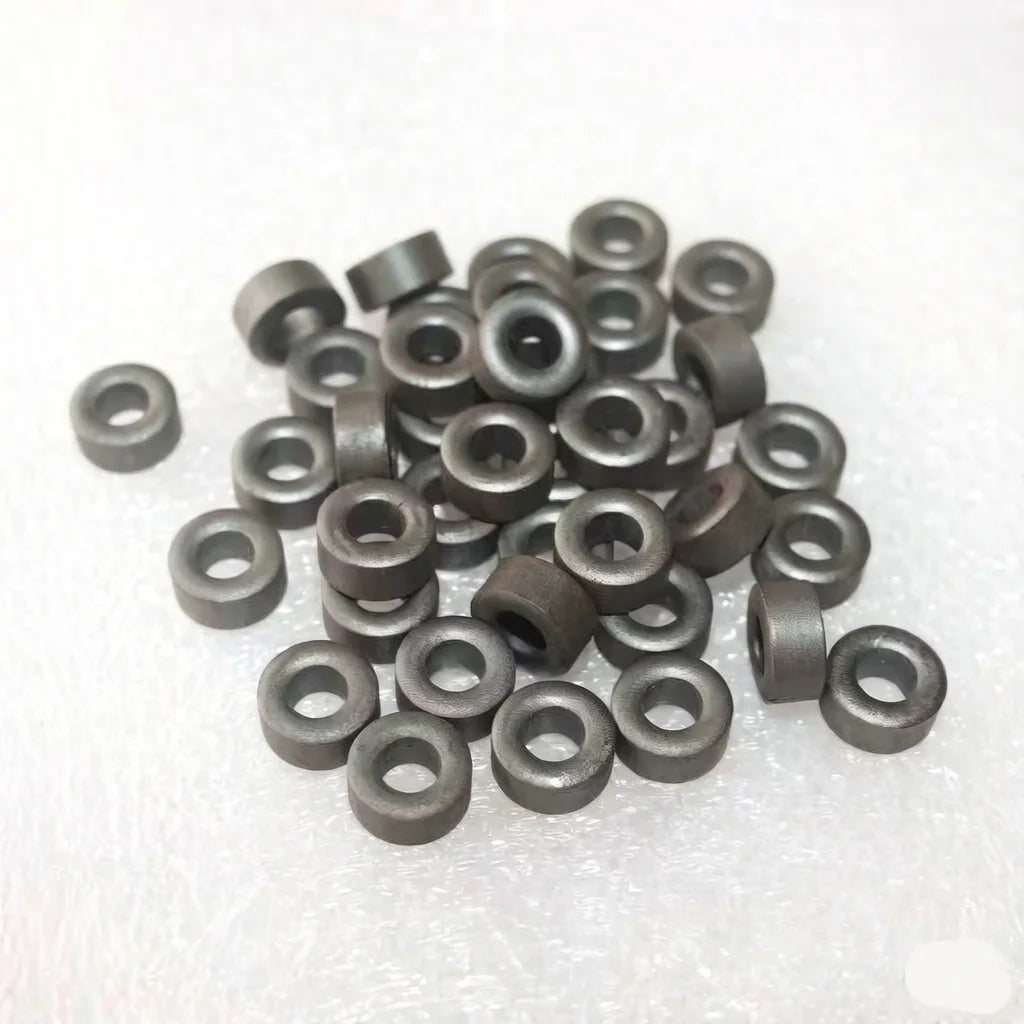

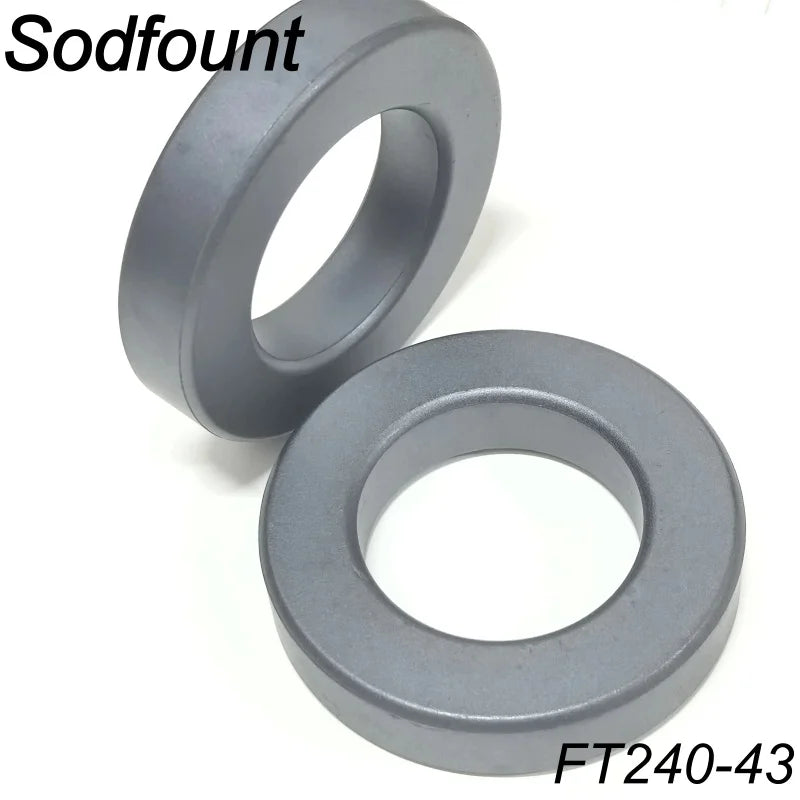

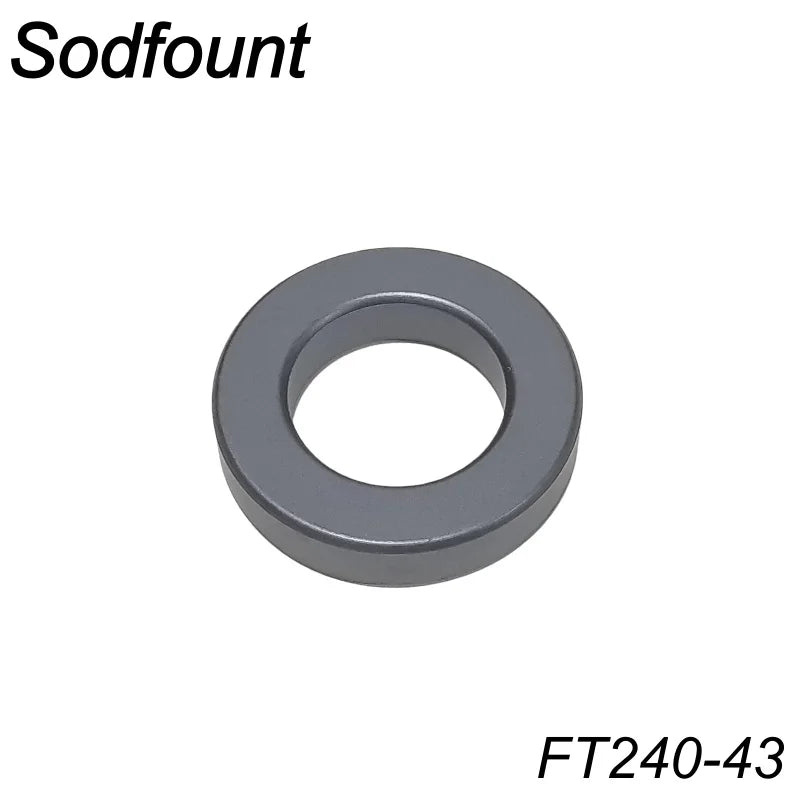

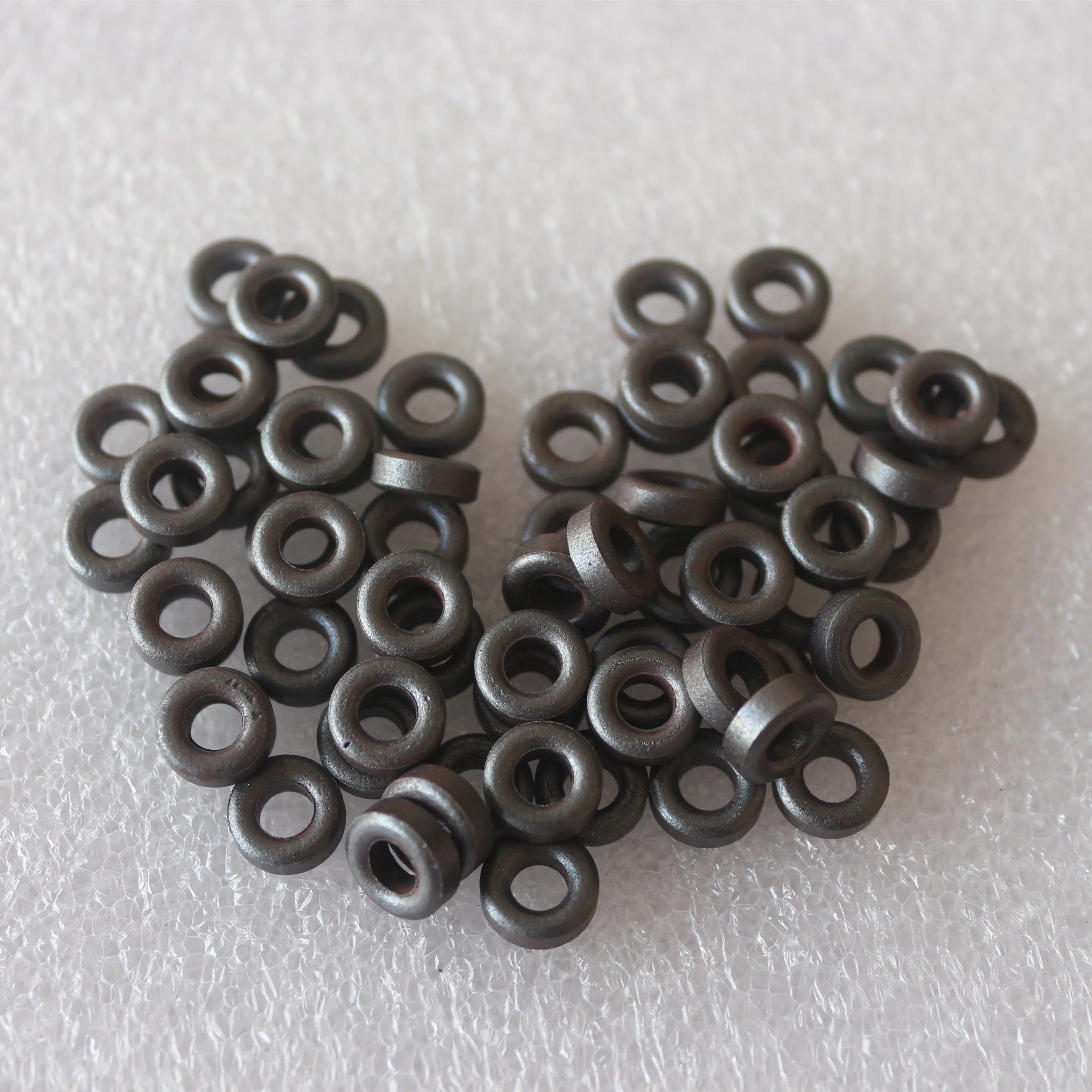

- Loose rings and hollow sleeves: FT240-43-type toroids, iron-powder T37/T94/T157 cores, RM/EE/UY transformer core sets and small hollow ferrite beads also appear among these results. They are not snap-on cable clips. A bare core requires a winding or conductor routing design; iron powder and ferrite are not automatically equivalent.
- PCB components: shared SMD ferrite-bead listings, bead sample books and an LED occur in this collection. A chip bead belongs in a soldered PCB circuit; the LED is not a noise filter.
Choose a cable choke in four steps

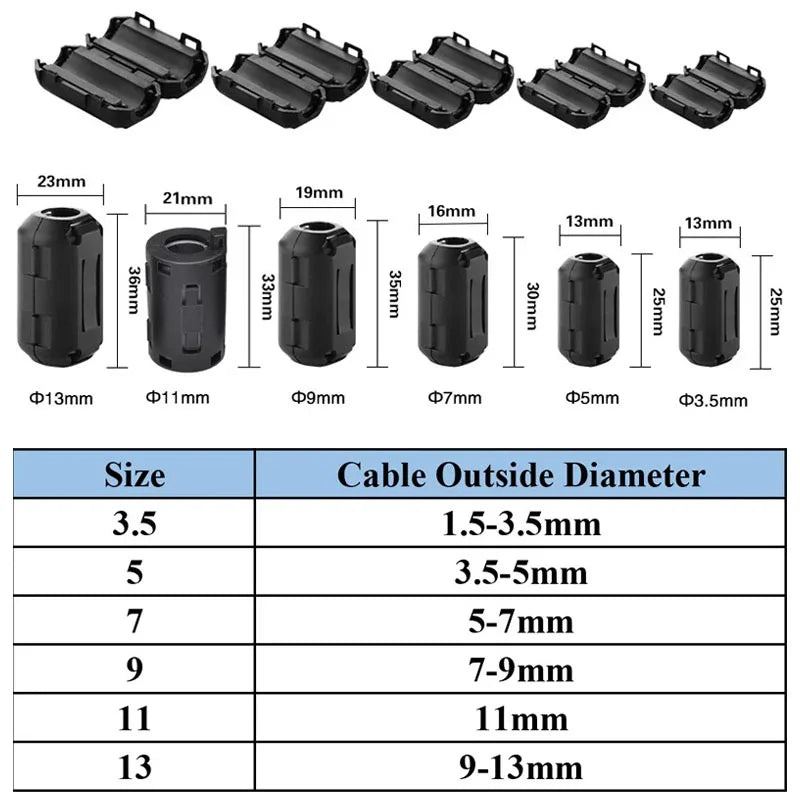

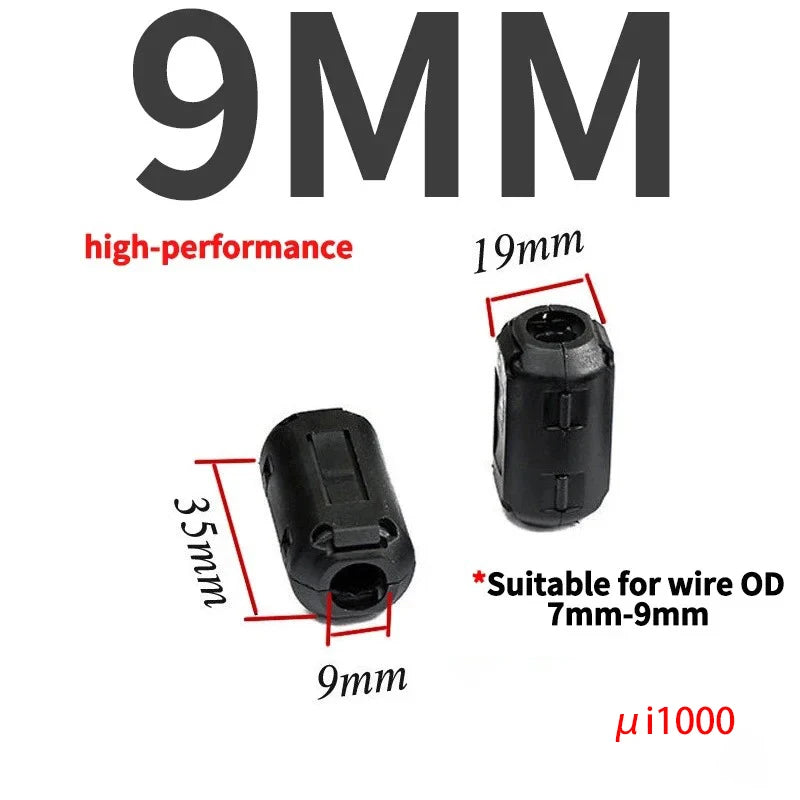

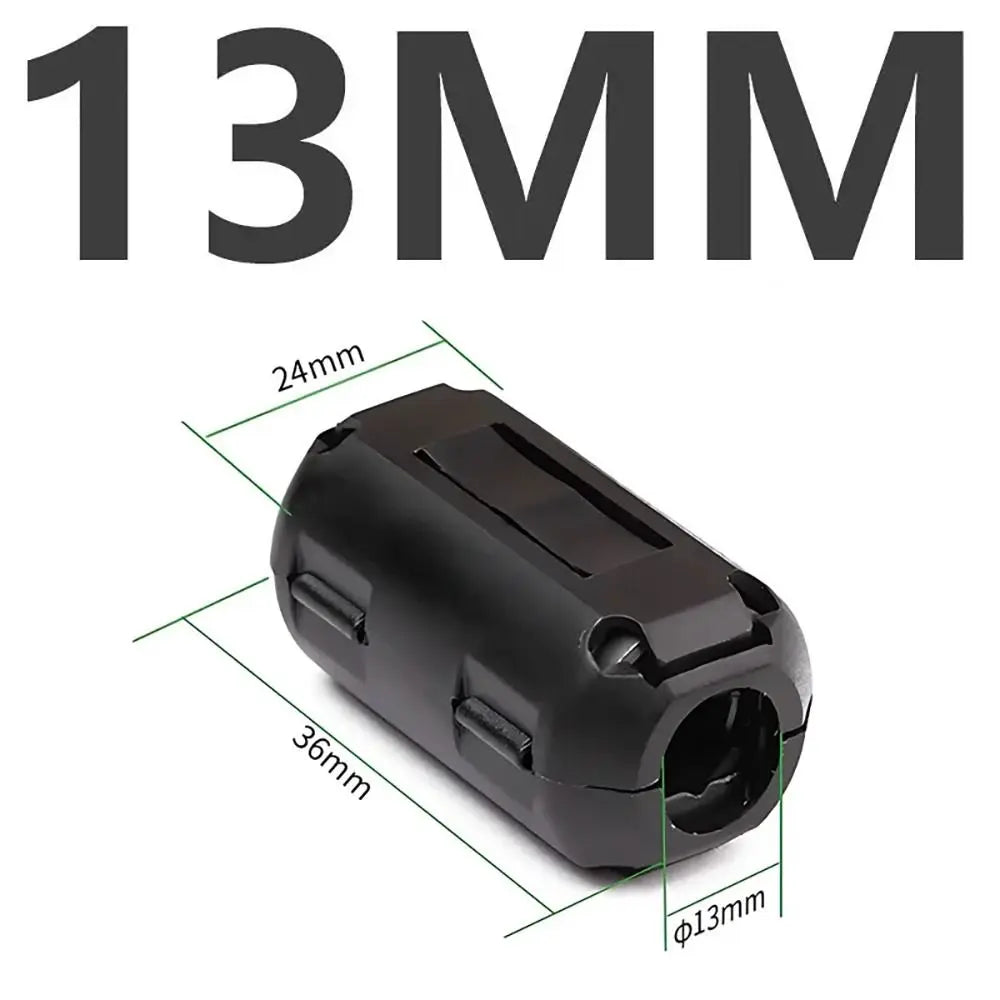

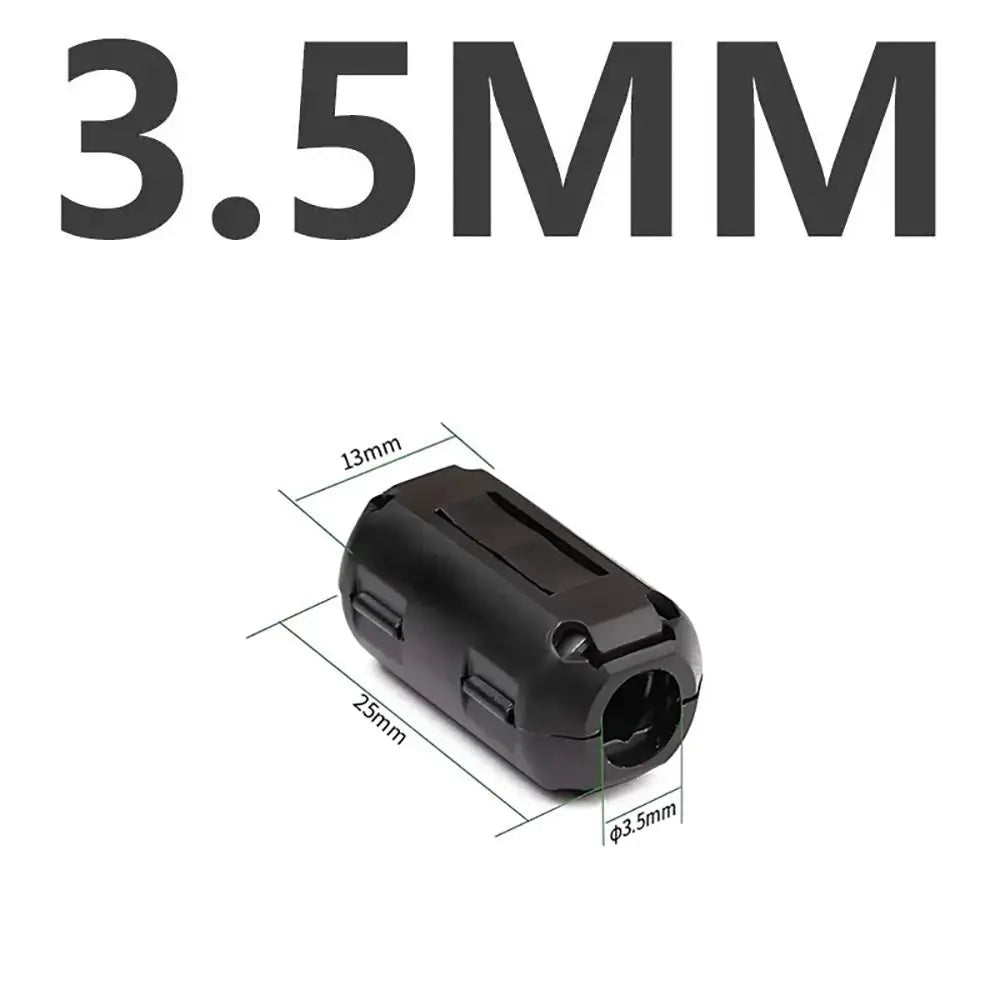

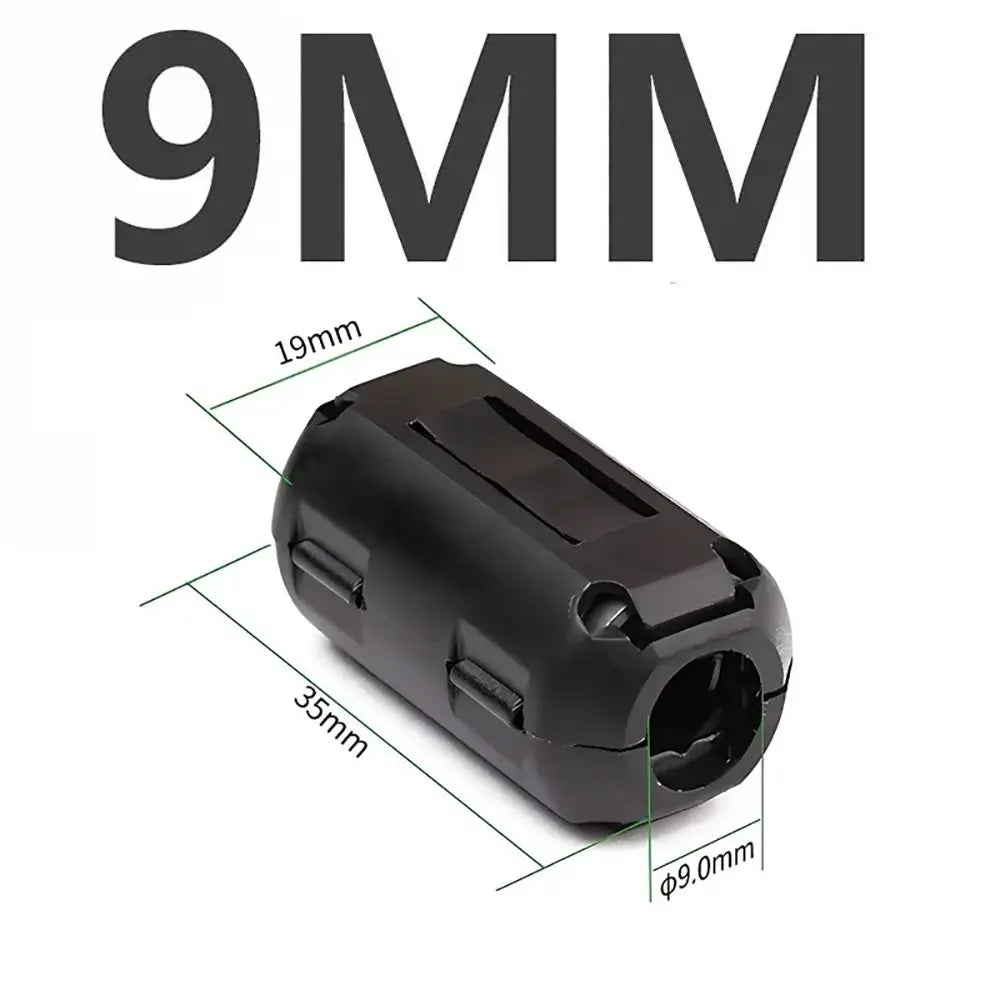

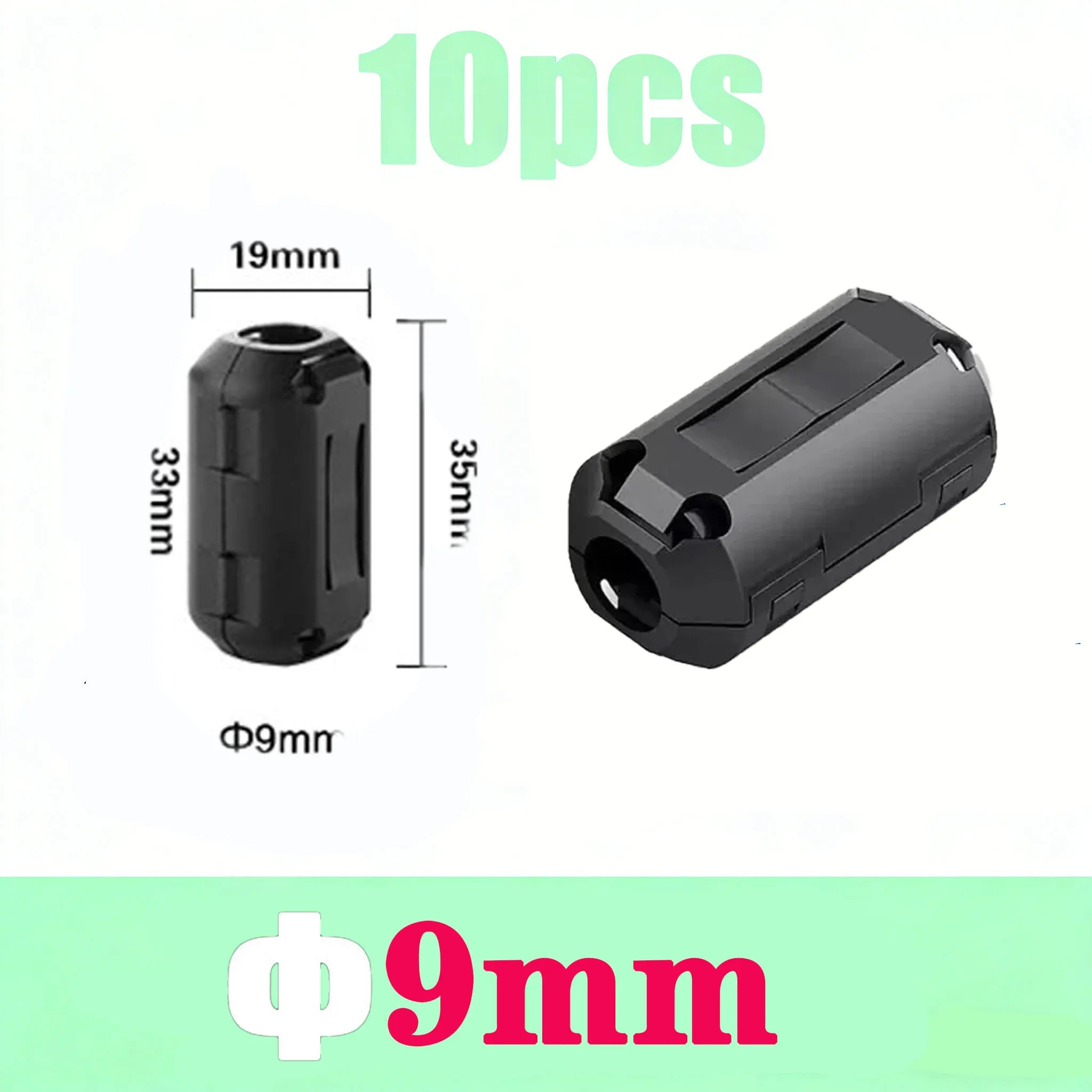

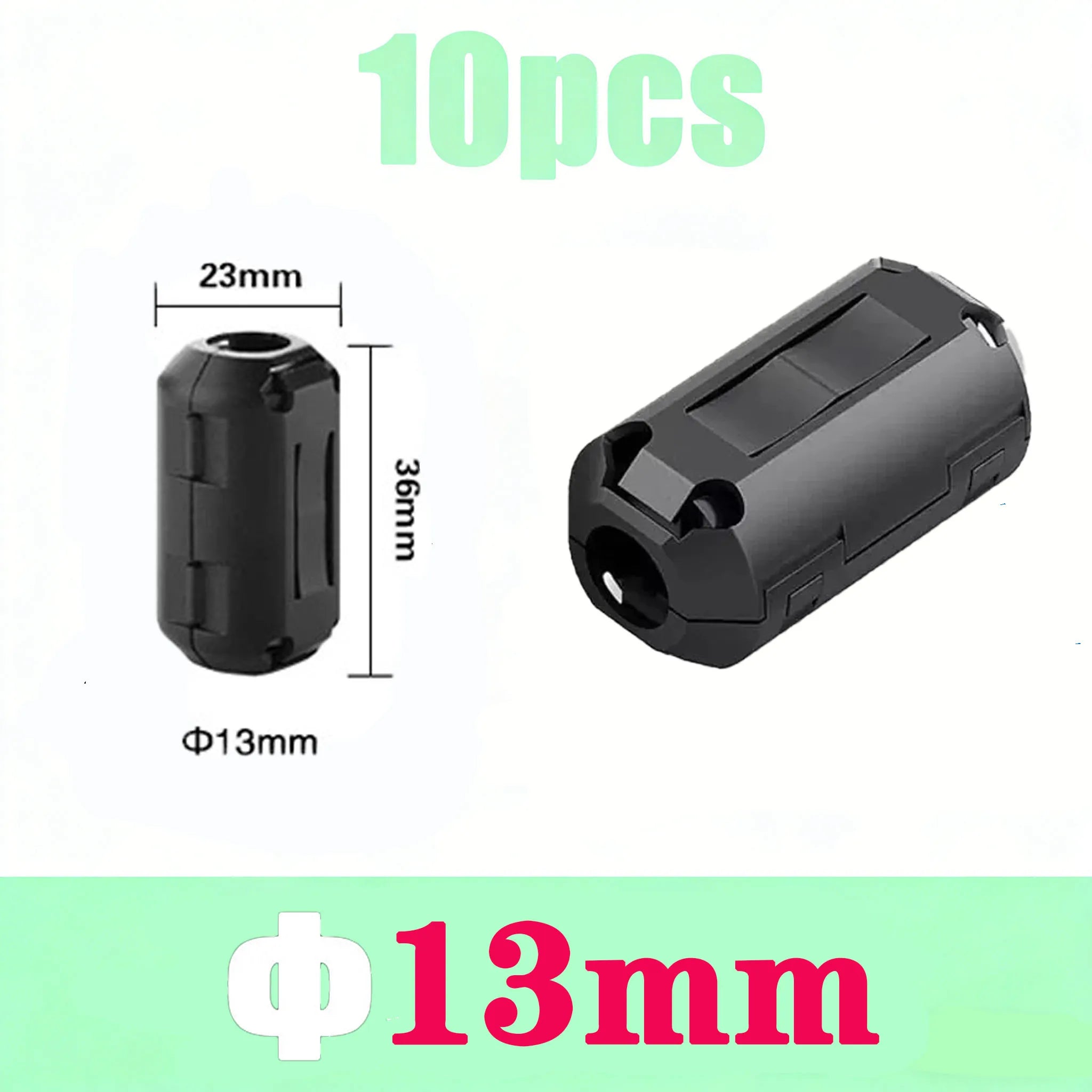

- Measure the complete cable: choose a closed core whose inner bore fits the cable's outside diameter without crushing insulation or preventing the latch from closing. A listed inner diameter is not a connector size.
- Identify the interference: determine the noise band and whether it travels as common-mode current on the cable. Clamping all conductors of a cable through one core is different from placing a ferrite bead in series with one PCB trace. A clip may not address differential-mode noise, a faulty cable, grounding problems or a protocol mismatch.
- Check magnetic performance: compare the selected core's material, impedance versus frequency, number of cable passes and any temperature or environmental limits. Increasing the number of turns changes performance and requires sufficient bore space and acceptable cable bend radius.

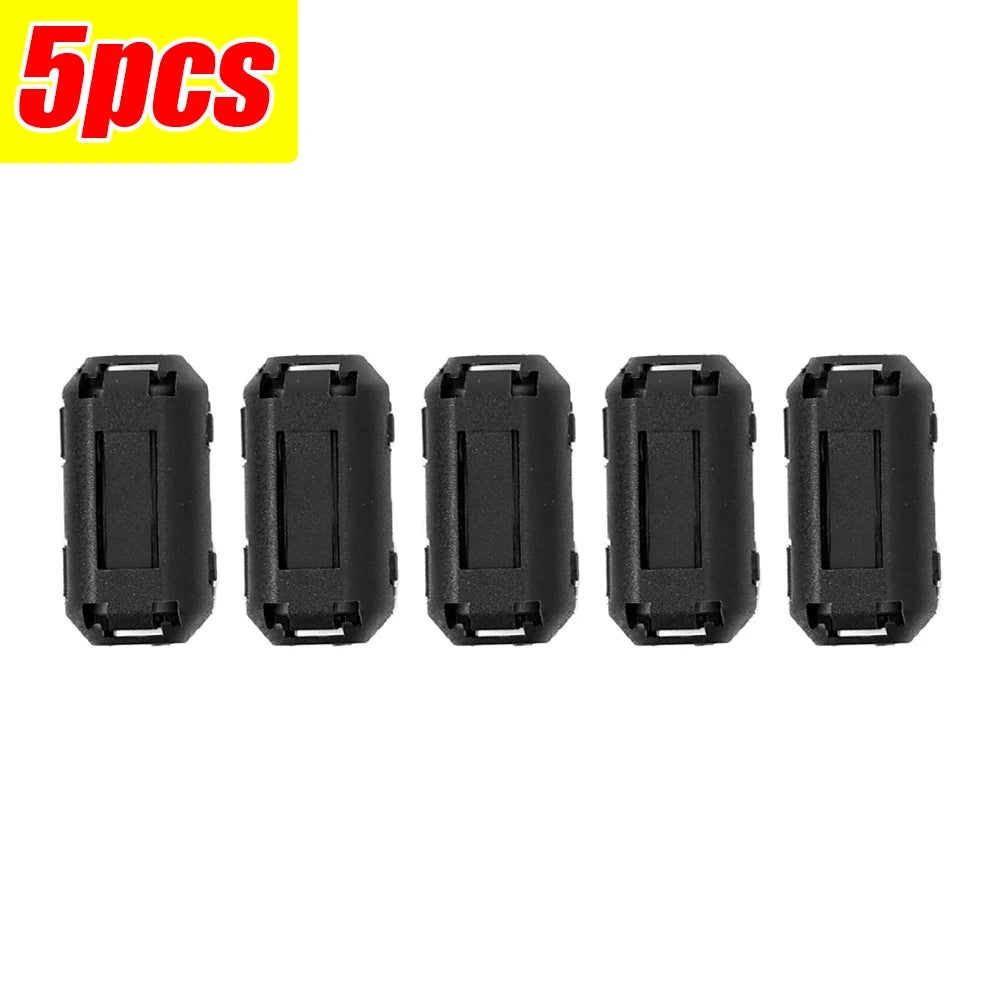

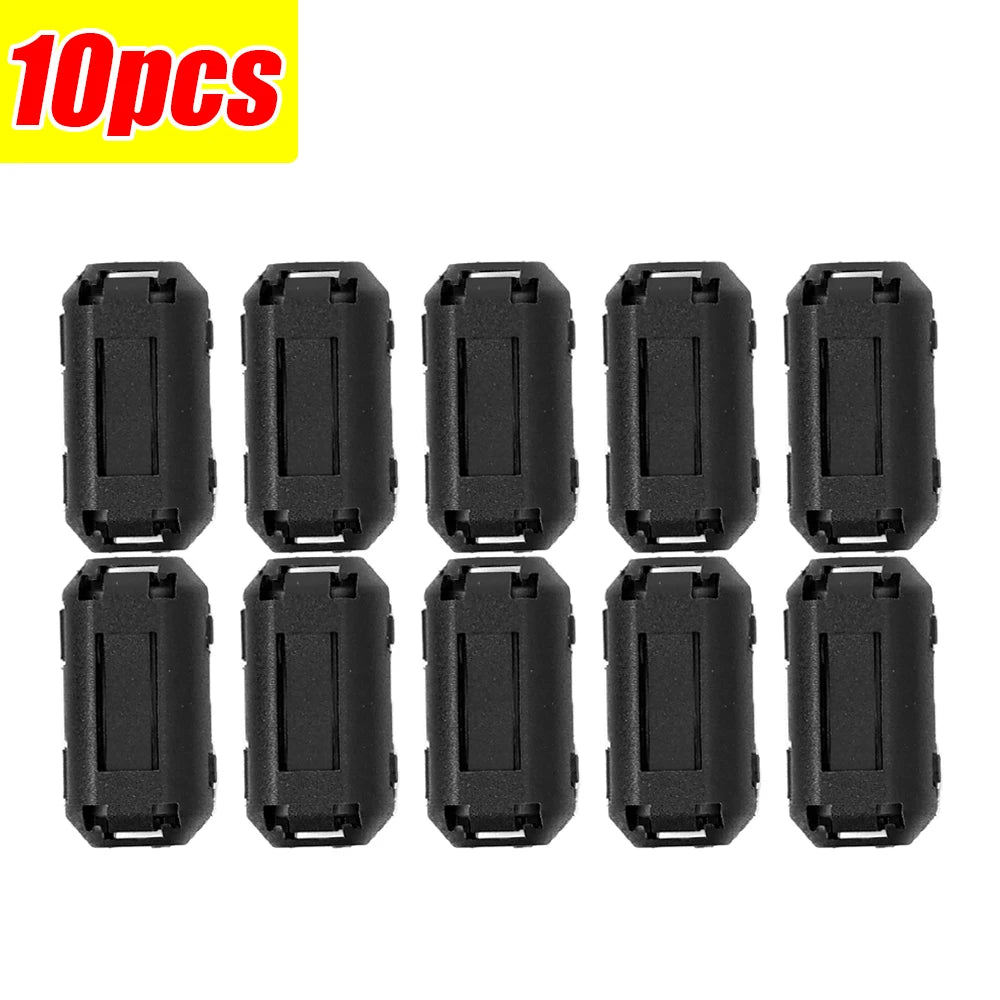

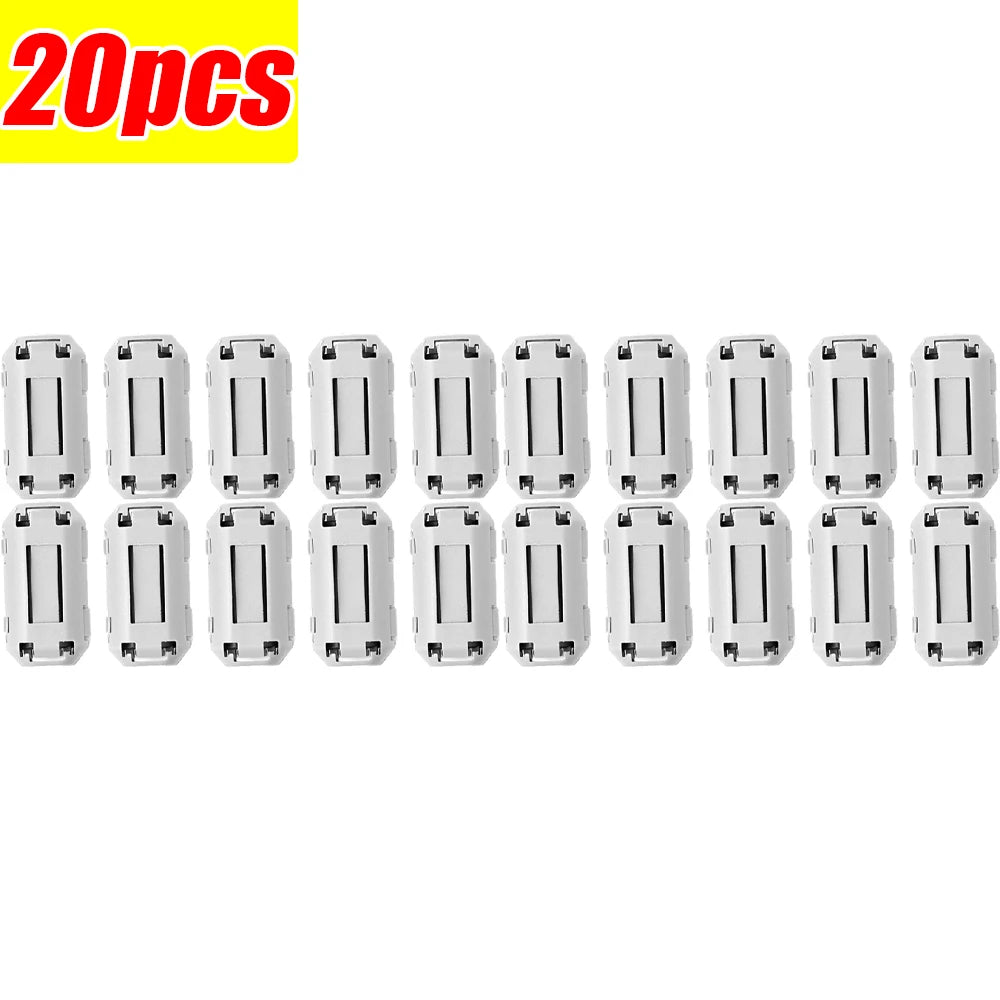

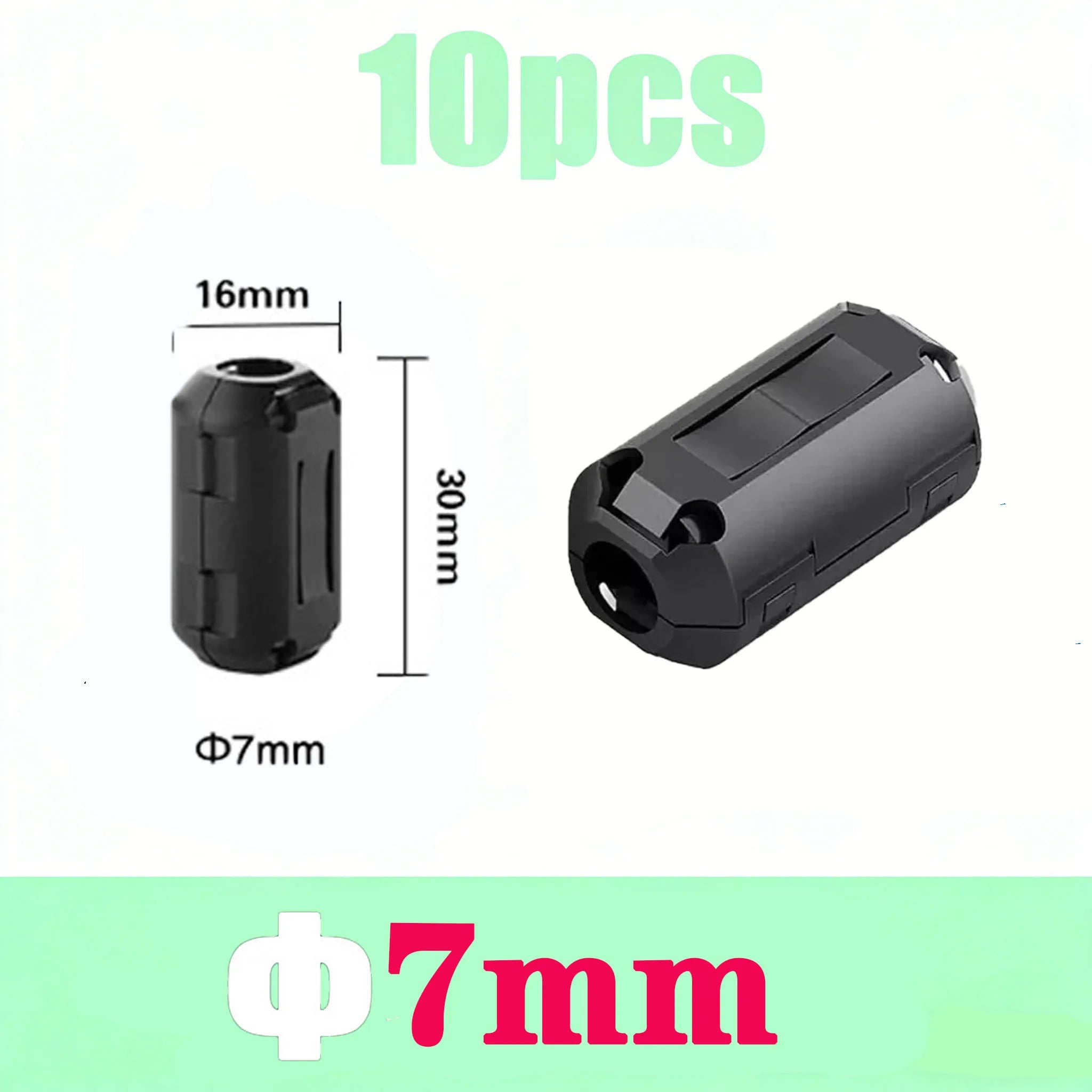

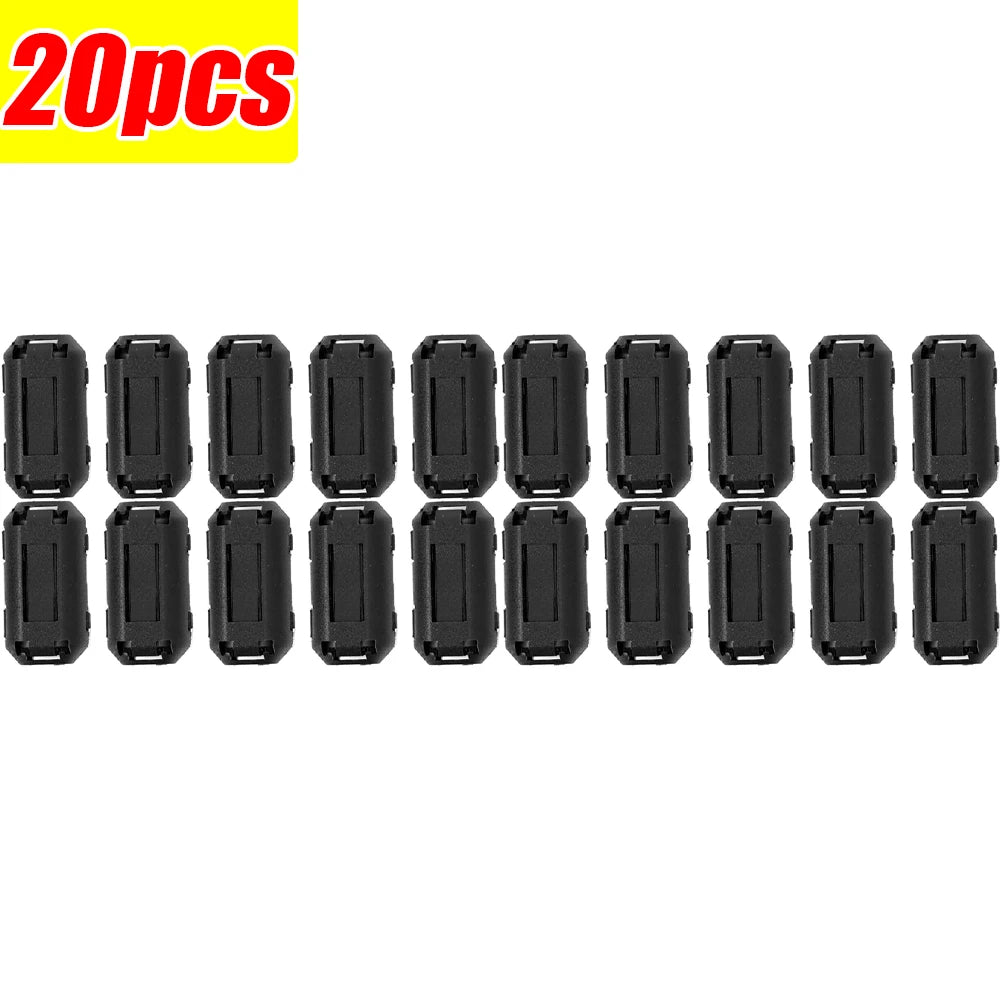

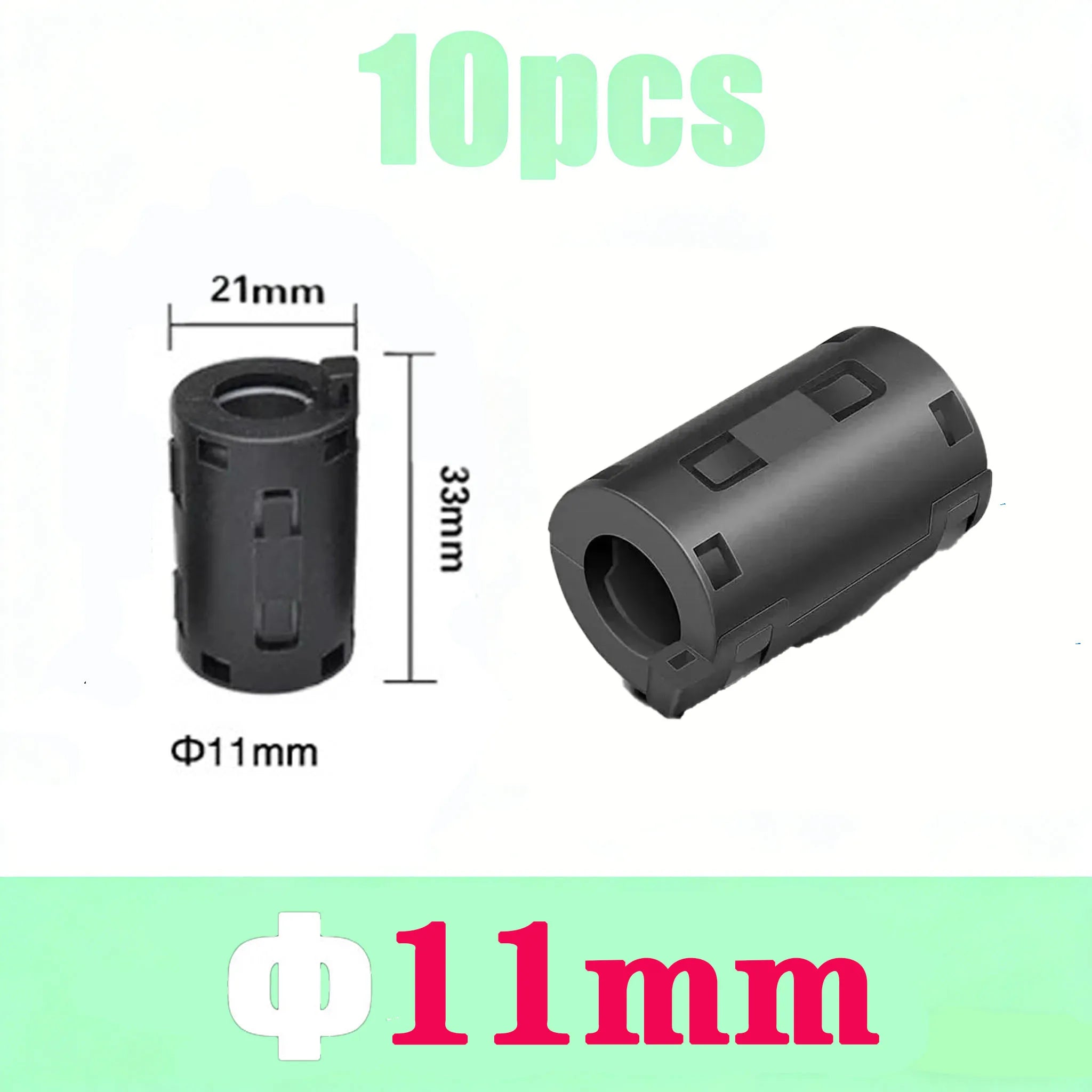

- Confirm the order: verify selected size, color/material designation and quantity. A pack labeled 10/20pcs can offer one selected size rather than ten or twenty different sizes. A brand name or certification statement copied from a seller description is not proof for every variant.
FAQ
Will a clip-on ferrite guarantee clearer audio or faster USB? No. It can attenuate some high-frequency cable noise when appropriately selected and placed, but it cannot repair a bad signal path or upgrade a cable's data specification.
Is a snap-on core a surge protector or an isolation transformer? No. It neither provides electrical isolation nor substitutes for mains safety protection or a certified EMI filter assembly.
Can a bare FT240 core simply snap onto a cord? No. A solid toroid needs a designed conductor routing or winding and assembly; use a split-shell variant for an intact cable where appropriate.
