FT232 USB Serial Adapters, UART Chips and Interface Converters

FT232 buying guide: identify the chip, delivered interface and selected variant

FT232 is a useful search term for USB-to-UART development, but this collection is broader than FT232 silicon. It contains FT232RL/FT232RNL adapter boards and loose ICs, FT232BL options, USB-to-TTL programming cables, USB-to-RS-232/RS-485/RS-422 converters, industrial serial accessories, and many multi-model listings. It also contains CH340, CH343G, PL2303 and CP2102 alternatives and products whose titles mention RS-232 or the digits “232” but are not FT232 products. Choose by the actual selected model and physical interface; neither a search result nor the collection name guarantees an FT232 chipset in every item.

Start with the electrical interface, not the connector shape

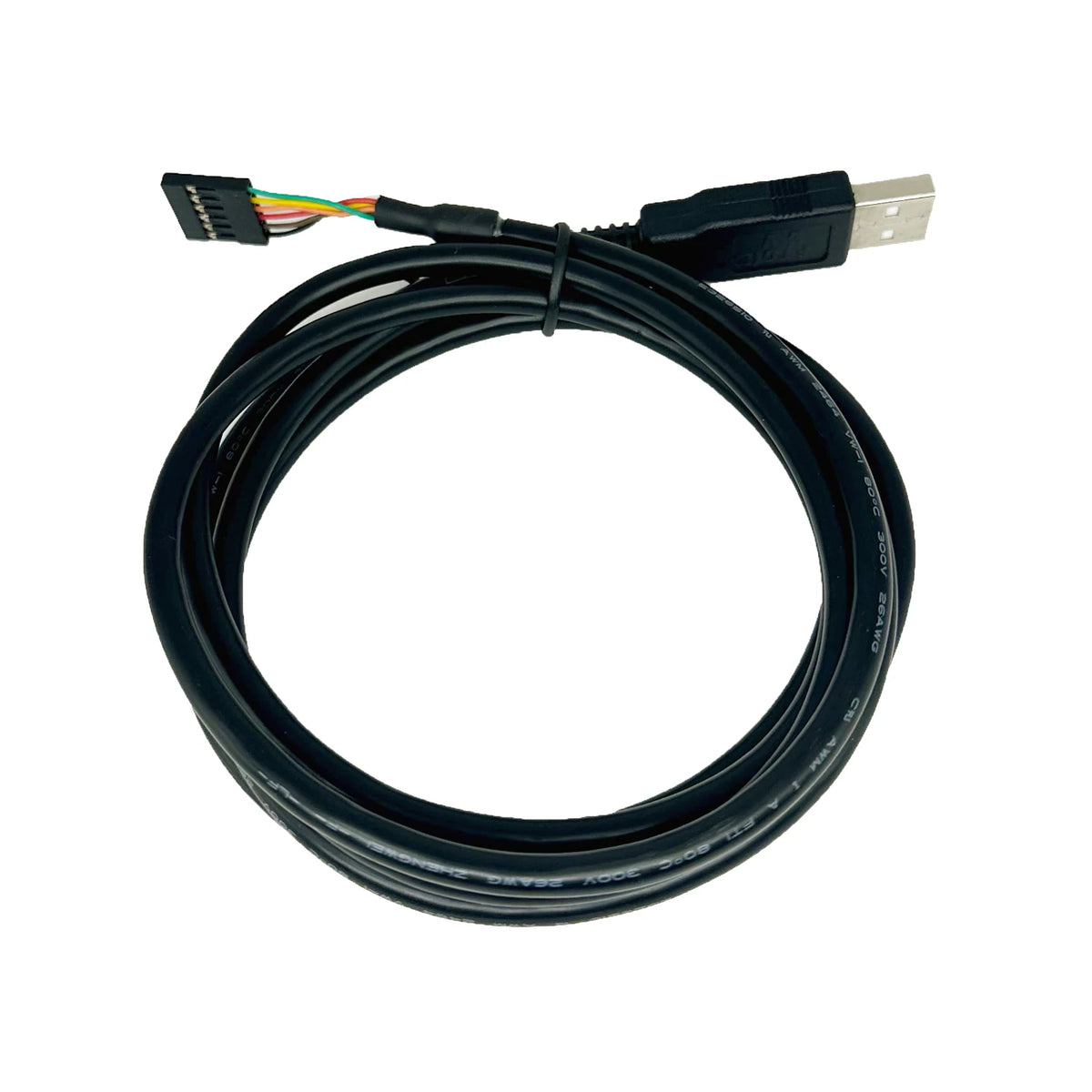

USB-to-UART TTL/CMOS: FT232-series bridges enumerate through USB and expose UART-side TXD/RXD and sometimes RTS/CTS, VCC or configurable I/O lines on the module. A 3.3 V or 5 V label can mean the UART signal level, a power output, or the module's input rail. These are different quantities. Confirm the specific board's VCC, VCCIO, jumper/switch position, output current budget and host-device pin labels before connecting a target. TXD/RXD on a TTL adapter are not directly compatible with an RS-232 DB9 voltage-level interface.

USB-to-RS-232: a usable DB9 serial adapter requires an RS-232 line driver/receiver in addition to a USB UART bridge. A passive DB9 connector, terminal breakout, straight-through cable or gender changer does not convert USB or TTL into RS-232. DB9 pin count and male/female orientation alone do not identify DTE/DCE role, signal assignment, crossover or handshaking. Compare the target's pinout and whether TX, RX, GND, RTS/CTS or other modem-control lines are needed. One multi-choice USB cable listing offers “HL-340,” “HL-FT232,” PL2303-labeled DB9 options, standalone DB9 adapters and terminal boards: these are not the same delivered device.

USB-to-RS-485 / RS-422: these products need the appropriate differential transceiver and control circuitry in addition to a USB bridge. RS-485 two-wire half-duplex and RS-422 or four-wire arrangements are not equivalent. Check A/B or +/- labeling against the documentation of both ends, number of terminals, half/full-duplex mode, automatic direction control, termination, bias network, cable length and bus load. Product options labeled “FT232 to RS485,” “CH340 to RS485,” “PL2303 to RS485” and “MAX485” can be different chips, assembled converters or transceiver-only boards. A MAX485-only option is not automatically a USB adapter. A headline covering all interface types does not mean the chosen item includes every port simultaneously.

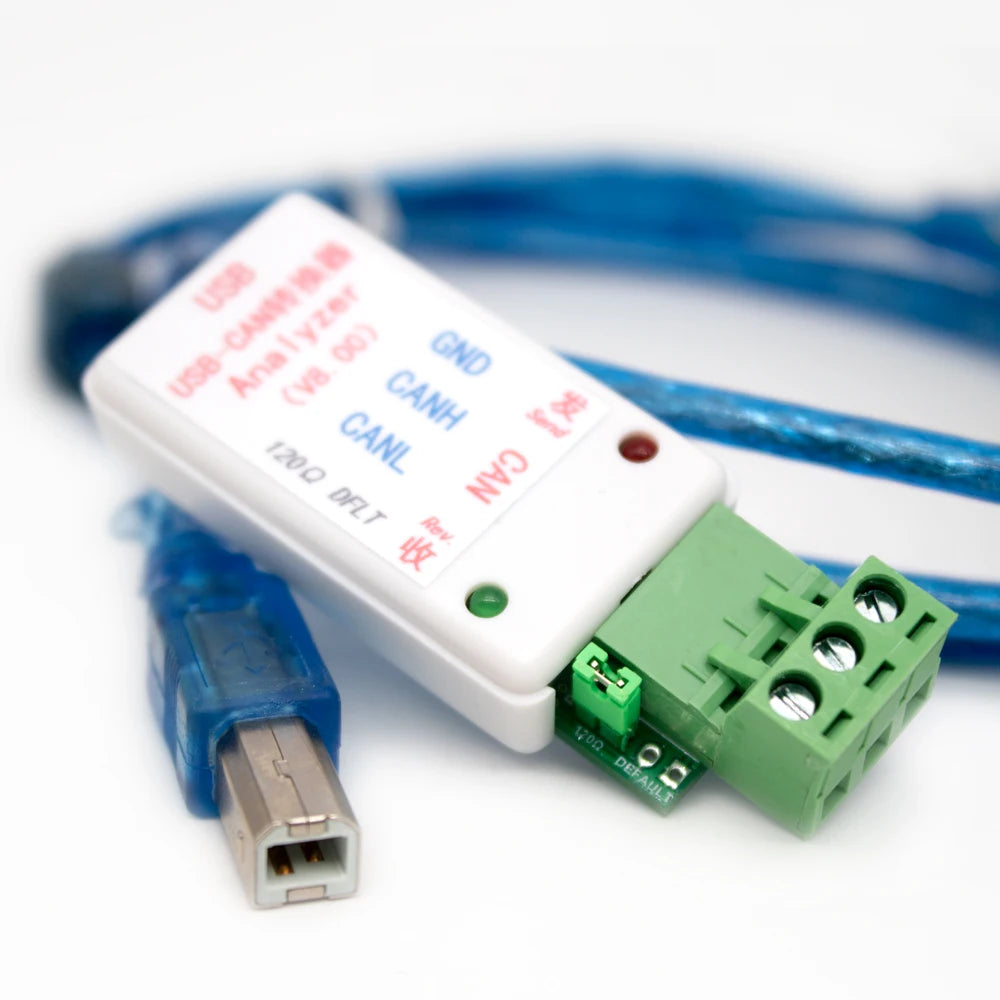

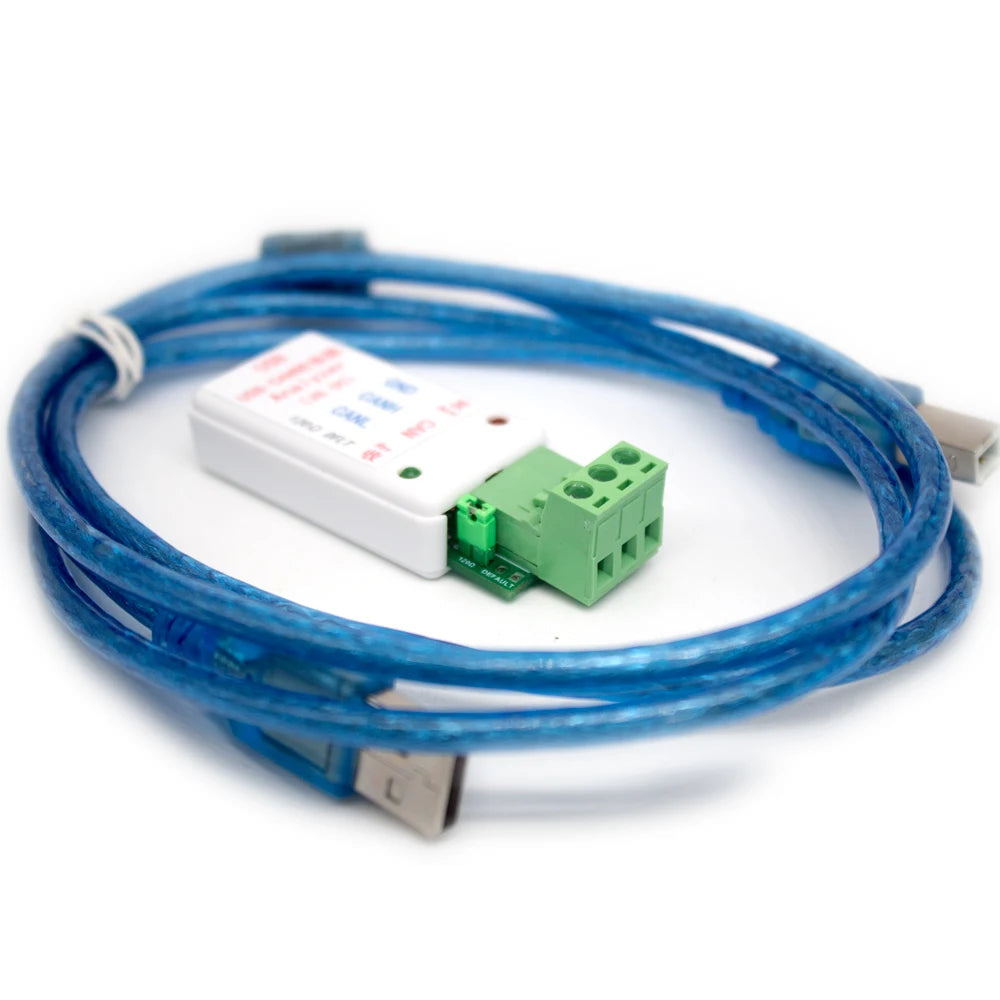

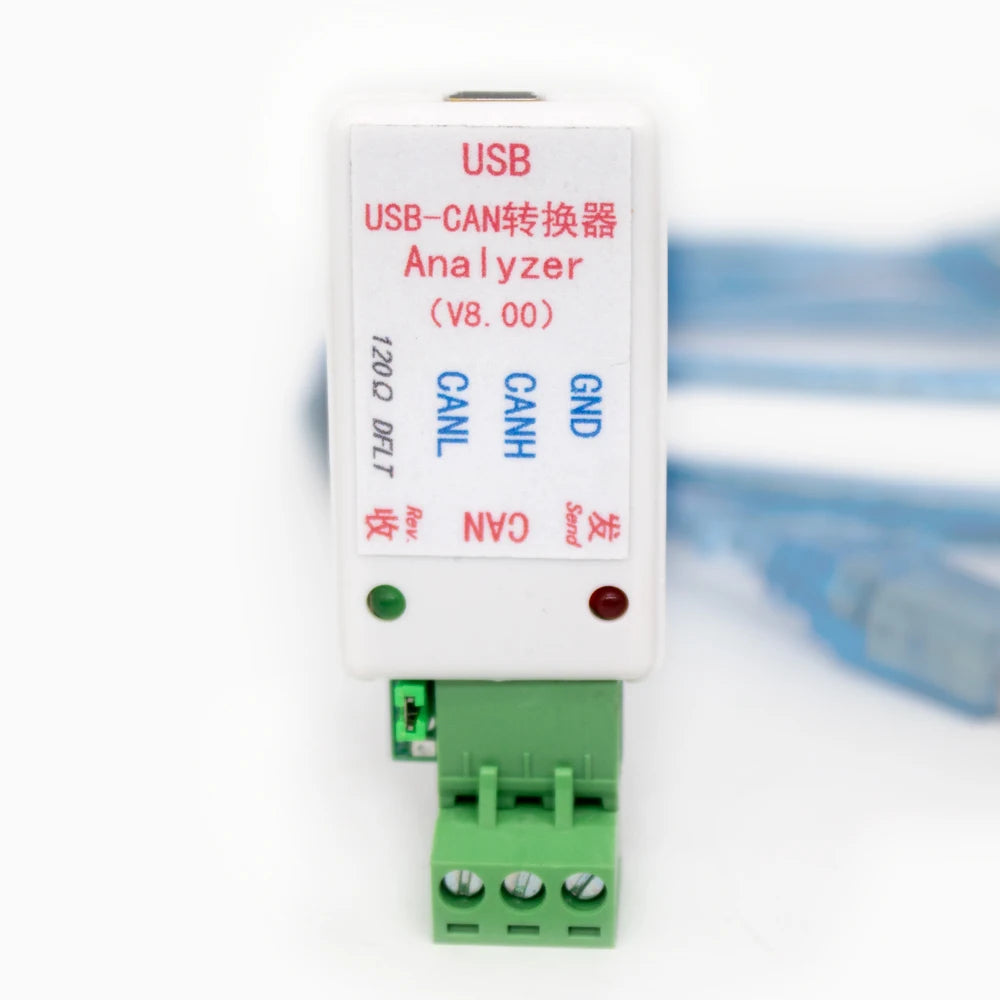

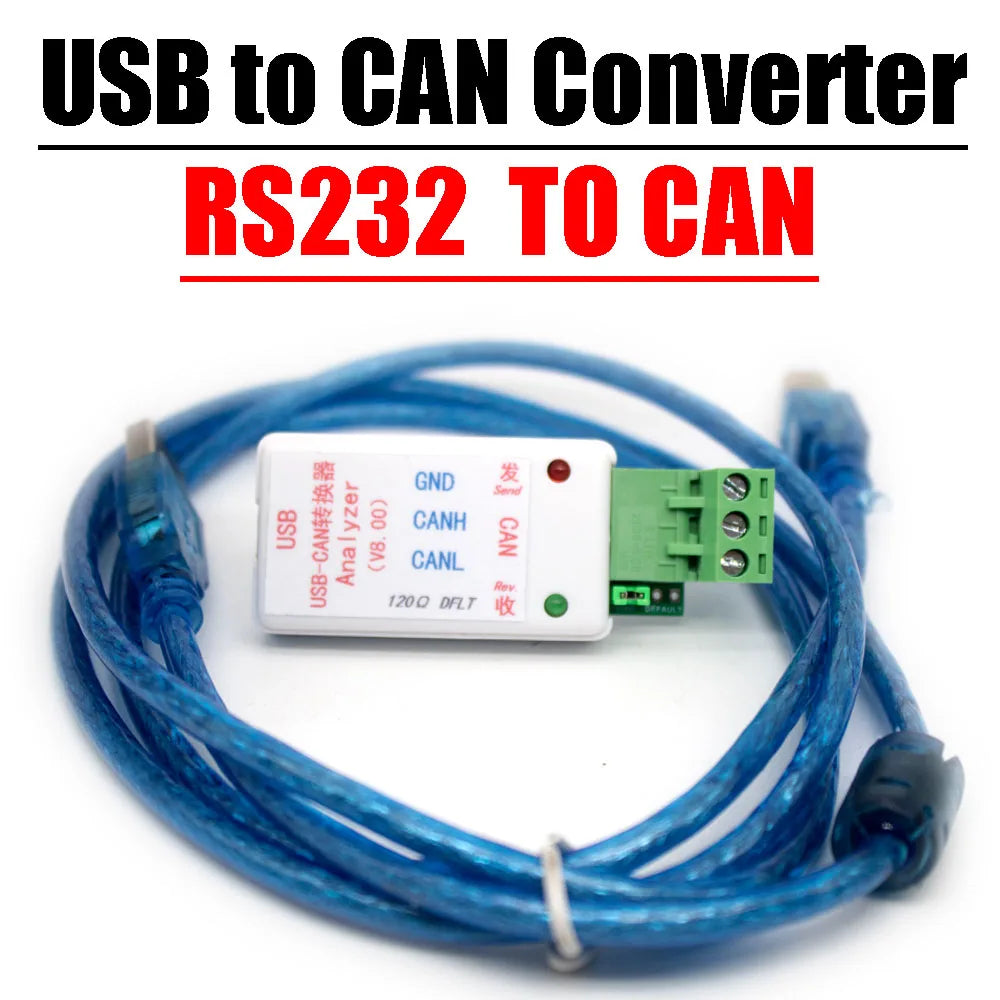

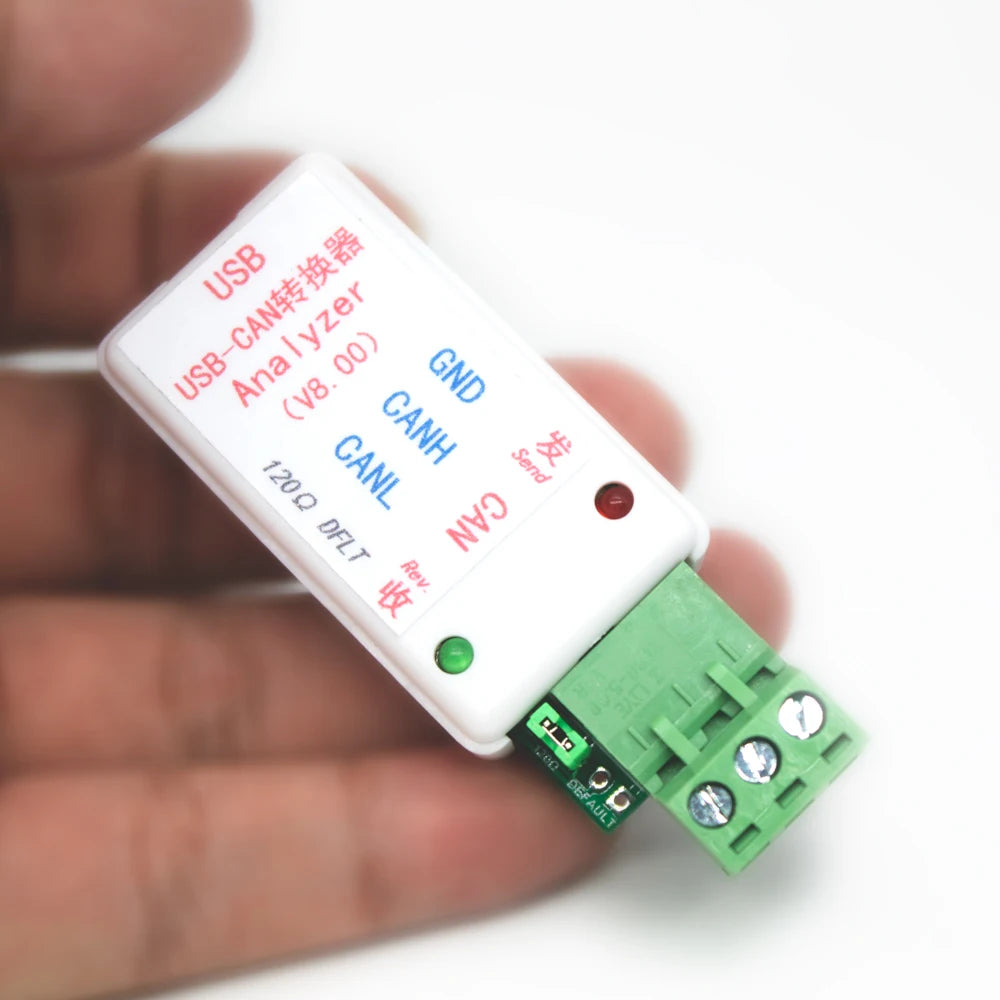

CAN, Ethernet and wireless gateways: a serial-to-Ethernet, serial-to-4G/LoRa/Wi-Fi or CAN protocol gateway is a different device with its own controller, firmware, power and interface rules. USB-UART alone does not implement CAN, Modbus TCP, Ethernet or cellular connectivity. These devices appear among the collection's RS-232 search matches; use their selected product specification, not an FT232 headline, to choose one.

FT232 loose ICs versus assembled modules

Some listings sell FT232RL-REEL SOP-28 devices in selectable quantities such as two, five, ten, fifty or one hundred; others offer FT232BL LQFP-32 in multi-model chip lists with unrelated devices such as TJA1050 or PCM5102A. FT232RL, FT232RNL and FT232BL must not be assumed pin-compatible or package-compatible. Check the exact part-number suffix, package drawing, USB and I/O power requirements, external components, pin functions and design files before PCB substitution. A bare chip is not a ready-to-use USB cable, and a selected FT232BL lot does not contain every IC shown in the combined headline. Source descriptions saying “original” or “100% tested” are not independent proof of authenticity or traceability.

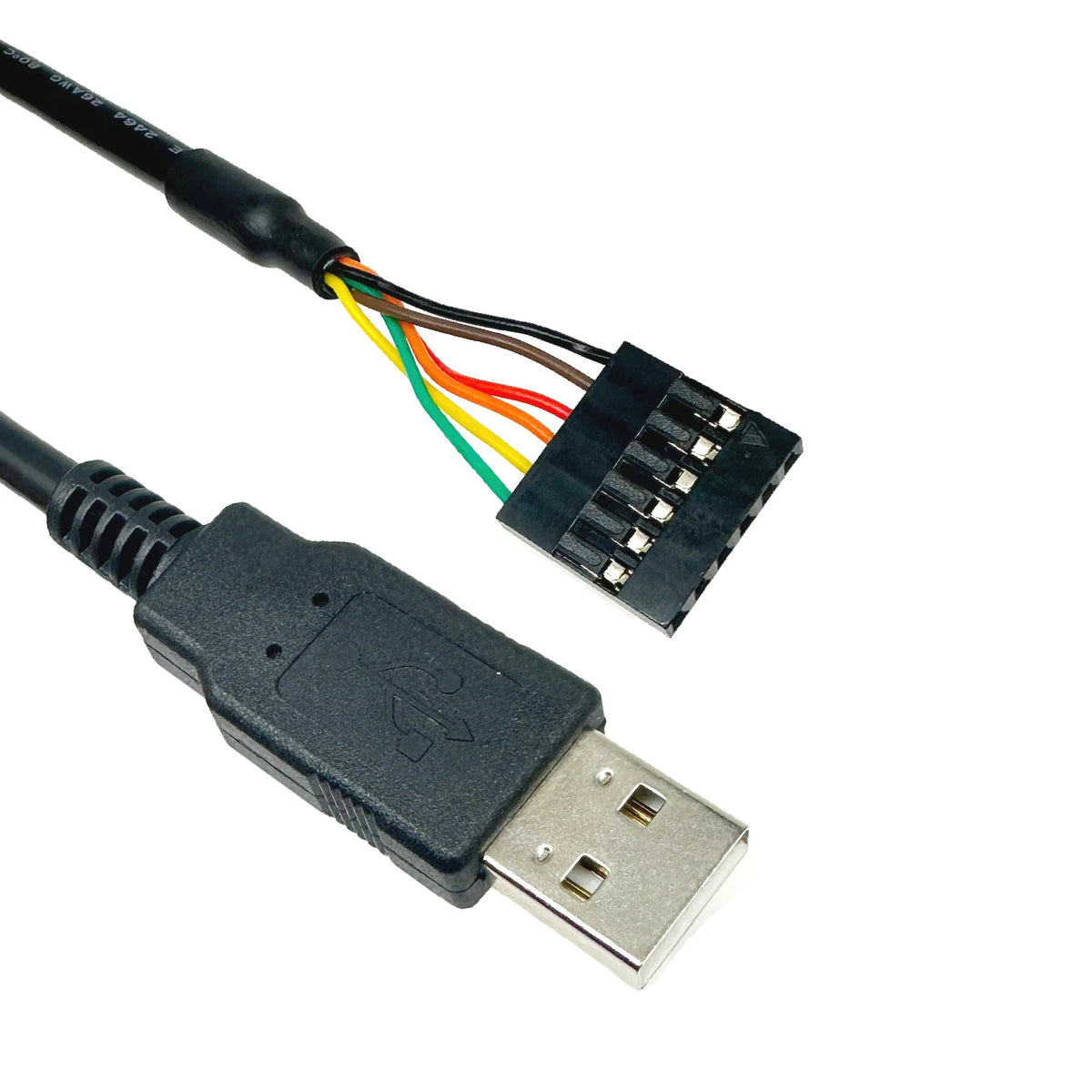

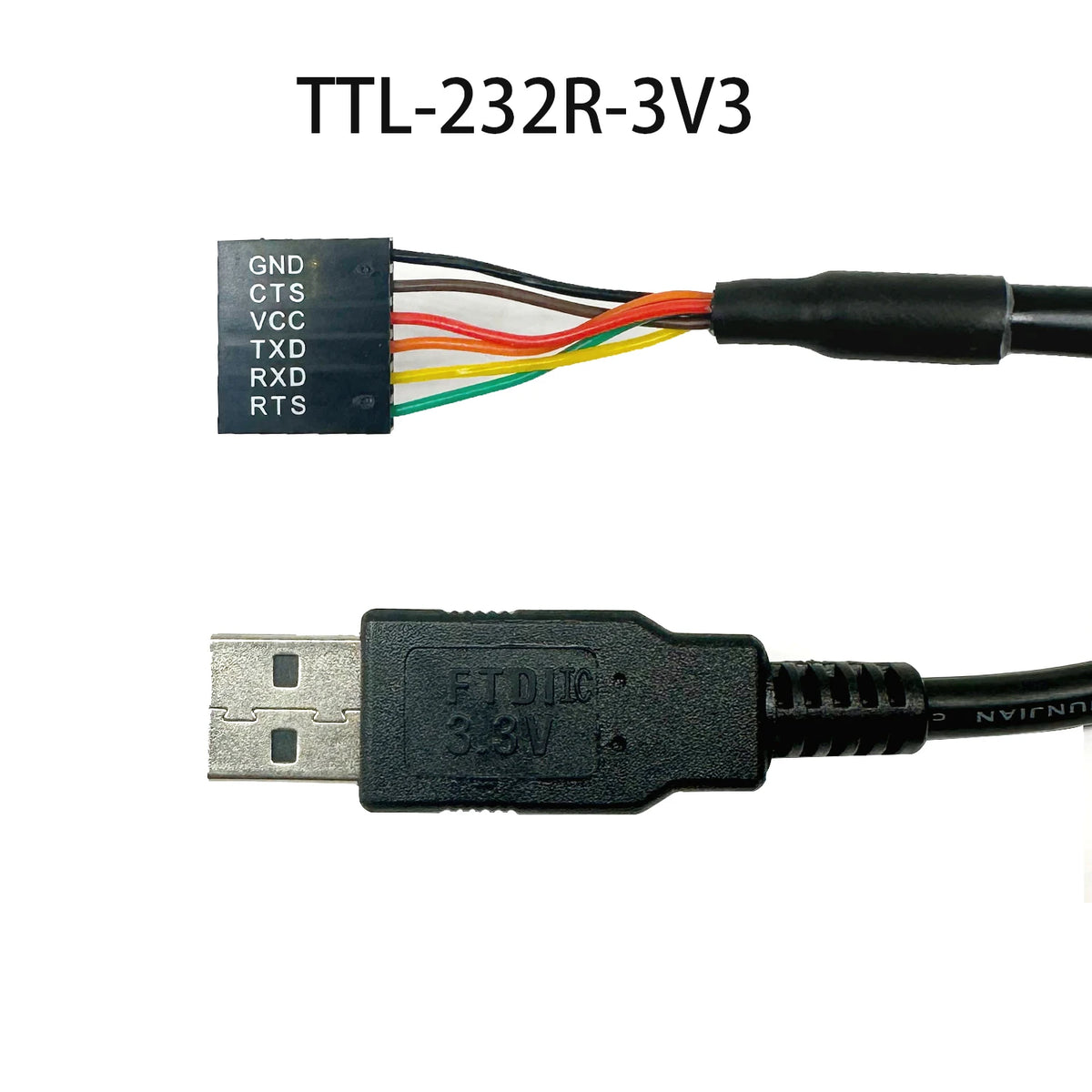

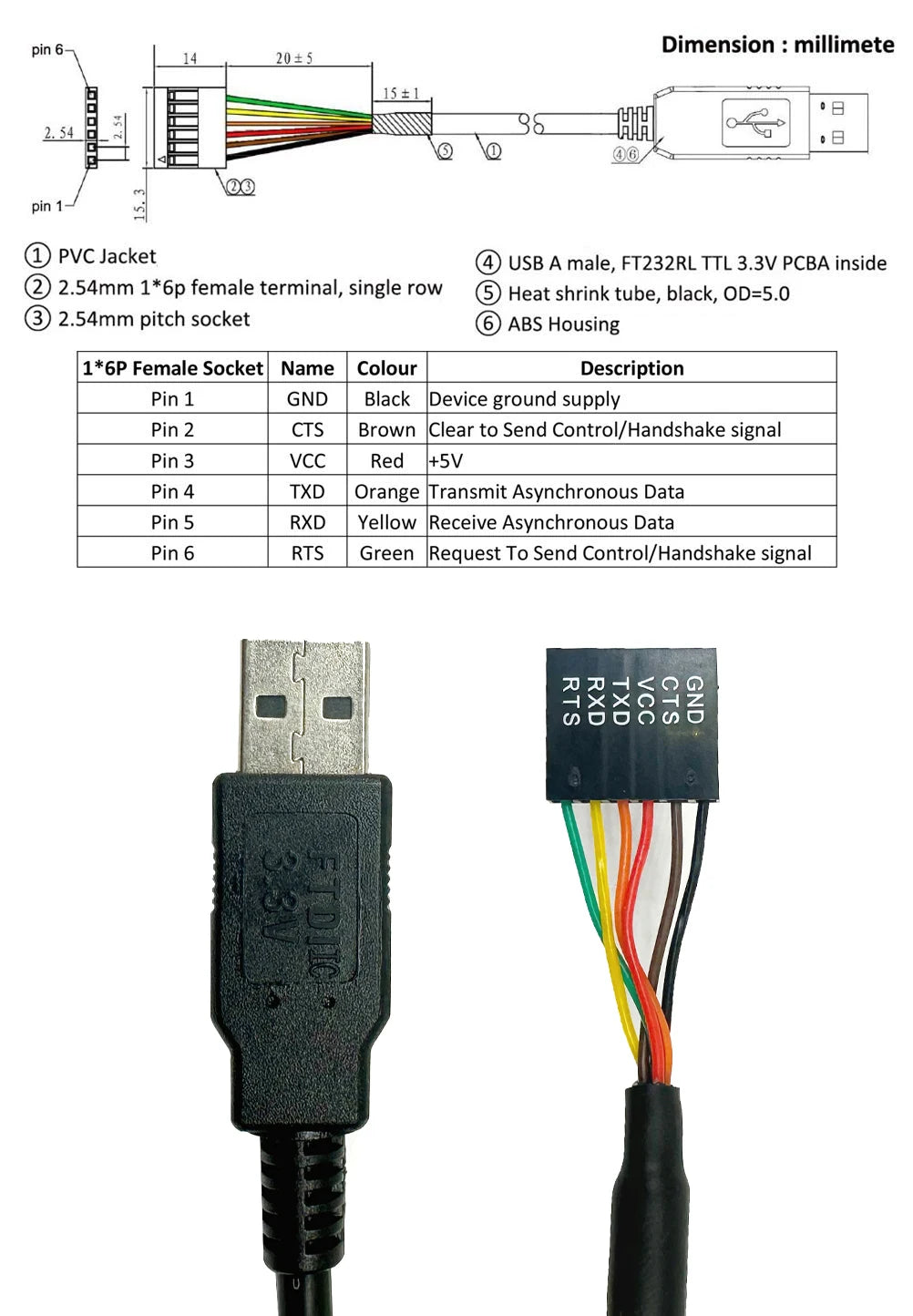

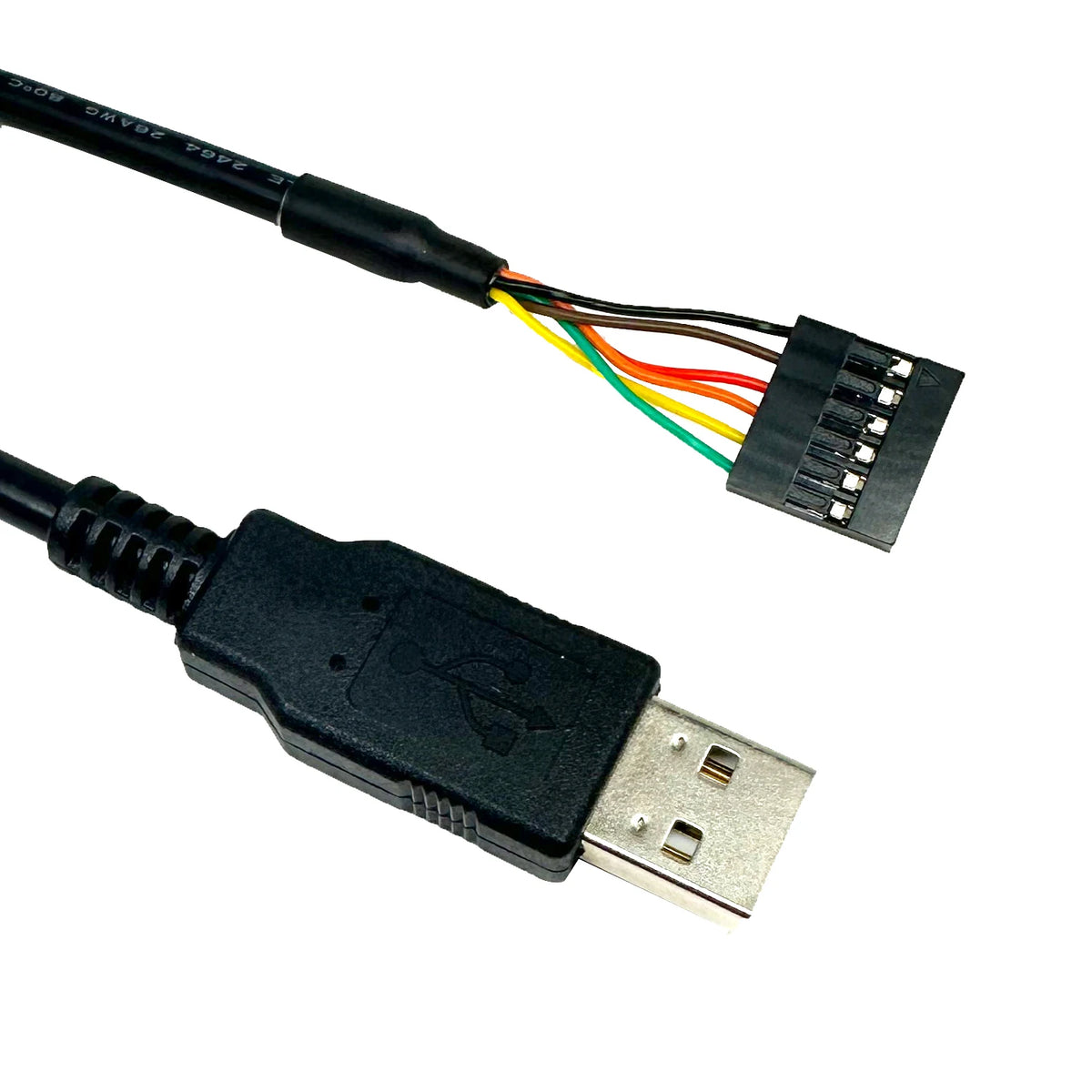

An assembled FT232RL USB-to-TTL module may use Mini USB, Micro USB, Type-C or USB-A, may present six UART pins or a different header, and may have a jumper for signal levels. A similarly titled Type-C/CH340 variant is not FT232 just because the product's title mentions FT232. One Nano development-board listing offers FT232 or CH340 USB bridges with different ATmega328P/PB, connector, soldered-header and cable selections; the bridge is only one part of that board. ESP32-CAM-related listings similarly separate FT232 download boards, ESP32-CAM assemblies, camera modules, antennas and jumper wires. Confirm that the selected option includes the host board, camera or adapter you actually need.

Driver and host compatibility

For an FT232-based adapter, check the reported USB VID/PID and the exact chip against the applicable driver distribution and your current Windows, macOS, Linux or Android host. A seller list of legacy operating systems is historical marketing, not a guarantee for a current OS release. Drivers may expose a virtual COM port or a vendor-specific interface depending on configuration. A CP2102, CH340, CH343G, CH9102F or PL2303 alternative may require a different driver and may present different GPIO/handshake functions, serial behavior or identification. Do not choose a substitute based only on the phrase “replace FT232.” Confirm that your application needs a COM port, hardware handshake, break signaling, bootloader control lines or direct library access and that the selected hardware actually exposes them.

For MCU flashing, identify the target's UART logic rail and boot/reset requirements. An adapter with TXD, RXD and GND may be enough for basic serial monitoring but not for automatic reset or flow control. The presence of a power pin on a serial header does not prove the adapter can power the whole development board. Read the output rating and avoid combining two powered rails without a design-level check. “For Arduino,” “for ESP32” and other platform names describe possible use, not a verified universal pinout or automatic compatibility.

Industrial converter claims require board-specific proof

Several FT232RNL multi-interface converters describe digital isolation, isolated power, TVS devices, fuses, switchable TTL 3.3 V/5 V levels and selectable RS-485 termination. Another FT232RL USB-to-TTL module describes an ADUM3201 isolator and isolated supply. These features belong only to the exact board/revision that carries them; a generic FT232RL breakout is not isolated. A source listing mixes an FT232RL RS-485 adapter with ADUM3160 USB-isolator variants and gives different “1-way,” “4-way” and Type-B selections. Select the physical configuration first, then verify the schematic, isolation barrier, ground separation, working-voltage rating, installation category and application environment. Advertised 1,000 V or 1,500 V isolation, “lightningproof,” 15 kV ESD or 600 W TVS figures are not blanket safety approvals for every item or a substitute for system-level protection assessment.

A claimed 1,200 m RS-485 run or 3 Mbps transfer rate likewise depends on the selected transceiver, cable, grounding, topology, termination and noise conditions; it cannot be promised for every setup. Different listings quote up to 32 nodes or larger figures. Loading and repeaters determine real network capacity. Install termination only at appropriate network ends for the selected topology, and verify whether a particular product's onboard resistor is fitted or jumper-enabled. For multi-port RS-232/485/422-to-Ethernet servers, choose the exact port type, number of ports, PoE option, isolated/non-isolated option and included power supply or regional plug. “Device only” is not a full accessory kit.

Accessories and unrelated search matches

The collection includes DB9, DB15 and DB25 D-sub shells, solder and screw-terminal adapters, RJ45-to-DB9 pinout cables, scanner serial harnesses, connector gender changers and passive wires. These are useful only where their exact physical pinout and mating equipment match. They do not provide FT232 USB conversion. Other entries include MAX232/MAX3232 RS-232 level shifters, MAX485/3485 RS-485 transceivers, HC-05/HC-06 Bluetooth UART modules, PLC boards, rotary encoders, sensors, LCDs, cellular gateways, laser diodes and other numerical “232” matches. Their inclusion must not be read as a claim that they contain FT232 silicon or that all their selectable options have a USB port. Some mixed variants offer a USB cable, a bare IC, an unrelated module or a complete assembly as mutually exclusive choices. Product membership is unchanged; check the specific selected variant on each product page.

Selection checklist

1. Specify the endpoints: USB host and TTL UART target, RS-232 DB9 device, two-wire RS-485 bus, four-wire RS-422 interface, or an entirely different gateway application.
2. Identify the selected chipset: FT232RL, FT232RNL, FT232BL, CH340/CH343G, CP2102 or PL2303. Do not infer the chip from a mixed title.
3. Choose the delivered form: loose IC, populated breakout, USB cable, enclosed industrial converter, passive connector, controller board or gateway. Read quantity and inclusion of host hardware.
4. Match the hardware: USB connector, target-side connector and pinout, logic voltage, supply and I/O current, handshake and direction control, isolation and actual transceiver implementation.
5. Validate the system: driver for the current host OS, protocol and baud settings, network termination/bias where applicable, cable environment and safety limits.
6. Check options at checkout: “FT232,” “CH340,” “MAX485,” “USB to RS232,” “USB to RS485,” “isolated,” “non-isolated,” and length/quantity selections may each change the delivered item.

Frequently asked questions

Is FT232 the same thing as RS-232?

No. FT232 identifies a USB-to-UART bridge family; RS-232 is an electrical serial interface. An FT232-based RS-232 adapter additionally needs suitable RS-232 level conversion. A TTL UART module cannot be plugged straight into an RS-232 port based solely on TX/RX labels.

Does an FT232 adapter also support RS-485?

Only if the selected board or cable includes an RS-485 transceiver and suitable direction-control design. A bare FT232 IC or TTL breakout does not become RS-485 merely through software.

Are FT232RL, FT232RNL and FT232BL interchangeable?

Do not assume so. Compare package, pinout, power domains, feature set, configuration and driver requirements using the exact datasheet and board design.

Can I assume all products in this collection use FTDI chips?

No. Several choices explicitly use CH340, CH343G, CP2102 or PL2303, and some search matches are passive connectors or unrelated components. The variant is the source of truth for the item ordered.

Is an “isolated” serial converter safe for any high-voltage installation?

No. Verify the exact board's isolation ratings, creepage and clearance, isolated power, documentation and applicable system safety requirements. Marketing terms alone do not establish installation suitability.

Do DB9 adapters convert protocols or voltage levels?

Passive DB9 gender changers and screw-terminal breakouts only rearrange or expose contacts. A real converter needs active circuitry appropriate to the two interfaces.
