Electrical Fuses, Thermal Cutoffs and Fuse Holders
A fuse is a protective element designed to open a circuit under specified overcurrent conditions. This broad assortment covers replaceable glass and ceramic cartridge fuses, PCB and surface-mount fuses, automotive blade and high-current bolt-down fuses, one-shot thermal cutoffs, fuse holders, fuse taps and prefused wiring accessories. Some listings also show resettable PTC devices, thermostats, resistor products and unrelated equipment: confirm the chosen item is actually a fuse before using it as overcurrent protection. A holder or cable with a fuse position is not itself proof that a suitable fuse is supplied.
Find the right product family
- Glass and ceramic cartridge fuses: listings span 3.6 × 10 mm, 5 × 20 mm, 6 × 30 mm, 10 × 38 mm and other form factors, with fast-acting and time-delay options. Glass versus ceramic housing does not establish breaking capacity. Compare exact dimensions, operating voltage, rated current, time-current characteristic and interrupting rating from the selected part.
- PCB and SMD fuses: axial-lead, square or round subminiature and 1206/1808/2410-style options need a compatible pad or lead footprint and appropriate solder process. A package code is not an ampere, voltage or fault-clearing rating.

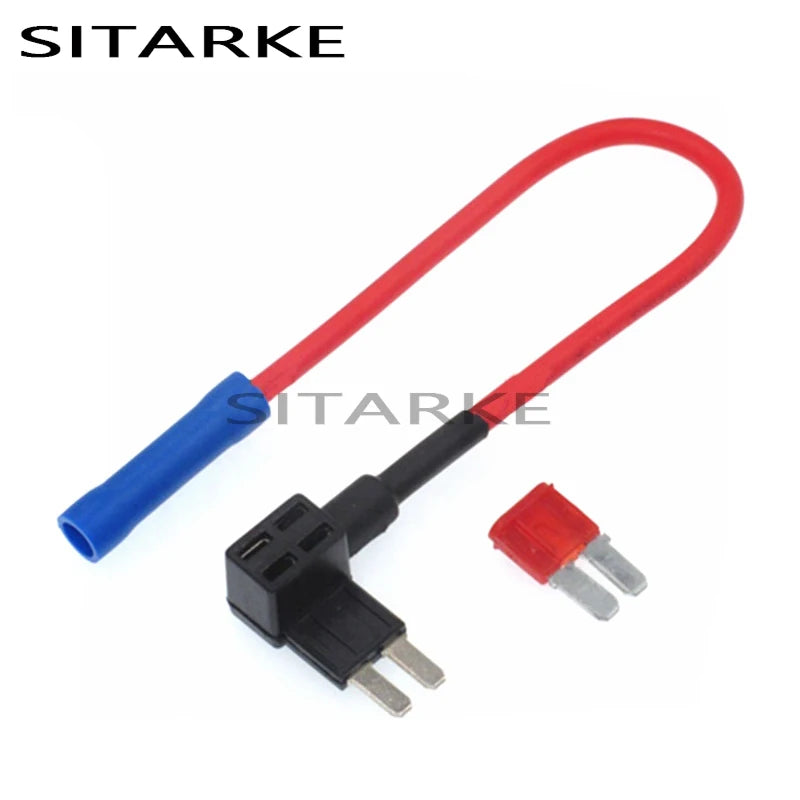

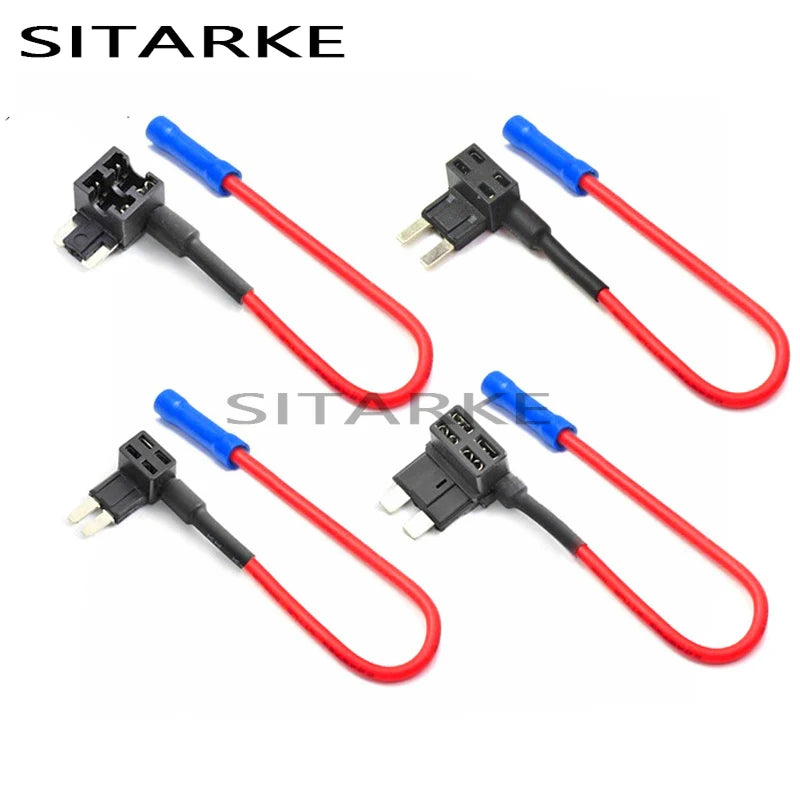

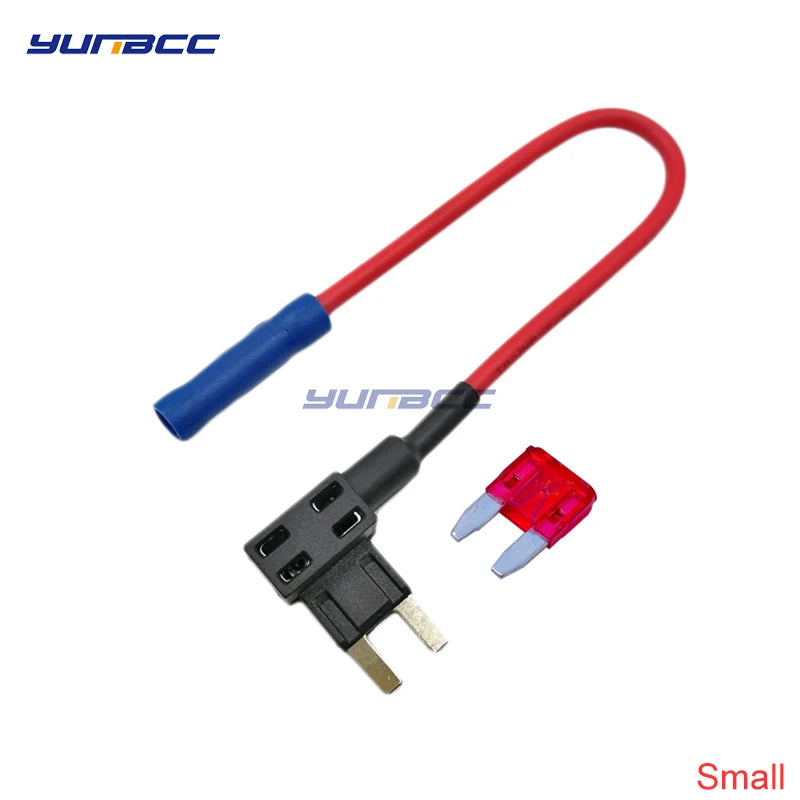

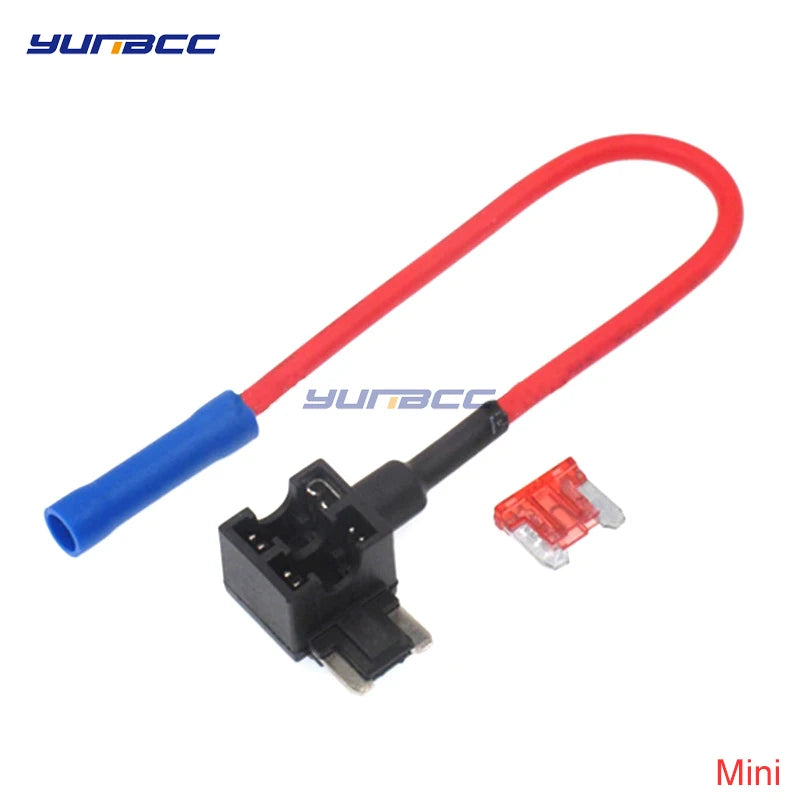

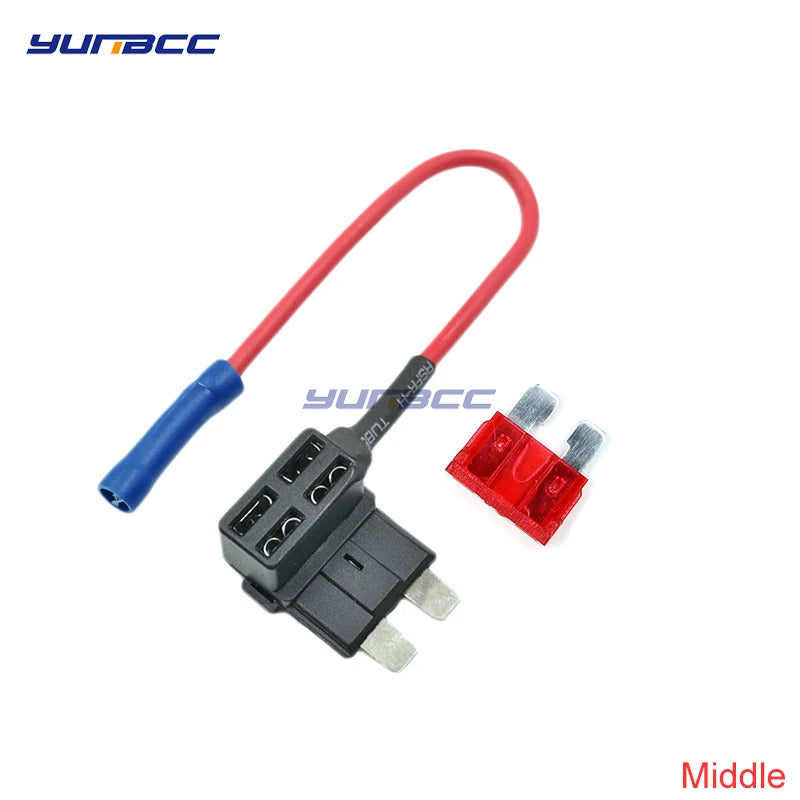

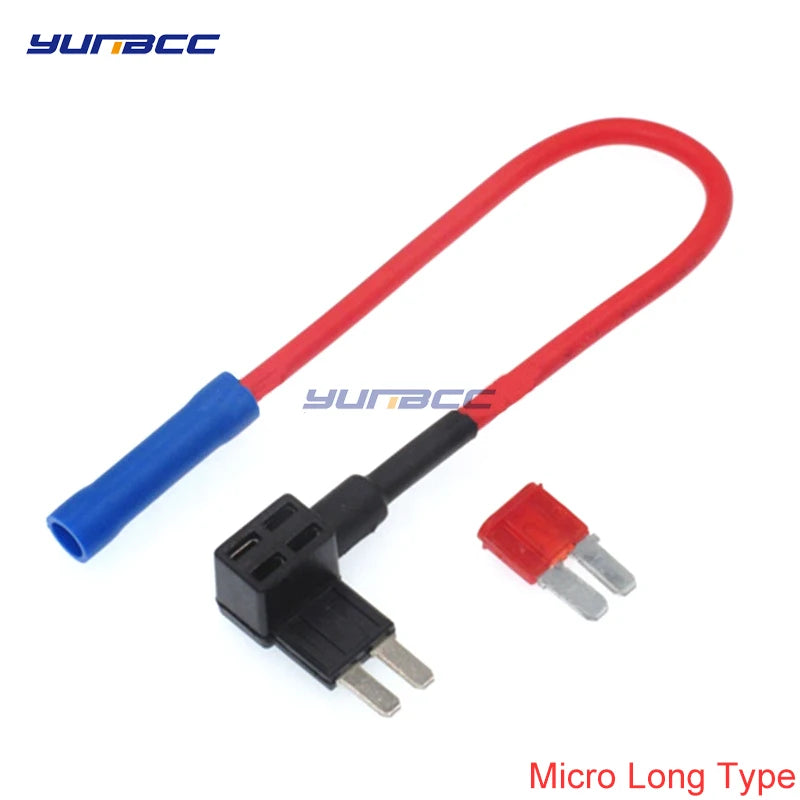

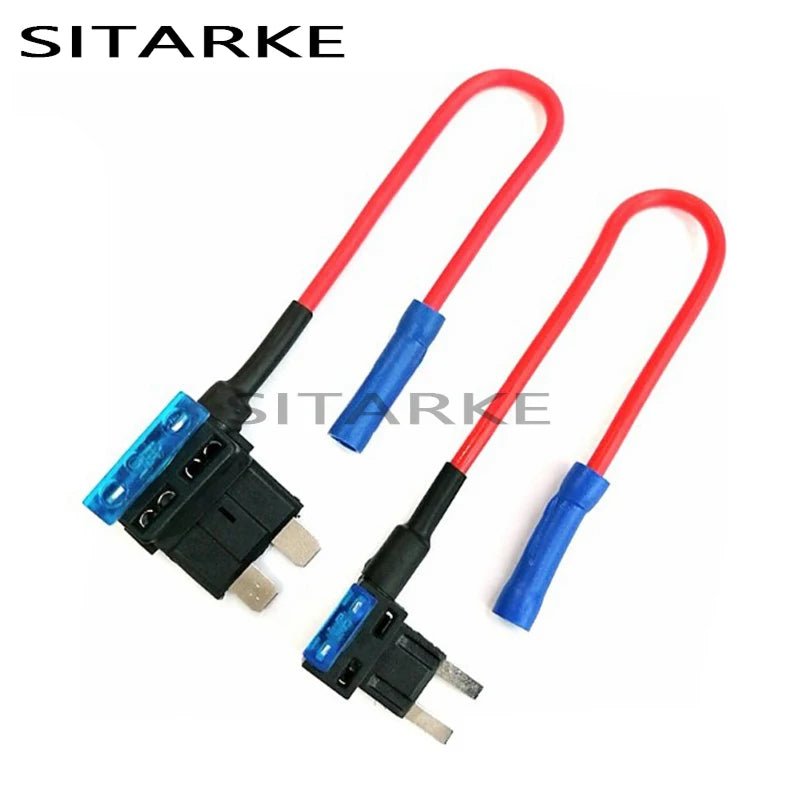

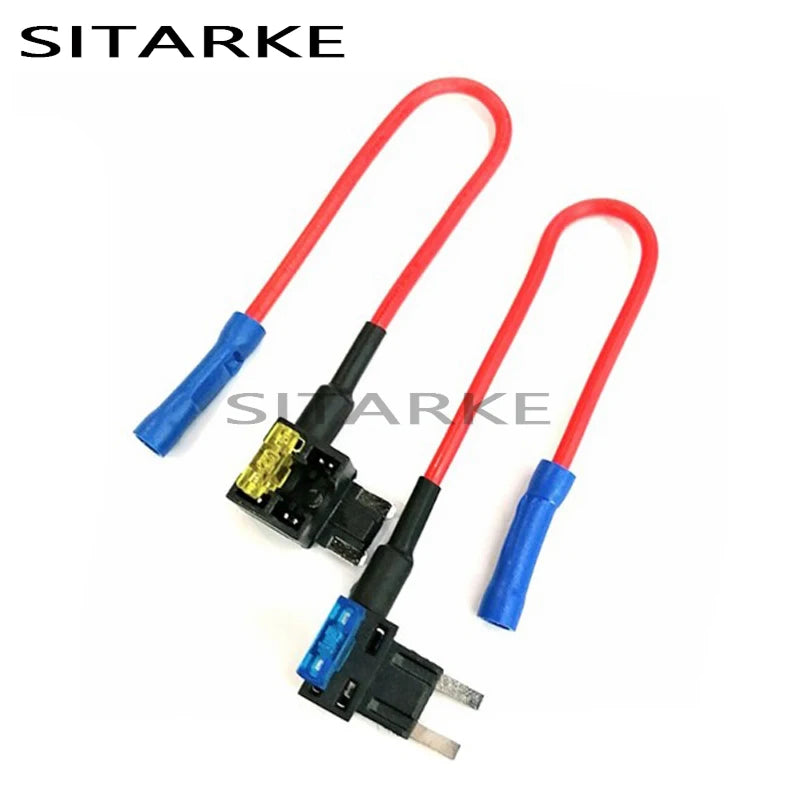

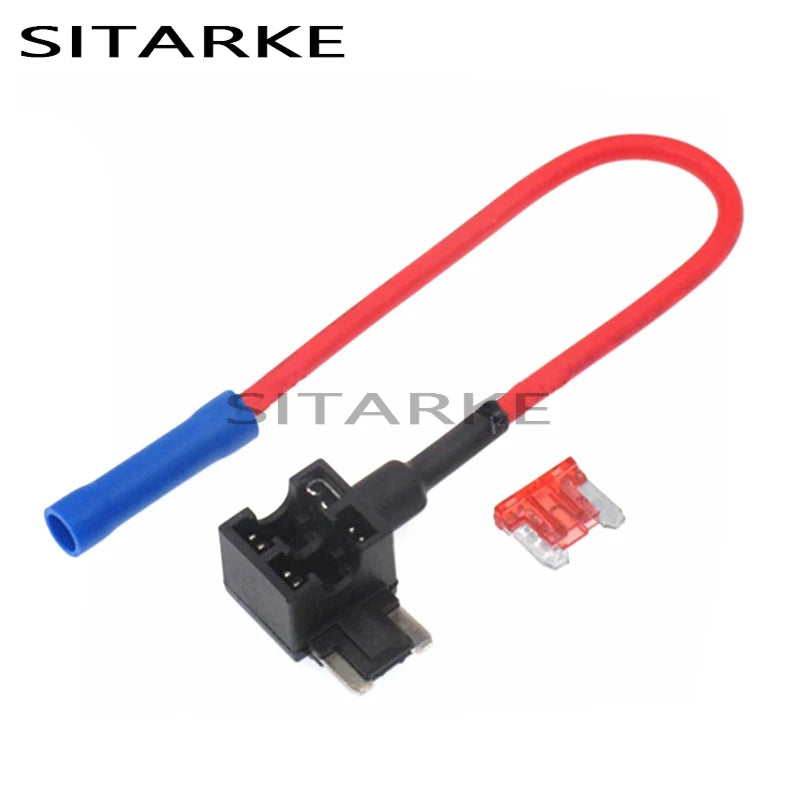

- Automotive and DC fuses: standard/ATO/ATC, mini, micro, M2, ANL and other blade or bolt-down products differ mechanically and electrically. Match the specified holder, DC voltage, current, fault capability and vehicle or battery-system conditions. Fuse taps and add-a-circuit adapters are accessories, not an automatic safe expansion of a circuit.
- Thermal cutoffs: RY/TF and similar one-shot devices are selected by opening temperature, holding temperature, voltage/current limits, mounting and exposure to process heat. Their printed temperature is not a replacement for an electrical fuse's current rating.

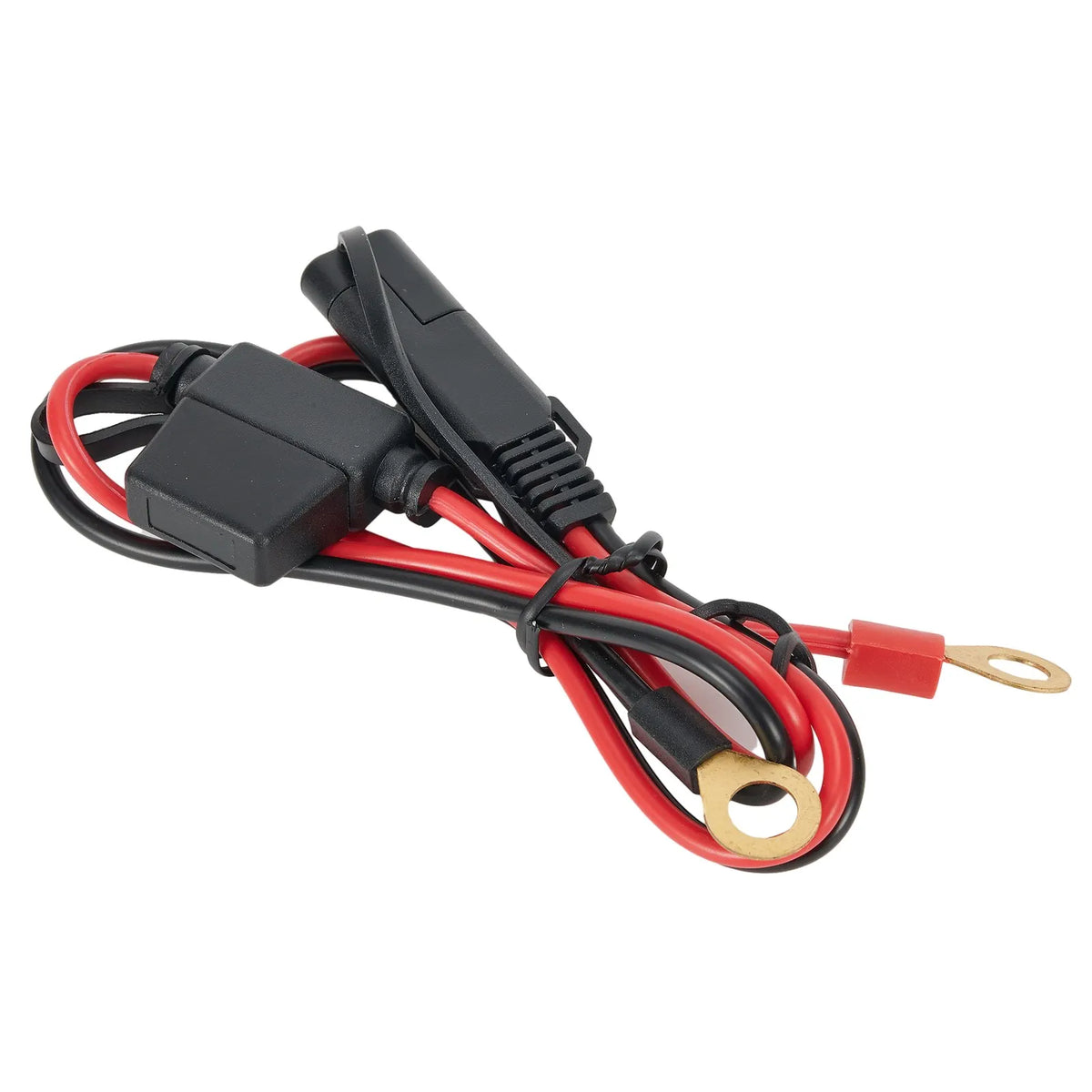

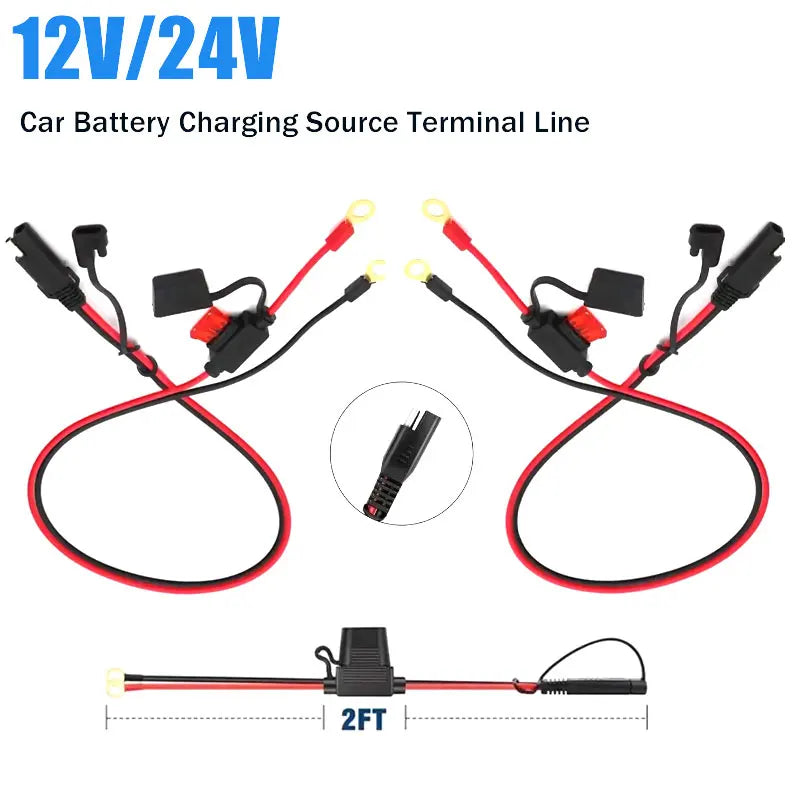

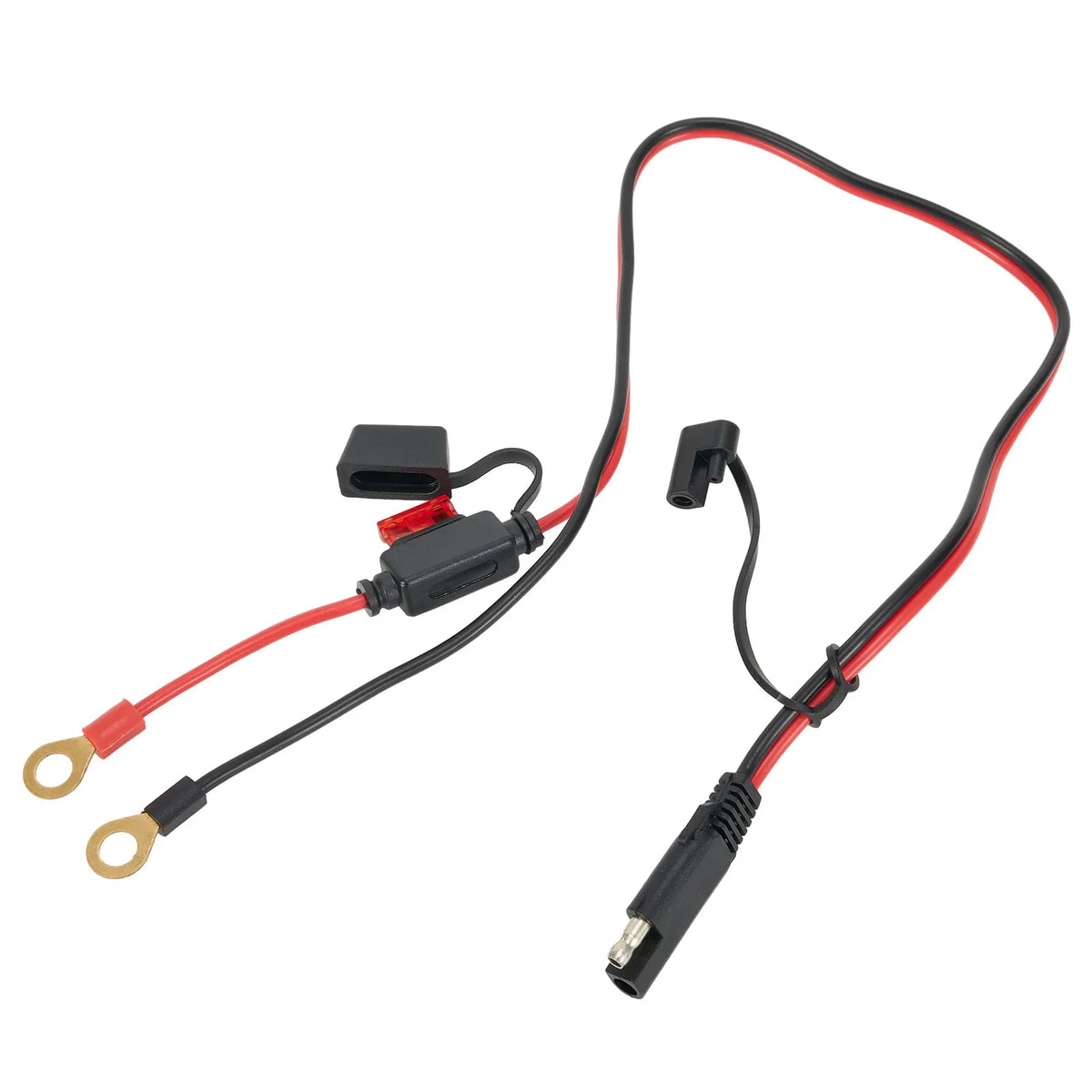

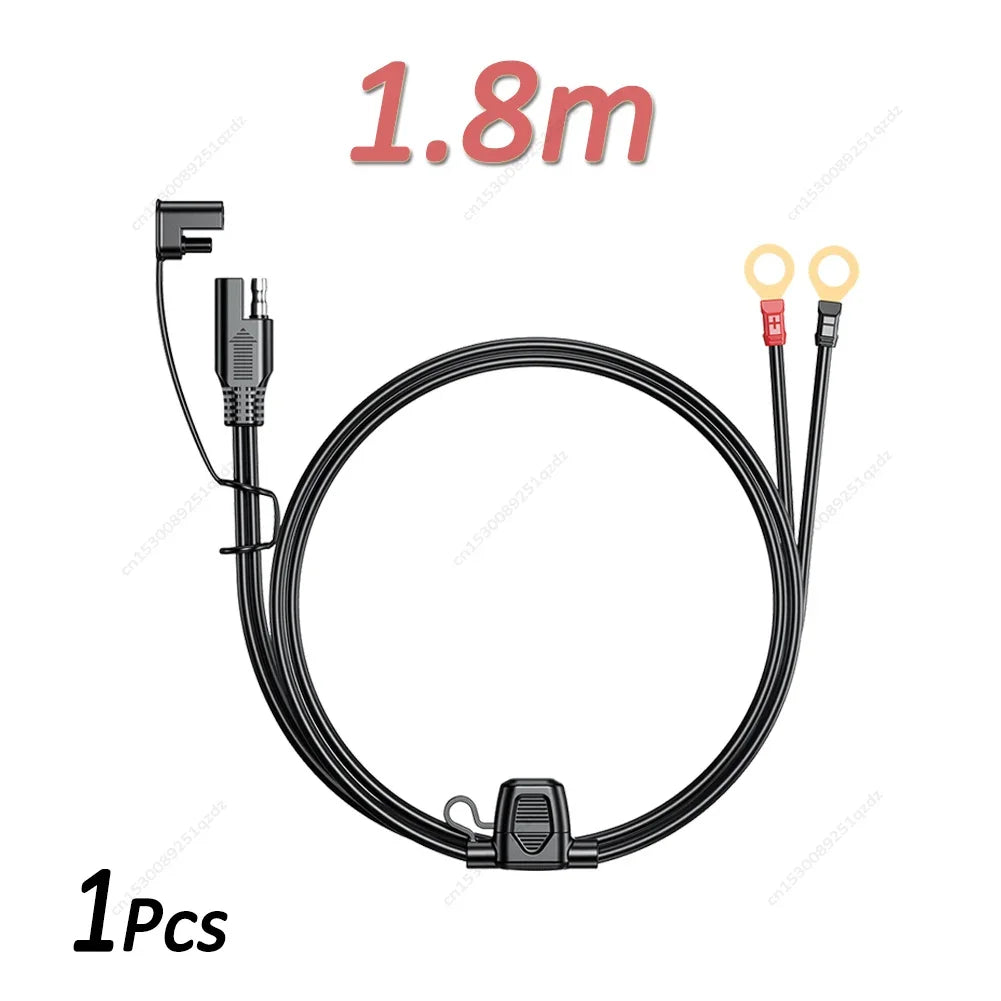

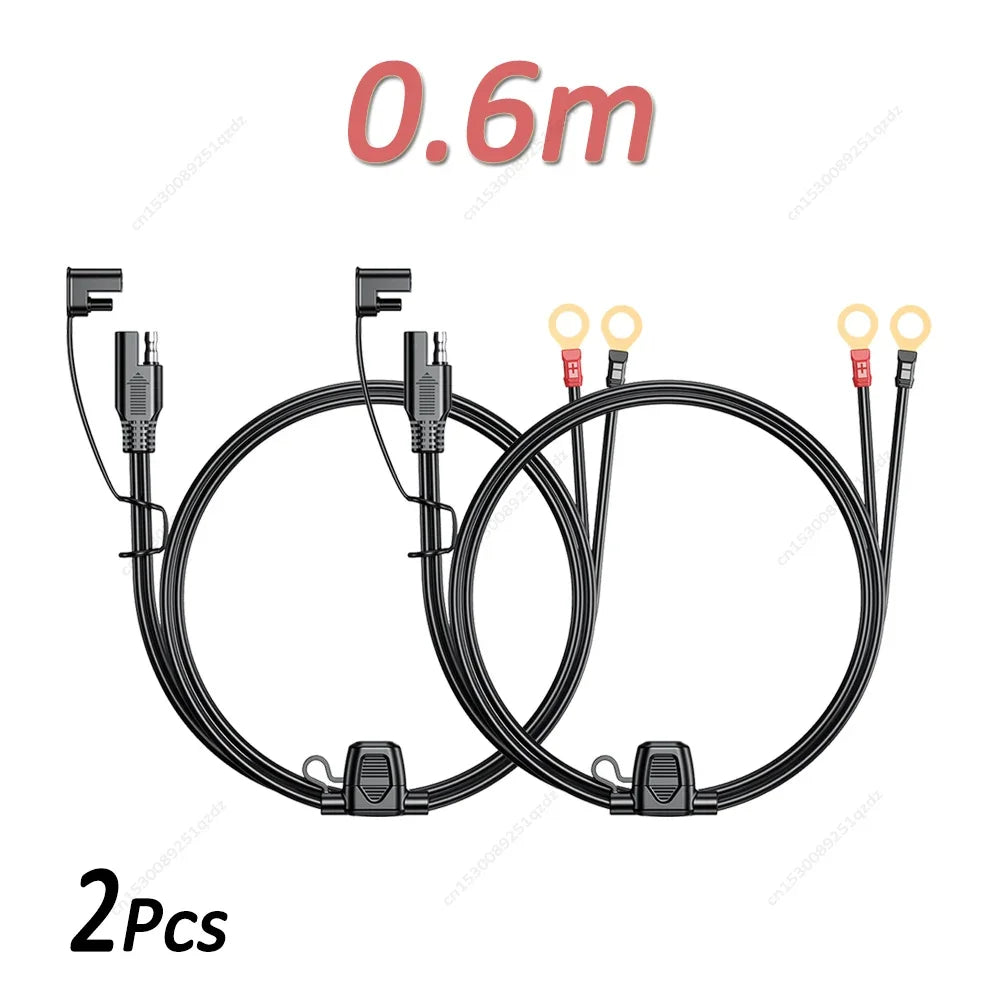

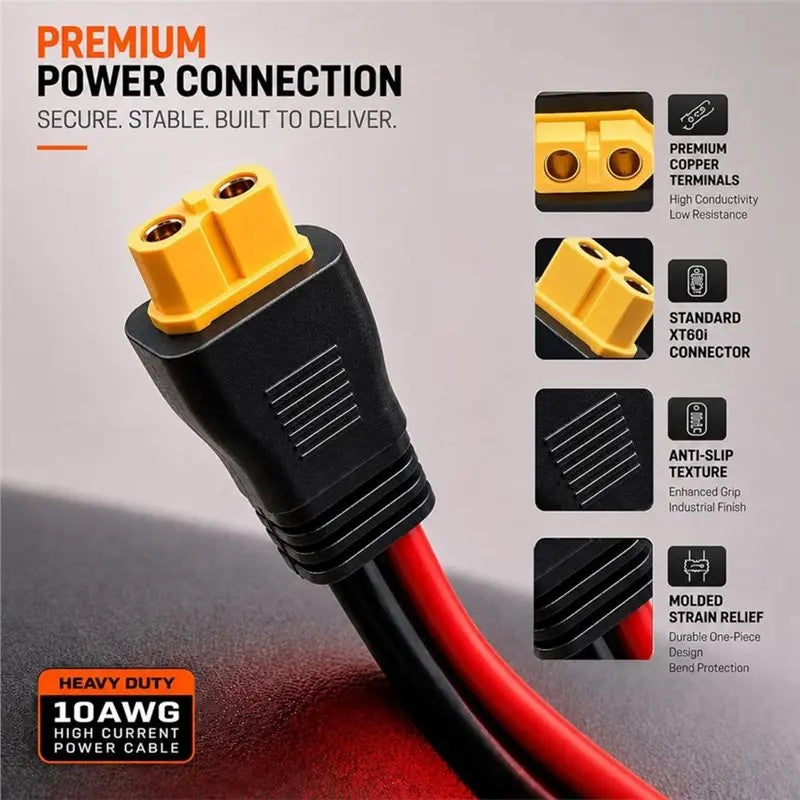

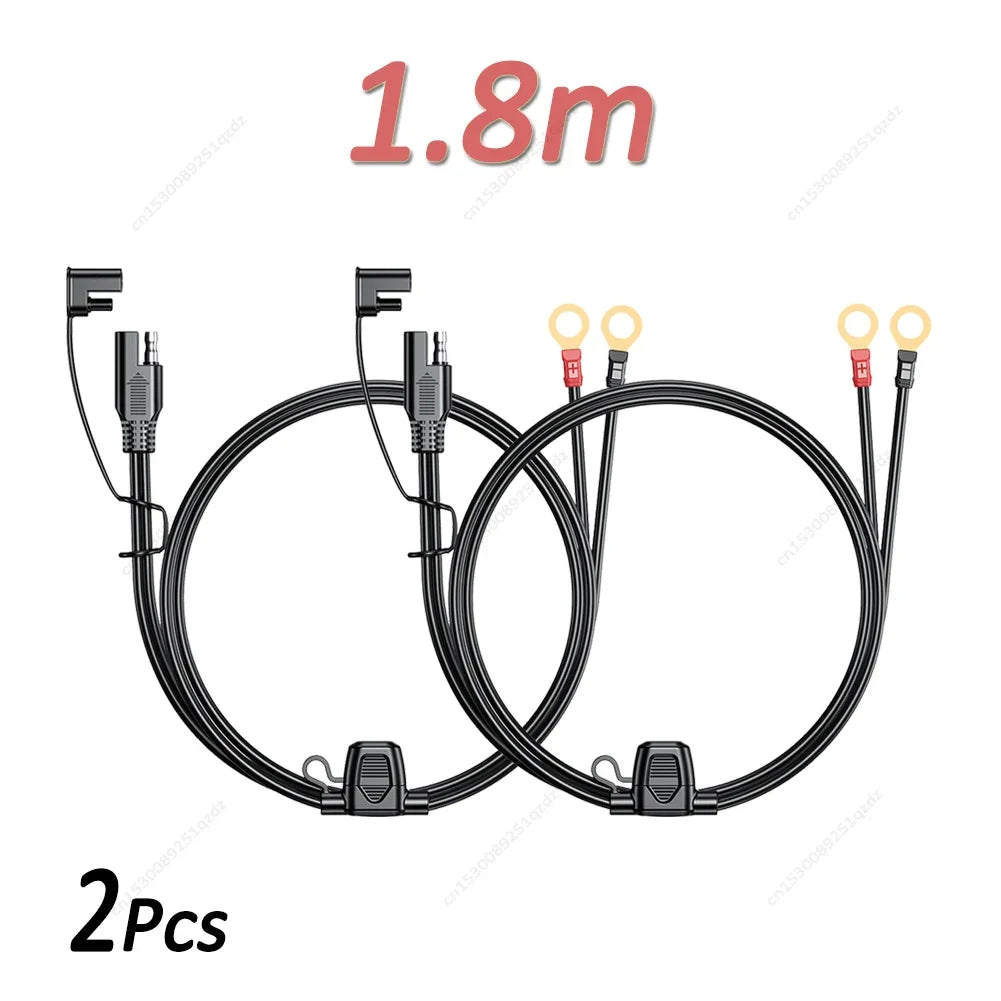

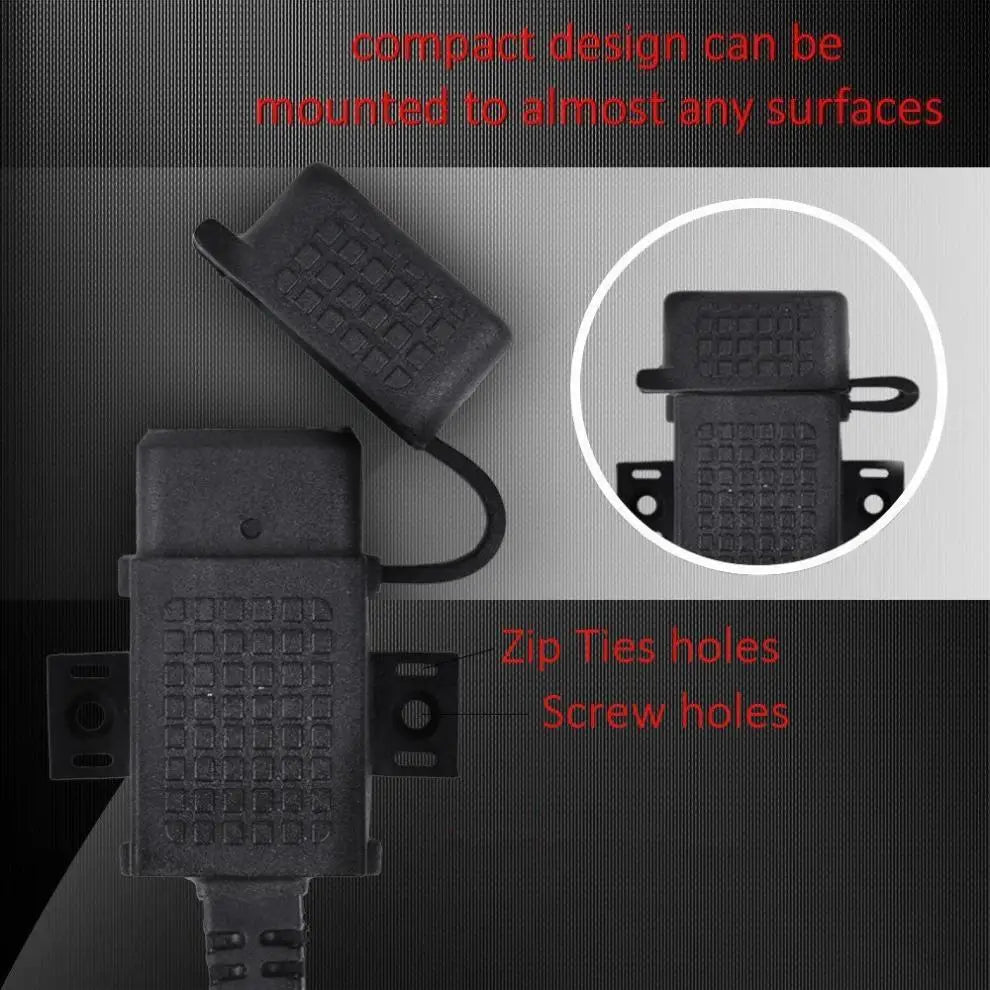

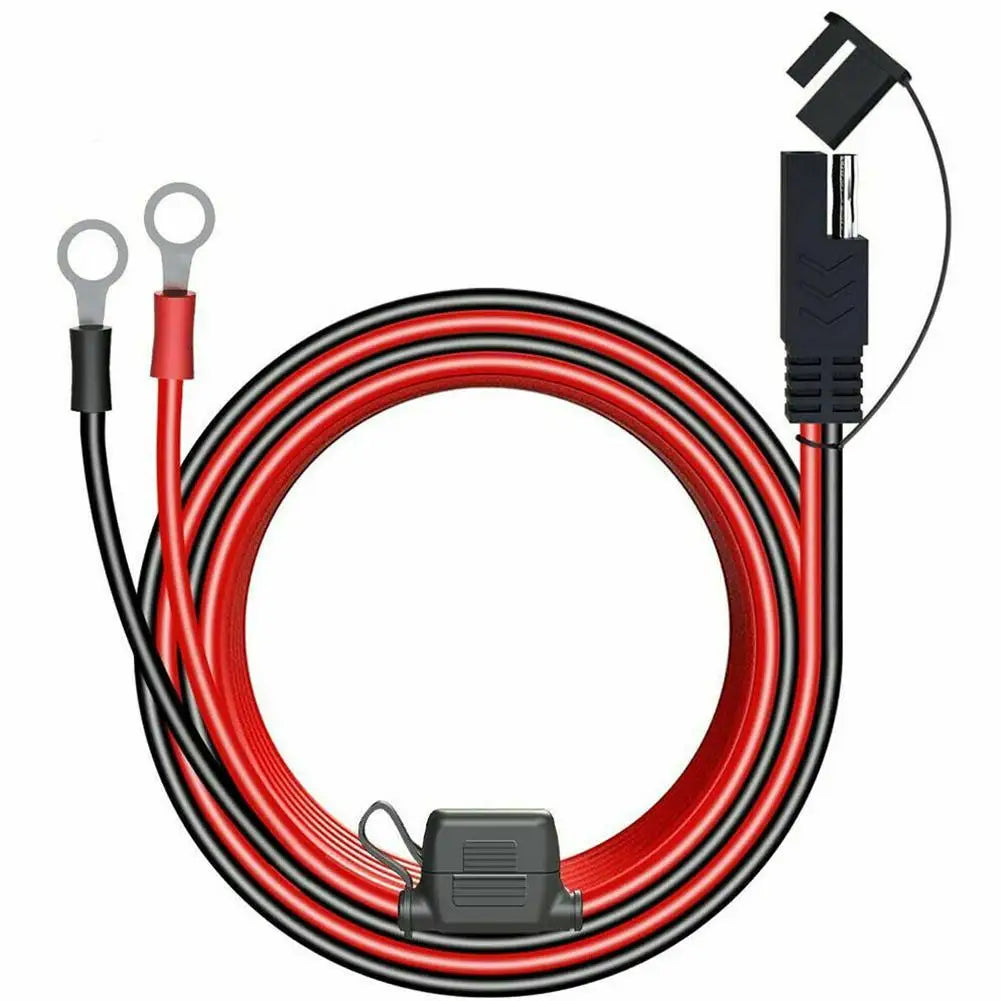

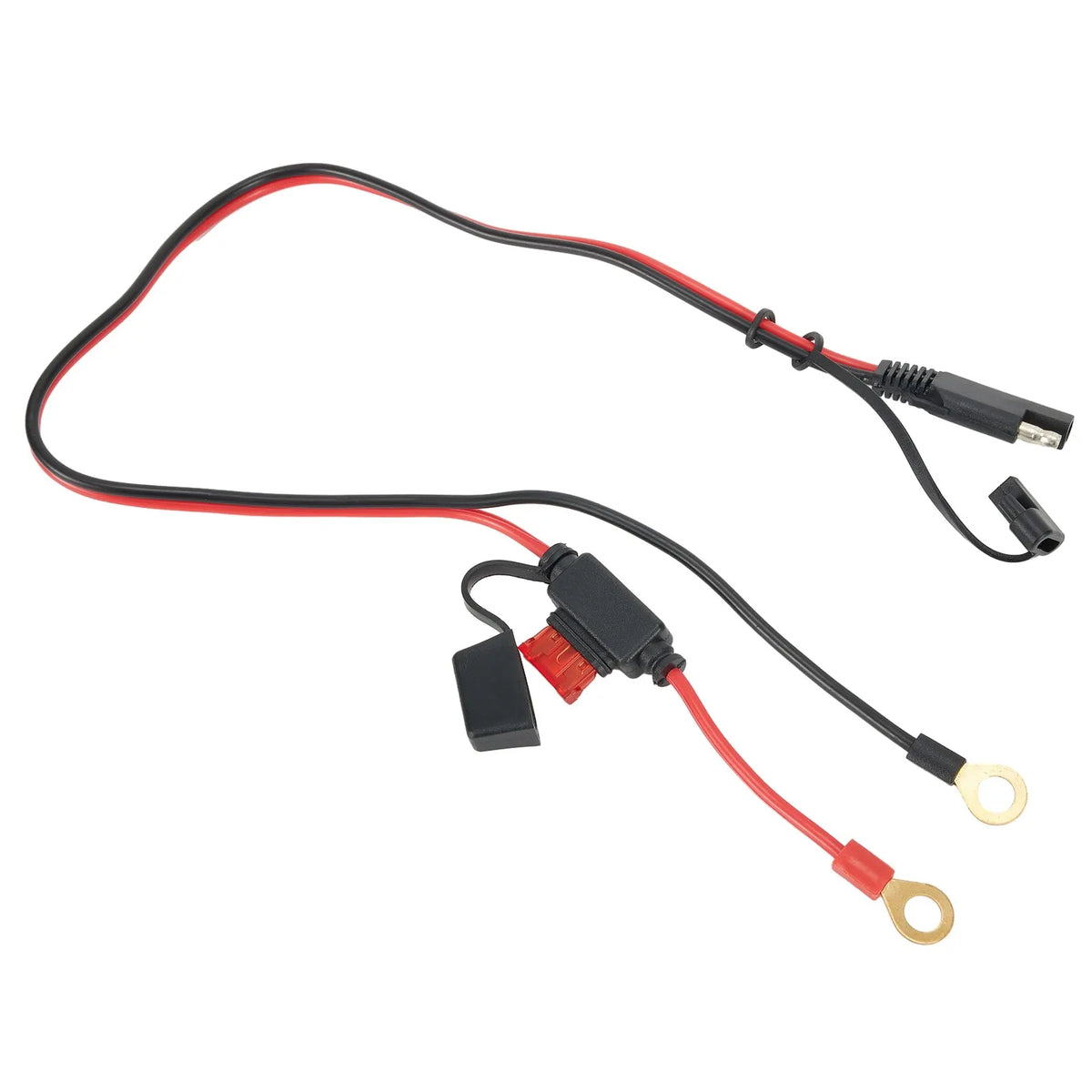

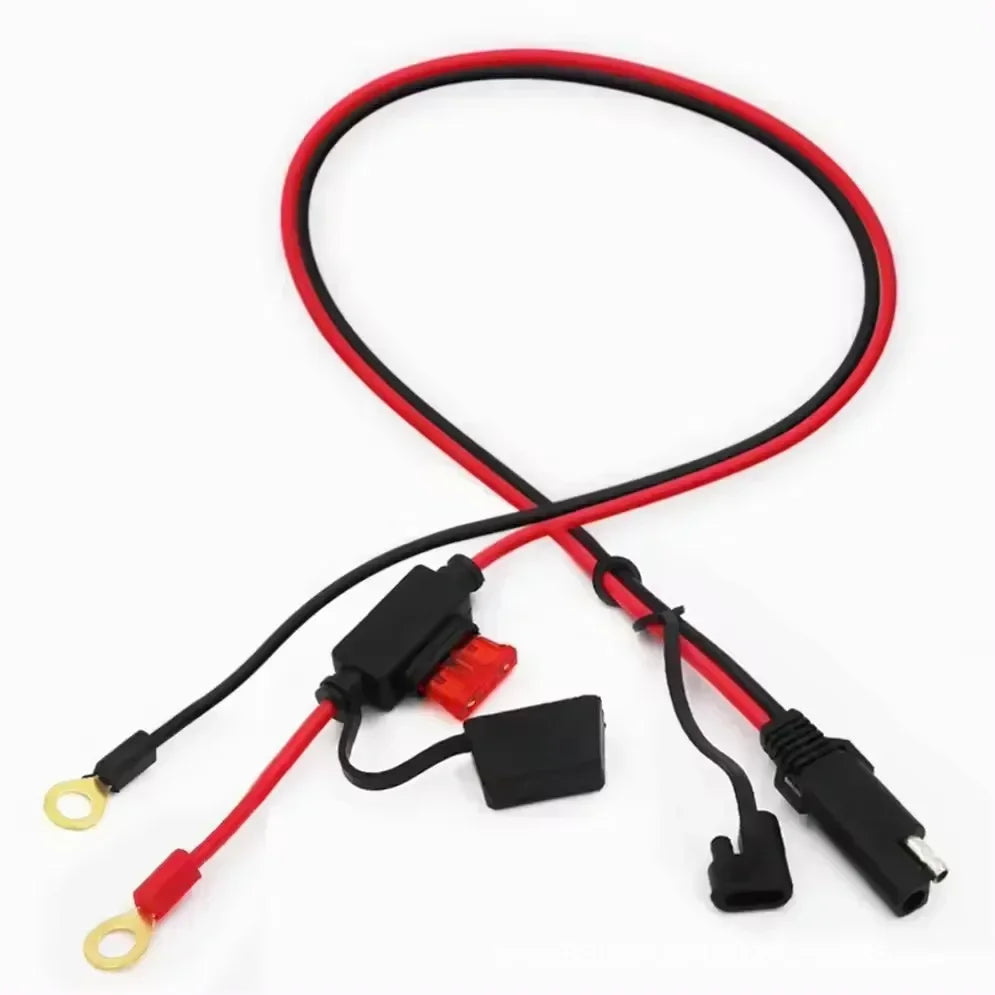

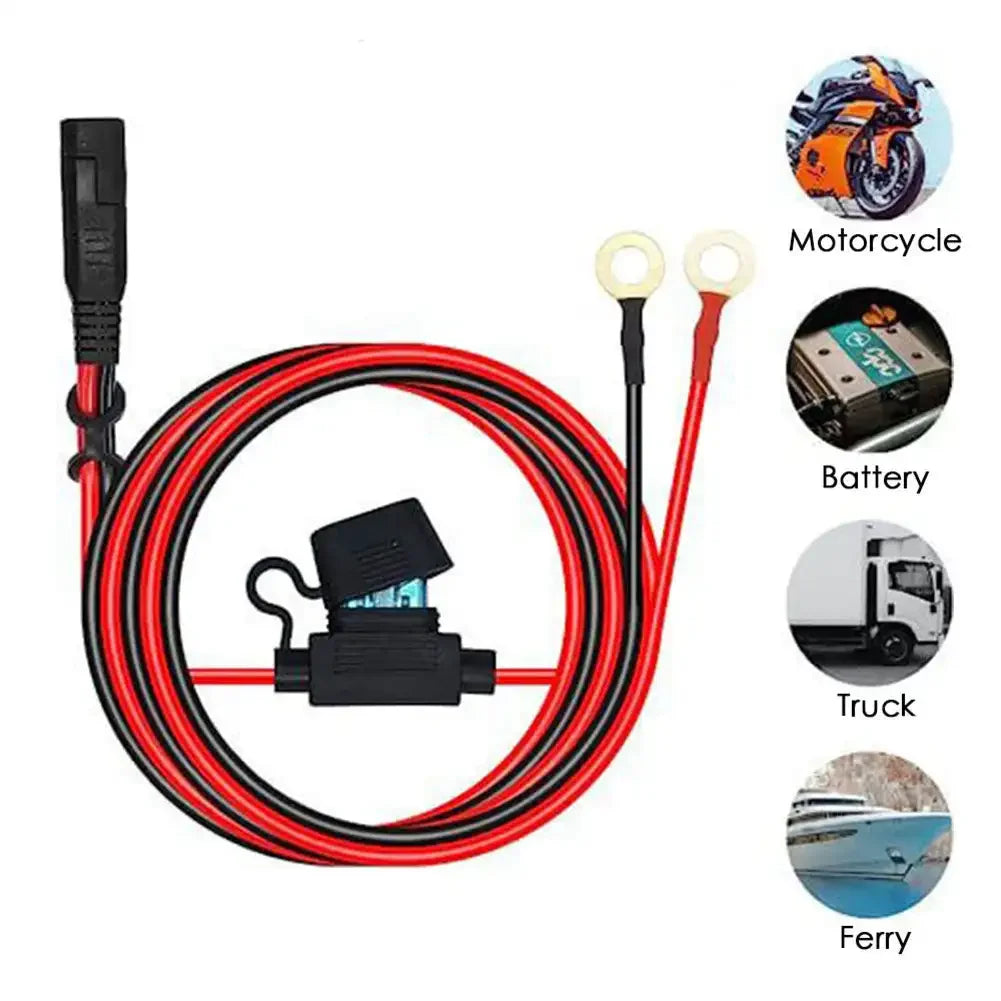

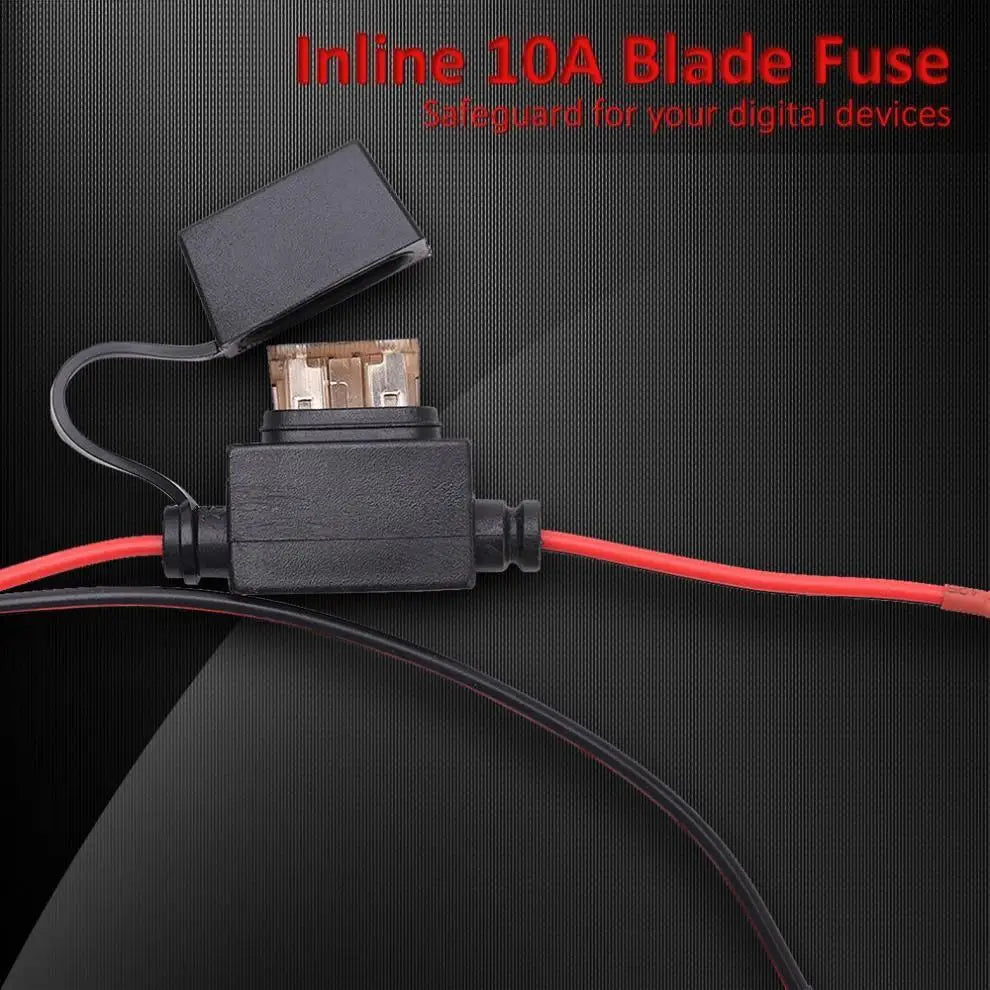

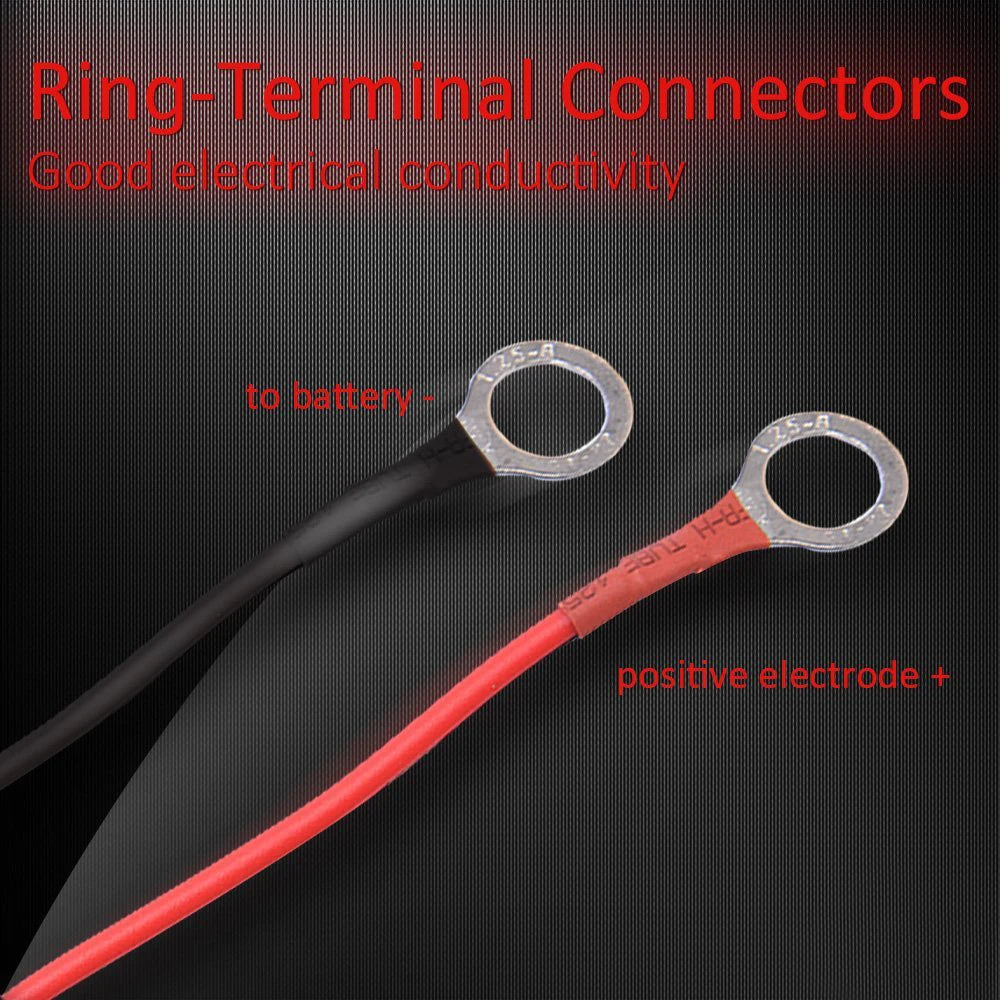

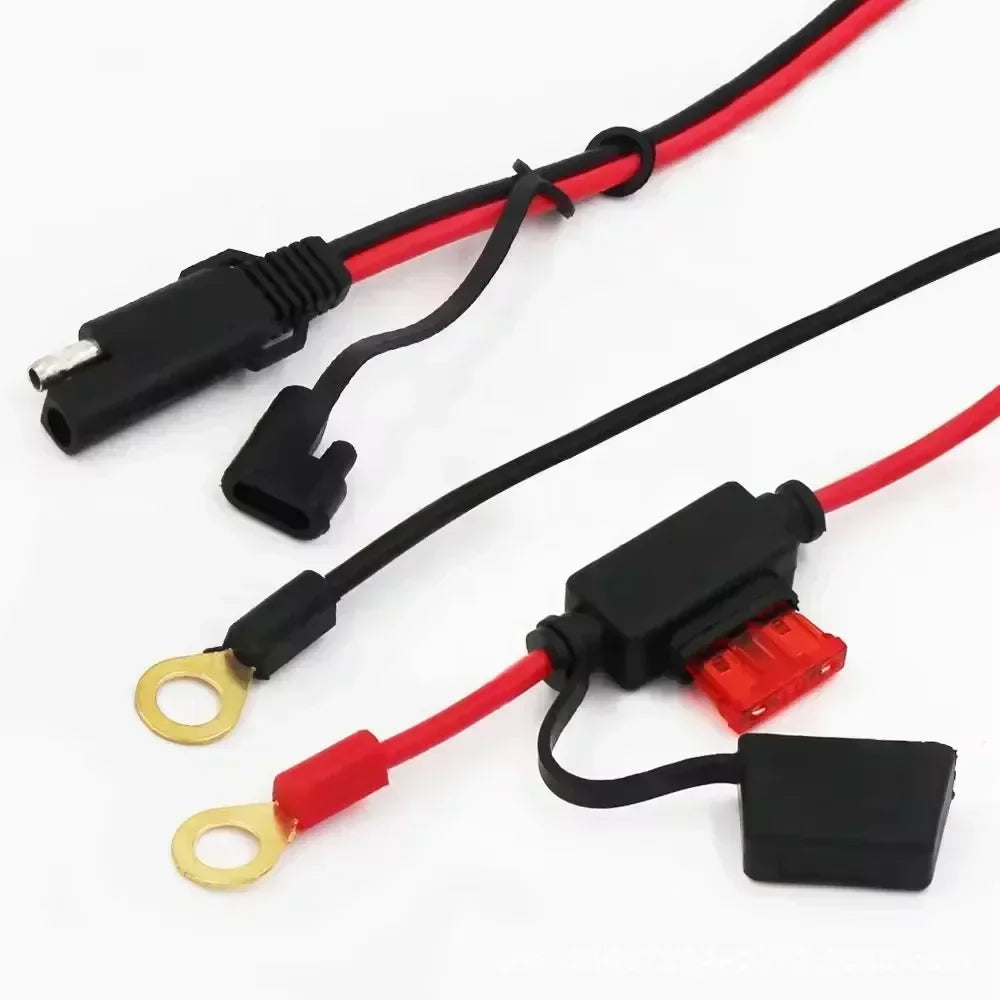

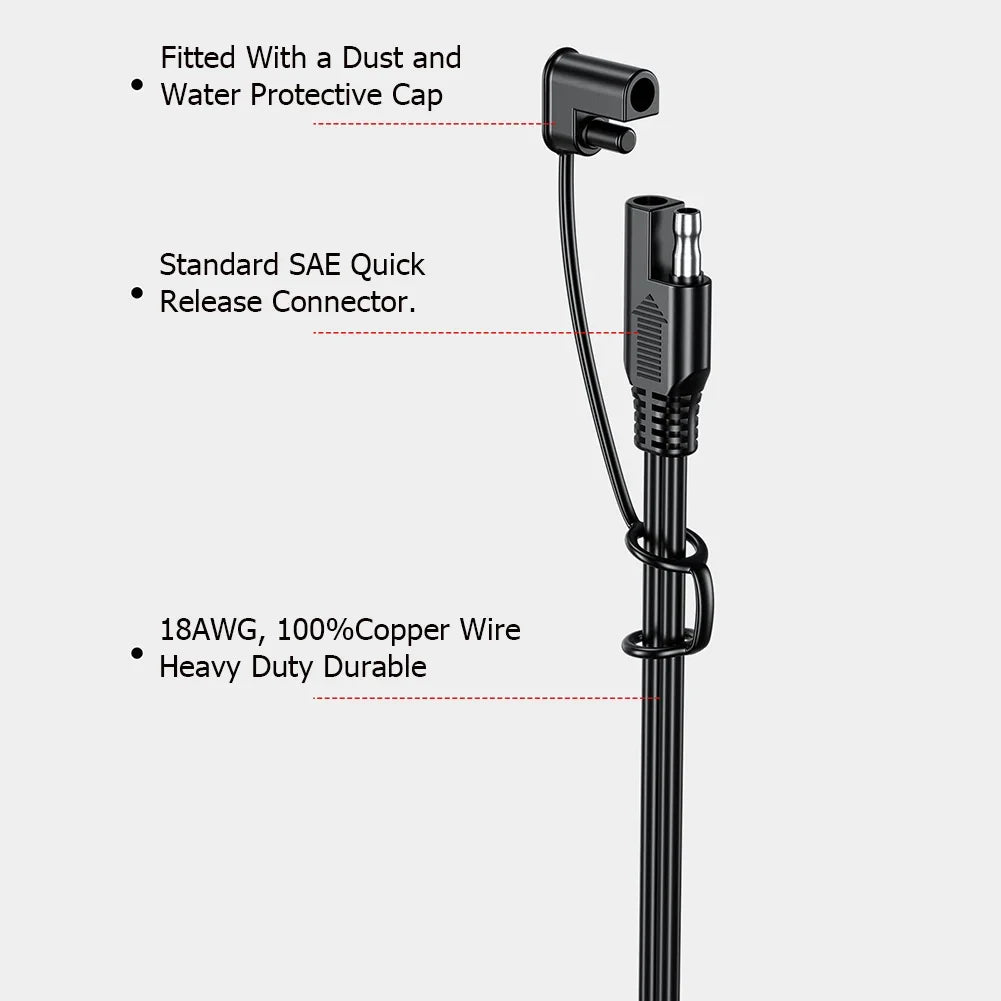

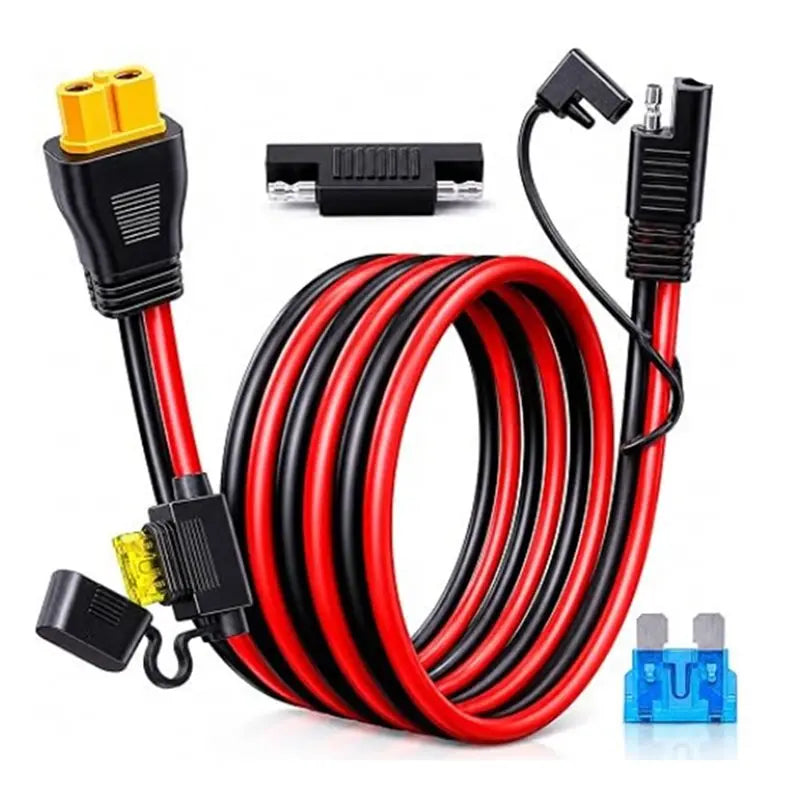

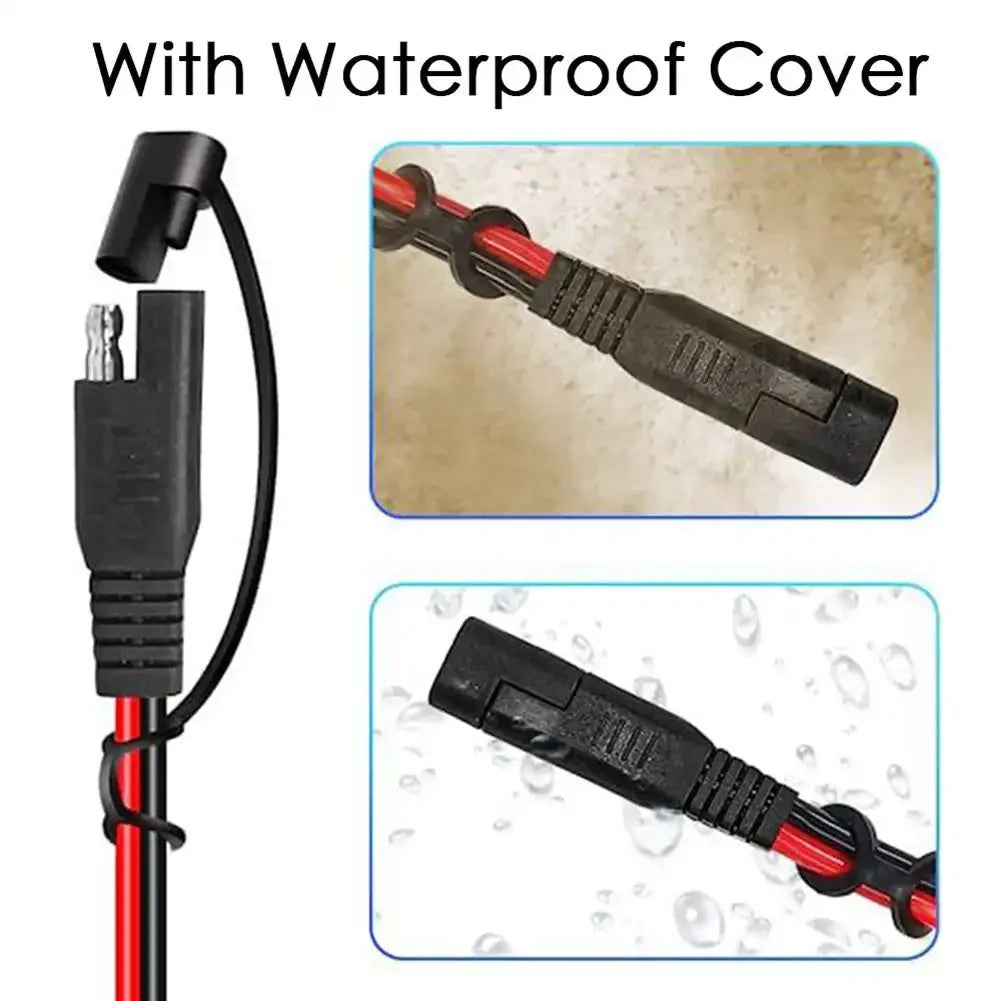

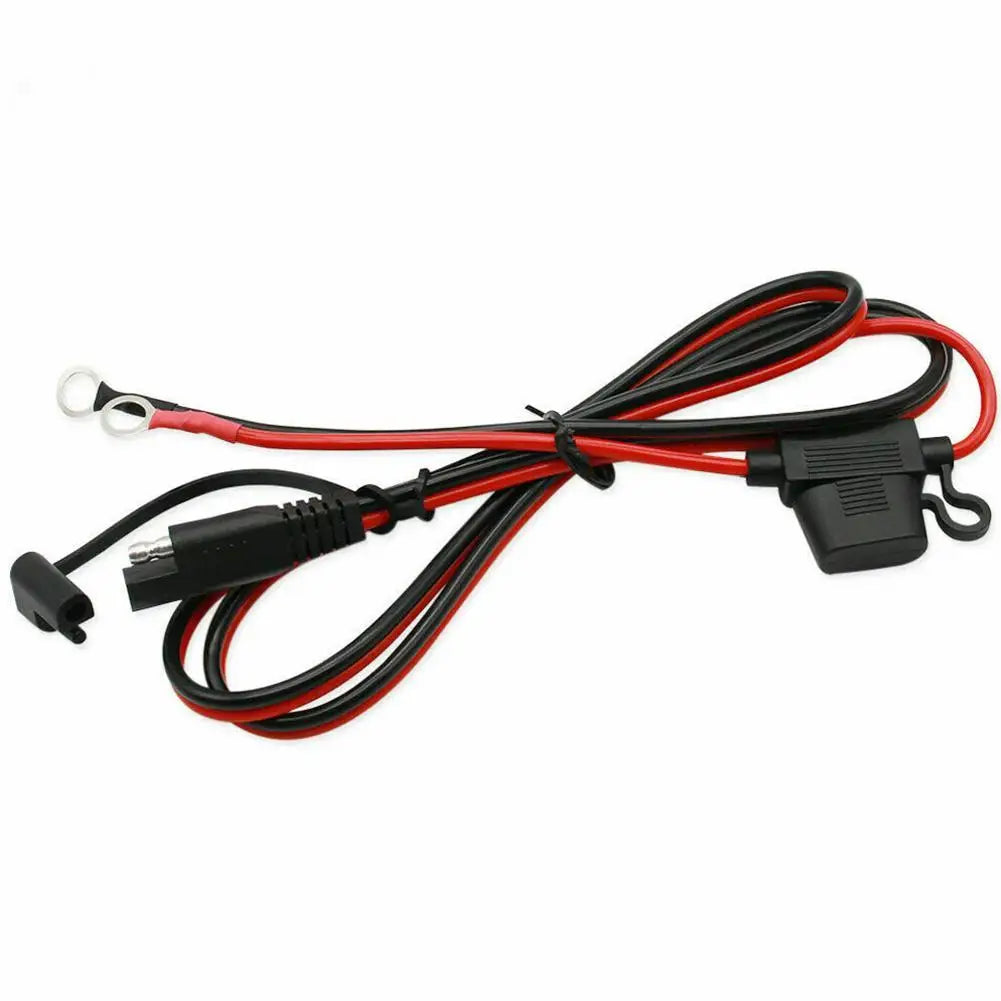

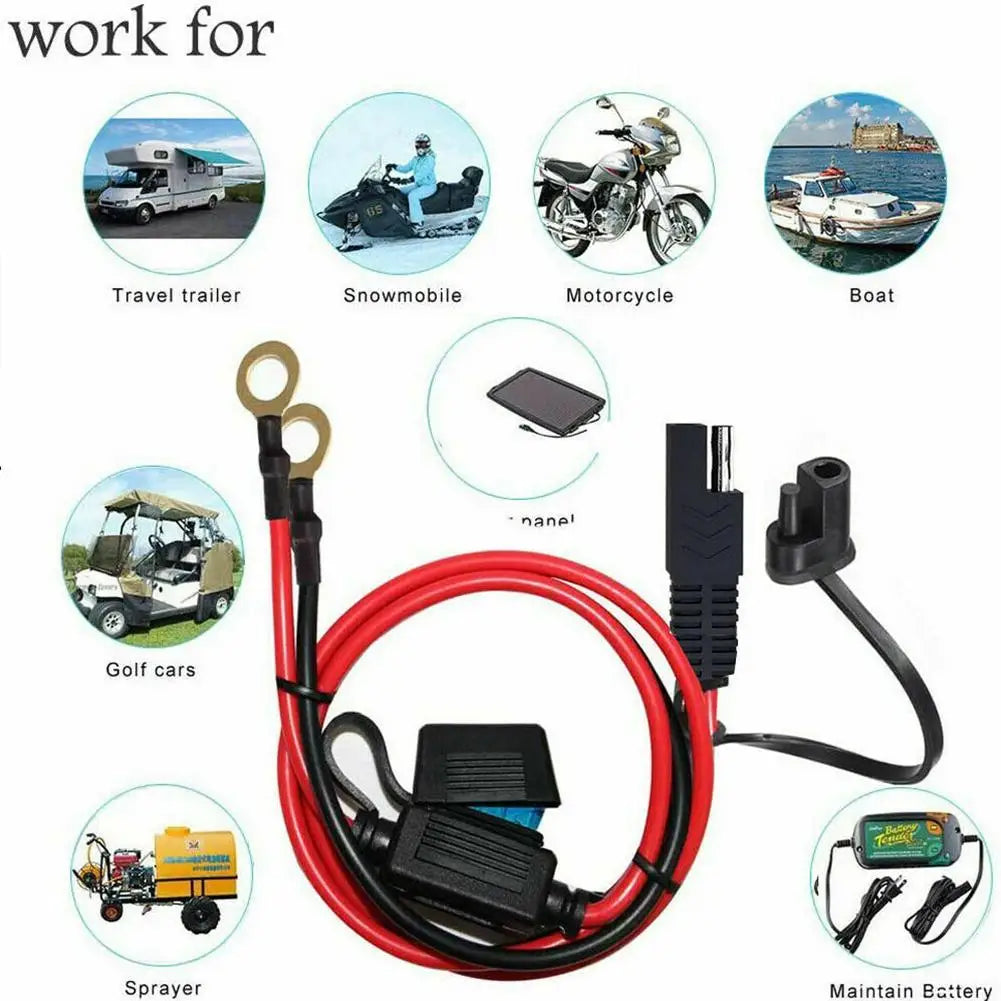

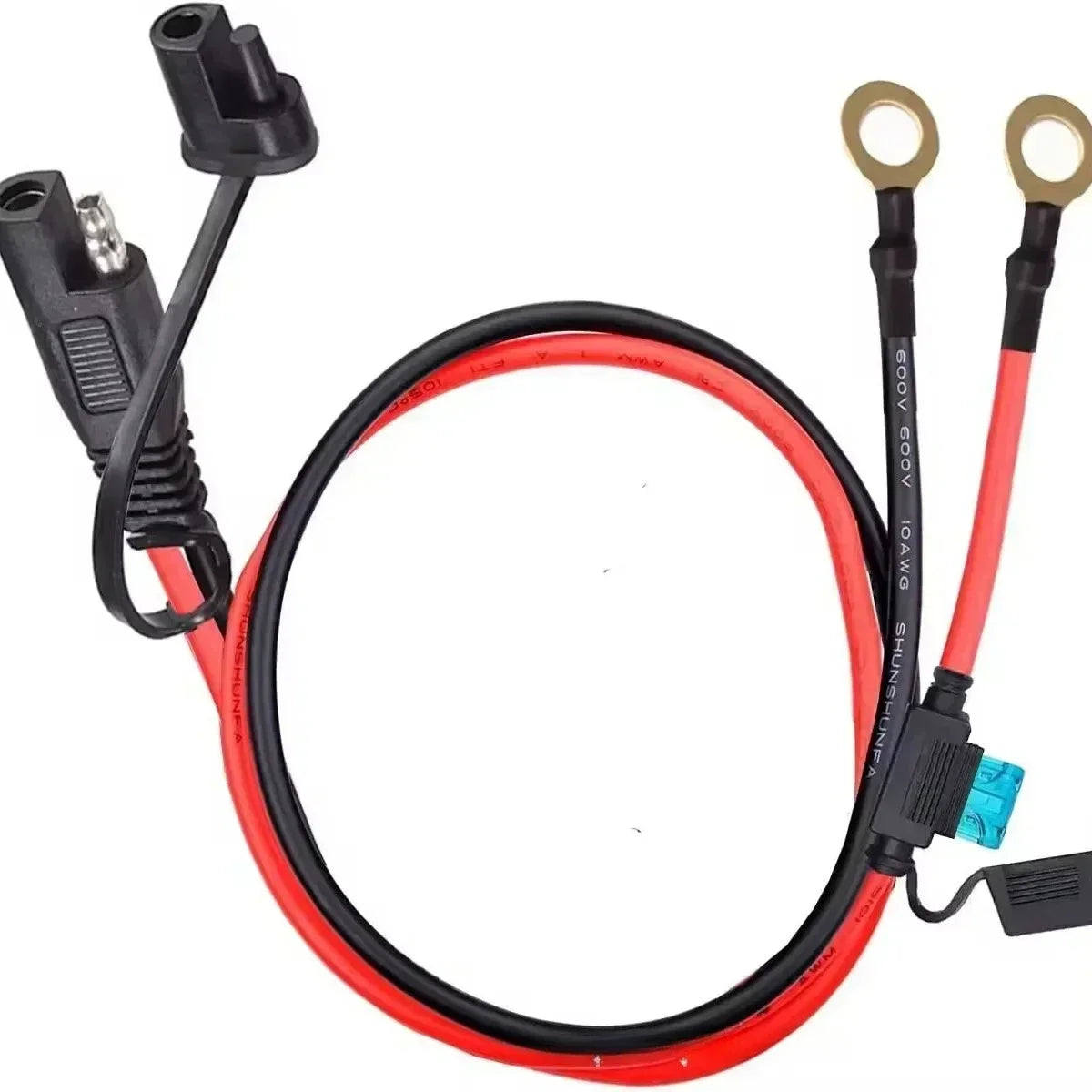

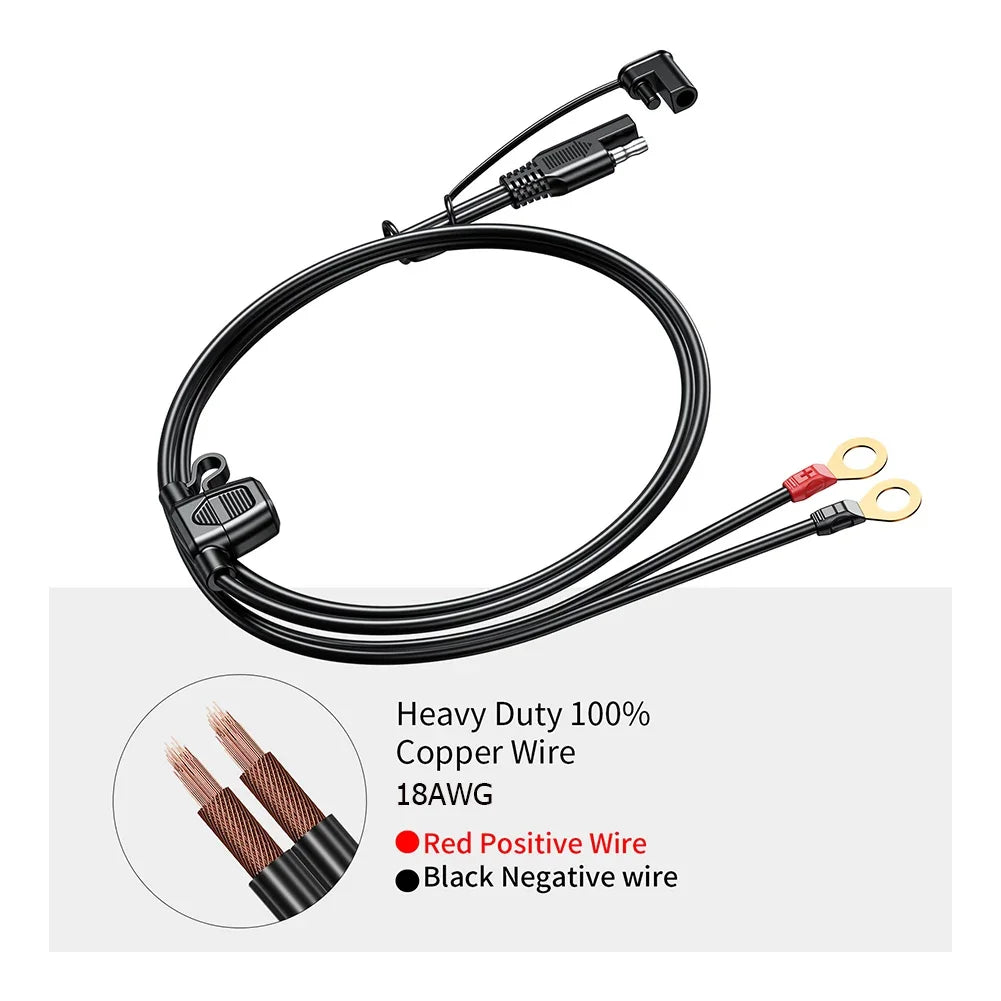

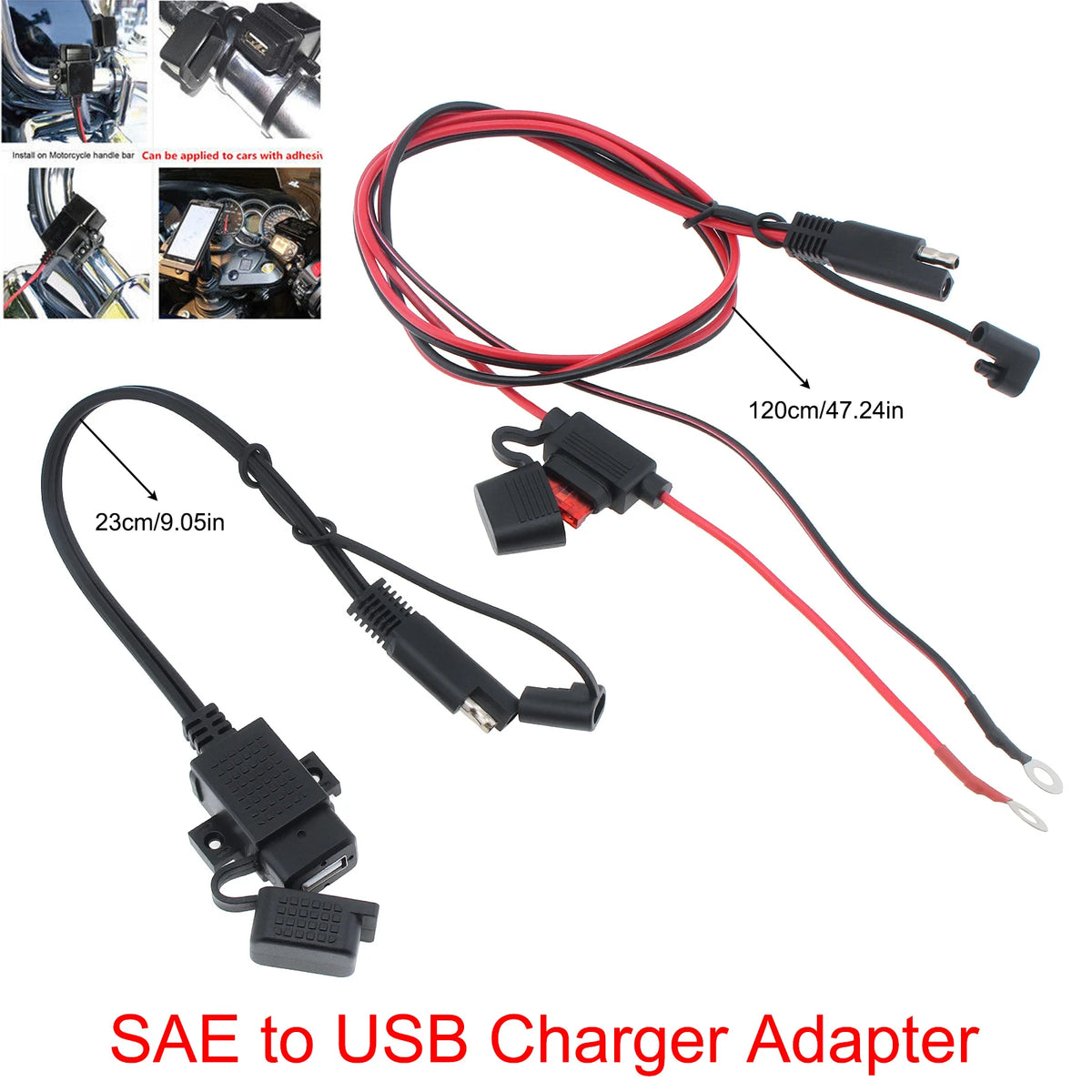

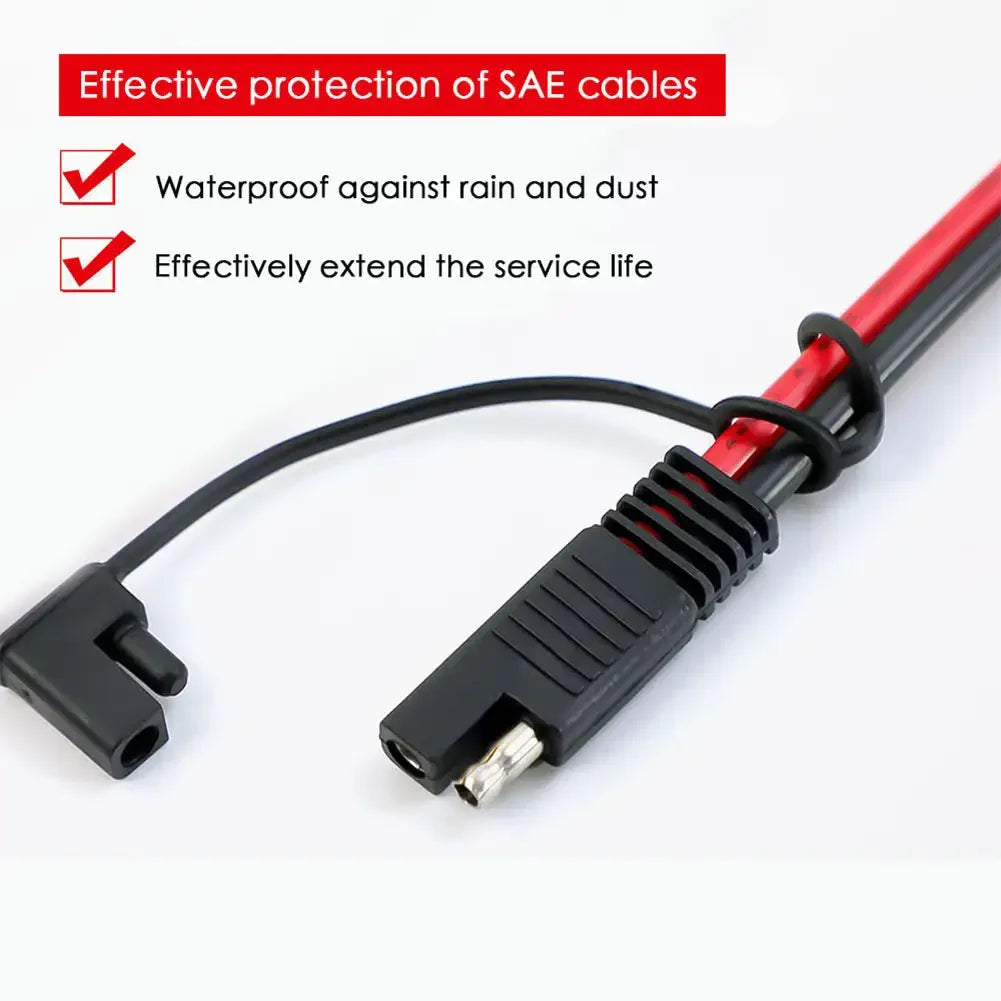

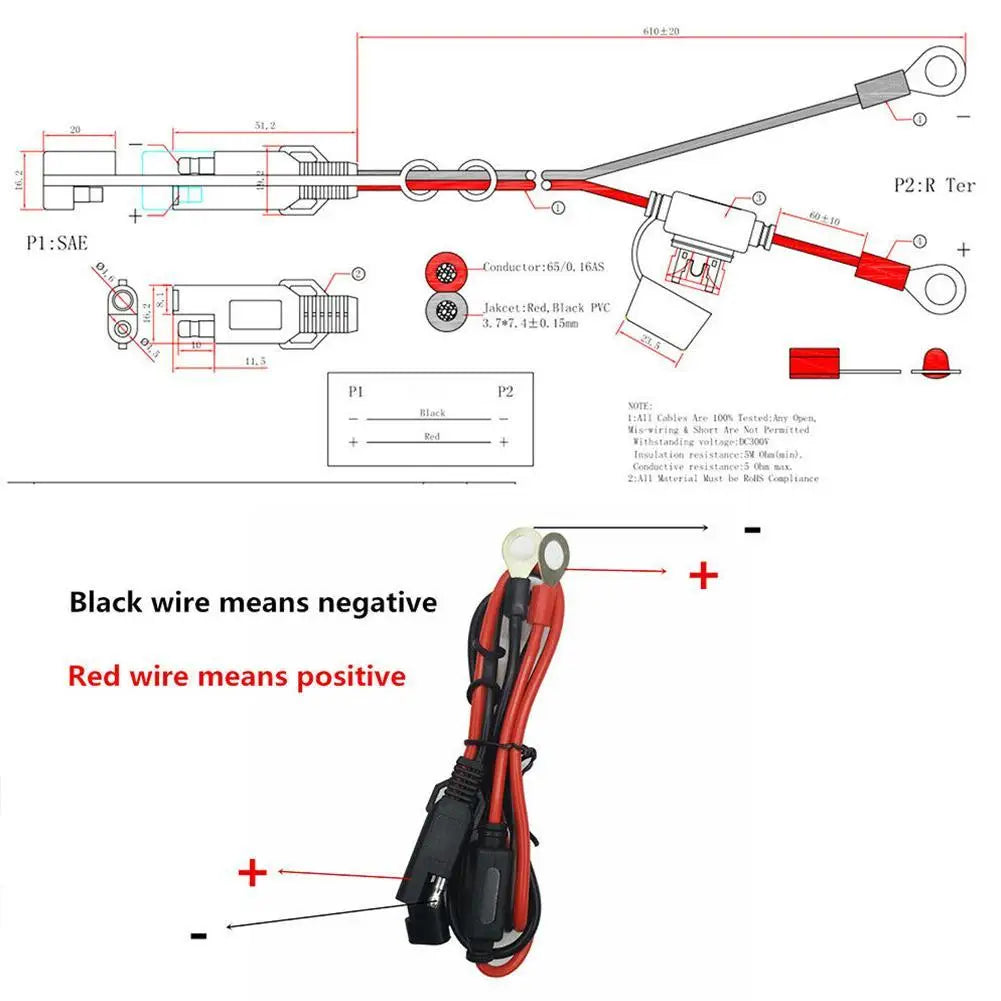

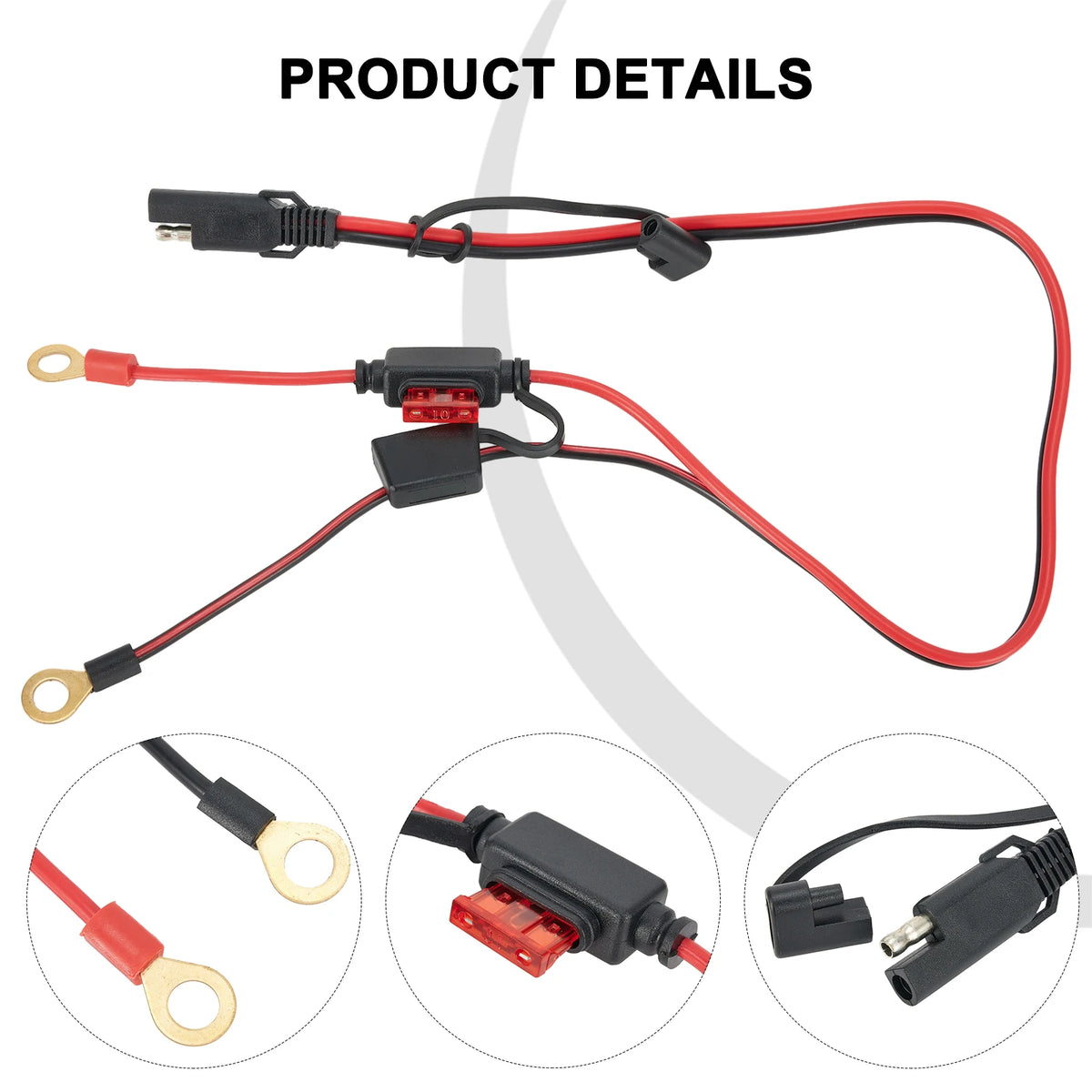

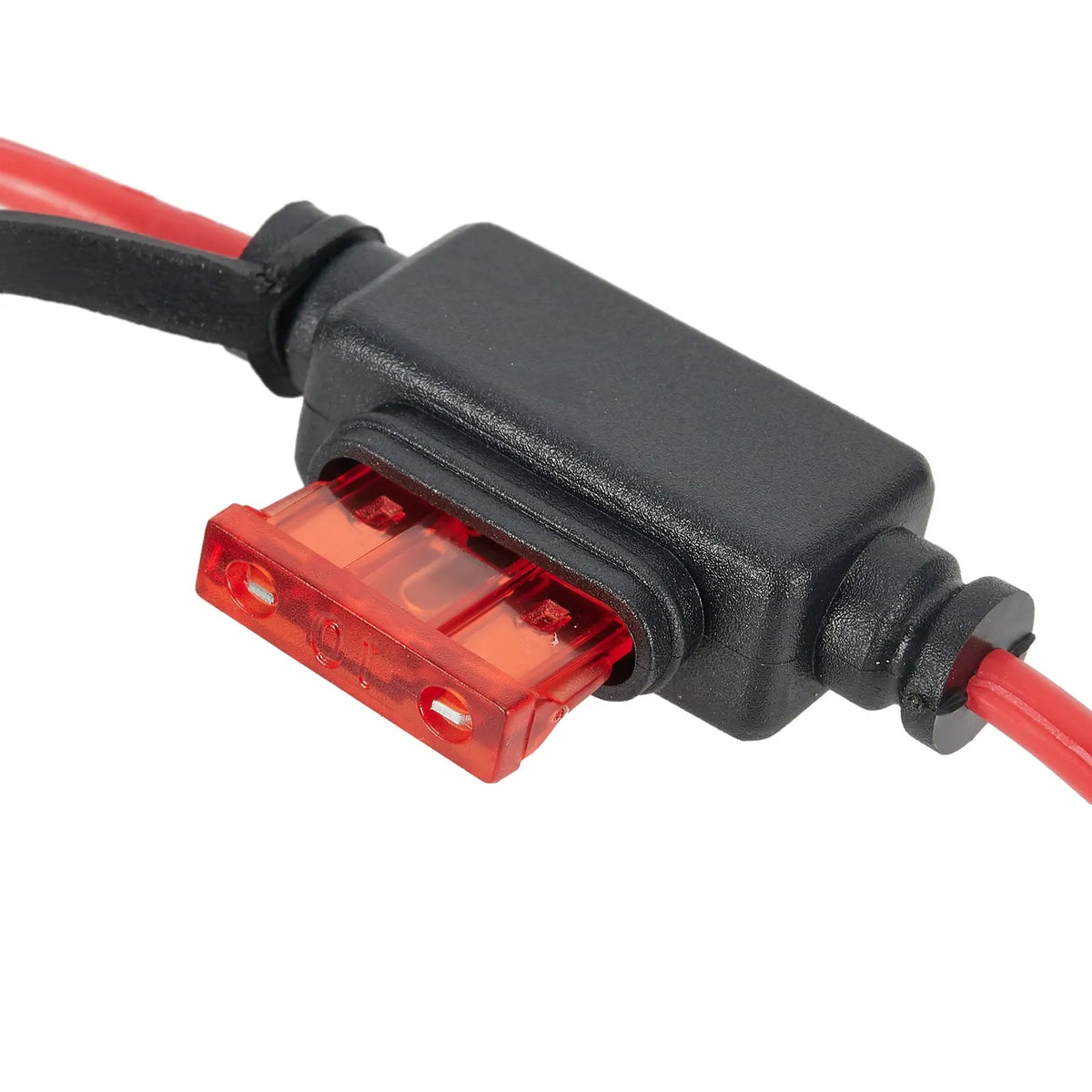

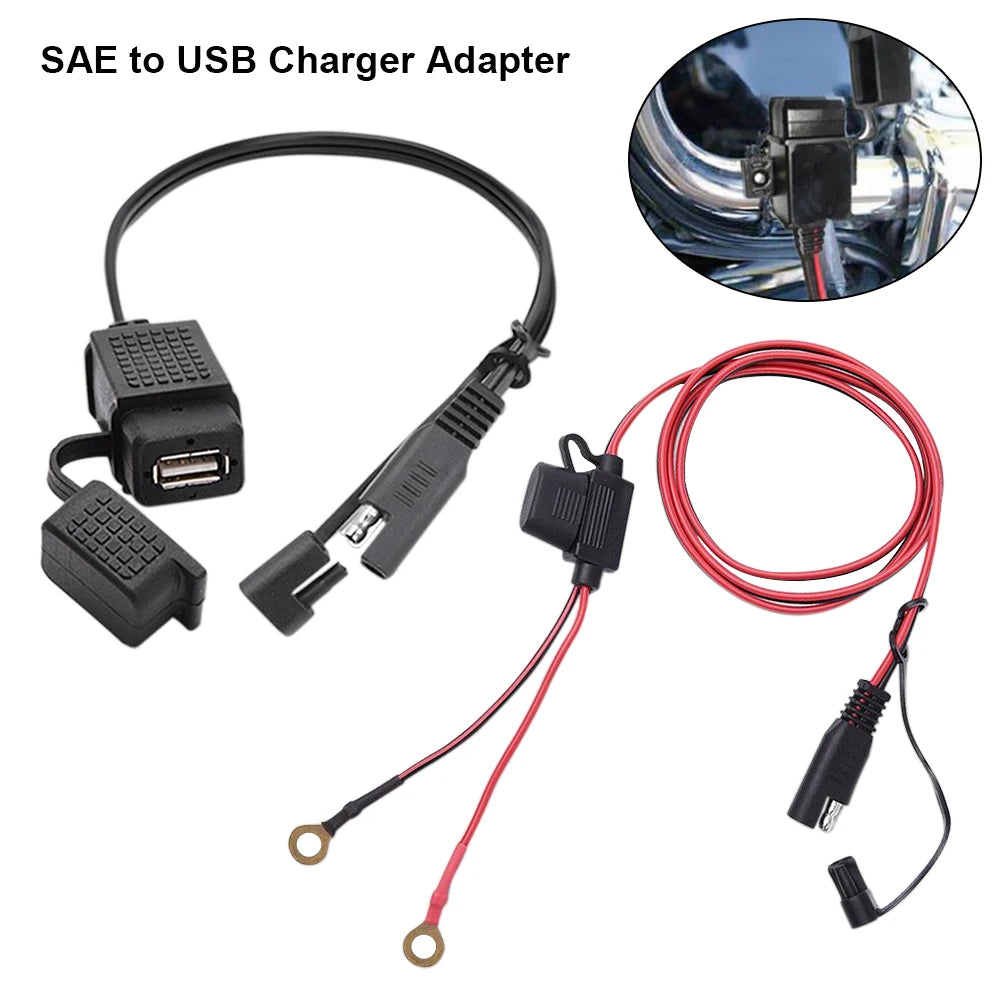

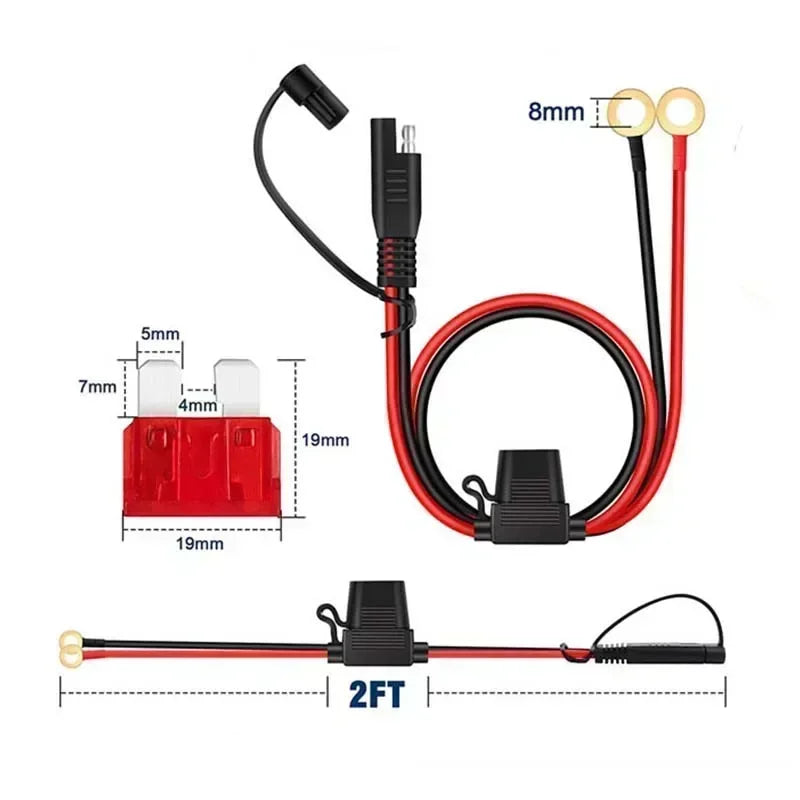

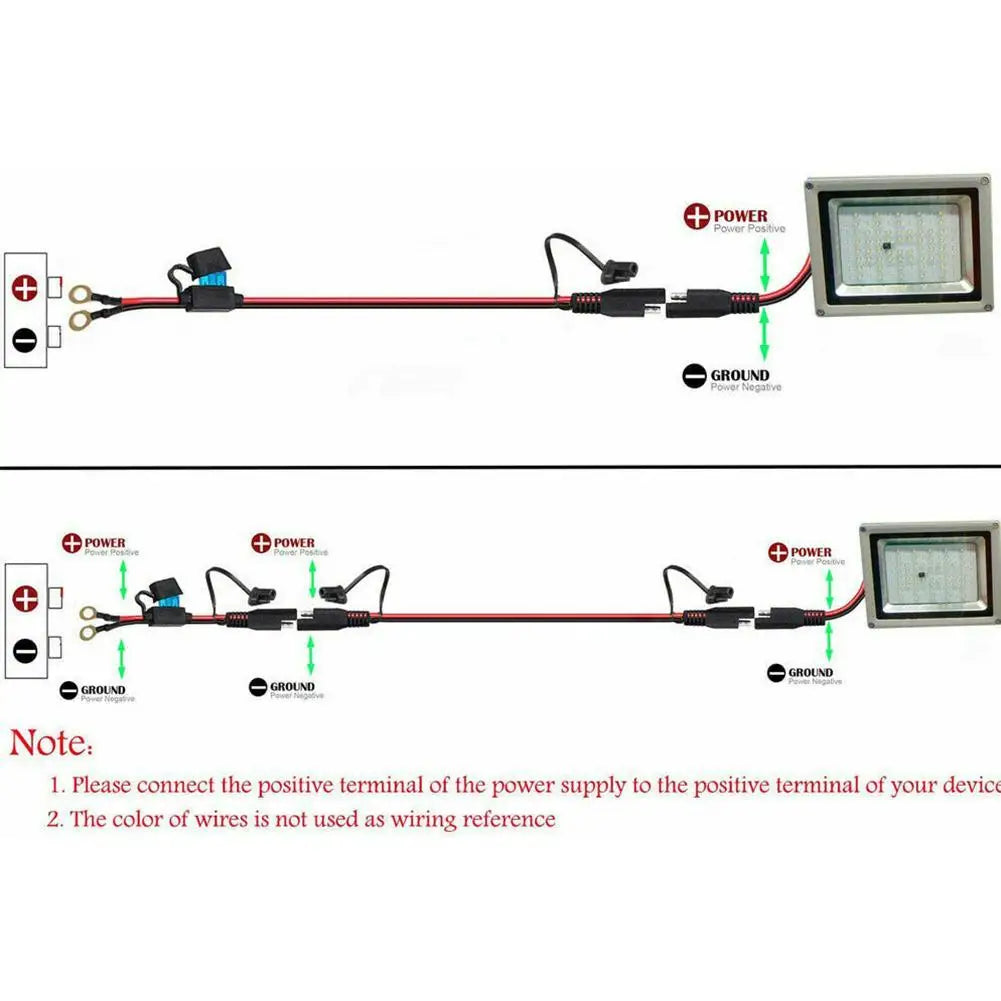

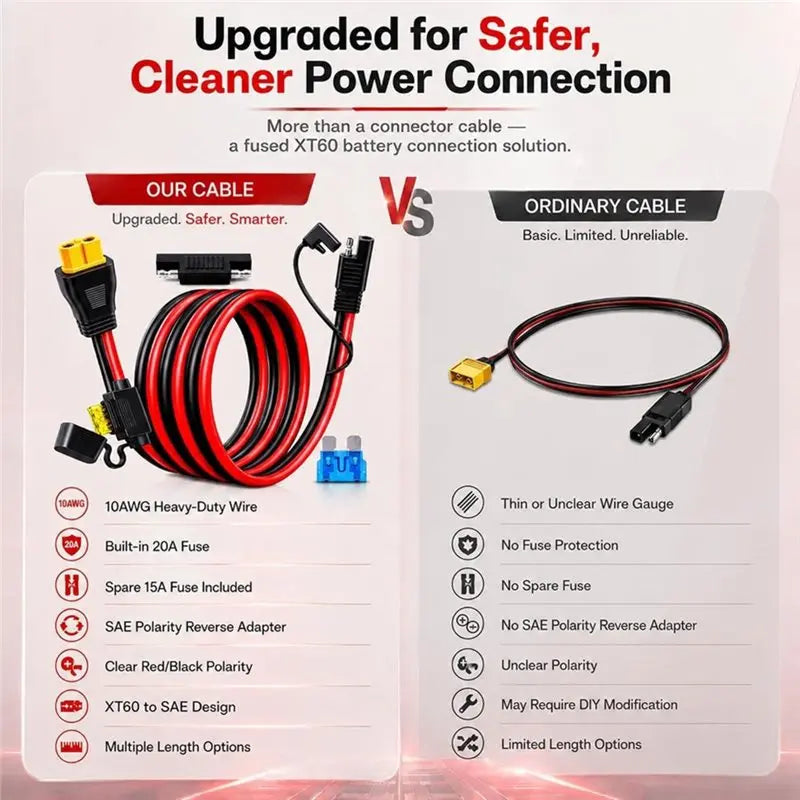

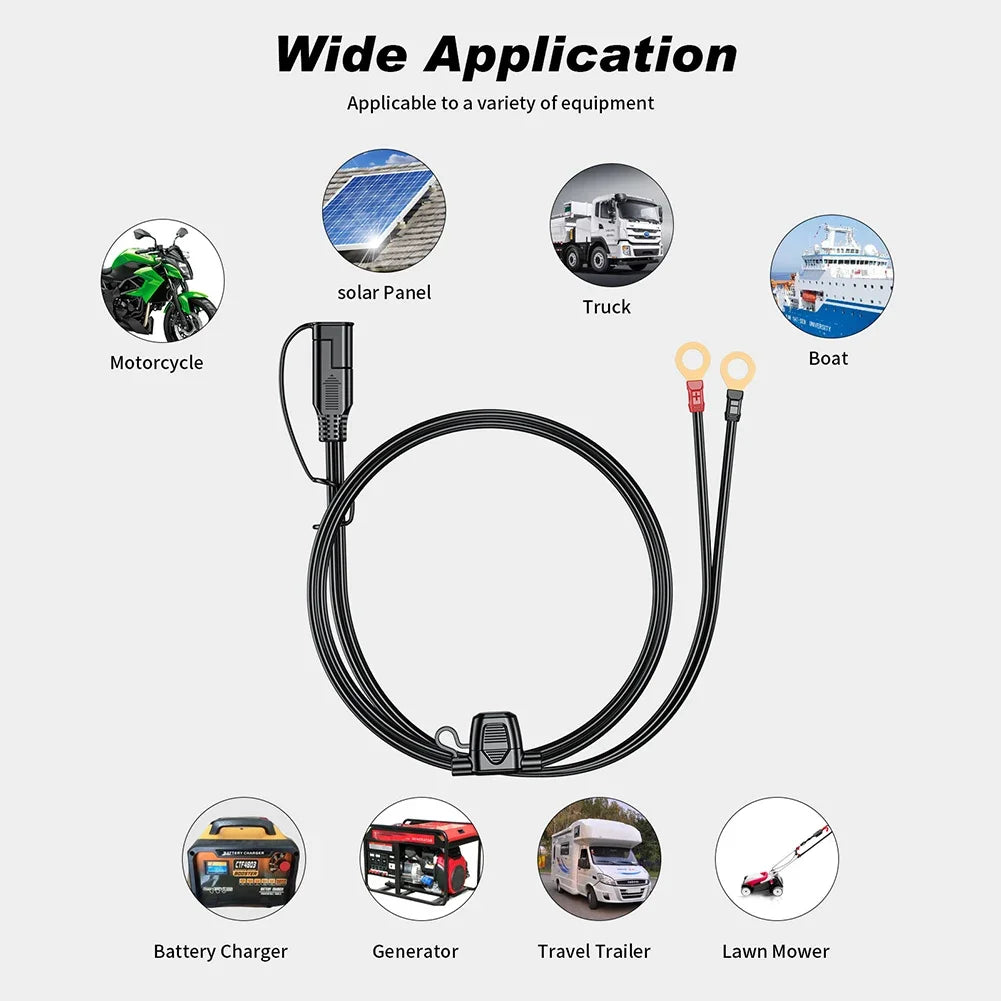

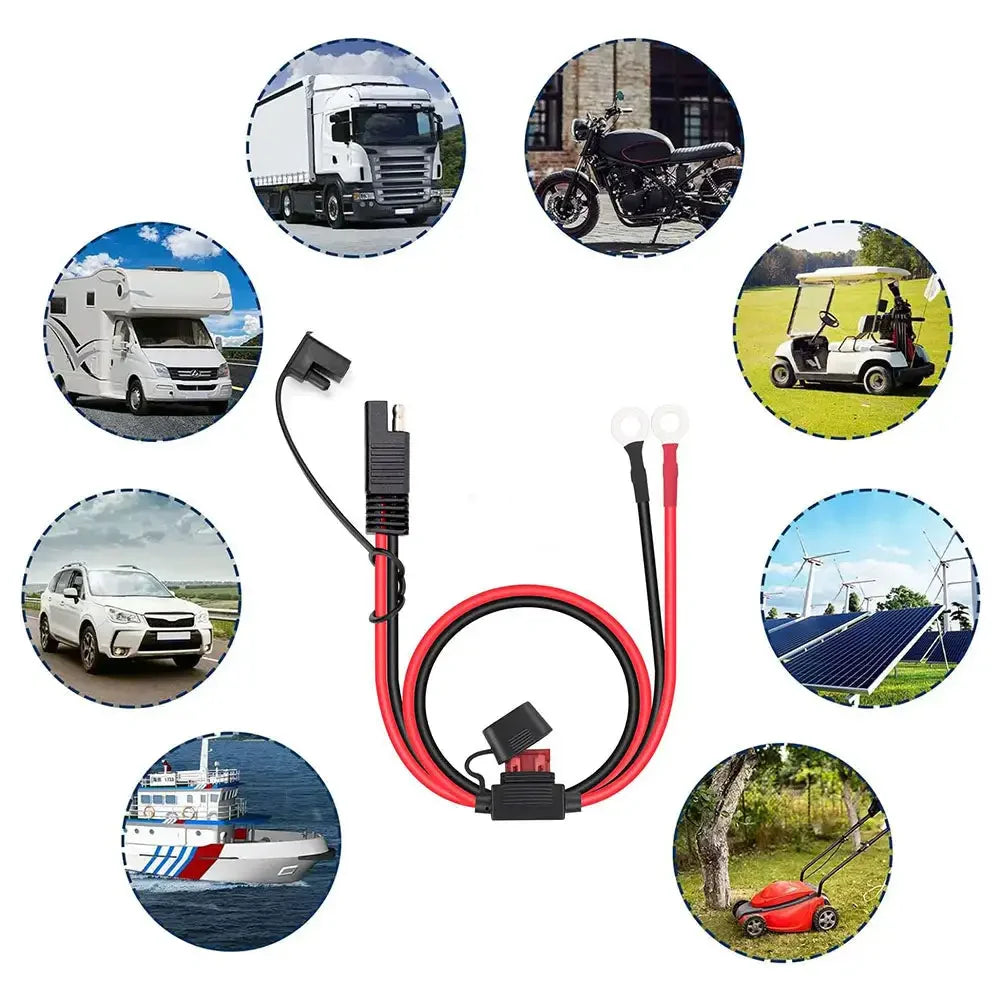

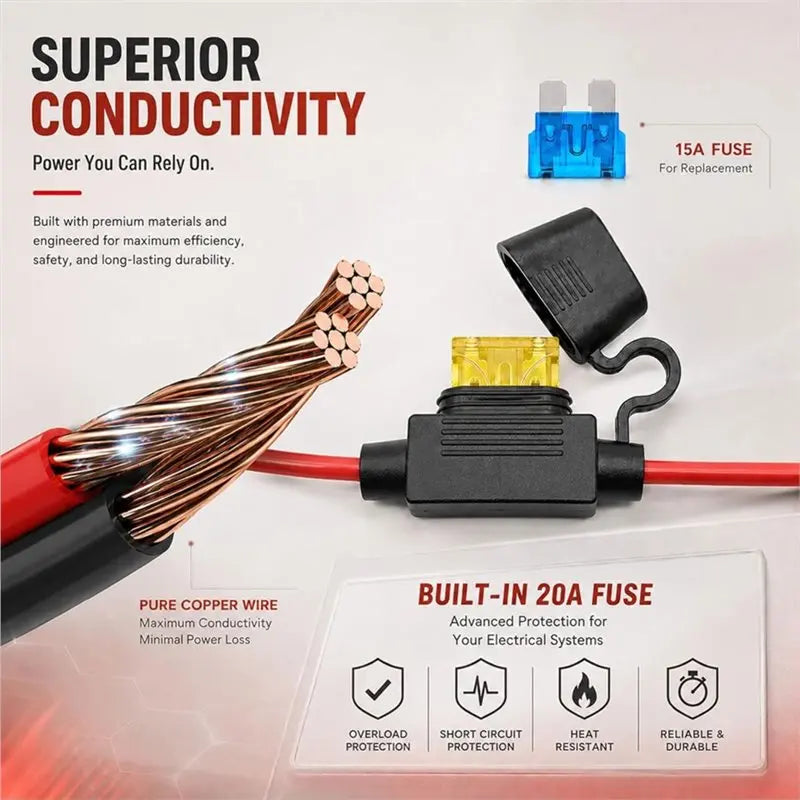

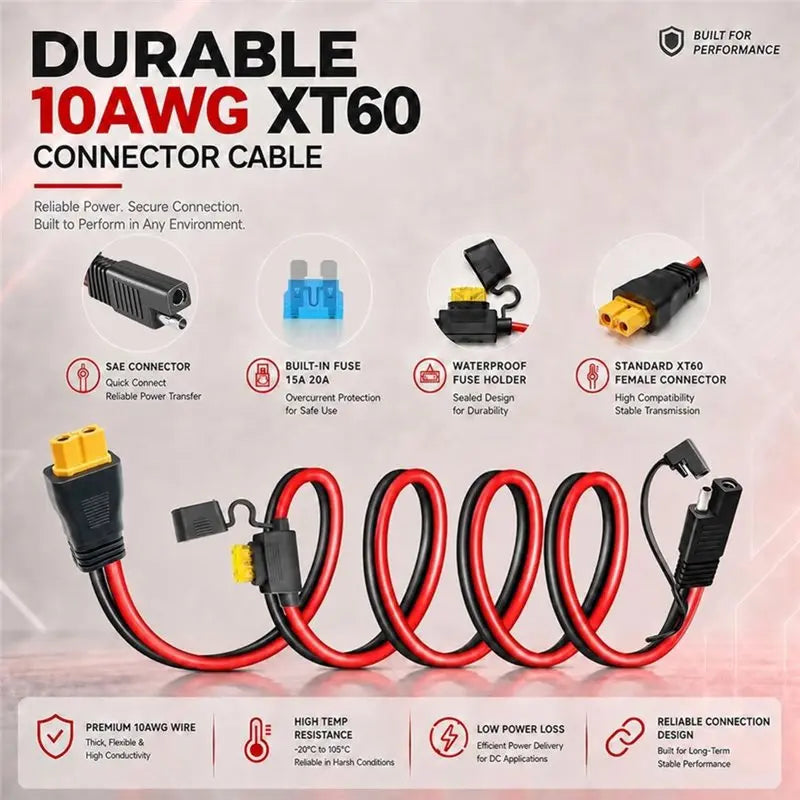

- Holders and prefused harnesses: inline glass-tube holders, waterproof-labeled automotive holders, panels, sockets and SAE/XT60 extension leads need matched fuse dimensions, contact rating, conductor gauge, polarity and environmental protection. A cable marked 15 A does not prove every connector or attached appliance is rated alike.

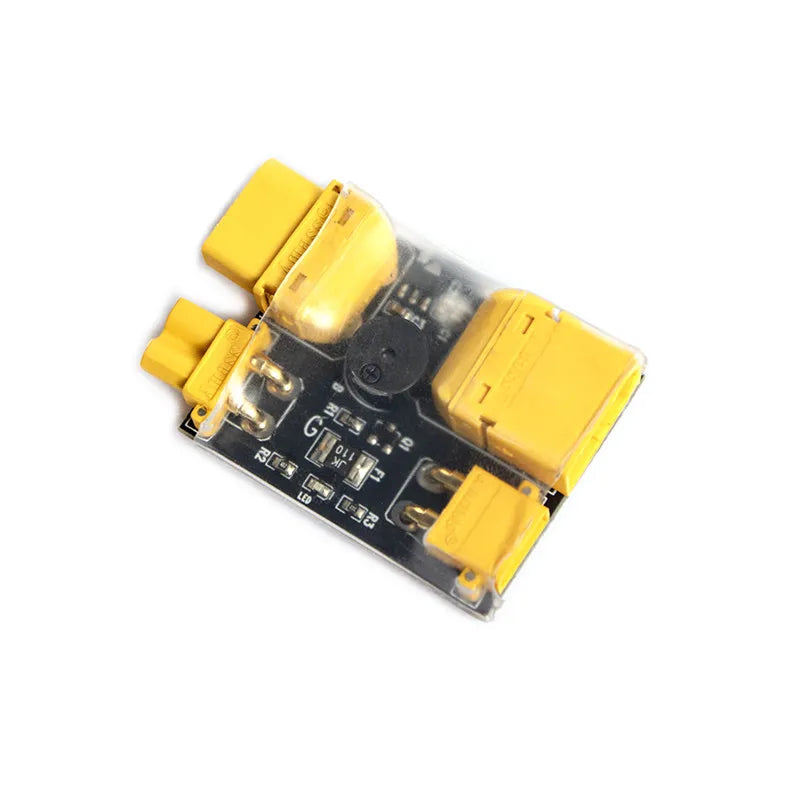

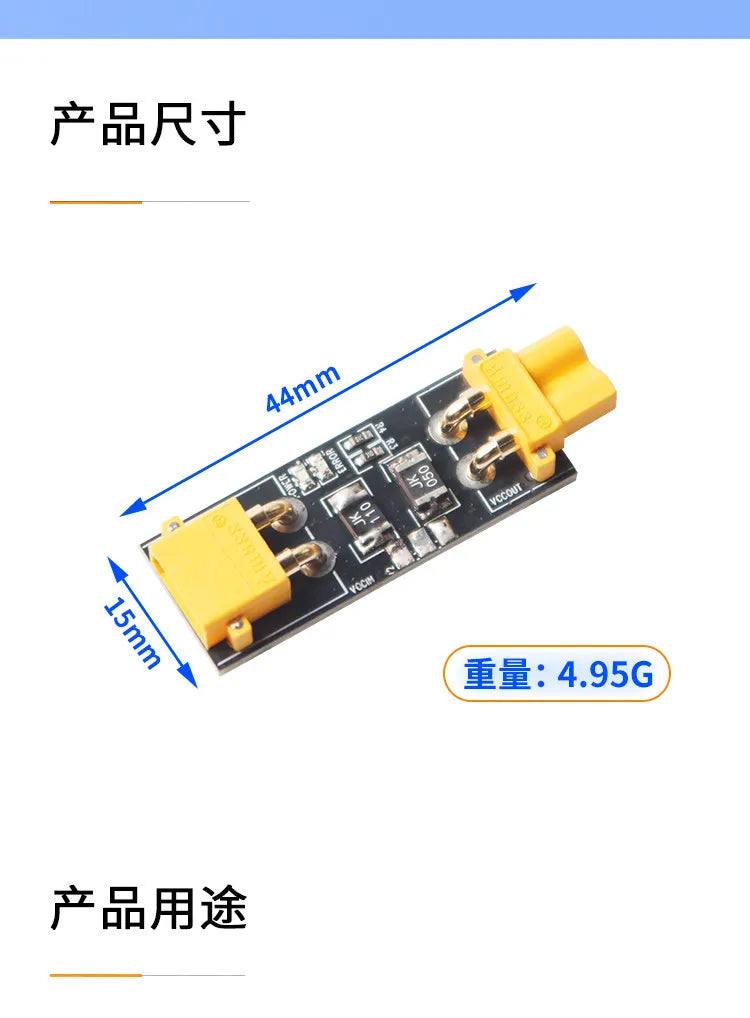

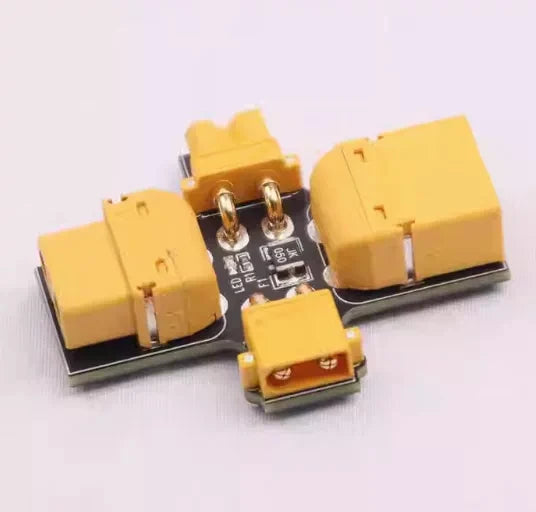

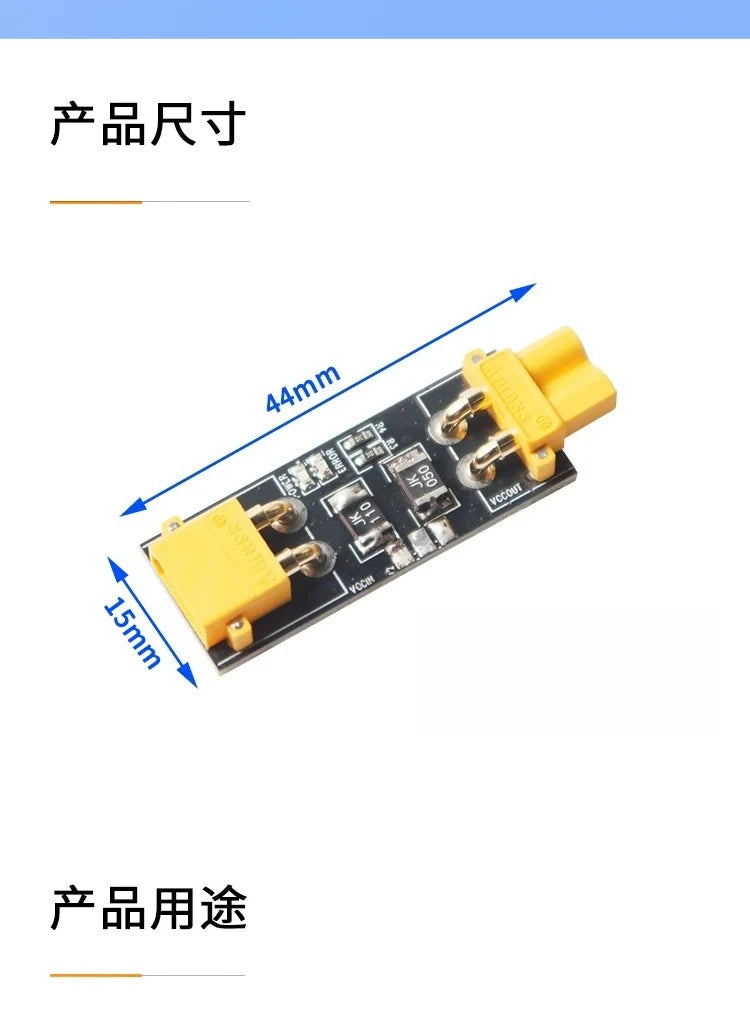

- Related but different items: resettable PTC protectors can recover after cooling, unlike one-shot fuses; KSD9700-style thermal switches cycle or reset according to their design. Wirewound or fusible-resistor listings, sensors, test plugs and transmitters must not be assumed equivalent to a certified fuse solely because the title contains “fuse.”
Selection steps for replacements and new designs
- Match function and circuit: establish whether the requirement is overcurrent, overtemperature, reversible limiting, holder replacement or a prefused harness. Identify AC versus DC, normal and maximum voltage, steady-state current, inrush profile and prospective fault current.
- Choose the time-current response: fast-acting F types and time-delay T types respond differently to temporary surges. Replacing a T fuse with an F fuse of the same amperage, or the reverse, can cause nuisance opening or inadequate protection. Refer to the equipment service specification and the selected part's characteristic curve.
- Check fault clearing: voltage and interrupting or breaking capacity must be appropriate for the available fault current. A 250 V mark is not sufficient without its AC/DC context and rated breaking capacity. High-current battery and PV DC applications require suitable DC-rated parts.

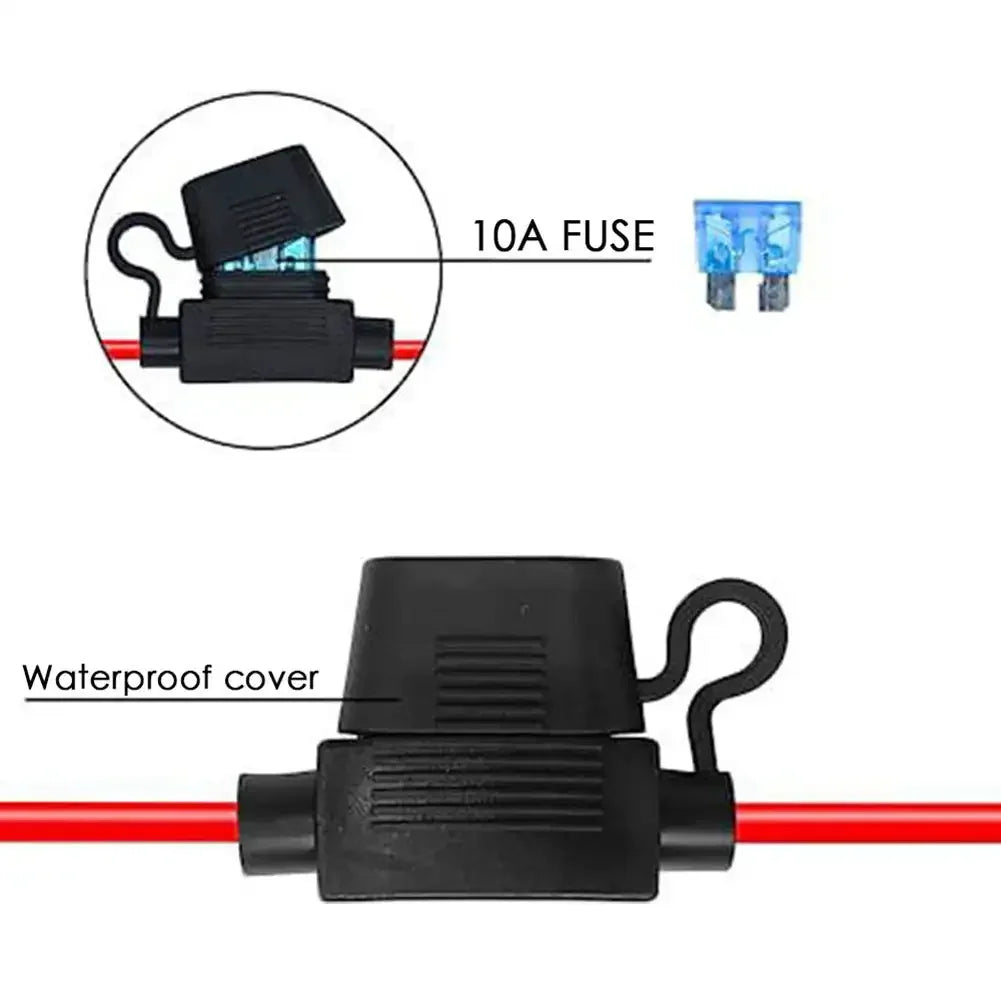

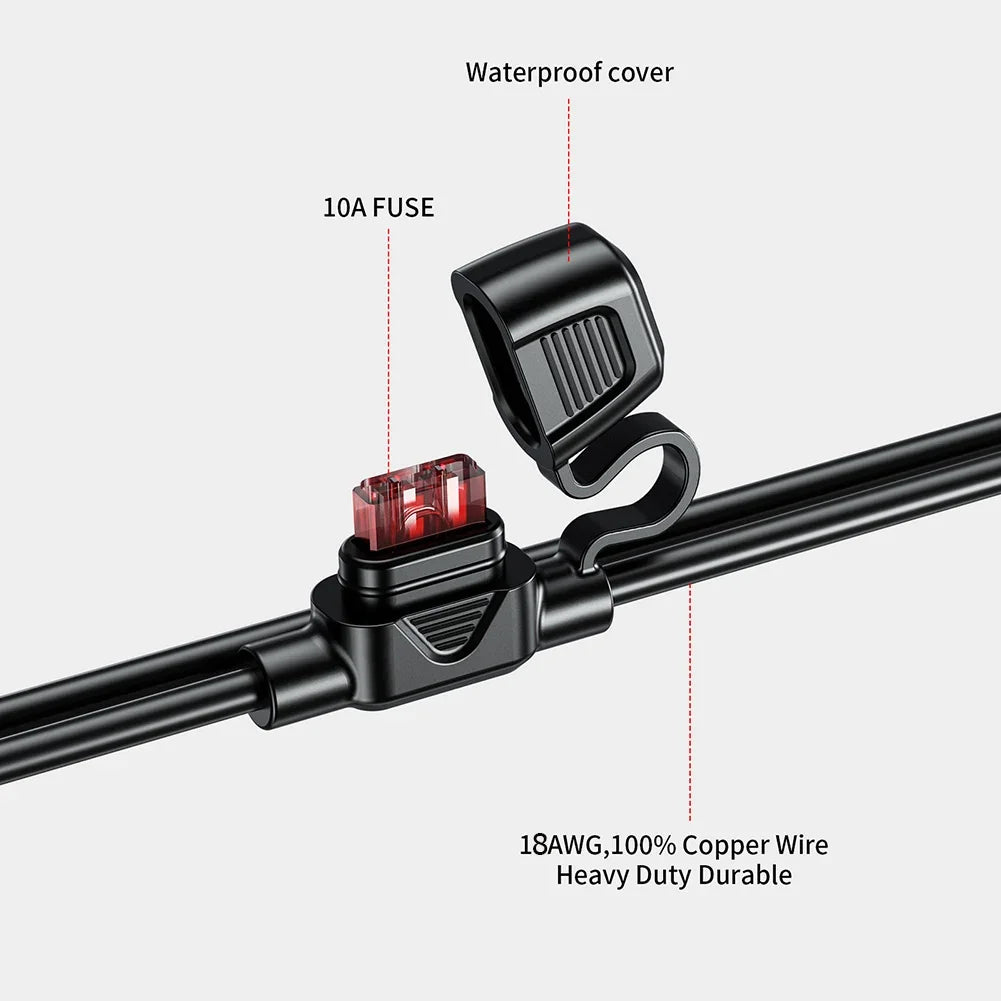

- Confirm fit and heat: measure cartridge length and diameter, blade family, pin spacing or SMD footprint; verify holder contact and wire ratings, installation temperature and thermal behavior. A waterproof claim may apply only to a closed holder assembly, not exposed connections.
- Verify exact variant and pack: shared listings offer many sizes, F/T speeds, current values, fuse/no-fuse selections, wire gauges and quantities. Check the selected variant and documentation, rather than extrapolating from a mixed listing title or generic seller certification claims.
Compatibility and safety
Never bridge or oversize a fuse to stop nuisance blowing; find the fault or inrush mismatch and follow the equipment manufacturer's requirements. A thermal cutoff, bimetal thermostat, PTC resettable protector, surge varistor and current fuse protect against different conditions and cannot be swapped by shape or a single temperature/ampere label. A fuse holder must not be rated only by the fuse inside it. For mains, vehicle power and battery systems, protection coordination, wiring and service require qualified review; this collection does not provide a universal connection method or establish certification for every offered variant.
Purchasing checklist
Record the application and exact replacement code, AC/DC voltage, normal and fault current, fuse speed and time-current curve, rated breaking capacity, physical format, ambient and mounting conditions, holder/contact/wire limits, selected temperature threshold for thermal cutoffs, included fuse status and package count. Confirm independently traceable approvals only where documented for the exact selected component.
Frequently asked questions
Are 5 × 20 mm fuses interchangeable if both say 10 A?
No. Compare F versus T response, AC/DC voltage, breaking capacity and the original equipment specification as well as size and current.
Does a 250 V glass fuse work in any 250 V circuit?
No. The rating must apply to the circuit type and the fuse must safely interrupt its prospective fault current.
Is a thermal fuse a resettable thermostat?
No. A one-shot thermal cutoff opens at its specified thermal conditions and is replaced after operating; a thermostat or resettable protector has a different function.
Does a fuse holder option include a fuse?
Not necessarily. Some options explicitly say “No Fuse”; verify the exact option and included pieces.
