Fusible Wirewound Resistors, Low-Ohm Values & Kits
Fusible wirewound resistors and low-ohm axial resistance packs
This collection primarily contains axial wirewound resistors marketed with “fuse,” “fuse resistance” or “fusible” wording, commonly in low-ohm values and stated power classes from 1/4W through 3W. It also includes assortment books and a few unrelated metal-film, SMD and temperature-controlled products. Because protective opening behavior is safety-critical, title wording alone is not enough to qualify a part as a fusible resistor.
What is a fusible resistor?
A true fusible resistor performs normal resistance and power-dissipation functions, then is designed to open in a controlled way under specified overload conditions. Selecting one requires both electrical resistance data and documented fusing behavior. A wirewound resistor, flameproof resistor and ordinary fuse are different component classes and are not automatically interchangeable.
Products represented

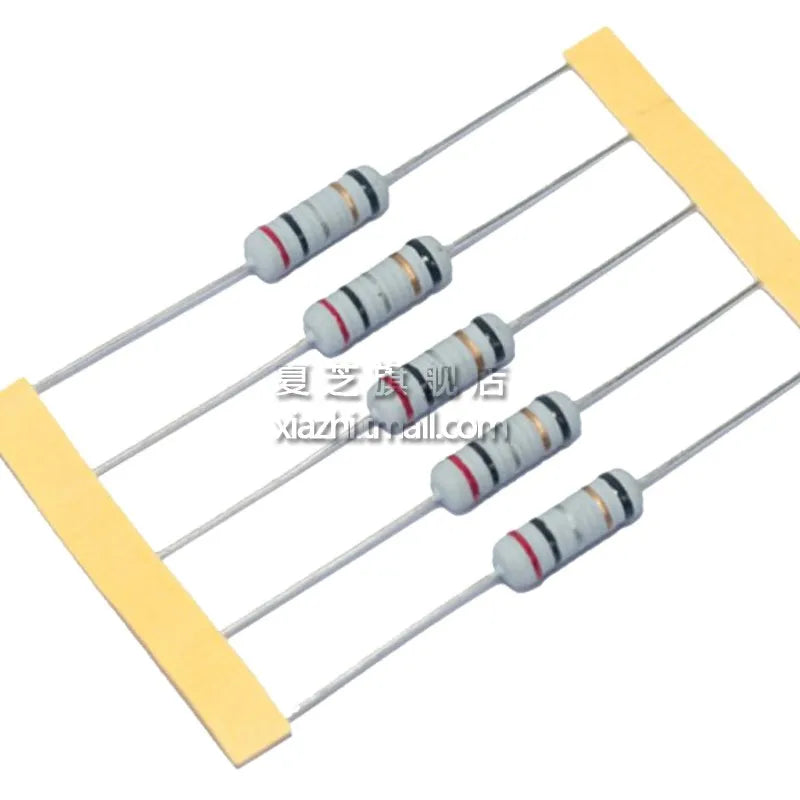

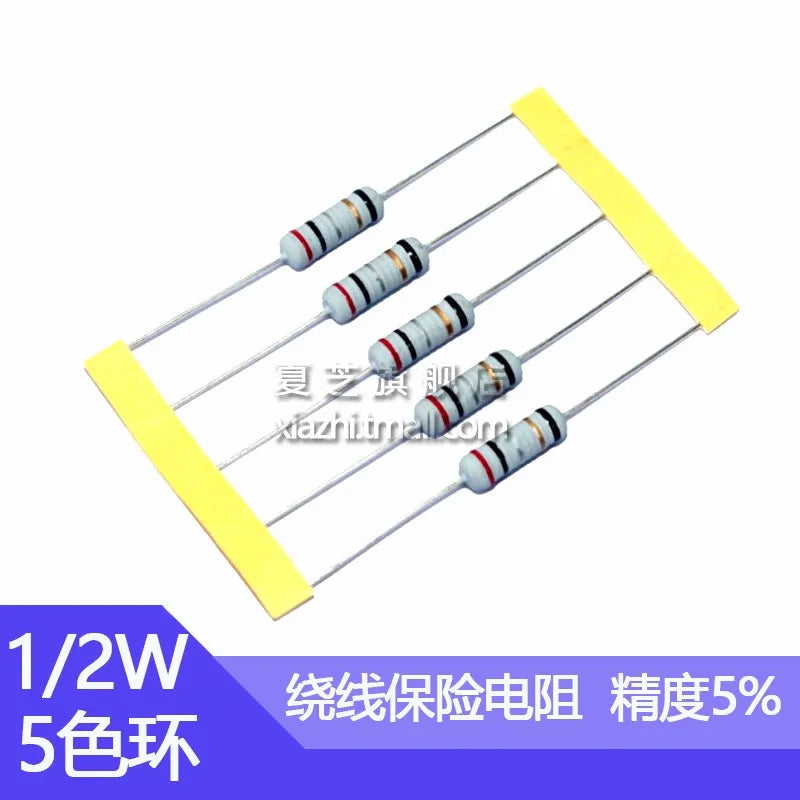

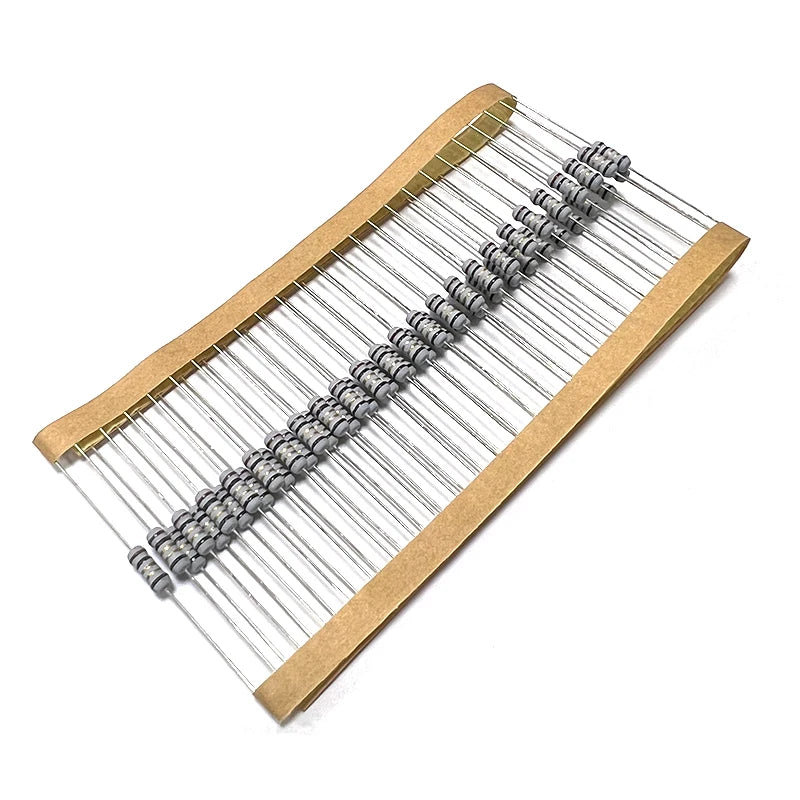

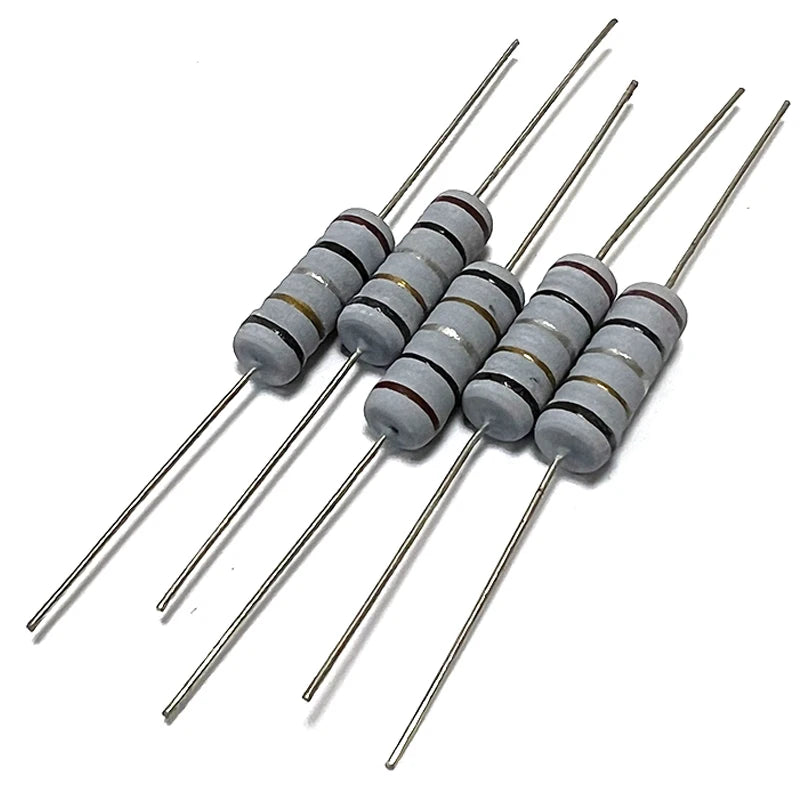

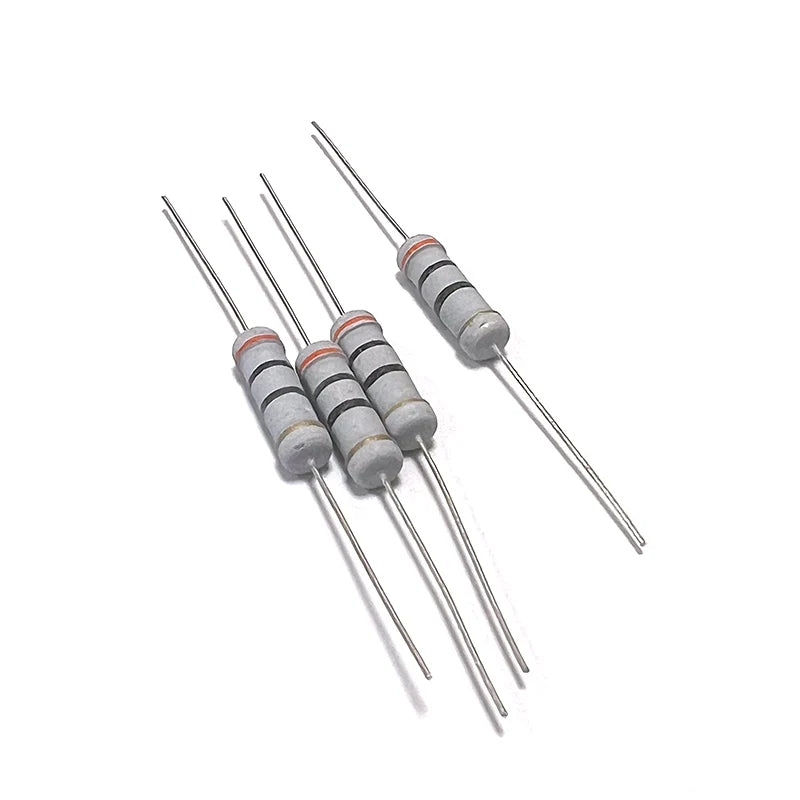

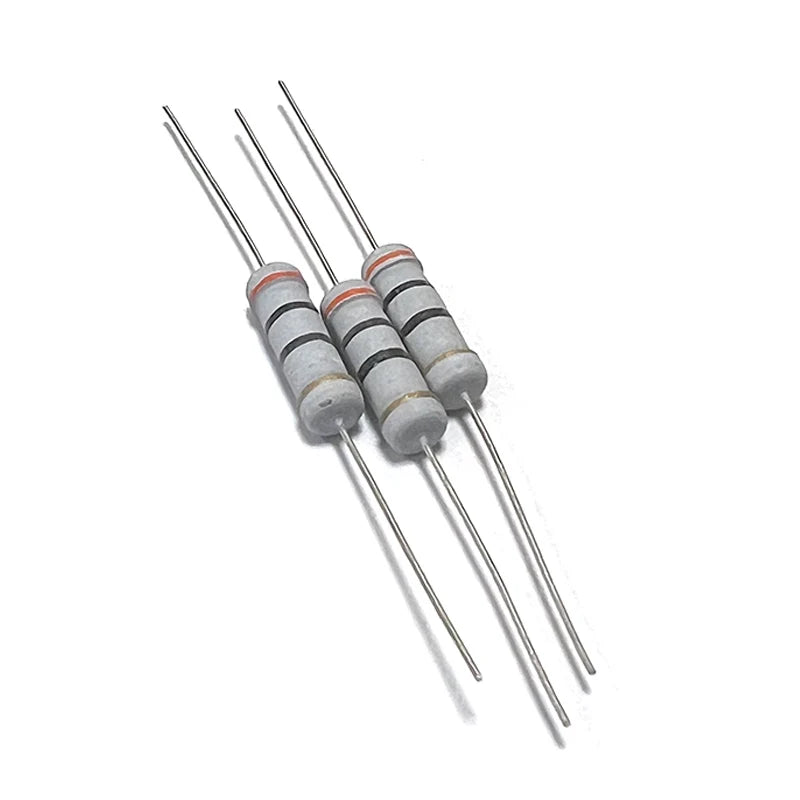

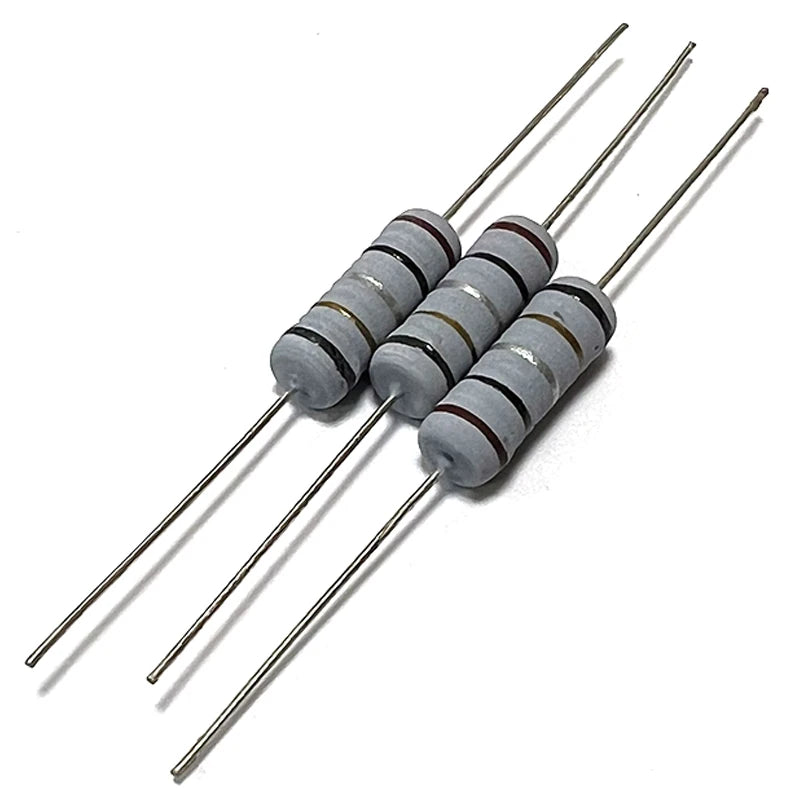

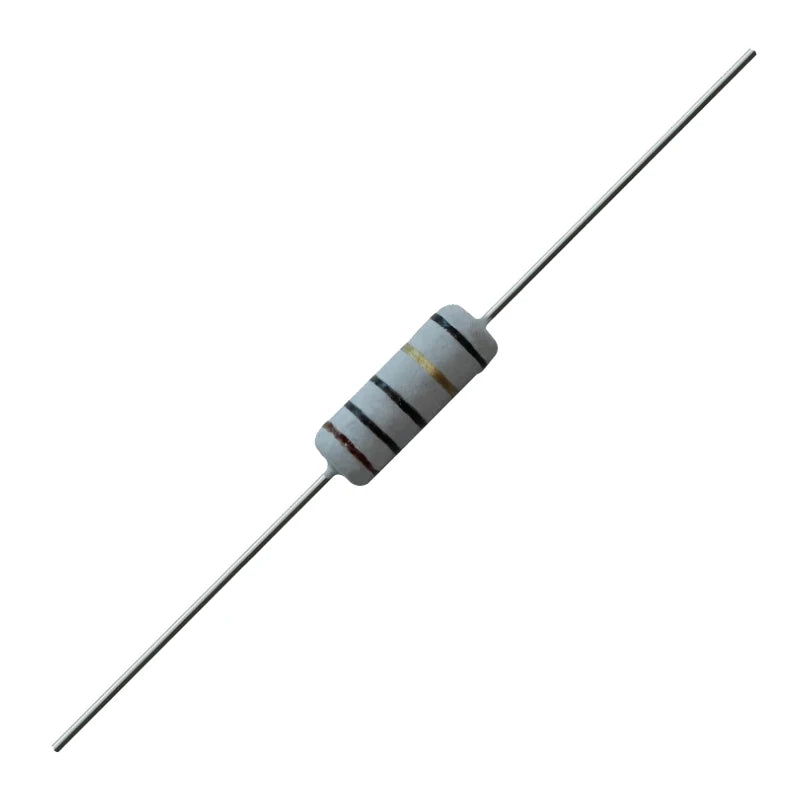

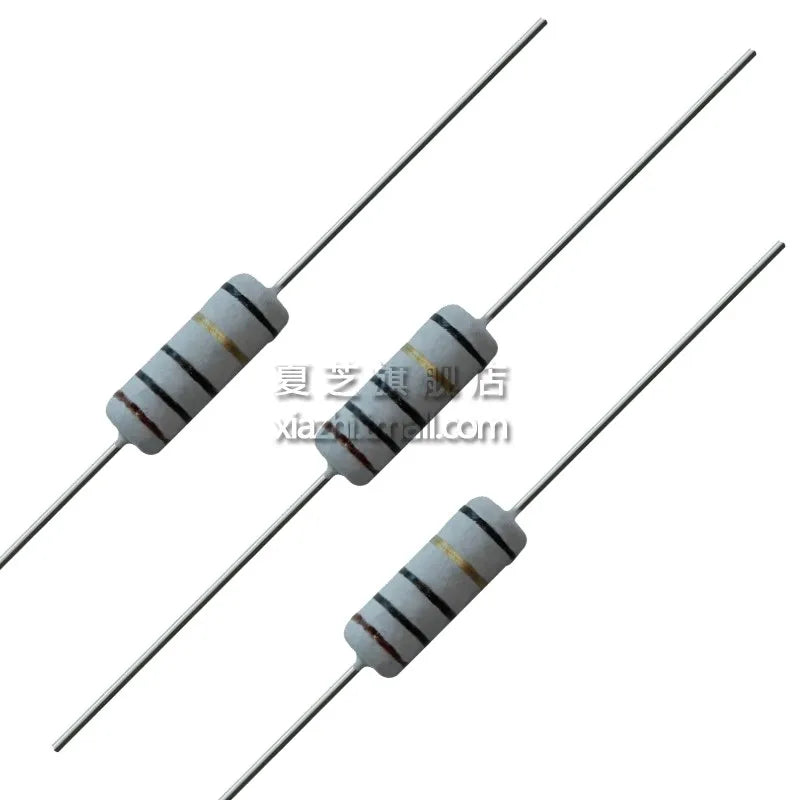

- Low-ohm axial wirewound parts: many products cover sub-ohm through hundreds-of-ohms selections at a stated 5% tolerance.

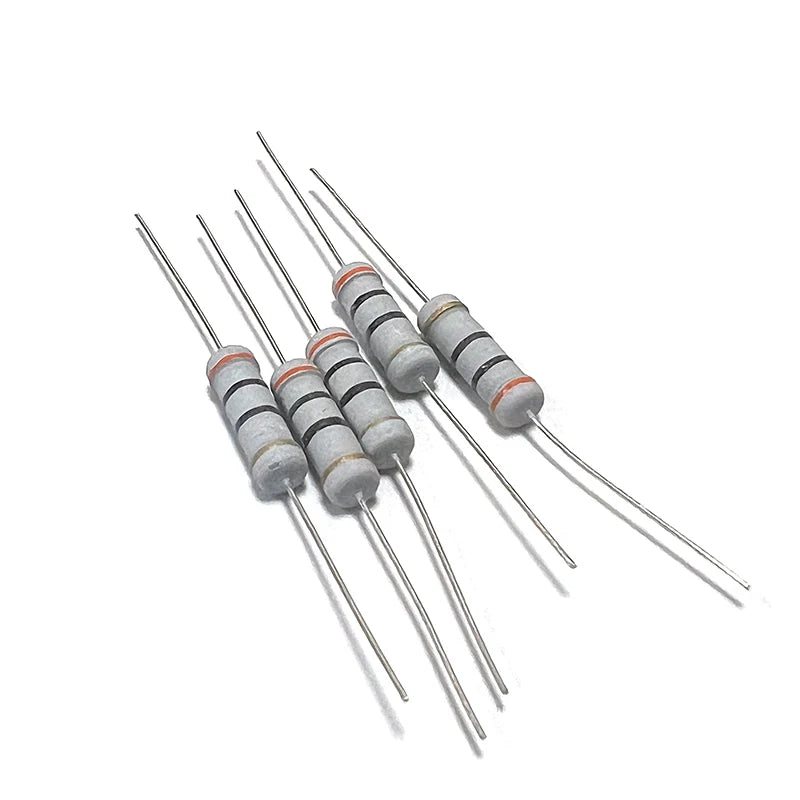

- Power-class options: listings marked 0.25W, 0.5W, 1W, 2W or 3W, with exact ratings tied to each product or variant.
- Assortment kits: sample books and multi-value sets for repair stock and prototyping.
- Explicit fusible listing: a 1W axial product specifically titled “Fusible Wirewound Resistor.” Its exact protective behavior still requires supporting specifications.

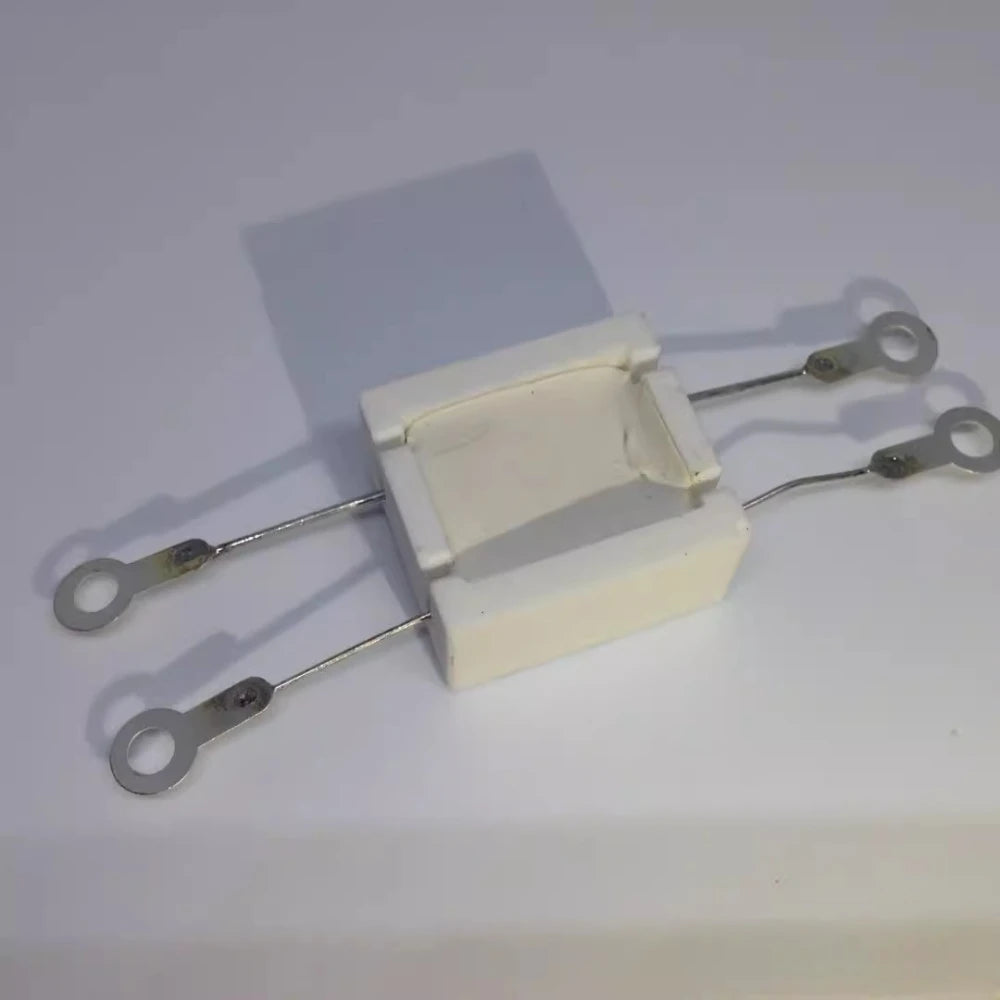

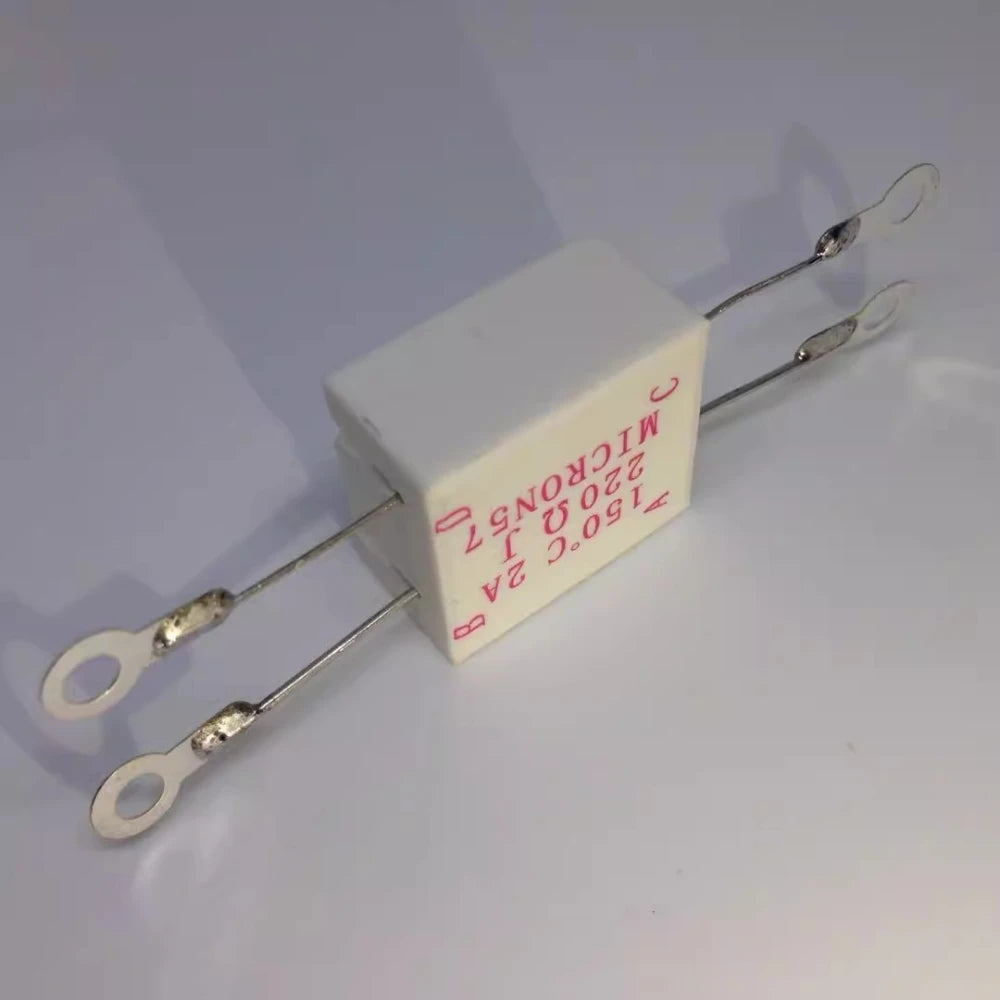

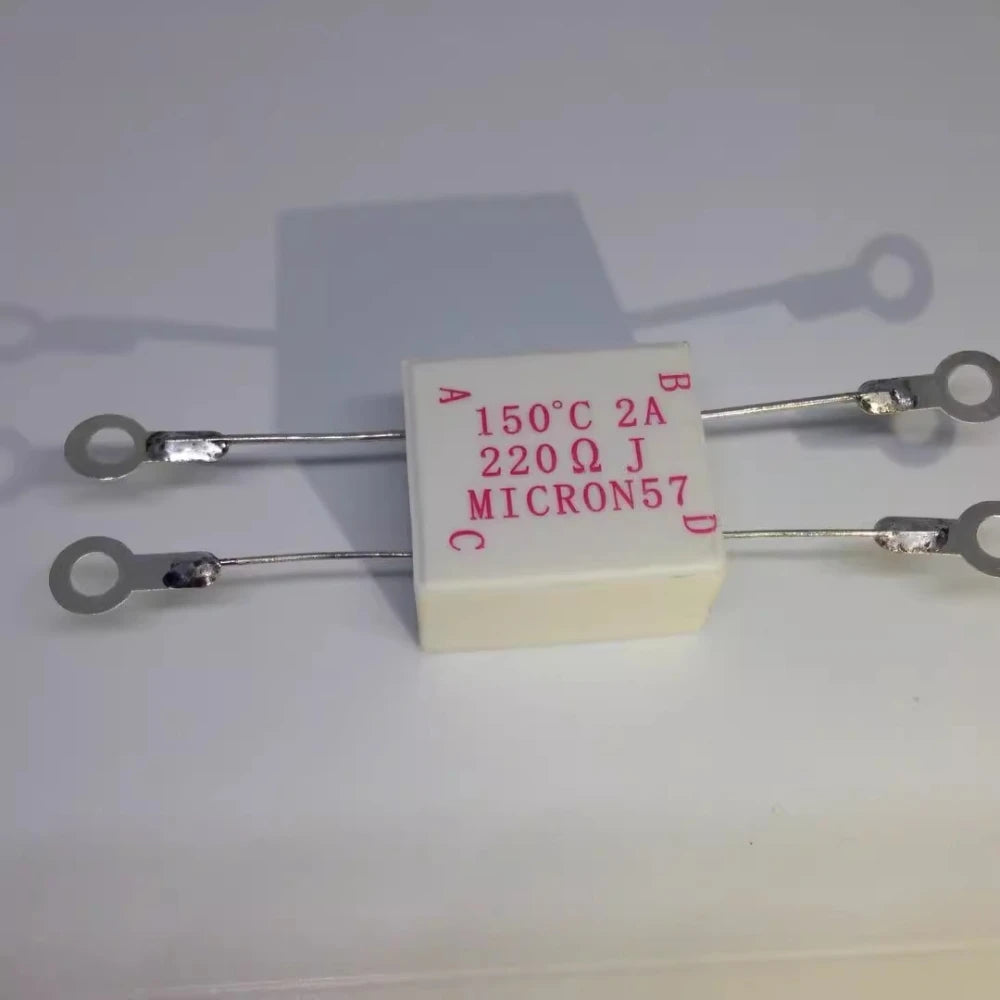

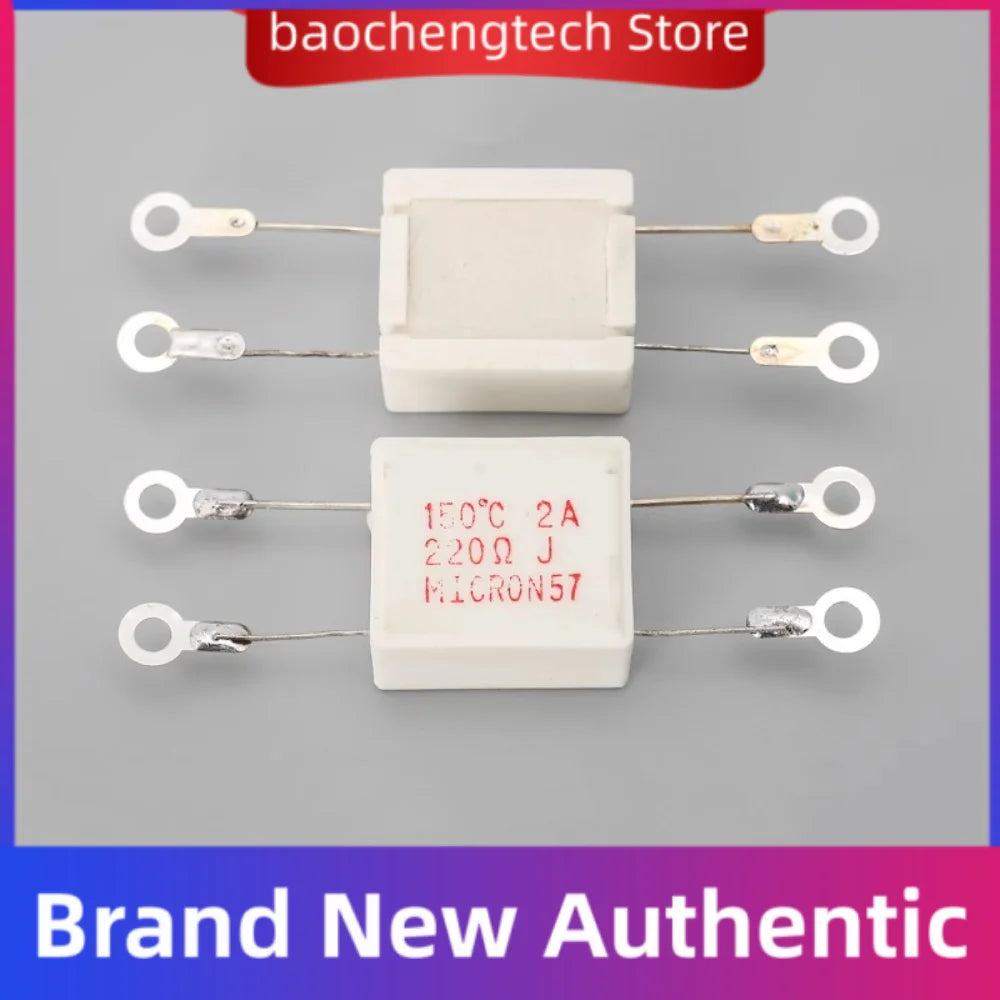

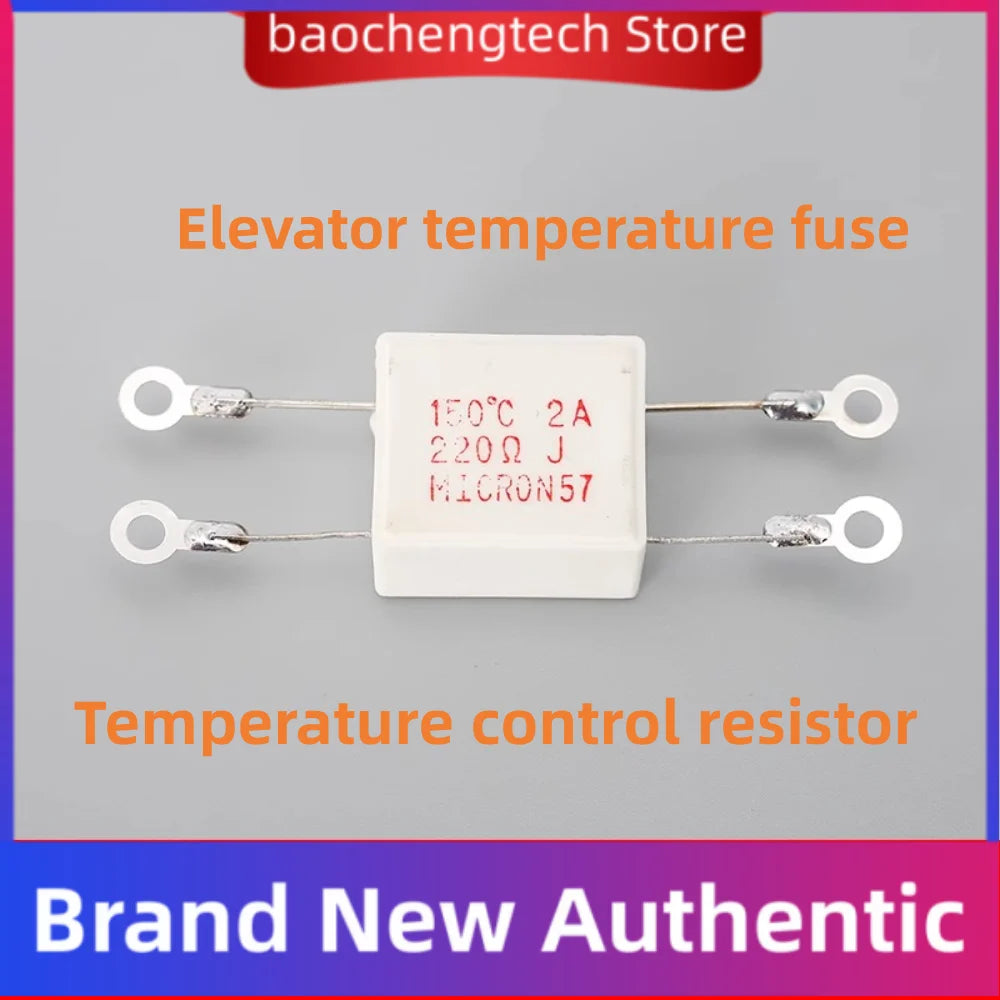

- Temperature-controlled cement assembly: a product described for a particular elevator application, which is not a universal fusible resistor replacement.
How to select
- Confirm the component function: determine whether the circuit requires a fusible resistor, a flameproof resistor, an ordinary resistor, a thermal fuse or a current fuse.
- Match resistance: verify Ω units and notation such as 0R22 = 0.22Ω.
- Match continuous power: calculate P = I²R or P = V²/R, then apply the specified thermal derating.
- Verify fusing data: obtain opening time versus overload, maximum interrupting conditions and post-failure behavior for the exact part.
- Check surge requirements: normal inrush and switching pulses must not cause nuisance opening, while a real fault must produce the intended safe response.
- Check voltage and safety spacing: confirm working voltage, overload voltage, creepage, clearance and insulation requirements.
- Match mechanics: verify body dimensions, lead diameter, lead spacing and clearance from heat-sensitive materials.
- Confirm compliance: where the resistor is part of a safety circuit, use only documented components accepted by the equipment design and applicable standard.
Fusible resistor versus ordinary fuse
An ordinary fuse is selected by current rating, voltage rating, breaking capacity and time-current curve. A fusible resistor is also selected by resistance, tolerance and continuous power. One cannot be substituted for the other solely because both may open during a fault. Never bypass a required fuse with a resistor or replace a designed fusible resistor with an ordinary wirewound part without qualified engineering review.
Fusible versus flameproof
“Flameproof” describes behavior during overload or failure; it does not necessarily mean the resistor is designed to open at a controlled time. Conversely, “fusible” does not establish a particular flame-retardant rating unless documented. This collection does not apply either property across all products.
Power and low-ohm boundaries
The stated 1/4W, 1/2W, 1W, 2W and 3W ratings belong to specific listings. They do not prove fusing performance. At low resistance, lead, contact and PCB resistance can affect both measurements and heating. Verify tolerance, TCR and overload stability where resistance accuracy matters.
Mixed-product boundaries

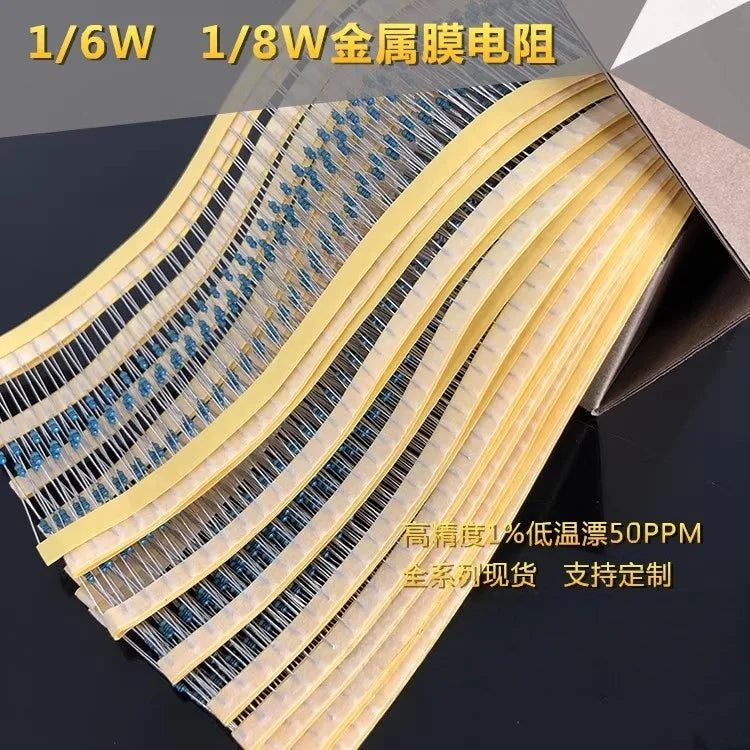

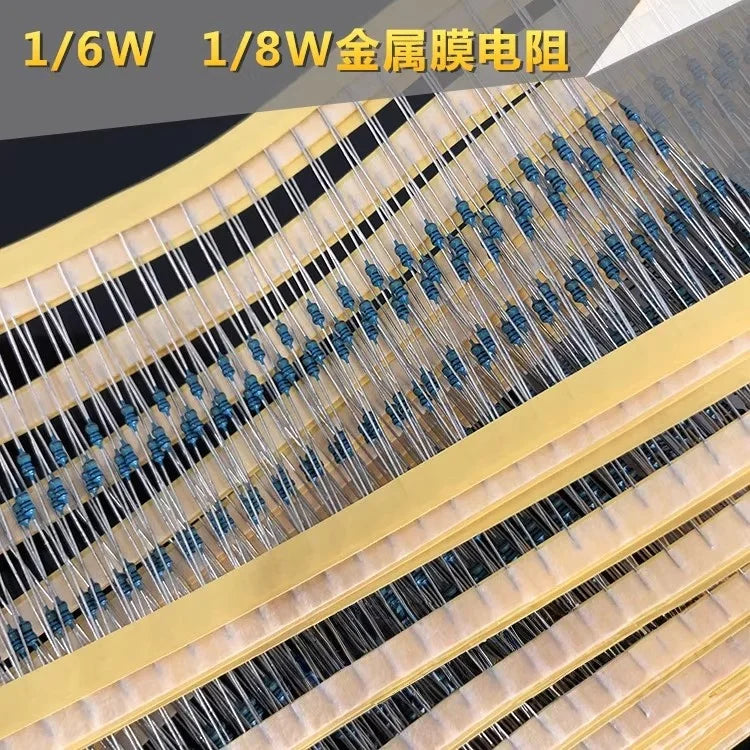

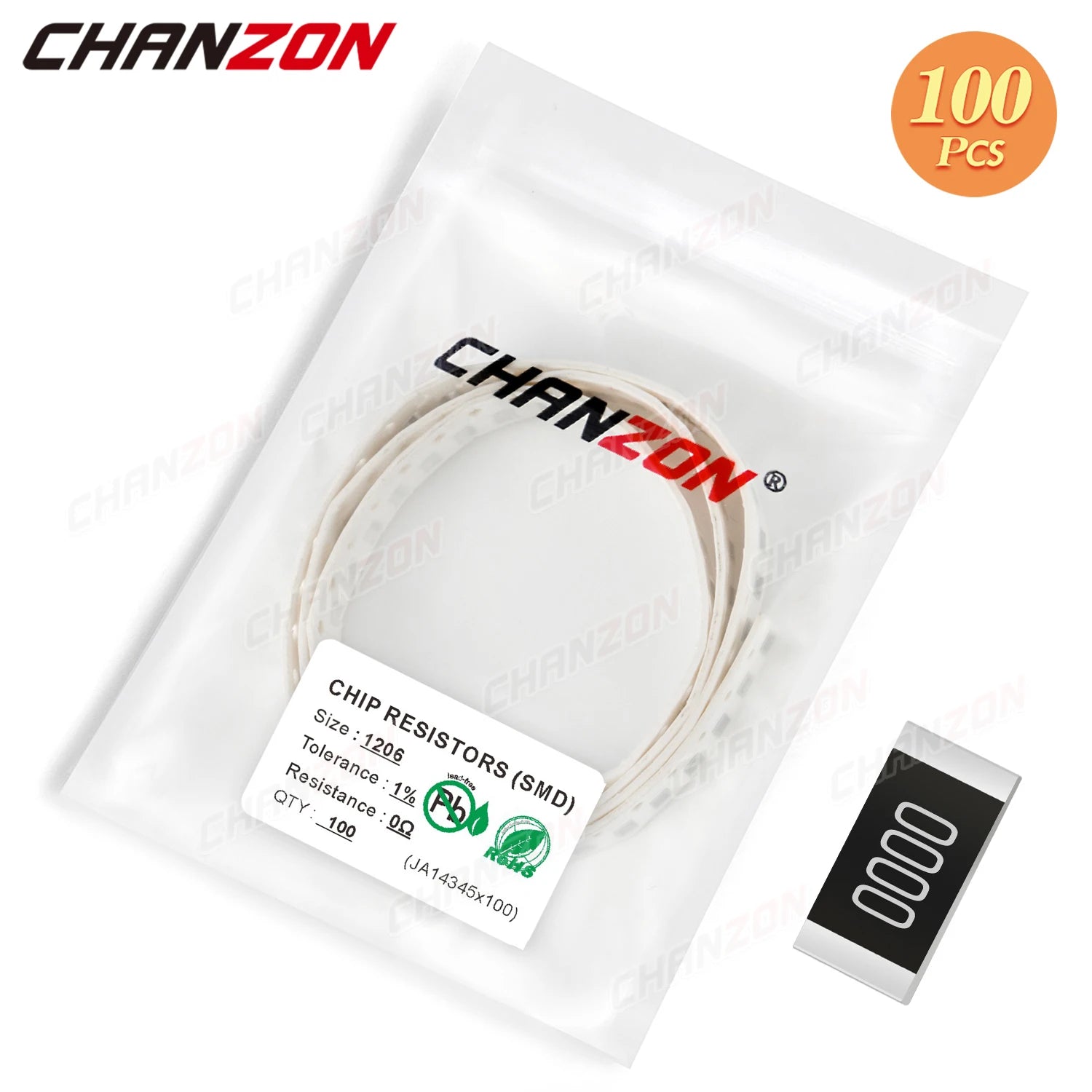

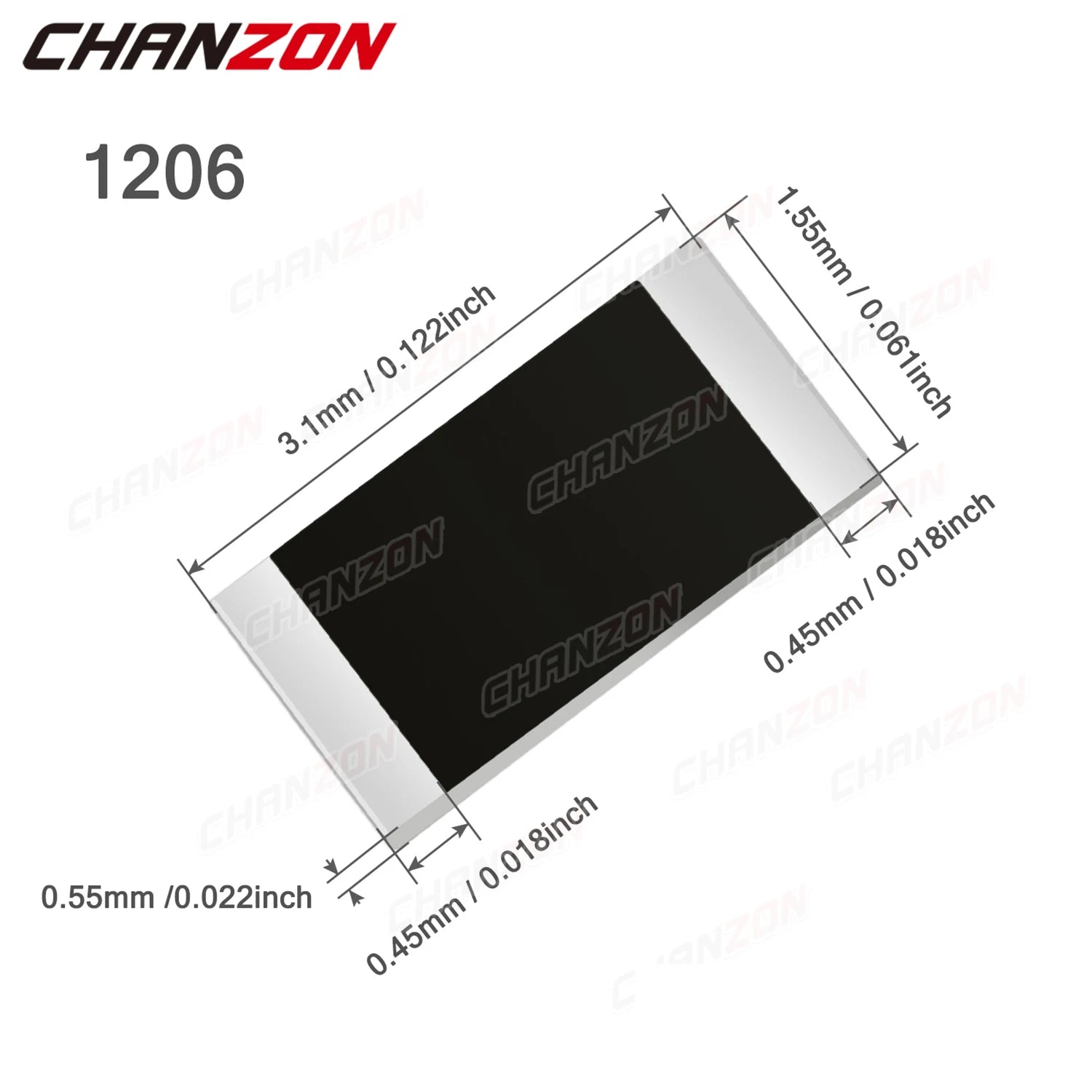

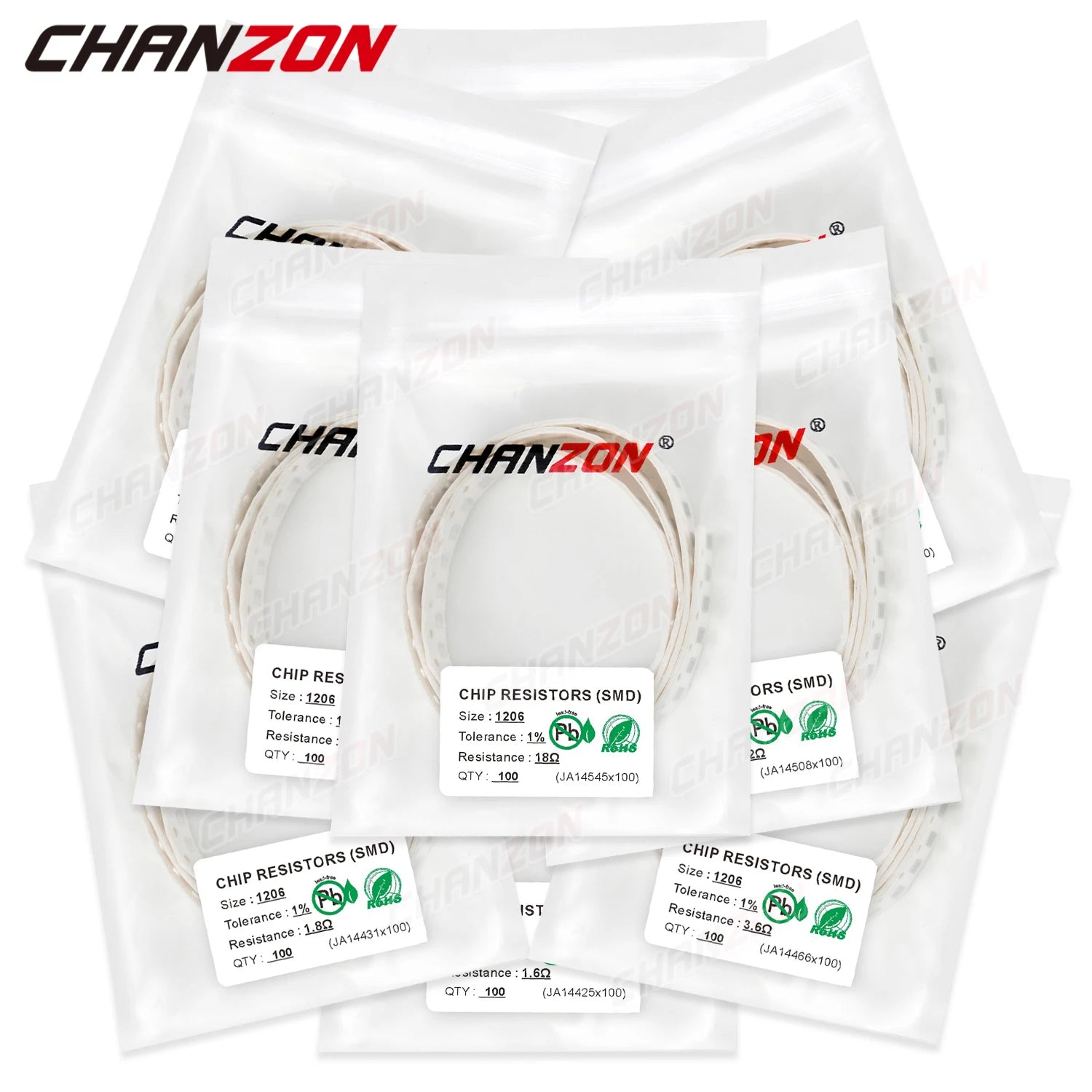

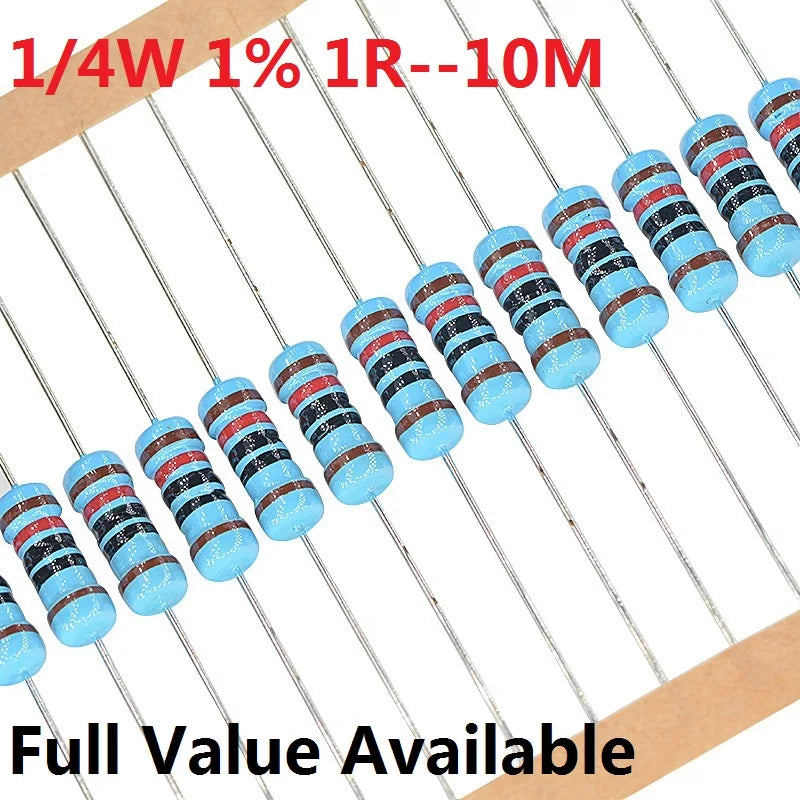

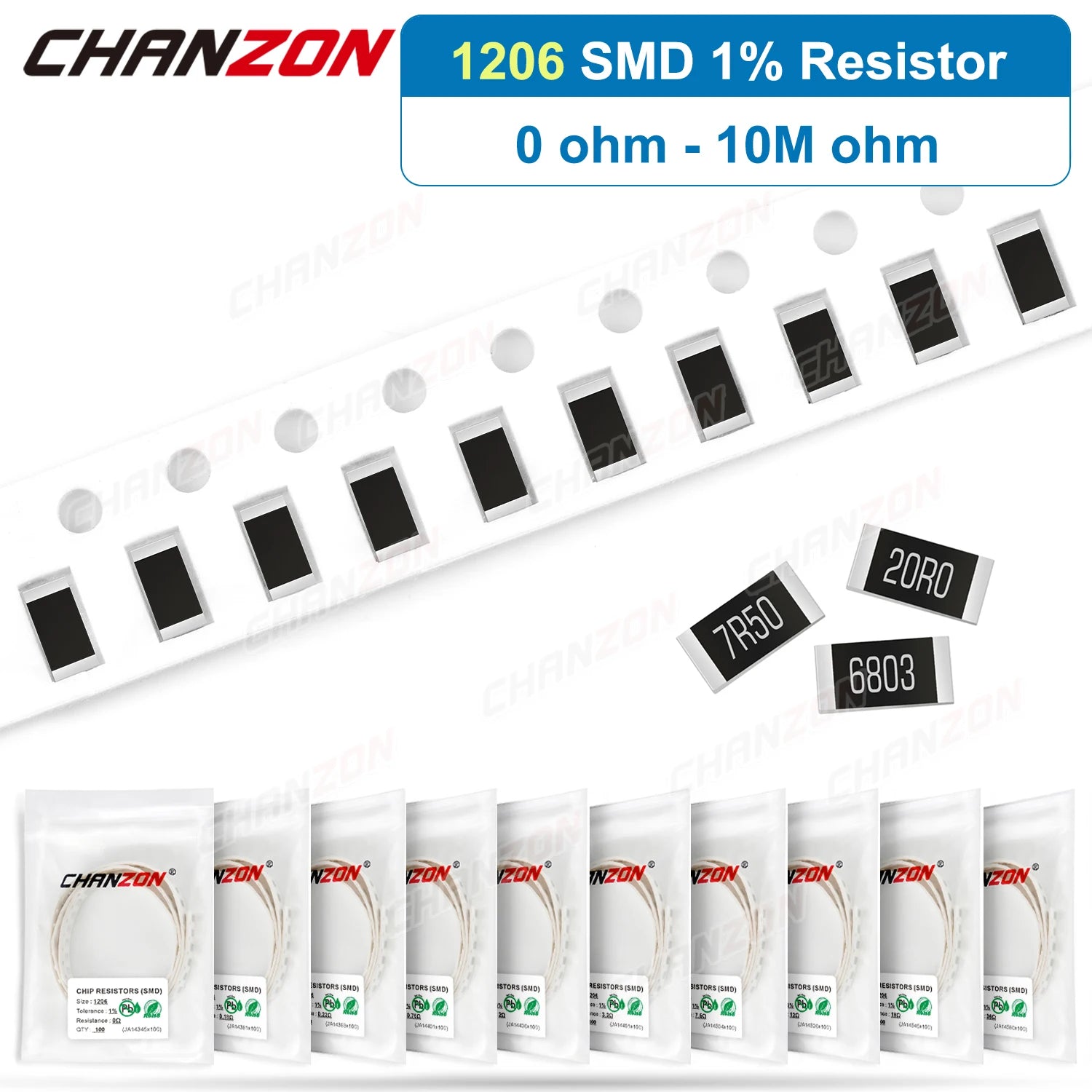

Two metal-film listings and one 1206 SMD resistor listing are ordinary resistance products unless their own documentation states otherwise. The temperature-controlled cement product combines a thermal function and a resistor for a named application; match its temperature, resistance, current, dimensions and equipment requirements exactly. Shared collection membership does not establish interchangeability.
Typical applications
- Input and startup paths where a documented fusible resistor is specified
- Power-supply and appliance repair using an exact matched replacement
- Low-ohm current limiting with verified overload behavior
- Service assortments for identifying resistance and physical fit
Ordering checklist
- Required component class and circuit function
- Resistance, tolerance and TCR
- Continuous power and derating
- Documented fusing or overload curve
- Voltage and interruption conditions
- Pulse and inrush withstand
- Flame behavior and required approvals
- Body dimensions, leads and installation clearance
Frequently asked questions
Does “fuse resistance” in a product title prove controlled fusing behavior?
No. Use the exact datasheet or verified product specification before treating it as a protective component.
Can I replace a fusible resistor with a normal wirewound resistor?
Not safely by matching resistance and wattage alone. The opening and failure behavior may be different.
Can I replace a fuse with a fusible resistor?
No, unless the equipment design explicitly specifies that component and its documented characteristics.
Does flameproof mean fusible?
No. Flame behavior and controlled electrical opening are separate properties.
Are all products here 5% tolerance?
No. Many wirewound listings state 5%, but mixed metal-film and SMD products use different specifications.
Is a 2W product interchangeable with any other 2W product?
No. Match resistance, dimensions, temperature rise, voltage, overload curve and protective function.
Can the elevator temperature-controlled resistor be used in other equipment?
Only after verifying every thermal, electrical, mechanical and safety requirement for that equipment.
