Indicator Lights, LED Pilot Lamps and Signal Devices

Indicator lights and signal devices for panels, equipment and diagnostics

Choose visual status indicators by function, mounting diameter, electrical rating and the information they convey. The main assortment includes wired metal and plastic LED pilot lamps, illuminated switches, flashing audible/visual alarms and small dashboard bulbs. It also contains battery-level displays and electronic assemblies whose onboard LED reports an operating state. A repair flex cable, a fuse block, a test instrument and a cement load resistor appear because their product titles mention indicator lights; these are not standalone pilot lamps. Read the exact selected variant before designing a panel or ordering replacement parts.

Start with the indicator's job

• Passive visual pilot lamp: an LED assembly illuminates when its specified power is applied; it normally neither switches a circuit nor senses a fault by itself.
• Flashing buzzer or beacon: a combined LED and active audible alarm provides a local warning; some versions are panel-mounted and others are compact freestanding signal lamps.
• Illuminated pushbutton or rocker: the light indicates a condition, while separate mechanical contacts perform switching. The LED supply and contact load are different specifications.
• Status display module: battery gauges, PD trigger boards, relays, sensors and test modules use LEDs to report a device's internal state. The complete device, not a replacement LED lamp, is being offered.
• Automotive indicator bulb: T3, T4.2 and T4.7 dashboard bulbs fit particular cluster sockets, unlike a 6 mm threaded panel lamp.

Color is not a standardized truth table. Red, amber/yellow, green, blue and white variants communicate whatever the installer assigns to them; a green lamp does not independently prove a machine is electrically safe, and an LED-only warning is not a substitute for required protective circuitry.

Panel-mount pilot lamps: diameter and hardware

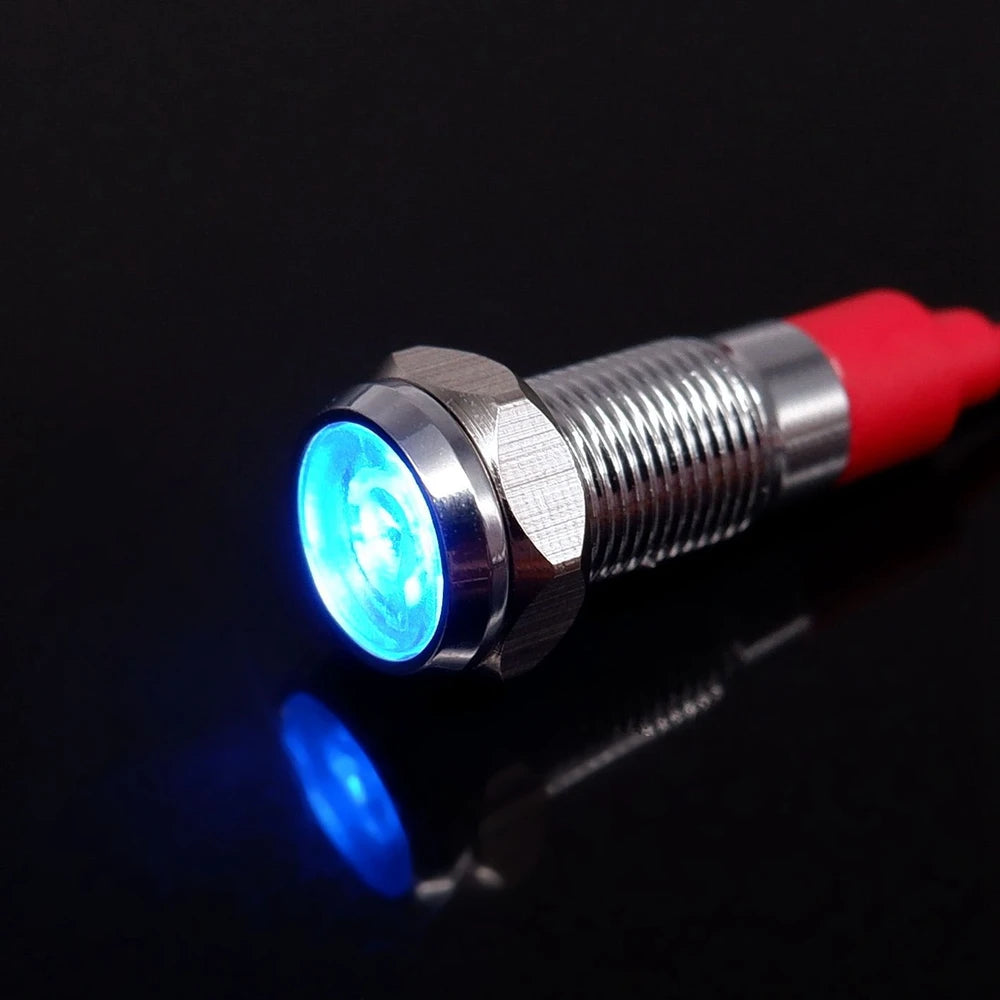

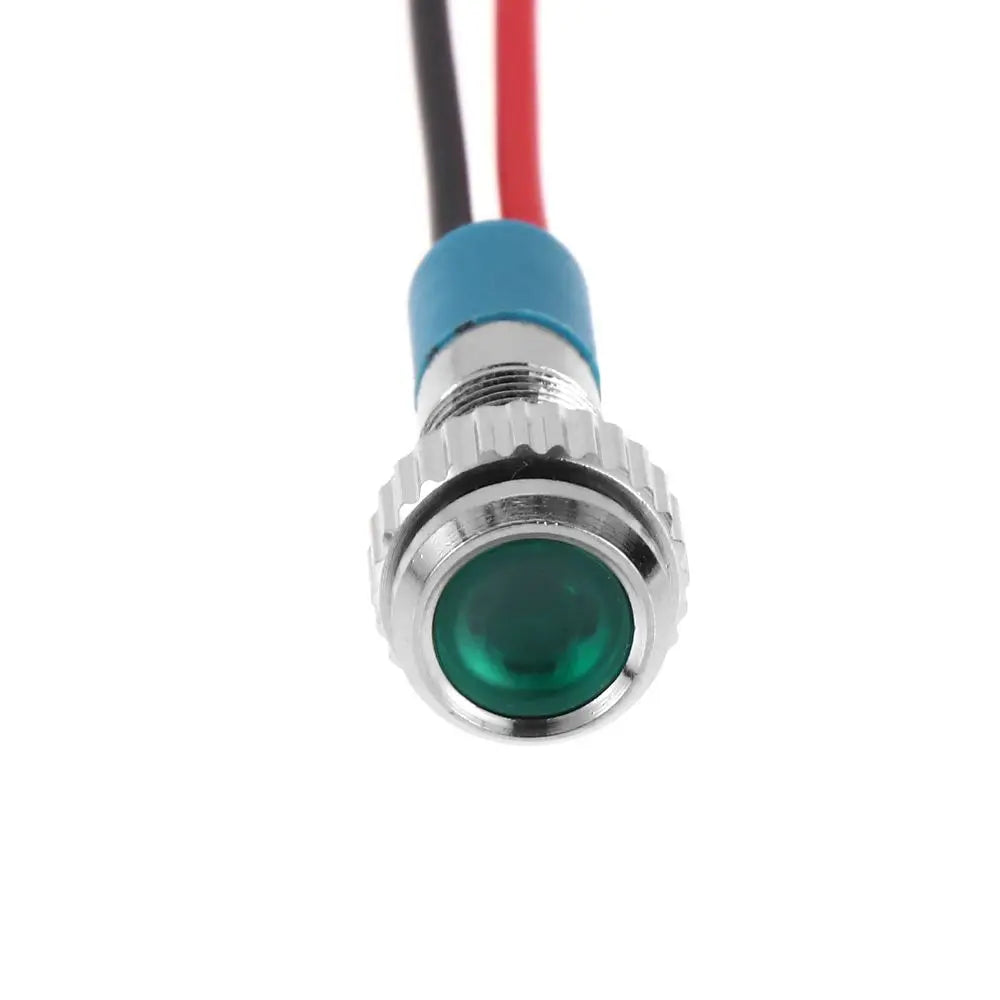

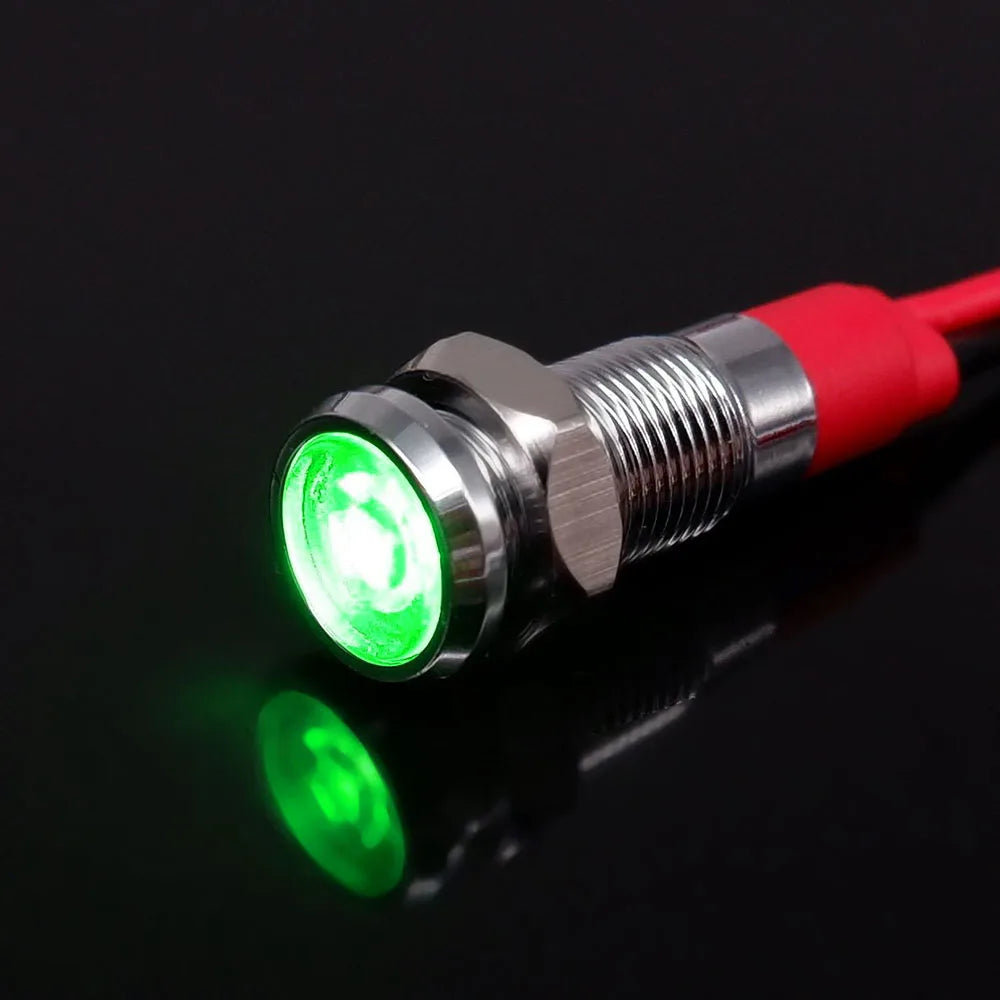

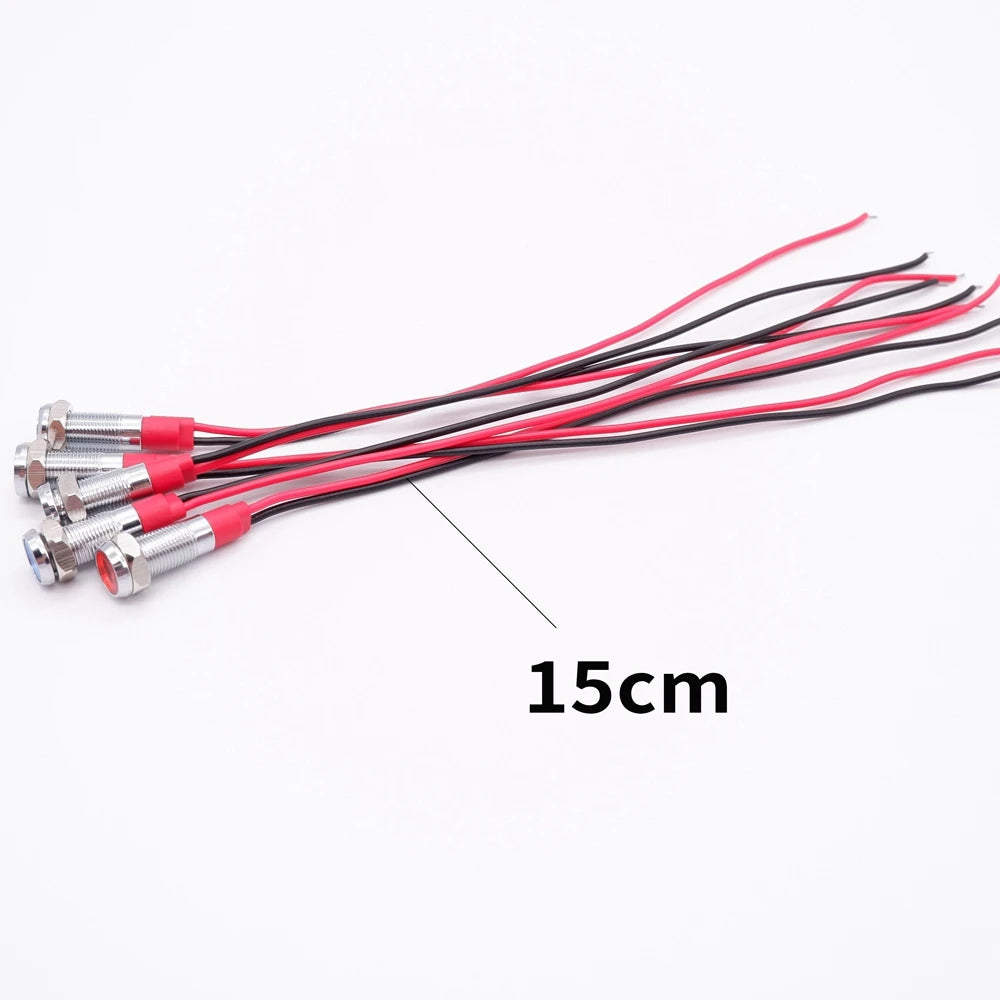

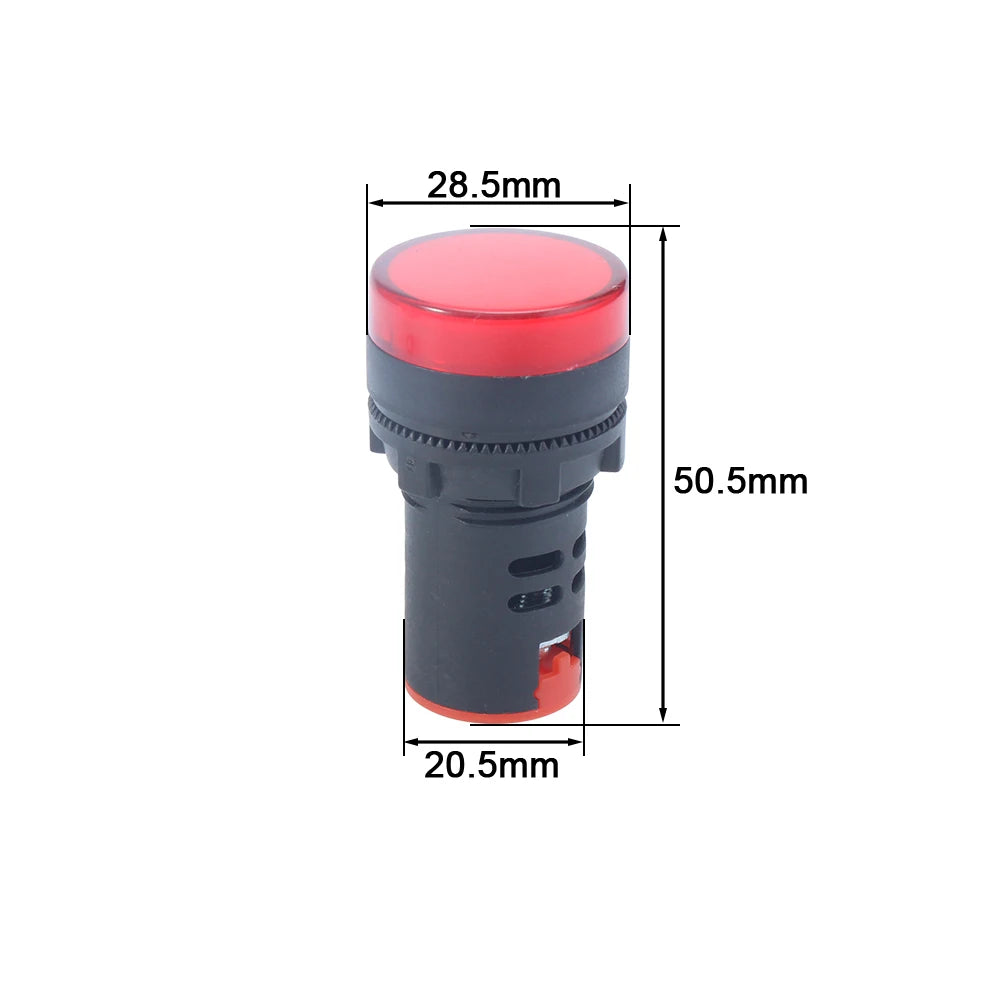

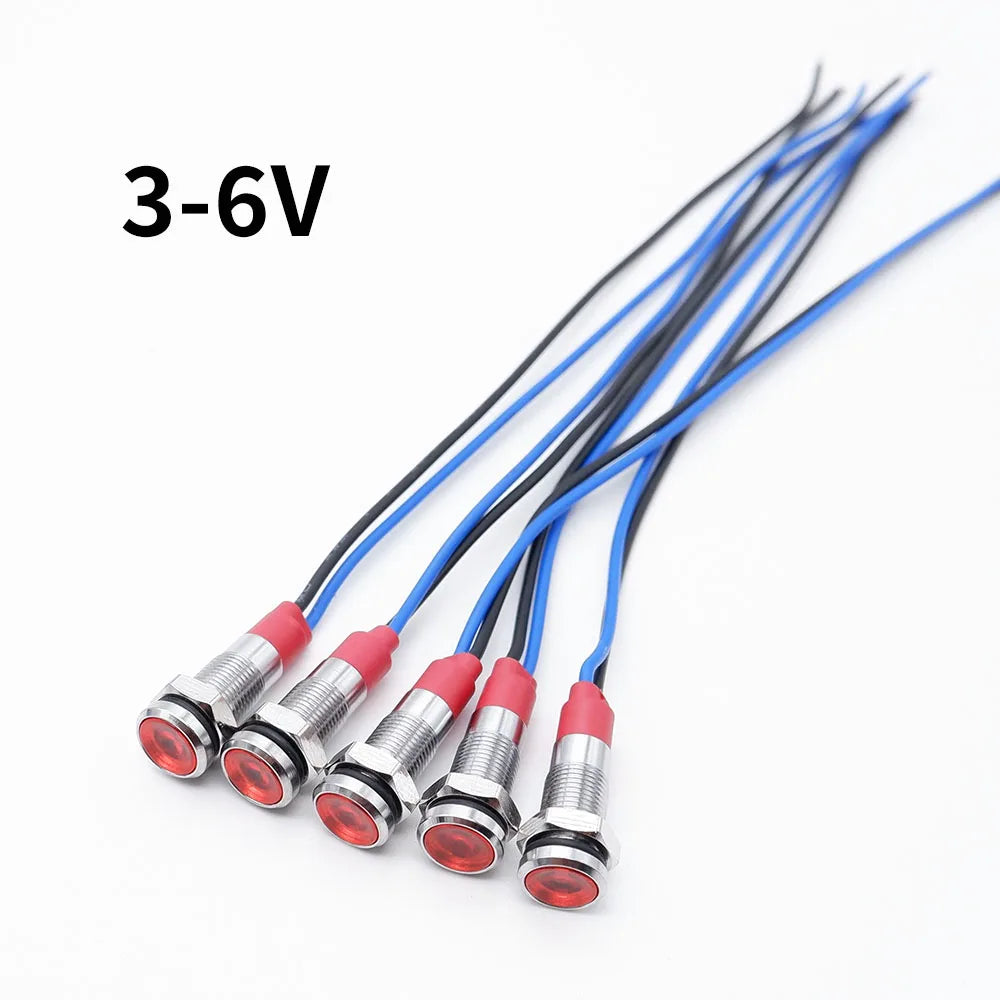

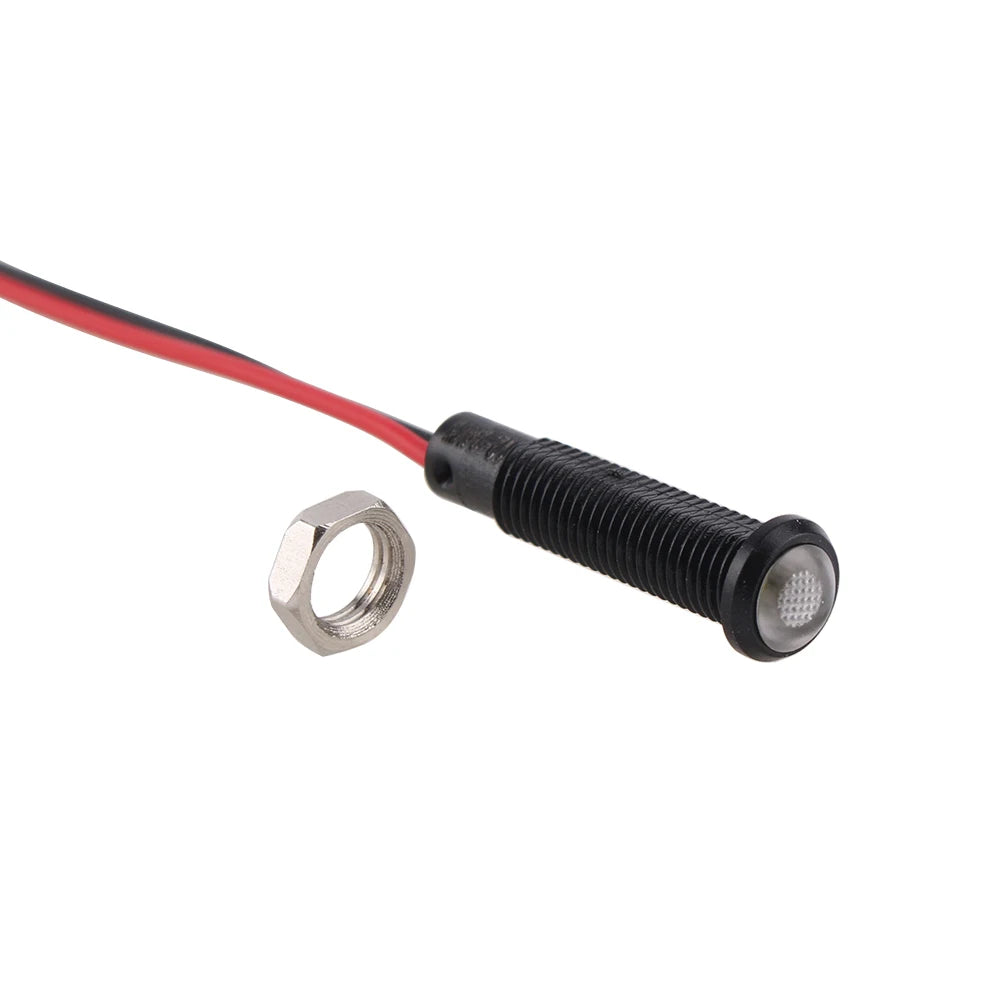

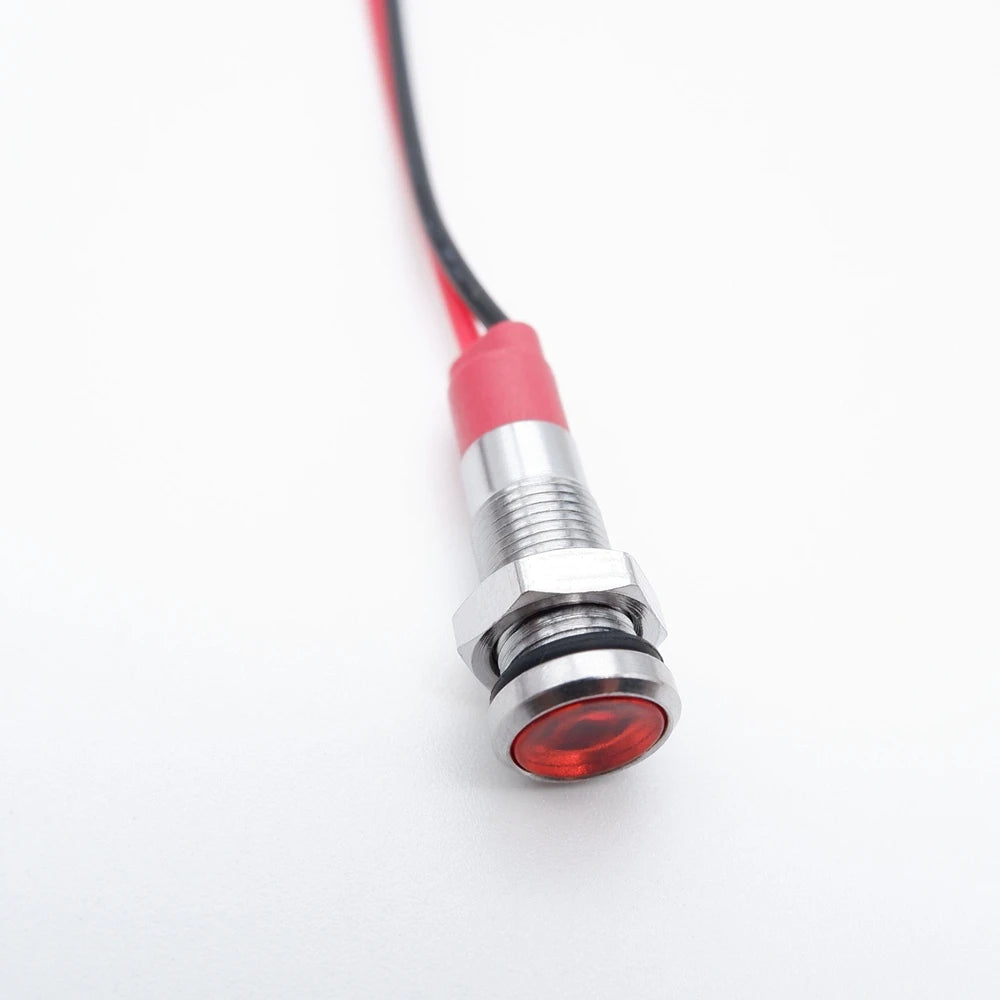

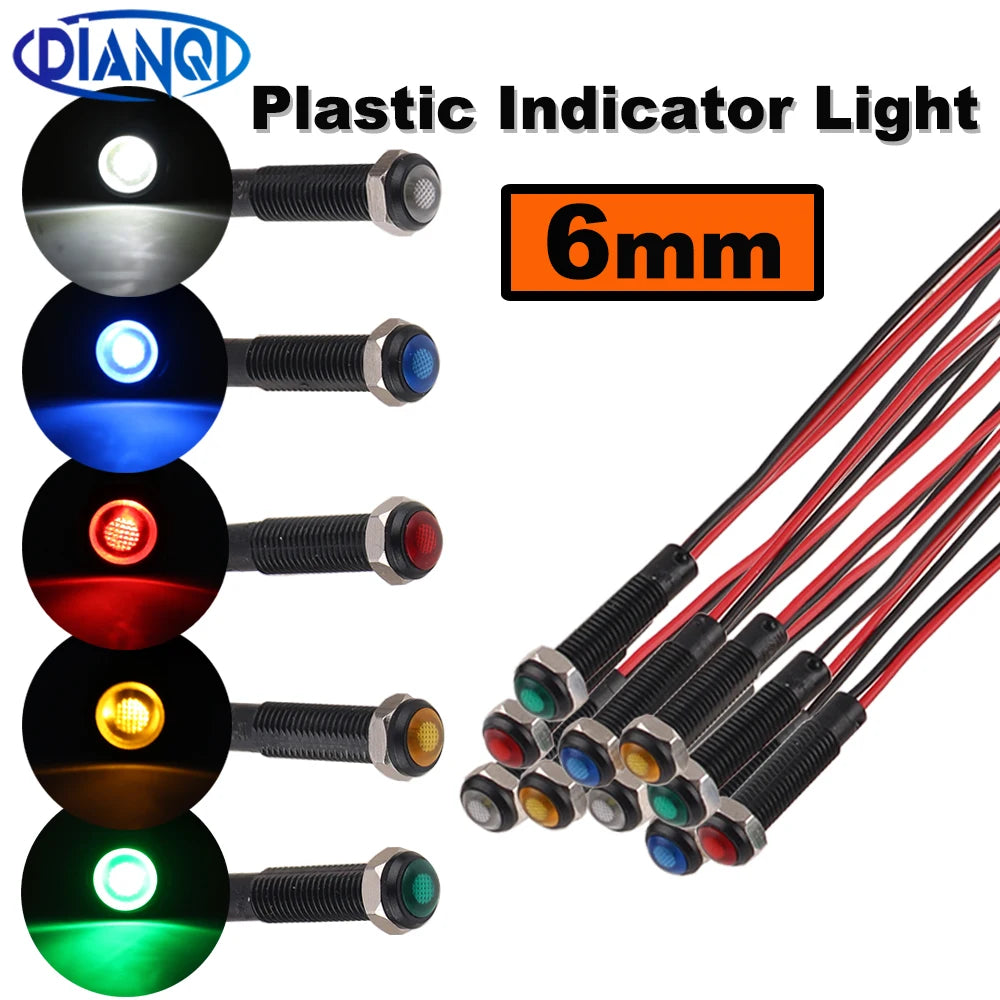

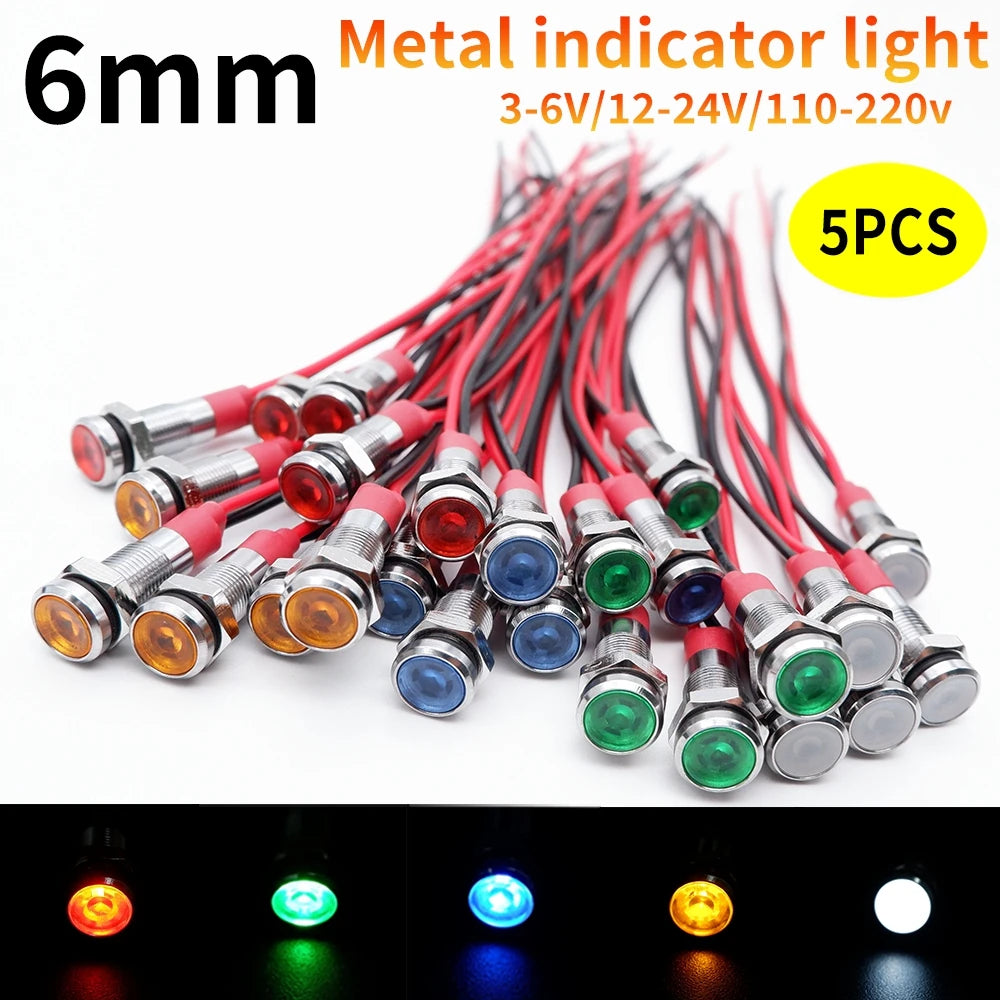

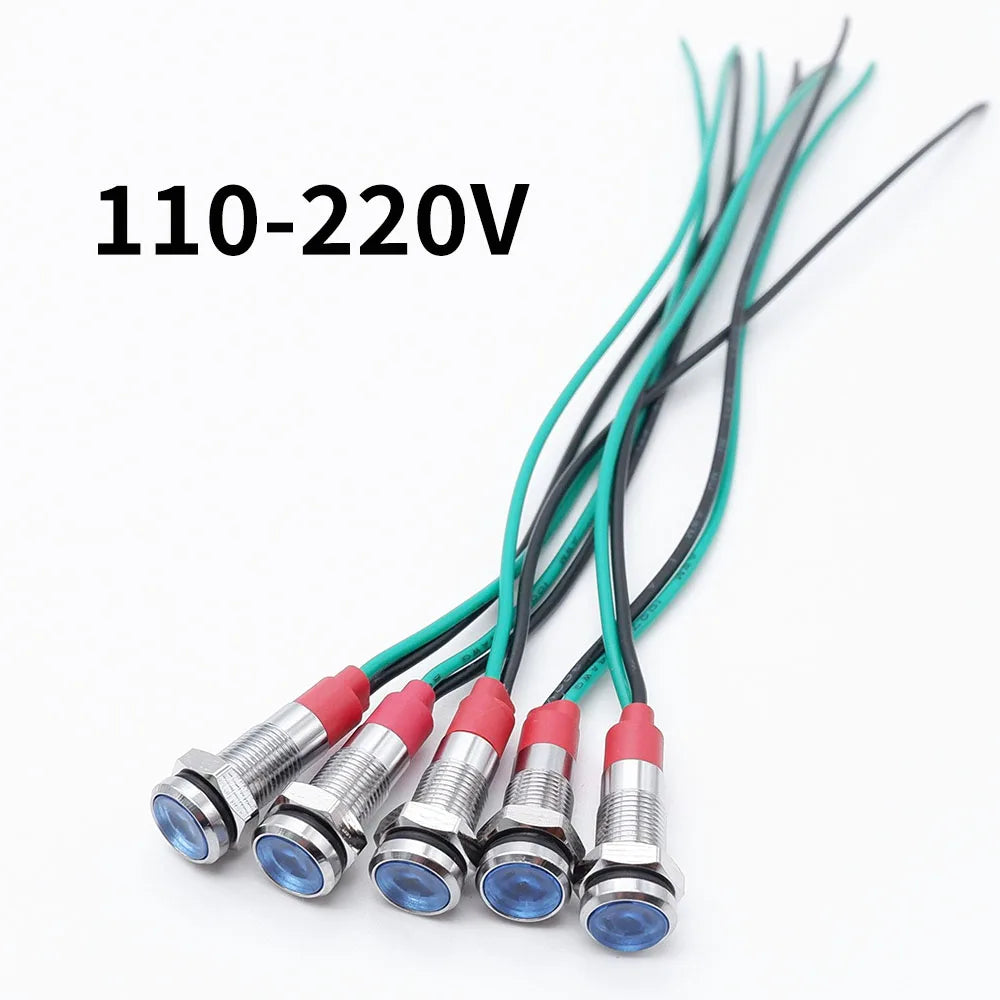

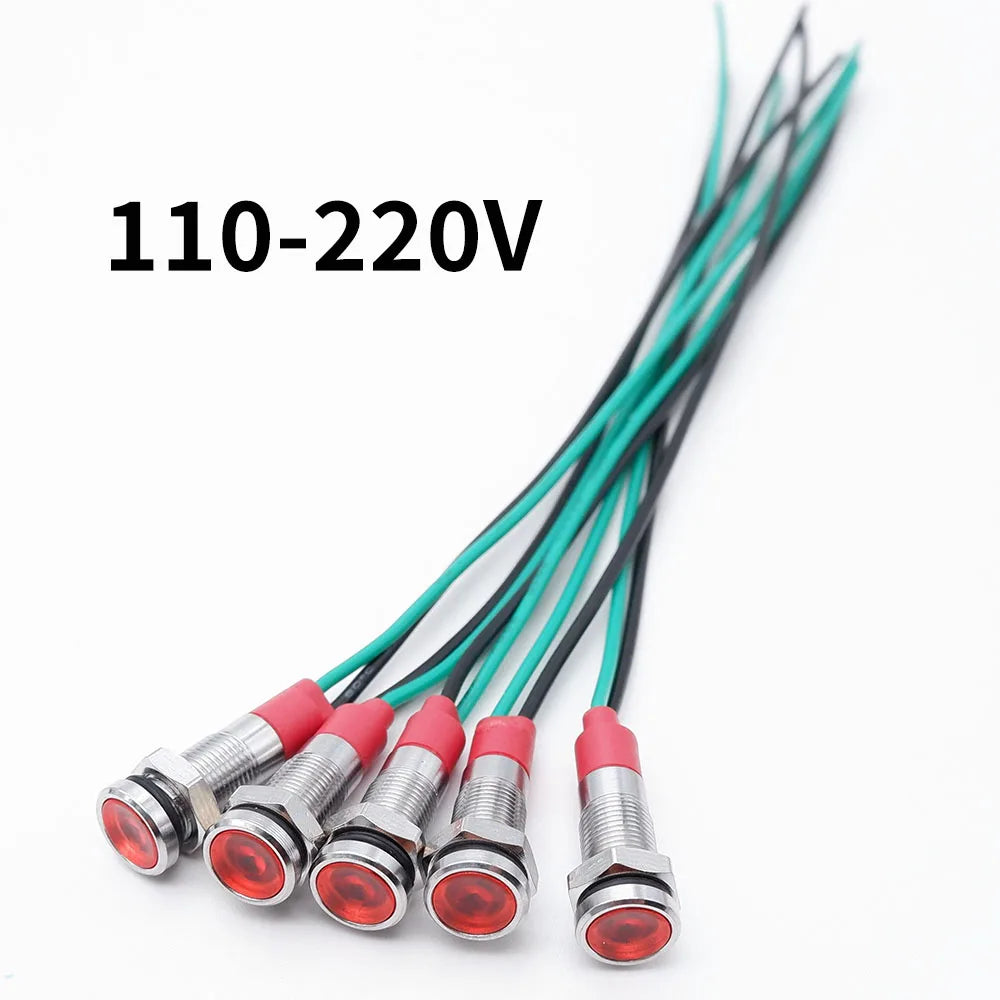

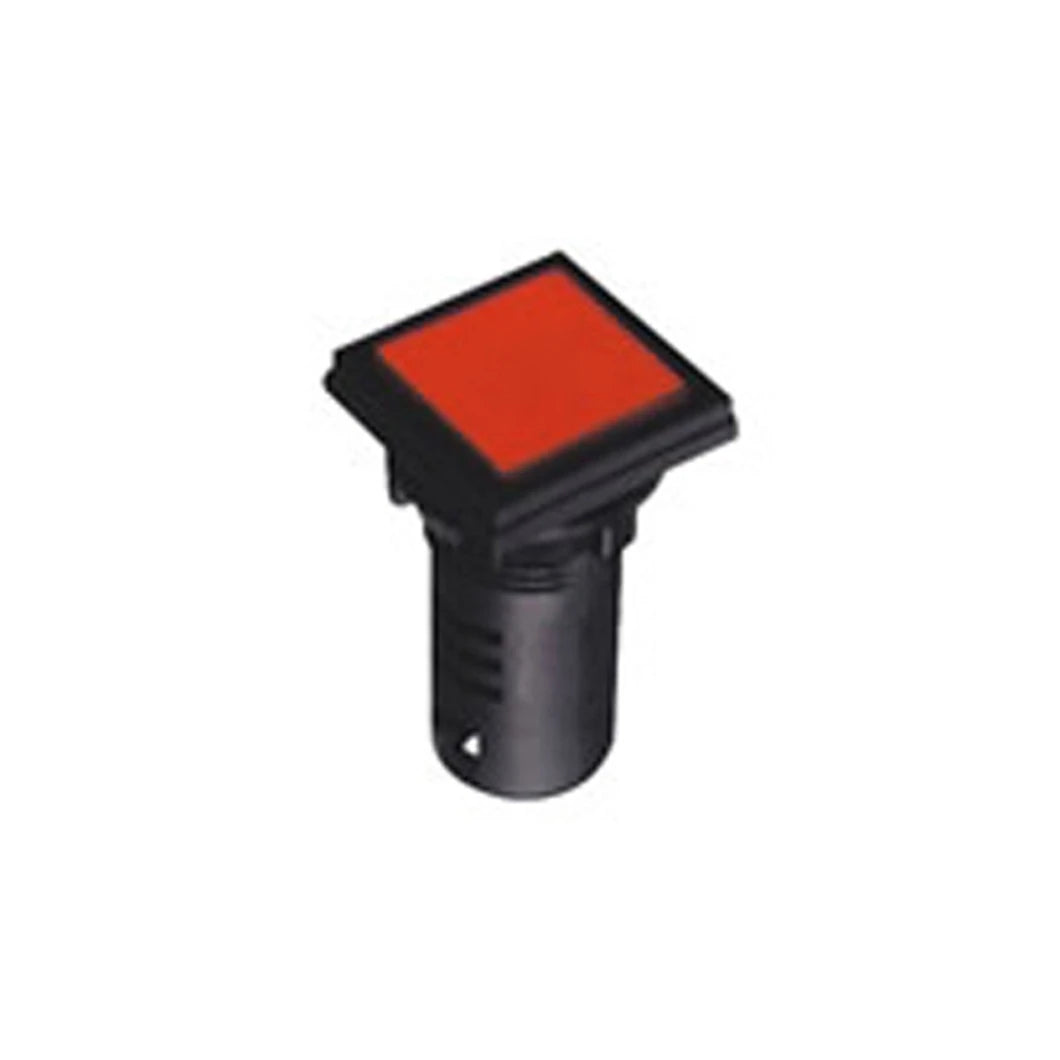

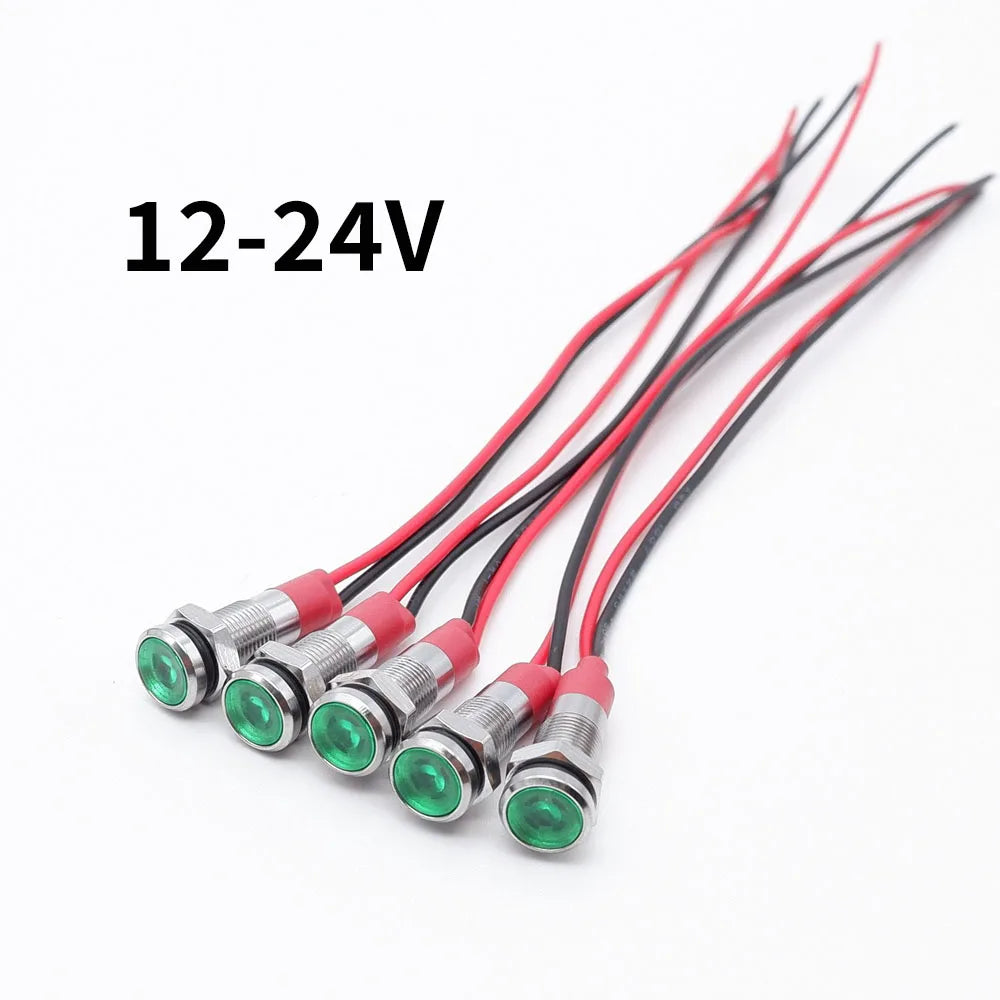

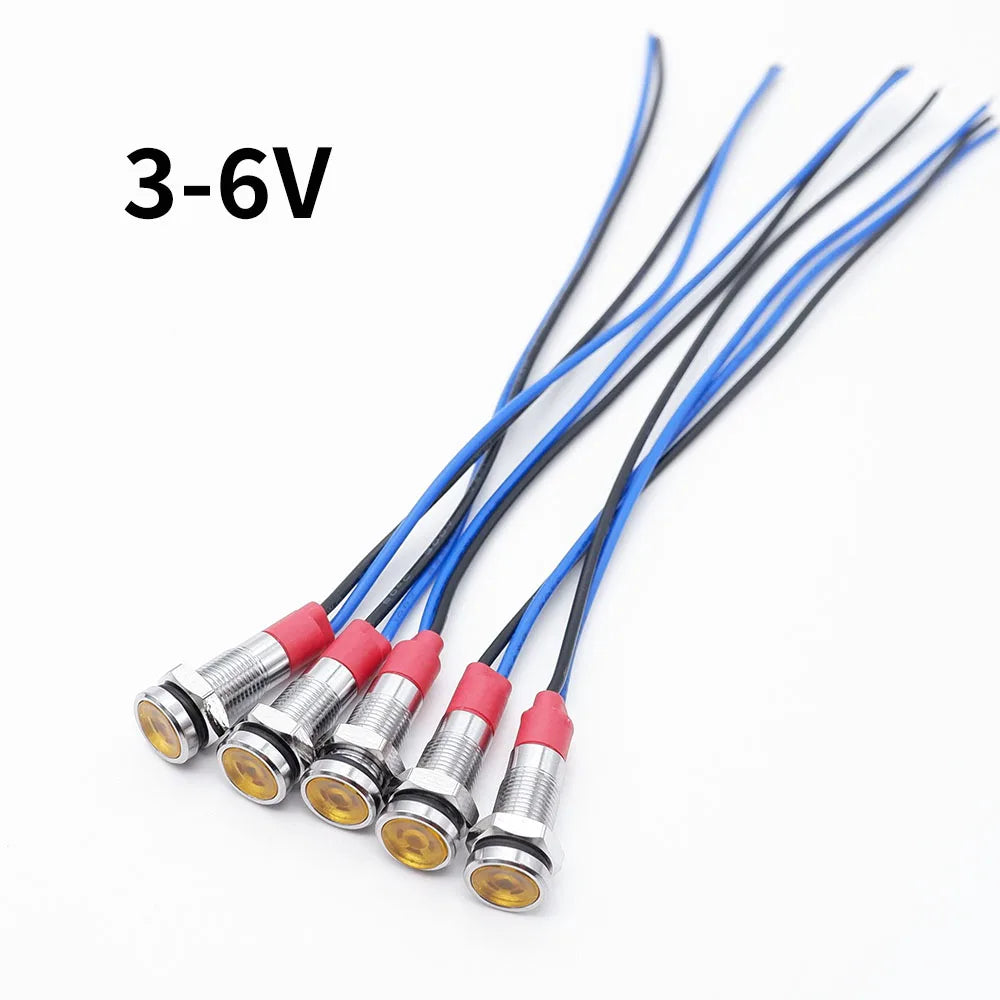

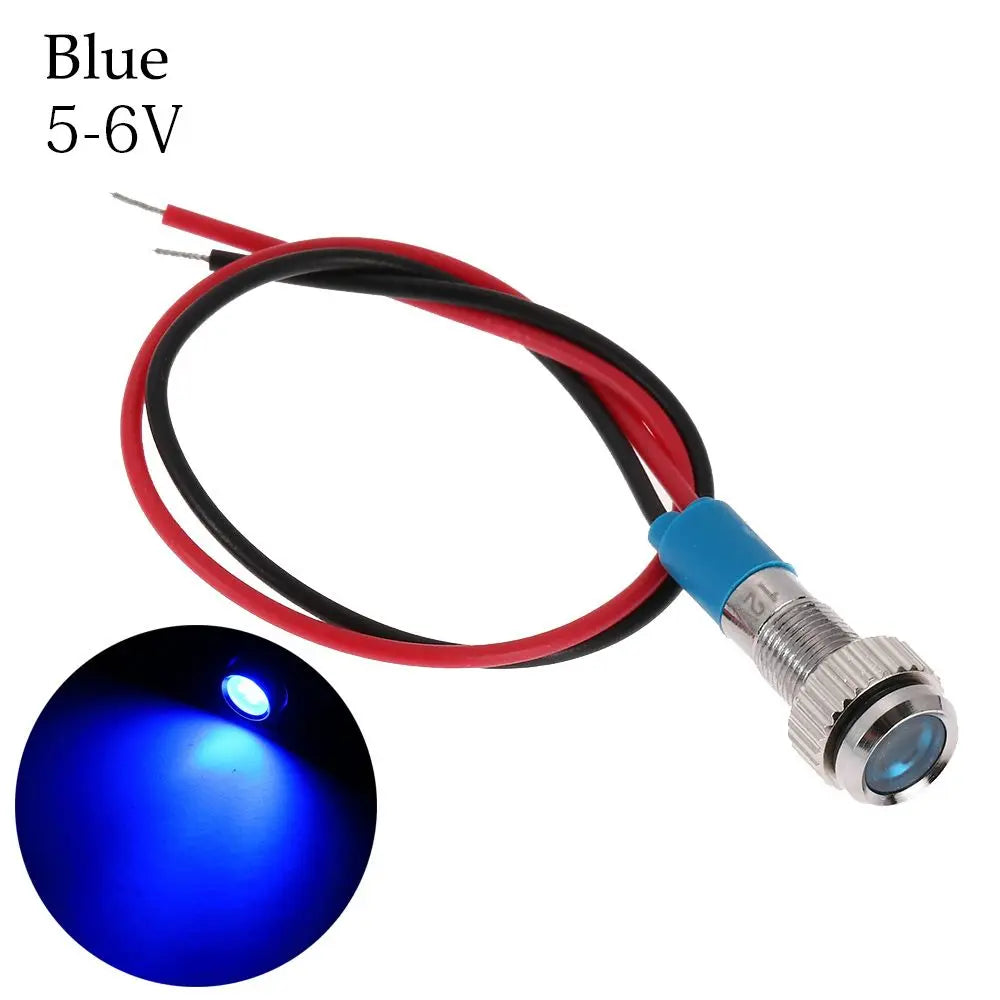

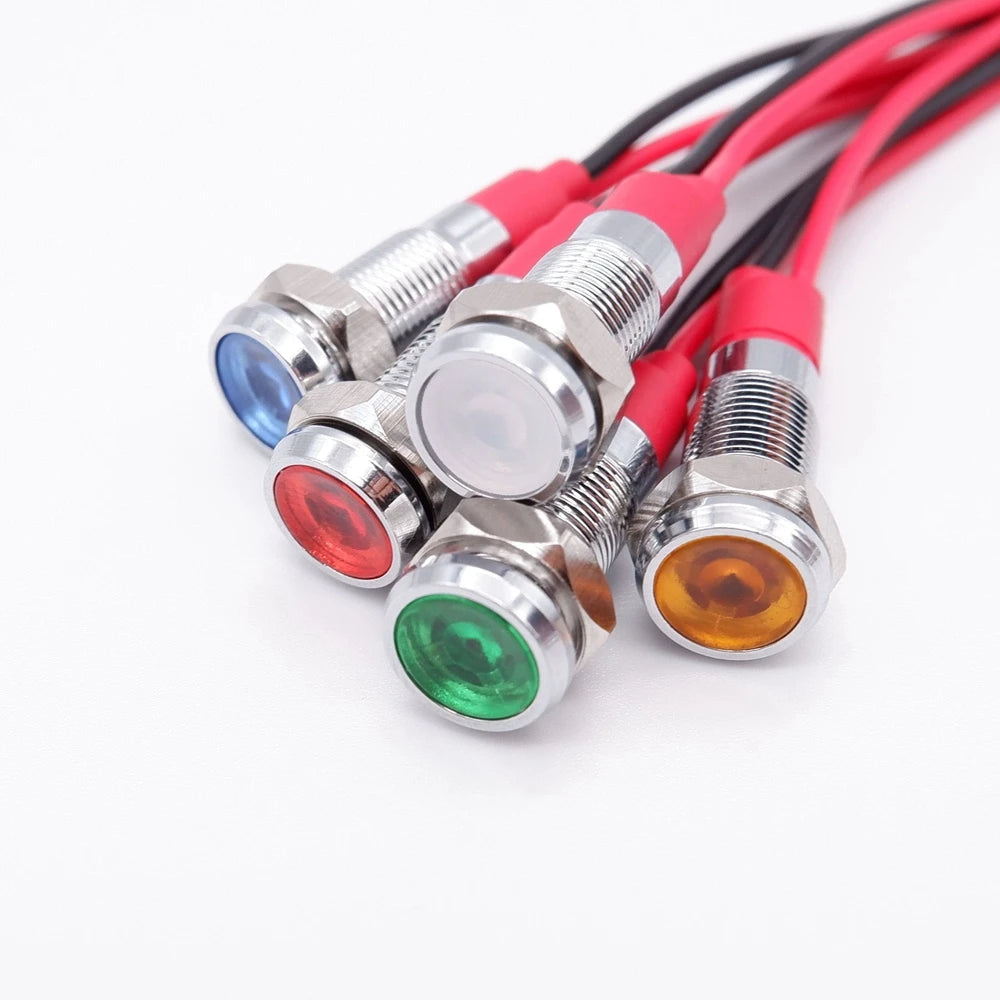

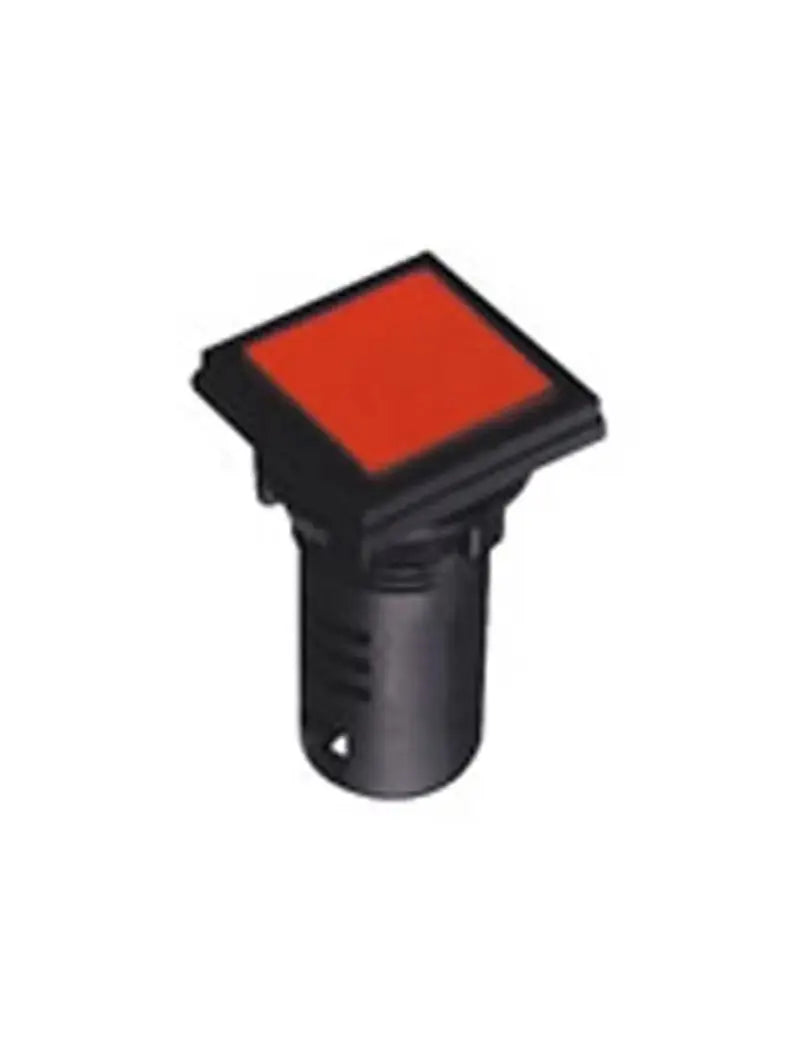

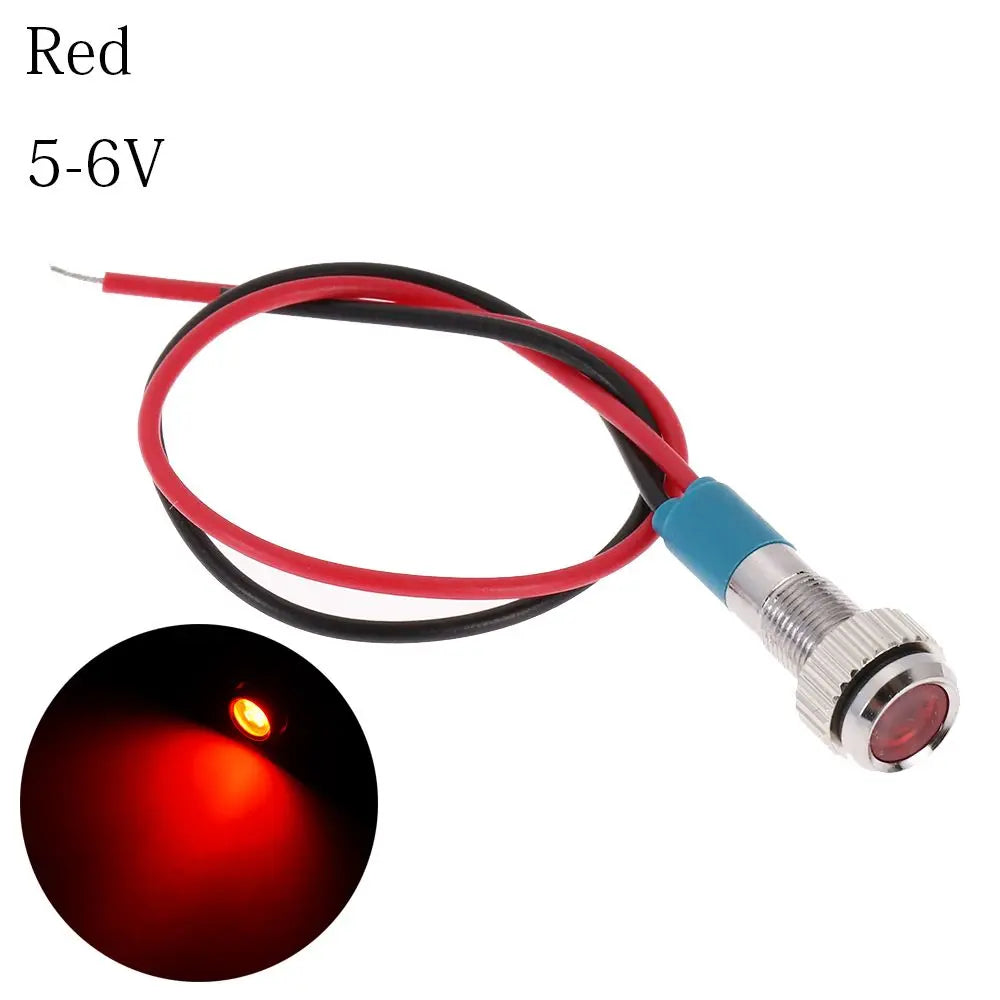

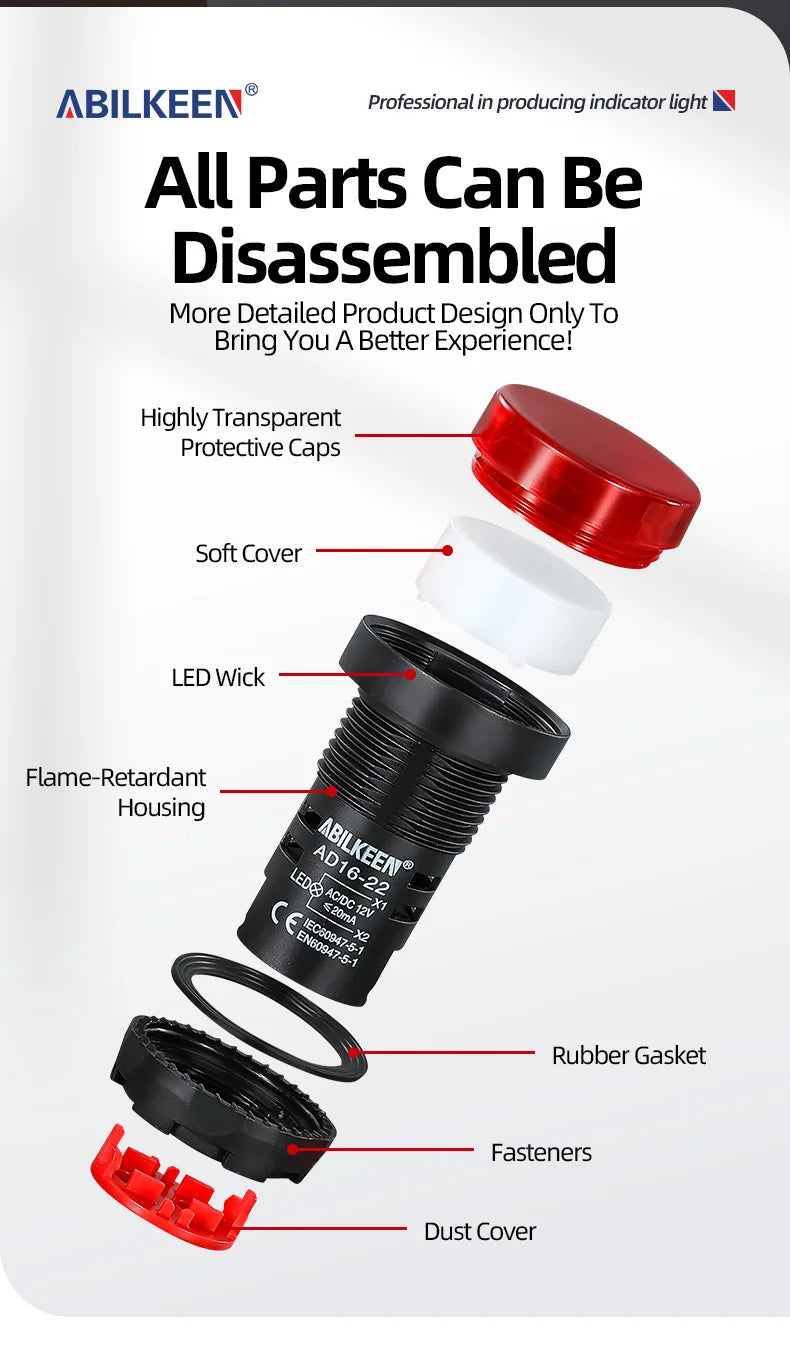

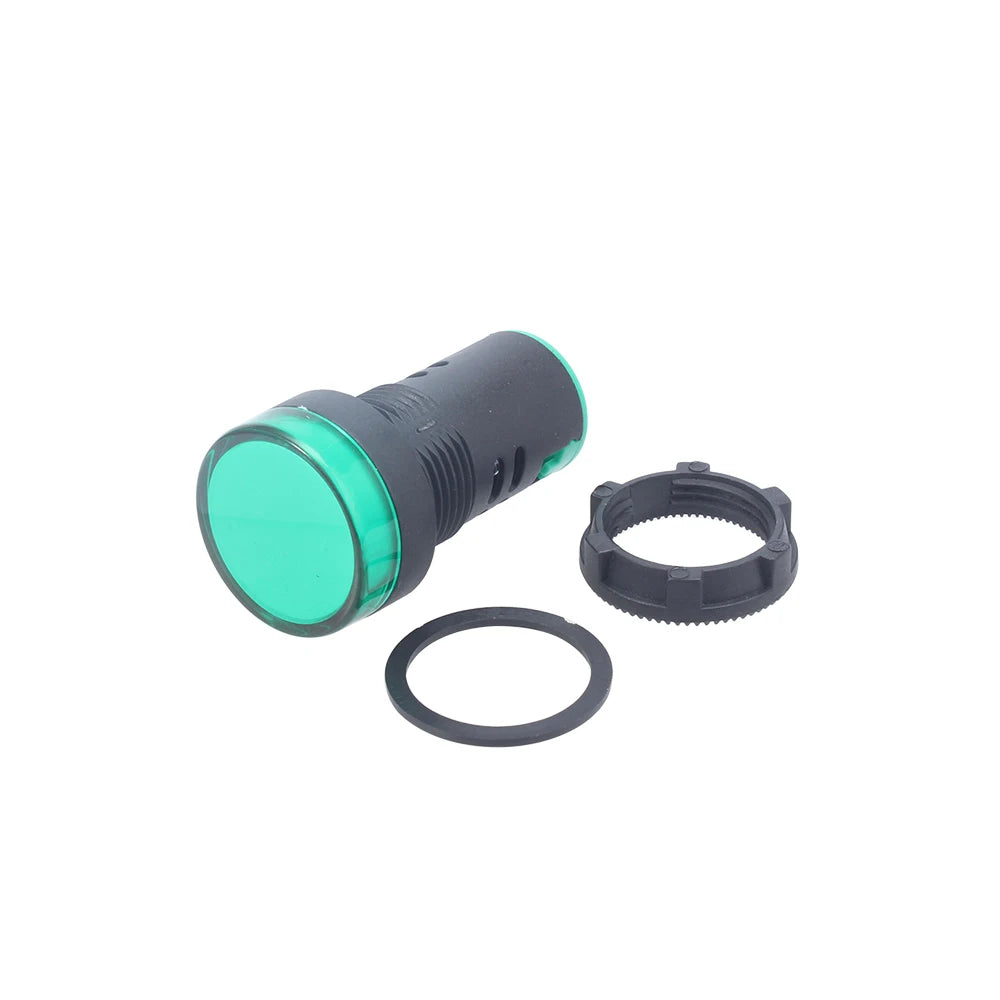

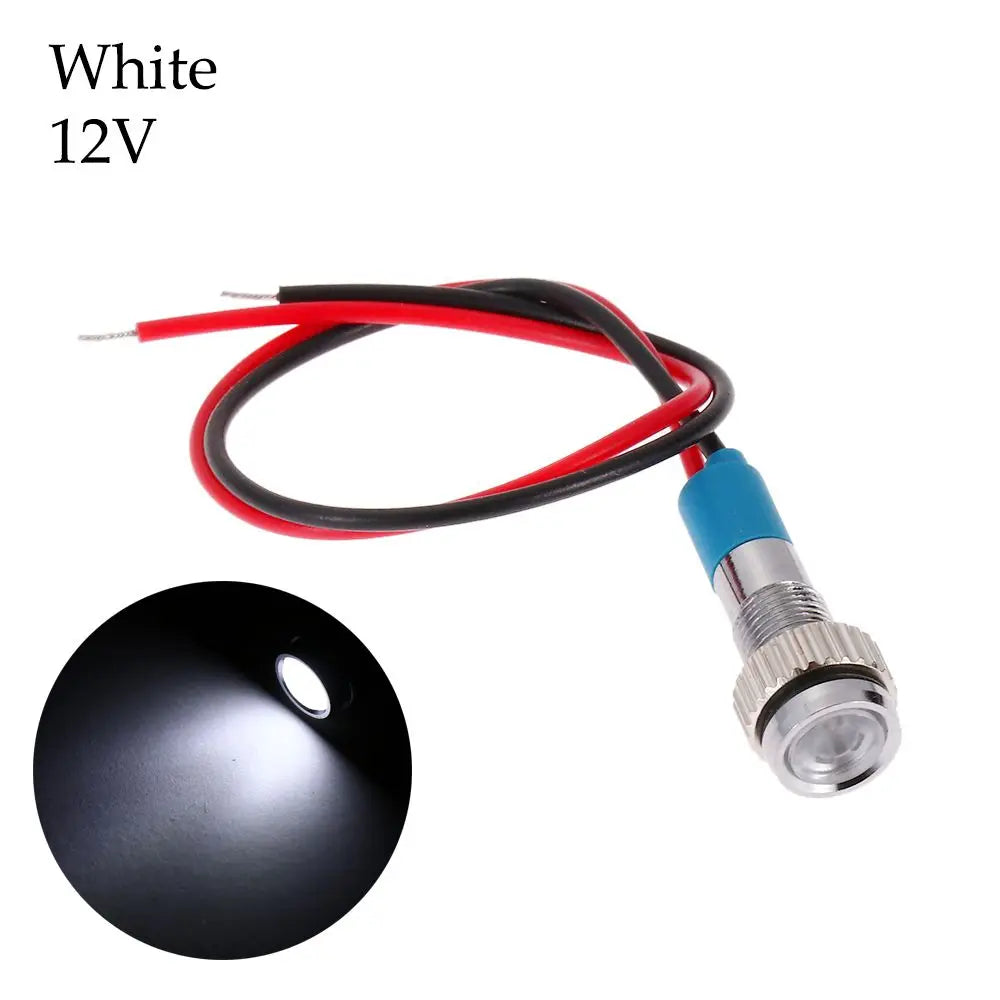

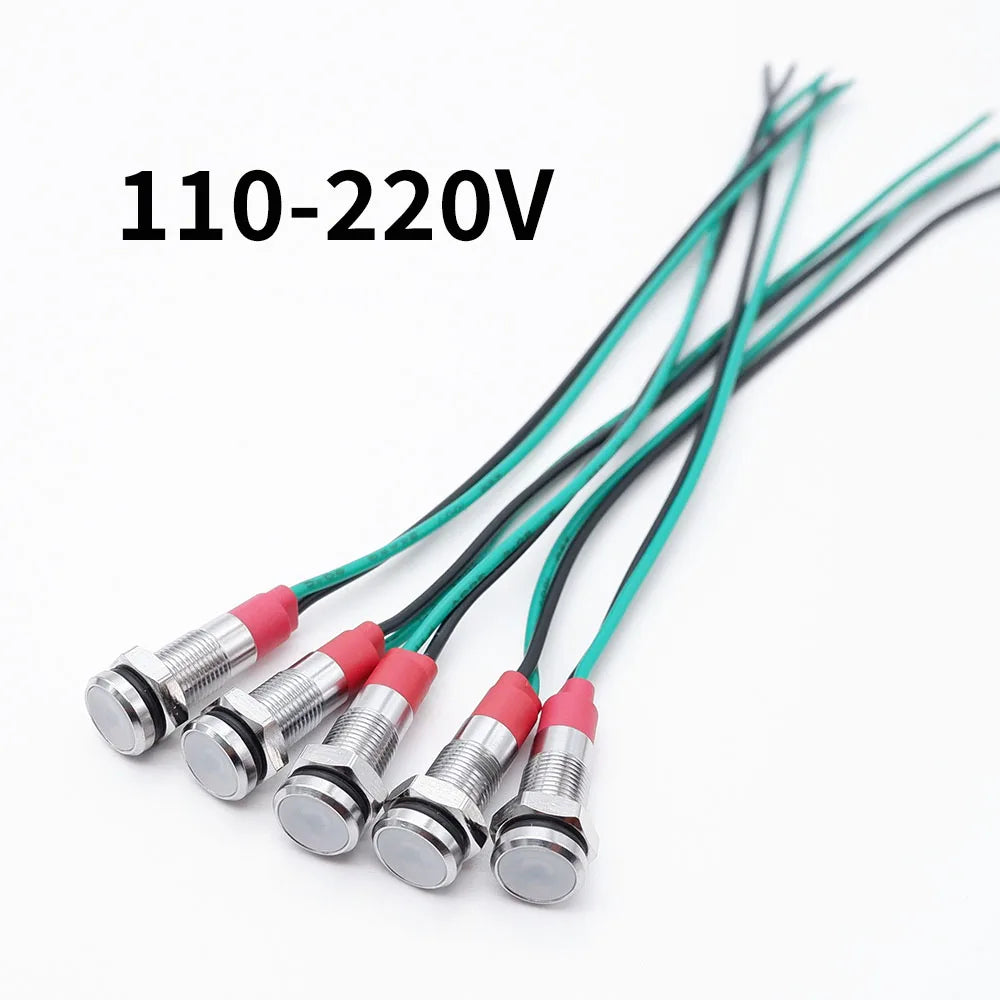

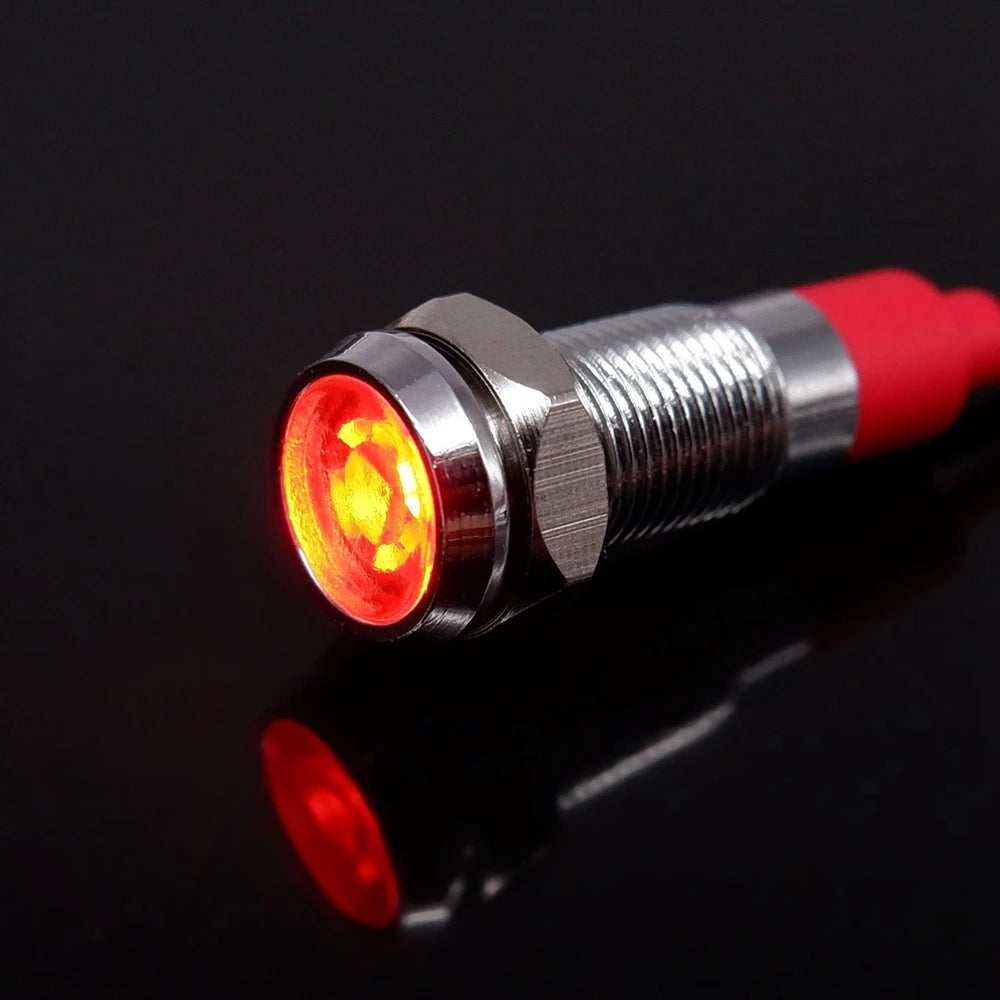

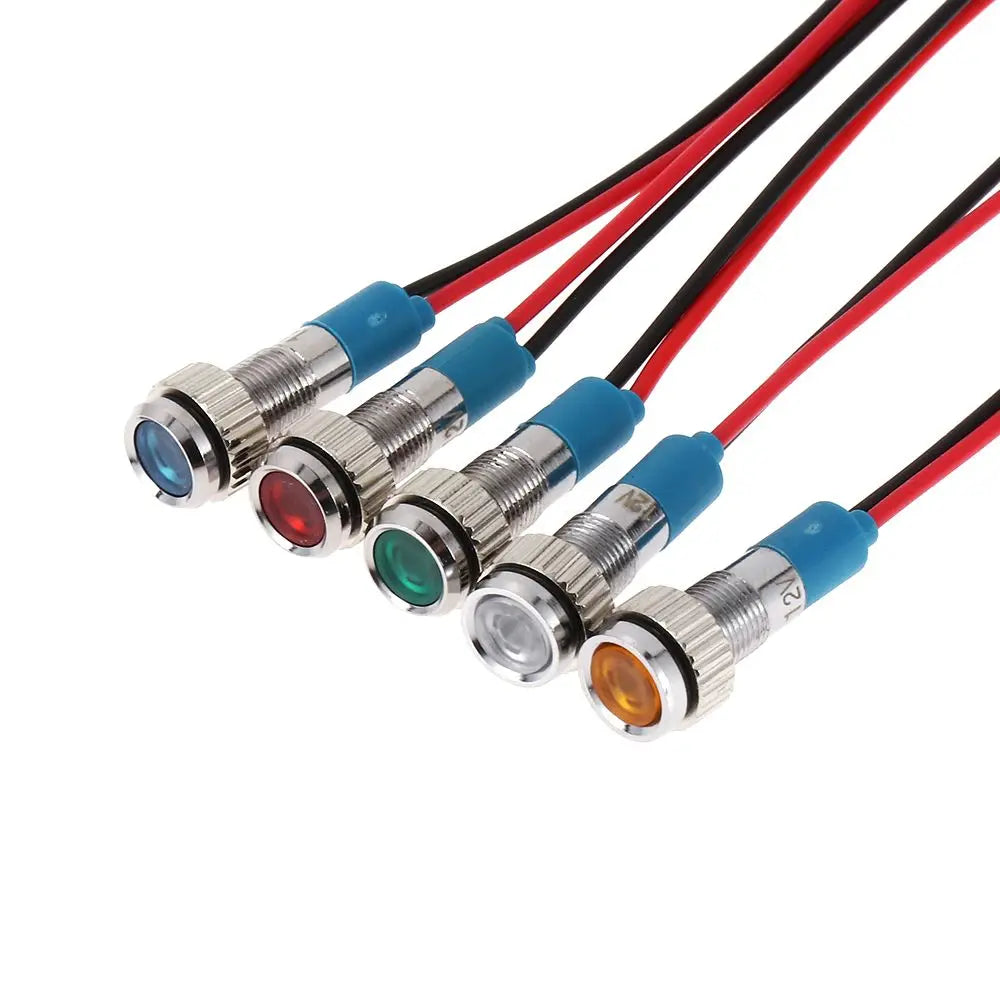

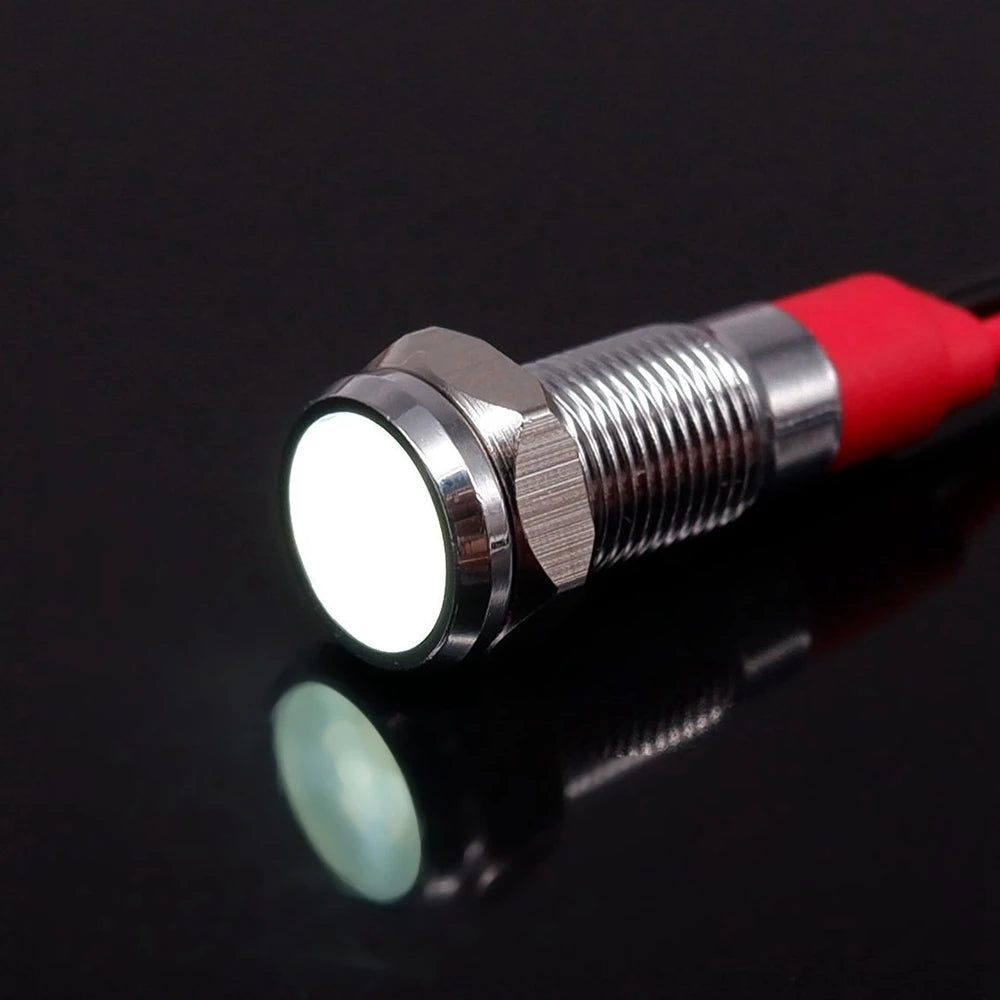

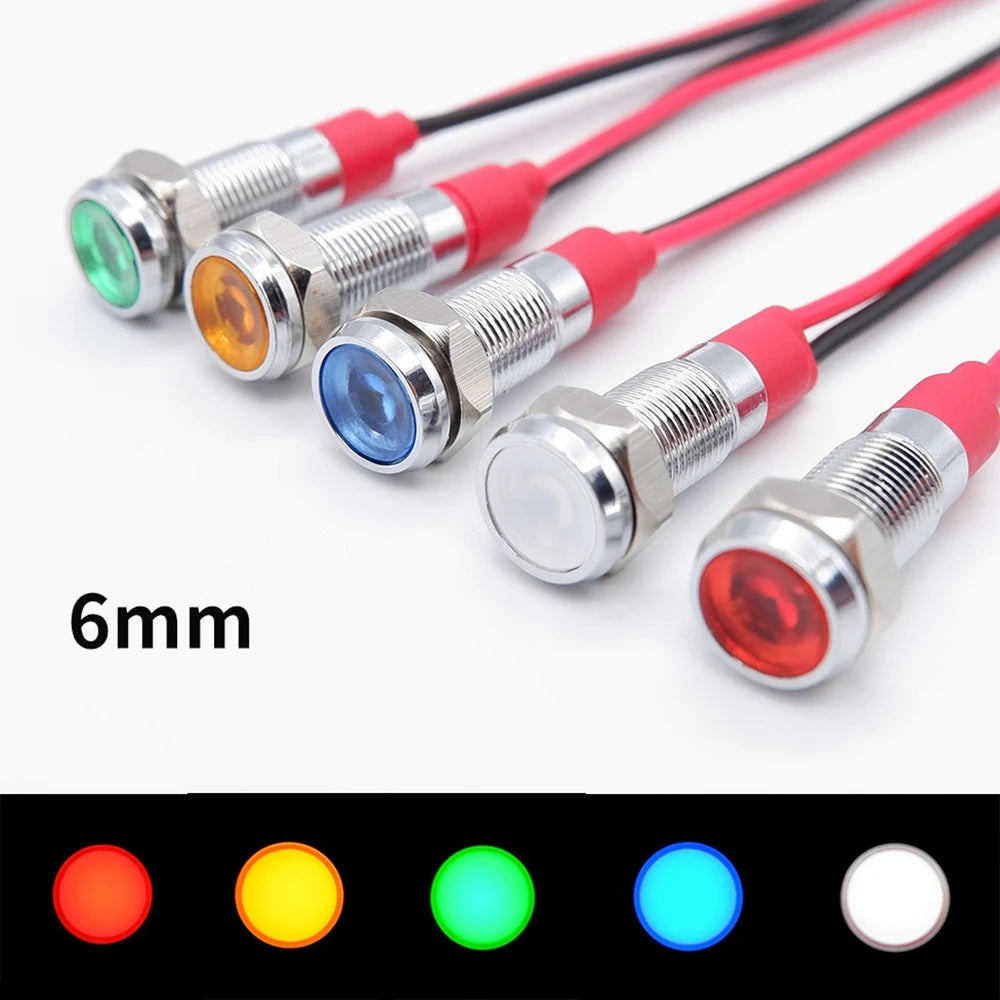

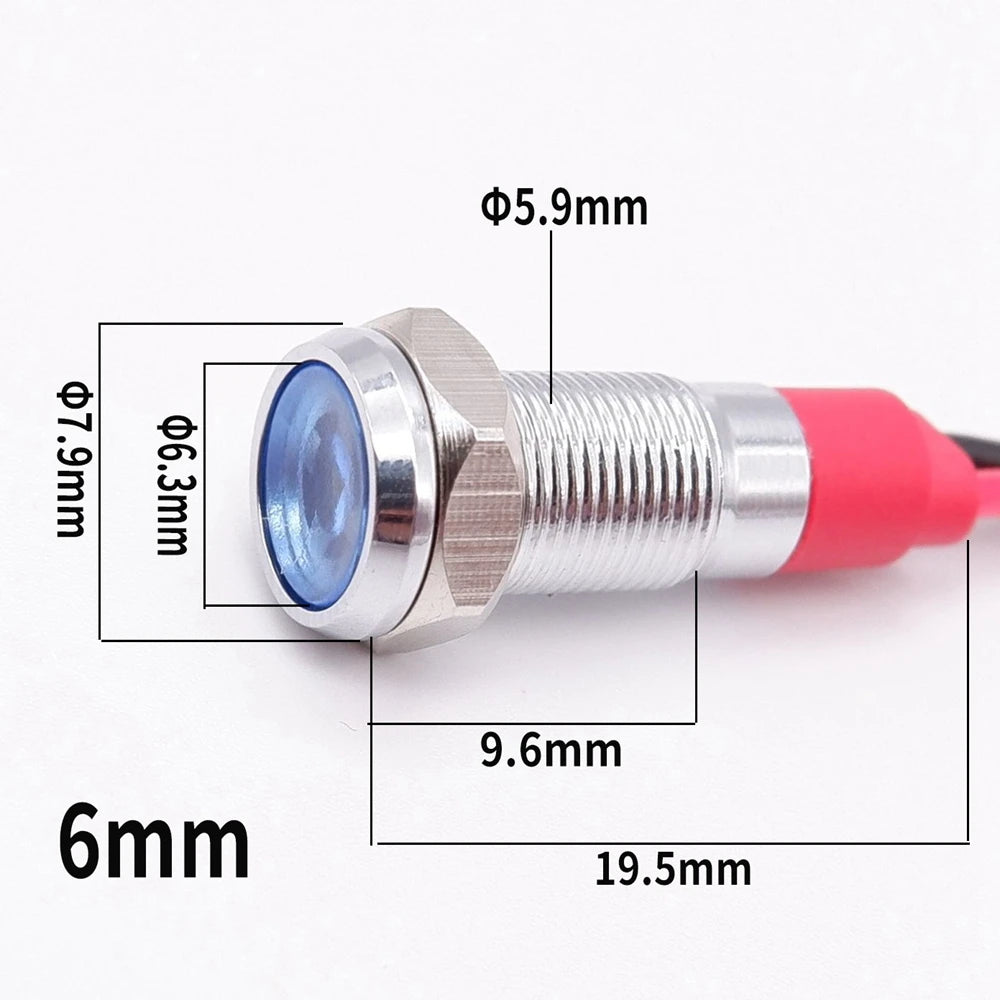

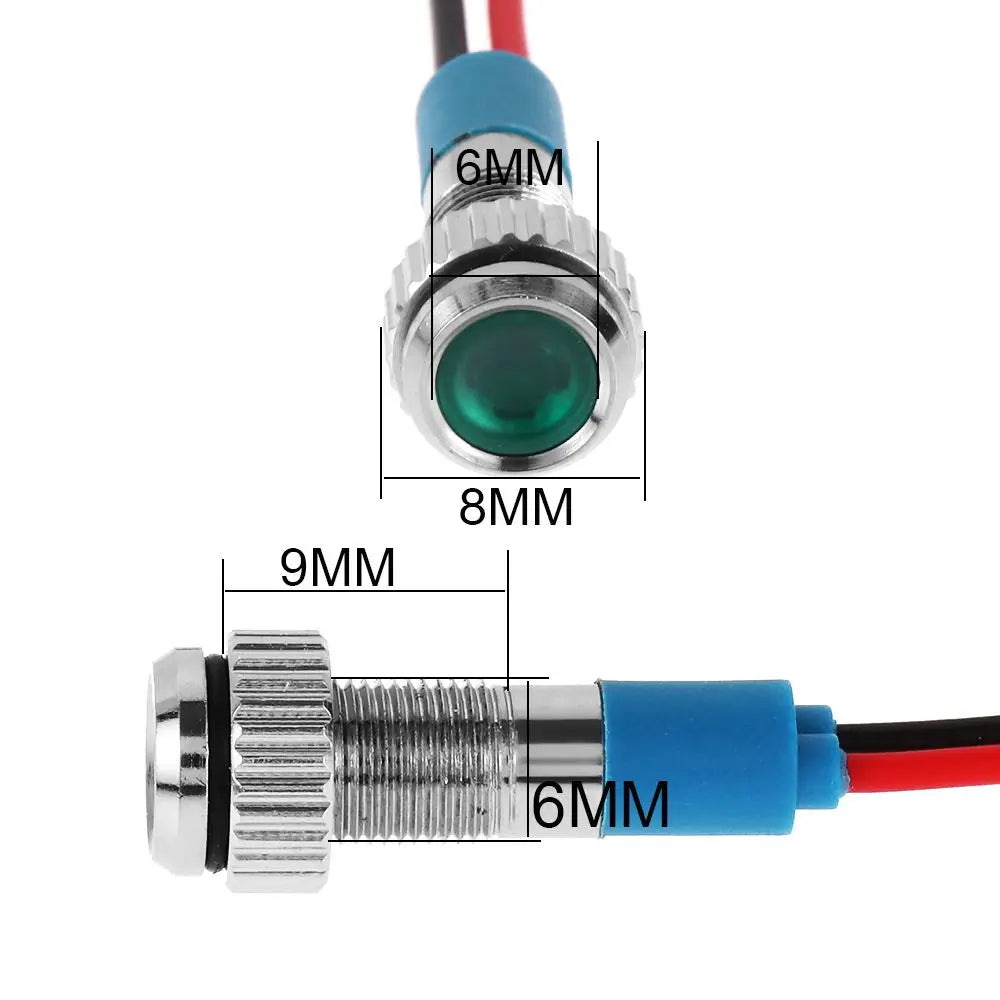

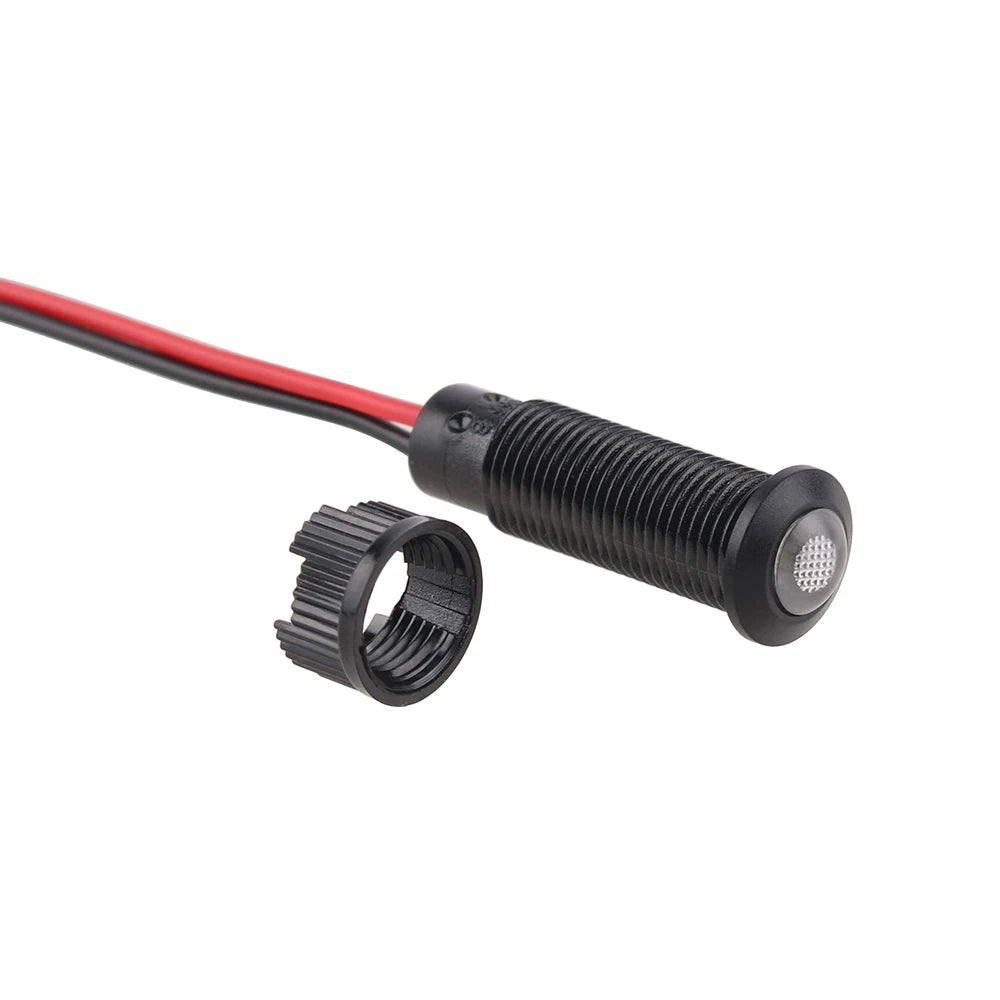

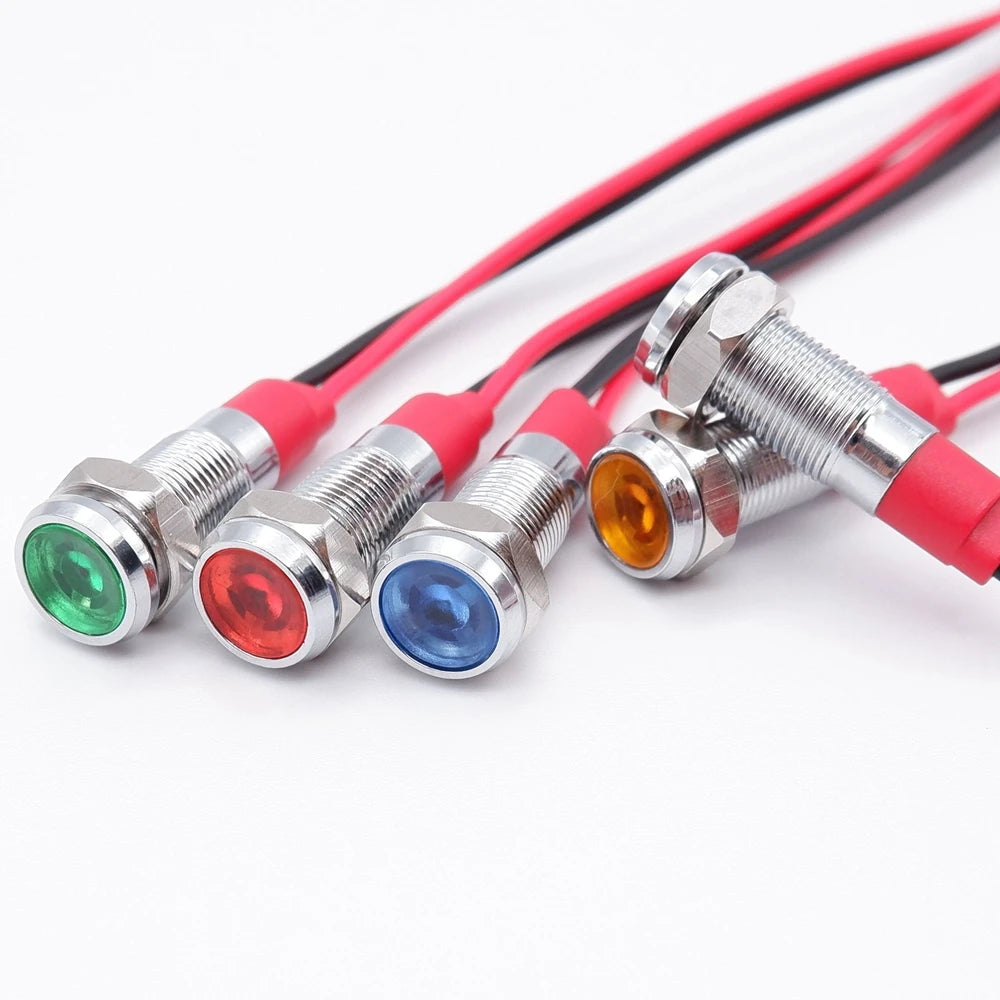

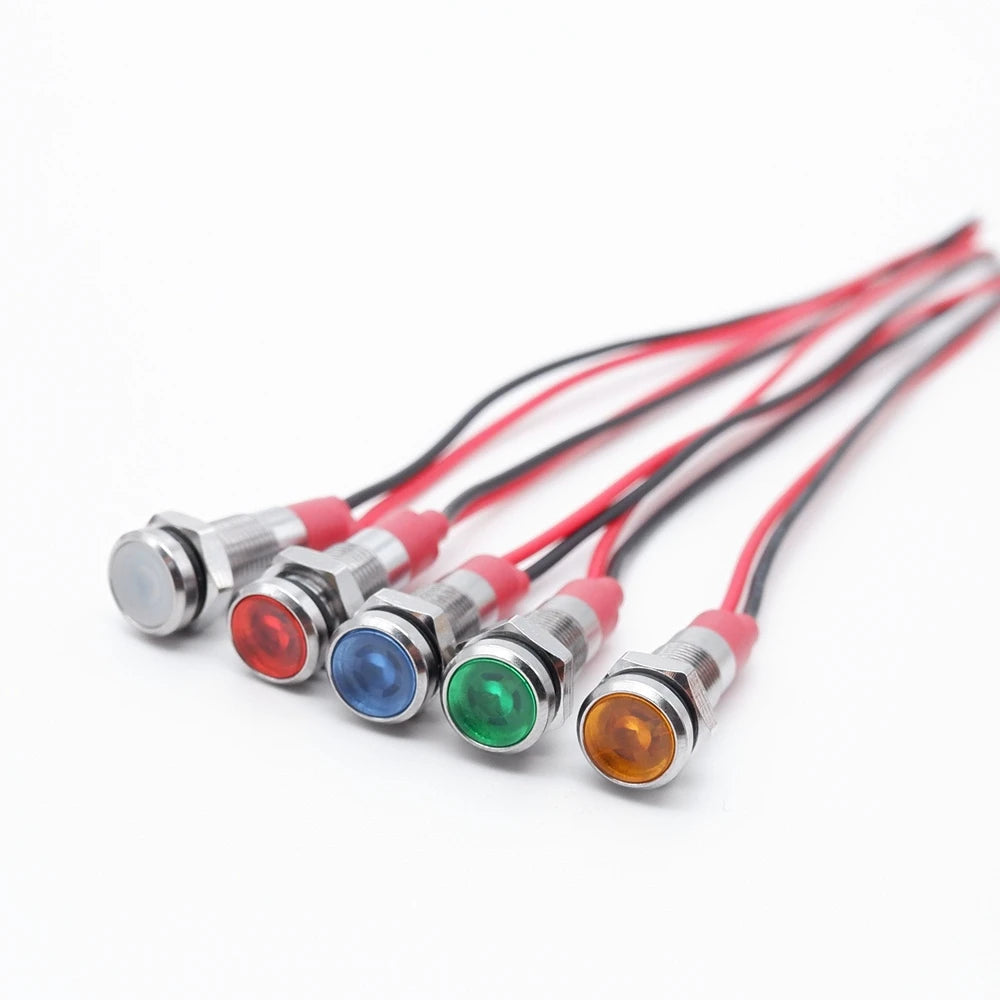

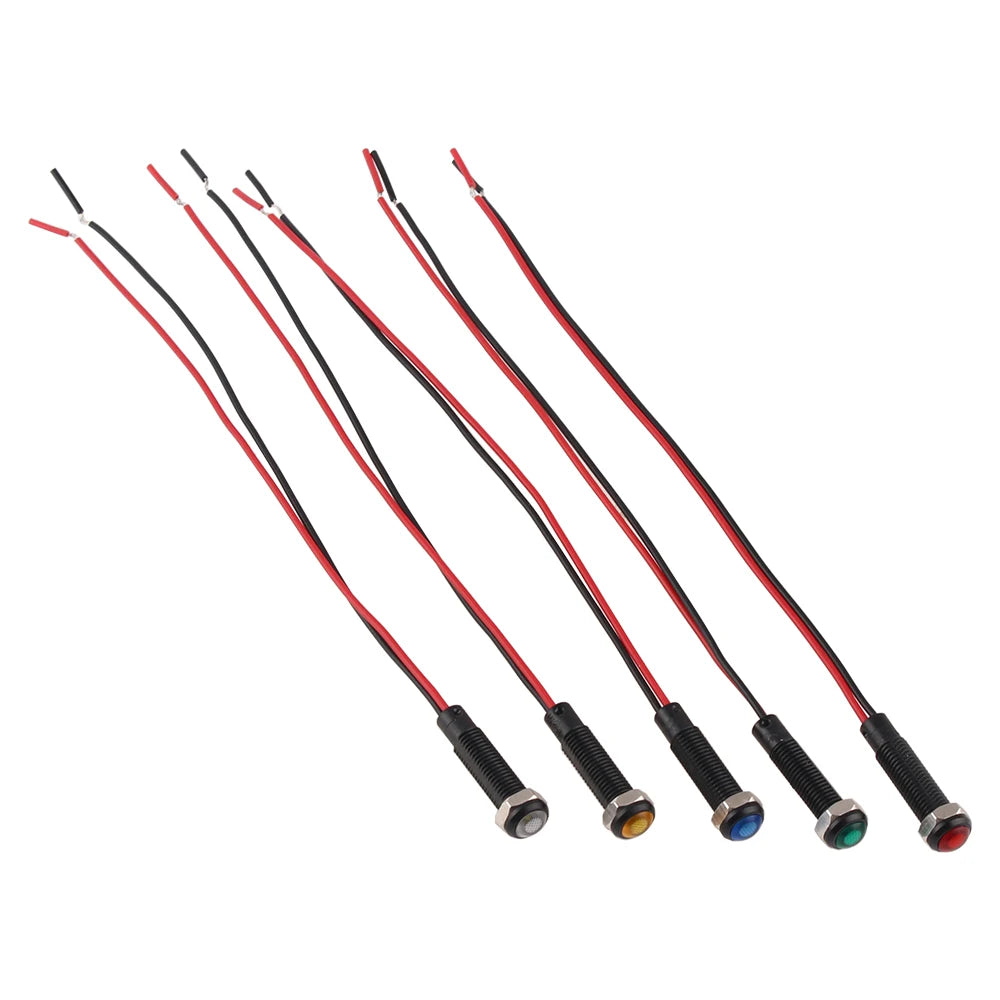

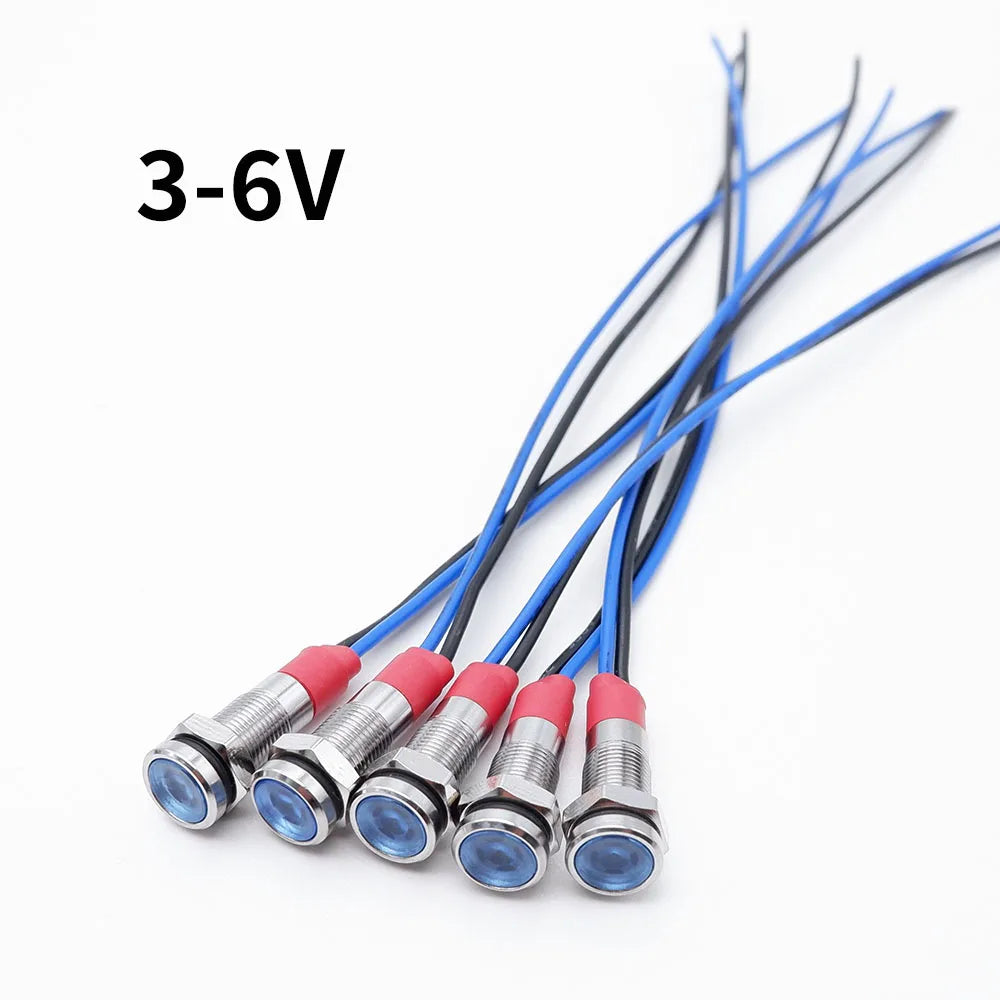

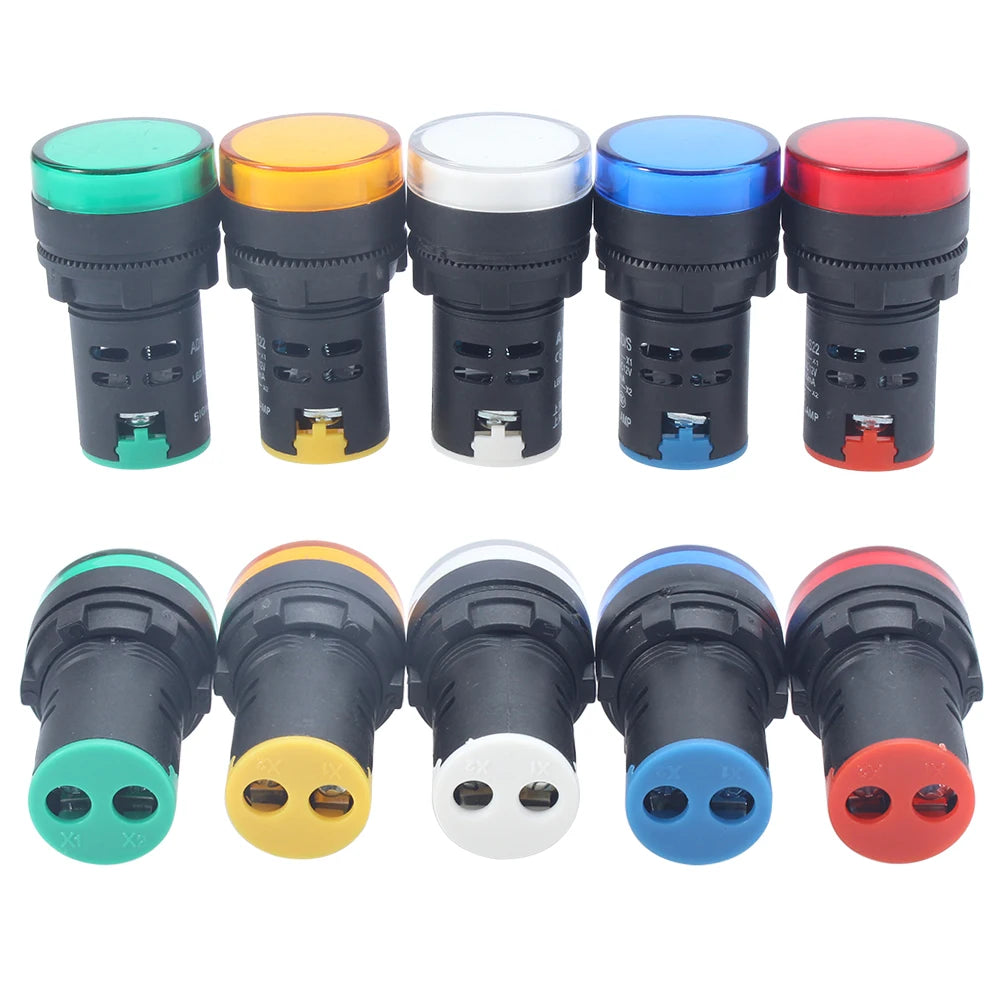

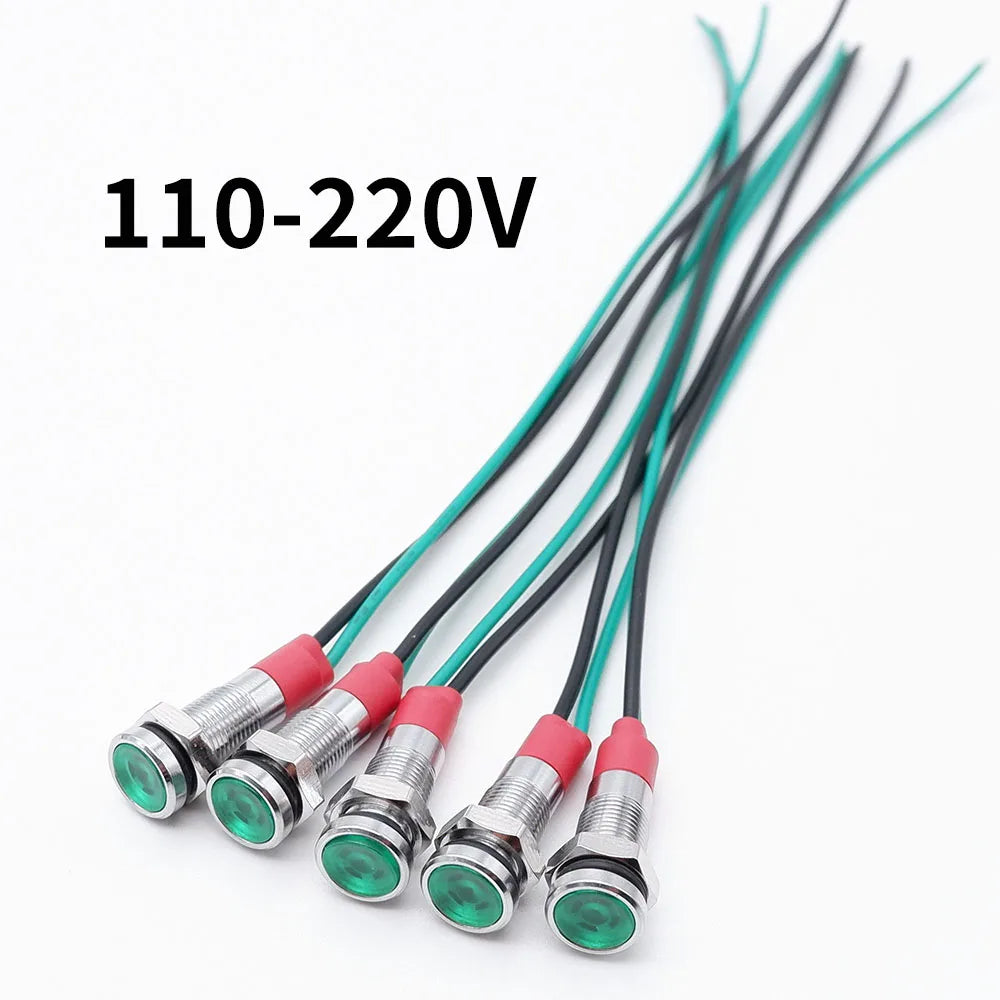

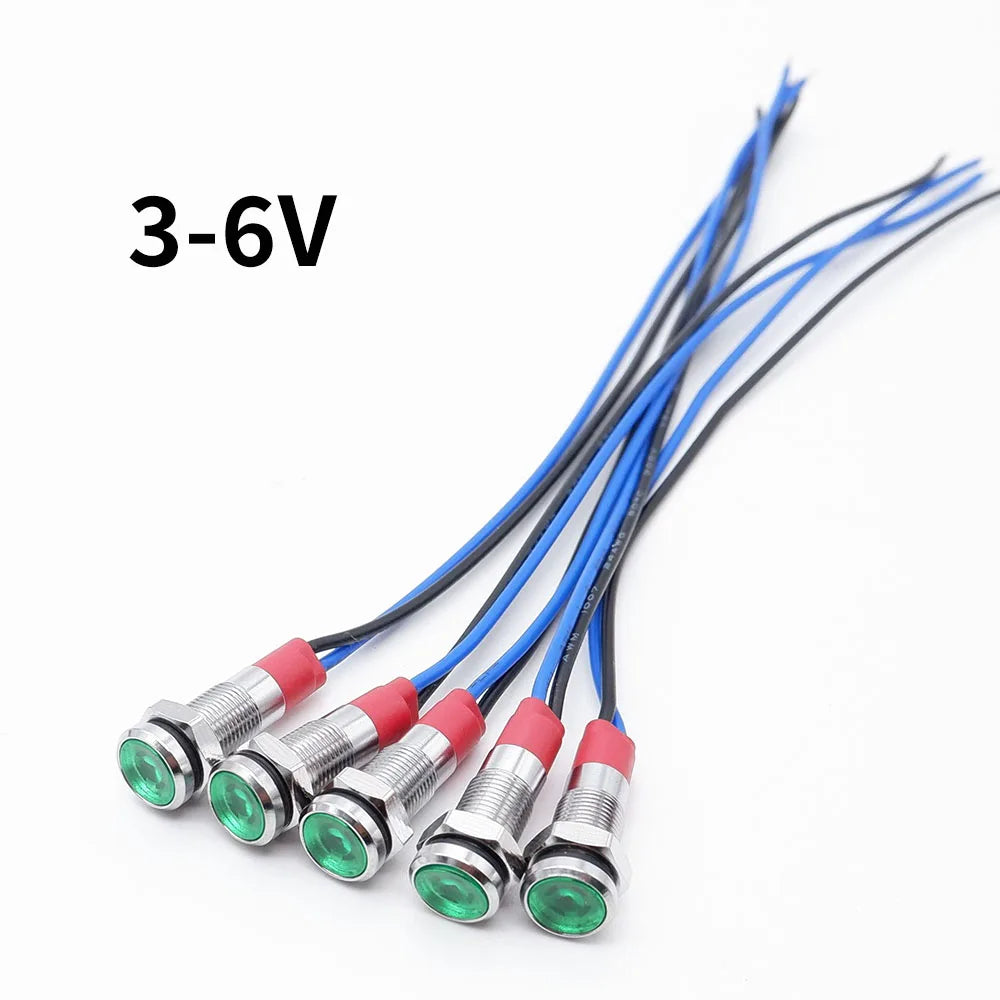

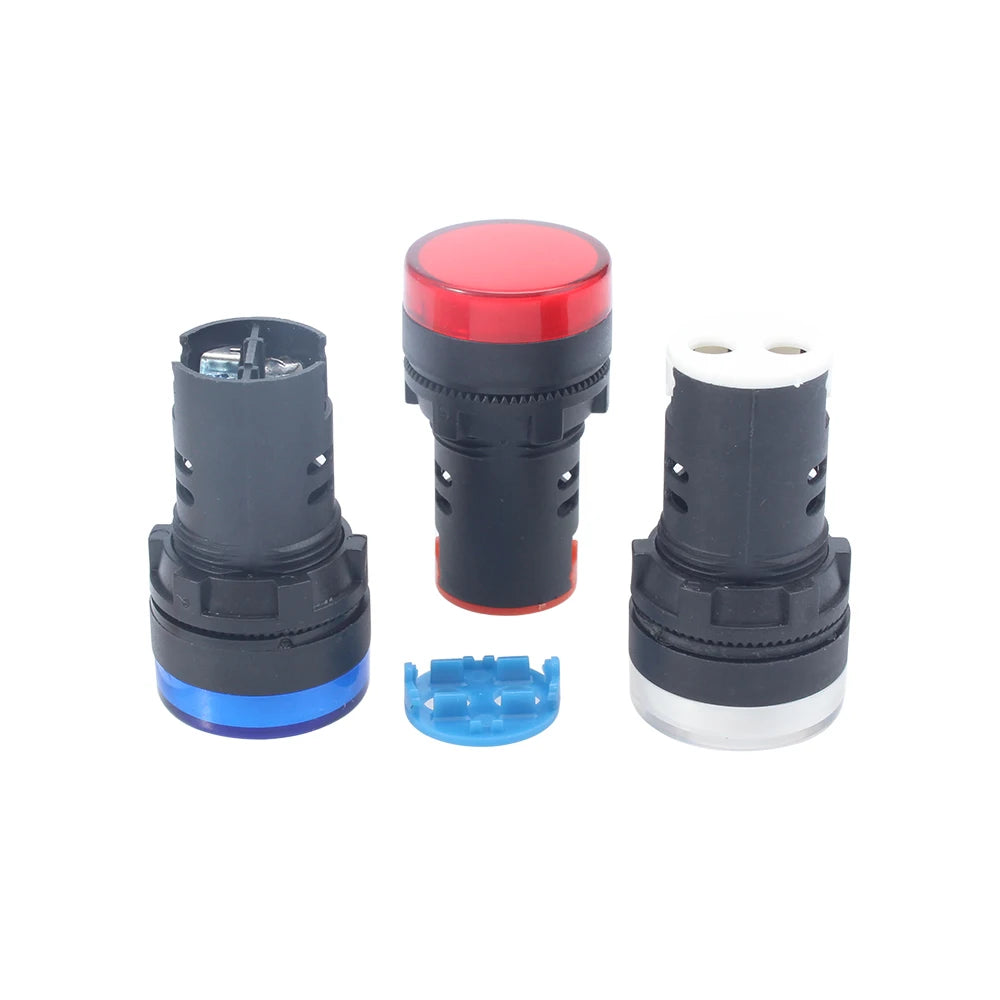

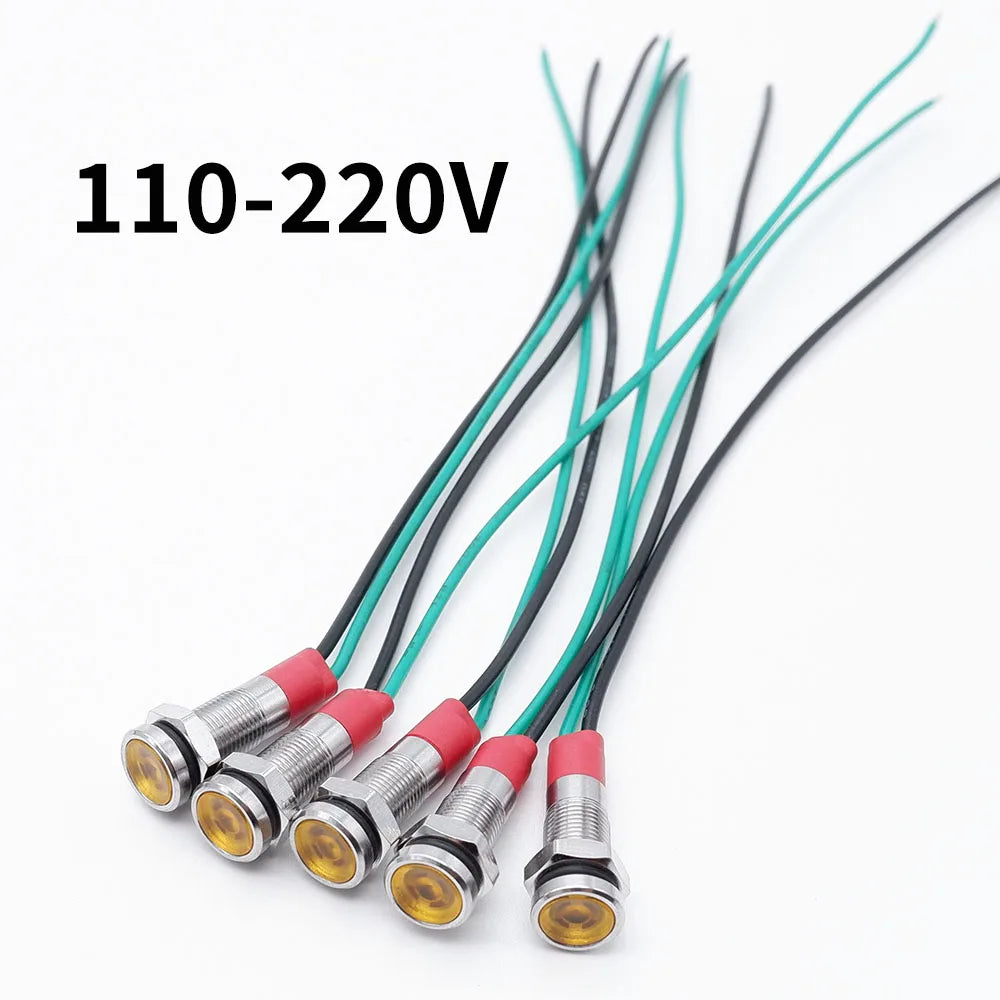

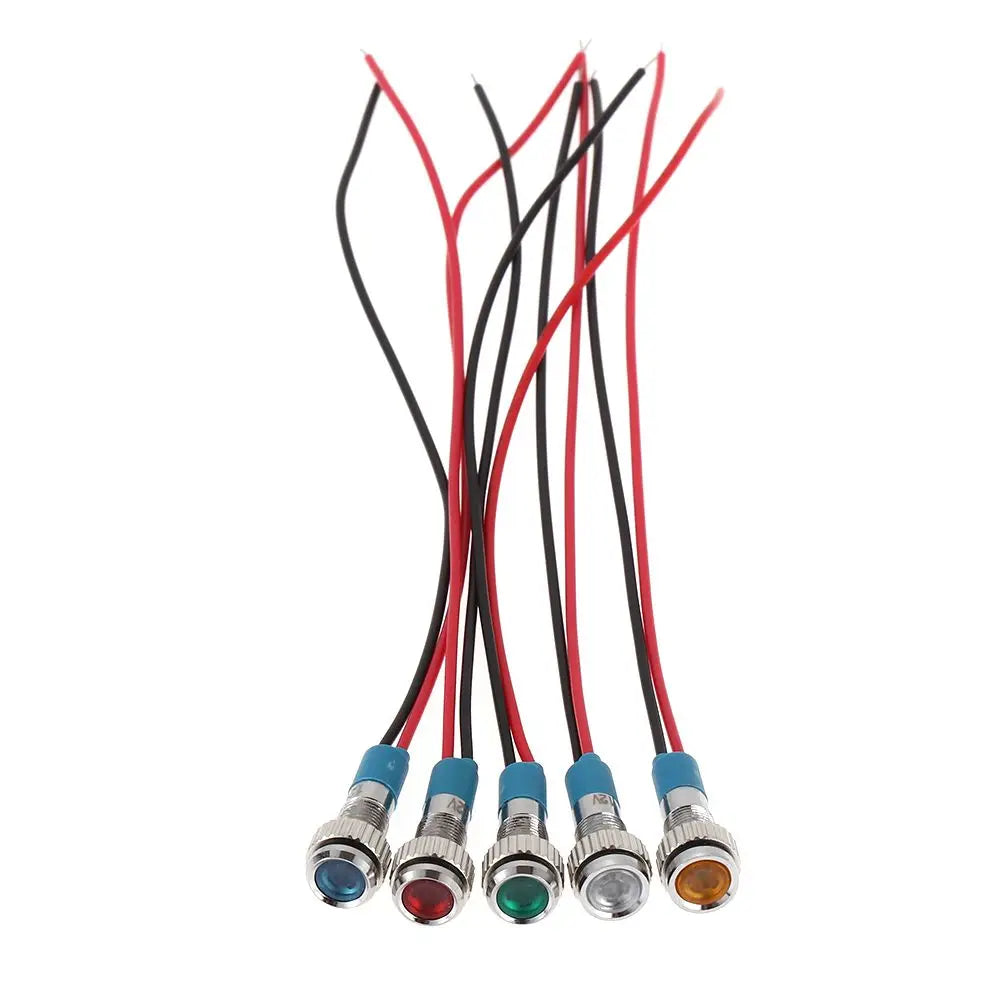

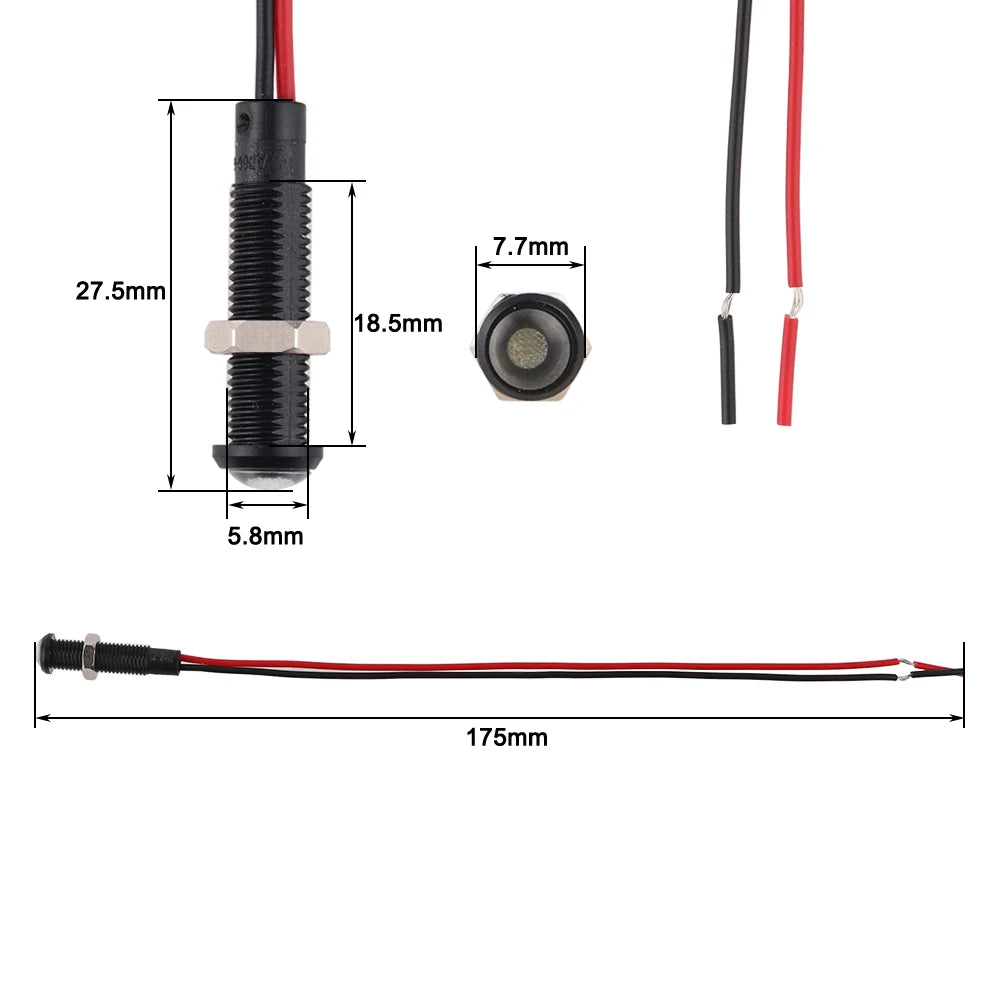

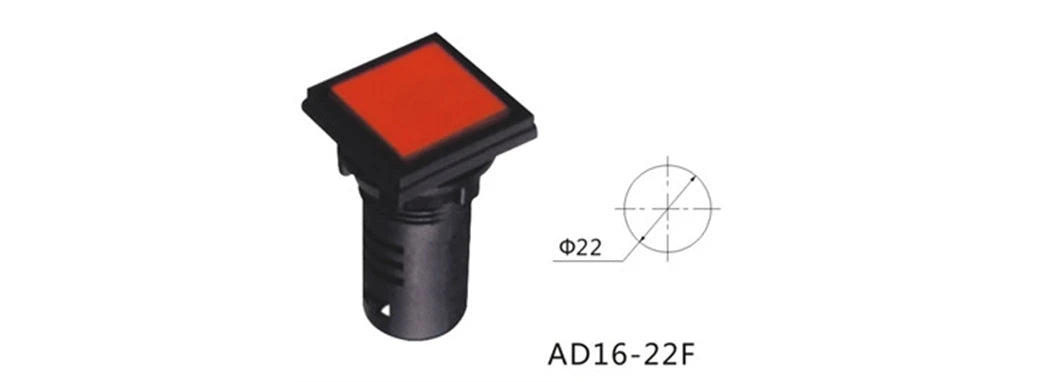

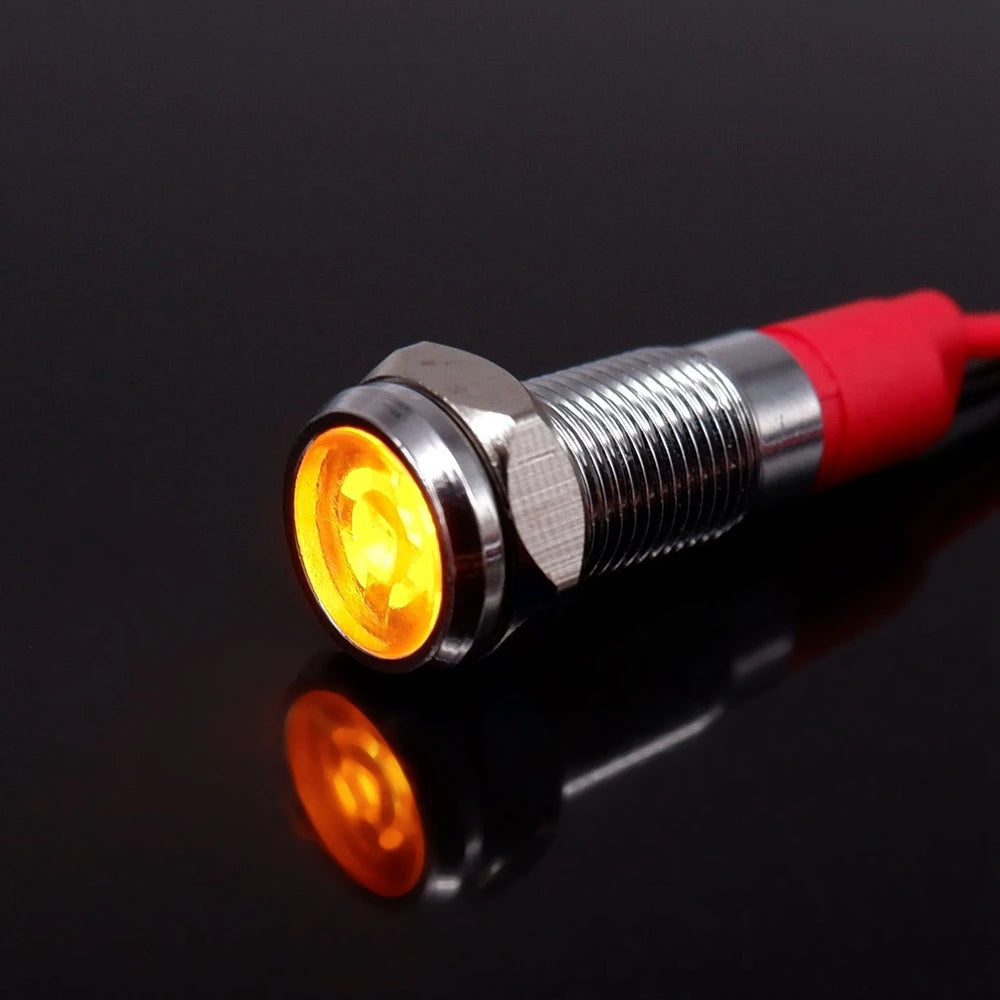

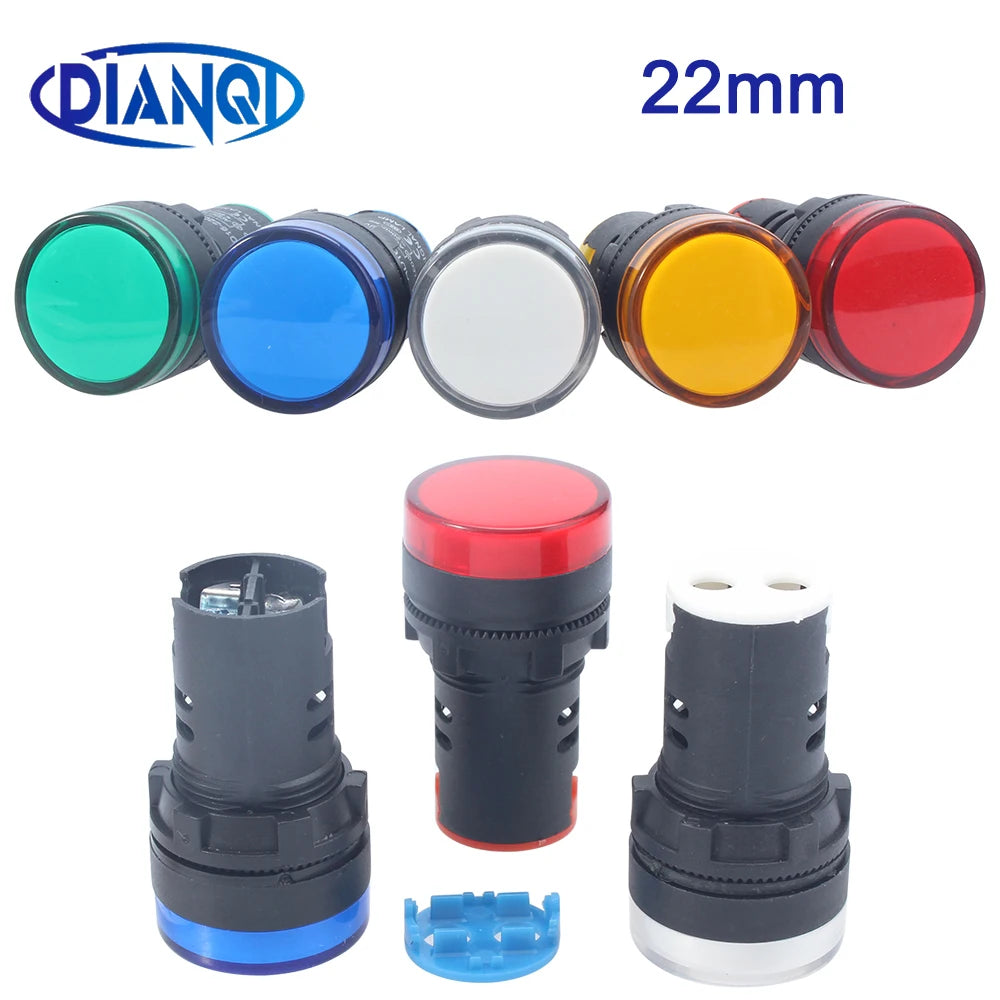

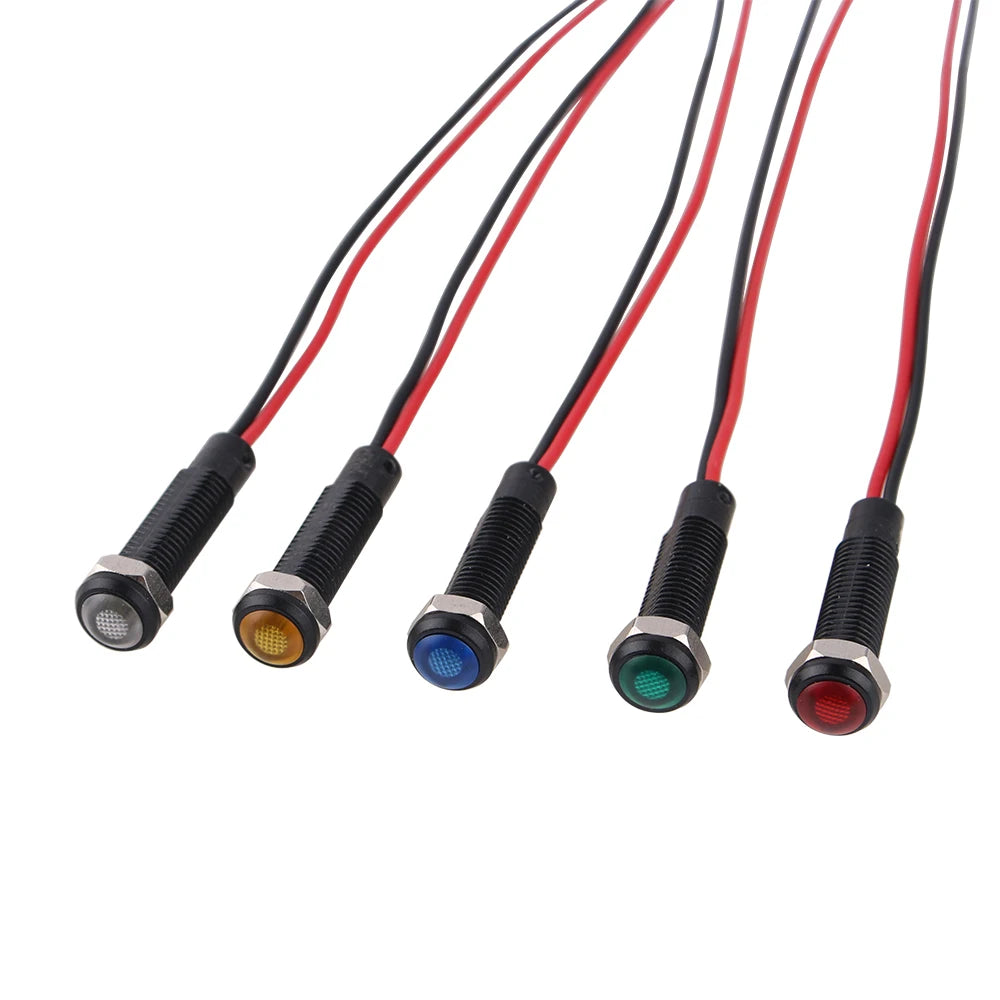

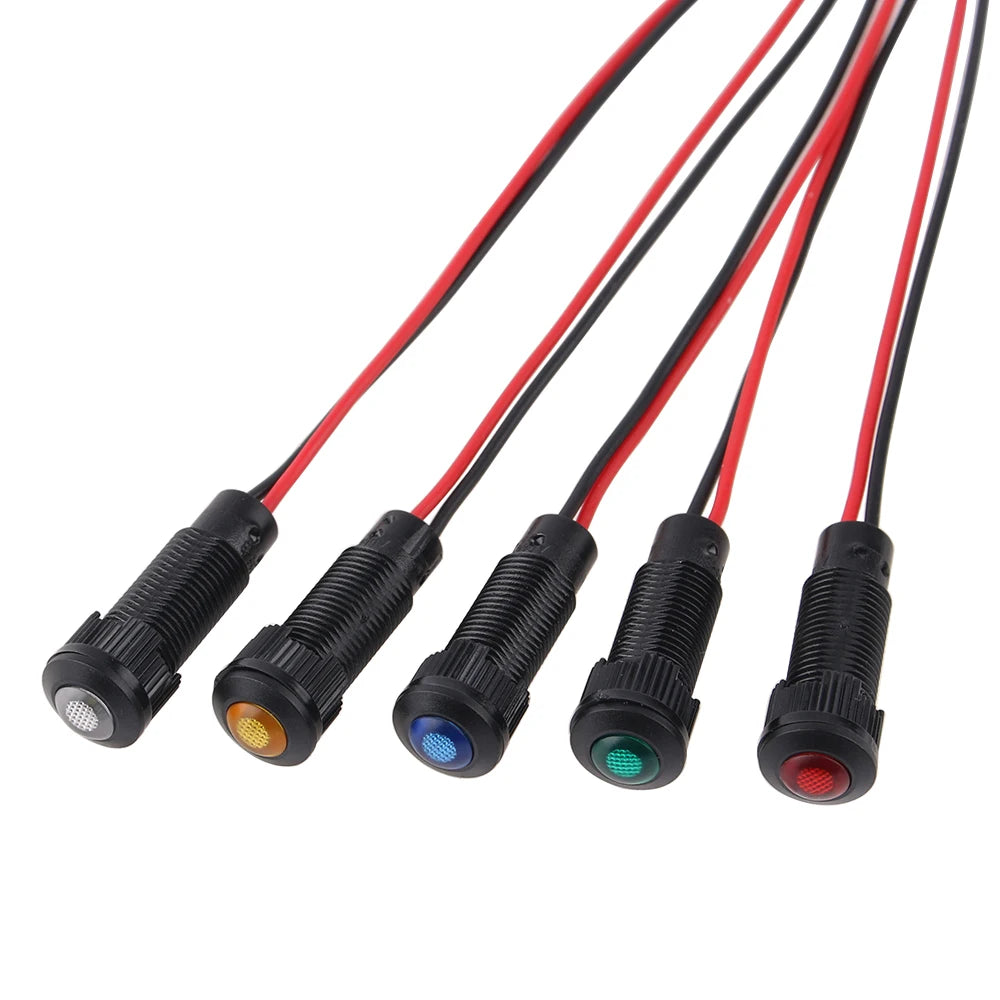

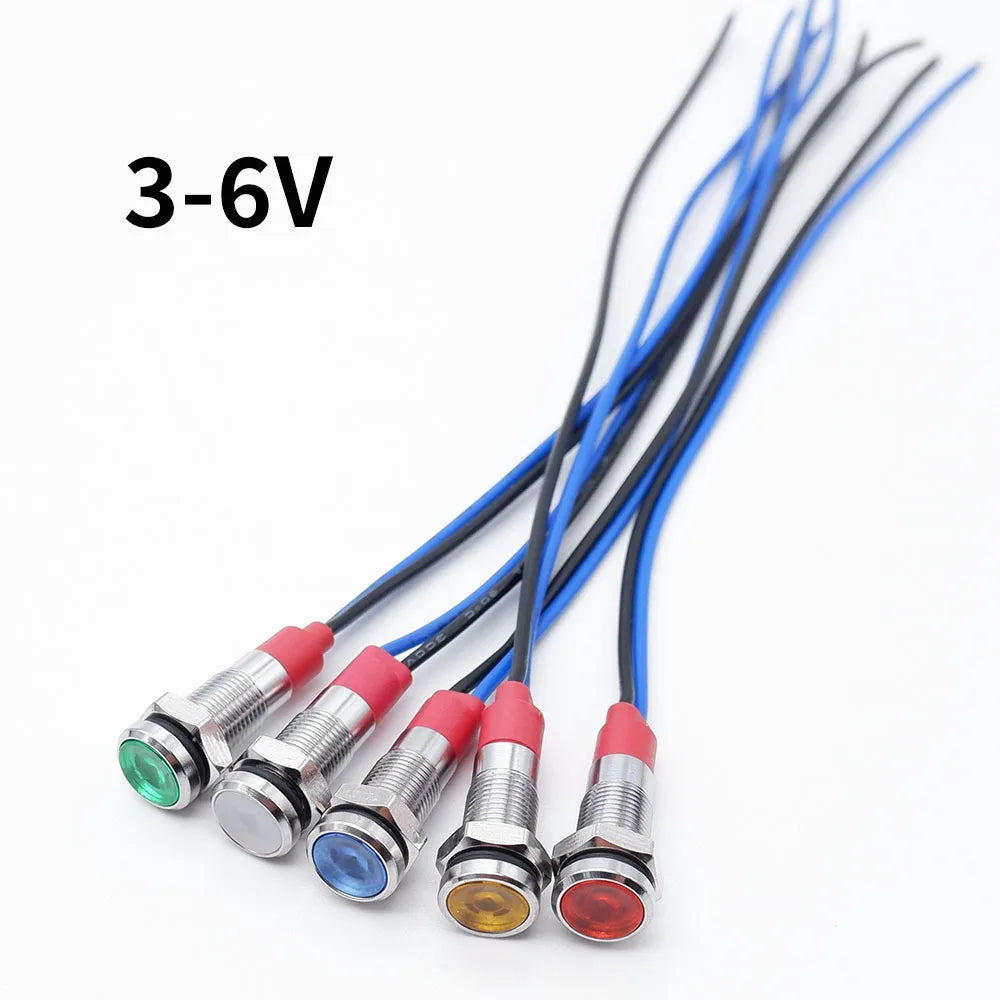

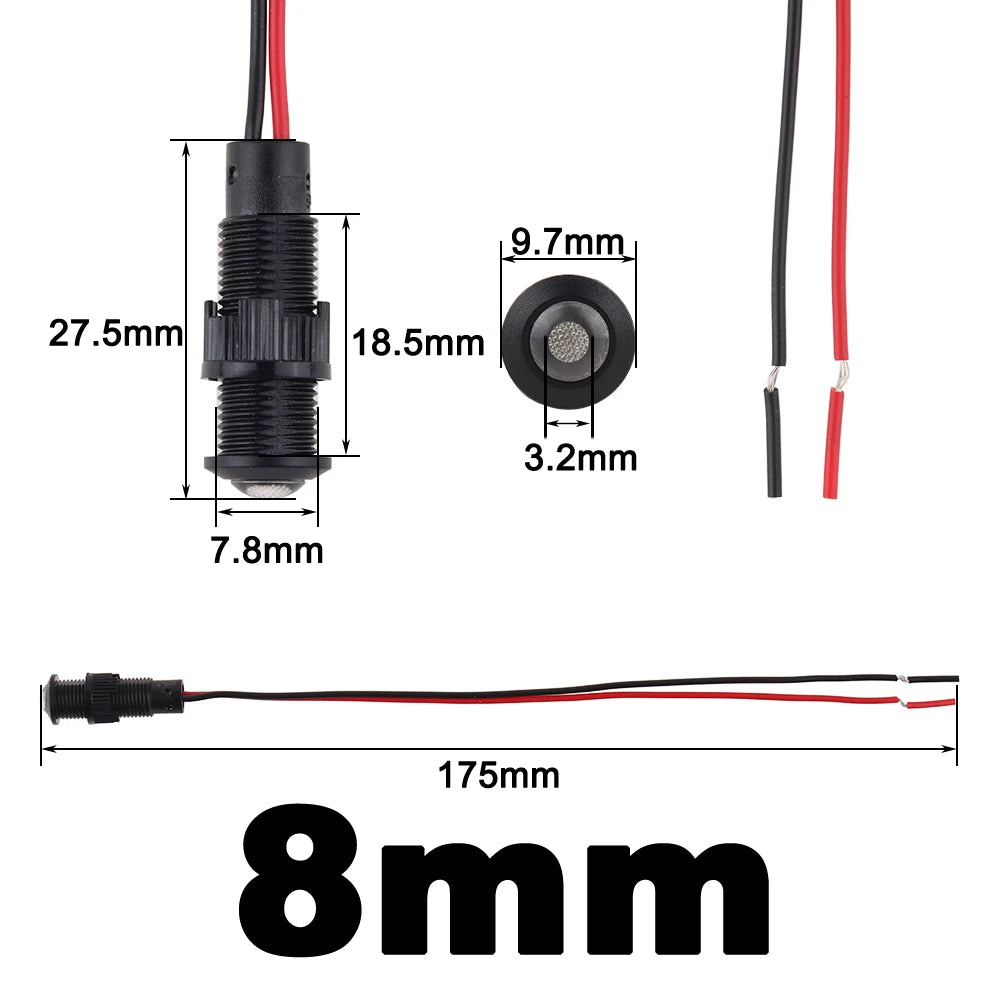

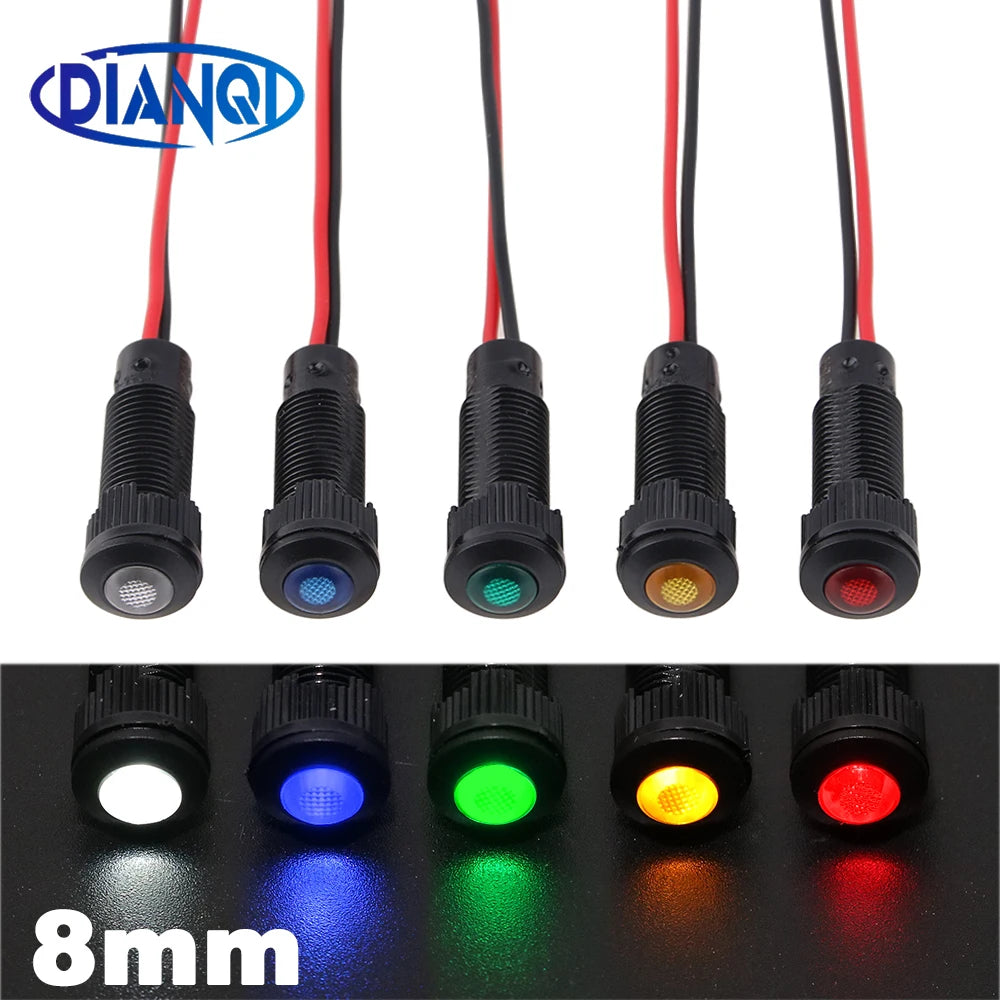

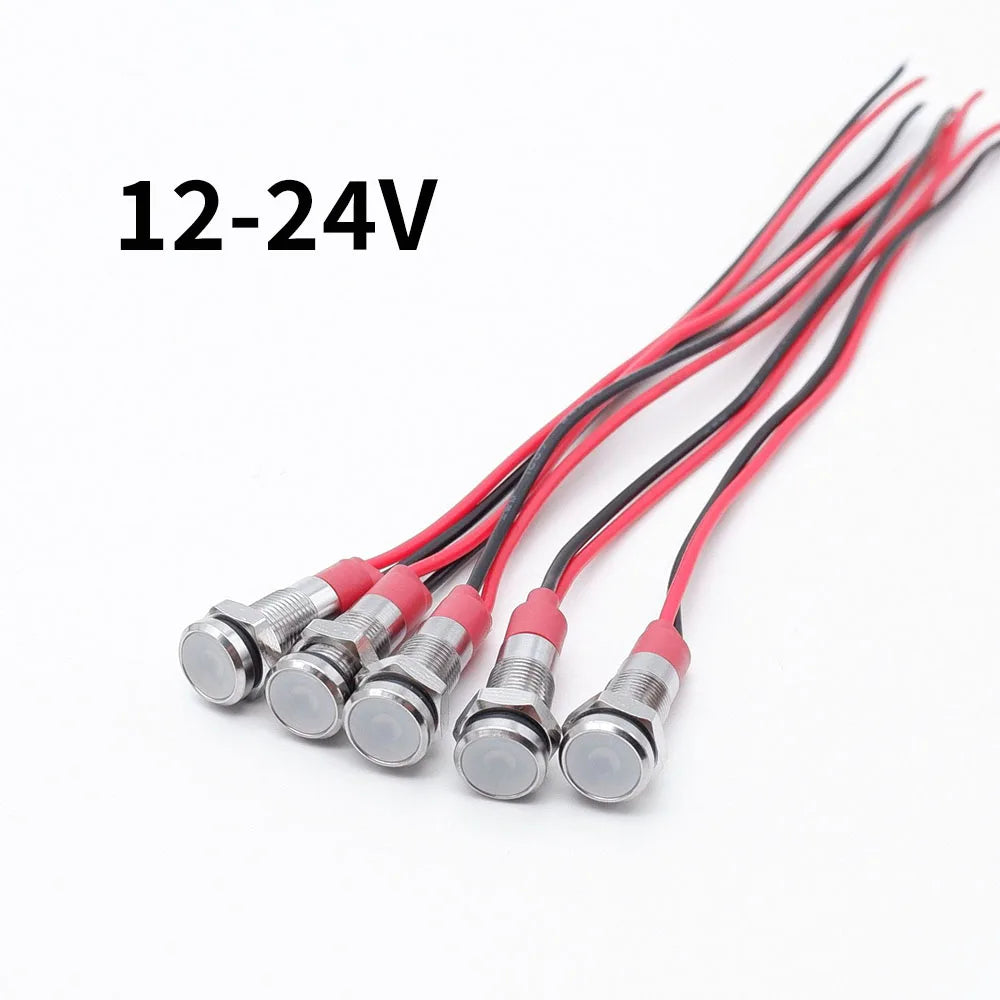

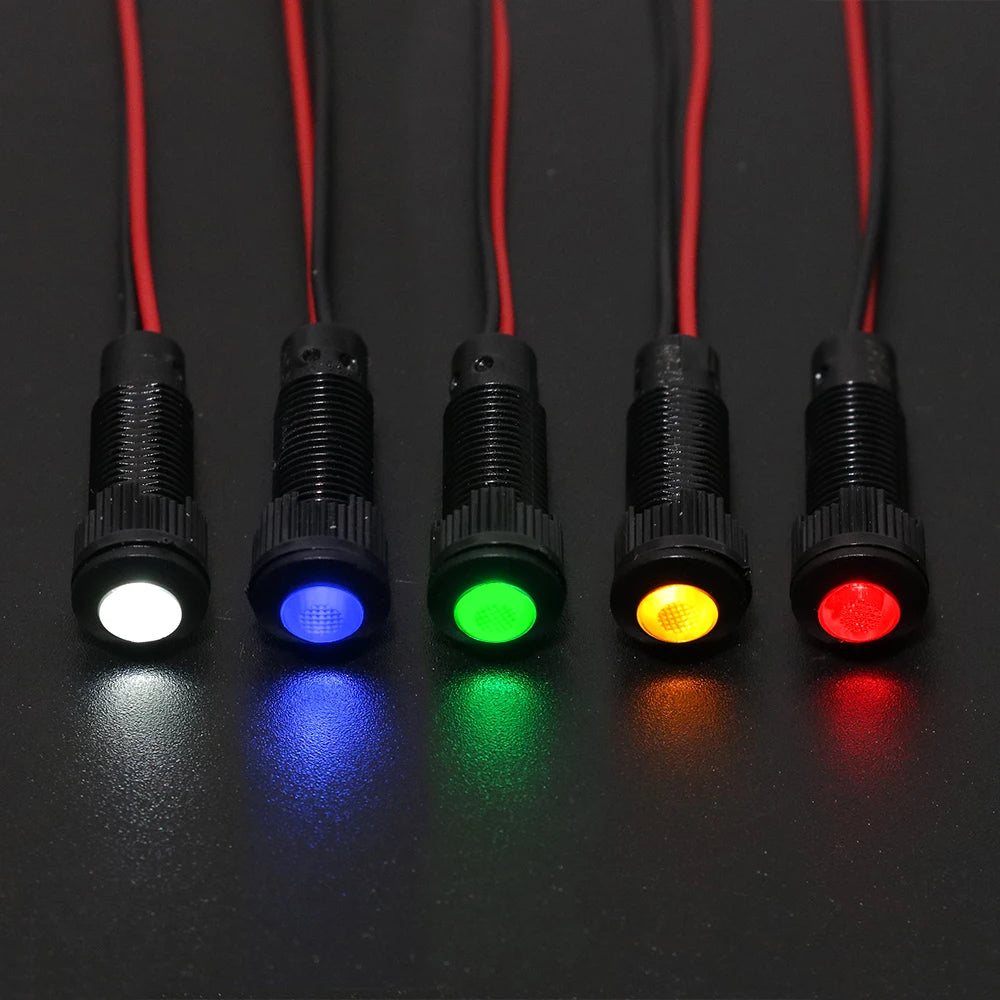

Several metal lamps are sold with 6, 8, 10 or 12 mm mounting-hole selections, in single-unit and five-piece options. The 6 mm wired models include flat-head and black-finish variants; 8 mm and 12 mm bodies are separate mechanical choices. Larger plastic AD16-22DS and square-headed AD16-22F styles target 22 mm panel openings. Check the specified cutout, threaded barrel length, bezel diameter, panel thickness, nut or retaining method, terminal/wire form and rear clearance; nominal “12 mm” in the title is not a complete mechanical drawing.

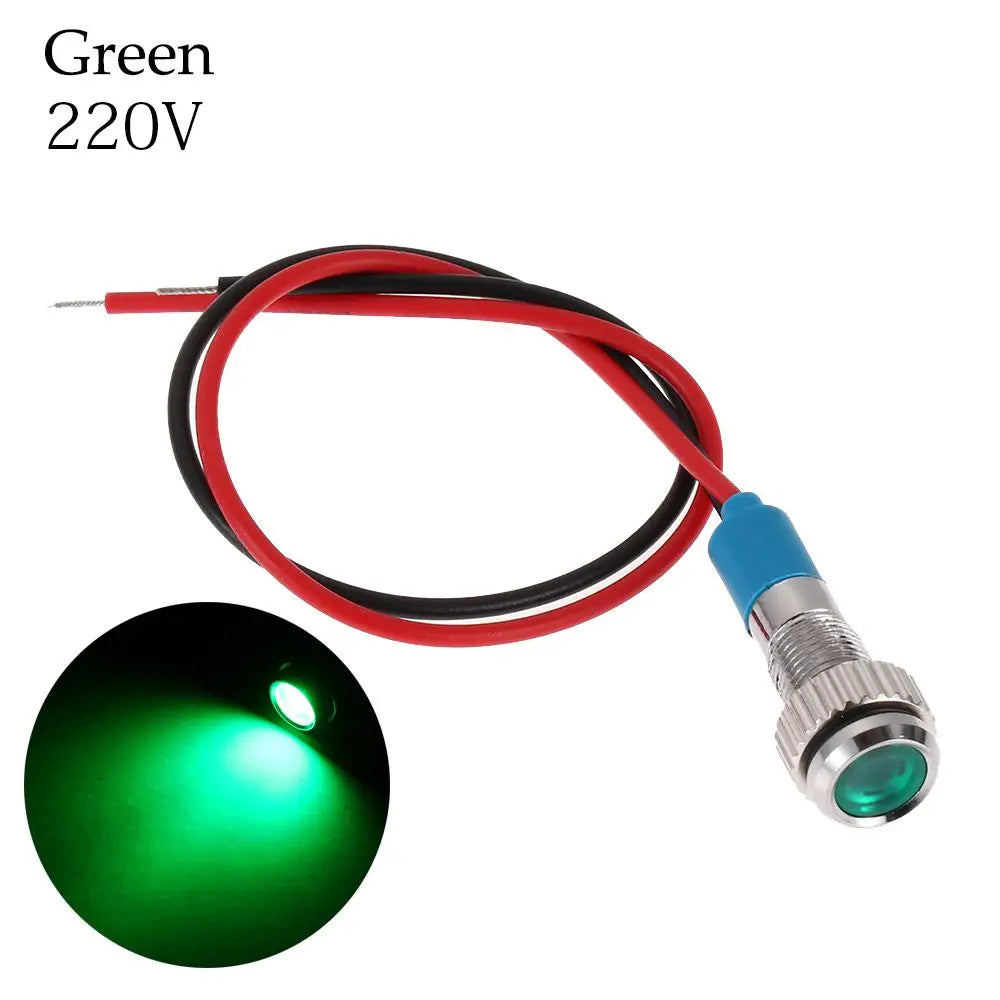

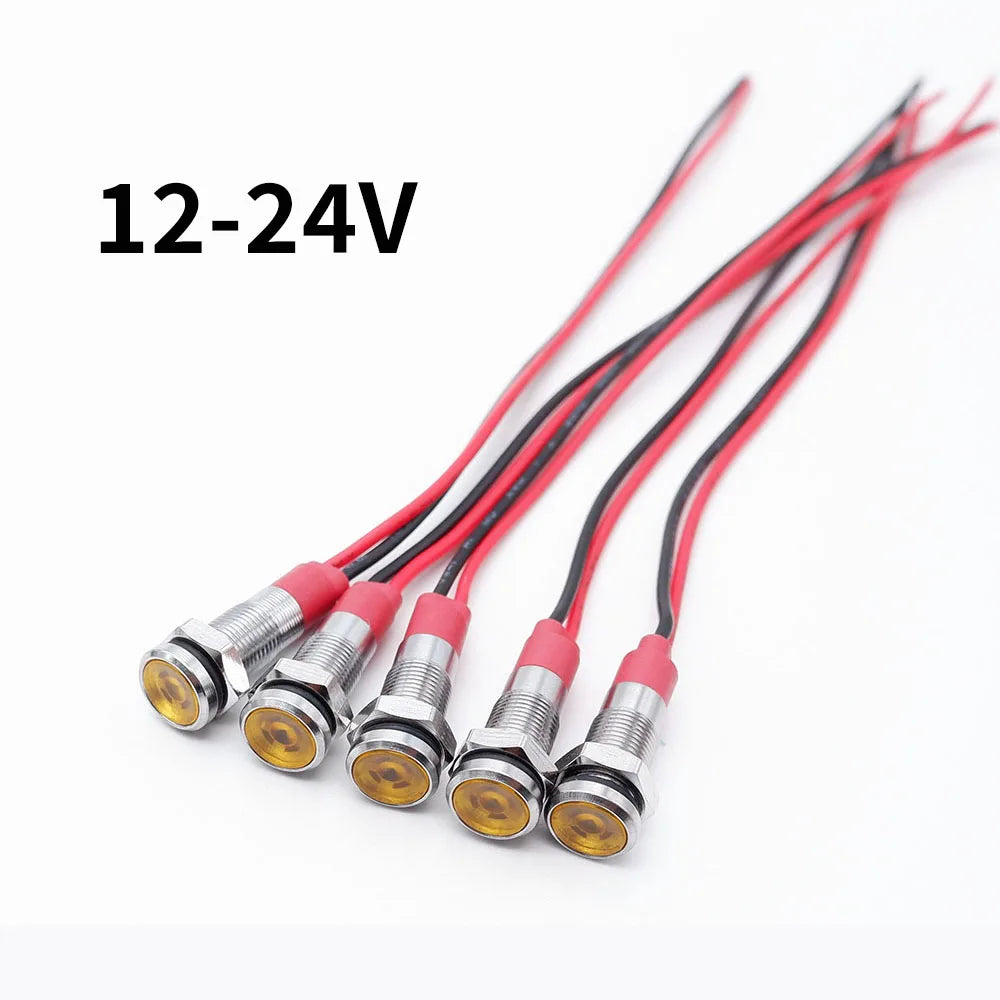

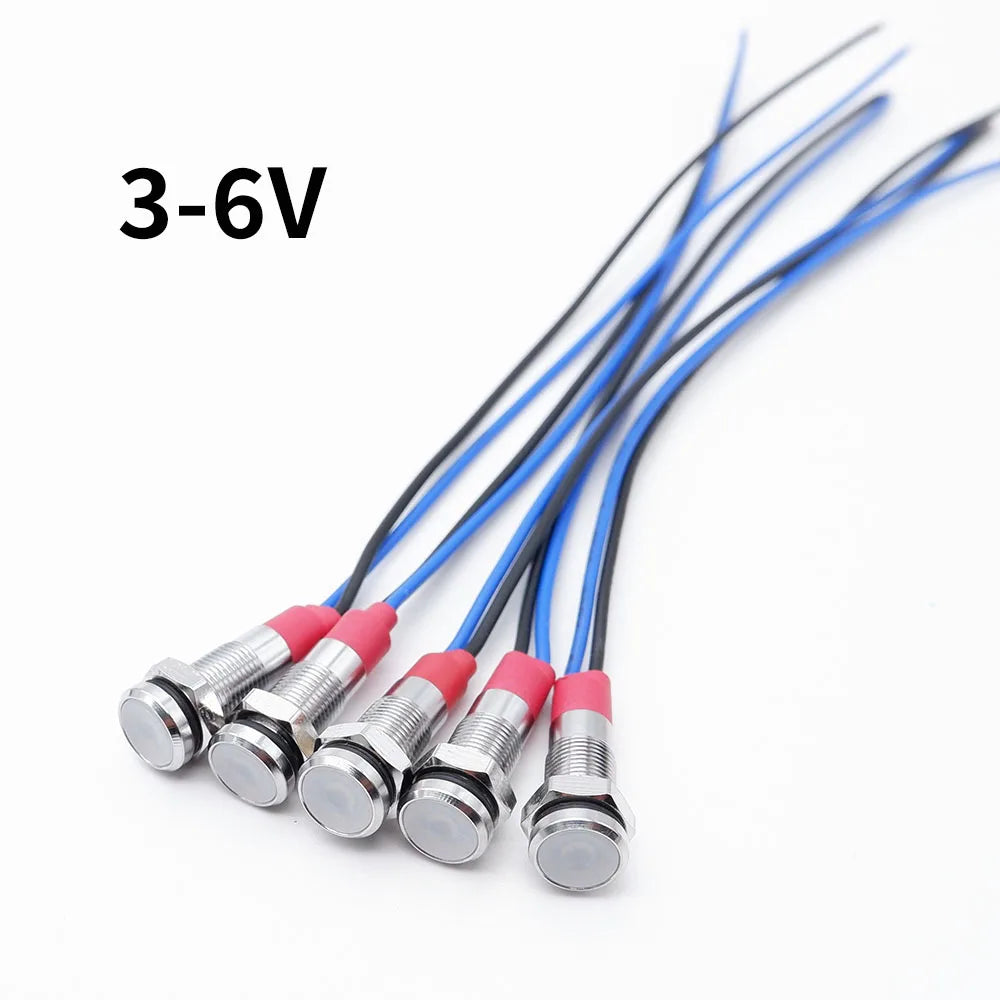

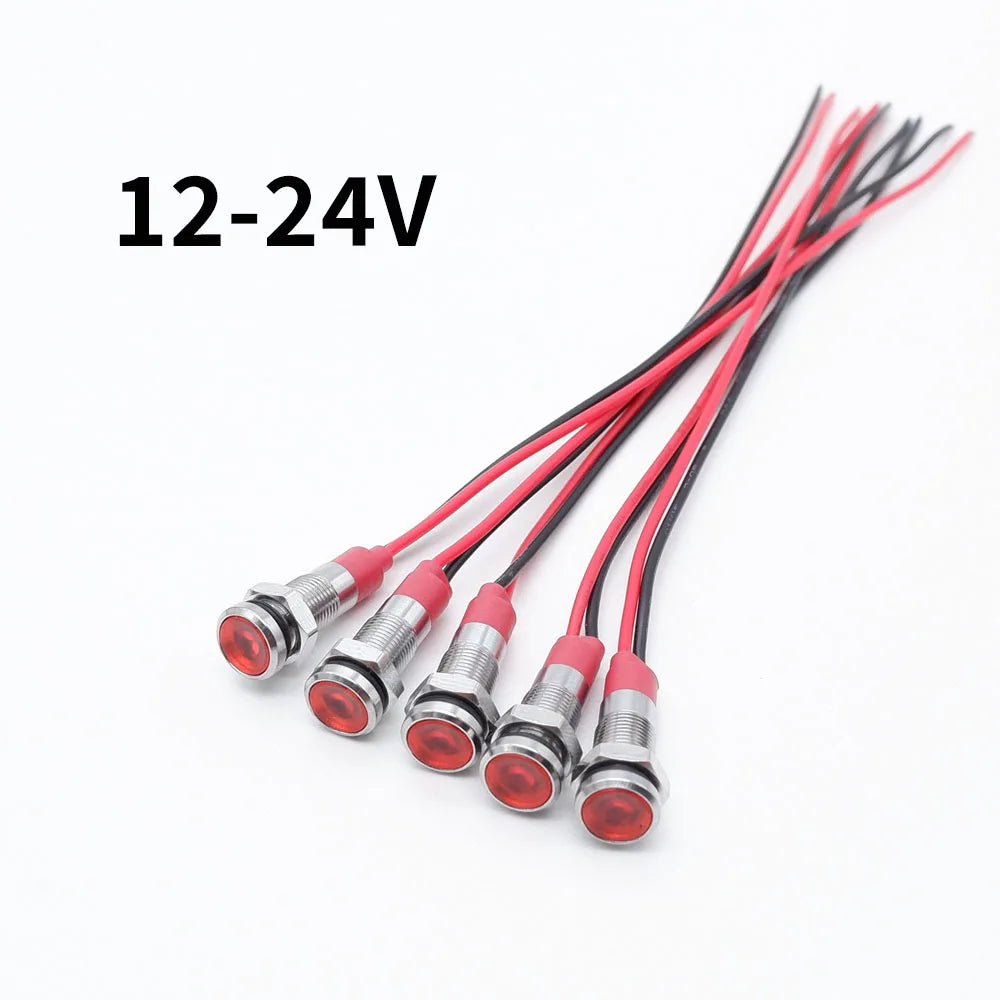

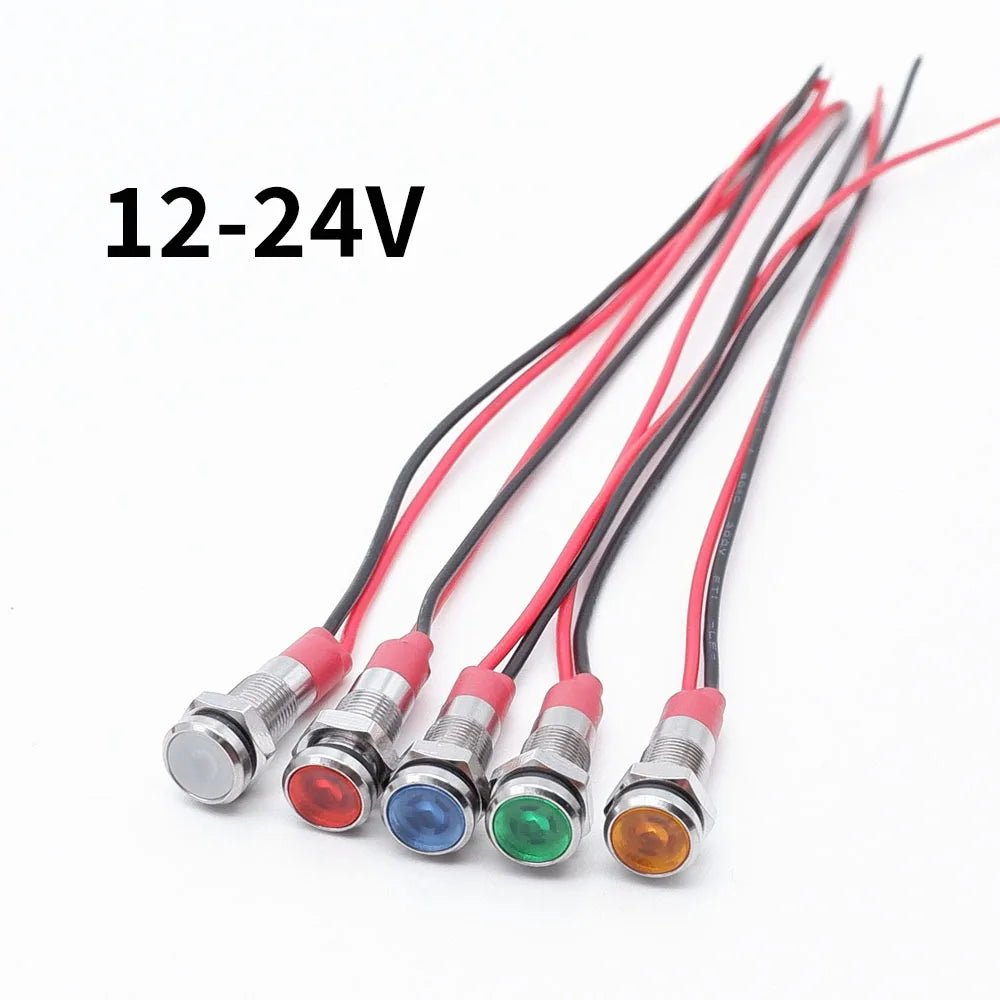

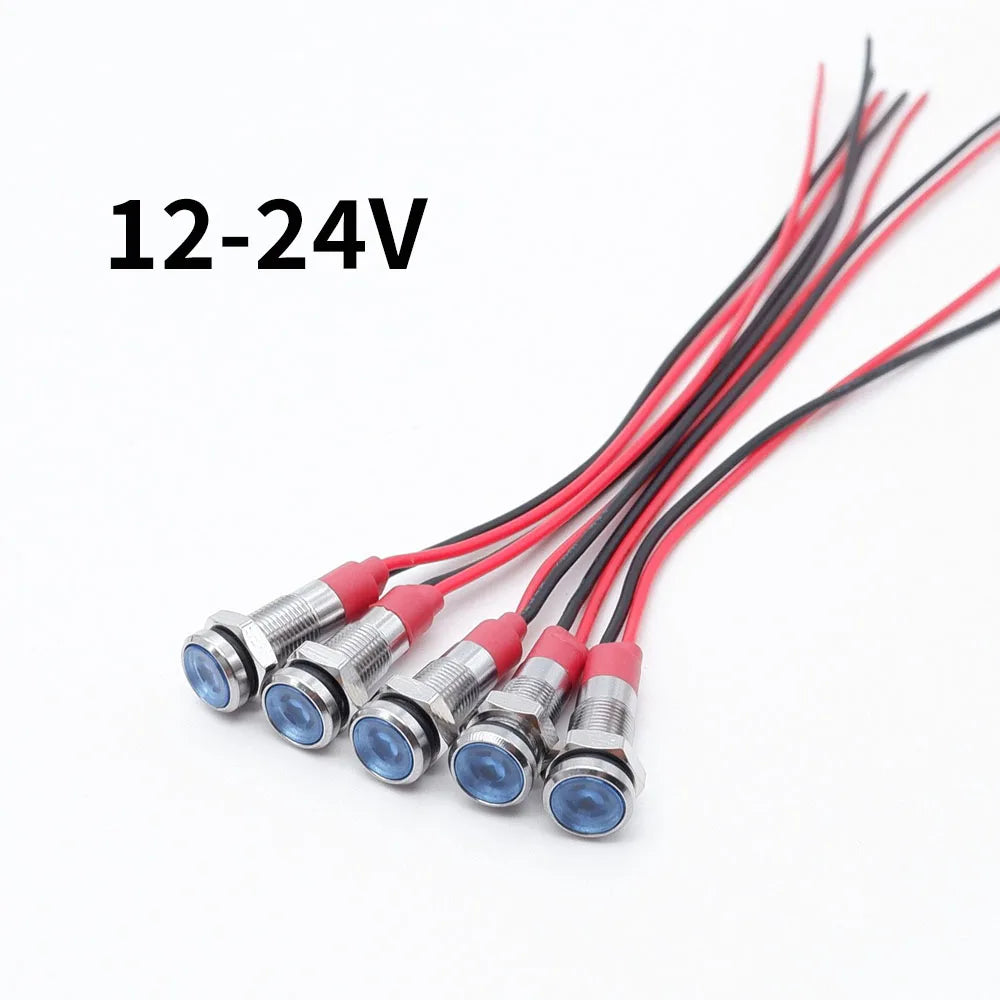

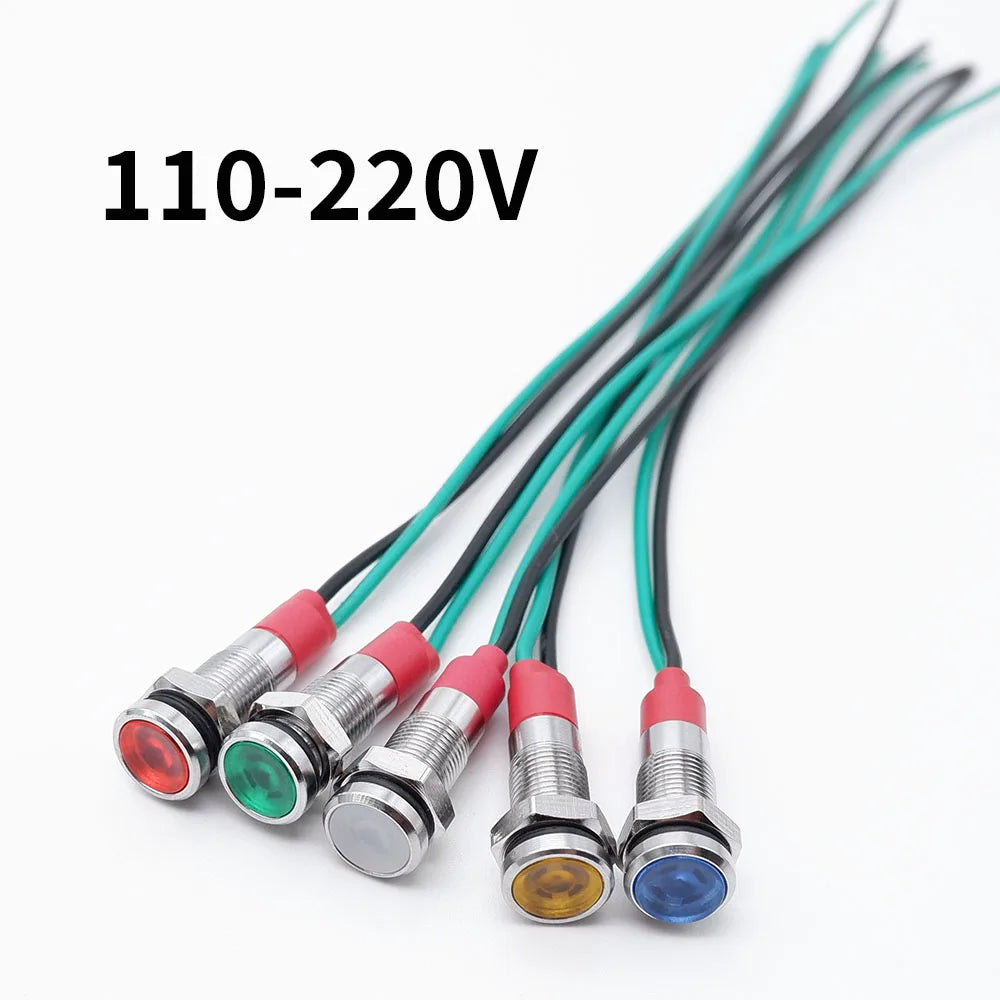

Color and electrical rating are encoded together on many products: examples include RED3-6VACDC, BLUE12-24VACDC, GREEN220VACDC, 12V-White, 110-220V-Blue and individual red/green/yellow/blue/white combinations. Some sellers offer a 6.3 V plastic pilot lamp, while others separate 3–6 V, 12–24 V and 110–220 V classes. A selector marked “Custom voltage” is not a declared input specification. Do not connect a low-voltage 3–6 V lamp to a 220 V source or assume the electronics inside different voltage variants are identical. AC/DC claims appear in some selected option text, but another listing's 220 V choice must not automatically be treated as universal AC/DC. Confirm supply type, polarity, current draw and rated voltage for the exact lamp.

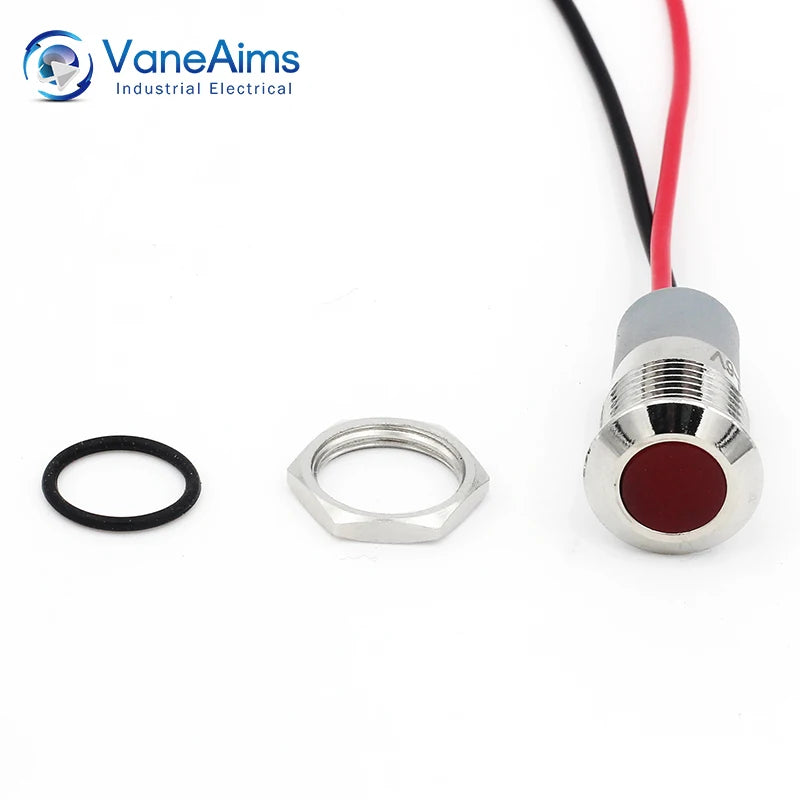

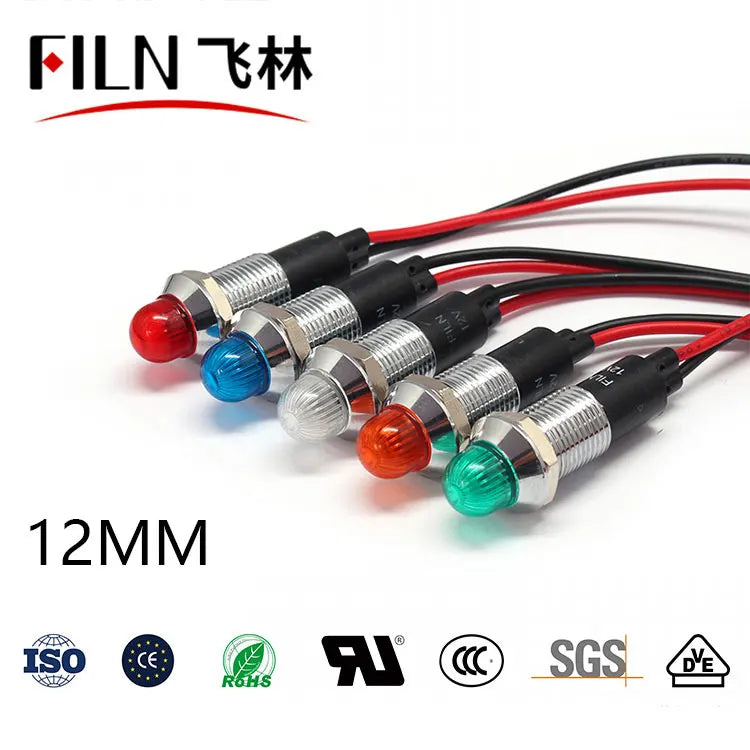

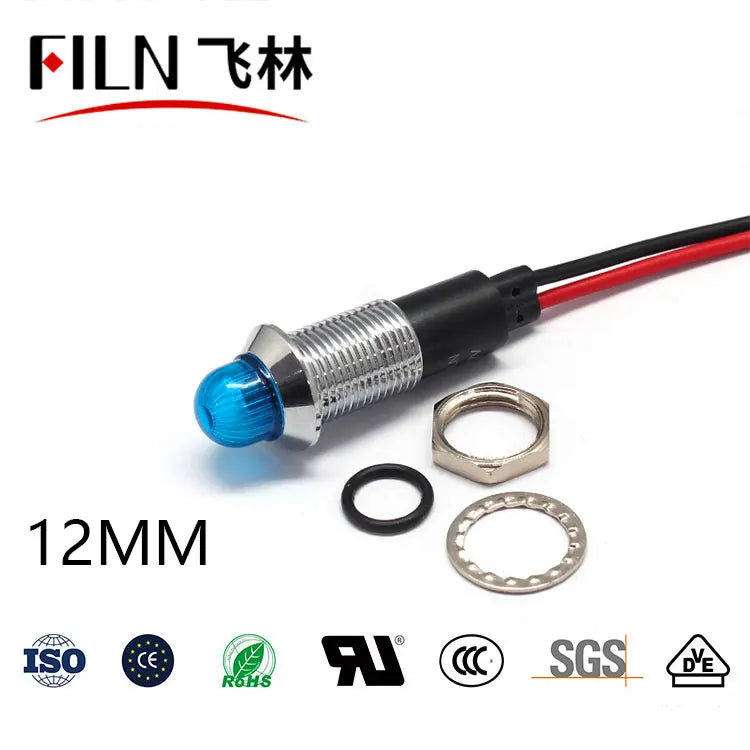

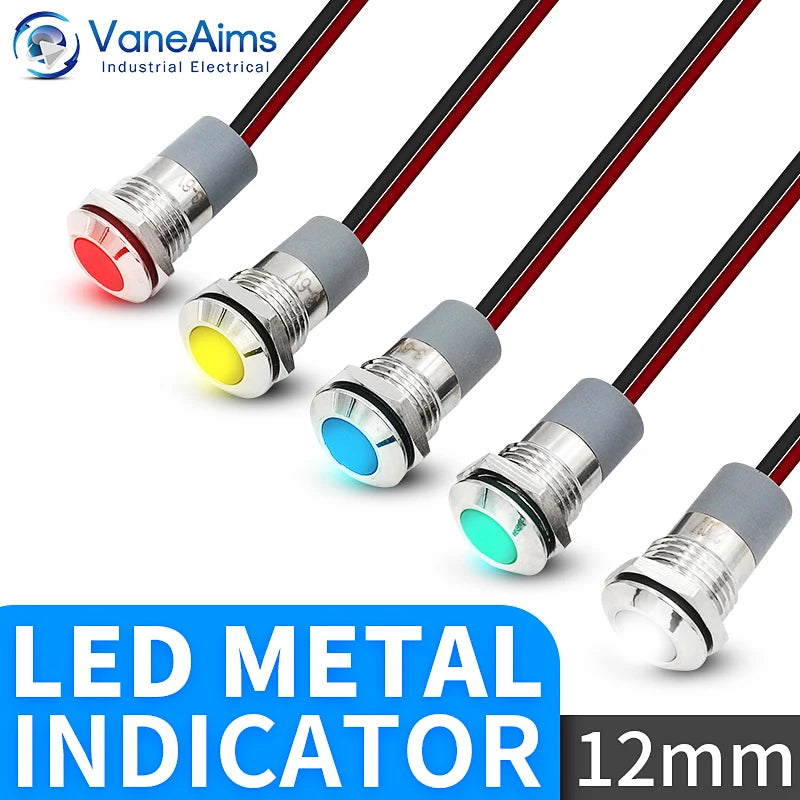

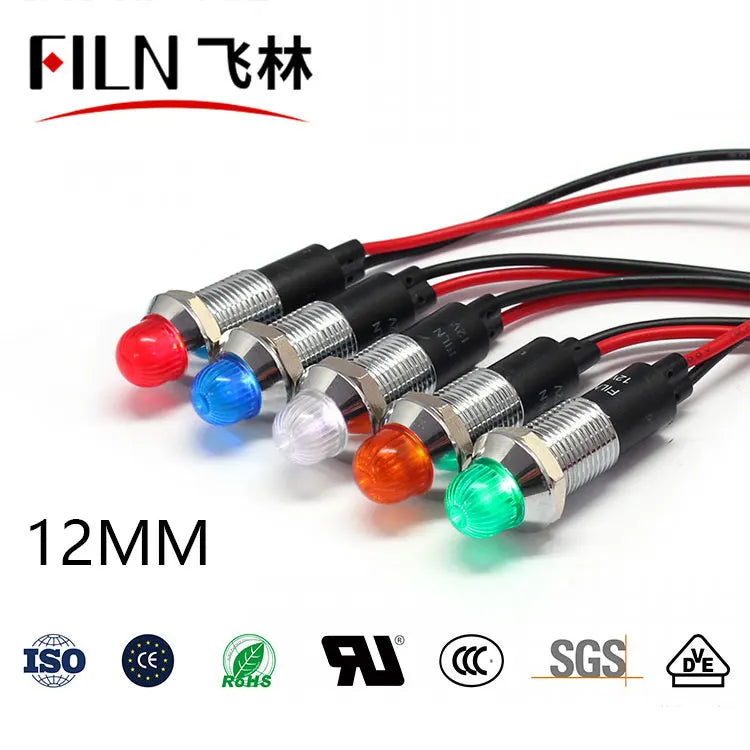

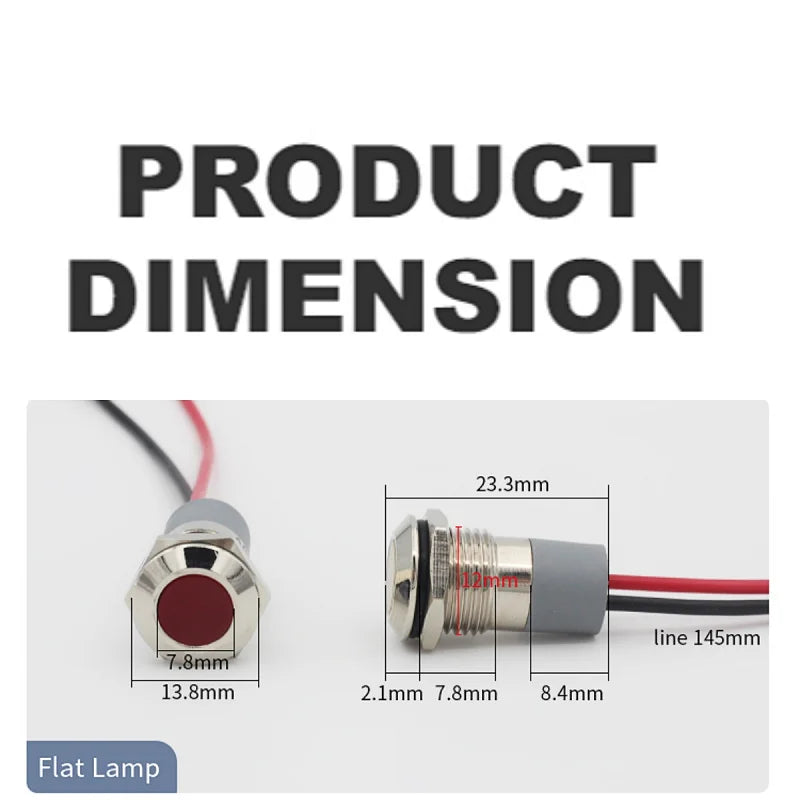

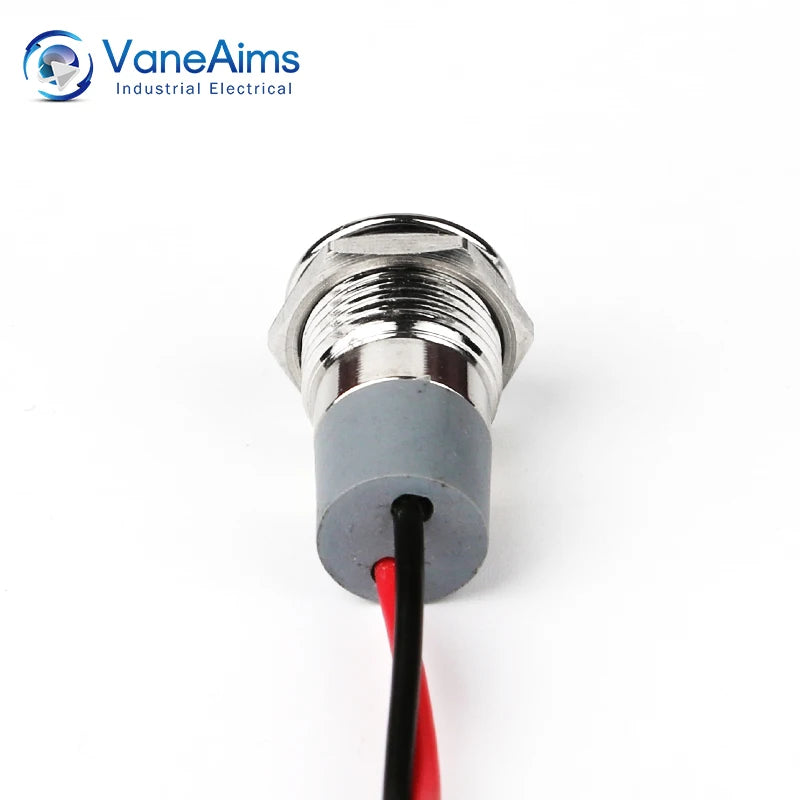

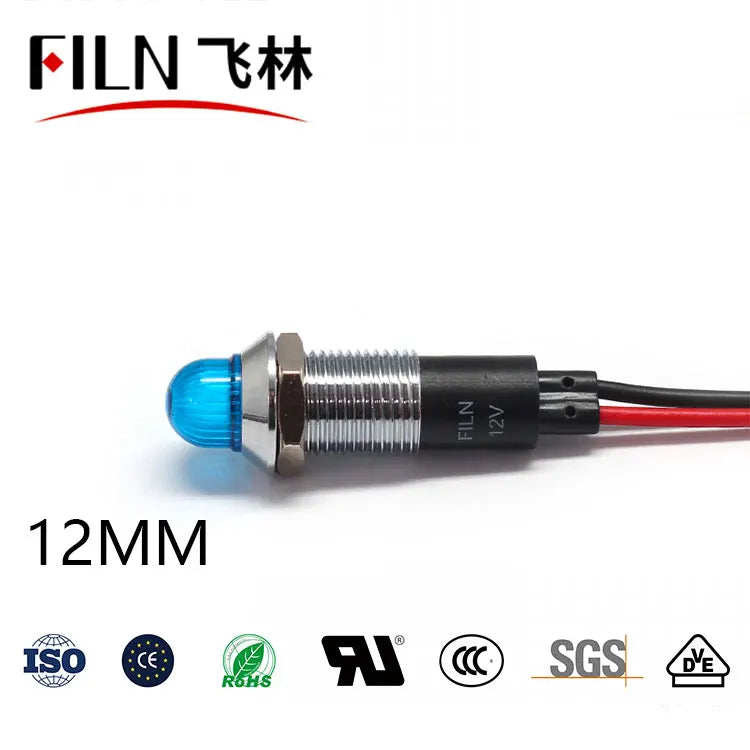

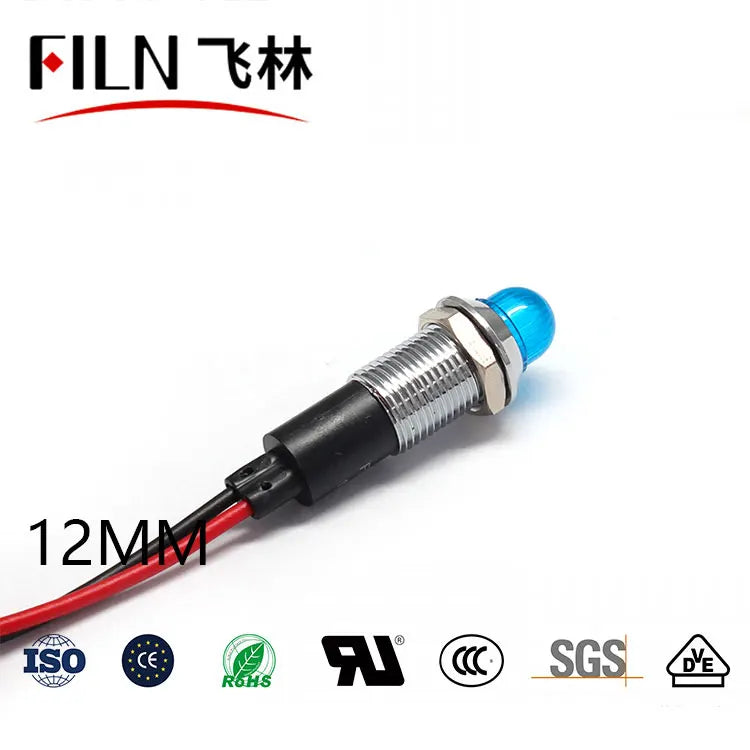

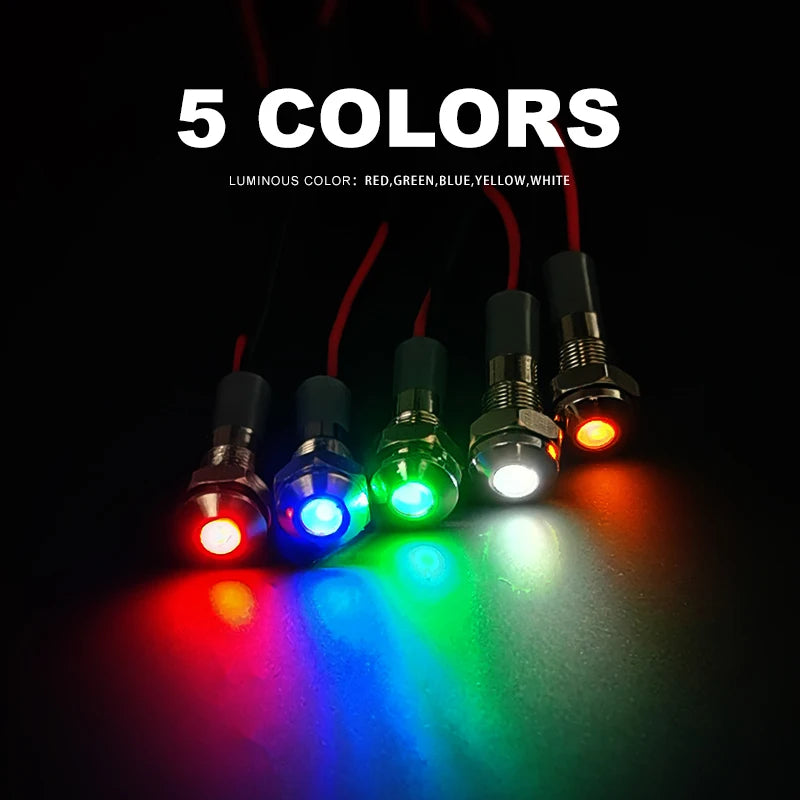

One 12 mm FILN product and selected VaneAims lamps advertise IP67, and a particular metal buzzer page advertises IP65. These claims attach to those products, not to every pilot light or its unsealed rear wiring. Ingress protection depends on the complete installed assembly, panel seal, cable entry and operating environment. CE, RoHS, CCC, lifetime and current statements copied from individual sellers should likewise be checked against documentation for the particular selection, not presented as collection-wide approvals.

Audible and flashing alarms

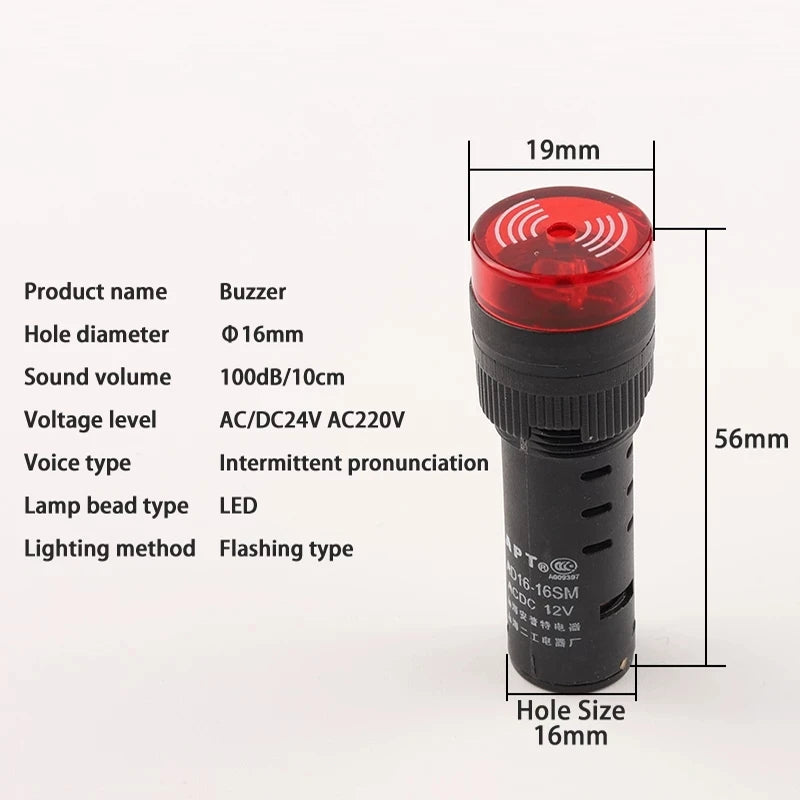

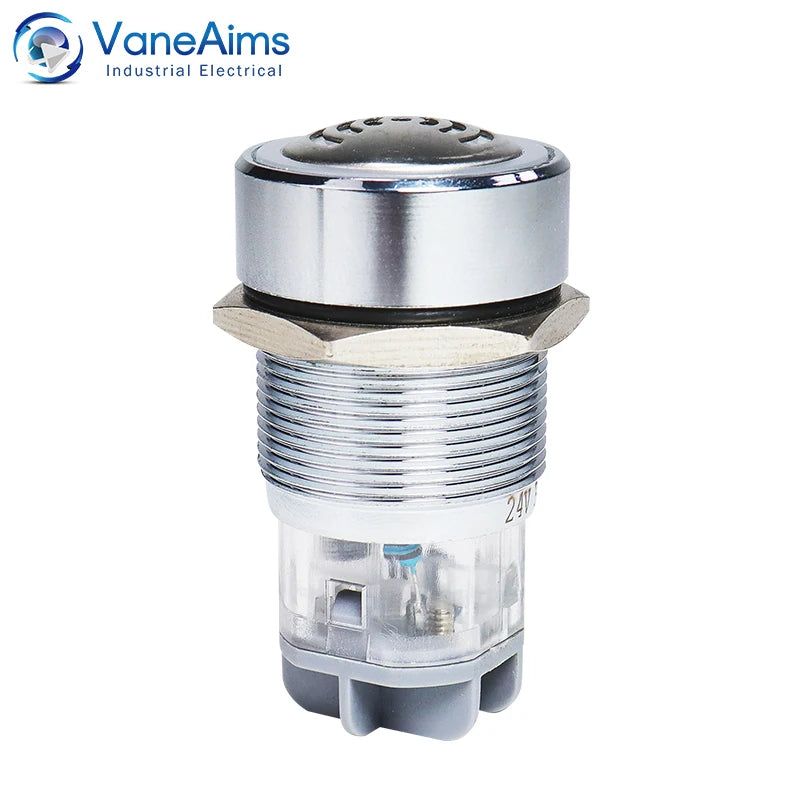

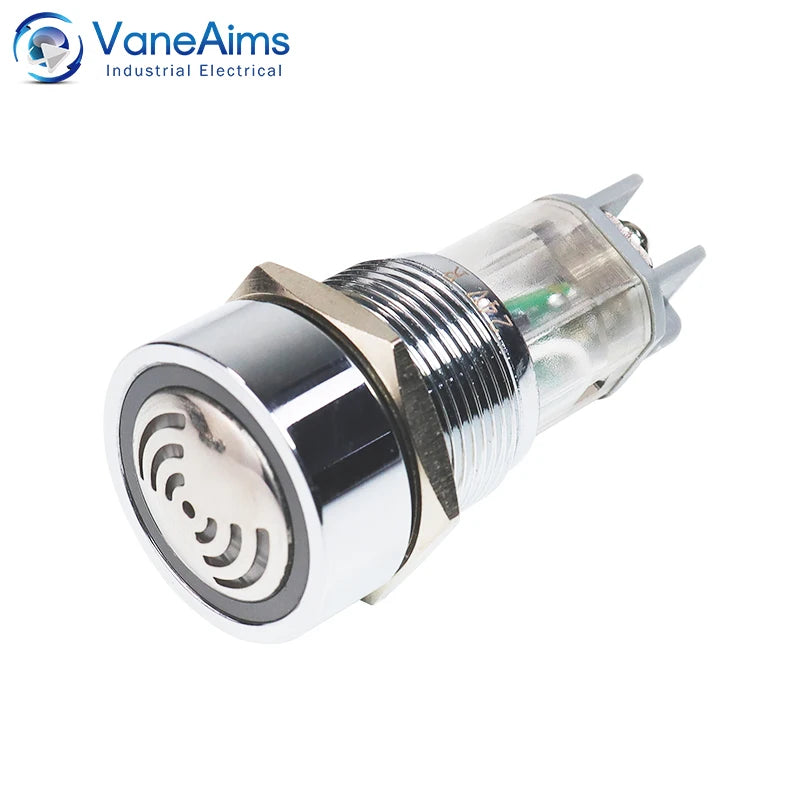

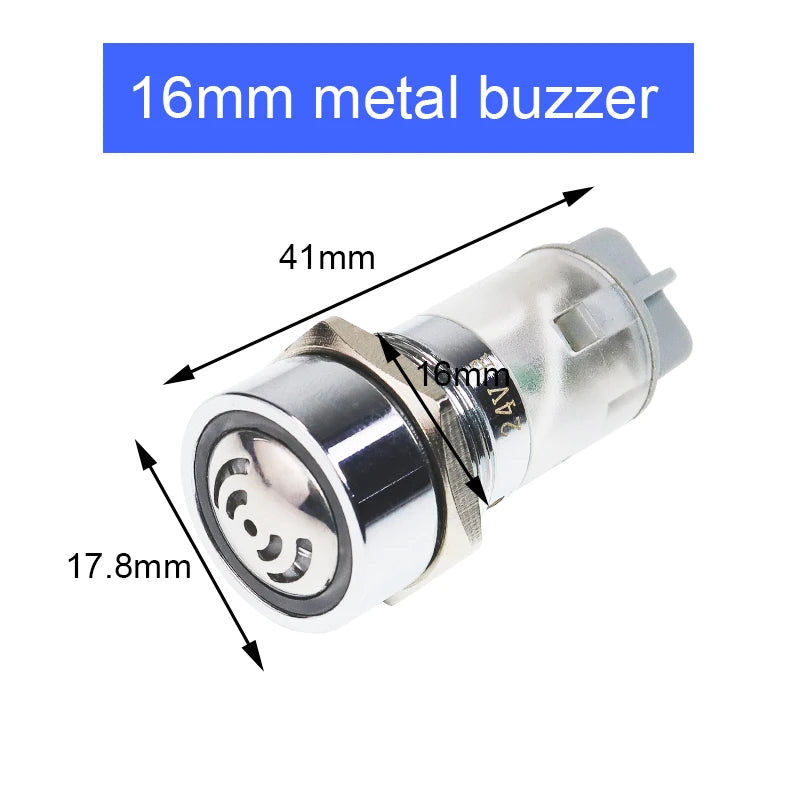

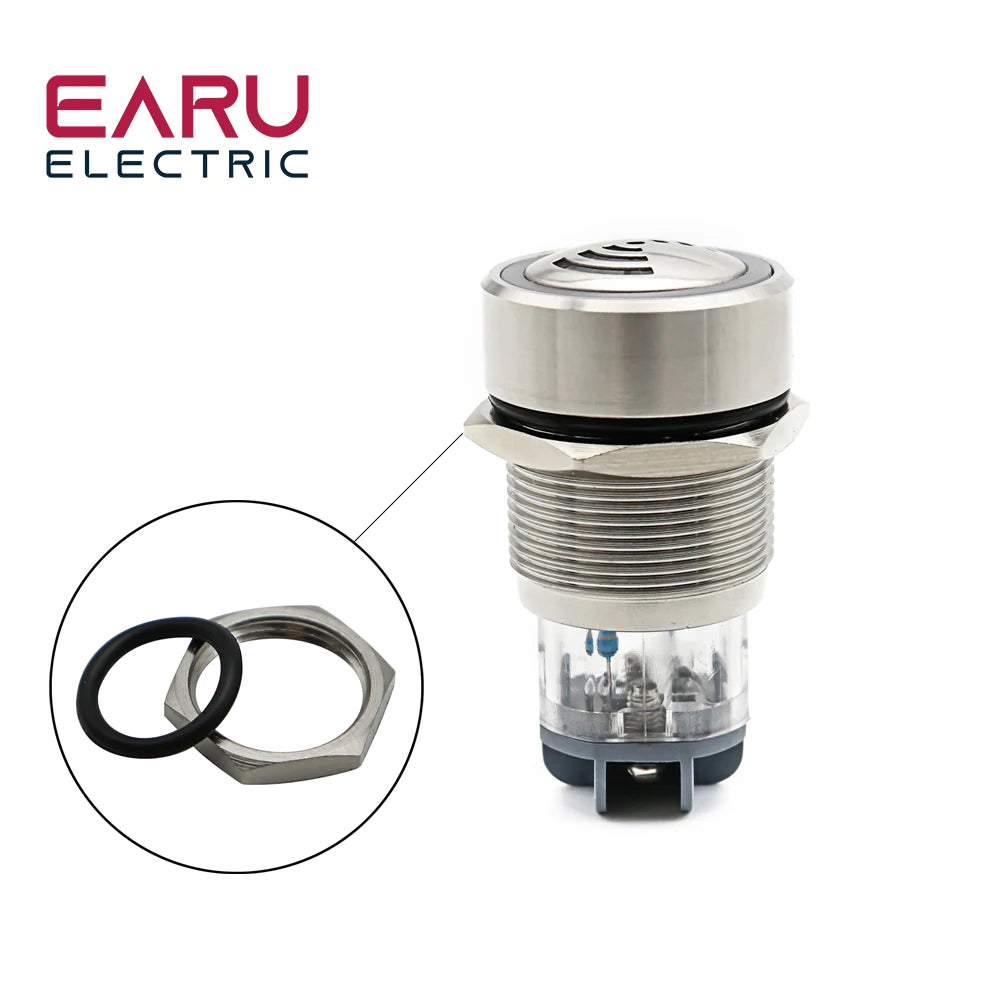

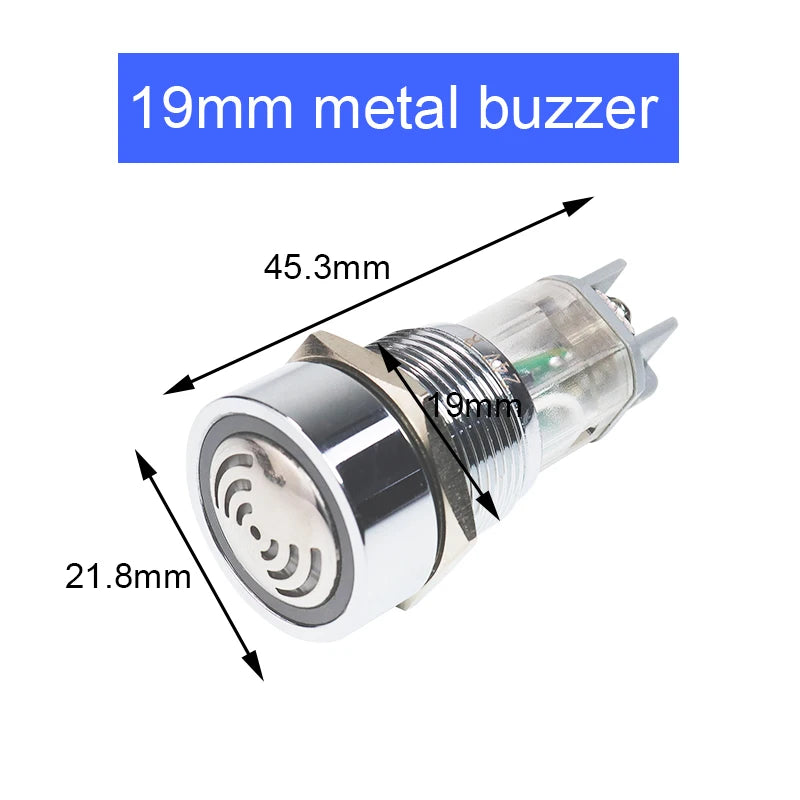

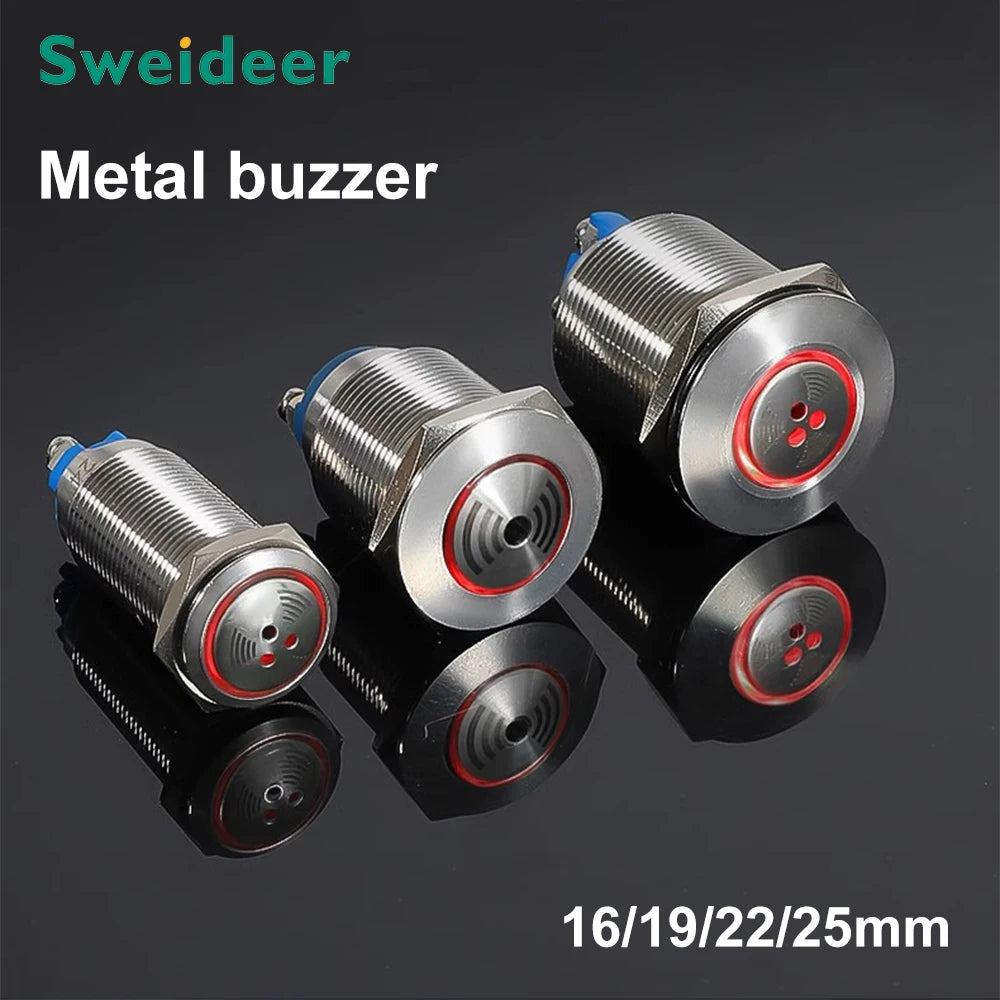

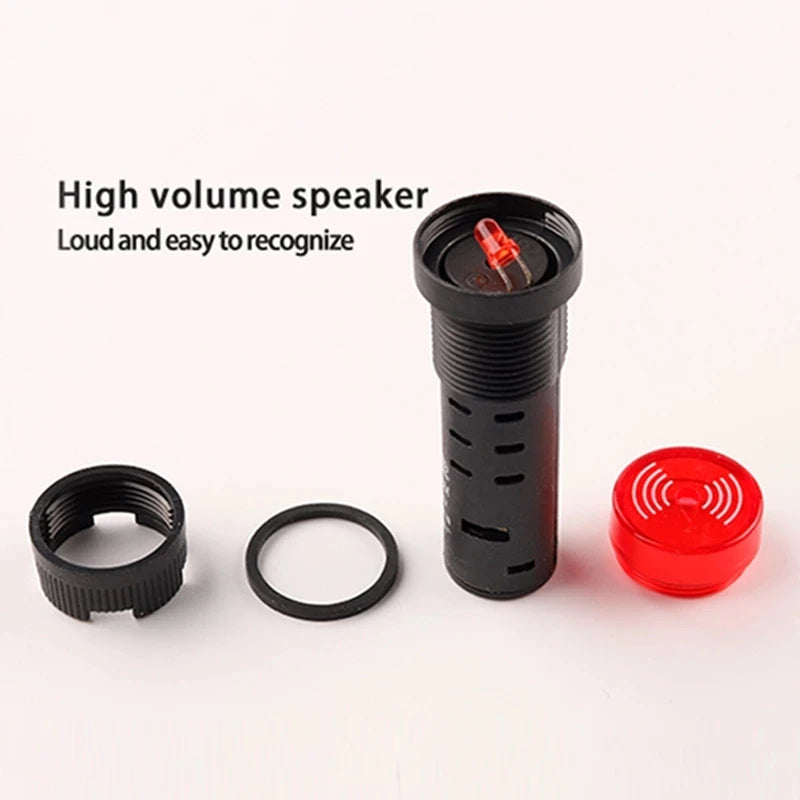

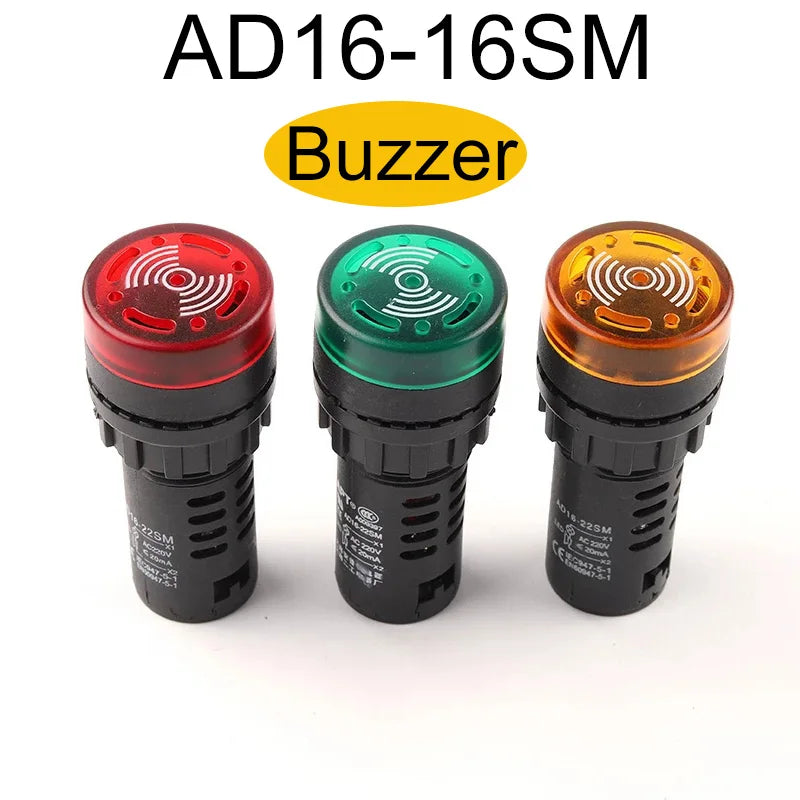

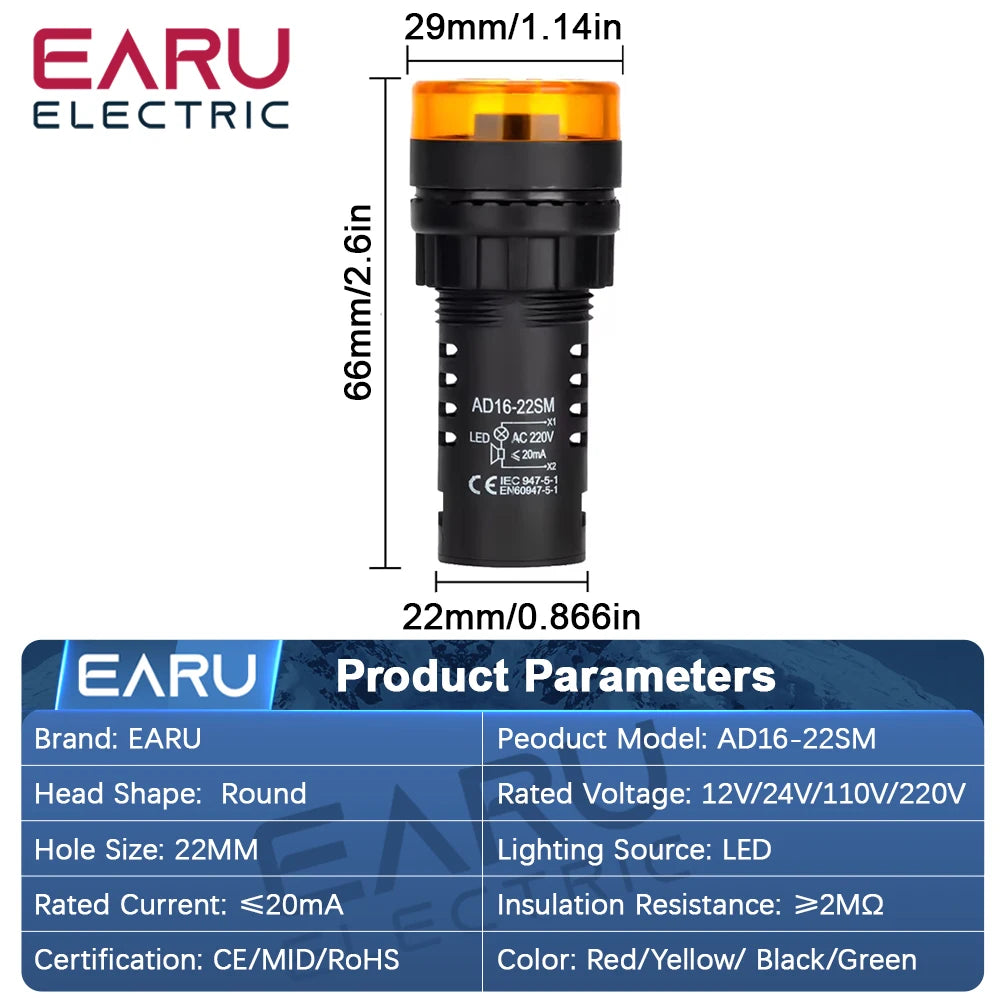

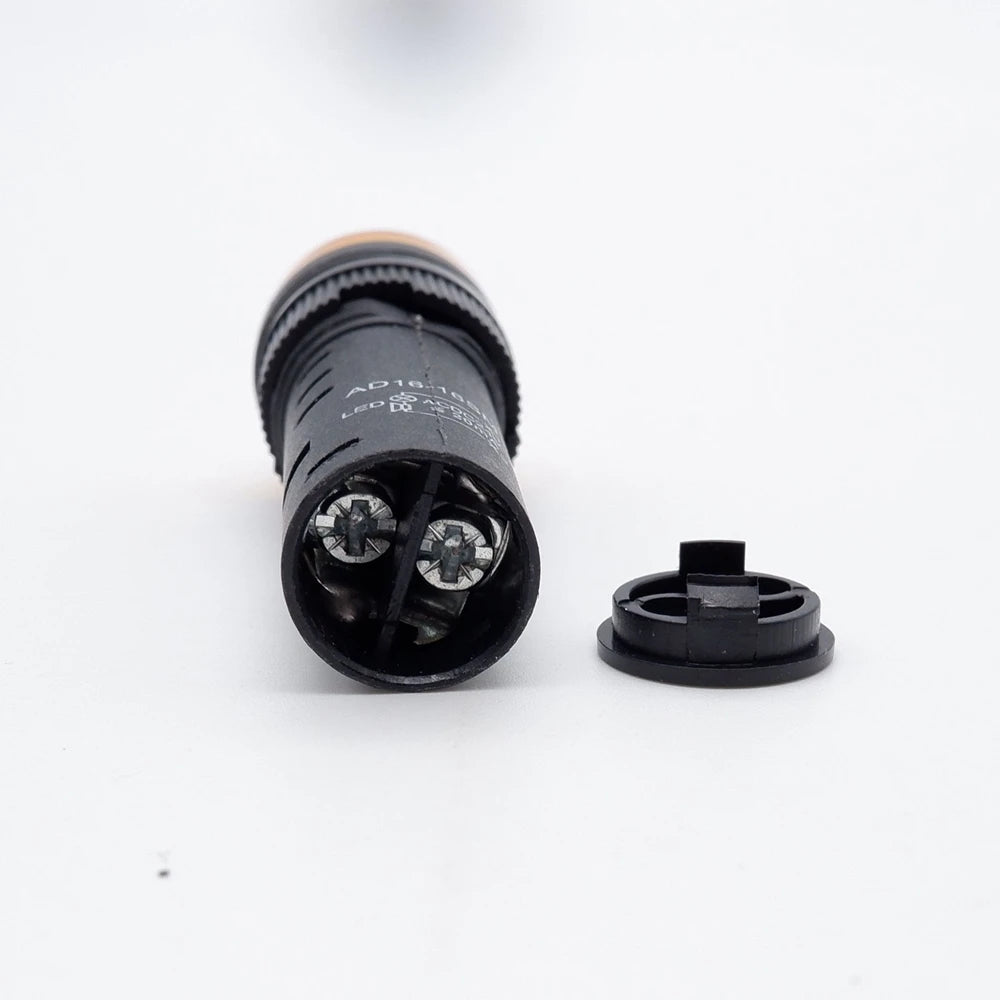

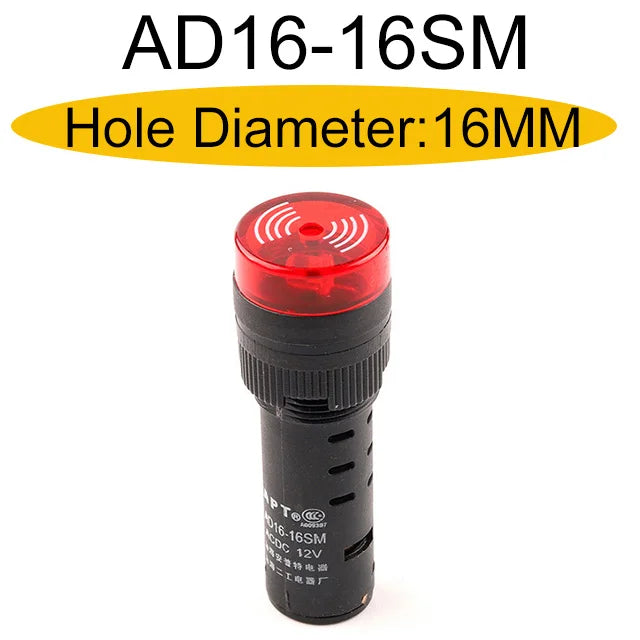

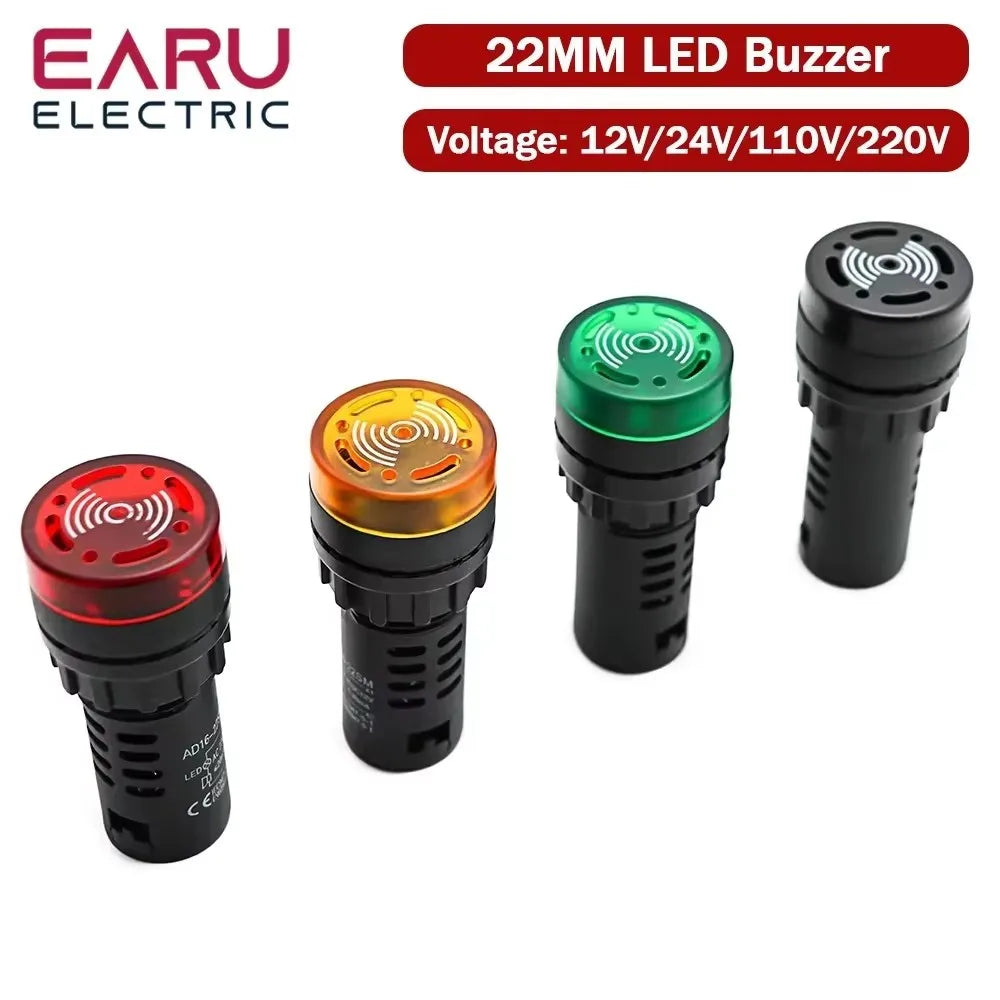

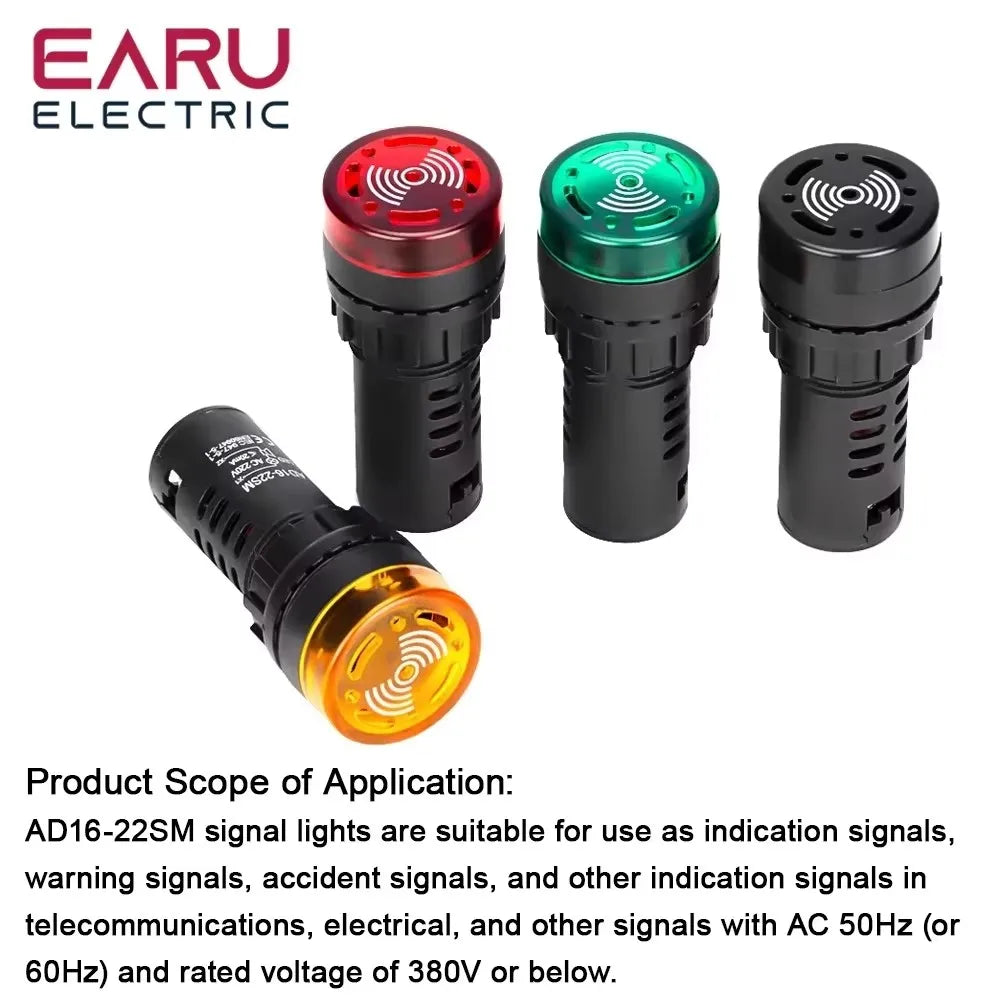

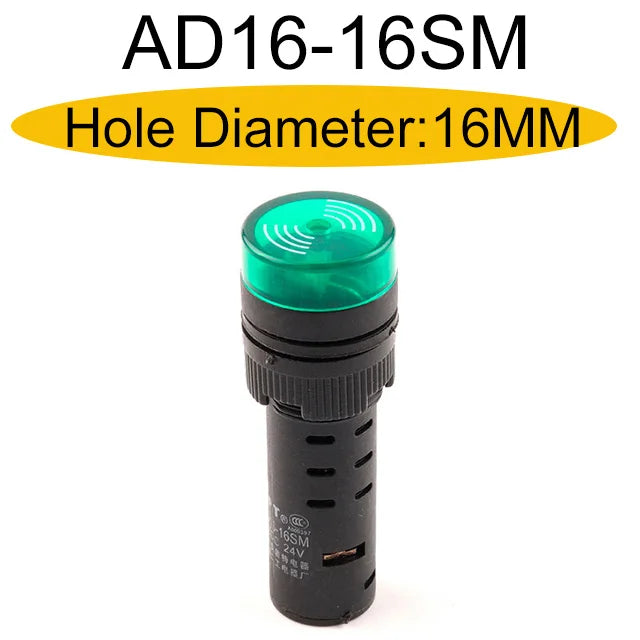

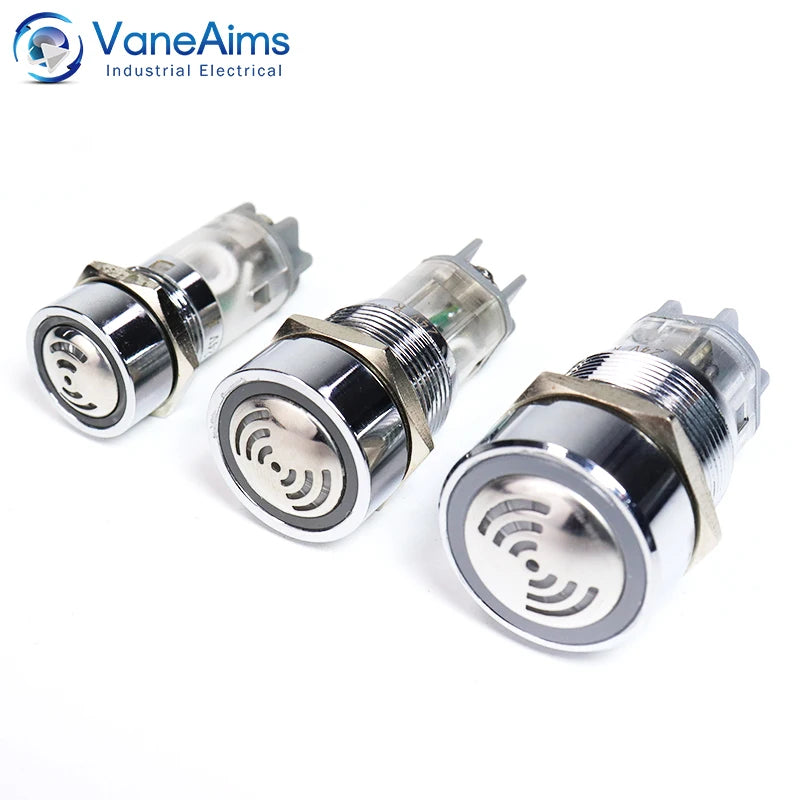

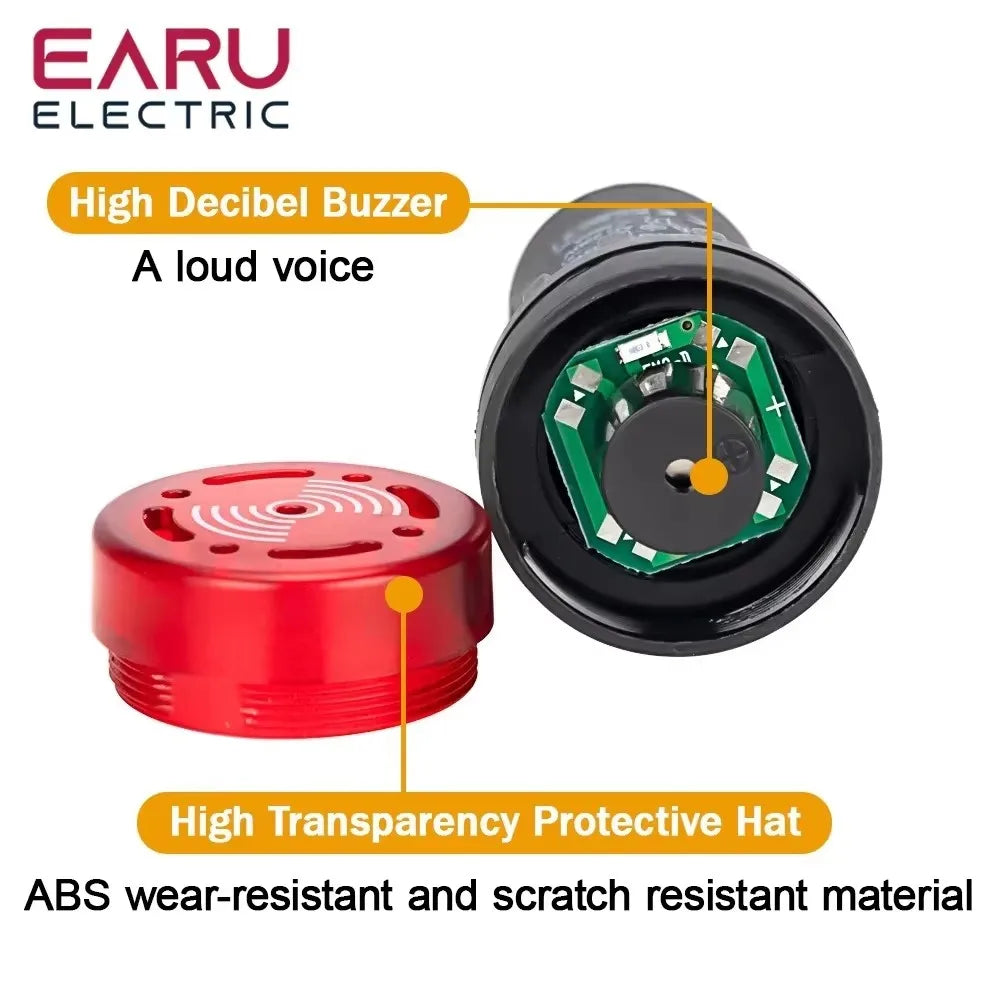

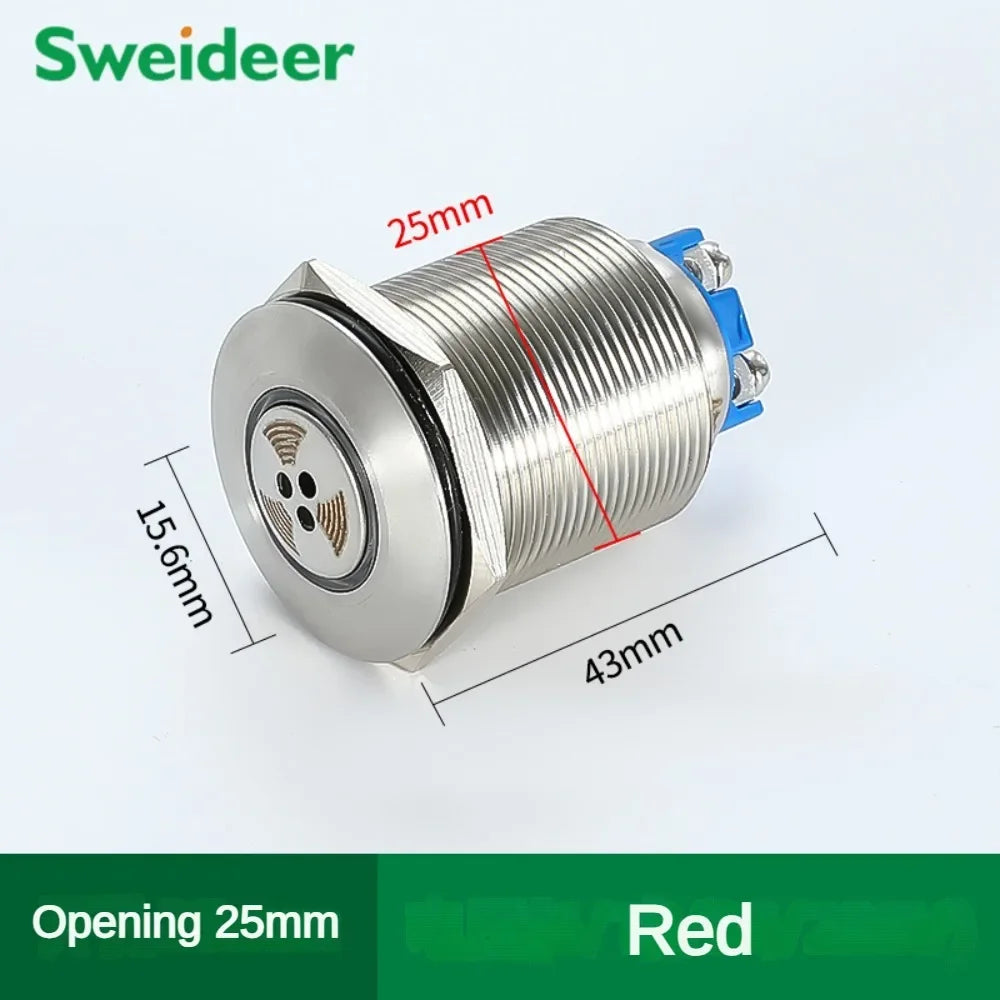

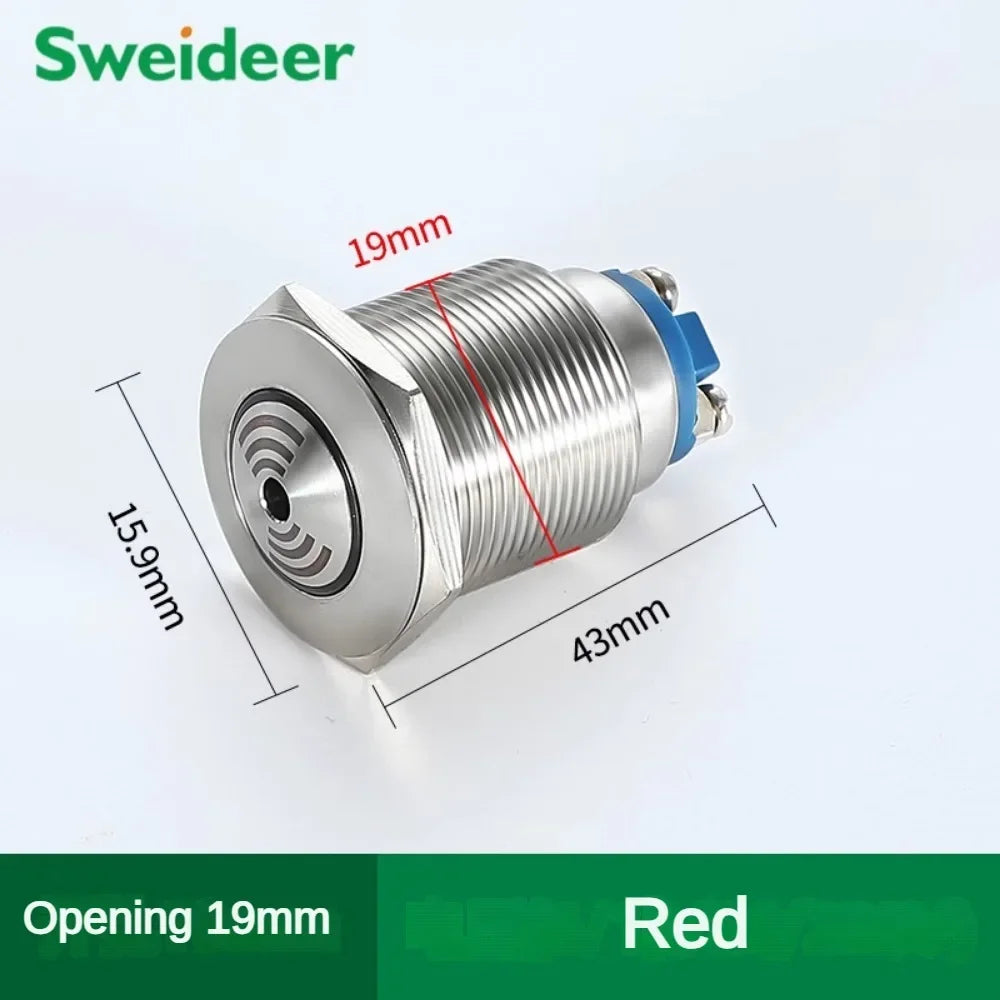

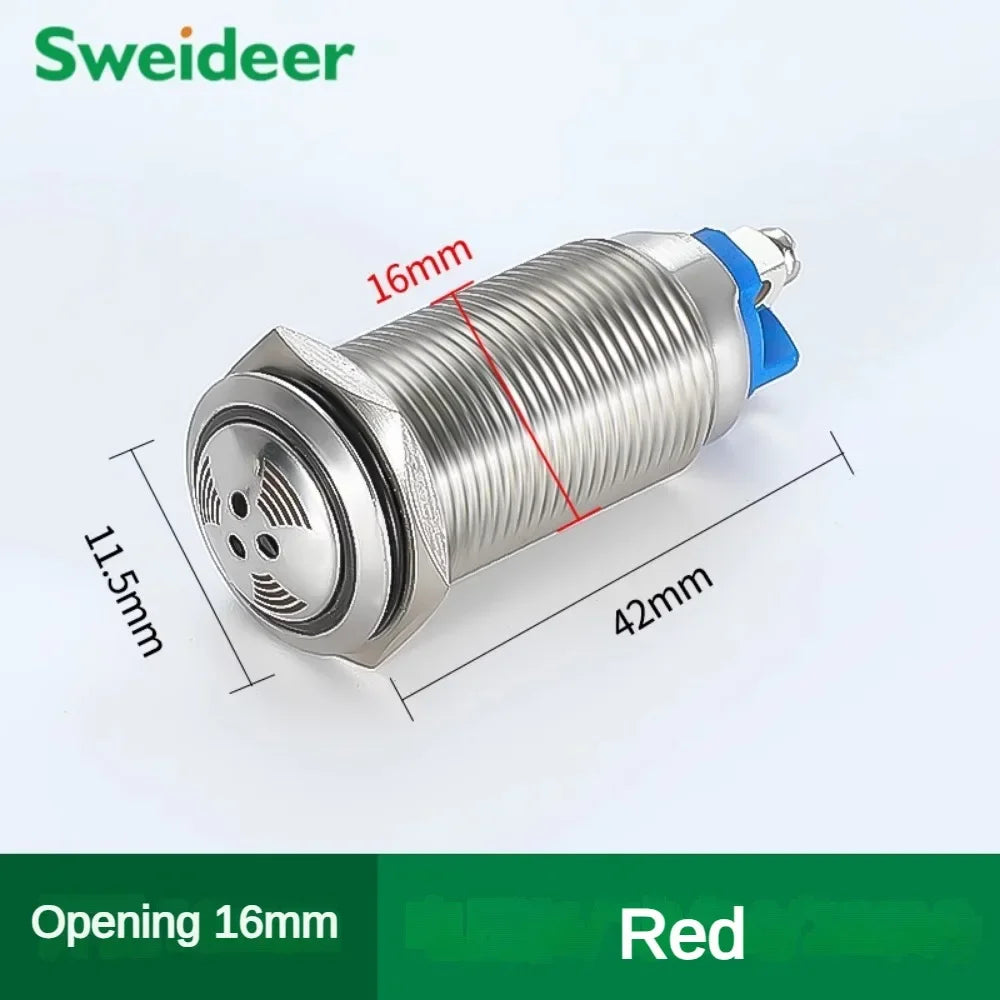

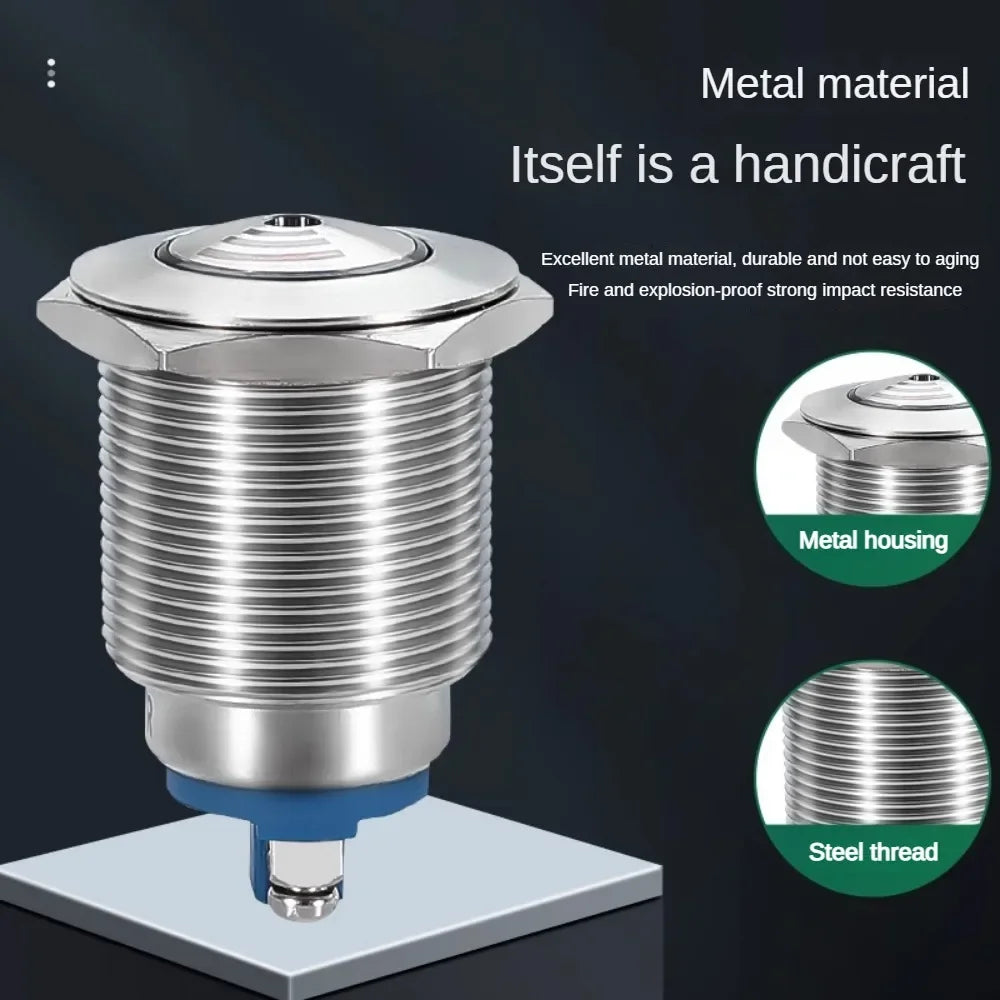

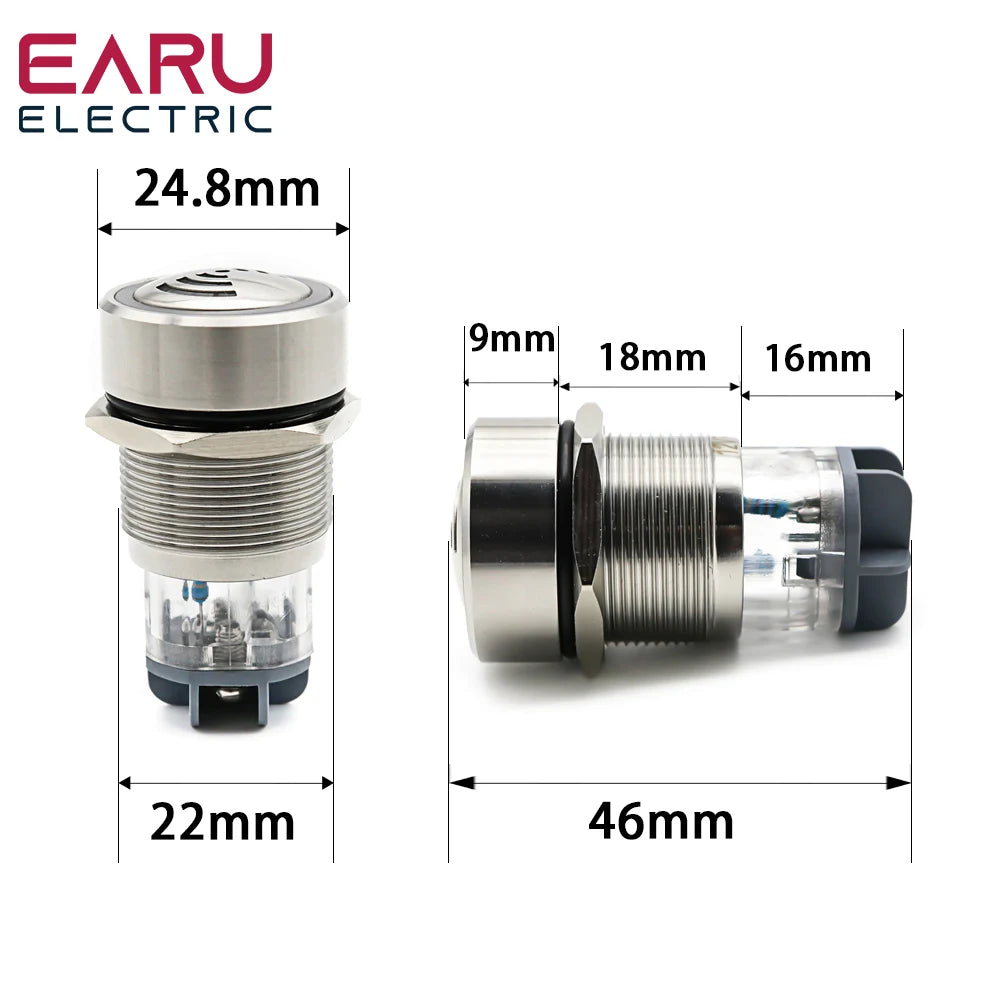

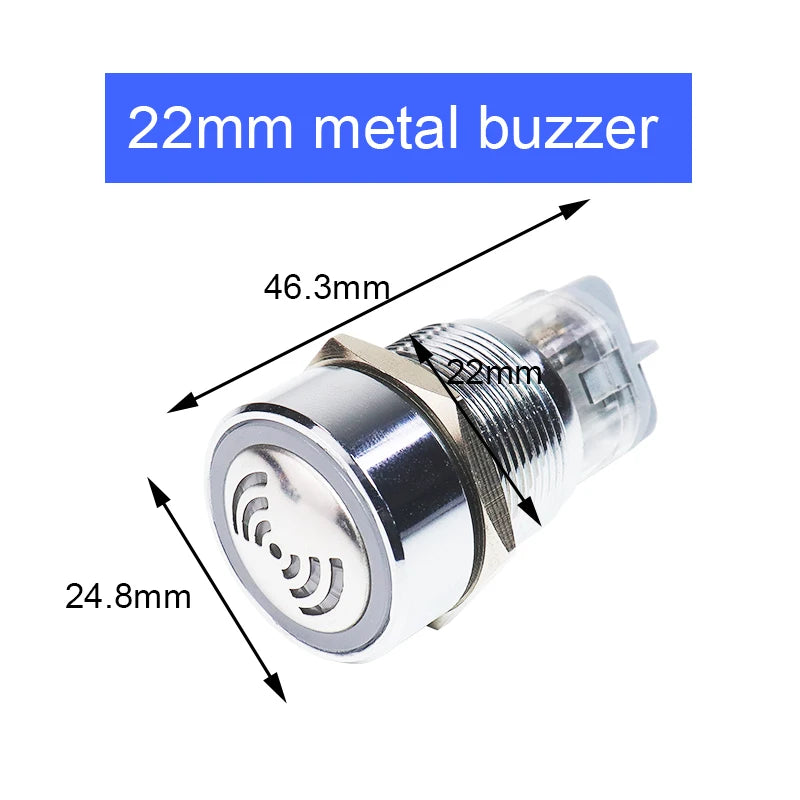

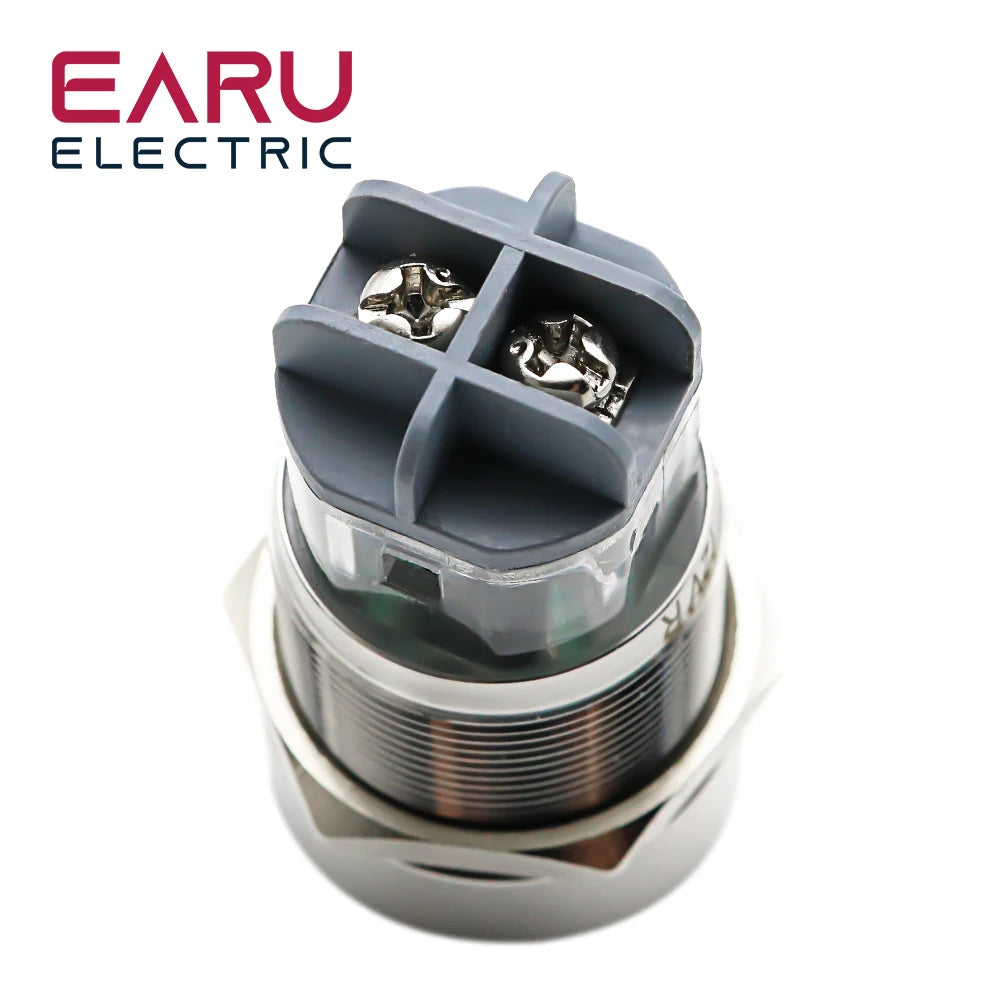

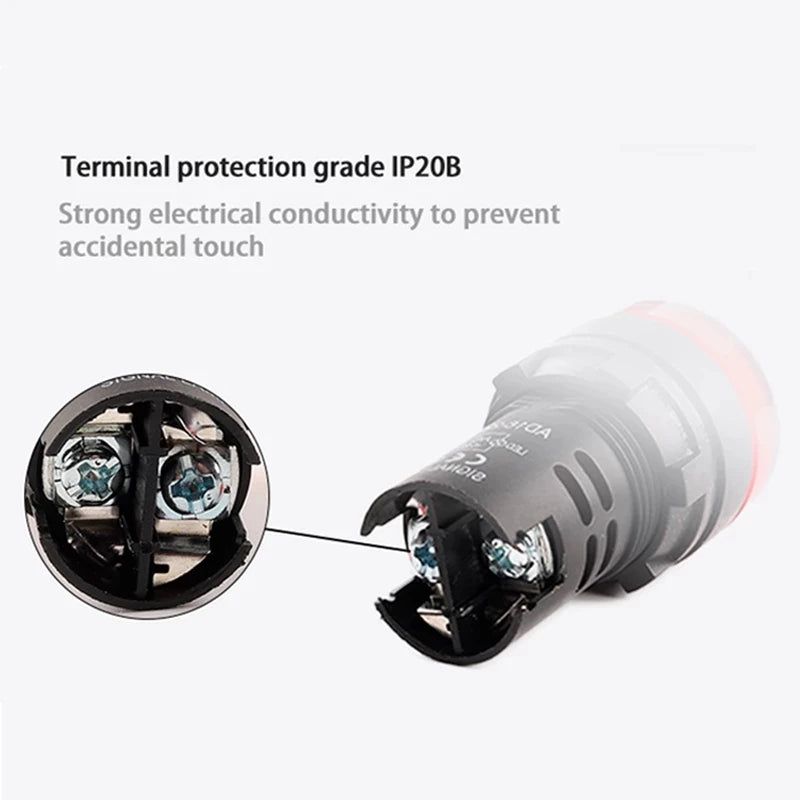

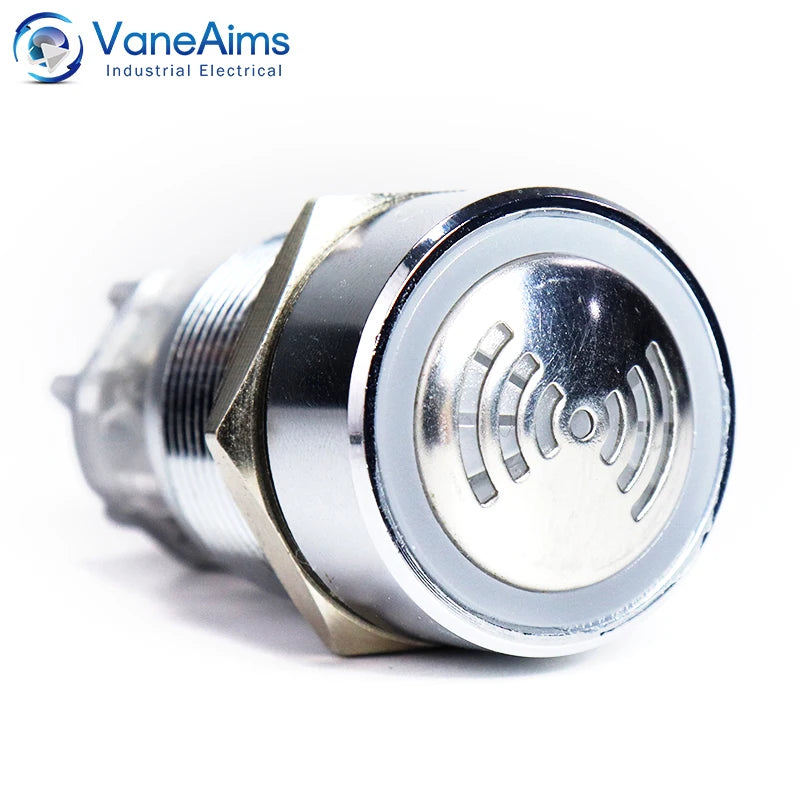

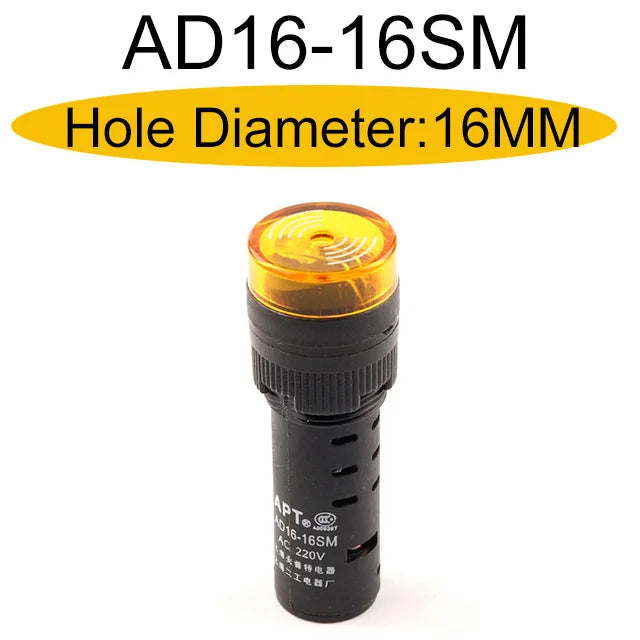

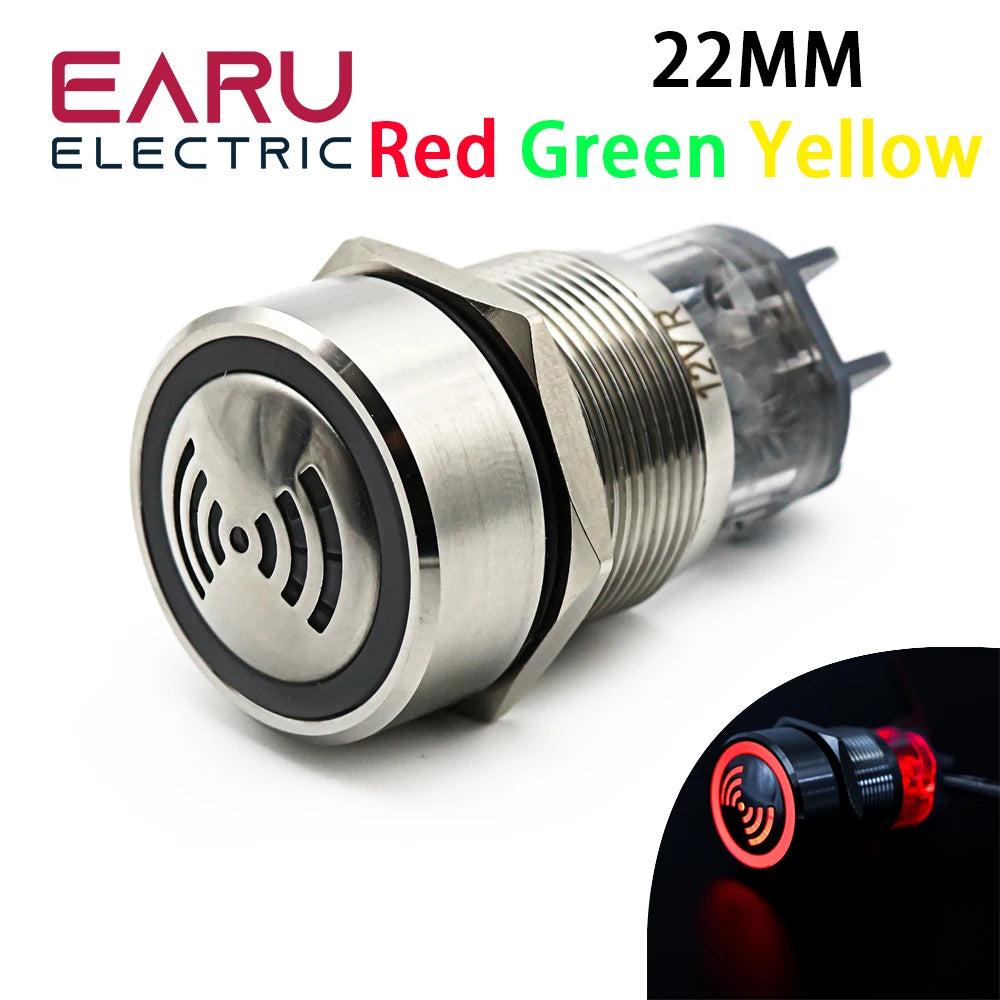

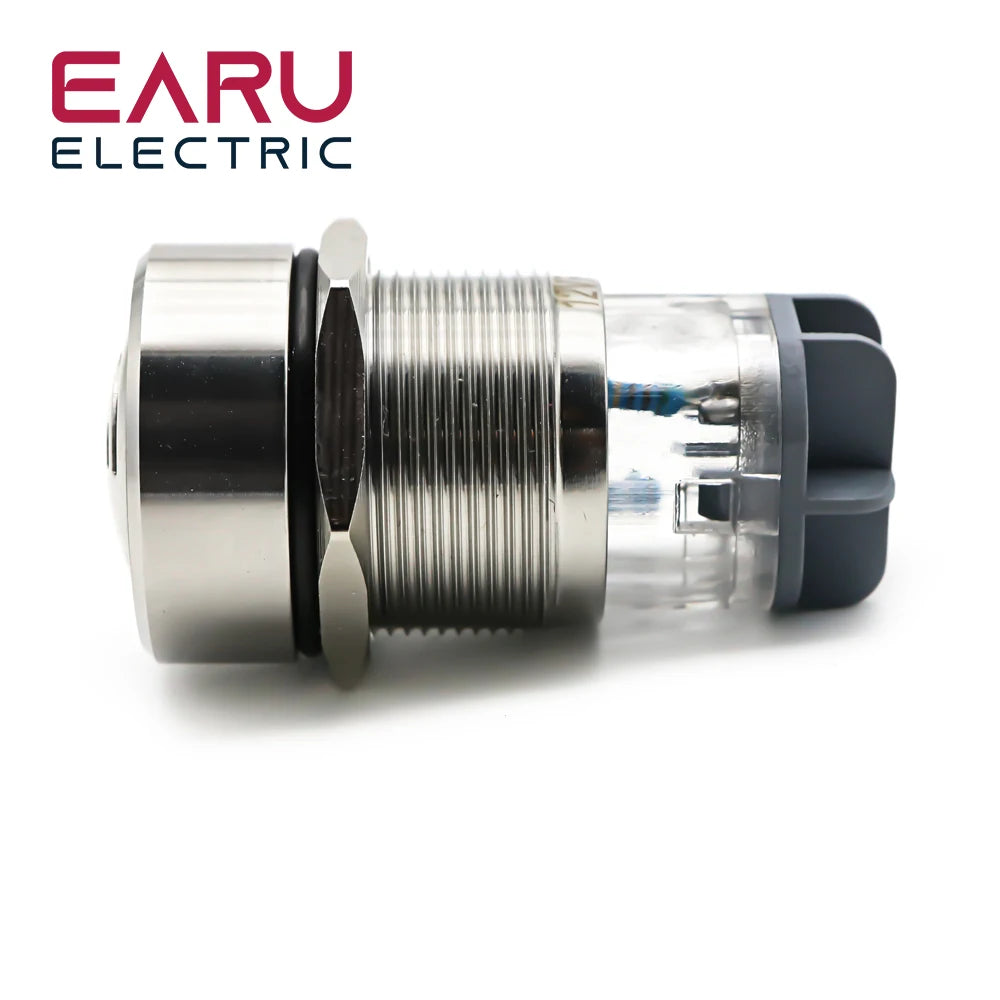

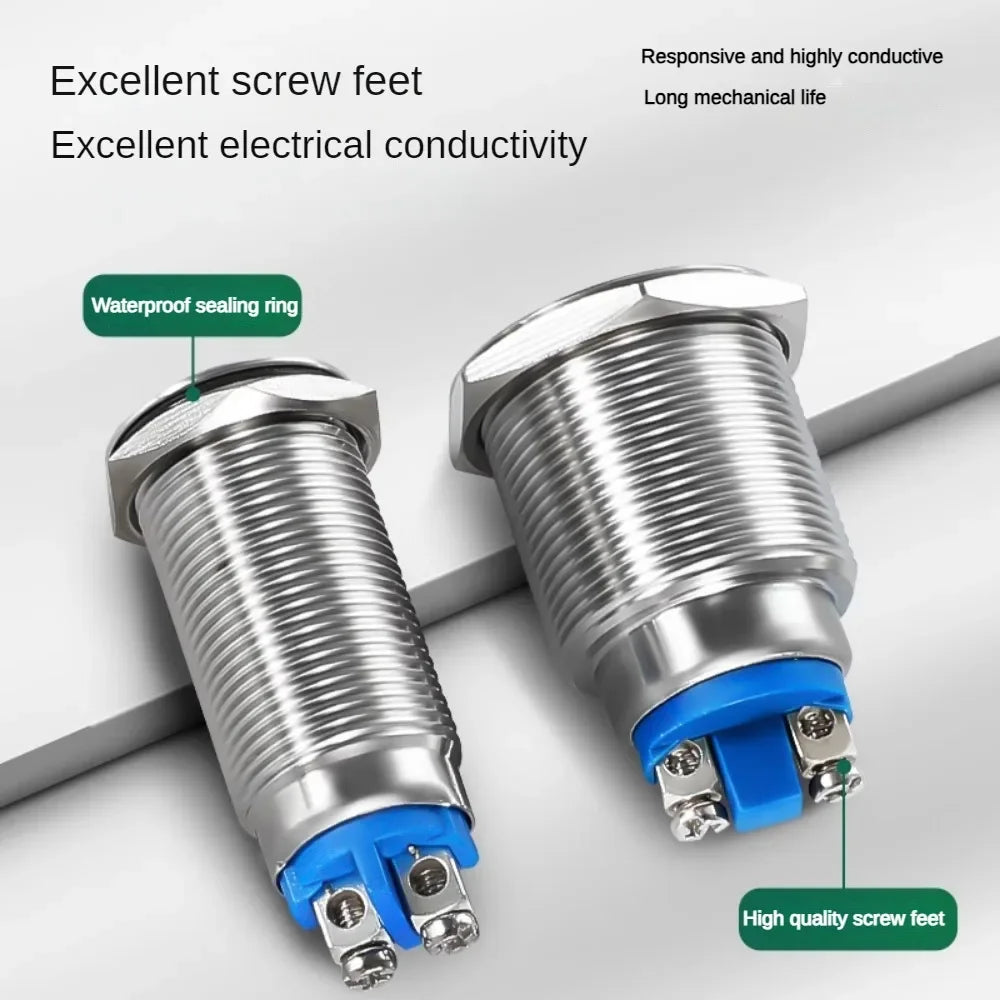

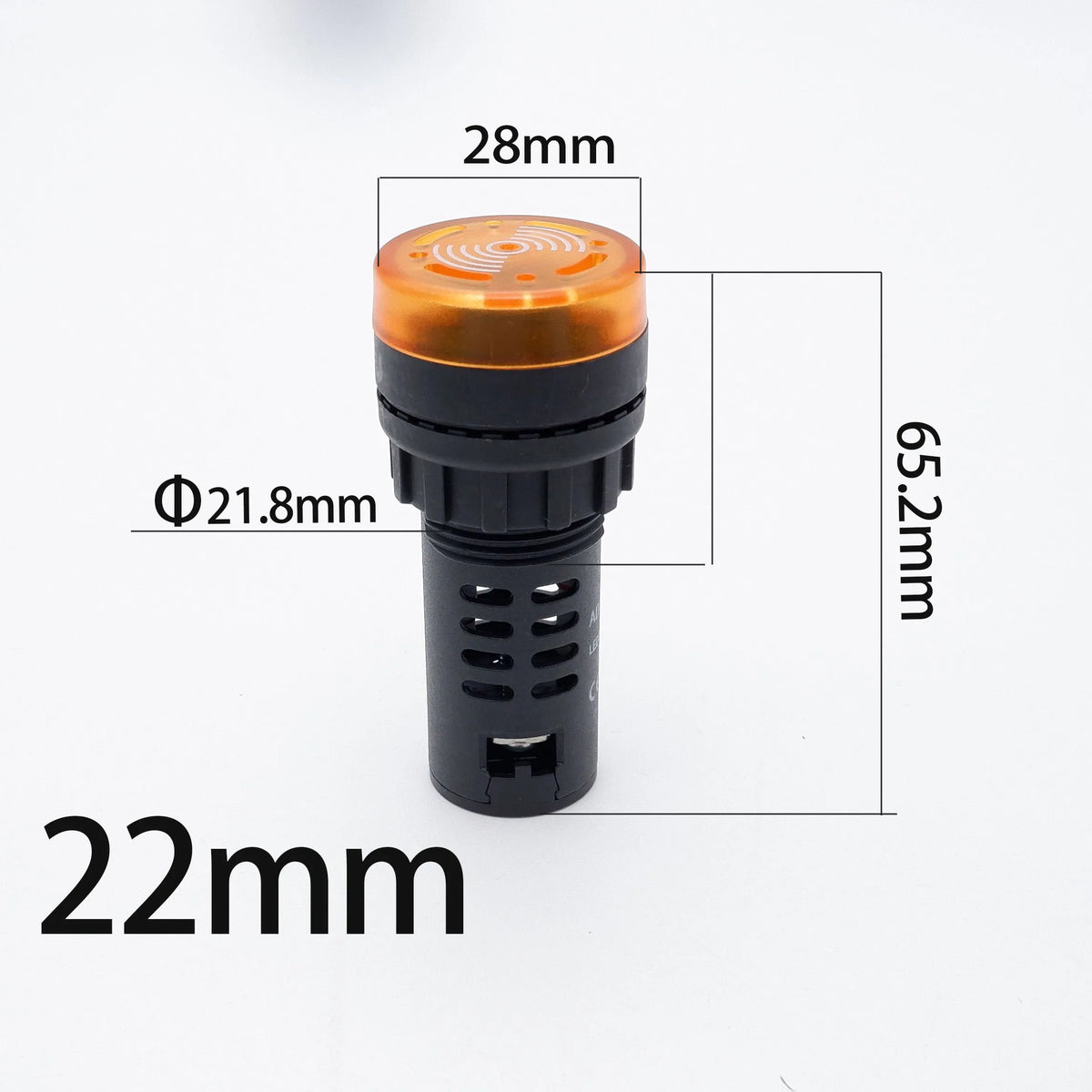

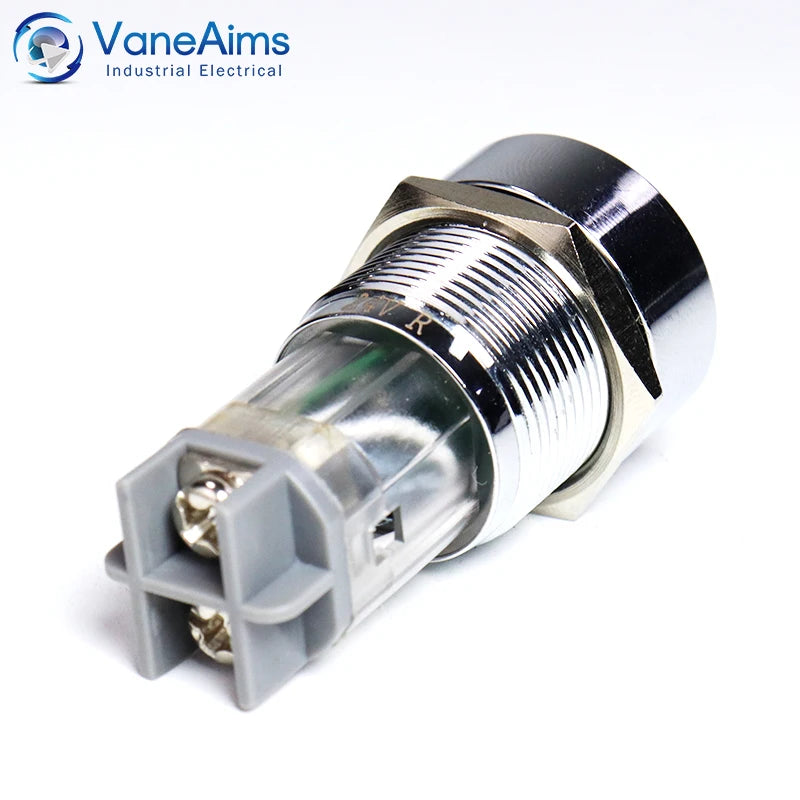

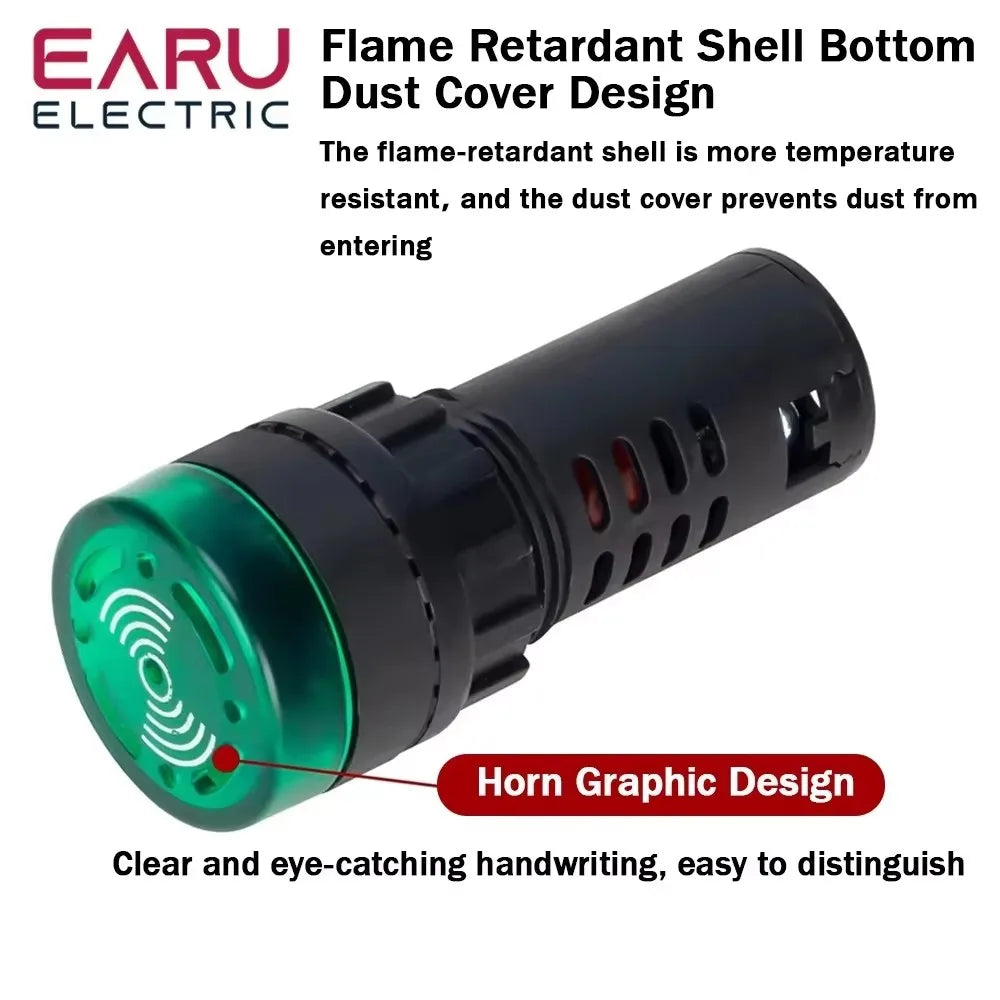

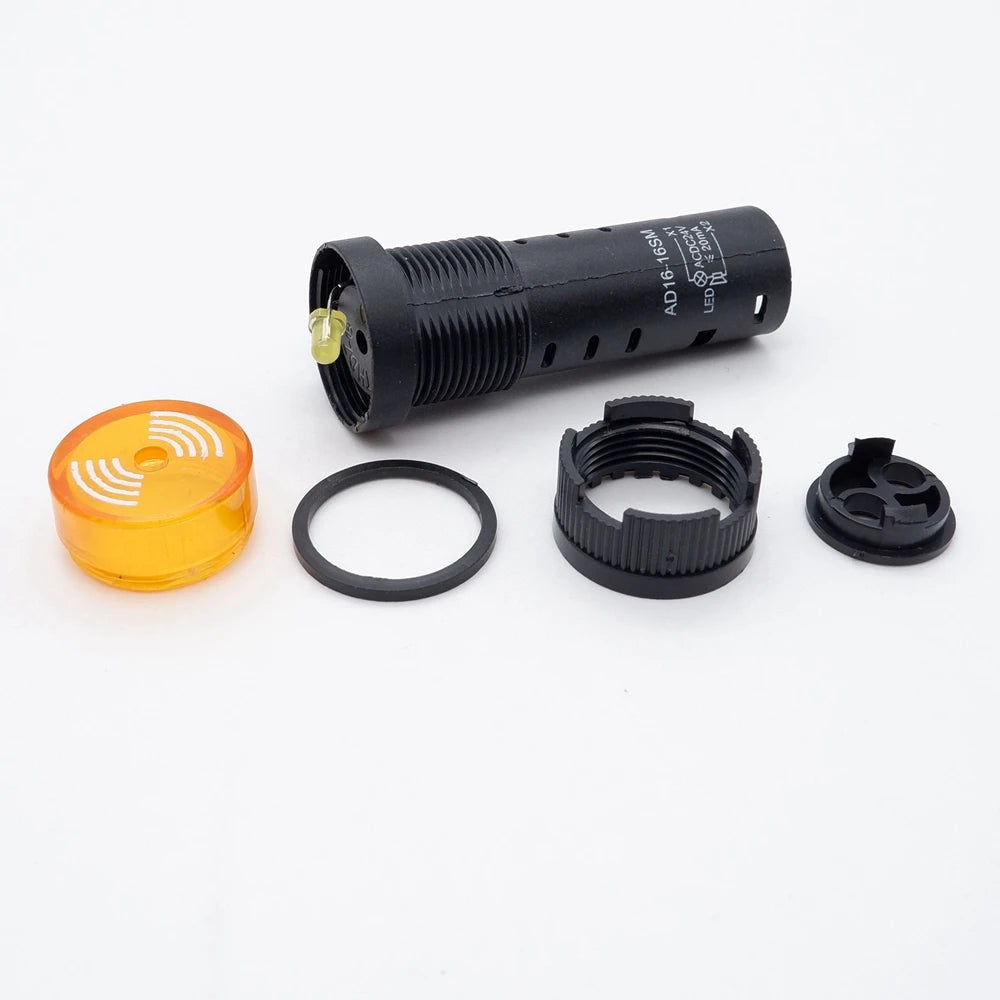

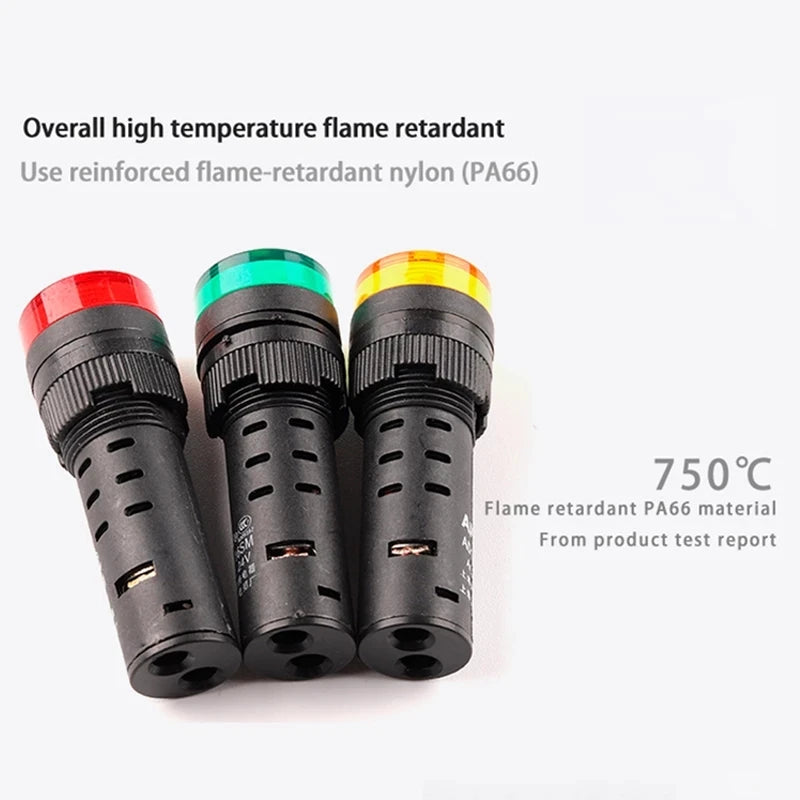

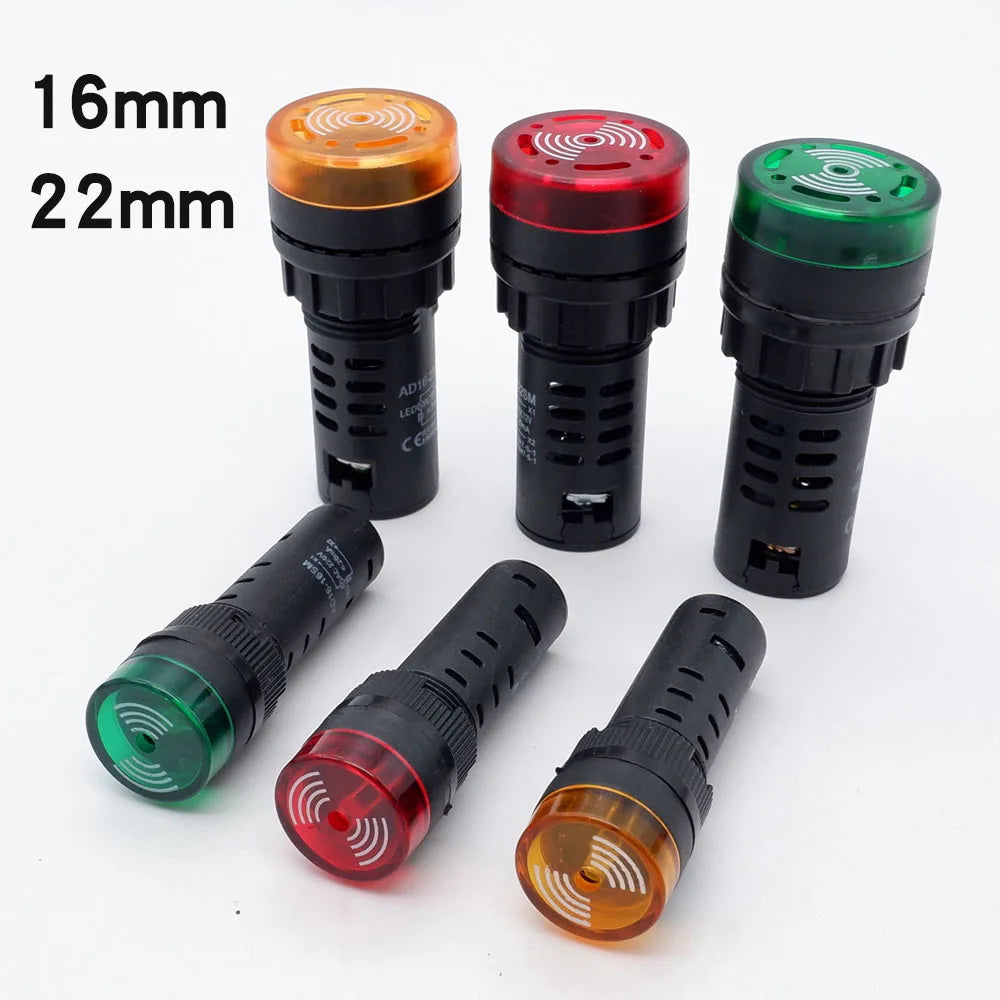

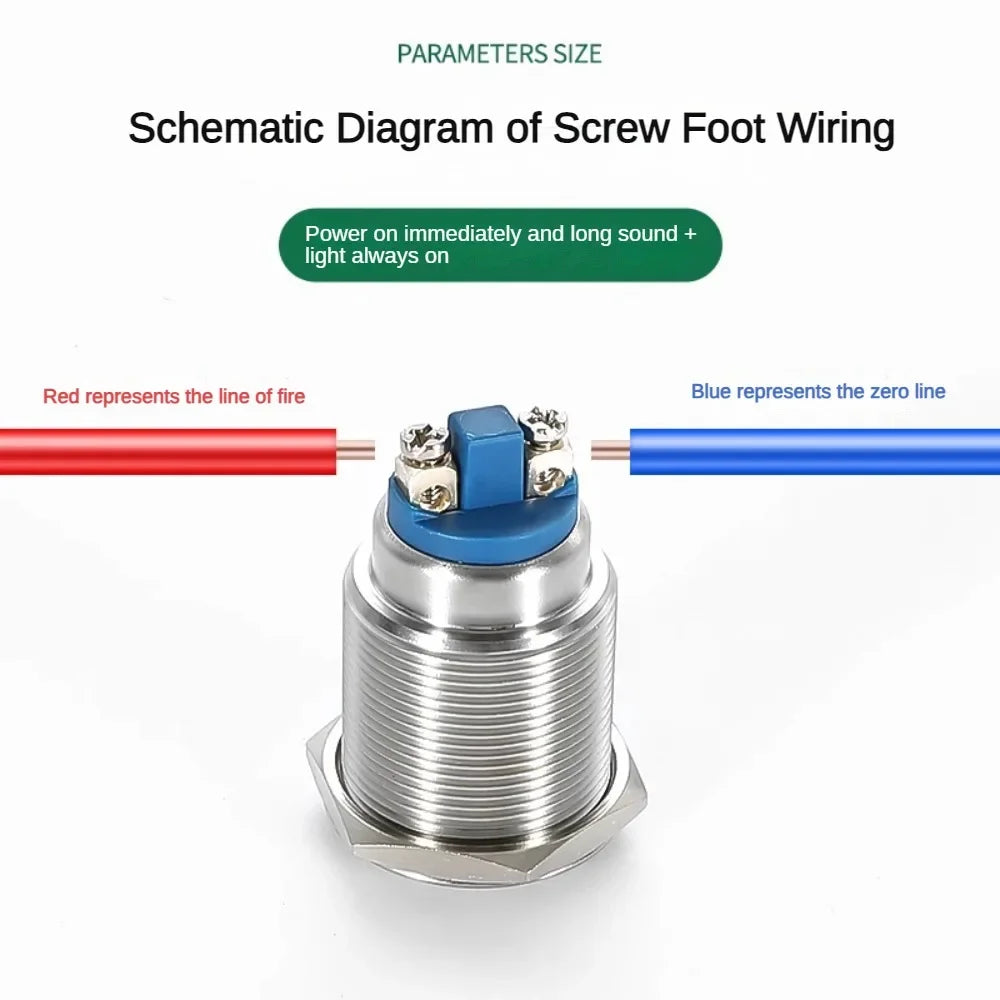

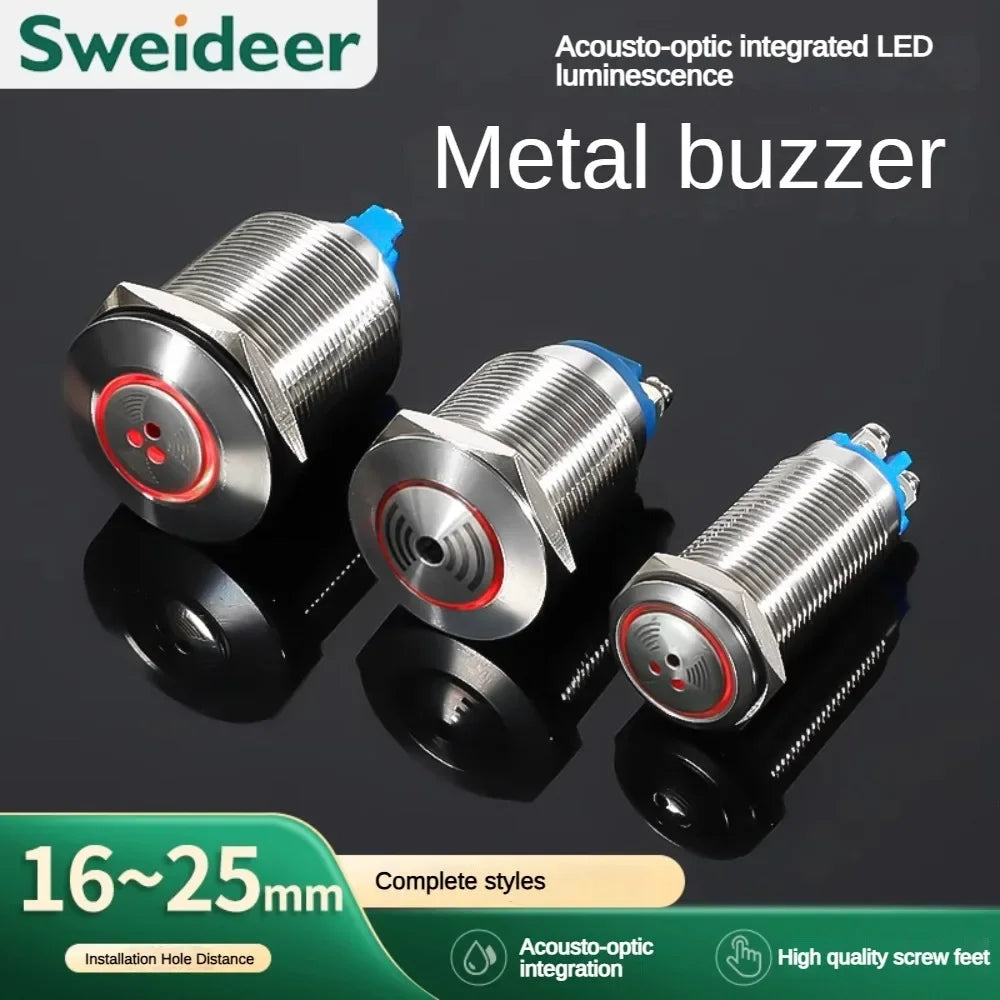

AD16-16SM and AD16-22SM-style LED buzzer listings use nominal 16 or 22 mm cutouts and red, green, yellow or black/yellow option labels. Selected supplies span 12, 24, 110 and 220 V, with a separate 16 mm page also offering 380 V. Another metal buzzer family lists 16, 19, 22 and 25 mm mounting diameters with 6, 12, 24 or 220 V choices, and a different IP65-advertised family lists 16/19/22 mm with red, yellow, green or blue light options at 12, 24 or 220 V. Those are separate products with different materials and electrical constructions; do not combine the widest diameter range from one listing with the widest voltage range from another.

Many buzzer entries say “flashing,” “strobe” or “intermittent sound.” Determine whether the selected device combines both sound and light, whether its buzzer is active, and whether its alert pattern and sound level are adequate for the actual ambient noise and viewing conditions. A panel indicator named “buzzer switch” in seller metadata may be an alarm device rather than a load-rated pushbutton. Conversely an emergency-stop pushbutton with an LED is not merely a buzzer. Safety-critical warning systems need independent design review, not just a visually noticeable lamp.

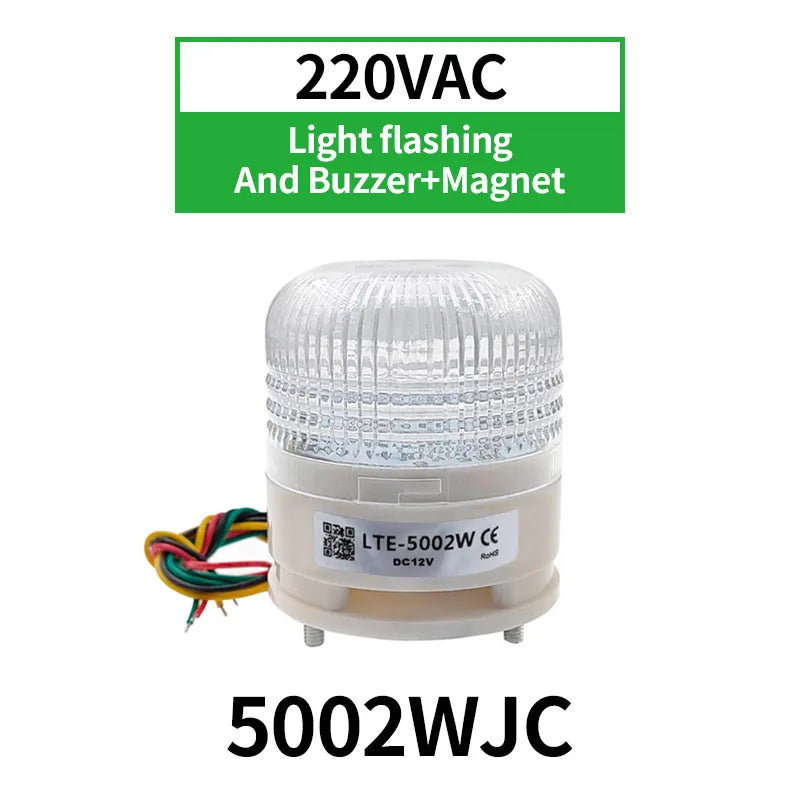

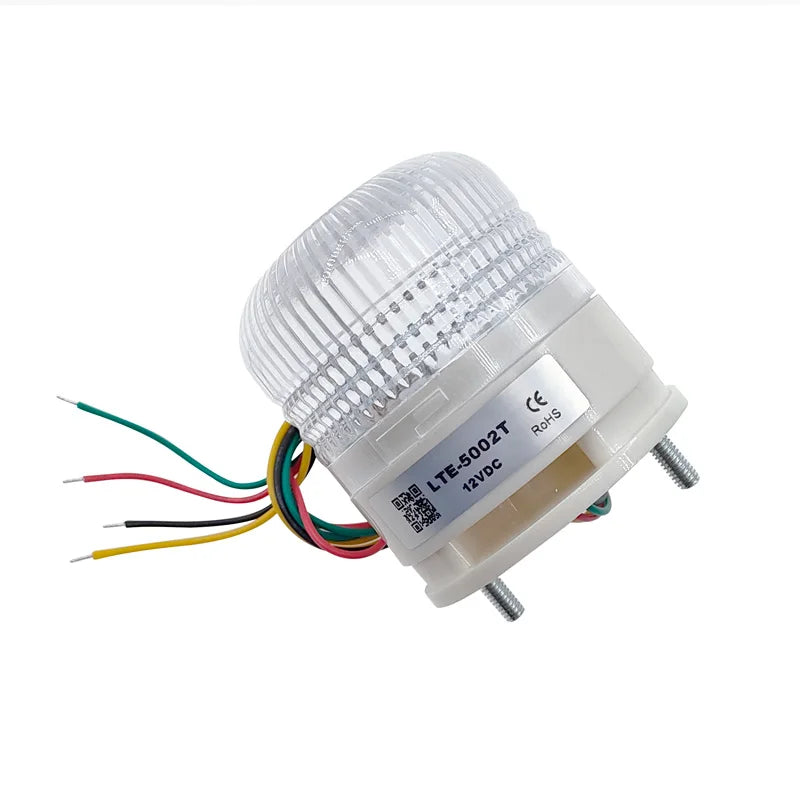

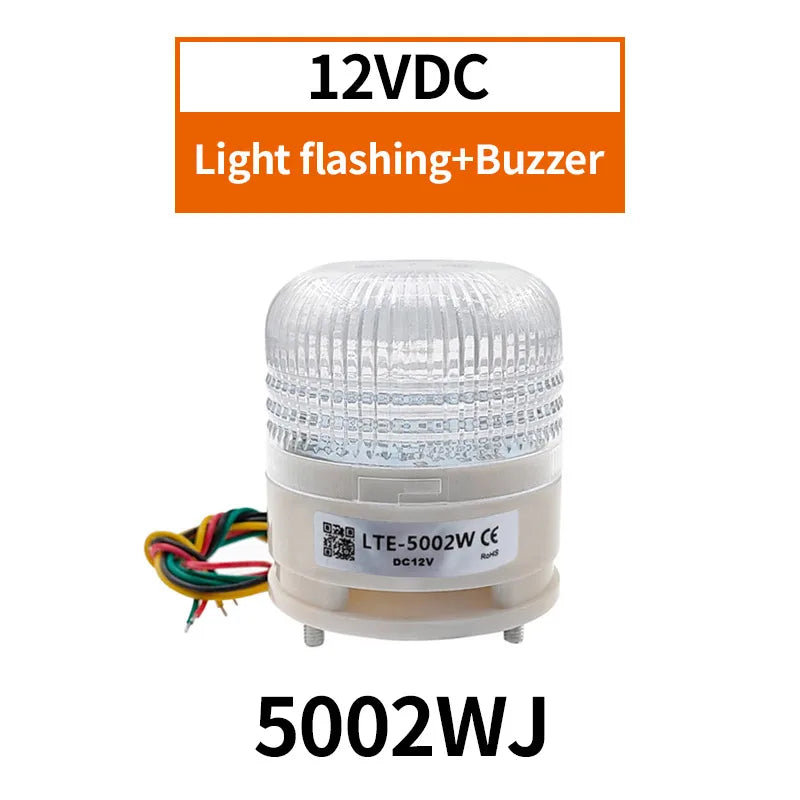

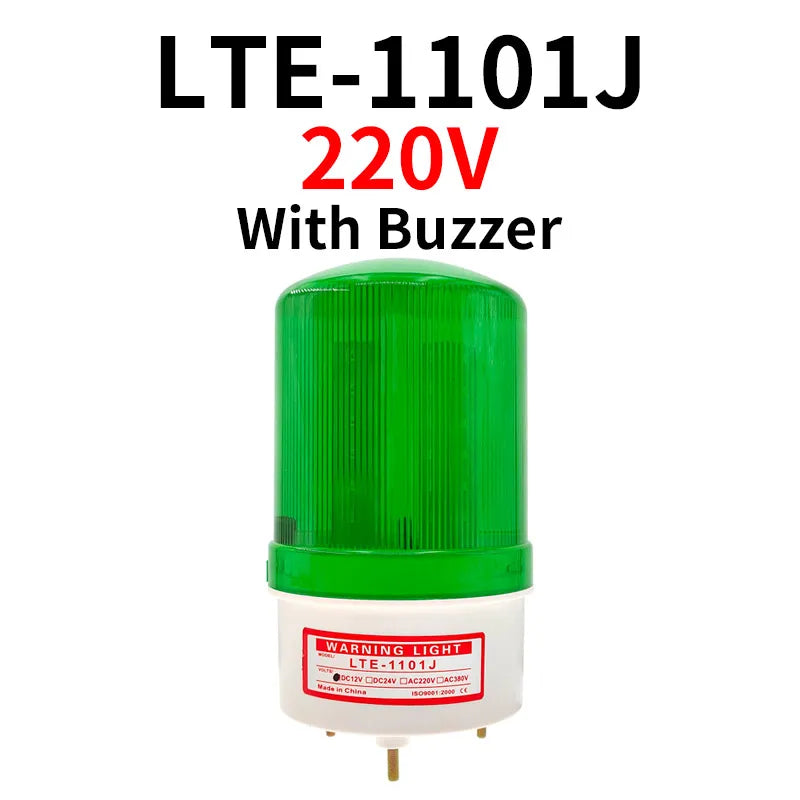

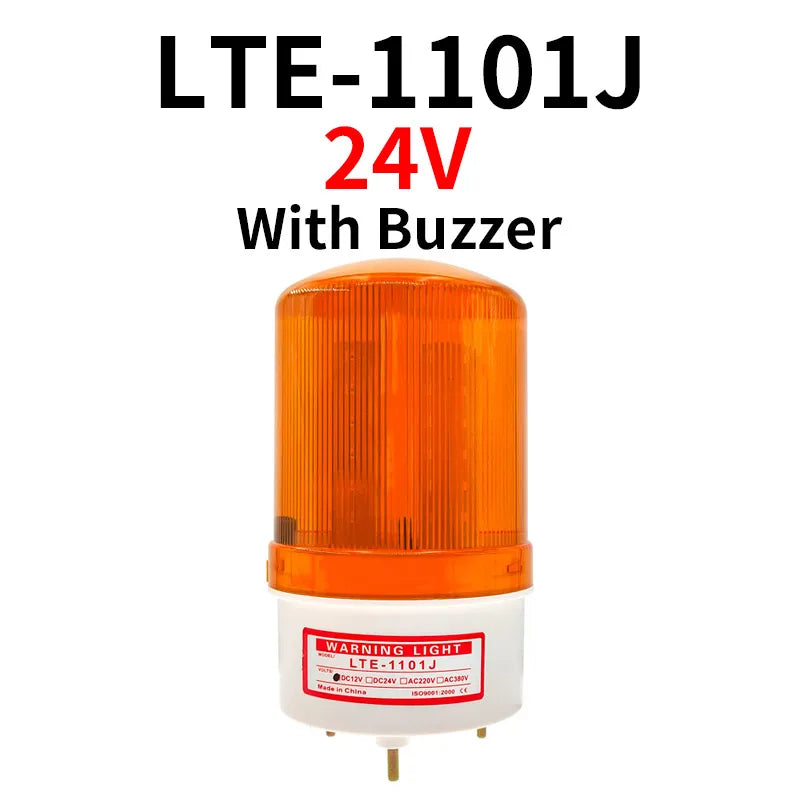

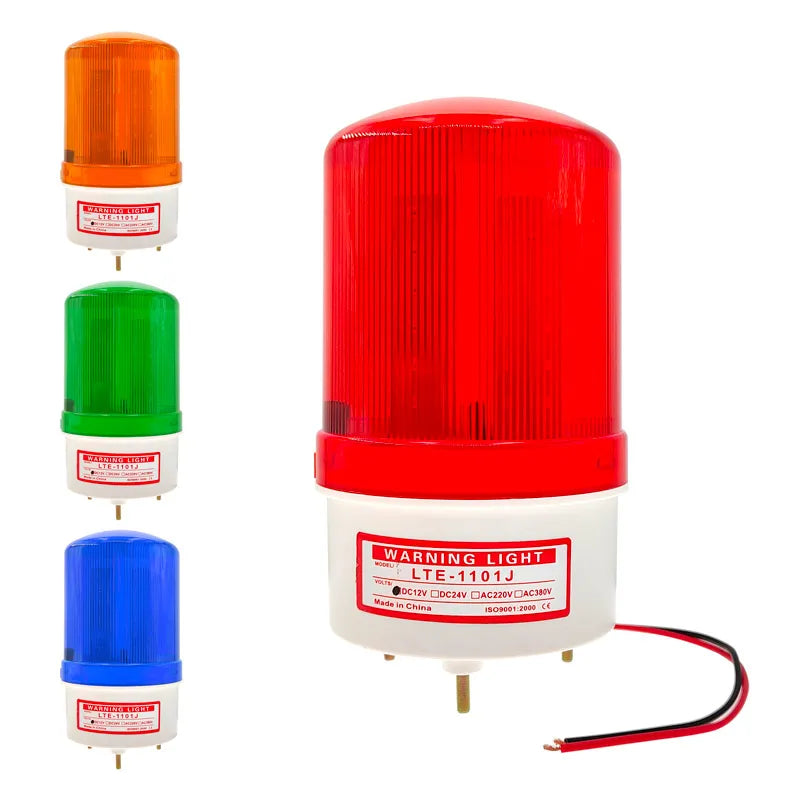

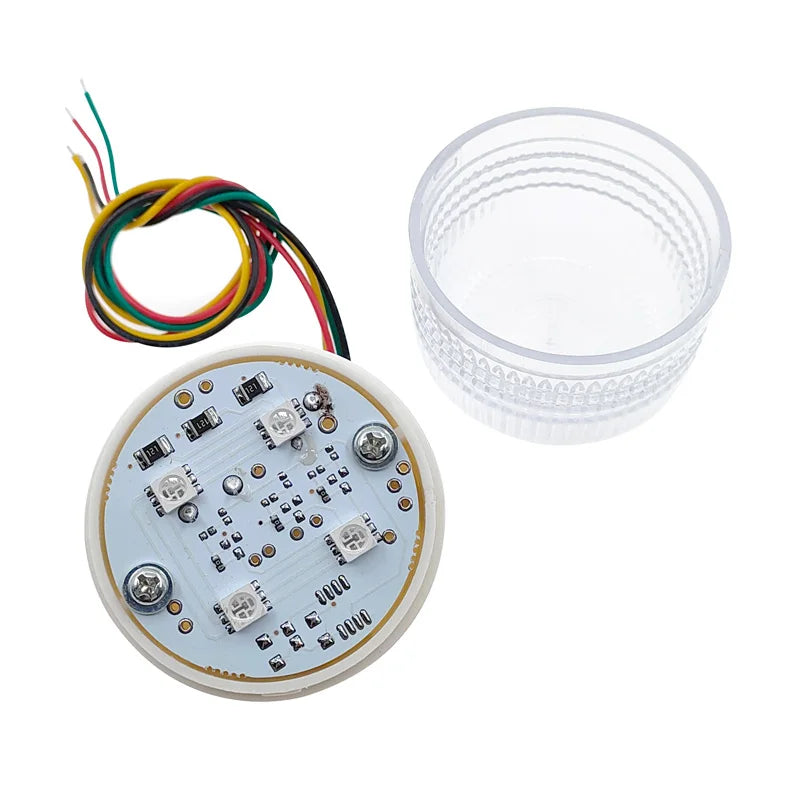

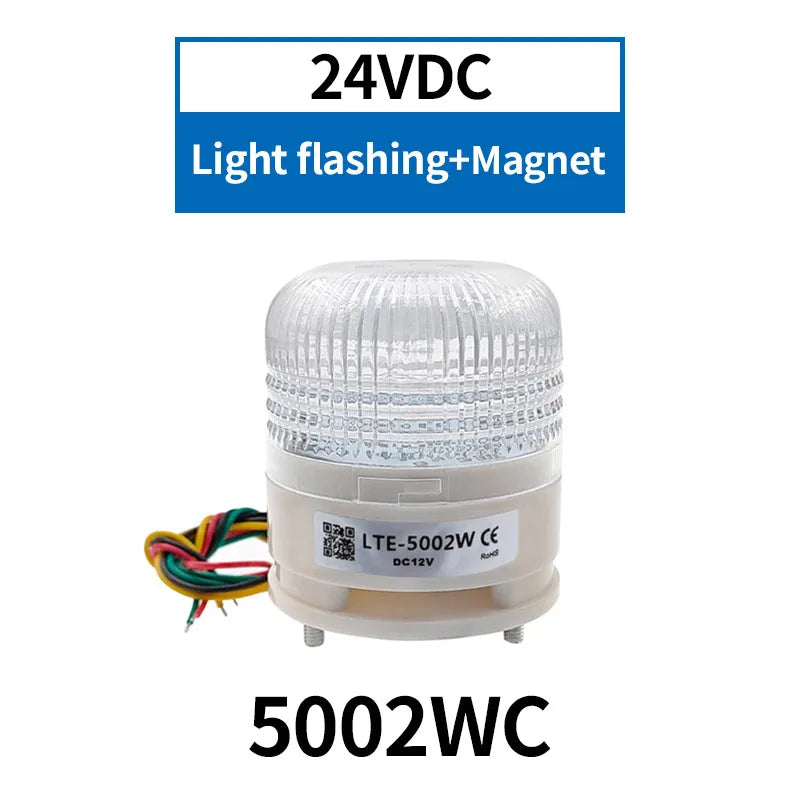

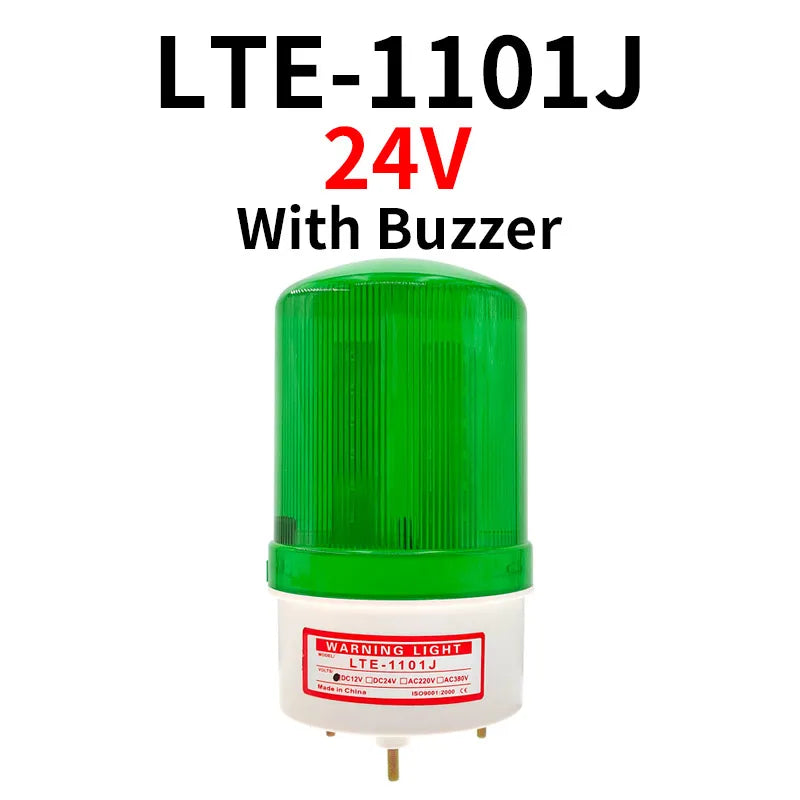

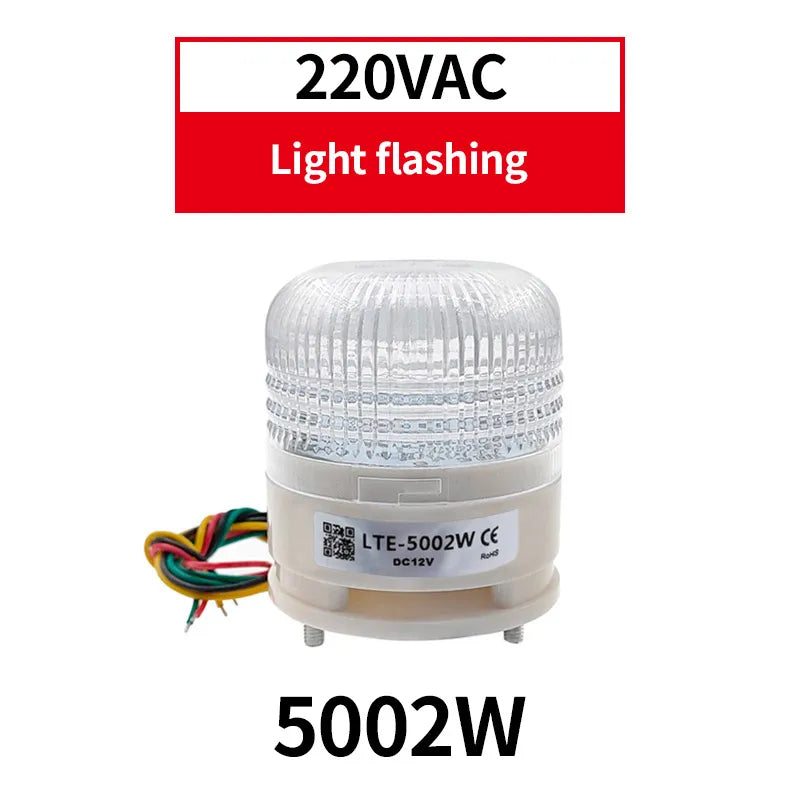

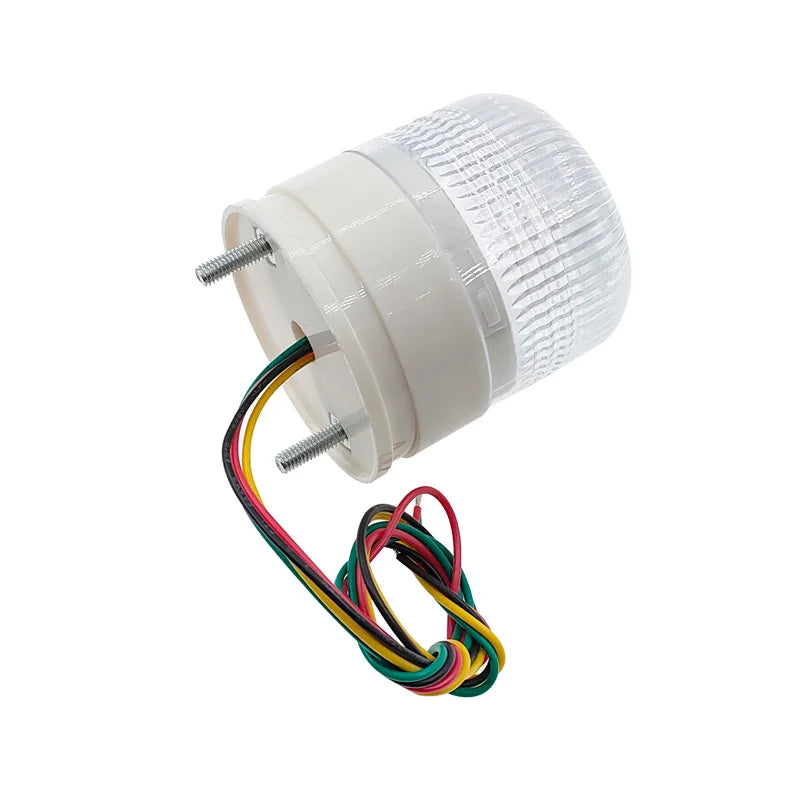

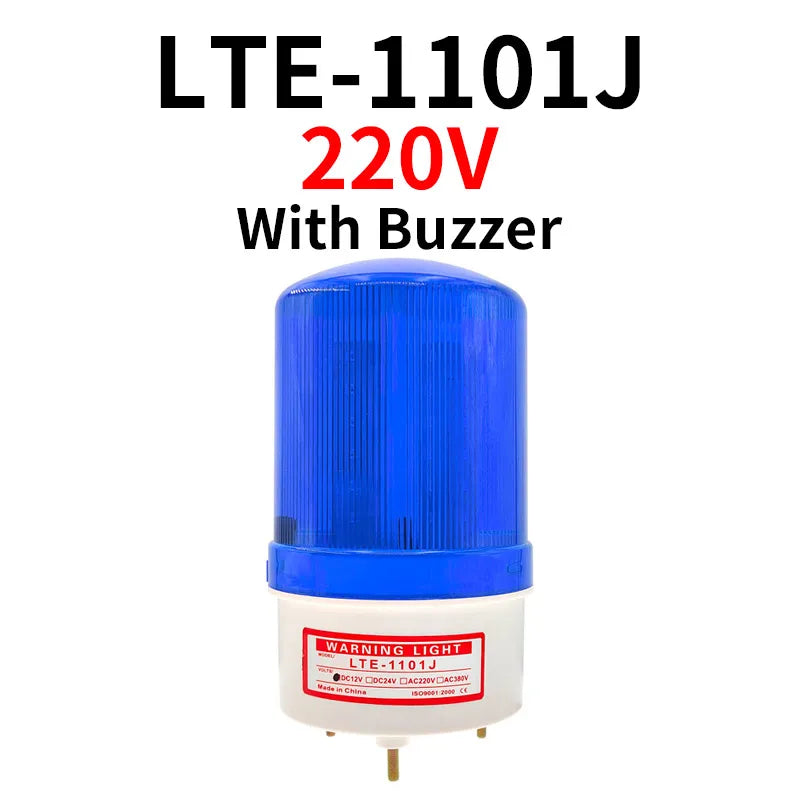

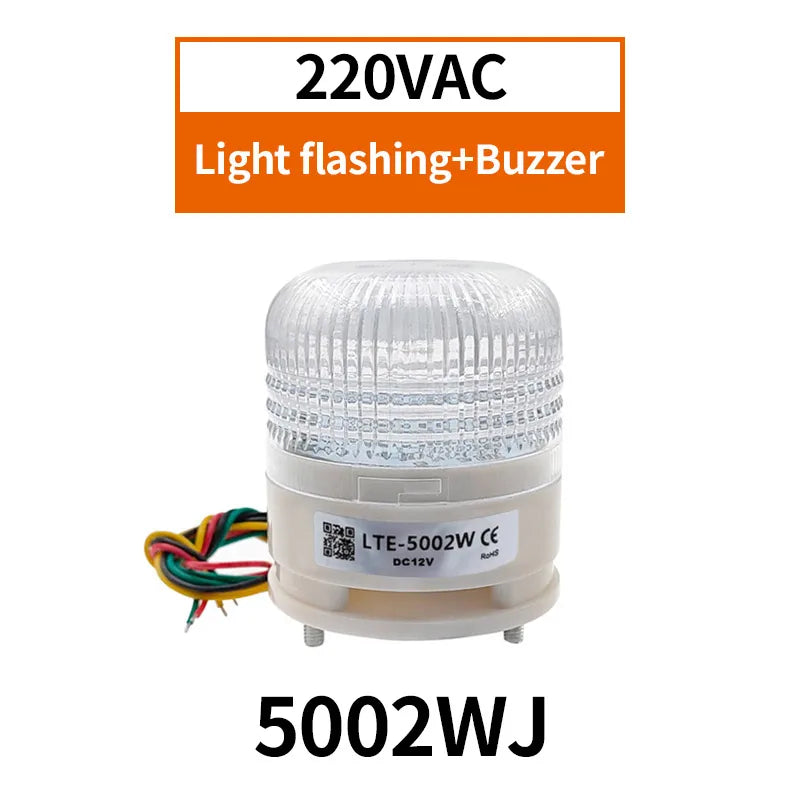

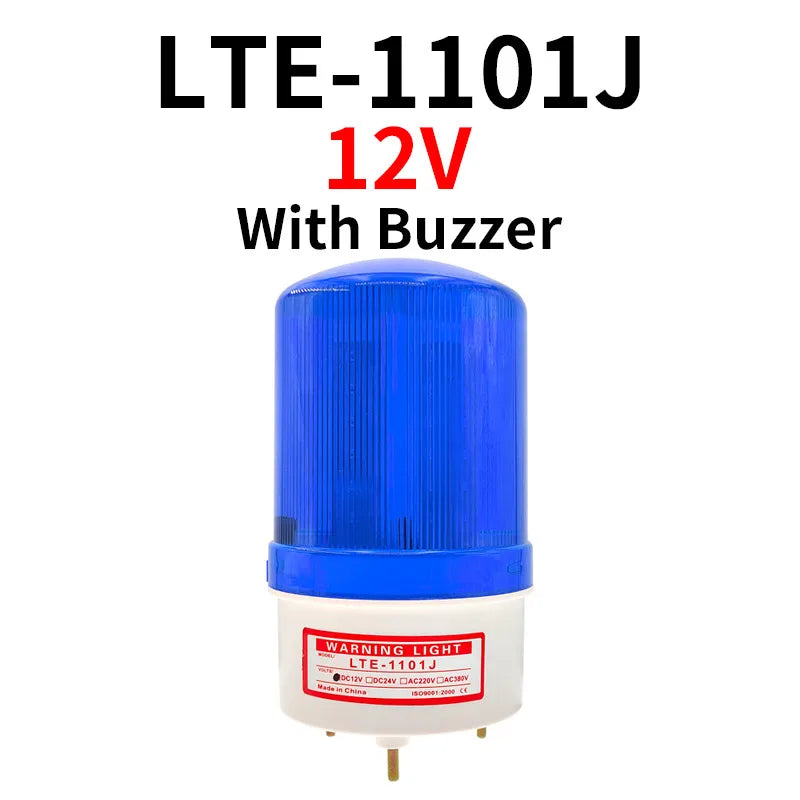

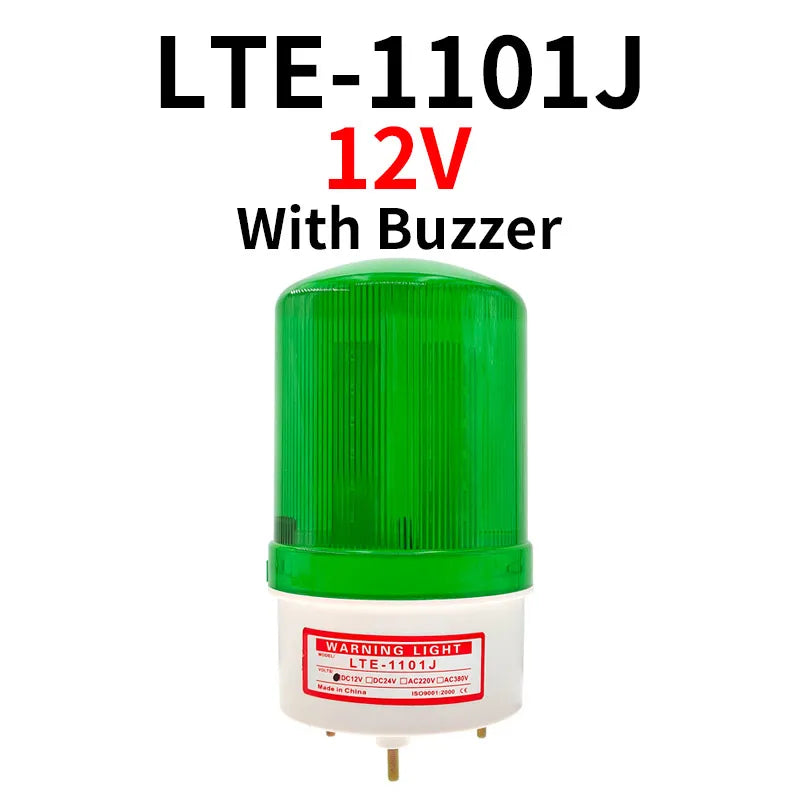

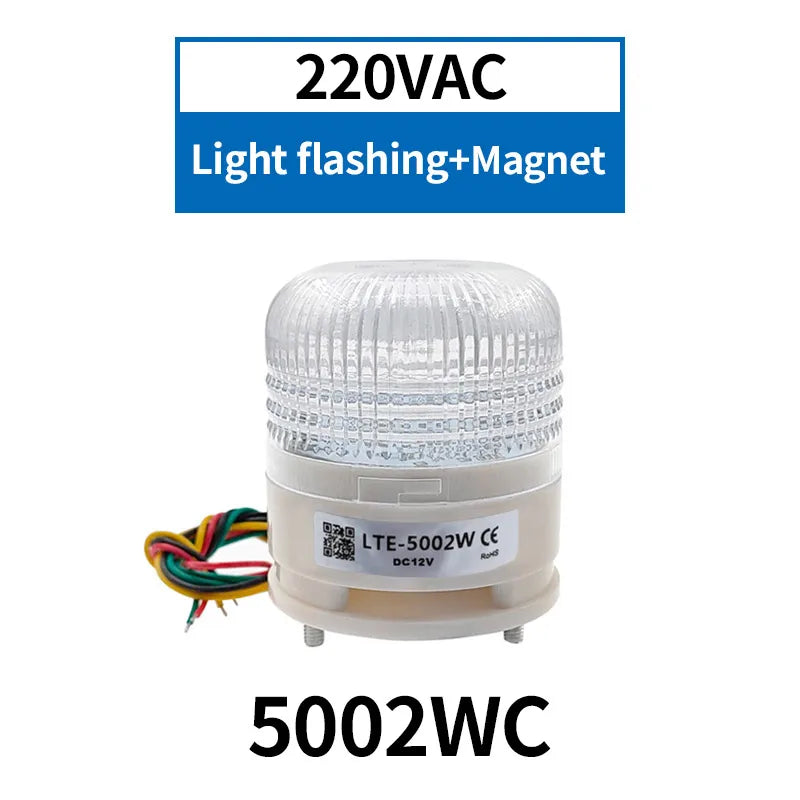

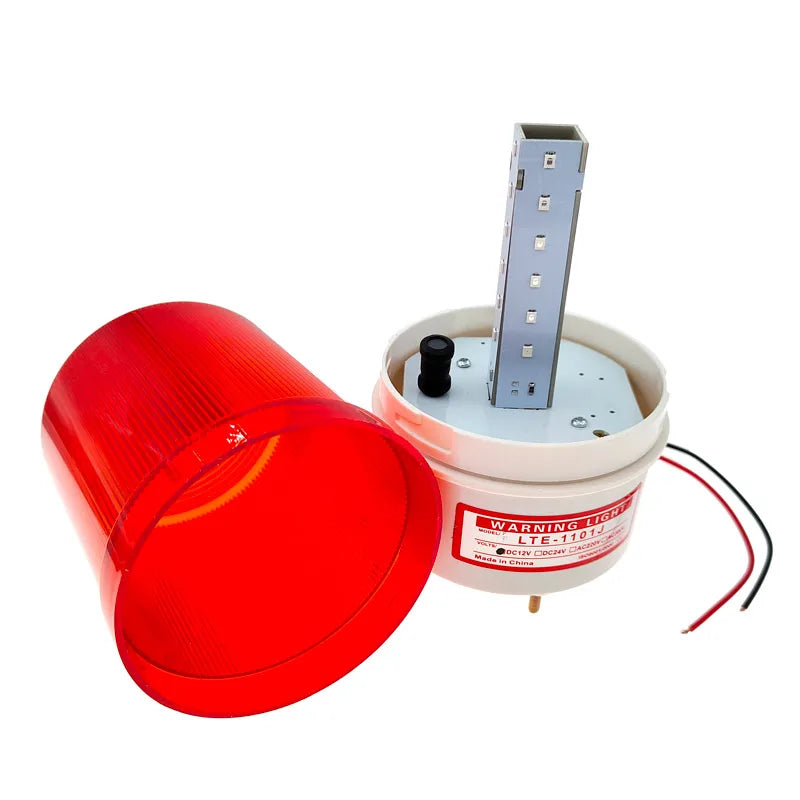

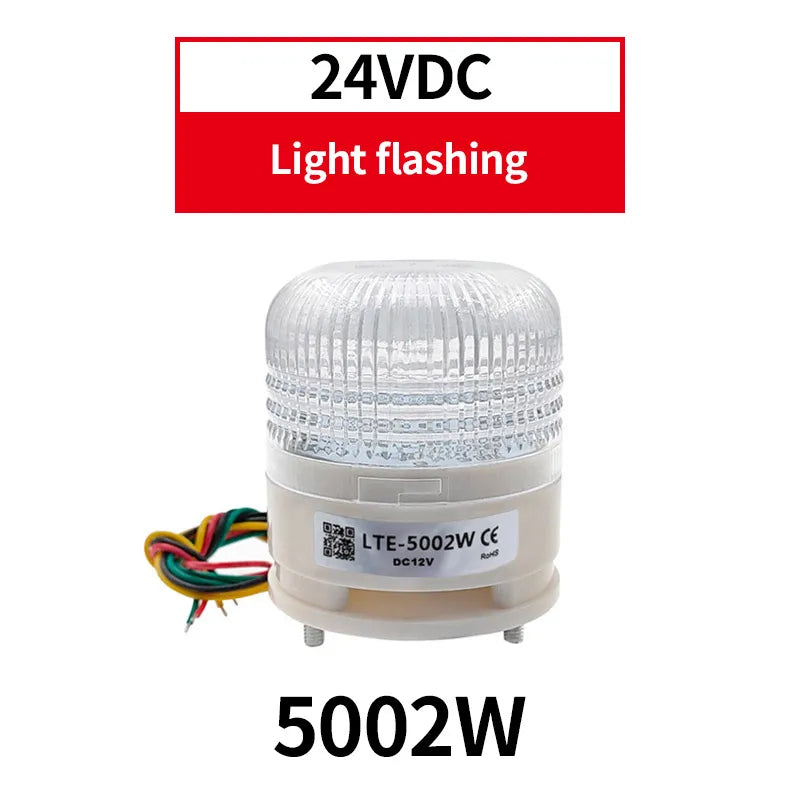

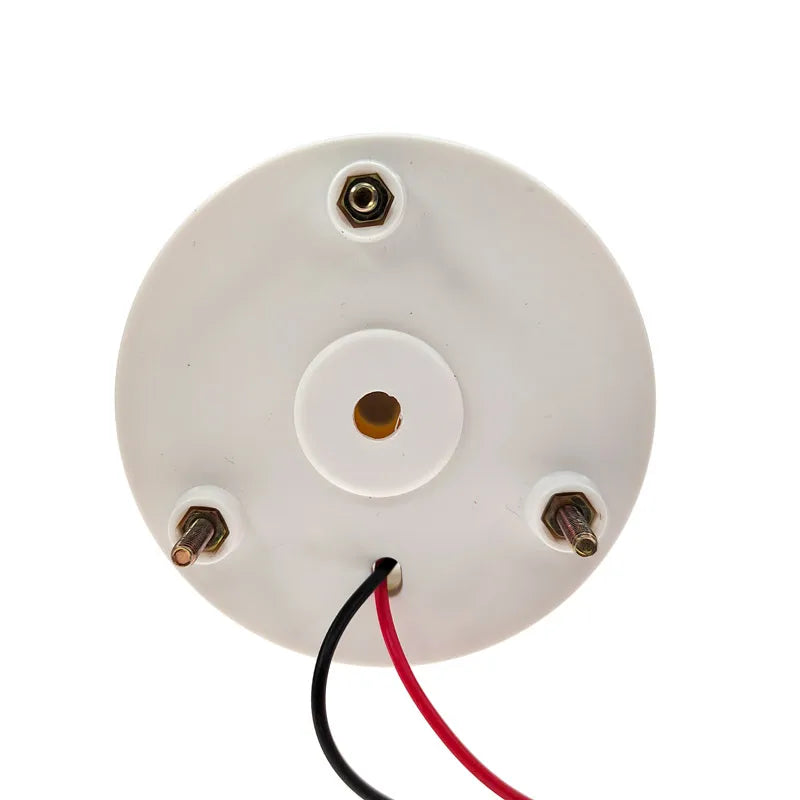

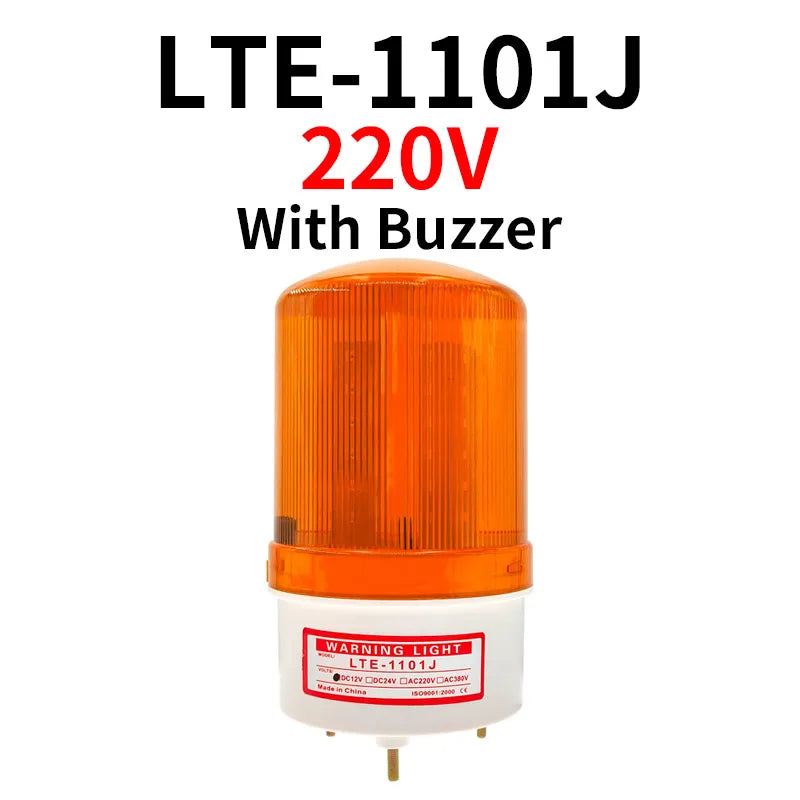

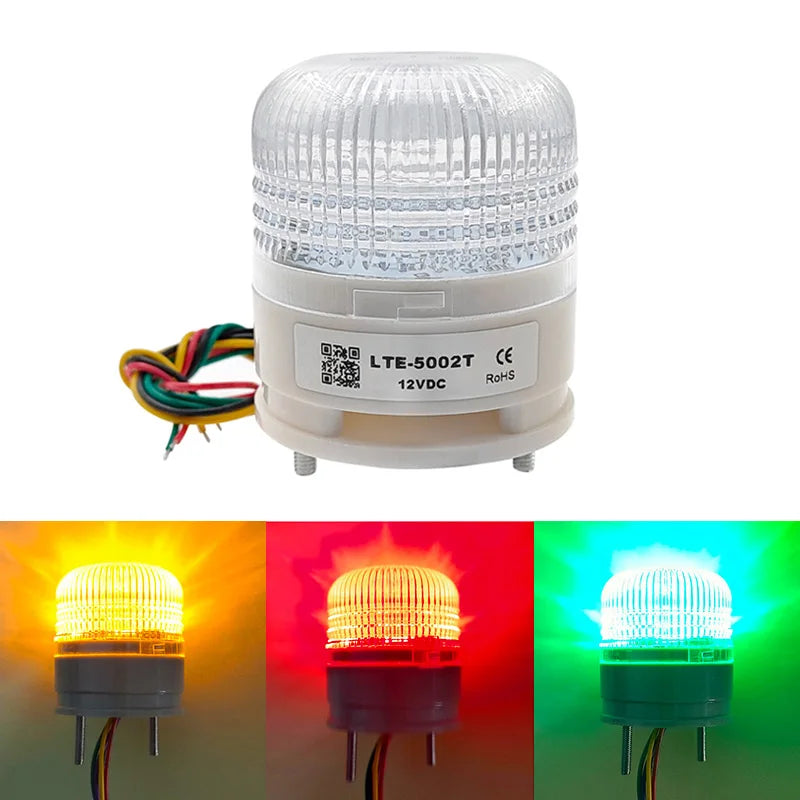

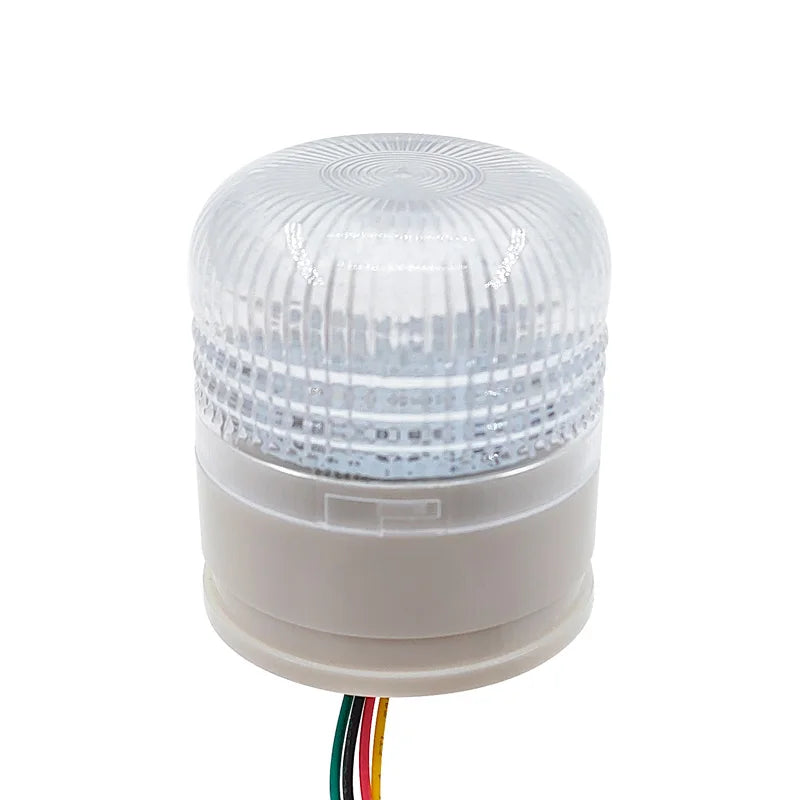

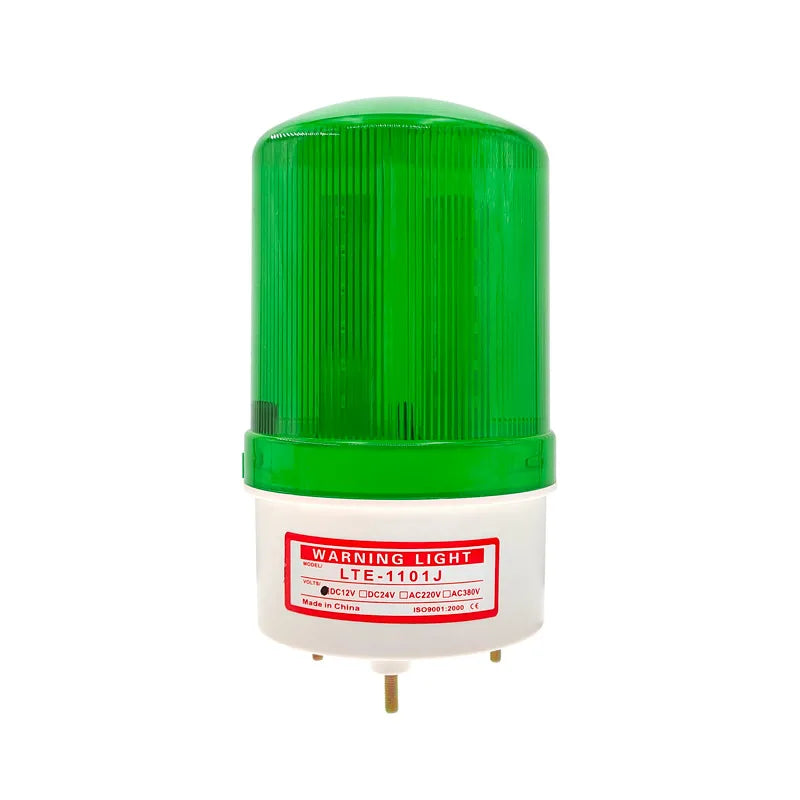

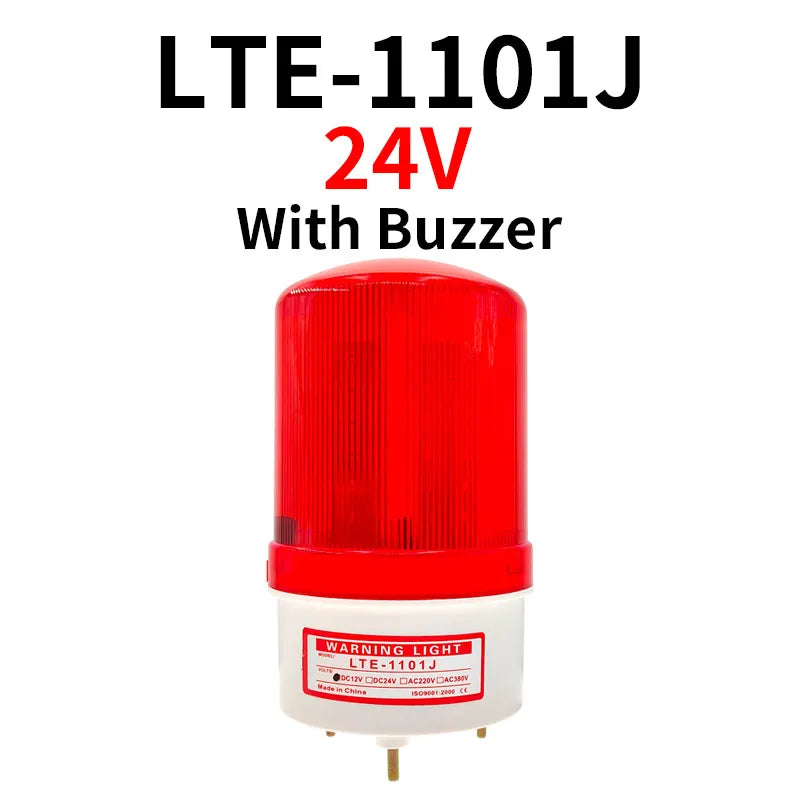

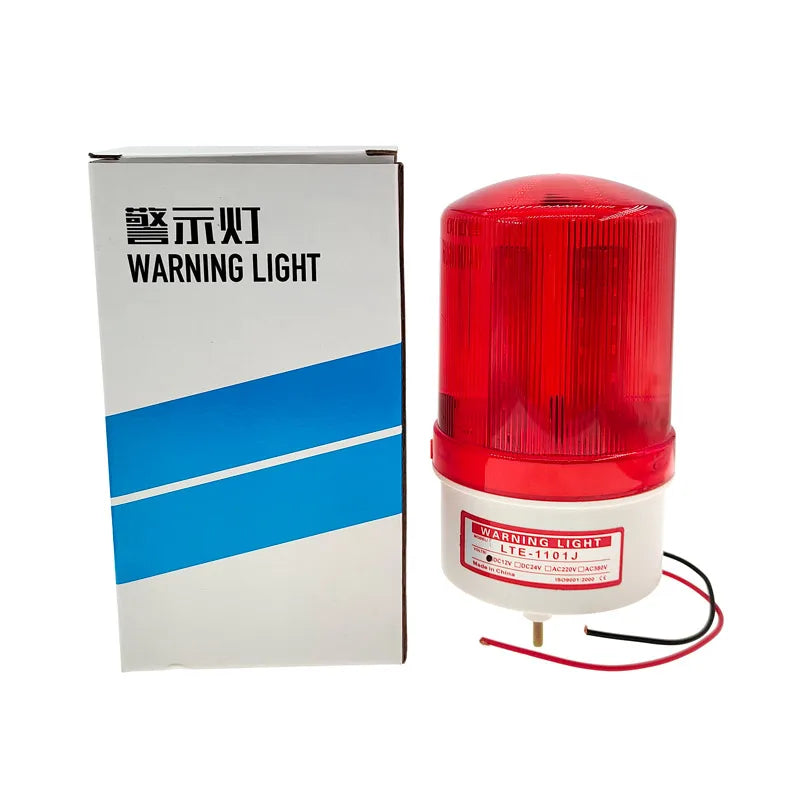

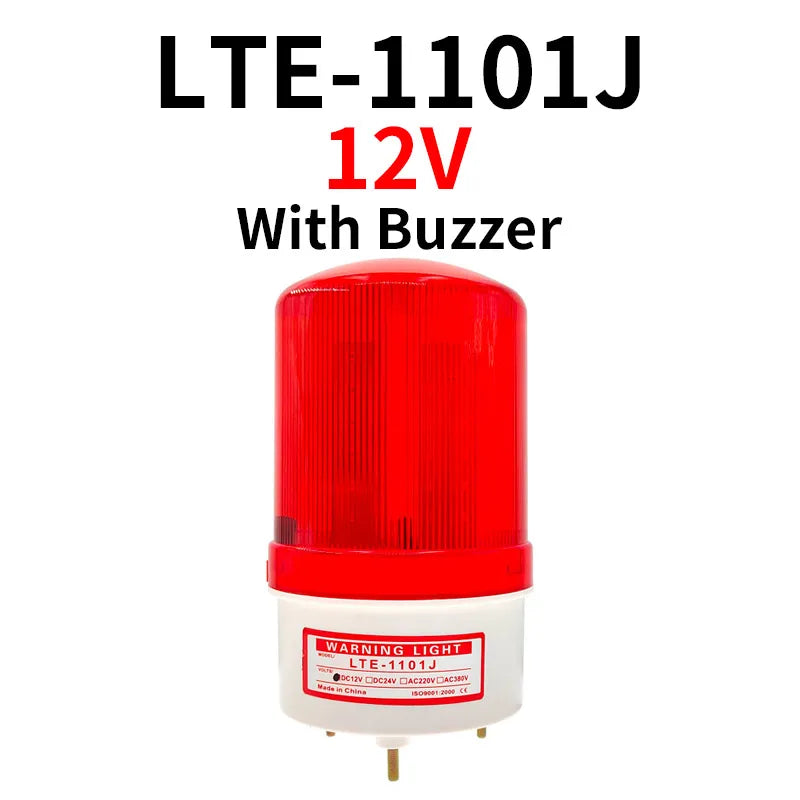

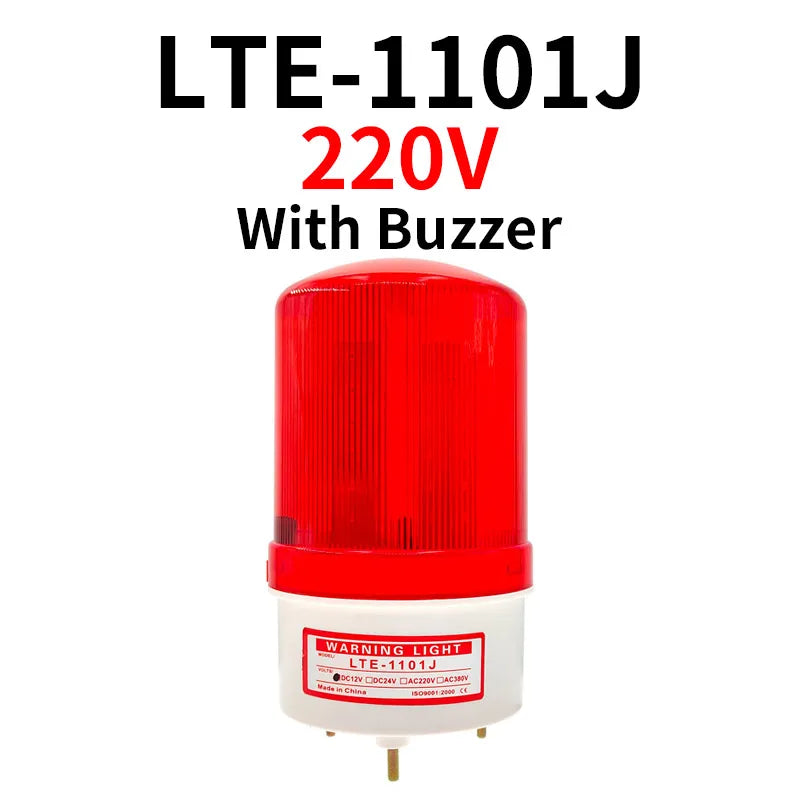

LTE-1101J and LTA5002-style compact warning lamps list different red, yellow, green and blue variants, with selected 12 V DC, 24 V DC and 220 V AC text on the latter's option names. Some listings mention a magnetic base. Verify the selected code, mounting method, acoustic function and actual supply marking. Do not take a generic structured “Power Source: DC” field as permission to power a variant explicitly labeled 220VAC from DC, or vice versa, without product-specific confirmation.

Illuminated switches, stop controls and empty enclosures

The KCD4-style enclosed rocker offers distinct red, green and blue LED options labeled 12–24 V or 110–220 V, and one description mentions a 16 A contact rating. That contact rating is not the lamp's operating current and does not guarantee suitability for all load types, inrush currents or external conditions. A 12 V water-drop pushbutton with red/green illumination and a 19 mm metal warning-symbol pushbutton are different assemblies. The 19 mm page provides momentary and latching choices and several printed symbols; a selected icon does not determine the switch's contact arrangement. Its source text says a socket connector is not included. Confirm the chosen actuator mode, contact form, connector, illumination voltage and panel cutout.

A 22 mm emergency-stop listing has M1/M3 head choices, optional red or green LEDs and selections for 2NC versus 1NO1NC and latching versus momentary behavior. “WITHOUT LED” is a real selected option. The seller's broad headline and description mention contact and LED configurations that do not appear uniformly in every variant. For machinery, use only a properly specified, independently validated emergency-stop architecture; an illuminated button or a seller's “emergency” name alone does not establish compliance with a required safety category or a certified disconnect function.

LA53/8050 control boxes and AG01–AG12/AG06-2-style ABS enclosures may be sold as housings with one or multiple 22 mm openings. A listing that mentions “indicator light emergency stop” in its headline does not establish that switches, lamps, contact blocks or wiring are included with every box variant. Match number and layout of cutouts to the actual components, then verify gasket, enclosure rating, panel depth and cable-entry arrangements. An “explosion-proof” seller claim for a box is not proof of suitability for a hazardous location; verify the exact assembly's documented approvals before such use.

Dashboard indicators and replacement ribbon cables

T3, T4.2 and T4.7 12 V dashboard indicator bulbs appear in 10-piece lots with white, green, yellow, red, blue and crystal-blue selections on one page; a second listing exposes only white. The variants specify the bulb socket size and color together. Check cluster holder geometry, pin/contact orientation, available clearance, polarity and vehicle electrical behavior rather than treating a 12 V rating as universal automotive fit. A dashboard warning light can also be controlled by a vehicle module, so a bulb replacement alone may not resolve a diagnostic fault.

A Nintendo Switch/Switch OLED Joy-Con SL/SR button flex-cable listing has SR, SL or SL-and-SR selections. It is a replacement ribbon-cable assembly associated with a side indicator, not an interchangeable panel LED. Check the exact console/controller generation, side and connector before ordering; references to several consoles in seller text do not guarantee compatibility with Switch Lite or another revision.

LED status on power and electronics modules

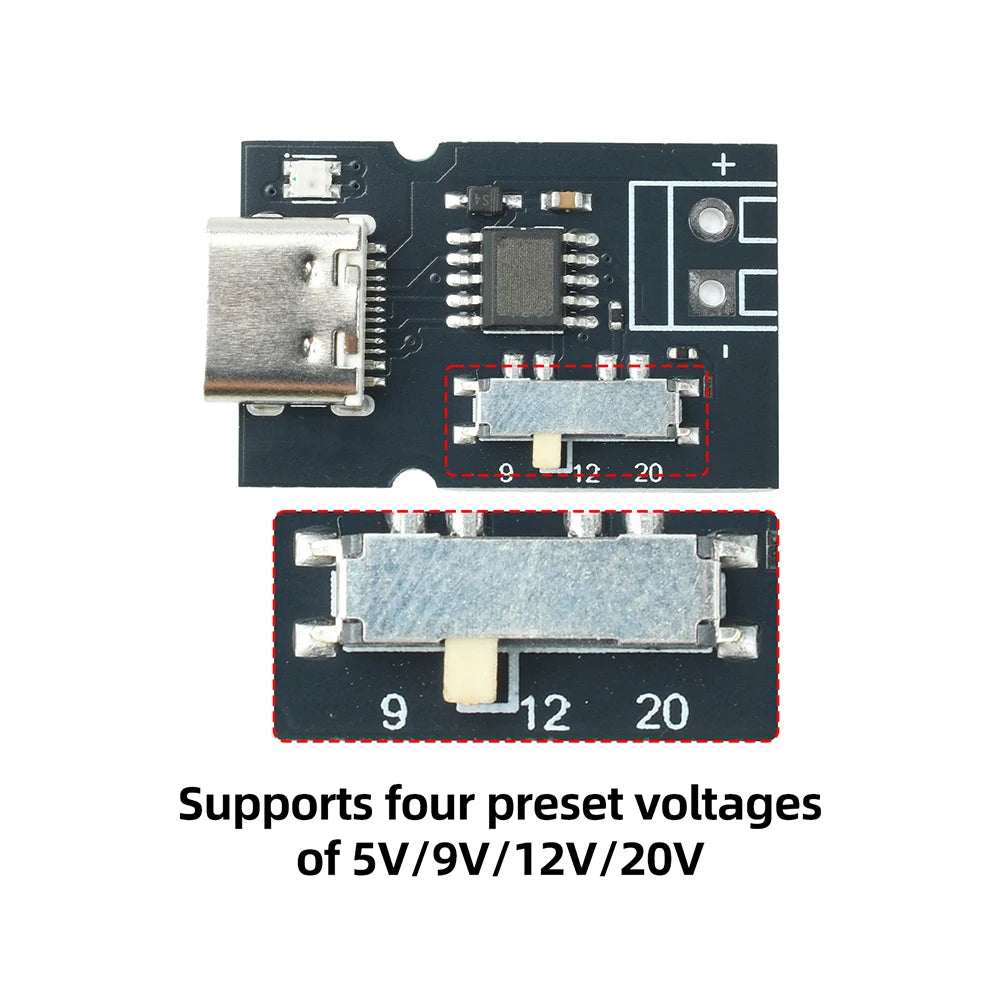

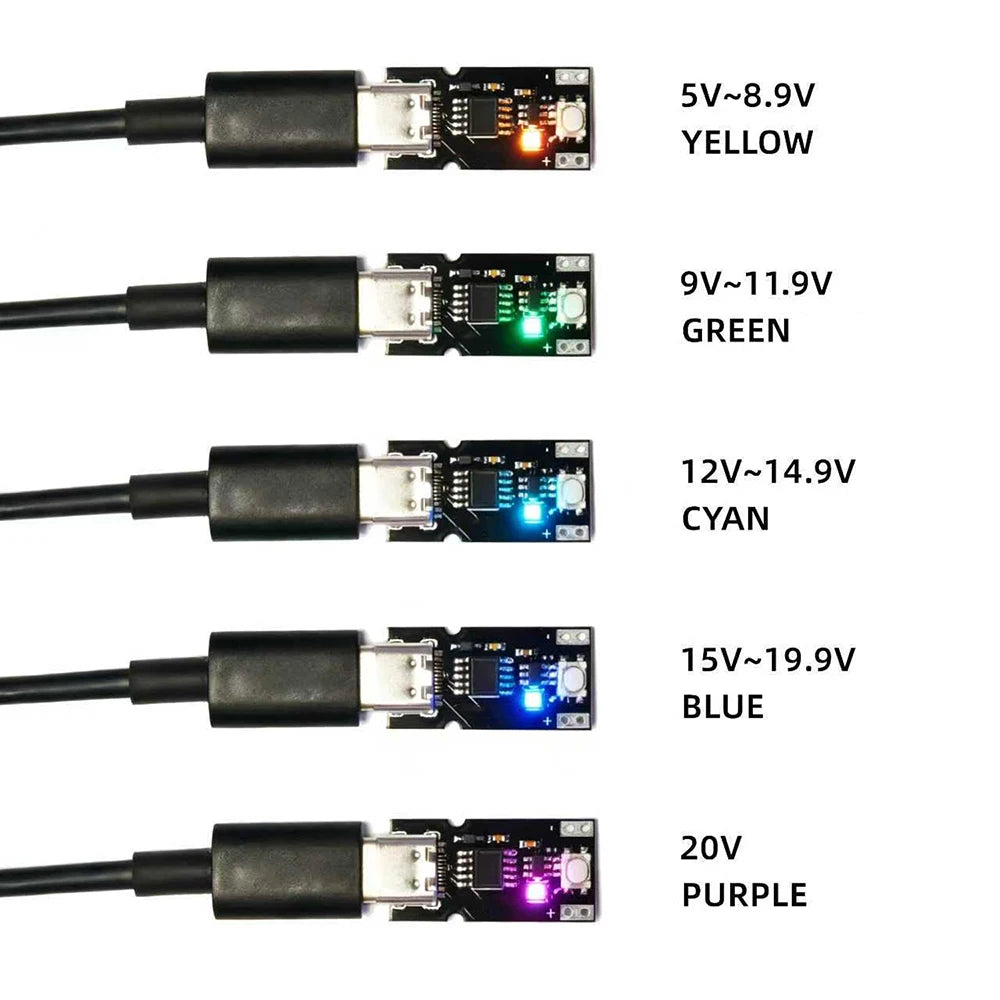

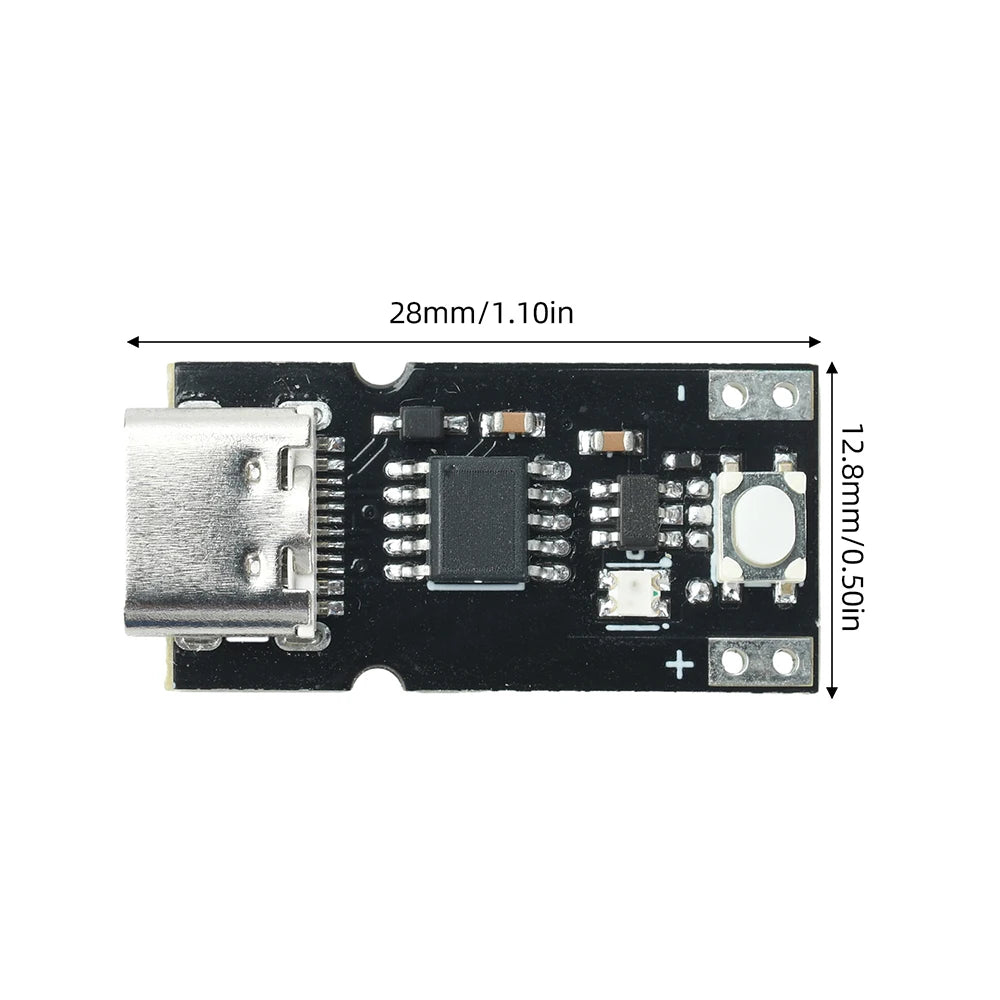

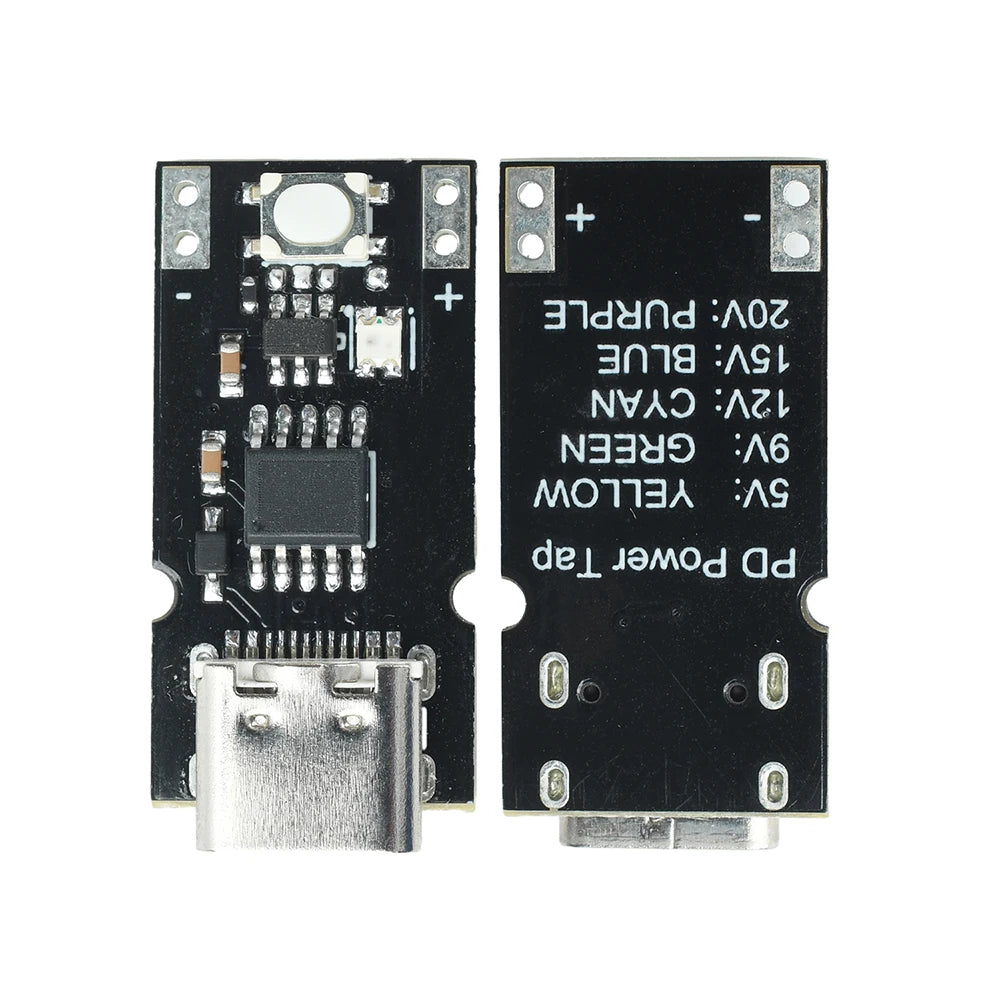

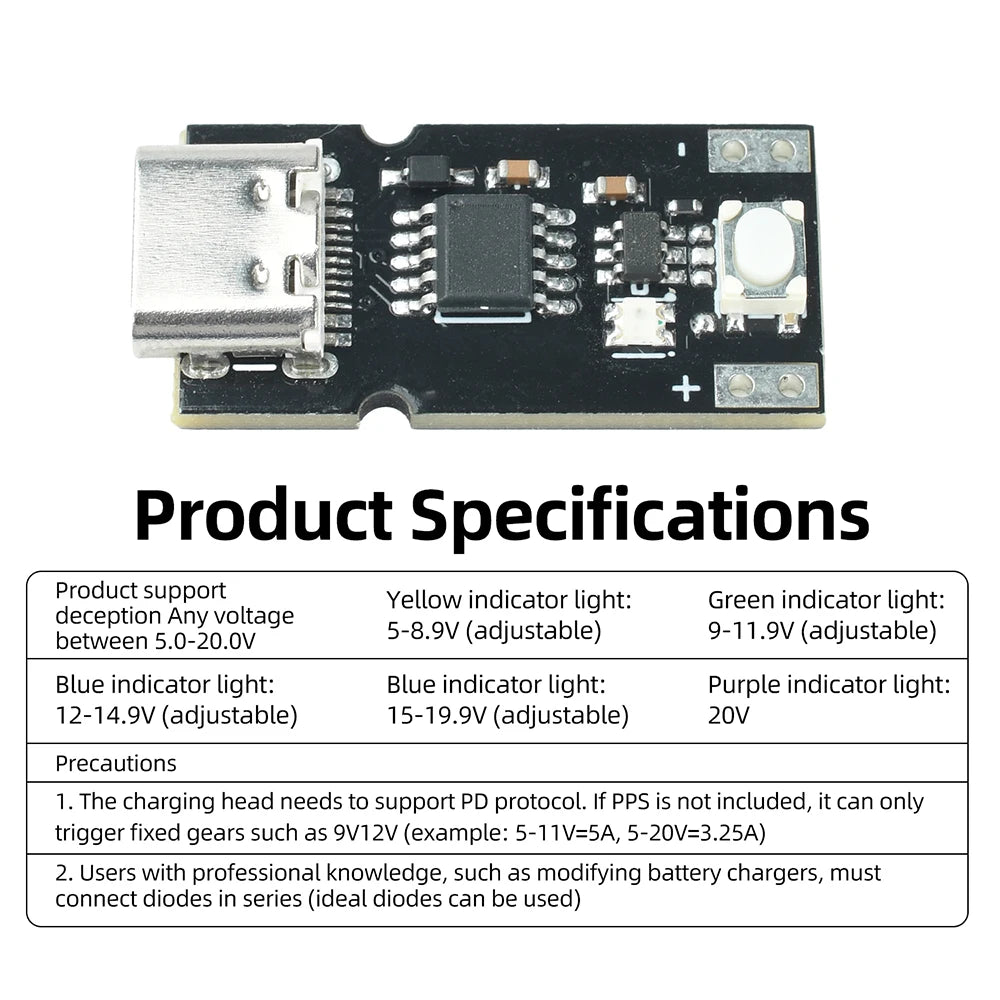

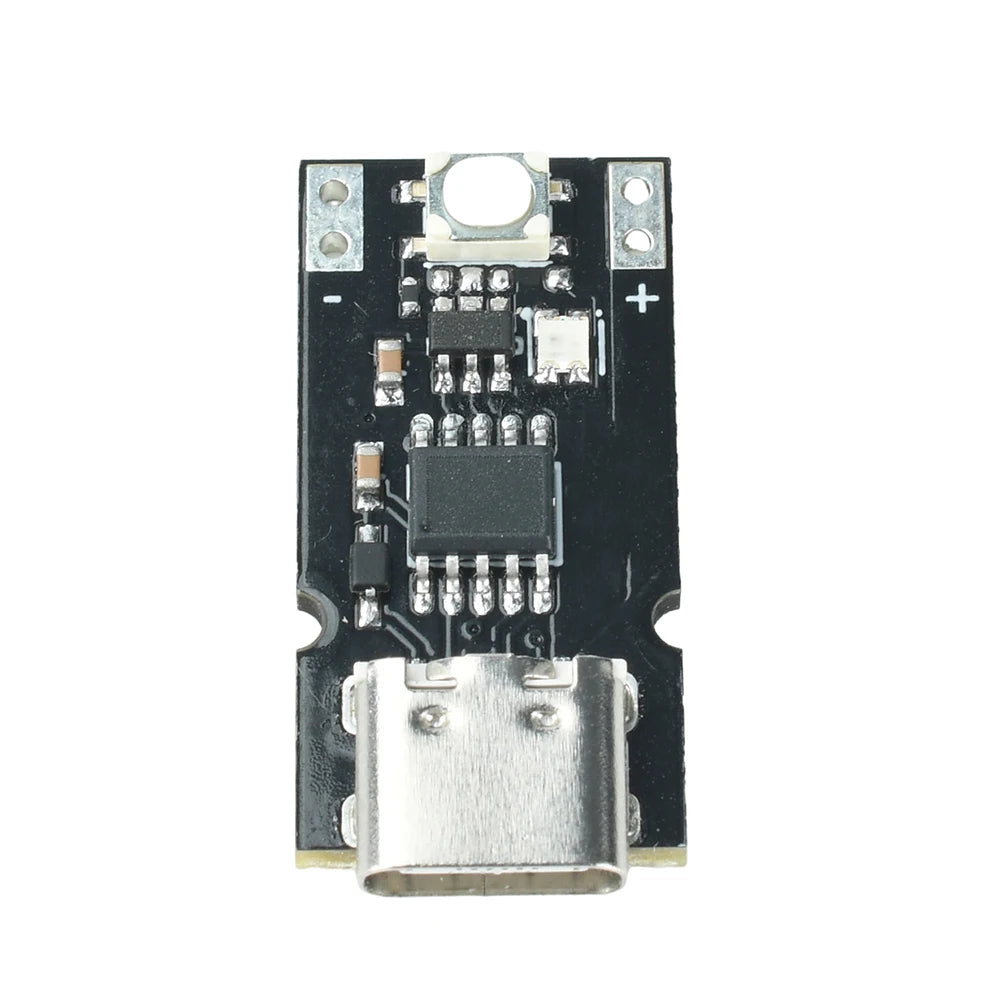

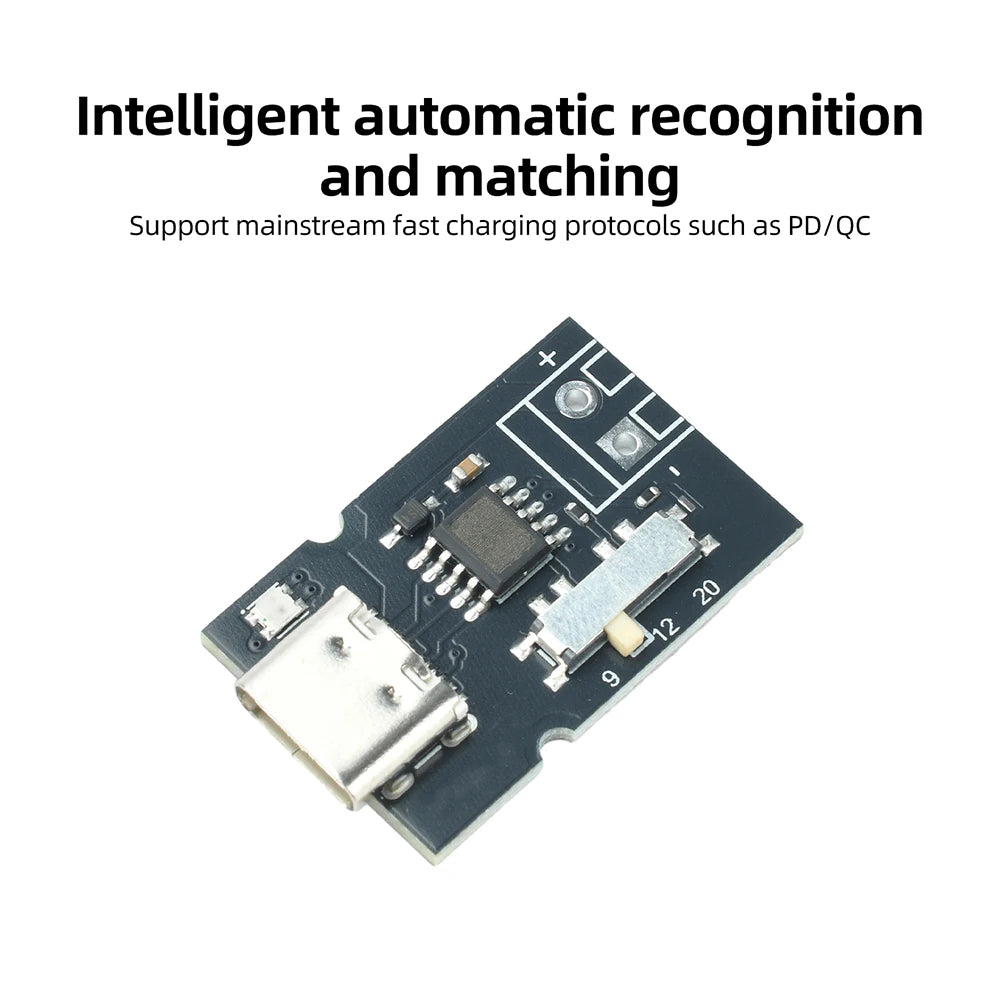

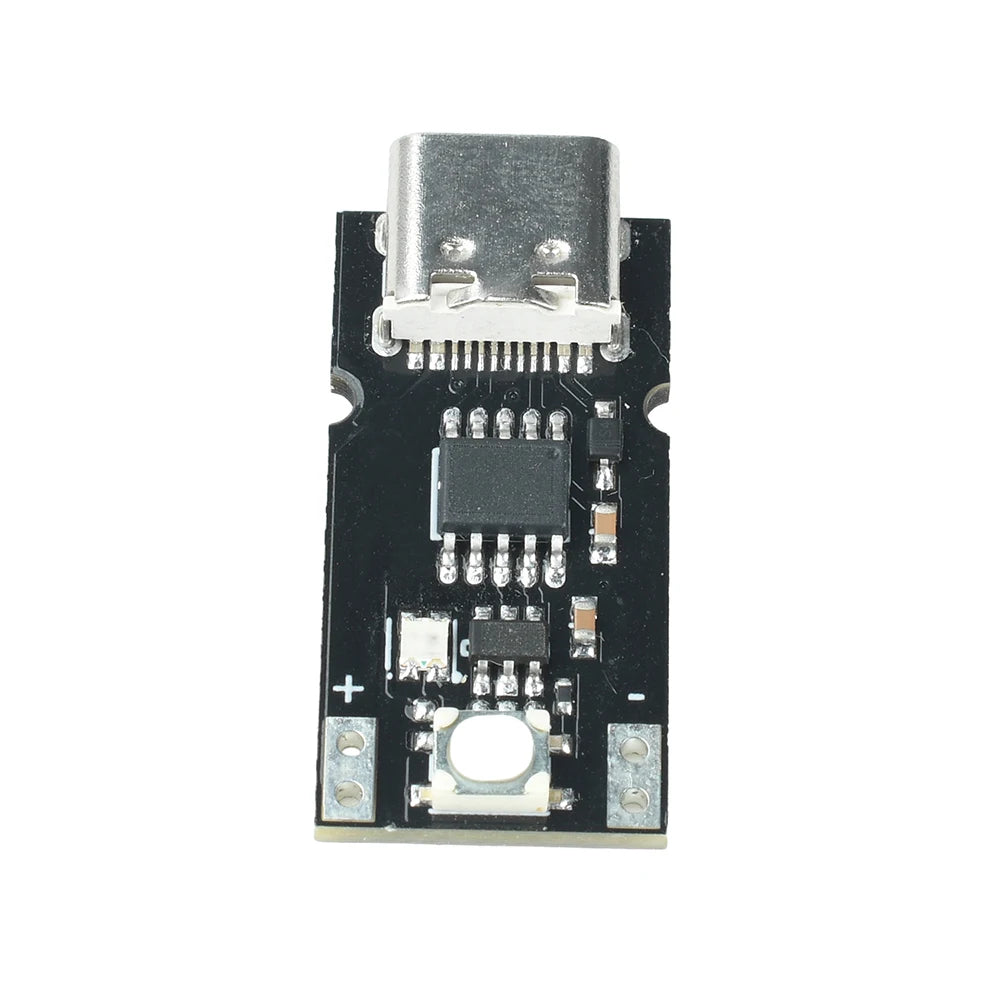

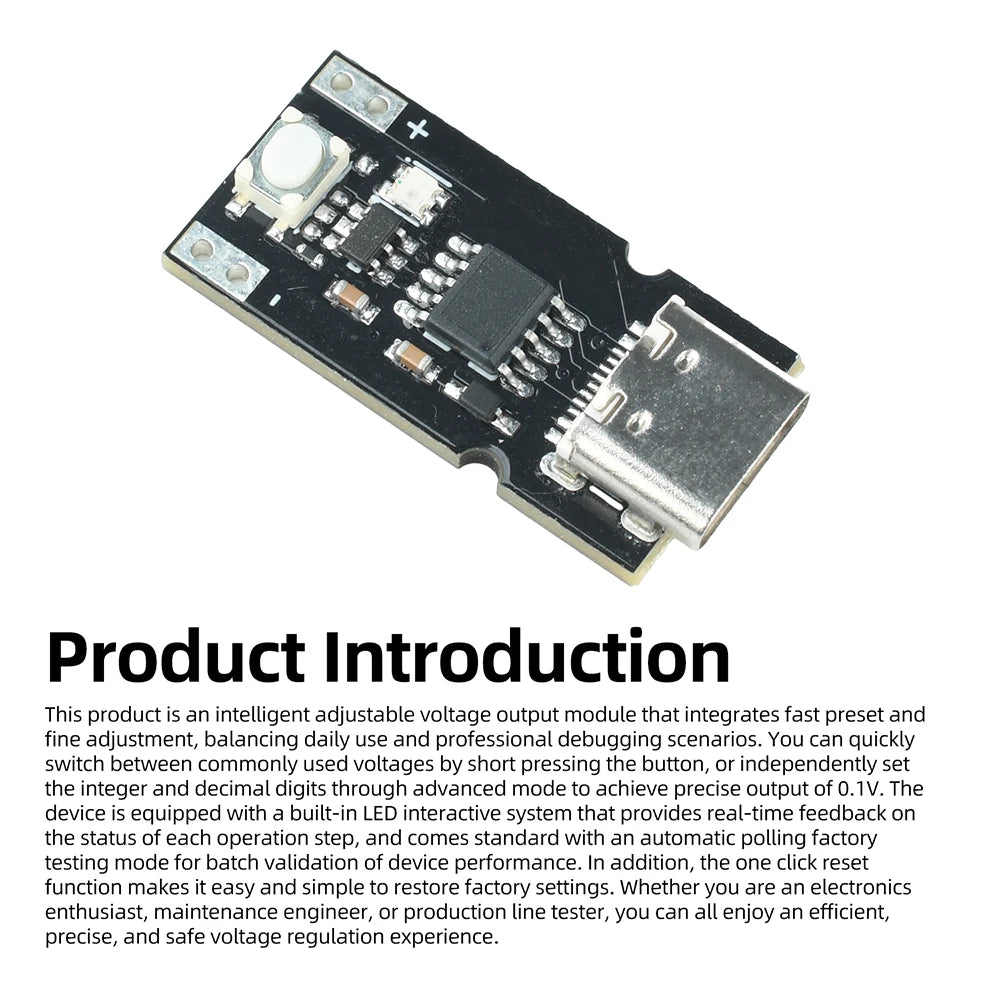

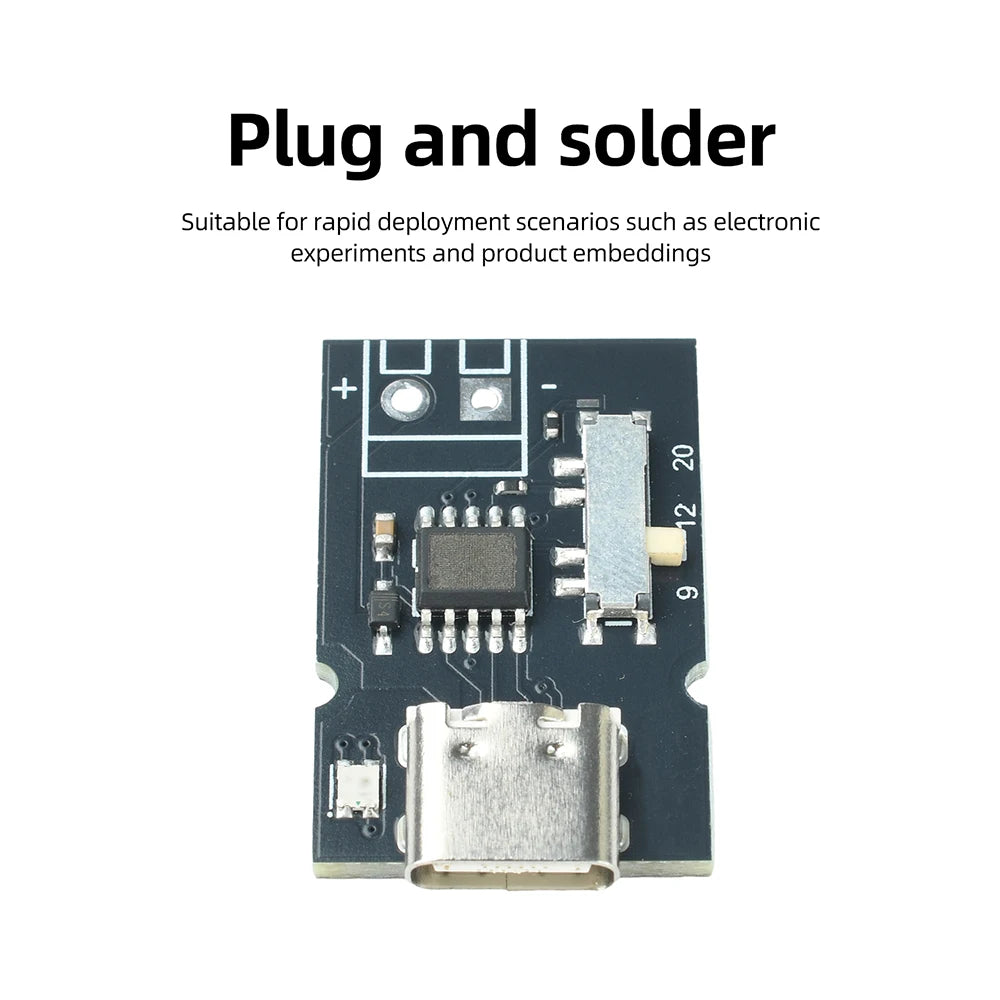

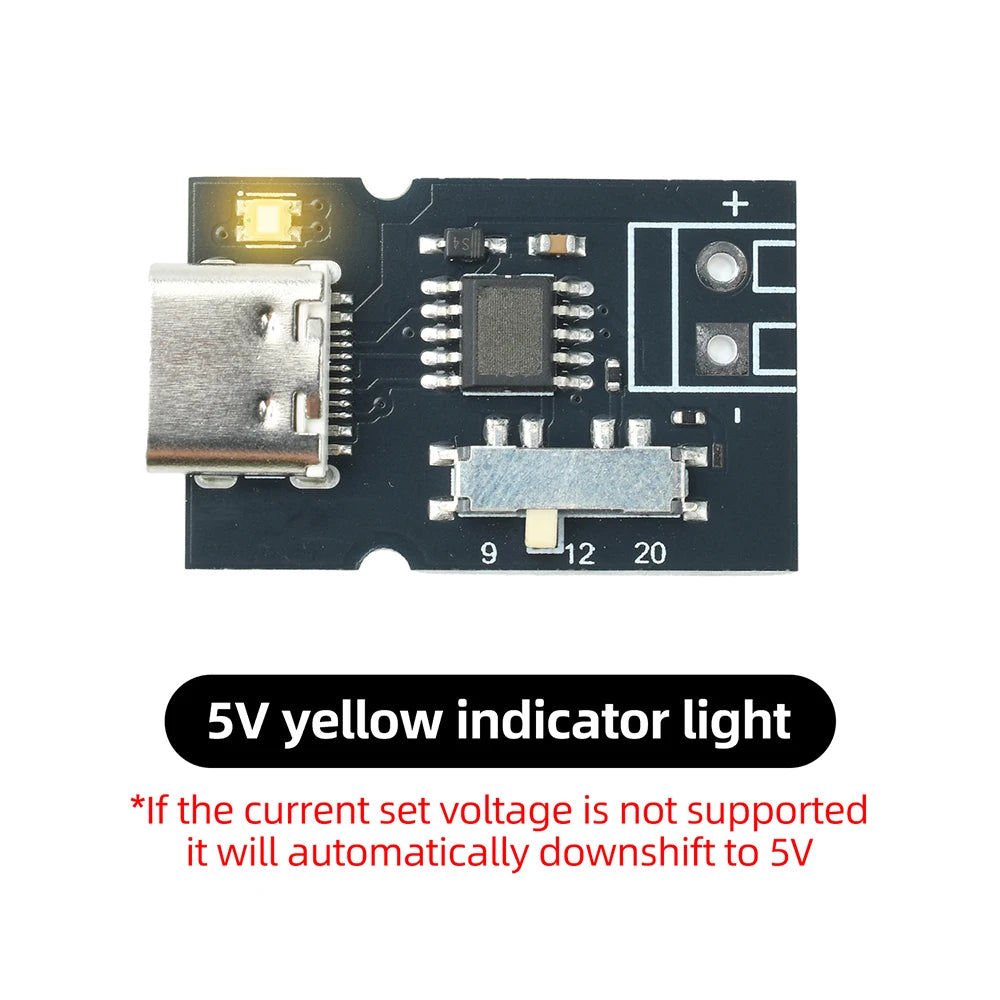

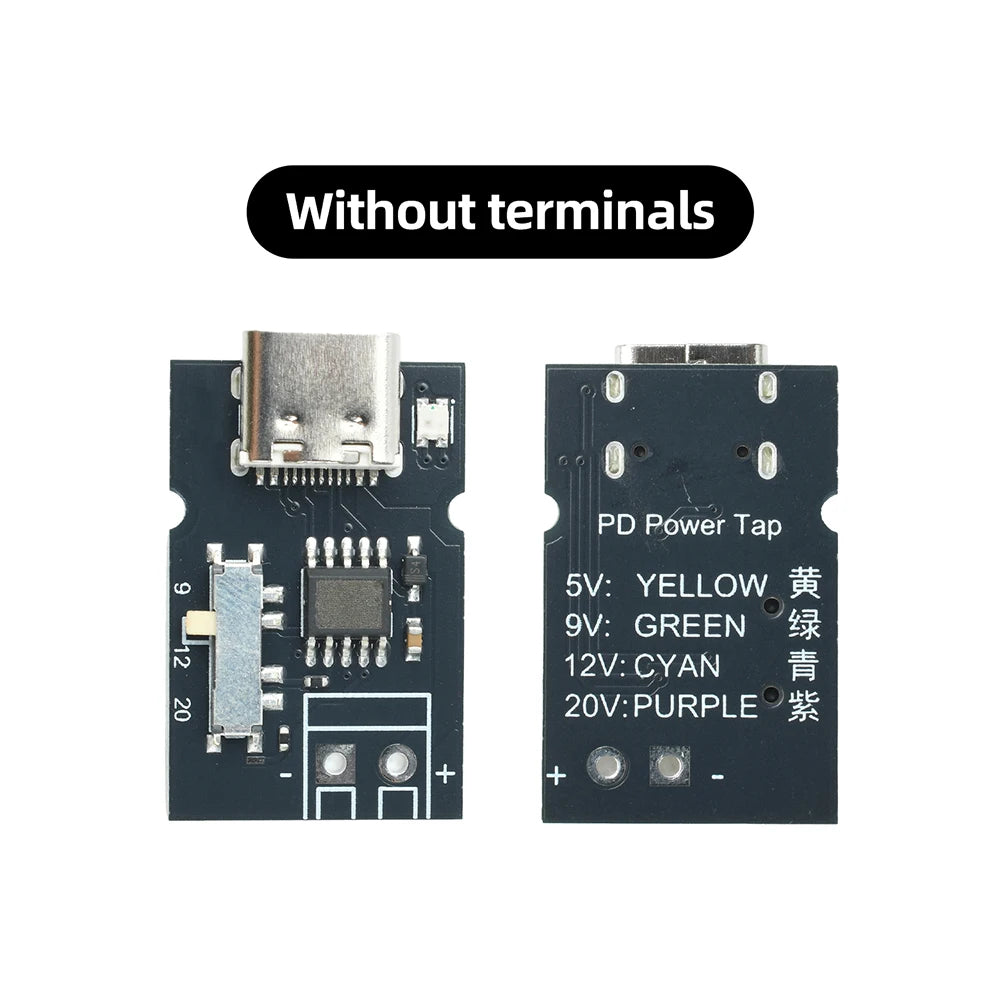

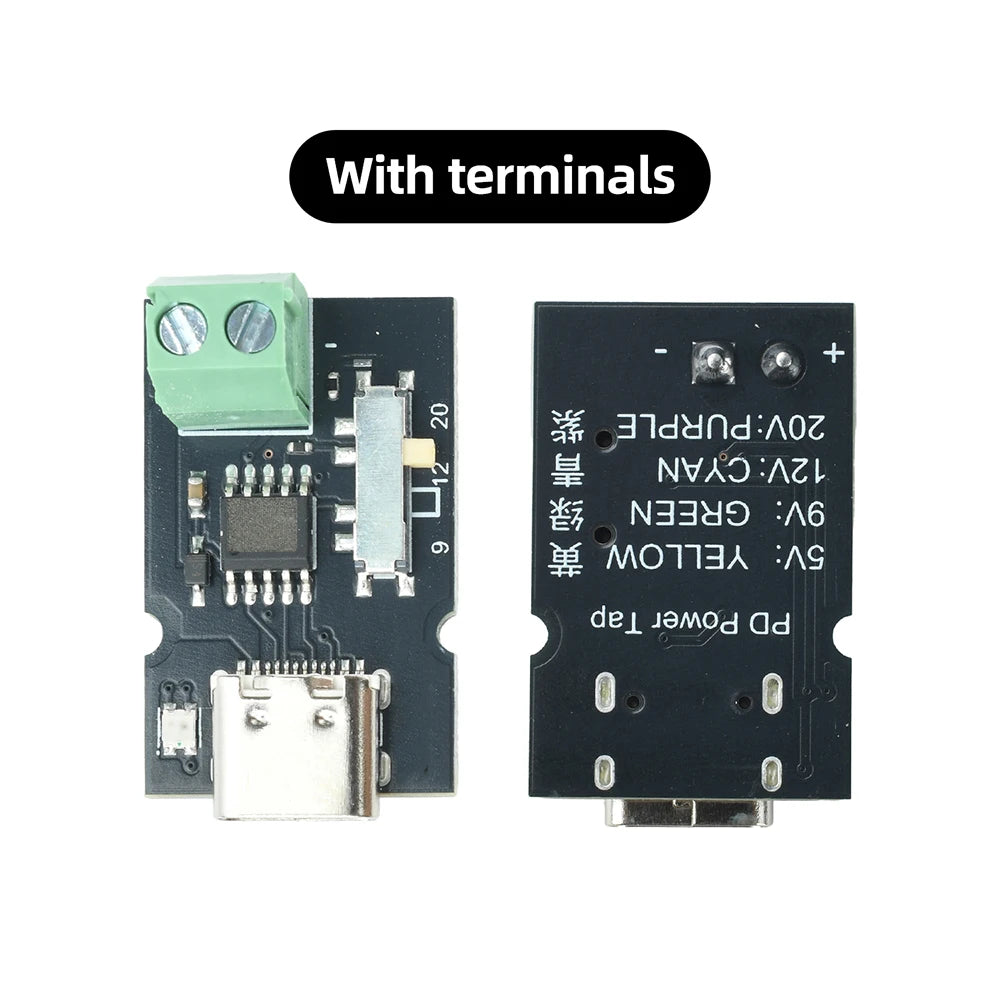

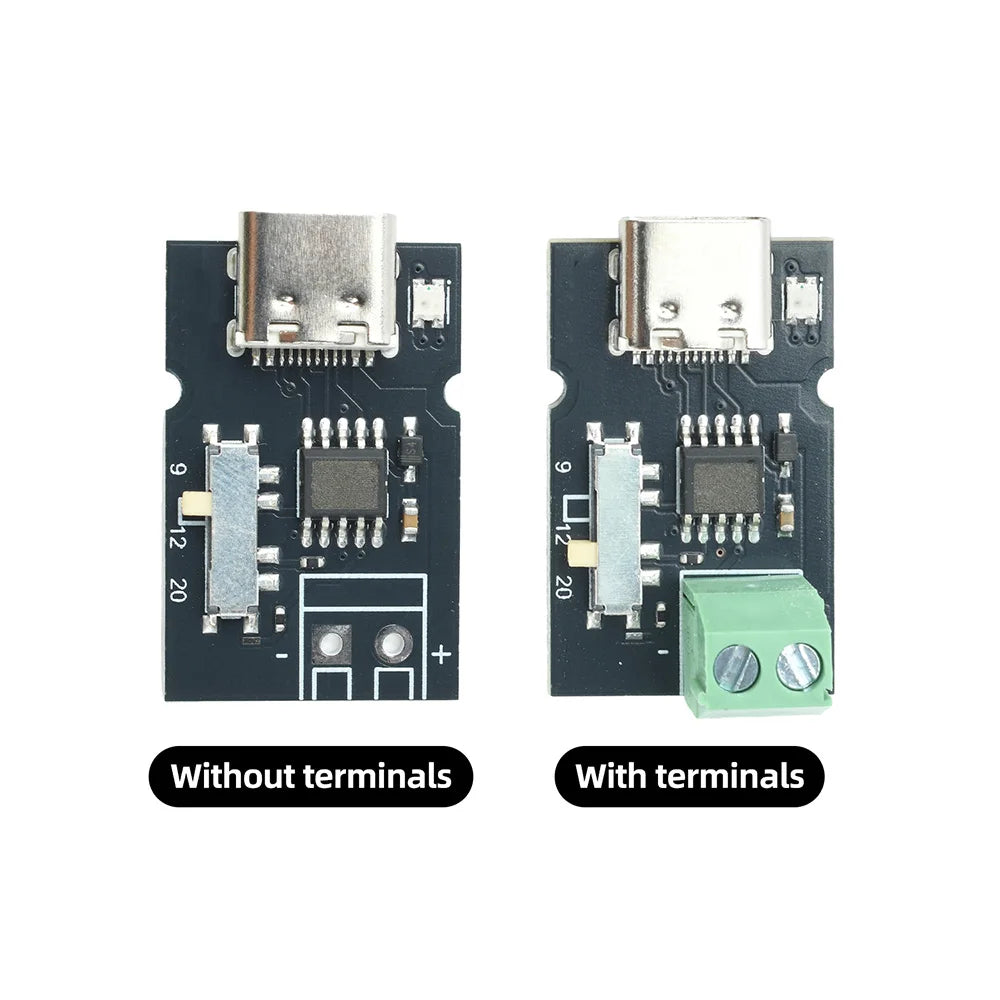

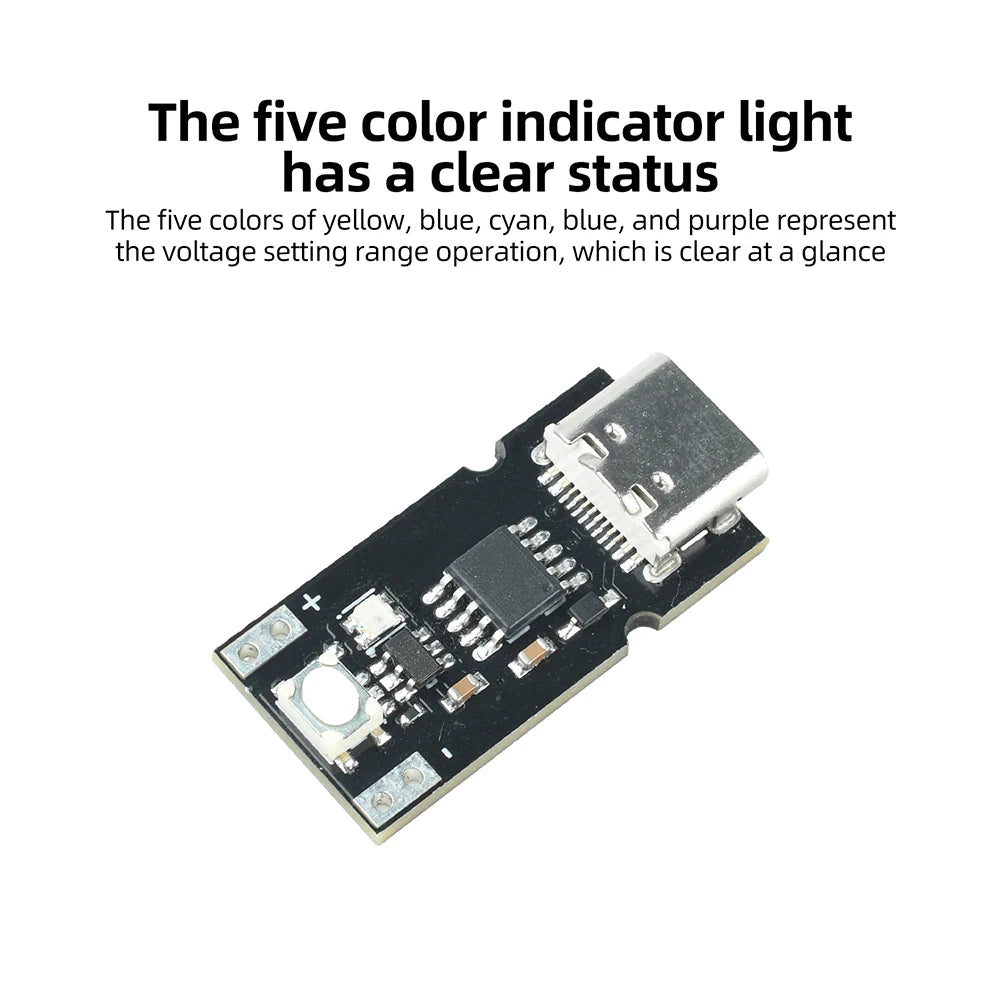

USB Type-C PD/QC trigger boards in this collection expose voltage indication while negotiating selected outputs. Some list 5/9/12/20 V presets; another claims 5–20 V adjustment including 15 V, with LED color feedback. A with-terminals versus without-terminals selection changes the physical output interface. These are PD/QC negotiation modules, not independent boost converters that can force any charger to produce any voltage. The available source profiles, cable, output load, heat and the exact board's rated input/output all matter. A colored status LED reports a setting or negotiation state; verify the actual output with an appropriate meter before connecting sensitive equipment.

RP2350 Pico 2 development boards, GEPRC M10 GPS variants and MH-M18/M28/M38 wireless audio boards each use onboard LEDs for board-specific status. An RP2350 board is a microcontroller development platform; a GPS module's light cannot prove a valid position fix in every installation; M18, M28 and M38 are separate audio module variants. Similarly a portable CO2 monitor's LCD/alarm, a 433 MHz PIR sensor's local LED, a three-phase motor overload relay's trip indicator, an RZM033VL/RZM048VL relay accessory's light and a mechanical endstop's indicator all serve different circuits. Compare the actual model, interface, operating voltage and use case rather than selecting these products as simple pilot-light substitutes.

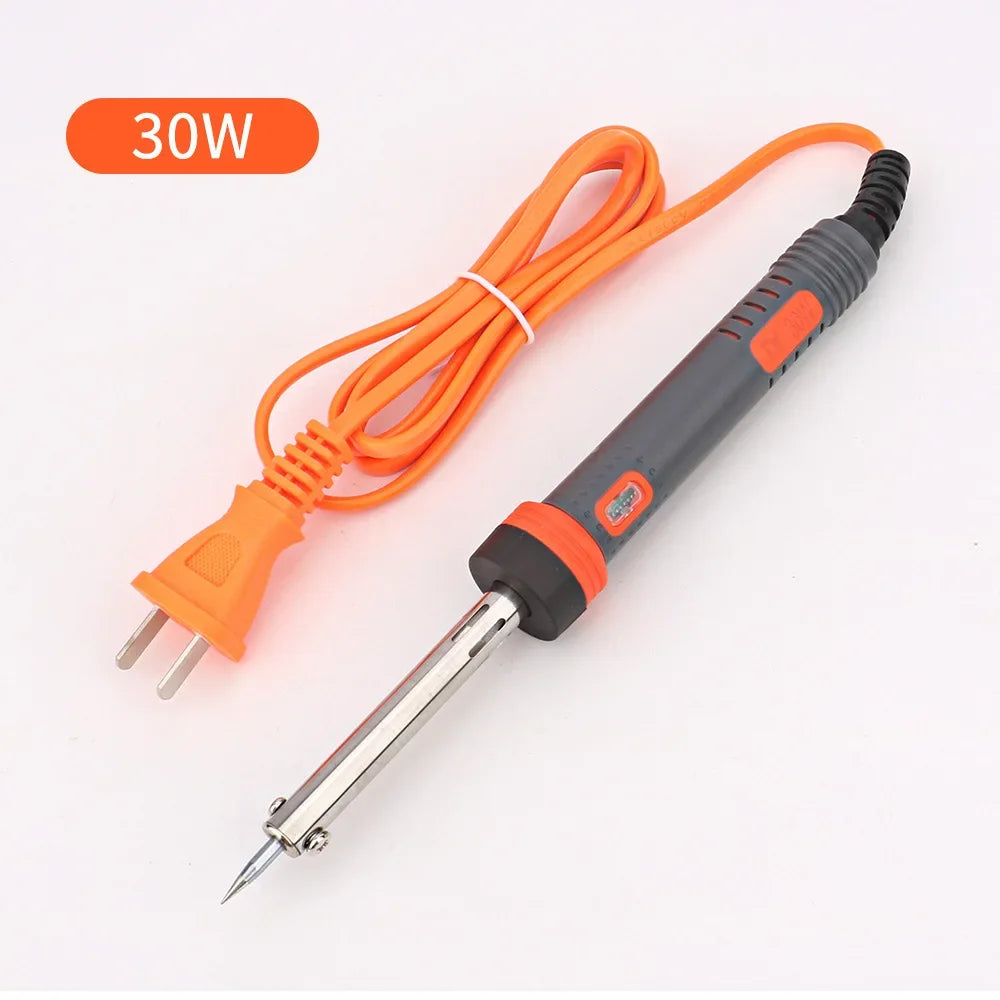

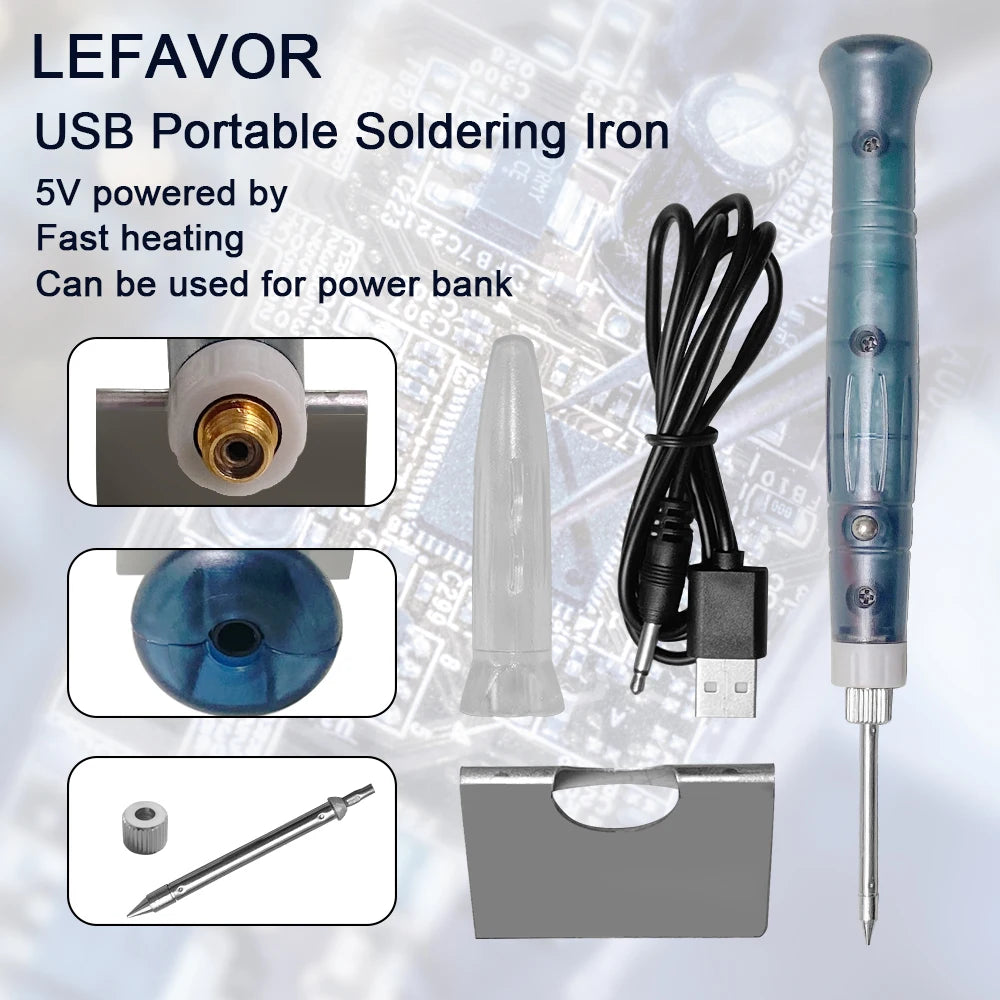

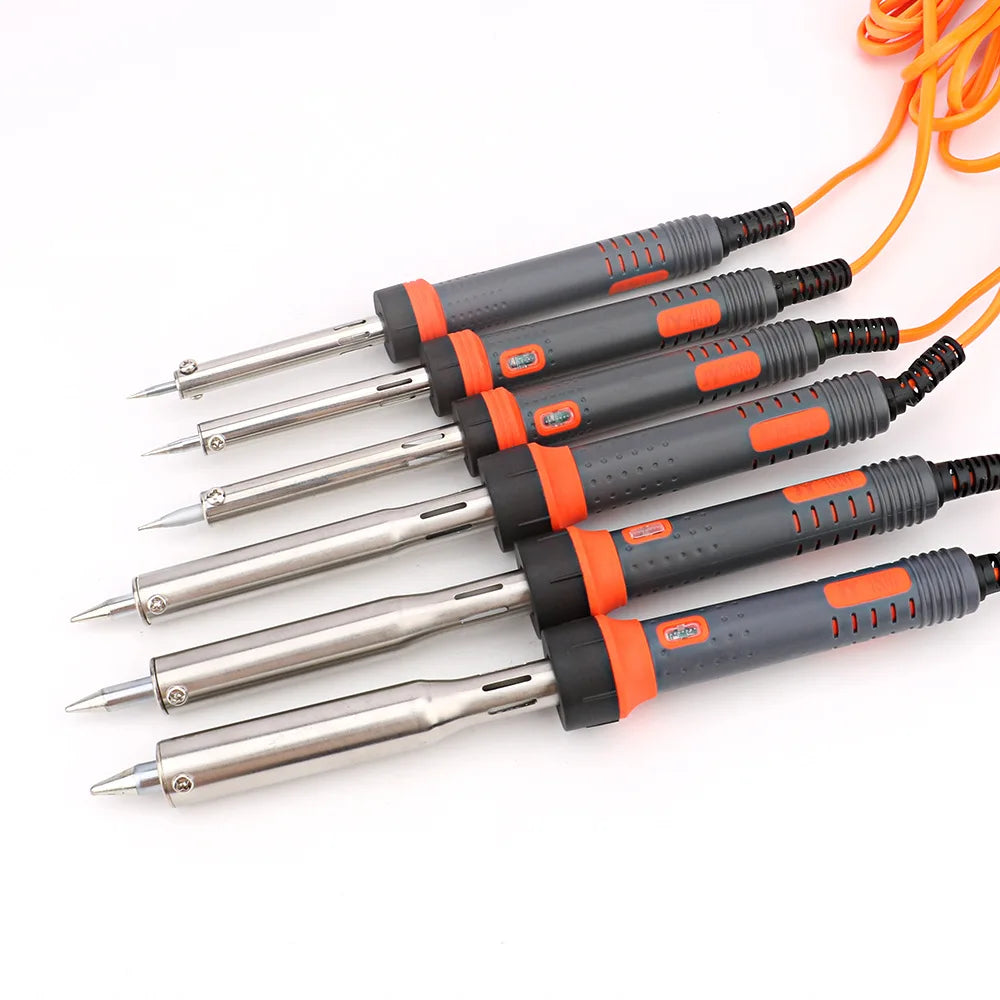

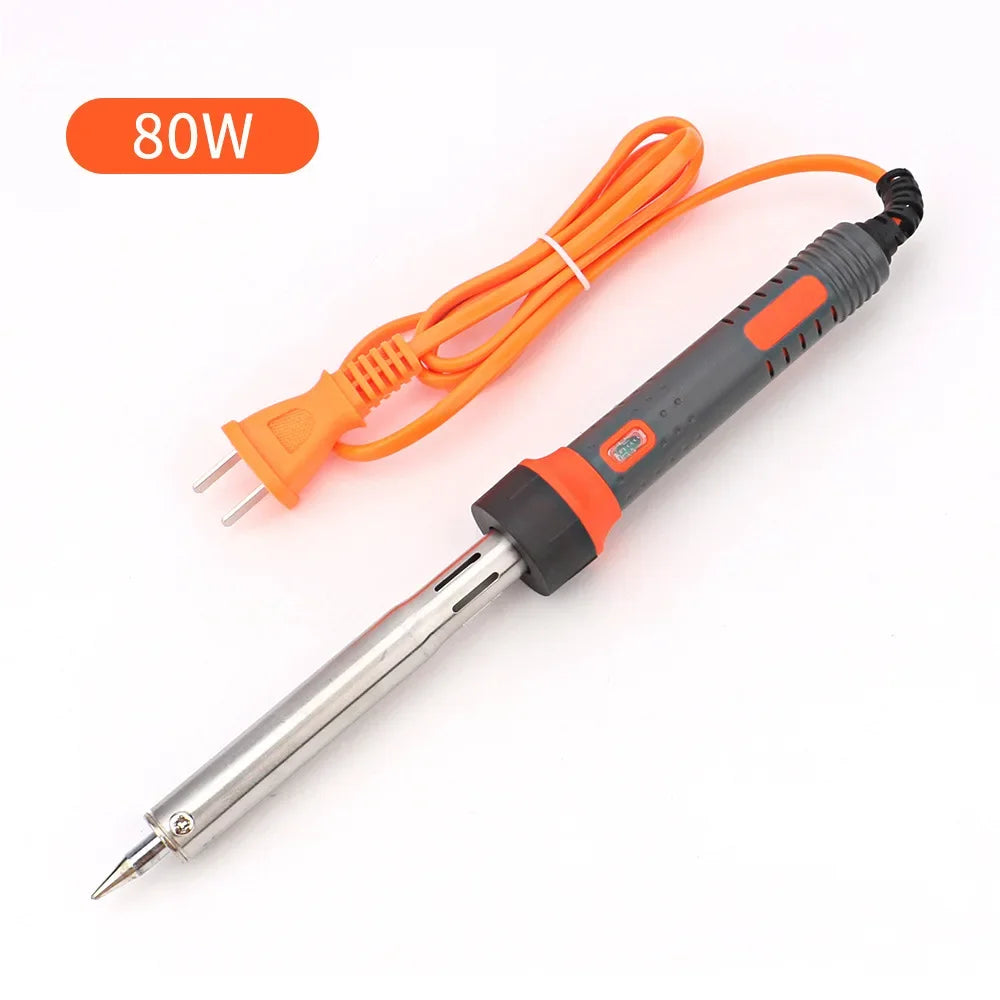

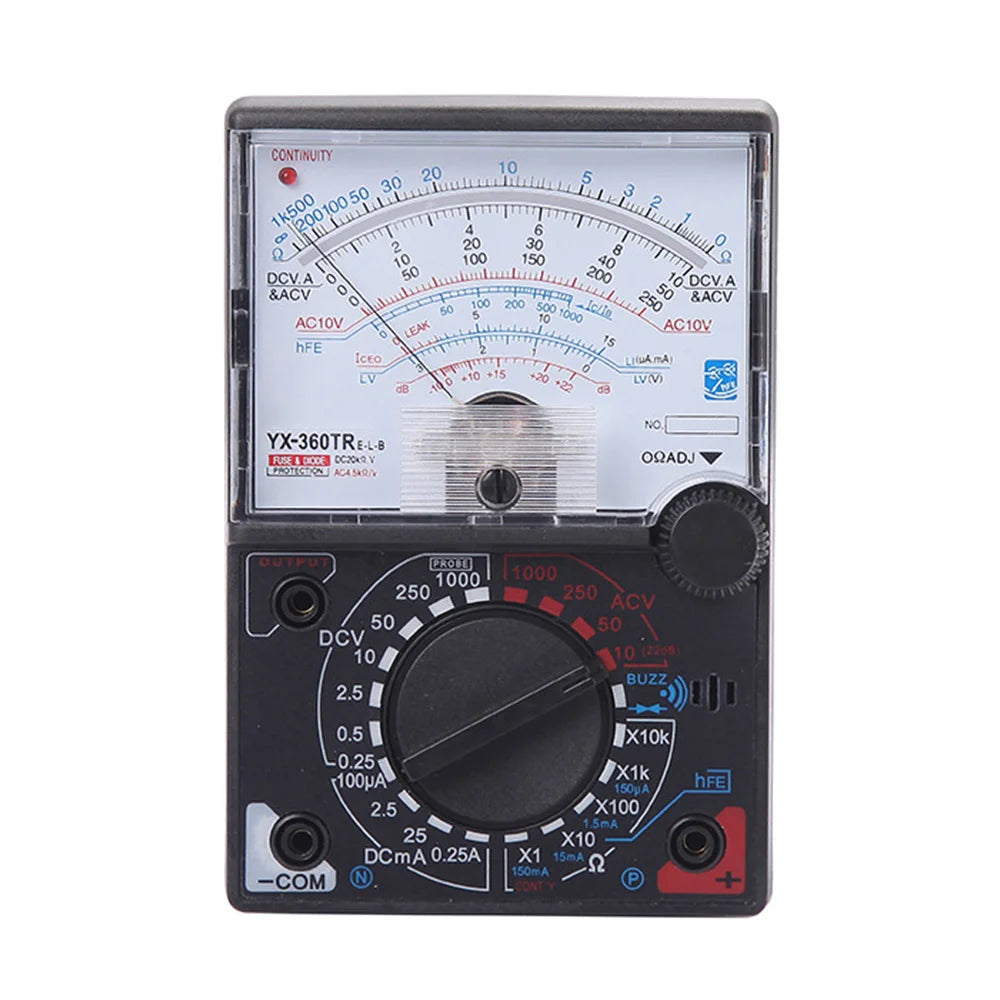

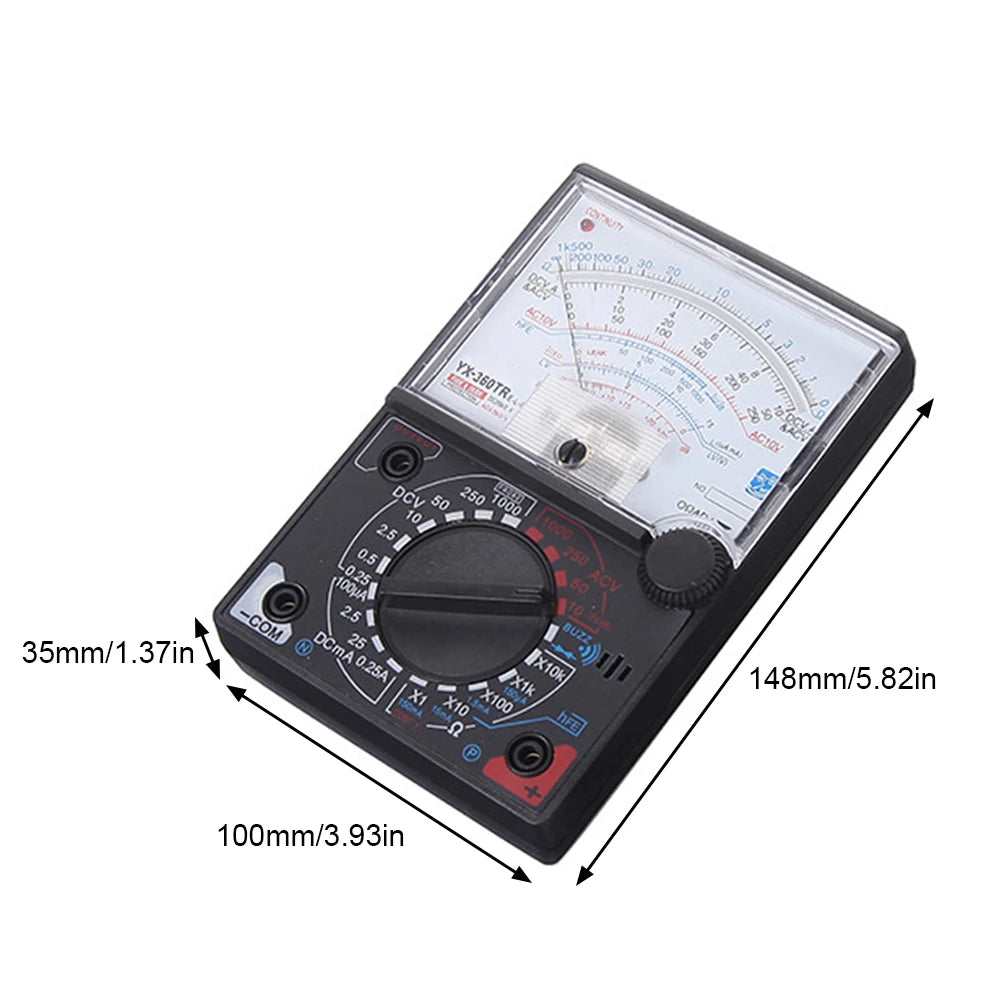

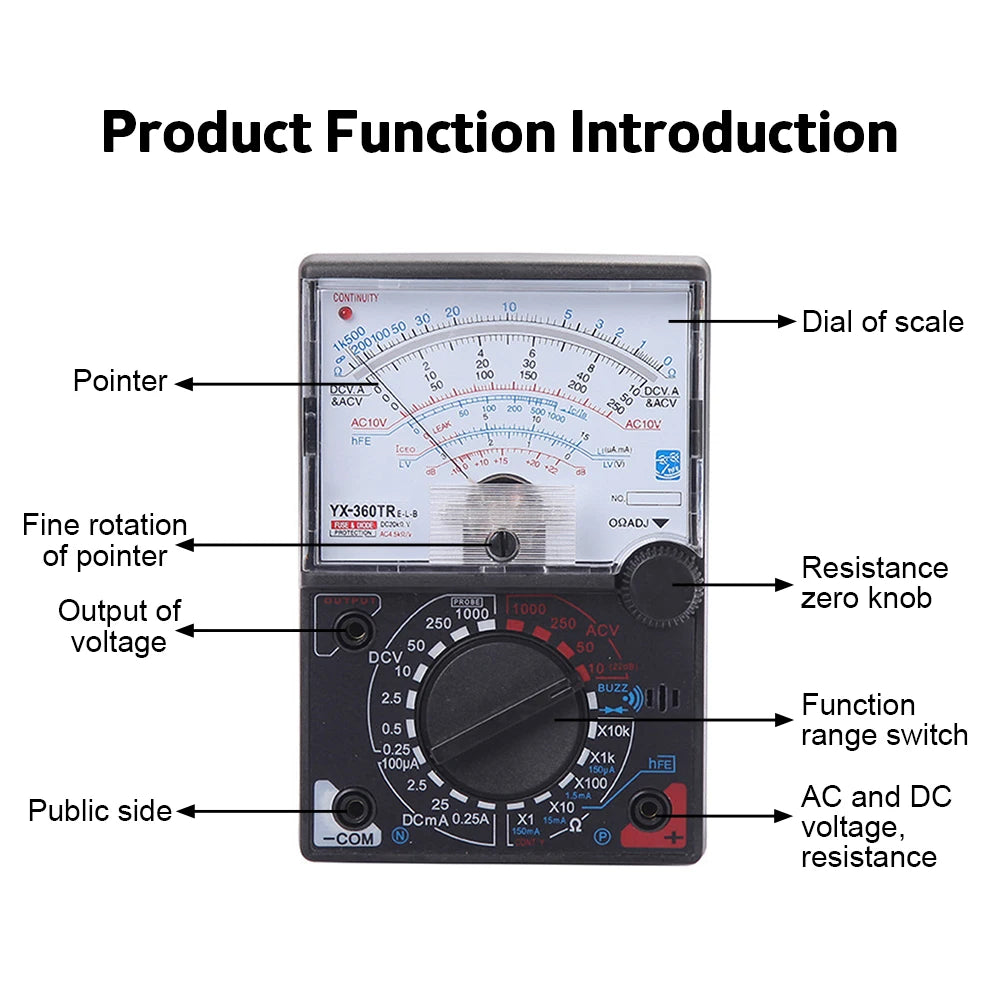

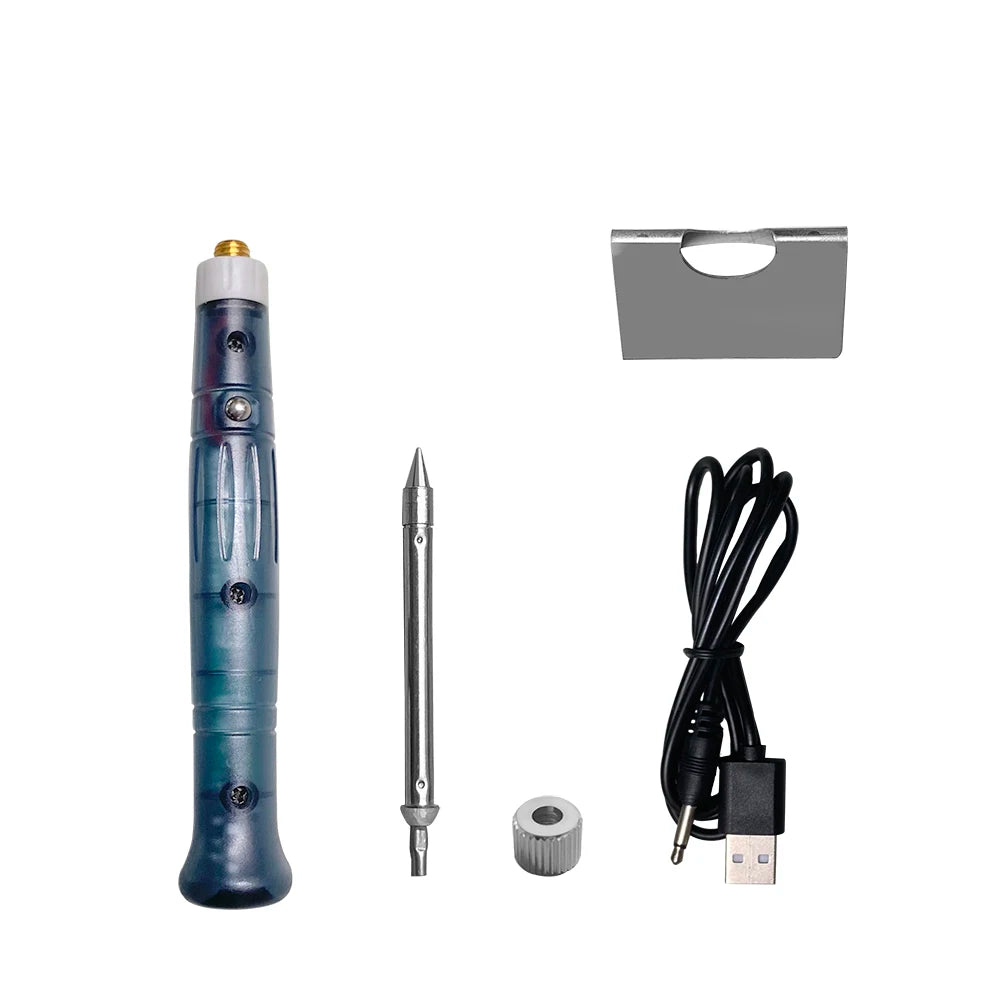

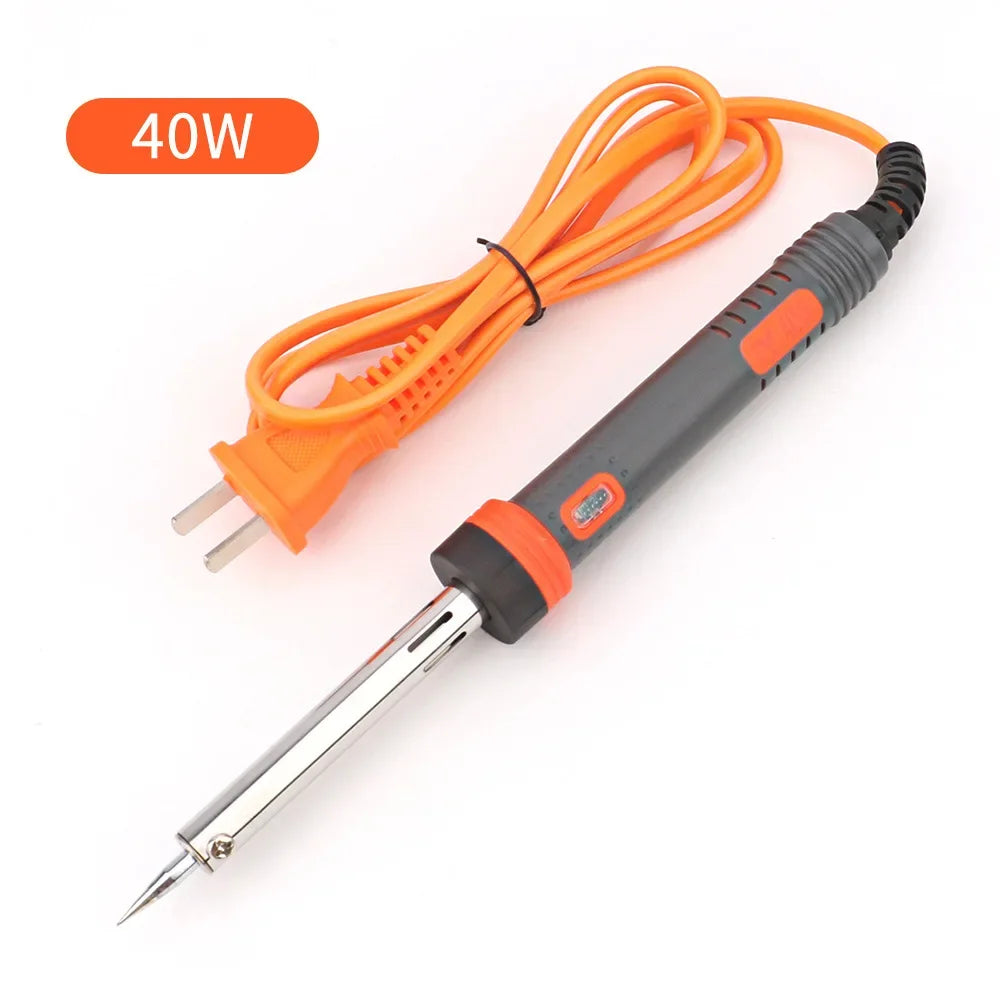

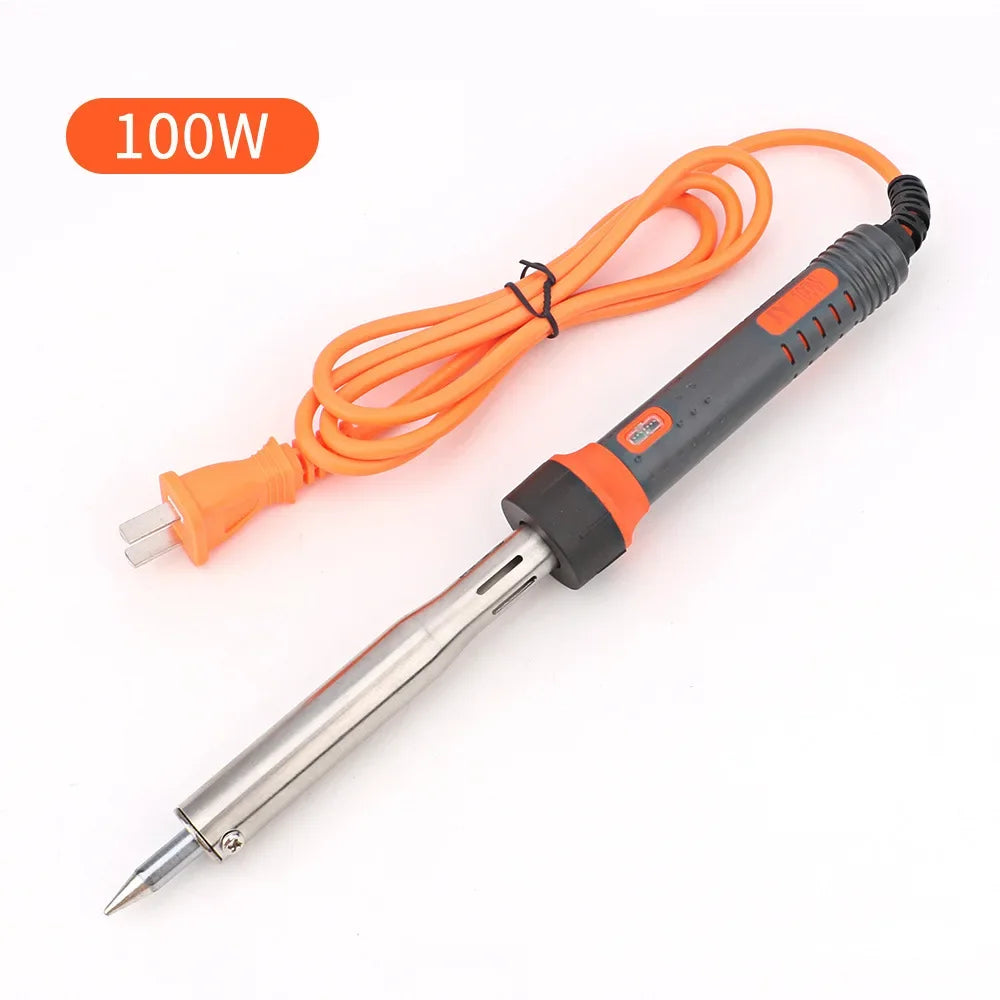

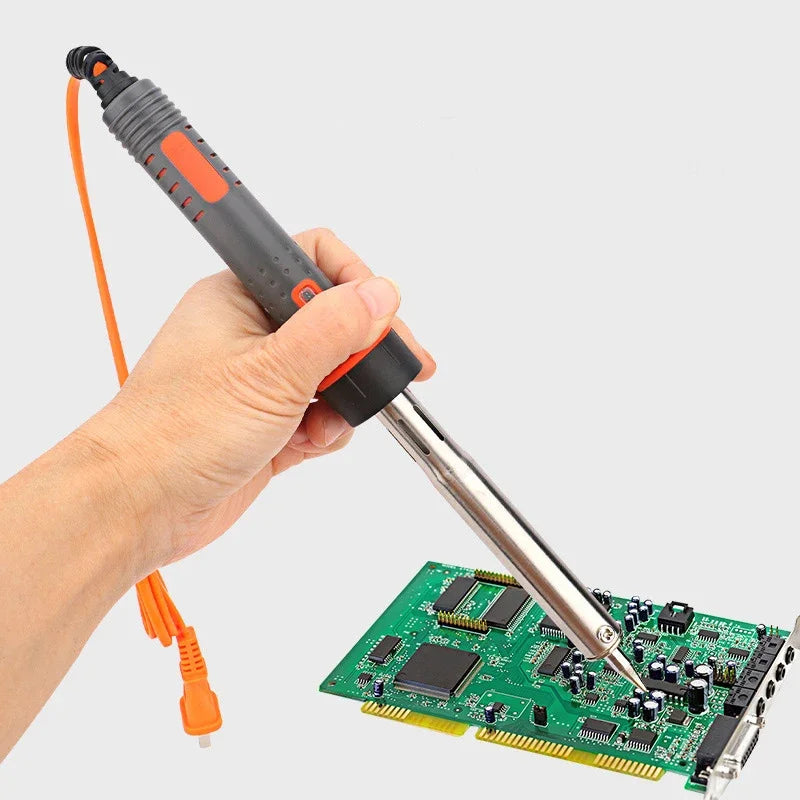

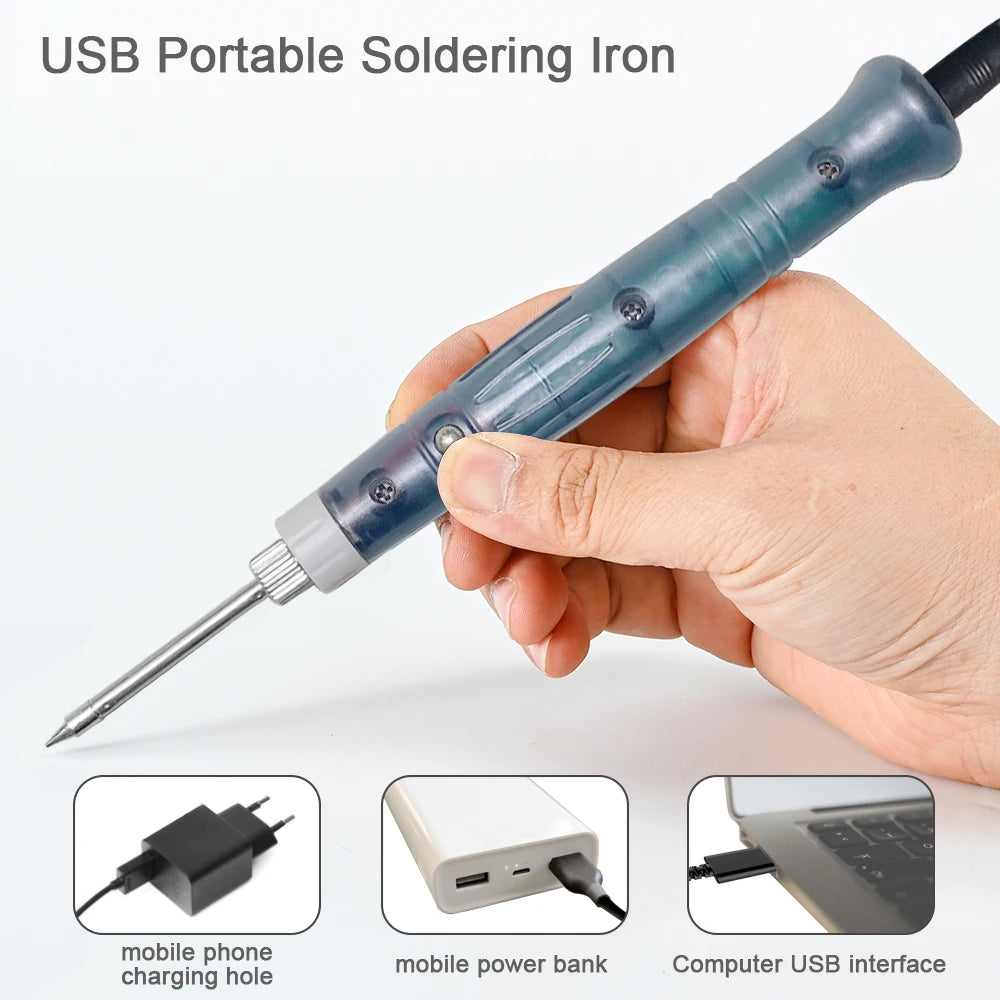

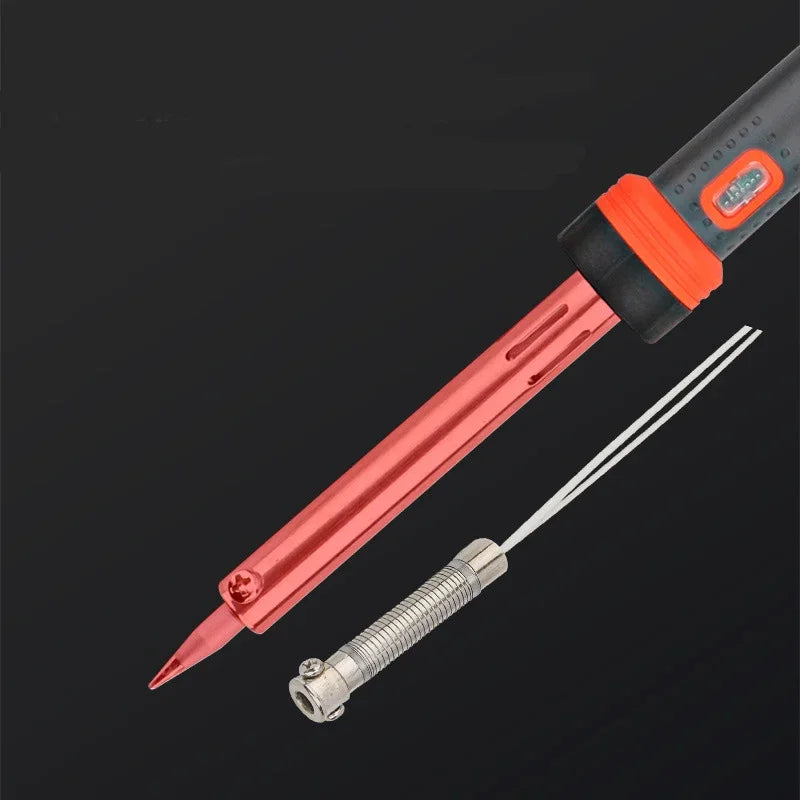

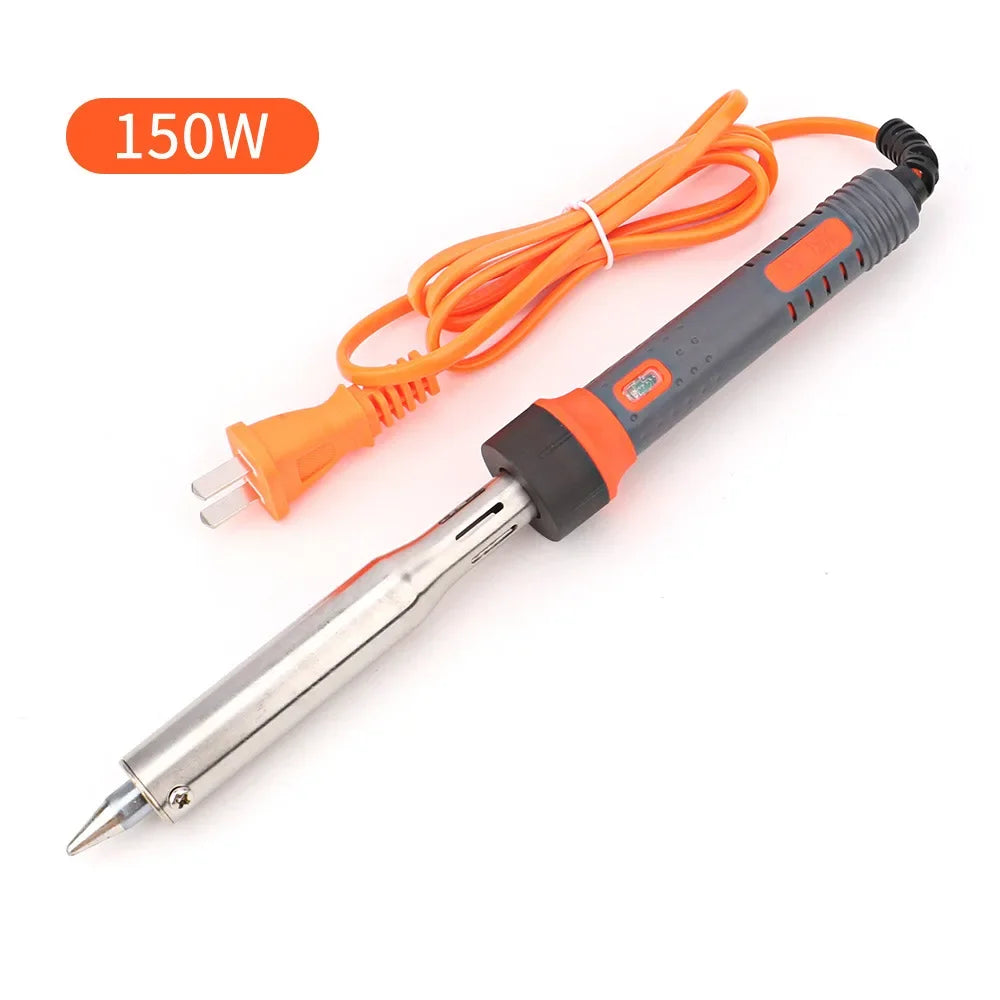

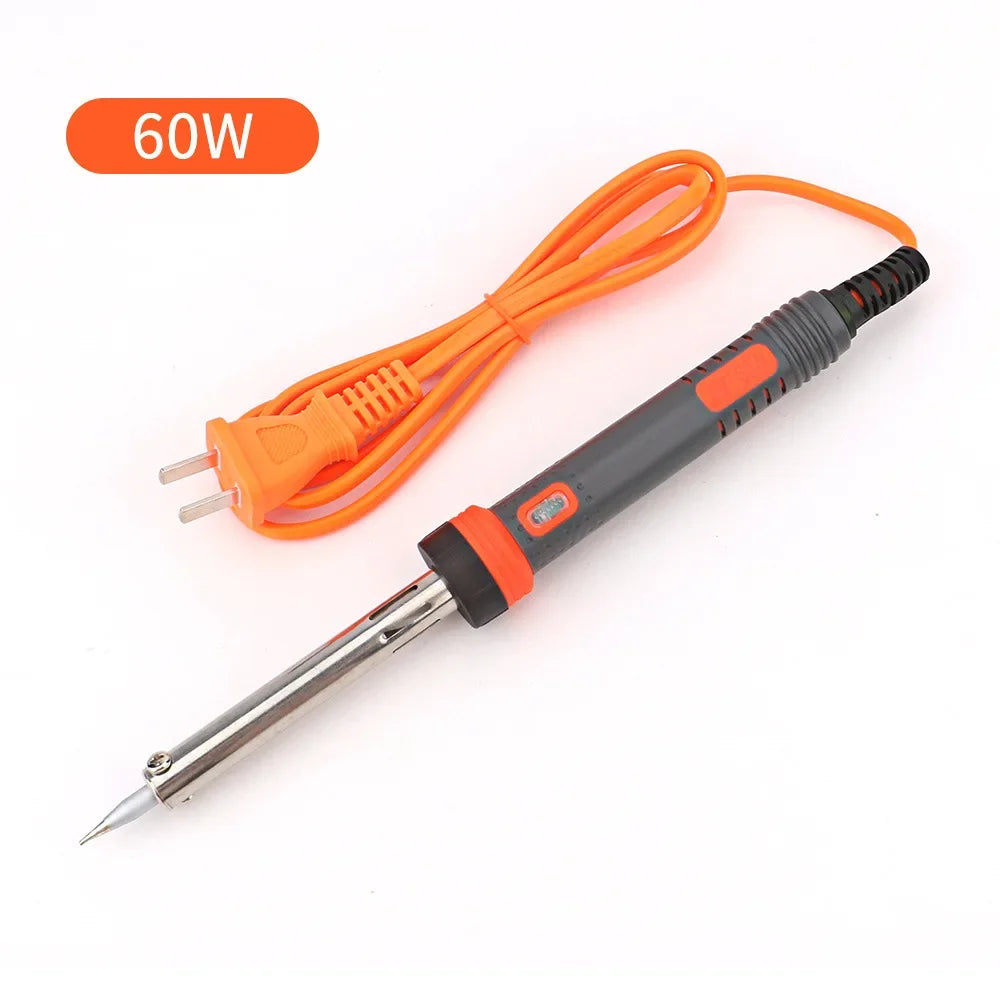

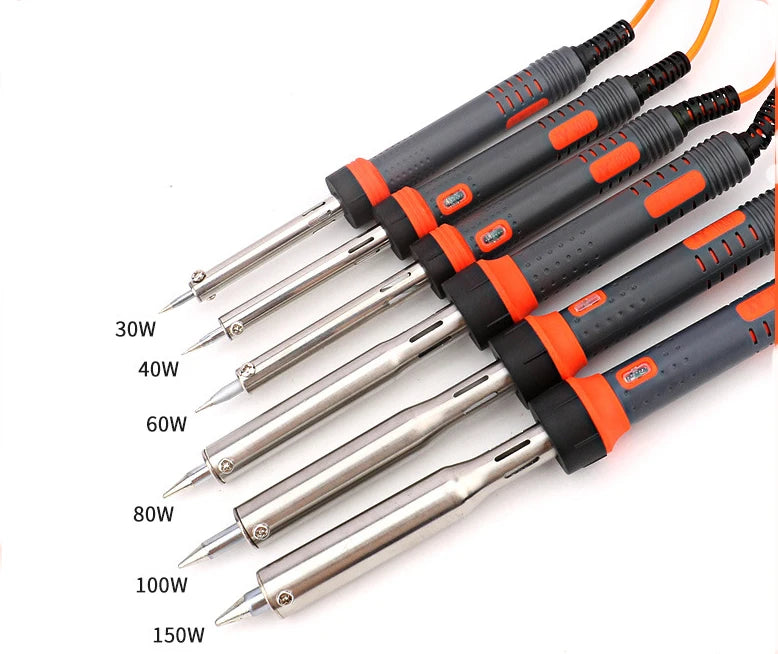

A T2 operational-amplifier test board uses LEDs to visualize its test response at different signal frequencies. A 3-channel servo tester uses an indicator while testing servo signals; 4-channel MOS/opto-isolation module pages specify 1-, 5- or 10-piece choices on one listing. A USB or mains soldering iron with a power light, a pointer multimeter with status indication and these specialist test boards are complete tools, not loose LED lamps. Do not use their supply voltage or sensor ratings as specifications for other products in this collection.

Battery gauges, fuse indicators and passive load resistors

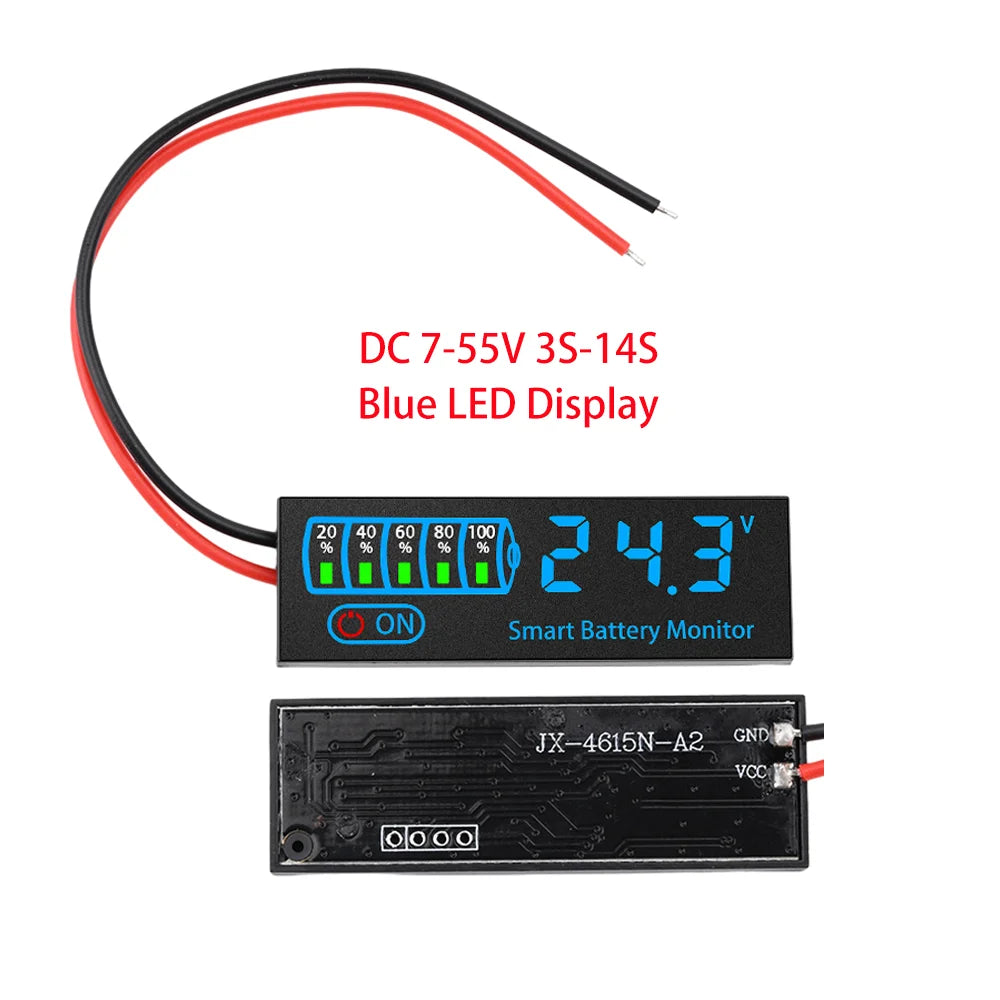

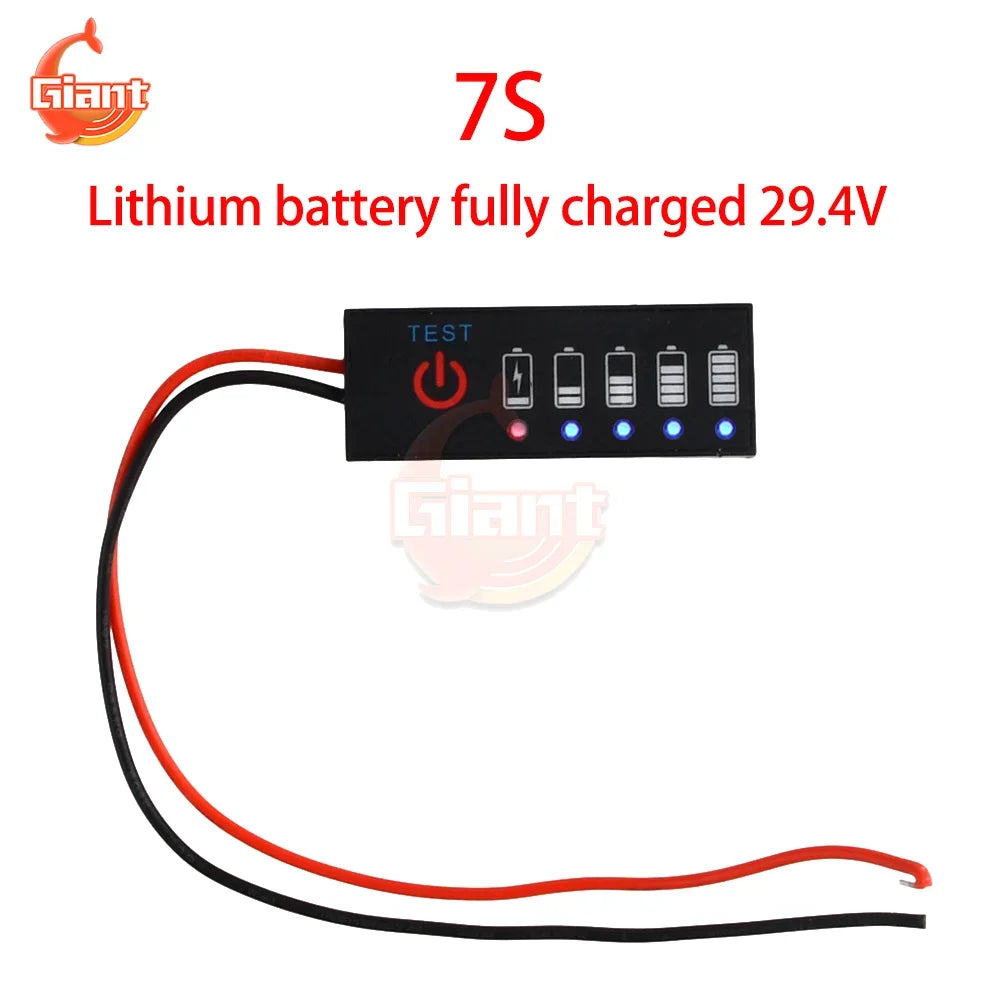

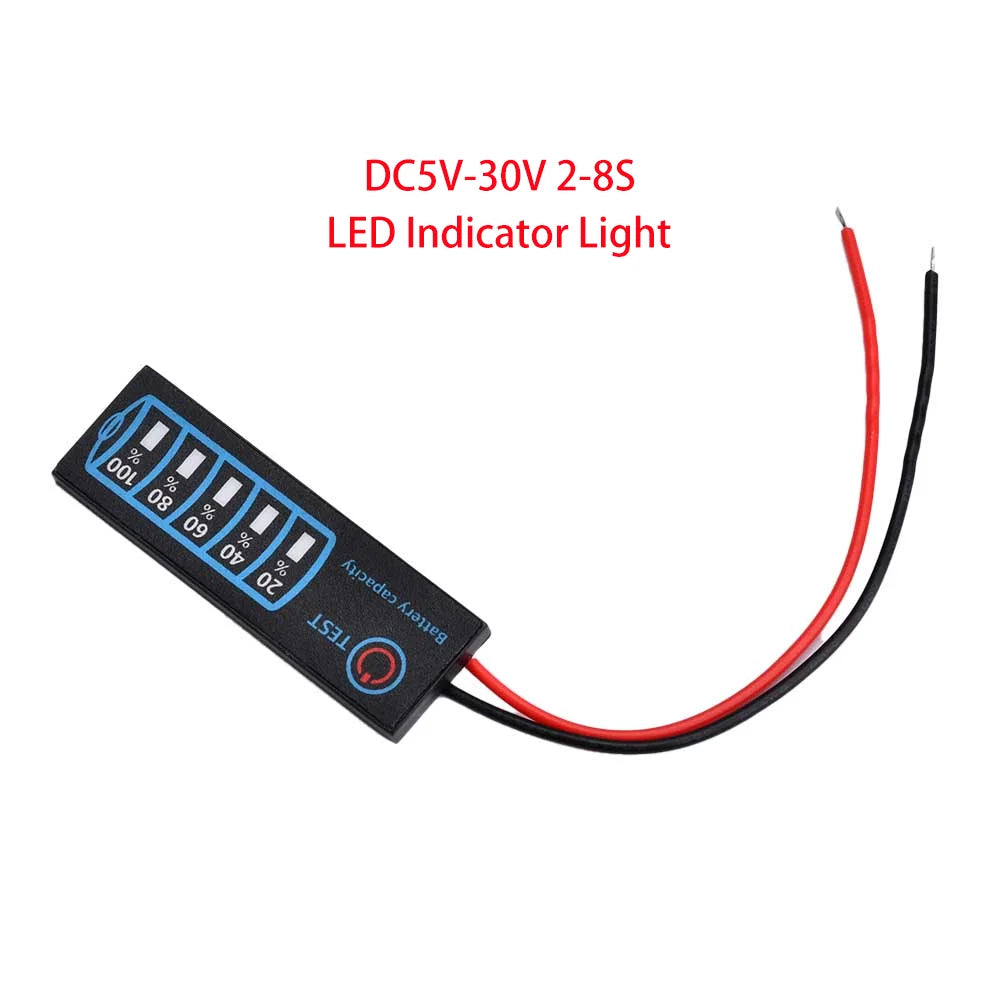

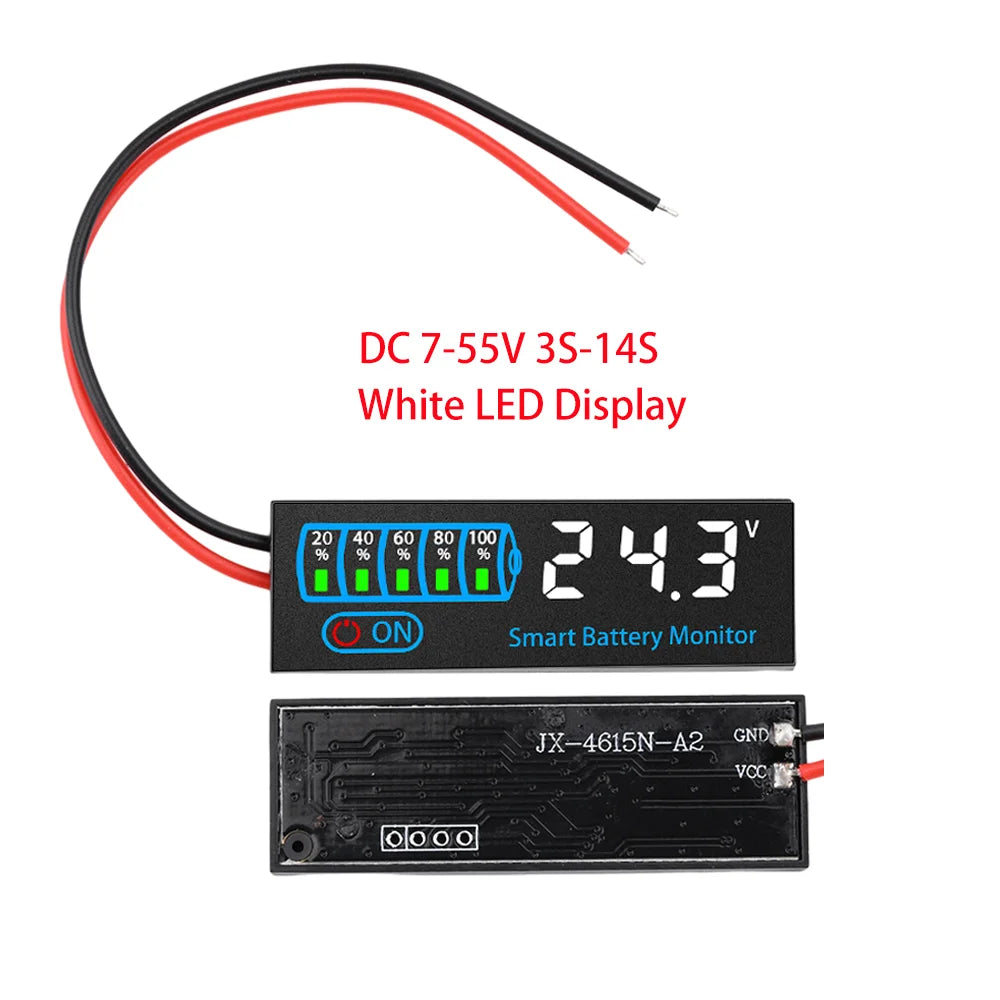

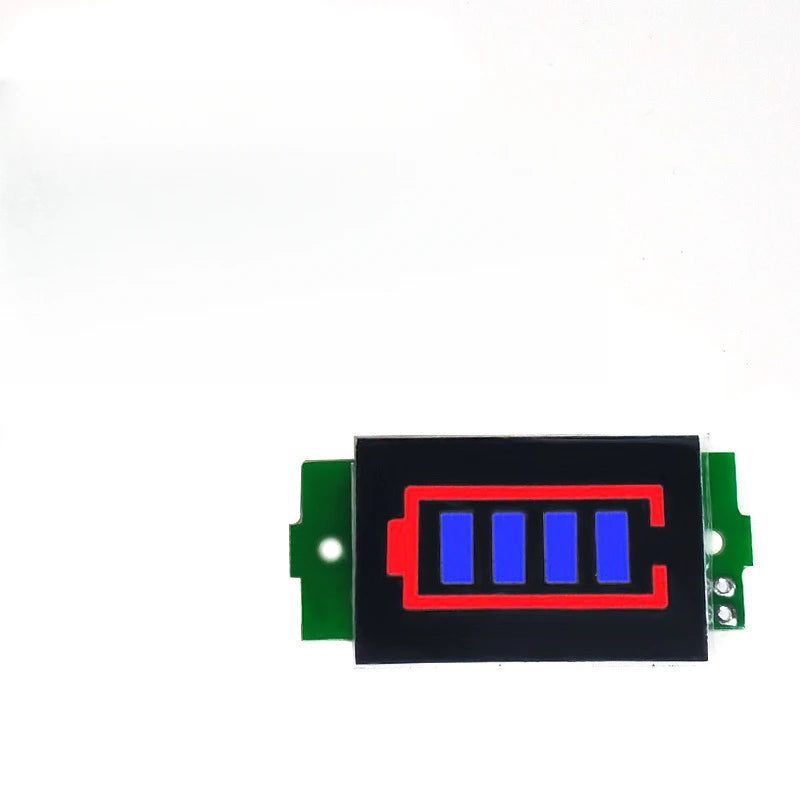

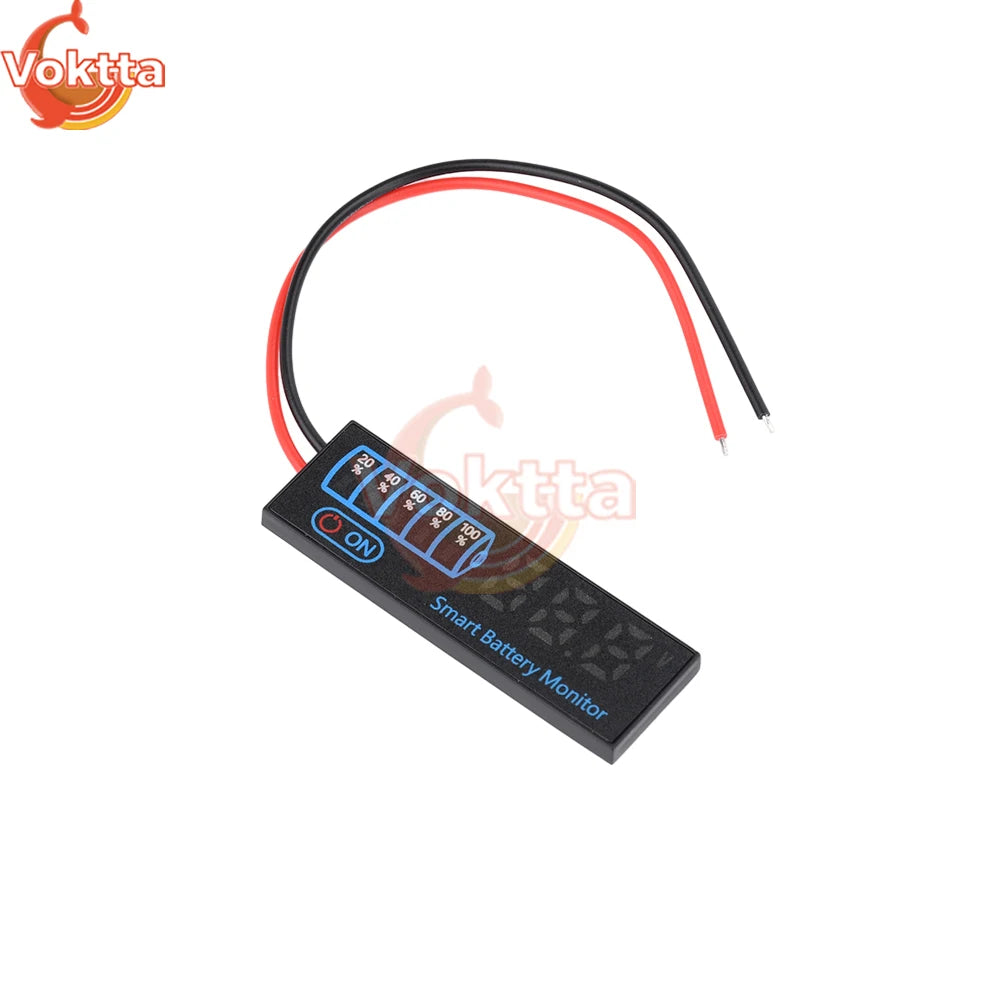

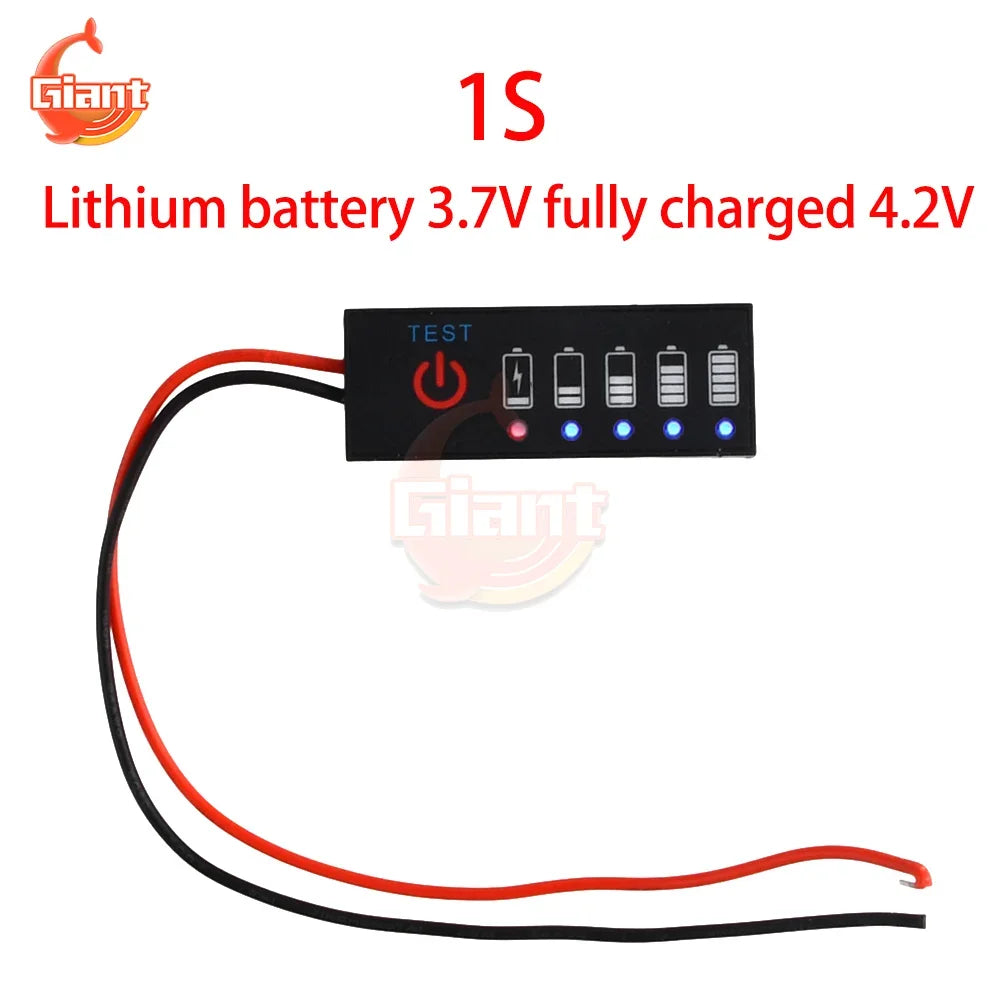

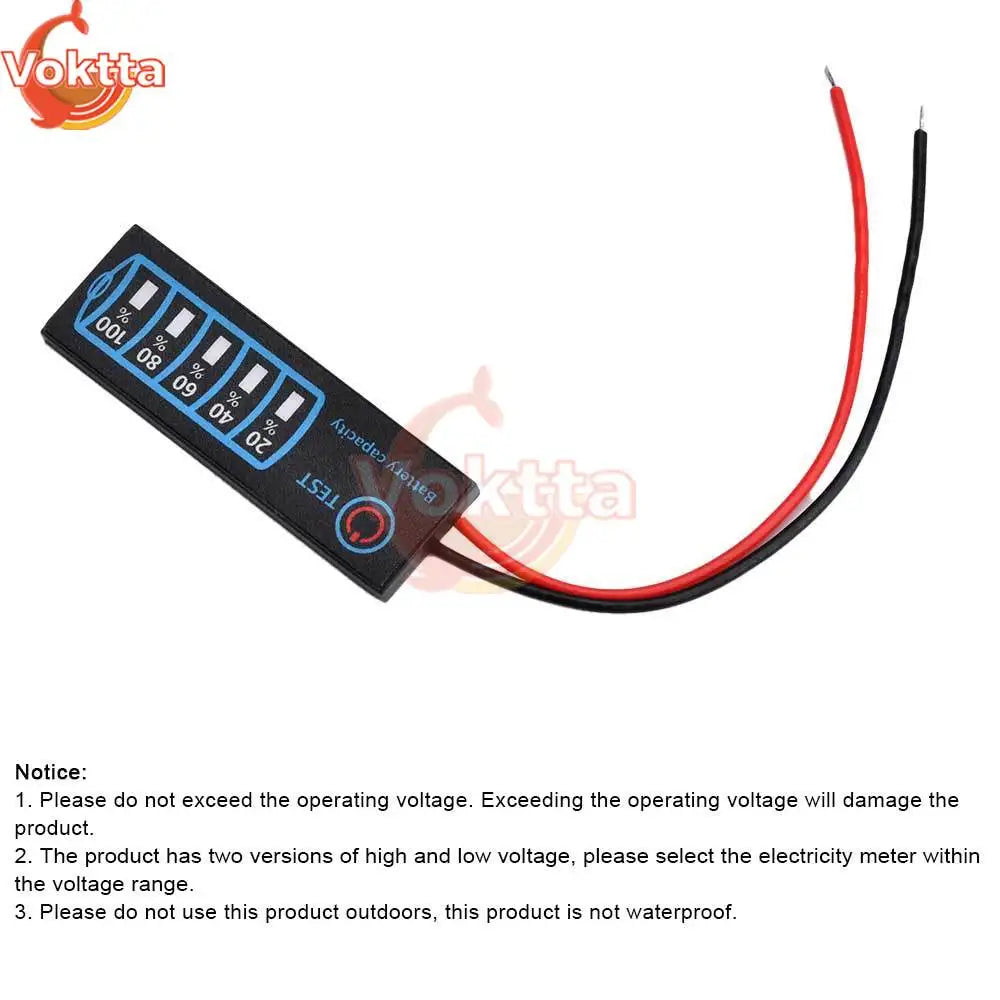

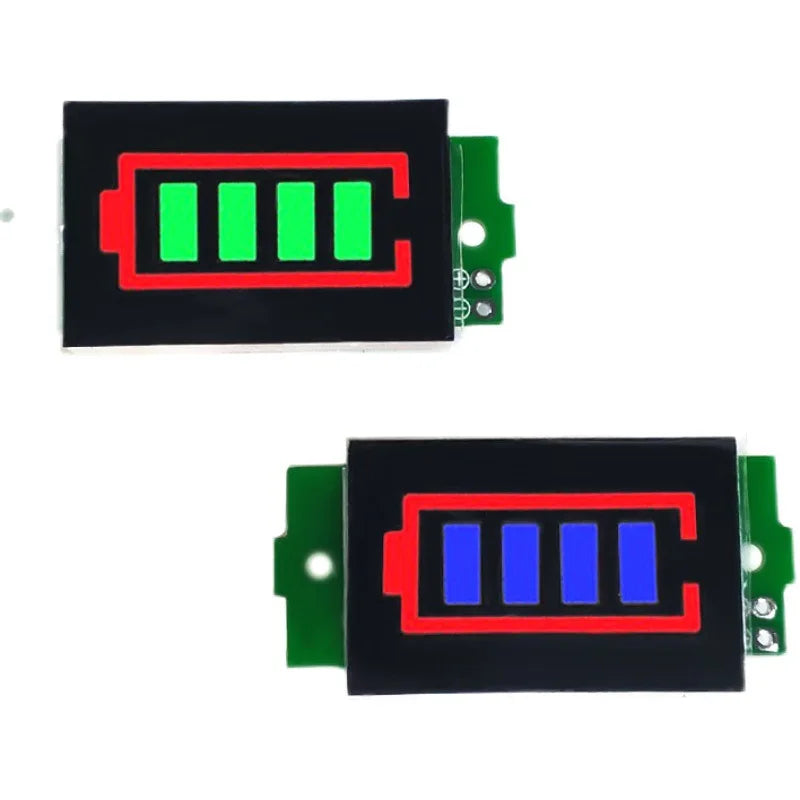

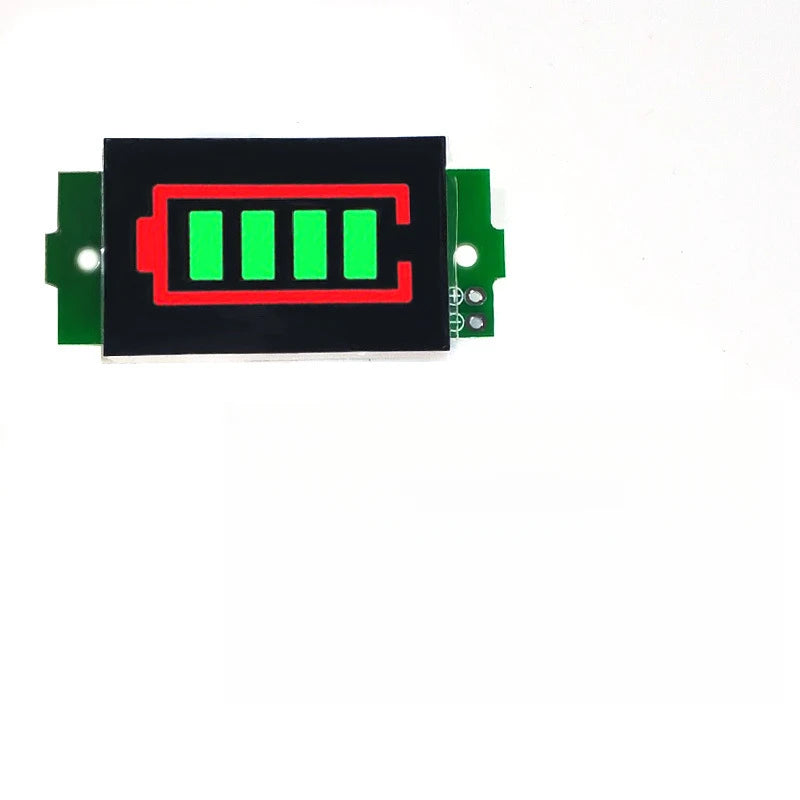

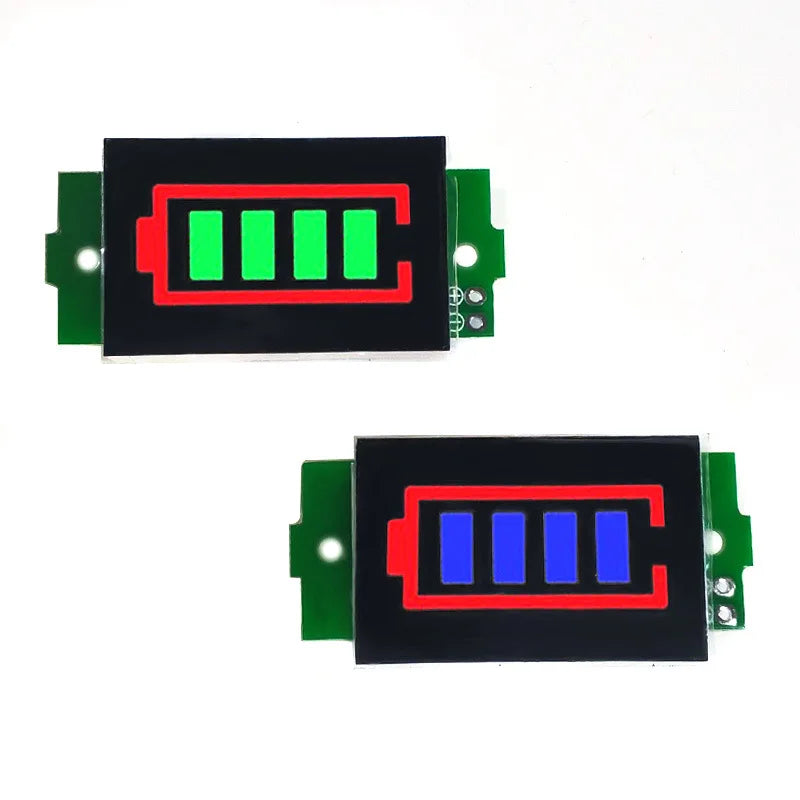

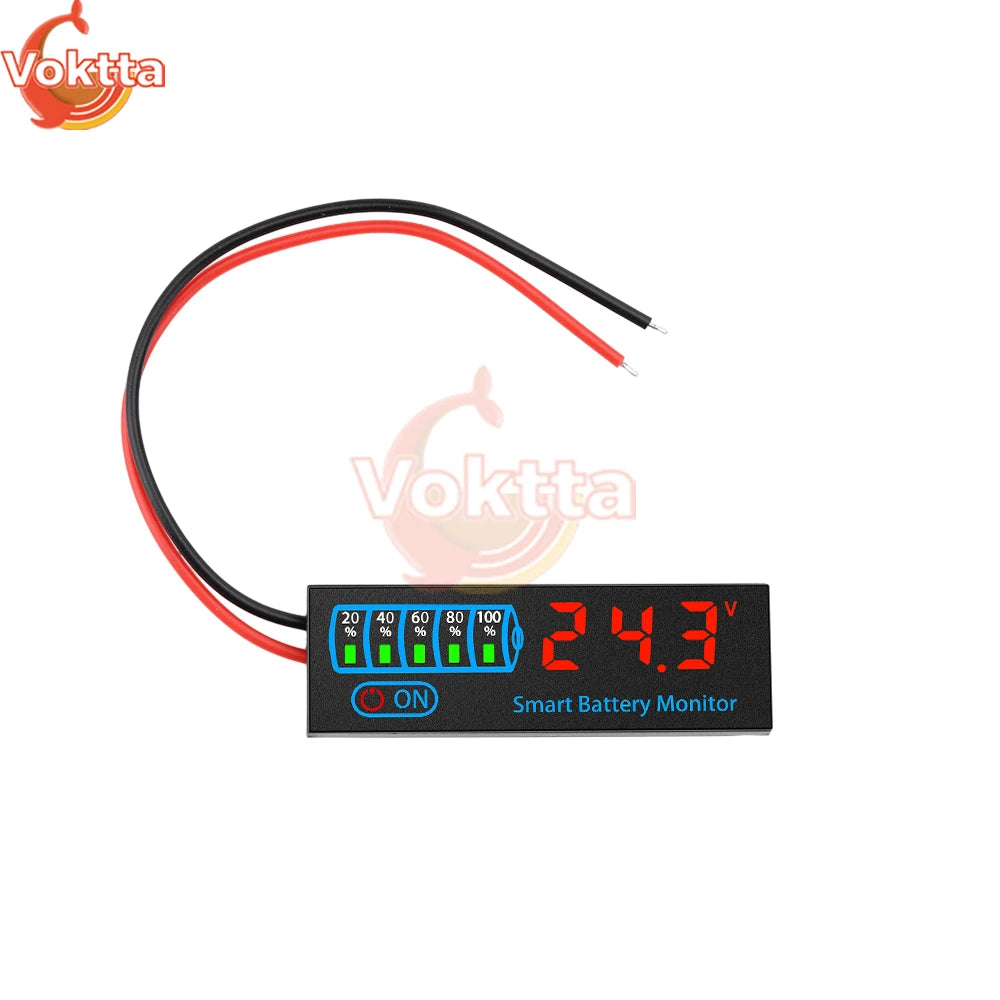

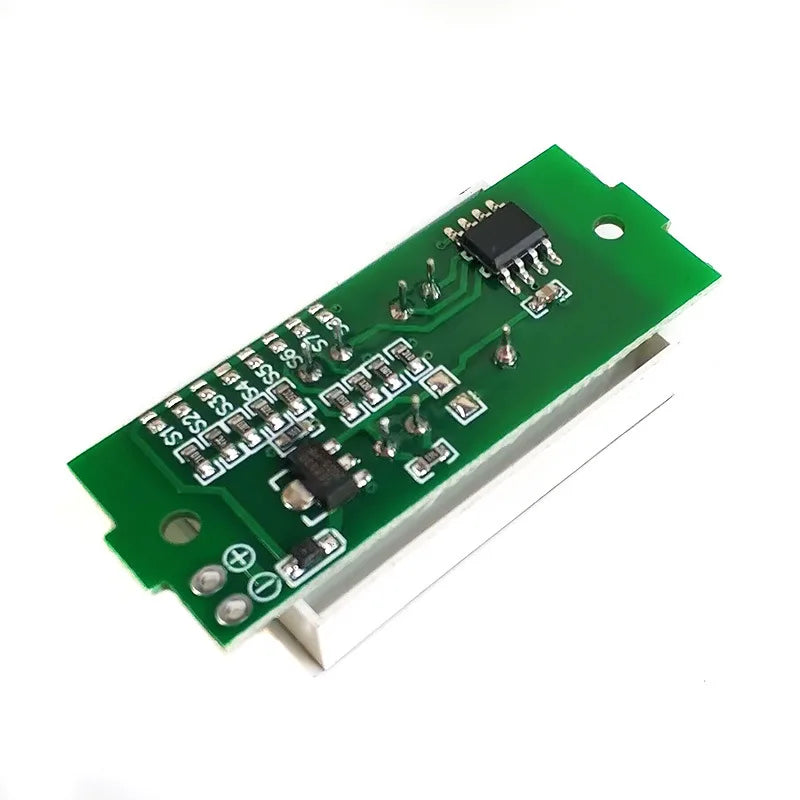

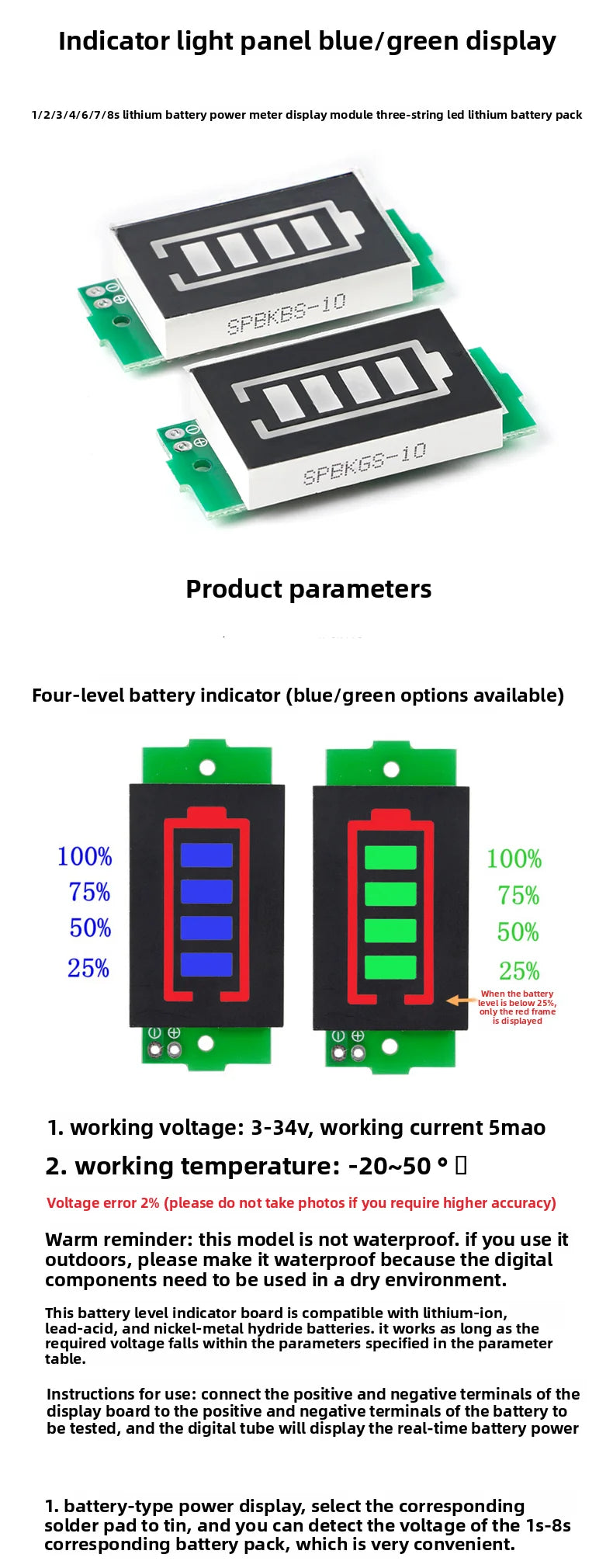

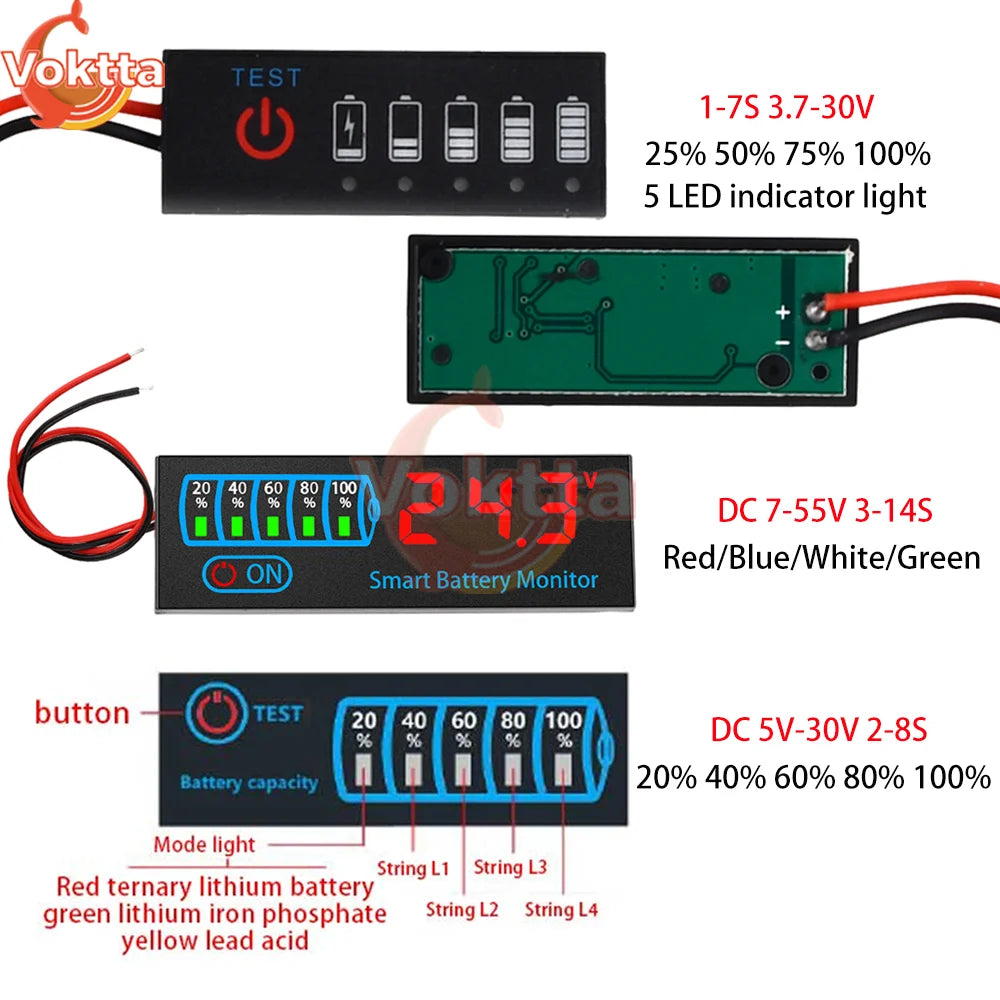

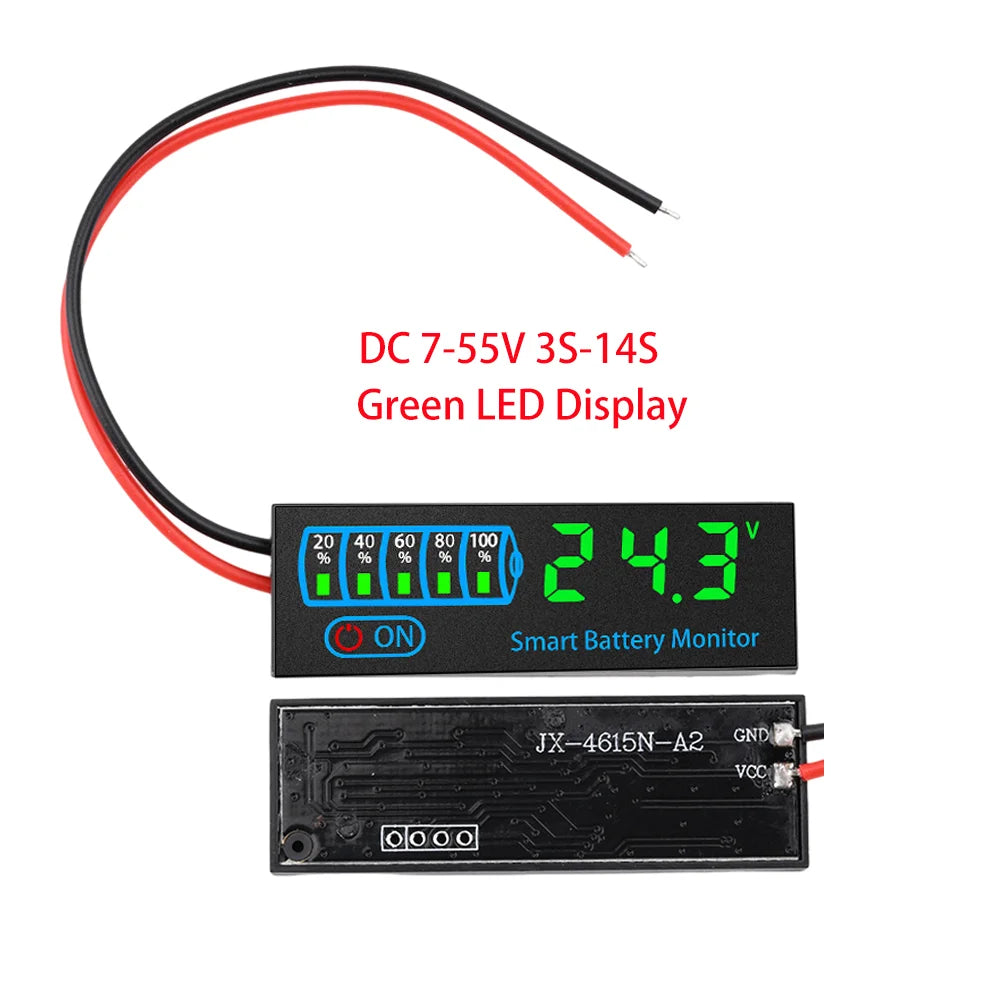

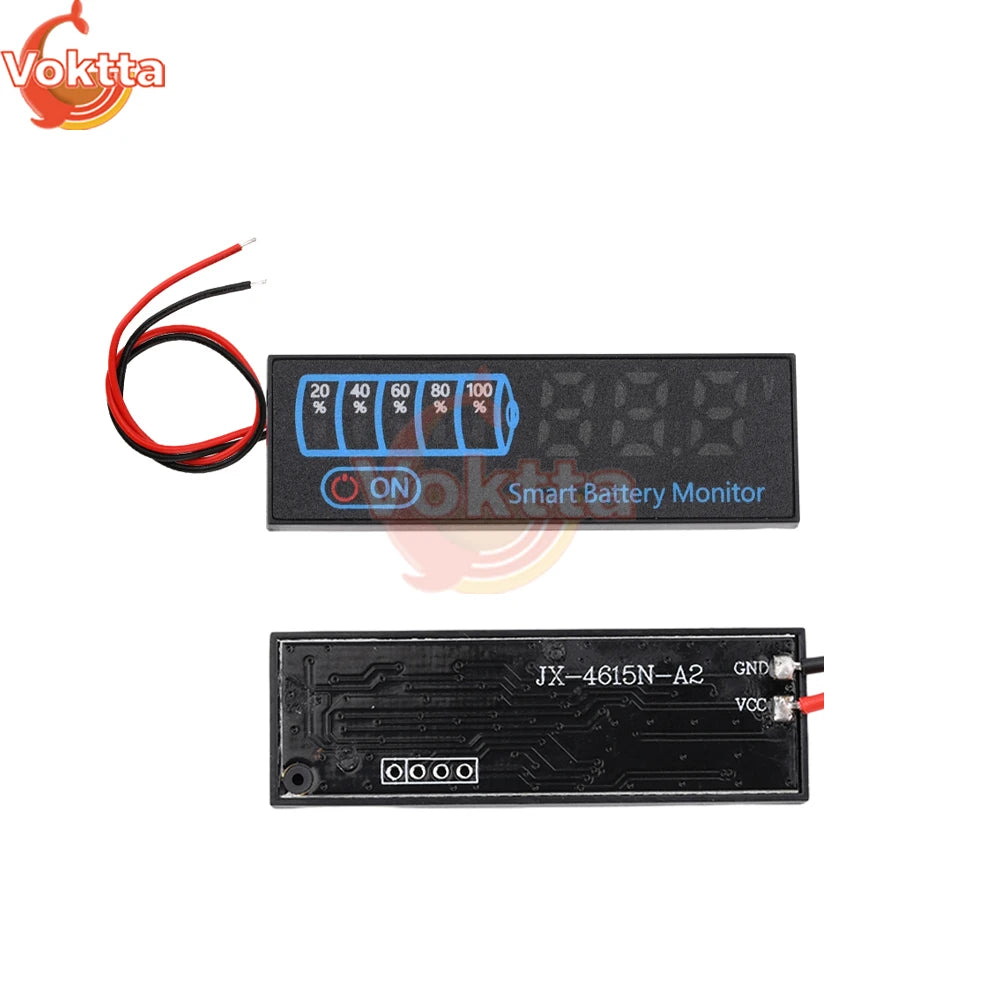

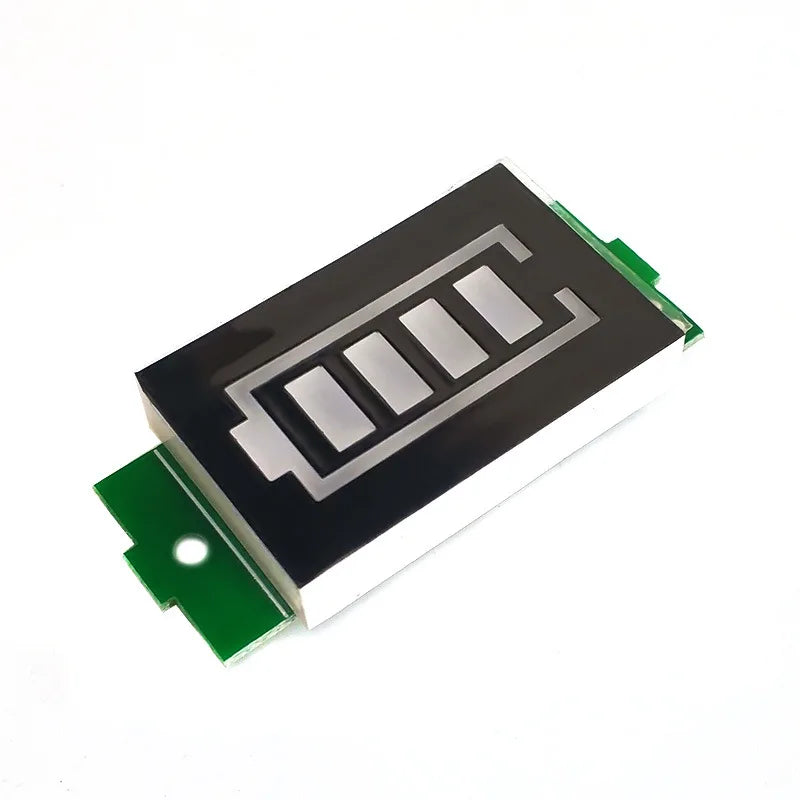

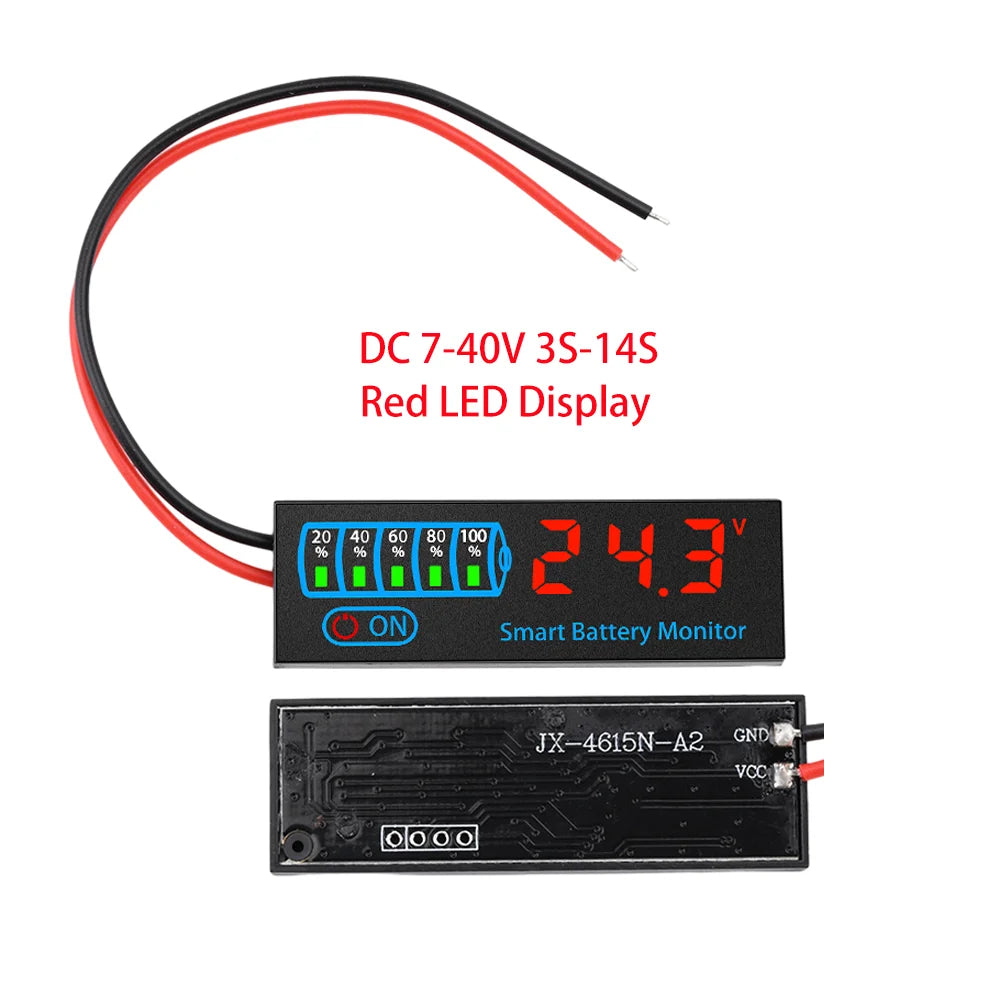

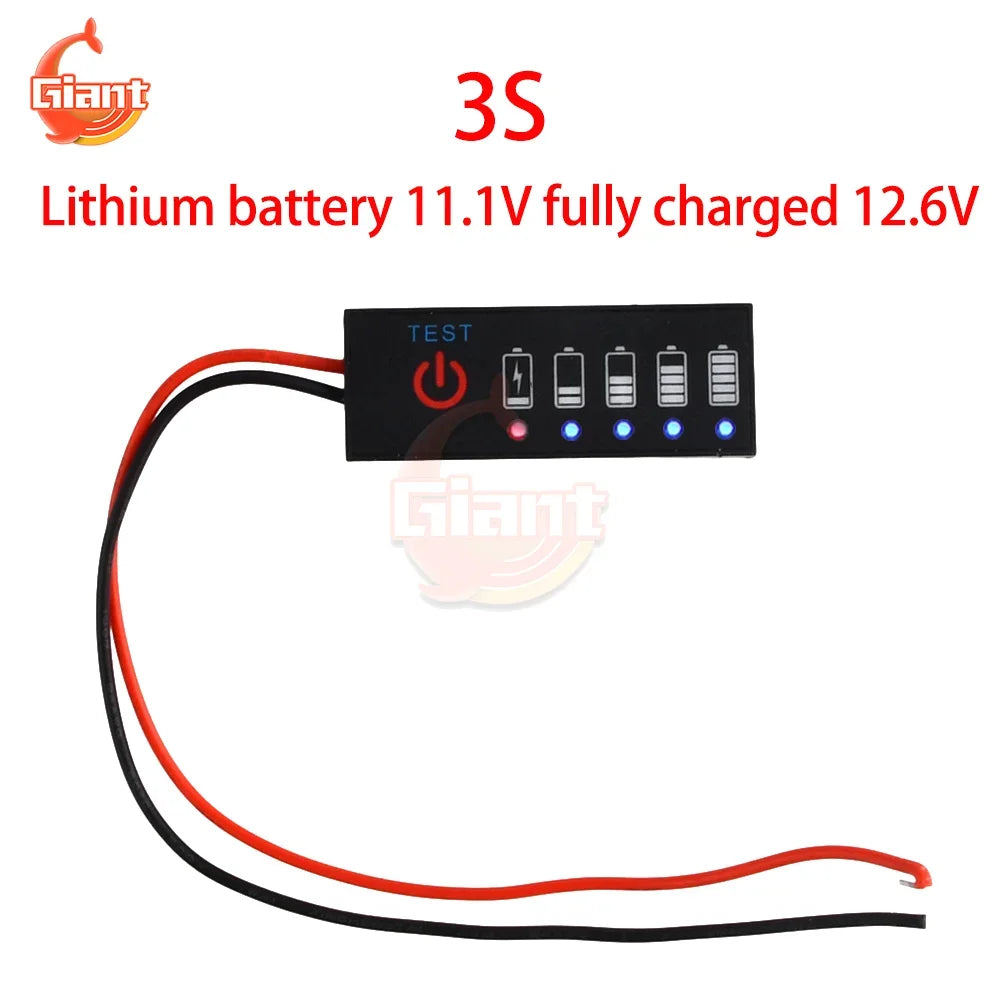

Battery-status boards include a configurable listing with 1S–7S, 2S–8S and 3S–14S-related wording, various colored displays and a source description distinguishing ternary lithium, lithium iron phosphate and lead-acid modes. Another module exposes green/blue displays and 1/5/10-piece selections. A series-cell count is not an interchangeable battery chemistry, and a voltage-derived state-of-charge display is not a battery-management system, cell-balancing circuit or protective cutoff. Set chemistry, series count and allowed voltage range for the precise selected board before connection. Seller-supplied ranges may differ by display color or model.

Automotive 6-way and 12-way blade-fuse blocks appear next to a variant offering a blade fuse alone. Check whether the selection ships a fuse, a fuse holder or a complete block, and verify circuit-by-circuit fuse ratings, busbar capacity, terminal sizes, supply voltage and installation environment. One title claims 12/24/32 V while the source text also mentions 36 V and 100 A; those numbers are not a blanket per-branch rating. The FS-101 DIN-rail fuse holder references a 6 × 30 mm glass fuse and 10 A in its title with an indicator in the holder; confirm the actual fuse size, included fuse, circuit voltage and indicator function from the exact item. An indicator cannot replace proper overcurrent coordination.

The 12 V motorcycle-turn-signal listing is a pair of 10-ohm, 10 W-marketed cement load resistors. These are passive, heat-dissipating electrical loads rather than LED indicator lamps. An approximate 12 V across 10 ohms implies about 14.4 W continuous dissipation, above a nominal 10 W component rating; actual flashing duty, vehicle voltage and installation determine exposure. Do not assume safe continuous operation or mount a resistor against heat-sensitive materials. Hyperflash correction depends on the vehicle's flasher/control electronics and is not universally solved by adding a resistor.

Procurement checklist

1. Decide whether the deliverable is a pilot lamp, sounder/beacon, illuminated switch, dashboard bulb, enclosure, fuse device, sensor, test board or repair cable.
2. Read the exact variant's voltage and supply type, not just a title listing 3 V through 380 V; keep LED supply separate from switch contact or module output ratings.
3. Match mounting aperture and rear geometry: 6/8/10/12 mm metal lamps, 16/19/22/25 mm alarms, 19/22 mm switches or T3/T4.2/T4.7 instrument sockets.
4. Verify color, light behavior, sound behavior, momentary/latching state, contact combination, and whether wires or terminals are supplied.
5. Check selected quantity and included parts, especially one versus five lamps, 20-piece square-head lots, one versus ten isolation boards, fuse-only versus holder, and SL versus SR cable.
6. For mains, motor control, emergency-stop and vehicle circuits, validate the assembly's ratings and applicable safety requirements with the responsible qualified designer or installer.

This collection preserves the current mix of products; its descriptions explain their boundaries rather than implying every item performs the same indication task. Product-specific documentation and the selected variant remain the authority for installation, compatibility and claims.
