Logic Level Shifters, Voltage Translators and Interface Modules

Voltage translation is a circuit choice, not one universal adapter

This collection contains 2-, 4- and 8-channel logic-level converter boards, TXS0108E/TXS0102 and TXB0104/TXB0101 translators, PCA9306 I²C/SMBus parts, MOSFET-based bidirectional boards, direction-controlled bus transceivers, and loose single-channel or multi-channel ICs. It also includes RS-232 and RS-485 interface modules, memory-card reader boards with onboard level conversion, CH341A flash programmers with a 1.8 V interface, and related modules. A shared “level shifter” title does not make these products interchangeable. Select the actual signal type, logic-rail pair, direction scheme, channel count, board versus loose chip, and order quantity before using one in a design.

What to compare before crossing voltage domains

A digital level translator allows a signal driven in one voltage domain to meet the valid input levels of another. It does not by itself regulate a power rail, provide galvanic isolation, repair an overvoltage fault, convert a protocol, or make an arbitrary output tolerant of higher voltage. Check both sides' recommended supply ranges and startup requirements, guaranteed input-high/input-low thresholds, output-high/output-low at load, output-enable behavior, leakage, maximum ratings, input capacitance and propagation delay in the exact manufacturer's datasheet and assembled board schematic. The labels “3.3V/5V,” “1.8V/3.3V” and “bidirectional” in product names apply only when the selected device and circuit support those conditions.

Identify whether a line is open-drain/open-collector with pull-ups, actively driven push-pull, clocked, input-only, output-only or dynamically bidirectional. Also check whether the protocol has a turnaround period or a driver-enable signal. A translator that senses direction automatically may perform well on one class of signal but fail with strong external pull-ups, large capacitive loads, long wiring or slow edges on another. Ground reference, decoupling, rise/fall times and rail power-up order are parts of the actual interface, not optional details. Verify power-off leakage/back-powering behavior when one side can be unpowered.

MOSFET-based 2- and 4-channel boards for open-drain buses

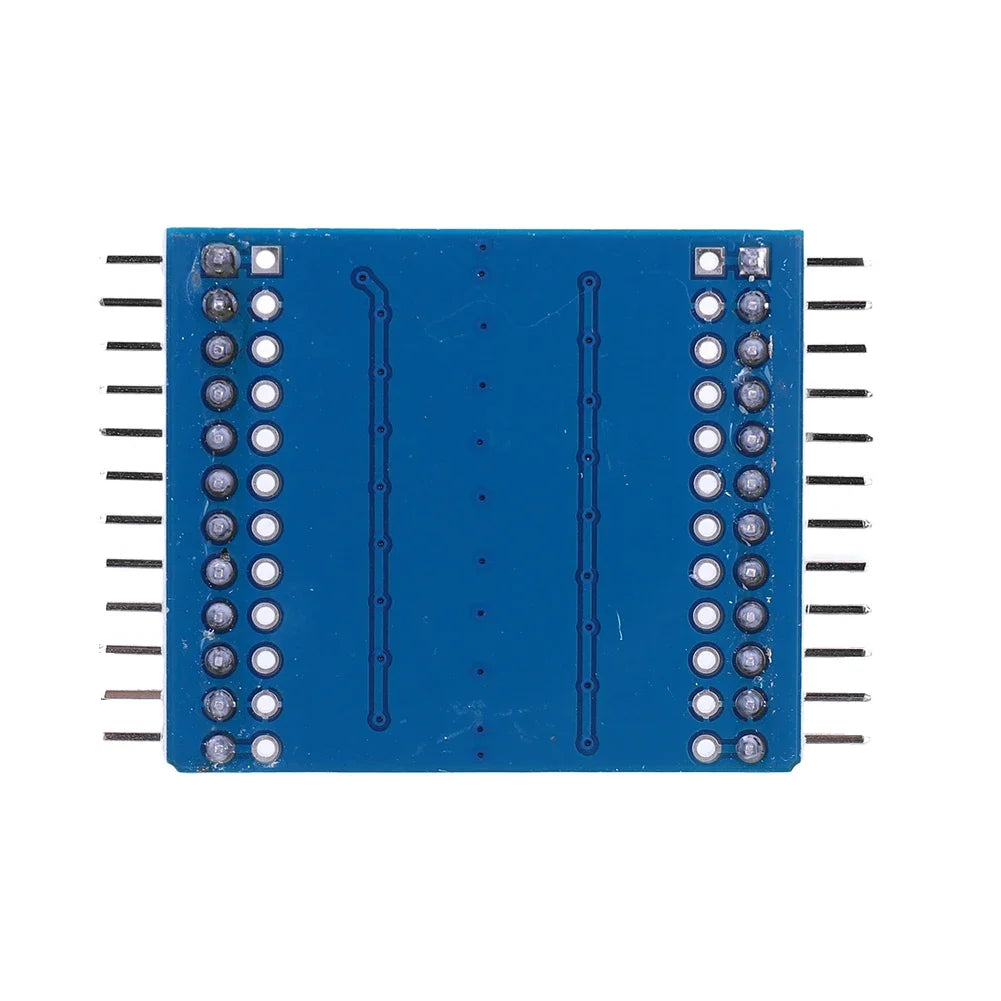

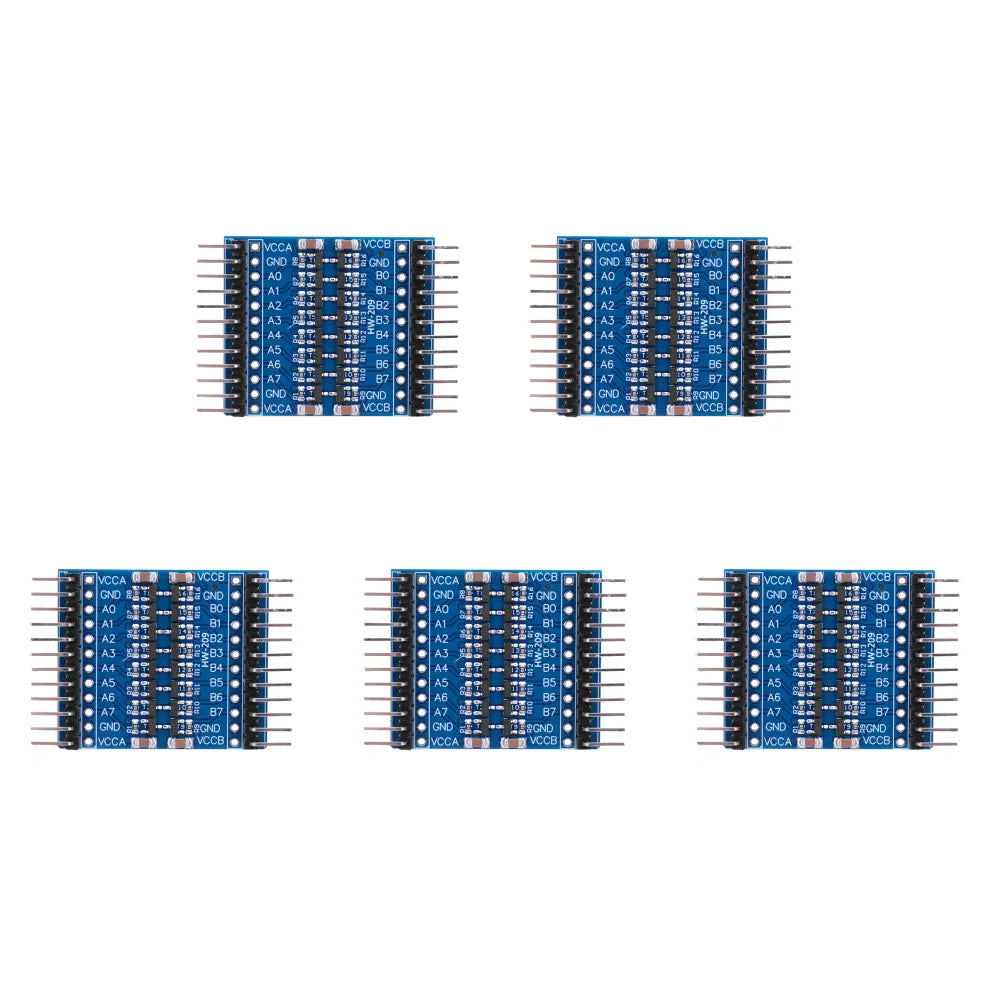

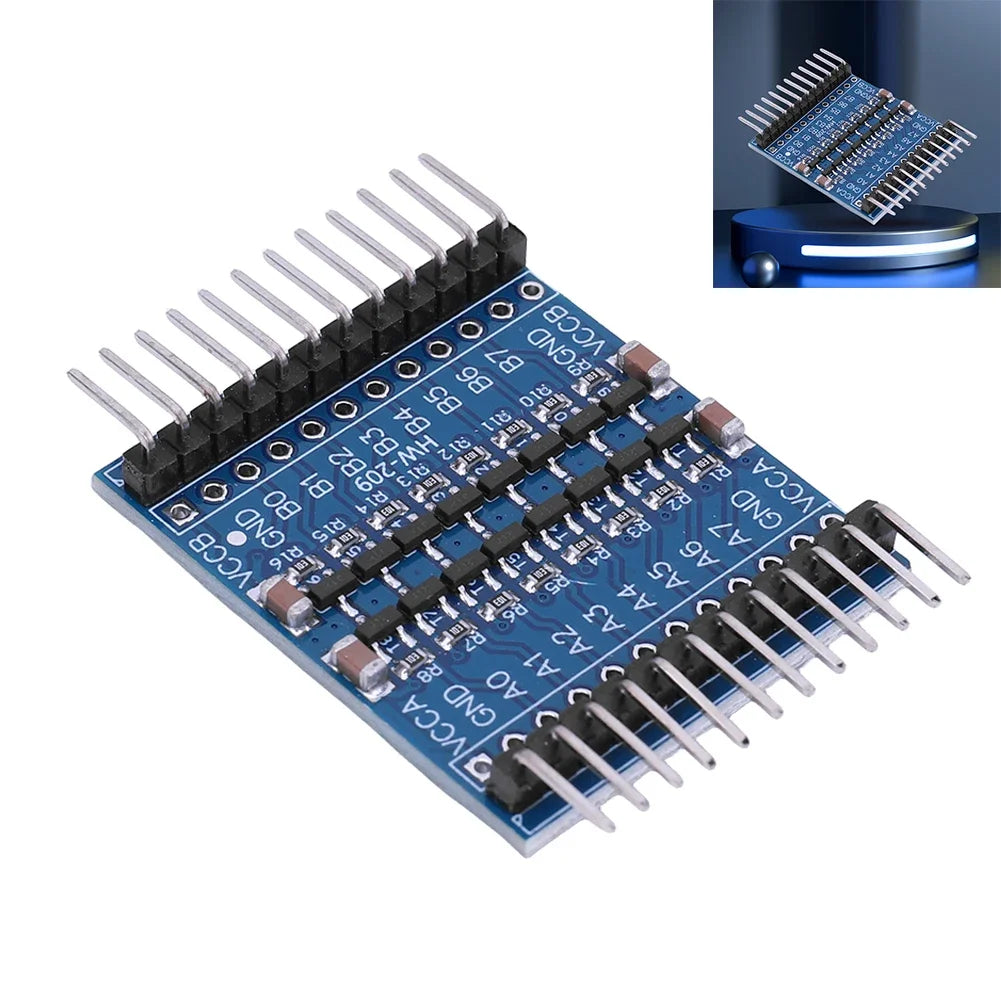

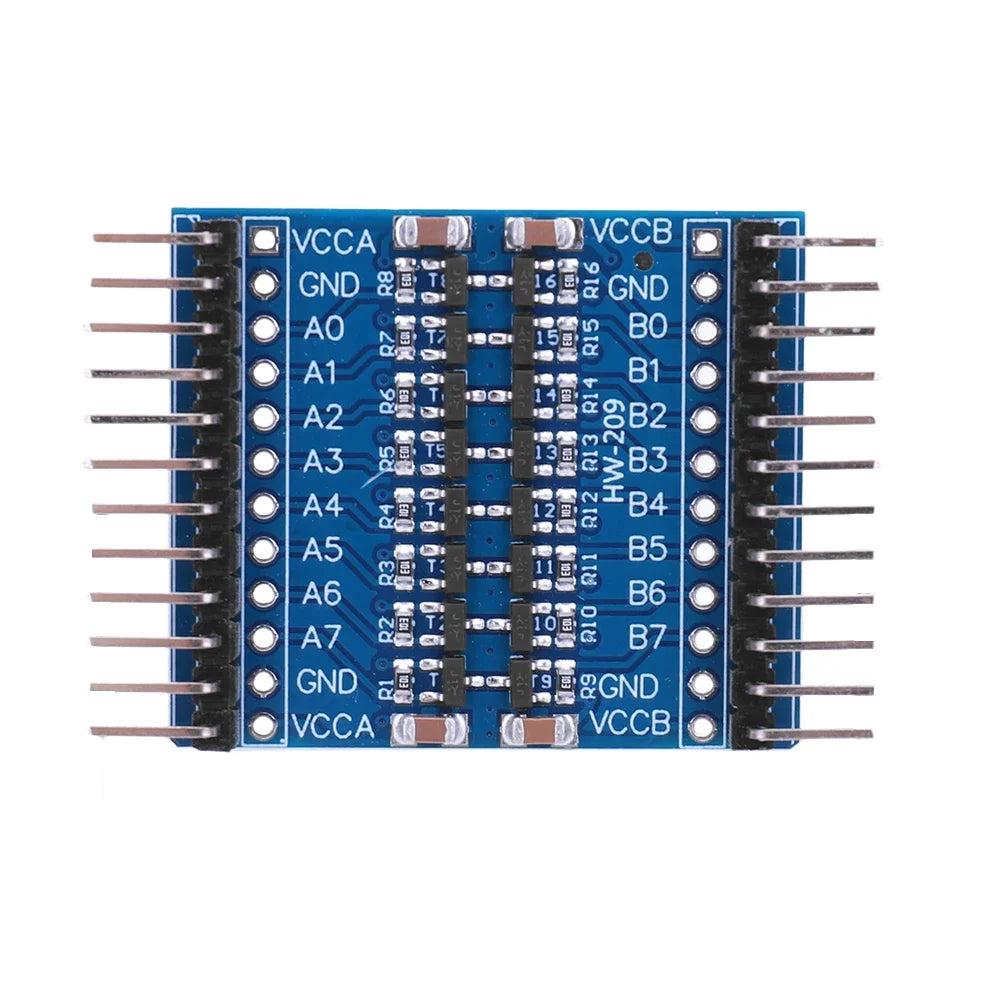

The two-channel and four-channel bidirectional modules in this collection include boards described as “4MOS,” “IIC/I2C” and 3 V/5 V level converters, with options specifying 2 Channel or 4 Channel and 1, 5, 10 or 20 pieces. A common MOSFET-and-pull-up topology is often used for open-drain I²C SDA/SCL lines, where each voltage domain has an appropriate pull-up. It is not inherently a strong, fast push-pull repeater for every UART or SPI signal. External and onboard pull-up resistors combine in parallel; compare rise time, total bus capacitance, sink-current budget, rail voltages and the selected board's actual resistor arrangement. “High speed,” “SPI” or “1-Wire” in a broad listing is not a guarantee that a particular MOSFET board will meet the timing and electrical details of those interfaces.

Check the low-voltage-side and high-voltage-side pins carefully. Power the reference rails according to the board documentation, and do not mistake a reference input for an independently regulated power output. The selected Color option may identify channel count rather than PCB color. Boards advertised with reverse-polarity protection need their actual protective circuit and ratings checked; the phrase does not authorize reversing an external supply or exceeding the connected microcontroller's absolute limits.

PCA9306: I²C/SMBus-specific translation

PCA9306 listings describe a two-bit bidirectional I²C/SMBus voltage translation device or assembled module. The bus uses open-drain signaling and suitable pull-ups in each voltage domain; a PCA9306 is not a general-purpose two-channel push-pull UART line driver or an RS-232 interface. Verify its enable/reference connections, pull-up voltage ranges, on-state behavior, bus capacitance and rise-time requirements using the selected part's documentation. The protocol's address and clock-stretching behavior remain defined by the host and peripherals, not by the level translator. A loose PCA9306 device and a populated PCB with connectors are different purchases.

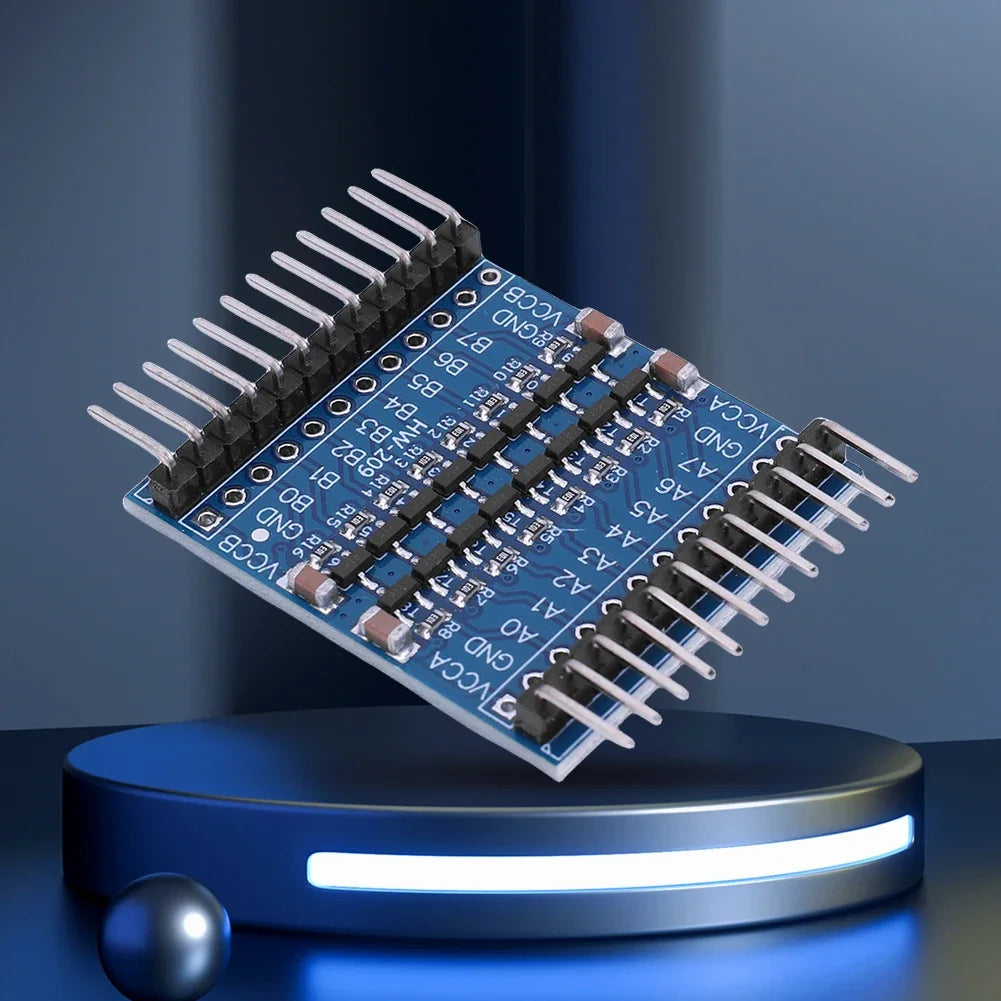

TXS0108E and TXS0102: automatic bidirectional devices

Many listings offer eight-channel TXS0108E modules, with other products naming TXS0102 two-bit translators. These are auto-direction voltage translators with device-specific internal behavior. They are not interchangeable with every MOSFET I²C breakout or with the TXB family simply because all are called “bidirectional.” Confirm the A/B supply rails, output-enable pin, startup sequencing and required external connections on the chosen board. Strong external pull-ups or pull-downs, heavy capacitive loads and long cables can conflict with auto-direction circuitry; evaluate the actual datasheet's application limits and timing at your voltage pair. A supplier's single “10 Mbps” or “high speed” title cannot describe all voltage, load and signal-direction cases. More channels mean more physical lines, not guaranteed support for eight independent high-current outputs or a universal interface library.

The 1/5/10/12-piece and other quantity choices refer to delivered boards or devices in the selected listing; verify whether headers are populated and whether a quantity refers to loose ICs or complete modules. “Full duplex” in a seller headline should not be interpreted as a protocol feature or as permission to let two push-pull drivers fight on one wire.

TXB0104 and TXB0101: push-pull use is not an I²C shortcut

Four-channel TXB0104 and single-channel TXB0101 options include assembled auto-direction boards and loose SOP-14 or smaller package ICs. The TXB topology is intended for appropriately driven logic signals under its specified drive and load limits; it can be unsuitable for open-drain I²C buses with external pull-ups or for large capacitive loads. Several product titles advertise TXB0104 for I²C and SPI together or say “no pull-up resistors”; that combination is not proof of universal I²C compatibility. Match actual electrical topology, logic levels, timing and the maker's recommended applications before ordering. If a bus needs pull-ups and wired-AND operation, evaluate a suitable I²C translator such as the selected PCA9306 or a properly characterized MOSFET board instead.

An auto-sensing translator is not a current-boosting output buffer for motors, relays, long field cables or an undetermined number of LED loads. Verify allowable external drive strength, direction changes and board OE wiring. “1.8V/3.3V/5V” in one title identifies candidate domains to check against the selected exact IC's A/B supply limits, not a claim that all three voltages can be connected to two supply pins simultaneously.

Direction-controlled, unidirectional and other logic ICs

Listings include a 74LVC4245A/MCU-245 dual-supply eight-bit bus transceiver module, SN74LVC1T45 single-bit direction-controlled SOT23-6 parts, SN74LV1T34 single-supply buffer options, 74HC4050D hex buffering devices, MC14504B TTL-to-CMOS translators, FXMA2102 and PI4ULS5V202U devices. These codes differ in channel count, package, allowable supplies, direction/enable controls, output drive and input tolerance. A bidirectional transceiver with a direction pin requires the host to set the direction deliberately. A one-way buffer cannot transparently translate an open-drain bus in both directions. A single-supply buffer's input acceptance does not imply arbitrary voltage-tolerant I/O; use the selected manufacturer's complete data and the exact package marking, particularly where a vendor listing offers a 10-, 20- or 50-piece loose-IC lot instead of an assembled board.

One 4/8-channel module advertises 1.2 V/1.8 V/3.3 V combinations; those are source-described board variants or intended domains, not a collection-wide supported range. An SX1509 16-channel I/O expander and LED/keyboard interface board offers additional I/O function; it should not be described as a transparent pin-for-pin 16-channel level shifter. An adjustable positive/negative DC bias-offset module handles an analog voltage offset, not the same job as digital two-rail logic translation.

Serial-interface modules are a different electrical category

MAX3232 and SP3232 boards translate logic UART signals to RS-232 electrical levels. RS-232 is not another 3.3 V/5 V CMOS logic rail, so these modules should not be substituted for a GPIO-level shifter. RS-485 TTL converters use a differential bus transceiver and may have separate driver-enable or auto-direction behavior; they are not simply 2-channel digital voltage shifters either. The CP2102 six-in-one adapter is a complete USB-serial/multi-interface assembly, not a loose bidirectional translator. Check actual UART direction, RS-232 connector pinout, RS-485 A/B pair, board supply, ground/isolated reference and required host driver as applicable. Where a title advertises 3.3 V/5 V compatibility, distinguish the converter's power supply from its actual logic-I/O thresholds.

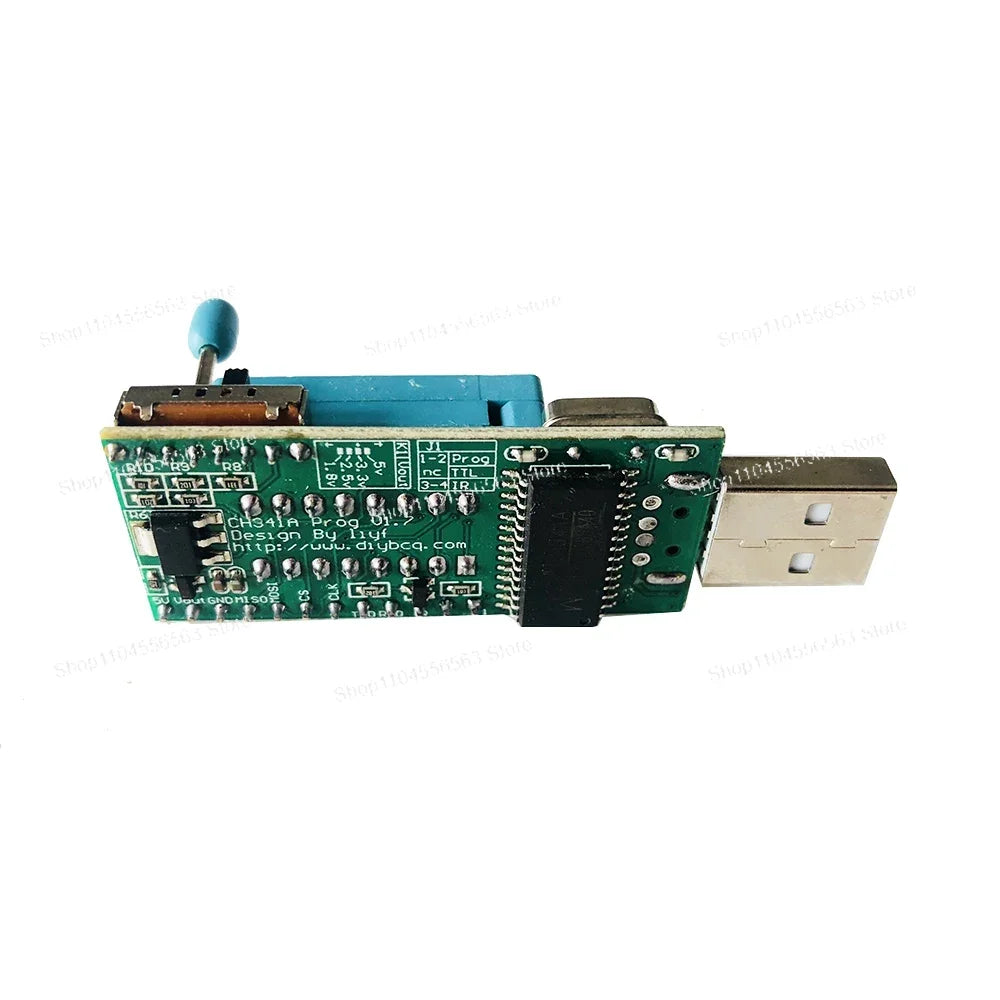

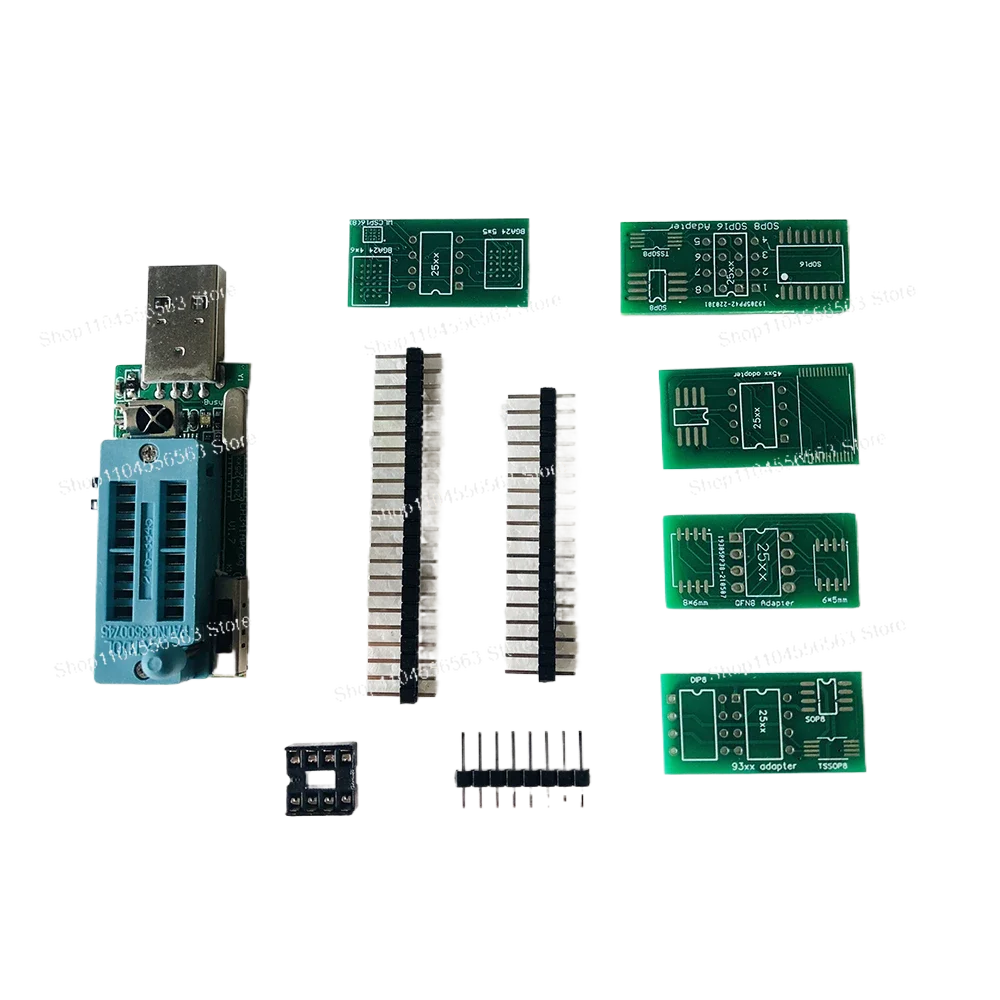

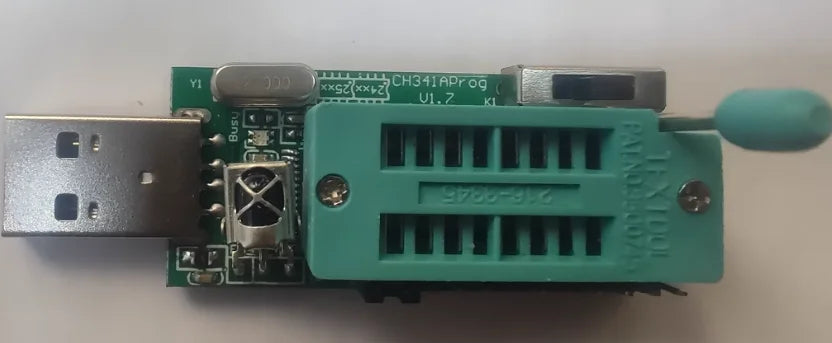

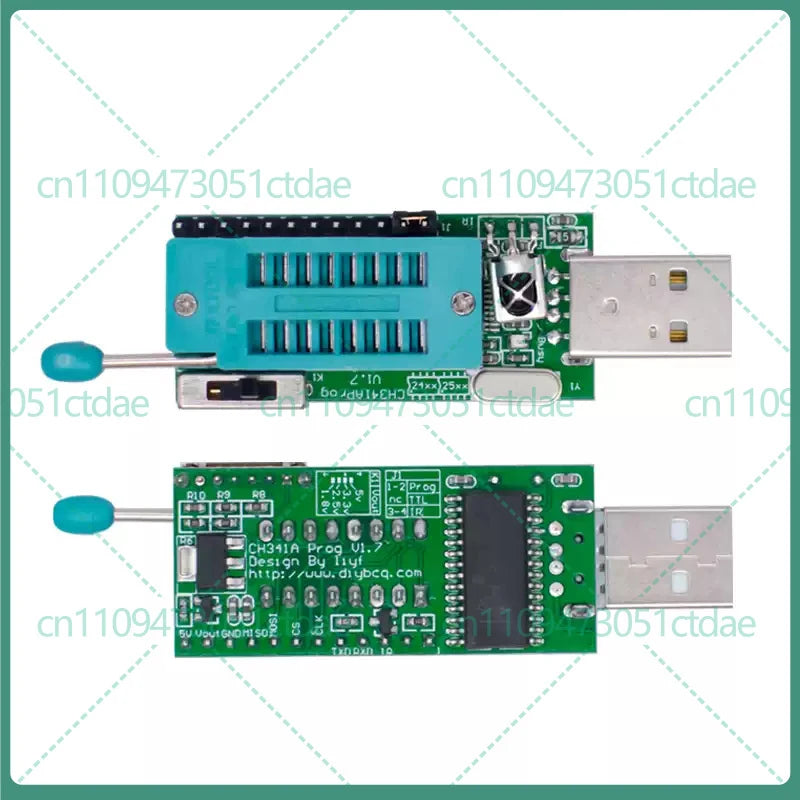

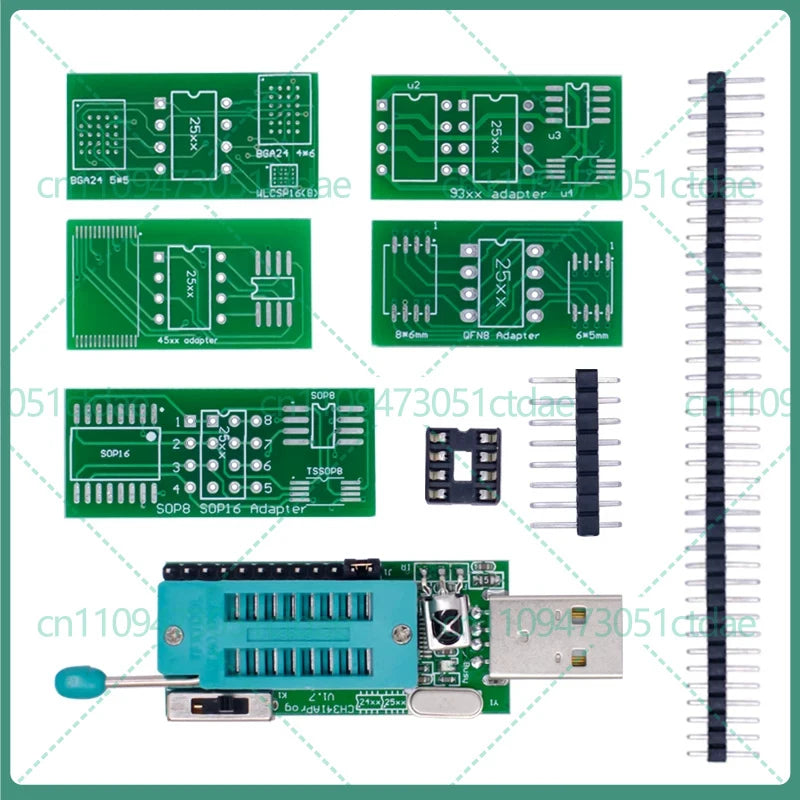

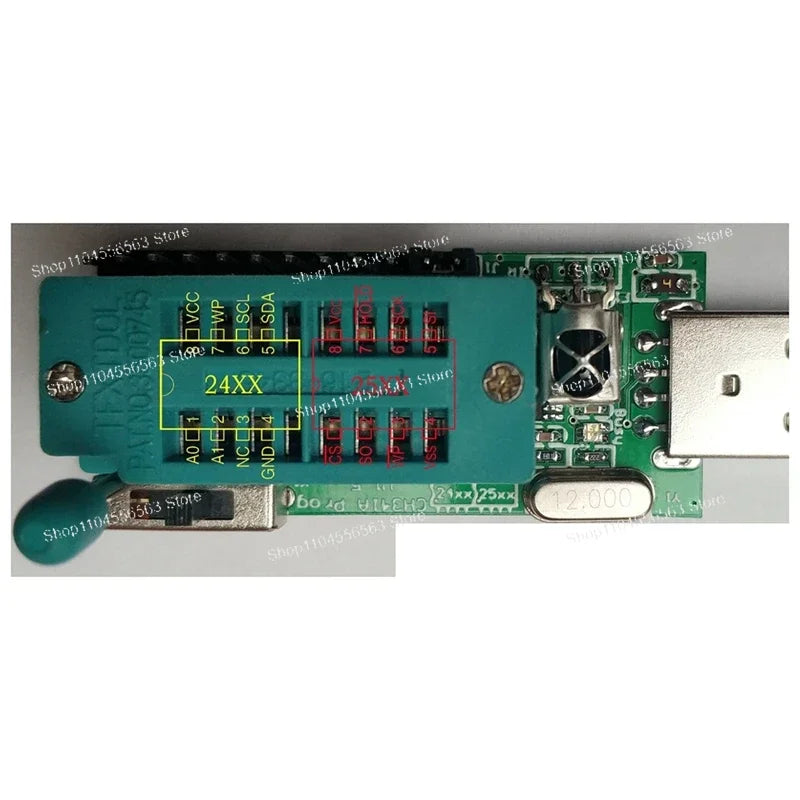

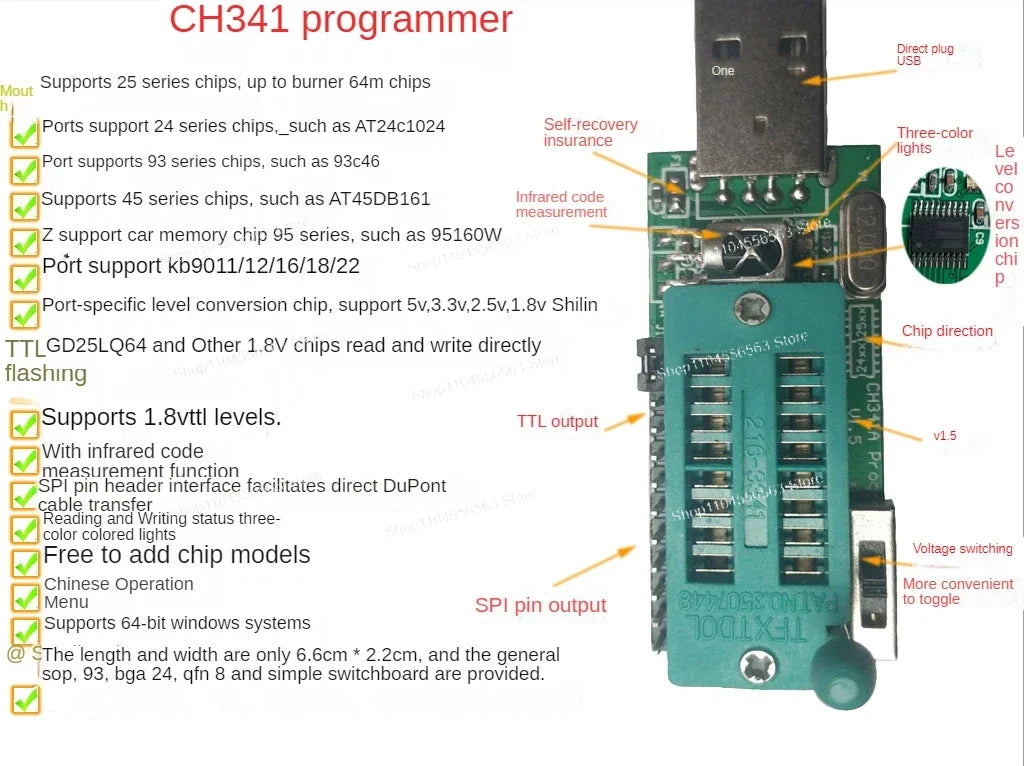

The HM-10 Bluetooth Low Energy UART module listings describe a wireless device whose interface may require voltage translation; purchasing one is not the same as ordering a standalone shifter. A CH341A USB flash programmer described with a 1.8 V level shifter is a programming assembly or option, not a general-purpose 1.8 V-to-5 V translator. Memory-card reader boards with onboard conversion provide SPI/card interface functions as assembled modules; their supported host voltage, card supply and actual level-shift topology must be checked separately. Seller-stated certifications or compatibility and “original” provenance are not independent verification for this entire collection.

Engineering selection checklist

1. Classify the line: I²C open-drain, push-pull GPIO, UART, SPI, RS-232, RS-485, a memory-card interface or analog offset. Do not shop by voltage pair alone.
2. Determine direction: fixed A-to-B, controlled bidirectional, auto-direction or open-drain pass-gate behavior. Account for turnaround and simultaneous driver contention.
3. Specify both power domains: actual minimum/maximum rails, host input-high threshold, translator output levels, unpowered-side behavior and power-on sequence.
4. Budget the signal: bus capacitance, pull-up resistance and rise time for I²C; load and edge rates for push-pull; propagation delay and clock timing for SPI or other fast interfaces.
5. Read the selected option: 2/4/8 channels, 1/5/10/20 pieces, module versus loose chip, board color versus device code, pin-header provision and package footprint.
6. Confirm board-level reality: schematic, rail pin labels, OE/DIR routing, ground references, connector positions and any claimed protective components on the selected PCB.

Frequently asked questions

Can one bidirectional level shifter handle I²C, SPI and UART equally well?

No. These interfaces have different drive topologies, speeds and direction requirements. Match the chosen translator to the actual signal and load; a title naming all three is not proof of electrical suitability.

Is TXB0104 a recommended universal I²C shifter?

No. Open-drain I²C pull-ups can conflict with TXB-style auto-direction behavior. Evaluate a device intended for the bus, such as a correctly applied PCA9306 or an appropriate MOSFET-based board.

Does a 3.3 V/5 V translator supply 3.3 V power to my sensor?

Not necessarily. Most boards require suitable reference supplies on both sides. Check whether any regulator exists and what current its output can deliver before powering an external device.

Can I replace a MAX3232 board with a four-channel logic shifter?

No. MAX3232-family modules interface logic UART to RS-232 voltage levels. A two-rail CMOS translator does not generate the correct RS-232 signaling.

Are a loose TXS0108E and an eight-channel module the same order?

No. A loose IC requires its package footprint and supporting design; an assembled board includes its own routing and connectors. Check the selected item and piece count.

Does “bidirectional” mean either end can drive at any time?

No. The bus topology and translator determine valid direction and turnaround behavior. Opposing push-pull drivers can still contend and damage a circuit.
