Line Filters for AC Power, RF Signals and EMI Control
A line filter changes the frequency response of a defined electrical path. Here “line” means more than one thing: AC mains input filters suppress conducted electromagnetic interference, whereas RF, ceramic and SAW filters select or reject frequencies on a low-power signal path. This collection includes both families, plus passive chokes, ferrites, DC filter modules and outlet accessories. Match the selected item to its circuit; a frequency printed on an RF part cannot be interpreted as the operating frequency of a mains filter.
Find the correct filter family
- AC power-line EMI assemblies: FN2030, FN351-labelled, CW1B, CW4L2, CW1D and other line filters include single-phase or three-phase models and terminal, chassis or IEC-inlet formats. The selected model's phase count, conductor arrangement, AC voltage, 50/60 Hz operating supply, continuous current, leakage, earth path and physical mounting must be verified individually. Seller claims about a named maker, “genuine,” “medical grade” or AC/DC compatibility need traceable evidence tied to the actual part.
- Open AC filter boards: two-stage 25 A/6 A-class audio power PCB listings are components for qualified enclosure and safety evaluation, not direct substitutes for approved chassis filters. Filter topology or a large ampere number does not establish an attenuation curve, surge capability or protection against electric shock.

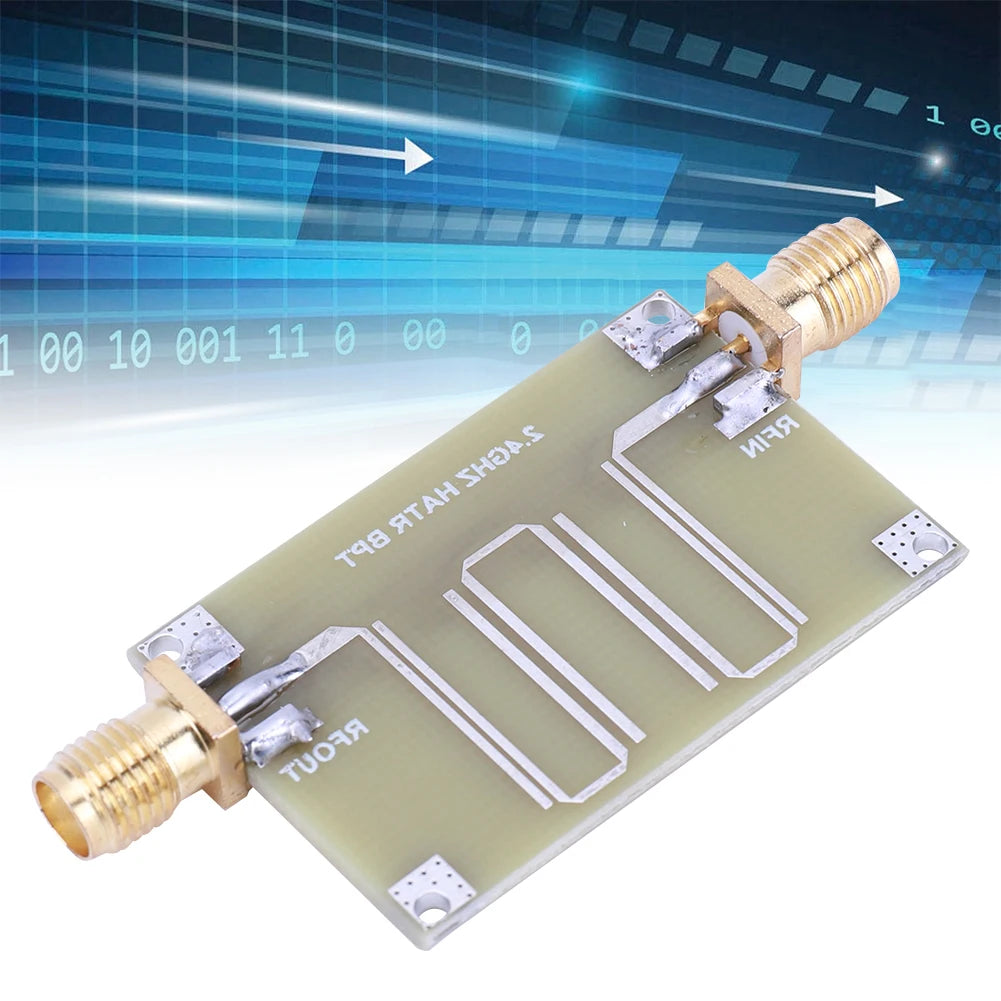

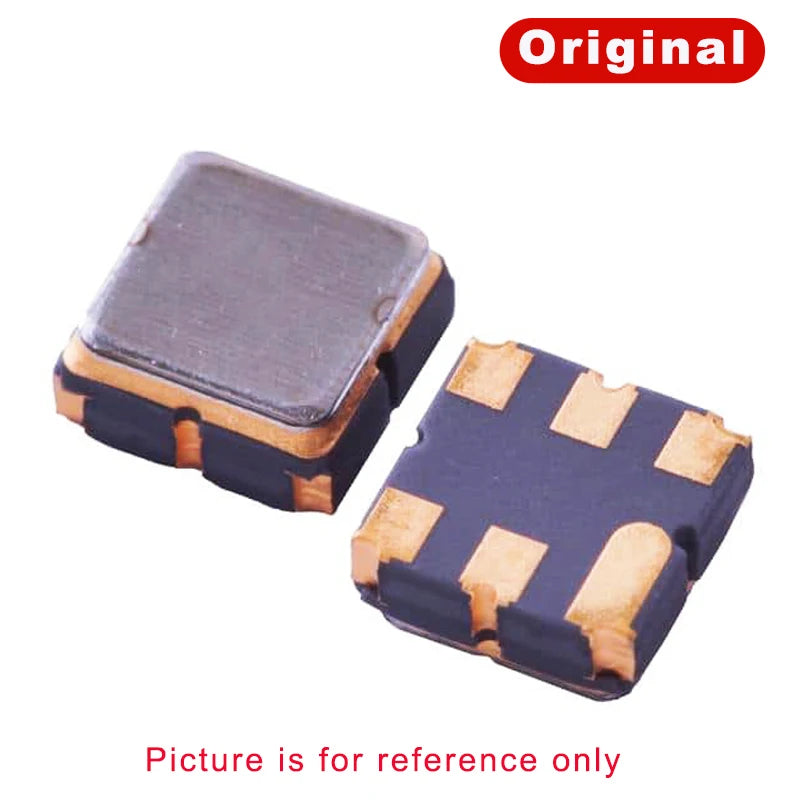

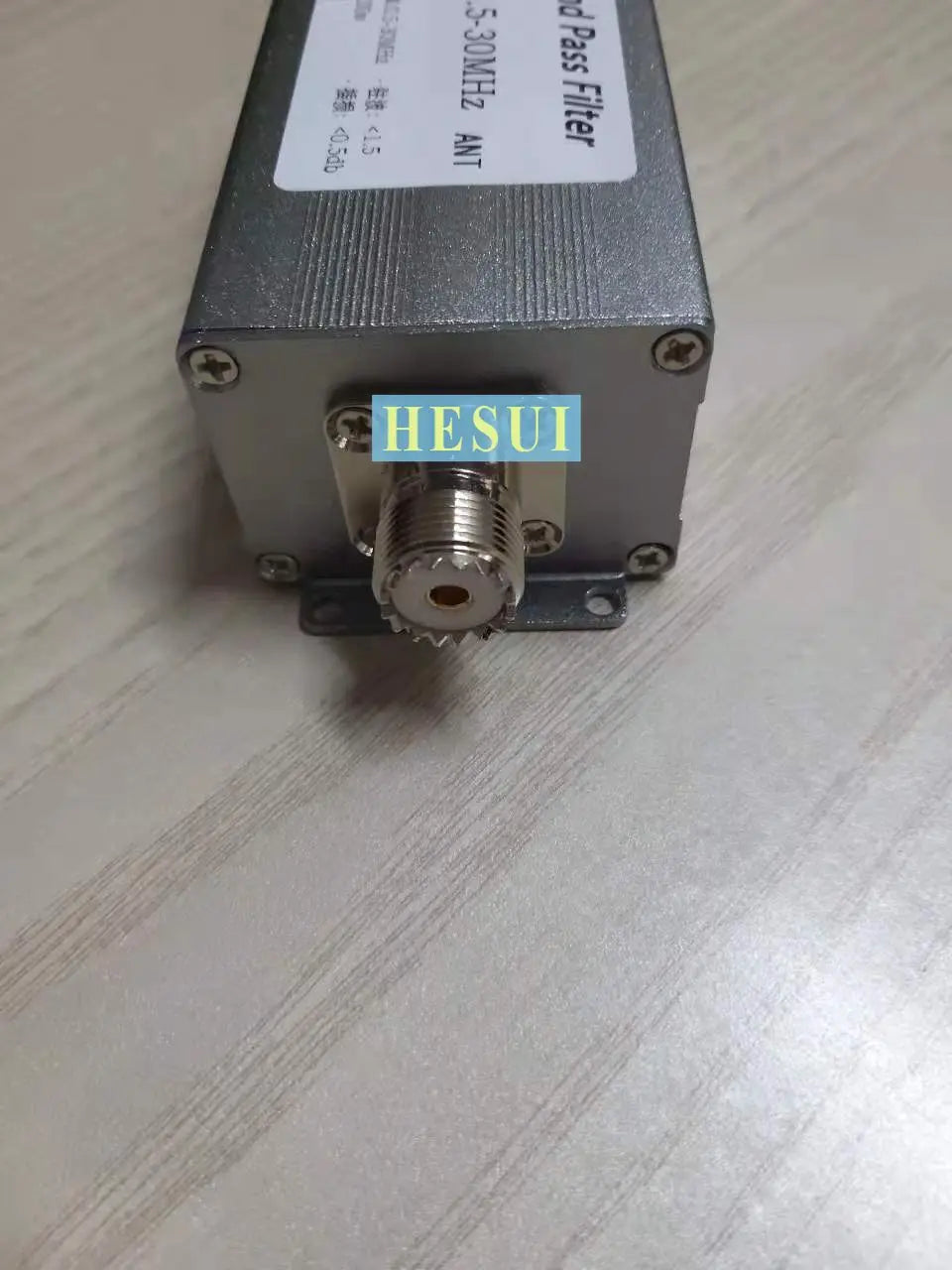

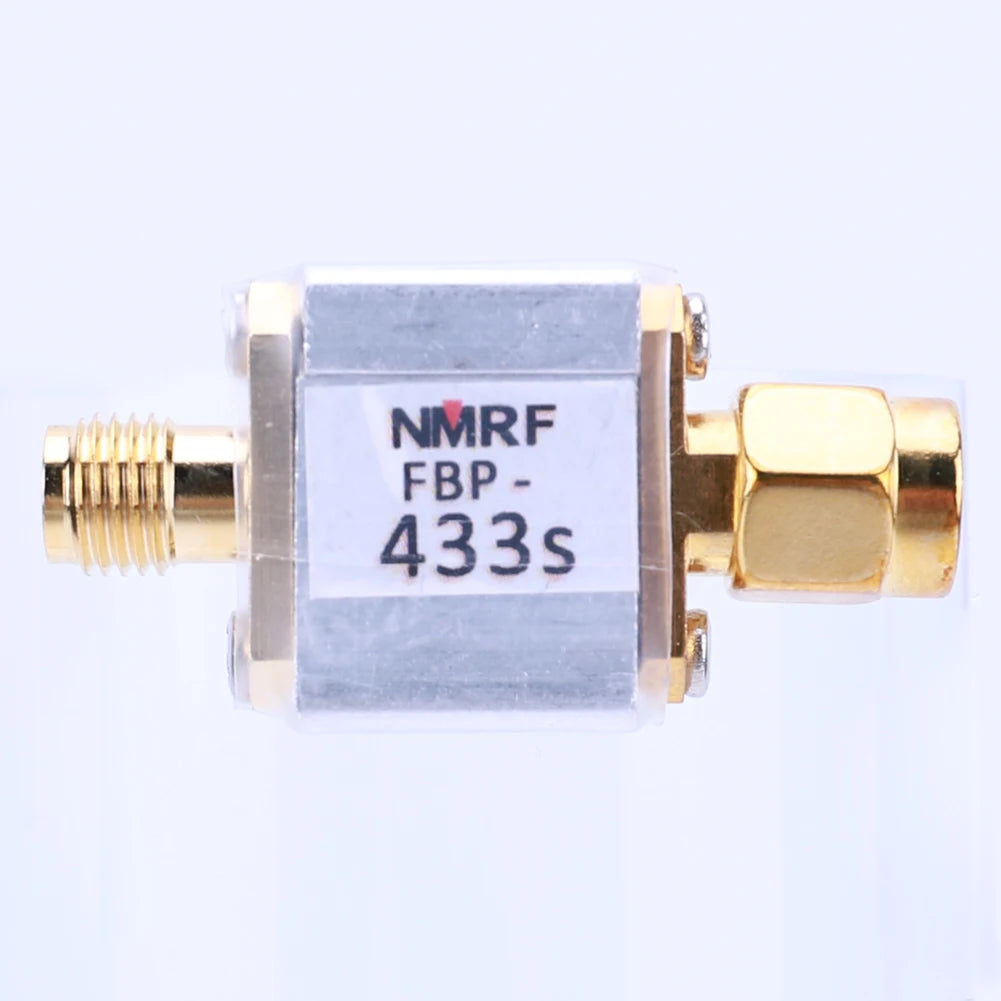

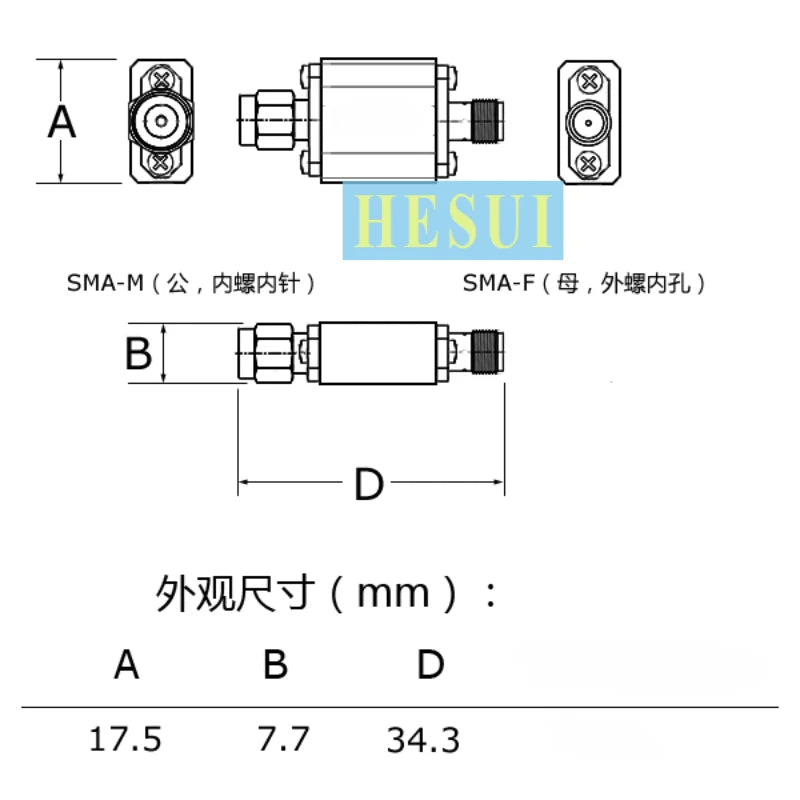

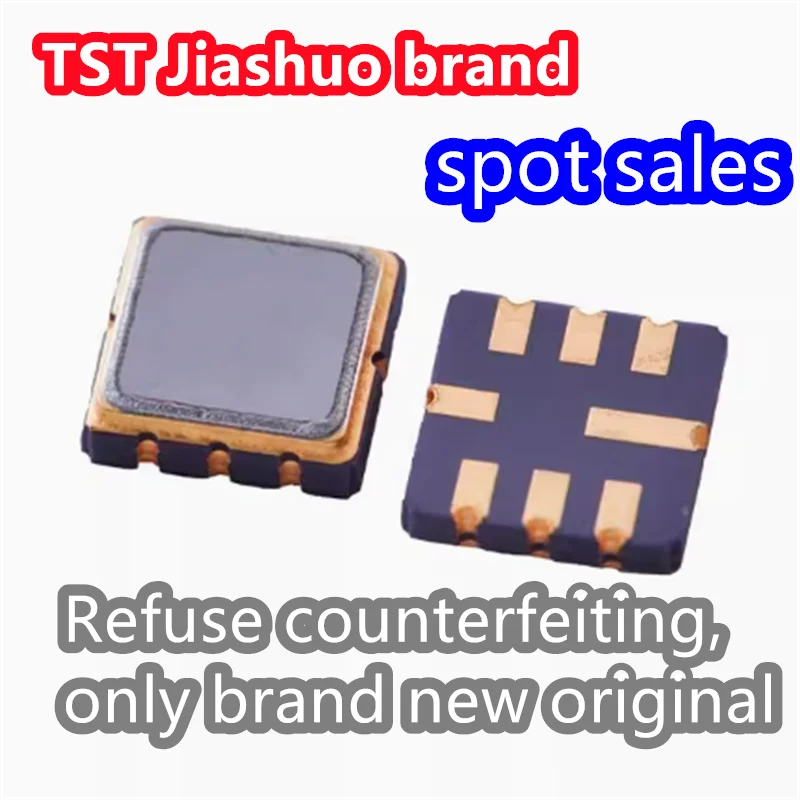

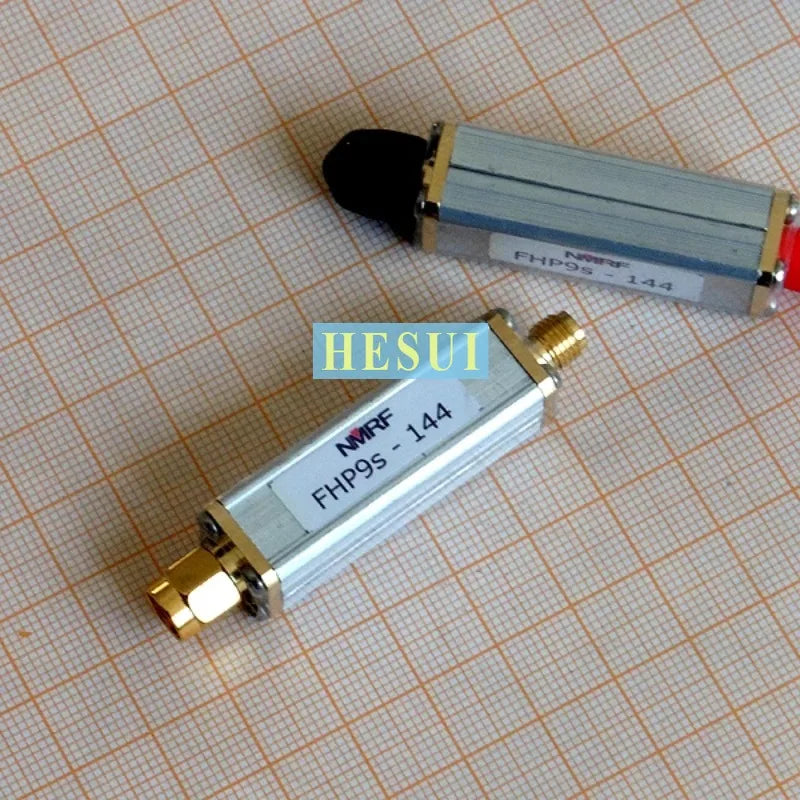

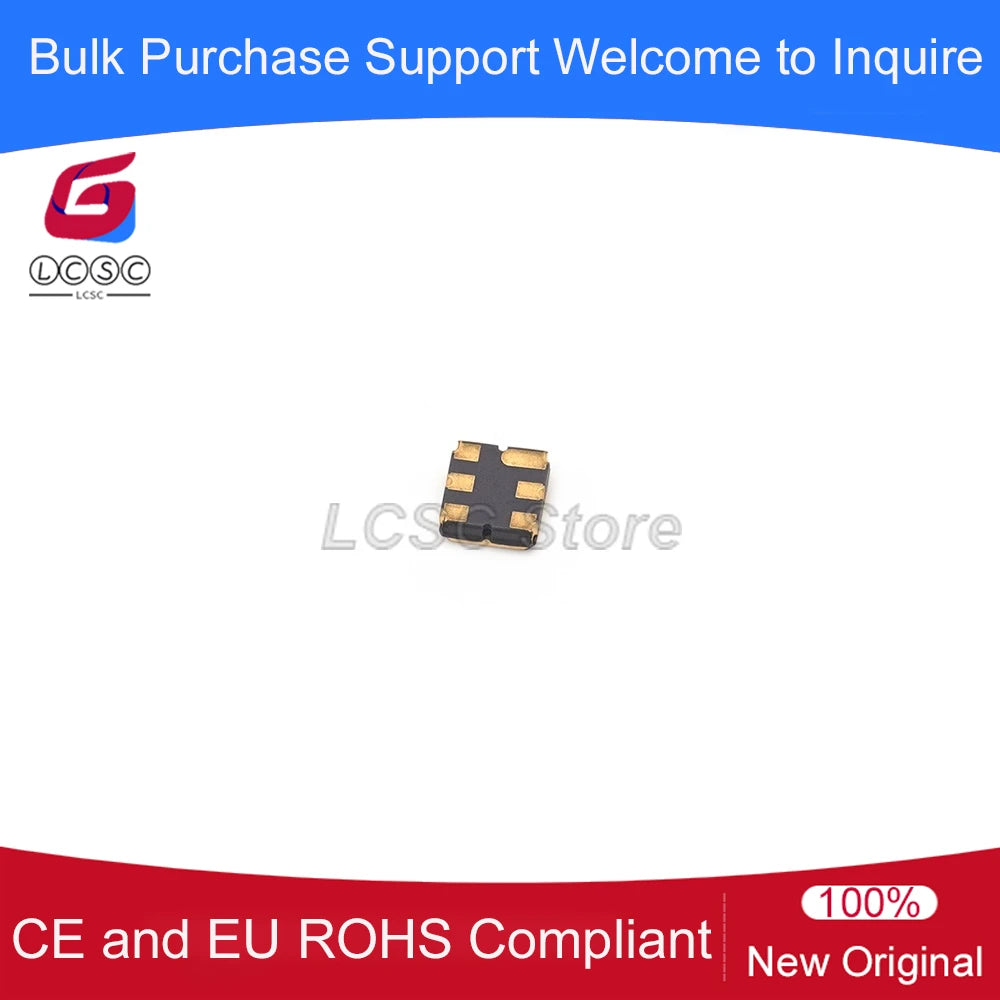

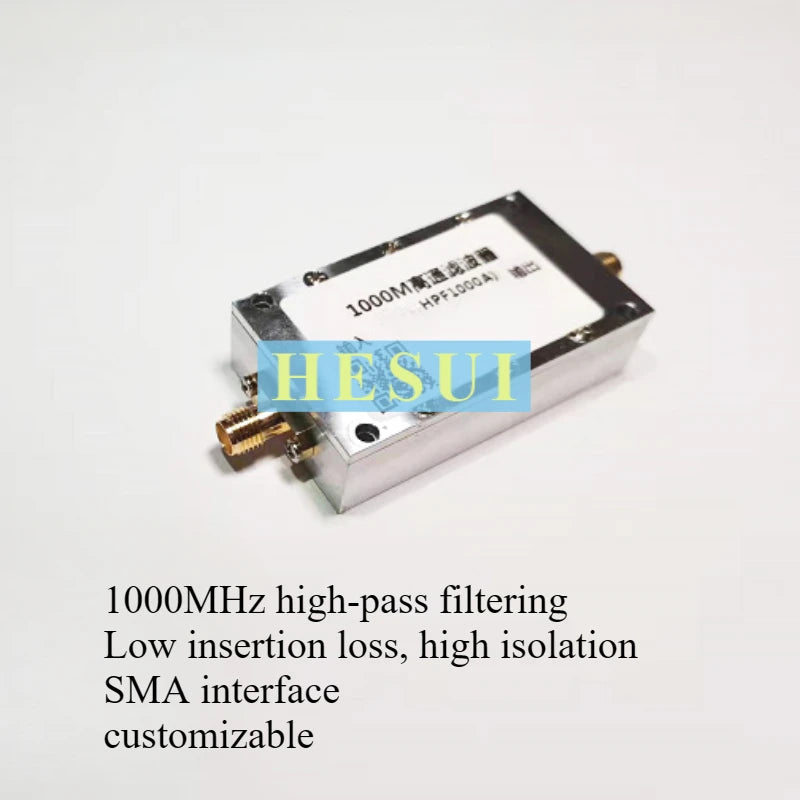

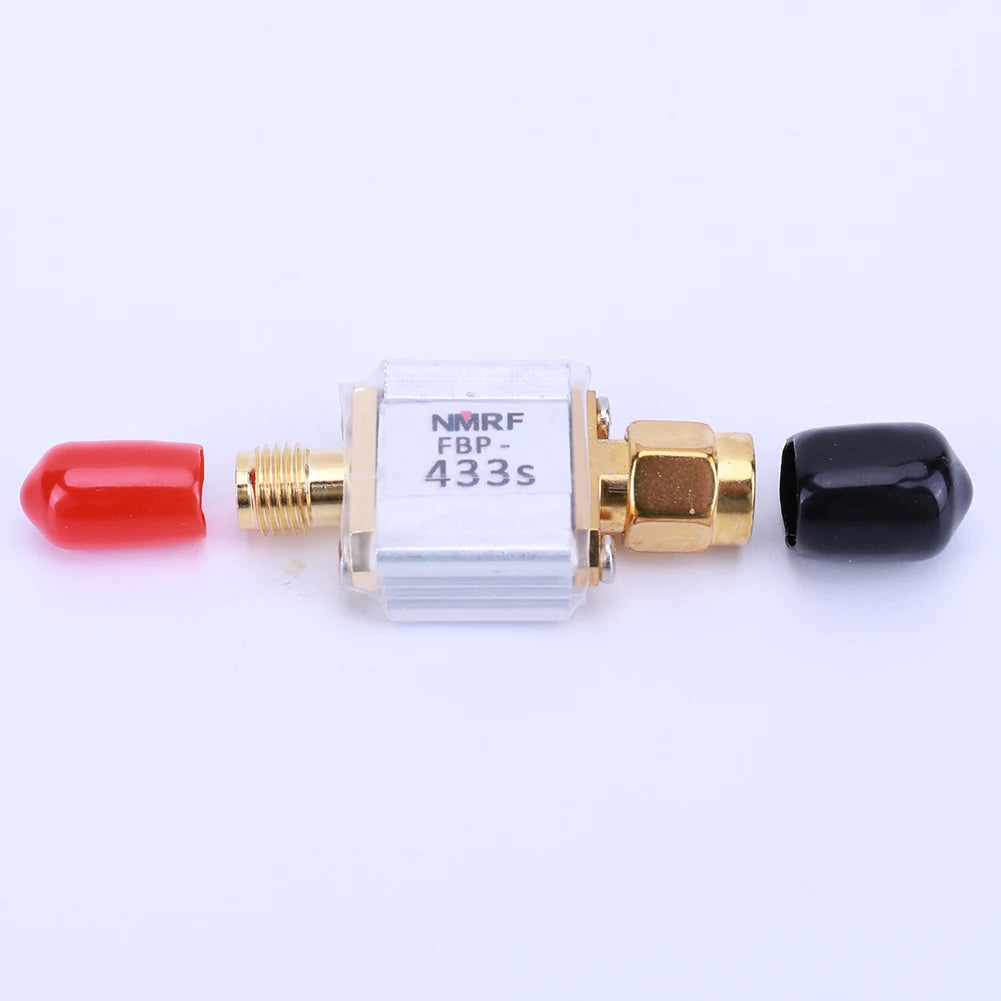

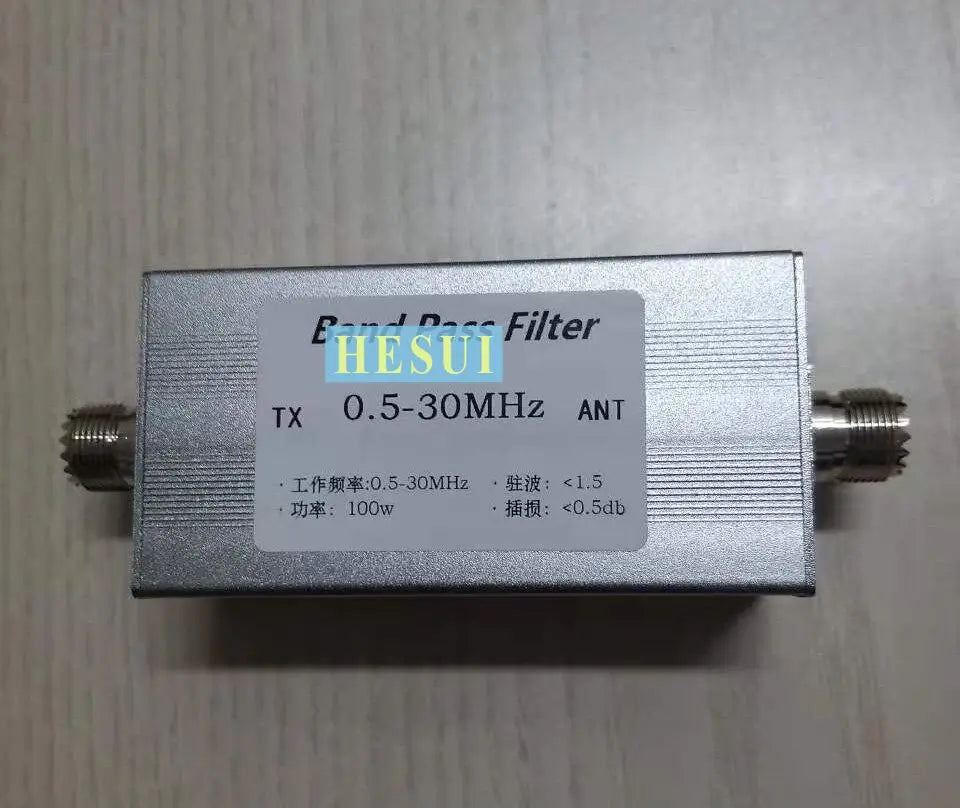

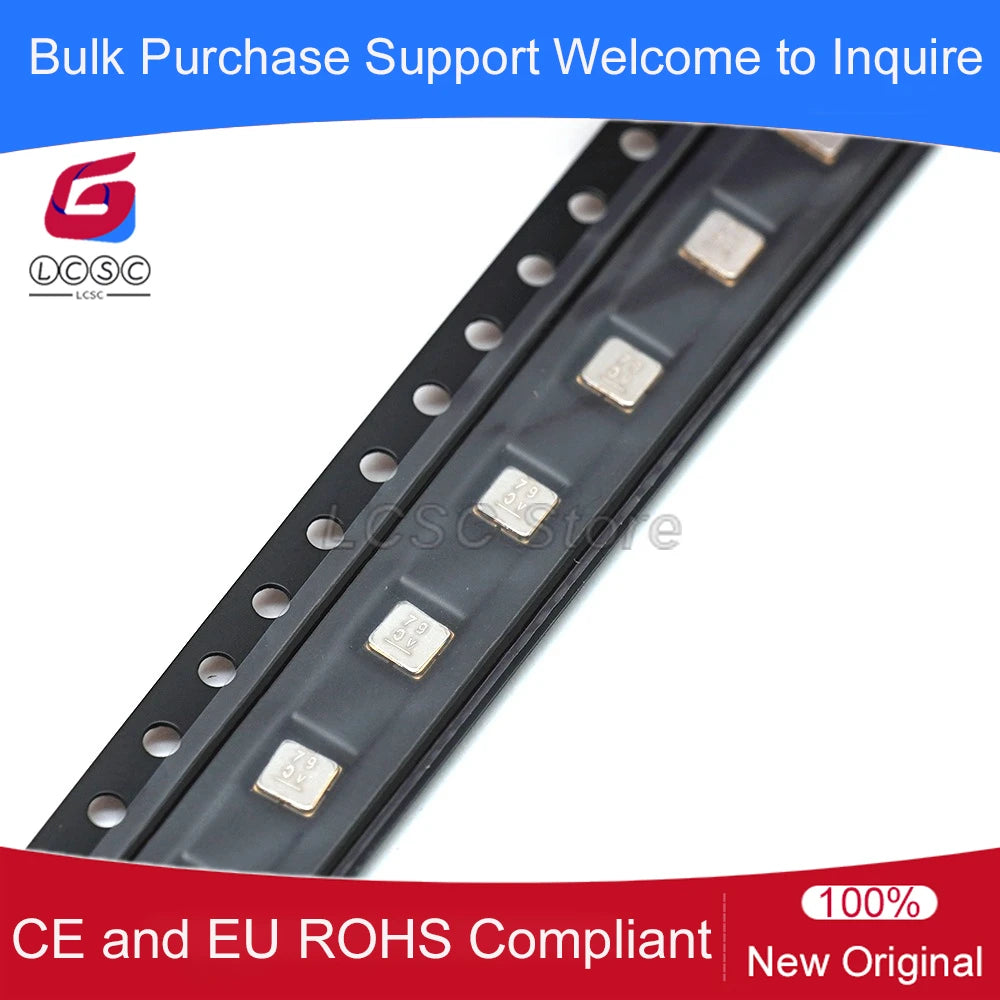

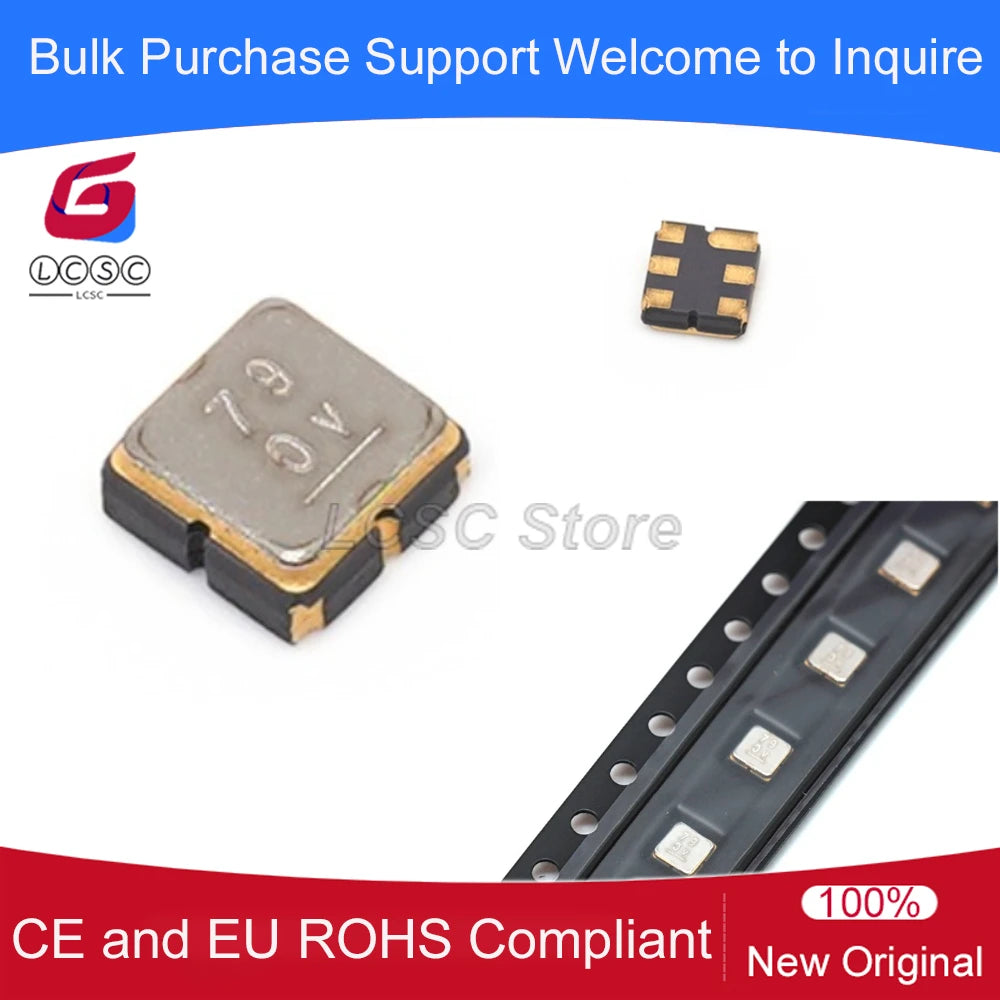

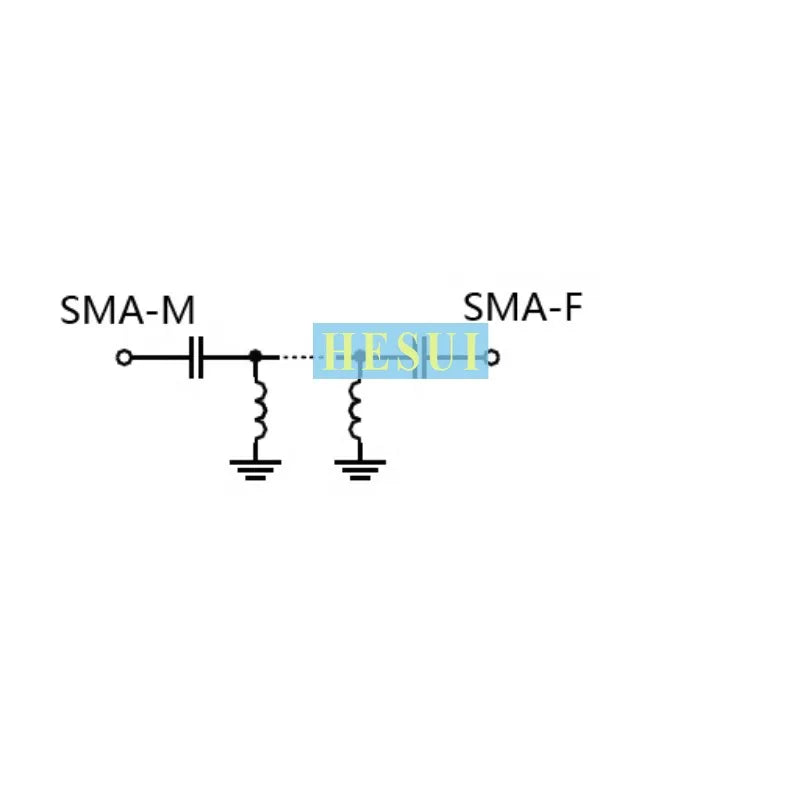

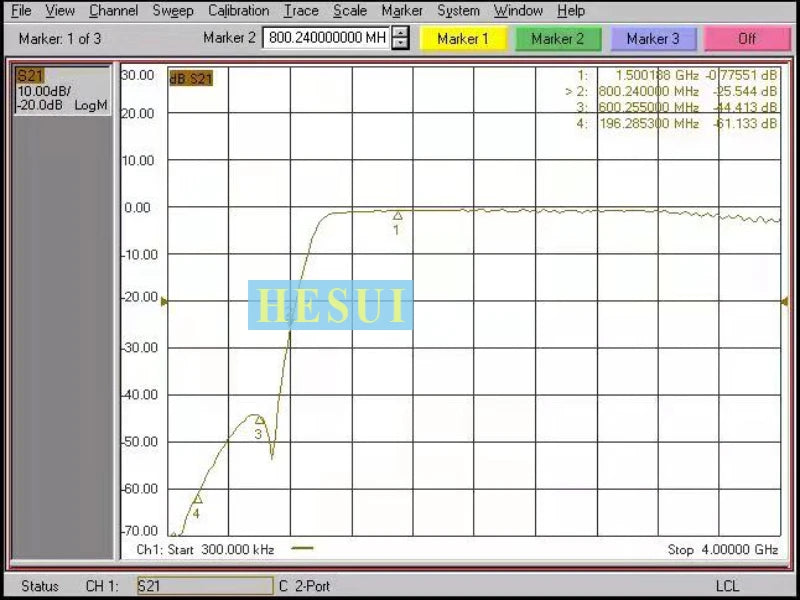

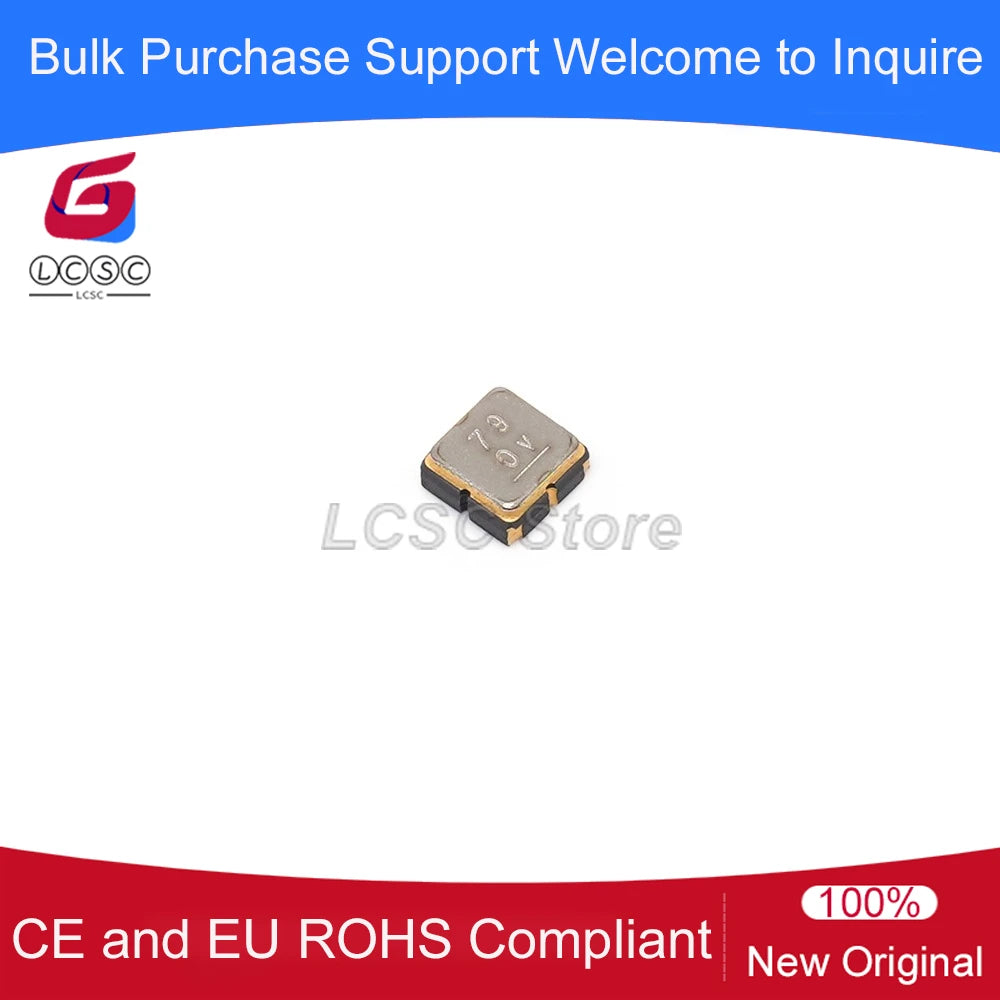

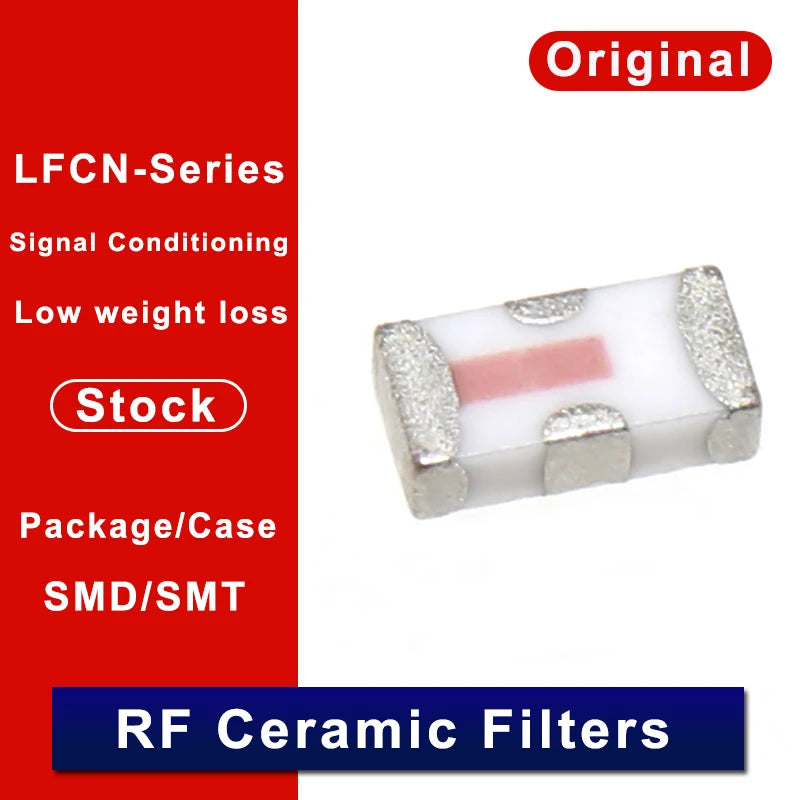

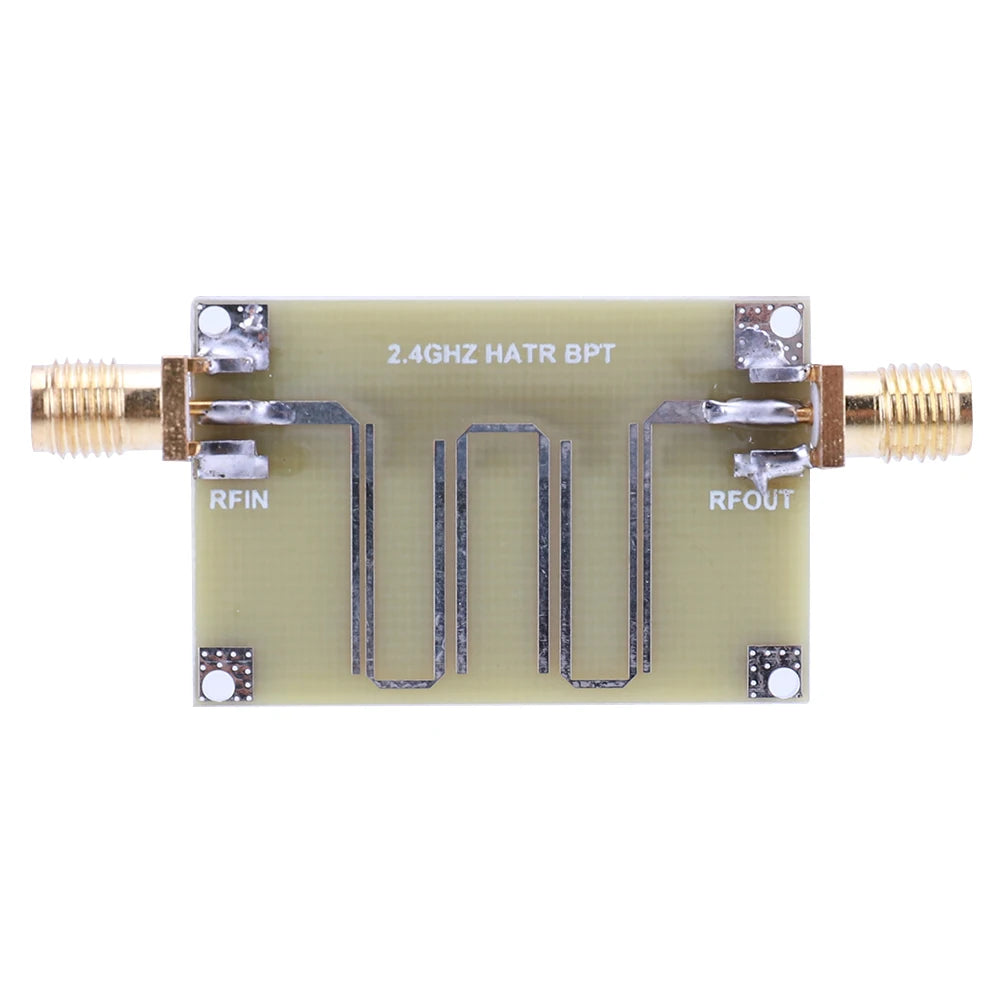

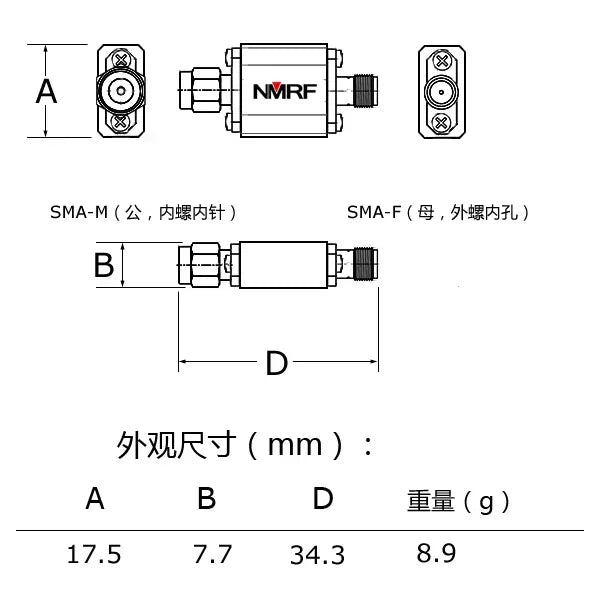

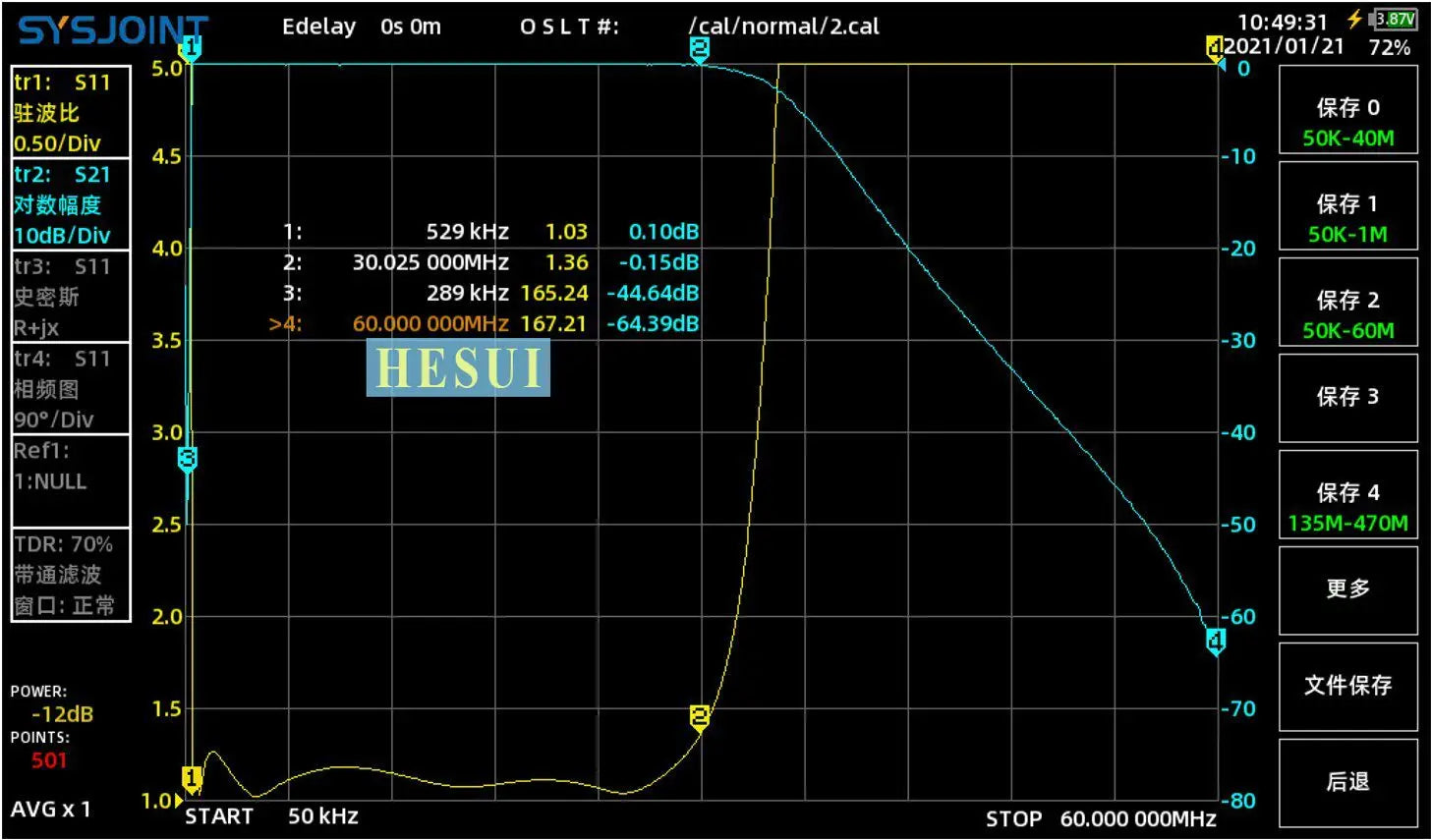

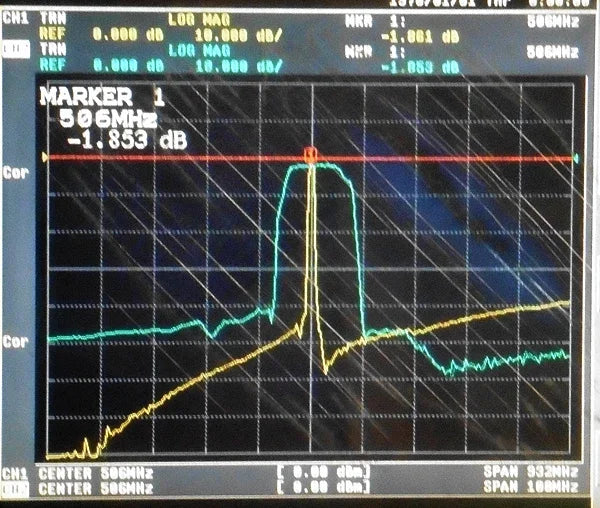

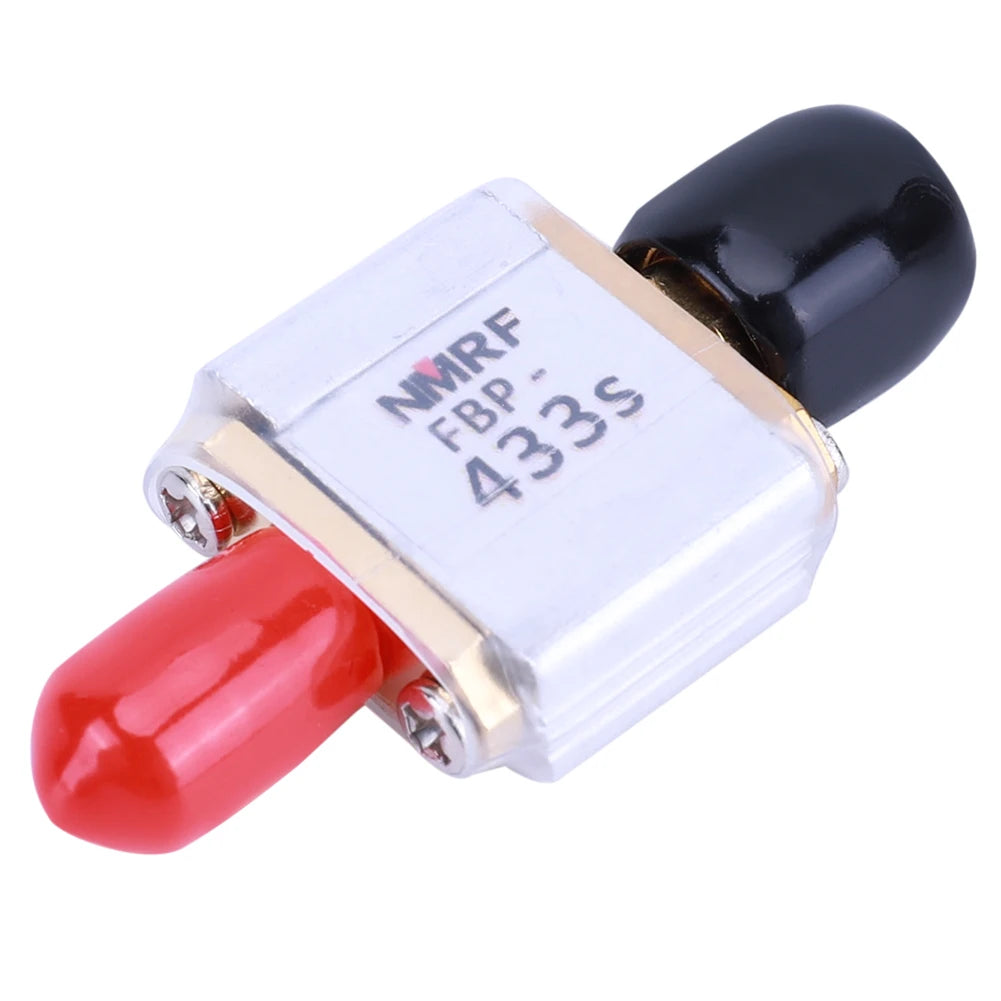

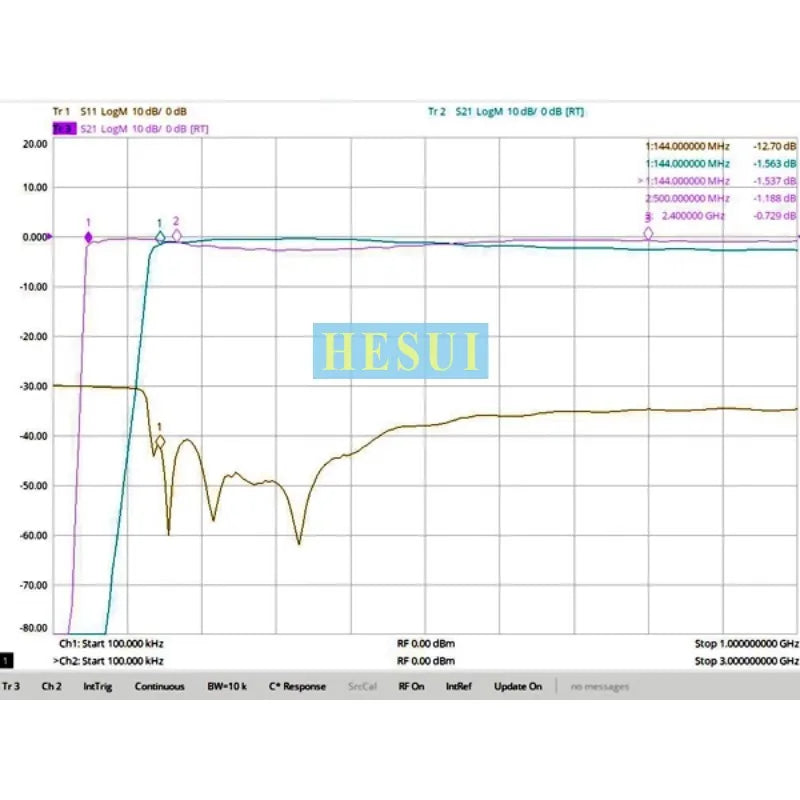

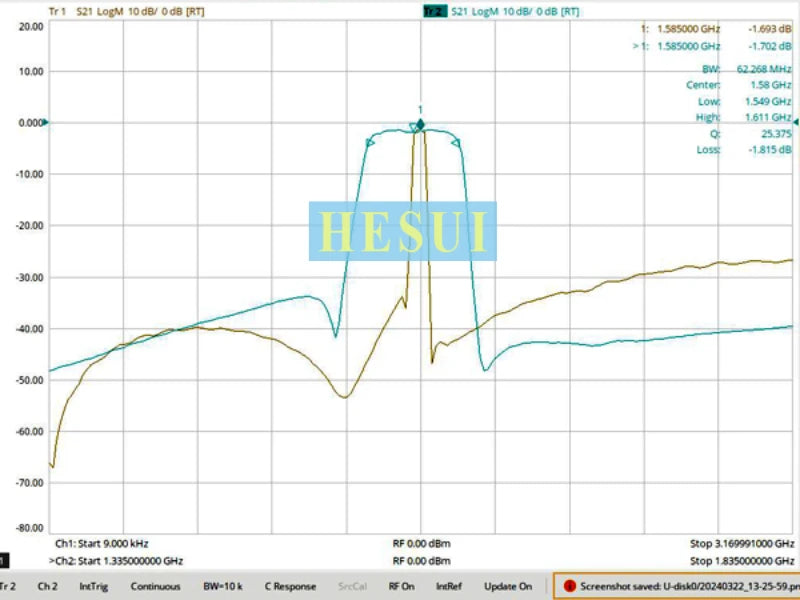

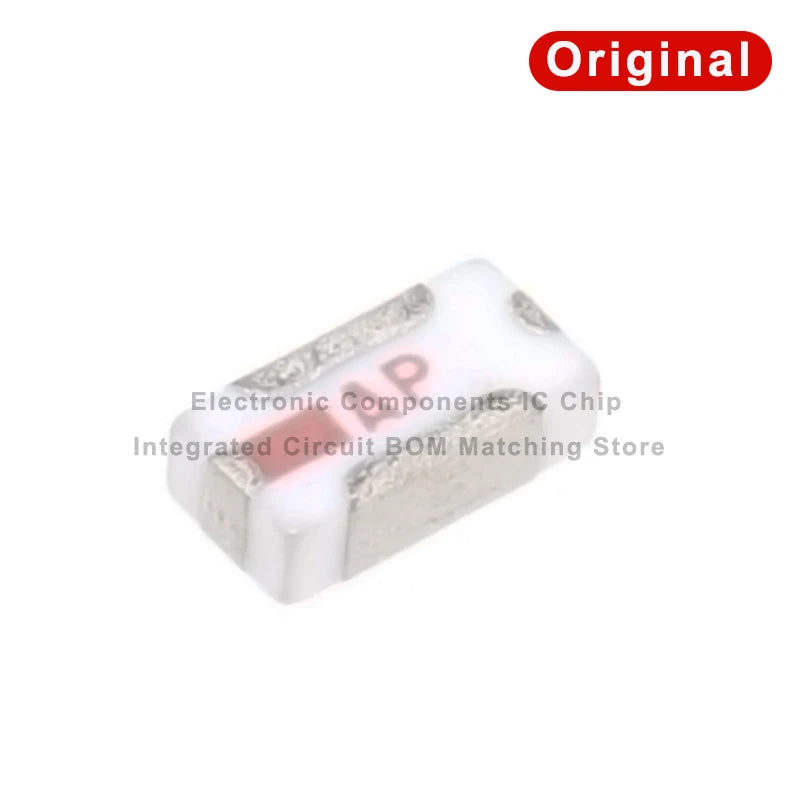

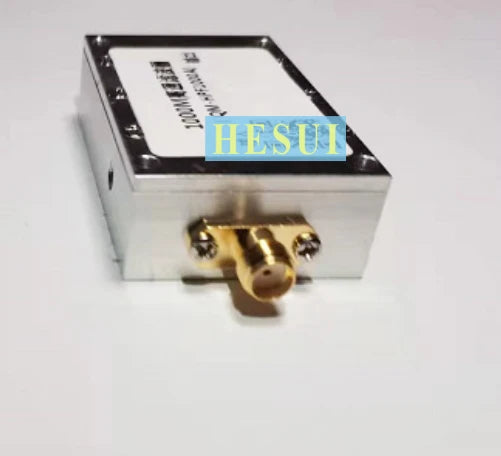

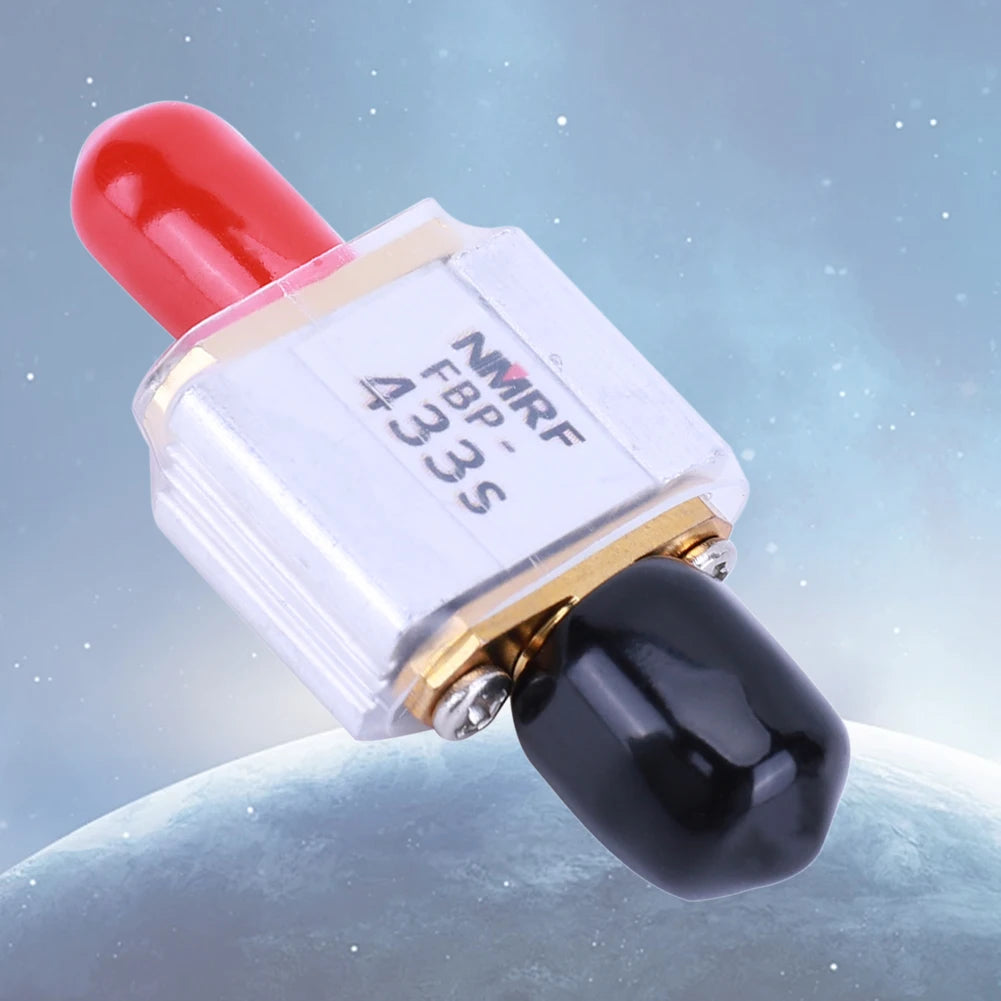

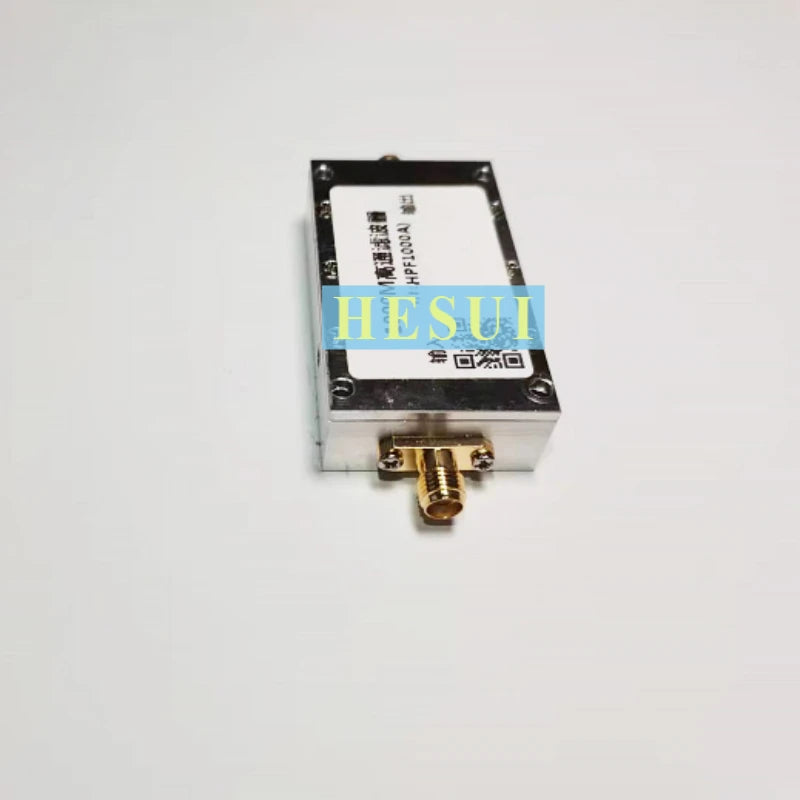

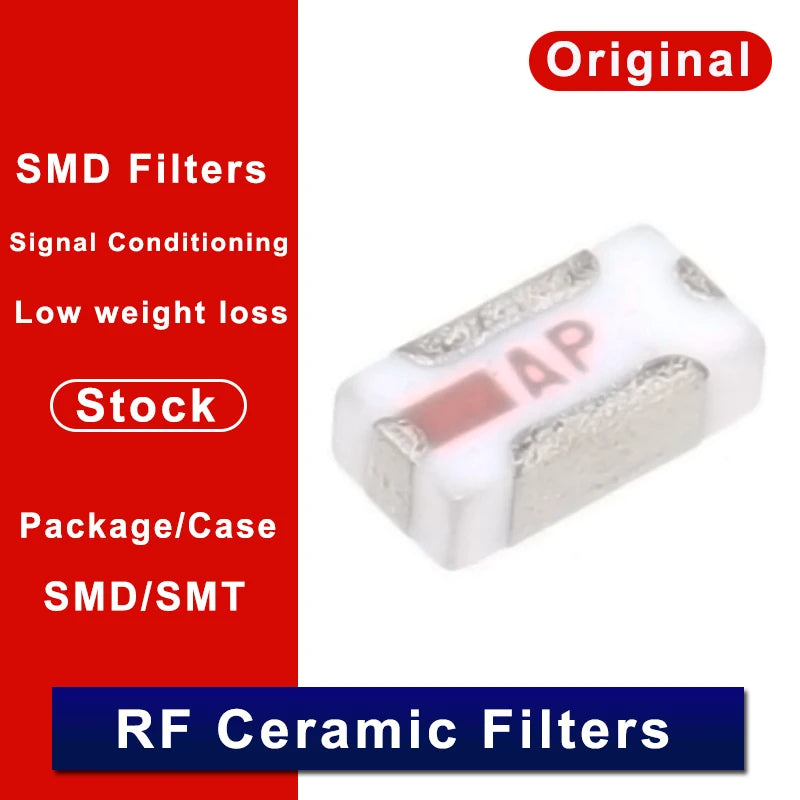

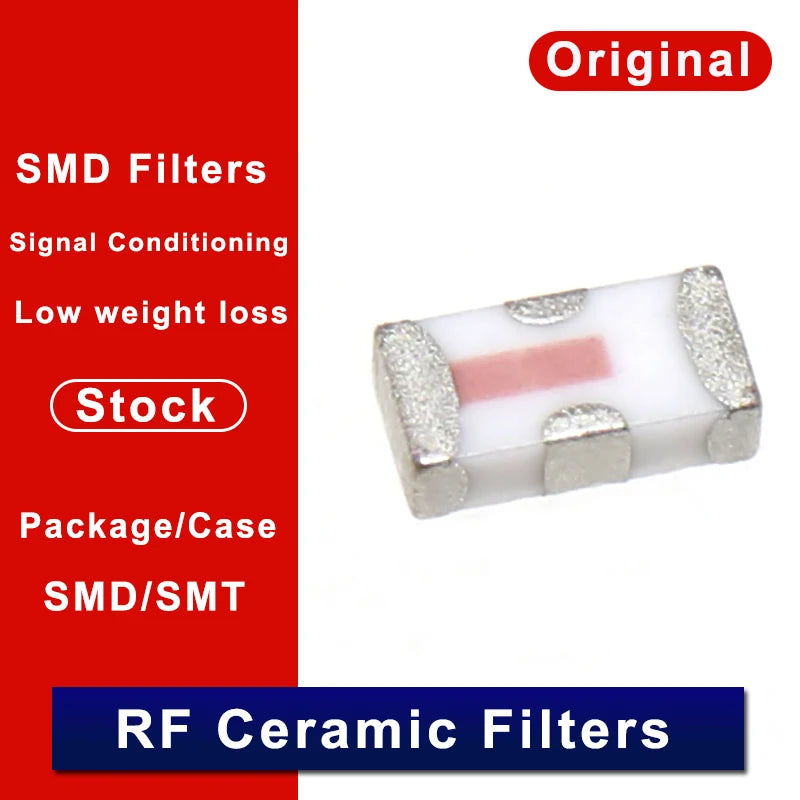

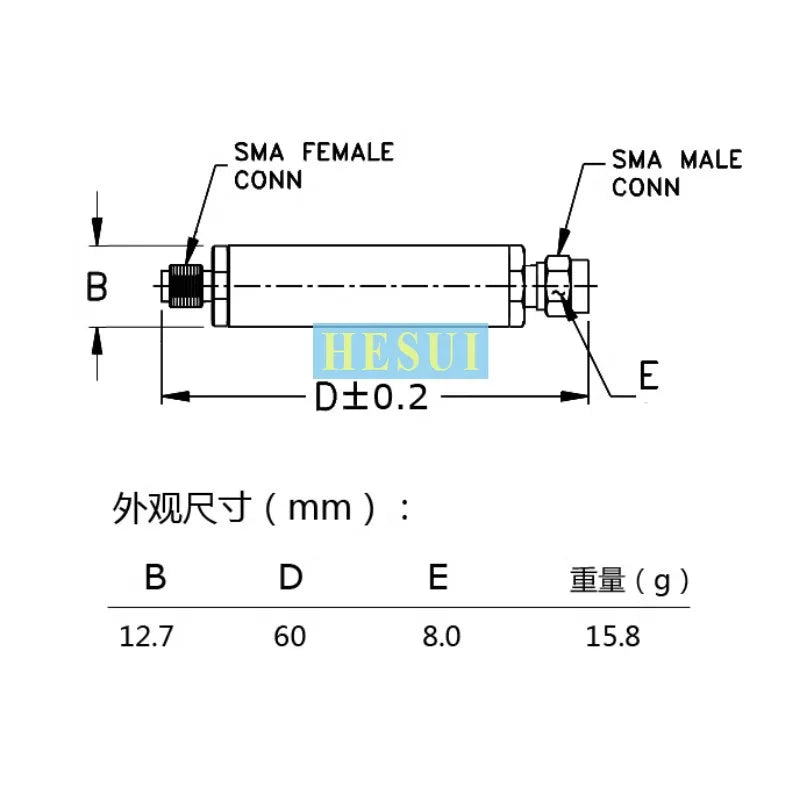

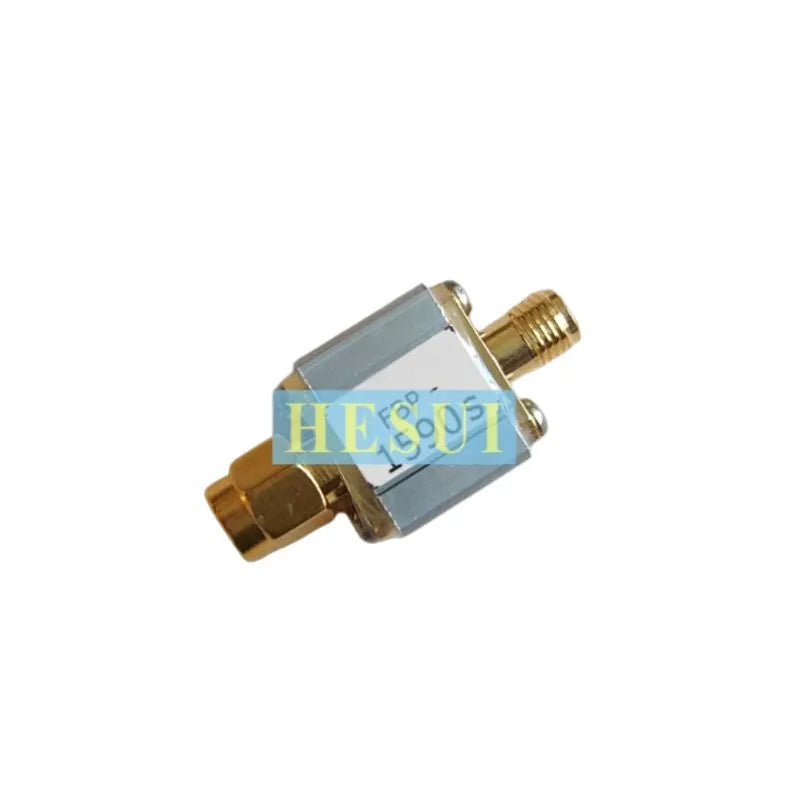

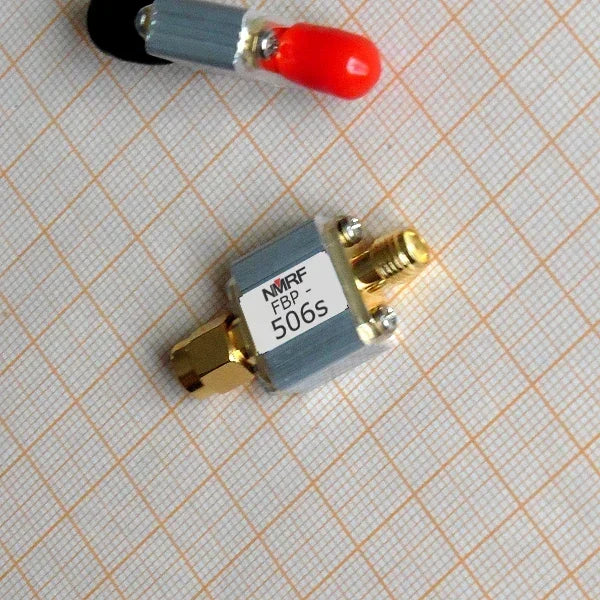

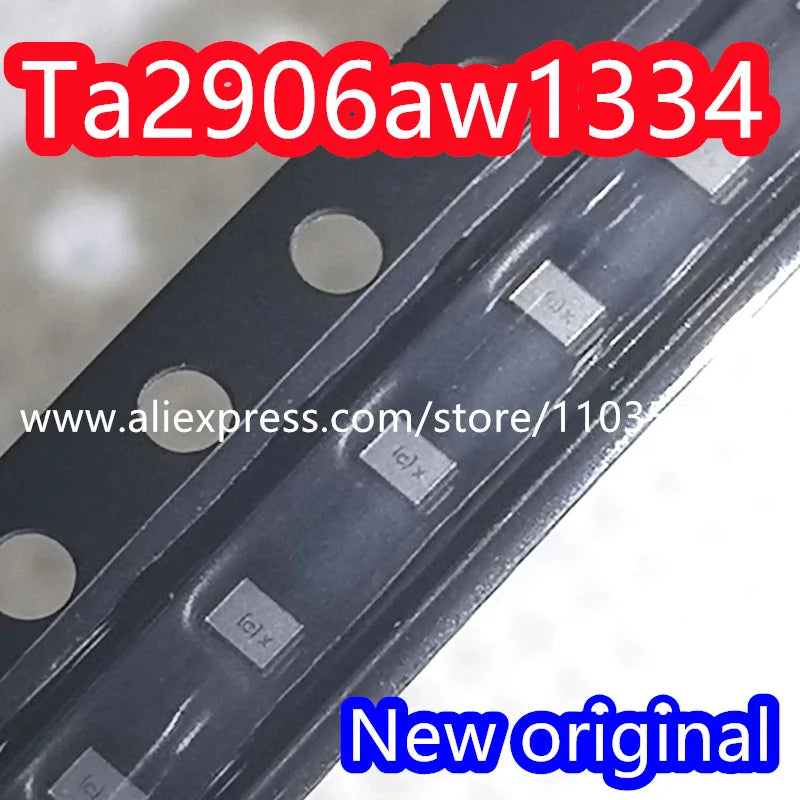

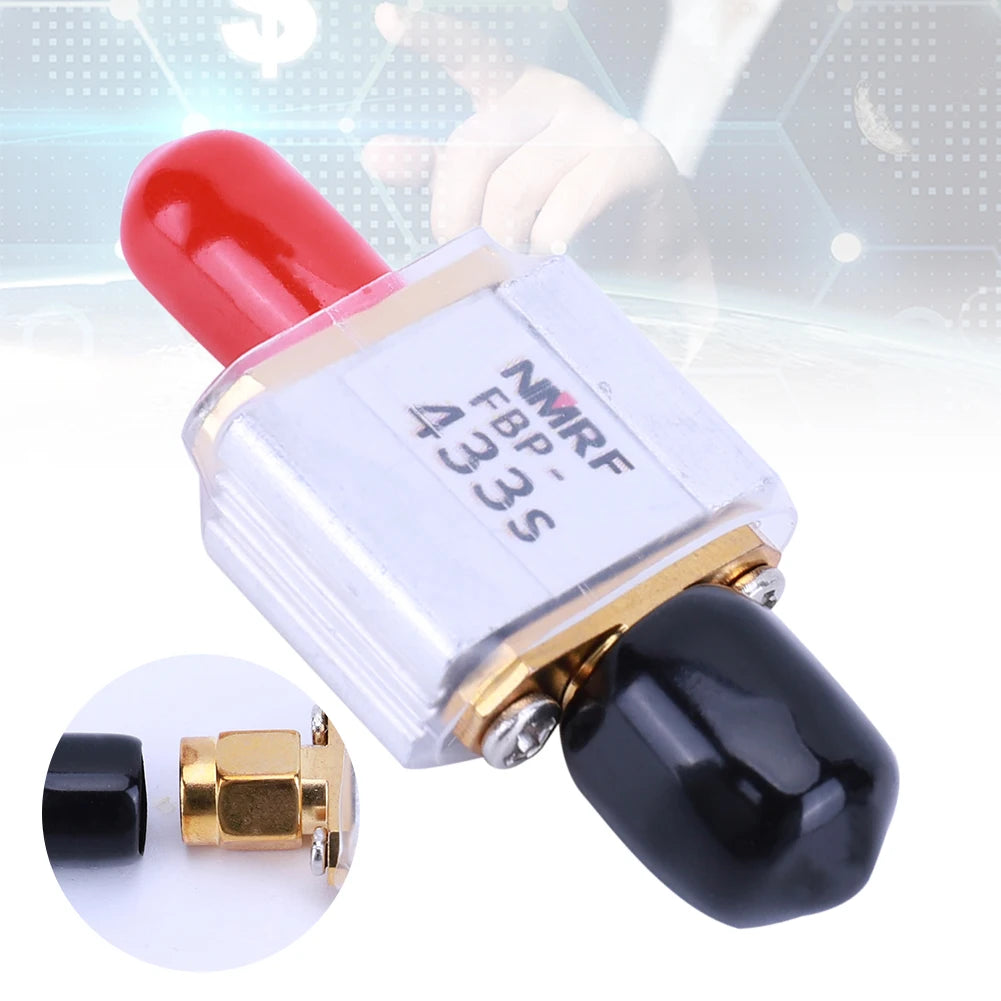

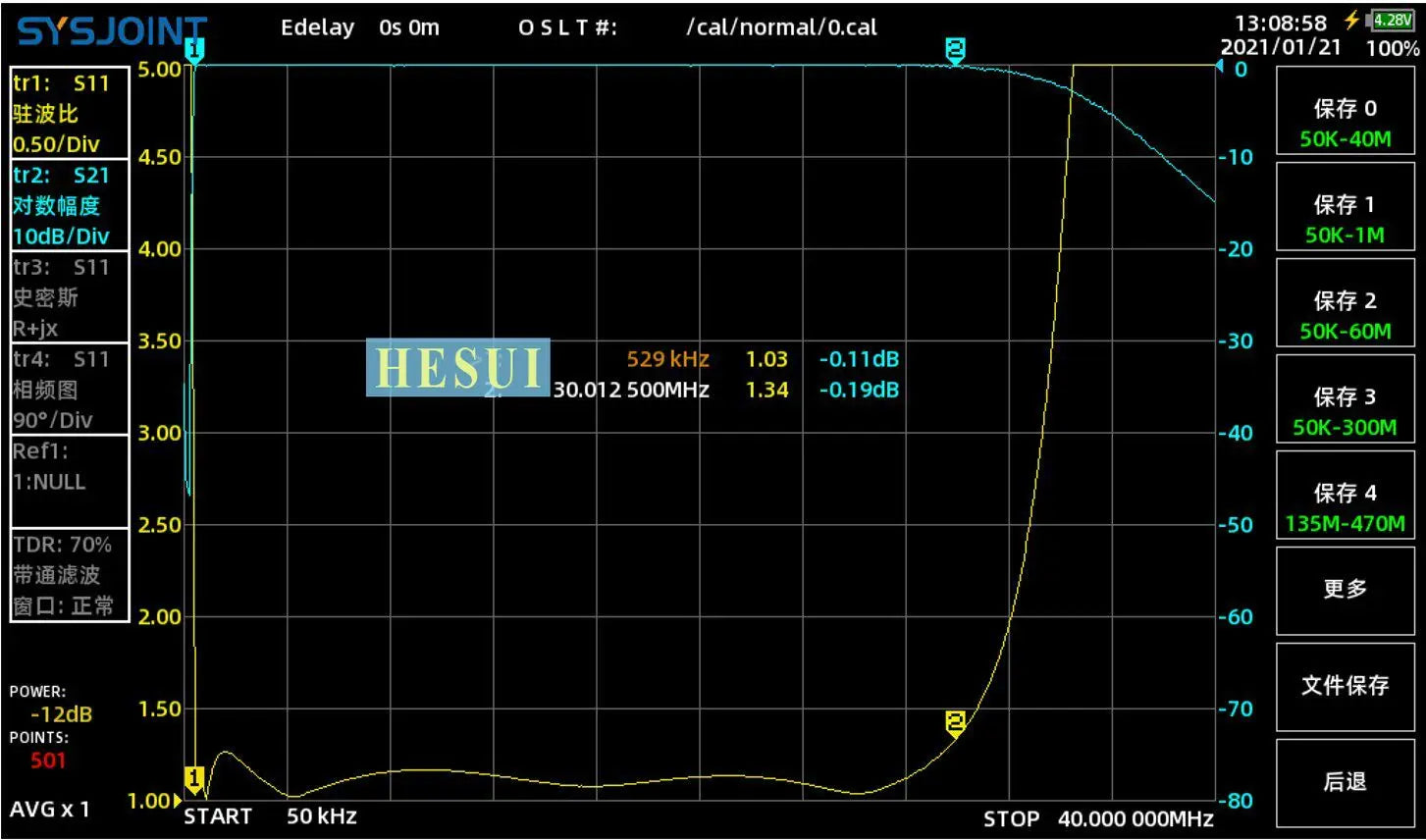

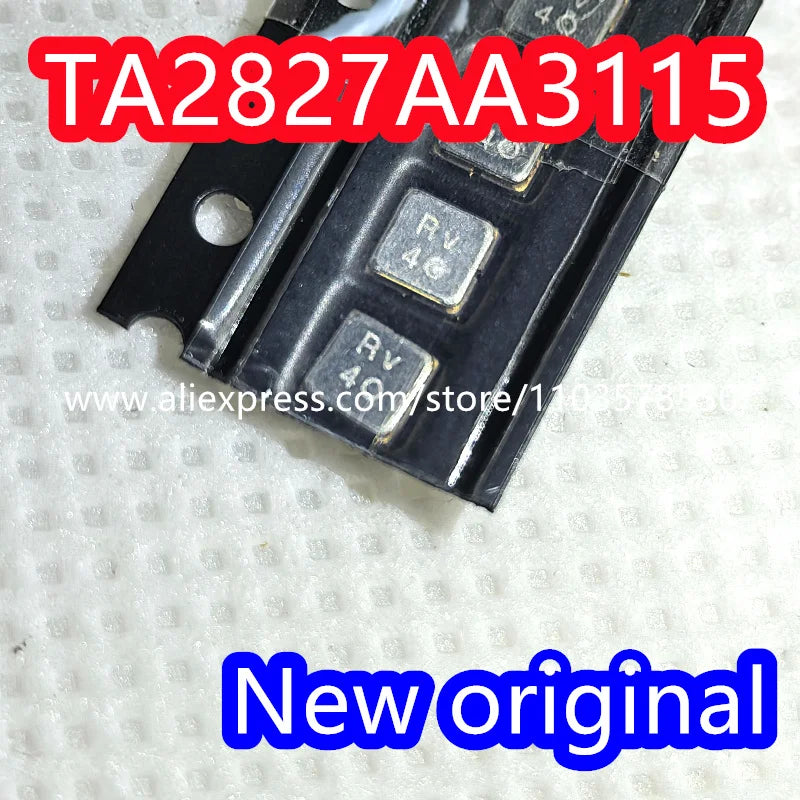

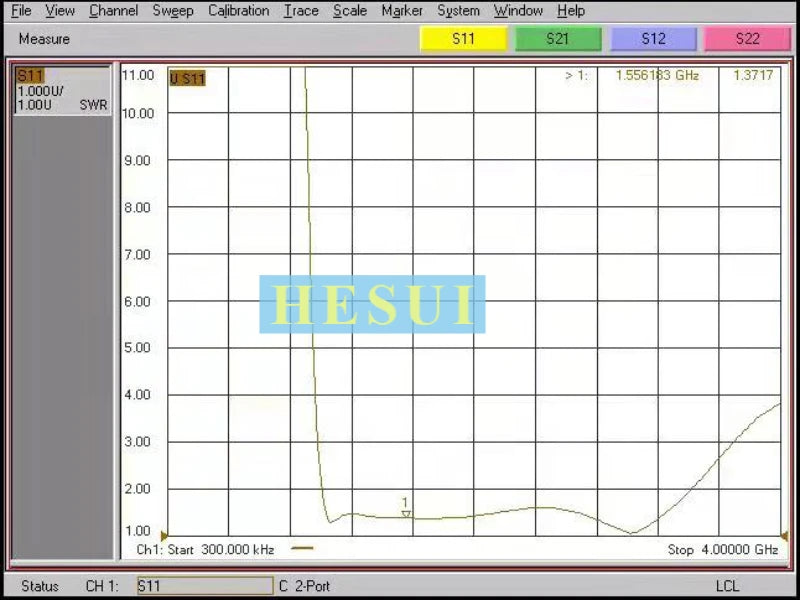

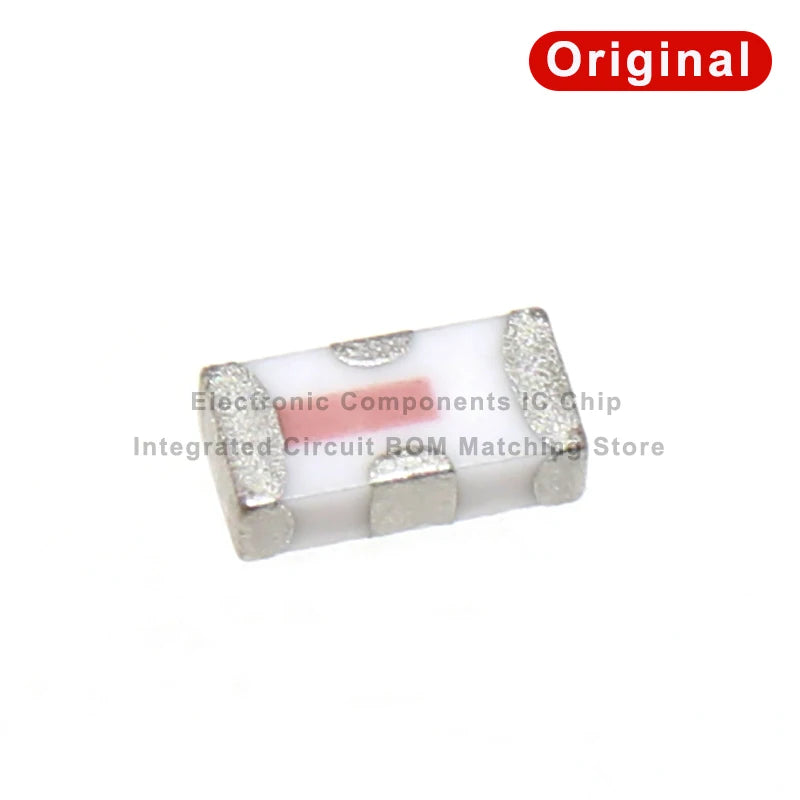

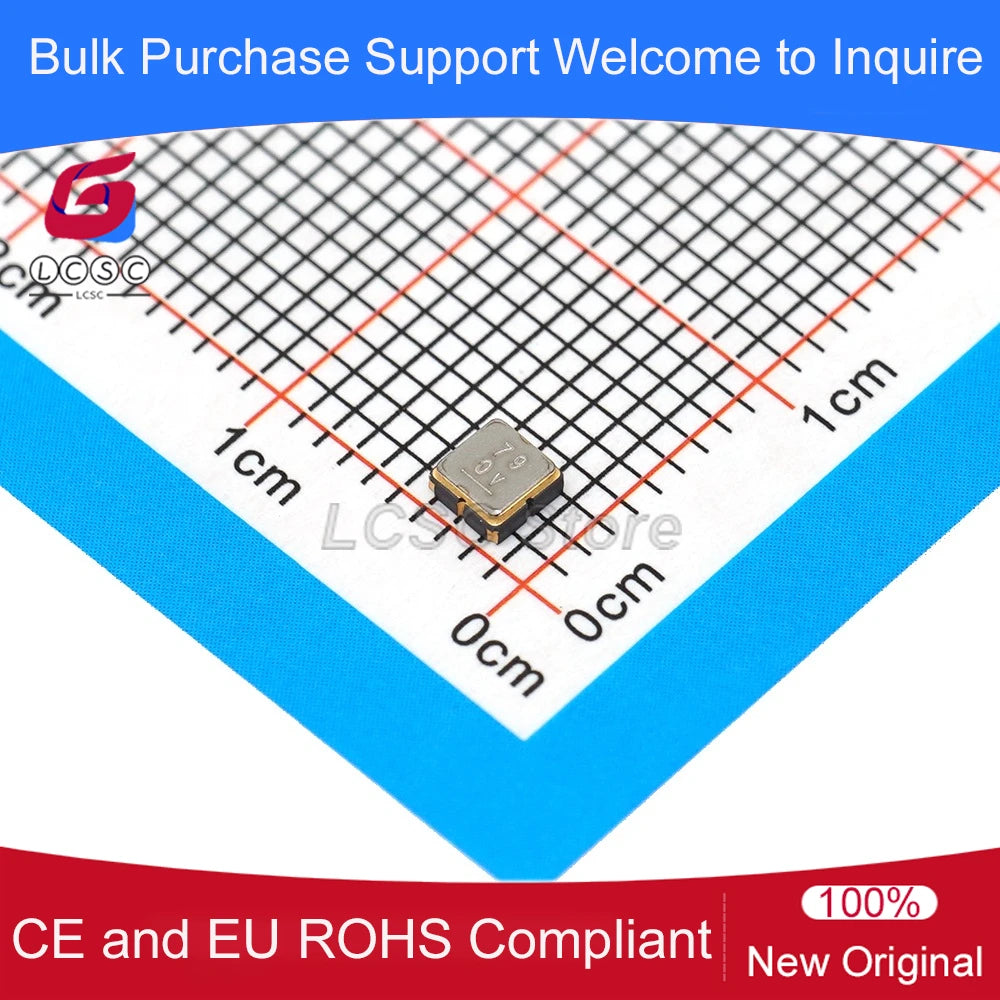

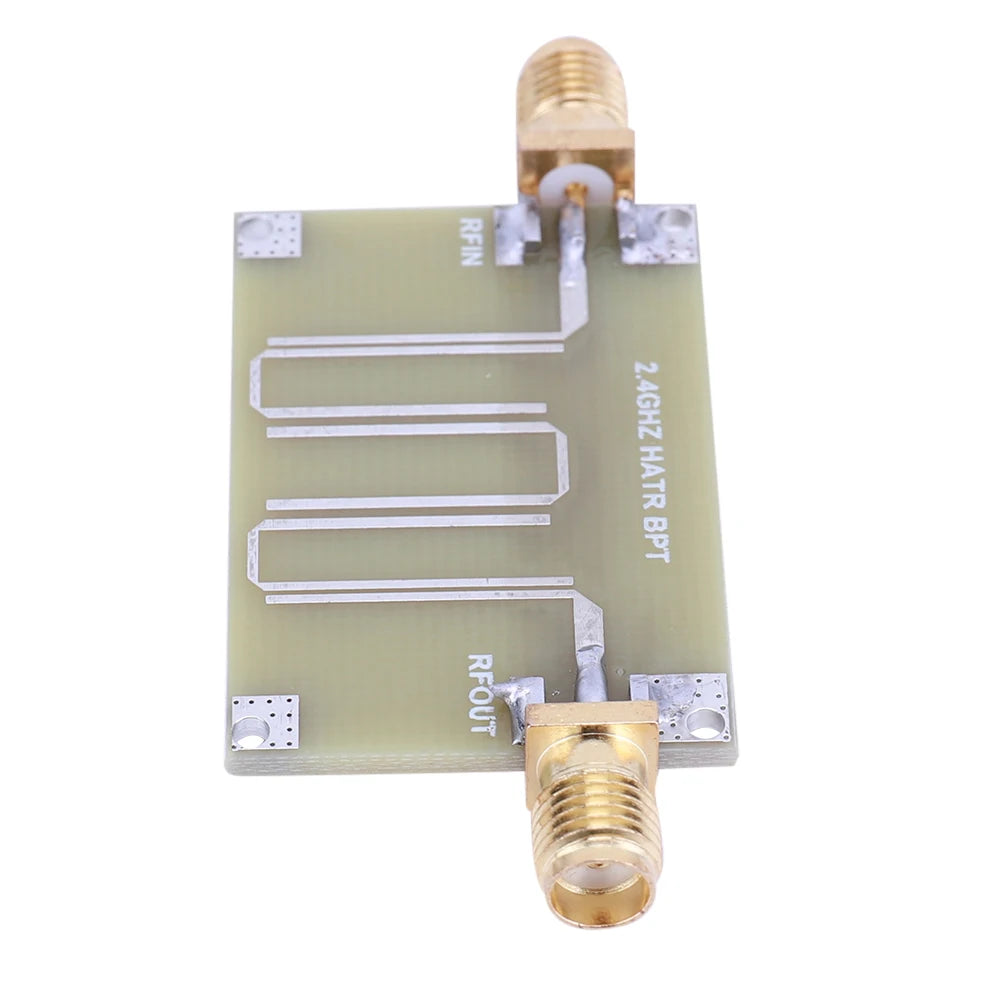

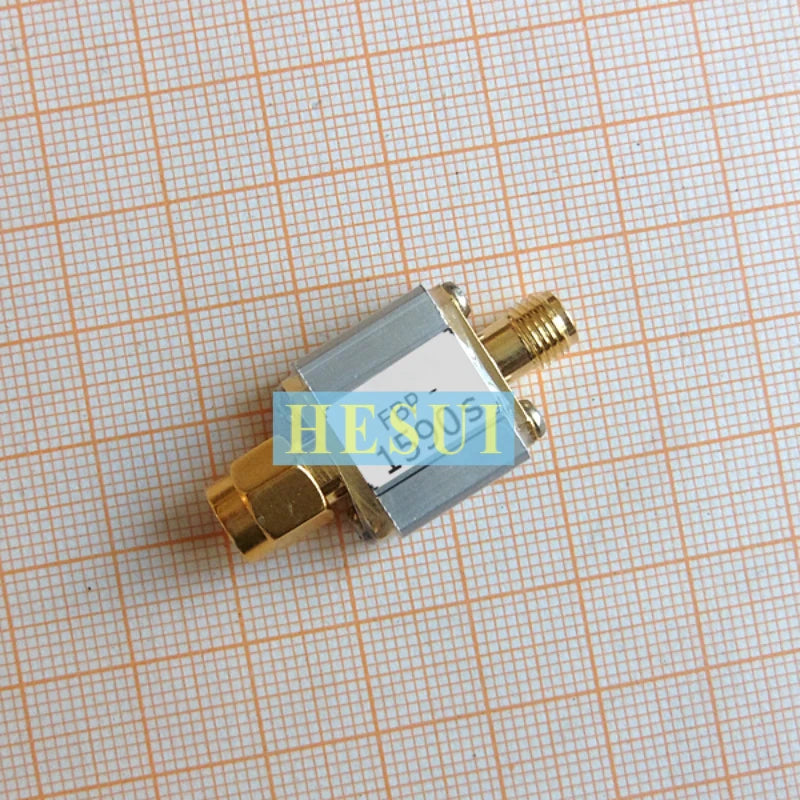

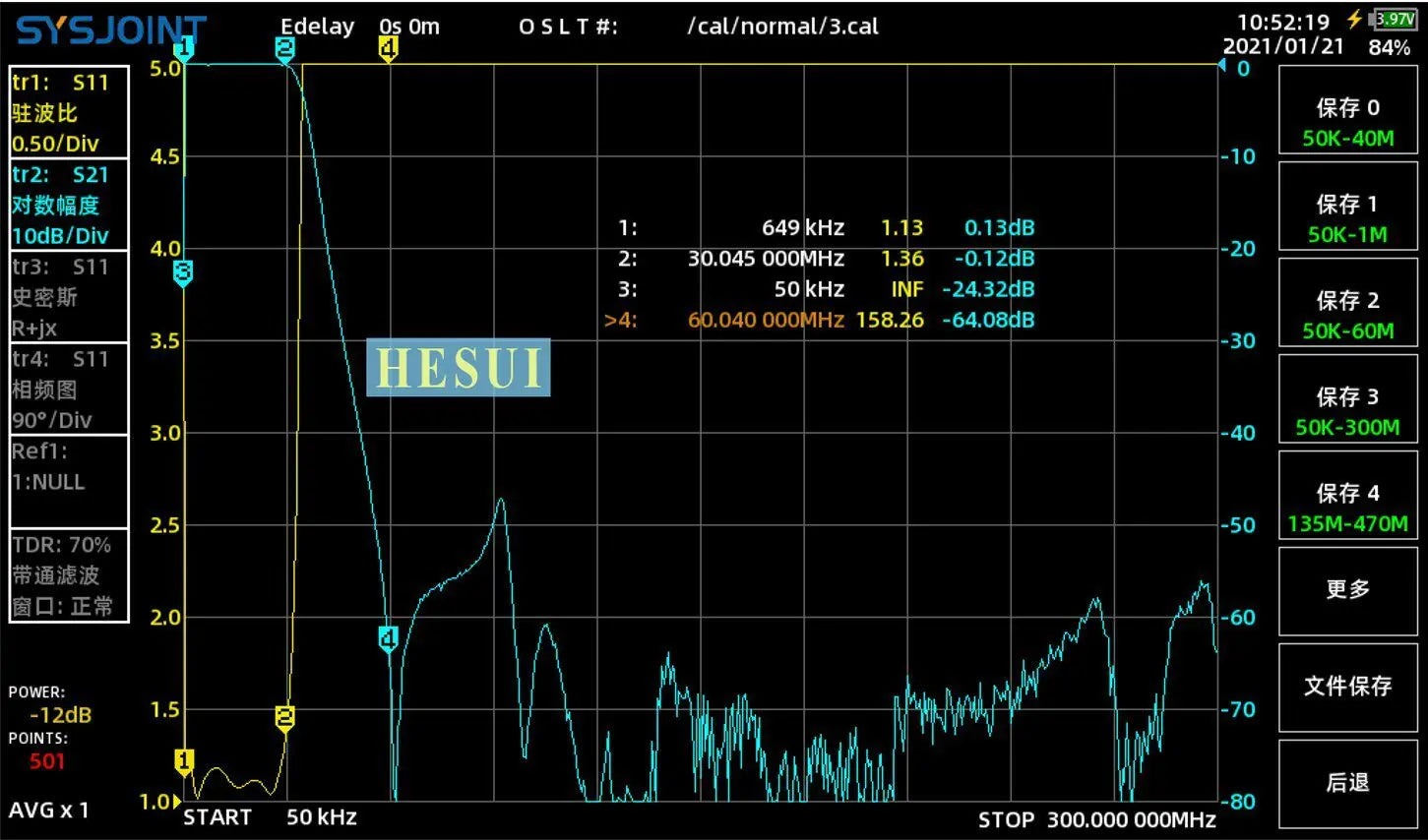

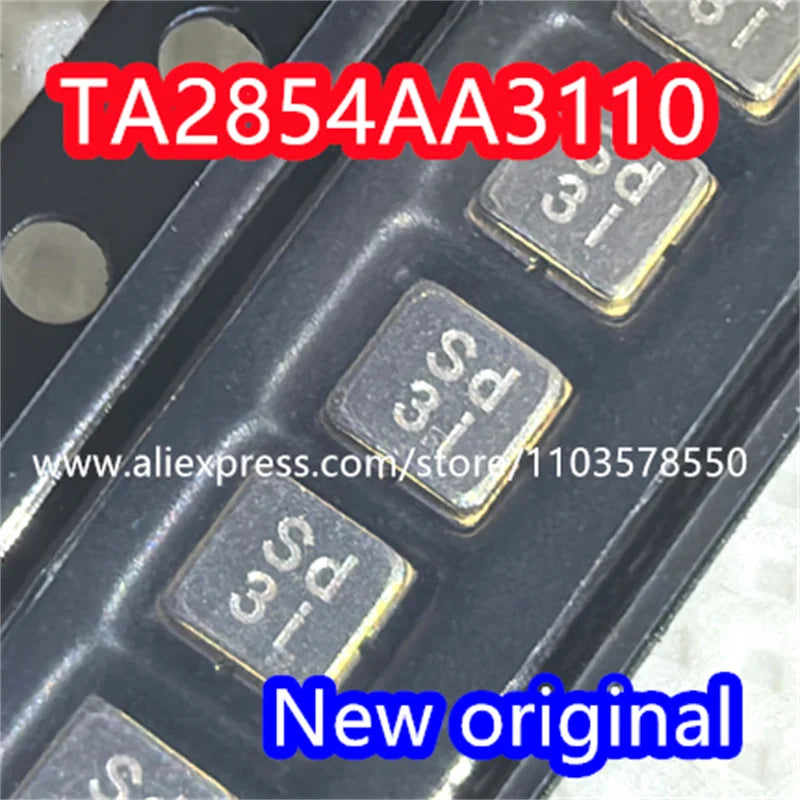

- RF band-pass and high-/low-pass filters: listed signal products include 433 MHz modules with SMA interfaces, 480/506/607 MHz SAW parts, 1090 MHz, GPS L1 1575.42 MHz and 1747.5/2140 MHz SAW variants, 144 MHz high-pass and 0.5–30 MHz band-pass modules, and chip low-pass families. Choose the actual center/pass band, 3 dB bandwidth, insertion loss, stopband rejection, port impedance, connector and maximum RF input power. A nominal frequency or antenna application alone does not prove radio compatibility or a suitable transmitter power rating.

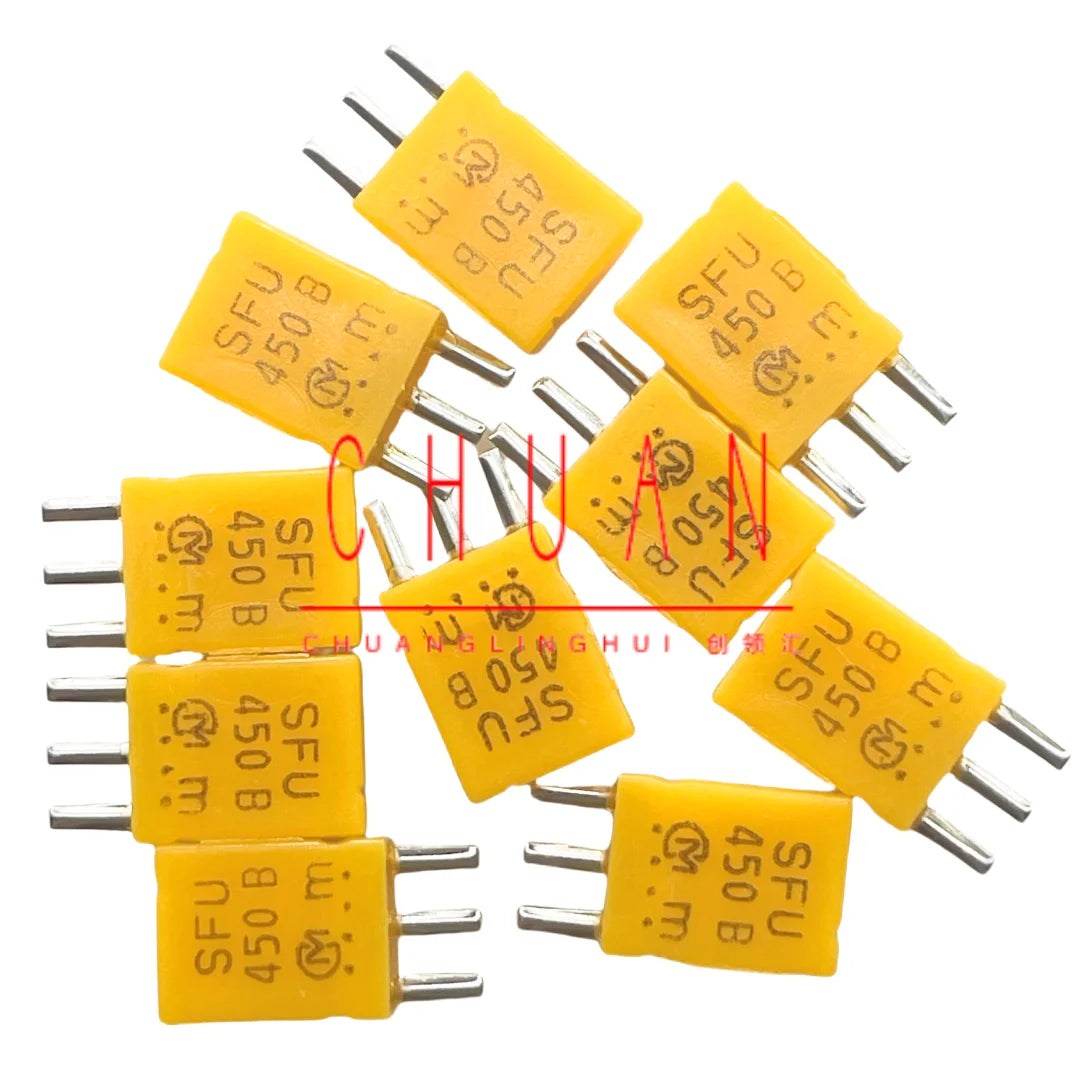

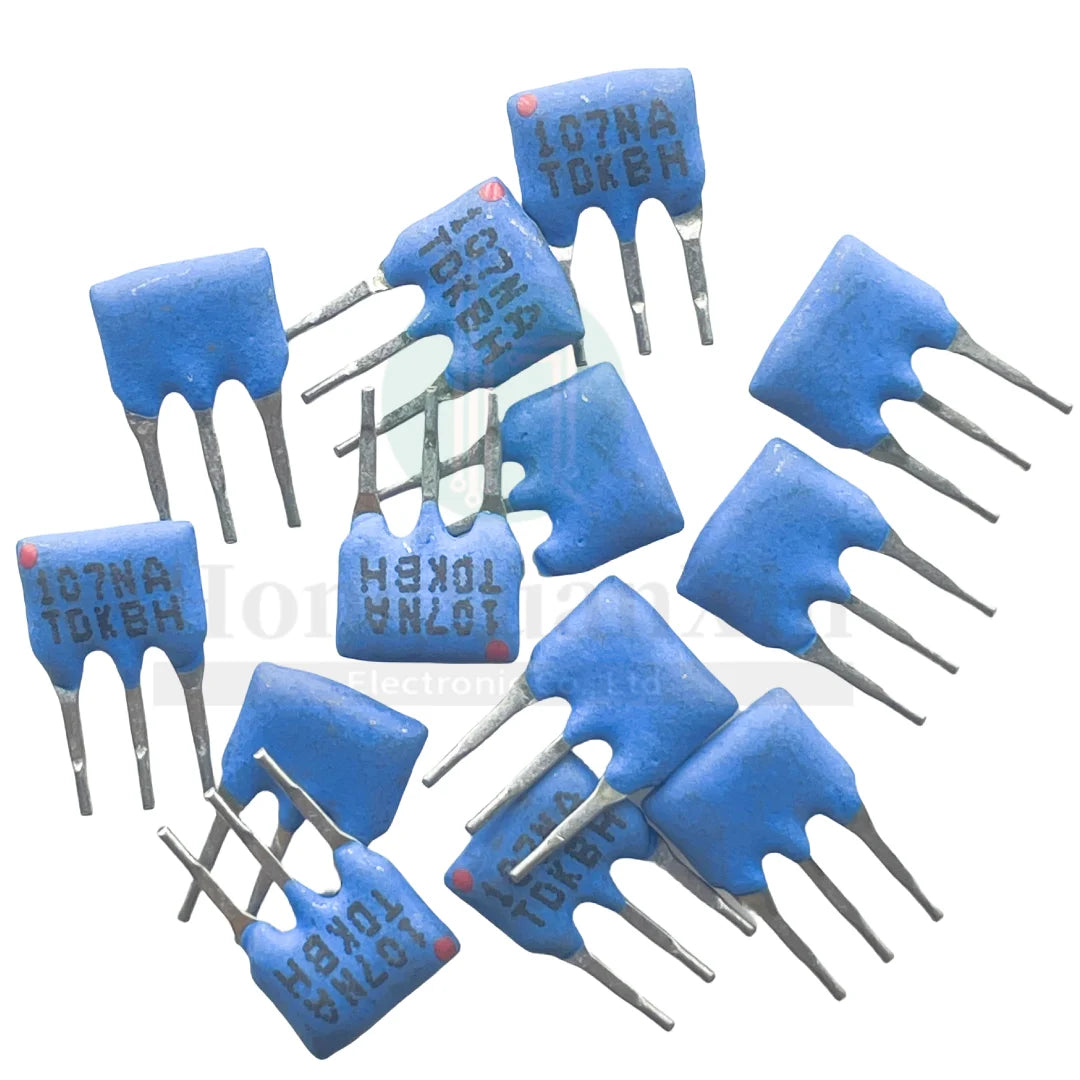

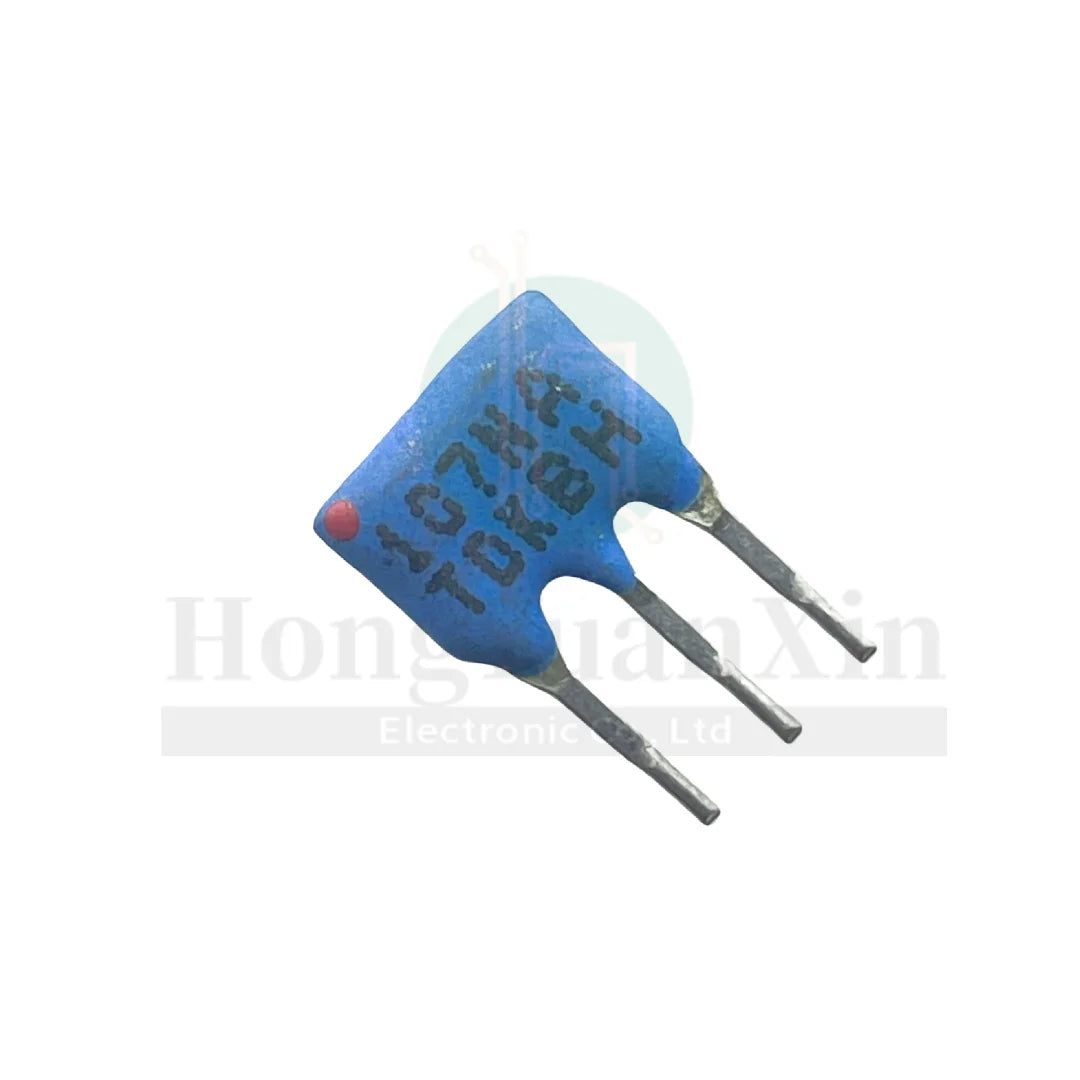

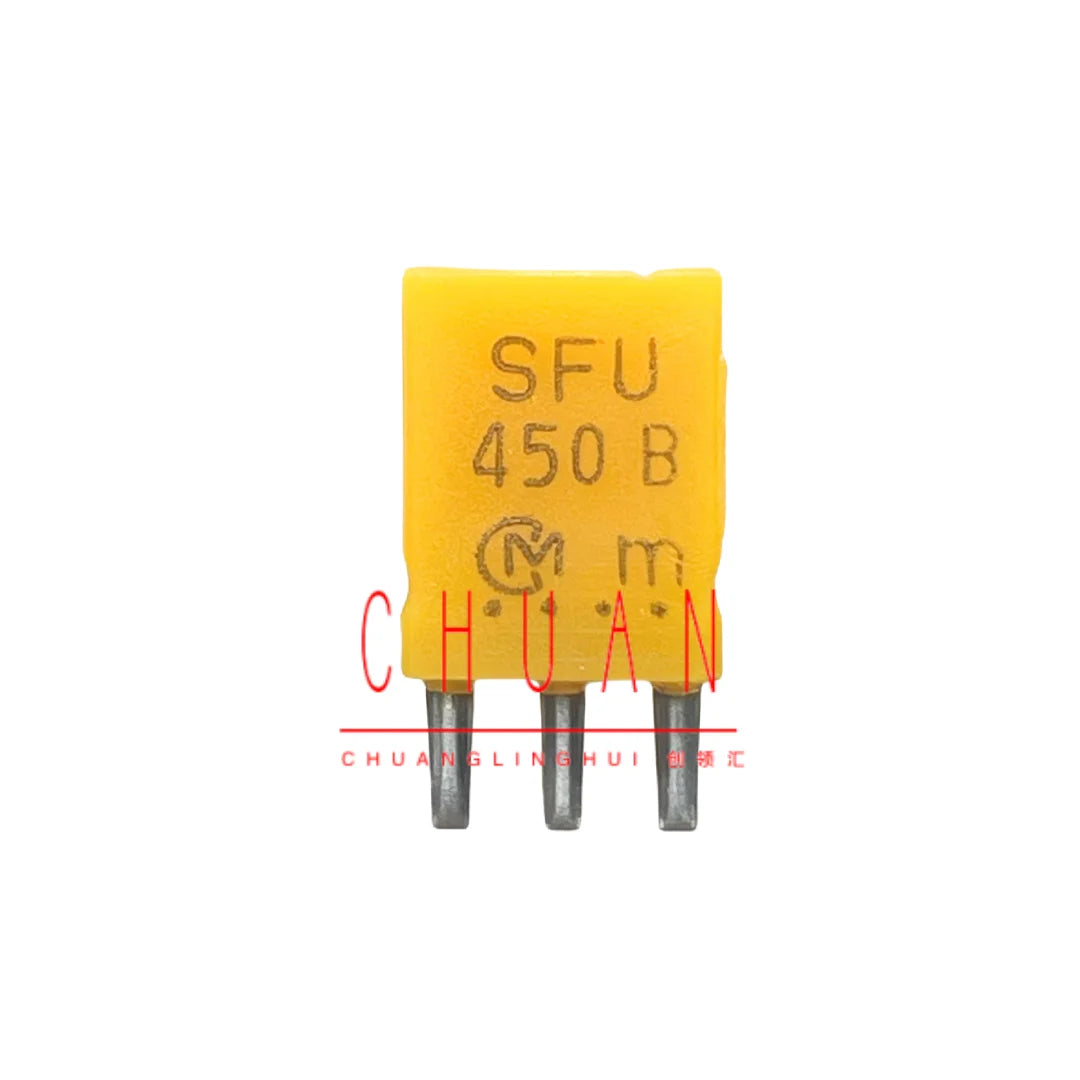

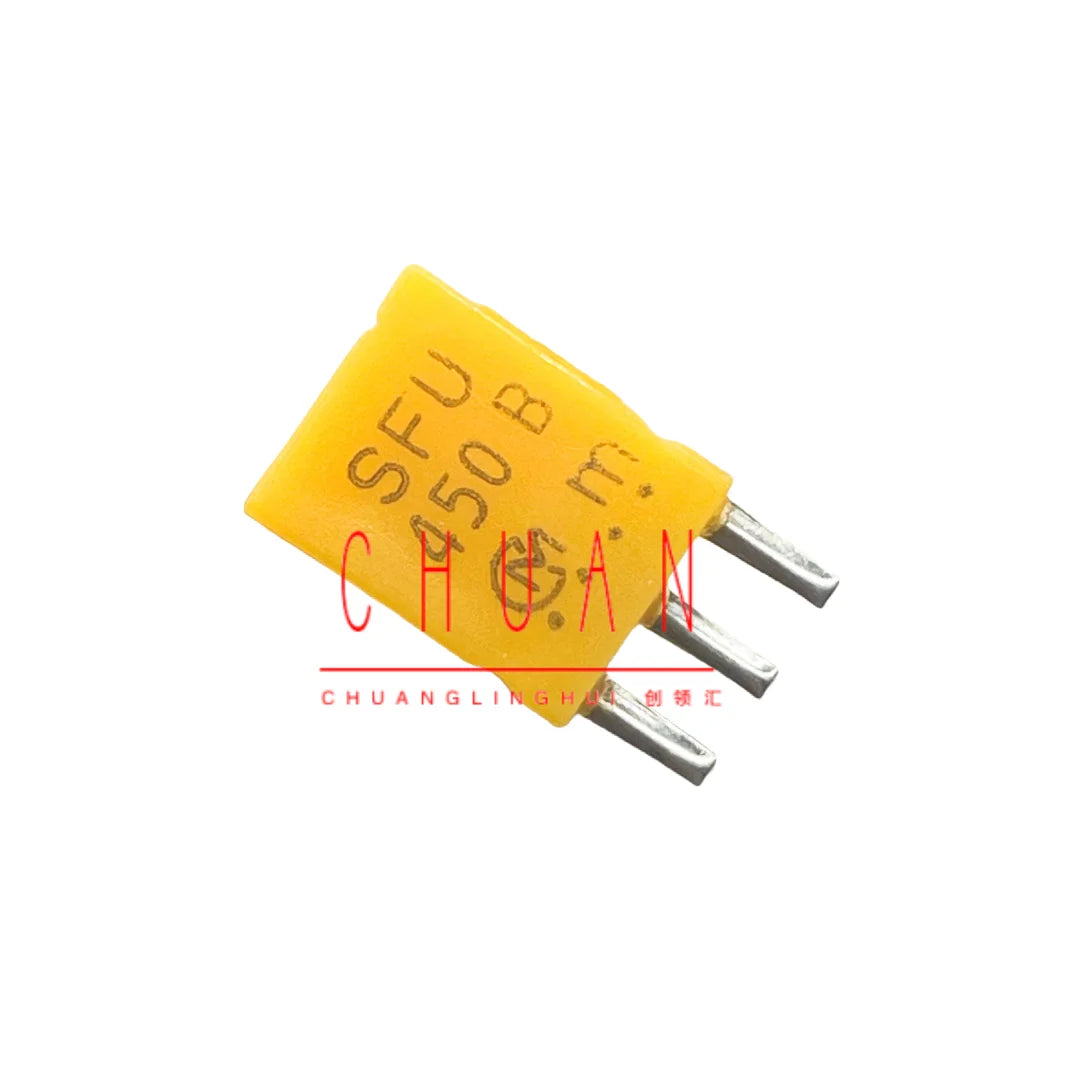

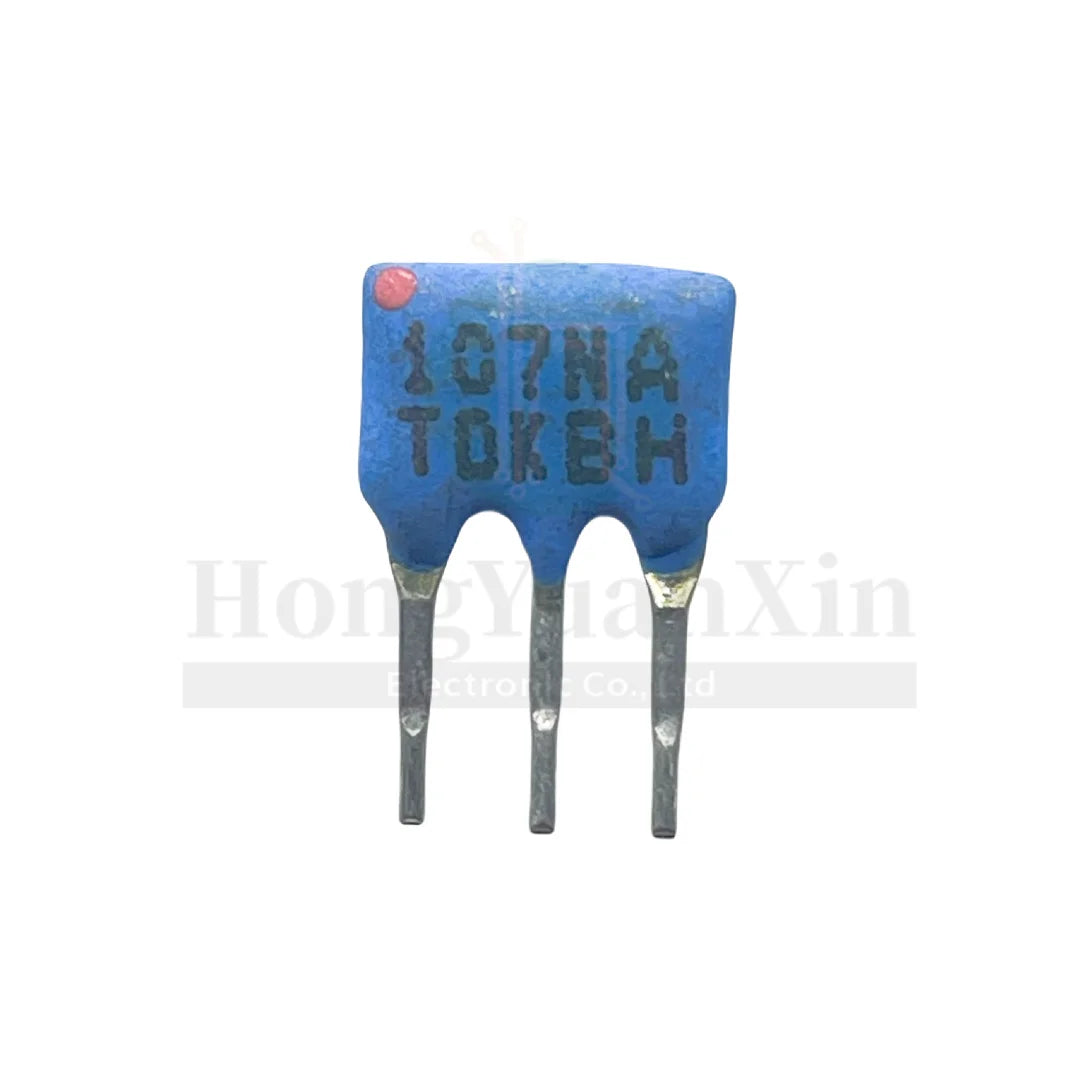

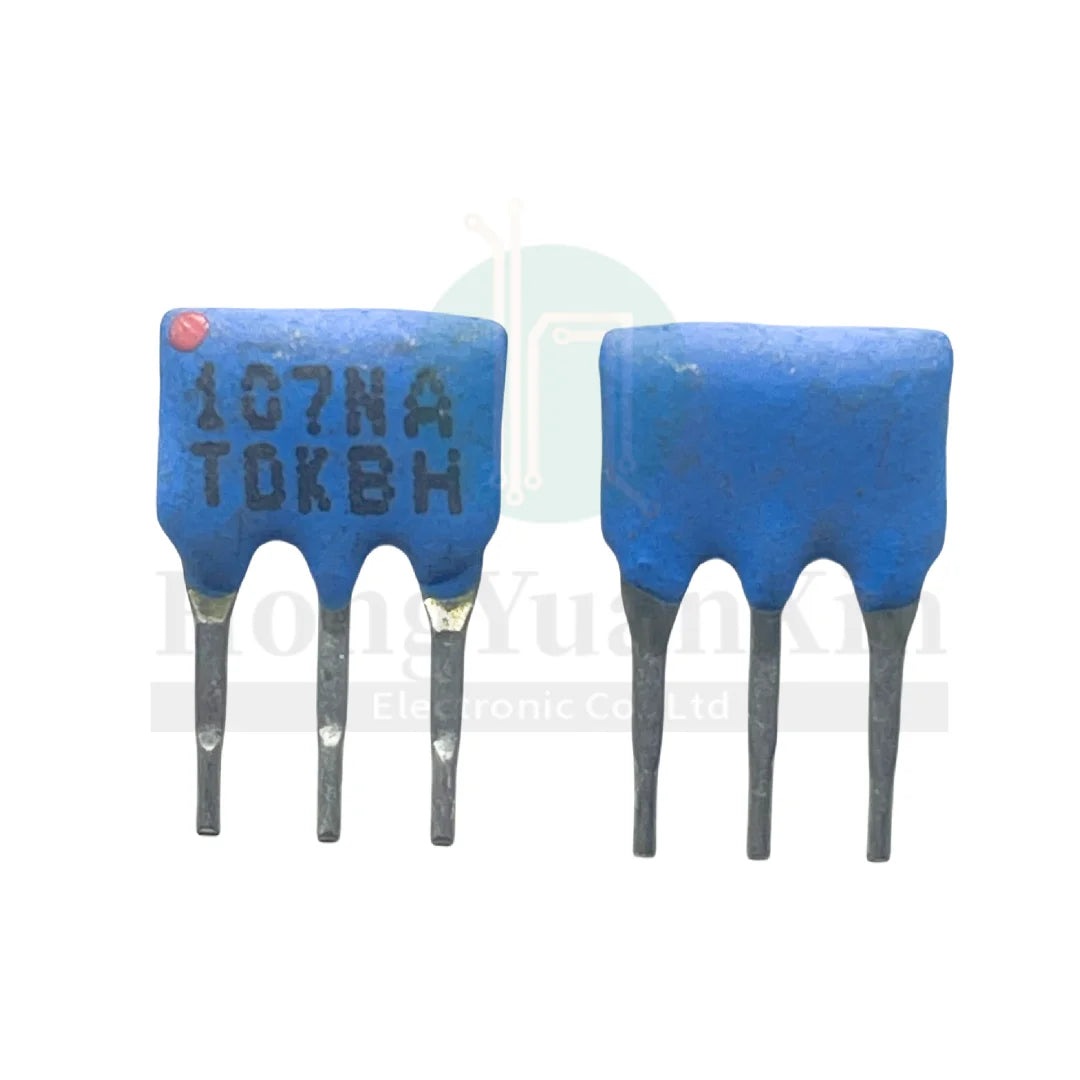

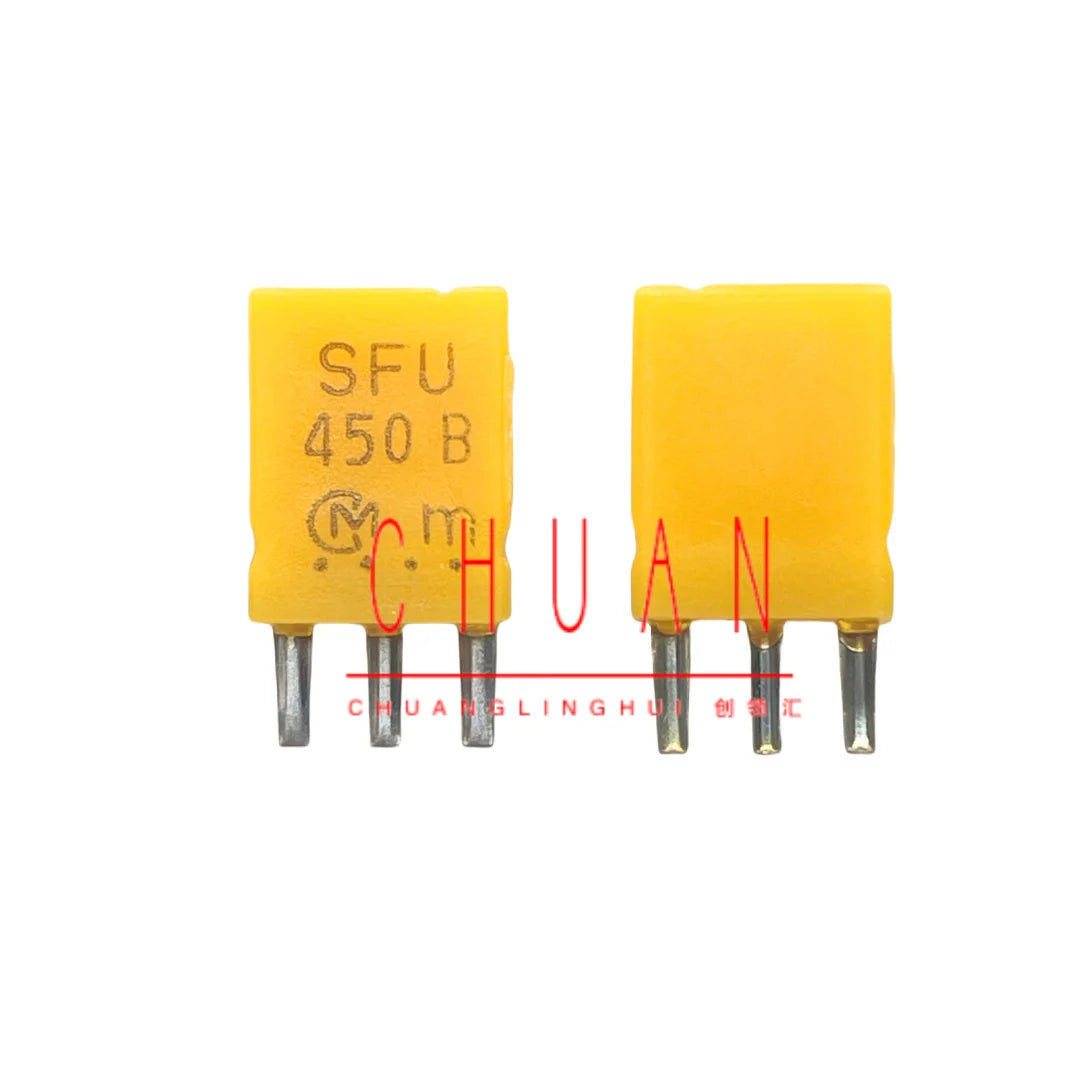

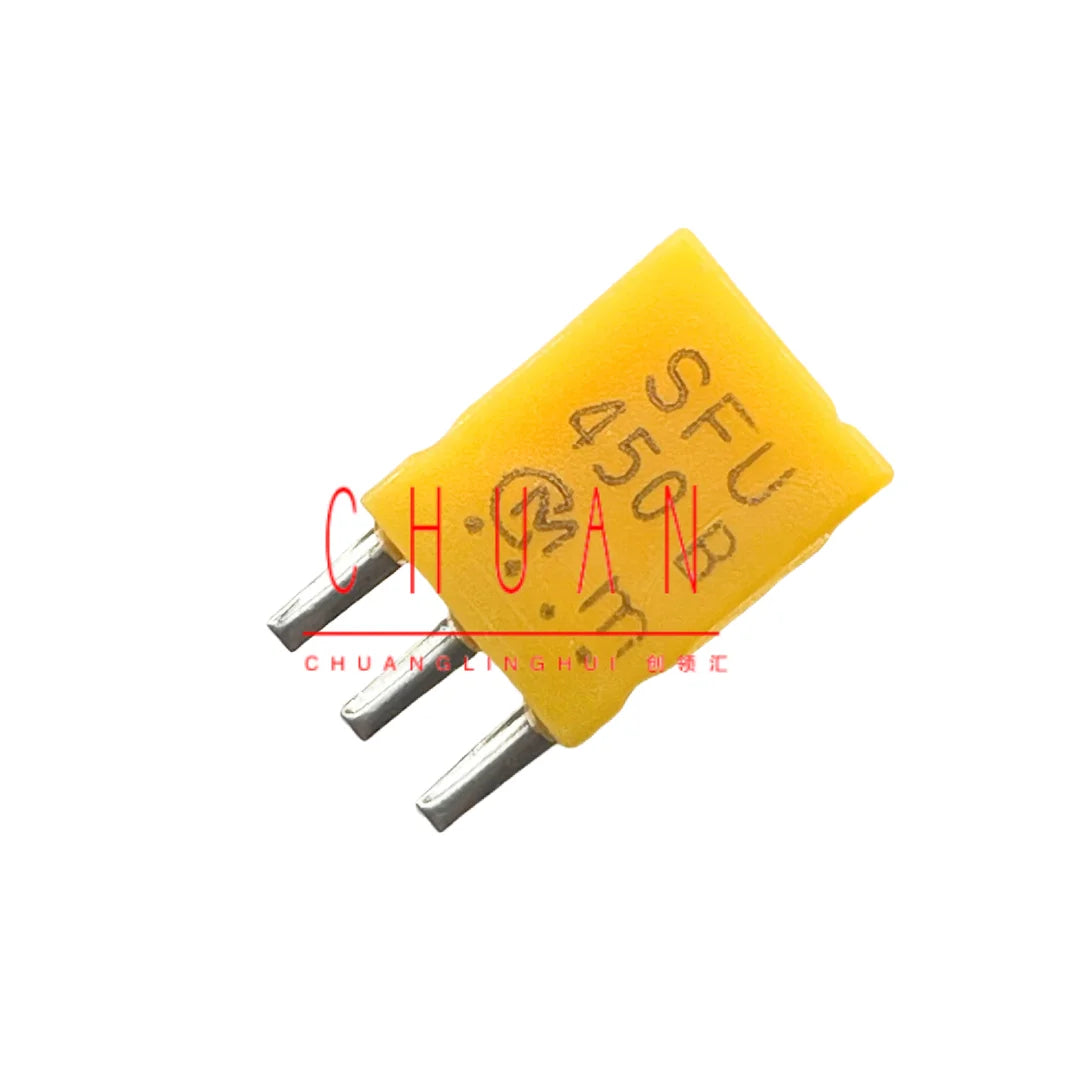

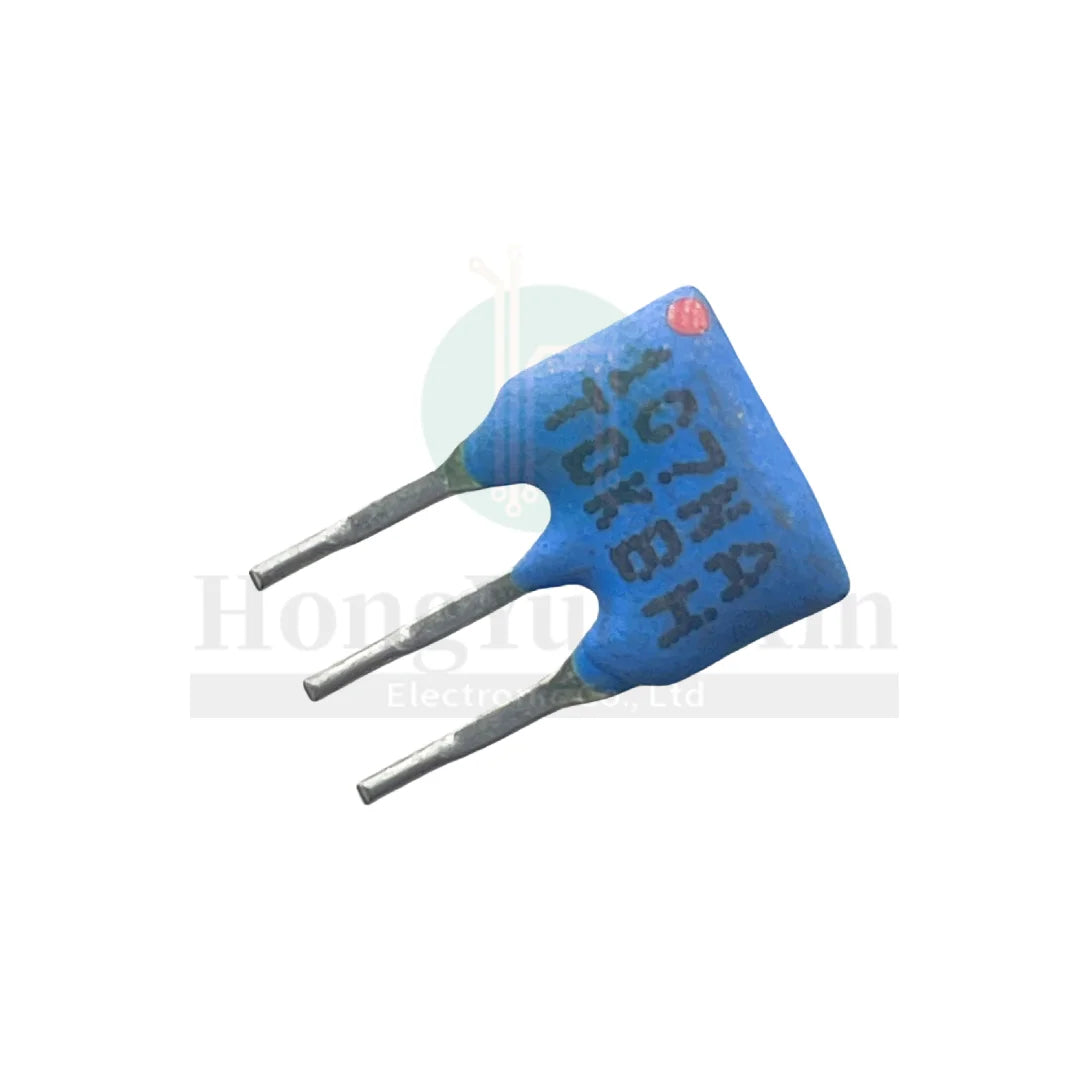

- IF and ceramic filters: 10.7 MHz FM IF and 450 kHz three-pin ceramic listings belong in particular receiver IF circuits; compare center frequency, bandwidth, pinout and impedance against the original design. The BP87108-labelled part has a seller title with an ambiguous 87–108 kHz/FM claim; obtain its real datasheet before treating it as an FM-band filter.

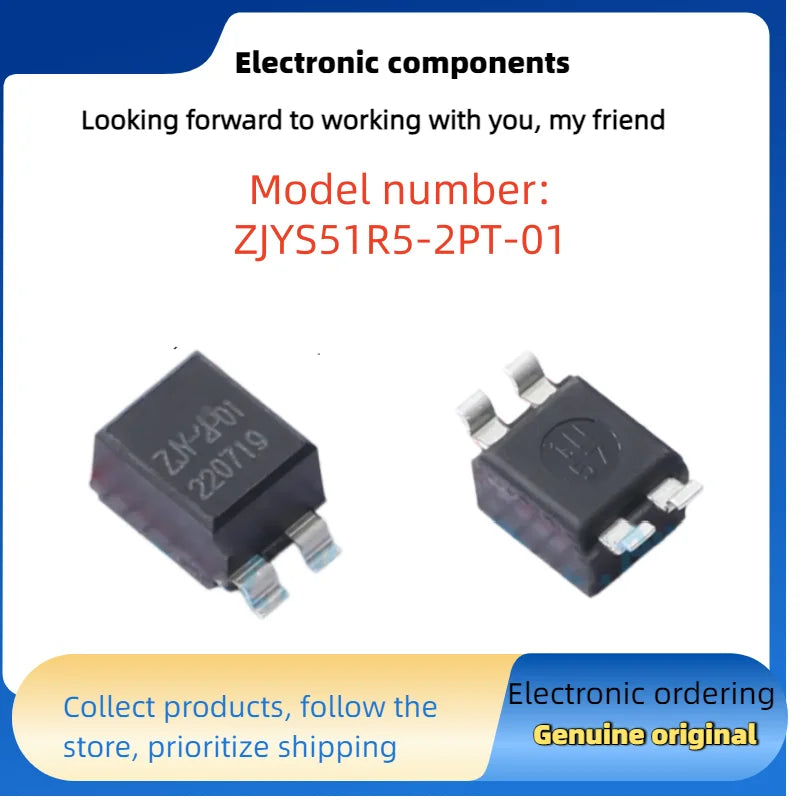

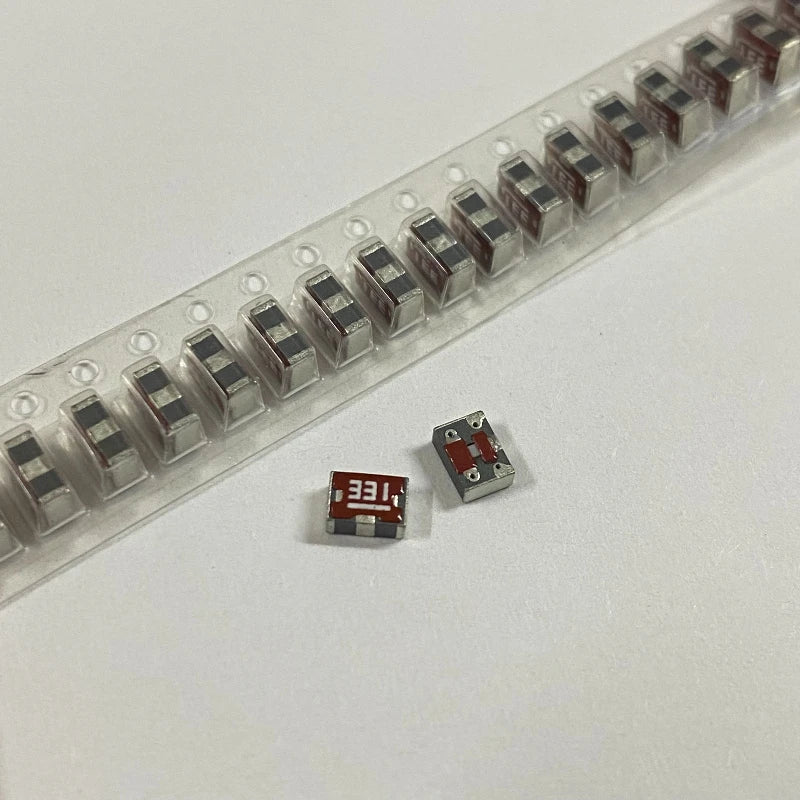

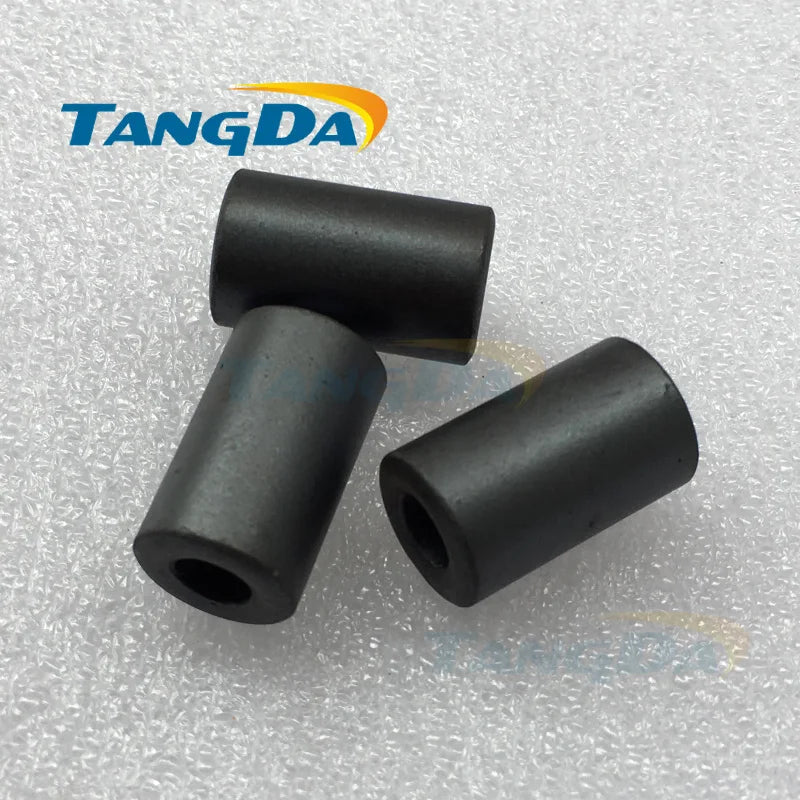

- Discrete EMI parts: three-terminal 330 pF EMI chips, cable ferrite sleeves, SMT signal-line common-mode chokes, 39 mH/ET28 power chokes and DC common-mode devices are building blocks, not completed AC line-filter assemblies. Check impedance versus frequency, capacitance or inductance, DCR, rated current, pinout, insulation and bias behavior as appropriate.

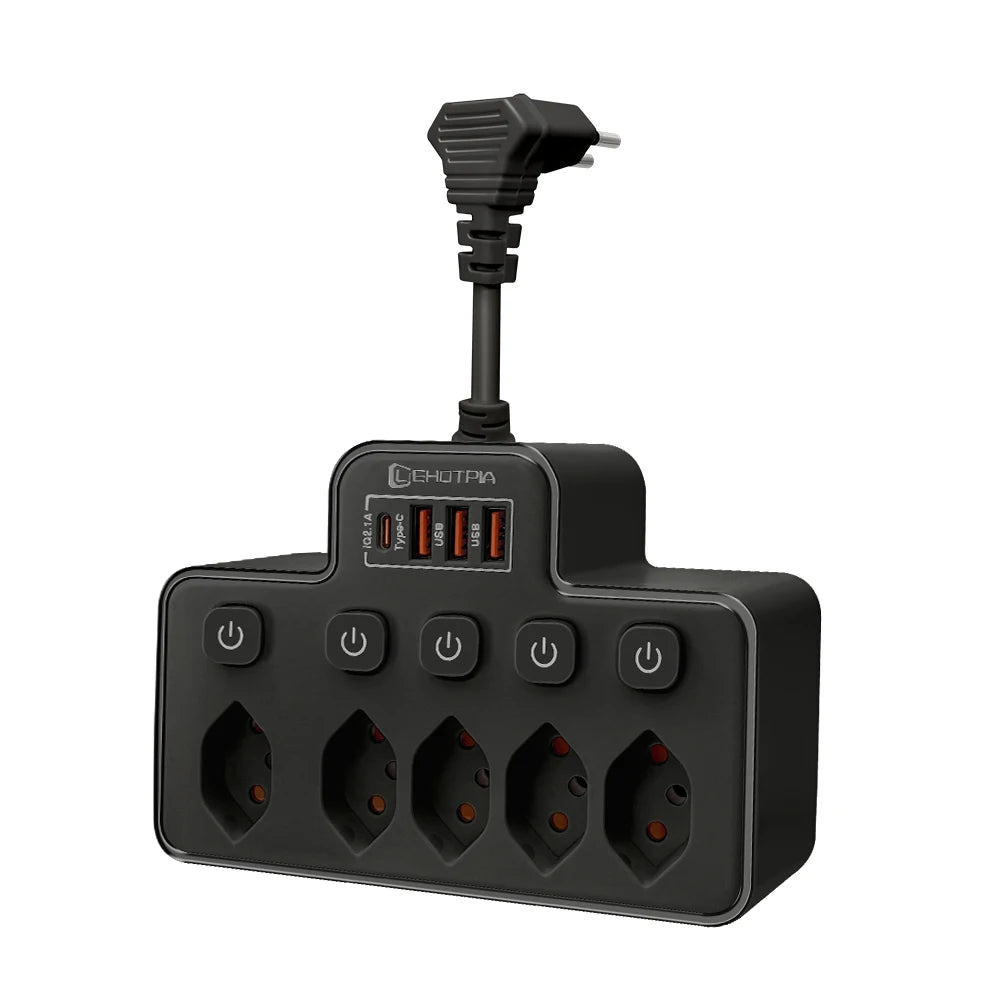

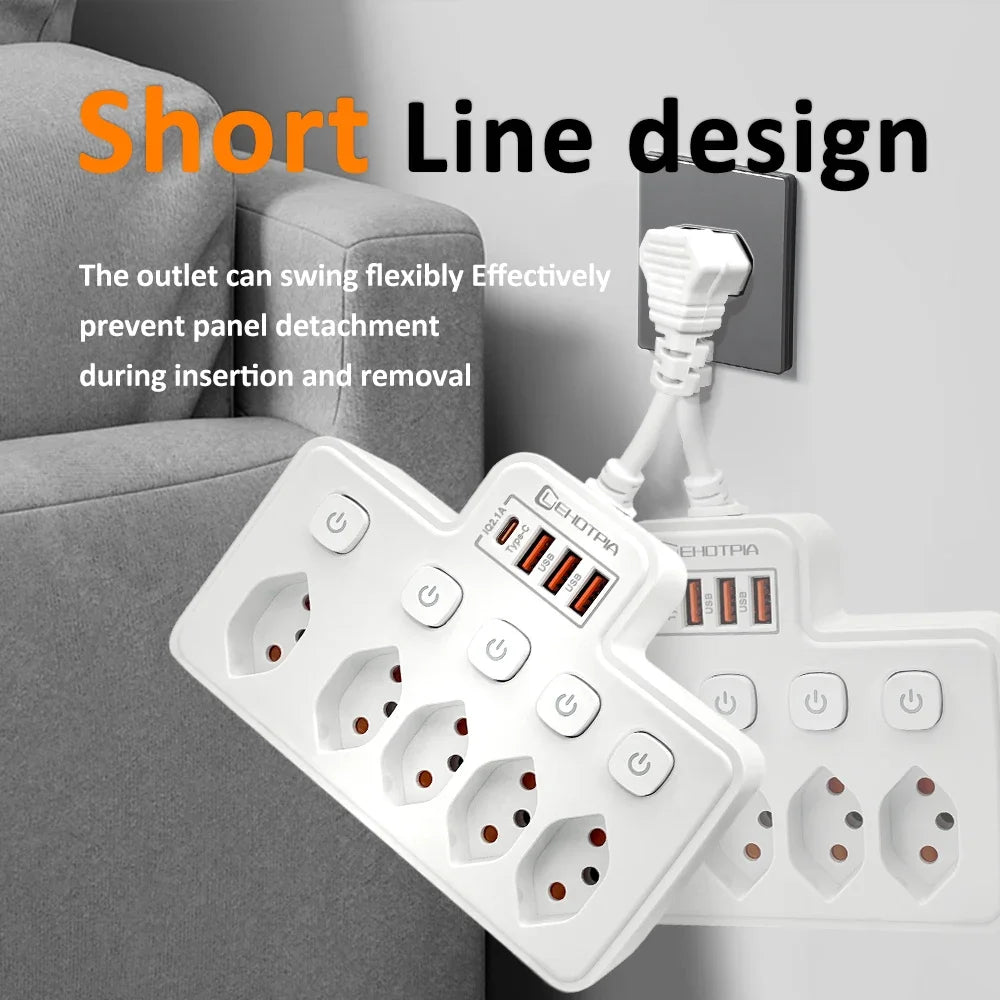

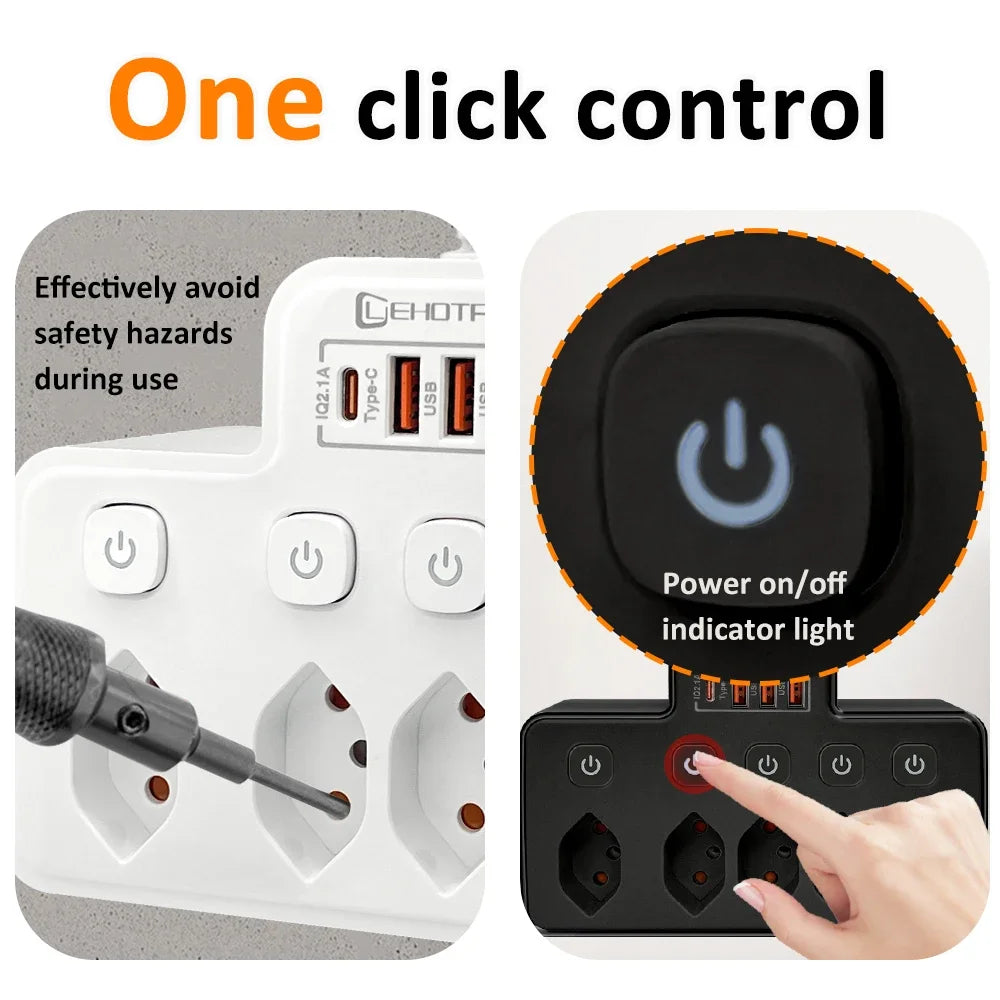

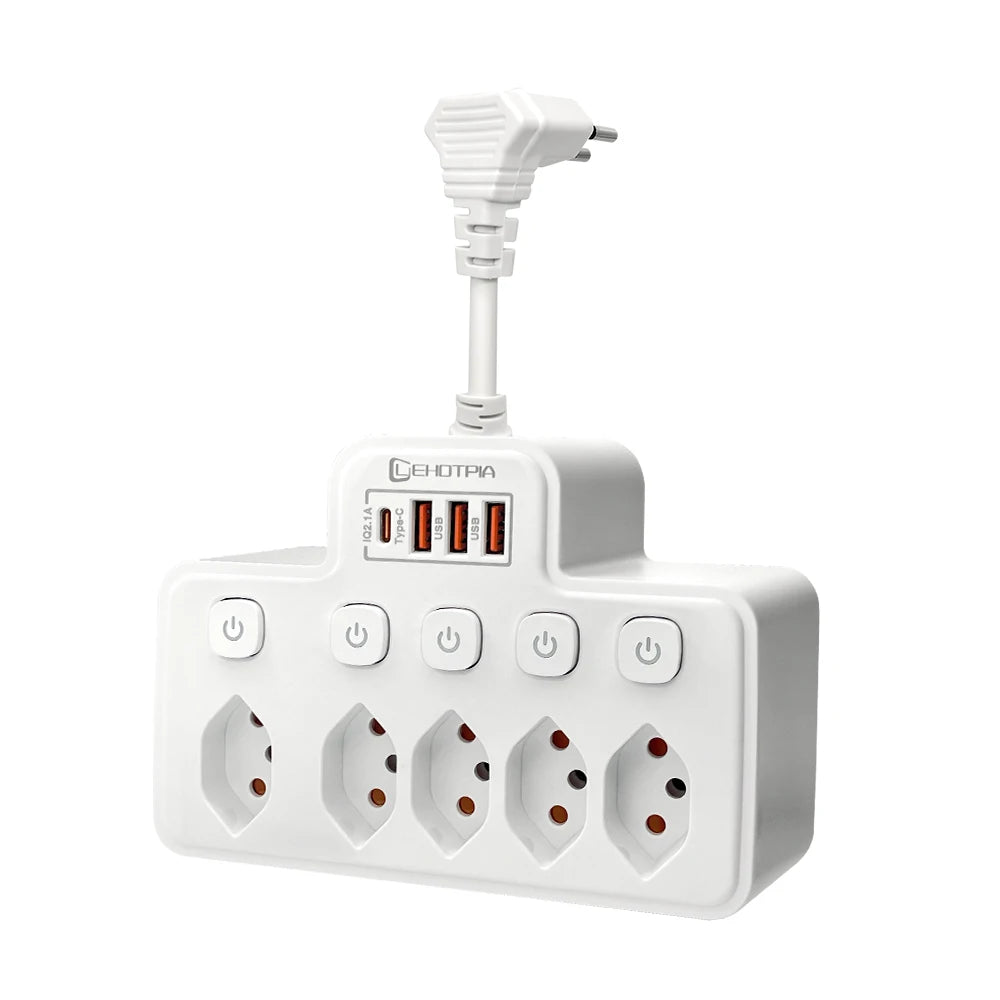

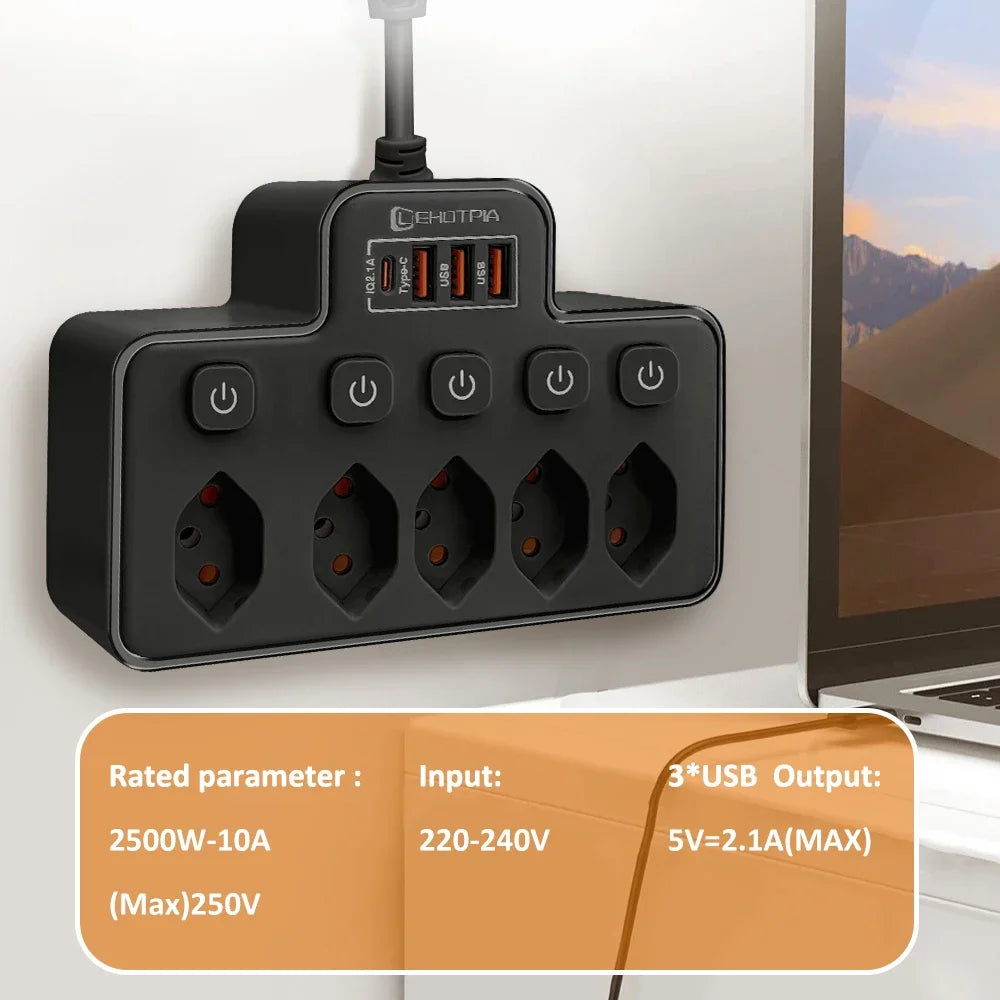

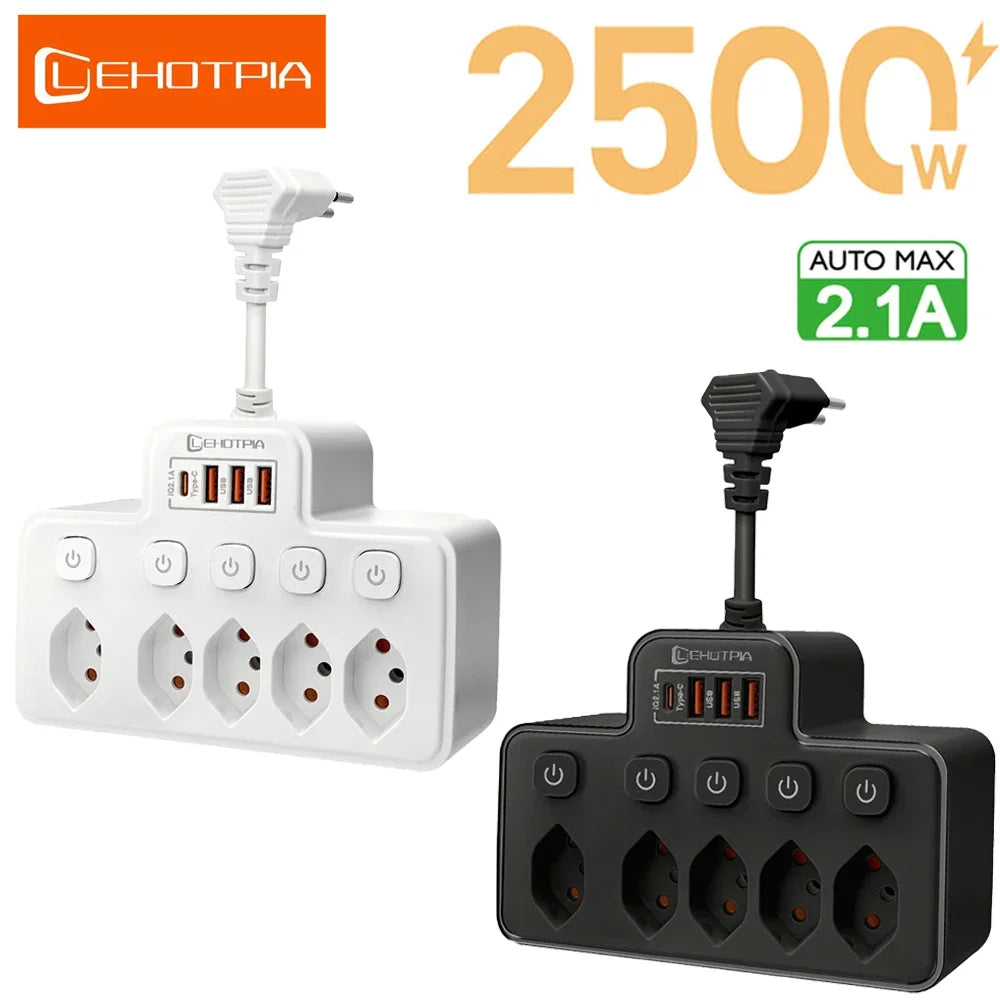

- Neighboring products: low-voltage 5–30 V FPV drone LC boards, USB-equipped power strips and switched audio outlet products have their own operating conditions. A power strip's marketing reference to “network filter” or surge protection does not make it an RF filter or prove certified surge performance.
Selection steps
- Identify the path: single-/three-phase AC supply, low-voltage DC rail, coaxial RF link, receiver IF or a cable's common-mode current. Select from that device family first.
- For AC mains, check the chosen part's actual voltage, phase and wires, current at ambient temperature, leakage, protective earth, insulation rating, connector/terminal design and enclosure. For DC modules check input polarity and allowable voltage/current; do not apply them to mains.

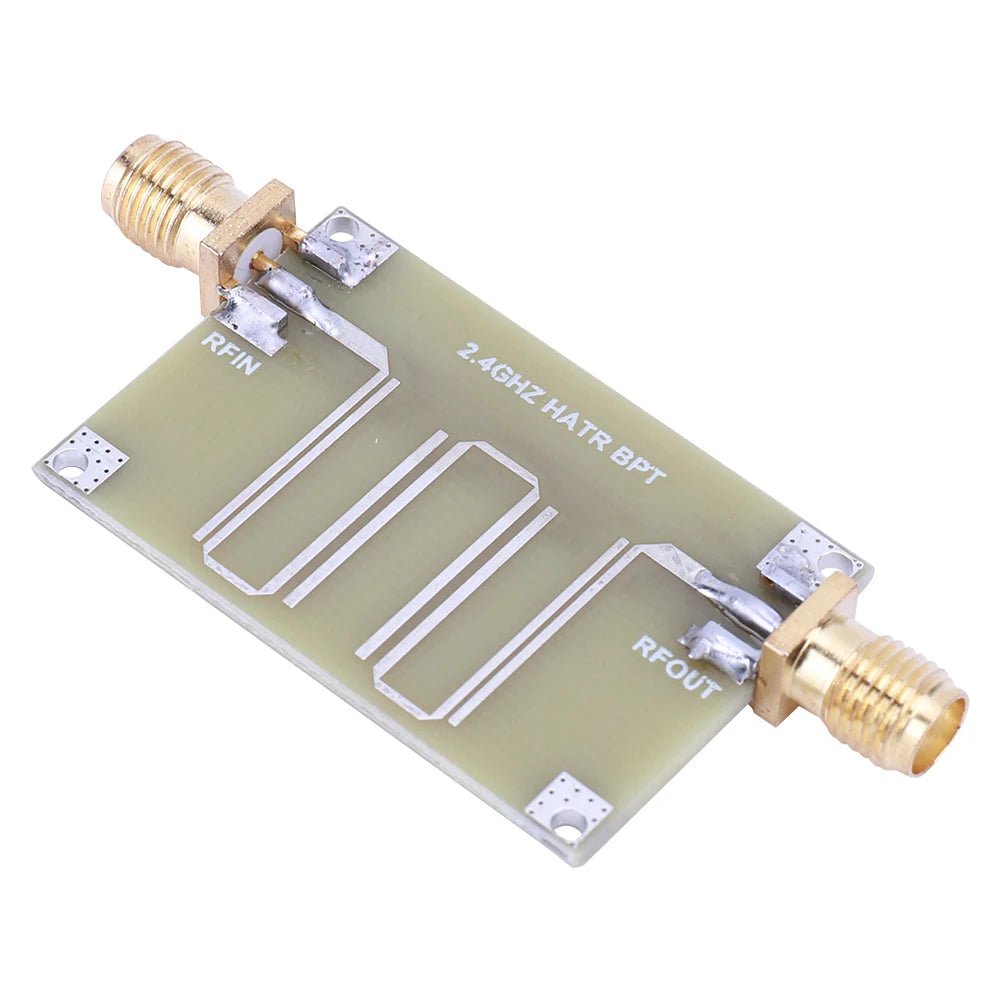

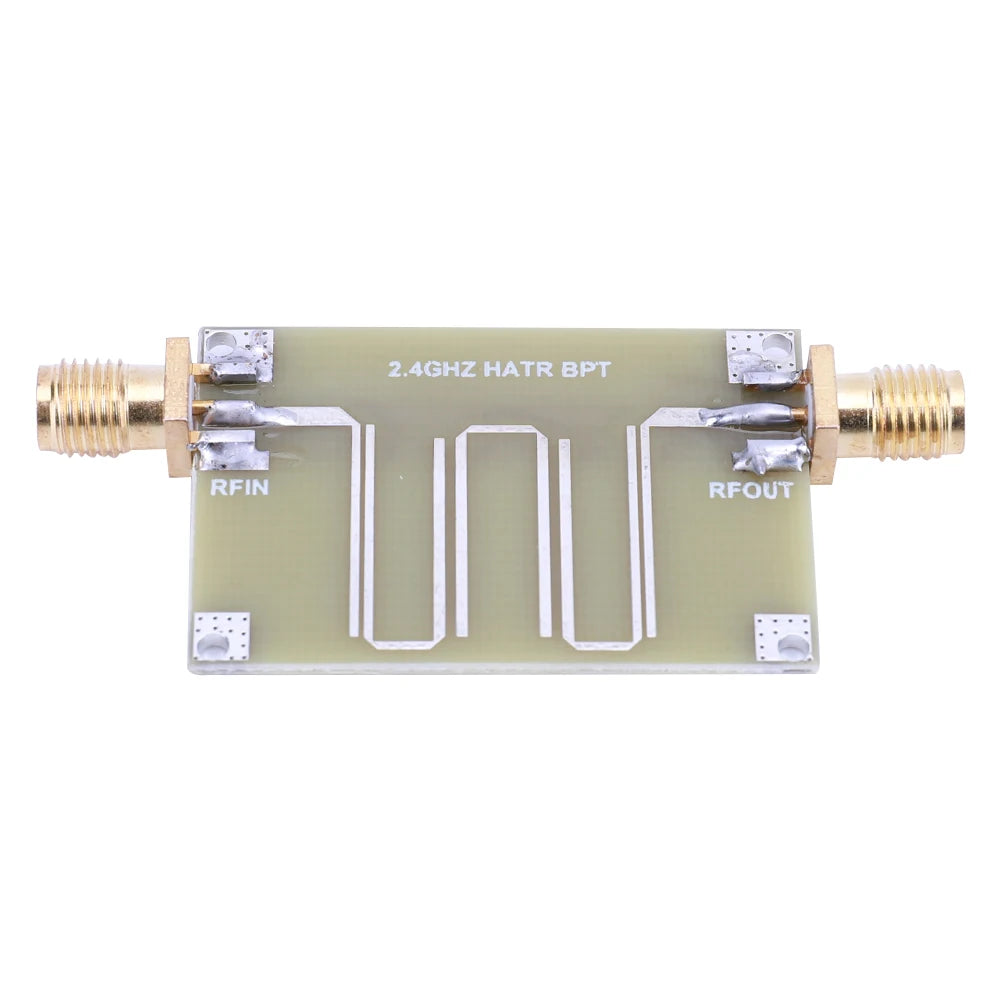

- For RF/IF work, establish system impedance, passband, stopband, insertion loss, return loss, allowed power and mechanical interface. SAW, ceramic and microstrip parts have different frequency behavior; one MHz/GHz figure is insufficient to establish equivalence.
- For EMI mitigation, request test curves with stated source and load conditions. Evaluate the frequency of interference, common-mode versus differential-mode path, grounding and layout. A filter cannot be assumed to cure every audio hum or interference source.
- Check the selected variant, quantity and accompanying items. Obtain original-equipment specifications and traceable approvals before claiming fit, certification, named-brand authenticity or medical suitability; a seller title is not proof.
Buying checklist and applications
Write down signal or power path, original part number, frequency band or AC supply frequency, voltage and current, impedance and attenuation requirements, connection pinout, mounting, environment and documentation needed for compliance. Industrial power inputs, radio receivers, FPV supplies and plug-in outlet accessories are distinct applications. Qualified personnel should handle mains installation using equipment-specific instructions; no general mains wiring method is given here.
Frequently asked questions
Can a 433 MHz RF band-pass module filter 50 Hz AC mains?
No. It is a signal-path frequency-selective device, not a safety-rated AC power-line assembly.
Is 10.7 MHz the supply frequency of an EMI line filter?
No. In these ceramic listings it is an intermediate signal frequency; AC power filters here are specified separately for mains-frequency supplies.
Does an FN or CW model number alone prove AC/DC interchangeability?
No. Verify the exact selected manufacturer's documentation for conductor count, AC or DC rating, current, earth and safety characteristics.
Can a common-mode choke or ferrite sleeve replace an enclosed filter?
No. They are components with frequency-dependent properties; a finished power filter has additional electrical, insulation and mounting requirements.
