LM386 Audio Amplifier ICs, Mono Modules and IC Kits

LM386 audio power amplifier chips, mono boards and mixed IC kits

The LM386 is a compact analog audio power-amplifier family used in low-voltage, low-power speaker projects. This collection combines bare LM386N through-hole devices, LM386M surface-mount choices, assembled mono amplifier modules and assorted electronics kits containing LM386 among many other ICs. Many products are multi-model listings in which the selected option is not LM386 at all. Check the selected variant, package and pack count: one DIP-8 chip, a populated adjustable-volume board and an 85-piece mixed assortment solve different problems.

How an LM386 audio stage works

An LM386 accepts an analog audio signal and delivers more current to a suitable small speaker than a typical line-level source can provide. It is a mono power amplifier, not a stereo DAC, a digital I2S decoder, a microphone capsule or a general-purpose operational amplifier interchangeable with LM358. Its voltage gain depends on the circuit connected to the gain pins; a commonly described baseline is approximately 20, while external components can configure higher gain up to approximately 200 in suitable designs. A board's input-volume potentiometer attenuates or sets the input level; it does not necessarily alter the IC's intrinsic closed-loop gain. Therefore “200 times” on a product headline is not proof that every assembled board is permanently wired for gain of 200.

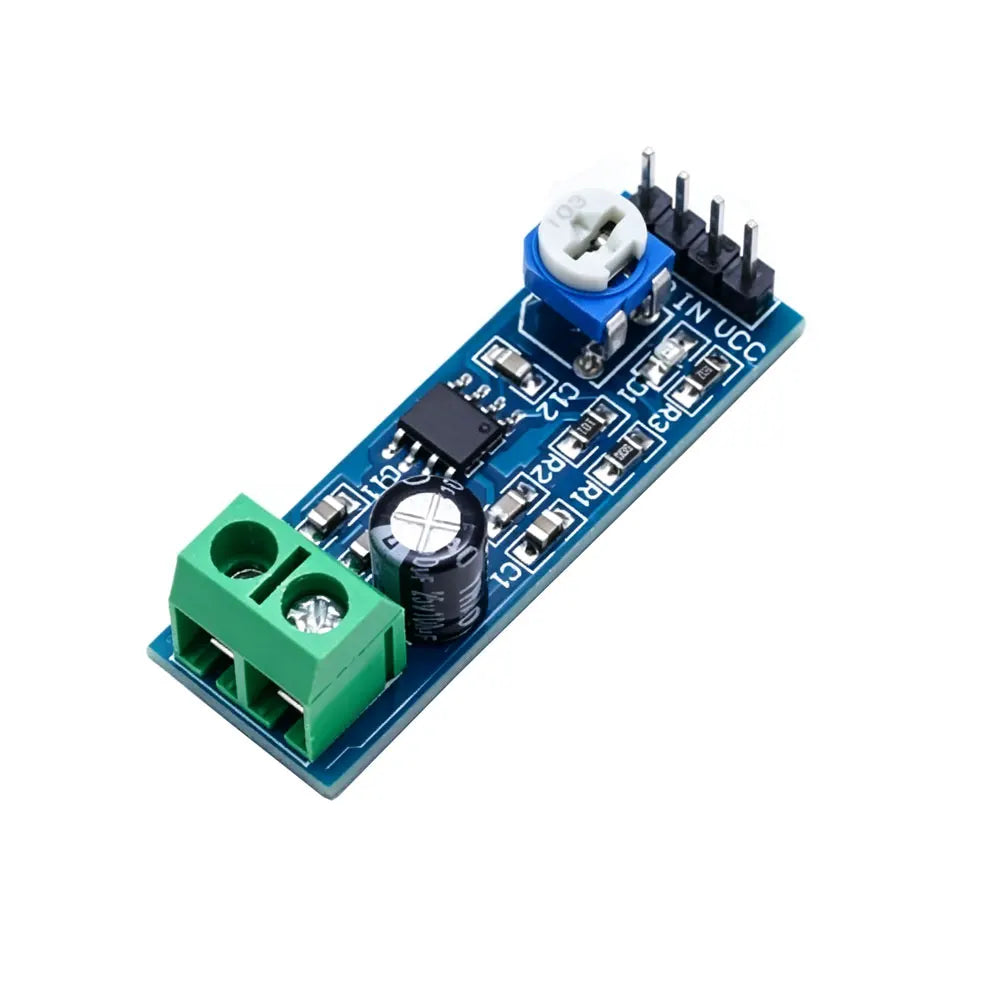

Low-voltage boards in the current listings quote different operating ranges: several 41 × 13 mm modules say 5–12 V and describe a 10 kΩ volume control, onboard indicator and speaker terminal; electret-microphone boards mention DC 4–12 V; a YX1667-style mono board advertises DC 3–12 V. These ranges are claims for their respective assembled boards, not a universal rating for every LM386 suffix or circuit. One 5–12 V module headline says “200 Times” while its own detailed description says 20-times gain; do not rely on the headline to resolve that contradiction. Check the chosen board's markings and circuit before power-up.

Choose the physical product

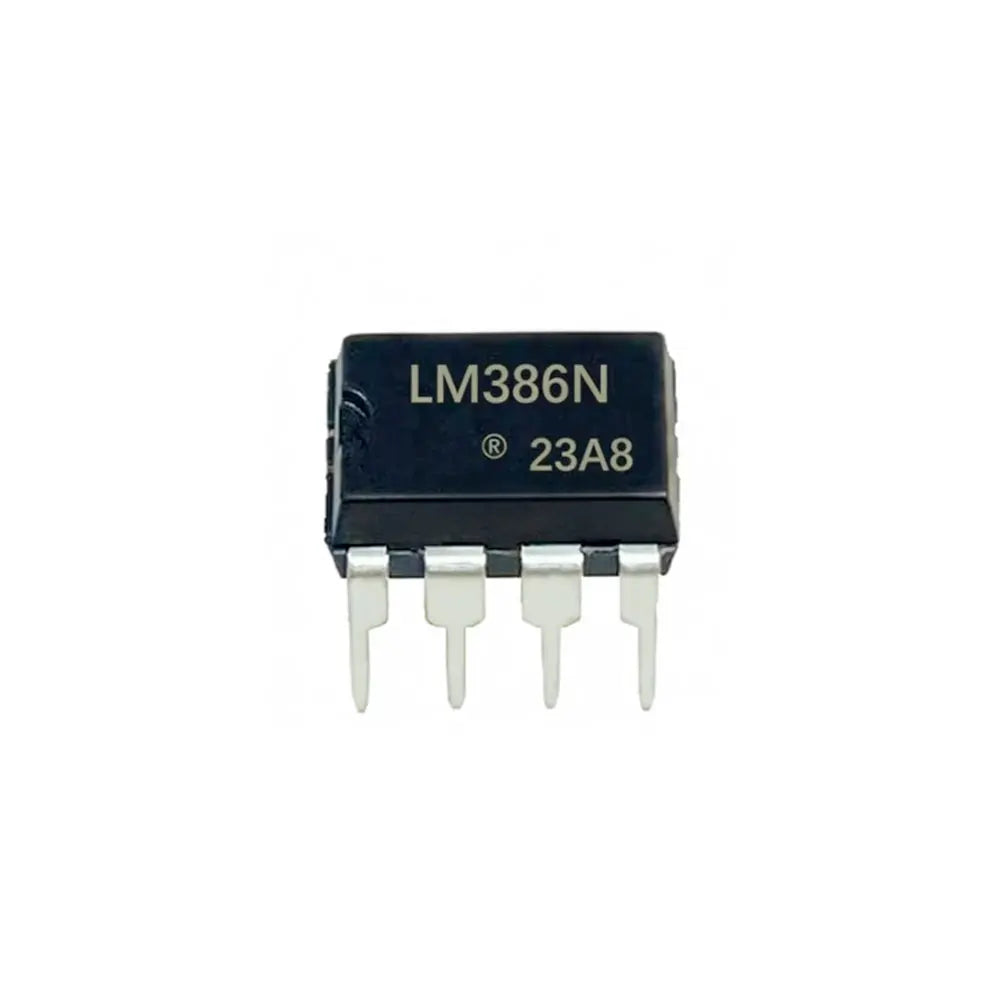

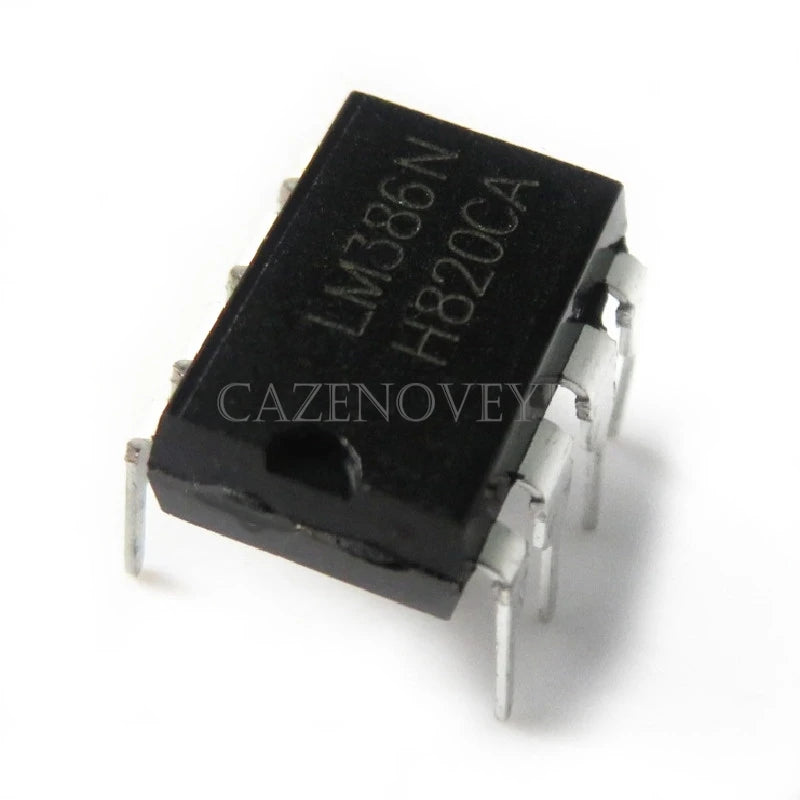

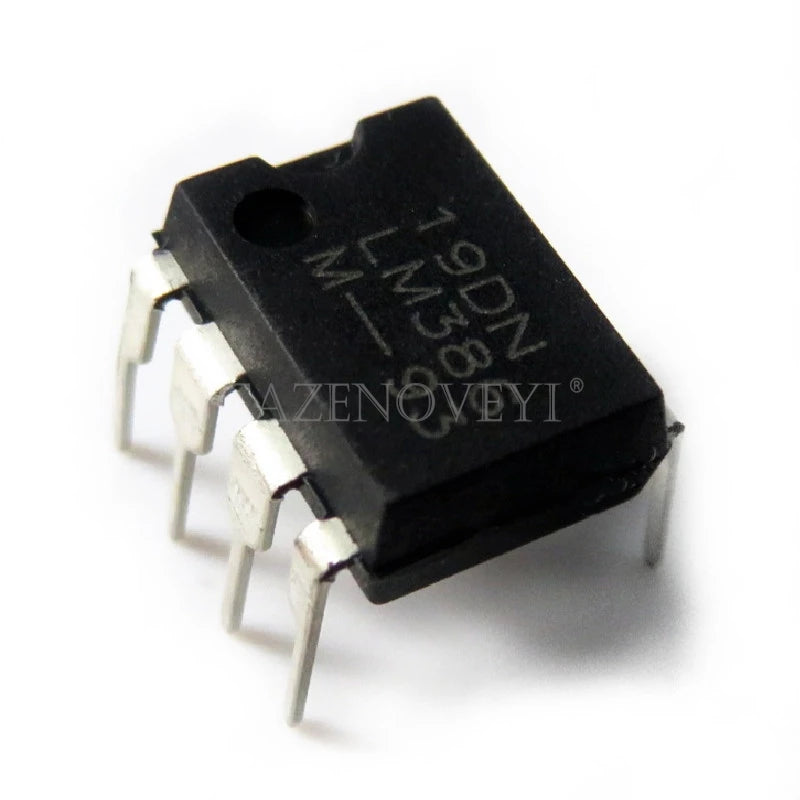

• Bare DIP-8 LM386: multi-model listings offer LM386N, LM386N-1 or LM386N-4 variants among other through-hole ICs. The suffix may identify a different grade, so compare its supply and output specifications against the exact device documentation rather than treating every “LM386” as identical. DIP-8 is appropriate only where the board is laid out for the corresponding through-hole pinout and component clearances.

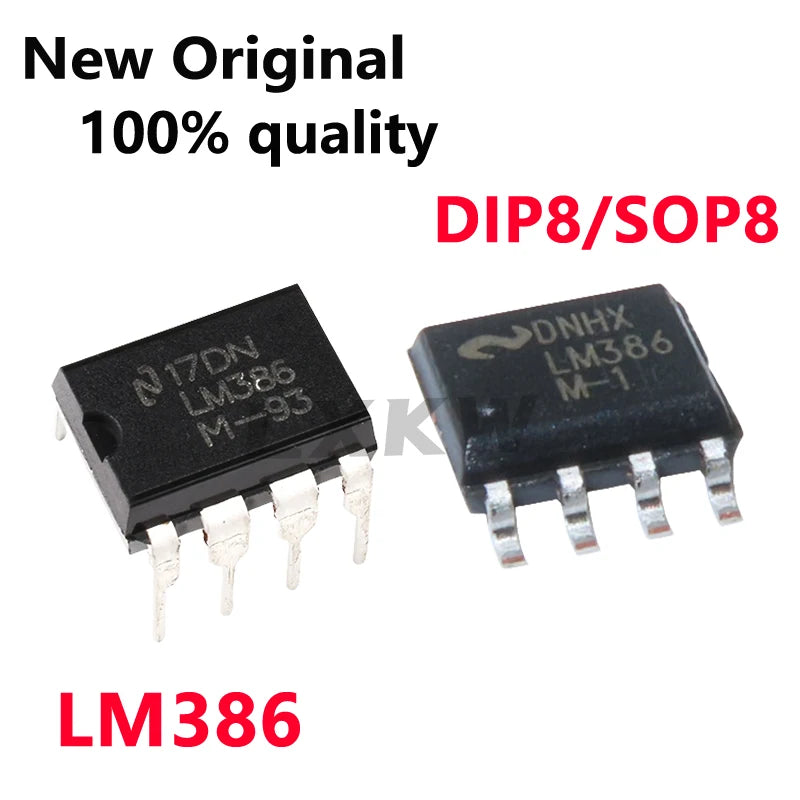

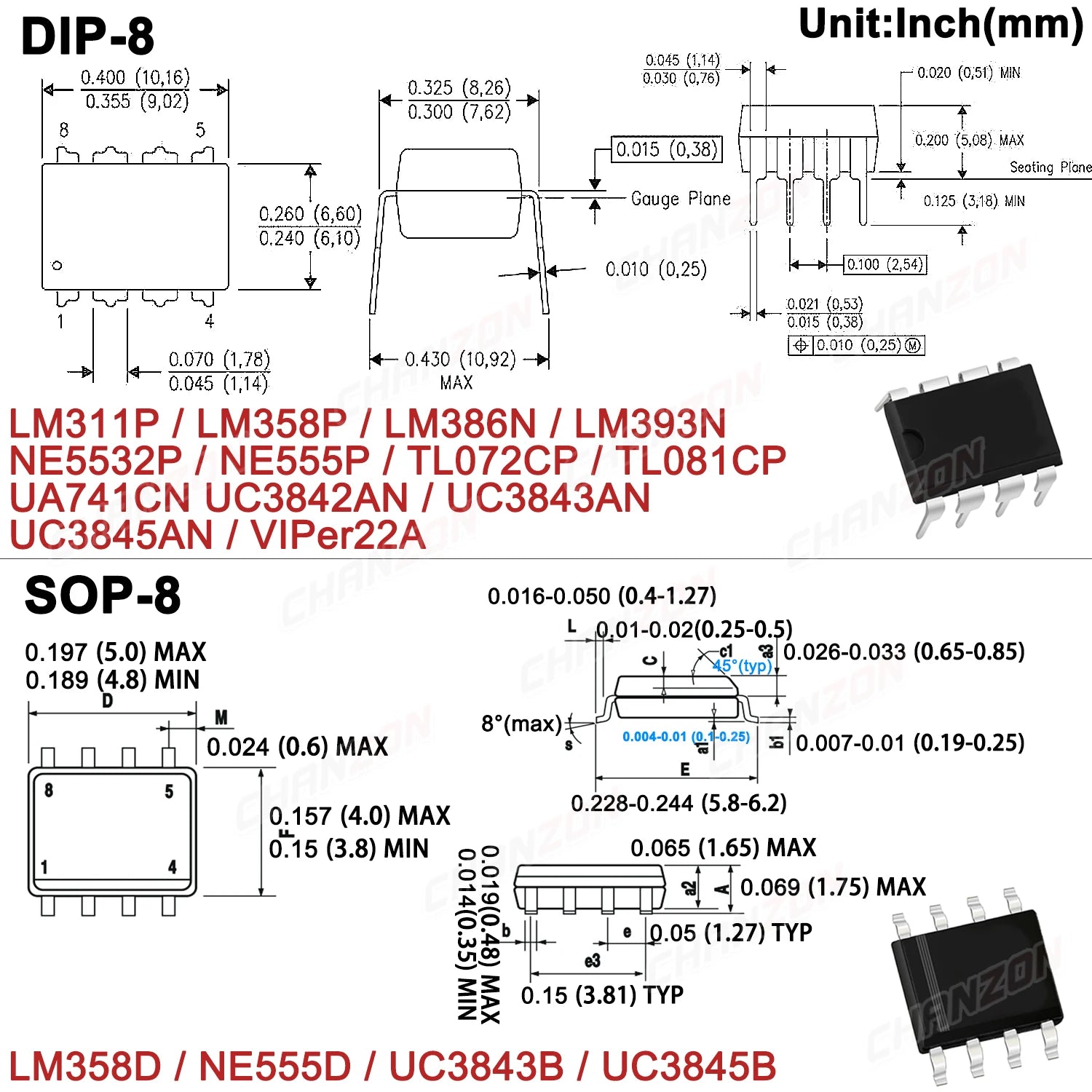

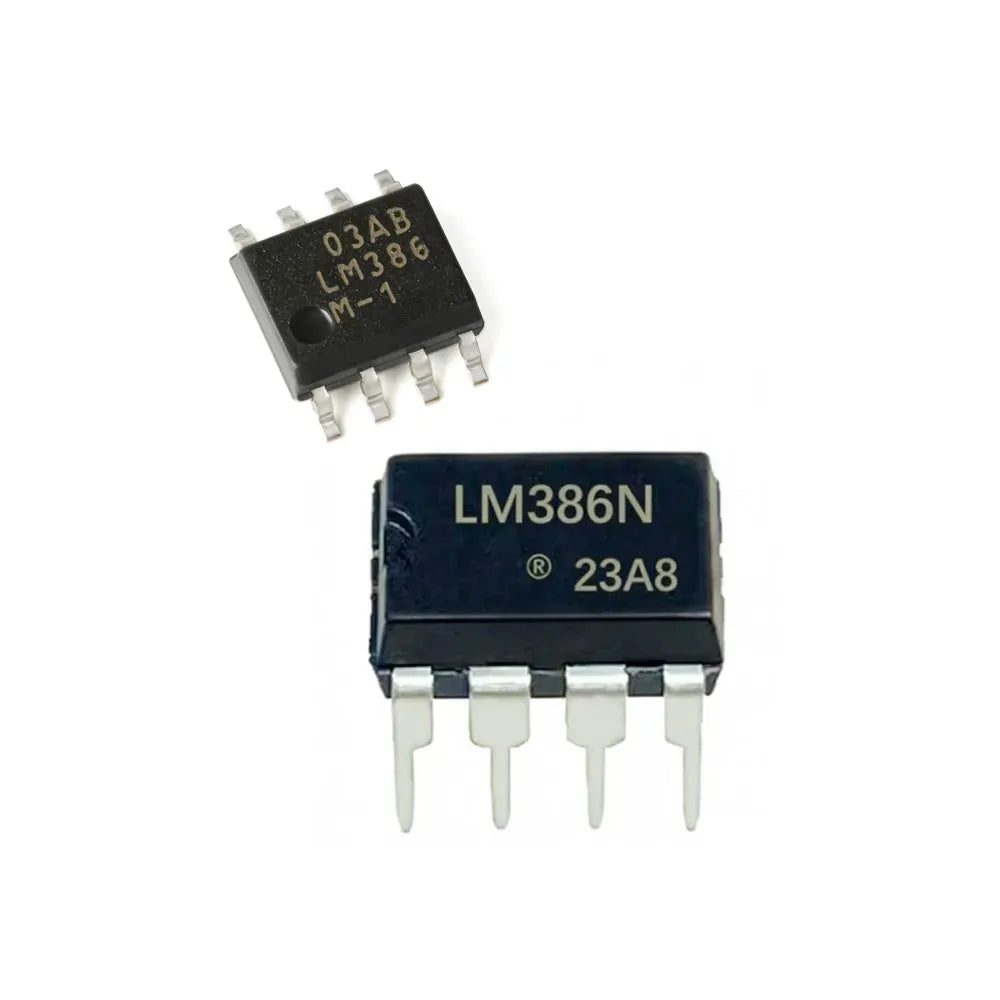

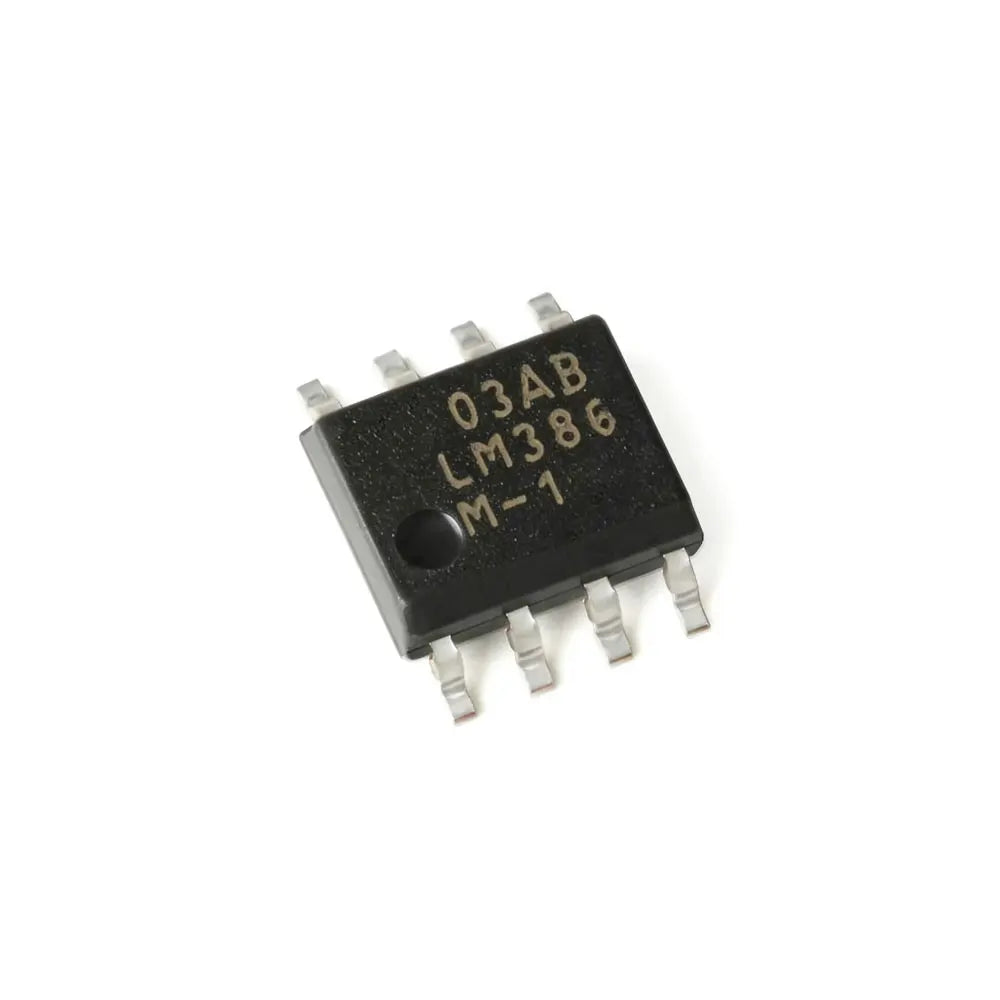

• Surface-mount LM386: LM386M, LM386M-1 or LM386MX-1 choices appear among SOP-8 component listings. They are bare devices, not assembled amplifier modules. DIP-8 and SOP-8 parts do not share a footprint even if the functional pins are similarly named. Check whether an option states 10, 20, 50 or a larger reel quantity before ordering.
• Assembled mono modules: several small LM386 audio boards have an onboard speaker terminal and adjustable 10 kΩ control; choices range from one board to 2-, 5-, 10- and 20-board packs. An assembled board still requires the appropriate DC supply, analog input and external speaker unless the selected listing specifically includes them. A module marketed for a microphone does not automatically ship with an electret capsule.
• Microphone-oriented boards: listings for LM386 electret microphone amplifier boards discuss 20–200 gain and potentiometer or non-potentiometer versions. One headline explicitly says “without potentiometer,” while descriptive copy mentions versions with and without it. Do not assume the pictured control is fitted on the selected SKU. Verify microphone bias and front-end implementation for the particular PCB; an LM386 by itself is not a complete high-fidelity microphone preamplifier.

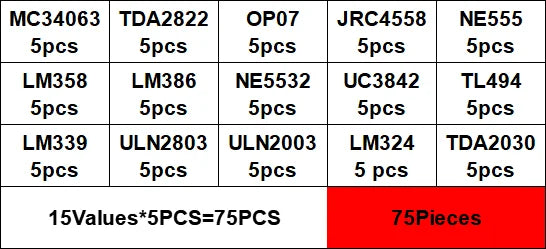

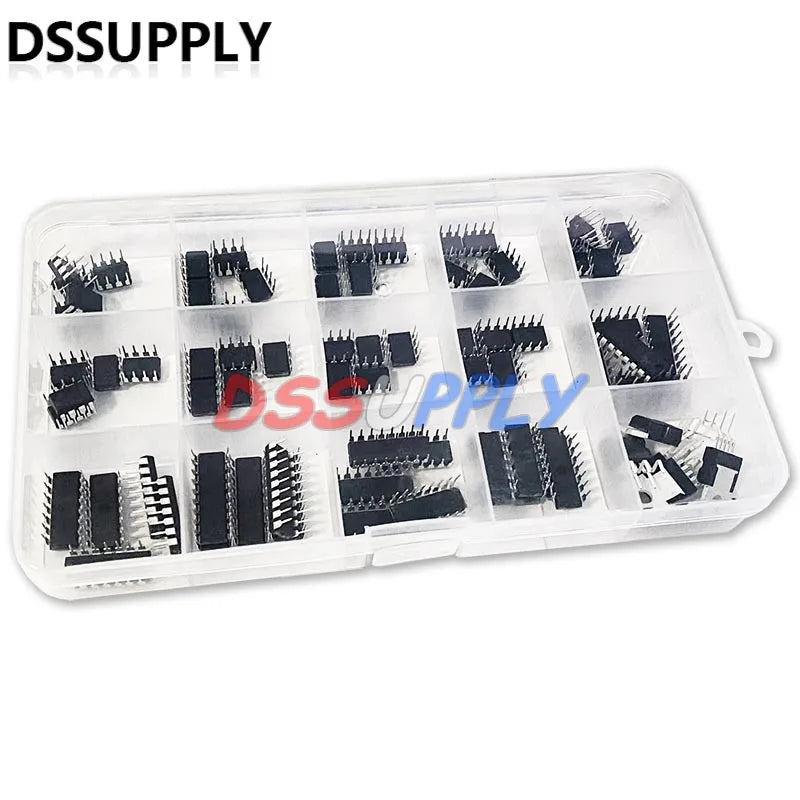

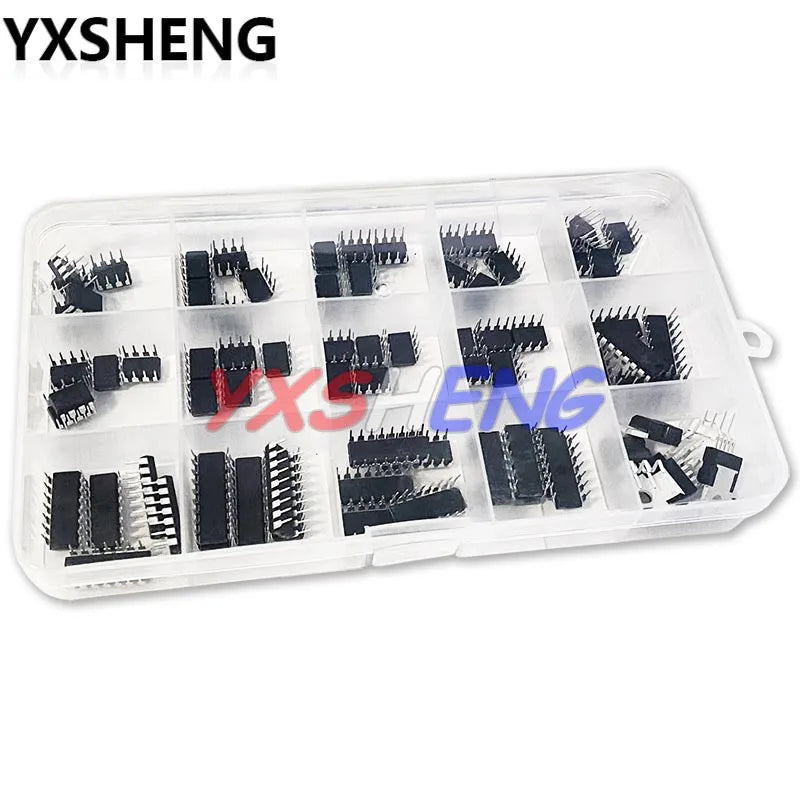

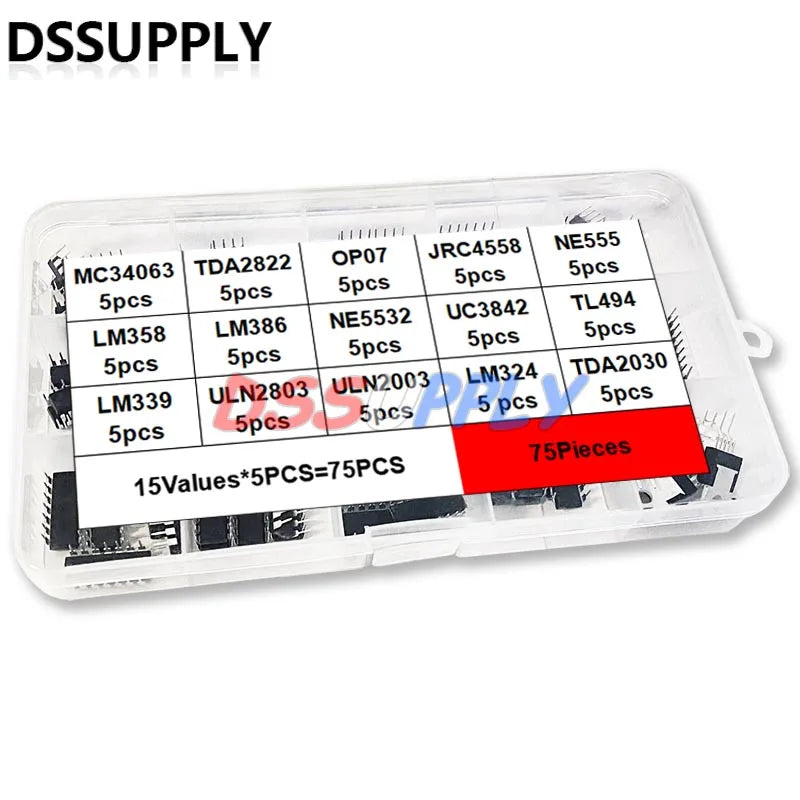

• Mixed IC kits: listings of 75-piece, 85-piece, 90-piece, 100-piece and 150-piece assortments include LM386 in varying counts alongside NE555, LM358, LM324, LM393, PC817, ULN2003, TDA2030 and others. In one 85-piece kit, the described breakdown includes 10 LM386N-1 chips; a 75-piece 15-value kit describes five of each named type. An assortment is not a pack containing only LM386. Some source descriptions conflict with their own titles or contain apparent typing errors; verify the selected kit's actual contents before counting it as production stock.

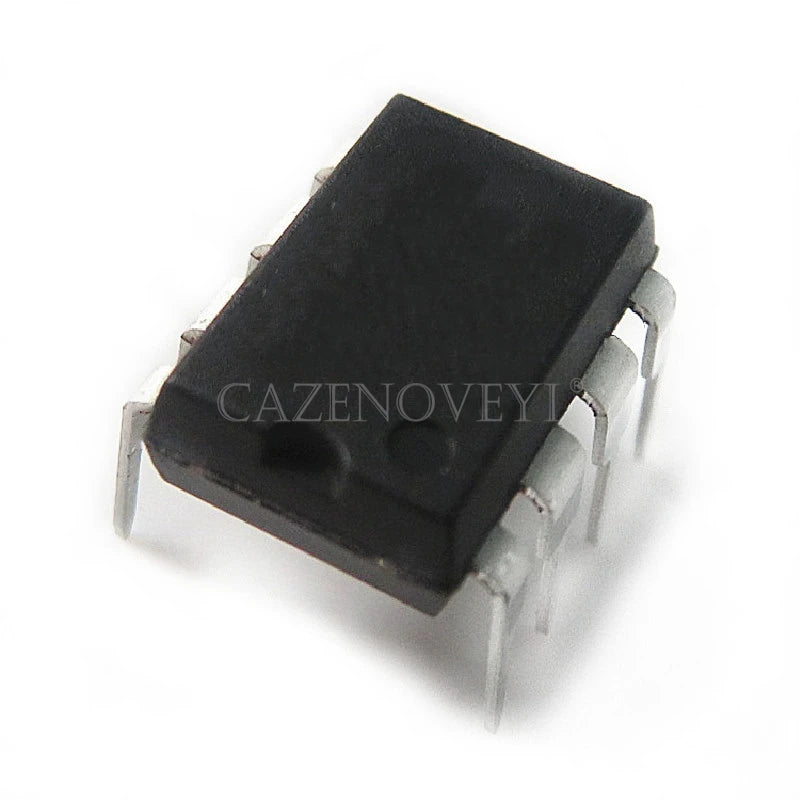

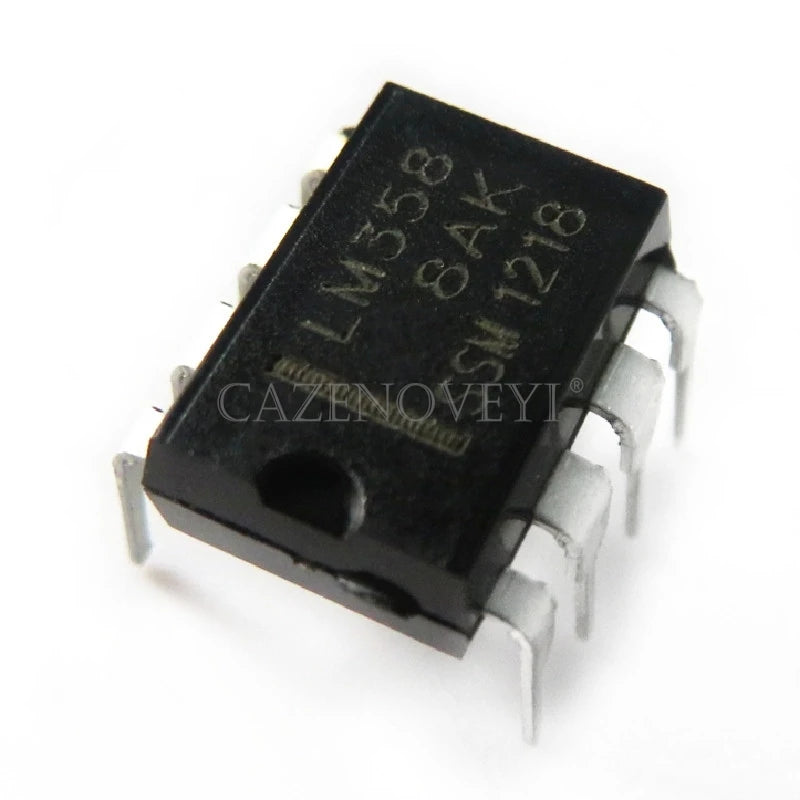

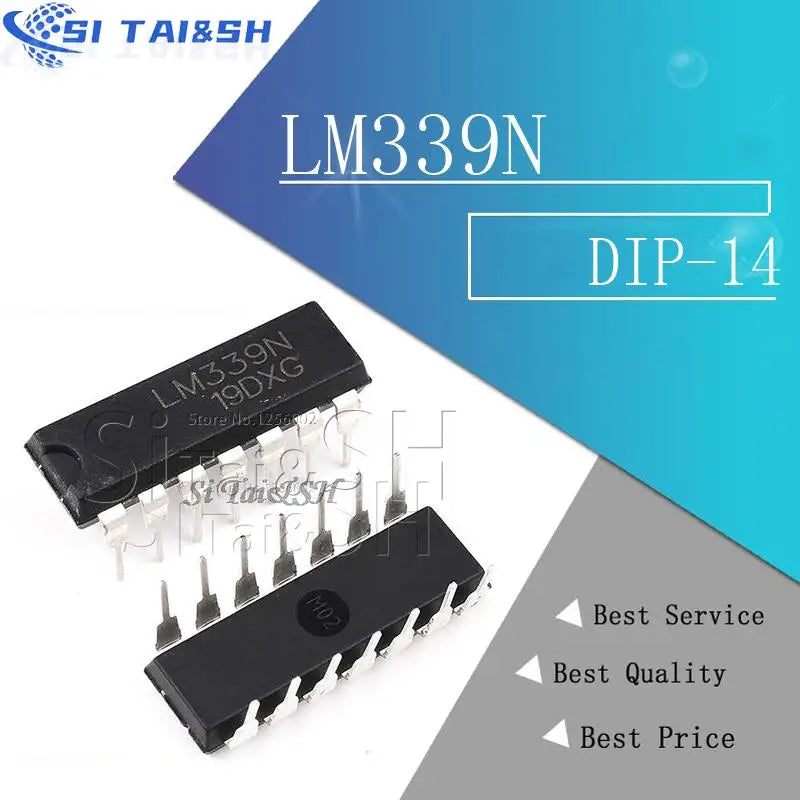

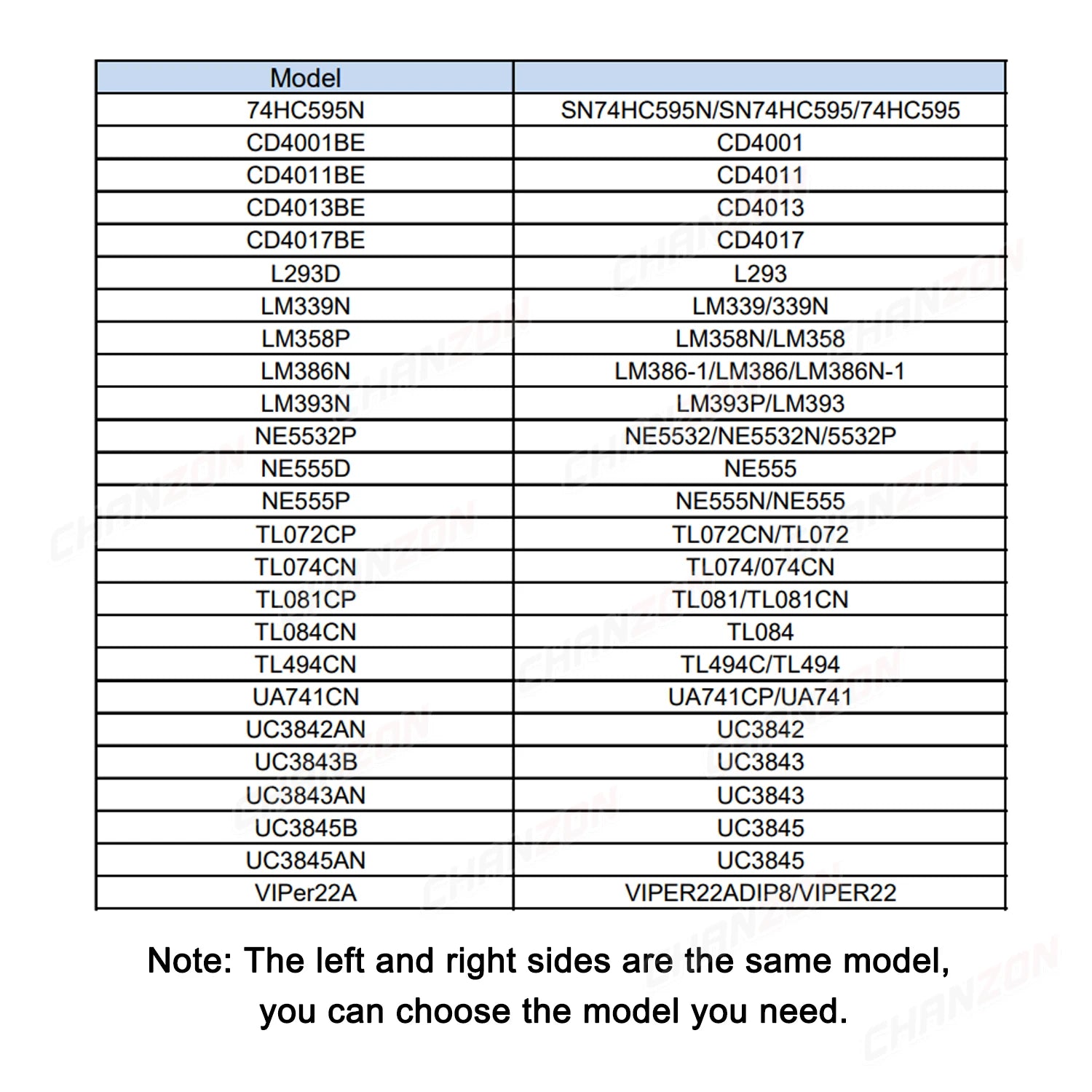

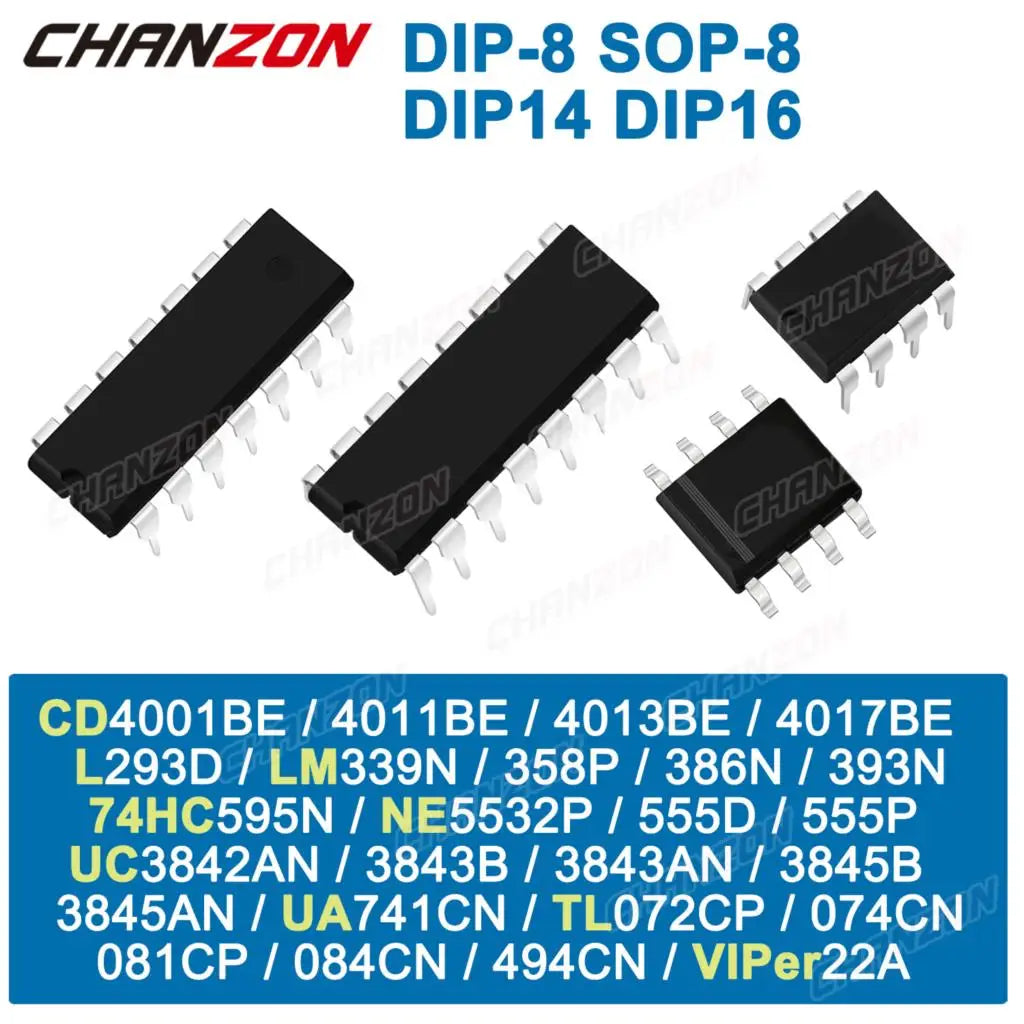

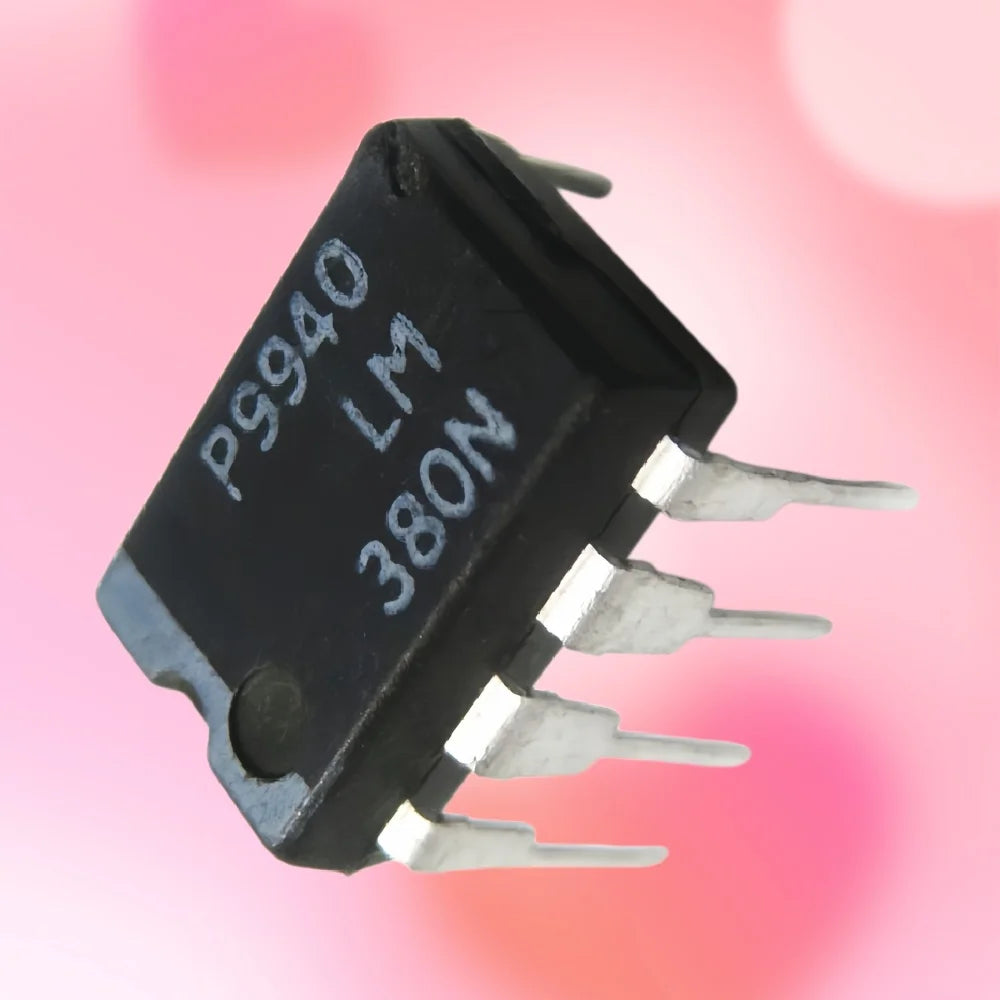

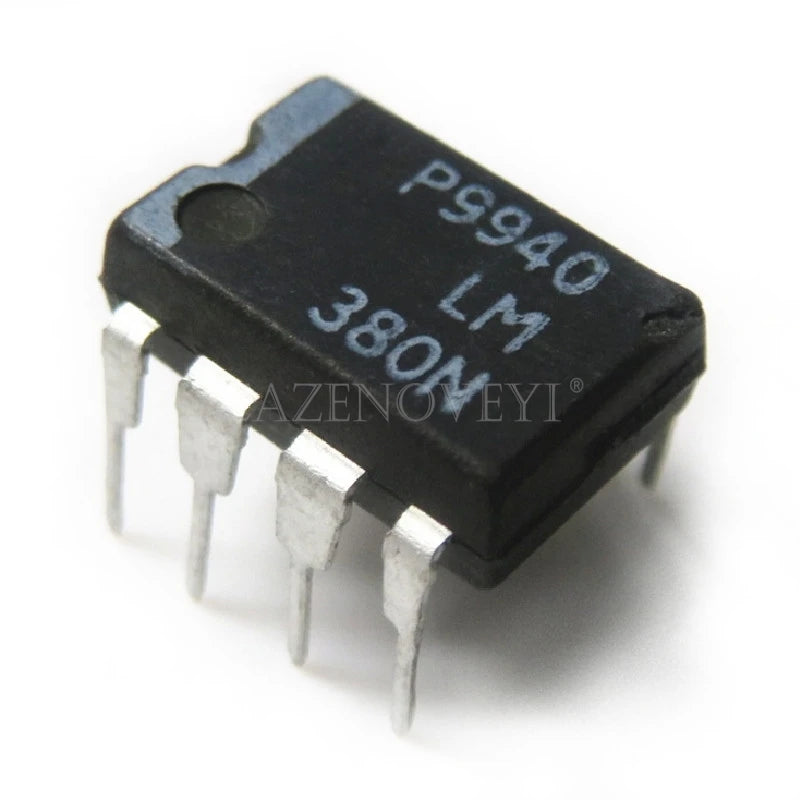

• Multi-choice IC pages: selectable LM358P, LM380N-8, LM376N, LM387N, LM339, LM393, NE5532, NE555, MC34063 and logic families are different devices. Even if LM386 appears in the shared headline, selecting a different model delivers that model, not LM386 or a combination. One title lists LM386N alongside other chips but the only currently shown variant is ULN2003AN-10PCS; that selection is not an LM386 product.

Engineering selection checklist

1. Match the signal source: an LM386 module expects an analog input at the input pins or connector identified for that PCB. Do not feed a digital I2S clock/data line into an analog audio input. Microphone-level sources may need the correct microphone bias and conditioning; line-level signals may need input attenuation to avoid clipping.
2. Match the supply to the exact board: identify the selected device suffix and PCB's regulator or protection, if any. Compare supply voltage, polarity, available current and decoupling to the chosen listing and authoritative component data. A 12 V claim on a module cannot be automatically applied to every naked IC or every battery-powered assembly.
3. Match gain to noise and headroom: more voltage gain is not automatically more usable speaker power. High gain also amplifies source noise and can clip on a modest signal. If the description says 20× and the headline says 200×, inspect the board's actual gain-pin components and verify the intended configuration rather than buying solely by the larger number.
4. Match the speaker and output power: confirm load impedance, achievable power at the actual supply and acceptable distortion/temperature. Source listings that classify an IC as a timer, voltage regulator or “logic IC” do not change its actual audio-amplifier function. Likewise, a seller's generic “dissipation power” value may refer to a resistor marking, not amplifier output wattage.
5. Match packaging and counts: DIP-8 versus SOP-8, 1 versus 5/10/20/50 pieces, assembled PCB versus loose chip and assortment versus single-model bag are essential purchasing differences. Full orderable part numbers and the selected variant are more reliable than abbreviated headline strings.

Board design, distortion and thermal reality

For a bare LM386, use its manufacturer documentation for supply limits, pinout, gain-setting network, input biasing, bypassing, output coupling, stability recommendations and load conditions. An amplifier's output power is limited by supply, speaker impedance, distortion tolerance and temperature. A claim of “200 times amplification” is a voltage-gain statement under a particular circuit condition, not “200 W.” A potentiometer-marking “10K” denotes resistance, not a 10 kW power rating. Poor grounding or insufficient supply decoupling can lead to audible hum or oscillation even when the board is correctly populated. Evaluate the complete assembly with its real source and speaker rather than borrowing a specification from an unrelated board.

Do not directly short the speaker output, reverse DC polarity, connect an unsuitable high-power load or infer that a PCB marked 5–12 V includes reverse-polarity and overcurrent protection. For battery or enclosure use, consider current draw, ventilation, wiring strain and speaker impedance. Bare ICs and modules are components for integration, not automatically certified finished consumer audio products.

Frequently asked questions

Is LM386 an op amp like LM358? No. LM386 is intended as an audio power amplifier; LM358 is a different operational-amplifier family. Their pinouts and output-drive roles are not interchangeable by name similarity.

Do 75- or 85-piece kit titles mean every chip is LM386? No. They describe mixed-value assortments; the LM386 count must be read from that kit's actual contents.

Can I get stereo from a single LM386 board? A single LM386 audio stage is mono. Two independently connected channels and an appropriate stereo source are required for stereo speaker output.

Does an electret-microphone LM386 module include a microphone? Not necessarily. “Electret microphone amplifier” describes its intended use; look for an explicit included capsule in the selected product contents.

Are N-1, N-4 and M-1 identical? Do not assume so. Check the full suffix for electrical grade and package, then verify the selected part against the intended board and supply.

Model references aid identification and selection, not a guarantee of authorized original-manufacturer provenance, certification, tested audio fidelity or universal circuit compatibility. Read the selected product's option and the precise device/board documentation before integrating it.
