MCP3008 10-Bit SPI ADC ICs and Related Converter Options

MCP3008 analog-to-digital converter ICs: select the exact part

This collection centers on bare MCP3008 10-bit, eight-input, SPI-compatible analog-to-digital converter chips, sold in through-hole MCP3008-I/P DIP-16 and surface-mount MCP3008-I/SL or MCP3008T-I/SL SOIC-16 options. It also contains mixed-part listings offering other ICs, MCP3208 and MCP3204 alternatives, and several ADS1115 I²C breakout boards. The selected variant determines what is supplied. A parent title naming MCP3008 does not mean each choice is an MCP3008, and a single selected part number does not include every device in a mixed title.

What the MCP3008 does

MCP3008 converts an analog voltage into a 10-bit digital result for a host microcontroller or single-board computer. It has an eight-channel analog input multiplexer and a serial interface using chip select, clock, data input and data output. It is a successive-approximation ADC, not a digital-to-analog converter. Several product titles incorrectly call it a “digital-to-analog converter”; those words do not change the function of the selected MCP3008 device. Eight inputs are selectable, not eight converters sampling simultaneously. The supported input configuration includes eight single-ended channels or differential input pair selections subject to the device's channel-pairing rules; check the official command table before writing differential-mode firmware.

The ideal 10-bit code space has 1,024 steps. A nominal LSB is approximately VREF/1,024 for the configured reference, but resolution is not an accuracy guarantee. Quantization, offset, gain error, integral and differential nonlinearity, reference noise, source impedance, settling and PCB noise all affect useful measurement quality. A nominal 3.3 V reference yields an ideal step near 3.22 mV; this is a scaling example, not a promised input accuracy or calibration result. The MCP3008 uses an externally applied reference voltage rather than an automatically precise internal measurement standard; reference quality and routing matter.

DIP-16 versus SOIC-16: check the selected package

MCP3008-I/P: The /P option denotes a 16-pin through-hole DIP form in the listings, suited to an appropriate DIP footprint or socket. A Raspberry Pi project still needs an electrically compatible power/reference arrangement, a connection to the SPI pins and suitable analog wiring. The chip itself is not a plug-in Pi HAT or finished breakout module.

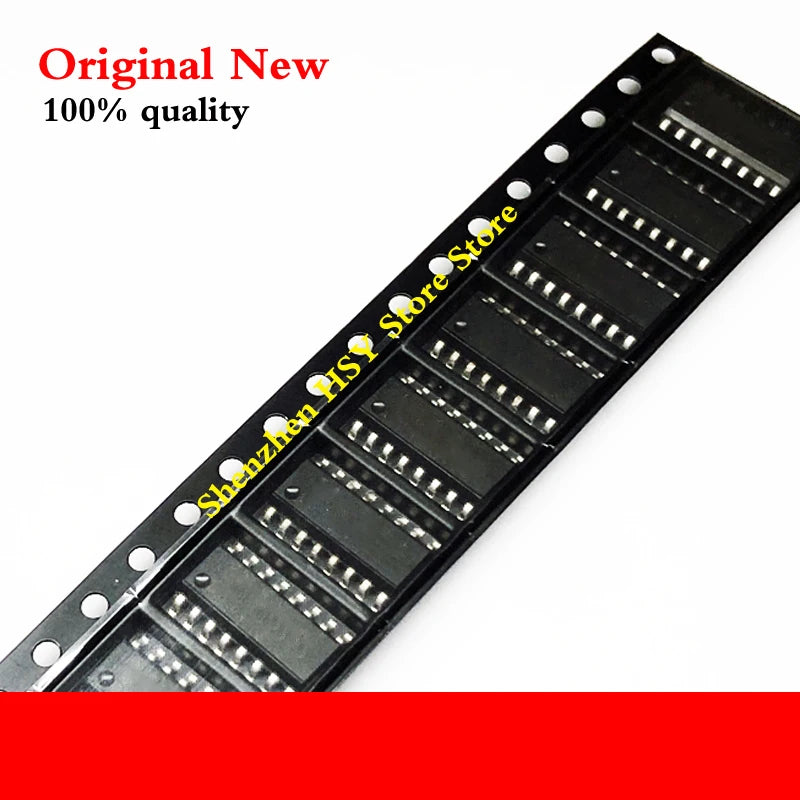

MCP3008-I/SL: The /SL option is represented as the surface-mount SOIC-16 version. Some supplier titles or option text inaccurately say “SOP-14” or “SOP14” next to MCP3008-I/SL; MCP3008's actual 16-pin package identification must be checked against the orderable part number, dimensional drawing and the specific delivered item before PCB assembly. Do not lay out a 14-pad board from a contradictory marketplace title. The T suffix in MCP3008T-I/SL normally concerns ordering/packaging rather than changing the ADC into a different resolution, but check the exact orderable code and pack format for the selected offer.

Pack quantity: The catalog includes one-piece, 2-, 3-, 5-, 10-, 20-, 30-, 50-, 100- and 200-piece choices across different listings. A title such as “1–100PCS” states the available range, not the quantity supplied by every option. For a listing with “Default Title,” check its individual description and stated lot size rather than assuming one chip. Mixed-model options pair a part number with a count, for example “5PCS MCP3008-I-P” or “20PCS MCP3008-I-SL”; order the exact combination needed.

Design boundaries: supply, reference and input voltage

Choose the host logic voltage and ADC supply together. The MCP3008 is commonly used on a 2.7–5.5 V supply according to device specifications; verify the exact operating and interface limits from the manufacturer's current datasheet and your selected part. Digital logic high/low thresholds follow the device's powered conditions. A 5 V-powered ADC is not automatically safe to wire directly to 3.3 V-only host pins, especially its serial data output. Likewise, a 3.3 V ADC cannot directly measure a 5 V analog signal simply because the host reads a ten-bit result. Check the host's I/O tolerance and use a suitable supply, signal conditioning or level translation when required.

Set VREF within the device's permitted range and use an adequately stable, low-noise source for the required measurement performance. Input measurements are bounded by supply and reference constraints; VREF sets full-scale conversion scaling but does not make an overvoltage safe. Protect the inputs against expected startup, fault and negative-voltage conditions. A divider or buffer can map an appropriate low-voltage signal into the permitted range, but its resistor tolerance, loading, leakage, bandwidth and overvoltage behavior must be included in the error and safety analysis. Do not connect mains, high common-mode nodes or other hazardous voltages directly to a bare ADC.

Analog and digital grounds, reference return, local decoupling and board layout deserve attention. The SAR sampling network draws transient charge from the source. An excessively high source impedance, large series resistance, insufficient acquisition interval or rapid channel changes can cause incomplete settling and channel-to-channel carryover. For sensor outputs, review drive capability, any RC filter and the timing available between selecting a channel and completing conversion. A first reading after a large mux step may need verification or discarding in a particular design; this is a system-design decision, not an inherent guarantee about every board.

SPI timing and firmware selection

MCP3008 does not speak I²C. Firmware must generate the serial start, single-ended/differential and channel-selection control bits, then interpret the returned data in the proper clock framing. Confirm SPI polarity, phase, clock frequency, chip-select behavior and voltage against the current device datasheet. The permitted clock and throughput depend on operating voltage and timing conditions; a seller's speed claim or a host's maximum SPI frequency is not a blanket conversion-rate guarantee. If several ADCs share the SPI bus, give each appropriate chip-select handling and account for loading and bus contention.

Raspberry Pi and Arduino references in some listings indicate common project use, not an included cable, code, carrier board or validated universal pinout. Before writing software, distinguish /P versus /SL footprints and whether an adapter or breakout is required. Software written for ADS1115's I²C registers cannot be used unchanged for MCP3008's SPI conversion framing. Likewise, an SPI MCP3208 may resemble MCP3008 physically while returning a different data width; code and scaling still require part-specific checks.

Other ADC choices in these listings

MCP3208-CI/P: A separately selected eight-channel, 12-bit SPI ADC alternative in mixed DIP-16 listings. Its nominal resolution and command/result decoding differ from MCP3008's ten-bit output. Choosing MCP3208 does not deliver an MCP3008 as well, even when both are printed in the parent title.

MCP3204-CI/SL and MCP3424-E/SL: Additional selectable converter ICs in mixed-family listings. The MCP3204 choice has a different channel count from MCP3208, while MCP3424 belongs to a different converter/interface family. Verify the selected IC's actual supply, reference scheme, digital interface, package, channel configuration and resolution instead of carrying MCP3008 numbers across.

ADS1115 modules: Four listings at the end of this collection are assembled 16-bit ADS1115 I²C breakout boards, in one-set, one-piece or five-piece board selections. ADS1115 is a distinct ADC with programmable gain and multiplexed inputs. It is not a bare MCP3008, is not an SPI device, and a “four-channel” title does not imply four simultaneous conversions. Check each selected module's supply, I²C pull-ups, pinout and accessory inclusion separately.

Mixed-title products that are not MCP3008

Some parent products offer MCP3008 only as one option among unrelated chips. Examples of actual selectable alternatives include MCP23008-E/P I/O expanders; MCP2120 interface ICs; MCP42010/MCP42100 digital potentiometers; MCP6004/MCP6024/MCP604-family amplifiers; MC33174D and MC34074D op amps; FM3164-G; TPIC6C595N shift registers; 74HC4051D analog multiplexers; AT24C01 memory; TOP255EN and TNY255GN power-control components; ULN2003APG transistor arrays; MBR10100CT diodes; and MCP4822-E/SN DACs. These are not interchangeable with an eight-channel MCP3008 ADC. If the selected option says one of these part numbers, the order is for that option's device and quantity, not a bonus MCP3008.

A mixed listing includes MCP3008-I/P alongside MCP3208-CI/P and MCP4822-E/SN. MCP4822 is a DAC choice, whose analog-output function differs fundamentally from MCP3008's analog-input conversion. Other mixed listings contain microcontrollers, power semiconductors and interface components whose “DIP-16” or “SOP-14” parent wording may refer to only some choices. Match the package to the specific selected orderable code, not the shared parent suffix.

One listing titled as a one-piece MCP3008 for Raspberry Pi currently exposes the selected option “IRFH5300TRPBF.” That option names a different semiconductor, so the parent title alone is inadequate evidence of an MCP3008 shipment. Other ambiguous options such as “10pcs leave message” do not themselves specify a definite IC. Do not infer a part number from the collection heading when the variant does not identify it; obtain the exact deliverable from the individual product details before ordering.

How to select accurately

1. Confirm function: Decide whether you need an SPI input ADC, I²C ADC module, DAC, I/O expander, analog mux or another listed component. Search terms in a parent title are not a substitute for the selected part number.
2. Choose data width and channels: MCP3008 is a 10-bit, eight-input multiplexed converter. MCP3208 is a 12-bit alternative; ADS1115 boards use a different I²C architecture. Nominal bits do not guarantee equal usable accuracy.
3. Check physical deliverable: Distinguish bare DIP-16 /P, bare SOIC-16 /SL, tape-and-reel-style T ordering and an assembled ADS1115 board. Marketplace “SOP14” wording beside /SL is contradictory and should be checked against the device drawing.
4. Match power domains: Verify ADC supply, reference, analog signal range and host digital-pin tolerance. Design conditioning for signals outside permissible chip limits rather than applying them directly.
5. Budget measurement error: Evaluate reference tolerance/noise, sensor source impedance, acquisition timing, input protection and grounding. Resolve temperature, speed and precision requirements from the exact device data.
6. Confirm quantity: Choose the selected part-and-count variant. Titles containing ranges or several part numbers do not promise a mixed kit.
7. Validate traceability: Seller phrases such as “100% original,” “100% tested,” “in stock” or “quality guaranteed” appear in product titles; they are not independently verified certifications, test reports or authorized-manufacturer provenance for every item.

Frequently asked questions

Does MCP3008 produce analog output? No. MCP3008 is an analog-to-digital converter. A listing that calls it a digital-to-analog converter mislabels its function; select an actual DAC such as the separately offered MCP4822 variant if the design requires analog output.

Are all eight channels sampled at once? No. They feed a multiplexed conversion path and are selected in sequence. For simultaneous acquisition, choose a device expressly designed for that requirement.

Is the chip ready to plug into a Raspberry Pi? A bare DIP or SOIC IC is not an assembled Pi accessory. Provide the correct mounting, SPI connection, supply/reference, ground and safe analog interface.

Are MCP3008-I/P and MCP3008-I/SL the same footprint? No. The /P and /SL listings denote through-hole DIP-16 and surface-mount SOIC-16 respectively; verify the manufacturer's package drawing and the chosen lot before PCB design.

Why does a product title say SOP-14? Several mixed or inconsistent seller titles do. Do not assume a 14-pin MCP3008; match the selected /SL code and physical package against the manufacturer drawing.

Can ADS1115 code control MCP3008? Not directly. ADS1115 uses I²C commands and MCP3008 uses SPI conversion framing. Resolve host voltage and part-specific firmware before assembly.

This guide explains the represented options and design checks. Actual package, lot count, board accessories and electrical limits must be verified against the selected variant and current device documentation.
