Micro Automotive Blade and SMD Fuses
“Micro fuse” describes more than one physical protection part in this collection. Automotive Micro2 blade fuses plug into matching vehicle fuse panels; small surface-mount (SMD) fuses solder onto a circuit board. Both are one-time overcurrent devices, but their footprints, terminals and electrical ratings are entirely different. The collection also contains mixed automotive blade-fuse assortments with mini and standard sizes. Identify the exact product and selected option before choosing a replacement.
What is in this collection?

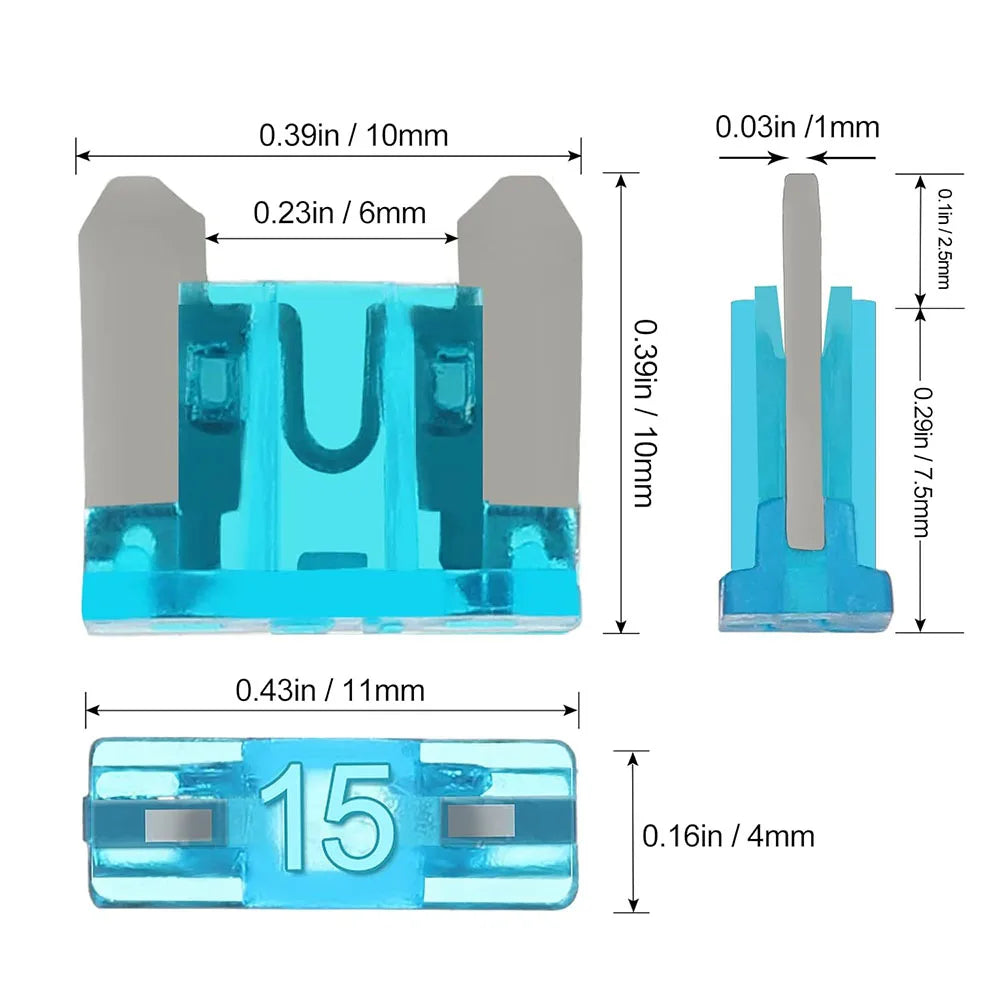

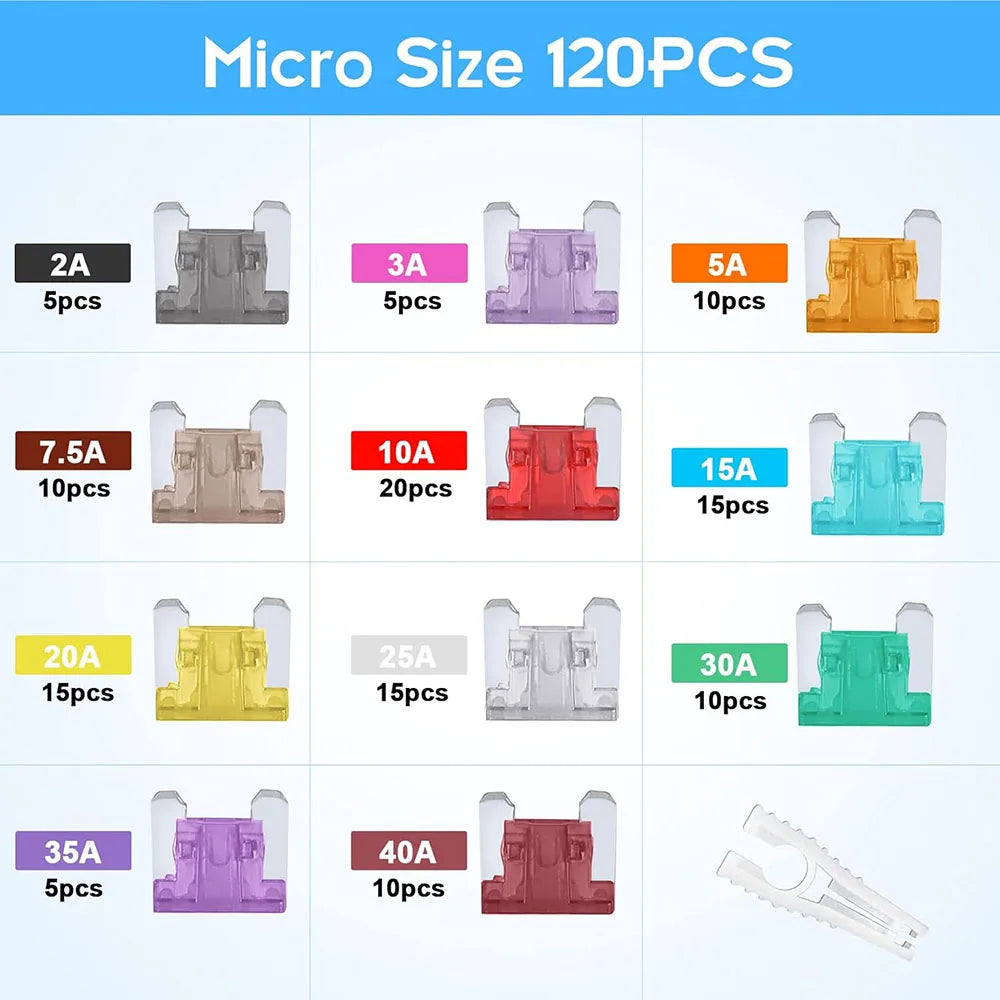

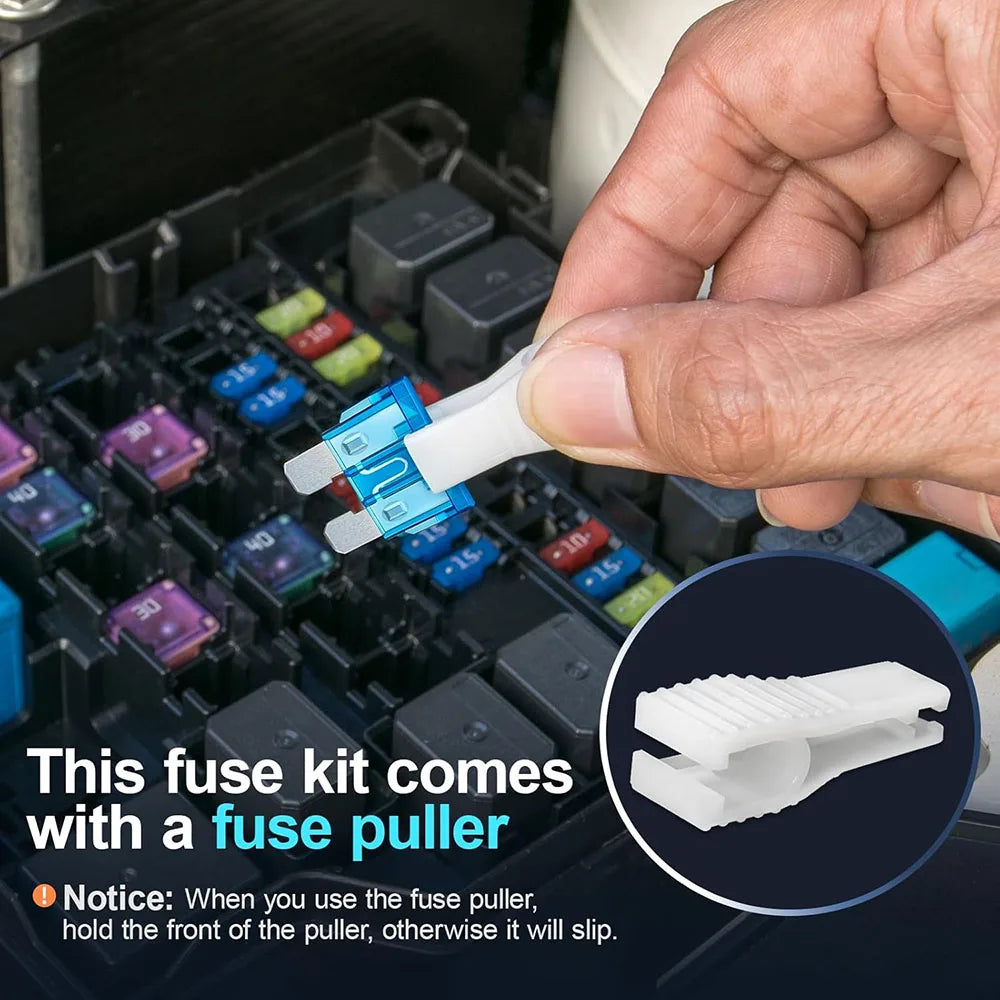

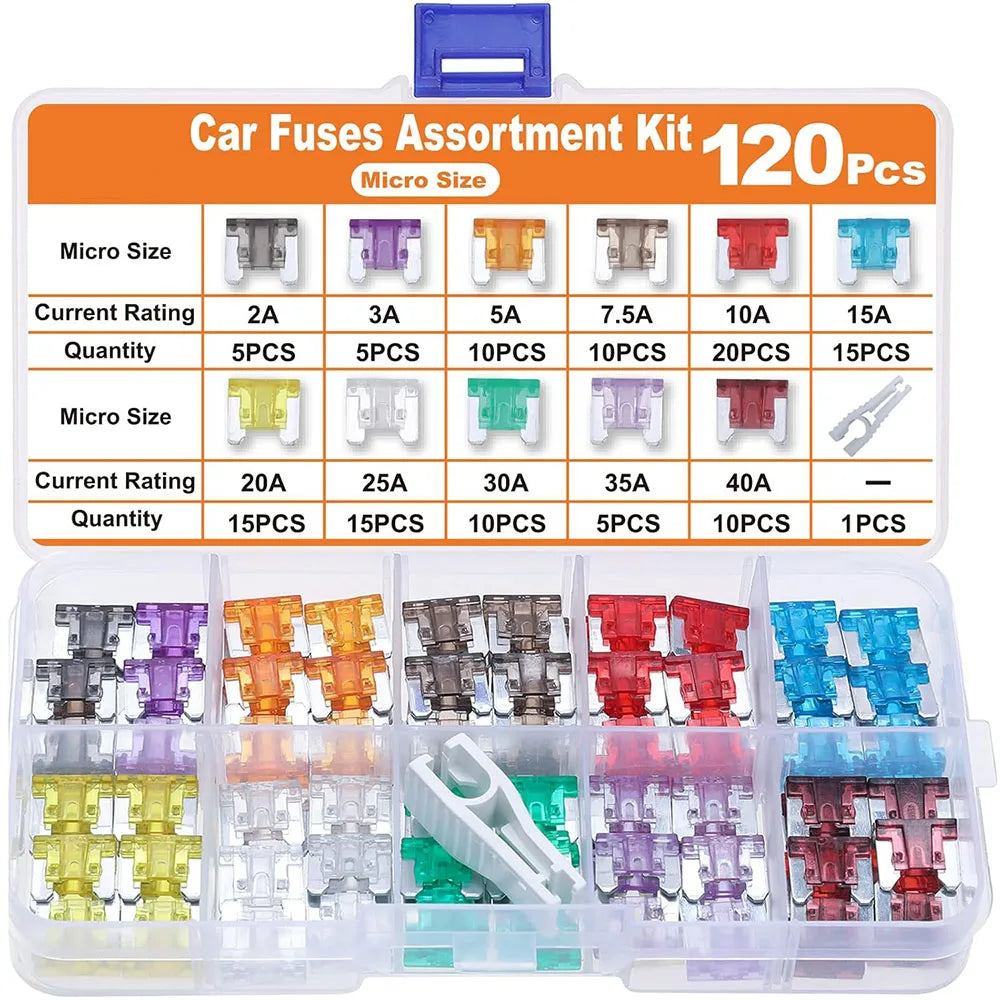

- Automotive Micro2/ATR/APT assortment kits: selected 84-piece kits list seven ampere values from 5 to 30 A and a puller; a 120-piece kit lists a wider 2 to 40 A range. These are vehicle blade-fuse spares, not board-mount chips. Check the contents of the actual kit before relying on an advertised count or distribution.
- Mixed automotive kits: 180-, 300- and 360-piece listings combine micro or Micro2 with mini and standard ATO/ATC blade formats in differing quantities. A mixed kit does not imply that these three slot geometries are interchangeable. Some listings offer zinc or aluminium-labelled options; these labels alone do not establish fuse-element composition or performance.

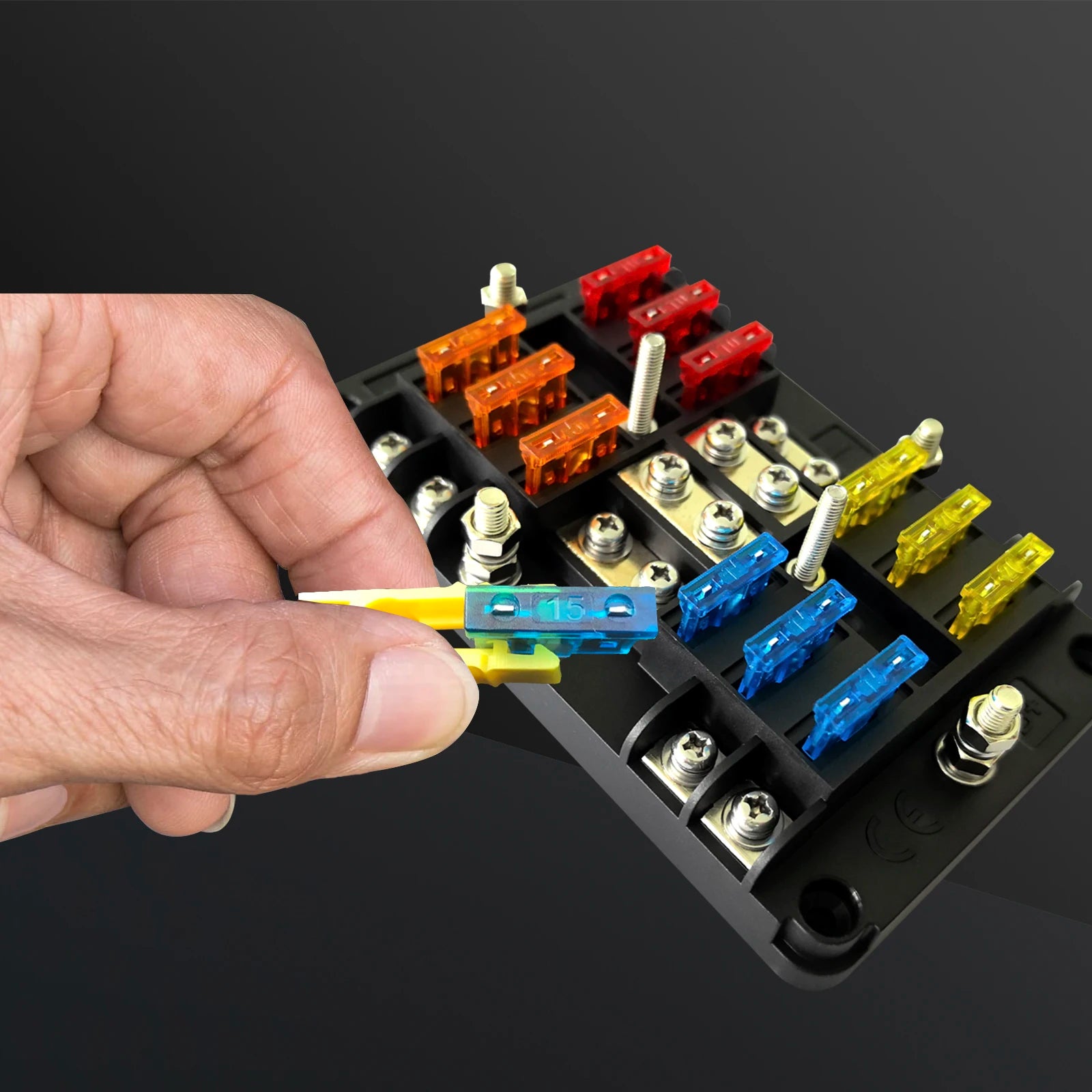

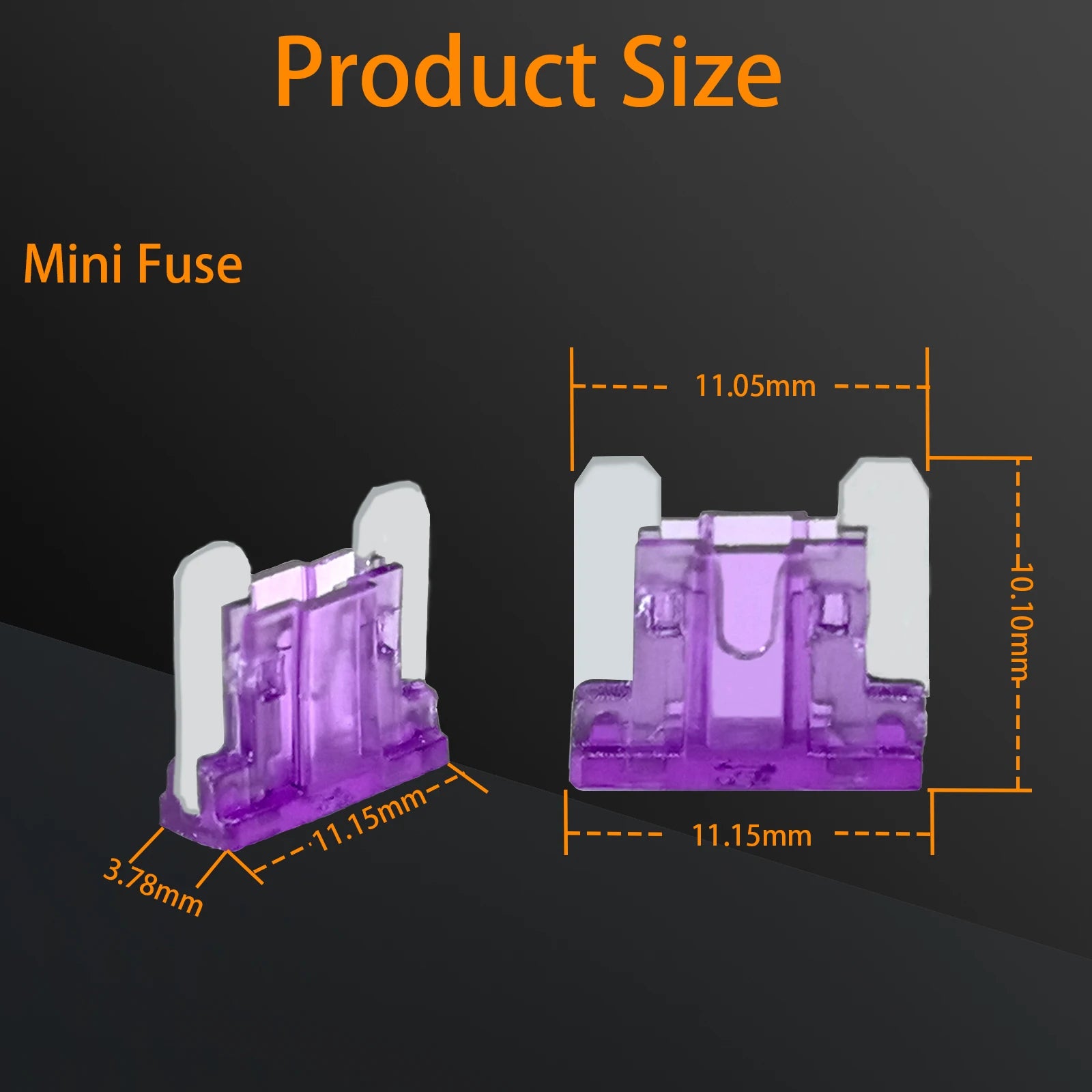

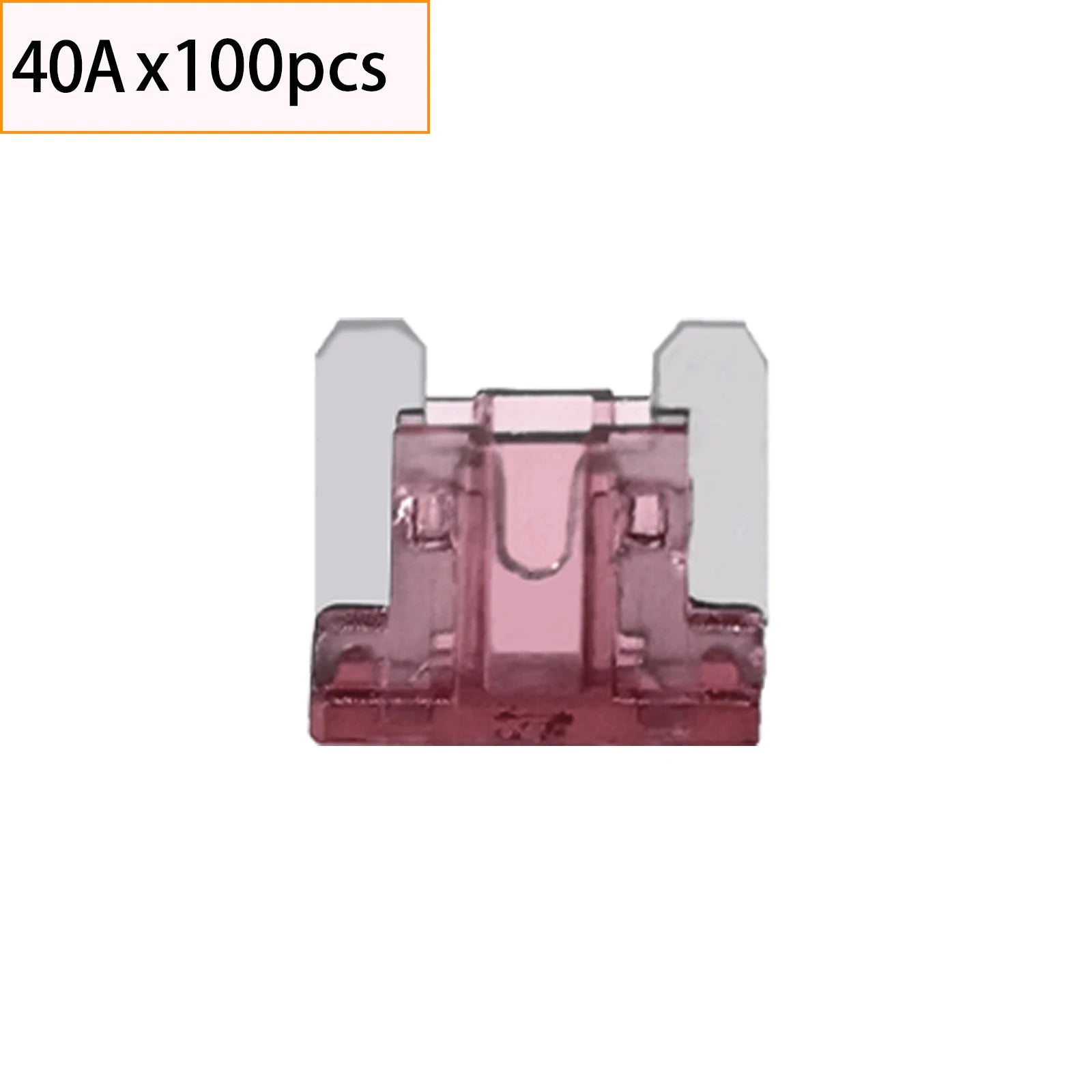

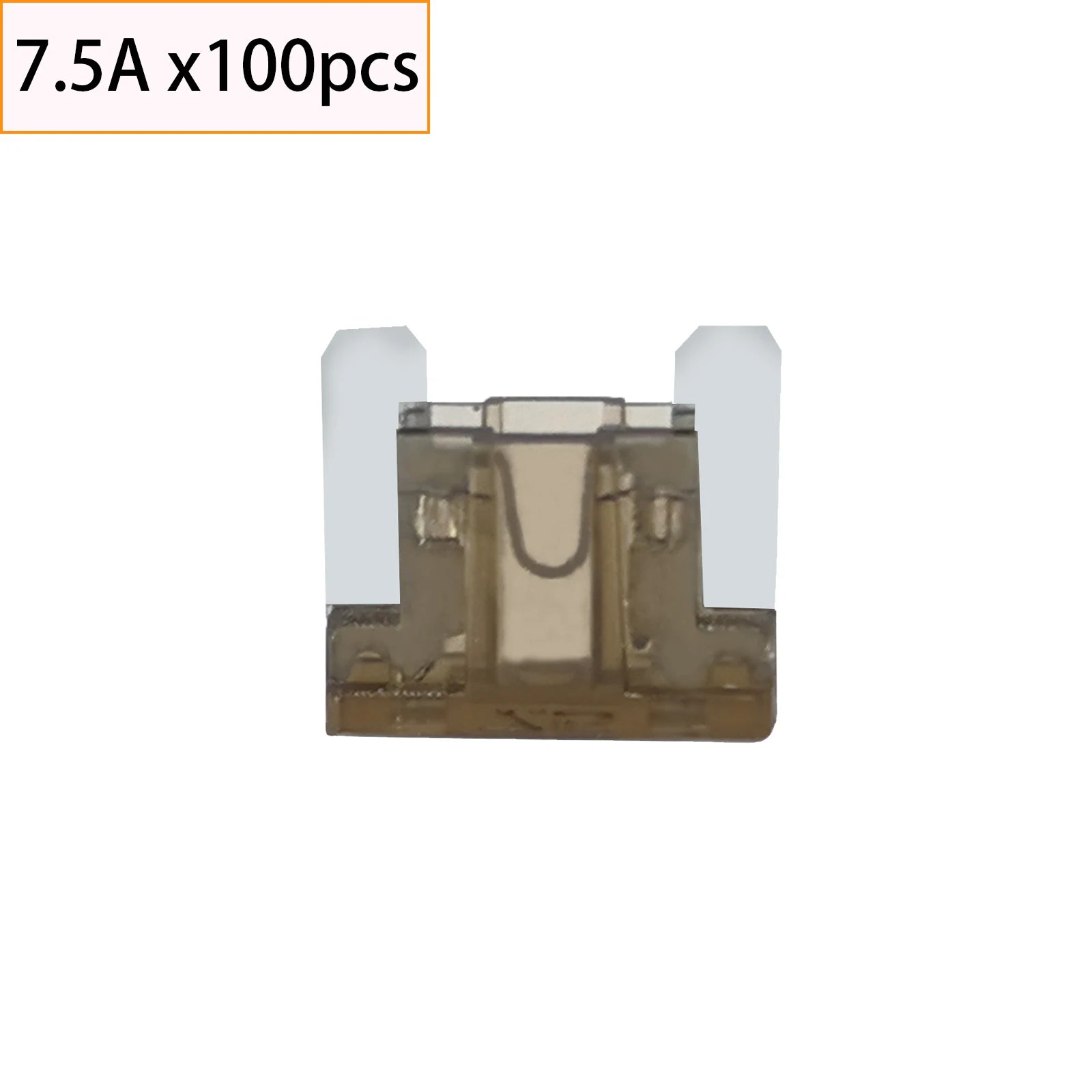

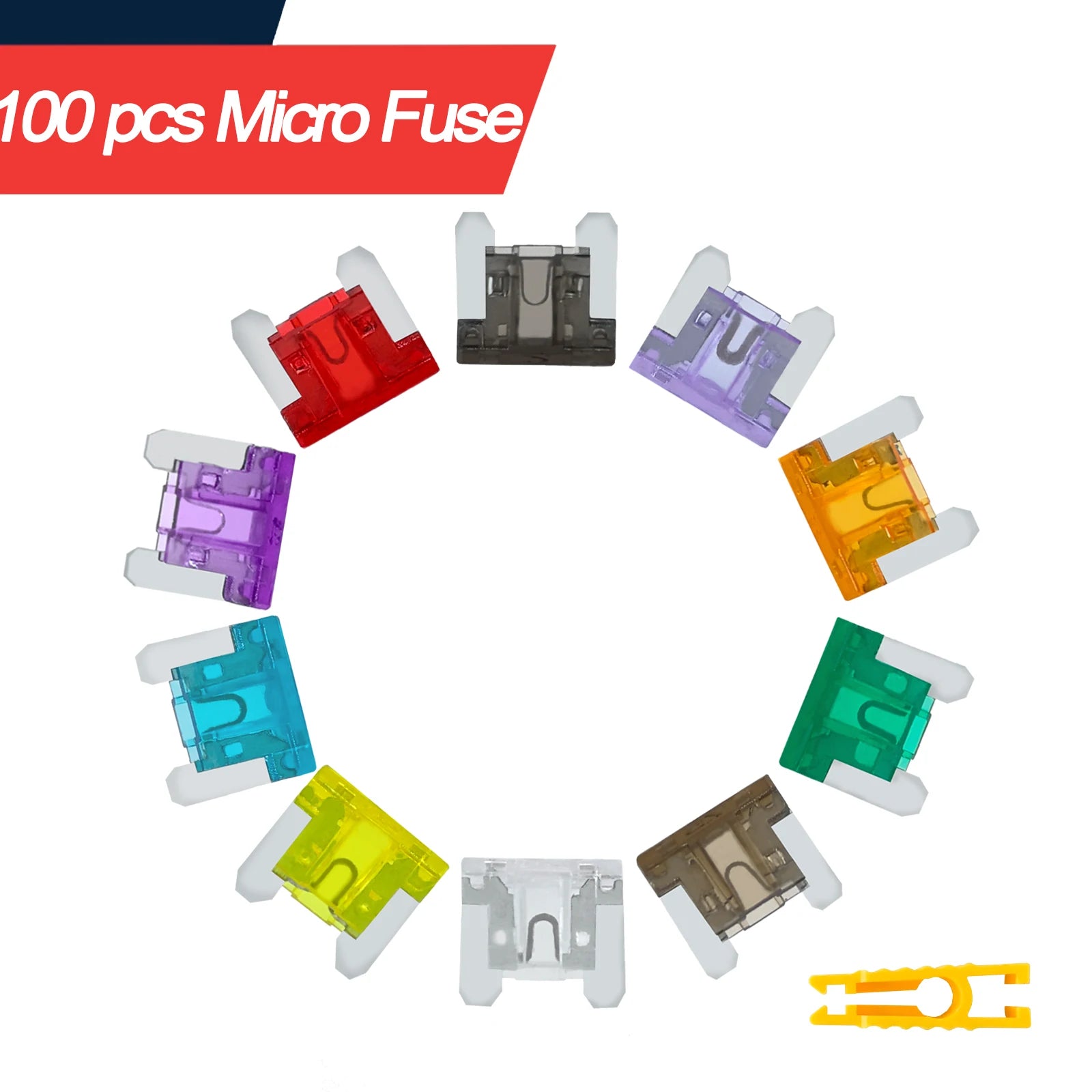

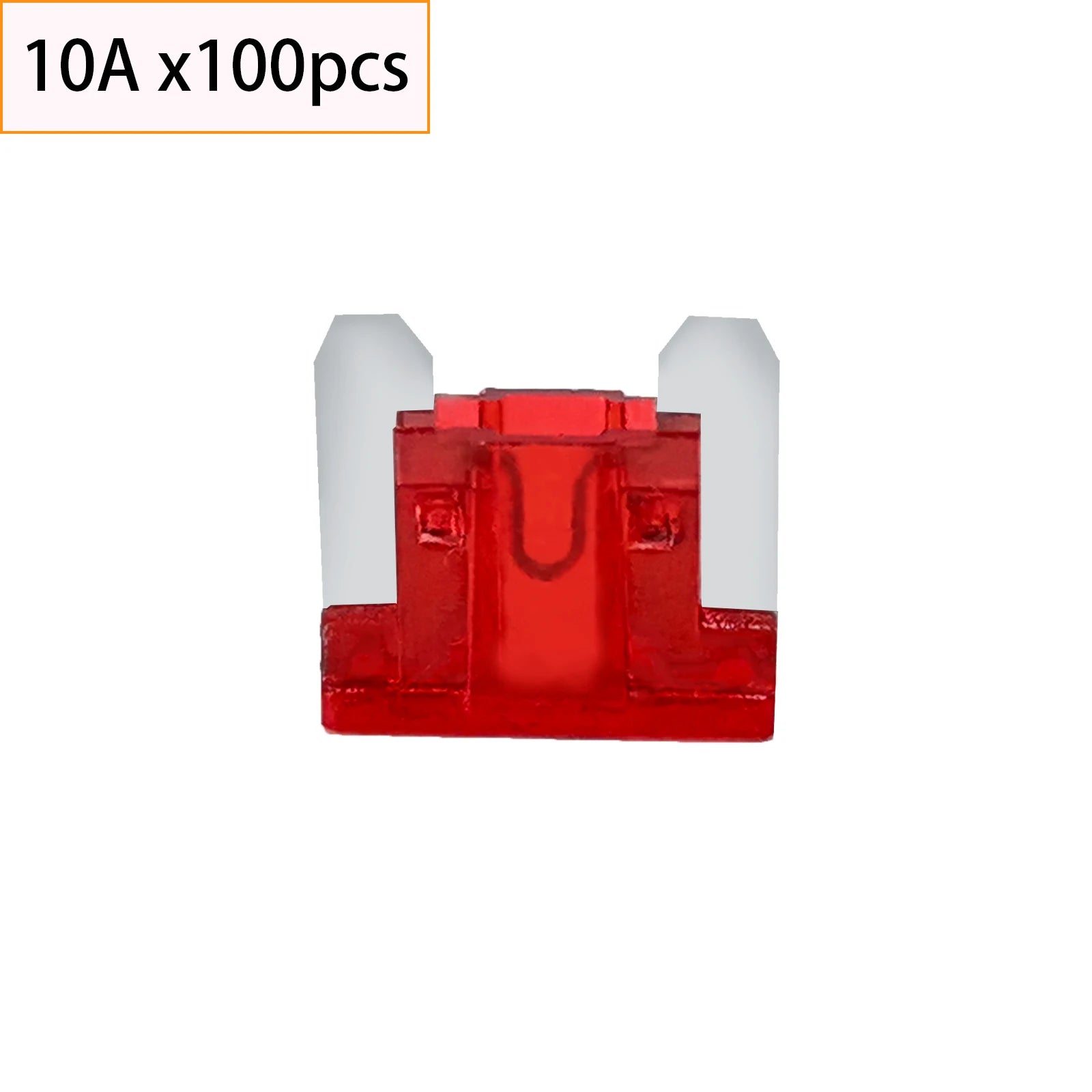

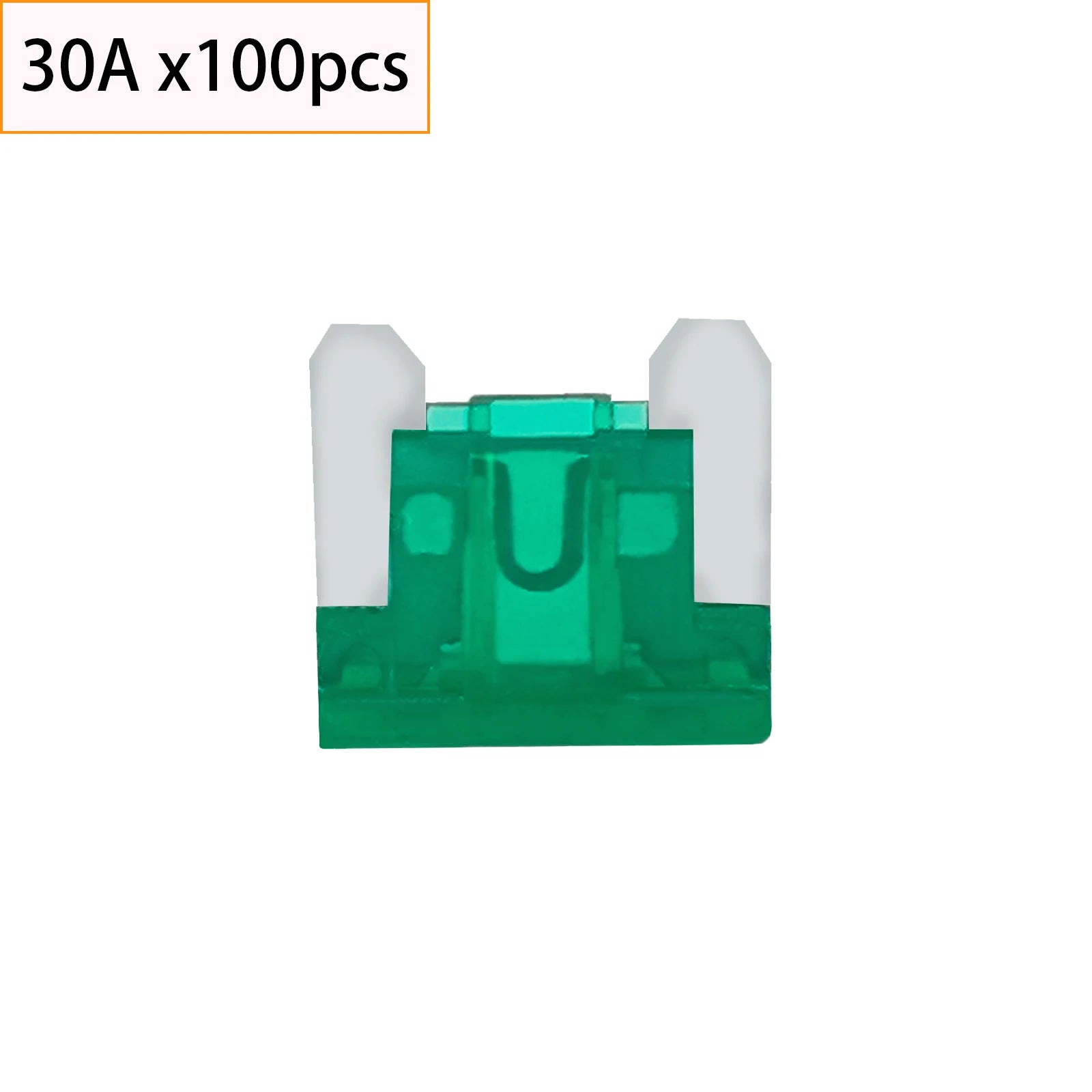

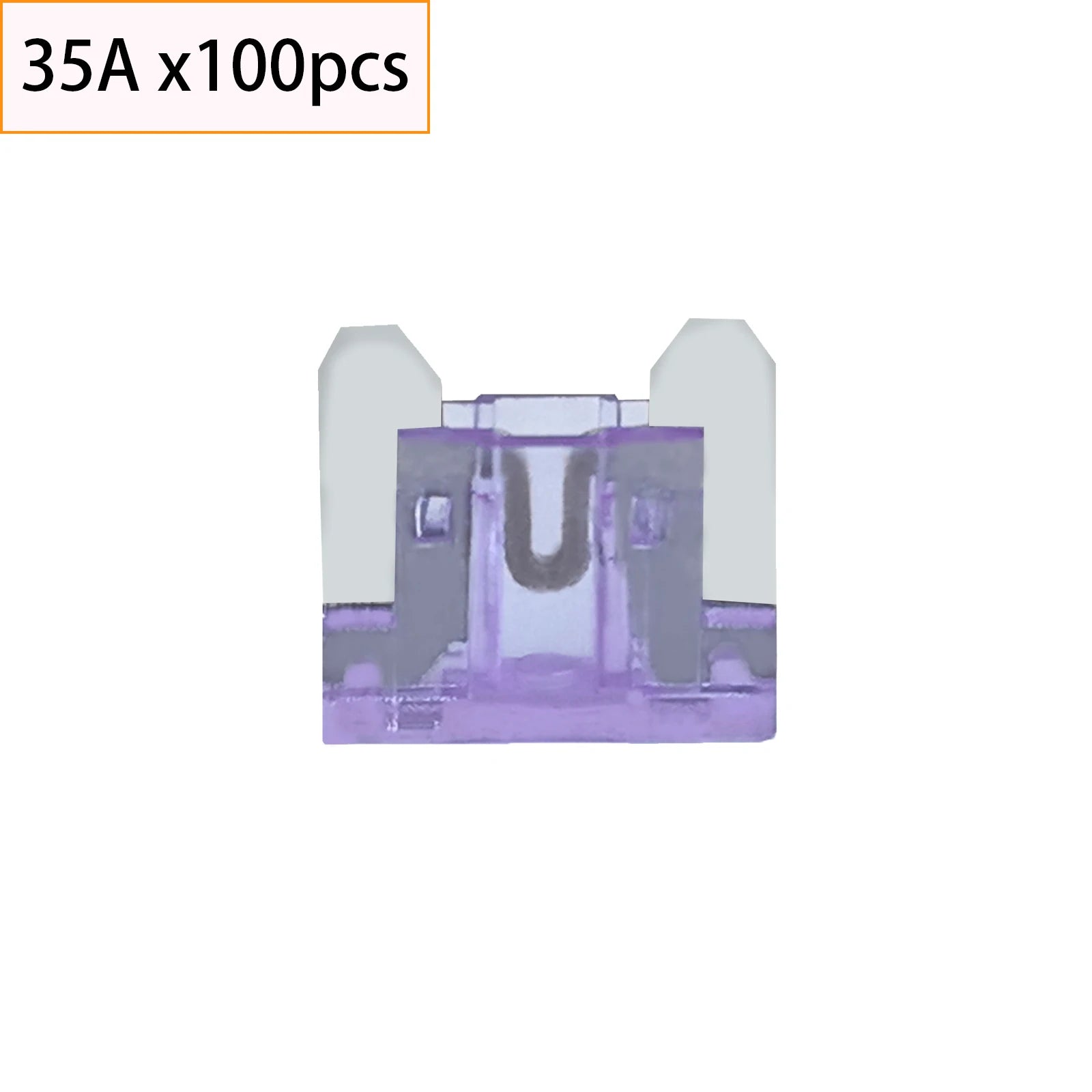

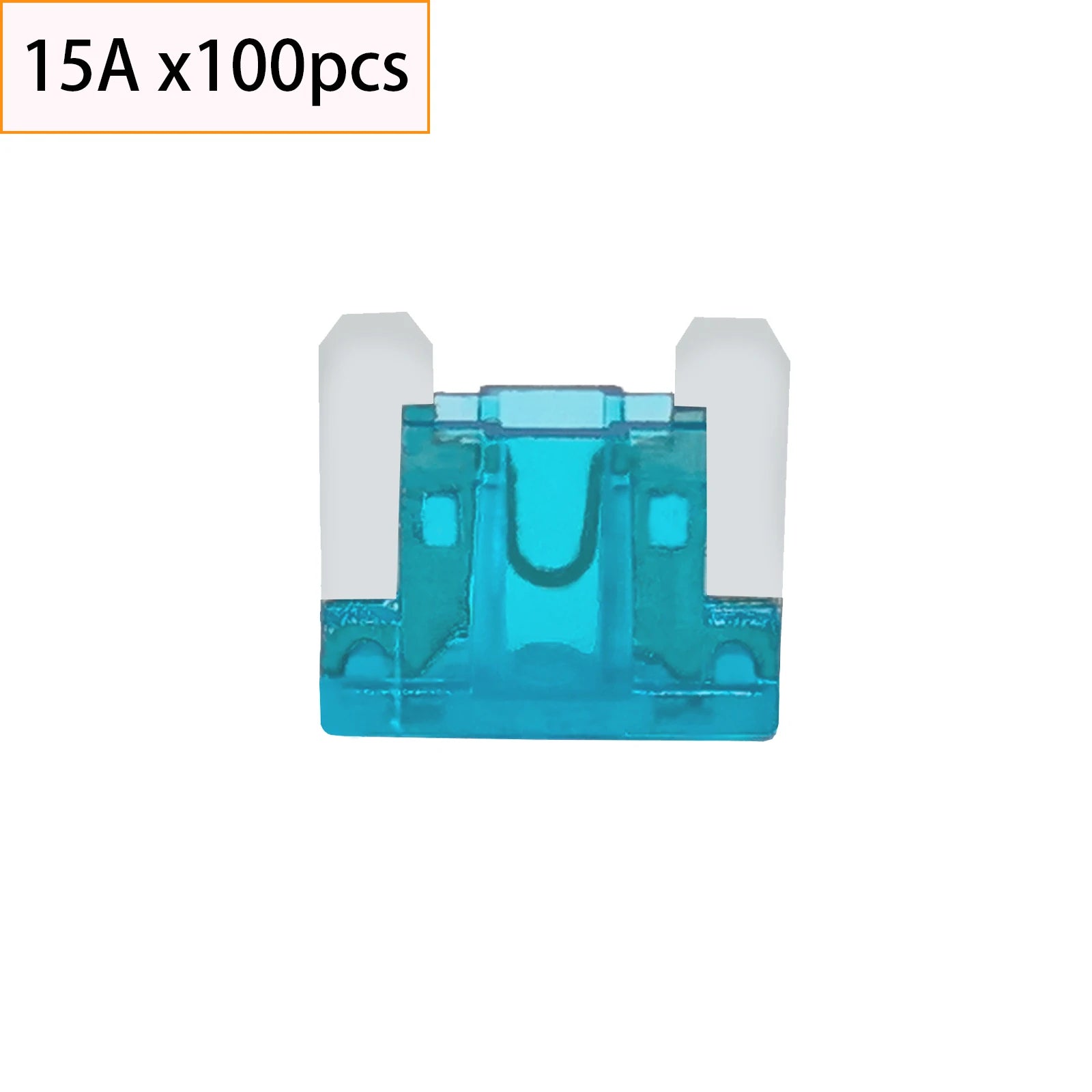

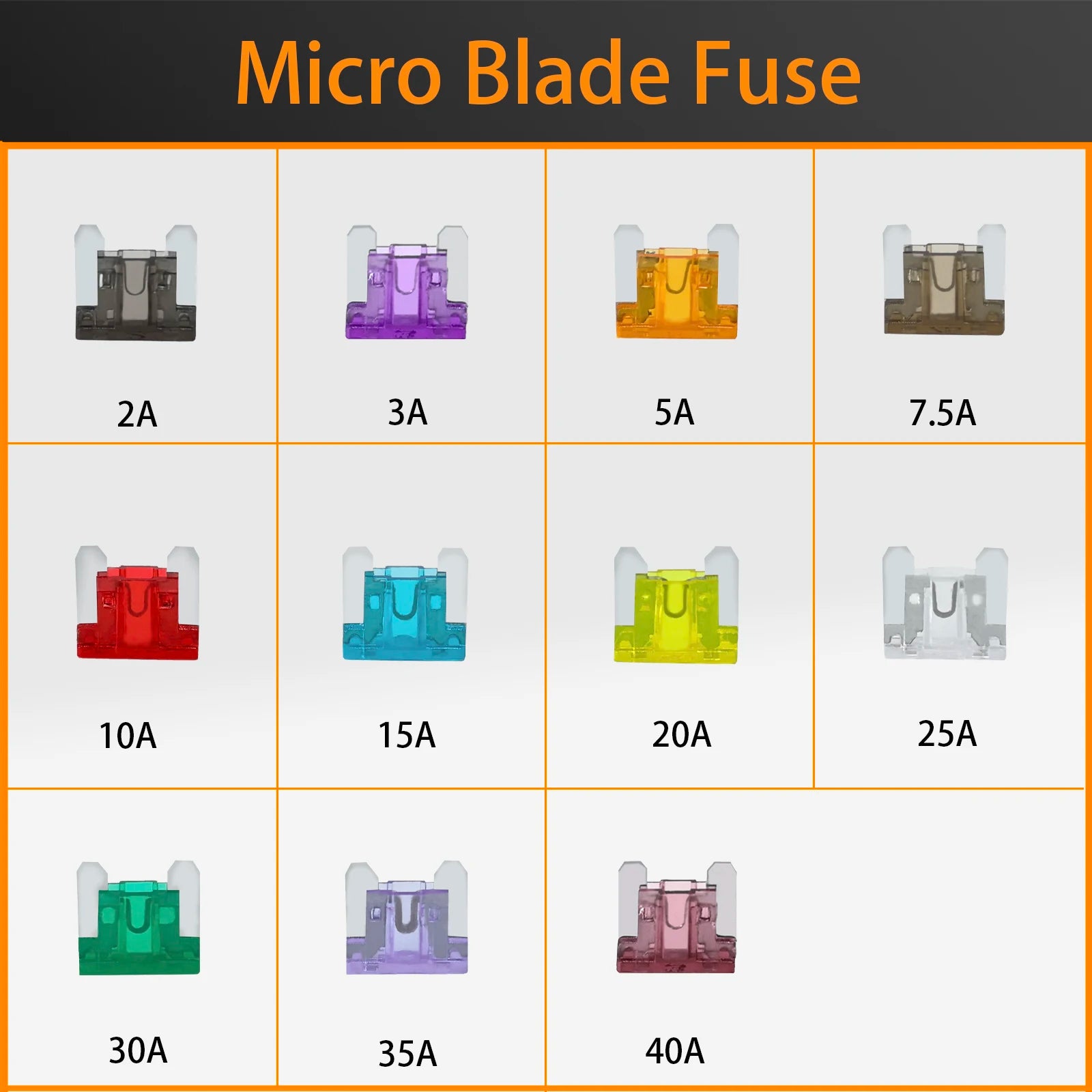

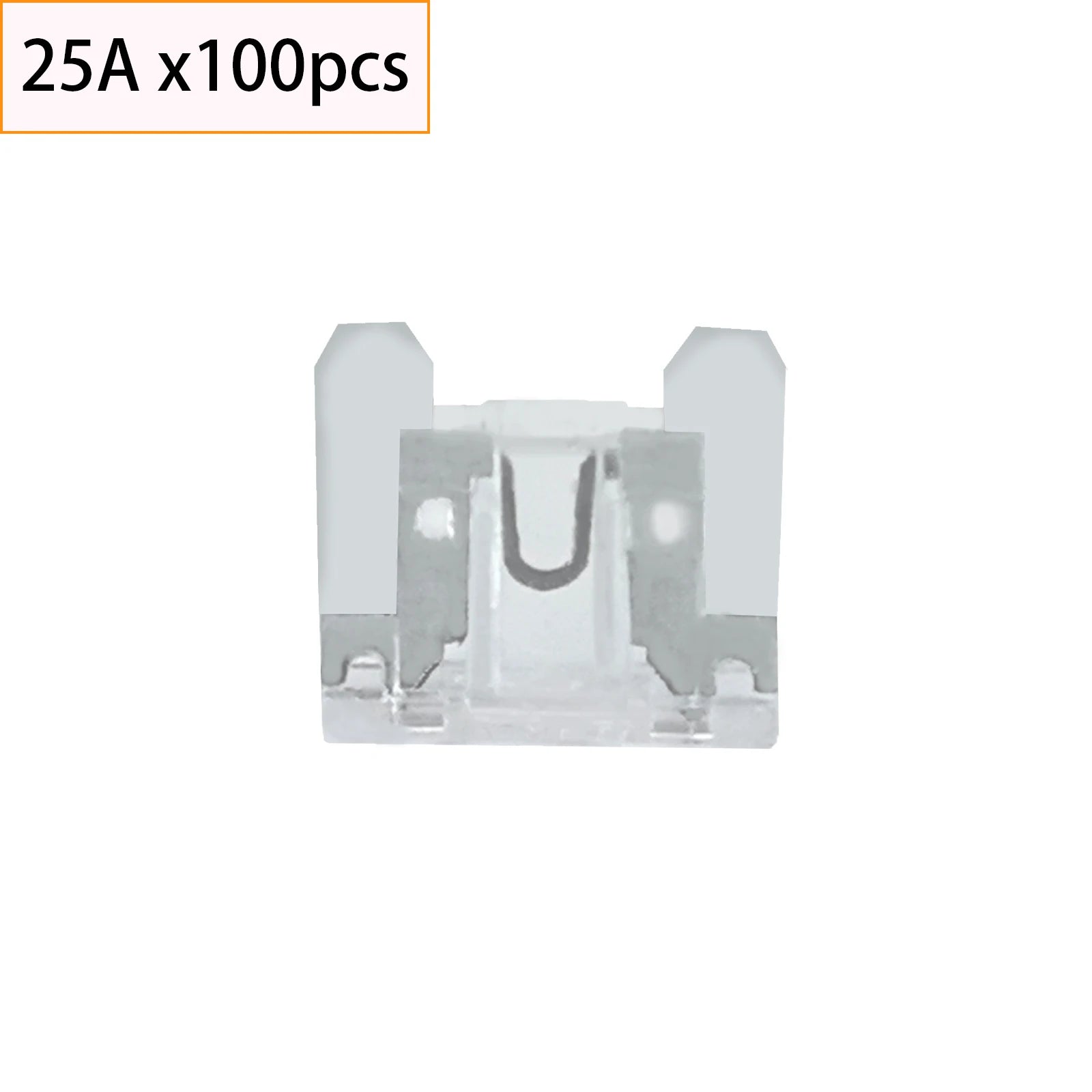

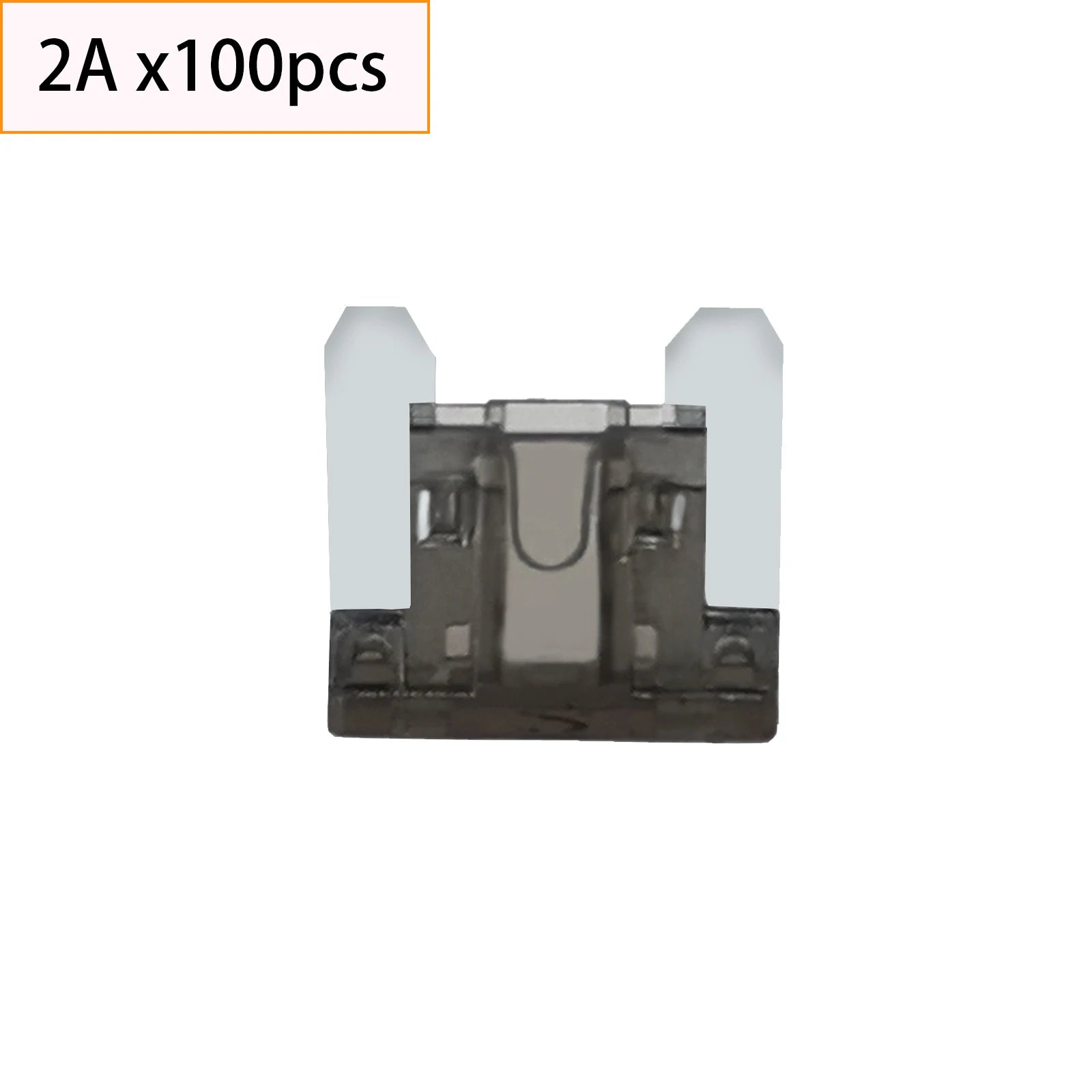

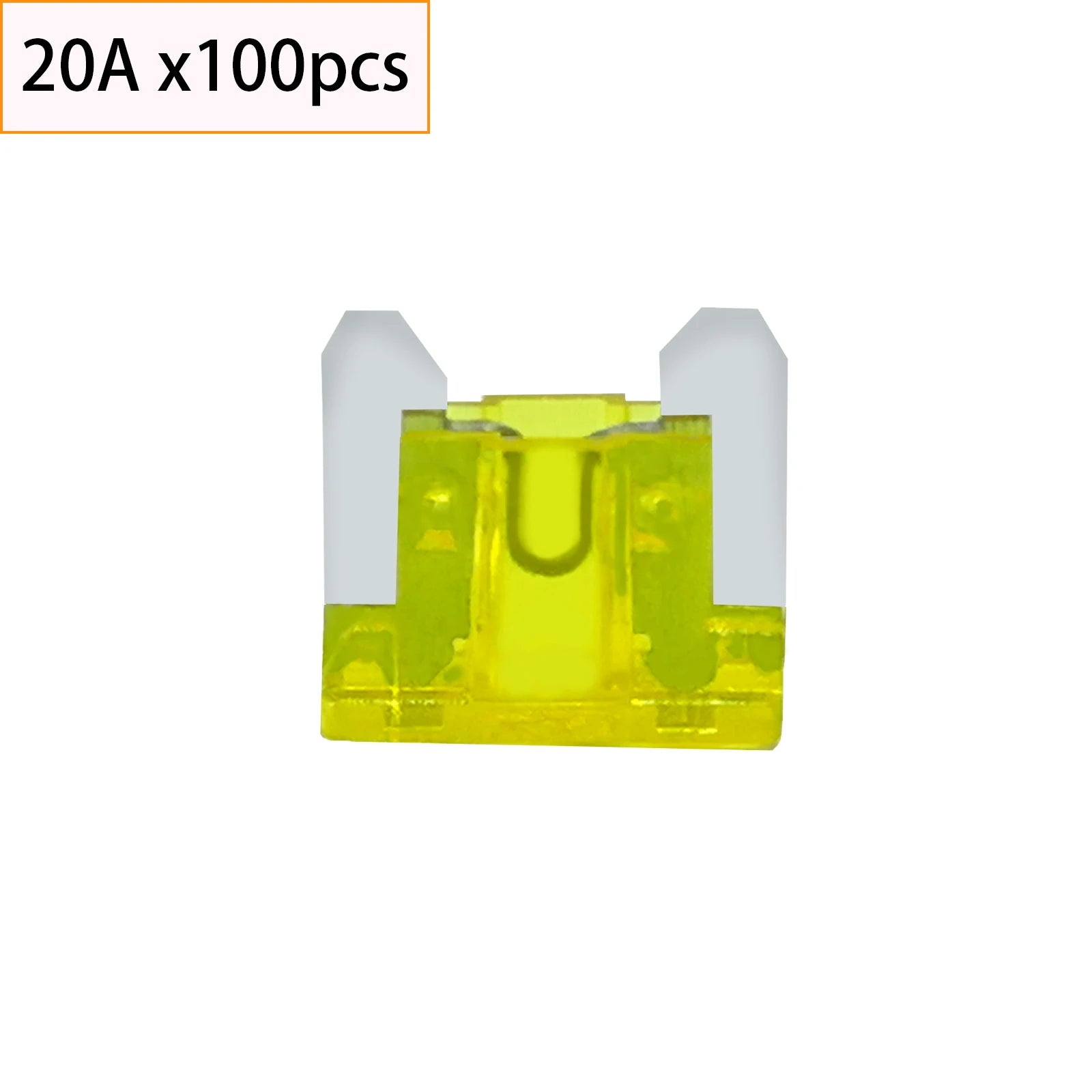

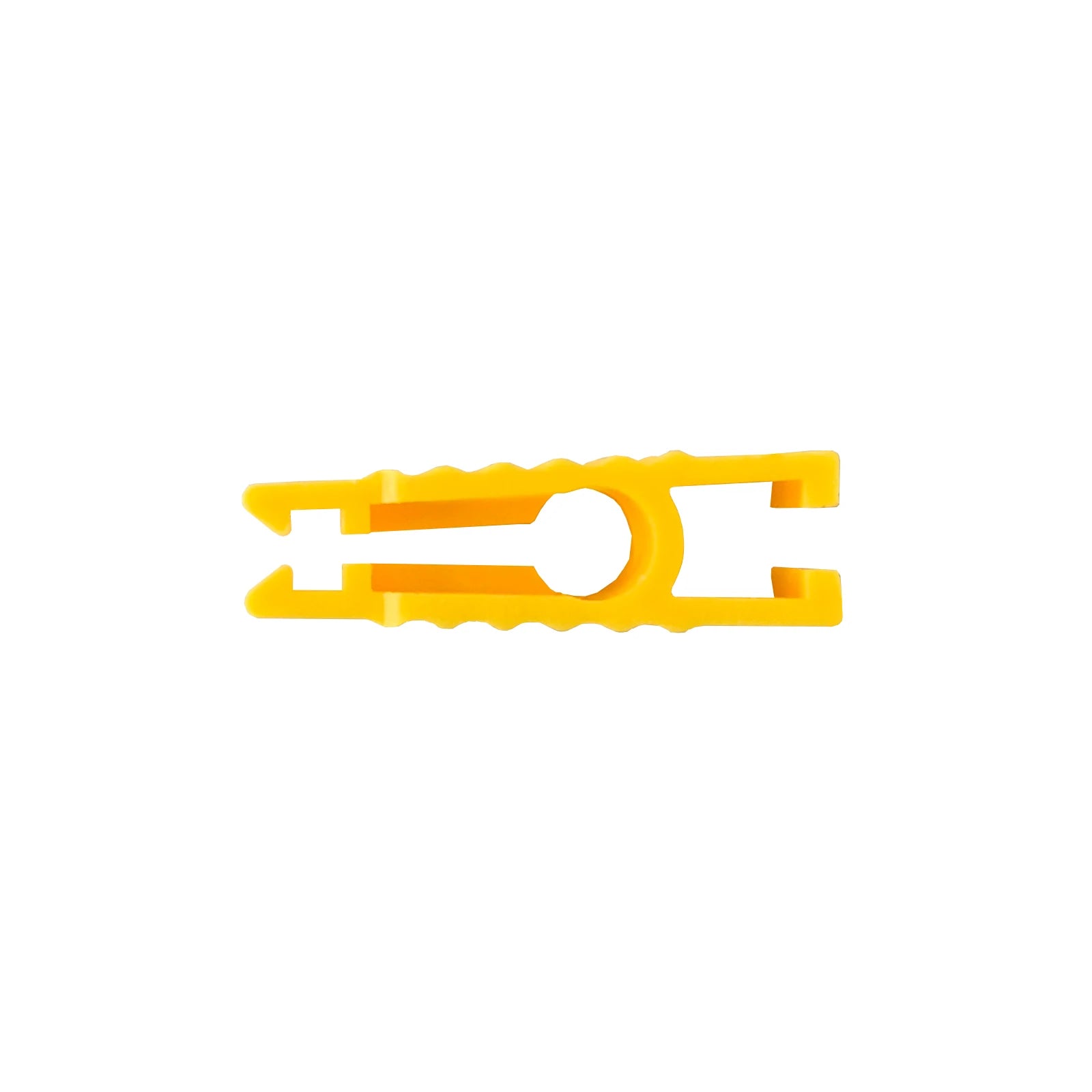

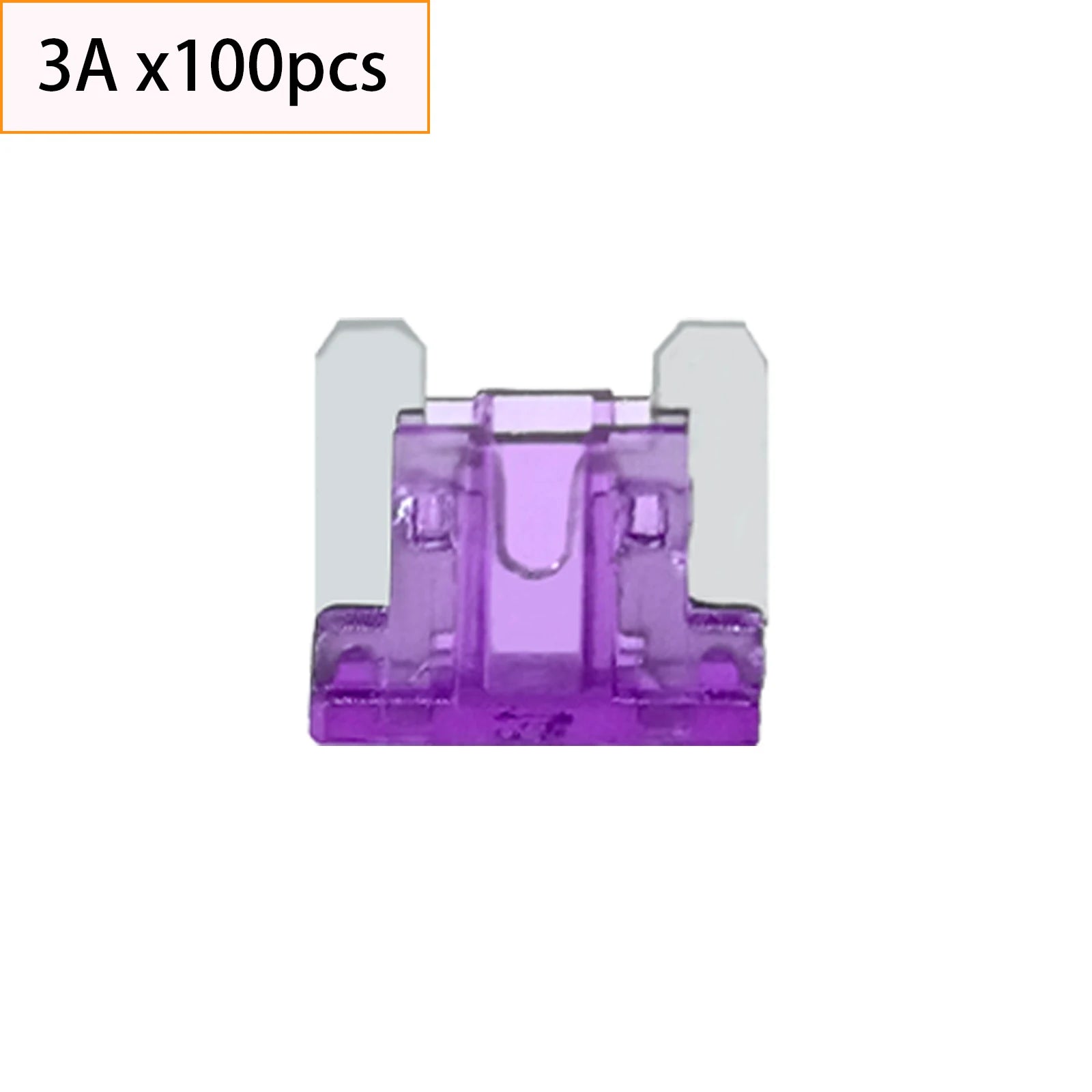

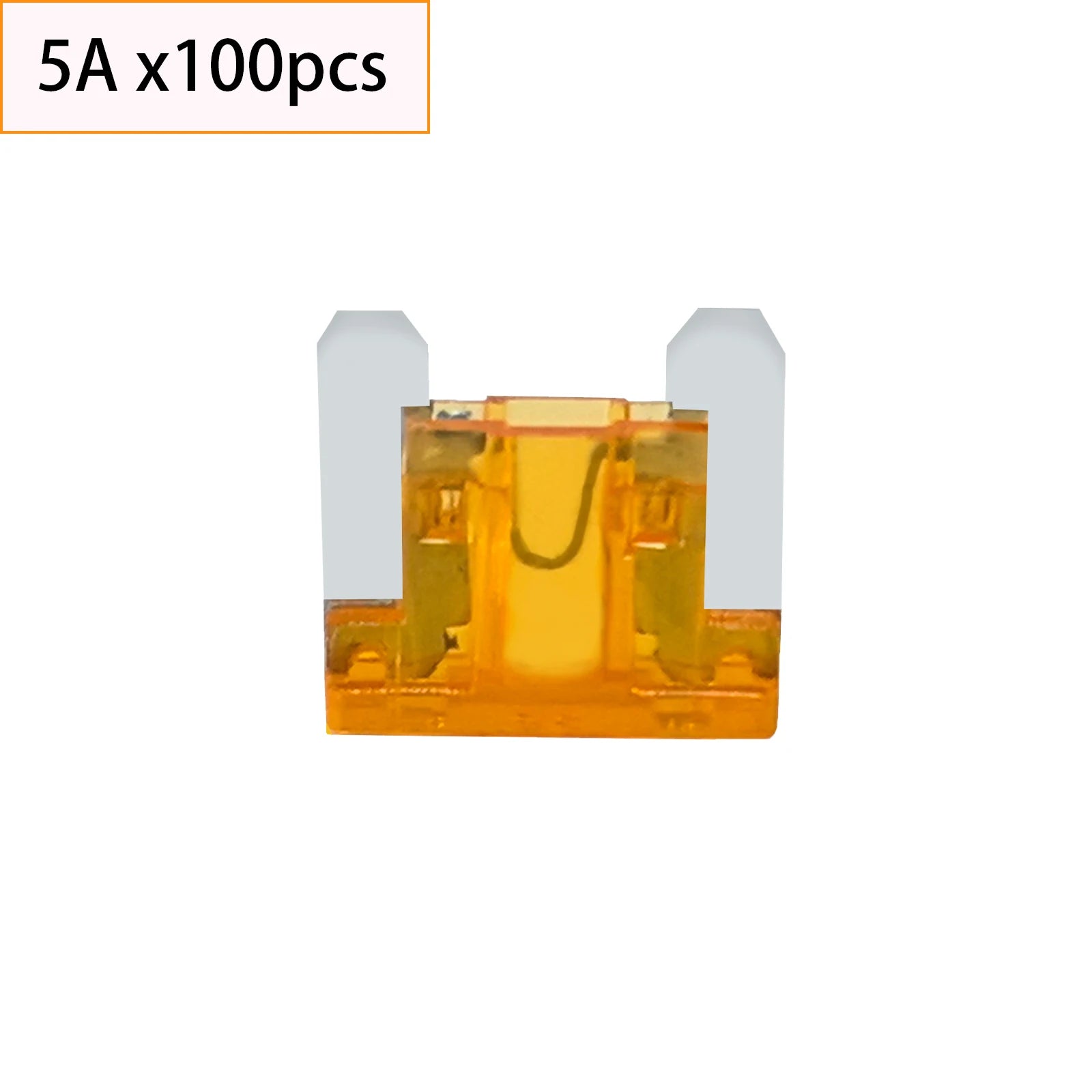

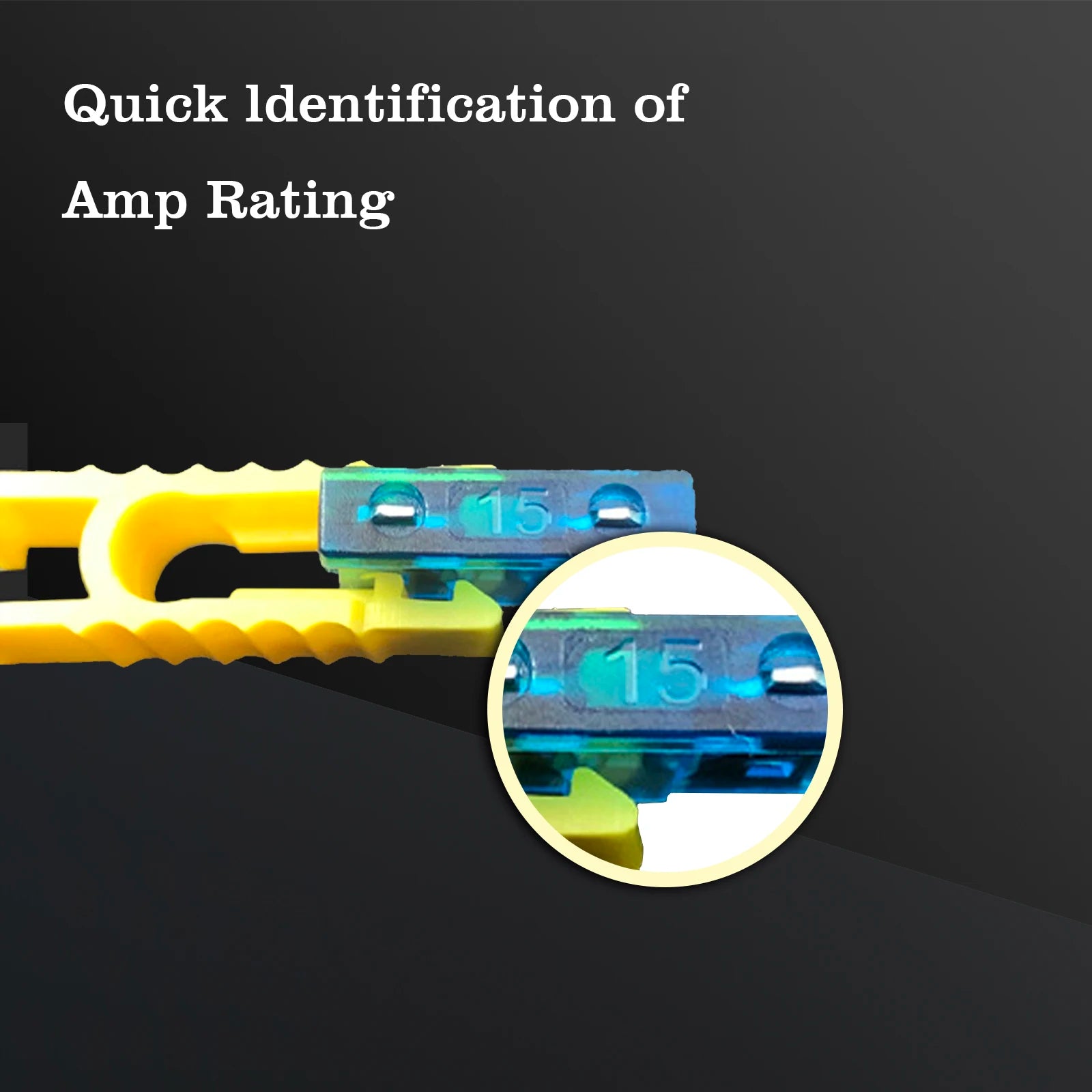

- Individual-value low-profile/micro options: a 100-piece listing has separate current choices from 2 to 40 A and a “Clip” accessory-only option. “Micro,” “low-profile mini” and “Micro2” are sometimes used inconsistently in source listings: inspect the selected case and terminals against the removed fuse.

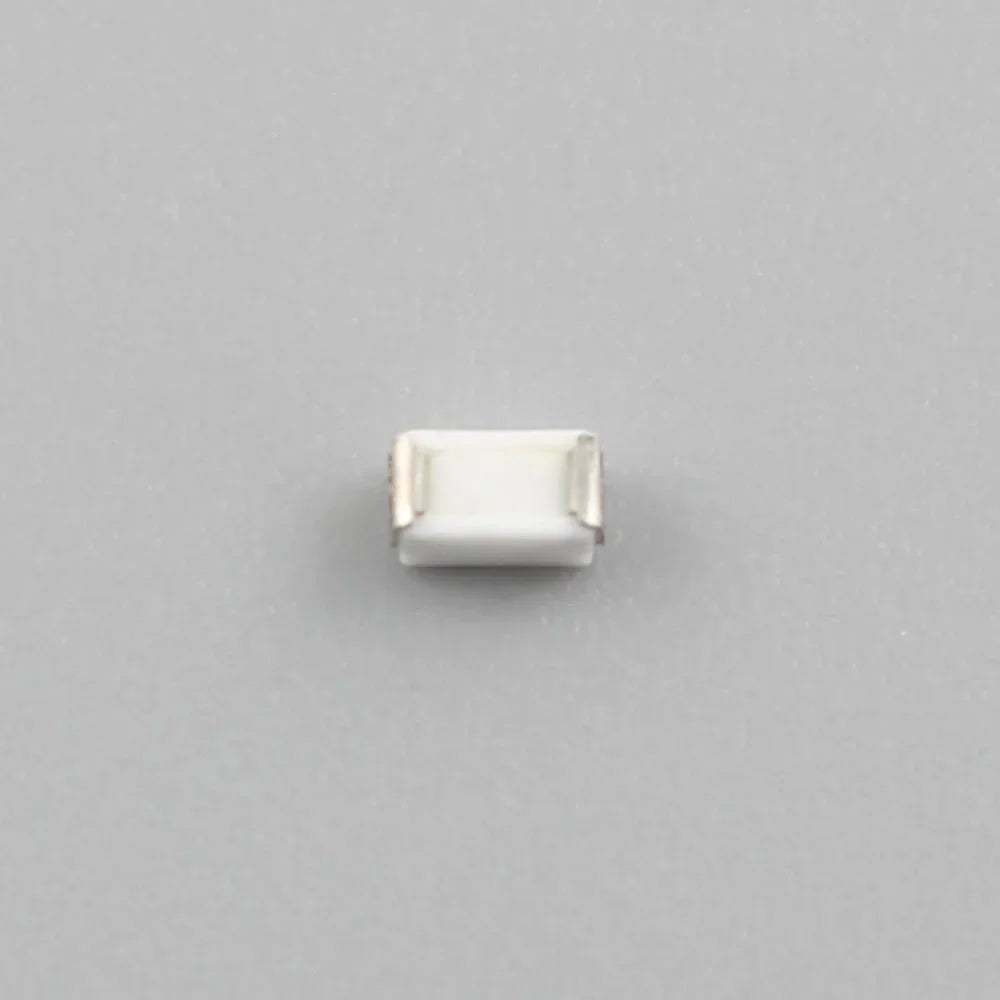

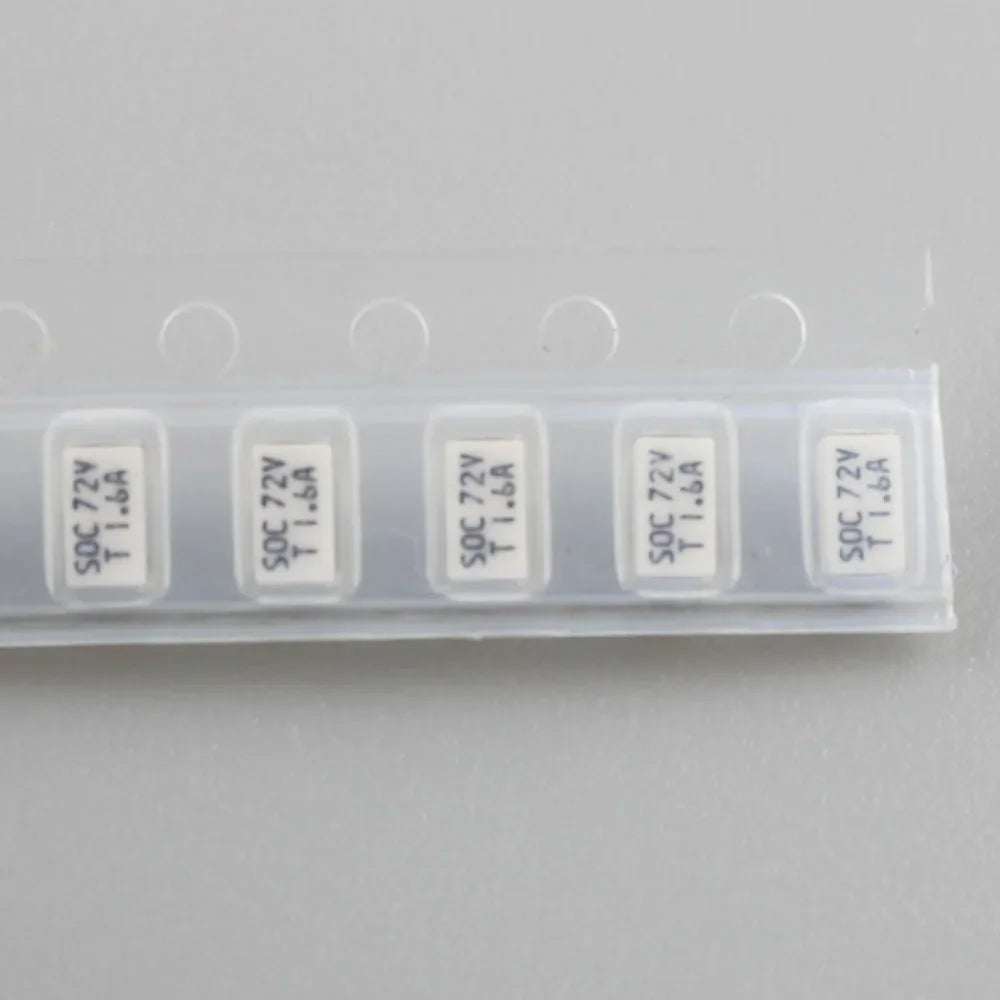

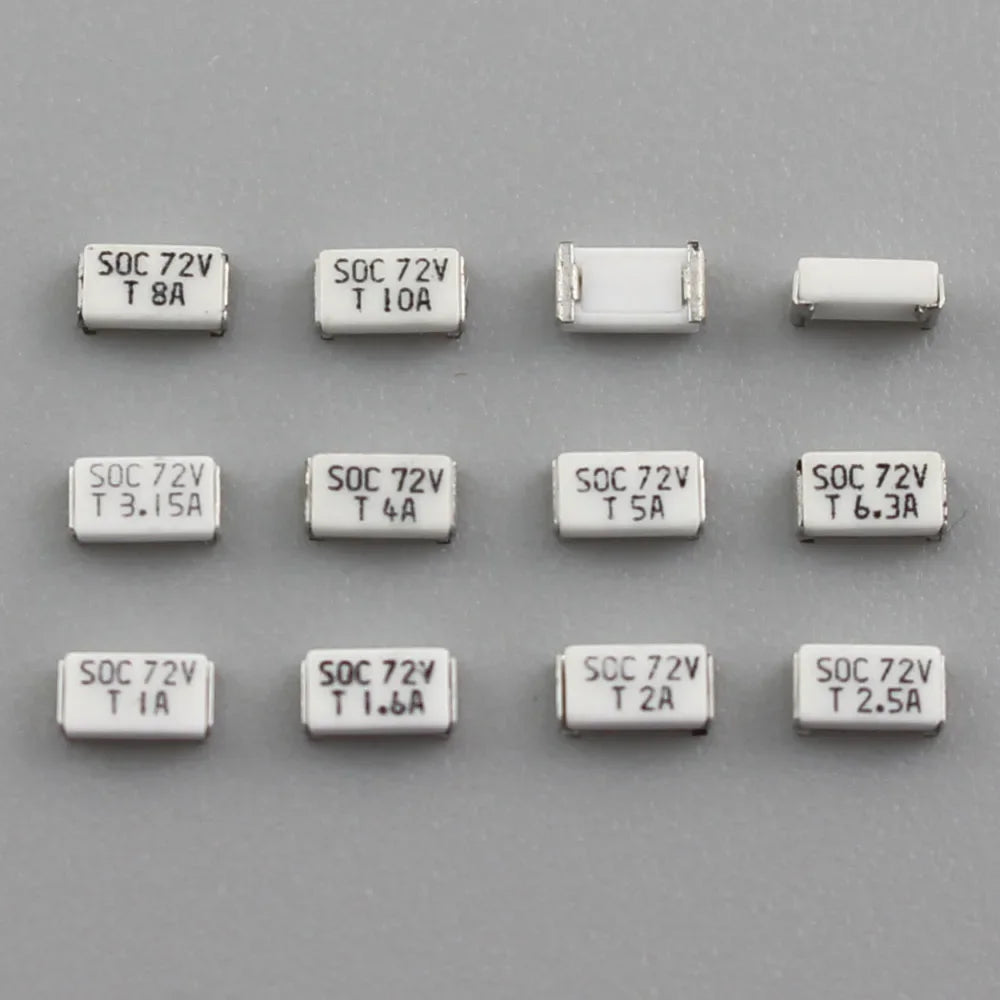

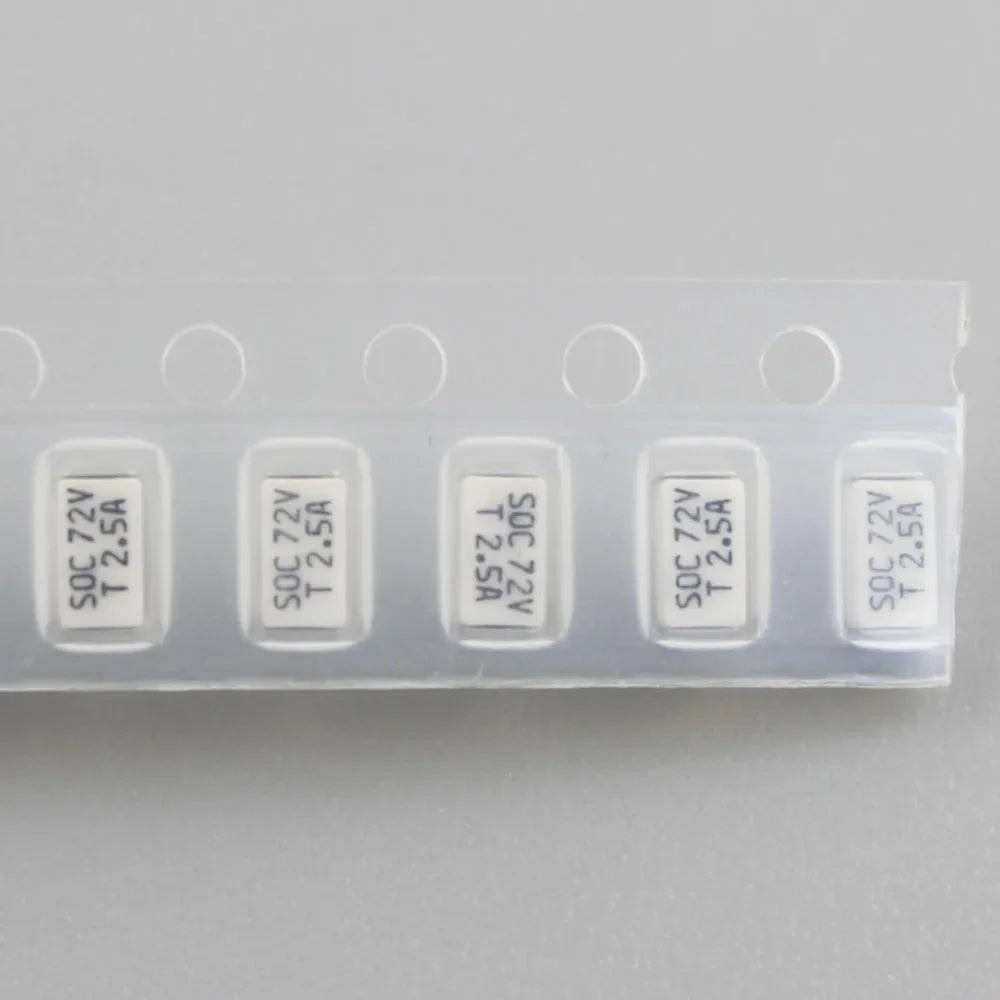

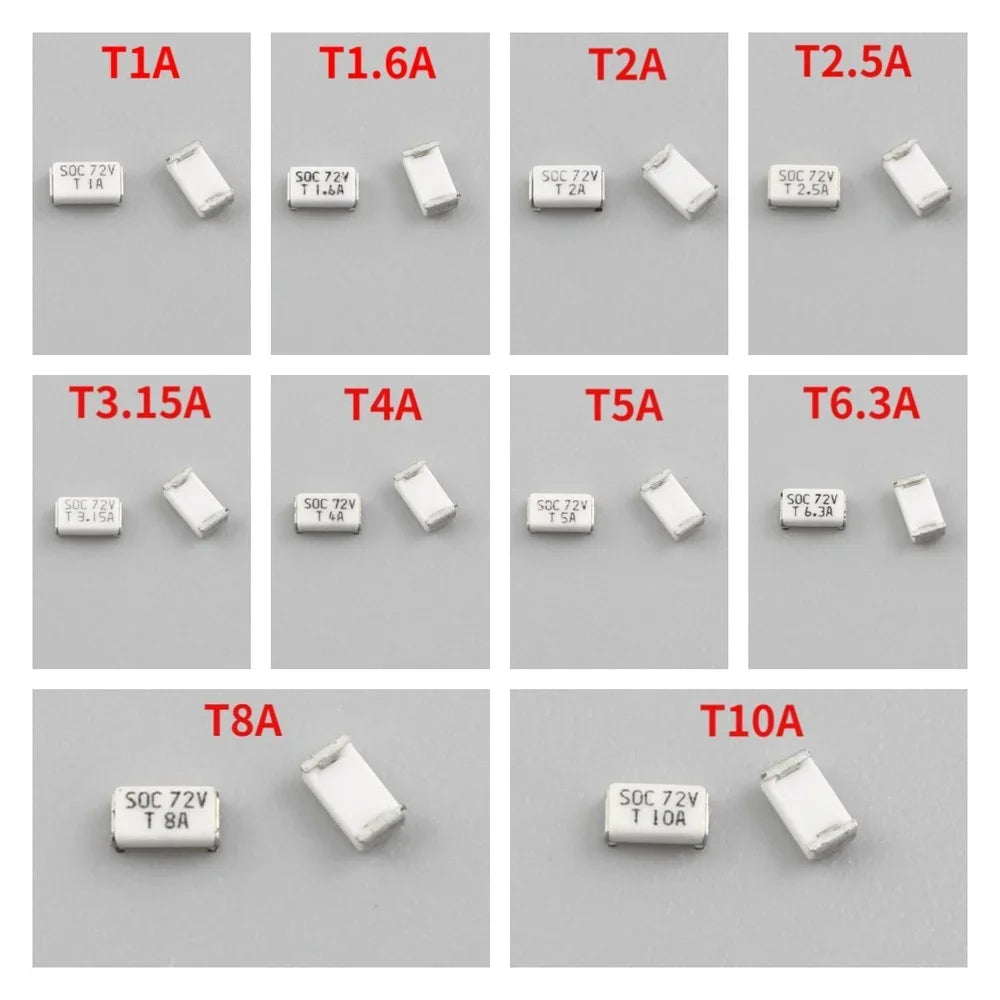

- 1206 SMD slow-blow fuses: one 11CT-labelled 1206 listing offers separate 1, 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8 and 10 A choices and describes a 72 V DC rating. Its T/slow-blow claim and interrupting rating must be checked against documentation for the selected variant, not transferred to other micro fuses.

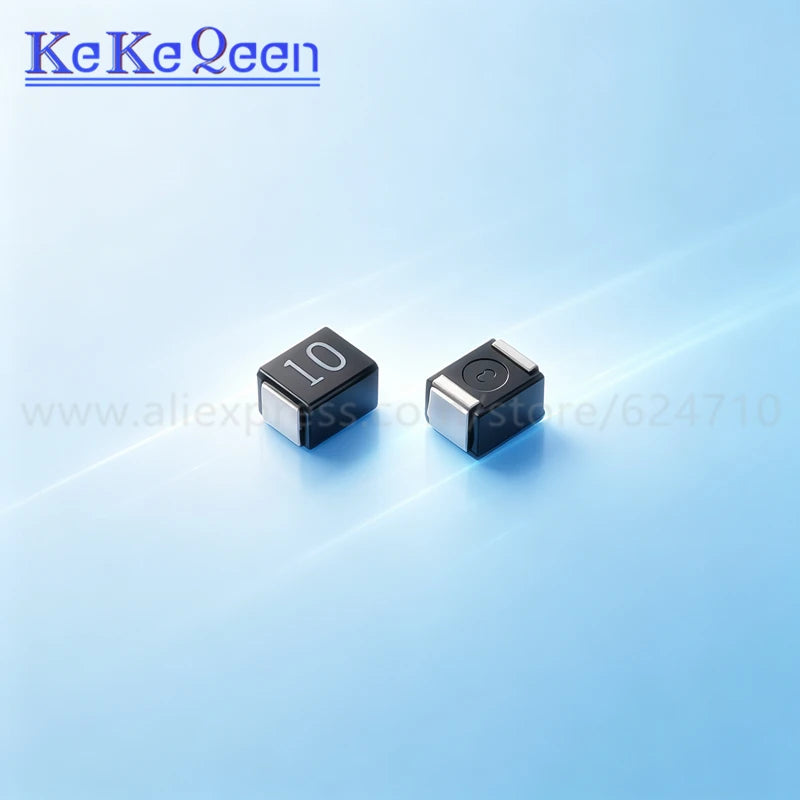

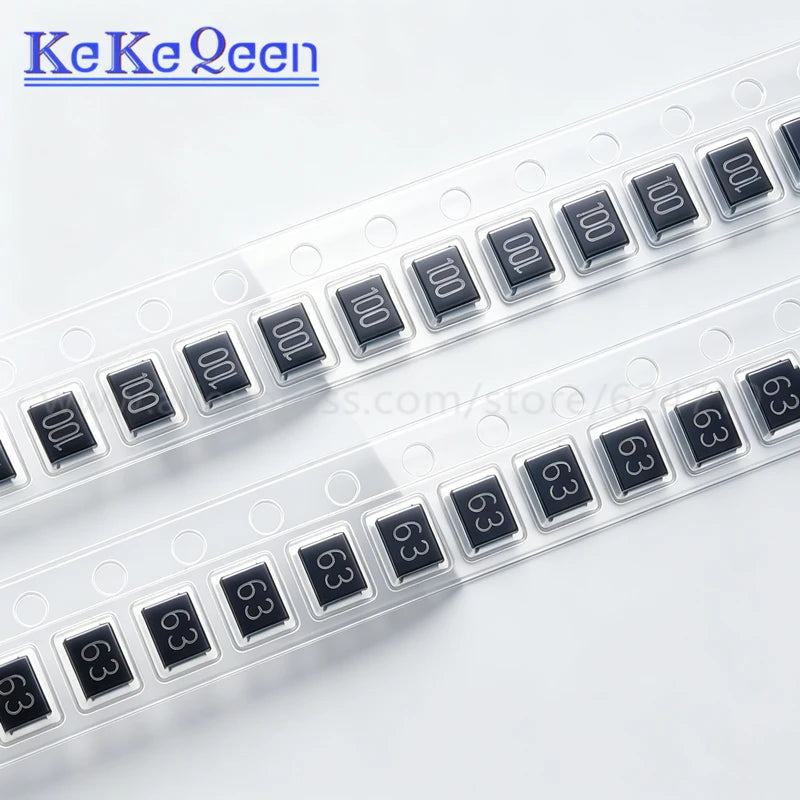

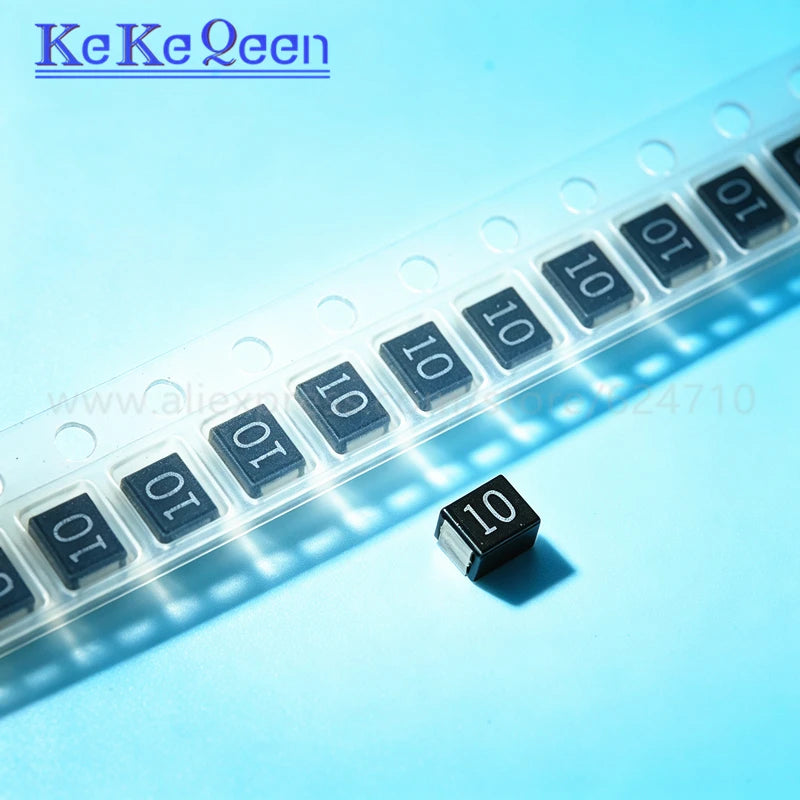

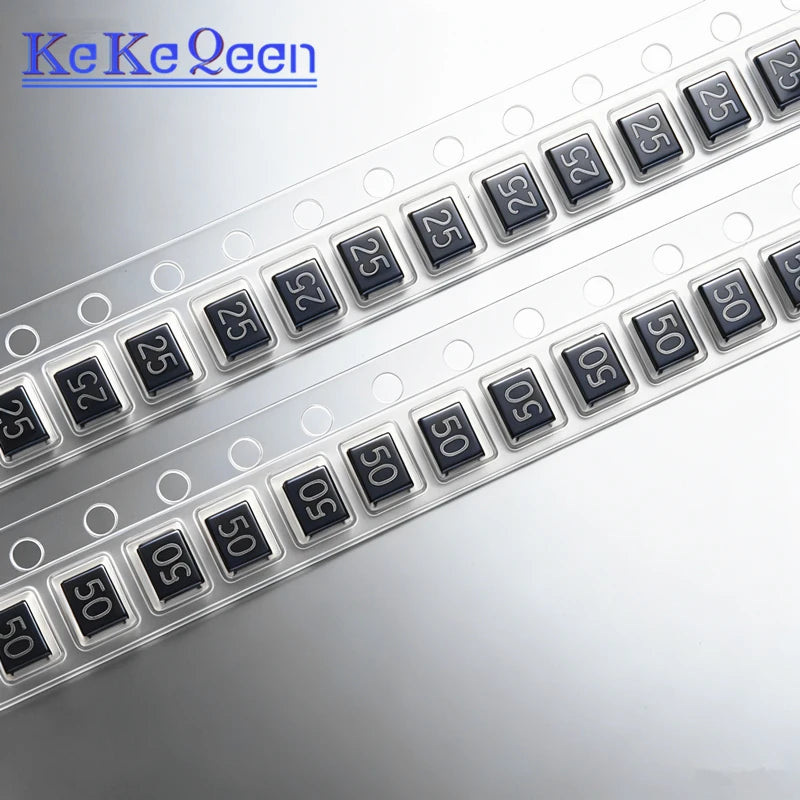

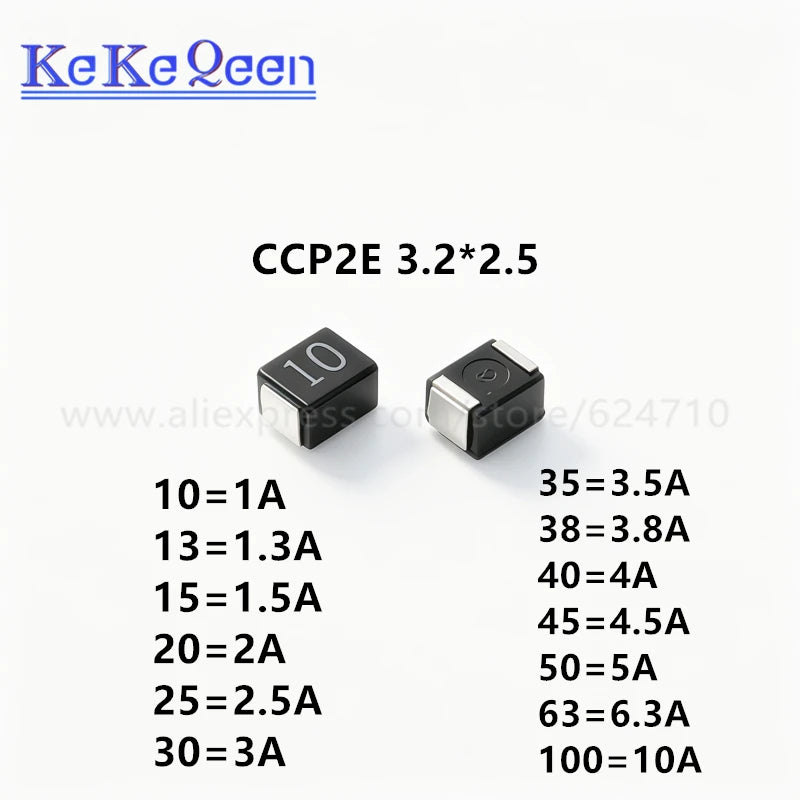

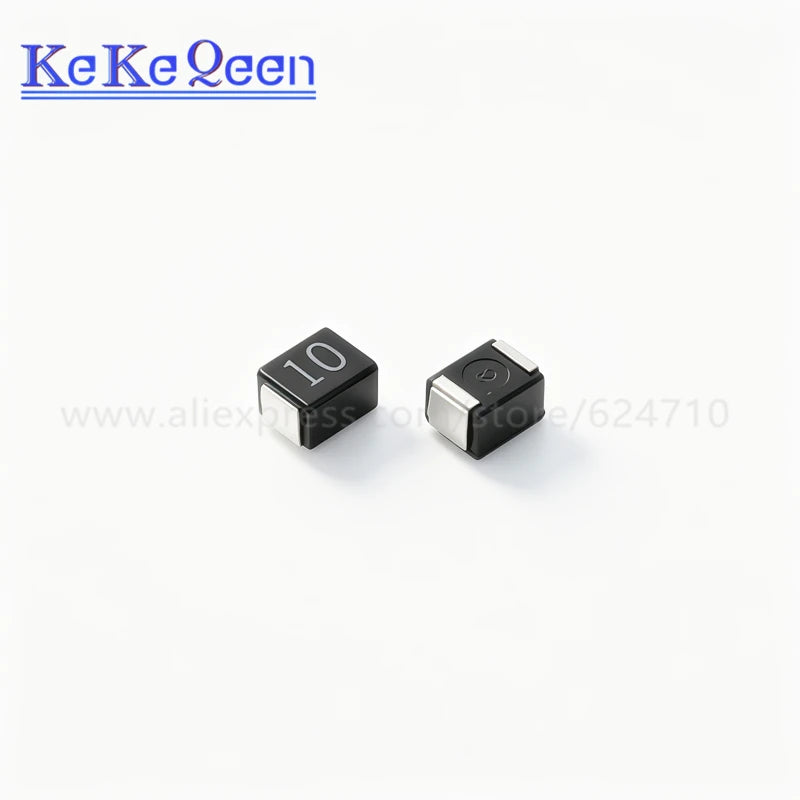

- CCP2E SMD chip protectors: two listings describe a 3.2 × 2.5 mm package with individual CCP2E codes spanning 1 to 10 A, including 1.3, 3.5, 3.8 and 4.5 A options. A similar size or common voltage headline does not prove an identical opening curve, polarity behavior, fault rating or solder footprint to a 1206 fuse.
How to choose
- Identify the location: vehicle slot or PCB pads. For a vehicle, match Micro2 versus any other micro/low-profile/mini blade shape using the owner's manual and original part. For a board, verify package dimensions, pad layout and the specified manufacturer part number.
- Match the protection: use the circuit's specified current and documented time-current curve, then check the selected part's AC or DC voltage rating and breaking capacity against the prospective fault current. An ampere label is not a breaking-capacity rating. A fuse that repeatedly opens signals a problem; never increase current rating simply to stop nuisance failures.
- Verify the actual option: select the ampere value, package/fuse family and pack count. A puller-only option supplies no protection; a kit heading may describe contents different from the selected quantity.
- Check evidence: where approvals, IEC/CE/RoHS, a branded origin, 72 V DC or a precise 50 A interruption figure are relevant, request traceable datasheet or compliance evidence for the exact selected device. Generic seller fields and certification labels do not validate every option.
Use and buying checklist
Micro2 vehicle spares serve designated fuse-panel slots on compatible low-voltage equipment. Board-mounted 1206 and CCP2E parts protect specified circuits in electronics and must be soldered to the corresponding PCB design. Record the original part number, package or blade geometry, ampere value, voltage type and rating, fault-current requirement, response curve, operating temperature, intended mounting and quantity. Follow the equipment maker's protection design and qualified electrical practice, particularly where a failed fuse indicates a hazardous fault.
Frequently asked questions
Can a Micro2 blade fuse replace a mini blade fuse?
No. They have different cases and terminal geometry. Use the exact fuse family specified for the slot, even when the amperage matches.
Is a 1206 SMD fuse an automotive micro fuse?
No. 1206 refers to a board-mount package; automotive Micro2 refers to a blade-fuse format. They cannot replace one another.
Are 1206 11CT and CCP2E interchangeable at the same amperage?
Not without comparing package/pads, voltage, interruption capacity and time-current data for the exact two parts. The nominal current alone is insufficient.
Does a kit containing micro, mini and standard fuses fit every vehicle?
No. Check the vehicle's fuse panel format and specified current values, then verify the selected kit's actual contents.
