NE5534 Single Audio Op Amp ICs and Signal Boards

NE5534 single-channel audio op amps and related signal assemblies

Compare selectable NE5534P and NE5534AN single operational-amplifier ICs, a ceramic-package SE5534AFE option, assembled audio conversion and DAC boards that mention NE5534, and discrete replacement modules. These are not all loose NE5534 chips or identical substitutes. Some product pages also offer a dual NE5532, a dual discrete module, or another model. The selected option, device suffix, package and count determine what is supplied.

Single versus dual: a fundamental design distinction

NE5534 is a single-channel operational amplifier for an external analog circuit; NE5532 is a dual-channel amplifier. Two similarly sized eight-pin packages do not imply interchangeable pin assignments, channel count, compensation, supply range or gain stability. The mixed “NE5532P NE5534P” page has one variant for each model and describes a ten-piece chip lot. Choose NE5534P when you need the single-device option; the seller's shared “dual-channel” title is inaccurate for the NE5534 choice. Another mixed page has separate NE5534P and NE5532P options at 10, 20, 50 and 100 pieces, even though the headline says 10–50 pieces. Here the field labeled “Color” specifies quantity and “Model Number” specifies the actual IC. A NE5532P / 20Pcs choice is twenty dual devices, not NE5534 chips or a mixed twenty-piece package.

A bare NE5534 needs a properly designed supply, feedback network, bypassing, input bias path and load. Before substitution or new design, check the exact manufacturer's datasheet for package pinout, recommended rails, input common-mode limits, output swing/current, noise at the intended source impedance, offset, bias current and stability at the intended closed-loop gain. NE5534 compensation and minimum stable gain considerations cannot be ignored by treating it like a generic unity-gain buffer. Compare the selected suffix and real board schematic rather than adopting reseller placeholder fields such as “international standard” voltage, temperature or dissipation. “Voltage regulator” and “drive IC” catalog labels do not redefine the device's analog amplifier role.

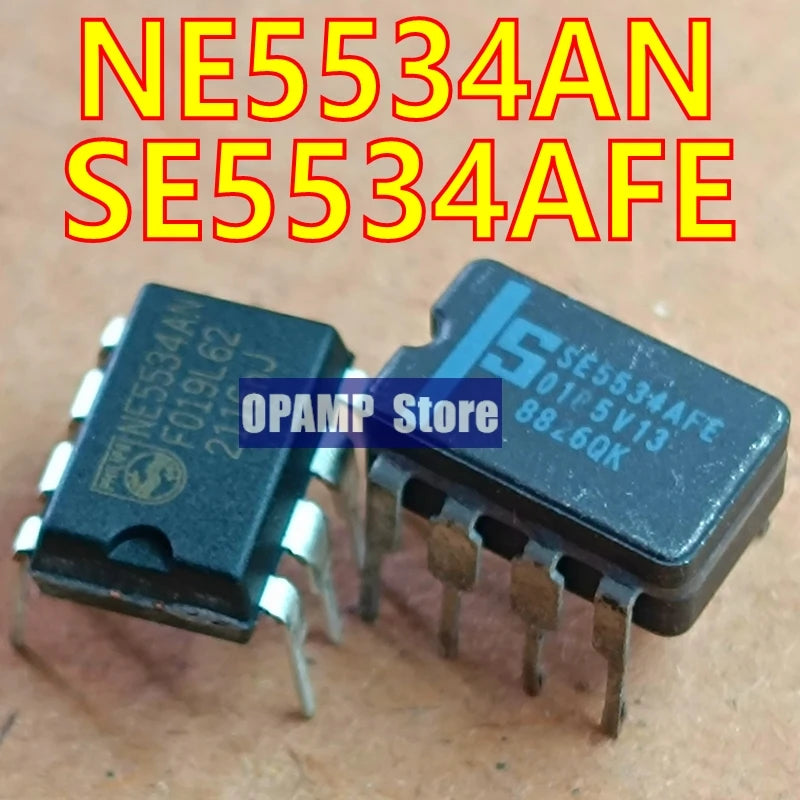

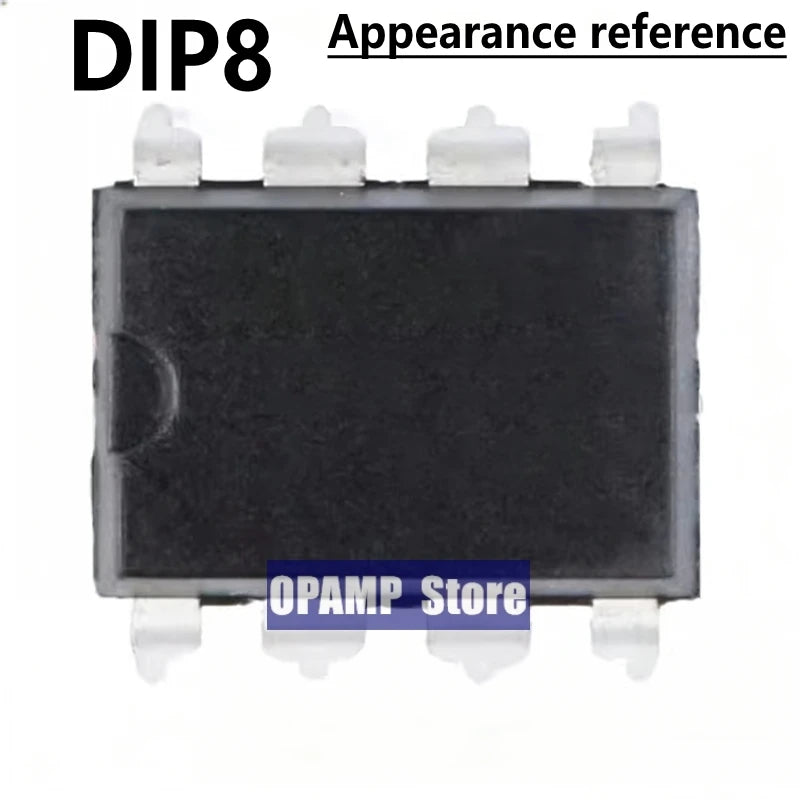

NE5534AN versus SE5534AFE ceramic

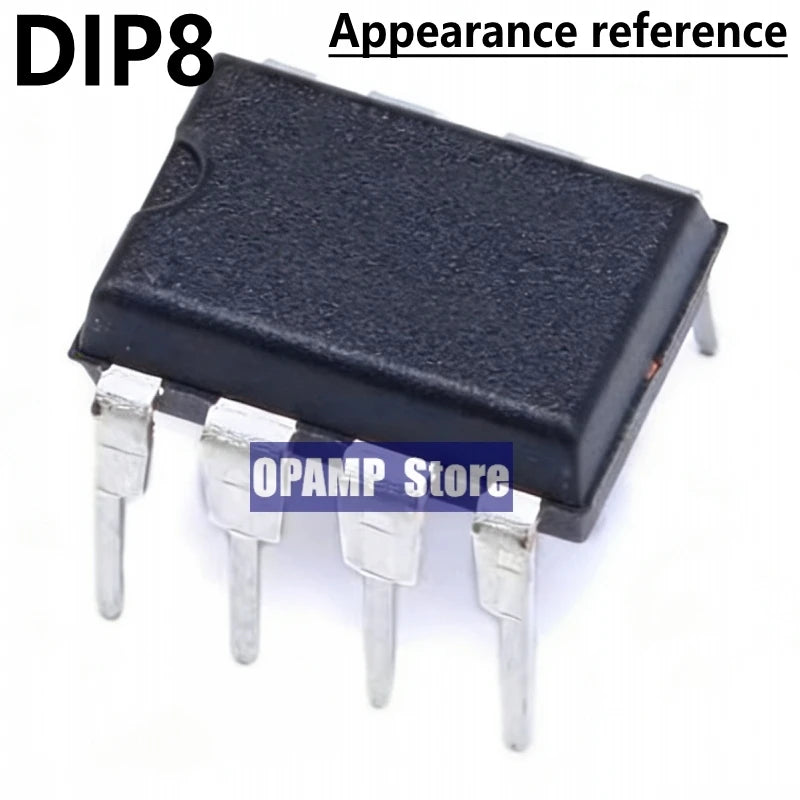

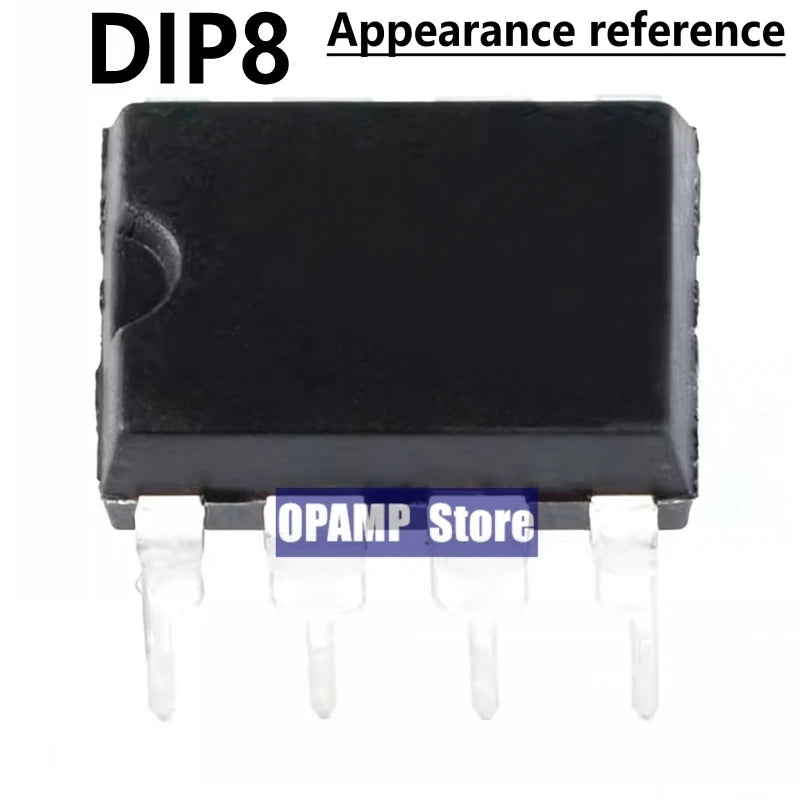

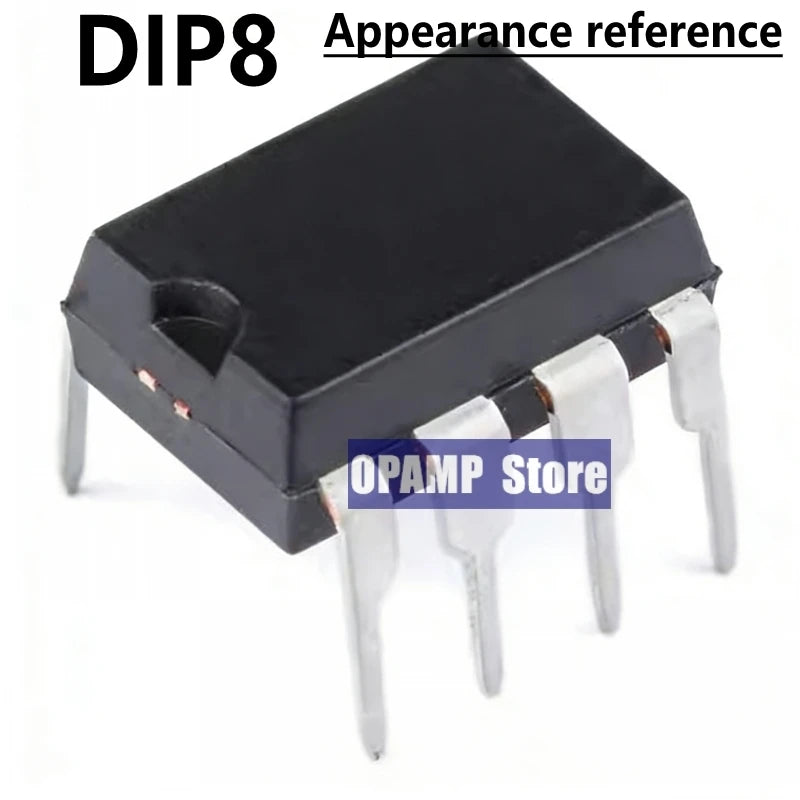

One dedicated single-op-amp page offers NE5534AN or SE5534AFE Ceramic, with “Ships From: China Mainland” attached to both options. The two named variants are not two pieces in one order. The listing names DIP-8 and ceramic DIP-8 formats, but package material alone does not verify that their electrical, environmental or screening specifications match. Confirm the full manufacturer's ordering code, physical dimensions, pin-1 marking, temperature grade and applicable documentation for the precise suffix received. Seller terms “original,” “all in stock,” “US origin” and “HIFI upgrade” are not independently verified supply-chain or performance evidence; a shipping-origin selector is not a country-of-manufacture certificate.

DAC board: verify the missing conversion chips

An assembled CS8412 + NE5534 board advertises USB, optical and coaxial decoding and references a TDA1541 DAC. Its description says a USB PCM2704 module is included, lists a roughly 115 × 165 mm PCB and describes transformer inputs of AC 15-0-15 V or alternative dual-secondary arrangements. Critically, the seller's package note says one TDA1541 DAC board, without SAA7220 and TDA1541 chips. This means a title saying “assembled” or “TDA1541 DAC” must not be read as proof of a fully functional, populated DAC. NE5534 in the title identifies an analog-stage component, not the entire device being sold. Verify which IC sockets are populated, which USB/optical/coaxial inputs are actually usable with the shipped board, required transformer configuration, digital-filter/DAC sourcing and output-stage wiring before planning a system. Do not apply the board's AC input descriptions to the bare NE5534 IC, and do not infer a verified signal-to-noise result from capacitor or PCB marketing claims.

Balanced-to-unbalanced board: signal conversion, not a bare chip

The SSM2141 balanced-XLR-to-RCA product describes an SSM2141 input receiver with a 5534 output stage. The selectable label says 2pcs SSM2141 on a page titled “2pcs,” while the description discusses a conversion board with balanced and RCA input routing. This is not a dedicated NE5534 IC offer; clarify whether the two-piece choice supplies two assembled boards or another packing arrangement if quantity matters. The description gives a dual-AC transformer supply of approximately AC 15-0-15 V and mentions 12–18 V dual AC alternatives for its intended board design. Verify terminal labeling, transformer arrangement, balanced input polarity, output signal reference, RCA routing and actual downstream input requirements against the physical board. It is a line-level interface, not a speaker power amplifier. Seller claims of laser-trimmed precision and professional-grade common-mode rejection describe claimed components or topology, not independently measured performance of the delivered assembly.

Discrete modules named as NE5534 alternatives

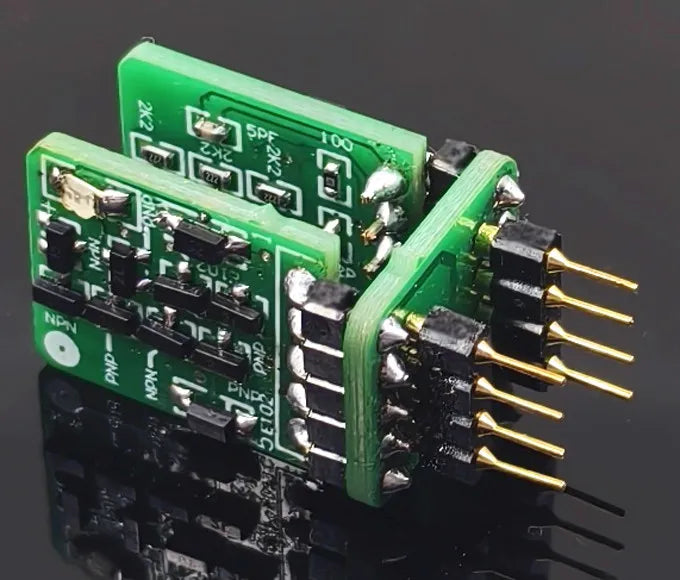

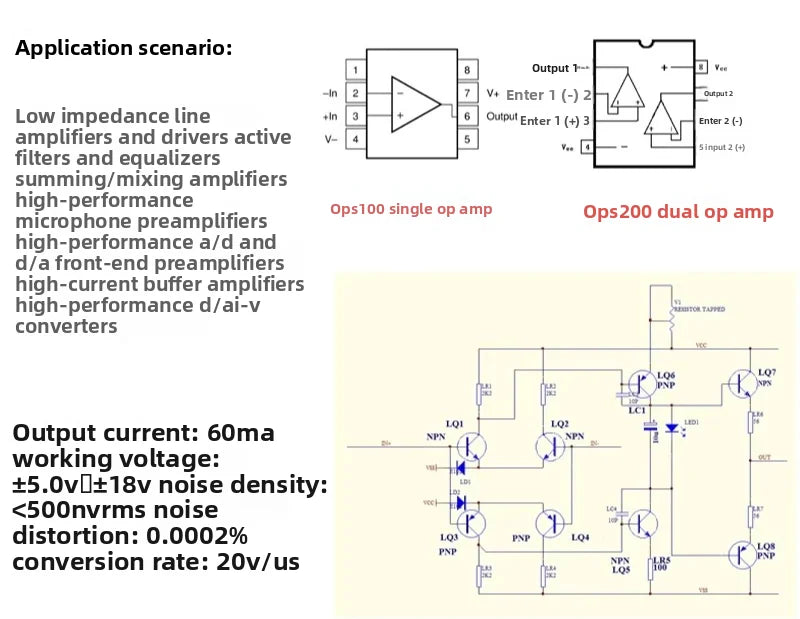

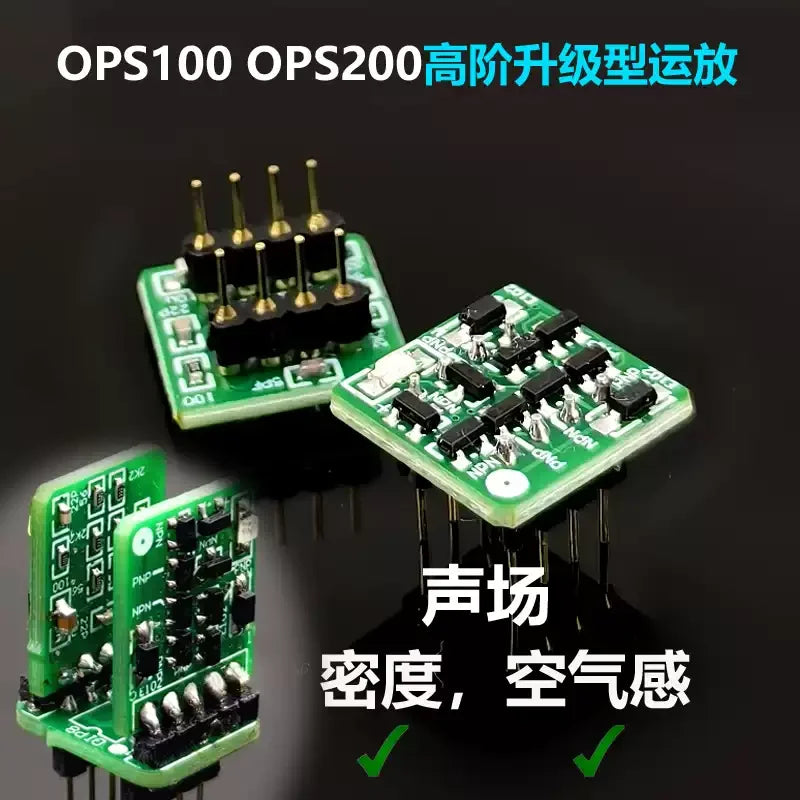

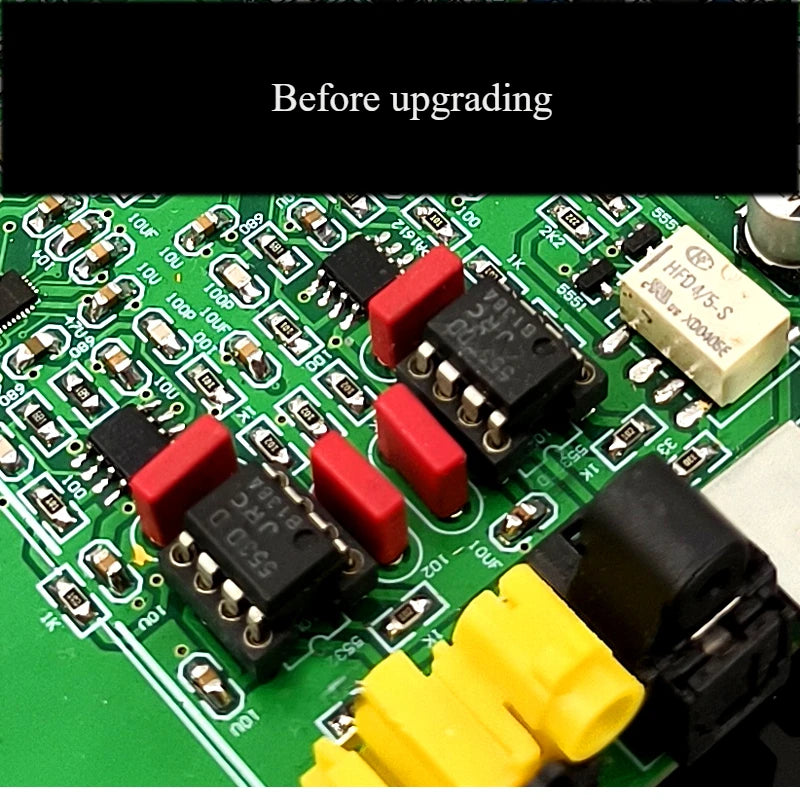

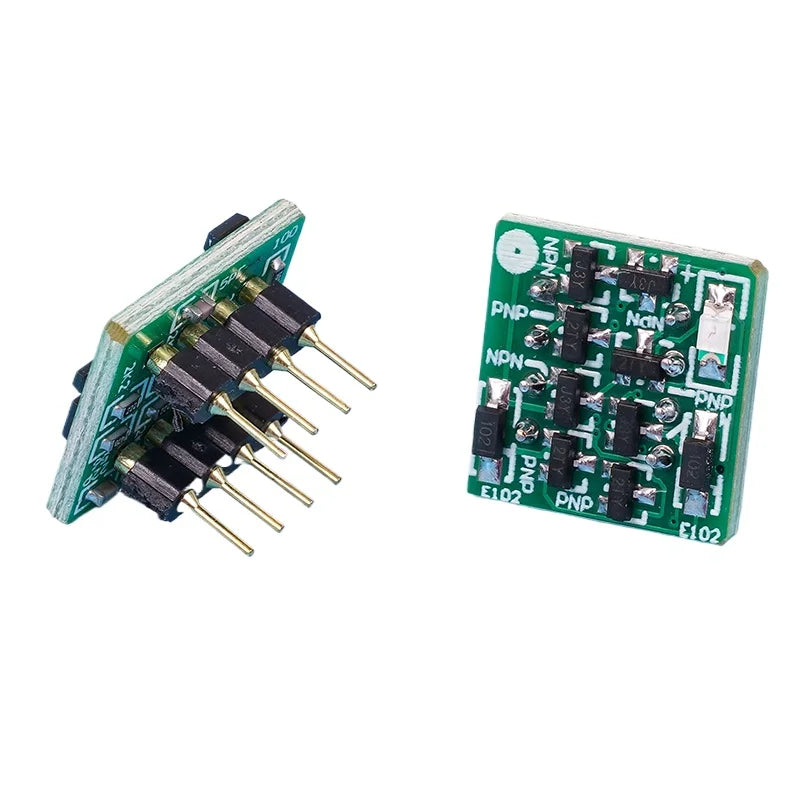

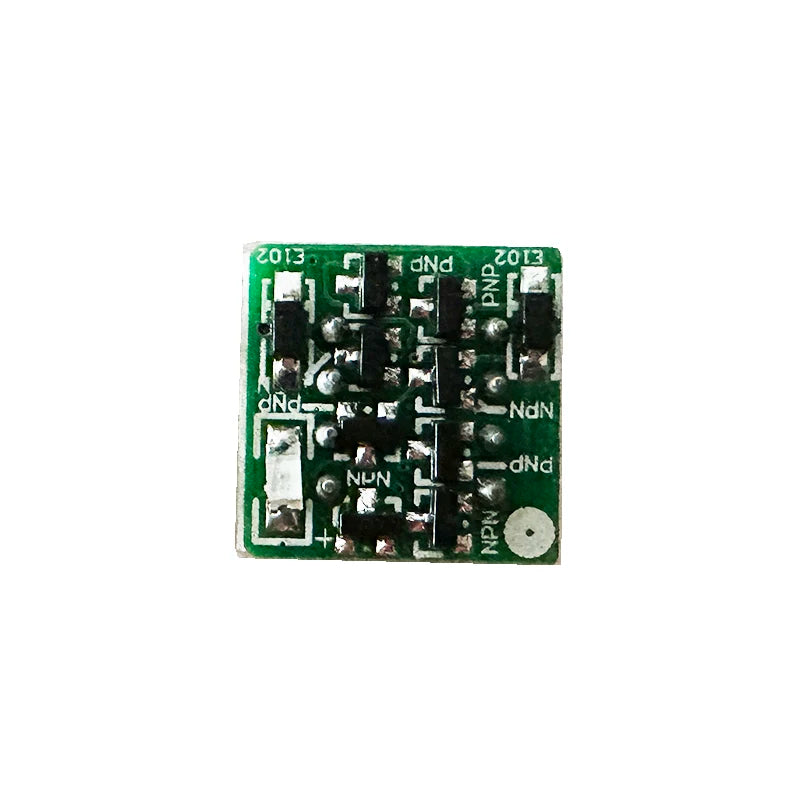

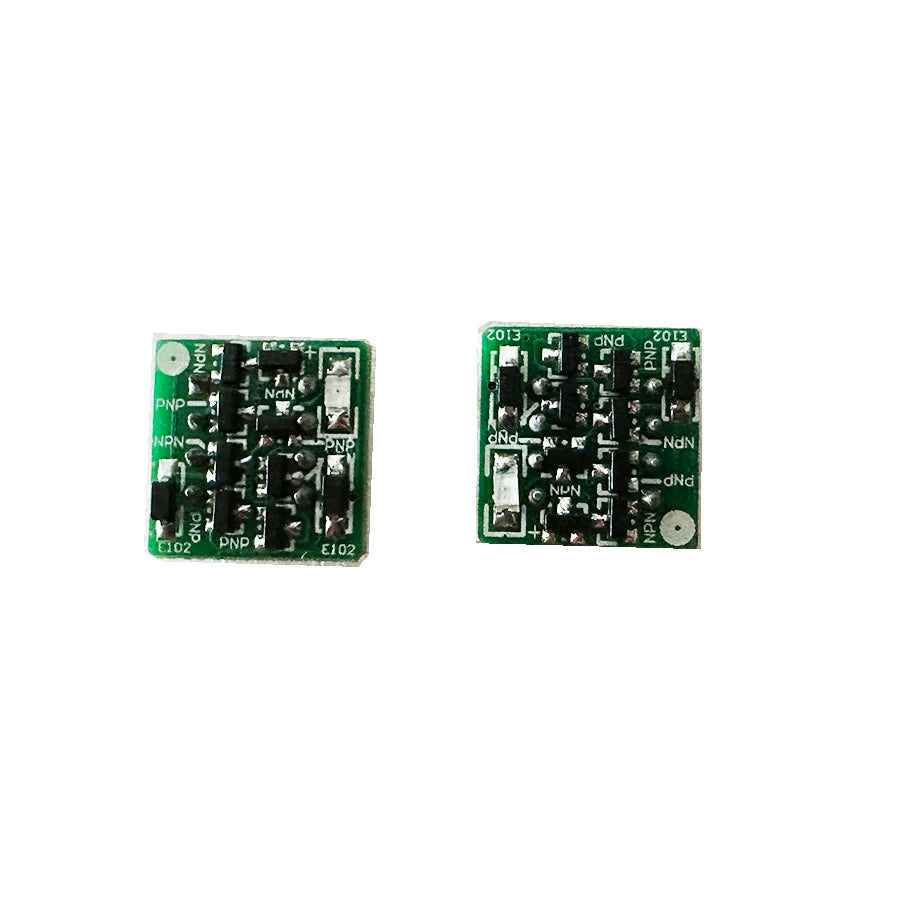

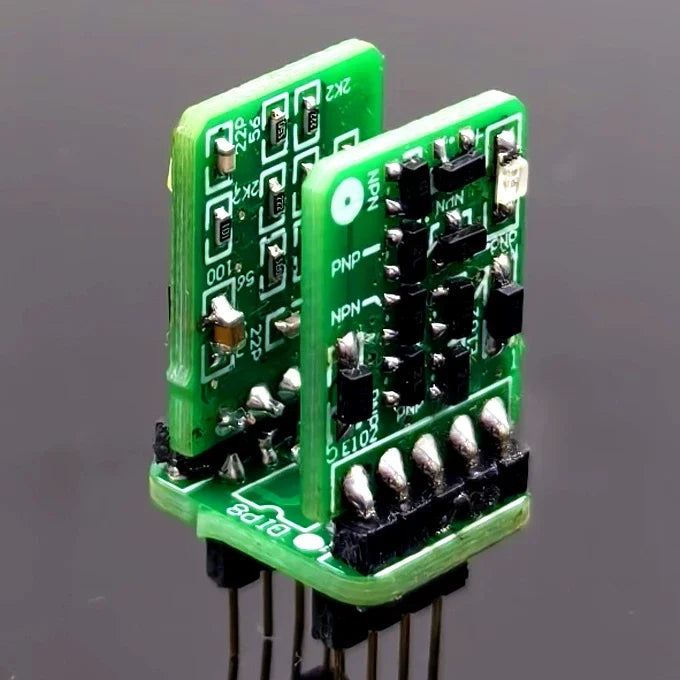

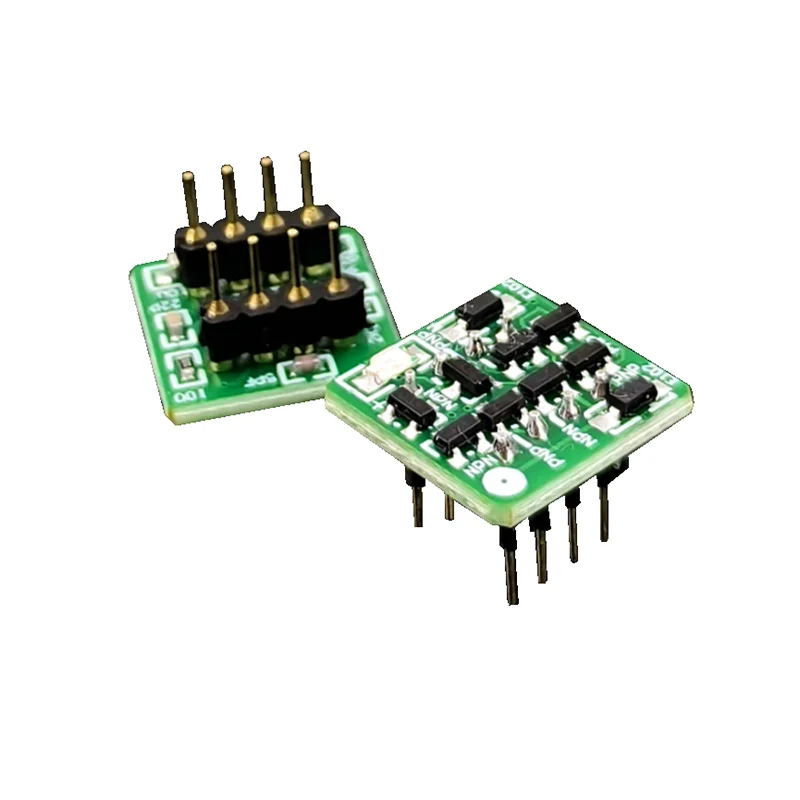

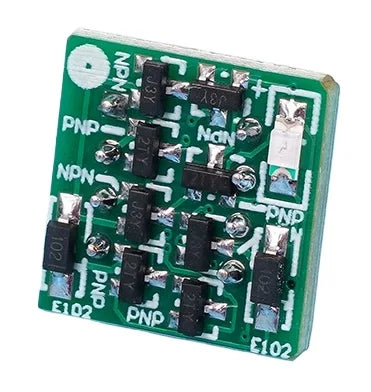

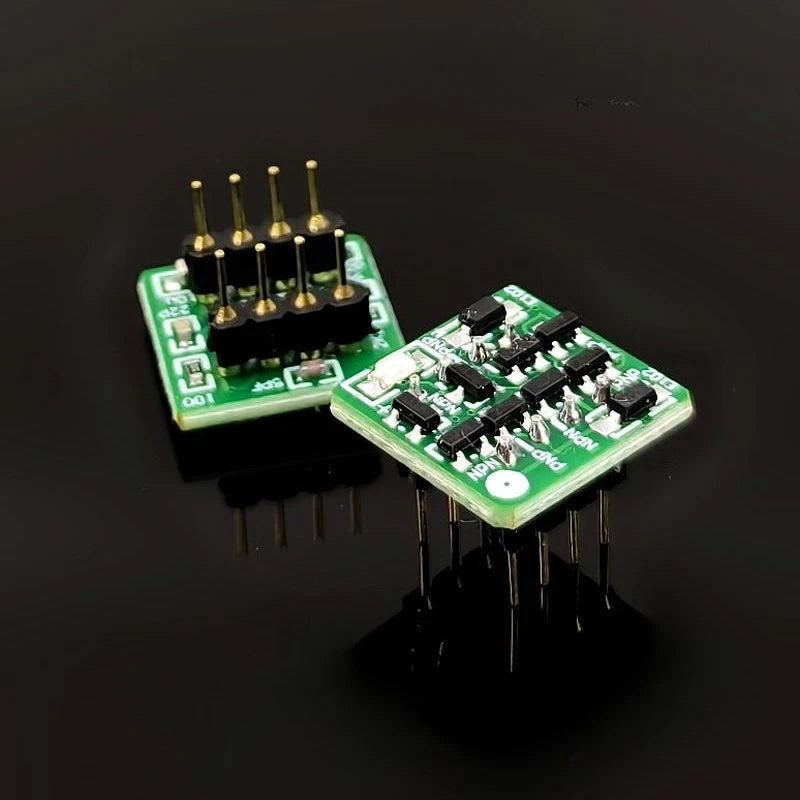

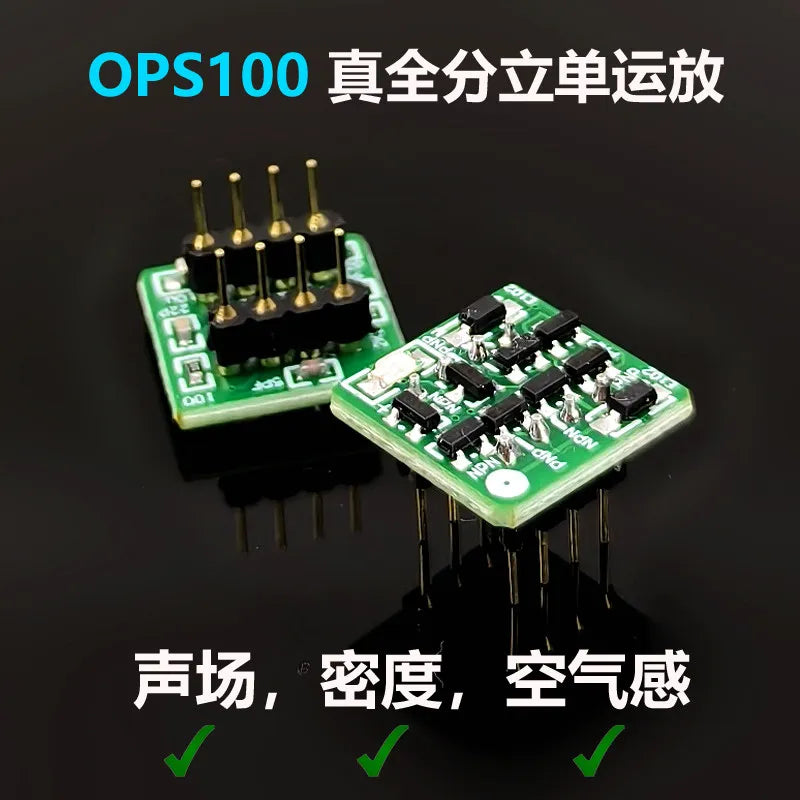

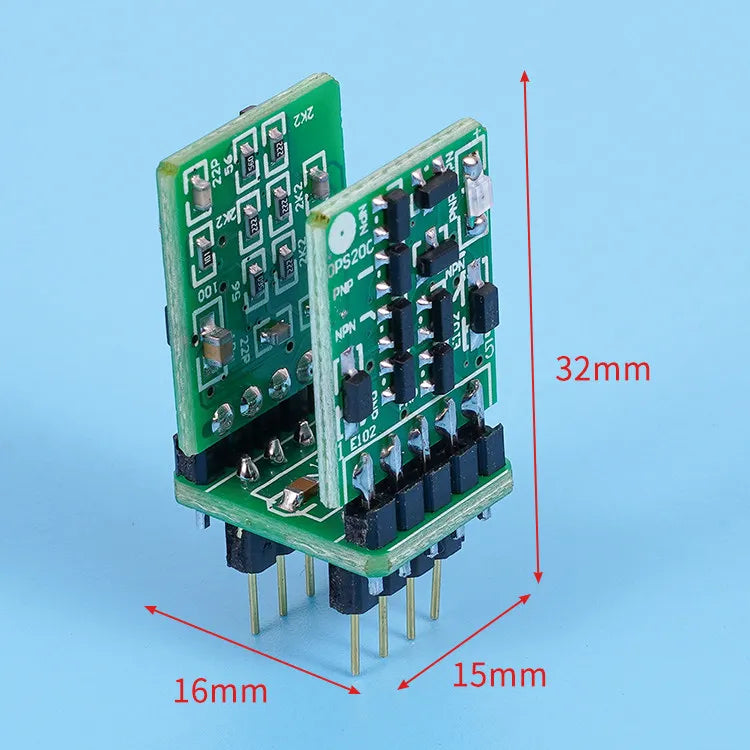

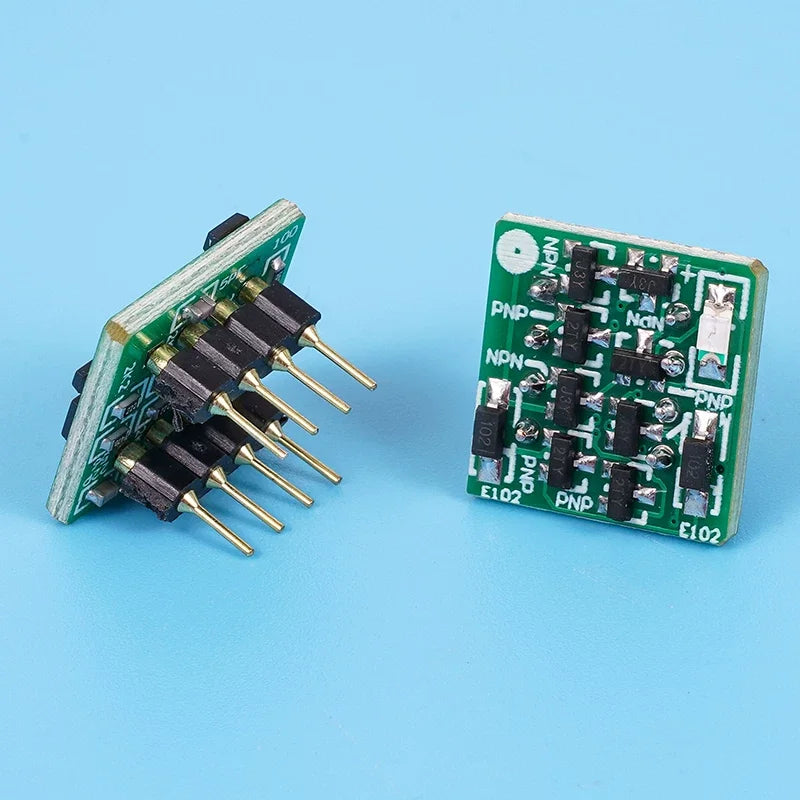

OPS100/OP1100 listings mention NE5534 and other single-channel op amps as replacement targets. One has options “single op amp x1,” “single op amp x2,” “Dual op amp x1” and “Dual op amp x2”; another offers a nominal single-module page in one- or two-piece quantities but has a conflicting OPS100 model field under an OP1100 headline. A third offers “OPS100 single,” “OPS200 Dual” and an ambiguous “black” choice. Select the stated single or dual architecture and count deliberately; a “black” color option does not establish the underlying module model. The page calling itself OPS100 but describing OPS200 Dual further requires verification of the actual shipped assembly before a critical repair. These discrete assemblies are not NE5534 dies or a guaranteed electrical equivalent merely because the headline says “upgrade.” Compare adapter pin mapping, quiescent current, required rails, physical height, clearance, load behavior, offset and feedback stability with the target host. Marketing claims about symmetry and sonic improvement require circuit-level measurement; no universal compatibility is established here.

Engineering selection sequence

1. Identify function: bare single NE5534, dual NE5532, alternative discrete single/dual module, incomplete DAC board or balanced-to-unbalanced interface board.
2. Resolve the exact option: model and count on mixed IC pages, NE5534AN versus ceramic SE5534AFE, and single versus dual module. Do not interpret the entire headline as one kit.
3. Check assembly state: a bare IC needs a host PCB; the DAC board explicitly omits SAA7220 and TDA1541; other boards need power and interface verification.
4. Check analog design: pin assignment, feedback/compensation and stable closed-loop gain, signal source impedance, allowable rails, input common mode, output headroom, load and bypassing, using the exact device datasheet.
5. Check physical integration: native DIP versus ceramic DIP, socket dimensions, orientation, module height and nearby components. The same number of pins is not sufficient.
6. Verify claims: seller originality, manufacturer origin, component grade and audible improvement do not substitute for traceability or measured acceptance testing where these matter.

Frequently asked questions

Is NE5534P a dual op amp like NE5532P? No. NE5534P is the single-channel selection. NE5532P is dual. Confirm pinout and external compensation for your circuit.

Does a “10–50Pcs” listing also offer 100 NE5534P? Its returned choices include 100Pcs / NE5534P. Choose the actual quantity and model rather than relying on the shorter headline.

Are NE5534AN and SE5534AFE Ceramic one combined set? No. They are separate selectable options, each also showing a shipping-origin field.

Is the assembled TDA1541 board ready to produce audio? The seller specifically says SAA7220 and TDA1541 chips are not included. Verify the missing components and the shipped board's working configuration first.

Is the SSM2141 product a bag of NE5534 chips? No. It is described as a balanced-to-unbalanced conversion board using a 5534 output-stage scheme; confirm the two-piece packing details if needed.

Can OPS100 replace NE5534 in every socket? No. Single/dual choice, mechanical dimensions, pinout, power requirements and stability must be checked for the exact module and host design.

Do “original” or professional-audio claims verify a lot? No. They do not establish authorized distribution, certificate status or measured board-level performance without supporting documentation.

Yoeruyo keeps these related items discoverable together while distinguishing a native single NE5534 IC from dual chips, circuit boards and alternative modules. Purchase by exact selected variant and verify the intended host design.
