nRF24L01 2.4 GHz Wireless Modules and RF Development Boards

nRF24L01 2.4 GHz transceivers, PA/LNA modules and development hardware

Explore 2.4 GHz wireless hardware for embedded projects: compact nRF24L01/nRF24L01+ style SPI transceiver modules, amplified PA/LNA boards, GT-24 and E01 series modules, RF-Nano and ESP32 development boards, socket adapters and platform-specific multi-radio accessories. These are not one interchangeable product. A selected option may contain a radio module, antenna, bare carrier, cable, USB serial adapter, microcontroller board or a completely different IC. Check the selected variant and included parts first, then verify the exact board's electrical limits, host interface and antenna arrangement.

Identify the deliverable before comparing range

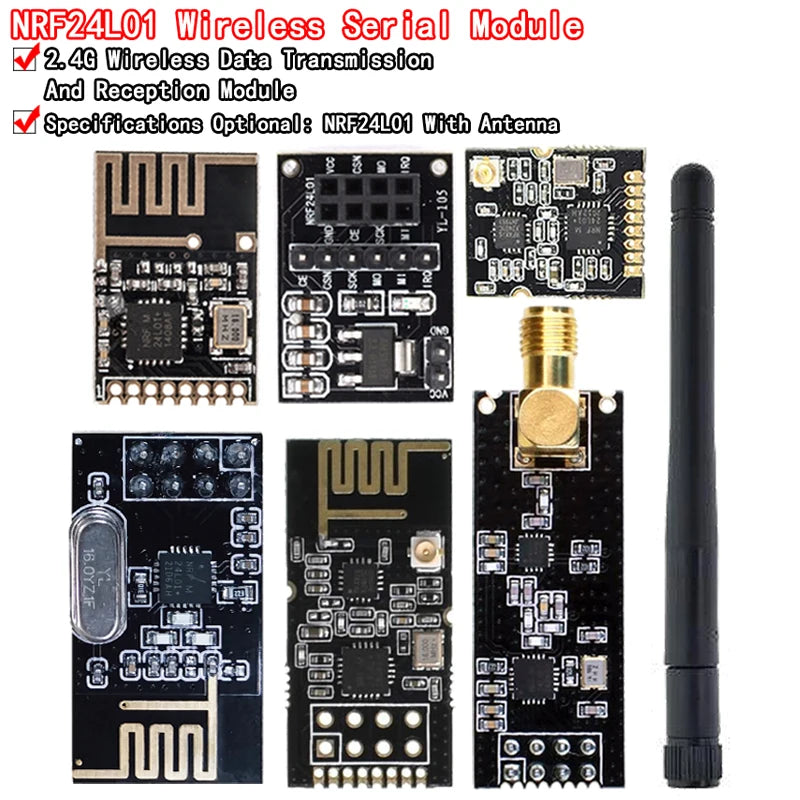

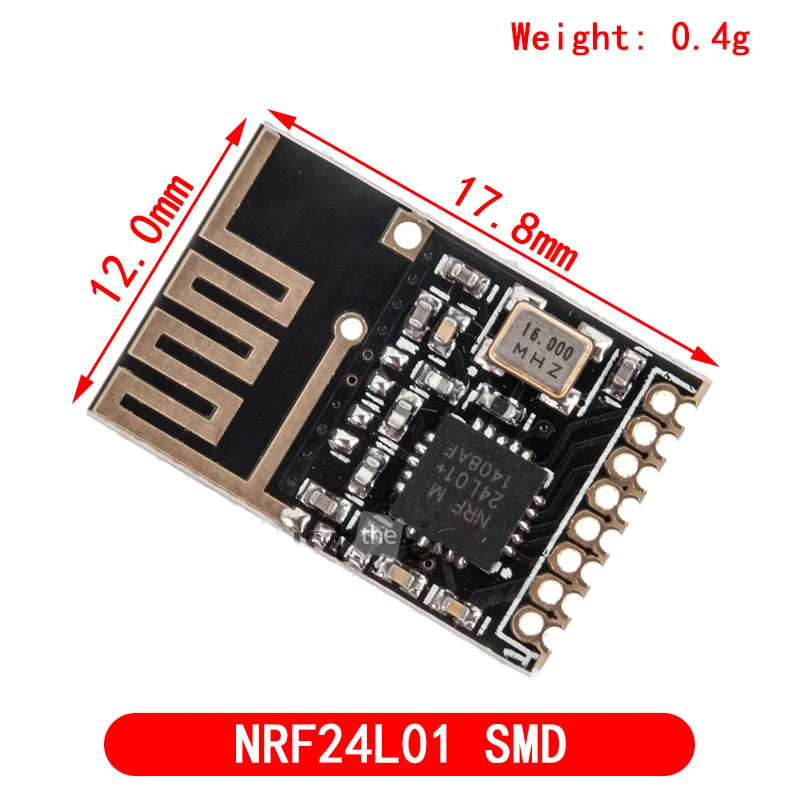

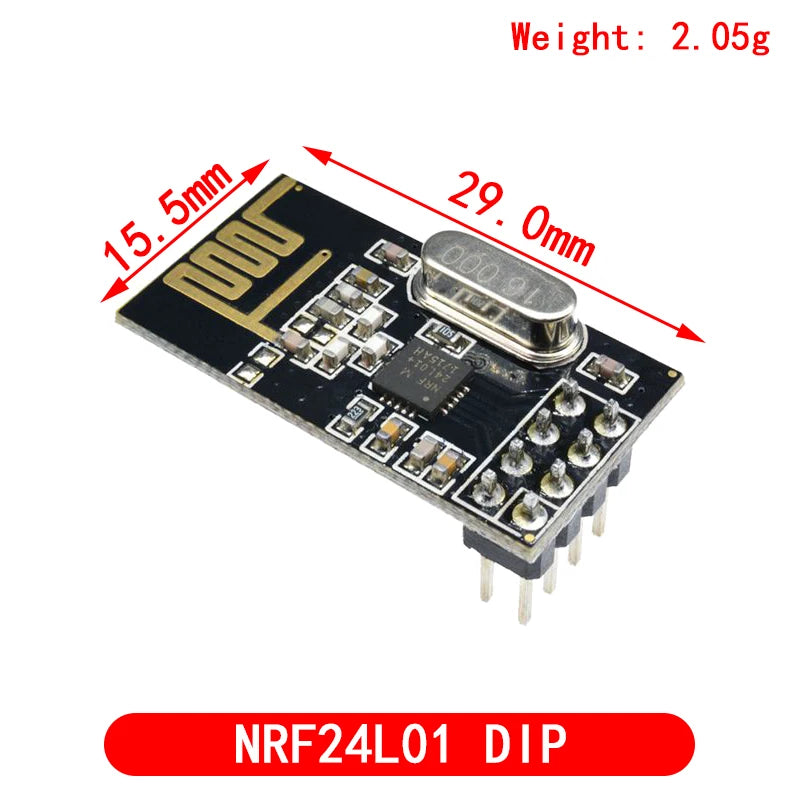

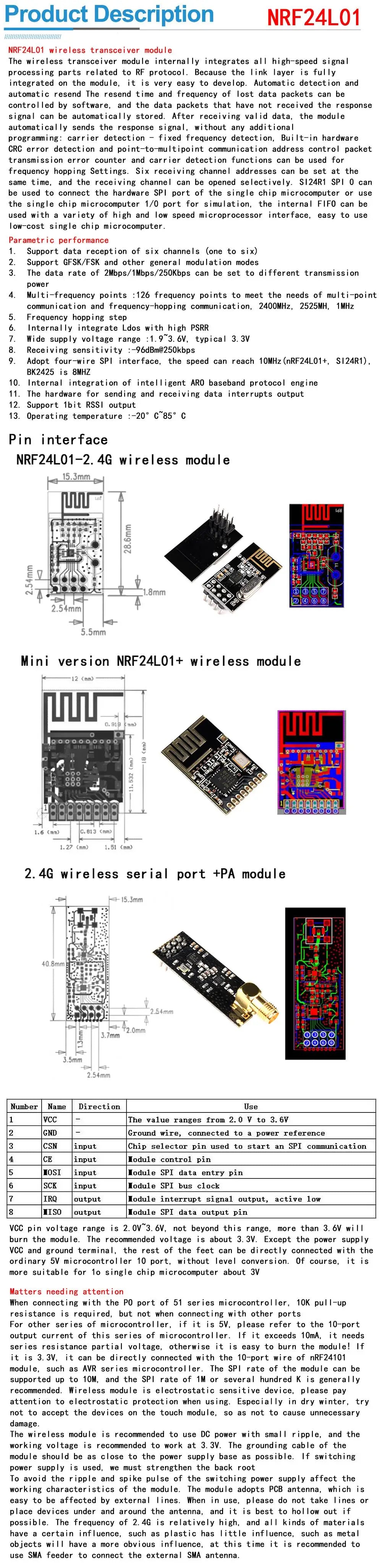

• Compact 8-pin SPI radios: standard DIP-header and surface-mount mini boards are offered in 1-, 2-, 4-, 5-, 10- and some 50-piece options. Several pages describe a 1.9–3.6 V radio supply, PCB antenna and up to 2 Mbit/s over-the-air mode. “DIP” on a board listing can mean header mounting, not a bare nRF24L01 chip. Some upgraded boards explicitly identify a Si24R1 or Ci24R1 instead of Nordic silicon; treat claims of register/protocol compatibility as design-specific, not proof that chips are identical or produced by the same manufacturer.

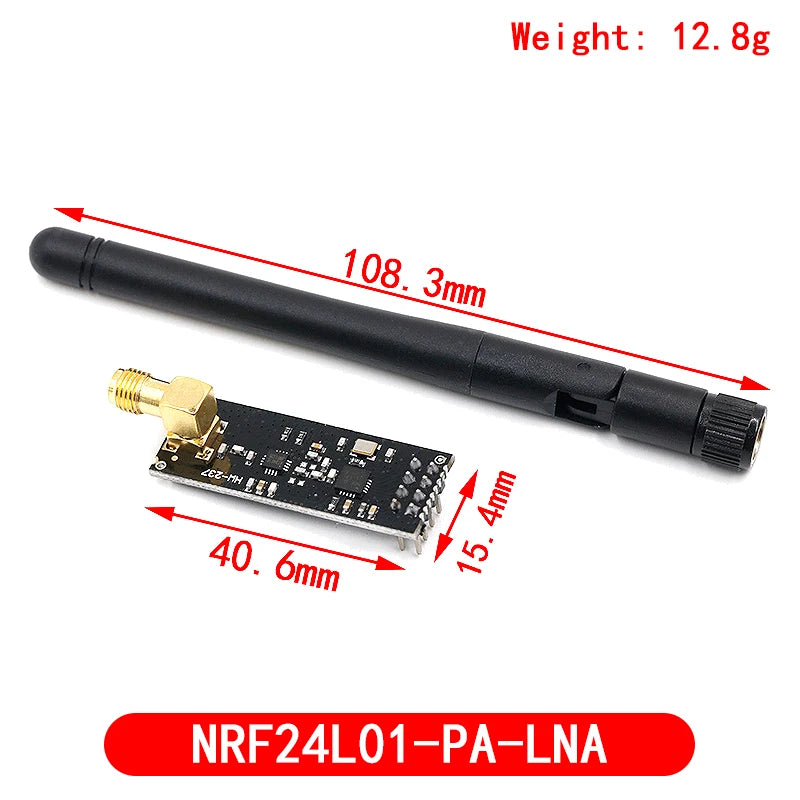

• PA/LNA amplified modules: antenna-equipped nRF24L01+PA+LNA pages describe an RF power amplifier and low-noise receive stage, often advertising 1000 or 1100 metres under open, unobstructed conditions. Some quote approximately 115 mA transmit demand. These are module-specific seller figures; the antenna, connector, supply, duty cycle, data rate and environment determine performance. A higher-power transmitter is not automatically usable at every location or configuration.

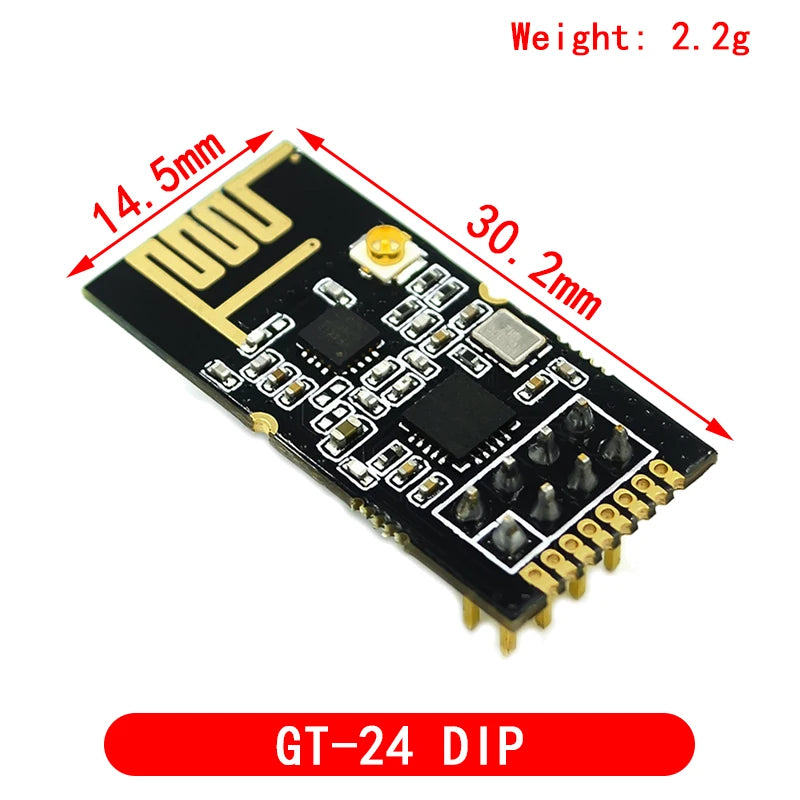

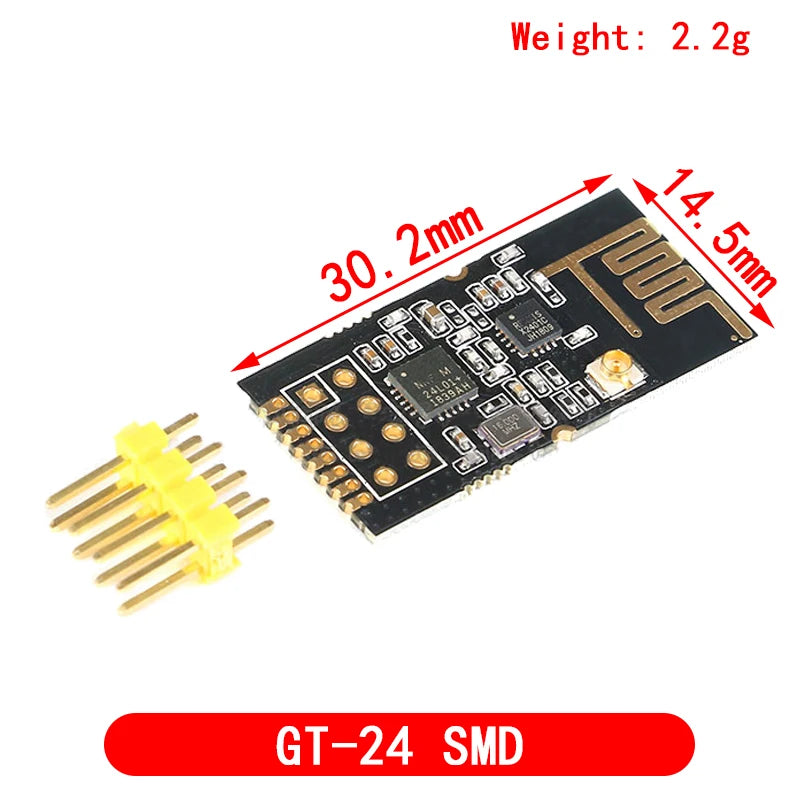

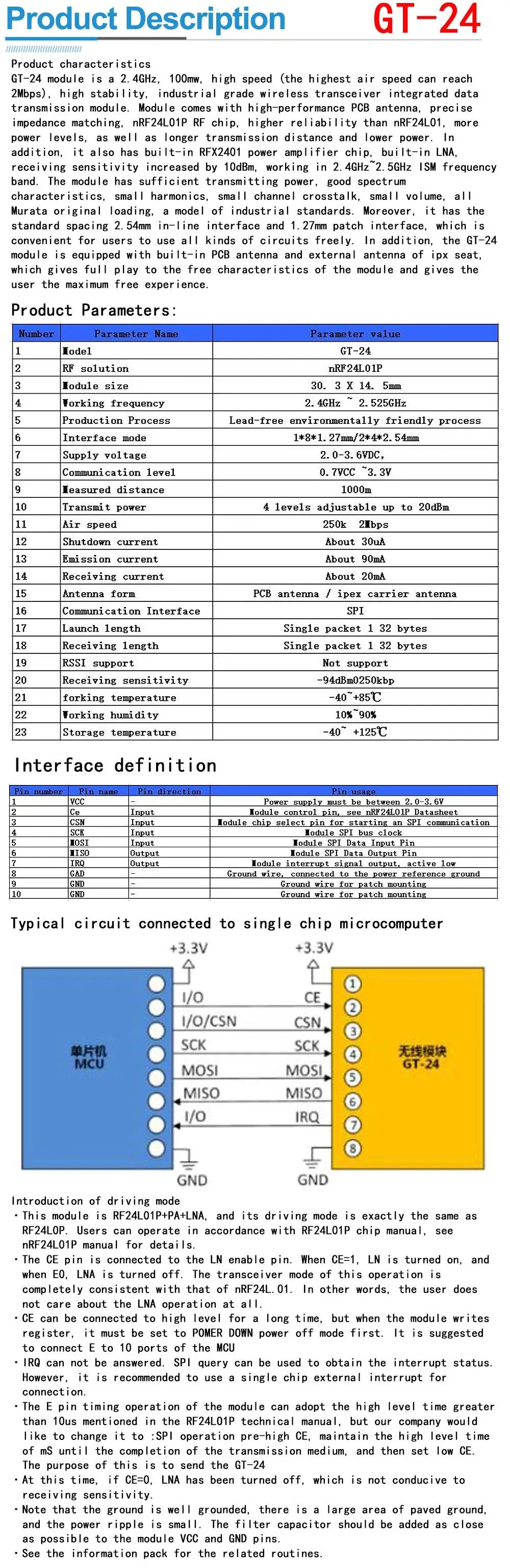

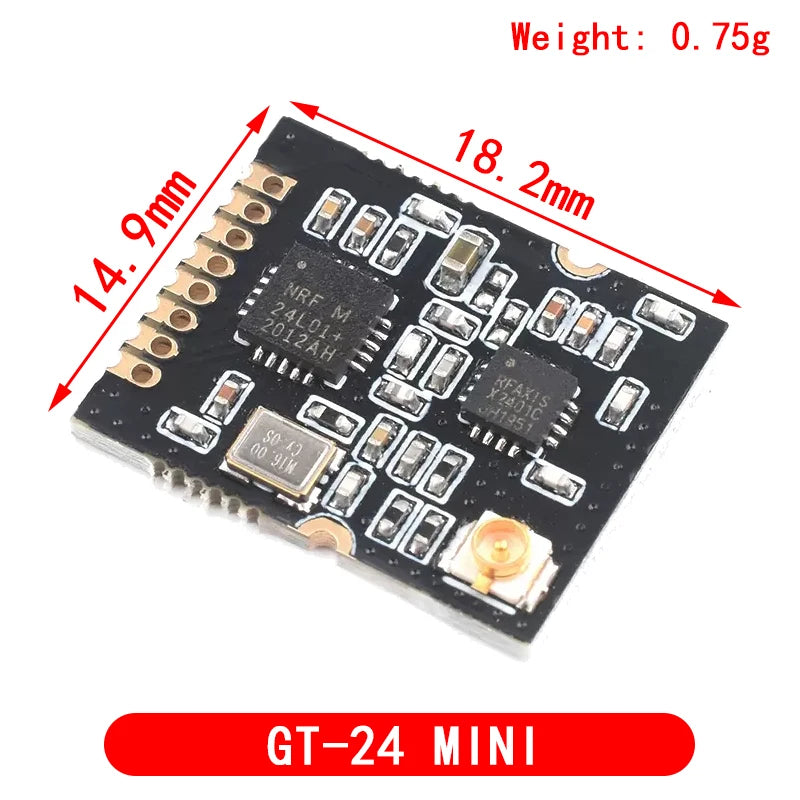

• GT-24 and E01 modules: GT-24 variants distinguish DIP, SMD and MINI boards, sometimes sold with an antenna or with unsoldered header pins. E01-ML01DP4/DP5, E01-2G4M20S1B and E01-2G4M27D/27SX/ML01SP4 variants are not a single footprint or output-power class. One E01-ML01DP4 description specifies a 20 dBm maximum and a conditional 1800 m test; an E01-2G4M27D description advertises 27 dBm and a conditional 5000 m test. These are separate product-specific figures, not verified everyday ranges for all radios here.

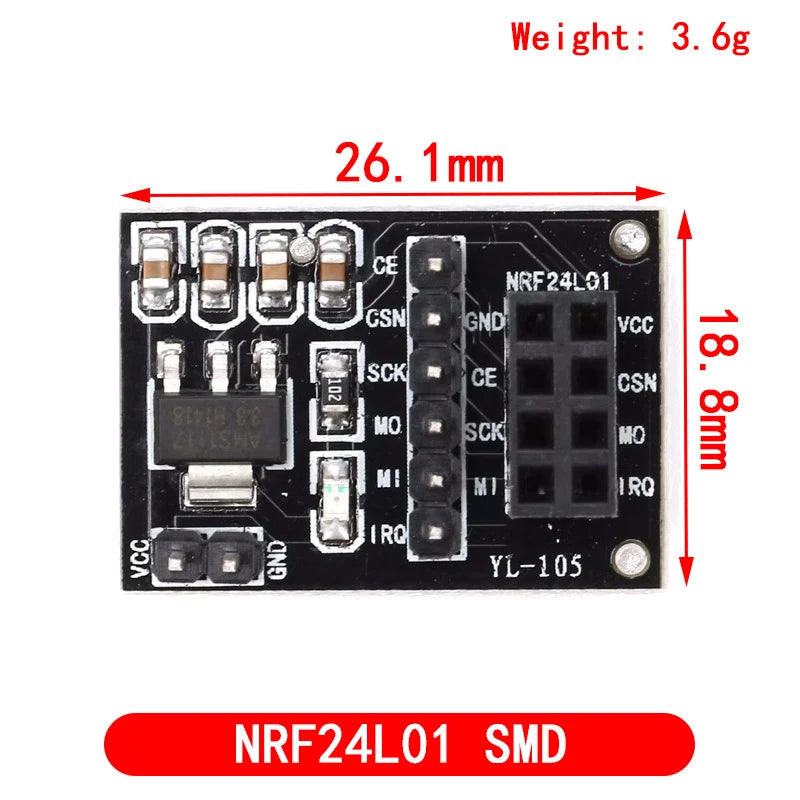

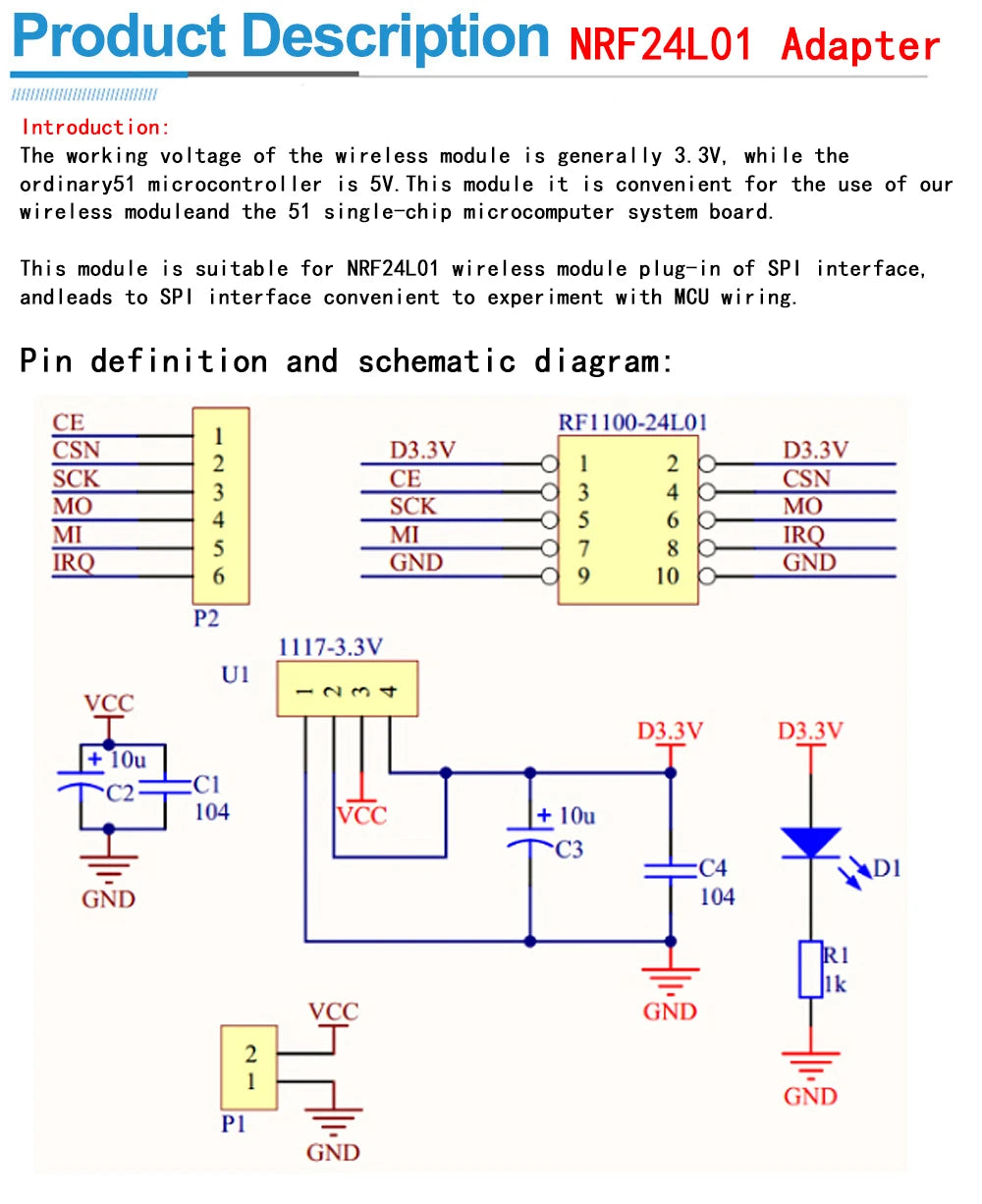

• Socket and supply adapter boards: 8-pin sockets and AMS1117-3.3 carrier boards can make it easier to power or mount a radio from a suitable host. “Socket,” “Expansion board,” “Adapter,” “NRF24L01 Adapt Board” and “3.3V Wireless Module” options must be checked individually. An adapter-only choice may ship no transceiver; a nominal 5 V input to a regulator on a particular carrier does not make a bare nRF24L01 radio 5 V tolerant or guarantee that all 5 V logic signals are level shifted.
• RF-Nano development boards: several Nano-format boards integrate an nRF24L01-class radio with a microcontroller and CH340 USB-to-serial interface. Options include Micro-USB or USB-C, ATmega328P, ATmega328PB or LGT8F328P/LGT328P variants, soldered versus unsoldered headers, optional antenna and different pack counts. A specific seller gives a 5 V board operating rail and recommends 6–15 V at its VIN input. Those are whole-board claims, not safe limits for an independent RF module. RF24 library compatibility, bootloader, USB driver, I/O map and code support depend on the selected processor and board revision.
• ESP32 and multi-radio host boards: ESP32 DevKitC carrier kits, ESP32-S3 boards with display/PN532/CC1101, M5Stack StickC/StickS3 or Cardputer expansion boards, and Flipper Zero GPIO accessories combine or accommodate nRF24L01-type hardware with other functions. Their Wi-Fi and Bluetooth generally come from an ESP32 host, not from a plain nRF24L01 transceiver. A board with CC1101 adds a separate sub-GHz radio; LoRa, infrared, NFC, microSD, display and 3D-printed shell features appear only on specific variants. Some accessory listings expressly exclude the Cardputer or Stick host device; do not assume the photo includes it.
• Finished project kits and other radios: RF CLOWN listings describe an ESP32 control board, three 2.4 GHz modules, antennas and an OLED/acrylic assembly, with seller notes about heat during prolonged operation. OpenDTU offerings describe ESP32 + nRF24L01 + cable, and one version adds a display for monitoring certain solar microinverters; firmware and inverter compatibility must be confirmed. Multiprotocol RC transmitter modules combine NRF24L01 with CC2500, A7105 and CYRF6936 and require a compatible transmitter/firmware. Standalone A7105-based MD7105-SY is not an nRF24L01 radio, despite comparative text in its title.

Radio interface, protocols and interoperability

A normal nRF24L01-class transceiver communicates with its host over SPI plus control/status lines and exchanges framed 2.4 GHz packets with another appropriately configured radio. It is not an ordinary Wi-Fi access point, Bluetooth peripheral, cellular modem or ready-to-use USB dongle. Some seller titles incorrectly call these boards “WiFi”; that word does not establish IEEE 802.11 support. An RF24-compatible sketch needs a supported MCU, correct radio wiring and voltage levels, suitable firmware, and matching settings at both ends: channel, data rate, address, packet format, CRC, acknowledgment and retransmission strategy. Merely sharing the 2.4 GHz band does not make different chips or consumer devices communicate.

Rate claims such as 250 kbit/s, 1 Mbit/s and 2 Mbit/s describe radio air settings where supported, not the end-to-end useful payload throughput. Data rate, link budget, receiver sensitivity and collision exposure interact. Some modules advertise multiple receive pipes, automatic acknowledgment and retransmission, but exact firmware and clone-chip behavior should be checked on both ends. Si24R1/Ci24R1, A7105, CC1101 and the nRF24L01 family have distinct identities; software or electrical compatibility must be established for a given pair, rather than inferred from similar frequencies or marketing labels.

Power and logic-level boundaries

Many simple radio boards specify 1.9–3.6 V at their radio supply; amplified modules often need a stable roughly 3.3 V supply with more peak current than compact modules. One PA/LNA seller states DC 3–3.6 V and around 115 mA at peak transmit. Never connect a bare 3.3 V radio module directly to a 5 V rail just because a Nano board, USB adaptor or AMS1117 carrier on another listing takes 5 V. Conversely, a particular E01-2G4M27D product field states 2.5–5.5 V for its module: that is not the voltage range of every E01 design or the underlying radio IC. Match the exact module and input pin with its own documentation.

Regulator presence, radio supply decoupling and transient current capability matter especially on PA/LNA transmit bursts. Check SPI logic thresholds and whether an adapter actually provides signal-level translation; a 3.3 V regulator alone addresses supply voltage, not necessarily a 5 V host's digital outputs. Board-level claims that an RF-Nano operates at 5 V refer to its host side, while its radio may use a separate regulated domain. Avoid drawing high-power module current from an MCU pin or assuming every host's 3.3 V output is adequate. Use the product's pinout and rated power source for the exact assembly.

Antenna, range and RF compliance

PCB antennas, SMA-attached antennas, IPEX/u.FL arrangements and unsoldered antenna/header options appear across the product choices. Choose the antenna connector and included accessory deliberately: a radio advertised “with antenna” may have another option that omits it. Install only a compatible antenna for the specific RF port and intended use. Do not treat a detachable antenna cable or a socket as a radio. Check module size, soldered header status and connector orientation against the enclosure and carrier.

Claims of 30 m, 100 m, 800 m, 1000 m, 1100 m, 1800 m, 2.5 km and 5 km refer to different products and different stated test conditions. For example, one 1800 m figure is tied to maximum power, 5 dBi antennas mounted at 2 m in clear air and a 250 kbit/s rate. Indoors, ground-level placement, walls, interference from other 2.4 GHz systems, antenna mismatch, enclosure effects and battery sag can sharply reduce a link's margin. Design from the desired packet reliability and link budget rather than headline distance. Transmit power, antenna gain and operating channel are subject to local radio rules; an advertised CE/FCC/RoHS field on a seller listing is not independent verification of certification or legal operation for every antenna and region.

Platform-specific selections

For a compact Arduino-compatible project, decide whether you need a standalone SPI module with an external host or an RF-Nano combining MCU, USB serial and radio. An ATmega328PB, LGT8F328P and ATmega328P may require different board definitions or pin assumptions. For ESP32, a “DevKitC + NRF24L01” listing can be a combined kit, radio-only variant or carrier/adapter; check the selected option and do not attribute ESP32 Bluetooth capability to the nRF module. For a Cardputer ADV versus Cardputer V1.1, StickC Plus2 or StickS3, verify the accessory explicitly names your exact host and firmware version. A three-radio board including LoRa may need firmware pin changes, as one seller explicitly states; “plug and play” on another listing cannot override that requirement.

For a USB-to-serial/NRF combo product, “CH340 Module,” “NRF24L01” and “1 Set” are separate shipping selections. A CH340 bridge alone is not an RF transceiver; a standalone nRF24L01 module is not a USB UART. For OpenDTU, confirm inverter protocol support, model, firmware, cable and whether display or housing is actually included. These project-specific kits must not be treated as generic nRF24L01 replacement parts. Use wireless testing equipment only on devices and networks you own or are authorized to assess.

Five-point purchasing checklist

1. Part identity: original nRF24L01/nRF24L01+, nRF24L01P-labelled module, Si24R1/Ci24R1 alternative, A7105, or a multi-chip board? Confirm the selected model rather than assuming the collection label applies to every option.
2. Delivery form: compact radio, amplified PA/LNA module, socket/regulator carrier, antenna, RF-Nano, ESP32 host kit, Cardputer/Flipper accessory or completed project kit. Count and included components vary per variant.
3. Electrical interface: check actual supply pin limits, peak transmit current, SPI logic level and regulator/level-shifter presence, not just a generic 3.3 V or 5 V listing headline.
4. Radio design: verify antenna type, connector, host firmware, packet settings, intended range under realistic conditions and local RF-power limits. A claimed maximum range is not a guaranteed connection.
5. Physical integration: choose soldered versus unsoldered headers, DIP versus SMD, Micro-USB versus USB-C and the precise M5Stack/Flipper/ESP32 carrier format. “With shell” and “without shell” affect housing on the specific listing, not every product.

Frequently asked questions

Is nRF24L01 a Wi-Fi or Bluetooth module? No. The typical nRF24L01-style radio is a 2.4 GHz SPI packet transceiver. ESP32-based kits may also provide Wi-Fi/Bluetooth from their separate MCU.

Can I feed an 8-pin nRF24L01 module 5 V? Do not assume so. Many listings specify 1.9–3.6 V for the radio. Some adapter or integrated-board inputs accept higher voltage because they contain additional circuitry; confirm the exact power pin and digital logic levels.

Does “adapter board” include a radio and antenna? Not necessarily. Several live options are explicitly sockets, expansion boards or antennas. Inspect the product's selected variant and package list.

Will two 2.4 GHz modules automatically talk to one another? No. They require compatible radio protocols and matched packet/firmware settings; an A7105 or CC1101 is not automatically interchangeable with an nRF24L01.

Is a 1100 m or 5000 m link guaranteed? No. Those figures belong to particular sellers' open-air maximum tests and depend on antenna, power, data rate, installation and interference. Verify regulatory limits for your region.

Some unrelated power ICs, joystick shields and A7105 variants appear among these products. The collection title is a guide to its main use, not a guarantee that each visible product or selectable variant contains an nRF24L01 radio. No membership is changed here.
