Power Rectifier Diodes, Bridges and Diode Modules
Power rectifier diodes control current flow in conversion and blocking applications when their reverse-voltage, forward-current and thermal limits are appropriate. This collection brings together axial and stud-style rectifiers, Schottky and fast-recovery power devices, bridge rectifiers and semiconductor modules. It also contains a small number of laser-diode products: those emit light and are not electrical rectifiers. “Power diode” is a broad supplier label, not a single topology or common rating across these choices.
Identify the actual device before comparing ratings
- Single silicon rectifiers: 6A4/6A10, 10A10 and ZP-labelled options include axial and larger mounted forms. A ZP menu selects different stated current grades; the largest number in its title does not apply to every variant. Match the complete part number, voltage grade, polarity, mounting hardware, surge rating and cooling conditions.
- Schottky power rectifiers: MBRS540/B540 SMC devices, MBR20100CT/MBRF20100CT TO-220 variants, STPS41H100CG D2PAK and 10SQ/15SQ/20SQ/30SQ solar blocking listings use different footprints and device arrangements. Check reverse leakage at temperature, forward drop at the working current, reverse-voltage headroom and whether a dual package rating is per leg or total. TO-220 and isolated TO-220F-style packages are not automatically pin- or thermally equivalent.
- Fast-recovery devices: RHRG-labelled TO-247 options and UF/FR assortments require part-specific reverse-recovery, voltage, current and thermal data. Conventional 1N4007 and switching-signal 1N4148 options in mixed packs are not interchangeable with a high-current fast rectifier merely because each is called a diode.
- Bridge rectifiers: DB107/DB207, KBP307, GBU808 and KBPC/GBPC selections contain bridge arrangements rather than a single two-terminal diode. Compare single-phase terminal mapping, package style, repetitive reverse voltage, average rectified current, surge capability and case-temperature/heatsink conditions. A supplier may quote conflicting voltages for KBP307; use the exact documented model instead of a shared title.

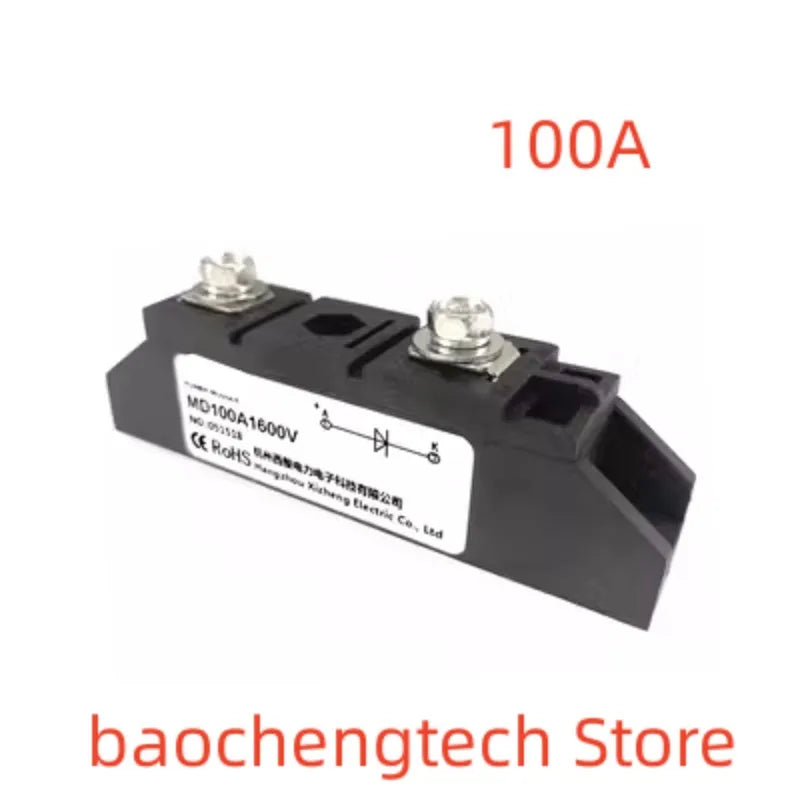

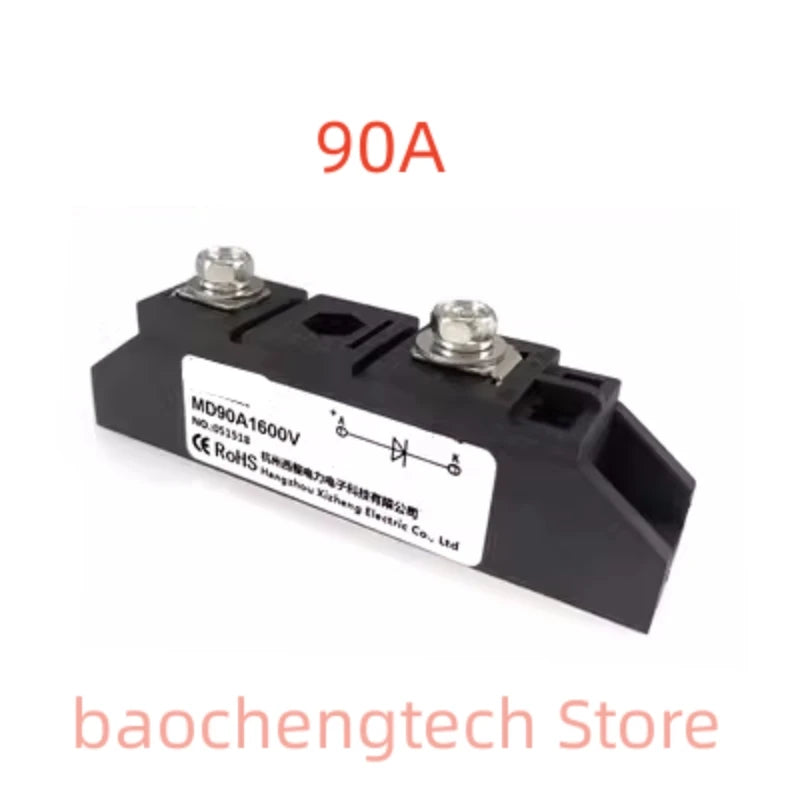

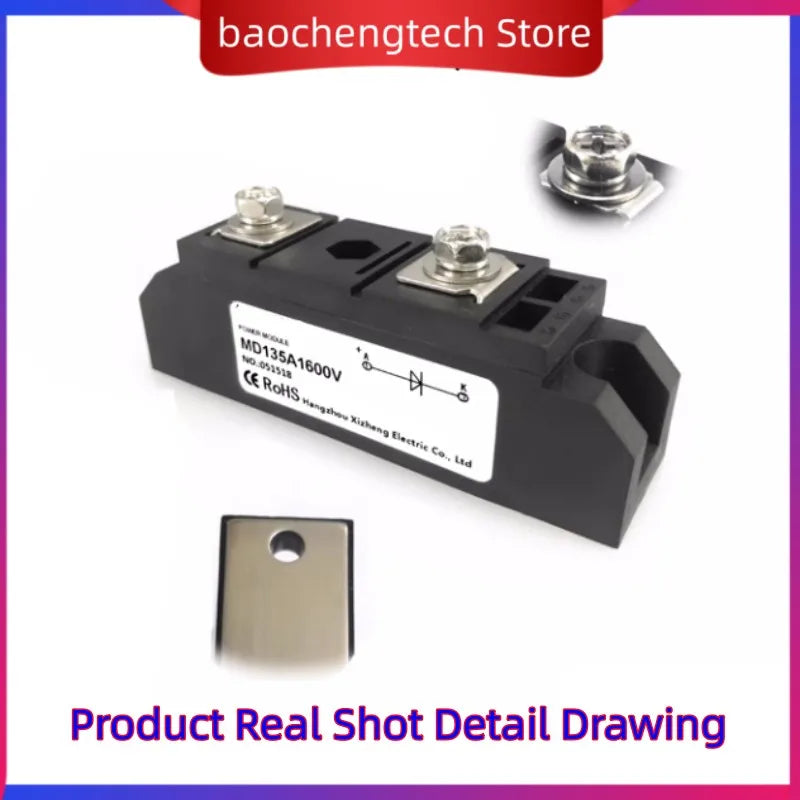

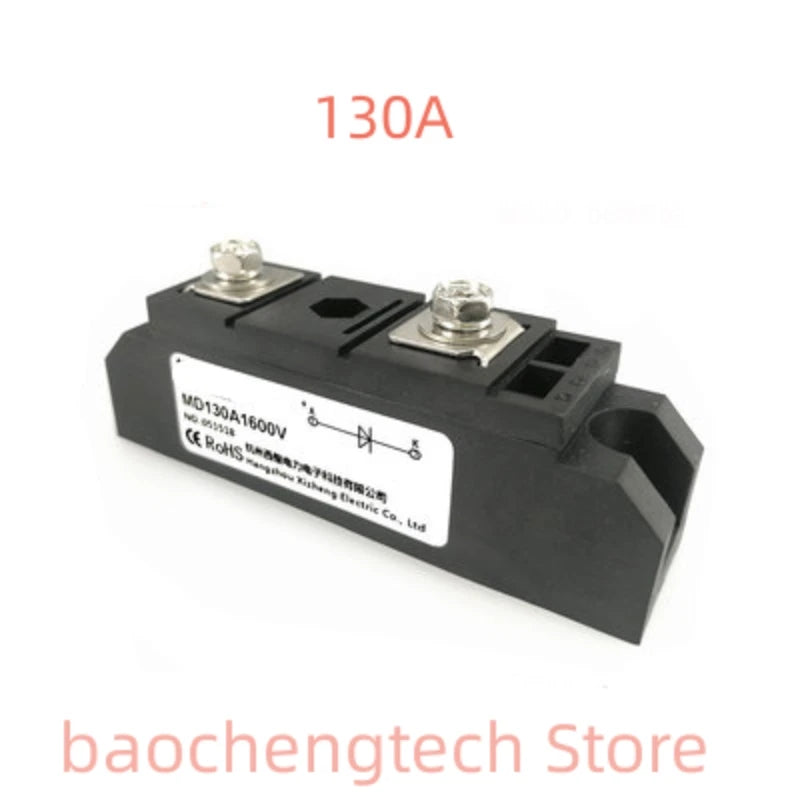

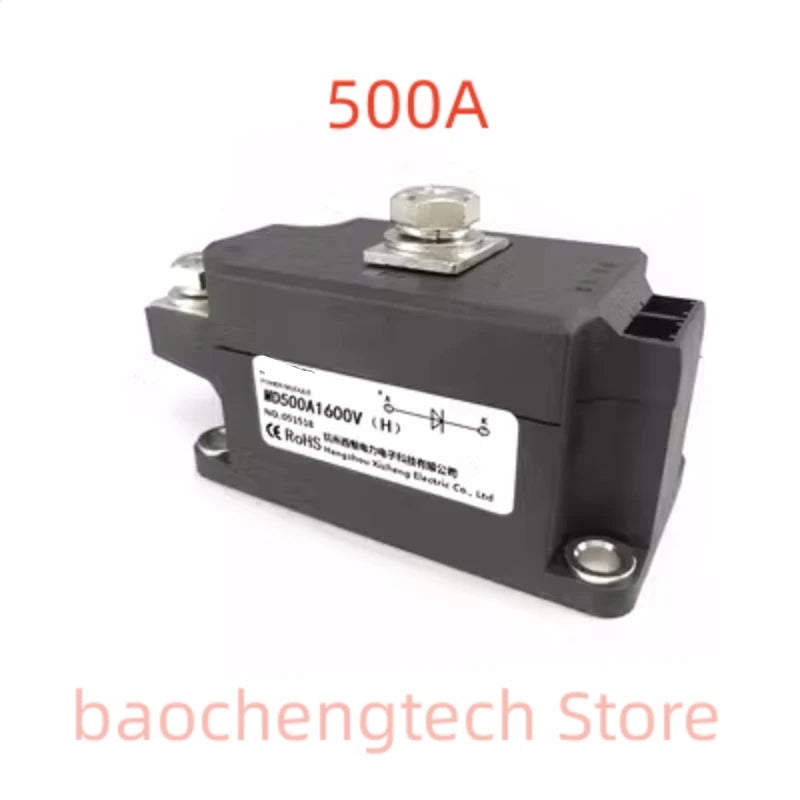

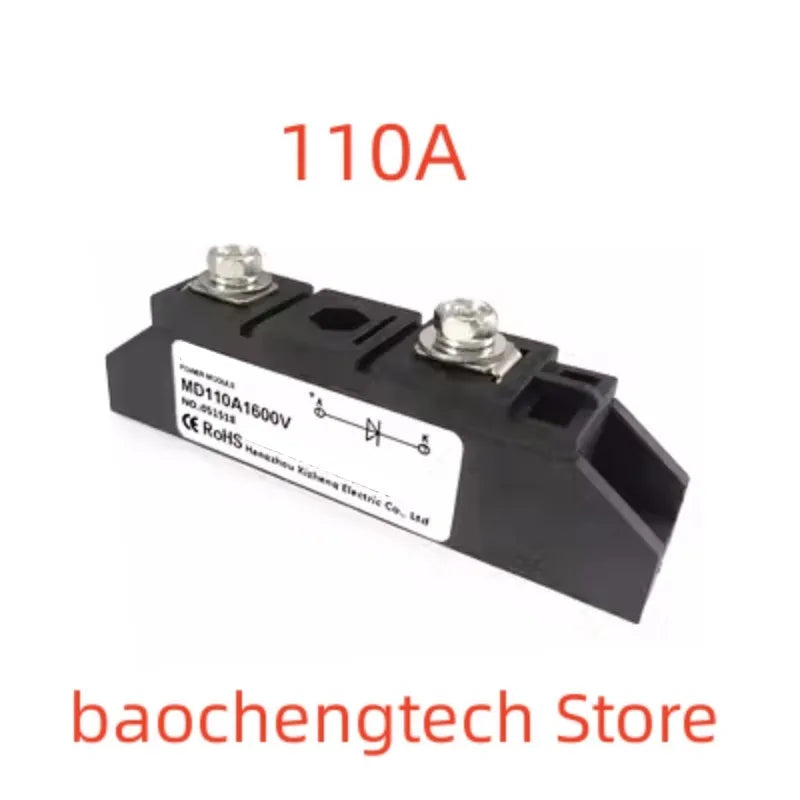

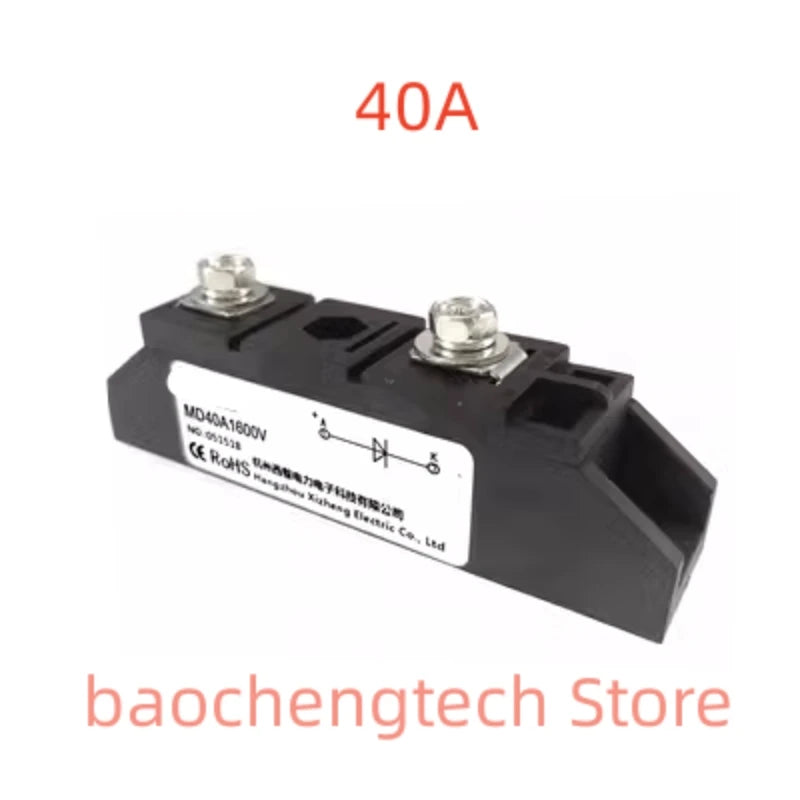

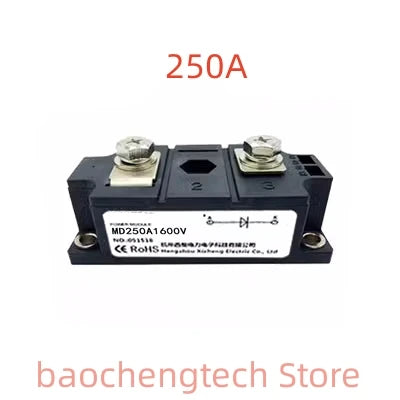

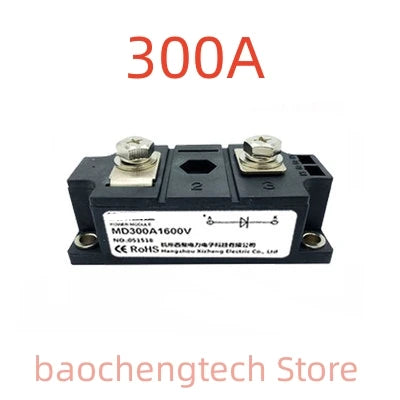

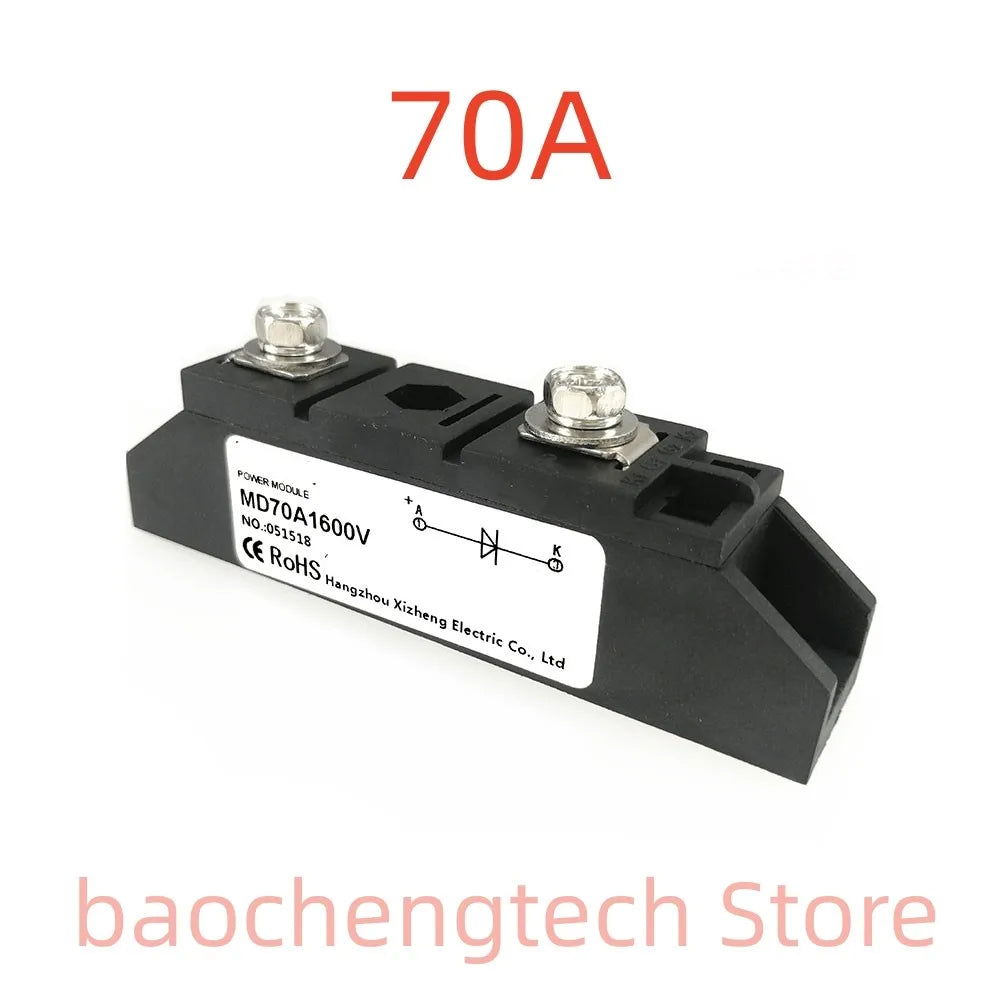

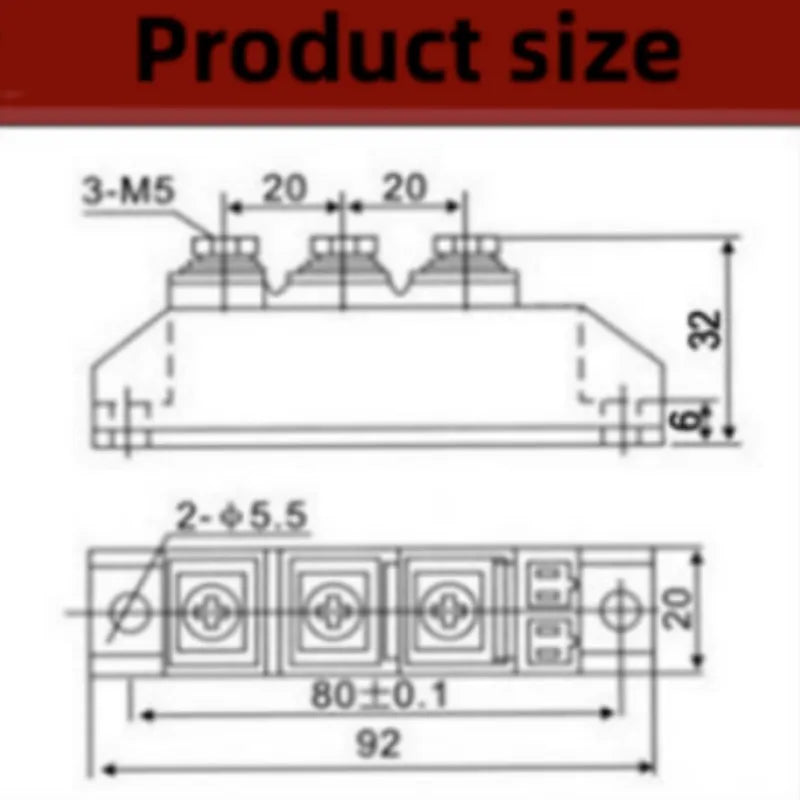

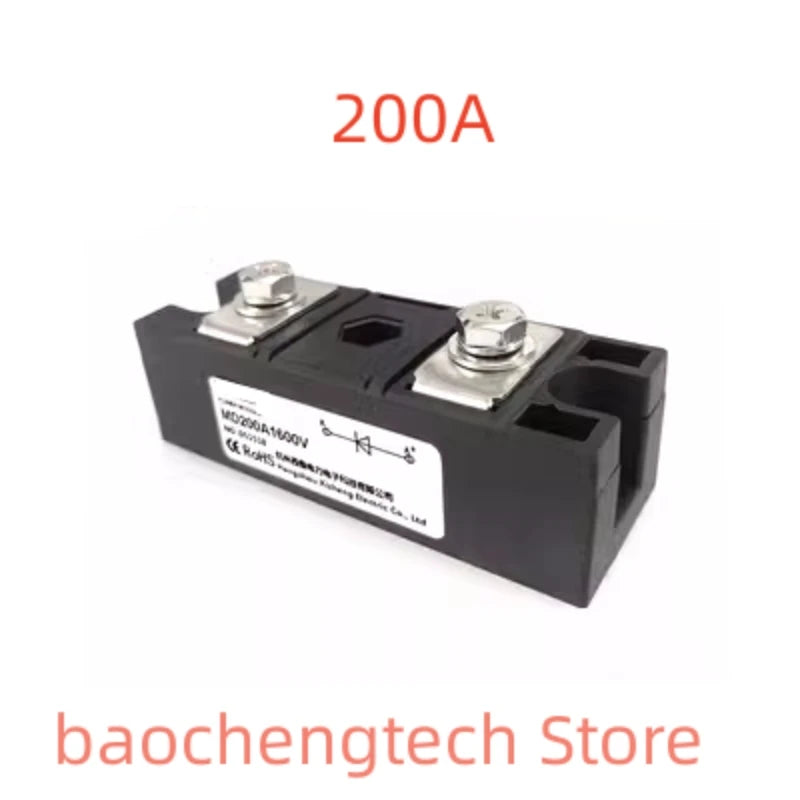

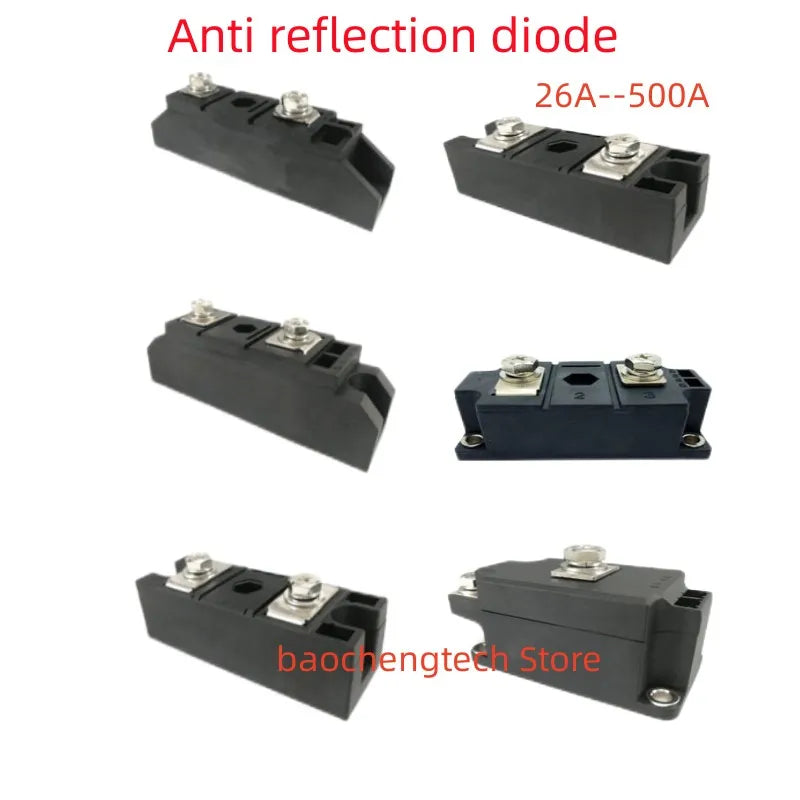

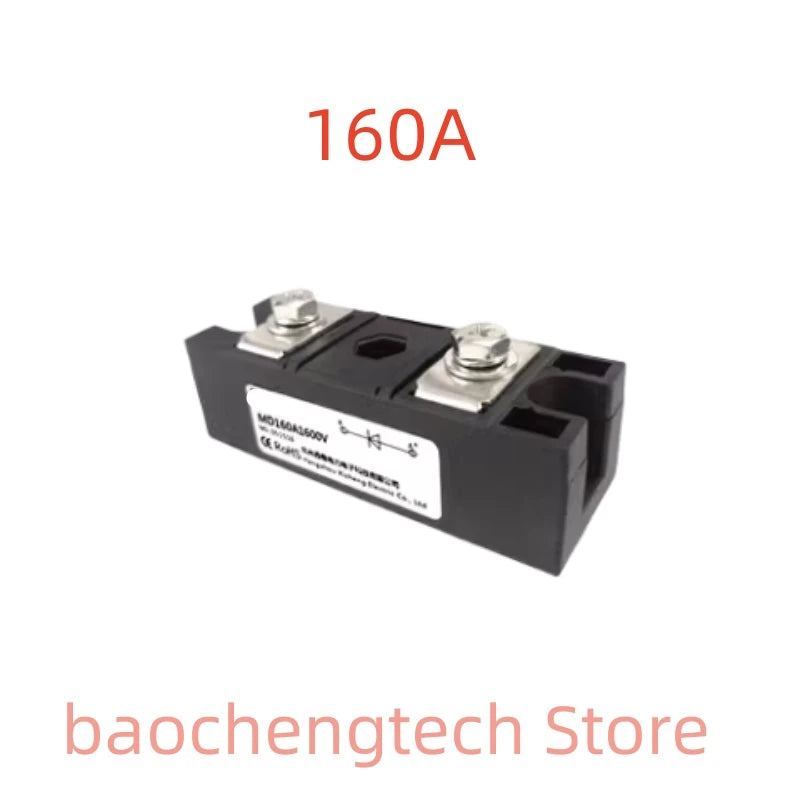

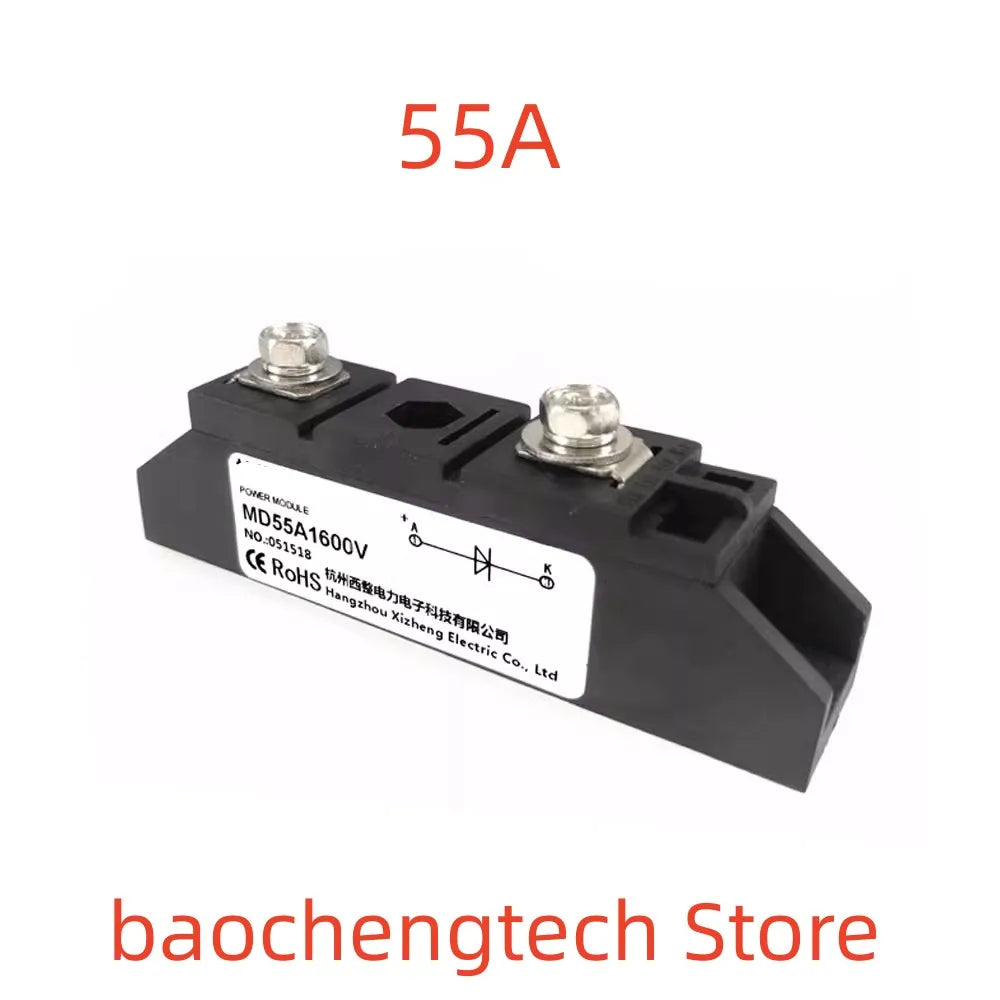

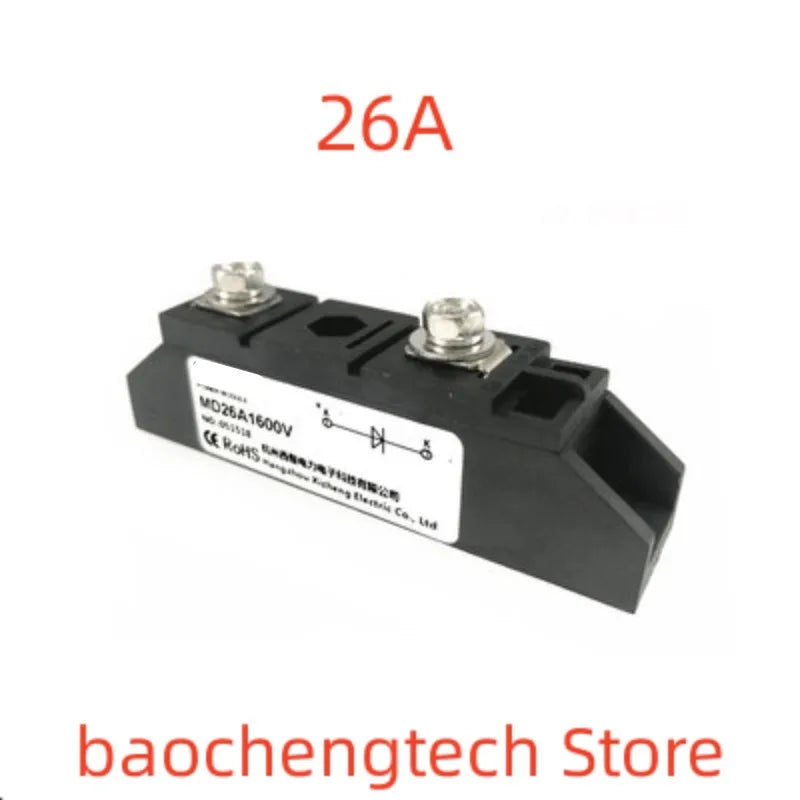

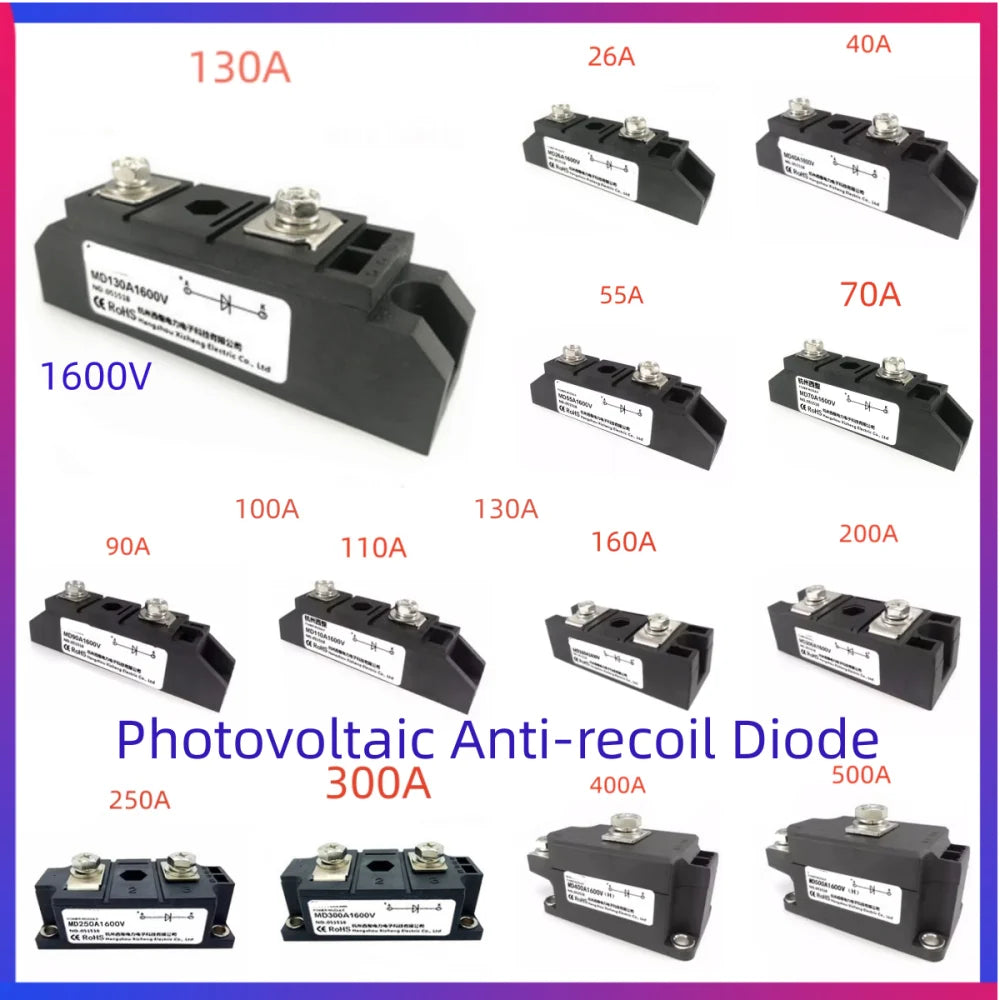

- Thyristor/diode modules: SKKT-labelled items mix controlled semiconductor modules and diode-related seller wording. A thyristor is gate-controlled and not a passive drop-in rectifier diode; verify the precise module's internal circuit, gate connections, isolation, mounting and cooling documentation.

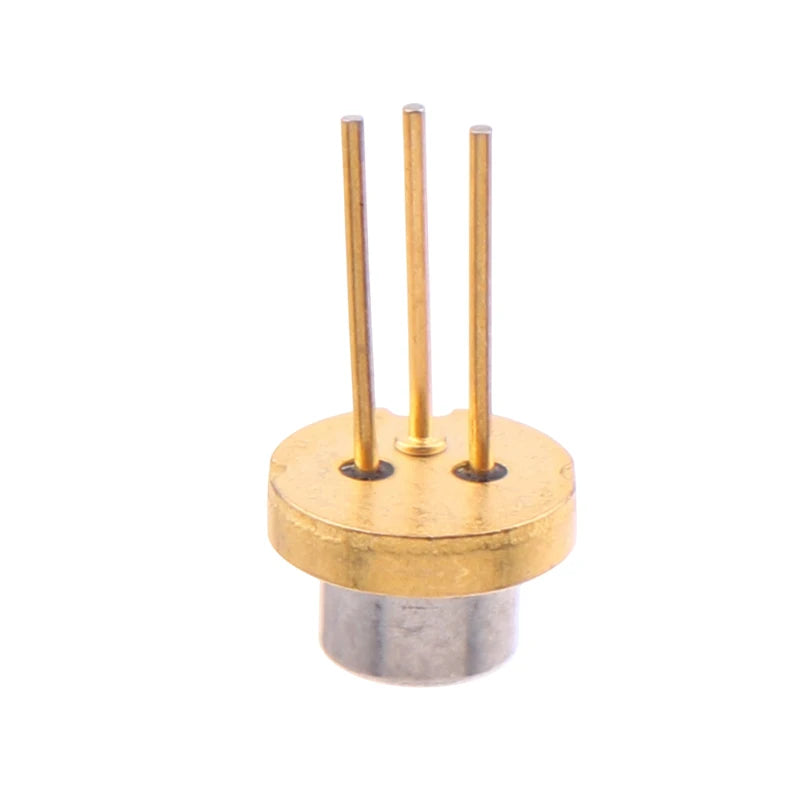

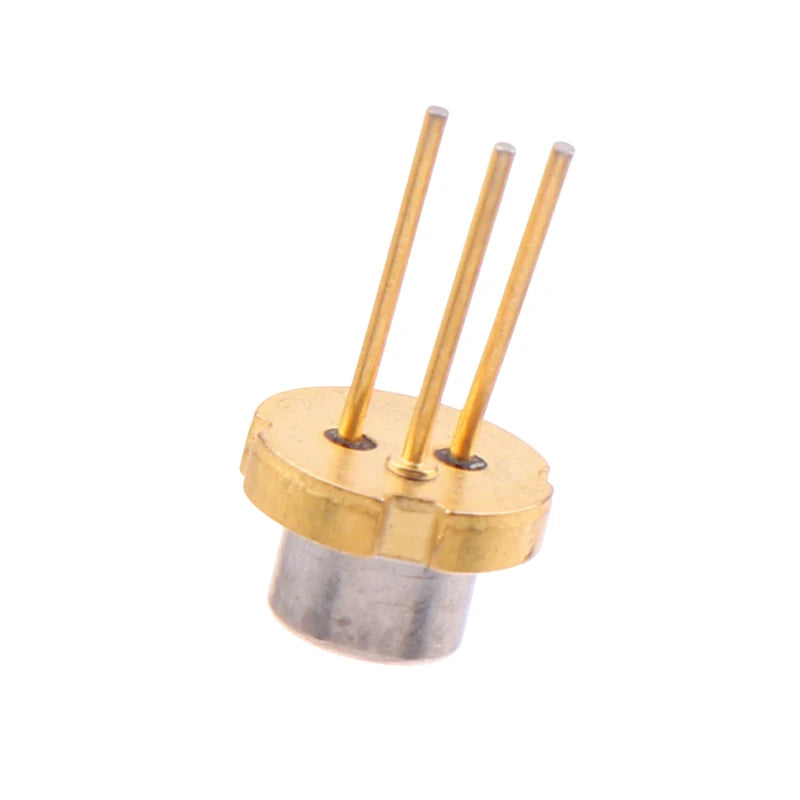

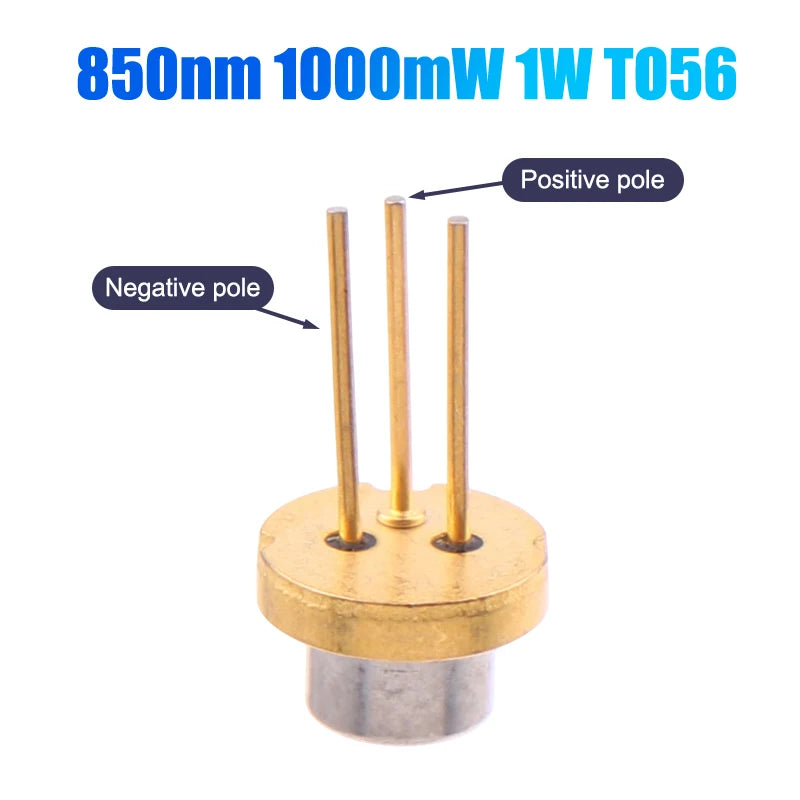

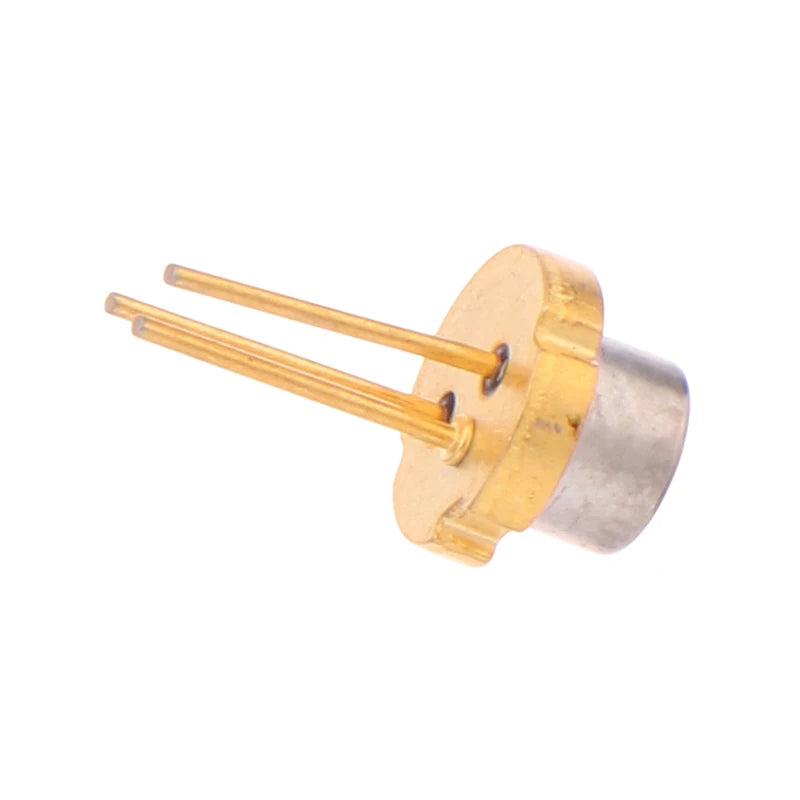

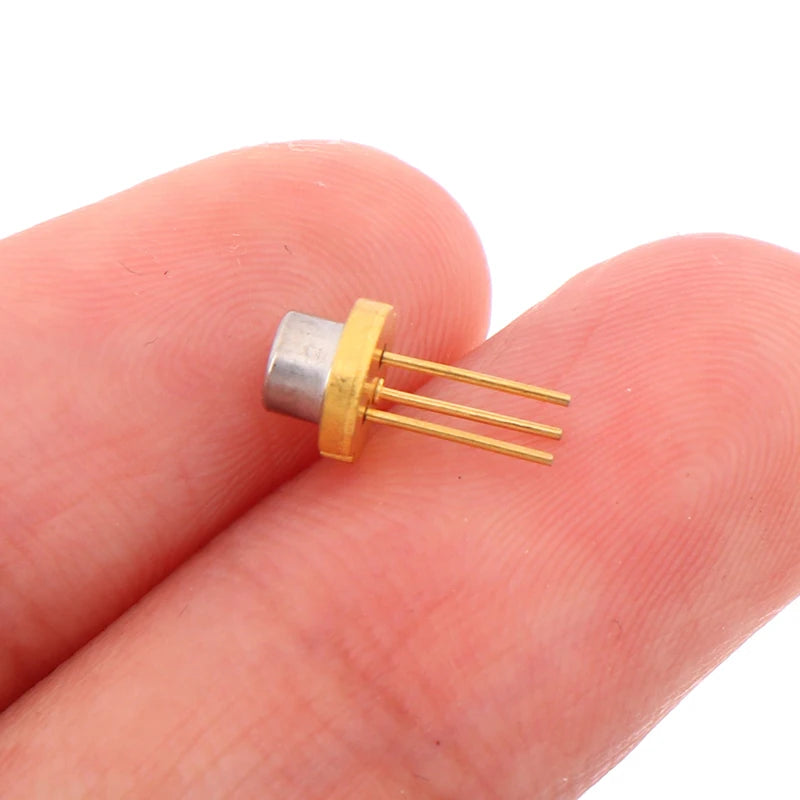

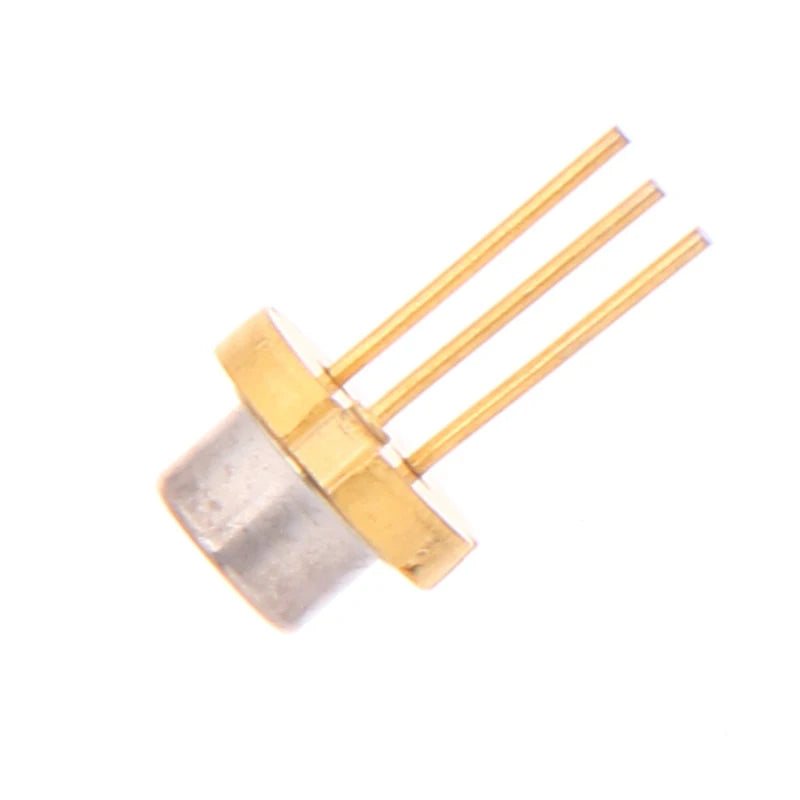

- Laser diodes: 850 nm IR laser emitters and a used fiber-coupled laser system are optical sources, not rectification parts. Their wavelength, optical output, drive electronics and eye-safety requirements are separate from electrical rectifier ratings. A used “260 W” laser-system title does not establish tested optical output, suitability or safe operation of the selected unit.
How to select a power rectifier
- Choose topology first: one diode, a dual common-cathode/other arrangement, a four-diode bridge, a controlled thyristor module, or a laser source. Do not choose by current label before identifying the actual device.
- For rectifiers, establish repetitive peak reverse voltage with transient headroom and current requirements for the actual waveform. Compare average and surge ratings under the manufacturer's specified case temperature and duty conditions.

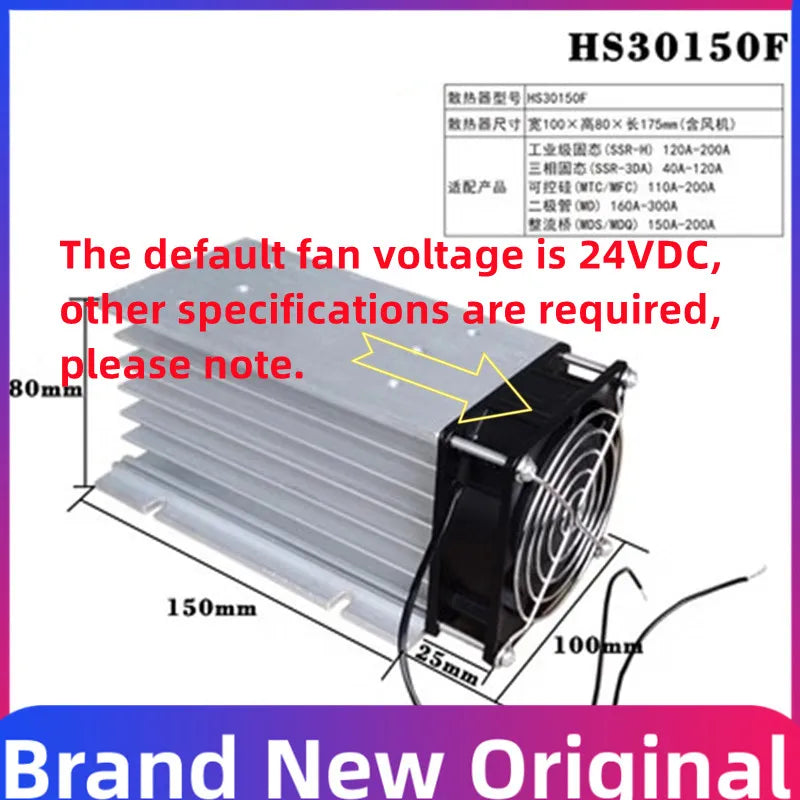

- Estimate conduction and switching losses from part-specific forward voltage, leakage and recovery data, then provide the documented thermal path. A 50 A bridge or 150 A stud-diode headline is not a promise of that current without suitable cooling.

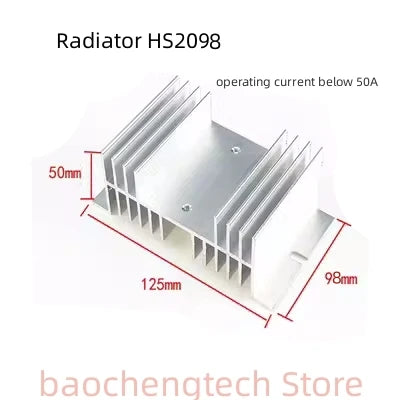

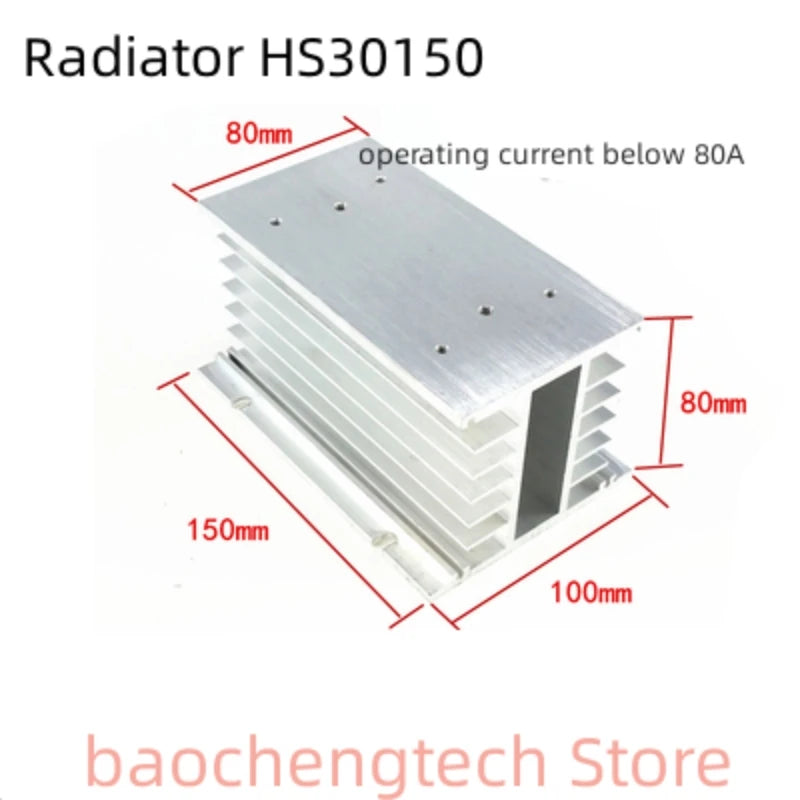

- Match axial body, SMC or D2PAK land pattern, TO-220/TO-247 pinout, stud polarity and thread, or bridge terminal map. Verify whether a module or kit includes heatsink, insulators and mounting hardware.
- Read the selected variant and quantity. Menus labelled “Color” may encode a voltage suffix, current grade, package, model or pack size. For optical laser products, use dedicated device documentation and qualified safety practices rather than rectifier selection criteria.
Purchasing checklist
Record the exact model and supplier documentation, device technology and topology, reverse-voltage rating, operating/peak current and test conditions, forward drop or recovery needs, package and polarity, thermal design, contents and quantity. For laser items, record wavelength, verified optical output, drive and safety documentation separately. No manufacturer authenticity, certification or equipment compatibility is established merely by an imported product title.
Frequently asked questions
Is a KBPC bridge the same as a high-current power diode?
No. A bridge contains several rectifying paths and has AC and DC terminals; a single diode has a different connection and function.
Can a Schottky replace a fast-recovery silicon diode?
Not on current rating alone. Compare reverse voltage, temperature-dependent leakage, forward loss, surge, switching behavior and package against the actual circuit.
Does a ZP150A option mean every ZP variant is 150 A?
No. The selector includes different ZP model numbers and stated current grades. Check the chosen model's datasheet and cooling conditions.
Is the 850 nm laser diode a rectifier?
No. It is a light-emitting device with optical and laser-safety requirements. It is present in the broad assortment but is not a substitute for an electrical power rectifier.
