Rectifier Diodes, Schottky Parts and Bridge Modules
Rectifier diodes conduct primarily in one direction and are used in power conversion, reverse-current blocking and related circuits when their actual voltage, current and thermal limits fit. This collection spans axial and surface-mount silicon rectifiers, Schottky and fast-recovery parts, bridge rectifiers, larger modules and assorted kits. It also contains switching diodes, Zener parts, DIAC triggers, generator replacement assemblies and active “ideal diode” boards. A shared title can mix device types, so choose the precise variant and datasheet rather than applying one headline specification to every option.
Identify the actual diode type

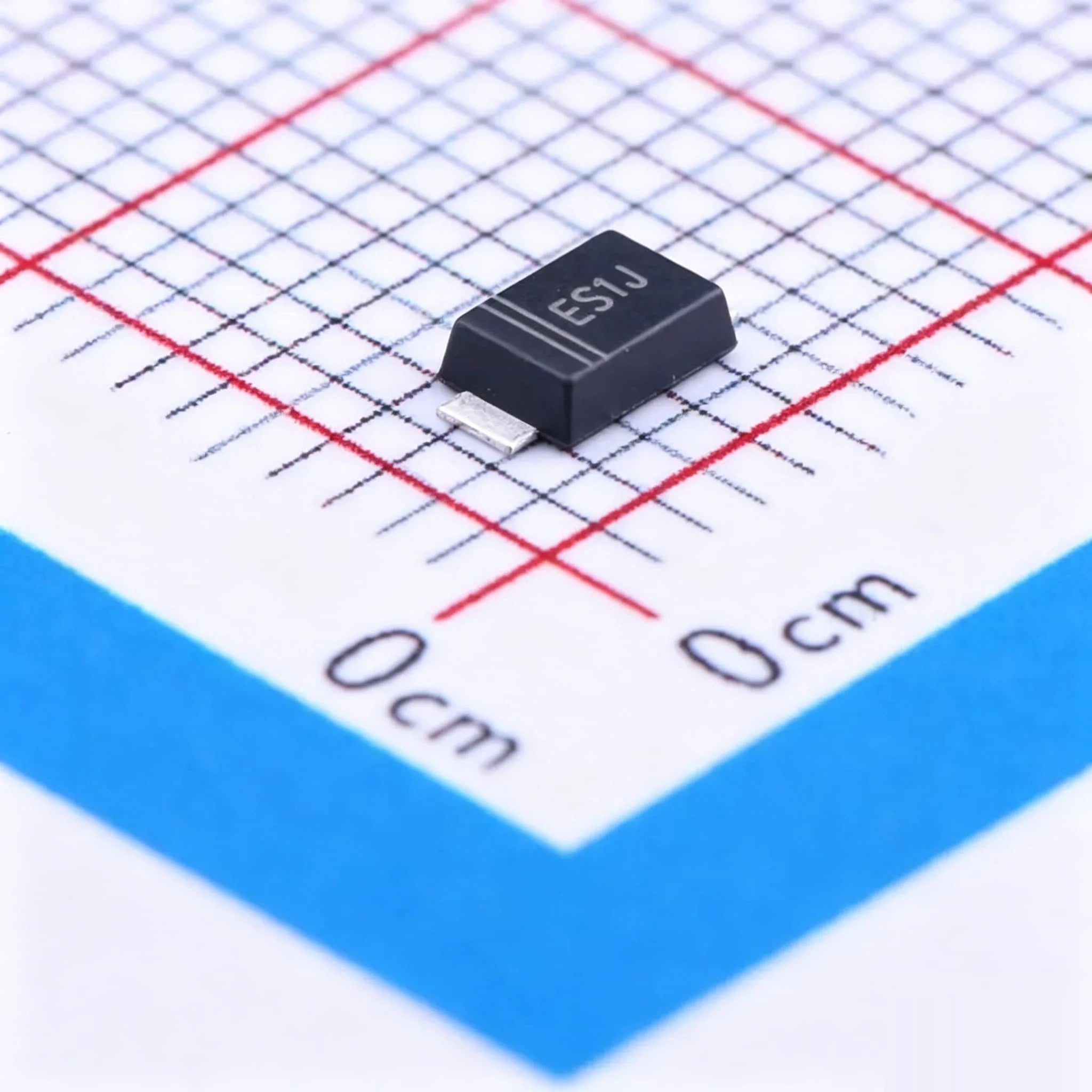

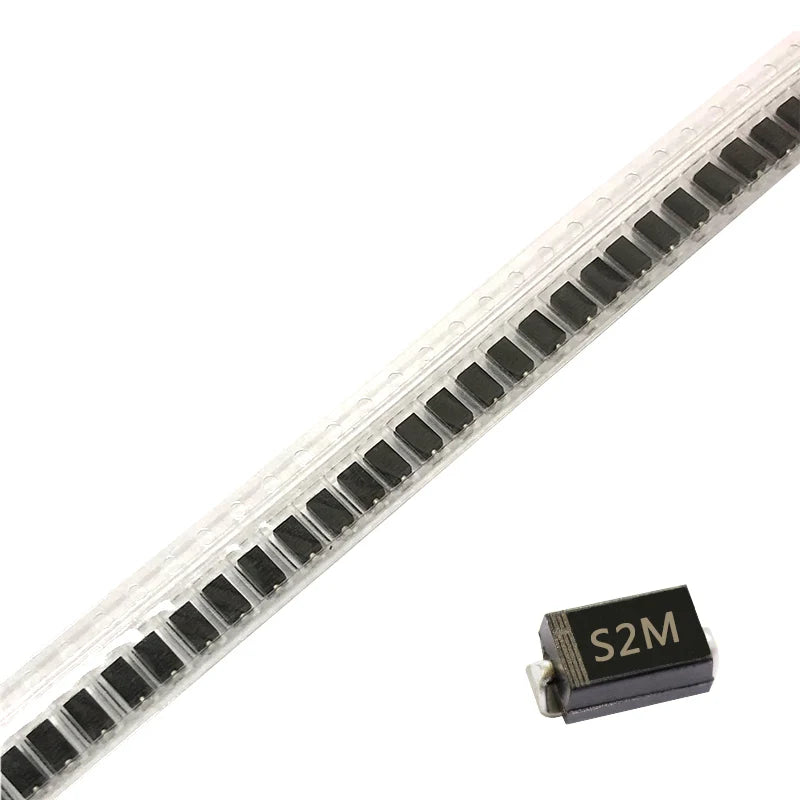

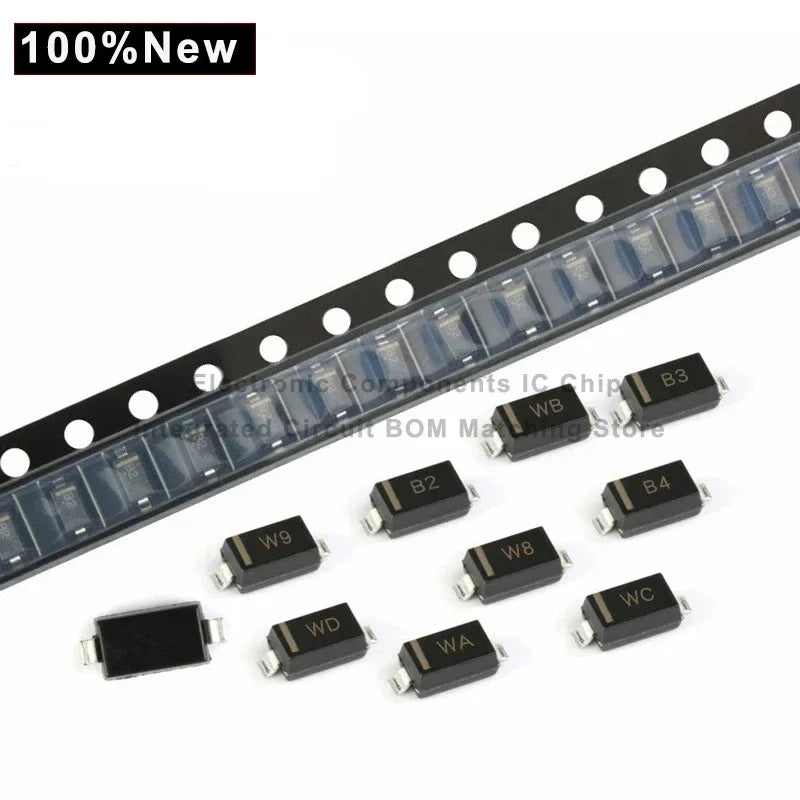

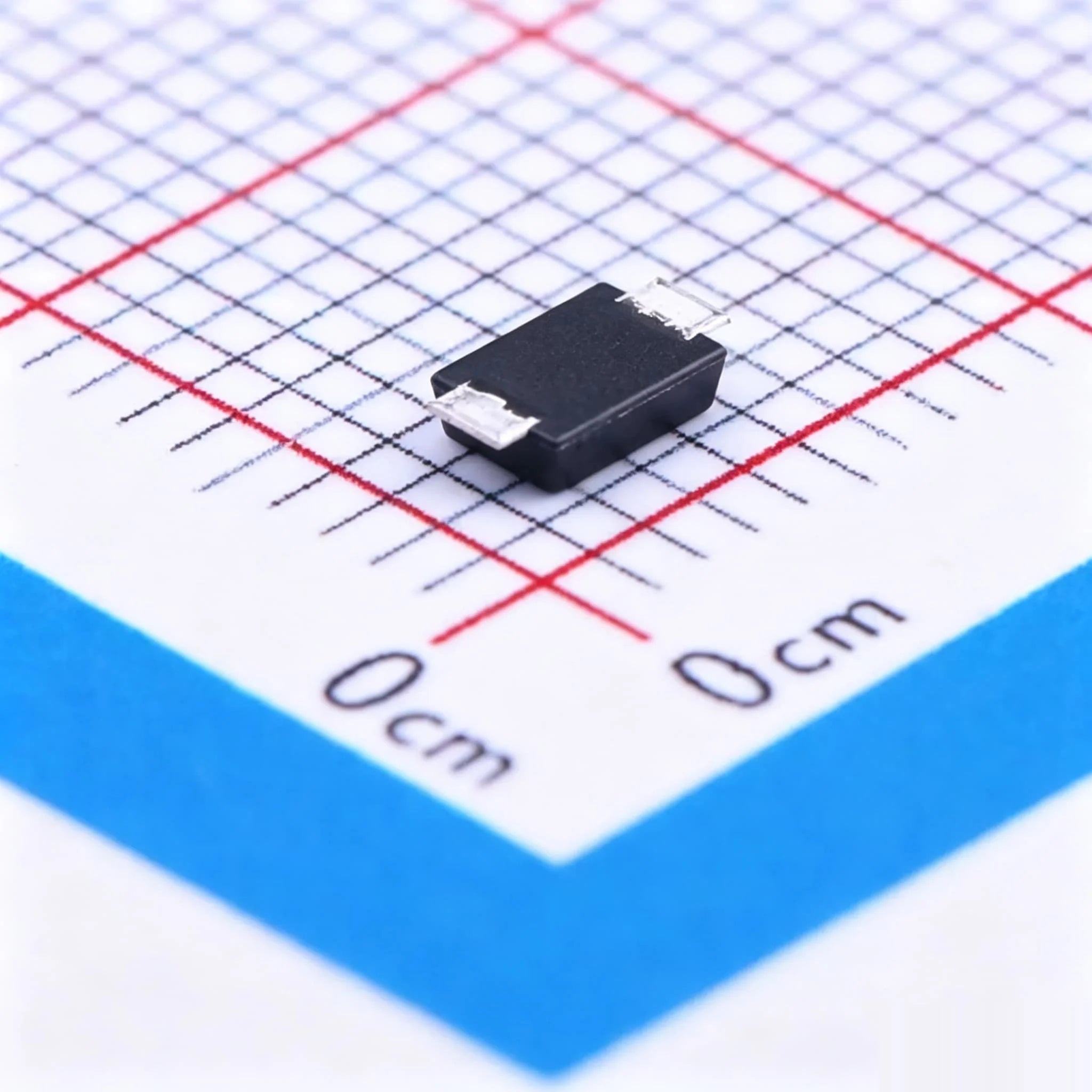

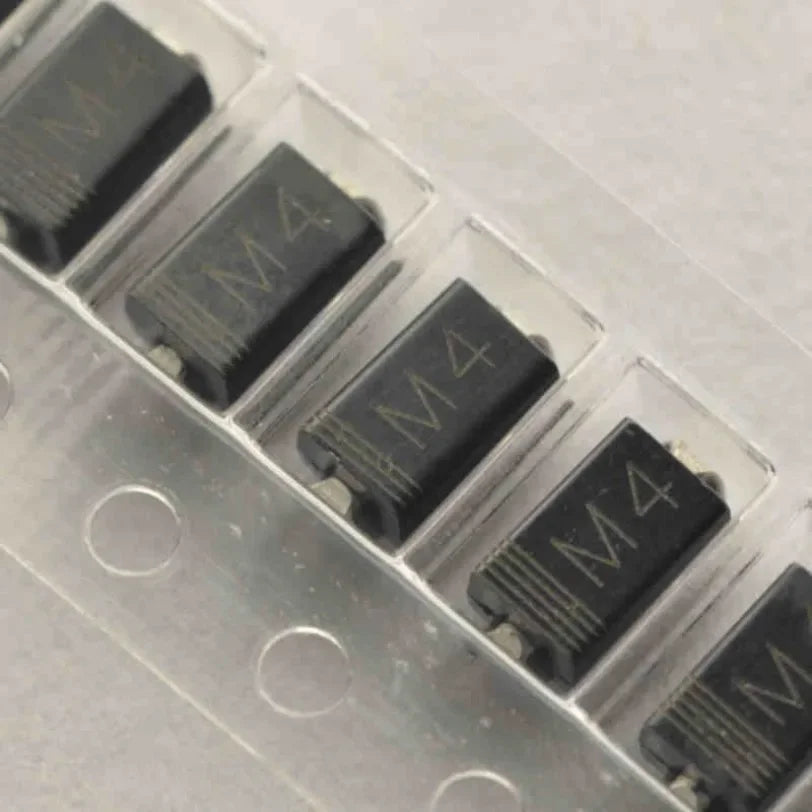

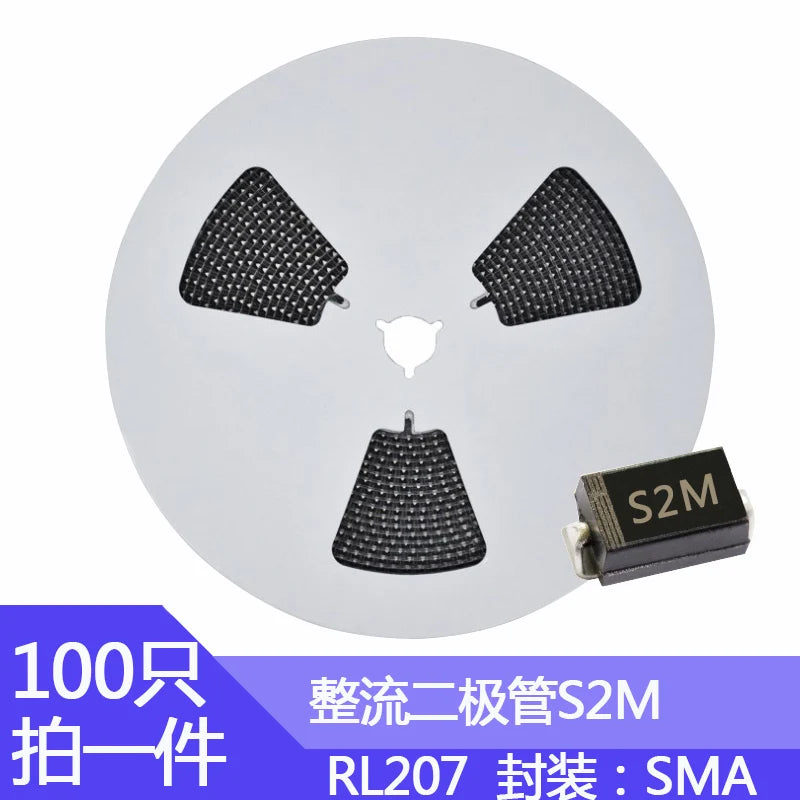

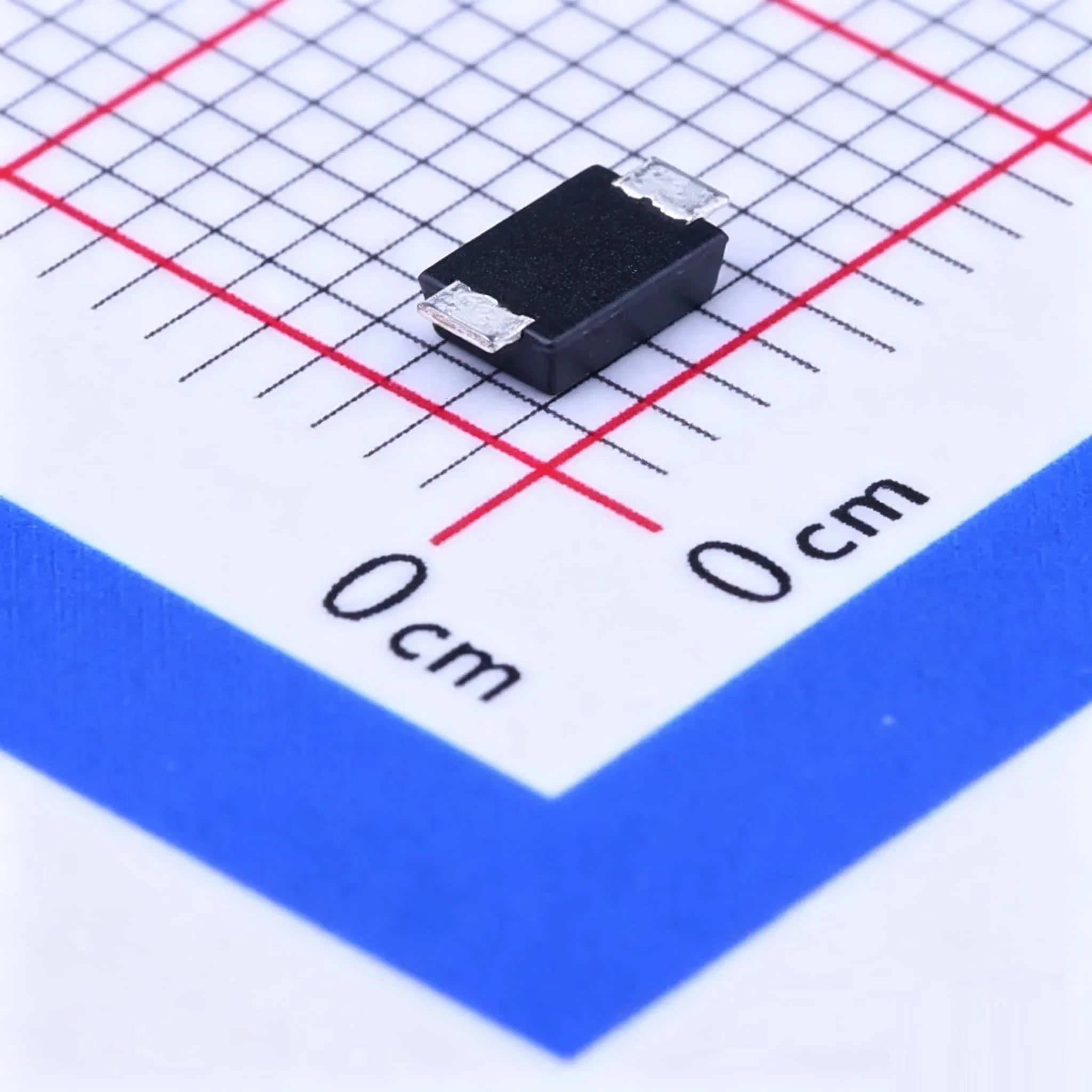

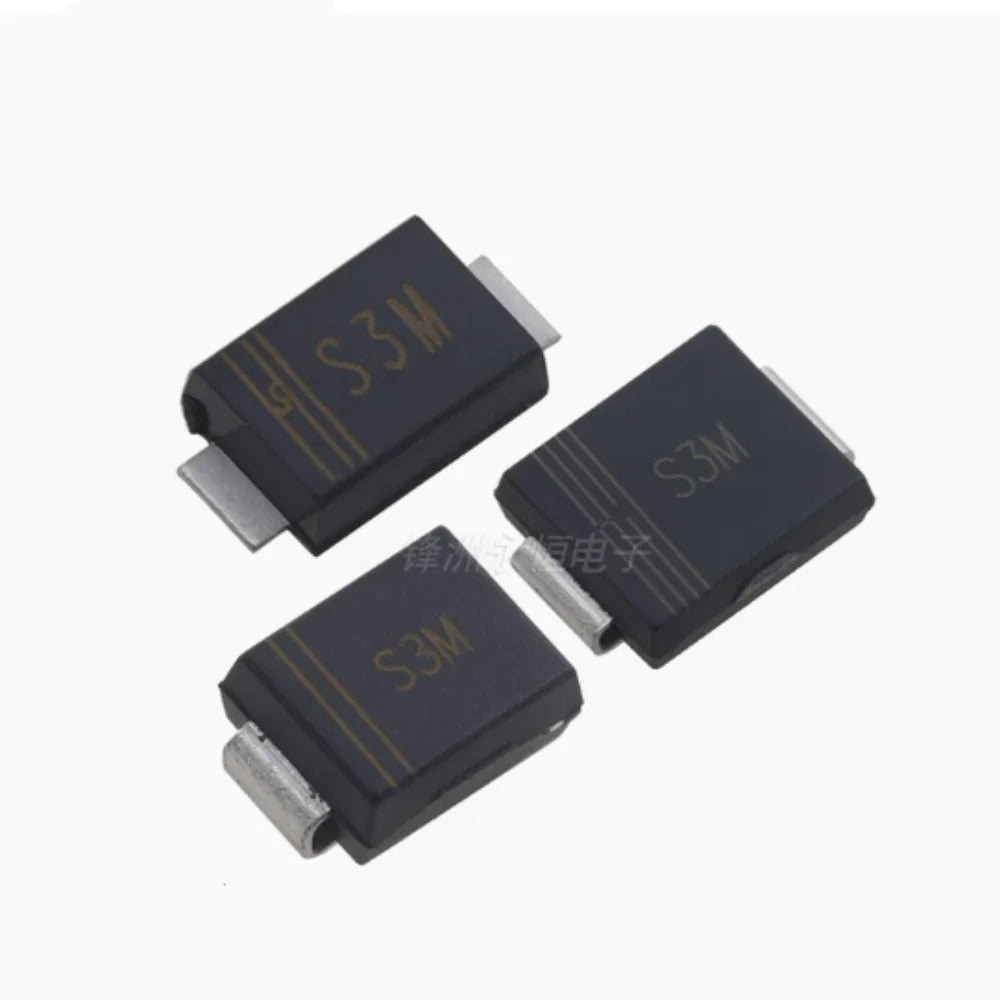

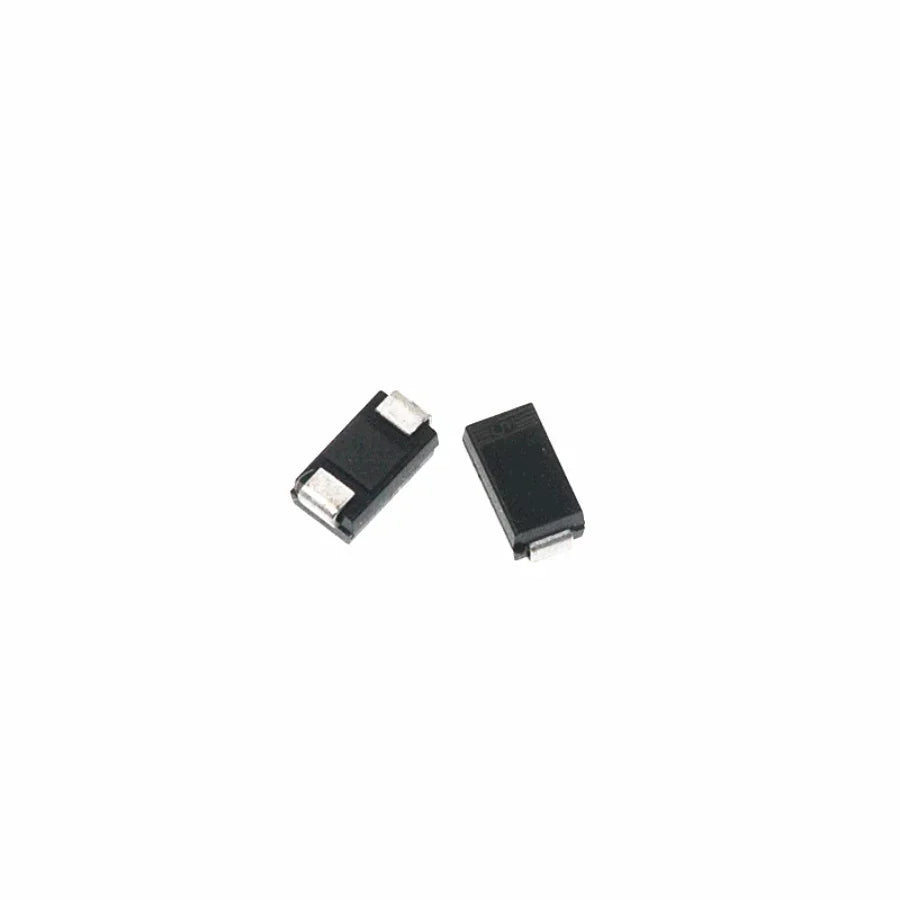

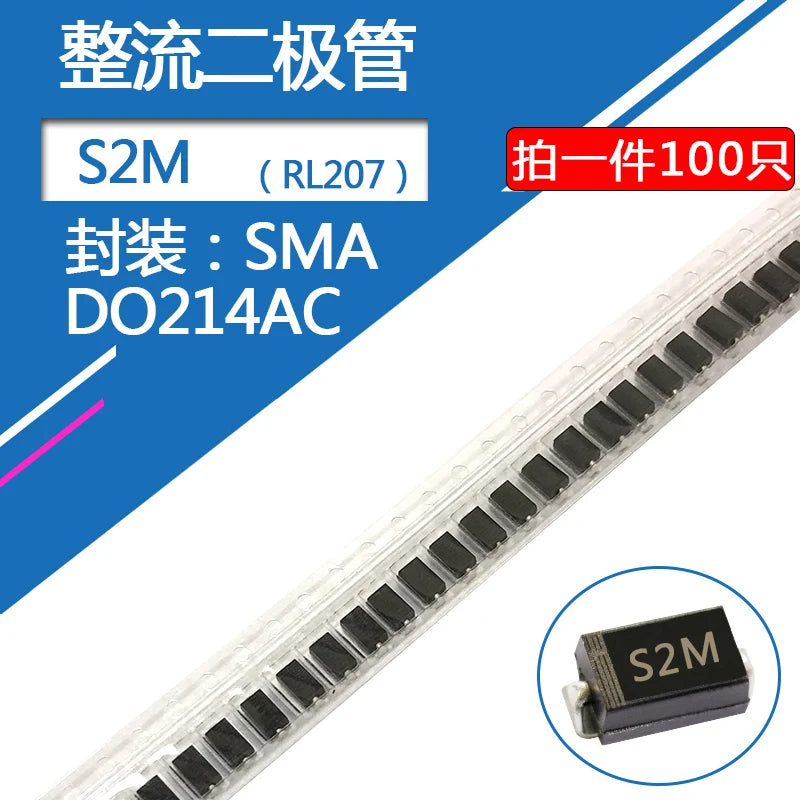

- Standard silicon rectifiers: 1N4001–1N4007 and SMD M1/M4/M7-style listings are common 1 A-class families with different repetitive reverse-voltage grades; 1N5400–1N5408, 6A10, 10A10 and other larger axial types serve different current and package needs. Check the exact suffix, forward-current test conditions, reverse-voltage rating, surge rating and package dimensions. Several seller titles incorrectly call 1N4007 a Schottky diode or quote 1200 V; do not infer either from such wording. Match the selected part to a reliable part-specific datasheet.

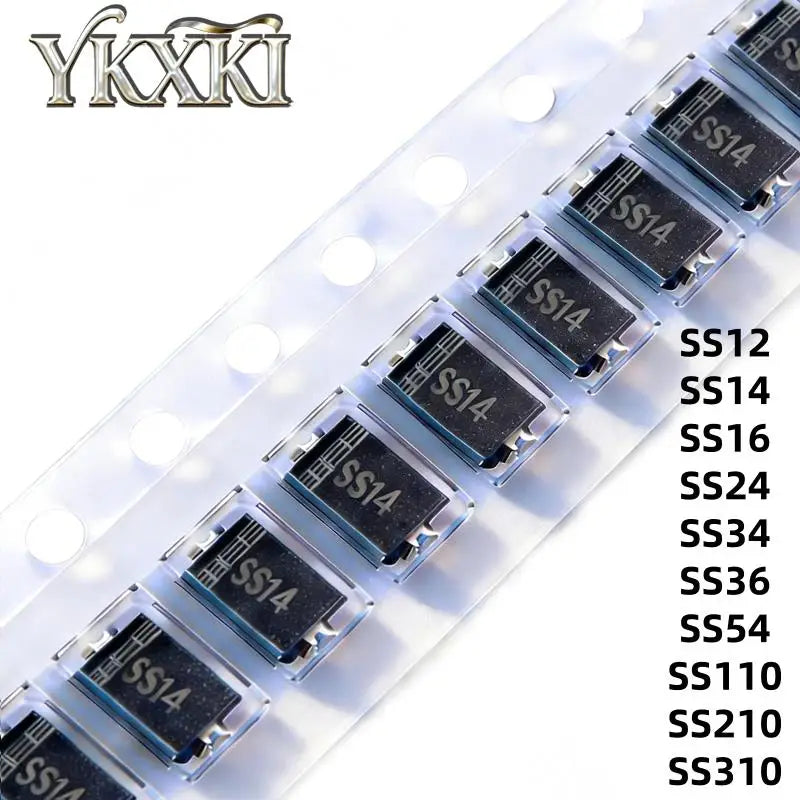

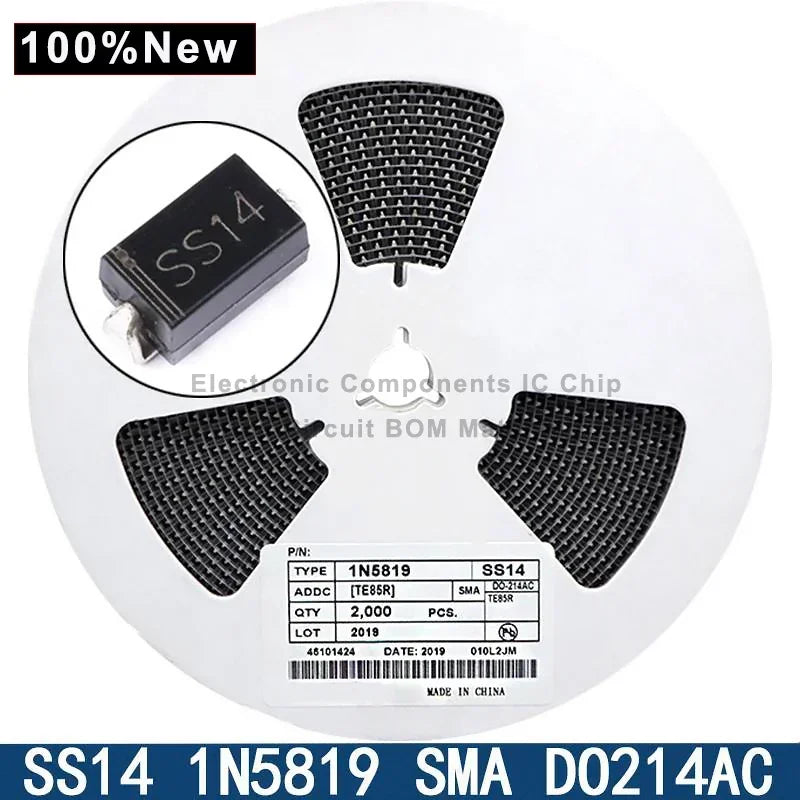

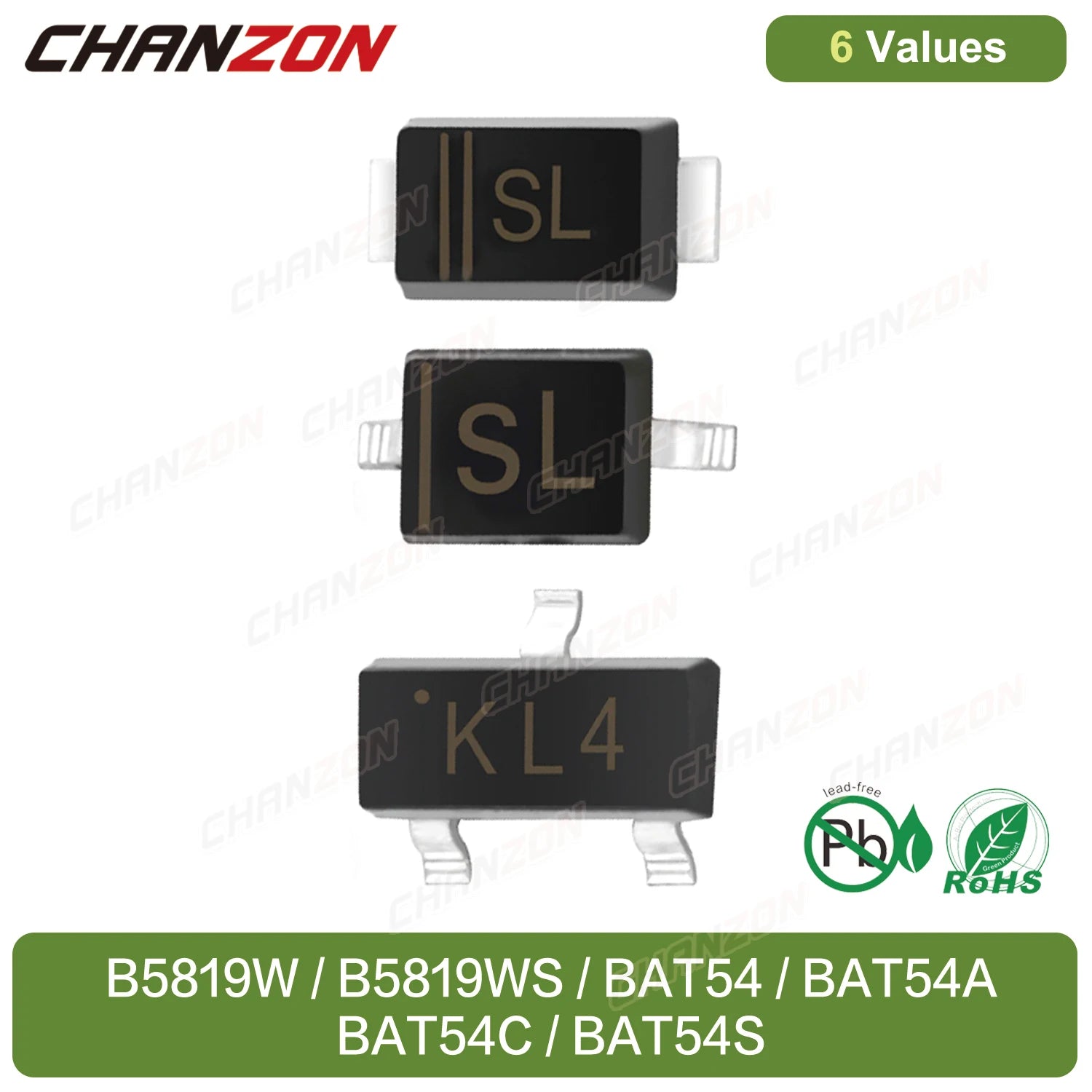

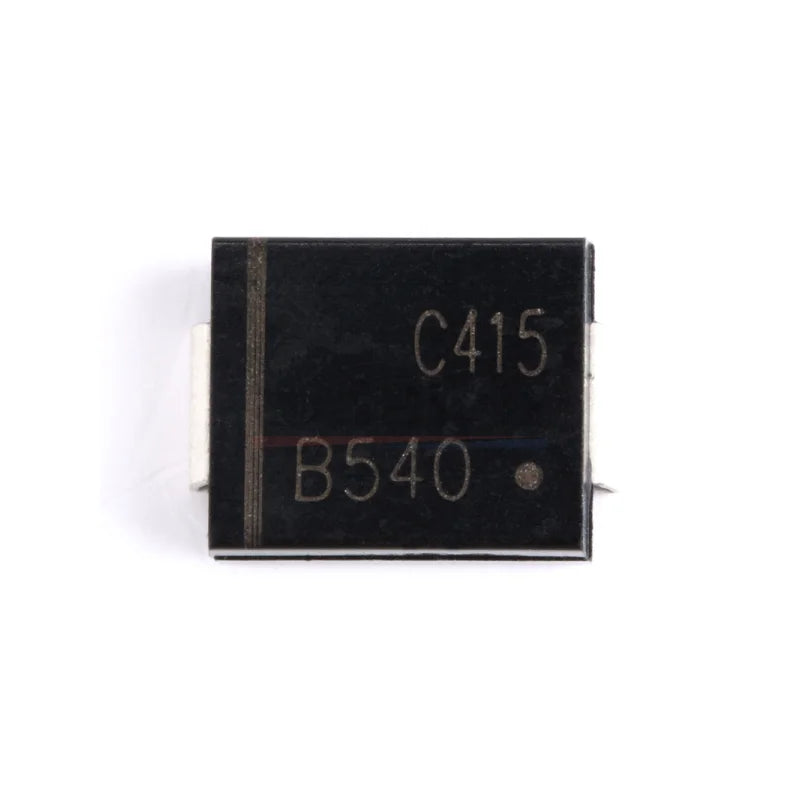

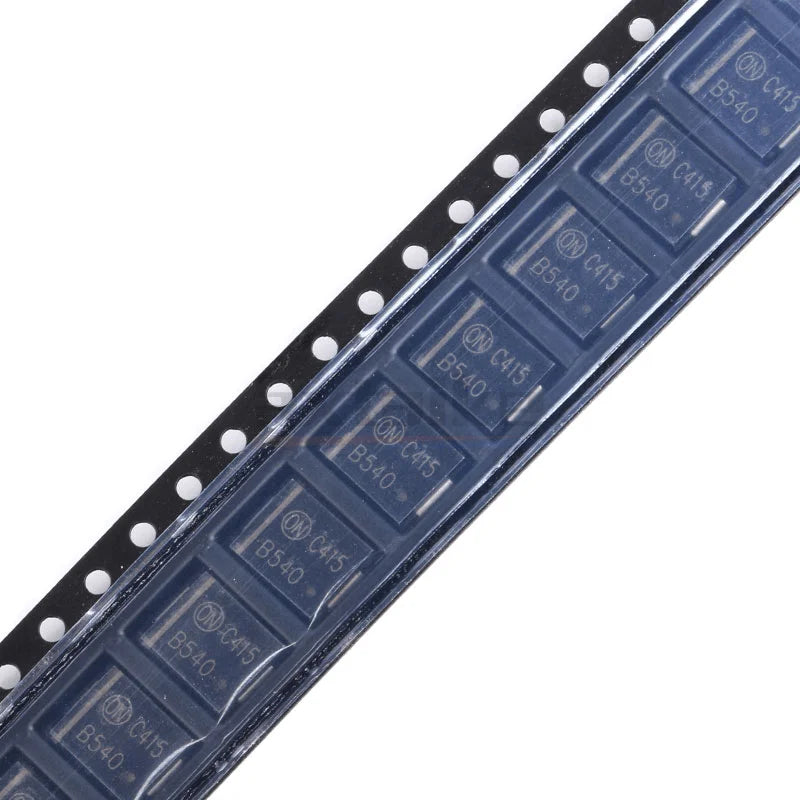

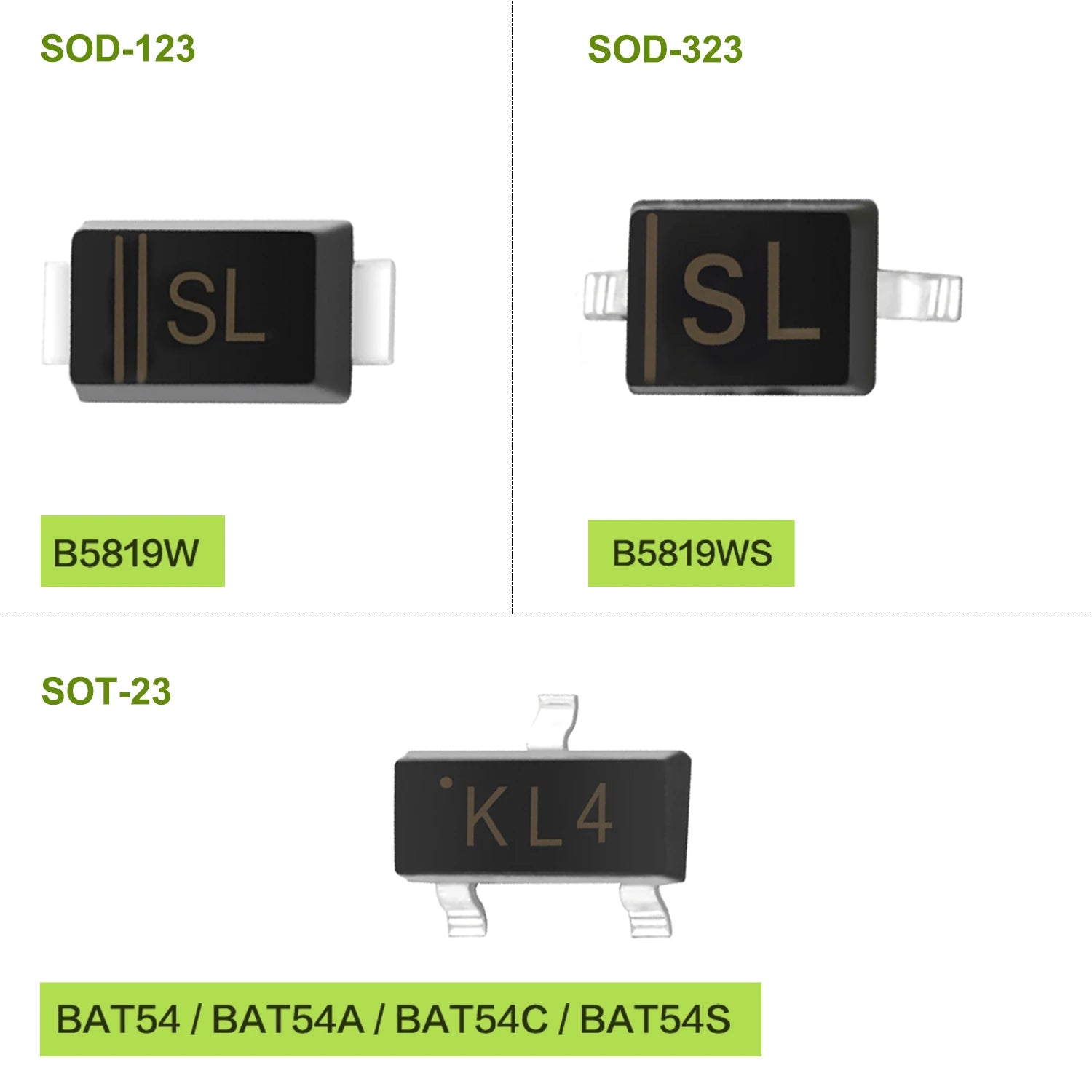

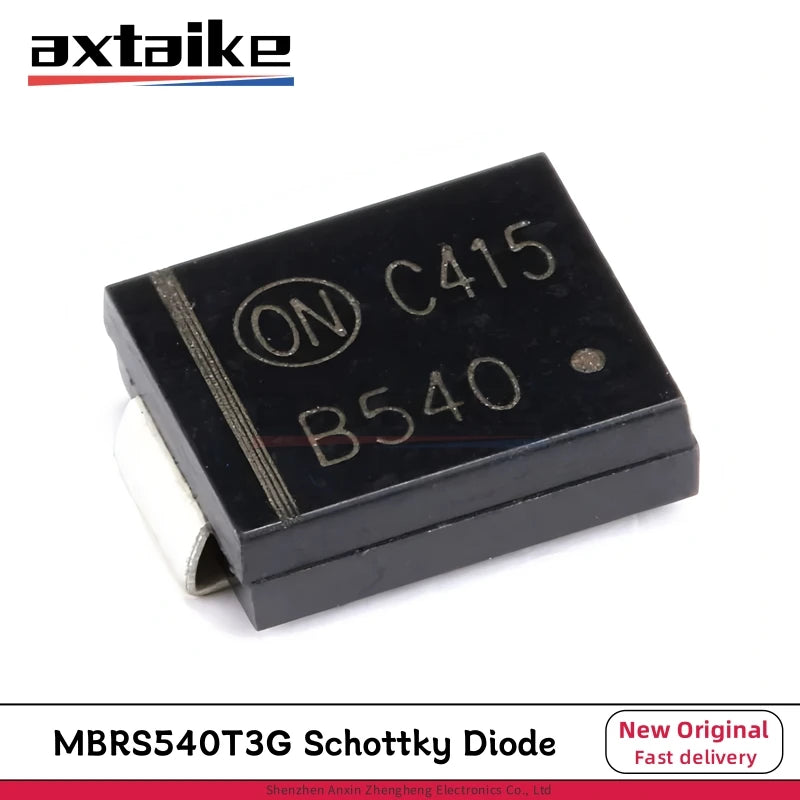

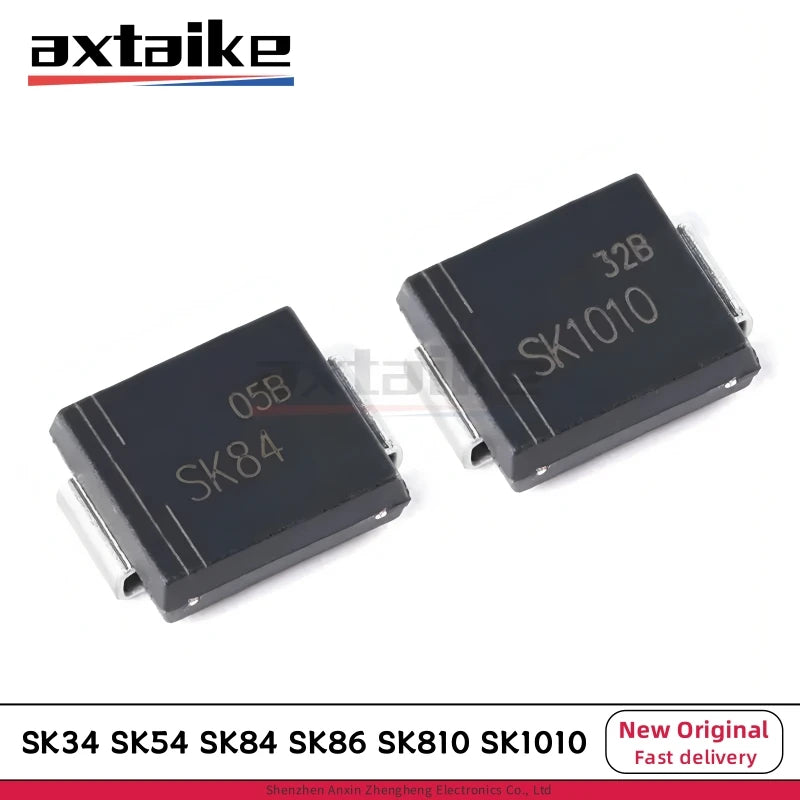

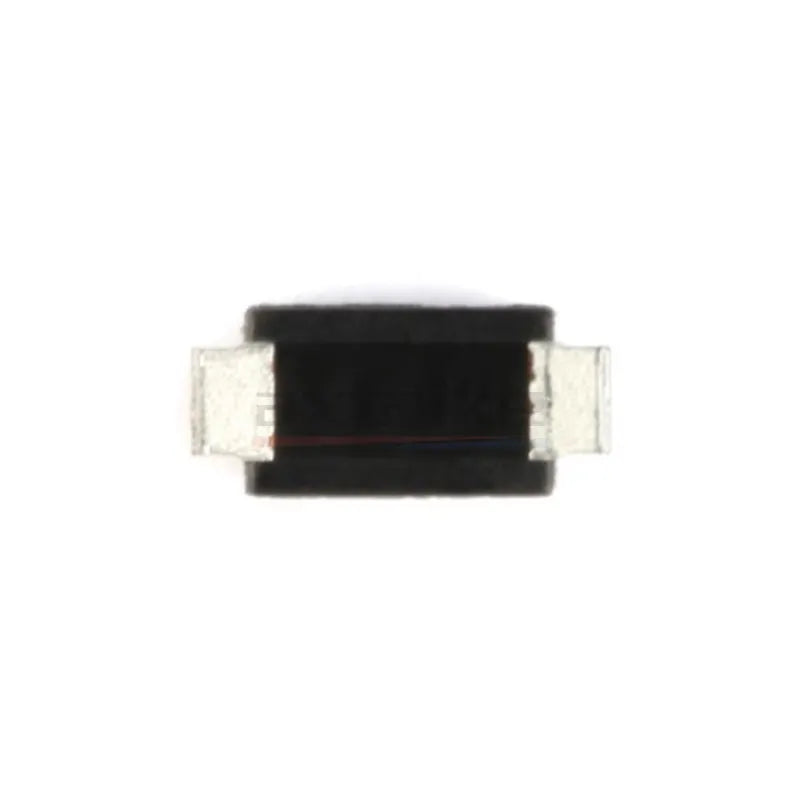

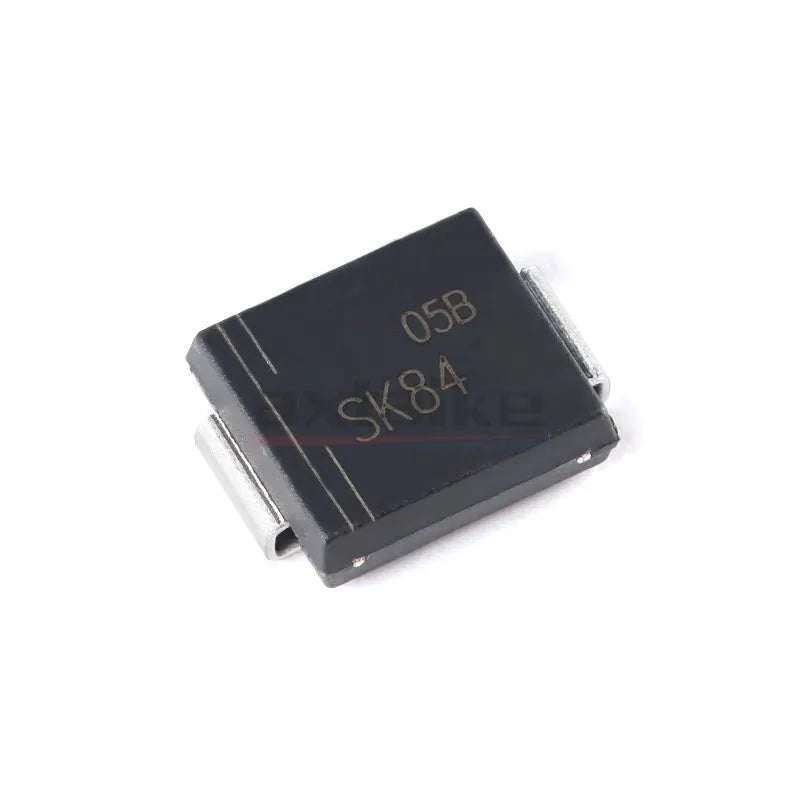

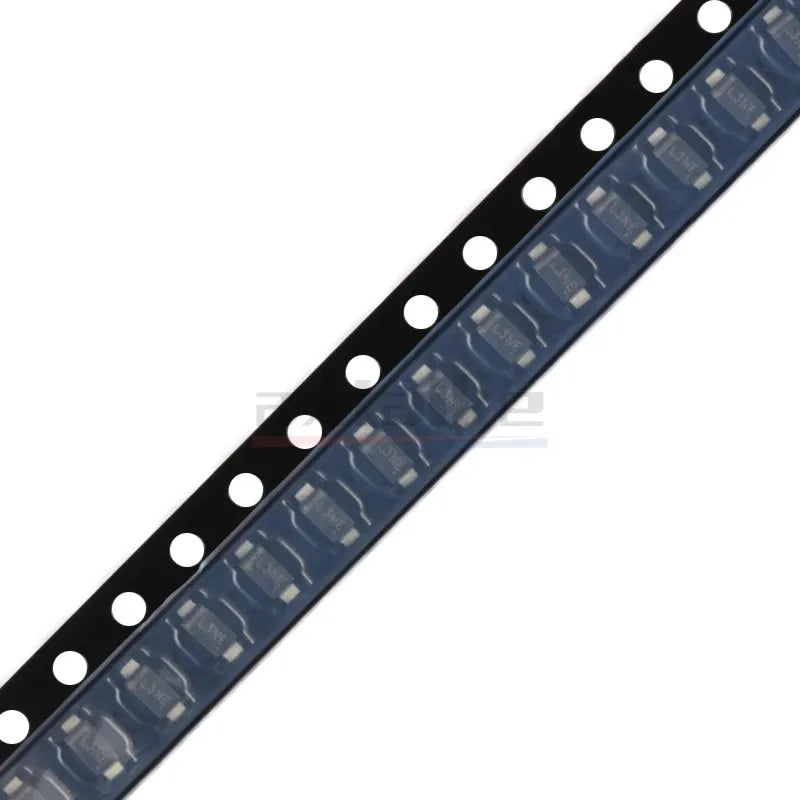

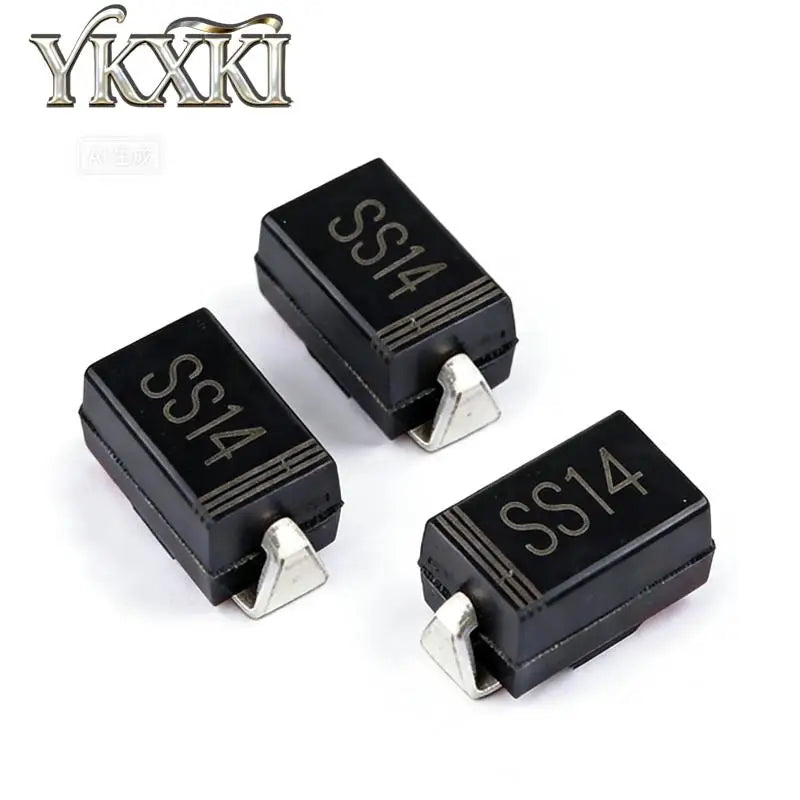

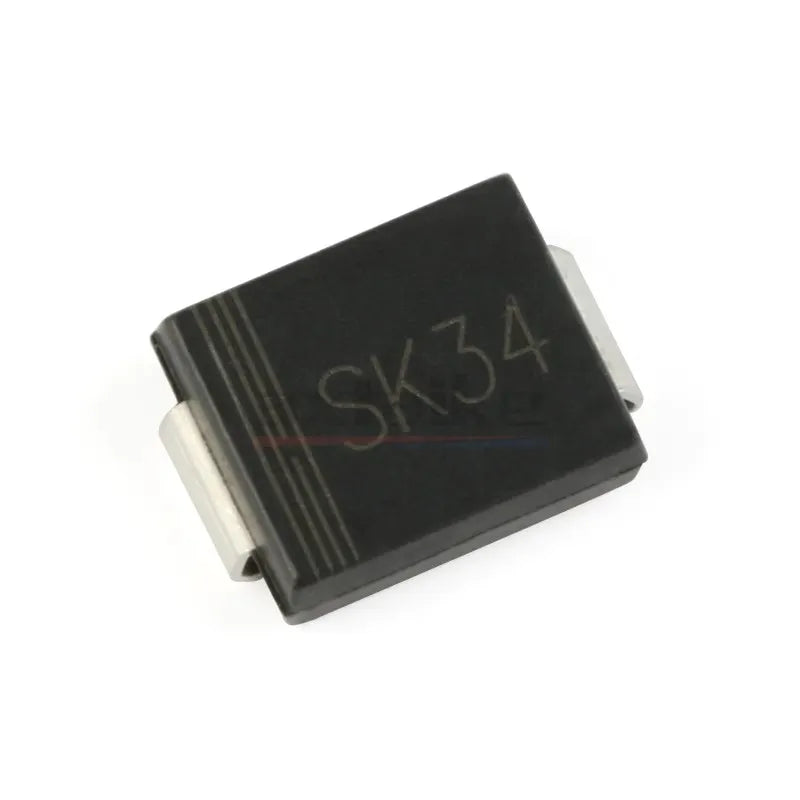

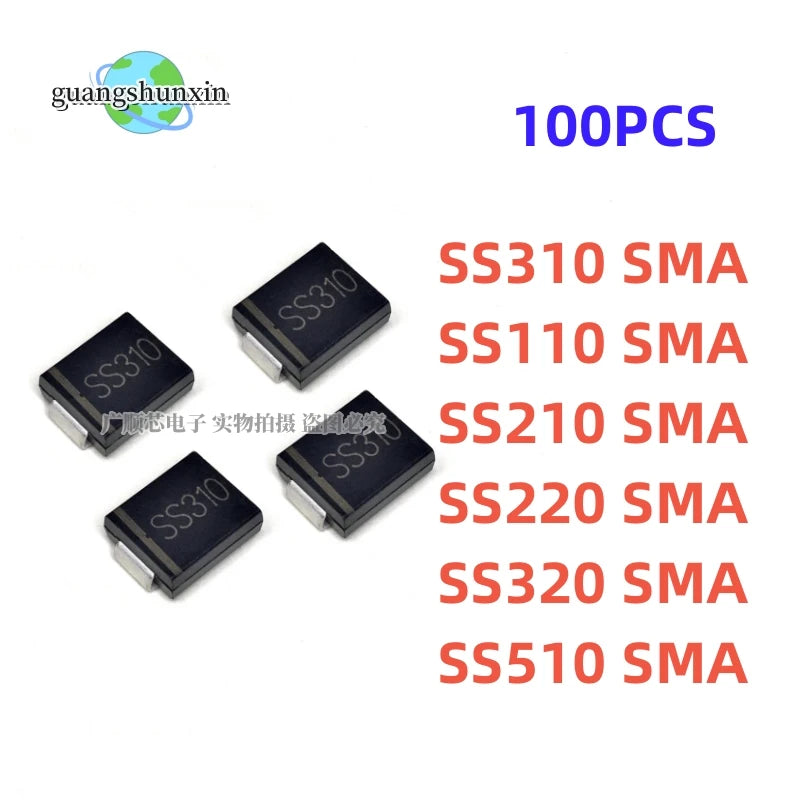

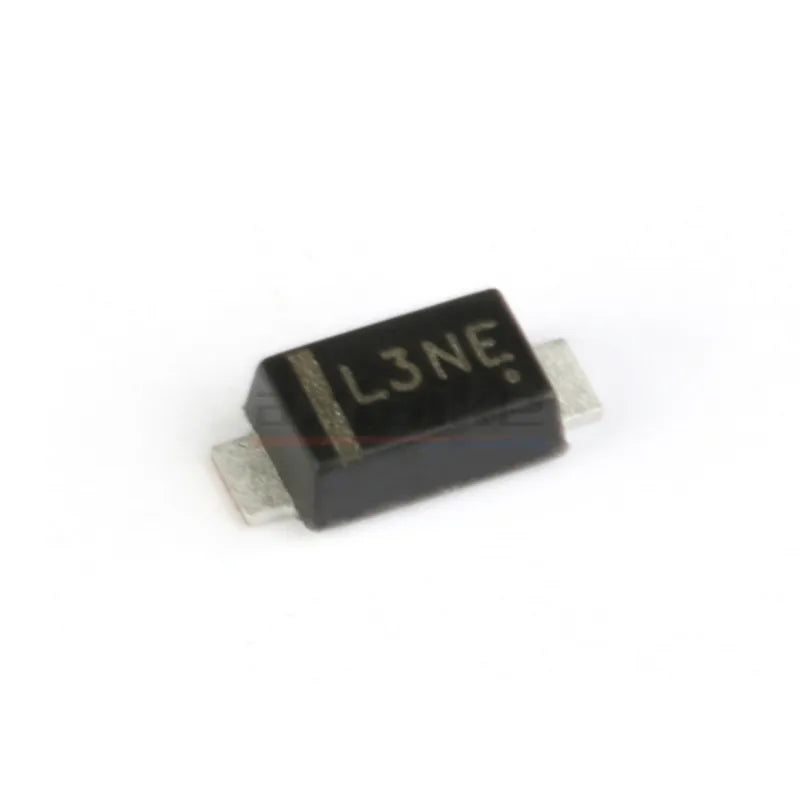

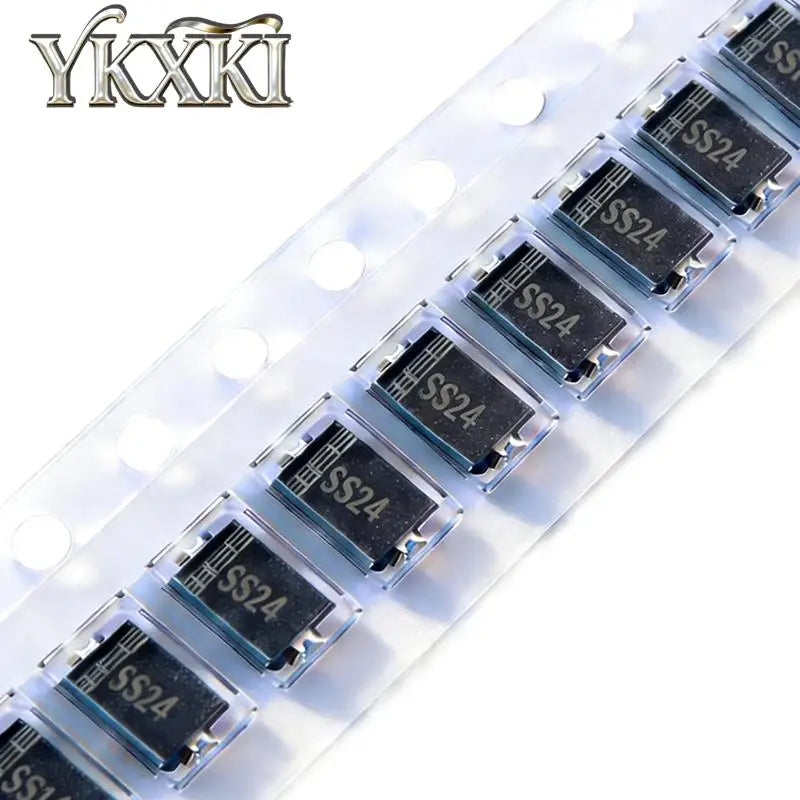

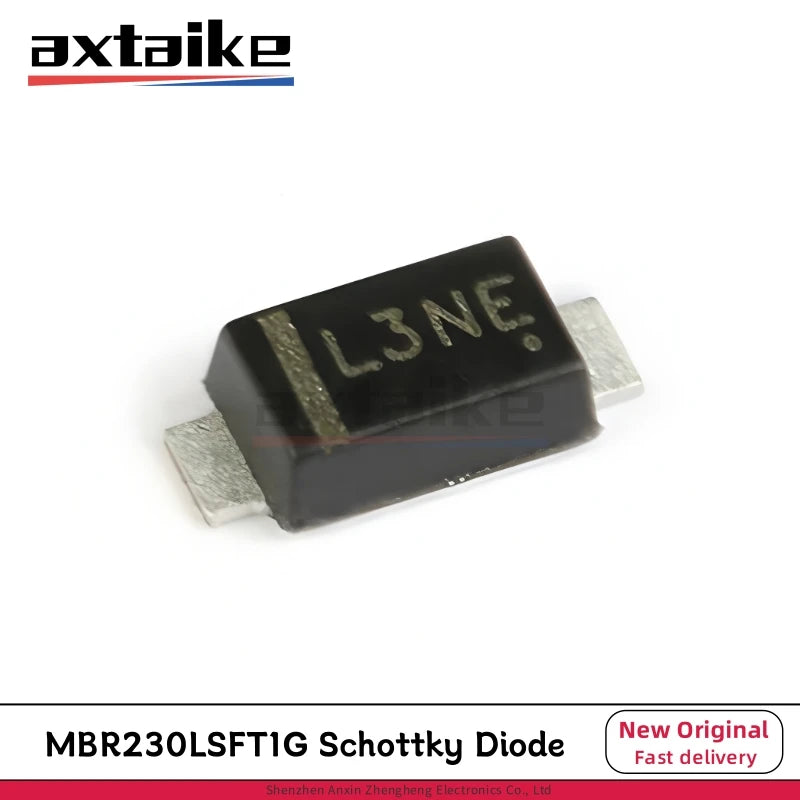

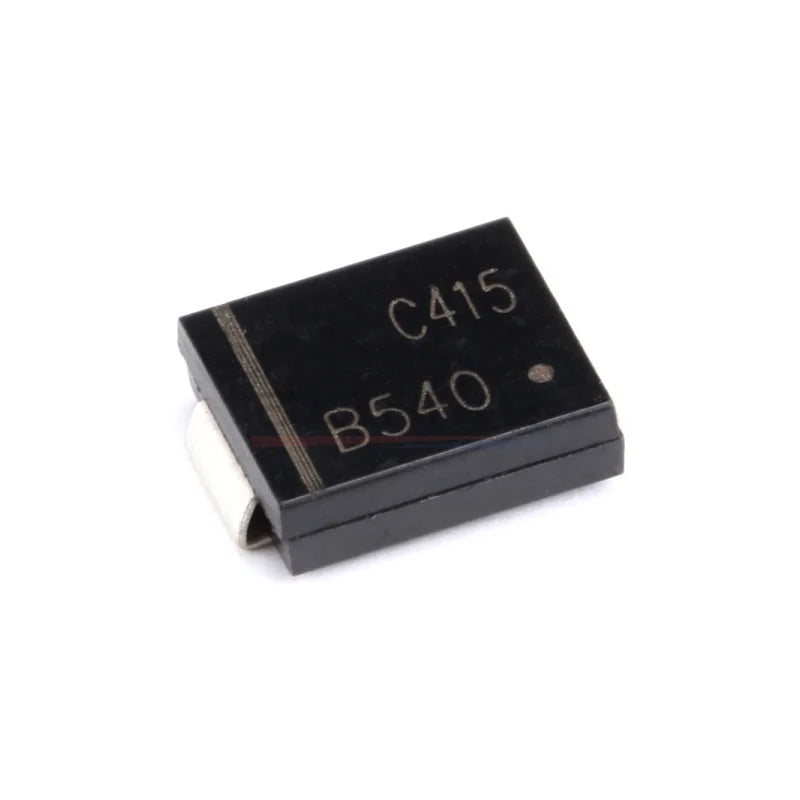

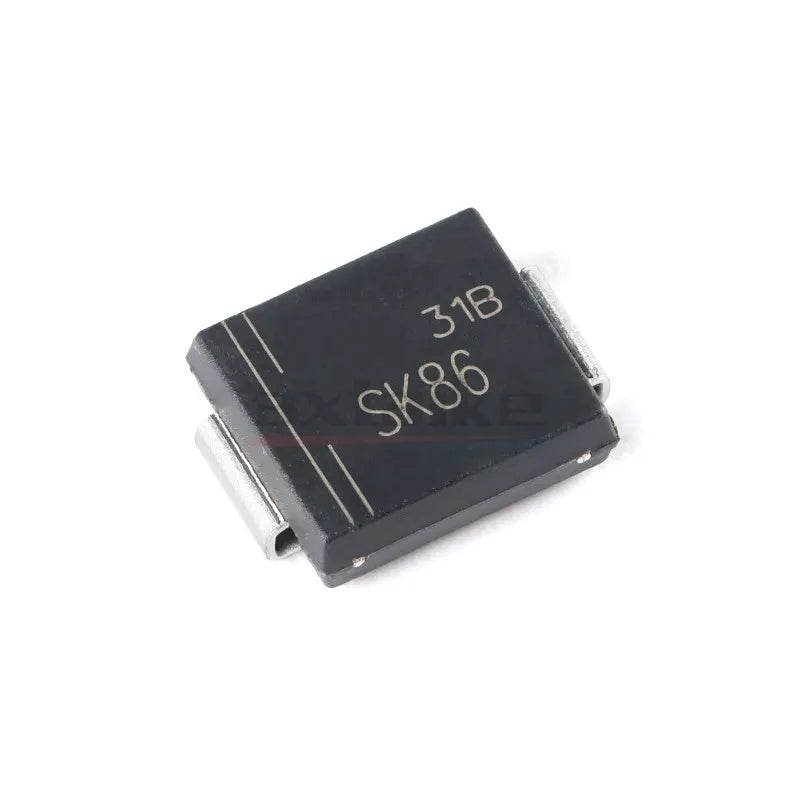

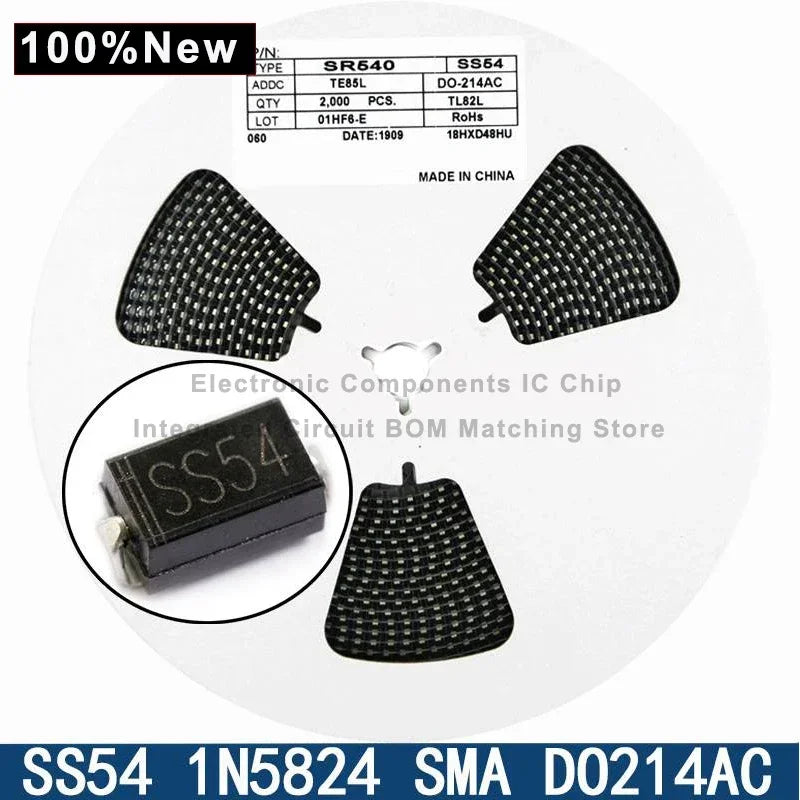

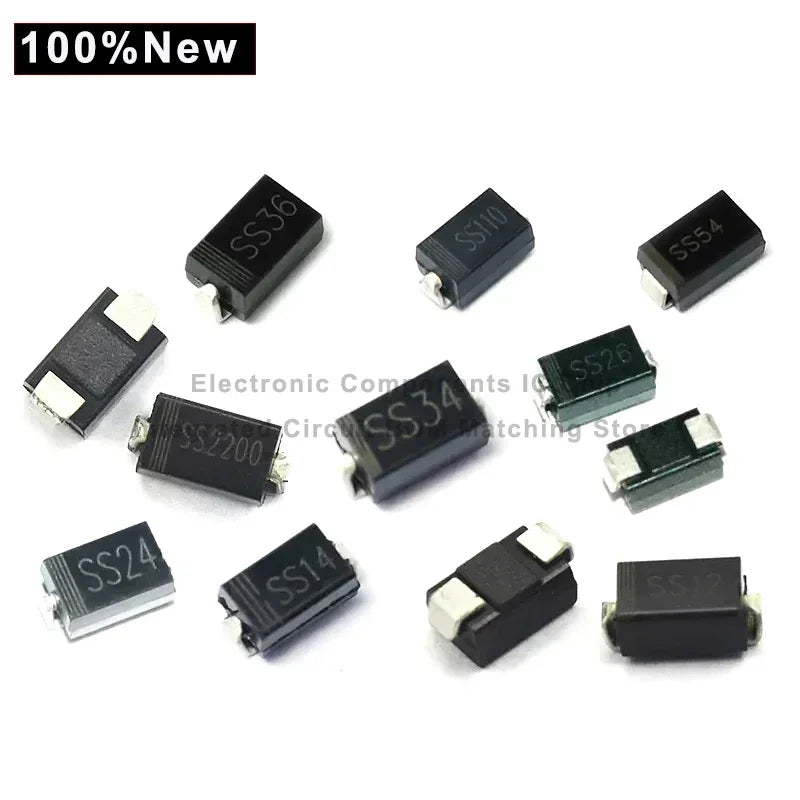

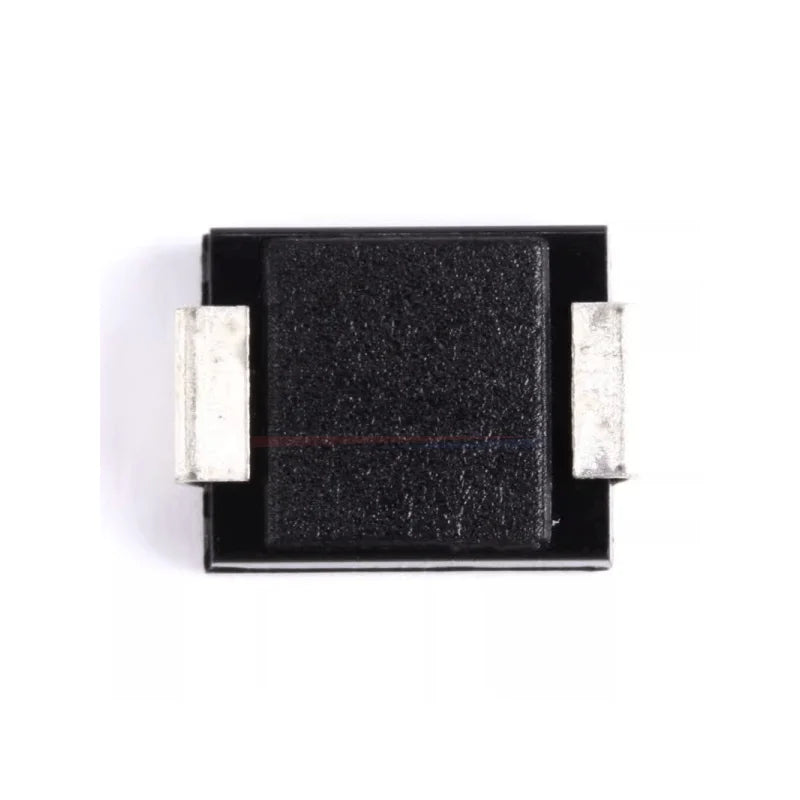

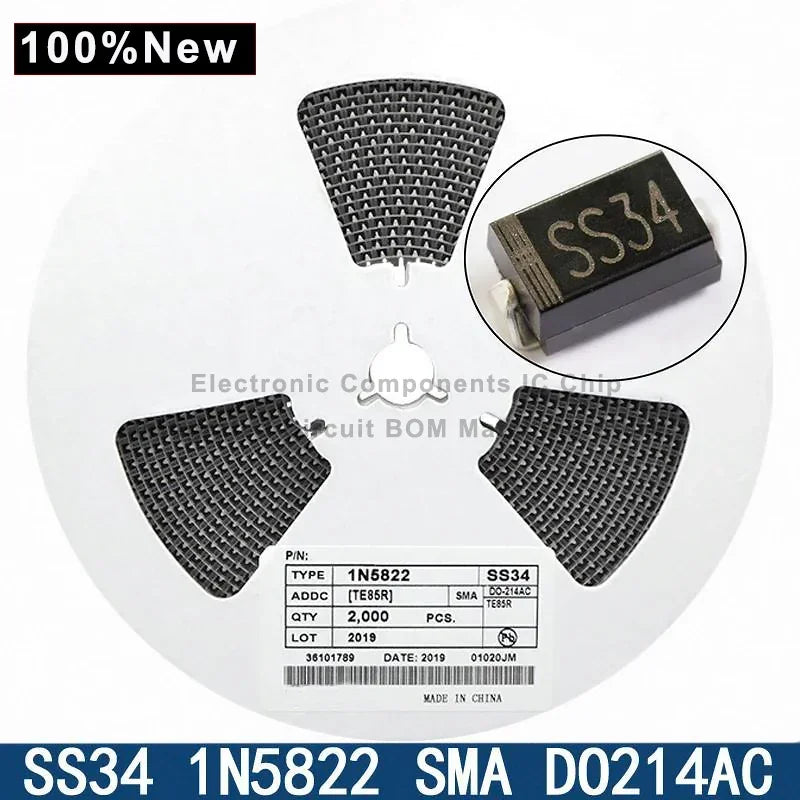

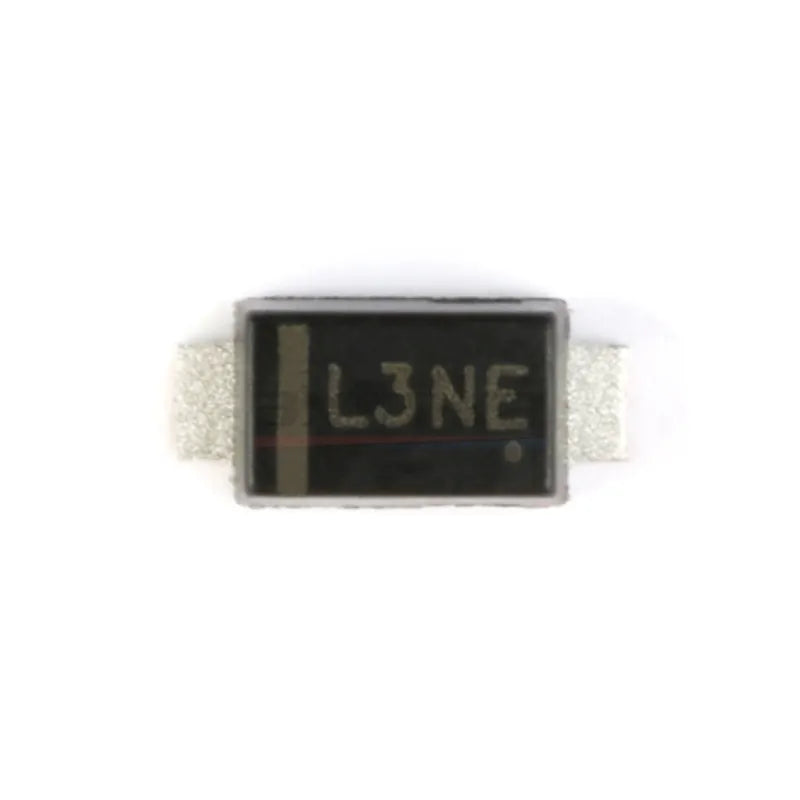

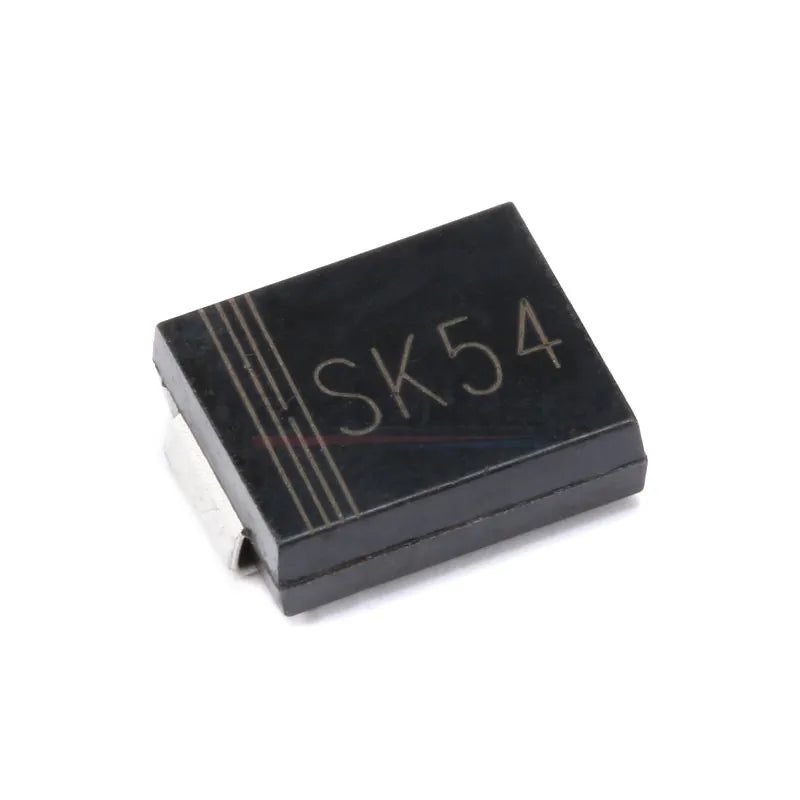

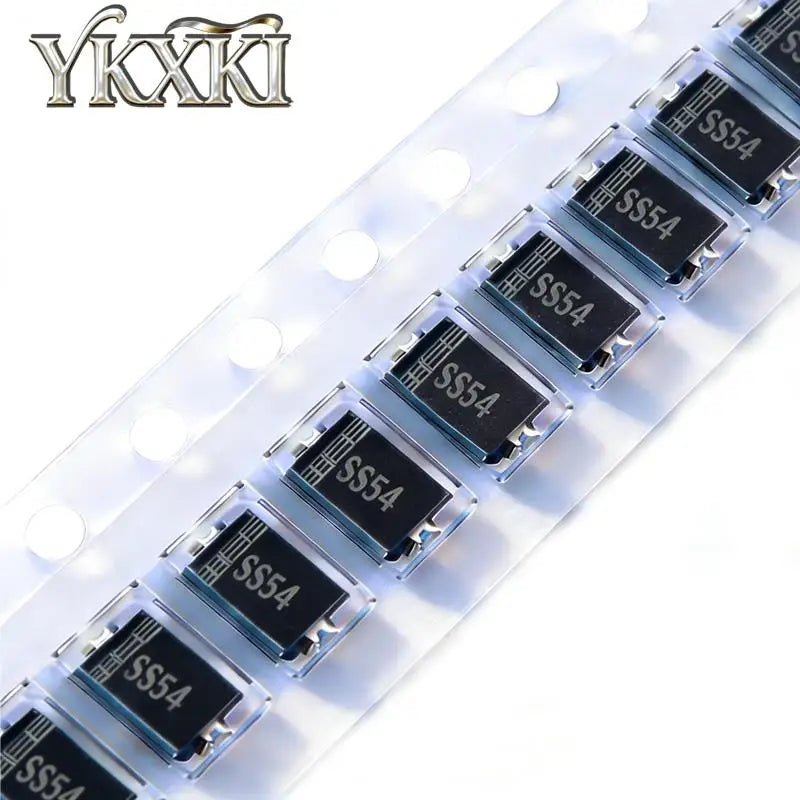

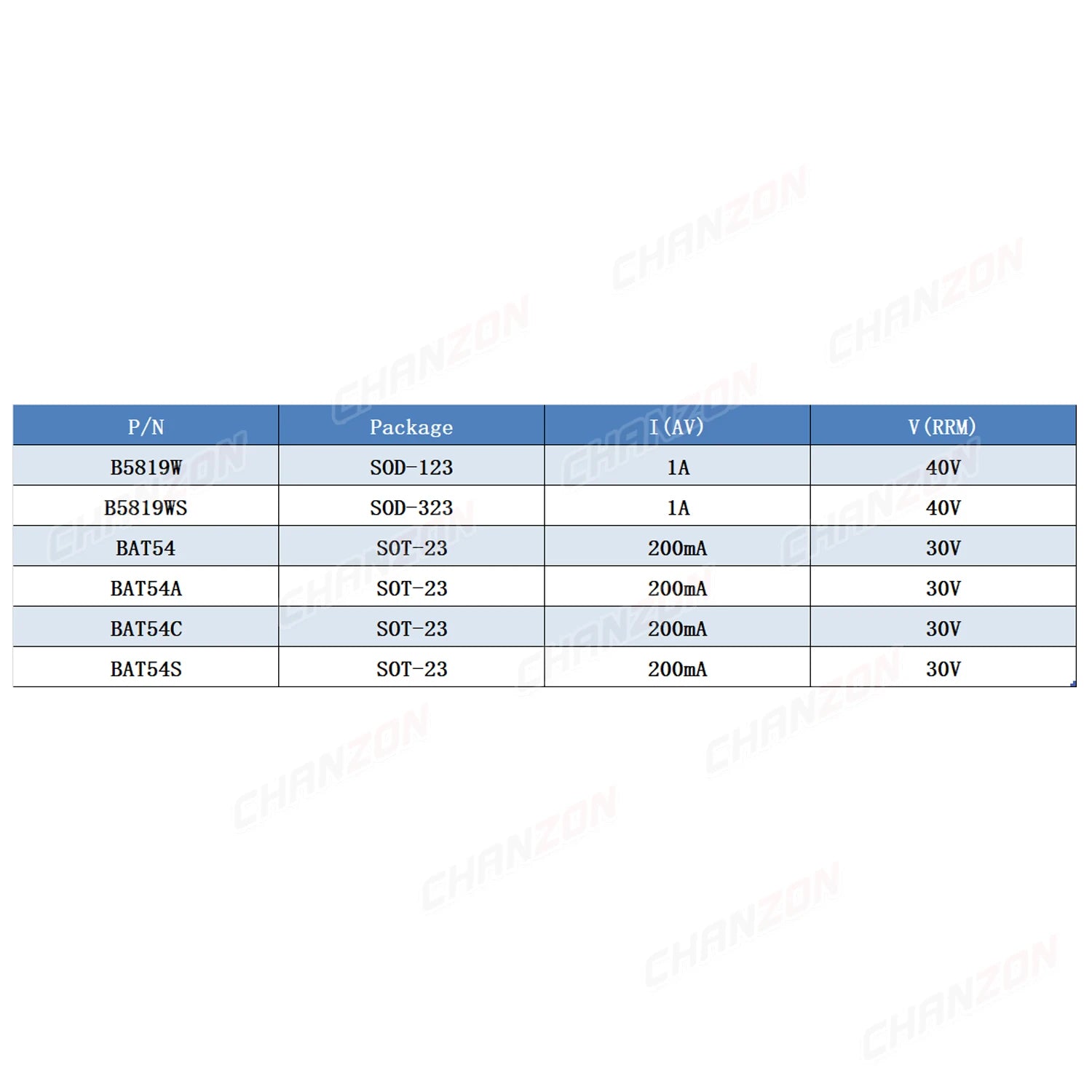

- Schottky barrier rectifiers: 1N5817/5818/5819, 1N5820/5821/5822, SR/SB/MBR families and SS-series SMD parts appear in different voltage/current and package selections, including SMA, SMB, SMC, TO-220 and TO-247 styles. Their lower forward drop in many applications comes with reverse leakage and voltage limits that must be checked at operating temperature. “Schottky” in an assortment title does not make an accompanying M7 or 1N4007 variant Schottky.

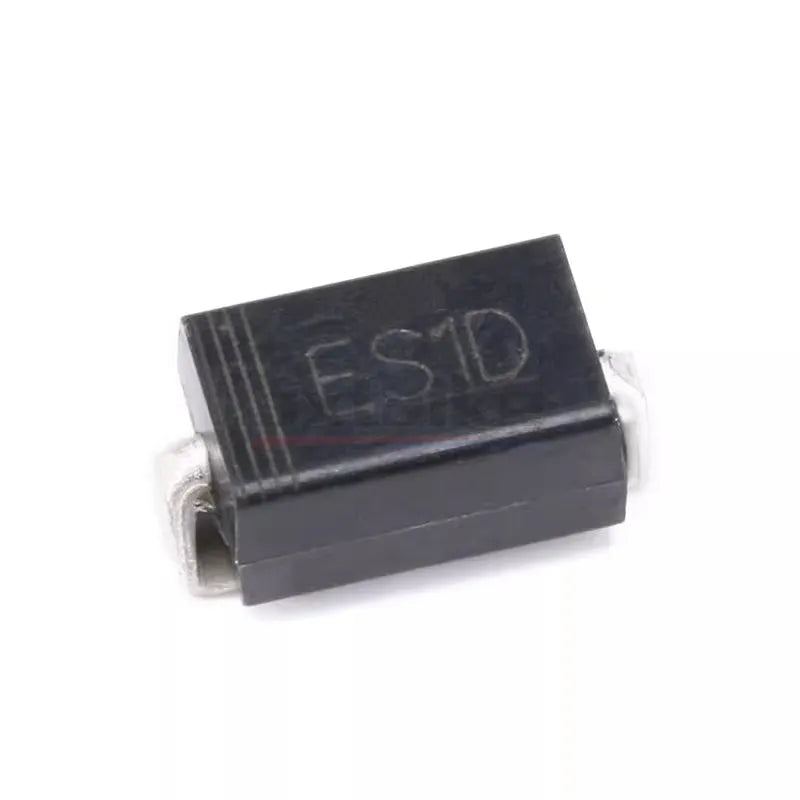

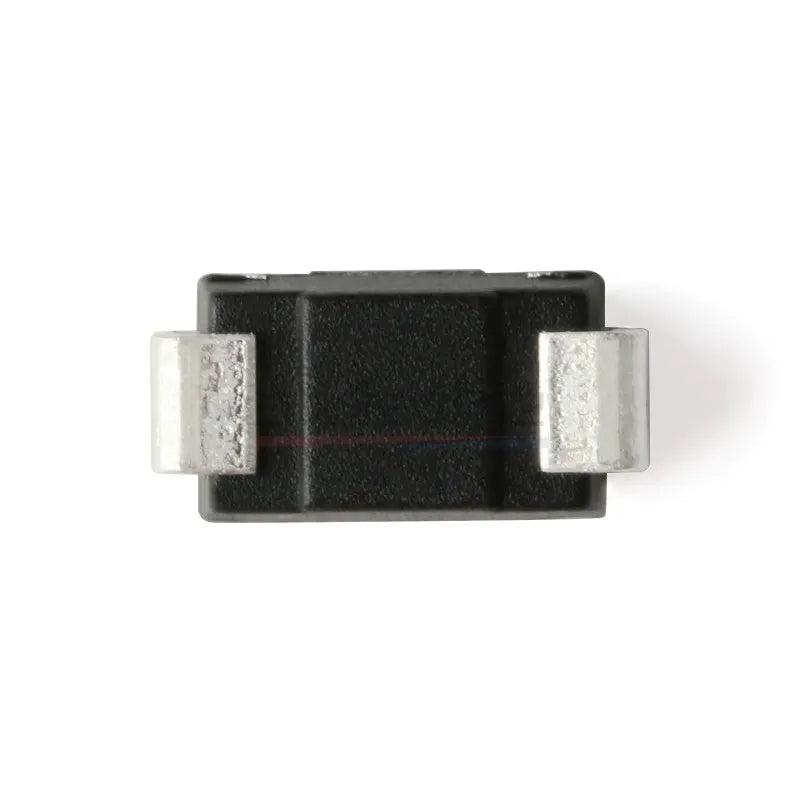

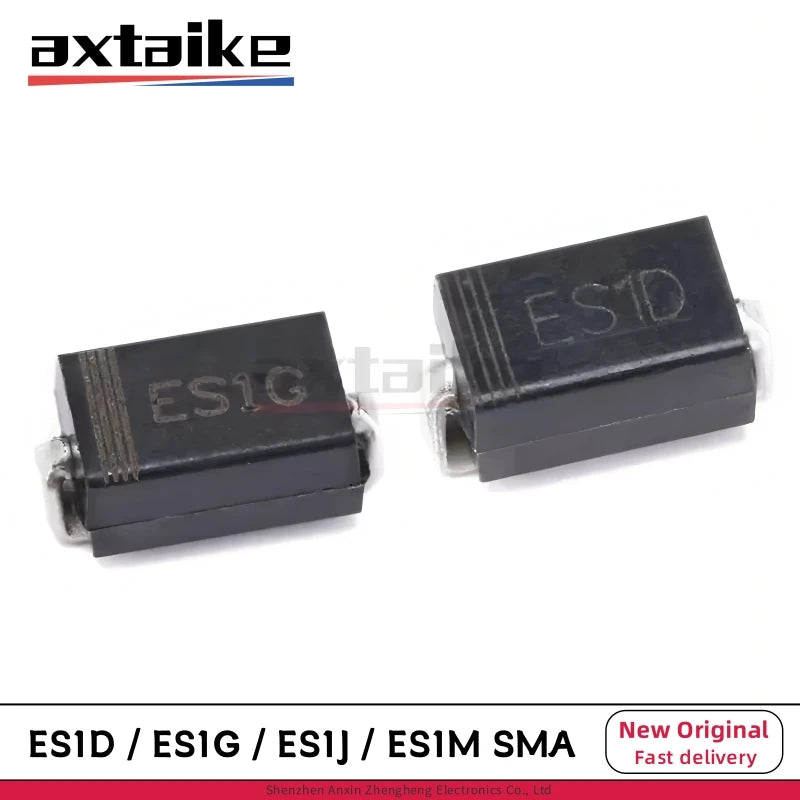

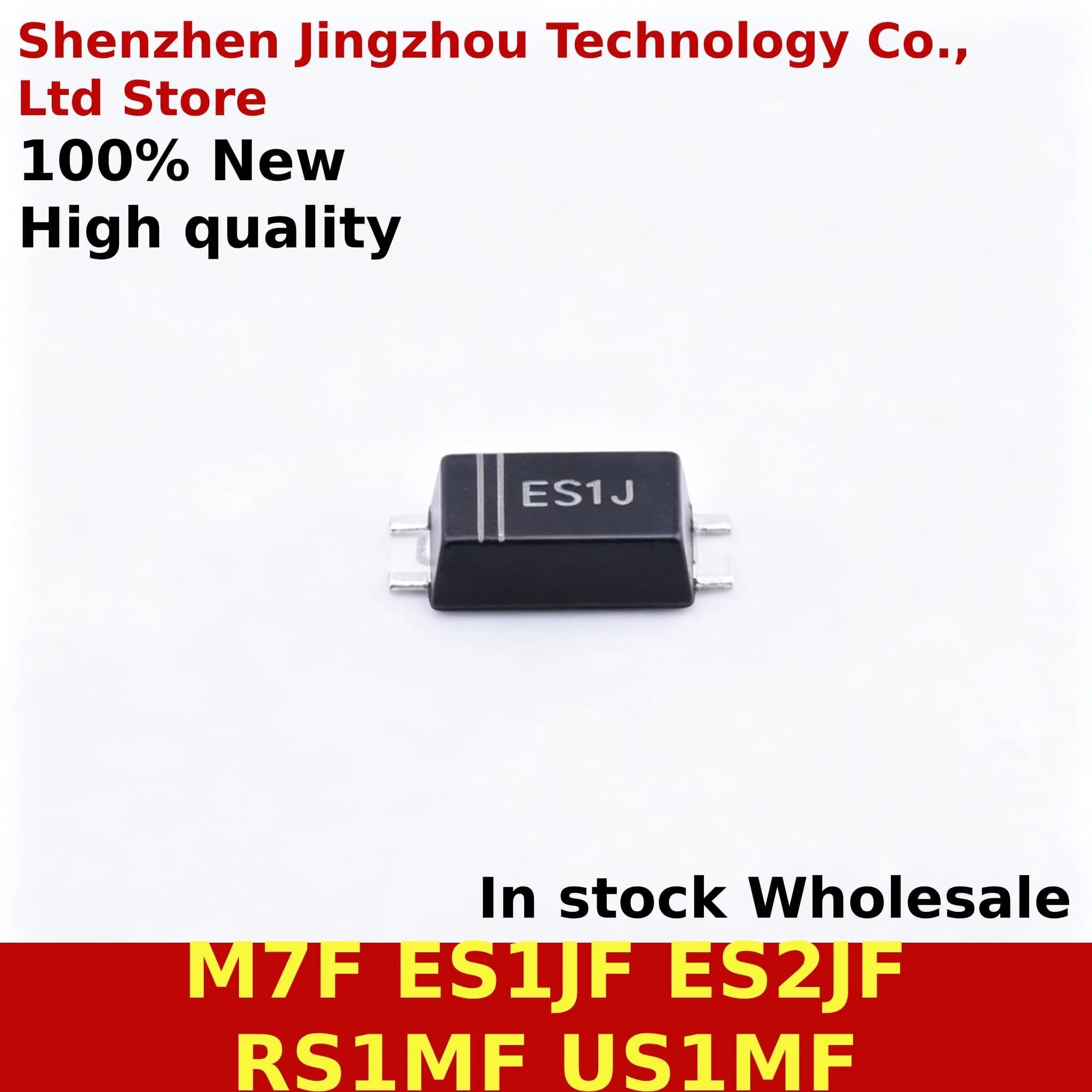

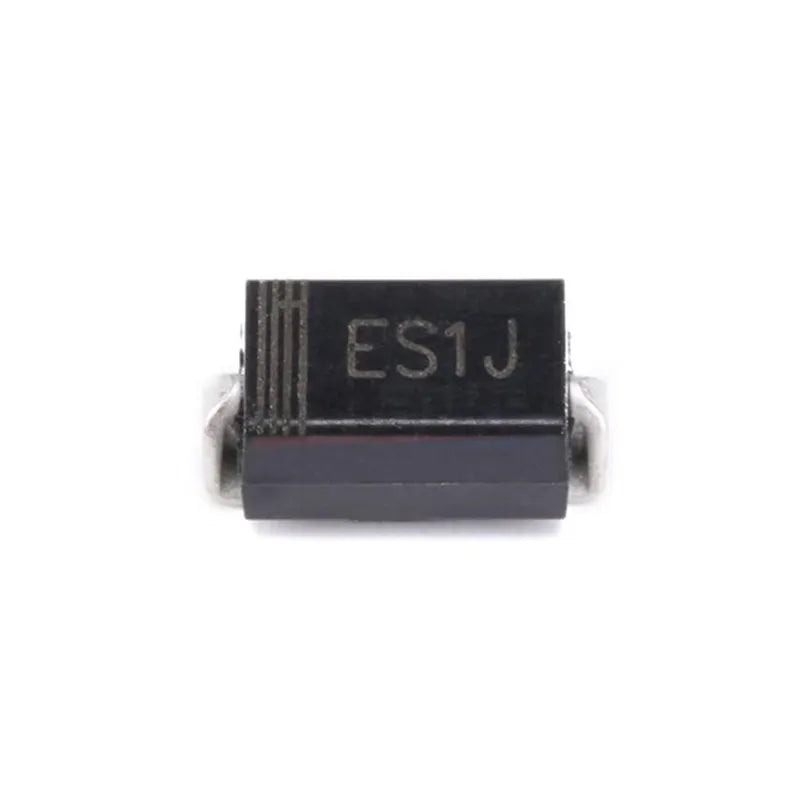

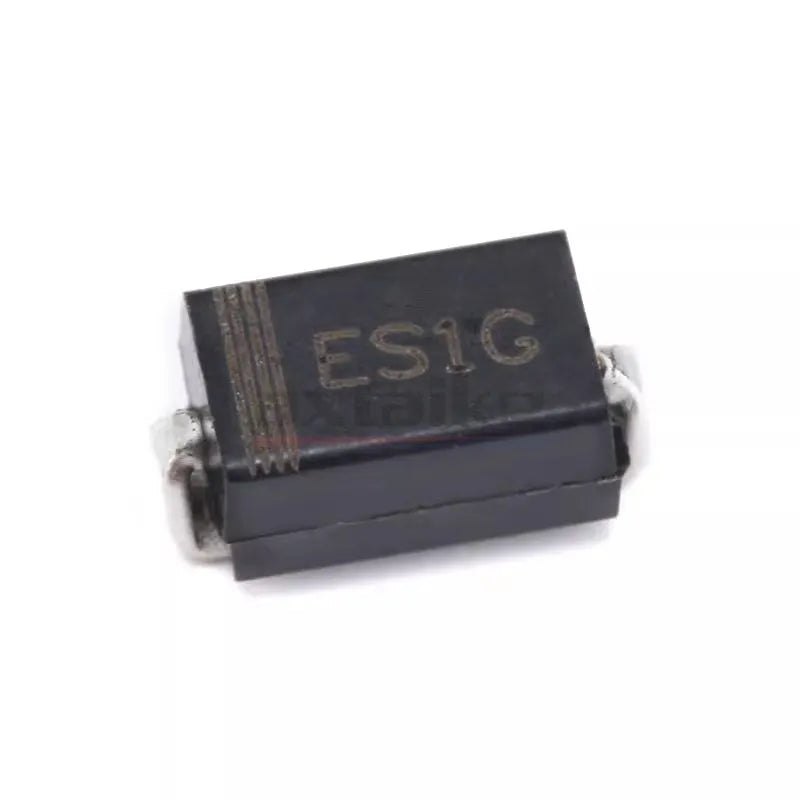

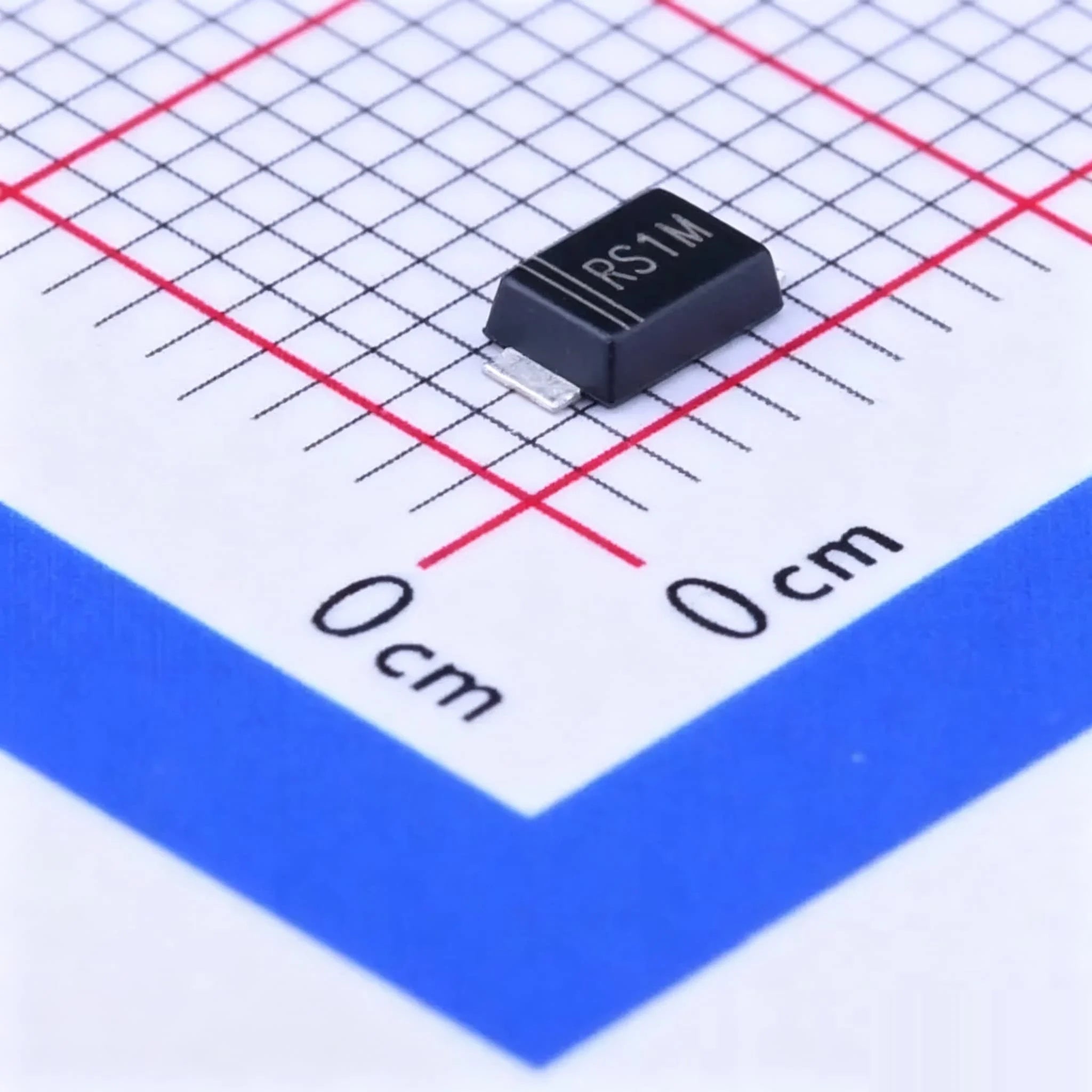

- Fast- and ultrafast-recovery parts: FR, UF, HER, RS, ES, US, SF, ER, MUR and selected TO-220/TO-247 listings target circuits where reverse-recovery behavior matters. Read the selected part's reverse-recovery time, recovery charge where specified, voltage, current and thermal data. A standard rectifier, Schottky and ultrafast diode cannot be swapped solely because their ampere labels match.
- Bridge rectifiers and power modules: KBPC, KBU, KBP, GBU/GBJ and small MB-series packages contain bridge arrangements with AC and DC terminals; MDS, SQL and M50100-labelled modules include larger single- or three-phase choices. A heatsink bundle and a bare bridge are different package contents. Match pinout, phase count, repetitive peak reverse voltage, allowable RMS/average current, surge and heatsink or mounting requirements. A “50 A” label is subject to specified cooling and temperature conditions.

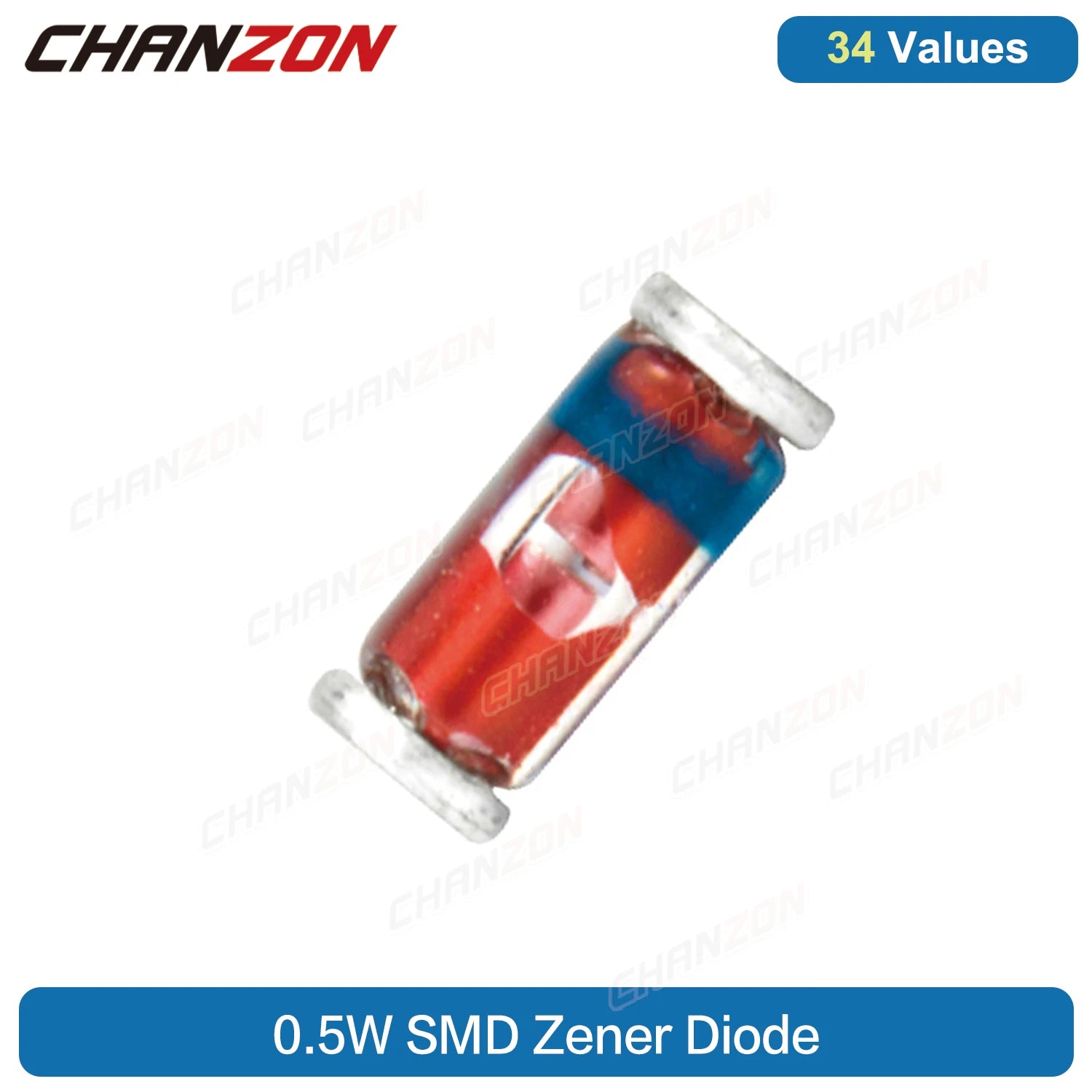

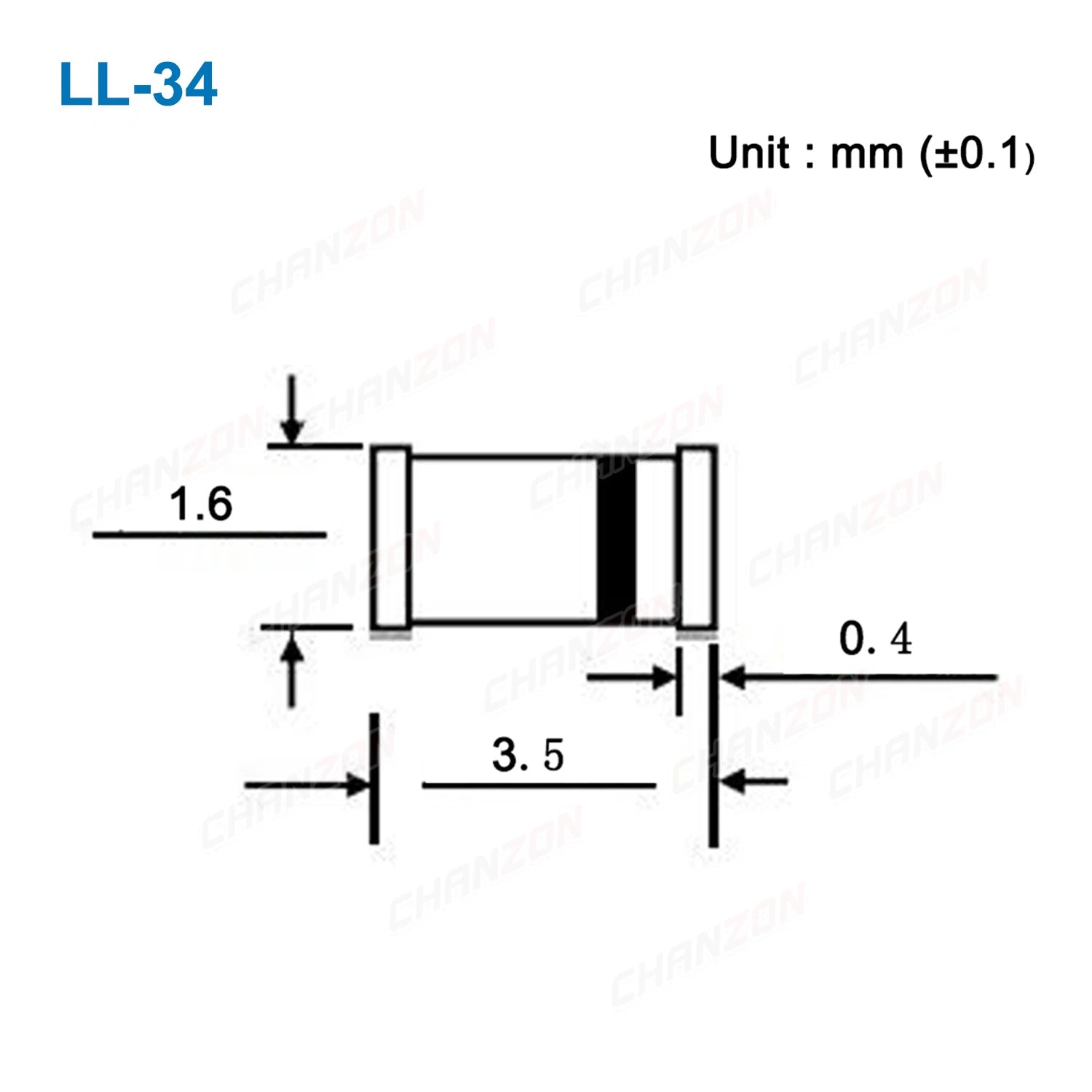

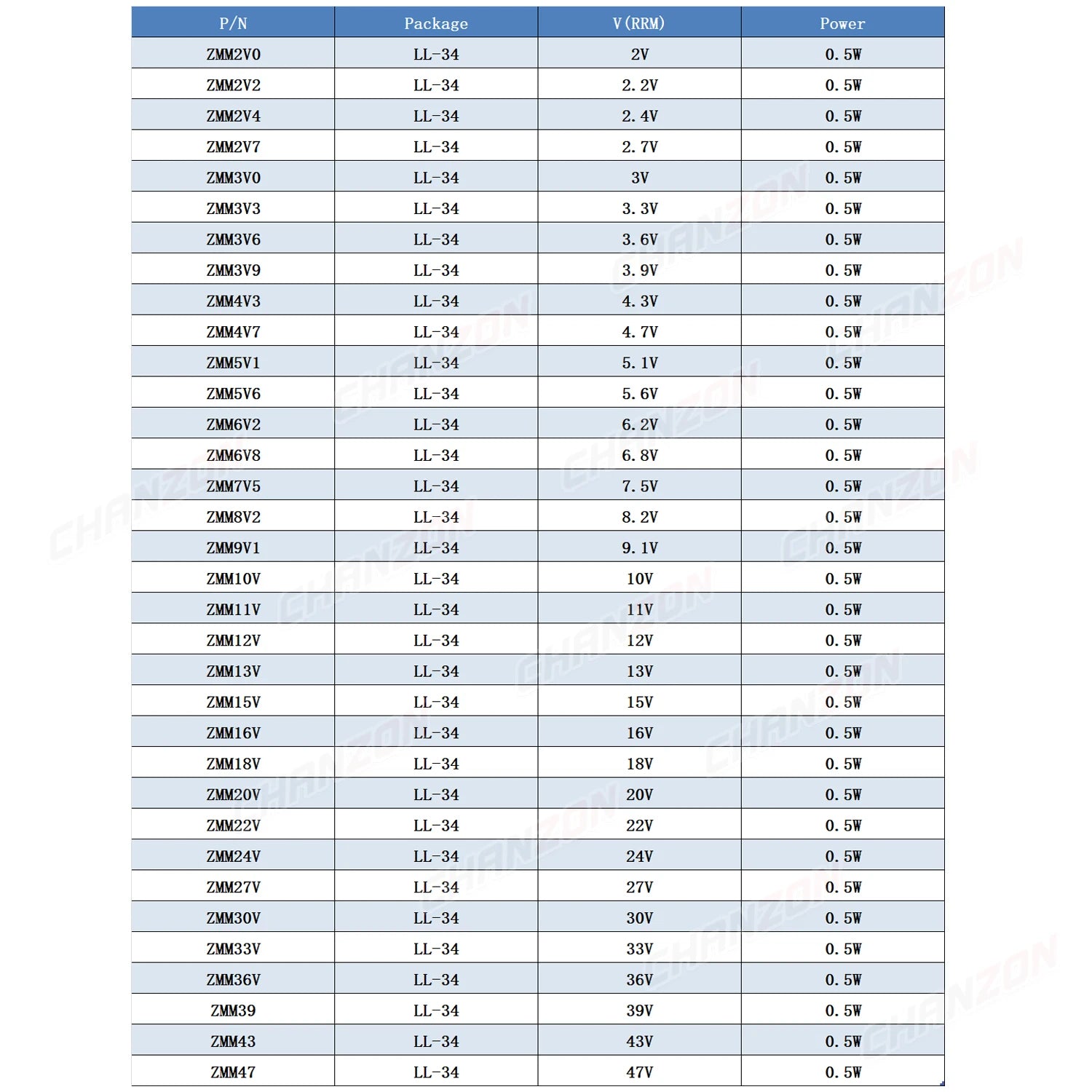

- Other forms in the assortment: 2CL77 and related high-voltage diode listings, HVM12/CL01-12 microwave parts and germanium 1N270 parts serve specialized circuits, not generic substitutes. 1N4148/1N914 are small switching-signal diodes; Zener assortments regulate or clamp at selected breakdown voltages, and DB3 is a bidirectional trigger device, not a conventional rectifier. Generator LSA/RSK listings can be complete rectifier wheels, diode pairs, varistors or plates by option; match original service part numbers, polarity and equipment documentation. Solar anti-backflow and “ideal diode” boards are assemblies with their own operating ranges and control behavior, not loose two-terminal diodes.
Selection steps
- Define the job: AC-to-DC bridge, DC blocking, low-loss freewheel path, switching/high-frequency recovery, high-voltage rectification or equipment-specific replacement. Identify whether you need one diode, a bridge, a module or a complete board.
- Choose reverse-voltage headroom for steady and transient conditions, and use documented current ratings for the real waveform and cooling. Check average forward current, peak surge, forward drop, reverse leakage, reverse recovery and junction temperature as relevant.

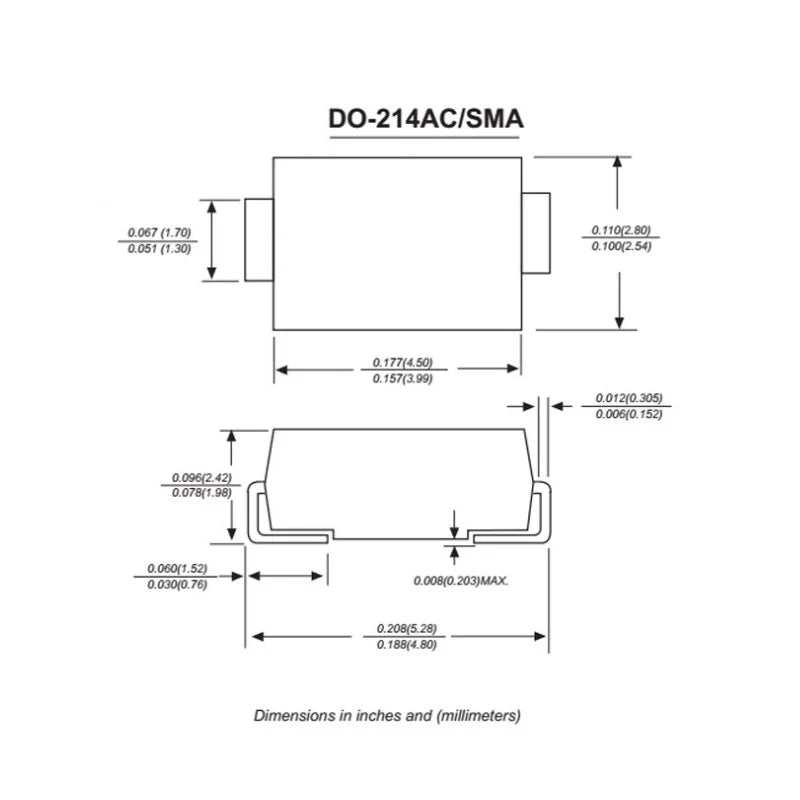

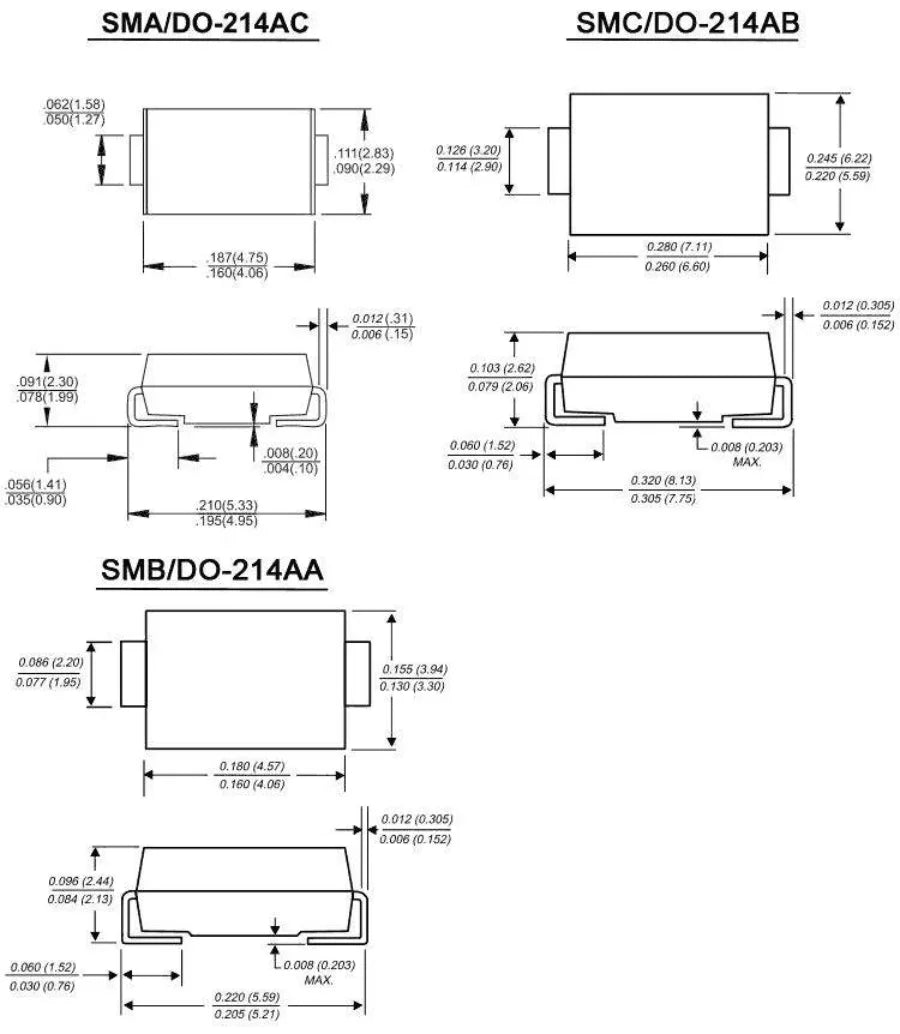

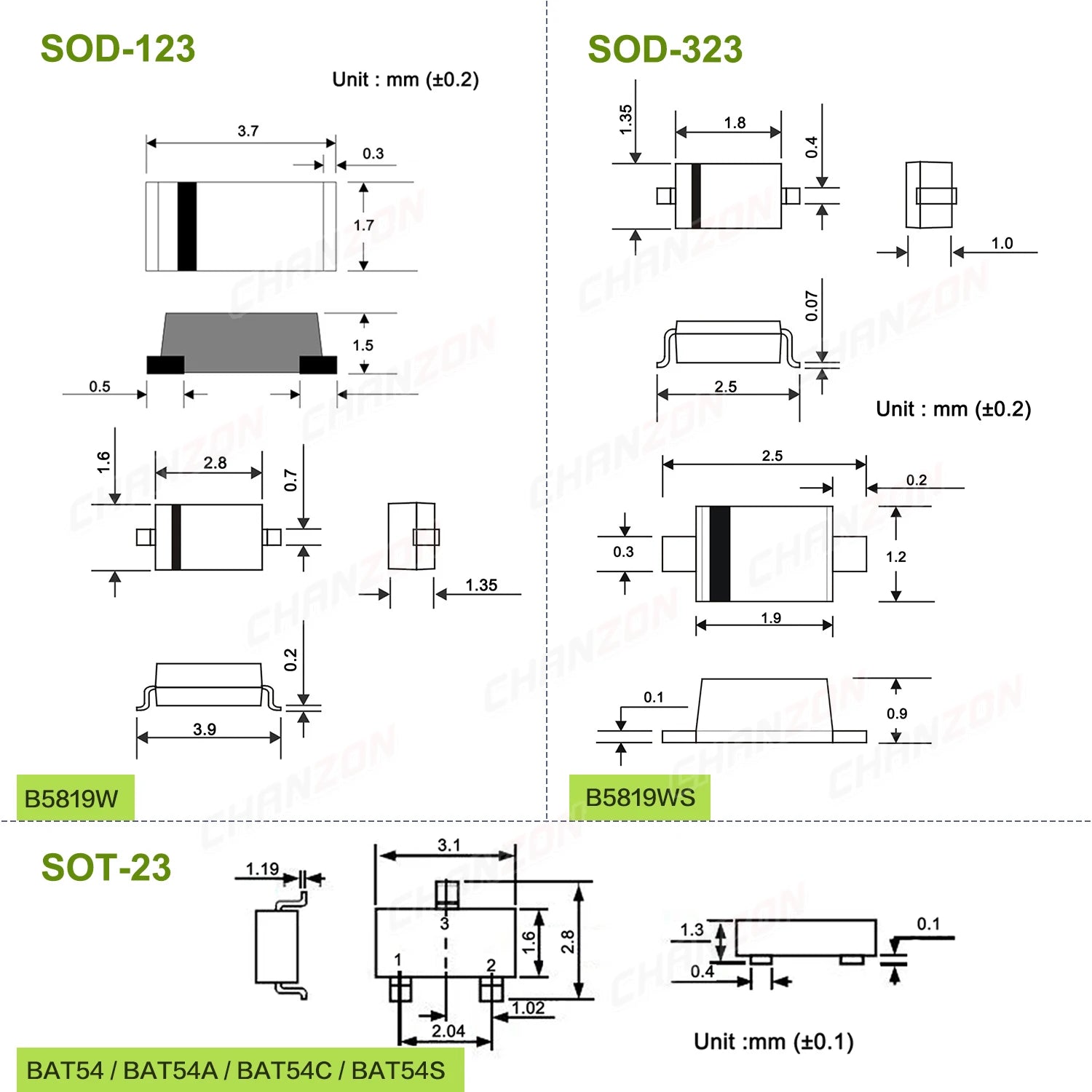

- Match the exact package and pinout: DO-41 and DO-201 axial parts, SMA/SMB/SMC or SOD surface-mount parts, TO-220/TO-247 dual devices and bolt-on bridges differ in polarity marking, connections, thermal path and footprint.
- Read the selected option and quantity. Many listings combine voltage grades or technologies in a single “Color” menu, while 10, 20, 50, 100, 1000 or larger piece counts and sample books are different purchasing choices. Verify which part number and count actually ship.
- For safety-critical, generator, mains or microwave high-voltage service, use traceable component data and qualified repair guidance. Supplier titles, “original” claims or application examples alone do not establish manufacturer authenticity, certifications or equipment fit.
Buying checklist
Record exact part number, diode technology, required topology, repetitive reverse voltage, waveform and continuous/peak current, switching frequency, allowable losses and cooling, package/pinout, operating temperature, and pack quantity. For a generator kit, also record the original assembly number and whether the selected option is a whole set, diode pair, plate or varistor. Do not substitute a voltage-trigger or Zener part for a rectifier because both are called “diodes.”
Frequently asked questions
Is 1N4007 a Schottky diode?
No. It is a conventional silicon rectifier family member, even when a mixed seller title labels the entire listing “Schottky.” Verify the selected component marking and datasheet.
Can a 1N5819 replace a 1N4007?
Not on ampere rating alone. Compare reverse-voltage requirement, leakage, temperature, waveform, speed, forward drop and physical fit.
Does a KBPC5010 bridge include a heatsink?
Only if the selected listing's package contents expressly include one. A nominal current rating still requires suitable thermal conditions.
Is an “ideal diode” board simply a Schottky diode?
No. It is an active or assembled reverse-current control product; check its own voltage range, current, terminals, quiescent behavior and protection limits.
