Red LEDs, Seven-Segment Displays and Signal Lights

Red LED components, numeric displays and signal assemblies

Find red-emitting components for indicators, instrument readouts, model scenery and signal panels. This collection includes a loose 3528 red SMD LED lot, prewired miniature LEDs, red seven-segment digit tubes, illuminated rockers and emergency-stop products, and flashing buzzers. It also contains infrared emitters, IR camera boards and torches, IR receivers, battery-powered/RGB lighting, and other products whose titles happen to include “red LED.” Those are not interchangeable visible-red diodes. The exact selected variant determines color, electrical rating, mechanical format and included quantity; a product headline listing five voltages or wavelengths does not mean one item accepts all of them.

Choose by function, not just the search phrase

• Visible red LED junction: a single SMD or four-pin Piranha emitter produces visible red light and requires matching current limiting, polarity and thermal design.
• Prewired miniature LED: a 0201/0402/0603/0805/1206 chip may be supplied on fine leads, with some 12 V versions described as resistor-equipped; it is not necessarily the same electrical item as a loose SMD LED.
• Numeric display: a red seven-segment digit tube contains multiple LED segments with common terminals. An Arduino-style TM1637 display board has added control electronics.
• Panel alarm or backlit switch: an active buzzer, pilot light, rocker or illuminated emergency-stop button is a complete assembly; its lamp voltage and any load-contact rating are distinct.
• Infrared optical product: 730–1,050 nm-marketed emitters, camera illuminators and IR receivers are not visible-red indicators, even if source keywords mention red LED.
• Light strip or accessory: selected RGB, white and multicolor tape and switch sockets/adapters may not include any red light source at all.

Red SMD and high-brightness emitter selection

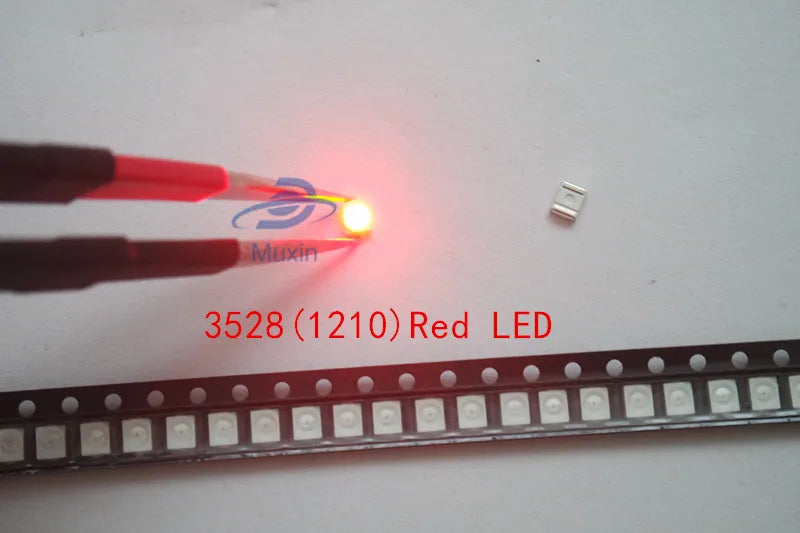

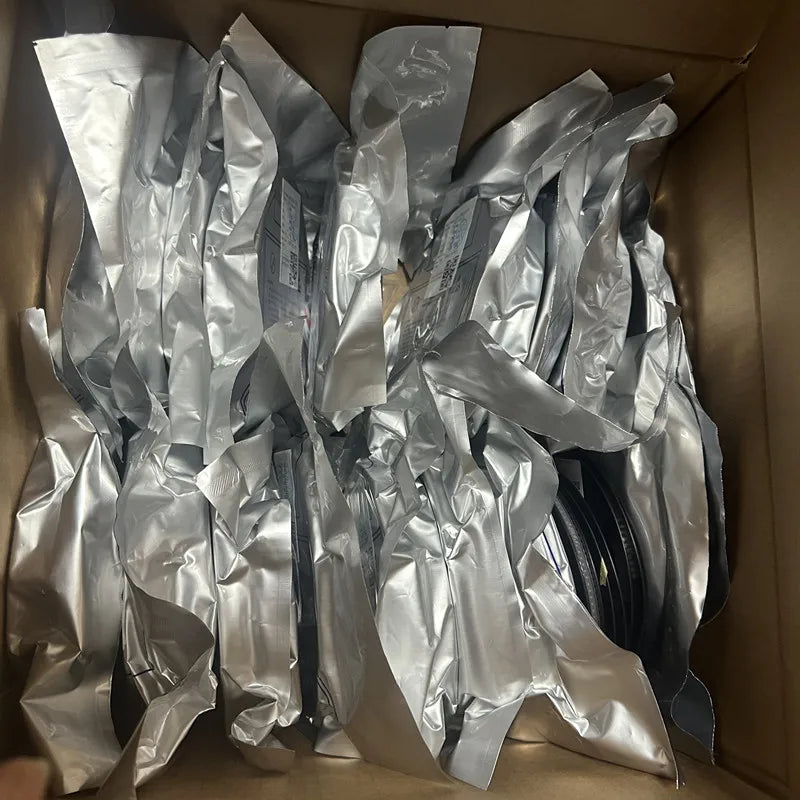

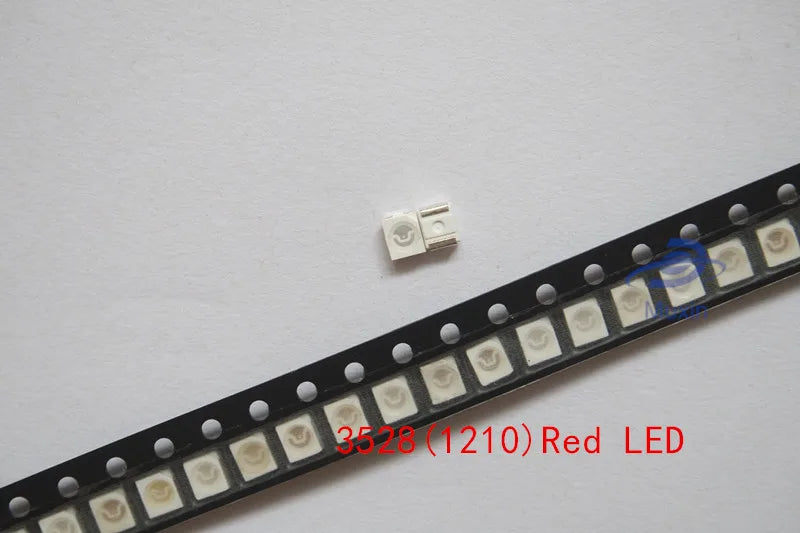

A 100-piece 3528 red LED listing calls out a 20 mA/approximately 2 V device and PLCC-2/PLCC-4 terms in its title, but does not expose selectable footprint or pin-layout variations. Confirm its actual terminal count, polarity, pad dimensions and optical bin before PCB manufacture; two and four electrical pads cannot be inferred to be interchangeable. “3–4 lm,” “ultra bright” and a headline forward voltage are seller-specific statements, not assured performance across every SMD product. A 20-piece 5 mm Piranha/superflux listing names four-chip 80 mA red technology yet offers both Red and Cold White emitting-color variants. Select Red for a red result; the cold-white option is not red. Four-pin board geometry, drive current and heat path differ from a conventional two-lead 5 mm indicator.

Forward voltage is measured at a stated current and operating temperature, not a recommended direct voltage-source connection. A loose LED typically needs a current-limited driver and a suitable resistor or regulator. Do not treat a “12 V” prewired assembly or a high-power IR emitter as proof that an unwired 3528 diode accepts 12 V. If color matching, intensity, wavelength and lifespan matter, use documentation for the chosen variant and operating point rather than seller-adjective brightness claims.

Prewired micro LEDs for model making

Fine-wire model railway and miniature-scene products appear in 0201 through 1206 package selections. One 0402 five-piece page markets 12 V and 20 cm wires; other ten-, twenty-, forty- and hundred-piece options name 3 V, 12 V, 20 cm or 30 cm leads, with specific flashing/resistor versions for 0805. On these pages red is a selectable color alongside blue, green, warm white, white, pink, purple, yellow, orange and ice blue. Some 20-piece products combine 0402 and 0603, while 100-piece assortments list 0201/0402/0603/0805/1206. The option naming one package and color controls what arrives, not every size/color printed in a headline.

Distinguish pre-soldered wires from integrated resistor and flashing behavior. A 3 V-rated wired LED should not be installed as a 12 V resistor-equipped unit merely because another variant shares the product page. A “12 V” title may describe a resistor in a specific lead assembly; confirm the actual lead, polarity, drive and resistor placement. For scenic lighting, check package thickness, viewing direction, wire insulation and length, lead strain relief and desired brightness before permanently embedding an LED. Prewired devices are still components, not weatherproof or mains-ready lights.

Seven-segment displays: electrical architecture and pack count

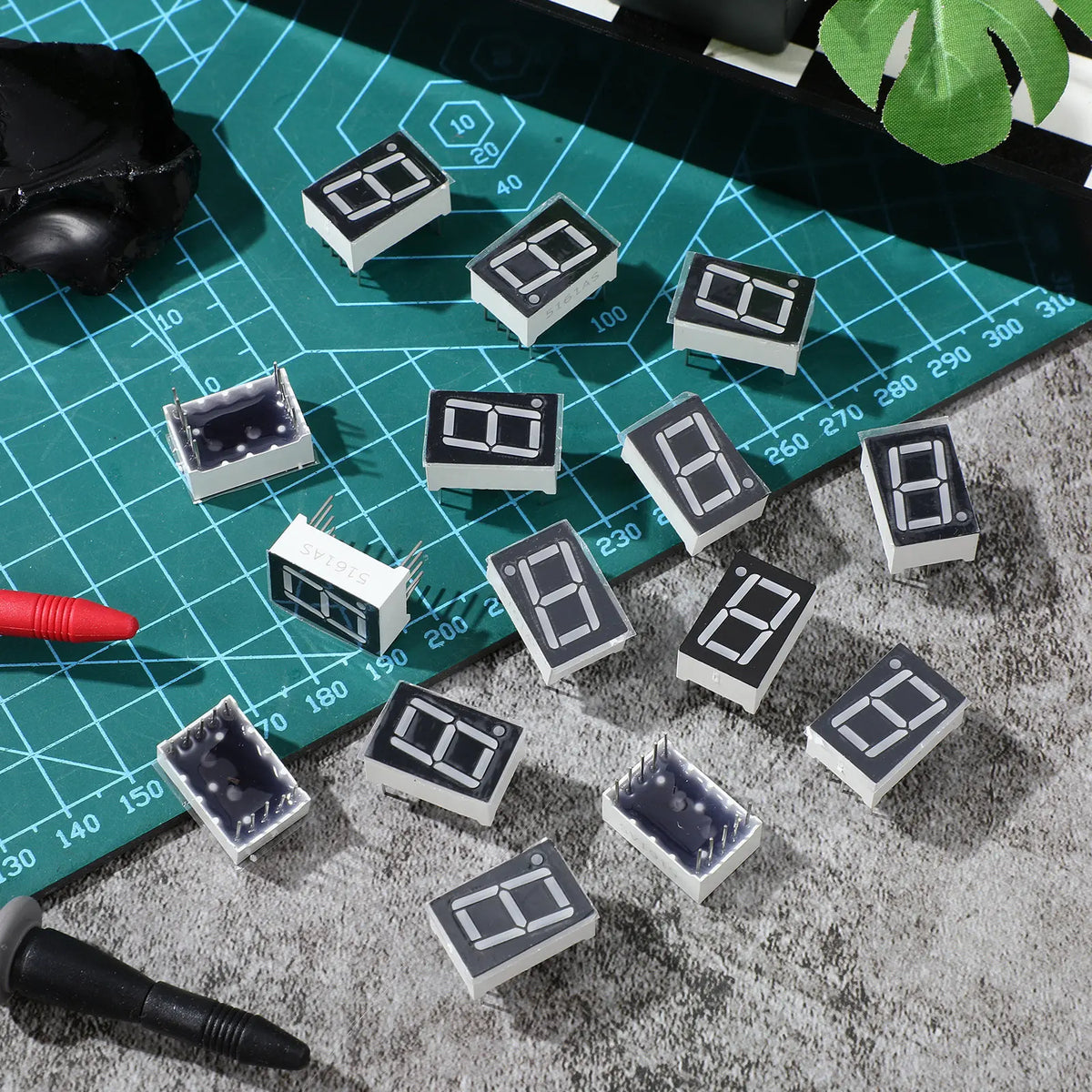

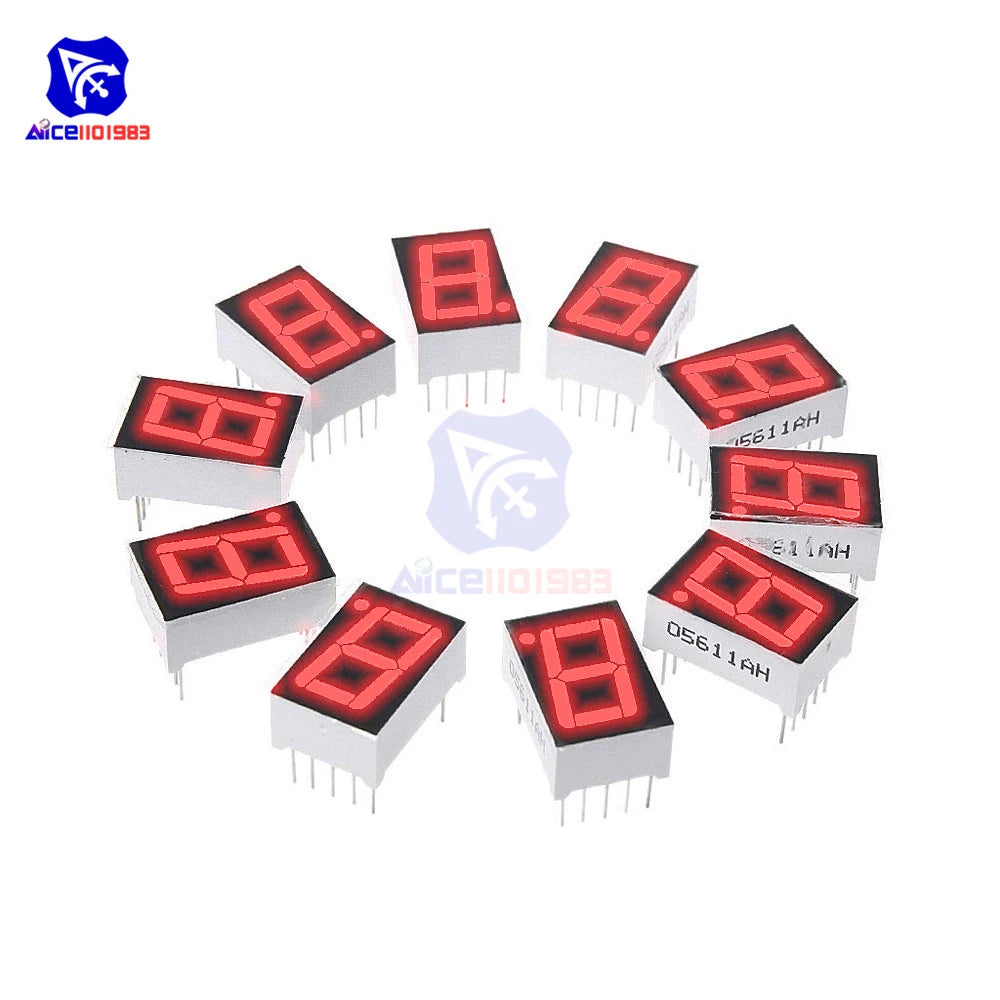

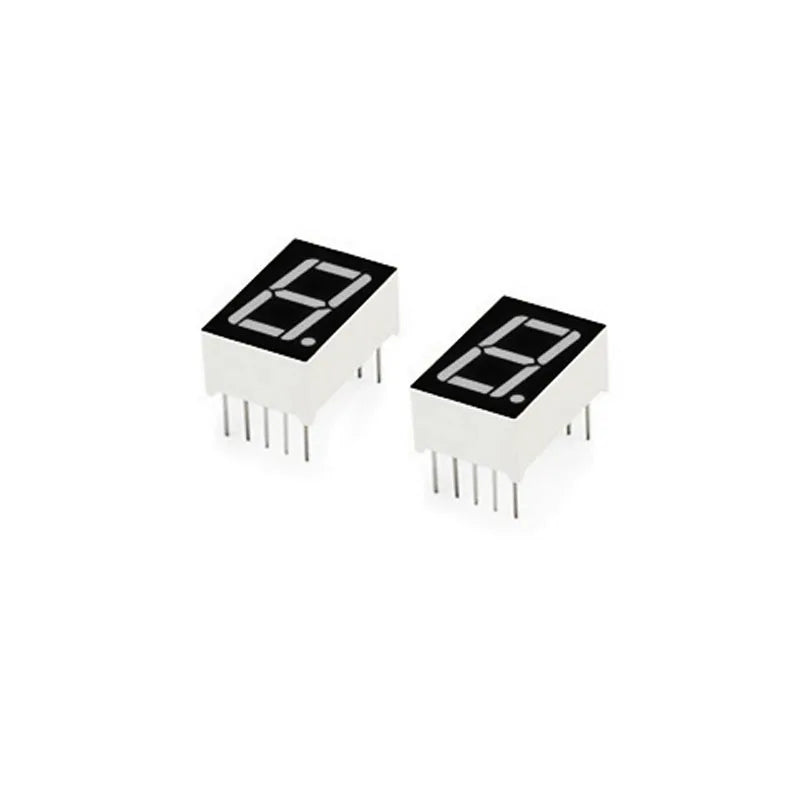

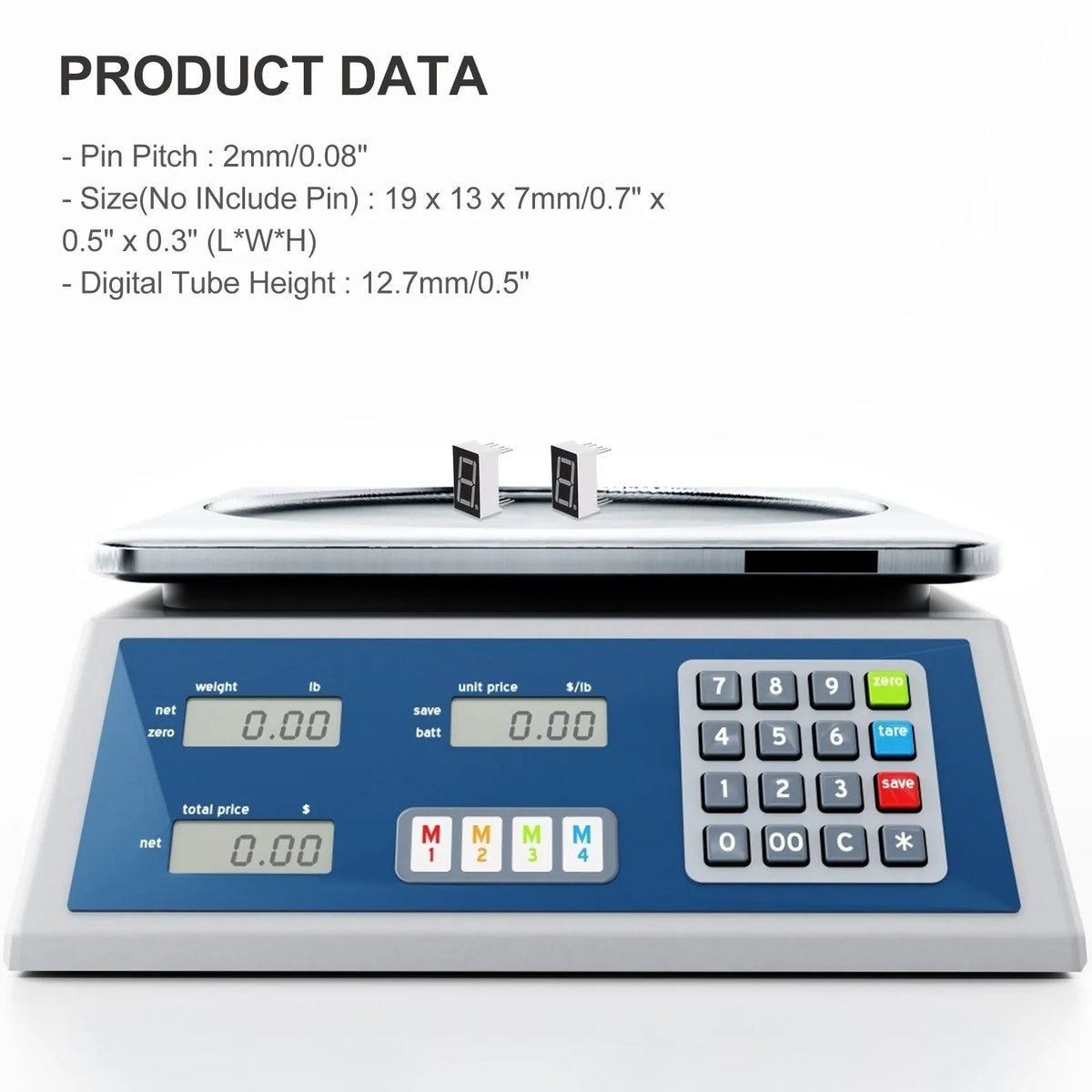

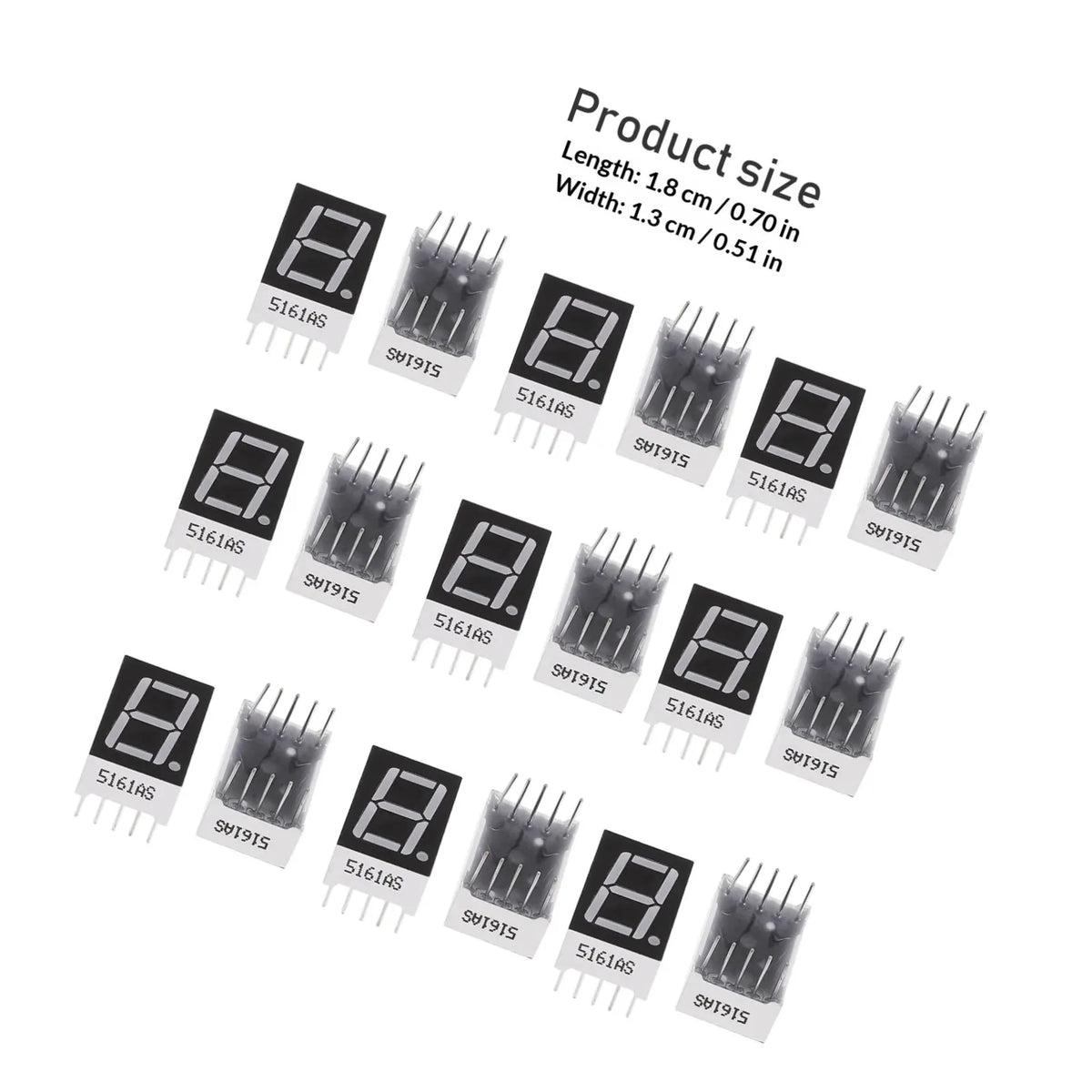

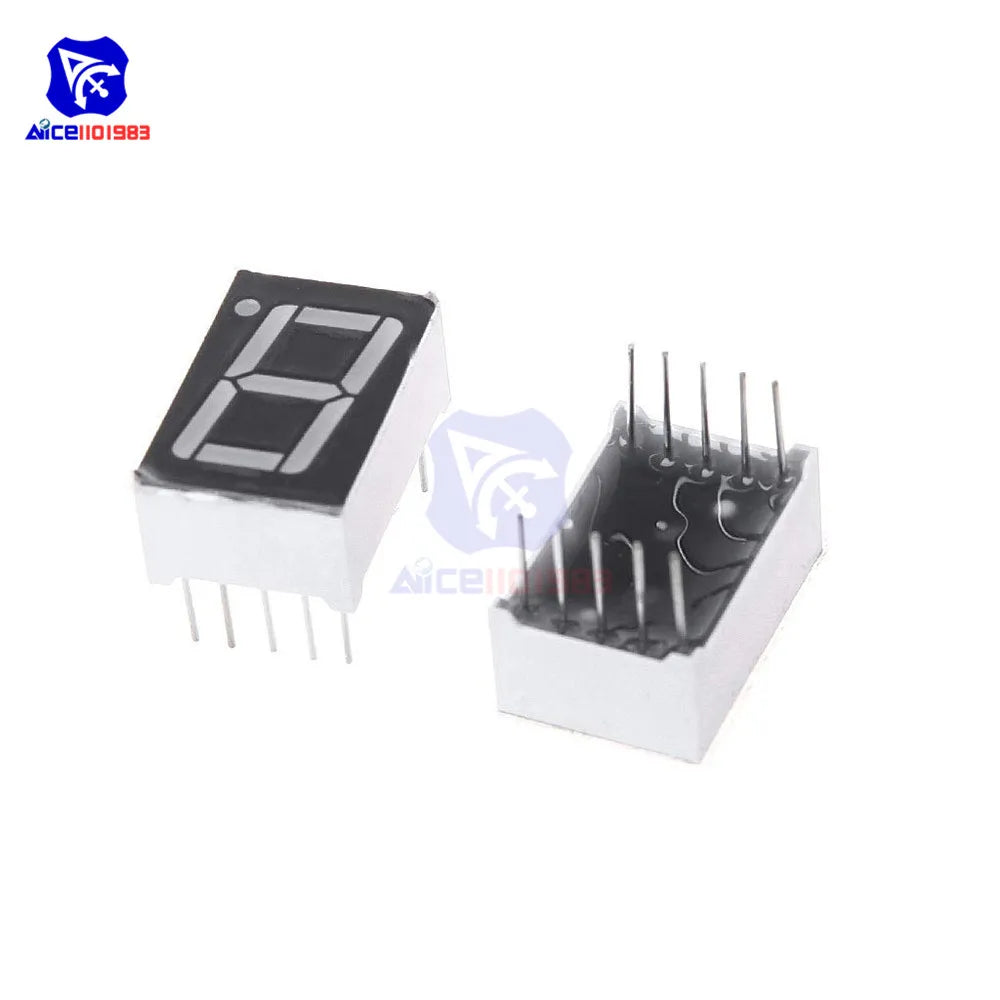

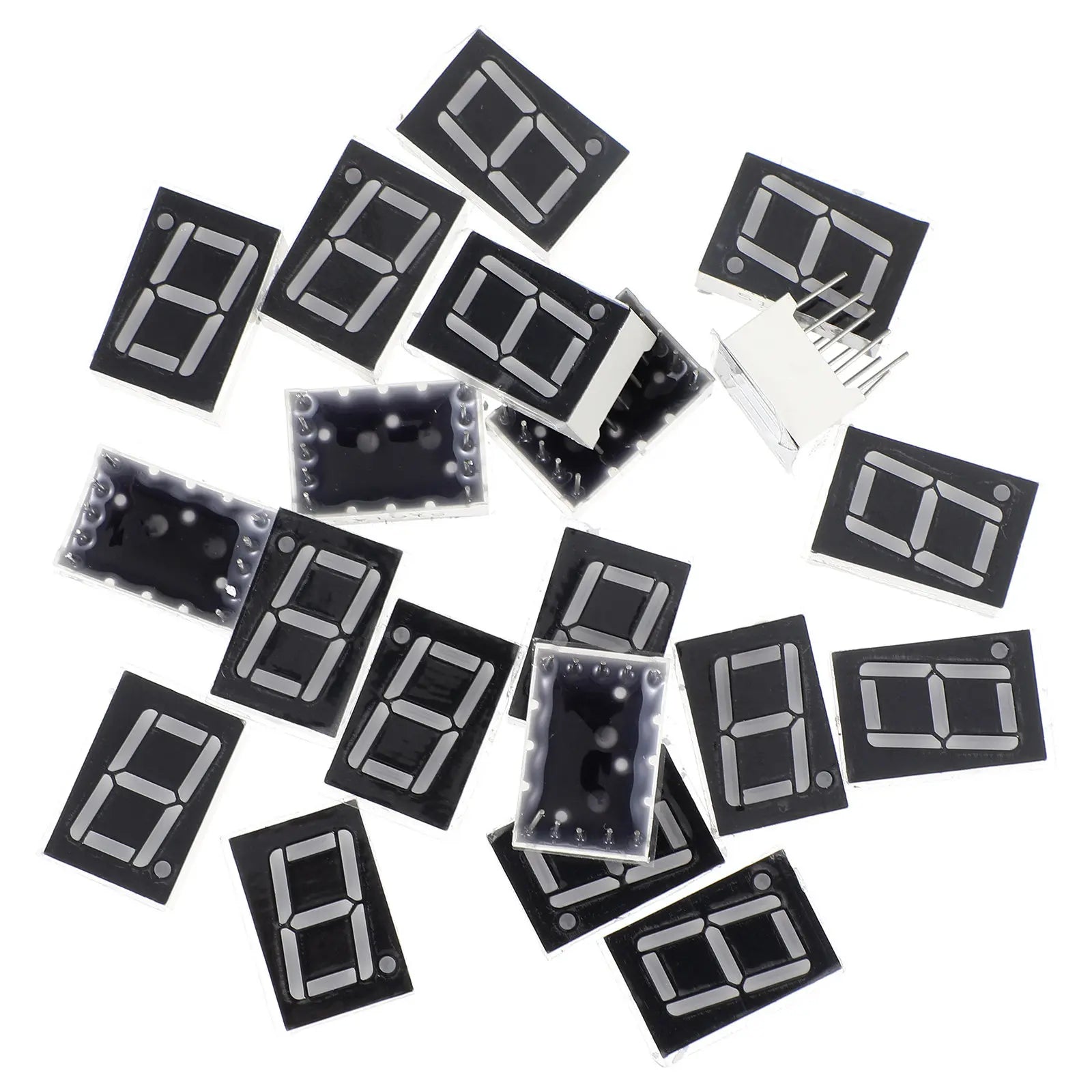

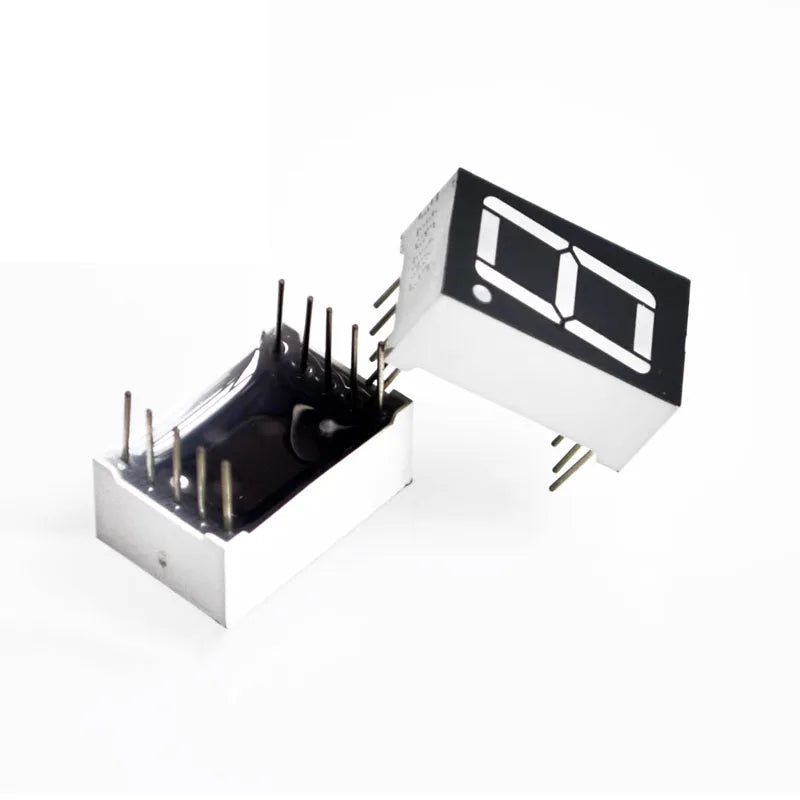

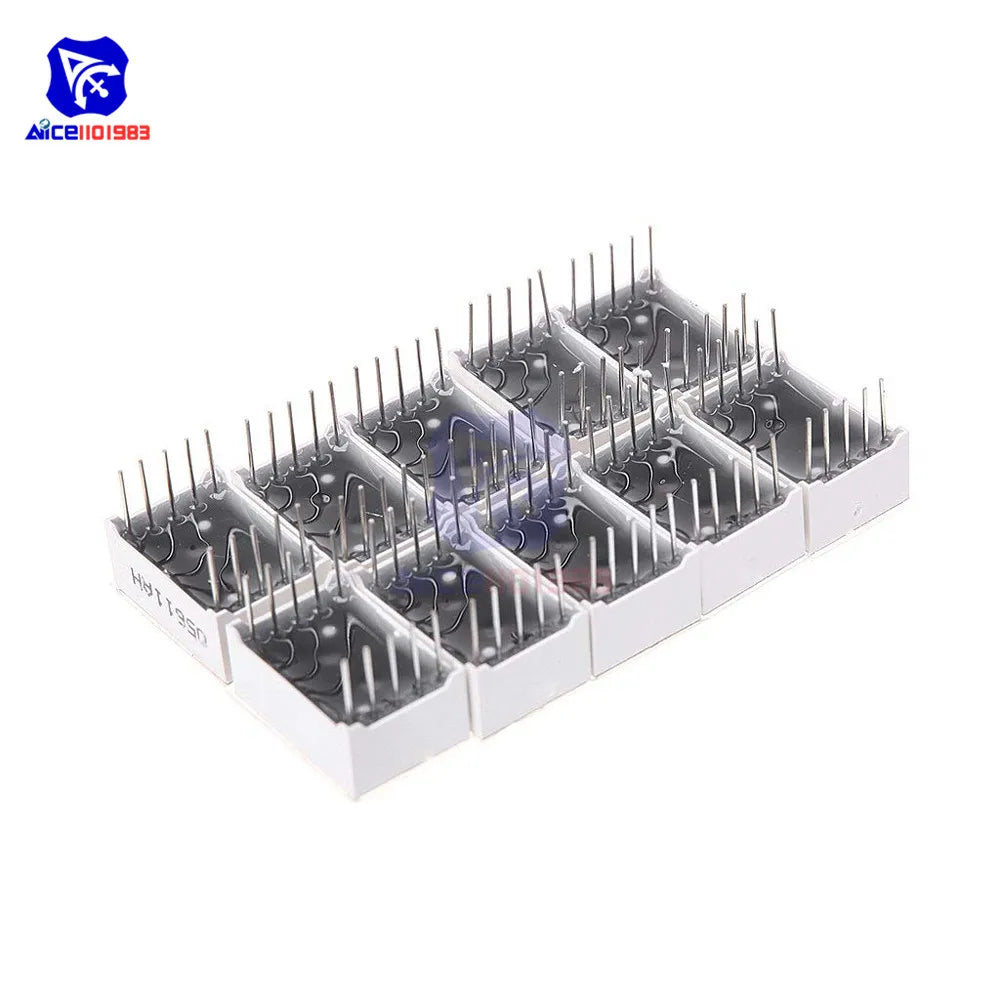

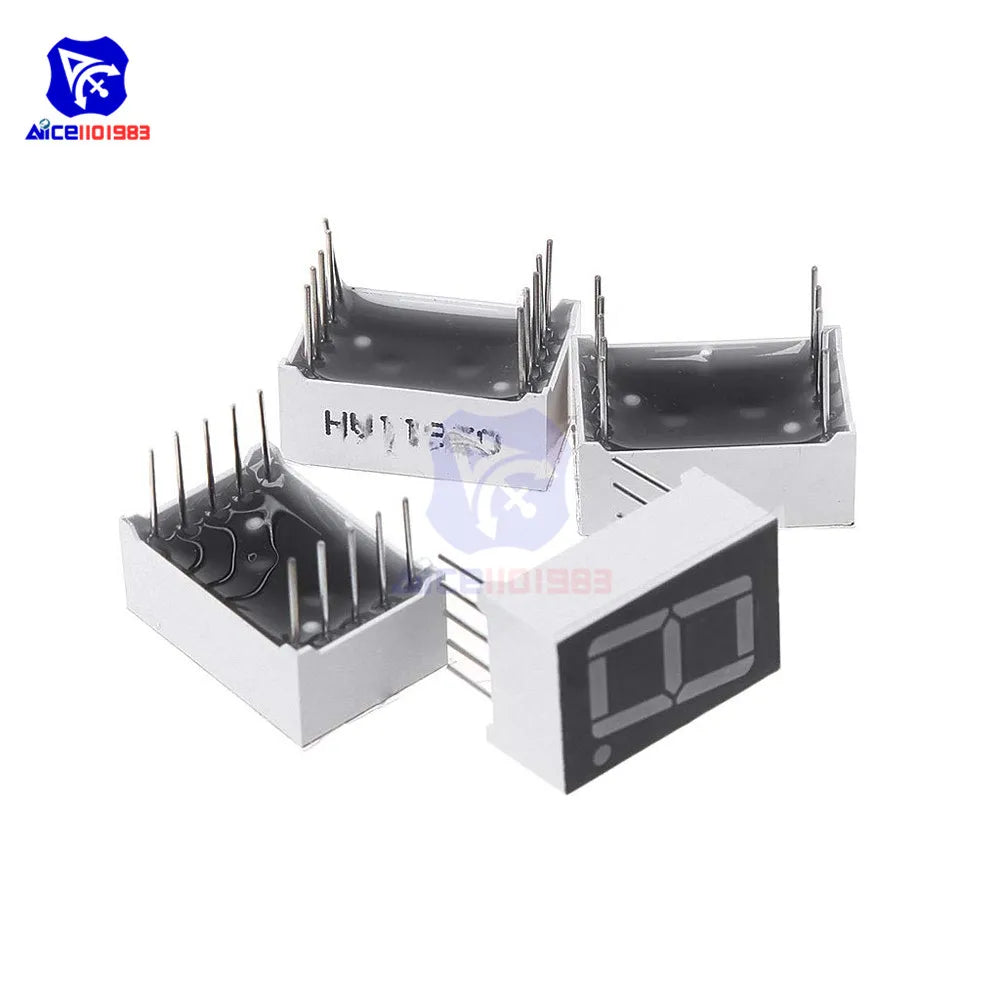

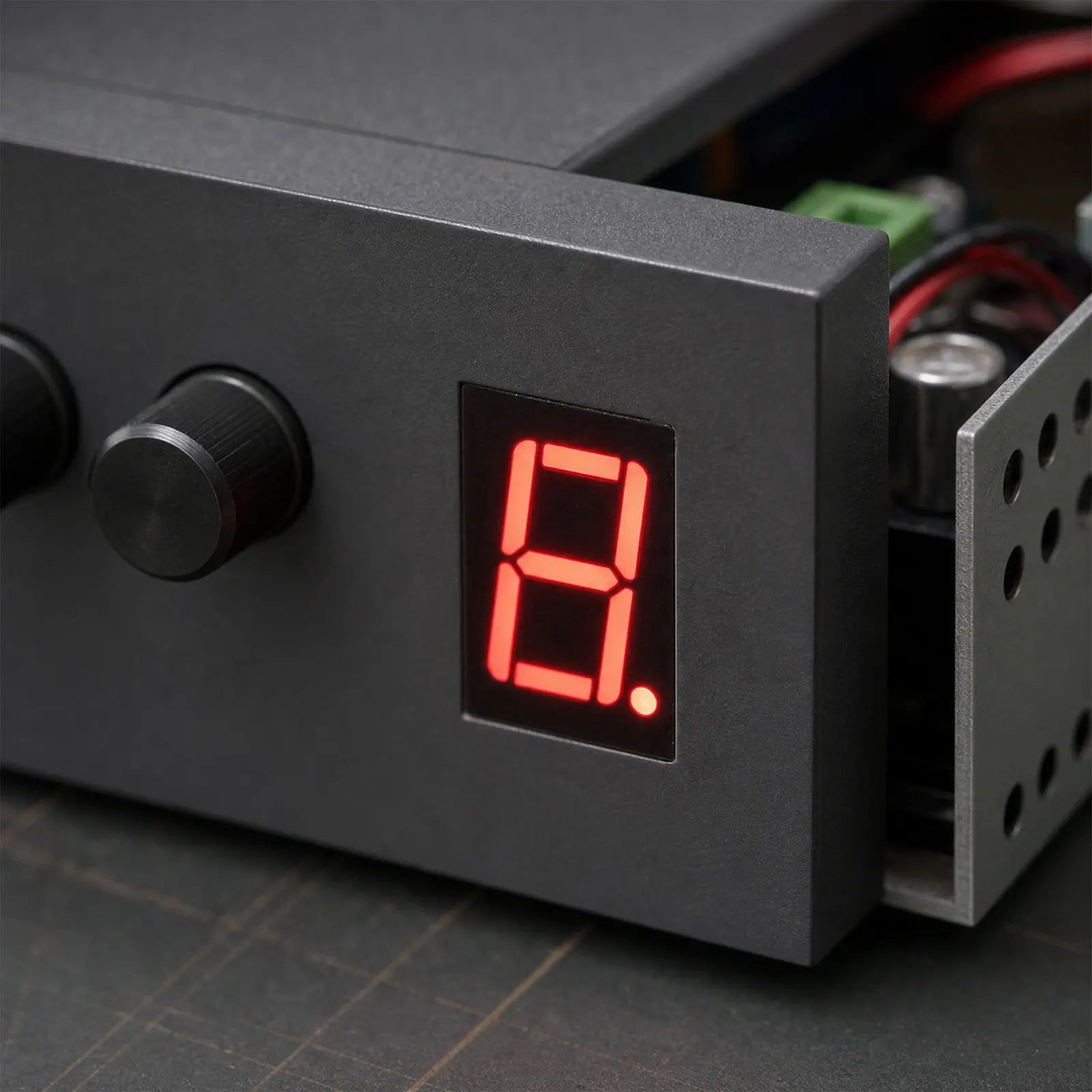

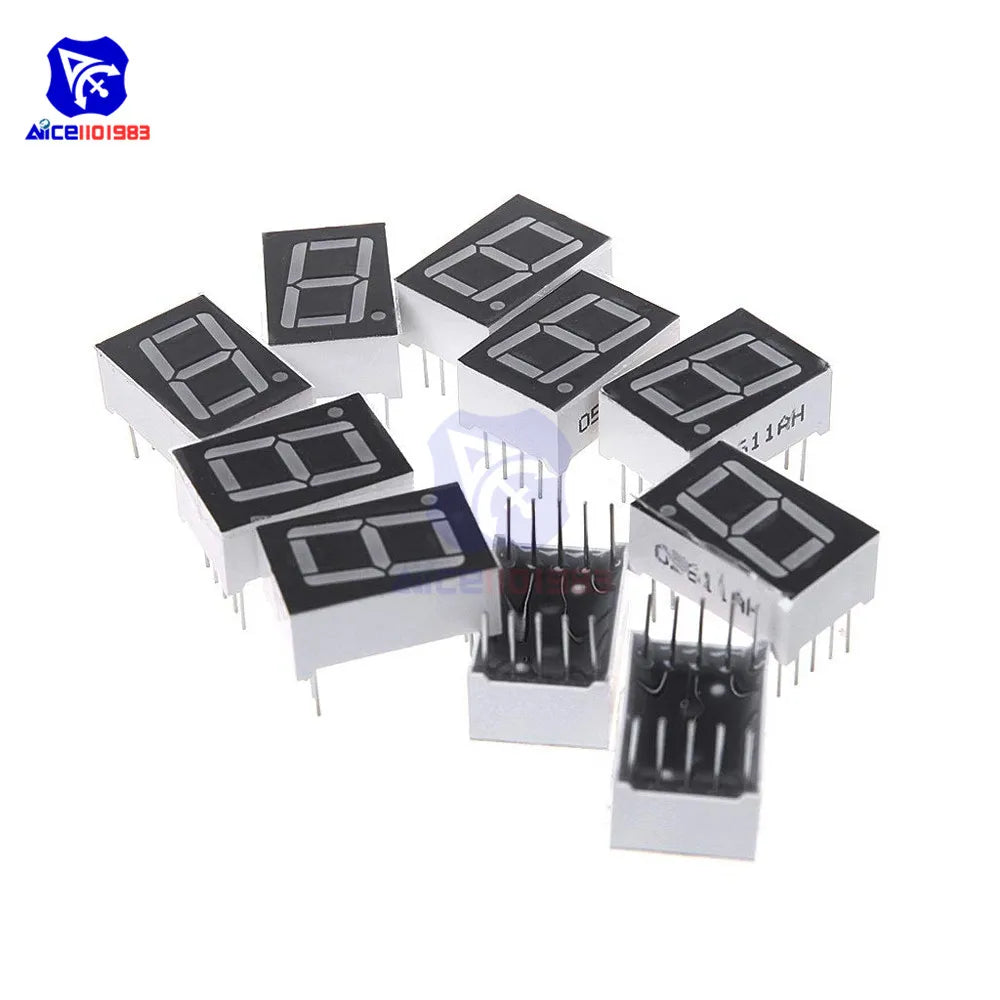

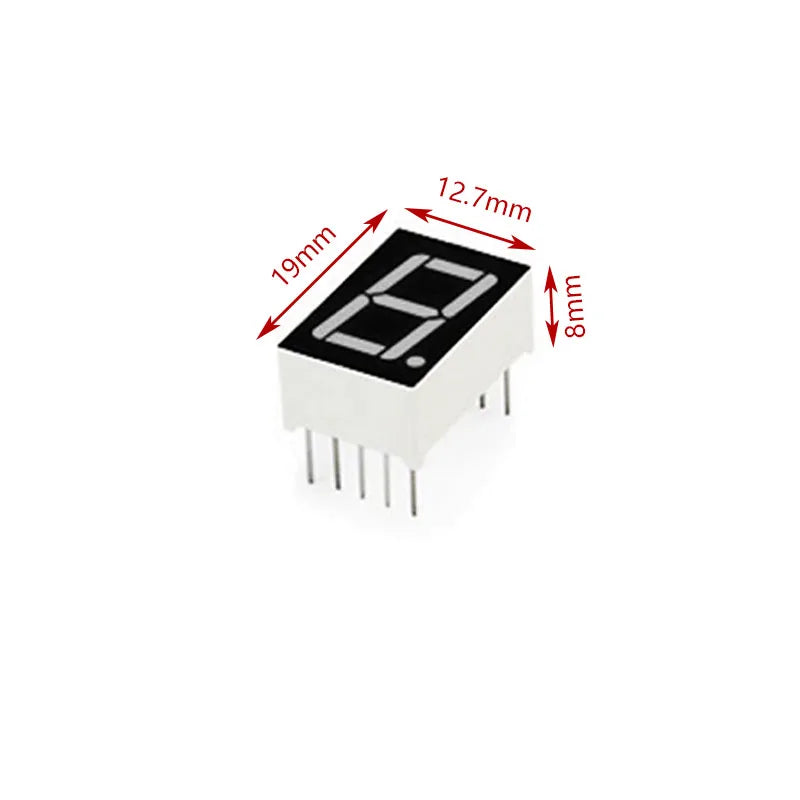

Red seven-segment products span 0.25-, 0.28-, 0.3-, 0.32-, 0.36-, 0.39-, 0.4-, 0.56-, 0.8-, 1.0-, 1.2- and 1.8-inch-marketed digit heights, in one-, two-, three- and four-digit formats. An option labeled C-A or Anode means common anode; C-C or Cathode means common cathode. Their driver polarity differs. A 10-pin one-digit tube, an 18-pin two-digit tube and a 12-pin four-digit part do not share a universal segment-to-pin map. Verify exact part number, number of digit commons, decimal-point/colon arrangement, segment current, PCB footprint, digit height and the driver or multiplexing scheme.

Many red tubes are supplied as five- or ten-piece lots, while other listings offer one, five, ten or twenty pieces and two examples name 50, 100 or 200 pieces. “4 Bit” can describe four displayed digits; it is not a four-piece pack. The option field named “Support Language” on several listings actually selects common-anode/cathode configuration, not a language translation. Seller text sometimes disagrees on part-number suffix versus polarity. Follow the chosen option and verify the exact data sheet before designing a board; do not rely on a general convention for AS/BS suffixes when the listing itself is inconsistent.

A 0.56-inch four-digit TM1637-style module with center/double dots offers different color and “with clock/without clock” options on two listings. Only the actual red variant supplies a red readout; blue/yellow/white/green selections do not. The module takes a supply and serial control signals rather than exposing bare segment commons like a loose digit tube. “With clock” should be checked for the actual board contents and timekeeping capability, not assumed to mean a battery-backed real-time clock. A generic “digit tube display module drive chip” headline on a bare 0.5-inch display lot also does not prove a driver IC is included.

Flashing alarms and red-illuminated controls

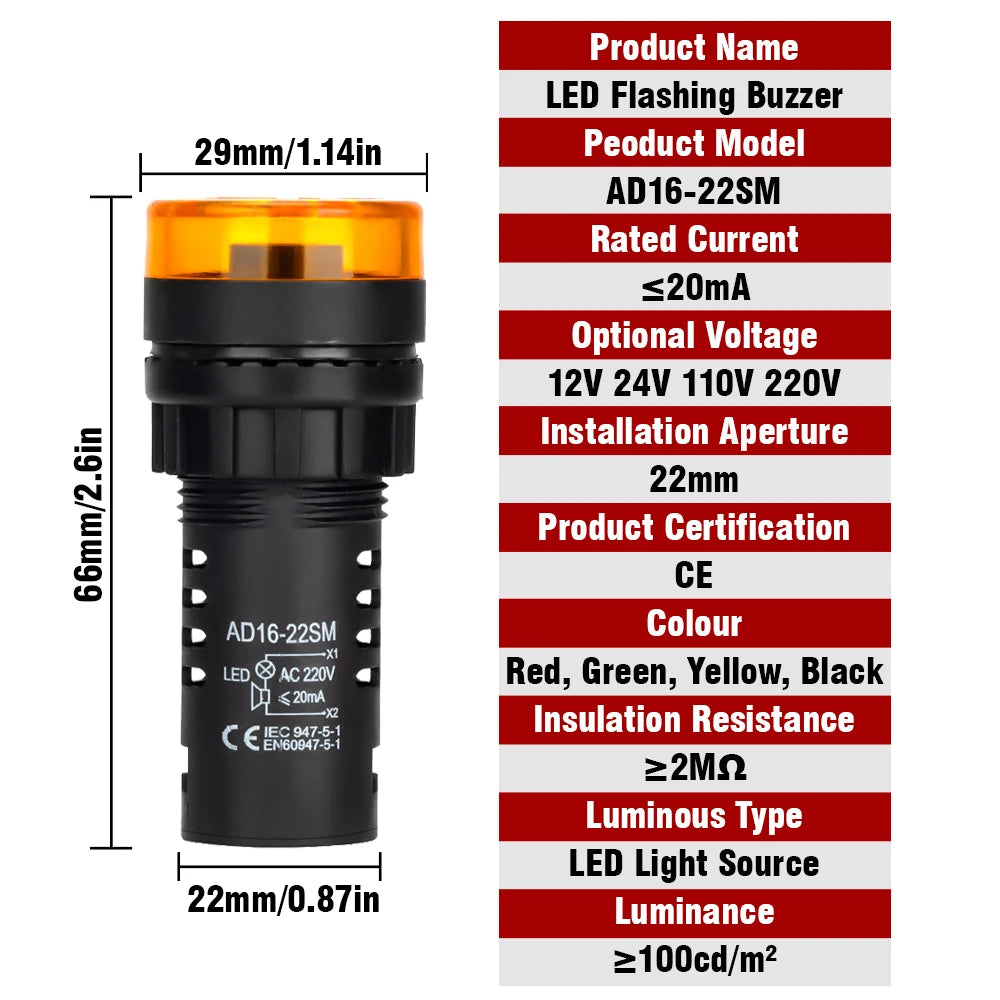

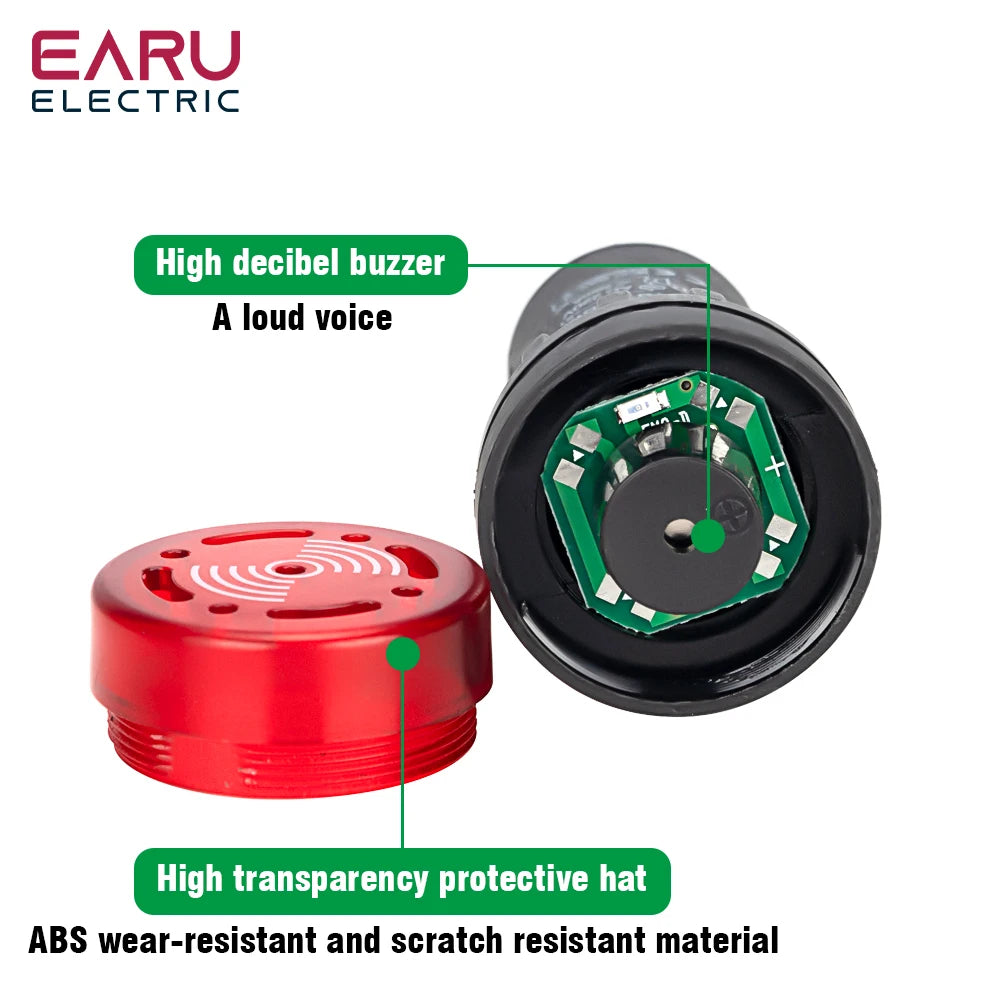

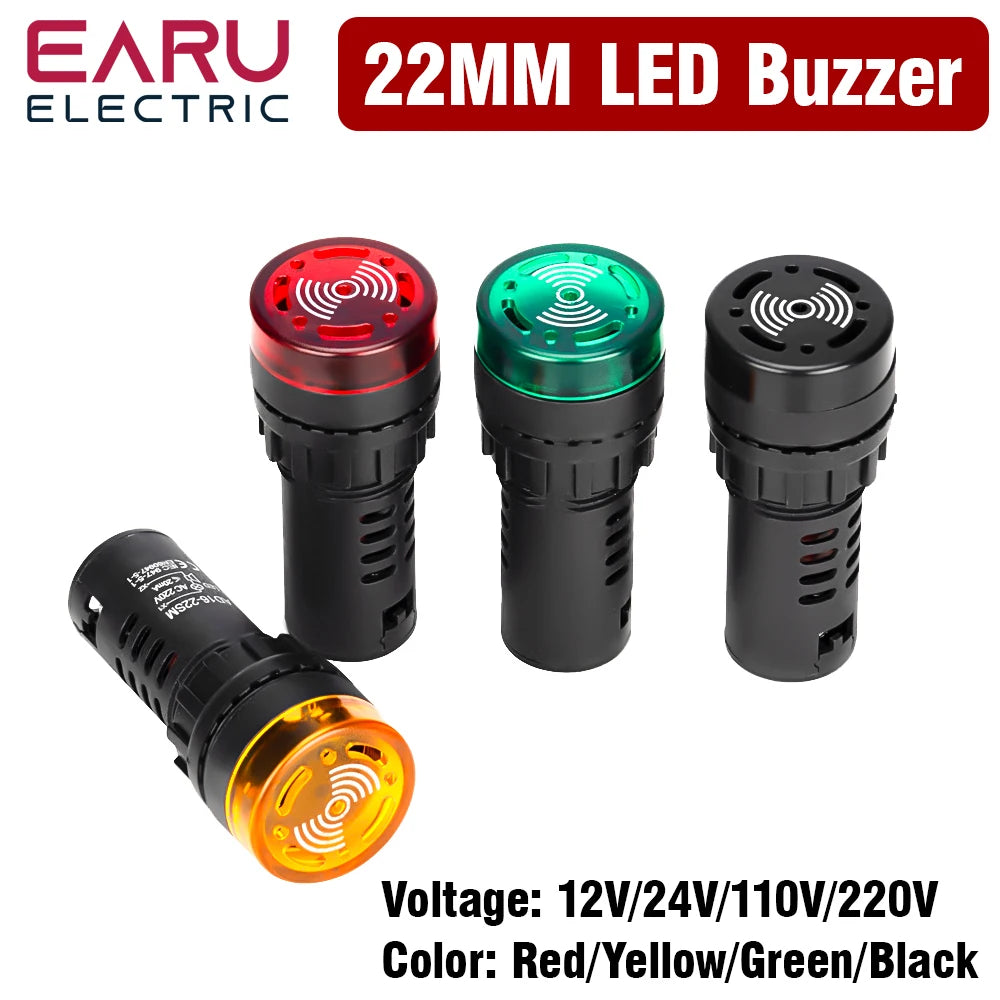

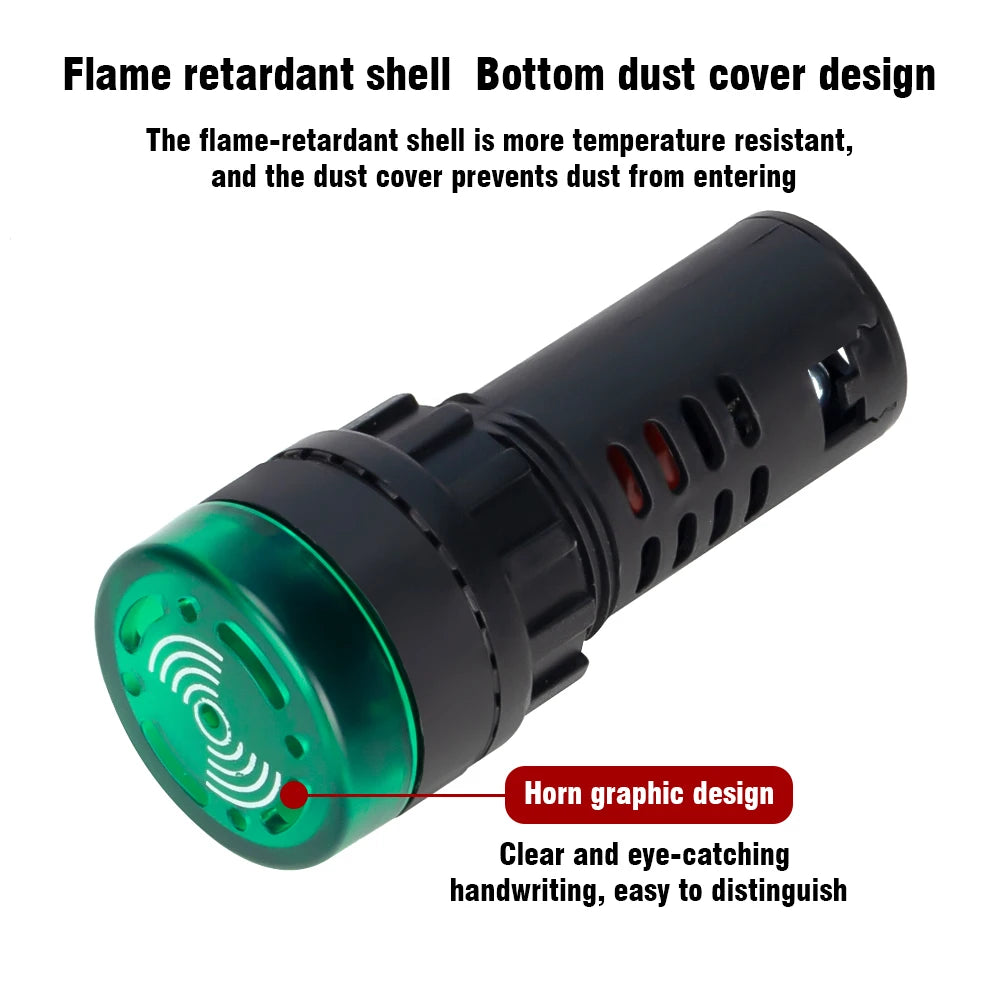

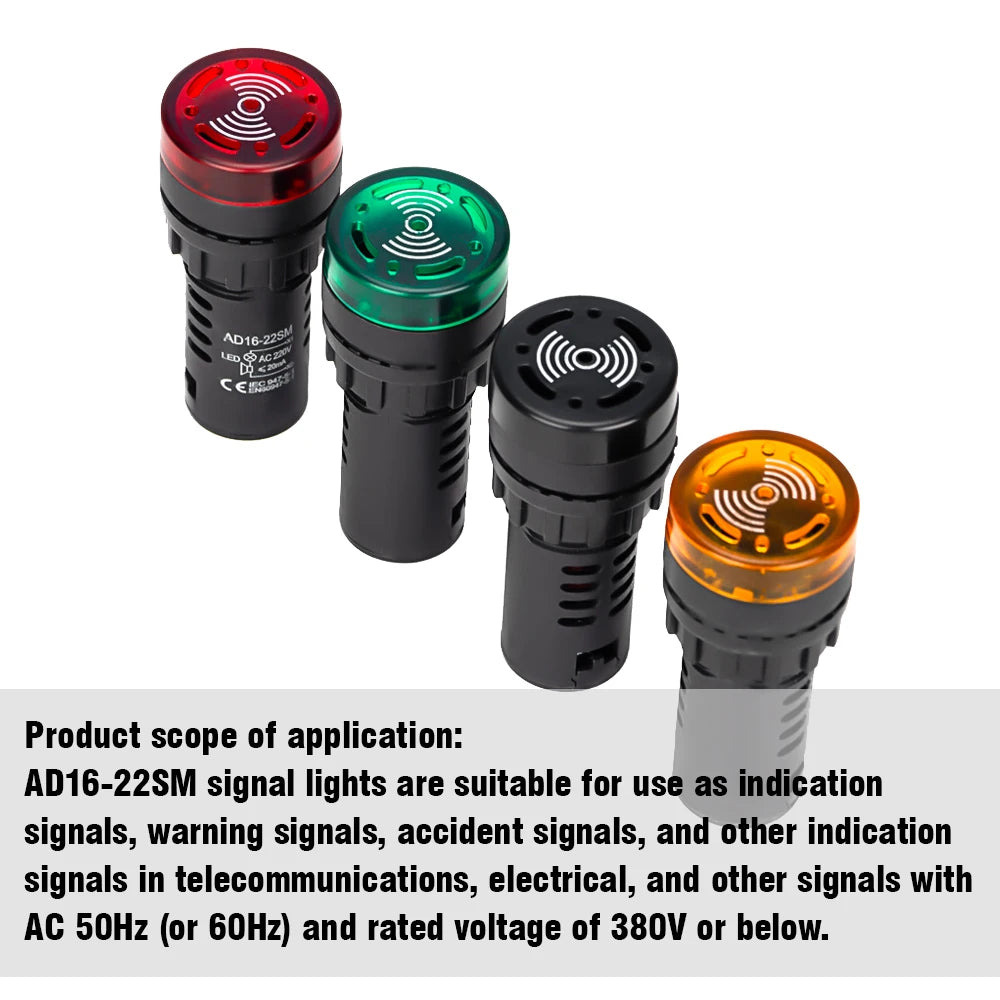

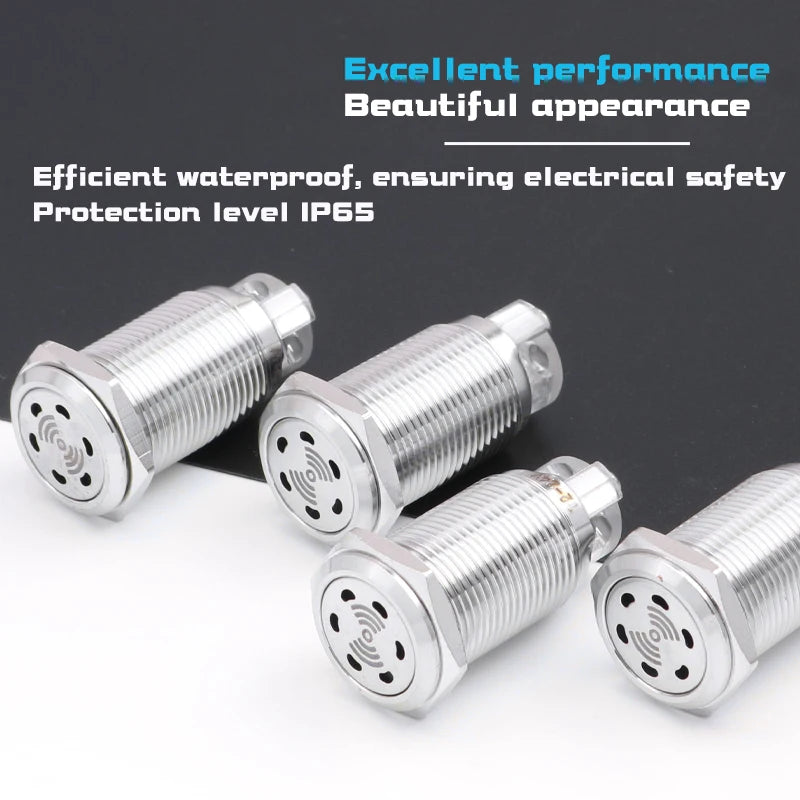

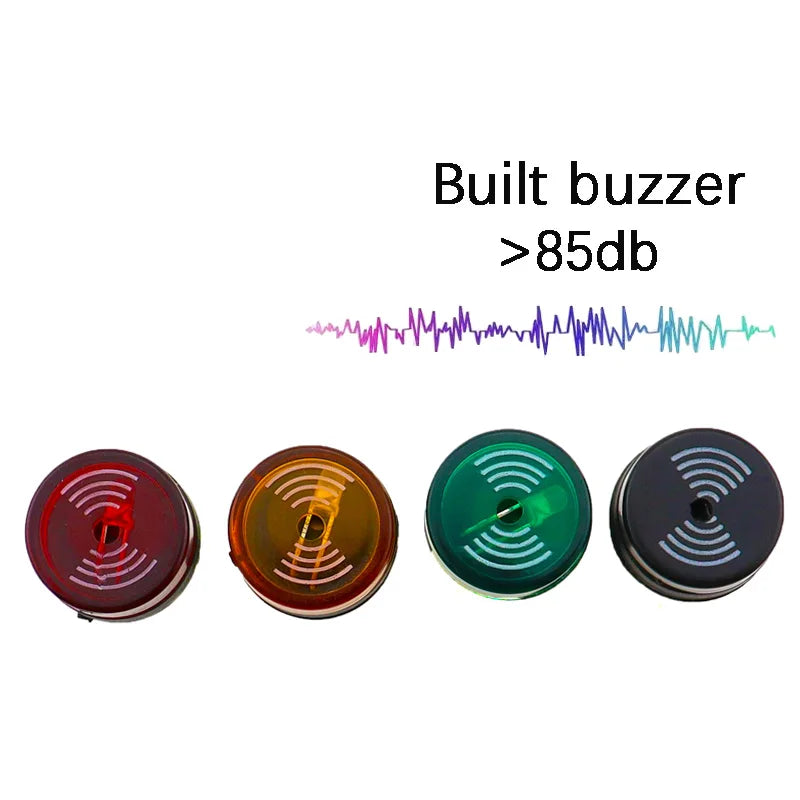

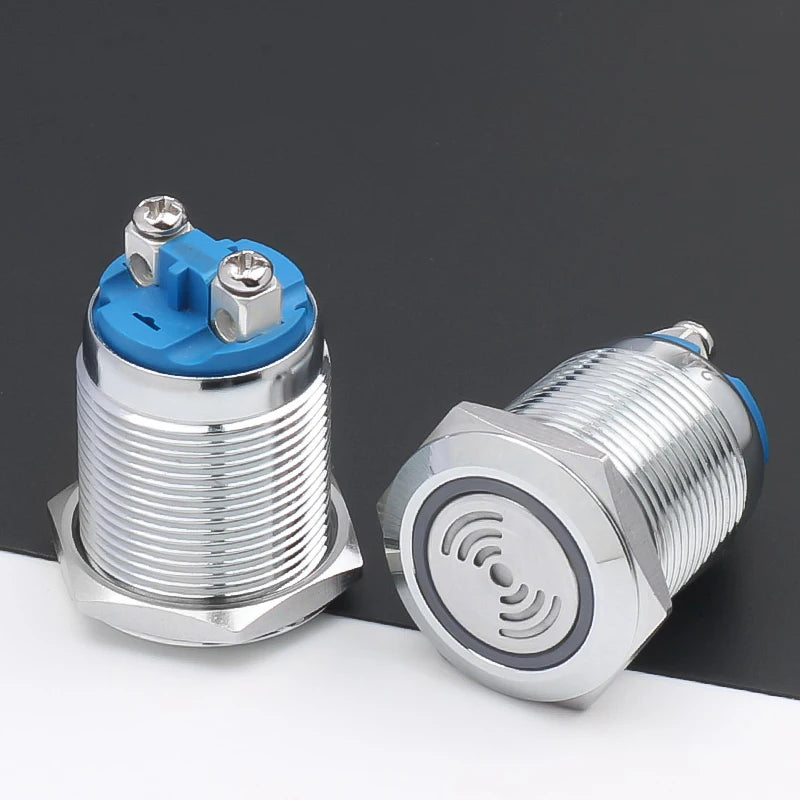

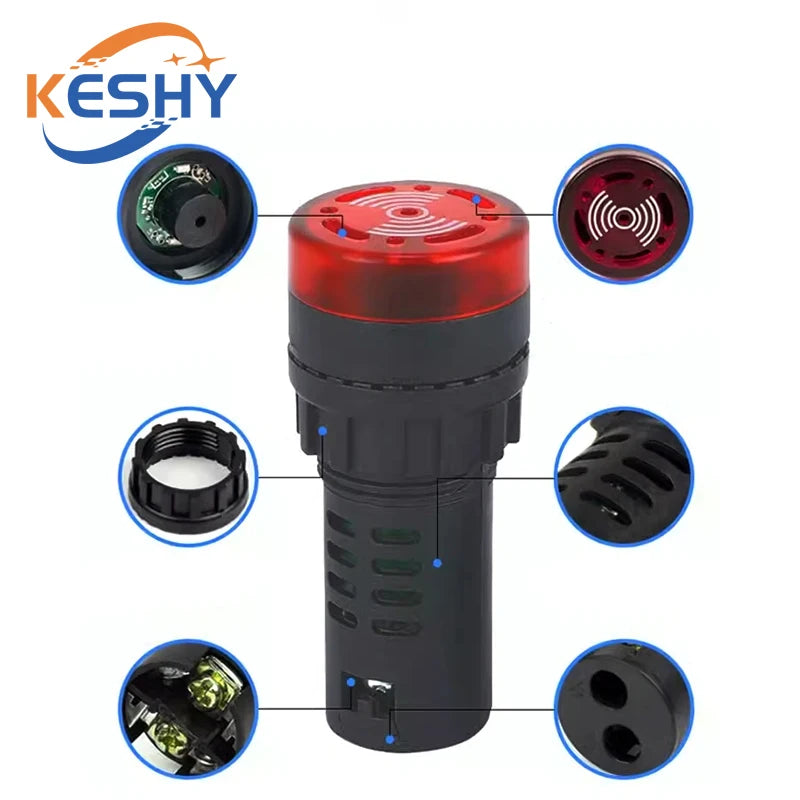

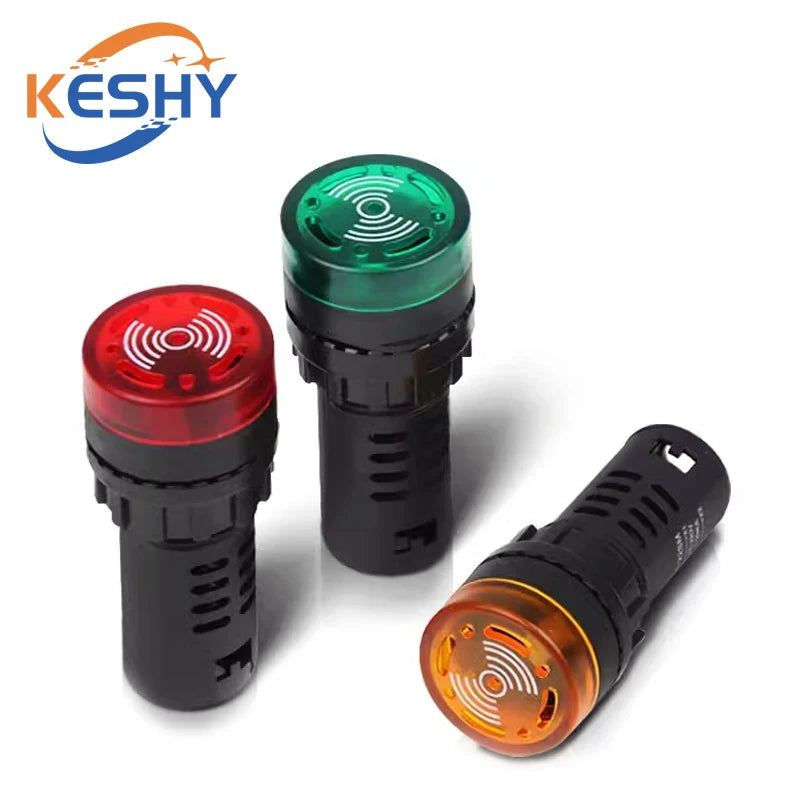

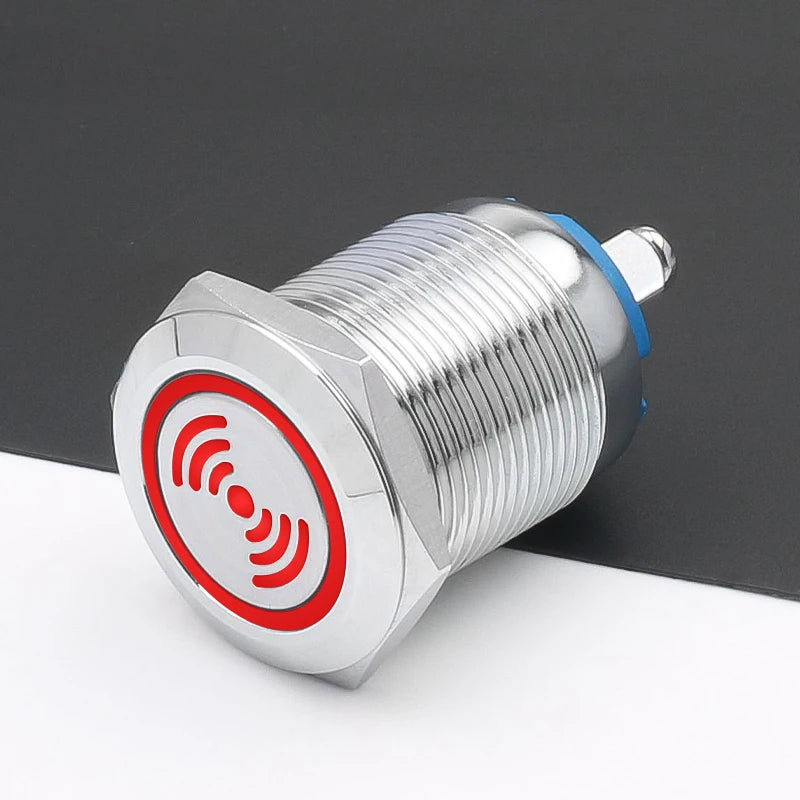

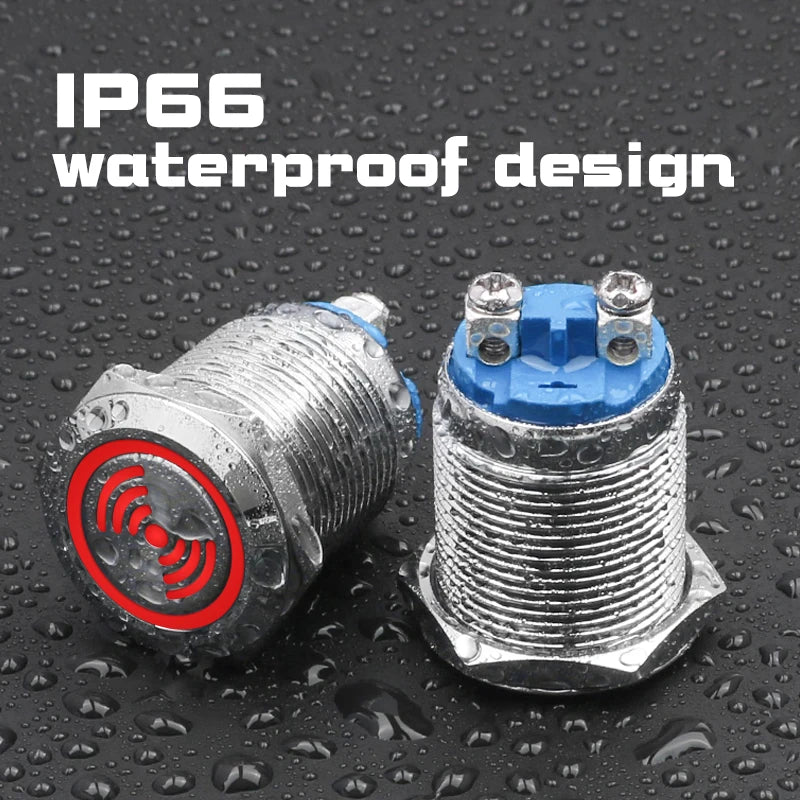

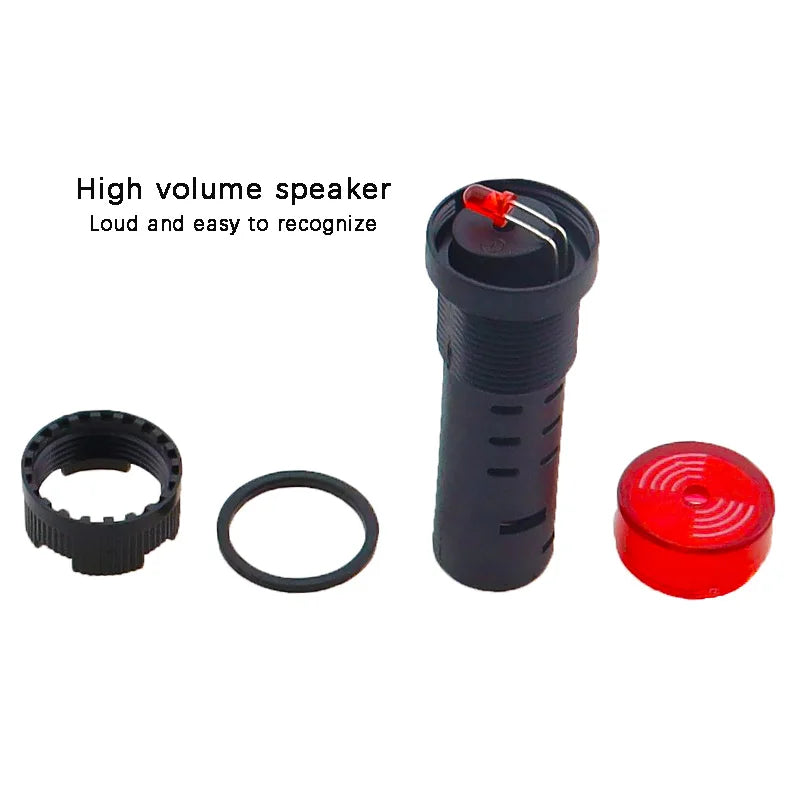

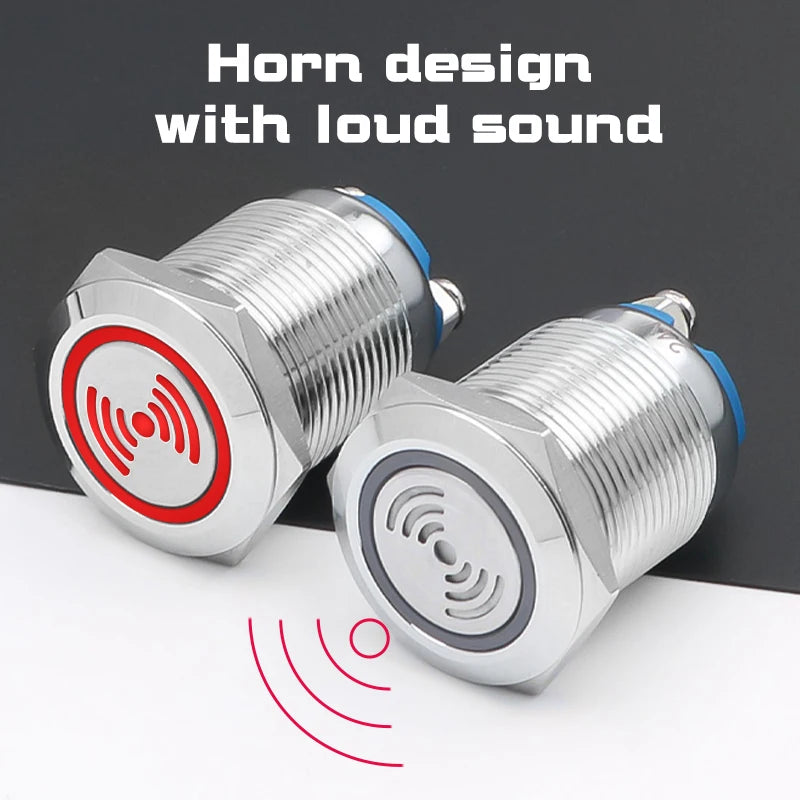

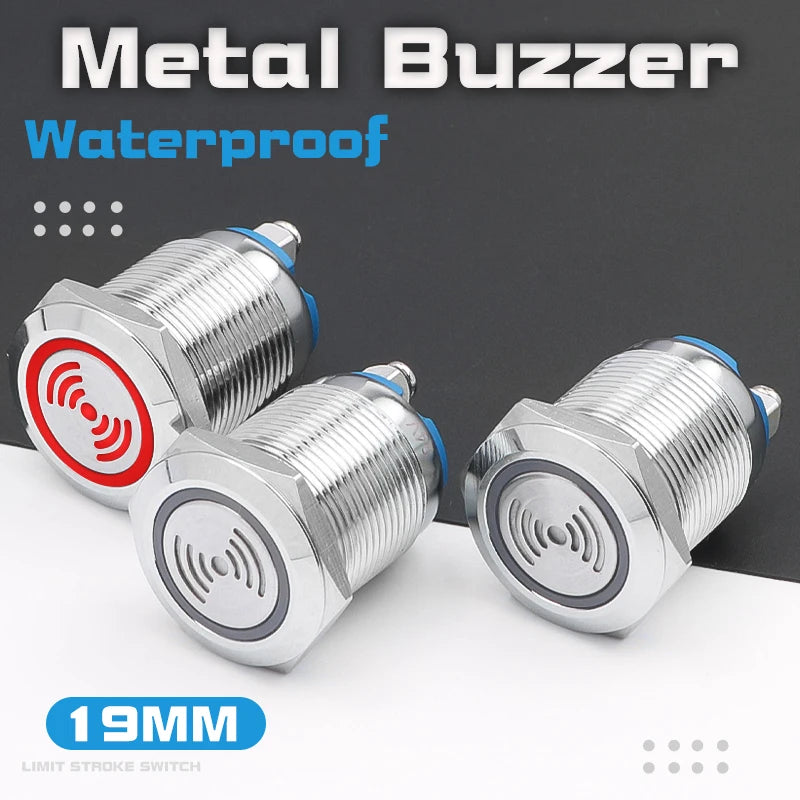

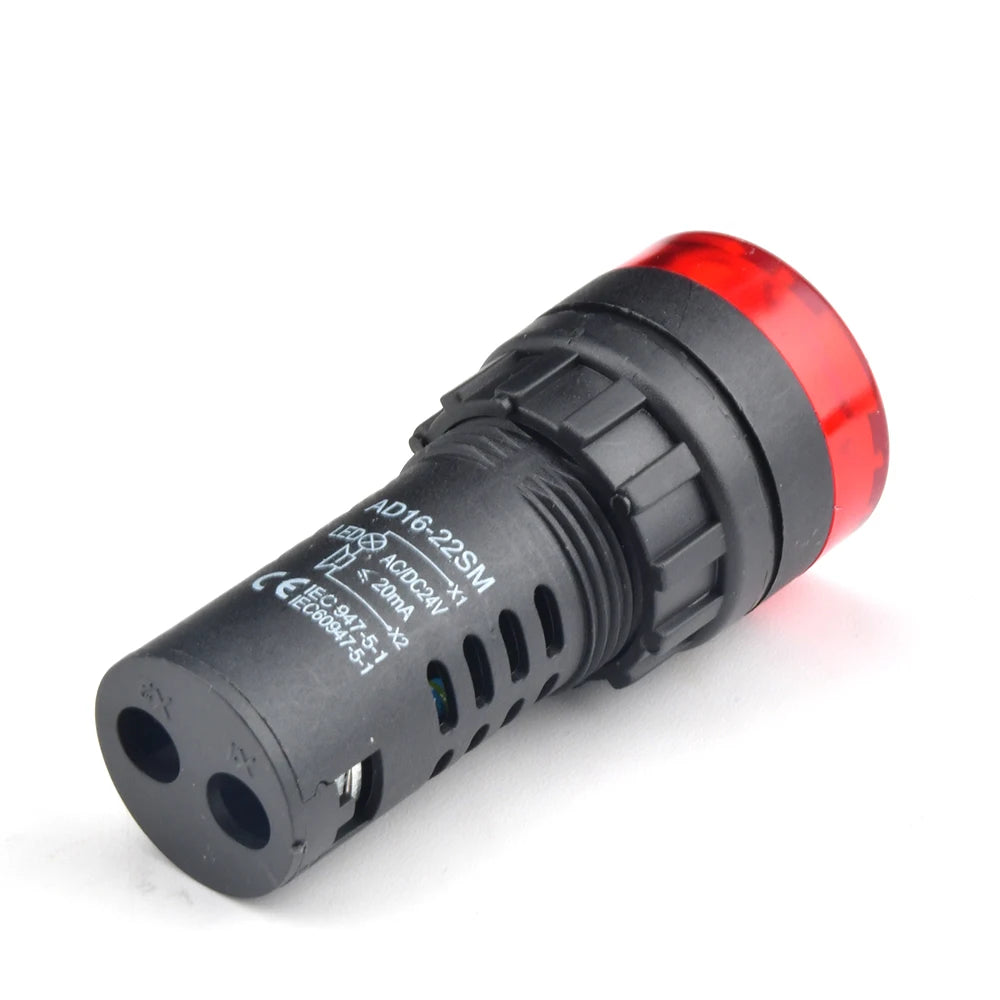

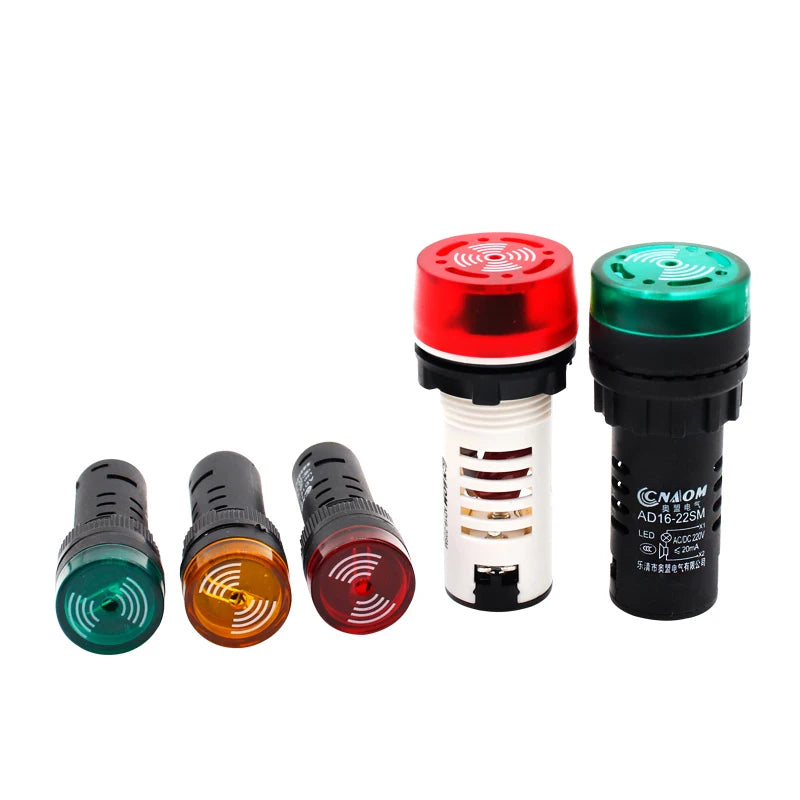

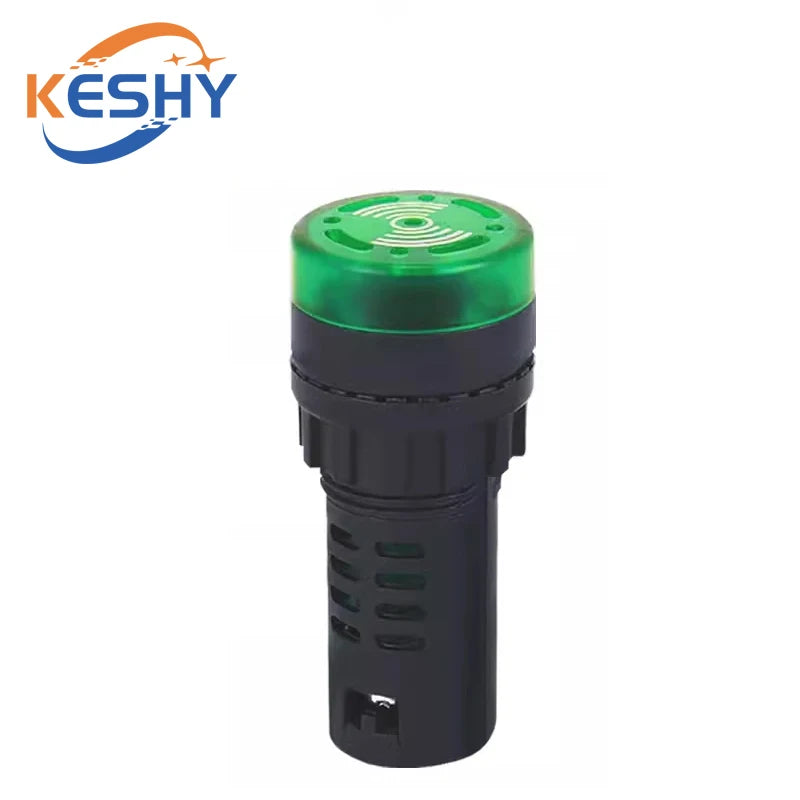

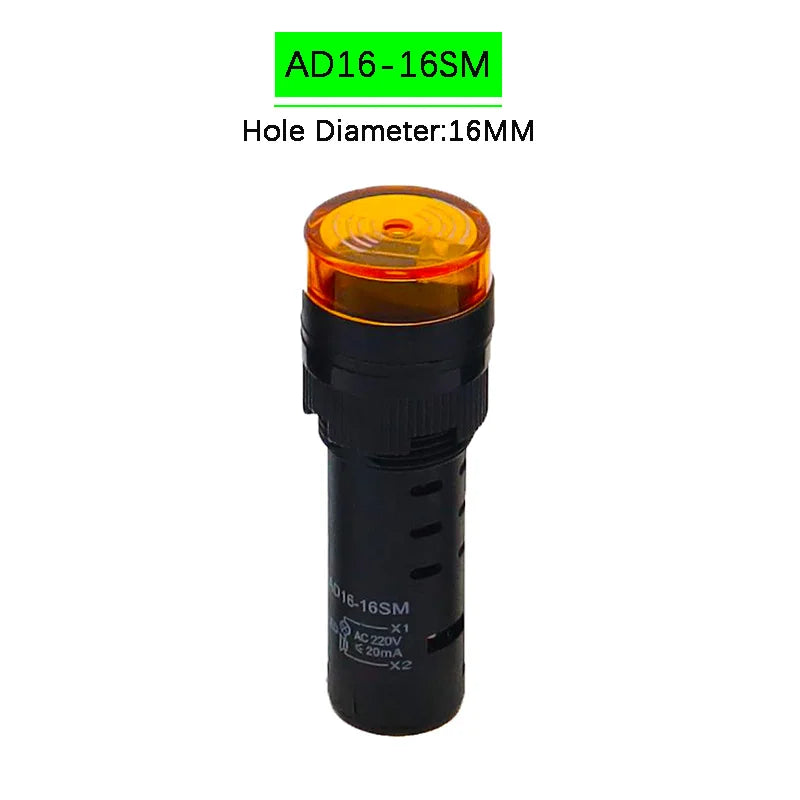

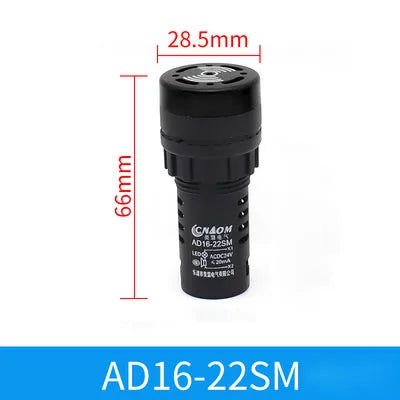

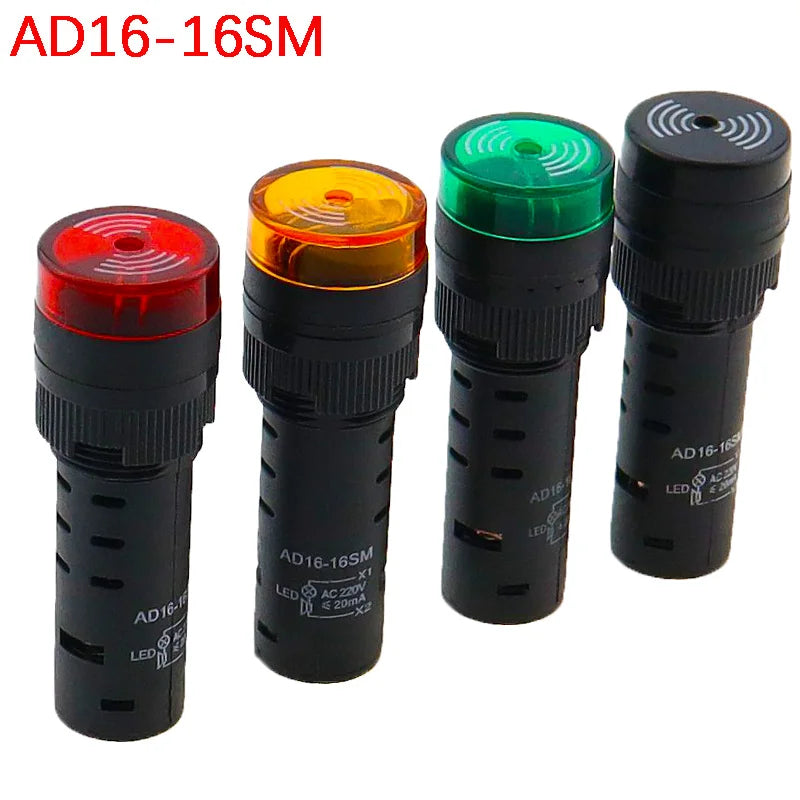

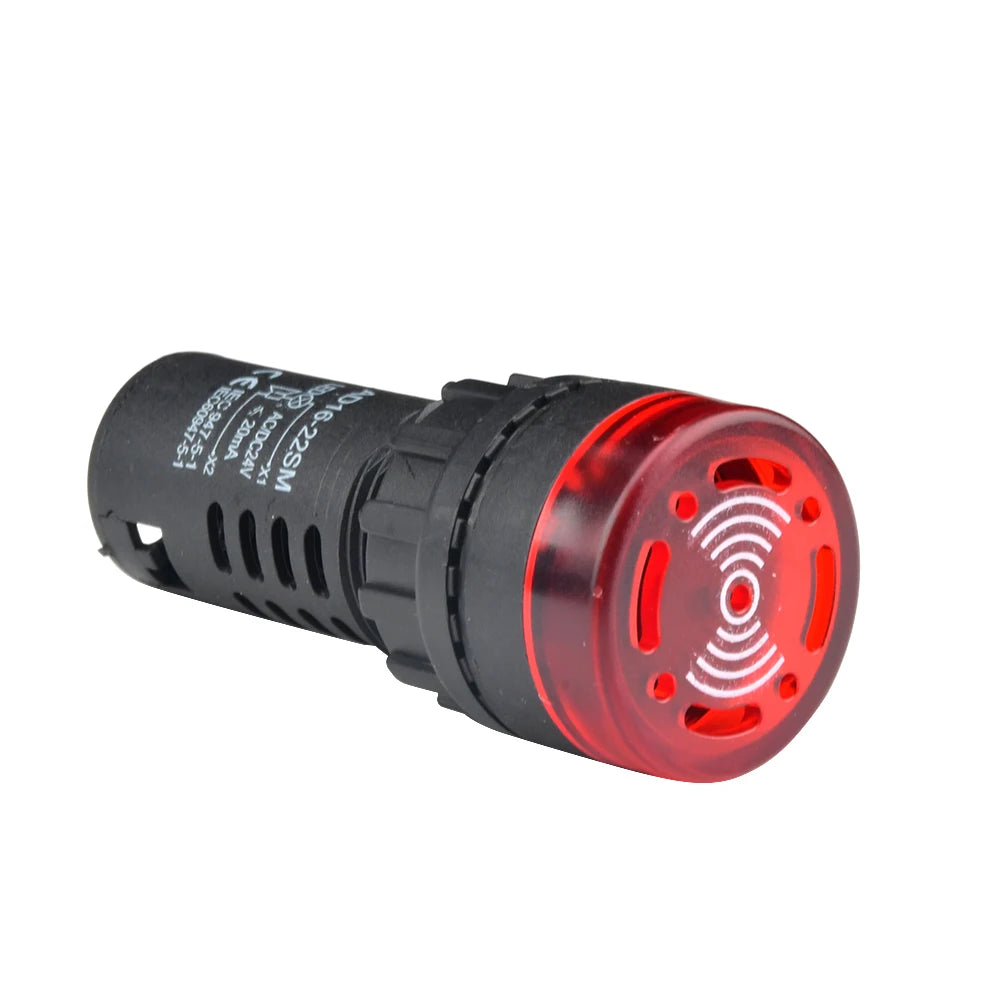

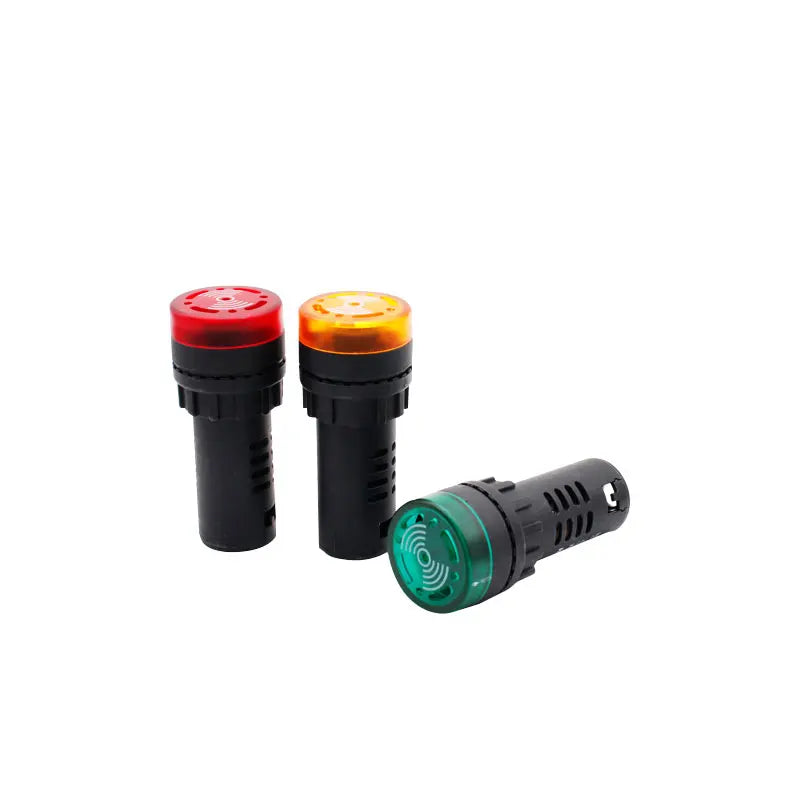

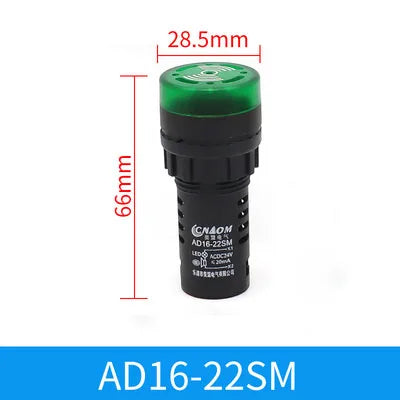

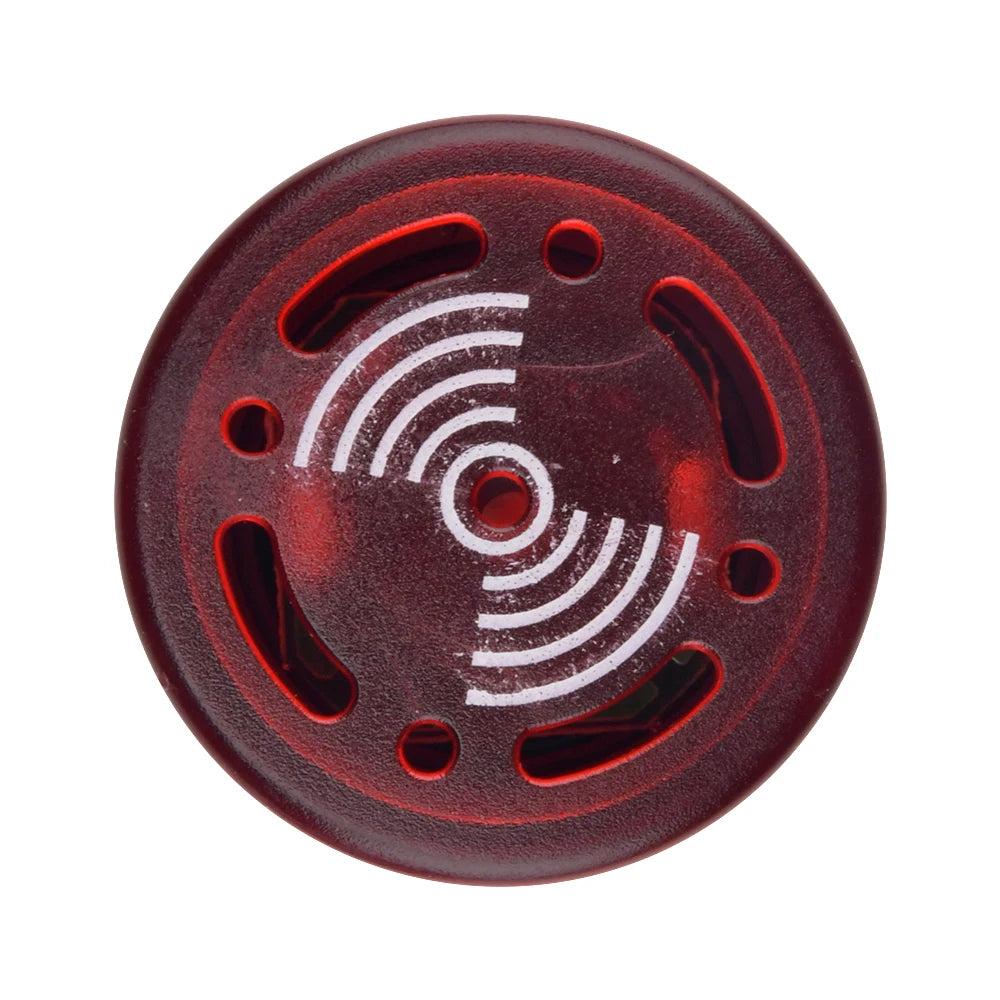

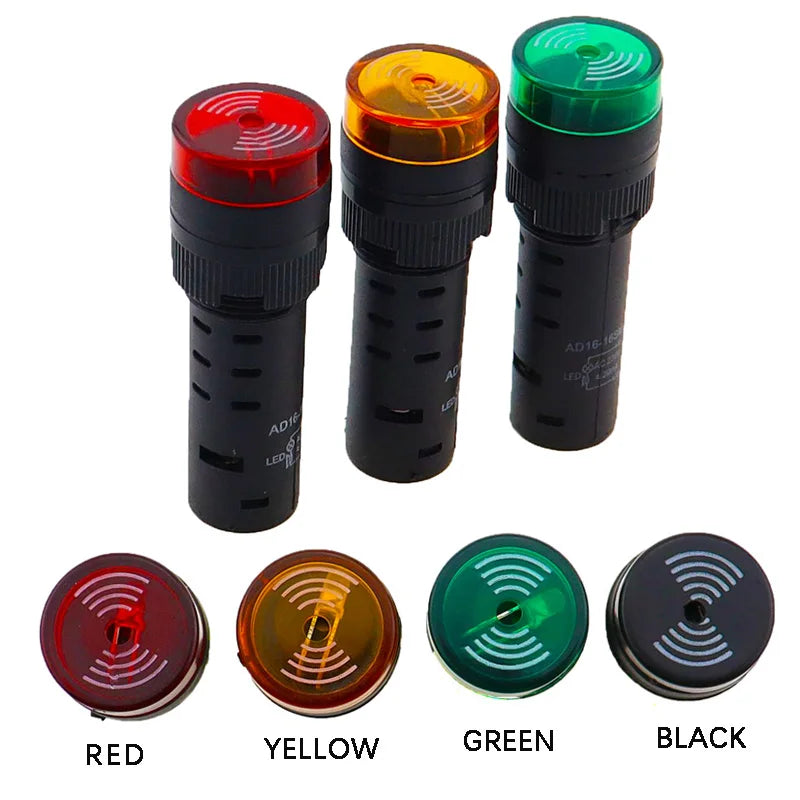

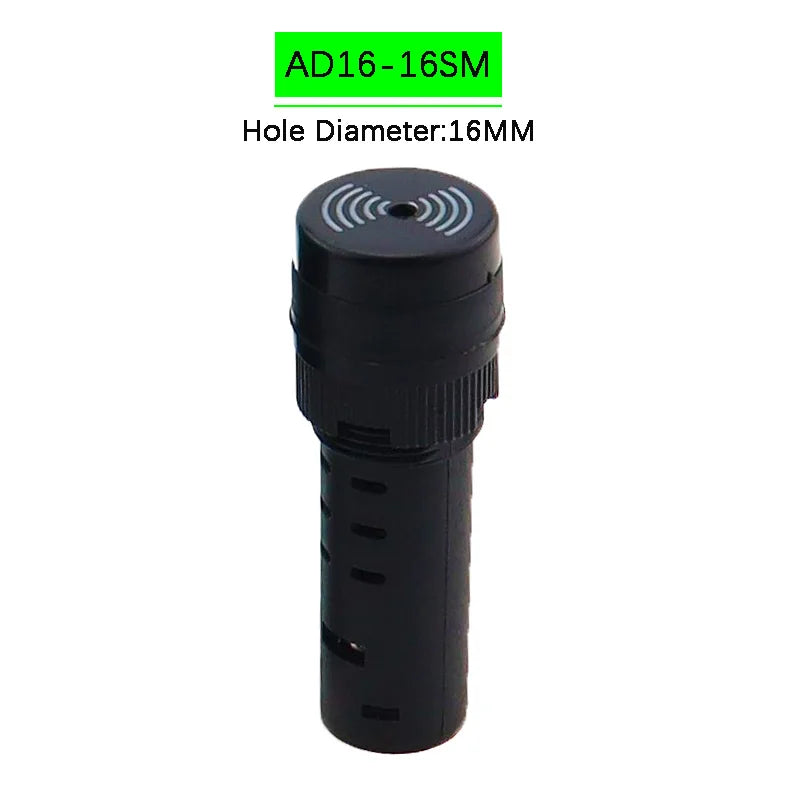

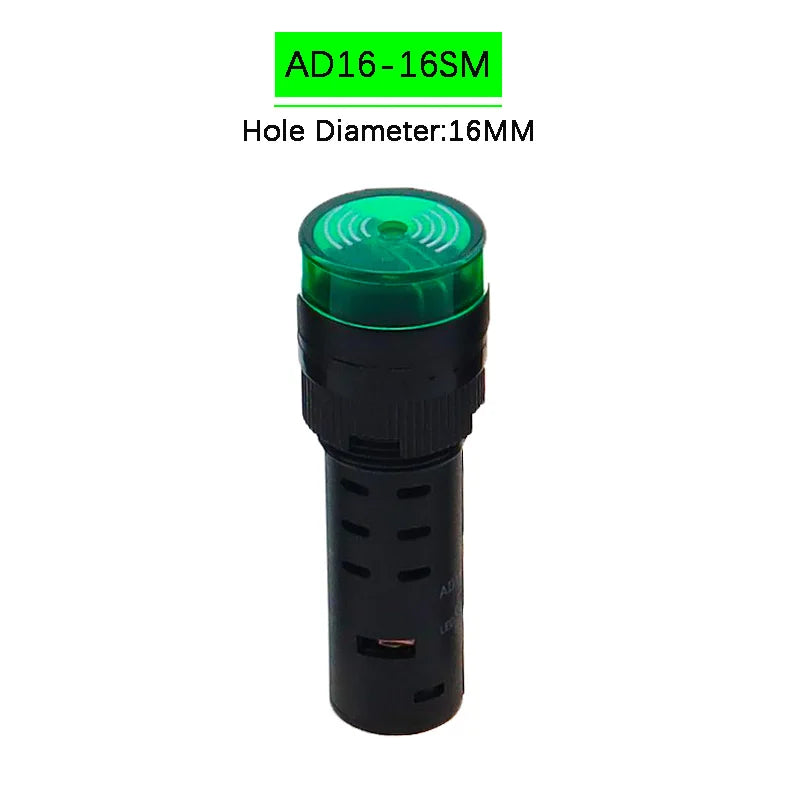

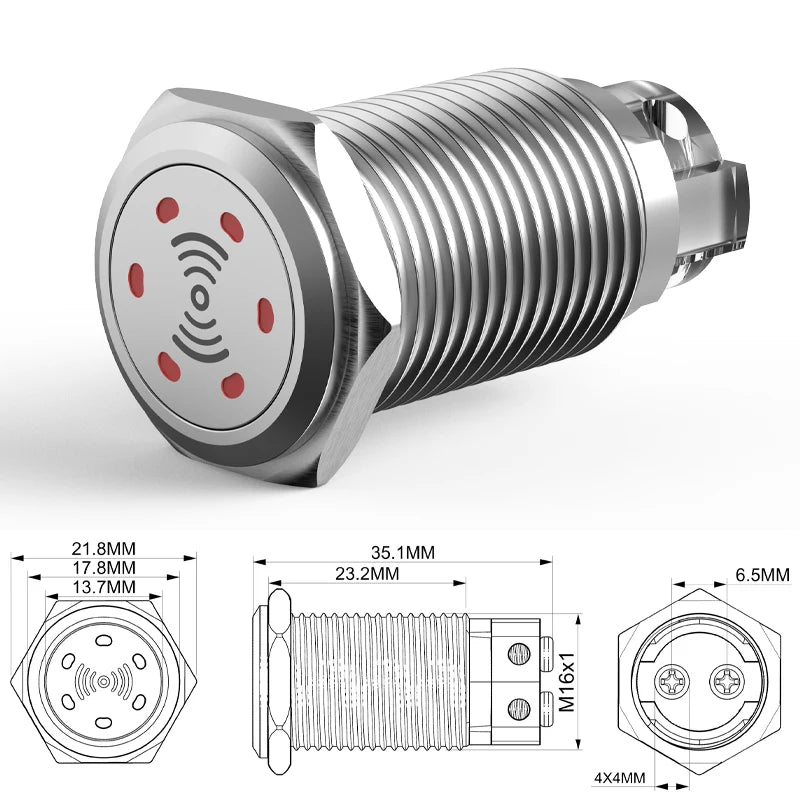

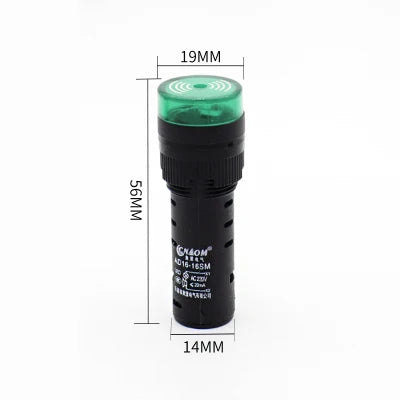

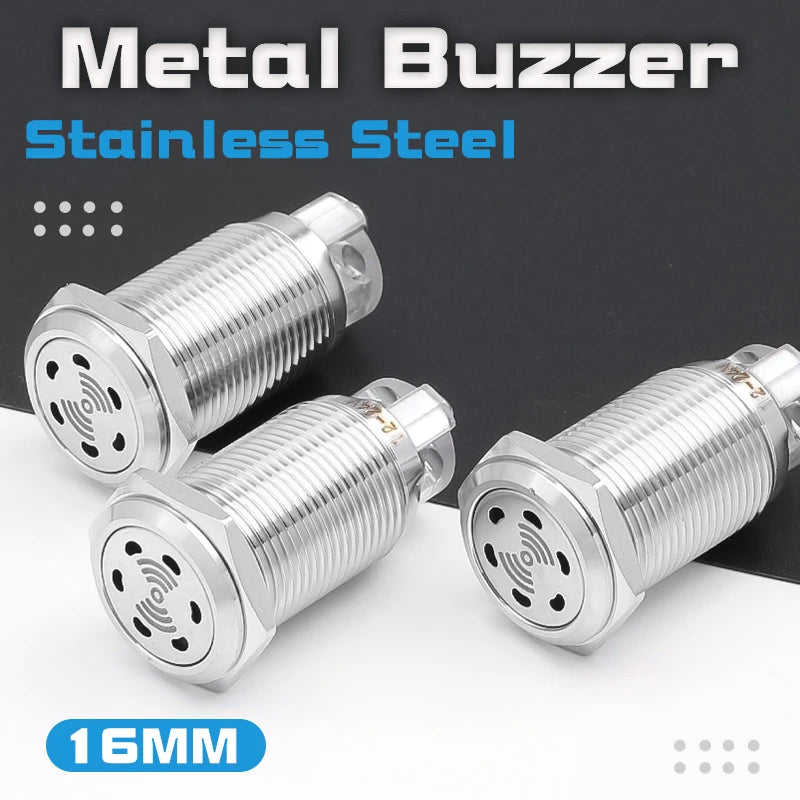

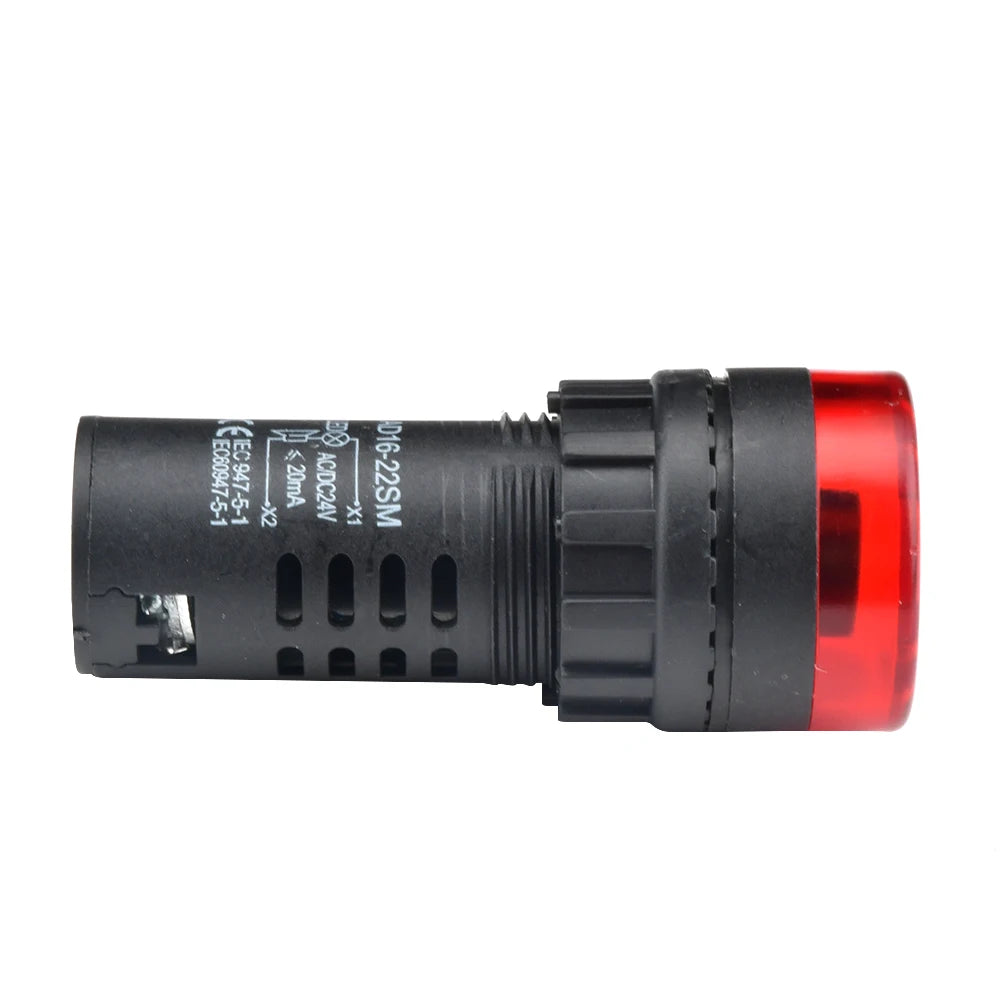

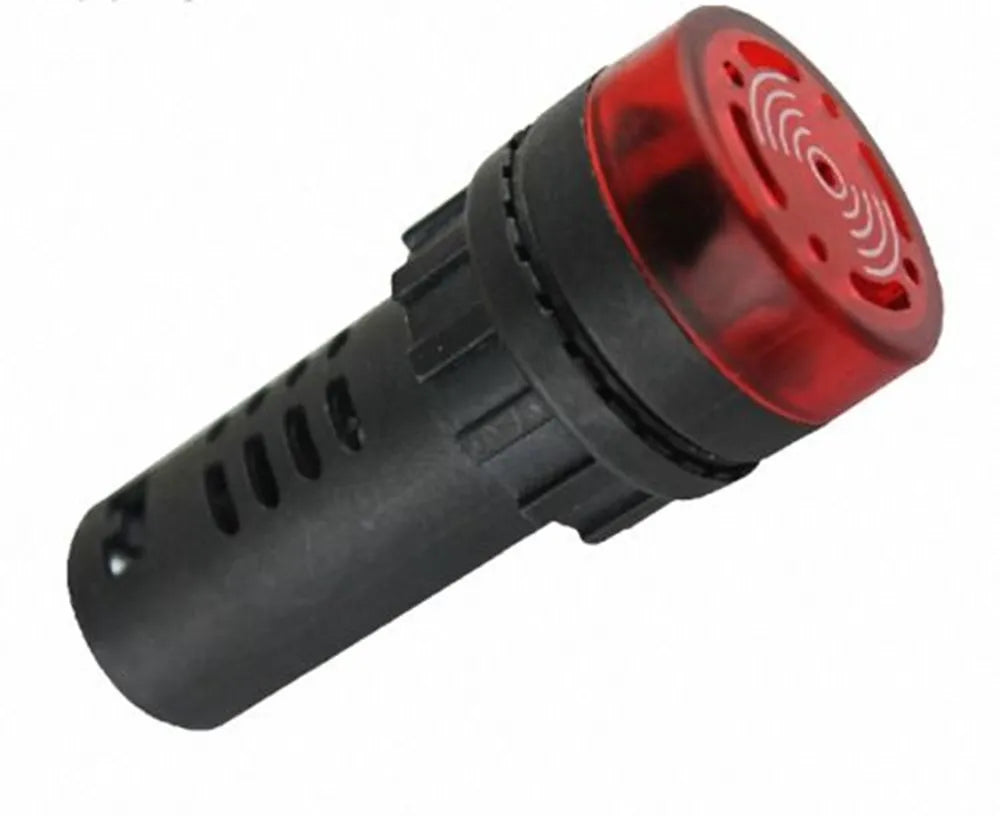

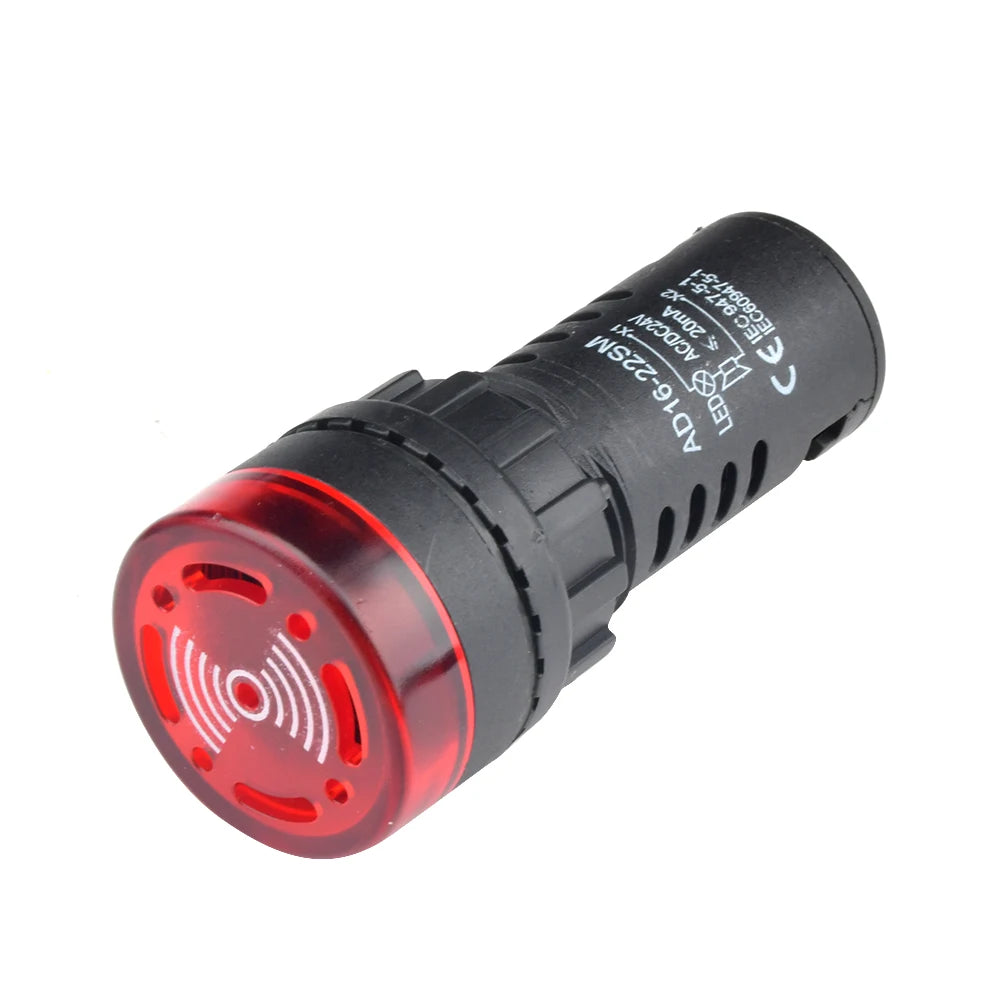

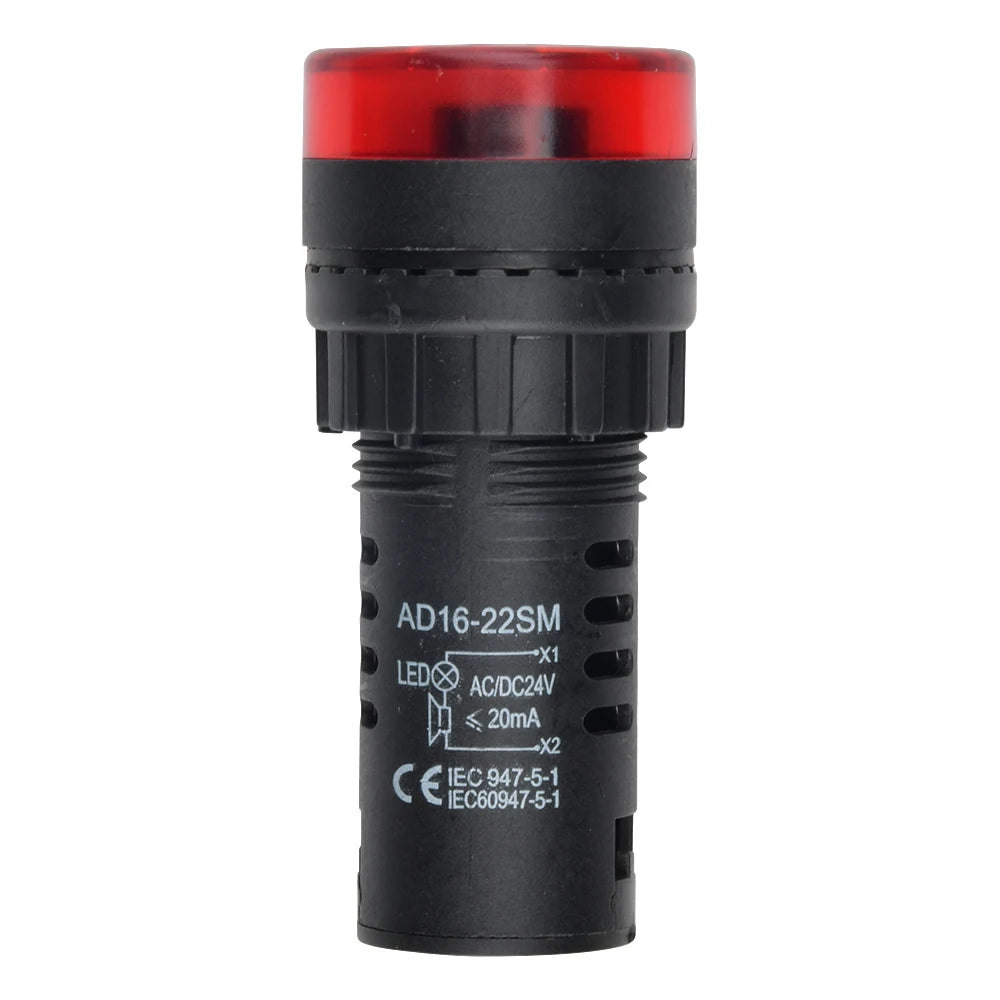

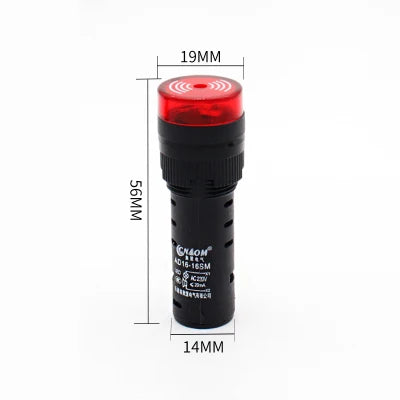

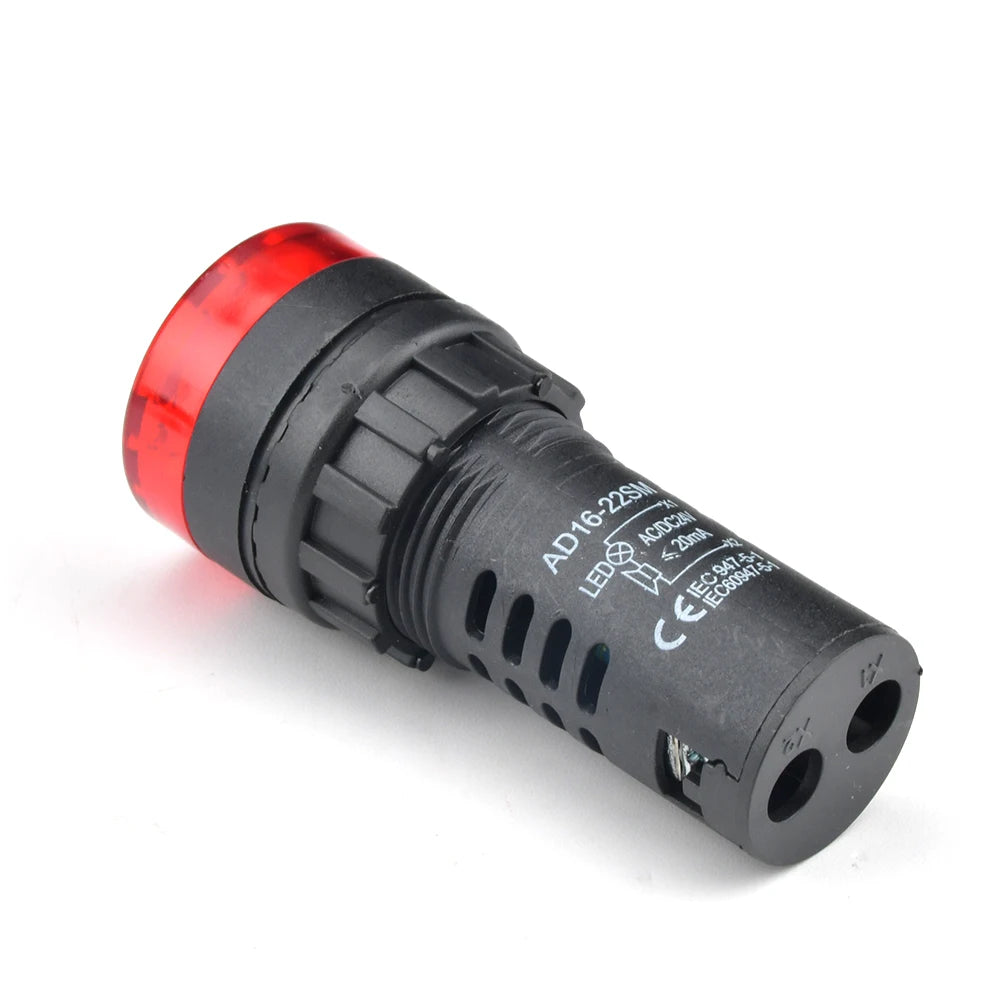

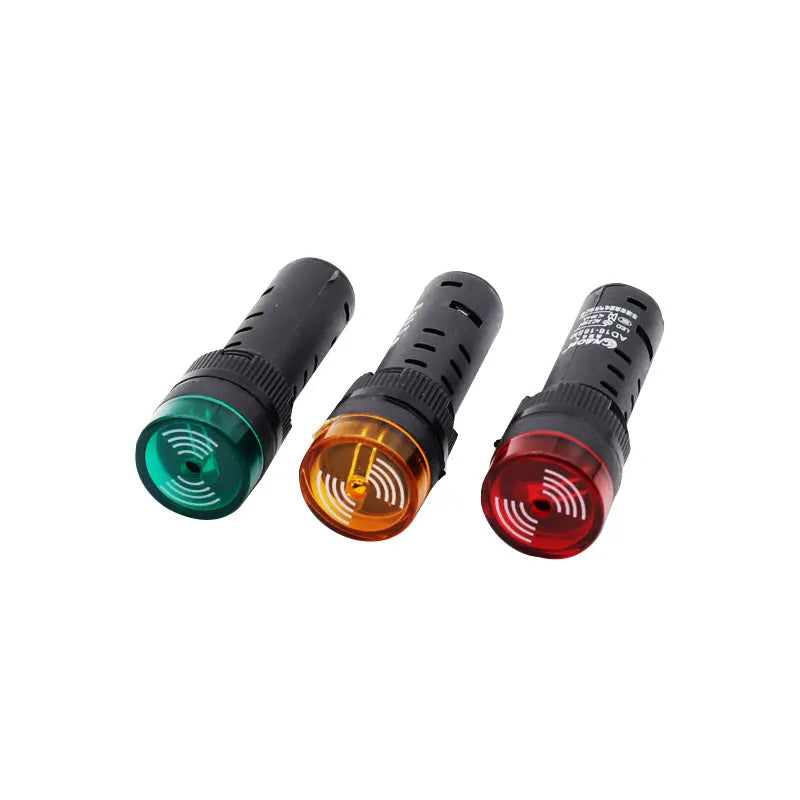

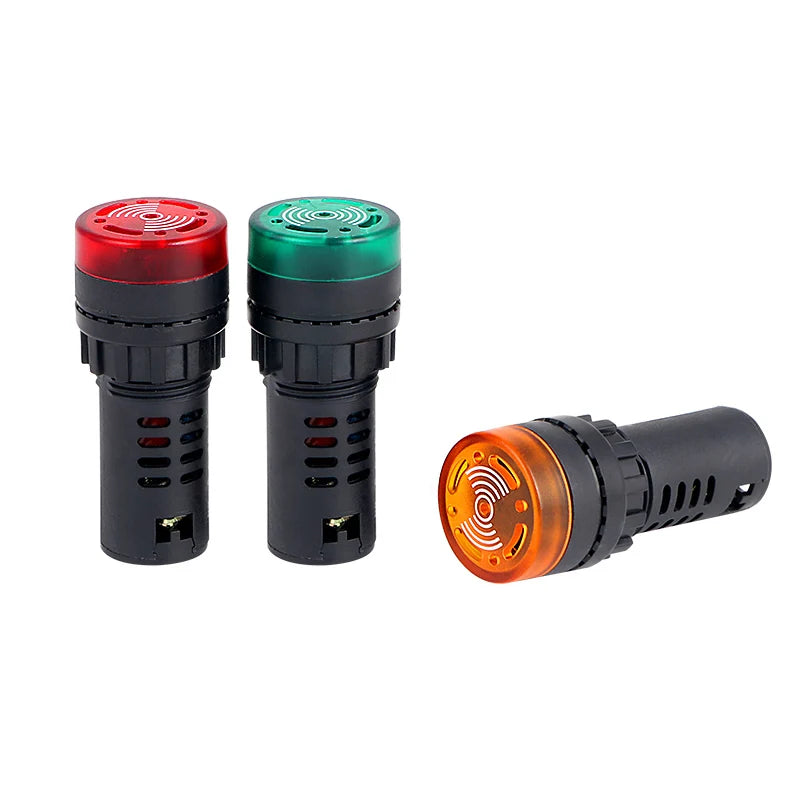

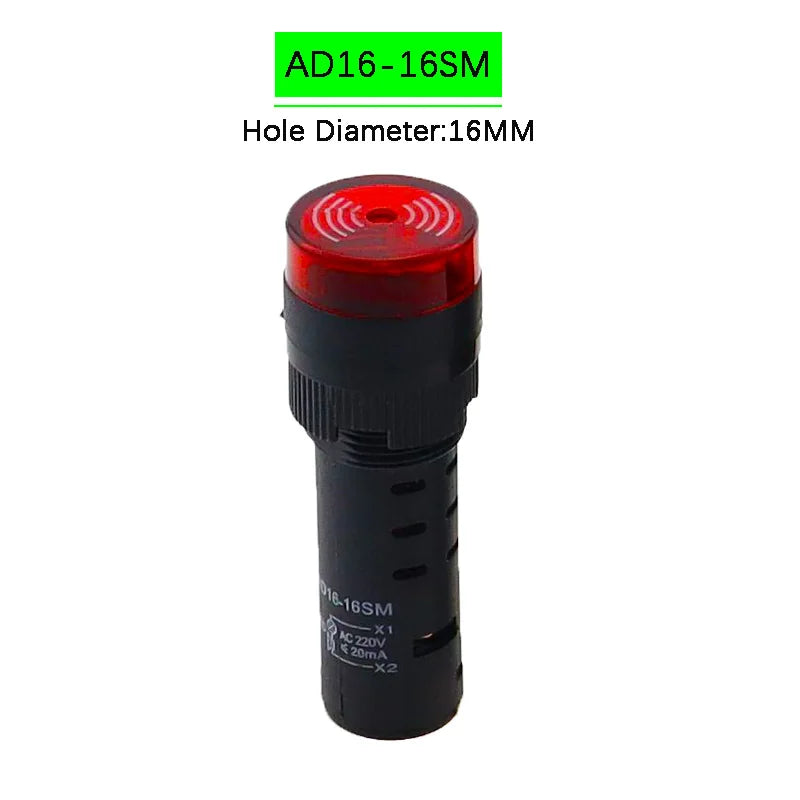

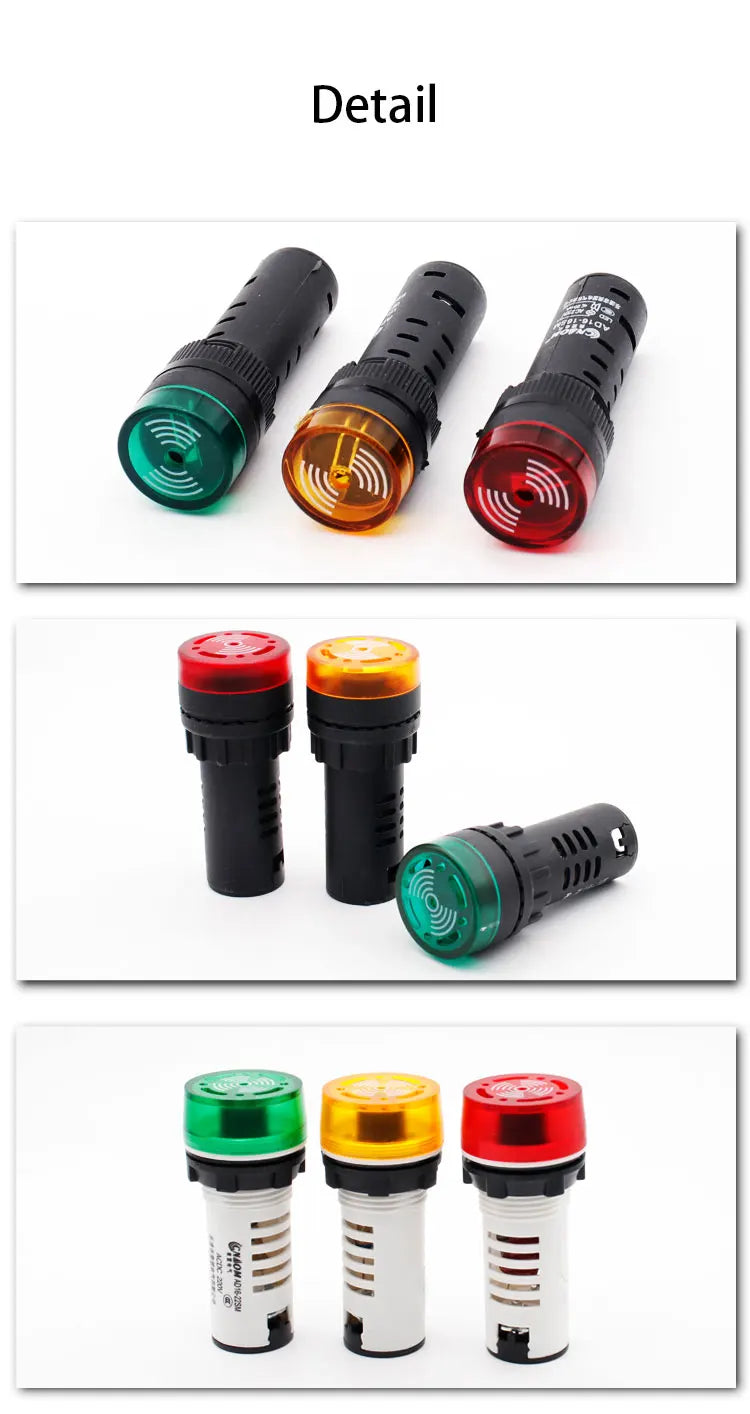

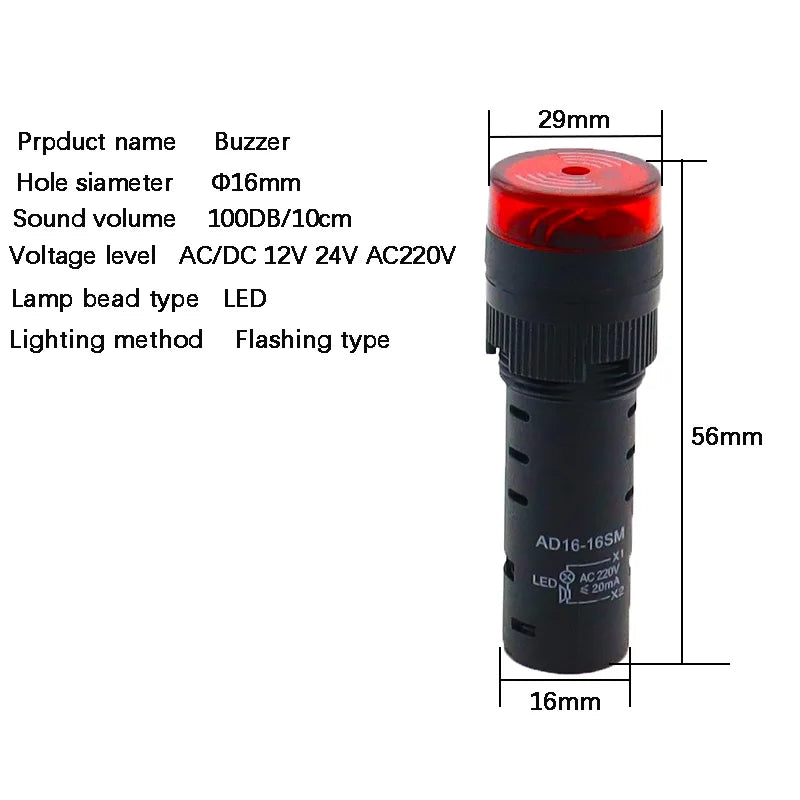

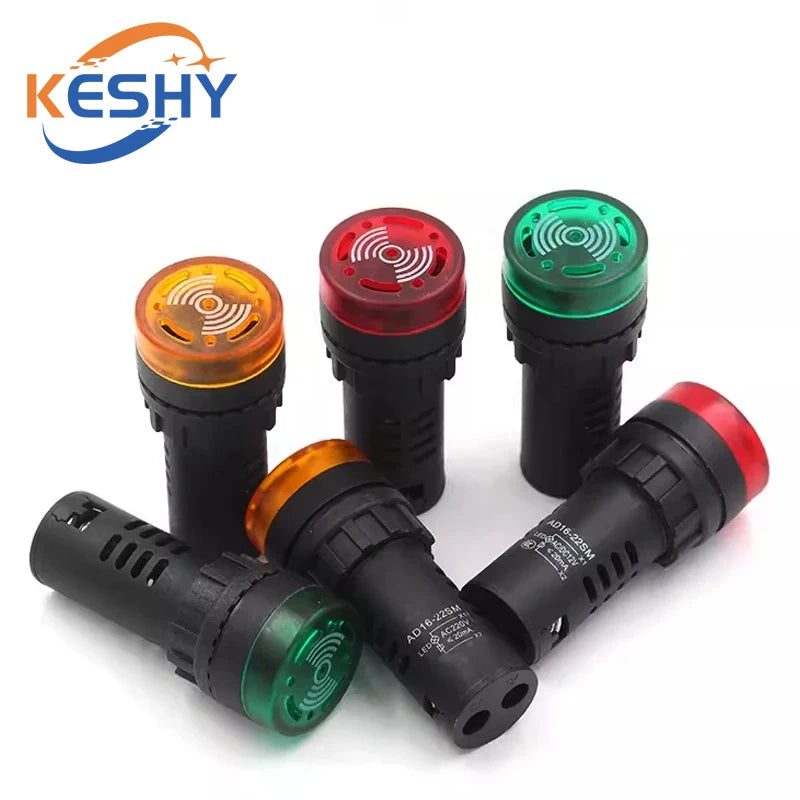

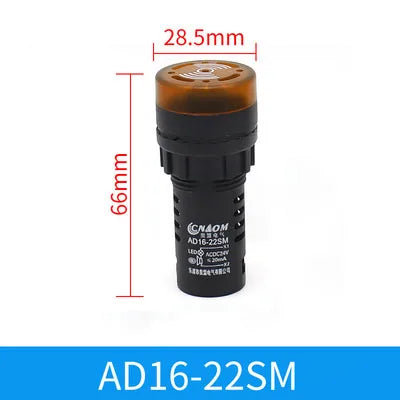

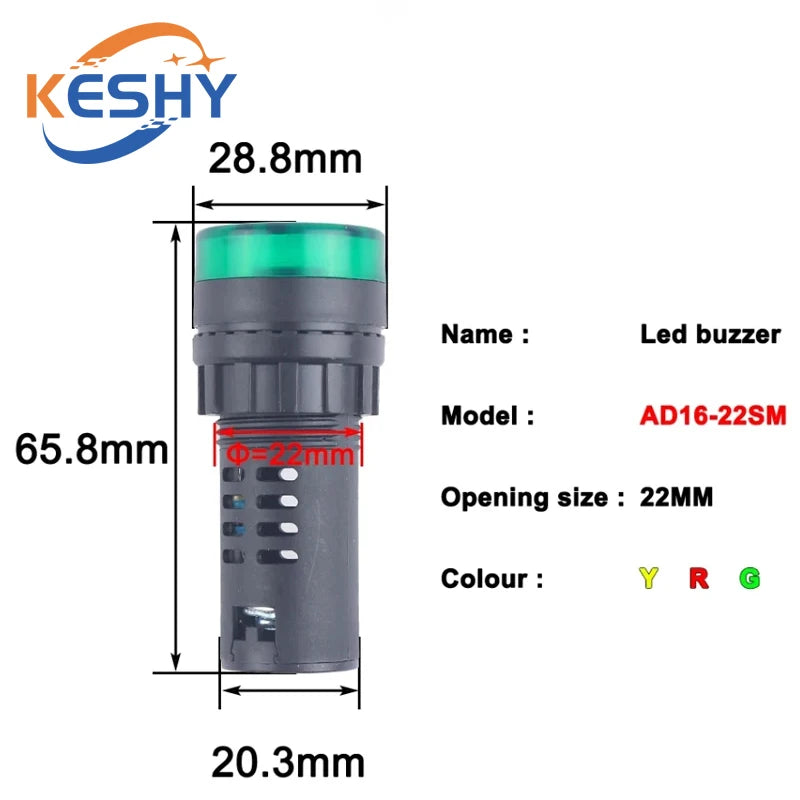

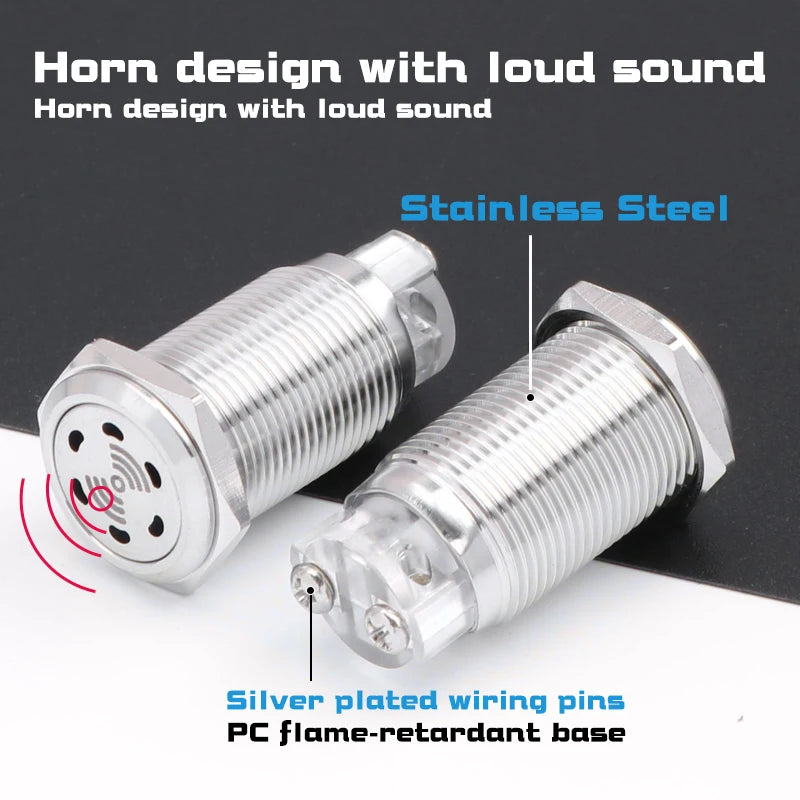

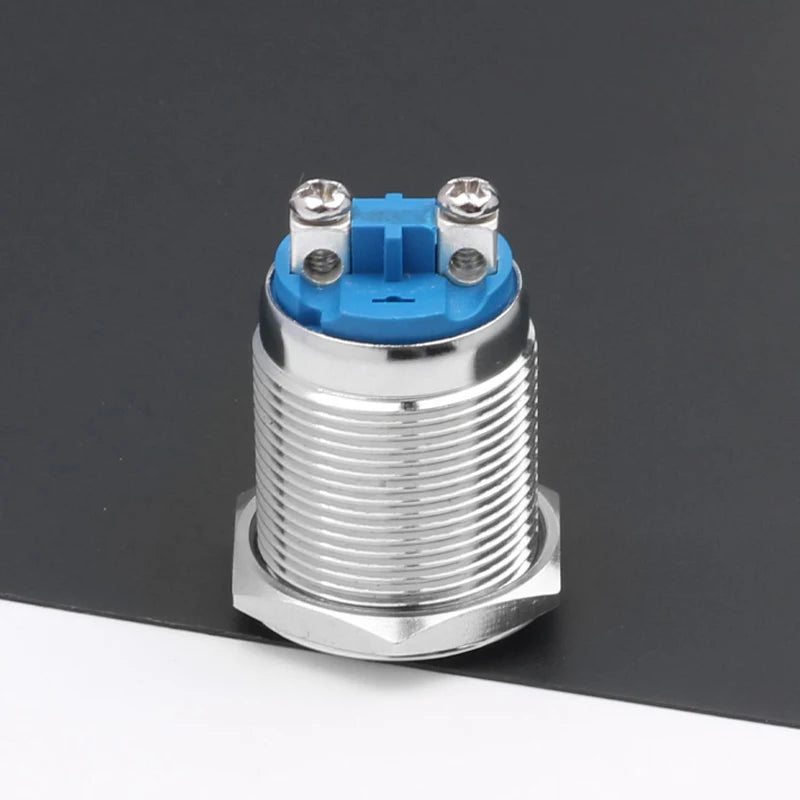

AD16-16SM/AD16-22SM-style sound-and-light alarm listings name 16 or 22 mm mounting holes and supply selections such as DC 12 V, DC 24 V, AC 110 V or AC 220 V; another page offers 36/48/380 V-labeled options. Red, green, yellow and black-coded variations coexist. One 12 mm-labeled page still uses the AD16-22SM model string; do not resolve that dimensional conflict by assuming a 12 or 22 mm cutout without the selected part drawing. A 16 mm metal buzzer and a 19 mm IP67-marketed metal buzzer are separate assemblies with selected 12/24 V versions, different audible claims and mounting needs. “Buzzer” in a switch product type is not evidence that it can safely switch a load. Verify whether each selected unit provides flash, sound, both, and what its electrical input really is.

Red-backlit automotive/boat rockers appear as five-pin SPST ON–OFF, seven-pin DPDT ON–OFF–ON and other pin/action combinations. ON denotes a maintained position; (ON) denotes momentary return. The symbol on a rocker face, such as winch, fog light, bilge pump or GPS, identifies intended use, not the circuit schematic. Some options explicitly supply a socket, cable, holder or switch accessory instead of the switch. Check load current, DC operating voltage, terminal layout, installation cutout and indicator wiring for the selected product. A red LED's illumination supply is not automatically the same as the switch contacts' load rating. IP and certification claims are listing-specific, and sealing at the exposed face does not guarantee sealed rear terminals.

Round 16/23 mm rocker five-packs marked for 220 V and 12 V red-lit round rocker five-packs are distinct electrical products despite similar descriptions. A large 12/16/19/22 mm illuminated metal pushbutton page combines ten lamp-color/head choices, three supply/lead classes and momentary or latching choices. Its 240 variants are specific combinations, not one pushbutton with all diameters, colors and ratings. Several LA36M mushroom emergency-stop pages explicitly offer “without Light” and “with red light,” with 1NC versus 2NC or voltage selections. A red lamp does not establish the safety performance of an emergency-stop circuit; the contact arrangement, positive opening, environmental rating and applicable machinery standards must be independently validated. Do not substitute an ordinary illuminated pushbutton for an engineered emergency-stop system.

Infrared emitters, optical assemblies and receivers

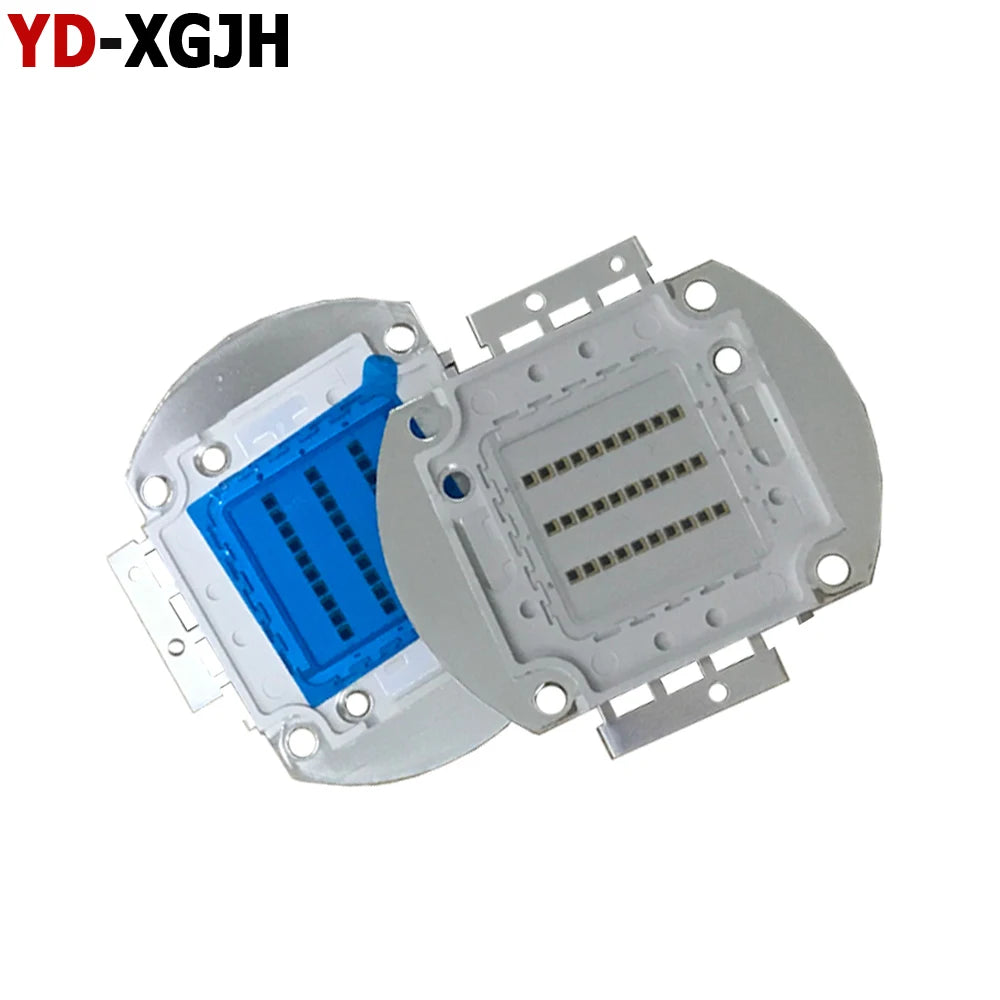

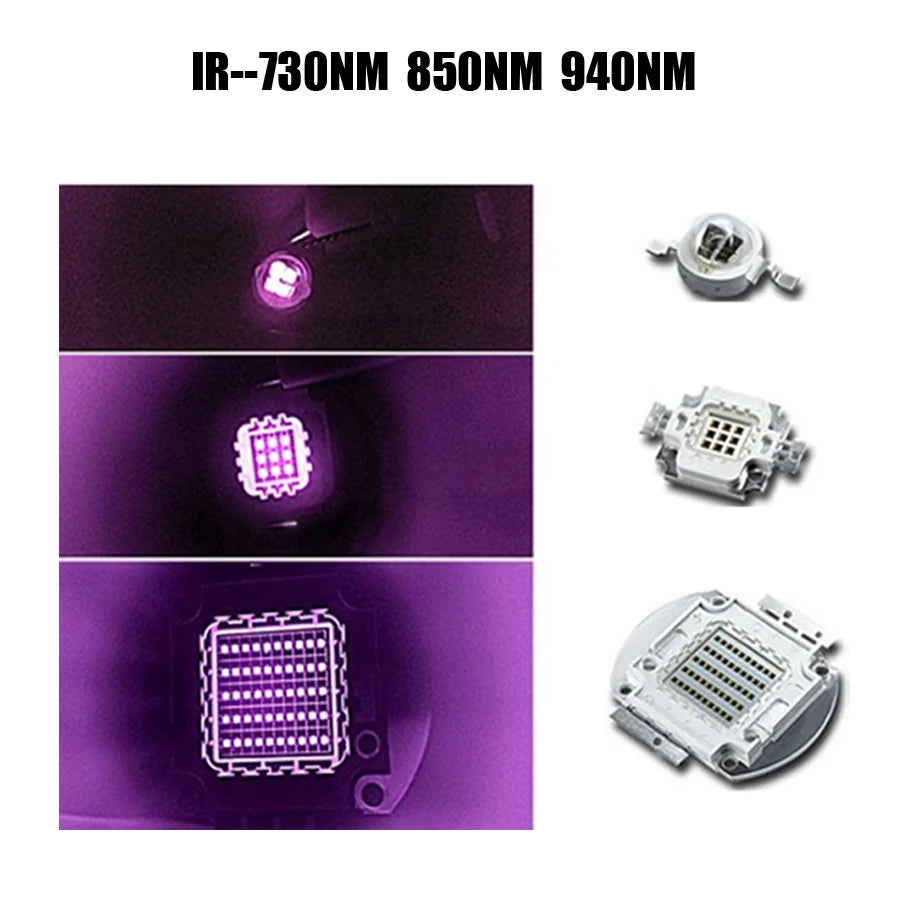

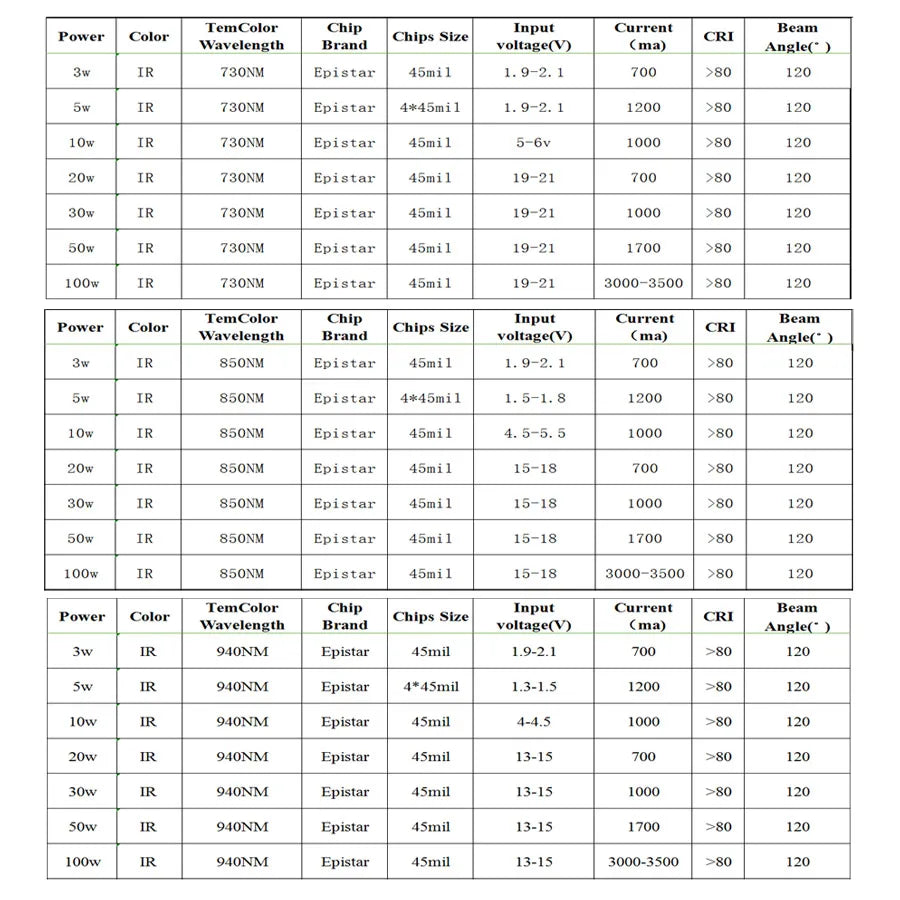

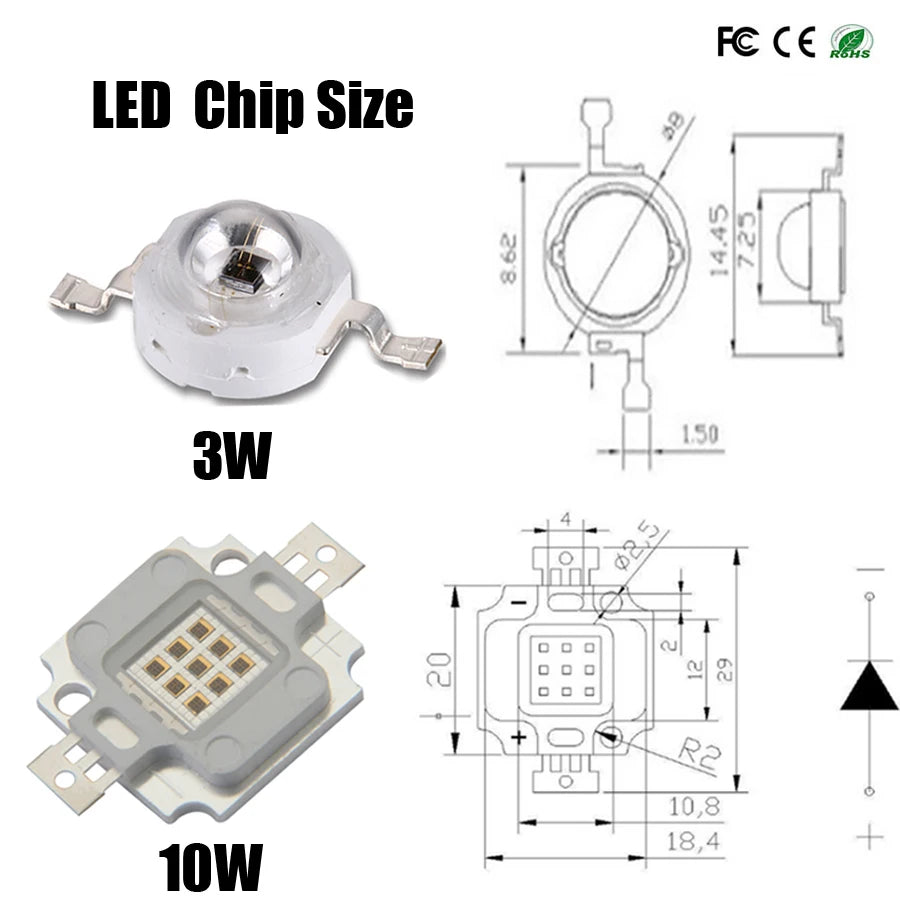

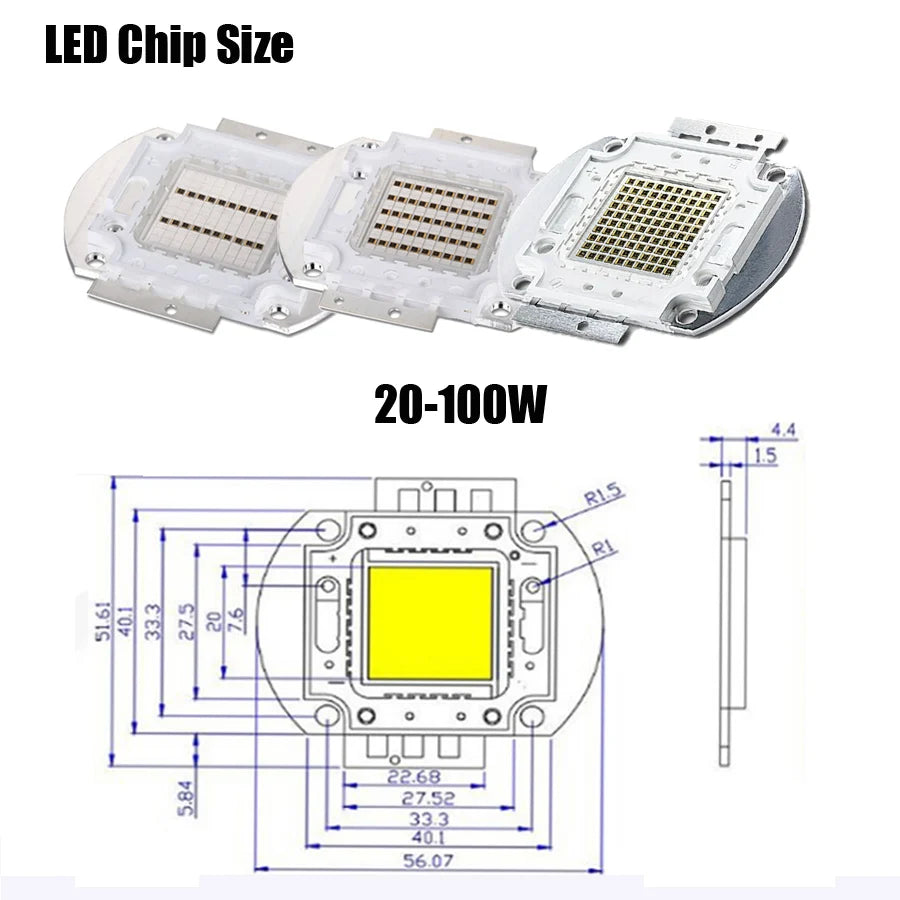

A substantial part of this collection consists of IR parts rather than visible-red LEDs. High-power diode selections list 730/740, 850 and 940 nm at nominal 3 W with 60°, 90° or 120° optics and one-, five-, ten-, twenty- or fifty-piece choices on different product pages. Other 5630/5730 0.5 W-marketed SMD lots offer 740/850/940 nm, and further listings advertise 1/3/5/10/20/30/50/100 W classes and 680–1,050 nm-marketed wavelengths. The selected wavelength, optic, power class, carrier and quantity form the actual item. A heading spanning all wavelengths is not a multiband diode. Do not equate a bare chip's forward voltage with a board or flashlight supply; verify current regulation, thermal resistance and wavelength/power measurement for the chosen unit.

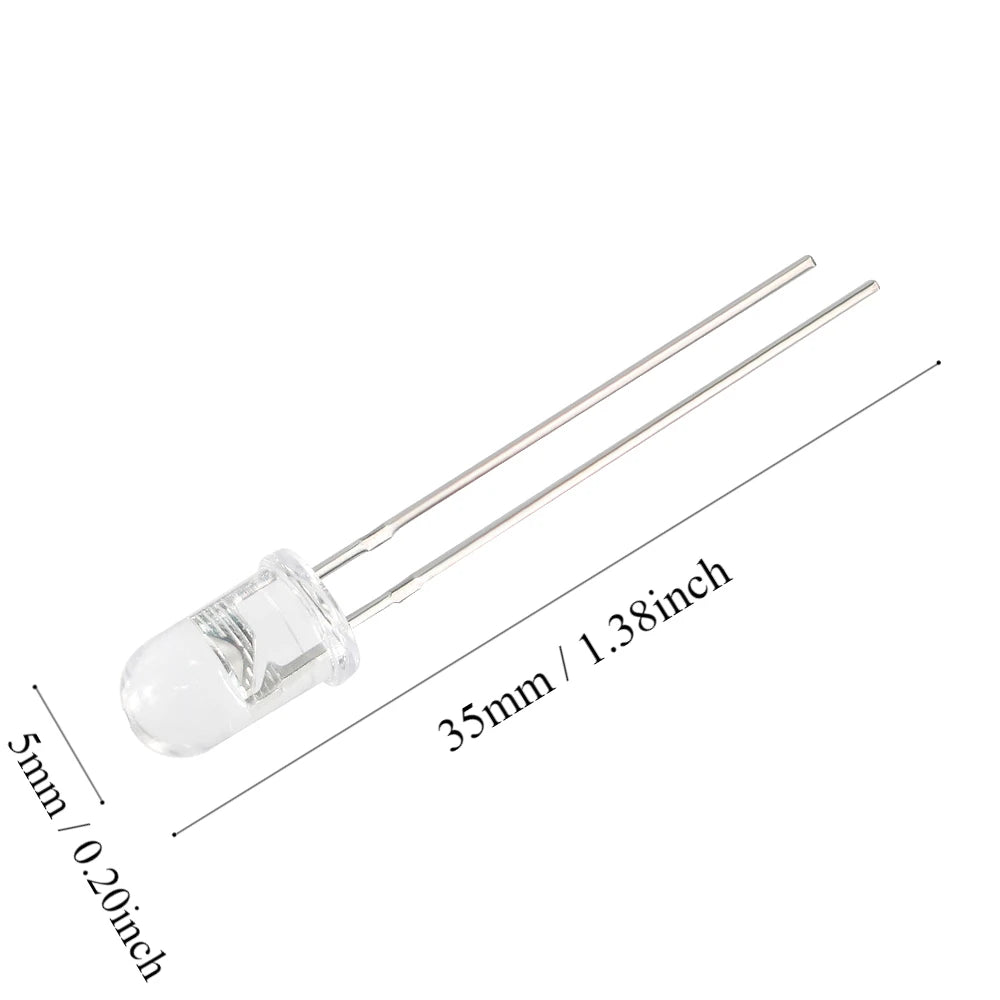

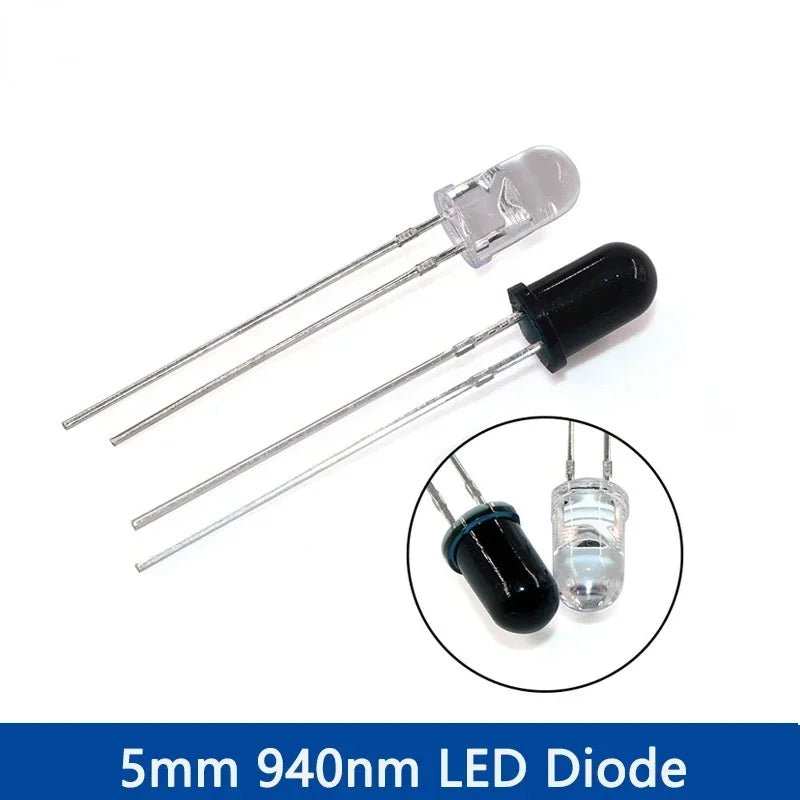

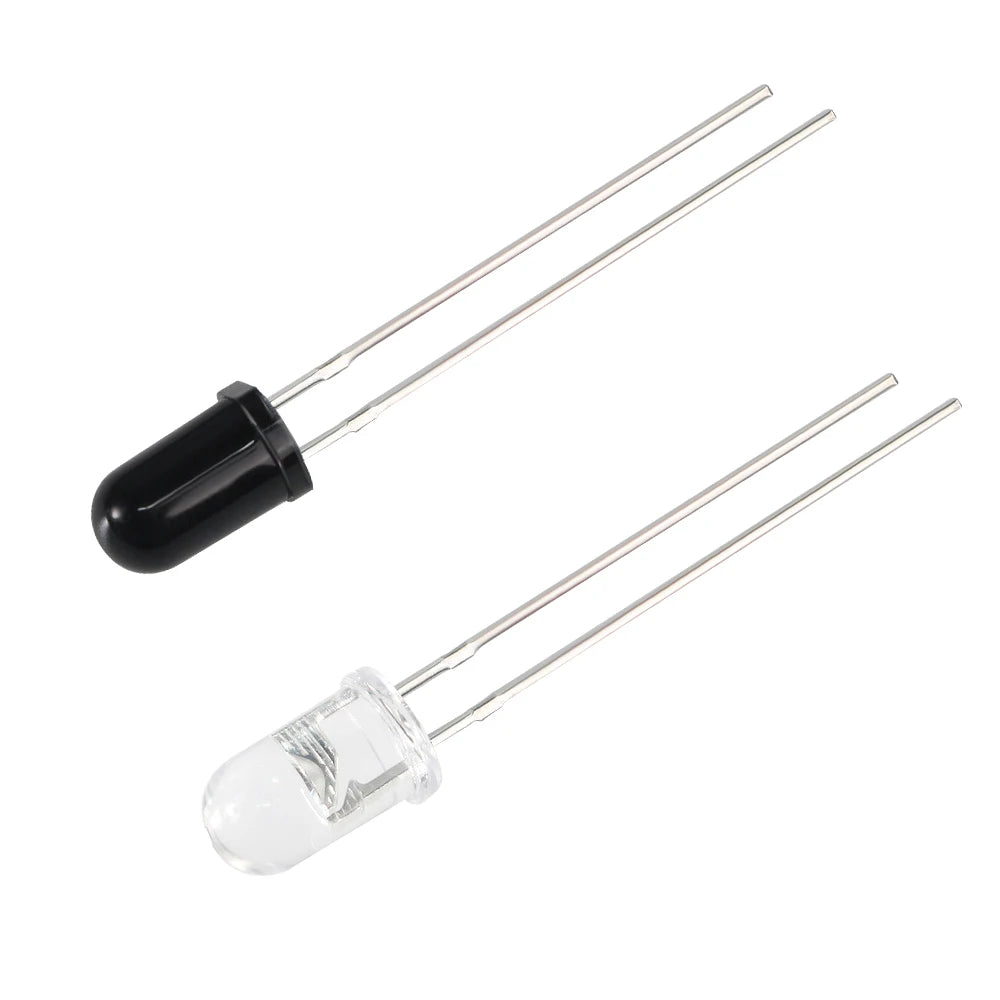

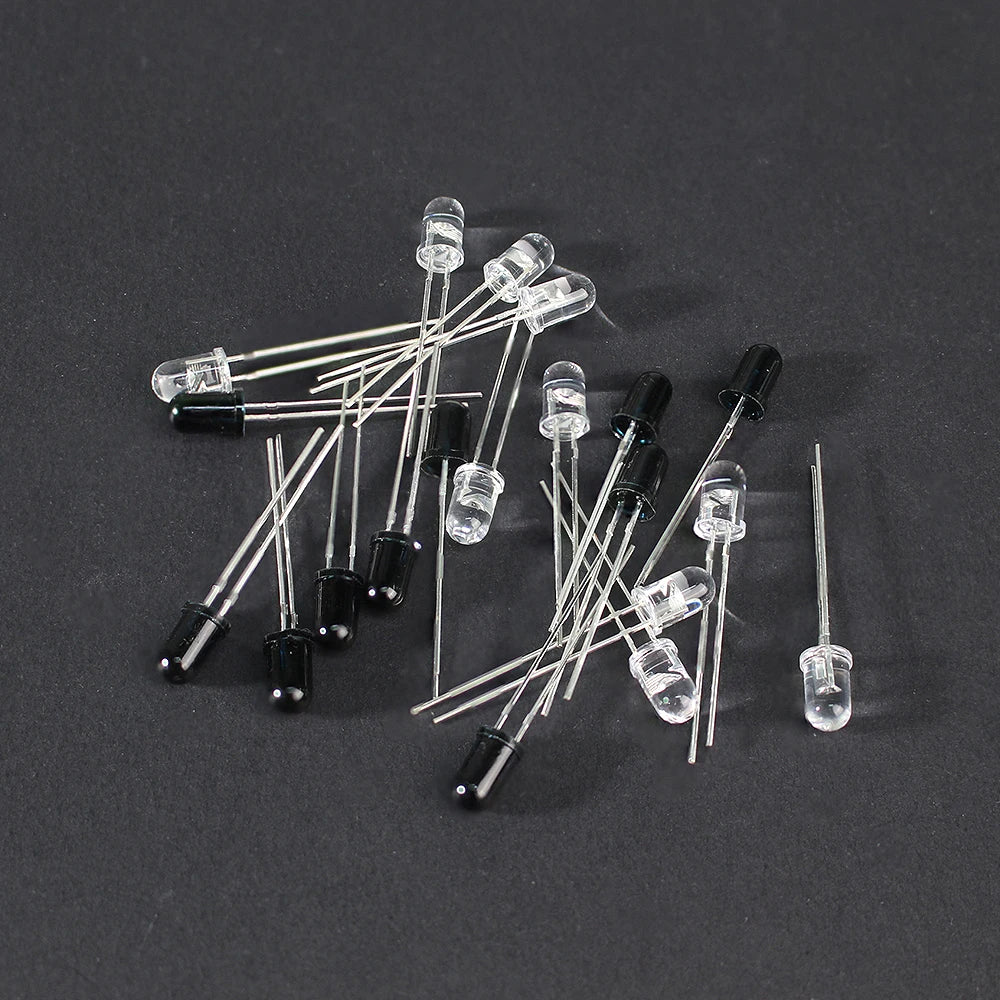

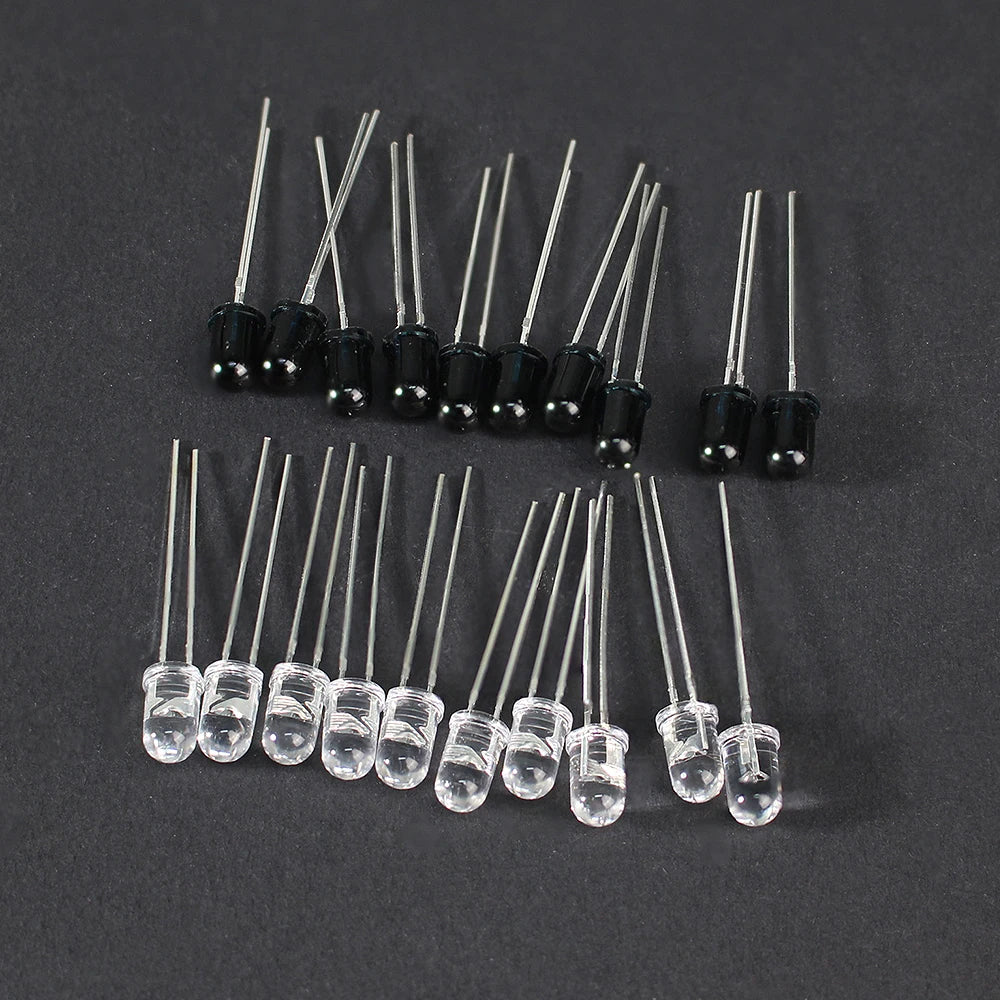

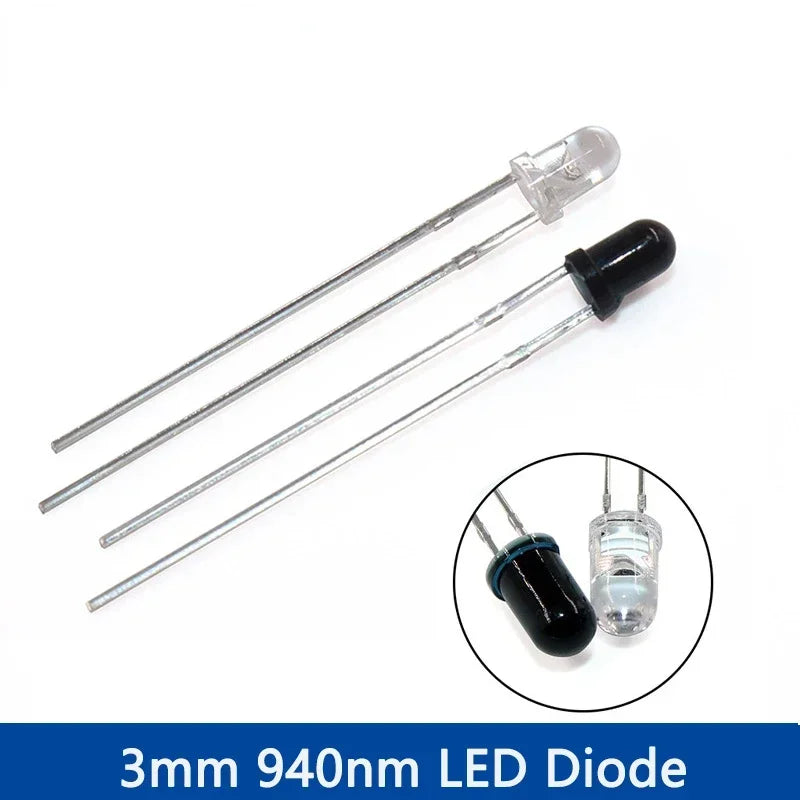

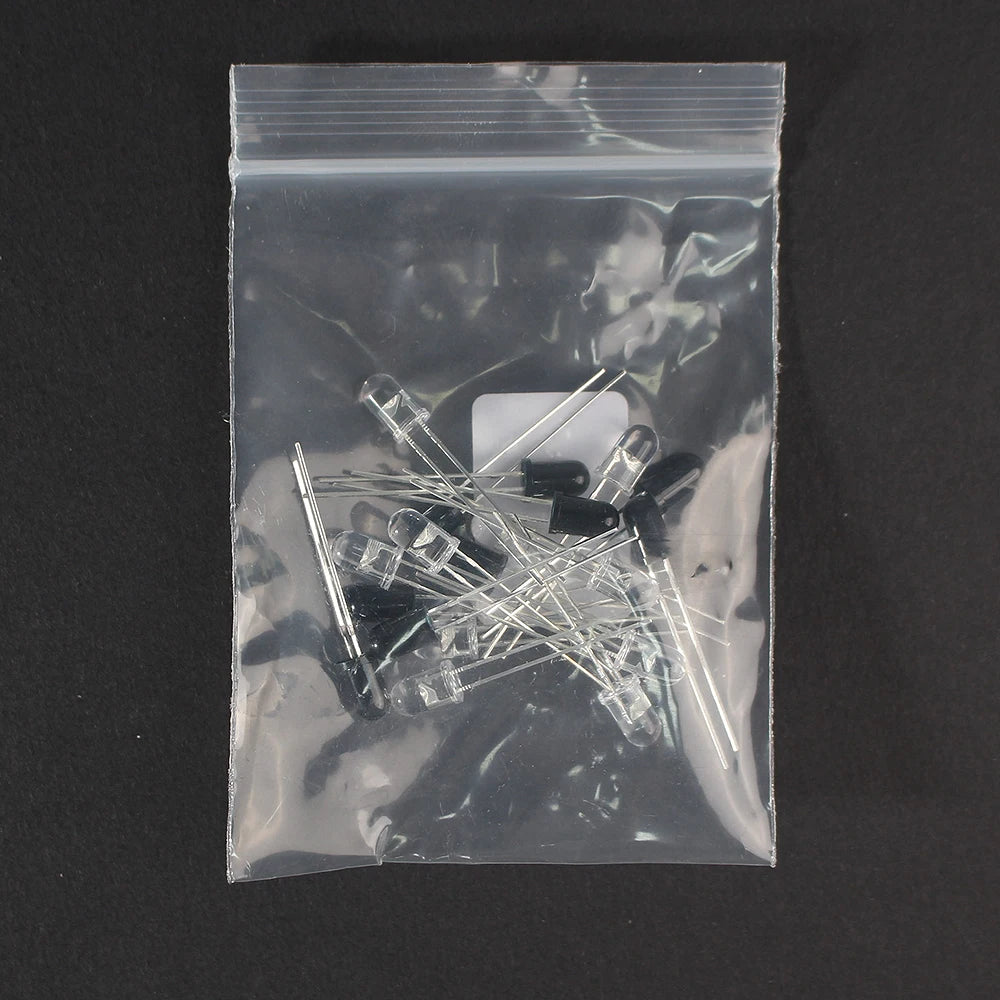

Selected 3 and 5 mm 940 nm emitter/receiver kits include two different device functions: the transmitter emits infrared; the receiver detects it. The 0603/0805/1206 IR SMD pages likewise expose separate Emitter and Receiver variants; a 1206 Receiver is not a 1206 transmitting LED. Some 5 mm IR333-A/TSAL-style titles name a manufacturer-like identifier, but exact manufacturer provenance or spectral performance cannot be established from the title alone. A gate-driver optocoupler containing an internal infrared LED and photo IC is an isolation component, not an external IR illuminator or visible-red LED.

Camera illuminator boards list 18 or 48 IR LEDs and 850/940 nm-marketed variants; a separate 48-LED unit offers Only Light, Only 12v Adapter or LEDs with adapter. An adapter-only choice does not ship a light board. IR zoom flashlights differentiate 850, 940 and other wavelengths, white-light options, and versions with or without 18650 batteries. Do not infer included batteries from “battery type.” Invisible or dimly glowing IR can still expose eyes and sensors to hazardous radiance; assess measured optical output, thermal design, required enclosure and application safety rather than using “invisible” as shorthand for safe. Medical/therapy and hunting terms in seller text do not establish clinical or regulatory authorization.

Decorative strips and unrelated electronic modules

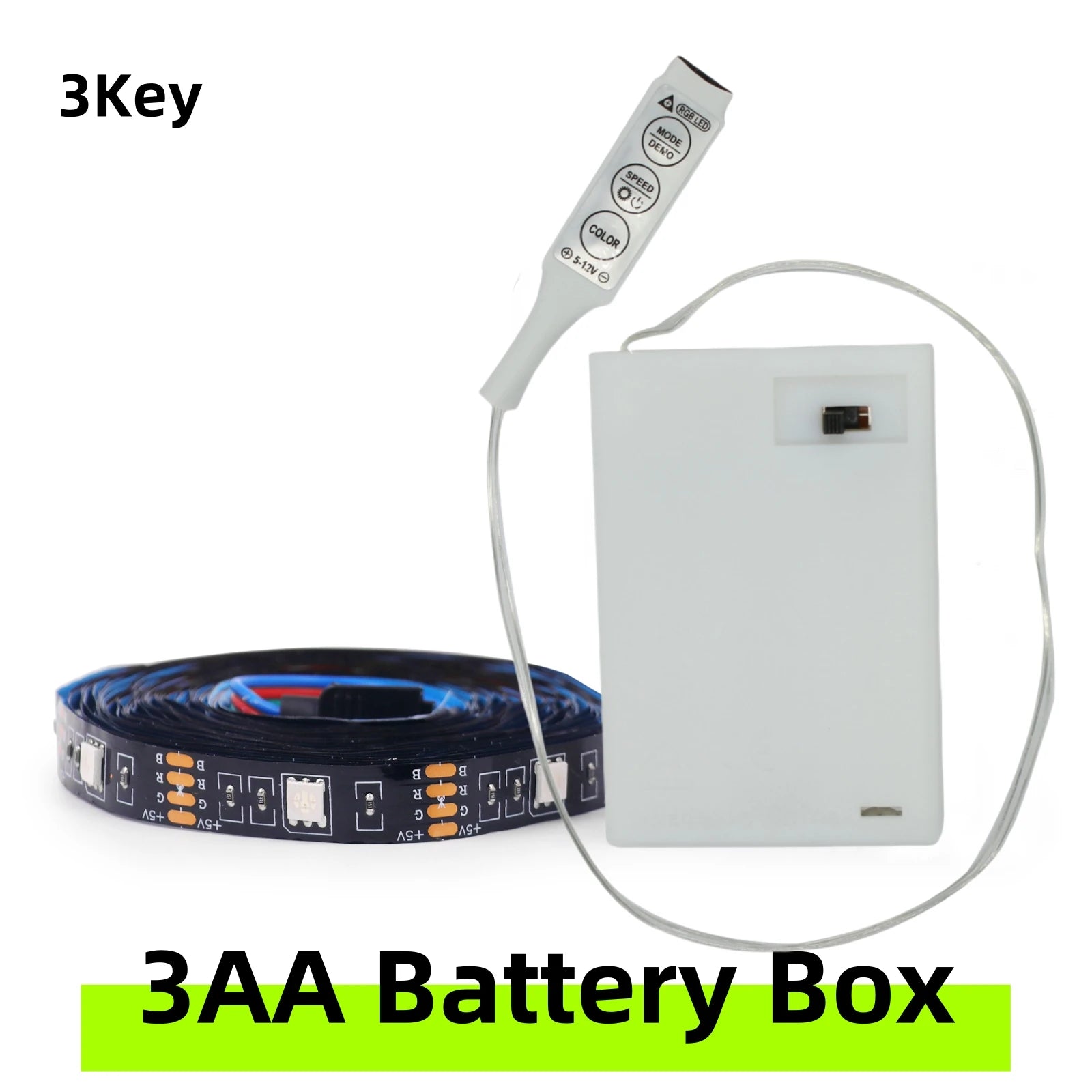

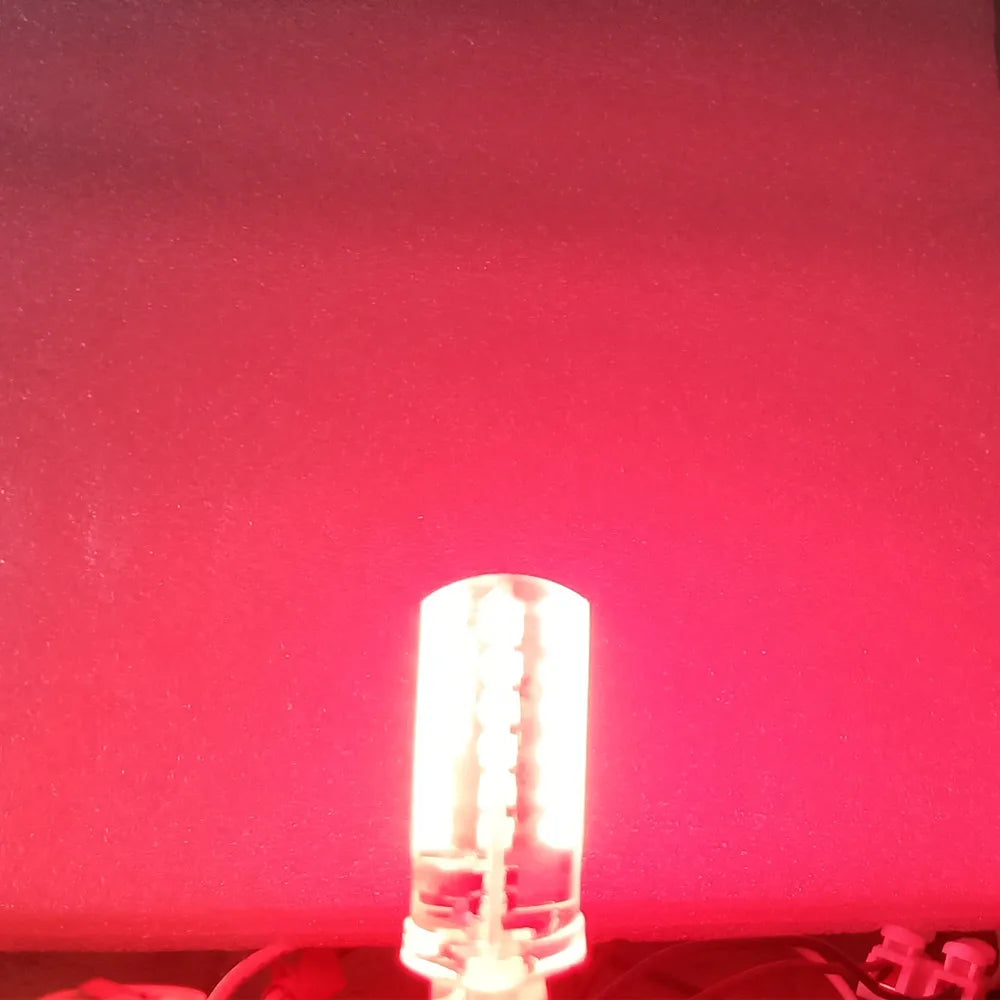

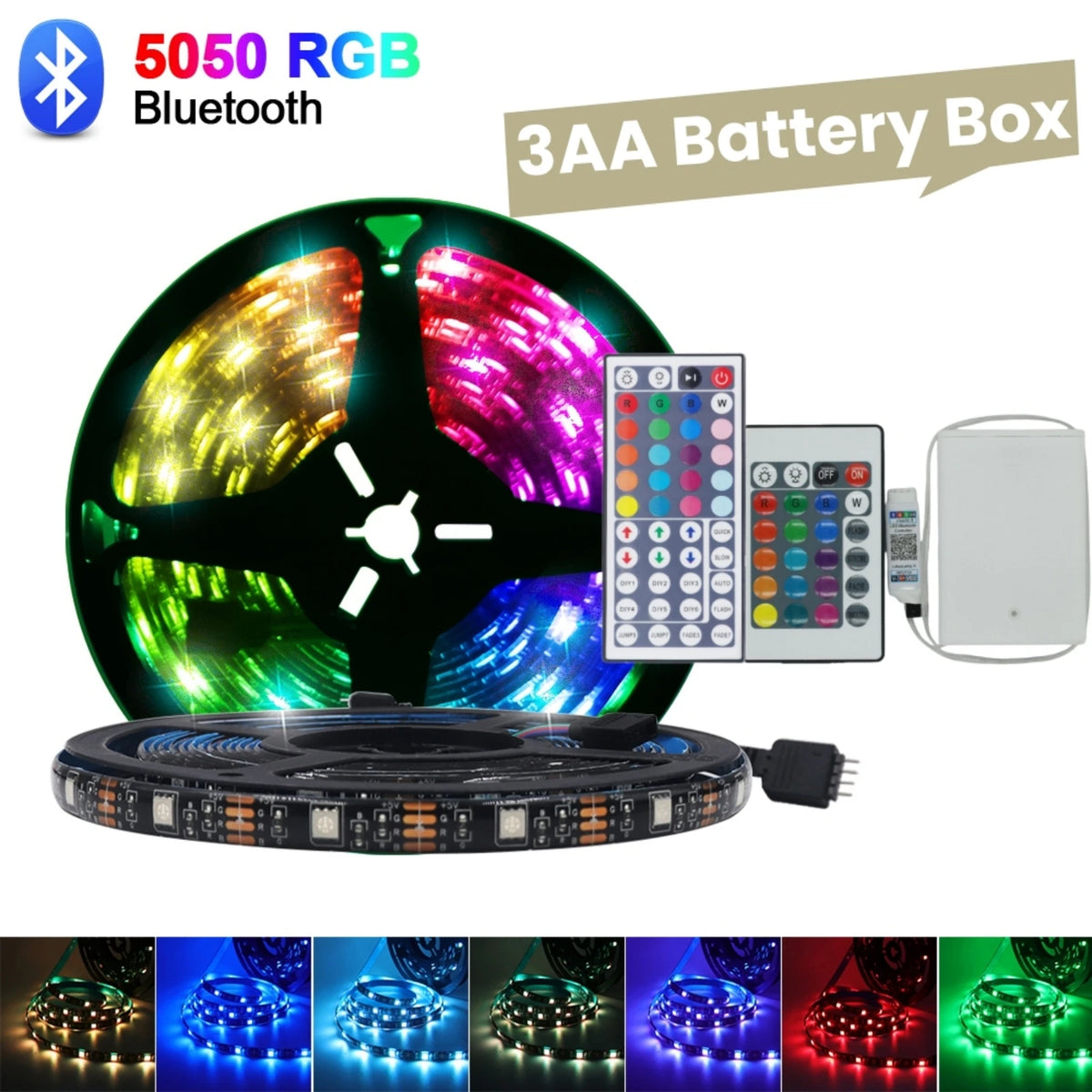

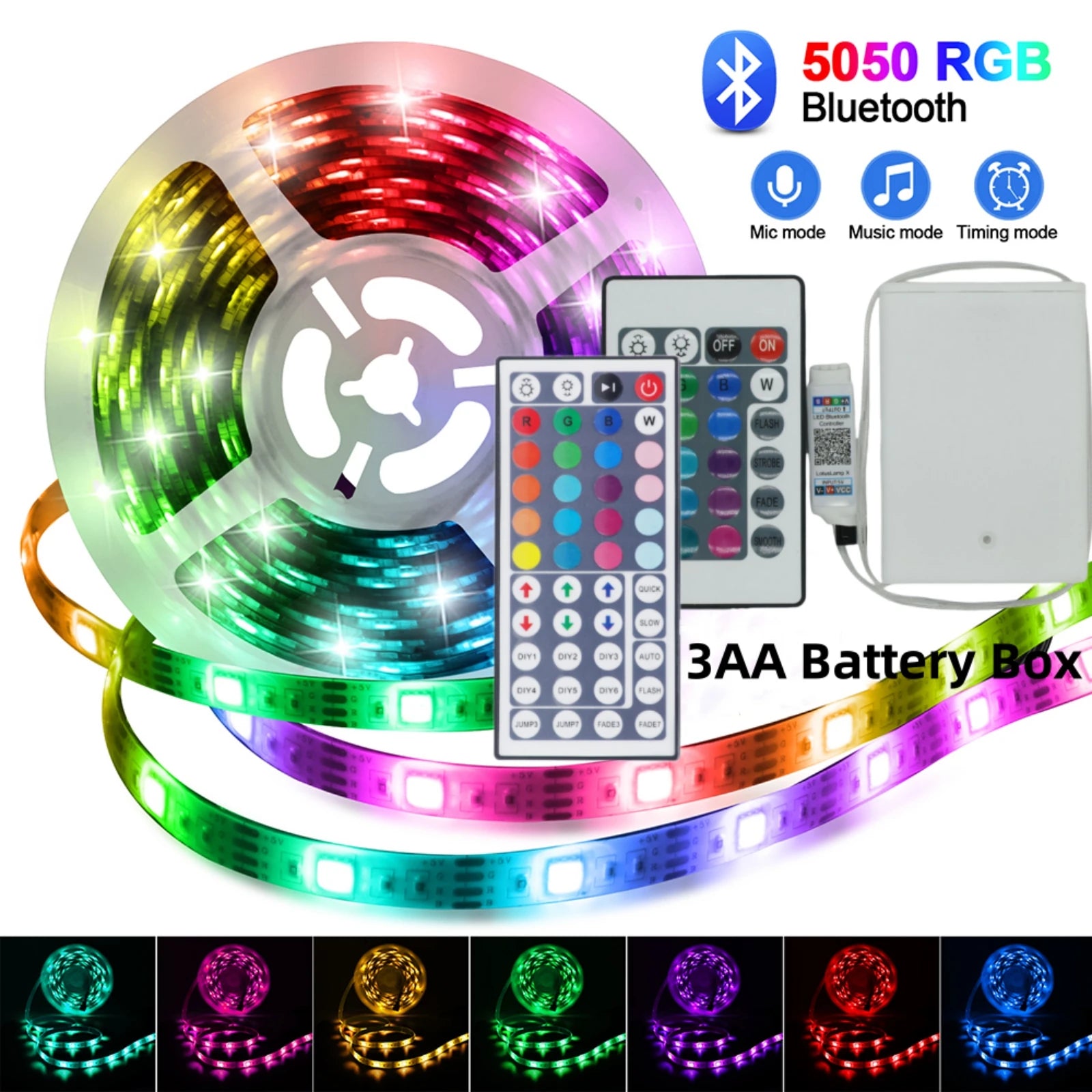

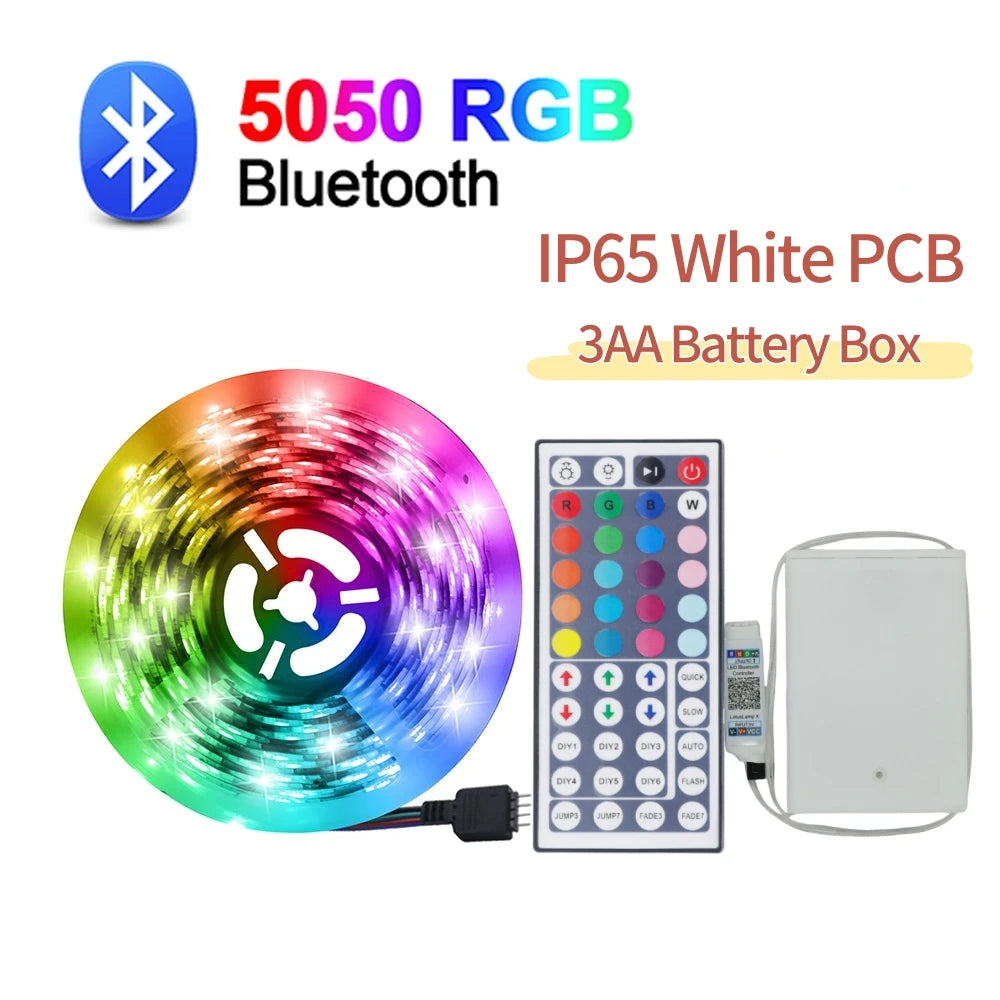

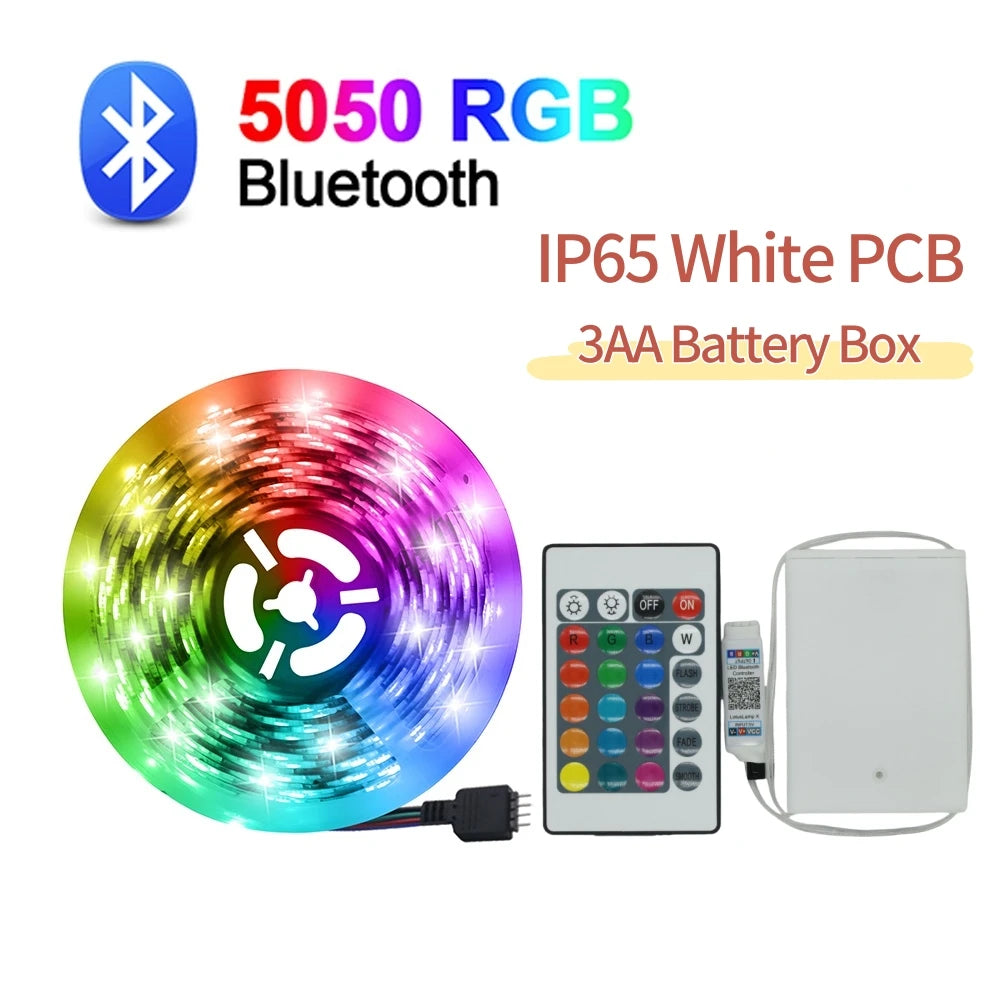

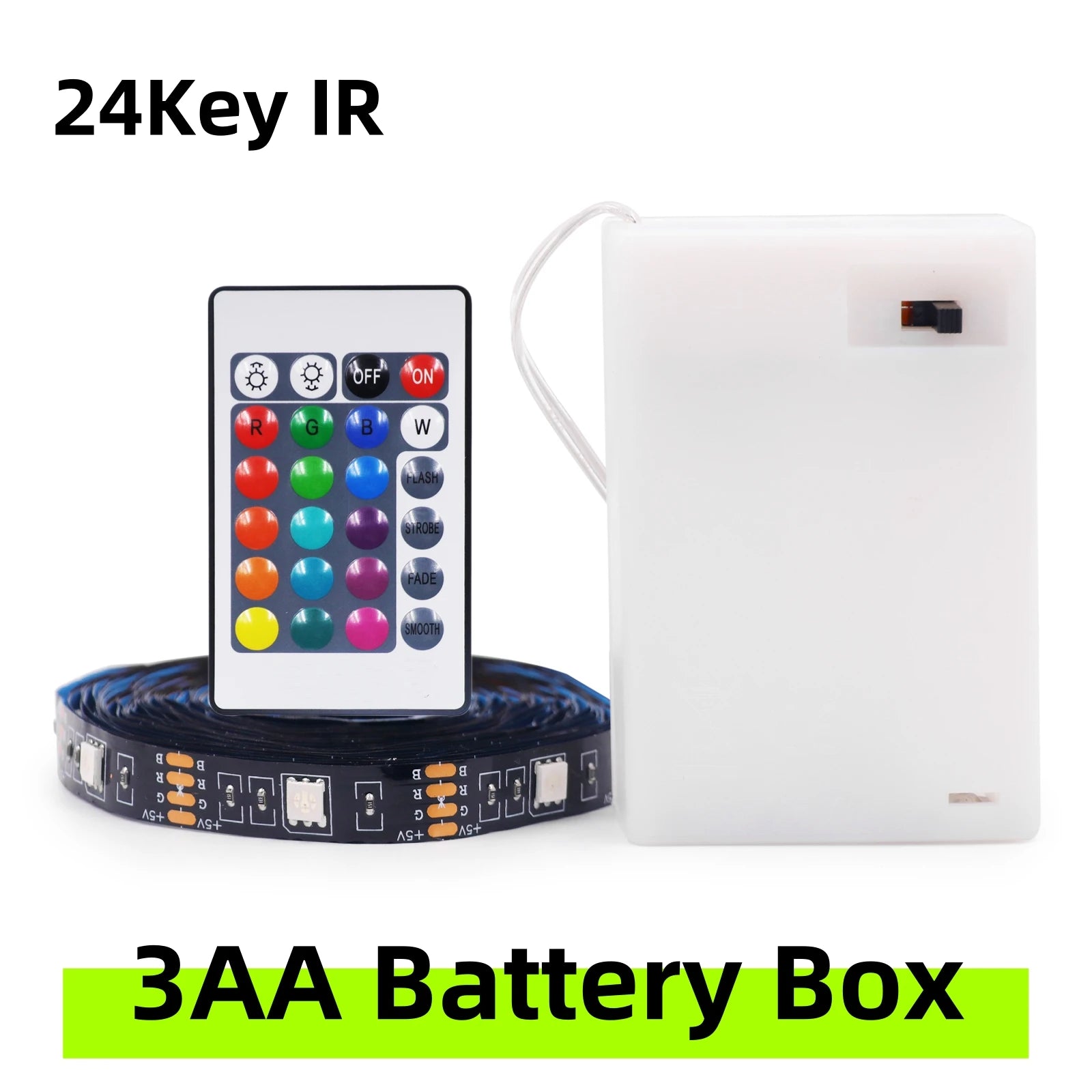

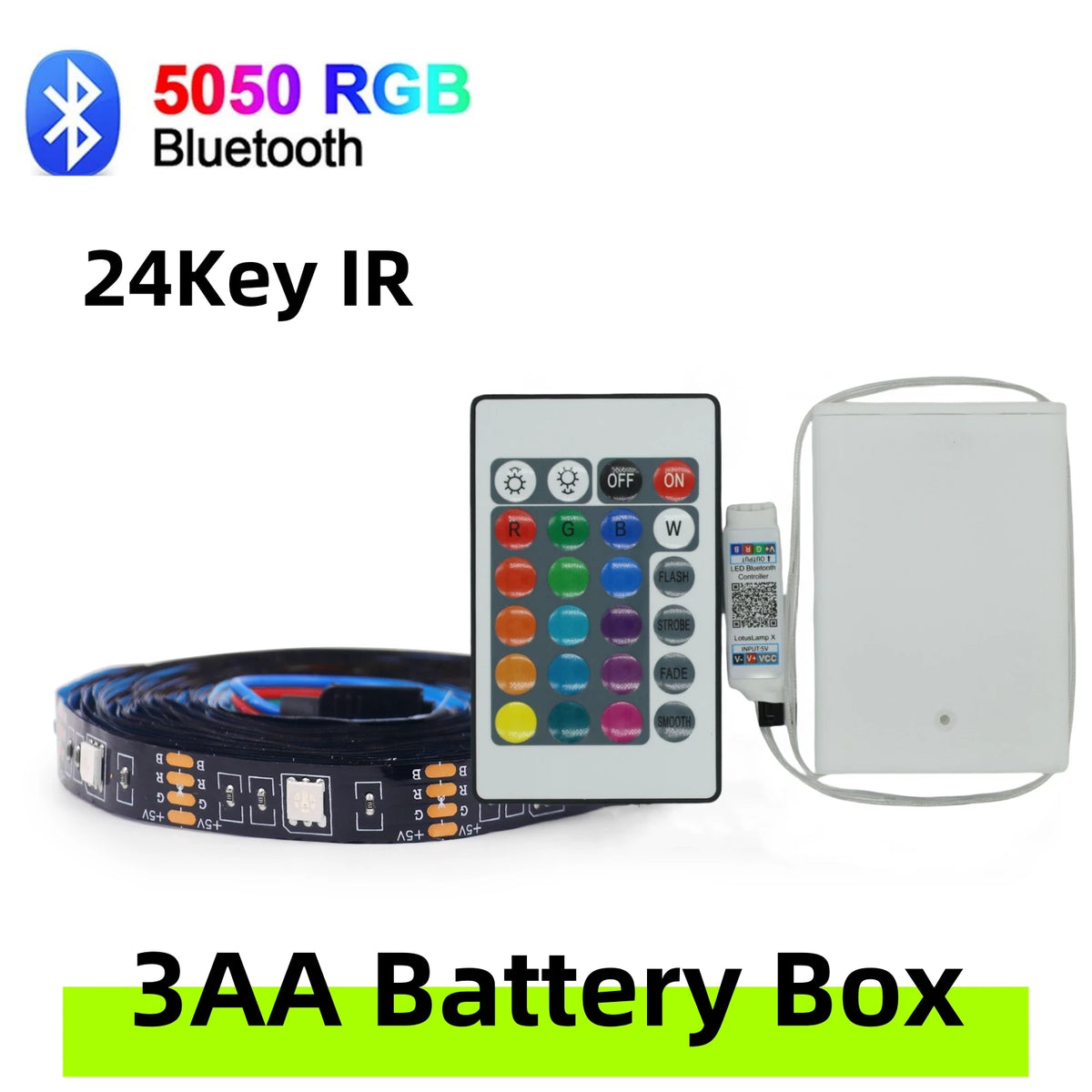

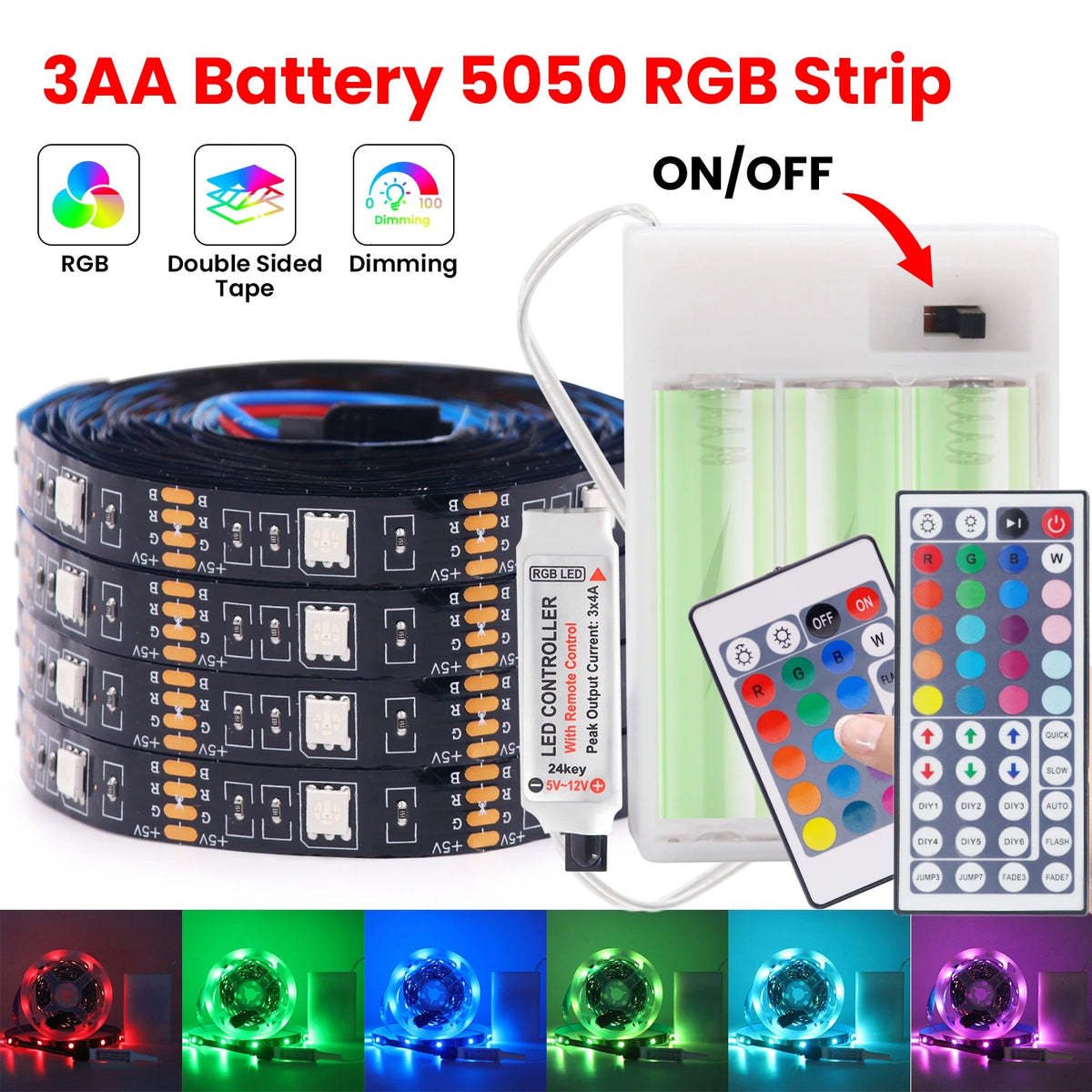

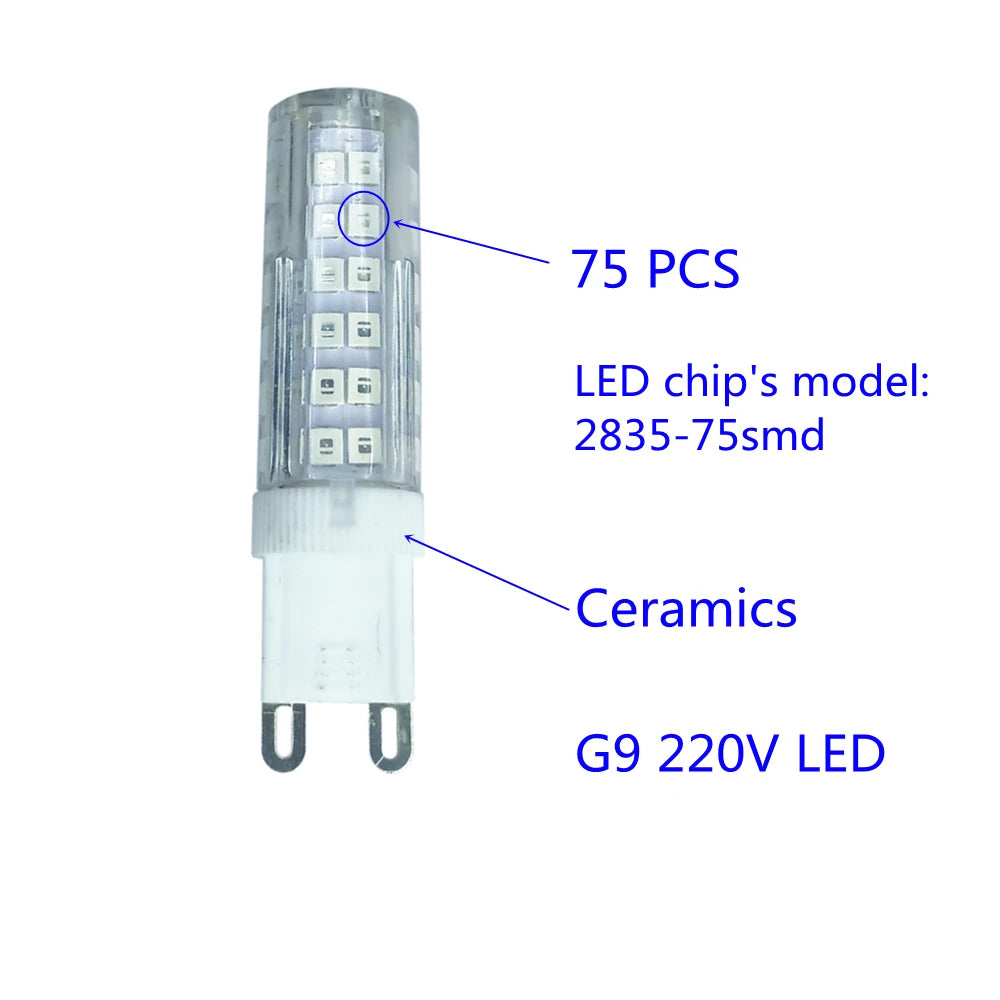

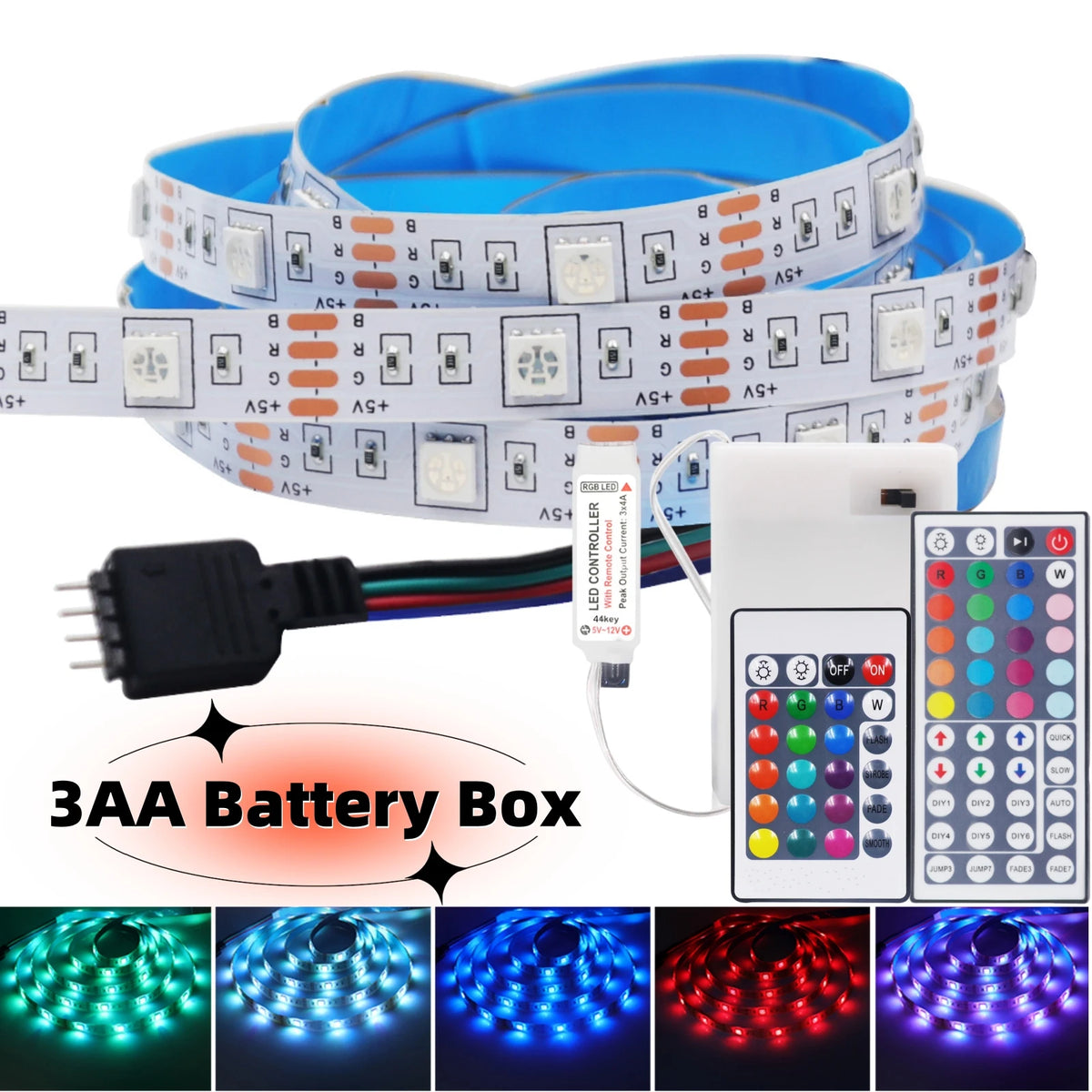

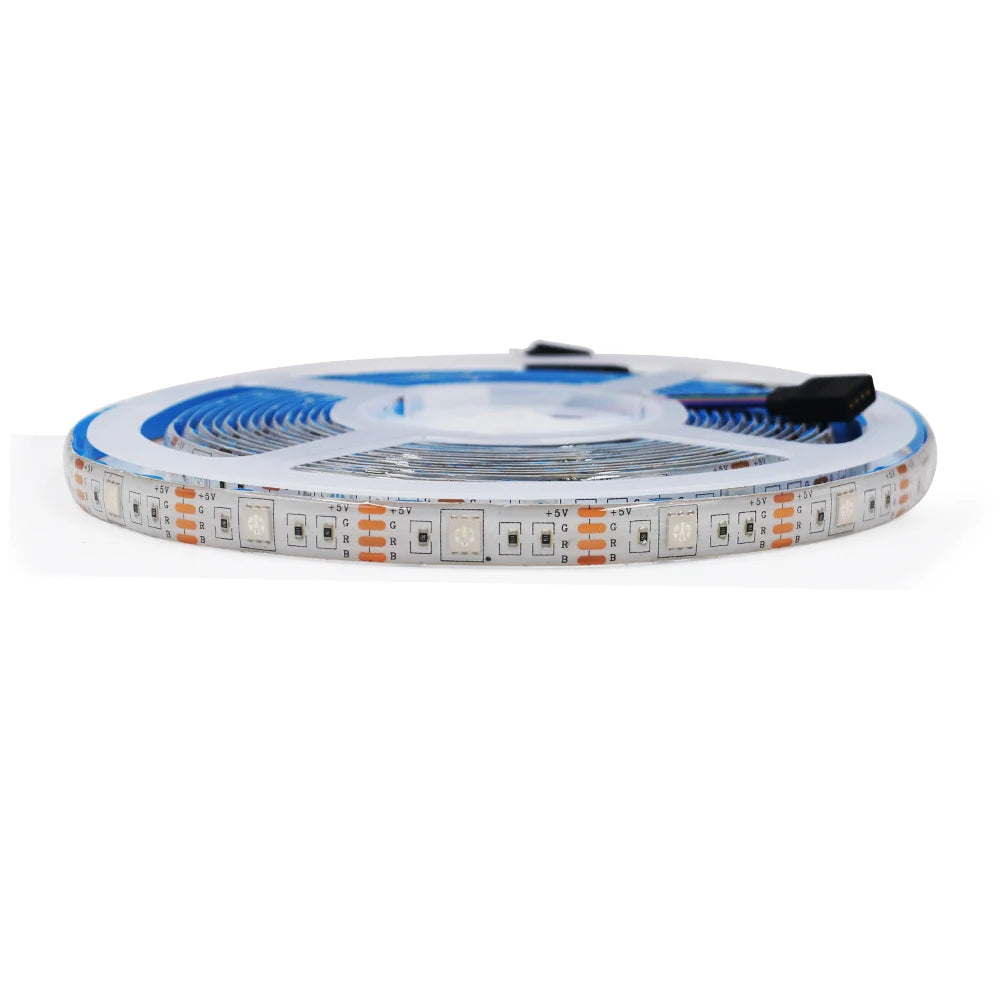

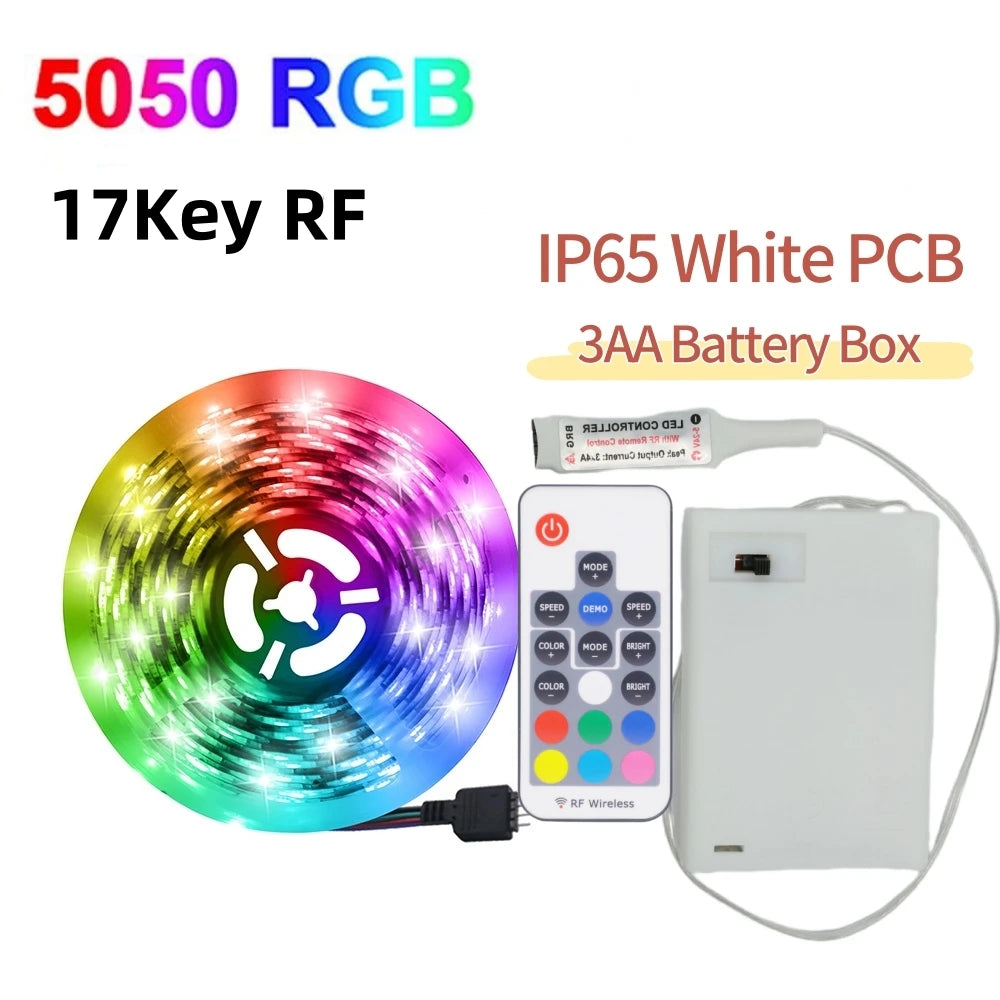

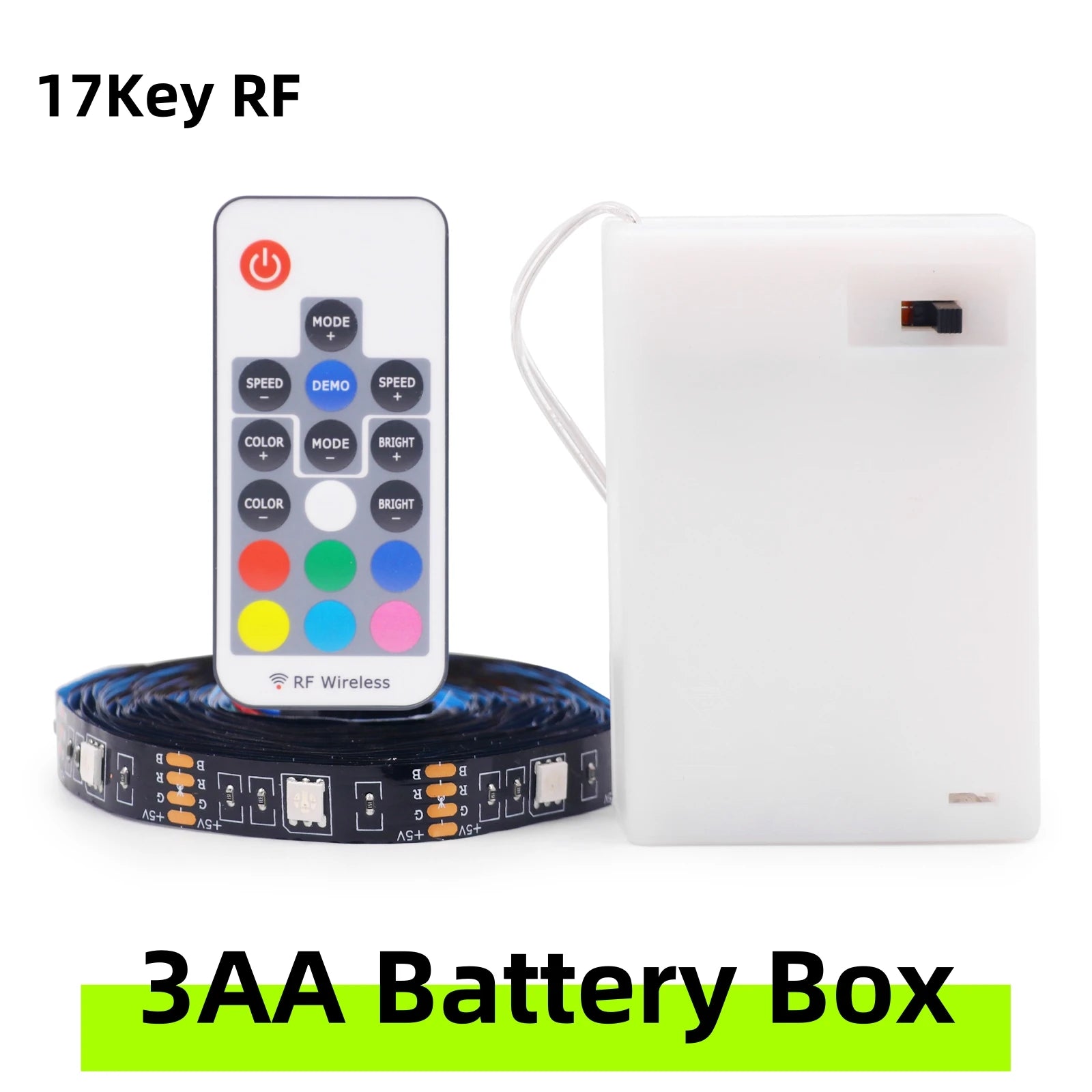

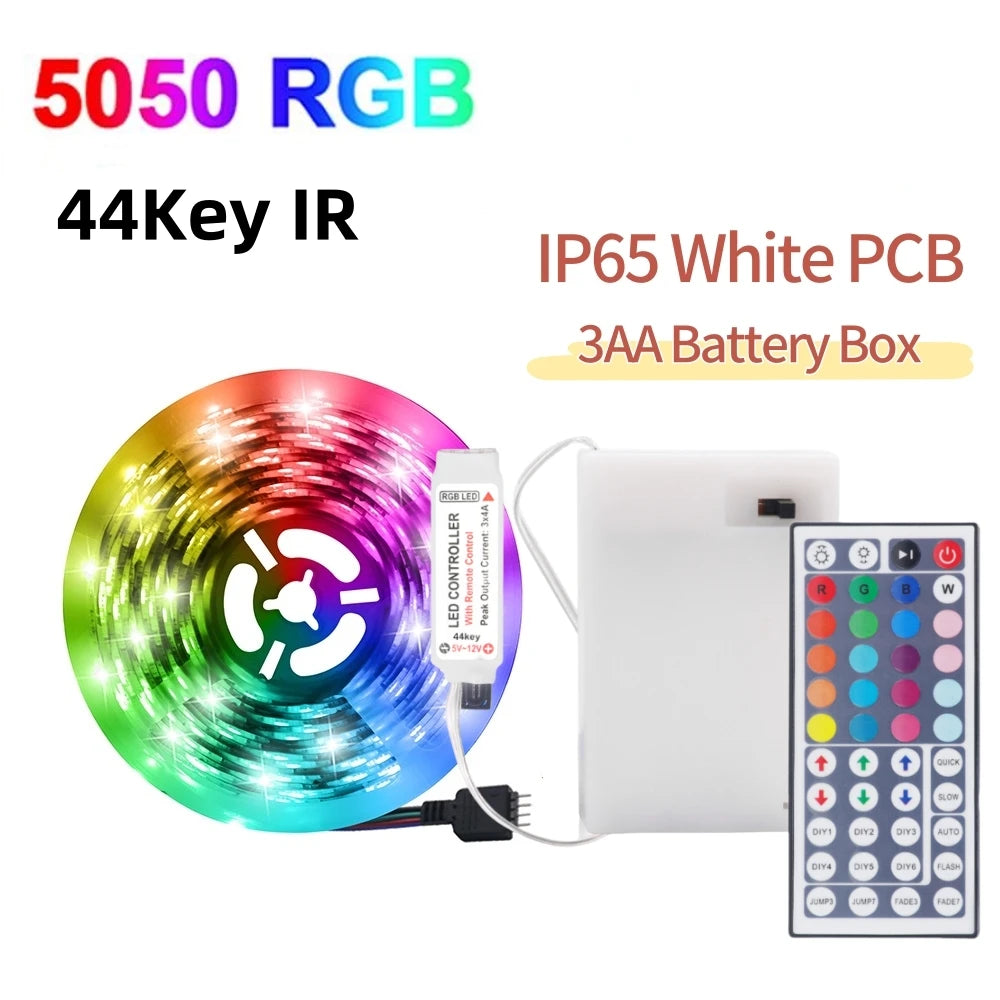

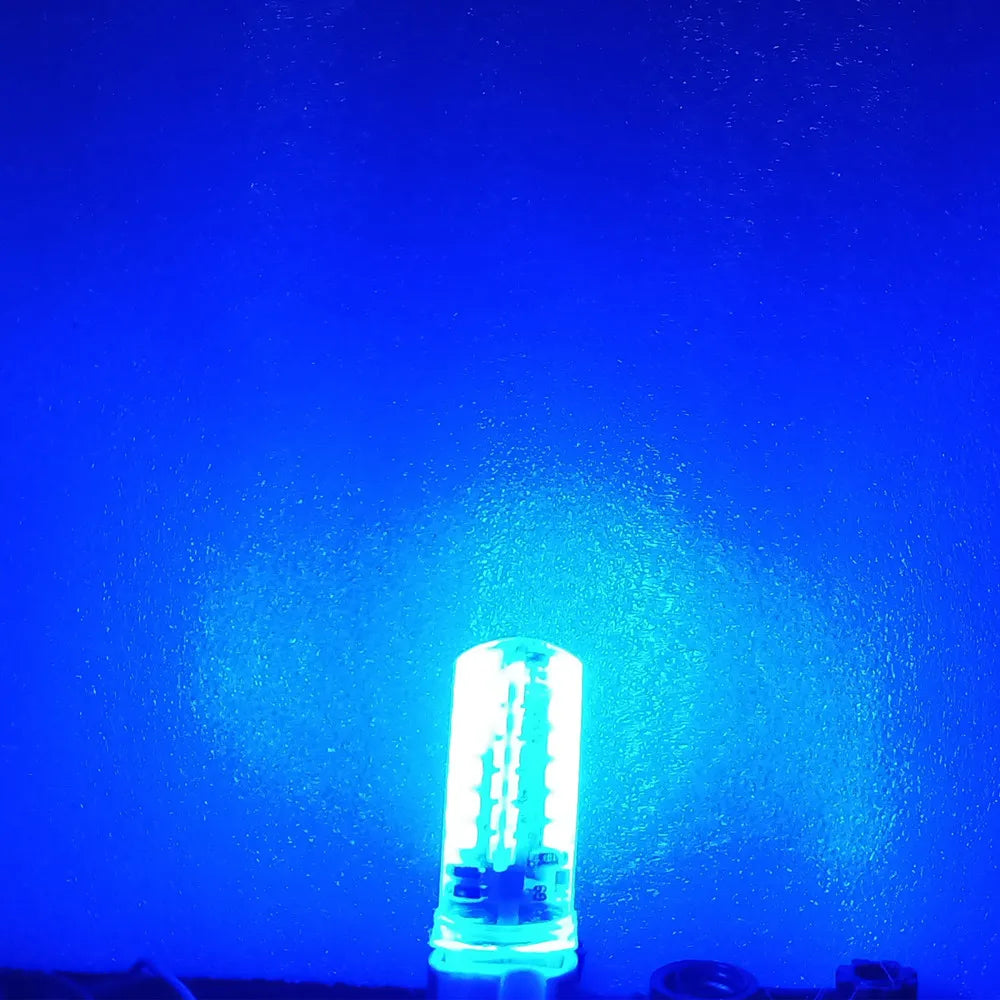

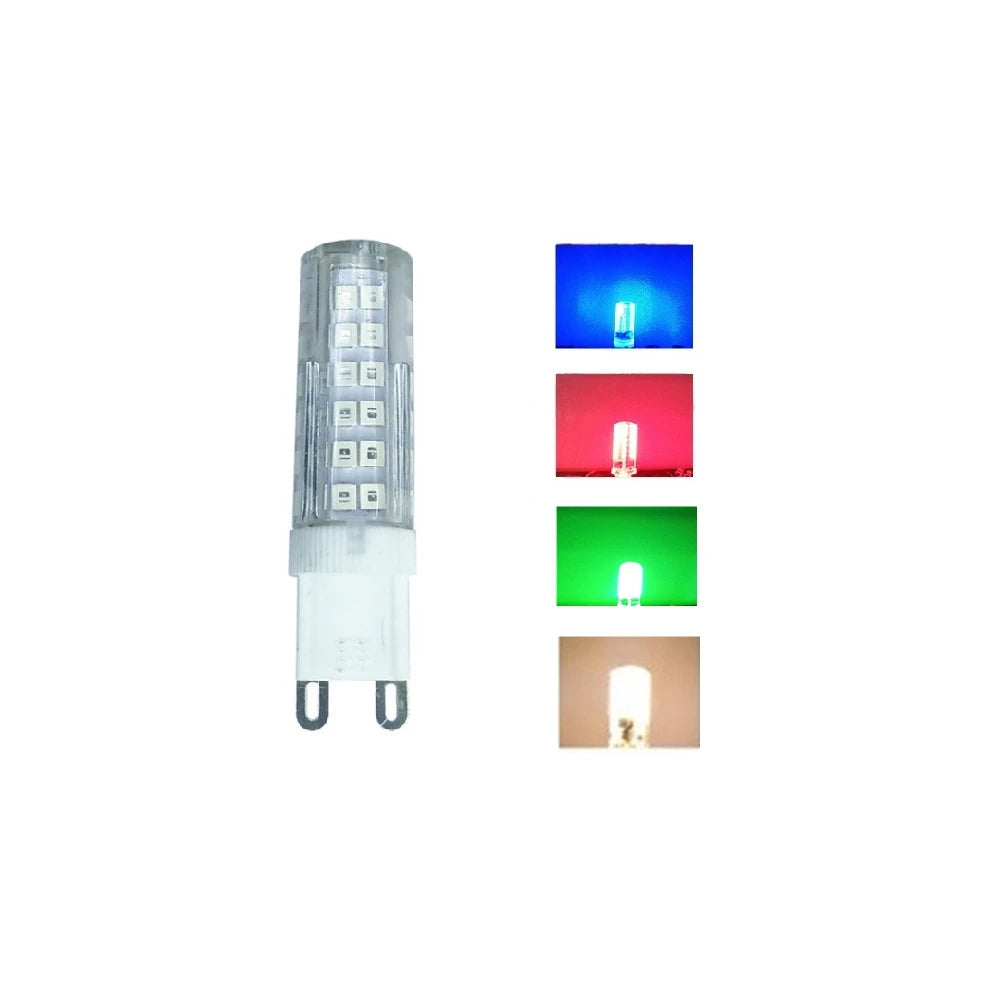

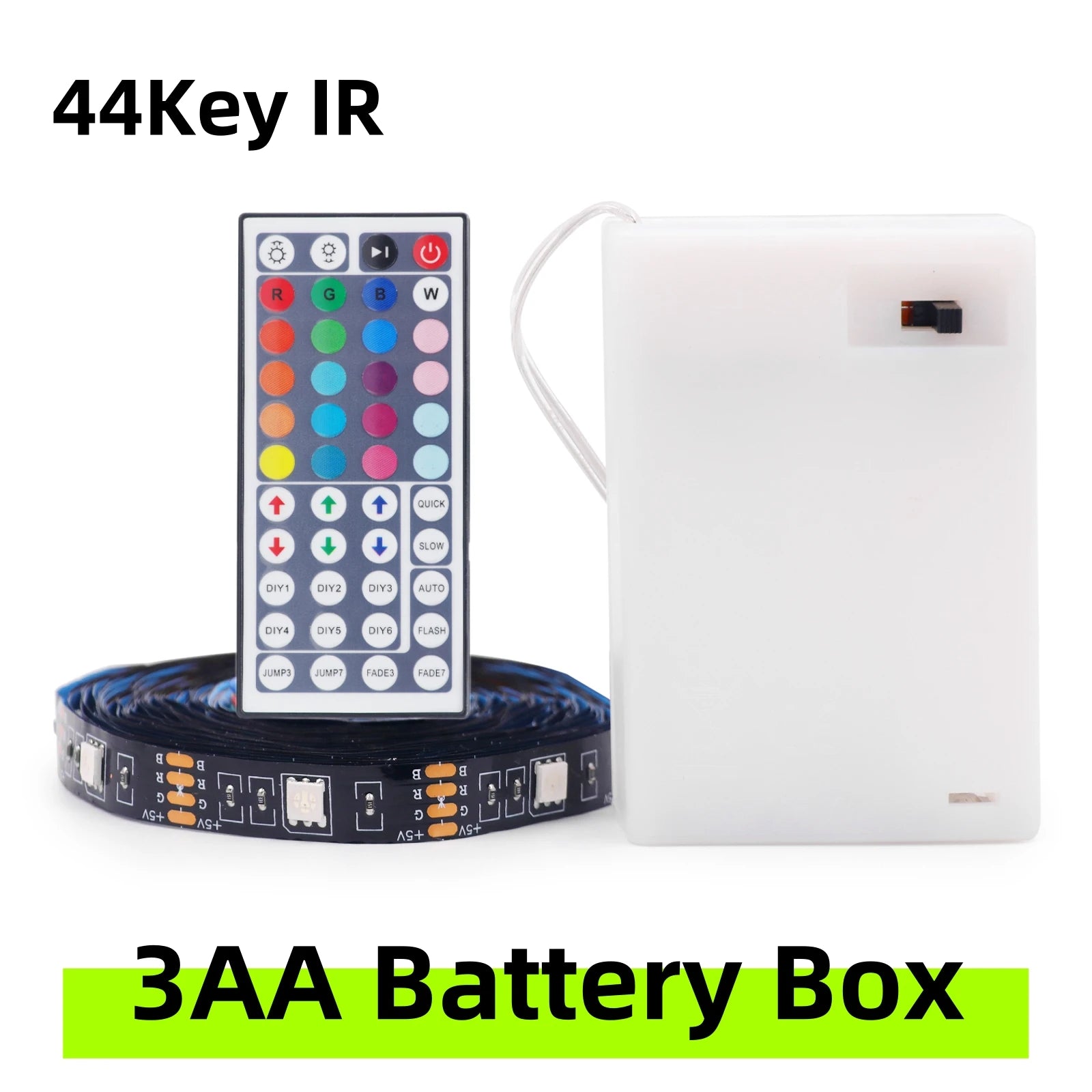

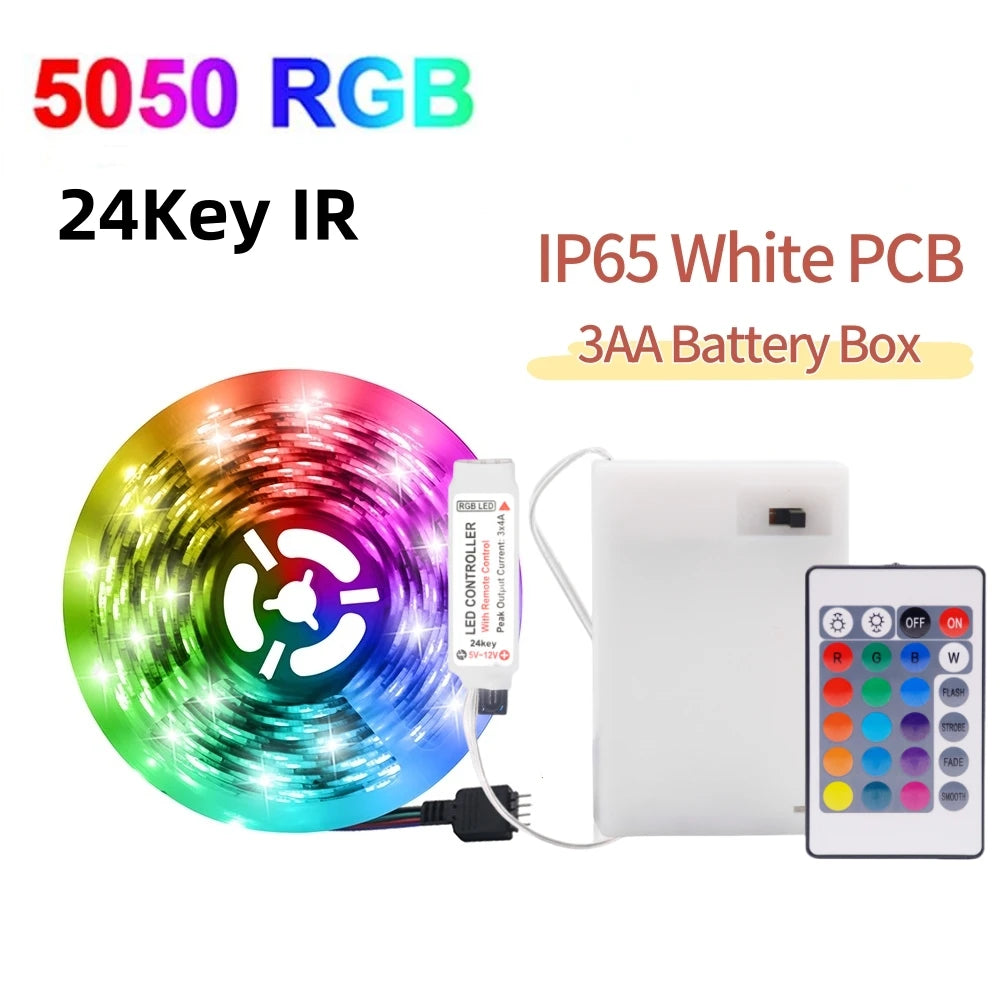

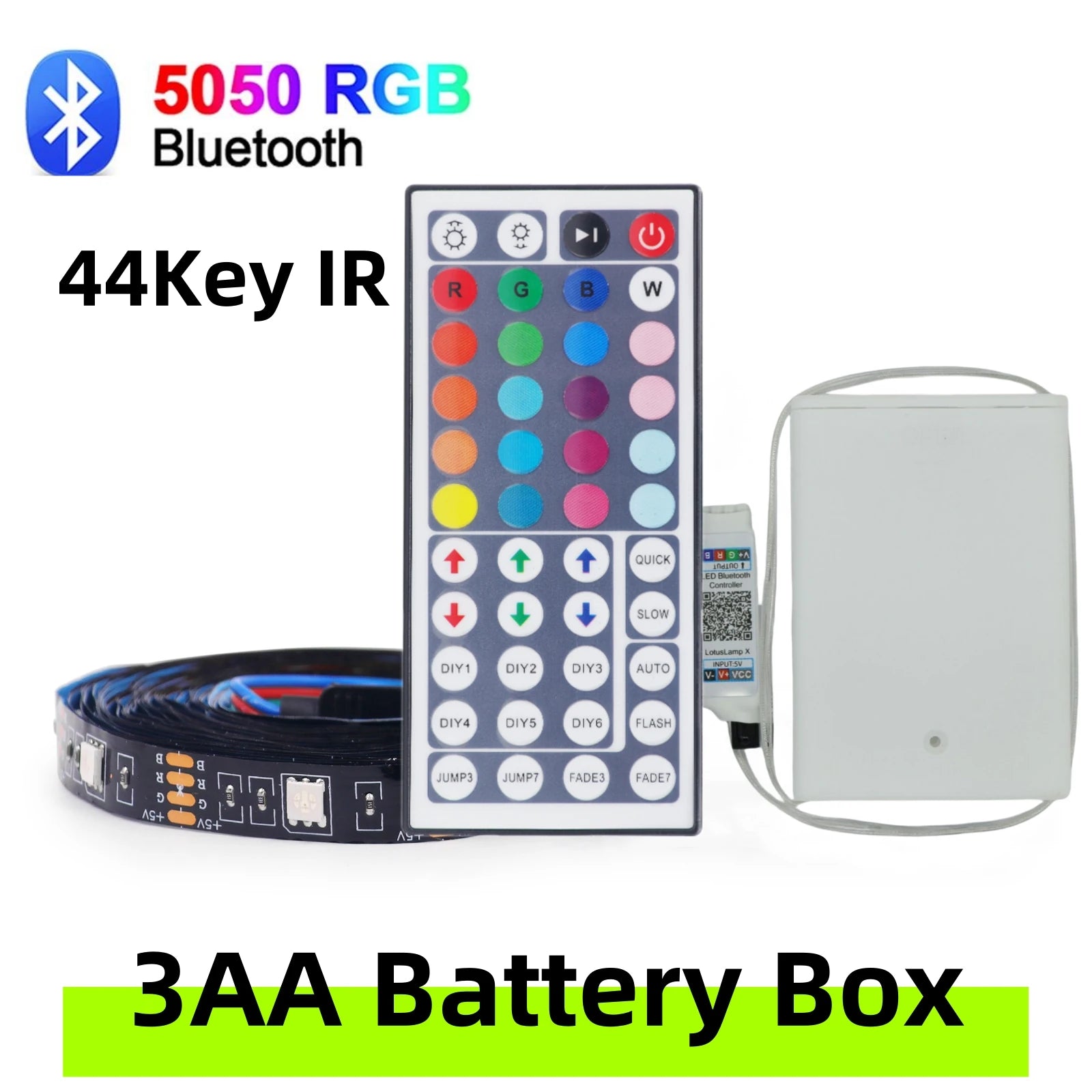

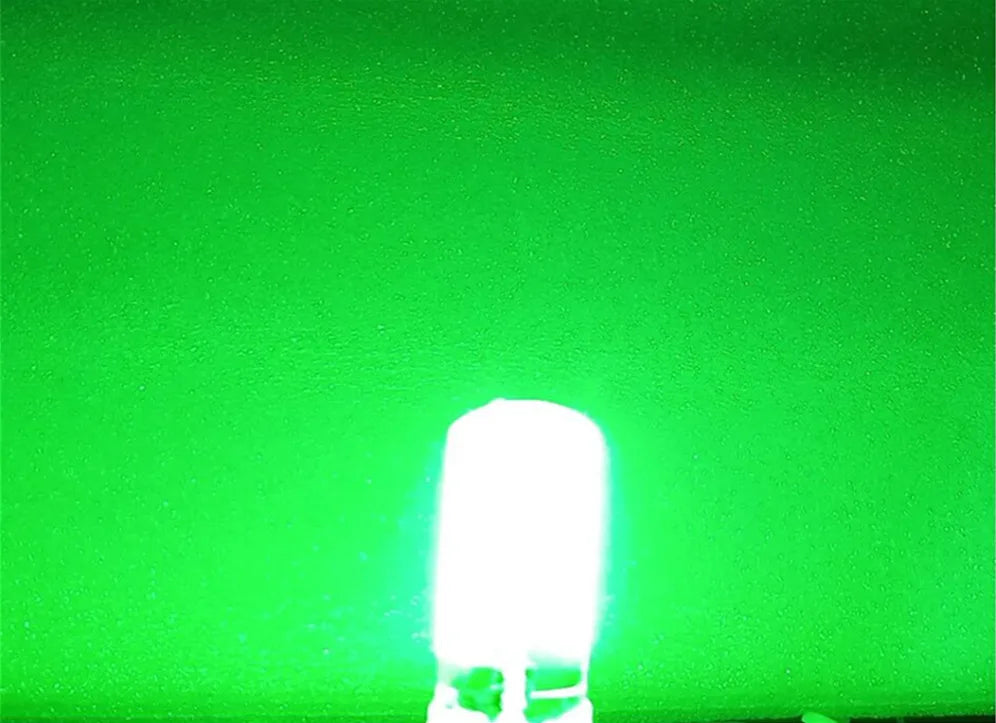

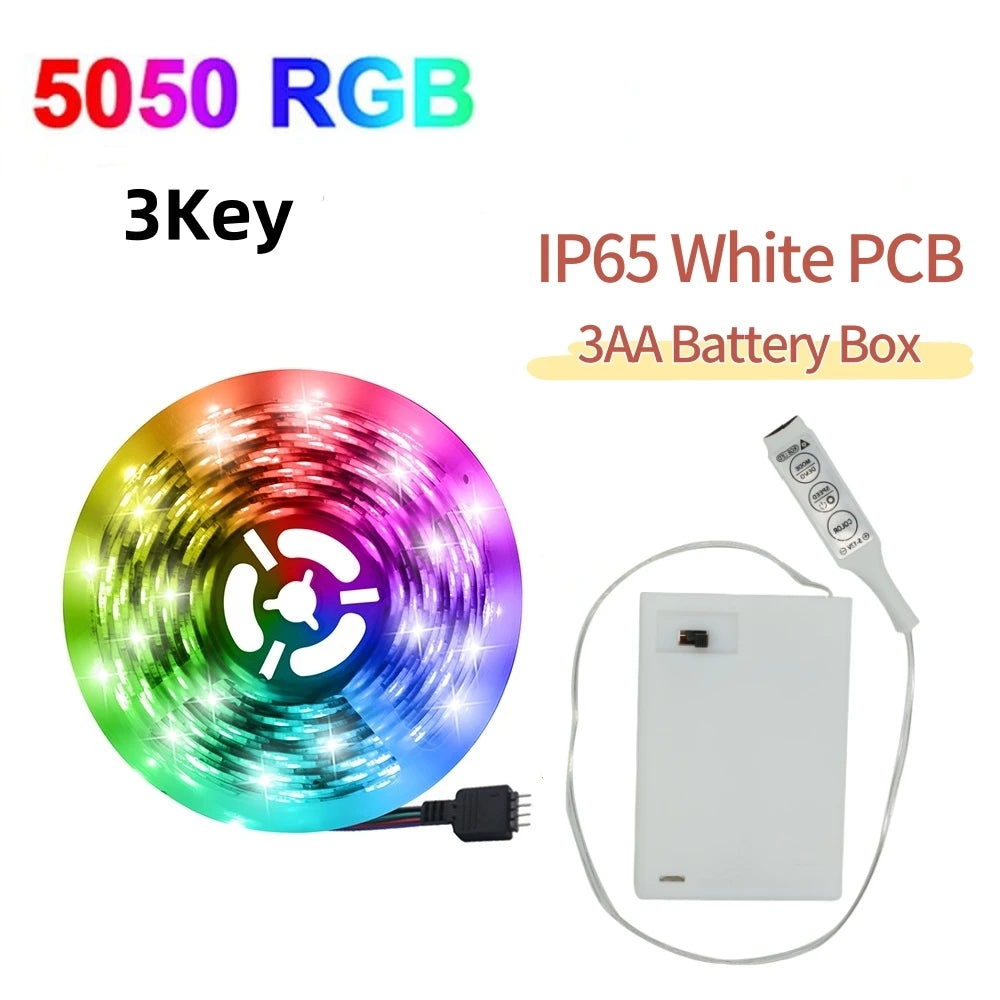

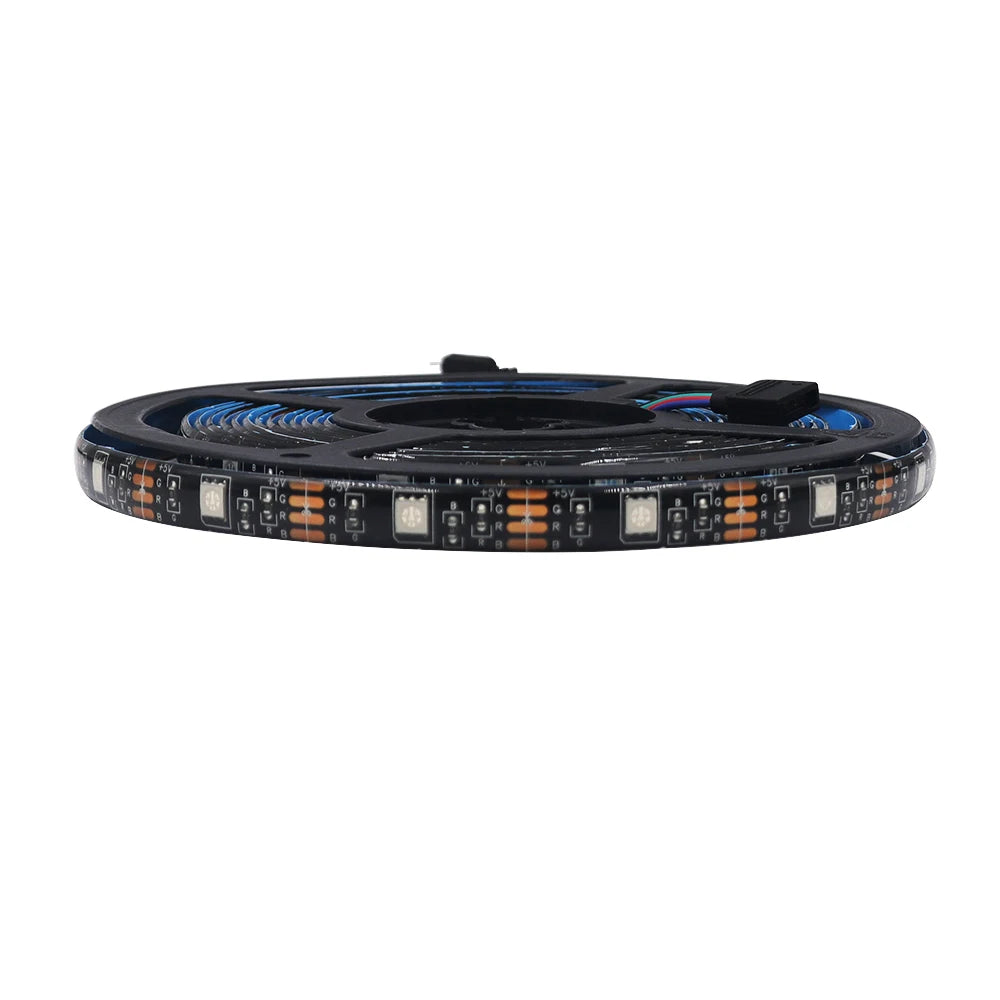

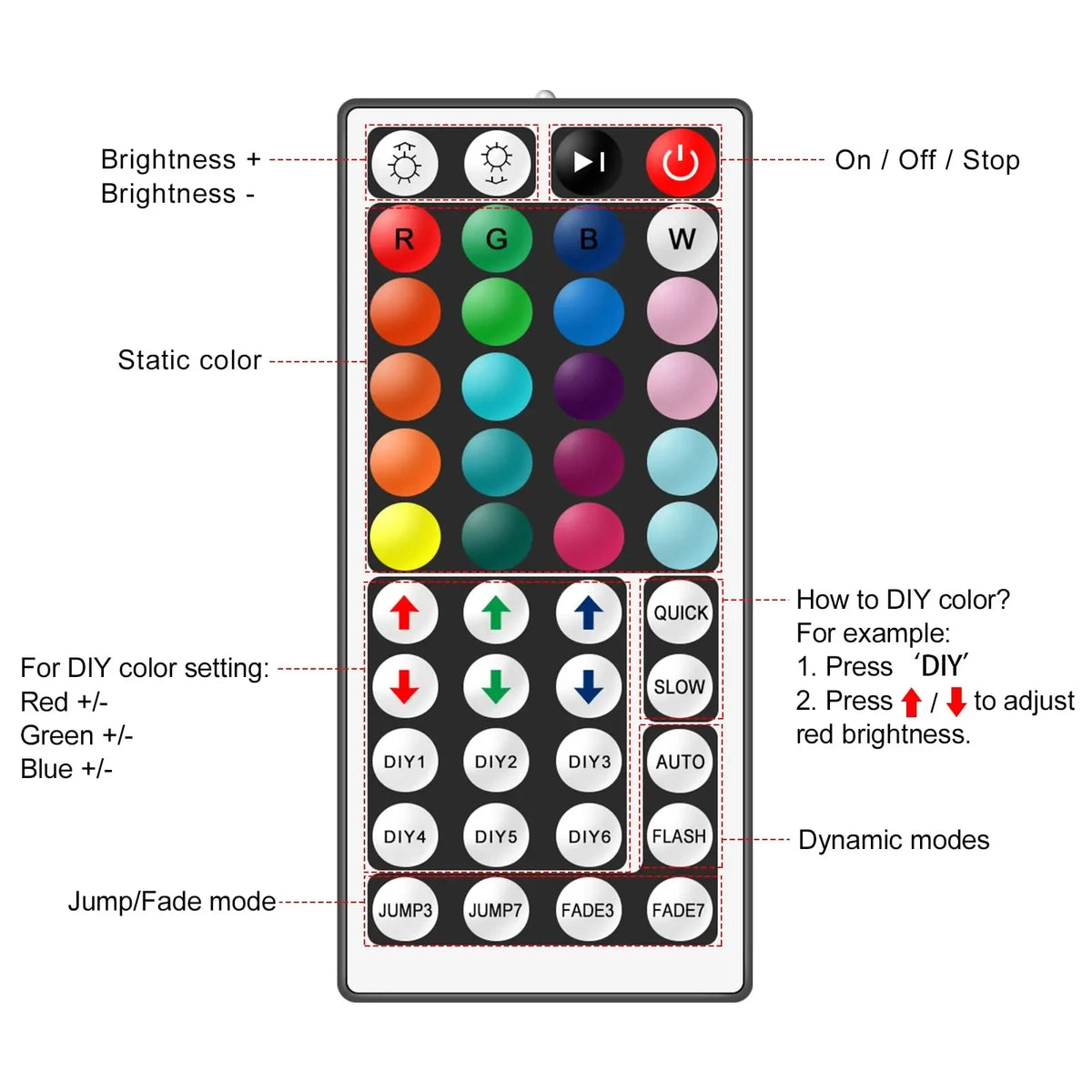

A 220 V G9-style colored bulb page offers red, green, blue, white or warm-white selections, not a universally red lamp. USB 5 V RGB strips with IR/BT/three-key controller options are multicolor systems; “infrared LED remote” refers to a control handset, not necessarily the strip's emitted wavelength. A battery-powered 5050 RGB strip page offers white/black PCB, controller-only or strip-only choices, different lengths and IP20/IP65-marketed options. Check whether the selected kit includes the strip, controller, power source or batteries; a nominal supply is not a guarantee of safe voltage drop over long tape. Another 3AA 2835 tape page offers red as one of white, warm white, blue, yellow, green, pink, ice-blue and purple variants, with selected waterproofing and length. The battery/USB COB motion-sensor tape page offers natural, cool or warm white only; it should not be advertised as red.

A red-numbered LM2596 buck converter/voltmeter is a power-conversion module whose display is red; it is not a pack of red LED diodes. A PIR sensor for LED strips controls light but is not an emitter. A 12/24 V dual-battery isolator with a red status lamp is an automotive relay; its battery-management behavior must be assessed by its own specifications, not by the color of a status LED. These items remain here because of their existing collection membership, but purchasing them as red light sources would be a category mistake.

Engineering and ordering checklist

1. Decide whether the required output is visible red, near-infrared, a multi-color strip, a numeric readout or only an illuminated control.
2. Select the exact color/wavelength option: red can be one variant on a page that also sells green, white, blue, 850/940 nm or an adapter alone.
3. Match the electrical layer: bare junction current and forward voltage, prewired 3/12 V lead assembly, TM1637 board input, mains-rated lamp/alarm, or automotive switch contacts are not interchangeable ratings.
4. For numeric readouts, verify digit count, common-anode versus common-cathode, pinout, driving method and actual pack count.
5. For panel hardware, check hole diameter, terminal configuration, momentary/latching action, warning-light and sound behavior, and whether an accessory or complete assembly is selected.
6. For IR systems, match transmitter to receiver or camera sensitivity; evaluate optics, heat and eye safety. Do not infer manufacturer identity, approvals or therapy performance from a headline.

Product-specific drawings, testing and the selected variant govern the item shipped. Collection-wide claims about color, voltage, brightness, waterproofing, compatibility or certifications would be misleading for this mixed assortment.
