Motor Run Capacitors: CBB60, CBB61 & CBB65
Motor run capacitors for continuous AC motor operation
A motor run capacitor remains in an appropriate AC motor circuit during operation; its capacitance, voltage and duty must match that motor's design. This collection focuses on CBB60 cylindrical run capacitors for pumps and washing-machine motors, CBB61 fan-style and multi-wire parts, and CBB65 compressor or dual-section parts. Many listings use “starting” as a sales term for a run-type film capacitor. Do not infer intermittent start-only versus continuous run duty from the headline; check the selected component's marking and datasheet.
Compare constructions and connections

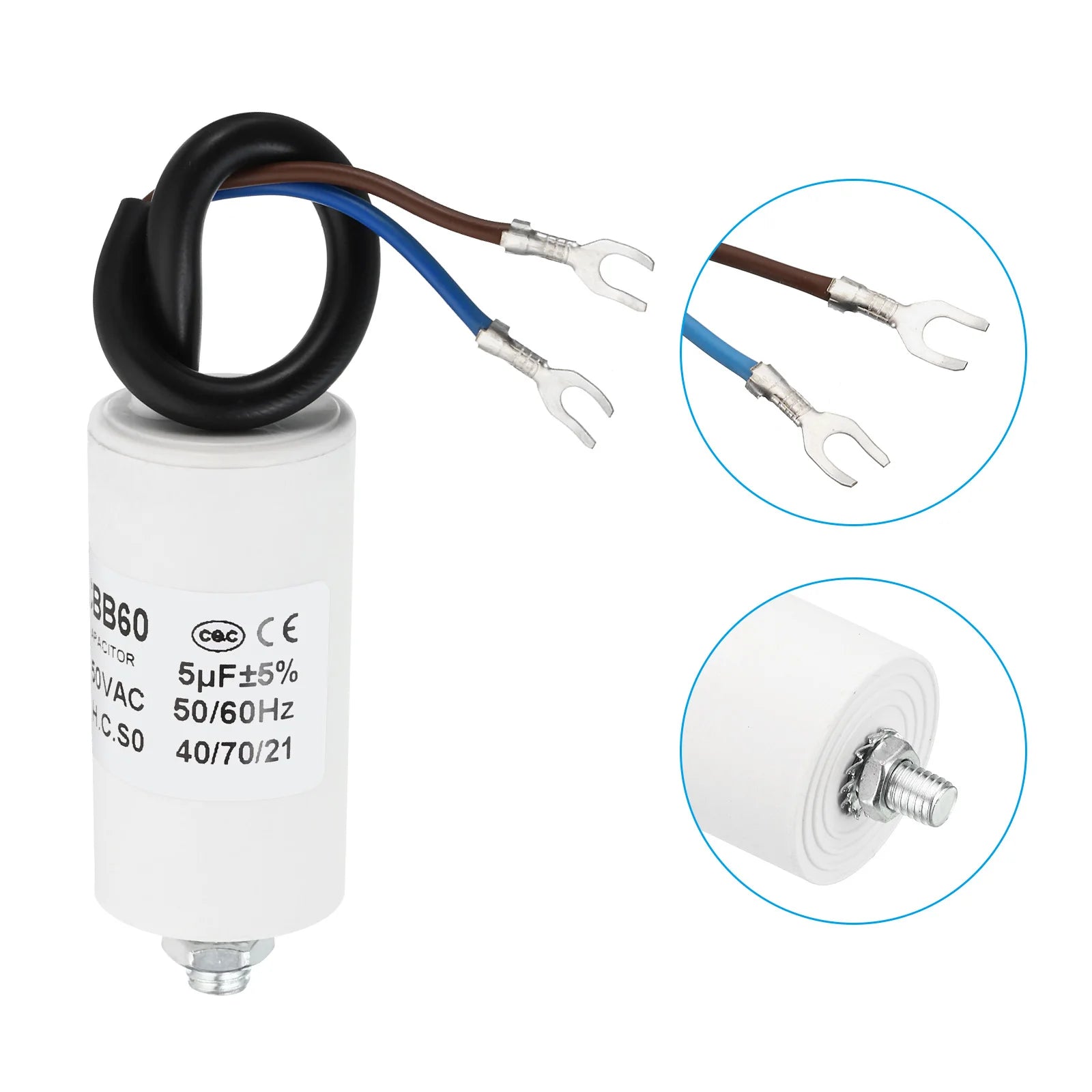

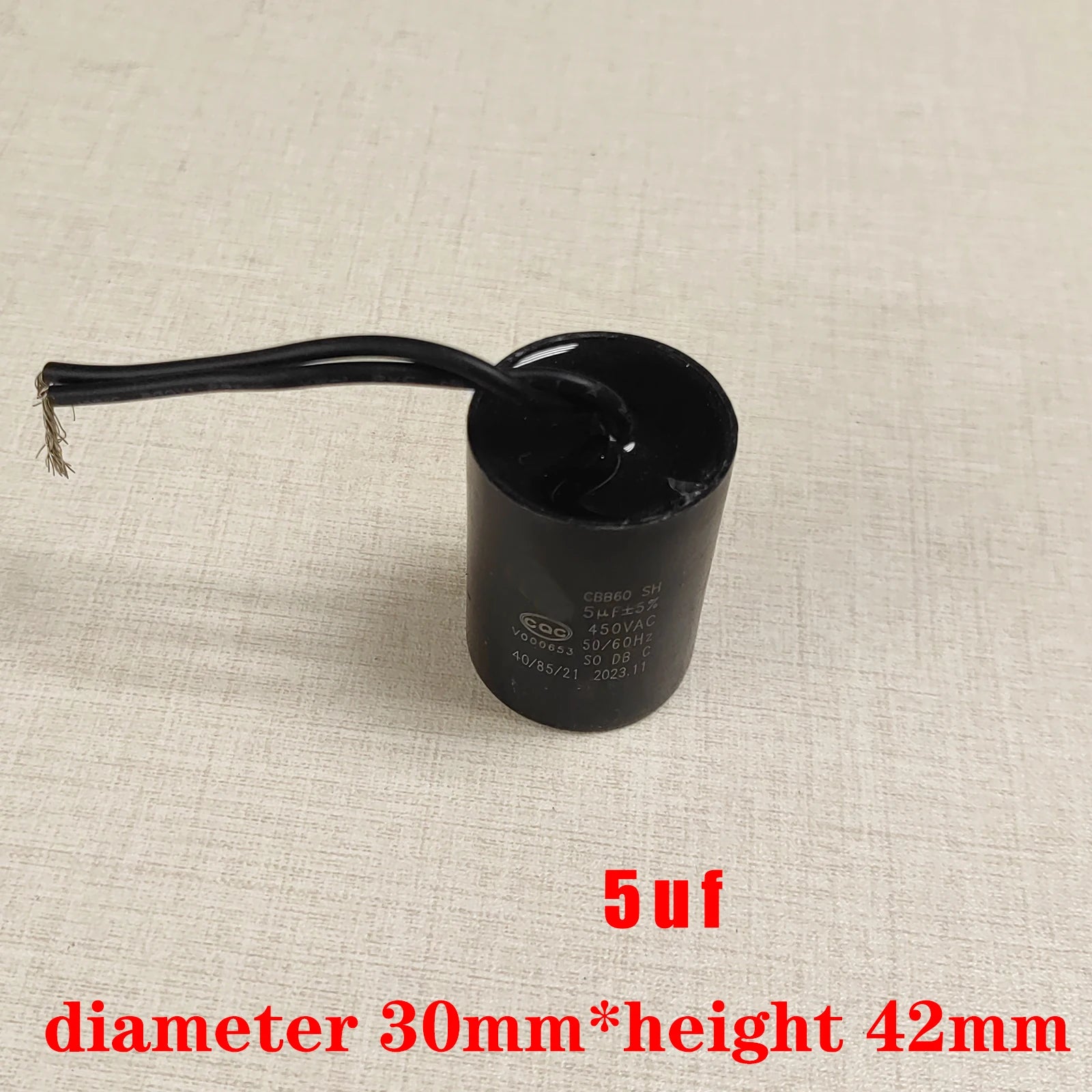

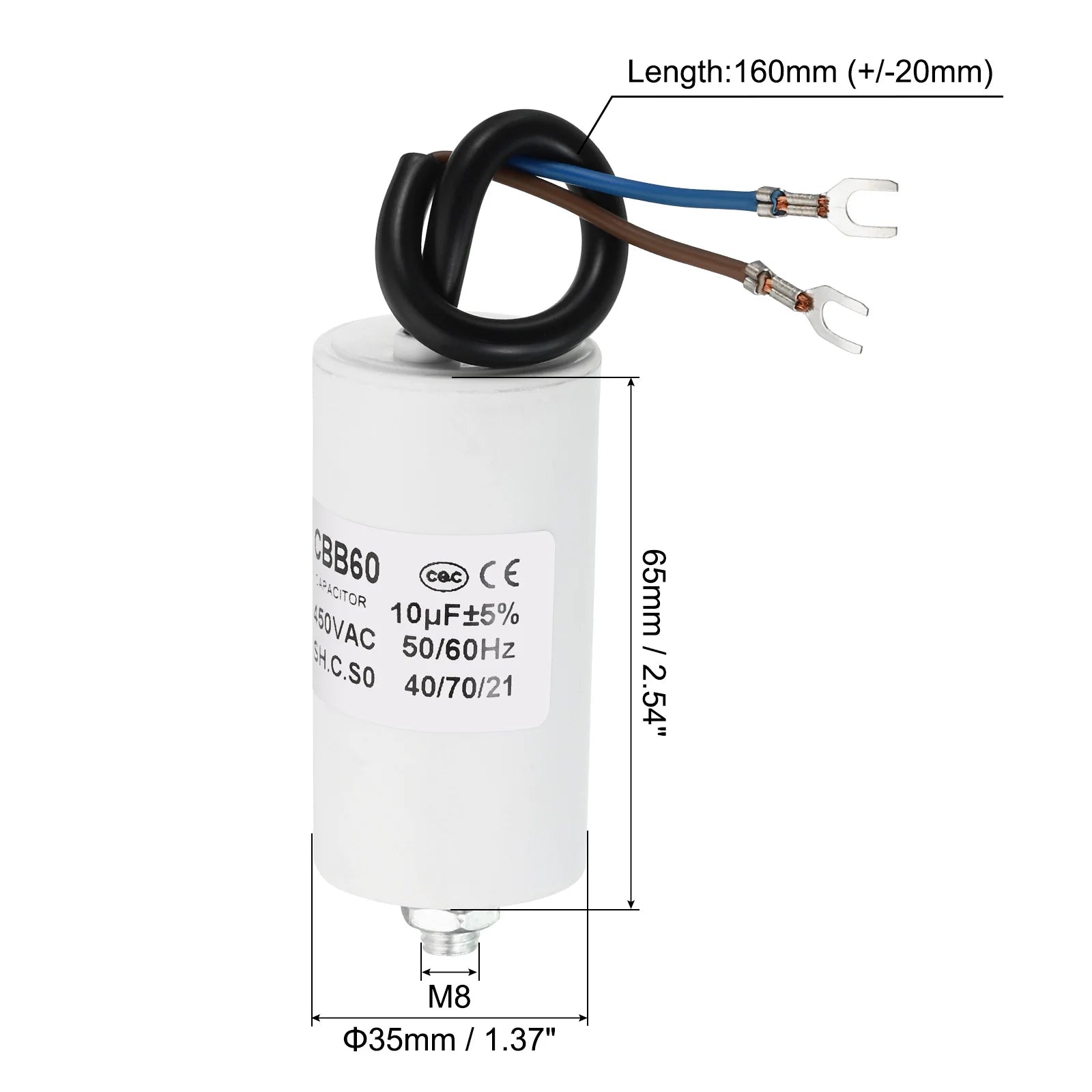

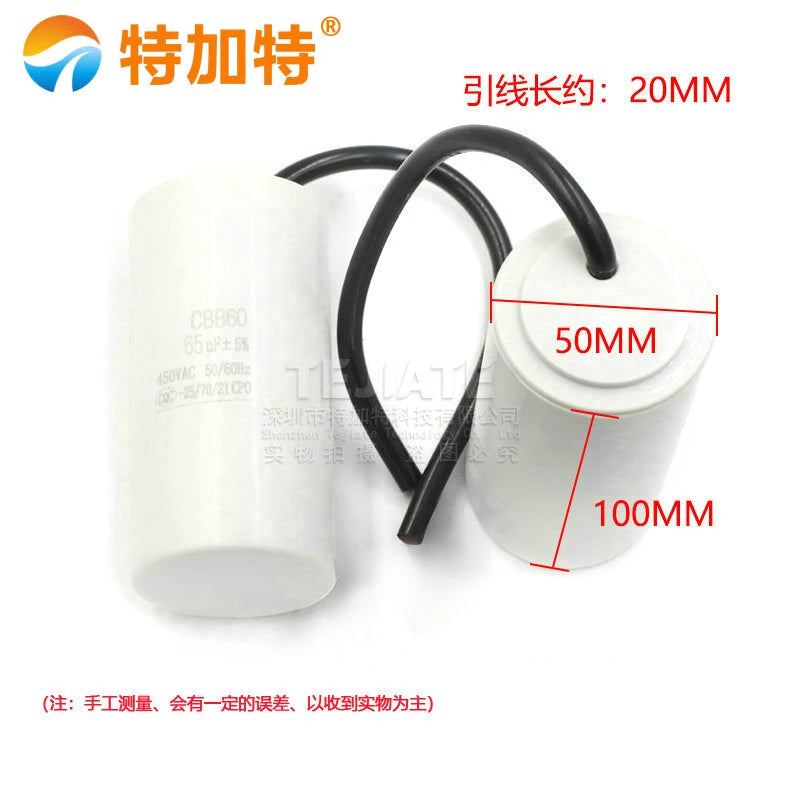

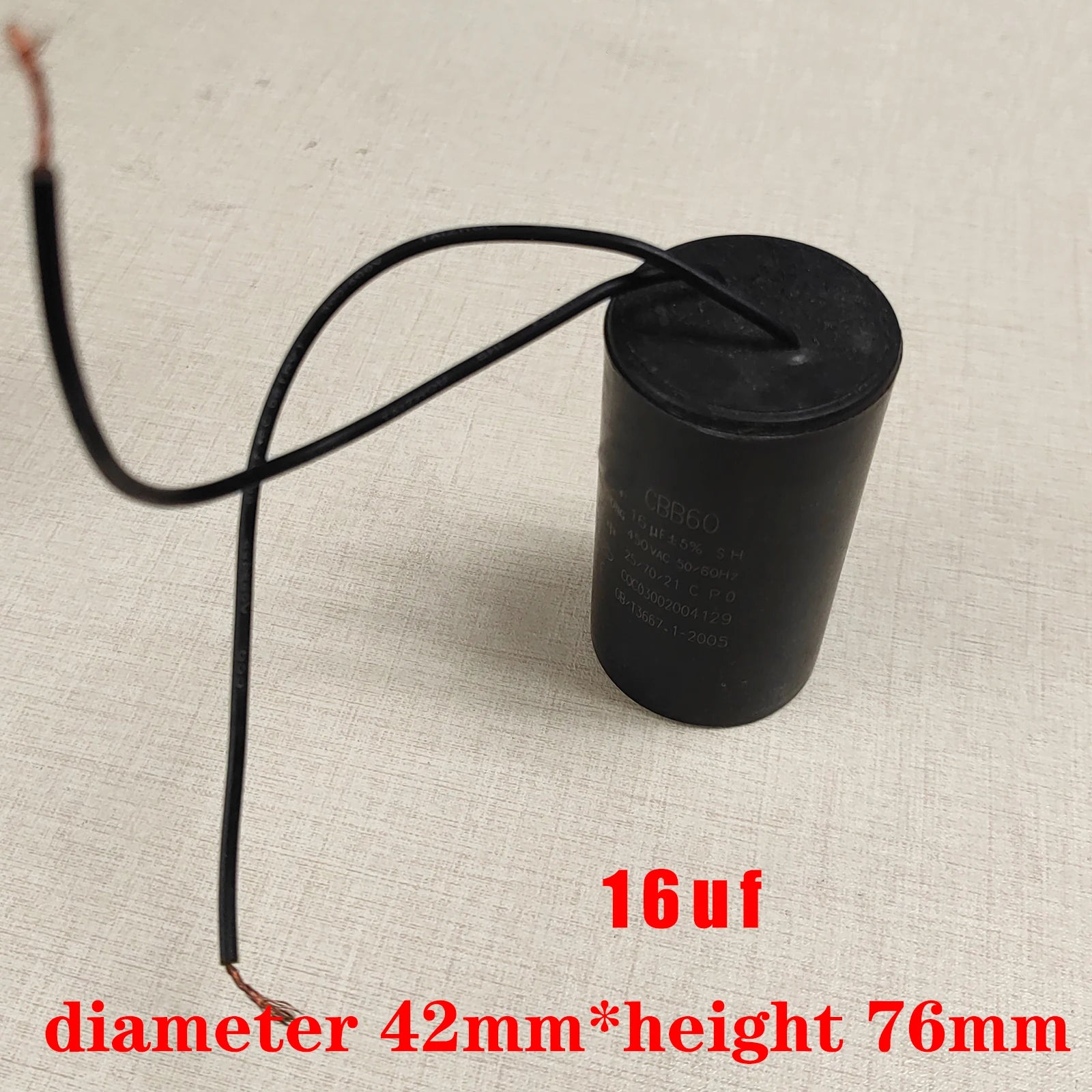

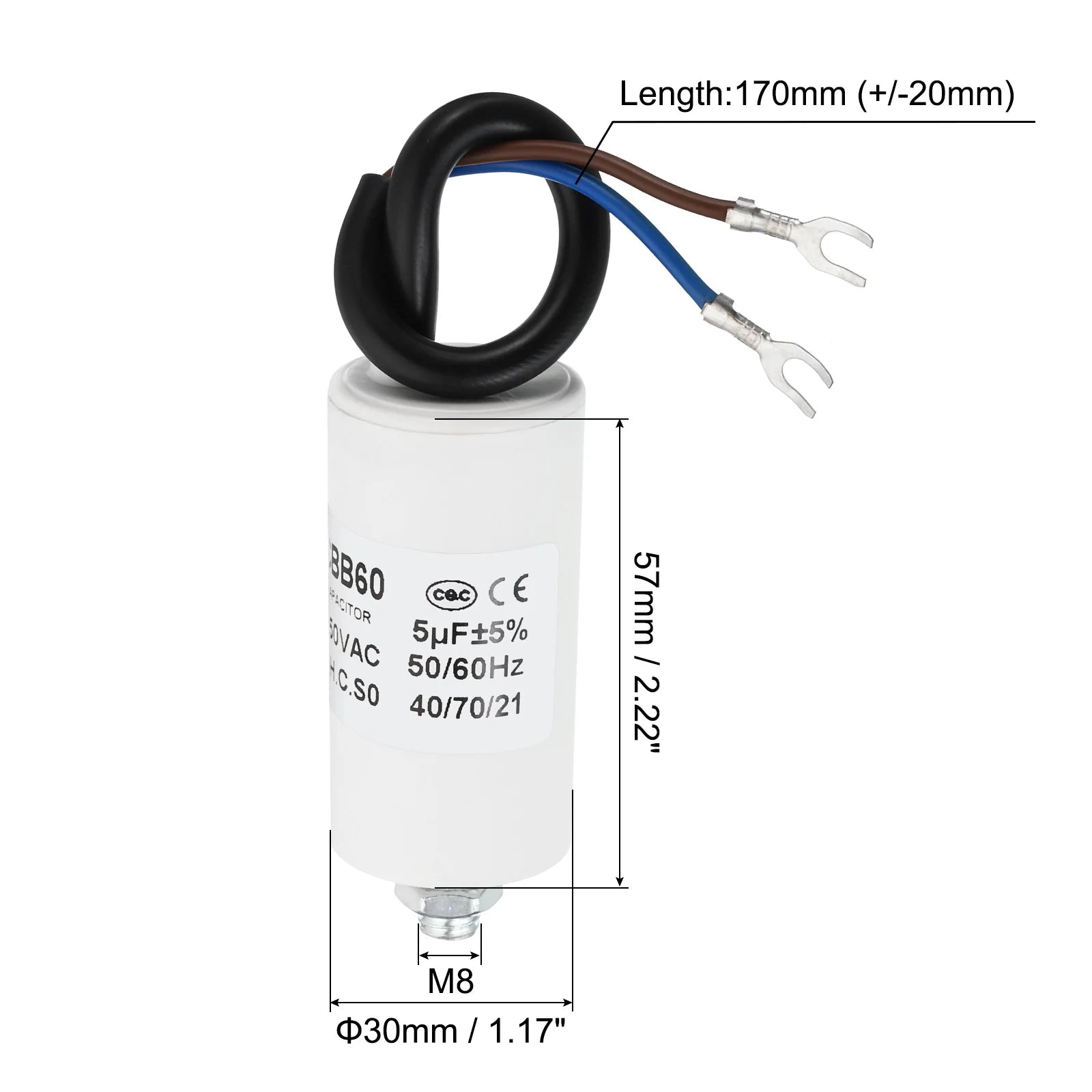

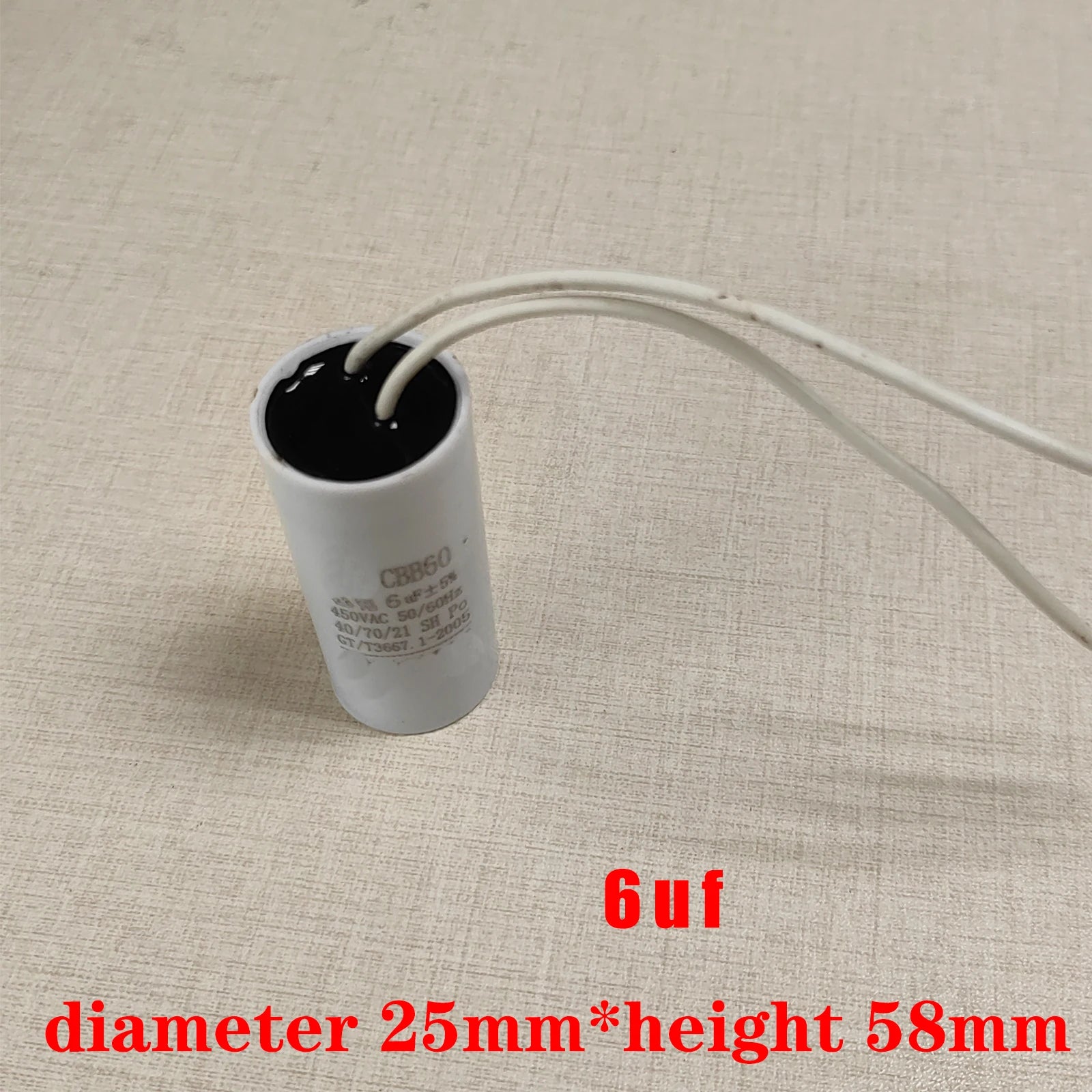

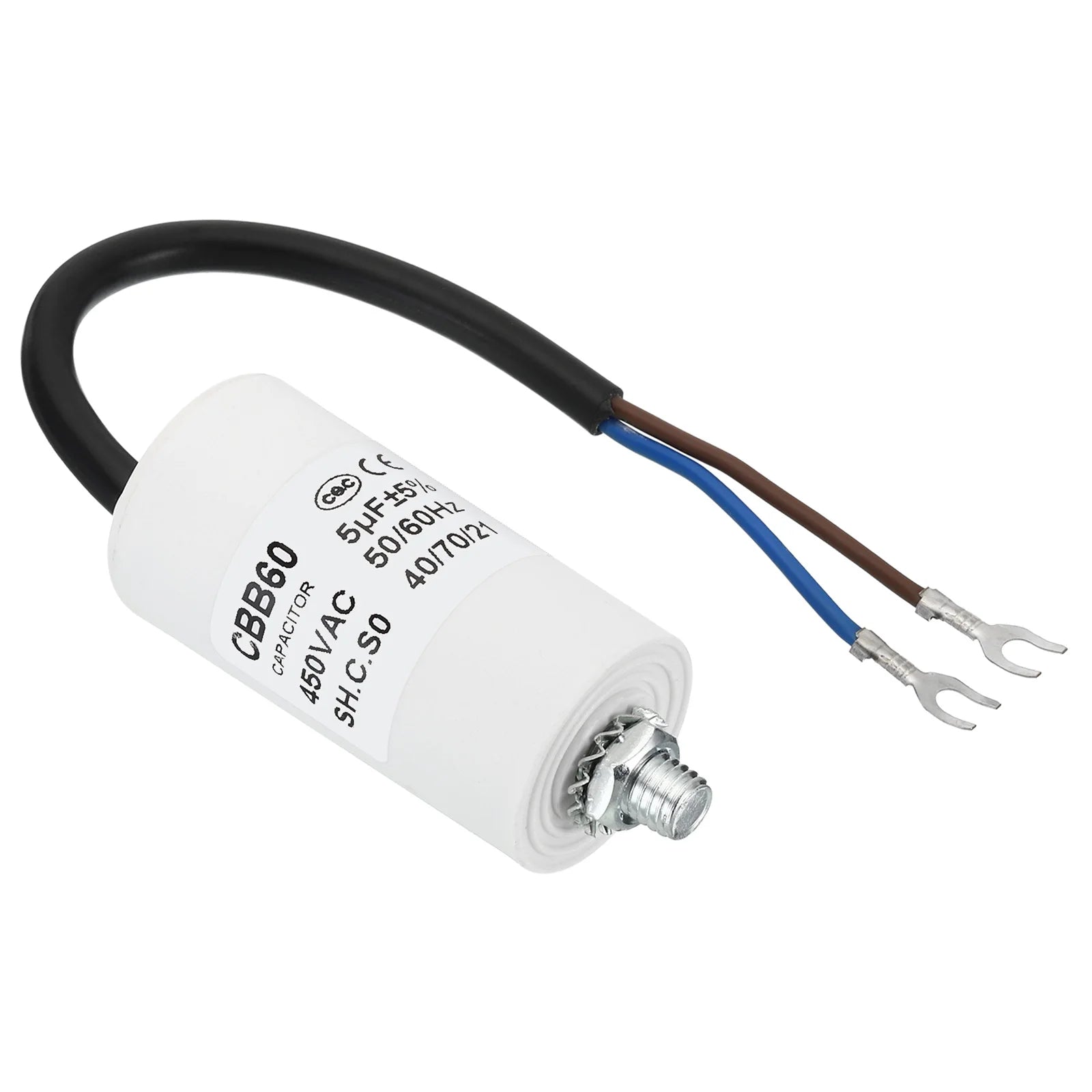

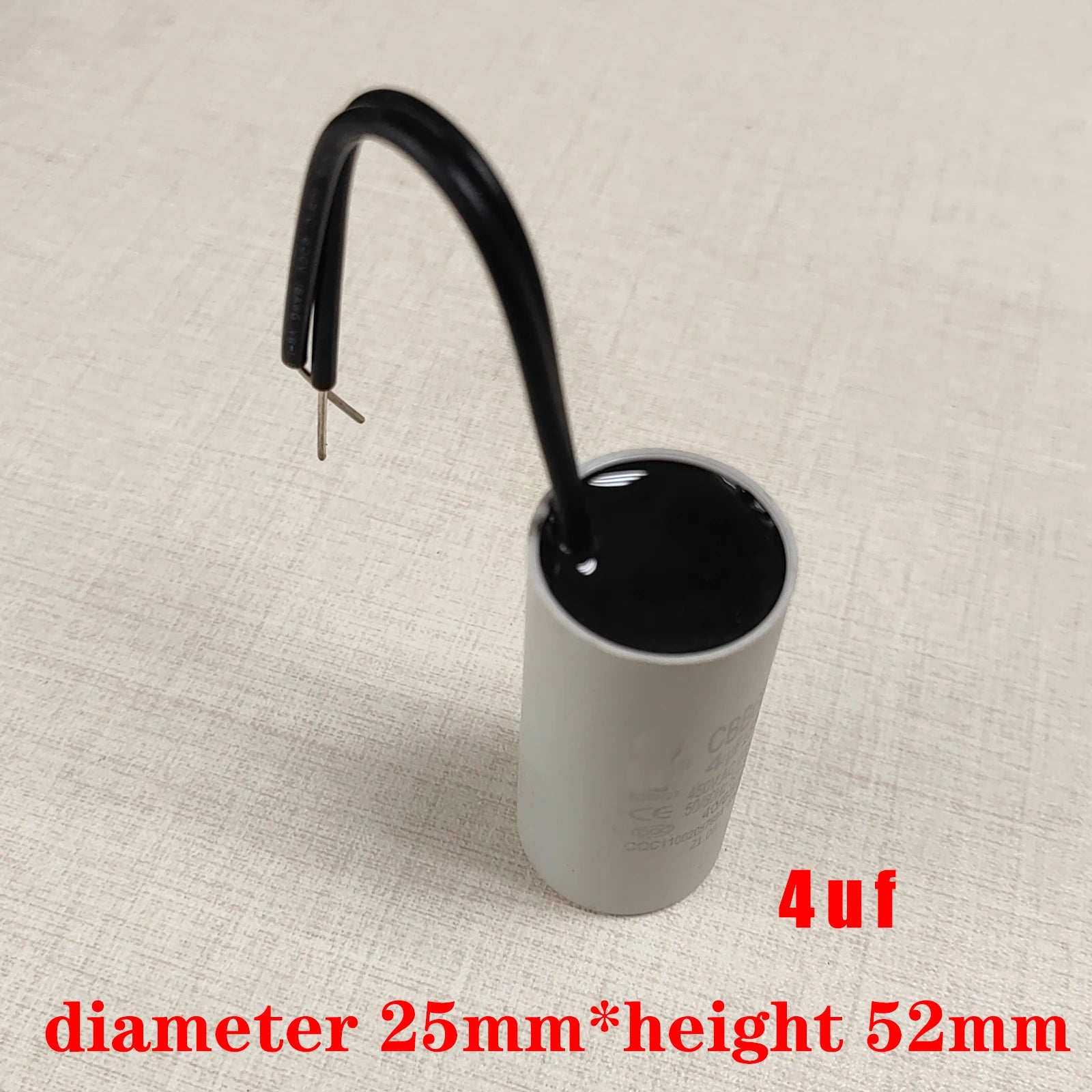

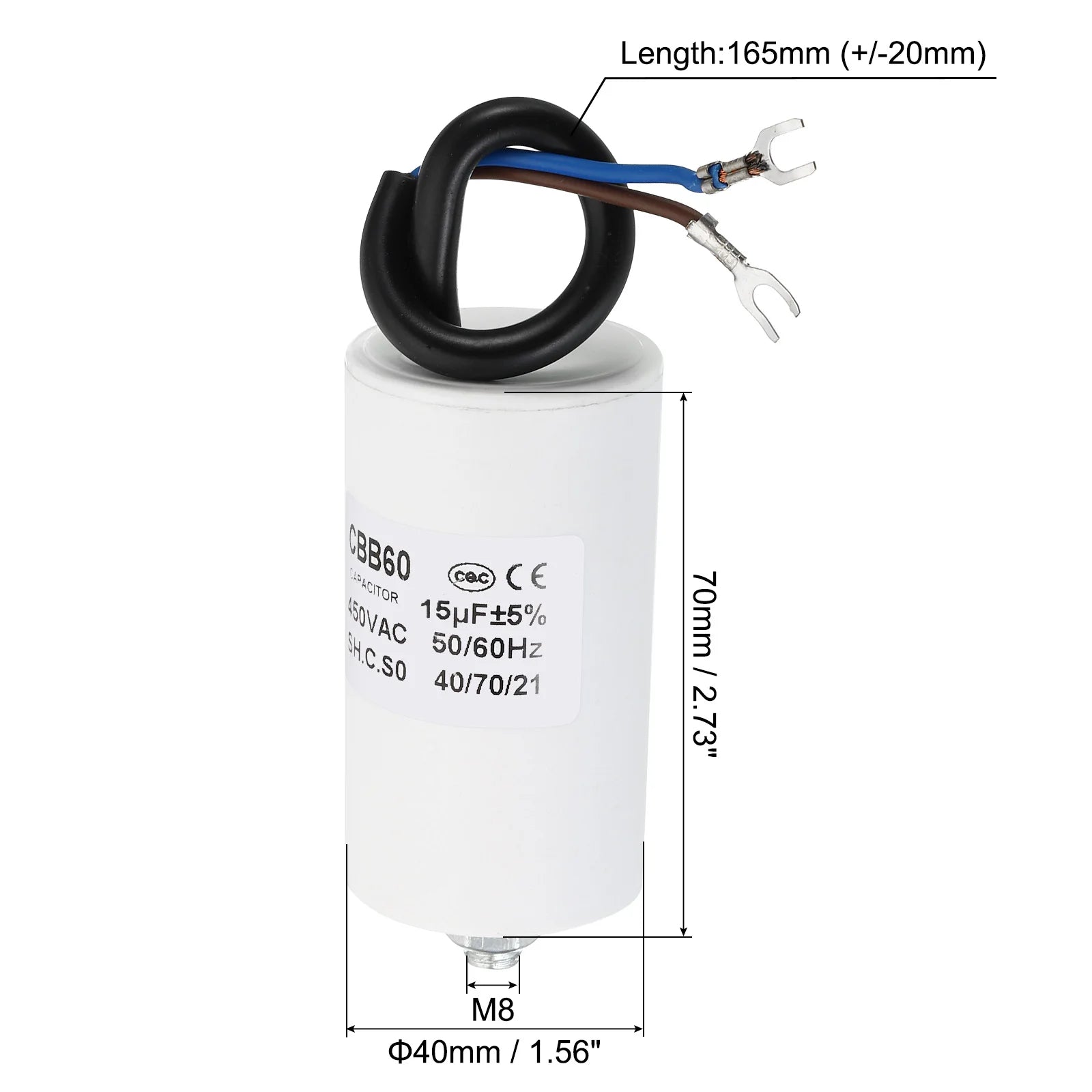

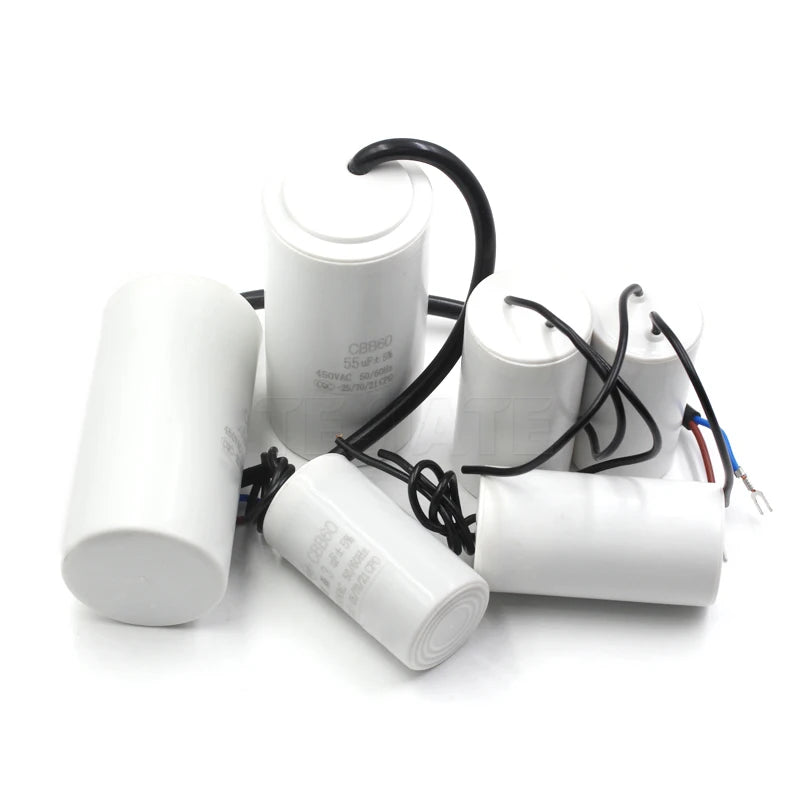

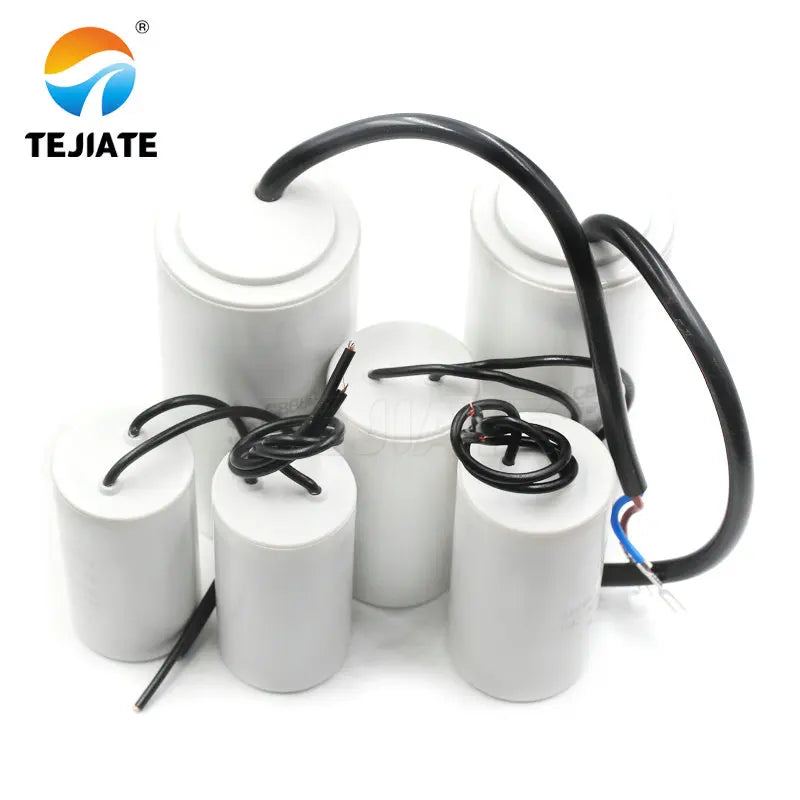

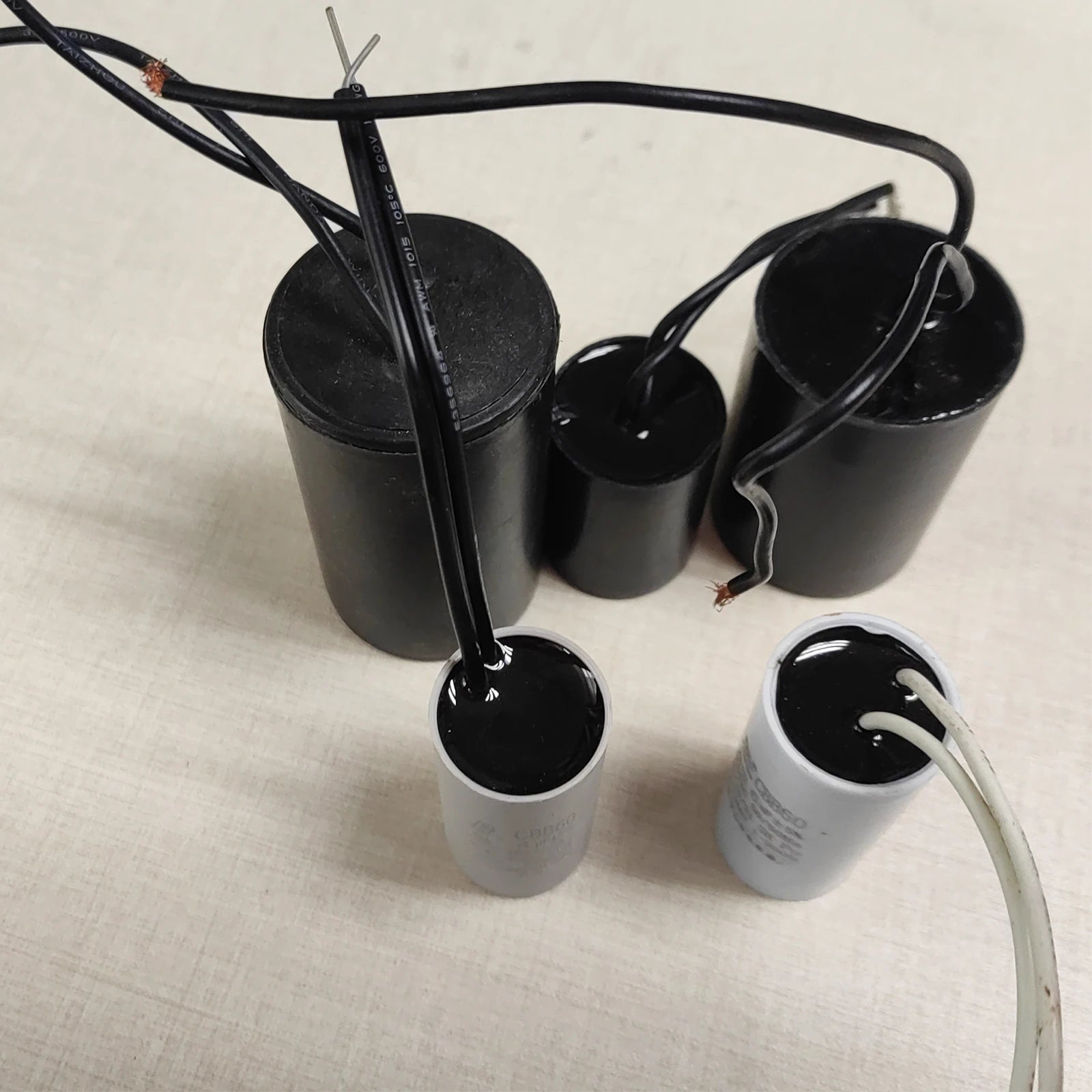

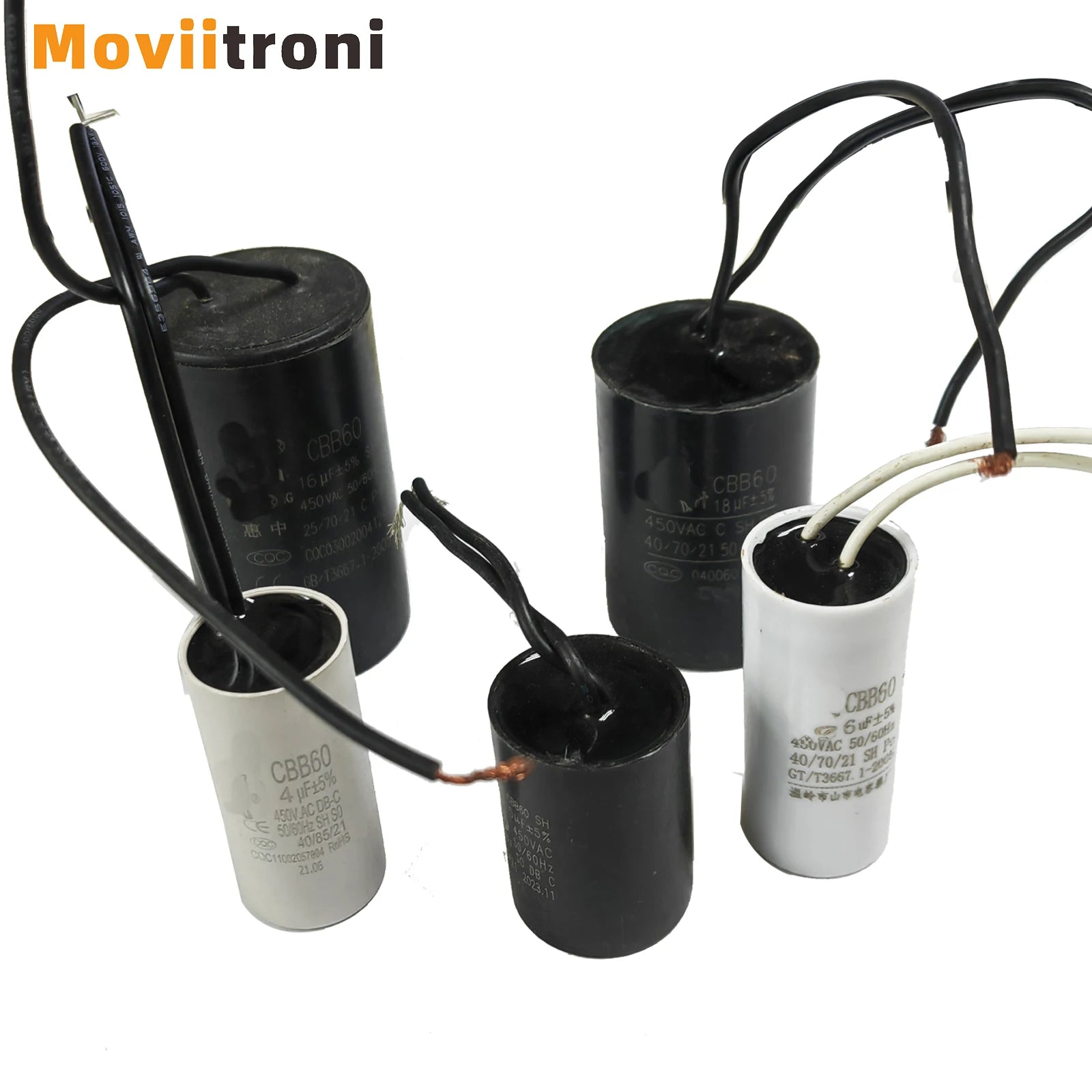

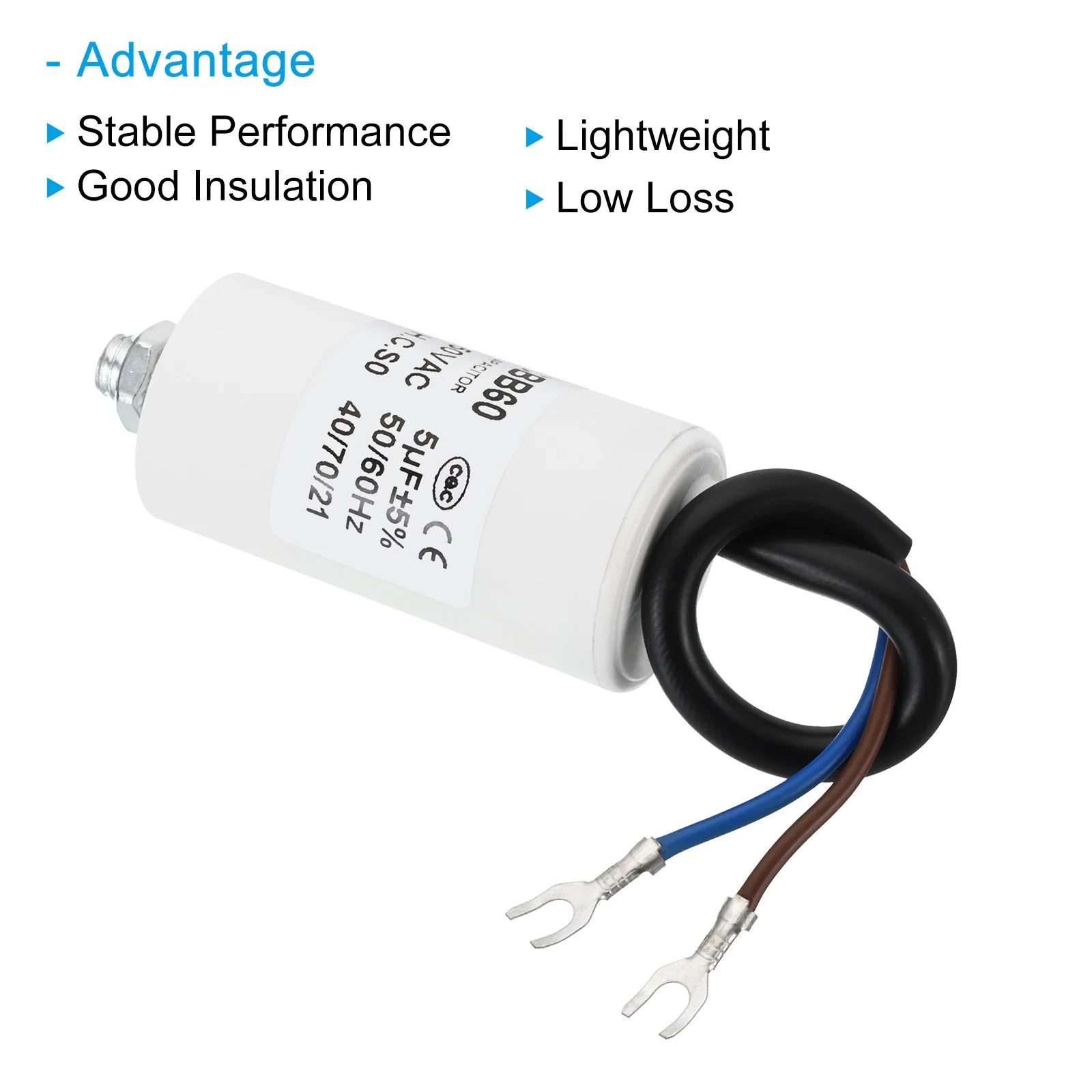

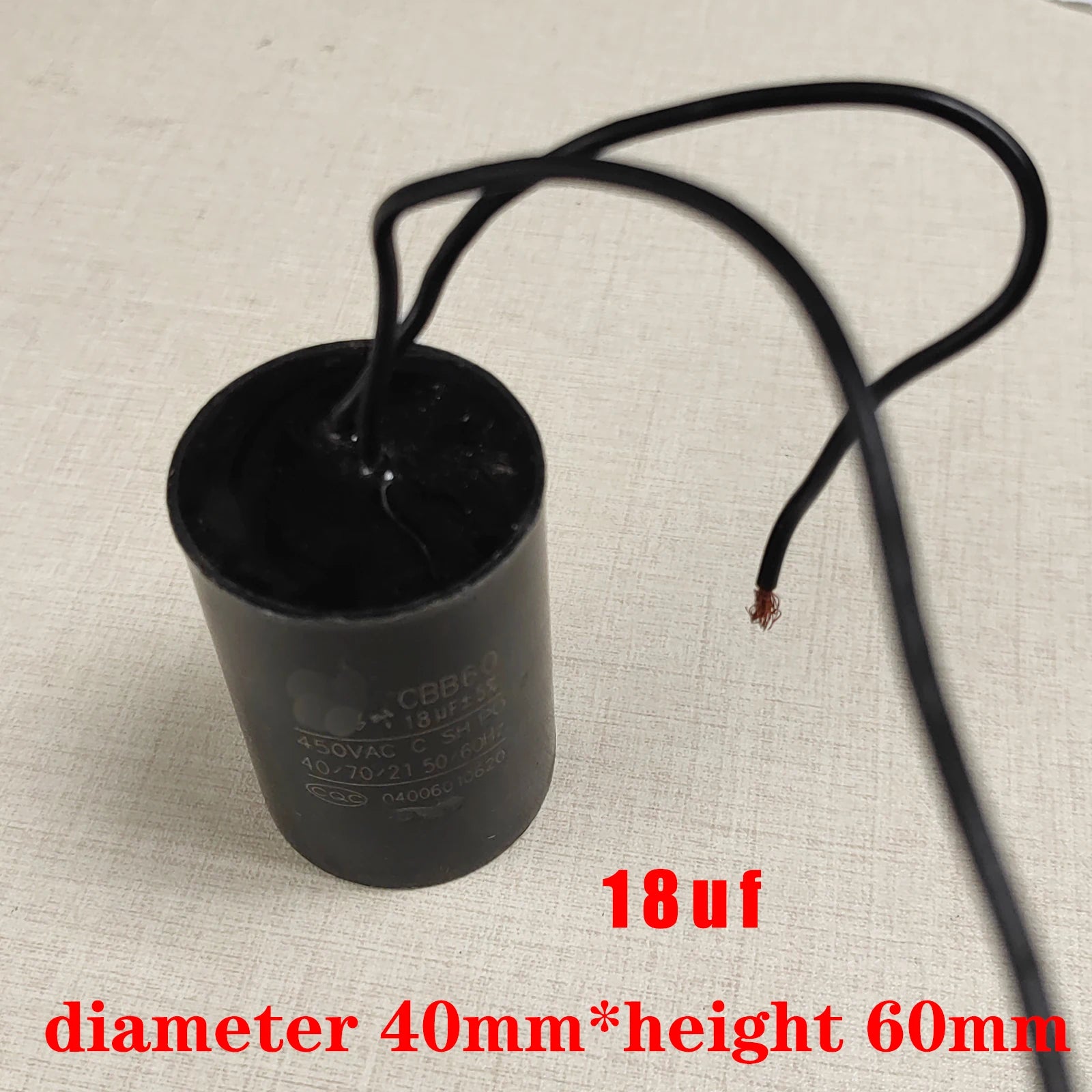

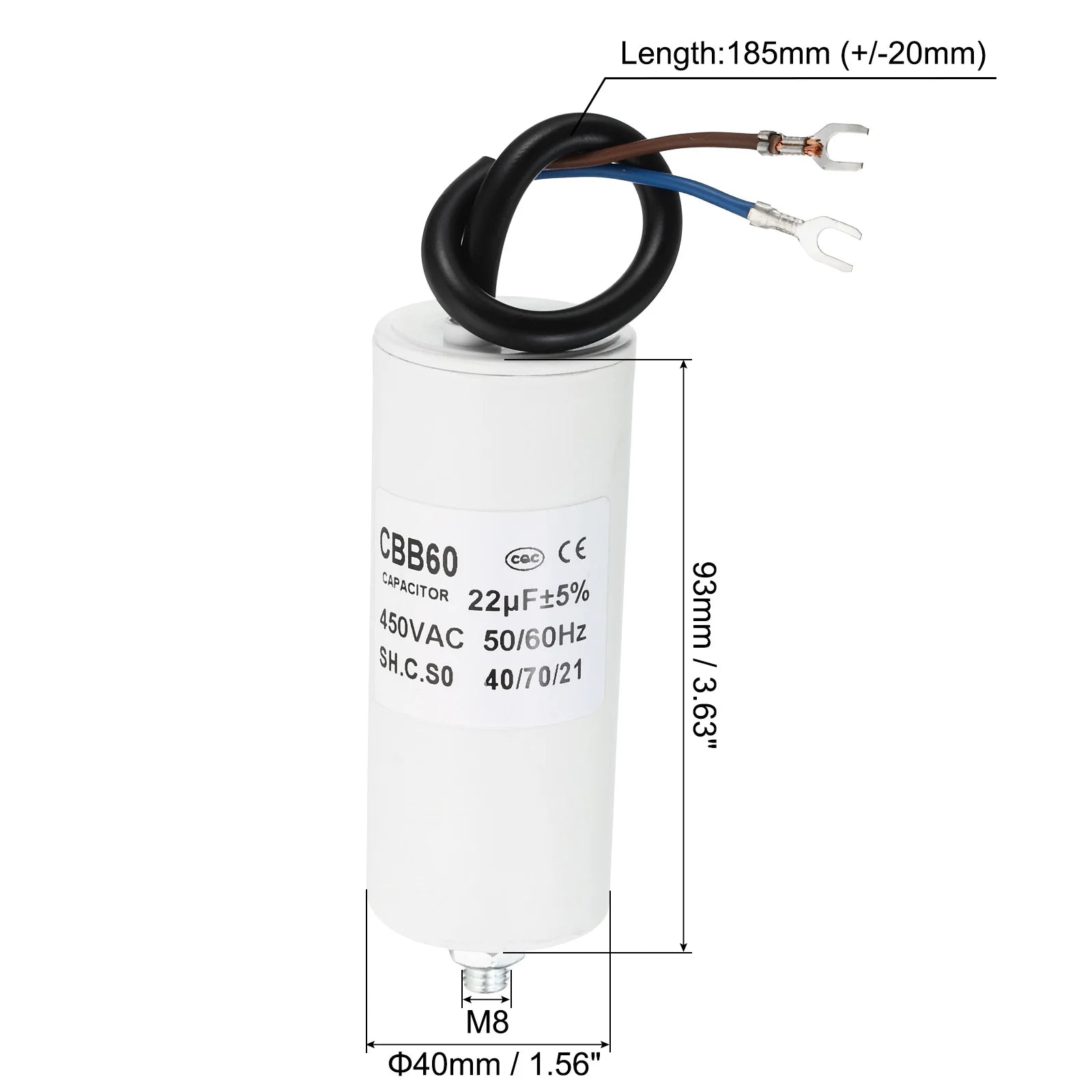

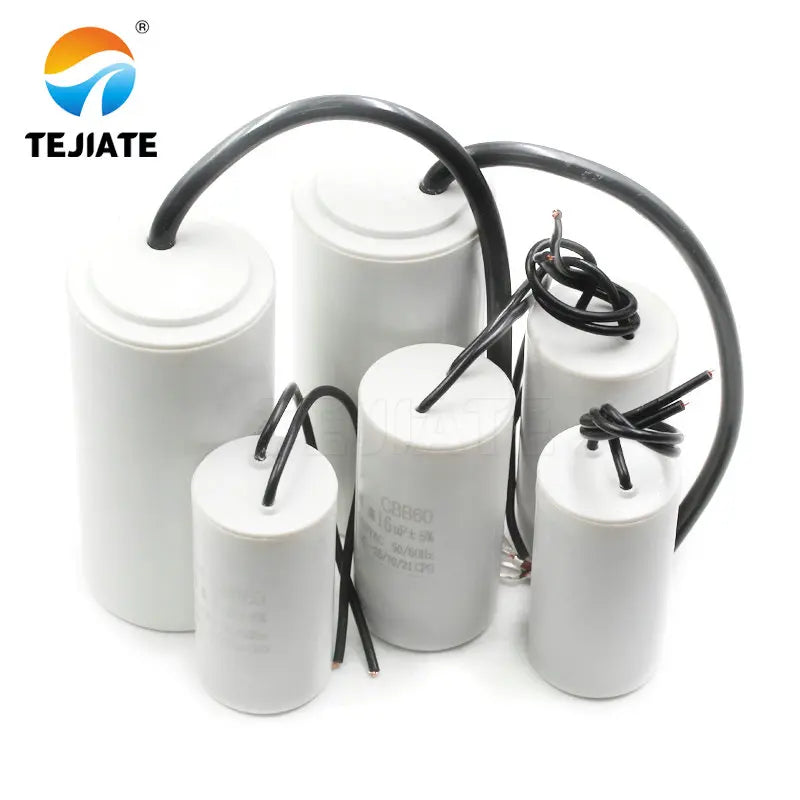

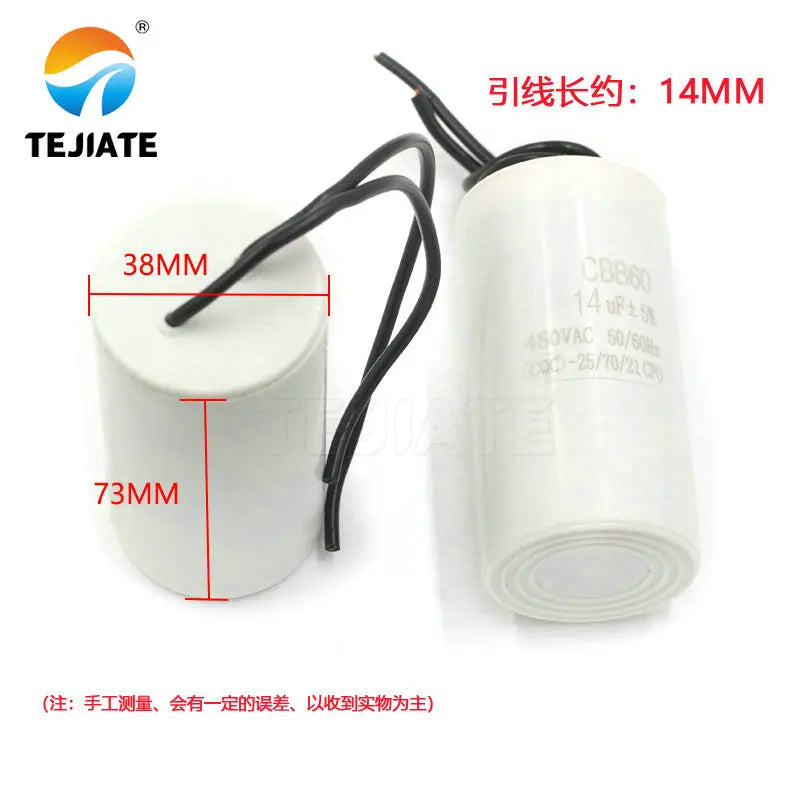

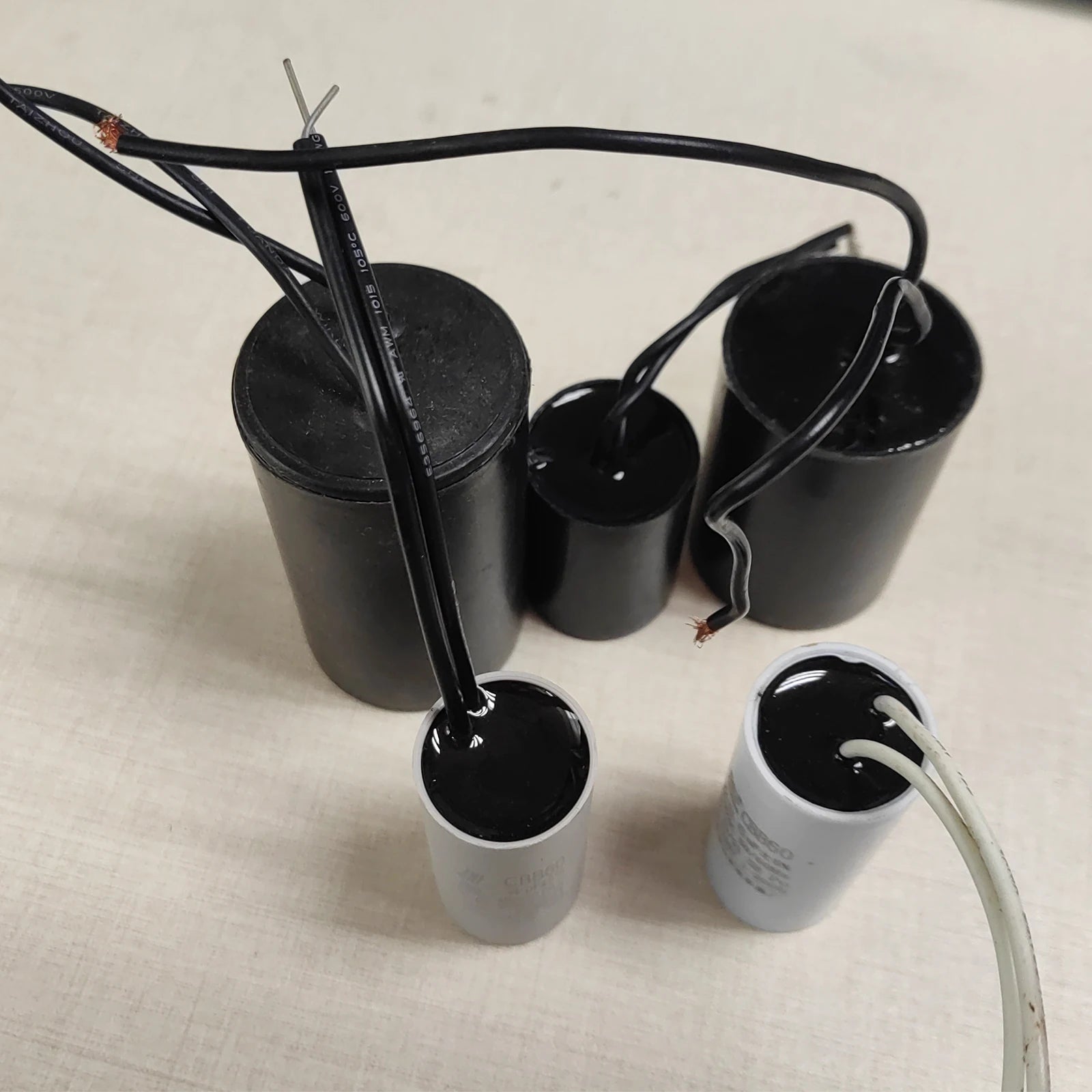

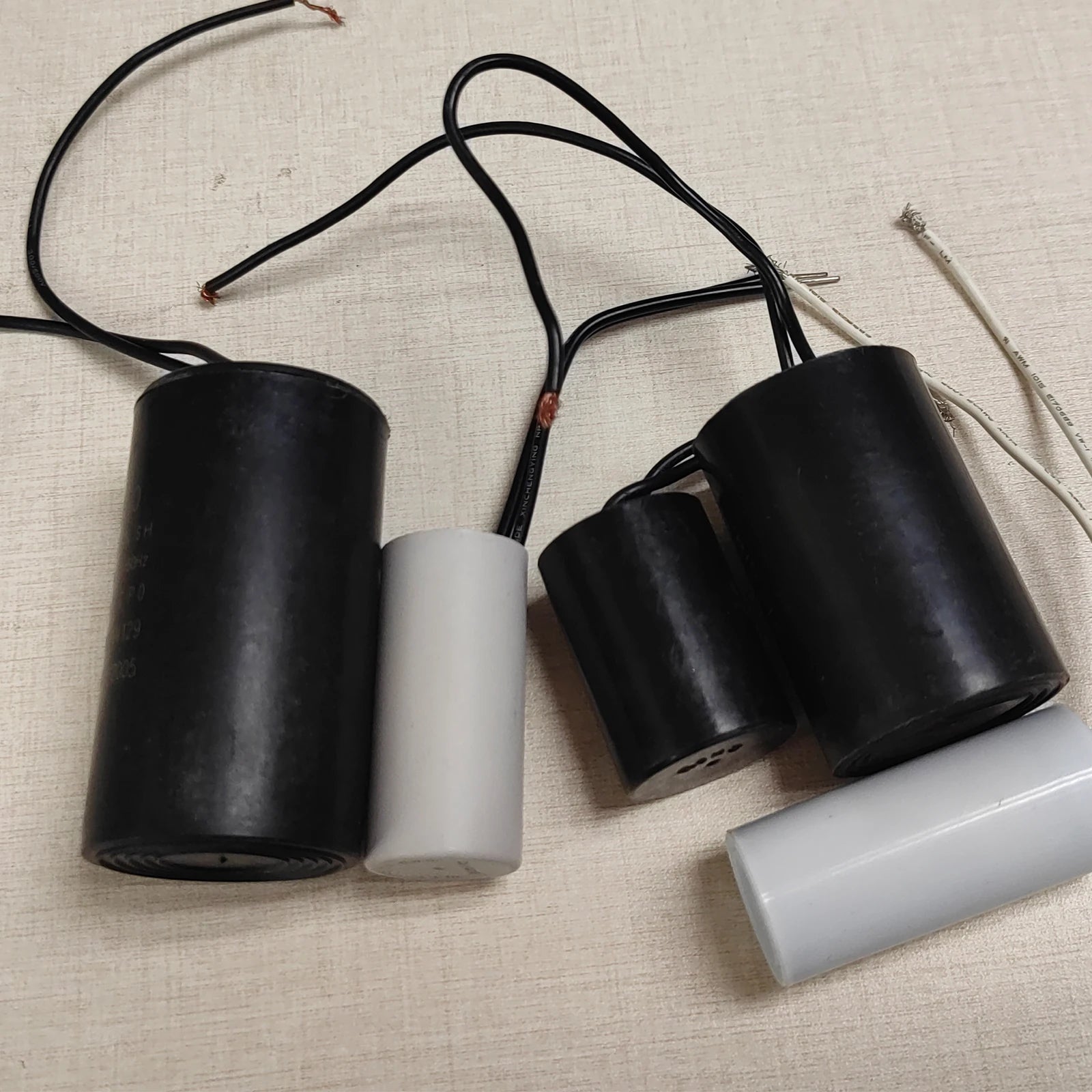

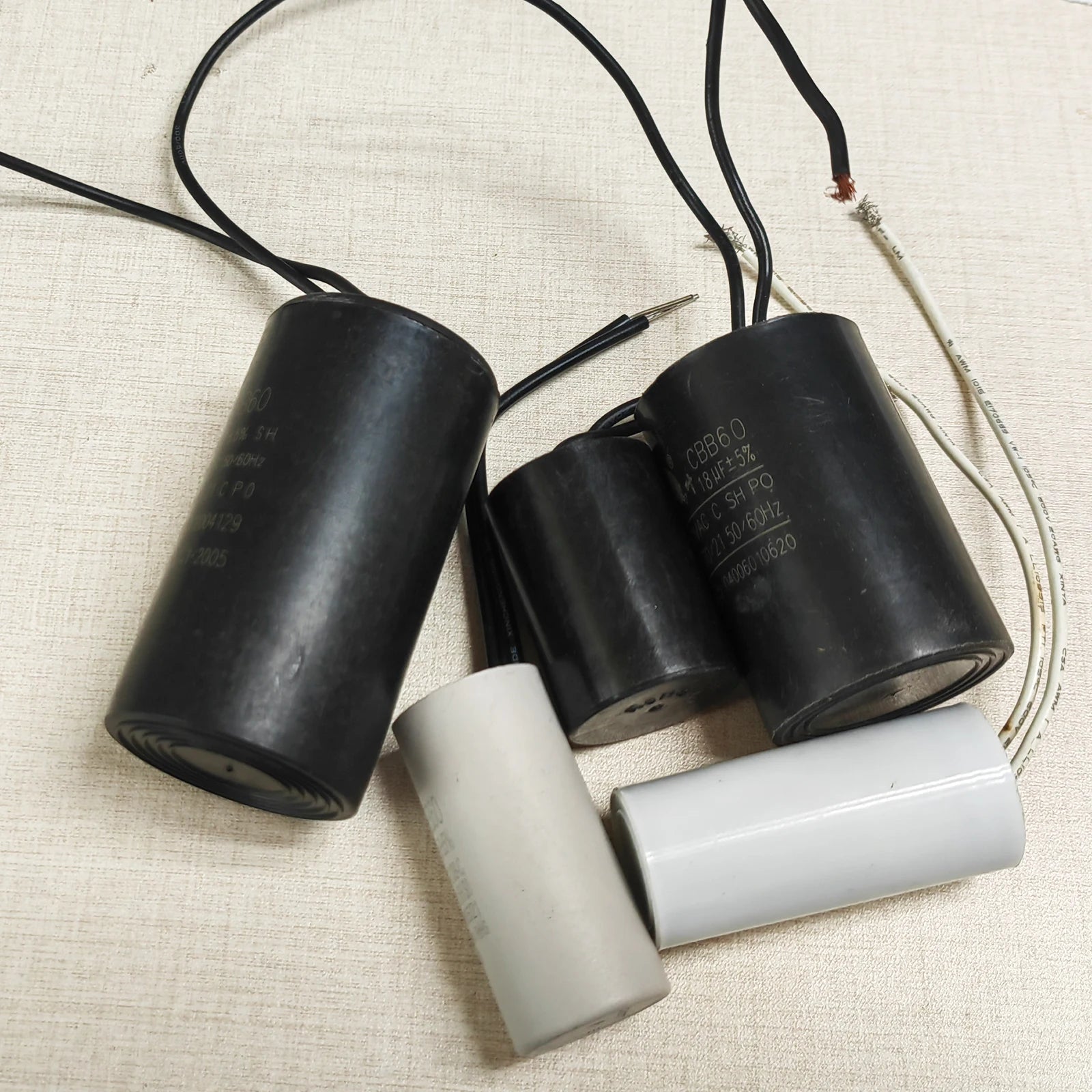

- CBB60: Listings include different µF selections, 250 VAC or 450 VAC claims, two-wire leads, spade tabs, four-terminal double inserts, cylindrical cases and bottom fixing studs. Four tabs may duplicate two electrical connections, but establish terminal grouping from the actual part rather than guessing from tab count. Match the case diameter, height, stud thread and clearance.

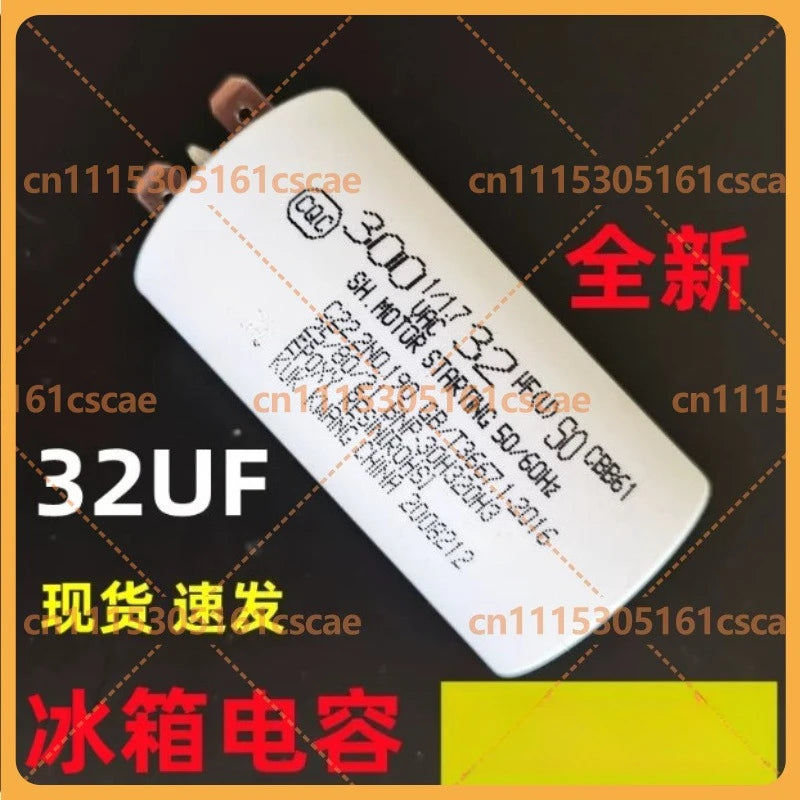

- CBB61: Compact fan-capacitor choices include single values, multi-section values such as 0.4+1.2 µF, three-wire speed-control configurations and plug-in packages. Multiple wires or capacitance values require the specific connection diagram; they are not drop-in substitutes for a two-terminal capacitor. Check whether a listed 630 V figure is AC or DC before selecting it for an AC motor.
- CBB65: Compressor-oriented listings contain single and dual values, including combinations such as 25+5 or 60+5 µF. A dual section is not one summed capacitance. Verify the common, fan and compressor terminals as marked on the chosen device and match both values to the original equipment.
Step-by-step selection
- From the original motor or equipment documentation, identify whether the component is continuously connected as a run capacitor, switched in for starting, or part of a relay/overload assembly. Determine each µF value, tolerance, AC rating, mains frequency and environmental requirements.
- Confirm the selected option's specified continuous-duty AC voltage and capacitance. Listings span different 250 VAC and 450 VAC options and sometimes put pack count in a misleading “Rated Voltage” field; the full variant and actual capacitor marking take precedence.
- Compare terminal layout, wire count, lead length, footprint, dimensions and mounting. Check operating temperature, applicable motor-capacitor standard, protective class and approval evidence for the exact replacement where required. Higher voltage alone does not prove mechanical fit or correct duty.
What else is in this collection?

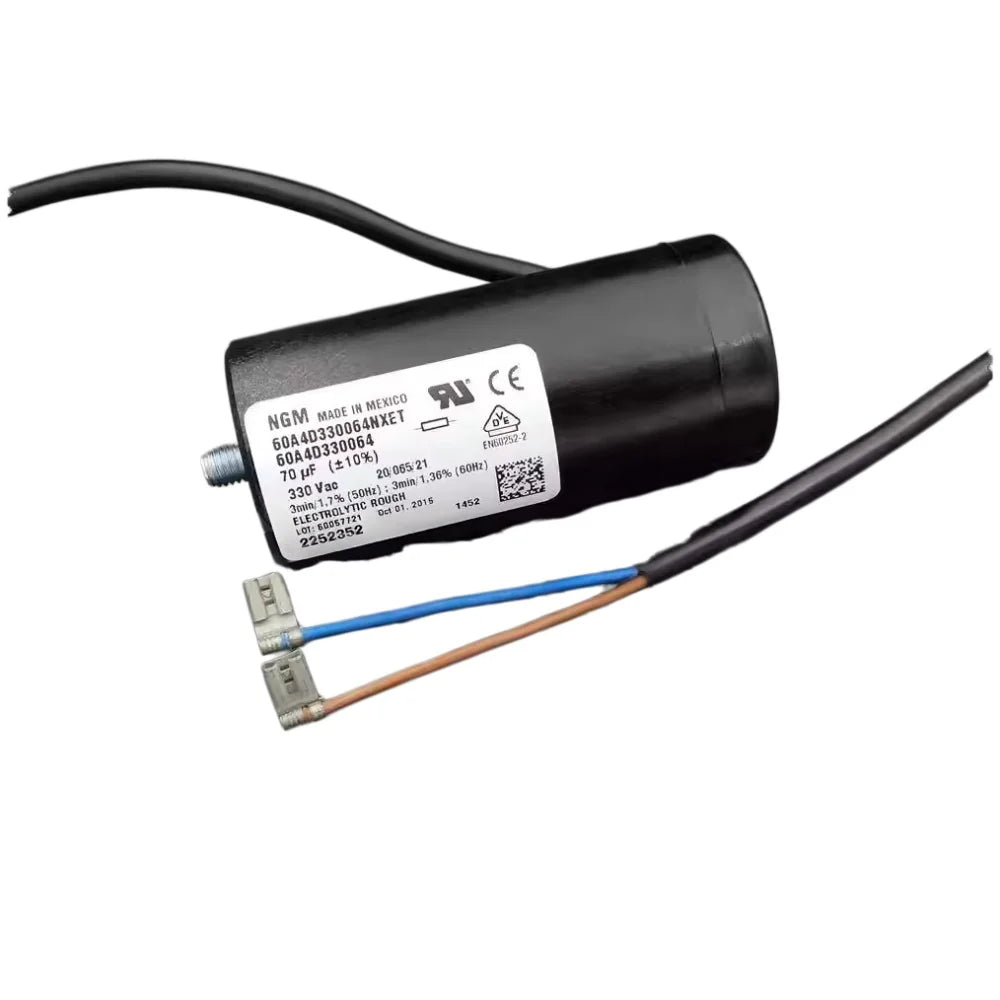

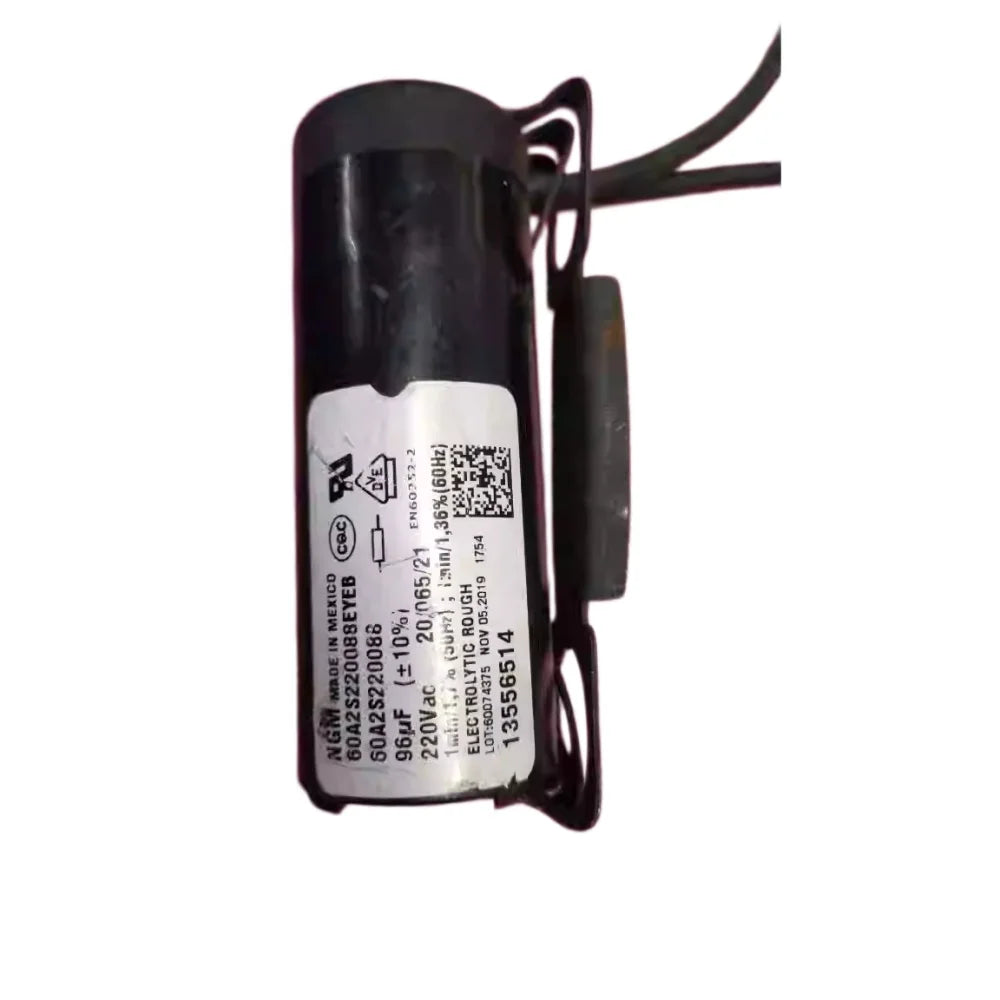

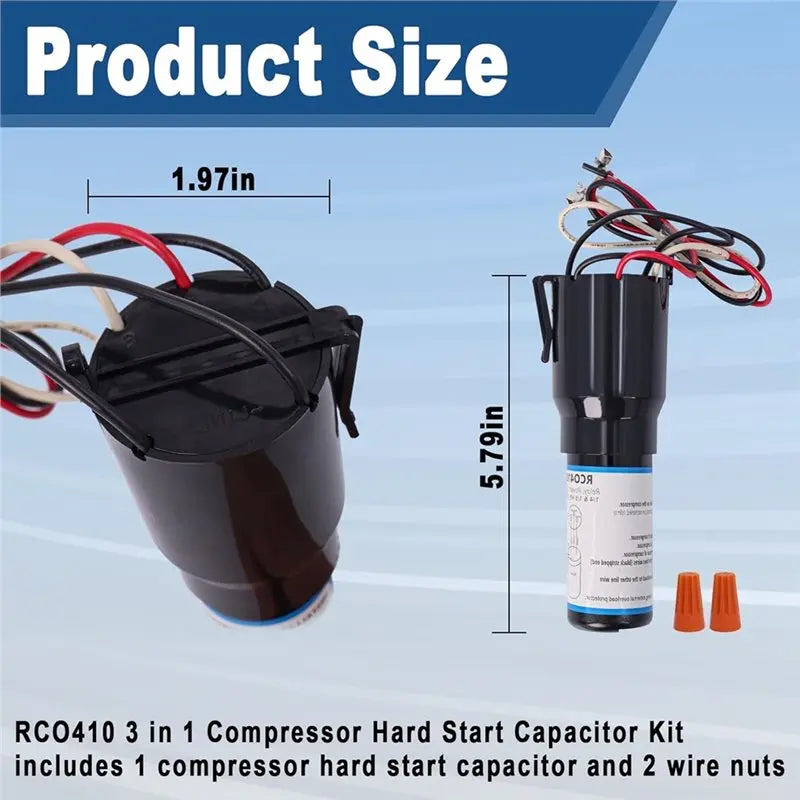

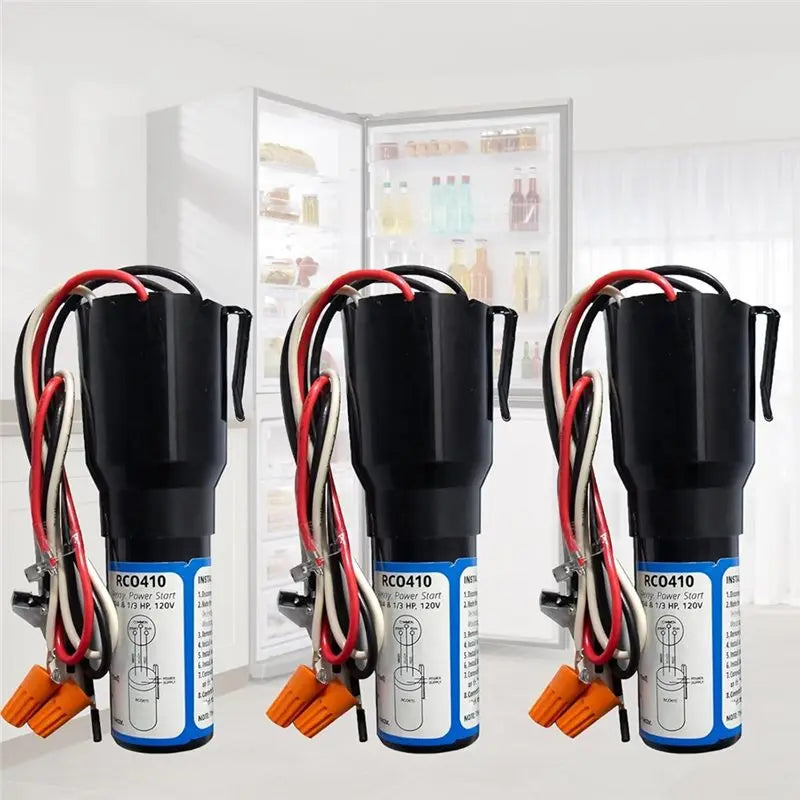

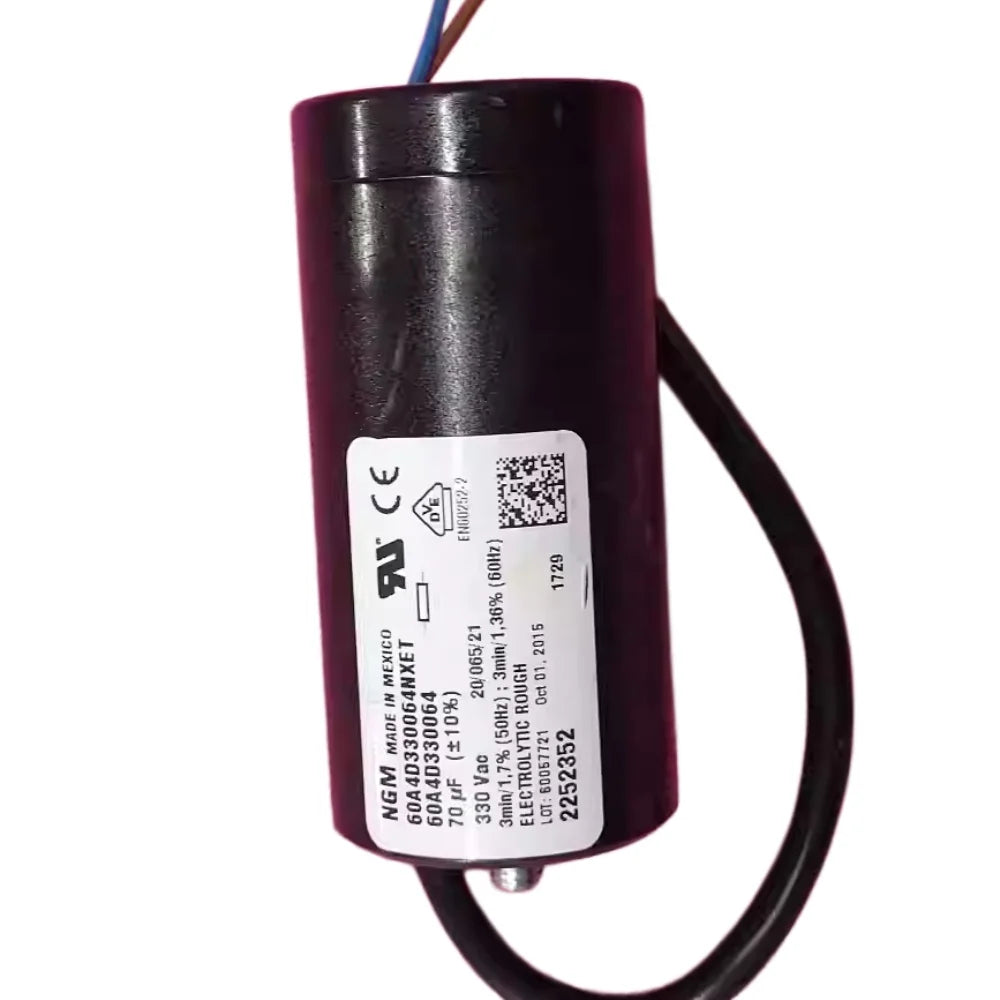

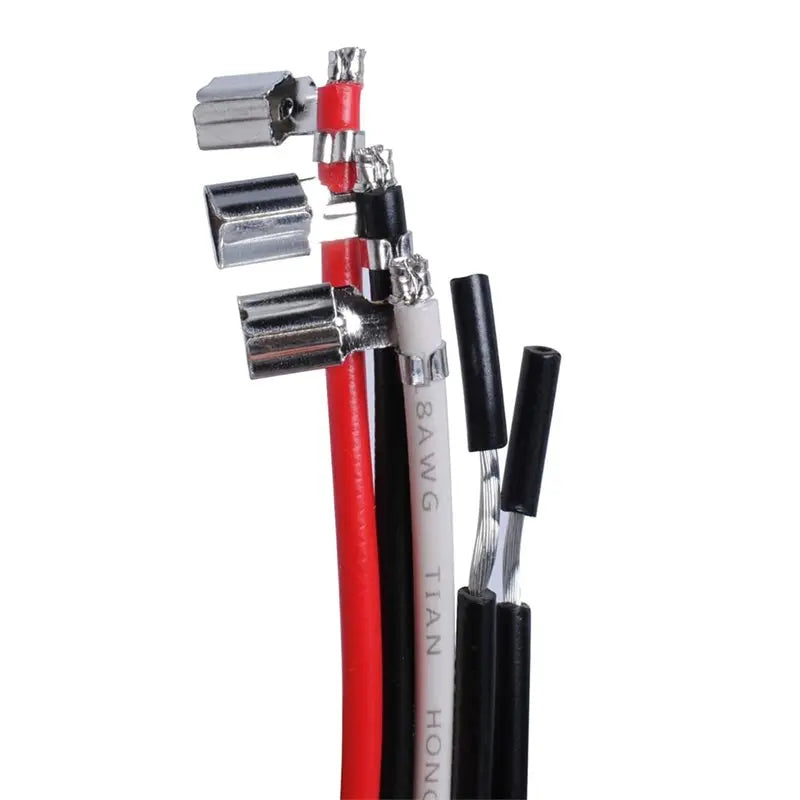

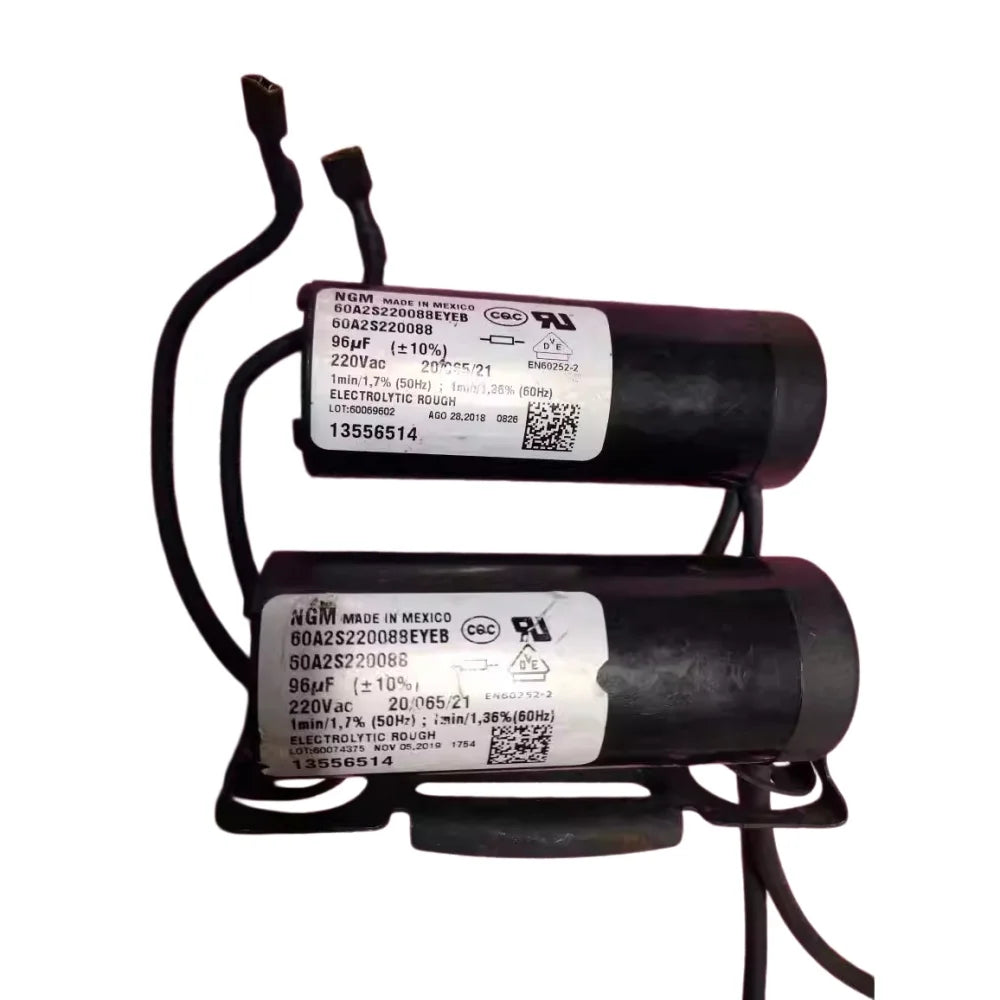

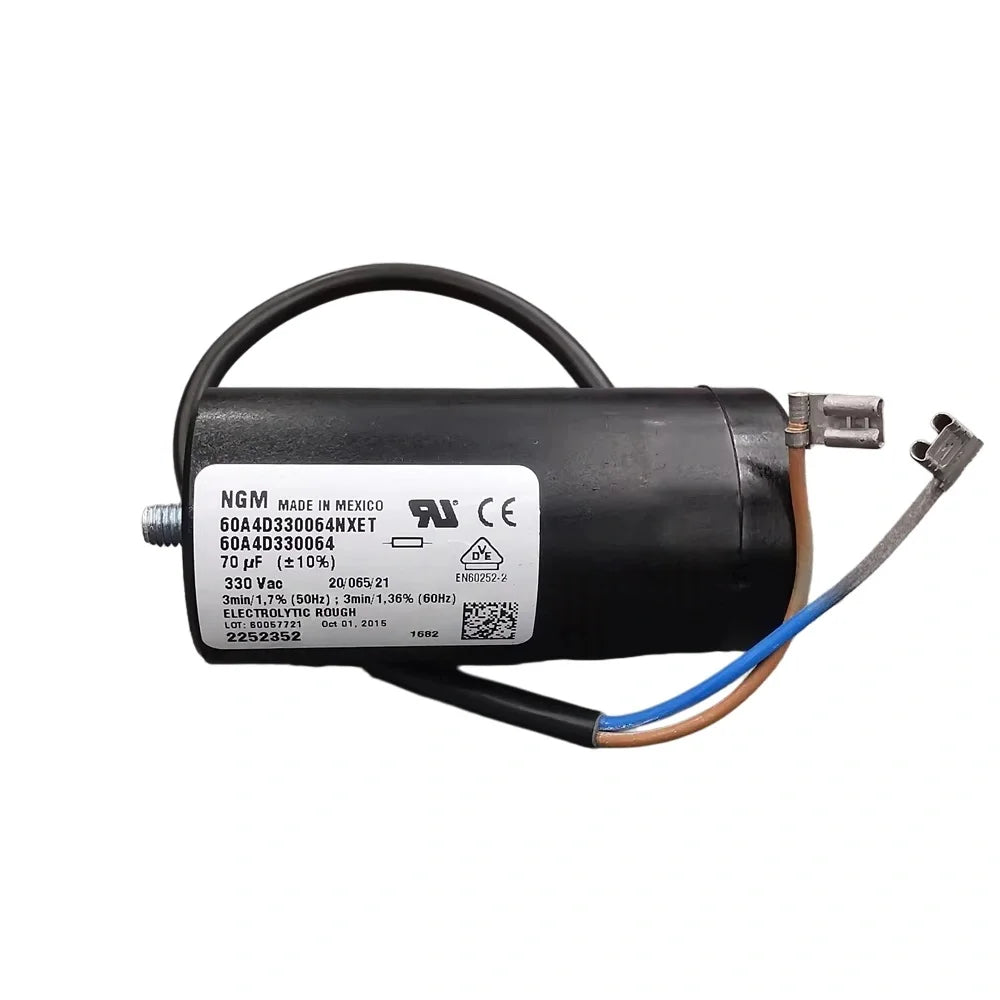

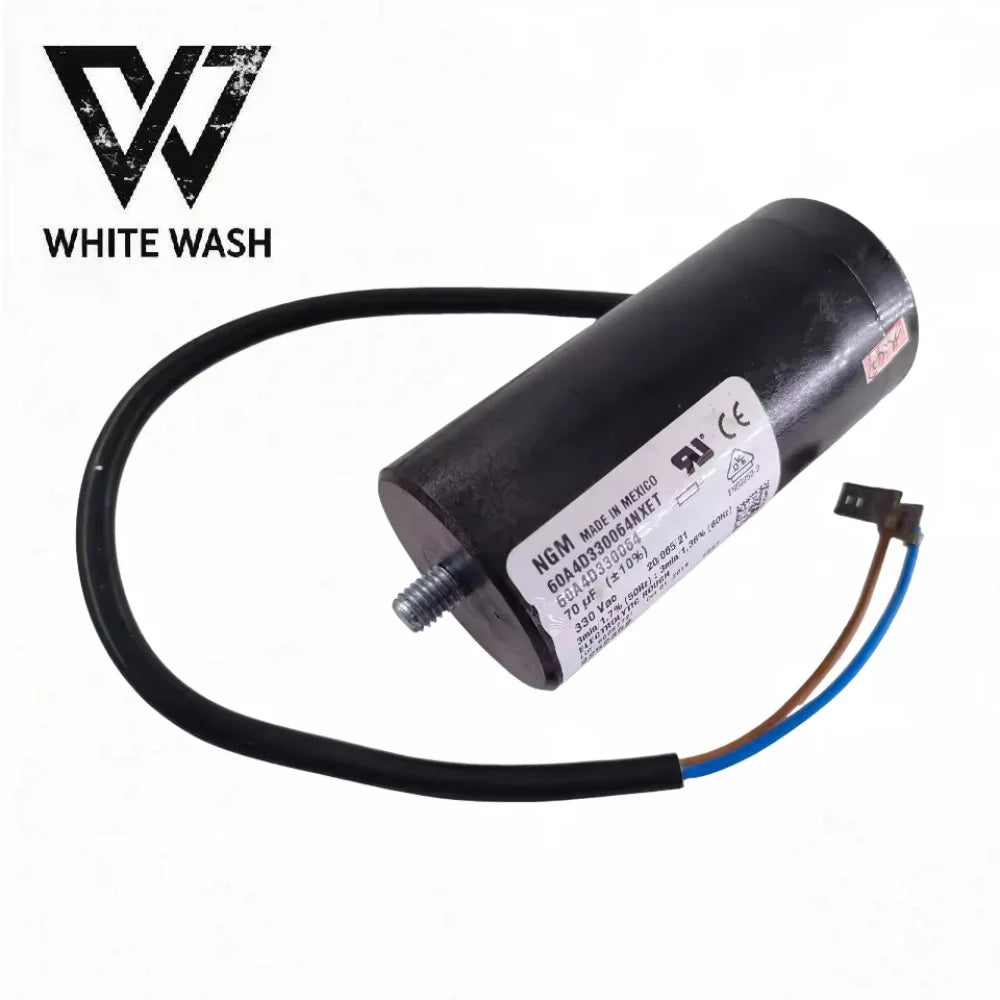

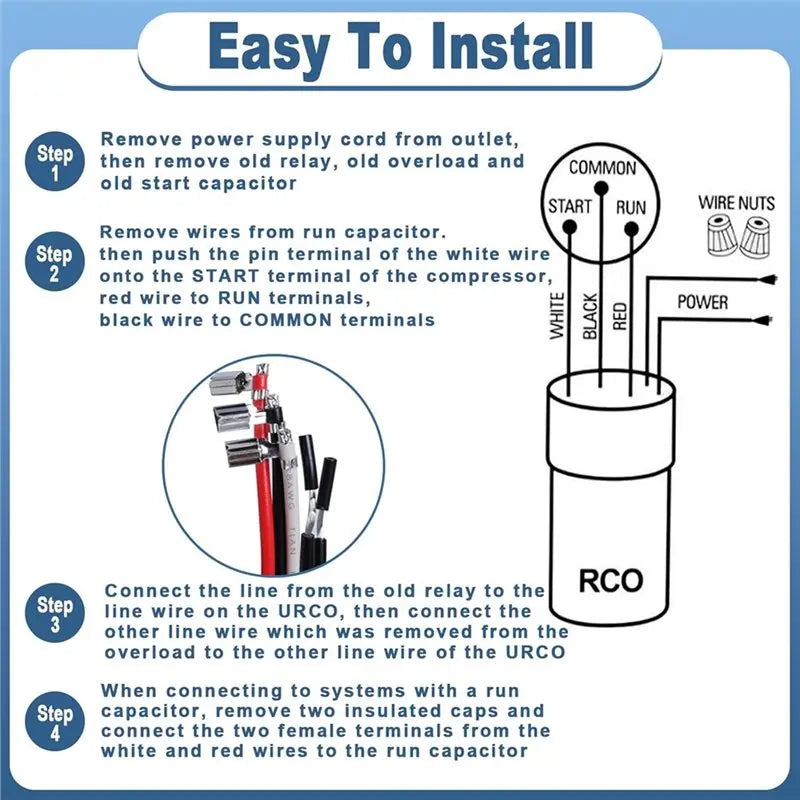

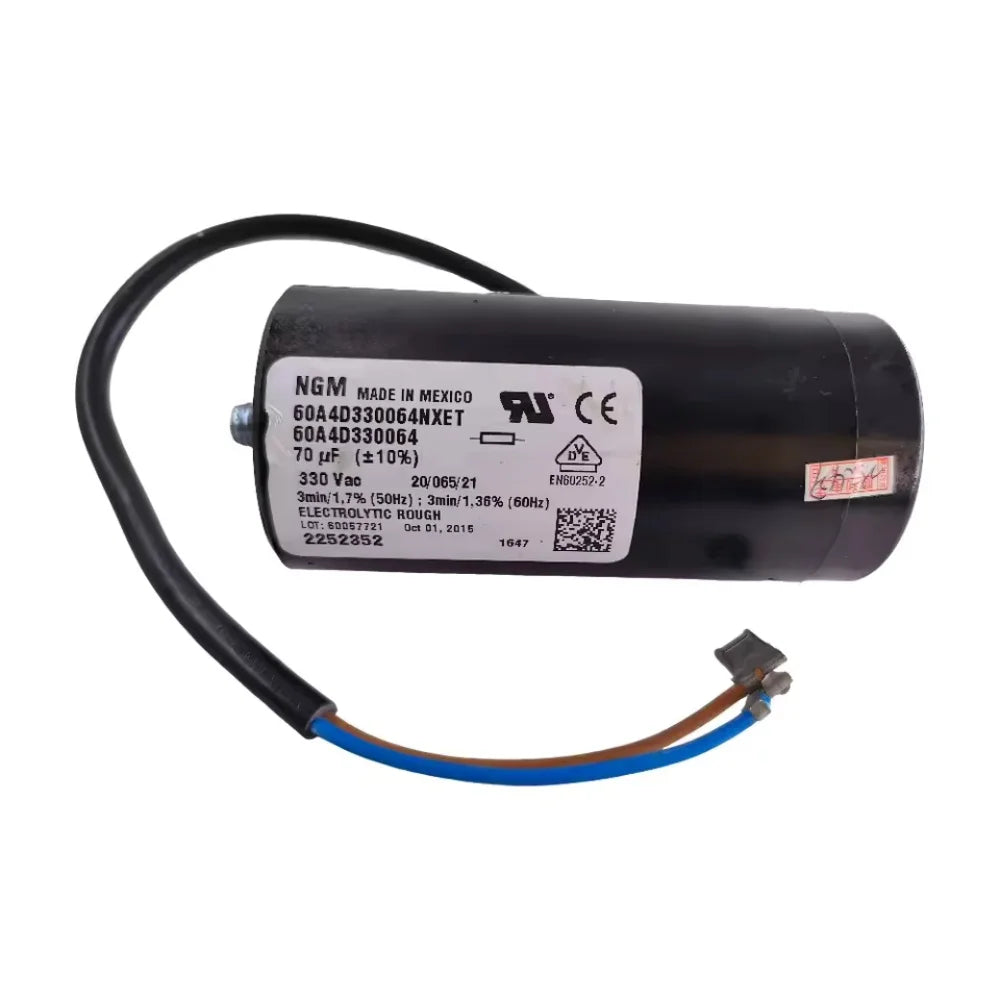

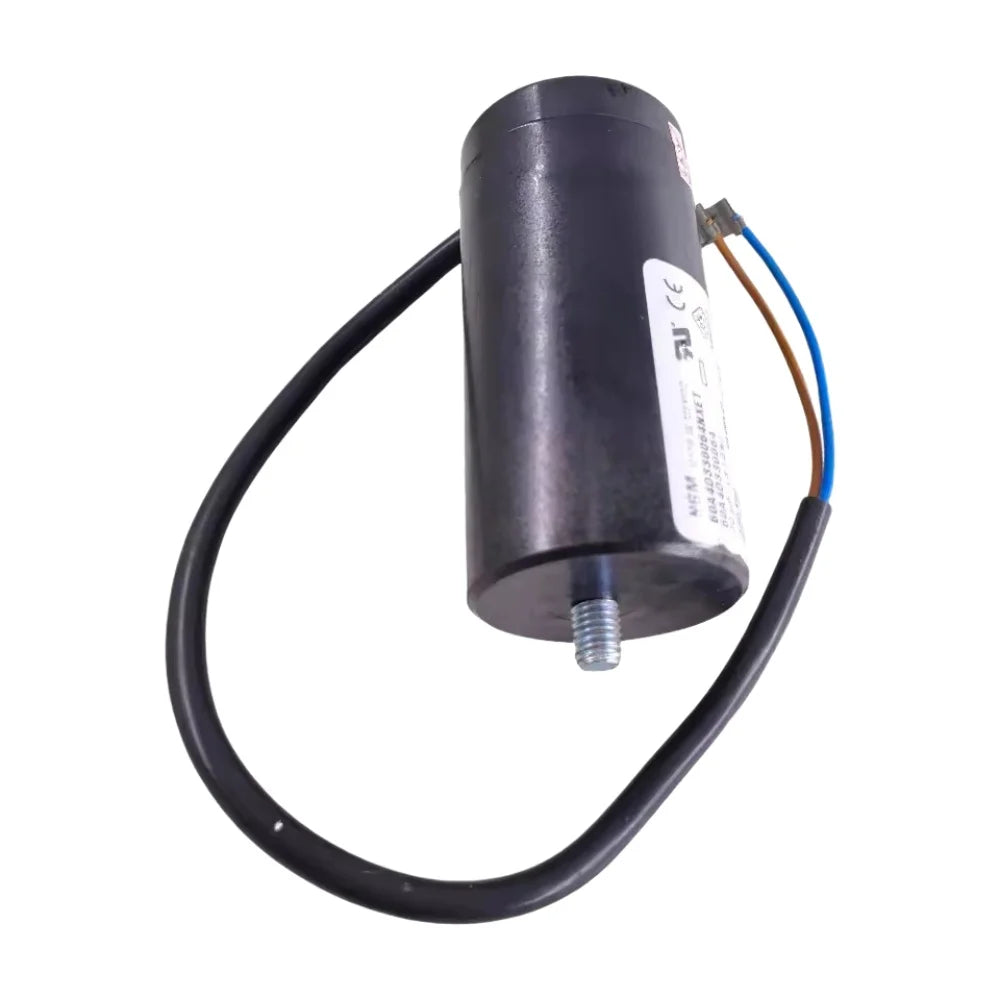

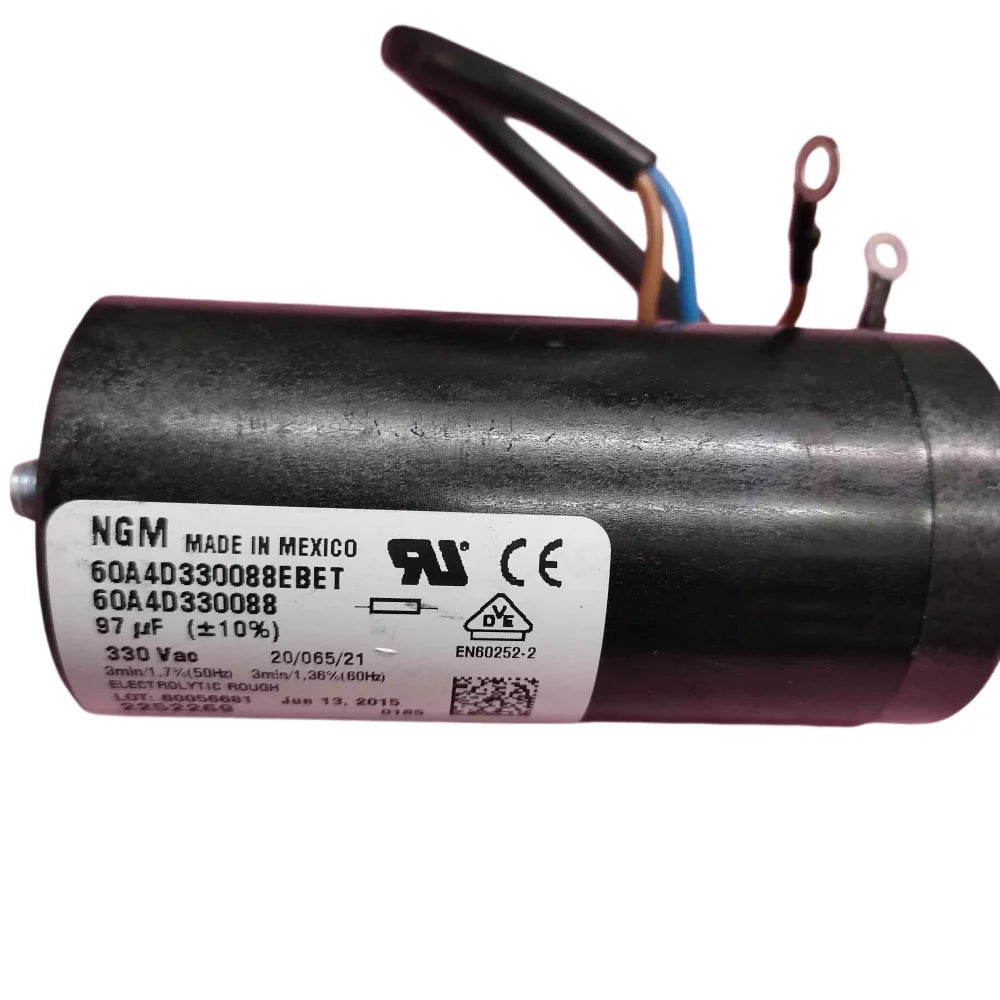

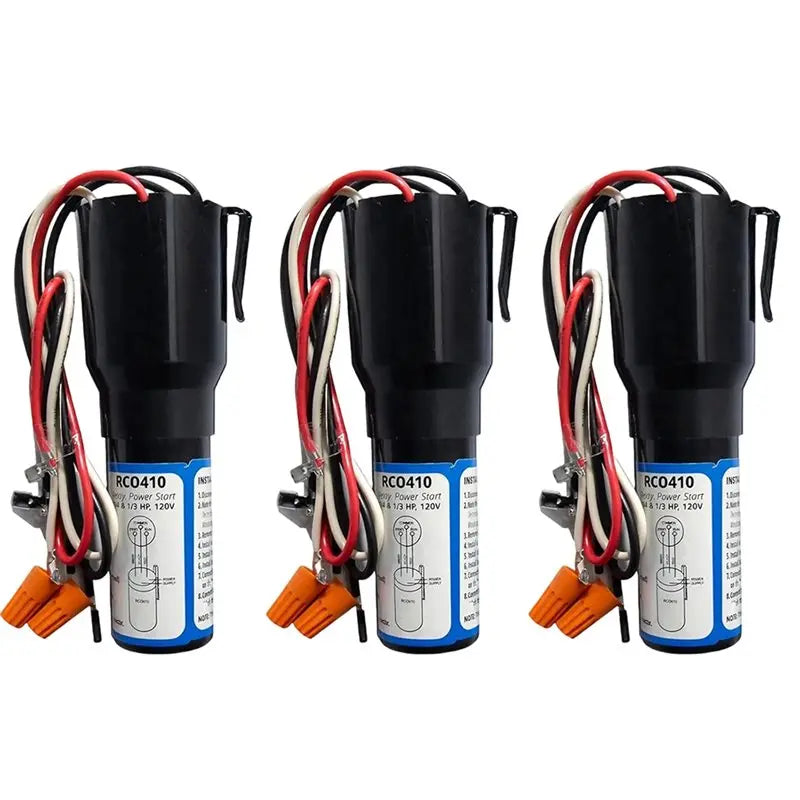

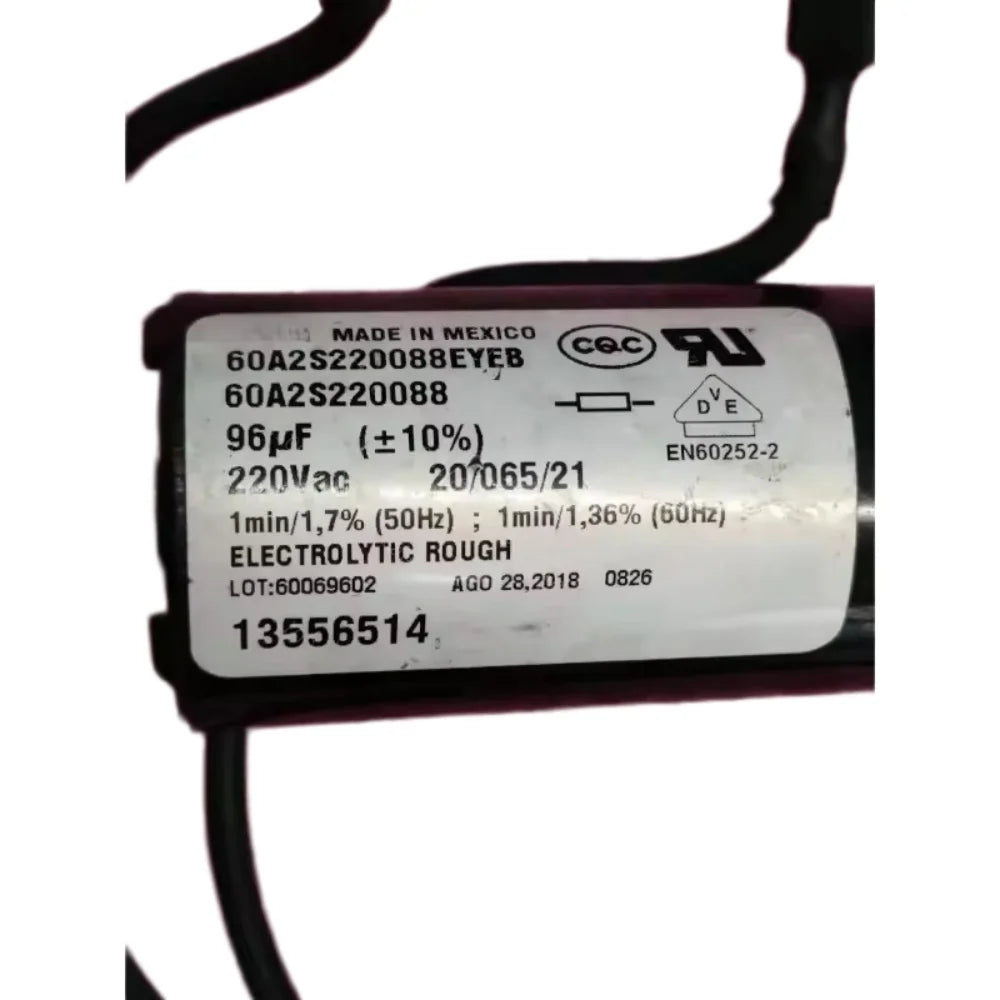

Some entries are CD60-labelled high-capacitance motor-start parts, hard-start relay kits, refrigerator overload/relay assemblies or reclaimed compressor parts. A start capacitor is not automatically continuous-duty; a hard-start kit includes switching and must be checked against the precise compressor specifications. Appliance brand lists, “original” wording and apparent part-number matches do not prove genuine origin or compatibility. Use the appliance's service documentation and qualified service practice; this guide does not provide a mains wiring method.
Purchase checklist and FAQ
Record equipment model and original part marking, run or start duty, each µF section and tolerance, VAC and frequency, terminal diagram, dimensions, mounting, temperature, required approvals and selected quantity.
Can a 450 VAC run part replace a 250 VAC start capacitor? Not by voltage alone. Their operating duty, switching and capacitance requirements may differ.
Can a four-tab part replace a two-wire part? Only after confirming terminal grouping, fit, duty and the equipment's connection diagram.
Is a refrigerator relay kit just a capacitor? No. It can contain a relay or overload protector; select the exact assembly for the equipment.
