SLC and MLC Storage, SSDs, NAND and Adapters
SSD storage, flash memory and interface accessories
This collection gathers finished solid-state drives, industrial flash modules, raw NAND ICs, removable flash media, enclosures and drive adapters. Its older SLC/MLC label does not mean every item contains SLC or MLC NAND. Some product pages explicitly describe TLC or QLC, and several advertise a dynamic SLC cache rather than native SLC memory. Read the selected variant and the exact device specification before using flash-cell type as a purchasing criterion. An SSD, bare flash chip, 40-pin IDE disk-on-module and empty USB enclosure are different deliverables.
What SLC, MLC, TLC and QLC actually describe
Single-level cell (SLC), multi-level cell (MLC), triple-level cell (TLC) and quad-level cell (QLC) refer to the number of bits stored per physical NAND cell: one, two, three and four respectively. They are not host-interface specifications or universal endurance rankings for assembled products. Endurance, retention, sustained write behavior and reliability also depend on NAND generation, controller, firmware, overprovisioning, error correction, workload and operating temperature. Consumer listings may use 'MLC' loosely to mean any multi-bit NAND; do not rely on a headline alone when a purchase requires genuine two-bit MLC. Request the exact manufacturer's NAND or drive specification and documented TBW or DWPD where relevant.
A dynamic SLC cache writes some multi-bit NAND temporarily in a one-bit mode to accelerate bursts. Ediloca EN680E, EN705, EN870 and EN855 listings use SLC-cache language. That is not proof that the entire SSD uses native SLC. When free space falls or the cache fills, sustained write speed can differ sharply from a short benchmark. EN855 variants explicitly say 'with DRAM', whereas the presence of DRAM must not be inferred for the other models. Controller and flash revisions can vary; seller descriptions that conflict about TLC versus QLC or speed cannot establish a universal specification.
Match the host interface before capacity or speed

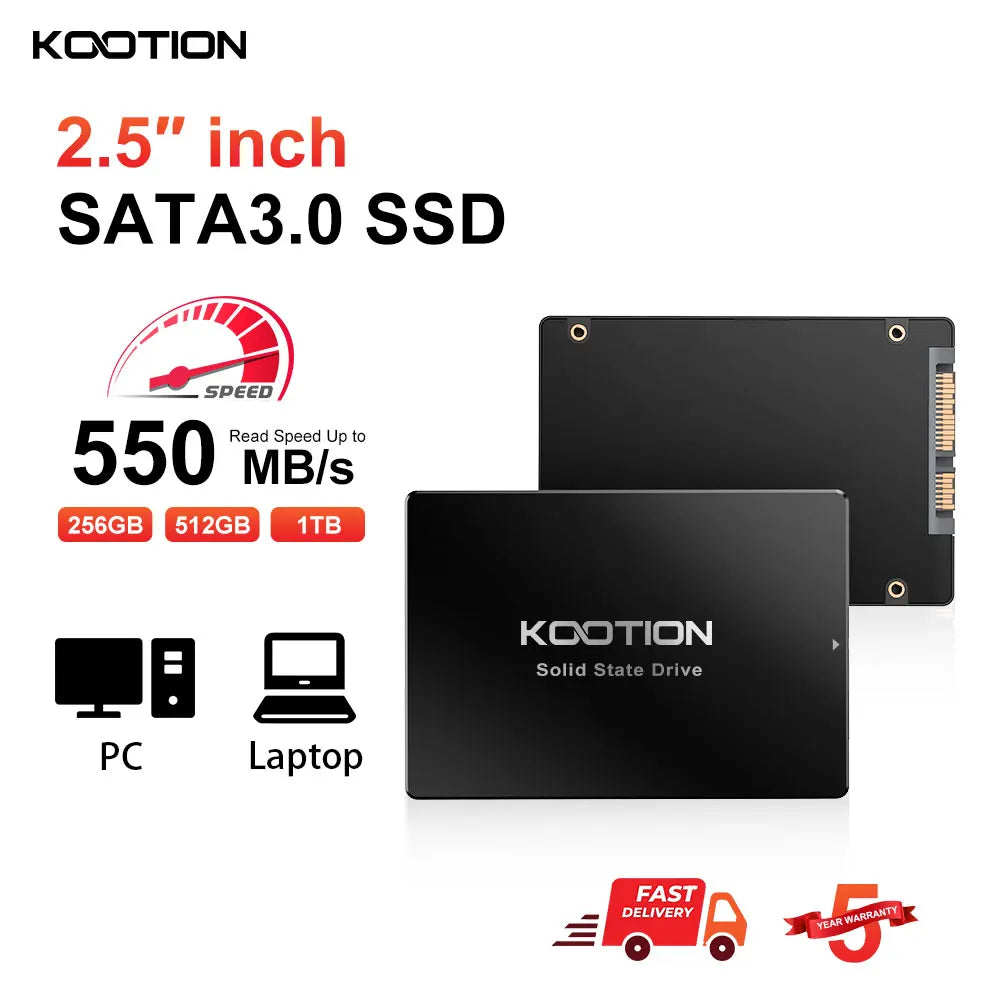

2.5-inch SATA: KOOTION and CUSU 2.5-inch drives and Samsung 870 EVO listings require a compatible SATA data and power connection. The KOOTION listing offers a broad range including 64 GB, 120/128 GB, 240/256 GB, 480/512 GB, 1 TB and 2 TB, with a distinct '256GB-Q' variant. One Samsung 870 EVO listing also selects 128 GB even though its headline mentions 250 GB and above; verify whether that exact variant matches the named model rather than assuming it does. SATA link rate is not delivered file-transfer speed.
M.2 SATA versus M.2 NVMe: The Transcend MTS400 selection here is 32 GB in 2242 M.2 SATA, and Kingchuxing listings mix 2242, 2260 and 2280 lengths under an M.2 SATA description. These do not become NVMe merely because their connector looks similar. Netac, Kingston NV3, CUSU CV3500Q, Ediloca EN680E/EN705/EN870/EN855 and Samsung 970 EVO Plus listings describe M.2 PCIe/NVMe drives; confirm the selected device's length, keying, generation, lanes and host boot support. Kingston NV3 variants differ between separate listings: one selects 500 GB only, another offers 500 GB, 1 TB and 2 TB. Samsung 970 EVO Plus currently selects 250 GB, 500 GB or 1 TB, not every capacity in its title. Ediloca EN680E is described as PCIe 3.0 x4, while EN705, EN870 and EN855 are described as PCIe 4.0-class drives. The stated 1400–7400 MB/s speed labels vary by model and capacity and are advertised peaks, not a guarantee for a laptop, enclosure or long transfer.

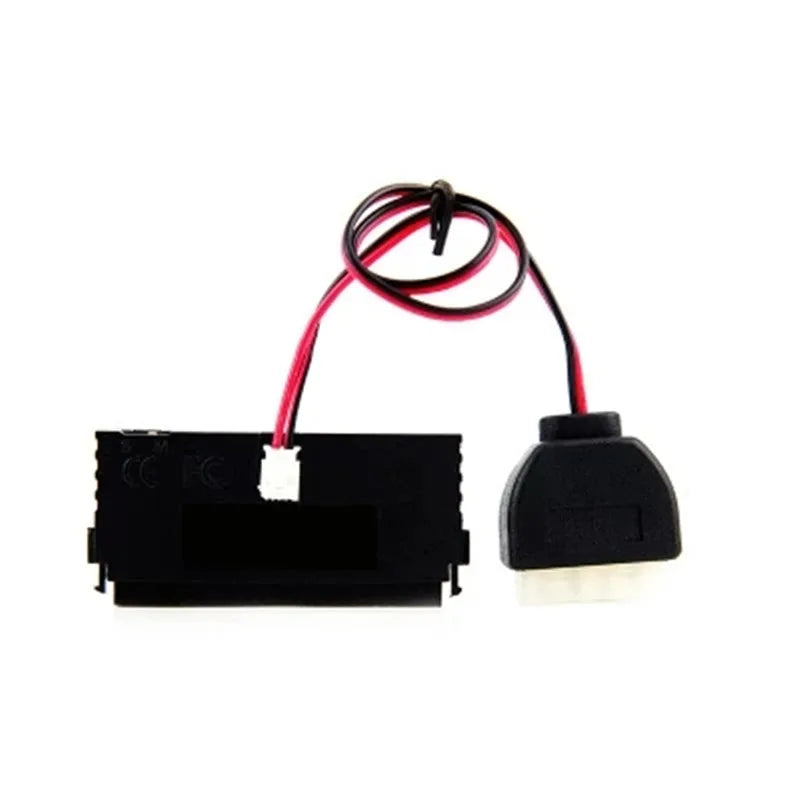

Legacy IDE/PATA: KingSpec and Yuancun 44-pin IDE SSD listings target older laptop-style connections, with selected capacities from 8 GB to 128 GB depending on the item. A separate 40-pin industrial IDE DOM offers 4, 8, 16, 32 or 64 GB options. Neither is SATA or NVMe. For a DOM, validate connector gender and orientation, whether power comes through a dedicated connector or the host's pin arrangement, board clearance, BIOS geometry and boot compatibility against the exact machine. Do not assume a 44-pin notebook port accepts a 40-pin desktop DOM. The 40-pin product copy conflicts on 'MLC' in its headline versus 'TLC' in its specifications; treat cell type as unverified until corroborated.
Raw NAND, embedded flash and removable media
The S34ML02G100TFI000 and S34ML04G100TFI000 options identify different TSOP48 SLC NAND devices. Select one full part number and confirm density, bus width, supply, timing, pinout, package and controller ECC/bad-block requirements from manufacturer documentation. Raw NAND is not a plug-in SSD and cannot be used as a drop-in replacement for an eMMC, SD card or SPI NOR flash.
The 9-pin horizontal eUSB disk-on-module listing has 2.00 mm and 2.54 mm header-pitch choices at 2, 4, 8, 16, 32 and 64 GB. Header spacing, physical orientation, USB signaling, host power and firmware boot support must all agree; a 9-pin header is not automatically an eUSB storage port. The SK Hynix H9TQ64A8GTCCUR-KUM listing is an eMCP described as combining LPDDR3 and eMMC, not an external SSD. Its memory and storage portions are distinct and require exact board-level compatibility. Separately offered D9, H5GC, H56C and K4Z BGA variants are memory packages, not evidence of an SSD or raw NAND replacement.
Transcend industrial SD card options are selected by color and ship-from field despite a headline discussing SLC/MLC and multiple capacities; verify the actual card part code, density and cell technology for the chosen option. USB flash-drive listings choose 32 GB or 64 GB plus a style code. A USB stick is not a bare NAND IC, and a color or style label does not certify endurance or industrial grade. The portable mSATA/USB drive listing distinguishes SLC-labeled 32/64 GB variants from MLC-labeled 128/256/512 GB variants; verify whether the selected option is a finished external drive and whether the supplier can substantiate the flash-cell claim.
External SSDs and empty accessories

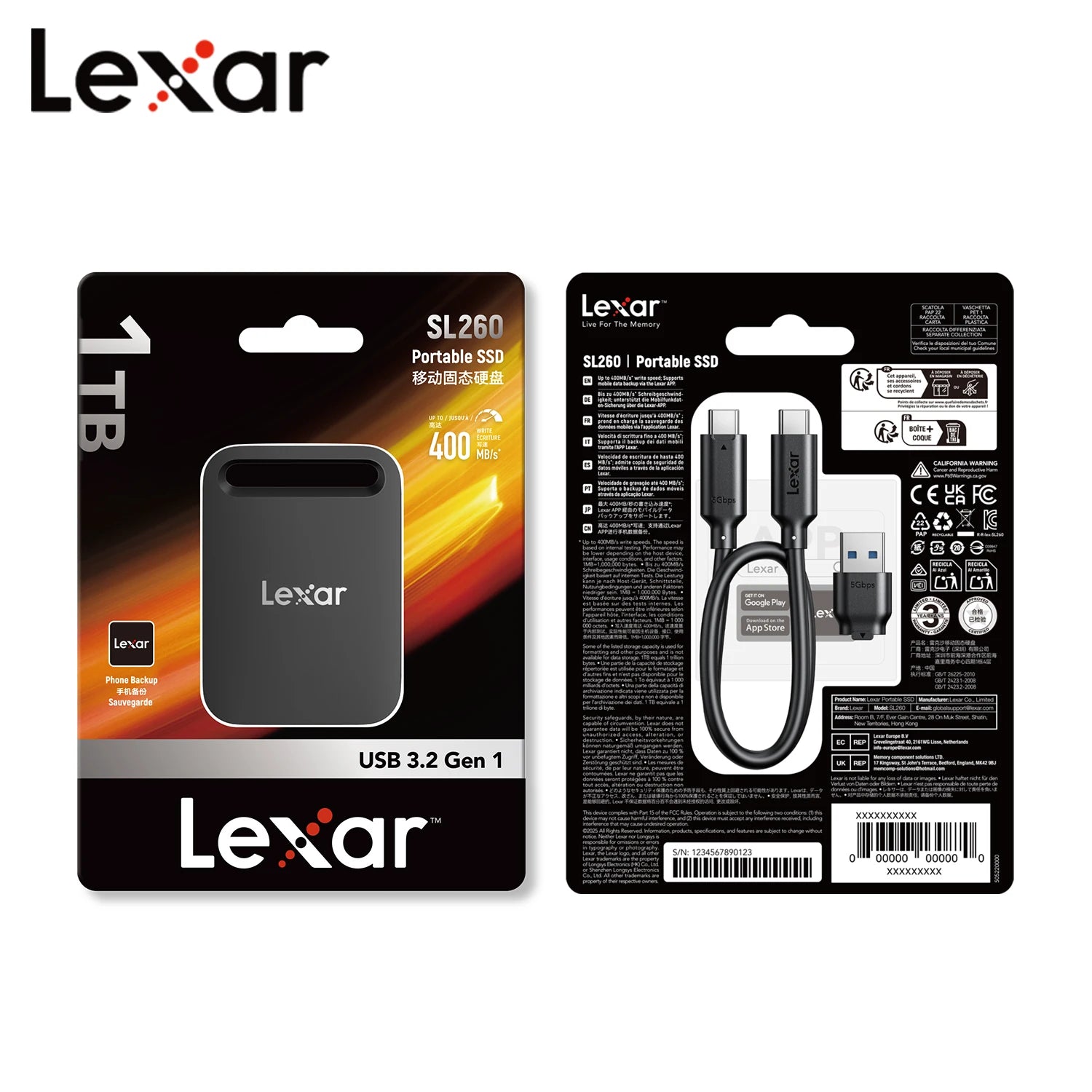

Lexar SL260 listings select 512 GB or 1 TB finished portable USB-C drives. Other external-drive listings advertise options from 1 TB through unusually large 20, 30, 64, 128 or even 256 TB. Such extraordinary capacities are unverified supplier claims, not confirmed usable storage; request trustworthy manufacturer identification and independently test the full writable capacity and read-back before entrusting data to them. A connector label such as USB 3.1 or 3.2 does not establish sustained SSD-class performance.
The JEYI K109 is a 2.5-to-3.5-inch SATA drive carrier, not a drive; confirm thickness, connector alignment and host bay requirements. One enclosure converts a selected M-key NVMe module to USB and supports listed 2230/2242/2260/2280 lengths subject to the actual mounting hardware. Another case offers separate 'NVME SATA 10Gbps', 'Only SATA 5Gbps' and 'Only NVME 10Gbps' versions; select the version matching your M.2 drive's electrical protocol. The Xbox Series X/S expansion-card adapter listing describes an empty NVMe 2230 conversion box rather than an SSD. Console support, firmware and physical compatibility require independent verification. USB enclosure throughput is limited by bridge, host port, cable, protocol and thermal design.
How to select safely
- Identify the deliverable: finished internal or external SSD, bare NAND, SD or USB media, eUSB/IDE DOM, carrier, enclosure or repair accessory. Glue-removal blades and RAM reballing stencils also appear in this mixed collection; they do not store data.
- Read the exact selected model, capacity, cell-type claim, physical length or header pitch, condition, kit contents and shipping origin. A multi-capacity title is not a bundle.
- Match SATA, M.2 SATA, M.2 PCIe/NVMe, PATA, USB or raw NAND to the host. Physical fit does not prove electrical or firmware compatibility.
- Check manufacturer evidence for endurance, temperature, controller/DRAM architecture, compliance, origin and warranty if your application depends on them. Seller claims of 'original', tested or certified are not independently verified here.
- Keep backups. Before using a suspicious high-capacity drive for important files, perform a complete write-and-read verification with appropriate tools on an isolated system.
Frequently asked questions
Does 'dynamic SLC cache' mean the drive is all-SLC? No. It can be TLC or QLC NAND temporarily operated in a one-bit mode for part of its capacity.
Can an M.2 SATA SSD replace an M.2 NVMe SSD? Not by default. The host slot must support the matching electrical protocol and physical length.
Is the 40-pin IDE DOM the same as a 44-pin PATA laptop SSD? No. Connector and power arrangements differ.
Are the 64–256 TB portable SSD choices confirmed? No. The listing options are not evidence of verified physical capacity or authenticity.
Does an enclosure or mounting bracket include the SSD? Not unless the selected listing explicitly says so.
Can a TSOP48 NAND chip replace an entire drive? No. It requires a compatible controller, PCB and data-management design.
Why does a 1 TB drive show less in my computer? Makers generally rate decimal bytes while many operating systems show binary units, and formatting or reserved areas can further affect usable space; this alone does not validate a device's claimed capacity.
Yoeruyo presents these related listings for technical comparison. Exact variant documentation, not a collection label or supplier headline, governs compatibility and substantiated specifications.
