Time-Delay Fuses for PCB and Cartridge Holders
A slow-blow or time-delay fuse is a one-time overcurrent device selected to tolerate a defined startup or inrush pulse while opening under a sustained overload or fault according to its own time-current curve. This collection includes T-marked glass and ceramic cartridges, axial-leaded tubes, compact 382/392 radial PCB fuses, small axial/PICO styles and selected surface-mount fuse assortments. Some listings combine fast (F) and time-delay (T) variants, while automotive PAL and MEGA links use their own physical and electrical specifications. Select the actual time-delay part, not just a product headline that says “slow blow.”
Time-delay formats in this collection

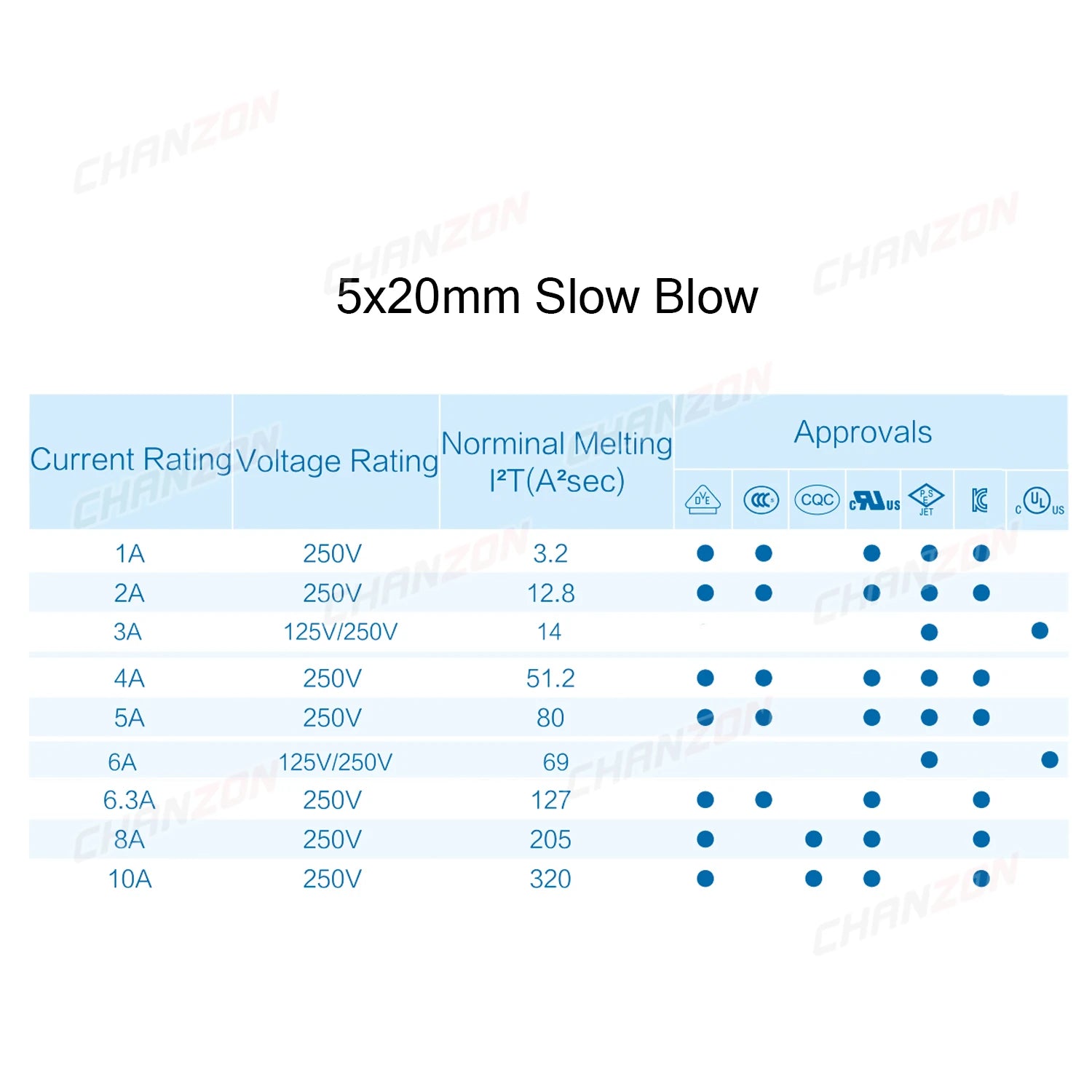

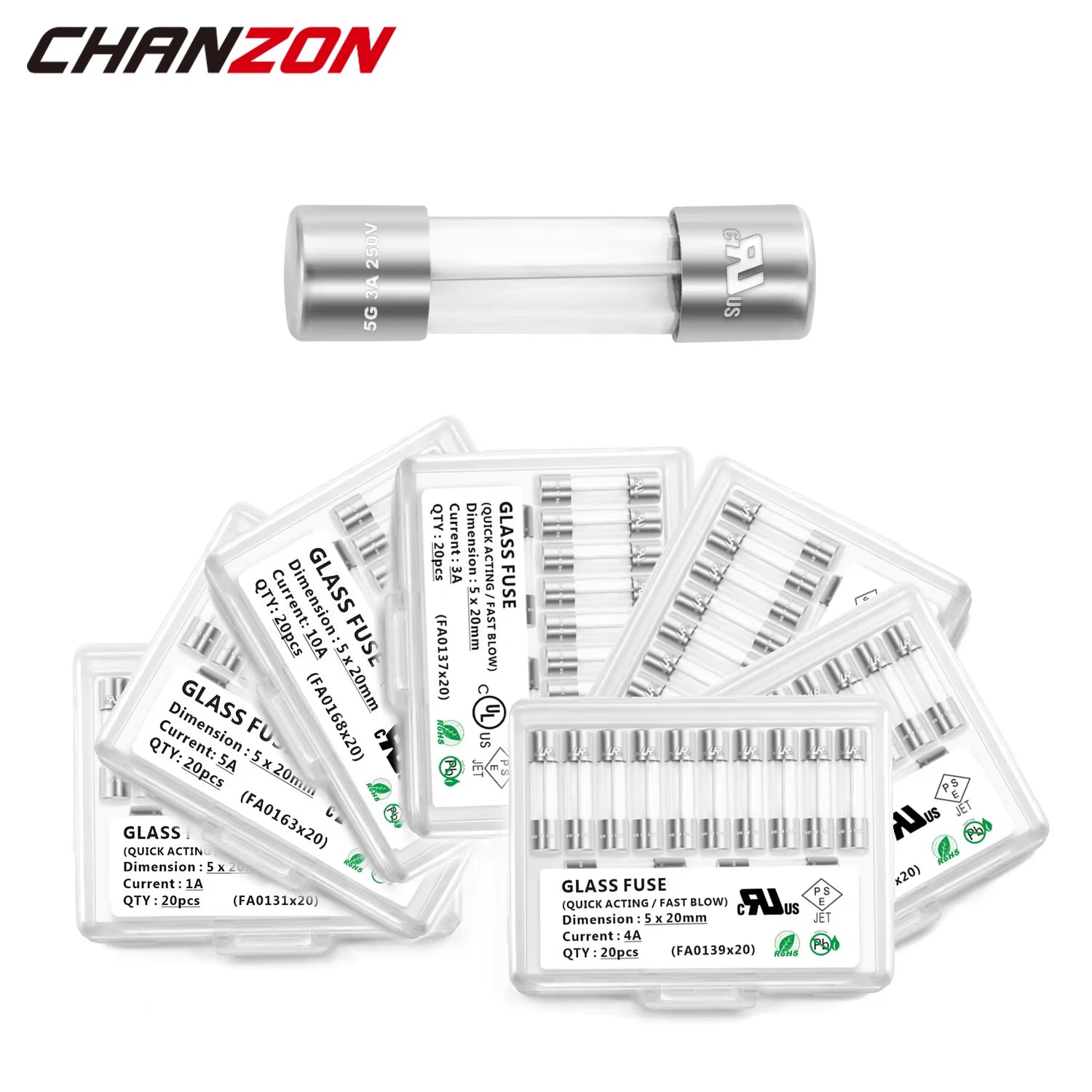

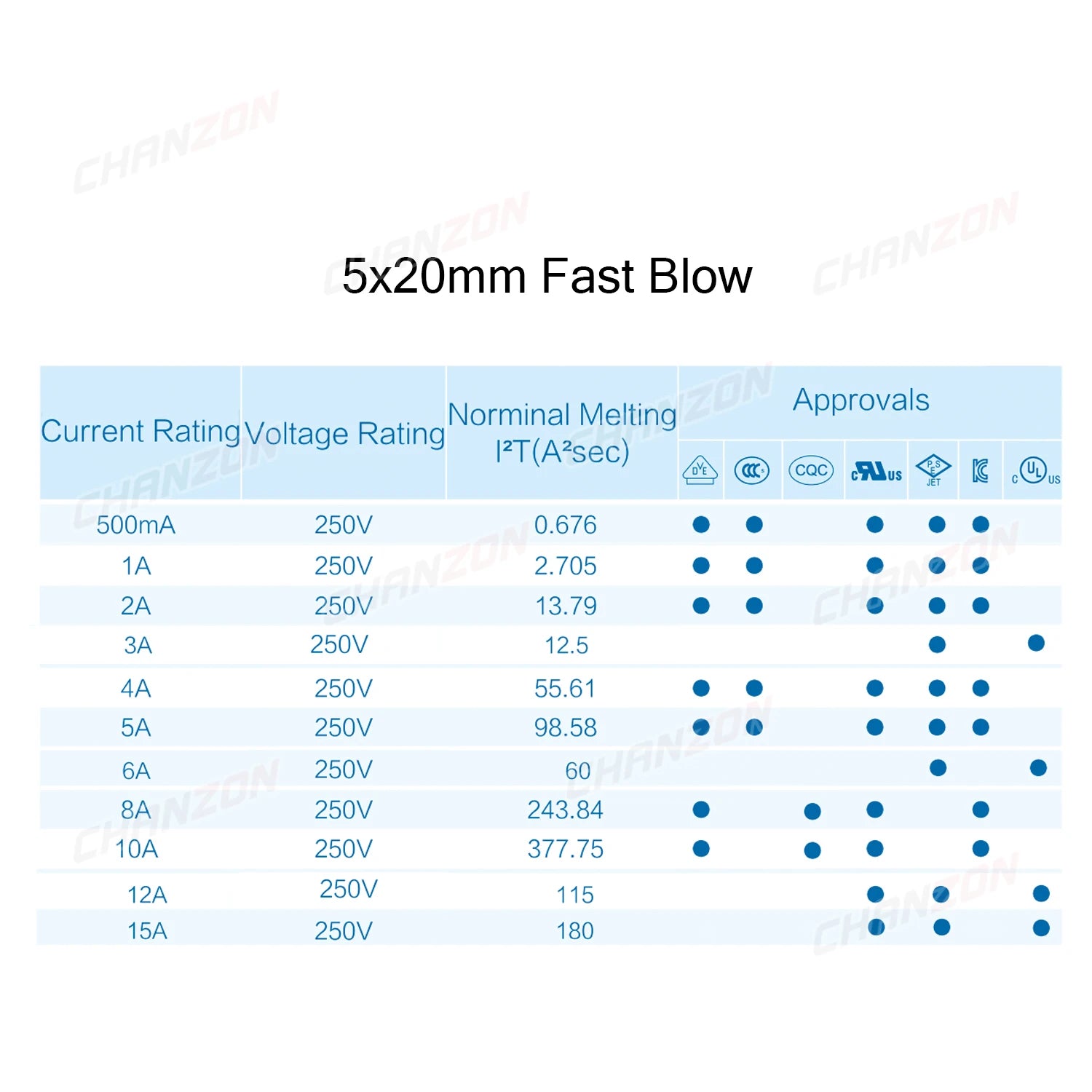

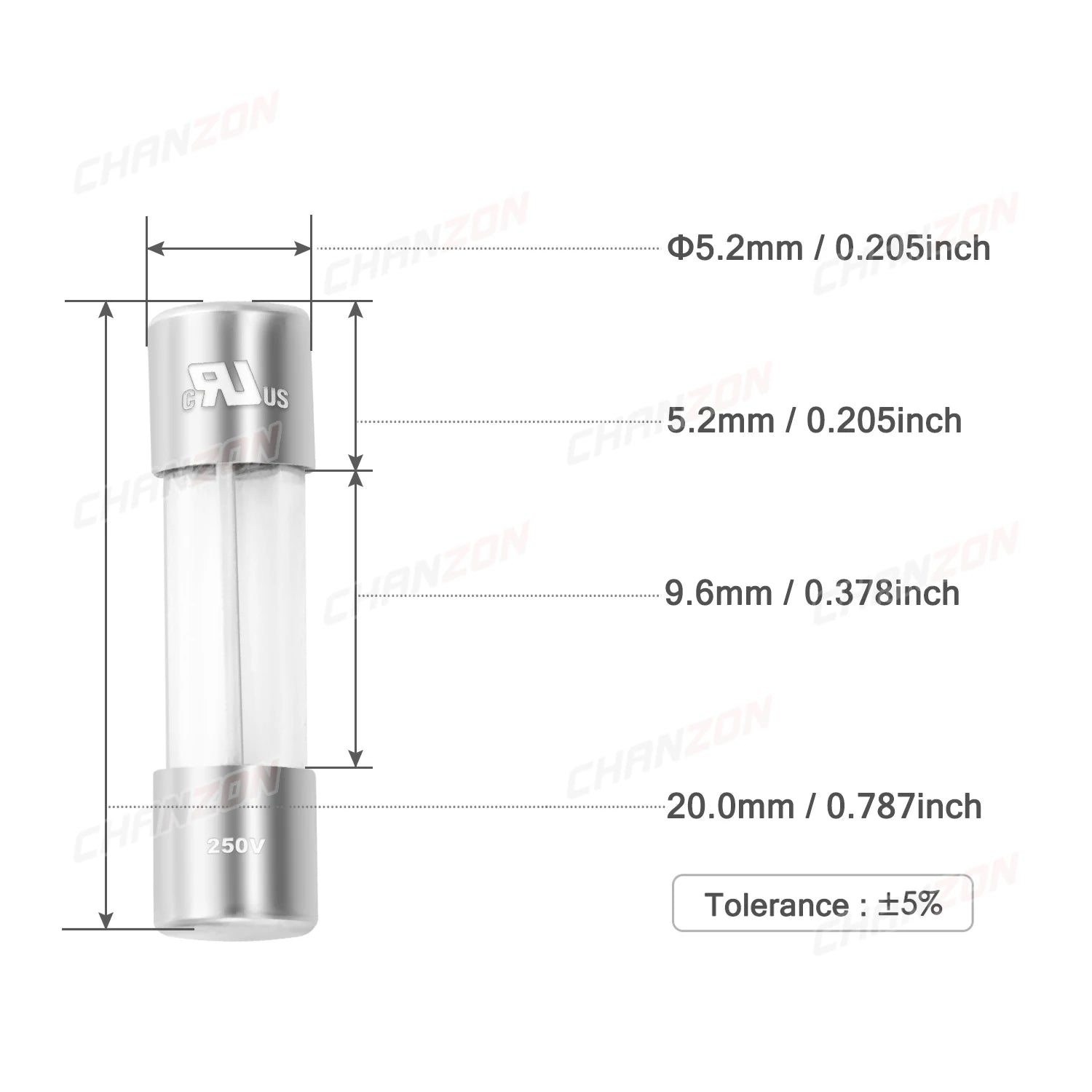

- Cartridge and axial-leaded tubes: 3.6 × 10, 5 × 20, 6 × 30 and selected 6 × 32 mm glass or ceramic fuses occur with multiple ampere values and packs. Plain end caps, straight pins and wire leads mount differently. Material and body dimensions alone do not prove T speed or fault-interruption capacity.

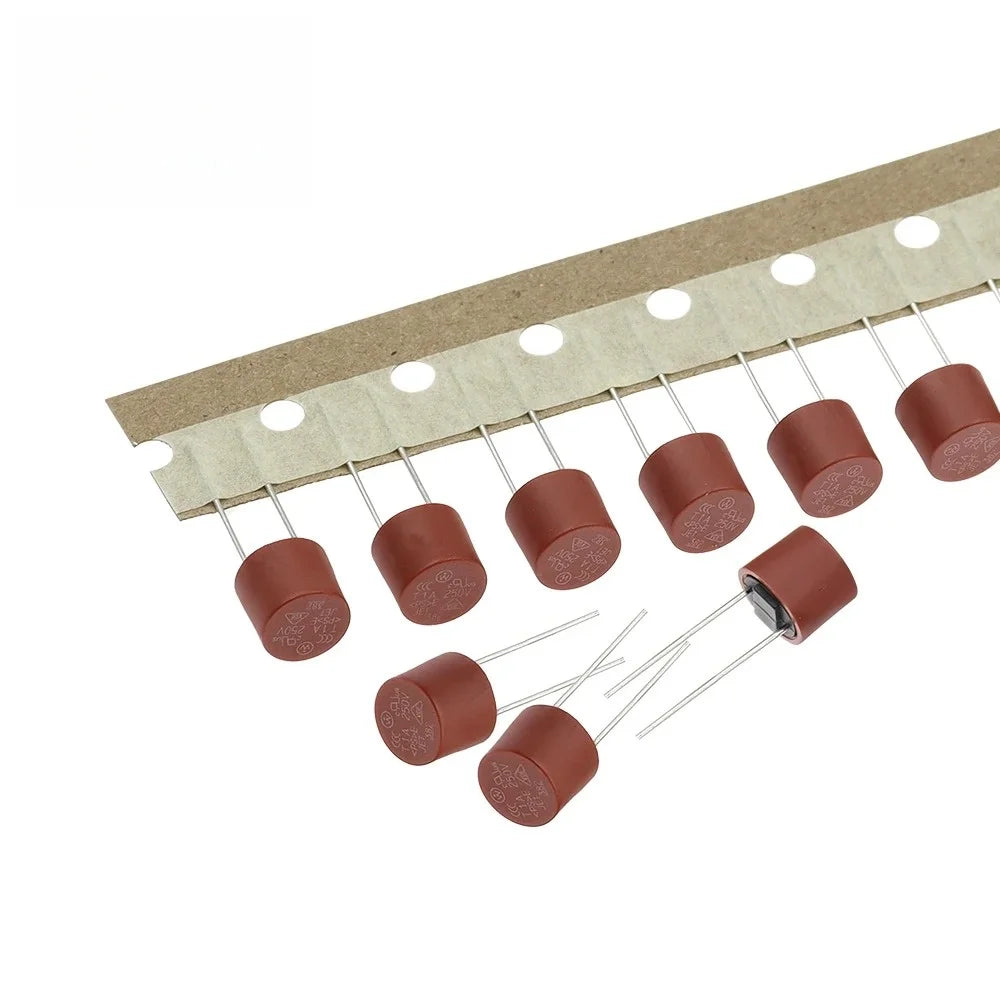

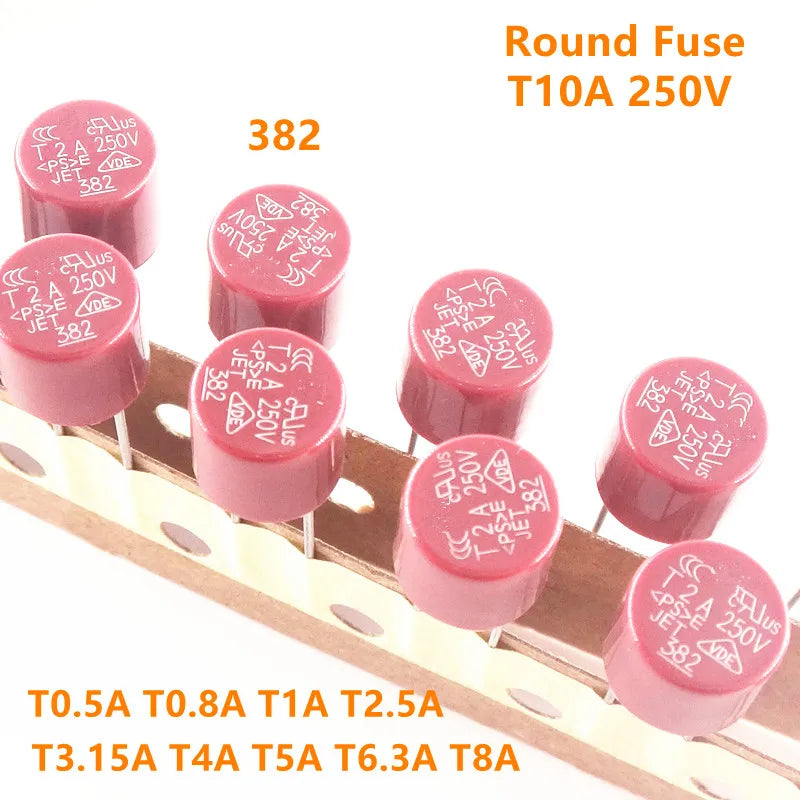

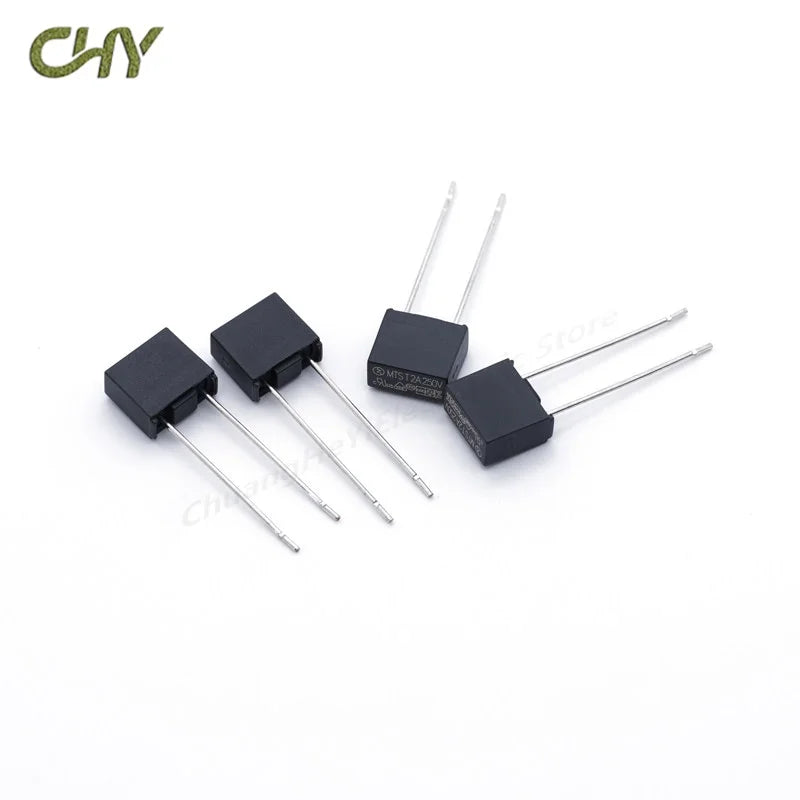

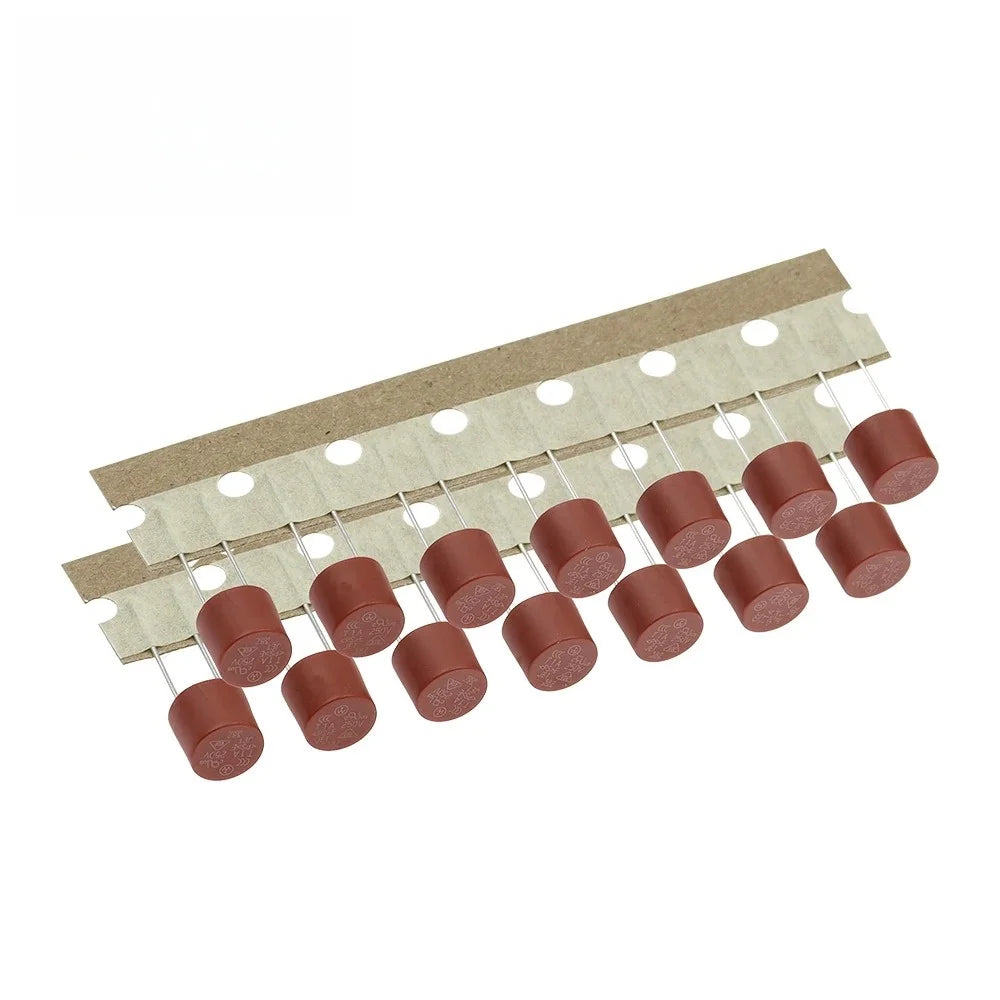

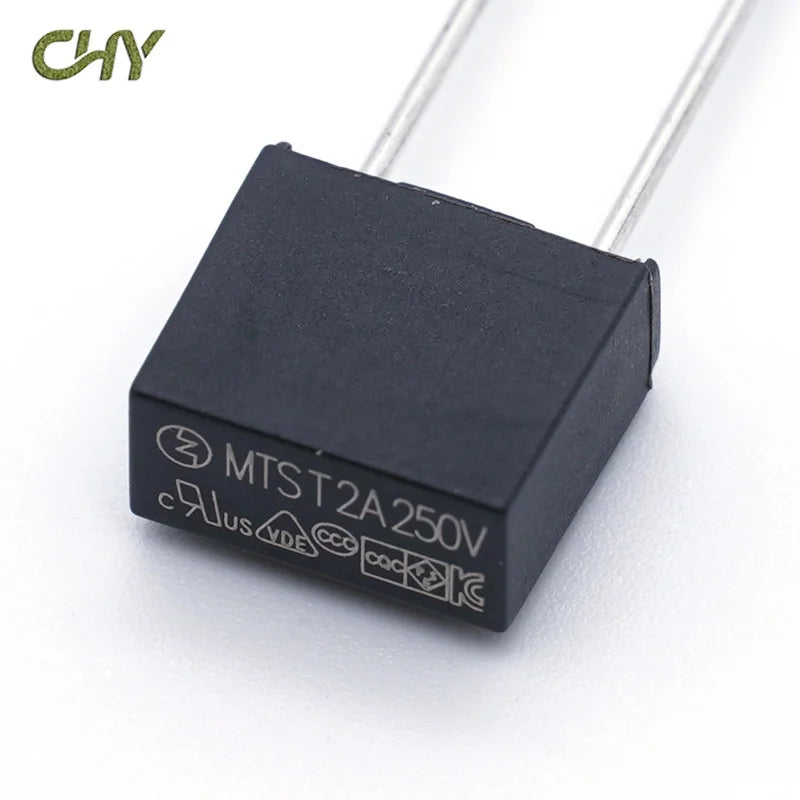

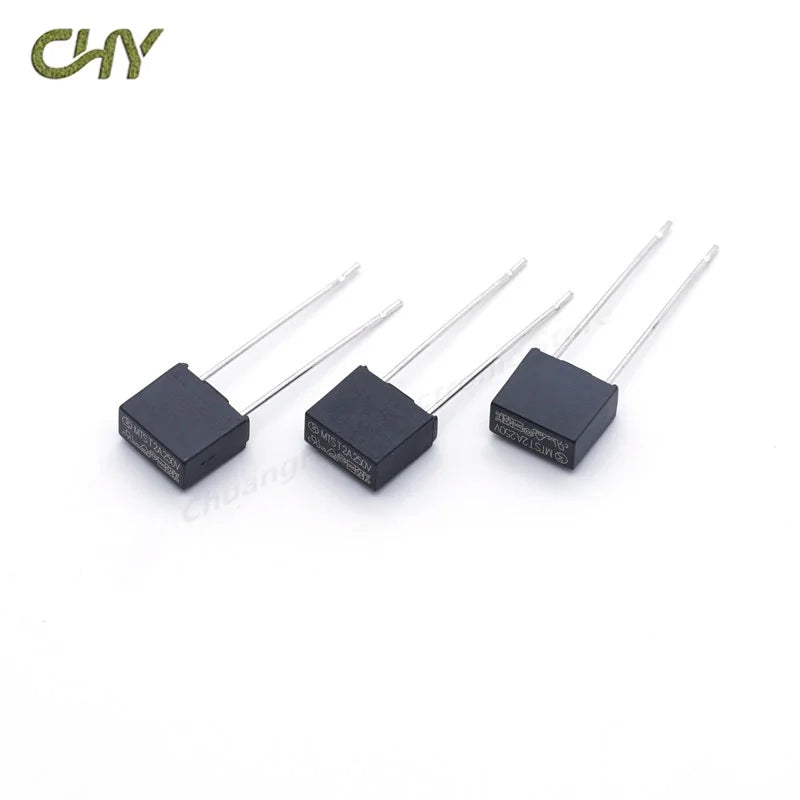

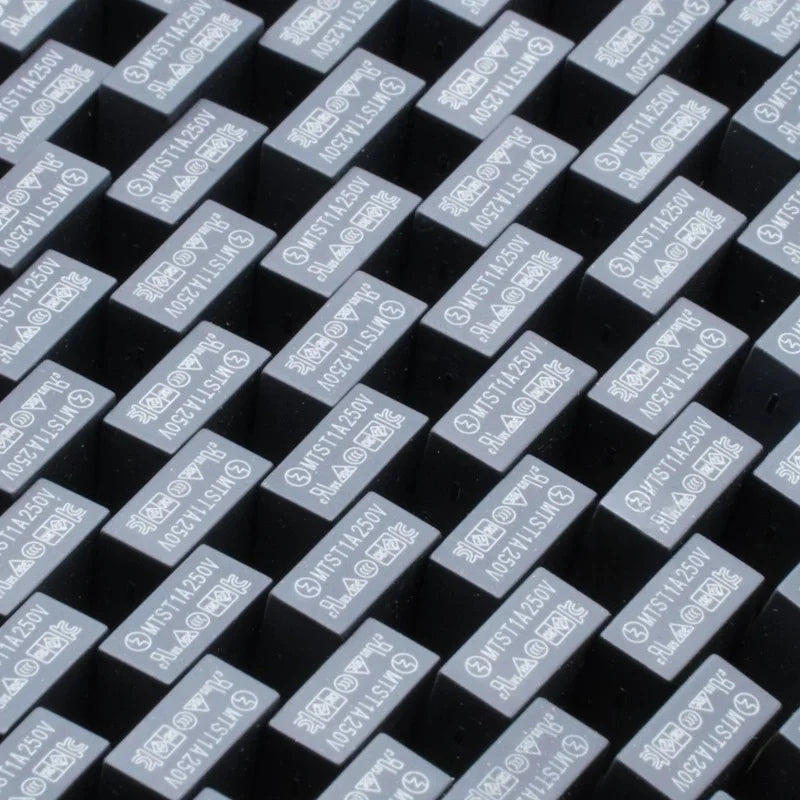

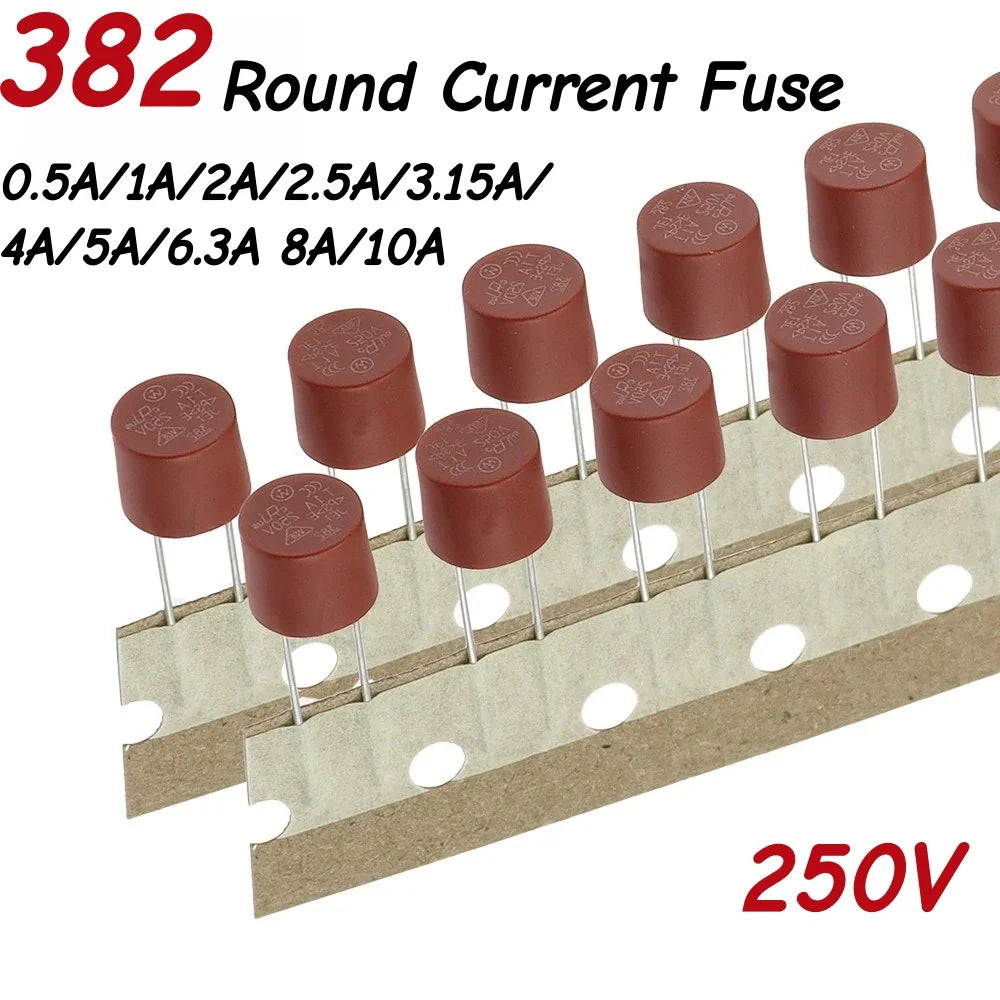

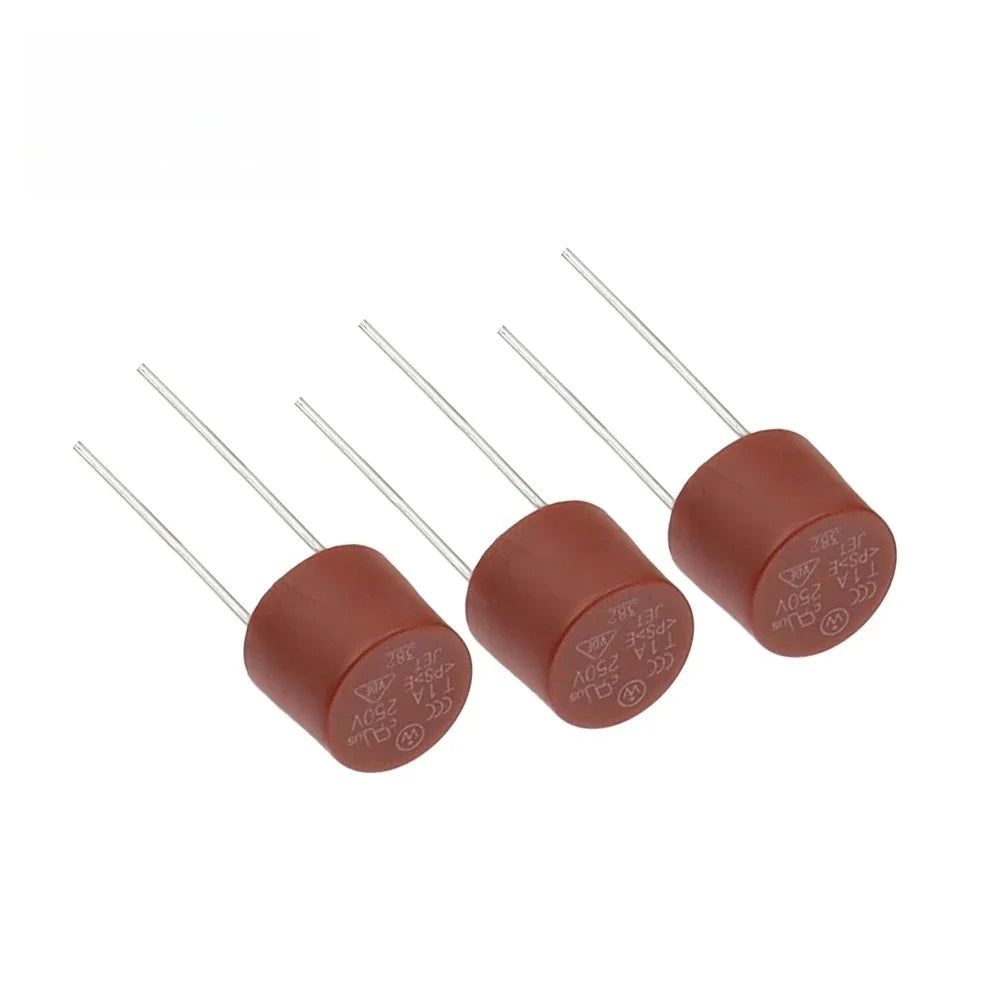

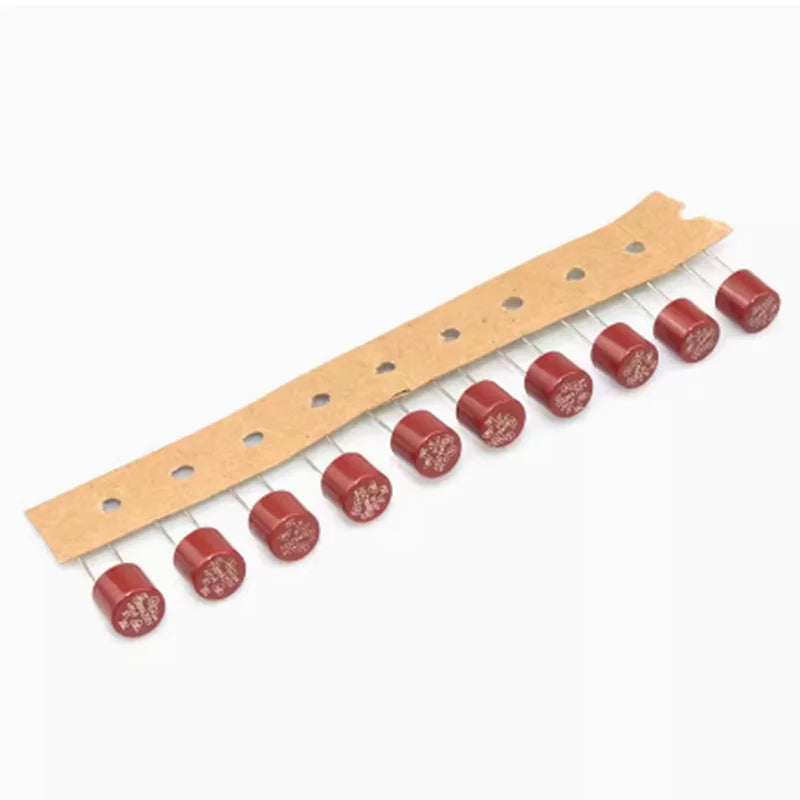

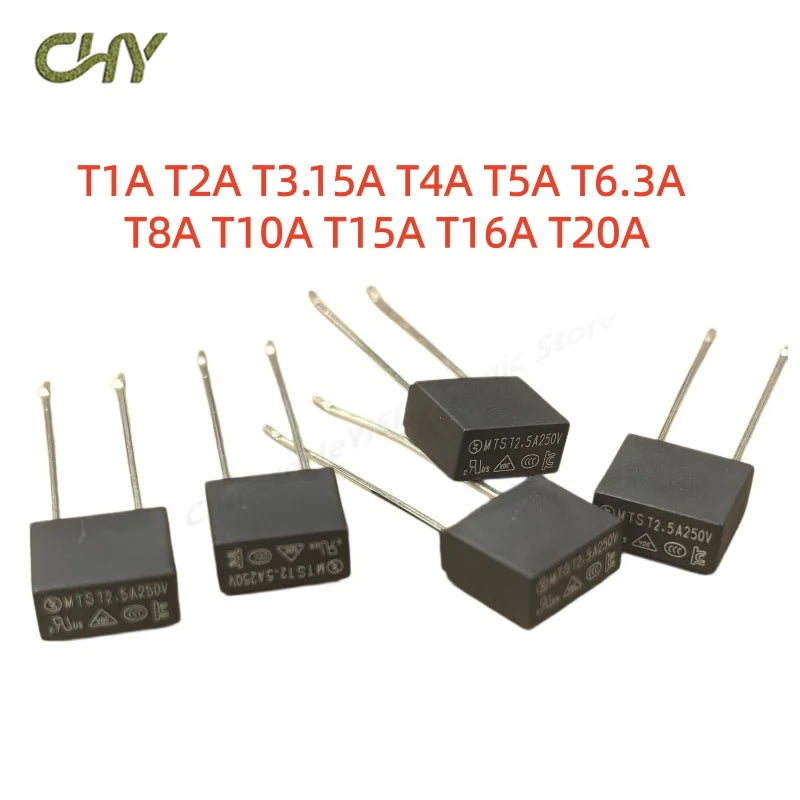

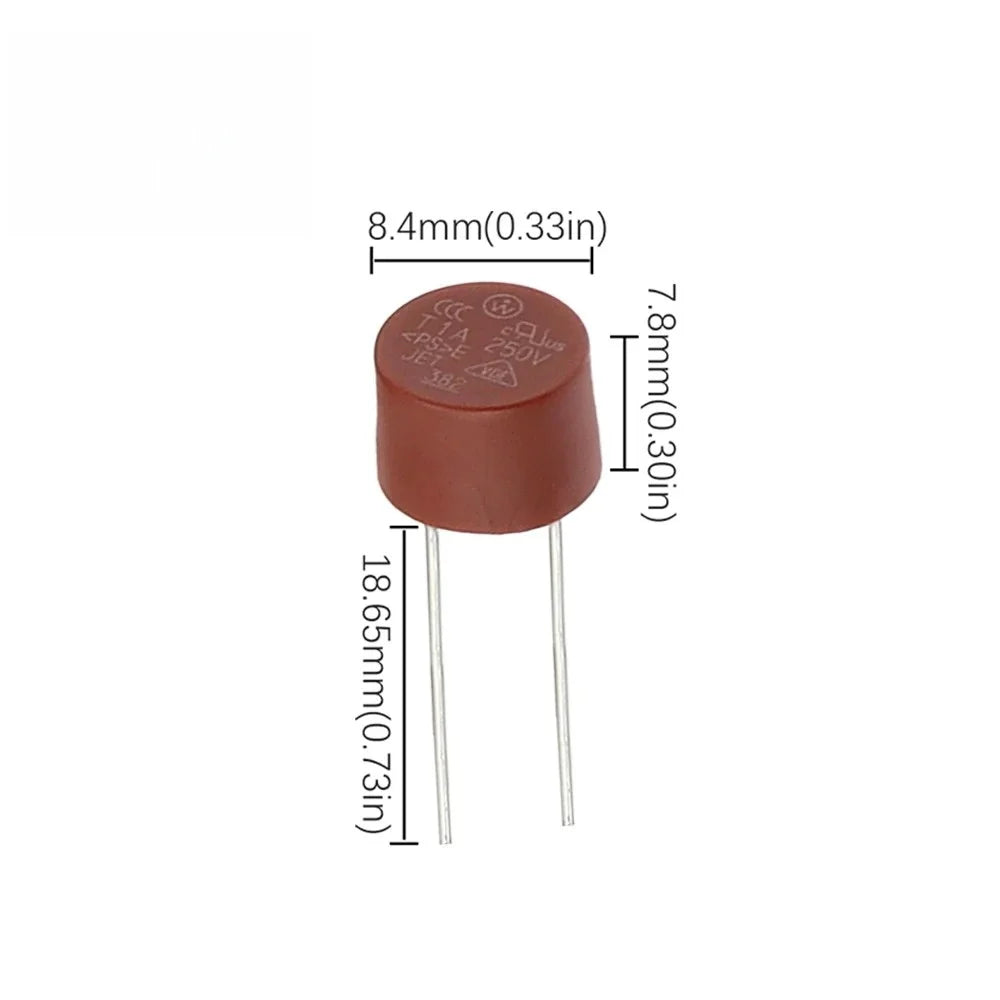

- Radial PCB fuses: 382/TR5-style round and 392-style square plastic-bodied two-pin options include T-coded milliampere and ampere selections for power boards. Match lead pitch, body clearance, time-current curve and the board's specified part; a similar-looking TV power-board fuse is not automatically interchangeable with every LCD TV model.

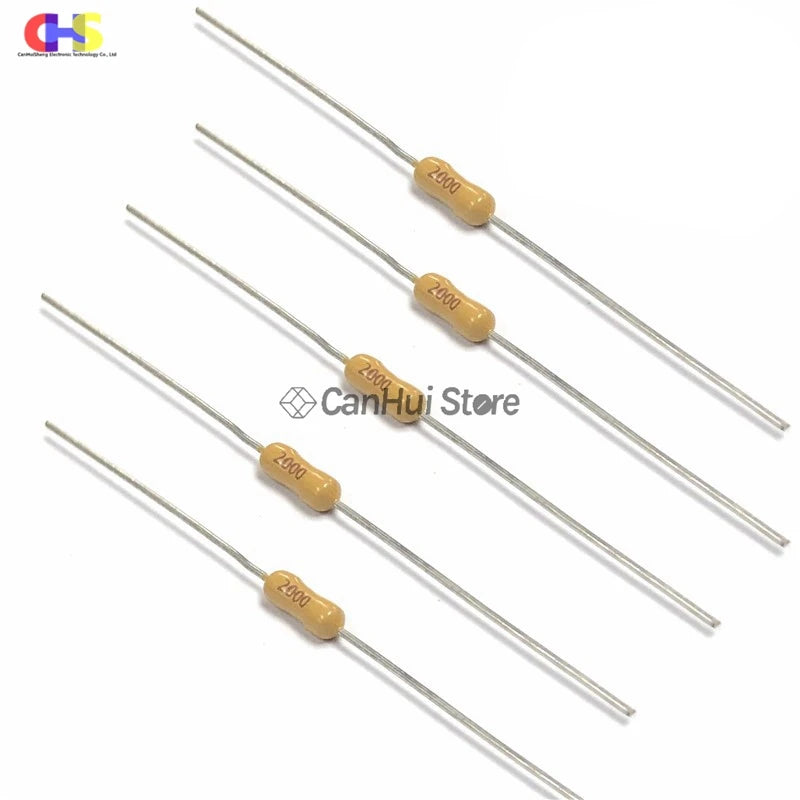

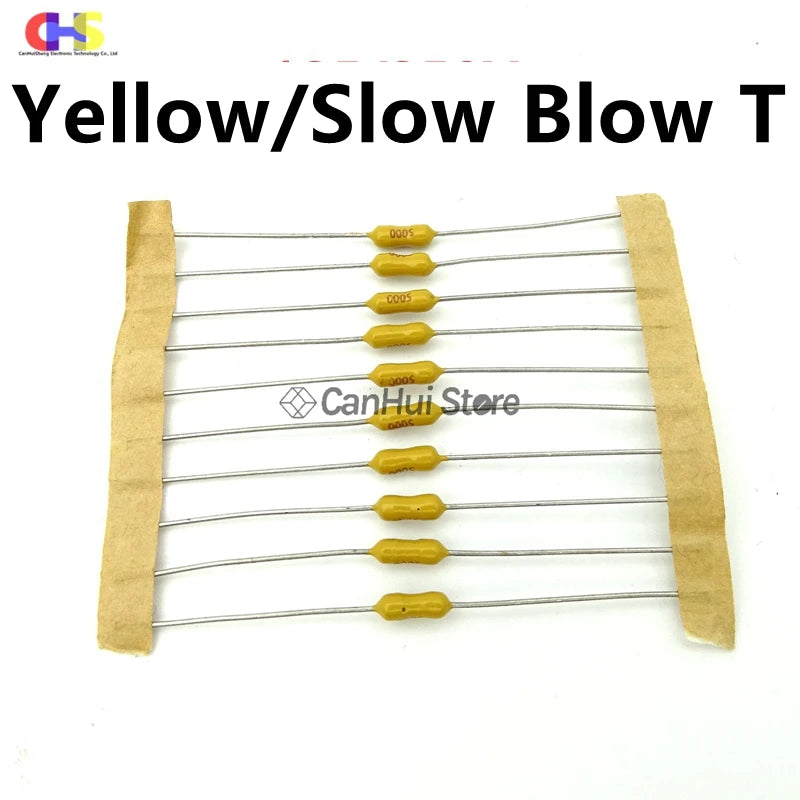

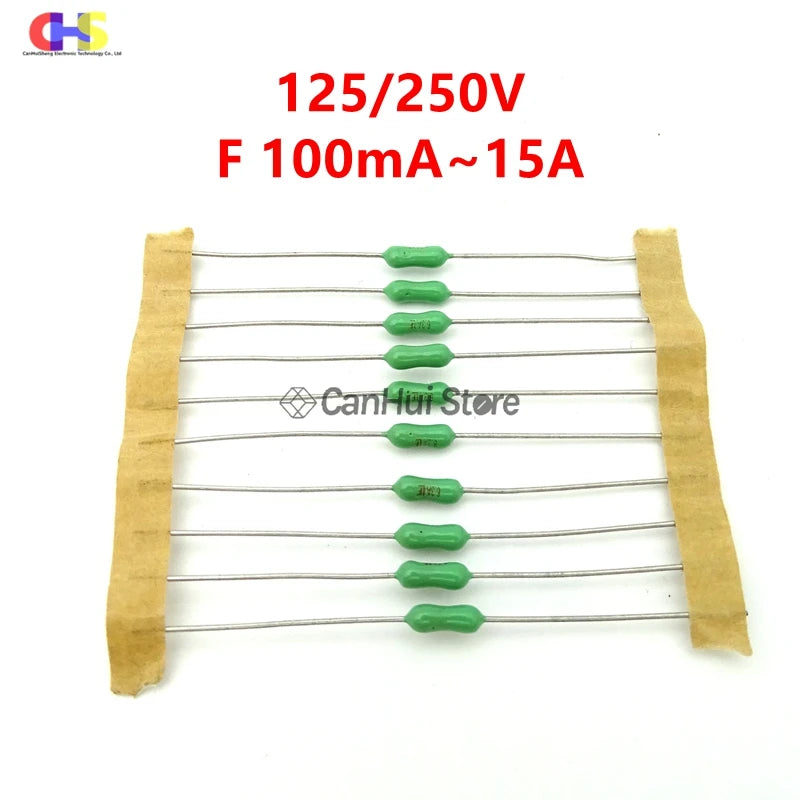

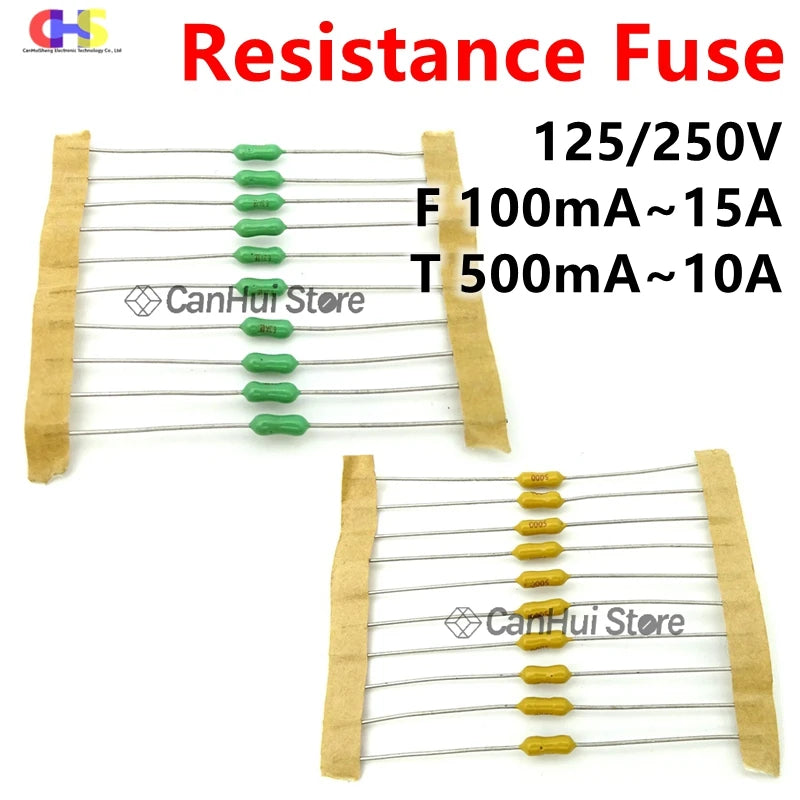

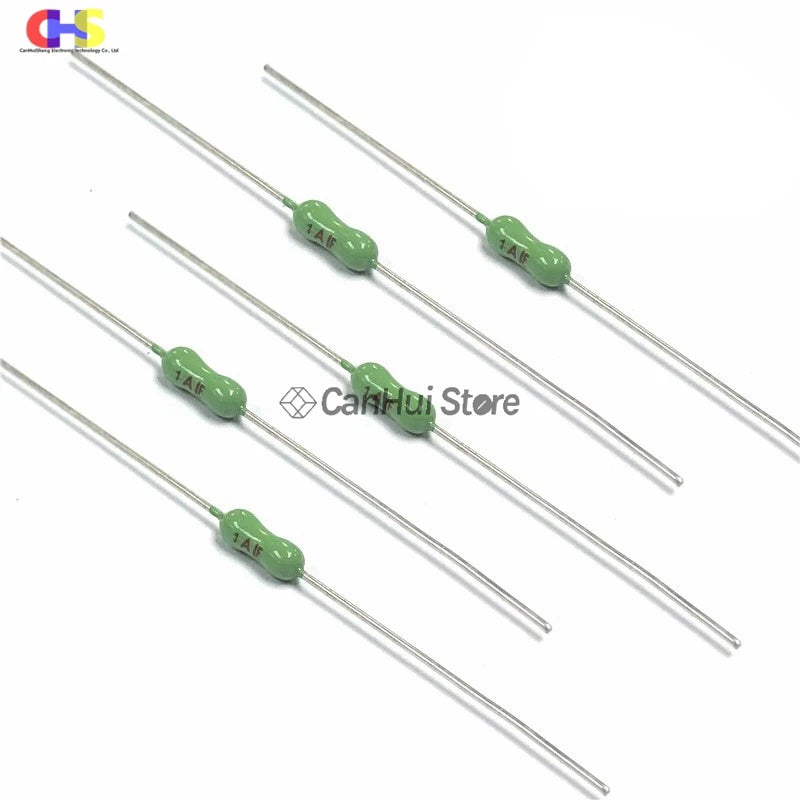

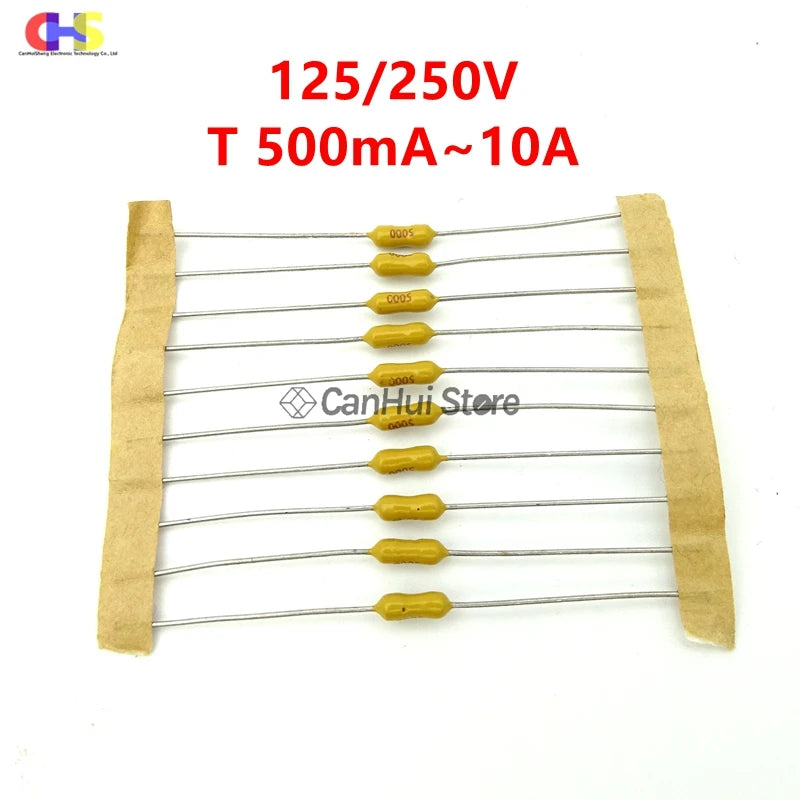

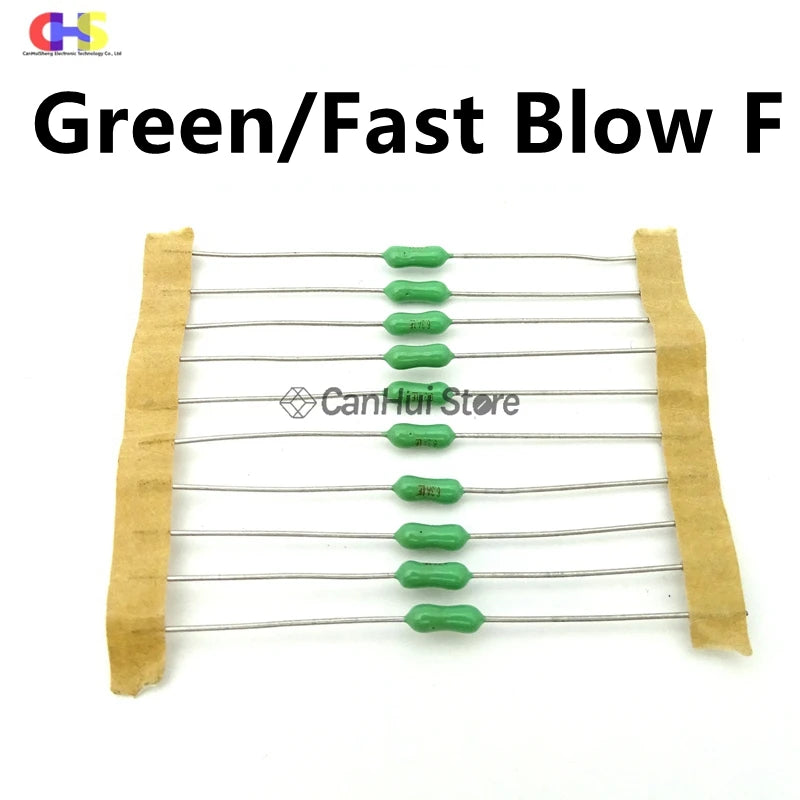

- SMD and axial PCB parts: 1808/2410/6125 chip-fuse kits and 2.4 × 7 mm axial devices need the exact footprint, soldering limits and selected response. “High inrush,” “F/T” or a package code in a listing is not proof that all included values have one tested time-delay characteristic.

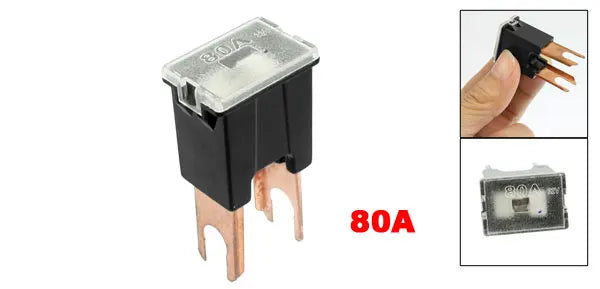

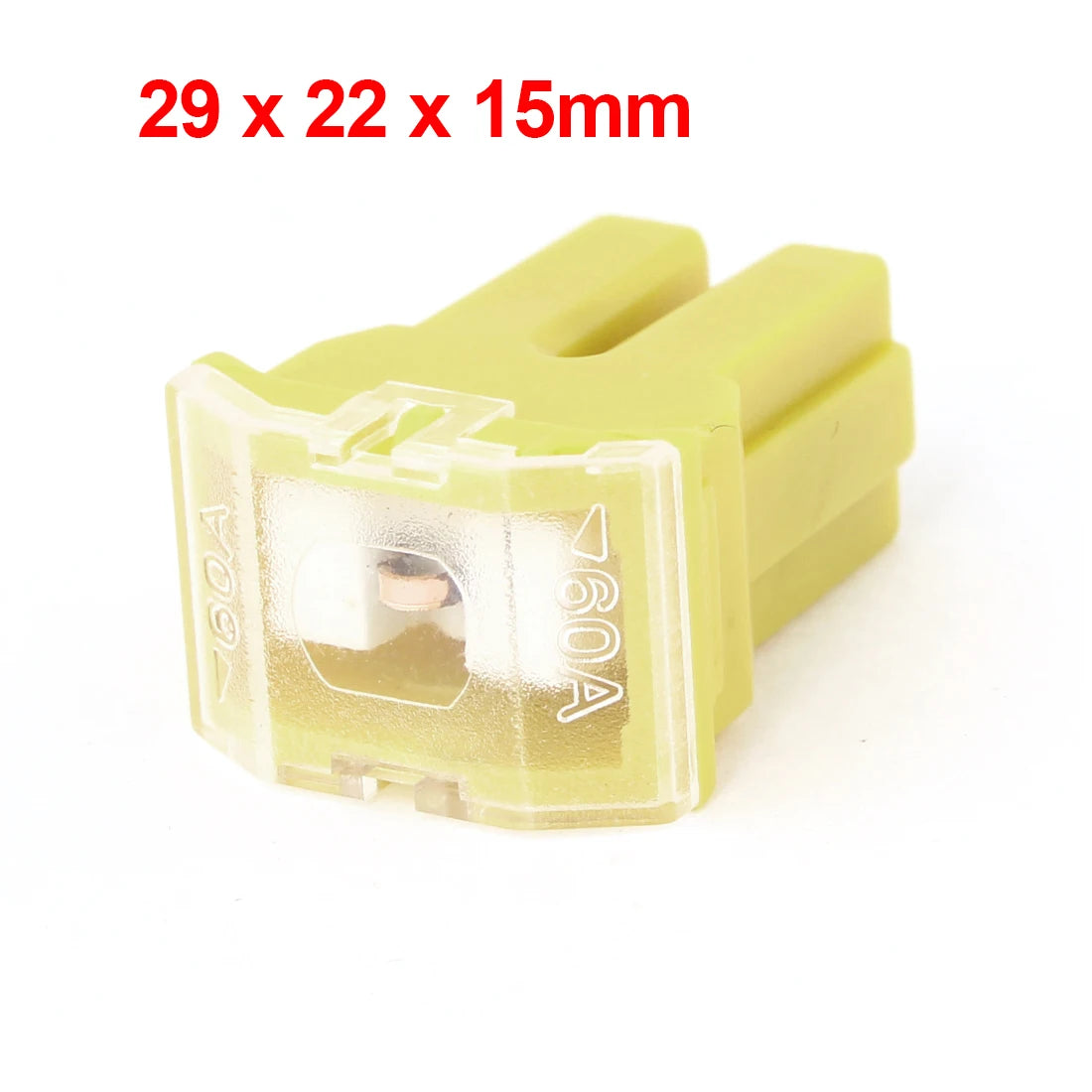

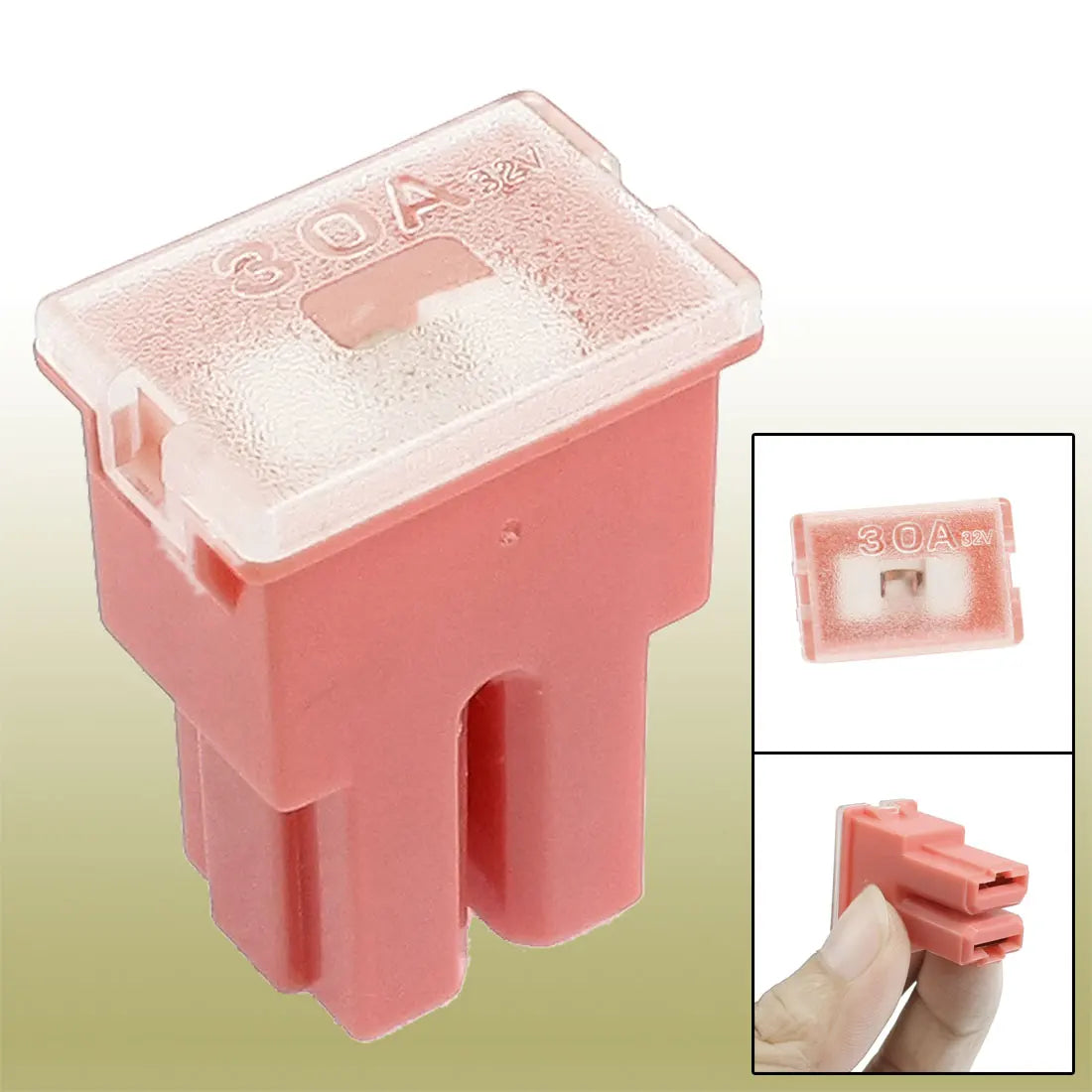

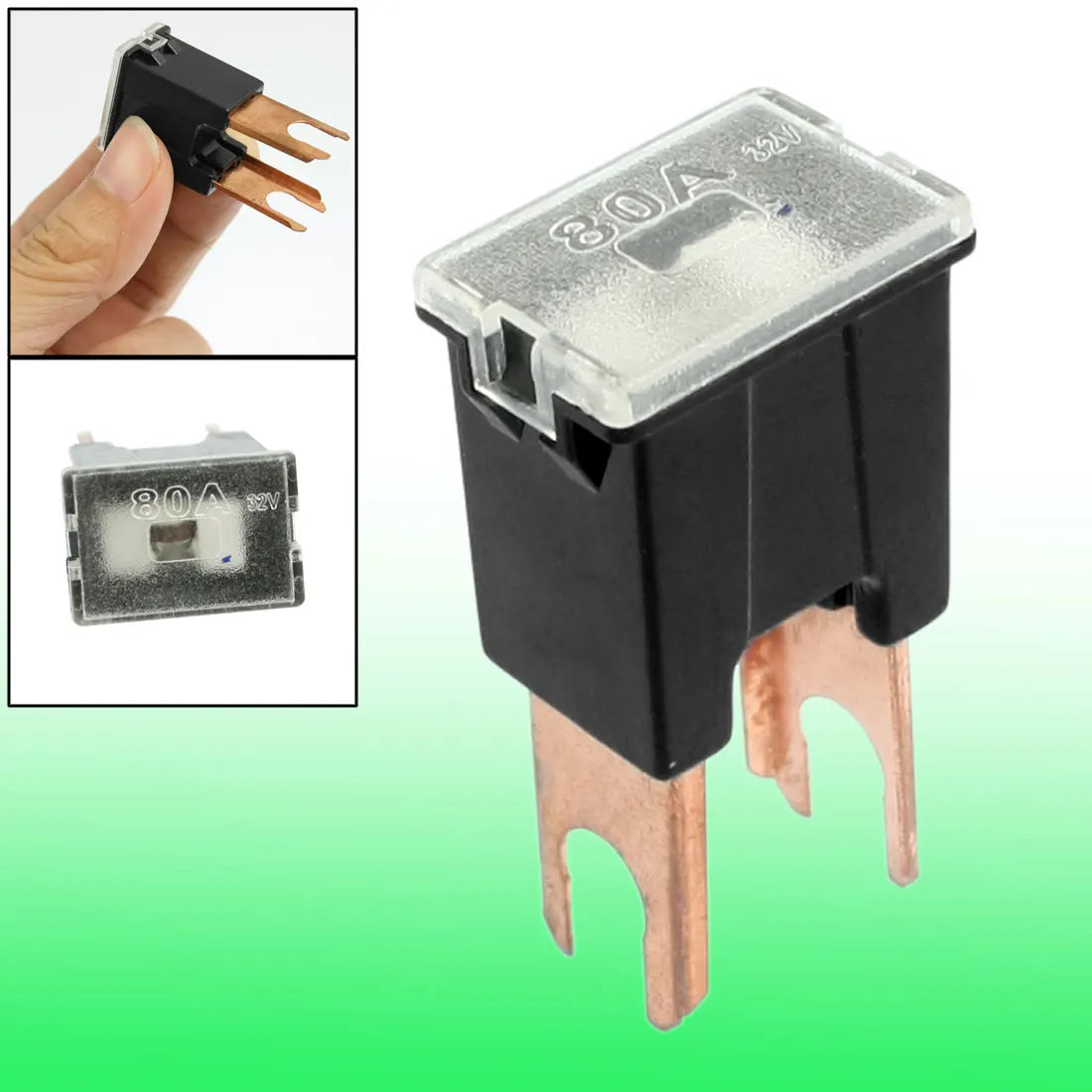

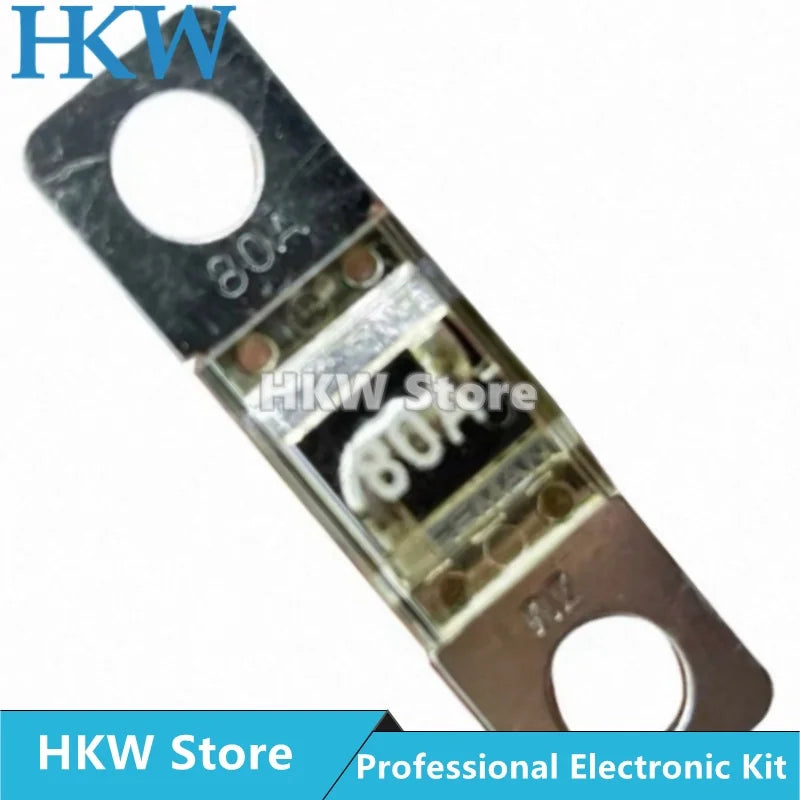

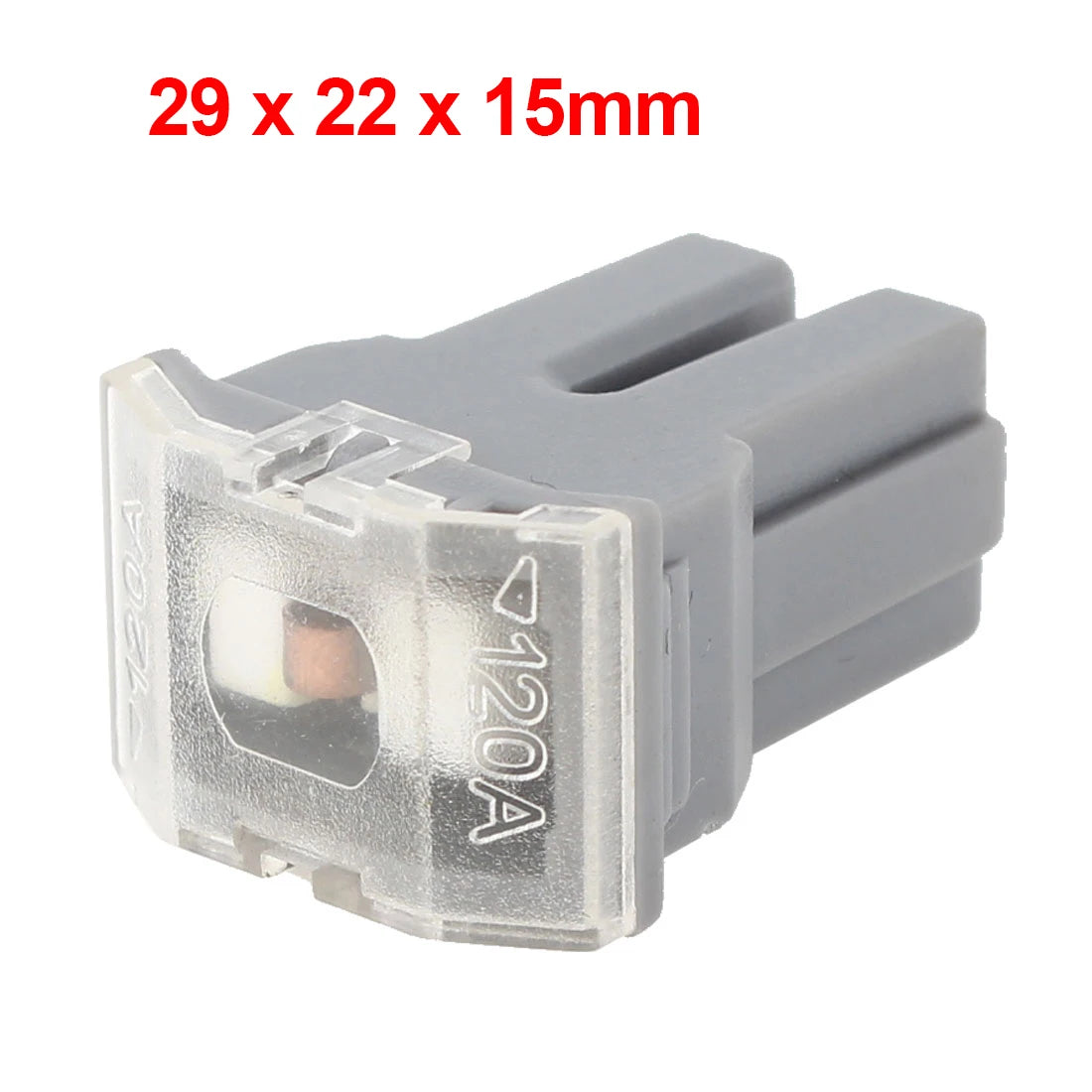

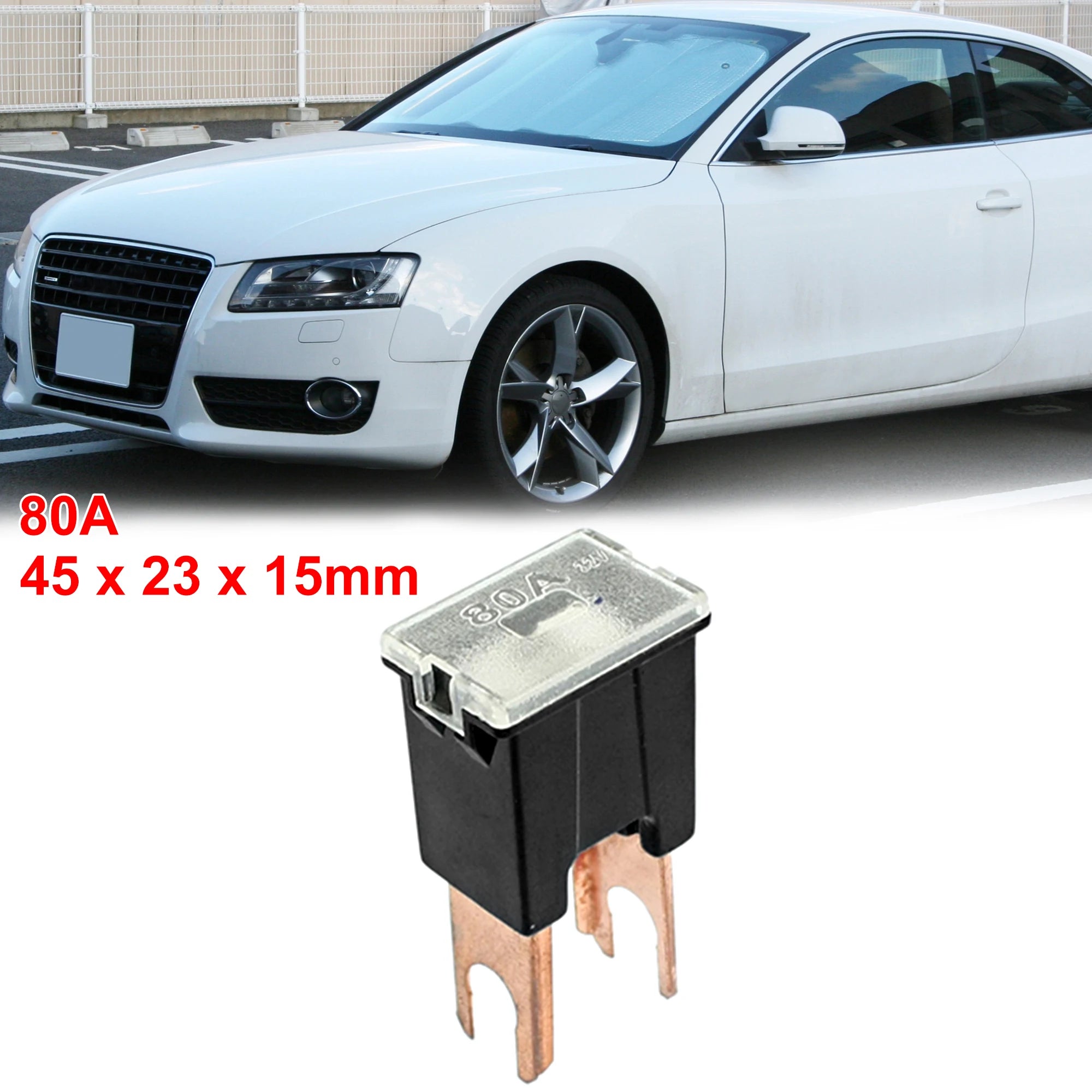

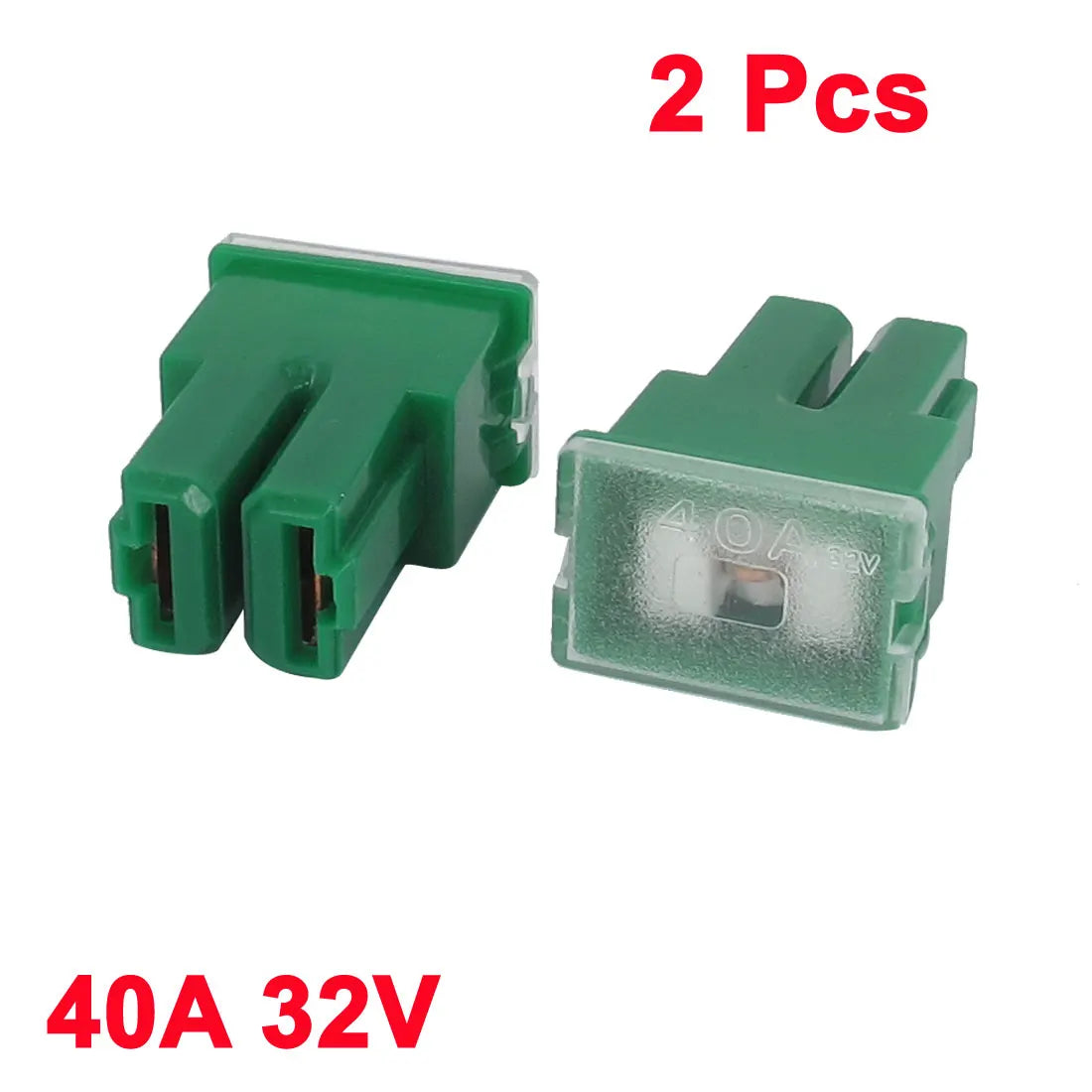

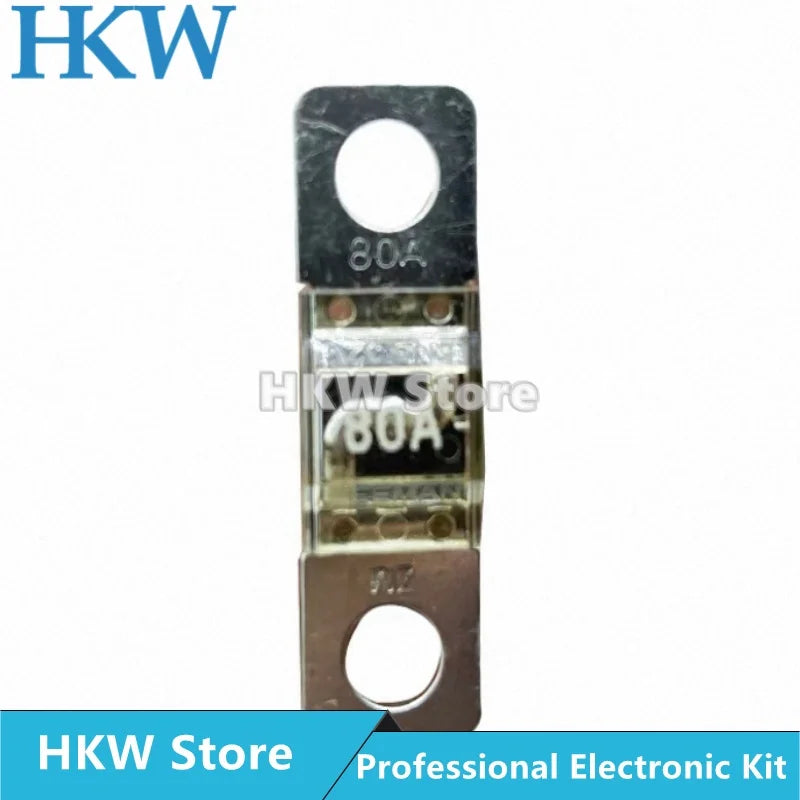

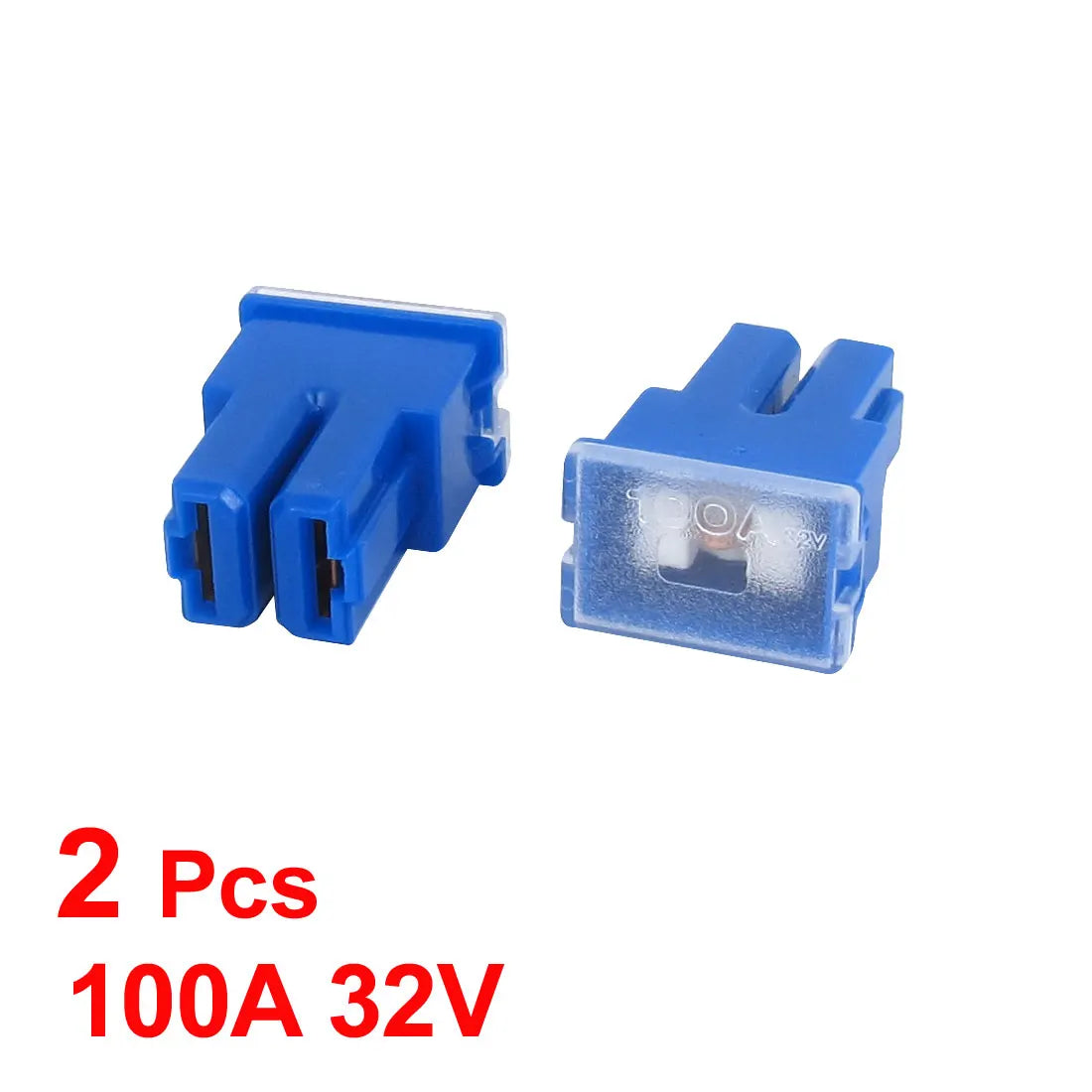

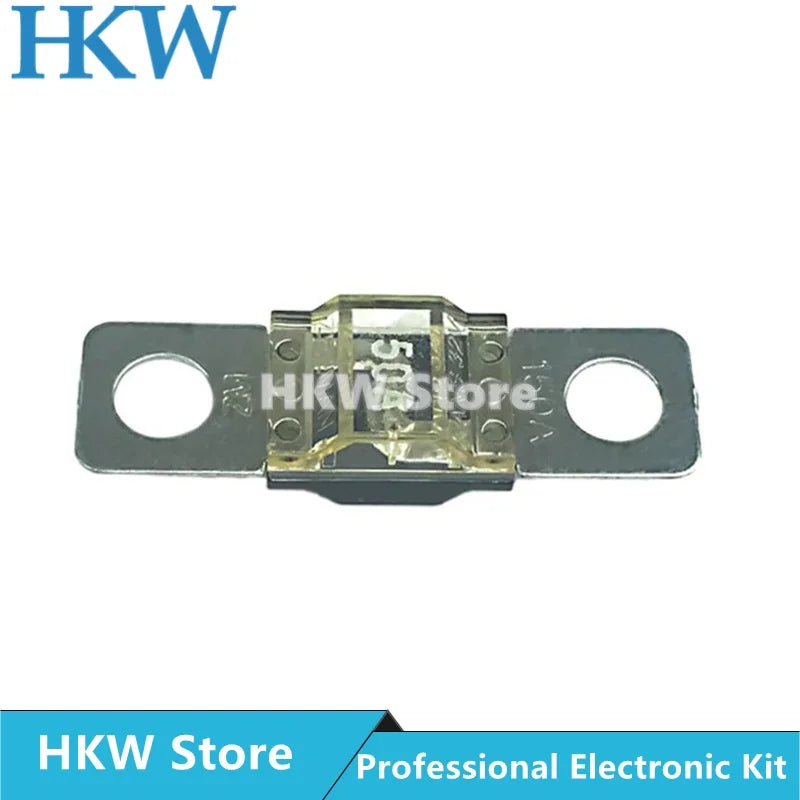

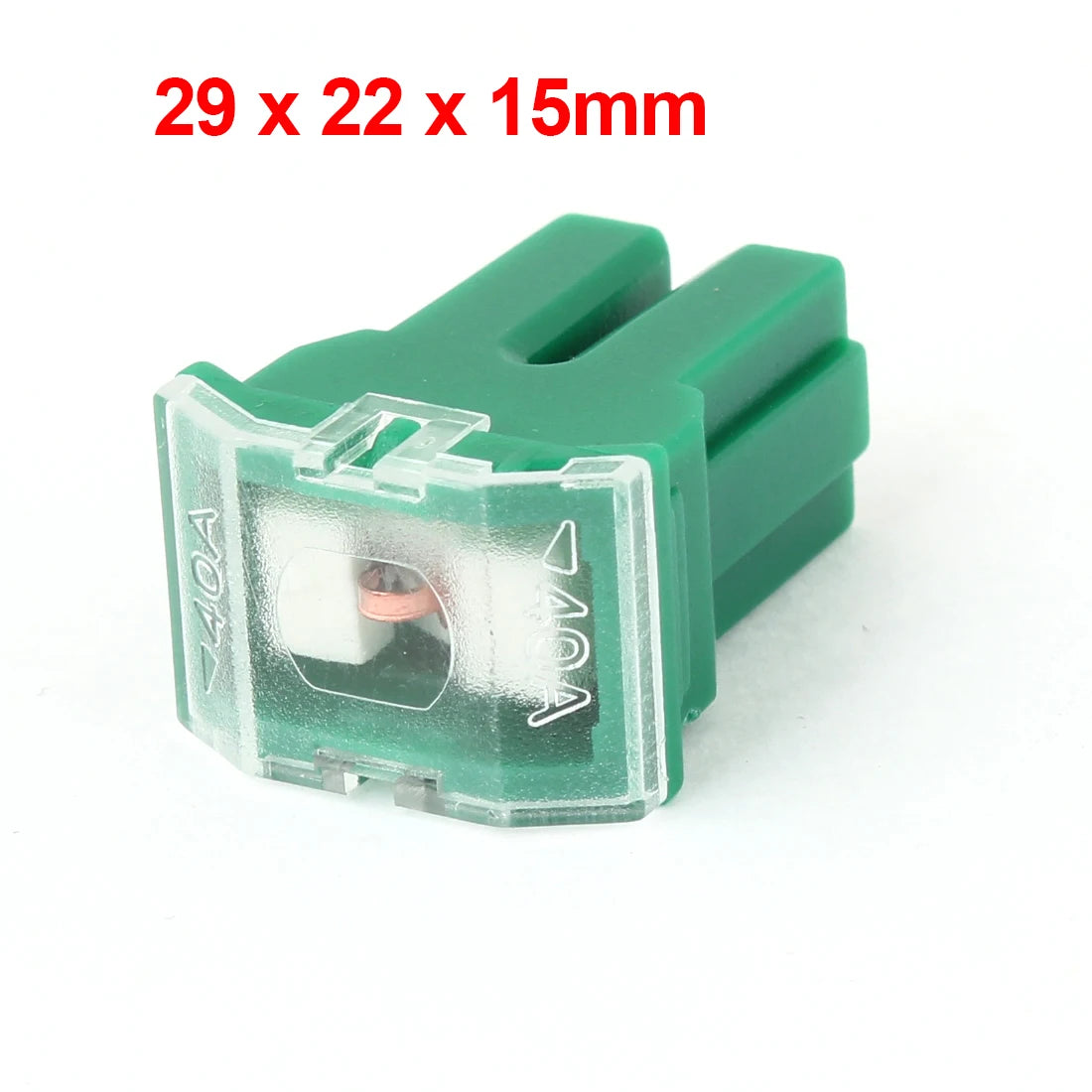

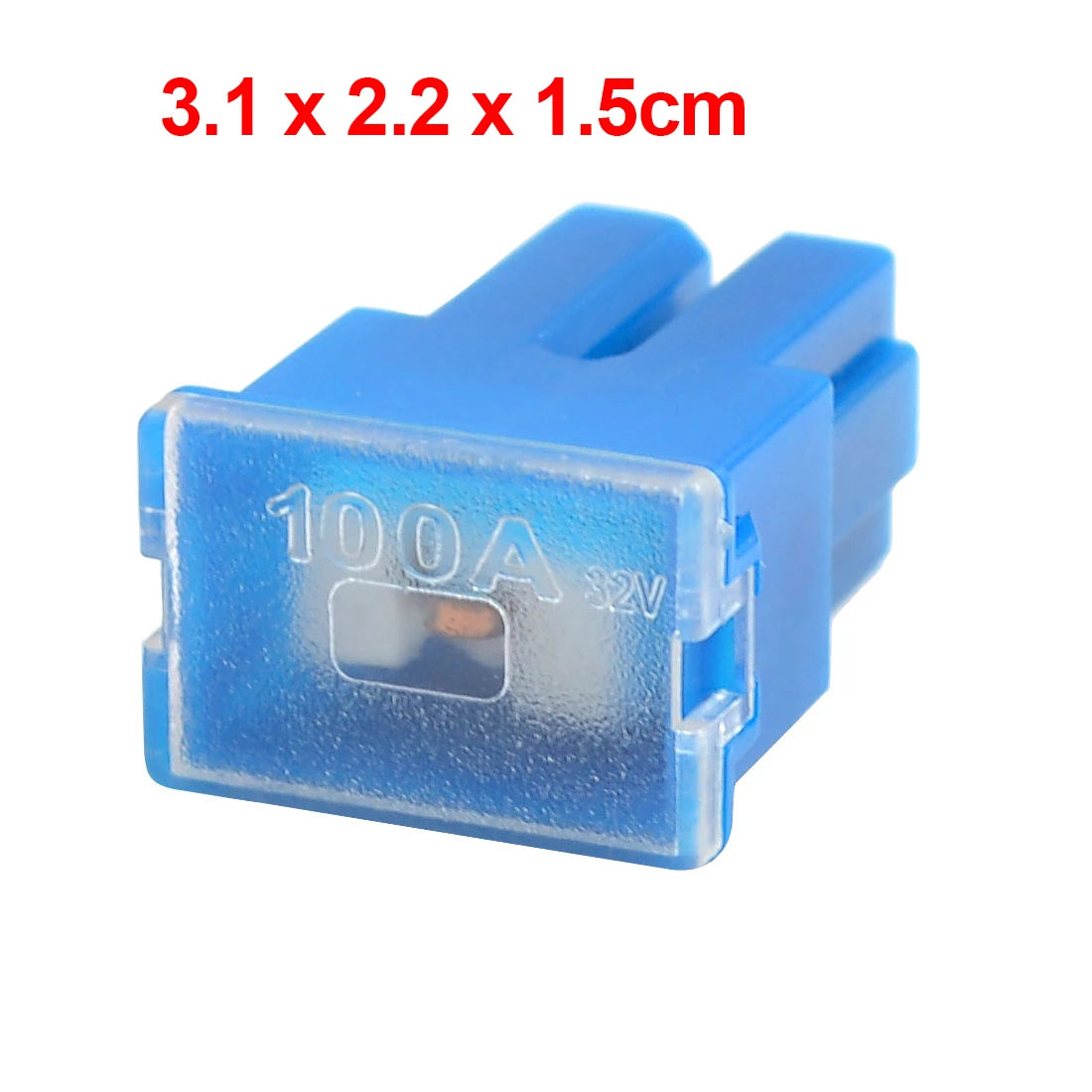

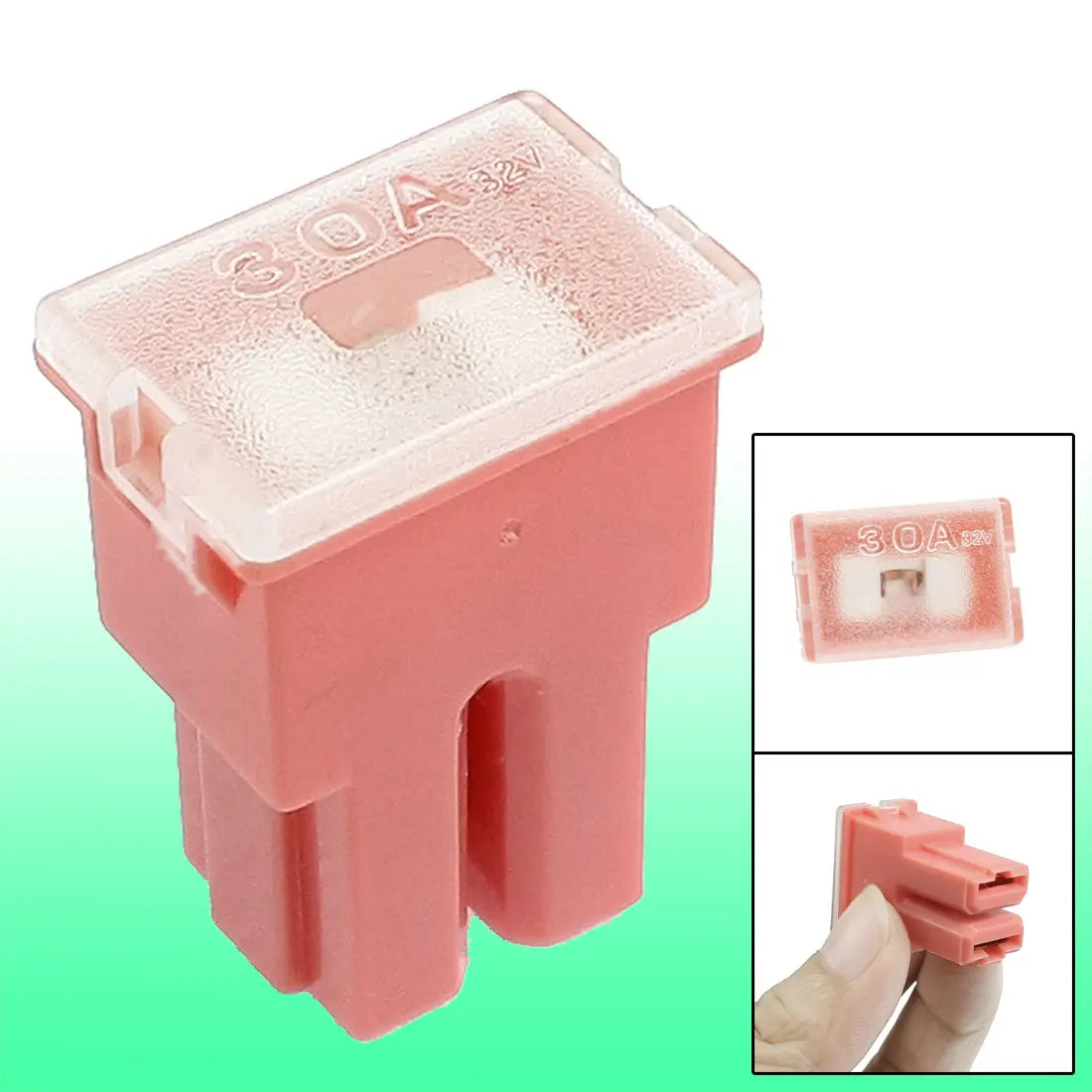

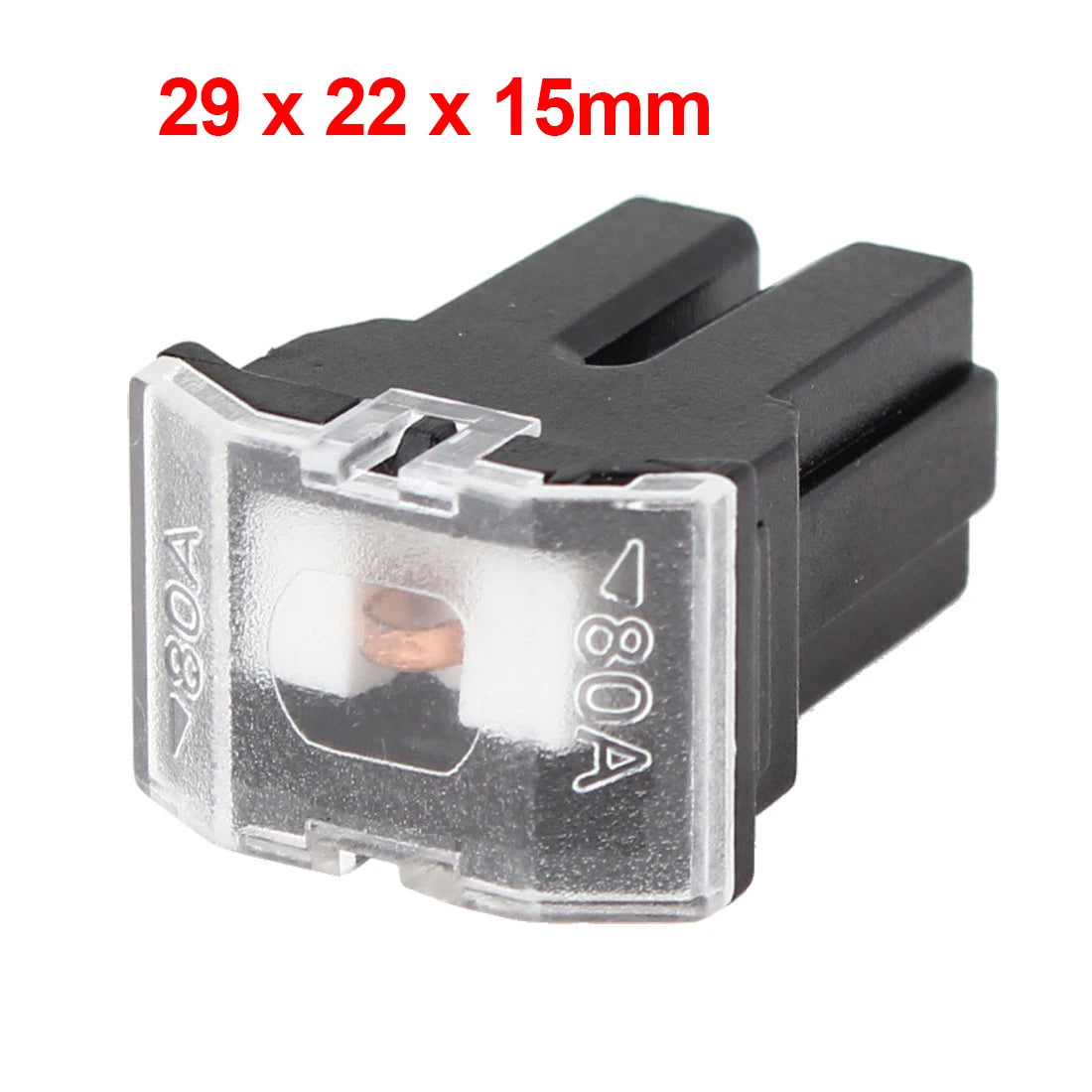

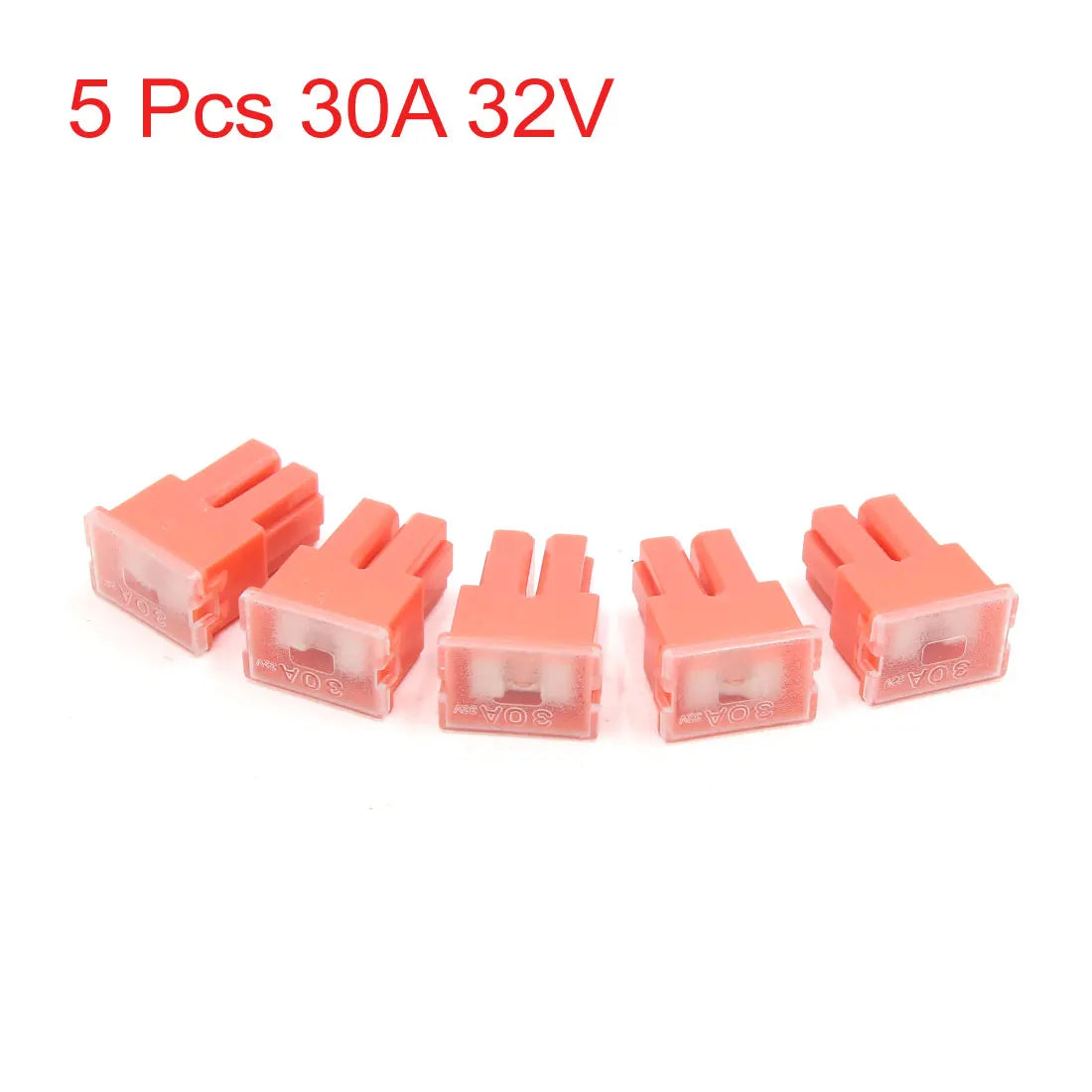

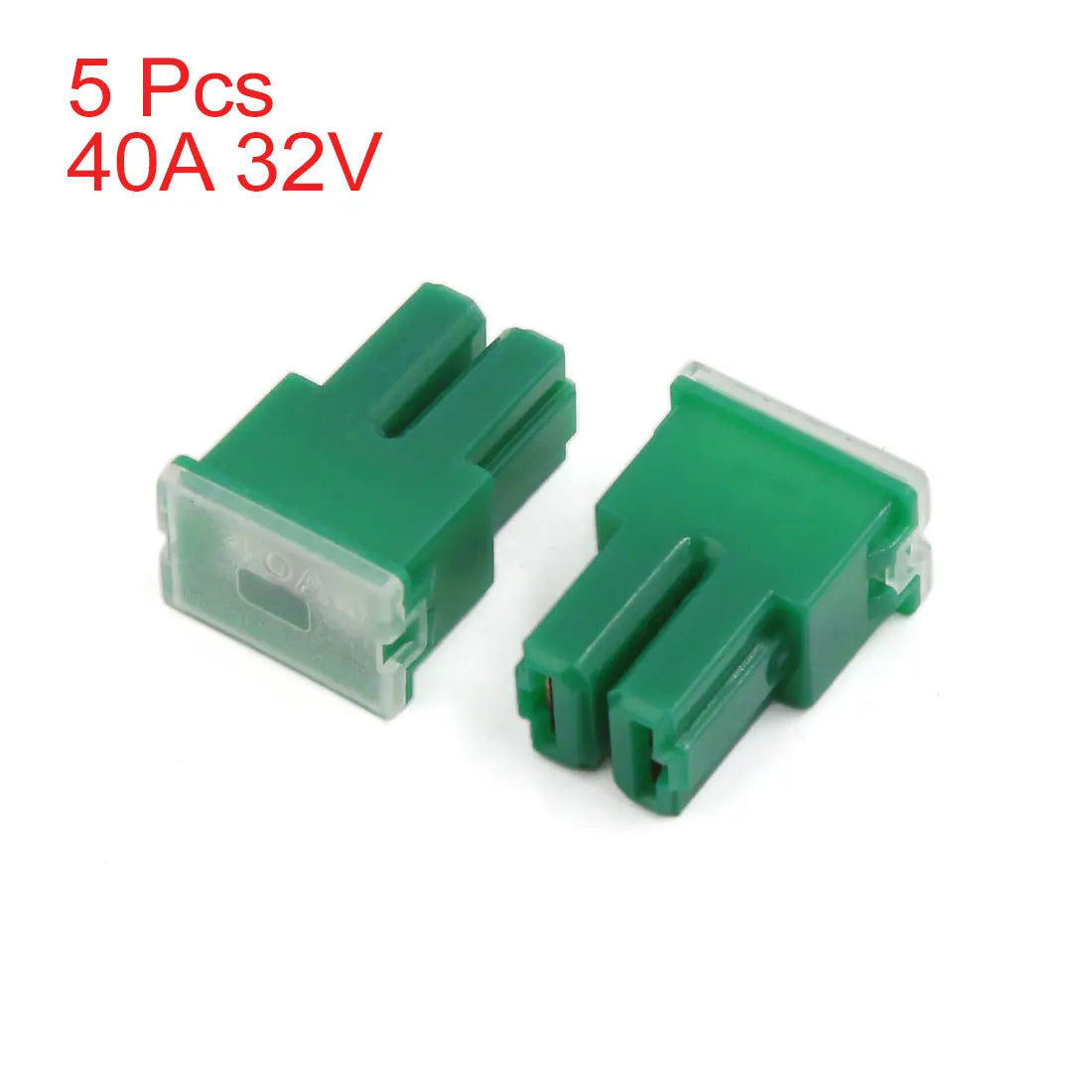

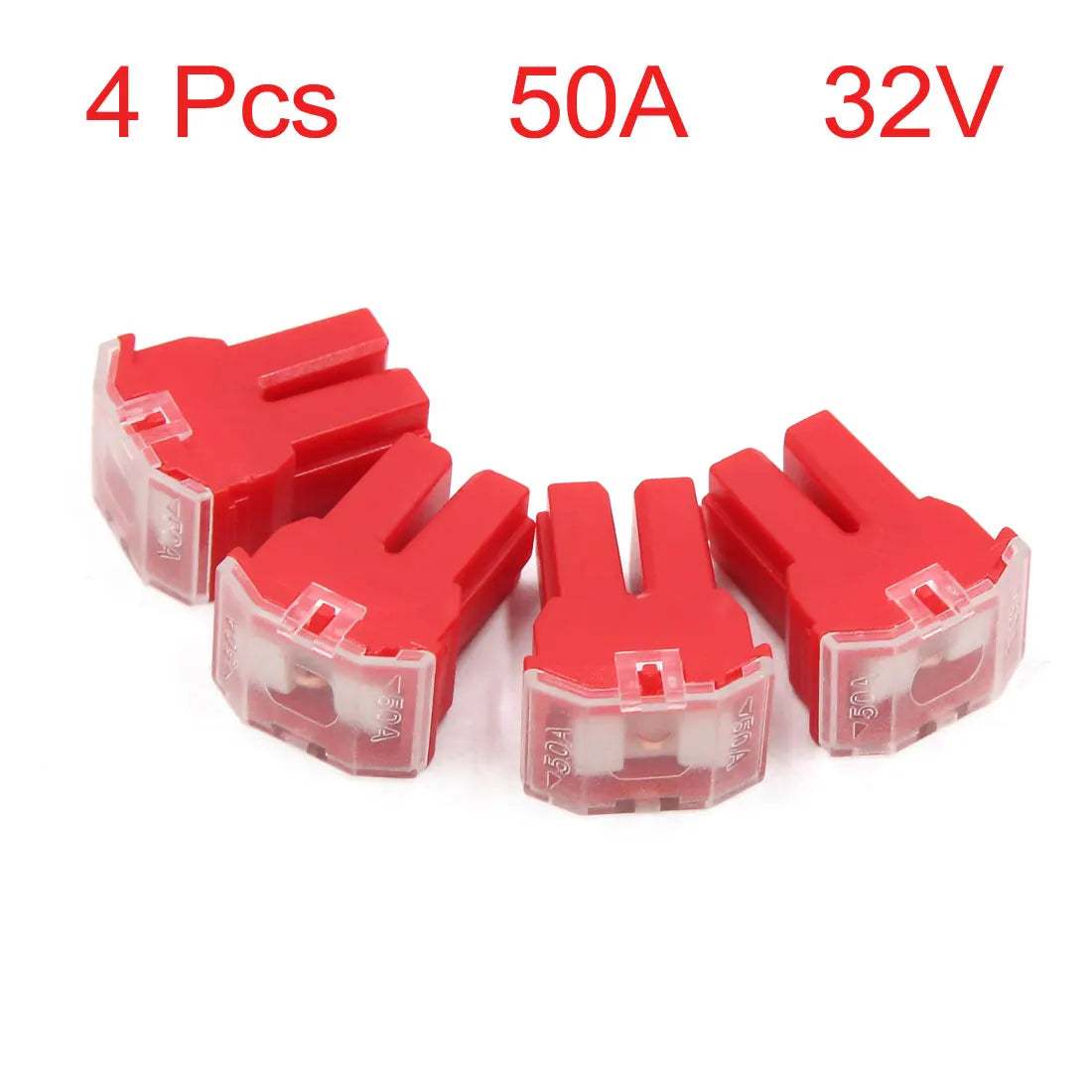

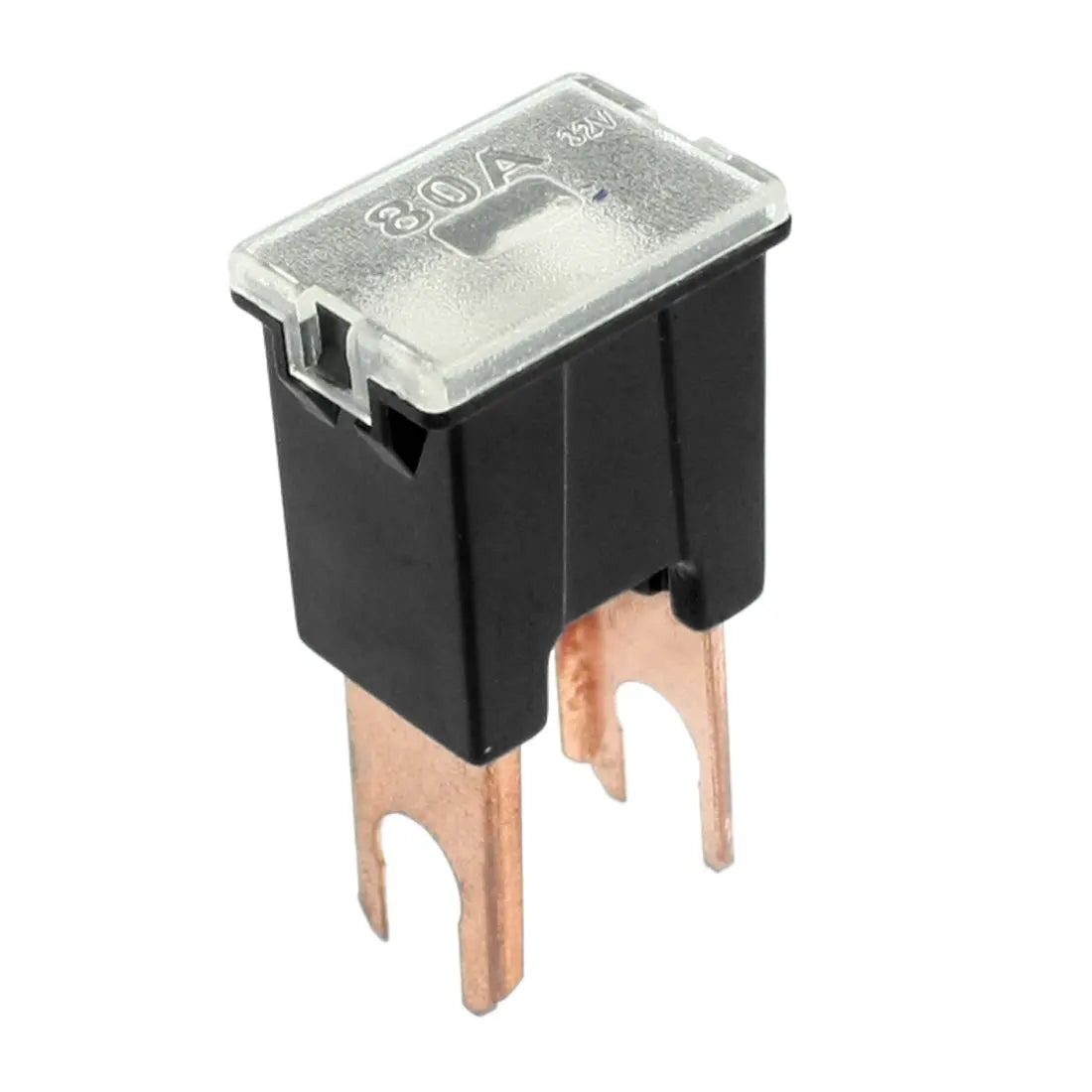

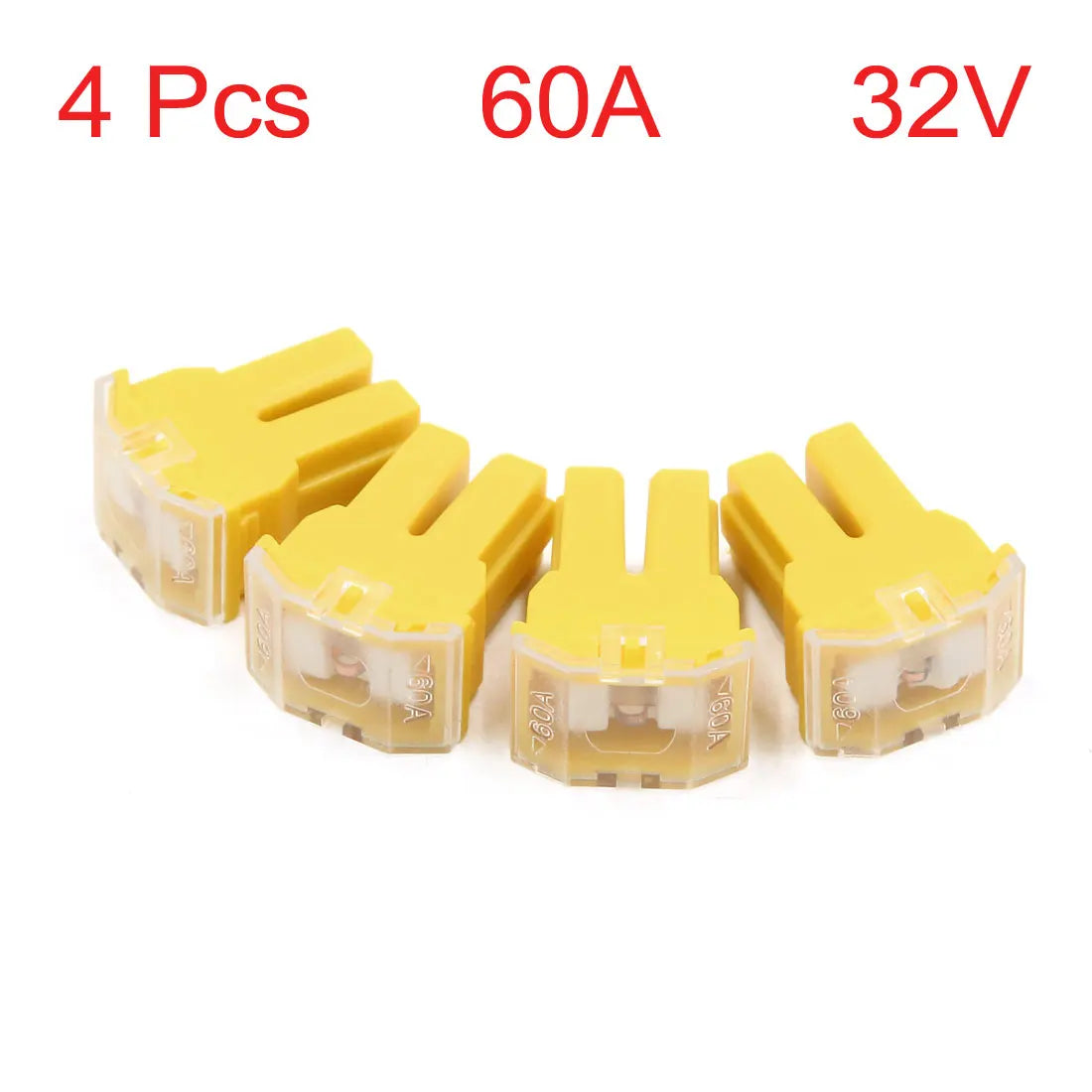

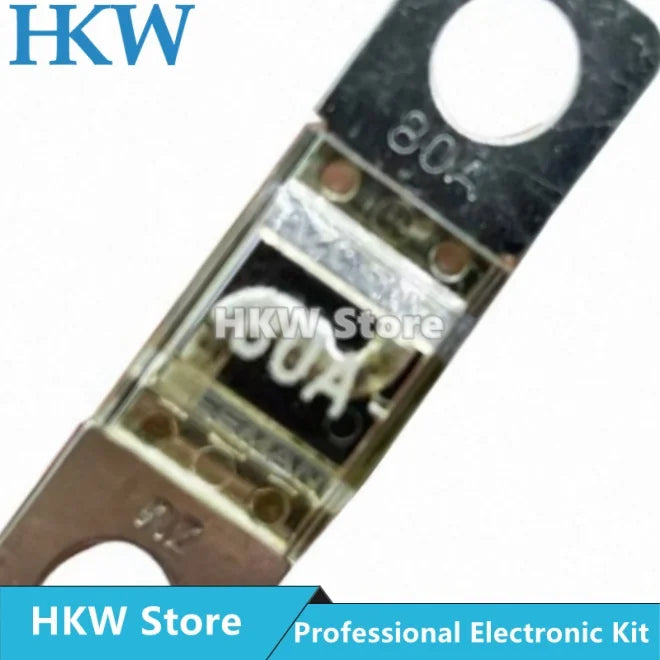

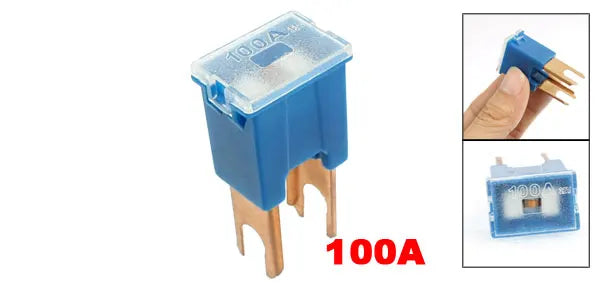

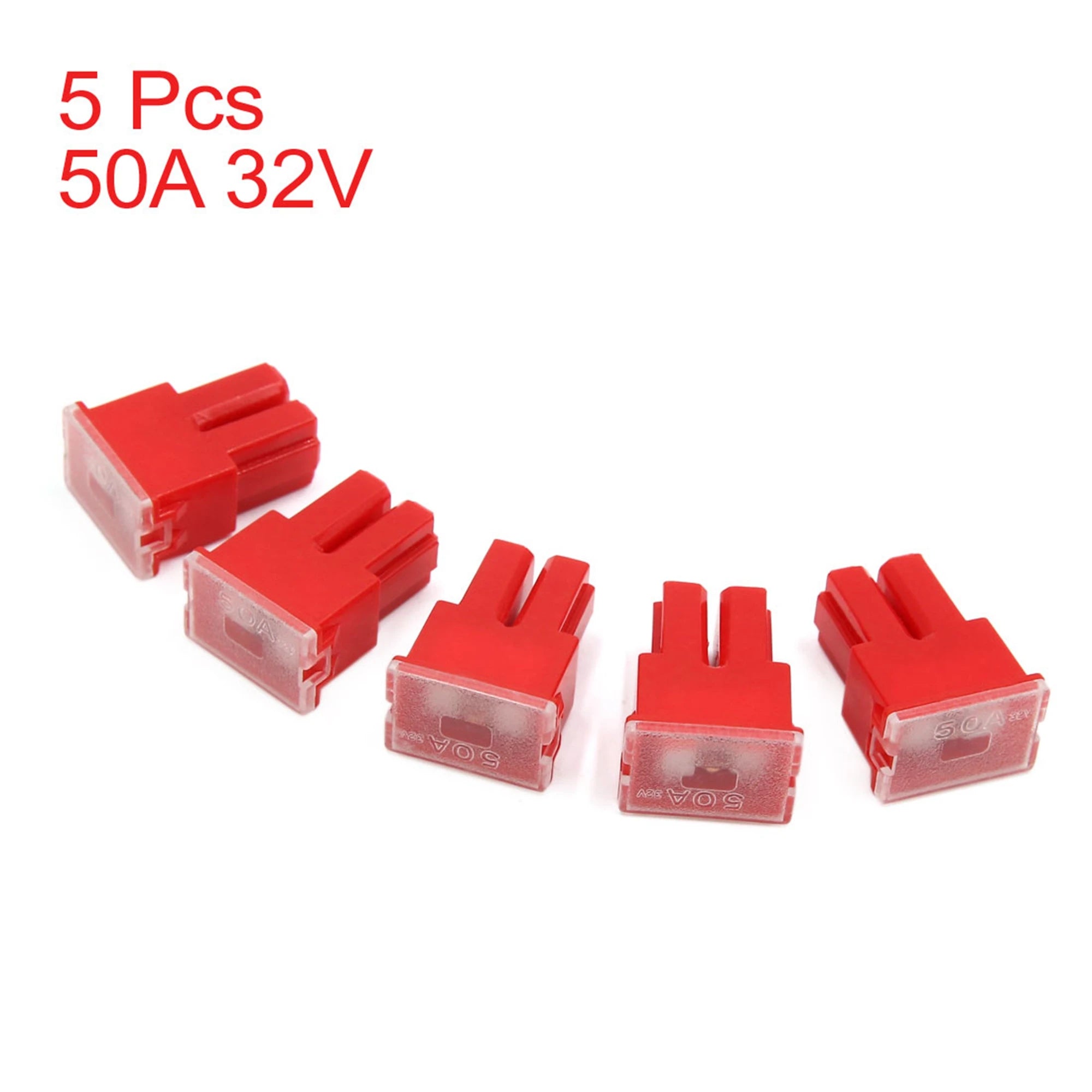

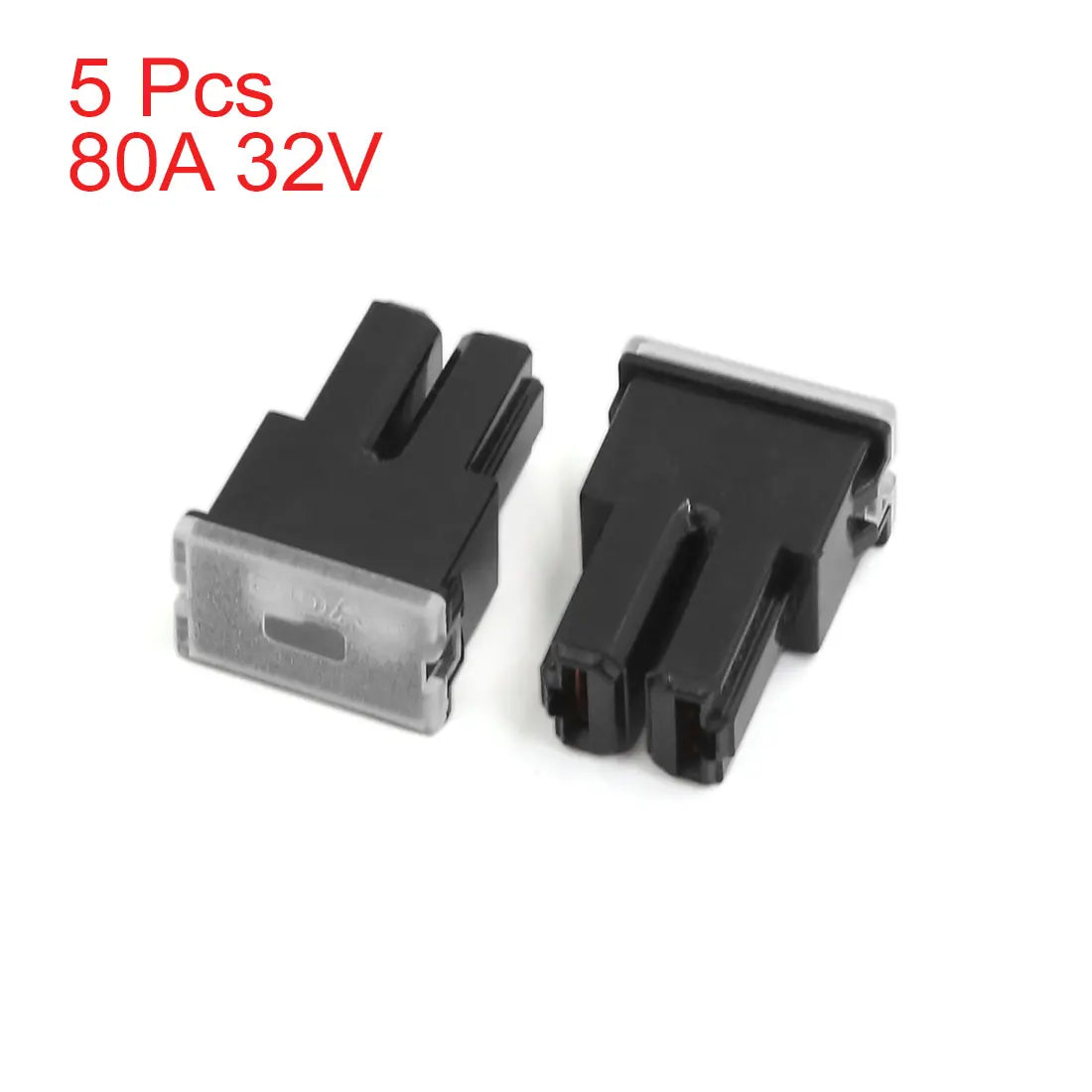

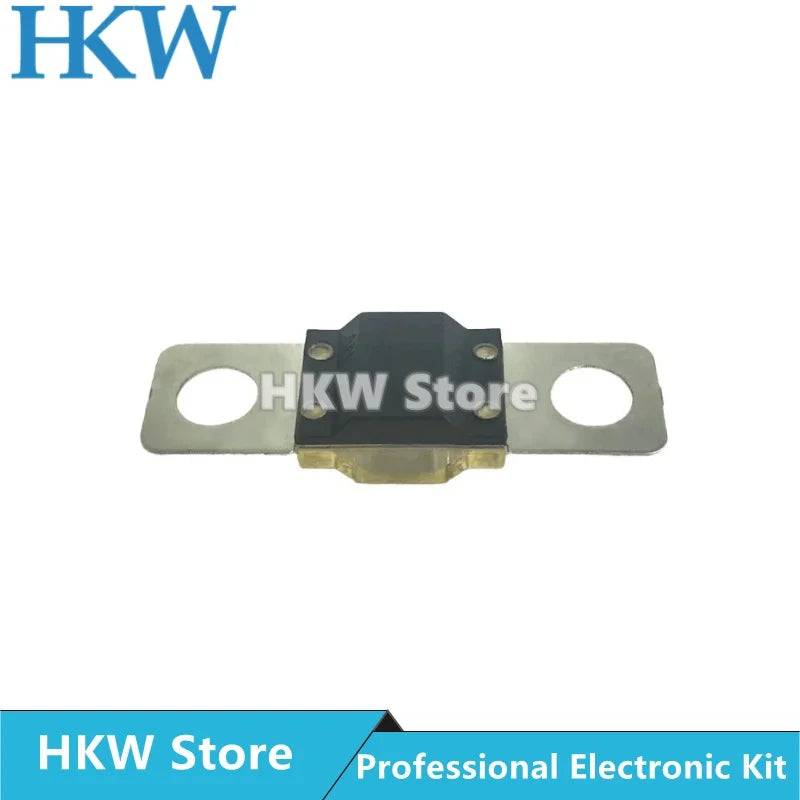

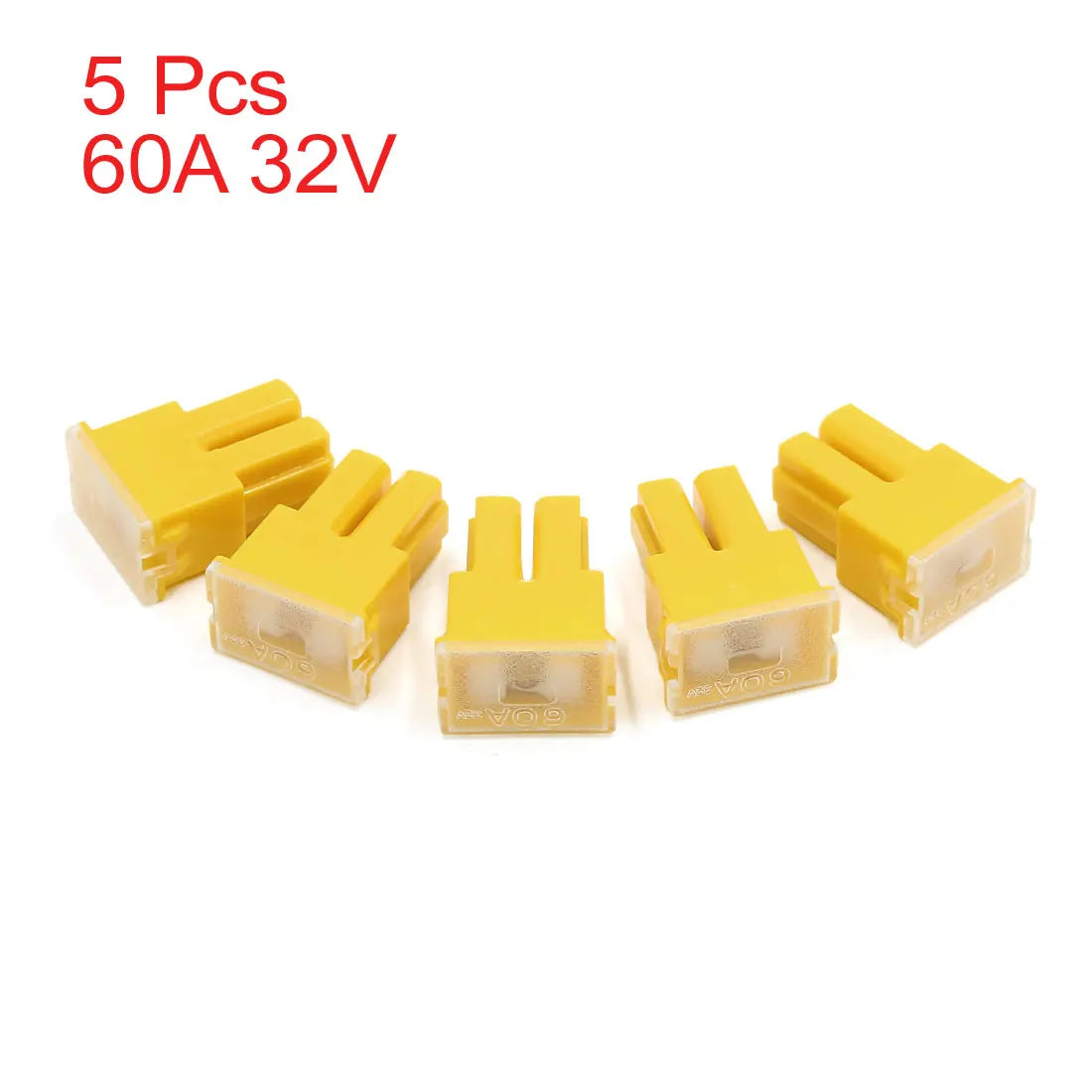

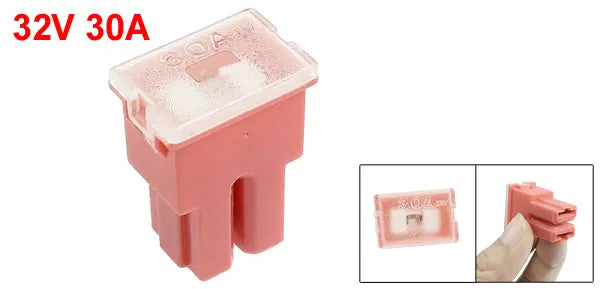

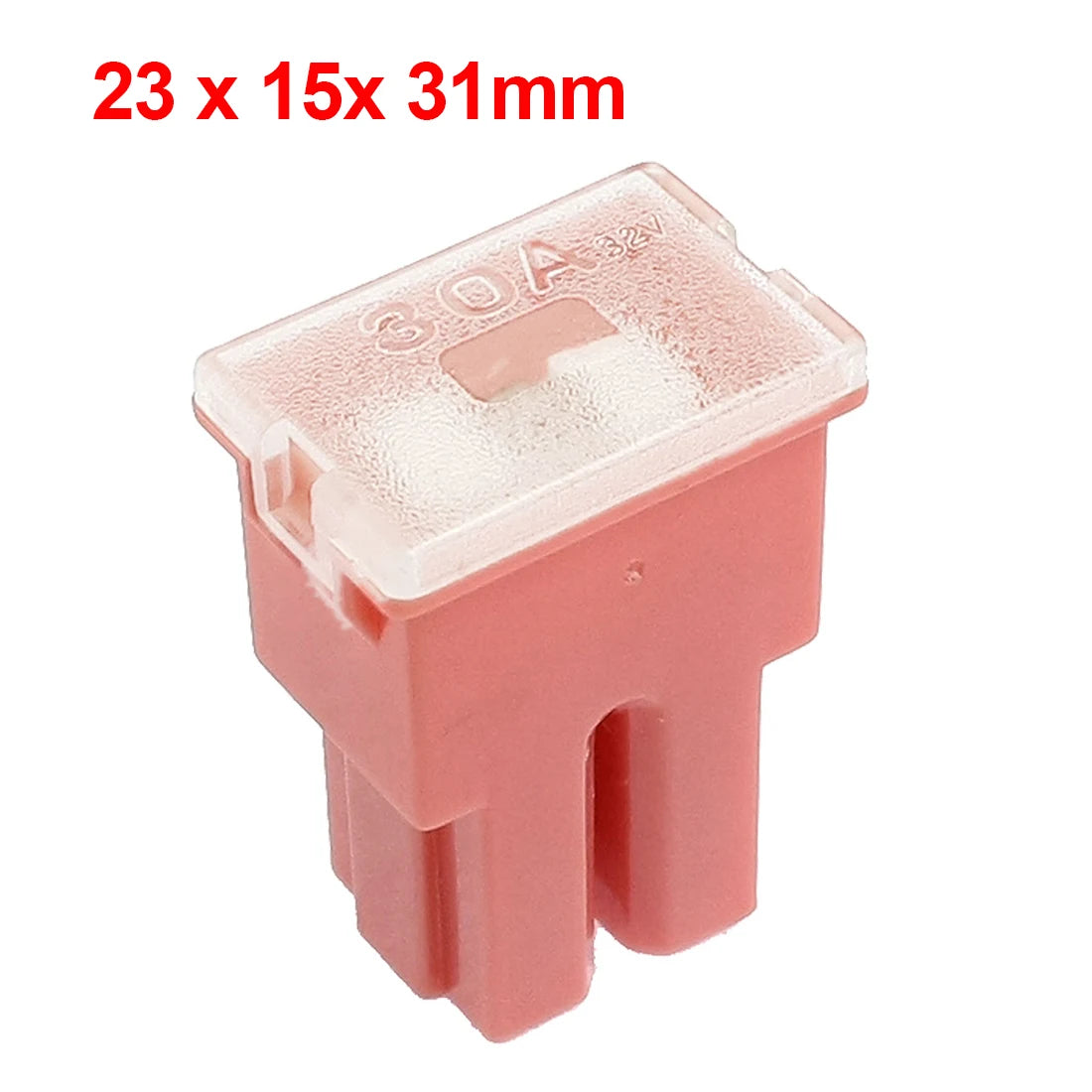

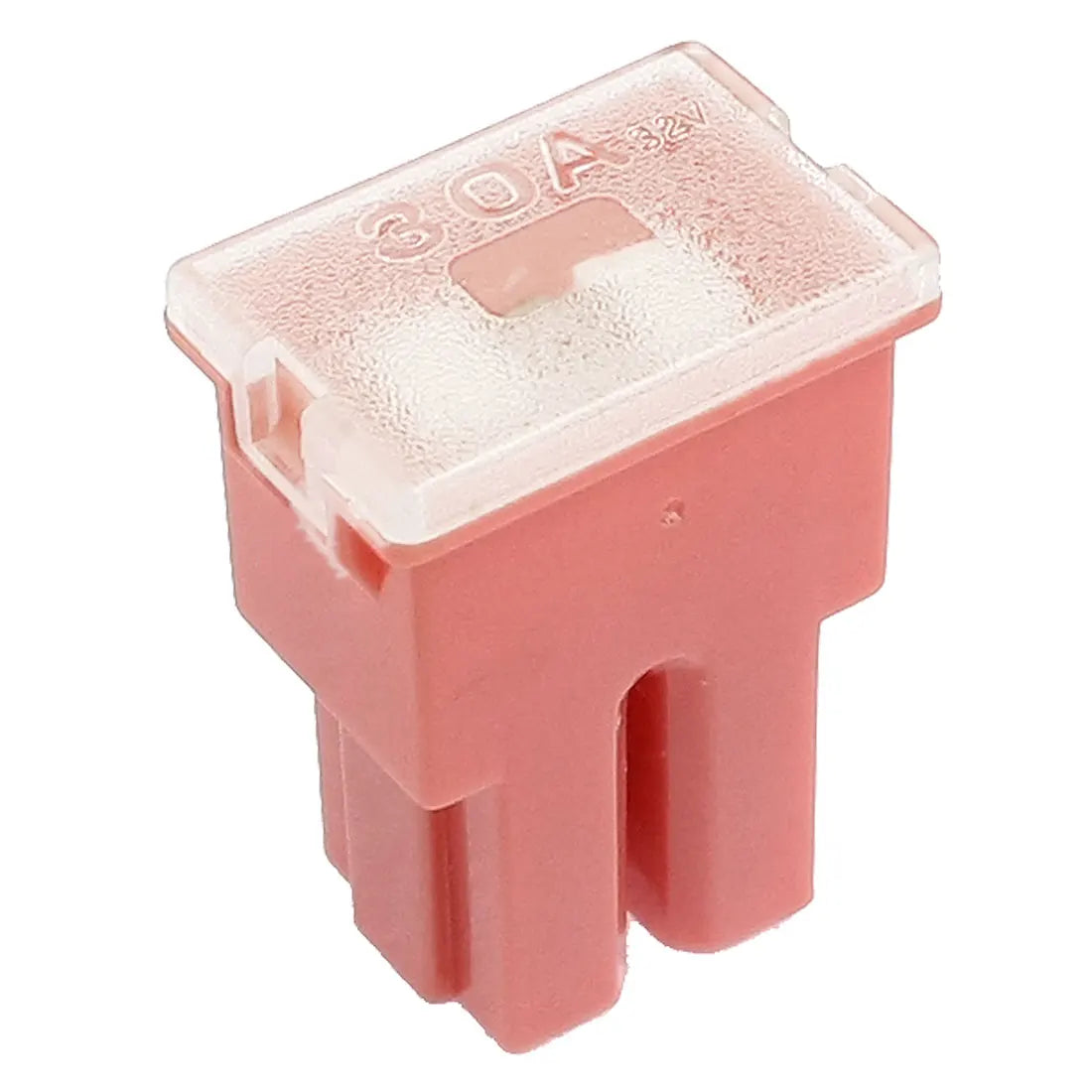

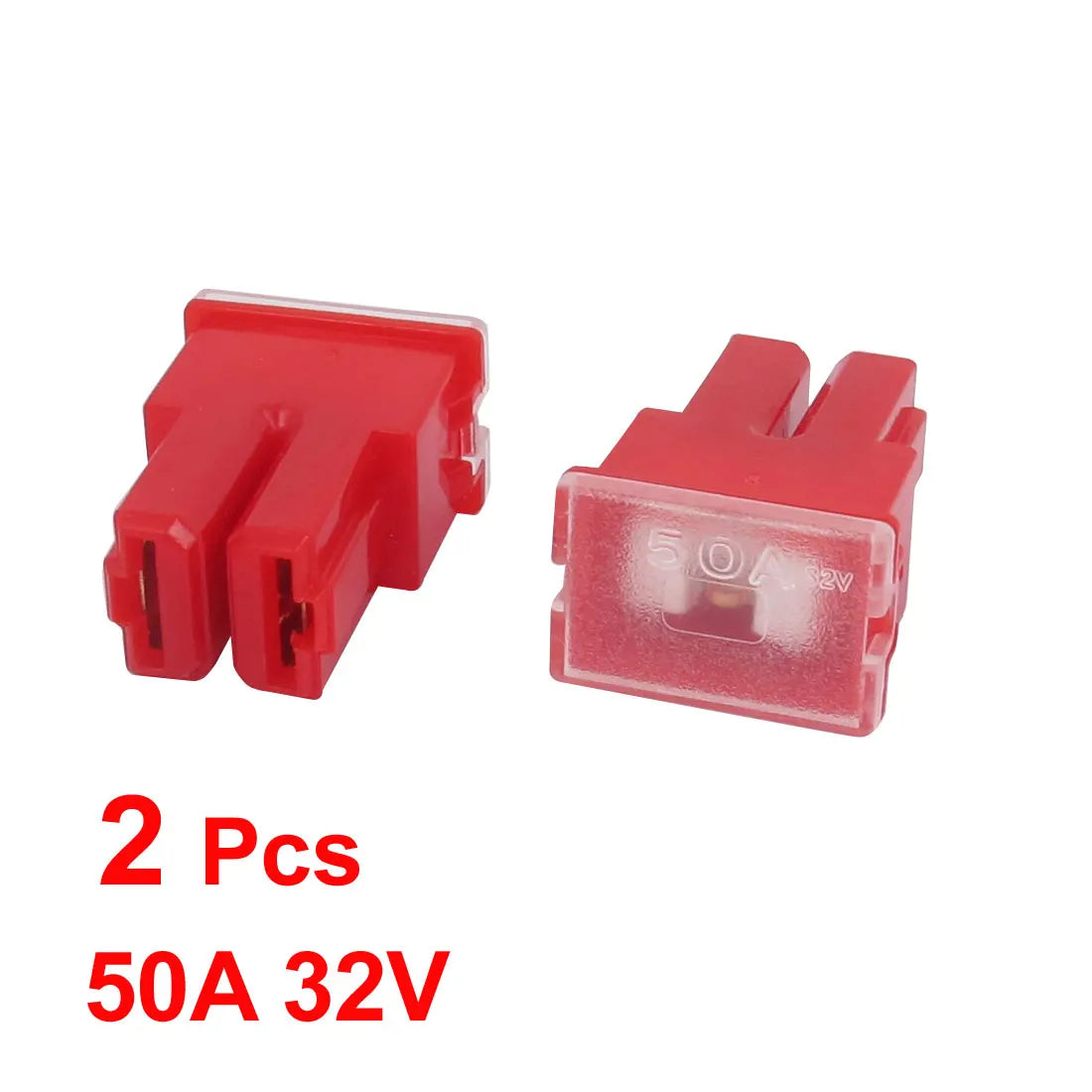

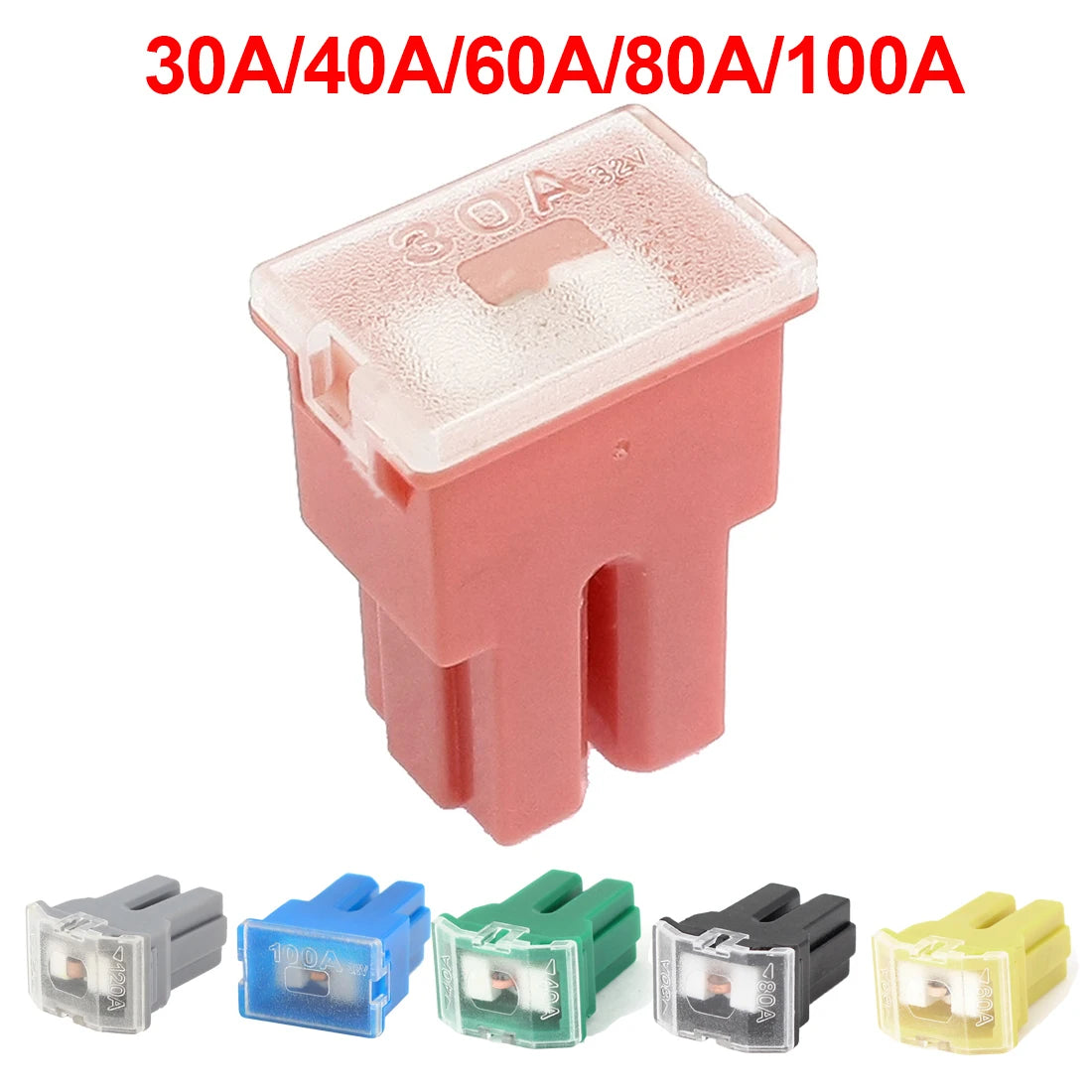

- Automotive links: PAL male/female cartridge, mini square and MEGA bolt-on fuses differ from miniature tube fuses in terminal geometry, DC voltage, breaking capacity and load. A vehicle part described as “slow blow” must be matched to its specific fuse family and manufacturer's curve.
What T means, and what it does not
T is commonly used to identify a time-delay characteristic on a specified fuse; F denotes fast-acting where those markings apply. T does not mean that a fuse will survive every surge or wait a fixed number of seconds to open. The opening time depends on current multiple, temperature and the tested fuse design. Many shared listings offer both F and T choices, and some source titles contradict themselves. Confirm the selected variant's markings and datasheet; do not treat a fast option in this collection as a time-delay replacement.
Selection workflow
- Start with the equipment maker's required part number or rating: exact T/time-delay designation, current, length and diameter or PCB footprint, terminal form and holder. Verify pack size and selected variant, not just the range in the listing title.
- Compare normal current and startup/inrush profile against the chosen fuse's documented time-current and I²t behavior. A time-delay characteristic can prevent nuisance opening in a circuit designed for it, but must not be used to hide a fault or up-rate an unsafe circuit.
- Verify rated AC and/or DC voltage, breaking capacity and prospective short-circuit current. “250 V” on a neighboring variant does not establish the selected part's DC suitability or fault rating; ampere rating is not breaking capacity.
- For PCB replacement, check lead pitch, body height, heat exposure and soldering process. For automotive bolt-down and PAL styles, match terminal geometry, environment and the specific DC interruption requirement.
- Where a seller claims IEC, UL, CE, a particular brand or “original,” request traceable documentation for the chosen component if compliance or provenance matters. Do not infer approval from a generic certification line.
Applications and buying checklist
Power supplies with brief charging inrush, motor-control inputs and suitable appliance or PCB circuits may specify T fuses, but the equipment's protection design determines the correct part. Record the original fuse marking, dimensions, current, time-current characteristic, AC/DC voltage, rated breaking capacity, circuit fault current, termination, environment and quantity. A thermal cutoff, resettable PTC and slow-blow current fuse operate differently and must not be substituted by appearance. Follow manufacturer instructions and qualified electrical practice for hazardous circuits.
Frequently asked questions
Can a T2A replace an F2A if both are 2 A and the same size?
No. Their opening curves differ. The equipment maker must approve the characteristic and every other relevant rating.
Is every 5 × 20 mm ceramic fuse time-delay?
No. Size and casing do not identify speed. Confirm the chosen part's T marking and documented response.
Does a time-delay fuse protect against all startup surges?
No. Compare the actual inrush pulse and the selected fuse's time-current or I²t data; the allowable pulse depends on part design and operating conditions.
Can a 382 round fuse replace a 392 square fuse on a power board?
Not from the ampere label alone. Match PCB lead geometry, package clearance, curve, voltage, fault rating and the specified part.
