STM32F103C8T6 MCUs, Blue Pill Boards & Debuggers
STM32F103C8T6 chips, minimum-system boards and development accessories
Source STM32F103C8T6-related parts for embedded prototypes and replacement builds. This collection contains individual LQFP-48 microcontroller ICs, Blue Pill-style STM32F103 minimum-system boards, compact CH340-equipped boards, larger learning kits, ST-LINK and J-Link-style debugging/programming tools, plus application kits that mention this device. A product appearing in this collection is not necessarily an STM32F103C8T6 chip: check its selected variant and included hardware before ordering.
Select the exact silicon, not just the F103 prefix
- STM32F103C8T6 IC: listings describe a 48-pin LQFP Cortex-M3 MCU. Loose IC options are intended for a matching PCB footprint and need an appropriate clock, power, reset, boot and programming design. Check the manufacturer's datasheet and the precise marking for memory, electrical limits, peripherals and revision. A listing's claimed originality is not proof of traceability.
- Nearby STM32F103 choices: C4, C6, C8 and CB ordering codes can differ in program-memory capacity; R and V variants can have larger packages and different pin mappings. F030/F051/F100/F101/F401/F411/H503 entries in multi-model titles are different device families, not automatic substitutes for an F103C8T6 board or firmware. Select the intended ordering code and package explicitly.
- Other vendors and architectures: CH32F103, CH32V103, APM32F103 and GD32F105 options are distinct devices even when a seller groups them with STM32 parts. Compare core architecture, peripheral implementation, electrical requirements, memory map, bootloader, firmware and debug support. Do not infer pin-for-pin or binary compatibility from a similar board outline.
- Quantity is a variant: bare chips and boards appear in single-piece, 2/3/5/10-piece and larger lots. Product titles can list several quantities or models; only the selected combination is supplied. Check whether “Color” means MCU, USB interface, board version, debugger bundle or lot size.
What does a Blue Pill or mini board include?
Minimum-system and Blue Pill Plus boards generally provide an assembled controller board with headers or header pads and some support circuitry; the fitted MCU, USB connector, boot jumpers, regulator, oscillator and installed headers vary by version. Listings here distinguish STM32F103C6T6, C8T6 and CBT6; Micro-USB versus USB-C; bare board versus board with ST-LINK V2; and compact boards with CH340 USB-to-serial circuitry. A USB-C socket alone does not prove native USB data wiring, on-board debugging or 5 V tolerance at MCU pins. Confirm the board schematic, its selected chip and whether the USB connector is wired for power, serial download or native USB. Match 3.3 V logic requirements and the board's actual power-input arrangement rather than treating an advertised “5V/3.3V” phrase as a universal pin rating.
Starter and advanced learning kits may add sensors, OLED/LCD screens, breadboards, RS-232/RS-485/CAN modules, USB cables or a debugger. A core-board-only variant is not the same bundle as an advanced kit. TFT display variants and separate LCD/baseplate choices likewise may not include the controller. Verify the contents and software/documentation for the exact kit configuration.
Programming and debugging boundaries
STM32F103 boards commonly expose SWD signals for debugging, while bootloader download and USB-to-serial paths depend on boot settings and the particular board circuitry. ST-LINK V2-style listings and J-Link V8/V9/V11/V12-labelled emulators are tools or bundles, not the MCU itself. Check tool provenance, supported target voltage, connector orientation, firmware/software versions, genuine-device support and the included cable or adapter. Do not assume every J-Link-labelled variant has the same features, official licensing or target compatibility. Never connect by wire color alone; use the documented pin labels and both devices' schematics.
Engineering checklist
- For a replacement IC, match the complete part number, package, pinout, PCB footprint and programmed firmware. Confirm clock source, reset/BOOT strapping and supply/I/O levels.
- For a board, verify the fitted MCU, physical dimensions, header pitch, connector type, regulator and oscillator arrangement, pin mapping, USB interface and whether headers are soldered.
- For firmware, confirm flash/RAM needed by the project, timers, ADC, serial buses, USB/CAN requirements, bootloader behavior and compatibility with the chosen toolchain and debugger.
- For the order, inspect every selected option and quantity. A title containing both board and ST-LINK does not mean each variant ships with both.
Frequently asked questions
Are STM32F103C6T6, C8T6 and CBT6 identical? No. Verify program-memory specification and exact silicon/board configuration. Firmware sized for one variant may not fit another, even if the board looks similar.
Does a Blue Pill include a programmer? Not necessarily. Some options include an ST-LINK-style device, some are board-only and some are programmer-only. Read the selected variant and bundle contents.
Can I use a CH340 board just like a standard Blue Pill? A CH340 adds a USB-to-serial interface on the particular board; compare MCU, USB routing, boot circuit and exposed pins. CH340 itself is not an SWD debugger.
Is CH32F103 or APM32F103 a guaranteed replacement? No. Similar names or pin counts do not establish electrical, peripheral or firmware equivalence. Validate against both datasheets and test the actual application.

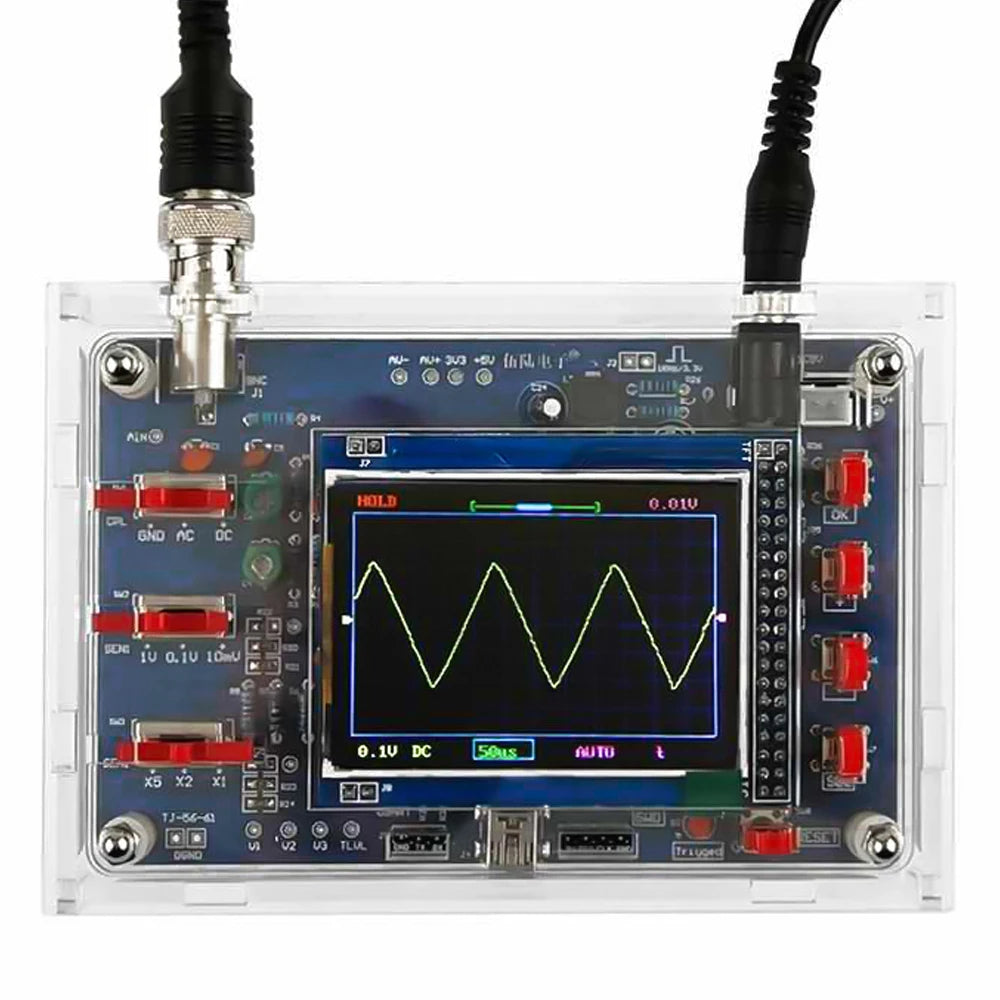

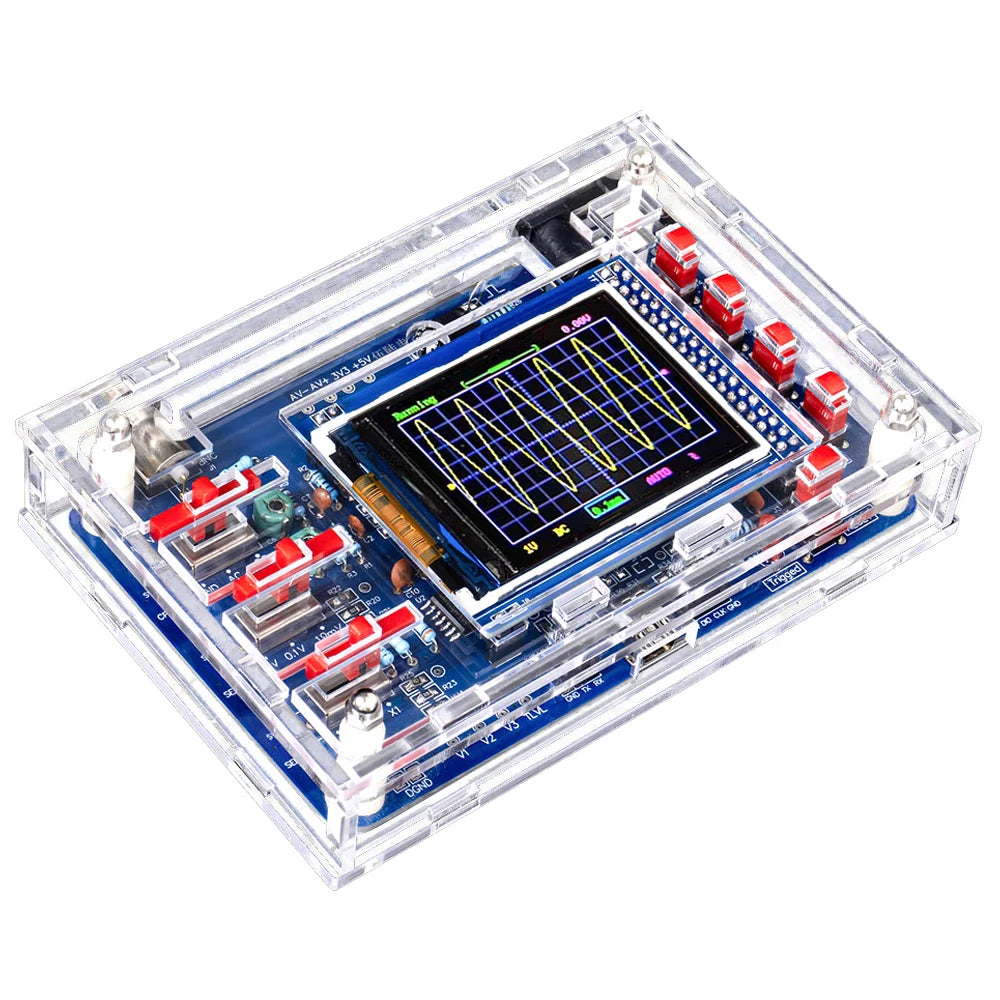

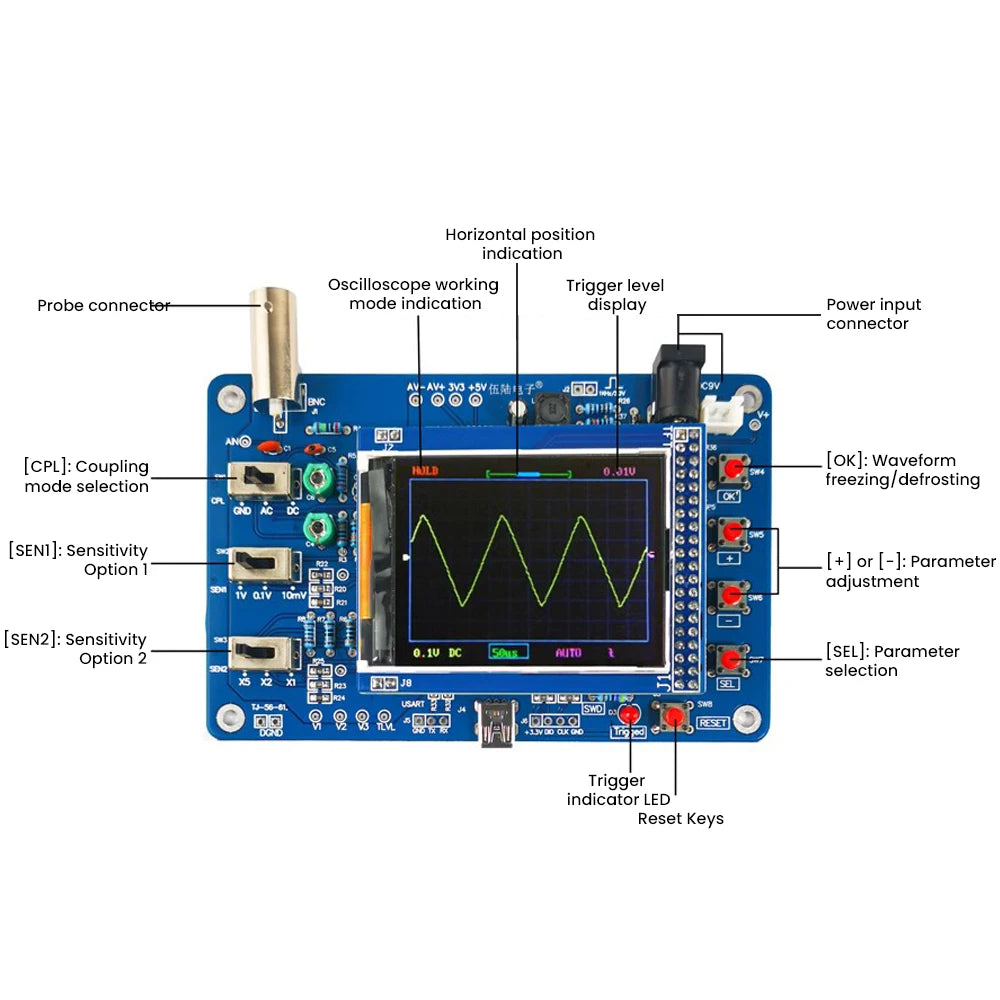

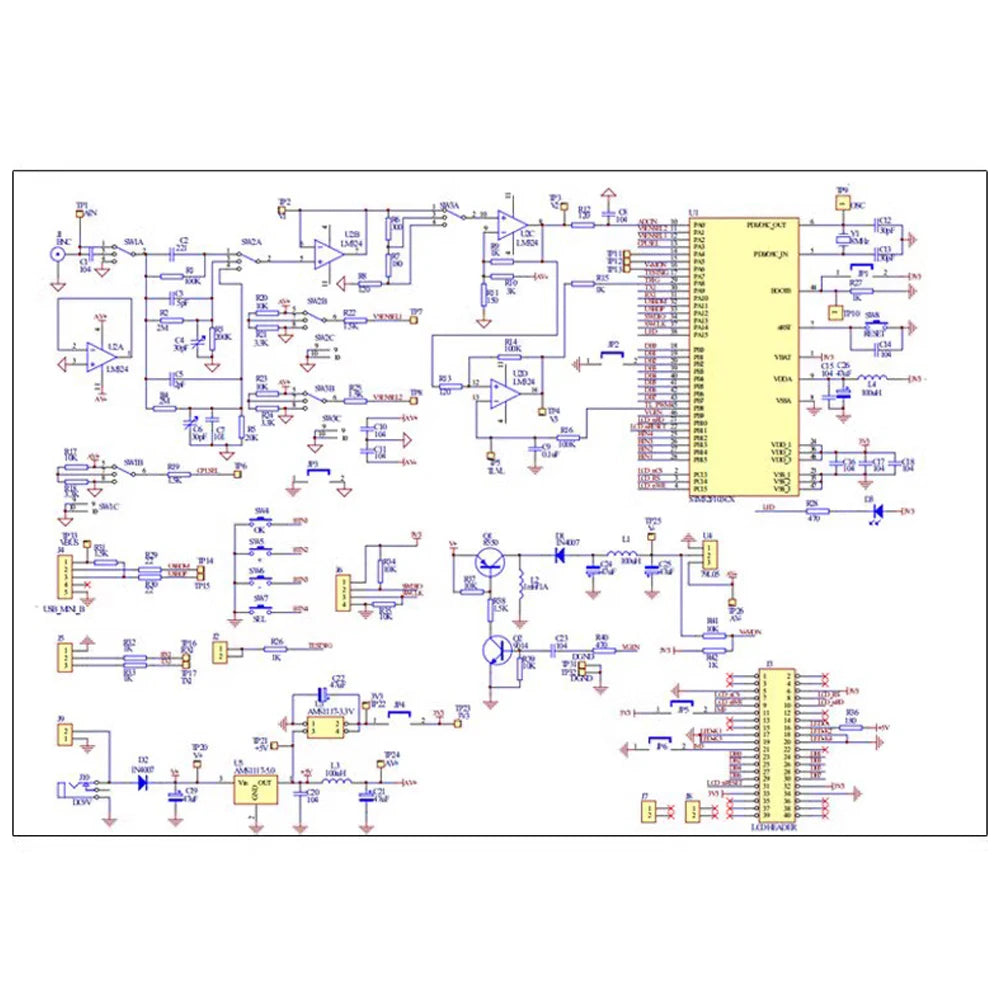

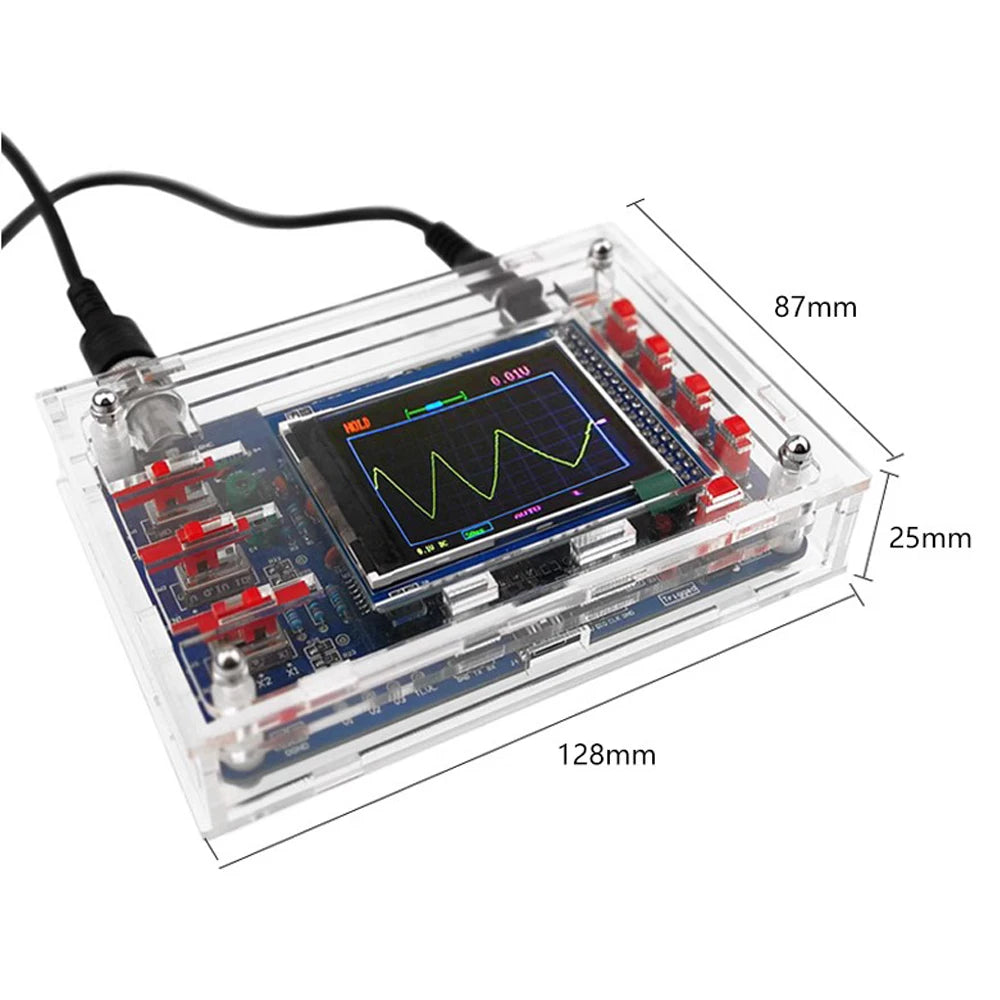

Why are oscilloscope kits and relay controllers here? They mention an STM32F103C8T6 in their application or title but are finished applications or assembly kits, not loose MCU chips. Check enclosure, assembly requirements, supply and included parts for those specific listings.
