STM32F4 Microcontroller ICs, Core Boards & Development Tools

STM32F4 microcontrollers, evaluation boards and development hardware

Compare STM32F4-family Arm Cortex-M4 microcontroller chips with populated core boards, Nucleo evaluation boards and supporting development tools. Listings span STM32F401, F405, F407, F411, F412, F427, F429 and F446 references, but the catalog also contains alternative MCU families, programming accessories, a camera module and finished equipment control boards. A part mentioned in a long headline is not necessarily the selected variant. Choose by the precise MCU ordering code, form factor, package, onboard circuitry and quantity rather than treating every result as an interchangeable STM32F4 IC.

Find the correct hardware form

• Bare surface-mount MCUs: listings include STM32F401RET6 LQFP-64, STM32F405RGT6 LQFP-64, STM32F407VET6 and VGT6 LQFP-100, STM32F407Z-series LQFP-144, STM32F429ZIT6 LQFP-144, STM32F429IGT6 LQFP-176, STM32F429BIT6 LQFP-208 and STM32F446RET6/RCT6 variants. These are components for a compatible PCB, not ready-to-run boards. Confirm the exact suffix, pin count, footprint, memory grade and selected lot before laying out or replacing a device. Seller titles sometimes mix chip codes and package claims; resolve conflicts against the exact selected device datasheet and physical marking.

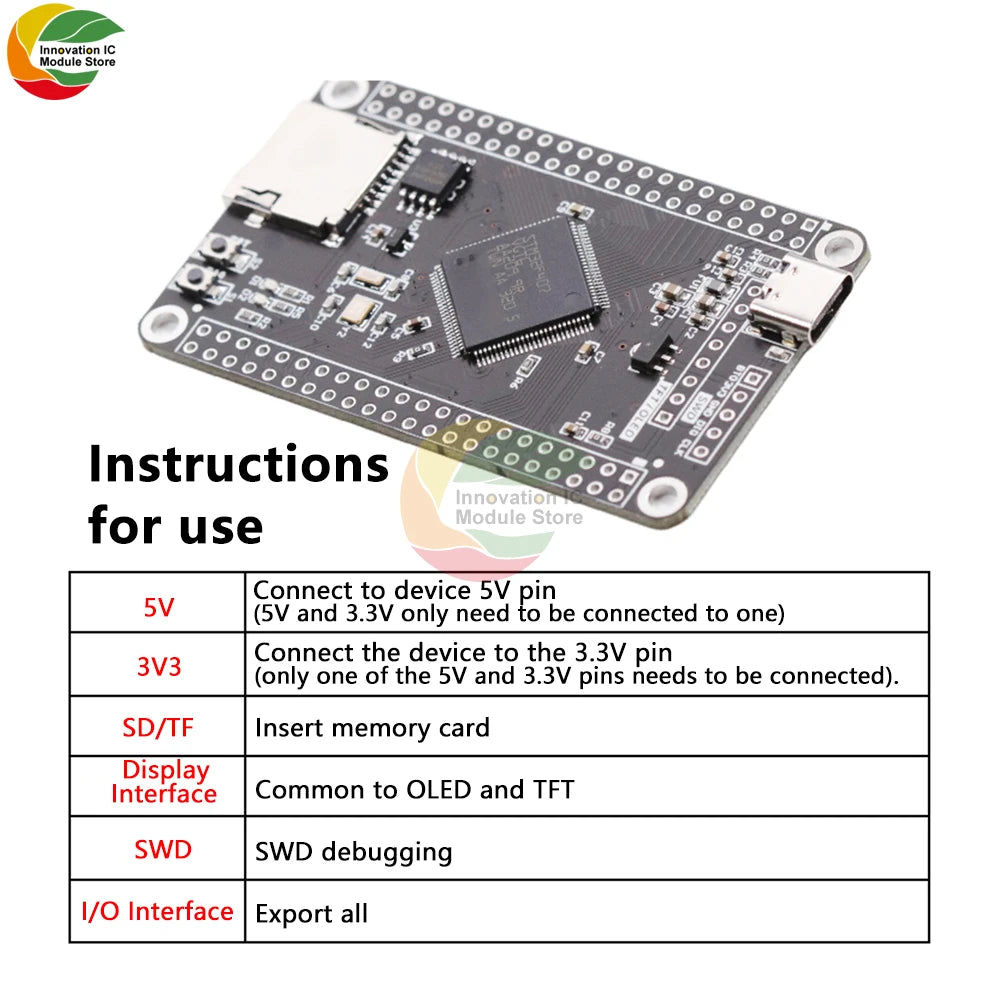

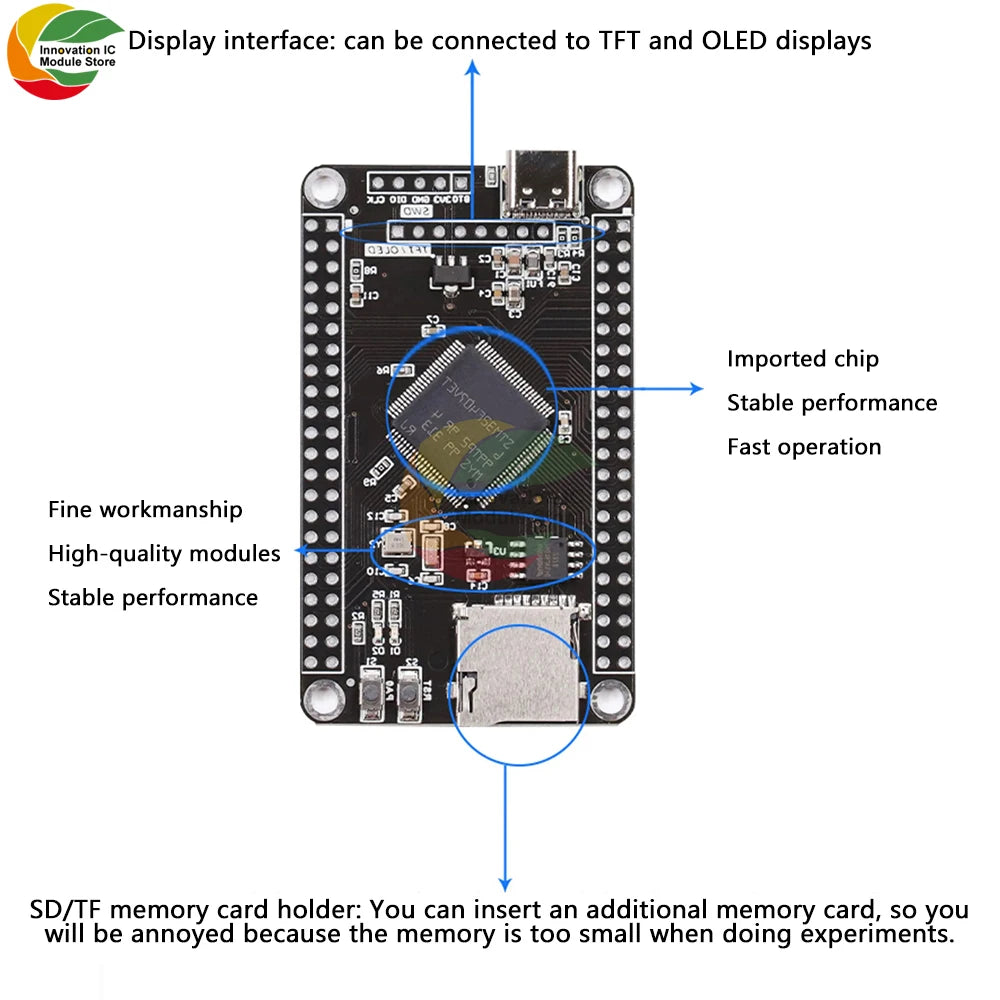

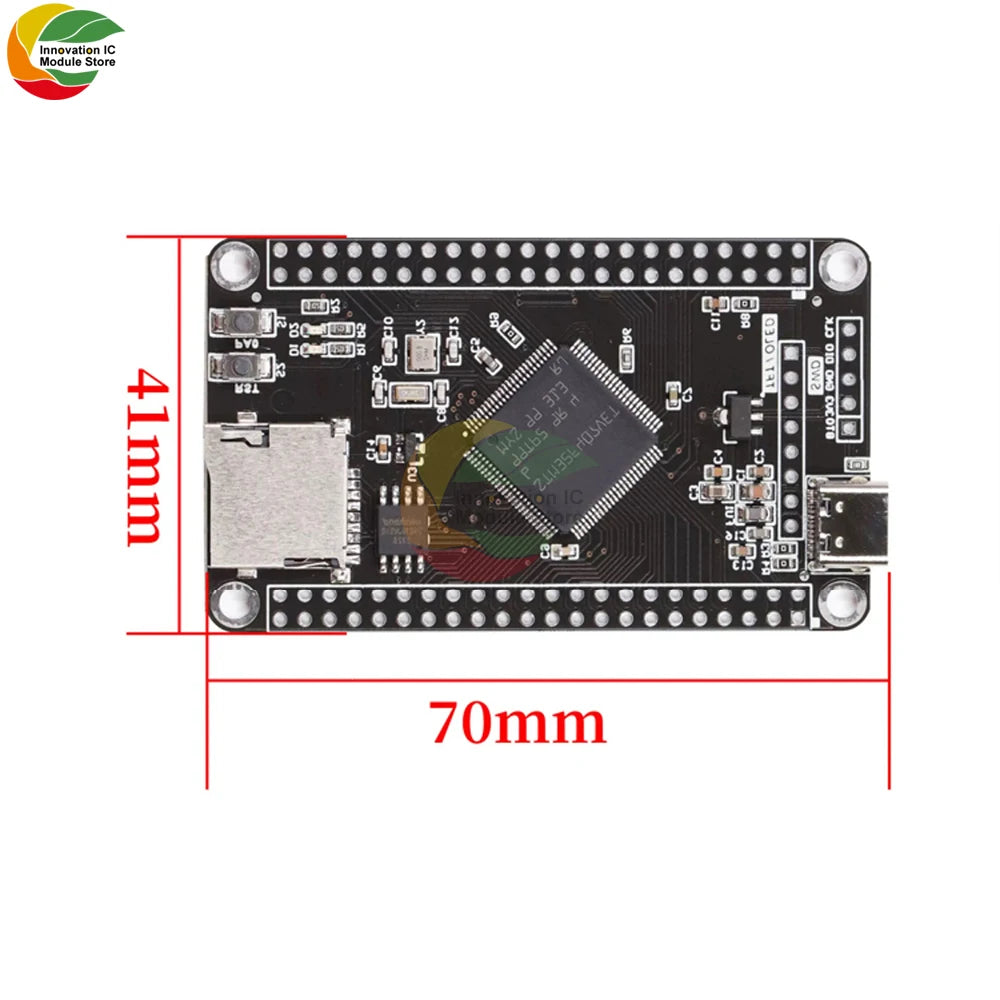

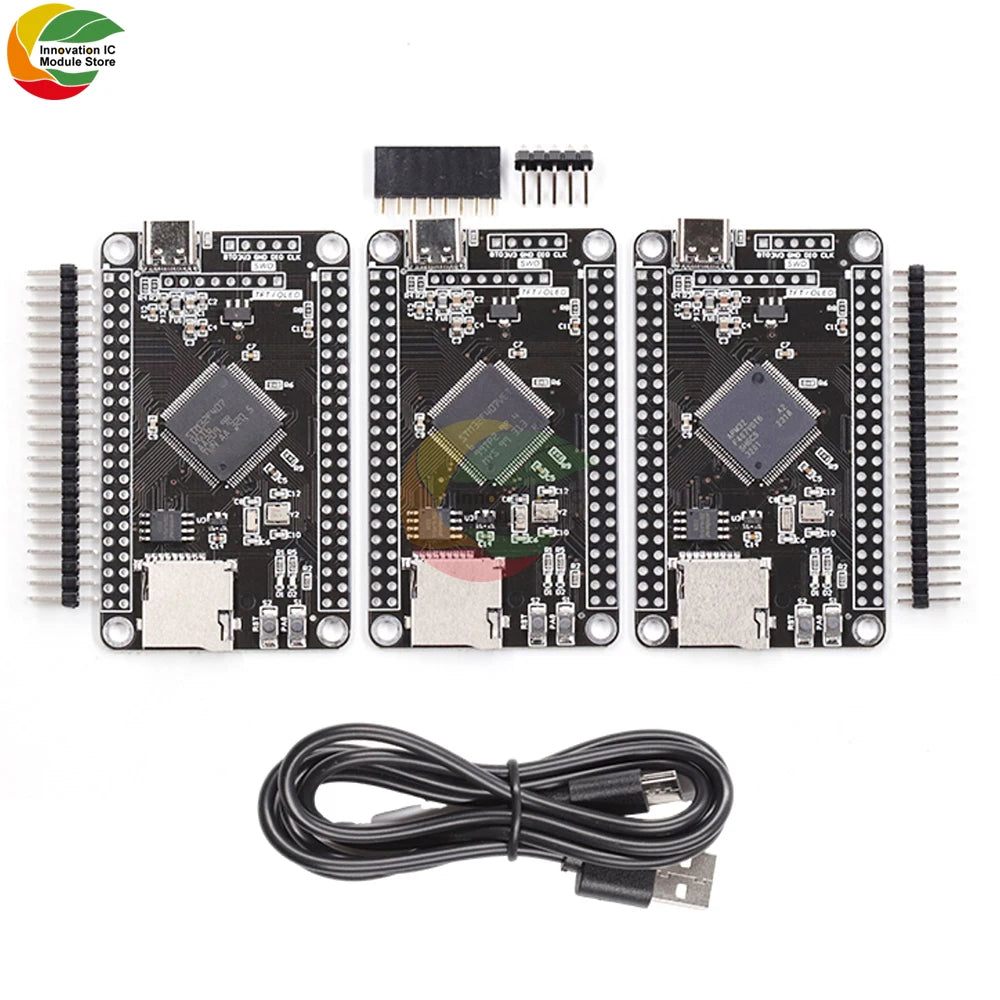

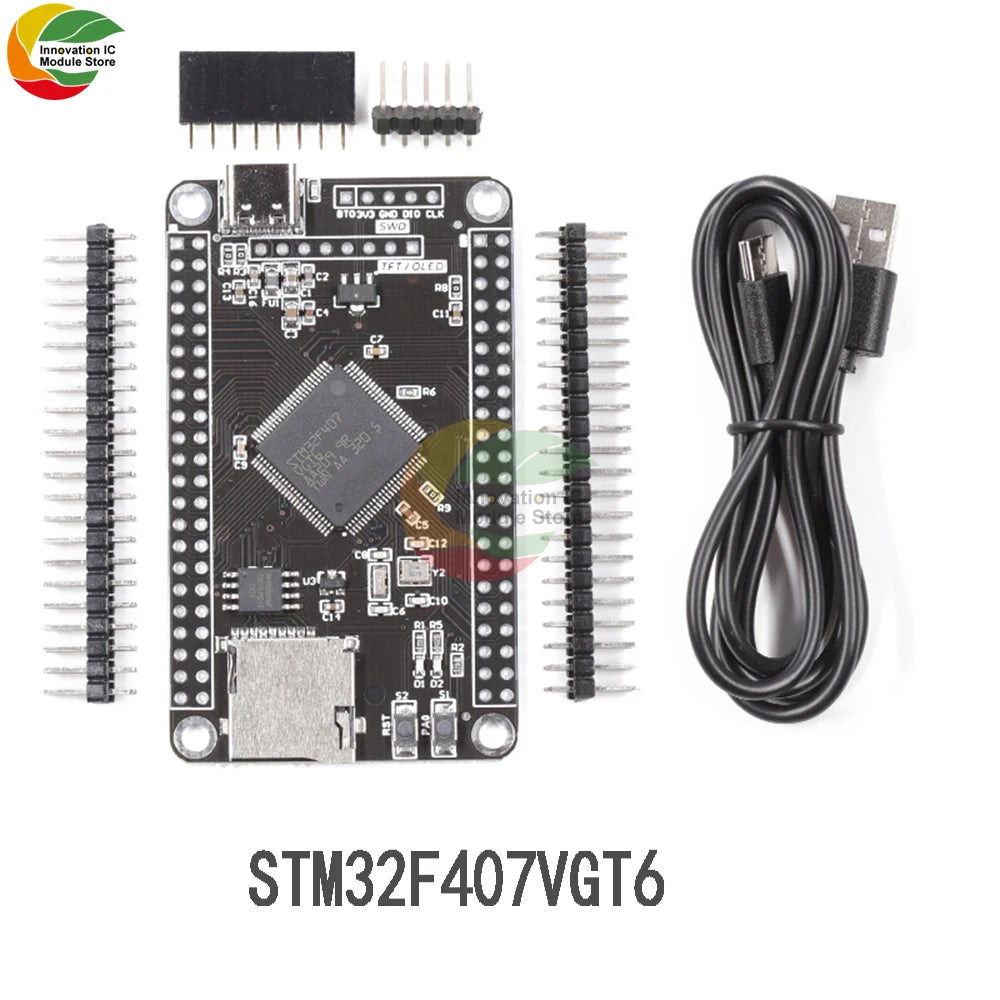

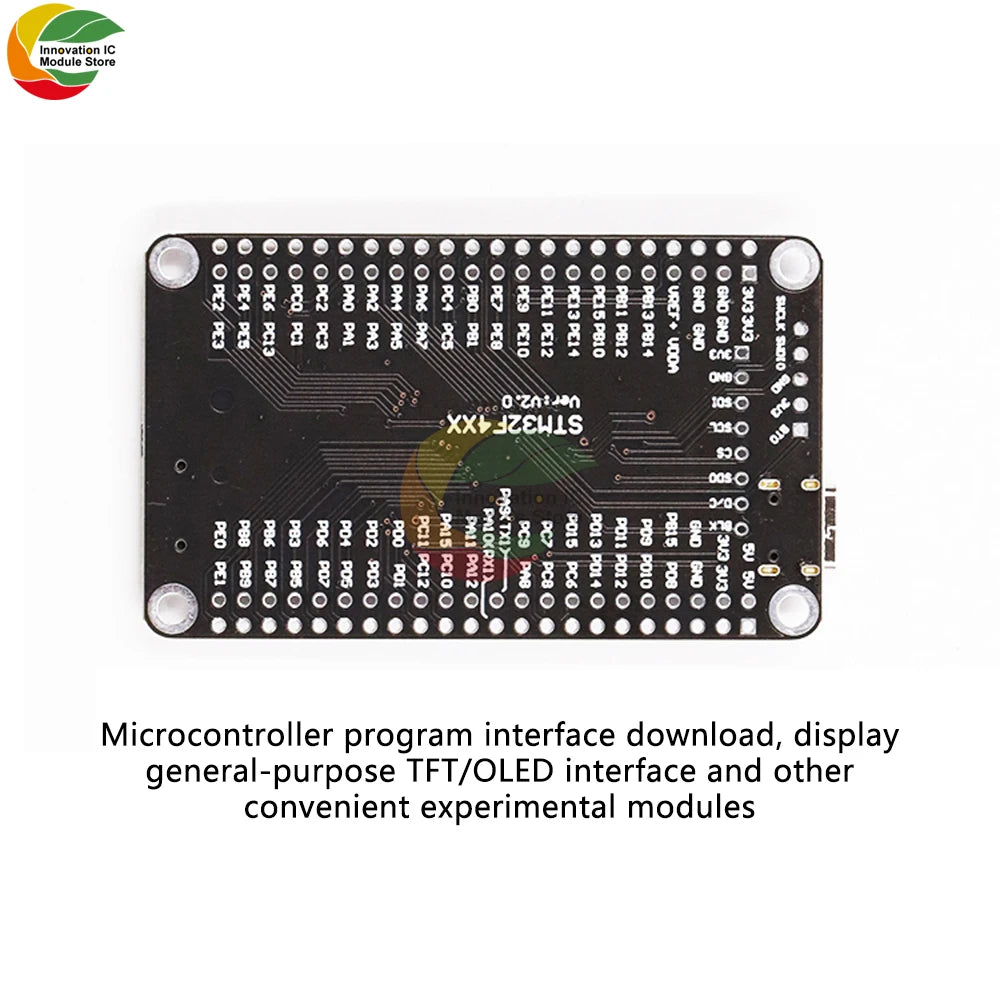

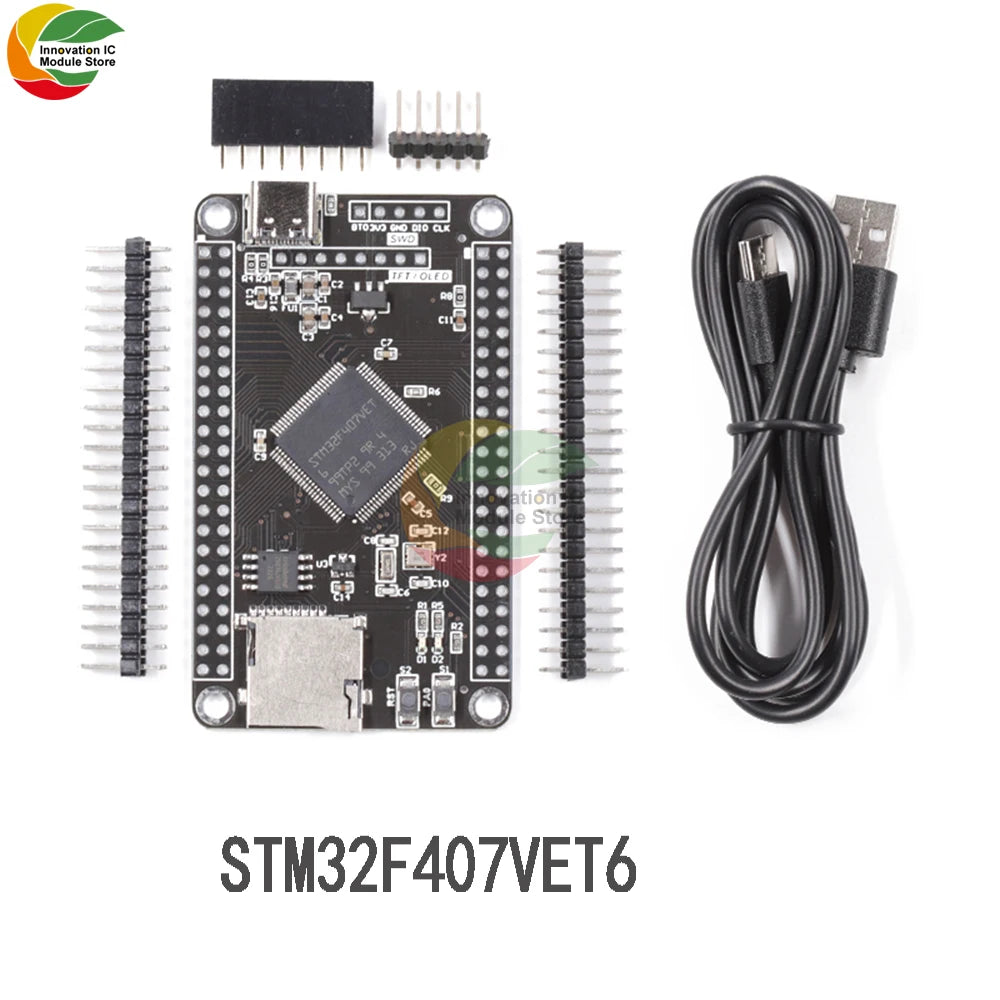

• Minimum-system and core boards: populated STM32F405, F407, F411, F429 and multi-model F405/F412/F446 boards can provide clock, regulation, boot controls and accessible I/O, but equipment and pin exposure vary. Some F407 board options offer a display, TFT/touch assembly, Ethernet, CAN or RS485; a listing with an LCD-screen-only option does not guarantee an MCU board in every variant. Check the assembled board revision, fitted MCU, headers, supply range, peripherals and actual contents.
• BlackPill-style boards: STM32F411CEU6 and F401/F411 board listings differ by fitted MCU, crystal and USB connection. A WeAct F411 listing distinguishes 8 MHz versus 25 MHz HSE and an optional 8 MB SPI flash version; board firmware and clock configuration must match the selected revision. USB-C as a physical connector does not by itself certify a particular USB function, power-delivery mode or bootloader.
• Nucleo evaluation boards: numerous NUCLEO-F446RE listings describe a board with STM32F446RET6, expansion headers and onboard ST-LINK debugging; some NUCLEO-F411RE boards are also listed. Verify the exact board reference and debugger revision supplied. Arduino Uno-style expansion connector positioning does not make every shield electrically or software compatible with STM32 pins, voltage levels or pin mapping.
• Application-specific equipment: Ender-3 S1 Pro V2.4.S1 silent mainboards mention an STM32F401RCT6 alongside TMC2208 drivers, but are 3D-printer replacement assemblies, not standalone general-purpose MCU chips or universal printer upgrades. Match the printer, mainboard revision, connectors, firmware and installed driver hardware before ordering.

How to compare STM32F4 devices

STM32F4 denotes a family, not one common footprint or identical peripheral set. F401, F405, F407, F411, F412, F427, F429 and F446 differ in available memory, clocking, timers, connectivity and pin multiplexing. An F407VET6 board and F407ZGT6 board can expose different signals even when their names share F407. Check the selected part's datasheet, reference manual, pinout and package drawing for supply rails, alternate functions, boot configuration and clock sources. Cortex-M4 or FPU in a listing is not proof that two devices share compiled firmware, PCB layout or peripheral resources.

Choose a development workflow separately from the target IC: check whether the selected board has integrated ST-LINK, requires an external SWD/JTAG probe or offers a supported ROM bootloader route. A USB connector may serve power, debugger or target USB according to the board wiring. Confirm debug-header pinout, supply/logic levels, tool firmware and host software before connecting a probe. Serial download, USB DFU and SWD are different paths, and availability depends on the exact MCU and board design. For software, match the project target and linker memory layout to the fitted part and verify clock startup, boot straps and peripheral pin mapping against the board schematic.

Interpret models, quantities and alternatives precisely

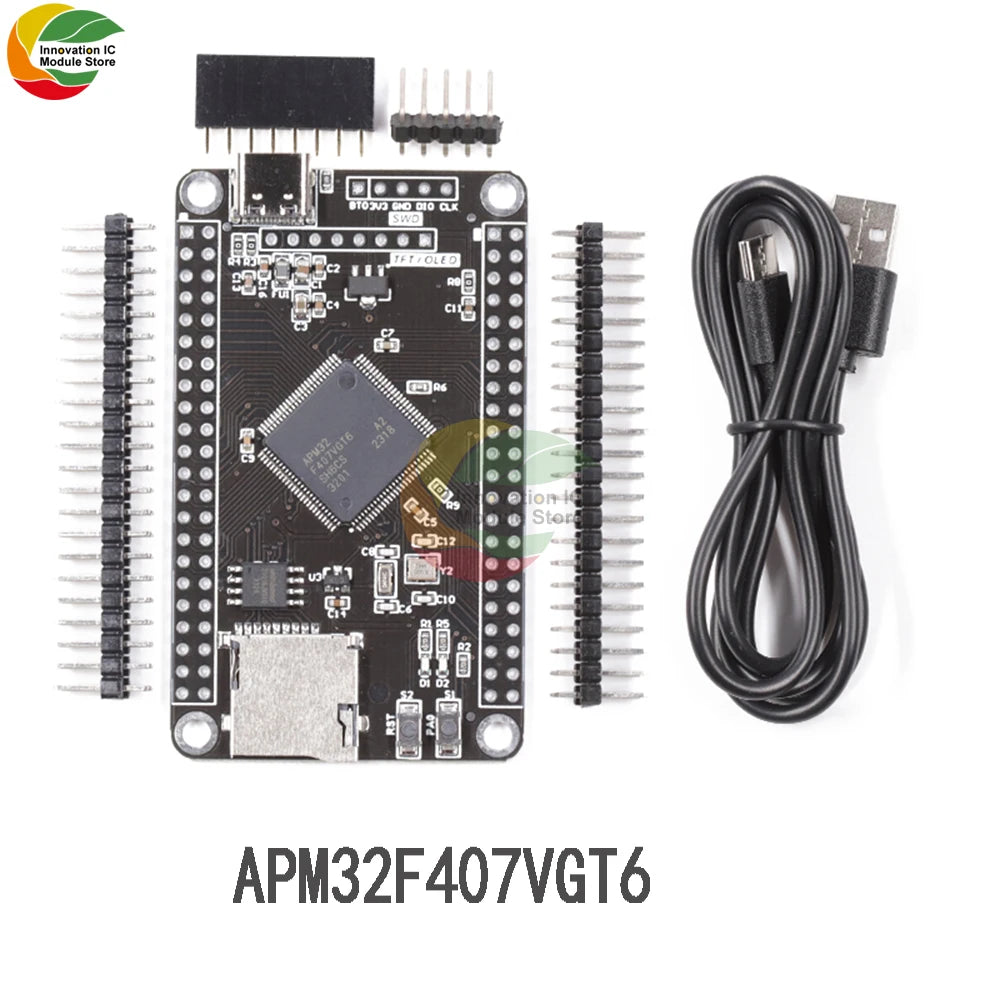

Options labelled “Color” can mean an actual model, bare chip versus assembled board, display accessory, board revision, or one-, two- and five-piece lot. Multi-model listings offering STM32F429IGT6, STM32F767IGT6 and STM32H743IIT6 are alternatives, not a three-board bundle: F767 and H743 belong to different families. Other listings mention STM32F103, F207 or F107; these are not F4 chips. APM32F407, PM32F407, GD32F405 and CH32F103 references are different manufacturer/device families and should not be assumed pin-, firmware- or toolchain-compatible just because a headline includes STM32. A programming-tool or OV2640 camera option is not a microcontroller. Inspect both selected model and quantity, along with whether an LCD, programmer, cables or headers are explicitly included.

Frequently asked questions

Is NUCLEO-F446RE a loose STM32F446RET6 chip? No. It is listed as a populated evaluation board; select a bare-chip listing for PCB assembly. Confirm the board's supplied debugger and expansion-header configuration on the exact offer.

Can I replace an STM32F407VET6 with an F407VGT6 or F407ZGT6? Do not assume a drop-in replacement. Compare full ordering codes, memory configuration, package pins, PCB footprint, voltage, peripheral routing and firmware before substitution.

Does every STM32F4 board include ST-LINK? No. Nucleo listings describe onboard debugging, while many minimum-system/core boards need a separate probe. Check the selected board and its included accessories.

Does an F411 BlackPill work with the same clock settings as another revision? Not automatically. The catalog includes 8 MHz and 25 MHz HSE variants; select the matching oscillator setting and verify any optional external flash separately.

Are STM32F767, STM32H743 and GD32F405 STM32F4 alternatives? They are separately selectable devices or families, not blanket equivalents. Confirm architecture, package, peripherals and programming support for the precise selected option.

Does the selected item include a display, camera, cable or programmer? Only when the individual product and selected variant explicitly say so. A combined headline often lists possible accessories or alternate choices rather than everything in one package.
