Surge Protection Devices, MOVs and Snubber Components
Surge protection is a system function, not the name of one interchangeable component. This collection brings together complete AC and DC surge protective devices (SPDs), individual metal-oxide varistors (MOVs), gas-discharge-tube/varistor modules, RC contact snubbers, generator rectifier and varistor replacement parts, and a surge-component tester. Check the selected listing and variant before ordering: a bare disc MOV is not a DIN-rail SPD, and a relay snubber is not a lightning arrester.
Identify the product you need

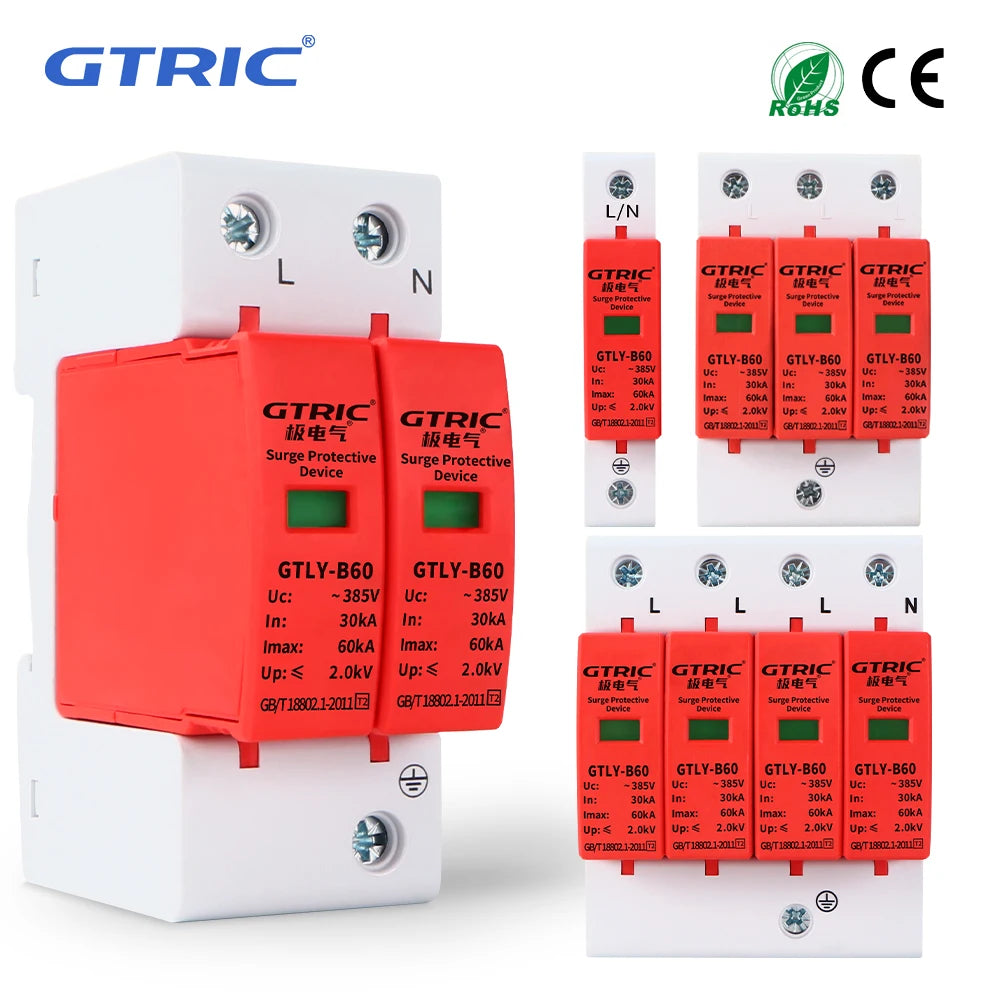

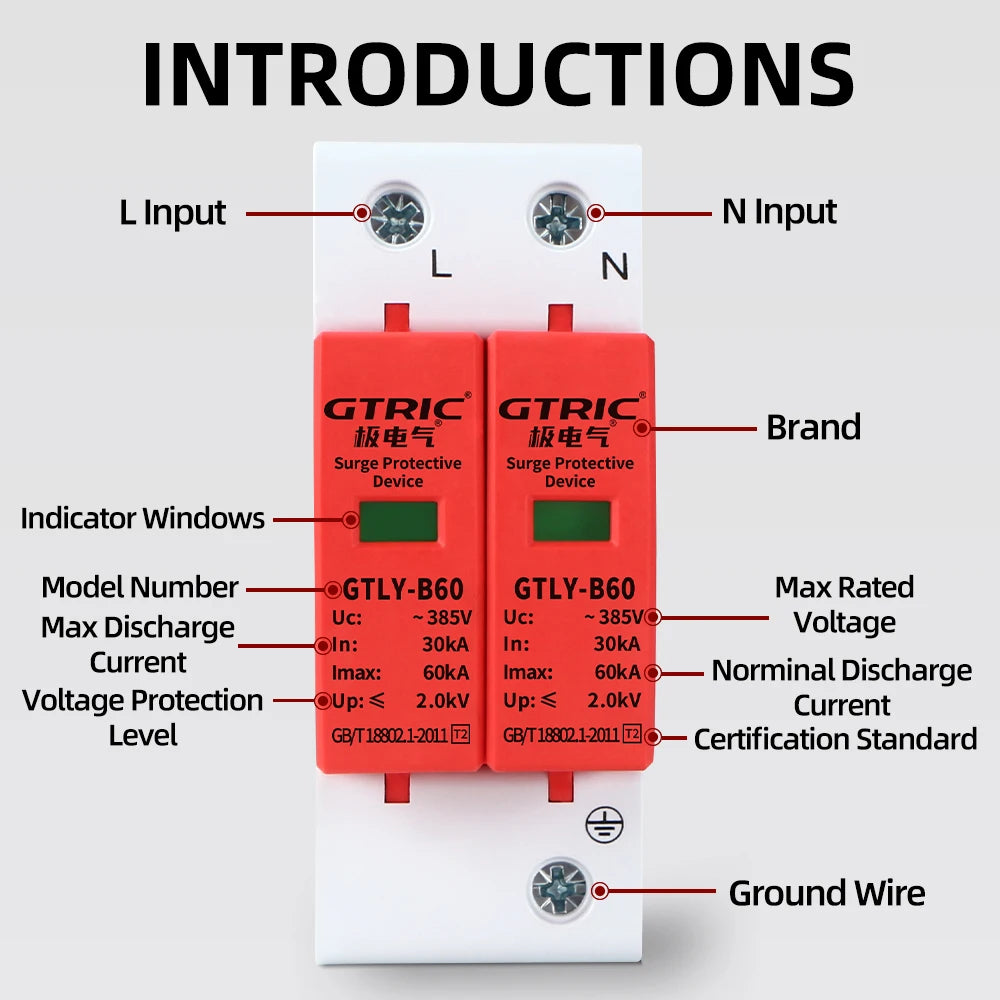

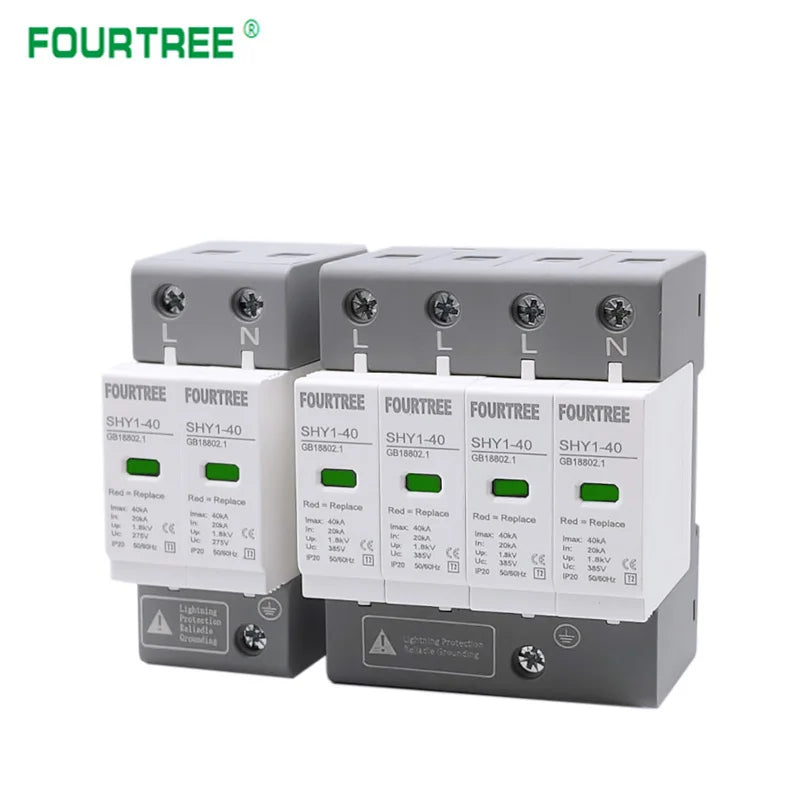

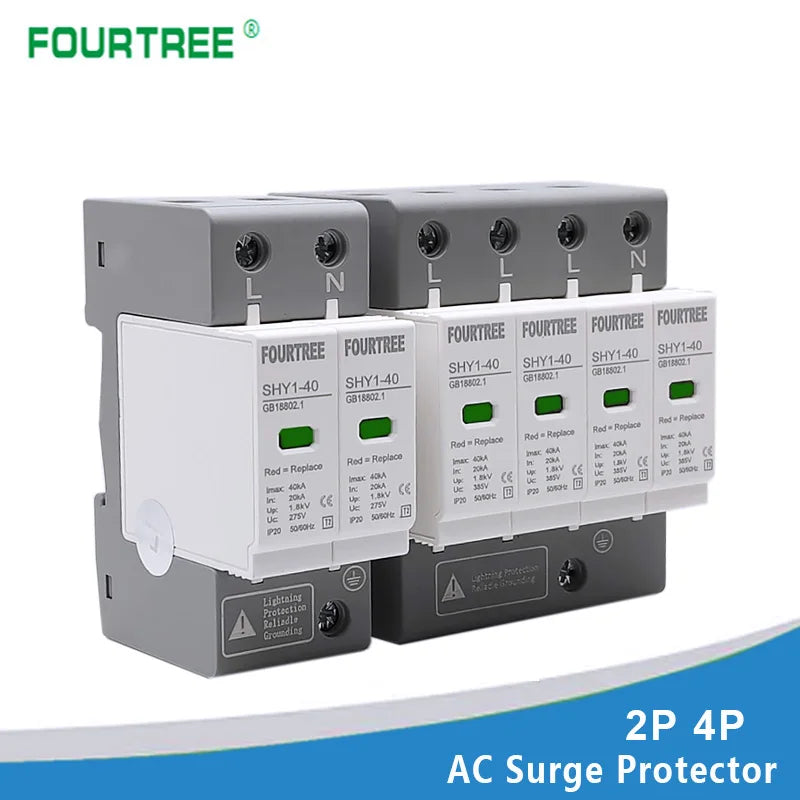

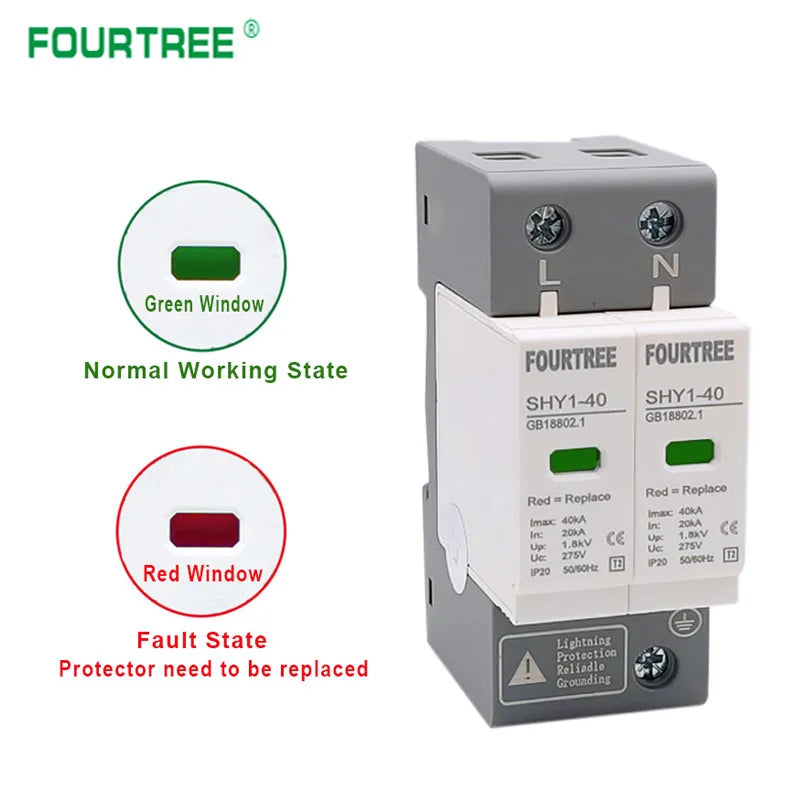

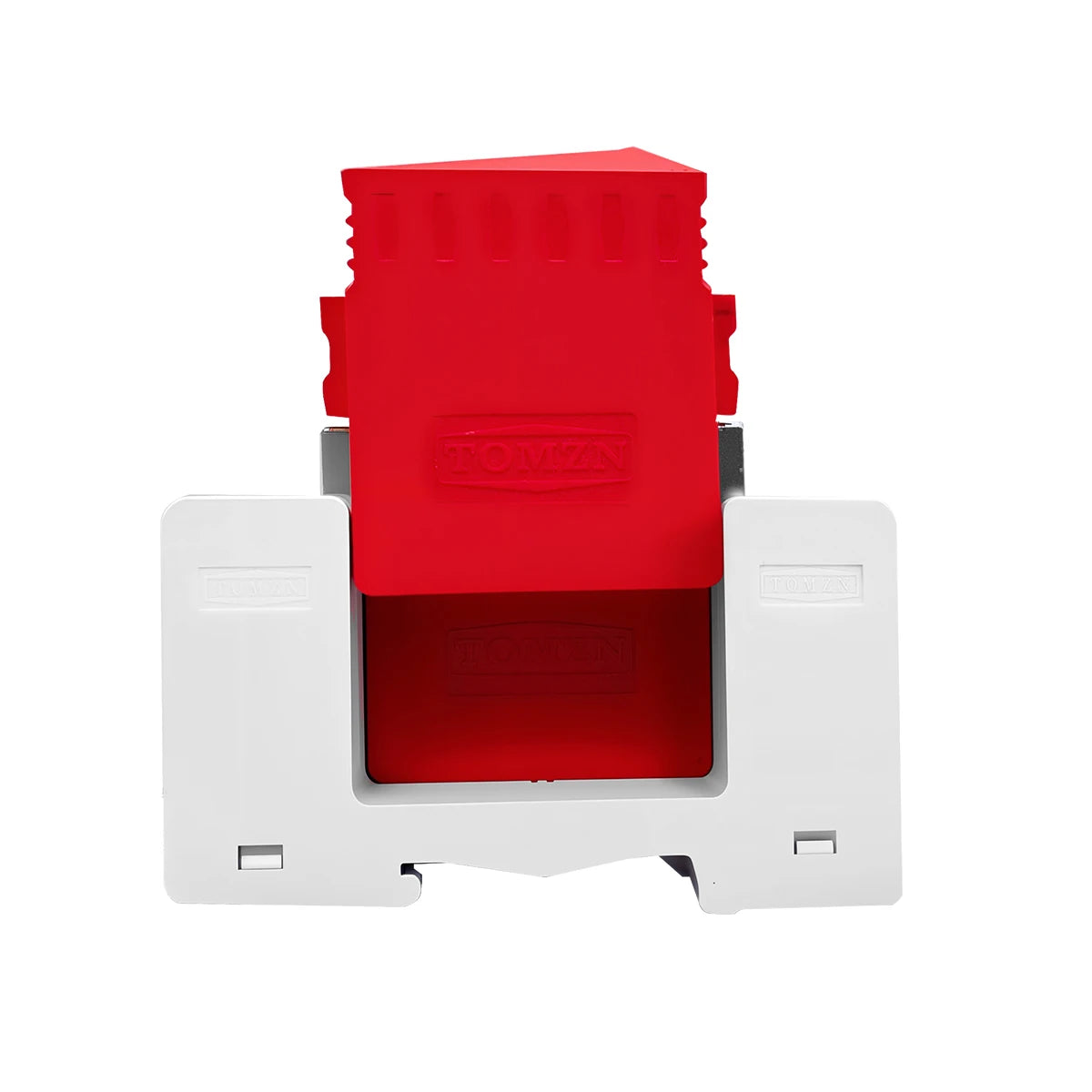

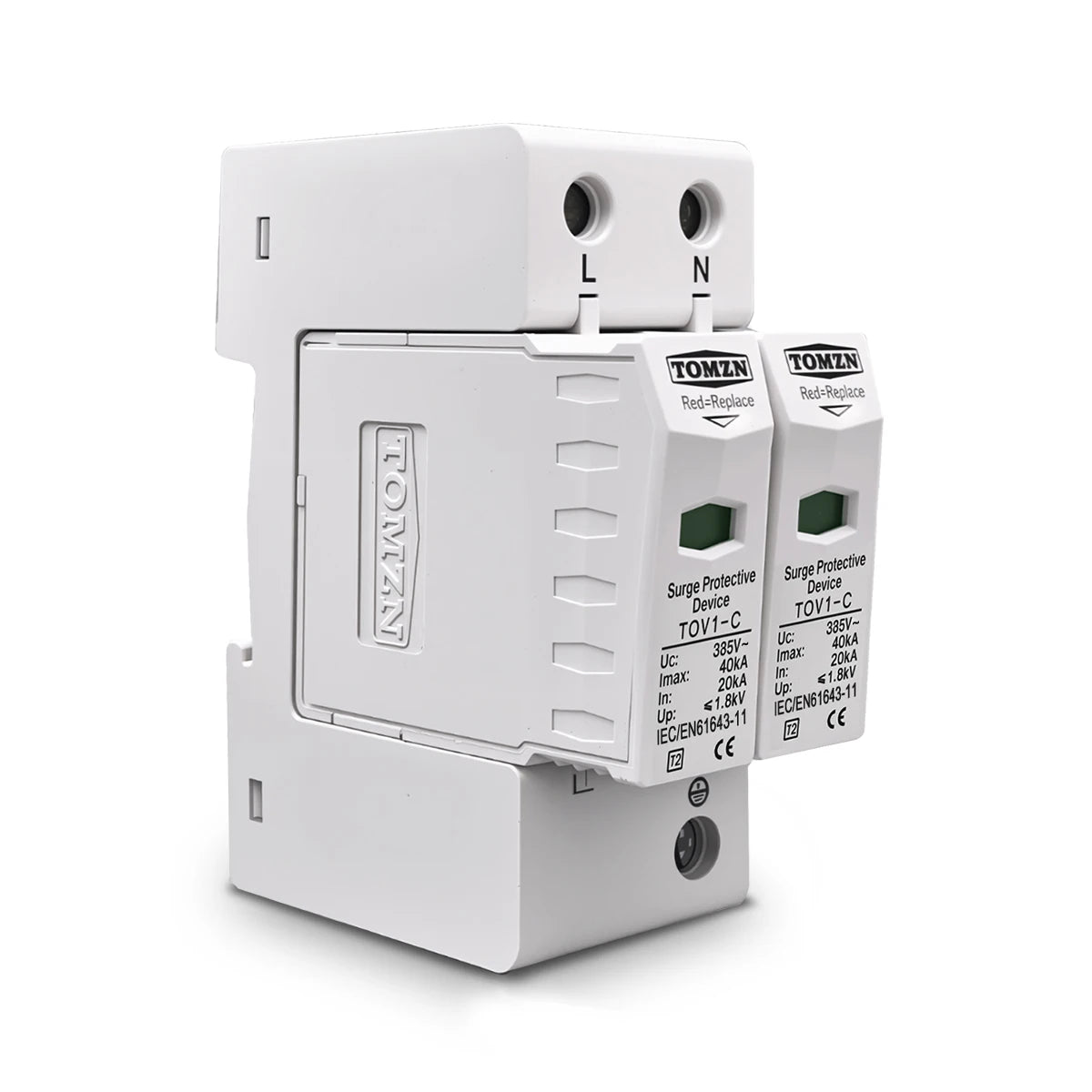

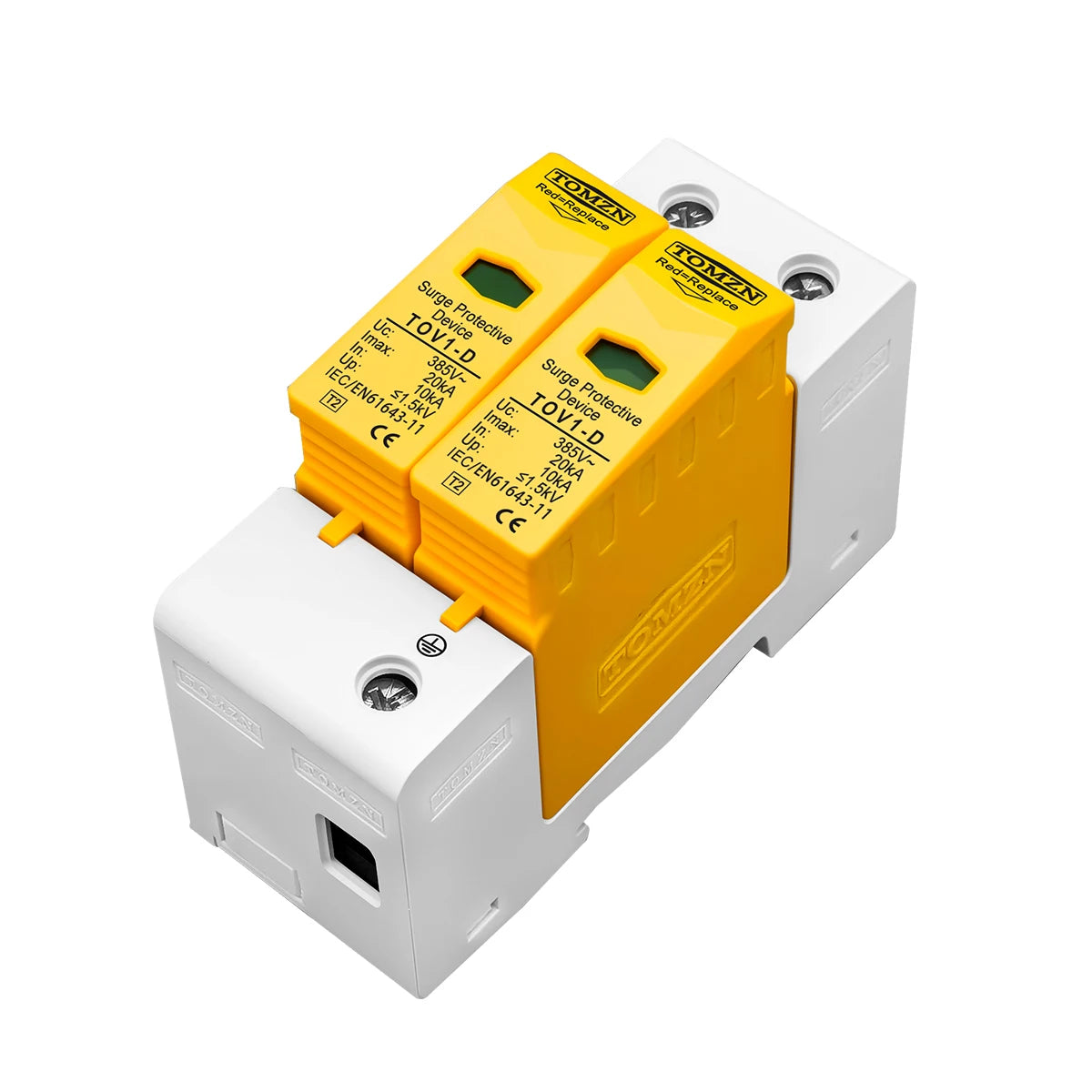

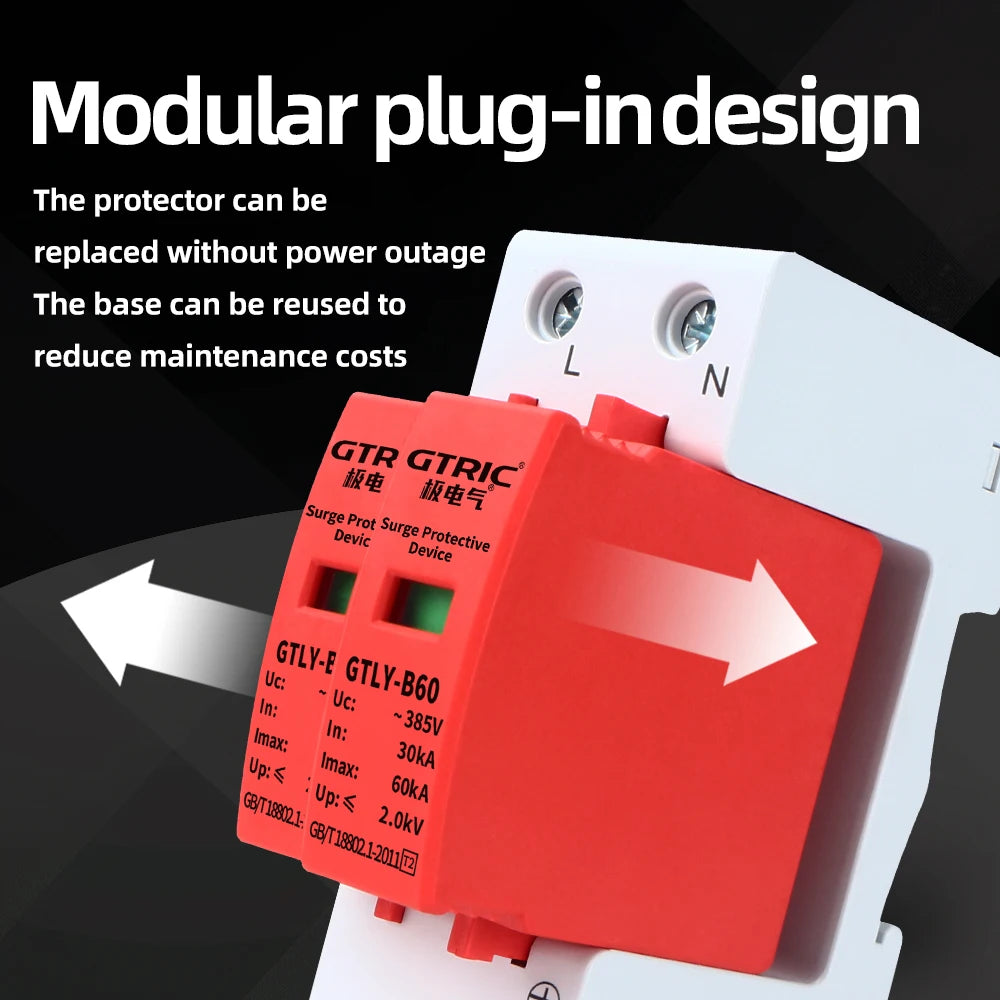

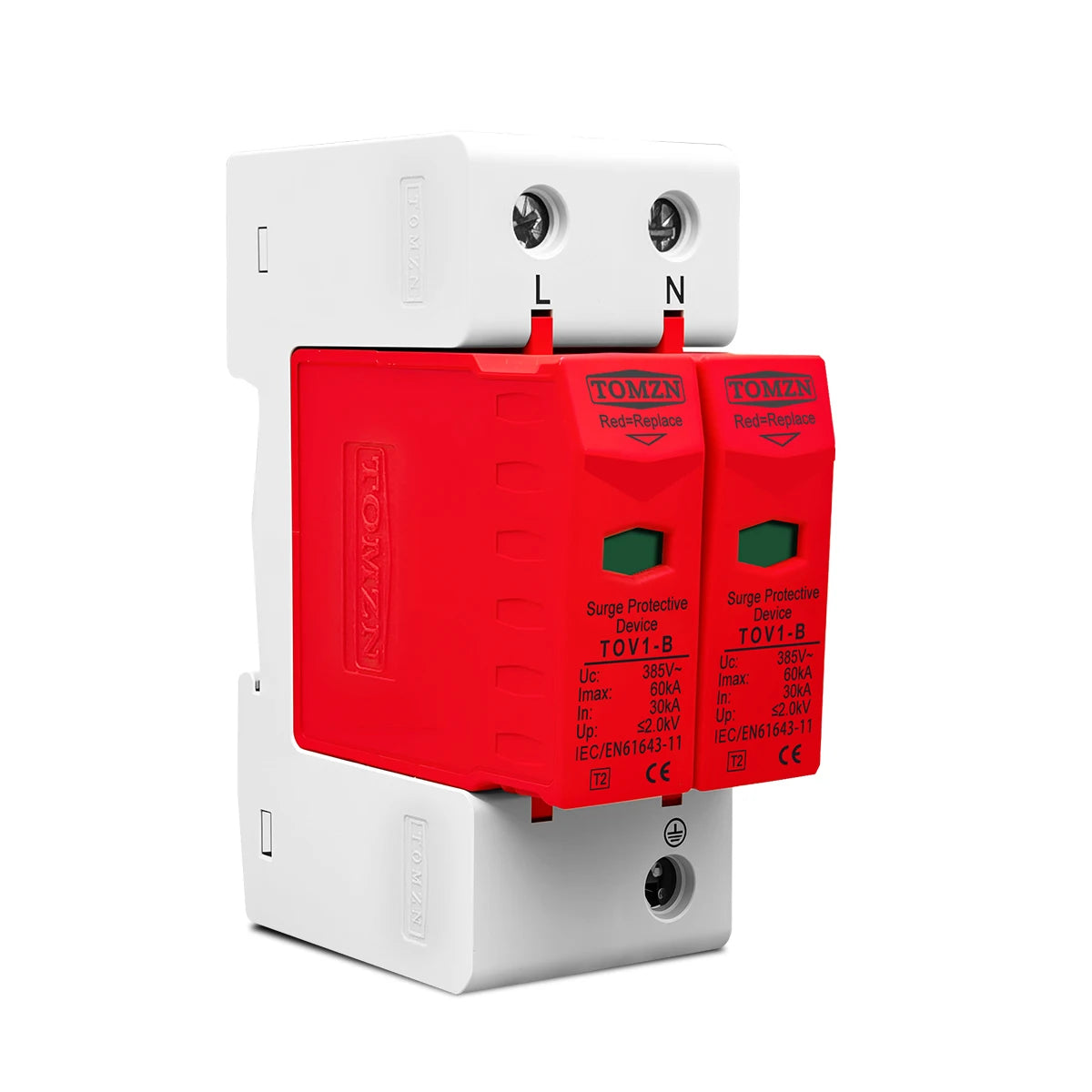

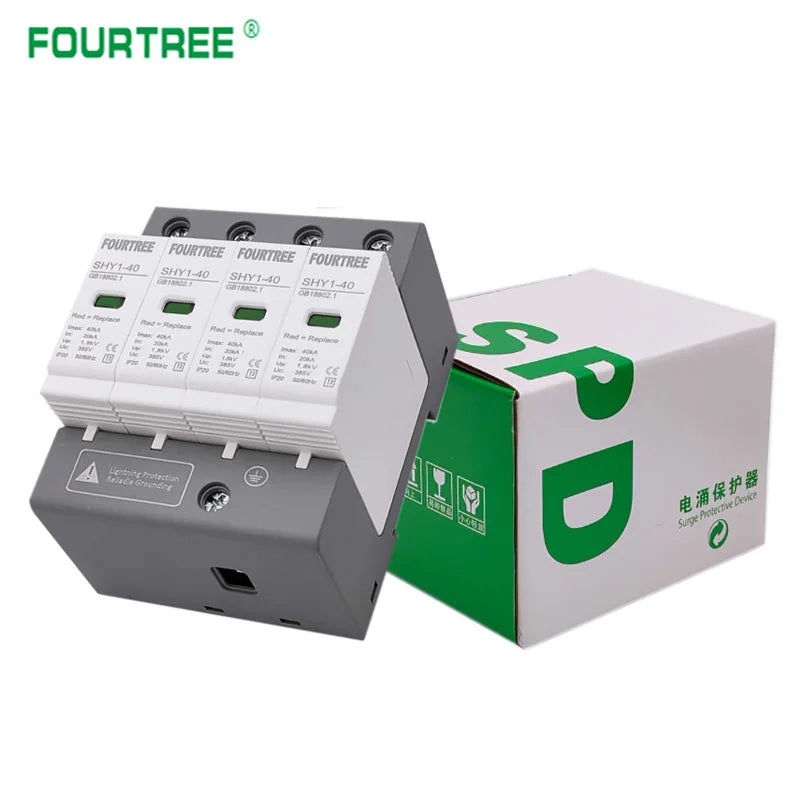

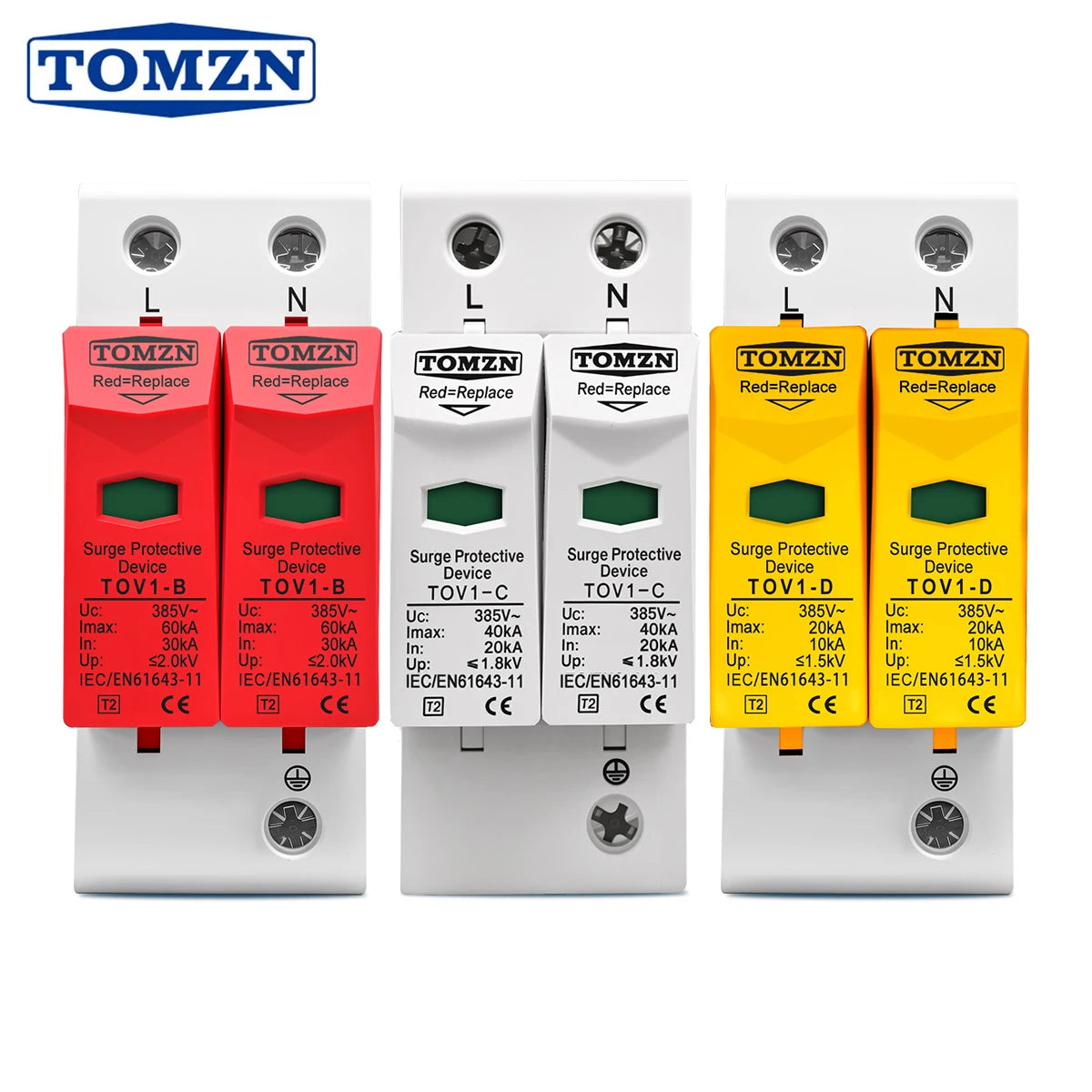

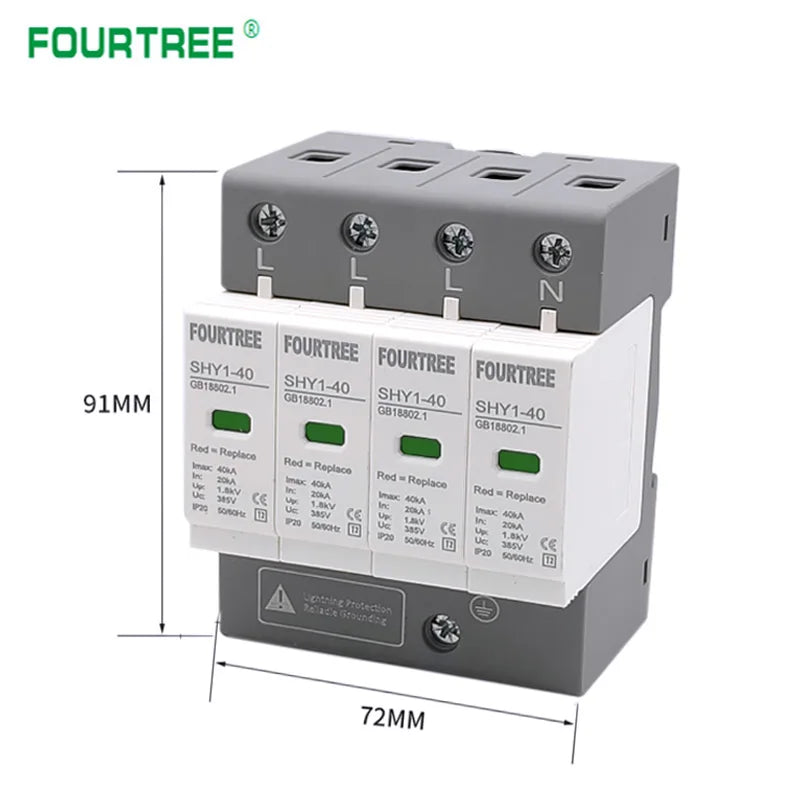

- AC DIN-rail SPDs: house and distribution-board listings offer selectable 1P, 2P, 3P and 4P configurations and options marked 220 V, 275 V, 385 V or 420 V, with advertised 10–20 kA, 20–40 kA or 30–60 kA ranges. These markings are not enough to establish a tested protection class, nominal discharge current or suitability for a particular supply. Check the actual device label, technical sheet, wiring system, operating-voltage rating and certification evidence for the chosen variant.
- DC/PV SPDs: separate solar DC listings offer 500 V, 600 V, 800 V and 1000 V-labeled options and 2P/3P configurations. Select for the maximum open-circuit DC voltage across the expected temperature range and the documented DC protection topology; an AC SPD is not automatically suitable for PV DC.

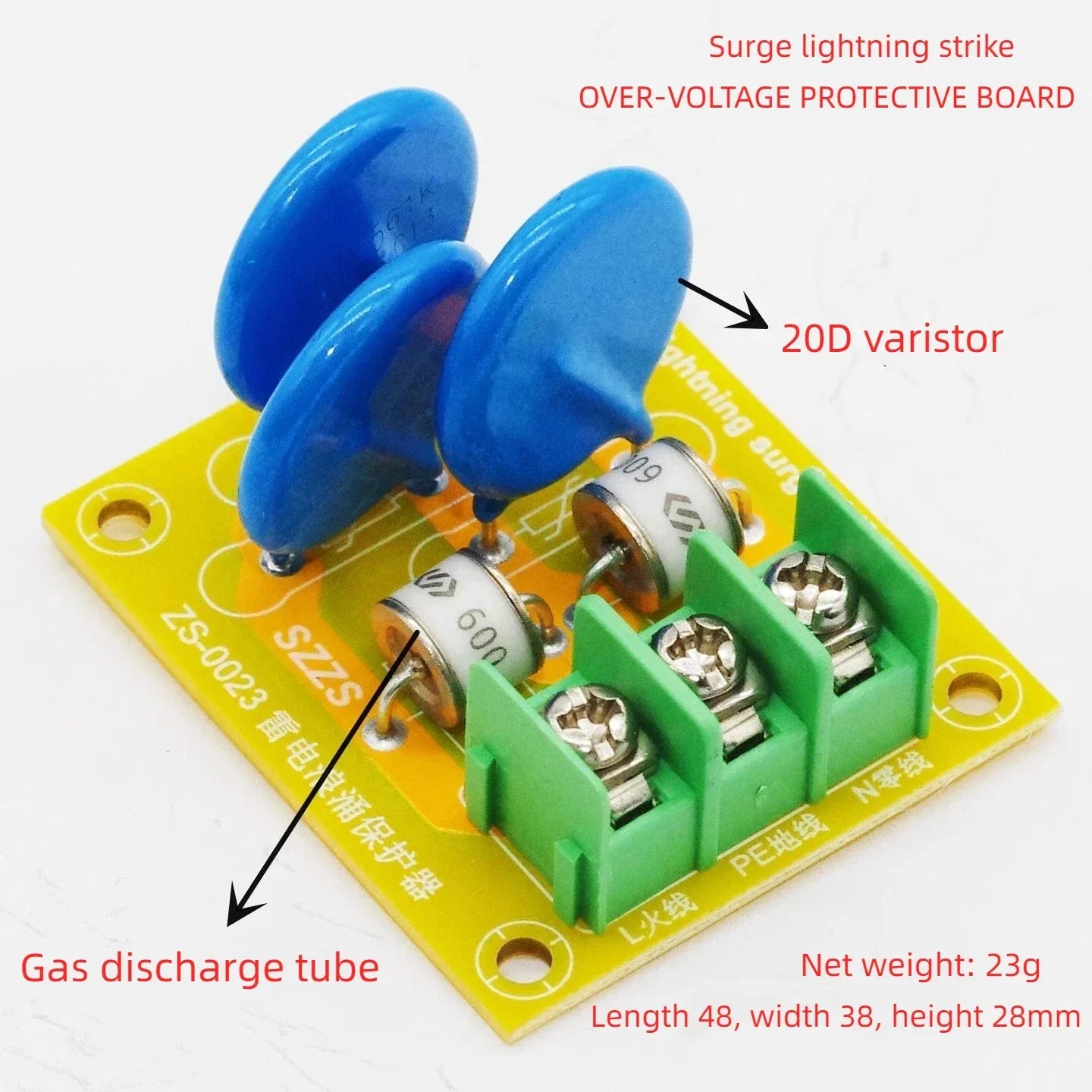

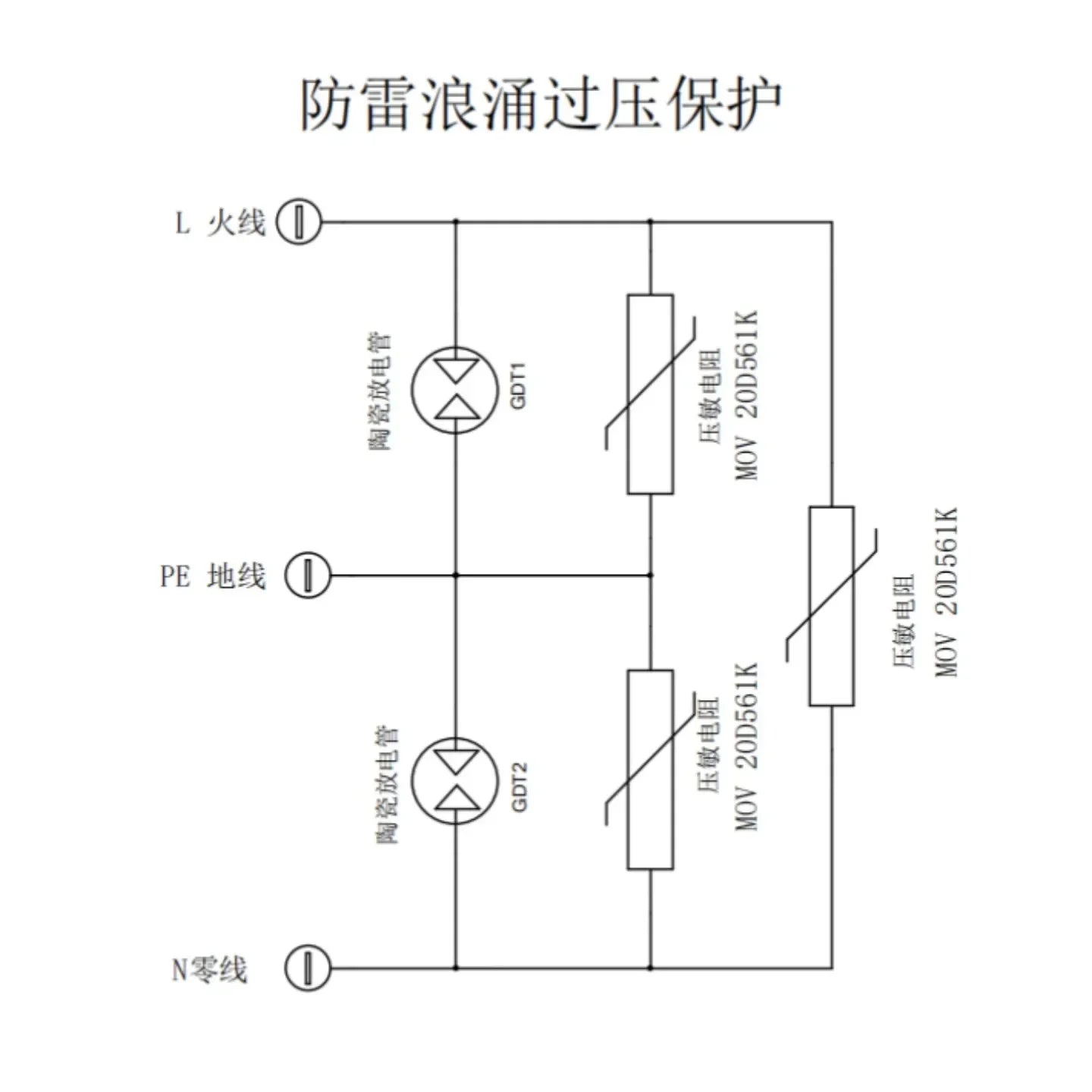

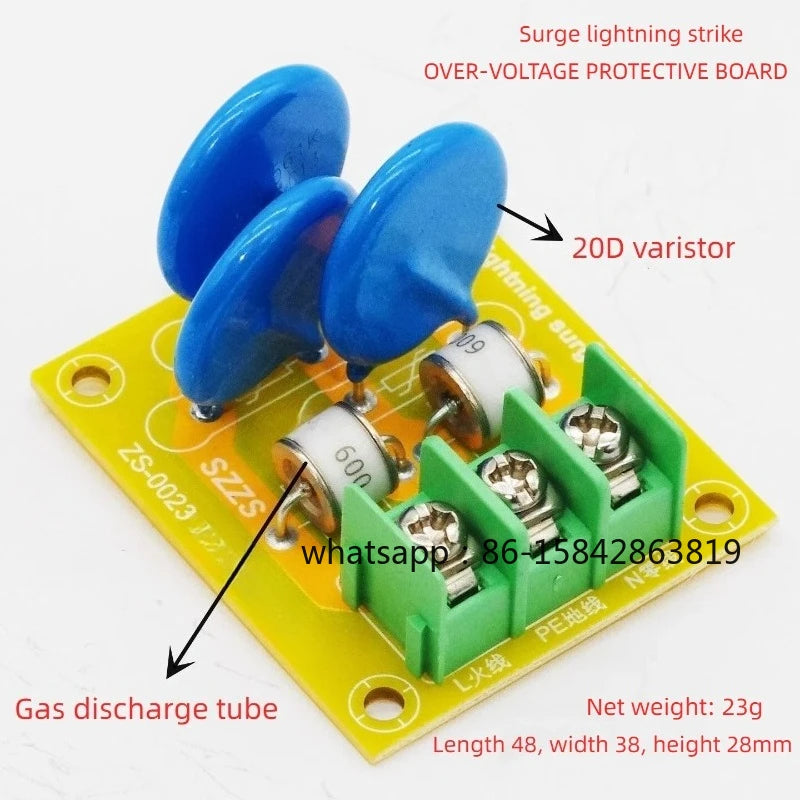

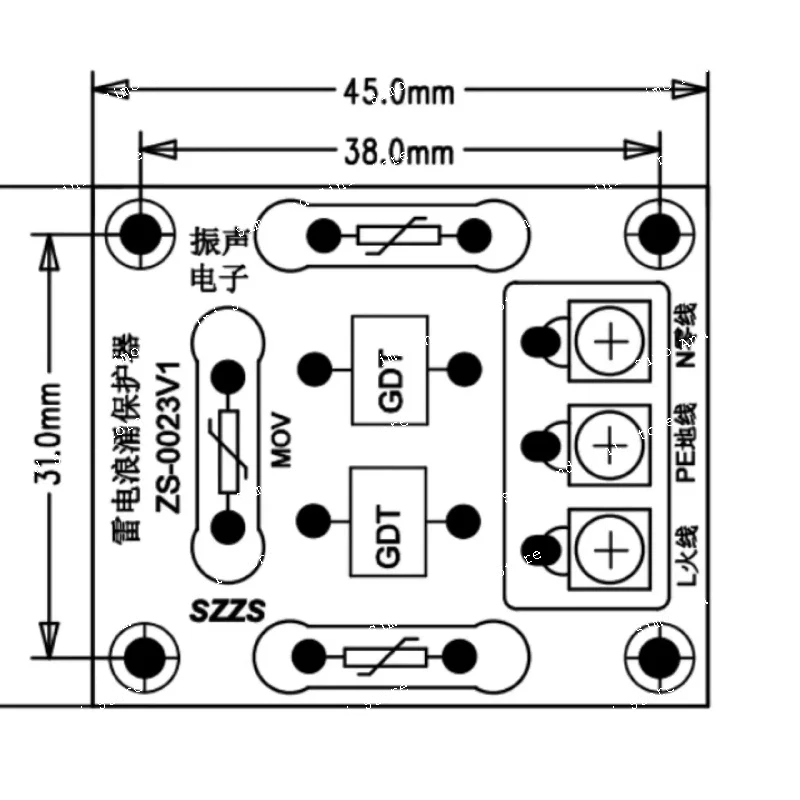

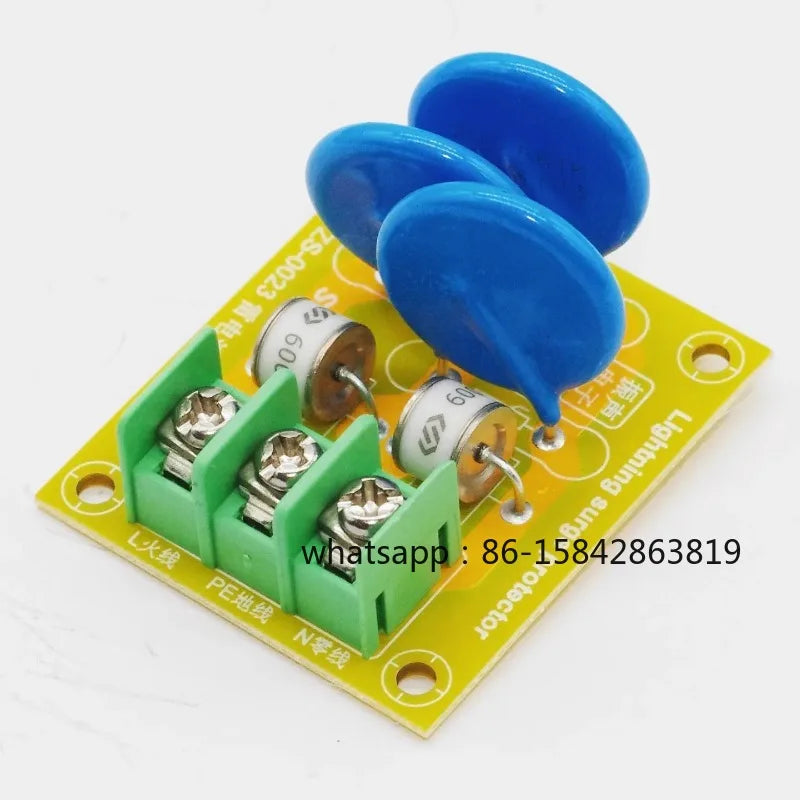

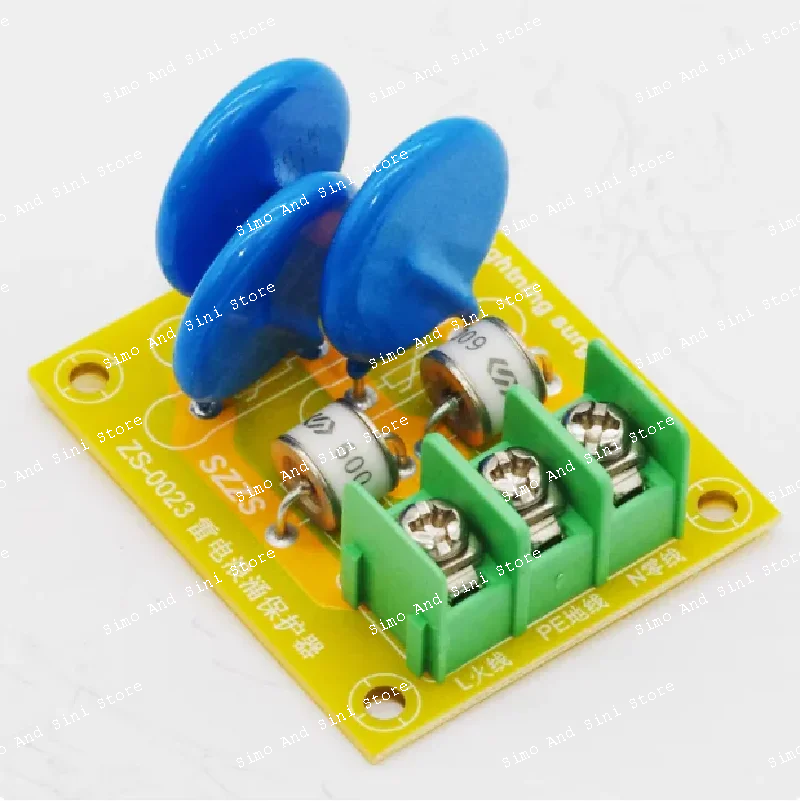

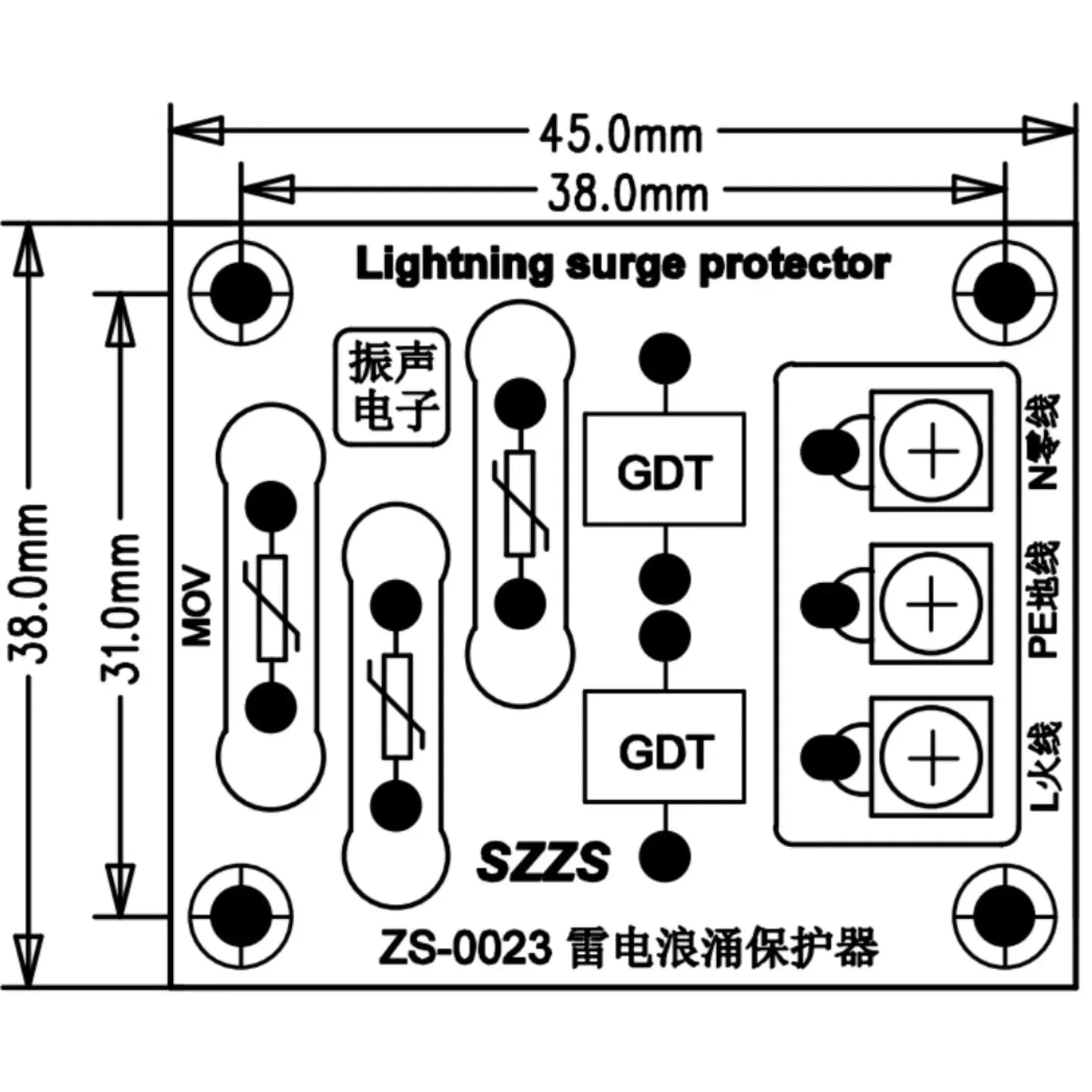

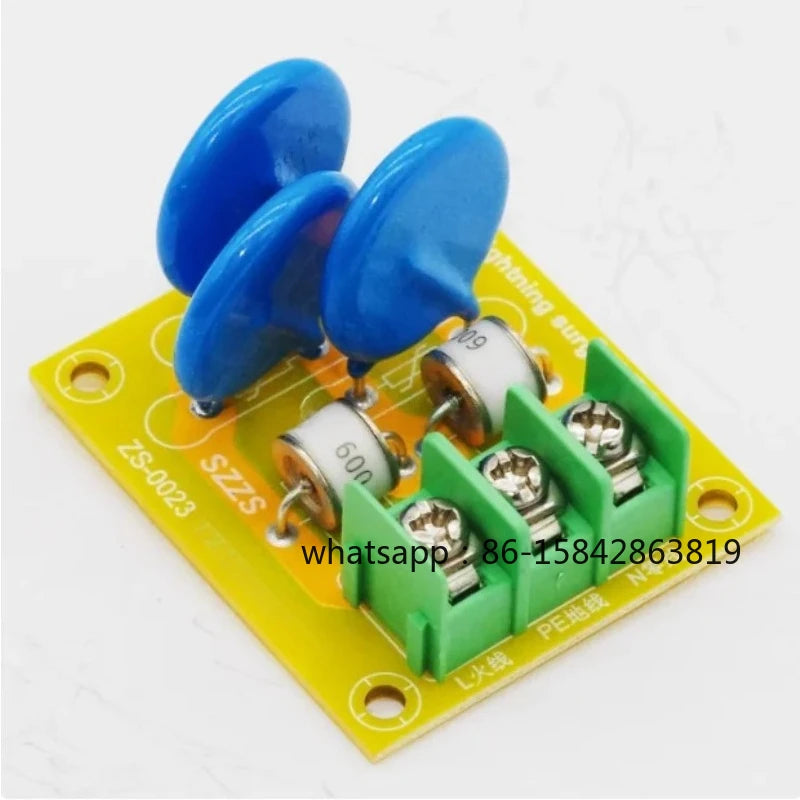

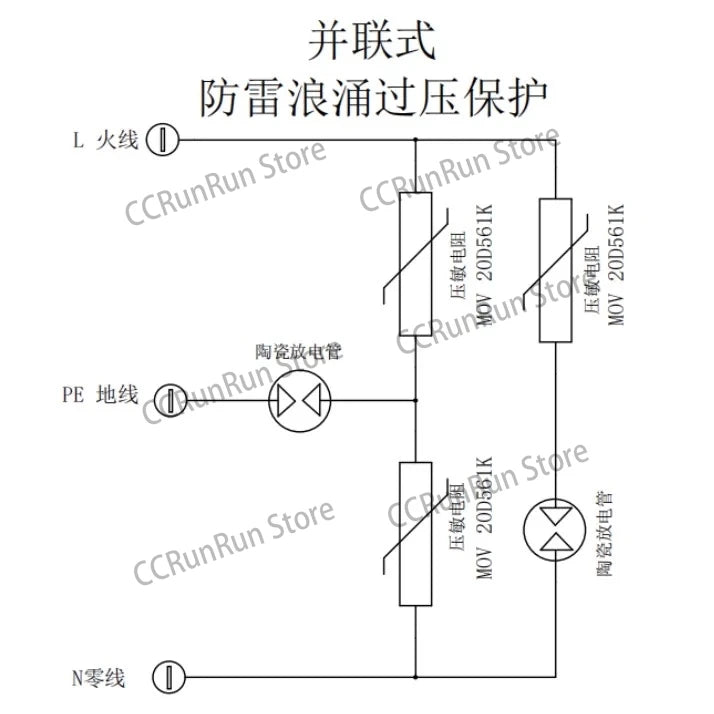

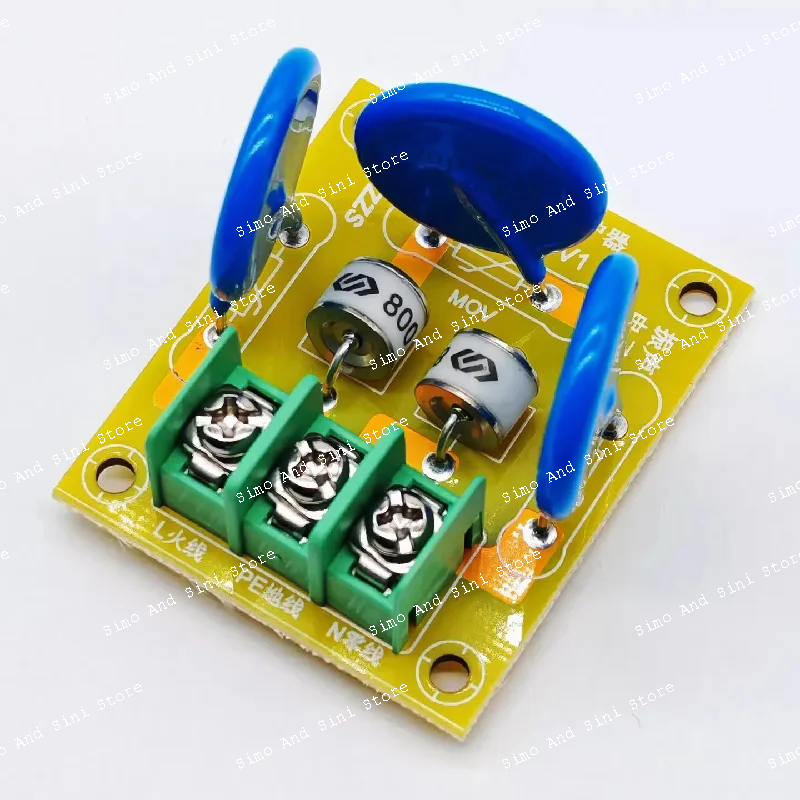

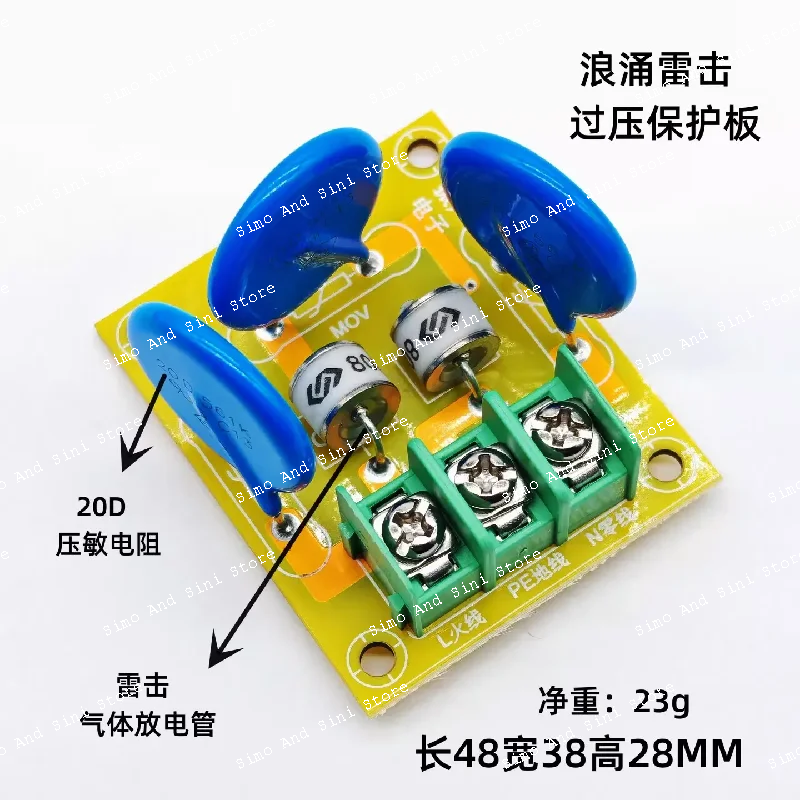

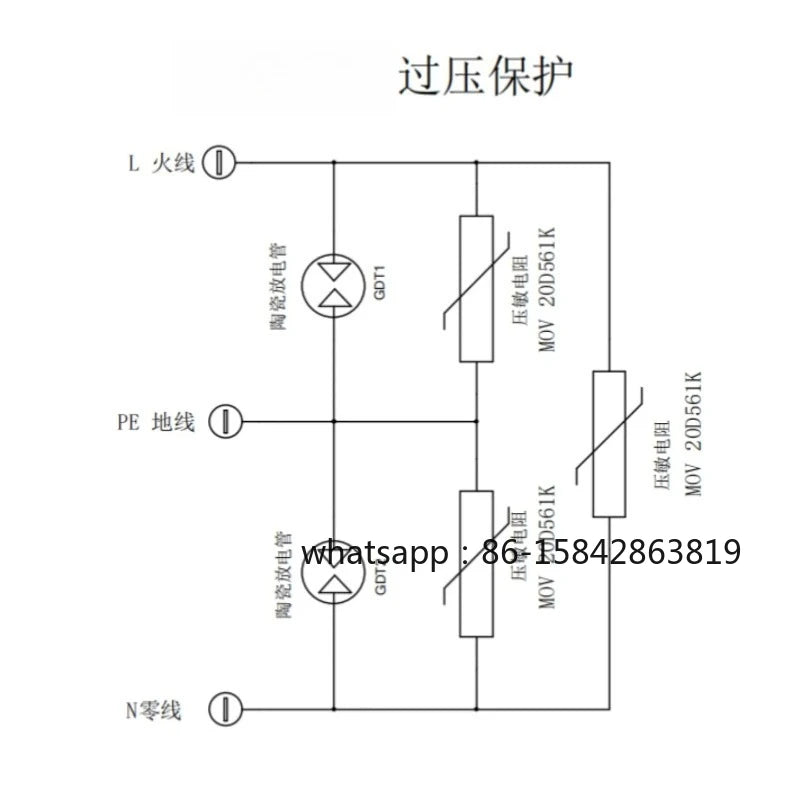

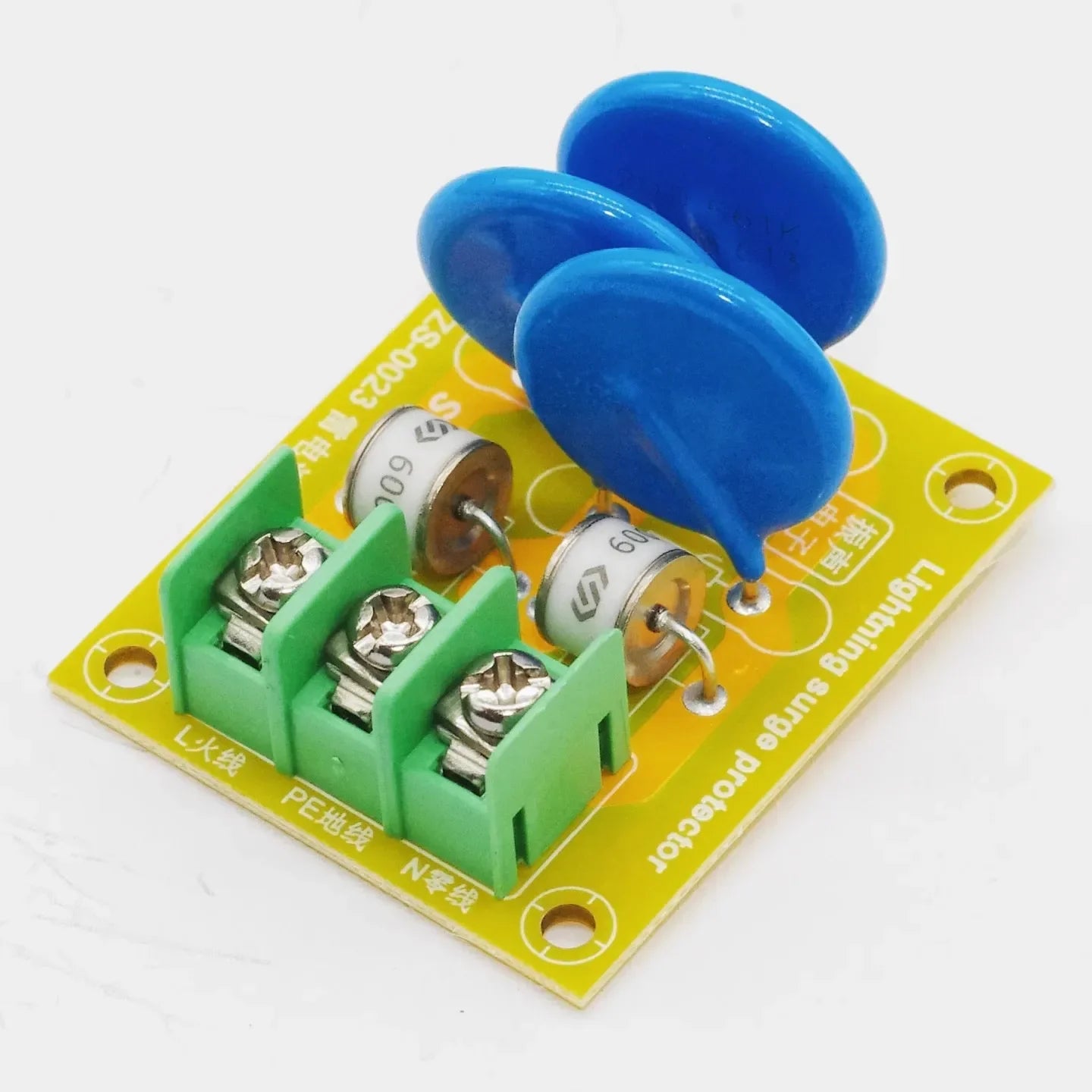

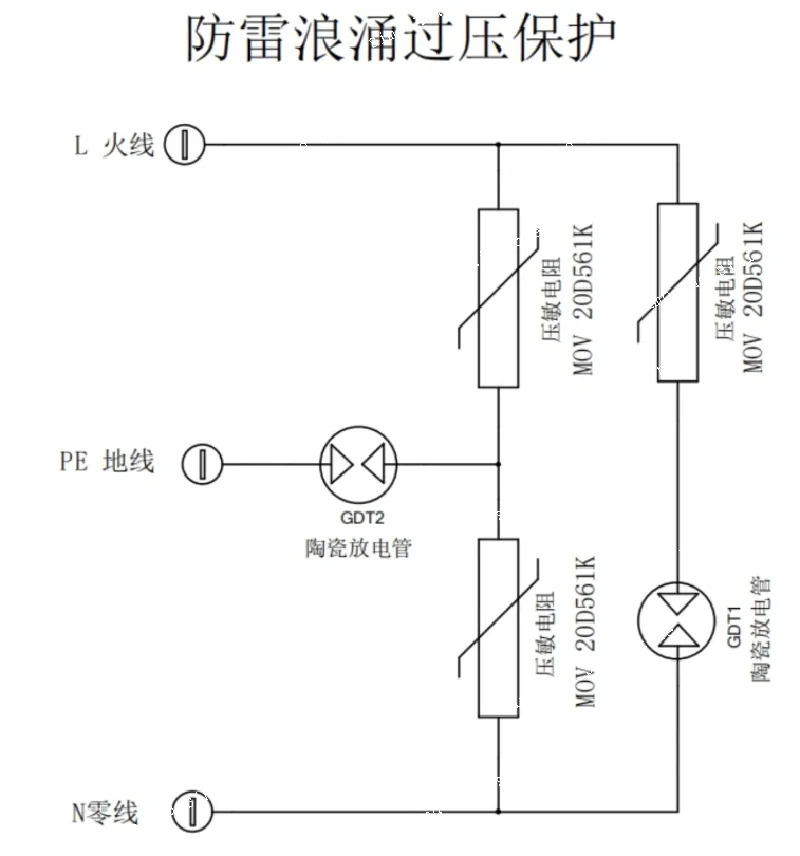

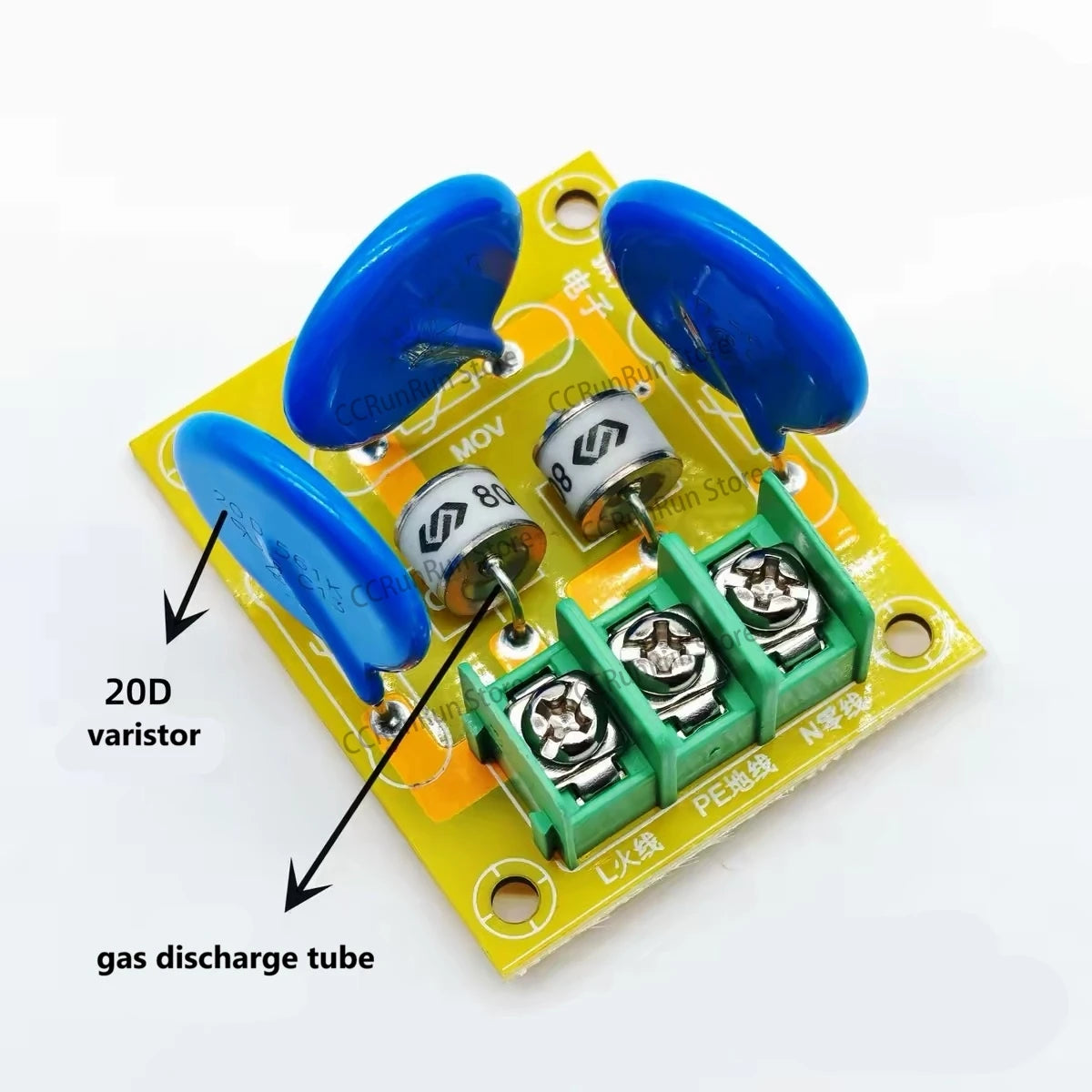

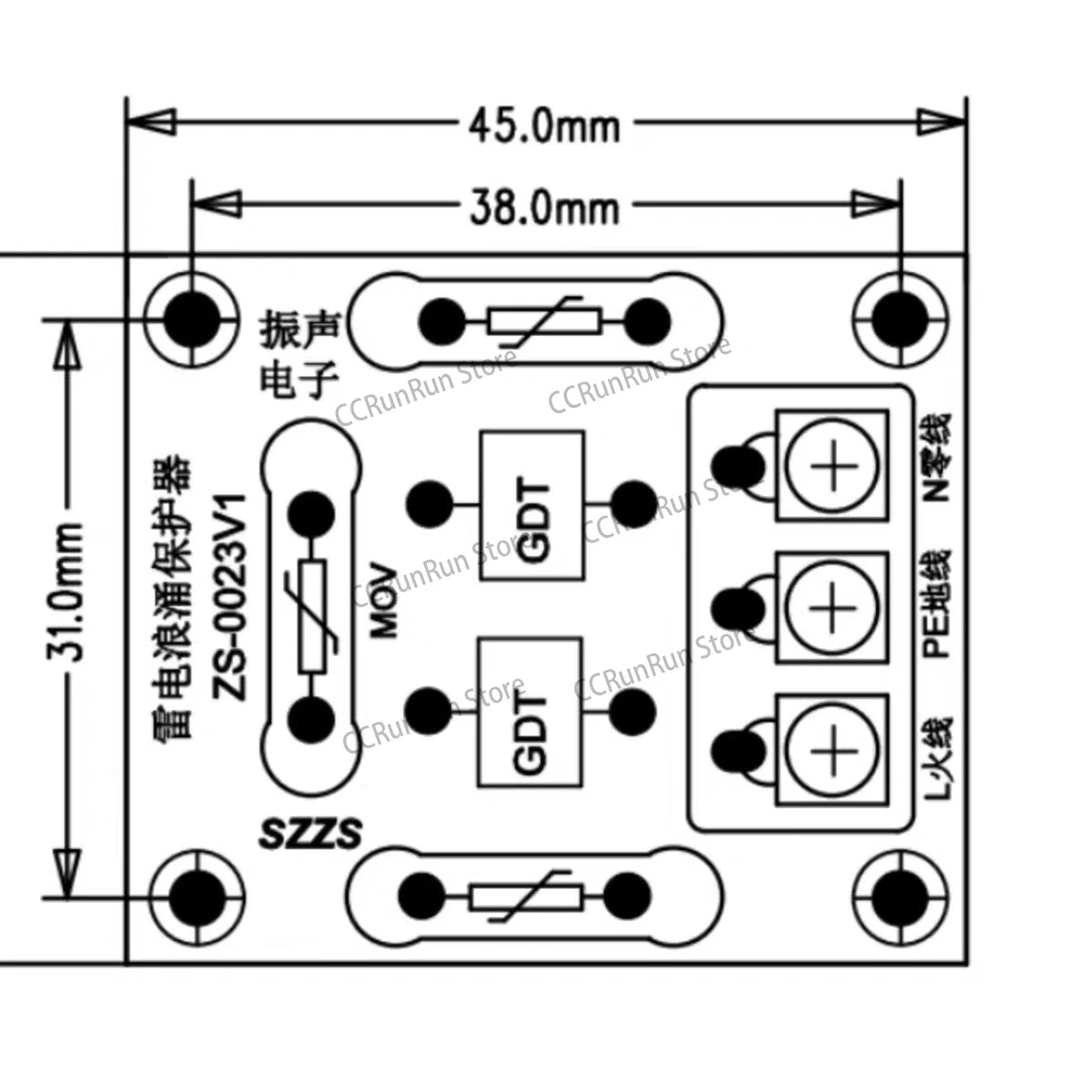

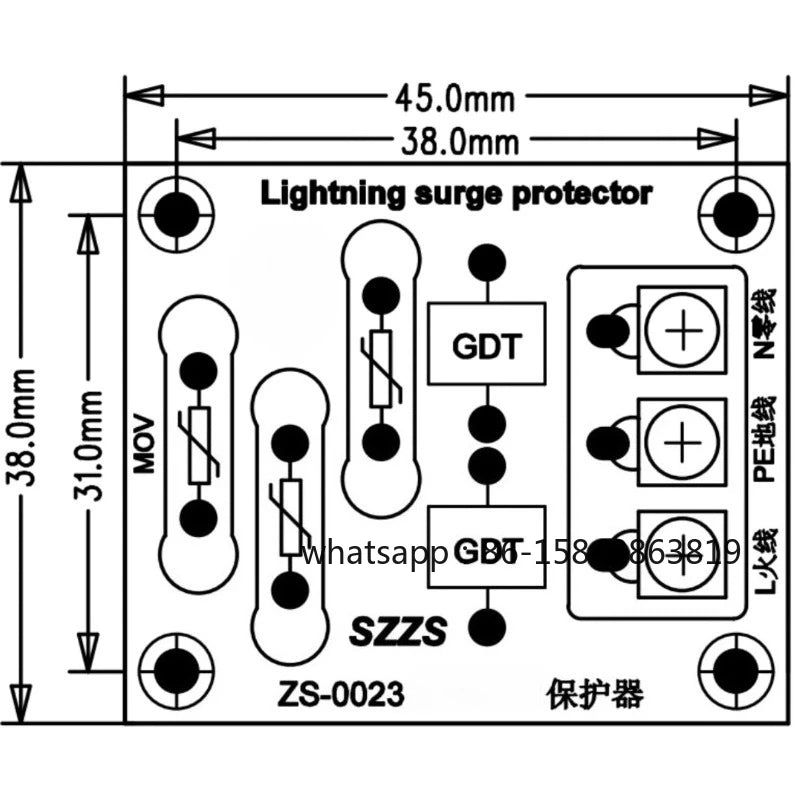

- Gas-tube and MOV assemblies: compact AC protection modules combine technologies in some listings. Verify the module's terminals, circuit, continuous operating rating, discharge behavior, housing and application-specific documents; the word “module” alone does not establish compliance as a complete installed SPD.

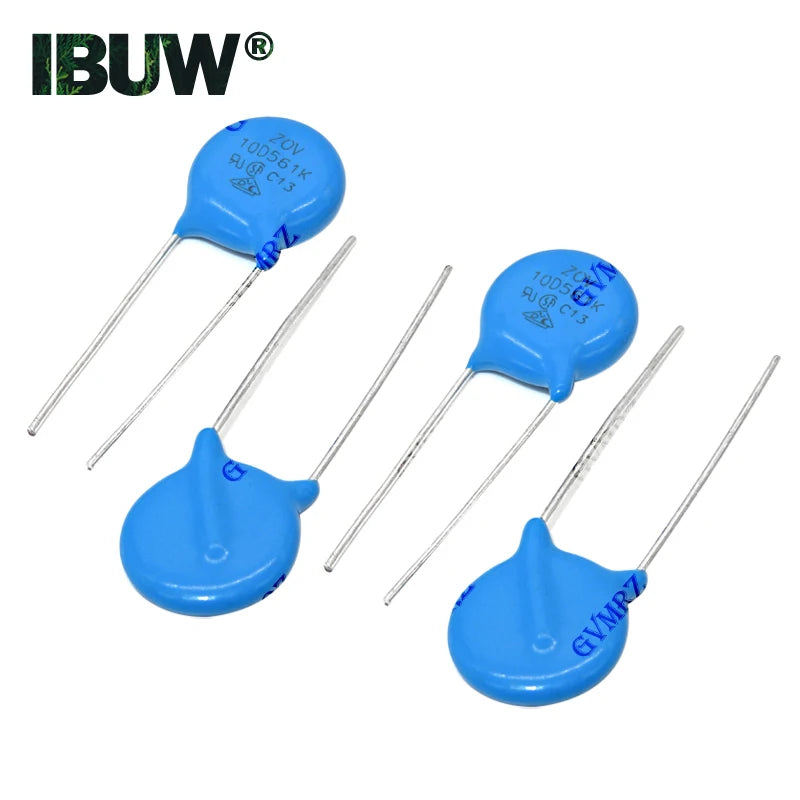

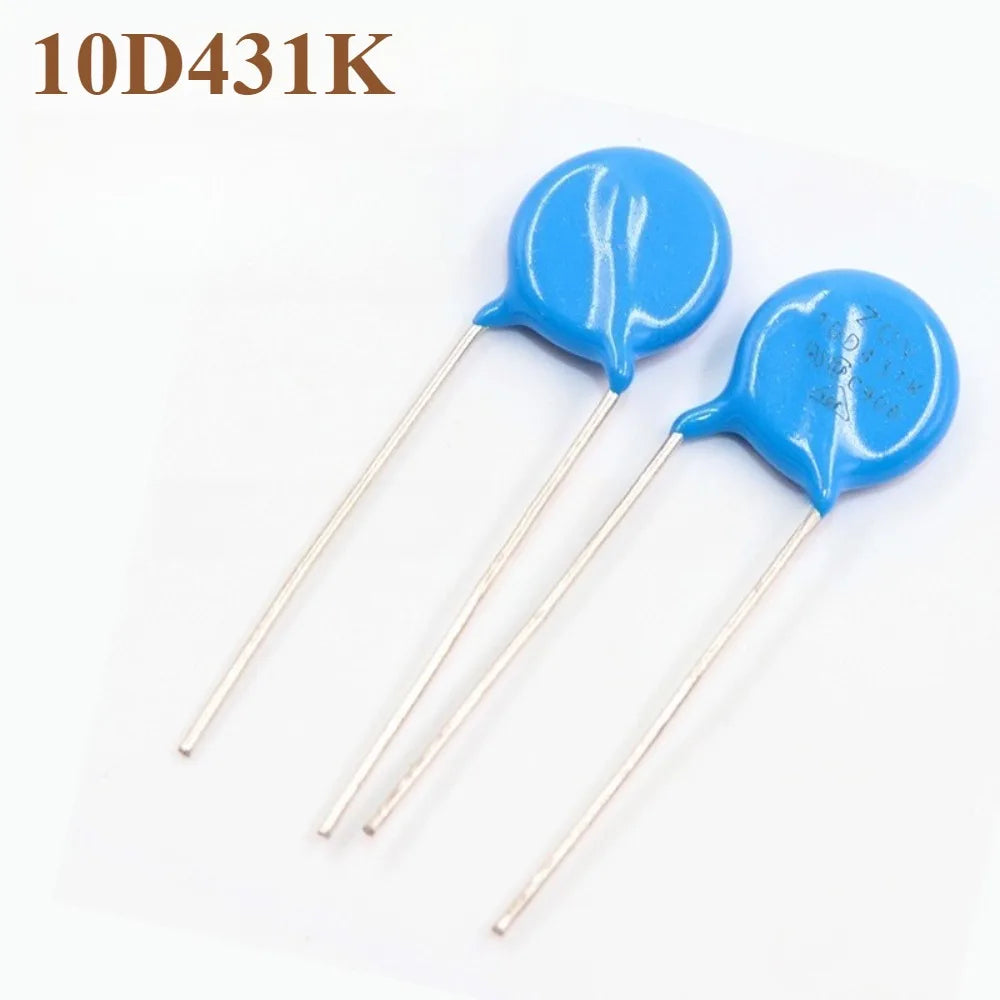

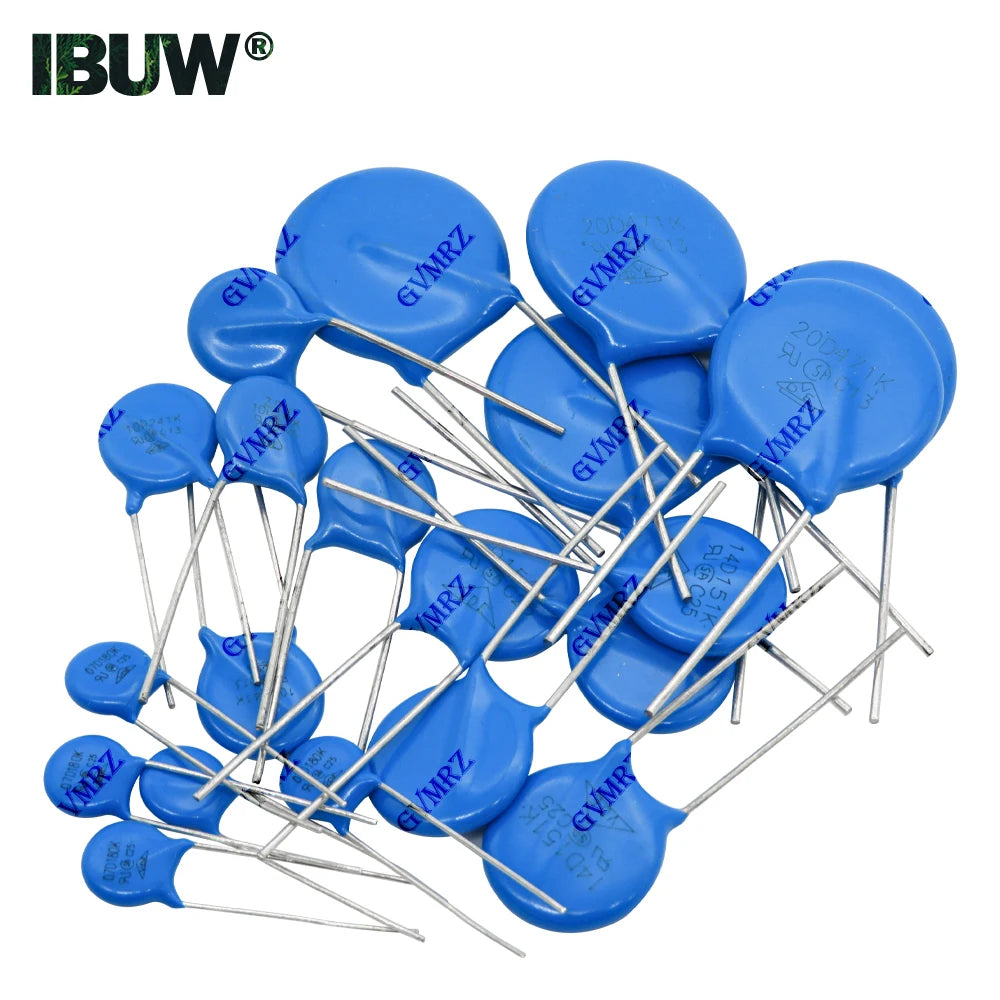

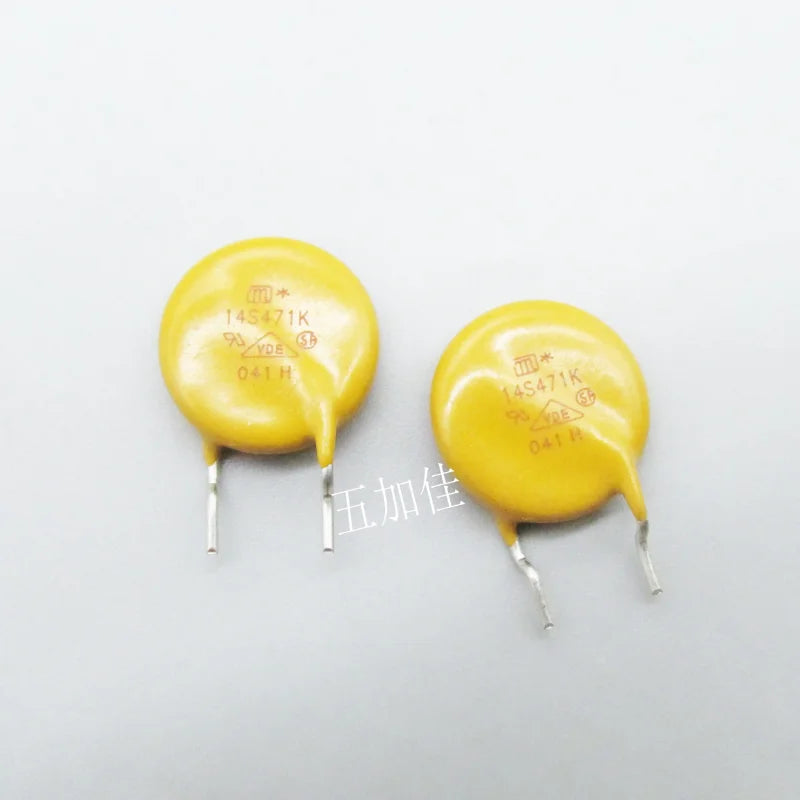

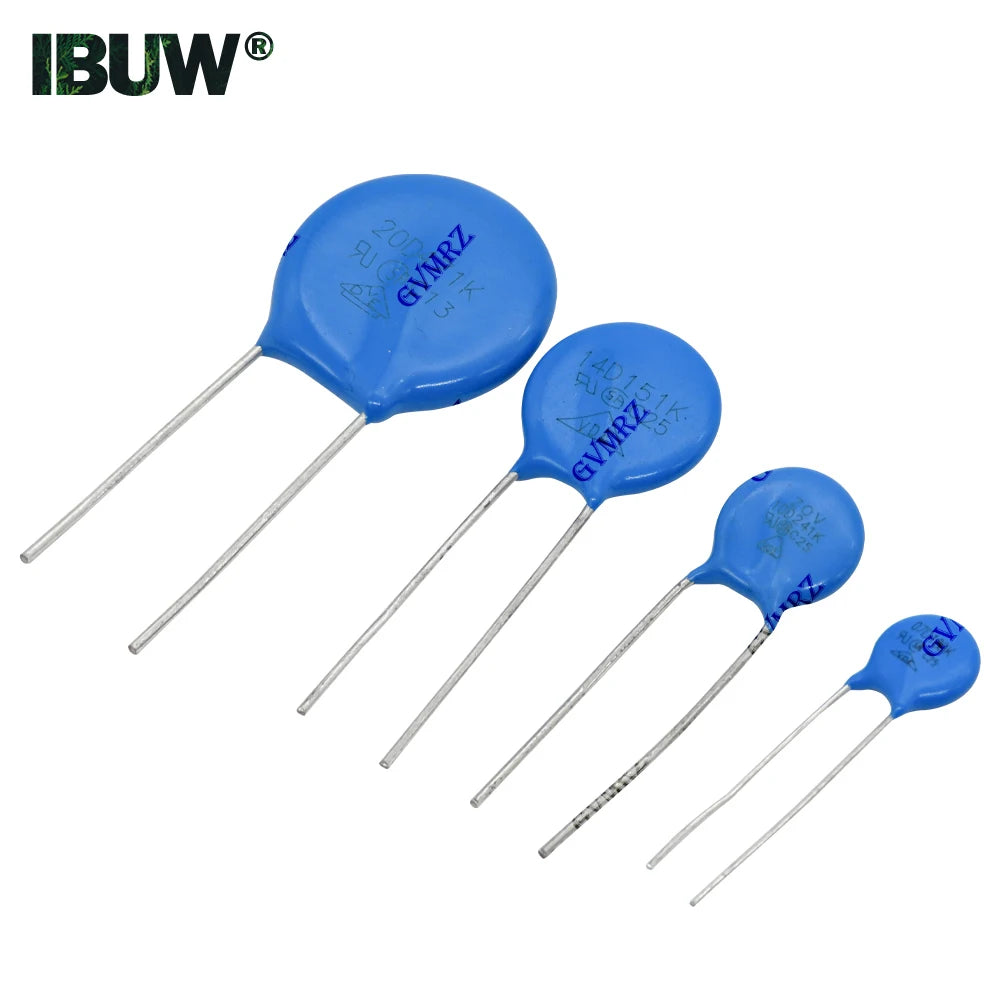

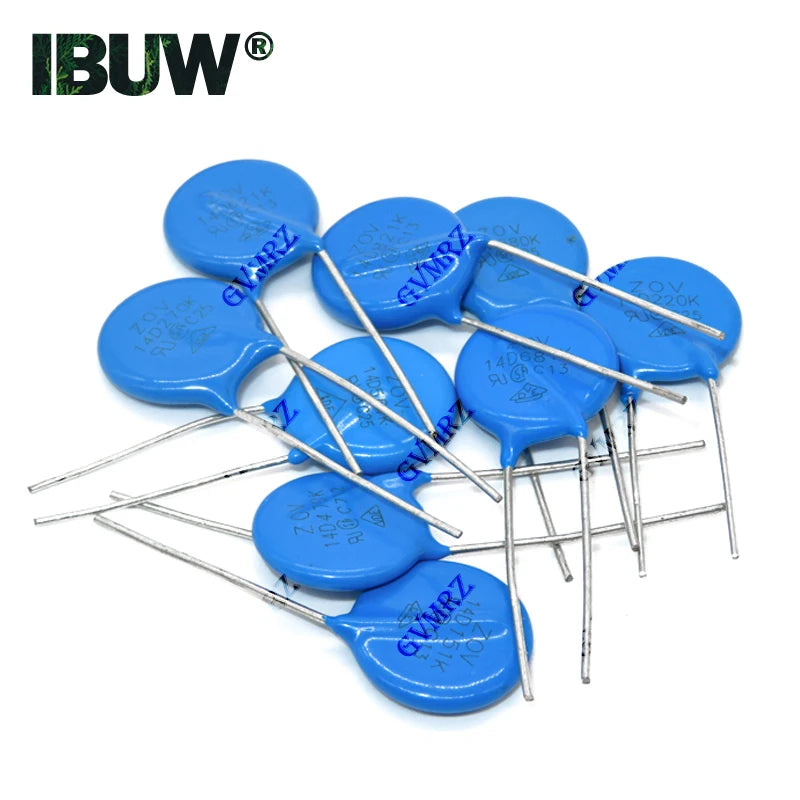

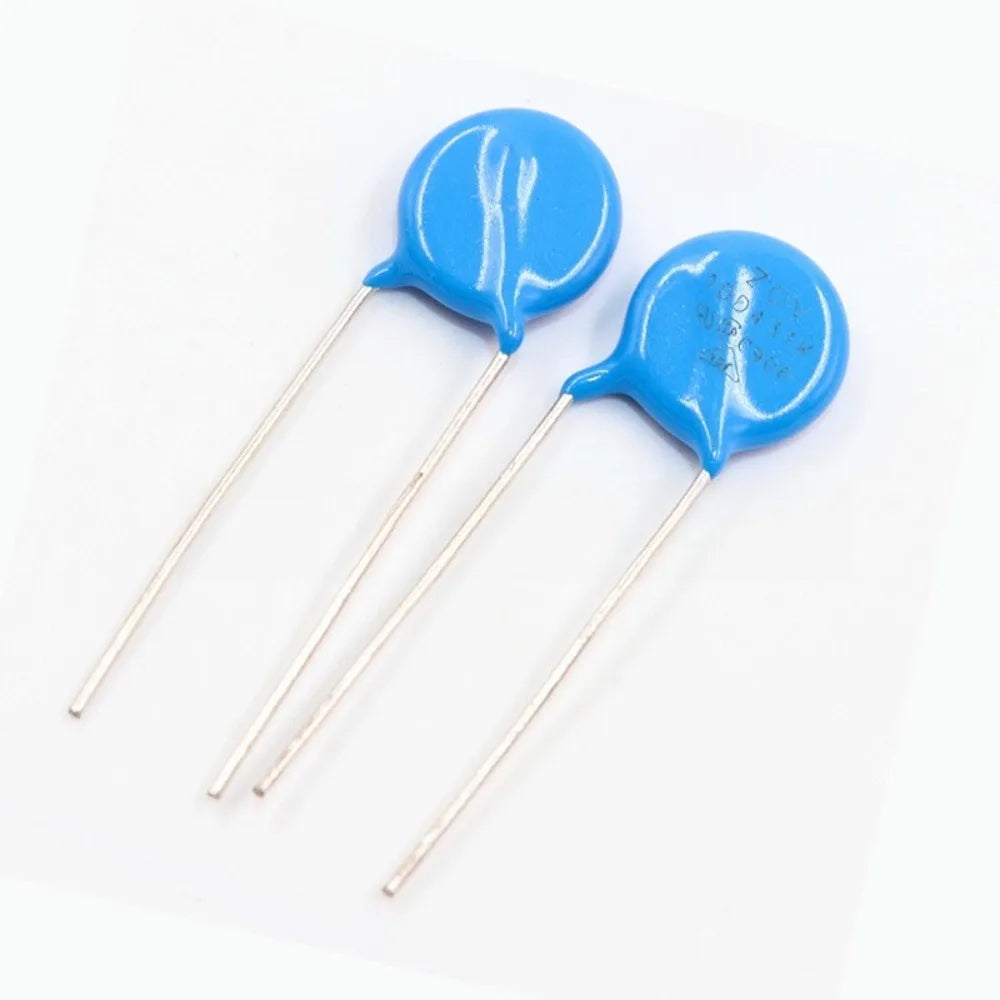

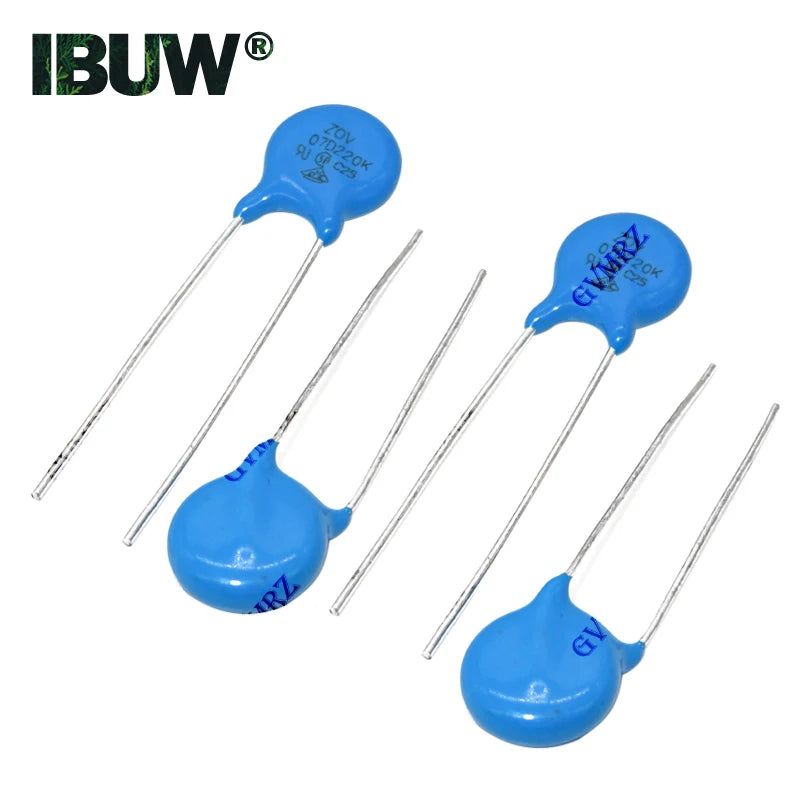

- Individual MOVs and kits: 05D, 07D, 10D, 14D, 20D and 25D-family radial discs, TVR, Q20K and other part-number options are voltage-dependent surge-limiting components. Their disc size, printed code and seller voltage label do not independently prove permissible AC RMS voltage or energy endurance. Multi-value boxes contain parts for evaluation, not a coordinated surge-protection system.
- RC snubber boards: relay-contact absorption modules address switching transients and interference; a label such as 5–400 V or 1000 W is not a license to use one across all AC/DC circuits. Match the board's specified circuit, resistor/capacitor ratings, insulation and load conditions.

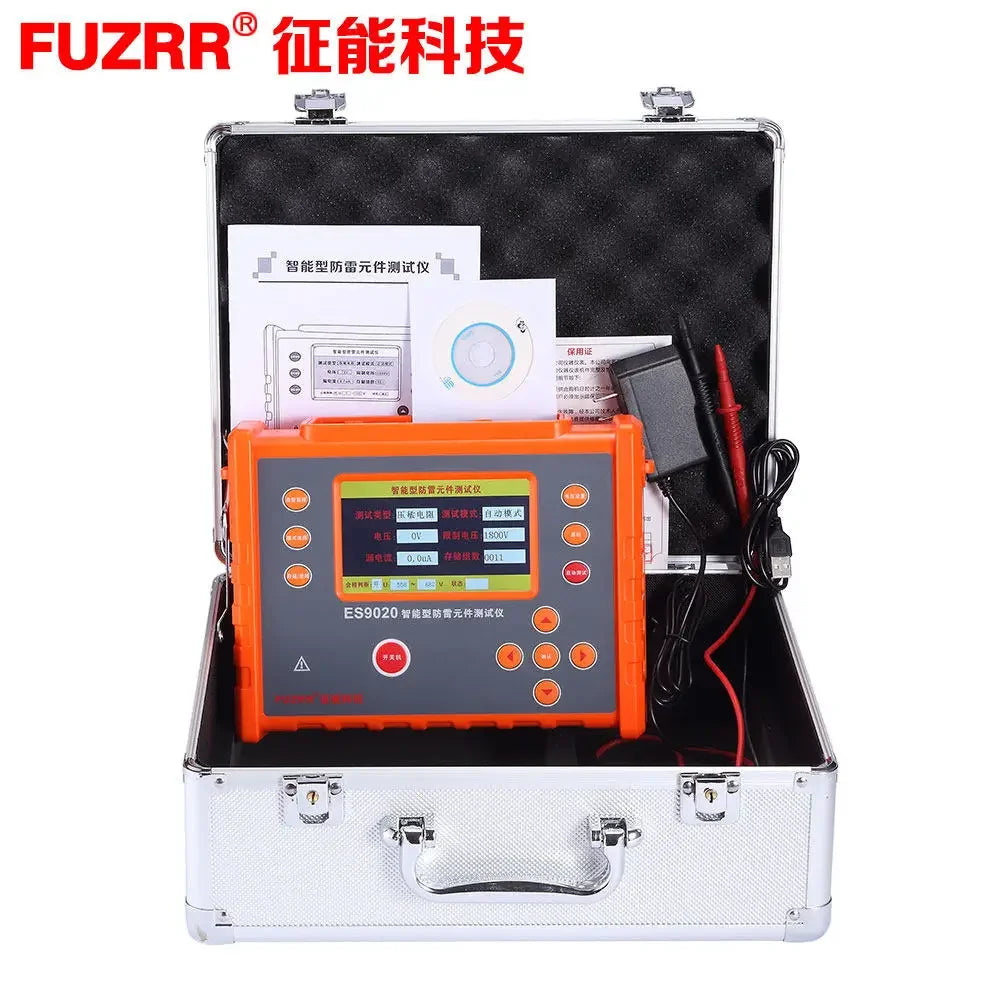

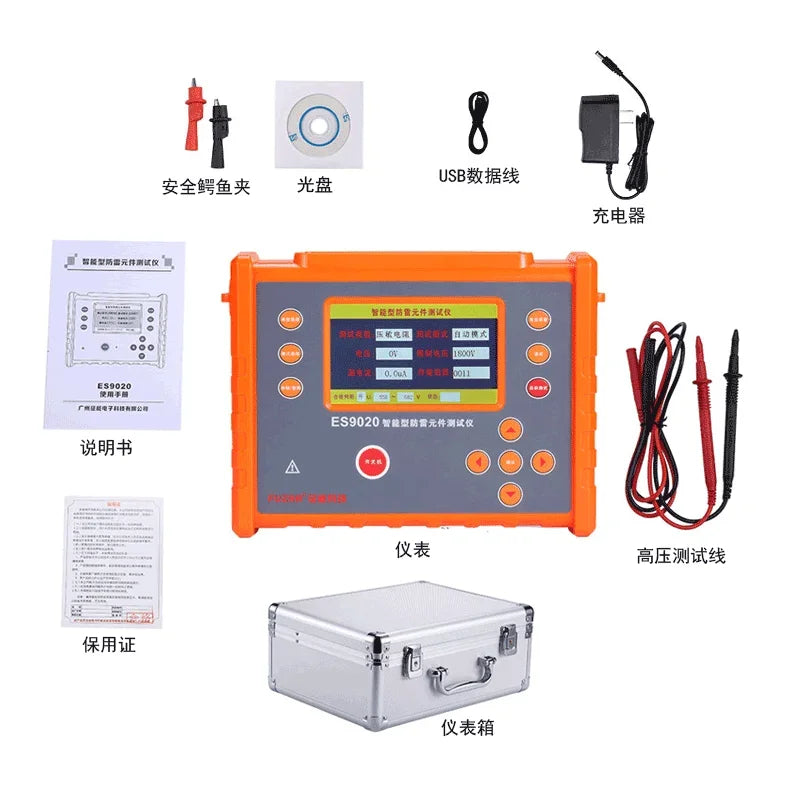

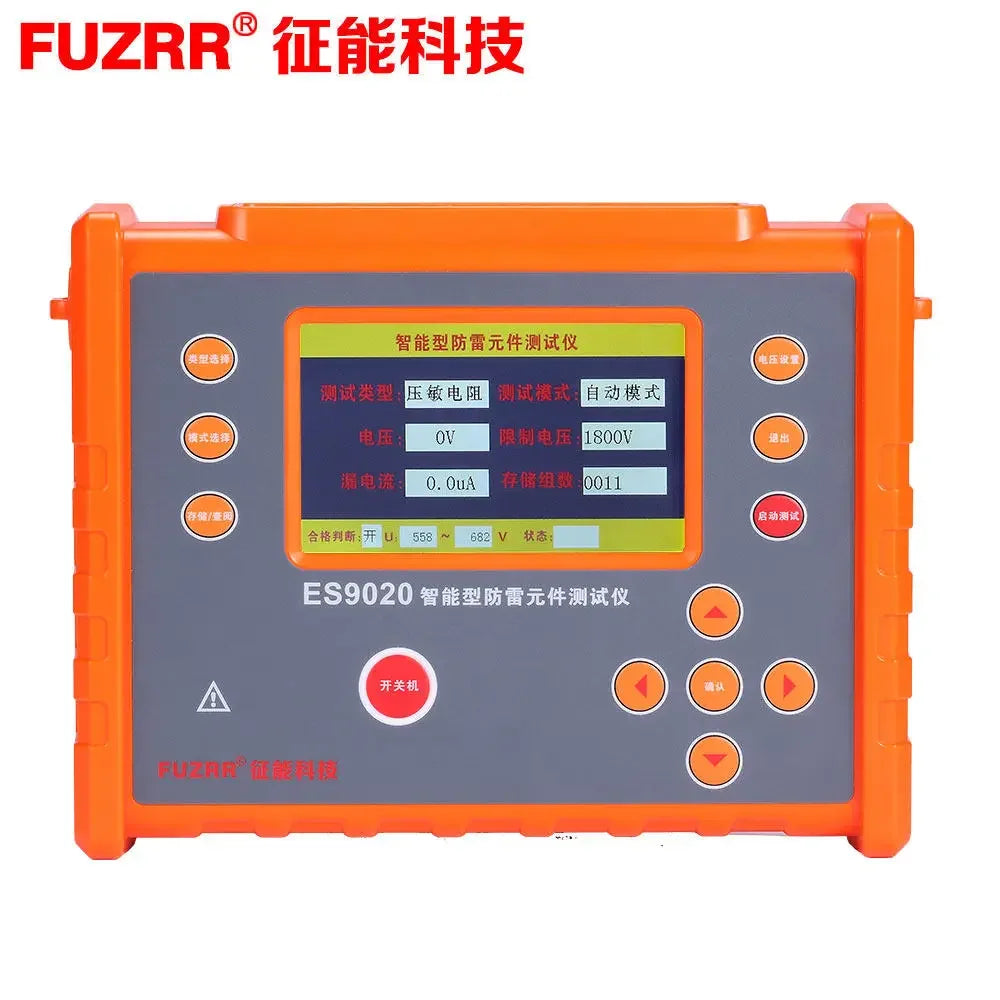

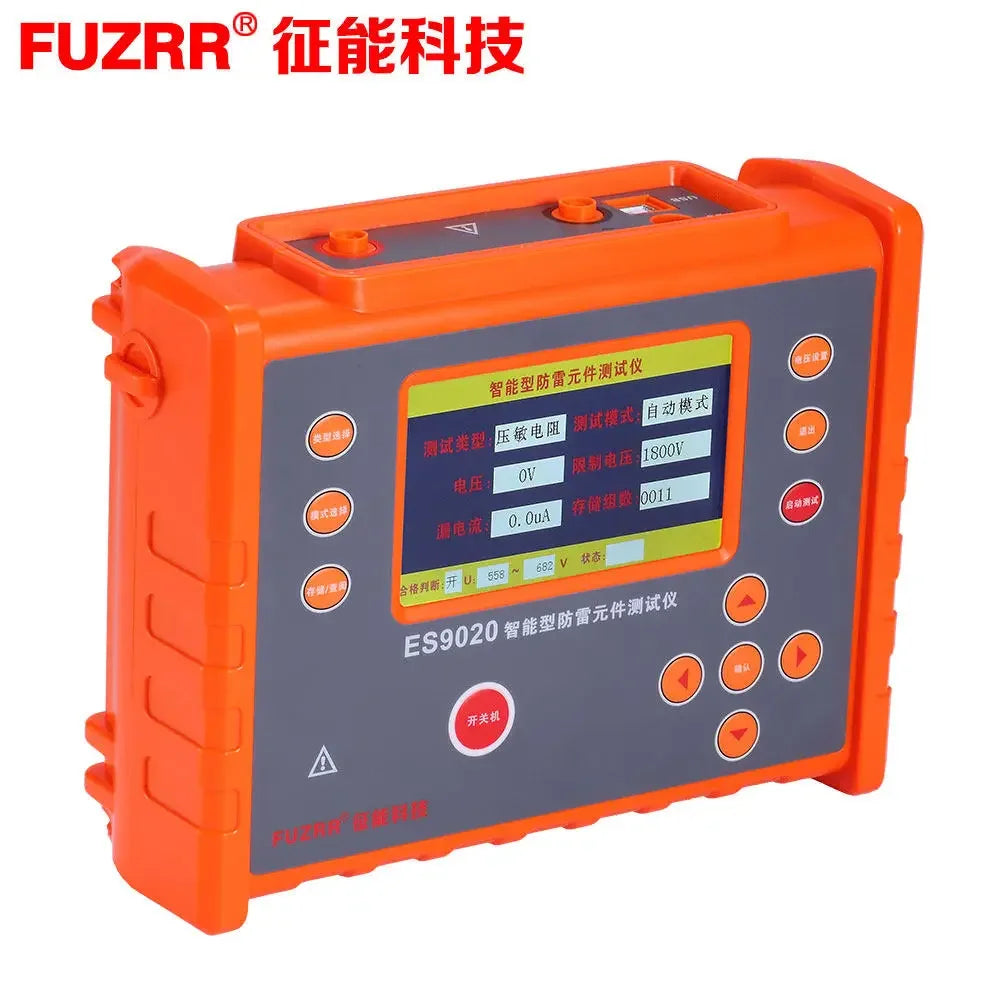

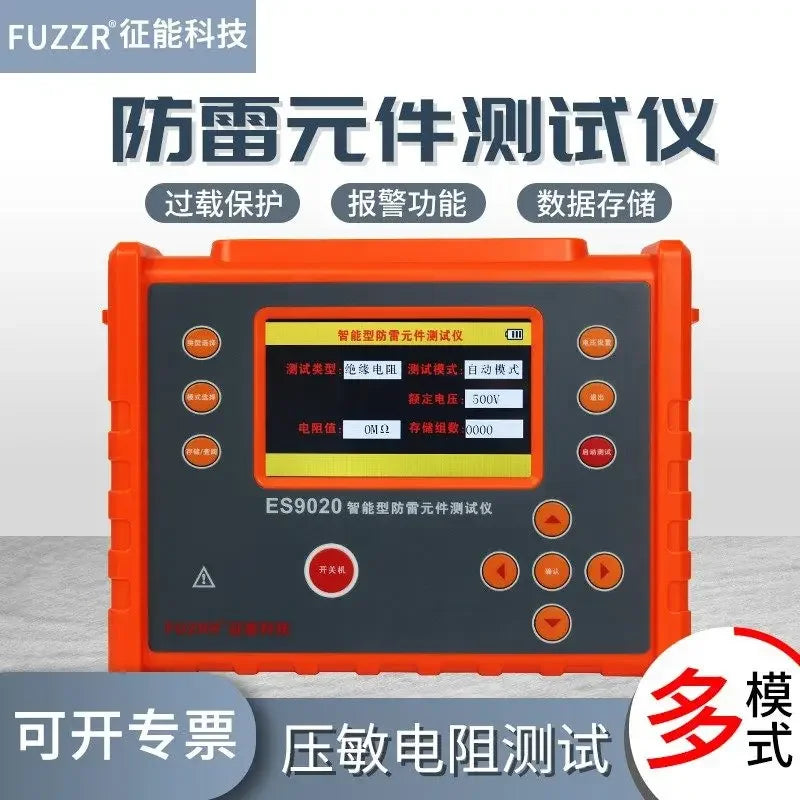

- Generator parts and testing equipment: MYL-series varistors and LSA-series rectifier/varistor assemblies are replacement candidates only after matching exact service part, mechanical fit and generator documentation. The ES9020 tester is measurement equipment, not a protective device. An audio DC-blocking filter in this assortment serves a different function and is not a substitute for an SPD.
How to specify an SPD or MOV
- Classify the installation as AC mains, PV DC, equipment-level transient protection, relay-contact suppression or generator servicing. Record the circuit topology, normal and worst-case operating voltage, frequency if applicable, poles/conductors and earthing arrangement.

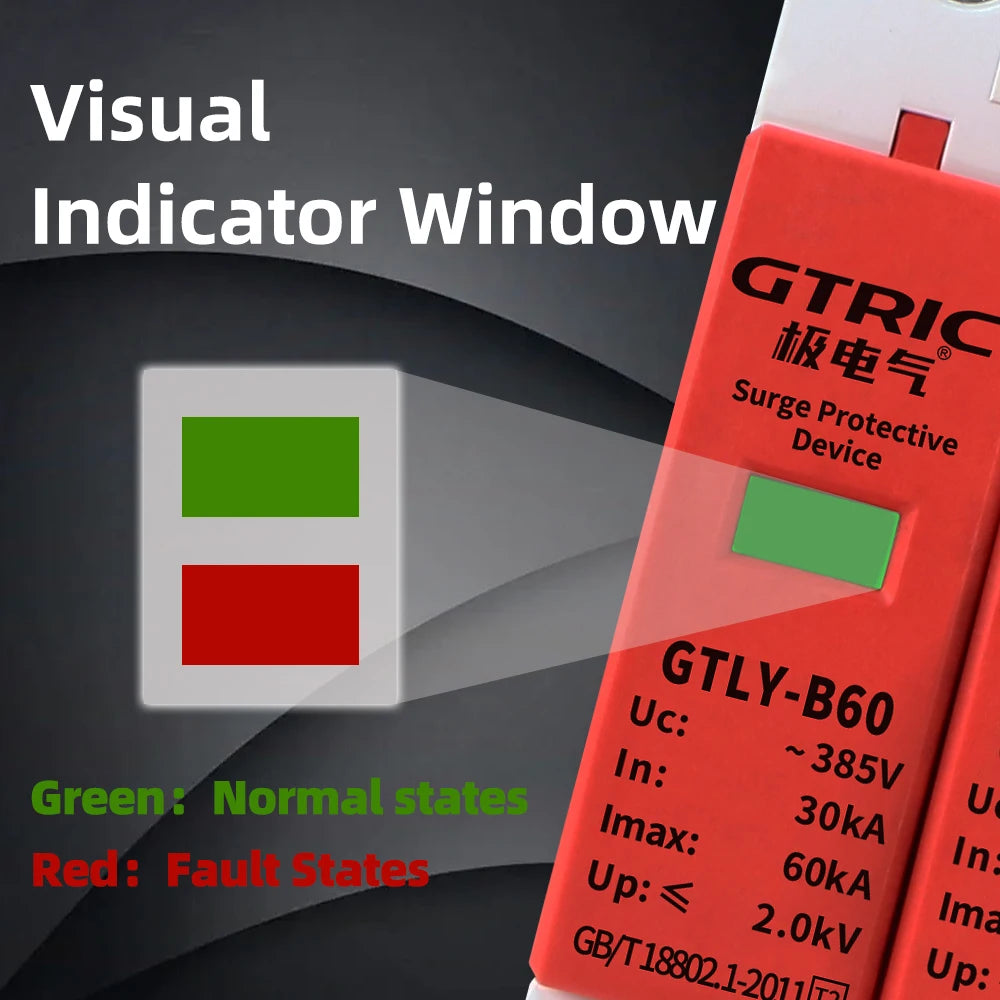

- For a complete SPD, compare the documented maximum continuous operating voltage, protection level, discharge-current ratings with their specified waveforms, protection type/class, short-circuit behavior, backup protection, disconnect/indicator features, installation category and applicable independently verifiable approvals. “40 kA” or “60 kA” without its test condition is insufficient.
- For an MOV component, separate maximum continuous AC RMS/DC voltage from varistor voltage at a stated test current and clamping voltage at a stated surge current. Verify pulse waveform, peak current, energy, repeated-surges and thermal-failure management for the exact selected part.
- Confirm the physical version and order quantity: pole count and rail form for SPDs, leads or terminals for components, chosen voltage/current option, enclosure and mounting, and whether the listing is a single piece or a pack. Do not infer equivalent provenance or certified performance from “original” or a brand in a seller title.
Compatibility and safety boundaries

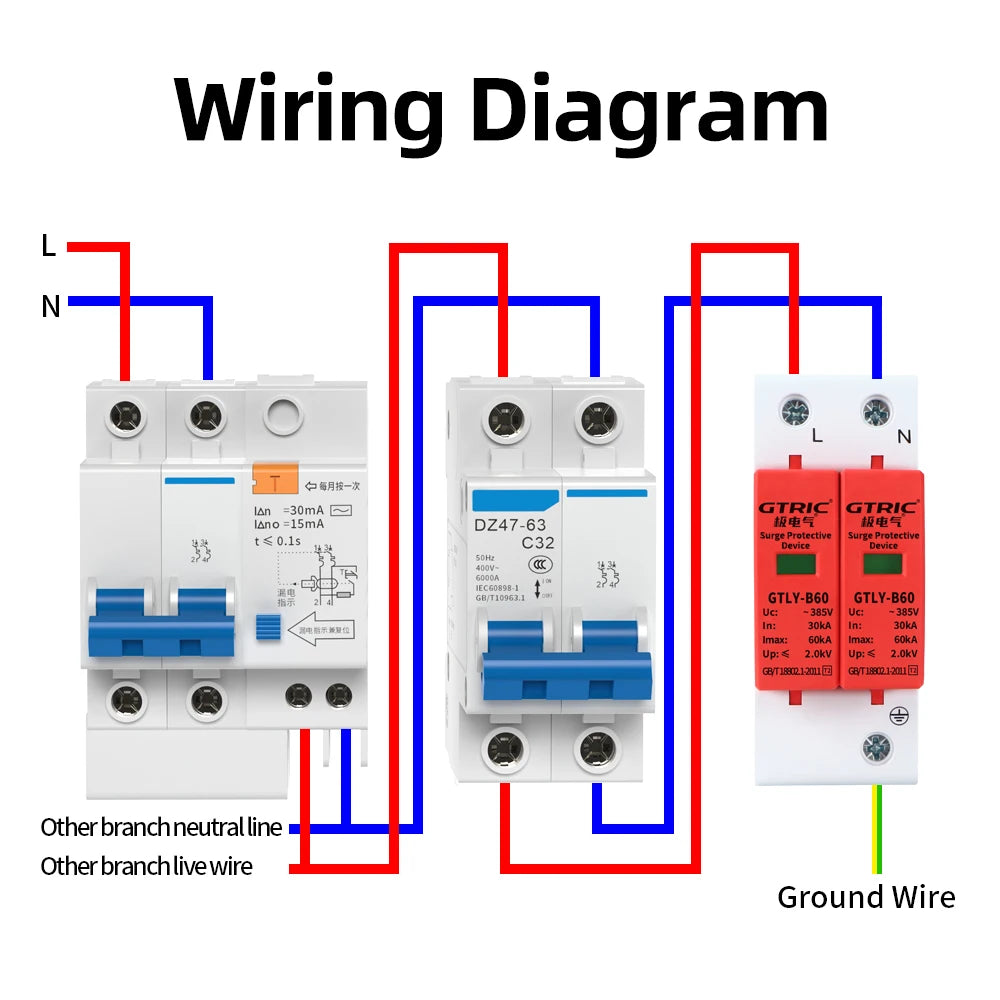

MOVs can degrade or fail under repeated or sustained overvoltage. They require suitable system-level coordination and failure protection; they do not replace a circuit breaker, fuse, isolation device or a verified complete SPD. Gas discharge tubes, TVS devices, RC snubbers and MOVs use different protection mechanisms. A device that matches the nominal system voltage may still have the wrong continuous voltage, protection level, discharge rating or pole arrangement. Mains, PV and generator work should be evaluated and installed by qualified personnel using the specific equipment documentation and local requirements; there is no universal wiring diagram for these listings.
Buyer checklist
Specify the installation type, supply range including tolerances, AC or DC, required topology/poles, expected transient waveform and exposure, exact documented protection ratings, selected manufacturer part number, terminal or footprint dimensions, backup protection requirements, approval evidence where needed, and number of pieces. For replacement work, match the equipment service part and not simply the color, diameter or “470V” option text.
Frequently asked questions
Is a 20D471K disc equivalent to a 2P 40 kA SPD?
No. The disc is a component; the 2P listing describes an assembly with its own verified ratings, disconnect and installation requirements.
Can an AC household SPD be fitted to a solar PV string?
Not on the basis of its AC rating. Select a device expressly specified for the installation's maximum DC voltage and PV system requirements.
What does a 275 V or 385 V option tell me?
Only that the seller uses that label for the option. Confirm whether the manufacturer's documentation defines it as maximum continuous AC voltage, a nominal system label or another rating.
Are the generator rectifier kits ordinary surge protectors?
No. They are generator-specific parts or assemblies; verify the exact alternator service documentation before considering a replacement.
