Time-Delay Fuses for PCB, Cartridge and DC Circuits
A time-delay fuse is a one-time overcurrent device whose documented time-current behavior can tolerate a specified short startup surge while still opening under a sustained overload or fault. “Slow blow,” “time lag” and a T prefix may describe a selected fuse's response, but do not set one universal opening time. This collection includes radial PCB, cartridge and bolt-down DC fuse listings plus several adjacent protection parts that are not interchangeable. Start with the exact selected part, circuit and manufacturer specification.
Formats represented here

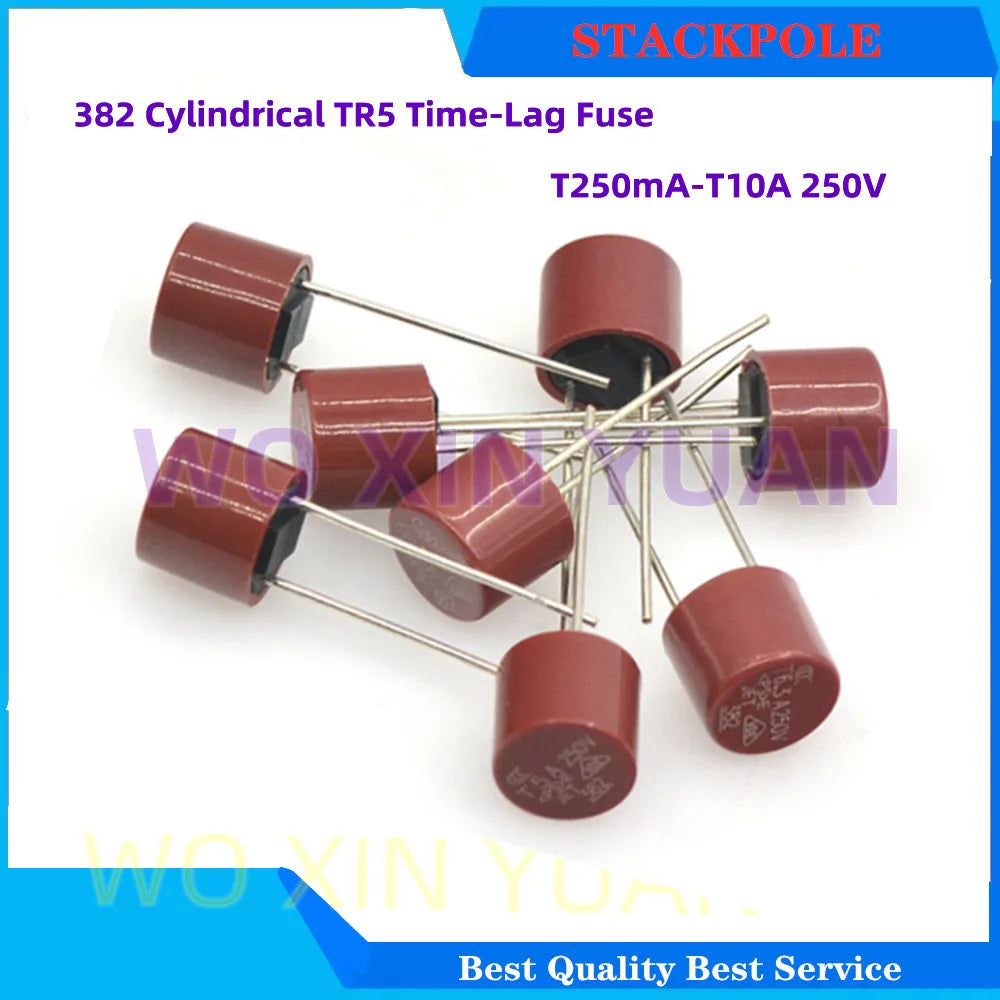

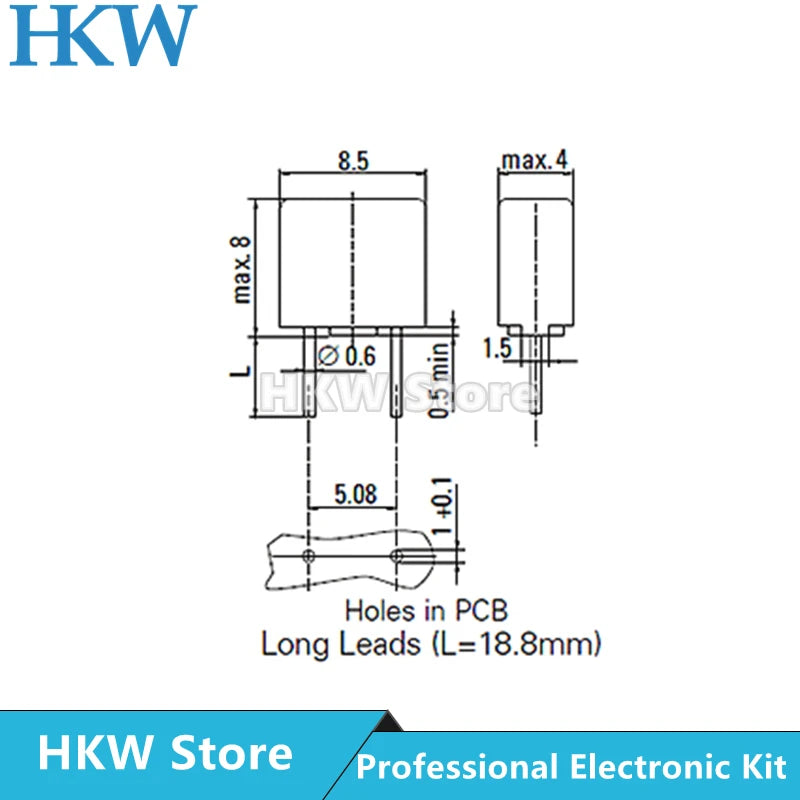

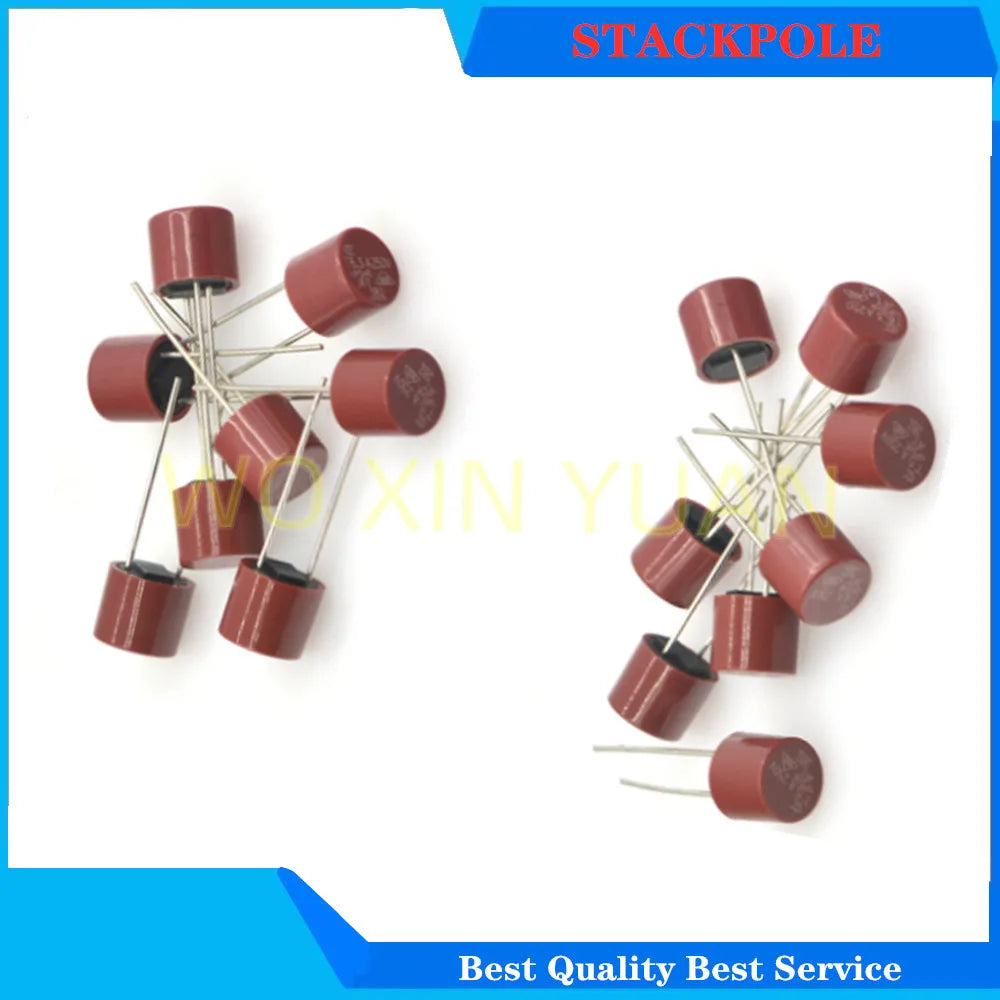

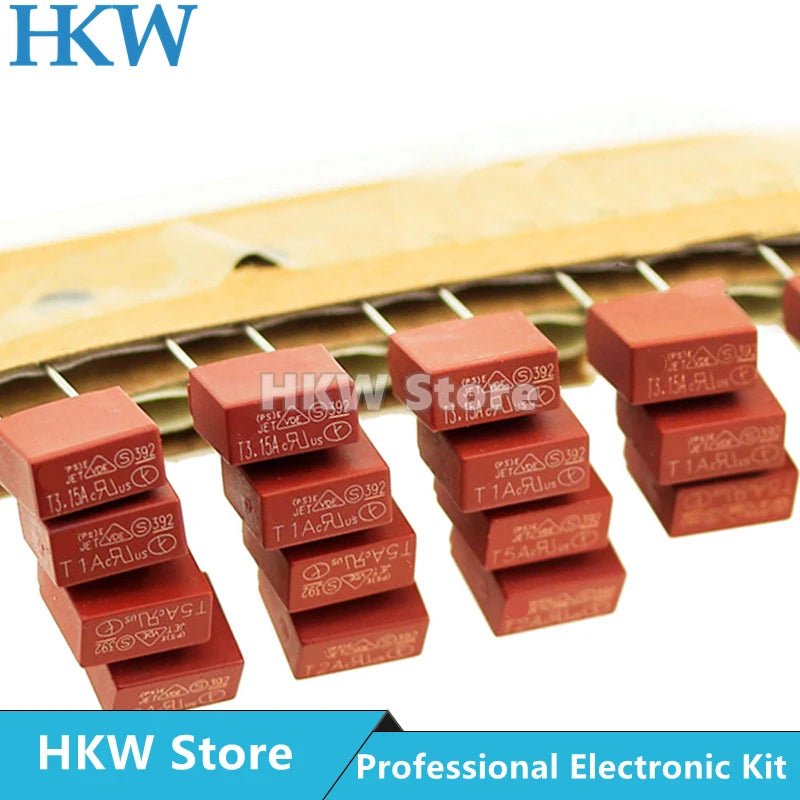

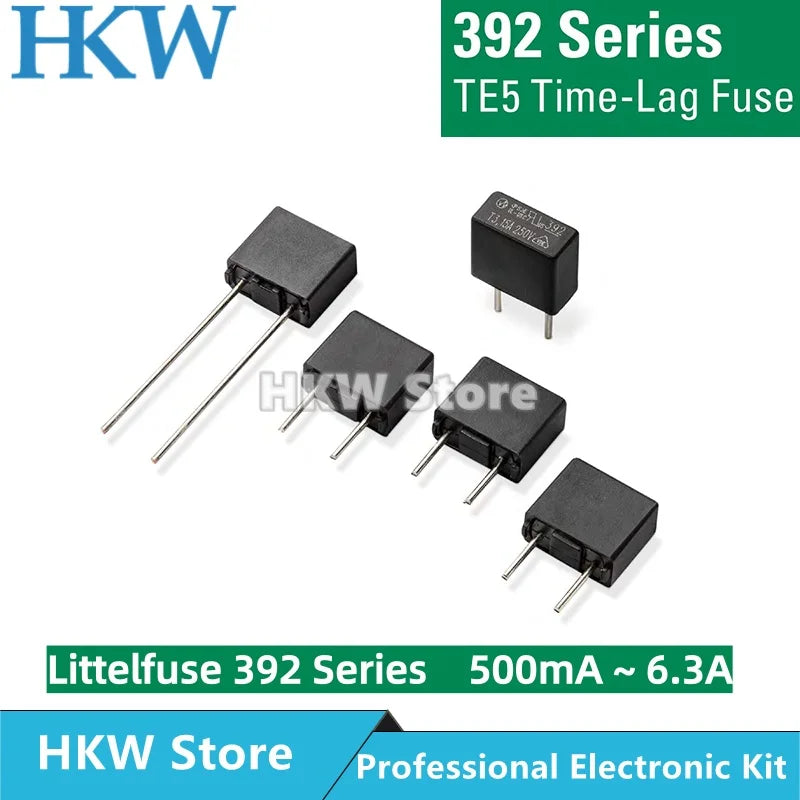

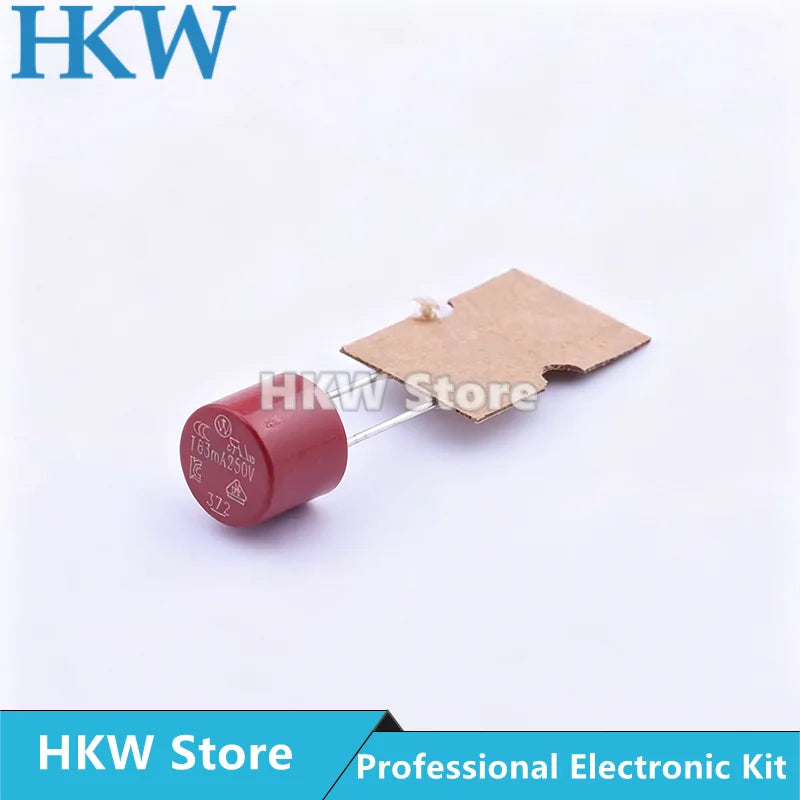

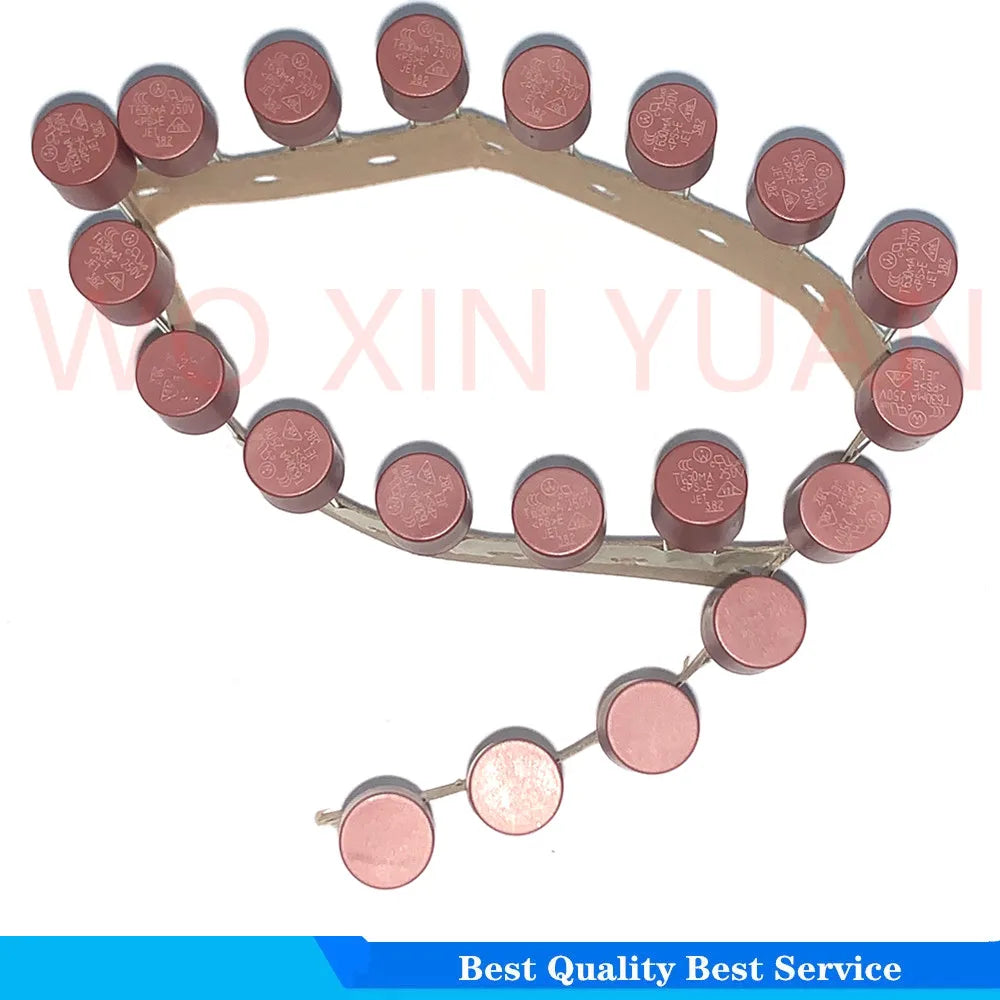

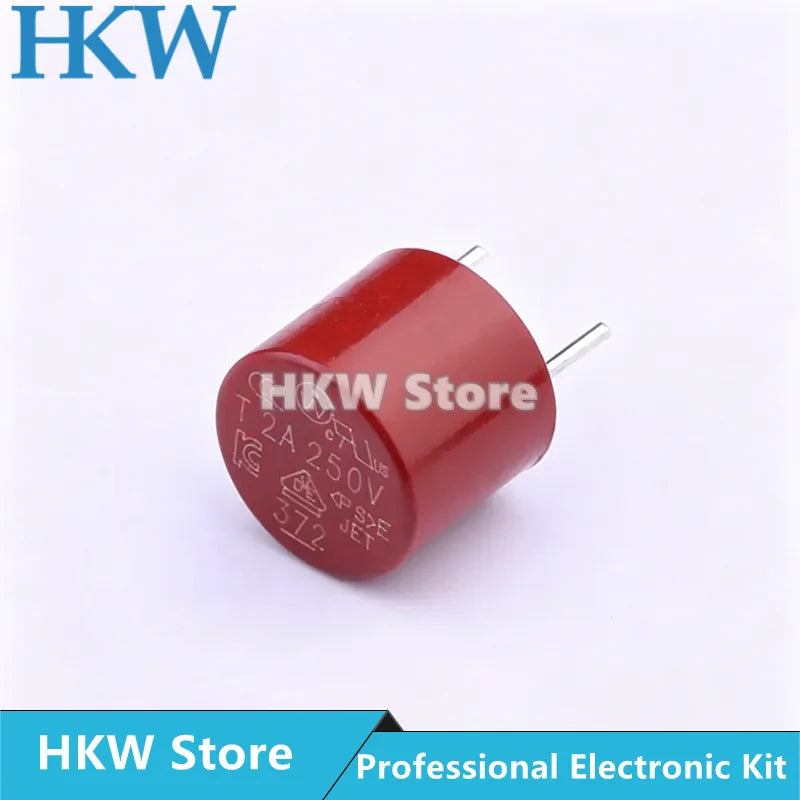

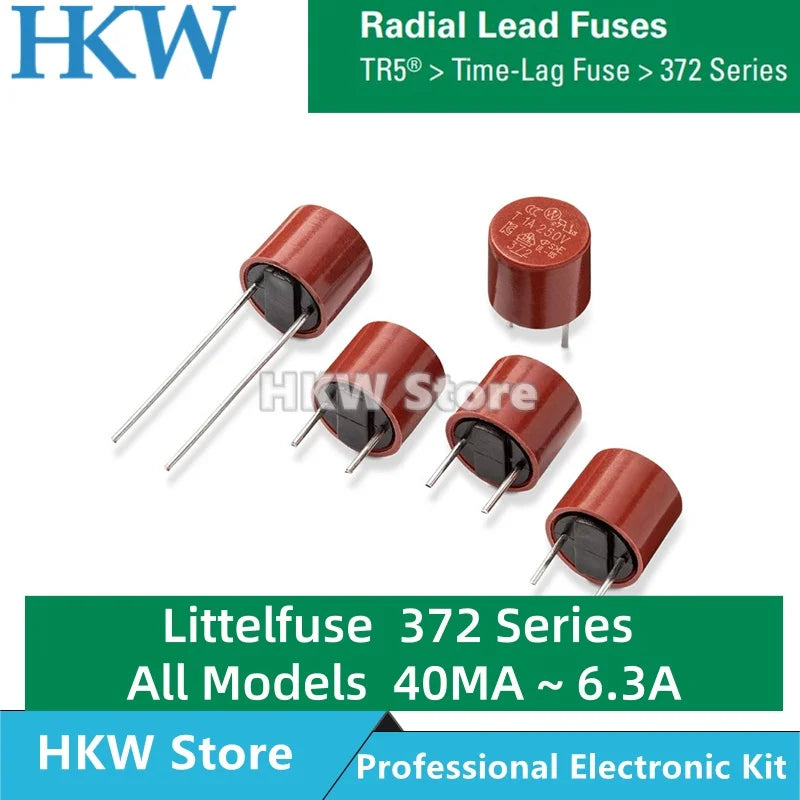

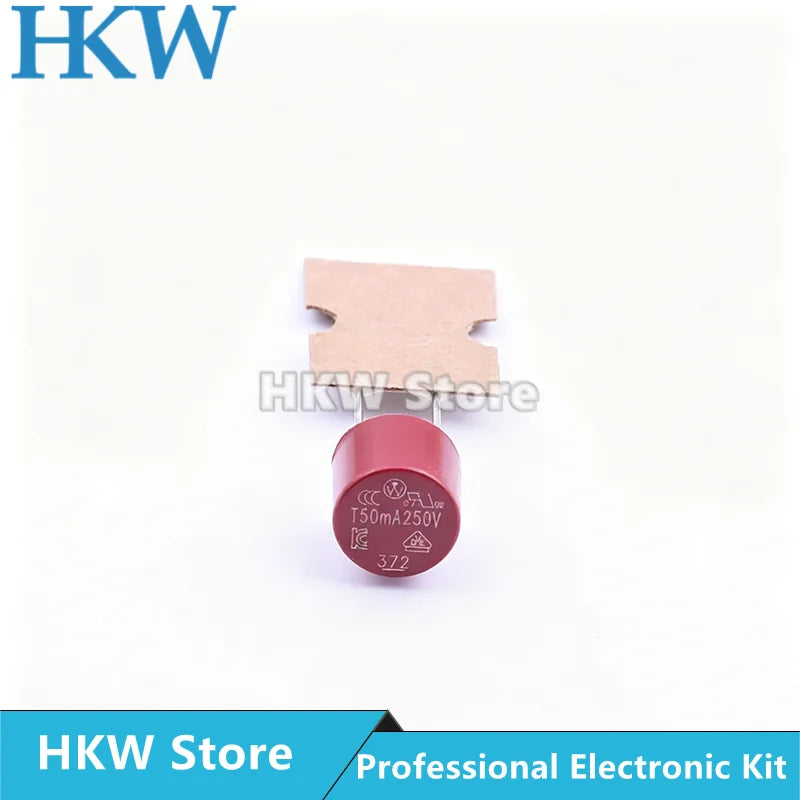

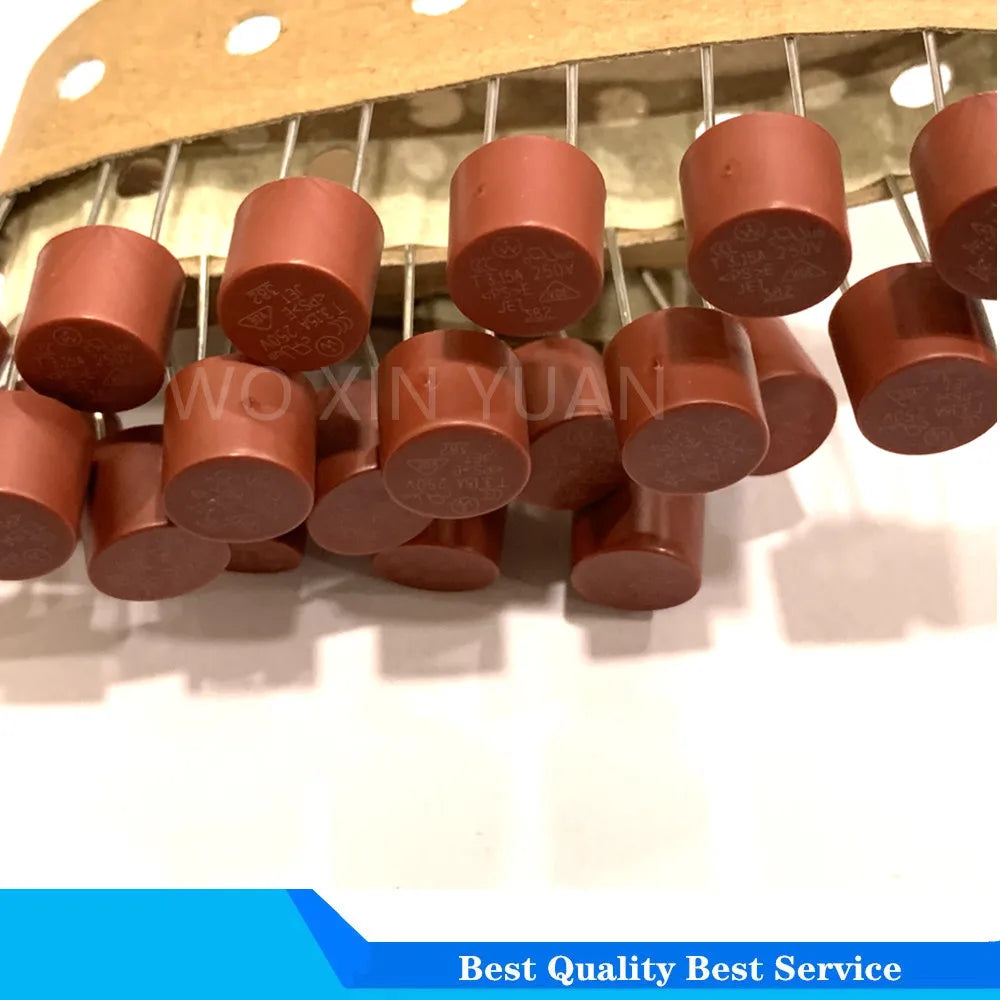

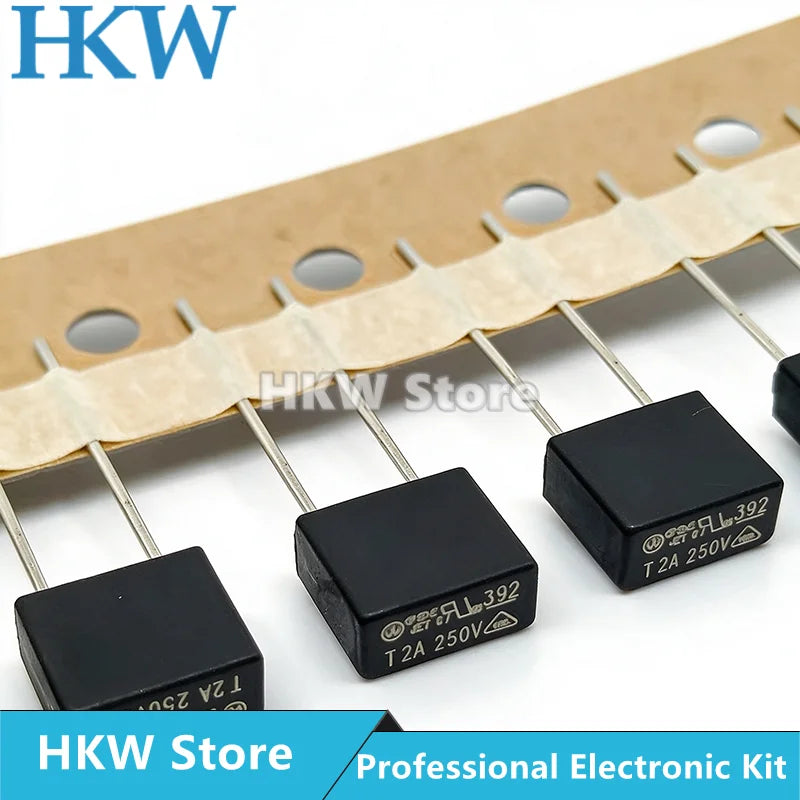

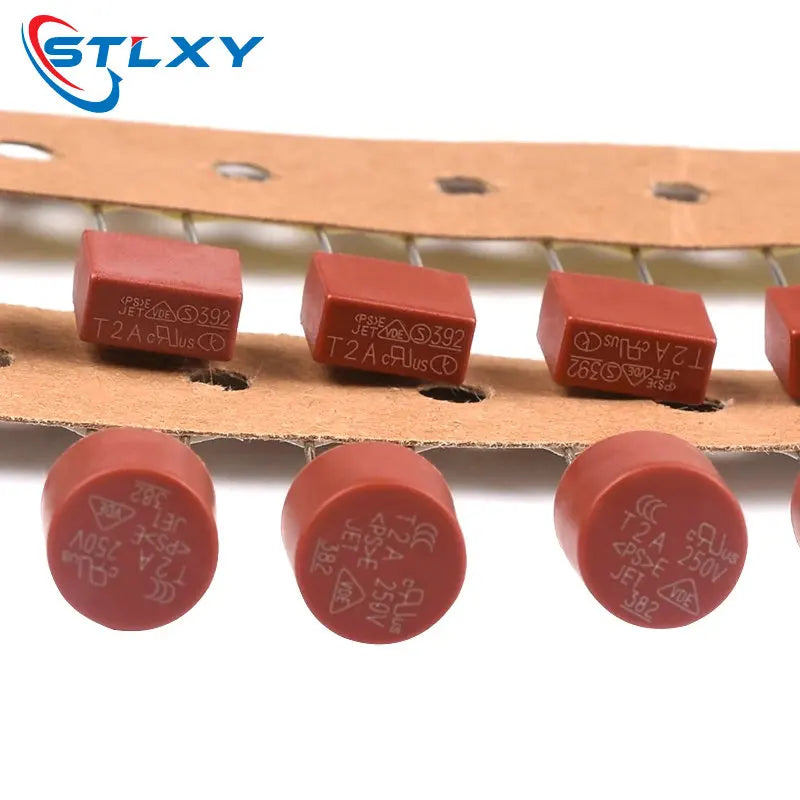

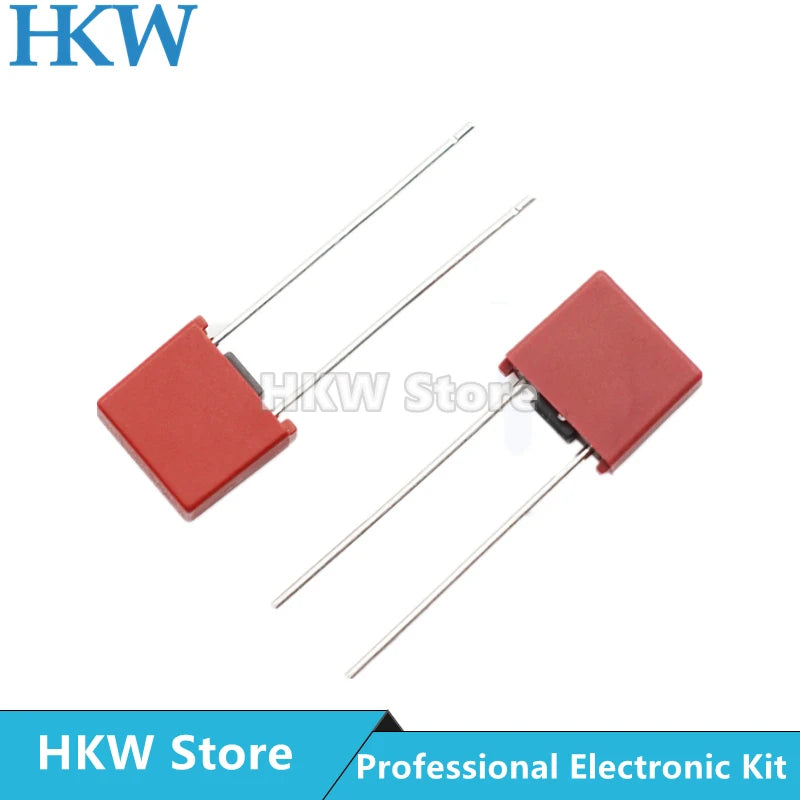

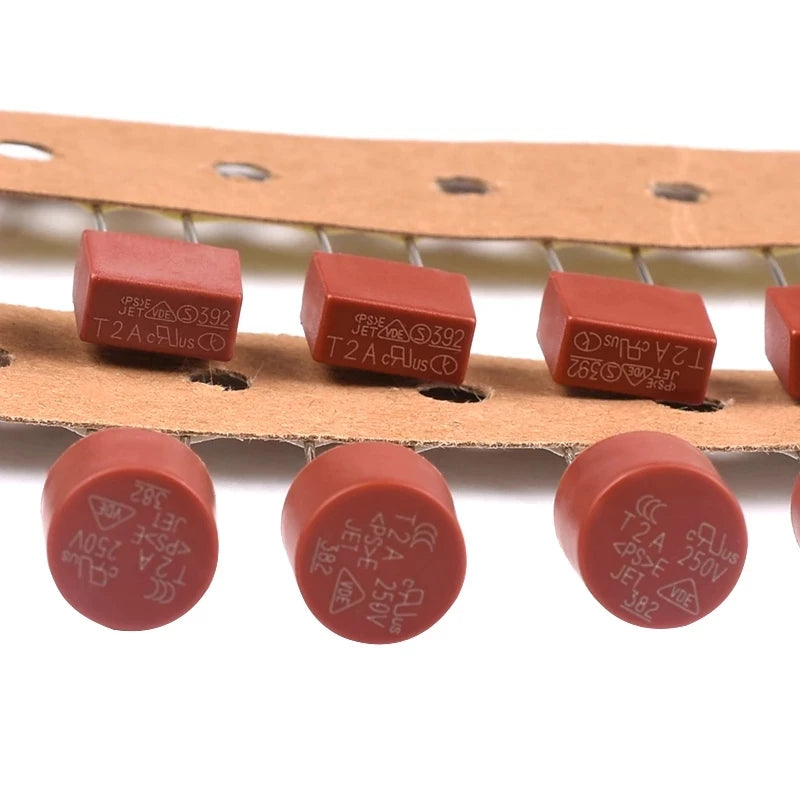

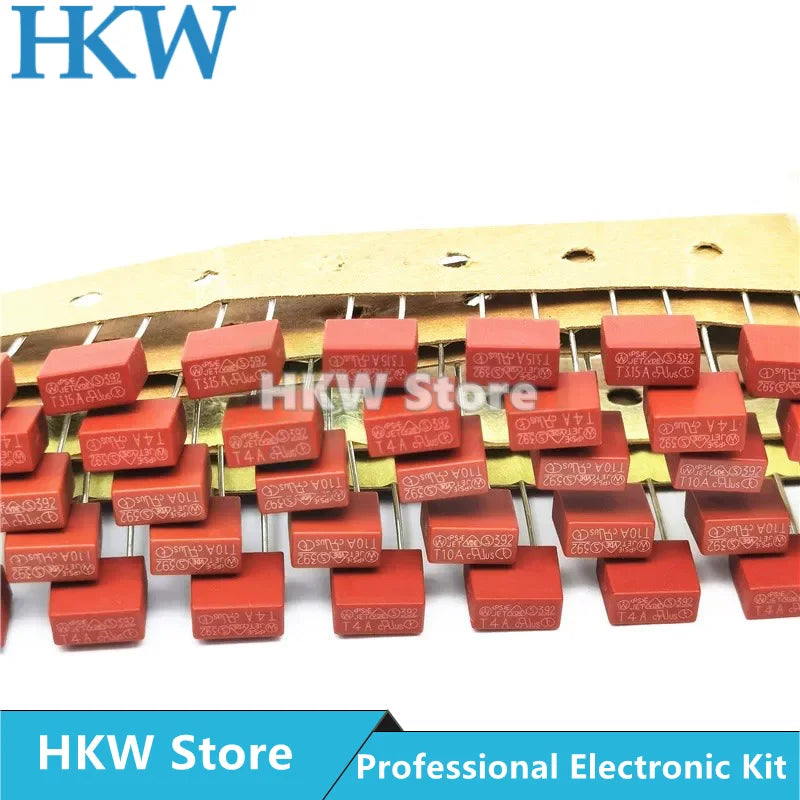

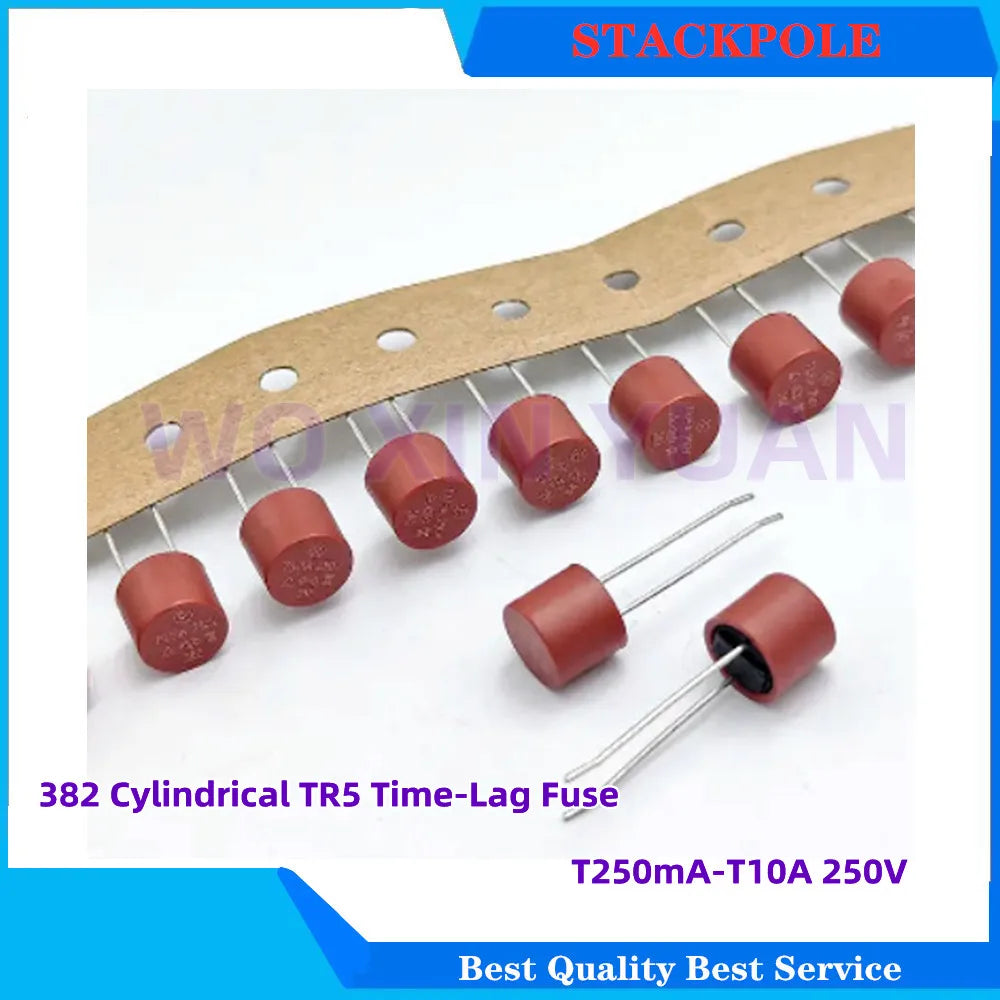

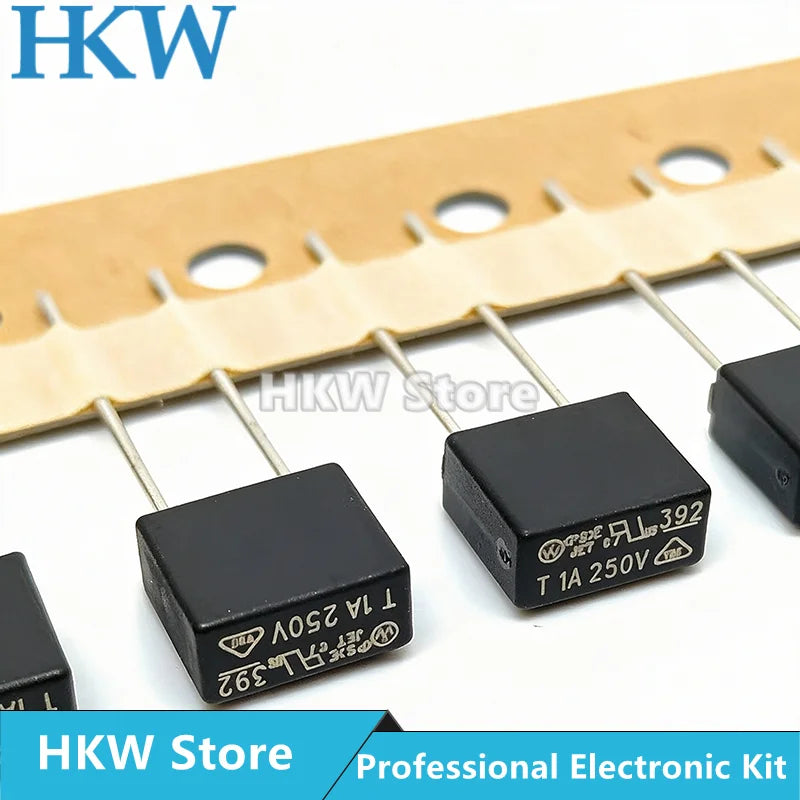

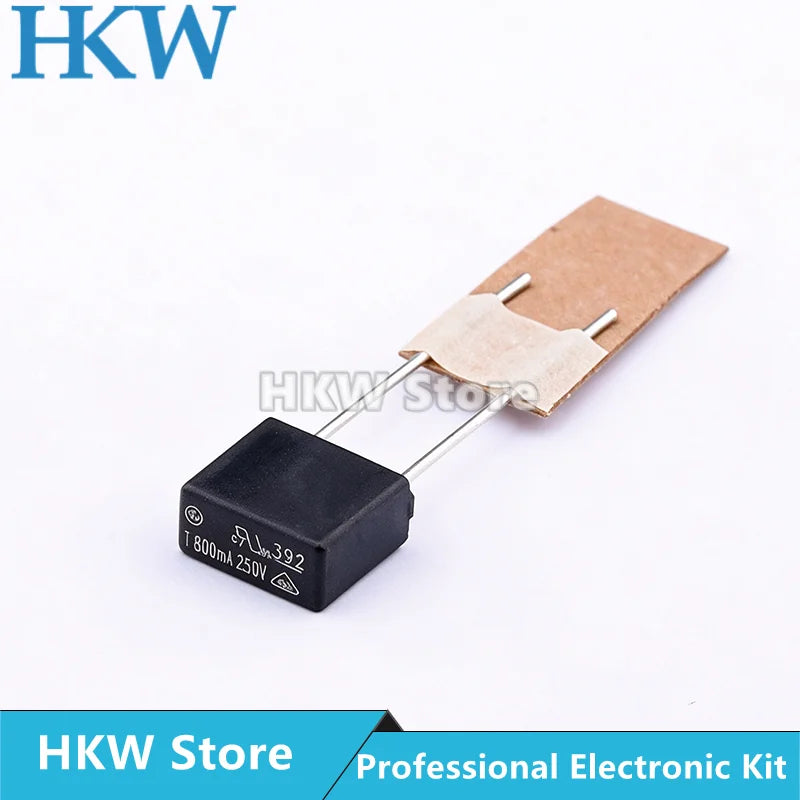

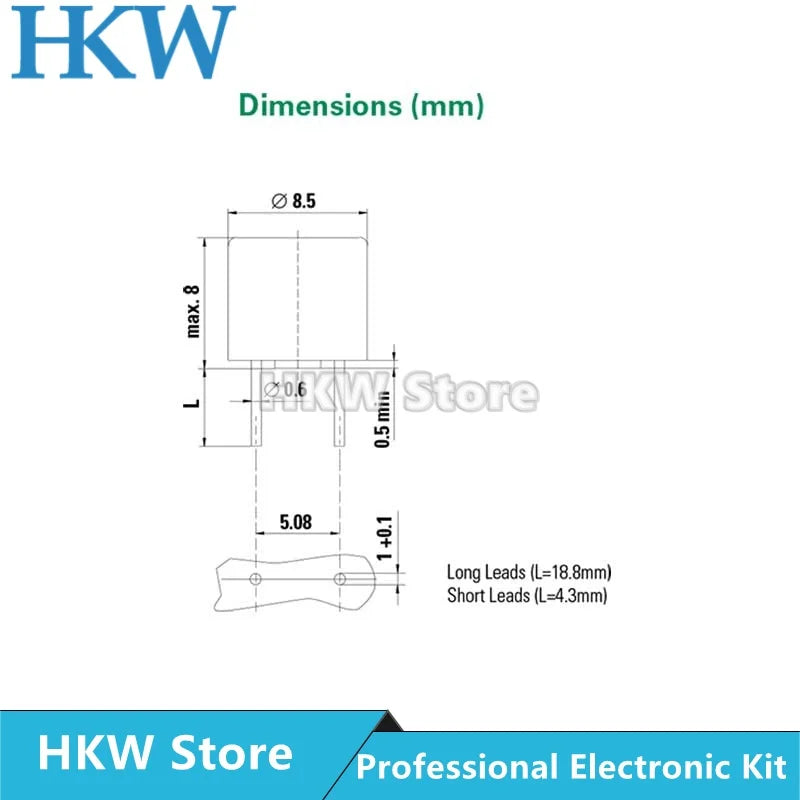

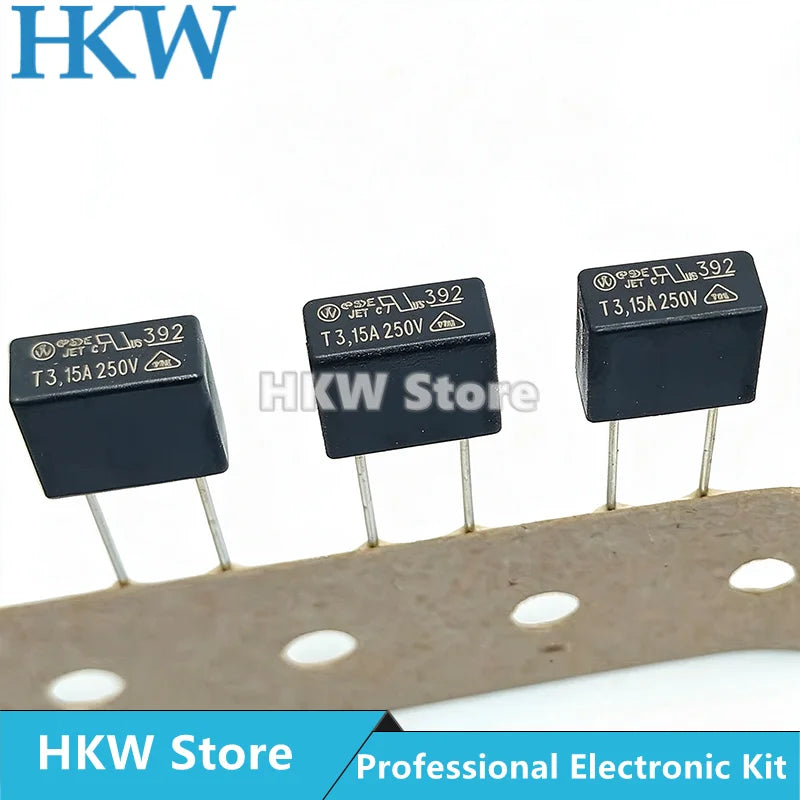

- Radial PCB fuses: 372/TR5-style cylindrical, 382 round and 392 square two-pin designs list T-marked milliampere and ampere choices, commonly described for 250 V applications. Compare lead spacing, body clearance, mounting method, time-current curve and fault rating; the 372, 382 and 392 shapes are not automatically interchangeable. A TV power-board reference in a listing does not prove compatibility with every device.

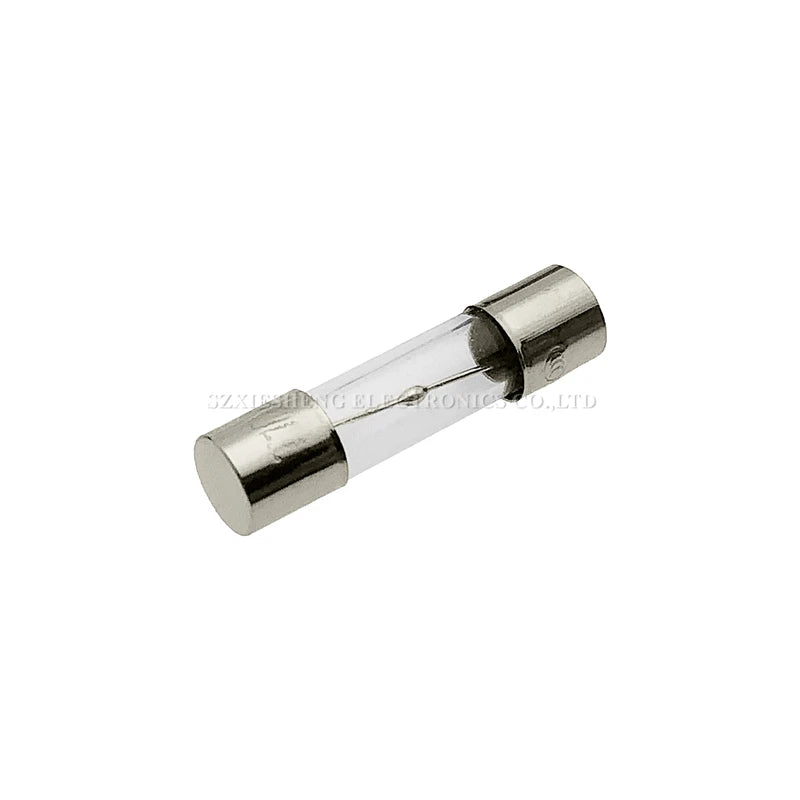

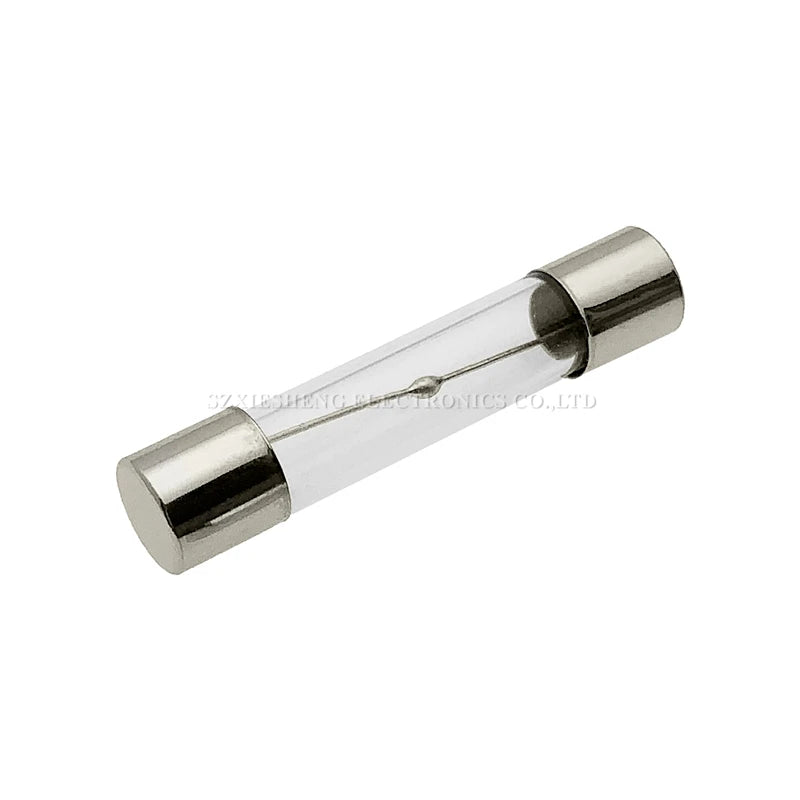

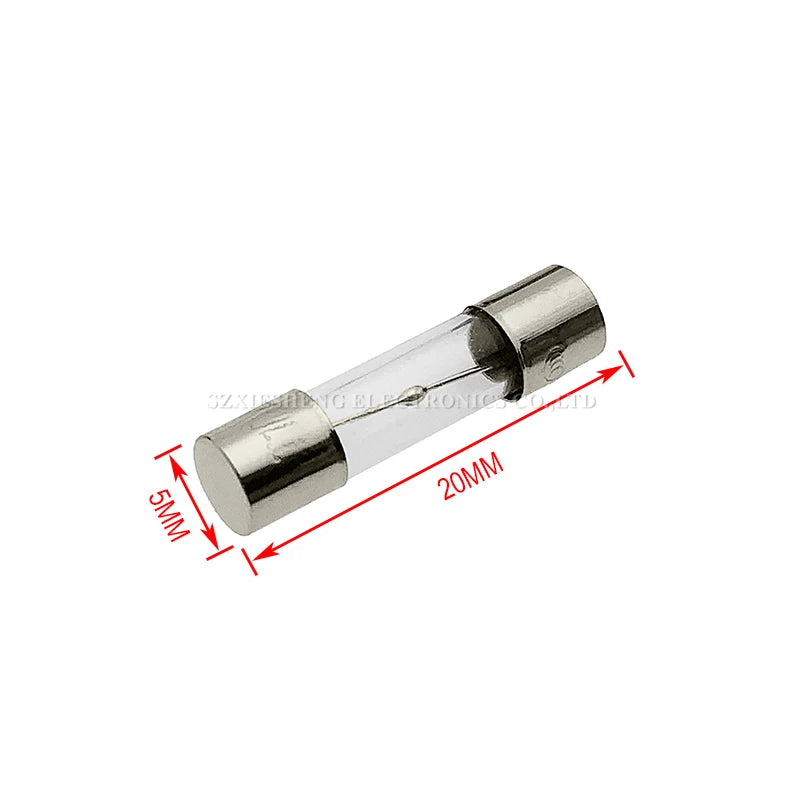

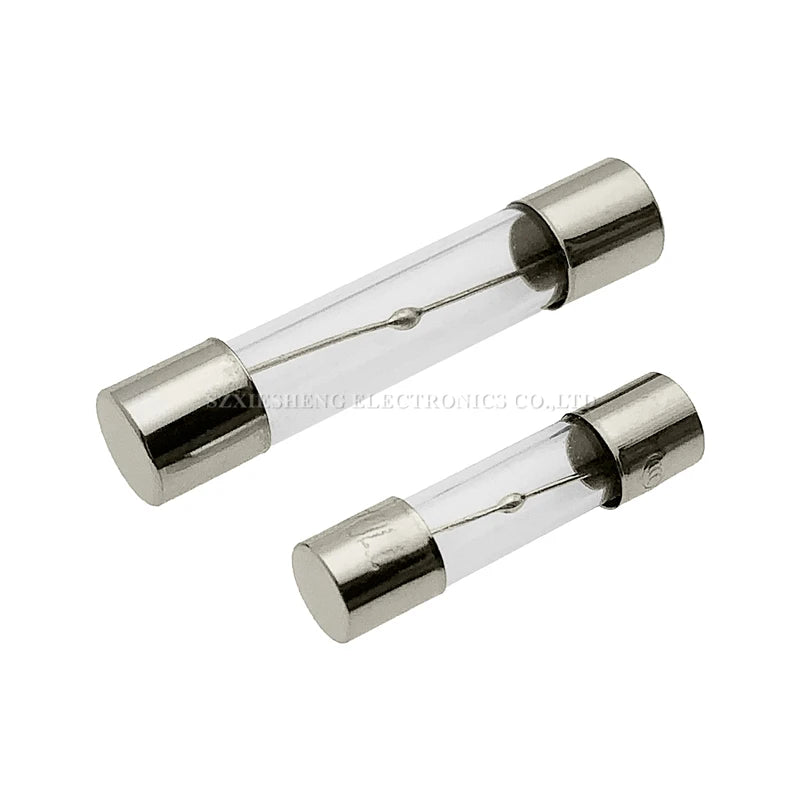

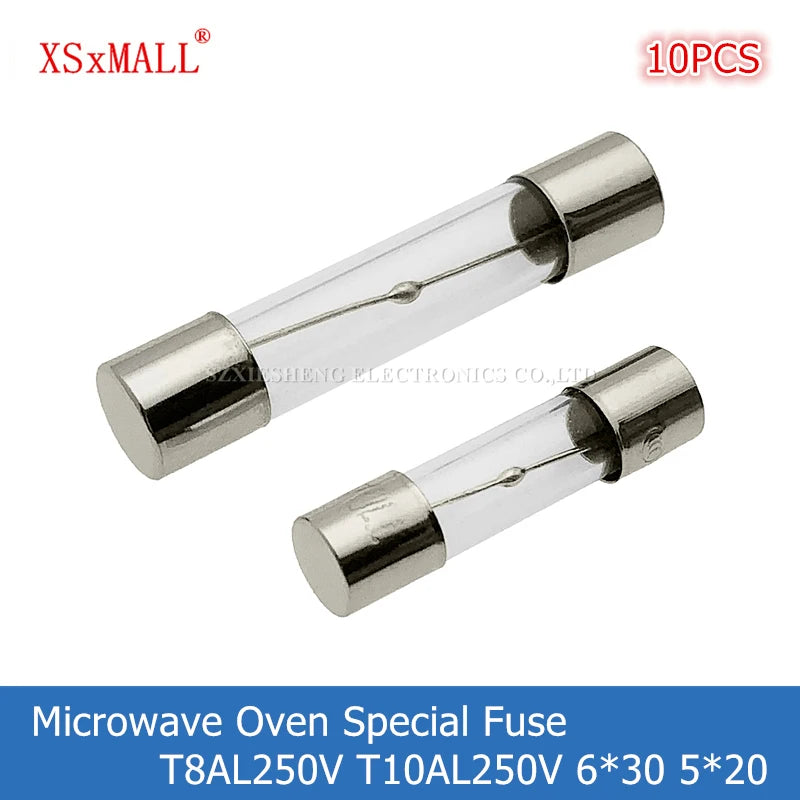

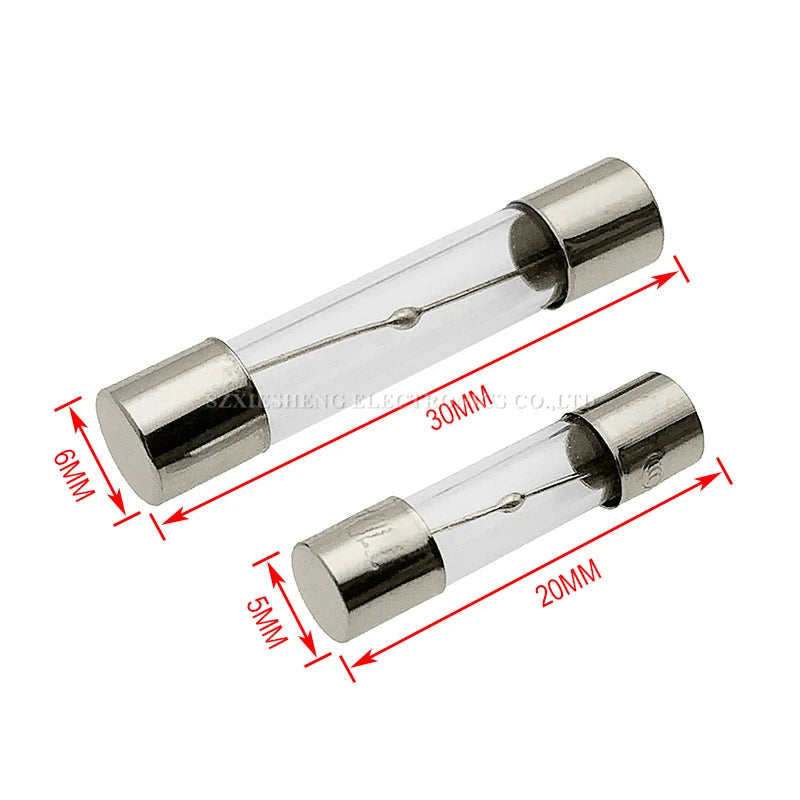

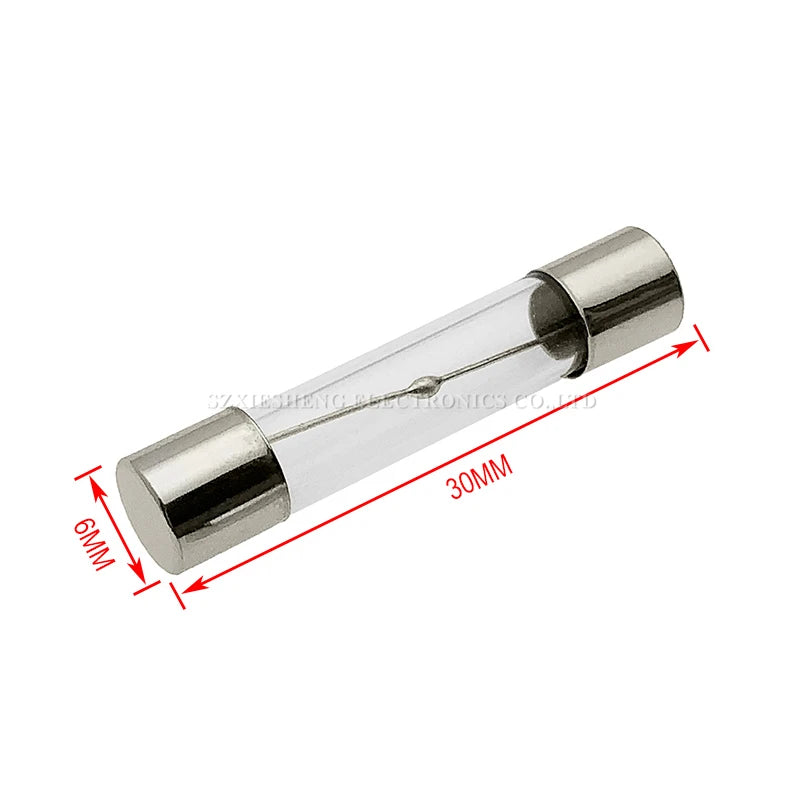

- Glass and ceramic cartridges: 5 × 20 mm ceramic tubes with pins and plain 5 × 20 or 6 × 30 mm glass options include T-labelled selections. A medium-response 5 × 20 mm part and a microwave-labelled T8A/T10A listing require their own documented specifications. For microwave equipment, match the equipment maker's part and use a qualified technician; high-voltage sections can retain dangerous charge after disconnection.

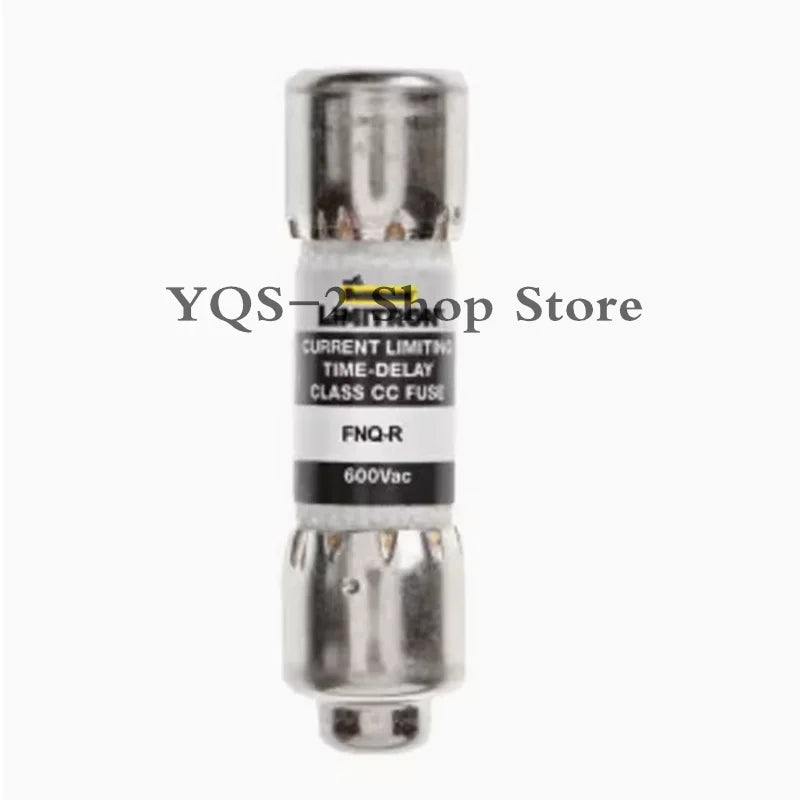

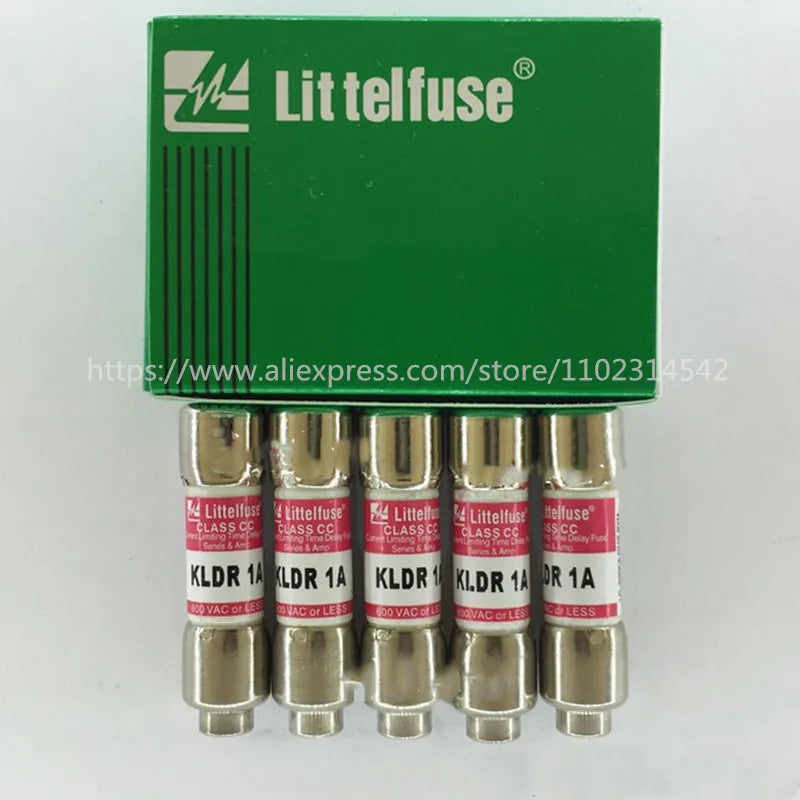

- Industrial cartridge links: KLDR and FNQ-R-labelled 10 × 38 mm listings reference 600 V-class time-delay families. Confirm the selected part's actual manufacturer, AC/DC rating, breaking capacity, holder and certification from traceable documentation; a seller's “original” wording is not proof of source.

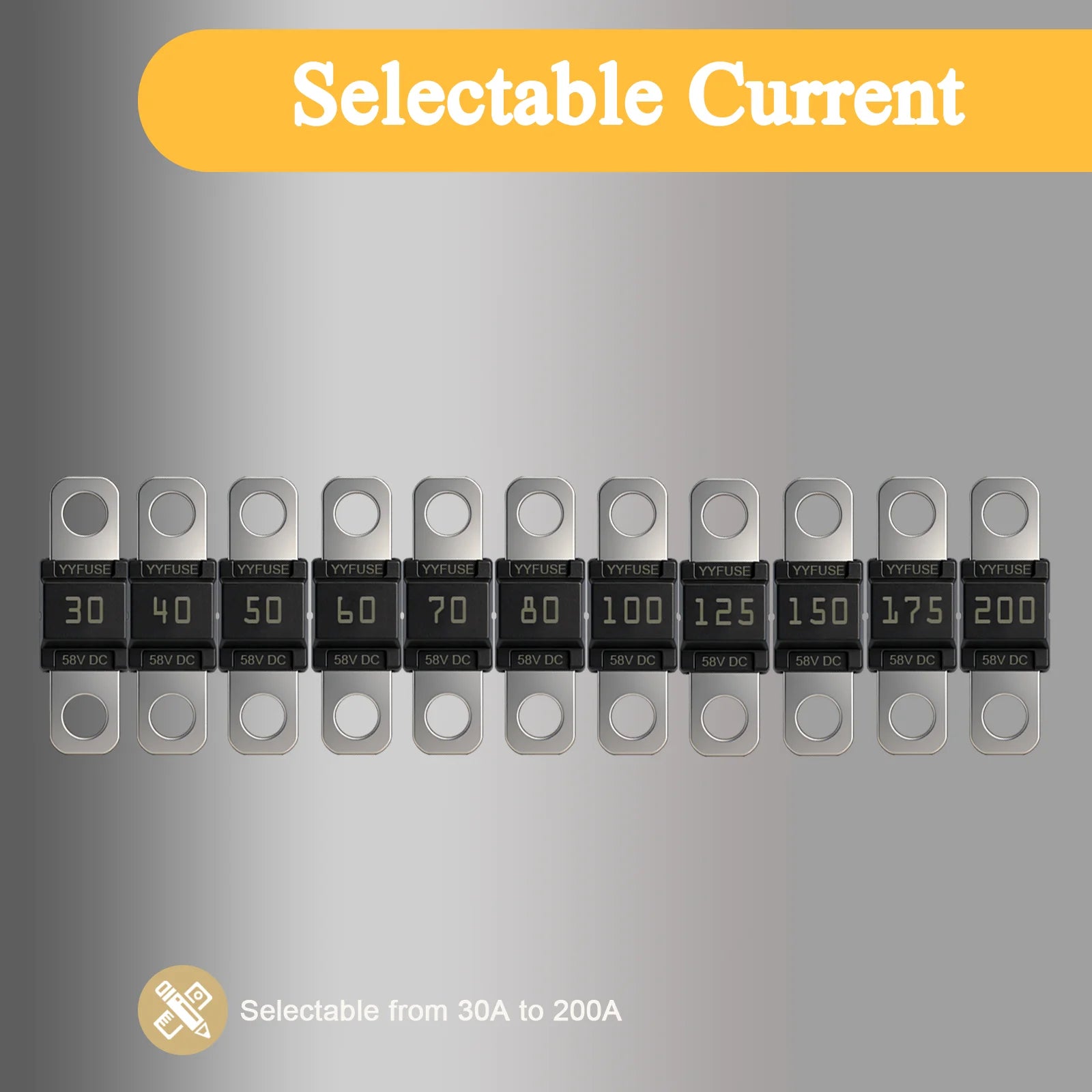

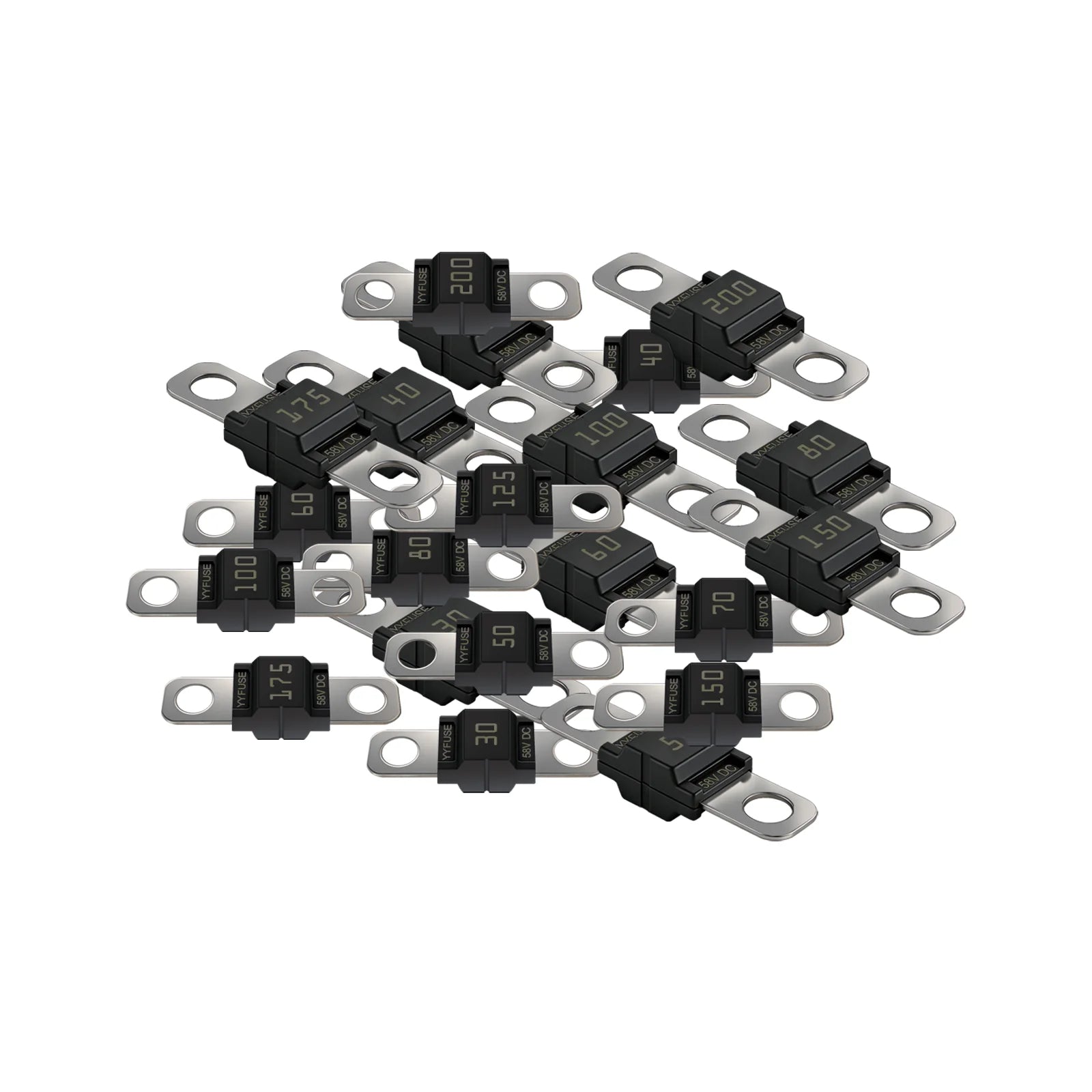

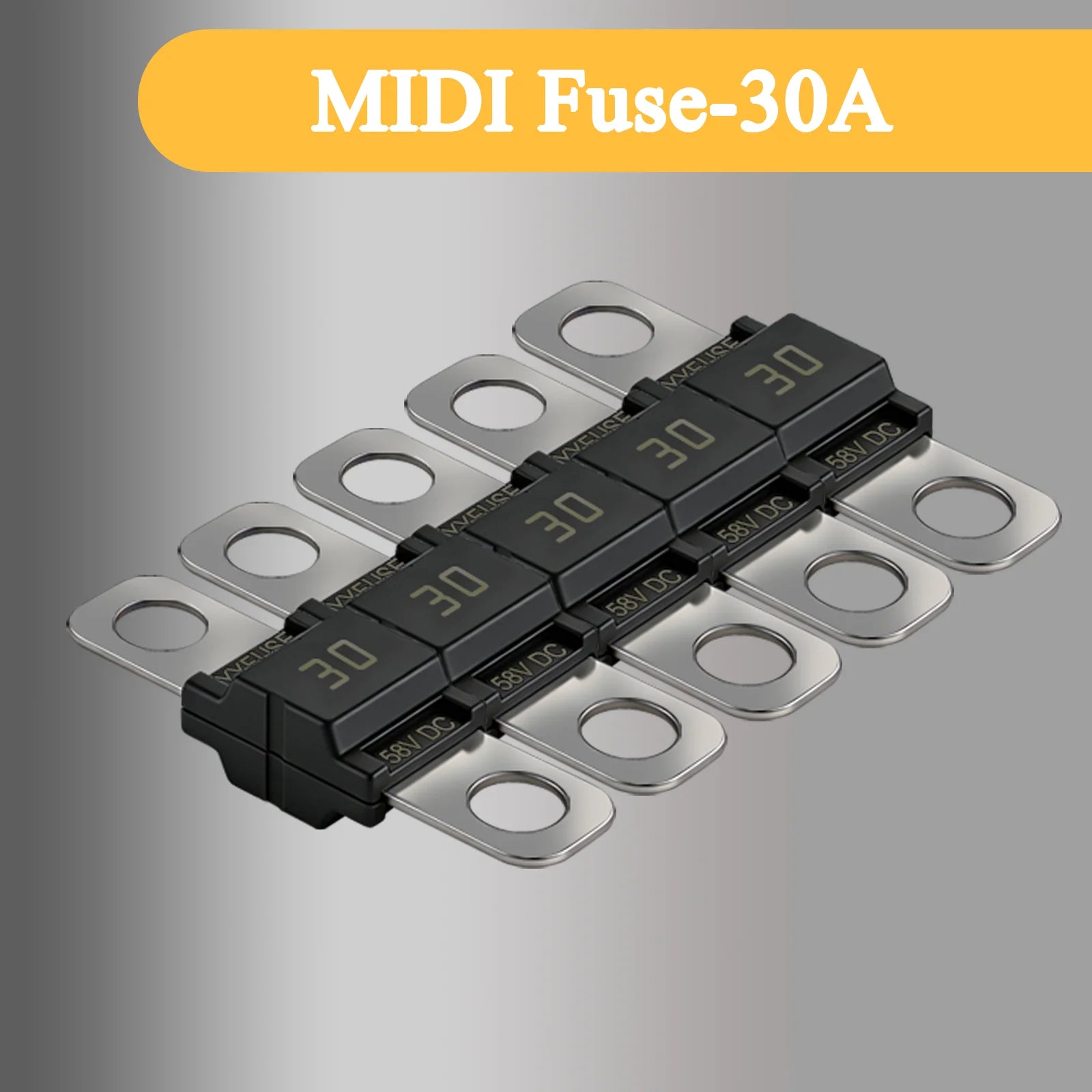

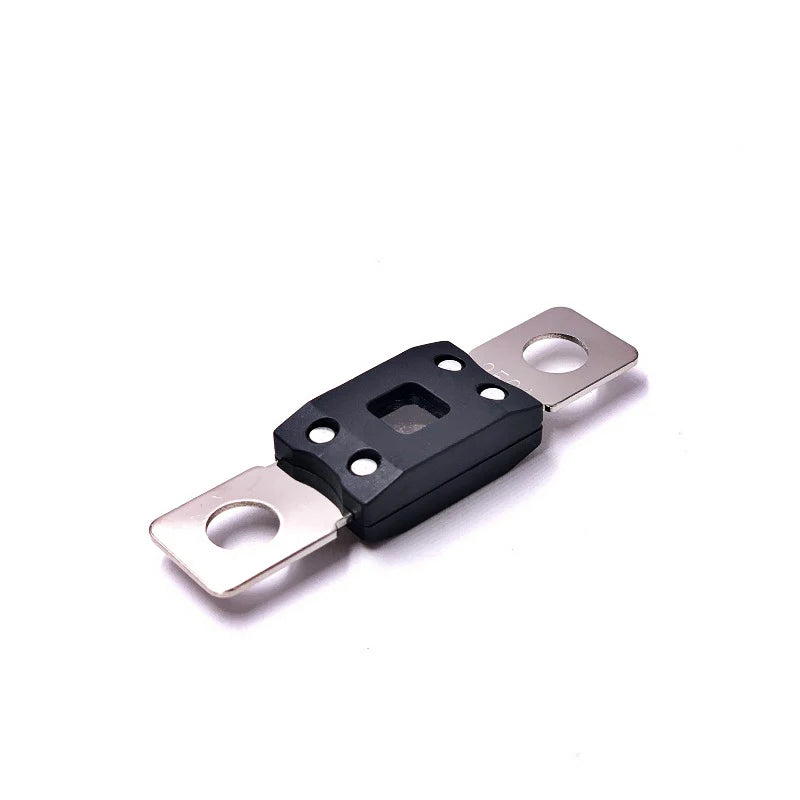

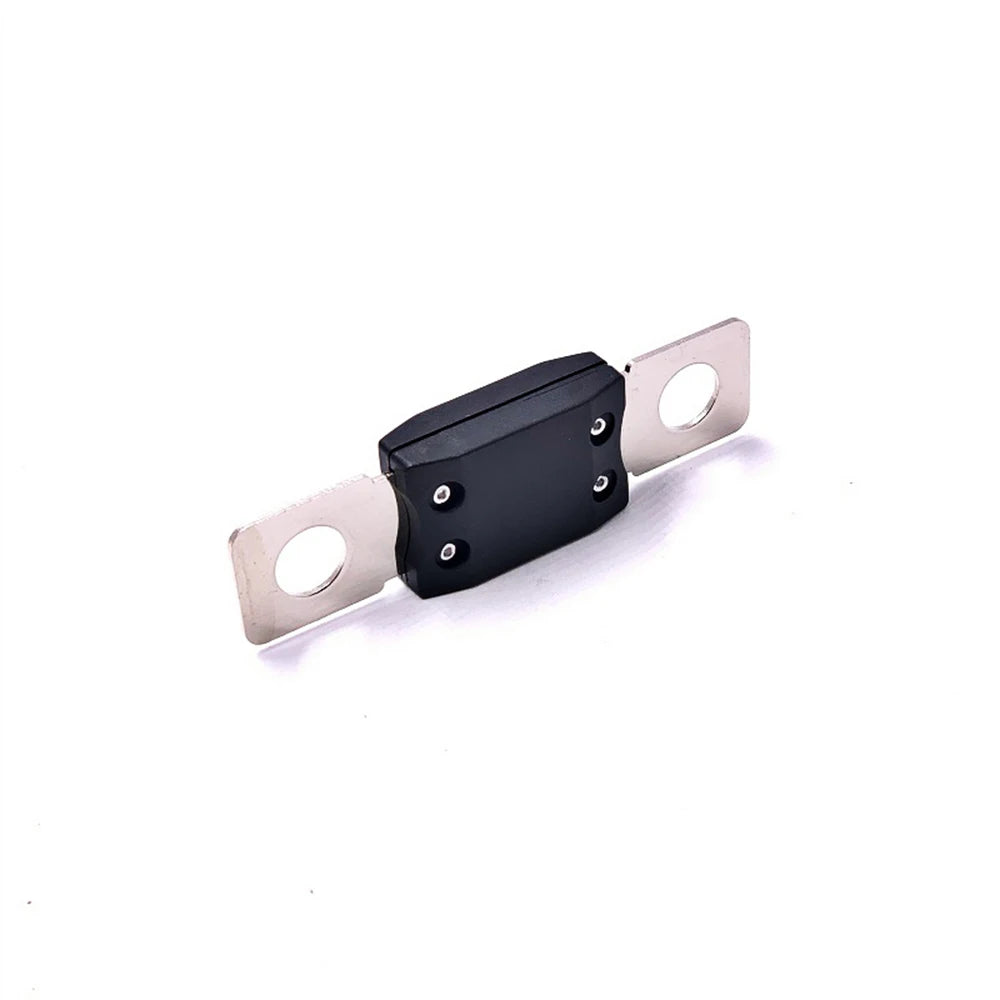

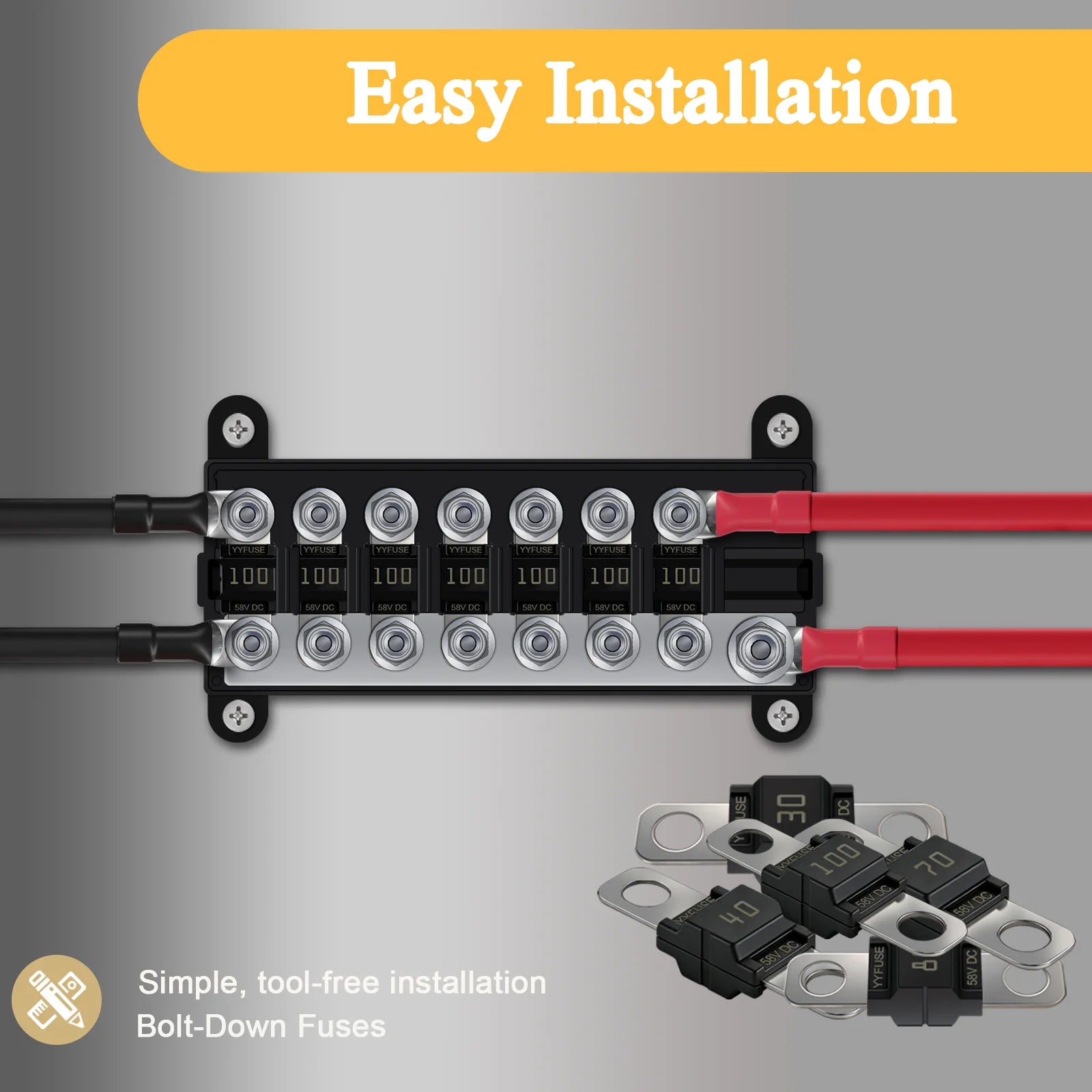

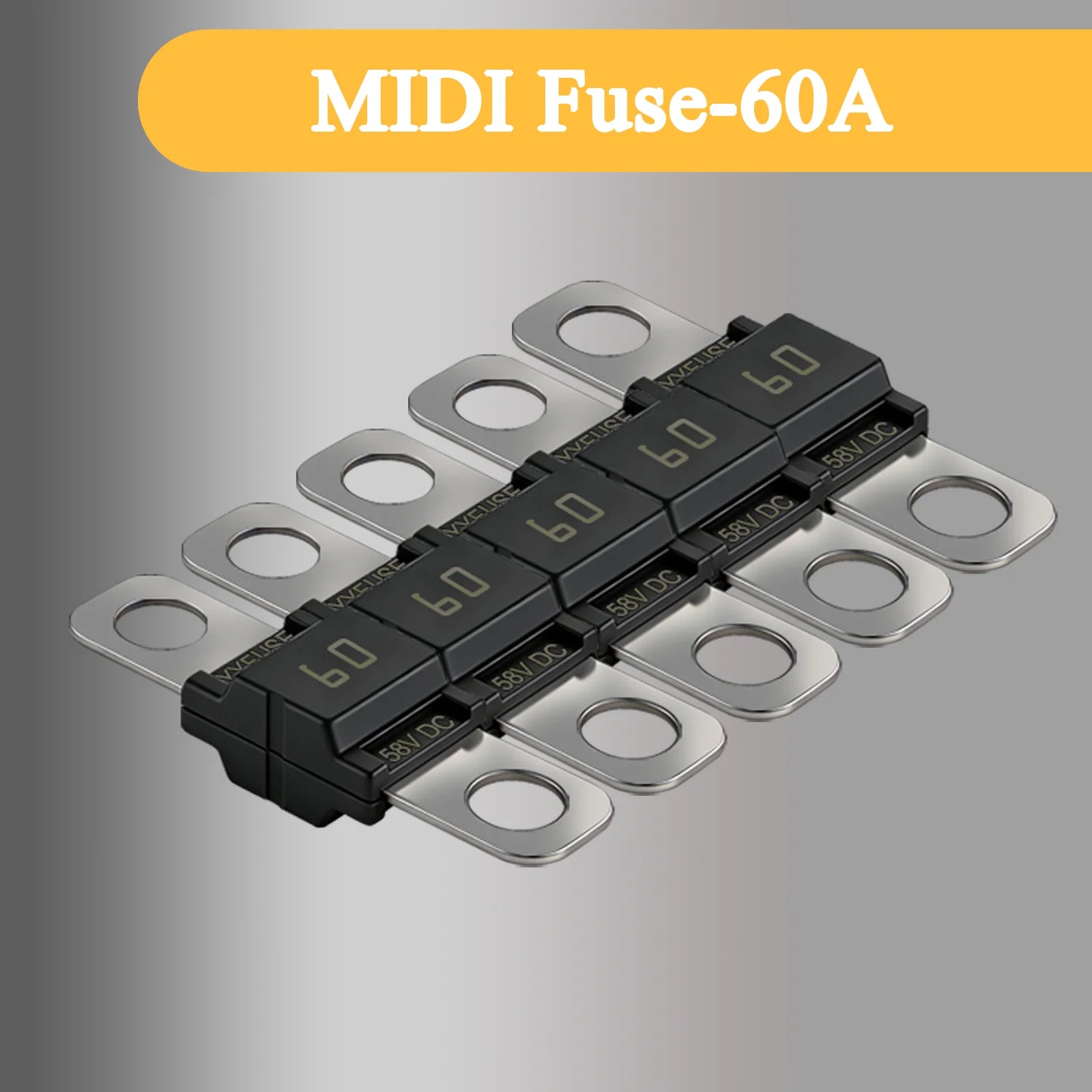

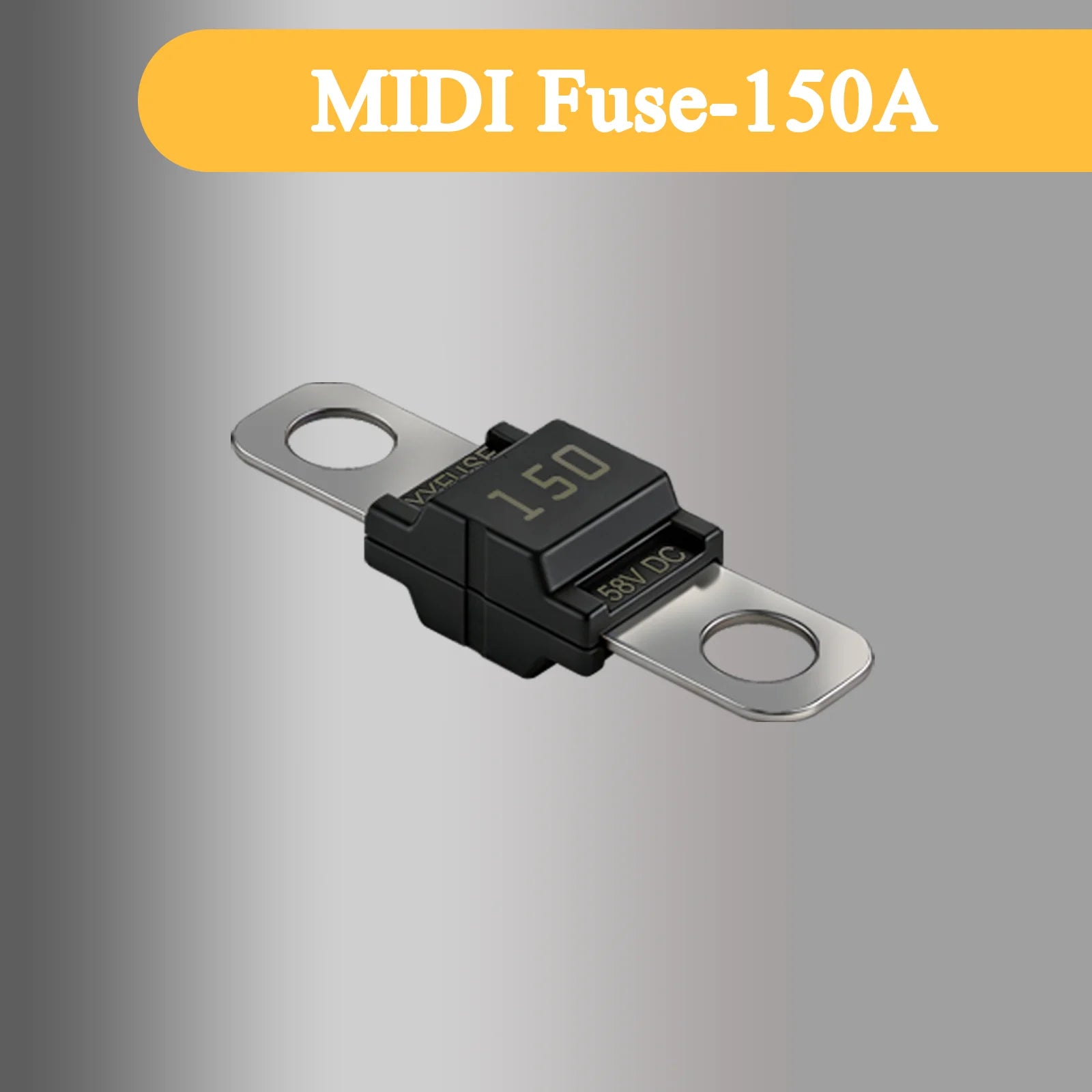

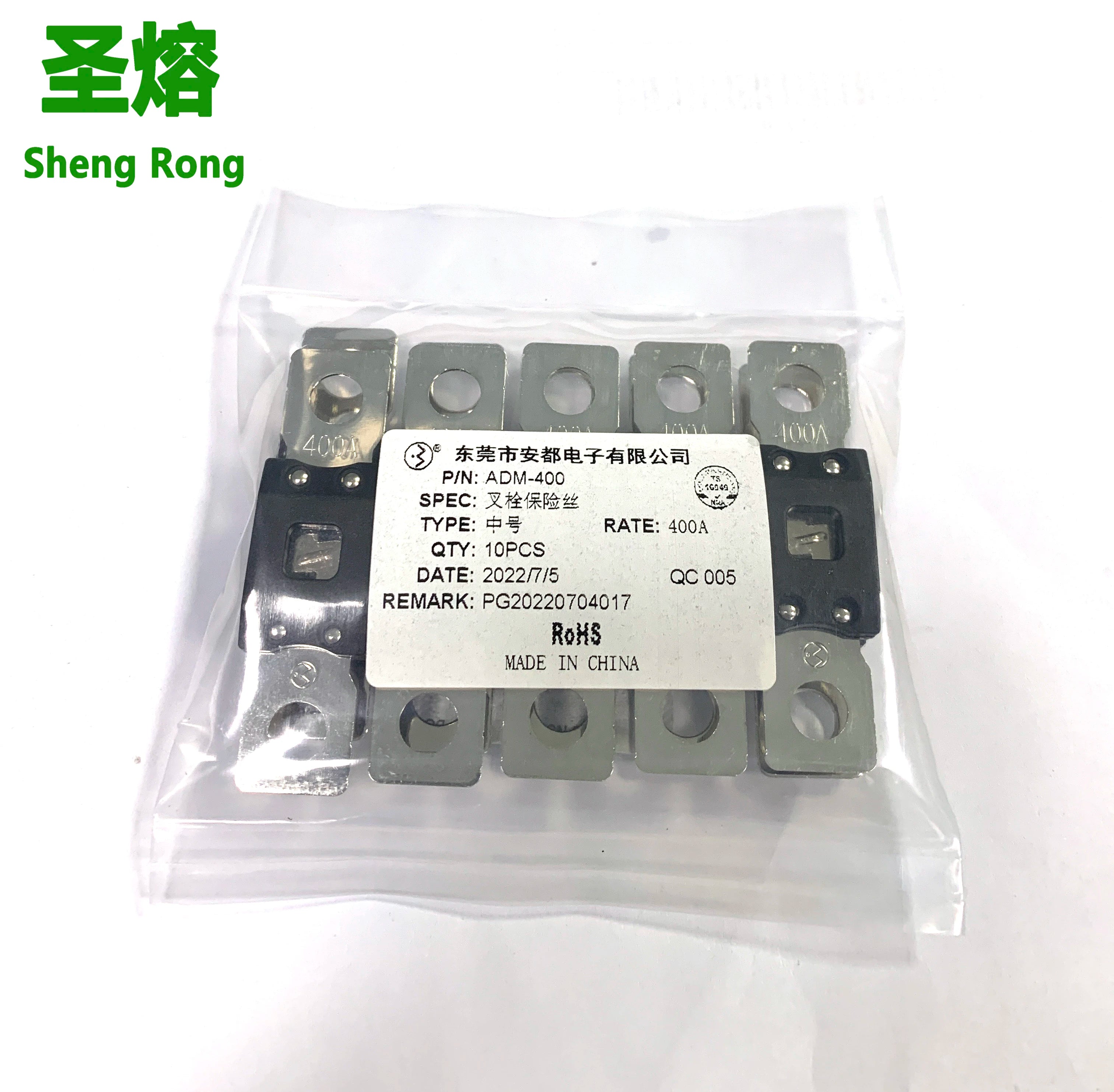

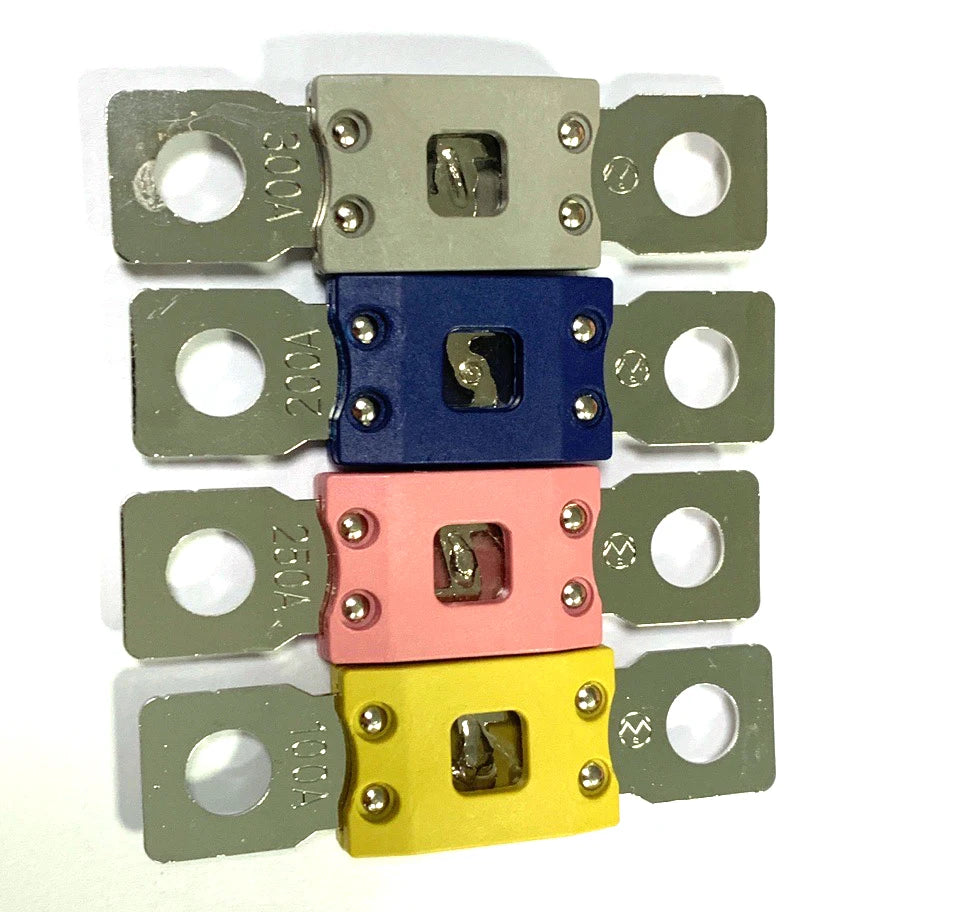

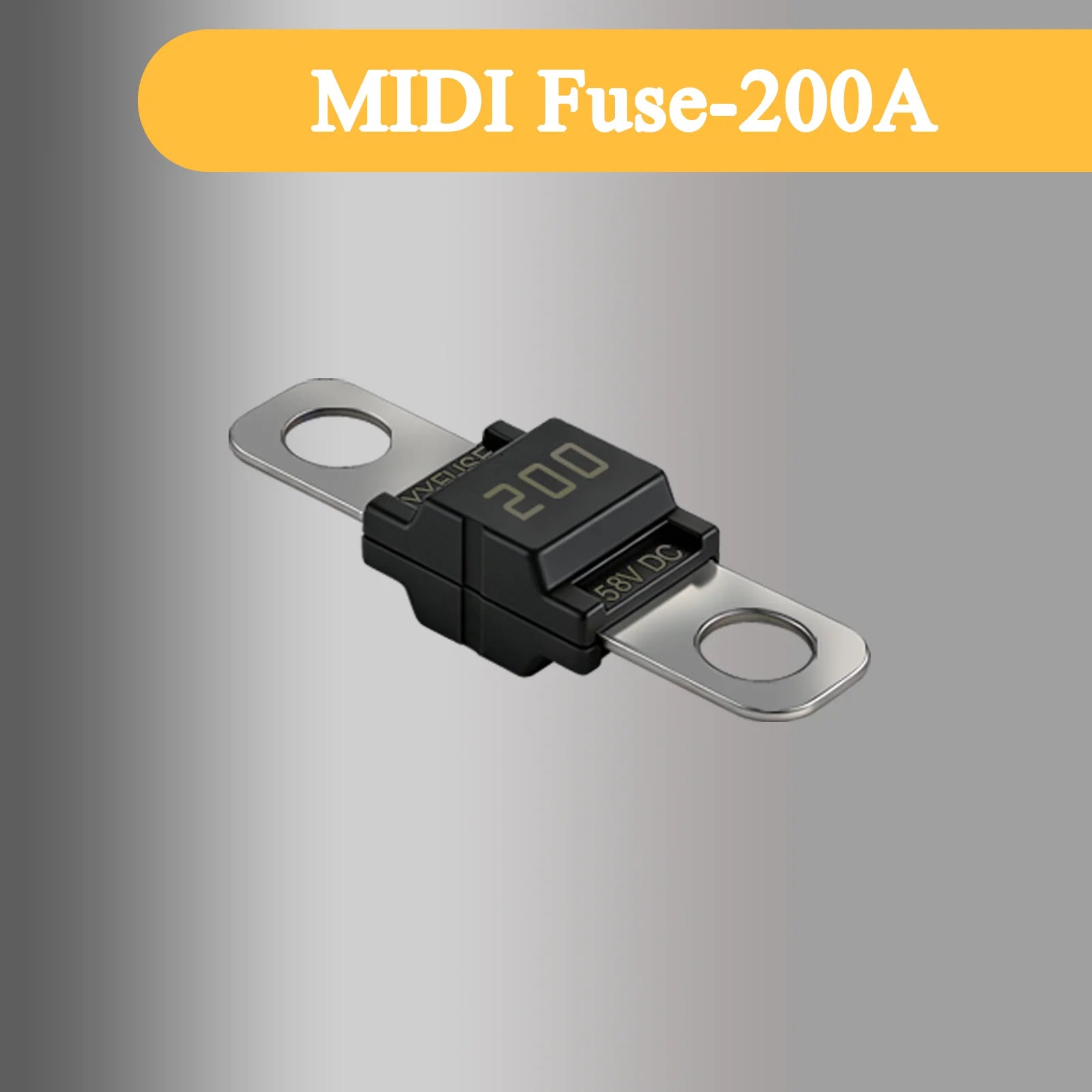

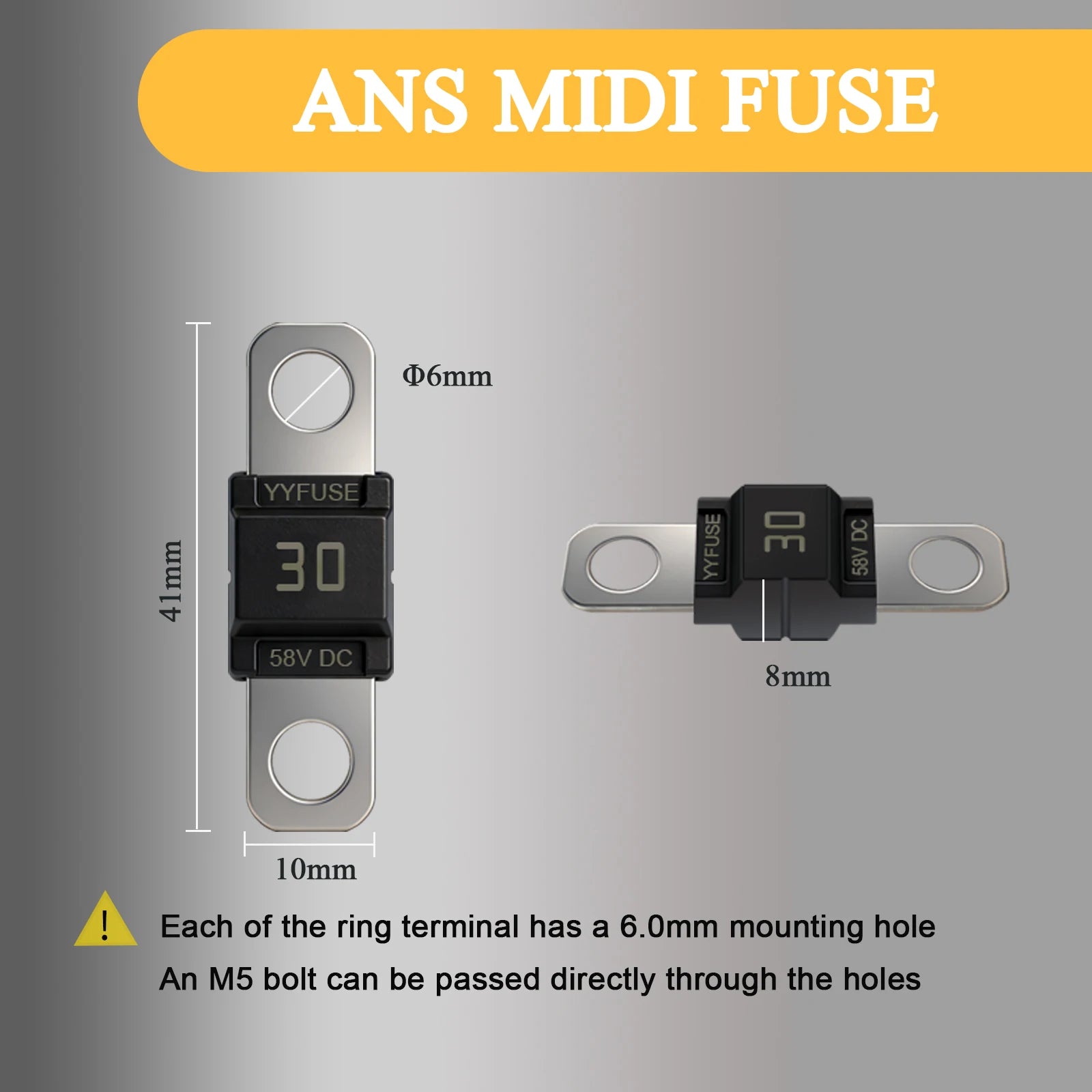

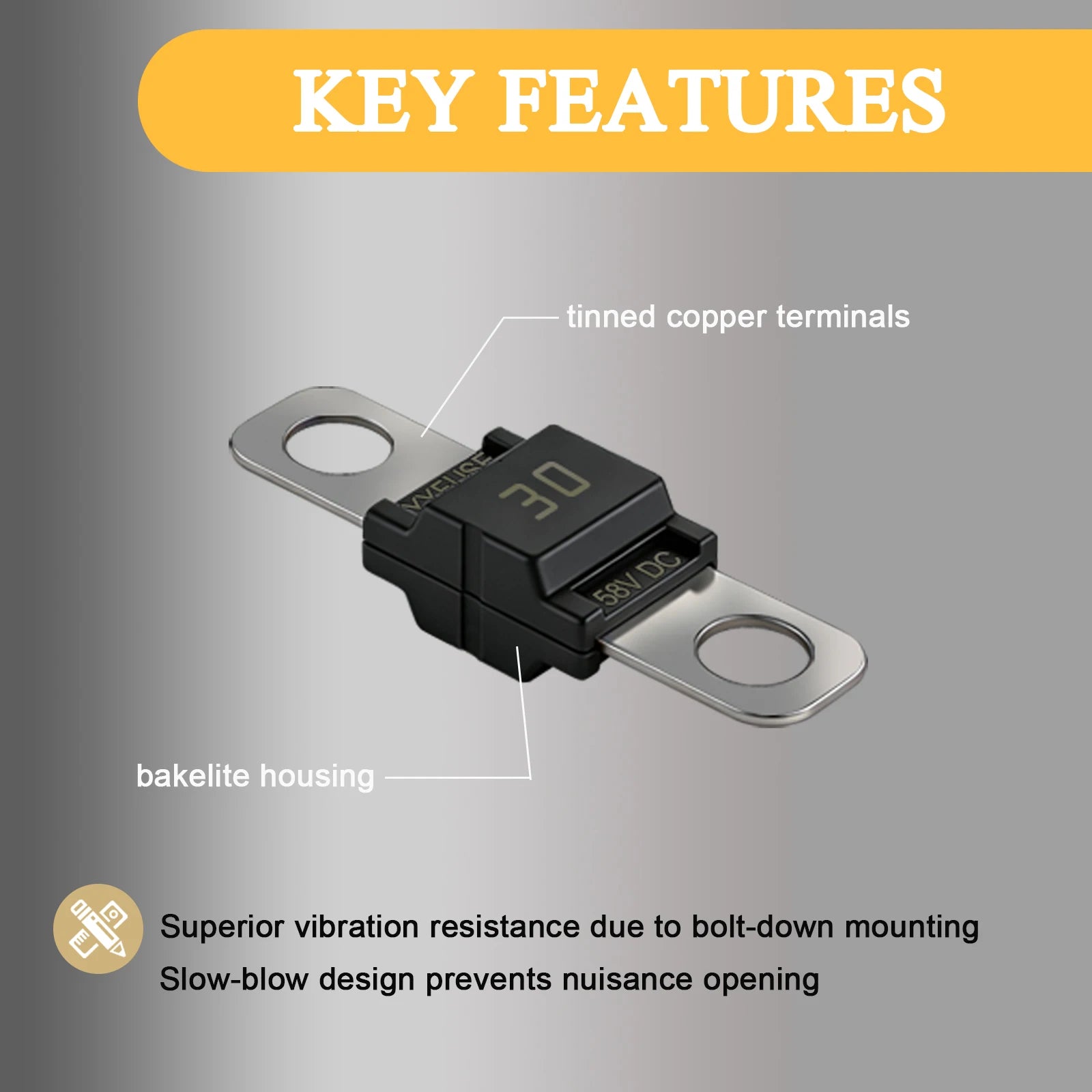

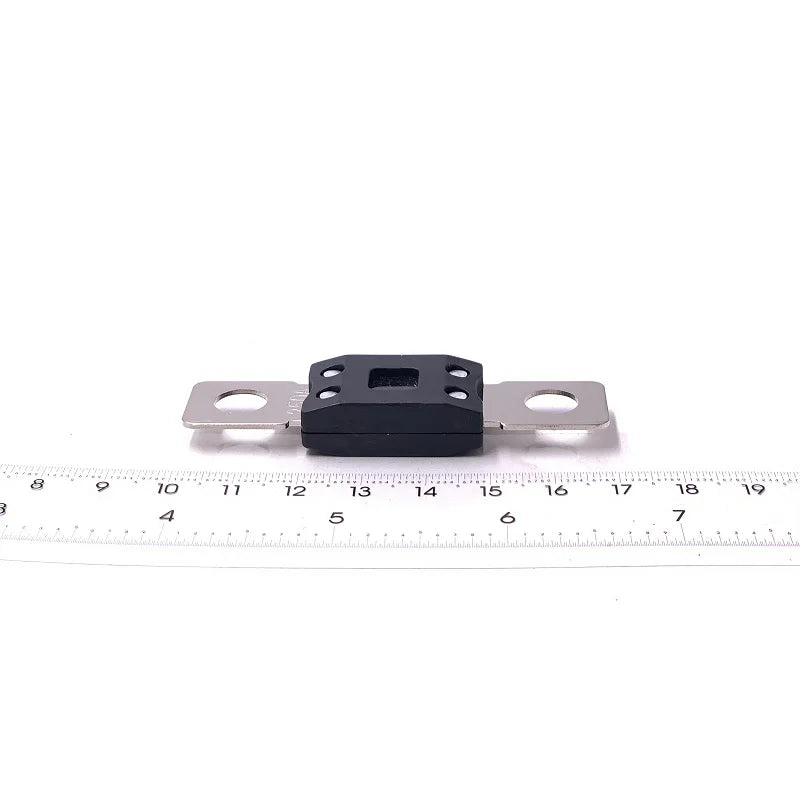

- Automotive/marine DC links: MIDI/AMI, ANM/MEGA and ANL-labelled bolt-down fuses or fuse-plus-holder options span higher current values and differing advertised DC voltage ranges. Match stud spacing, terminal geometry, cable and holder ratings, DC voltage and prospective fault current. Do not substitute these for miniature cartridge or radial PCB fuses solely because both mention delay.

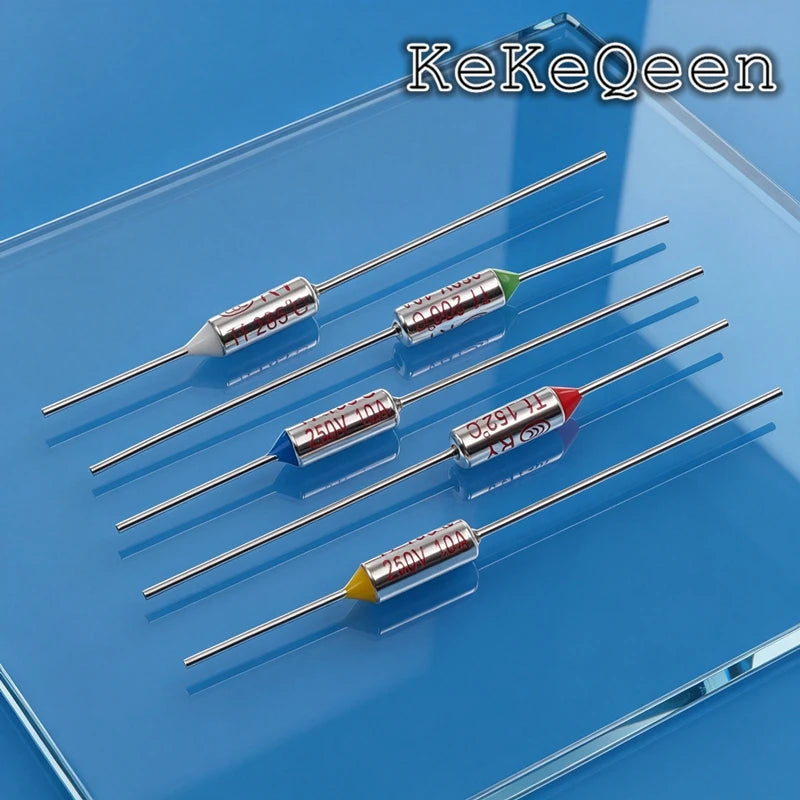

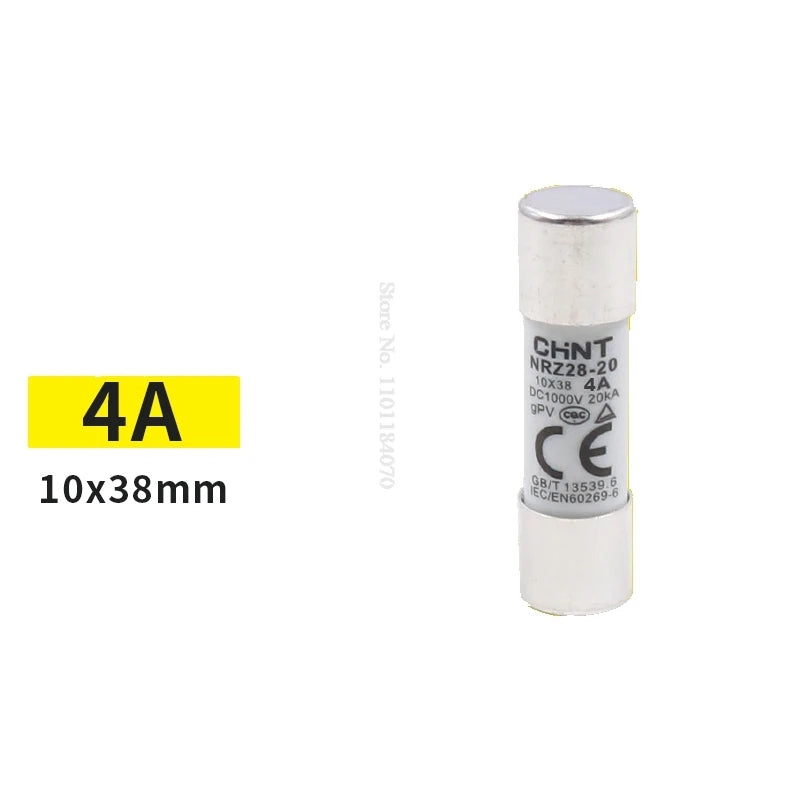

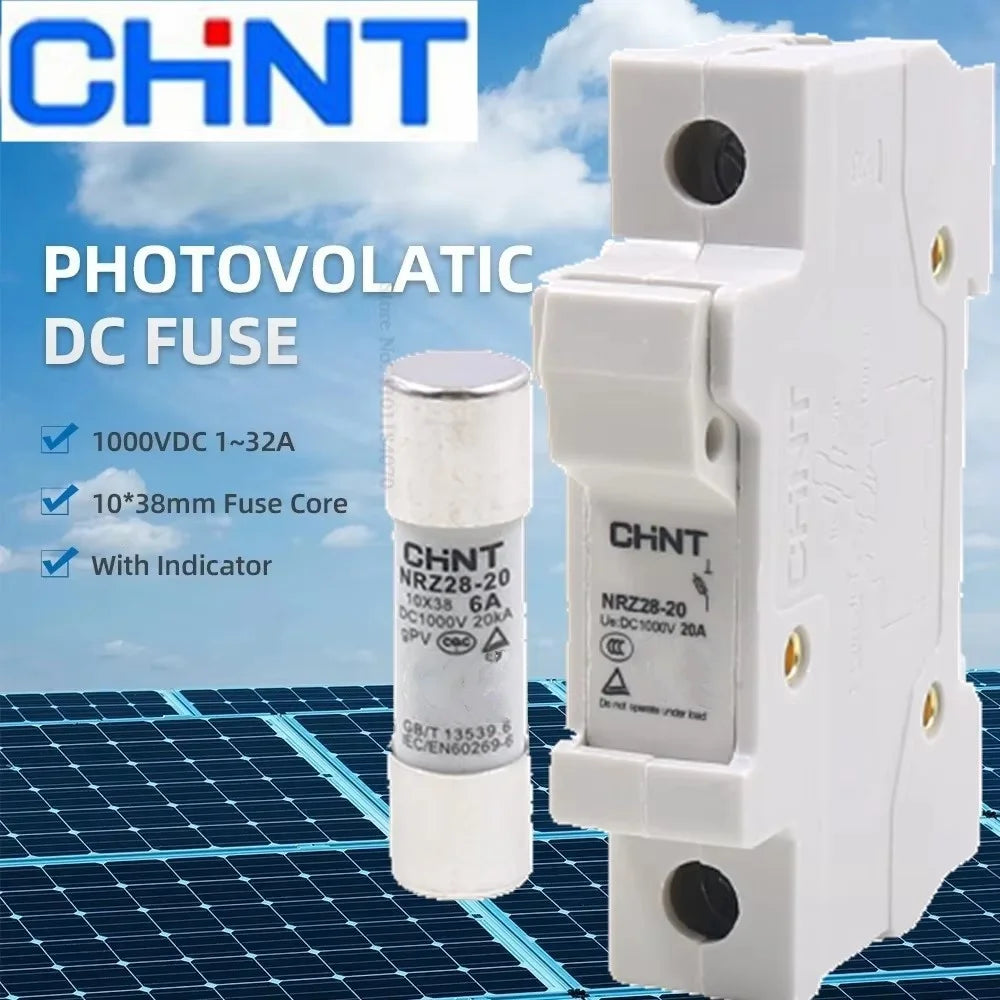

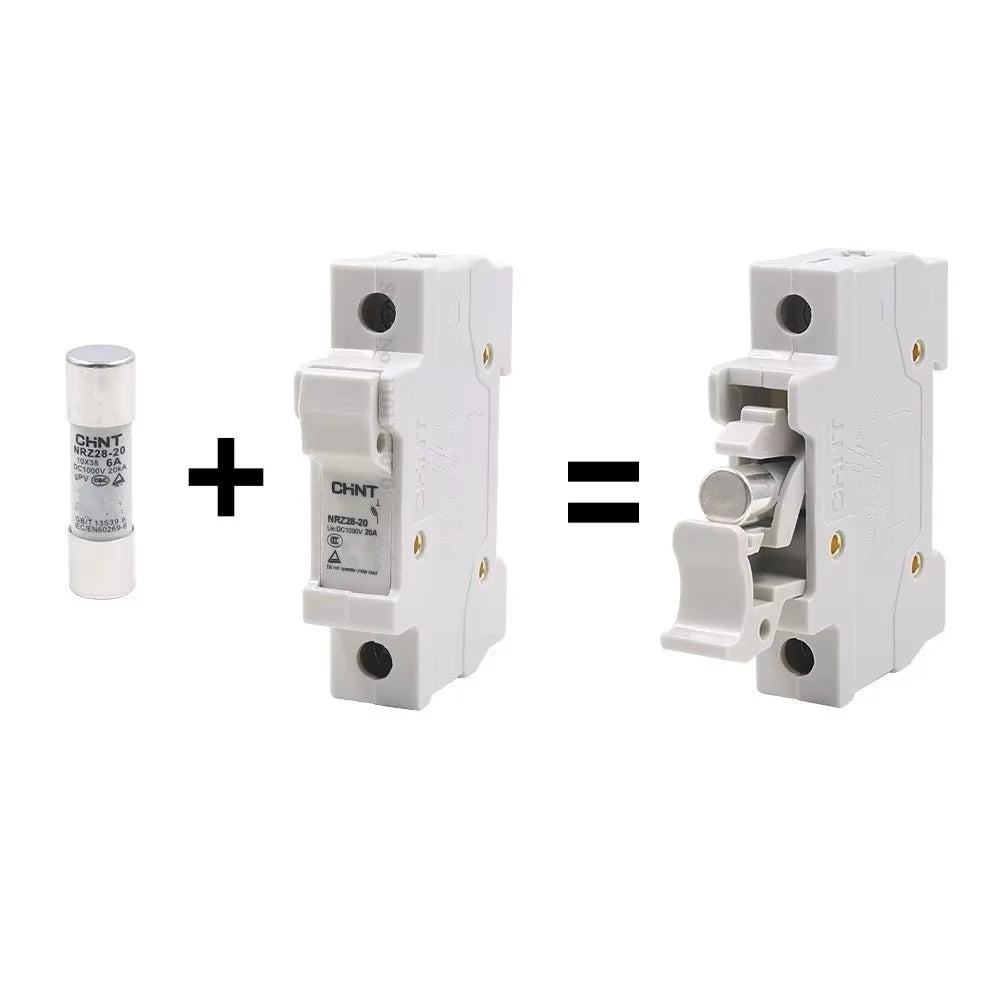

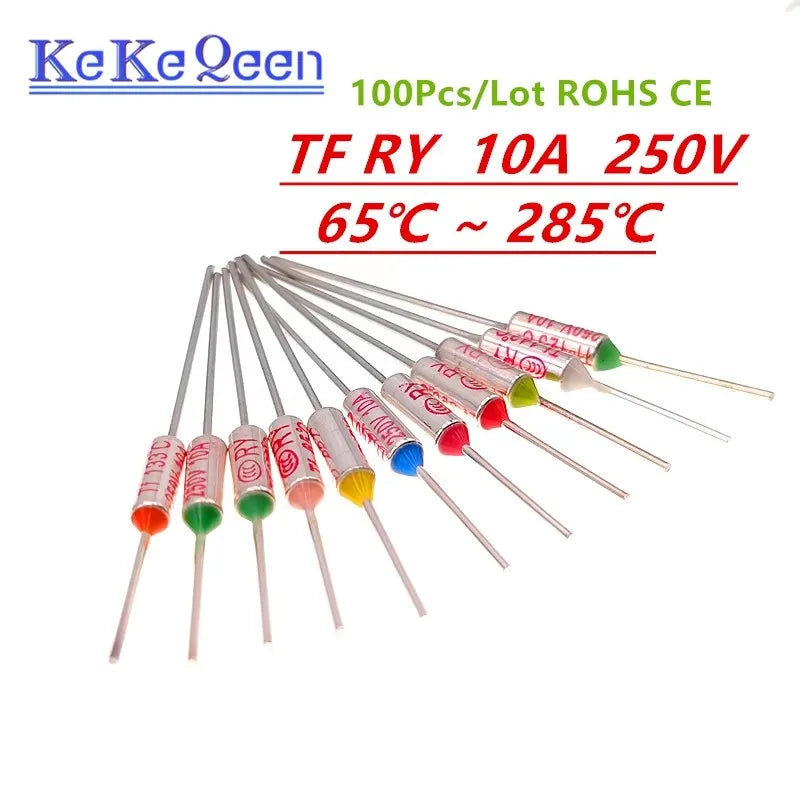

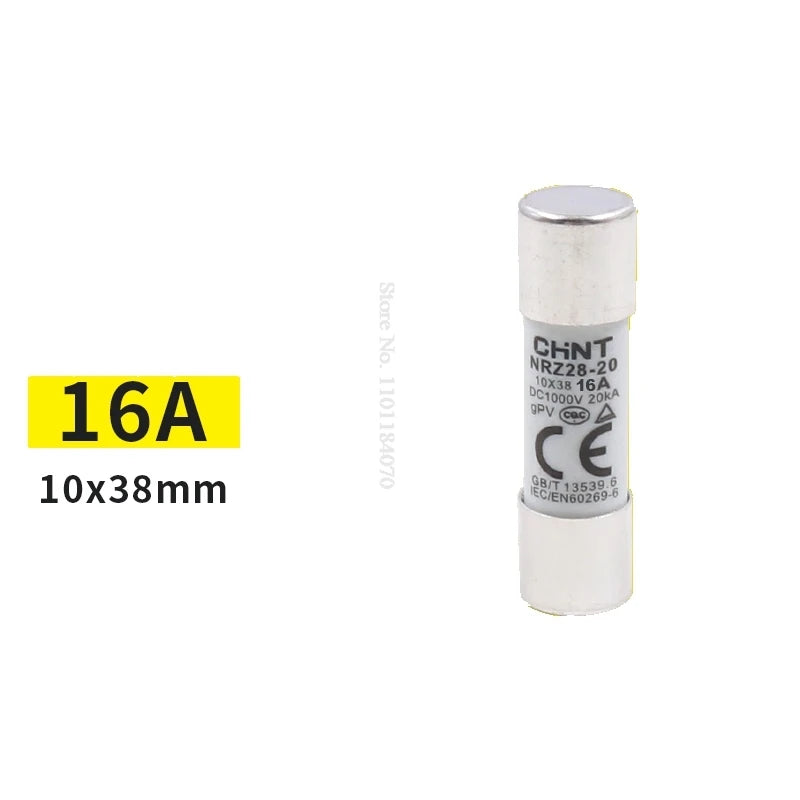

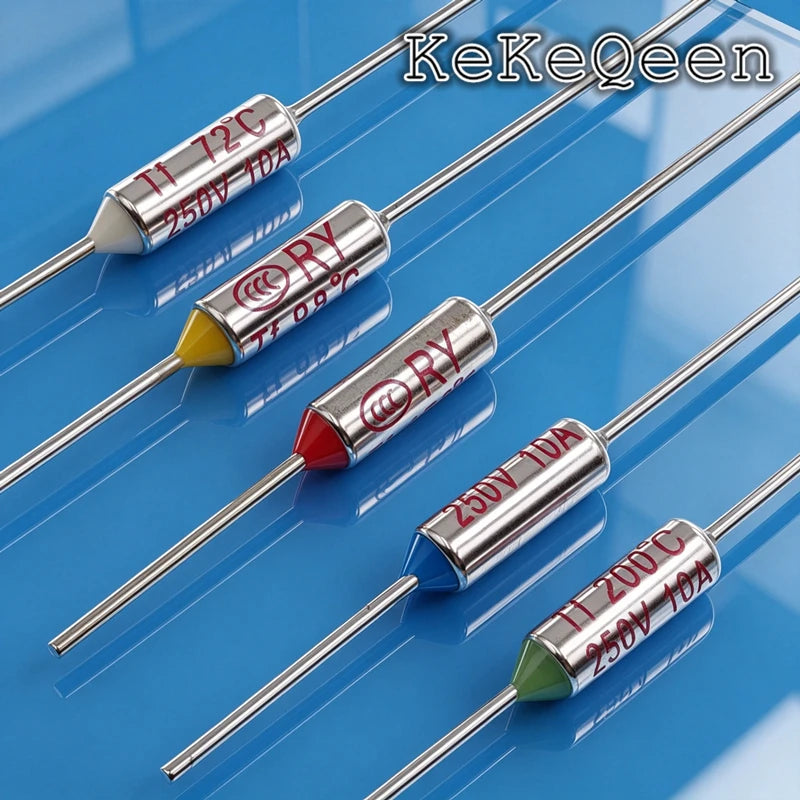

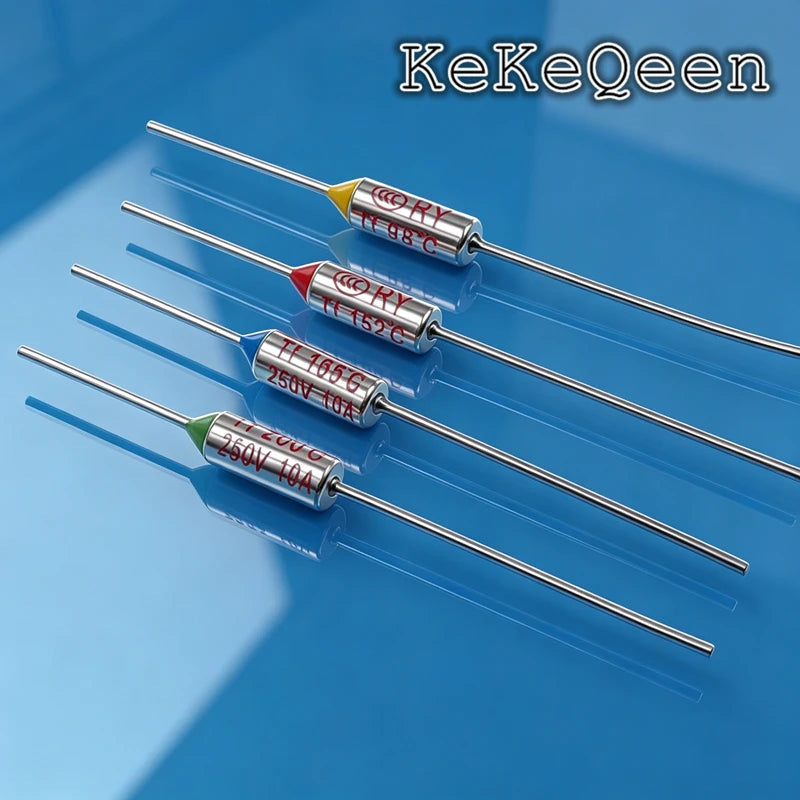

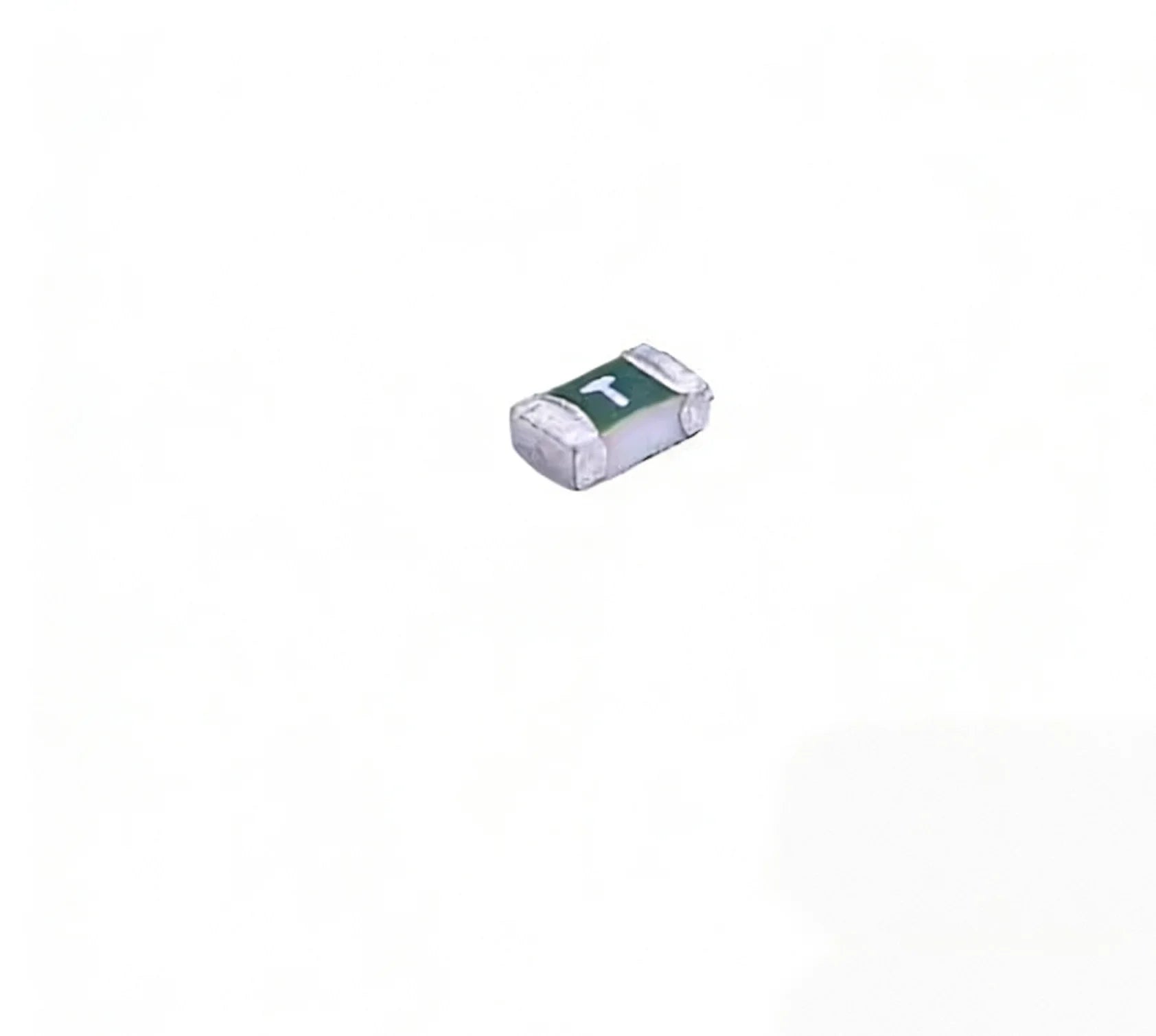

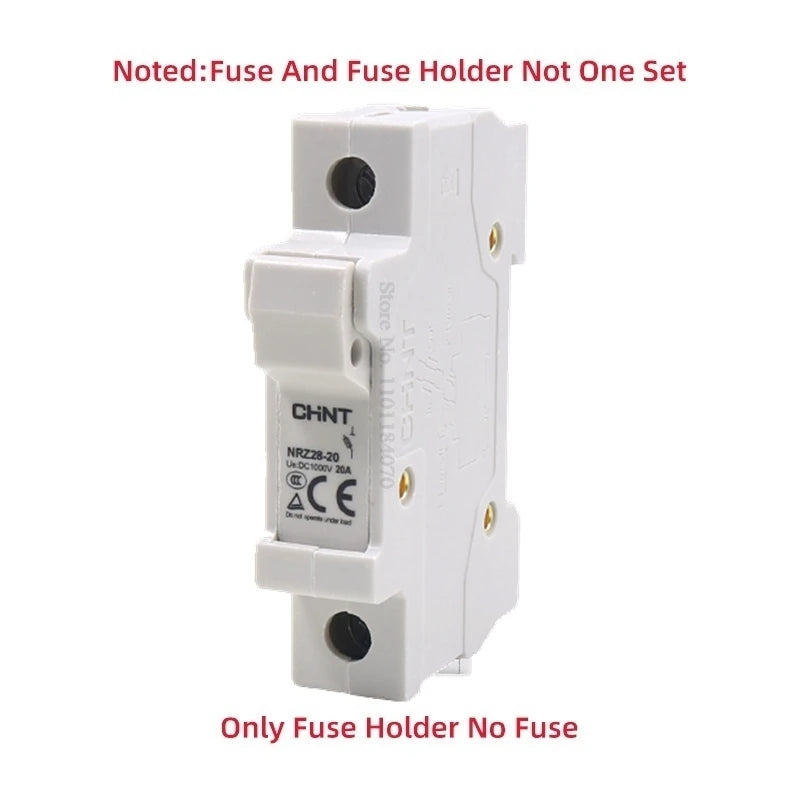

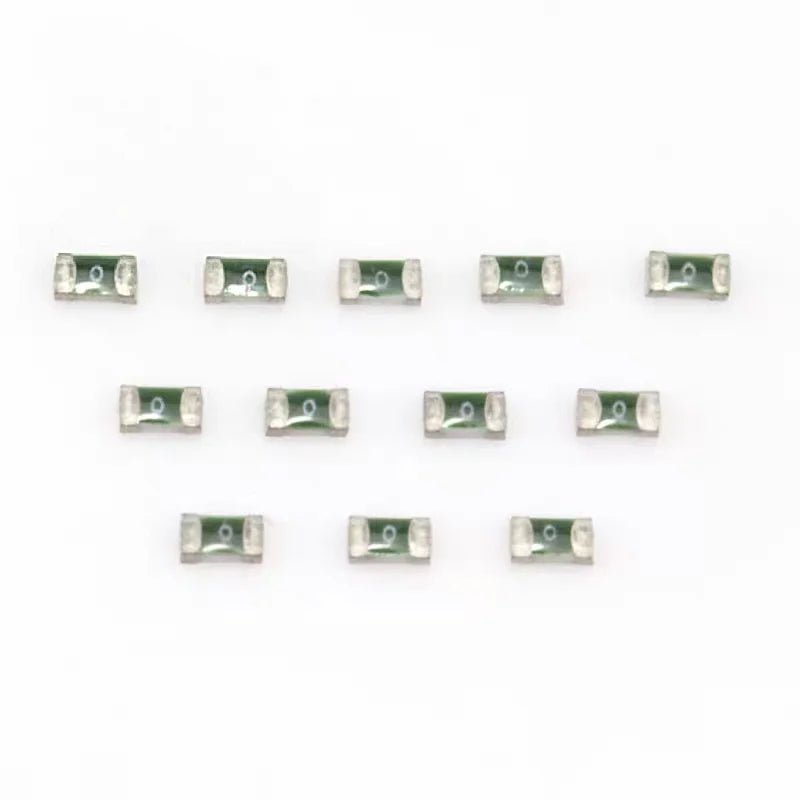

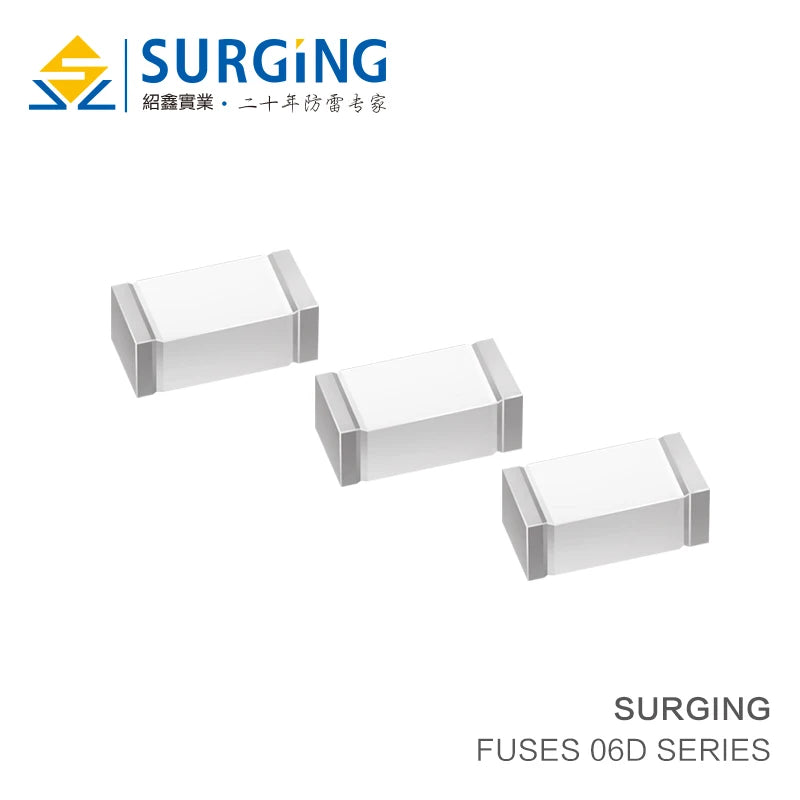

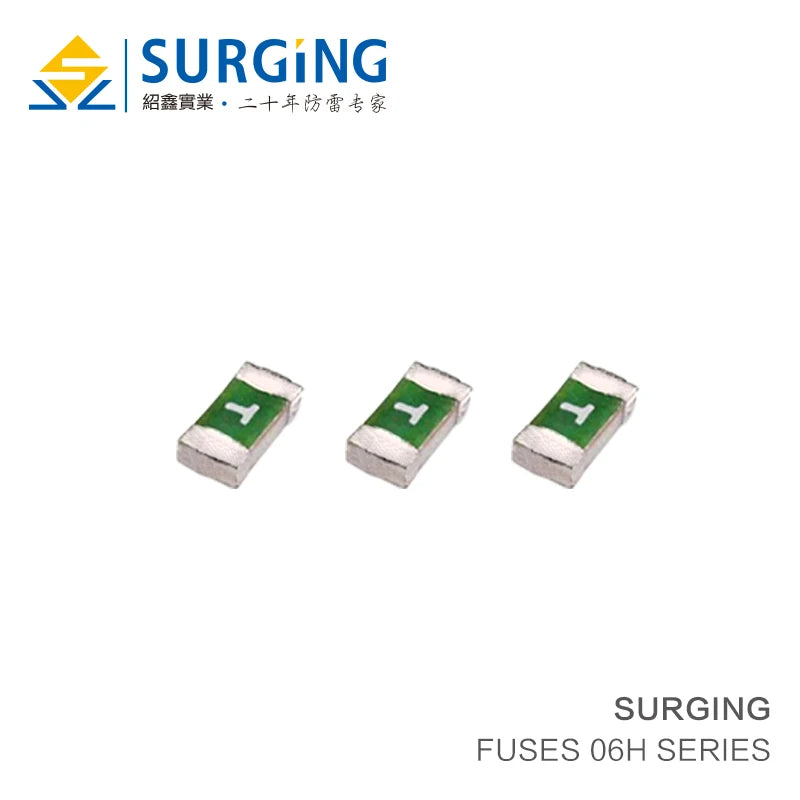

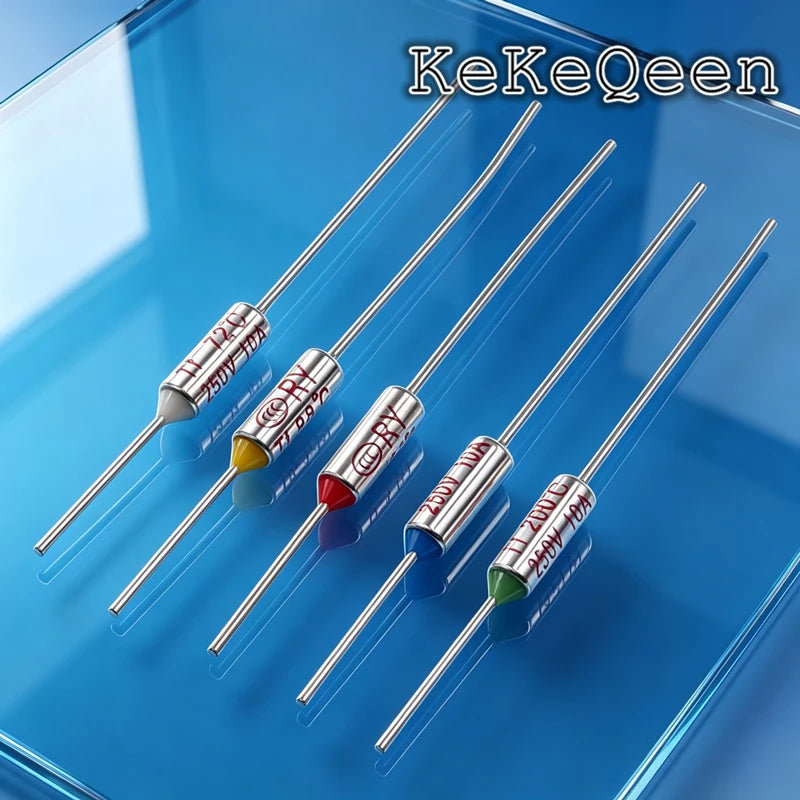

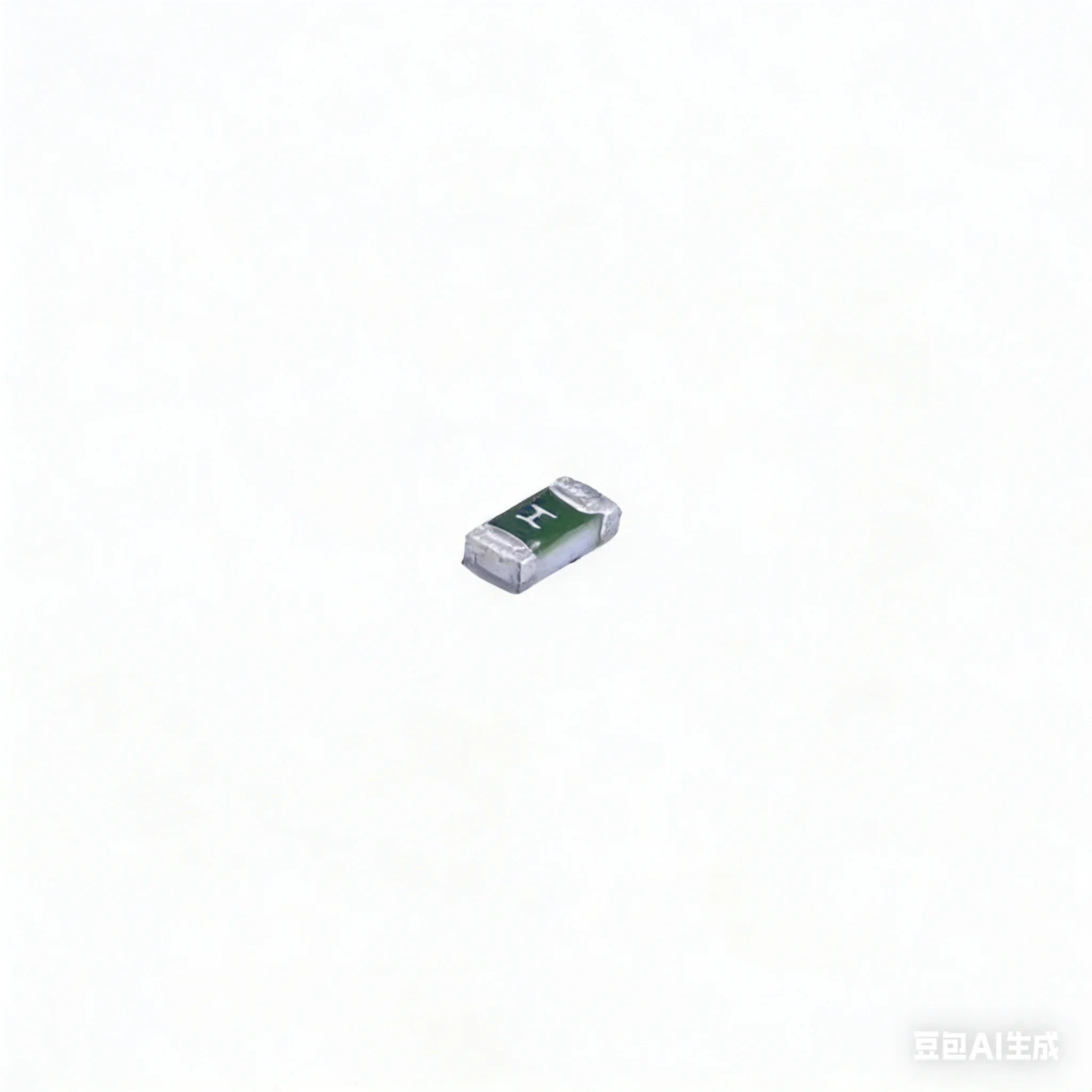

- Different protection mechanisms: a metal-shell TF/Ry thermal cutoff opens at a specified temperature, not according to a T fuse's current-time curve. Fast-acting 0603/1206 SMD links, a low-profile blade fuse box and a PV DC fuse/holder listing have their own response and application requirements. A PV fuse is not made suitable for ordinary AC or automotive service by its current number alone.
Selection workflow
- Identify the original equipment or circuit's required part number, shape and termination. Match a 372/382/392 board footprint, cartridge size, 10 × 38 holder or bolt pattern exactly.
- Check the documented time-current curve and pulse withstand against the real startup surge and normal operating current. A T prefix alone does not guarantee the needed pulse survival or fault-clearing time. Repeated fuse operation calls for fault diagnosis, not a higher current or slower replacement.
- Verify the chosen variant's ampere rating, AC or DC voltage, breaking capacity at the applicable voltage, prospective short-circuit current and temperature conditions. “250 V,” “600 V” or “58 V” in a family headline does not validate every option or an unverified DC use.
- For an installed holder, terminal block or bolt-down fuse, separately assess contacts, wire size, environmental protection, heat and mechanical fit. Confirm whether the selected pack includes a fuse or only a holder and count the individual pieces.
- Obtain traceable datasheets and approvals if compliance, a named manufacturer or genuine origin matters. Generic IEC/CE or seller branding statements are not a substitute for evidence tied to the exact selected component.
Buying checklist and applications
These listings serve different specified power-supply inputs, PCB control circuits, industrial fuse holders and vehicle DC distribution designs. Record the part number, fuse mechanism, footprint, rated current, time-current characteristic, AC/DC voltage and interruption rating, inrush profile, expected fault current, ambient conditions, holder and package quantity. Do not use a thermal cutoff, fast SMD fuse or PV link as a drop-in time-delay current fuse. Hazardous circuit work requires the equipment manufacturer's instructions and qualified electrical practice.
Frequently asked questions
Does a T2A fuse always wait a fixed number of seconds?
No. Opening time varies with applied current and the selected device's tested curve. Compare its published data with the circuit's normal and fault conditions.
Can a 392 square radial fuse replace a 382 round one?
Not by ampere rating alone. Compare lead geometry, board clearance, curve, voltage and breaking capacity with the specified part.
Is a 184°C thermal fuse a slow-blow current fuse?
No. Its stated temperature is the thermal cutoff threshold; it is not a substitute for a current fuse with a T time-current response.
Can a MIDI, MEGA or ANL fuse be selected by amperage alone?
No. Each family has its own terminal pattern, DC ratings and fault-interruption behavior. Match the original circuit and holder specification.
