12V TVS Diodes and Other Voltage Grades
Compare 12V-designated transient-voltage-suppression (TVS) diodes alongside other voltage grades in this collection. Available listings include SMBJ12A and SMBJ12CA in SMB/DO-214AA, 1.5KE12A/12CA and P6KE12CA axial choices, and SM712-family SOT-23 protectors. Many product menus also offer 5 V, 6.8 V, 18 V, 51 V and substantially higher-numbered grades, so the collection title does not guarantee every selected variant is a 12V device.
What is listed

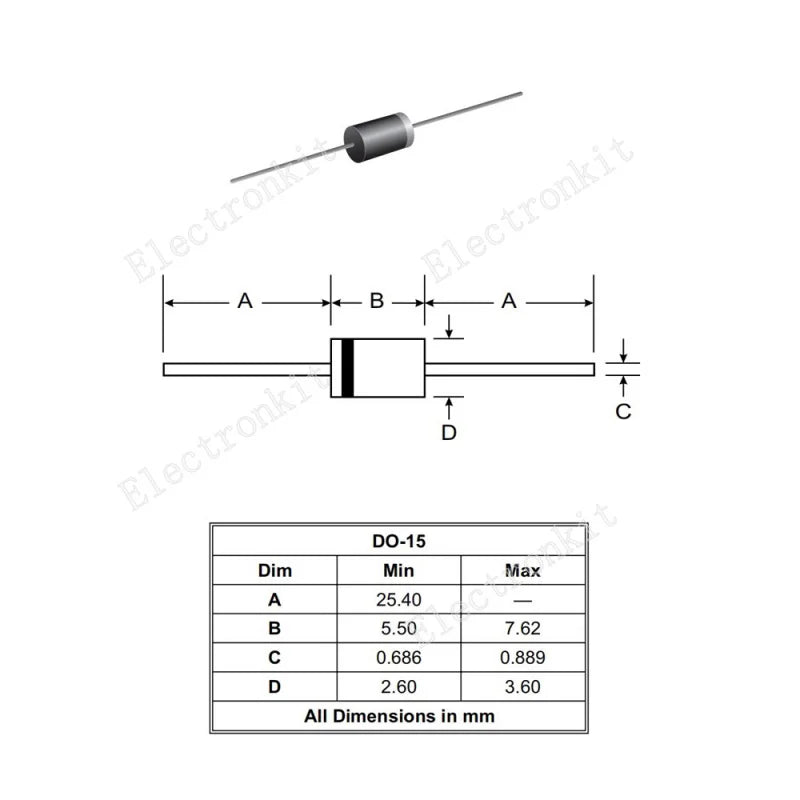

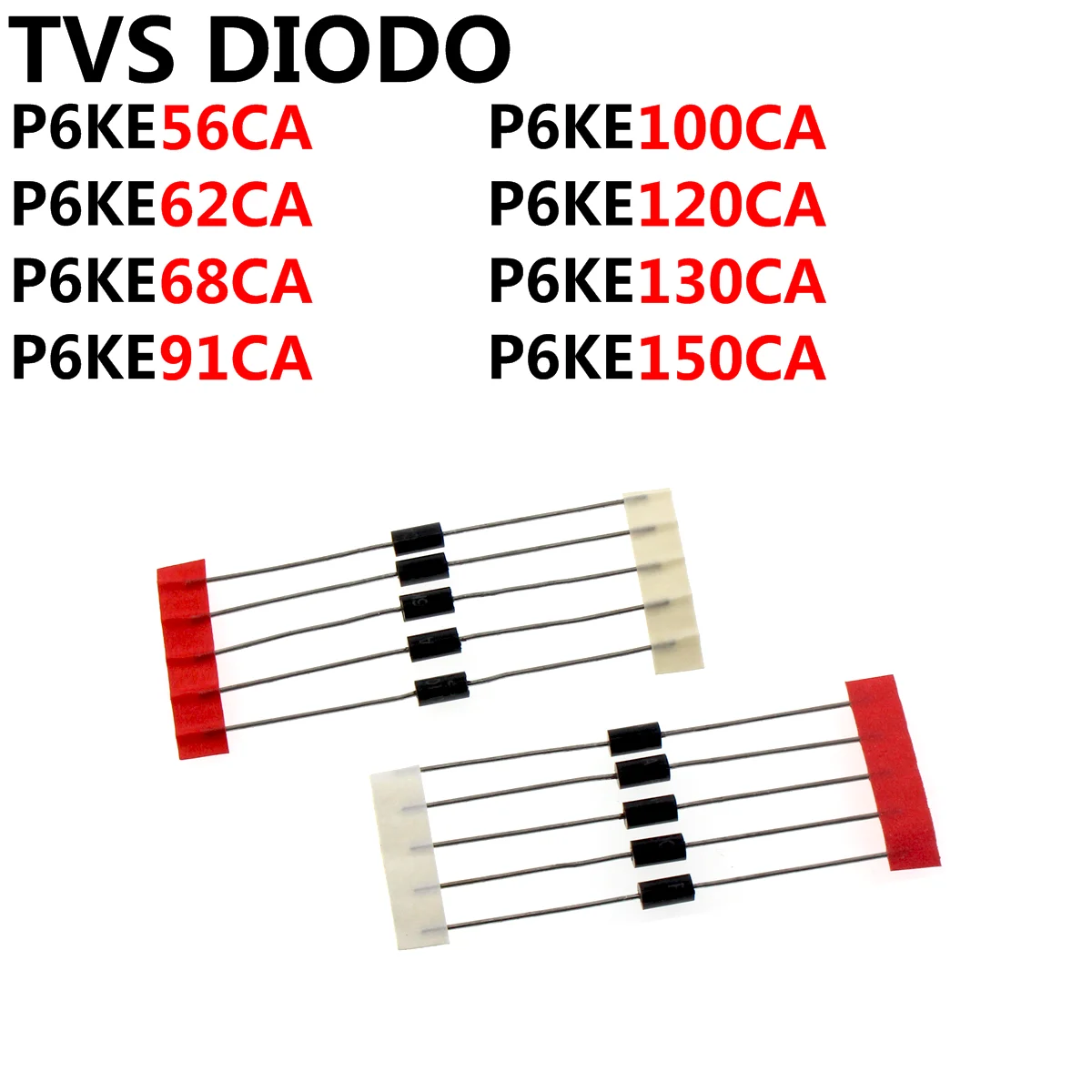

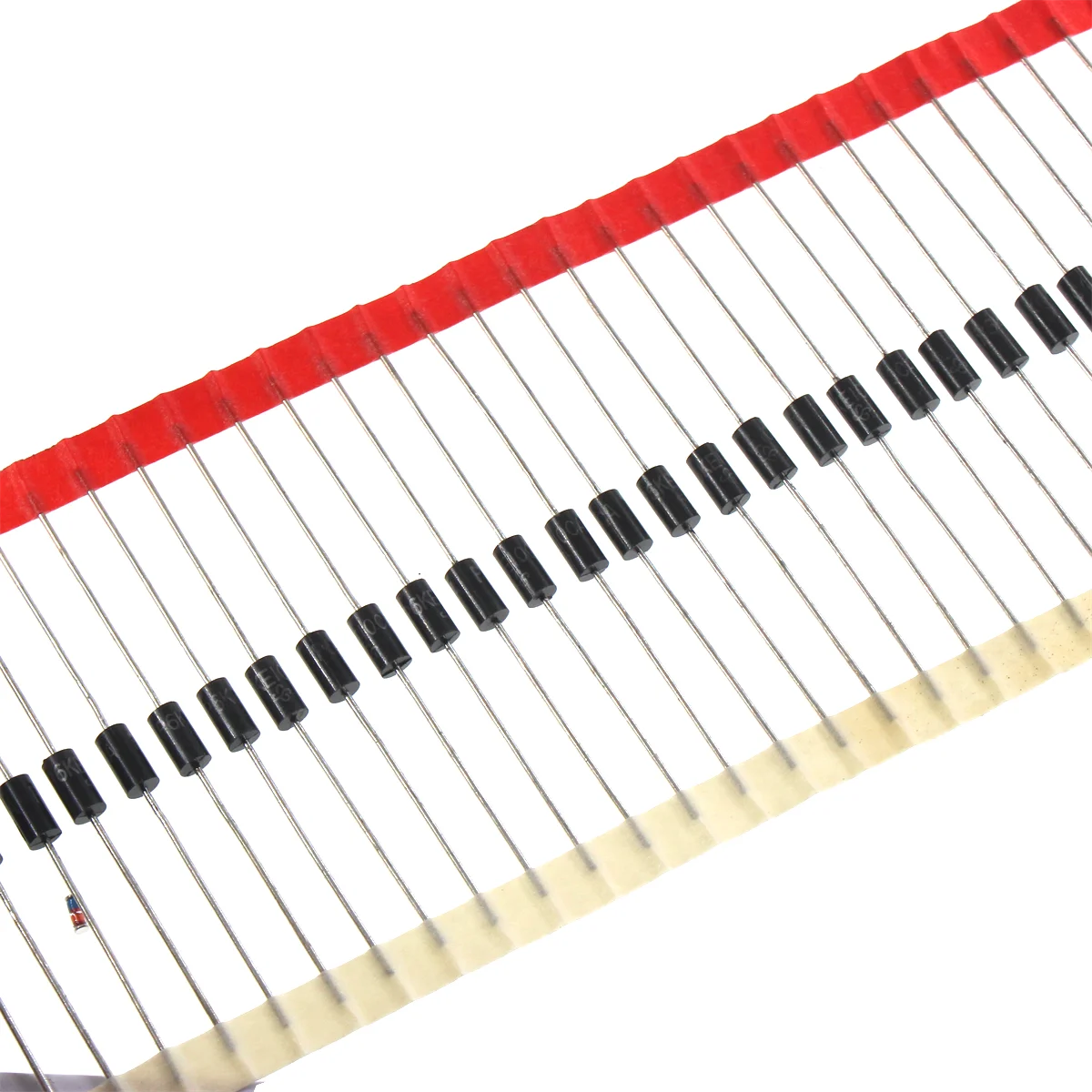

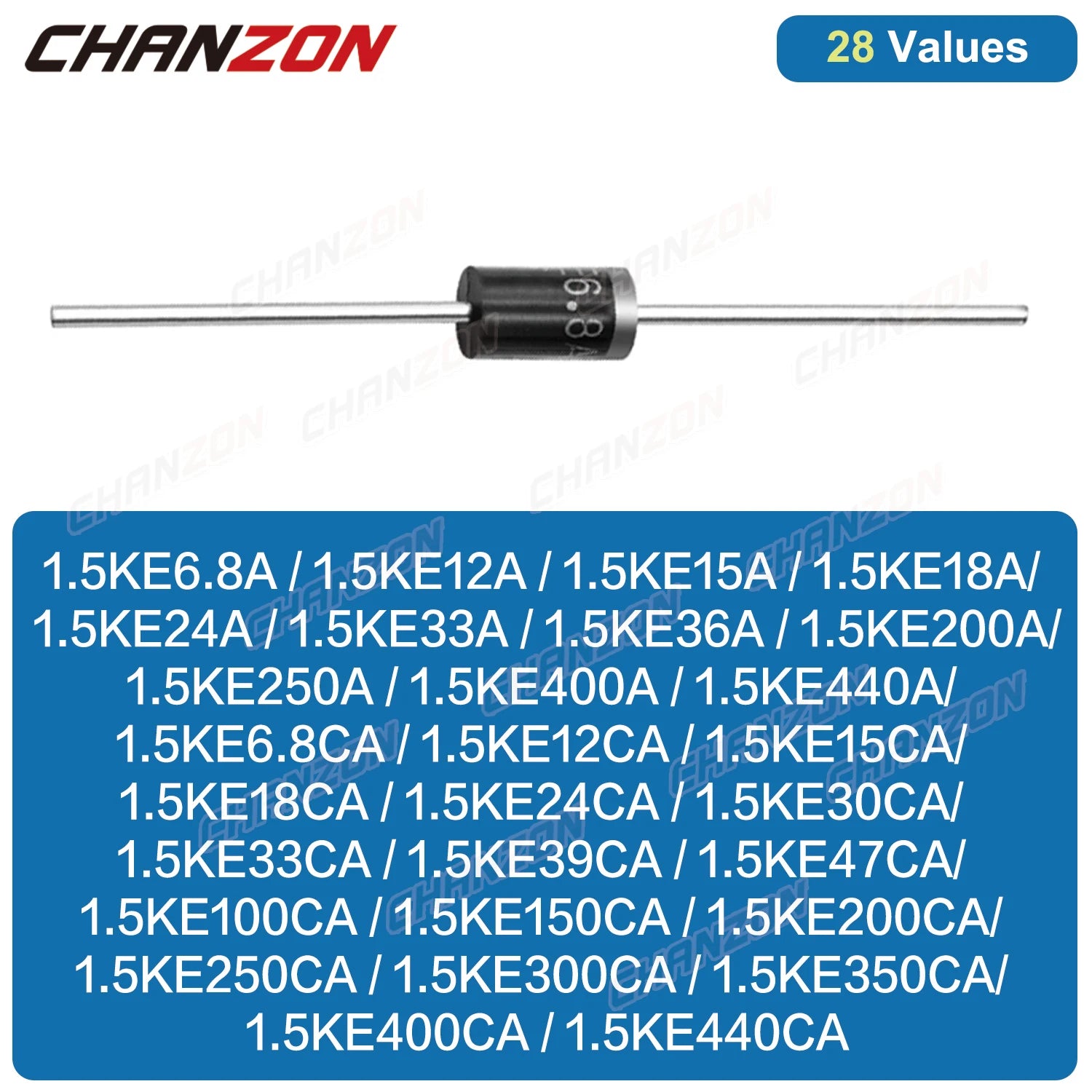

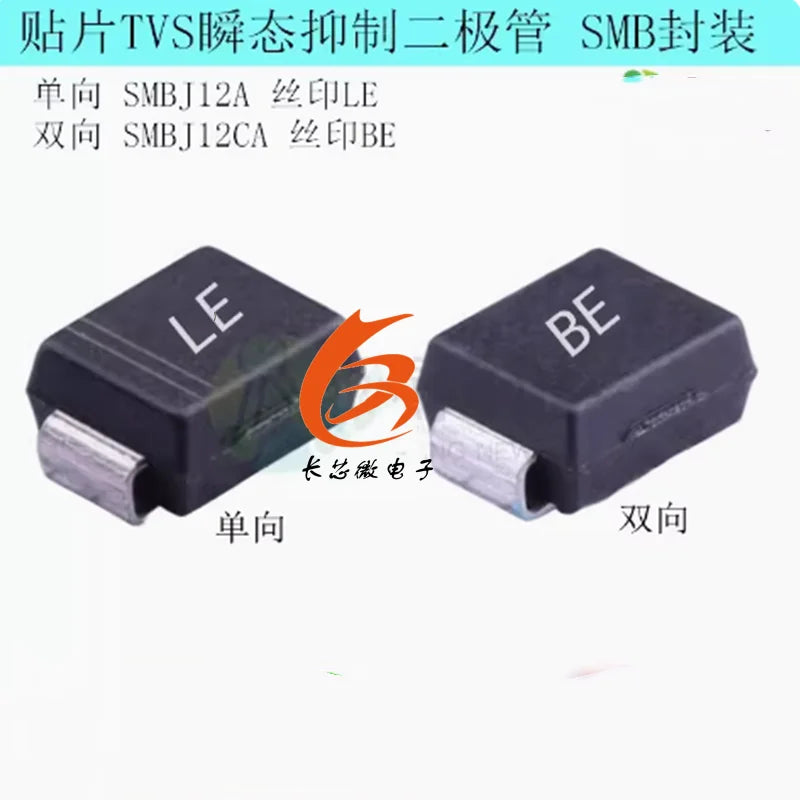

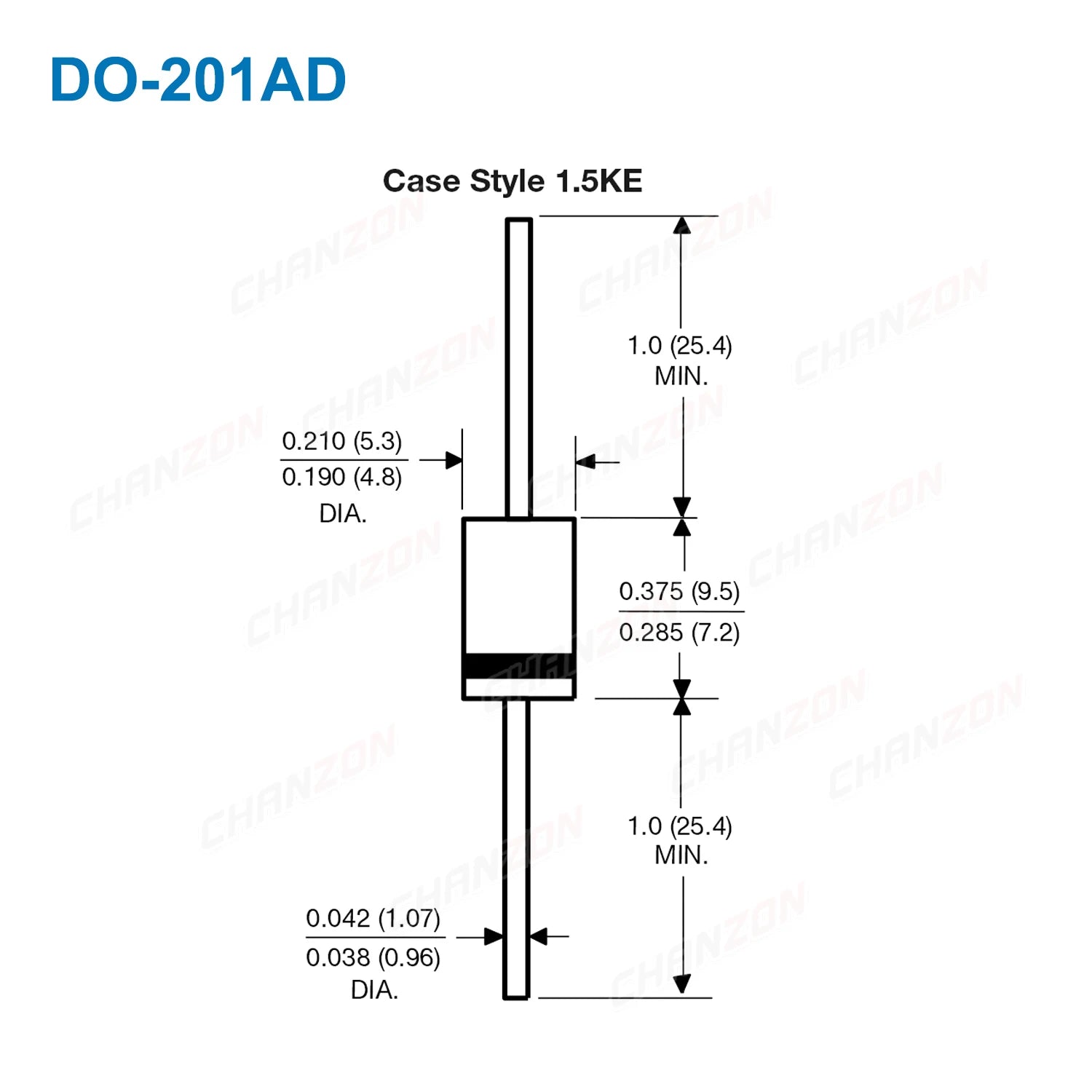

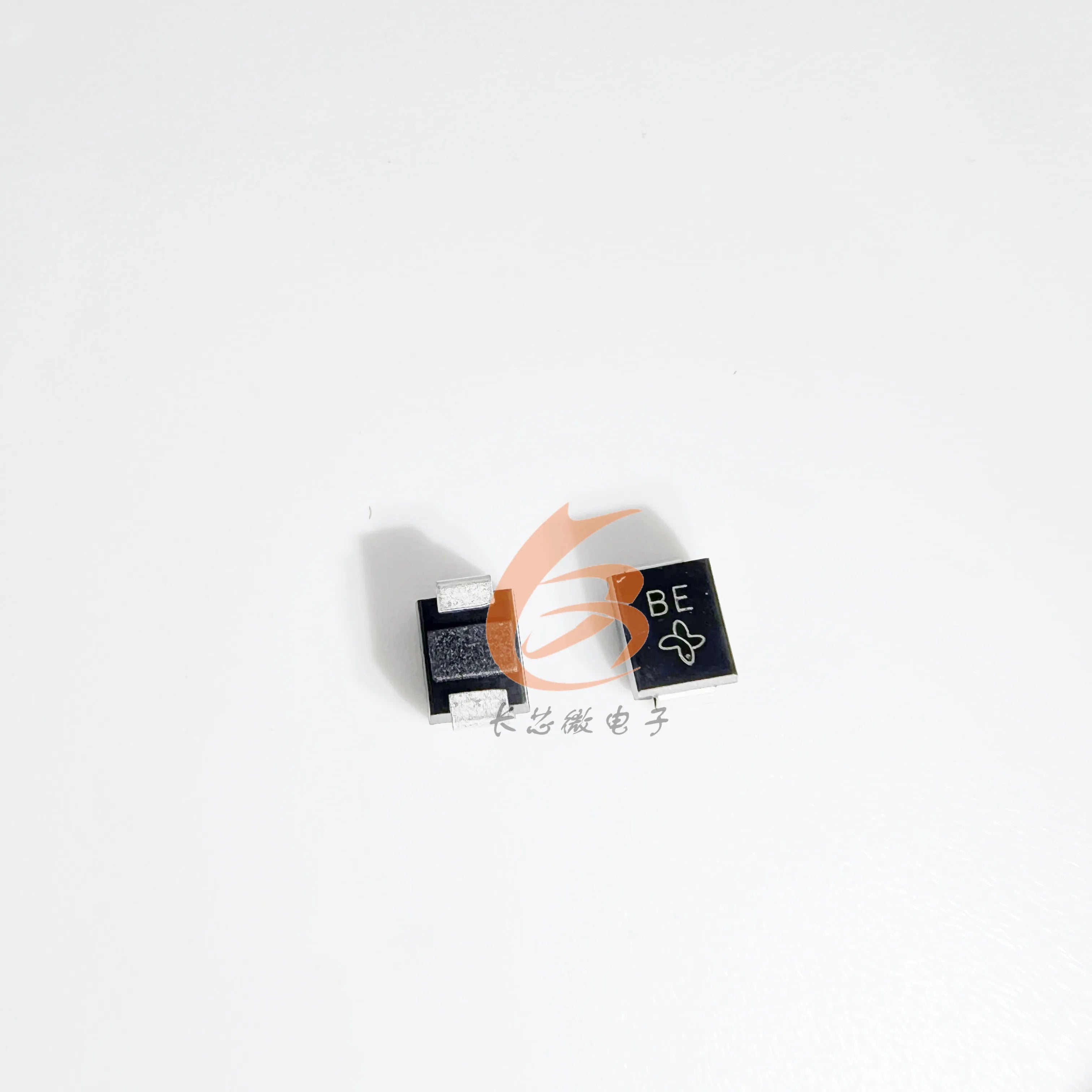

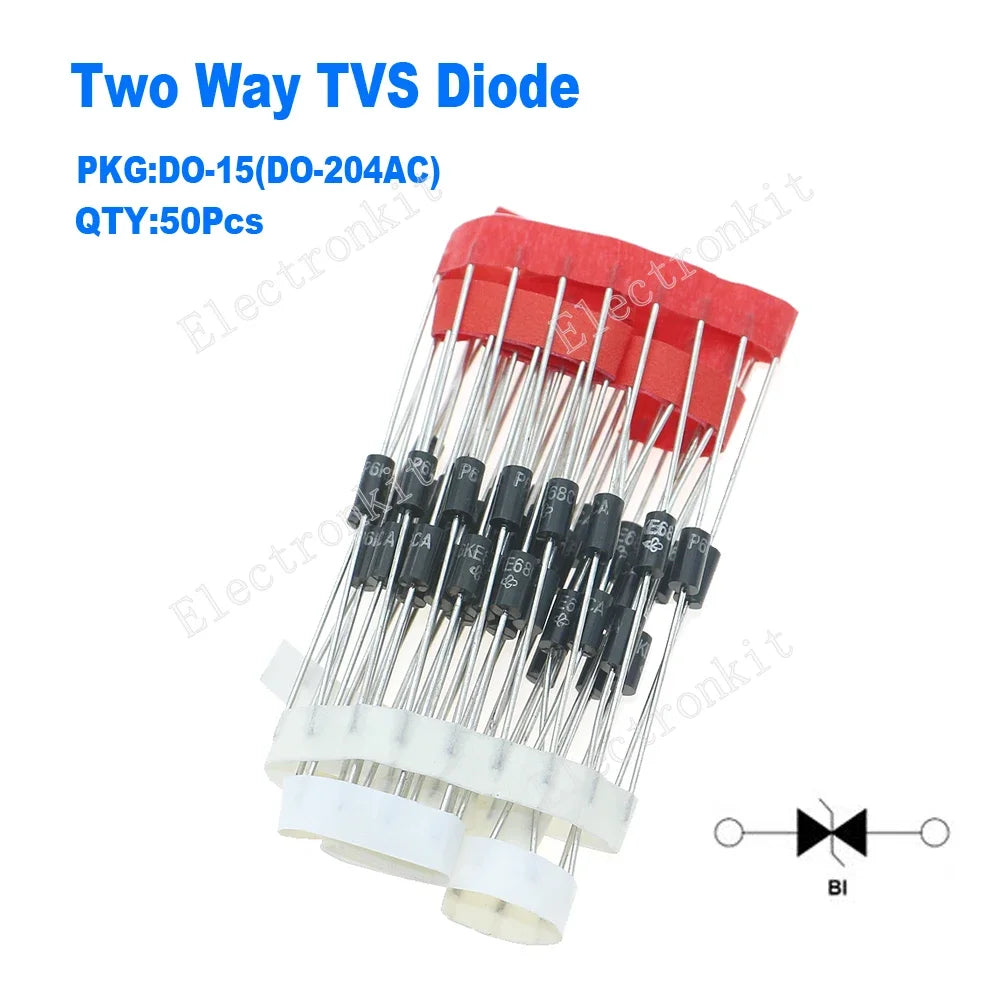

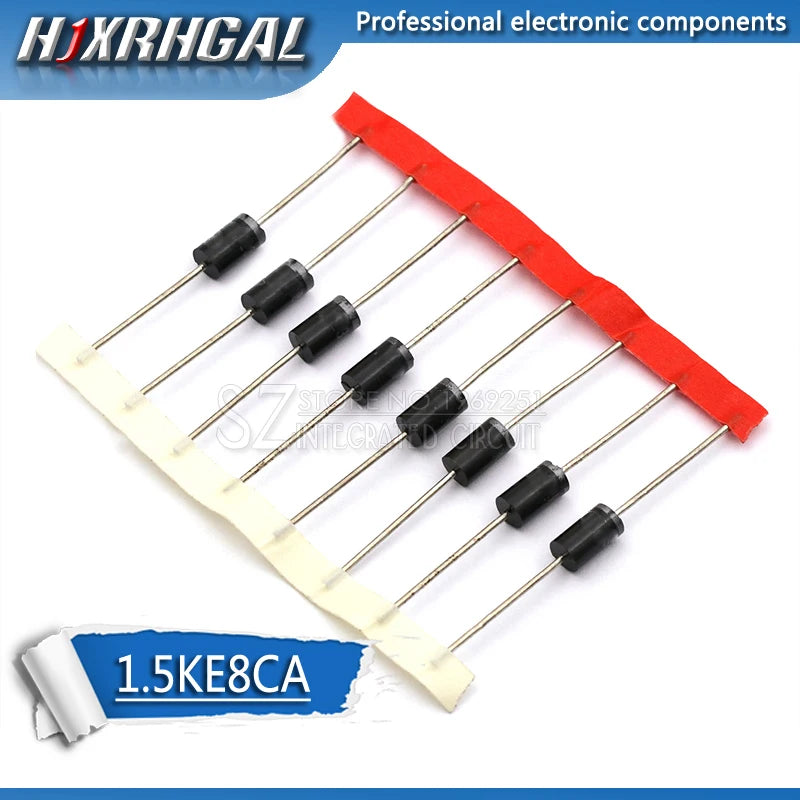

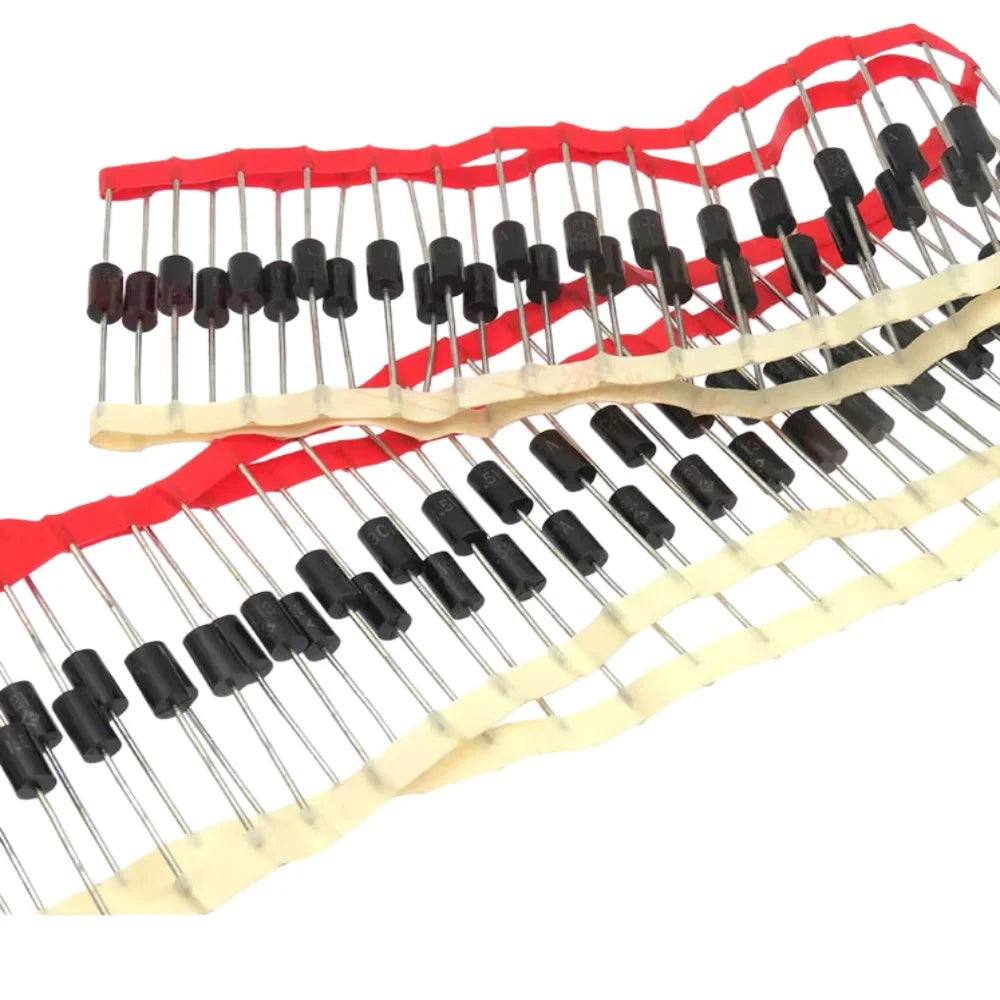

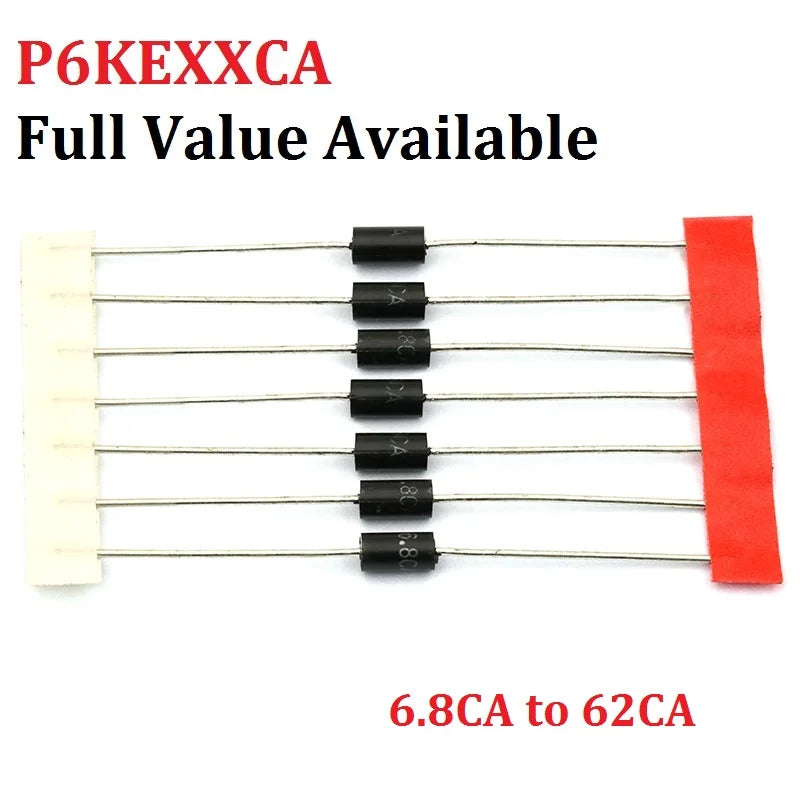

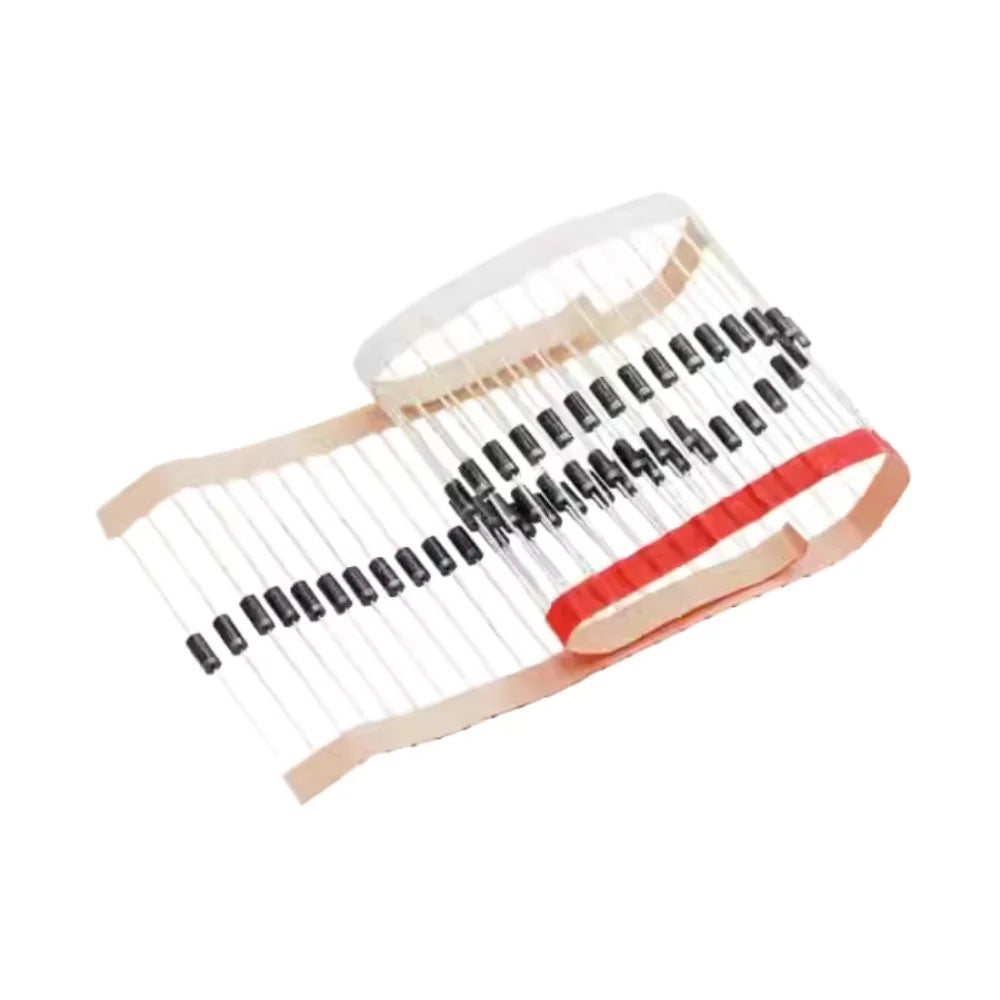

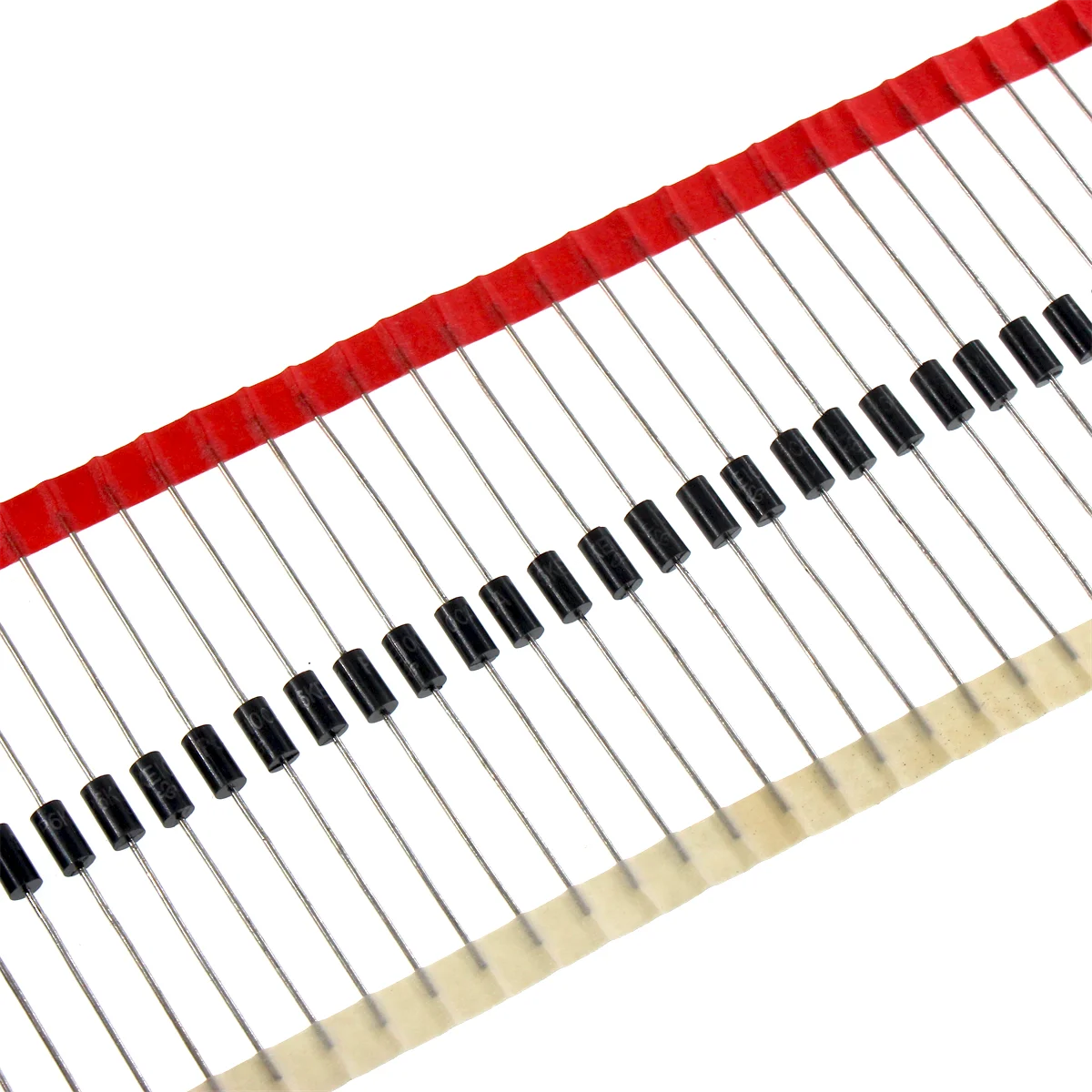

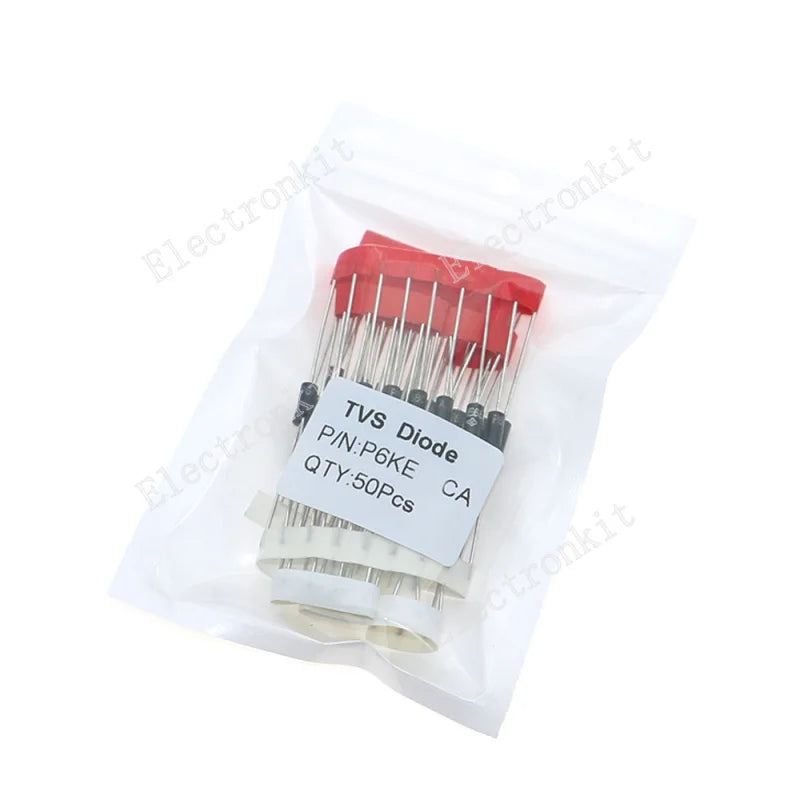

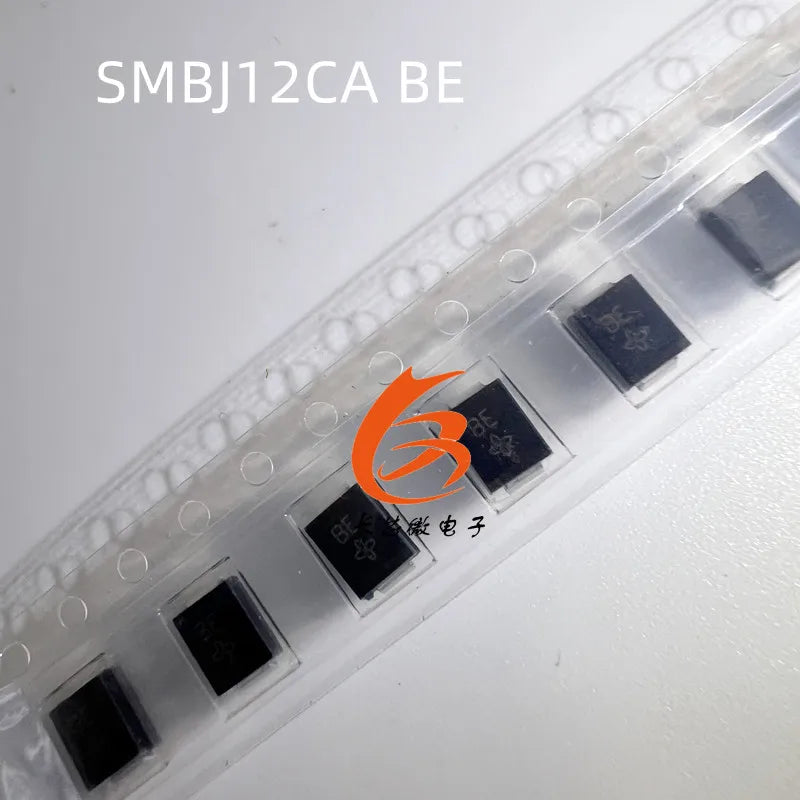

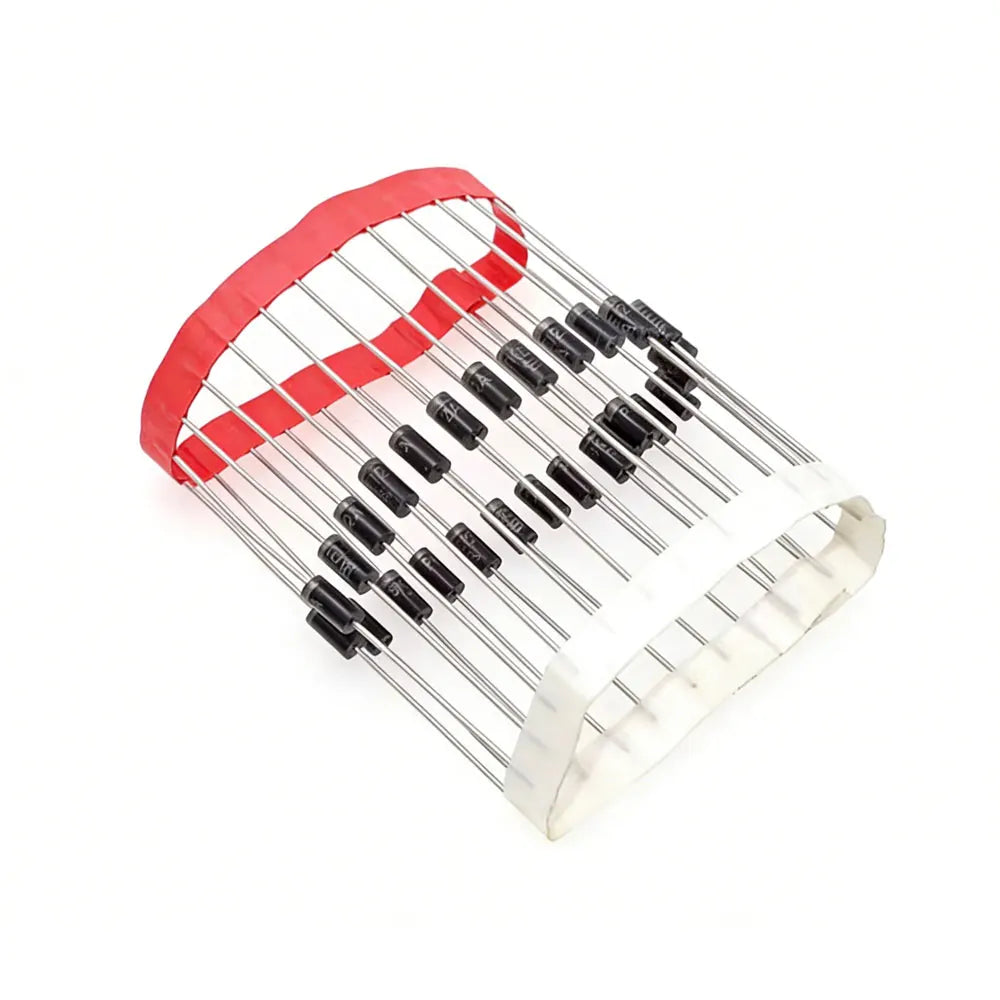

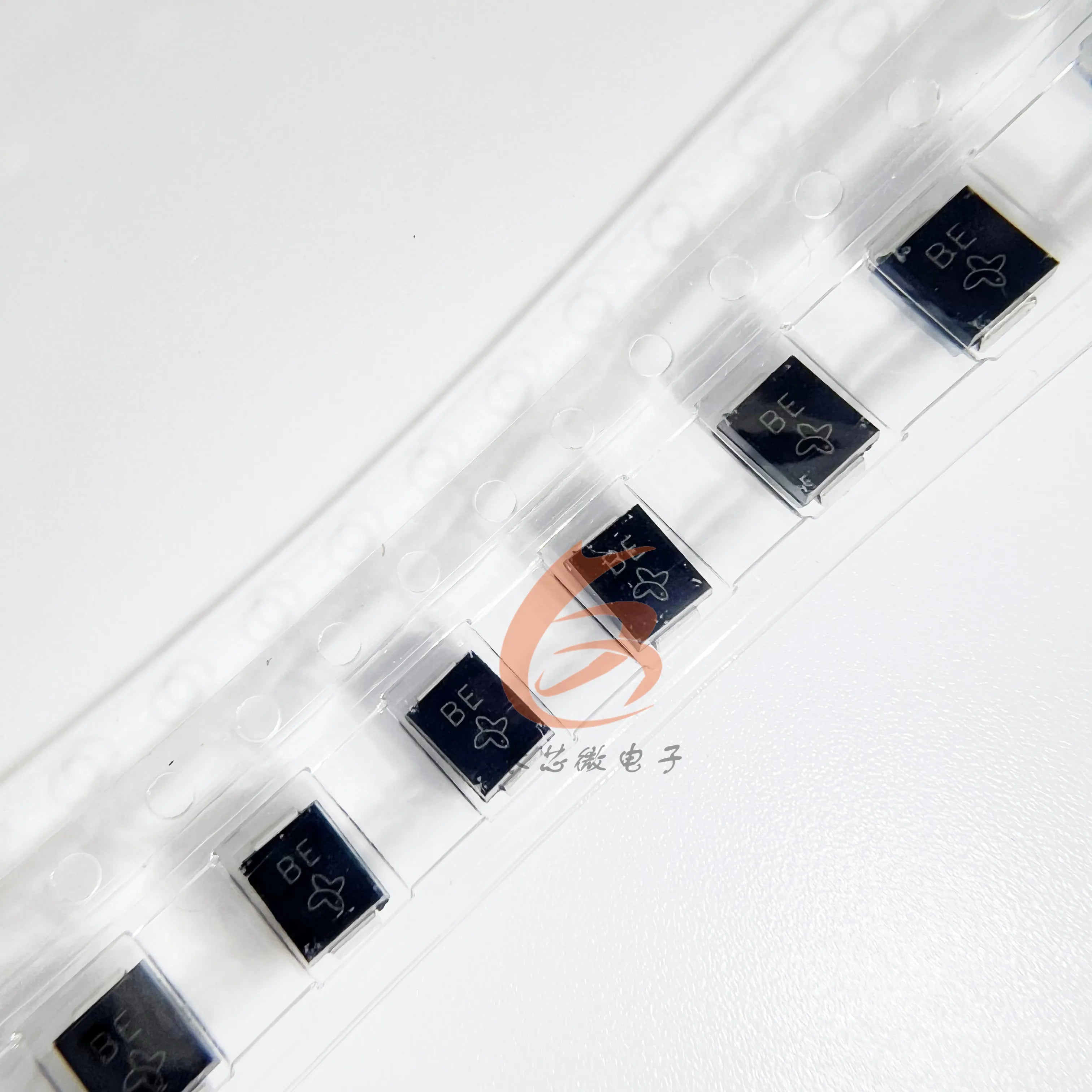

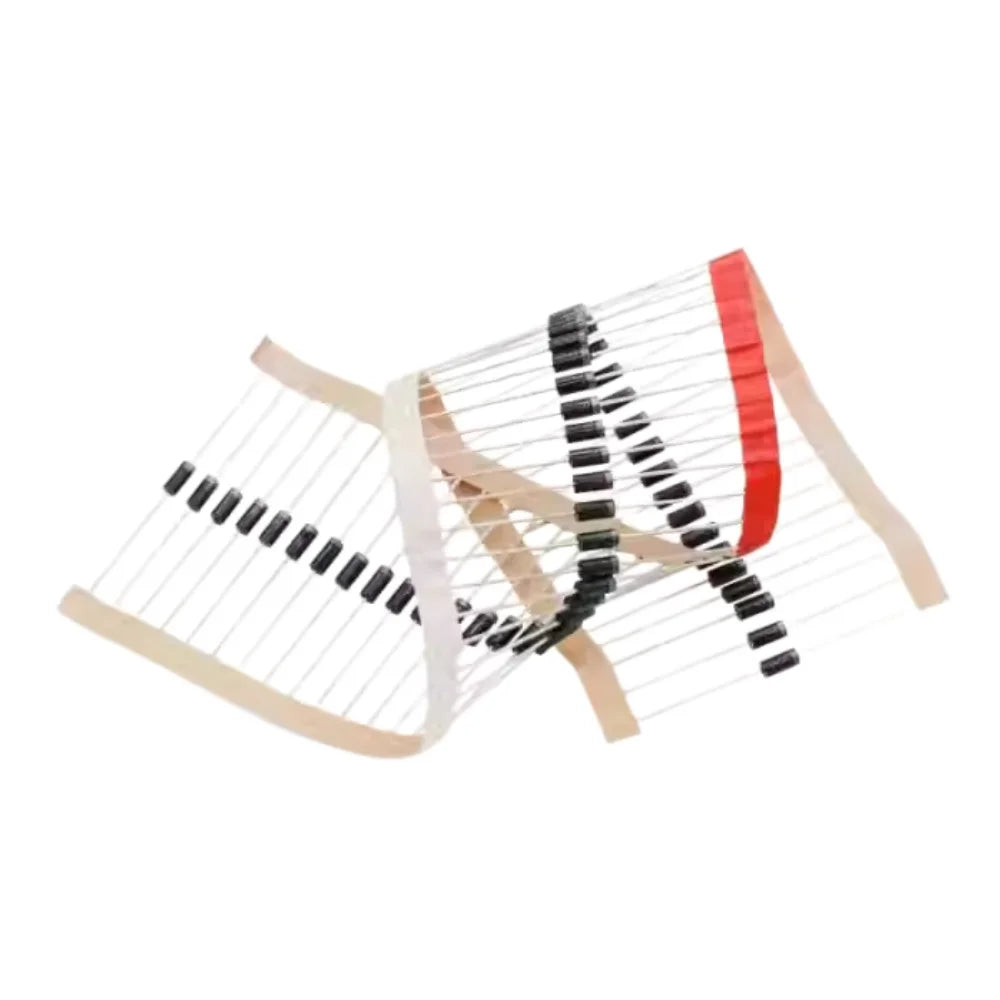

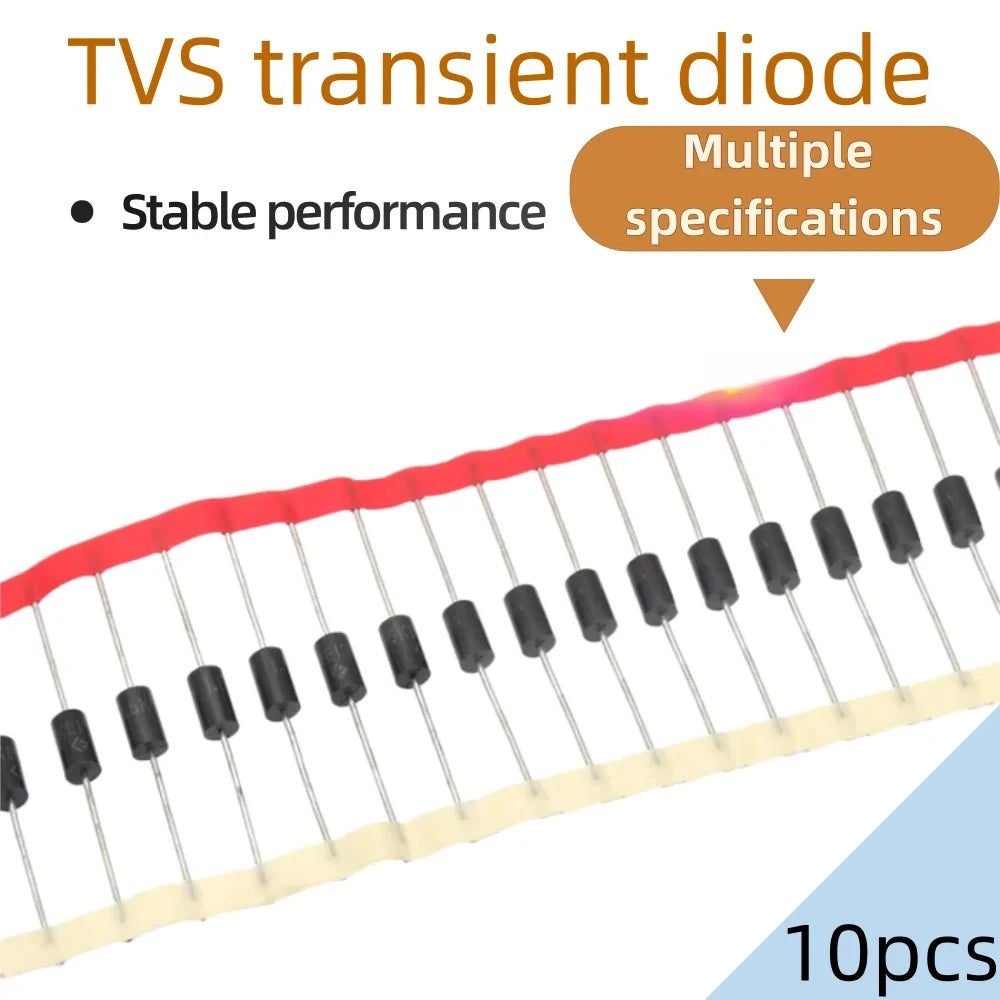

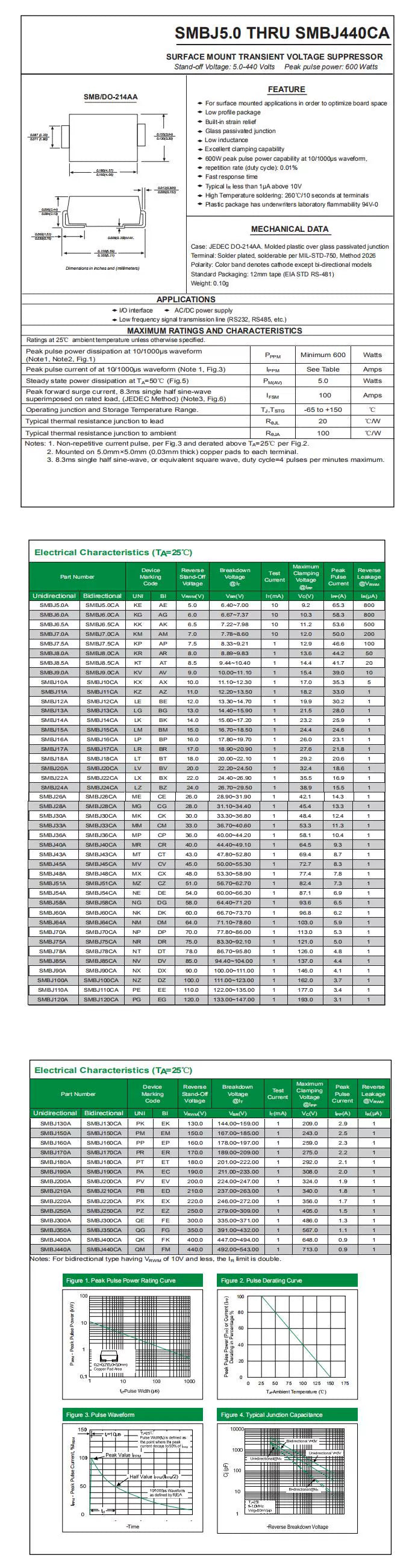

- 12-numbered two-terminal choices: a 200-piece SMBJ12A versus SMBJ12CA menu selects one polarity variant, not both. P6KE12CA appears among 20- or 50-piece axial menus; 1.5KE12A and 1.5KE12CA appear among 10- or 20-piece 1.5KE selections. These families differ in package and pulse test ratings; the “12” in their names is not a universal maximum clamping voltage.

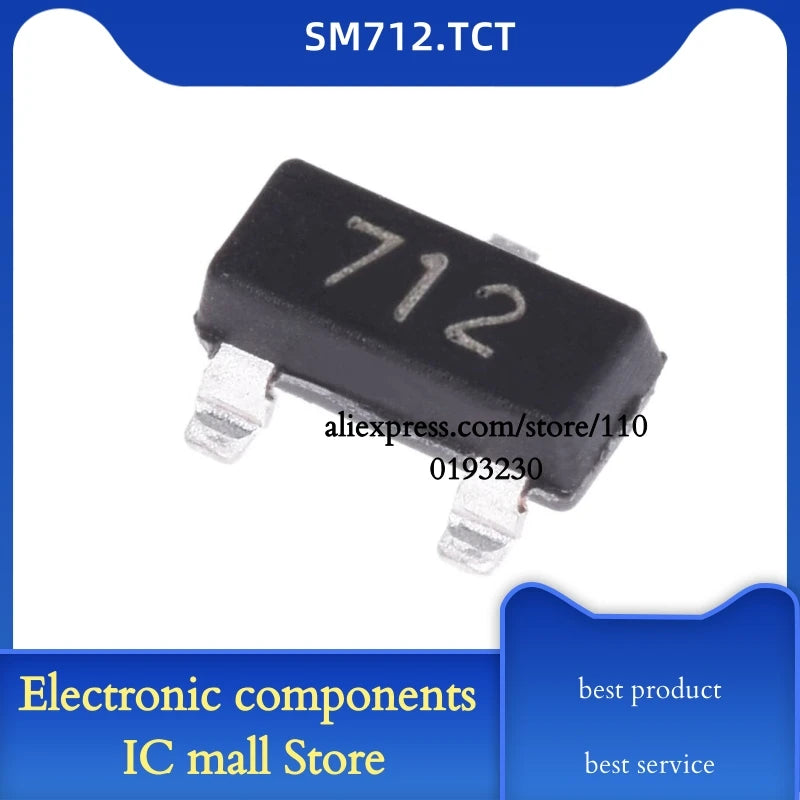

- SM712-family SOT-23 parts: separate 20- and 50-piece SM712 listings and a 10/50/100-piece SM712.TCT or PSM712-LF-T7 listing use multi-terminal protection formats. The “12V/7V” and other figures in seller titles may describe asymmetric device characteristics; confirm the exact full designation, working-voltage limits and pin arrangement before applying one to a communication line.

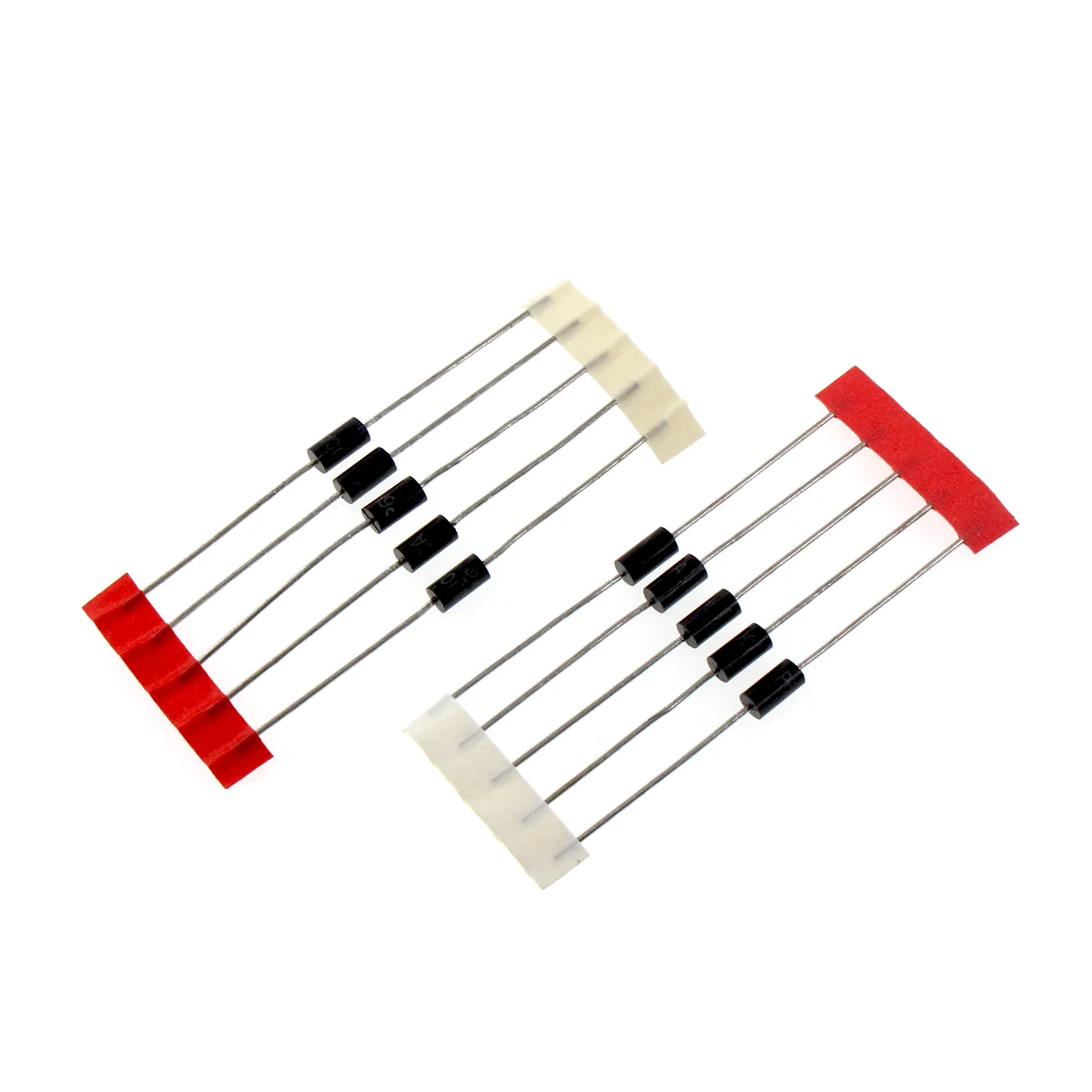

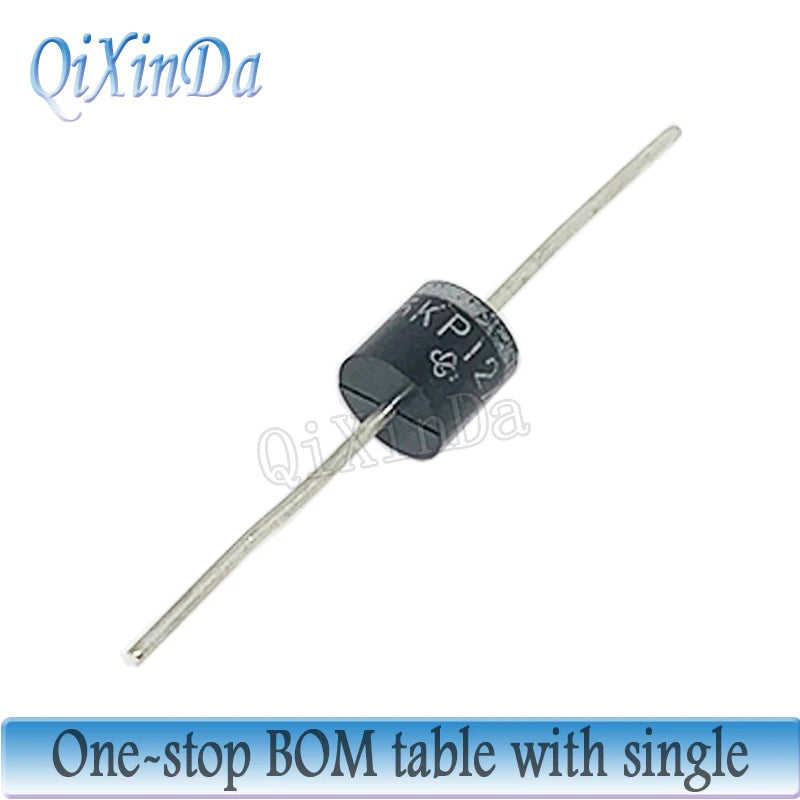

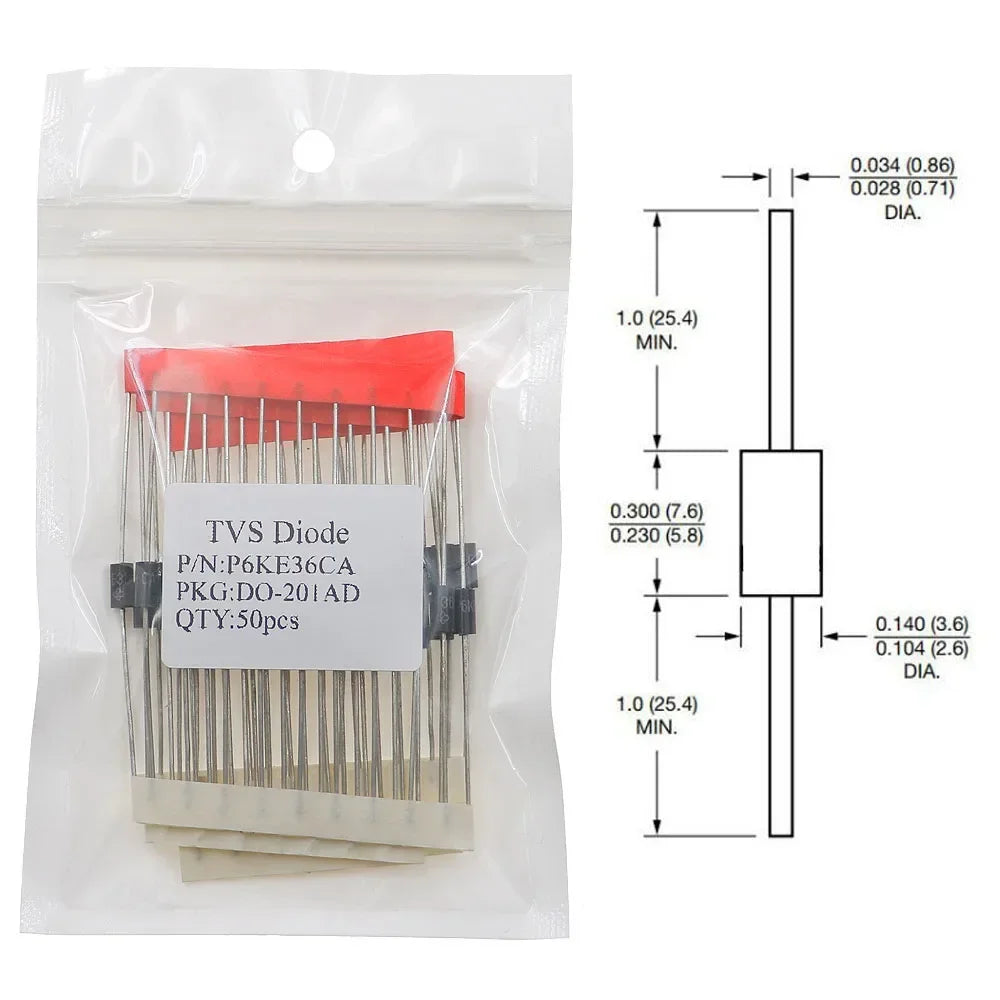

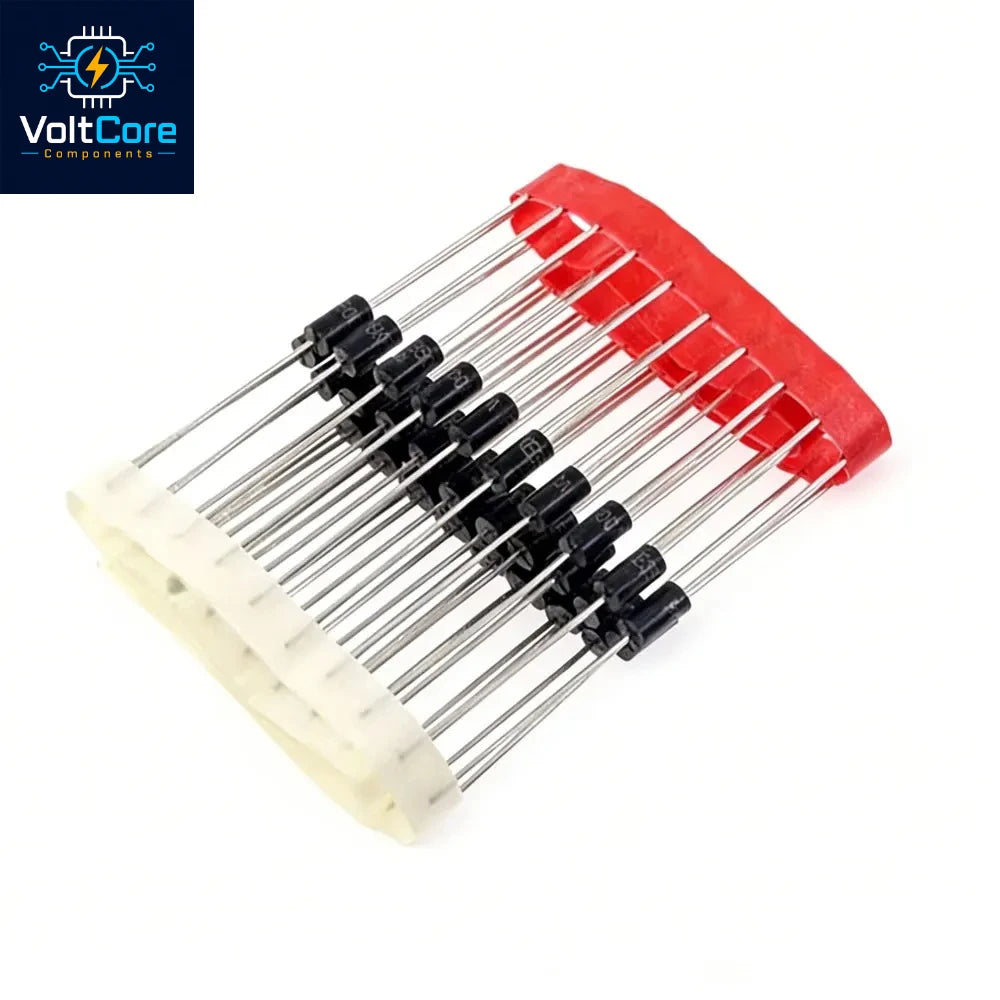

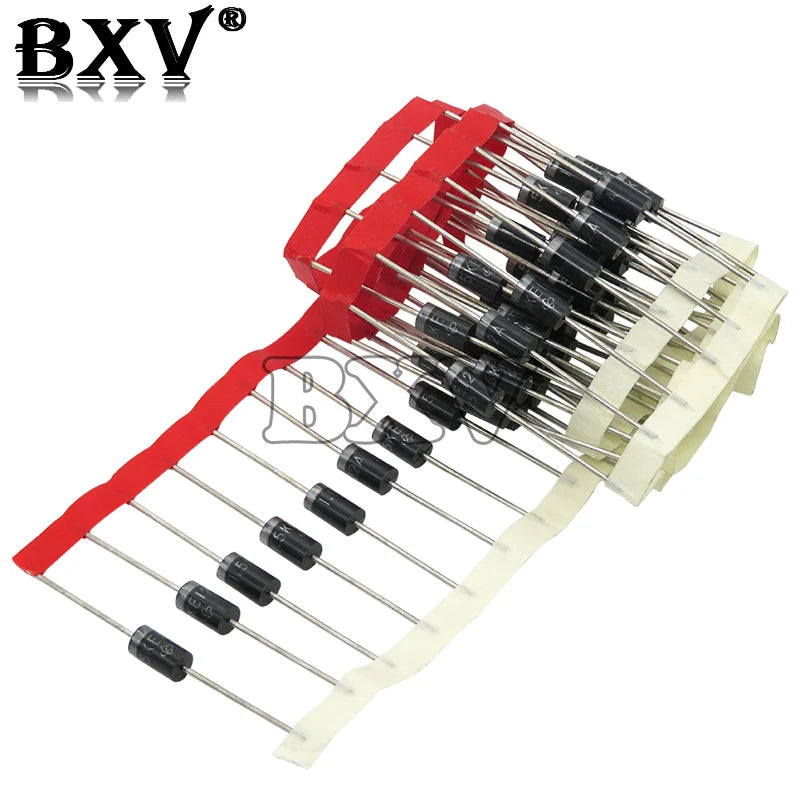

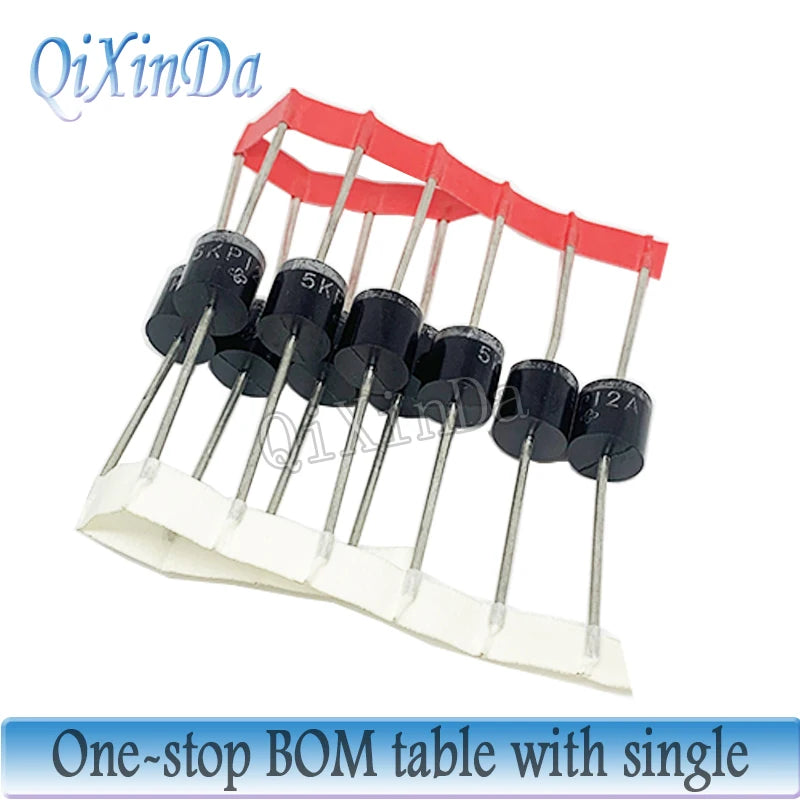

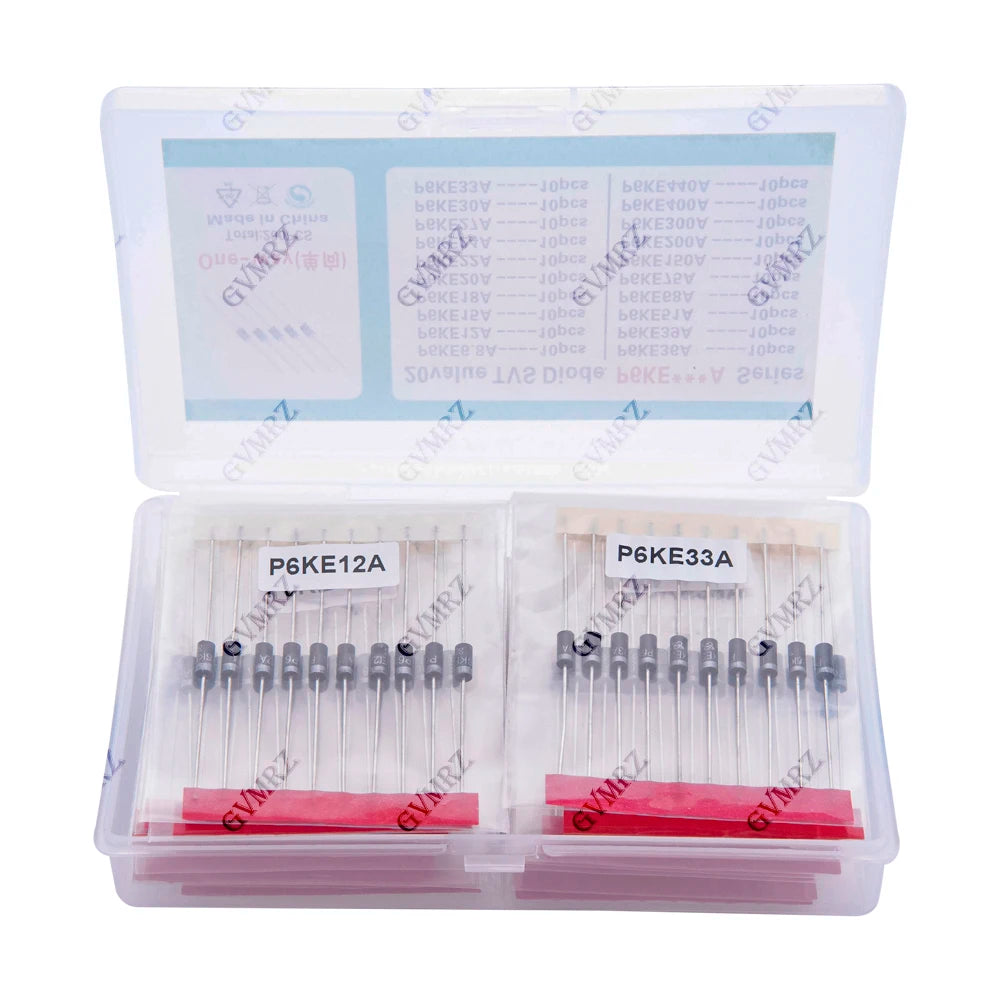

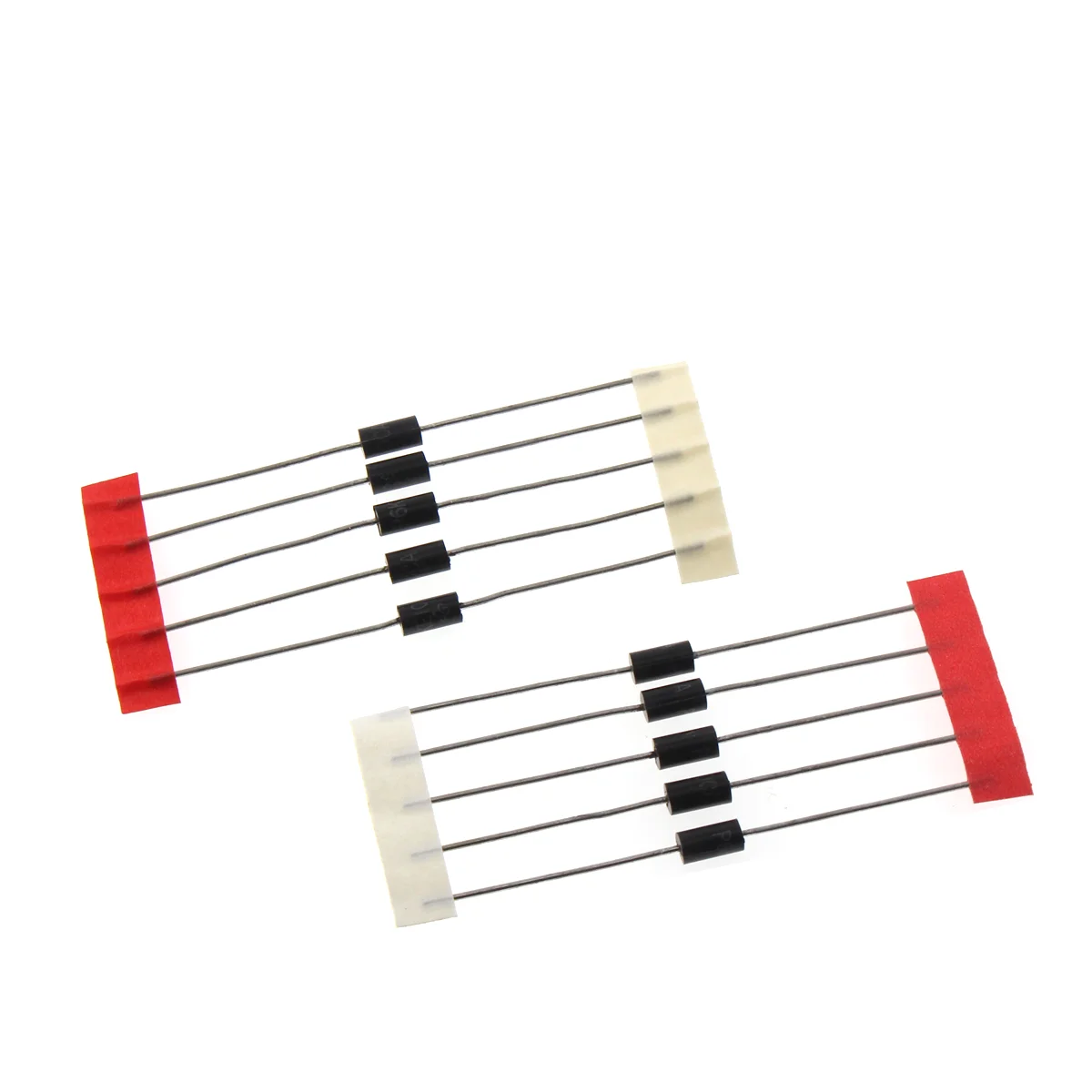

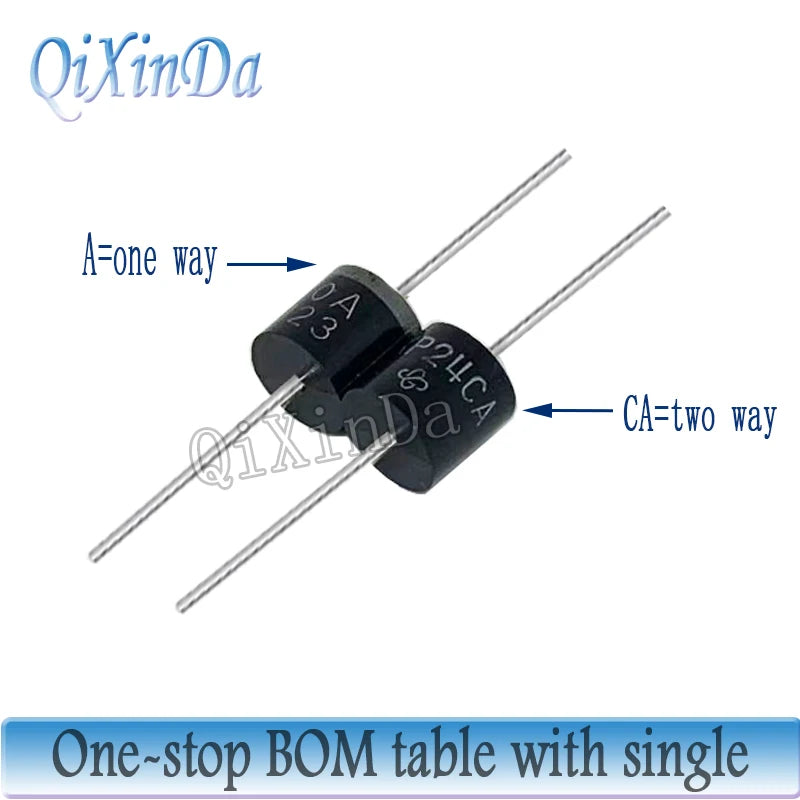

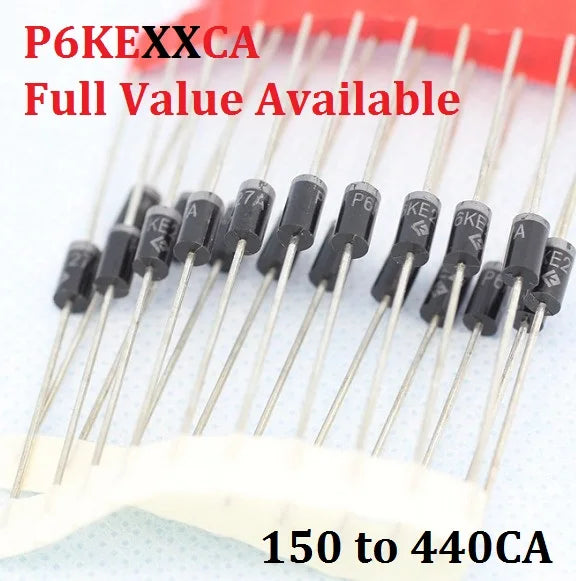

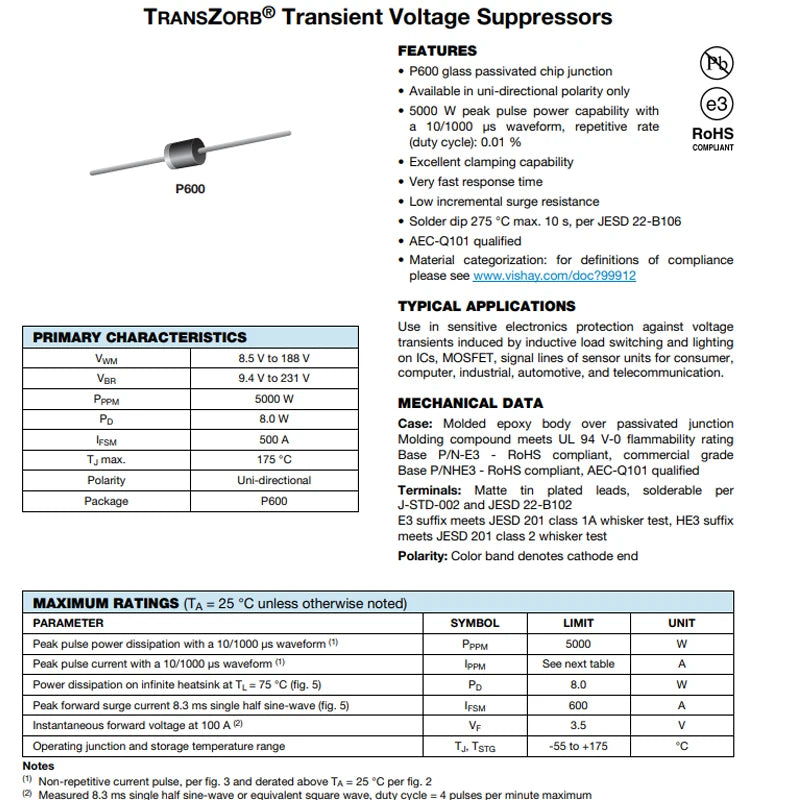

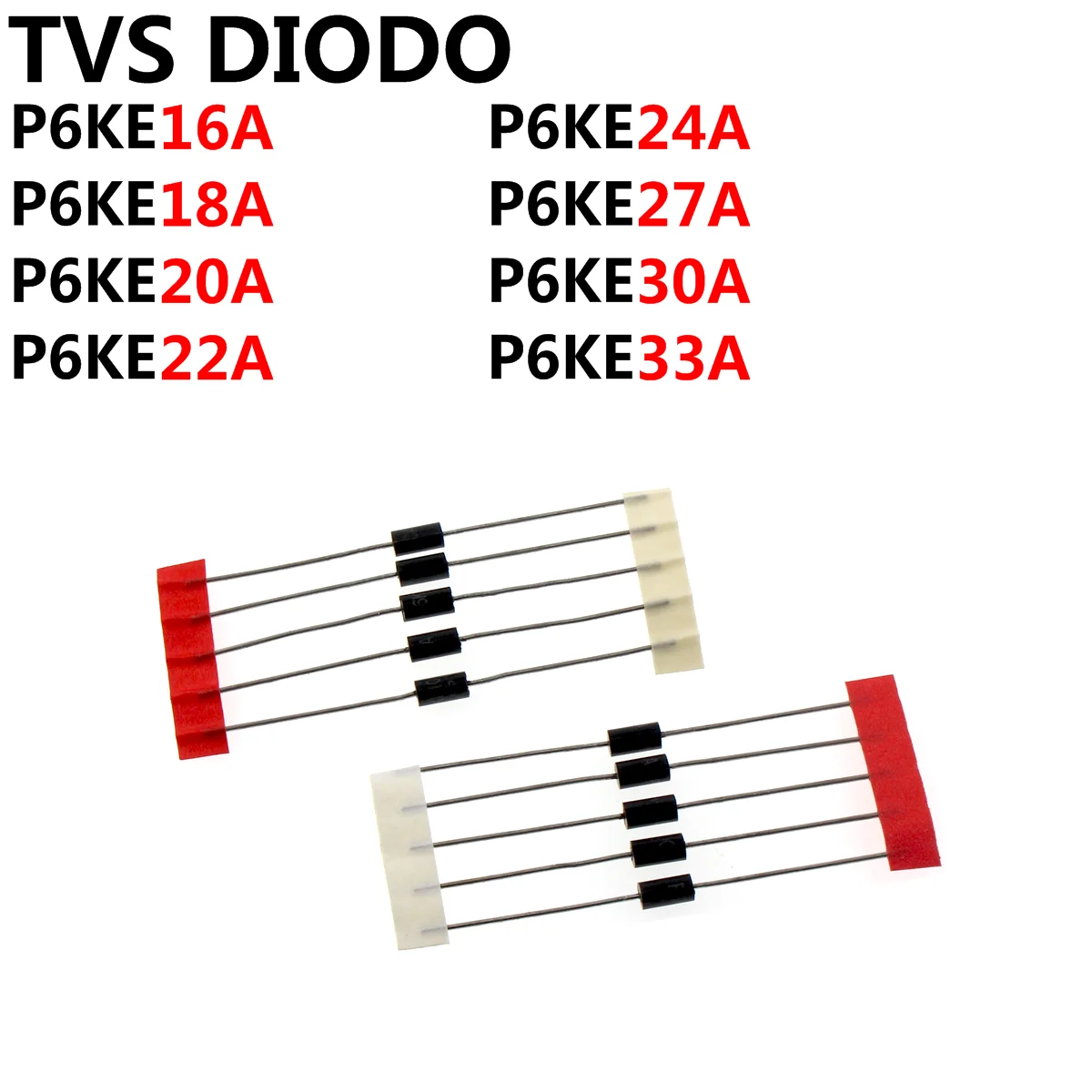

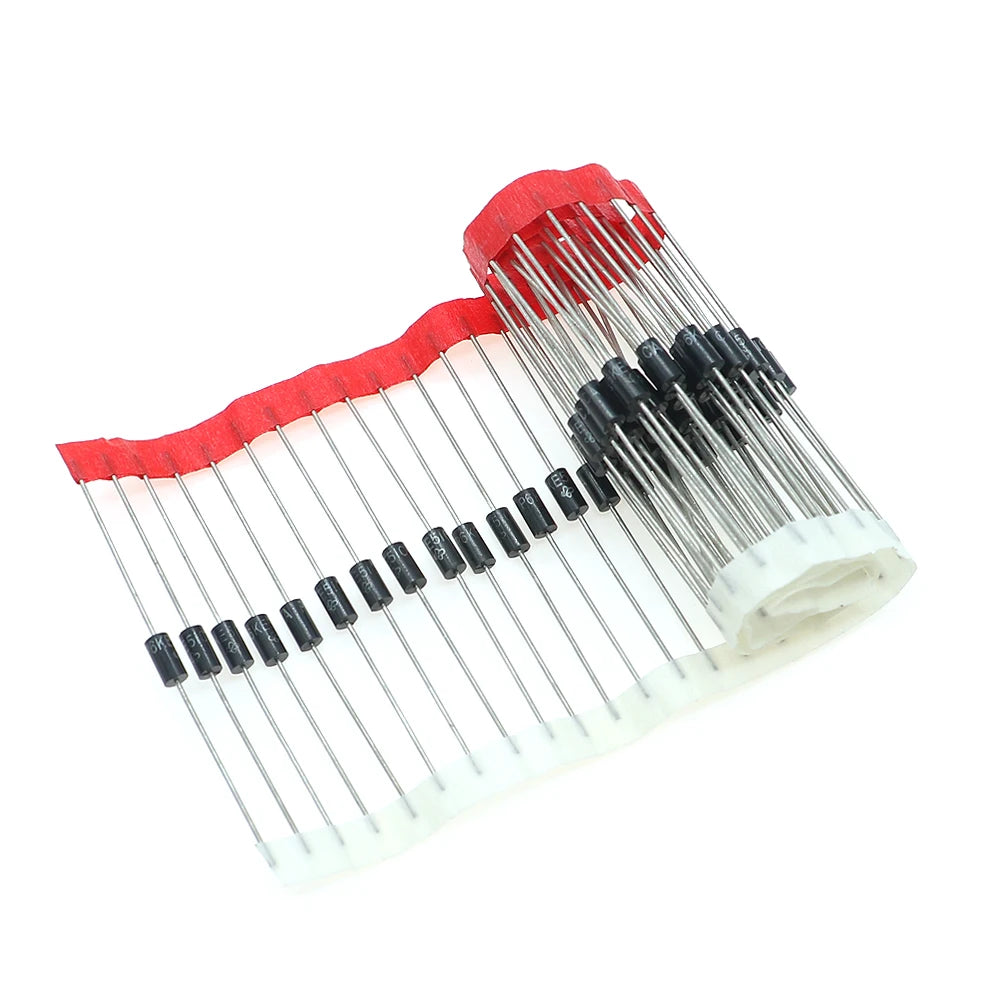

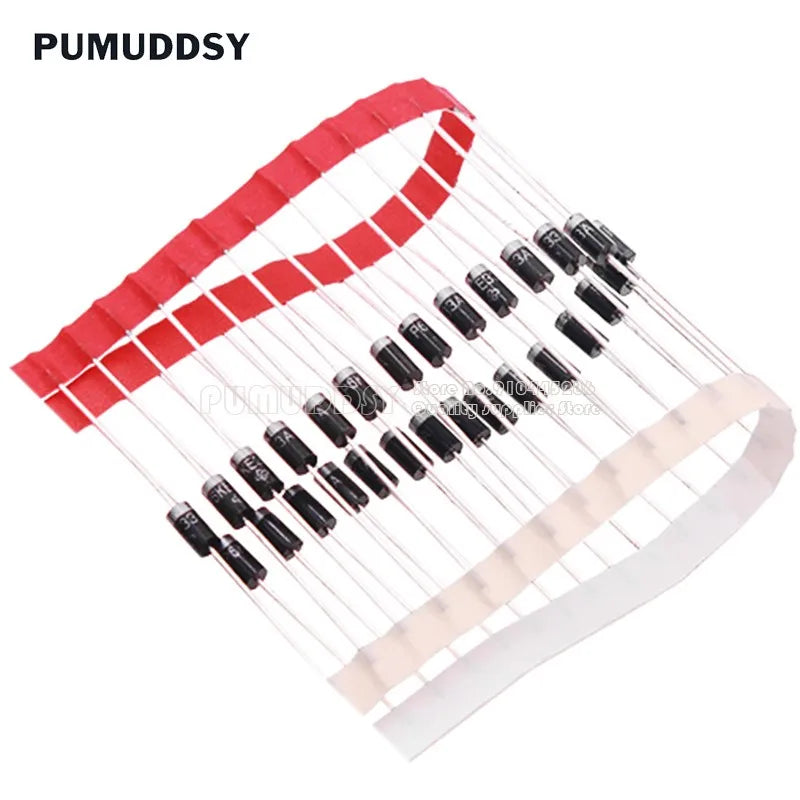

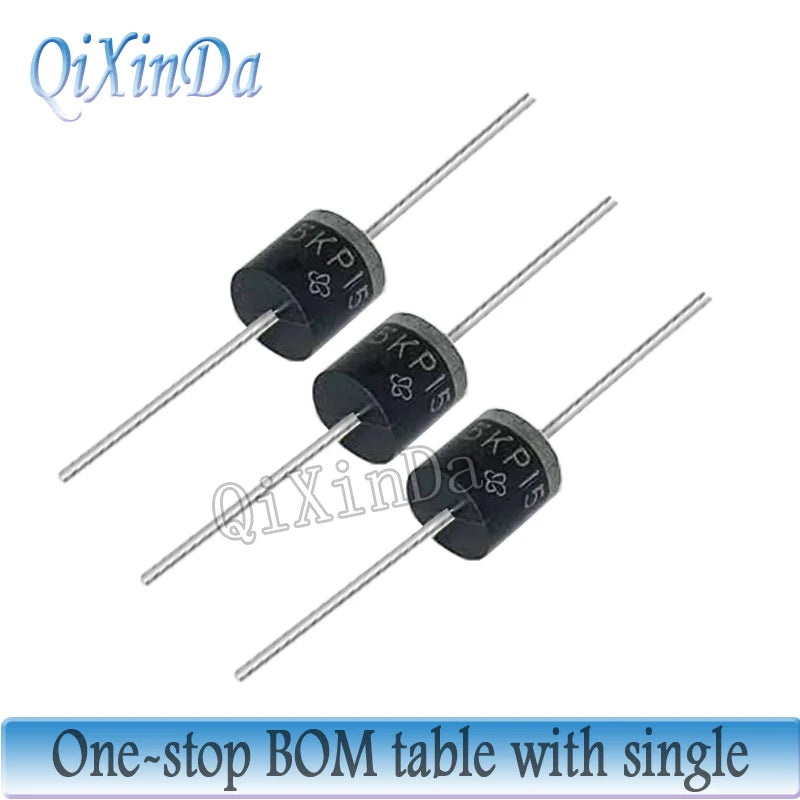

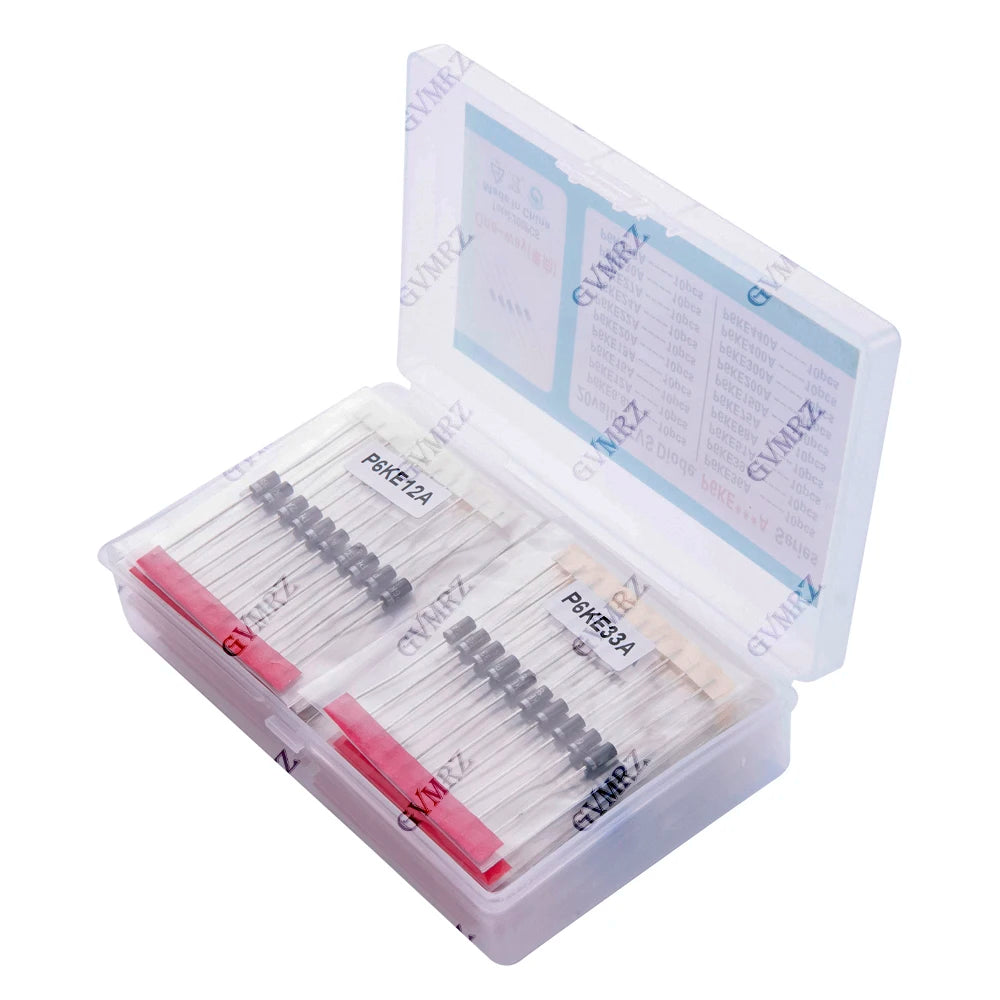

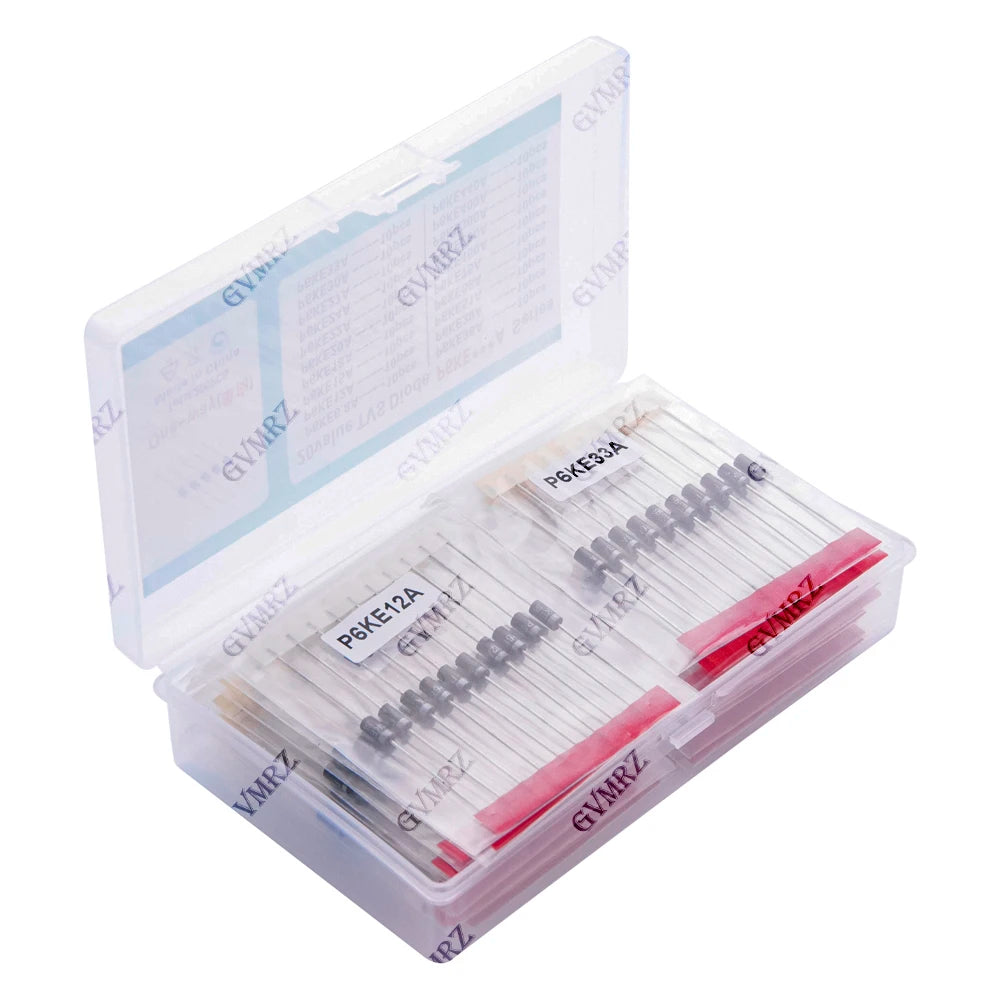

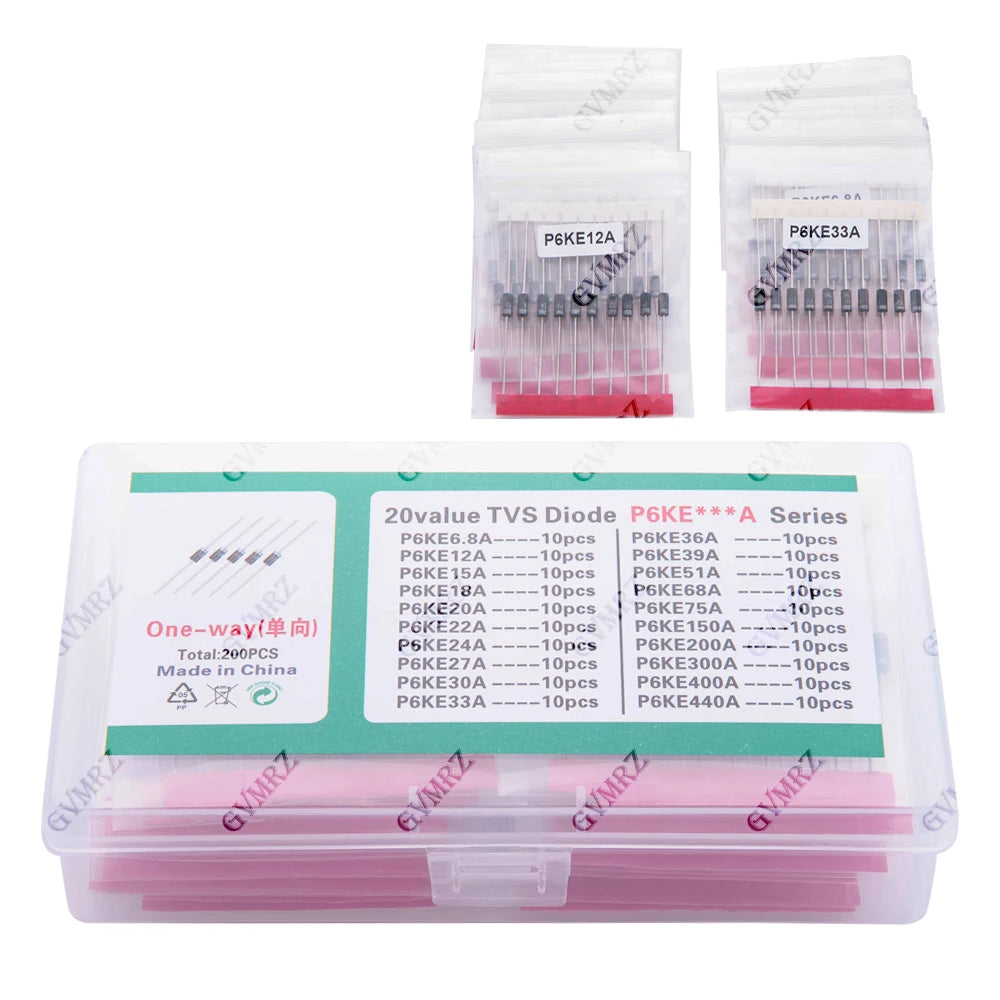

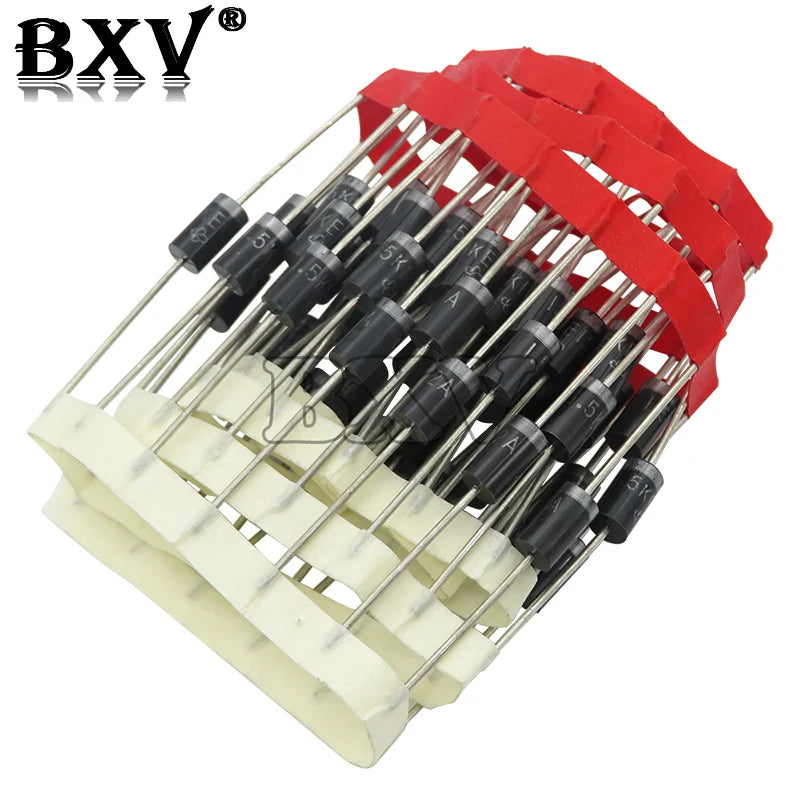

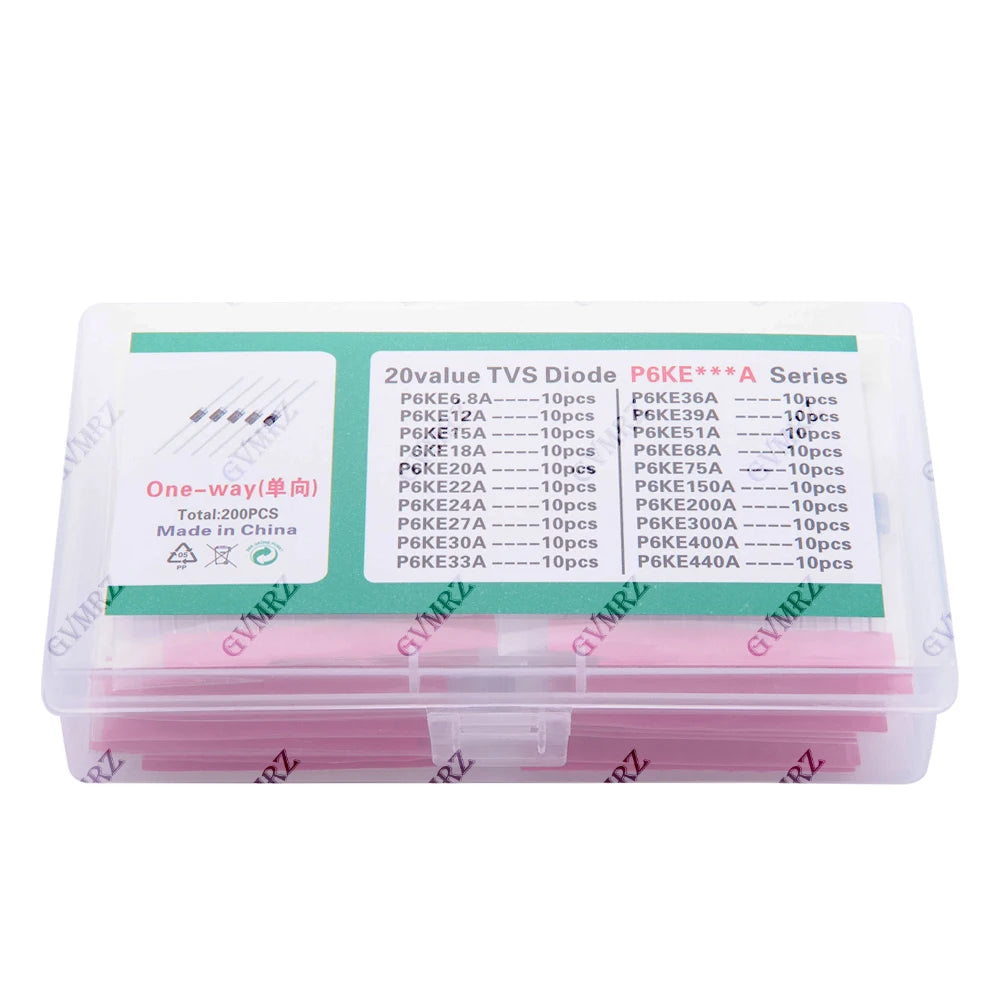

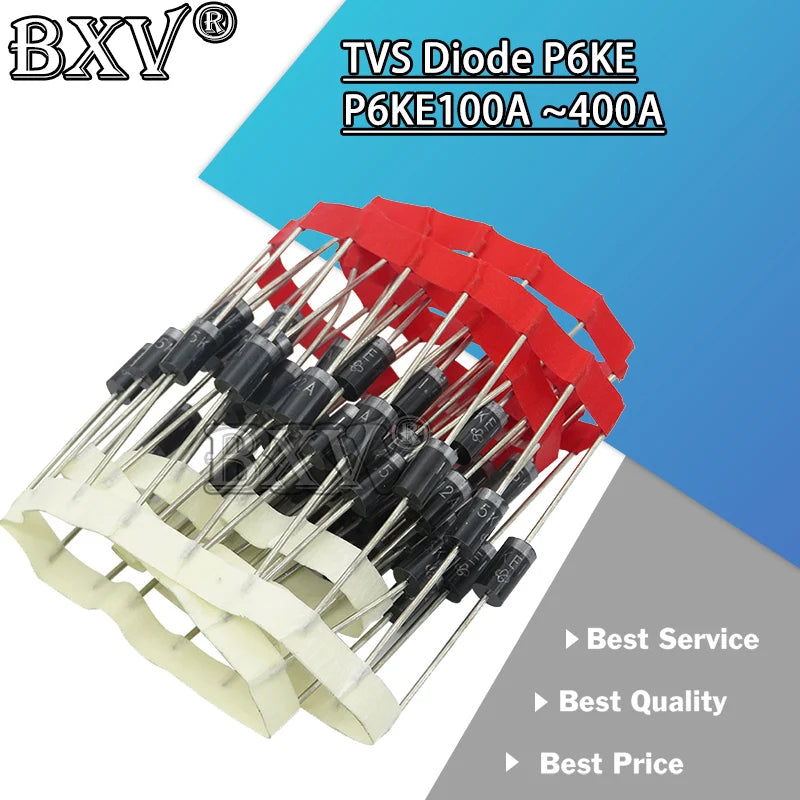

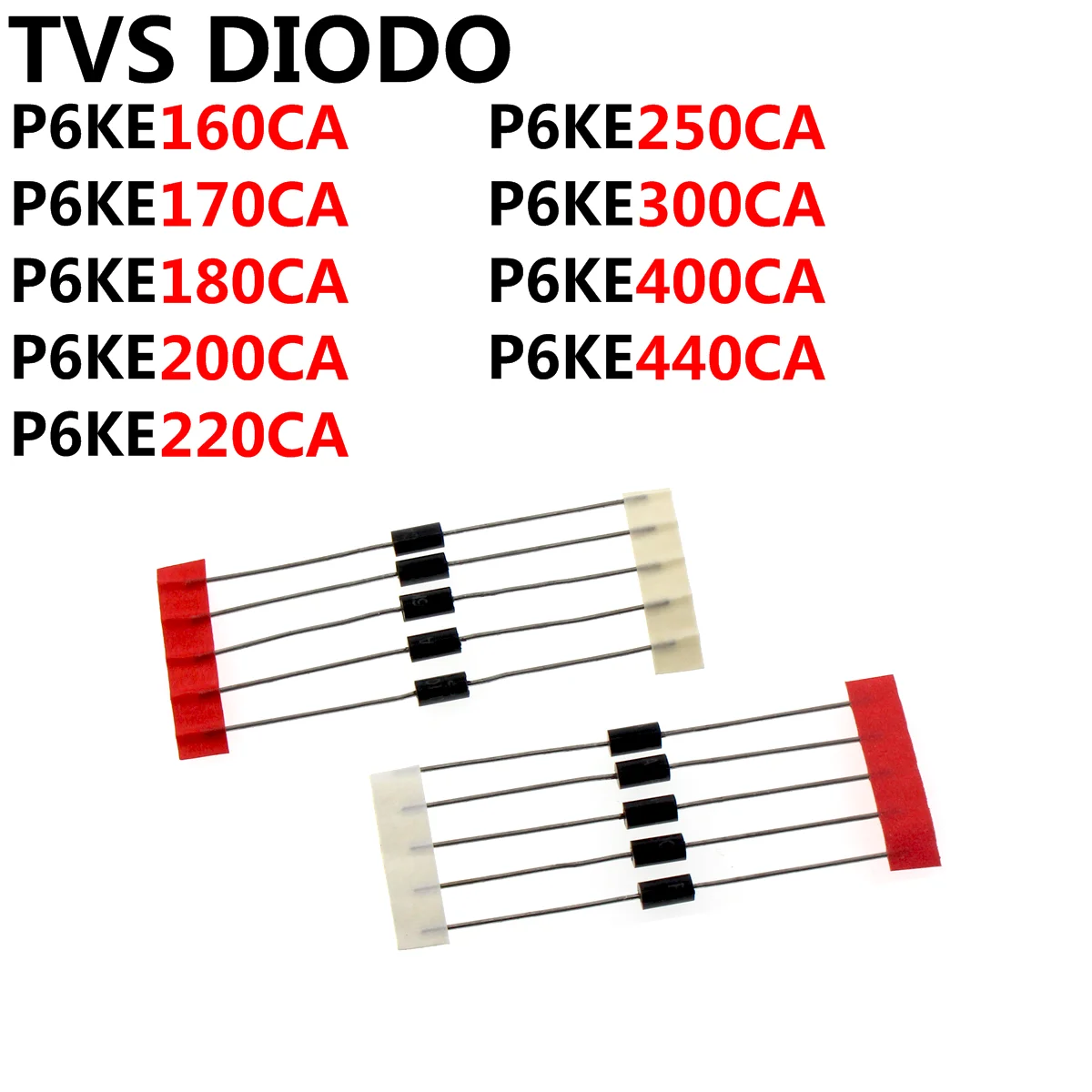

- Other axial options: P6KE A/CA menus range from 6.8 to over 400-numbered grades; 1.5KE A/CA menus include low and high grades, and 5KP A/CA choices include 43 through 60 grades. A 200-piece, 20-value P6KE kit is an assortment with a stated total, not 200 of each value.

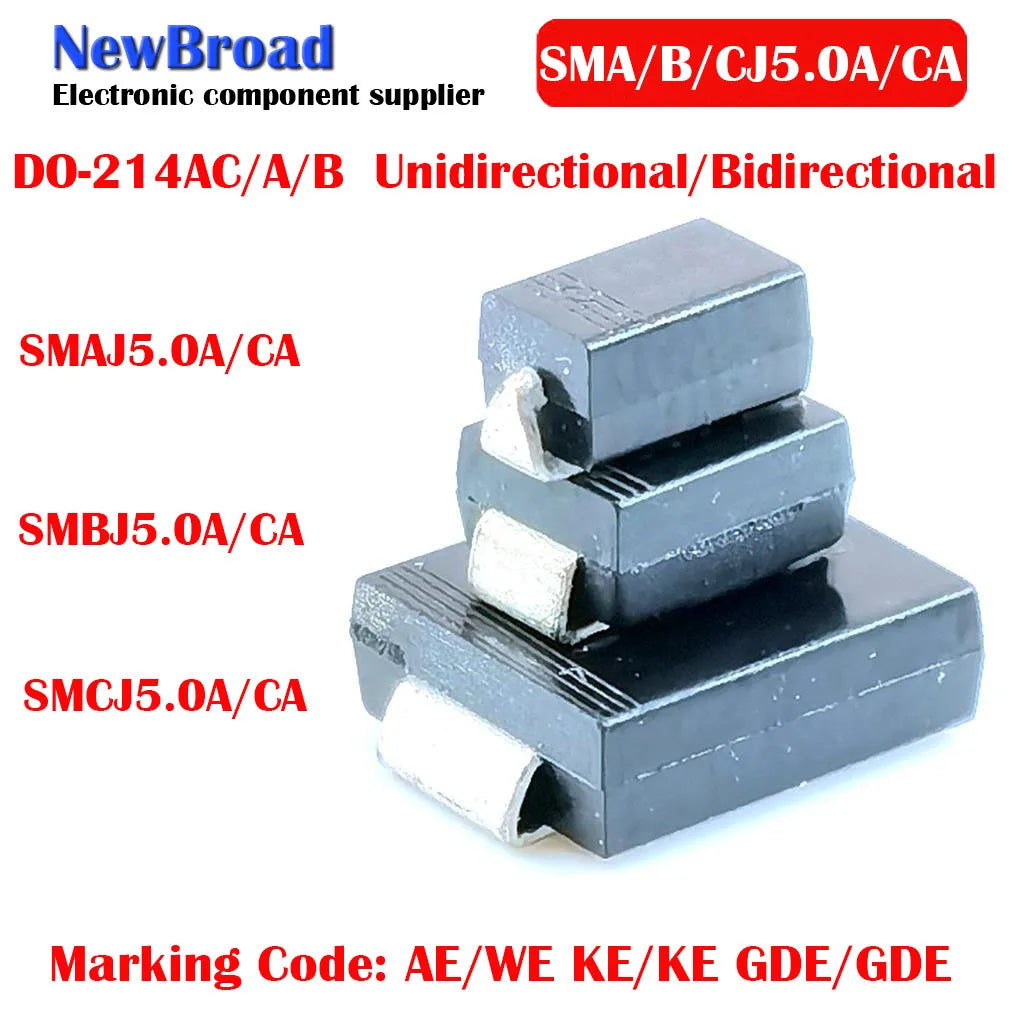

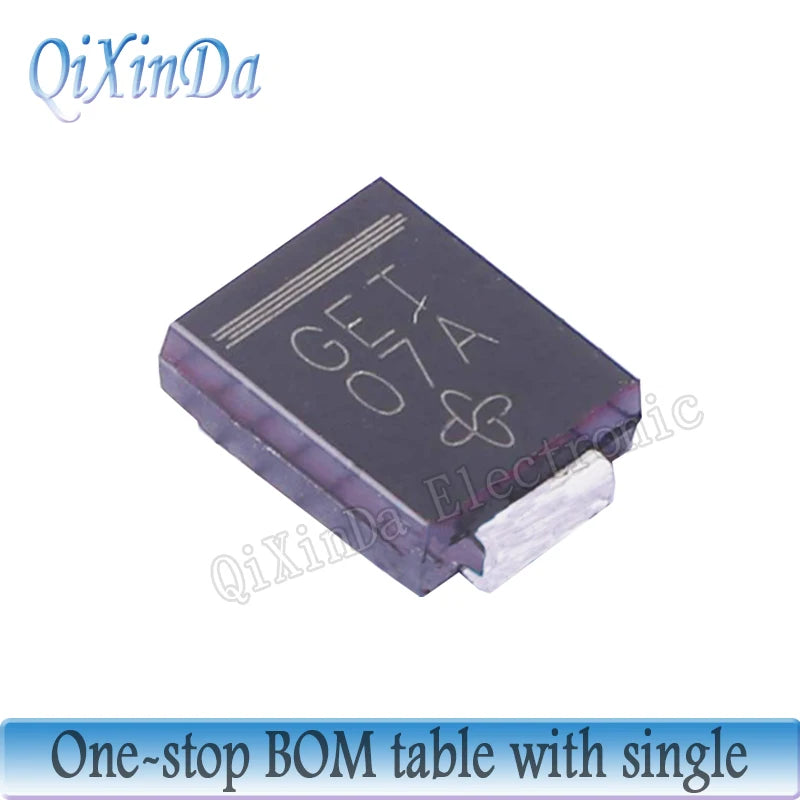

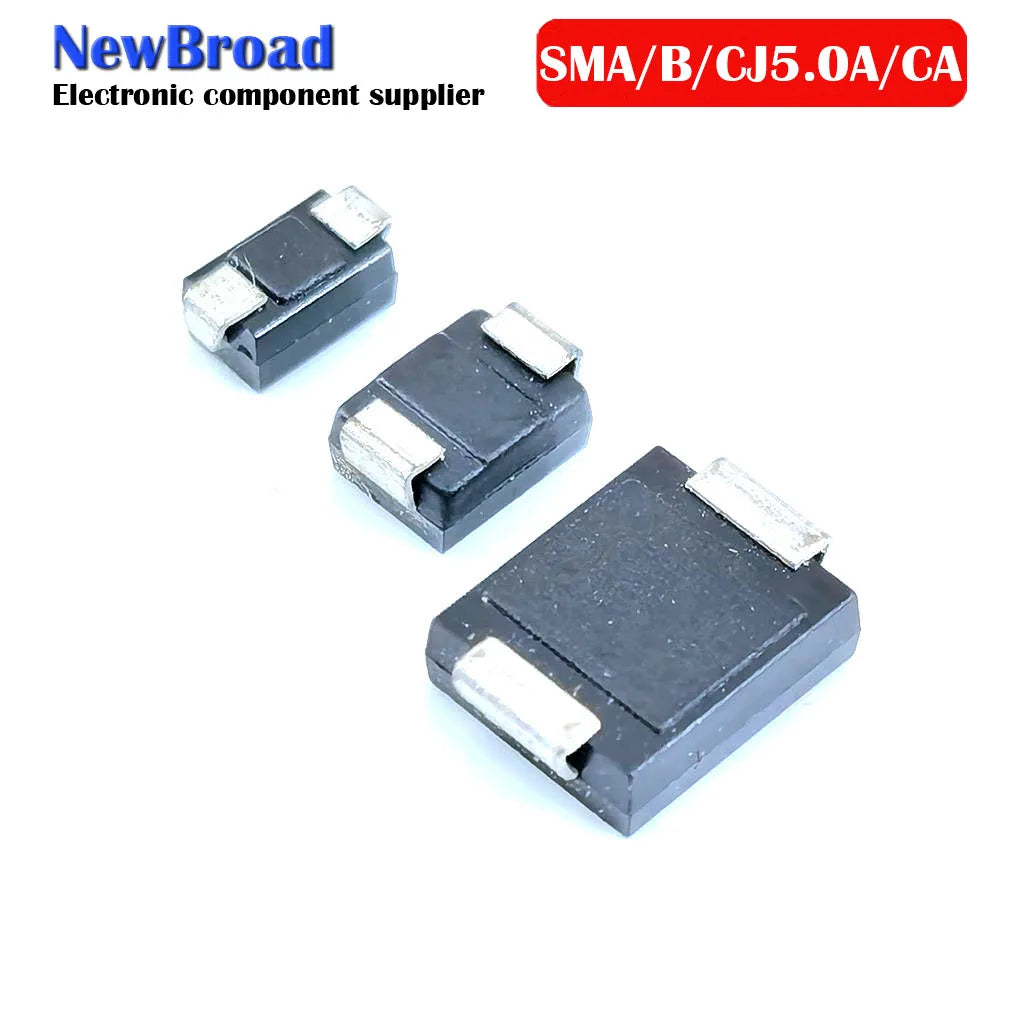

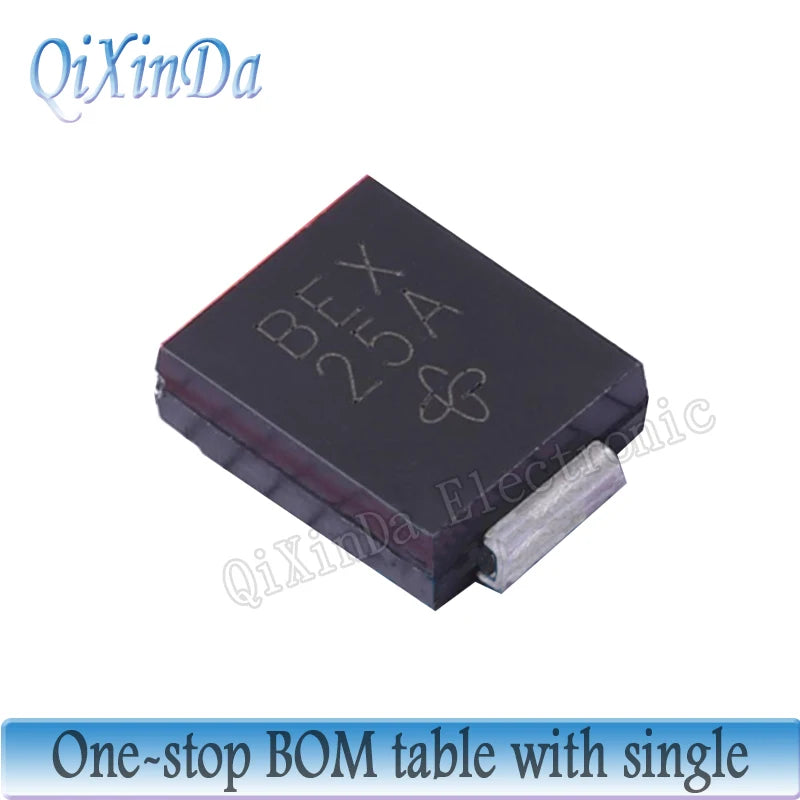

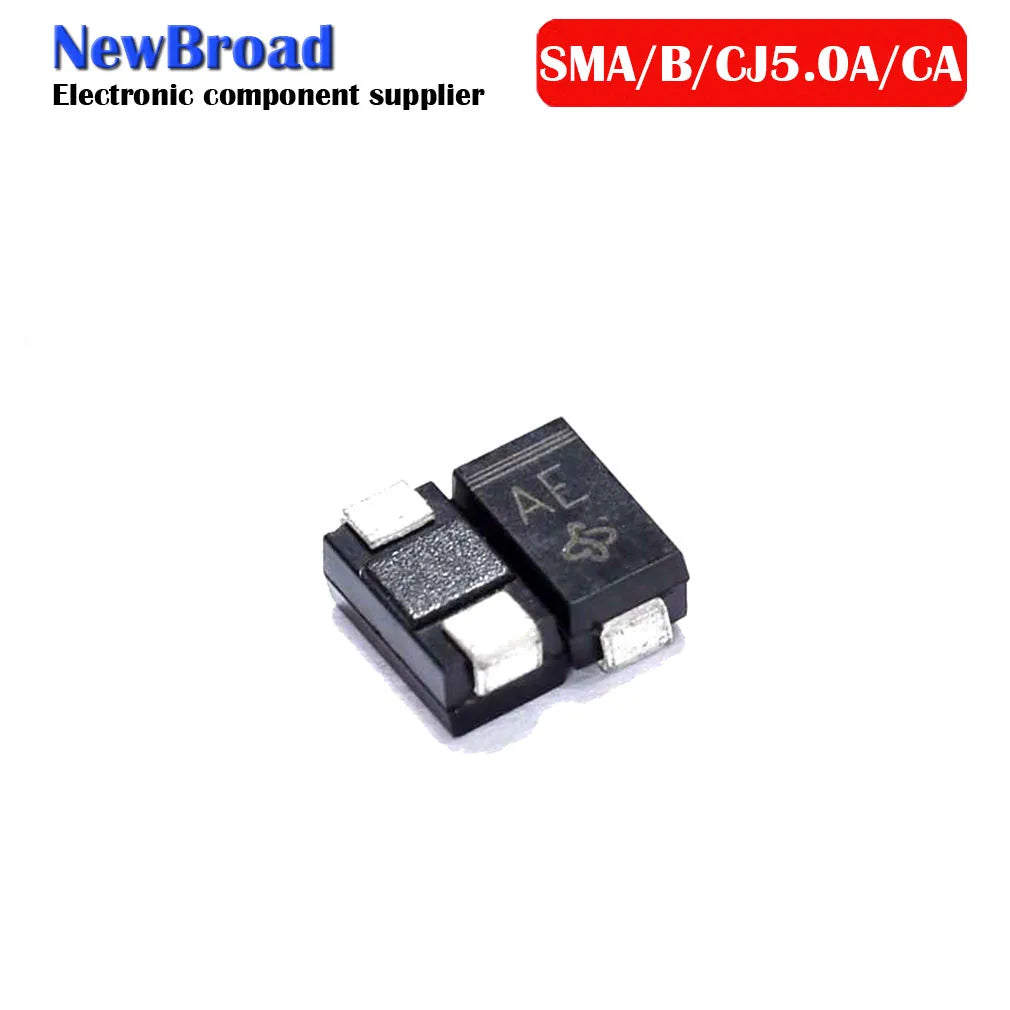

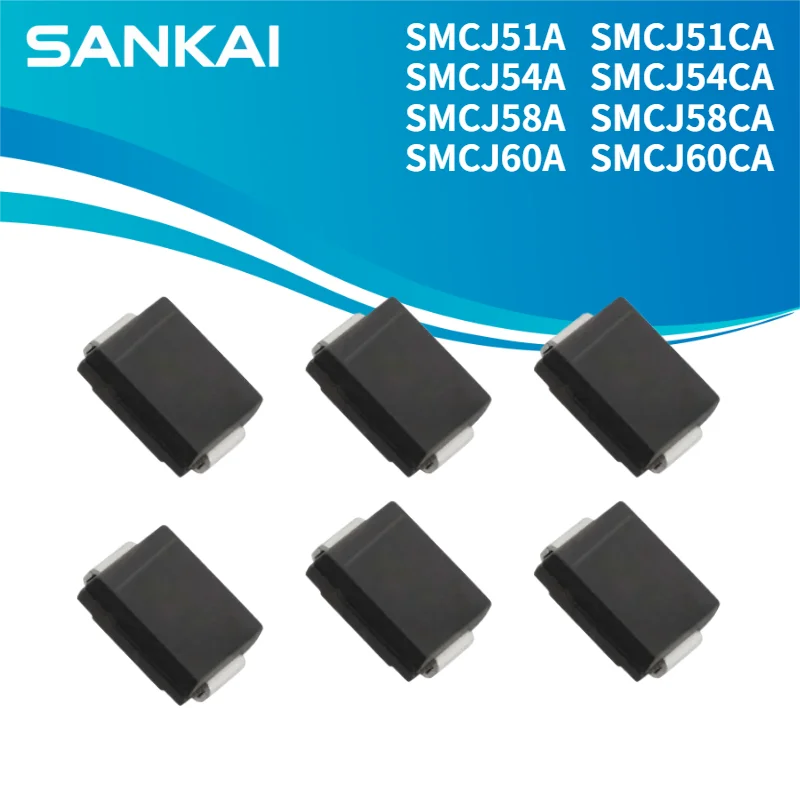

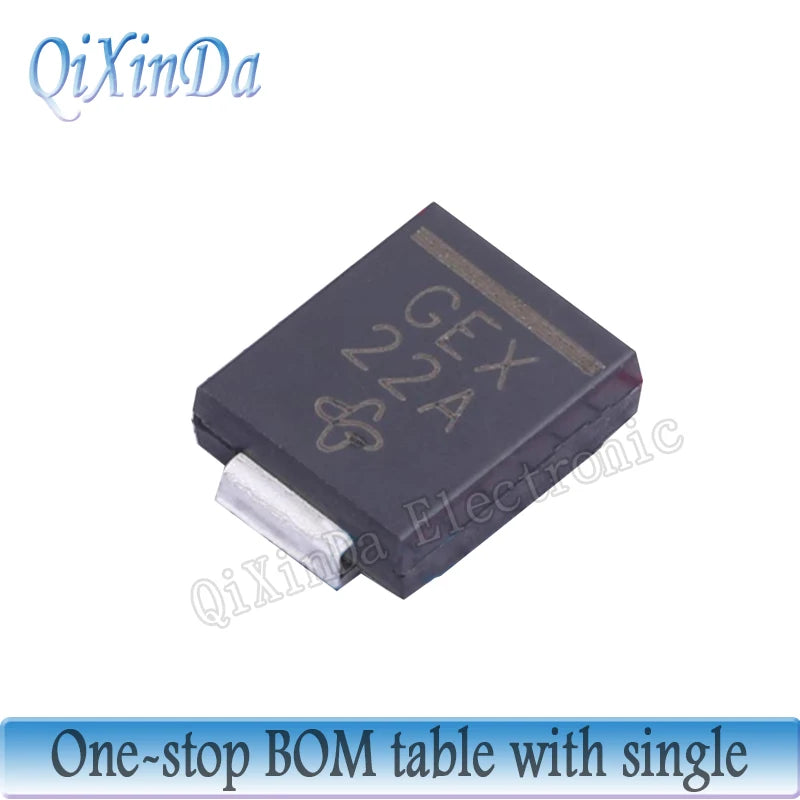

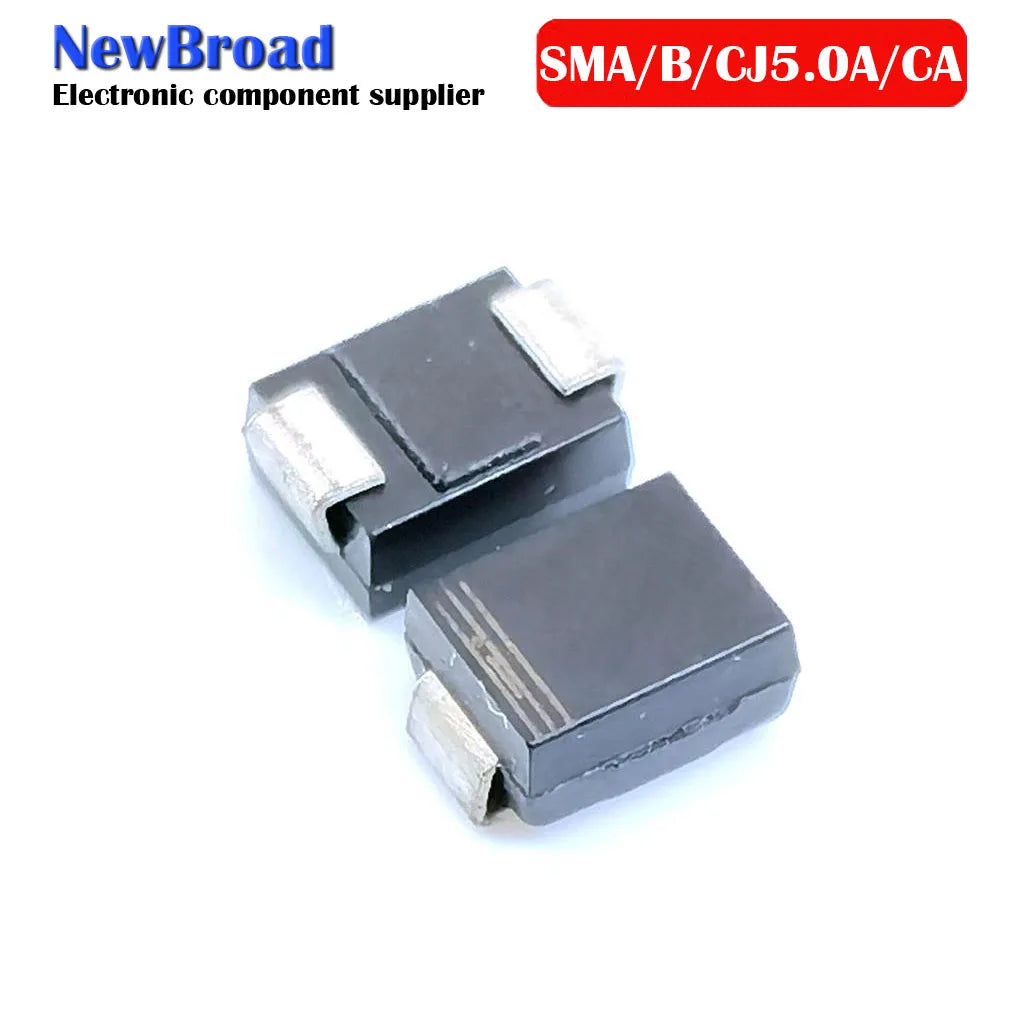

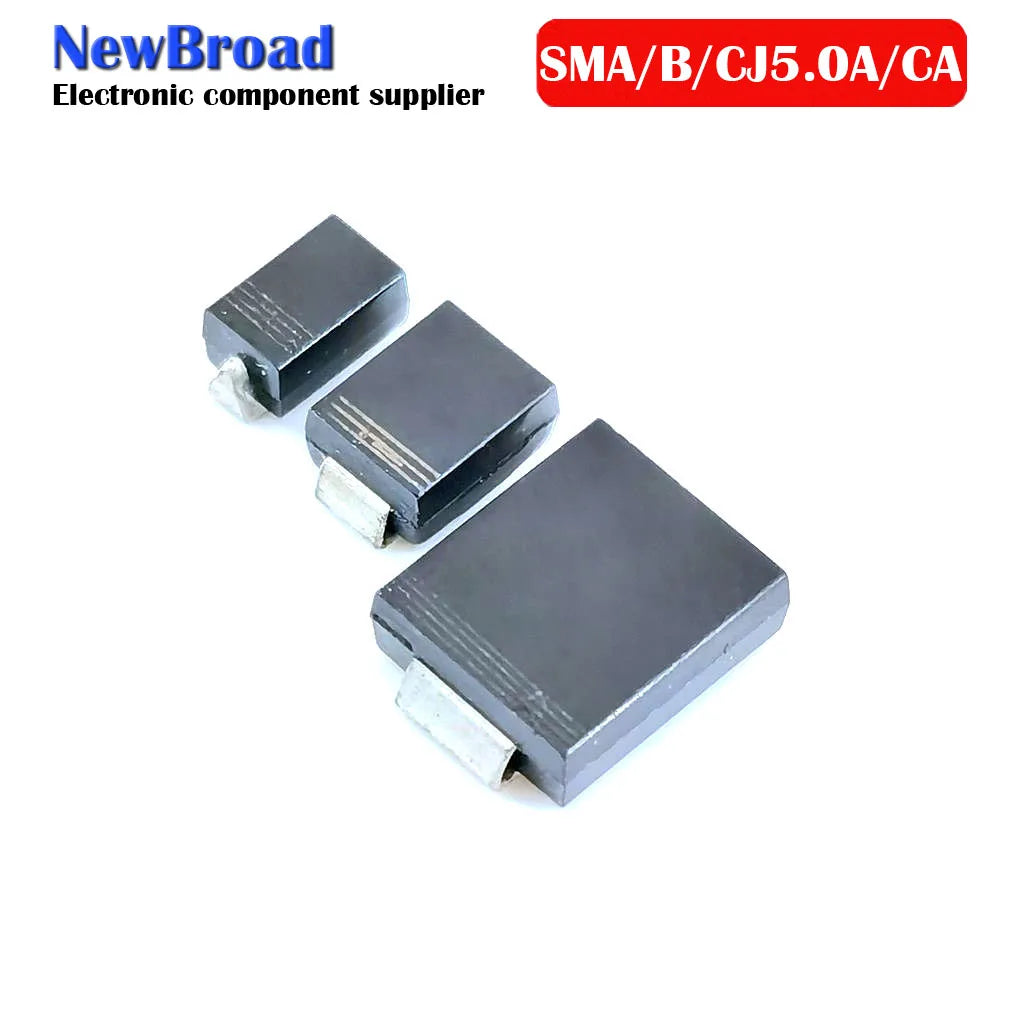

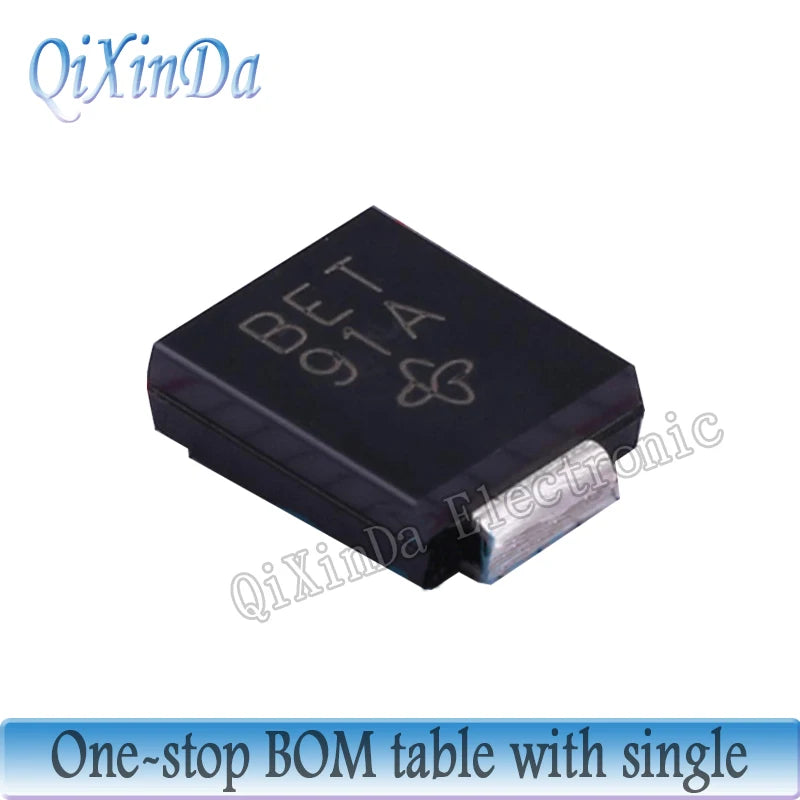

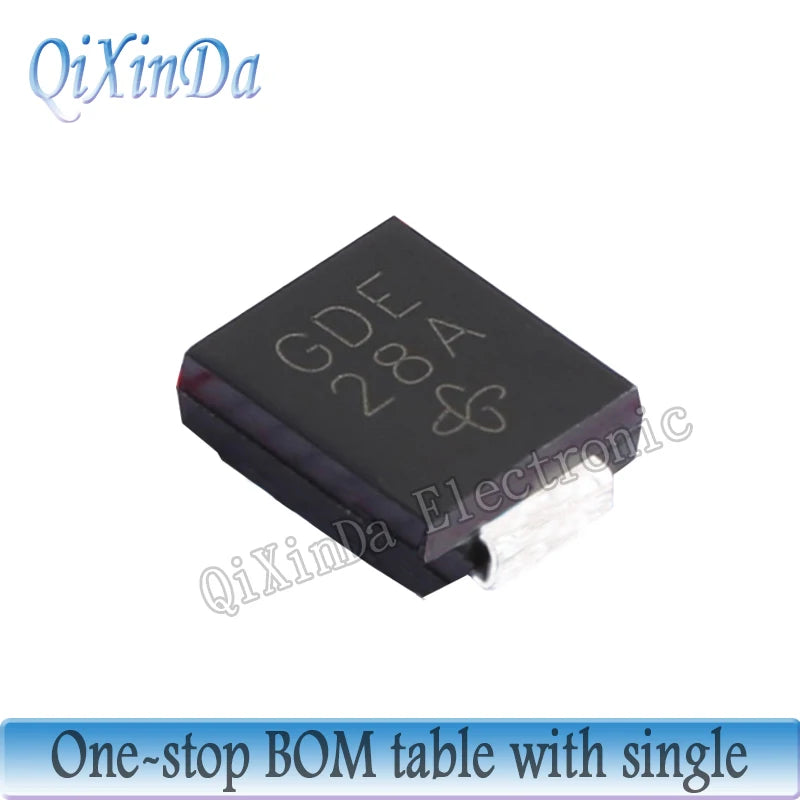

- Other SMD options: some menus offer SMAJ, SMBJ or SMCJ 5.0A/CA variants and SMCJ grades above 50. Check the selected part and package, rather than assuming a 12V SMD suppressor from this page heading.
How to specify protection for a nominal 12V rail
- Determine the rail's maximum normal voltage, including tolerance and expected excursions. Choose a device with an appropriate reverse standoff voltage (VRWM), then confirm its breakdown range (VBR) and clamping voltage (VC) at the specified pulse current against what the downstream circuit tolerates. A nominal 12V rail does not automatically call for a part number ending in 12.
- Confirm direction. In many P6KE, 1.5KE, SMBJ and SMCJ listings, A and CA commonly distinguish unidirectional and bidirectional versions. Validate this for the exact selected part, including polarity marking and relevant normal waveform.
- Compare peak pulse current, pulse waveform, peak pulse power and temperature derating in the manufacturer's datasheet. Imported “600W” or “1500W” headlines may refer to different families or test conditions and do not indicate continuous dissipation.

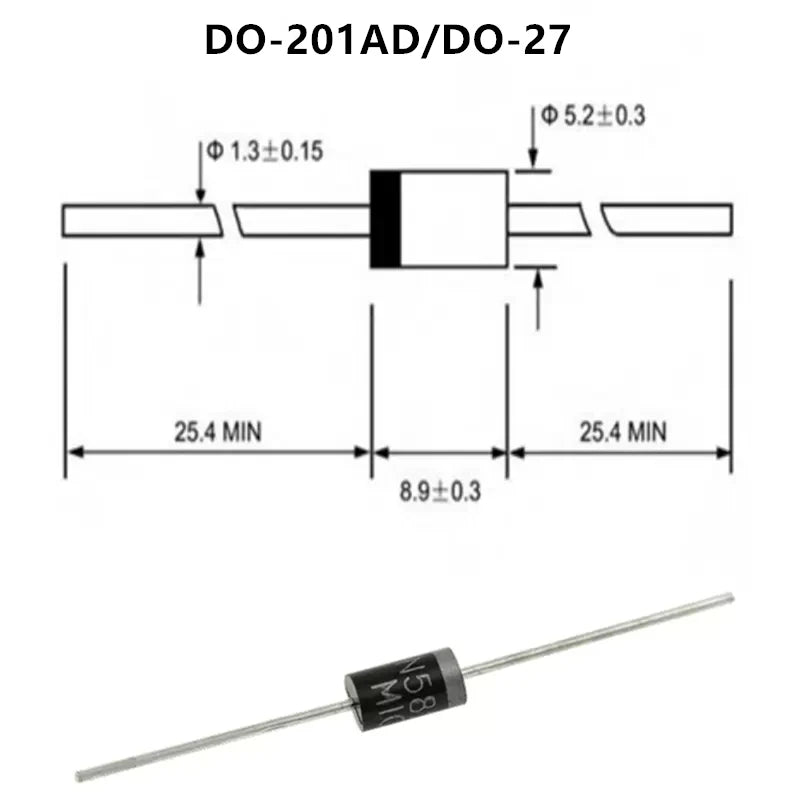

- Match the footprint and connections: axial P6KE, 1.5KE and 5KP, SMA, SMB, SMC and three-terminal SOT-23 devices cannot be assumed interchangeable. Review the selected variant's full part number, quantity and actual datasheet; generic supplier voltage or certification fields are not verified design limits.
Frequently asked questions
Is SMBJ12A the same as SMBJ12CA?
No. These are separate selections commonly associated with different suppression direction. Check their exact polarity and electrical limits before substitution.
Will a “12V TVS diode” clamp exactly at 12V?
No. Working standoff, breakdown and clamp voltage are different quantities. Look up VC at the relevant pulse current on the exact device datasheet.
Is SM712 a standard two-terminal 12V axial TVS?
No. The listed SM712 options are SOT-23 multi-terminal protectors; examine their pinout and asymmetric voltage characteristics for the intended interface.

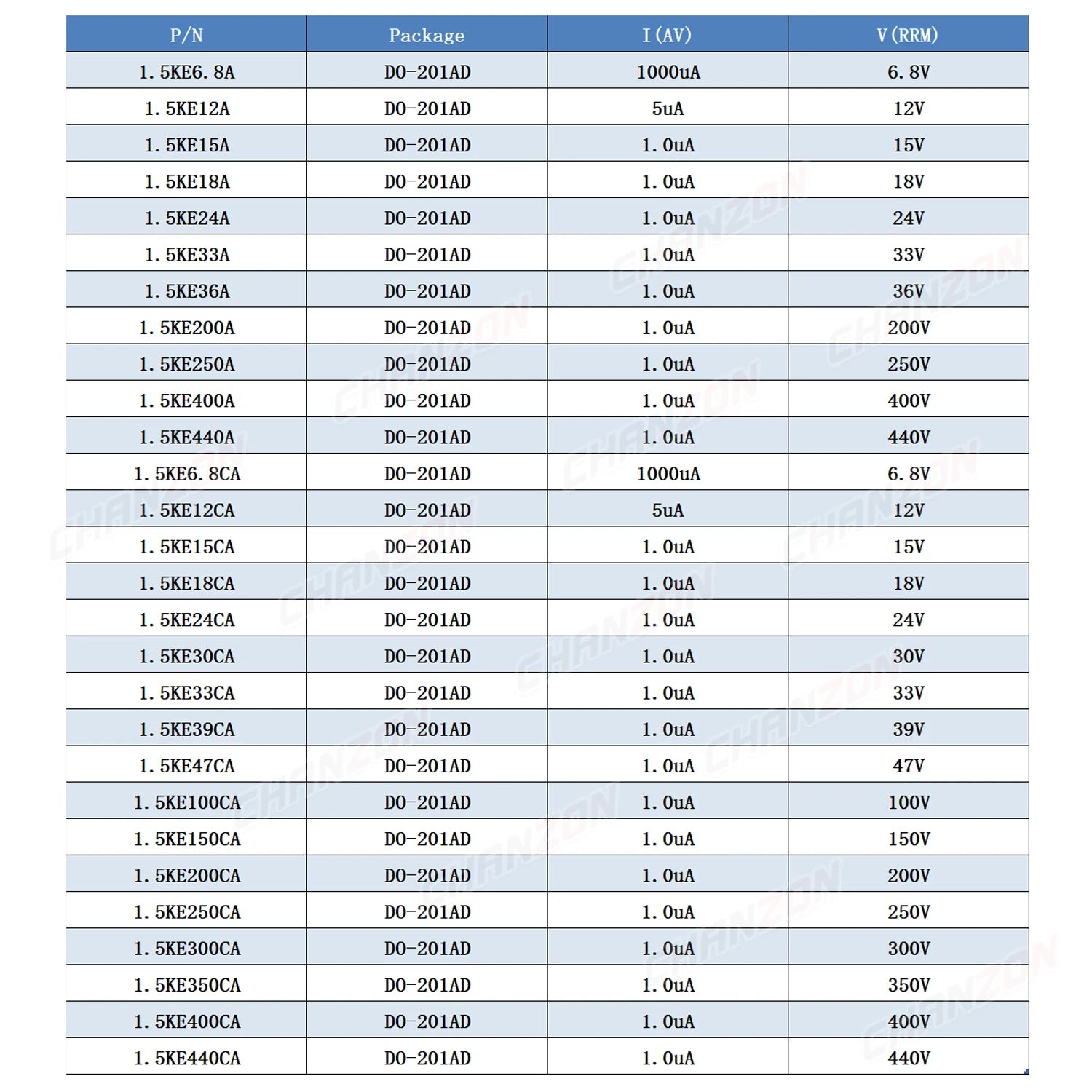

Does a product titled “28 Values” ship all 28 grades?
Its variant menu specifies individual 20-piece model choices. Choose the exact grade; only a listing explicitly sold as an assortment should be treated as a mixed kit.
