W25Q32 SPI NOR Flash ICs and Storage Modules

W25Q32 SPI NOR flash: bare ICs and assembled storage modules

Shop 32-Mbit W25Q32-class serial NOR flash chips and small SPI memory boards, alongside related W25Q16, W25Q64, W25Q128 and W25Q80 choices. This is a mixed collection, not a single 32-Mbit part number or a mixed assortment in every order. Some listings sell bare SOIC/SOP-8 integrated circuits, others sell a populated breakout board intended for a microcontroller project. Select the exact model, form factor and quantity shown in the chosen variant. Supplier headings that mention all five densities do not mean all five arrive together.

Capacity: convert bits to bytes before you choose

These are nominal binary memory densities: eight bits per byte. A module's usable capacity is that of its fitted chip, not the largest density mentioned anywhere in the listing. The seller text for some 100-piece modules repeats W25Q80/16/32/64/128 performance figures and even labels a 4 KB-sector count as “64KB”; treat repeated tables as family-level illustrations, not measurements of the selected item.

Identify the physical item: chip, populated module or adapter

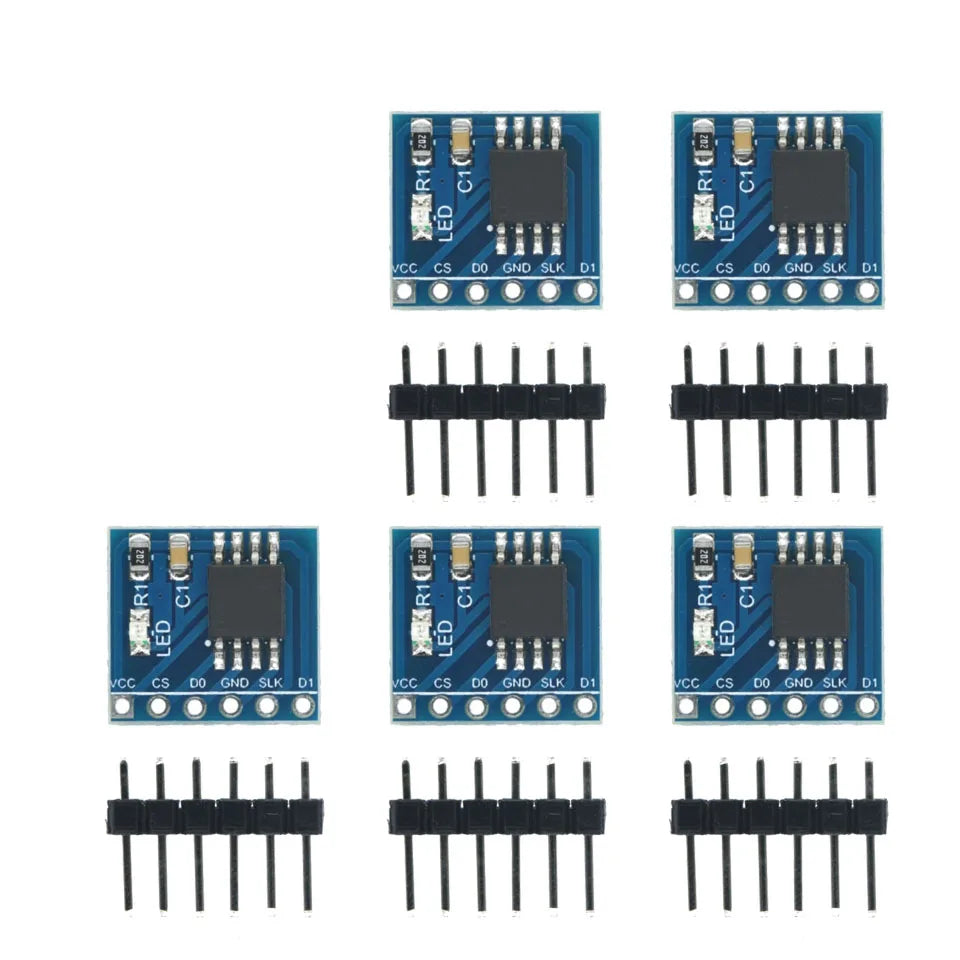

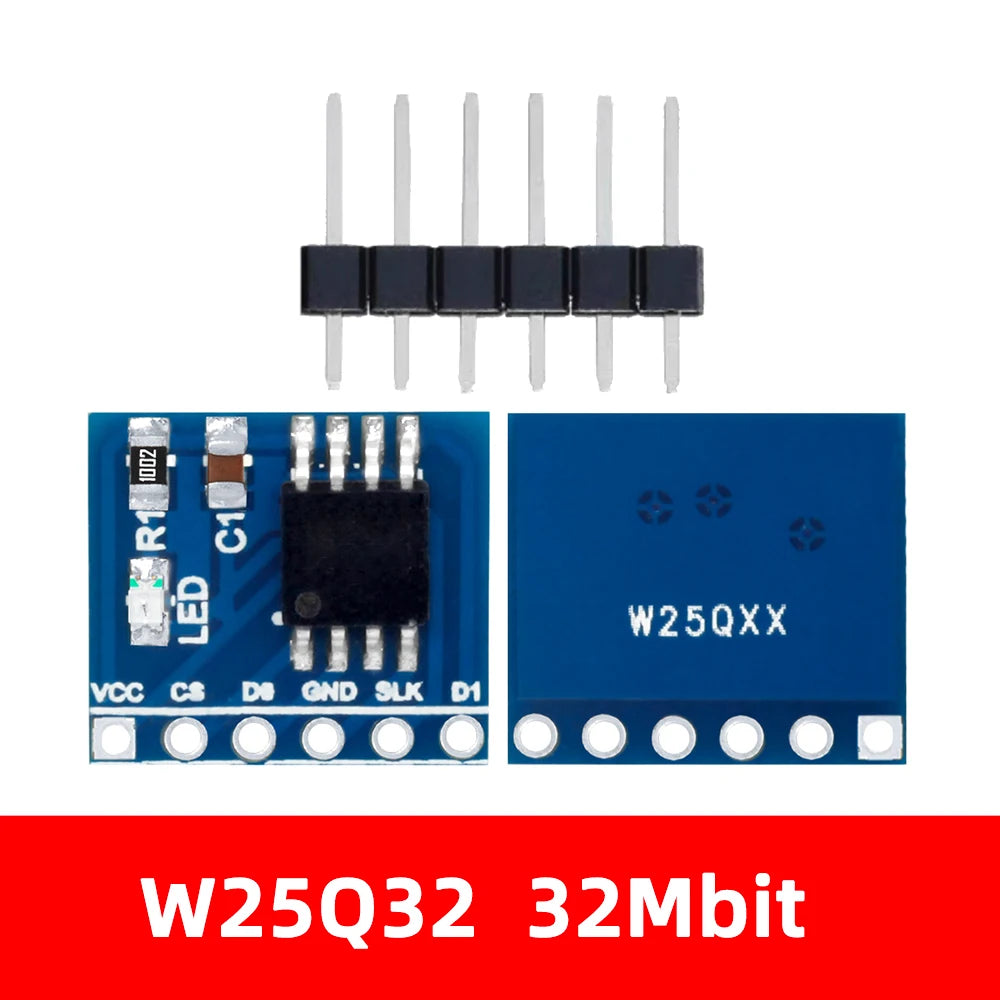

Listings with W25Q32JVSIQ, W25Q32FVSSIG, W25Q32JVSSIQ or W25Q32JWSSIQ options describe loose eight-pin flash ICs, commonly presented as SOIC/SOP-8. A loose IC is not a plug-in storage board: plan for PCB pads, a suitable socket or qualified soldering and a host programmer if needed. Listings titled “storage module,” “SPI interface,” “memory board” or “adapter board” generally describe a small populated breakout, but inspect the selected variant's photo and package contents before assuming a chip is installed. One module listing explicitly says its selected W25Q32/W25Q64/W25Q128 option supplies one optional module; other offers use 1, 2, 5, 10, 20, 50 or 100 pieces of one selected model. Quantity is not density and a 100PCS option is not a set of 100 different models. Products with a single Default Title, such as a five-piece W25Q32FVSSIG listing, need their actual pack specification checked rather than inferred from neighboring options.

Some imported product-type fields call these flash products a “voltage regulator,” “switch,” “drive IC,” “logic IC” or “module.” Those labels are inconsistent with their model and description; verify the actual physical assembly from the individual offer rather than shopping by imported type. Claims of “new original,” “replacement for W25Q32BVSSIG,” supplier certification or stock provenance are seller assertions, not authentication or proof of drop-in equivalence.

Exact suffix, supply rail and package decide compatibility

The W25Q32 family name identifies a 32-Mbit density, not a universal electrical or firmware specification. Check the entire marking and manufacturer datasheet for the ordered revision, including JV, FV or JW suffix, supply range, package outline, pad pitch, temperature grade, erase geometry, command set, identification bytes, protection bits and supported I/O modes. Several module descriptions claim 2.7–3.6 V operation and up to 104 MHz clock for particular examples; those figures must not be applied to every bare chip, board revision, host cable or voltage variant in this collection. W25Q32JW must especially not be assumed to share the same voltage range as a JV/FV option simply because both read W25Q32. Verify the exact suffix first, then power and signal levels at the device pins. A 5 V microcontroller's GPIO should not be connected on the assumption that an SPI board provides level shifting or regulation; the listings do not establish that for every board.

Confirm the board's connector order and the flash package footprint independently. SOIC/SOP-8 body widths and pin pitch can vary, and similar-looking boards may route WP#, HOLD#/RESET# or quad-I/O pins differently. A seller's reference to BV/FV or to STM32, Arduino or Raspberry Pi code does not certify electrical compatibility or supply working drivers. One 100-piece module description states that WP and HOLD are tied high on its board, leaving standard single-line SPI accessible but not quad operation; do not promise quad-SPI just because the fitted IC may support it. Conversely a different board layout must be inspected before applying that restriction. Clock speed is bounded by the actual chip revision, board signal integrity and host timing, not the largest number in generic supplier text.

SPI NOR integration and programming considerations

Serial NOR is nonvolatile storage used for firmware images, configuration tables, assets and embedded data. It is not RAM, a memory card or a stand-alone USB drive. Before choosing a density, check address width, controller or boot-ROM support, flash JEDEC identification, erase and program commands, protection-register behavior, expected firmware image size and board layout. A host that boots from one 25-series part is not necessarily compatible with another density, suffix or vendor. A capacity upgrade may need firmware and partition-layout changes, and a pin-compatible claim does not establish command-compatible protection or boot support.

Typical SPI NOR devices organize data into pages and erase sectors or blocks. The detailed seller description for one board family cites 256-byte pages and 4 KB erase sectors and warns that writes crossing page boundaries may wrap within a page. Validate actual geometry and wrap behavior against the datasheet of the exact chip, then implement erase-before-program, bounded page writes, status polling and read-back verification in the host application. Power loss during an erase or write can leave data inconsistent; plan redundant configuration records or recovery paths when the use case needs them. Endurance, retention and operating-temperature numbers in supplier material are not blanket guarantees for every selection or assembly.

Selection checklist

1. Choose the required density in Mbit, then confirm its byte equivalent and firmware-image requirements.
2. Decide whether you need a bare SOIC/SOP-8 IC or an assembled SPI module with pins or pads suitable for your project.
3. Read the selected option's full suffix and quantity. “W25Q32 10PCS” is ten of the W25Q32 option, not ten each of every model.
4. Consult the current manufacturer datasheet for voltage and I/O tolerance, pinout, package geometry, erase sectors, protection and temperature grade.
5. Verify board population, any regulator or level shifter, the WP/HOLD wiring and whether standard SPI or quad I/O is actually available at its connector.
6. Match the host's boot/programming support, software driver, chip ID and expected memory map. Save and compare reliable backups before replacing a programmed chip.
7. If provenance, authenticity, certification or tested performance matters, request traceability and evidence for the specific selected lot.

Frequently asked questions

Is W25Q32 32 MB? No. 32 Mbit is nominally 4 MB. W25Q64 is 8 MB and W25Q128 is 16 MB.

Do I get all the models named in a title? Usually not. Pick one density and pack quantity in the variant selector; only the selected option defines the order.

Are the modules compatible with 5 V Arduino boards? Not automatically. Verify the actual flash rail, board-level translation and every host signal before connecting.

Can I substitute a W25Q32JW for a W25Q32JV? Do not treat them as interchangeable from the shared density. Confirm exact voltage, package, commands, protection behavior and host support from their datasheets.

Can I use quad SPI through every module? No. At least one module description says its WP/HOLD lines are tied high and exposes standard single-line SPI. Check the specific board's routing.

Does a populated board include STM32 code or a programmer? A supplier's code reference is not proof of a supplied programmer, software license or current working firmware example. Confirm actual package contents.

Are quoted cycle-life and retention figures verified for the order? No collection-wide qualification has been established. Obtain the exact device datasheet and lot-level evidence when reliability requirements demand it.

Yoeruyo keeps the related memory IC and module choices together for comparison while preserving their individual options. Use the selected model and datasheet as the source of truth for design and purchasing decisions.
