Watchdog Timer ICs, Supervisors and Network Relay Boards

Watchdog timer ICs, voltage supervisors and network watchdog boards

A watchdog detects a missed service event and initiates a defined recovery response, but the word covers very different products in this collection. You will find discrete supervisor and timer ICs for embedded circuits, voltage-regulator devices advertised with watchdog functions, ready-built Ethernet relay controllers that monitor a network, and a few industrial devices with an integrated watchdog. Other listings are unrelated products captured by the words “watch,” “dog” or “timer.” Read the actual product and selected variant before ordering: a loose SOT-23 IC cannot replace a powered relay board, and a network watchdog cannot supervise an MCU's internal program flow just because both use the same name.

What the electronics options are

• TPS3823-33DBVR and TPS3823 series: listings describe SOT-23-5 voltage-monitor ICs with watchdog capability. One listing offers 5, 10, 20 or 30 pieces of TPS3823-33DBVR; another offers separate TPS3823-25DBVR, -30DBVR, -33DBVR and -50DBVR options. The suffix indicates a different voltage-threshold grade; it is not merely a pack-size choice. Check the exact orderable part, voltage threshold, reset polarity and timing against the manufacturer data before replacing an installed supervisor.
• STWD100NYWY3F: a listing specifies a ten-piece lot of SOT-23-5 watchdog timer ICs. The device supervises an external processor's periodic service behavior; its connection and timeout behavior must be confirmed for the selected full part number. Do not treat “ten pieces” as ten assembled watchdog modules.
• TPS3431SDRBR: a five-piece listing describes a programmable watchdog IC in VSON-8 with an enable function. Verify its particular watchdog window or timeout configuration, enable behavior, package footprint and signal polarity in its authoritative data sheet before design-in. The seller's “original” wording is not independent proof of provenance.
• TPL5010DDCR: 5-piece and 10-piece SOT-23-6 options are described as nano-power system timers with a watchdog function. This is a different timing architecture from a fixed-threshold voltage supervisor. Select it according to the required wake, service and reset behavior rather than assuming the same pinout or timeout as a TPS3823.
• MAX6369KA: a five-piece listing advertises pin-selectable watchdog timers in a small surface-mount package. Confirm the exact suffix, pin map, timer settings and package against the actual selected device; seller shorthand such as “SOT23-8” should not be used as a PCB-footprint specification without checking.

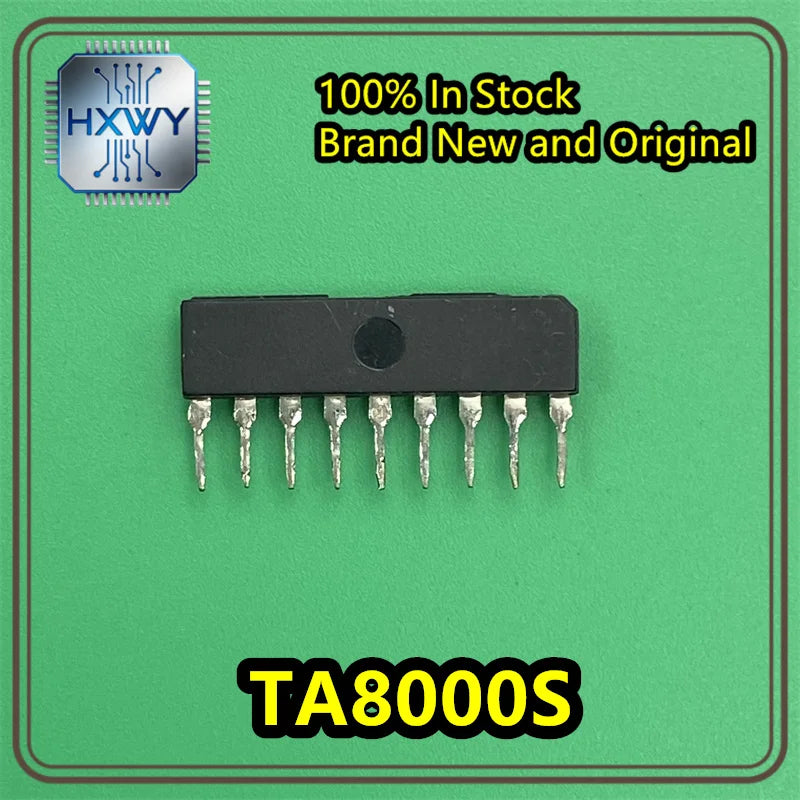

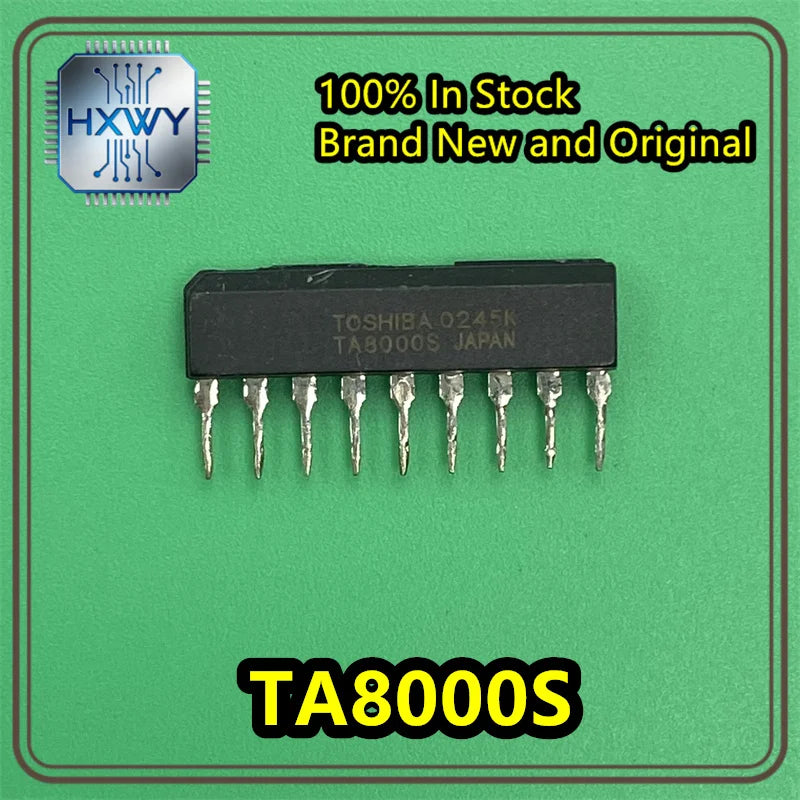

• TA8000S and X25165: the former is advertised as a through-hole SIP-9 regulator with watchdog, with 10- and 50-piece choices; the latter is a separately listed programmable-watchdog device. These are not automatically interchangeable with the standalone ICs above. Consult the exact device documentation for supply, monitoring, reset and package details.
• Network watchdog relays: HHT-NET2D is presented as a two-channel IP network relay controller with normally closed dry-contact outputs, while several Ethernet/Wi-Fi boards list optional RS485, CAN and enclosure selections. A controller can check a target or network state and toggle a relay to restart external equipment. Protocols, target-check method, relay channels, contact form, supply, enclosure and supported interface depend on the selected board, not on the word watchdog in the title.
• Devices with an internal watchdog: a LoRa RS485/RS232 transceiver, a serial-to-Ethernet converter and cellular RTU listings mention watchdog functionality among their larger system features. The selected product is the entire communications device, not a loose watchdog IC.

Choosing a watchdog IC for an embedded design

1. Define the failure to detect: a missed MCU service pulse, low supply voltage, a hung peripheral or a failed network connection requires different circuitry. A voltage supervisor can assert reset when the monitored rail drops; it does not necessarily detect stuck firmware. A watchdog timer can detect a missed service event; it does not necessarily enforce a precise brownout threshold.
2. Match the reset behavior: confirm whether the output is active-low or active-high, push-pull or open-drain, whether a manual reset pin is provided, and whether reset remains asserted through supply ramp-up. Ensure the host reset pin accepts the output voltage and polarity.
3. Budget the timing: compare startup delay, minimum/maximum watchdog timeout, service window and reset pulse width to the firmware's longest legitimate blocking operation. A windowed watchdog may reject service that is too early as well as too late; a simple watchdog may not. Do not copy a timeout quoted for one model onto another.
4. Check thresholds and power: choose the TPS3823 suffix according to the target rail and its guaranteed reset threshold over tolerance and temperature. Verify supply limits, quiescent current, input high/low levels and behavior during undervoltage. The number in a seller title is not a complete electrical specification.
5. Match the physical part: SOT-23-5, SOT-23-6, VSON-8, SIP-9 and other package labels imply different land patterns and assembly processes. Verify the full manufacturer part number, marking, pin 1 and drawing before ordering for a populated PCB.
6. Confirm actual order quantity: 5PCS, 10PCS, 20PCS and 30PCS options denote piece count where shown; a variant labeled with a device suffix instead denotes the chosen electrical model. Check the selection as well as the headline when a listing combines several voltages.

Choosing a network or relay watchdog

For an IP-controlled relay board, determine what the board tests: local Ethernet link, a pingable IP address, cloud reachability, or a configured external service. These are not equivalent failure signals. A loss of ping might reflect filtering rather than a failed router; cycling power repeatedly can also interrupt healthy equipment. Verify the board's target configuration, polling/retry policy, recovery delay and post-boot behavior in the exact version's manual. One HHT-NET2D listing describes two normally closed relay channels and a brief disconnect/reconnect cycle when its monitored address fails; do not assume the other boards have the same contact form or timing.

Network-controller option labels distinguish combinations such as ETH WIFI, ETH WIFI RS485, ETH WIFI CAN and CASE, as well as 2CH/4CH/8CH versions. These are separate configurations, not a guarantee that the plain ETH WIFI board includes CAN, RS485, an enclosure and all channel counts at once. Some descriptions mention MQTT, HTTP, Modbus, CoAP, Wiegand or PoE; confirm which interface is actually fitted and supported on the selected revision. Contact rating, isolation, acceptable power source and enclosure must be verified for the specific unit and installation. Dry contacts do not provide a powered output by themselves. Mains or high-energy switching requires an appropriately rated installation by a qualified person; a seller's generic load claim is not a universal safe-use approval.

Important catalog distinctions

Some neighboring products are not watchdog timers: DS1302, DS1643, DS12887 and PCF8563 are timekeeping/RTC-related parts; a NE555 falling-edge-trigger delay board is a timer module, not automatically a microcontroller watchdog; CH32V003 is a microcontroller board. Multi-model semiconductor pages allow selection of PCF8563 alongside unrelated logic, interface, audio, power or transistor components. In those listings, the chosen variant decides which component and quantity ships. The title's combined model list is not a mixed kit unless the selected option expressly says so.

Pet feeders, animal heating lamps, chicken-coop doors, bird products, watch movements, game-themed masks and figurines, patrol recorders and alarm accessories also appear in this collection. Their words overlap with “watchdog” or “timer,” but they are not electronic watchdog ICs. Their product pages and selected options describe the actual goods. They remain in the collection; this description does not relabel them or imply they are suitable for circuit design.

Frequently asked questions

Can I use a network watchdog board instead of a watchdog IC? Not as a direct component substitute. A network board is a powered assembled controller with its own communications and relay outputs. An IC is integrated into a host circuit and requires the corresponding power, pin connections and firmware/service strategy.

Does every supervisor also monitor voltage? No. Some listed devices specifically combine supply monitoring with watchdog timing; others focus on watchdog or system-timer functions. Read the full selected part's data sheet for its actual monitored inputs and outputs.

Does a watchdog guarantee recovery from any fault? No. Recovery depends on the failure mode, supply integrity, reset wiring, firmware startup and external equipment. A watchdog may be ineffective if the fault prevents a reliable reset or if firmware continues to service it while the application is stuck. Validate the design with realistic fault-injection tests.

Are manufacturer identity, certifications or exact performance verified by a listing headline? No. References to model numbers and seller claims help identify potential choices, but do not establish authorized provenance, certification, universally compatible firmware or guaranteed electrical specifications. For safety- or uptime-critical work, confirm the exact orderable device and authoritative documentation before integration.
