Zener Diodes, Voltage Regulators and Assortment Kits
Explore Zener diode selections for voltage-reference and shunt-regulation designs, from axial through-hole parts to compact surface-mount packages and multi-value assortments. A Zener diode is specified by its reverse breakdown voltage at a stated test current. It is not a stand-alone regulated power supply: the resulting operating voltage depends on current, tolerance, temperature, dynamic impedance and the surrounding circuit.
What is in this collection?

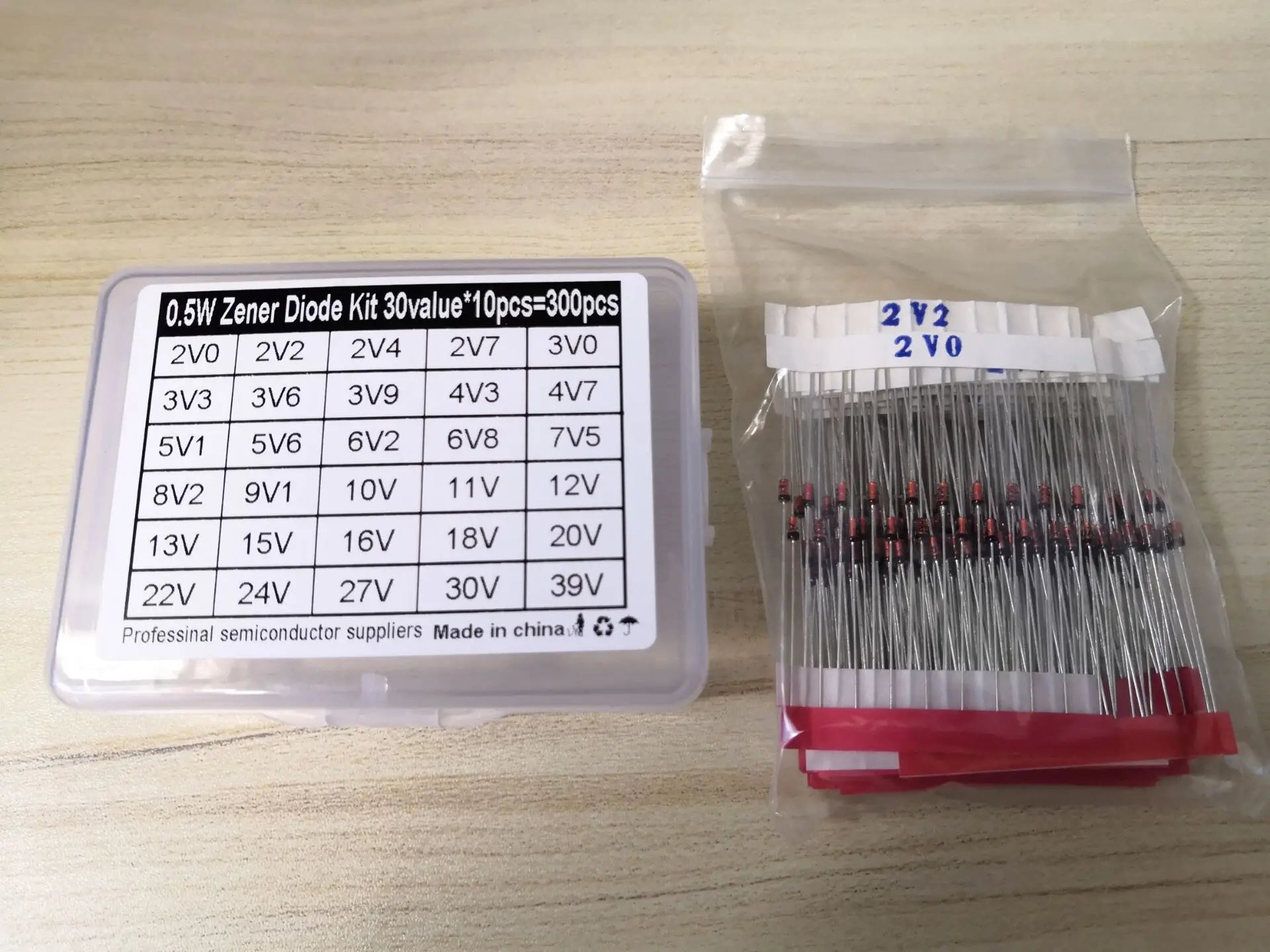

- Axial, through-hole Zeners: listings include BZX55C choices commonly described as 0.5 W in DO-35, 1N4727A–1N4761A choices commonly described as 1 W in DO-41, and larger 1N53xxB family options. Voltage selectors span different grades, for example 1N4728A 3.3 V, 1N4733A 5.1 V and 1N4742A 12 V. Check the selected part's datasheet; power figures apply only within specified mounting and thermal conditions.

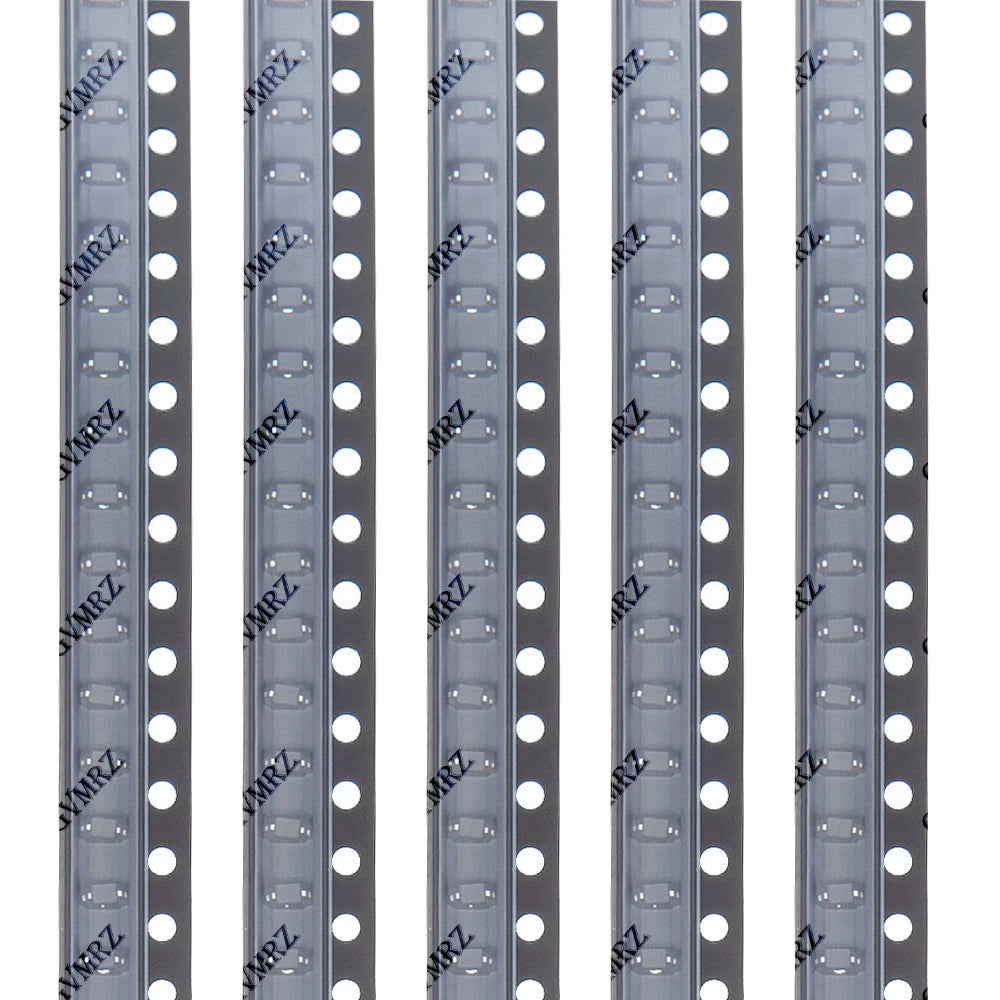

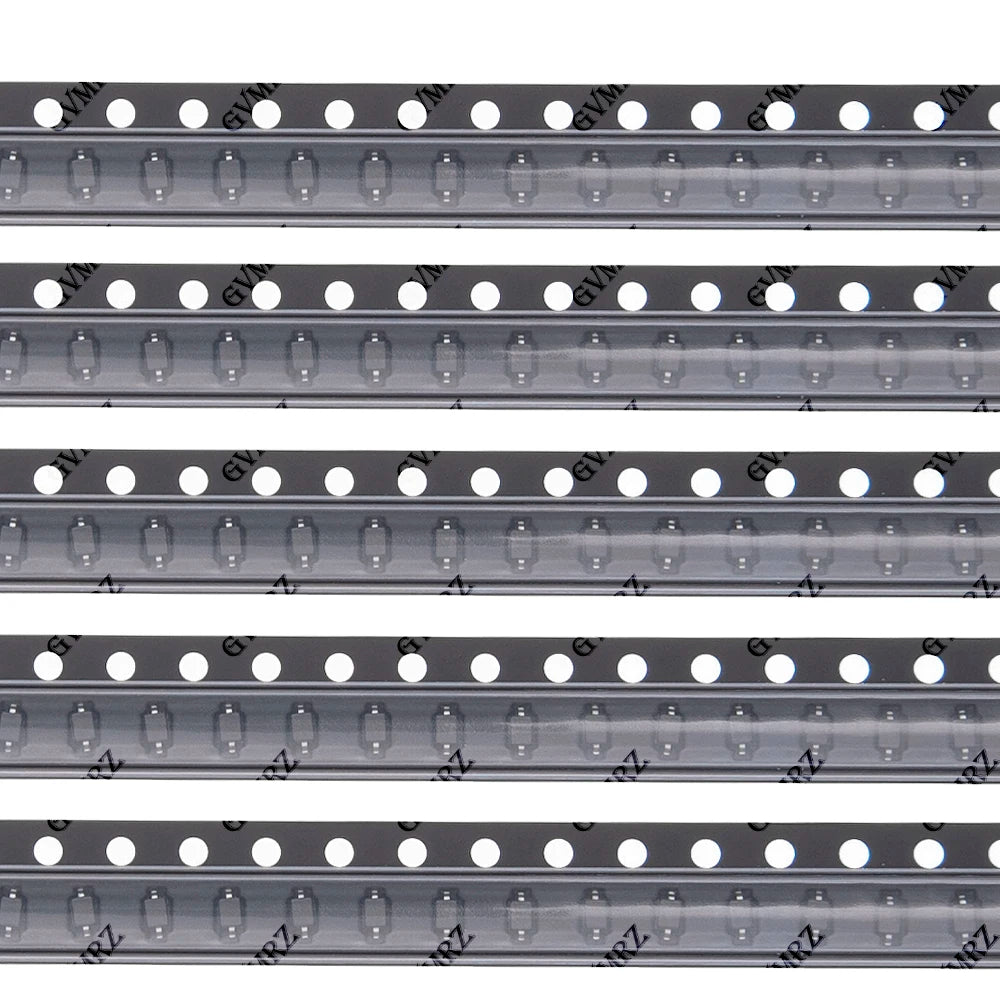

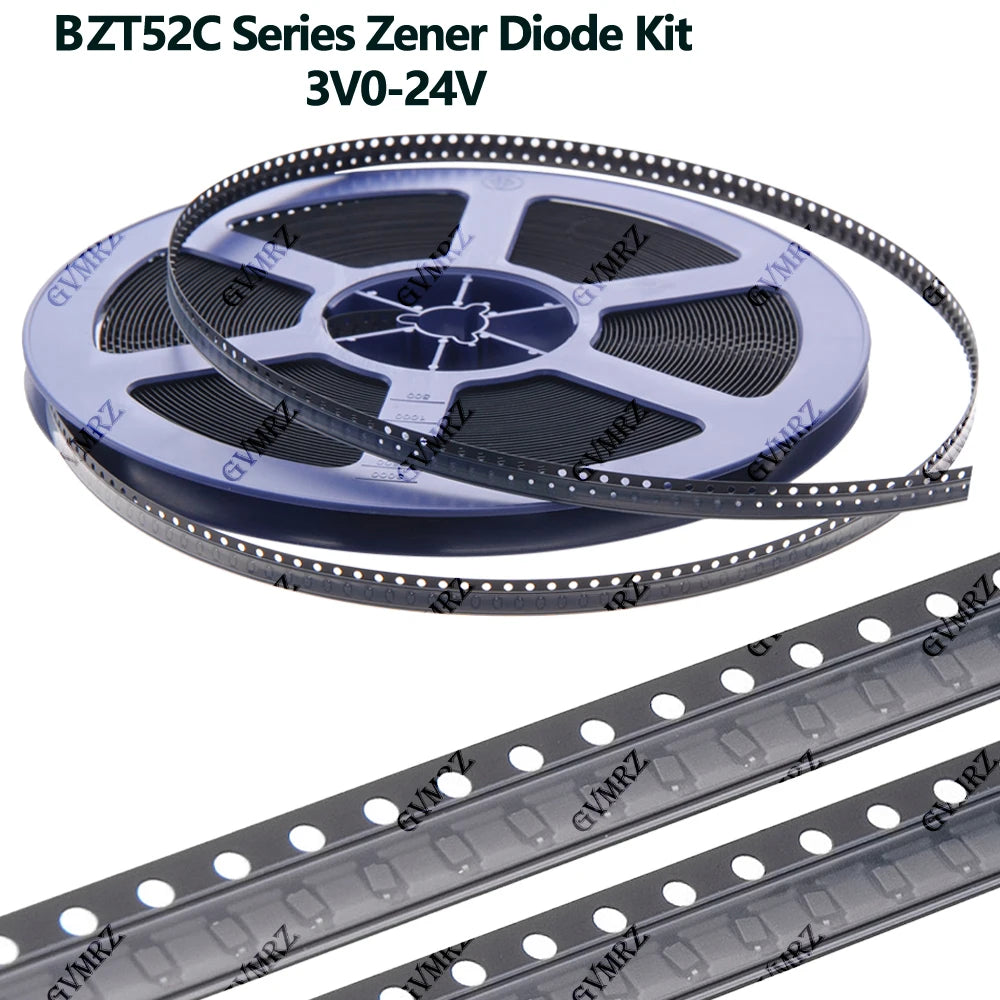

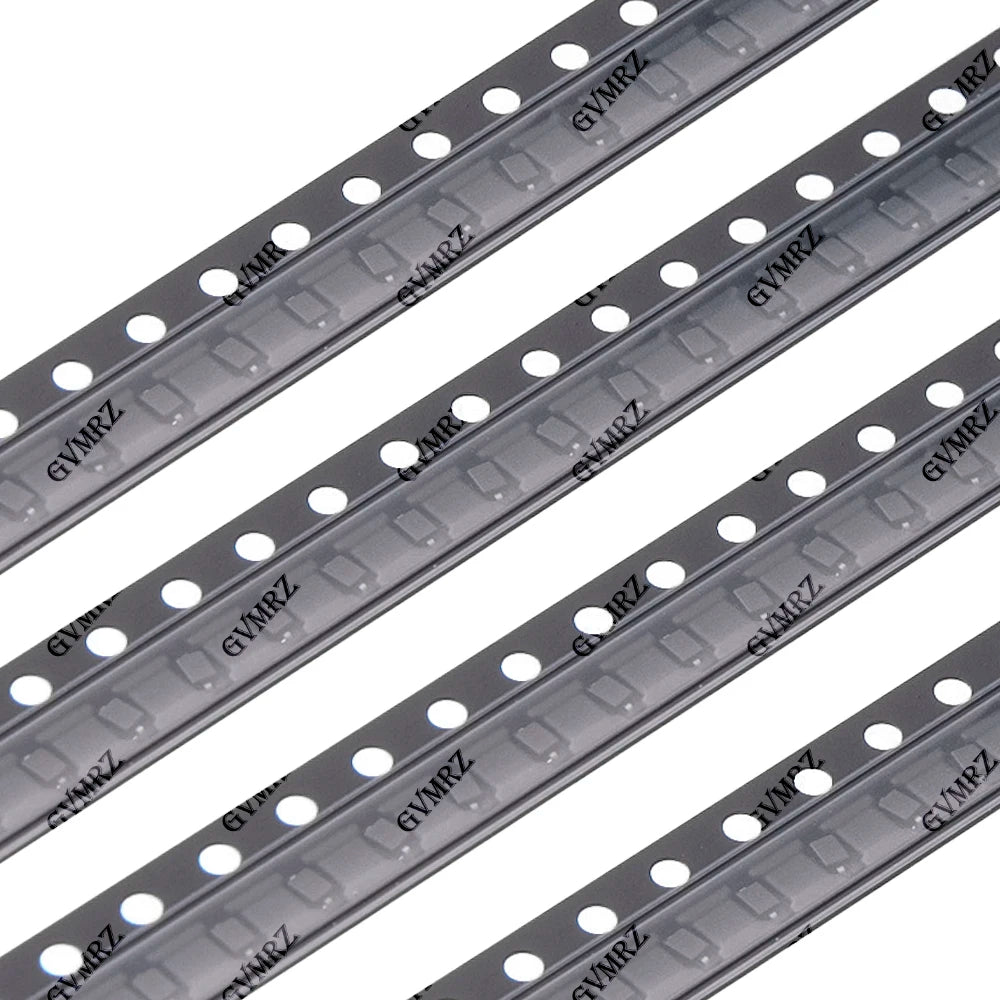

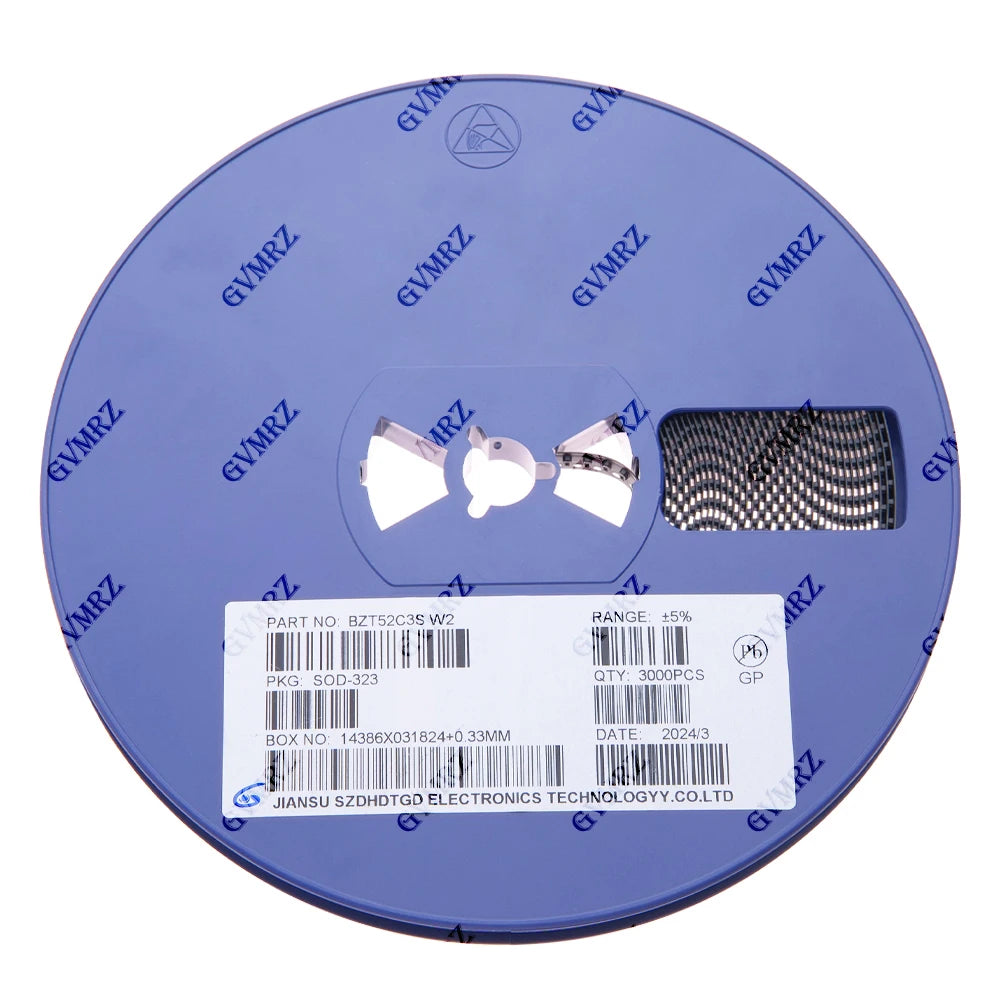

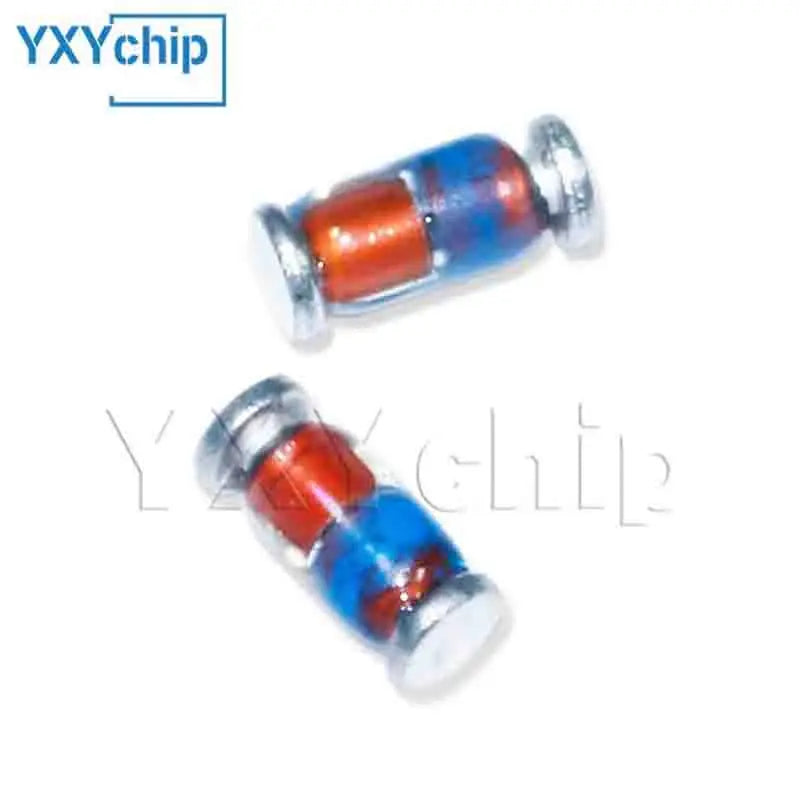

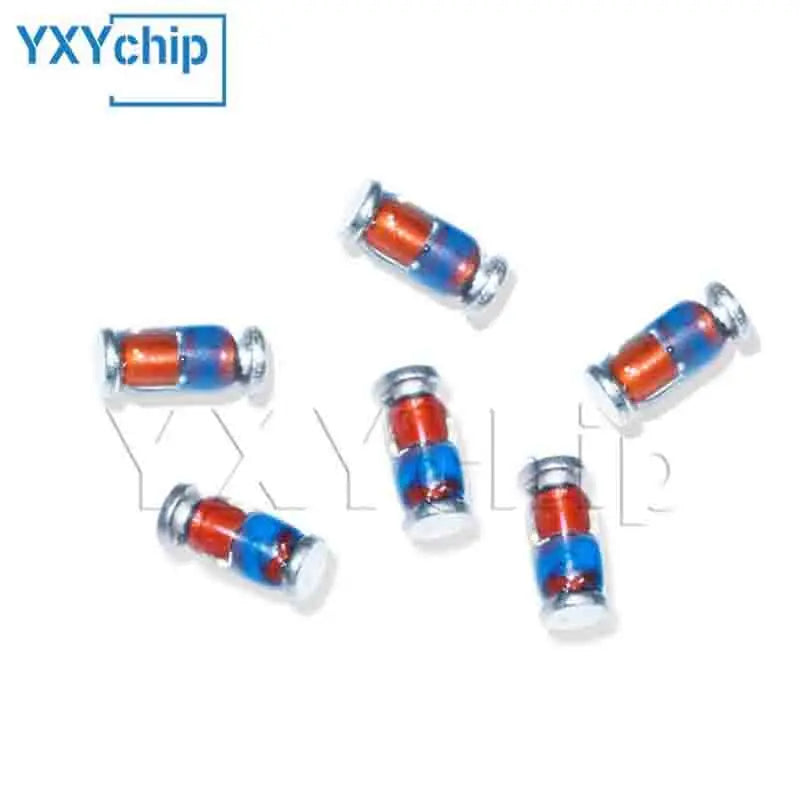

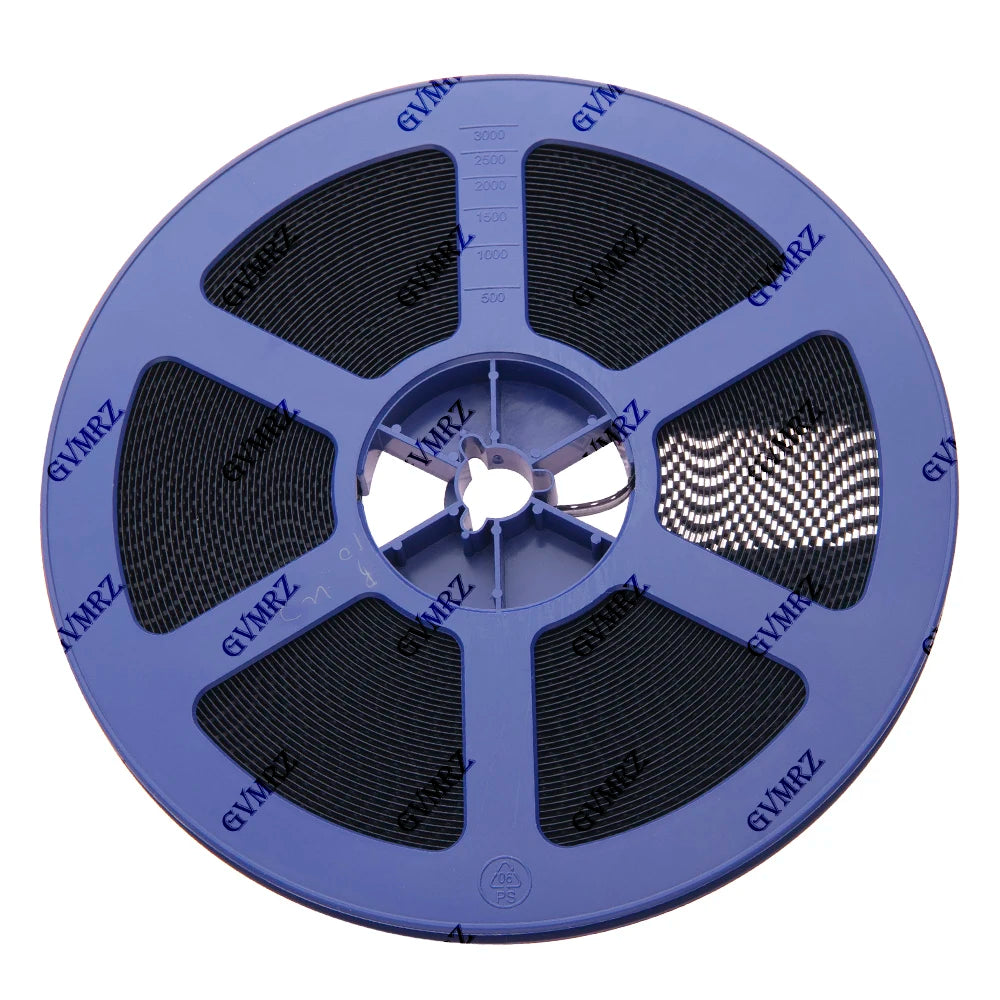

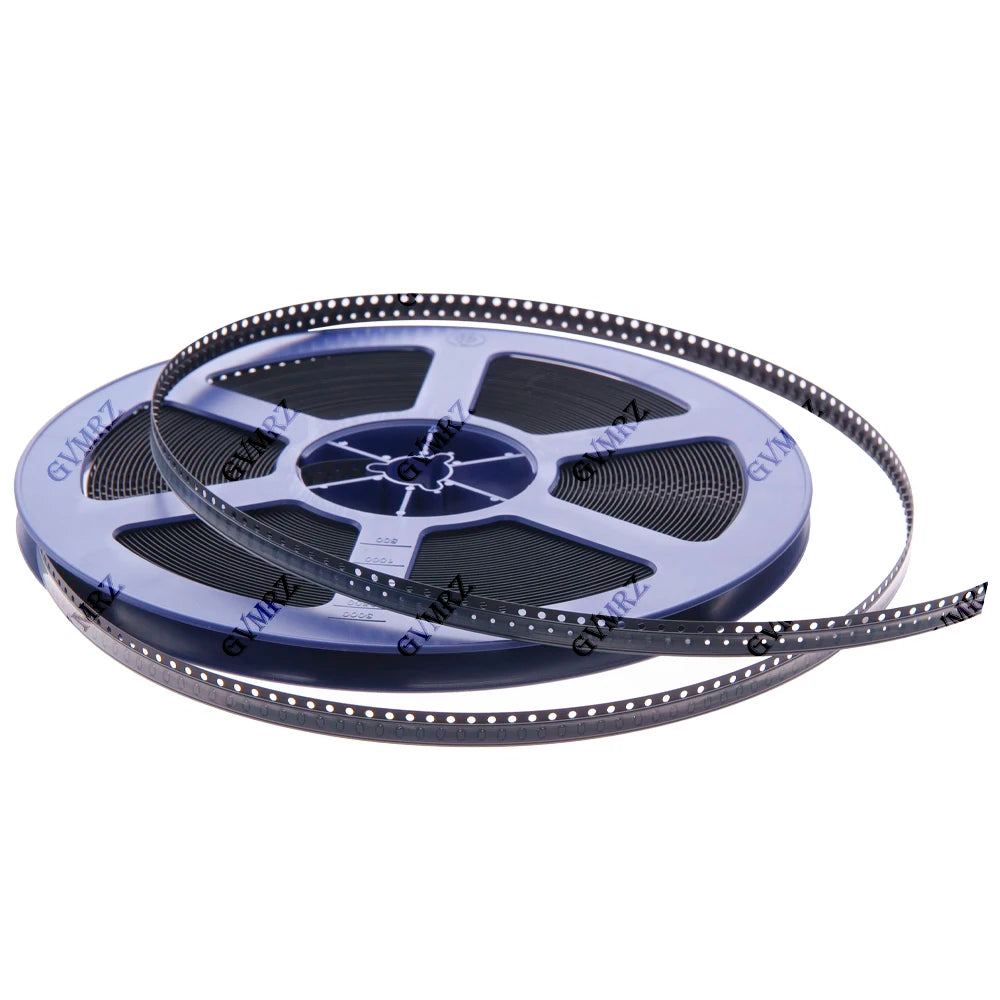

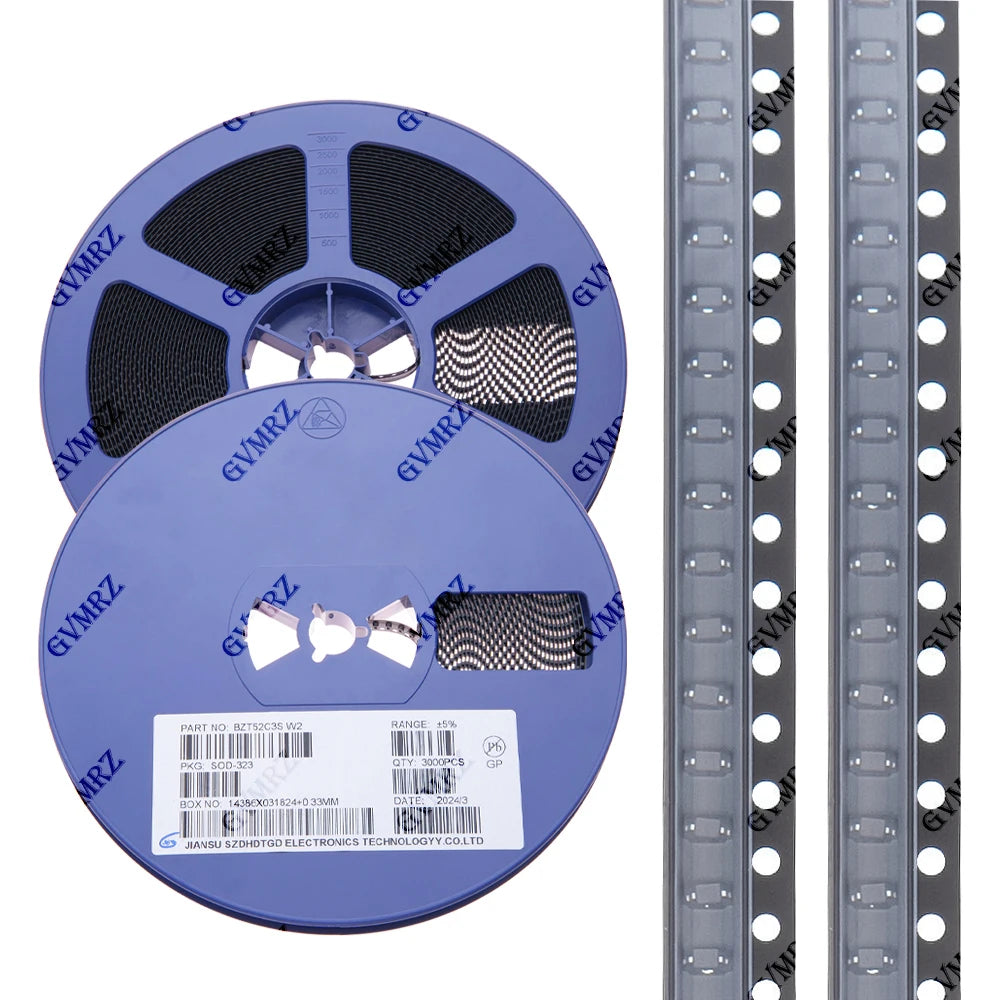

- Surface-mount choices: BZT52C in SOD-123, BZX84C in SOT-23, ZMM/LL34 cylindrical SMD types and SML4733A SMA listings need different footprints, polarity checks and power derating. A voltage code such as 5V1 means nominal 5.1 V, not a guaranteed voltage at every operating current.

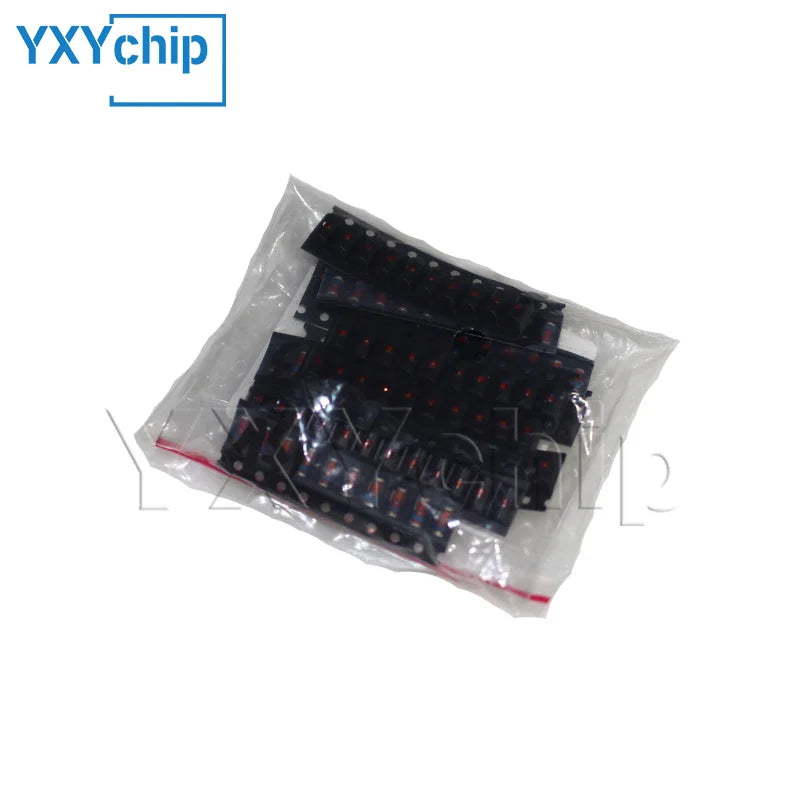

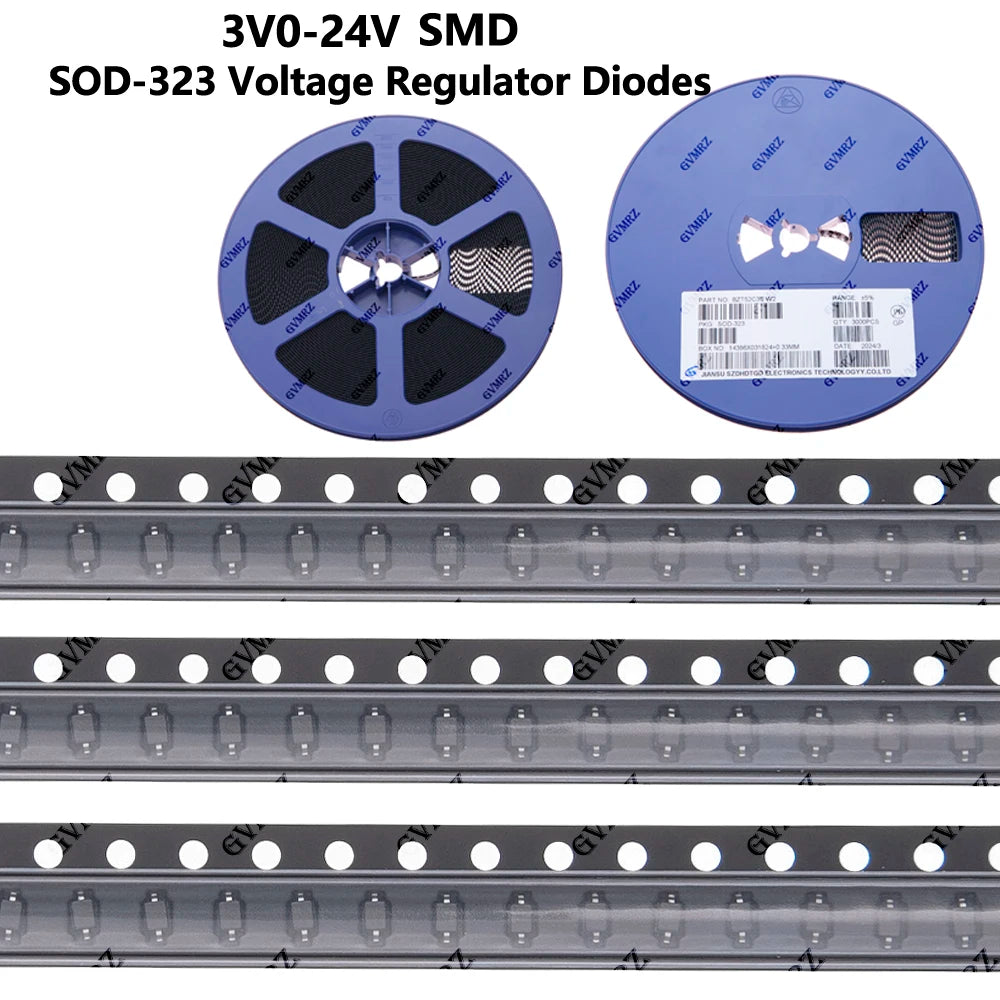

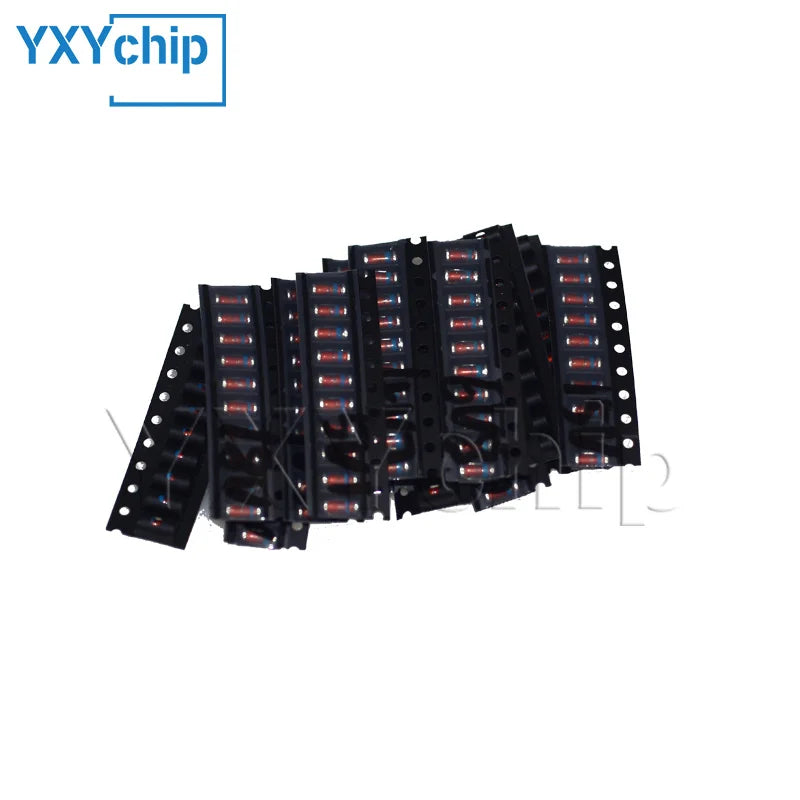

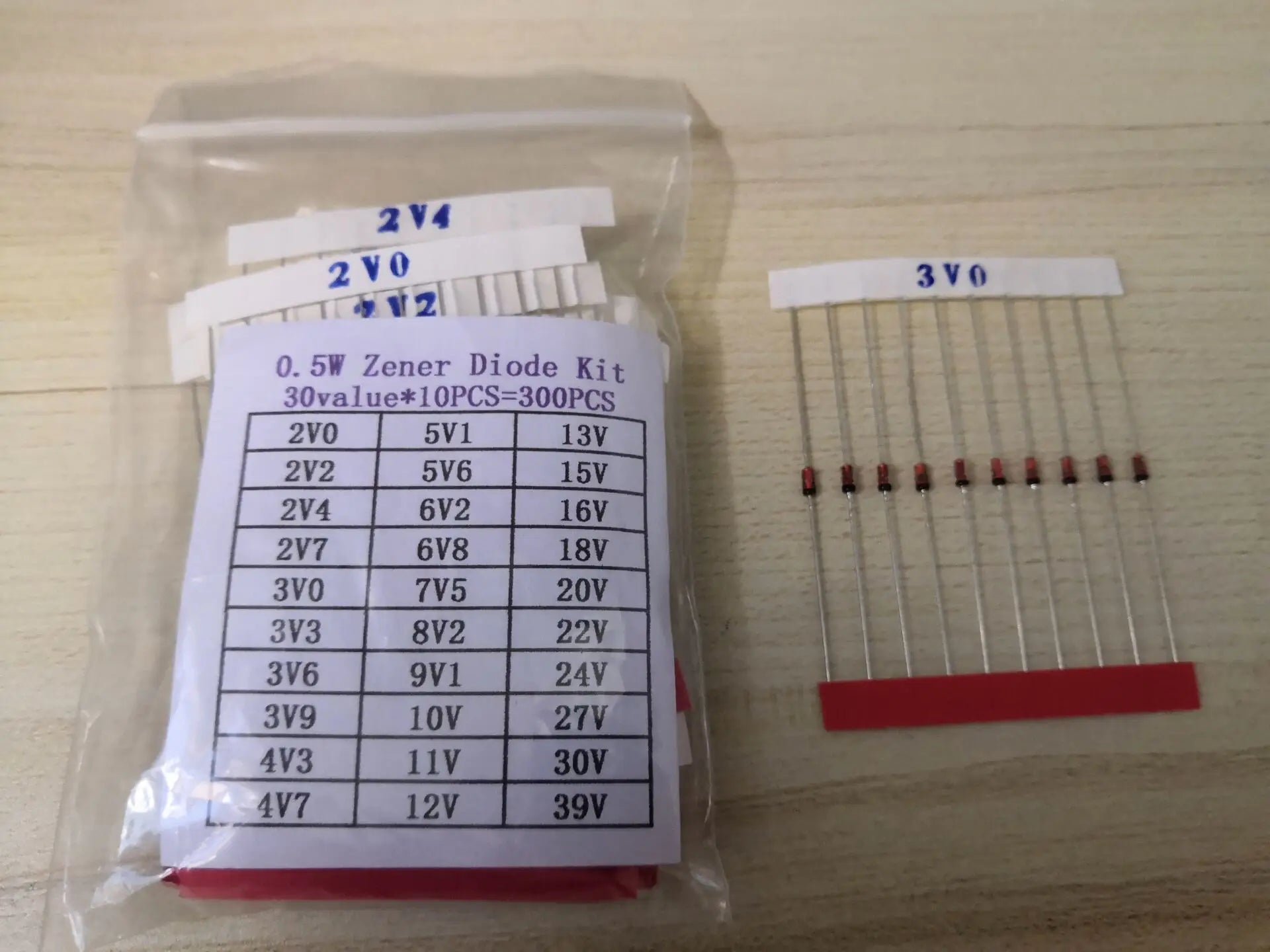

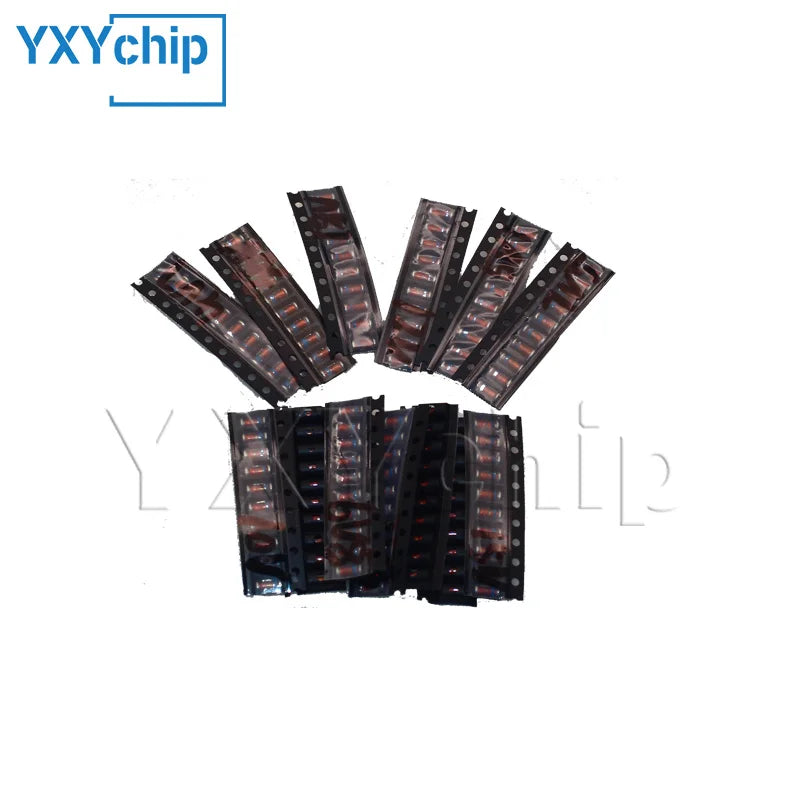

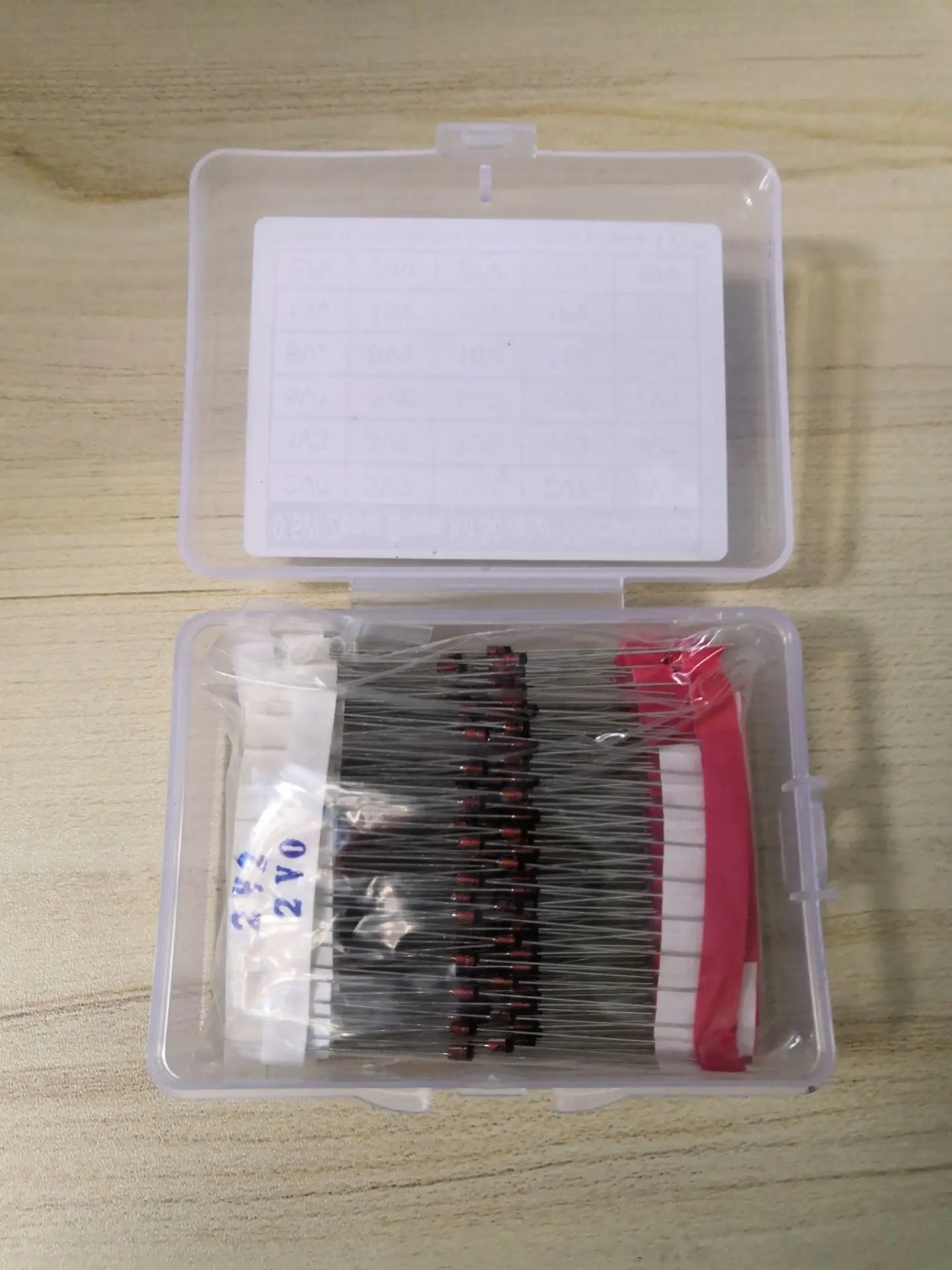

- Assortment boxes and packs: some selections are a single voltage and pack size; others mix many grades. Read the chosen variant and its stated contents. Some mixed diode kits include rectifiers, Schottky, fast-recovery, switching or TVS devices, which are not substitutes for a Zener reference. A kit listing's headline wattage or voltage range does not certify every included device.

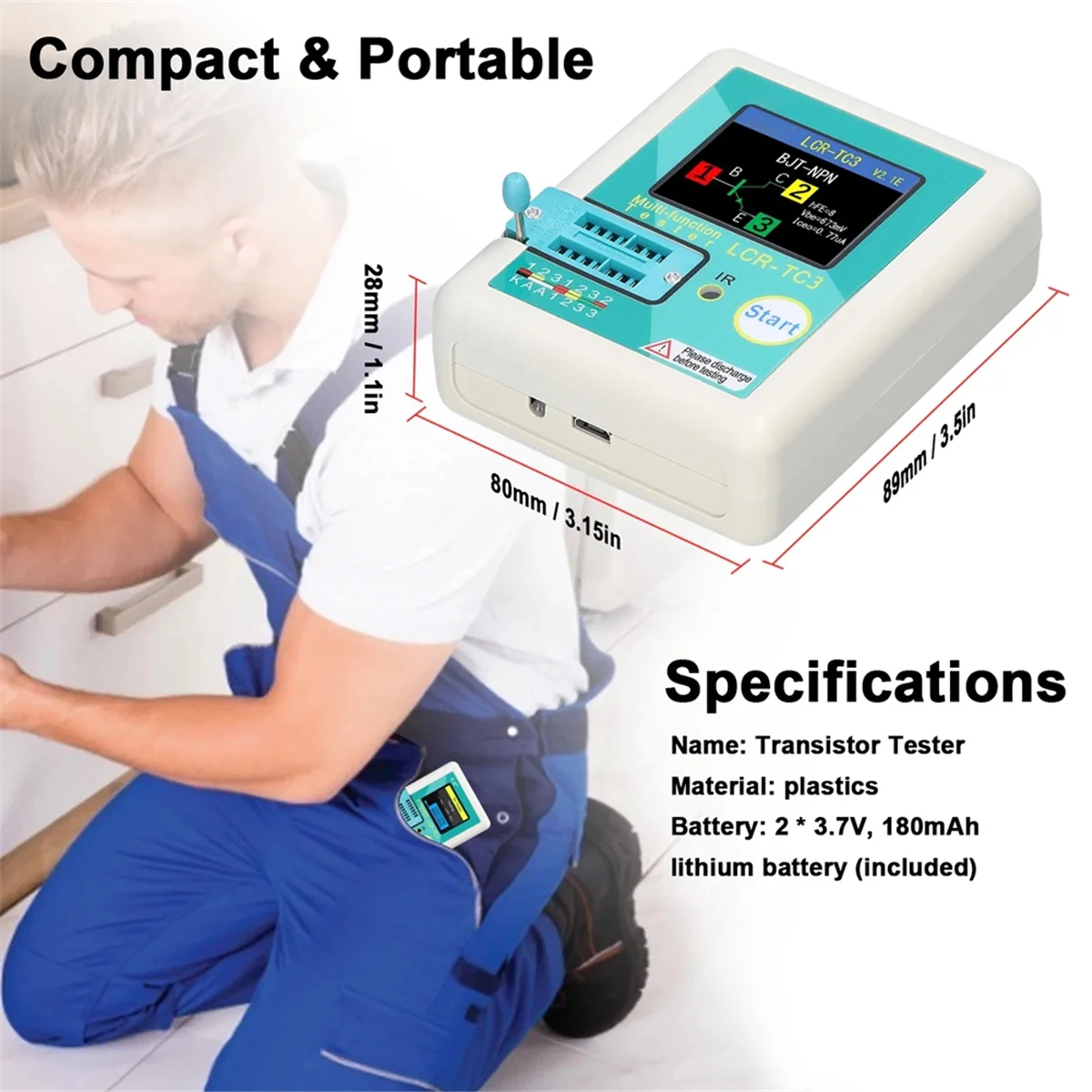

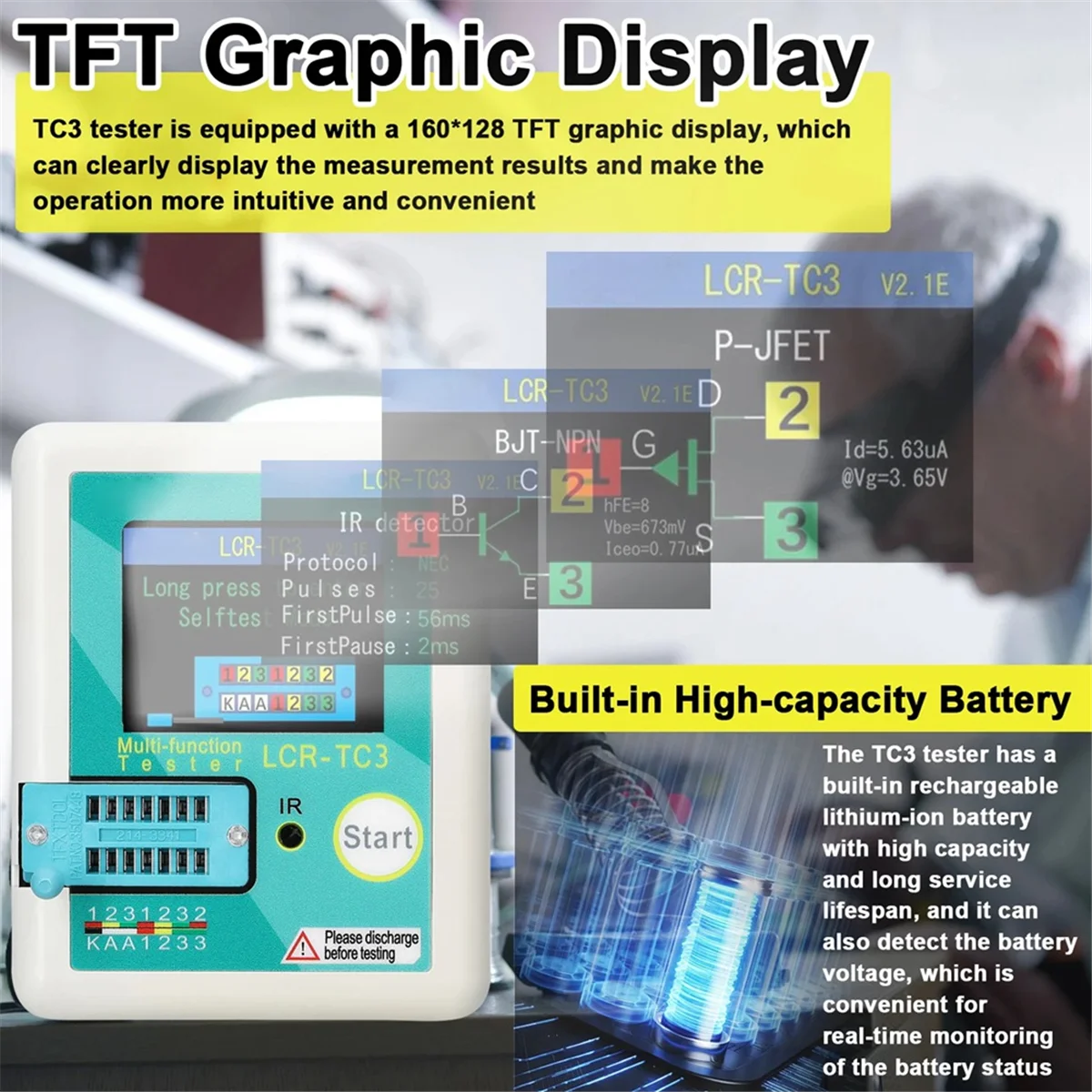

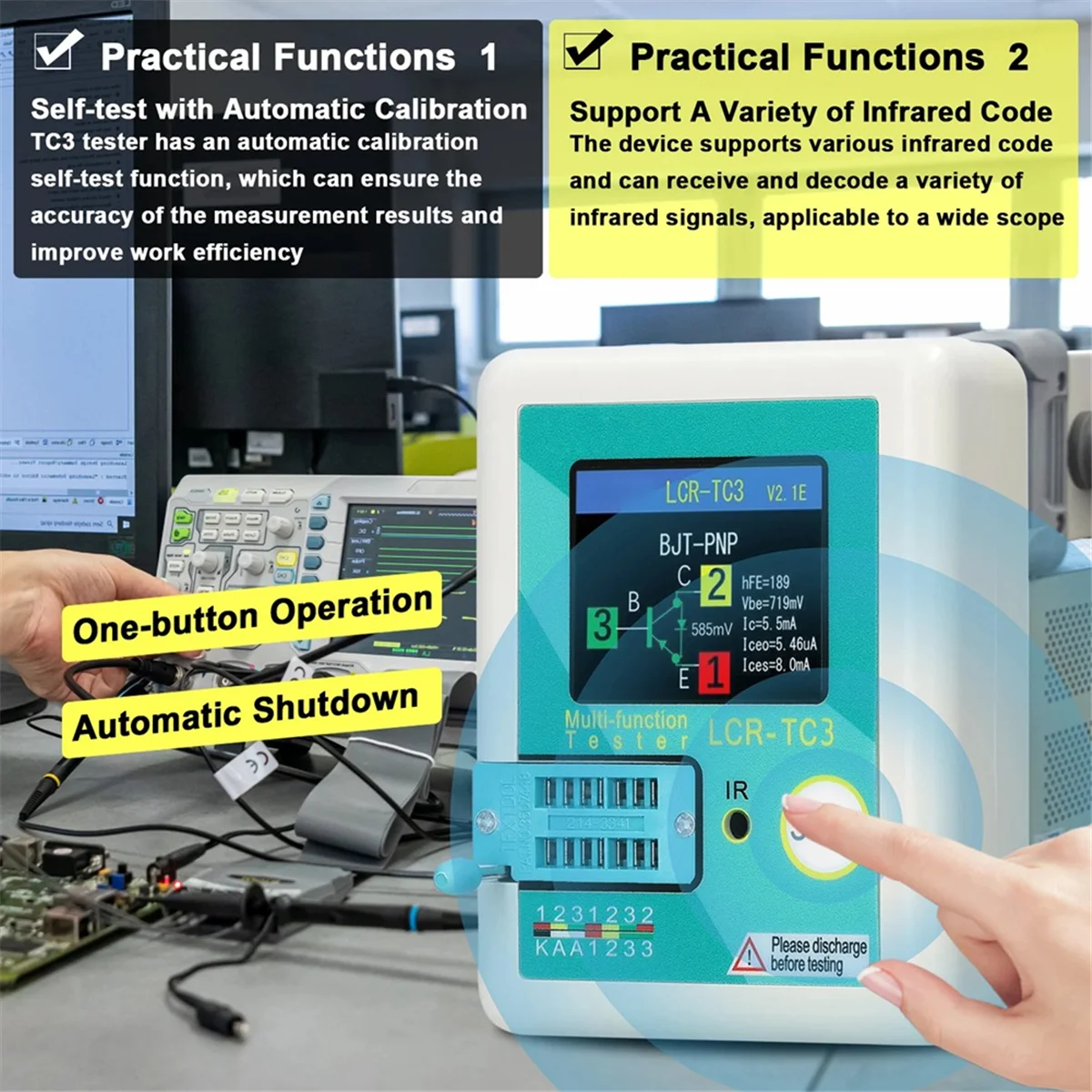

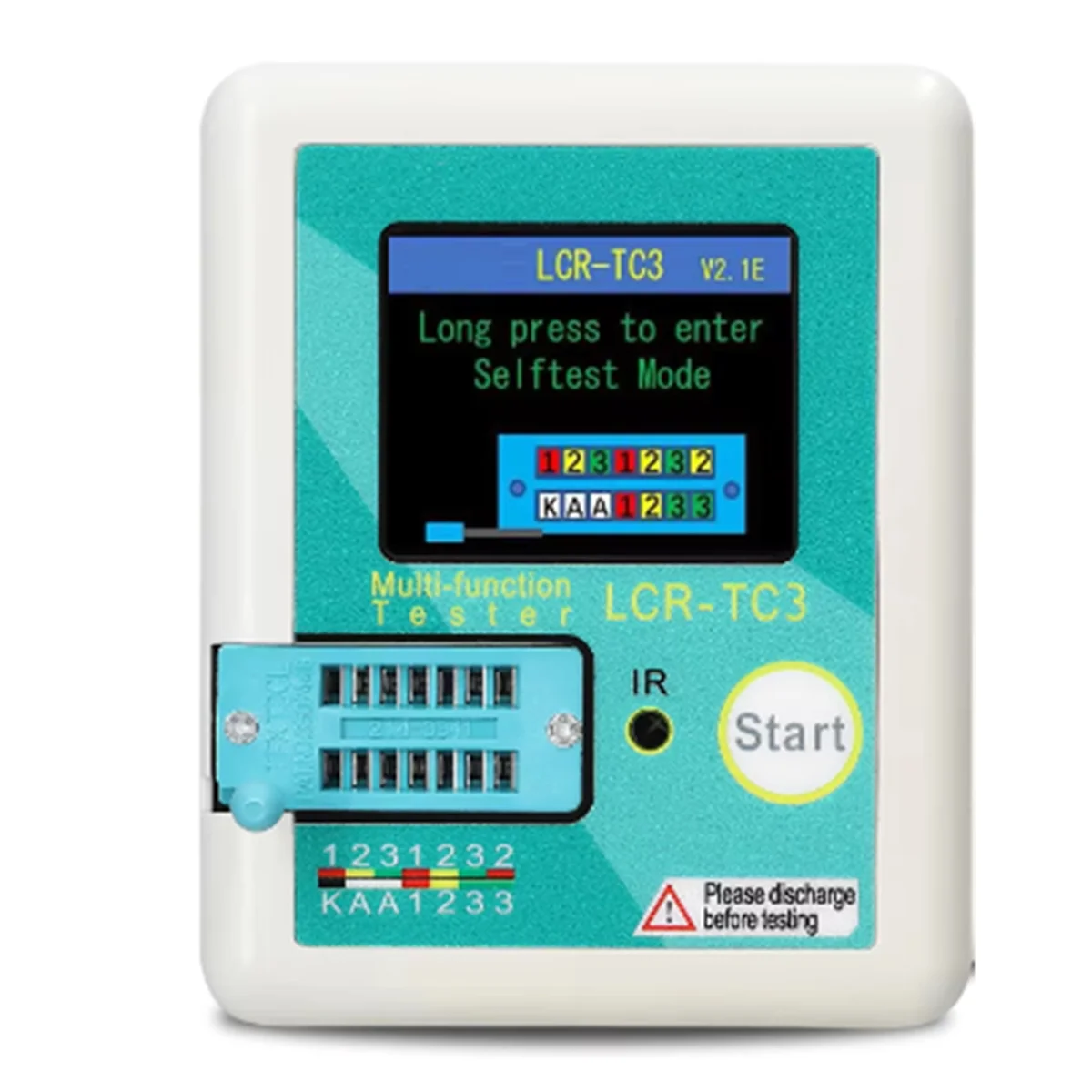

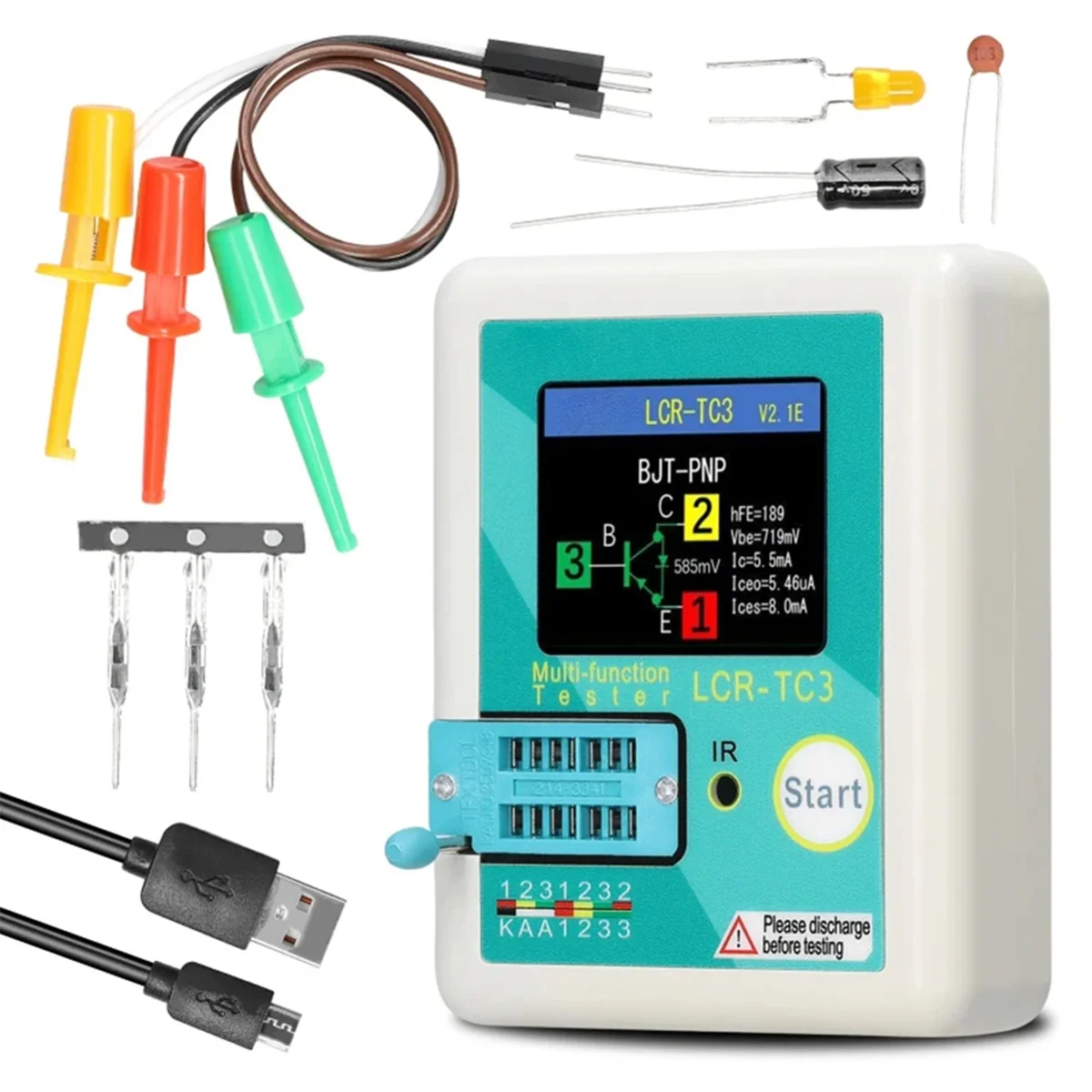

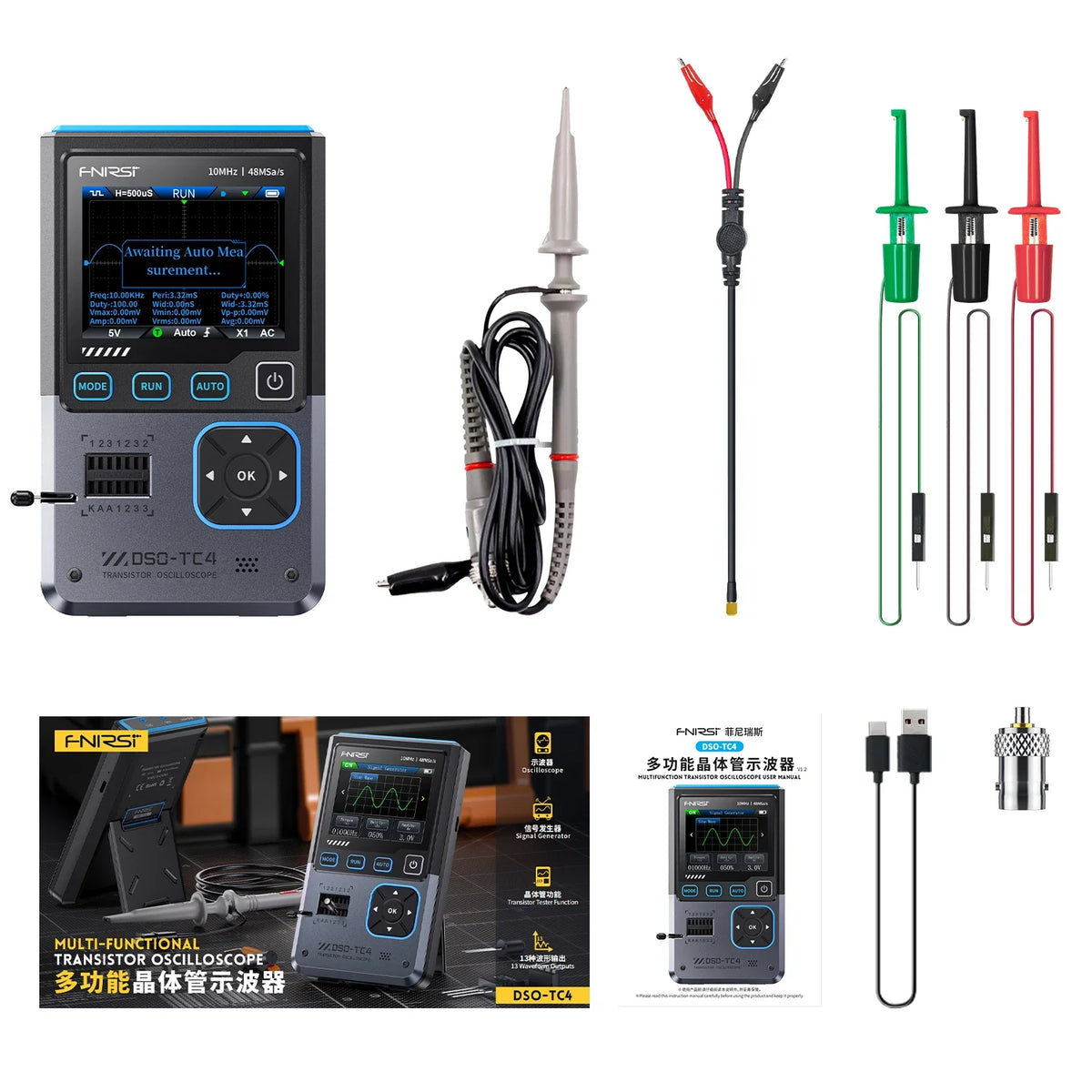

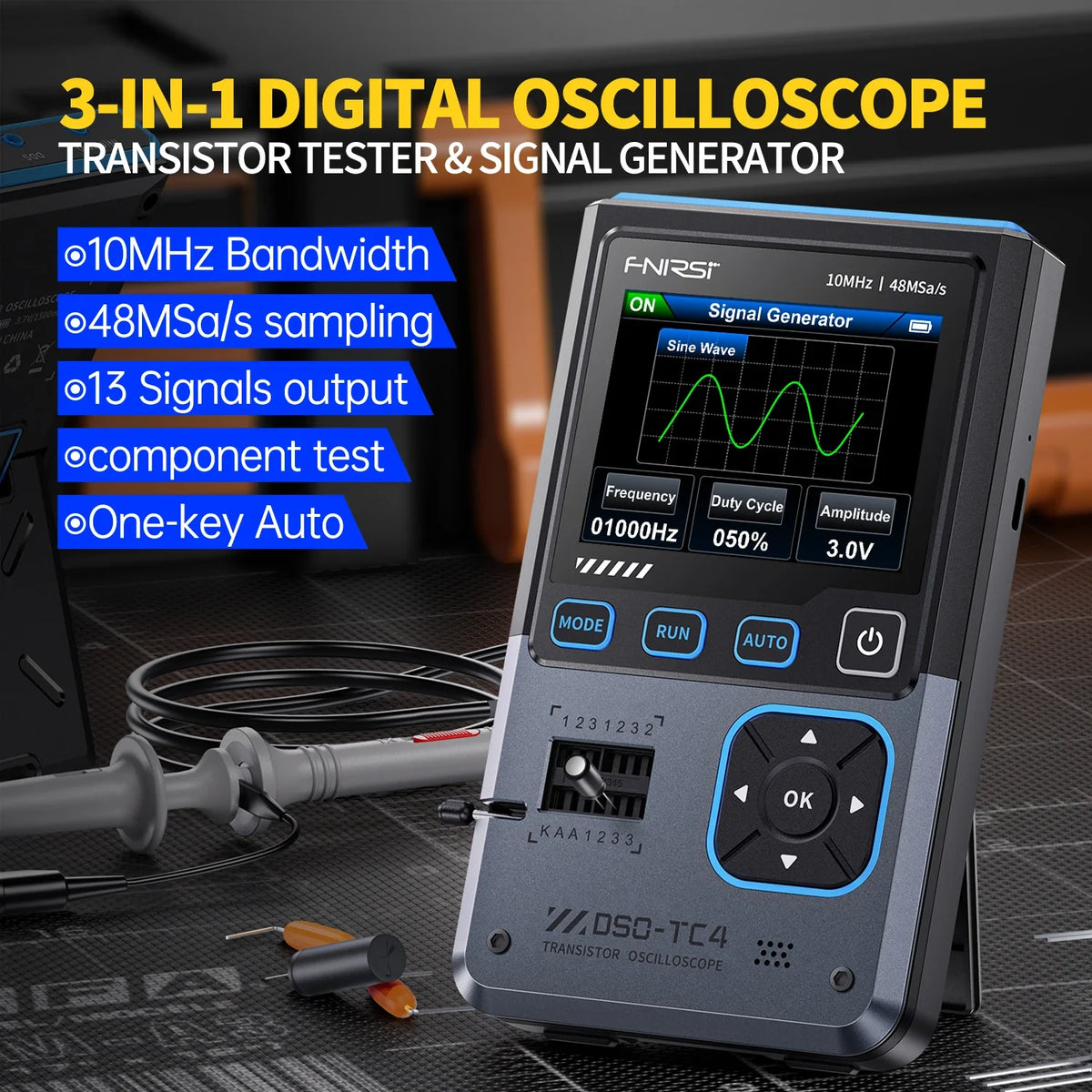

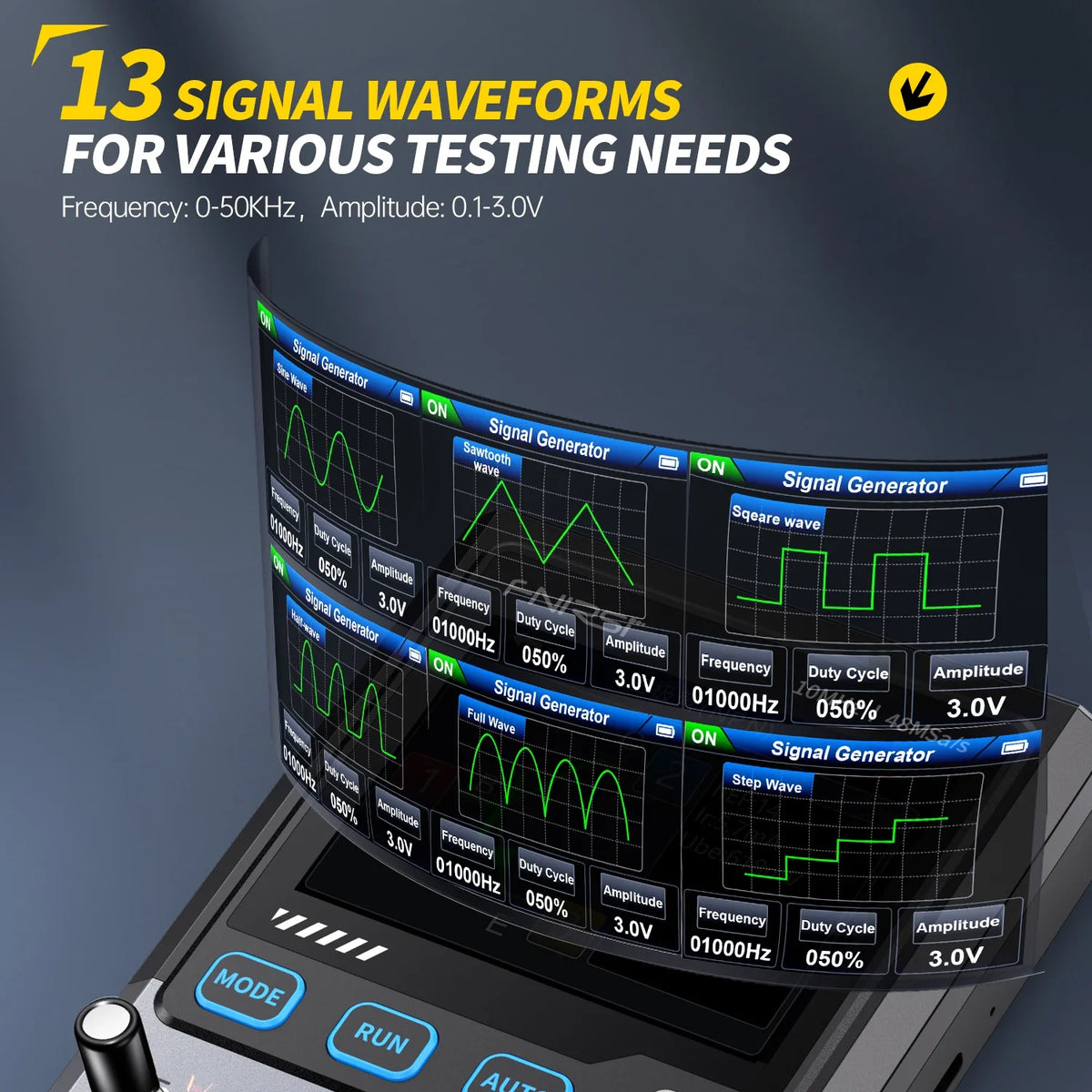

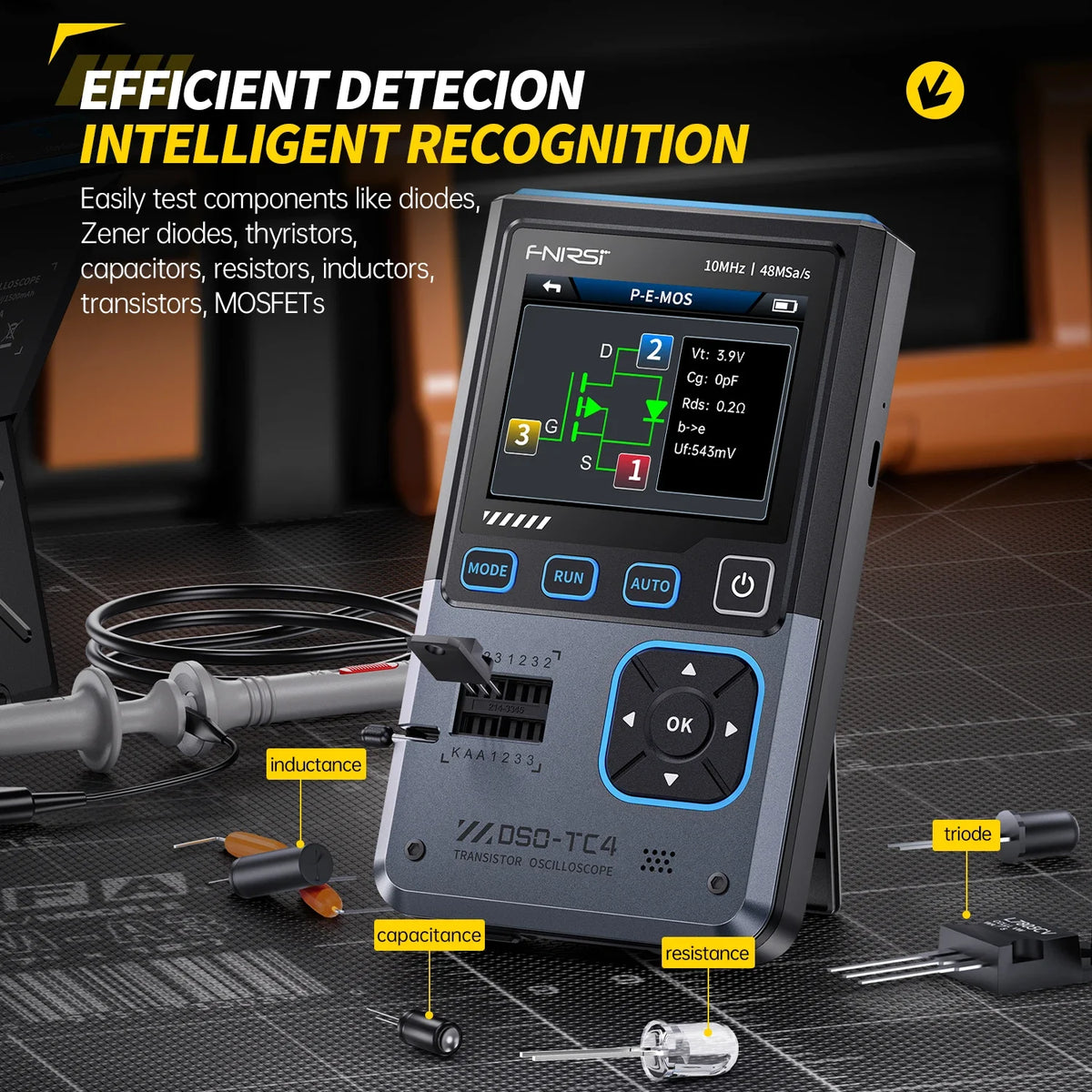

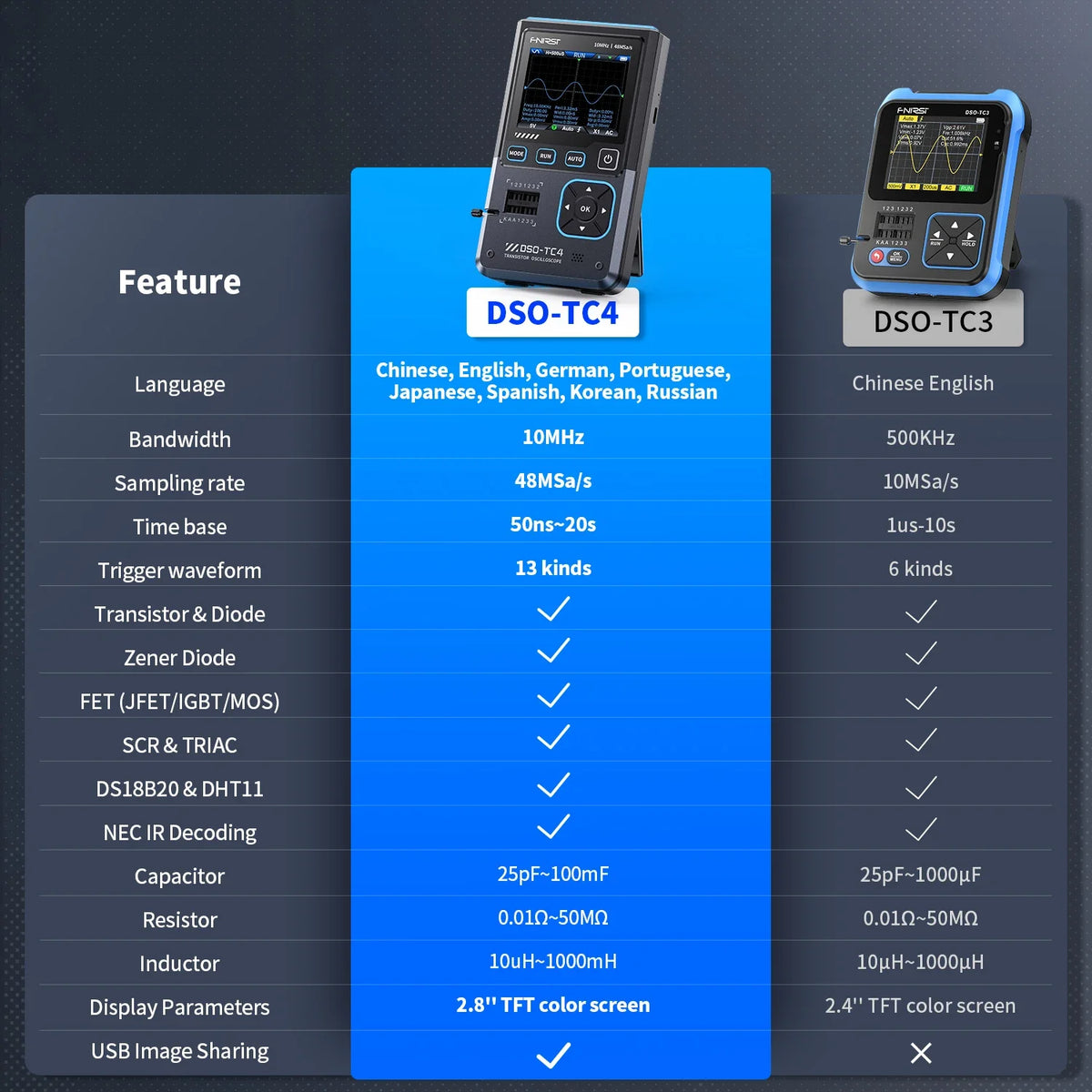

- Other items that appear here: component testers and oscilloscopes mentioning Zener-test capability are instruments, not Zener diodes. DB3 trigger diodes and options for other diode classes must be evaluated for their own functions. These listings remain in the collection, but should not be ordered as replacement Zener parts.
Select by the exact operating point
- Choose the required nominal Zener voltage and exact selected part number, then confirm its test current, tolerance band and voltage-temperature behavior in a manufacturer datasheet. Listing-wide “Voltage” fields and auto-imported specification tables can conflict with the actual model or option.
- Check the available bias current throughout the expected input and load range and the part's minimum and maximum operating current. Account for the series impedance, Zener dissipation and thermal derating in your own circuit design. The voltage will not be precisely nominal below or far above the specified test current.
- Confirm the package, lead spacing or PCB footprint, cathode marking, assembly method and heat dissipation. DO-35, DO-41, SOD-123, SOT-23, LL34 and SMA are not mechanically interchangeable.
- For a protection application, establish whether you need continuous voltage referencing or a transient-rated TVS. A normal Zener's nominal breakdown voltage and wattage do not establish surge-clamp performance or safety approval.
- For purchasing, record the selected model, nominal voltage, datasheet tolerance/test current, power at operating temperature, package, quantity and exact assortment contents. Do not infer manufacturer authenticity or certification from “original” in an imported title.
Frequently asked questions
Is a 5.1 V Zener always exactly 5.1 V?
No. Its specified range is measured at a particular test current and temperature. Tolerance, operating current and temperature change the actual voltage. Check the selected device's datasheet.
Can I replace a 1 W DO-41 Zener with a 0.5 W DO-35 or an SMD part?
Not on voltage alone. Compare maximum dissipation after thermal derating, voltage tolerance at the working current, polarity and physical fit before approving a replacement.
Is a Zener diode the same as a TVS diode?
No. A Zener is generally selected for a defined reverse-breakdown operating point; a TVS is specified for transient clamping with its own standoff, breakdown, clamp voltage and surge waveform ratings. Mixed listings can offer both.
Does an assortment include every voltage printed in its title?
Not necessarily. Some listings offer one selected voltage per pack, while others offer a mixed kit. Review the exact option and kit contents before buying.
