Zener Diodes for Voltage Reference and Regulation
At a glance: this collection centers on Zener diodes selected by nominal reverse-breakdown voltage for reference, limiting and regulation circuits. A Zener's voltage is specified at a test current with tolerance and temperature dependence: the diode itself is not a stand-alone regulated power supply. The catalog also contains mixed-component kits, tester equipment, rectifiers and voltage-regulator ICs whose names contain “voltage regulator.” Check the selected product and variant, not the collection label alone.
Choose the actual device family
- Axial through-hole Zeners: 1N47xx / 1N47xxA menus list individual voltage grades such as 1N4728A 3V3, 1N4733A 5V1 and 1N4742A 12V, plus multi-value DO-41-style kits. BZX55C menus list 0.5 W-class DO-35 options. Imported DO-35/DO-41 and power descriptions conflict in places; neither family nor footprint is established by the shared title.

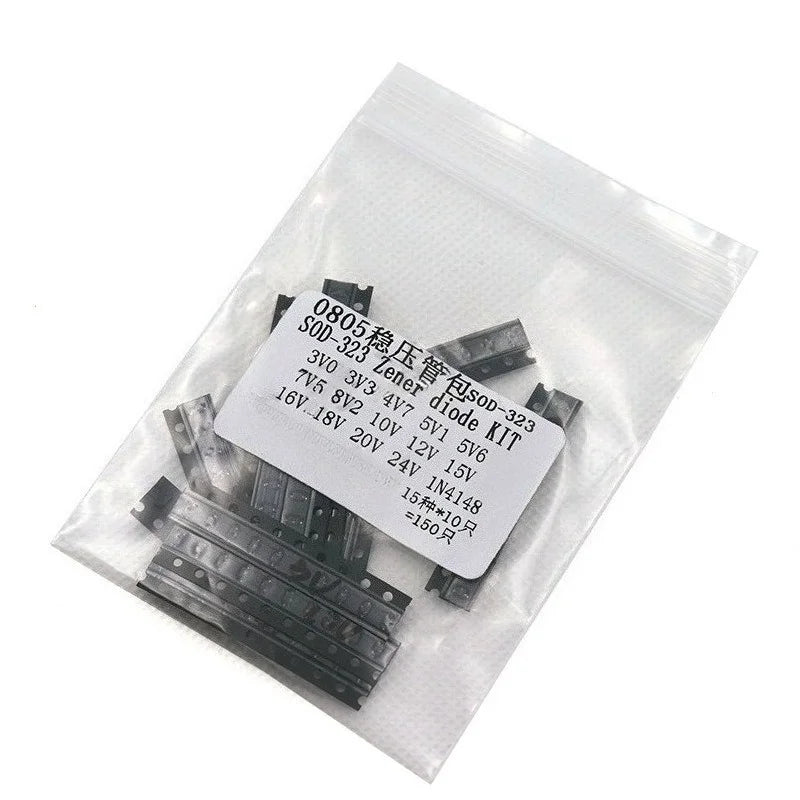

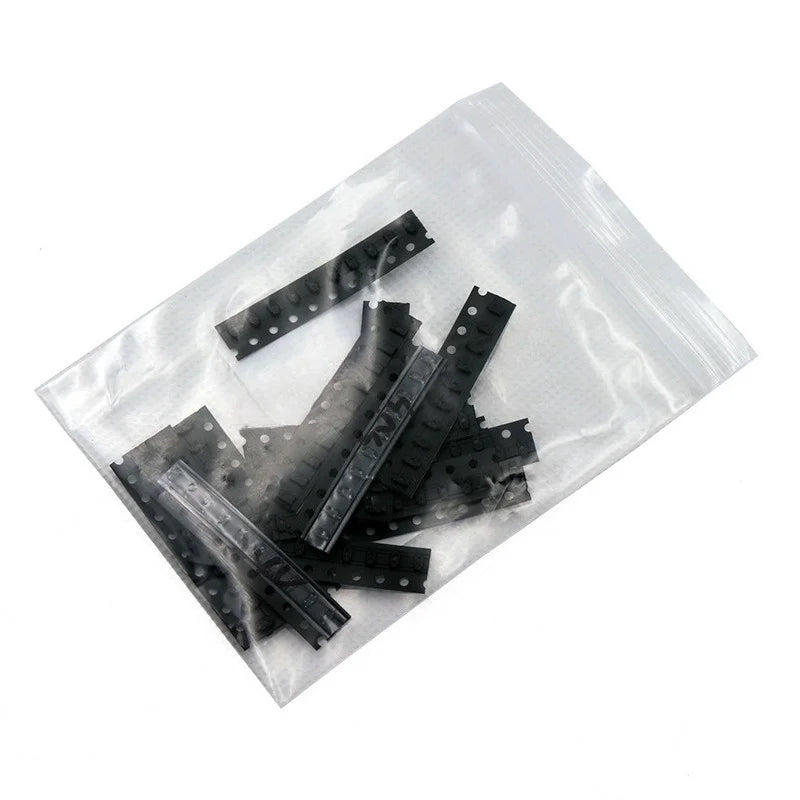

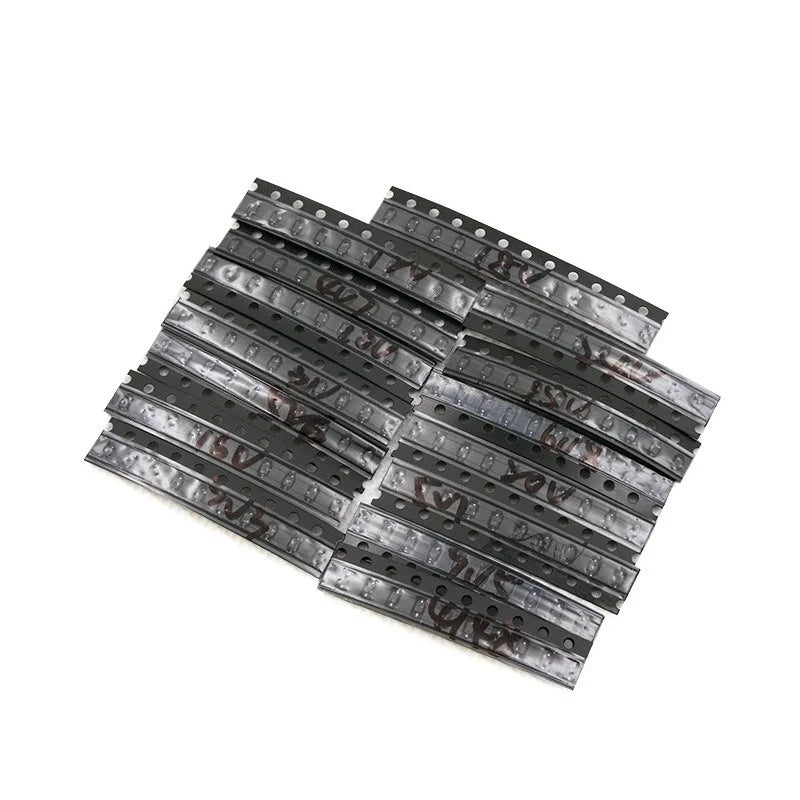

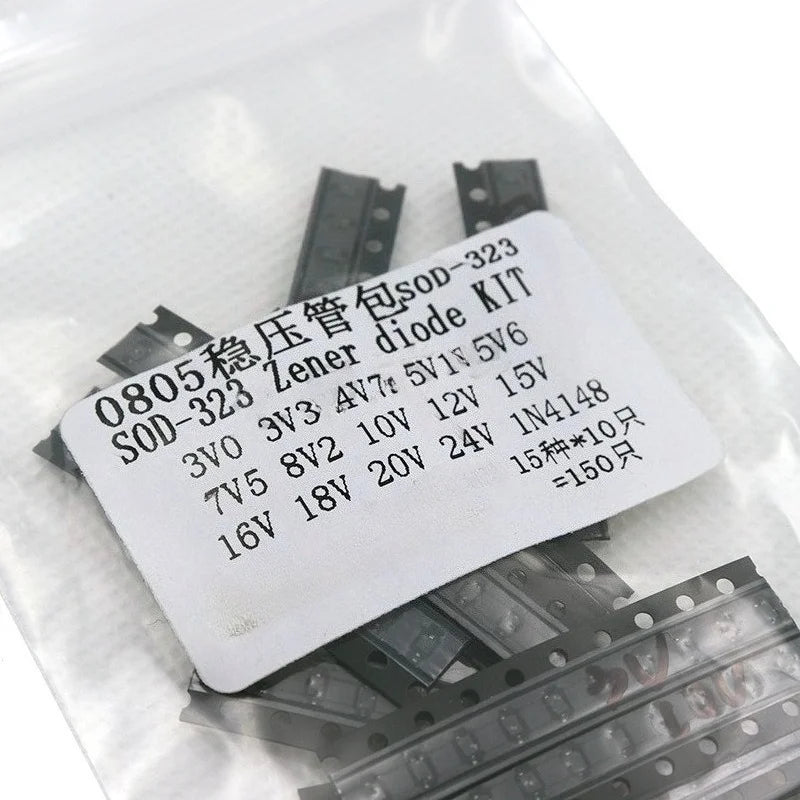

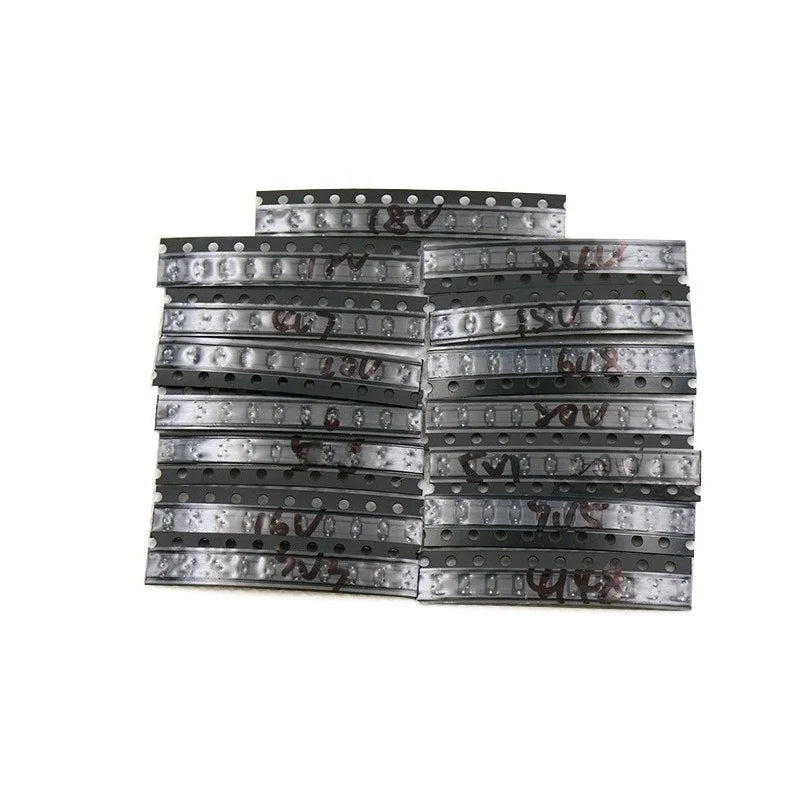

- Surface-mount Zeners: BZT52C listings offer SOD-323 voltage choices, BZX84C menus offer SOT-23 choices, ZMM selections are described as LL34, and LL41 assortments contain multiple voltage grades. The catalog also lists 1SMA5927BT3G 12 V in SMA, PDZVTR30B in SOD-128, and other individually identified SMD devices. These package and power classes are not interchangeable merely because their nominal voltage matches.
- Assortments and quantities: titles include 14-, 15-, 16-, 25-, 27- and 30-value Zener kits as well as single-value 50-, 100-, 250-piece or reel options. A kit total is not its count of any one voltage. Read the chosen option's contents, voltage list and quantity per grade; some multi-device kit variants instead contain switching, rectifier, Schottky or TVS diodes.
- Other items in this collection: AMS1117 and 78L05 / MIC29302 are voltage-regulator ICs, not Zener diode substitutes. LCR-TC3 listings are testers. HVM12 / CL01-12 listings describe high-voltage rectifier diodes, not Zener grades. Their presence here does not change their function; inspect each item's own specifications before ordering.
Selection and qualification checklist
- Define the role: decide whether the design needs a reverse-breakdown reference, a regulated supply, a switching or rectifier diode, or a transient-rated protection part. Nominal voltage alone cannot qualify the latter functions.
- Specify electrical limits: obtain the exact selected manufacturer's datasheet for nominal Zener voltage, tolerance, test current, dynamic impedance, leakage, maximum power and temperature derating. Listing-wide imported fields such as “standard” or mismatched current/voltage strings are not verified ratings.
- Check the circuit window: calculate reverse current and power across supply, load and temperature extremes; confirm that the chosen grade operates within its specified range. Check polarity and cathode marking.
- Match the assembly and purchase unit: confirm axial body and lead pitch or SMD package and land pattern, then record full part number, selected voltage, quantity per voltage and kit composition on the BOM. Do not assume an LL34, LL41, SOD-323, SOT-23, SMA or TO-92 device fits another footprint.
Frequently asked questions
Does “voltage regulator diode” mean a complete 3.3 V, 5 V or 12 V supply regulator?
No. A Zener grade describes reverse breakdown under specified conditions. A regulator IC is a different device category, and a working circuit must meet its own current, thermal and tolerance requirements.
Are all products in this collection Zener diodes?
No. Some listed items are regulator ICs, testers, high-voltage rectifiers or mixed-component kits. Check the exact product and selected variant before comparing Zener specifications.
Can I substitute the same voltage across axial and SMD families?
Not on nominal voltage alone. Compare test current, tolerance, impedance, leakage, power derating, polarity and mechanical dimensions for the exact parts.
Does a 300-piece assortment contain 300 of one voltage?
Not unless its selected pack explicitly says so. Multi-value kits divide the total among voltage grades; confirm the contents and per-grade count in that listing.
