SPECIFICATIONS

Description:

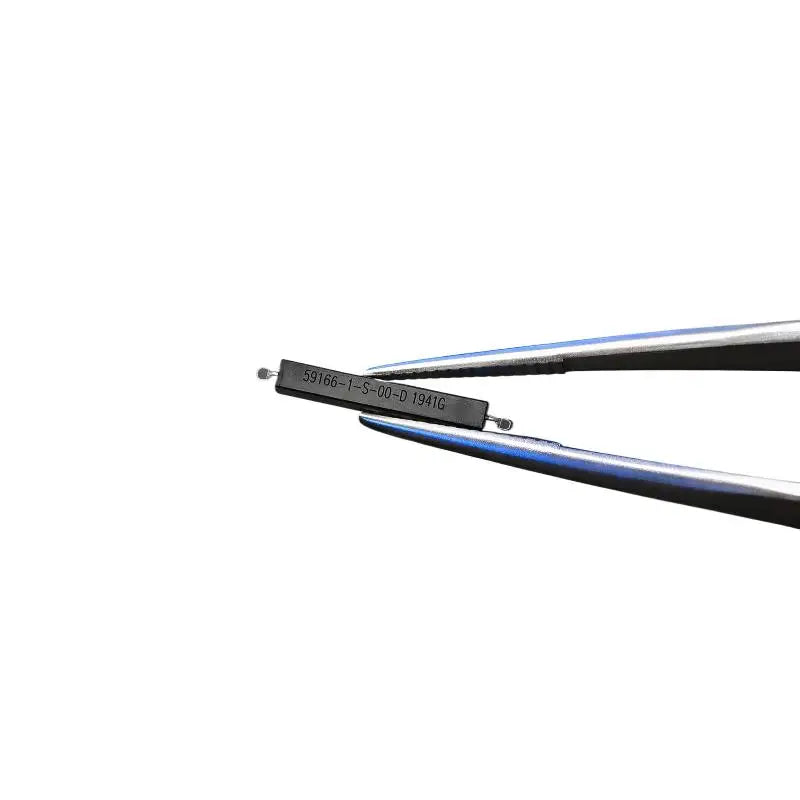

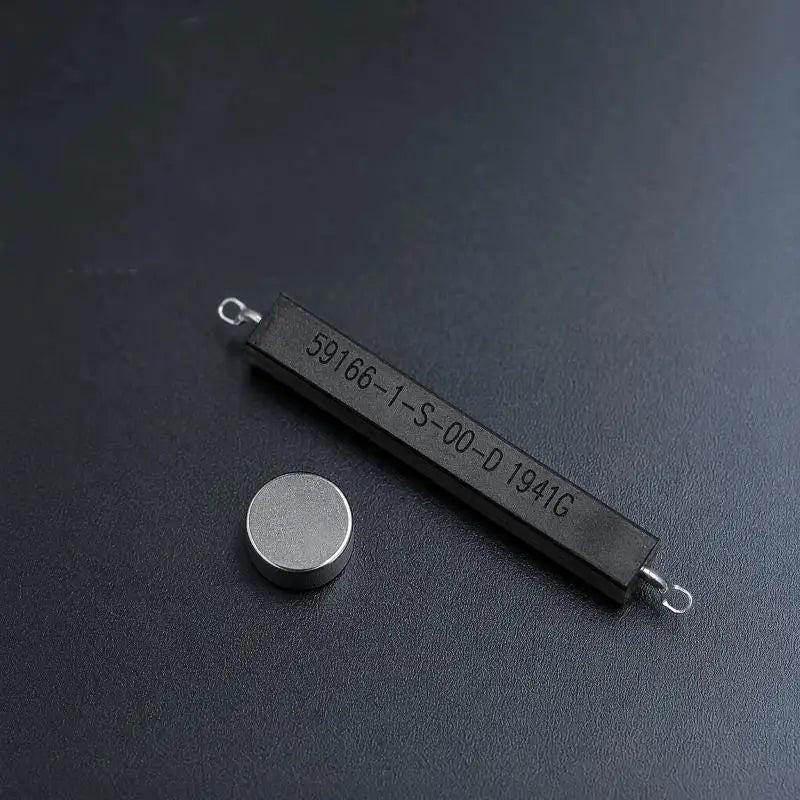

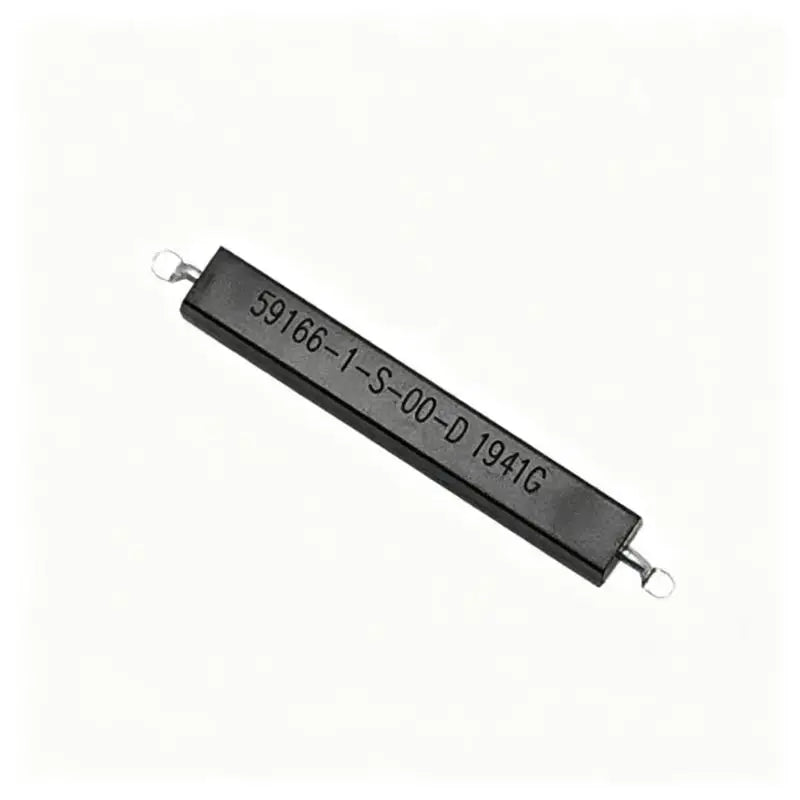

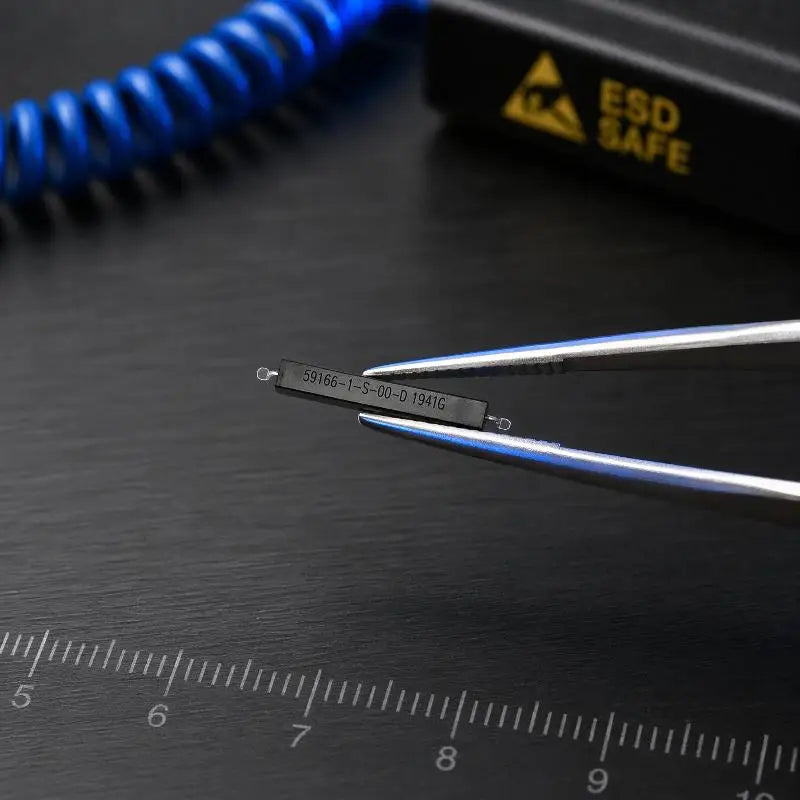

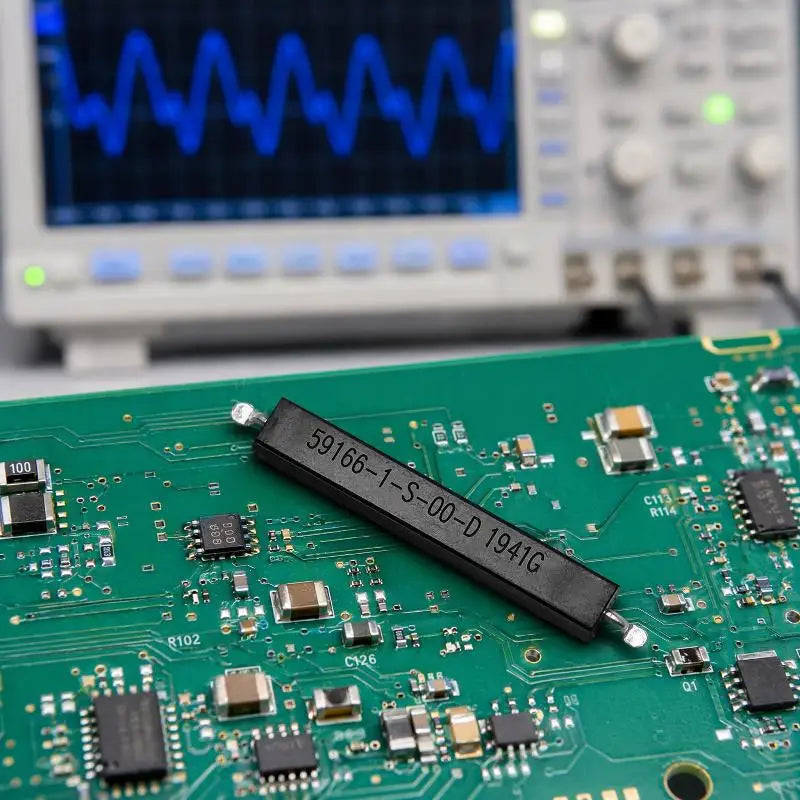

59166-1-S-00-D Plastic Encapsulated SMD Reed Switch | High-Sensitivity Low-Power Magnetic Sensor for Automatic Mounting, Industrial & Consumer Electronic Applications

Key Features:

1. Ultra-Sensitive Magnetic Sensing: Made with high-purity permalloy (iron-nickel alloy) reed contacts, it delivers fast, stable response to low-intensity magnetic field signals, ensuring accurate triggering for low-power sensing systems and effectively reducing false operation rates.

2. Durable Sealed Protection: Encapsulated with food-grade epoxy resin, it fully isolates internal components from dust, moisture, oxidation and external mechanical impact, with a service life of over 10 million operations to adapt to various harsh working environments.

3. SMD Process Compatible: Equipped with high-temperature resistant tin-plated copper terminals, it supports standard automatic reflow soldering process and fits universal SMD mounting pads, improving mass production assembly efficiency and cutting manual soldering labor costs.

4. RoHS Compliant: Manufactured with lead-free non-toxic materials conforming to RoHS standards, it releases no harmful substances during production, storage and operation, meets global electronic product export regulations, and is suitable for consumer, medical and automotive electronic devices.

5. Stable Electrical Performance: Its high-insulation glass-sealed internal cavity maintains consistent contact resistance and insulation voltage across the -40°C to 85°C working temperature range, guaranteeing reliable long-term operation in temperature-fluctuating application scenarios.

Specifications:

Category: Magnetic Sensor / SMD Reed Switch

Material: Epoxy resin

Size: Standard 1941 SMD package

Appearance: Black encapsulation, silver plated terminal

Application: Smart home sensors, industrial control equipment, IoT devices, security alarm systems, consumer electronics, automotive electronic parts

Package Quantity: 1 pcs
