SPECIFICATIONS

Brand Name: eletechsup

Certification: NONE

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Output Current: 0-30MA

Output Frequency: 0.01-100kHZ

Output Type: SINGLE

Size: 155*145*18MM

Type: DC/AC Inverters

Weight: 296g

is_customized: Yes

semi_Choice: yes

SMECD04 is optimized by eletechsup based on the most classic style on the market. It retains the advantages of the old version and improves the disadvantages. It not only improves the defects of the old version that the frequency cannot be continuously adjusted and the parameters cannot be saved, but also upgrades the electrical characteristics, and the power supply adds over-current, over-voltage and surge protection.

This product can not only output 7.83Hz Schumann wave,
but also can adjust the frequency within the range of 0.01Hz~100KHz,
digital circuit crystal oscillator frequency reference, more stable, stronger anti-interference

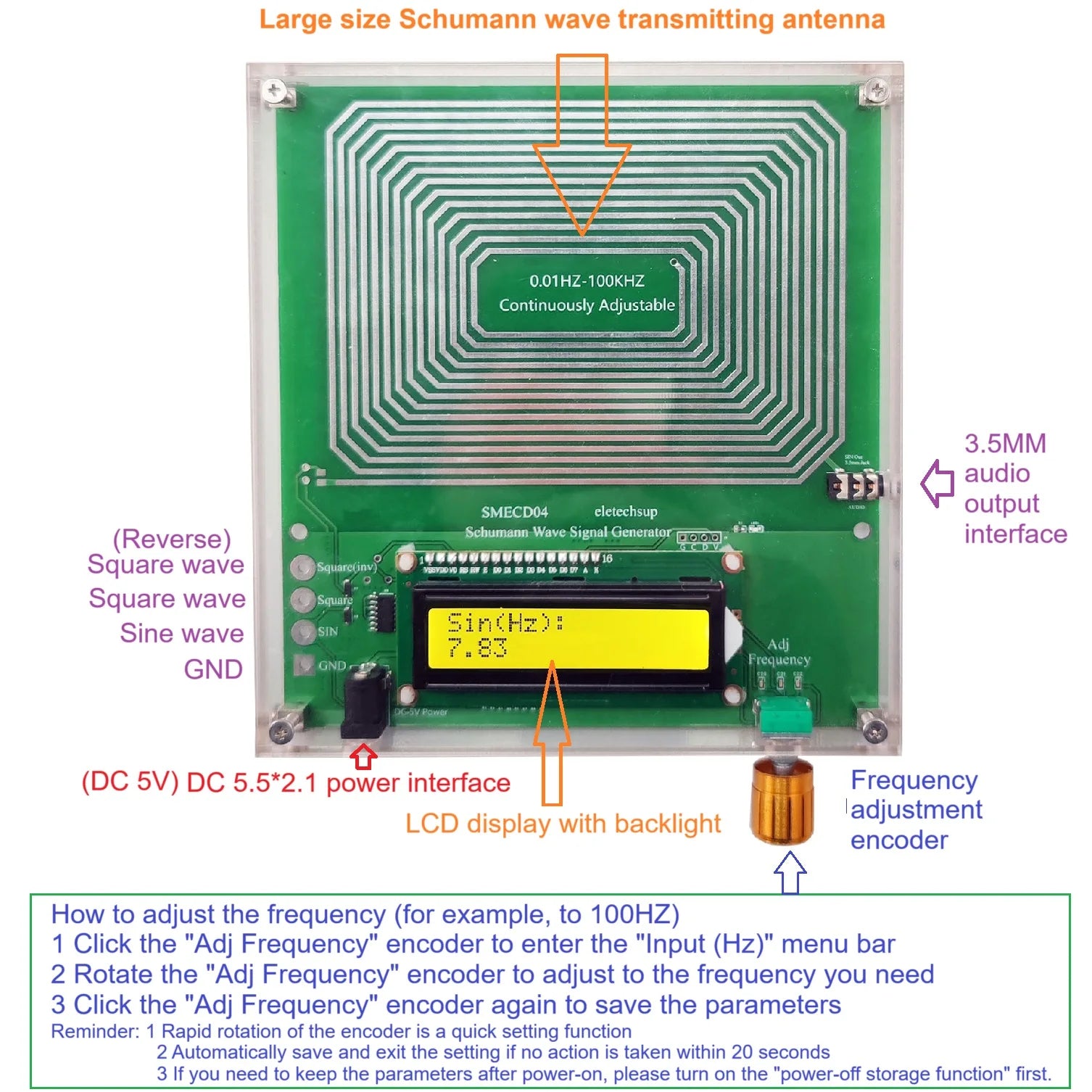

1 Working voltage: DC 5V
2 Working current: 13-20MA
3 Power interface: DC5.5*2.1
4 Default frequency: 7.83Hz
5 Adjustment range: 0.01Hz~100000Hz (Continuously adjustable)
6Waveform: Sine wave/Square Wave
7 Signal voltage amplitude: 3.3V
8 With 3.5MM audio output
9 Size: 150*140*26MM(Without shell) ,155*145*18MM(With shell)
10 Weight : 296g(With shell)

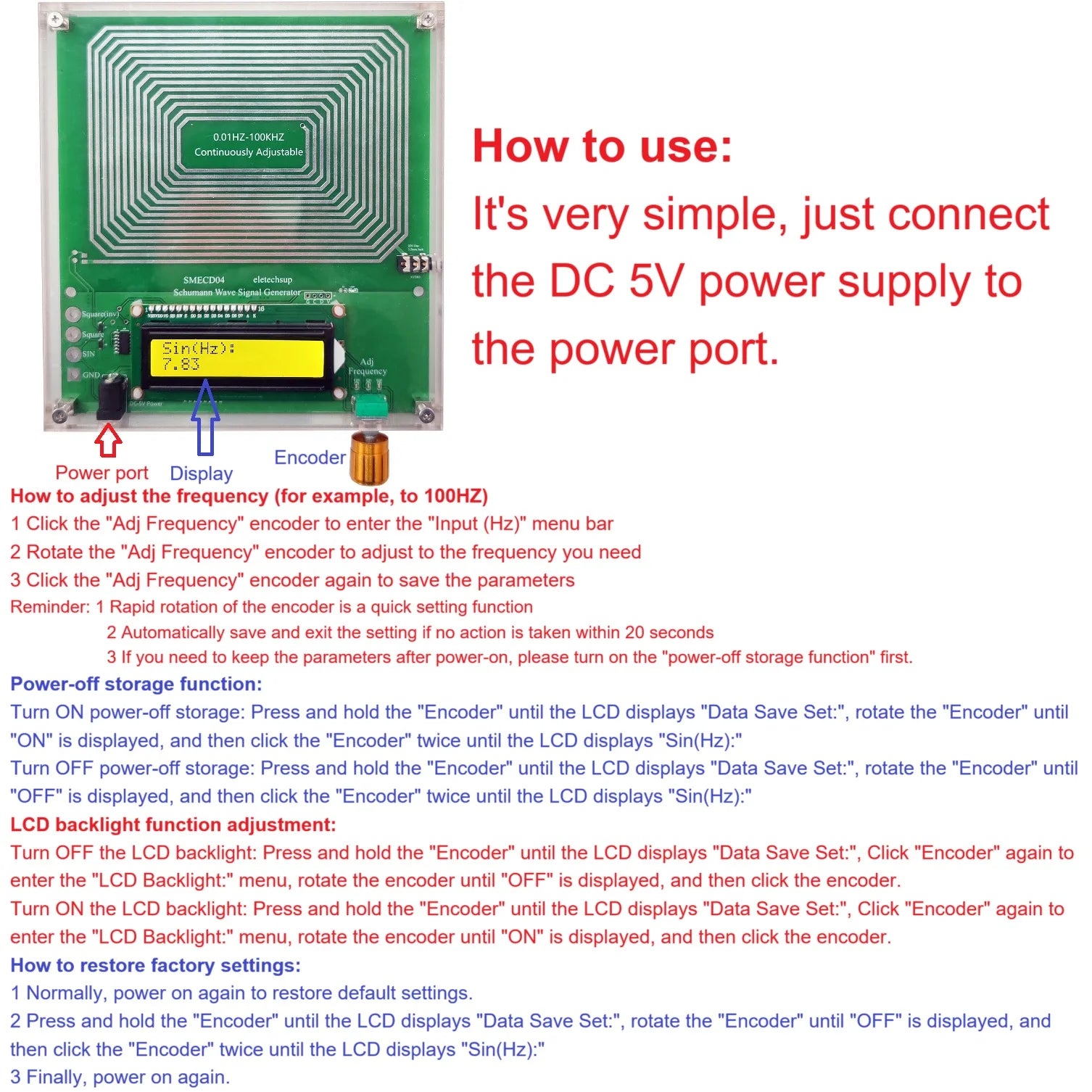

How to use:

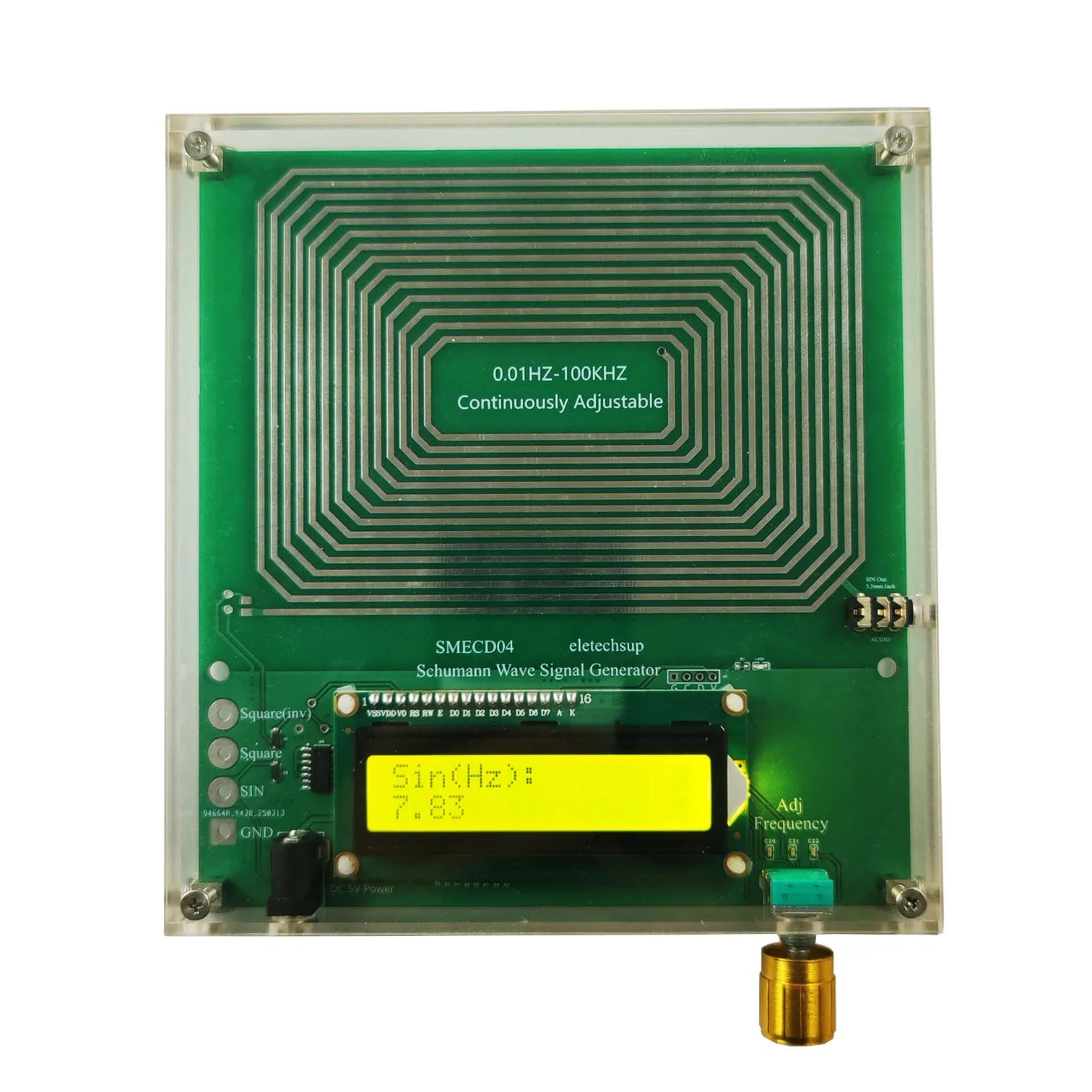

1 Connect the board to a DC 5V power supply, and the LCD will display ''Sin(Hz):7.83''.
2 Then place it in a suitable position to experience the Schumann Resonances signal.


SMECD04 signal generator 0.01HZ-100000HZ adjustable, the steps are as follows:
0.01-99.99HZ: step 0.01HZ
100.0HZ-999.9HZ: step 0.1HZ
1000HZ-9999HZ: step 1HZ
10000HZ-99999HZ: step 10HZ
Frequency 0.01HZ-100Khz adjustable

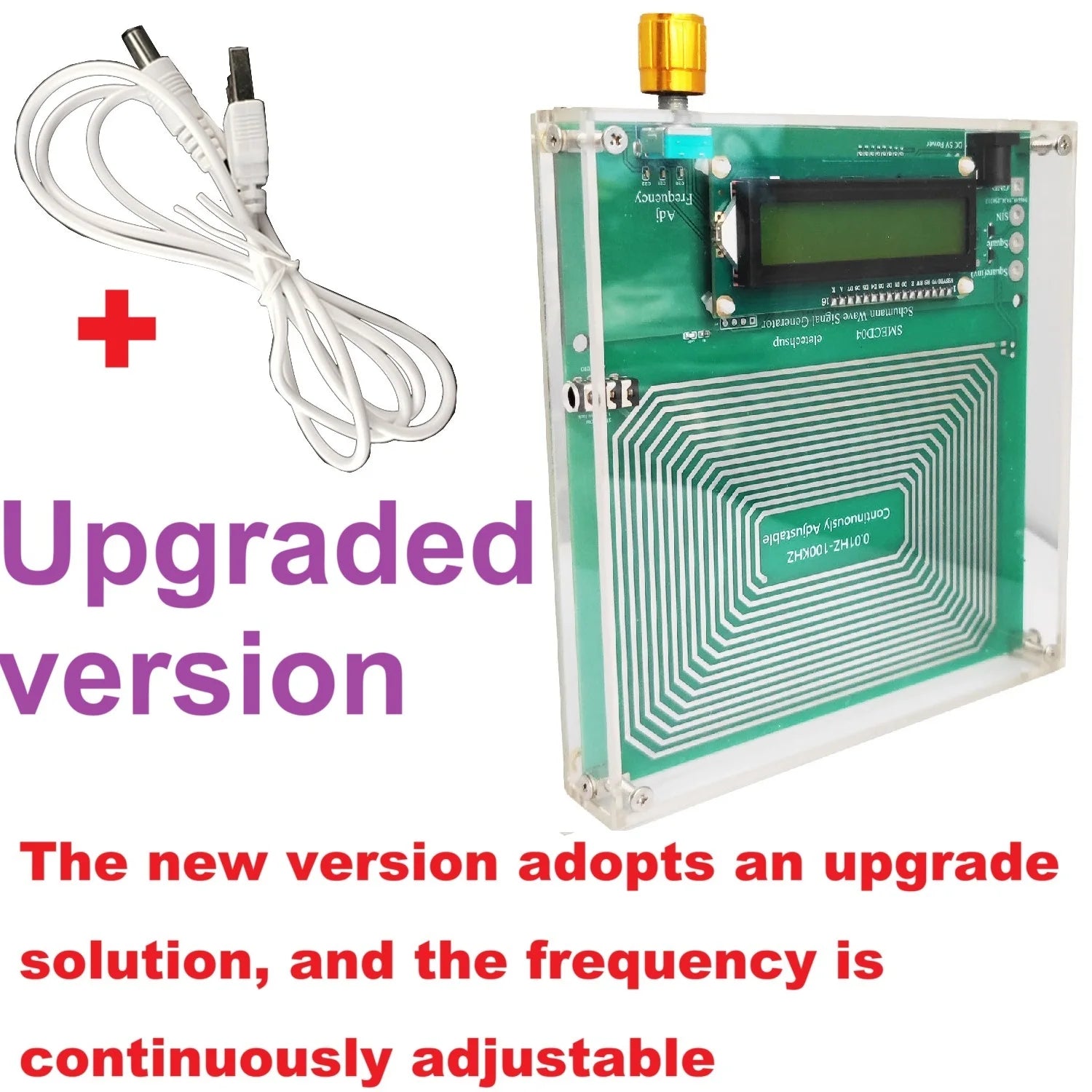

Shipping list: device + USB power cable

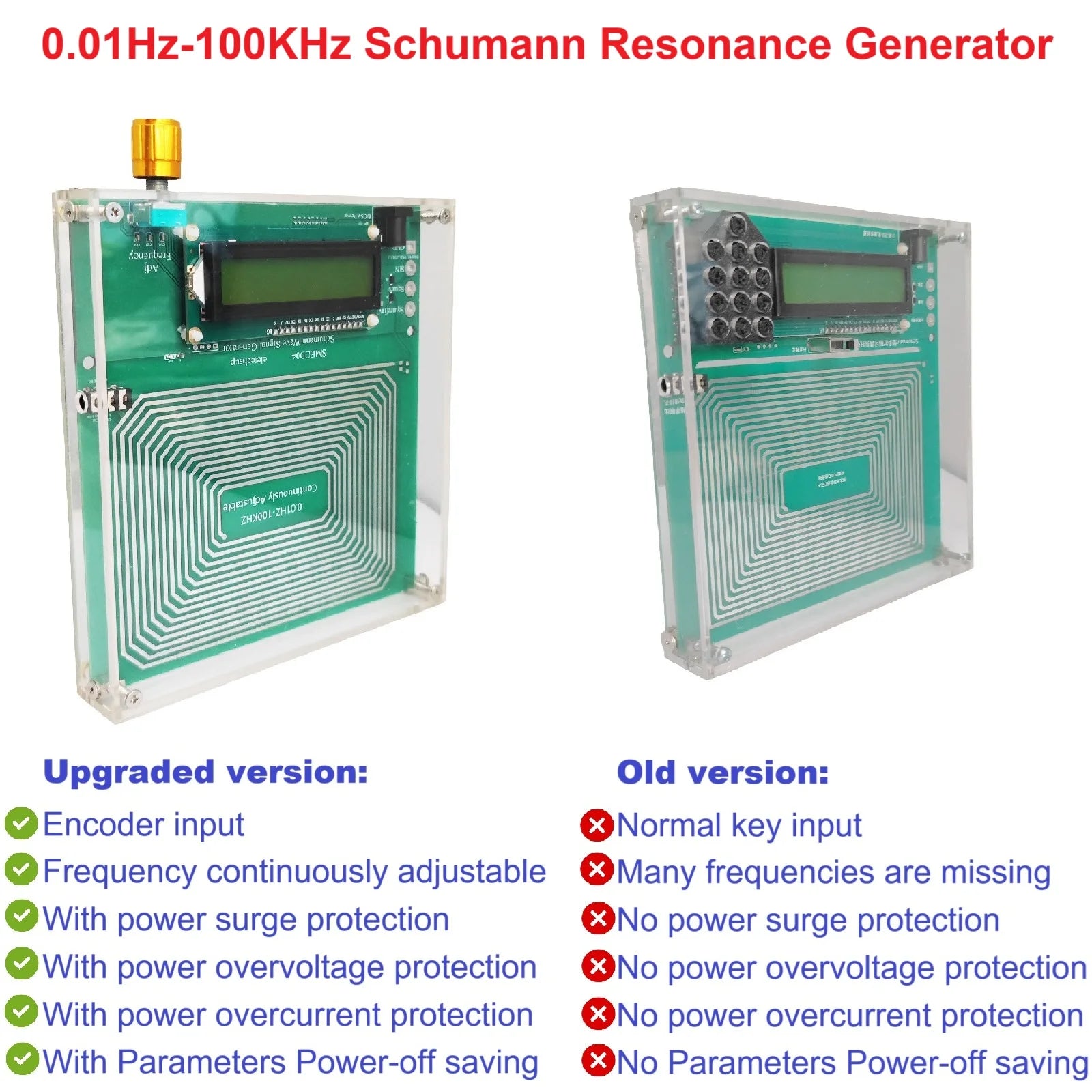

SMECD04 has continuously adjustable frequencies, but many frequencies are missing in the old version.

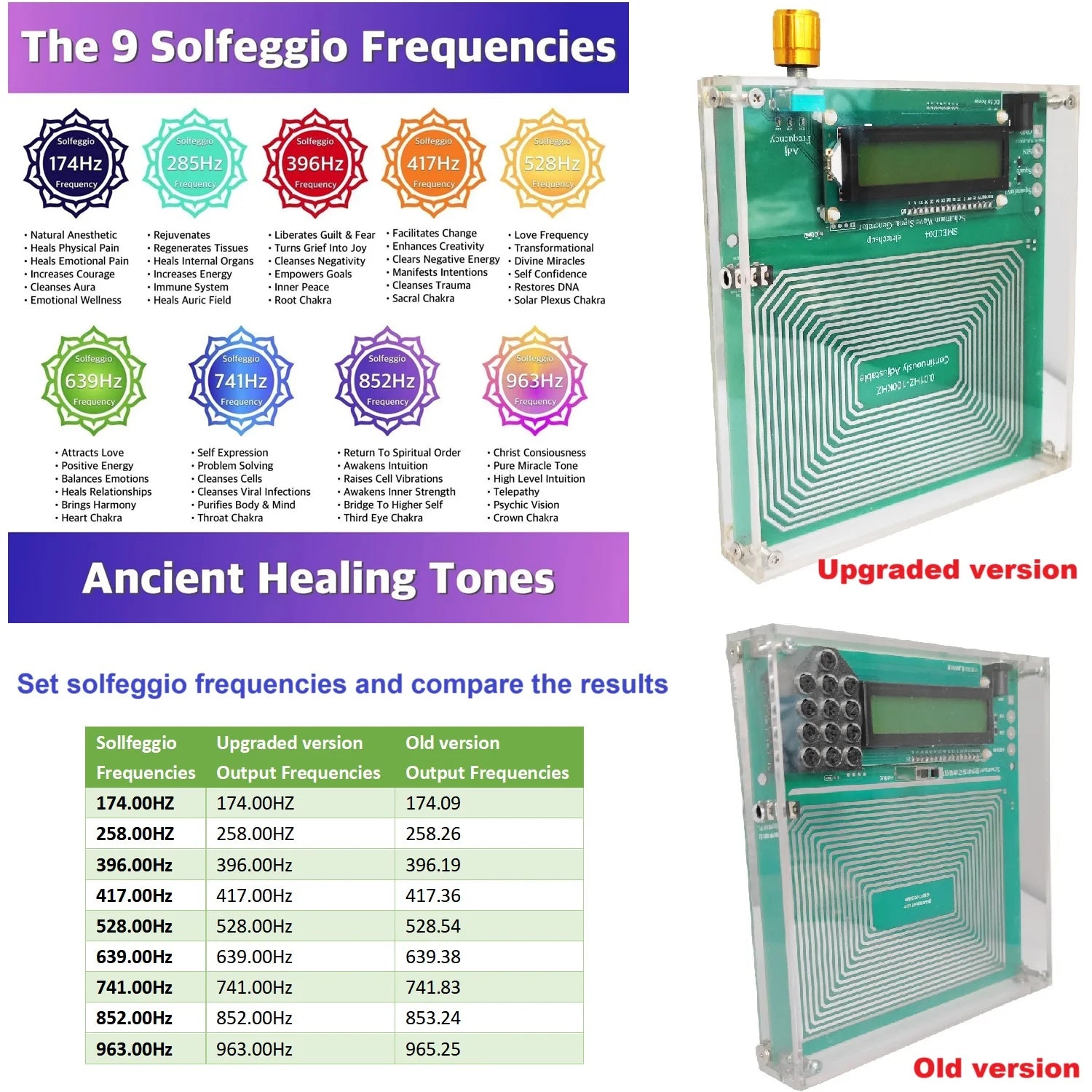

The following is a comparison of the output results of solfeggio frequencies:
