0-100Kpa Differential Pressure Sensor China Intelligent Absolute Gauge Pressure Transmitter
Output 0-10V / Other
$229.23
Sale price
$229.23
Regular price
$0.00
Skip to product information
0-100Kpa Differential Pressure Sensor China Intelligent Absolute Gauge Pressure Transmitter
$229.23
Sale price
$229.23
Regular price
$0.00
Description

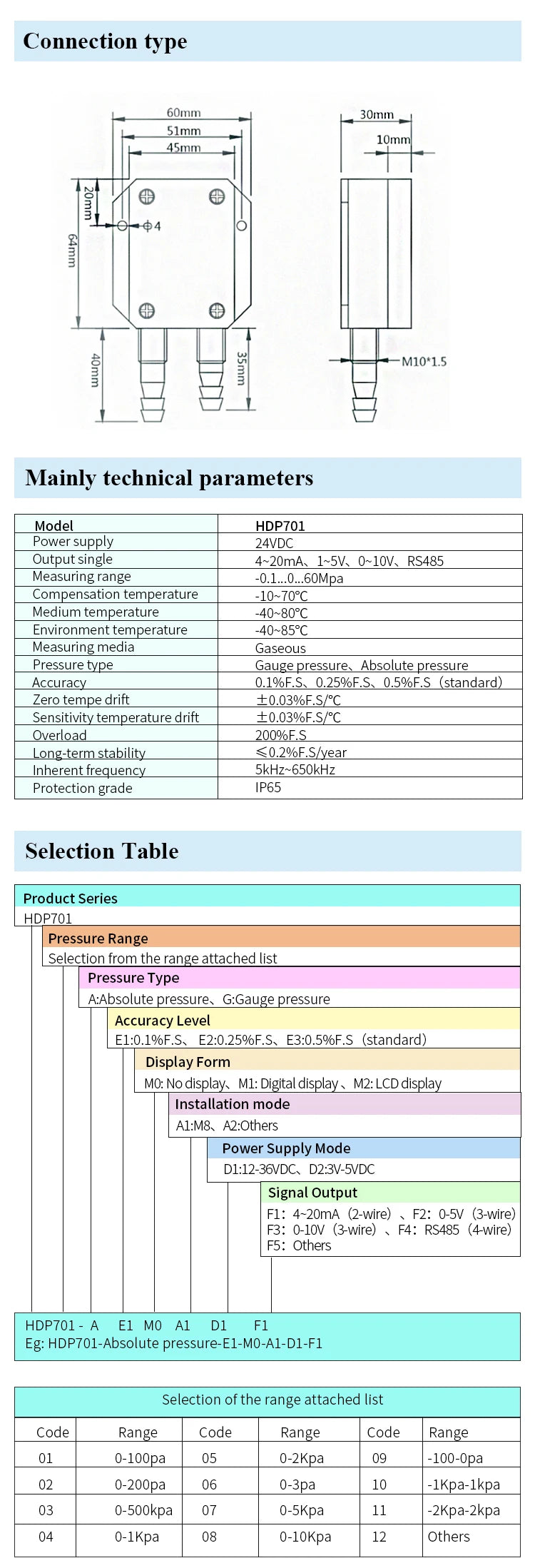

SPECIFICATIONS
Accuracy: 0.25%
Battery Included: no
Brand Name: NoEnName_Null
Certification: CE
High-concerned chemical: none
Long-term Stability: ≤0.2%F.S/year
Max Measuring Range: 400 Bar & Above
Measuring range: -30kpa-30kpa
Medium: wind , gases
Model Number: HDP701
Origin: Mainland China

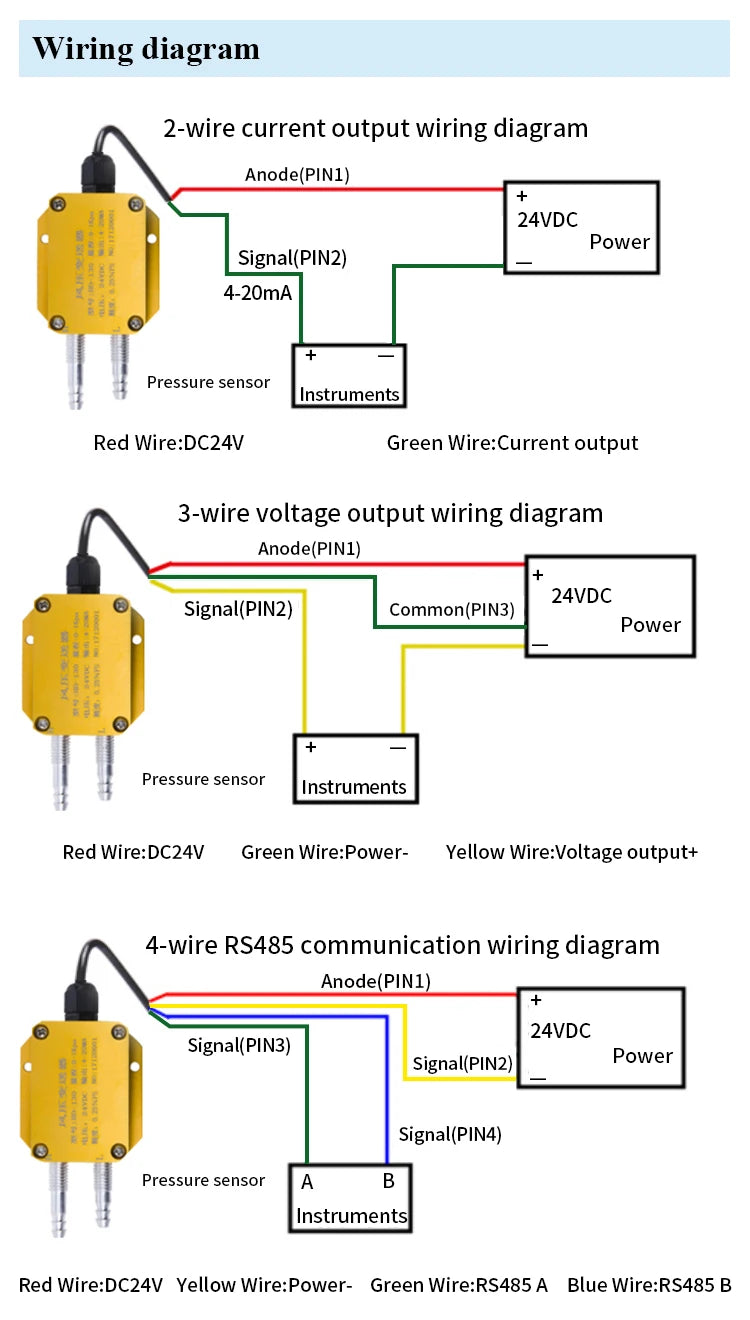

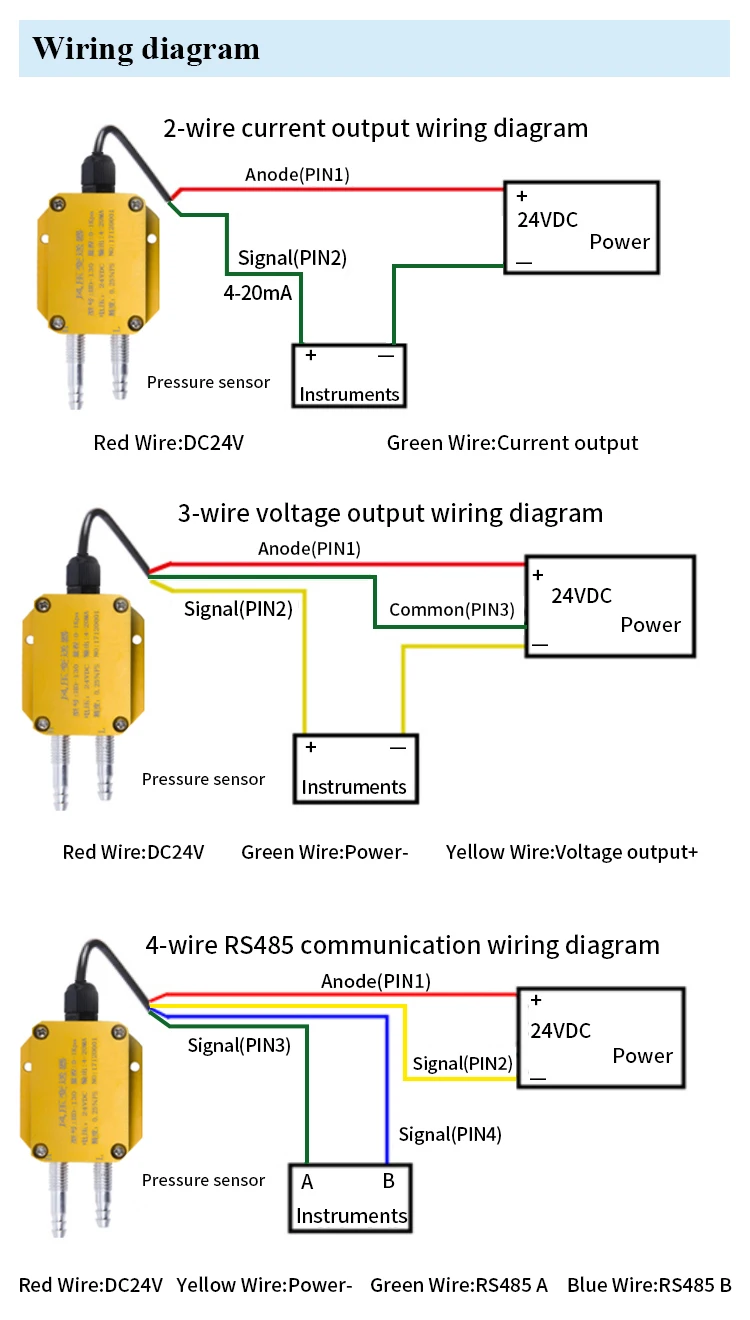

Output signal: 4~20mA,1~5V,0~10V,RS485
Power Supply: DC 24V
Process connection: Pagoda mouth M8
Product name: Air Pressure Transducer
Protection grade: IP65
Response time: ≤50MS
Semi-finishedproduct: No
Sensitivity Temperature Drift: 0.03%F.S/℃
Temperature: -40~85℃
0-50Kpa Differential Pressure Sensor China Intelligent Absolute Gauge Pressure Transmitter
Note: This product support -10KPA~10KPA
Any question , please consult us.
Brief Description

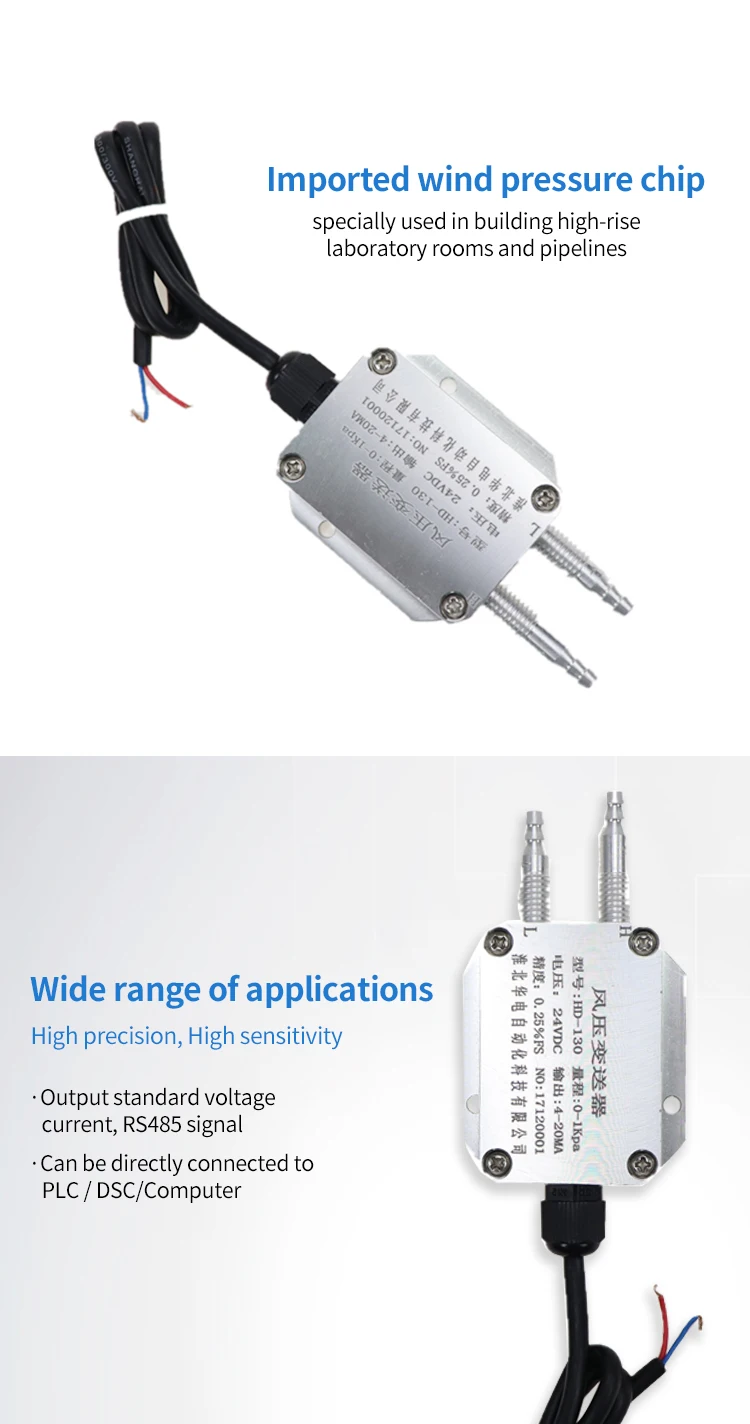

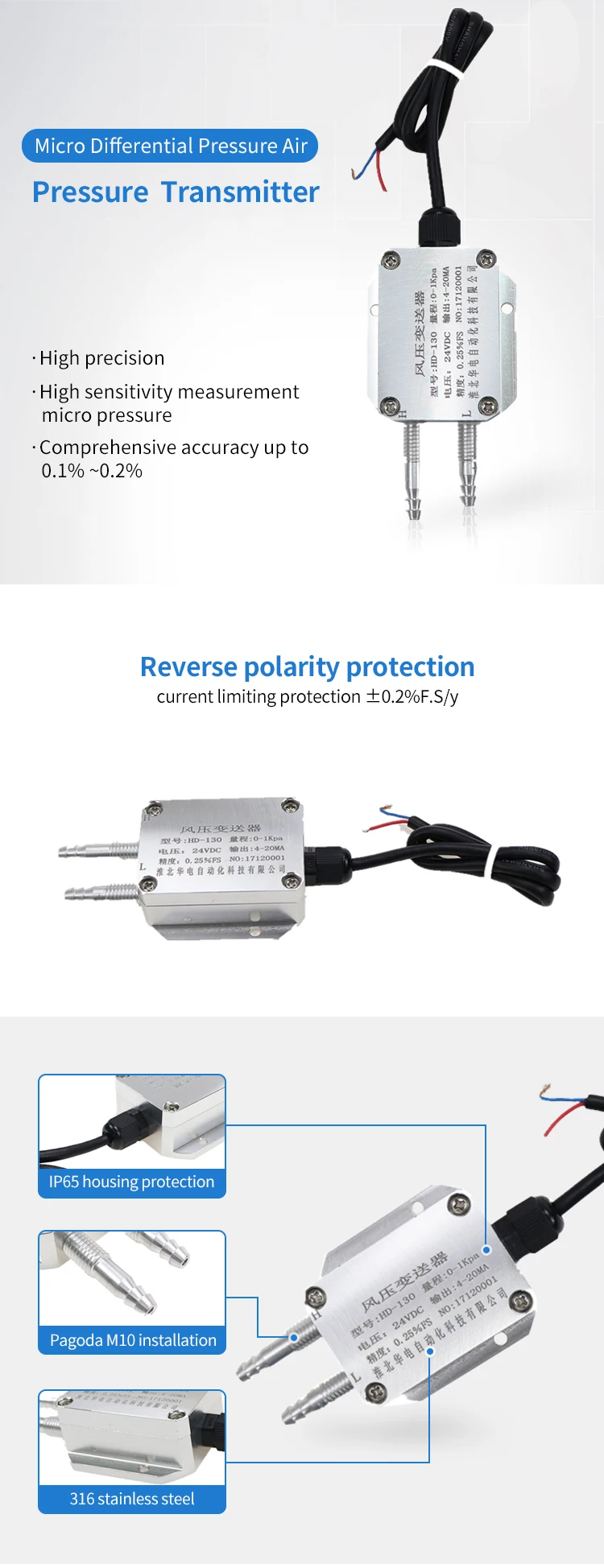

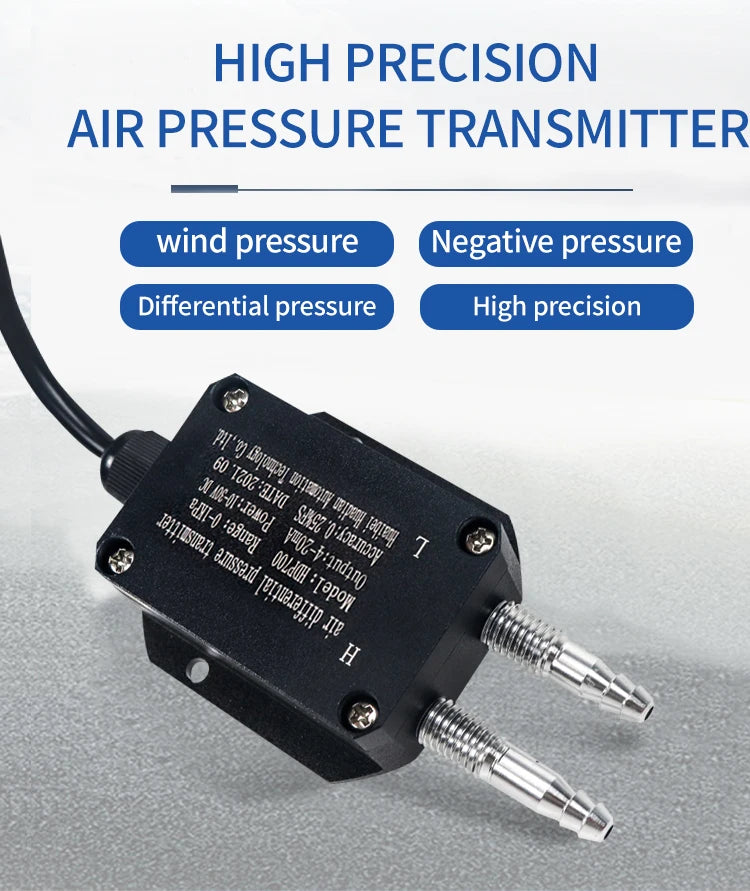

HDP 701 micro differential pressure air pressure transmitter is composed of OEM silicon piezoresistive differential pressure core.The shell is made of aluminium alloy. The two pressure interfaces are M8 threaded and cock structures,which can be directly installed in the measuring pipeline or connected through the booster pipe,and can accurately measure the pressure and differential pressure of the gas.It is widely used in the field of pressure process control in power and coal industry,such as boiler air supply and underground ventilation.

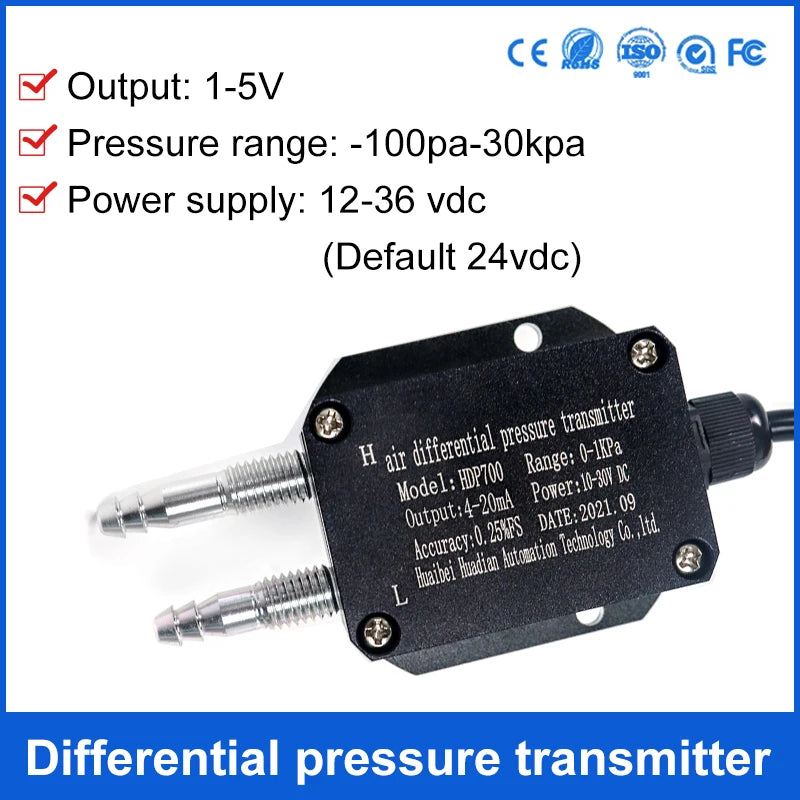

The long tube is the high pressure input port and the short tube is the low pressure input port. Measuring Pressure:Only Long tube Measuring differential pressure:high pressure to long tube,low pressure to short tube.

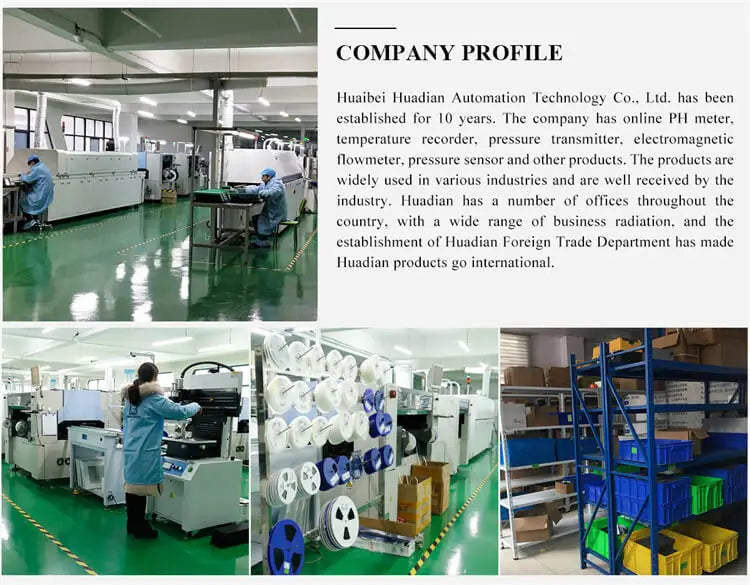

Company And Certificates
Package and Shipping
Contact Us
Email: sales2@huadianauto.com
Tel/Whatsapp/Skype: +86 199 5603 7060
Websites: www.huadianauto.com
Huaibei Huadian Automation Technology Co.Ltd CN
Factory address: 265 Suixi Road, Xiangshan District, Huaibei City, Anhui Province,China
