SPECIFICATIONS

Battery Included: no

Brand Name: Vadias

Certification: CE,FCC,RoHS

Feature 1: 0-100bar to 4-20mA Pressure Transmitter Sensor RS485

Feature 10: 0-600bar to 4-20mA LCD Pressure Transmitter

Feature 2: -1-1bar to RS485 Pressure Transmitter

Feature 3: 0-60Mpa to 4-20mA Pressure Sensor

Feature 4: -50-50mbar to 4-20mA LCD Pressure Sensor

Feature 5: 0-1000bar to 4-20mA LCD Pressure Transmitter

Feature 6: 0-350bar to 0-10V LCD Pressure Transmitter

Feature 7: 0-200Bar to 4-20mA LCD Pressure Transmitter

Feature 8: 0-300bar to 4-20mA LCD Pressure Transmitter

Feature 9: 0-16Mpa to RS485 LCD Pressure Transmitter

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above

Measuring Range: 0-60Mpa,-0.1Mpa~0~100MPa

Medium: Oil, Gas, Water, Air

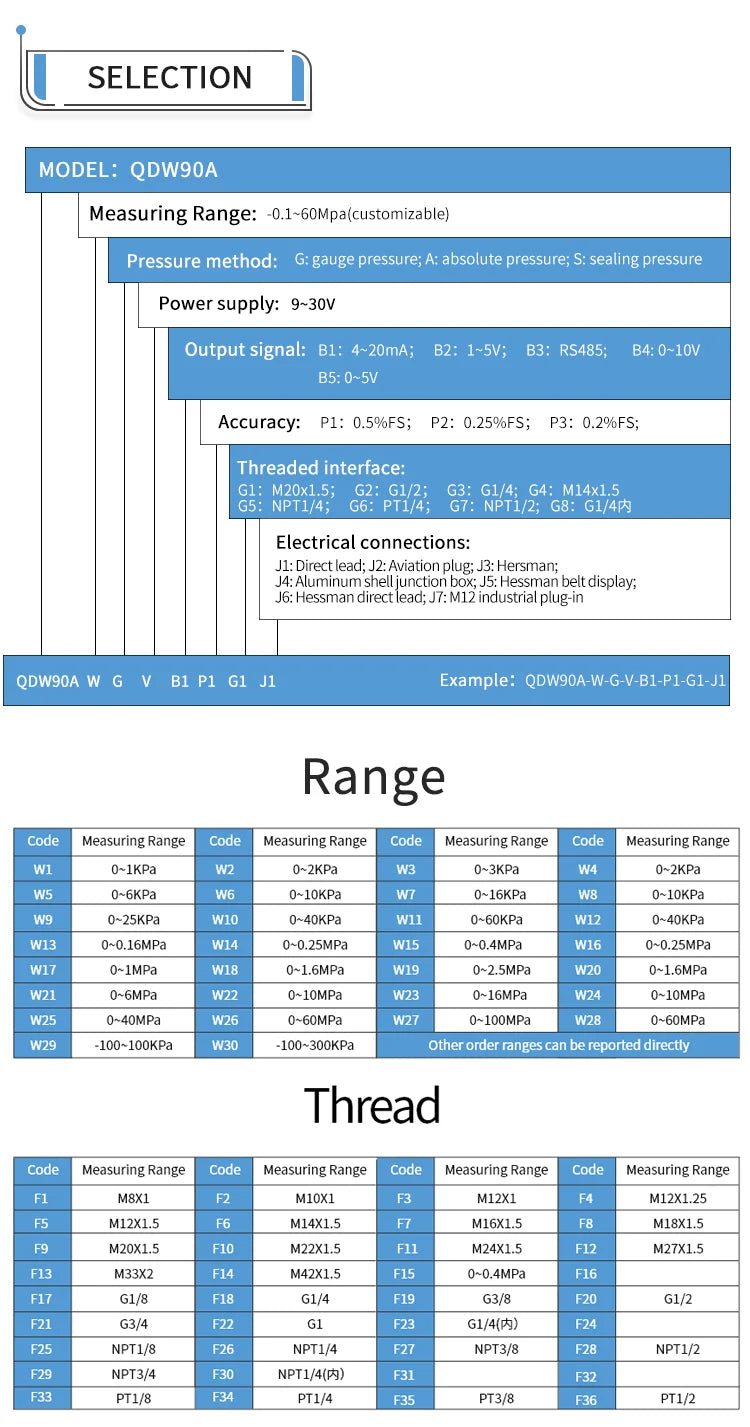

Model Number: QDW90A LCD

Origin: Mainland China

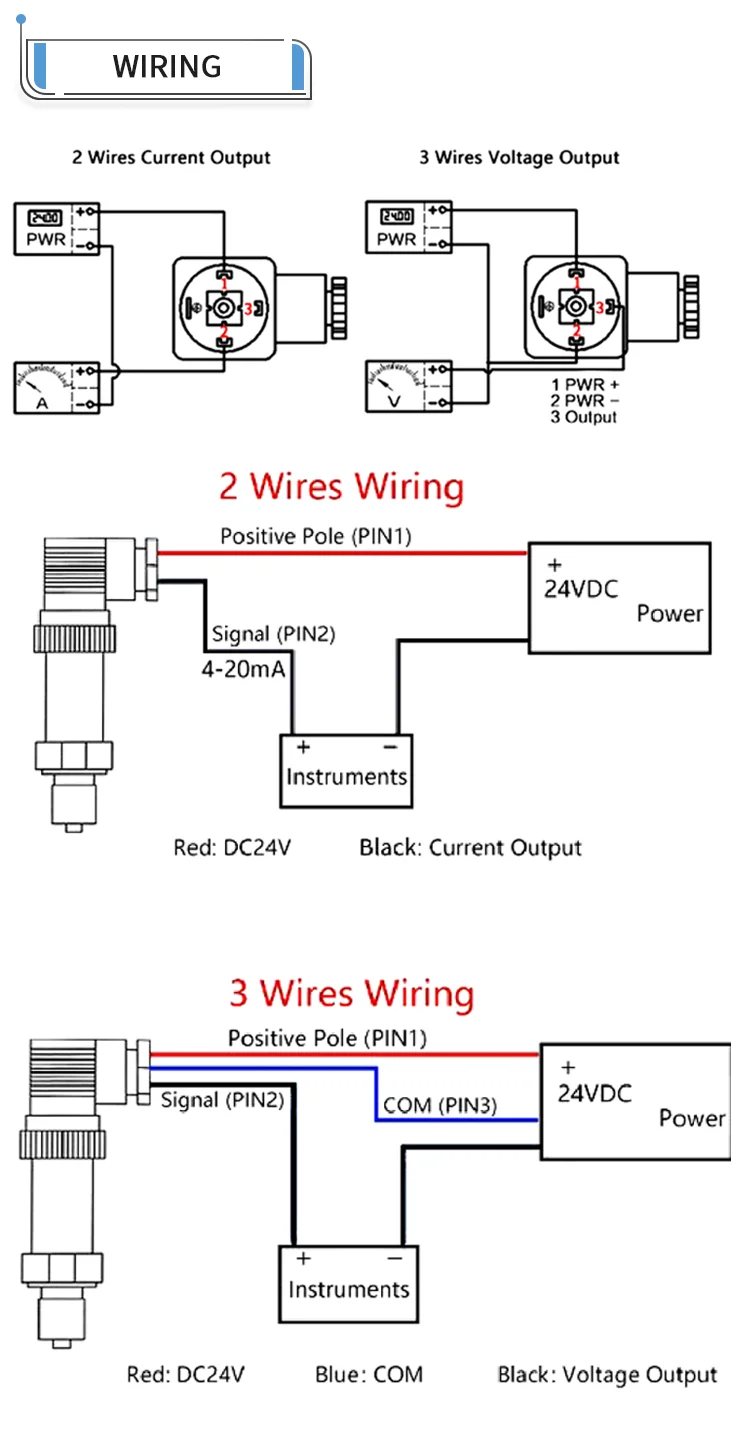

Output Signal: 4-20mA,0-10V,0-5V,RS485

Power Supply: DC24V, DC12V, DC12-30V,

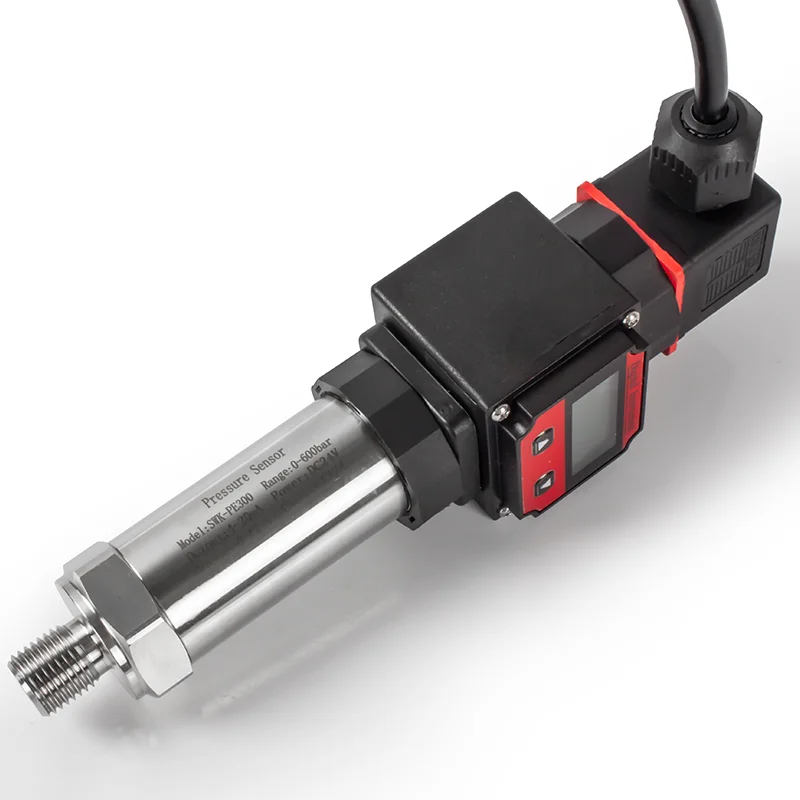

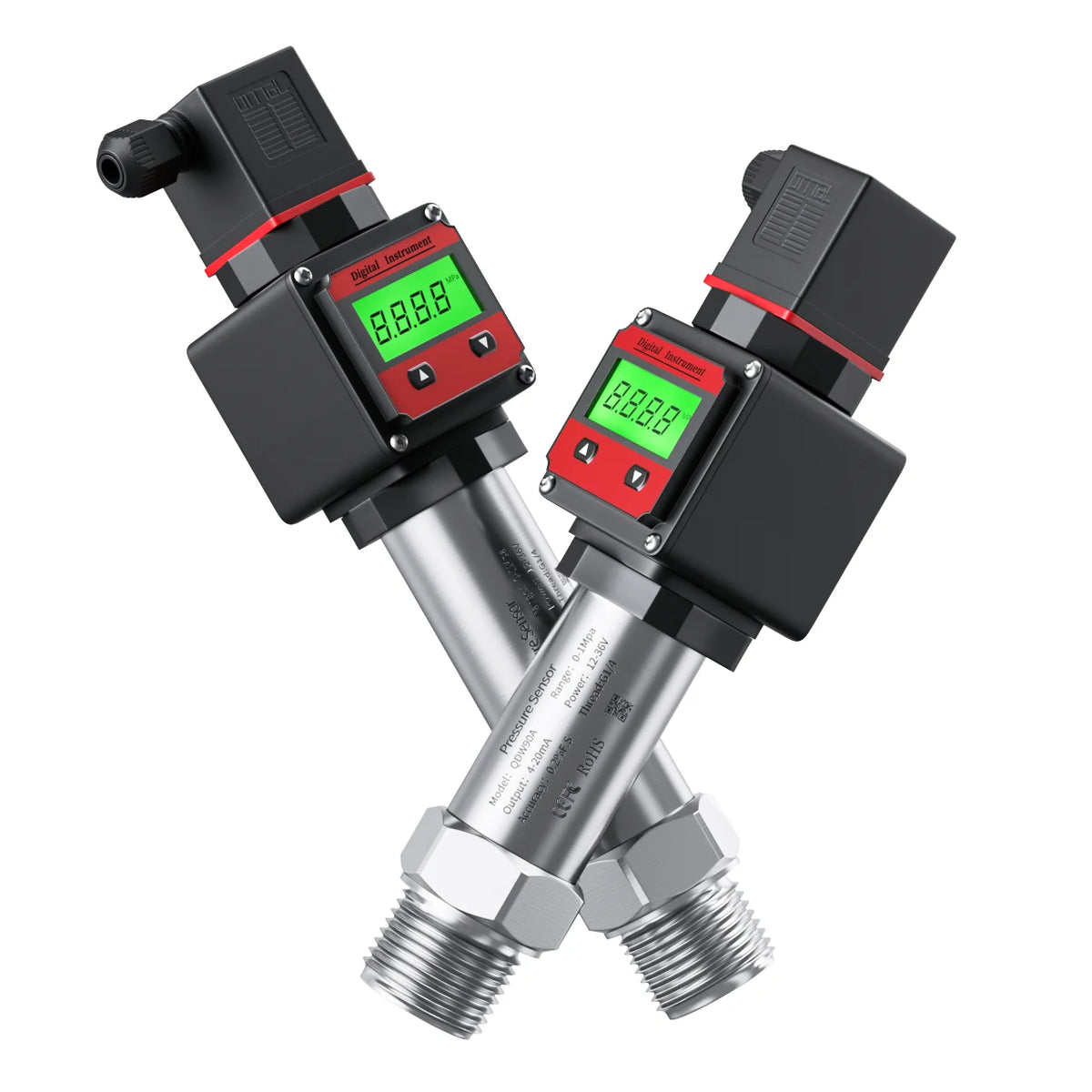

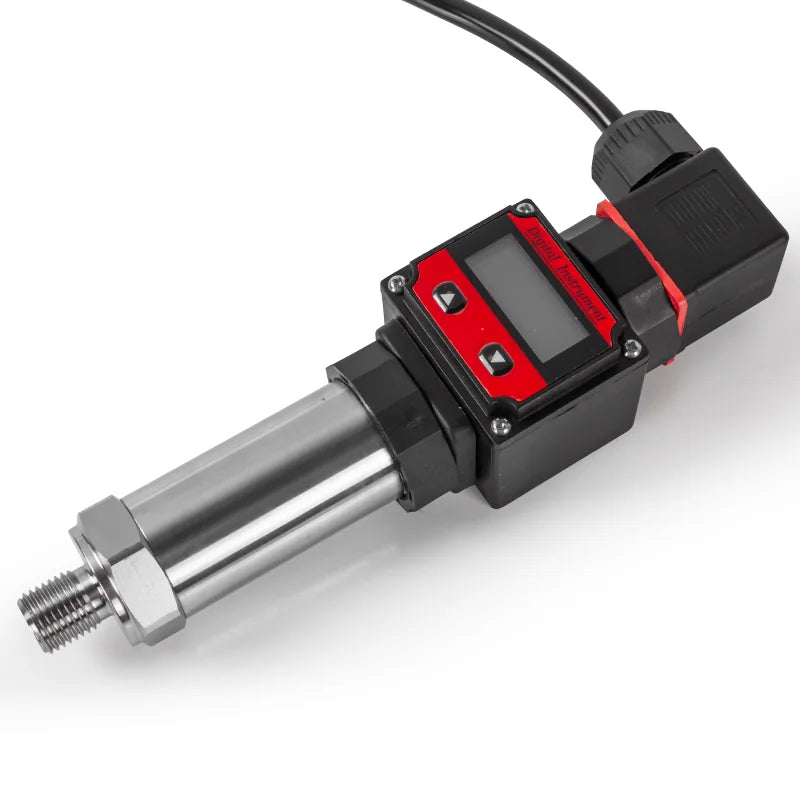

Product Name: LCD Hersman Pressure Sensor

Semi-finishedproduct: No

Thread Size: G1/4

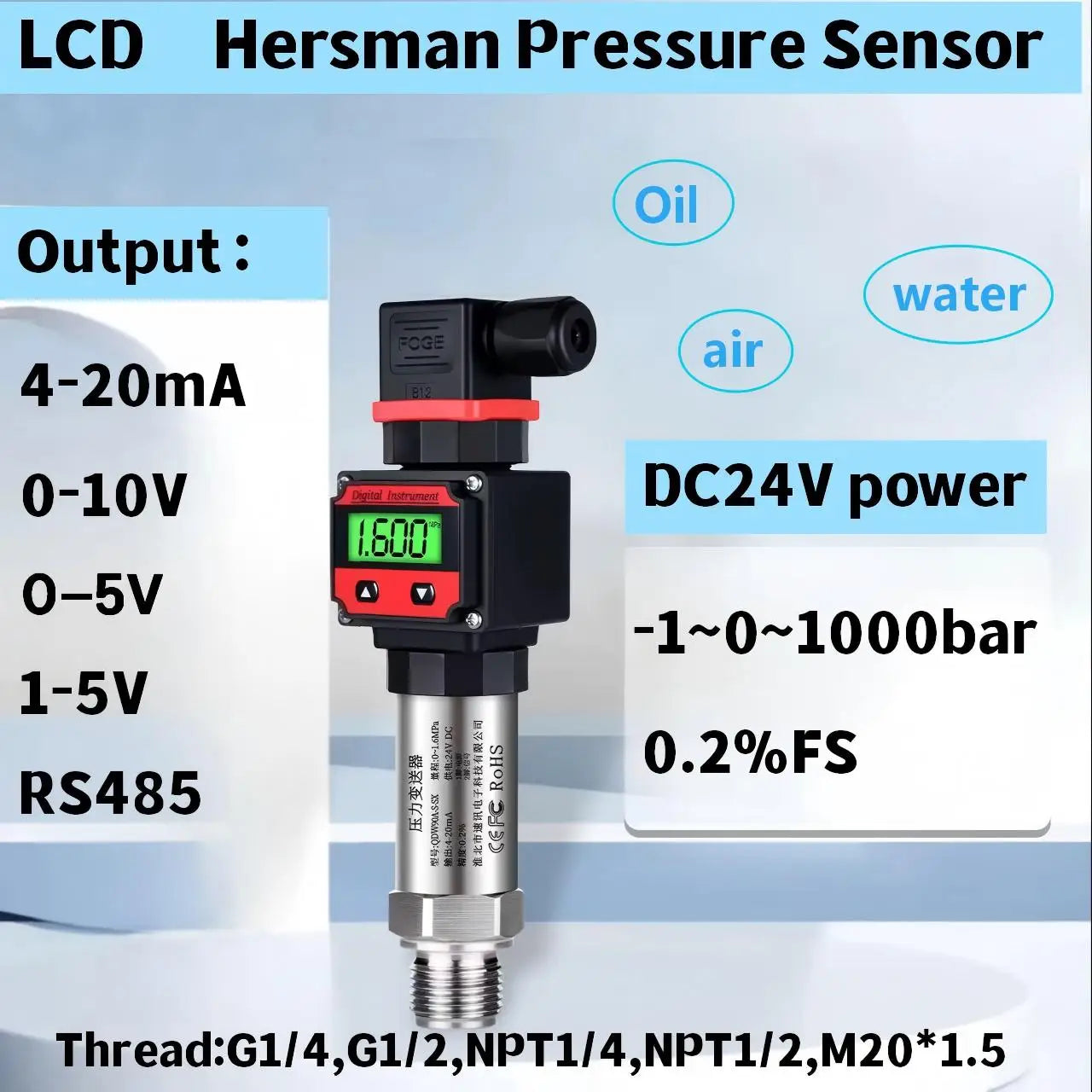

NOTES:

Default Power Supply:DC24V.

Pressure Range:-1~0~1000bar

Output signal:4-20mA,0-10V,0-5V,1-5V,RS485

Thread:G1/4,G1/2,NPT1/4,NPT1/2,M20*1.5,G3/8...

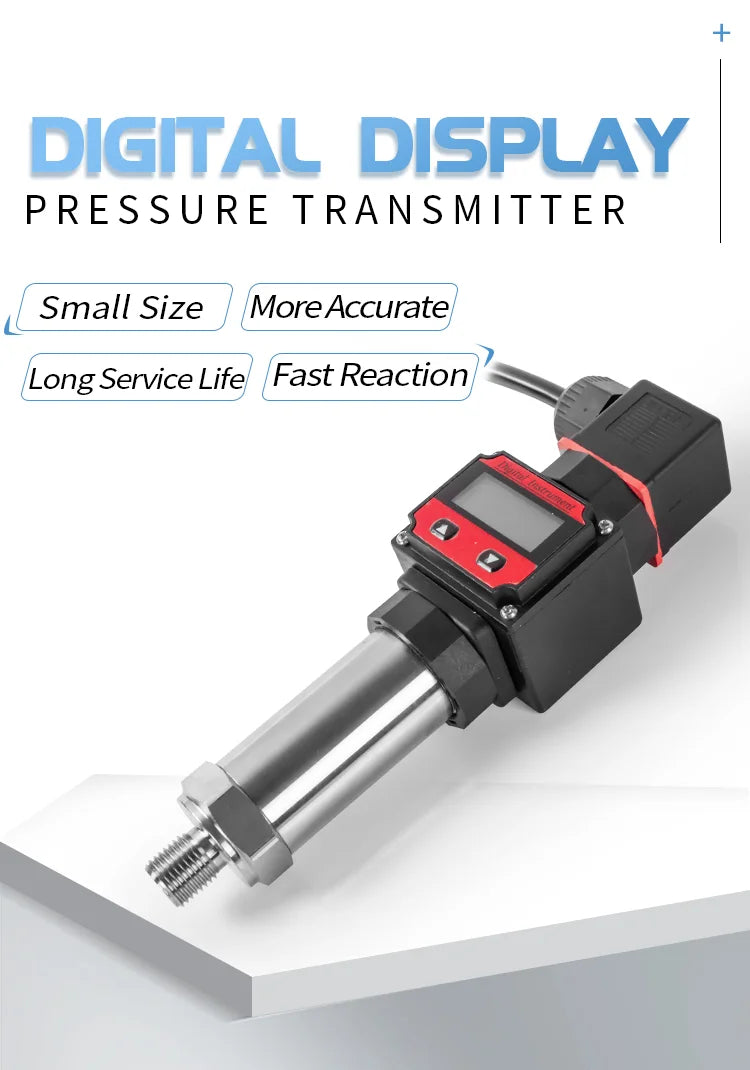

Introduction:

<1>. QDX50A series precision pressure transducer has been specially designed to cover the majority of industrial applications which need high accuracy measurement.
<2>.  The pressure transducer are made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to adjust zero and full range conveniently.
<3>.  This pressure transmitter is suitable for all applications in process control, laboratory and materials testing equipments.

<4>. Customized structures and outputs formats can be designed according to special application requirement, in addition to standard products.

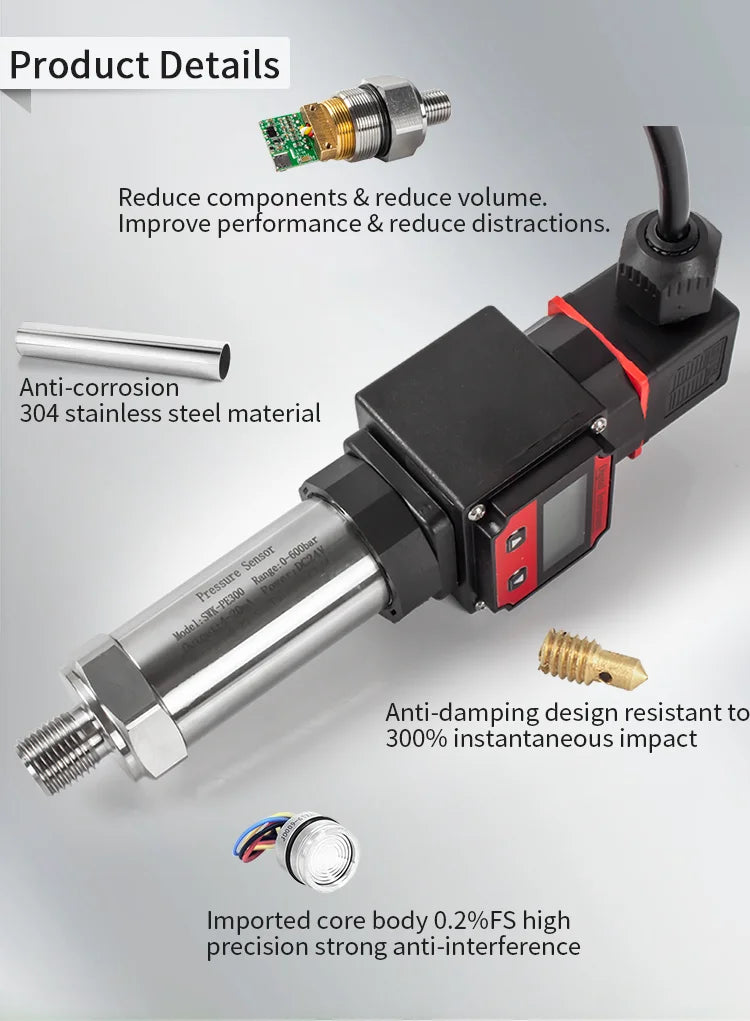

Features:

◆ CE conformity

◆ Low cost and high quality

◆ All stainless steel integrated structure

◆ Small size, convenient to install and operate

◆ 4-20mA, 1-5V, 0-5V, 0-10V, various voltage output

◆ For applications such as air, water, oil

◆ Provide OEM, flexible customization

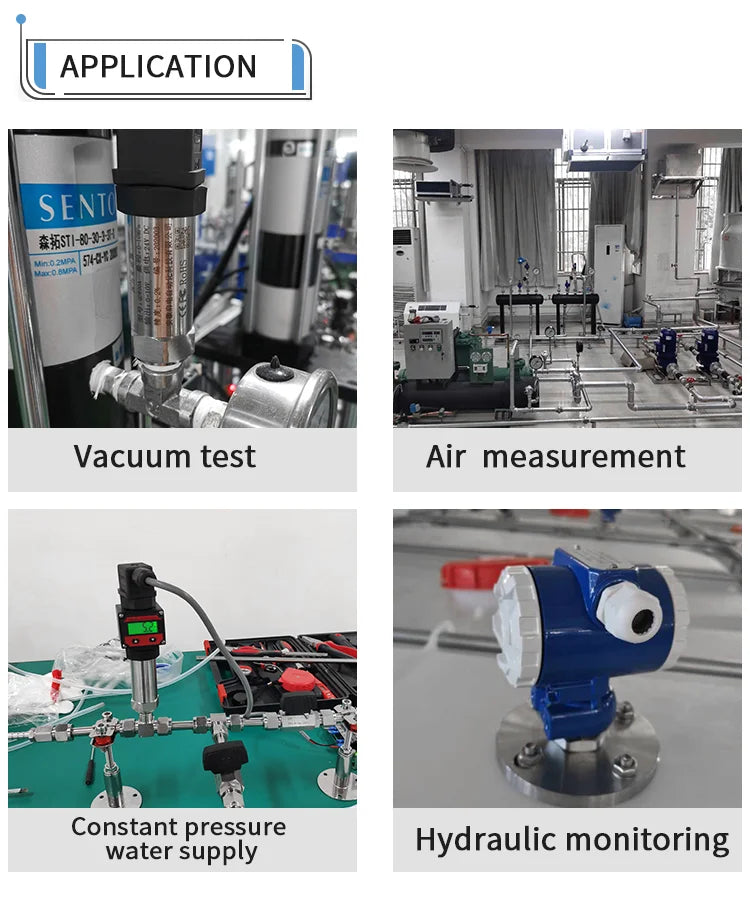

Application:

◆ Intelligent IoT constant pressure water supply

◆ Engineering machinery, industrial process control and monitoring

◆ Energy and water treatment systems

◆ Steel, light industry, environmental protection

◆ Medical, agricultural machinery, testing equipment

◆ Flow measurement equipment

◆ Hydraulic and pneumatic control systems

◆ Air-conditioning unit and refrigeration equipment

◆ Water pump, air compressor pressure monitoring
