Description

SPECIFICATIONS

3dB Bandwidth: 1550-1610MHz

Brand Name: NONE

High-concerned chemical: none

Input Impedance: 50 Ohm

Model Number: FBP-1590s

Nominal Center Frequency: 1585.5MHz

Origin: Mainland China

Package Type: Surface mount

Transfer Function: Band Pass

Type: SAW Filter

is_customized: Yes

This series of products is built from surface acoustic wave SAW devices with accurate bandwidth and excellent cutoff characteristics. Applicable to Beidou generation I, II generation B1 band; GPS L1 band; GLONASS L1 band. This series is only suitable for passive antenna systems
Model: FBP-1590s
Impedance: 50 Ohms
Maximum load capacity: 200mW (23dBm)
Interface: SMA-M, SMA-F
Center frequency /1dB bandwidth: 1585.5MHz / 40MHz
3 dB pass band: 1550 ~ 1610 MHz
Passband interpolation loss: <= 2.5dB

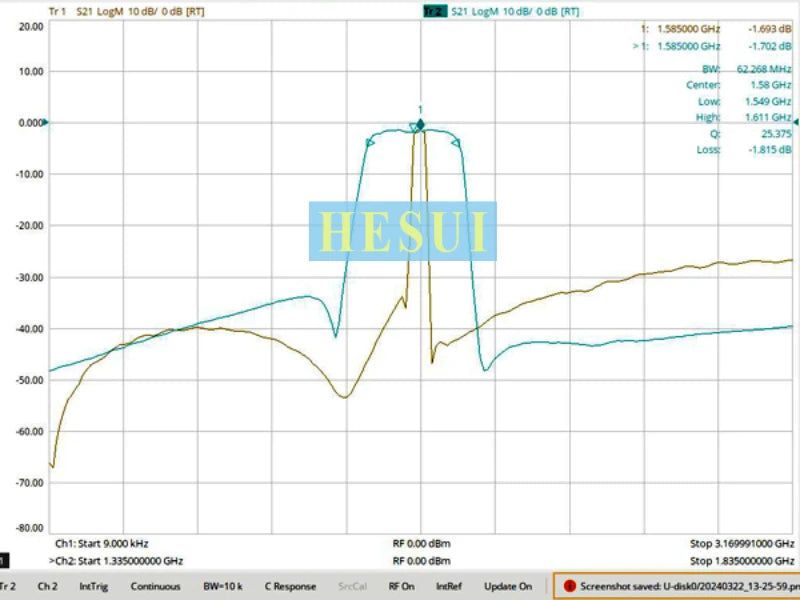

Frequency response diagram (the parameter shown in the diagram is S21, marking 3dB bandwidth. Blue-green line sweep width 0.01-3170MHz, yellow line scan center frequency 1585MHz, sweep width 500MHz; Vertical scale is 10dB per cell) :

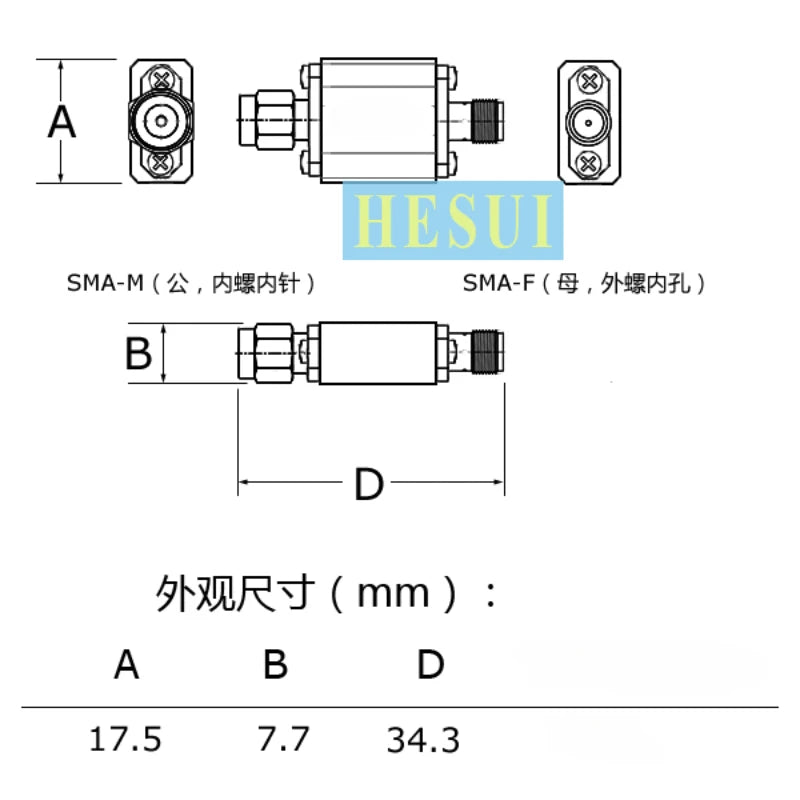

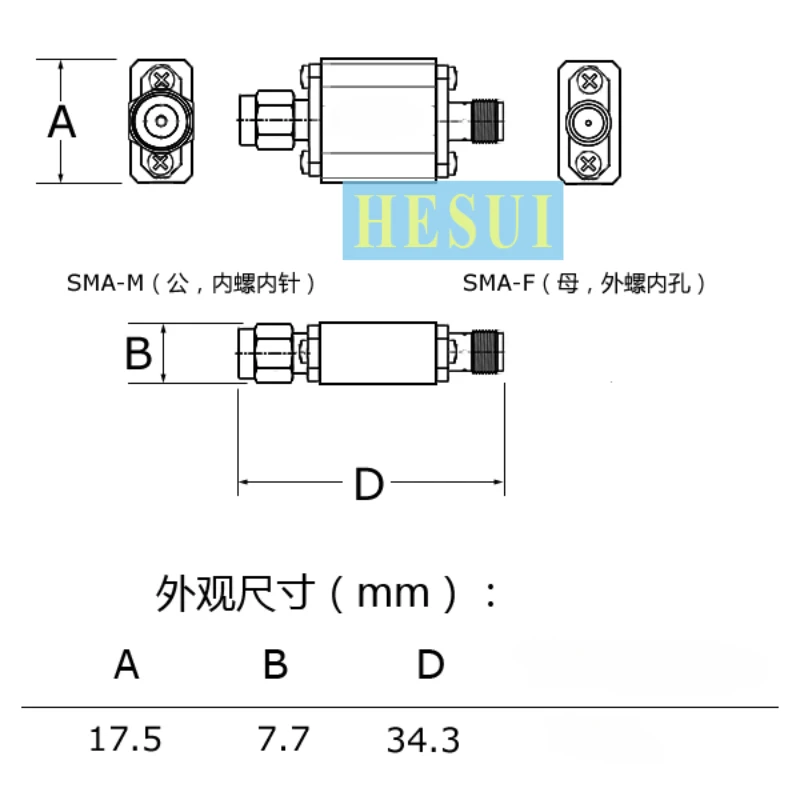

Appearance size:
